舟一会 ZHOUYIHUI 船外机

翟墨 F6 舷外机爆炸图及零件明细

四冲程 6 / 8 马力 · 共 20 个部位 / 449 条零件，点击零件编码查看详情，或搜索本页零件。

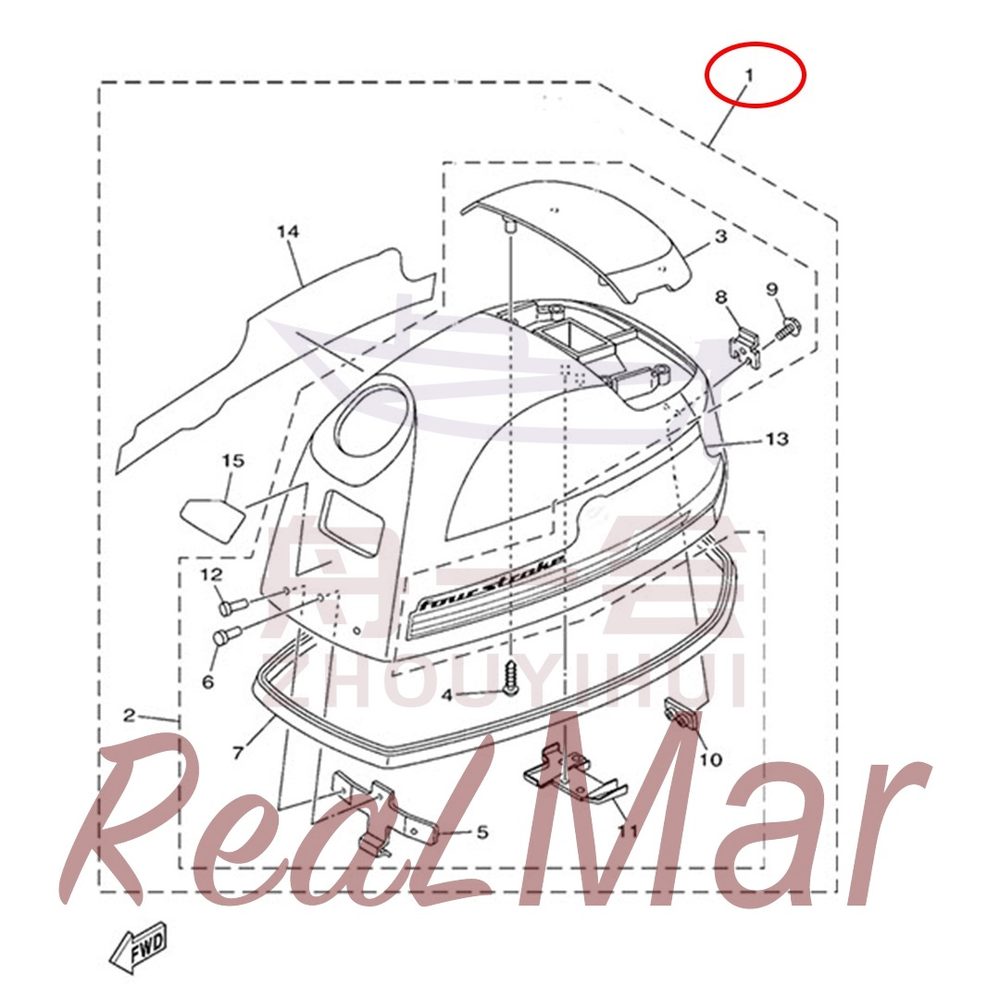

FIG. 2 TOP COWLING
FIG. 2 TOP COWLING 爆炸图
本部位共 11 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-G2610-000消音罩总成TOP COWLING ASSY16BV-G2610-10
DM0609-G2610-001消音罩总成TOP COWLING ASSY16BW-G2610-00
DM0609-G2610-002消音罩总成TOP COWLING ASSY16BX-G2610-12
2DM0609-G2610-000消音罩总成（无标贴）TOP COWLING W/O GRAPHICS16BV-G2610-10
3DM0609-G2613-000导流罩MOLDING, AIR DUCT16BX-G2613-10
413320-60098十字槽盘头自攻螺钉SCREW, TAPPING497780-40012
5DM0609-G2651-000消音罩前挂钩HOOK16BX-G2651-00
610844-06M06扁圆头半空心铆钉RIVET190266-04M04
7DM0609-42615-000消音罩下密封条SEAL16BX-42615-00
8DM0609-42652-000消音罩后挂钩HOOK160R-42652-00
913515-05596六角头螺栓和平垫圈组合件BOLT, WITH WASHER297595-05514
10DM0609-42649-000后挂钩垫板HOLDER, CLAMP BAND168T-42649-00
11DM0609-G2134-000消音罩油门盖COVER16BX-G2134-00
1210844-06M00扃圆头半空心铆钉RIVET290266-04M00
13DM0609-42675-000标贴GRAPHIC, SIDE 116BV-42675-10
14DM0609-42676-000标贴GRAPHIC, SIDE 216BV-42676-10
15DM0609-G2677-000标贴GRAPHIC, FRONT16EC-G2677-00
DM0609-G2677-001标贴GRAPHIC, FRONT16ED-G2677-00
DM0609-G2677-002标贴GRAPHIC, FRONT16EE-G2677-00

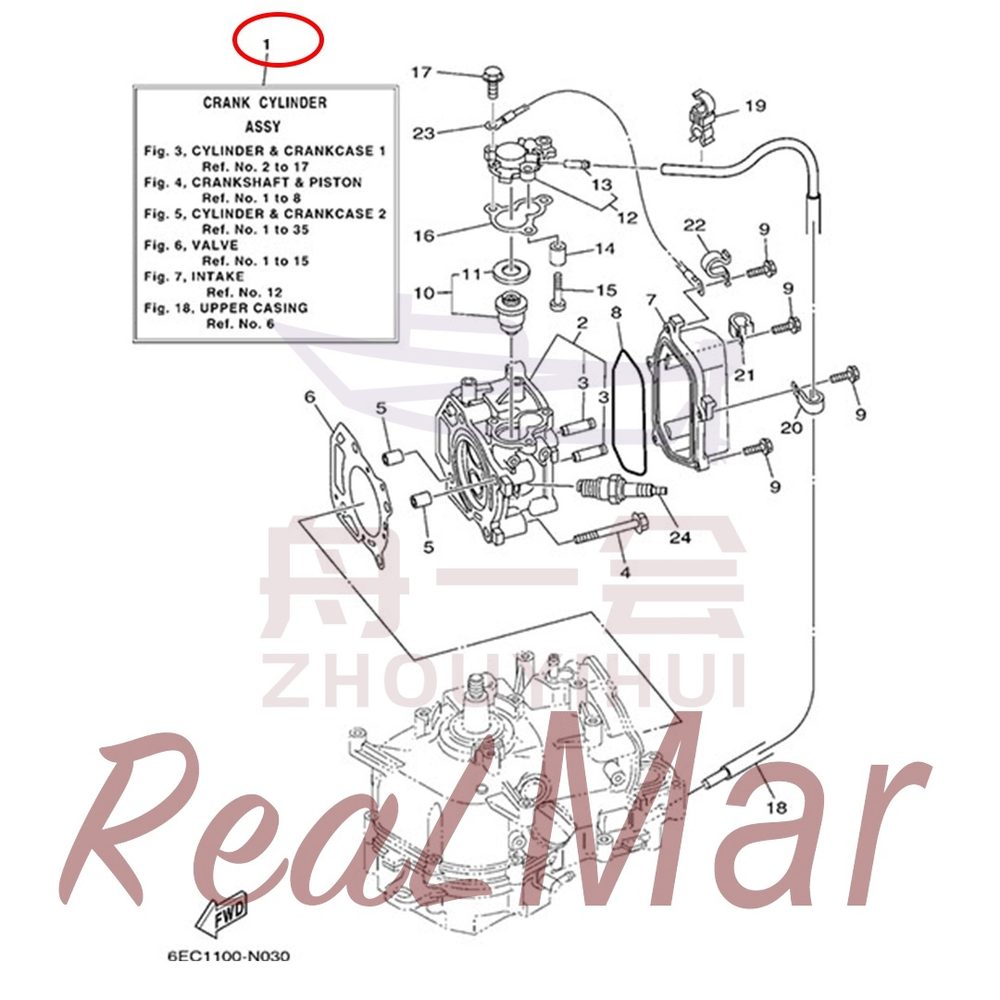

FIG. 3 CYLINDER & CRANKCASE 1
FIG. 3 CYLINDER & CRANKCASE 1 爆炸图
本部位共 25 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-WE090-000发动机总成CRANK CYLINDER ASSY16BX-WE090-00-1S
2DM0609-E1111-000气缸盖组件HEAD, CYLINDER 116BX-E1111-00-1S
3DM2509-11133-000气门导管GUIDE, VALVE 1267D-11133-10
410905-02M74六角法兰面螺栓BOLT, FLANGE490105-08M36
511590-90996气缸盖定位销PIN, DOWEL299510-10114
6DM0609-11181-000气缸盖密封垫GASKET, CYLINDER HEAD 116BX-11181-00
7DM0609-E1191-000气缸盖罩COVER, CYLINDER HEAD 116BX-E1191-00-5B
8DM0609-E1356-000气缸盖罩密封圈SEAL, CYLINDER 216BX-11356-00
913015-04080六角头螺栓BOLT597095-06020
10DM0609-12411-000节温器THERMOSTAT166M-12411-01
11DM1512-12412-000节温器垫圈SEAL, THERMOSTAT1688-12412-00
12DM0609-E2413-000节温器盖COVER, THERMOSTAT168D-E2413-00-1S
13DM2509-24378-000节温器盖直管接头PIPE, JOINT 21650-24378-00
14DM0609-11325-000气缸盖阳极ANODE16G8-11325-00
1513220-05085十字开槽圆柱头螺钉SCREW, PAN HEAD197880-05025
16DM2509-E2414-000节温器盖垫片GASKET, COVER168D-E2414-A0
1710991-04MA8六角头螺栓和平垫圈组合件BOLT, WITH WASHER390119-06MA2
18DM0609-F4323-000节温器盖回水软管PIPE 1216BX-F4323-00
1910646-01089回水软管管夹组件CLAMP190464-09021
2010645-04M24线束夹CLAMP190465-06M86
2110645-04M24线束夹CLAMP190465-06M86
2210645-02739线束支架CLAMP190465-08371
23DM0609-82519-000气缸盖接地线WIRE, EARTH LEAD FIL, MASSE16G0-82519-00
2416308-00738火花塞PLUG, SPARK (NGK)194702-00372

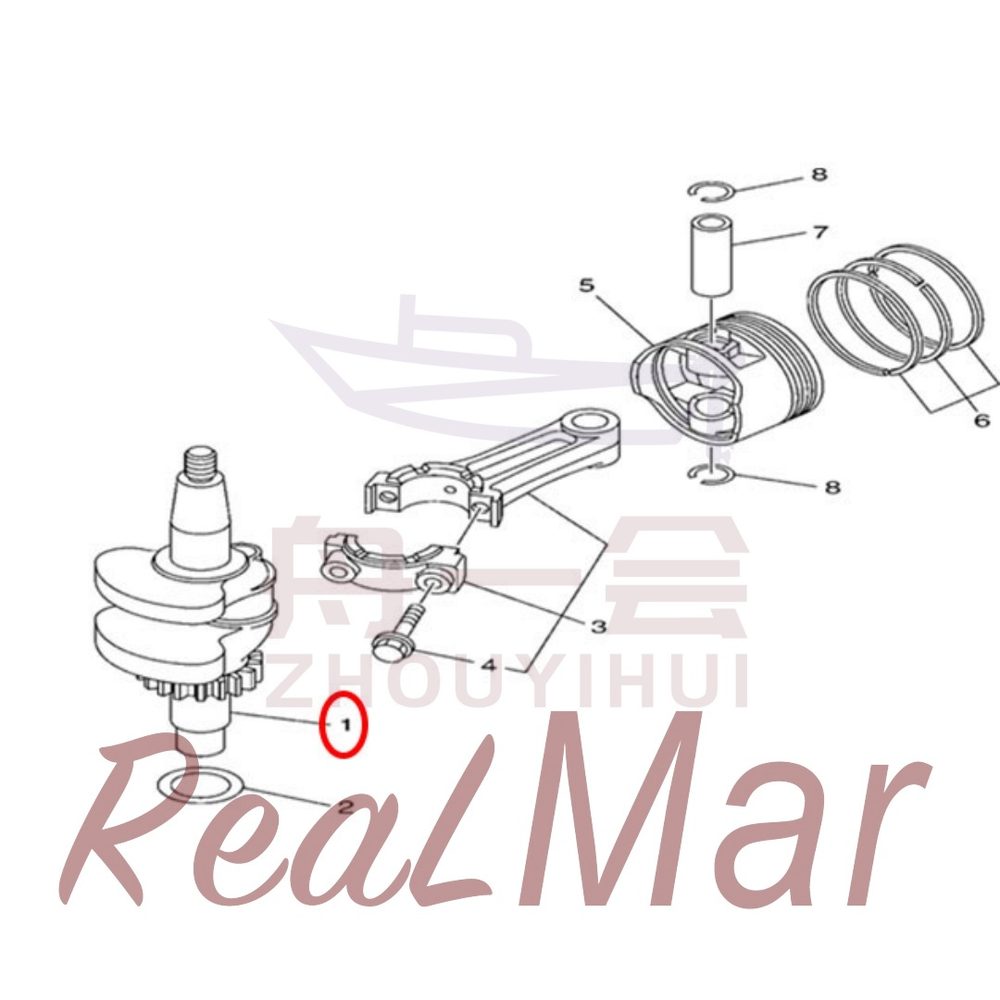

FIG. 4 CRANKSHAFT & PISTON
FIG. 4 CRANKSHAFT & PISTON 爆炸图
本部位共 8 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-E1410-000曲轴CRANKSHAFT16BX-E1410-00
210809-844P8曲轴下端平垫圈WASHER, PLATE190201-266P2
3DM0609-11650-000连杆组合CONNECTING ROD ASSY16BX-11650-00
4DM0609-11654-000连杆螺栓BOLT, CONNECTING ROD267D-11654-00
5DM0609-E1631-000活塞PISTON (STD)16BX-E1631-00-96
6DM0609-E1603-000活塞环组PISTON RING SET (STD)16BX-E1603-00
7DM0609-11633-000活塞销PIN, PISTON16BX-11633-00
817650-94042活塞销挡圈CIRCLIP293450-16068

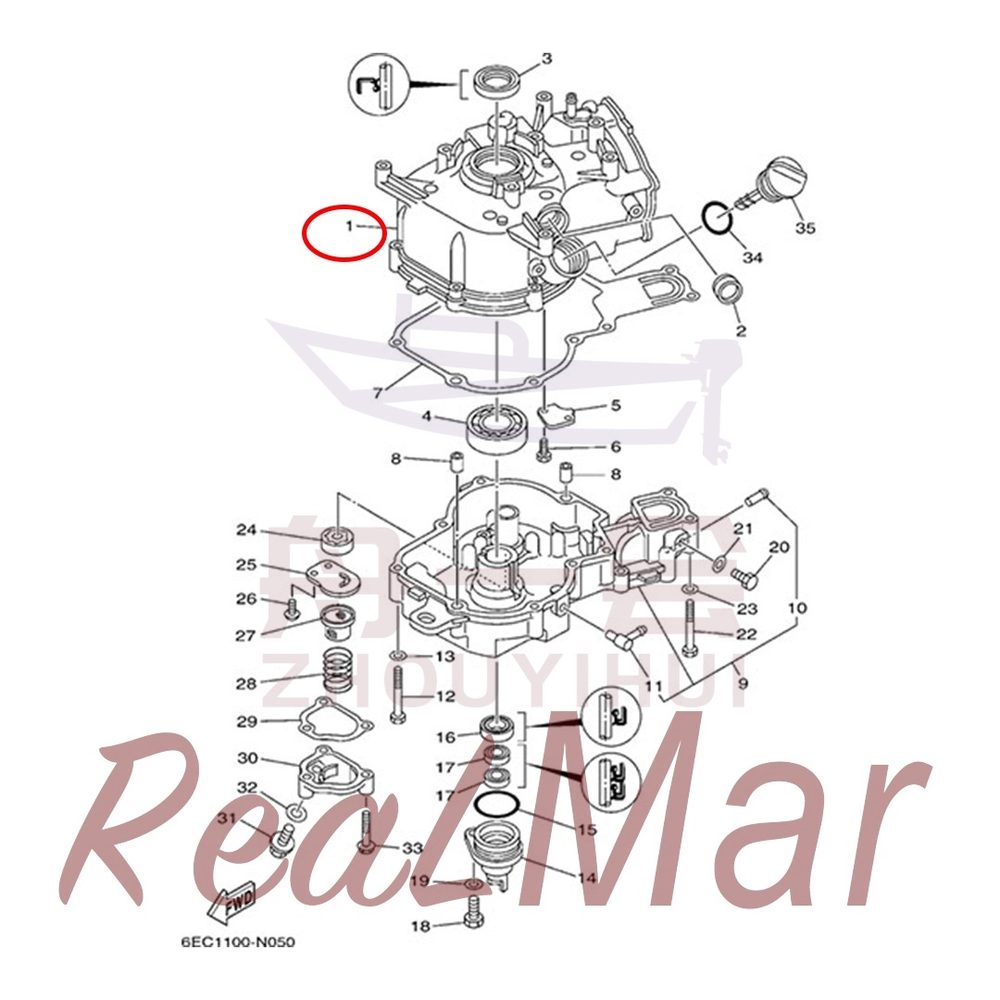

FIG. 5 CYLINDER & CRANKCASE 2
FIG. 5 CYLINDER & CRANKCASE 2 爆炸图
本部位共 33 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-E1311-000气缸体组合CYLINDER 116BX-E1311-00-1S
2DM0609-15361-000机油观察窗组件GAUGE, LEVEL13Y6-15361-00
317908-85010曲轴上端油封OIL SEAL193102-25090
417704-805B8曲轴上轴承BEARING193306-205B2
5DM0609-E1168-000通气盖板COVER, BREATHER16BX-E1168-00
613097-05090六角头螺栓BOLT297013-05010
7DM0609-11351-000气缸体垫片GASKET, CYLINDER16BX-11351-00
811590-90996气缸盖定位销PIN, DOWEL299510-10114
9DM0609-E5111-000曲轴箱CRANKCASE 116BX-E5111-00-1S
10DM2509-24378-000节温器盖直管接头PIPE, JOINT 21650-24378-00
11DM1511-11372-000出水指示管接头NIPPLE, HOSE1676-11372-00
1213097-04050六角头螺栓BOLT897013-06050
1318107-04400平垫圈WASHER, PLATE892903-06600
14DM0609-E5396-000曲轴下端盖HOUSING, OIL SEAL168D-E5396-00-5B
1517890-75573曲轴下端盖O型圈O-RING193210-35537
1617908-80902曲轴下端油封OIL SEAL193102-20108
1717908-90006曲轴下端盖油封OIL SEAL293102-10004
1813015-02080六角头螺栓BOLT197095-08020
1918115-02400平垫圈WASHER192995-08600
2013015-02096六角头螺栓BOLT197095-08014
2110670-02967中间座铜垫圈GASKET190430-08143
2213097-04050六角头螺栓BOLT297013-06050
2318107-04400平垫圈WASHER, PLATE292903-06600
24DM0609-E3310-000机油泵转子组件ROTOR ASSY 116BX-E3310-00
25DM0609-E3316-000机油泵底板COVER, PUMP16BX-E3316-00
2612593-04098十字槽盘头螺钉SCREW, PAN HEAD298517-06012
27DM0609-13411-000机油泵滤网组件STRAINER, OIL151Y-13411-00
2810509-92534机油泵滤网弹簧SPRING, COMPRESSION190501-18576
29DM0609-E3475-000机油泵垫片GASKET16BX-E3475-00
30DM0609-E3417-000机油泵盖COVER, STRAINER16BX-E3475-00-1S
3110905-02M34六角法兰面螺栓BOLT, FLANGE190105-08M76
3210809-02292中间座铜垫圈WASHER, PLATE190201-08818
3313535-04575六角头螺栓和平垫圈组合件BOLT, WITH WASHER397575-06535
3417890-86M31机油标尺O型圈O-RING193210-24M79
35DM0609-E5362-000机油标尺PLUG, OIL LEVEL168D-E5362-00

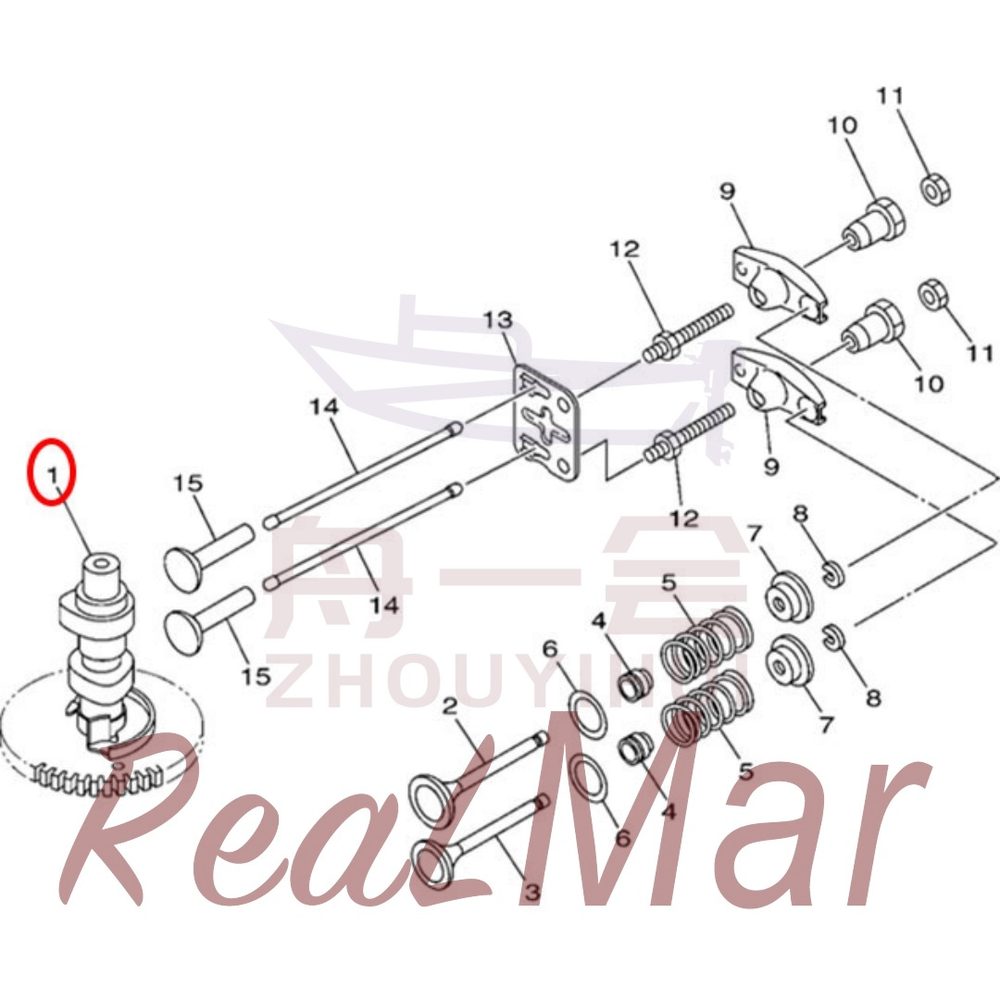

FIG. 6 VALVE
FIG. 6 VALVE 爆炸图
本部位共 15 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-E2170-000凸轮轴组件CAMSHAFT ASSY 116BX-E2170-00
2DM0609-12111-000进气门VALVE, INTAKE16BX-12111-00
3DM0609-12121-000排气门VALVE, EXHAUST16AU-12121-00
4DM2509-12119-000气门油封SEAL, VALVE STEM251Y-12119-00
5DM0609-12113-000气门弹簧SPRING, VALVE INNER260R-12113-00
6DM0609-12116-000气门弹簧垫圈SEAT, VALVE SPRING268T-12116-00
7DM2509-12117-000气门弹簧座RETAINER, VALVE SPRING27NJ-12117-00
8DM2509-12118-000气门弹簧卡圈LOCK, VALVE SPRING RETAINER27NJ-12118-00
9DM2509-12151-000气门摇臂ARM, VALVE ROCKER267D-12151-00
10DM2509-12165-000摇臂轴PIVOT, ROCKER ARM27FK-12165-00
11DM2509-12158-000气门锁紧螺母NUT, LOCK27FK-12158-00
12DM2509-12157-000摇臂轴螺栓BOLT267D-12157-00
13DM0609-E2155-000推杆导向板GUIDE, PUSH ROD16BX-E2155-00
14DM0609-12154-000推杆ROD, VALVE PUSH26BX-12154-00
15DM2509-12153-000挺柱LIFTER, VALVE2JA9-12153-00

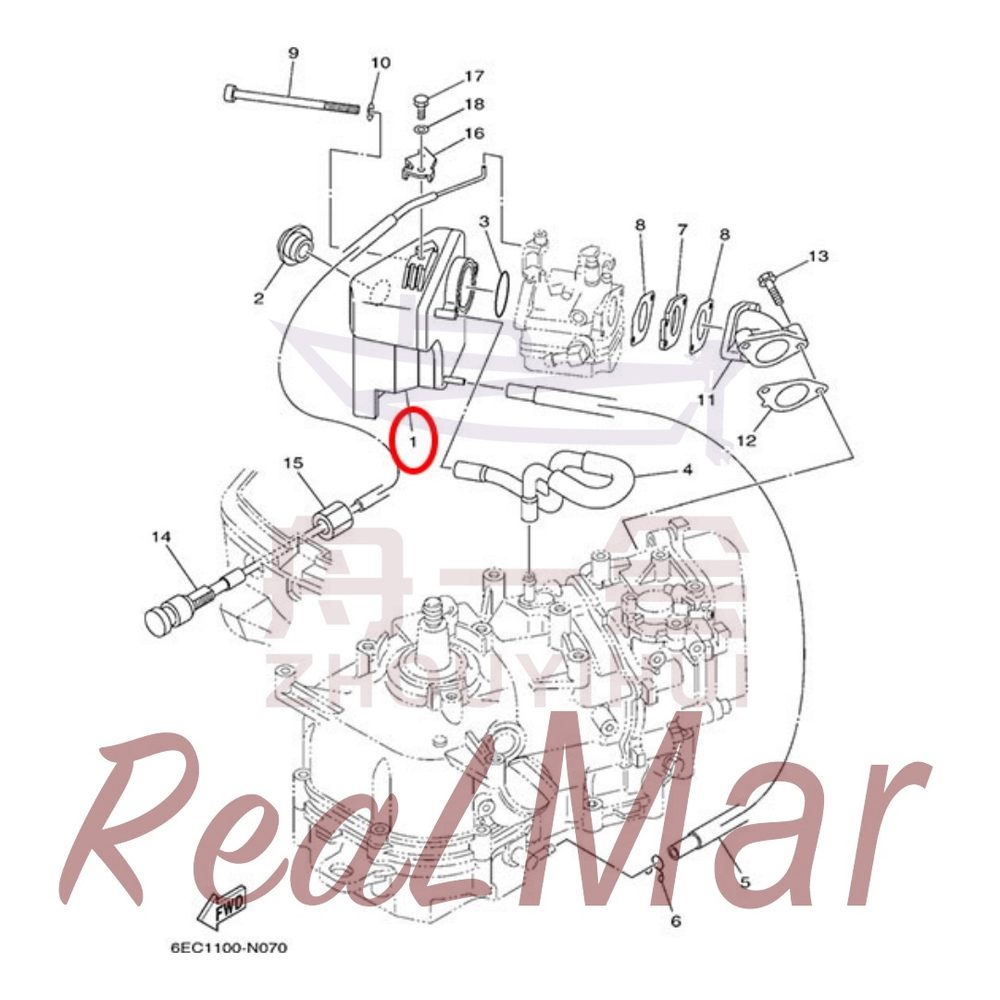

FIG. 7 INTAKE
FIG. 7 INTAKE 爆炸图
本部位共 18 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-14440-000进气消音器组件SILENCER ASSY, INTAKE16BX-14440-00
210620-92M36进气消音器堵塞GROMMET190480-18M74
317890-780A3进气消音器密封圈O-RING193210-320A7
4DM0609-F4314-000呼吸软管PIPE 416BX-F4314-00
5DM0609-E316F-000进气消音器回油管HOSE, OIL 116BX-E316F-00
610643-01M01管夹CLIP190467-09M09
7DM0609-E3647-000化油器隔热垫GASKET, MANIFOLD 316BX-E3647-00
8DM0609-E3646-000化油器垫片GASKET, MANIFOLD 226BX-E3646-00
910990-04750内六角圆柱头螺钉BOLT, HEXAGON SOCKET HEAD BOULON, TETE HEXAGONALE CREUSE290110-06350
1010809-04904平垫圈WASHER, PLATE290201-06106
11DM0609-E3641-000进气歧管MANIFOLD, INTAKE 116BX-E3641-10-94
12DM0609-E3645-000进气歧管垫片GASKET, MANIFOLD 116BX-E3645-00
1310991-04MA7六角头螺栓和平垫圈组合件BOLT, WITH WASHER BOULON, AVEC RONDELLE290119-06MA3
14DM0609-F6330-000阻风门拉线STARTER CABLE ASSY16BX-F6330-01
15DM0609-F6333-000塑料螺母NUT16BX-F6333-00
16DM0609-E3151-000阻风门拉线压板STAY16BX-E3151-00
1713015-05090六角头螺栓BOLT197095-05010
1818115-05400平垫圈WASHER192995-05600

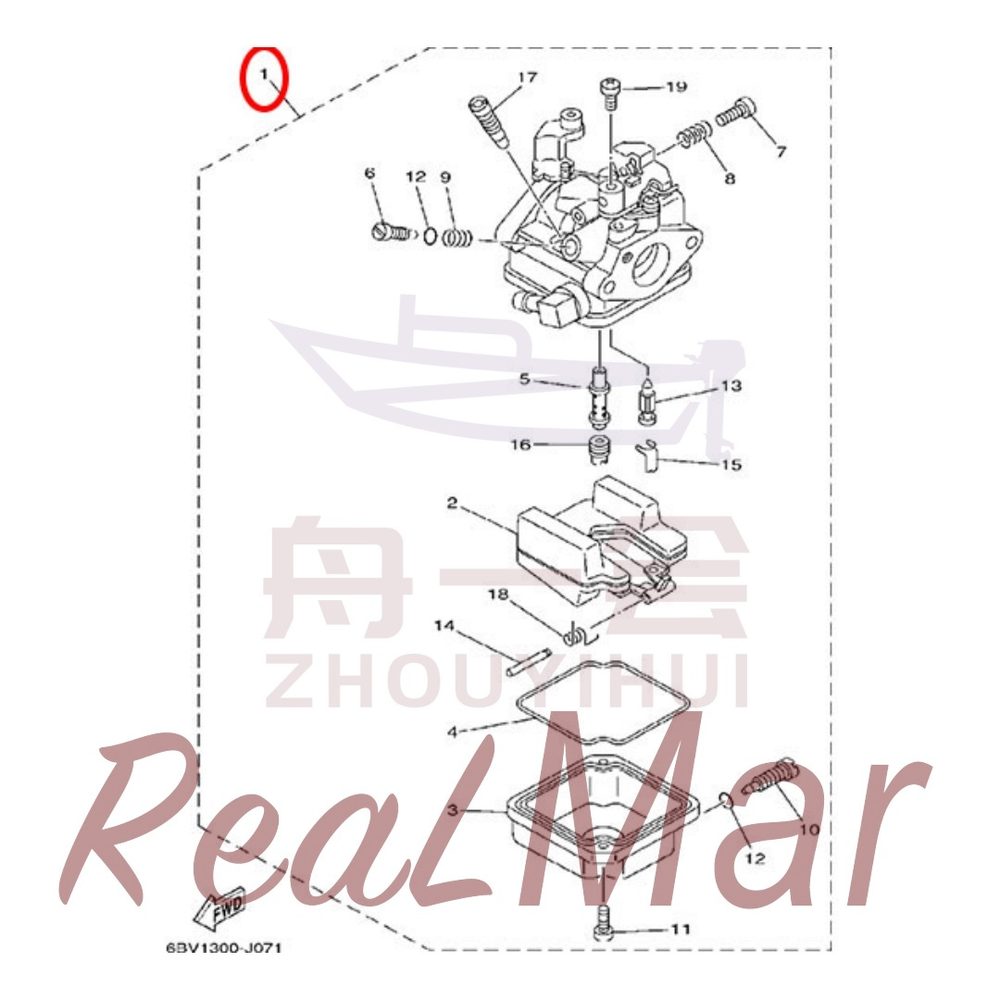

FIG. 8 CARBURETOR
FIG. 8 CARBURETOR 爆炸图
本部位共 9 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-14301-000化油器CARBURETOR ASSY 116BV-14301-11
2DM0609-14985-000FLOAT16BX-14985-00
3DM0609-14980-000BODY, FLOAT CHAMBER16BX-14980-00
4DM0609-14984-000GASKET, FLOAT CHAMBER16BX-14984-00
5DM0609-14947-000JET, NEEDLE16BV-14947-00
DM0609-14947-001JET, NEEDLE16BW-14947-00
DM0609-14947-002JET, NEEDLE16BX-14947-00
6DM0609-14923-000SCREW, PILOT16BW-14923-20
DM0609-14923-001SCREW, PILOT16BX-14923-20
7DM0609-14523-000SCREW, STOP16BX-14523-00
8DM0609-14555-000SPRING16BX-14555-00
9DM0609-14935-000SPRING16BX-14935-00
10DM0609-14991-000SCREW16BX-14991-00
11DM0609-14592-000SCREW26BX-14592-00
12DM0609-14562-000O-RING24JH-14562-00
13DM0609-14546-000VALVE, NEEDLE16BX-14546-00
14DM0609-14548-000PIN, FLOAT ARM16BX-14548-00
15DM0609-14937-000CLIP16BX-14937-00
16DM0609-14943-000JET, MAIN (#60)16BV-14943-11
DM0609-14943-001JET, MAIN (#70)16BW-14943-15
DM0609-14943-002JET, MAIN (#75)16BX-14943-17
17DM0609-14948-000JET (#35)16BV-14948-01
DM0609-14948-001JET (#42)16BX-14948-04
18DM0609-14556-000SPRING16BX-14556-00
1912520-06004SCREW, PAN HEAD198580-04006

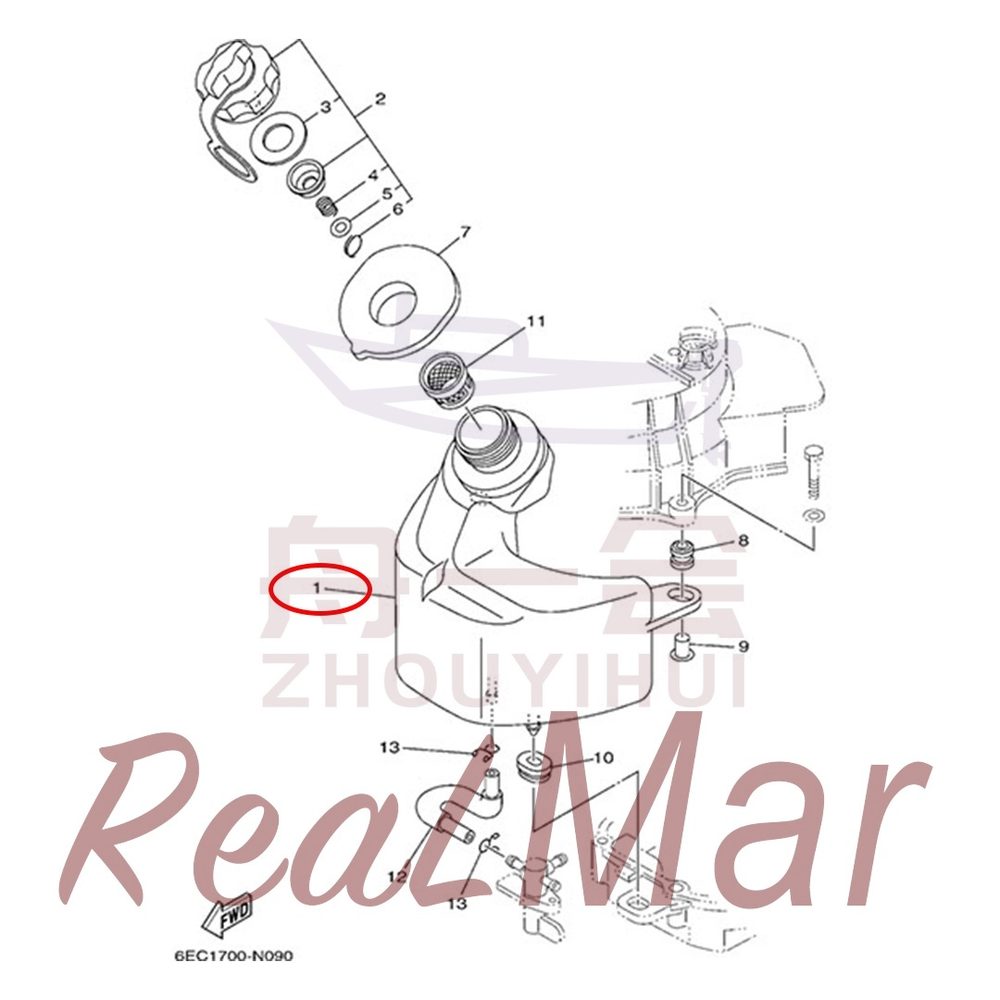

FIG. 9 FUEL 1
FIG. 9 FUEL 1 爆炸图
本部位共 13 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-F4111-000内油箱组件TANK, FUEL16BX-F4111-00
2DM0609-24610-000内油箱盖组件CAP ASSY16BX-24610-00
3DM0609-24612-000燃油箱盖密封垫圈PACKING, CAP168D-24612-00
410509-900A5燃油箱盖压缩弹簧SPRING, COMPRESSION190501-100A5
518110-06800大垫圈WASHER, PLAIN192990-04200
610642-900A0燃油箱盖扣环CLIP190468-100A0
7DM0609-24641-000内油箱盖胶圈GASKET, CAP 116BX-24641-00
8DM0311-82317-000点火器支架减振圈DAMPER, IGNITION COIL26A0-82317-00
910723-04991点火器支架衬套COLLAR290387-06119
1010620-09551内油箱底部减振圈GROMMET190480-01559
11DM0609-24167-000内油箱滤网STRAINER16BX-24167-00
12DM0609-F4311-000内油箱出油管PIPE, FUEL 116BX-F4311-00
1310643-01M01管夹CLIP290467-09M09

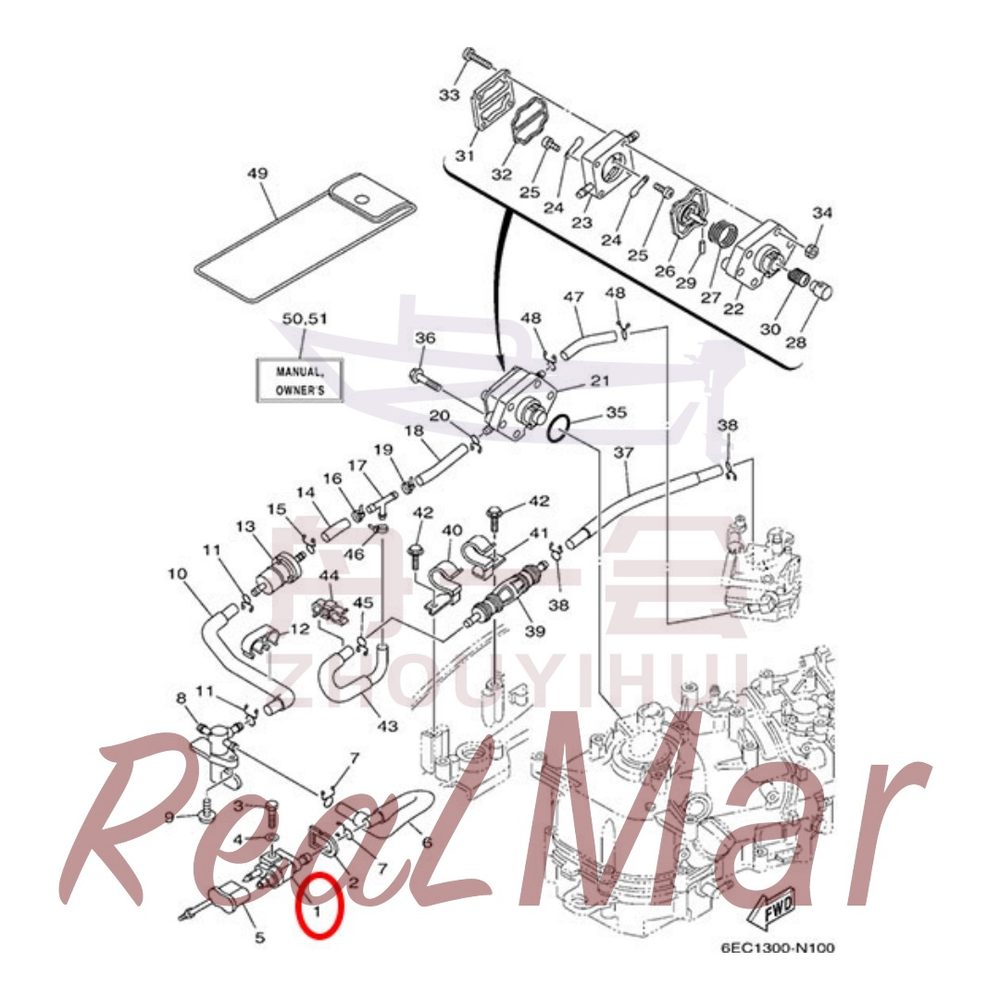

FIG. 10 FUEL 2
FIG. 10 FUEL 2 爆炸图
本部位共 34 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0511-24304-000进油管插座体FUEL PIPE JOINT COMP. 116G1-24304-02
2DM0609-F4329-000进油管插座密封件SEAL160R-F4329-00
313015-04085六角头螺栓BOLT197095-06025
418115-04400平垫圈WASHER192995-06600
5DM0609-2476U-000进油管插座护套PROTECTOR 116BX-2476U-00
6DM0609-F4312-000进油管插座出油管PIPE 216BX-F4312-00
710643-01M01管夹CLIP290467-09M09
8DM0609-24500-000油阀组件FUEL COCK ASSY 116BX-24500-00
910951-04M90十字槽盘头螺钉和平垫圈组合件SCREW, WITH WASHER190159-06M10
10DM0609-F4313-000滤清器前进油软管PIPE 316BX-F4313-00
1110643-01M01管夹CLIP290467-09M09
1210656-98886油管管夹CLAMP190464-12224
13DM0609-24251-000燃油过滤器STRAINER 116BT-24251-01
14DM0609-F247C-000油管HOSE 316BX-F247C-00
1510643-01M01管夹CLIP190467-09M09
1610645-99M90扎带CLAMP190465-11M10
17DM6011-24378-000圆头三通PIPE, JOINT 31688-24378-00
18DM0609-F247D-000油管HOSE 416BX-F247D-00
1910645-99M90扎带CLAMP190465-11M10
2010643-01M01管夹CLIP190467-09M09
21DM0609-24410-000汽油泵总成FUEL PUMP ASSY16BX-24410-00
22DM0609-24412-000BODY 1167D-24412-00
23DM0609-24413-000BODY 2167D-24413-02
24DM3011-24421-000VALVE, CHECK26A0-24421-01
25DM0609-14325-000SCREW, PAN HEAD26E7-14325-00
26DM0609-24411-000DIAPHRAGM16BX-24411-00
27DM0609-24423-000SPRING, DIAPHRAGM167D-24423-00
28DM0609-13131-000PLUNGER16BX-13131-00
29DM0609-24374-000PIN166M-24374-00
30DM0609-24454-000SPRING16BX-24454-00
31DM0609-24414-000BODY 3167D-24414-01
32DM0609-24471-000DIAPHRAGM166M-24471-01
33DM0609-24444-000SCREW467D-24444-00
3415720-06400NUT495380-04600
3517890-83ME7汽油泵O型圈O-RING193210-27ME3
3610991-04M45六角头螺栓和平垫圈组合件BOLT, WITH WASHER290119-06M65
37DM0609-F247B-000手动泵后软管HOSE 216BX-F247B-00
3810643-01M01管夹CLIP290467-09M09
39DM0609-24360-000内置手动泵组件PRIMER PUMP ASSY16BX-24360-00
40DM0609-24135-000手动泵前支架CLAMP 116BX-24135-00
41DM0609-24136-000手动泵后支架CLAMP 216BX-24136-00
4210901-04M20六角法兰面螺栓BOLT290109-06M80
43DM0609-F247A-000手动泵前软管HOSE 116BX-F247A-00
4410646-01089回水软管管夹组件CLAMP190464-09021
4510643-01M01管夹CLIP190467-09M09
4610645-99M90扎带CLAMP190465-11M10
47DM0609-E3971-000油管PIPE, FUEL 116BX-E3971-00
4810643-01M01管夹CLIP290467-09M09
49DM0609-F8100-000工具包TOOL KIT16EE-F8100-00
50DM0609-F8199-000说明书MANUAL,OWNER'S16EC-F8199-70-E0

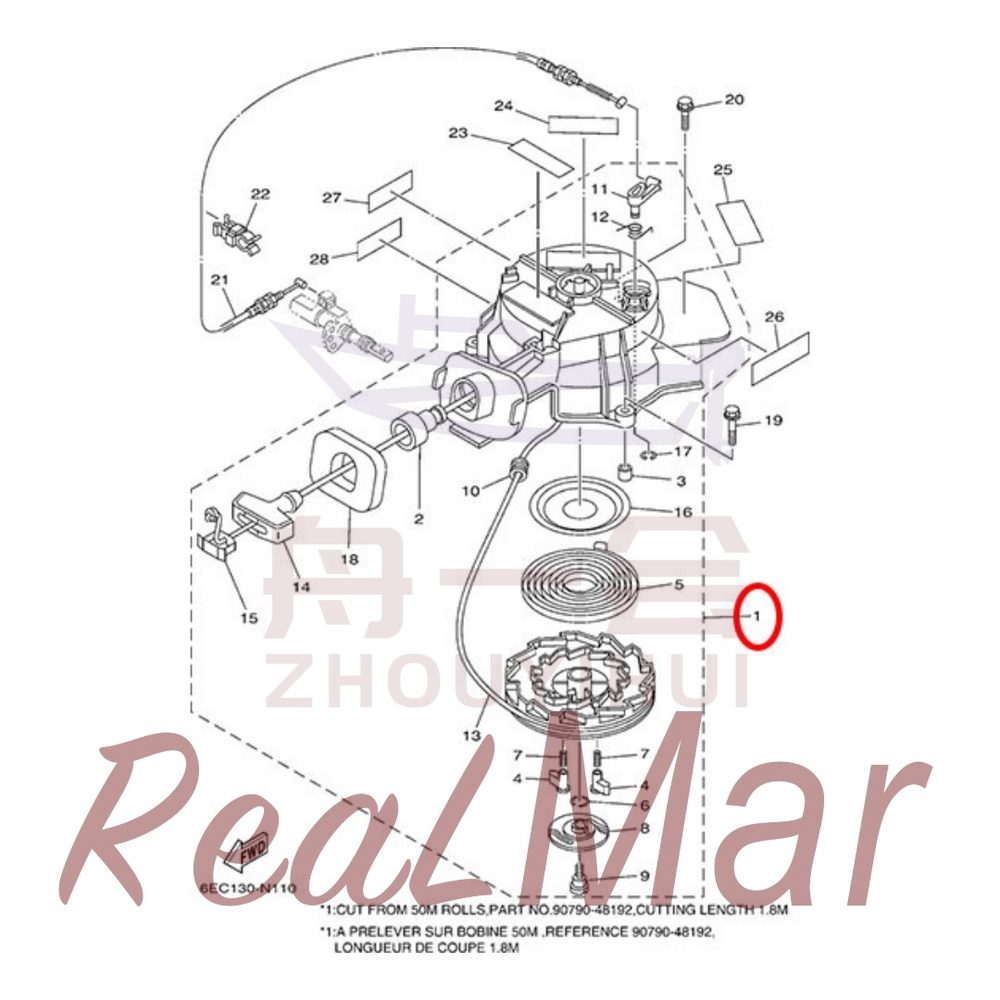

FIG. 11 STARTER
FIG. 11 STARTER 爆炸图
本部位共 24 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-15710-000起动器总成STARTER ASSY16BX-15710-00
2DM1511-15795-000起动绳滑套GUIDE, ROPE163V-15795-01
3DM0609-15764-000起动器壳体衬套COLLAR 1367D-15764-00
4DM0609-15741-000起动盘棘爪PAWL, DRIVE267D-15741-00
5DM2509-15713-000平面蜗卷弹簧SPRING, STARTER167D-15713-00
6DM0609-15705-000驱动盘钢丝挡圈SPRING, DRIVE PAWL16BX-15705-00
7DM0609-15767-000起动盘棘爪压缩弹簧SPRING267D-15767-00
8DM0609-15735-000驱动盘GUIDE, CAM167D-15735-00
9DM0609-15793-000驱动盘自攻螺钉SCREW167D-15793-00
10DM1512-15764-000起动绳护圈COLLAR 1168T-15764-00
11DM0609-15794-000起动限制卡爪STOPPER167D-15794-01
12DM0609-15734-000起动限制卡爪回位弹簧SPRING, RETURN167D-15734-00
13DM0609-33143-000启动绳WIRE, STARTER (L:1800MM)1*
14DM0511-15755-000起动手柄HANDLE, STARTER16G1-15755-00
15DM0511-15779-000起动手柄盖COVER16G1-15779-00
16DM0609-15739-000蜗卷弹簧止推垫片WASHER, THRUST167D-15739-00
17DM0609-15744-000开口挡圈CIRCLIP167D-15744-00
18DM0609-15762-000起动器密封圈SEAL, RUBBER 216BX-15762-00
1910991-04MA5六角头螺栓和平垫圈组合件BOLT, WITH WASHER290119-06MA5
2010991-04M62六角头螺栓和平垫圈组合件BOLT, WITH WASHER190119-06M48
21DM0609-E5770-000起动器锁紧拉索CABLE COMP., STARTER STOP16BX-E5770-00
2210646-03002锁紧拉索夹组件CLAMP190464-07008
23DM0609-15714-000起动盘DRUM, SHEAVE167D-15714-00
24DM0609-H1995-000标贴LABEL, WARNING16EE-H1995-40
25DM0609-H1995-001标贴LABEL, WARNING16EE-H1995-50
26DM0609-E3437-000标贴MARK, CAUTION16EE-E3437-60
27DM0609-E4427-000标贴LABEL, INSTRUCTION16EE-E4427-60
28DM0609-H1994-000标贴LABEL, SAFETY16EE-H1994-40
29DM0609-H1994-001标贴LABEL, SAFETY16EE-H1994-50

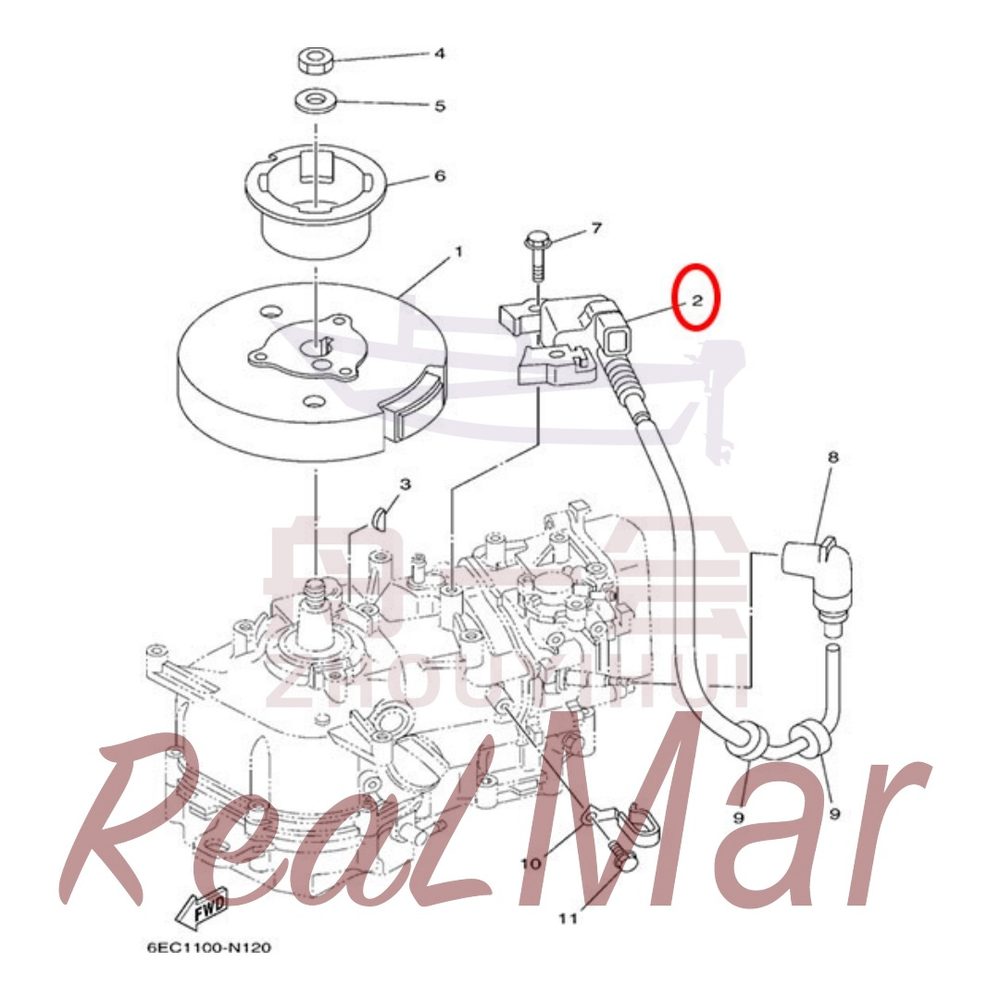

FIG. 12 GENERATOR
FIG. 12 GENERATOR 爆炸图
本部位共 10 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-85550-000飞轮ROTOR ASSY16BX-85550-00
2DM0609-85571-000CDI点火器IGNITION COIL WITH CDI UNIT16BV-85571-01
310820-06M04飞轮半圆键KEY, WOODRUFF190280-04M06
410930-98044飞轮螺母NUT190170-12066
510809-98638飞轮螺母垫片WASHER, PLATE190201-12472
6DM0609-15723-000起动连接器PULLEY, STARTER16BX-15723-00
710905-04073六角法兰面螺栓BOLT, FLANGE290105-06037
8DM0609-82370-000高压包帽PLUG CAP ASSY16BX-82370-00
910620-85949高压包护圈GROMMET290480-25161
1010645-02749高压包支架CLAMP190465-08361
1115293-04098六角法兰面螺栓BOLT, FLANGE195817-06012

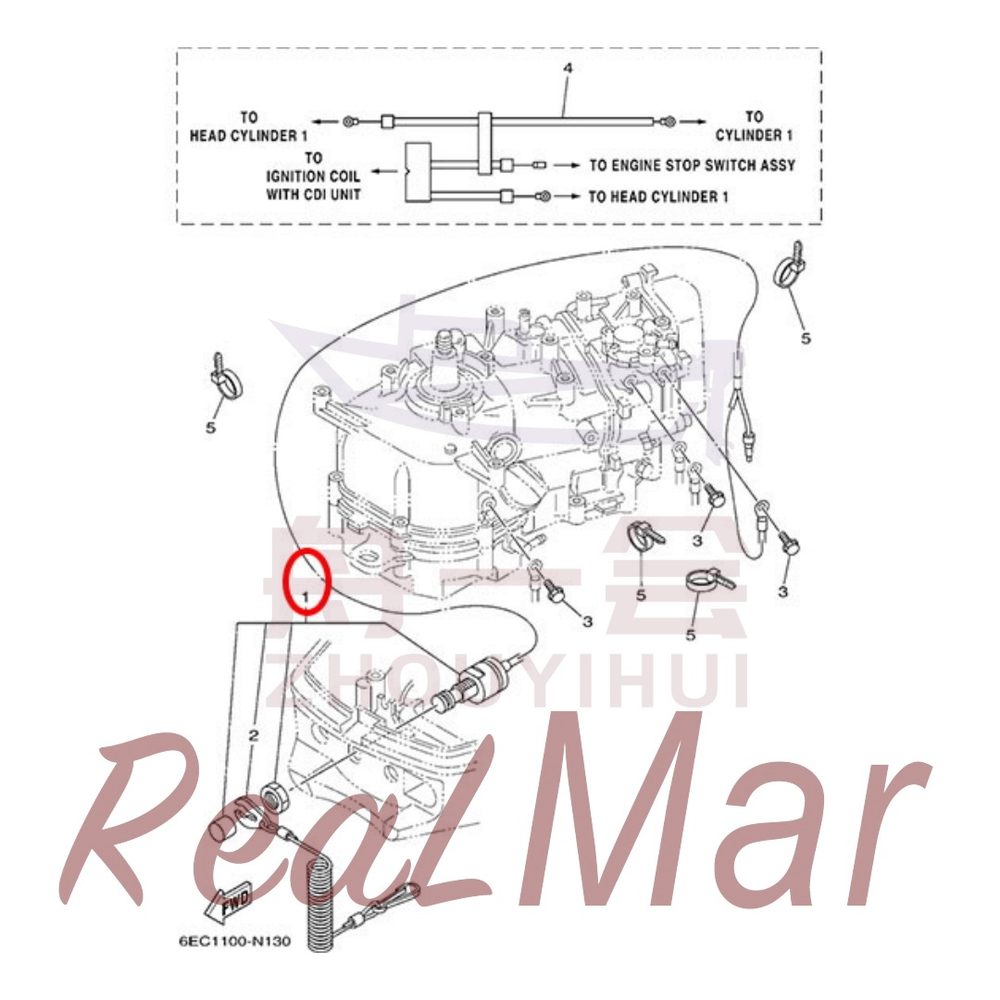

FIG. 13 ELECTRICAL
FIG. 13 ELECTRICAL 爆炸图
本部位共 5 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM4011-82575-000熄火开关组件ENGINE STOP SWITCH ASSY166T-82575-01
2DM0609-82556-000应急熄火拉绳LANYARD, STOP SWITCH16B2-82556-00
315293-04098六角法兰面螺栓BOLT, FLANGE395817-06012
4DM0609-H2531-000气缸体接地线WIRE, LEAD16BX-82531-00
510645-97M13塑料扎带CLAMP490465-13M97

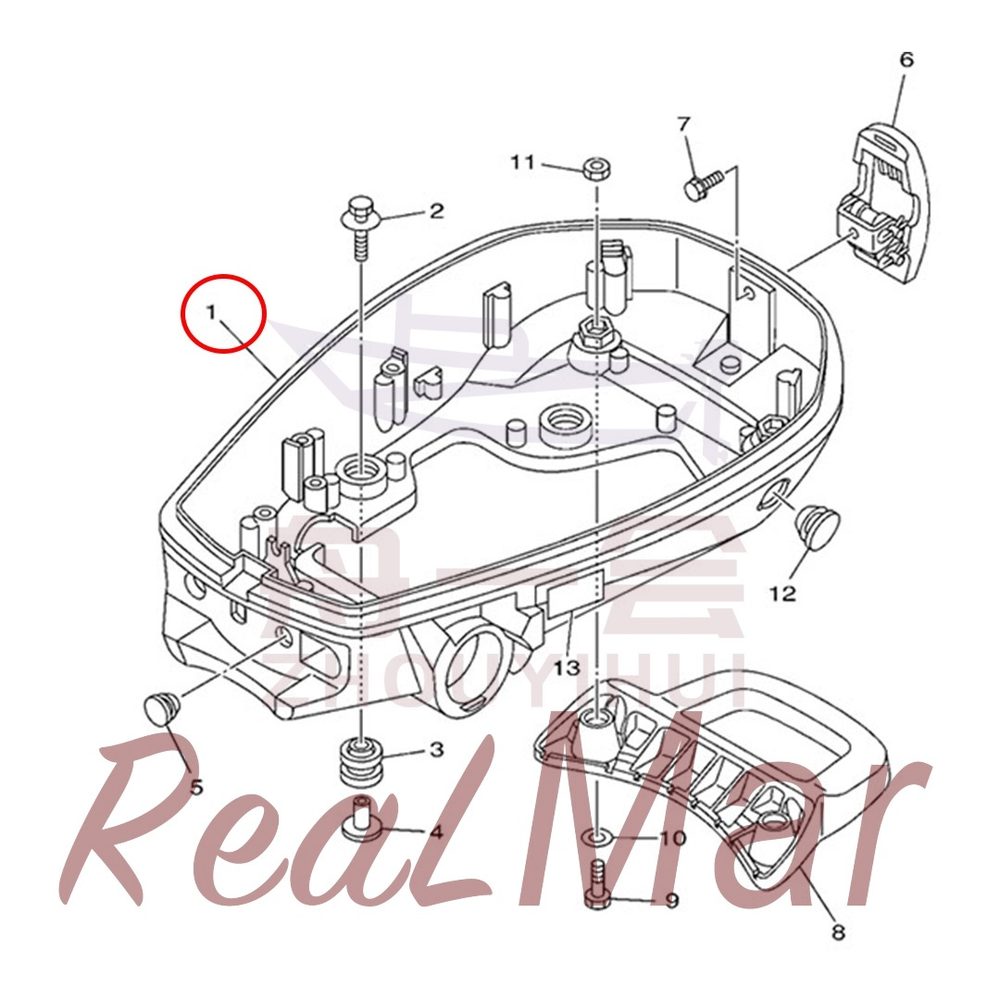

FIG. 14 BOTTOM COWLING
FIG. 14 BOTTOM COWLING 爆炸图
本部位共 12 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-G2711-000底座COWLING, BOTTOM 116BX-G2711-00-40
210991-04012六角头螺栓和特大垫圈组合件BOLT, WITH WASHER490119-06098
310620-89M28底座减振圈GROMMET490480-21M82
410723-04934底座减振圈衬套COLLAR490387-06176
510620-96M96衬套GROMMET190480-14M14
6DM0609-42801-000消音罩锁紧块组件COWLING CLAMP COMP.168T-42801-00
710991-04M01六角头螺栓和平垫圈组合件BOLT, WITH WASHER190119-06M09
8DM0609-G2731-000后提手CARRYING HANDLE16BX-G2731-00
913015-02080六角头螺栓BOLT297095-08020
1018115-02400平垫圈WASHER292995-08600
1115720-024001型六角螺母NUT295380-08600
1210620-88M38底座左堵头GROMMET190480-22M72
13DM0609-G2794-000标贴LABEL, WARNING (GENERAL)16EE-G2794-50

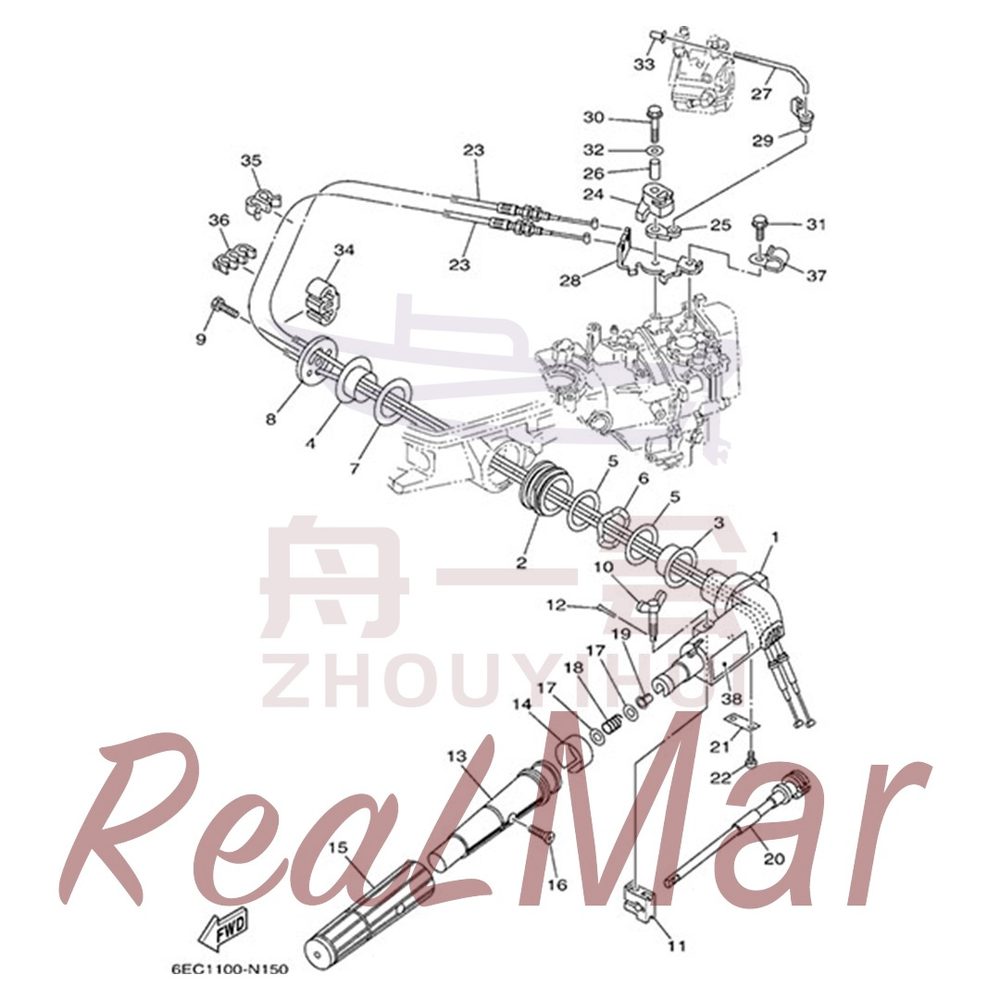

FIG. 15 STEERING
FIG. 15 STEERING 爆炸图
本部位共 38 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
DM0609-W0084-000操纵手柄总成HANDLE STEERING ASSY1
1DM0609-G2111-000操纵臂HANDLE, STEERING16BX-G2111-00-4D
2DM0609-42129-000操纵臂减振套BUSHING, RUBBER16BX-42129-00
3DM0609-G2171-000操纵臂内衬套BUSHING16BX-G2171-00
4DM0609-G2172-000操纵臂外衬套BUSHING 216BX-G2172-00
5DM0609-G2181-000操纵臂内垫圈WASHER26BX-G2181-00
6DM0609-G2188-000操纵臂波形垫圈WASHER, WAVE16BX-G2188-00
7DM0609-G2182-000操纵臂外垫圈WASHER 216BX-G2182-00
8DM0609-G2131-000操纵臂压盘COVER, HANDLE STEERING16BX-42131-00
913035-02085六角头螺栓BOLT197075-08025
10DM1511-42125-000油门锁紧手柄BOLT, FRICTION16G1-42125-01
11DM0311-42126-000油门锁紧块FRICTION, STEERING HANDLE GRIP16G1-42126-00
1219610-94090开口销PIN. COTTER191490-16010
13DM0609-G2119-000操纵手柄GRIP, STEERING HANDLE168D-G2119-01
14DM0609-G2137-000油门指示牌INDICATOR, THROTTLE160P-G2137-00
15DM0609-G2177-000操纵手柄套RUBBER, HANDLE168D-G2177-10
1610958-05099十字槽沉头螺钉SCREW, COUNTERSUNK190152-05011
1710809-90M08平垫圈WASHER, PLATE290201-10M02
1810509-87895操纵手柄压缩弹簧SPRING, COMPRESSION190501-23215
1910724-02078油门操纵杆衬套BUSH190386-08032
20DM0609-42T38-000油门操纵杆组件LEVER, THROTTLE16BX-42T38-00
21DM2509-G2159-000油门操纵杆压板STAY168D-G2159-00
2213225-05098十字槽盘头螺钉SCREW, PAN HEAD297885-05012
23DM0609-F6301-000油门拉线THROTTLE CABLE ASSY CABLE D'ACCELERATEUR26BX-F6301-00
24DM0609-41638-000油门支座PULLEY16BX-41638-00
25DM0609-41283-000油门支座摆臂LEVER, FREE ACCEL.16BX-41283-00
2610723-04858油门支座内衬套COLLAR190387-06252
27DM0609-41211-000油门从动杆LINK, ACCEL.16BX-41211-00
28DM0609-E4497-000油门支座支架STAY, THROTTLE WIRE16BX-E4497-00
29DM0511-41262-000阻风门联动杆滑座JOINT, CHOKE LEVER1661-41262-02
3010991-04MA5六角头螺栓和平垫圈组合件BOLT, WITH WASHER190119-06MA5
3110991-04M01六角头螺栓和平垫圈组合件BOLT, WITH WASHER190119-06M09
3210809-04M48换挡手柄外平垫圈1WASHER, PLATE190201-06M62
33DM0609-14395-000油门从动杆帽CAP, OVERFLOW PIPE1647-14395-60
3410646-04004油门拉线前固定夹CLAMP290464-06006
3510646-03M80油门拉线后固定夹CLAMP190464-07M20
3610646-03M05油管管夹CLAMP190464-07M05
3710645-02715线束夹CLAMP190465-08395
38DM0609-G2794-001标贴LABEL, WARNING (GENERAL)16EE-G2794-40

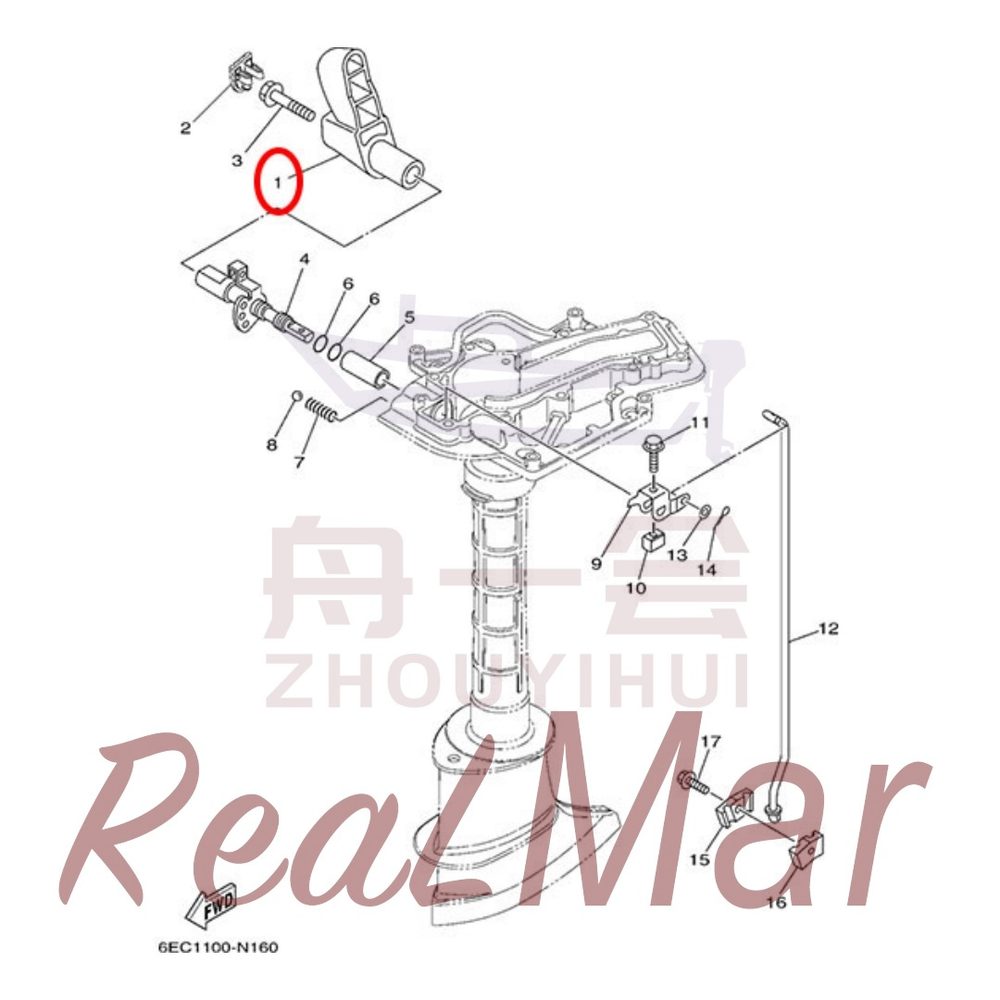

FIG. 16 CONTROL
FIG. 16 CONTROL 爆炸图
本部位共 18 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-G4111-000换挡手柄HANDLE, GEAR SHIFT16BX-G4111-00
2DM0609-G3679-000换挡手柄盖COVER16BX-G3679-00
310905-02064六角法兰面螺栓BOLT, FLANGE190105-08046
4DM0609-G4119-000换挡转轴组件SHAFT, CHANGE16BX-G4119-00-CA
5DM0609-G4122-000换挡转轴轴套BUSHING, SHIFT ROD LEVER16BX-G4122-00
617890-01750换挡转轴O型圈O-RING293210-09350
710509-98208换挡手柄压缩弹簧SPRING, COMPRESSION190501-12802
817505-94086钢珠BALL193505-16024
9DM0609-G4121-000换挡臂LEVER, SHIFT ROD16BX-G4121-00
1010723-04506换挡臂衬套SPACER190387-06504
1110991-05M06六角螺栓和平垫圈组合BOLT, WITH WASHER190119-05M04
12DM0609-G4143-000上换挡杆组件ROD, SHIFT16BX-44143-00
1318110-05400平垫圈WASHER, PLATE192990-05600
1419610-94090开口销PIN. COTTER191490-16010
15DM0609-G4145-000换挡杆右连接块CONNECTOR, SHIFT ROD168D-G4145-00
16DM0609-G4146-000换挡杆左连接块CONNECTOR, SHIFT ROD168D-G4146-00
1710901-04M29六角法兰面螺栓BOLT, WITH WASHER190109-06M81

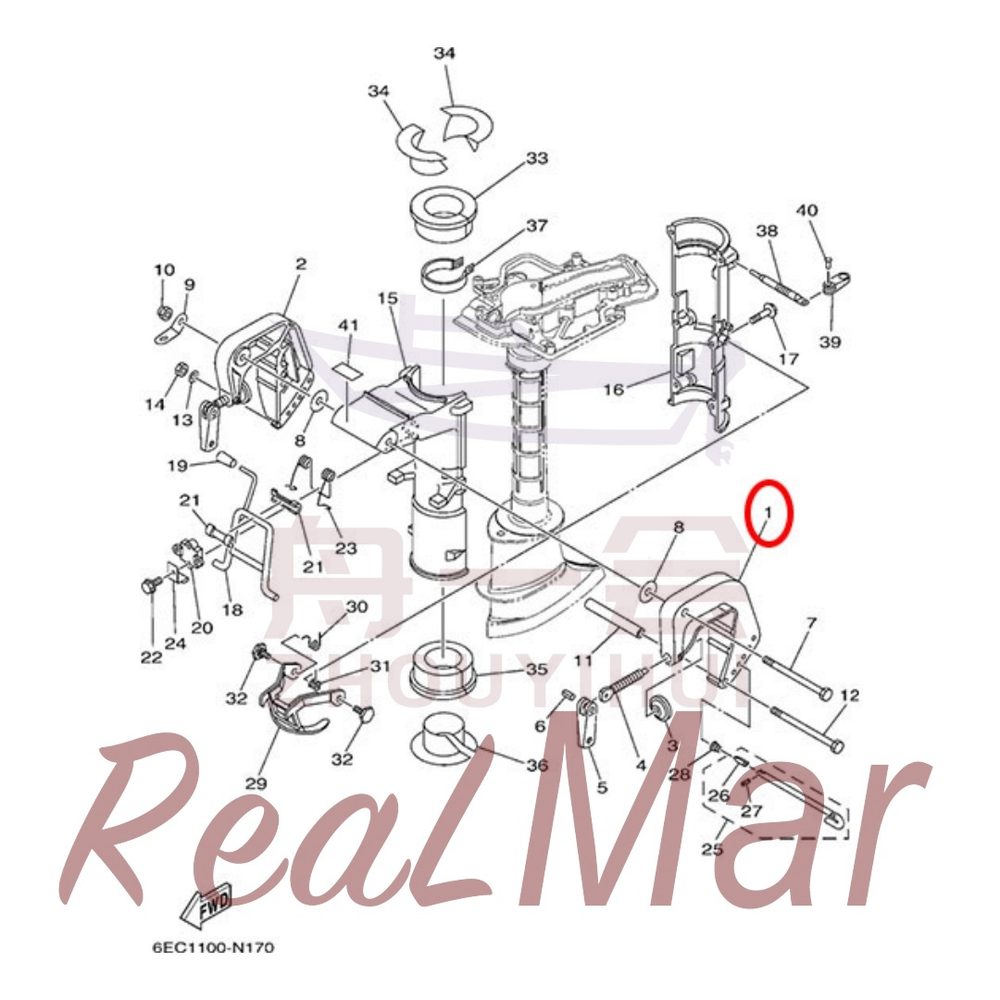

FIG. 17 BRACKET
FIG. 17 BRACKET 爆炸图
本部位共 40 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-G3111-000左支架BRACKET, CLAMP 116L8-G3111-01-4D
2DM0609-G3112-000右支架BRACKET, CLAMP 216L8-G3112-00-4D
3DM1511-43114-000艉板锁紧压盘PAD, TRANSOM CLAMP2648-43114-01
4DM0211-43116-000艉板锁紧螺杆SCREW, TRANSOM CLAMP26E0-43116-01
5DM0609-G3118-000艉板锁紧手柄HANDLE, TRANSOM CLAMP26L8-G3118-01
610867-06M09锁紧手柄沉头半空心铆钉PIN290243-04M01
710909-02M03六角头螺栓BOLT190101-08M07
810808-02M52起翘器下支撑轴外平垫圈WASHER, PLATE290202-08M58
9DM0211-43113-000拉环PLATE, CLAMP BRACKET168D-G3113-00
1010925-020531型非金属嵌件六角锁紧螺母NUT, SELF-LOCKING190185-08057
1110723-04M99套管COLLAR CLAMP BRACKET190387-06M11
1210909-04775六角头螺栓BOLT190101-06335
1318110-04400下换挡杆密封用外垫片WASHER, PLATE192990-06600
1415720-044001型六角螺母NUT, HEXAGON195380-06600
15DM0609-G3311-000前回转支架BRACKET, SWIVEL 1168D-G3311-01-4D
16DM0609-G3312-000后回转支架BRACKET, SWIVEL 2168D-G3312-01-4D
1715215-04075六角法兰面螺栓BOLT, FLANGE695895-06035
18DM0609-43181-000起翘撑架组件LEVER, TILT STOP 116BX-43181-00
19DM0511-43632-000起翘手柄护套KNOB, TILT16E0-43632-00
20DM0311-43313-000起翘撑架固定板BRACKET, SWIVEL 316E0-43313-00-94
21DM0311-43189-000撑架销轴衬套BUSHING2620-43189-00
2215215-04080六角法兰面螺栓BOLT, FLANGE295895-06020
23DM0609-48561-000撑架扭转弹簧SPRING 116BX-48561-00
24DM0609-G3319-000垫板PLATE16EE-G3319-00
25DM0609-G3160-000限位插销组件TILT ROD ASSY168D-G3160-00
26DM0609-G3165-000锁片PLATE, TILT LOCK16NO-G3165-00
2719410-70002弹性圆柱销PIN, SPRING191690-30008
2810508-02M05锥形压缩弹簧SPRING, CONICAL190502-08M05
29DM0609-43614-000起翘锁钩PLATE, TILT LOCK16BX-43614-00
30DM0609-43188-000起翘锁钩扭转弹簧SPRING16BX-43188-00
31DM0609-43198-000起翘锁钩扭转弹簧2SPRING 216BX-43198-00
3210901-04M26起翘限位片六角螺轴BOLT290109-06M84
33DM0609-G2537-000回转支架上橡胶套BUSHING, PIVOT SHAFT168D-G2537-00
34DM0609-G2539-000回转支架上塑料衬套BUSHING, PIVOT SHAFT268D-G2539-00
35DM0609-G2538-000回转支架下橡胶套BUSHING, PIVOT SHAFT16BX-G2538-00
36DM0609-G2549-000回转支架下塑料衬套BUSHING, PIVOT SHAFT16BX-G2549-00
37DM0311-42528-000回转支架抱箍PLATE, FRICTION16E0-42528-03
38DM0311-42529-000转向锁紧手柄螺杆SCREW, FRICTION PIECE16L5-42529-01
39DM0311-42561-000转向锁紧手柄KNOB, STEERING LOCK168D-G2561-01
4010844-06M05扁圆头半空心铆钉RIVET190266-04M05
41DM0609-F4591-000标贴EMBLEM, FUEL COCK16EE-F4591-00

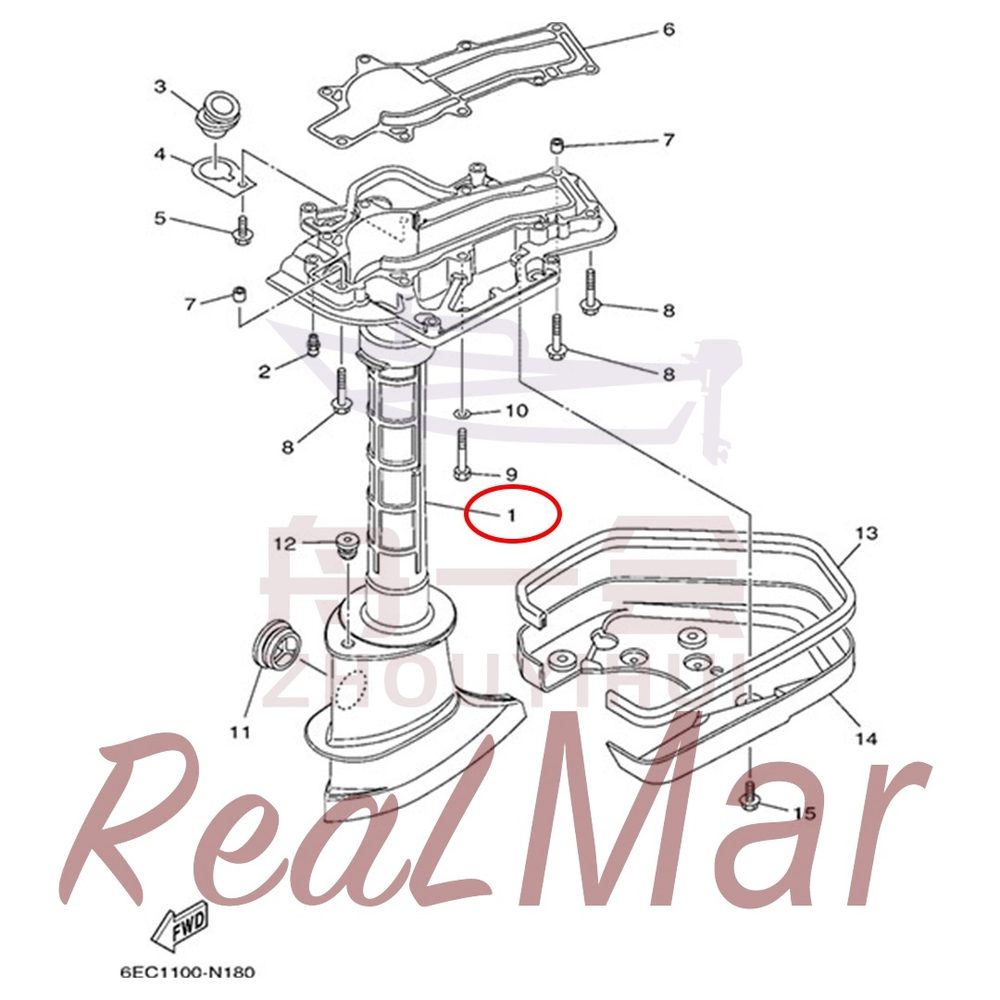

FIG. 18 UPPER CASING
FIG. 18 UPPER CASING 爆炸图
本部位共 15 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-G5111-000中间箱体CASING, UPPER16BX-G5111-00-4D
217300-04M07油杯NIPPLE, GREASE193700-06M03
3DM0609-15316-000机油导油套DAMPER 116BX-15316-00
4DM0609-G5181-000机油导油套固定板PLATE16BX-G5321-00
513535-04596六角头螺栓和平垫圈组合件BOLT WITH WASHER197575-06514
6DM0609-45113-000动力下垫片GASKET, UPPER CASING16BX-45113-00
710723-04M96减速箱空心定位销COLLAR290387-06M14
813535-04560六角头螺栓和平垫圈组合件BOLT, WITH WASHER597575-06540
913097-04050六角头螺栓BOLT497013-06050
1018115-04400平垫圈WASHER492995-06600
11DM0311-45151-000中间箱体橡胶套COVER, UPPER CASING2647-45151-01
1210620-90M97中间箱体橡胶衬套GROMMET190480-10M13
13DM0609-42716-000下护罩密封条RUBBER, SEAL 116BX-42716-00
14DM0609-G2723-000下护罩组件COVER, BOTTOM16BX-G2723-00
1513535-04596六角头螺栓和平垫圈组合件BOLT WITH WASHER497575-06514

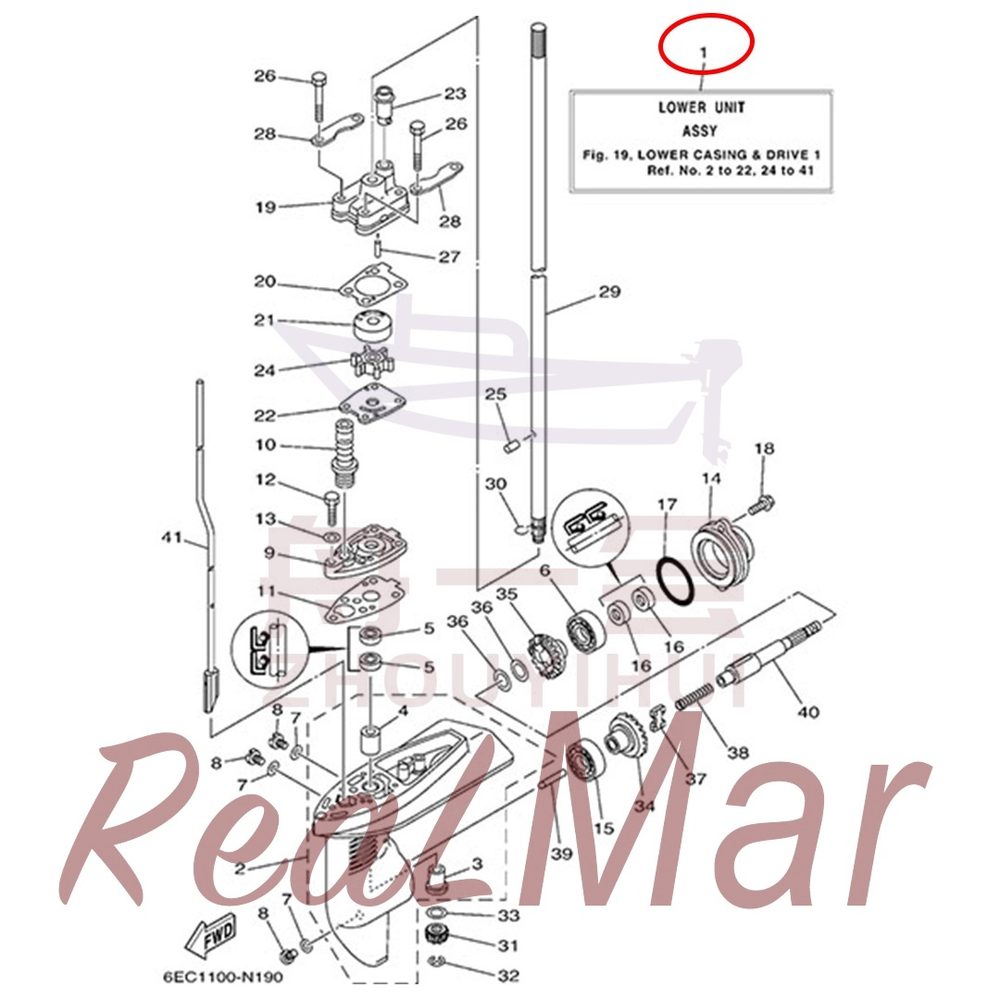

FIG. 19 LOWER CASING & DRIVE 1
FIG. 19 LOWER CASING & DRIVE 1 爆炸图
本部位共 46 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-G5300-000减速箱总成 SLOWER UNIT ASSY16BX-G5300-00-4D
DM0609-G5300-001减速箱总成 LLOWER UNIT ASSY16BX-G5300-10-4D
2DM0609-G5311-000减速箱壳体CASING, LOWER168D-G5311-00-4D
3DM0511-45317-000传动轴下轴套BUSHING, DRIVE SHAFT16E0-45317-09
4DM0511-45316-000传动轴上轴套BUSHING, DRIVE SHAFT16E0-45316-09
517909-90M96曲轴下端盖油封OIL SEAL293101-10M14
617704-006YH轴承BEARING193306-004YH
710670-02080放油螺塞垫圈GASKET390430-08020
810760-02008不带磁放油螺塞PLUG, STRAIGHT SCREW390340-08002
9DM0609-G5321-000水泵座PLATE168D-G5321-00
10DM0311-44147-000换挡杆油封BOOT, SHIFT ROD16L2-44147-00
11DM0609-G5315-000水泵座垫片PACKING, LOWER CASING168D-G5315-A0
1213015-04085六角头螺栓BOLT197095-06025
1318115-04400平垫圈WASHER192995-06600
14DM0609-G5361-000轴承座CAP, LOWER CASING168D-G5361-00-4D
1517704-006YH轴承BEARING193306-004YH
1617909-97M98轴承座油封OIL SEAL293101-13M12
1717890-62896轴承座O型圈O-RING193210-48214
1815215-04094六角法兰面螺栓BOLT, FLANGE295895-06016
19DM0609-44311-000水泵壳体HOUSING, WATER PUMP16BX-44311-00
20DM0609-G4315-000水泵壳体下垫片（纸垫）GASKET, WATER PUMP16BX-G4315-01
21DM0609-44322-000水泵壳体座圈INSERT, CARTRIDGE16BX-44322-00
22DM0609-44323-000水泵壳体垫片（钢垫）OUTER PLATE, CARTRIDGE16BX-44323-00
23DM0609-44366-000水泵壳体水封DAMPER, WATER SEAL 2167D-44366-00
24DM0511-44352-000水泵叶轮IMPELLER16E0-44352-00
2517406-01044圆柱销PIN, DOWEL193604-09066
2613015-04065六角头螺栓BOLT497095-06045
2717406-92020水泵壳体定位销PIN, DOWEL293604-18080
28DM0609-G4328-000水泵壳体固定板PLATE268D-G4328-00
29DM0511-45511-000传动轴SHAFT, DRIVE16E0-45511-01
DM0511-45511-001传动轴SHAFT, DRIVE16E0-45511-11
3010643-02M09轴用钢丝挡圈CLIP190467-08M01
31DM0609-45551-000主动齿轮PINION (13T)16BX-45551-00
3211009-04400开口挡圈CIRCLIP199001-06600
3310809-99M61主动齿垫圈WASHER, PLATE190201-11M49
34DM0609-45560-000前进挡齿轮GEAR 1 (27T)167D-45560-00
35DM0609-45570-000倒挡齿轮GEAR 2 (27T)167D-45570-00
36DM0609-45576-000倒挡齿轮调整垫片WASHER, THRUST 2267D-45576-00
37DM0609-45631-000离合子CLUTCH, DOG167D-45631-01
3810509-980A1离合子压缩弹簧SPRING, COMPRESSION190501-120A9
39DM0609-45635-000换挡销PLUNGER, SHIFT167D-45635-00
40DM0609-G5611-000螺旋桨轴SHAFT, PROPELLER168D-G5611-10
41DM0609-G4150-000下换挡杆组件SHIFT CAM ASSY16BX-G4150-00
DM0609-G4150-001下换挡杆组件SHIFT CAM ASSY16BX-G4150-10

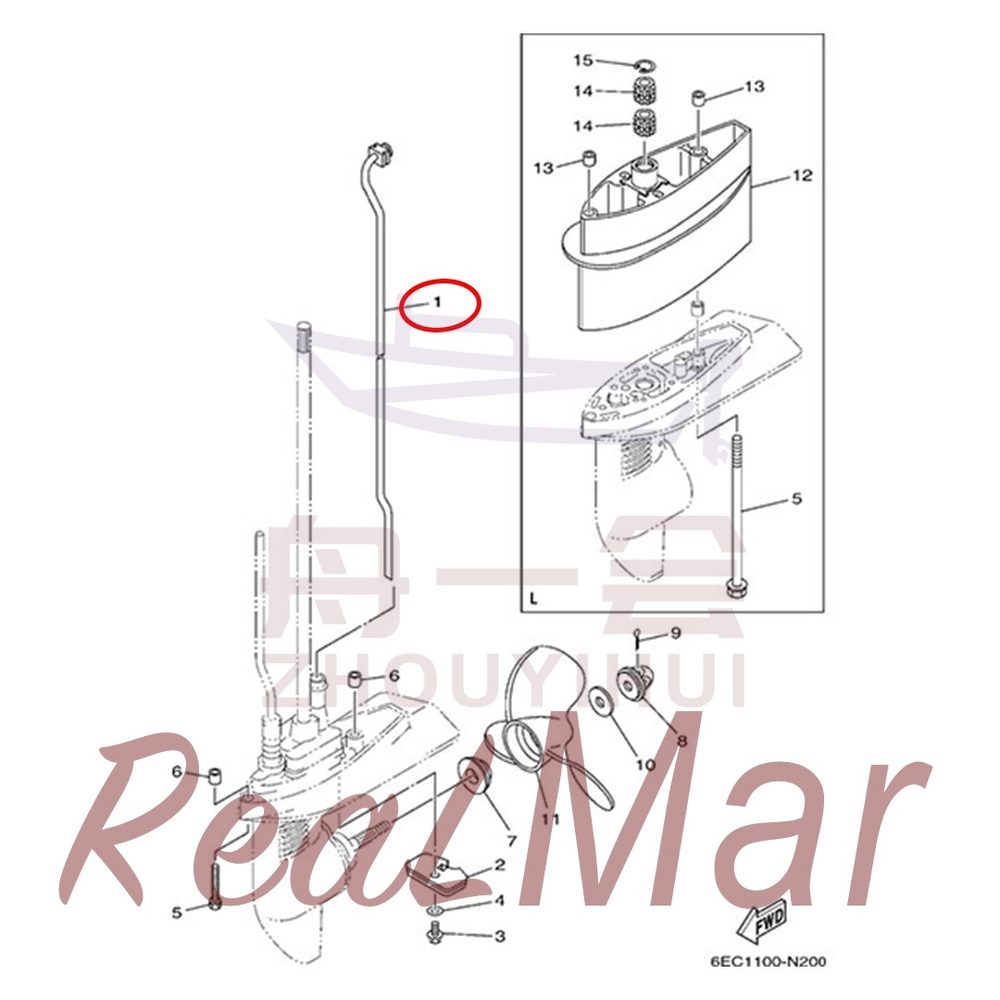

FIG. 20 LOWER CASING & DRIVE 2
FIG. 20 LOWER CASING & DRIVE 2 爆炸图
本部位共 17 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-G4360-000进水管WATER TUBE ASSY16BX-G4360-00
DM0609-G4360-001进水管WATER TUBE ASSY16BX-G4360-10
2DM0211-45251-000阳极ANODE16L5-45251-03
315215-04098六角法兰面螺栓BOLT, FLANGE195895-06012
418110-04700内锯齿锁紧垫圈WASHER, INTERNAL TOOTH192990-06300
510991-04M60六角头螺栓和平垫圈组合件BOLT, WITH WASHER290119-06M40
10991-04856六角头螺栓和平垫圈组合件BOLT, WITH WASHER290119-06254
610723-04M96减速箱空心定位销COLLAR290387-06M14
7DM2509-G5987-000螺旋桨推力衬套SPACER 1168D-G5987-00
8DM0311-45616-000螺旋桨锁紧螺母NUT, PROPELLER16L5-45616-00
919610-85070开口销PIN. COTTER191490-25030
1010809-02M56点火提前摆杆大垫圈WASHER, PLATE190201-08M54
11DM0609-45941-000螺旋桨总成PROPELLER (3X7-1/2"X8"-BA)16E0-45941-01
DM0609-45943-000螺旋桨总成PROPELLER (3X7-1/2"X7"-BA)16E0-45943-01
DM0609-45949-000螺旋桨总成PROPELLER (3X7-1/4"X6-1/2"-BA)16E0-45949-00
DM0609-45952-000螺旋桨总成PROPELLER (3X7-1/4"X8-1/4"-BA)16E0-45952-00
DM0609-45954-000螺旋桨总成PROPELLER (3X7-1/2"X9"-BA)16E0-45954-00
12DM0609-G5211-000加长连接座EXTENSION16BX-G5211-00-4D
1310723-04M96减速箱空心定位销COLLAR290387-06M14
14DM0609-45318-000传动轴衬套组件BUSHING, DRIVE SHAFT26BX-45318-01
1517680-88M07孔用弹性挡圈CIRCLIP193420-22M03

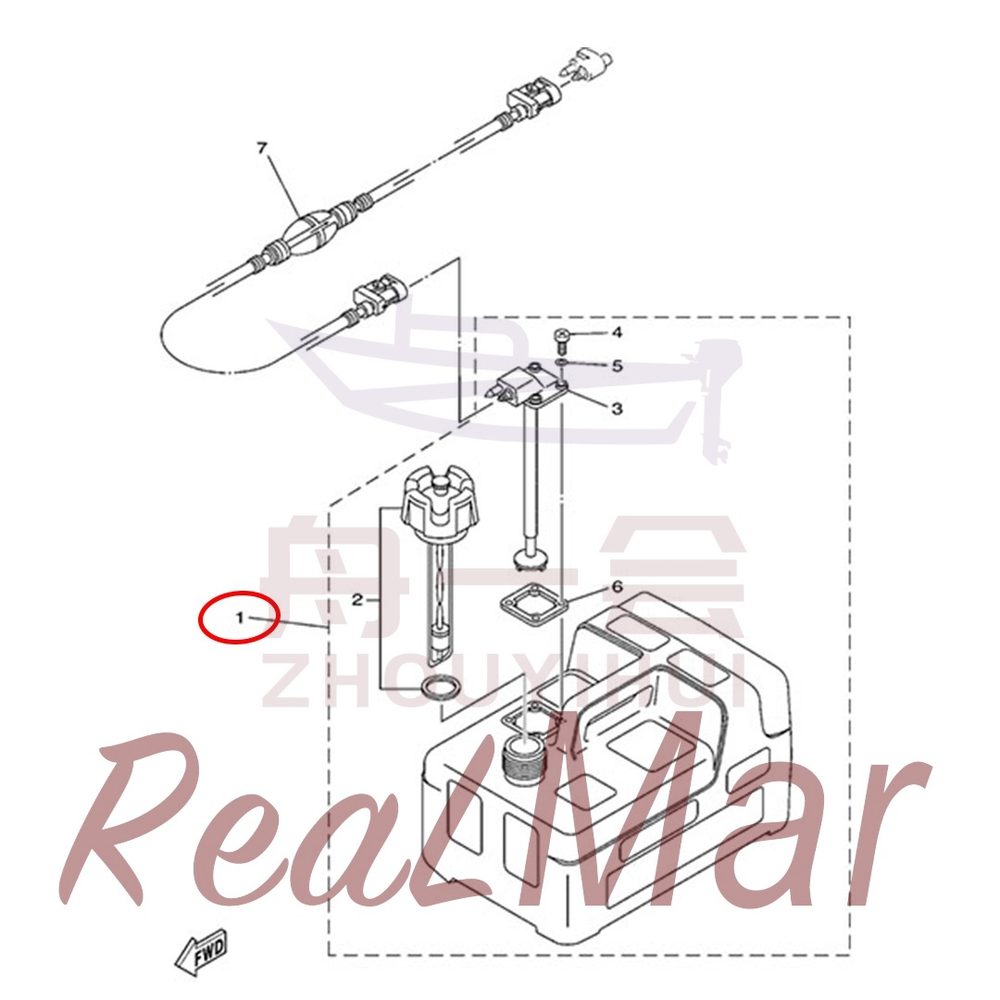

FIG. 21 FUEL TANK
FIG. 21 FUEL TANK 爆炸图
本部位共 7 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0609-24201-000外燃油箱总成12LFUEL TANK ASSY (12L)16YL-24201-10
2DM0511-24610-001外燃油箱盖组件12LCAP ASSY16YL-24610-01
3DM0511-24260-000油管插座总成FUEL METER ASSY16YL-24260-01
410953-05M94十字槽盘头螺钉SCREW, PAN HEAD490157-05M16
5DM0511-24329-000油管插座尼龙垫圈SEAL46YL-24329-00
6DM0511-24268-000油管插座密封垫GASKET, FUEL METER16YL-24268-01
7DM0609-24306-000输油管总成FUEL PIPE COMP. 116YL-24306-54
