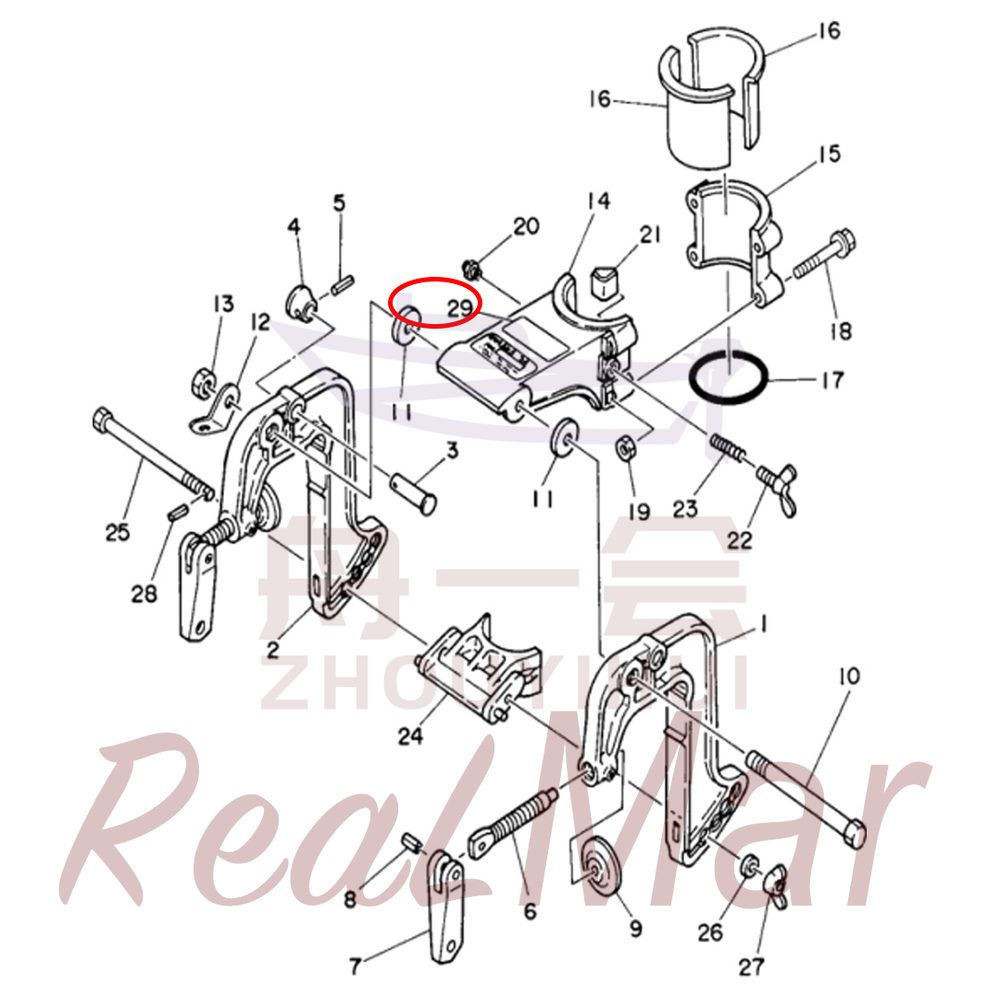

本部位共 9 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
| REF | 零件编码 | 中文名称 | 英文名称 | 用量 | YMH对应零件号 |
|---|
| 1 | DM0211-43111-000 | 左支架 | BRACKET, CLAMP | 1 | 6A1-43111-03-4D |
| 2 | DM0211-43112-000 | 右支架 | BRACKET, CLAMP | 1 | 6A1-43112-00-4D |
| 3 | DM0211-43191-000 | 支撑销 | SHAFT, STOPPER | 1 | 6A1-43191-00 |
| 4 | DM0211-43192-000 | 支撑销手柄 | KNOB, STOPPER | 1 | 6A1-43192-00 |
| 5 | 19410-70096 | 弹性圆柱销 | PIN, SPRING | 1 | 91690-30014 |
| 6 | DM0211-43116-000 | 艉板锁紧螺杆 | SCREW, TRANSOM CLAMP | 2 | 6E0-43116-01 |
| 7 | DM0211-43118-000 | 艉板锁紧手柄 | HANDLE, TRANSOM CLAMP | 2 | 6E0-43118-01 |
| 8 | 10867-06M09 | 锁紧手柄沉头半空心铆钉 | PIN | 2 | 90243-04M01 |
| 9 | DM0211-43114-000 | 艉板锁紧压盘 | PAD, TRANSOM CLAMP | 2 | 620-43114-00 |
| 10 | 10909-02893 | 六角头螺栓 | BOLT | 1 | 90101-08217 |
| 11 | 10808-02088 | 大垫圈 | WASHER, PLATE | 2 | 90202-08022 |
| 12 | DM0211-43113-000 | 拉环 | PLATE, CLAMP BRACKET | 1 | 6A1-43113-01 |
| 13 | 15720-02400 | 1型六角螺母 | NUT | 1 | 95380-08600 |
| 14 | DM0211-43311-000 | 回转支架 | BRACKET, SWIVEL 1 | 1 | 6A1-43311-02-4D |
| 15 | DM0211-43312-000 | 上装盖 | BRACKET, SWIVEL 2 | 1 | 6A1-43312-00-4D |
| 16 | DM0211-42537-000 | 回转支架衬套 | BUSHING, PIVOT SHAFT | 2 | 646-42537-01 |
| 17 | 17890-64066 | 水泵座O型圈 | O-RING | 1 | 93210-46044 |
| 18 | 10991-04M12 | 六角头螺栓和平垫圈组合件 | BOLT, WITH WASHER | 4 | 90119-06M98 |
| 19 | 15720-04400 | 1型六角螺母 | NUT, HEXAGON | 4 | 95380-06600 |
| 20 | 17300-04M07 | 油杯 | NIPPLE, GREASE | 1 | 93700-06M03 |
| 21 | DM0211-42528-000 | 锁紧橡胶块 | PLATE, FRICTION | 1 | 646-42528-00 |
| 22 | 10988-04006 | 蝶形锁紧螺栓 | BOLT, WING | 1 | 90122-06004 |
| 23 | 10509-98838 | 转向锁紧手柄螺杆压簧 | SPRING, COMPRESSION | 1 | 90501-12272 |
| 24 | DM0211-43351-000 | 起翘限位支架 | RECEIVER, THRUST | 1 | 6A1-43351-00 |
| 25 | DM0211-43371-000 | 六角头带孔螺栓 | BOLT, RECEIVER | 1 | 6A1-43371-00 |
| 26 | 10809-04060 | 厚垫圈 | WASHER, PLATE | 1 | 90201-06040 |
| 27 | 10935-04002 | 蝶形螺母 圆翼 | NUT, WING | 1 | 90175-06008 |
| 28 | 19410-80004 | 弹性圆柱销 | PIN, SPRING | 1 | 91690-20006 |
| 29 | DM0211-82377-000 | | LABEL (SPARK,IGNITION) | 1 | 63V-82377-50 |
