舟一会 ZHOUYIHUI 船外机

翟墨 T3 舷外机爆炸图及零件明细

二冲程 3 / 3.5 / 4 马力 · 共 9 个部位 / 337 条零件，点击零件编码查看详情，或搜索本页零件。

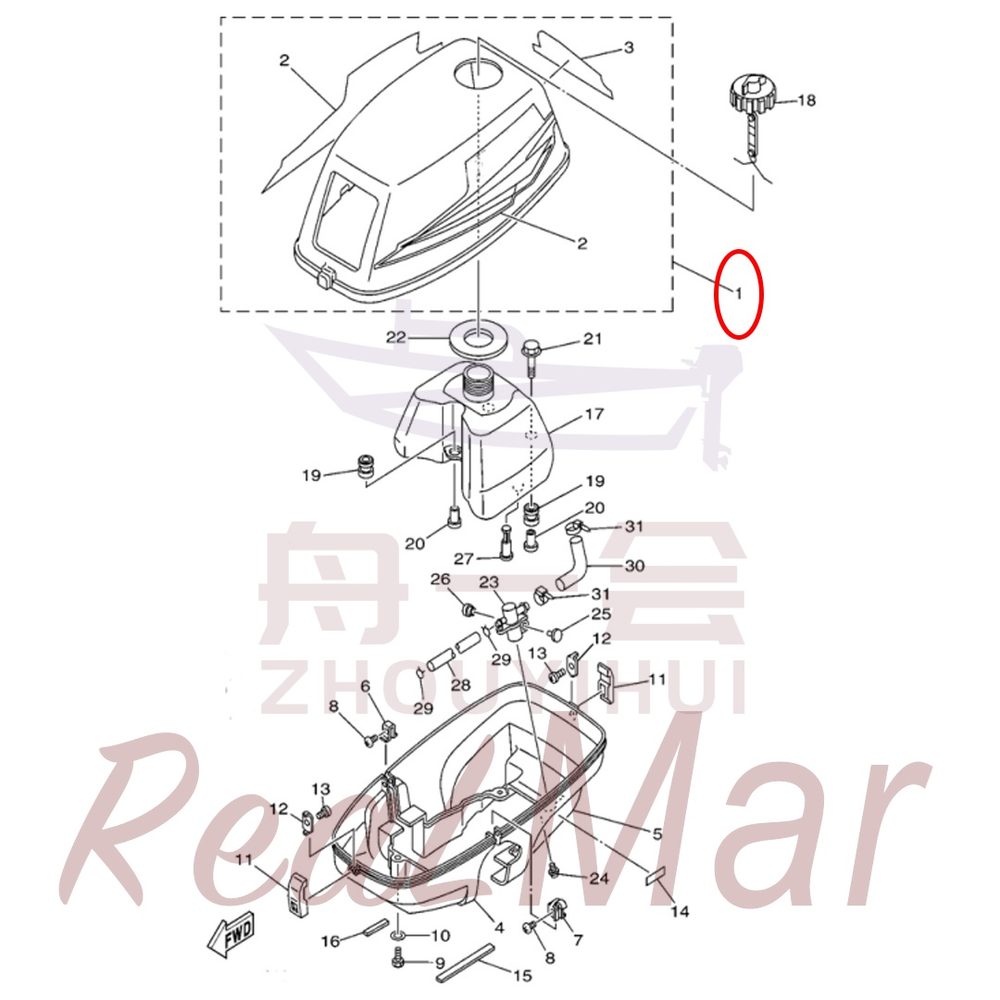

FIG. 1 COWLING & FUEL
FIG. 1 COWLING & FUEL 爆炸图
本部位共 21 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0311-42610-000消音罩总成TOP COWLING ASSY16L5-42610-13-4D
2DM0311-W0070-000左右标贴GRAPHIC SET16L5-W0070-13
3DM0311-42678-000后标贴GRAPHIC, REAR16L5-42678-12
4DM0311-42711-000前底座(含衬套）COWLING, BOTTOM16L5-42711-11
5DM0311-42712-000后底座(含衬套）COWLING, BOTTOM16L5-42712-12
6DM0311-42774-000底座右端锁扣STAY, APRON 116L5-42774-00
7DM0311-42775-000底座左端锁扣组件STAY, APRON 216L5-42775-00
813220-05090十字槽小盘头螺钉SCREW, PAN HEAD297880-05010
913015-04094六角头螺栓BOLT497095-06016
1018115-04400平垫圈WASHER492995-06600
11DM0311-42647-000消音罩锁紧块组合HOLDER, CLAMP BAND26L5-42647-00
12DM0311-42823-000底座扣盖PLATE, STOP26L5-42823-00
1310943-07M08十字槽盘头自攻螺钉SCREW, TAPPING290167-03M02
14DM0311-24591-000油门开关标贴EMBLEM, FUEL COCK16L5-24591-00
15DM0311-42662-000底座隔音条1DAMPER16L5-42662-00
16DM0311-42663-000底座隔音条2DAMPER16L5-42663-00
17DM0311-24111-000内油箱TANK, FUEL16L5-24111-02
18DM0311-24610-000内油箱盖组件CAP ASSY16L5-24610-00
19DM0311-82317-000点火器支架减振圈DAMPER, IGNITION COIL36A0-82317-00
20DM0311-42542-000点火器支架衬套PIPE3624-42542-00
2110991-04M45六角头螺栓和平垫圈组合件BOLT, WITH WASHER290119-06M65
22DM0311-24641-000内燃油箱垫圈GASKET, CAP 116L5-24641-00
23DM0311-24500-000油阀组件FUEL COCK ASSY 116L5-24500-60
2410951-04M90十字槽盘头螺钉和平垫圈组合件SCREW, WITH WASHER190159-06M10
25DM0311-44196-000公扣INDICATOR 316L5-44196-00
26DM0311-44197-000母扣INDICATOR 416L5-44197-00
27DM0311-24251-000汽油阀门滤网STRAINER 116L5-24251-00
28DM0311-24311-000化油器进油管PIPE, FUEL 116L5-24311-00
2910643-02006管夹CLIP290467-08004
30DM0311-24312-000内油箱出油管PIPE 216L5-24312-00
3110645-97M99扎带CLAMP290465-13M11

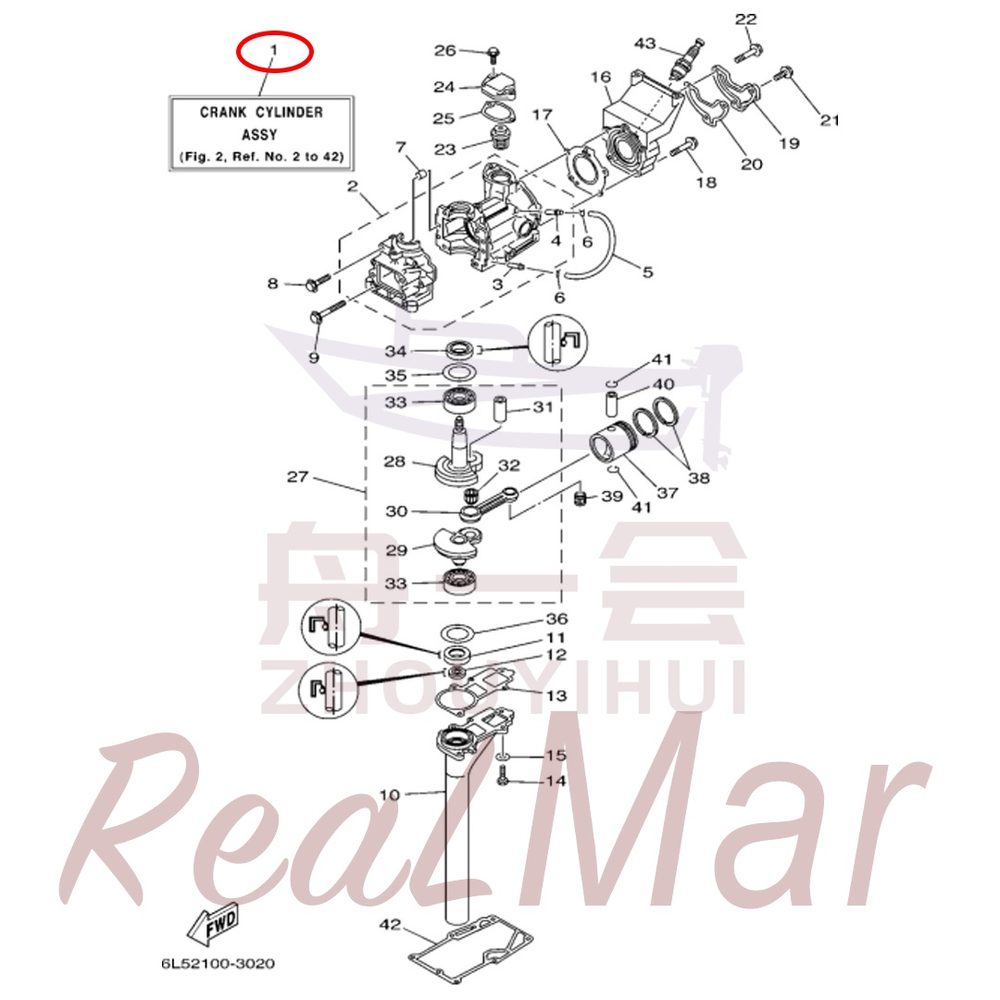

FIG. 2 CYLINDER & CRANKCASE
FIG. 2 CYLINDER & CRANKCASE 爆炸图
本部位共 33 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0311-W0090-000气缸体曲轴箱总成CRANK CYLINDER ASSY16L5-W0090-01-1S
2DM0311-15100-000气缸体曲轴箱组件CRANKCASE ASSY16L5-15100-00-1S
3DM0311-14485-000回油管油嘴PIPE, JOINT1624-14485-00
4DM0311-11372-000气缸体弯管接头NIPPLE, HOSE16E5-11372-01
510665-03M81软管HOSE (L135)190445-07M29
610643-04094管夹CLIP290467-06016
717404-98091定位销PIN, DOWEL293606-12019
810905-04M94六角法兰面螺栓BOLT, FLANGE490105-06M16
910905-04M60六角法兰面螺栓BOLT, FLANGE290105-06M40
10DM0311-15396-000排气管HOUSING, OIL SEAL16L5-15396-00-94
1117909-80M81曲轴下端油封OIL SEAL193101-20M29
1217909-01M68曲轴下端盖油封OIL SEAL193101-09M42
13DM0311-15369-000排气管垫片GASKET, OIL SEAL HOUSING16L5-15369-A0
1413015-04080六角头螺栓BOLT597095-06020
1518115-04400平垫圈WASHER592995-06600
16DM0311-11111-000气缸盖HEAD, CYLINDER 116L5-11111-00-1S
17DM0311-11181-000气缸盖密封垫GASKET, CYLINDER HEAD 116L5-11181-A2
1810991-04063六角头螺栓和平垫圈组合件BOLT, WITH WASHER390119-06047
19DM0311-11191-000气缸盖外盖COVER, CYLINDER HEAD 116L5-11191-00-1S
20DM0311-11193-000气缸盖外盖垫片GASKET, HEAD COVER 116L5-11193-A1
2110991-04MA8六角头螺栓和平垫圈组合件BOLT, WITH WASHER190119-06MA2
2210991-04083六角头螺栓和平垫圈组合件BOLT, WITH WASHER290119-06027
23DM0311-12411-000节温器THERMOSTAT16E5-12411-02
24DM0311-12413-000节温器盖COVER, THERMOSTAT16L5-12413-00-1S
25DM0311-12414-000节温器盖垫片GASKET, COVER16L5-12414-A1
2610991-04MA8六角头螺栓和平垫圈组合件BOLT, WITH WASHER290119-06MA2
27DM0311-11400-000曲轴连杆总成CRANKSHAFT ASSY16L5-11400-00
28DM0311-11412-000CRANK 116L5-11412-00
29DM0311-11422-000CRANK 216L5-11422-00
30DM0311-11651-000ROD, CONNECTING16L5-11651-00
31DM0311-11681-000PIN, CRANK 116L5-11681-00
3217790-694N3BEARING193310-416N7
3317704-806U0曲轴下轴承BEARING293306-204U0
3417908-80M04曲轴下端油封OIL SEAL193102-20M06
3510809-78M00曲轴上端平垫圈WASHER, PLATE190201-32M00
3610809-78M09曲轴下端平垫圈WASHER, PLATE190201-32M01
37DM0311-11631-000活塞PISTON (STD)16L5-11631-00-96
38DM0311-11610-000活塞环组PISTON RING SET (0.50MM O/S)16L5-11610-20
3917790-998U0连杆小端轴承BEARING193310-112U0
40DM0311-11633-000活塞销PIN, PISTON16L5-11633-00
4117650-97088活塞销挡圈CIRCLIP293450-13022
42DM0311-45113-000动力下垫片GASKET, UPPER CASING16L5-45113-A1
4316308-00836火花塞SPARK PLUG194702-00274

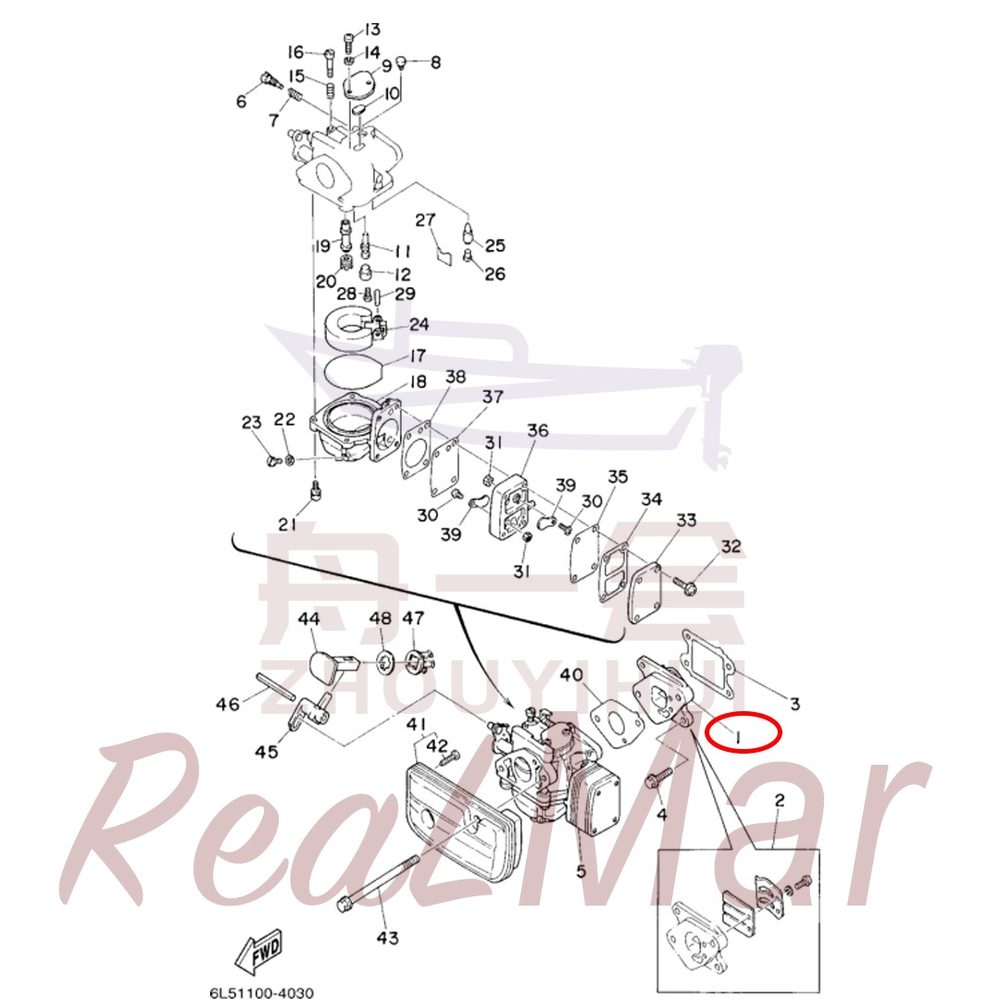

FIG. 3 INTAKE
FIG. 3 INTAKE 爆炸图
本部位共 23 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0311-13610-000簧片阀组件REED VALVE ASSY16L5-13610-02
2DM0311-W0004-000簧片阀组件REED SET16L5-W0004-02
3DM0311-13621-000簧片阀垫片GASKET, VALVE SEAT16L5-13621-A2
415215-04094六角法兰面螺栓BOLT, FLANGE295895-06016
5DM0311-14301-000化油器CARBURETOR ASSY 116L5-14301-03
6DM0311-14923-000怠速油针SCREW, PILOT1679-14923-00
7DM0311-14555-000拉伸弹簧SPRING1679-14555-00
8DM0311-14966-001CAP16G1-14966-00
9DM0311-14527-000PLATE16G1-14527-00
10DM0311-14126-000GASKET16G1-14126-00
11DM0311-14948-000JET (#40)16L5-14948-03
12DM0311-14966-002CAP1676-14966-00
1313220-06090SCREW, PAN HEAD297880-04010
1418110-06900WASHER, SPRING292990-04100
1510509-90784压缩弹簧SPRING, COMPRESSION190501-10326
16DM0311-14523-000一字槽盘头锁紧螺钉SCREW, STOP163V-14523-00
17DM0311-14984-000橡胶圈O-RING16G1-14984-00
18DM0311-14980-000BODY, FLOAT CHAMBER16G1-14980-01
19DM0311-14947-000JET, NEEDLE16L5-14947-01
20DM0311-14943-000主量孔JET, MAIN (#68)1676-14943-14
2113120-06996十字小盘头螺钉和弹簧垫圈组合件SCREW, WITH WASHER497980-04114
22DM0311-14398-000WASHER16G1-14398-00
23DM0311-14992-000一字槽盘头螺钉SCREW, DRAIN16G1-14992-00
24DM0311-14985-000浮子FLOAT16G1-14985-00
25DM0311-14546-000阀针VALVE, NEEDLE16G1-14546-00
26DM0311-14186-000油针座PIN, FLOAT1676-14186-00
27DM0311-14159-000卡簧CLIP1663-14159-00
2812520-06002十字槽平盘螺钉SCREW, PAN HEAD198580-04008
29DM0311-14548-000固定销PIN, FLOAT ARM1688-14548-00
3012120-07004十字槽锁紧螺钉SCREW, BIND298980-03006
3115720-07400六角螺母NUT295380-03600
3213120-06985十字小盘头螺钉和弹簧垫圈组合件SCREW, WITH WASHER497980-04125
33DM0311-24452-000外盖板COVER16G1-24452-00
34DM0311-24432-000GASKET, FUEL PUMP 216G1-24432-00
35DM0311-24471-000油泵膜片DIAPHRAGM16G1-24471-00
36DM0311-24412-000燃油泵1BODY 116G1-24412-01
37DM0311-24411-000内隔膜片DIAPHRAGM16G1-24411-00
38DM0311-24431-000燃油泵衬垫1GASKET, FUEL PUMP 116G1-24431-01
39DM0311-24421-000控制阀VALVE, CHECK26L5-24421-00
40DM0311-14198-000化油器垫片GASKET16L5-14198-A1
41DM0311-14440-000进气消音器组件SILENCER ASSY, INTAKE16L5-14440-00
4213320-60394十字槽半沉头自攻螺钉SCREW, TAPPING297780-40716
4315215-04015六角法兰面螺栓BOLT, FLANGE295895-06095
44DM0311-41271-000阻风门拉手KNOB, CHOKE16L5-41271-00
45DM0311-41252-000阻风门摇臂组件LEVER, CHOKE 116L5-41252-00
4619410-60062弹性圆柱销PIN, SPRING191690-40048
47DM0311-41273-000阻风门拉手滑座GROMMET1689-41273-00
48DM0311-41274-000阻风门拉手滑座衬套GROMMET 216J8-41274-00

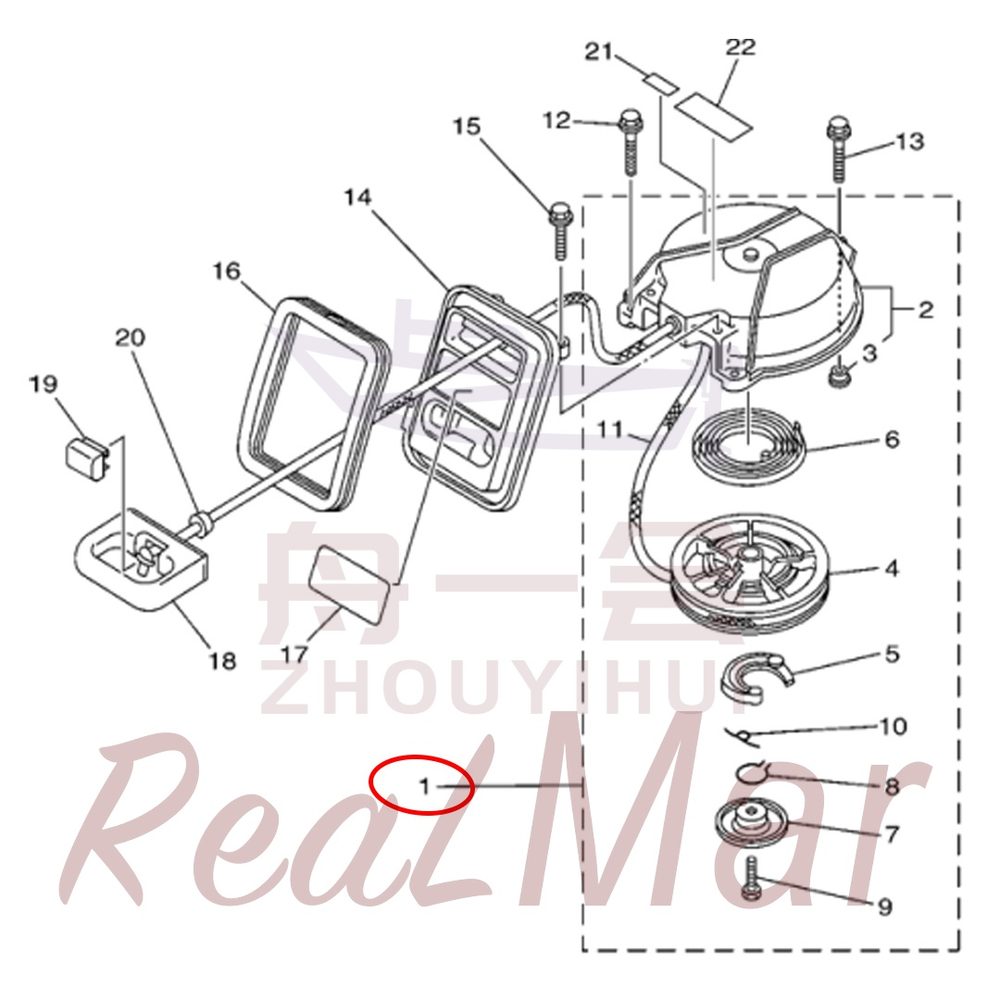

FIG. 4 STARTER
FIG. 4 STARTER 爆炸图
本部位共 15 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0311-15710-000起动器总成STARTER ASSY16L5-15710-00
2DM0311-15711-000起动器壳体组件CASE, STARTER16L5-15711-00
310723-04M30起动器壳体衬套COLLAR190387-06M70
4DM0311-15714-000起动盘DRUM, SHEAVE16L5-15714-00
5DM0311-15741-000起动盘棘爪PAWL, DRIVE16L5-15741-00
6DM0311-15713-000平面蜗卷弹簧SPRING, STARTER16L5-15713-00
7DM0311-15716-000起动盘压盖PLATE, DRIVE16L5-15716-00
8DM0211-15705-000驱动爪弹簧SPRING, DRIVE PAWL16A1-15705-00
913797-04098六角头螺栓BOLT197313-06012
10DM0211-15767-000压盖扭转弹簧SPRING16A1-15767-00
11DM0311-33143-000启动绳WIRE (L:1650MM)1*
1215215-04080六角法兰面螺栓BOLT, FLANGE295895-06020
1315215-04075六角法兰面螺栓BOLT, FLANGE195895-06035
14DM0311-15758-000起动绳导向座GUIDE, ROPE16L5-15758-00-98
1515215-04094六角法兰面螺栓BOLT, FLANGE295895-06016
16DM0311-15761-000起动器密封圈SEAL, RUBBER 116L5-15761-00
17DM0311-42677-000标贴GRAPHIC, FRONT16L5-42677-10
18DM0311-15755-000起动手柄（含嵌件）HANDLE, STARTER16L5-15755-00
19DM0311-15779-000起动手柄盖COVER16L5-15779-00
20DM0311-15789-000起动手柄减振圈DAMPER16L5-15789-00
21DM0311-42791-000标贴MARK 116H8-42791-10
22DM0211-83625-001标贴MARK 516A1-83625-41

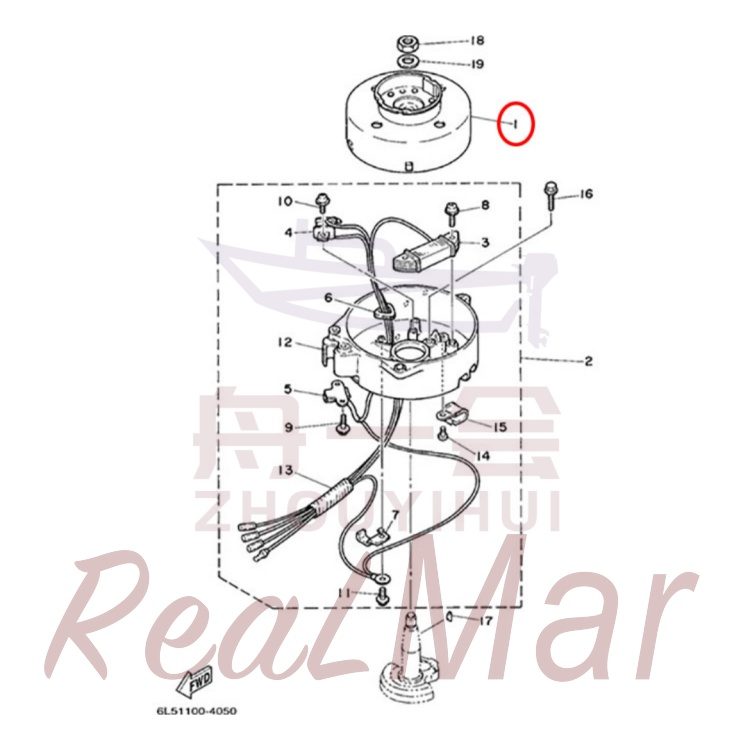

FIG. 5 GENERATOR
FIG. 5 GENERATOR 爆炸图
本部位共 14 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0311-85550-000飞轮ROTOR ASSY16L5-85550-M0
2DM0311-85560-000发电机座组件BASE ASSY16L5-85560-M1
3DM0311-85520-000充电线圈COIL, CHARGE16E0-85520-70
4DM0311-85595-000触发线圈COIL, PULSER16L5-85595-M0
5DM0311-85592-000触发器总成PULSER COIL ASSY16L5-85592-M0
6DM0311-81336-000导线橡胶保护套GROMMET16E0-81336-70
7DM0311-81328-000线夹1CLAMP16E0-81328-70
810951-05072十字槽盘头螺钉和弹簧垫圈组合件SCREW, WITH WASHER290159-05038
910951-05073十字开槽盘头螺钉和弹簧垫圈组合件SCREW, WITH WASHER290159-05037
1010951-06074十字槽盘头螺钉和弹簧垫圈组合件SCREW, WITH WASHER290159-04036
1110951-06075十字开槽盘头螺钉和弹簧垫圈组合件SCREW, WITH WASHER190159-04035
12DM0311-15771-000线圈支座STAY 116L5-15771-01-94
1310664-90M09波纹管HOSE (L60)190446-10M01
1413207-05002十字槽小盘头螺钉SCREW, PAN HEAD197803-05008
1510645-90M76线夹2CLAMP190465-10M34
1615215-04094六角法兰面螺栓BOLT, FLANGE295895-06016
1710820-06M04飞轮半圆键KEY, WOODRUFF190280-04M06
1810930-90997飞轮螺母NUT190170-10113
1910809-90984飞轮螺母垫片WASHER, PLATE190201-10126

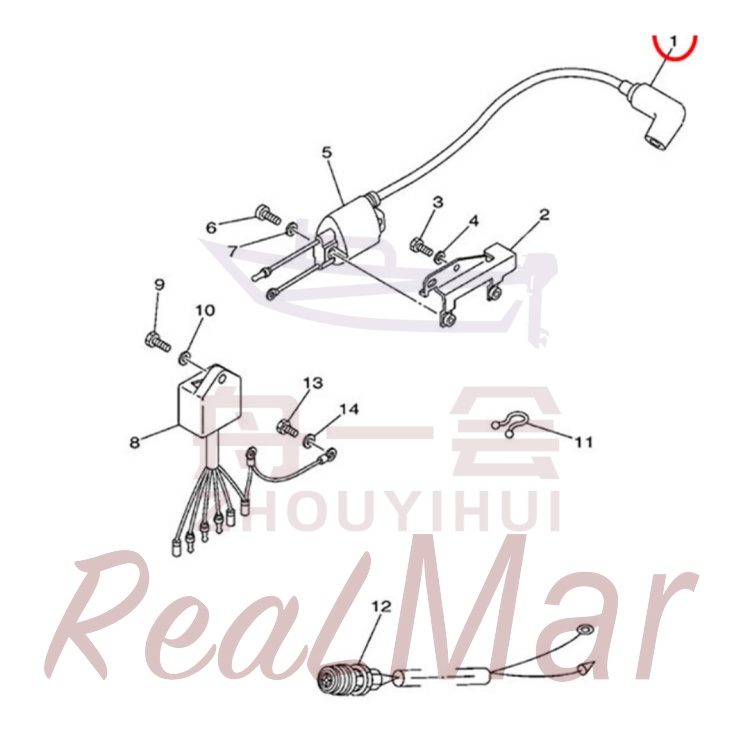

FIG. 6 ELECTRICAL
FIG. 6 ELECTRICAL 爆炸图
本部位共 9 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0211-82370-001高压包帽PLUG CAP ASSY1663-82370-01
2DM0311-82316-000高压包支架BRACKET, IGNITION COIL16L5-82316-00
313015-04094六角头螺栓BOLT297095-06016
418115-04400平垫圈WASHER292995-06600
5DM0311-85570-000高压包IGNITION COIL ASSY16L5-85570-N0
613220-04094十字开槽盘头螺钉SCREW, PAN HEAD297880-06016
718110-04400平垫圈WASHER, PLATE292990-06600
8DM0311-85540-000CDI点火器C.D.I. UNIT ASSY16L5-85540-M0
913015-04094六角头螺栓BOLT197095-06016
1018115-04400平垫圈WASHER192995-06600
1110645-92963线夹CLAMP190465-18147
12DM0311-82550-000熄火开关组件ENGINE STOP SWITCH ASSY16L5-82550-00
1313010-04098六角头螺栓BOLT197090-06012
1418110-04400平垫圈WASHER, PLATE192990-06600

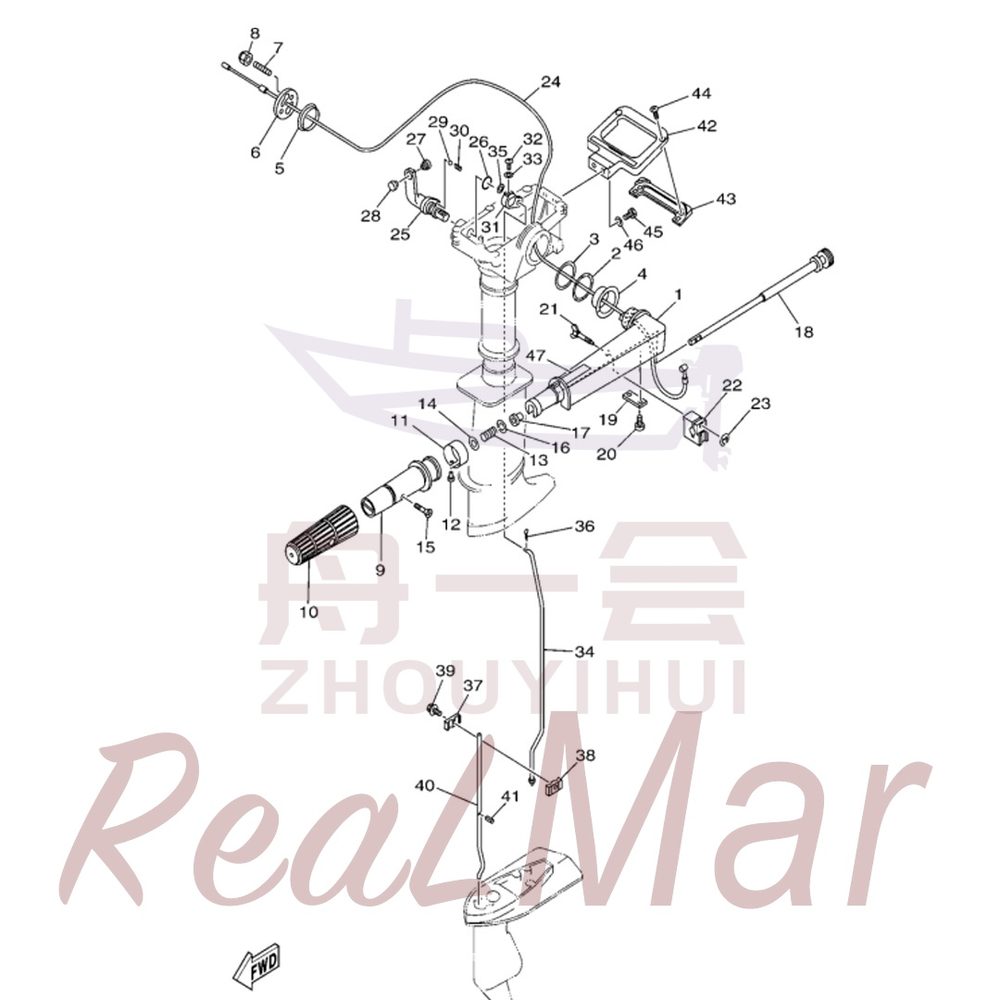

FIG. 7 CONTROL
FIG. 7 CONTROL 爆炸图
本部位共 38 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
DM0311-W0084-000操纵手柄总成HANDLE STEERING ASSY1
1DM0311-42111-000操纵臂HANDLE, STEERING16G1-42111-11-4D
210804-74M89操纵臂波形垫圈WASHER, WAVE190206-36M21
310808-74M55操纵臂内垫圈WASHER, PLATE190202-36M55
410724-76M13操纵臂内衬套BUSH190386-34M97
510724-77M14操纵臂外衬套BUSH190386-33M96
6DM0311-42131-000操纵臂压盘COVER, HANDLE STEERING16G1-42131-02
710994-02094操纵臂双头螺柱BOLT, STUD190116-08016
810925-020531型非金属嵌件六角锁紧螺母NUT, SELF-LOCKING190185-08057
9DM0311-42119-000操纵手柄GRIP, STEERING HANDLE1664-42119-00
10DM0311-42177-000操纵手柄套RUBBER, HANDLE16G1-42177-00
11DM0311-42137-000油门指示牌INDICATOR, THROTTLE16L5-42137-00
1210841-08M01标牌铆钉RIVET190269-02M09
1310509-87895操纵手柄压缩弹簧SPRING, COMPRESSION190501-23215
1418107-90400操纵手柄压缩弹簧平垫圈WASHER, PLATE192903-10600
1510961-05M97十字槽沉头螺钉SCREW190149-05M13
1610801-02M93操纵手柄压缩弹簧平垫圈WASHER190209-08M17
1710724-02078油门操纵杆衬套BUSH190386-08032
18DM0311-42138-000油门操纵杆组件LEVER, THROTTLE16G1-42138-01
19DM0311-42159-000油门操纵杆压板STAY16E0-42159-02
2013225-05098十字槽盘头螺钉SCREW, PAN HEAD297885-05012
21DM0311-42125-000油门锁紧手柄BOLT, FRICTION ADJUSTING16L5-42125-00
22DM0311-42126-000油门锁紧块FRICTION, STEERING HANDLE GRIP16G1-42126-00
2311020-07400开口挡圈CIRCLIP199080-03600
24DM0311-26301-000油门拉线THROTTLE CABLE ASSY16L5-26301-01
25DM0311-44111-000换挡手柄HANDLE, GEAR SHIFT16L5-44111-00
2617890-98783换挡手柄O型圈O-RING193210-12327
27DM0311-44196-000公扣INDICATOR 316L5-44196-00
28DM0311-44197-000母扣INDICATOR 416L5-44197-00
2917505-94086钢球BALL193505-16024
3010509-98836换挡手柄压缩弹簧SPRING, COMPRESSION190501-12274
31DM0311-44121-000换挡摇臂LEVER, SHIFT ROD16L5-44121-00
3213320-60580十字槽盘头自攻螺钉SCREW, TAPPING197780-40520
3318110-06400平垫圈WASHER, PLATE192990-04600
34DM0311-44143-000上换挡杆ROD, SHIFT16L5-44143-00
3518110-05400平垫圈WASHER, PLATE192990-05600
3619610-94090开口销PIN, COTTER191490-16010
37DM0311-44145-000换挡杆右连接块CONNECTOR, SHIFT ROD16E0-44145-00
38DM0311-44146-000换挡杆左连接块CONNECTOR, SHIFT ROD16E0-44146-00
3915215-04080六角法兰面螺栓BOLT, FLANGE195895-06020
40DM0311-44144-000下换挡杆ROD, SHIFT16L5-44144-00
4119401-85096弹性圆柱销PIN, SPRING191609-25014
42DM0311-42731-000后提手CARRYING HANDLE16L5-42731-00-4D
43DM0311-42735-000后提手手柄PROTECTOR16L5-42735-20
4410949-06M08十字槽沉头自攻螺钉SCREW, TAPPING290161-04M02
4513015-04080六角头螺栓BOLT297095-06020
4618115-04400平垫圈WASHER292995-06600
47DM0211-2415A-001标贴LABEL, CAUTION16A1-2415A-41

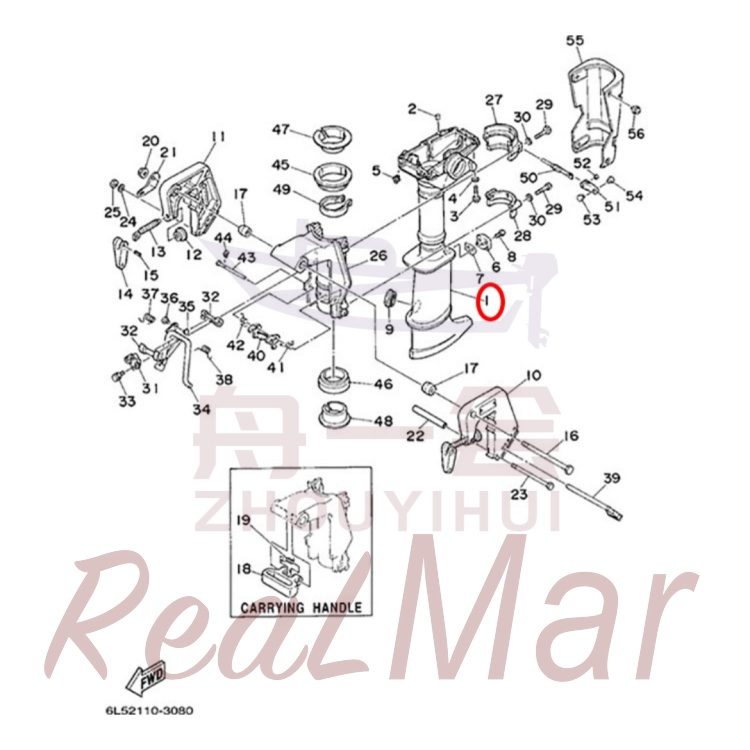

FIG. 8 UPPER CASING & BRACKET
FIG. 8 UPPER CASING & BRACKET 爆炸图
本部位共 48 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0311-45111-000中间箱体CASING, UPPER16L5-45111-02-4D
217406-98M03定位销PIN, DOWEL293604-12M07
313015-04070六角头螺栓BOLT697095-06030
418115-04400平垫圈WASHER692995-06600
517300-04M07油杯NIPPLE, GREASE193700-06M03
6DM0311-45152-000排气盖COVER, UPPER CASING 216L5-45152-00
7DM0311-45115-000排气盖密封垫GASKET, UPPER CASING16L5-45115-A0
810961-05M02十字槽沉头螺钉SCREW190149-05M08
9DM0311-45151-000中间箱体橡胶套COVER, UPPER CASING1647-45151-01
10DM0311-43111-000左支架BRACKET, CLAMP16L5-43111-01-4D
11DM0311-43112-000右支架BRACKET, CLAMP16L5-43112-00-4D
12DM0211-43114-000艉板锁紧压盘PAD, TRANSOM CLAMP2620-43114-00
13DM0211-43116-000艉板锁紧螺杆SCREW, TRANSOM CLAMP26E0-43116-01
14DM0211-43118-000艉板锁紧手柄HANDLE, TRANSOM CLAMP26E0-43118-01
1510867-06M09沉头半空心铆钉PIN290243-04M01
1610909-02M90六角头螺栓BOLT190101-08M10
17DM0311-43136-000衬套PIECE, FRICTION26G1-43136-00
18DM0311-42121-000前提手BRACKET16L5-42121-00
1910502-94M70前提手扭转弹簧SPRING, TORSION190508-16M30
2010925-020531型非金属嵌件六角锁紧螺母NUT, SELF-LOCKING190185-08057
21DM0211-43113-000拉环PLATE, CLAMP BRACKET16A1-43113-01
2210723-04M99套管COLLAR190387-06M11
2310909-04775六角头螺栓BOLT190101-06335
2418110-04400平垫圈WASHER, PLATE192990-06600
2515720-044001型六角螺母NUT, HEXAGON195380-06600
26DM0311-43311-000回转支架BRACKET, SWIVEL 116L5-43311-01-4D
27DM0311-44511-000上装盖COVER, UPPER MOUNT16L5-44511-00-4D
28DM0311-44553-000下装盖COVER, LOWER MOUNT16L5-44553-00-4D
2913015-04075六角头螺栓BOLT497095-06035
3018115-04400平垫圈WASHER492995-06600
31DM0311-43313-000起翘撑架固定板BRACKET, SWIVEL 316E0-43313-00-94
32DM0311-43189-000撑架销轴衬套BUSHING2620-43189-00
3315215-04080六角法兰面螺栓BOLT, FLANGE295895-06020
34DM0311-43181-000起翘撑架组件LEVER, TILT STOP16L5-43181-00
35DM0311-44196-000公扣INDICATOR 316L5-44196-00
36DM0311-44197-000母扣INDICATOR 416L5-44197-00
3710502-94080撑架扭转弹簧SPRING, TORSION190508-16020
3810502-94089起翘撑架回位弹簧SPRING, TORSION190508-16021
39DM0311-43160-000限位插销组件TILT ROD ASSY16L5-43160-00
40DM0311-43614-000起翘锁钩PLATE, TILT LOCK16L5-43614-00
4110502-02M84起翘锁钩扭转弹簧SPRING, TORSION190508-08M26
4210502-02M83起翘锁钩扭转弹簧2SPRING, TORSION190508-08M27
43DM0311-43659-000起翘锁钩销轴SHAFT, REVERSE LOCK16L5-43659-00
4411020-05400开口挡圈CIRCLIP199080-05600
45DM0311-42537-000回转支架上橡胶套BUSHING, PIVOT SHAFT16L5-42537-00
46DM0311-42538-000回转支架下橡胶套BUSHING, PIVOT SHAFT16L5-42538-00
47DM0311-42539-000回转支架上塑料衬套BUSHING, PIVOT SHAFT16L5-42539-00
48DM0311-42549-000回转支架下塑料衬套BUSHING, PIVOT SHAFT16L5-42549-00
49DM0311-42528-000回转支架抱箍PLATE, FRICTION16E0-42528-03
50DM0311-42529-000转向锁紧手柄螺杆SCREW, FRICTION PIECE16L5-42529-01
51DM0311-42561-000转向锁紧手柄KNOB, STEERING LOCK16L5-42561-00
5210844-06M05扁圆头半空心铆钉RIVET190266-04M05
53DM0311-44196-000公扣INDICATOR 316L5-44196-00
54DM0311-44197-000母扣INDICATOR 416L5-44197-00
55DM0311-43318-000护罩COVER16L5-43318-11
5610951-04M90十字槽盘头螺钉和平垫圈组合件SCREW, WITH WASHER490159-06M10

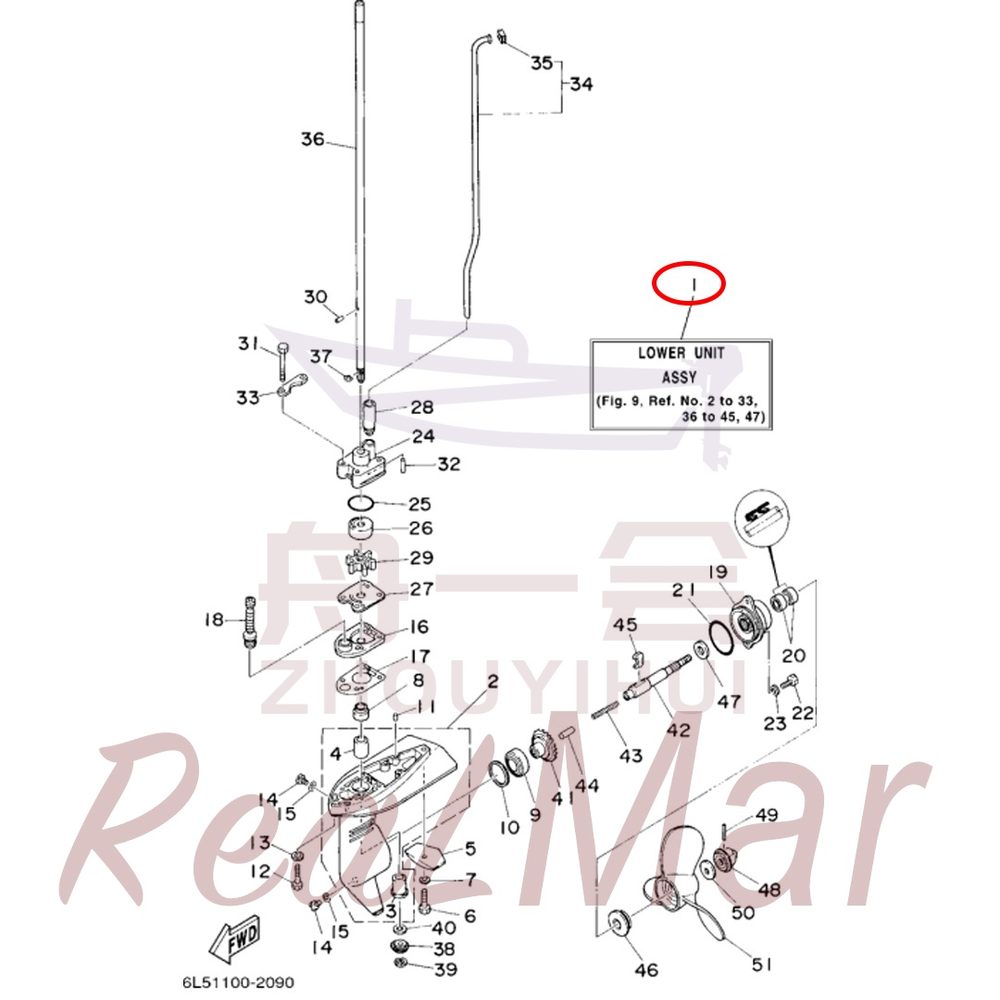

FIG. 9 LOWER CASING & DRIVE
FIG. 9 LOWER CASING & DRIVE 爆炸图
本部位共 49 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1DM0311-45300-000减速箱总成LOWER UNIT ASSY16L5-45300-01-4D
2DM0311-45311-000减速箱壳体CASING, LOWER16L5-45311-00-4D
3DM0311-45317-000传动轴下轴套BUSHING, DRIVE SHAFT16L5-45317-09
4DM0311-45316-000传动轴上轴套BUSHING, DRIVE SHAFT16L5-45316-09
5DM0211-45251-000阳极ANODE16L5-45251-03
615215-04070六角法兰面螺栓BOLT, FLANGE195895-06030
718110-04700内锯齿锁紧垫圈WASHER, INTERNAL TOOTH192990-06300
817907-01M69减速箱油封OIL SEAL193103-09M41
917794-007U0轴承BEARING193316-003U0
10DM0311-45567-000前进挡齿轮调整垫片SHIM16L5-45567-00
1117406-98M03定位销PIN, DOWEL293604-12M07
1213015-04070六角头螺栓BOLT397095-06030
1318115-04400平垫圈WASHER392995-06600
1410760-02008不带磁放油螺塞PLUG, STRAIGHT SCREW290340-08002
1510670-02080放油螺塞垫圈GASKET290430-08020
16DM0311-45321-000水泵座PLATE16L5-45321-00-5B
17DM0311-45315-000水泵座垫片PACKING, LOWER CASING16L5-45315-A0
18DM0311-44147-000换挡杆油封BOOT, SHIFT ROD16L2-44147-00
19DM0311-45361-000轴承座CAP, LOWER CASING16L5-45361-00-4D
2017909-97M98轴承座油封OIL SEAL293101-13M12
2117890-62896轴承座O型圈O-RING193210-48214
2213015-04094六角头螺栓BOLT297095-06016
2318115-04400平垫圈WASHER292995-06600
24DM0311-44311-000水泵壳体HOUSING, WATER PUMP16L5-44311-00
2517890-77M25水泵壳体O型圈O-RING193210-33M85
26DM0311-44322-000水泵壳体座圈INSERT, CARTRIDGE16L5-44322-00
27DM0311-44323-000水泵壳体垫片（钢垫）OUTER PLATE, CARTRIDGE16L5-44323-00
28DM0311-44366-000水泵壳体水封DAMPER, WATER SEAL16E0-44366-00
29DM0311-44352-000水泵叶轮IMPELLER16L5-44352-00
3017406-03M97圆柱销PIN, DOWEL193604-07M13
3113015-04060六角头螺栓BOLT497095-06040
3217406-92020定位销PIN, DOWEL293604-18080
33DM0311-44328-000水泵壳体固定板PLATE26L5-44328-00
34DM0311-44360-000进水管WATER TUBE ASSY16L5-44360-01
35DM0211-44365-000进水管橡胶套DAMPER, WATER SEAL1646-44365-00
36DM0311-45511-000传动轴SHAFT, DRIVE16L5-45511-00
3710643-03M98钢丝挡圈CLIP190467-07M12
38DM0311-45551-000主动齿轮PINION16L5-45551-00
3911009-04400开口挡圈CIRCLIP199001-06600
40DM0311-45533-000主动齿垫圈SHIM (T:2.0MM)16L5-45533-00
DM0311-45533-001主动齿垫圈SHIM (T:2.1MM)16L5-45533-10
DM0311-45533-002主动齿垫圈SHIM (T:2.2MM)16L5-45533-20
DM0311-45533-003主动齿垫圈SHIM (T:2.3MM)16L5-45533-30
41DM0311-45560-000前进挡齿轮GEAR16L5-45560-00
42DM0311-45611-000螺旋桨轴SHAFT, PROPELLER16L5-45611-00
4310509-90046离合子压缩弹簧SPRING, COMPRESSION190501-10064
44DM0311-45635-000换挡销PLUNGER, SHIFT16L5-45635-00
45DM0311-45631-000离合子CLUTCH, DOG16L5-45631-00
46DM0311-45987-000螺旋桨推力衬套SPACER16L5-45987-01
4710809-97912倒挡齿轮垫圈WASHER, PLATE190201-13198
48DM0311-45616-000螺旋桨锁紧螺母NUT, PROPELLER16L5-45616-00
4919610-85070开口销PIN, COTTER191490-25030
5010809-02M56点火提前摆杆大垫圈WASHER, PLATE190201-08M54
51DM0311-45943-000螺旋桨总成PROPELLER (3X7-1/4"X6"-BS)16L5-45943-00-EL
DM0311-45945-000螺旋桨总成PROPELLER (3X7-1/4"X8-1/4"-BS)16L5-45947-00-EL
DM0311-45952-000螺旋桨总成PROPELLER (3X7-1/2"X5-1/2"-BS)16L5-45952-00-EL
