舟一会 ZHOUYIHUI 船外机

翟墨 T9.8 舷外机爆炸图及零件明细

二冲程 9.8 / 12 马力 · 共 15 个部位 / 398 条零件，点击零件编码查看详情，或搜索本页零件。

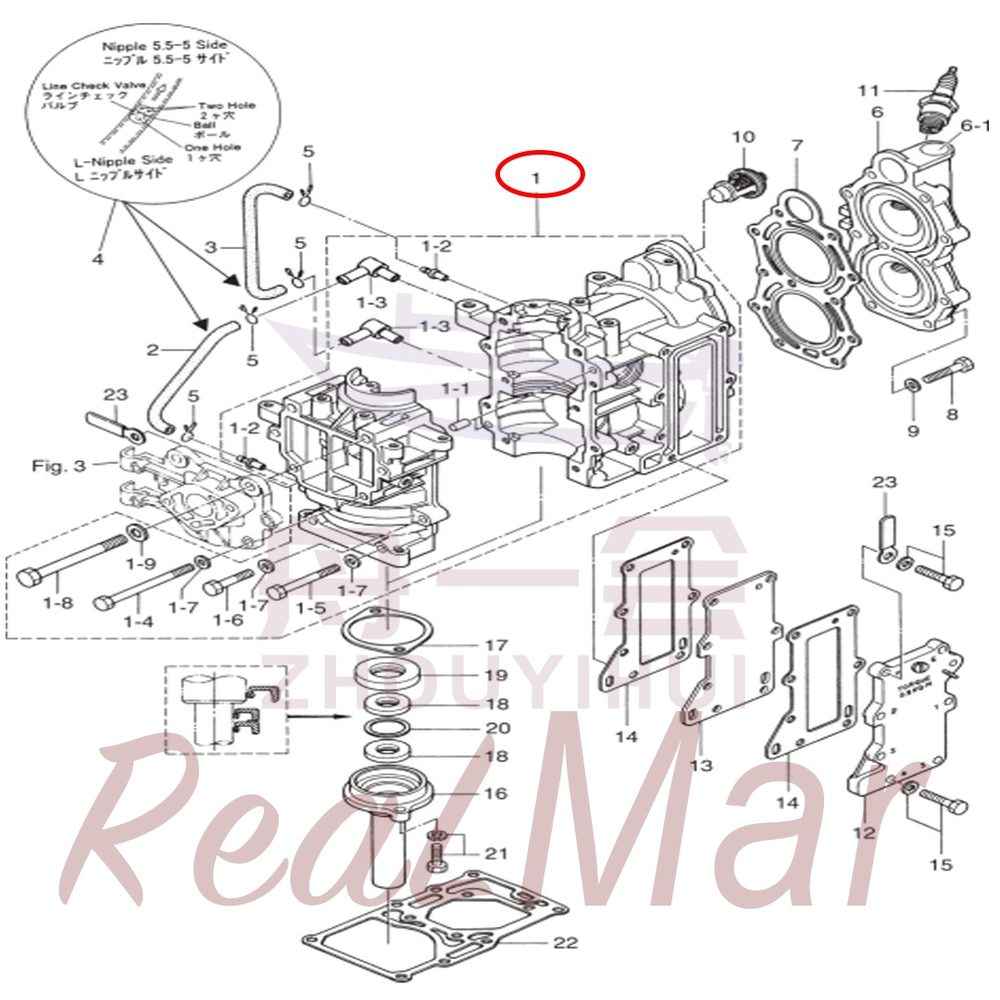

Fig. 1 CYLINDER・CRANK CASE ASS'Y
Fig. 1 CYLINDER・CRANK CASE ASS'Y 爆炸图
本部位共 33 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
1–1DM9811-01100-000气缸体曲轴箱组件（含缸套、定位销）Cylinder–Crank Case13K9B01100-1
1–1–117404-98091合箱定位销Dowel Pin,2345-01111-0
1–1–2DM9811-01131-000回油管油嘴Nipple2393-01131-0
1–1–3DM9811-01137-000气缸体弯管接头1–Nipple (New)2393-01137-0
1–1–419498-10435六角头螺栓Bolt4916129-0675
1–1–519498-10450六角头螺栓和平垫圈组合件Bolt2916129-0650
1–1–610991-04063六角头螺栓和平垫圈组件Bolt2916129-0630
1–1–710809-04904平垫圈Washer8940121-0600
1–1–819098-60220六角头螺栓Bolt2910124-0880
1–1–916098-90200摇臂轴密封平垫圈Washer2940121-0800
1–2DM9811-40120-000油管Lubrication Hose198AL-4-0120
1–3DM9811-40230-000油管Lubrication Hose198AL-4-0230
1–4DM9811-01160-000回油阀组件1Line Check Valve2393-01160-0
1–5DM9811-01133-000卡簧Clip43T5-01133-0
1–6DM9811-01001-000气缸盖Cylinder Head13K9B01001-0
1–6–1DM9811-01093-000气缸盖堵头Welch Plug2350-01093-0
1–7DM9811-01005-000气缸盖密封垫Cylinder Head Gasket13B2-01005-0
1–810991-04063六角头螺栓和平垫圈组件Bolt11916119-0630
1–910809-04904平垫圈Washer11940121-0600
1–10DM2509-12411-000节温器Thermostat1350-01030-1
1–1116308-00060火花塞Spark Plug29701-1-1010
16308-00838火花塞Spark Plug ( with Resistance)29701-1-1014
1–12DM9811-02300-000排气箱外盖Exhaust Cover (Outer)13B2B02300-0
1–13DM9811-02302-000排气箱内盖Exhaust Cover (Inner)13K9B02302-0
1–14DM9811-02305-000排气箱外盖垫片Exhaust Cover Gasket23K9-02305-0
1–1513015-04085六角头螺栓Bolt7910114-5625
1–16DM9811-01210-000曲轴下端盖Crank Case Head13B2-01210-0
1–17DM9811-01214-000曲轴下端盖垫片Crank Case Head Gasket13B2-01214-0
1–18DM9811-01215-000曲轴下端盖油封3Oil Seal23B2-01215-0
1–19DM9811-00122-000曲轴下端盖油封Oil Seal13B2-00122-0
1–20DM9811-01217-000曲轴下端盖油封隔板Spacer13B2-01217-0
1–2113035-04080六角头螺栓和平垫圈组合件Bolt2910103-6620
1–22DM9811-01303-000动力下垫片Engine Basement Gasket13B2-01303-0
1–23DM9811-06972-000线束夹Clamp2309-06972-0

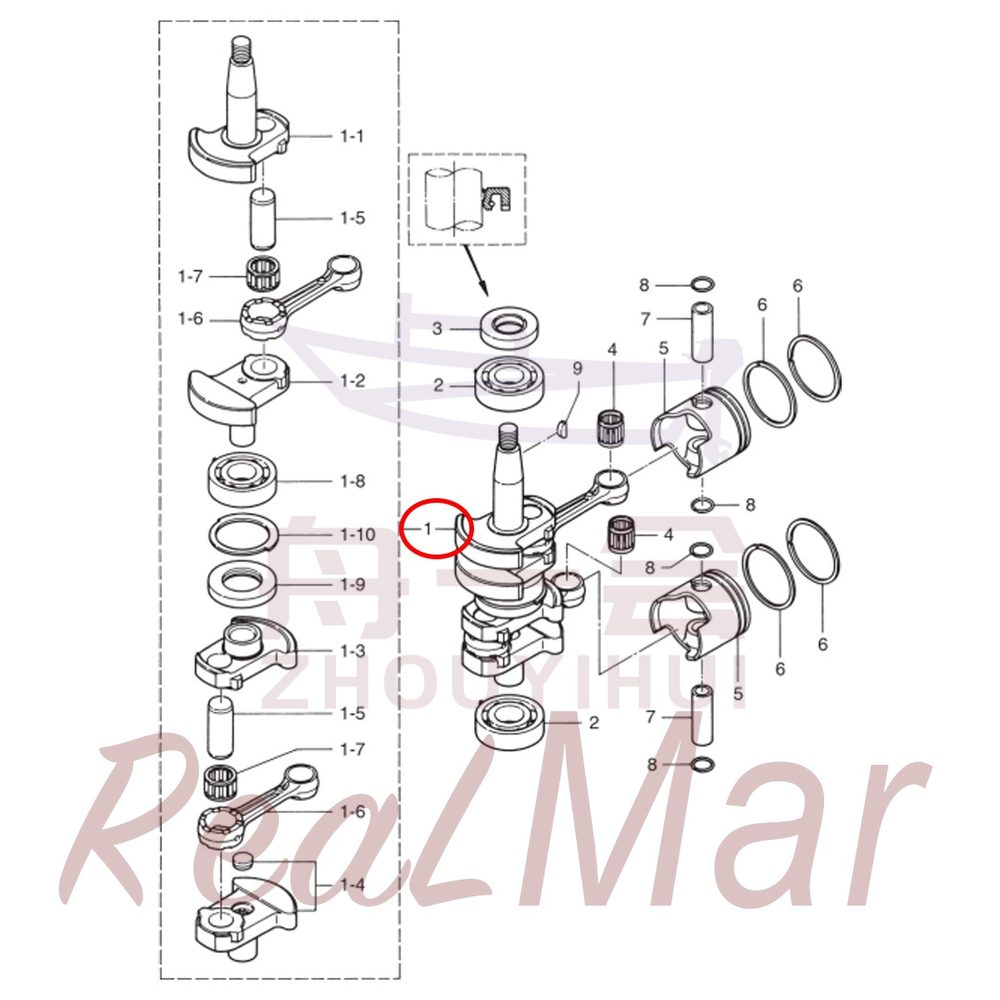

Fig. 2 PISTON・CRANKSHAFT
Fig. 2 PISTON・CRANKSHAFT 爆炸图
本部位共 10 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
2–1DM9811-00030-000曲轴连杆总成Crank Shaft Ass’y13B2-00030-1
2–1–1DM9811-00031-000Crank Shaft “A”13B2-00031-0
2–1–2DM9811-00032-000Crank Shaft “B”13B2-00032-0
2–1–3DM9811-00033-000Crank Shaft “C”13B2-00033-0
2–1–4DM9811-00034-000Crank Shaft “D”13B2-00034-0
2–1–5DM9811-00061-000Crank Pin23B2-00061-1
2–1–6DM9811-00040-000Connecting Rod23B2-00040-0
2–1–7DM9811-00043-000Needle Bearing23B2-00043-0
2–1–8DM9811-36204-000Ball Bearing19603-3-6204
2–1–9DM9811-00051-000Oil Seal13B2-00051-0
2–1–10DM9811-00115-000Crank shaft Thrust Plate1369-00115-0
2–2DM9811-36204-000Ball Bearing29603-3-6204
2–3DM9811-00121-000曲轴上端油封Oil Seal1101-00121-0
2–4DM9811-00042-000连杆小头滚针Needle Bearing2338-00042-0
2–5DM9811-00001-000活塞Piston (Std)23B2-00001-0
DM9811-00004-000Piston (0.Jmm O/S)23B2-00004-0
2–6DM9811-00011-000活塞环Piston Ring (Std)43B2-00011-0
DM9811-00014-000Piston Ring (0.5mm O/S)43B2-00014-0
2–7DM9811-00021-000活塞销Piston Pin23B2-00021-0
2–8DM9811-00024-000活塞销挡圈Piston Pin Clip4350-00024-1
2–9DM9811-00131-000飞轮半圆键Magneto Key1338-00131-0

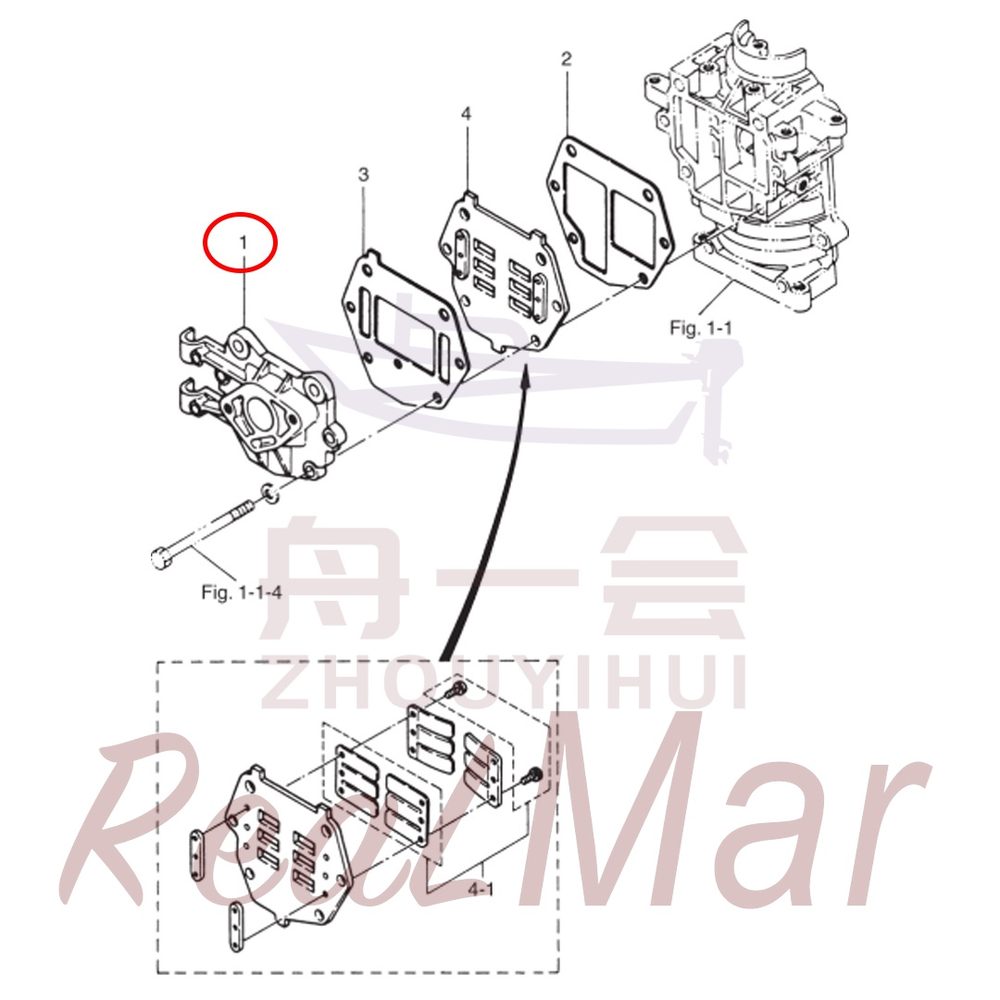

Fig. 3 INLET・REED VALVE
Fig. 3 INLET・REED VALVE 爆炸图
本部位共 5 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
3–1DM9811-02010-000进气阀座Intake Manifold13B2B02010-0
3–2DM9811-02104-000簧片阀垫片Intake Manifold Gasket (Inner)13B2-02104-0
3–3DM9811-02105-000进气阀座垫片Intake Manifold Gasket (Outer)13B2-02105-0
3–4DM9811-02100-000簧片阀组件Reed Valve Ass’y13B2-02100-0
3–4–1DM9811-02110-000簧片Reed Valve Set13B2-02110-0

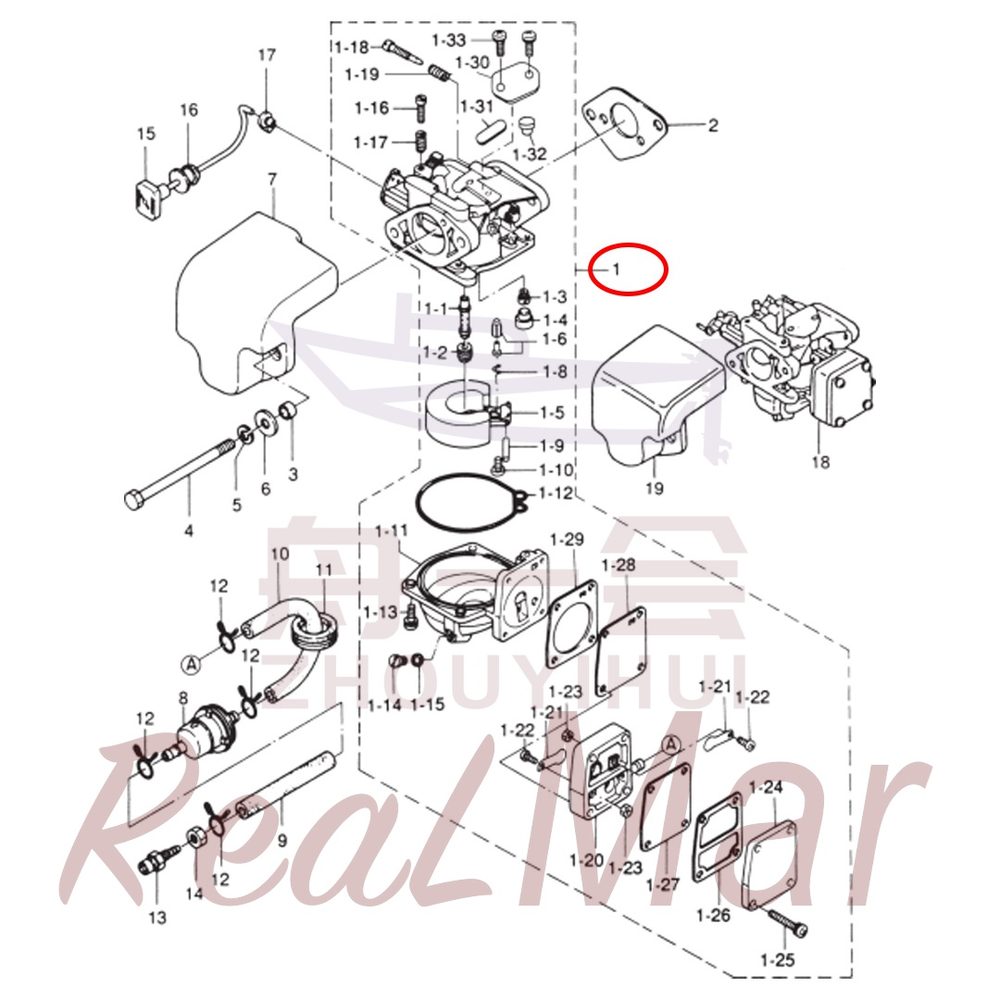

Fig. 4 CARUBRETOR
Fig. 4 CARUBRETOR 爆炸图
本部位共 28 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
4–1DM9811-03200-000化油器Carburetor13K9-03200-0
4–1–1DM9811-03252-000Main Nozzle13K9-03252-0
4–1–2DM9811-03251-000Main Jet #9513K9-03251-0
4–1–3DM9811-03254-000Slow Jet #J013K9-03254-0
4–1–4DM9811-03256-000Rubber Cap1346-03256-0
4–1–5DM9811-03231-000Float1369-03231-0
4–1–6DM9811-03239-000Float Valve13R3-03239-0
4–1–8DM9811-03244-000Clip1344-03244-0
4–1–9DM9811-03232-000Float Arm Pin1346-03232-0
4–1–10DM9811-03234-000Screw13F3-03234-0
4–1–11DM9811-03221-000Float Chamber13B2-03221-0
4–1–12DM9811-03222-000Float Chamber O–Ring1369-03222-0
4–1–1318850-74696Screw4922503-6414
4–1–14DM9811-03292-000Drain Screw1369-03292-0
4–1–15DM9811-03293-000Drain Screw Gasket1369-03293-1
4–1–16DM9811-03265-000Stop Screw1346-03265-0
4–1–17DM9811-03267-000Spring “A”1346-03267-0
4–1–18DM9811-03266-000Adjusting Screw1346-03266-0
4–1–19DM9811-03268-000Spring “B”1356-03268-0
4–1–20DM9811-03304-000Pump Body1369-03304-0
4–1–21DM9811-03305-000Check Valve2369-03305-0
4–1–2218958-80704Screw2921522-0306
4–1–2317098-90700Nut2930121-0300
4–1–24DM9811-03301-000Pump Cover1369-03301-0
4–1–2518855-74687Screw4922553-6423
4–1–26DM9811-03302-000Pump Cover Gasket1369-03302-0
4–1–27DM9811-03303-000Pump Diaphragm “A”1369-03303-0
4–1–28DM9811-03306-000Pump Diaphragm “B”1369-03306-0
4–1–29DM9811-03307-000Pump Body Gasket1369-03307-0
4–1–30DM9811-03181-000Carburetor Cover1369-03181-0
4–1–31DM9811-03182-000Carburetor Cover Gasket “A”1369-03182-0
4–1–32DM9811-03183-000Carburetor Cover Gasket “B”1369-03183-0
4–1–33DM9811-03186-000Screw2369-03186-0
4–2DM9811-02011-000化油器垫片Carburetor Gasket1369-02011-0
4–3DM9811-02416-000进气消音器衬套Intake Silencer Spacer23B2-02416-0
4–419492-90425六角头螺栓Bolt2916181-0685
4–518115-04900弹垫Spring Washer2941303-0600
4–6DM6011-15791-000拉绳导轮限位垫片Washer23R0-66308-0
4–7DM9811-02411-000进气消音器组件Intake Silencer13B2-02411-0
4–8DM9811-02230-000燃油过滤器Fuel Filter1369-02230-0
4–9DM9811-50075-000油管Fuel Hose “A”198AB-5-0075
4–10DM9811-02212-000出油管Fuel Hose “B”13B2-02212-0
4–11DM9811-76023-000燃油泵进油管护圈Grommet1345-76023-0
4–12DM9811-02215-000管夹Φ11Clip4338-02215-0
4–13DM9811-70260-000进油管插座组件Fuel Connector (Engine, Male)13B2-70260-1
4–14DM9811-70261-000进油管插座锁紧螺母Nut1332-70261-0
4–15DM9811-67151-000阻风门拉杆Choke Rod13B2-67151-0
4–16DM9811-67104-000阻风门拉杆橡胶座Choke Rod Grommet1369-67104-0
4–17DM0511-41262-000阻风门联动杆滑座Rod Snap1346-67196-1
4–18DM9811-03202-000化油器Carburetor (EP)13K9-03202-0
4–19DM9811-02412-000进气消音器组件Intake Silencer (EP)13B2-02412-0

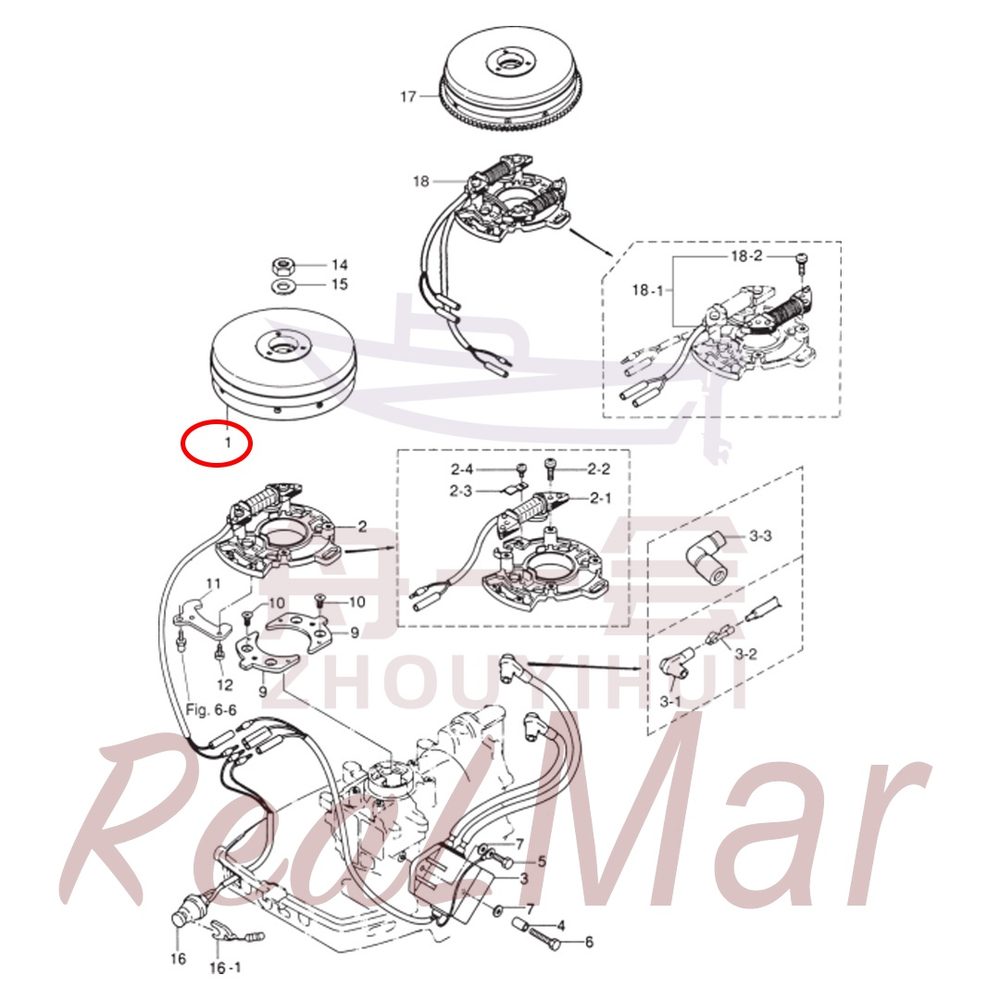

Fig. 5 MAGNETO
Fig. 5 MAGNETO 爆炸图
本部位共 23 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
5–1DM9811-06101-000飞轮Flywheel Cup13B2-06101-0
5–2DM9811-06102-000线圈支座Coil Plate Ass’y (without Alternator)13B2-06102-1
5–2–1DM9811-06120-000充电线圈Exciter Coil13B2-06120-0
5–2–213108-04985十字槽盘头螺钉和弹簧垫圈组合件Screw2921521-6625
5–2–3DM9811-06135-000线卡Magneto Cord Holder13B2-06135-0
5–2–418958-94604十字开槽小盘头螺钉和弹簧垫圈组合件Screw1921521-6406
5–3DM9811-06170-000CDI点火块C.D.I Unit (with Resistance Cap)13B2-06170-0
5–3–1DM9811-06291-000高压包帽Plug Cap23M2-06291-0
5–3–2DM9811-06926-000火花塞接头Plug Cap Uerminal23M2-06926-0
5–3–3DM9811-06921-000高压包帽Cap ( with Resistance)23C7-06921-0
5–4DM9811-06162-000高压包衬套Spacer13B2-06162-0
5–513035-04080六角头螺栓和平垫圈组合件Bolt1910104-0620
5–610991-04085六角头螺栓Bolt1910104-0645
5–710809-04904平垫圈Washer2940103-0600
5–9DM9811-63724-000定子底板Set Plate (Lower)23B2-63724-0
5–1012307-04098十字槽沉头螺钉Screw4921603-0612
5–11DM9811-05233-000线圈支座转动连接板Coil Plate Stopper13K9-05233-0
5–1215720-044001型六角螺母Screw2921503-6510
5–1410930-98044飞轮螺母Magneto Nut1369-00132-0
5–1510809-98638飞轮螺母垫片Washer1940121-1200
5–16DM9811-06830-000熄火开关组件Stop Switch1398-06830-0
5–16–1DM9811-06821-000应急熄火拉绳Stop Switch Lanyard1353-06821-0
5–17DM9811-06194-000飞轮（电启动）Flywheel Cup (with Ring Gear)13B2-06194-1
5–18DM9811-06103-000Coil Plate Ass’y (with Alternator)13B2-06103-2
5–18–1DM9811-06123-000Alternator Set13B2-06123-1
5–18–213108-04985十字槽盘头螺钉和弹簧垫圈组合件Screw2921521-6625

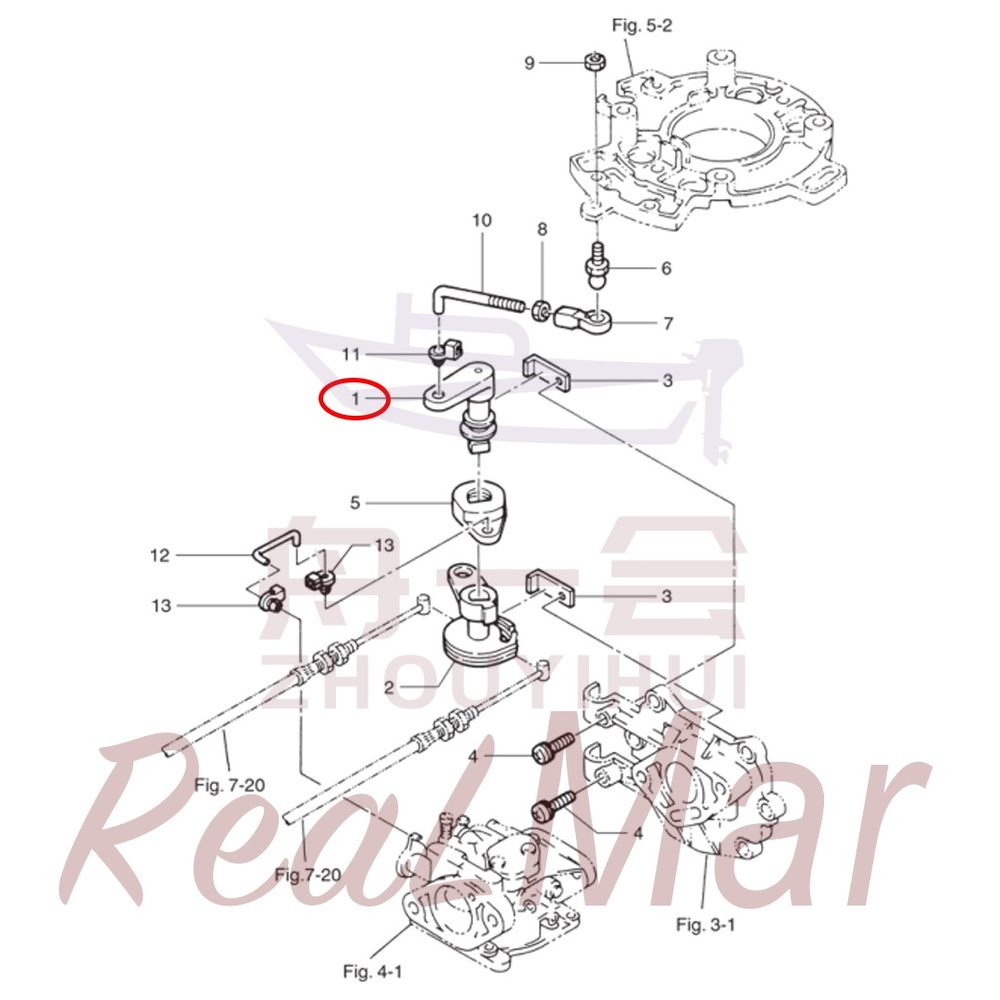

Fig. 6 THROTTLE MECHANISM
Fig. 6 THROTTLE MECHANISM 爆炸图
本部位共 13 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
6–1DM9811-63711-000点火提前摆杆Advancer Lever13B2-63711-0
6–2DM9811-63611-000油门加速凸轮Throttle Drum13B2-63611-0
6–3DM9811-63506-000点火提前摆杆挡板Throttle Drum Holder23B2-63506-0
6–413225-05080十字槽盘头螺钉和弹簧垫圈组合件Screw2921521-6520
6–5DM9811-63751-000油门支座摆臂Throttle Arm13B2-63751-0
6–6DM9811-05228-000线圈支座球接头Ball Joint “B”1346-05228-1
6–7DM1511-41237-000点火提前拉杆接头Ball Joint Connector “C”13B7-05243-0
6–810930-05M721型六角螺母Nut1930103-0500
6–915720-044001型六角螺母Nut1930103-0600
6–10DM9811-63715-000点火提前拉杆Advancer Link Rod13B2-63715-2
6–11DM9811-05224-000联动杆滑座Rod Snap1345-05224-0
6–12DM9811-63716-000起动锁紧联动杆Throttle Link Rod13B2-63716-1
6–13DM0511-41262-000阻风门联动杆滑座Rod Snap2346-67196-1

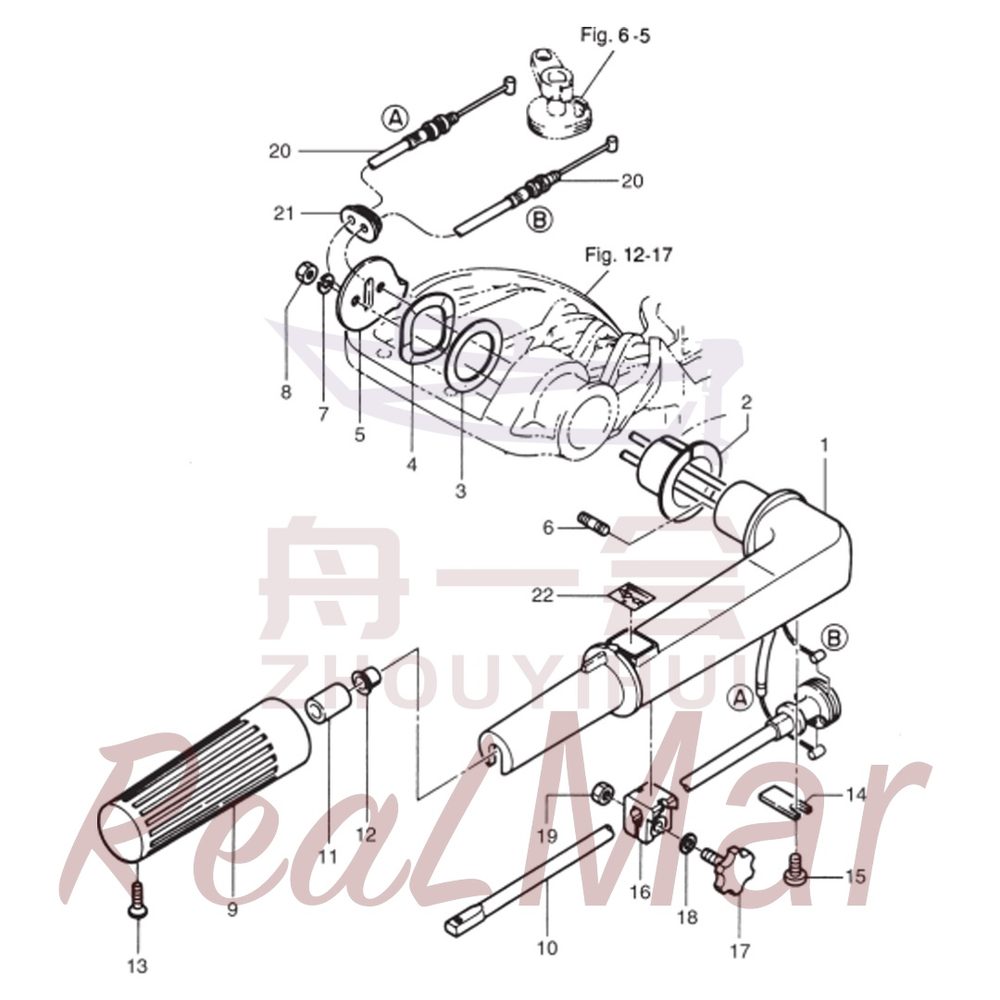

Fig. 7 TILLER HANDLE (MF/EF type)
Fig. 7 TILLER HANDLE (MF/EF type) 爆炸图
本部位共 23 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
DM9811-W0084-000操纵手柄总成HANDLE STEERING ASSY1
7–1DM9811-63011-000操纵臂Tiller Handle13B2Q63011-1
7–2DM9811-63102-000操纵臂内衬套Tiller Handle Bushing13B2-63102-0
7–3DM9811-63108-000操纵臂内垫圈Washer13B2-63108-0
7–4DM9811-63109-000操纵臂波形垫圈Wave Washer13B2-63109-0
7–5DM9811-63103-000操纵臂压盘Stopper, Tiller Handle13B2-63103-0
7–6DM9811-63104-000操纵臂双头螺柱Stud Bolt23B2-63104-1
7–718115-04900弹垫Spring Washer2941303-0600
7–815720-044001型六角螺母Nut2930113-0600
7–9DM9811-63012-000操纵手柄Grip1350-63012-0
7–10DM9811-63041-000油门操纵杆组件Throttle Shaft13B2-63041-0
7–11DM9811-63048-000油门操纵杆橡胶套Throttle Shaft Damper1345-63048-0
7–12DM9811-63046-000油门操纵杆衬套Bushing1350-63046-0
7–1318029-70592十字槽半沉头螺钉Screw1920813-0518
7–14DM9811-63063-000油门操纵杆压板Throttle Shaft Supporter13B2-63063-0
7–1512593-04098十字槽盘头螺钉Screw1921513-0612
7–16DM9811-63035-000油门锁紧块Friction Piece13B2-63035-1
7–17DM9811-63034-000油门锁紧手柄Adjusting Screw13B2-63034-0
7–1810809-04904平垫圈Washer1940113-0600
7–1915720-044001型六角螺母Nut1930113-0600
7–20DM9811-63600-000油门拉线Throttle Cable23B2-63600-1
7–21DM9811-63621-000油门拉线固定块Throttle Cable Grommet13B2-63621-0
7–22DM9811-72019-000标贴Throttle Decal1369-72019-1

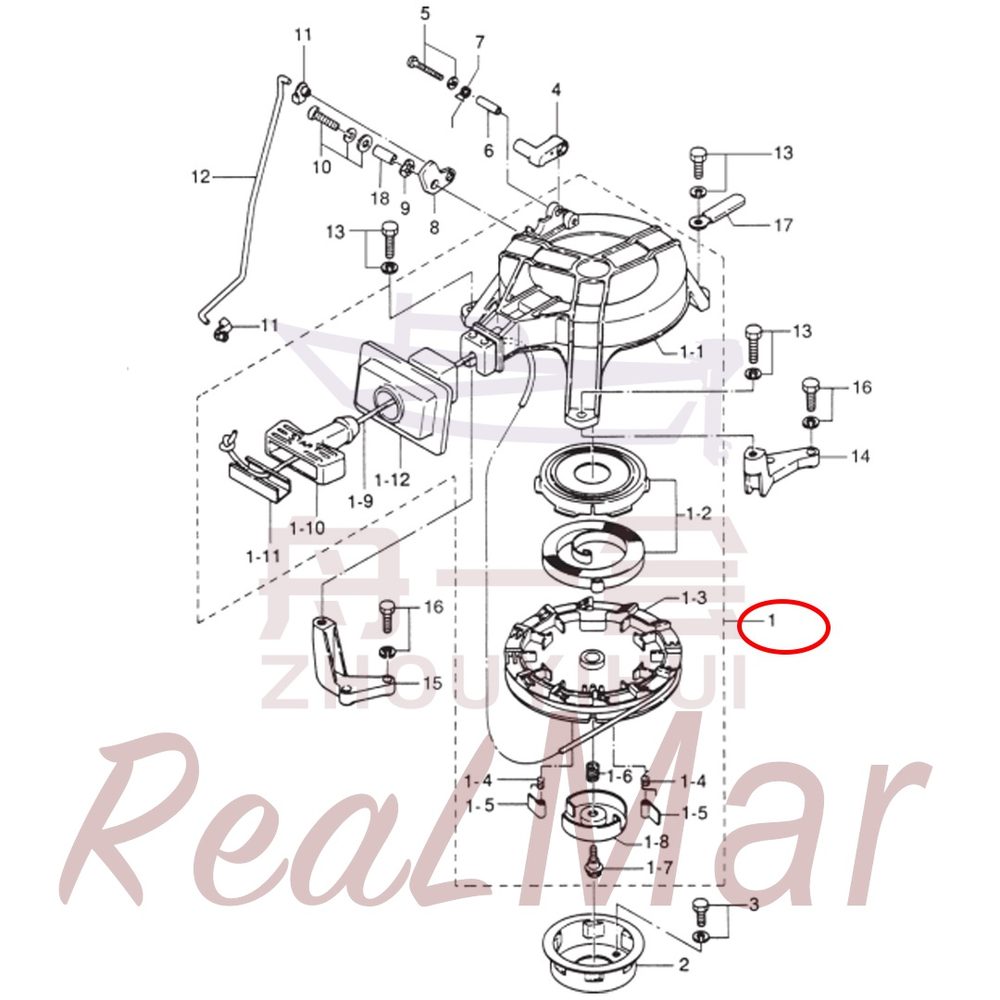

Fig. 8 RECOIL STARTER・STARTER LOCK
Fig. 8 RECOIL STARTER・STARTER LOCK 爆炸图
本部位共 32 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
8–1DM9811-05000-000起动器总成Recoil Starter13B2-05000-0
8–1–1DM9811-05105-000起动器壳体Starter Case13B2-05105-0
8–1–2DM9811-05010-000蜗卷弹簧组件Starter Spring Set13B2-05010-0
DM9811-05010-001平面蜗卷弹簧
DM9811-05010-002平面蜗卷弹簧座
8–1–3DM9811-05104-000起动盘Reel13B2-05104-0
8–1–4DM9811-05012-000棘爪扭转弹簧Return Spring2369-05012-0
8–1–5DM9811-05003-000起动盘棘爪Ratchet23B2-05003-0
8–1–6DM9811-05007-000起动盘压盖弹簧Friction Spring1369-05007-0
8–1–7DM9811-05138-000六角法兰面台阶螺栓Starter Shaft Bolt13B2-05138-0
8–1–8DM9811-05006-000起动盘压盖Friction Plate13B2-05006-0
8–1–9DM9811-05013-000起动绳Starter Rope13B2-05013-0
8–1–10DM9811-05019-000起动手柄Starter Handle13B2-05019-0
8–1–11DM9811-05131-000起动手柄盖Rope Anchor13B2-05131-0
8–1–12DM9811-05116-000起动绳导向座Starter Sealing Plate13B2-05116-0
8–2DM9811-05901-000起动连接器Starter Pulley13B2-05901-0
8–319098-94498六角头螺栓和弹簧垫圈组合件Bolt3910121-6612
8–4DM9811-05252-000起动限制卡爪Starter Lock1338-05252-0
8–518950-75670十字槽小盘头螺钉和平垫圈组合件Screw1921503-5430
8–6DM9811-05255-000起动限制卡爪衬套Collar1338-05255-0
8–7DM9811-05216-000起动限制卡爪回位扭簧Starter Lock Spring1338-05216-0
8–8DM9811-05253-000起动限制摇臂Starter Lock Cam13B2-05253-0
8–916960-70200起动限制摇臂波形垫Wave Washer1941403-0800
8–1018950-73494十字槽小盘头螺钉、弹簧垫圈和平垫圈组合件Screw1921503-7616
8–11DM9811-05223-000起动锁紧连杆滑座Rod Snap23K9-05223-0
8–12DM9811-05217-000起动锁紧连杆Starter Lock Rod13B2-05217-1
8–1313035-04080六角头螺栓和平垫圈组合件Bolt3910103-6620
8–14DM9811-05101-000起动器左支架Starter Bracket (Left)13B2B05101-0
8–15DM9811-05102-000起动器右支架Starter Bracket (Right)13B2B05102-0
8–1613097-04085六角头螺栓和弹簧垫圈组合件Bolt4910121-6623
8–17DM9811-06972-000线束夹Clamp1309-06972-0
8–18DM9811-05215-000起动限制摇臂衬套Collar13M2-05215-0

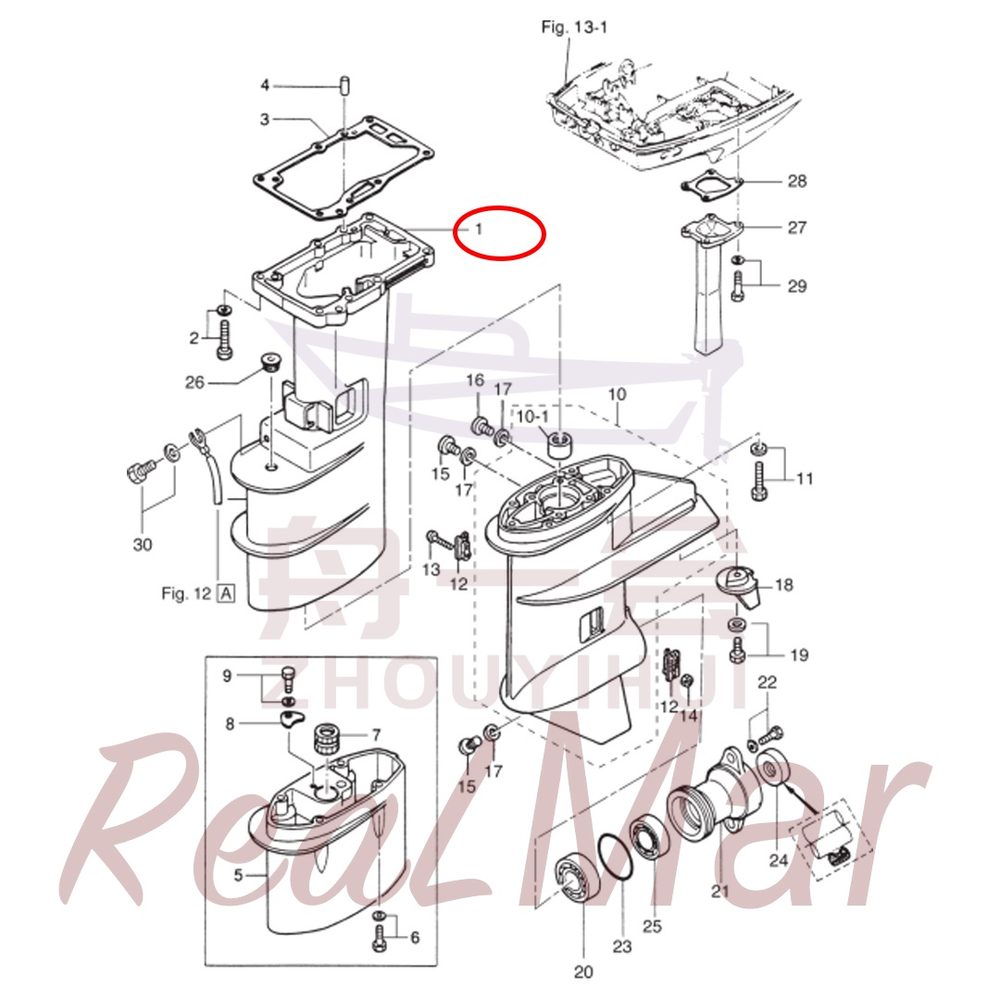

Fig. 9 DRIVE SHAFT HOUSING・GEAR CASE
Fig. 9 DRIVE SHAFT HOUSING・GEAR CASE 爆炸图
本部位共 30 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
9–1DM9811-61020-000中间箱体Drive Shaft Housing “S”13B2Q61020-1
DM9811-61030-000中间箱体Drive Shaft Housing “L”13B2Q61030-1
9–213535-04575六角头螺栓和平垫圈组合件Bolt6910113-5635
9–3DM9811-61012-000底座下密封垫Drive Shaft Housing Gasket13B2-61012-0
9–4DM9811-01111-000中间箱体定位销Dowel Pin23B2-01111-0
9–5DM9811-61110-000Extension Housing “UL”13B2Q61110-2
9–613535-04575Bolt4910113-5635
9–7DM9811-60003-000Drive Shaft Bushing13B2-60003-1
9–8DM9811-66024-000Drive Shaft Bushing Stopper1353-66024-0
9–919090-74498六角头螺栓和弹簧垫圈组合件Bolt1910103-6612
9–10DM9811-60000-000减速箱壳体Gear Case (New)13AAQ60000-0
DM9811-60000-001减速箱壳体Gear Case (Old)(1)3V1S60000-0
DM9811-60000-002减速箱壳体Gear Case (Old)(1)3B2S60000-0
9–10–1DM9811-60211-000传动轴滚针轴承Needle Bearing13V1-60211-0
9–1113535-04575六角头螺栓和平垫圈组合件Bolt4910113-5635
9–12DM9811-60206-000减速箱进水滤网Water Strainer (New)23AA-60206-0
9–1318959-70670十字槽小盘头螺钉Screw1921513-0430
9–1417060-70600非金属嵌件六角锁紧薄螺母Nylon Nut1930403-0400
9–1510760-02008不带磁放油螺塞Oil Plug2332-60005-2
9–1610760-02008不带磁放油螺塞Water Plug1332-60005-2
9–1710670-02209放油螺塞垫圈Gasket3332-60006-0
9–18DM9811-60217-000平衡翼Trim Tab13V1-60217-0
DM9811-60218-000阳极Anode（1）338-60218-2
9–1913035-04080六角头螺栓和平垫圈组合件Bolt1910103-5620
19090-70494Bolt（1）910103-0616
9–20DM9811-06204-000轴承Ball Bearing19601-0-6204
9–21DM9811-60101-000轴承座Propeller Shaft Housing13B2Q60101-0
9–2213035-04080六角头螺栓和平垫圈组合件Bolt2910113-5620
9–23DM9811-65015-000轴承座前O型圈O-Ring1345-65015-0
9–24DM9811-60111-000轴承座油封Oil Seal1369-60111-0
9–2517704-006YH轴承Ball Bearing19601-0-6004
9–26DM9811-66043-000中间箱体橡胶衬套Cam Rod Grommet1369-66043-1
9–27DM9811-02311-000排气管Exhaust Pipe13B2-02311-0
9–28DM9811-02312-000排气管垫片Exhaust Pipe Gasket13B2-02312-0
9–2913035-04080六角头螺栓和平垫圈组合件Bolt4910113-5618
9–3013035-04098六角头螺栓和平垫圈组合件Bolt1910103-5612

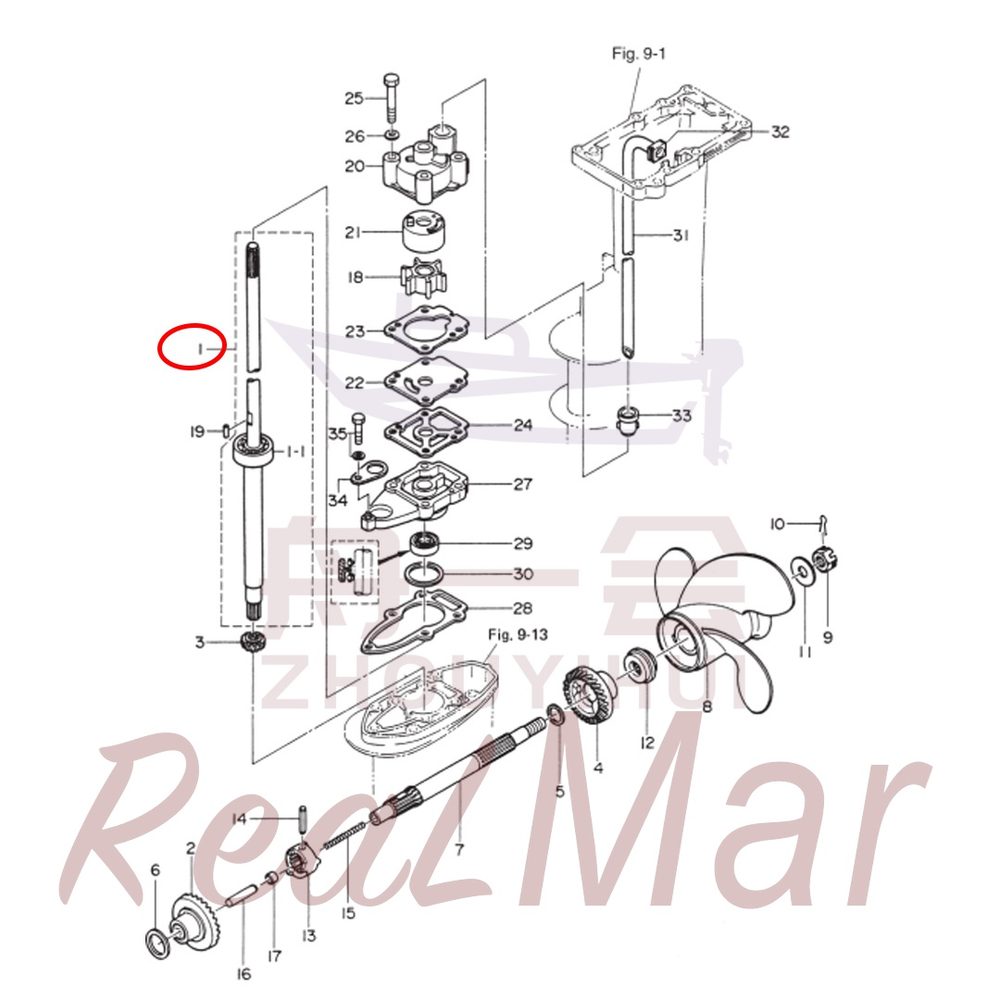

Fig. 10 TRANSMISSION・WATER PUMP
Fig. 10 TRANSMISSION・WATER PUMP 爆炸图
本部位共 39 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
10–1DM9811-64306-000传动轴组件Drive Shaft “S”13V1-64306-1
DM9811-64307-000传动轴组件Drive Shaft “L”13V1-64307-1
DM9811-64309-000传动轴组件Drive Shaft “UL”13V1-64309-1
10–1–1DM9811-06301-000传动轴深沟球轴承Ball Bearing19601-0-6301
10–2DM9811-64010-000前进挡齿轮组件Bevel Gear “A”13B2-64010-0
10–3DM9811-64020-000主动齿轮Bevel Gear “B”13B2-64020-0
10–4DM9811-64030-000倒挡齿轮Bevel Gear “C”13B2-64030-0
10–5DM0512-64032-000倒挡齿轮垫圈Washer1369-64032-0
10–6DM9811-64014-000前进挡齿轮调整垫片ShimAR369-64014-0
DM9811-64015-000前进挡齿轮调整垫片ShimAR369-64015-0
10–7DM9811-64211-000螺旋桨轴Propeller Shaft13V1-64211-0
10–8DM9811-64513-000螺旋桨总成Propeller (6.5), 3x8.5x6.513B2W64513-1
DM9811-64514-000螺旋桨总成Propeller (7), 3x8.9x7.013B2W64514-1
DM9811-64515-000螺旋桨总成Propeller (7.5), 3x8.5x7.513B2W64515-1
DM9811-64517-000螺旋桨总成Propeller (8.5), 3x8.9x8.313B2W64517-1
DM9811-64519-000螺旋桨总成Propeller (9.5), 3x8.9x10.013B2W64519-1
10–910939-90M09螺旋桨锁紧螺母Propeller Nut1369-64121-0
10–1019610-70080开口销Split Pin1951503-0318
10–1110809-90M09大垫圈Washer1369-64124-0
10–12DM9811-64230-000螺旋桨推力衬套Propeller Thrust Holder13B2-64230-1
10–13DM9811-64215-000离合子Clutch13B2-64215-0
10–14DM9811-64217-000弹性圆柱销Spring Pin1301-64217-0
10–15DM9811-64221-000离合子压缩弹簧Clutch Spring13V1-64221-0
10–16DM9811-64223-000换挡销Clutch Push Rod1369-64223-0
10–17DM9811-64222-000换挡滑销Clutch Spring Retainer13B2-64222-0
10–18DM9811-65021-000水泵叶轮Water Pump Impeller13B2-65021-1
10–19DM9811-65022-000水泵叶轮传动销Water Pump Impeller Key13B2-65022-0
10–20DM9811-65016-000水泵壳体Pump Case (Upper)13B2-65016-0
10–21DM9811-65011-000水泵壳体座圈Pump Case Liner13B2-65011-0
10–22DM9811-65025-000水泵壳体垫片Water Pump Guide Plate13B2-65025-0
10–23DM9811-65018-000水泵壳体下垫片Pump Case Gasket (Upper)13B2-65018-0
10–24DM9811-65029-000水泵座上垫片Pump Guide Plate Gasket13B2-65029-0
10–2510991-04083六角头螺栓和平垫圈组合件Bolt4916113-0650
10–2610809-04904平垫圈Washer4940113-0600
10–27DM9811-65017-000水泵座Pump Case (Lower)13V1-65017-0
10–28DM9811-65020-000水泵座下垫片Pump Case Gasket (Lower)13B2-65020-0
10–29DM9811-60111-001水泵座油封Oil Seal1309-60111-0
10–30DM9811-64023-000主动齿调整垫片Gap LinerAR3B2-64023-0
10–31DM9811-65100-000进水管Water Pipe “S”13B2-65100-0
DM9811-65110-000进水管Water Pipe “L”13B2-65110-0
10–32DM9811-65195-000进水管上密封套Water Pipe Seal (Upper)13B2-65195-0
10–33DM9811-65014-000水泵壳体水封Water Pipe Seal (Lower)1331-65014-0
10–34DM9811-66033-000下换挡杆密封用外垫片Cam Rod Bushing Stopper1369-66033-0
10–3510991-04096六角头螺栓和平垫圈组合件Bolt1910103-5625

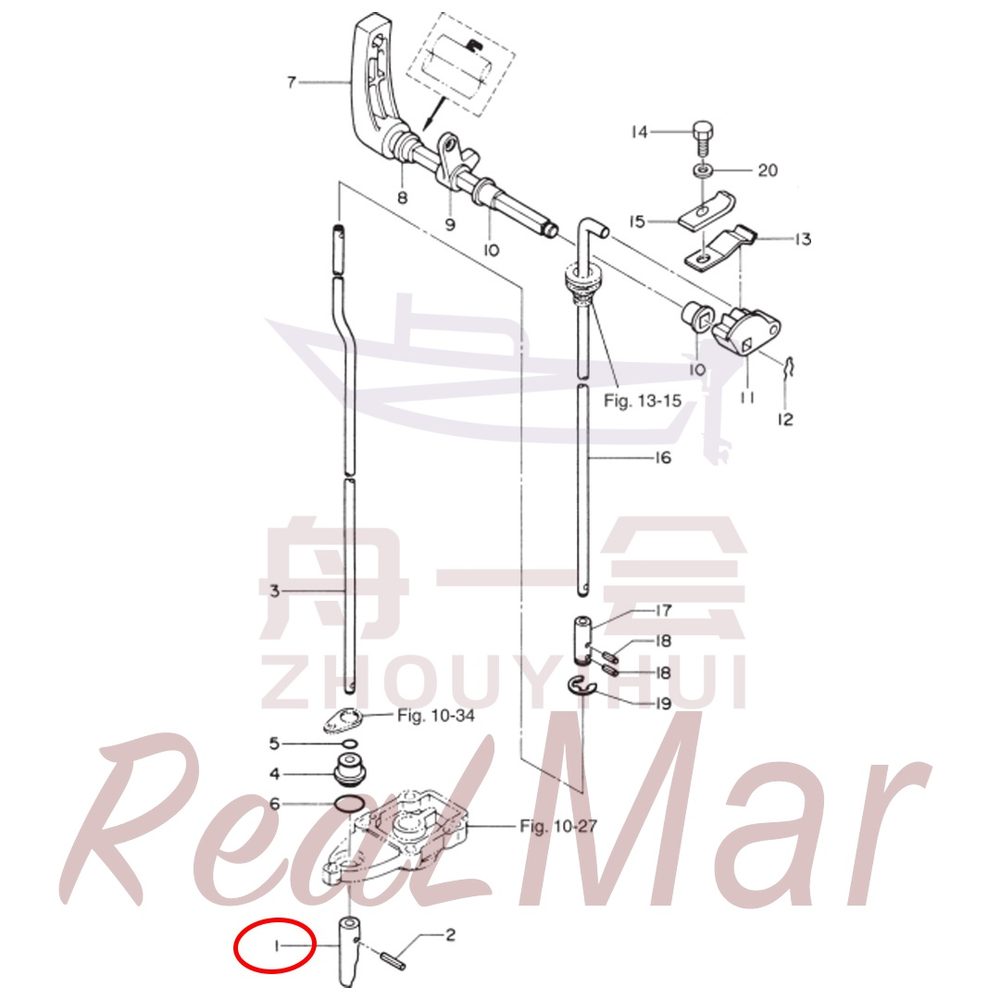

Fig. 11 GEAR SHIFT
Fig. 11 GEAR SHIFT 爆炸图
本部位共 21 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
11-1DM9811-66011-000下换挡杆组件Clutch Cam1369-66011-0
11-219410-70098弹性圆柱销Spring Pin1951403-0310
11-3DM9811-66012-000下换挡杆Cam Rod “S”13B2-66012-0
DM9811-66013-000下换挡杆Cam Rod “L”13B2-66013-0
11-4DM9811-66031-000下换挡杆固定座Cam Rod Bushing1369-66031-0
11-5DM9811-66021-000下换挡杆O型圈O-Ring1369-66021-1
11-6DM9811-66032-000固定座O型圈O-Ring1332-66032-0
11-7DM9811-66110-000换挡手柄Shift lever13B2-66110-0
11-8DM9811-66137-000换挡手柄密封圈Oil Seal13K9-66137-0
11-9DM9811-05211-000起动锁紧连杆摆臂Starter lock lever13B2-05211-1
11-10DM9811-67101-000换挡手柄衬套Shift lever Shaft Bushing2350-67101-0
11-11DM9811-66225-000挡位限位块Shift Rod lever13B2-66225-0
11-1215930-70200换挡转轴限位开口销Snap Retainer1951703-0800
11-13DM9811-66112-000挡位限位片Shift lever Stopper13C8-66112-0
11-1419099-60490六角头螺栓和平垫圈组合件Bolt1910114-0610
11-15DM9811-66116-000挡位限位片压板Shift lever Stopper Plate13C8-66116-0
11-16DM9811-66211-000上换挡杆Shift Rod13B2-66211-0
11-17DM9811-66241-000换挡杆连接套Shift Rod Joint13B2-66241-0
11-1819410-70098弹性圆柱销Spring Pin2951403-0310
11-1916570-79000开口挡圈E-Ring1945303-1000
11-2010809-04904平垫圈Washer1940103-0600

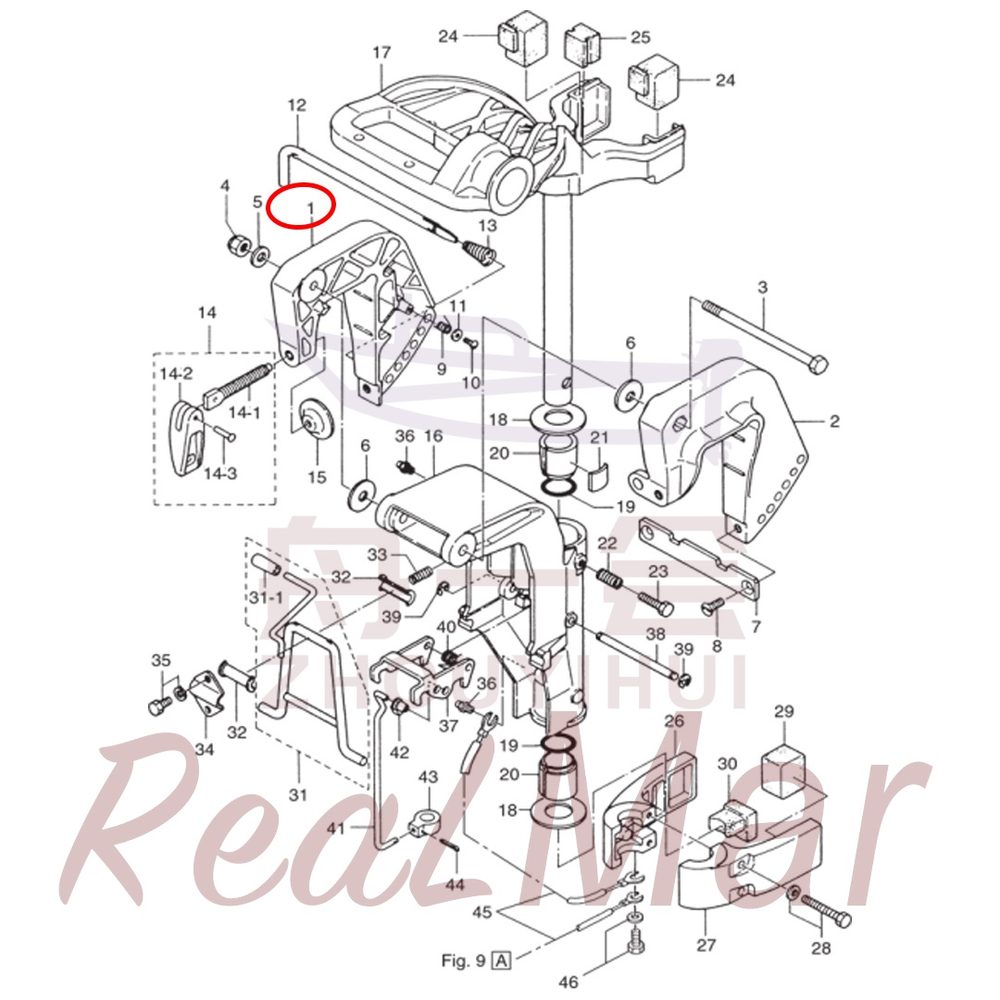

Fig. 12 BRACKET・REVERSE LOCK
Fig. 12 BRACKET・REVERSE LOCK 爆炸图
本部位共 50 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
12–1DM9811-62112-000右支架Clamp Bracket (Right)1369Q62112-3
12–2DM9811-62113-000左支架Clamp Bracket (Left)1369Q62113-2
12–3DM9811-62115-000六角头螺栓Bolt1309-62115-2
12–410925-020531型非金属嵌件六角锁紧螺母Nylon Nut1930446-0800
12–518110-02400平垫圈Washer1940113-0800
12–6DM9811-62116-000右支架垫圈Washer2307-62116-1
12–7DM9811-62118-000左右支架固定板Distance Plate13B2-62118-0
12–812307-04098十字槽沉头螺钉Screw2921613-0612
12–9DM9811-62146-000起翘撑架导向扭簧Clamp Bracket Spring1369-62146-1
12–1013208-06004十字槽盘头螺钉Screw1921703-0406
12–11DM9811-62147-000起翘撑架导向垫圈Washer1369-62147-0
12–12DM9811-62121-000限位插销组件Thrust Rod1350-62121-1
12–13DM9811-62122-000锥形压缩弹簧Thrust Rod Spring1369-62122-2
12–14DM9811-62100-000艉板锁紧螺杆组件Clamp Screw Ass’y2369Q62100-1
12–14–1DM0512-62103-000艉板锁紧螺杆Clamp Screw2369-62103-0
12–14–2DM2509-G3118-000艉板锁紧手柄Clamp Screw Handle2307Q62102-1
12–14–310867-06M09锁紧手柄沉头半空心铆钉Rivet23C8-62104-1
12–15DM1511-43114-000艉板锁紧压盘Clamp Screw Pad2332-62101-0
12–16DM9811-62310-000回转支架Swivel Bracket13B2Q62310-0
12–17DM9811-62010-000转向托架组件Steering Shaft13B2Q62010-0
12–18DM9811-62422-000转向托架上衬套压盖Thrust Plate23B2-62422-0
12–19DM9811-62415-000衬套O型圈O–Ring23B2-62415-0
12–20DM9811-62417-000转向托架上衬套Steering Shaft Bushing23B2-62417-0
12–21DM9811-62441-000转向托架上衬套垫块Bracket Friction Plate1345-62441-0
12–22DM9811-62421-000垫块压缩弹簧Friction Plate Spring1346-62421-1
12–2319099-70270六角头螺栓Bolt1910113-0830
12–24DM9811-61301-000中间箱体上侧减振块Rubber Mount (Upper)23B2-61301-0
12–25DM9811-61337-000中间箱体上减振块Damper (Upper)13B2-61337-0
12–26DM9811-61401-000右舷下固定块Mount Bracket (Right)13K9Q61401-0
12–27DM9811-61402-000左舷下固定块Mount Bracket (Left)13K9Q61402-0
12–2813535-04560六角头螺栓和平垫圈组合件Bolt2910113-5640
12–29DM9811-61302-000中间箱体侧减振块Rubber Mount (Lower)23B2-61302-0
12–30DM9811-61336-000中间箱体下减振块Damper (Lower)13B2-61336-0
12–31DM9811-62431-000起翘撑架组件Tilt Stopper13B2Q62431-3
12–31–1DM9811-62433-000起翘手柄护套Tilt Stopper Grip1369-62433-1
12–32DM9811-62437-000撑架销轴衬套Tilt Stopper Bushing2393-62437-0
12–33DM9811-66112-001压缩弹簧Spring1369-66112-1
12–34DM9811-62439-000起翘撑架固定板Tilt Stopper Set Plate1369-62439-1
12–3513035-04098六角头螺栓和平垫圈组合件Bolt2910113-5612
12–3617300-04M07油杯Grease Fitting2344-67177-0
12–37DM9811-66322-000起翘锁钩Reverse Lock13B2-66322-1
12–38DM9811-66321-000起翘锁钩销轴Reverse Lock Shaft13B2-66321-1
12–3916570-70500开口挡圈E–Ring2945303-0500
12–40DM9811-66315-000起翘锁钩扭转弹簧Reverse Lock Spring13B2-66315-0
12–41DM9811-66305-000起翘锁钩拉杆Reverse Lock Link13B2-66305-0
12–42DM9811-05224-000拉簧挂座Rod Snap1345-05224-0
12–43DM9811-66302-000起翘锁钩拉杆座Reverse Lock Link Joint13B2-66302-0
12–4415950-70896开口销Split Pin1951503-0214
12–45DM9811-62396-000回转支架接地线Ground Cable23A3-62396-1
12–4613035-04098六角头螺栓和平垫圈组合件Bolt1910103-5612

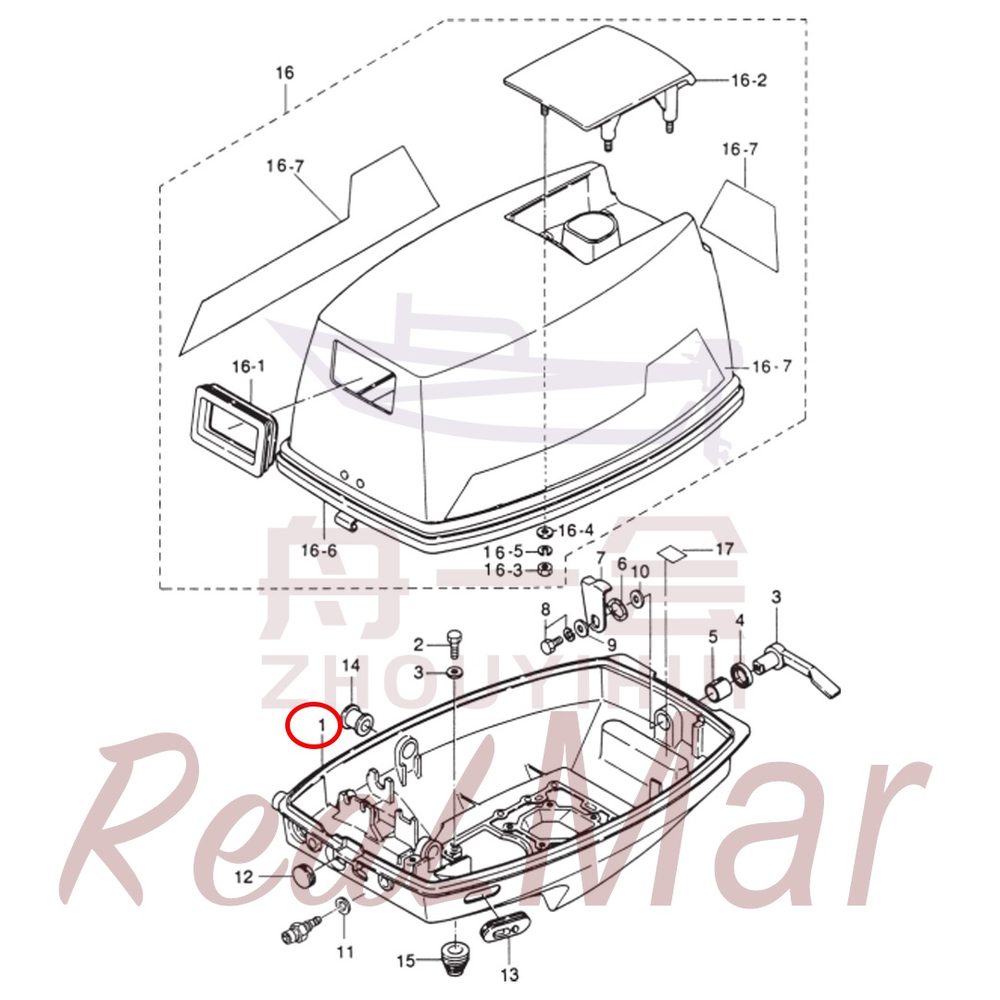

Fig. 13 MOTOR COVER
Fig. 13 MOTOR COVER 爆炸图
本部位共 23 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
13–1DM9811-67100-000底座Bottom Cowl13B2Q67100-1
13–213035-04080六角头螺栓和平垫圈组合件Bolt4910113-5620
13–318110-02400平垫圈Hook Lever1369Q67141-1
13–4DM9811-67147-000后锁紧手柄密封圈Hook Lever Seal Ring1338-67147-0
13–5DM9811-67105-000锁紧手柄衬套Hook Lever Bushing1369-67105-0
13–616960-79600锁紧手柄波形垫Wave Washer1941403-1400
13–7DM9811-67142-000后消音罩锁钩Cover Hook1369-67142-0
13–819090-74498六角头螺栓和弹簧垫圈组合件Bolt1910103-6612
13–9DM6011-15791-000拉绳导轮限位垫片Washer13R0-66308-0
13–10DM9811-67146-000后锁紧手柄垫圈Washer13C8-67146-0
13–11DM9811-70112-000进油管插座密封件Gasket1336-70112-0
13–12DM9811-67117-000起动开关安装孔堵塞Grommet1345-67117-0
13–13DM9811-67162-000底座工艺堵塞1Battery Cable Grommet1353-67162-0
13–14DM9811-67187-000底座工艺堵塞2Throttle Shaft Grommet13B2-67187-0
13–15DM9811-66226-000上换挡杆护圈Grommet1345-66226-0
13–16DM9811-67500-000消音罩Top Cowl13K9Q67500-1
13–16–1DM9811-67503-000起动器密封圈Starter Seal13B2-67503-0
13–16–2DM9811-67521-000导流罩Tilt Handle13B2Q67521-0
13–16–315720-04400六角薄螺母Nut4930103-0600
13–16–410809-04904平垫圈Washer4940103-0600
13–16–518115-04900弹垫Spring Washer4941303-0600
13–16–6DM9811-67501-000消音罩下密封条Top Cowl Seal13F3-67501-0
13–16–7DM9811-87801-000标贴Decal Set13K9Q87801-1
13–17DM9811-72025-000标贴Spark Plug Decal1369-72025-0
DM9811-72026-000标贴Spark Plug Decal (with Resistance)1369-72026-0
Fig. 13 SEPARATE FUEL TANK (Plastic)・ACCESSORIES
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
17–1DM9811-70167-000外燃油箱总成12LFuel Tank (12L, Plastic)13B2-70167-0
17–1–1DM9811-700J0-000外燃油箱盖组件12LFuel Gauge Vented Cap13B2-700J0-0
17–1–2DM9811-70021-000油箱盖垫片Tank Cap Gasket13C7-70021-0
17–1–3DM9811-70270-000油箱出油嘴组件Male Quick Connector13E0-70270-0
17–1–4DM9811-70155-000油管插座出油管Elbow Tubing and Clamp Ass’y13B2-70155-0
17–1–5DM9811-70199-000油管插座密封垫O–Ring13C7-70199-0
17–1–6DM9811-70113-000出油管滤网组件Filter13C7-70113-0
17–2DM9811-70200-000输油管总成Primer Bulb Ass’y13B7-70200-3
17–2–1DM9811-71600-000Fuel Hose198AB-7-1600
17–2–2DM9811-70281-000输油管进油嘴插头组件Fuel Connector (Tank side, Female)13B2-70281-0
17–2–3DM9811-70700-000Fuel Hose198AB-7-0700
17–2–4DM9811-70201-000Clamp4332-70201-0
17–2–5DM9811-70211-000Primer Bulb13C7-70211-0
17–2–6DM9811-70217-000Clamp23C7-70217-0
17–2–7DM9811-70220-000Joint Ass’y (Inlet)13C7-70220-1
17–2–8DM9811-70224-000Joint Ass’y (Outlet)13C7-70224-1
17–2–9DM9811-70250-000输油管出油嘴插头组件Fuel Connector (Engine side, Female)13B2-70250-1

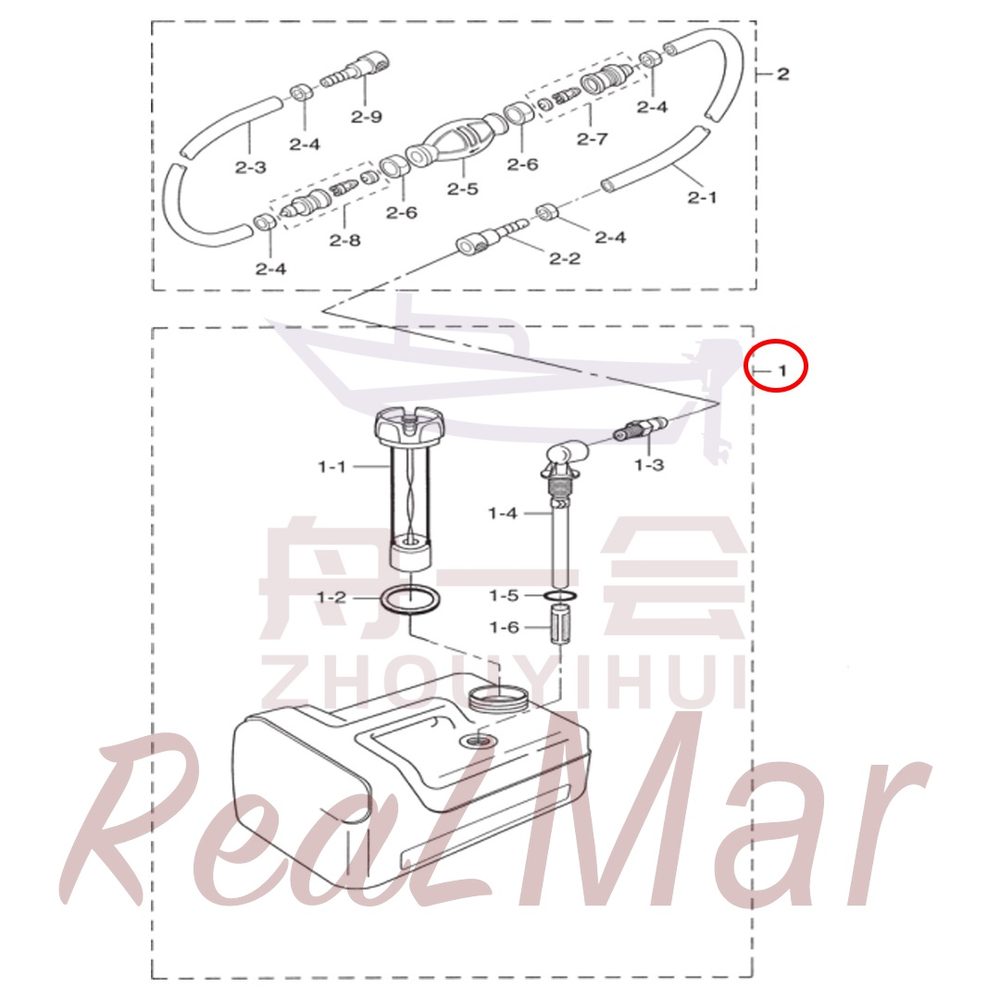

14 油箱油管
14 油箱油管 爆炸图
本部位共 9 张零件定位图，点击表格中 REF 序号 可切换查看该零件位置。
REF零件编码中文名称英文名称用量YMH对应零件号
