舟一会 ZHOUYIHUI 船外机

海的 12F - 12F HL(S)

共 10 个部位，点击零件编码查看详情，或搜索本页零件。

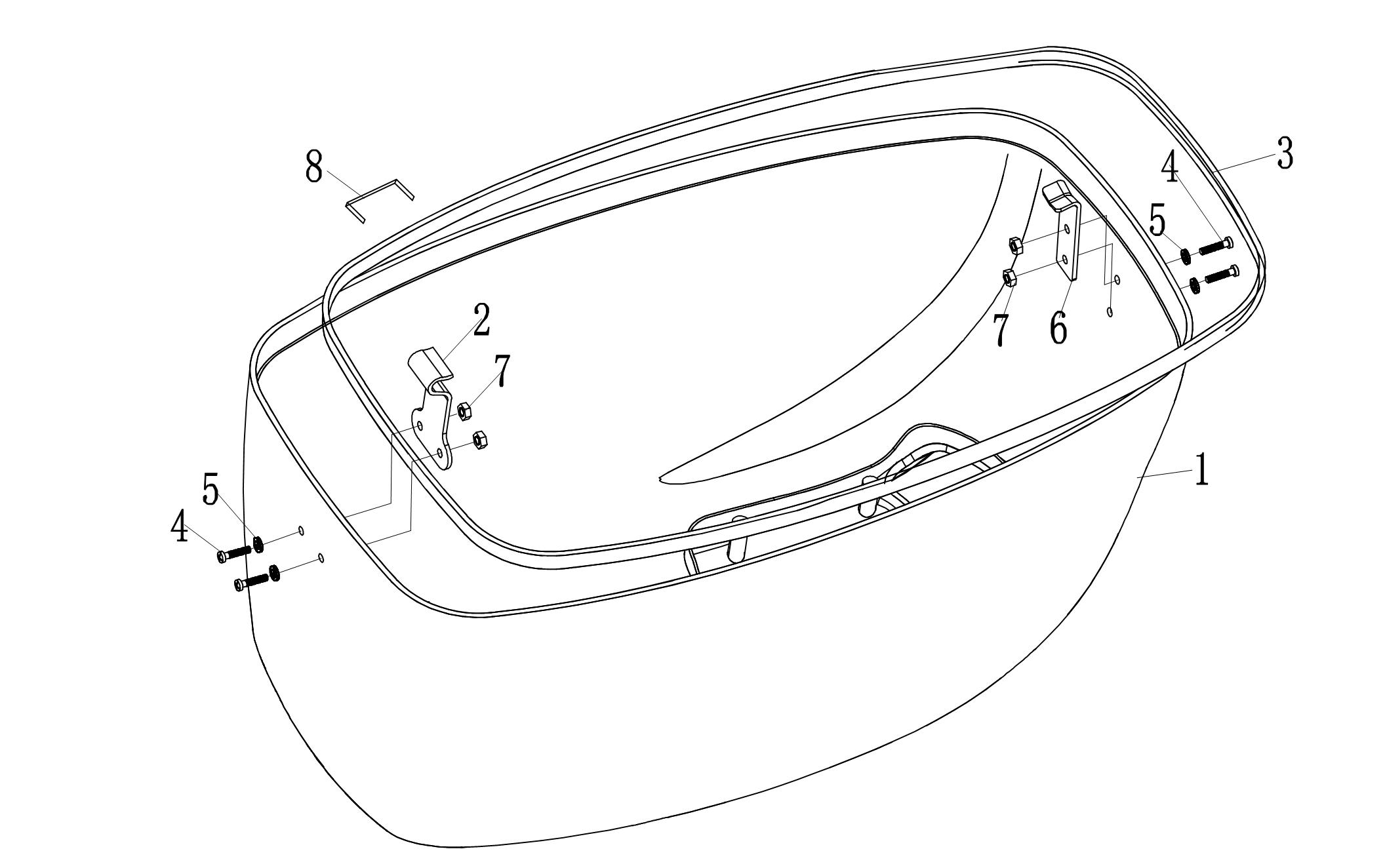

顶罩
顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
19.8F顶罩Top cowling1
29.8F-Ⅱ-07.03前锁紧钩Front locking hook1
39.8F-07.02橡胶密封条Rubber sealing strip1
4GB/T818十字槽盘头螺钉M4* 14Cross recessed Pan head screws (M4*14)4
5GB/T96平垫4Flat gasket4
69.8F-Ⅱ-07.05后锁紧钩Back locking hook1
7DIN985六角尼龙锁紧螺母M4Hex nylon locking nuts M44
815F-07.07装帧钉Bingding nail10
None9.8F-07.00.00.00顶罩部件Top cowling assembled1

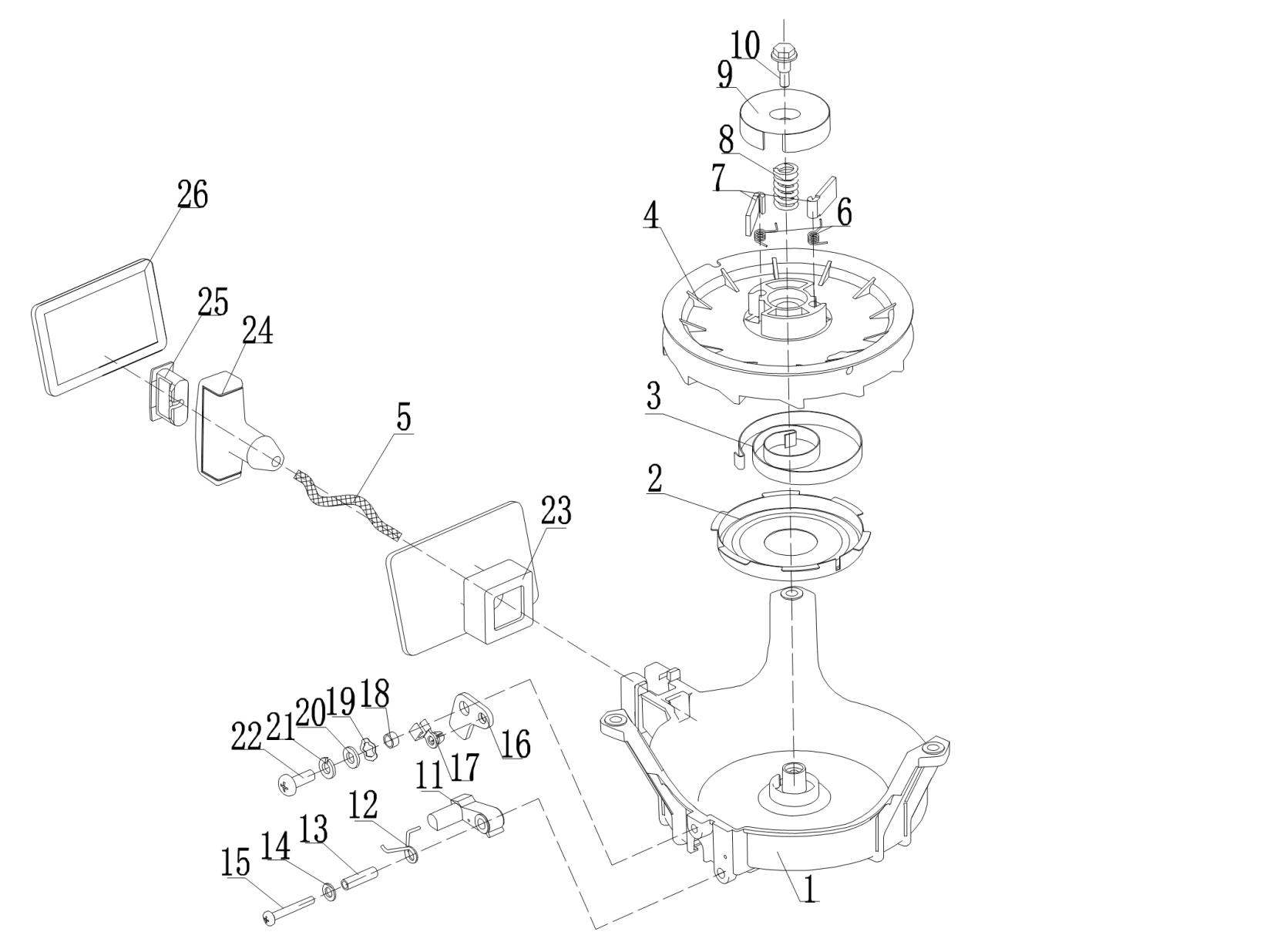

启动罩
启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
19.8F-01.01.19启动罩(外壳)Starter Cover13B2-05105-0
29.8F-01.01.10涡型弹簧盘volute spring13B2-05010-0
39.8F-01.01.09涡型弹簧Volute spring1
49.8F-01.01.07启动轮Start wheel13B2-05104-0
5F4-01.01.15启动绳φ3.5*1800mmStart rope 3.5M*1800MM13B2-05013-0
69.8F-01.01.06拨爪扭簧Drive claw torsion spring2369-05007-0
79.8F-01.01.04起动拨爪Drive Claw23B2-05003-0
89.8F-01.01.05压盘弹簧Pressed Plate spring1369-05012-0
99.8F-01.01.02启动压盘Starter Pressed plate13B2-05006-0
109.8F-01.01.03压盘螺栓Pressed Plate bolt13B2-05138-0
119.8F-01.01.16制动器Brake1338-05252-0
129.8F-01.01.18制动器扭簧Brake Torsional spring1338-05216-0
139.8F-01.01.17铜衬套Copper bushing1338-05255-0
14GB96平垫4Flat gasket1
15GB823十字槽小盘头螺钉M4*3Cross recessed pan head *1
169.8F-01.01.12制动器导向块tapping scre s(M4 30)13B2-05253-0
179.8F-01.01.13连杆接头connecting rod joint13B2-66241-0
189.8F-01.01.14垫管Cushion tube13M2-05215-0
199.8F-01.01.15波垫Wave gasket1941403-0800
20GB848平垫6Flat gasket M61
21GB93弹垫6washer1
22GB818十字槽盘头螺钉M6*16Cross recessed pan head *1
239.8F-01.01.11.01-Ⅱ橡胶托架(长）tapping screws(M6 16) Rubber bracket13B2-05116-0
2415F-01.01.08启动手柄Starter handle13B2-05019-0
2515F-01.01.10手柄盖Starter Handle cover13B2-05131-0
263.5-Ⅱ-01.01.07启动橡胶套start rubber sleeve1
None9.8F-01.01.00.00启动罩组件Recoil Starter Assy.1
动力部分

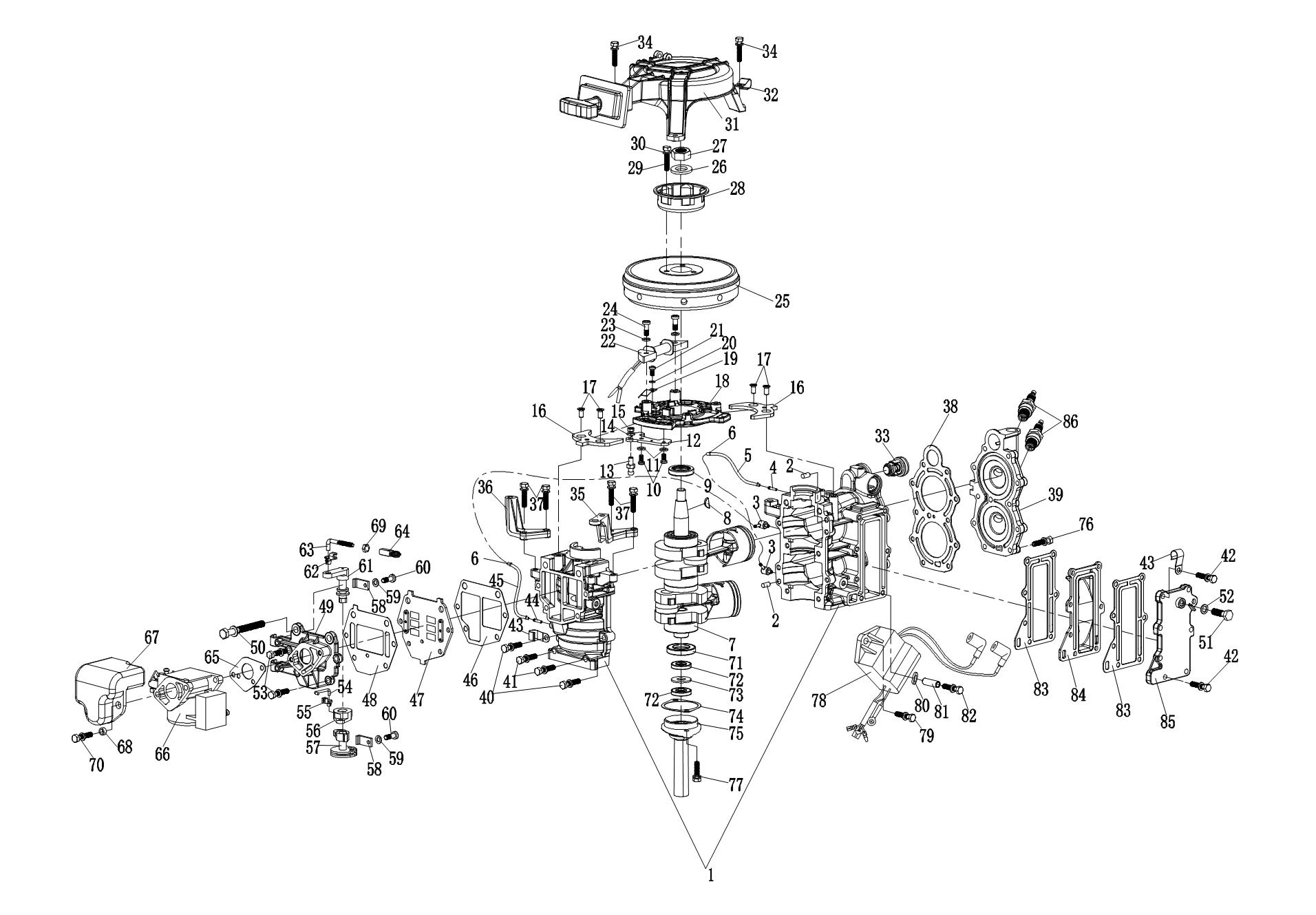

动力部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
19.8F-01.06.18.00箱体组件Crankcase comp.(with crankcase cover)13B2B01100-1
215F-01.06.20定位销6*12Dowel pin 6*122345-01111-0
315F-01.06.03气管圆接头AAir tube joint A2338-01131-1
415F-01.06.21气管圆接头BAir tube joint B1
59.8F-01.06.15气管（长）(3*7*232)Air tube(long)(3*7*232)1
615F-01.06.06管夹φ6.5Pipe clamp φ74
79.8F-01.06.20.00曲柄连杆组件Crankshaft connecting rod Assy.13B2-00030-0
89.8F-01.06.27半圆键Woodruff key,Crankshaft1
99.8F-01.06.28油封 35*20*7Oil seal 35*20*71
10GB/T818十字槽盘头螺钉5*10Cross recessed pan head tapping screws(M2
11GB93弹垫5Spring washer M52
129.8F-01.03.10正时连接板Connecting plate,timing1
139.8F-01.03.11正时连接螺栓Connecting Plate bolt1
14GB93弹垫6Spring washer M61
15GB/T6170六角螺母M6Hexagonal nut M61
169.8F-01.03.09正时限位块limited block,timing23B2-06135-0
17GB819十字槽沉头螺钉M6*12Cross recessed countersunk head screws4
189.8F-01.03.08正时控制器Timing controller13B2-63711-0
199.8F-01.03.07线圈压板Coil pressing plate1
20GB/T93弹垫4Spring washer M41
21GB/T818十字槽盘头螺钉M4*8Pan head screws with cross recessed(M5*1
229.8F-01.03.06.00充电线圈组件Charging coil assy13B2-06120-0
23GB/T93弹垫6Spring washer M62
24GB/T818十字槽盘头螺钉M6*25Pan head screws with cross recessed(M6*22
259.8F-01.03.05.00飞轮组件Flying wheel Assy.1
2615F-01.03.20飞轮平垫Flying wheel flat gasket1
27GB6170(10) M12*飞轮螺母（铁铬合金，对边1Flywheel nut1
289.8F-01.01.20启动毂Starter hub13B2-05901 -0
29GB5783六角头螺栓M6*12bolt3
30GB93弹垫6washer3
319.8F-01.01.00.00起动罩组件Starter cover assy1
32F15-01.03.00.42通气管固定夹BAir tube clip B1309-06972-0
3315F-01.06.14节温器50℃thermostat 50℃1350-01030-1
34GB9074.1（8.8）六角头螺栓和平垫组件M6*20hexagon headed bolt and flat plate M6*123
359.8F-01.06.01起动罩支撑架左Stand(LH),recoil starter13B2S05101-0
369.8F-01.06.02起动罩支撑架右Stand(RH),recoil starter13B2S05102-0
37GB9074.1（8.8）六角头螺栓和平垫组件M6*20hexagon headed bolt and flat plate M6*124
389.8F-01.06.10气缸垫Cylinder gasket1
399.8F-01.06.09.01气缸盖Cylinder cover13K9B01001-0
40GB9074.1（10.9）六角头螺栓和平垫组件M6*30hexagon headed bolt and flat plate Assy. M2
41GB9074.1（10.9）六角头螺栓和平垫组件M6*50hexagon headed bolt and flat plate Assy.M2
42GB9074.1（8.8）六角头螺栓和平垫组件M6*25hexagon headed bolt and flat plate M6*257
43F15-01.03.00.42通气管固定夹BAir tube clip B2309-06972-0
4415F-01.06.21气管圆接头BJoint,air breather tube1
459.8F-01.06.16气管（短）(3*7* 123)Air tube(short)(3*7* 123)1
469.8F-01.02.04密封垫（出）seal gasket(outlet)13B2-02105-0
479.8F-01.02.03.00进气阀组件Air intake valve assy13B2-02100-0
489.8F-01.02.02密封垫（进）Seal Gasket(inlet)13B2-02104-0
499.8F-01.02.01进气阀盖Air intake valve cover13B2-02110-0
50GB9074.1（10.9）六角头螺栓和平垫组件M8*85hexagon headed bolt and flat plate Assy.M2
51GB/T5783六角头螺栓M8*10hexagon headed bolt M8*101
52F2.5-01.01.00.04铜垫片Copper washer1
53GB9074.1（10.9）六角头螺栓和平垫组件M6*75hexagon headed bolt and flat plate Assy.M4
549.8F-01.04.02油门连杆Throttle lever1
5515F-01.02.07阻风门连杆接头joint,chock lever1
569.8F-01.04.03油门连接块Connecting block,throttle1
579.8F-01.04.04钢索连接盘Throttle cable connecting plate1
589.8F-01.04.01控制架压板Controlled bracket clamp2
59GB/T93弹垫5Spring washer M52
60GB/T818-2000十字槽盘头螺钉M5*20Pan head screws with cross recessed(M5*22
619.8F-01.04.05正时摇臂Rocker arm ，timing1
629.8F-01.04.07连杆接头Linkage connector1345-05224-0
639.8F-01.04.06L件螺杆"L " bolt1
6415F-01.03.12连杆接头Linkage connector1
659.8F-01.07.02化油器垫片Carburetor gasket1369-02011-0
669.8F-01.07.01化油器组件Carburetor Assy13B2-03200-1
679.8F-01.02.05.00进气消音器组件Air intake silencer13B2-02411-0
689.8F-01.07.03垫管Cushion tube2
69GB/T6170六角螺母M5Hexagon nut M51
70GB9074.1（8.8）六角头螺栓和平垫组件M6*85hexagon headed bolt and flat plate Assy.M2
719.8F-01.06.04.02油封(20*40*7)Oil seal 20*40*713B2-00122-0
729.8F-01.06.04.03油封(12*28*5)Oil seal 12*28*523B2-01215-0
739.8F-01.06.04.04油封垫片Oil seal gasket13B2-01217-0
749.8F-01.06.03密封垫oil seal gasket13B2-01214-0
759.8F-01.06.04.01油封壳体oil seal housing13B2-01210-0
76GB9074.1（10.9）六角头螺栓和平垫组件M6*30hexagon headed bolt and flat plate M6*3011
77GB9074.1（8.8）六角头螺栓和平垫组件M6*20hexagon headed bolt and flat plate M6*202
789.8F-01.03.01.00点火控制器组件CDI (Charging coil, spark plug lead assy.)13B2-06170-0
79GB9074.1（8.8）六角头螺栓和平垫组件M6*20hexagon headed bolt and flat plate Assy.M1
80GB97.1平垫6Flat gasket1
819.8F-01.03.02垫管Cushion tube1
82GB9074.1（8.8）六角头螺栓和平垫组件M6*45hexagon headed bolt and flat plate Assy.M1
839.8F-01.06.08密封垫（排气盖）Seal Gasket(exhaust cap)23K9-02305-0
849.8F-01.06.07排气内盖Inner cap,exhaust13K9B02302-0
859.8F-01.06.06排气侧盖Side cap,exhaust13B2B02300-0
869701-0-1010火花塞(新)Spark plug(new)2BPR7HS

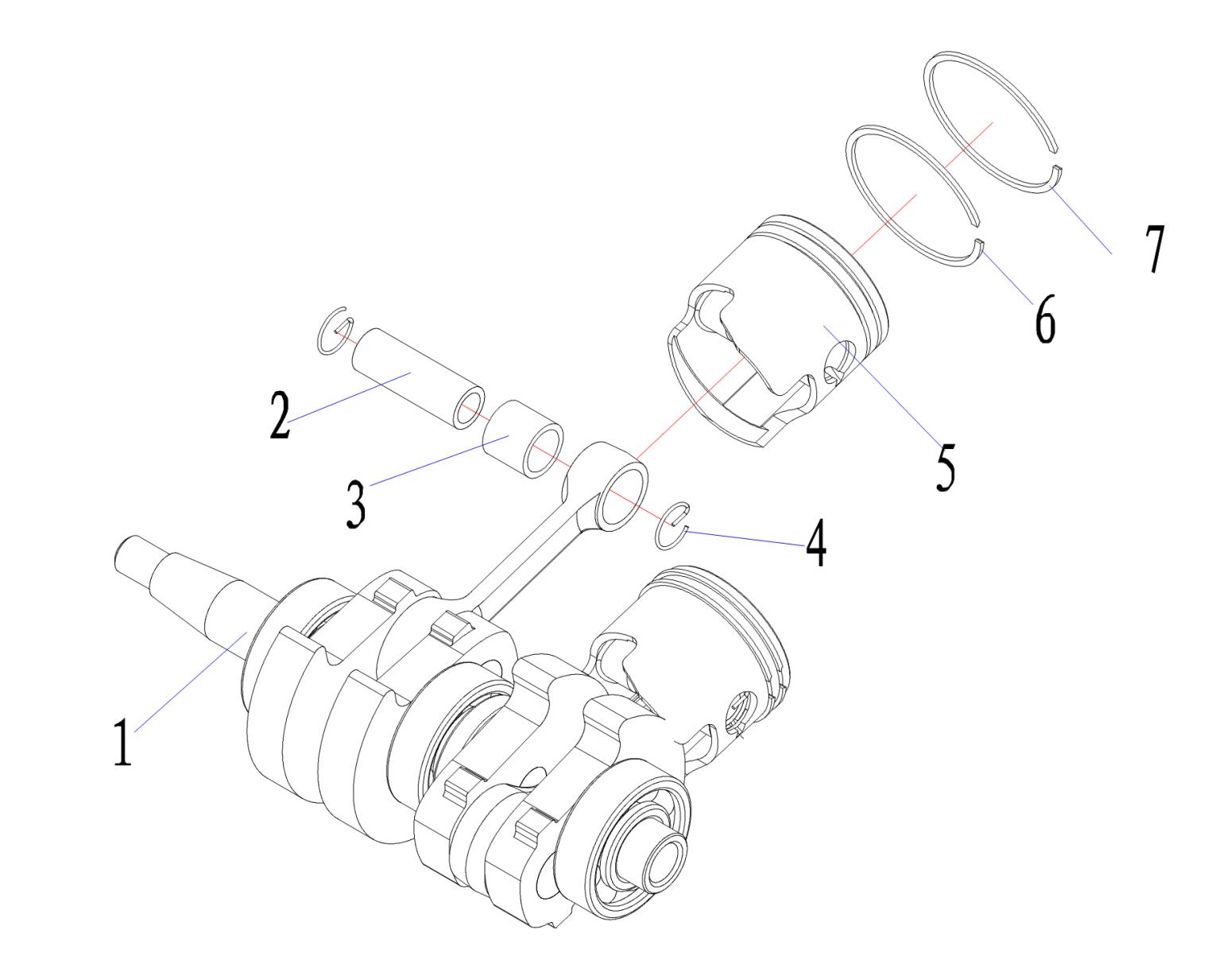

曲轴连杆部分
曲轴连杆部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
19.8F-01.06.20.00曲轴连杆组件Crankshaft connecting rod13B2-00030-0
29.8F-01.06.24活塞销Piston Pin23B2-00021-0
39.8F-01.06.26滚针轴承needle bearing2338-00042-0
49.8F-01.06.25活塞销卡簧Circlip4350-00024-1
59.8F-01.06.21活塞Piston23B2-00001-0
69.8F-01.06.22第一道活塞环First piston ring23B2-00011-0
79.8F-01.06.23第二道活塞环Second piston ring2

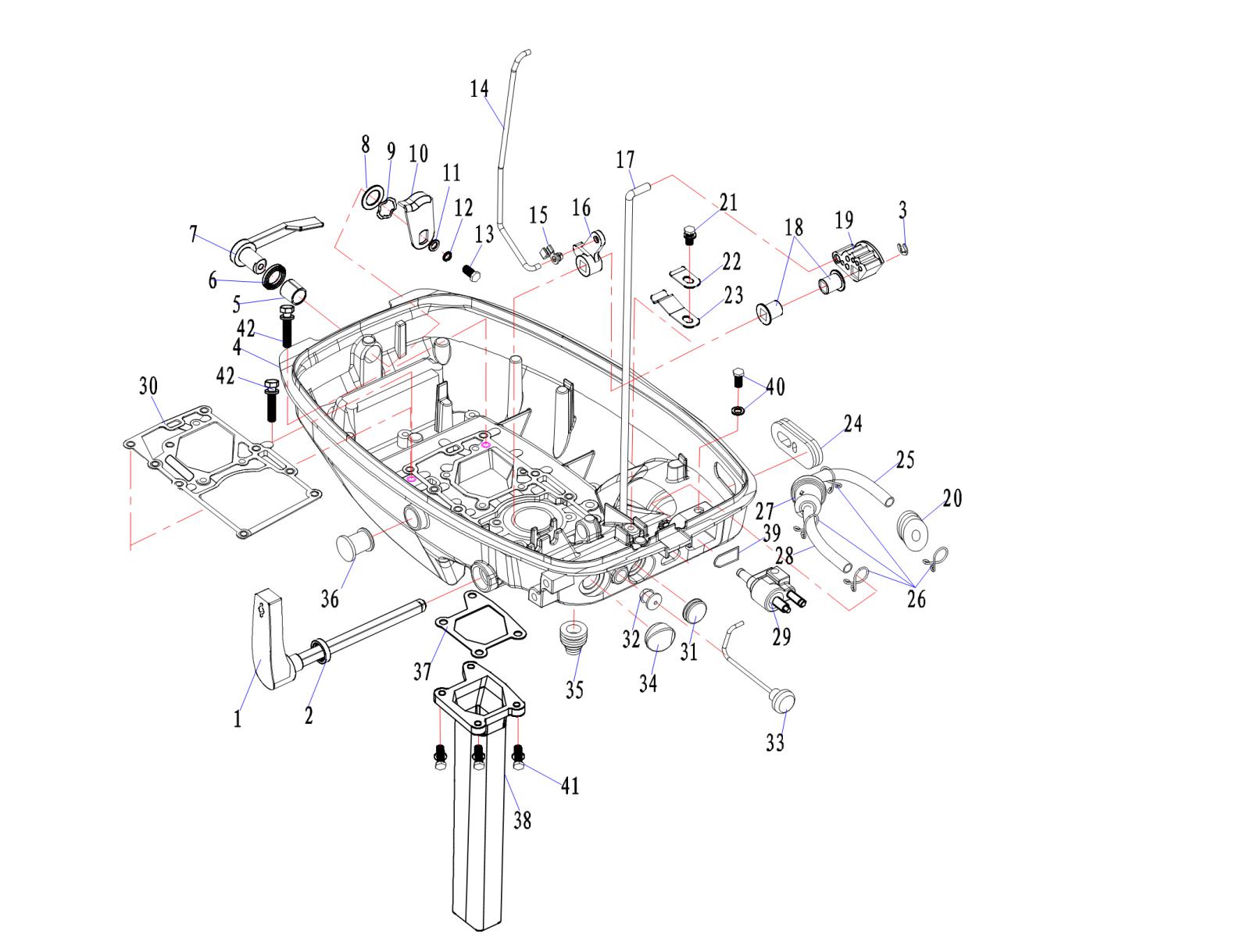

底座部分
底座部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
19.8F-01.05.03.00变档杠杆组件Shift level assy.13B2-66110-0
29.8F-01.05.09橡胶密封圈Rubber seal ring1
3GB/T896开口挡圈6Circlip1
49.8F-02.10底罩Bottom cowling13B2S67100-1
59.8F-02.11.03衬套Bushing1369-67105-0
69.8F-02.11.02橡胶圈Rubber ring1338-67147-0
79.8F-02.11.01前锁紧手柄Front lock handle1369S67141-1
89.8F-02.11.04垫片Gasket1
99.8F-02.11.05波形垫圈Wave washer1941403-1400
109.8F-02.11.06锁紧片Lock plate1369-67142-0
11GB/T96平垫6Flat gasket M61
12GB/T93弹垫6Spring washer M61
13GB/T5783六角头螺栓M6*12hexagon headed bolt M6*121
149.8F-01.05.05制动器连杆brake linkage1
159.8F-01.01.13连杆接头Linkage connector13B2-66241 -0
169.8F-01.05.04连杆连接块Lingage joint13B2-05211-1
179.8F-01.05.10上变档杆Upper Shift lever13B2-66211-0
189.8F-01.05.06衬套Bushing2350-67101-0
199.8F-01.05.07变档定位块Shift block1
209.8F-01.07.06橡胶衬圈Rubber Bushing1
21GB9074.1（8.8）六角头螺栓和平垫组件M6*1flat plate1headed bolt and M6*12
229.8F-01.05.02压板Pressing plate13C8-66116-0
239.8F-01.05.01限位弹簧板Limit Spring plate,13C8-66112-0
249.8F-02.05闷头Aplug A1353-67162-0
259.8F-01.07.04折弯型油管Bends Fuel hose1
2615F-01.07.04管夹φ10Hose Clip φ104
27F9.9-01.04.03.00燃油滤清器组件Fuel filter Assy1
28F4-01.07.09油管Bfuel hose 5*10*761
2915F-01.07.01.00燃油管插头组件Fuel hose joint assy.13B2-70260-1
309.8F-02.01密封垫（发动机座）seal gasket (engine seating)1
319.8F-02.06闷头Brubber plug B1345-67117-0
329.8F-02.04阻风门拉杆护套choke lever bushing1
339.8F-02.03.00阻风门拉杆组件choke lever assy13B2-67151-0
349.8F-02.12底罩橡胶塞Rubber plug1
359.8F-02.09护套Sleeve1345-66226-0
369.8F-02.02堵塞Plug13B2-67187-0
379.8F-05.01密封垫（排气管）Seal Gasket (exhaust)13B2-02312-0
389.8F-05.02排气管Exhaust pipe13B2-02311-0
39F9.9-01.04.00.13燃油管插头垫片fuel hose joint Washer1
40GB9074.1（8.8）六角头螺栓和平垫组件M6*2hexagon headed bolt and flat plate M6*251
41GB9074.1（8.8）六角头螺栓和平垫组件M6*1flat plate4headed bolt and M6*18
42GB9074.1（8.8）六角头螺栓和平垫组件M6*2flat plate2headed bolt and M6*20

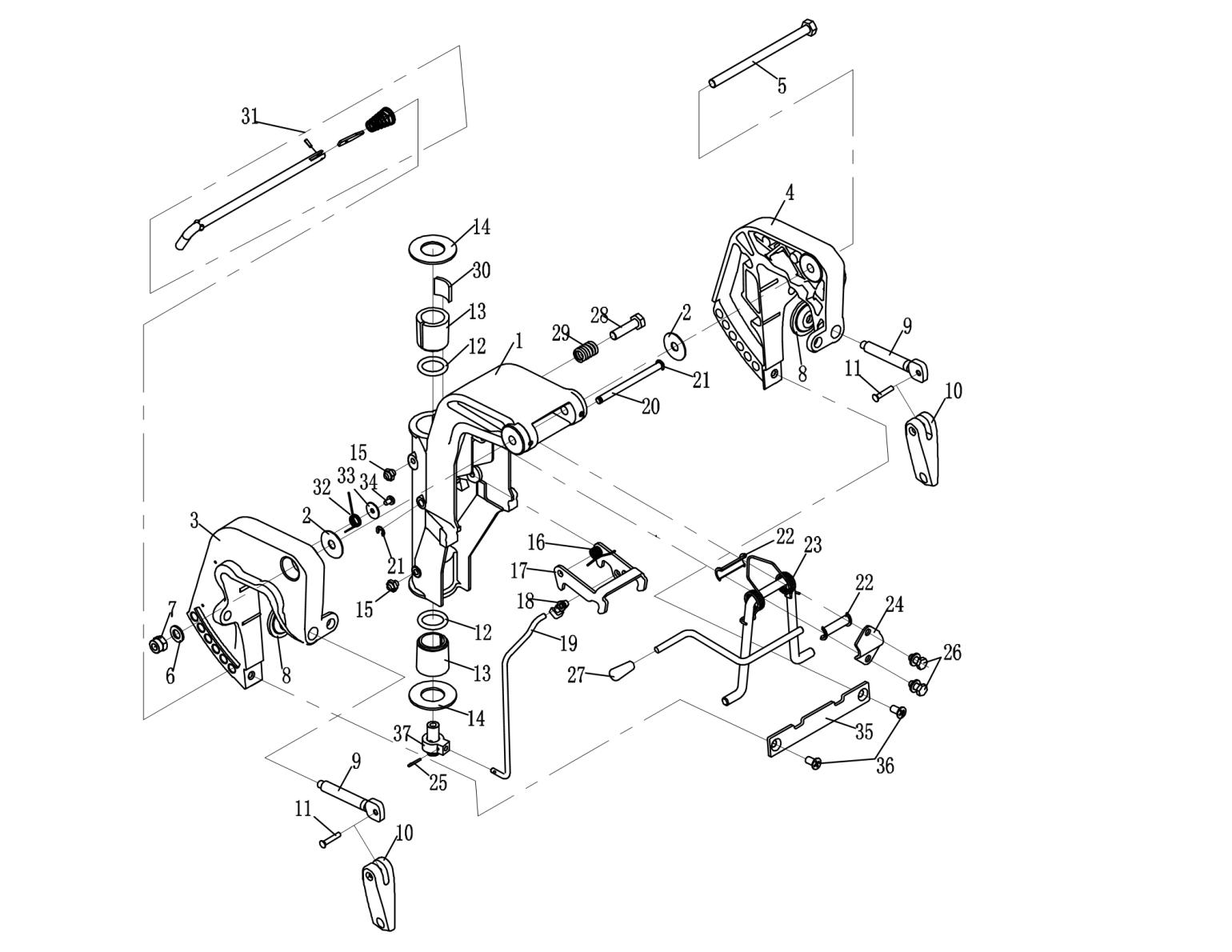

夹紧部分
夹紧部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
19.8F-03.05.01旋转托架Swivel bracket13B2S62010-0
29.8F-03.05.10大垫片Big Gasket2307-62116-0
39.8F-03.05.14.01夹紧托架（左）Clamp bracket(LH)1369S62113-2
49.8F-03.05.14.02夹紧托架（右）Clamp bracket(RH)1369S62112-3
5GB/T5783六角头螺栓M8*125Bolt1
6GB/T97.1平垫8Flat gasket1
7DIN985六角尼龙锁紧螺母M8Hex nylon locking nut M81
815F-03.05.02.03夹紧盘Clamp plate2332-62101-0
99.8F-03.05.14.03艉板夹紧螺杆Transom Clamp Bolt2369-62103-0
1015F-03.05.02.04夹紧手柄Clamping handle2307S62102-1
11GB/T1015沉头半空心铆钉4*22Rivet M4*222
129.8F-03.02O型圈(20*4)O ring23B2-62415-0
139.8F-03.01衬套Bushing23B2-62417-0
149.8F-03.03垫片Gasket23B2-62422-0
15JB/7940.1-95直通式压注油杯M6Oil cup2
169.8F-03.05.08扭簧Torsional spring13B2-66315-0
179.8F-03.05.06锁紧钩locking Hook13B2-66322-0
189.8F-01.04.07连杆接头Linkage connector1345-05224-0
199.8F-03.05.07锁紧连接杆Locking rod13B2-66305-0
209.8F-03.05.05销轴pin shaft13B2-66321-0
21GB/T896开口挡圈5Circlip2
229.8F-03.05.04减磨垫friction gasket2393-62437-0
239.8F-03.05.02.00角度调整支架组件Tilt adjustment bracket13B2S62431-3
249.8F-03.05.03调整支架压板Brake ajusting Plate1369-62439-0
25GB/T91开口销1.6*16Cotter pin1
26GB9074.1（8.8）六角头螺栓和平垫组件M6*12hexagon headed bolt and flat plate M6*122
27F4-03.05.02.02支架手柄橡胶套Bracket hanle rubber1369-62433-1
28GB/T5783六角头螺栓M8*30Bolt1
299.8F-03.05.09弹簧Spring1346-62421-0
309.8F-03.04.01摩擦片Friction plate1345-62441-0
319.8F-03.05.11.00角度限位插销组件Trim rod Assy1350-62121-0
329.8F-03.05.13扭簧Torsional spring1369-62146-1
339.8F-03.05.14大垫圈Big washer1369-62147-0
34GB/T818十字槽盘头螺钉M4*8Screw1
359.8F-03.05.12夹紧托架连接板Clamping bracket connecting plate13B2-62118-0
36GB/T819.1十字槽沉头螺钉M6*12Screw2
379.8F-06.02塑料滑套Sliding sleeve1344-67178-0

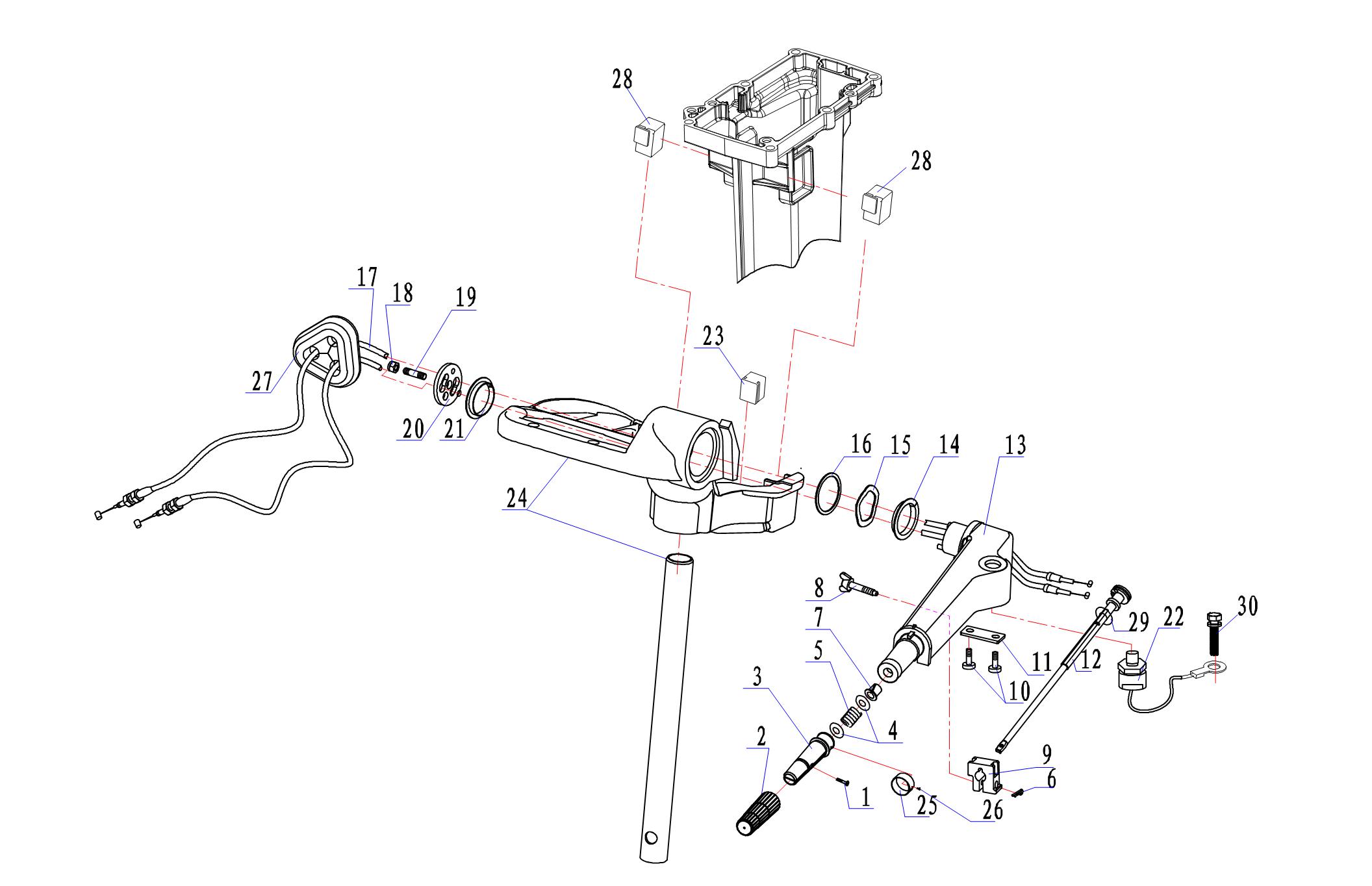

操舵手柄
操舵手柄 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB/T820十字槽半沉头螺钉M5*25Cross recessed slot countersunk head screw1
215F-04.07.14手柄橡胶套Handle Rubber sleeve1
315F-04.07.13手柄Handle1
4GB/T848平垫10Flat gasket2
515F-04.07.11弹簧Spring1
6GB/T91开口销1.6*12cotter pin 1.6*121
715F-04.07.12衬套Bushing1
815F-04.07.09阻力调整旋钮Resistance adjustor1
915F-04.07.08锁紧块Locking block1
10GB/T818十字槽盘头螺钉M5*12Cross recessed Pan head screws M5*122
1115F-04.07.07节气门杆压板Throttle lever Plate1
1215F-04.07.05节气门杆Throttle lever1
1315F-04.07.01操舵手柄Steering handle1
1415F-04.06开口尼龙衬套（长）Open nylon bushing(long)1
1515F-04.05手柄波形垫圈Handle wave washer1
1615F-04.03尼龙垫圈Nylon washer1
179.8F-04.13油门控制钢索Throttle cable2
18DIN985六角尼龙锁紧螺母M8Hex nylon locking nut M81
1915F-04.07.02双头螺柱(短）Double screw bolt (short)1
2015F-04.02操舵手柄压板Steering handle plate1
2115F-04.04开口尼龙衬套（短）Open nylon bushing(short)1
2215F-04.07.03急停开关总成emergency stop switches assy1
239.8F-05.08减震块CDamper C1
249.8F-04.15.01操舵托架Steering bracket1
25F4-04.11-Ⅱ油门标牌throttle Indicator1
26GB/T845十字槽盘头自攻螺钉ST2.2*4.5Cross recessed Pan head tapping screws ST2.2*4.51
279.8F-04.14钢索固定套Cables fixer1
289.8F-05.09减震块DDamper D2
29GB/T848平垫12Flat gasket1
30GB9074.1（8.8）六角头螺栓和平垫组件M6*12hexagon headed bolt and flat plate M6*121
None9.8F-04.00.00.00操舵手柄部件Tiller Assy.1
水上部分

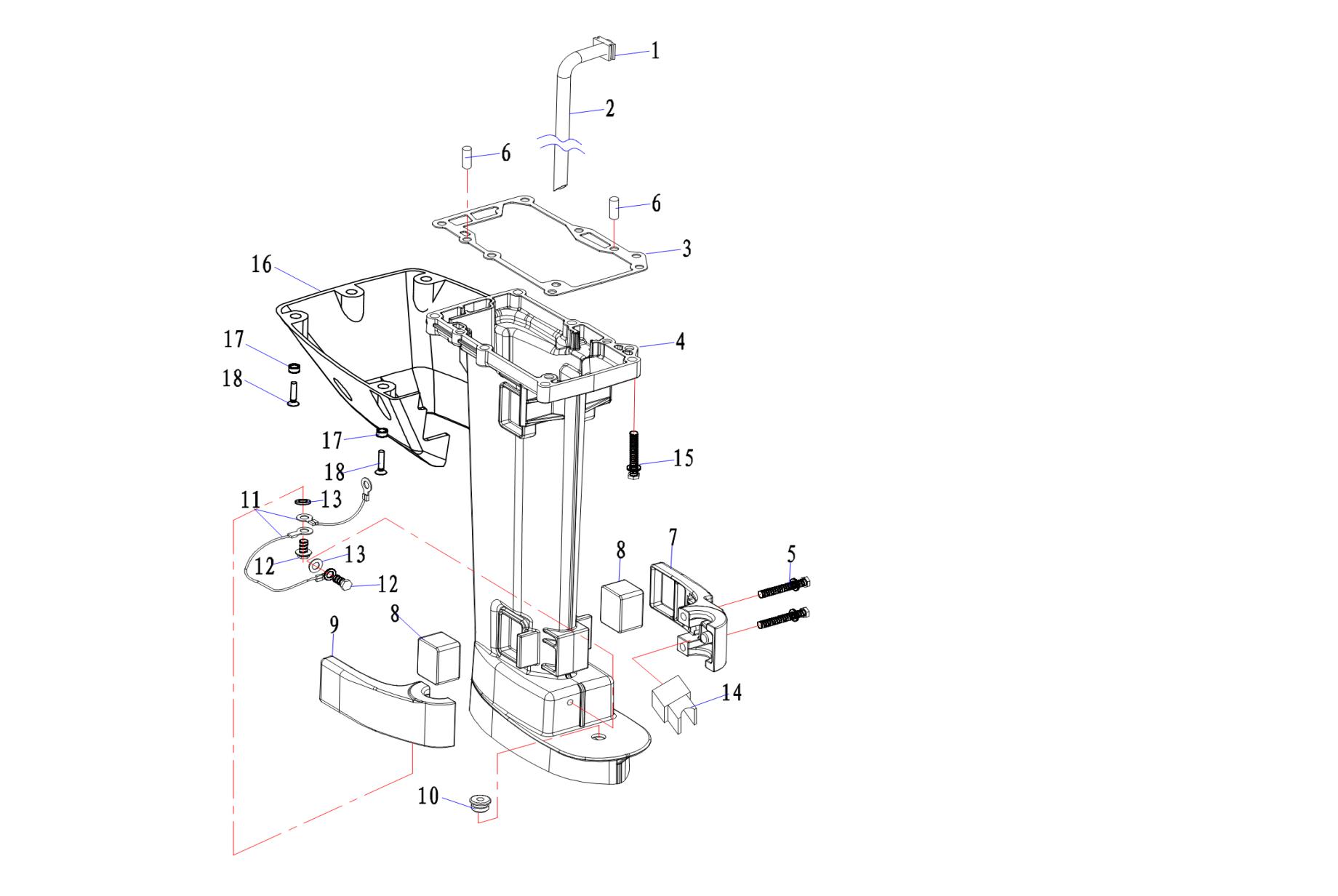

水上部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
19.8F-05.11水管密封圈Hose seal ring1
29.8F-05.10-S水管(短轴）Hose(short shaft)13B2-65100-0
None9.8F-05.10-L水管(L)Hose(short shaft)1
39.8F-02.08密封垫Seal gasket1
49.8F-05. 12-S水上装置壳体（S）Upper casing(S)1
None9.8F-05. 12-L水上装置壳体(L)Upper casing(L)1
5GB9074.1（8.8）六角头螺栓和平垫组件M6*4hexagon headed bolt and flat plate M6*402
6F9.9-05.00.00.05定位销6*19Locating pin 6*192
79.8F-05.04减震块外壳BDamper housing B1
89.8F-05.05减震块ADamper A2
99.8F-05.03减震块外壳ADamper housing A1
109.8F-05.13变档凸轮杆密封圈Gear shift cam rod Seal ring1
119.8F-05.07钢索连接线Cable connector2
12GB/T823十字槽小盘头螺钉M6*12Cross recessed Pan head screws M6*122
13GB/T848平垫6Flat plate2
149.8F-05.06减震块BDamper B1
15GB9074.1（8.8）六角头螺栓和平垫组件M6*3hexagon headed bolt and flat plate M6*356
169.8F-01.08.00.00装饰罩Decoration cover1
179.8F-01.01.14垫管Cushion tube53M2-05215-0
18GB/T818十字槽盘头螺钉M6*16Cross recessed Pan head screws M6*165
水下部分

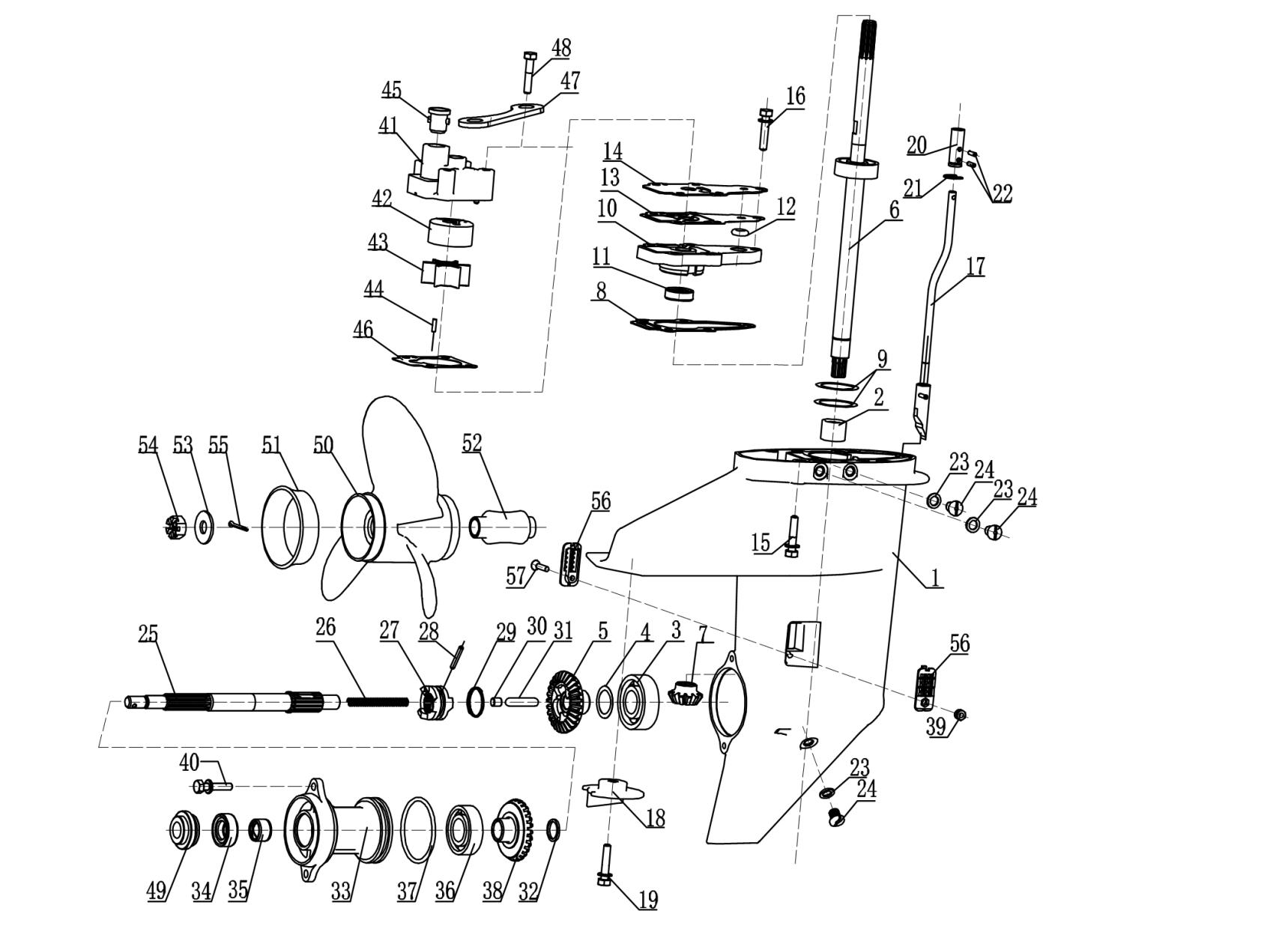

水下部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
19.8F-06.31水下壳体Lower casing13B2S60000-0
29.8F-06.30滚针轴承TLA1516Needle bearing TLA151613V1-60211-0
39.8F-06.28深沟球轴承6204deep groove ball bearing19601-0-6204
4F9.9-06.02.00.02倒档齿轮填隙片Reverse gear shim3369-64014-0
59.8F-06.27正档齿轮Forward gear13B2-64010-0
69.8F-06.23.00-S驱动轴总成(短轴）Drive shaft Assy.(S)13B2-64301-0
None9.8F-06.23.01-L驱动轴(L)Drive shaft(L)1
79.8F-06.29小齿轮Pinion gear13B2-64020-0
89.8F-06.20密封垫seal gasket13B2-65020-0
99.8F-06.22填隙片(0.1)Shim1369-64014-0
109.8F-06.19水泵座water pump seat13B2-65017-0
119.8F-06.21双唇口油封(12*24*8)Double lip Oil seal1309-60111-0
1215F-06.03.03变挡杆O形密封圈(5.8*4.3)Shift lever o-ring1
139.8F-06.14密封垫Seal Gasket13B2-65029-0
149.8F-06.13水泵垫板Water pump Plate,13B2-65025-0
15GB9074.1（8.8）六角头螺栓和平垫组件M6*3hexagon headed bolt and flat plate M6*354
16GB9074.1（8.8）六角头螺栓和平垫组件M6*2hexagon headed bolt and flat plate M6*251
179.8F-06.24.00-S变档凸轮组件(短轴)Gear shift cam lever (S)1
None9.8F-06.24.00-L变档凸轮组合件(长轴)Gear shift cam lever (L)1
189.8F-06.08航向调整片Trim tab1
19GB9074.1（8.8）六角头螺栓和平垫组件M6*2hexagon headed bolt and flat plate M6*201
209.8F-06.01连接轴Connecting shaft1
21GB/T896开口挡圈10Circlip1
22GB/T879.2弹性圆柱销3*10Elastic cylindrical pin 3*102
2315F-06.01.04螺塞密封垫Seal Gasket3332-60006-0
2415F-06.01.03注油口螺塞Oil drain plug3332-60005-1
259.8F-06.26.02螺旋桨轴Propeller shaft13B2-60003-0
269.8F-06.26.05压缩弹簧Compression spring13B2-64221-0
279.8F-06.26.03离合器clutch13B2-64215-0
28F9.9-06.00.00.19销Pin1301-64217-0
29F9.9-06.00.00.20簧环Circlip13B2-64221-0
309.8F-06.26.07调整柱塞Adjustment plunger13B2-64222-0
319.8F-06.26.06变档柱塞Gear shift plunger1369-64223-0
329.8F-06.26.01垫圈gasket1
339.8F-06.25.01水下壳体盖Lower casing Cap13B2S60101-0
349.8F-06.25.06双唇口油封(28*15*10)Double lip Oil seal1369-60111-0
35F9.9-06.02.00.03含油轴承Oil bearing1
36F9.9-06.00.00.15轴承6004C2Bearing 6004C219601-0-6004
37F9.9-06.02.00.05O形圈(50.5*3.1)O-ring(50.5*3.1)1345-65015-0
389.8F-06.25.03倒档齿轮Reverse gear13B2-64030-0
39DIN985六角尼龙锁紧螺母M4Hex nylon locking nut M41
40GB9074.1（8.8）六角头螺栓和平垫组件M6*2hexagon headed bolt and flat plate M6*202
419.8F-06.09.01水泵壳体Water pump housing13B2-65016-0
429.8F-06.09.02水泵内壳Water pump inner shell13B2-65011-0
439.8F-06.10.00水泵叶轮组件Impeller assy.13B2-65021-1
449.8F-06.12水泵叶轮销Impeller pin,water pump1
459.8F-06.15水管下密封圈Seal ring(lower),hose1331-65014-0
469.8F-06.11密封垫Gasket,water pump casing1
479.8F-06.05水泵壳体压板Water pump housing plate2
48GB/T5783六角头螺栓M6*50Bolt4
499.8F-06.03螺旋桨垫块Propeller pad13B2-64231-0
509.8F-06.06.01螺旋桨Propeller13B2-64517-0
None9.8F-06.06.00.00螺旋桨组件(8.9*8.5)Propeller Assy.13B2-64517-0
519.8F-06.06.02喇叭口Propeller mouth1
529.8F-06.06.03.00内花键组件Internal splined assy.1
53GB/T96平垫10Gasket1
5415F-06.14.06开槽六角螺母Nut1369-64121-0
55GB91开口销2.5*20Cotter pin1
569.8F-06.07进水口盖Water inlet cap2
57GB/T823十字槽小盘头螺钉M4*30Pan head screw with cross recess1
None9.8F(S)-06.00.00.00水下装置部件(短）low unit（S）1
None9.8F(L)-06.00.00.00水下装置部件（长）low unit（L）1
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2GB91 2.5*20开口销cotter pin1
3GB879 3*10弹性圆柱销Cylindrical pin2
49.8F-06.10.00水泵叶轮组件impeller Assy.13B2-65021-1
515F-09.01应急启动手柄emergency starting handle1
6F15-08.00.00.00燃油箱总成(12L)fuel case Assy.1
715F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
815F-01.01.22启动绳φ5*2000mmstarter rope1
915F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
1015F-09.00工具包toolkit1
8保修保养手册(仅国内客户用)Warranty and maintenance munal(just for Chinese client)1
