舟一会 ZHOUYIHUI 船外机

海的 15F - 15F HL(S)

共 12 个部位，点击零件编码查看详情，或搜索本页零件。

总装分解图

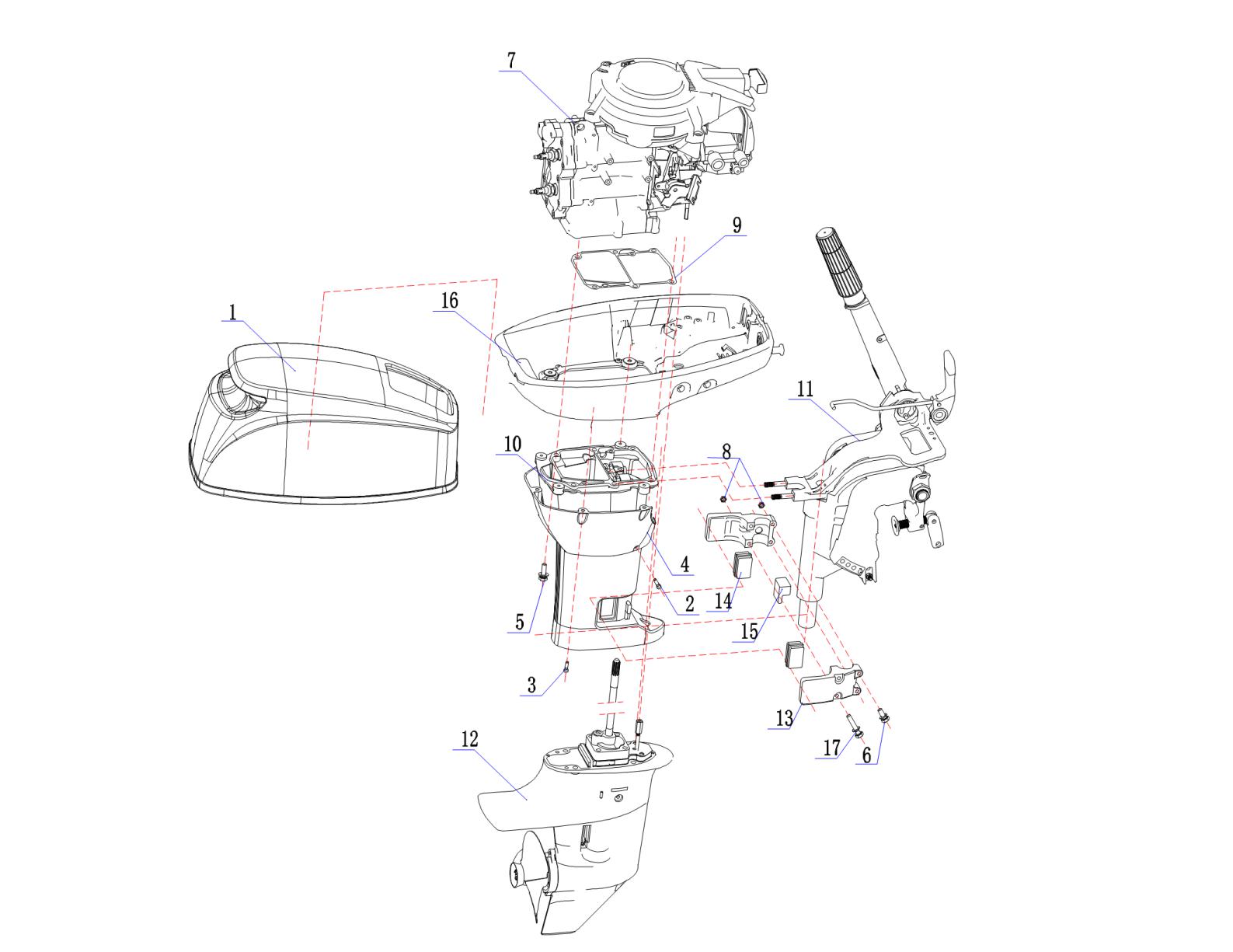

总装分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-07.00.00顶罩部件Upper casing1
2GB818十字槽盘头螺钉M5*12Bolts297885-05012
3GB818十字槽盘头螺钉M5*12Bolts597885-05012
415F-00.05水上装饰罩Decarate casing1
5GB9074.1(8.8)六角头螺栓和平垫组件M8*30Flat gasket&bolts6
6GB9074.1(8.8)六角头螺栓和平垫组件M6*55Flat gasket&bolts2
715F-01.00.00发动机部件Starter1
8GB6177六角法兰螺母M6Bolts4
915F-01.06.29箱体密封垫Seal ring1
1015F-05.00.00水上装置组件Top cowling1
1115F-03.00.00夹紧托架部件Crankshaft piston1
1215F-06.00.00水下驱动部件Bottom cowling1
1315F-00.01减震器外壳Cushion blocking casing2
1415F-00.02减震块ACushion blocking A2
1515F-00.03减震块BCushion blocking B1
1615F-02.00.00底罩部件Bottom casing1
17GB9074.1(8.8)六角头螺栓和平垫组件M6*75Flat gasket&bolts2
顶罩

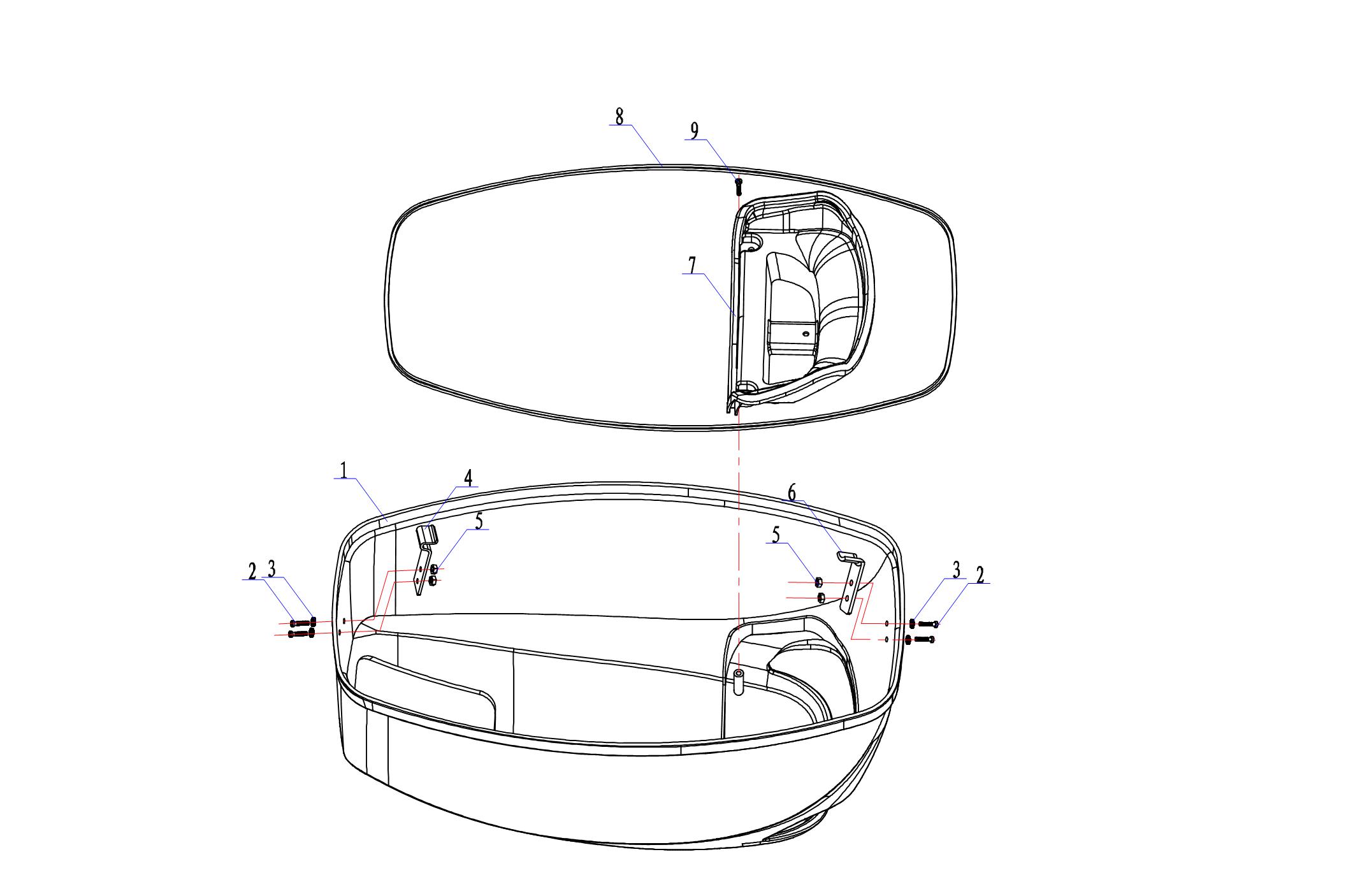

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-07.01顶罩Top cowling1
2GB818十字槽盘头螺钉M4* 16Pan head bolt with cross recess497885-05012
3GB96平垫4Flat gasket490201-10M01
4F15-07.00.00.06前锁紧钩Lock Hook(front)1
5DIN985六角尼龙锁紧螺母M4Connecting,Top cowling490185-08057
615F-Ⅱ-07.08锁紧钩(Ⅱ型)Lock Hook(II)1
715F-07.02进气口盖Cap,air inlet1
815F-07.06橡胶密封圈Rubber seal ring1
9GB845十字槽盘头自攻螺钉ST4.2*13Cross recessed pan head tapping screws3
None15F-07.00.00.00顶罩部件Top cowling assy.1
启动罩

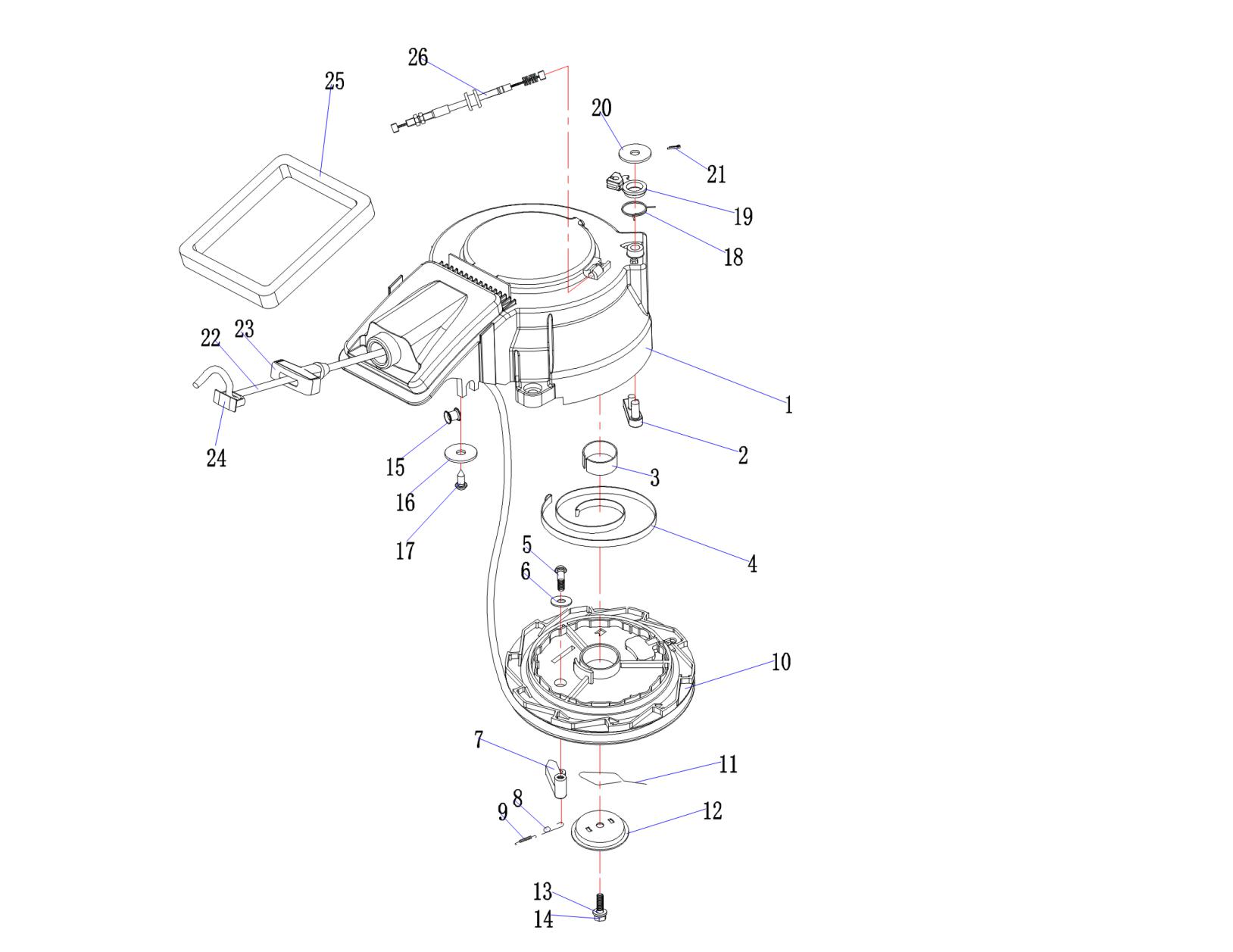

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-01.01.01启动罩外壳Casing,Starter cover assy.163V-15711-02
215F-01.01.12制动器Brake163V-15794-00
315F-01.01.06启动轮衬套Bushing,Start wheel163V-15753-00
415F-01.01.11涡形弹簧Volute spring163V-15713-00
5GB818十字槽盘头螺钉M5*14Pan head bolt with cross recess197885-05012
6GB96平垫5Flat gasket190201-10M01
7F25-01.01.00.02驱动臂Drive arm163V-15741-00
815F-01.01.18驱动臂弹簧Spring,drive arm163V-15767-01
915F-01.01.17回位弹簧Return spring163V-15784-01
1015F-01.01.05启动轮Start wheel163V-15714-00
1115F-01.01.20压板夹簧Clip spring163V-15705-01
1215F-01.01.19启动压板Starter plate163V-15716-00
13GB848平垫6Flat plate190201-10M02
14GB5783六角头螺栓M6*12bolts190105-06M07
1515F-01.01.03启动绳卷轴Scroll,start rope163V-15764-00
16GB5287平垫6Flat plate190206-12052
17GB845十字槽盘头自攻螺钉A型ST5.5*16Bolts1
1815F-01.01.13制动器扭簧Torsional spring,brake163V-15734-00
1915F-01.01.14钢索固定环fixed collar，steel cable163V-15748-00
2015F-01.01.15垫片Gasket1
2115F-01.03.11卡簧Spring191490-16018
2215F-01.01.22启动绳5*2000MMStart rope1
2315F-01.01.08启动手柄Starter handle16G1-15755-00
2415F-01.01.10手柄盖Cover,Starter handle16G1-15779-00
2515F托架减震套(共展)(厚度12)Damper163V-15762-00
2615F-01.01.21制动钢索Steel cable,brake163V-15770-01
None15F-01.01.00.00起动罩组件Recoil starter(assemble assy.)163V-15710-13
动力部分

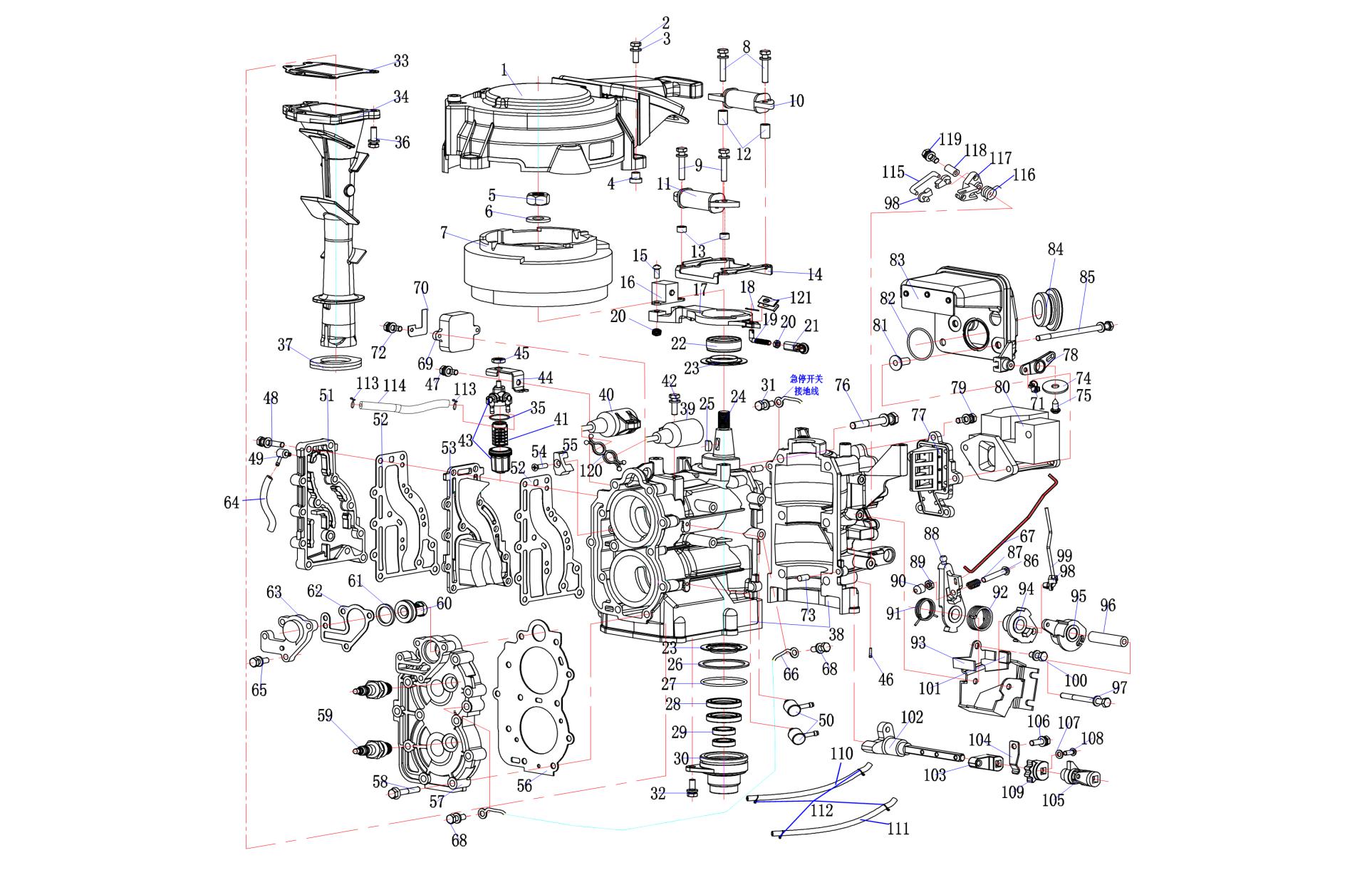

动力部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-01.01.00.00启动罩组件Starter cover assembly163V-15710-13
2GB5783六角头螺栓M6*25Bolt390105-06M07
315F-01.01.25启动罩垫片start cover gasket3
415F-01.01.04启动罩垫管Starter cover tube390387-06M05
515F-01.03.19飞轮螺母Flying wheel nut190170-12066
615F-01.03.20飞轮平垫Flying wheel flat gasket190201-12472
715F-01.03.18.00飞轮组件Flywheel nut163V-85550-11
8GB9074.1(8.8)六角头螺栓和平垫组件M6*3Flat gasket&bolts2
9GB9074.1(8.8)六角头螺栓和平垫组件M6*4Flat gasket&bolts2
1015F-01.03.04充电线圈Charging coil163V-85520-01
1115F-01.03.05照明线圈Lighting coil163V-85533-00
1215F-01.03.03磁电机垫管 Bbushing,Magneto290387-06M53
1315F-01.03.02磁电机垫管 Abushing,Magneto290387-06M24
1415F-01.03.01固定板Fixing plate163V-41611-00
15GB818十字槽盘头螺钉M5*12Pan head bolt with cross recess297885-05012
1615F-01.03.08触发器Impulsor s163V-85580-01
1715F-01.03.07安装座Inner cover,exhaust1
18GB91开口销（1.6*12）cotter pin191490-30020
1915F-01.03.10L件螺杆L-screw1
20GB6170六角螺母M5Hex nut395380-06700
2115F-01.03.12连杆接头connector1
2215F-01.06.30油封FB23*36*13Oil seal193110-23M00
2315F-01.06.31轴承盖板shaft cover263V-11445-00
2415F-01.06.00.00曲轴活塞组件shaft pist ion Assy.163V-11400-01
2515F-01.06.34.19半圆键woodruff key1
2615F-01.06.32大垫圈Big gasket1
2715F-01.06.28O型密封圈O-seal gasket193210-46M16
2815F-01.06.26油封B25*38*6Oil seal293101-25018
2915F-01.06.27油封B13*25*6Oil seal293101-13018
3015F-01.06.25油封壳体oil seal cover163V-15396-01-94
31GB9074.1(8.8)六角头螺栓和平垫组件M6*1bolt&flat gasket Assy.1
32GB9074.1(8.8)六角头螺栓和平垫组件M6*1bolt&flat gasket Assy.1
3315F-05.10排气管密封垫Cover gasket,exhaust pipe163V-41133-A1
3415F-05.09排气管Exhaust pipe165F-41131-00-5B
3515F-01.07.05.06过滤器O型圈(33*2)O ring,filter193210-32738
36GB9074.1（8.8）六角头螺栓和平垫组件M6*2bolt&flat gasket Assy.597075-08030
3715F-05.11减震垫damper163V-41135-00
3815F-01.06.01曲轴箱箱体组件shaft casing Assy.163V-15100-02-1S
3915F-01.03.14高压包 AIgnition coil A163V-85570-00
4015F-01.03.15高压包 BIgnition coil B1
4115F-01.07.05.04过滤器滤芯fuel fliter161N-24563-00
42GB9074.1(8.8)六角头螺栓和平垫组件M6*2bolt&flat gasket Assy.2
4315F-01.07.05.05燃油滤清器(外壳)Inner cover,exhaust161N-24560-00
4415F-01.06.23燃油滤清器支架outer cover,exhaust1682-24566-01
45GB6170六角头螺母M8Bolt nut195380-06700
4615F-01.06.21气管圆接头 BJoint,air breather tube1
47GB9074.1(8.8)六角头螺栓和平垫组件M6*1bolt&flat gasket Assy.1
48GB9074.1(8.8)六角头螺栓和平垫组件M6*3bolt&flat gasket Assy.13
4915F-01.06.10水管圆接头water Tube fitting B1
5015F-01.06.03气管圆接头 AJoint,air breather tube2
5115F-01.06.08排气外盖Exhaust cover（outlet)163V-41113-00-1S
5215F-01.06.09排气盖密封垫Joint,air breather tube263V-41112-A0
5315F-01.06.07排气内盖Exhaust cover（intake)163V-41111-00-1S
54GB819十字槽沉头螺钉M5*16Bolt1
5515F-01.06.18阳极 AAdone1682-11325-00
5615F-01.06.12气缸垫cylinder gasket163V-11181-A2
5715F-01.06.13气缸盖cylinder cover16E7-11111-01-1S
58GB5789(10.9)六角法兰面螺栓M6*35bolt11
59BR7HS火花塞(新）spark plug2
6015F-01.06.14-50°节温器(50°)thermostat16E5-12411-30
6115F-01.06.14.01大垫圈Big gasket1688-12412-00
6215F-01.06.15节温器垫thermostat gasket1682-12414-A1
6315F-01.06.16节温器盖thermostat cover1682-12413-00-1S
6415F-01.06.11橡胶水管5*10*305Rubber hose1
65GB9074.1(8.8)六角头螺栓和平垫组件M6*2Bolt & flat gasket4
6615F-01.06.04钢索连接组件Throttle cable connecting Assy.1
6715F-01.04.11阻风门连杆chock lever1
68GB9074.1(8.8)六角头螺栓和平垫组件M6*1bolt&flat gasket Assy.2
6915F-01.03.13点火控制器CDI163V-85540-01
7015F-01.03.06固线卡Fixation clip1
7115F-01.02.07阻风门连杆接头joint,chock lever1661-41262-02
72GB9074.1(8.8)六角头螺栓和平垫组件M6*2bolt&flat gasket Assy.2
7315F-01.06.20定位销Dowel pin2
74GB96平垫5flat gasket190201-10M01
75GB845十字槽盘头自攻螺钉ST4.8*bolt1
76GB9074.1( 10.9)六角头螺栓和平垫组件M8*6bolt&flat gasket Assy.6
7715F-01.06.24.00进气阀座组件Inlet valve seat163V-13610-10
7815F-01.02.05阻风门摇臂Rocker arm,chock,1
79GB9074.1(8.8)六角头螺栓和平垫组件M6*2bolt&flat gasket Assy.3
8015F-01.02.08.00化油器组件Carburetor Assy163V-14301-00
8115F-01.02.03带肩垫管Shoulder pad tube290387-06M15
8215F-01.02.02消音器O型圈silencer o-ring193210-35M86
8315F-01.02.01.00进气消音器组件Air intake silencer Assy.163V-14440-00
8415F-01.02.04橡胶闷头rubber plug1
85GB9074.1(8.8)六角头螺栓和平垫组件M6*1bolt&flat gasket Assy.2
86GB823十字槽小盘头螺钉M6*35screw1
8715F-01.04.06压缩弹簧Compression spring190501-12M16
8815F-01.04.05磁电机控制杠杆magneto control lever163V-41631-00
89DIN985六角尼龙锁紧螺母M6Hex Nylon bolt nut190185-08057
9015F-01.04.07螺纹盖screw cap1
9115F-01.04.02扭簧Atorsion spring190508-16M37
9215F-01.04.03扭簧Btorsion spring190508-20M38
9315F-01.04.01安装架mounting bracket163V-14497-02
9415F-01.04.09油门连杆固定套Connecting block,throttle163V-41283-01
9515F-01.04.08钢索组合固定套Fixed sleeve，wire Assy。163V-41638-00
9615F-01.04.04套管bushing190387-06M50
97GB9074.1(8.8)六角头螺栓和平垫组件M6*6bolt&flat gasket Assy.1
9815F-01.02.07阻风门连杆接头joint,chock lever3661-41262-02
9915F-01.05.08油门连杆Throttle lever163V-41211-00
100GB9074.1(8.8)六角头螺栓和平垫组件M6*1bolt&flat gasket Assy.1
10115F-01.04.10橡胶限位块rubber limited block1
10215F-01.05.01变档杆杠杆shift lever163V-44123-01
10315F-01.05.04变档连杆固定块shift lever block163V-44121-01
10415F-01.06.22变档限位弹簧板shift located spring plate163V-44116-00
10515F-01.05.03变档摇臂shift rocker arm163V-44122-01
106GB9074.1(8.8)六角头螺栓和平垫组件M6*1bolt&flat gasket Assy.1
107GB848平垫5flate gasket390201-10M02
108GB818十字槽盘头螺钉M5*12screw397885-05012
10915F-01.05.06变档定位块shift located block163V-44125-00
11015F-01.06.05橡胶管3*7*210rubber hose1
11115F橡胶管3*7*230rubber hose163V-15762-00
112管夹φ7Hose Clip4
113管夹φ10Hose Clip2
11415F-01.07.03耐油橡胶管5*10*184rubber hose1
11515F-01.05.11摇臂杠杆rocker lever16L2-15747-00
11615F-01.05.12钢索端套扭簧tursion spring,cable bottom sleeve190508-08M39
11715F-01.05.09钢索端套cable bottom sleeve163V-15746-10
11815F-01.05.10钢索端套垫管bushing,190387-06M06
119GB9074.1(8.8)六角头螺栓和平垫组件 M6*bolt&flat gasket Assy.1
12015F-01.03.17尼龙线卡(双)Wire fixer1
12115F-01.03.09定位卡fixed clip1
曲轴部分

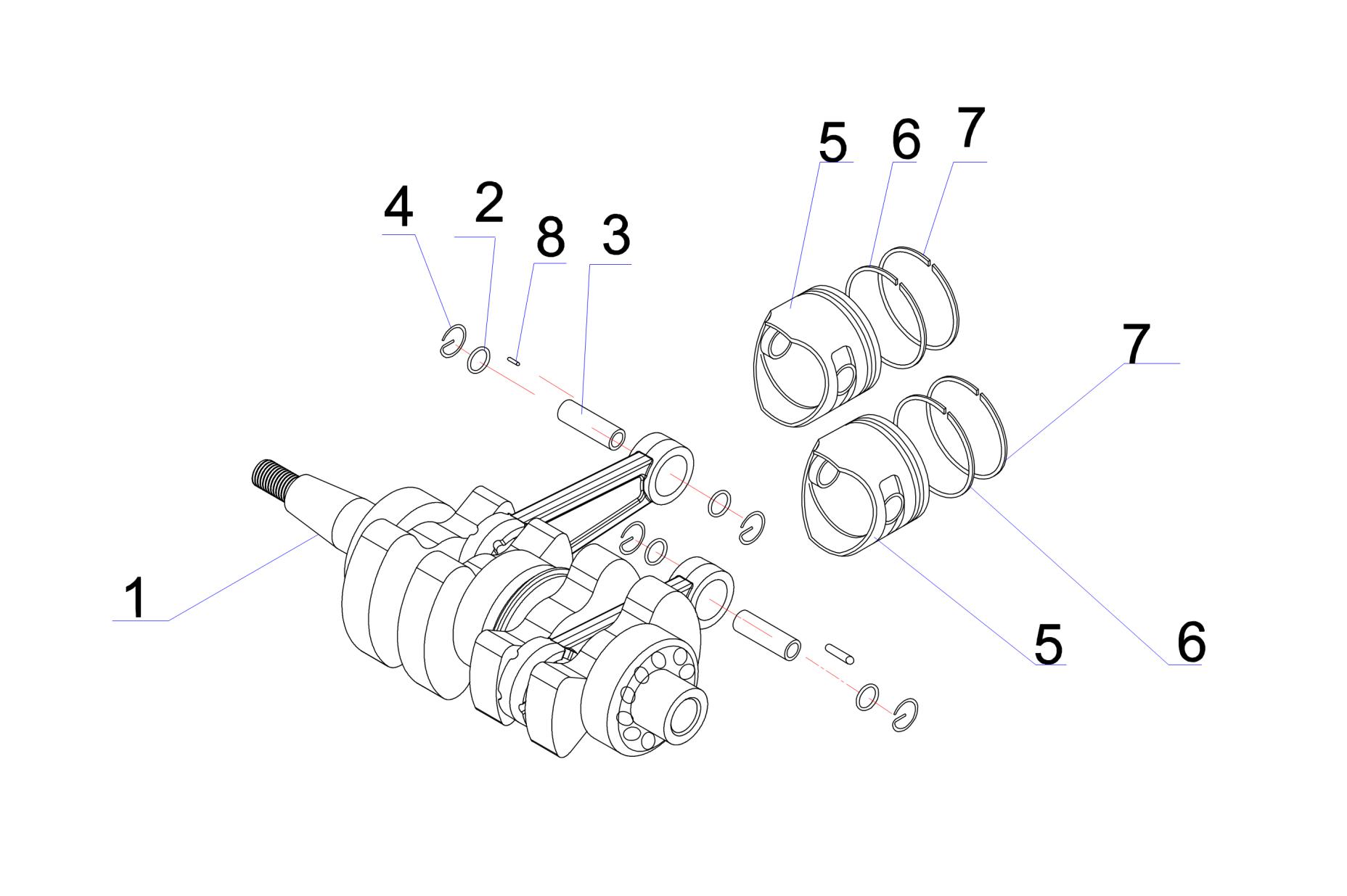

曲轴部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-01.06.33.00曲轴Crankshaft163V-11400-01
215F-01.06.33.17滚针盖板Needle bearing plate490201-14377
3F15-01.02.02.06活塞销Pin,piston2634-11633-00
4F15-01.02.02.02活塞销卡簧Circlip493450-15023
515F-01.06.33.11活塞Piston26E7-11631-00-97
615F-01.06.33.13活塞环 2Top ring2682-11610-01
715F-01.06.33.12活塞环 12nd ring2
815F-01.06.33.16密排滚针Roller pin5093602-14104
操舵手柄

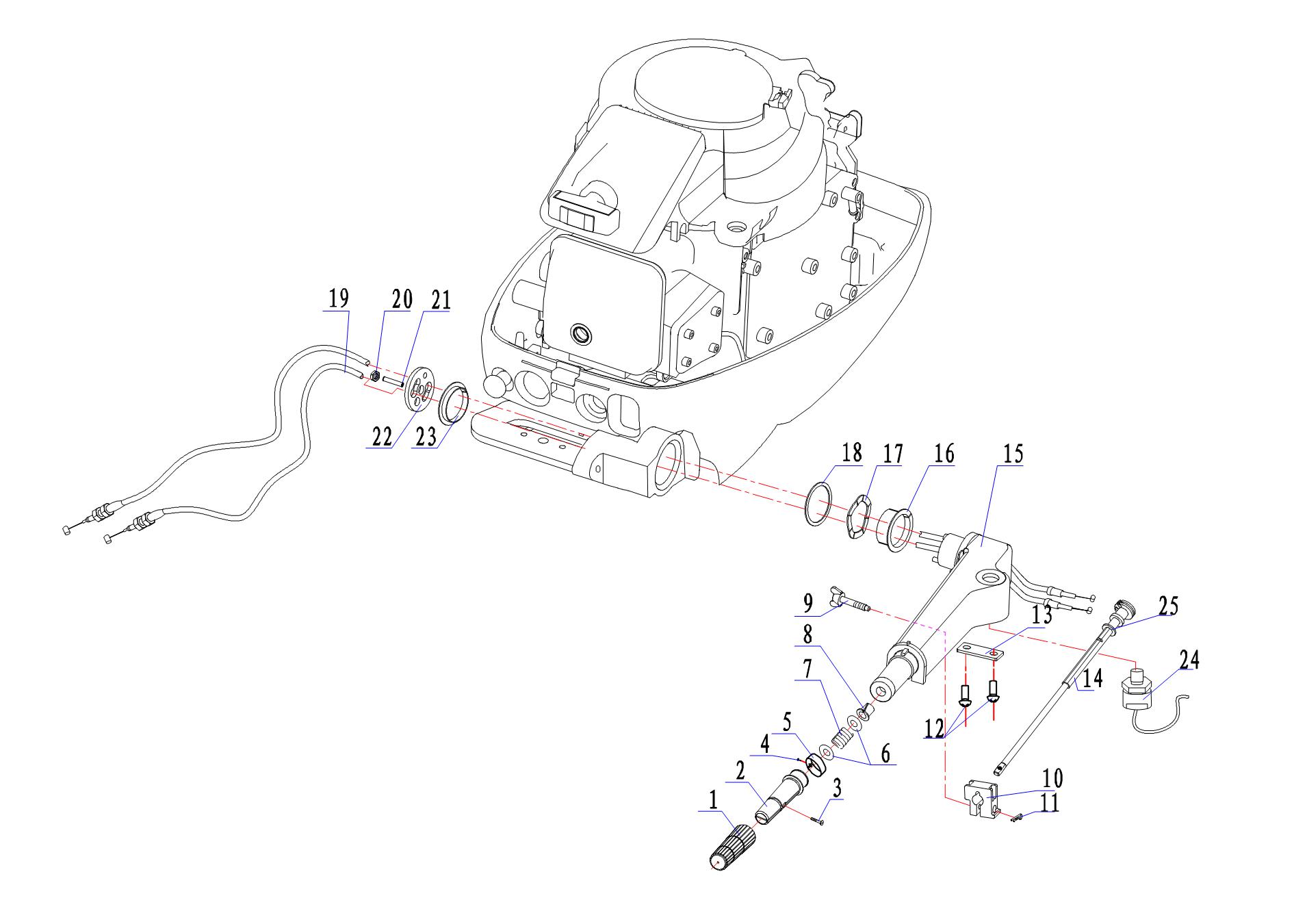

操舵手柄 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-04.07.14手柄橡胶套Rubber sleeve,Handle16G1-42177-00
215F-04.07.13手柄Handle1664-42119-00
3GB820十字槽半沉头螺钉M5*25Cross recessed countersunk head screw190149-05M13
4GB845十字槽盘头自攻螺钉ST2.2Pan head bolt with cross recess1
5F4-04.11-Ⅱ油门标牌Throttle plate1
6GB848平垫10Flat gasket290201-10M02
715F-04.07.11弹簧spring190501-23215
815F-04.07.12衬套Bushing190386-08032
915F-04.07.09阻力调整旋钮Adjustor,friction16G1-42125-01
1015F-04.07.08锁紧块Latch segment16G1-42126-00
11GB91开口销1.6*12Cotter pin191490-30020
12GB818十字槽盘头螺钉M5*12Cross recessed countersunk head screw297885-05012
1315F-04.07.07节气门杆压板Plate16E0-42159-02
1415F-04.07.05节气门杆Throttle lever16G1-42138-01
1515F-04.07.01操舵手柄Steering handle163V-42111-01-4D
1615F-04.06开口尼龙衬套（长）Bushing190386-34M97
1715F-04.05手柄波形垫圈Washer290206-36M21
1815F-04.03尼龙垫圈Washer190202-36M55
1915F-04.07.04油门控制钢索Throttle cable26L2-26301-01
20DIN985六角尼龙锁紧螺母M8nut190185-08057
2115F-04.07.02双头螺柱(短）Bolt190116-08016
2215F-04.02操舵手柄压板Plate16G1-42131-02
2315F-04.04开口尼龙衬套（短）Bushing190386-33M96
2415F-04.07.03急停开关总成emergency stop switches assy165W-82575-01
25GB848平垫12Flat gasket190201-10M02
None15F-04.00.00.00操舵手柄部件Tiller Assy.1
旋转托架部分

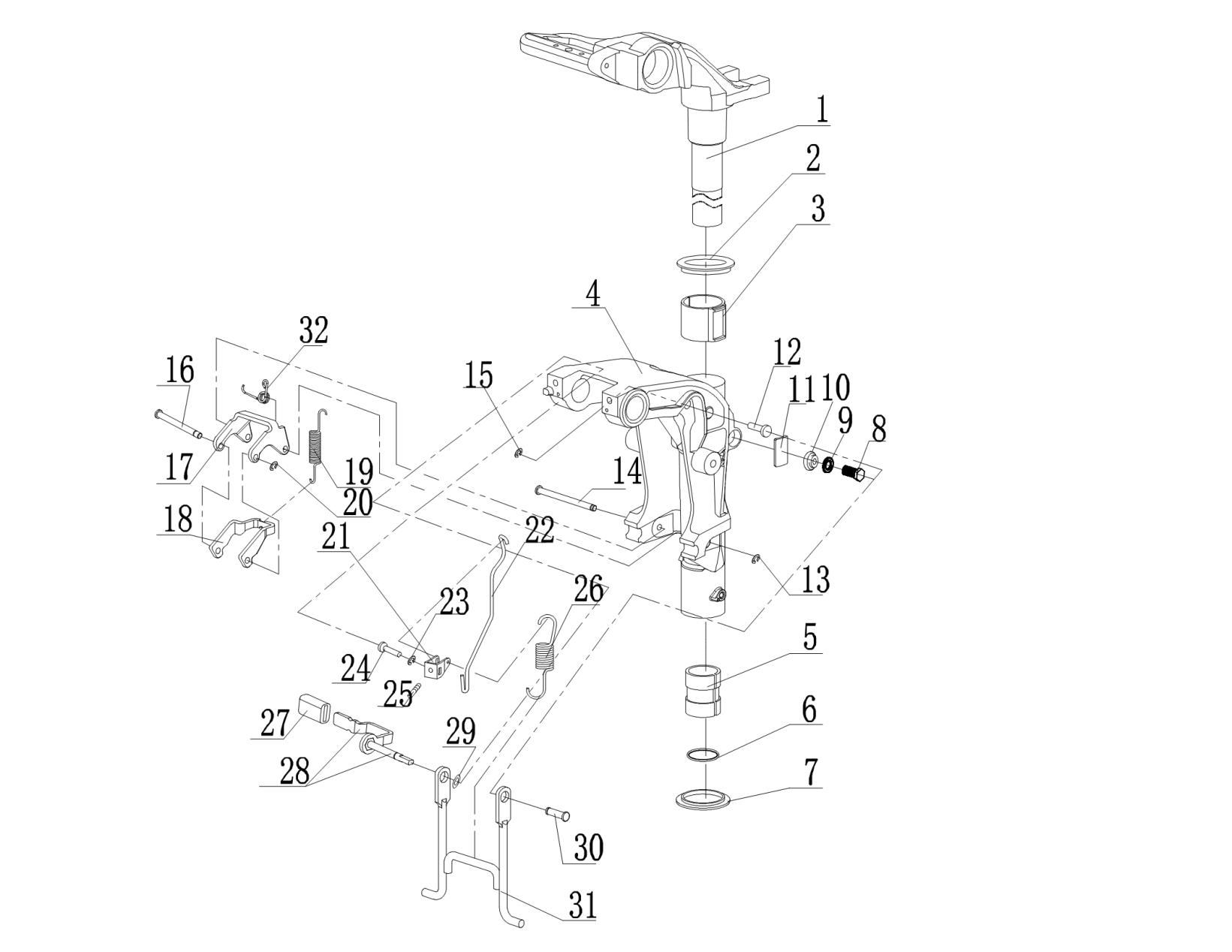

旋转托架部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-04.01.00操舵托架组件Steering bracket comp.163V-42511-04-4D
215F-03.09.05垫圈ring gasket190209-40008
315F-03.09.03锁紧圈Lock washer165F-42537-00
415F-03.09.01旋转托架Swivel bracket163V-43311-03-4D
515F-03.09.08下衬圈Lower bushing190386-30M60
615F-03.09.07O型密封圈(29*3.8)O ring193210-29M94
715F-03.09.06下垫套bushing (bottom)190386-30048
8GB5783六角头螺栓M6*20Flat gasket&bolts190105-06M07
9GB848平垫6Flat gasket190201-10M02
1015F-03.09.09锁紧螺栓密封圈Gasket1689-43373-01
1115F-03.09.04锁紧圈摩擦片Friction plate,Locking163V-42528-00
1215F-03.09.17支撑架销尼龙套Nylon bush,support frame190386-07M95
13GB896开口挡圈4Circlip199080-05600
1415F-03.09.16支撑架销Pin,support frame163V-43659-00
15GB896开口挡圈5Circlip190386-22M94
1615F-03.09.22角度定位固定轴Shaft,Tilt Lock166R-43611-00
1715F-03.09.21角度定位锁紧外支架Tilt angle outer bracket166R-43615-00
1815F-03.09.20角度定位锁紧内支架Tilt angle inner bracket163V-43614-10
1915F-03.09.18拉簧pull Sping163V-43656-00
20GB896开口挡圈4Circlip193430-04M03
2115F-03.09.10角度定位件Angle fixer163V-43641-01
2215F-03.09.11角度定位锁杆angle loction rod166R-43617-00
23GB896开口挡圈5Circlip199080-05600
2415F-03.09.14杠杆套Sleeve1
25GB818十字盘头螺钉M5*6Pan head screw with cross recess190157-05014
2615F-03.09.24角度支撑架拉簧Spring190507-20M00
2715F-03.09.12.01橡塑套rubber Sleeve1682-43318-01
2815F-03.09.12.00操纵杠杆组件Lever comp.,Steering166M-43630-01
2915F-03.09.13杠杆垫washer1
3015F-03.09.19角度定位锁轴Pin166R-43611-00
3115F-03.09.15角度支撑架Tilt angle fixer166M-43350-01
3215F-03.09.23弹簧Spring190508-18M41
夹紧部分

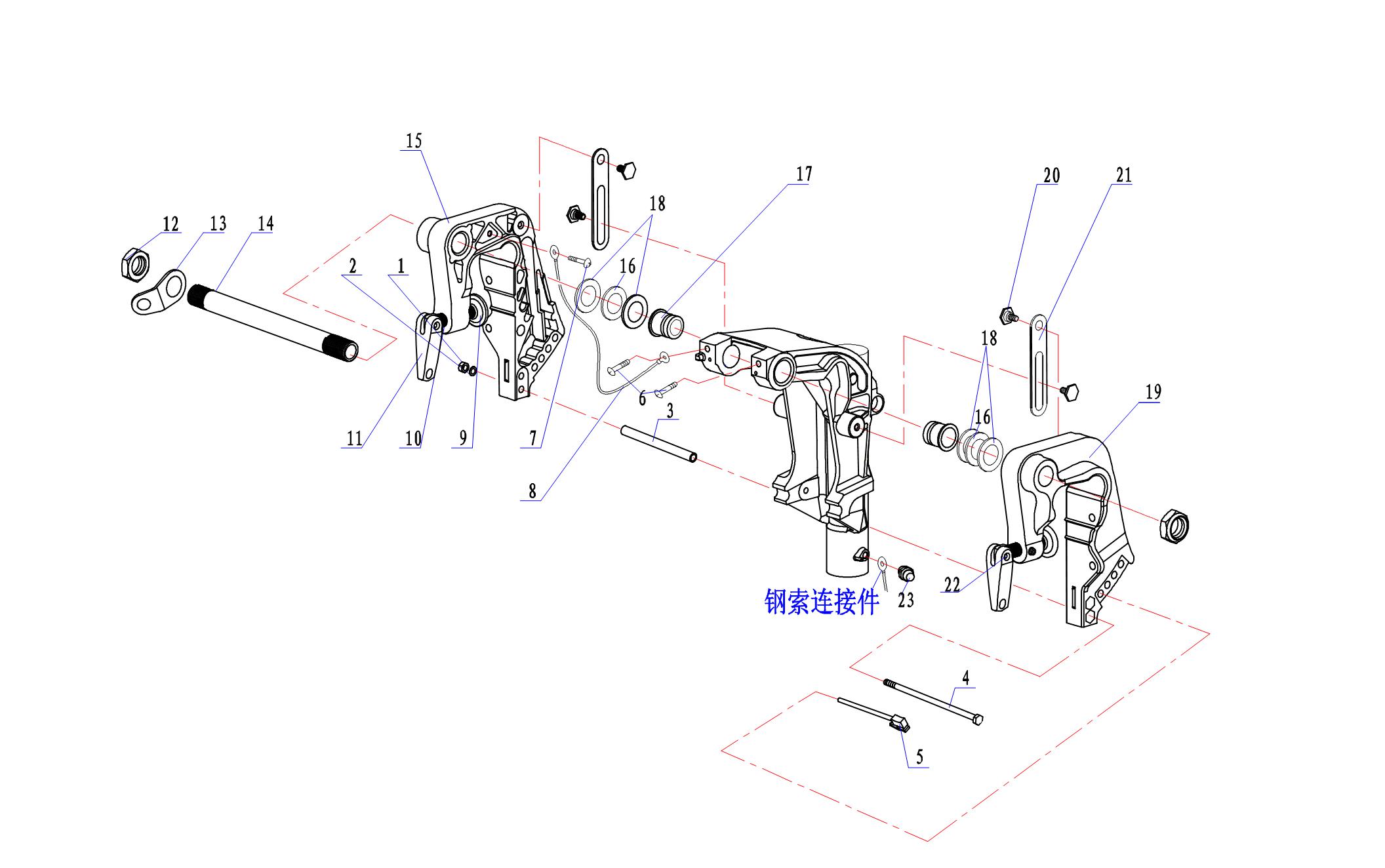

夹紧部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB6170六角头螺母M6Hexagonal nut195380-06700
2GB848平垫6Flat gasket192995-06600
315F-03.11螺栓套管Sleeve190387-06M13
4GB5783六角头螺栓M6*145Bolt190101-06M29
515F-03.10.00-Ⅱ角度限位插销组件Trim rod1689-43160-00
6GB818十字槽盘头螺钉M8*10Cross recessed countersunk head s297885-05012
7GB818十字槽盘头螺钉M6*8Cross recessed countersunk head s166M-82148-00
815F-03.05.03钢索连接组件Conductive wire197885-08010
915F-03.05.02.03夹紧盘Clamp plate2648-43114-01
10F9.9-Ⅱ-03.00.00.02艉板夹紧螺栓Clamp Bolt,Transom26E7-43116-00
1140F-03.05.03.02夹紧手柄intensify handle26E0-43118-01
1215F-03.01夹紧托架螺母Clamp nut290185-22043
1315F-03.03孔板Orifice plate16J8-43113-01
1415F-03.04夹紧托架双头螺栓Bolt163W-43131-01
1515F-03.05.01夹紧托架（左）（高压Bracket(left)163V-43112-08-4D
1615F-03.02尼龙垫圈Nylon gasket290202-22M54
1715F-03.09.02托架阻尼套Damping ring,bracket290386-22M94
1840F-03.03垫片Washer4
1915F-03.08.01夹紧托架（右）（高压Bracket(RH)163V-43111-07-4D
2015F-03.06扁头六角螺栓Bolt490109-06M84
2115F-03.07制动板brake pad263V-43181-00
22GB1015沉头半空心铆钉4* 18Bolt2
23JB/7940.1直通式压注油杯M6Cup1
底座

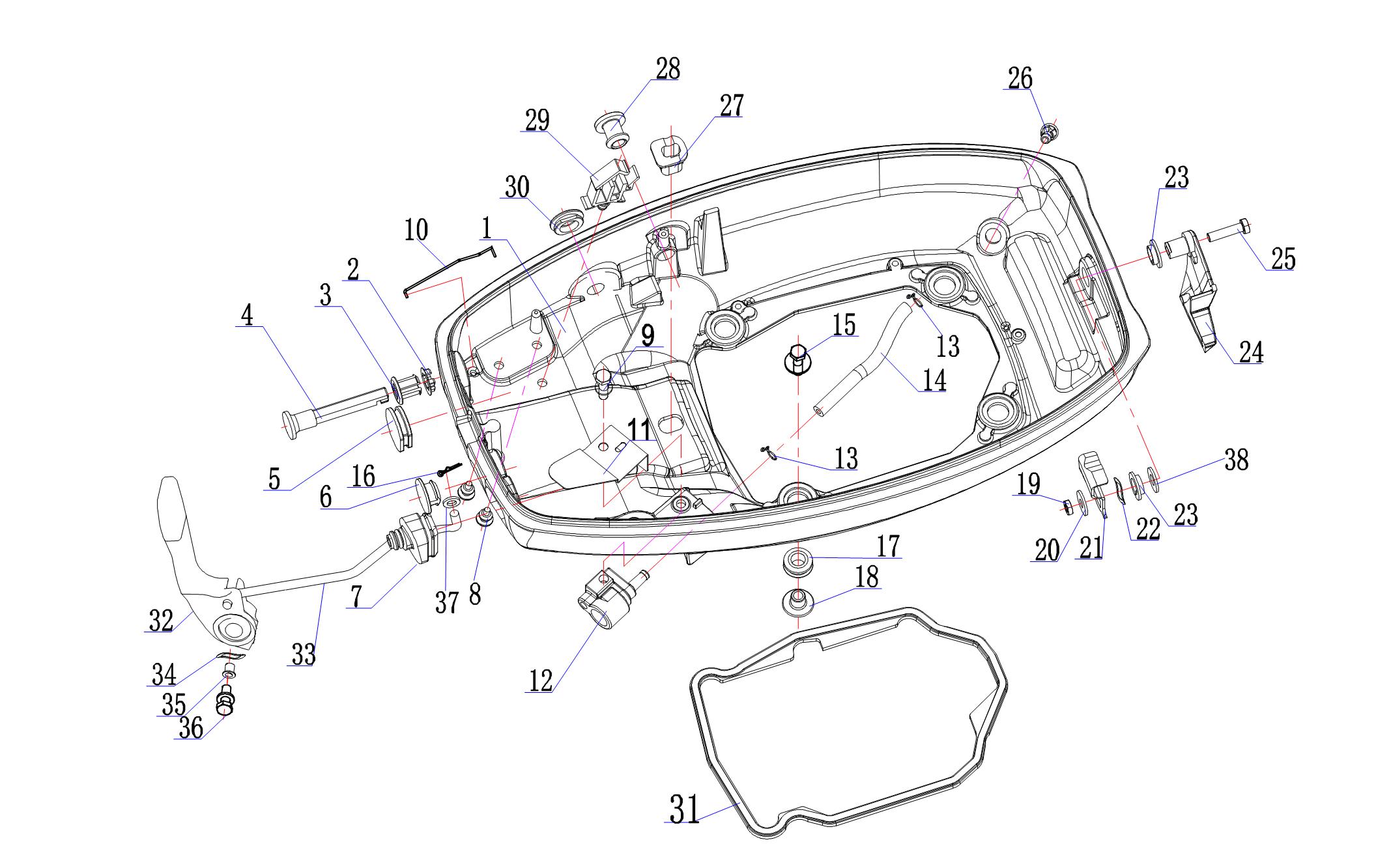

底座 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-Ⅱ-02.01底罩Bottom seat163V-42711-13-04D
215F-02.04橡胶垫Rubber washer16J8-41274-00
315F-02.03阻风门拉杆护套Protecting bush,choke1689-41273-00
415F-02.02阻风门拉杆Pull rod,choke16H4-41271-01
515F-02.12前操油门橡胶闷头（大）Rubber plug(L)1682-42724-00
615F-02.13前操油门橡胶闷头（小）Rubber plug(S)1682-42725-00
715F-02.05手柄连杆橡胶护套Rubber sleeve, handle conncet ing rod163V-42726-00
815F-02.09外接水管橡胶闷头Rubber plug,water hose2
9GB9074.1(8.8)六角头螺栓和平垫组件M6*25Flat gasket&bolts1
1015F-01.02.06阻风门摇臂连杆Connector,choke1
1115F-01.07.02燃油管插头固定板Fuel hose joint plate1
12燃油管插头组件Fuel hose joint assy.115-F01.07.01.00
13管夹10Clamp2
1415F-01.07.03耐油橡胶管（5*10*184）Tube1
15GB9074.1(8.8)六角头螺栓和平垫组件M6*25Flat gasket&bolts4
1615F-01.05.14卡簧Spring1
1715F-02.07底座减震垫Cushion blocking of bottom seat490387-06034
1815F-02.08减震垫衬管Washer,damping490480-15M31
19GB6170六角螺母M6Hexagonal nut195380-06700
20GB5287平垫6Flat gasket190206-12052
2115F-Ⅱ-02.21前锁紧钩Lock Hook(front)16E7-42816-00
2240F-02.02.00.02波型垫片Washer190201-06068
2315F-Ⅱ-02.19塑料衬套Plastic bushing2
2415F-Ⅱ-02.18锁紧手柄Lock handle163V-42815-01-4D
25GB5783六角螺栓M6*25Bolt195380-06700
2615F-02.11塑料水嘴Plastic Water nozzle16BL-44391-00
2715F-02.10变档连杆橡胶护套protecting bush,gear shifting linkage1682-42727-00
2815F-02.14前操变档橡胶闷头Rubber plug,Gear shaft16G1-42748-00
2915F-02.06油门钢索固定夹Fixer,Throttle cable190465-25M57
30F4-01.02.06.06橡胶闷头Rubber plug1
3115F-05.02壳体橡胶密封垫Seal Gasket163V-42716-02
3215F-04.08.01变档手柄shift Gear handle1
3315F-04.08.02变档手柄连杆gear shifting linkage1
3415F-04.08.04变档手柄波形垫圈Washer1
3515F-04.08.03带肩垫管Washer1
36GB9074.1(8.8)六角头螺栓和平垫组件M6*40Flat gasket&bolts1
37GB848平垫6Flat gasket190201-10M02
38GB848平垫12Flat gasket190201-10M02
水上部分

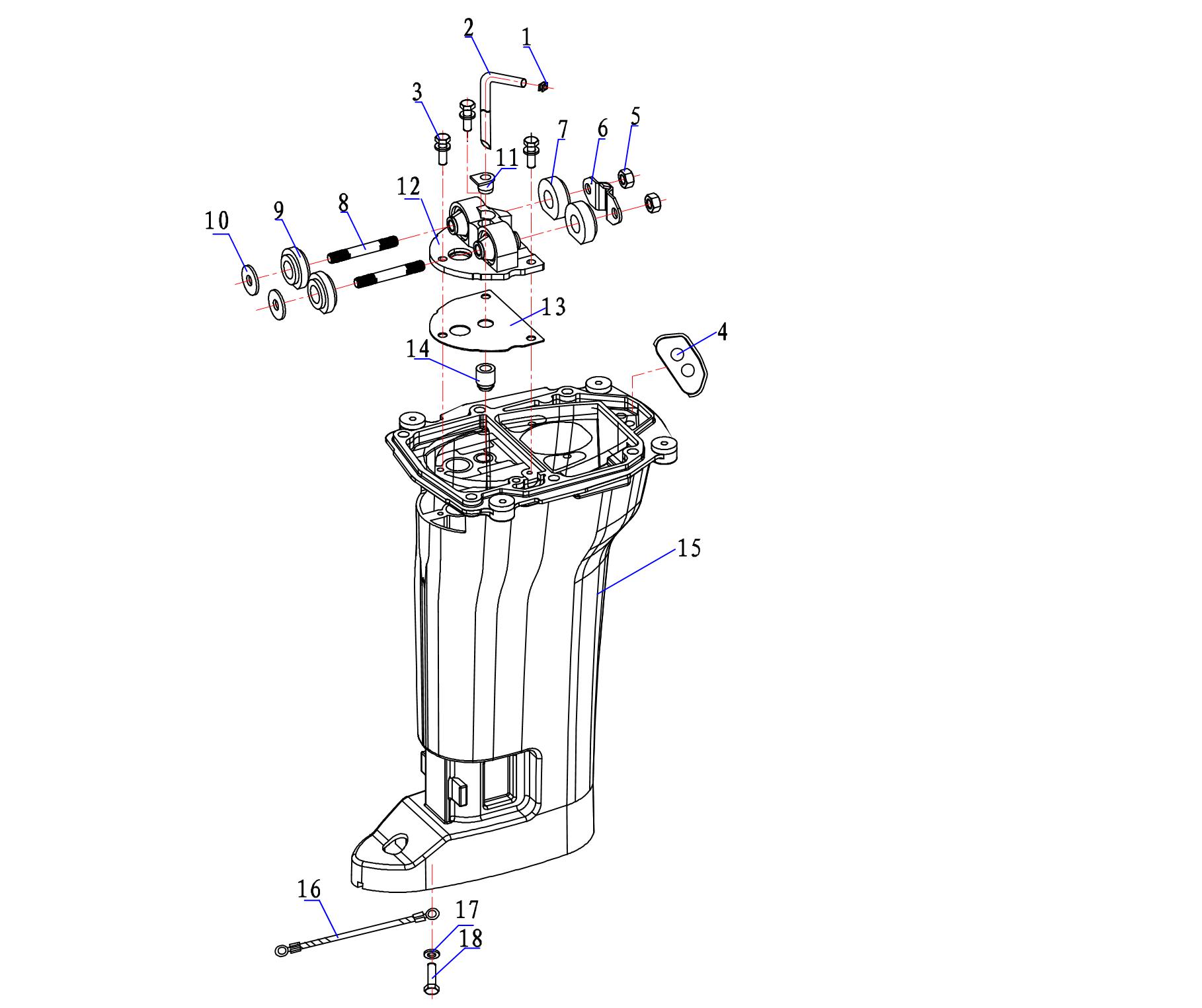

水上部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-05.06水管工形橡胶圈Rubber ring,water hose163V-44365-10
215F-05.05-S水管(短轴）Hose (S)163V-44361-01
None15F-05.05-L水管(L)Hose (L)1
3GB9074.1(8.8)六角头螺栓和平垫组件M6*18Flat gasket&bolts Assy3
415F-05.03怠速孔橡胶密封块Blocker163V-45126-01
5GB6170六角螺母M8Bolts295380-06700
615F-04.01.04上减震器压板Plate163V-44526-00
715F-00.10双孔减震套(单凸面)damper Sleeve2
8F9.9-04.01.00.04双头螺柱Bolt290116-08M54
915F-00.09双孔减震套(双凸面)Sleeve2
10GB96平垫8Flat gasket290201-10M01
1115F-05.04.05水管上橡胶圈Rubber ring(upper),hose1
1215F-05.04.00上减震器组件Upper damper comp.163V-44514-01-5B
1315F-05.04.04密封垫seal gasket163V-45114-A1
1415F-05.07水管下橡胶圈Rubber ring(lower),hose163V-44368-00
1515F-05.01-S水上装置壳体(短轴）Upper casing(S)163V-45111-05-4D
None15F-05.01-L水上装置壳体(L)Upper casing(L)1
1615F-05.08钢索连接件Connector parts1
17GB848平垫6Flat gasket190201-10M02
18GB818十字槽盘头螺钉M6*10Bolt197885-05012
水下部分

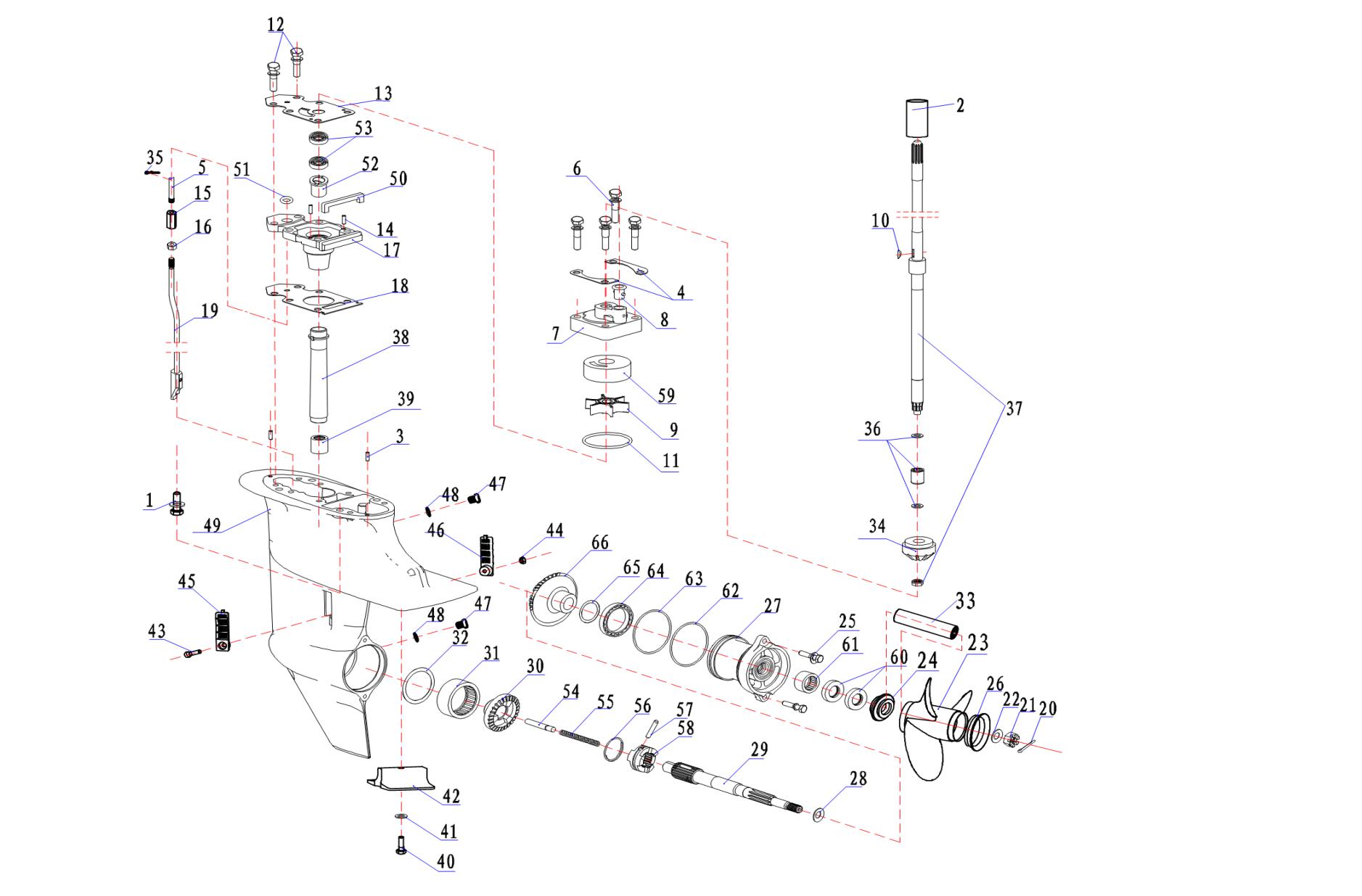

水下部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB9074.1(8.8)六角头螺栓和平垫组件M8*30Flat gasket&bolts Assy.497075-08030
215F-00.04尼龙垫圈Nylon Washer1
315F-06.03.08定位销4*12Dowel pin293604-12M07
415F-06.02.07水泵固定板Dead plate,water pump263V-44328-00
515F-01.05.13变档连杆Gear shift lever163V-44143-01
6GB5783六角头螺栓M8*45Bolt497080-08045
715F-06.02.01水泵壳体Water pump housing comp.163V-44301-00
815F-06.02.06水泵水管密封圈Seal Gasket,water hose1647-44366-00
915F-06.02.04水泵叶轮Impeller163V-44352-01
1015F-06.01.09半圆键Woodruff key163V-44338-00
1115F-06.02.02水泵壳体O形圈O ring,water pump casing193210-44398
12GB5783六角头螺栓M8*25Bolt290105-06M07
1315F-06.03.01轴承座压板(电镀）pressing plate,bearing seat163V-44323-00
1415F-06.03.08定位销4*12Dowel pin293604-12M07
1515F-06.04.05柱状螺母Column nut161N-44146-00
16GB6170六角螺母M6Hexagonal nut195380-06700
1715F-06.03.02轴承座壳体Bearing seat casing163V-45331-00-5B
1815F-06.03.07轴承座密封垫Gasket,bearing seat163V-45315-A0
1915F-06.04.00-S变档凸轮组件(S）Shift cam assy.(S)163V-44150-00
None15F-06.04.00-L变档凸轮组件(L)Shift cam assy.(L)1
20GB91开口销2.5*20Cotter pin191490-30020
2115F-06.14.06开槽六角螺母Nut190171-10M01
22GB96平垫10Flat Gasket190201-10M01
2315F-06.14.01-Ⅱ螺旋桨(9-1/4*9)Propeller1683-45941-00-EL
None15F-06.14.00.00螺旋桨组件（9-1/4*9）Propeller Assy.1683-45945-00-EL
2415F-06.13衬套Bushing16E7-45987-01
25GB9074.1(8.8)六角头螺栓和平垫组件M6*20Bolt297095-06020
2615F-06.14.02螺旋桨喇叭口Propeller shaft1
2715F-06.12.06水下壳体盖Cap,lower casing1683-45361-02-4D
2815F-06.11垫圈gasket ring1
2915F-06.10.01螺旋桨轴Propeller shaft1683-45611-00
3015F-06.09正档螺旋锥齿轮spiral bevel,forward gear16E7-45560-01
3115F-06.07圆锥滚子轴承30205Roller Bearings193332-00005
3215F-06.08-0.1正档齿轮填隙片-0.1Shim2664-45567-01
3315F-06.14.03螺旋桨内花键Propeller shaft teeth1
3415F-06.01.10小齿轮Pinion gear163V-45551-00
3515F-01.05.14卡簧circlip1
3615F-06.01.13推力圆柱滚子轴承Roller Bearings193341-41414
3715F-06.01.08-S驱动轴(短轴)Drive shaft (S)163V-45510-01
None15F-06.01.08-L驱动轴（L）Drive shaft (L)1
3815F-06.01.07尼龙衬圈Nylon bushing163V-45536-00
3915F-06.01.14滚针轴承F1420（NSK）Roller Needle Bearings193315-314V8
None15F-06.01.14滚针轴承F1420（国产）Roller Needle Bearings193315-314V8
40GB5789(10.9)六角法兰面螺栓(铁铬合金)M6*30Bolt195895-06030
41GB861内齿锁紧垫圈6Washer,inner gear192990-06300
4215F-06.15阳极BAnode161N-45251-01
43GB820十字槽半沉头螺钉M5*20Cross recessed countersunk head screw190152-05M04
44DIN985六角尼龙锁紧螺母M5Hexagonal nut190185-05002
4515F-06.01.05进水口盖AWater inlet cover16G1-45214-00
4615F-06.01.06进水口盖Bcover,water inlet163V-45215-00
4715F-06.01.03注油口螺塞plug,straight screw290340-08002
4815F-06.01.04螺塞密封垫Seal Gasket290430-08020
4915F-06.01.02水下壳体Lower casing163V-45311-01-4D
5015F-06.03.04轴承座密封条Sealing strip,bearing seat1
5115F-06.03.03变档杆O形密封圈Shift lever o-ring193210-06ME6
5215F-06.03.06带肩筒形轴承Bearing1626-45316-09
5315F-06.03.05油封20*30*6Oil seal293101-20048
5415F-06.10.06(S)变档柱塞S=43Plunger1650-45635-00
5515F-06.10.05压缩弹簧Compression spring190501-14M06
5615F-06.10.04簧环Circlip1648-45633-06
5715F-06.10.03销Pin190250-05010
5815F-06.10.02爪形离合器Dog clutch1682-45631-00
5915F-06.02.03水泵内壳Insert, cartridge163V-44322-00
6015F-06.12.08油封17*30*6Oil seal293101-17054
6115F-06.12.07滚针轴承17BM2312Needle bearing193315-317U2
6215F-06.12.04O形圈（小）（56*3.1）O ring193210-56M80
6315F-06.12.05O形圈（大）（57.8*2）O ring193210-57M09
6415F-06.12.03深沟球轴承6005deep groove ball bearing193306-00501
6515F-06.12.02-0.1倒档齿轮填隙片-0.1shim1626-45577-00
6615F-06.12.01倒档螺旋锥齿轮Reverse gear16E7-45571-00
None15F(S)-06.00.00.00水下装置部件Lower Casing Assy.1
None15F(L)-06.00.00.00水下装置部件Lower Casing Assy.1
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2GB91 2.5*20开口销cotter pin1
315F-06.02.04水泵叶轮water pump impeller163V-44352-01
415F-08.00.00燃油箱总成(24L)fuel case Assy.1
515F-09.01应急启动手柄emergency starting handle1
615F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
715F-01.01.22启动绳φ5*2000mmstarter rope1
815F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
915F-09.00工具包toolkit1
10保修保养手册(仅国内客户用)Warranty and maintenance munal(just for Chinese client)1
