共 12 个部位，点击零件编码查看详情，或搜索本页零件。

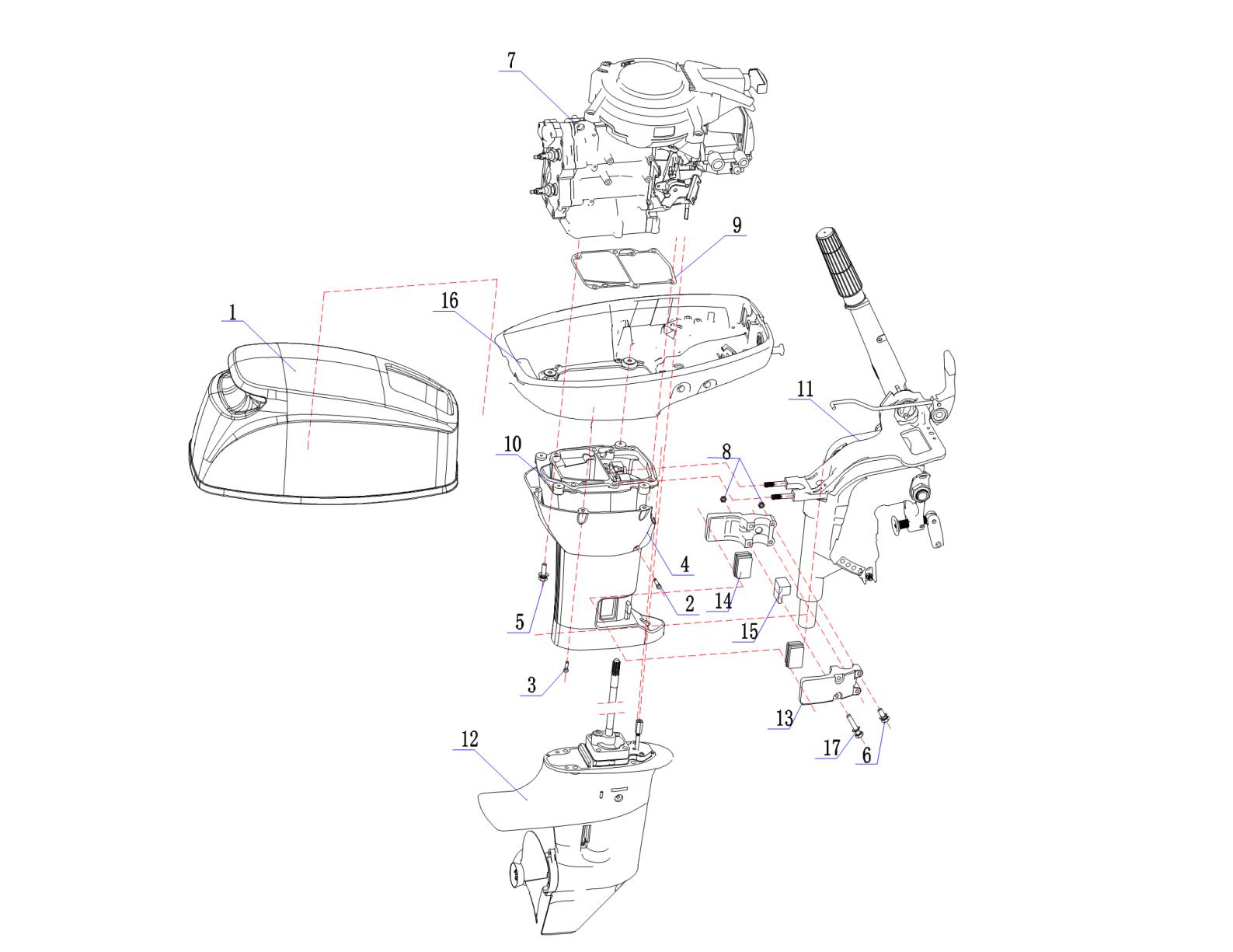

| REF | 零件编码 | 中文名称 | 英文名称 | 用量 | YMH对应零件号 |
|---|---|---|---|---|---|
| 1 | 15F-07.00.00 | 顶罩部件 | Upper casing | 1 | |
| 2 | GB818 | 十字槽盘头螺钉M5*12 | Bolts | 2 | 97885-05012 |
| 3 | GB818 | 十字槽盘头螺钉M5*12 | Bolts | 5 | 97885-05012 |
| 4 | 15F-00.05 | 水上装饰罩 | Decarate casing | 1 | |
| 5 | GB9074.1(8.8) | 六角头螺栓和平垫组件M8*30 | Flat gasket&bolts | 6 | |
| 6 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6*55 | Flat gasket&bolts | 2 | |
| 7 | 15F-01.00.00 | 发动机部件 | Starter | 1 | |
| 8 | GB6177 | 六角法兰螺母M6 | Bolts | 4 | |
| 9 | 15F-01.06.29 | 箱体密封垫 | Seal ring | 1 | |
| 10 | 15F-05.00.00 | 水上装置组件 | Top cowling | 1 | |
| 11 | 15F-03.00.00 | 夹紧托架部件 | Crankshaft piston | 1 | |
| 12 | 15F-06.00.00 | 水下驱动部件 | Bottom cowling | 1 | |
| 13 | 15F-00.01 | 减震器外壳 | Cushion blocking casing | 2 | |
| 14 | 15F-00.02 | 减震块A | Cushion blocking A | 2 | |
| 15 | 15F-00.03 | 减震块B | Cushion blocking B | 1 | |
| 16 | 15F-02.00.00 | 底罩部件 | Bottom casing | 1 | |
| 17 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6*75 | Flat gasket&bolts | 2 |

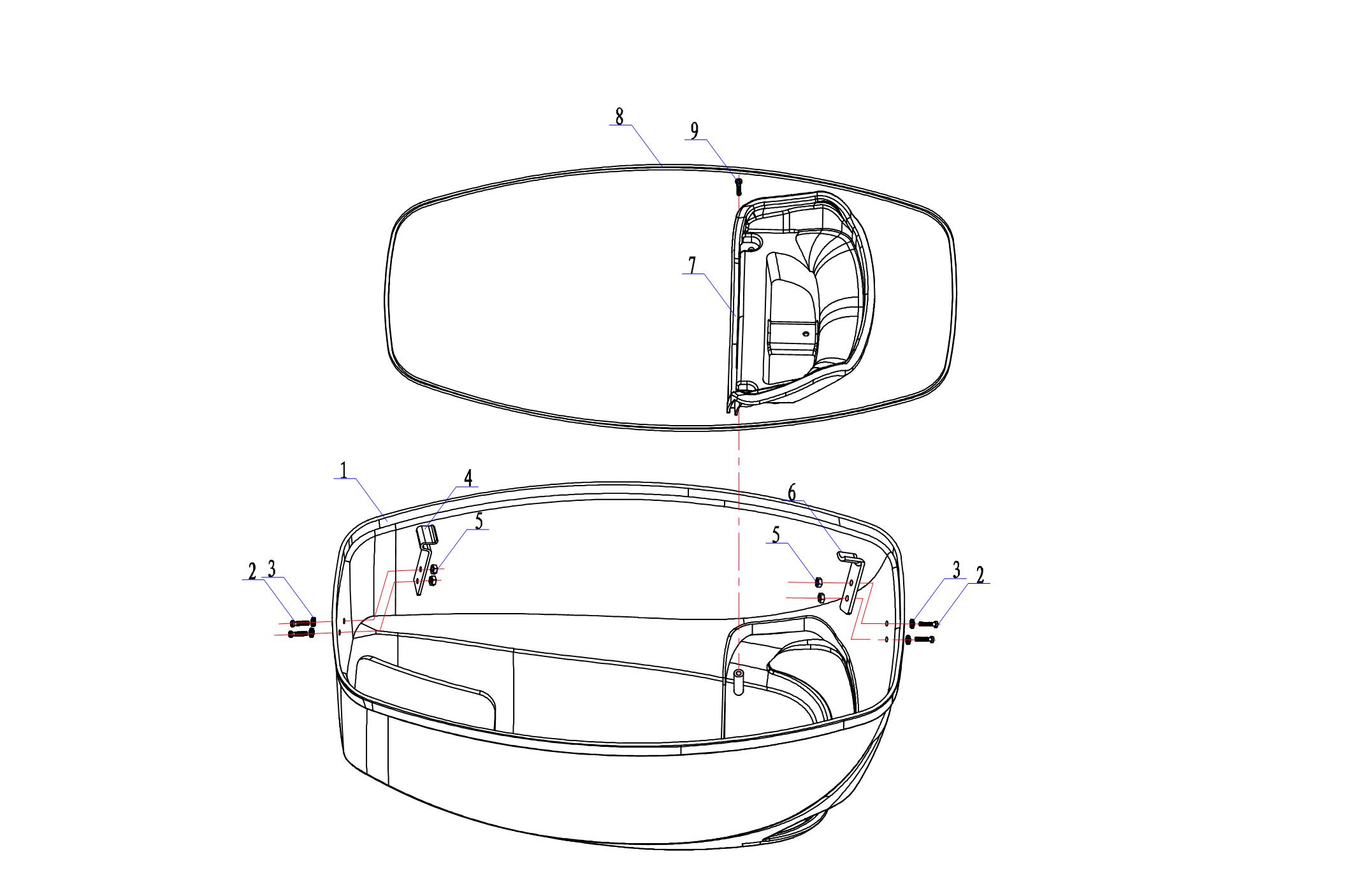

| REF | 零件编码 | 中文名称 | 英文名称 | 用量 | YMH对应零件号 |
|---|---|---|---|---|---|
| 1 | 15F-07.01 | 顶罩 | Top cowling | 1 | |
| 2 | GB818 | 十字槽盘头螺钉M4* 16 | Pan head bolt with cross recess | 4 | 97885-05012 |
| 3 | GB96 | 平垫4 | Flat gasket | 4 | 90201-10M01 |
| 4 | F15-07.00.00.06 | 前锁紧钩 | Lock Hook(front) | 1 | |
| 5 | DIN985 | 六角尼龙锁紧螺母M4 | Connecting,Top cowling | 4 | 90185-08057 |
| 6 | 15F-Ⅱ-07.08 | 锁紧钩(Ⅱ型) | Lock Hook(II) | 1 | |
| 7 | 15F-07.02 | 进气口盖 | Cap,air inlet | 1 | |
| 8 | 15F-07.06 | 橡胶密封圈 | Rubber seal ring | 1 | |
| 9 | GB845 | 十字槽盘头自攻螺钉ST4.2*13 | Cross recessed pan head tapping screws | 3 | |
| None | 15F-07.00.00.00 | 顶罩部件 | Top cowling assy. | 1 |

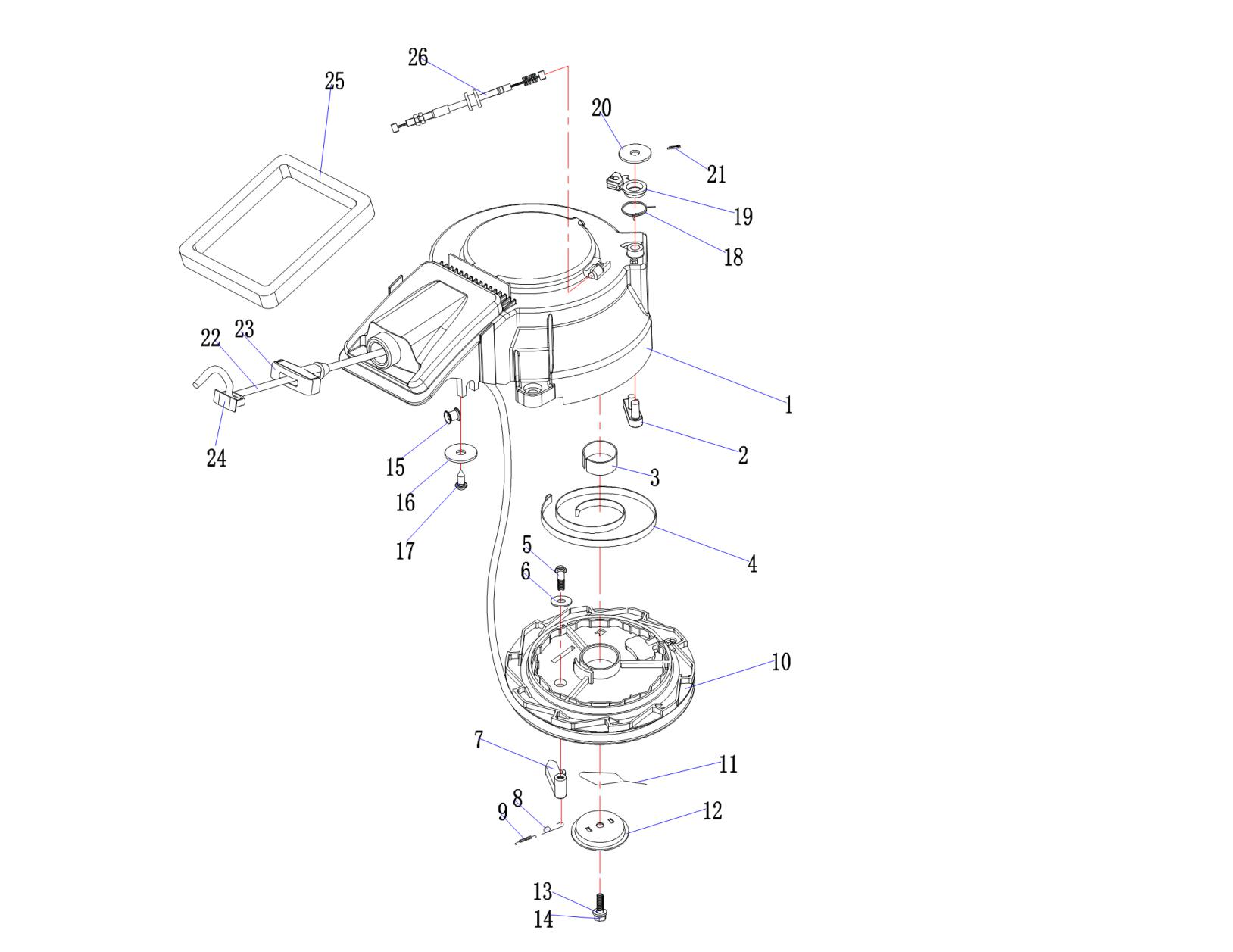

| REF | 零件编码 | 中文名称 | 英文名称 | 用量 | YMH对应零件号 |
|---|---|---|---|---|---|
| 1 | 15F-01.01.01 | 启动罩外壳 | Casing,Starter cover assy. | 1 | 63V-15711-02 |
| 2 | 15F-01.01.12 | 制动器 | Brake | 1 | 63V-15794-00 |
| 3 | 15F-01.01.06 | 启动轮衬套 | Bushing,Start wheel | 1 | 63V-15753-00 |
| 4 | 15F-01.01.11 | 涡形弹簧 | Volute spring | 1 | 63V-15713-00 |
| 5 | GB818 | 十字槽盘头螺钉M5*14 | Pan head bolt with cross recess | 1 | 97885-05012 |
| 6 | GB96 | 平垫5 | Flat gasket | 1 | 90201-10M01 |
| 7 | F25-01.01.00.02 | 驱动臂 | Drive arm | 1 | 63V-15741-00 |
| 8 | 15F-01.01.18 | 驱动臂弹簧 | Spring,drive arm | 1 | 63V-15767-01 |
| 9 | 15F-01.01.17 | 回位弹簧 | Return spring | 1 | 63V-15784-01 |
| 10 | 15F-01.01.05 | 启动轮 | Start wheel | 1 | 63V-15714-00 |
| 11 | 15F-01.01.20 | 压板夹簧 | Clip spring | 1 | 63V-15705-01 |
| 12 | 15F-01.01.19 | 启动压板 | Starter plate | 1 | 63V-15716-00 |
| 13 | GB848 | 平垫6 | Flat plate | 1 | 90201-10M02 |
| 14 | GB5783 | 六角头螺栓M6*12 | bolts | 1 | 90105-06M07 |
| 15 | 15F-01.01.03 | 启动绳卷轴 | Scroll,start rope | 1 | 63V-15764-00 |
| 16 | GB5287 | 平垫6 | Flat plate | 1 | |
| 17 | GB845 | 十字槽盘头自攻螺钉A型ST5.5*16 | Bolts | 1 | |
| 18 | 15F-01.01.13 | 制动器扭簧 | Torsional spring,brake | 1 | 63V-15734-00 |
| 19 | 15F-01.01.14 | 钢索固定环 | fixed collar，steel cable | 1 | 63V-15748-00 |
| 20 | 15F-01.01.15 | 垫片 | Gasket | 1 | |
| 21 | 15F-01.03.11 | 卡簧 | Spring | 1 | 91490-16018 |
| 22 | 15F-01.01.22 | 启动绳5*2000MM | Start rope | 1 | |
| 23 | 15F-01.01.08 | 启动手柄 | Starter handle | 1 | 6G1-15755-00 |
| 24 | 15F-01.01.10 | 手柄盖 | Cover,Starter handle | 1 | 6G1-15779-00 |
| 25 | 15F | 托架减震套(共展)(厚度12) | Damper | 1 | 63V-15762-00 |
| 26 | 15F-01.01.21 | 制动钢索 | Steel cable,brake | 1 | 63V-15770-01 |
| None | 15F-01.01.00.00 | 起动罩组件 | Recoil starter(assemble assy.) | 1 | 63V-15710-13 |

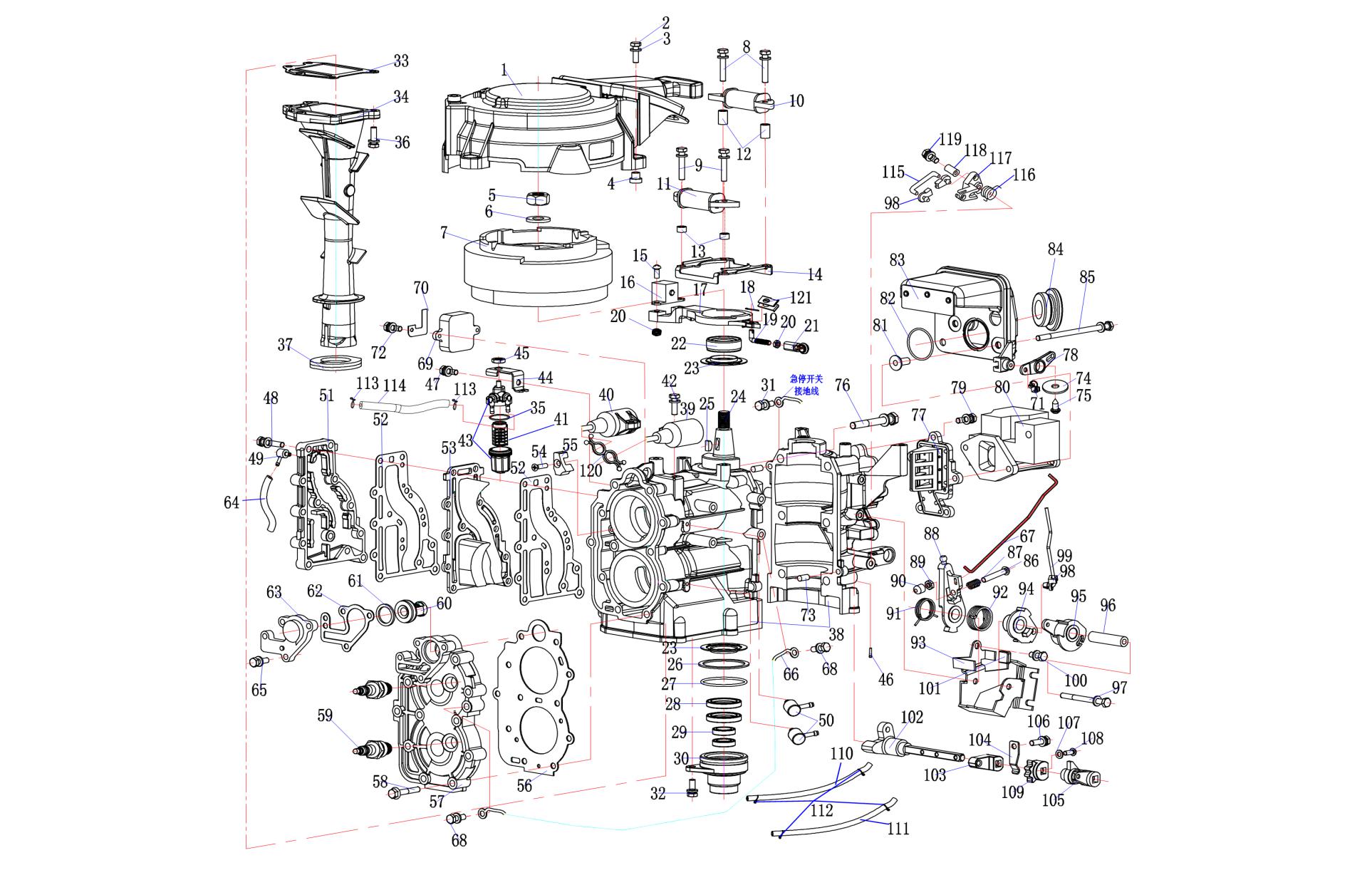

| REF | 零件编码 | 中文名称 | 英文名称 | 用量 | YMH对应零件号 |
|---|---|---|---|---|---|
| 1 | 15F-01.01.00.00 | 启动罩组件 | Starter cover assembly | 1 | 63V-15710-13 |
| 2 | GB5783 | 六角头螺栓M6*25 | Bolt | 3 | 90105-06M07 |
| 3 | 15F-01.01.25 | 启动罩垫片 | start cover gasket | 3 | |
| 4 | 15F-01.01.04 | 启动罩垫管 | Starter cover tube | 3 | 90387-06M05 |
| 5 | 15F-01.03.19 | 飞轮螺母 | Flying wheel nut | 1 | 90170-12066 |
| 6 | 15F-01.03.20 | 飞轮平垫 | Flying wheel flat gasket | 1 | 90201-12472 |
| 7 | 15F-01.03.18.00 | 飞轮组件 | Flywheel nut | 1 | 63V-85550-11 |
| 8 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 3Flat gasket&bolts | 2 | |
| 9 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 4Flat gasket&bolts | 2 | |
| 10 | 15F-01.03.04 | 充电线圈 | Charging coil | 1 | 63V-85520-01 |
| 11 | 15F-01.03.05 | 照明线圈 | Lighting coil | 1 | 63V-85533-00 |
| 12 | 15F-01.03.03 | 磁电机垫管 B | bushing,Magneto | 2 | 90387-06M53 |
| 13 | 15F-01.03.02 | 磁电机垫管 A | bushing,Magneto | 2 | 90387-06M24 |
| 14 | 15F-01.03.01 | 固定板 | Fixing plate | 1 | 63V-41611-00 |
| 15 | GB818 | 十字槽盘头螺钉M5*12 | Pan head bolt with cross recess | 2 | 97885-05012 |
| 16 | 15F-01.03.08 | 触发器 | Impulsor s | 1 | 63V-85580-01 |
| 17 | 15F-01.03.07 | 安装座 | Inner cover,exhaust | 1 | |
| 18 | GB91 | 开口销（1.6*12） | cotter pin | 1 | 91490-30020 |
| 19 | 15F-01.03.10 | L件螺杆 | L-screw | 1 | |
| 20 | GB6170 | 六角螺母M5 | Hex nut | 3 | 95380-06700 |
| 21 | 15F-01.03.12 | 连杆接头 | connector | 1 | |
| 22 | 15F-01.06.30 | 油封FB23*36*13 | Oil seal | 1 | 93110-23M00 |
| 23 | 15F-01.06.31 | 轴承盖板 | shaft cover | 2 | 63V-11445-00 |
| 24 | 15F-01.06.00.00 | 曲轴活塞组件 | shaft pist ion Assy. | 1 | 63V-11400-01 |
| 25 | 15F-01.06.34.19 | 半圆键 | woodruff key | 1 | |
| 26 | 15F-01.06.32 | 大垫圈 | Big gasket | 1 | |
| 27 | 15F-01.06.28 | O型密封圈 | O-seal gasket | 1 | 93210-46M16 |
| 28 | 15F-01.06.26 | 油封B25*38*6 | Oil seal | 2 | 93101-25018 |
| 29 | 15F-01.06.27 | 油封B13*25*6 | Oil seal | 2 | 93101-13018 |
| 30 | 15F-01.06.25 | 油封壳体 | oil seal cover | 1 | 63V-15396-01-94 |
| 31 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 1bolt&flat gasket Assy. | 1 | |
| 32 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 1bolt&flat gasket Assy. | 1 | |
| 33 | 15F-05.10 | 排气管密封垫 | Cover gasket,exhaust pipe | 1 | 63V-41133-A1 |
| 34 | 15F-05.09 | 排气管 | Exhaust pipe | 1 | 65F-41131-00-5B |
| 35 | 15F-01.07.05.06 | 过滤器O型圈(33*2) | O ring,filter | 1 | 93210-32738 |
| 36 | GB9074.1（8.8） | 六角头螺栓和平垫组件M6* | 2bolt&flat gasket Assy. | 5 | 63V-45126-01 |
| 37 | 15F-05.11 | 减震垫 | damper | 1 | 63V-41135-00 |
| 38 | 15F-01.06.01 | 曲轴箱箱体组件 | shaft casing Assy. | 1 | 63V-15100-02-1S |
| 39 | 15F-01.03.14 | 高压包 A | Ignition coil A | 1 | 63V-85570-00 |
| 40 | 15F-01.03.15 | 高压包 B | Ignition coil B | 1 | |
| 41 | 15F-01.07.05.04 | 过滤器滤芯 | fuel fliter | 1 | 61N-24563-00 |
| 42 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 2bolt&flat gasket Assy. | 2 | |
| 43 | 15F-01.07.05.05 | 燃油滤清器(外壳) | Inner cover,exhaust | 1 | 61N-24560-00 |
| 44 | 15F-01.06.23 | 燃油滤清器支架 | outer cover,exhaust | 1 | 682-24566-01 |
| 45 | GB6170 | 六角头螺母M8 | Bolt nut | 1 | 95380-06700 |
| 46 | 15F-01.06.21 | 气管圆接头 B | Joint,air breather tube | 1 | |
| 47 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 1bolt&flat gasket Assy. | 1 | |
| 48 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 3bolt&flat gasket Assy. | 13 | |
| 49 | 15F-01.06.10 | 水管圆接头 | water Tube fitting B | 1 | |
| 50 | 15F-01.06.03 | 气管圆接头 A | Joint,air breather tube | 2 | |
| 51 | 15F-01.06.08 | 排气外盖 | Exhaust cover（outlet) | 1 | 63V-41113-00-1S |
| 52 | 15F-01.06.09 | 排气盖密封垫 | Joint,air breather tube | 2 | 63V-41112-A0 |
| 53 | 15F-01.06.07 | 排气内盖 | Exhaust cover（intake) | 1 | 63V-41111-00-1S |
| 54 | GB819 | 十字槽沉头螺钉M5*16 | Bolt | 1 | |
| 55 | 15F-01.06.18 | 阳极 A | Adone | 1 | 682-11325-00 |
| 56 | 15F-01.06.12 | 气缸垫 | cylinder gasket | 1 | 63V-11181-A2 |
| 57 | 15F-01.06.13 | 气缸盖 | cylinder cover | 1 | 6E7-11111-01-1S |
| 58 | GB5789(10.9) | 六角法兰面螺栓M6*35 | bolt | 11 | |
| 59 | BR7HS | 火花塞(新） | spark plug | 2 | |
| 60 | 15F-01.06. 14-50° | 节温器(50°) | thermostat | 1 | 6E5-12411-30 |
| 61 | 15F-01.06.14.01 | 大垫圈 | Big gasket | 1 | 688-12412-00 |
| 62 | 15F-01.06.15 | 节温器垫 | thermostat gasket | 1 | 682-12414-A1 |
| 63 | 15F-01.06.16 | 节温器盖 | thermostat cover | 1 | 682-12413-00-1S |
| 64 | 15F-01.06.11 | 橡胶水管5*10*305 | Rubber hose | 1 | |
| 65 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 2Bolt & flat gasket | 4 | |
| 66 | 15F-01.06.04 | 钢索连接组件 | Throttle cable connecting Assy. | 1 | |
| 67 | 15F-01.04.11 | 阻风门连杆 | chock lever | 1 | |
| 68 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 1bolt&flat gasket Assy. | 2 | |
| 69 | 15F-01.03.13 | 点火控制器 | CDI | 1 | 63V-85540-01 |
| 70 | 15F-01.03.06 | 固线卡 | Fixation clip | 1 | |
| 71 | 15F-01.02.07 | 阻风门连杆接头 | joint,chock lever | 1 | 661-41262-02 |
| 72 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 2bolt&flat gasket Assy. | 2 | |
| 73 | 15F-01.06.20 | 定位销 | Dowel pin | 2 | |
| 74 | GB96 | 平垫5 | flat gasket | 1 | 90201-10M01 |
| 75 | GB845 | 十字槽盘头自攻螺钉ST4.8* | bolt | 1 | |
| 76 | GB9074.1( 10.9) | 六角头螺栓和平垫组件M8* | 6bolt&flat gasket Assy. | 6 | |
| 77 | 15F-01.06.24.00 | 进气阀座组件 | 1 | 63V-13610-10 | |
| 78 | 15F-01.02.05 | 阻风门摇臂 | Rocker arm,chock, | 1 | |
| 79 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 2bolt&flat gasket Assy. | 3 | |
| 80 | 15F-01.02.08.00 | 化油器组件 | Carburetor Assy | 1 | 63V-14301-00 |
| 81 | 15F-01.02.03 | 带肩垫管 | Shoulder pad tube | 2 | 90387-06M15 |
| 82 | 15F-01.02.02 | 消音器O型圈 | silencer o-ring | 1 | 93210-35M86 |
| 83 | 15F-01.02.01.00 | 进气消音器组件 | Air intake silencer Assy. | 1 | 63V-14440-00 |
| 84 | 15F-01.02.04 | 橡胶闷头 | rubber plug | 1 | |
| 85 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 1bolt&flat gasket Assy. | 2 | |
| 86 | GB823 | 十字槽小盘头螺钉M6*35 | screw | 1 | |
| 87 | 15F-01.04.06 | 压缩弹簧 | Compression spring | 1 | 90501-12M16 |
| 88 | 15F-01.04.05 | 磁电机控制杠杆 | magneto control lever | 1 | 63V-41631-00 |
| 89 | DIN985 | 六角尼龙锁紧螺母M6 | Hex Nylon bolt nut | 1 | 90185-08057 |
| 90 | 15F-01.04.07 | 螺纹盖 | screw cap | 1 | |
| 91 | 15F-01.04.02 | 扭簧A | torsion spring | 1 | 90508-16M37 |
| 92 | 15F-01.04.03 | 扭簧B | torsion spring | 1 | 90508-20M38 |
| 93 | 15F-01.04.01 | 安装架 | mounting bracket | 1 | 63V-14497-02 |
| 94 | 15F-01.04.09 | 油门连杆固定套 | Connecting block,throttle | 1 | 63V-41283-01 |
| 95 | 15F-01.04.08 | 钢索组合固定套 | Fixed sleeve，wire Assy。 | 1 | 63V-41638-00 |
| 96 | 15F-01.04.04 | 套管 | bushing | 1 | 90387-06M50 |
| 97 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 6bolt&flat gasket Assy. | 1 | |
| 98 | 15F-01.02.07 | 阻风门连杆接头 | joint,chock lever | 3 | 661-41262-02 |
| 99 | 15F-01.05.08 | 油门连杆 | Throttle lever | 1 | 63V-41211-00 |
| 100 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 1bolt&flat gasket Assy. | 1 | |
| 101 | 15F-01.04.10 | 橡胶限位块 | rubber limited block | 1 | |
| 102 | 15F-01.05.01 | 变档杆杠杆 | shift lever | 1 | 63V-44123-01 |
| 103 | 15F-01.05.04 | 变档连杆固定块 | shift lever block | 1 | 63V-44121-01 |
| 104 | 15F-01.06.22 | 变档限位弹簧板 | shift located spring plate | 1 | 63V-44116-00 |
| 105 | 15F-01.05.03 | 变档摇臂 | shift rocker arm | 1 | 63V-44122-01 |
| 106 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6* | 1bolt&flat gasket Assy. | 1 | |
| 107 | GB848 | 平垫5 | flate gasket | 3 | 90201-10M02 |
| 108 | GB818 | 十字槽盘头螺钉M5*12 | screw | 3 | 97885-05012 |
| 109 | 15F-01.05.06 | 变档定位块 | shift located block | 1 | 63V-44125-00 |
| 110 | 15F-01.06.05 | 橡胶管3*7*210 | rubber hose | 1 | |
| 111 | 15F | 橡胶管3*7*230 | rubber hose | 1 | 63V-15762-00 |
| 112 | 管夹φ7 | Hose Clip | 4 | ||
| 113 | 管夹φ10 | Hose Clip | 2 | ||
| 114 | 15F-01.07.03 | 耐油橡胶管5*10*184 | rubber hose | 1 | |
| 115 | 15F-01.05.11 | 摇臂杠杆 | rocker lever | 1 | 6L2-15747-00 |
| 116 | 15F-01.05.12 | 钢索端套扭簧 | tursion spring,cable bottom sleeve | 1 | 90508-08M39 |
| 117 | 15F-01.05.09 | 钢索端套 | cable bottom sleeve | 1 | 63V-15746-10 |
| 118 | 15F-01.05.10 | 钢索端套垫管 | bushing, | 1 | 90387-06M06 |
| 119 | GB9074.1(8.8) | 六角头螺栓和平垫组件 M6* | bolt&flat gasket Assy. | 1 | |
| 120 | 15F-01.03.17 | 尼龙线卡(双) | Wire fixer | 1 | |
| 121 | 15F-01.03.09 | 定位卡 | fixed clip | 1 |

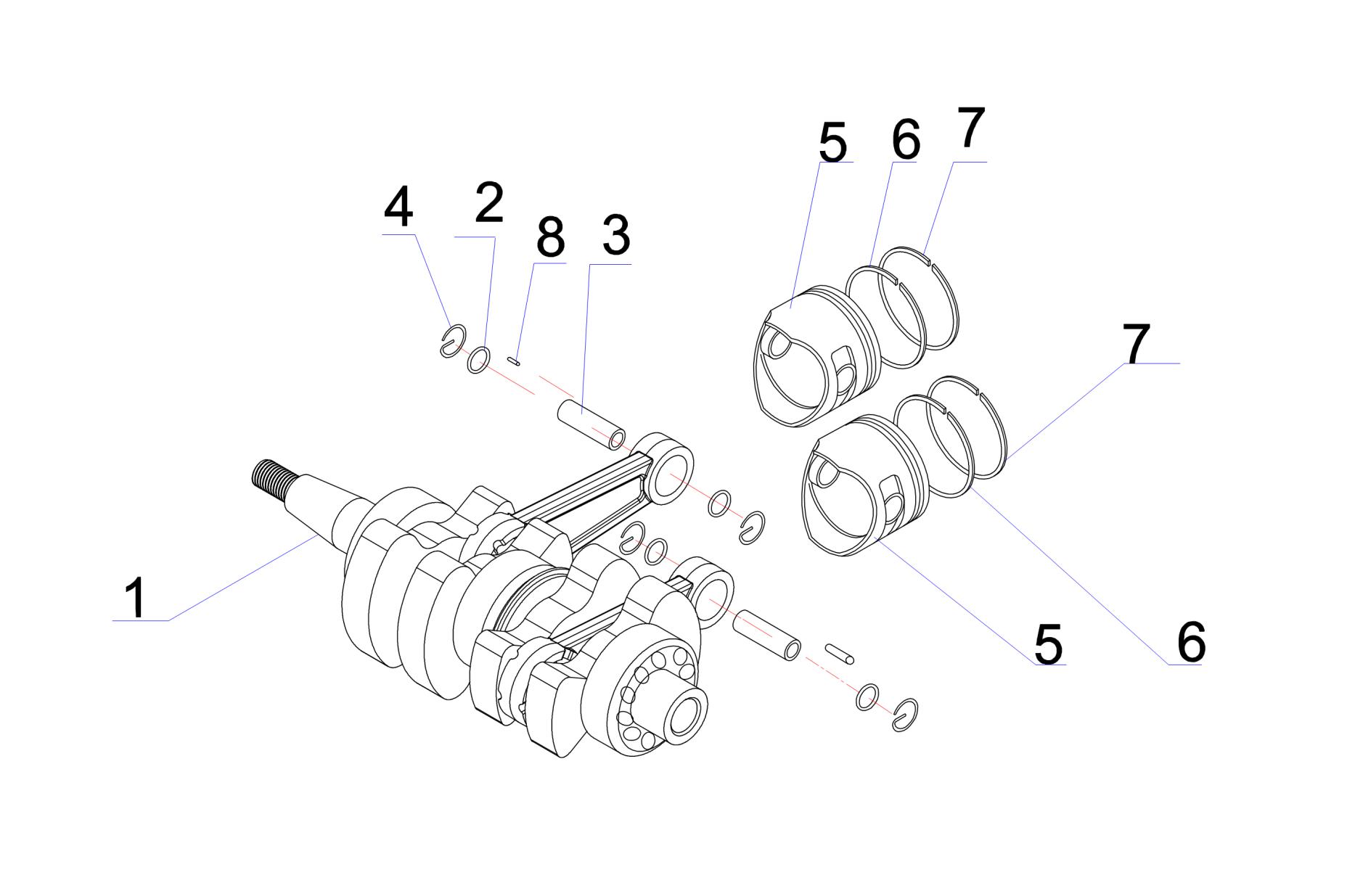

| REF | 零件编码 | 中文名称 | 英文名称 | 用量 | YMH对应零件号 |
|---|---|---|---|---|---|
| 1 | 15F-01.06.33.00 | 曲轴 | Crankshaft | 1 | 63V-11400-01 |
| 2 | 15F-01.06.33.17 | 滚针盖板 | Needle bearing plate | 4 | 90201-14377 |
| 3 | F15-01.02.02.06 | 活塞销 | Pin,piston | 2 | 634-11633-00 |
| 4 | F15-01.02.02.02 | 活塞销卡簧 | Circlip | 4 | 93450-15023 |
| 5 | 15F-01.06.33.11 | 活塞 | Piston | 2 | 6E7-11631-00-97 |
| 6 | 15F-01.06.33.13 | 活塞环 2 | Top ring | 2 | 682-11610-01 |
| 7 | 15F-01.06.33.12 | 活塞环 1 | 2nd ring | 2 | |
| 8 | 15F-01.06.33.16 | 密排滚针 | Roller pin | 50 | 93602-14104 |

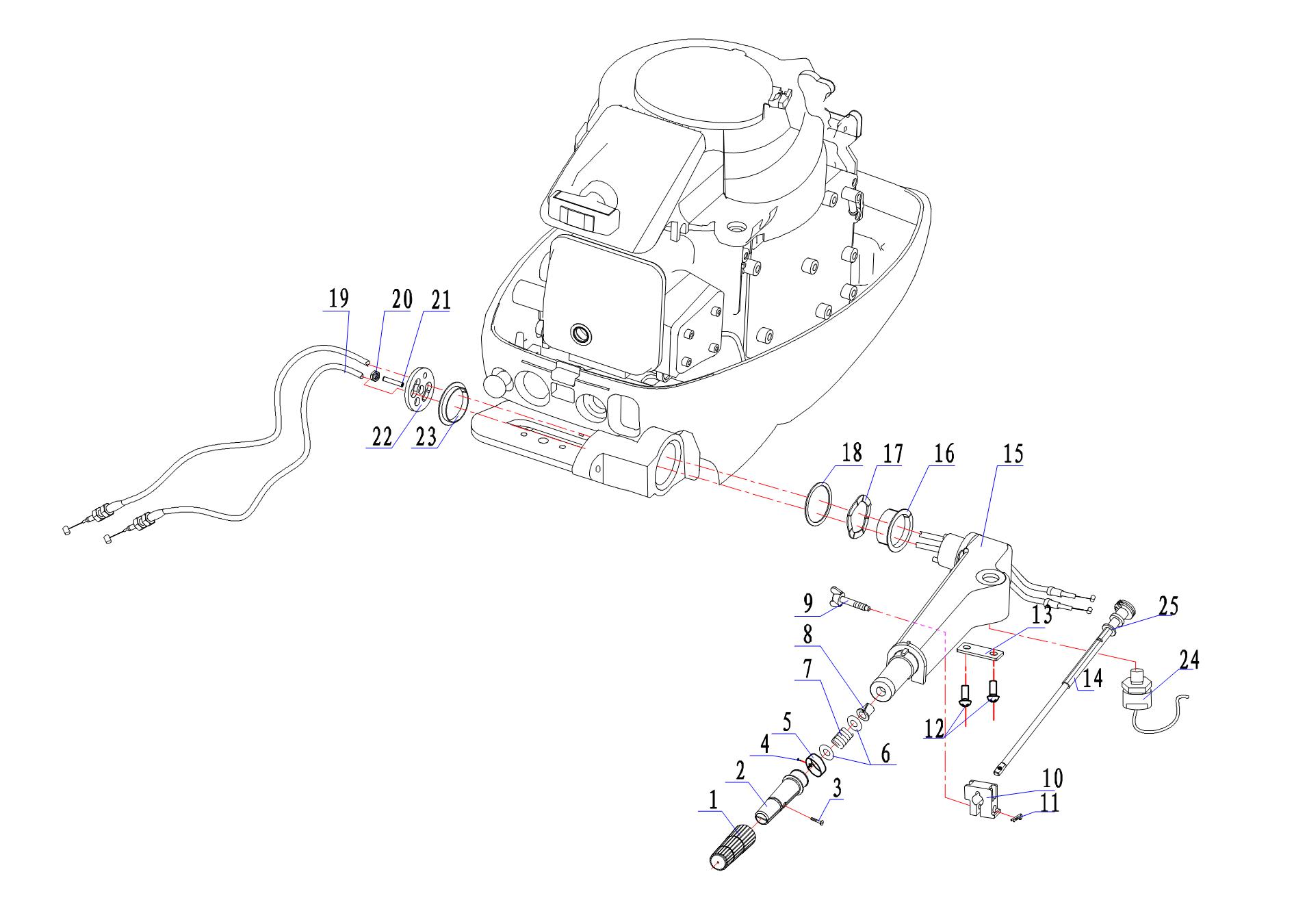

| REF | 零件编码 | 中文名称 | 英文名称 | 用量 | YMH对应零件号 |
|---|---|---|---|---|---|
| 1 | 15F-04.07.14 | 手柄橡胶套 | Rubber sleeve,Handle | 1 | 6G1-42177-00 |
| 2 | 15F-04.07.13 | 手柄 | Handle | 1 | 664-42119-00 |
| 3 | GB820 | 十字槽半沉头螺钉M5*25 | Cross recessed countersunk head screw | 1 | 90149-05M13 |
| 4 | GB845 | 十字槽盘头自攻螺钉ST2.2 | Pan head bolt with cross recess | 1 | |
| 5 | F4-04.11-Ⅱ | 油门标牌 | Throttle plate | 1 | |
| 6 | GB848 | 平垫10 | Flat gasket | 2 | 90201-10M02 |
| 7 | 15F-04.07.11 | 弹簧 | spring | 1 | 90501-23215 |
| 8 | 15F-04.07.12 | 衬套 | Bushing | 1 | 90386-08032 |
| 9 | 15F-04.07.09 | 阻力调整旋钮 | Adjustor,friction | 1 | 6G1-42125-01 |
| 10 | 15F-04.07.08 | 锁紧块 | Latch segment | 1 | 6G1-42126-00 |
| 11 | GB91 | 开口销1.6*12 | Cotter pin | 1 | 91490-30020 |
| 12 | GB818 | 十字槽盘头螺钉M5*12 | Cross recessed countersunk head screw | 2 | 97885-05012 |
| 13 | 15F-04.07.07 | 节气门杆压板 | Plate | 1 | 6E0-42159-02 |
| 14 | 15F-04.07.05 | 节气门杆 | Throttle lever | 1 | 6G1-42138-01 |
| 15 | 15F-04.07.01 | 操舵手柄 | Steering handle | 1 | 63V-42111-01-4D |
| 16 | 15F-04.06 | 开口尼龙衬套（长） | Bushing | 1 | 90386-34M97 |
| 17 | 15F-04.05 | 手柄波形垫圈 | Washer | 2 | 90206-36M21 |
| 18 | 15F-04.03 | 尼龙垫圈 | Washer | 1 | 90202-36M55 |
| 19 | 15F-04.07.04 | 油门控制钢索 | Throttle cable | 2 | 6L2-26301-01 |
| 20 | DIN985 | 六角尼龙锁紧螺母M8 | nut | 1 | 90185-08057 |
| 21 | 15F-04.07.02 | 双头螺柱(短） | Bolt | 1 | 90116-08016 |
| 22 | 15F-04.02 | 操舵手柄压板 | Plate | 1 | 6G1-42131-02 |
| 23 | 15F-04.04 | 开口尼龙衬套（短） | Bushing | 1 | 90386-33M96 |
| 24 | 15F-04.07.03 | 急停开关总成 | emergency stop switches assy | 1 | 65W-82575-01 |
| 25 | GB848 | 平垫12 | Flat gasket | 1 | 90201-10M02 |
| None | 15F-04.00.00.00 | 操舵手柄部件 | Tiller Assy. | 1 |

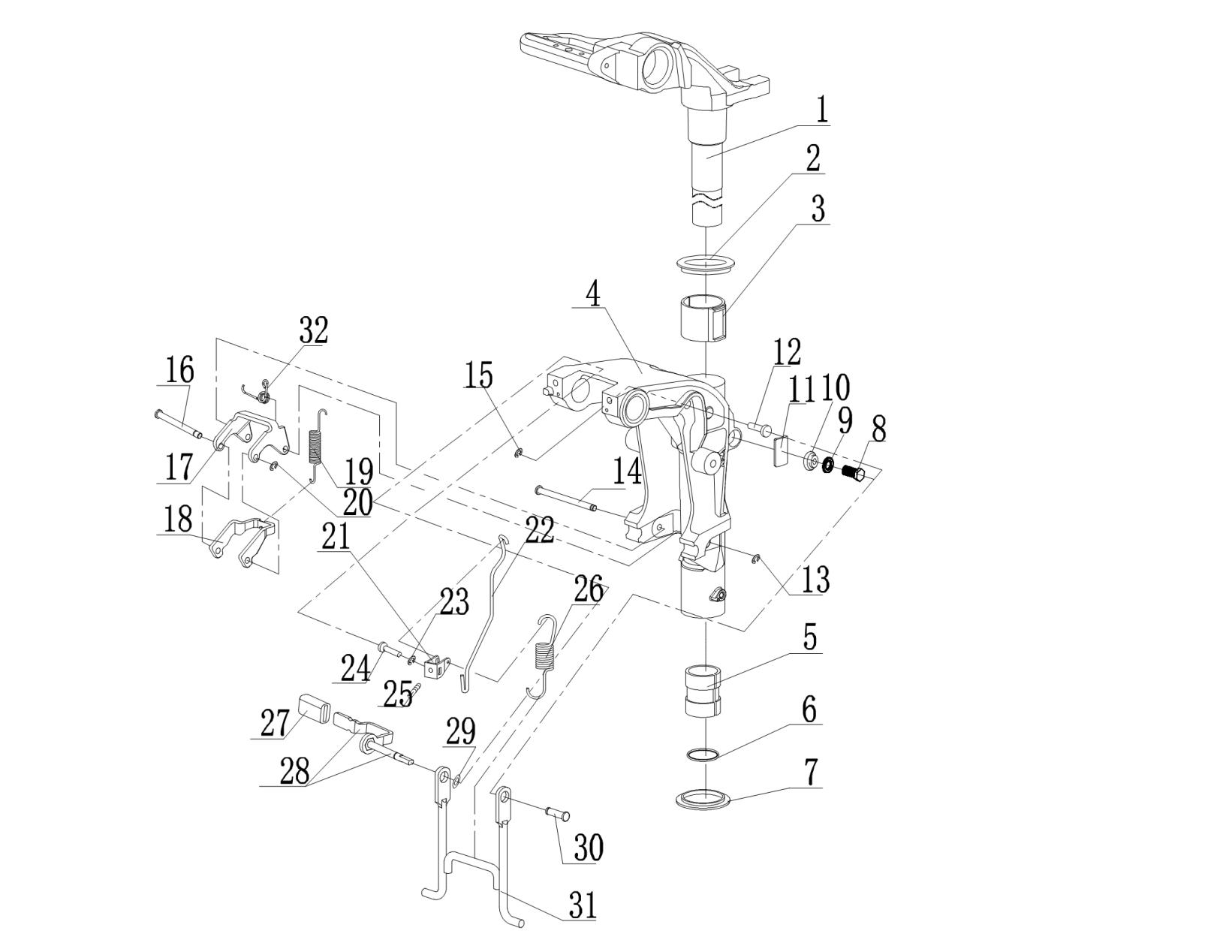

| REF | 零件编码 | 中文名称 | 英文名称 | 用量 | YMH对应零件号 |
|---|---|---|---|---|---|
| 1 | 15F-04.01.00 | 操舵托架组件 | Steering bracket comp. | 1 | 63V-42511-04-4D |
| 2 | 15F-03.09.05 | 垫圈 | ring gasket | 1 | 90209-40008 |
| 3 | 15F-03.09.03 | 锁紧圈 | Lock washer | 1 | 65F-42537-00 |
| 4 | 15F-03.09.01 | 旋转托架 | Swivel bracket | 1 | 63V-43311-03-4D |
| 5 | 15F-03.09.08 | 下衬圈 | Lower bushing | 1 | 90386-30M60 |
| 6 | 15F-03.09.07 | O型密封圈(29*3.8) | O ring | 1 | 93210-29M94 |
| 7 | 15F-03.09.06 | 下垫套 | bushing (bottom) | 1 | 90386-30048 |
| 8 | GB5783 | 六角头螺栓M6*20 | Flat gasket&bolts | 1 | 90105-06M07 |
| 9 | GB848 | 平垫6 | Flat gasket | 1 | 90201-10M02 |
| 10 | 15F-03.09.09 | 锁紧螺栓密封圈 | Gasket | 1 | 689-43373-01 |
| 11 | 15F-03.09.04 | 锁紧圈摩擦片 | Friction plate,Locking | 1 | 63V-42528-00 |
| 12 | 15F-03.09.17 | 支撑架销尼龙套 | Nylon bush,support frame | 1 | 90386-07M95 |
| 13 | GB896 | 开口挡圈4 | Circlip | 1 | 99080-05600 |
| 14 | 15F-03.09.16 | 支撑架销 | Pin,support frame | 1 | 63V-43659-00 |
| 15 | GB896 | 开口挡圈5 | Circlip | 1 | 90386-22M94 |
| 16 | 15F-03.09.22 | 角度定位固定轴 | Shaft,Tilt Lock | 1 | 66R-43611-00 |
| 17 | 15F-03.09.21 | 角度定位锁紧外支架 | Tilt angle outer bracket | 1 | 66R-43615-00 |
| 18 | 15F-03.09.20 | 角度定位锁紧内支架 | Tilt angle inner bracket | 1 | 63V-43614-10 |
| 19 | 15F-03.09.18 | 拉簧 | pull Sping | 1 | 63V-43656-00 |
| 20 | GB896 | 开口挡圈4 | Circlip | 1 | 93430-04M03 |
| 21 | 15F-03.09.10 | 角度定位件 | Angle fixer | 1 | 63V-43641-01 |
| 22 | 15F-03.09.11 | 角度定位锁杆 | angle loction rod | 1 | 66R-43617-00 |
| 23 | GB896 | 开口挡圈5 | Circlip | 1 | 99080-05600 |
| 24 | 15F-03.09.14 | 杠杆套 | Sleeve | 1 | |
| 25 | GB818 | 十字盘头螺钉M5*6 | Pan head screw with cross recess | 1 | 90157-05014 |
| 26 | 15F-03.09.24 | 角度支撑架拉簧 | Spring | 1 | 90507-20M00 |
| 27 | 15F-03.09.12.01 | 橡塑套 | rubber Sleeve | 1 | 682-43318-01 |
| 28 | 15F-03.09.12.00 | 操纵杠杆组件 | Lever comp.,Steering | 1 | 66M-43630-01 |
| 29 | 15F-03.09.13 | 杠杆垫 | washer | 1 | |
| 30 | 15F-03.09.19 | 角度定位锁轴 | Pin | 1 | 66R-43611-00 |
| 31 | 15F-03.09.15 | 角度支撑架 | Tilt angle fixer | 1 | 66M-43350-01 |
| 32 | 15F-03.09.23 | 弹簧 | Spring | 1 | 90508-18M41 |

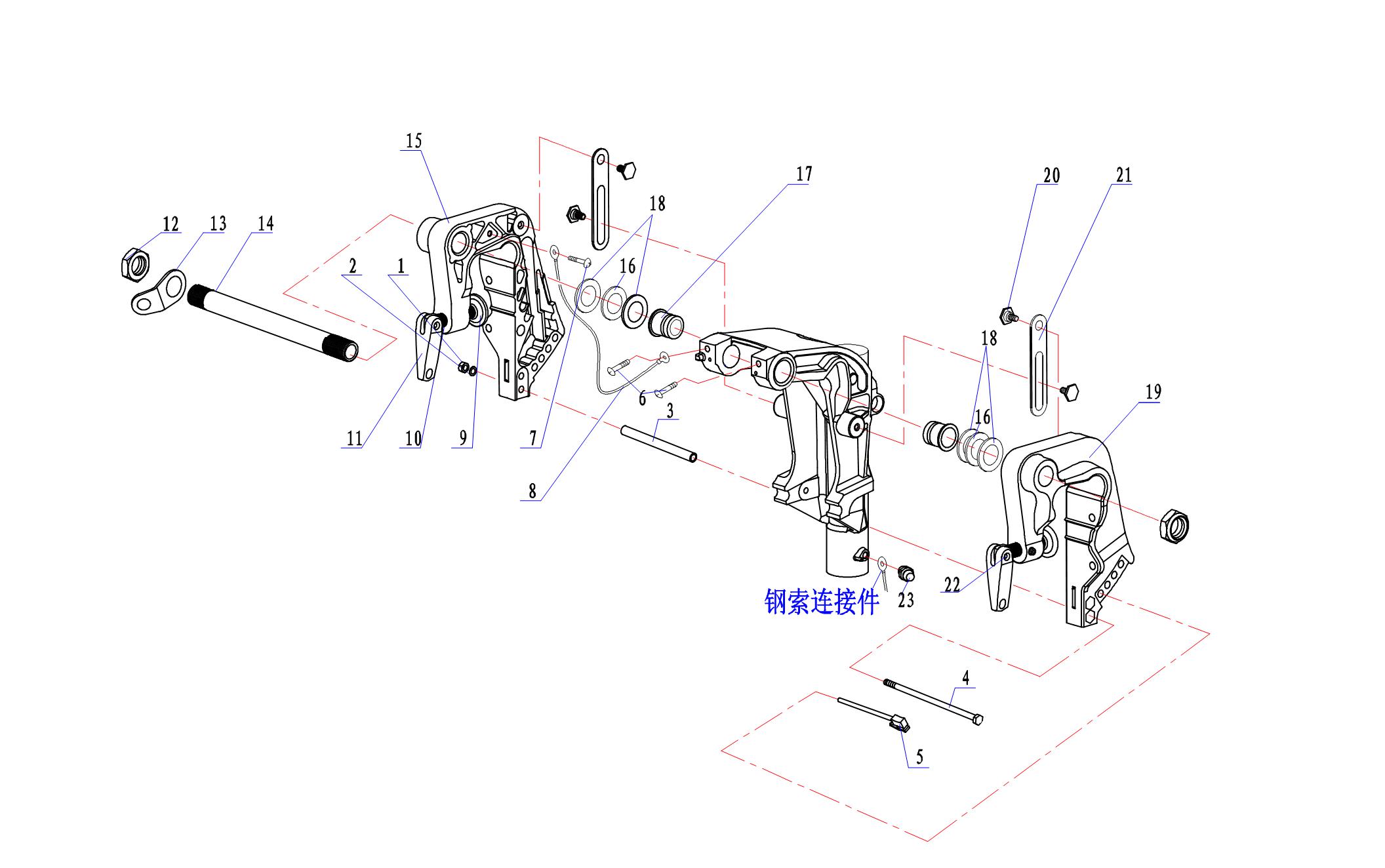

| REF | 零件编码 | 中文名称 | 英文名称 | 用量 | YMH对应零件号 |
|---|---|---|---|---|---|
| 1 | GB6170 | 六角头螺母M6 | Hexagonal nut | 1 | 95380-06700 |
| 2 | GB848 | 平垫6 | Flat gasket | 1 | 92995-06600 |
| 3 | 15F-03.11 | 螺栓套管 | Sleeve | 1 | 90387-06M13 |
| 4 | GB5783 | 六角头螺栓M6*145 | Bolt | 1 | 90101-06M29 |
| 5 | 15F-03.10.00-Ⅱ | 角度限位插销组件 | Trim rod | 1 | 689-43160-00 |
| 6 | GB818 | 十字槽盘头螺钉M8*10 | Cross recessed countersunk head s | 2 | 97885-05012 |
| 7 | GB818 | 十字槽盘头螺钉M6*8 | Cross recessed countersunk head s | 1 | 66M-82148-00 |
| 8 | 15F-03.05.03 | 钢索连接组件 | Conductive wire | 1 | 97885-08010 |
| 9 | 15F-03.05.02.03 | 夹紧盘 | Clamp plate | 2 | 648-43114-01 |
| 10 | F9.9-Ⅱ-03.00.00.02 | 艉板夹紧螺栓 | Clamp Bolt,Transom | 2 | 6E7-43116-00 |
| 11 | 40F-03.05.03.02 | 夹紧手柄 | intensify handle | 2 | 6E0-43118-01 |
| 12 | 15F-03.01 | 夹紧托架螺母 | Clamp nut | 2 | 90185-22043 |
| 13 | 15F-03.03 | 孔板 | Orifice plate | 1 | 6J8-43113-01 |
| 14 | 15F-03.04 | 夹紧托架双头螺栓 | Bolt | 1 | 63W-43131-01 |
| 15 | 15F-03.05.01 | 夹紧托架（左）（高压） | Bracket(left) | 1 | 63V-43112-08-4D |
| 16 | 15F-03.02 | 尼龙垫圈 | Nylon gasket | 2 | 90202-22M54 |
| 17 | 15F-03.09.02 | 托架阻尼套 | Damping ring,bracket | 2 | 90386-22M94 |
| 18 | 40F-03.03 | 垫片 | Washer | 4 | |
| 19 | 15F-03.08.01 | 夹紧托架（右）（高压） | Bracket(RH) | 1 | 63V-43111-07-4D |
| 20 | 15F-03.06 | 扁头六角螺栓 | Bolt | 4 | 90109-06M84 |
| 21 | 15F-03.07 | 制动板 | brake pad | 2 | 63V-43181-00 |
| 22 | GB1015 | 沉头半空心铆钉4* 18 | Bolt | 2 | |
| 23 | JB/7940.1 | 直通式压注油杯M6 | Cup | 1 |

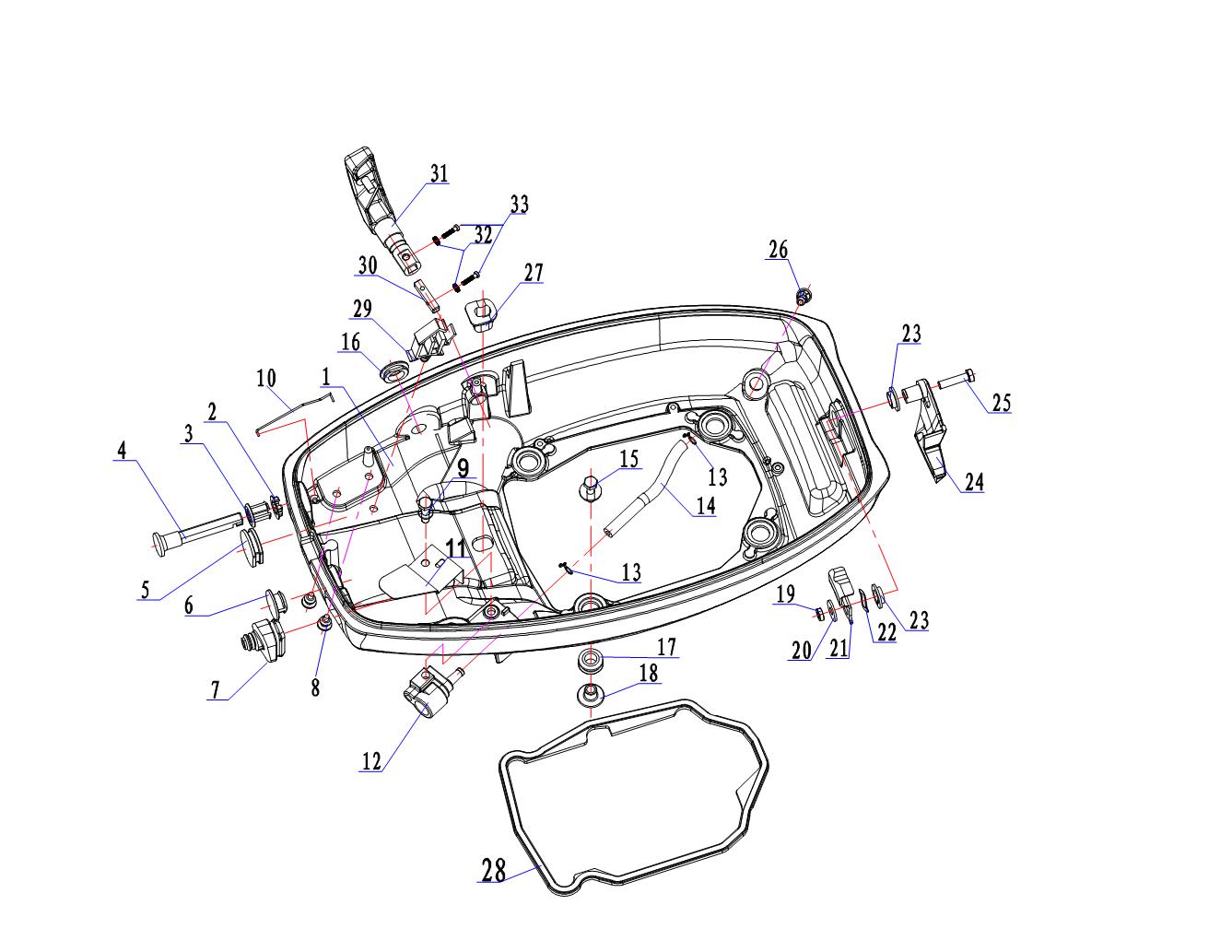

| REF | 零件编码 | 中文名称 | 英文名称 | 用量 | YMH对应零件号 |
|---|---|---|---|---|---|
| 1 | 15F-Ⅱ-02.01 | 底罩 | Bottom seat | 1 | 63V-42711-13-04D |
| 2 | 15F-02.04 | 橡胶垫 | Rubber washer | 1 | 6J8-41274-00 |
| 3 | 15F-02.03 | 阻风门拉杆护套 | Protecting bush,choke | 1 | 689-41273-00 |
| 4 | 15F-02.02 | 阻风门拉杆 | Pull rod,choke | 1 | 6H4-41271-01 |
| 5 | 15F-02.12 | 前操油门橡胶闷头（大） | Rubber plug | 1 | 682-42724-00 |
| 6 | 15F-02.13 | 前操油门橡胶闷头（小） | Rubber plug | 1 | 682-42725-00 |
| 7 | 15F-02.05 | 手柄连杆橡胶护套 | Rubber sleeve, handle connceting rod | 1 | 63V-42726-00 |
| 8 | 15F-02.09 | 外接水管橡胶闷头 | Rubber plug,water hose | 2 | |
| 9 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6*25 | Flat gasket&bolts | 1 | |
| 10 | 15F-01.02.06 | 阻风门摇臂连杆 | Connector,choke | 1 | |
| 11 | 15F-01.07.02 | 燃油管插头固定板 | Fuel hose joint plate | 1 | |
| 12 | 15F-01.07.01.00 | 燃油管插头组件 | Fuel hose joint assy. | 1 | |
| 13 | 管夹10 | Clamp | 2 | ||
| 14 | 15F-01.07.03 | 耐油橡胶管（5*10*184） | Tube | 1 | |
| 15 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6*25 | Flat gasket&bolts | 4 | |
| 16 | F4-01.02.06.06 | 橡胶闷头 | Rubber plug | 1 | |
| 17 | 15F-02.07 | 底座减震垫 | Cushion blocking of bottom seat | 4 | 90387-06034 |
| 18 | 15F-02.08 | 减震垫衬管 | Washer,damping | 4 | 90480-15M31 |
| 19 | GB/T6170 | 六角螺母M6 | Hexagonal nut | 1 | |
| 20 | GB/T5287 | 平垫6 | Flat gasket | 1 | 90206-12052 |
| 21 | 15F-Ⅱ-02.21 | 前锁紧钩 | Hook locker(front) | 1 | 6E7-42816-00 |
| 22 | 40F-02.02.00.02 | 波型垫片 | Washer | 1 | 90201-06068 |
| 23 | 15F-Ⅱ-02.19 | 塑料衬套 | Plastic bushing | 2 | |
| 24 | 15F-Ⅱ-02.18 | 锁紧手柄 | Lock handle | 1 | 63V-42815-01-4D |
| 25 | GB/T5783 | 六角螺栓M6*25 | Bolt | 1 | 95380-06700 |
| 26 | 15F-02.11 | 塑料水嘴 | Plastic Water nozzle | 1 | 6BL-44391-00 |
| 27 | 15F-02.10 | 变档连杆橡胶护套 | protecting bush,gear shifting linkage | 1 | 682-42727-00 |
| 28 | 15F-05.02 | 壳体橡胶密封垫 | Gasket | 1 | 6G1-42748-00 |
| 29 | 15F-02.06 | 油门钢索固定夹 | Fixer,Throttle cable | 1 | 90465-25M57 |
| 30 | 15F-01.05.00.01-Ⅱ | 变档杠杆 | Gear lever | 1 | |
| 31 | F9.9E-02.00.00.03 | 变档杆手柄 | Gear handle | 1 | 63V-42716-02 |
| 32 | GB/T97.1（M5） | 平垫5 | Flat gasket | 1 | |
| 33 | GB/T818(M5*12) | 十字槽盘头螺钉（M5） | Screw | 1 |

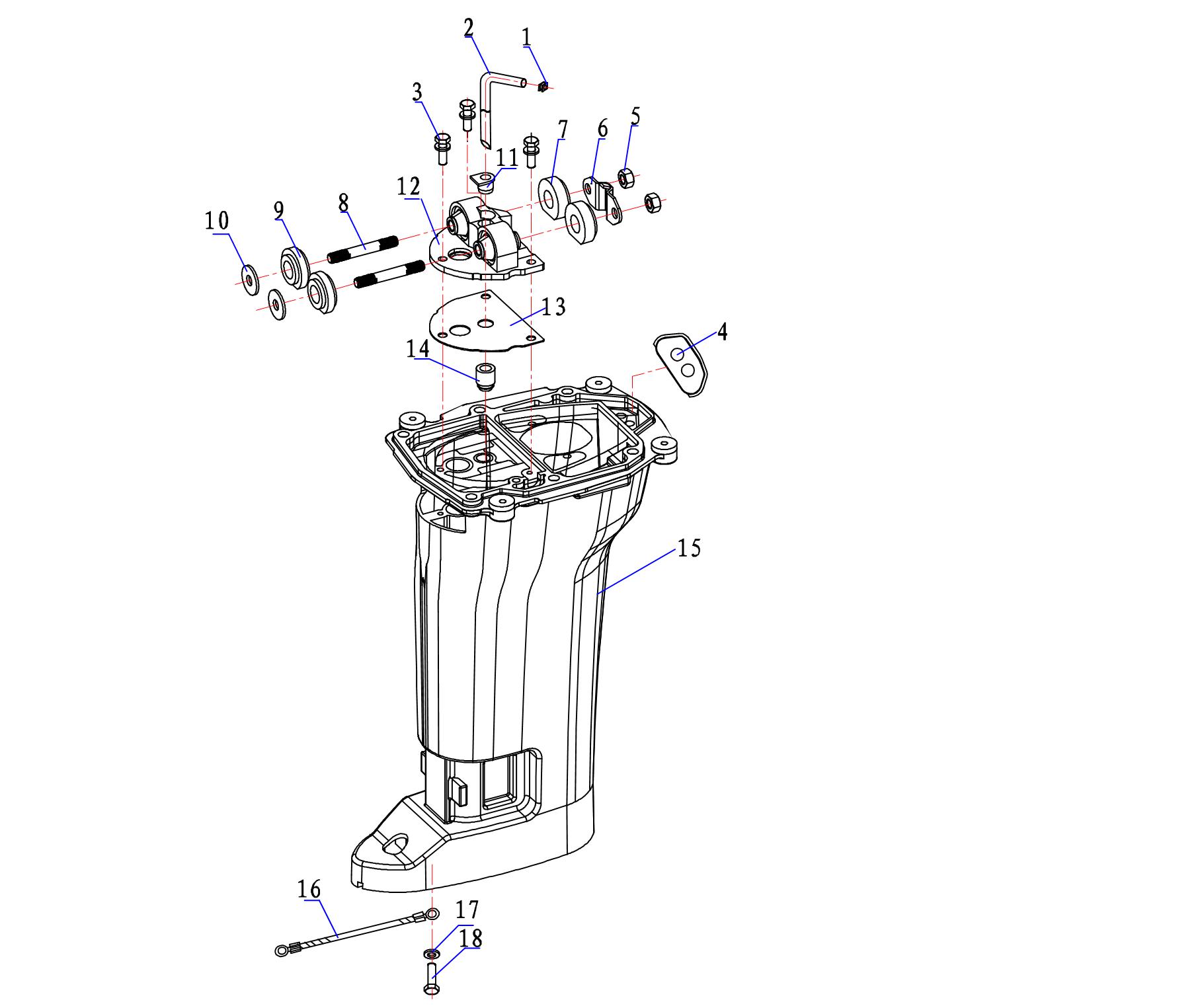

| REF | 零件编码 | 中文名称 | 英文名称 | 用量 | YMH对应零件号 |
|---|---|---|---|---|---|
| 1 | 15F-05.06 | 水管工形橡胶圈 | Rubber ring,water hose | 1 | 63V-44365-10 |
| 2 | 15F-05.05-S | 水管(短轴） | Hose | 1 | 63V-44361-01 |
| None | 15F-05.05-L | 水管(L) | Hose (L) | 1 | |
| 3 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6*18 | Flat gasket&bolts Assy | 3 | 63V-45126-01 |
| 4 | 15F-05.03 | 怠速孔橡胶密封块 | Blocker | 1 | |
| 5 | GB6170 | 六角螺母M8 | Bolts | 2 | 63V-44526-00 |
| 6 | 15F-04.01.04 | 上减震器压板 | Plate | 1 | |
| 7 | 15F-00.10 | 双孔减震套(单凸面) | damper Sleeve | 2 | 90116-08M54 |
| 8 | F9.9-04.01.00.04 | 双头螺柱 | Bolt | 2 | |
| 9 | 15F-00.09 | 双孔减震套(双凸面) | Sleeve | 2 | |
| 10 | GB96 | 平垫8 | Flat gasket | 2 | 90201-10M01 |
| 11 | 15F-05.04.05 | 水管上橡胶圈 | Rubber ring(upper),hose | 1 | 63V-44514-01-5B |
| 12 | 15F-05.04.00 | 上减震器组件 | Upper damper comp. | 1 | 63V-45114-A1 |
| 13 | 15F-05.04.04 | 密封垫 | seal gasket | 1 | 63V-44368-00 |
| 14 | 15F-05.07 | 水管下橡胶圈 | Rubber ring(lower),hose | 1 | 63V-45111-05-4D |
| 15 | 15F-05.01-S | 水上装置壳体(短轴） | Upper casing(S) | 1 | |
| None | 15F-05.01-L | 水上装置壳体(L) | Upper casing(L) | 1 | |
| 16 | 15F-05.08 | 钢索连接件 | Connector parts | 1 | |
| 17 | GB848 | 平垫6 | Flat gasket | 1 | 90201-10M02 |

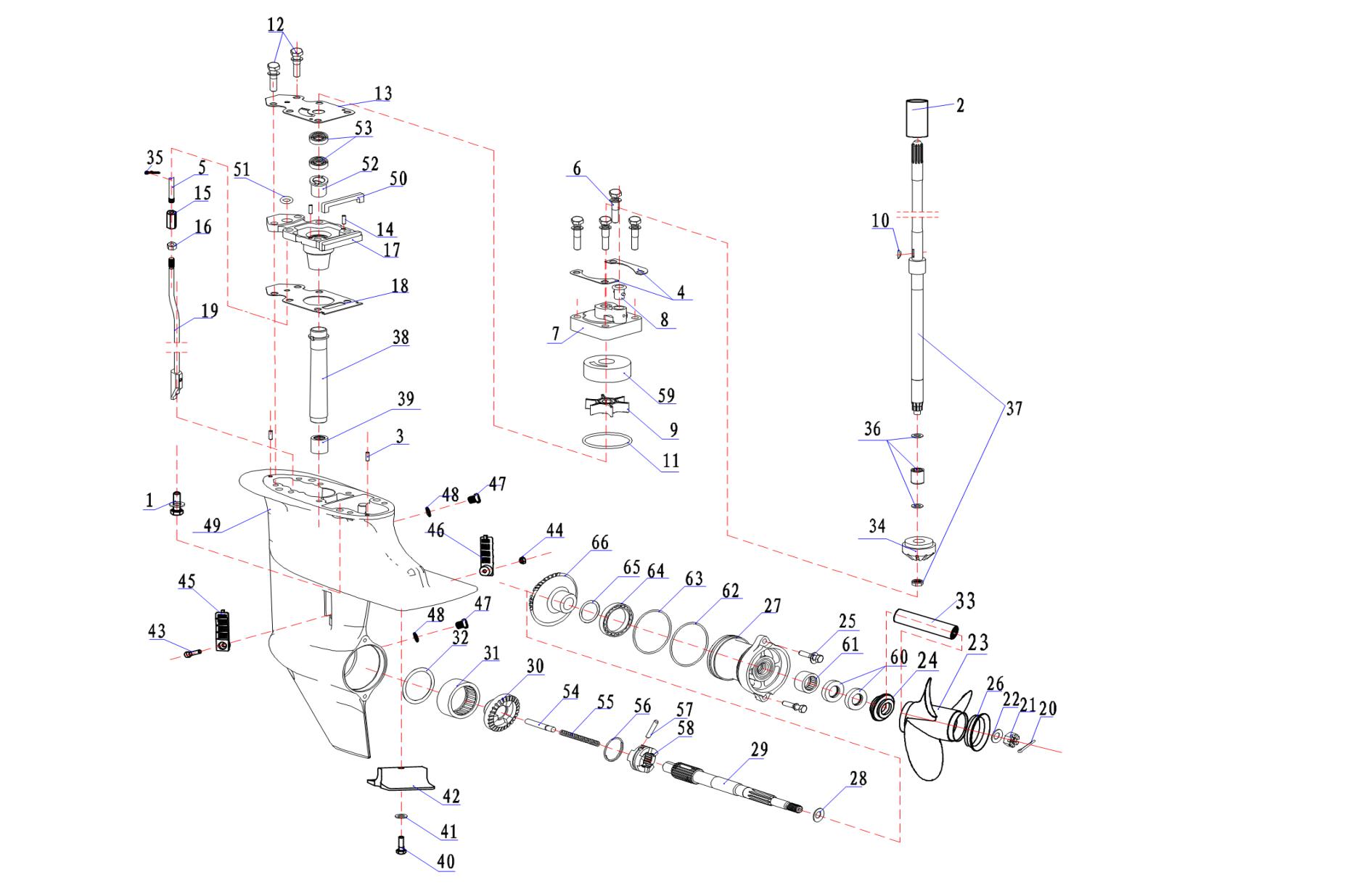

| REF | 零件编码 | 中文名称 | 英文名称 | 用量 | YMH对应零件号 |
|---|---|---|---|---|---|
| 1 | GB9074.1(8.8) | 六角头螺栓和平垫组件M8*30 | Flat gasket&bolts Assy. | 4 | 97075-08030 |
| 2 | 15F-00.04 | 尼龙垫圈 | Nylon Washer | 1 | |
| 3 | 15F-06.03.08 | 定位销4*12 | Dowel pin | 2 | 93604-12M07 |
| 4 | 15F-06.02.07 | 水泵固定板 | Dead plate,water pump | 2 | 63V-44328-00 |
| 5 | 15F-01.05.13 | 变档连杆 | Gear shift lever | 1 | 63V-44143-01 |
| 6 | GB5783 | 六角头螺栓M8*45 | Bolt | 4 | 97080-08045 |
| 7 | 15F-06.02.01 | 水泵壳体 | Water pump housing comp. | 1 | 63V-44301-00 |
| 8 | 15F-06.02.06 | 水泵水管密封圈 | Seal Gasket,water hose | 1 | 647-44366-00 |
| 9 | 15F-06.02.04 | 水泵叶轮 | Impeller | 1 | 63V-44352-01 |
| 10 | 15F-06.01.09 | 半圆键 | Woodruff key | 1 | 63V-44338-00 |
| 11 | 15F-06.02.02 | 水泵壳体O形圈 | O ring,water pump casing | 1 | 93210-44398 |
| 12 | GB5783 | 六角头螺栓M8*25 | Bolt | 2 | 90105-06M07 |
| 13 | 15F-06.03.01 | 轴承座压板(电镀） | pressing plate,bearing seat | 1 | 63V-44323-00 |
| 14 | 15F-06.03.08 | 定位销4*12 | Dowel pin | 2 | 93604-12M07 |
| 15 | 15F-06.04.05 | 柱状螺母 | Column nut | 1 | 61N-44146-00 |
| 16 | GB6170 | 六角螺母M6 | Hexagonal nut | 1 | 95380-06700 |
| 17 | 15F-06.03.02 | 轴承座壳体 | Bearing seat casing | 1 | 63V-45331-00-5B |
| 18 | 15F-06.03.07 | 轴承座密封垫 | Gasket,bearing seat | 1 | 63V-45315-A0 |
| 19 | 15F-06.04.00-S | 变档凸轮组件(S） | Shift cam assy.(S) | 1 | 63V-44150-00 |
| None | 15F-06.04.00-L | 变档凸轮组件(L) | Shift cam assy.(L) | 1 | |
| 20 | GB91 | 开口销2.5*20 | Cotter pin | 1 | 91490-30020 |
| 21 | 15F-06.14.06 | 开槽六角螺母 | Nut | 1 | 90171-10M01 |
| 22 | GB96 | 平垫10 | Flat Gasket | 1 | 90201-10M01 |
| 23 | 15F-06.14.01-Ⅱ | 螺旋桨(9-1/4*9) | Propeller | 1 | 683-45941-00-EL |
| None | 15F-06.14.00.00 | 螺旋桨组件（9-1/4*9） | Propeller Assy. | 1 | 683-45945-00-EL |
| 24 | 15F-06.13 | 衬套 | Bushing | 1 | 6E7-45987-01 |
| 25 | GB9074.1(8.8) | 六角头螺栓和平垫组件M6*20 | Bolt | 2 | 97095-06020 |
| 26 | 15F-06.14.02 | 螺旋桨喇叭口 | Propeller shaft | 1 | |
| 27 | 15F-06.12.06 | 水下壳体盖 | Cap,lower casing | 1 | 683-45361-02-4D |
| 28 | 15F-06.11 | 垫圈 | gasket ring | 1 | |
| 29 | 15F-06.10.01 | 螺旋桨轴 | Propeller shaft | 1 | 683-45611-00 |
| 30 | 15F-06.09 | 正档螺旋锥齿轮 | spiral bevel,forward gear | 1 | 6E7-45560-01 |
| 31 | 15F-06.07 | 圆锥滚子轴承30205 | Roller Bearings | 1 | 93332-00005 |
| 32 | 15F-06.08-0.1 | 正档齿轮填隙片-0.1 | Shim | 2 | 664-45567-01 |
| 33 | 15F-06.14.03 | 螺旋桨内花键 | Propeller shaft teeth | 1 | |
| 34 | 15F-06.01.10 | 小齿轮 | Pinion gear | 1 | 63V-45551-00 |
| 35 | 15F-01.05.14 | 卡簧 | circlip | 1 | |
| 36 | 15F-06.01.13 | 推力圆柱滚子轴承 | Roller Bearings | 1 | 93341-41414 |
| 37 | 15F-06.01.08-S | 驱动轴(短轴) | Drive shaft (S) | 1 | 63V-45510-01 |
| None | 15F-06.01.08-L | 驱动轴（L） | Drive shaft (L) | 1 | |
| 38 | 15F-06.01.07 | 尼龙衬圈 | Nylon bushing | 1 | 63V-45536-00 |
| 39 | 15F-06.01.14 | 滚针轴承F1420（NSK） | Roller Needle Bearings | 1 | 93315-314V8 |
| None | 15F-06.01.14 | 滚针轴承F1420（国产） | Roller Needle Bearings | 1 | 93315-314V8 |
| 40 | GB5789(10.9) | 六角法兰面螺栓(铁铬合金)M6*3 | 0Bolt | 1 | 95895-06030 |
| 41 | GB861 | 内齿锁紧垫圈6 | Washer,inner gear | 1 | 92990-06300 |
| 42 | 15F-06.15 | 阳极B | Anode | 1 | 61N-45251-01 |
| 43 | GB820 | 十字槽半沉头螺钉M5*20 | Cross recessed countersunk head screw | 1 | 90152-05M04 |
| 44 | DIN985 | 六角尼龙锁紧螺母M5 | Hexagonal nut | 1 | 90185-05002 |
| 45 | 15F-06.01.05 | 进水口盖A | Water inlet cover | 1 | 6G1-45214-00 |
| 46 | 15F-06.01.06 | 进水口盖B | cover,water inlet | 1 | 63V-45215-00 |
| 47 | 15F-06.01.03 | 注油口螺塞 | plug,straight screw | 2 | 90340-08002 |
| 48 | 15F-06.01.04 | 螺塞密封垫 | Seal Gasket | 2 | 90430-08020 |
| 49 | 15F-06.01.02 | 水下壳体 | Lower casing | 1 | 63V-45311-01-4D |
| 50 | 15F-06.03.04 | 轴承座密封条 | Sealing strip,bearing seat | 1 | |
| 51 | 15F-06.03.03 | 变档杆O形密封圈 | Shift lever o-ring | 1 | 93210-06ME6 |
| 52 | 15F-06.03.06 | 带肩筒形轴承 | Bearing | 1 | 626-45316-09 |
| 53 | 15F-06.03.05 | 油封20*30*6 | Oil seal | 2 | 93101-20048 |
| 54 | 15F-06.10.06(S) | 变档柱塞S=43 | Plunger | 1 | 650-45635-00 |
| 55 | 15F-06.10.05 | 压缩弹簧 | Compression spring | 1 | 90501-14M06 |
| 56 | 15F-06.10.04 | 簧环 | Circlip | 1 | 648-45633-06 |
| 57 | 15F-06.10.03 | 销 | Pin | 1 | 90250-05010 |
| 58 | 15F-06.10.02 | 爪形离合器 | Dog clutch | 1 | 682-45631-00 |
| 59 | 15F-06.02.03 | 水泵内壳 | Insert, cartridge | 1 | 63V-44322-00 |
| 60 | 15F-06.12.08 | 油封17*30*6 | Oil seal | 2 | 93101-17054 |
| 61 | 15F-06.12.07 | 滚针轴承17BM2312 | Needle bearing | 1 | 93315-317U2 |
| 62 | 15F-06.12.04 | O形圈（小）（56*3.1） | O ring | 1 | 93210-56M80 |
| 63 | 15F-06.12.05 | O形圈（大）（57.8*2） | O ring | 1 | 93210-57M09 |
| 64 | 15F-06.12.03 | 深沟球轴承6005 | deep groove ball bearing | 1 | 93306-00501 |
| 65 | 15F-06.12.02-0.1 | 倒档齿轮填隙片-0.1 | shim | 1 | 626-45577-00 |
| 66 | 15F-06.12.01 | 倒档螺旋锥齿轮 | Reverse gear | 1 | 6E7-45571-00 |
| None | 15F(S)-06.00.00.00 | 水下装置部件 | Lower Casing Assy. | 1 | |
| None | 15F(L)-06.00.00.00 | 水下装置部件 | Lower Casing Assy. | 1 |
| REF | 零件编码 | 中文名称 | 英文名称 | 用量 | YMH对应零件号 |
|---|---|---|---|---|---|
| 1 | 15F-06.01.03 | 注油口螺塞 | thread plug,straight screw | 1 | 90340-08002 |
| 2 | GB91 2.5*20 | 开口销 | cotter pin | 1 | |
| 3 | 15F-06.02.04 | 水泵叶轮 | water pump impeller | 1 | 63V-44352-01 |
| 4 | 15F-08.00.00 | 燃油箱总成(24L) | fuel case Assy. | 1 | |
| 5 | 15F-09.01 | 应急启动手柄 | emergency starting handle | 1 | |
| 6 | 15F-06.01.04 | 螺塞密封垫 | thread plug seal gasket | 2 | 90430-08020 |
| 7 | 15F-01.01.22 | 启动绳φ5*2000mm | starter rope | 1 | |
| 8 | 15F-08.01.06.00 | 燃油管单向阀组件 | Fuel Hose With Connecter | 1 | |
| 9 | 15F-09.00 | 工具包 | toolkit | 1 | |
| 10 | 保修保养手册(仅国内客户用) | Warranty and maintenance munal(just for Chinese client) | 1 |
