舟一会 ZHOUYIHUI 船外机

海的 25F - 25FFEL(S)

共 10 个部位，点击零件编码查看详情，或搜索本页零件。

顶罩

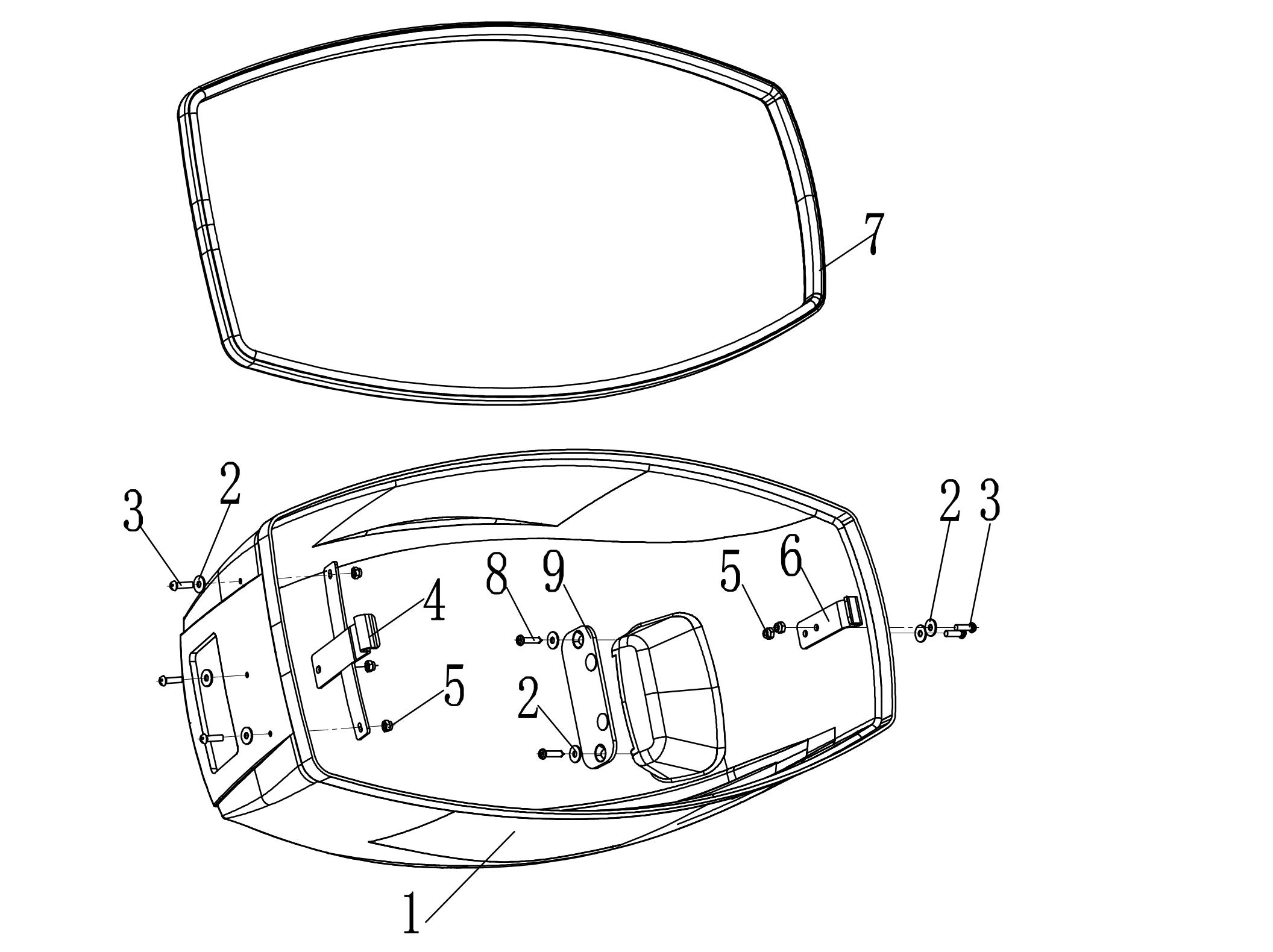

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
120F-07.00.00.01顶罩Top cowling1
2GB96 M4平垫4Flat gasket 47
3GB818 M4*14十字槽盘头螺钉M4*14Cross recessed counters5
420F-07.00.00.04前锁紧钩Front locking hook1
5DIN985 M4六角尼龙锁紧螺母M4Bolt5
615F-Ⅱ-07.08锁紧钩(Ⅱ型)(海的)Locking hook1
720F-07.00.00.03橡胶密封条Rubber sealing strip1
8GB845 ST3.9*13十字槽盘头自攻螺钉ST3.9*13Bolt2
920F-07.00.00.05进气口盖Air inlet Cap1
启动罩

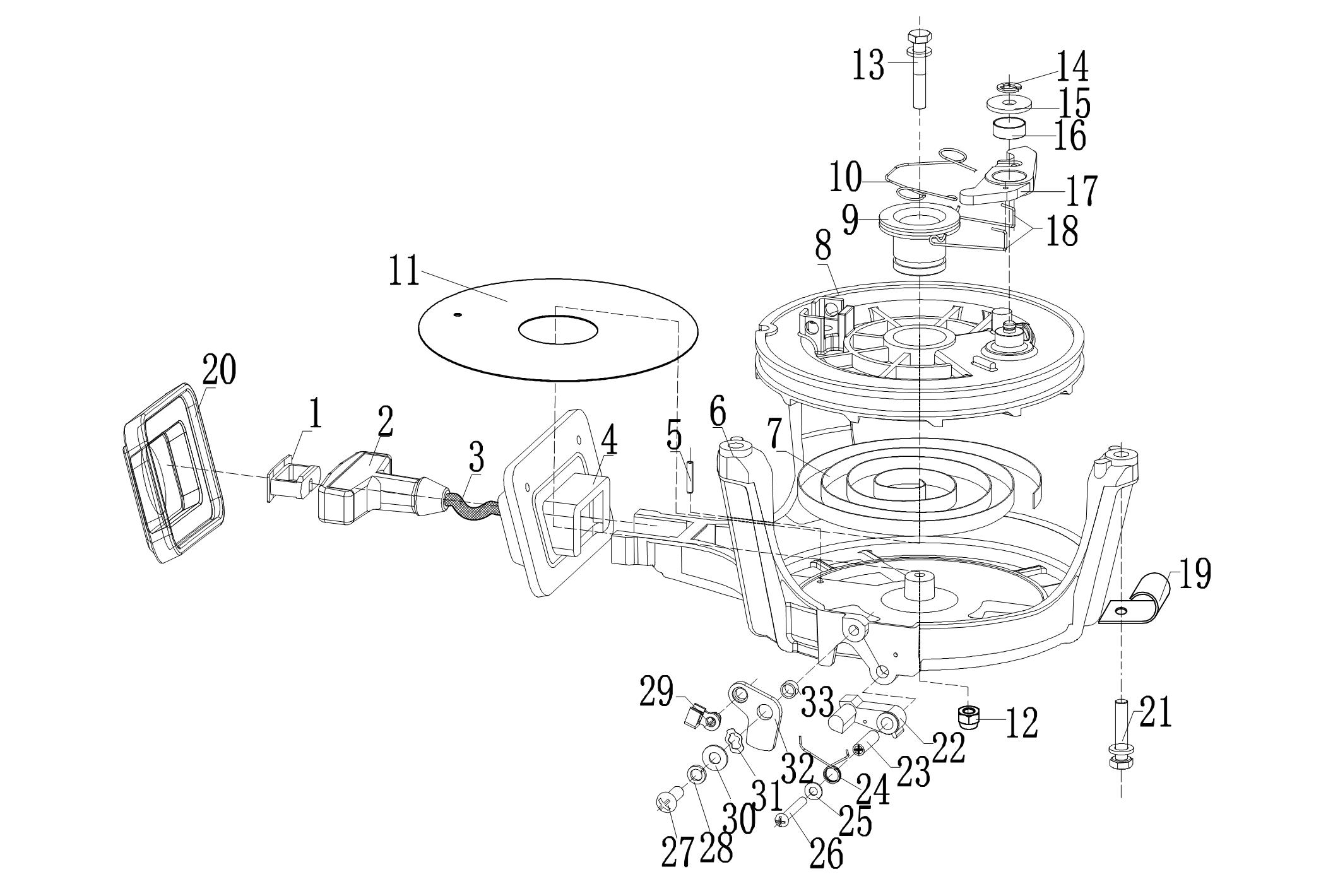

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-01.01.16手柄盖Starter Handle cover1338-05013-0
240F-01.01.18启动手柄Starter handle1338-05019-0
320F-01.01.00.08启动绳φ5*1650mmStarting rope φ5M*1650MM1350-05013-1
420F-01.01.02.00橡胶托架组件Rubber bracket1350-05116-0
5GB879 3*16弹性圆柱销3*16Elastic cylindrical pin 3*161
620F-01.01.00.09启动罩Starter Cover1350-05105-0
720F-01.01.00.07涡型弹簧Volute spring1345-05004-0
820F-01.01.01.00启动轮组件Start wheel Assy1350-05104-1
920F-01.01.00.06启动轮衬管Start wheel bushing1350-05132-0
1020F-01.01.00.04回位弹簧Return spring1350-05124-0
1120F-01.01.00.10减磨圈Friction ring1
12DIN985 M6六角尼龙锁紧螺母M6hexagon nylon lock nut1
13GB9074.1 M6*35(8.8)螺栓和垫圈组合件M6*35Hexagonal bolt & flat gasket assy M6*31
14GB896 5开口挡圈5Circlip1
15GB5287 M6平垫6Flat gasket 61
1620F-01.01.00.03驱动臂垫管Cushion tube1345-05135-1
1720F-01.01.00.02驱动臂Drive arm1345-05003-1
1820F-01.01.00.05回位弹簧拉钩Return spring hook2350-05123-0
19F15-01.03.00.42通气管固定夹Bfix clip,air breather tube190465-06M86
2020F-01.01.00.01减震套Damper1
21GB9074.1 M6*30(8.8)螺栓和垫圈组合件M6*30Bolt3
229.8F-01.01.16制动器Brake1
239.8F-01.01.17铜衬套Copper bushing1
249.8F-01.01.18制动器扭簧Torsional spring,brake1
25GB96 M4平垫4Flat gasket 41
26GB823 M4*30十字槽小盘头螺钉M4*30Cross recessed pan head tapping scre1
27GB818 M6*16十字槽盘头螺钉M6*16Pan head bolt with cross recess197880-06016
28GB93 M6弹垫6Washer1
299.8F-01.01.13连杆接头Linkage connector1
30GB97.1 M6平垫6Flat gasket1
319.8F-01.01.15波垫Wave gasket1
329.8F-01.01.12制动器导向块Brake guide1
339.8F-01.01.14垫管Cushion tube1
动力部分(1)

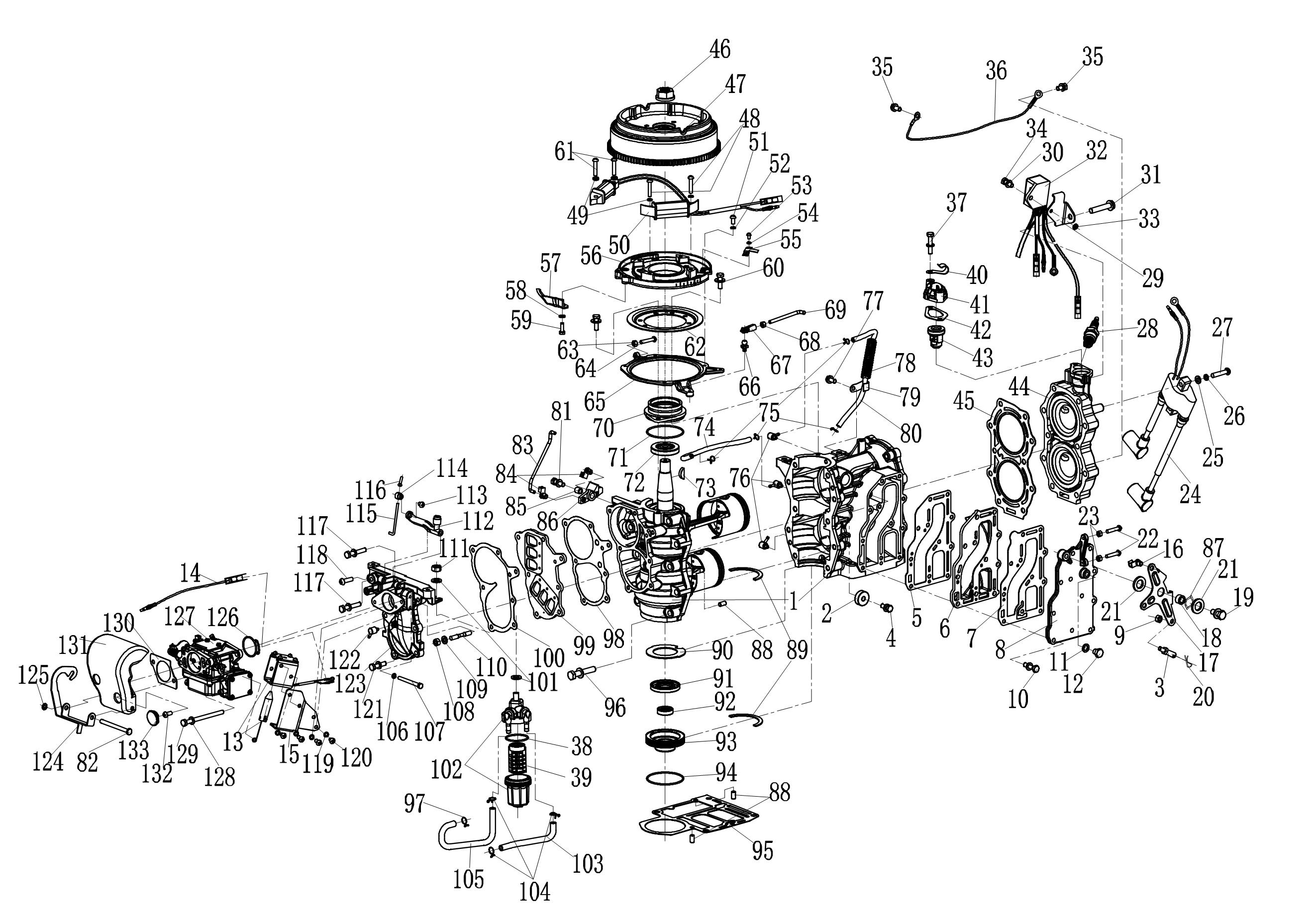

动力部分(1) 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
120F-01.06.02.00箱体组件Crankcase comp.1362B01100-3
23.5F-06.01.09阳极Anode1338-60218-2
320FE-03.00.00.35油门钢索接头throttle cable connector1
4GB9074.1 M6*16(8.8)螺栓和垫圈组合件M6*16Bolt1
520F-01.06.00.14排气内盖密封垫Exhaust inner cover gasket1350-02306-0
620F-01.06.00.13排气内盖Exhaust inner cover1350B02302-0
720F-01.06.00.12排气外盖密封垫Exhaust outer cover gasket1350-02305-0
820F-01.06.00.11排气外盖Exhaust outer cover1350B02301-1
9GB6170 M5六角螺母M5Hexagon nut M51
10GB9074.1 M6*25(8.8)螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket ass11
11F2.5-01.01.00.04铜垫片Copper washer1
12GB5783 M8*10六角头螺栓M8*10Hexagonal bolt M8*101
1320FE-01.03.07.00电磁阀总成magnetic valve Assy.1
1420FE-01.03.07.01电磁阀电源线power line,magnetic valve1
1520FE-01.03.00.09电磁阀支架bracket,magnetic valve1
169.8F-01.04.07连杆接头Linkage connector1
1720F-01.04.00.04正时摇臂Timing rock arm1
1820F-01.04.00.06摇臂衬管Rock arm bushing1
19GB9074.1 M8*20(8.8)螺栓和垫圈组合件M8*20Hexagon headed bolt and flat pl1
2015F-01.05.14卡簧(中）Spring1
2120F-01.04.00.05摇臂减磨垫Rock arm friction gasket2
22GB818 M5*25十字槽盘头螺钉M5*25Cross recessed Pan head screw2
23GB6170 M5六角螺母M5Hexagon nut M52
2420F-01.03.01.00高压包组件Ignition coil comp.13G2-06040-2
25GB97.1 M6平垫6Flat gasket2
26GB93 M6弹垫6Washer2
27GB818 M6*30十字槽盘头螺钉M6*30Cross recessed Pan head screw2
28BPR7HS(5F/9.8F/20F)火花塞Spark Plug297010-4008
2920F-01.03.00.01点火控制器固定板CDI bracket13G2-06061-0
30GB97.1 M6平垫6Flat gasket1
31GB5789 M8*40(10.9)(S1六角法兰面螺栓M8*40(10.9)bolt10
3220F-01.03.02.00点火控制器组件CDI (Charging coil, spark plug le13G2-06060-2
33GB6172 M6六角薄螺母M6Hexagon thin nut M61
34GB5783 M6*14六角头螺栓M6*14hex bolt16BX-42129-00
35GB9074.1 M6*12(8.8)螺栓和垫圈组合件M6*12Bolt2
3620F-01.03.00.02接电导线Electrical conductor1
37GB9074.1 M6*30(8.8)螺栓和垫圈组合件M6*30Bolt2
3815F-01.07.05.06过滤器O型圈O ring,filter193210-32738
3915F-01.07.05.04过滤器滤芯fuel fliter161N-24563-00
40F15-01.03.00.42通气管固定夹Bfix clip,air breather tube190465-06M86
4120F-01.06.00.15节温器盖Thermostat cover13H6B01031-0
4220F-01.06.00.16节温器盖密封垫Thermostat cover seal gasket1346-01032-0
4315F-01.06.14-50°节温器(50°)thermostat 50℃1350-01030-1
4420F-01.06.00.17气缸盖Cylinder cap1345-01111-0
4520F-01.06.00.18气缸垫Cylinder gasket1350-01005-0
46F15-01.06.00.06飞轮螺母（法兰面M16*1.25Fly wheel nut1334-00132-0
4720FE-01.03.03.00飞轮组件fly wheel Assy.1
48GB818 M5*25十字槽盘头螺钉M5*25Cross recessed Pan head screw2
49GB93 M5弹垫5Spring washer4
5020FE-01.03.11.00充电/照明线圈组件charge/lighting coil Assy.1
51GB818 M5*10十字槽盘头螺栓M5*10Cross recessed pan head tappin4
52GB93 M5弹垫5Spring washer4
53GB818 M4*6十字槽盘头螺钉M4*6Cross recessed Pan head screw2
54GB93 M4弹垫4Washer2
5520F-01.03.00.03压线板Cable plate1350-06025-0
5620F-01.03.05.00磁电机座组件Magnetic seat Assy13G2-06002-1
5720F-01.03.00.06油门调整片Throttle adjustment plate1
58GB97.1 M5平垫5Flat gasket292995-05600
59GB5783 M5*14六角头螺栓M5*14Hexagon headed bolt M5*142
60GB9074.1 M6*20(8.8)螺栓和垫圈组合件M6*20Flat gasket&Bolt2
61GB818 M5*30十字槽盘头螺钉M5*30Pan head screw with cross rece2
6220F-01.03.00.05磁电机座减磨板Magnetic seat friction plate1346-63722-2
63GB6170 M5六角螺母M5Hexagon nut M51
64GB818 M5*25十字槽盘头螺钉M5*25Cross recessed Pan head screw1
6520F-01.03.00.04正时调整板Timing adjustment plate1350-63723-0
6630F-01.02.00.02球头螺栓Ball head bolt1
6730F-01.05.00.03正时调整连杆接头Timing adjustment connecting b1
68GB6170 M5六角螺母M5Hexagon nut M51
6920F-01.04.01.01正时连杆上Timing connecting rod(up)1
7020F-01.06.00.05上油封壳体Oil sealing casing(up)1350-01401-0
71F9.9-06.02.00.06O形圈(55.5*2)O ring (big)193210-49046-00
7220F-01.06.00.07曲轴上油封25*45*8Crankshaft oil seal 25*45*81350-00121-0
7340F-01.03.03半圆键Woodruff key1
7420F-01.06.00.03回油管2.5*7*185Oil return pipe 3*7*1851
7515F-01.06.06管夹φ6.5Tube clip4
7615F-01.06.03气管圆接头AJoint,air breather tube3650-14485-03
77GB9074.1 M6*12(8.8)螺栓和垫圈组合件M6*12Bolt1
78F4-01.07.12波纹管ф12*115Bellows ф 12*1151
79F15-01.03.00.42通气管固定夹Bfix clip,air breather tube190465-06M86
8020F-01.06.00.02平衡管2.5*7*270Balance pipe 3*7*2701
81GB9074.1 M6*20(8.8)螺栓和垫圈组合件M6*20Flat gasket&Bolt1
8220F-01.02.00.02阻风门摇臂销轴Choke rock arm pin1350-67154-0
8320F-01.04.00.03制动器连杆Brake connecting rod1
849.8F-01.01.13连杆接头Linkage connector2
8520F-01.04.00.02限位块垫管Limited block cushion tube1
8620F-01.04.00.01倒档限位块Reversing limit block1
879.8F-02.11.05波形垫片Wave gasket19414-3-1400
8815F-01.06.20定位销6*12Dowel pin4
8920F-01.06.00.21限位环Limit ring2350-00115-0
9020F-01.06.00.20限位板Limit plate1350-00107-0
9120F-01.06.00.31曲轴下油封25*47*6Crankshaft under oil seal 25*47* 1350-01215-5
9220F-01.06.00.32驱动轴上油封13*25*7Drive shaft upper oil seal1
9320F-01.06.00.29下油封壳体Oil seal casing(under)1
94F9.9-06.02.00.06O形圈(55.5*2)O ring (big)193210-49046-00
9520F-01.06.00.01机体密封垫Engine seal gasket1350-01303-1
96GB9074.1 M8*45(10.9)螺栓和垫圈组合件M8*45Hexagon headed bolt and flat pl10
97管夹φ10Clamp1
9820F-01.06.00.10进气阀座密封垫Inlet valve seat gaskets1350-02105-1
9920F-01.06.01.00进气阀座组件Inlet valve seat Assy1362-02100-1
10020F-01.06.00.09进气阀盖密封垫Inlet valve cap seal1350-02104-0
101GB97.1 M8平垫8Flat gasket2
10215F-01.07.05.05燃油滤清器（外壳）Inner cover,exhaust161N-24560-00
10320F-01.07.00.01滤清器进油管Filter inlet pipe1
104管夹φ9Tube Clip3
10520F-01.07.00.02滤清器出油管(定型管)Filter outlet pipe1
106GB93 M5弹垫5Spring washer1
107GB5782 M5*50六角头螺栓M5*50Hexagon headed bolt M5*501
108GB6170 M6六角螺母M6Hexagon nut1
109GB97.1 M6平垫6Flat gasket1
110GB900 M6*25/14双头螺栓M6*25/14Bolt M6*25/141
111GB6170 M8六角螺母M8Bolt nut1
11220F-01.02.04.00油门联动杆组件Throttle linkage rod comp.13M2-03172-0
113GB818 M5*6十字槽盘头螺钉M5*6Pan head screw with cross rece190157-05014
11420F-01.02.00.05油门连杆接头Throttle linkage joint1350-03176-0
11520F-01.02.00.04油门连杆Throttle linkage1350-03174-0
116F9.9-01.04.00.05连杆帽linkage cover1
117GB9074.1 M6*35(8.8)螺栓和垫圈组合件M6*35Hexagonal bolt & flat gasket ass2
118GB823 M6*20十字槽小盘头螺钉M6*20Cross recessed Pan head screw1
119GB97.1 M5平垫5Flat gasket492995-05600
120GB818 M5*10十字槽盘头螺钉M5*10Cross recessed pan head tappin4
121GB9074.1 M6*30(8.8)螺栓和垫圈组合件M6*30Bolt4
12215F-01.06.03气管圆接头AJoint,air breather tube1650-14485-03
12320F-01.06.00.08进气阀盖Inlet valve cap13M2B02010-0
12420F-01.02.02.00阻风门摇臂组件choke rock arm assy13G2-67152-0
125GB896 5开口挡圈5Circlip1
12620F-01.02.00.03化油器密封圈Carburetor seal ring13C8-02011-0
12720F-01.02.03.00化油器组件Carburetor Assy.13G2-03100-3
128GB97.1 M6平垫6flat gasket2
129GB5783 M6*80六角头螺栓M6*80hex bolt2
13020F-01.02.00.01空滤器密封垫Air filter gasket13G2-02414-0
13120F-01.02.01.00空滤器组件Air filter assy13G2-02411-0
132GB818 M5*12十字槽盘头螺钉M5*12Screw M5*122
133F4-01.02.06.06橡胶闷头Rubber plug2
动力部分（2）

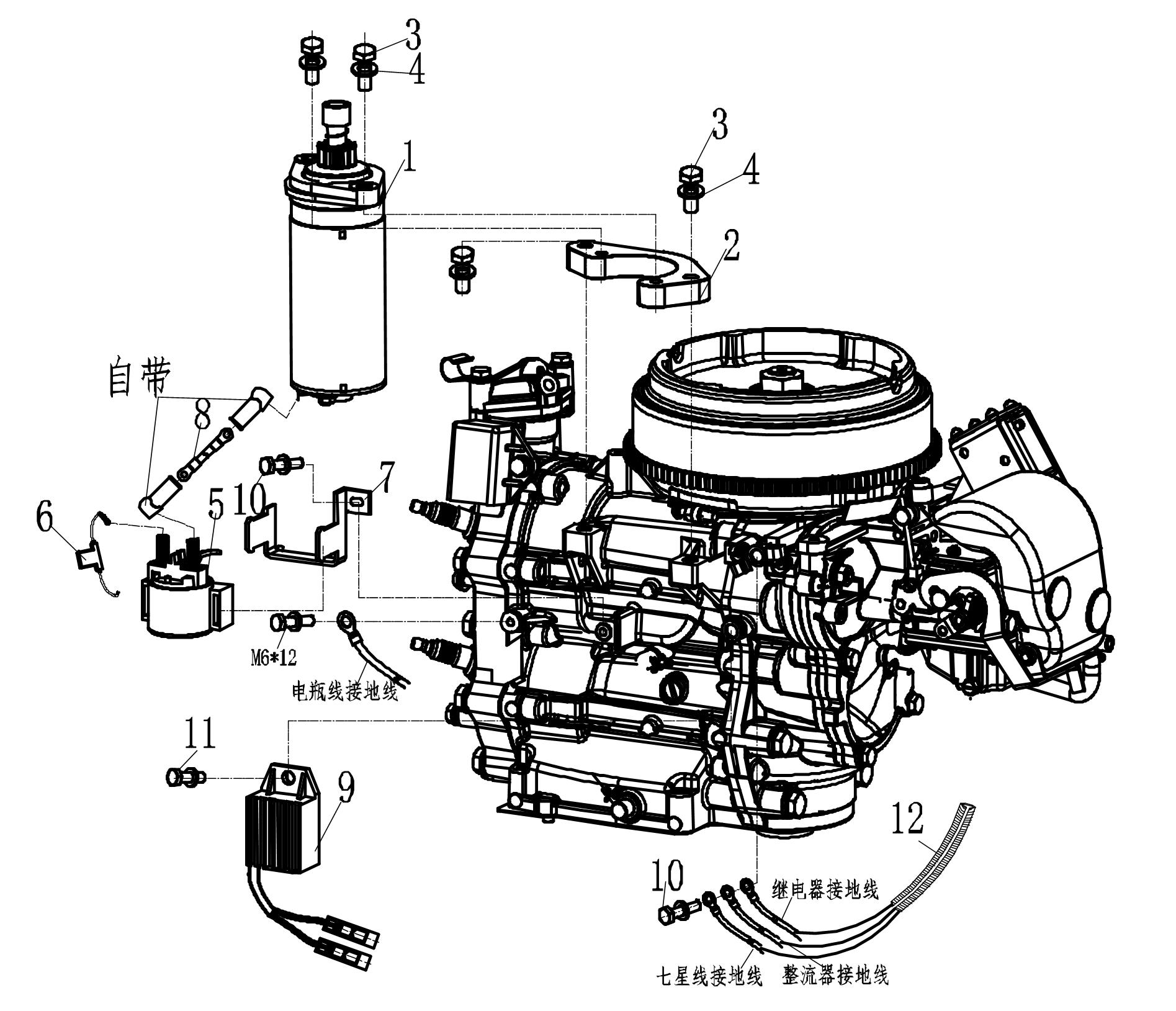

动力部分（2） 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
120FE-01.03.09.00启动电机组件starting motor Assy.1
220FE-01.03.00.08起动电机支架bracket,starting motor1
3GB5783 M8*30六角头螺栓M8*30Bolt4
4GB93 M8弹垫8washer4
5DQDF15-00.03.00继电器组件(电起动)Relay Assy.(Electrical)1
620FE-01.03.14.00保险丝导线fuse wire1
720FE-01.03.00.10继电器支架bracket,relay1
820FE-01.03.09.01启动电机电源线power line,starting motor1
9F15-01.06.07.00整流器组件Rectifier Comp.168T-81960-00-00
10GB9074.1 M6*16(8.8)螺栓和垫圈组合件M6*16Bolt2
11GB9074.1 M6*12(8.8)螺栓和垫圈组合件M6*12Bolt1
12波纹管φ11* 100bellows1
曲轴部分

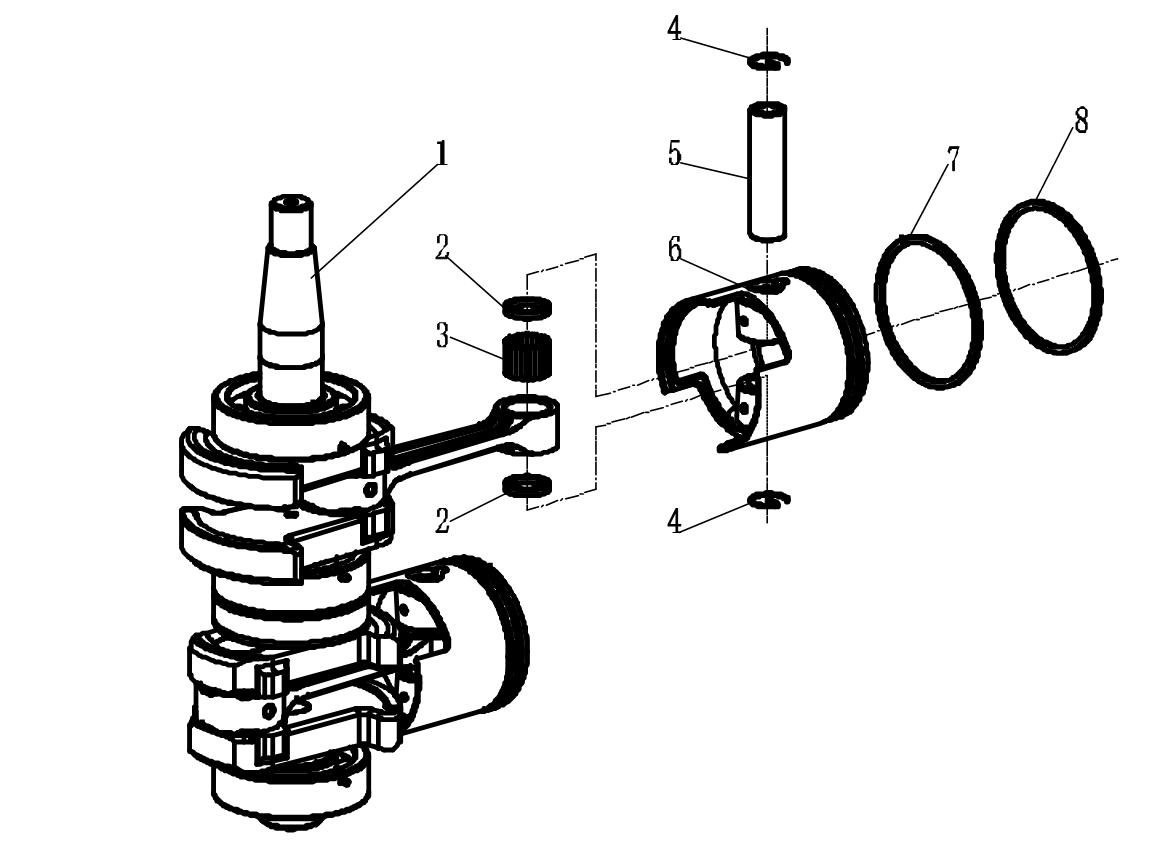

曲轴部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
120F-01.06.03.00曲轴连杆组件Crankshaft connecting rod1
220F-01.06.00.27滚针挡板Needle roller baffle4
315F-01.06.33.16密排滚针Roller pin50
49.8F-01.06.25活塞销卡簧Piston circlip4
520F-01.06.00.23活塞销Piston pin2
620F-01.06.00.22活塞Piston2
720F-01.06.00.25副气环2nd ring2
820F-01.06.00.24主气环1st ring2
底座部分

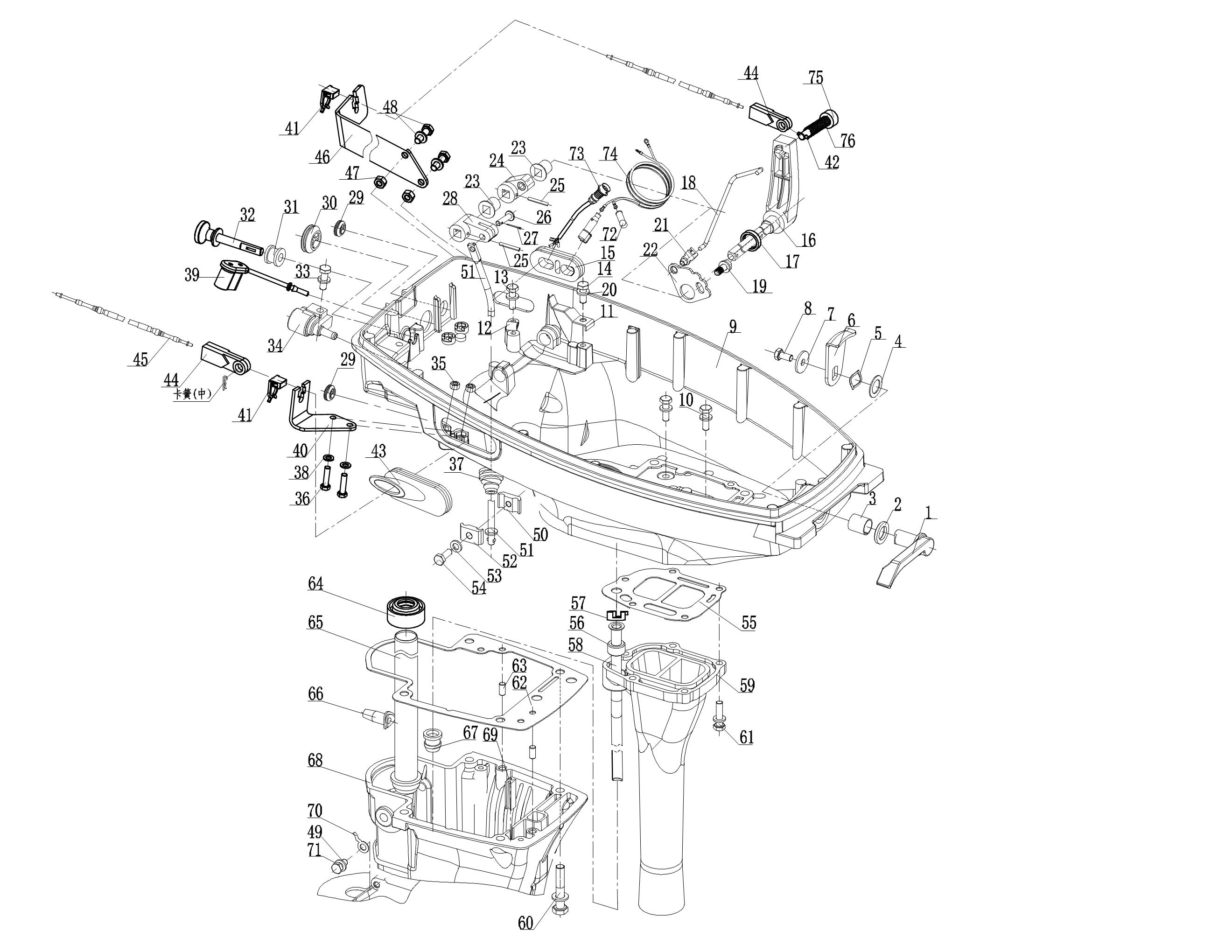

底座部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
120F-02.00.01.01前锁紧手柄Front lock handle1338S67141-0
29.8F-02.11.02橡胶圈Rubber ring136967-1050
320F-02.00.01.02衬套bushing1350-67105-0
49.8F-02.11.04垫片Gasket1
59.8F-02.11.05波形垫片Wave gasket19414-3-1400
620F-02.00.01.03锁紧片Lock plate1345-67142-1
7GB5287 M6平垫6Flat gasket 61
8GB5783 M6*12六角头螺栓M6*12Bolt1
920F-02.00.00.01底座Bottom cowling1
10GB9074.1 M6*20(8.8)螺栓和垫圈组合件M6*20Flat gasket&Bolt2
1120F-01.05.00.04限位板弹簧Limit plate spring1
12F15-01.03.00.42通气管固定夹Bfix clip,air breather tube190465-06M86
13GB9074.1 M6*12(8.8)螺栓和垫圈组合件M6*12Bolt1
14GB5783 M6*14六角头螺栓M6*14Bolt M6*1416BX-42129-00-00
159.8F-02.05闷头Aplug A1353-67162-0
1620F-01.05.01.00变档杠杆组件Shift level assy.1350-66110-0
179.8F-01.05.09橡胶密封圈Rubber seal ring1
1820F-01.05.00.02限位板连杆Limit connecting rod1
19GB9074.1 M6*16(8.8)螺栓和垫圈组合件M6*16Bolt1
20GB97.1 M6平垫6Flat gasket1
219.8F-01.01.13连杆接头Linkage connector1
2220F-01.05.00.01变档限位板Limiting plate1350-66121-0
239.8F-01.05.06衬套Bushing2350-67101-0
2420F-01.05.00.03限位板固定块Limiting plate block1350-66115-0
25GB879 3*18弹性圆柱销3*18Elastic cylindrical pin 3*102
2620F-01.05.00.06变档连杆轴销Rod pin1
27GB91 1.6*16开口销1.6*16Cotter pin1
2820F-01.05.00.05变档杠杆固定块Shift lever block1350-66225-0
295F-02.02堵塞APlug A234567-1170
30F4-02.13后罩橡胶闷头Rubber plug1
3120F-02.00.00.12阻风门拉杆橡胶套choke lever bushing1
3220F-01.02.00.06阻风门拉杆choke lever assy1
33GB9074.1 M6*25(8.8)螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket as1
3415F-01.07.01.00燃油管插头组件Fuel hose joint assy1
35GB6170 M5六角螺母M5Hexagon nut M52
36GB5783 M5*20六角头螺栓M5*20hex bolt2
379.8F-02.09护套Sleeve1345-66226-0
38GB97.1 M5平垫5Flat gasket292995-05600
39F6-01.04.00.12燃油插头护套Fuel hose joint cover1
4020FE-02.00.00.13油门钢索限位板throttle cable limited plate1
41F9.9E-02.00.00.02钢索固定卡销cable fixed pin2
42GB879 3*12弹性圆柱销3*12Elastic cylindrical pin 3*121
4320F-02.00.00.02底座橡胶堵头Rubber plug1
44HDYK00.00.24钢索调节装置ACable adjuster A2
45HDYK00.06.00遥控钢索组件(3.8M)Remote Control Cable (3.8m)2
4620FE-02.00.00.14档位钢索限位板cable limited ,shift1
47GB6170 M6六角螺母M6Hexagon nut2
48GB9074.1 M6*20(8.8)螺栓和垫圈组合件M6*20Flat gasket&Bolt2
49GB93 M6弹垫6Washer1
5020F-05.00.00.07变档连杆锁紧块BGear shift locking block B1
5120F-05.00.00.01上变档连杆Gear shift connecting rod1350-66214-0
5220F-05.00.00.06变档连杆锁紧块AGear shift locking block A1
53GB97.1 M6平垫6Flat gasket1
54GB5783 M6*16(8.8)六角头螺栓M6*16Bolt1
5520F-02.00.00.07排气管密封垫Exhaust pipe seal gasket1362-02312-0
5620F-02.00.00.09水管橡胶圈Water pipe ring1
5720F-02.00.00.10水管衬套Water pipe bushing1
5820F-02.00.00.06-S水管(短轴）Water pipe(short shaft)1
None20F-02.00.00.07-L水管(长轴)Water pipe( L )1
5920F-02.00.00.08排气管Exhaust pipe1362-02311-0
60GB9074.1 M8*45(8螺栓和垫圈组合件M8*45Hexagon headed bolt and flat p4
61GB9074.1 M6*25(8.8)螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket as5
6220F-02.00.00.11底座下垫片Bottom cowling gasket(down)1350-61012-1
6315F-01.06.20定位销6*12Dowel pin2
6420F-02.00.00.05护套橡胶垫Rubber gasket1
6520F-02.00.00.03驱动轴护套组件Drive shaft cover components1
6620F-02.00.00.04护套橡胶出水管Rubber outlet pipe1
6720F-05.00.00.04水管衬圈pipe bushing1
6820F-05.00.00.03-S水上壳体(短轴）Upper casing(S)1
None20F-05.00.00.03-L水上壳体(长轴）Upper casing( L )1
6920F-05.00.00.05橡胶密封条Rubber seal strip1
7015F-05.08钢索连接件Connector parts1
71GB5783 M6*12六角头螺栓M6*12Bolt1
72DQDF15-00.03.03橡胶护套Arubber sleeveA1
7320FE-01.03.13.00七芯线插头seven-core plug1
7420FE-01.03.12.00电瓶线组件battery pack Assy.1
7530FE-04.00.00.15固定调节装置插销bolt,fixing and adjusting device1
7630FE-04.00.00.16固定调节装置弹簧spring,fixing and adjusting dev1
水下部分

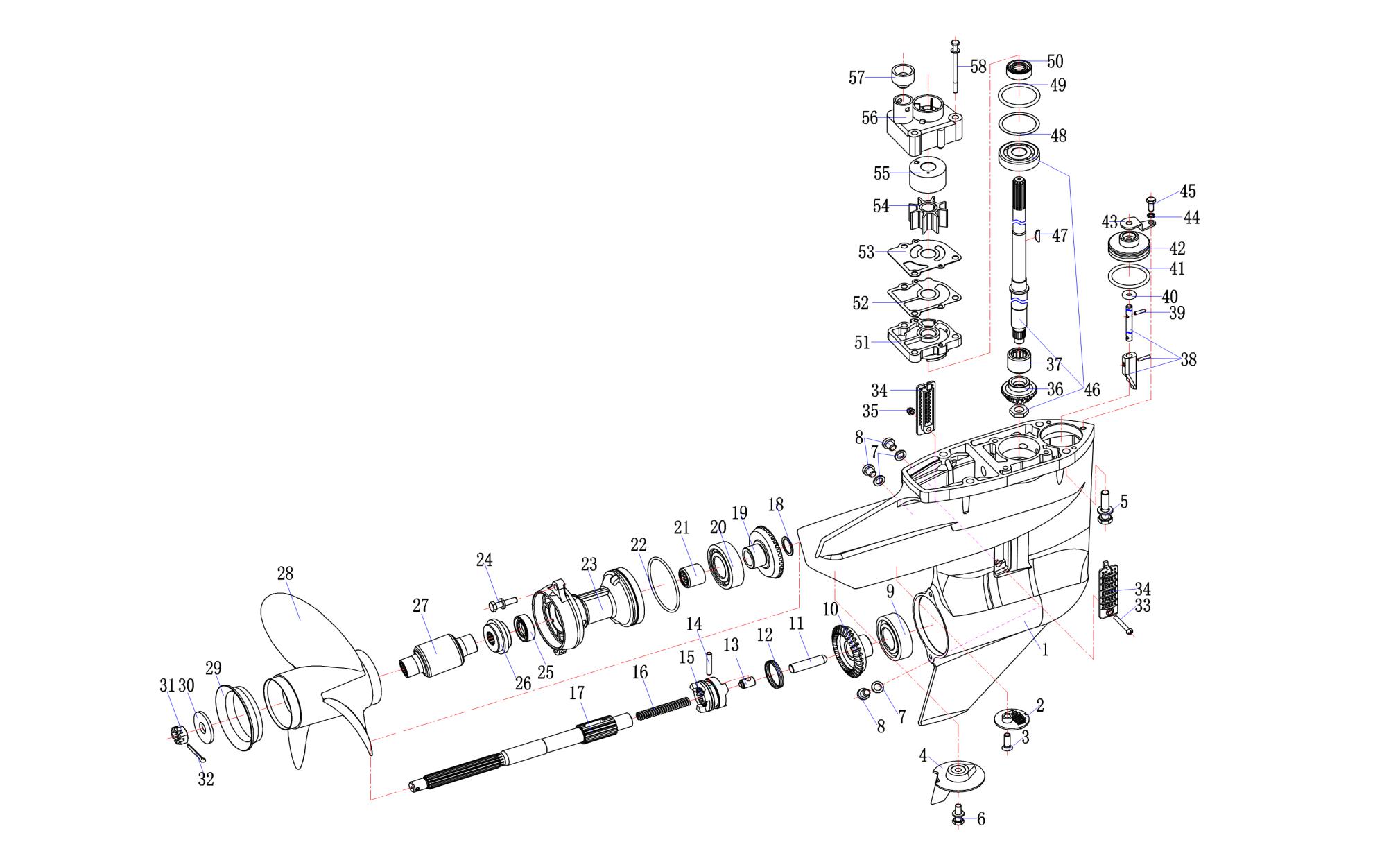

水下部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
120F-06.00.00.28水下壳体Lower casing1398S60000-0
220F-06.00.00.24进水口盖（下）Water inlet cap (Lower)1369-60206-0
3GB/T820十字槽半沉头螺钉M6*16Cross recessed slot1
49.8F-06.08航向调整片Trim tab k h d13V9-60218-0
5GB9074.1(8.8)六角头螺栓和平垫组件M8*35Hexagon headed bolt and flat4
6GB9074.1(8.8)六角头螺栓和平垫组件M6*20Hle agMo8n* aded bolt and flat1
715F-06.01.04螺塞密封垫Pllutg s 2g0asket390430-08020
815F-06.01.03注油口螺塞Oil drain plug390340-08002
9F4-01.06.02深沟球轴承6205C3Deep groove ball bearing19601-0-6205
1020F-06.00.00.27正档齿轮r3d gear1350-64010-0
1120F-06.00.03.06变档柱塞Gear shift plunger1350-64223-1
1220F-06.00.03.04簧环Circlip1350-64219-0
1320F-06.00.03.07弹簧限位套Spring limit sleeve1350-64222-0
1415F-06.10.03销Pin1350-64218-0
1520F-06.00.03.02爪型离合器Claw type clutch1362-64215-0
1620F-06.00.03.05压缩弹簧Compression spring1332-64221-0
1720F-06.00.03.01螺旋桨轴Propeller shaft1362-64211-0
1820F-06.00.00.22倒档齿轮垫圈Reverse gear washer1350-64032-0
1920F-06.00.00.15倒档齿轮Reverse gear1362-64030-0
20F4-01.06.02深沟球轴承6205C3Deep groove ball bearing19601-0-6205
2120F-06.00.00.17滚针轴承Needle bearing1362-60211-0
2220F-06.00.00.13水下壳体盖O型圈(60*2.5)Lower casing Cap O-ring1121-32071-0
2320F-06.00.00.14水下壳体盖Lower casing Cap1362S60101-0
24GB9074.1(8.8)六角头螺栓和平垫组件M6*25 l * aded bolt and flat2
2520F-06.00.00.18水下壳体盖油封Lower casing Cap Oil sealing1346-65013-0
2620F-06.00.00.02螺旋桨垫块Propeller pad1362-64231-0
2720F-06.00.02.00螺旋桨内花键组件Propeller shaft teeth assy.1362-64103-0
2820F-06.00.01.01螺旋桨Propeller1
None20F-06.00.01.00螺旋桨组件(9-1/4*9)Propeller Assy.1362-64103-0
2920F-06.00.01.02螺旋桨喇叭口Propeller horn1
30GB/T96垫片12Gasket1
3120F-06.00.00.01开槽六角螺母Slotted hex nuts1346-64121-5
32GB/T91开口销2.5*25Cotter pin 2.5*251
33GB/T823十字槽小盘头螺钉M4*30Screw M4*301
3420F-06.00.00.23进水口盖（上）Inlet cap (up)2362-60206-0
35DIN985六角尼龙锁紧螺母M4Hex nylon locking nut1
3620F-06.00.00.19小齿轮Pinion gear1350-64020-0
3720F-06.00.00.32滚针轴承Needle bearing1
3820F-06.00.04.00-S变档凸轮组件(短轴)Gear shift cam lever (S)1
None20F-06.00.04.00-L变档凸轮组件(长轴)Gear shift cam lever (L)1
39GB/T879.2弹性圆柱销3*12Elastic cylindrical pin 3*121
4015F-06.03.03变档杆O型密封圈Shift lever O ring1
4120F-06.00.00.09水泵座O型圈Water pump seat O ring1336-62415-0
4220F-06.00.04.03变档凸轮杆座Shift Cam lever seat1
4320F-06.00.00.21变档凸轮座压板Shift Cam lever seat Plate1
44GB/T93弹垫5Elastic gasket M51
45GB/T5783六角头螺栓M5*12Hexagon headed bolt M5*121
4620F-06.00.00.30-S驱动轴总成(短轴)(含轴承和 螺母)Drive shaft Assy(S)(with bearing and nut)1350-64301-0
None20F-06.00.00.30-L驱动轴总成(长轴)(含轴承和 螺母)Drive shaft Assy(L)(with bearing and nut)1
4720F-06.00.00.06水泵叶轮半圆键Woodruff key,Crankshaft1350-65022-0
4820F-06.00.00.12填隙片(0.3)Shim(0.3)1346-64082-0
4920F-06.00.00.09水泵座O型圈Water pump seat O ring1336-62415-0
5020F-06.00.00.11水泵座油封(13.8*26*9.5)Water pump oil seal1332-60223-0
5120F-06.00.00.10水泵座Water pump seat1350-65017-0
5220F-06.00.00.08水泵座密封垫Water pump seat seal gasket1
5320F-06.00.00.07水泵垫板water pump gasket1350-65025-0
5420F-06.00.05.00水泵叶轮组件Impeller assy.1334-65021-0
5520F-06.00.00.05水泵内壳Water pump inner shell1350-65011-1
5620F-06.00.00.04水泵外壳Water pump housing1350-65016-1
5720F-06.00.00.03水管下密封圈Water hose seal(down)1350-65014-0
58GB9074.1(8.8)六角头螺栓和平垫组件M6*50 l * aded bolt and flat3
None20F(S)水下装置部件Lower Casing Assy.1
None20F(L)水下装置部件Lower Casing Assy.1
夹紧部分

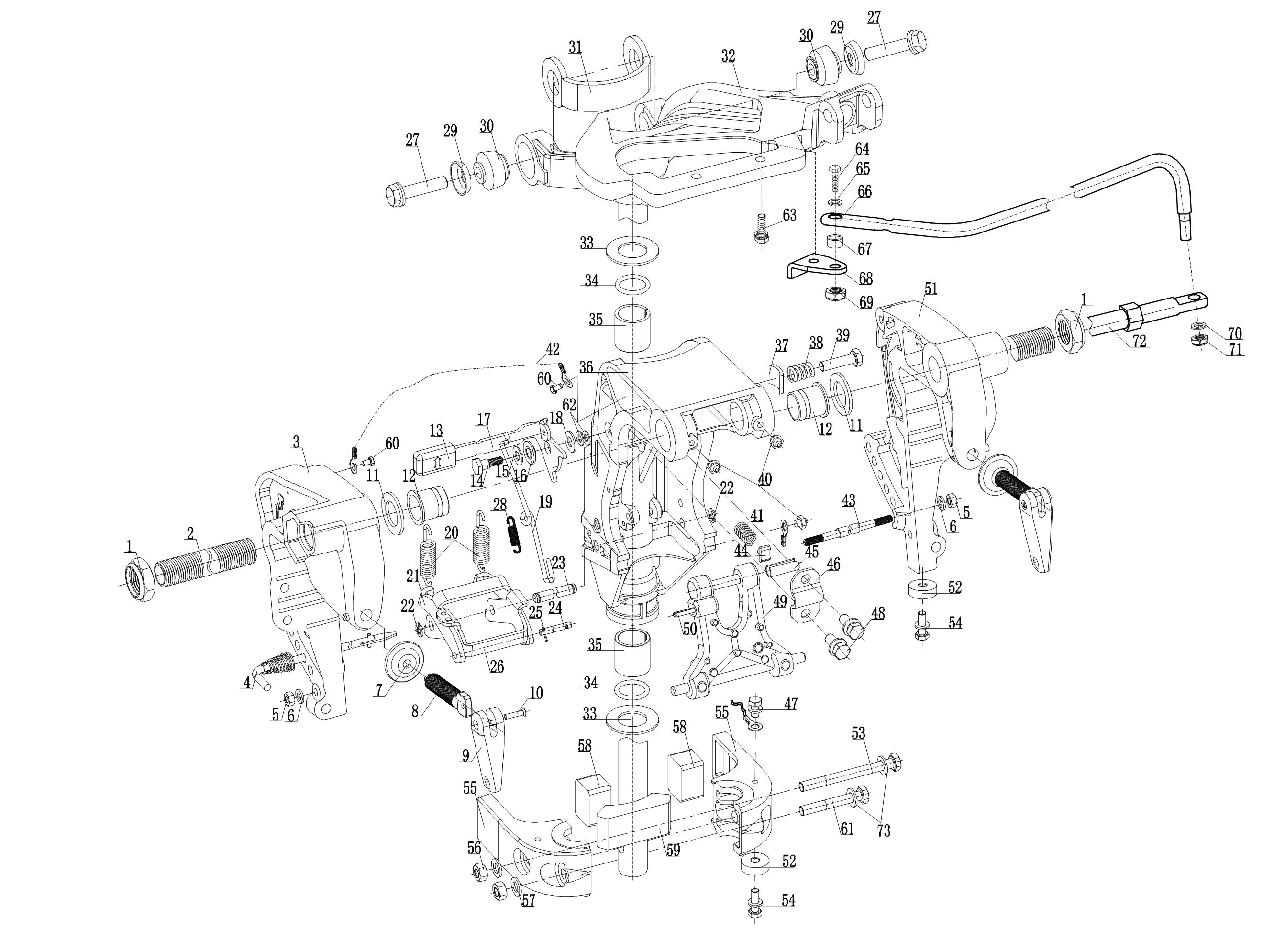

夹紧部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-03.01夹紧托架螺母Clamp nut290185-22043
240F-03.04夹紧托架双头螺栓Bolt1346-62191-0
320F-03.00.00.14夹紧托架(左)clamp bracket(L)13G2S62113-0
49.8F-03.05.11.00角度限位插销组件Trim rod Assy1350-62121-0
5GB6170 M6六角螺母M6Hexagon nut1
6GB97.1 6平垫6Flat gasket2
715F-03.05.02.03夹紧盘Clamp plate2620-43114-00
89.8F-03.05.14.03艉板夹紧螺杆Transom Clamp Bolt2369-62103-0
940F-03.05.03.02夹紧手柄intensify handle26E0-43118-01
10GB1015 4*18沉头半空心铆钉4*18Bolt2
1115F-03.02尼龙衬圈Nylon gasket290202-22M54
1215F-03.09.02托架阻尼套Damping ring,bracket290386-22M94
1315F-03.09.12.01橡塑套rubber Sleeve1682-43318-01
1420F-03.00.00.28手柄锁紧螺钉Handle locking screw13V9-05254-0
15GB848 M8平垫8Flat Pad 81
1620F-03.00.00.30减磨衬圈Friction bushing1941403-0800
1720F-03.00.00.27起翘手柄Tilt handle13G2-66311-0
1820F-03.00.00.29减磨垫Friction gasket1
1920F-03.00.00.24角度定位锁杆Position lock lever13G2-66312-0
2020F-03.00.00.23角度支架拉簧Position tension spring23G2-66331-0
2120F-03.00.00.20角度定位外支架Tilt adjustment outer bracket13G2-66313-1
22GB896 6开口挡圈6Circlip2
2320F-03.00.00.26角度定位轴Angle positioning axes1
2420F-03.00.00.25角度定位支架固定轴Angle bracket fixed axis13G2-66321-0
25GB91 1.6*12开口销1.6*12Cotter pin 1.6*121
2620F-03.00.00.21角度定位内支架Tilt adjustment inner bracket1
27GB5787 M10*1.25*4六角头法兰螺栓M10*1.25*45 (SHexagon head flange bolts M10*1.2
2820F-03.00.00.22拉簧Tension spring1350-66315-0
2920F-03.00.00.10螺栓盖Bolt cover2
3020F-03.00.02.00上减震器组件Damper Assy(up)2350-61301-0
3120F-03.00.00.32夹紧托架上橡胶减震垫Clamping bracket upper Damper1
3220F-03.00.01.00操舵托架组件Steering bracket components1
3320F-03.00.00.05旋转托架减磨片Swivel bracket friction gasket2350-62423-0
3420F-03.00.00.06旋转托架O型圈(22*3.5)Swivel bracket O ring 22*3.52350-62415-0
3520F-03.00.00.07旋转托架衬套Swivel bracket bushing2350-62417-0
3620F-03.00.00.31旋转托架swivel bracket13G2S62310-0
379.8F-03.04.01摩擦片Friction plate1345-62441-0
389.8F-03.05.09弹簧Spring1346-62421-0
39GB5783 M8*30六角头螺栓M8*30Bolt1
40JB/7940.1直通式压注油杯M6Oil cup393700-06M03
4120F-03.00.00.17角度支撑架弹簧Angle brace spring13G2-66351-0
429.8F-05.07钢索连接线Cable connector1
4320F-03.00.00.13夹紧支撑杆Clamp rod1350-62117-1
4420F-03.00.00.19衬管支撑垫Bushing gasket1346-62438-0
4520F-03.00.00.18角度支撑衬套Angle support bushing1350-62437-0
4620F-03.00.00.16角度支撑压板Angle support plate1350-62439-1
47GB9074.1 M6*10(8.8螺栓和垫圈组合件M6*10Hexagonal bolt & flat gasket assy M1
48GB9074.1 M8*16(8.8螺栓和垫圈组合件M8*16Hexagon headed bolt and flat plate1
4920F-03.00.04.00角度支撑架组件Angel support Assy13G2S62431-0
50GB879 5*40弹性圆柱销5*40（壁厚1）Elastic cylindrical pin 5*401
5120F-03.00.00.15夹紧托架(右)clamp bracket(R)13G2S62112-0
523.5F-06.01.09阳极Anode1338-60218-2
53GB5783 M8*90六角头螺栓M8*90hex bolt1
54GB9074.1 M6*20(8.8螺栓和垫圈组合件M6*20Flat gasket&Bolt1
5520F-03.00.00.03减震器外壳ADamper casing A2350S61402-1
56GB6170 M8六角螺母M8Bolt nut1
57GB97.1 M8平垫8Flat gasket2
5820F-03.00.00.01减震块ADamper A2350-61302-0
5920F-03.00.00.02减震块BDamper B1350-61336-0
60GB5783 M6*10六角头螺栓M6*10Bolt2
61GB/T5783六角头螺栓M8*551
62GB96 M6平垫6Flat gasket2
63GB5783 M8*25螺栓和垫圈组合件M8*25Hexagonal bolt & flat gasket assy M1
64HDYK00.10.04六角螺栓3/8-24hex bolt1
65HDYK00.10.06平垫10flat gasket1
6620FE-03.00.00.34操纵杆control rod1
67HDYK00.10.03操纵杆垫管bushing,control rod1
68HDYK00.10.02操纵钩control hook1
69HDYK00.10.05六角薄螺母3/8-24hex thin bolt1
70GB97.1 M10平垫10Flat gasket192903-10100
71HDYK00.10.07尼龙锁紧螺母3/8-24Nylon lock nut1
72HDYK00.00.35.01( 3.8M)方向钢索组件(3.8M)Steering Cable (3.8m)1
73GB97.1 M8平垫8Flat gasket2
遥控盒

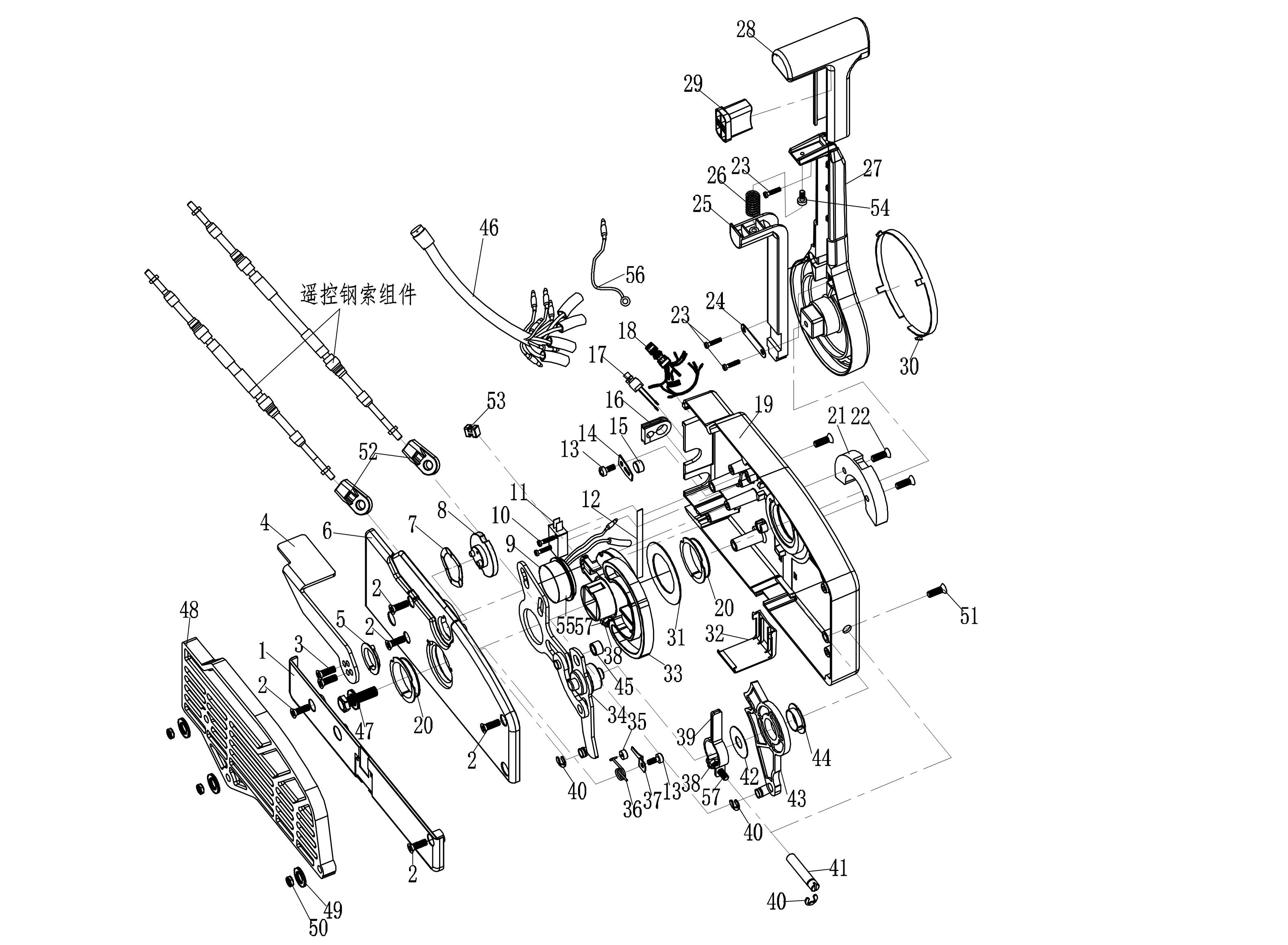

遥控盒 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1HDYK00.00.01小盖板Small plate1
2GB819 M5*16十字槽沉头螺钉M5*16Bolt5
3GB819 M5*12十字槽沉头螺纹钉M5*12Screw M5*122
4HDYK00.00.02怠速锁紧手柄Lale lock handle1
5HDYK00.00.04减磨圈Antifriction Bushing1703-48243-00
6HDYK00.00.31大盖板cap1
7HDYK00.00.03波型垫圈Wave Washer1703-48198-00
8HDYK00.01.00手柄锁紧轮组件Handle Lock wheel Assy1703-48153-00
9HDYK00.02.01峰鸣器Buzzer assy1703-83383-B0
10GB818 M3*14十字槽盘头螺钉M3*14Pan Screw M3*142
11HDYK00.05.00怠速启动开关Idle Start switch1703-82540-00
12HDYK00.00.10弹性钢板Spring steel plate5
13GB818 M4*6十字槽盘头螺钉Cross recessed Pan head screws M4*62
14HDYK00.00.09压板Plate1
15HDYK00.00.11档位限位柱Shift limit pin1
16HDYK00.00.12线束密封圈Wire Harness Seal Ring1703-48284-00
17HDYK00.03.00急停开关总成Engine shut-off switch1688-82575-01
18HDYK00.04.00启动开关总成Start switch Assy1703-82510-12
19HDYK00.00.08遥控盒(外壳)Remote control box1
20HDYK00.00.16档位座减磨圈Gear Shift Seat washer2703-48236-00
21HDYK00.00.20手柄限位器Handle Limit Assy1703-48245-00
22GB819 M5*16十字槽沉头螺钉M5*16Bolt2
23GB818 M4*10十字槽盘头螺钉M4*10Pan head bolt with cross recess M4*103
24HDYK00.09.05锁紧手柄压板handle Lock plate1
25HDYK00.09.04手柄锁紧开关Handle lock switch1703-48223-00
26HDYK00.09.06弹簧Spring1703-48227-00
27HDYK00.09.01手柄座Handle seat1
28HDYK00.09.03手柄Handle1
29HDYK00.09.07手柄开关盖Handle switch cap1
30HDYK00.09.02手柄座装饰圈Handle seat decoration ring1
31HDYK00.00.15档位座减磨垫Gear Shift Seat washer1
32HDYK00.00.26盒盖连接件connector,box cap1
33HDYK00.00.14档位座Shift seat1
3430FEHDYK00.07.00油门控制装置总成Throttle controler Assy1703-48261-01
35HDYK00.00.06导轮Guide wheel1703-48234-00
36HDYK00.00.07弹簧Spring1703-48244-00
37HDYK00.00.05导轮压板Guide wheel plate1703-48246-00
38GB6170六角螺母M5Hexagon nut M52
39HDYK00.08.01锁紧夹箍Locking Clamp1703-48264-00
40GB896开口挡圈6(不锈钢/厚度1)Circlip3
41HDYK00.08.02调节螺钉Adjusting screw1703-48265-00
42HDYK00.00.19档位控制器减磨垫Shift control washer1703-48268-00
43HDYK00.00.17档位控制器Shift controler1703-48271-00
44HDYK00.00.13油门控制器减磨片Shift control washer1703-48235-00
45HDYK00.07.10导轮Guide wheel1703-48252-00
46HDYK00.00.33七芯插头5MSeven-pin plug 5M1688-8258A-20
47GB9074.1(8.8)螺栓和垫圈组合件M8*30Flat gasket&bolts1
48HDYK00.00.32遥控器固定板Remote control fixation plate1
49GB5287平垫6Flat gasket 63
50GB6170六角螺母M6Hexagon nut3
51GB820十字槽半沉头螺钉M6*90Screw M6*903
52HDYK00.00.25钢索调节装置BCable adjustor B2703-48345-01
53HDYK00.00.27线索密封座Wire harness sealing Seat1
54GB818十字槽盘头螺钉M5*10Cross recessed pan head tapping screws(M1
55HDYK00.02.02蜂鸣器护套Handle switch cap1703-82563-02
56HDYK00.05.01电启动怠速线Electric Start Idle Wire1
57GB5783六角头螺栓M5*25Bolt2
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
2HDYK00.00.34.00方向盘组件steering wheel Assy.1
3GB6170 M6六角螺母hex bolt3
4HDYK00.00.35.01(3.8M)方向钢索组件direction wire rope Assy.1
530FE-04.00.00.15固定调节装置插销bolt,fixing and adjust ing device1
6HDYK00.10.05六角薄螺母3/8-24hex bolt,thin1
7HDYK00.06.00遥控钢索组件(3.8M)steel Cable Assy.,remote control2
8HDYK00.00.35.00方向座组件direction base Assy.1
9HDYK00.00.32遥控器固定板remote control fixed board1
10HDYK00.10.04六角螺栓3/8-24hex bolt1
11GB97.1 M6平垫flat gasket2
12F9.9E-02.00.00.02钢索固定卡销steel Cable fixed pin1
13GB820 M6*90十字槽半沉头螺钉Pan head bolt with cross recess3
14GB5287 M6平垫flat gasket3
15GB91 2.5*25开口销cotter pin1
1615F-09.00工具包toolkit1
1720F-06.00.05.00水泵叶轮组件impeller Assy.1334-65021-0
1830FE-04.00.00.16固定调节装置弹簧spring，fixing and adjust ing device1
19GB879 3*12弹性圆柱销Cylindrical pin1
2020FE-03.00.00.34操纵杆control Lever1
21HDYK00.10.02操纵钩control hook1
22HDYK00.00.24钢索调节装置Asteel cable ajusting device A2
23HDYK00.00.25钢索调节装置Bsteel cable ajusting device B2703-48345-01
24GB5783 M6*20六角头螺栓hex bolt2
25GB6170 M6六角螺母hex bolt2
2615F-06.01.03注油口螺塞thread plug,straight screw190340-08002
27HDYK00.10.03操纵杆垫管washer,control Lever1
28HDYK00.10.06平垫M10flat gasket1
29GB97.1 M10平垫flat gasket192903-10100
30HDYK00.10.07尼龙锁紧螺母3/8-24nylon Lock nut1
3115F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
3215F-01.01.22启动绳φ5*2000mmstarter rope1
3315F-09.01应急启动手柄emergency starting handle1
3415F-08.00.00燃油箱总成(24L)fuel case Assy.1
3520A保险丝fuse1
3615F-01.05.14卡簧（中）circlip(M)1
37保修保养手册(仅国内客户用)Warranty and maintenance munal(just for Chinese client)1
