舟一会 ZHOUYIHUI 船外机

海的 25F - 25FHL(S)

共 8 个部位，点击零件编码查看详情，或搜索本页零件。

顶罩

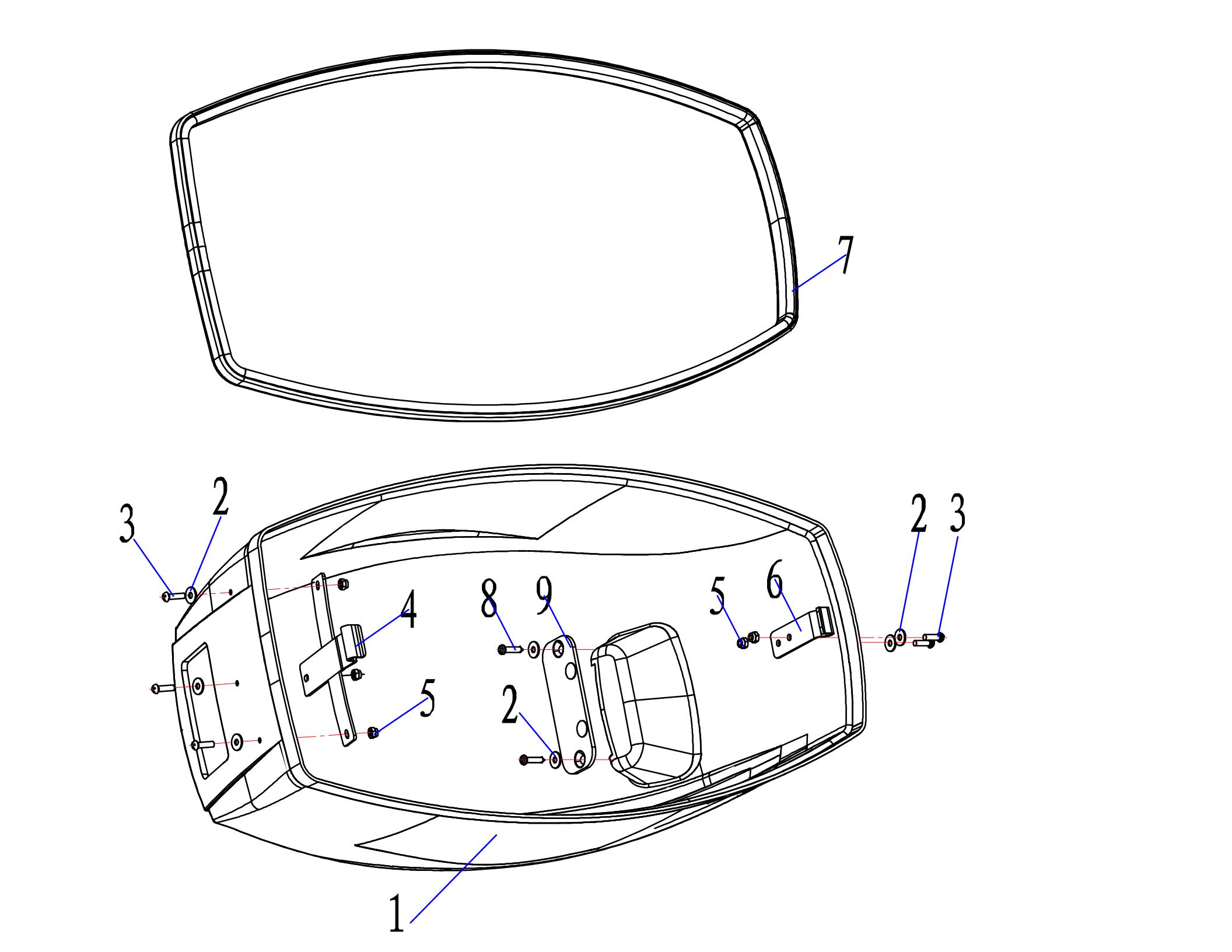

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
120F-07.00.00.01顶罩Top cowling1
2GB/T96.1平垫4Flat gasket7
3GB/T818十字槽盘头螺钉M4*14Cross recessed Pan head screws5
420F-07.00.00.04前锁紧钩Front locking hook1
5DIN985六角尼龙锁紧螺母M4Hex nylon locking nuts M45
615F-Ⅱ-07.08锁紧钩Locking hook1
720F-07.00.00.03橡胶密封条Rubber sealing strip1
8GB/T845十字槽盘头自攻螺钉ST*3.9*13Cross recessed pan head tapping screws(ST4.8*13)2
920F-07.00.00.05进气口盖Air inlet Cap1
None20F-07.00.00.00顶罩总成top cowling assembly1
启动罩

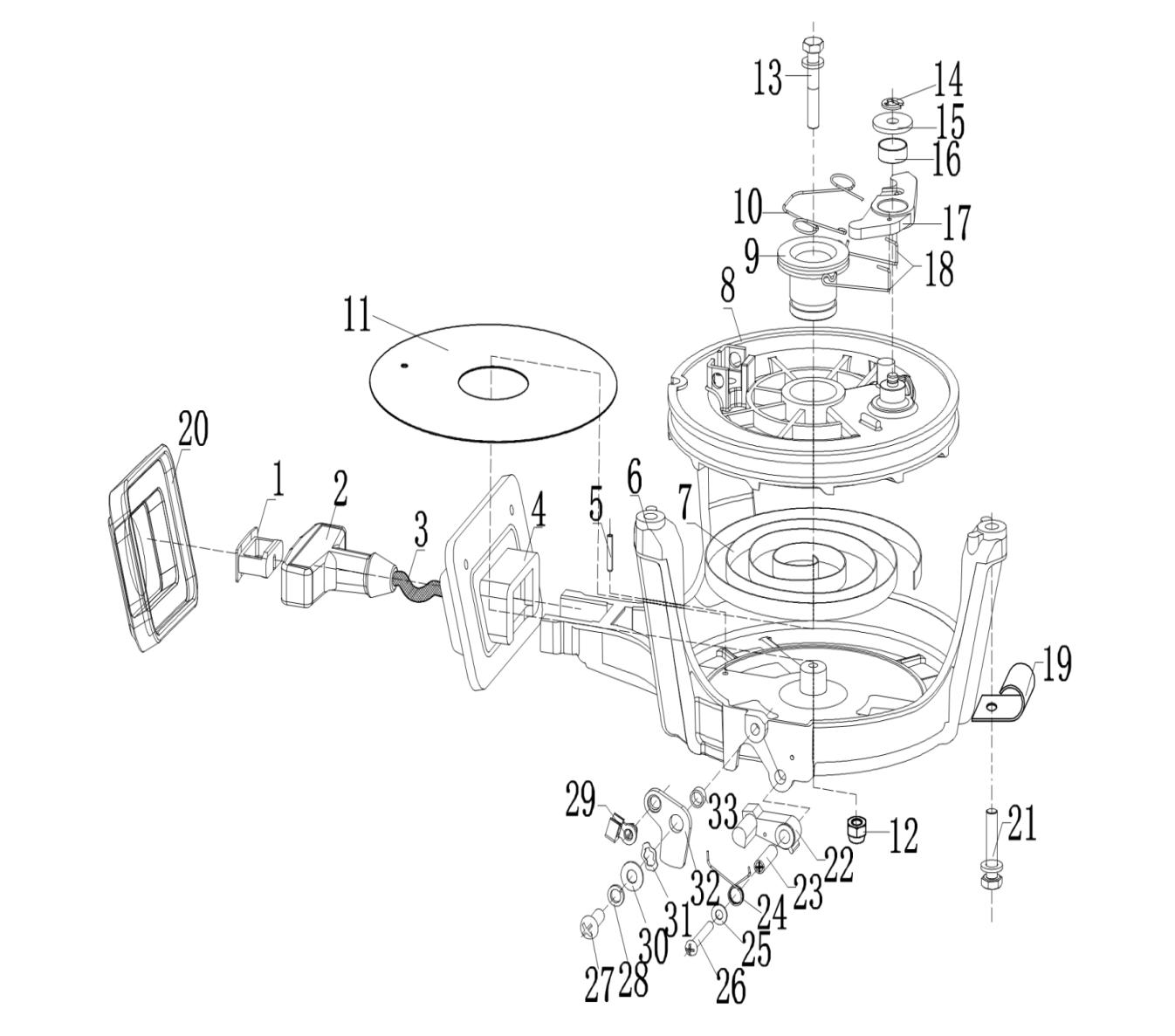

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-01.01.16手柄盖Starter Handle cover1338-05013-0
240F-01.01.18启动手柄Starter handle1338-05019-0
320F-01.01.00.08启动绳φ5*1650mmStarting rope φ1350-05013-1
420F-01.01.02.00橡胶托架组件Rubber bracket1350-05116-0
5GB/T879.1弹性圆柱销3*16Elastic cylindrical pin1
620F-01.01.00.09启动罩Starter Cover1350-05105-0
720F-01.01.00.07涡型弹簧Volute spring1345-05004-0
820F-01.01.01.00启动轮组件Start wheel Assy1350-05104-1
920F-01.01.00.06启动轮衬管Start wheel bushing1350-05132-0
1020F-01.01.00.04回位弹簧Return spring1350-05124-0
1120F-01.01.00.10减磨圈Friction ring1
12DIN985六角尼龙锁紧螺母M6Hex nylon locking nut M61
13GB9074.1(8.8)六角头螺栓和平垫组件M6*35hexagon headed bolt and1
14GB/T896开口挡圈5Cirtclip t 6 351
15GB/T5287平垫6Flat gasket 61
1620F-01.01.00.03驱动臂垫管Cushion tube1345-05135-1
1720F-01.01.00.02驱动臂Drive arm1345-05003-1
1820F-01.01.00.05回位弹簧拉钩Return spring hook2350-05123-0
19F15-01.03.00.42通气管固定夹BAir hose clip1
2020F-01.01.00.01减震套Damper1
21GB/T9074.1（8.8）六角头螺栓和平垫组合M6*30hexagon headed bolt and3
229.8F-01.01.16制动器Brat ke t 6 301338-05252-0
239.8F-01.01.17铜衬套Copper bushing1338-05255-0
249.8F-01.01.18制动器扭簧Brake Torsional spring1338-05216-0
25GB/T96平垫4Flat gasket 41
26GB/T823十字槽小盘头螺钉M4*30Screw M4*301
27GB/T818十字槽盘头螺钉M6*16Screw M6*161
28GB/T93弹垫6Elastic gasket M61
299.8F-01.01.13连杆接头connecting rod joint1910114-5616
30GB/T97.1平垫6Flat Gasket M61
319.8F-01.01.15波垫Wave Gasket1941403-0800
329.8F-01.01.12制动器导向块Brake Guide1350-05253-0
339.8F-01.01.14垫管Cushion tube1
None20F-01.01.00.00启动罩组件Recoil Starter Assy.1
动力部分

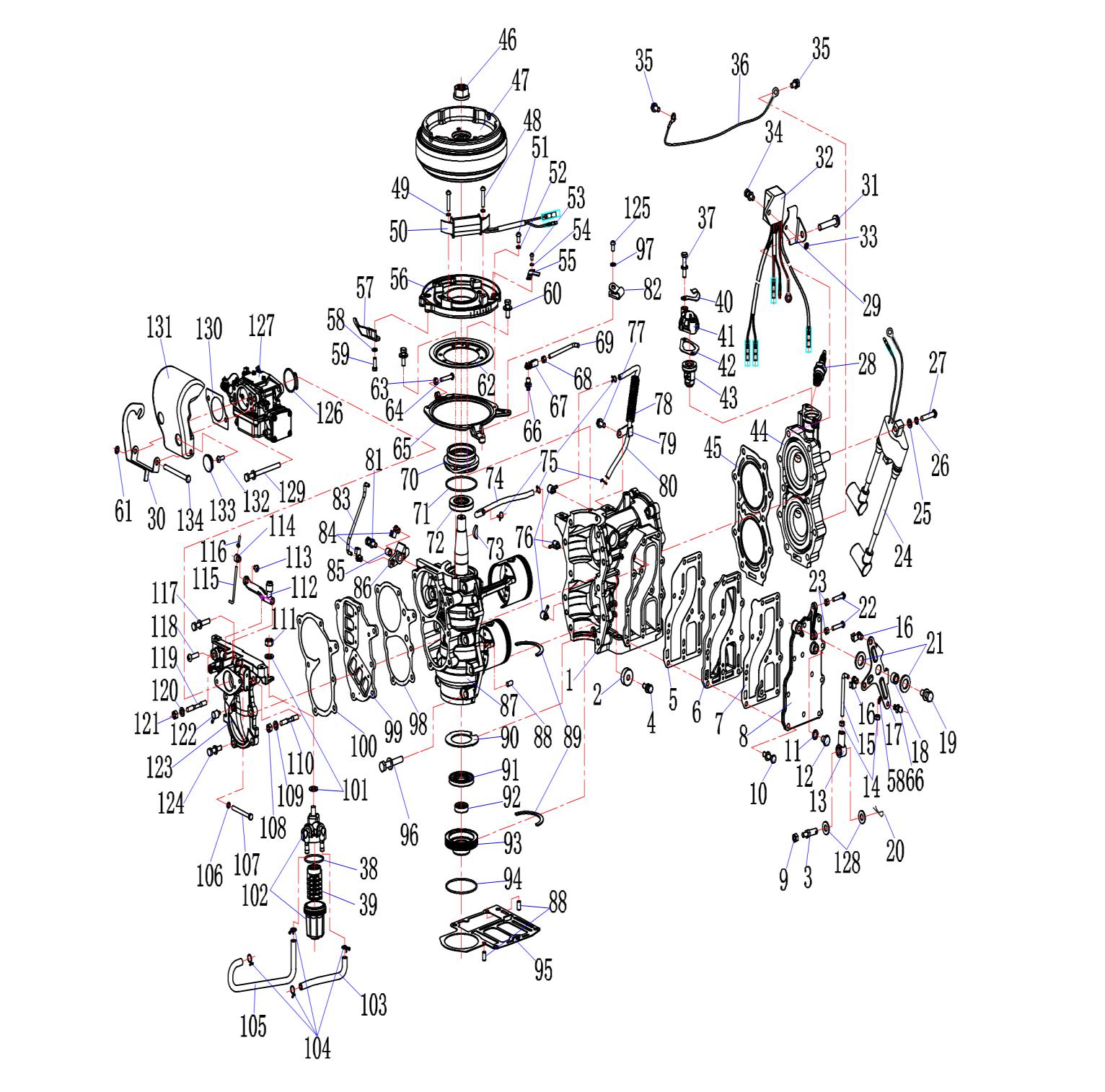

动力部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
120F-01.06.02.00箱体组件Crankcase comp.1362B01100-3
23.5F-06.01.09阳极Anode1338-60218-2
320F-04.00.01.06油门连杆轴销Throttle linkage pin1
4GB9074.1(8.8)六角头螺栓和平垫组件M6*16Hexagon headed bolt and flat plate M6*161
520F-01.06.00.14排气内盖密封垫Exhaust inner cover gasket1350-02306-0
620F-01.06.00.13排气内盖Exhaust inner cover1350B02302-0
720F-01.06.00.12排气外盖密封垫Exhaust outer cover gasket1350-02305-0
820F-01.06.00.11排气外盖Exhaust outer cover1350B02301-1
9GB/T6170六角螺母M6Hexagon nut M61
10GB/T9074.1(8.8)六角头螺栓和平垫组件M6*25Hexagon headed bolt and flat plate M6*2511
11F2.5-01.01.00.04铜垫片Copper gasket1
12GB/T5783六角头螺栓M8*10Hexagon headed Bolt M8*101
1320F-01.04.02.01正时连杆套Timing connecting rod cover1
14GB/T6170六角螺母M5Hexagon nut M52
1520F-01.04.01.01正时连杆上Timing connecting rod(up)1
169.8F-01.04.07连杆接头connecting rod joint2
1720F-01.04.00.04正时摇臂Timing rock arm1
1820F-01.04.00.06摇臂衬管Rock arm bushing1
19GB9074.1(8.8)六角头螺栓和平垫组件M8*20Hexagon headed bolt and flat plate M6*201
2015F-01.05.14卡簧Circlip1
2120F-01.04.00.05摇臂减磨垫Rock arm friction gasket2
22GB/T818十字槽盘头螺钉M5*25Cross recessed Pan head screws M5*252
23GB/T6170六角螺母M5Hexagon nut2
2420F-01.03.01.00高压包组件Ignition coil comp.13G2-06040-2
25GB/T97.1平垫6Flat gasket2
26GB/T93弹垫6Elastic gasket M62
27GB/T818十字槽盘头螺钉M6*30Cross recessed Pan head screws M5*302
28BPR7HS火花塞Spark plug2
2920F-01.03.00.01点火控制器固定板CDI bracket13G2-06061-0
3020F-01.02.02.00阻风门摇臂组件choke rock arm assy13G2-67152-0
31GB5789六角法兰面螺栓M8*40(10.9)(Sbolt10
3220F-01.03.02.00点火控制器组件CDI (Charging coil, spark plug lead assy.)13G2-06060-2
33GB6172六角薄螺母M6Hexagon thin nut M61
34GB/T9074.1(8.8)六角头螺栓和平垫组件M6*14Hexagon headed bolt and flat plate M6*141
35GB9074.1(8.8)六角头螺栓和平垫组件M6*12Hexagon headed bolt and flat plate M6*122
3620F-01.03.00.02接电导线Electrical conductor1
37GB/T9074.1(8.8)六角头螺栓和平垫组件M6*30Hexagon headed bolt and flat plate M6*302
3815F-01.07.05.06过滤器O型圈Filter O-ring1
3915F-01.07.05.04过滤器滤芯Filter element1
40F15-01.03.00.42通气管固定夹BAir hose clip B1
4120F-01.06.00.15节温器盖Thermostat cover13H6B01031-0
4220F-01.06.00.16节温器盖密封垫Thermostat cover seal gasket1346-01032-0
4315F-01.06.14节温器(50°)Thermostat(50°)1350-01030-1
4420F-01.06.00.17气缸盖Cylinder cap1345-01111-0
4520F-01.06.00.18气缸垫Cylinder gasket1350-01005-0
46F15-01.06.00.06飞轮螺母Fly wheel nut1334-00132-0
4720F-01.03.03.00飞轮组件Fly wheel Assy13G2-06001-1
48GB/T818十字槽盘头螺钉M5*25Cross recessed Pan head screws *2
49GB/T93弹垫5M5 25 Elastic gasket M52
5020FE-01.03.11.00充电/照明线圈组件Charging/ lighting coil Assy.1
51GB/T818十字槽盘头螺栓M5*10Bolt M5*104
52GB/T93弹垫5Elastic gasket M54
53GB/T818十字槽盘头螺钉M4*6Cross recessed Pan head screws *2
54GB/T93弹垫4M4 6 Elastic gasket M42
5520F-01.03.00.03压线板Cable plate1350-06025-0
5620F-01.03.05.00磁电机座组件Magnetic seat Assy13G2-06002-1
5720F-01.03.00.06油门调整片Throttle adjustment plate1
58GB/T97.1平垫5Flat gasket3
59GB/T5783六角头螺栓M5*14Hexagon headed bolt M5*142
60GB9074.1(8.8)六角头螺栓和平垫组件M6*20Hexagon headed bolt and flat plate M6*202
61GB/T896开口挡圈5Circlip1
6220F-01.03.00.05磁电机座减磨板Magnetic seat friction plate1346-63722-2
63GB/T6170六角螺母M5Hexagon nut M51
64GB/T818十字槽盘头螺钉M5*25Cross recessed Pan head screws M5*251
6520F-01.03.00.04正时调整板Timing adjustment plate1350-63723-0
6630F-01.02.00.02球头螺栓Ball head bolt2
6730F-01.05.00.03正时调整连杆接头Timing adjustment connecting bolt1
68GB/T6170六角螺母M5Hexagon nut M51
6920F-01.04.01.01正时连杆上Timing connecting rod(up)1
7020F-01.06.00.05上油封壳体Oil sealing casing(up)1350-01401-0
71F9.9-06.02.00.06O形圈(大)O ring (big)193210-49046-00
7220F-01.06.00.07曲轴上油封25*45*8Crankshaft oil seal 25*45*81350-00121-0
7340F-01.03.03半圆键Woodruff key1
7420F-01.06.00.03回油管3*7* 185Oil return pipe 3*7*1851
75管夹7Pipe clamp M74
7615F-01.06.03气管圆接头APipe round connector A3
77GB9074.1(8.8)六角头螺栓和平垫组件M6*12Hexagon headed bolt and flat plate M6*121
78F4-01.07.12波纹管ф12* 115Bellows ф 12*1151
79F15-01.03.00.42通气管固定夹BAir hose clip B1
8020F-01.06.00.02平衡管3*7*270Balance pipe 3*7*2701
81GB/T9074.1(8.8)六角头螺栓和平垫组件M6*20Hexagon headed bolt and flat plate M6*201
82F4-11.12.31线卡Wire fixer1
8320F-01.04.00.03制动器连杆Brake connecting rod1
849.8F-01.01.13连杆接头connecting rod joint2910114-5616
8520F-01.04.00.02限位块垫管Limited block cushion tube1
8620F-01.04.00.01倒档限位块Reversing limit block1
8720F-01.06.00.19箱盖Crankcase cover1
8815F-01.06.20定位销6*12Pin4345-01111-0
8920F-01.06.00.21限位环Limit ring2350-00115-0
9020F-01.06.00.20限位板Limit plate1350-00107-0
9120F-01.06.00.31曲轴下油封25*47*6Crankshaft under oil seal 25*47*61350-01215-5
9220F-01.06.00.32驱动轴上油封13*25*7Drive shaft upper oil seal1
9320F-01.06.00.29下油封壳体Oil seal casing(under)1
94F9.9-06.02.00.06O形圈(大)O ring (big)193210-49046-00
9520F-01.06.00.01机体密封垫Engine seal gasket1350-01303-1
96GB9074.1( 10.9)六角头螺栓和平垫组件M8*45Hexagon headed bolt and flat plate M8*4510
97GB/T97.1平垫5Flat gasket1
9820F-01.06.00.10进气阀座密封垫Inlet valve seat gaskets1350-02105-1
9920F-01.06.01.00进气阀座组件Inlet valve seat Assy1362-02100-1
10020F-01.06.00.09进气阀盖密封垫Inlet valve cap seal1350-02104-0
101GB/T97.1平垫8Flat gasket 82
10215F-01.07.05.05燃油滤清器（外壳）Fuel filter(Casing)1346-02230-0
10320F-01.07.00.01滤清器进油管Filter inlet pipe1
104管夹9Pipe clamp M94
10520F-01.07.00.02滤清器出油管Filter outlet pipe1
106GB/T93弹垫5Elastic gasket M51
107GB/T5782六角头螺栓M5*50Hexagon headed bolt M5*501
108GB/T6170六角螺母M6Hexagon nut M61
109GB/T97.1平垫6Flat gasket1
110GB/T900双头螺栓M6*25/14Bolt M6*25/141
111GB/T6170六角螺母M8Hexagon nut M81
11220F-01.02.04.00油门联动杆组件Throttle linkage rod comp.13M2-03172-0
113GB/T818十字槽盘头螺钉M5*6Cross recessed Pan head screws M5*61
11420F-01.02.00.05油门连杆接头Throttle linkage joint1350-03176-0
11520F-01.02.00.04油门连杆Throttle linkage1350-03174-0
116F9.9-01.04.00.05连杆帽linkage cover1
117GB9074.1(8.8)六角头螺栓和平垫组件M6*35Hexagon headed bolt and flat plate M8*351
118GB/T823十字槽小盘头螺钉M6*20Cross recessed Pan head screws M6*201
119GB/T900双头螺栓M6*30/14Double-screw bolt1
120GB/T97.1平垫6Flat gasket1
121GB/T6170六角螺母M6Hexagon nut M61
12215F-01.06.03气管圆接头APipe round connector A1
12320F-01.06.00.08进气阀盖Inlet valve cap13M2B02010-0
124GB9074.1(8.8)六角头螺栓和平垫组件M6*25Hexagon headed bolt and flat plate M6*254
125GB/T818十字槽盘头螺栓M5*10Cross recessed Pan head bolt1
12620F-01.02.00.03化油器密封圈Carburetor seal ring13C8-02011-0
12720F-01.02.03.00化油器组件Carburetor Assy.13G2-03100-3
12820F-03.00.00.29减磨垫Friction gasket2
129GB97.1 M6平垫6flat gasket2
NoneGB5783 M6*80六角头螺栓M6*80hex bolt2
13020F-01.02.00.01空滤器密封垫Air filter gasket13G2-02414-0
13120F-01.02.01.00空滤器组件Air filter assy13G2-02411-0
132GB/T818十字槽盘头螺钉M5*12Cross recessed Pan head screws M5*122
133F4-01.02.06.06橡胶闷头Rubber plug2
13420F-01.02.00.02阻风门摇臂销轴Choke rock arm pin1350-67154-0
曲轴部分

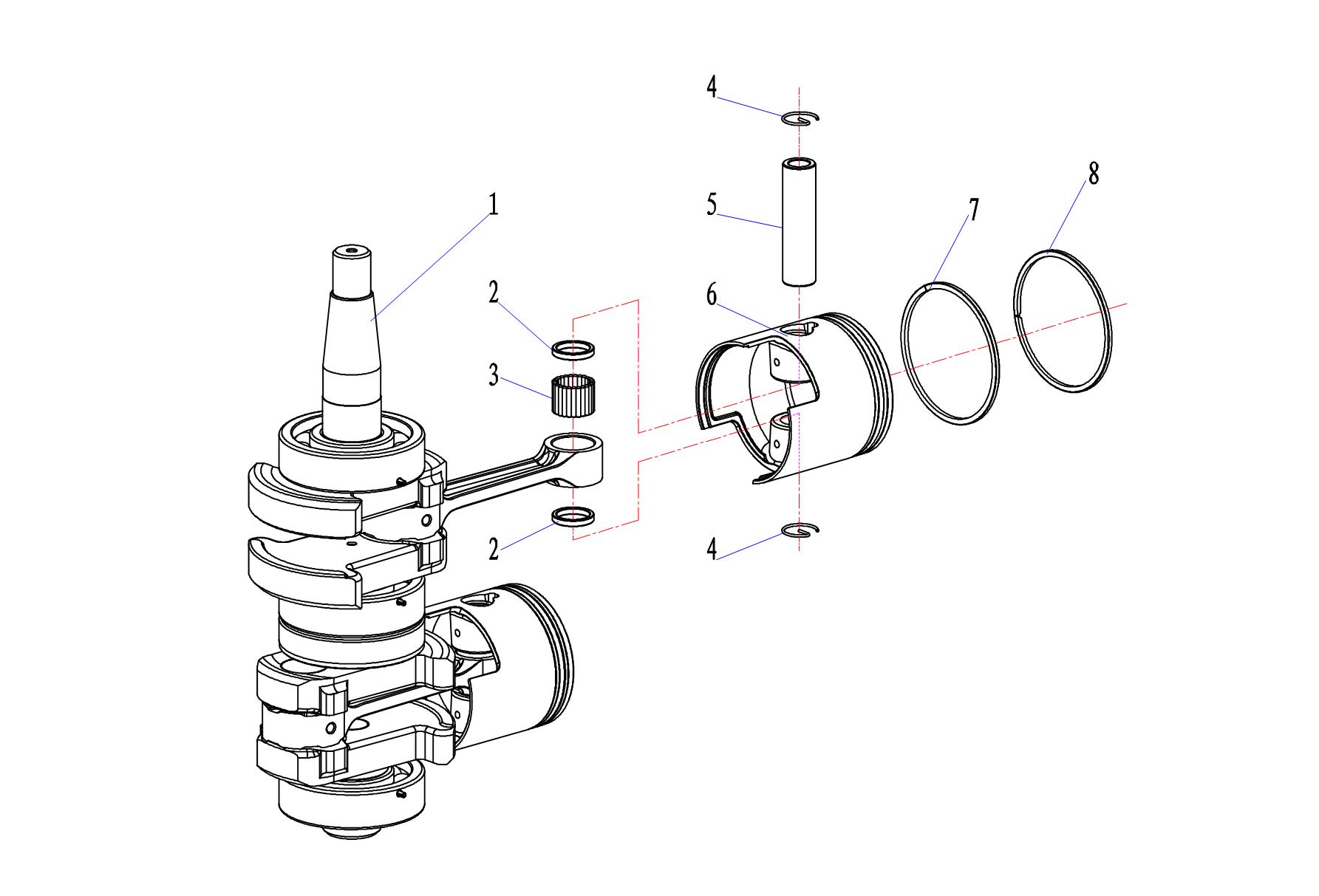

曲轴部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
120F-01.06.03.00曲轴连杆组件Crankshaft connecting rod1
220F-01.06.00.27滚针挡板Needle roller baffle4
315F-01.06.33.16密排滚针Needle roller50
49.8F-01.06.25活塞销卡簧Piston pin circlip4
520F-01.06.00.23活塞销Piston pin2
620F-01.06.00.22活塞Piston2
720F-01.06.00.25副气环2nd ring2
820F-01.06.00.24主气环1st ring2
水上部分

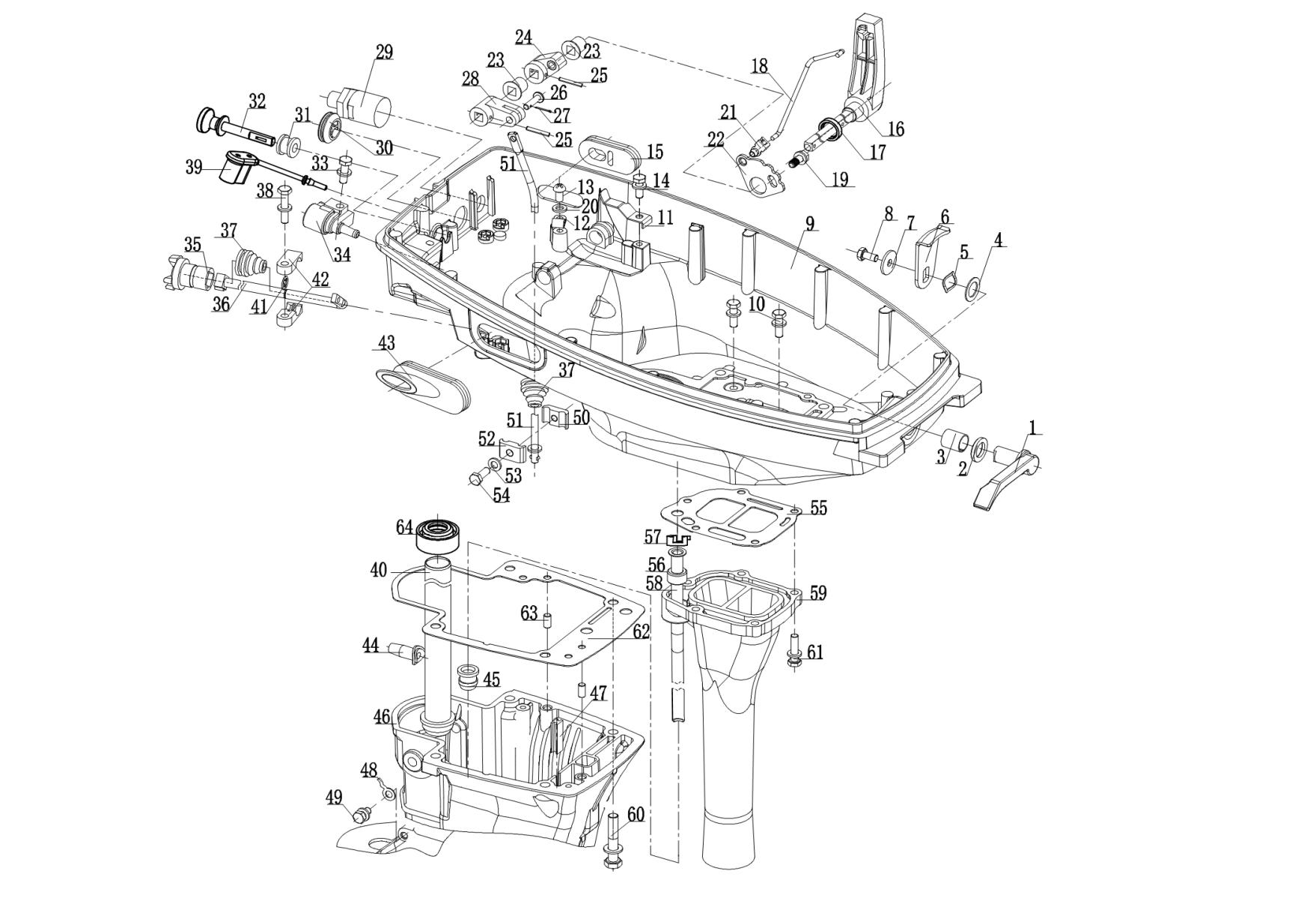

水上部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
120F-02.00.01.01前锁紧手柄Front lock handle1338S67141-0
29.8F-02.11.02橡胶圈Rubber ring1338-67147-0
320F-02.00.01.02衬套bushing1350-67105-0
49.8F-02.11.04垫片gasket13C8-67146-0
59.8F-02.11.05波形垫片Wave gasket1941403-1400
620F-02.00.01.03锁紧片Lock plate1345-67142-1
7GB/T5287平垫6Flat gasket1
8GB/T5783六角头螺栓M6*12Hexagon headed bolt1
920F-02.00.00.01底座Bottom cowling1
10GB9074.1(8.8)六角头螺栓和平垫组件M6*Hexagon headed bolt and flat plate M6*202
1120F-01.05.00.04限位板弹簧Limit plate spring1
12F4-11.12.31线卡Wire clip1
13GB/T818十字槽盘头螺钉M6*12Cross recessed Pan head screws M6*121
14GB9074.1(8.8)六角头螺栓和平垫组件M6*Hexagon headed bolt and flat plate M6*161
159.8F-02.05闷头Aplug A1353-67162-0
1620F-01.05.01.00变档杠杆组件Shift level assy.1350-66110-0
179.8F-01.05.09橡胶密封圈Rubber seal ring13K9-66137-0
1820F-01.05.00.02限位板连杆Limit connecting rod1
19GB9074.1(8.8)六角头螺栓和平垫组件M6*Hexagon headed bolt and flat plate M6*161
20GB/T97.1平垫6Flat gasket1
219.8F-01.01.13连杆接头Connecting rod joint1910114-5616
2220F-01.05.00.01变档限位板Limiting plate1350-66121-0
239.8F-01.05.06衬套bushing2350-67101-0
2420F-01.05.00.03限位板固定块Limiting plate block1350-66115-0
25GB/T879.1弹性圆柱销3*18Elastic cylindrical pin 3*102
2620F-01.05.00.06变档连杆轴销Rod pin1
27GB/T91开口销1.6*16Cotter pin1
2820F-01.05.00.05变档杠杆固定块Shift lever block1350-66225-0
2920F-01.03.06.00急停开关组件Emergency stop switch components1398-06830-0
30F4-02.13后罩橡胶闷头Rubber plug1
3120F-02.00.00.12阻风门拉杆橡胶套choke lever bushing1
3220F-01.02.00.06阻风门拉杆choke lever assy1
33GB9074.1(8.8)六角头螺栓和平垫组件M6*Hexagon headed bolt and flat plate M6*251
3415F-01.07.01.00燃油管插头组件Fuel hose joint assy.1
3520F-04.00.01.04油门连杆齿轮Throttle-linkage gear1
3620F-04.00.01.00油门连杆组件Throttle-linkage Assy1
379.8F-02.09护套Sleeve2345-66226-0
38GB9074.1(8.8)六角头螺栓和平垫组件M6*Hexagon headed bolt and flat plate M6*251
39F6-01.04.00.12燃油插头护套Fuel hose joint cover1
4020F-02.00.00.03驱动轴护套组件Drive shaft cover components1
41GB/T896开口挡圈6Circlip1
4220F-04.00.01.05油门连杆固定块Throttle connecting block2
4320F-02.00.00.02底座橡胶堵头Rubber plug1
4420F-02.00.00.04护套橡胶出水管Rubber outlet pipe1
4520F-05.00.00.04水管衬圈pipe bushing1
4620F-05.00.00.03-S水上壳体(短轴）Upper casing(S)1
None20F-05.00.00.03-L水上壳体(长轴）Upper casing( L )1
4720F-05.00.00.05橡胶密封条Rubber seal strip1
4815F-05.08钢索连接件Cable connectors1
49GB9074.1(8.8)六角头螺栓和平垫组件M6*Hexagon headed bolt and flat plate M6*101
5020F-05.00.00.07变档连杆锁紧块BGear shift locking block B1
5120F-05.00.00.01上变档连杆Gear shift connecting rod1350-66214-0
5220F-05.00.00.06变档连杆锁紧块AGear shift locking block A1
53GB/T97.1平垫6Flat gasket1
54GB/T5783（A2-70)六角头螺栓M6*16Hexagon headed bolt M6*161
5520F-02.00.00.07排气管密封垫Exhaust pipe seal gasket1362-02312-0
5620F-02.00.00.09水管橡胶圈Water pipe ring1
5720F-02.00.00.10水管衬套Water pipe bushing1
5820F-02.00.00.06-S水管(短轴)Water pipe(short shaft)1
None20F-02.00.00.07-L水管(长轴)Water pipe( L )1
5920F-02.00.00.08排气管Exhaust pipe1362-02311-0
60GB9074.1(8.8)六角头螺栓和平垫组件M8*Hexagon headed bolt and flat plate M8*454
61GB9074.1(8.8)六角头螺栓和平垫组件M6*Hexagon headed bolt and flat plate M6*255
6220F-02.00.00.11底座下垫片Bottom cowling gasket(down)1350-61012-1
6315F-01.06.20定位销6*12Locating pin 6*122345-01111-0
6420F-02.00.00.05护套橡胶垫Rubber gasket1
夹紧部分

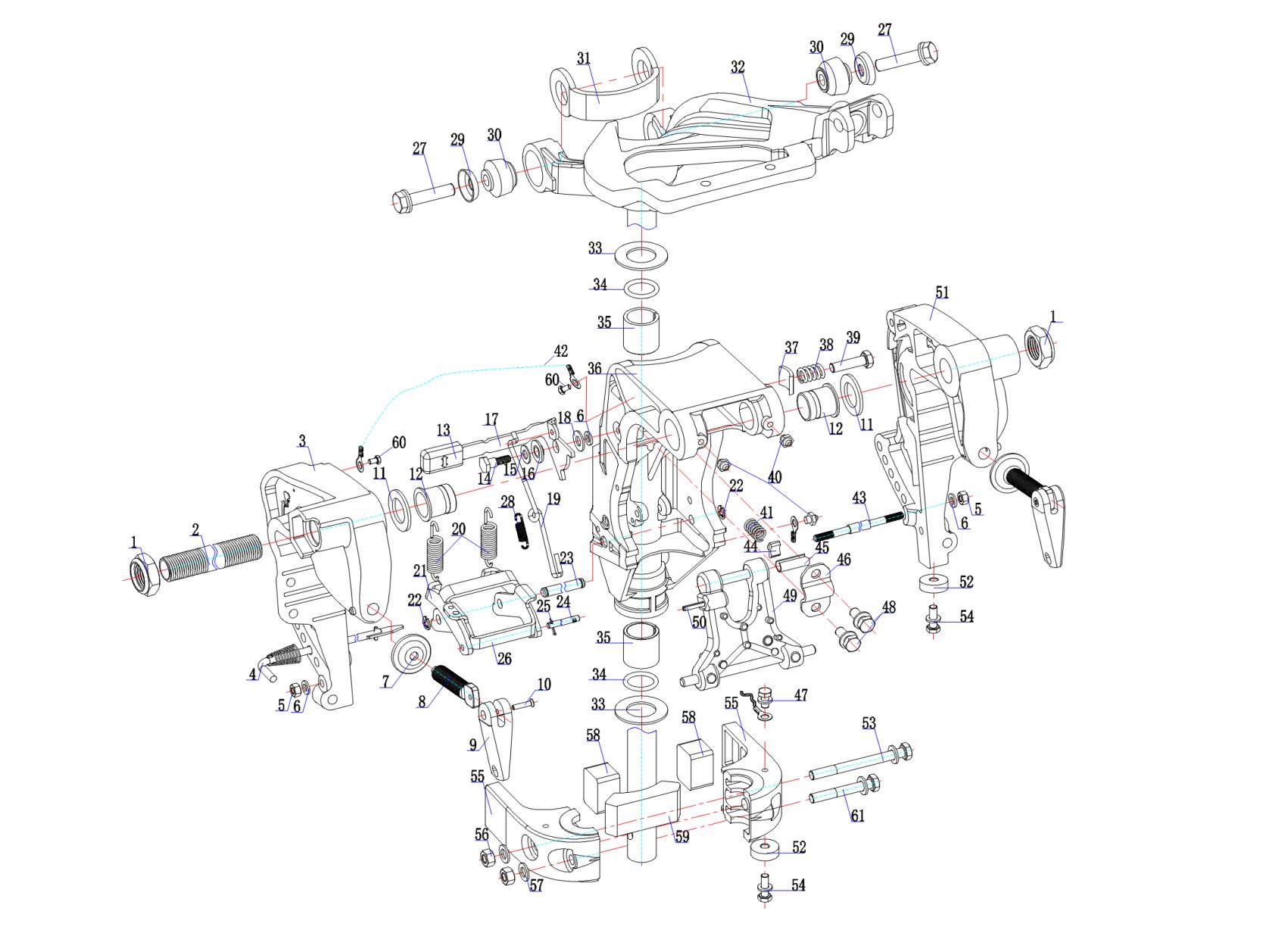

夹紧部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-03.01夹紧托架螺母Clamping bracket hex nut2346-62127-0
240F-03.04夹紧托架双头螺栓Bolt1346-62191-0
320F-03.00.00.14旋转托架(左)Swivel bracket(LH)13G2S62113-0
49.8F-03.05.11.00角度限位插销组件Trim rod Assy1350-62121-1
5GB/T6170六角螺母M6Hex nut2
6GB/T97.1平垫6Flat gasket3
715F-03.05.02.03夹紧盘Clamping plate2332-62101-0
89.8F-03.05.14.03艉板夹紧螺杆Transom Clamp Bolt2398-62103-0
940F-03.05.03.02夹紧手柄Clamping handle2
10GB/T1015沉头半空心铆钉4*18Rivet M4*182
1115F-03.02尼龙衬圈Nylon bushing2
1215F-03.09.02托架阻尼套Bracket damping cover2349-62126-0
1315F-03.09.12.01橡塑套Tilt handle rubber cover1346-66333-0
1420F-03.00.00.28手柄锁紧螺钉Handle locking screw13V9-05254-0
15GB/T97.1平垫8Flat gasket1
1620F-03.00.00.30减磨衬圈Friction bushing1941403-0800
1720F-03.00.00.27起翘手柄Tilt handle13G2-66311-0
1820F-03.00.00.29减磨垫Friction gasket1
1920F-03.00.00.24角度定位锁杆Position lock lever13G2-66312-0
2020F-03.00.00.23角度支架拉簧Position tension spring23G2-66331-0
2120F-03.00.00.20角度定位外支架Tilt adjustment outer bracket13G2-66313-1
22GB/T896开口挡圈6Circlip2
2320F-03.00.00.26角度定位轴Angle positioning axes1
2420F-03.00.00.25角度定位支架固定轴Angle bracket fixed axis13G2-66321-0
25GB/T91开口销1.6*12Cotter pin 1.6*121
2620F-03.00.00.21角度定位内支架Tilt adjustment inner bracket1
27GB/T5787六角头法兰螺栓M10*1.25*45（SHexagon head flange bolts2
2820F-03.00.00.22拉簧i 5in S12)1350-66315-0
2920F-03.00.00.10螺栓盖Bolt cover2
3020F-03.00.02.00上减震器组件Damper Assy(up)2350-61301-0
3120F-03.00.00.32夹紧托架上橡胶减震垫Clamping bracket upper Dampe1
3220F-03.00.01.00操舵托架组件Steering bracket components1
3320F-03.00.00.05旋转托架减磨片Swivel bracket friction gasket2350-62423-0
3420F-03.00.00.06旋转托架O型圈(22*3.5)Swivel bracket O ring 22*3.52350-62415-0
3520F-03.00.00.07旋转托架衬套Swivel bracket bushing2350-62417-0
3620F-03.00.00.31旋转托架swivel bracket13G2S62310-0
379.8F-03.04.01摩擦片Friction gasket1345-62441-0
389.8F-03.05.09弹簧Spring1346-62421-1
39GB/T5783六角头螺栓M8*30Hex bolt M8*301
40GB/T7940.1直通式压注油杯M6Oil cup3
4120F-03.00.00.17角度支撑架弹簧Angle brace spring13G2-66351-0
429.8F-05.07钢索连接线Cable connector1
4320F-03.00.00.13夹紧支撑杆Clamp rod1350-62117-1
4420F-03.00.00.19衬管支撑垫Bushing gasket1346-62438-0
4520F-03.00.00.18角度支撑衬套Angle support bushing1350-62437-0
4620F-03.00.00.16角度支撑压板Angle support plate1350-62439-1
47GB9074.1(8.8)六角头螺栓和平垫组件M6*10Hexagon headed bolt and flat1
48GB9074.1(8.8)六角头螺栓和平垫组件M8*16Hle agMo6n* aded bolt and flat2
4920F-03.00.04.00角度支撑架组件Aln el rt Assy13G2S62431-0
50GB/T879.1弹性圆柱销5*40（壁厚1）Elastic cylindrical pin 5*401
5120F-03.00.00.15旋转托架(右)Swivel brasket(RH)13G2S62112-0
523.5F-06.01.09阳极Anoide2338-60218-2
53GB9074.1(8.8)六角头螺栓和平垫组件M8*85Hexagon headed bolt and flat1
54GB9074.1(8.8)六角头螺栓和平垫组件M6*20Hle agMo8n* aded bolt and flat2
5520F-03.00.00.03减震器外壳ADla p ing A2350S61402-1
56GB/T6170六角螺母M8Hex nut M82
57GB/T97.1平垫8Flat gasket2
5820F-03.00.00.01减震块ADamper A2350-61302-0
5920F-03.00.00.02减震块BDamper B1350-61336-0
60GB5783六角头螺栓M6*10Hex bolt M6*102
61GB/T5783六角头螺栓M8*551
61GB97.1平垫81
操舵手柄

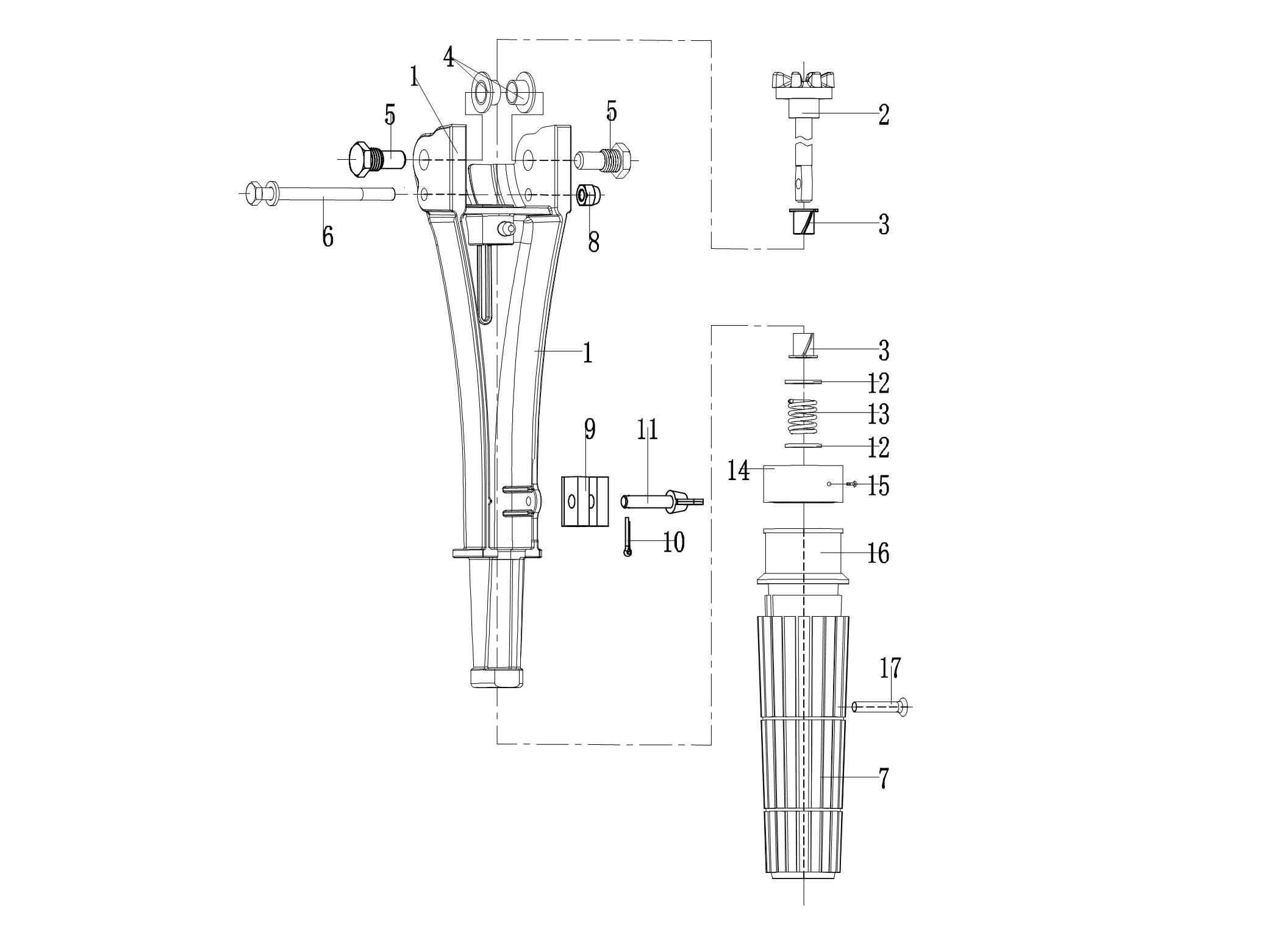

操舵手柄 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
120F-04.00.00.01操舵手柄Steering1398S63011-0
220F-04.00.02.00节气门杆组件Throttle lever Assy1398-63041-0
315F-04.07.12衬套Bushing2350-63046-0
420F-04.00.00.03手柄转轴减磨套Friction bushing2
520F-04.00.00.02六角手柄转轴Hex handle shaft2
6GB9074.1(8.8)六角头螺栓和平垫组件M6*75Hexagon headed bolt and flat plate M6*751
715F-04.07.14手柄橡胶套Handle rubber cover1398-63012-0
8GB/T923盖型螺母M6*0.5(细牙)Cap nut M6*0.5 (fine pitch)1
920F-04.00.00.04锁紧块Locking block1
10GB/T91开口销1.6*12Cotter pin 1.6*121
1120F-04.00.00.05阻力调整旋钮Resistance adjustor1
12GB/T848平垫10Flat gasket2
1315F-04.07.11弹簧Spring1
14F4-04.11-Ⅱ油门标牌Throttle Indicator1
15GB/T845十字槽盘头自攻螺钉ST2.2*4.5Cross recessed Pan head tapping screws1
1615F-04.07.13手柄Handle1
17GB/T820十字槽半沉头螺钉M5*25Cross recessed slot countersunk head screw M5*251
None20F操舵手柄部件Tiller Assy.1
水下部分

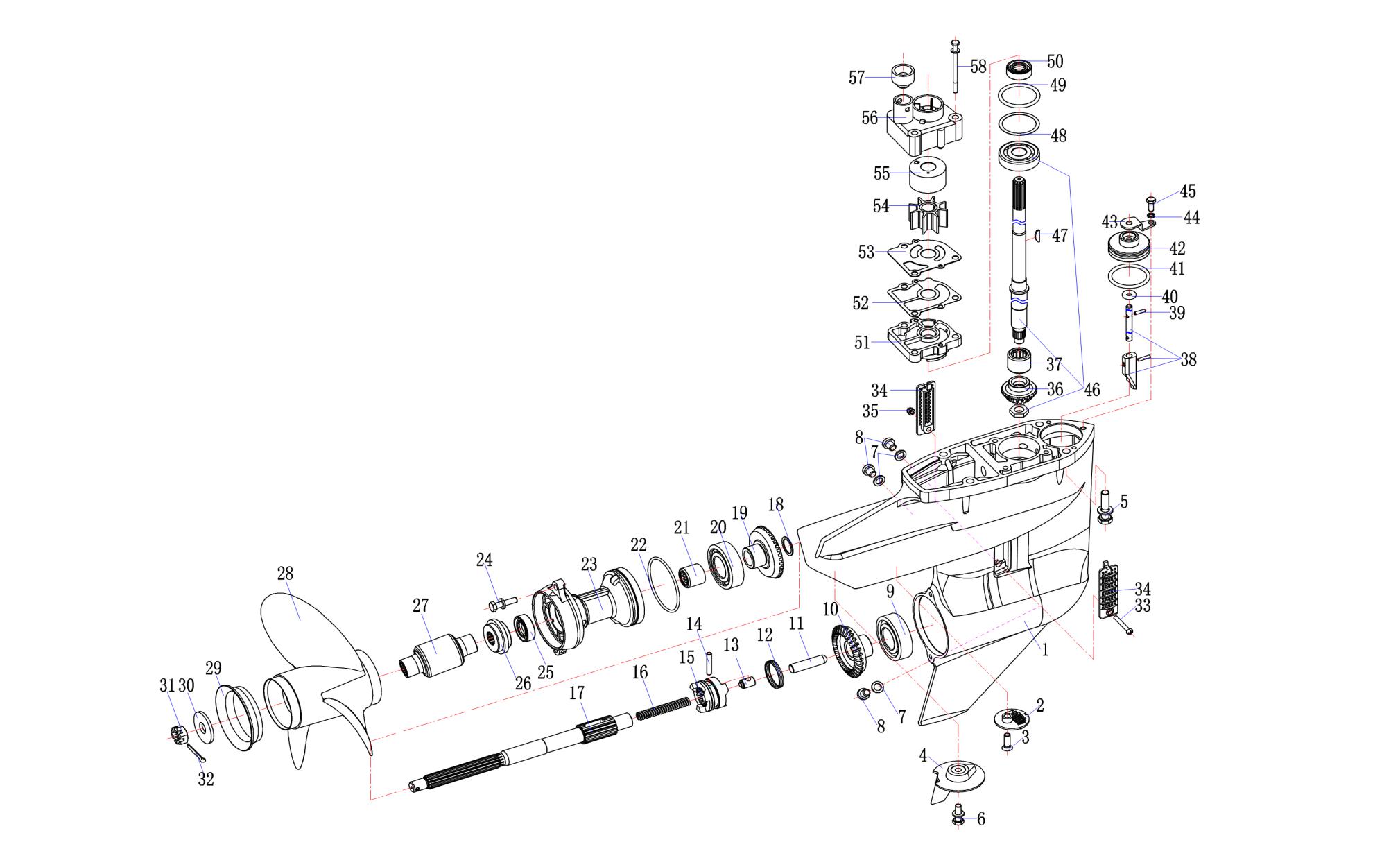

水下部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
120F-06.00.00.28水下壳体Lower casing1398S60000-0
220F-06.00.00.24进水口盖（下）Water inlet cap (Lower)1369-60206-0
3GB/T820十字槽半沉头螺钉M6*16Cross recessed slot1
49.8F-06.08航向调整片countersunk head screw Trim tab13V9-60218-0
5GB9074.1(8.8)六角头螺栓和平垫组件M8*35Hexagon headed bolt and flat *1
6GB9074.1(8.8)六角头螺栓和平垫组件M6*20 l aded bolt and flat *1
715F-06.01.04螺塞密封垫plate M6 20 Plug seal gasket390430-08020
815F-06.01.03注油口螺塞Oil drain plug390340-08002
9F4-01.06.02深沟球轴承6205C3Deep groove ball bearing19601-0-6205
1020F-06.00.00.27正档齿轮6205C3 Forward gear1350-64010-0
1120F-06.00.03.06变档柱塞Gear shift plunger1350-64223-1
1220F-06.00.03.04簧环Circlip1350-64219-0
1320F-06.00.03.07弹簧限位套Spring limit sleeve1350-64222-0
1415F-06.10.03销Pin1350-64218-0
1520F-06.00.03.02爪型离合器Claw type clutch1362-64215-0
1620F-06.00.03.05压缩弹簧Compression spring1332-64221-0
1720F-06.00.03.01螺旋桨轴Propeller shaft1362-64211-0
1820F-06.00.00.22倒档齿轮垫圈Reverse gear washer1350-64032-0
1920F-06.00.00.15倒档齿轮Reverse gear1362-64030-0
20F4-01.06.02深沟球轴承6205C3Deep groove ball bearing19601-0-6205
2120F-06.00.00.17滚针轴承6205C3 Needle bearing1362-60211-0
2220F-06.00.00.13水下壳体盖O型圈(60*2.5)Lower casing Cap O-ring1121-32071-0
2320F-06.00.00.14水下壳体盖Lower casing Cap1362S60101-0
24GB9074.1(8.8)六角头螺栓和平垫组件M6*25Hexagon headed bolt and flat *12
2520F-06.00.00.18水下壳体盖油封plate M6 25 Lower casing Cap Oil sealing1346-65013-0
2620F-06.00.00.02螺旋桨垫块Propeller pad1362-64231-0
2720F-06.00.02.00螺旋桨内花键组件Propeller shaft teeth assy.1362-64103-0
2820F-06.00.01.01螺旋桨Propeller11
120F-06.00.01.00螺旋桨组件(9-1/4*9)Propeller Assy.1362-64103-0
2920F-06.00.01.02螺旋桨喇叭口Propeller horn11
30GB/T96垫片12Gasket11
3120F-06.00.00.01开槽六角螺母Slotted hex nuts1346-64121-5
32GB/T91开口销2.5*25Cotter pin 2.5*2511
33GB/T823十字槽小盘头螺钉M4*30Screw M4*3011
3420F-06.00.00.23进水口盖（上）Inlet cap (up)2362-60206-0
35DIN985六角尼龙锁紧螺母M4Hex nylon locking nut51
3620F-06.00.00.19小齿轮Pinion gear1350-64020-0
3720F-06.00.00.32滚针轴承Needle bearing11
3820F-06.00.04.00-S变档凸轮组件(短轴)Gear shift cam lever (S)11
120F-06.00.04.00-L变档凸轮组件(长轴)Gear shift cam lever (L)1
39GB/T879.2弹性圆柱销3*12Elastic cylindrical pin 3*1211
4015F-06.03.03变档杆O型密封圈Shift lever O ring11
4120F-06.00.00.09水泵座O型圈Water pump seat O ring11
4220F-06.00.04.03变档凸轮杆座Shift Cam lever seat11
4320F-06.00.00.21变档凸轮座压板Shift Cam lever seat Plate11
44GB/T93弹垫5Elastic gasket M511
45GB/T5783六角头螺栓M5*12Hexagon headed bolt M5*1211
4620F-06.00.00.30-S驱动轴总成(短轴)(含轴承和 螺母)Drive shaft Assy(S)(with bearing and nut)1350-64301-0
120F-06.00.00.30-L驱动轴总成(长轴)(含轴承和 螺母)Drive shaft Assy(L)(with bearing and nut)1
4720F-06.00.00.06水泵叶轮半圆键Woodruff key,Crankshaft1350-65022-0
4820F-06.00.00.12填隙片(0.3)Shim(0.3)1346-64082-0
4920F-06.00.00.09水泵座O型圈Water pump seat O ring1336-62415-0
5020F-06.00.00.11水泵座油封(13.8*26*9.5)Water pump oil seal1332-60223-0
5120F-06.00.00.10水泵座Water pump seat1350-65017-0
5220F-06.00.00.08水泵座密封垫Water pump seat seal gasket11
5320F-06.00.00.07水泵垫板water pump gasket1350-65025-0
5420F-06.00.05.00水泵叶轮组件Impeller assy.1334-65021-0
5520F-06.00.00.05水泵内壳Water pump inner shell1350-65011-1
5620F-06.00.00.04水泵外壳Water pump housing1350-65016-1
5720F-06.00.00.03水管下密封圈Water hose seal(down)1350-65014-0
58GB9074.1(8.8)六角头螺栓和平垫组件M6*50Hexagon headed bolt and flat *13
120F(S)水下装置部件plate M6 50 Lower Casing Assy.
120F(L)水下装置部件Lower Casing Assy.
None9随机附件
