舟一会 ZHOUYIHUI 船外机

海的 30F - 30FHL(S)

共 15 个部位，点击零件编码查看详情，或搜索本页零件。

顶罩

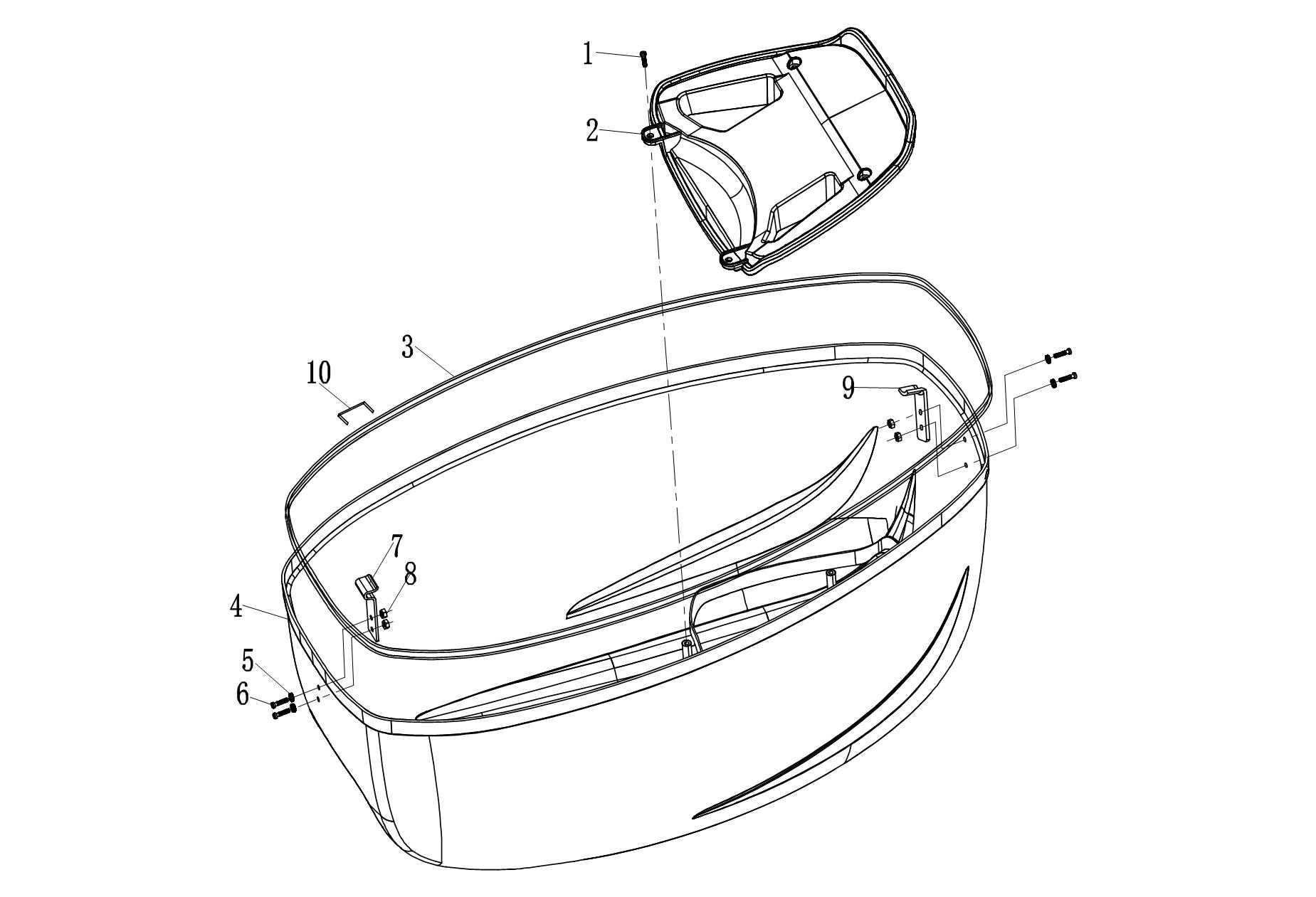

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB845十字槽盘头自攻螺钉ST4.2*16Cross recessed pan head tapping screws4
230F进气口盖Air inlet cap1
330F-07.00.00.03橡胶密封条Rubber sealing strip1
430F顶罩（共展）Top cowling1
5GB96平垫4Flat gasket4
6GB818十字槽盘头螺钉M4* 16Pan head bolt with cross recess4
7F15-07.00.00.06前锁紧钩Lock Hook(front)1
8DIN985六角尼龙锁紧螺母M4Hexagonal nut4
930F-07.00.00.04后锁紧钩Rear lock hook1
1015F-07.07装帧订Bingding nail10
None30F-07.00.00.00顶罩总成top cowling, Assy1
启动罩

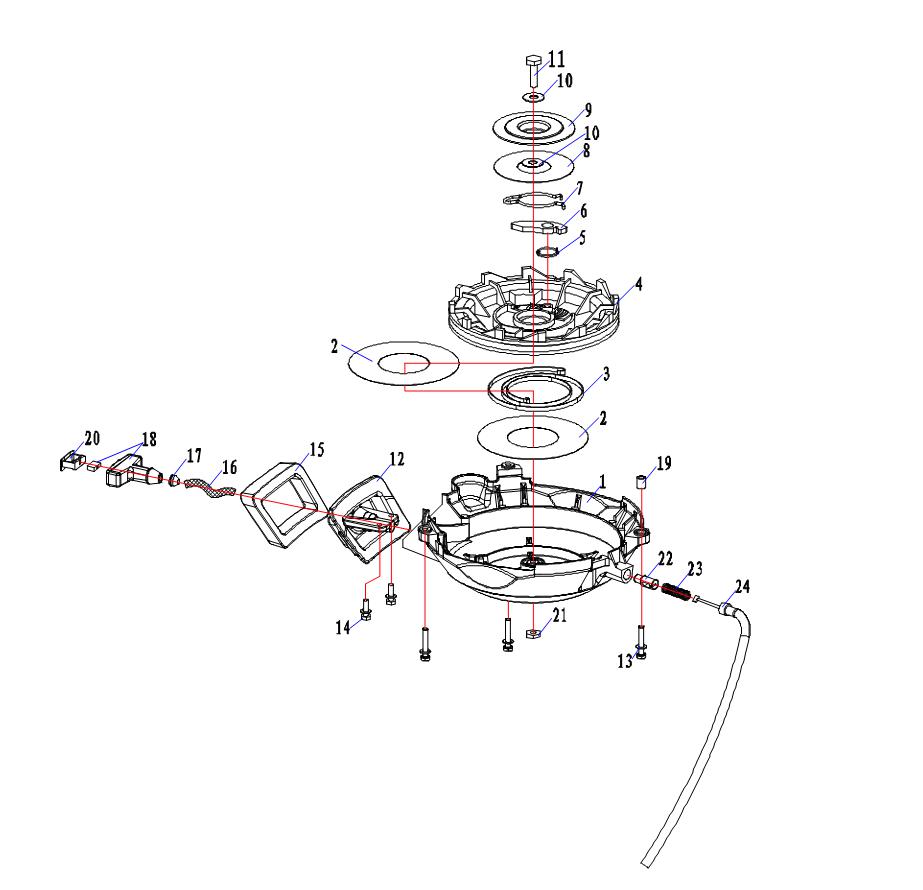

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
130F-01.01.00.11启动罩Starter cover assy.161N-15711-10
230F-01.01.00.10减磨圈friction ring26F5-15739-00
340F-01.01.08涡形弹簧Volute spring16F5-15713-01
430F-01.01.01.00启动轮组件Start wheel comp.16G0-15714-01
530F-01.01.00.08驱动爪扭簧drive pawl torsion161N-15734-00
630F-01.01.00.07驱动爪Drive pawl16F5-15741-01
730F-01.01.00.06压板夹簧Clip spring161N-15715-00
830F-01.01.00.16启动压板垫片Washer,Starter plate1
930F-01.01.00.05启动压板Starter plate16F5-15716-01
10GB96.1垫片8Flat gasket2
11GB5783六角头螺栓M8*30Bolt1
1230F-01.01.00.03启动罩托架Bracket,Starter cover assy.161N-15758-01-4D
13GB9074.1（8.8）六角头螺栓和平垫组件M6*3bolt&flat gasket assy.M6*353
14GB9074.1（8.8）六角头螺栓和平垫组件M6*1bolt&flat gasket assy.M6*162
1530F-Ⅱ-01.01.00.04减震圈Damper161N-15762-00
1615F-01.01.22启动绳φ5*2000mmStart rope1
1740F-01.01.19手柄减震圈Shock ring,handle16A0-15789-00
1840F-01.01.18启动手柄Starter handle1689-15755-01
19F15-01.01.00.18空心定位销Dowel pin1
2040F-01.01.16手柄盖Handle cap1
21GB6172六角薄螺母M8Bolt16F5-15779-02
2230F-01.01.00.02制动器柱塞Plug,Brake1656-15748-00
2330F-01.01.00.01制动器弹簧Spring,brake190501-10227
2430F-01.01.02.00制动钢索组件Brake cable comp.161T-15770-00
None30F-01.01.00.00启动罩（装配总成）Recoil starter assy.1
动力部分

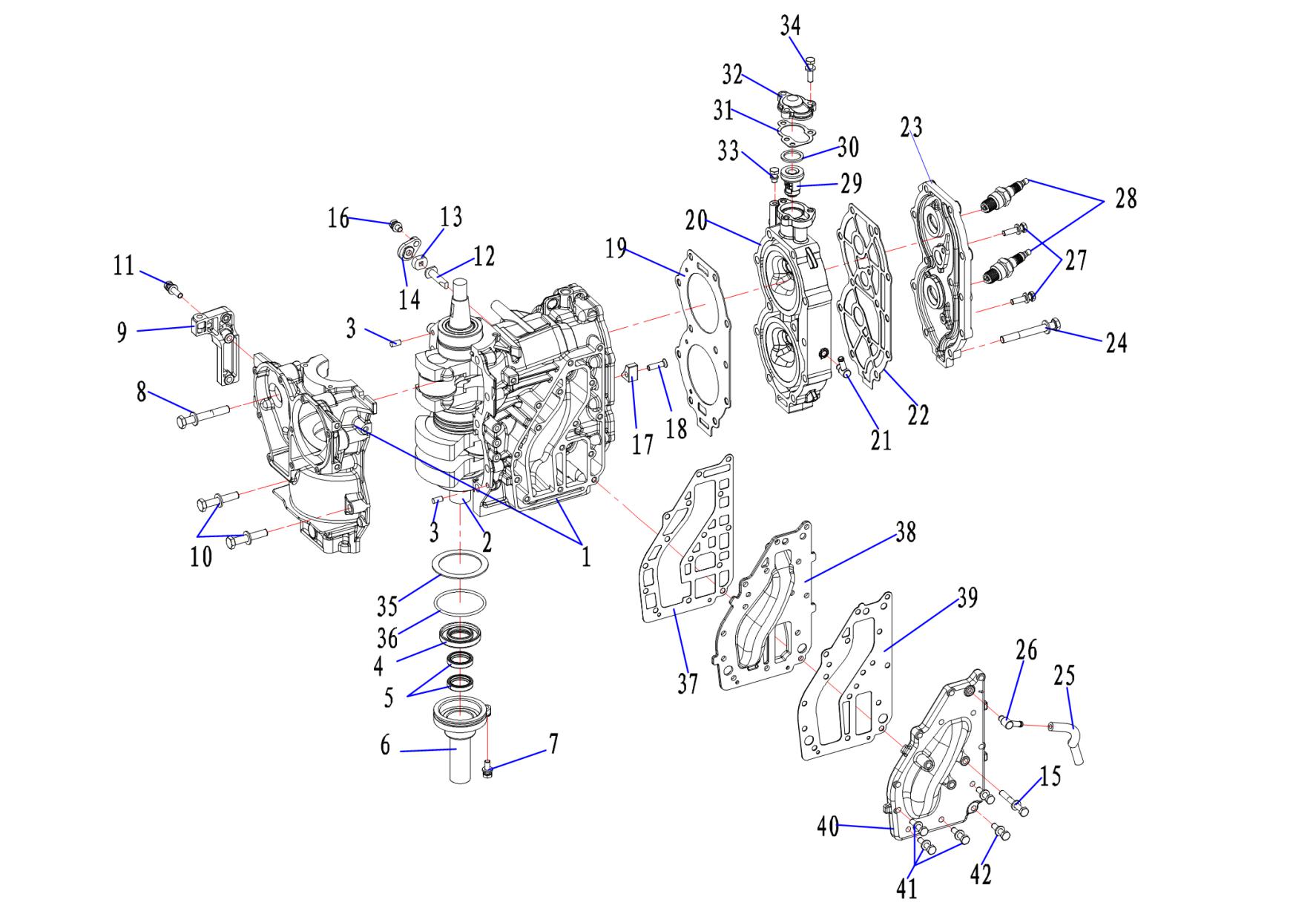

动力部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
130F-01.04.01.00箱体箱盖组件Crankcase comp.(with crankcase cov169P-15100-00-1S
230F-01.04.02.00曲轴连杆活塞组件Crankshaft connecting rod with piston169P-11400-00
315F-01.06.20定位销6*12Dowel pin293606-12019
430F-01.04.00.22曲轴下油封25*48*8Oil seal(bottom),crankshaft(25*48*8)1
540F-01.06.00.23油封（16*30*6）Oil seal（16*30*6）2
630F-01.04.00.20油封壳体Casing,oil seal1
7GB9074.1(8.8)六角头螺栓和平垫组件M6*20Bolt&flat gasket M6*201
8GB9074.1（10.9)六角头螺栓和平垫组件M8*60Bolt&flat gasket M8*608
930F-01.04.00.14起动罩支架左Bracket(L),Starter cover assy.16H7-15771-01-94
10GB9074.1六角头螺栓和平垫组件M8*45Bolt&flat gasket M8*452
11G（B 097）4.1六角头螺栓和平垫组件M6*25Bolt&flat gasket M6*252
123（08F-80）1.04.00.18阳极Anode16J8-11325-00
1330F-01.04.00.17水封water seal16H3-11328-00
1430F-01.04.00.16压紧块Lock pad16H3-11327-00-1S
15GB9074.1(8.8)六角头螺栓和平垫组件M6*50Bolt&flat gasket M6*503
16GB9074.1六角头螺栓和平垫组件M6*16Bolt&flat gasket M6*161
173（08F-80）1.04.00.09机体阳极Anode1689-11325-00
18GB819十字槽沉头螺钉M6*20Cross recessed countersunk head sc1
1930F-01.04.00.08气缸垫Cylinder gasket161N-11181-A1
2030F-01.04.00.07气缸盖Cylinder cover161N-11111-01-1S
2115F-01.06.10水管圆接头round joint,hose1676-11372-00
2230F-01.04.00.06气缸头外盖密封垫Outer cover gasket,cylinder head161T-11193-A1
2330F-01.04.00.05气缸头外盖Outer cover,cylinder head161N-11191-01-1S
24GB9074.1( 10.9)六角头螺栓和平垫组件M8*65Bolt&flat gasket M8*6511
2530F-01.04.00.01水管（5*10*105）hose（5*10*105）1
2615F-01.06.10水管圆接头round joint,hose1676-11372-00
27GB9074.1六角头螺栓和平垫组件M6*20Bolt&flat gasket M6*202
28B（R8H）S- 10火花塞（新）Spark plug294702-00160
2915F-01.06.14-50°节温器（50°)Thermostat 50°16E5-12411-02
3015F-01.06.14.01大垫圈Large washer190201-21567
3130F-01.04.00.04节温器盖密封垫Thermostat gasket1655-12414-A1
3230F-01.04.00.03节温器盖Thermostat cap1655-12413-01-1S
33GB9074.1六角头螺栓和平垫组件M6*12Bolt&flat gasket M6*121
34G（B90）74.1六角头螺栓和平垫组件M6*20Bolt&flat gasket M6*203
353（0F-0）1.04.00.31轴承盖板Cap,bearing1
3630F-01.04.00.21油封壳体O型圈(54.8*3)O ring,Oil seal casing1
3730F-01.04.00.13排气内盖密封垫Gasket,exhaust inner cover16K8-41122-A1
3830F-01.04.00.12排气内盖Inner cover,exhaust16K8-41121-00-1S
3930F-01.04.00.11排气外盖密封垫Gasket,exhaust outer cover16K8-41124-A1
4030F-01.04.00.10排气外盖outer cover,exhaust161N-41123-00-1S
41GB9074.1六角头螺栓和平垫组件M6*30Bolt&flat gasket M6*3011
42G（B8980）74.1（8.8）六角头螺栓和平垫组件M6*25Bolt&flat gasket M6*251
进气系统

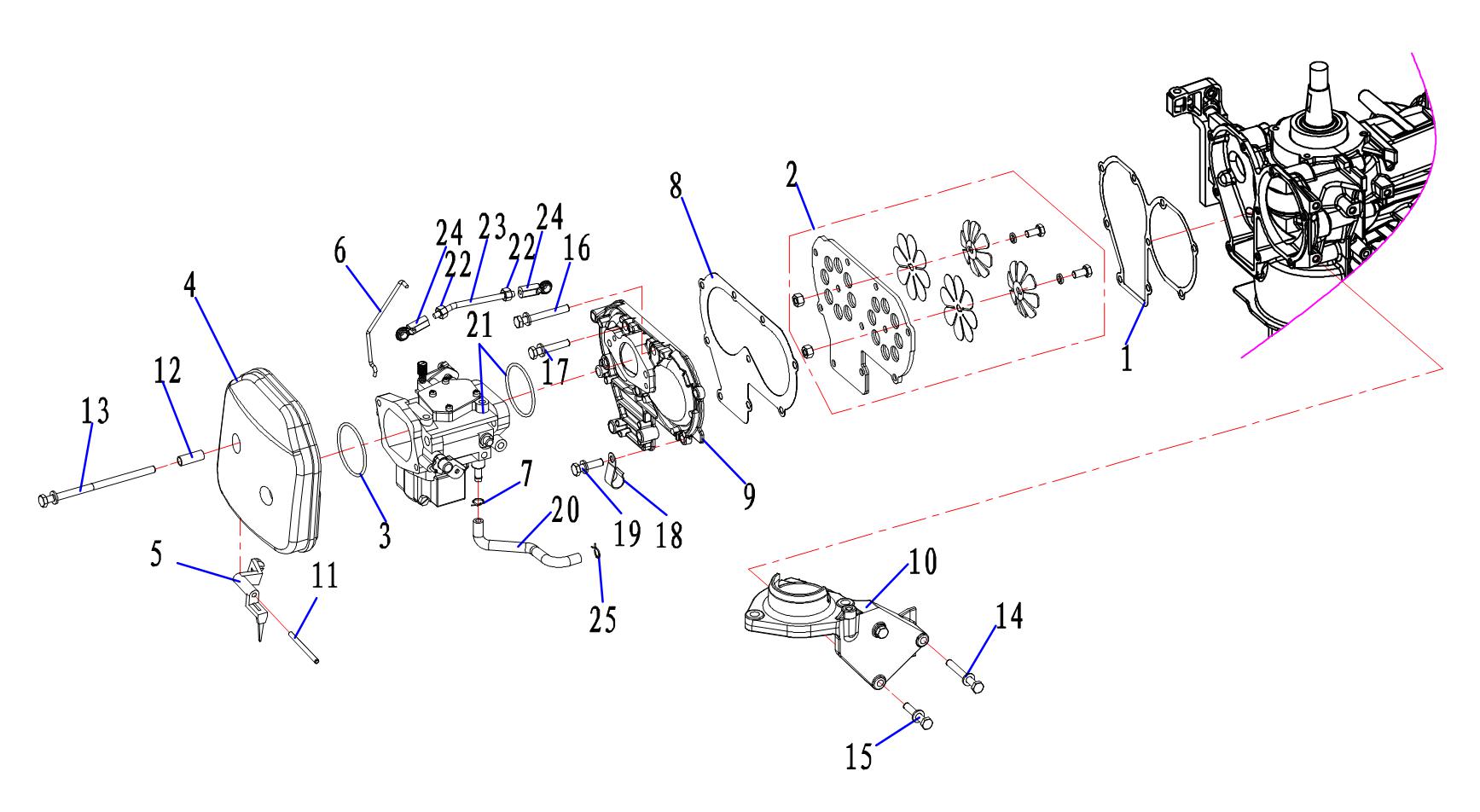

进气系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
130F-01.03.00.11进气阀座密封垫Air intake valve seat gasket1648-13621-A1
230F-01.03.07.00进气阀组件Air intake valve assy161N-13610-00
330F-01.03.00.01进气消音器O型圈Air intake silencer O ring193210-40659
430F-01.03.01.00进气消音器组件Air intake silencer Assy.161N-14440-00
530F-01.03.02.00阻风门摇臂组件Rocker arm comp.,chock1689-41252-01
630F-01.03.00.12阻风门连杆Lever,chock161N-41256-00
7管夹φ9Hose clip φ91
830F-01.03.00.10进气歧管密封垫Air intake manifold seal gasket1648-13645-A0
930F-01.03.00.08进气歧管Intake manifold161N-13641-01-1S
1030F-01.04.00.15启动罩支架右Bracket(R),Starter cover assy.1656-15772-00-94
11GB879.2弹性圆柱销4*49Cylindrical pin 4*49191690-40048
1230F-01.03.00.02进气消音器垫管Air intake cushion tube290387-06M26
13GB9074.1 （8 8）六角头螺栓和平垫组件M6*1Bolt&flat gasket M6*1152
14. GB9074.1(8.8)六角头螺栓和平垫组件M6*4Bolt&flat gasket M6*451
15GB9074.1 （8 8）六角头螺栓和平垫组件M6*3Bolt&flat gasket M6*302
16GB9.074.1 （8 8）六角头螺栓和平垫组件M6*5Bolt&flat gasket M6*501
17GB9.074.1 （8 8）六角头螺栓和平垫组件M6*3Bolt&flat gasket M6*356
18. F15-01.03.00.42通气管固定夹Bfix clip,air breather tube1
19GB9074.1 （8 8）六角头螺栓和平垫组件M6*2Bolt&flat gasket M6*252
20. 30F-01.03.00.05燃油泵出油管Outlet pipe,fuel pump1
2130F-01.03.03.00化油器组件Carburetor Assy.169P-14301-00
22GB6170六角头螺母M5Hexagon Nut M52
2330F-01.05.06.01油门连杆Throttle lever1
2415F-01.03.12连杆接头Linkage connector2661-41262-02
25管夹φ10Hose clip φ101
电器件

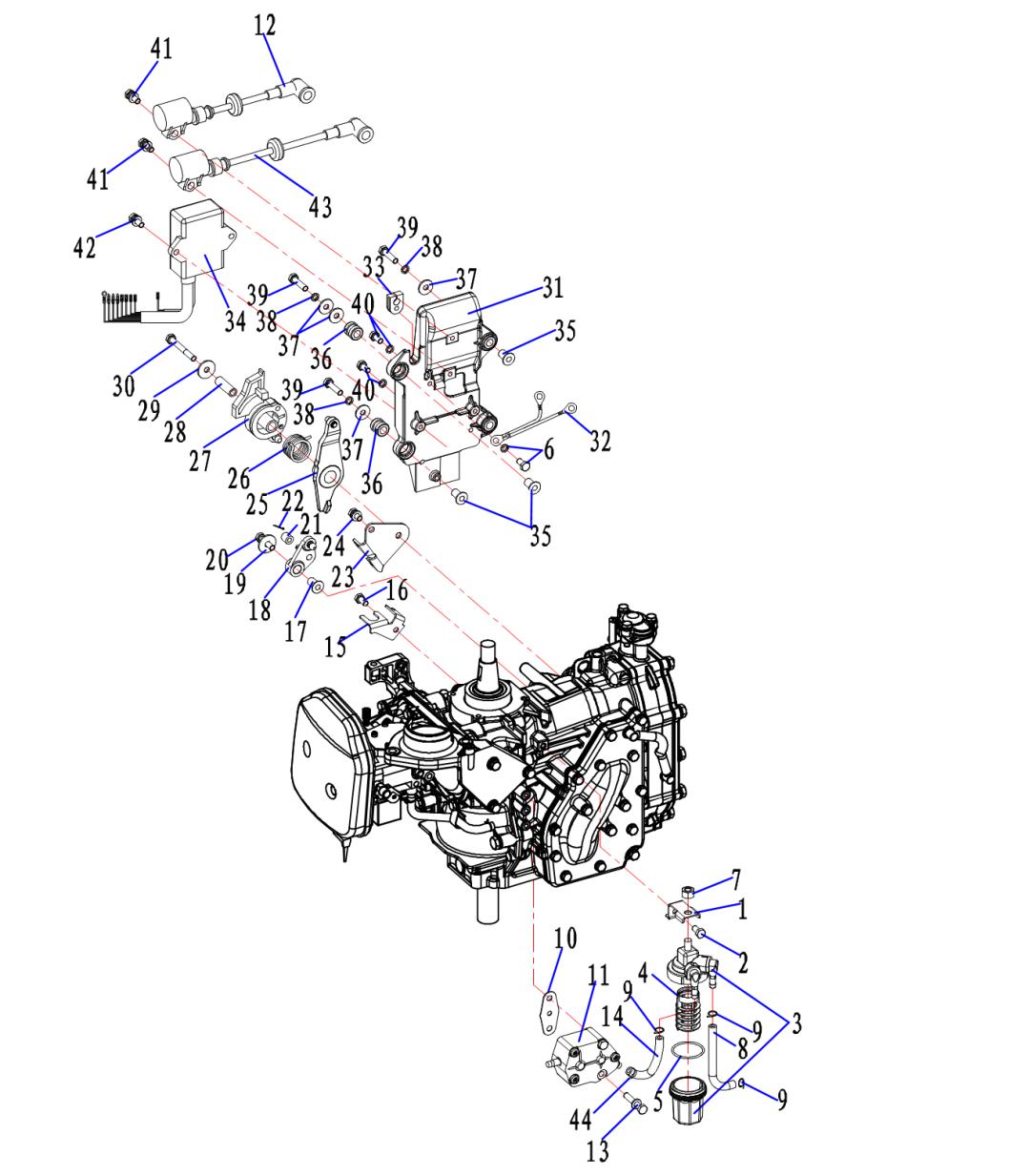

电器件 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-01.06.23燃油滤清器支架Bracket,fuel filter161N-24566-01
2GB5783六角头螺栓M6*12Hexagon Nut M6*121
315F-01.07.05.05燃油滤清器（外壳）Fuel filter shell161N-24560-00
415F-01.07.05.04过滤器滤芯filter,fuel filter161N-24563-00
515F-01.07.05.06过滤器O型圈O ring,Fuel Filter193210-32738
6GB9074.1(8.8)六角头螺栓和平垫组件M6*Bolt&flat gasket M6*121
7GB6170六角螺母M8Hexagon Nut M81
830F-01.03.00.04燃油滤清器进油管5*9*370Oil inlet hose,fuel filter 5*9*370190445-09M75
9管夹φ9hose clip φ93
1040F-01.07.05燃油泵垫片Fuel pump washer1650-24431-A0
1140F-01.07.04.00燃油泵组件(TK)Fuel pump assy.1692-24410-00
1230F-01.02.07.00高压包组件（短）Ignition coil (short)161N-85570-00
13GB9074.1(8.8)六角头螺栓和平垫组件M6*Bolt&flat gasket M6*402
1430F-01.03.00.06燃油滤清器出油管5*9*105Oil outlet hose,fuel filter 5*9*1051689-24311-00
1530F-01.01.00.15制动钢索支架Bracket,brake cable1689-24311-00
16GB9074.1(8.8)六角头螺栓和平垫组件M6*Bolt&flat gasket M6*101
1730F-01.05.00.01带肩垫管Shoulder pad tube169P-42154-00
1830F-01.05.02.00油门驱动座组件Drive seat,throttle1
19GB96平垫6Flat gasket 61
20GB5783六角头螺栓M6*25Hexagon Bolt M6*251
2130F-01.05.00.02滚轮Wheel1
22GB91开口销1.2* 12Cotter pin 1.2* 121
2330F-01.05.00.06端轮支架End wheel bracket169P-14497-00
24GB9074.1(8.8)六角头螺栓和平垫组件M6*Bolt&flat gasket M6*121
2530F-01.05.05.00正时控制端轮组件Cam,timing control169P-41631-00
2630F-01.05.00.05扭簧Torsional spring169P-42167-00
2730F-01.05.04.00油门钢索端轮组件Cam comp.,throttle cable169P-41213-00
2830F-01.05.00.04端轮衬套End wheel bushing190387-06M59
29GB96平垫6Flat gasket1
30GB5783六角头螺栓M6*45Hexagon Bolt M6*251
3130F-01.02.00.10点火控制器支架CDI bracket161N-85542-00-94
3230F-01.02.00.08接地线Earthing conductor1
3330F-01.02.00.09线束固定套Fixing sleeve,speed limit16H3-81922-00
3430F-01.02.09.00点火控制器组件CDI161N-85540-13
3540F-01.03.22带肩垫管Shoulder pad tube461N-82317-00
3640F-01.03.23减震圈Damper4
37GB96平垫6Flat gasket 65
38GB93弹垫6Washer 64
39GB5783六角头螺栓M6*30Hexagon Bolt M6*304
40GB9074.1(8.8)六角头螺栓和平垫组件M6*Bolt&flat gasket M6*122
41GB9074.1(8.8)六角头螺栓和平垫组件M6*Bolt&flat gasket M6*202
42GB9074.1(8.8)六角头螺栓和平垫组件M6*Bolt&flat gasket M6*202
4330F-01.02.08.00高压包组件（长）Ignition coil (long)1
44管夹φ10hose clip φ101
启动部分

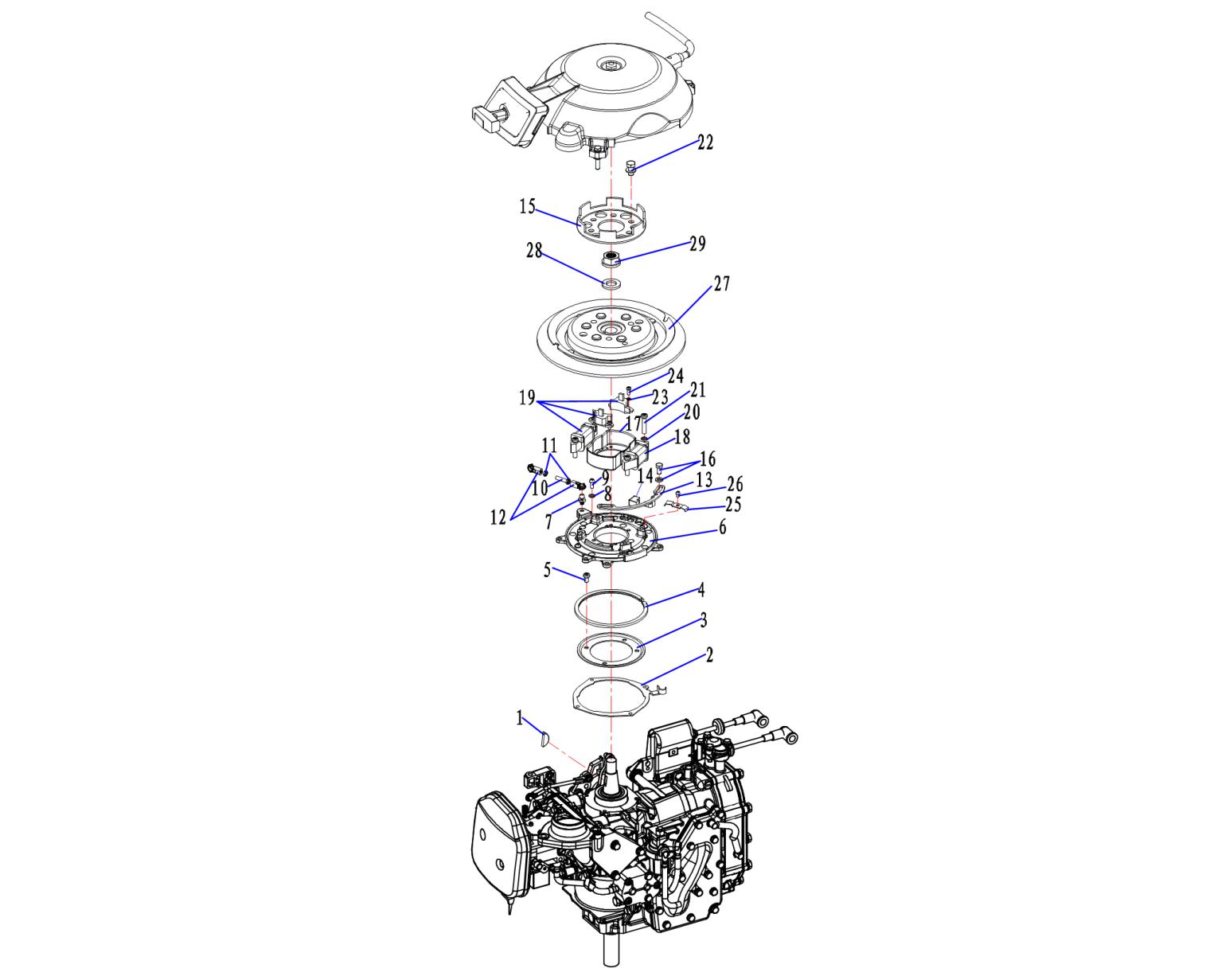

启动部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-01.03.03半圆键Woodruff key190280-05015
230F-01.02.00.07磁电机座固定板Magneto seat fixer1676-41613-00
330F-01.02.00.06衬圈垫板Bushing plate1689-41612-01
430F-01.02.00.05开口衬圈Bushign1676-41611-00
5GB818 M6*10十字槽盘头螺钉M6*10Pan head bolt with cross recess M6*10497880-06010
630F-01.02.06.02磁电机座Magneto seat169P-85561-00
730F-01.02.00.02球头螺栓Ball stud1
8GB93 M5弹垫5washer4
9GB818 M5*12十字槽盘头螺钉M5*12Pan head bolt with cross recess M5*124
1030F-01.05.03.01螺杆Bolt1
11GB6170 M5六角头螺母M5Cross-recessed nut M52
1230F-01.05.00.03正时调整连杆接头Lever joint,timing adjuster2
1330F-01.02.02.01正时调整支架Bracket,timing adjuster161N-41615-00
1430F-01.02.02.02橡胶限位块Rubber limited block161N-44194-01
1530F-01.01.00.12启动毂Starter pulley1
16GB9074.1 *六角头螺栓和平垫组件M6*1Bolt&flat gasket M6*102
17M6 10(8 8) 30F-01.02.00.04触发器座Impulsor seat161N-85537-00
1830F-01.02.03.00照明线圈组件Lighting coil assy.161N-81313-09
1930F-01.02.04.00充电线圈及触发线圈组件Charging coil & ignition coil comp.161N-85543-19
20GB93 M6弹垫M6Washer M64
21GB818 M6*25十字槽盘头螺钉M6*25Pan head bolt with cross recess M6*254
22GB9074.1 *六角头螺栓和平垫组件M8*1Bolt&flat gasket M8*163
23M8 16(8 8) GB93 M4弹垫M4Washer M44
24GB818 M4*12十字槽盘头螺钉M4*12Pan head bolt with cross recess M4*124
2530F-01.02.00.03压线板Plate,cable1
26GB818 M4*8十字槽盘头螺钉M4*8Pan head bolt with cross recess M4*81
2730F-01.02.01.00飞轮组件Flying wheel1
28GB97.1 M16平垫M16Flat gasket M16190201-16M44
29F15-01.06.00.06飞轮螺母Flying wheel Nut190179-16M05
曲轴部分

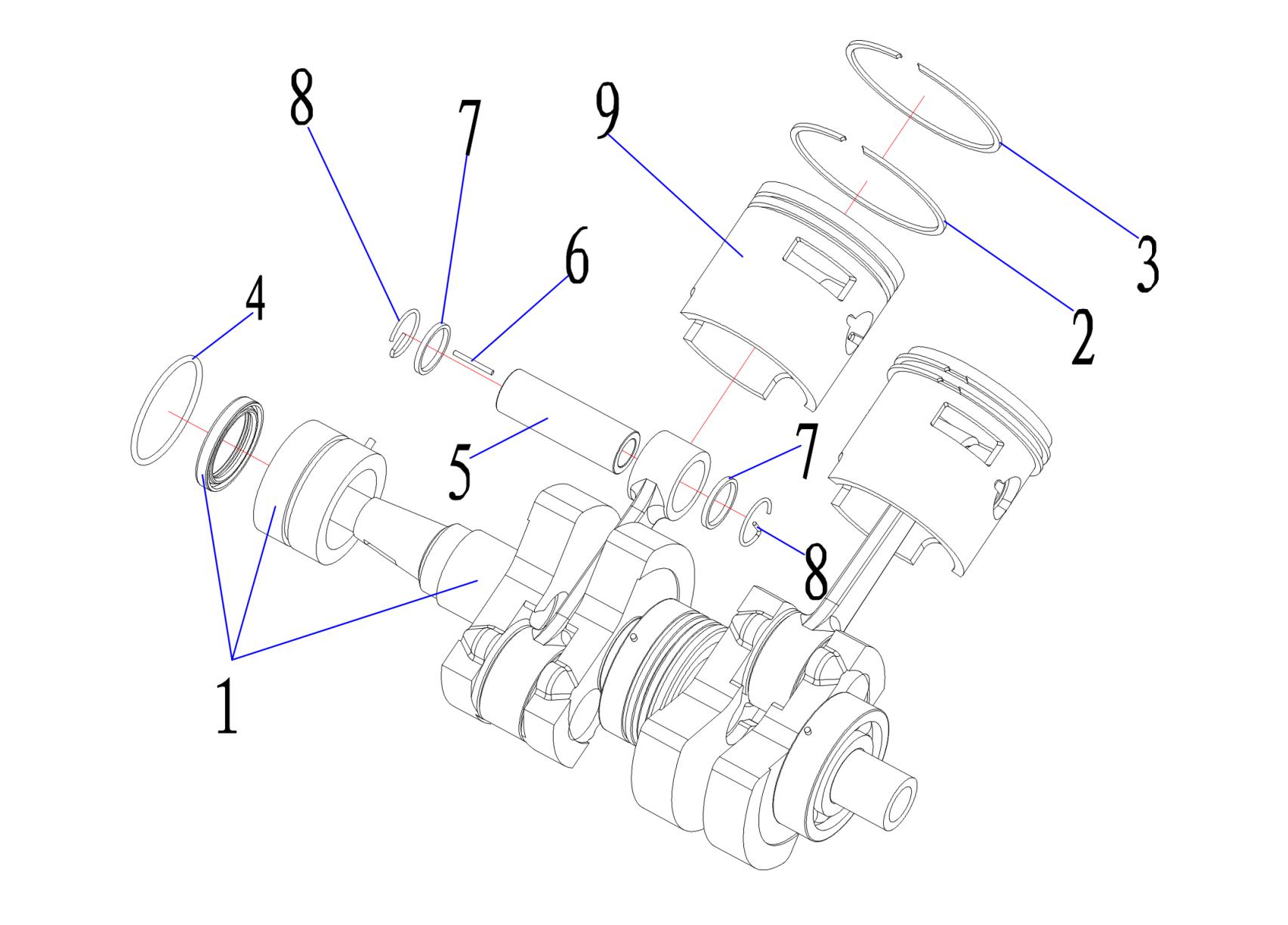

曲轴部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
130F-01.04.02.00曲轴连杆组件Crankshaft connecting ro169P-11400-00
230F-01.04.00.28副气环2nd ring261N-11603-00
330F-01.04.00.27主气环1st ring261N-11603-00
430F-01.04.02.02O型圈O ring1
530F-01.04.00.25活塞销Pin,piston2689-11633-00
630F-01.04.00.30密排滚针Roller pin6893602-20M02
730F-01.04.00.29滚针盖板Needle bearing plate490201-20M27
840F-01.06.04.03活塞销卡簧Circlip4688-11634-00
930F-01.04.00.24活塞Piston261N-11631-00-95
底座

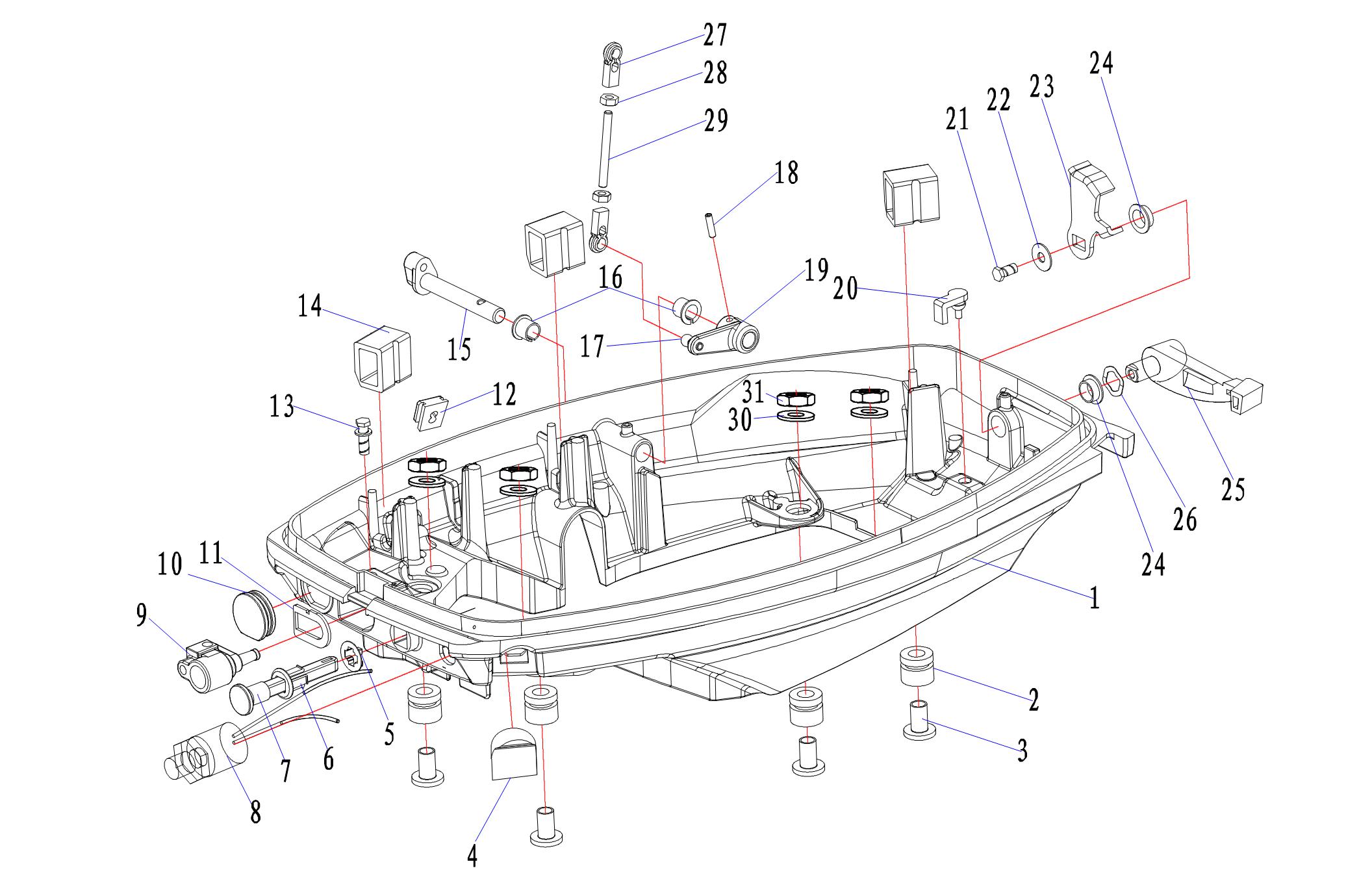

底座 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
130F-02.00.00.11底座Bottom Cowling1689-42711-04-4D
230F-02.00.00.07底座减震圈Bottom damper490480-15M06
330F-02.00.00.06底座带肩垫管Collar490387-08M25
430F-02.00.00.02闷头（侧）Plug1689-42725-01
515F-02.04橡胶垫Rubber washer1
615F-02.03阻风门拉杆护套Protecting bush,choke1689-41273-00
730F-02.00.00.03阻风门拉杆Pull rod,choke1682-41271-00
830F-01.02.10.00急停开关组件Engine shut-off switch16E9-82575-02
915F-01.07.01.00燃油管插头组件Fuel hose joint assy.16G1-24304-02
1015F-02.12前操油门橡胶闷头（大）Rubber plug1682-42724-00
11F9.9-01.04.00.13燃油管插头垫片Washer,fuel hose joint1
1230F-04.06油门钢索固定套Fixing sleeve,throttle cable1
13GB9074.1(8.8)六角头螺栓和平垫组件M6*2Bolt&flat gasket M6*251
1430F-02.00.00.01线束橡胶固定套Rubber fixing sleeve,harness361N-26326-00
1530F-02.00.00.04节气门控制轴Throttle axis1656-42153-00-94
1630F-02.00.00.05轴套Shaft sleeve290386-10009
1730F-02.00.01.02球头嵌件Insert,throttle leverrocker arm1
18GB879弹性圆柱销4*18Spring Pin191690-40018
1930F-02.00.01.01节气门控制摇臂Throttle lever rocker arm169P-42157-00-94
2030F-02.00.00.08L型闷头Plug1647-42523-00
21GB5783六角头螺栓M6*12Hexagon Bolt M6*121
22GB96平垫6Flat gasket 61
2330F-02.00.00.10锁紧块Latch segment1689-42816-00
2440F-02.02.00.03垫圈AWasher A2
2530F-02.00.02.00锁紧手柄组件Lock handle comp.1689-42815-00
2640F-02.02.00.02波型垫片Wave washer1
2715F-01.03.12连杆接头Linkage connector2682-41237-00
28GB6170六角头螺母M5Cross-recessed nut M52
2930F-01.05.06.01前操油门连杆Throttle lever1
30GB6172六角薄螺母M8Hexagon Thin Nut M846F5-15779-02
31GB97.1平垫8Flat gasket 84
档位机构 1

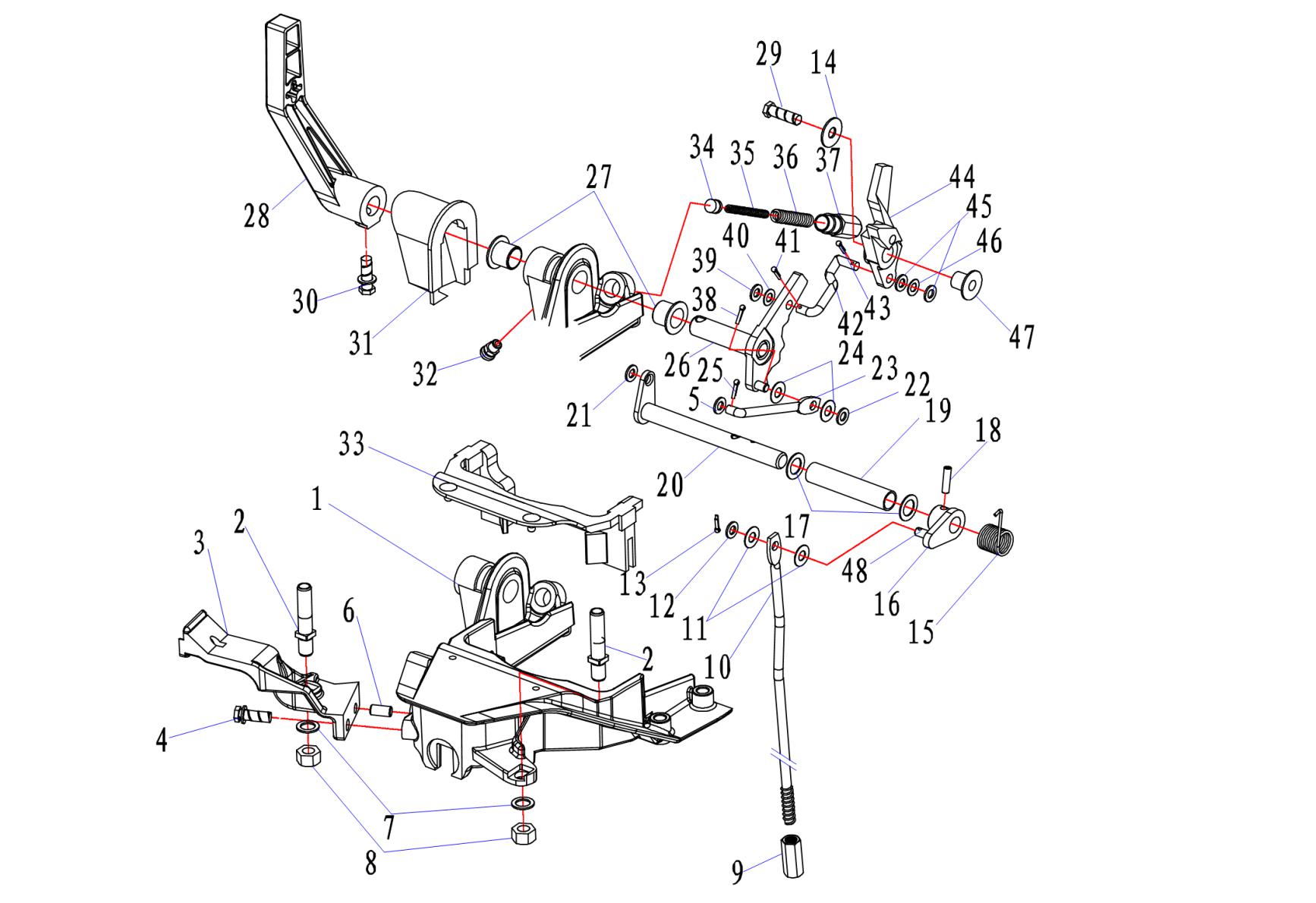

档位机构 1 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
130F-05.01.00.15档位托架Gear shift bracket169P-44518-00-94
230F-05.01.00.04双头螺栓M8Double-screw bolt M82
330F-05.01.00.05档位托架支架（仅灰色喷漆）Support1648-44519-00-94
4GB9074.1(8.8)六角头螺栓和平垫组件M6*18Bolt&flat gasket M6*181
5GB97.1平垫5Flat gasket 51
615F-01.06.20定位销6*12Dowel pin 6*12193606-12019
7GB97.1平垫8Flat gasket2
8GB6170六角头螺母M8Hexagon Nut M82
915F-06.04.05柱状螺母Column nut161N-44146-00
1030F-05.01.00.07上变档杆Shift lever(upper)161N-44143-00
1130F-05.01.00.06尼龙垫片6*13Nylon gasket 6*13290202-06007
12GB97.1平垫5Flat gasket 51
13GB91开口销1.6*10Cotter pin 1.6*101
14GB96平垫6Flat gasket 61
1530F-05.01.00.08变档扭簧Gear shift spring190508-14M13
1630F-05.01.01.00上变档杆摇臂组件Rocker arm,shift lever(upper)1689-44125-00
1730F-05.01.00.09尼龙垫片16*10*0.7Nylon gasket 16*10*0.7290202-10024
18GB879弹性圆柱销4*16Elastic cylindrical pin 4*16191690-40018
1930F-05.01.00.10变档轴套Gear shift axle sleeve1
2030F-05.01.02.00变档连杆拉臂组件Gear shift arm1689-44121-01
21GB97.1平垫5Flat gasket 51
22GB97.1平垫5Flat gasket 51
2330F-05.01.00.13变档连杆Gear shift1664-44142-00
2430F-05.01.00.06尼龙垫片6*13Nylon gasket 6*13290202-06007
25GB91开口销1*10Cotter pin 1*101
2630F-05.01.04.00变档凸轮组件Gear shift cam1664-44113-01
2730F-05.01.00.14变档手柄轴套Handle sleeve290381-12M01
2830F-05.01.00.11变档手柄Gear shift handle1689-44111-01-4D
29GB5783六角头螺栓M6*20Hexagon Nut M6*201
30GB9074.1(8.8)六角头螺栓和平垫组件M6*20Bolt&flat gasket M6*201
3130F-05.01.00.12减震护套Damping sleeve1689-42718-00
32JB/T9401直通式压注油杯M6Oil Cup M61
3330F-05.01.00.03箱盖密封垫块Gasket pad169P-42717-00
3430F-05.01.03.04变档凸轮芯杆Gear shift cam stem1664-44167-01
3530F-05.01.03.02弹簧内Inner spring190501-09M08
3630F-05.01.03.03弹簧外Outer spring190501-14M07
3730F-05.01.03.01顶杆Mandrel1
38GB91开口销1.2*12Cotter pin 1.2* 121
39GB97.1平垫5Flat gasket 51
40GB 860鞍形弹性垫圈 M5Washer M51
41GB91开口销1.2*12Cotter pin 1.2* 121
4230F-01.05.00.09连杆Lever1
43GB91开口销1.2*12Cotter pin 1.2* 121
4430F-01.05.00.08制动钢索端轮Cam,brake cable1
45GB97.1平垫5Flat gasket 52
46GB 860鞍形弹性垫圈 M5Washer M51
4730F-01.05.00.07带肩垫管Shoulder pad tube1
4830F-05.01.01.01变档杆连接轴Shift lever connecting shaft1
操舵部分

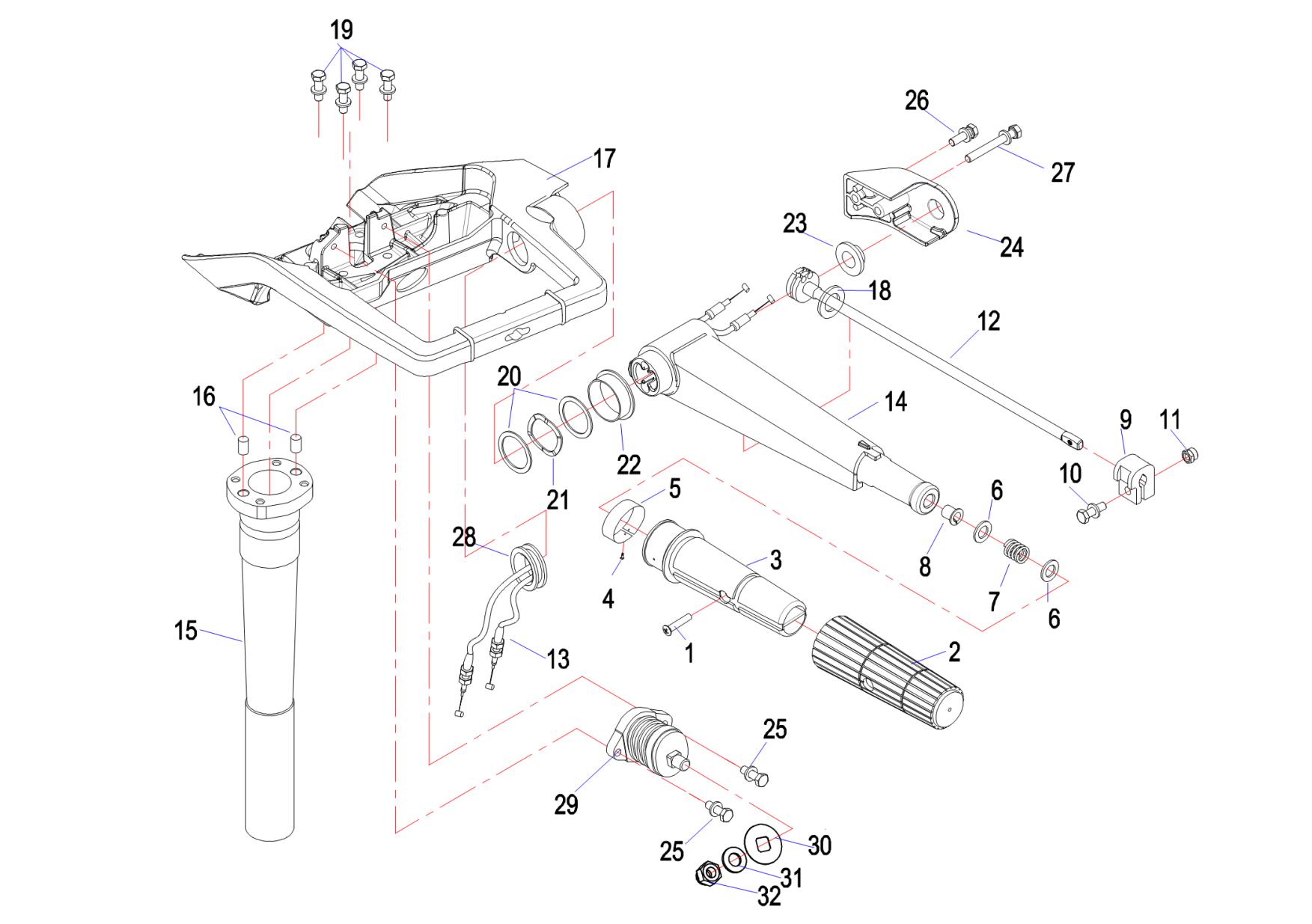

操舵部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB820十字槽半沉头螺钉M5*25Cross recessed countersunk hea1
215F-04.07.14手柄橡胶套Rubber sleeve,Handle16F6-42119-00
315F-04.07.13手柄Handle1664-42119-00
4GB845十字槽盘头自攻螺钉ST2.2*4.5Cross recessed pan head tappin1
5F4-04.11-Ⅱ油门标牌Indicator,throttle16G1-42137-10
6GB848平垫10Flat gasket 102
715F-04.07.11弹簧spring190501-23215
815F-04.07.12衬套Bushing190386-08032
930F-04.07.04锁紧块Latch segment1656-42126-01
10GB9074.1（8.8）六角头螺栓和平垫组件M6*20Bolt&flat gasket M6*201
11DIN985六角尼龙锁紧螺母M6hexagonal locknut M61
1230F-04.07.03.00节气门杆组件Valve rod comp.1689-42138-00
1330F-04.07.02油门控制钢索Throttle cable261N-26311-00
1430F-04.00.00.10操舵手柄Steering handle1689-42111-01-4D
1530F-04.00.00.13操舵托架连接轴Steering bracket axis1689-42521-00-94
1640F-01.06.00.25定位销8*12Dowel pin 8*12293608-12063
1730F-04.00.00.11操舵托架Steering bracket169P-42511-00-4D
18GB848平垫12Flat gasket 121
19GB9074.1(8.8)六角头螺栓和平垫组件M6*20Bolt&flat gasket M6*204
2030F-04.04垫圈gasket290201-28013
2130F-04.05波垫Wave washer190206-28001
2230F-04.03手柄衬套handle bush190387-33001
2330F-04.02手柄盖衬套bush,Handle cover190387-13003
2430F-04.00.00.01操舵手柄盖Cap,Steering handle169P-42112-00-4D
25GB9074.1(8.8)六角头螺栓和平垫组件M6*20Bolt&flat gasket M6*202
26GB9074.1(8.8)六角头螺栓和平垫组件M6*20Bolt&flat gasket M6*201
27GB9074.1(8.8)六角头螺栓和平垫组件M6*50Bolt&flat gasket M6*501
2830F-04.08油门钢索护套Protecting bush,throttle cable1
2930F-00.00.02.00减震脚组件（前）Damper comp.(Front)1689-44516-00
3030F-05.01.00.01减震脚(前)垫片Damper comp.Gasket(Front)1
31GB97.1平垫10Flat gasket 101
32DIN985六角尼龙锁紧螺母M10*1.25hexagonal lock nut M10*1.251
None30F-04.00.00.00操舵手柄部件（不含操舵托架）Tiller Assy. ( Without steering bra1
水上部分

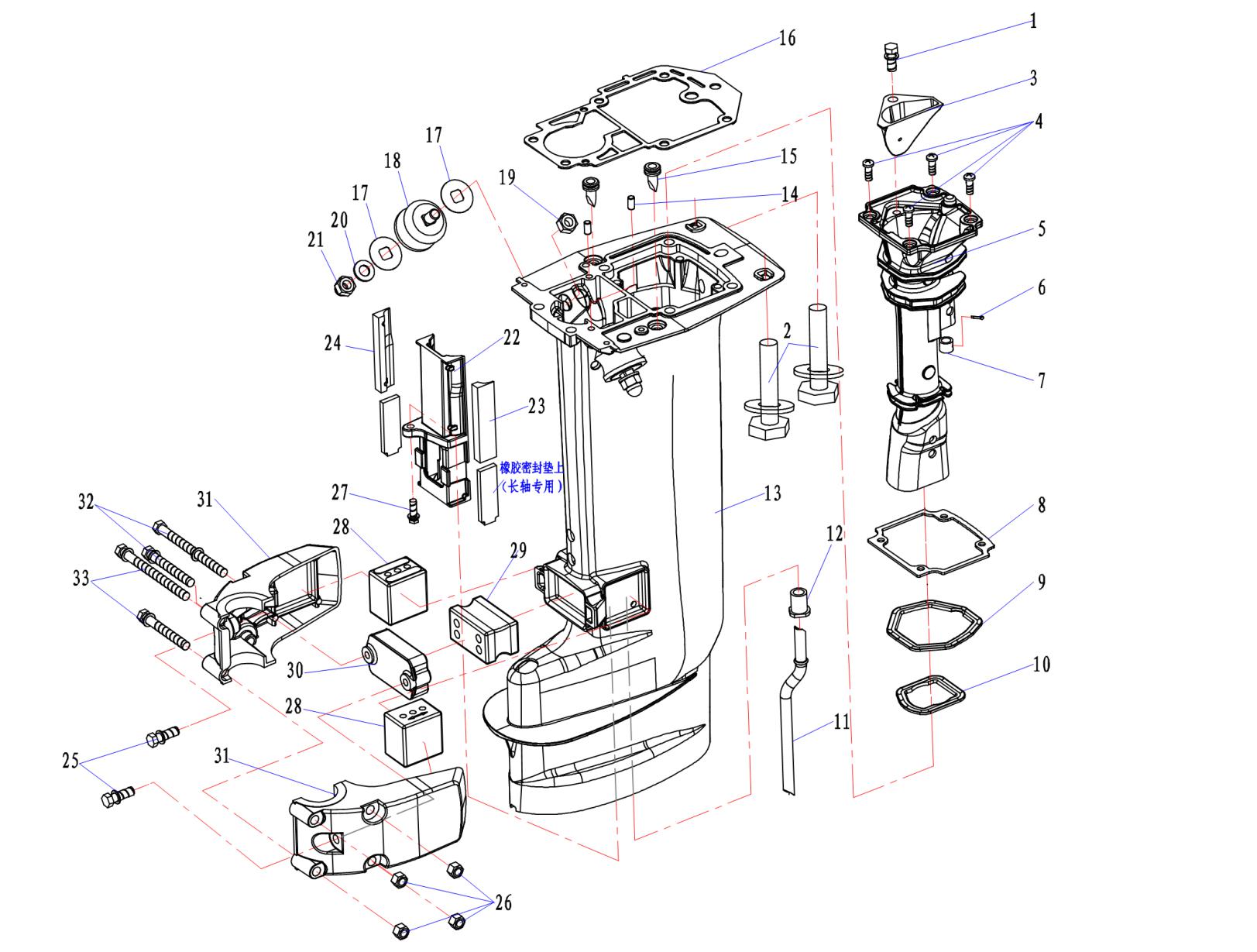

水上部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB9074.1(8.8)六角头螺栓和平垫组件Bolt&flat gasket M8*201
2GB9074.1(8.8)六角头螺栓和平垫组件Bolt&flat gasket M8*201
330F-05.02.00.01排气导管Exhaust guid169P-41137-00-5B
4GB823十字槽盘头螺钉M6*16Pan head bolt with cross recess M6*164
530F-05.02.00.02排气歧管Exhaust manifold169P-41131-01-5B
6GB91开口销2.5*25Cotter pin 2.5*251
730F-05.02.00.06怠速排气堵塞Idle exhaust plug1
830F-05.02.00.03排气歧管密封垫Gasket,Exhaust manifold169P-41134-A0
930F-05.02.00.04上橡胶密封垫Rubber gasket(upper)169P-41138-00
1030F-05.02.00.05下橡胶密封垫Lower rubber gasket169P-41139-00
1130F-05.02.00.10-水管(短轴）Hose (S)161N-44361-00
None30F-05.02.00.10-水管(长轴）Hose (L)1
1230F-05.02.00.11水管上密封圈Seal ring(upper),hose1689-44366-00
1330F-05.02.00.12-水上壳体(短轴）Upper casing(S)169P-45111-00-4D
None30F-05.02.00.12-水上壳体(长轴）Upper casing(L)1
1415F-01.06.20定位销6*12Dowel pin293606-12019
15F9.9-02.00.00.12排水嘴Water nozzle265W-42717-00
1630F-00.00.00.02机体密封垫Engine gasket1689-45113-A1
1730F-05.01.00.01减震脚(前)垫片Damper washer1
1830F-00.00.01.00减震脚组件（侧）Damper comp.2664-44514-00-94
19GB6170六角螺母M10*1.25Hexagonal nut M10*1.252
20GB97.1平垫10Flat gasket 104
21DIN985六角尼龙锁紧螺母M10*1.25Hexagonal nut M10*1.254
2230F-05.02.00.07-排气侧板（短轴）Side cover,exhaust(S)169P-47467-00-5B
None30F-05.02.00.07-排气侧板（长轴）Side cover,exhaust(L)1
2330F-05.02.00.13橡胶密封垫下-ⅡRubber gasket(lower)-Ⅱ169P-45127-00
2430F-05.02.00.09橡胶密封垫下Rubber gasket(lower)169P-45128-00
25GB9074.1(8.8)六角头螺栓和平垫组件M8*25Bolt&flat gasket M8*251
26GB6170六角螺母M8Hexagonal nut M82
27GB9074.1(8.8)六角头螺栓和平垫组件M6*20Bolt&flat gasket M6*201
2830F-00.00.00.06减震块（侧）Damper (side)2689-44555-00
2930F-00.00.00.07减震块（中）Damper (middle)1689-44557-00
3030F-00.00.00.08减震器座（中）Damper seat(middle)1689-44553-00-94
3130F-00.00.00.04减震器外壳Damper housing2689-44551-01-4D
32GB9074.1(8.8)六角头螺栓和平点组件M8*10Bolt&flat gasket M8*1001
33GB9074.1(8.8）六角头螺栓和平垫组件M8*65Bolt&flat gasket M8*652
物料代码规格型号零件名称(中文）零件名称(英文）单价数量
None40F-03.04夹紧托架双头螺栓Bolt16J8-43131-01
None15F-03.03孔板Orifice plate16J8-43113-01
None15F-03.01夹紧托架螺母Clamp nut2
None30F-03.00.03.01左托架Bracket(LH)1689-43112-02-4D
NoneF9.9-Ⅱ-03.00.00.02艉板夹紧螺栓Clamp Bolt,Transom2
None40F-03.05.03.02夹紧手柄intensify handle26E0-43118-01
None15F-03.05.02.03夹紧盘Clamp plate2648-43114-01
NoneGB1015沉头半空心铆钉4*18Rivet 4*182
None30F-03.01.02左托架衬套Bushing,bracket(LH)1
None40F-03.05.04.01定位轴Position axis1
None40F-03.05.04.02定位轴手柄Position axis handle1
NoneGB879.2弹性圆柱销3*18Cylindrical pin191690-40048
None30F-03.00.04.00右托架Bracket(RH)1389-43111-03-4D
None30F-03.00.00.22旋转托架Swivel bracket1689-43311-03-4D
None15F-03.09.02托架阻尼套Damping ring,bracket290386-22M67
None40F-03.03垫片Gasket4
None30F-03.03.07起翘定位锁杆Locker,tilt1689-43631-00
None30F-03.03.09扭簧Torsional spring1689-43643-00
None30F-03.03.08起翘定位锁杆护套Protect sleeve,Locker1689-43633-00
None30F-03.03.10定位锁杆连杆Position rocker rod1689-43616-00
None30F-03.03.12销轴Axis pin1
None30F-03.03.11定位锁杆支架Position rocker support1648-43642-00
NoneGB896开口挡圈5Circlip199080-05600
None30F-03.03.13外倾斜定位连杆limit rob,outlet tilt1648-43617-00
None30F-03.03.15倾斜定位销轴Tilt position axis190240-05047
None30F-03.03.16外倾斜定位锁板Lock plate,outlet tilt1689-43614-01
None30F-03.03.14内倾斜定位锁板Arm,tilt lock1648-43615-00
NoneGB91开口销1.2*12Cotter pin 1.2* 121
None30F-03.03.17拉簧Spring190506-30M27
None30F-03.03.18.00浅水航行定位板组件Position plate,shallow water1689-43681-01
NoneGB5783六角头螺栓M6*16Bolt M6*162
NoneGB96平垫6Flat gasket GB962
None30F-03.03.19垫管Cushion tube2
None15F-03.09.12.01橡塑套Rubber sleeve1
None30F-03.03.20拉簧（短）Spring2
NoneGB879.2弹性圆柱销4*35Cylindrical pin291690-40048
NoneGB9074.1(8.8)六角头螺栓和平垫组件M8*1Bolt M8*1601
None30F-03.04螺栓套管Sleeve1
NoneJB/T7940.1直通式压注油杯 M6Oil cup M63
NoneGB6170六角螺母M8Hexagon Nut M81
None30F-03.05角度限位插销组件Pin1689-43160-00
None15F-03.09.09锁紧螺栓密封圈Gasket1
None30F-03.03.02上衬圈Bushing(upper)190209-47016
None30F-03.03.03锁紧圈Lock washer190386-47M22
None40F-03.07.05锁紧圈摩擦片Friction plate,Locking1648-42528-00
None30F-03.03.04下衬套bushing (bottom)190386-38090
None30F-03.03.05O型橡胶圈Rubber ring193210-37160
None30F-03.03.06下衬圈Lower bushing190386-38022
NoneGB9074.1（8.8）六角头螺栓和平垫组件M6*2Bolt&flat gasket M6*201
夹紧部分

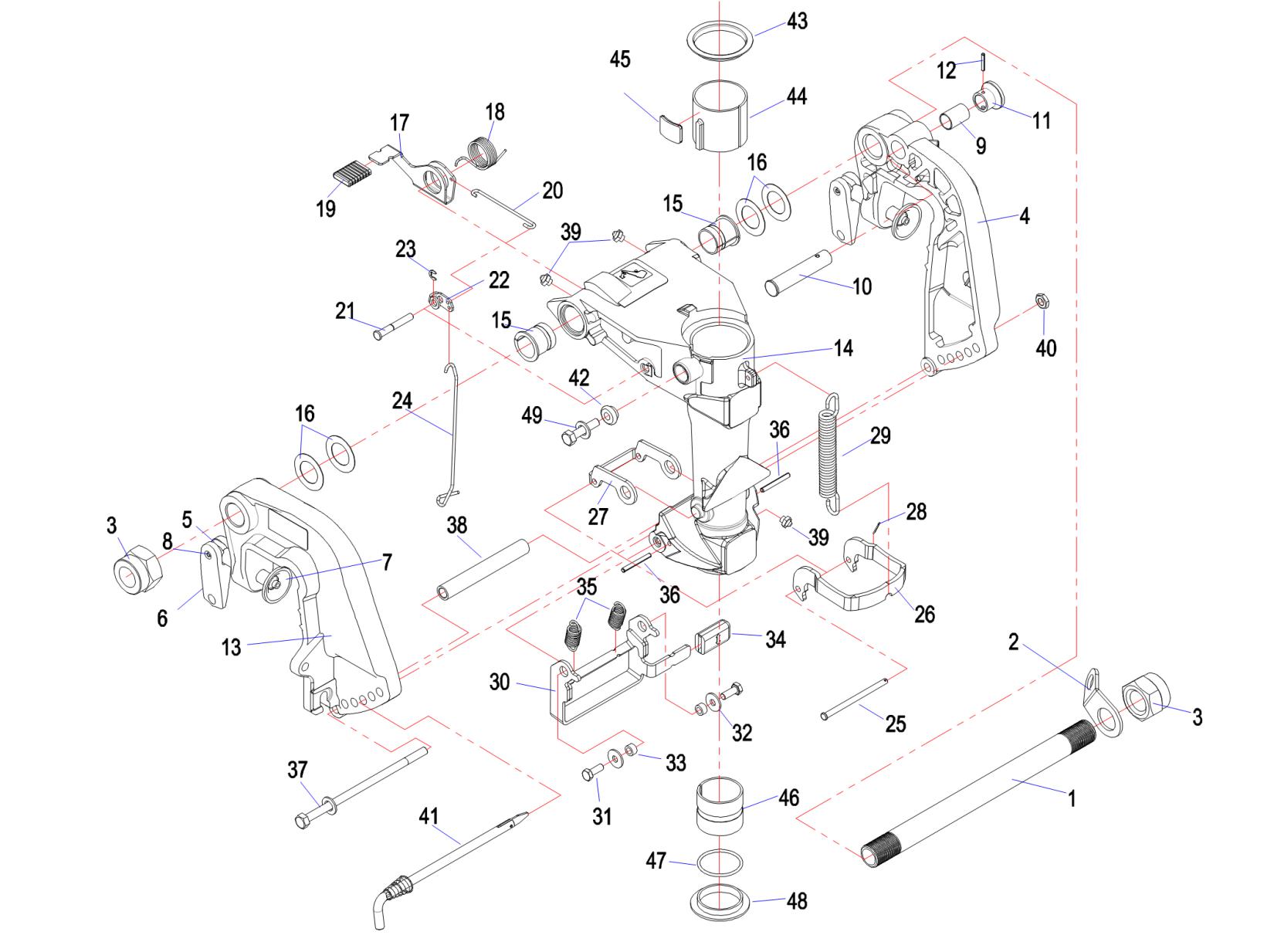

夹紧部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
水下总成

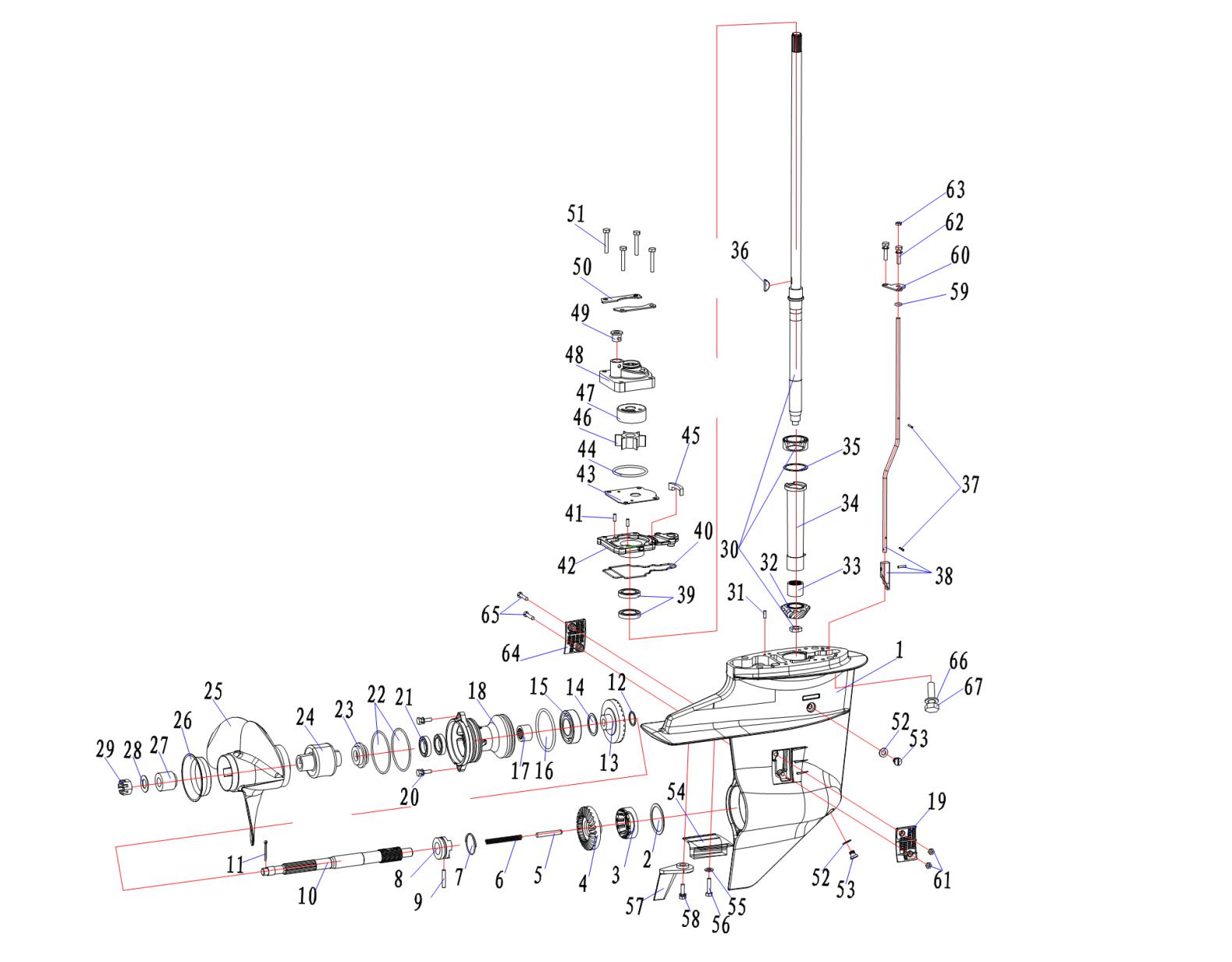

水下总成 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
130F-06.00.00.27水下壳体Lower casing161N-45311-02-4D
230F-06.00.00.26填隙片1（正档圆锥）Shim,forward gear16L2-45567-00
315F-06.07圆锥滚子轴承(30205)Roller Bearings193332-00005
430F-06.00.00.22正档齿轮Forward gear161N-45560-10
530F-06.00.05.06变档柱塞Gear shift plunger1648-45635-00
630F-06.00.05.05压缩弹簧Compression spring190501-10065
715F-06.10.04簧环Circlip1
830F-06.00.05.02爪形离合器Dog clutch1664-45631-02
915F-06.10.03离合器销Clutch pin1
1030F-06.00.05.01螺旋桨轴Propeller shaft165W-45611-00
11GB91开口销2.5*25Cotter pin 2.5*251
1230F-06.00.00.06垫圈gasket190201-20417
1330F-06.00.04.06倒档齿轮Reverse gear161N-45571-00
1430F-06.00.04.05填隙片（倒档）shim16L2-45577-00
1530F-06.00.04.04深沟球轴承(6006C3)deep groove ball bearing193306-00612
1630F-06.00.04.07O型圈（粗）(63.5*4)O ring(63.5*4)193210-64ME7
1730F-06.00.04.03滚针轴承(HK2016)Needle bearing(HK2016)193315-22004
1830F-06.00.04.01水下壳体盖Cap,lower casing161N-45361-01-4D
1930F-06.00.00.05进水口盖Bcover,water inlet1
20GB9074.1(8.8)六角头螺栓和平垫组件M6*20Bolt&flat gasket M6*202
2130F-06.00.04.02壳体盖油封（20*34*6.5）Oil seal（20*34*6.5）293101-20M07
2230F-06.00.04.08O型圈（细）(67*2.5)O ring(67*2.5)293210-65M50
2330F-06.00.00.03螺旋桨垫块Pad,propeller16L2-45987-01-00
2430F-06.00.02.00螺旋桨内花键组件Propeller shaft teeth assy.1
2530F-06.00.01.01螺旋桨(9-7/8*12-F)Propeller(9-7/8*12-F)1664-45941-01-EL
None30F-06.00.01.00螺旋桨组件(9-7/8*12-F)Propeller Assy.1664-45949-02-EL
2630F-06.00.01.02螺旋桨喇叭口(9-7/8*12-F)Propeller horn(9-7/8*12-F)1
2730F-06.00.00.02螺旋桨内花键垫块Pad,Propeller Liner1689-45997-00-00
28GB97.1平垫14Flat gasket 141
2930F-06.00.00.01开槽六角螺母M14Nut M14190171-14013
3030F-06.00.07.00-S驱动轴总成(短轴)Drive shaf(S)161N-45510-00
None30F-06.00.07.00-L驱动轴总成(长轴)Drive shaf(L)1
3115F-06.03.08定位销4*12Dowel pin 4* 12161N-45315-00
3230F-06.00.00.21主动轮Driving wheel161N-45551-00
3330F-06.00.00.28滚针轴承（F2020）Needle bearing（F2020）193315-220V7
None30F-06.00.00.28滚针轴承（F2020）国产Needle bearing（F2020）193315-220V7
3430F-06.00.00.29尼龙衬圈Nylon bushing161N-45536-00
3530F-06.00.00.25填隙片（驱动轴）shim161N-45587-00
3640F-06.09.02半圆键Woodruff key190280-03M03
37GB879弹性圆柱销（2.5*14）Cylindrical pin（2.5*14）291690-40018
3830F-06.00.06.00-S变档凸轮组件(短轴)Shift cam assy.(S)1
None30F-06.00.06.00-L变档凸轮组件(长轴)Shift cam assy.(L)1
3940F-06.04.04壳体盖油封(22*36*7)Oil seal(22*36*7)2
4030F-06.00.00.19橡胶密封圈Rubber seal ring193101-22067
4115F-06.03.08定位销4*12Dowel pin 4* 12261N-45315-00
4230F-06.00.00.20轴承座Bearing seat161N-45331-00-5B
4330F-06.00.00.13水泵垫板Plate,water pump161N-44323-00
4430F-06.00.00.12水泵外壳O型圈(46*3.3)O-ring,Water pump casing(46*3.193210-45161
4530F-06.00.00.16轴承座密封条Sealing strip,bearing seat161N-45127-00
4640F-06.09.00水泵叶轮组件Impeller assy.16H4-44352-02
4730F-06.00.00.11水泵内壳Insert, cartridge169P-44322-00
4830F-06.00.00.10水泵外壳Casing,water pump169P-44311-00
4930F-06.00.00.09水管密封圈hose seal ring1
5030F-06.00.00.08水泵挡板Baffle,water pump2
51GB5783六角头螺栓M6*40Bolt M6*404
5215F-06.01.04螺塞密封垫Gasket290430-08020
5315F-06.01.03注油口螺塞plug,straight screw2
5415F-06.15阳极BAnode161N-45251-01
55GB861.1内齿锁紧垫圈Washer,inner gear1
56GB5783六角头螺栓M6*35Bolt M6*351
5730F-06.00.03.00航向调整片组件Heading trim tab assembly161N-45371-00
58GB9074.1(8.8)六角头螺栓和平垫组件M6*20Bolt&flat gasket M6*201
5915F-06.03.03变档杆O形密封圈(5.8*4.3)Shift lever o-ring1
6030F-06.00.00.15变档凸轮压板Gearshift cam plate1
61DIN985六角尼龙锁紧螺母M5Connecting,Top cowling M52
62GB9074.1(8.8)六角头螺栓和平垫组件M6*25Bolt&flat gasket M6*252
63GB6170六角头螺母M6Hexagon Nut M61
6430F-06.00.00.04进水口盖AWater inlet cover A1
65GB819十字槽沉头螺钉M5*30cross recessed countersunk head screw M5*302
66GB848平垫10Flat gasket 104
6730F-00.00.00.01六角法兰面螺栓(M10*35)Bolt(M10*35)4
None30F(S)-06.00.00.00水下装置部件low unit(S)1
None30F(L)-06.00.00.00水下装置部件low unit (L)1
档位机构 2

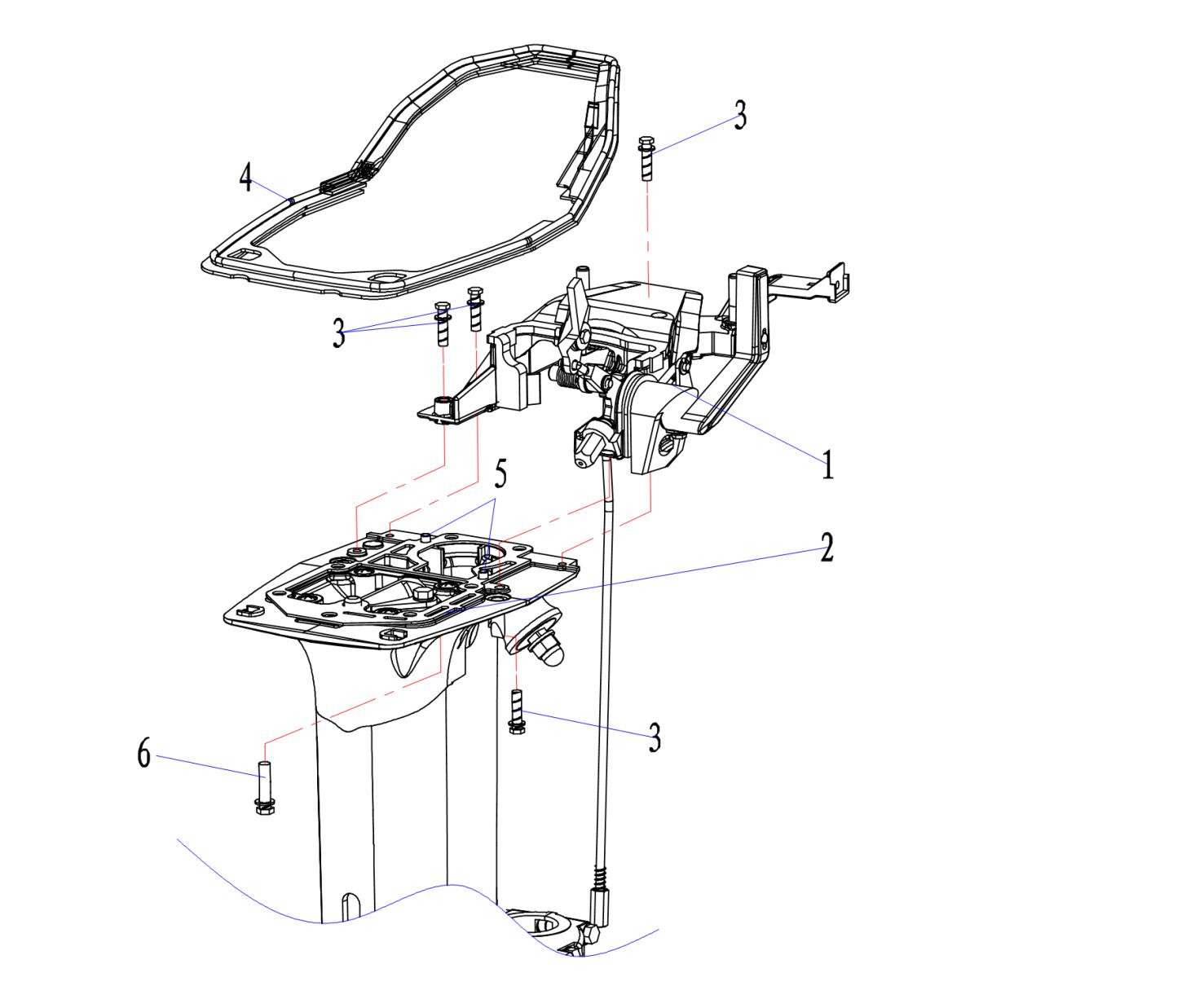

档位机构 2 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1档位系统部件Gear shift parts1
2水上装置部件Upper casing1
3GB9074.1(8.8)六角头螺栓和平垫组件M6*25Bolt&flat gasket M6*254
430F-05.01.00.02底座橡胶密封圈Bottom damper1
515F-01.06.20定位销6*12Dowel pin 6*12293606-12019
6GB9074.1(8.8)六角头螺栓和平垫组件M8*30Bolt&flat gasket M8*306
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
1GB91 2.5*25开口销cotter pin1
240F-06.09.00水泵叶轮组件impeller Assy.16H4-44352-02
315F-08.00.00燃油箱总成(24L)fuel case Assy.1
415F-09.01应急启动手柄emergency starting handle1
515F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
615F-01.01.22启动绳φ5*2000mmstarter rope1
715F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
815F-09.00工具包toolkit1
9保修保养手册(仅国 内客户用)Warranty and maintenance munal(just for Chinese client)1
