舟一会 ZHOUYIHUI 船外机

海的 4.8F - 4.8FHL(S)-III

共 8 个部位，点击零件编码查看详情，或搜索本页零件。

顶罩

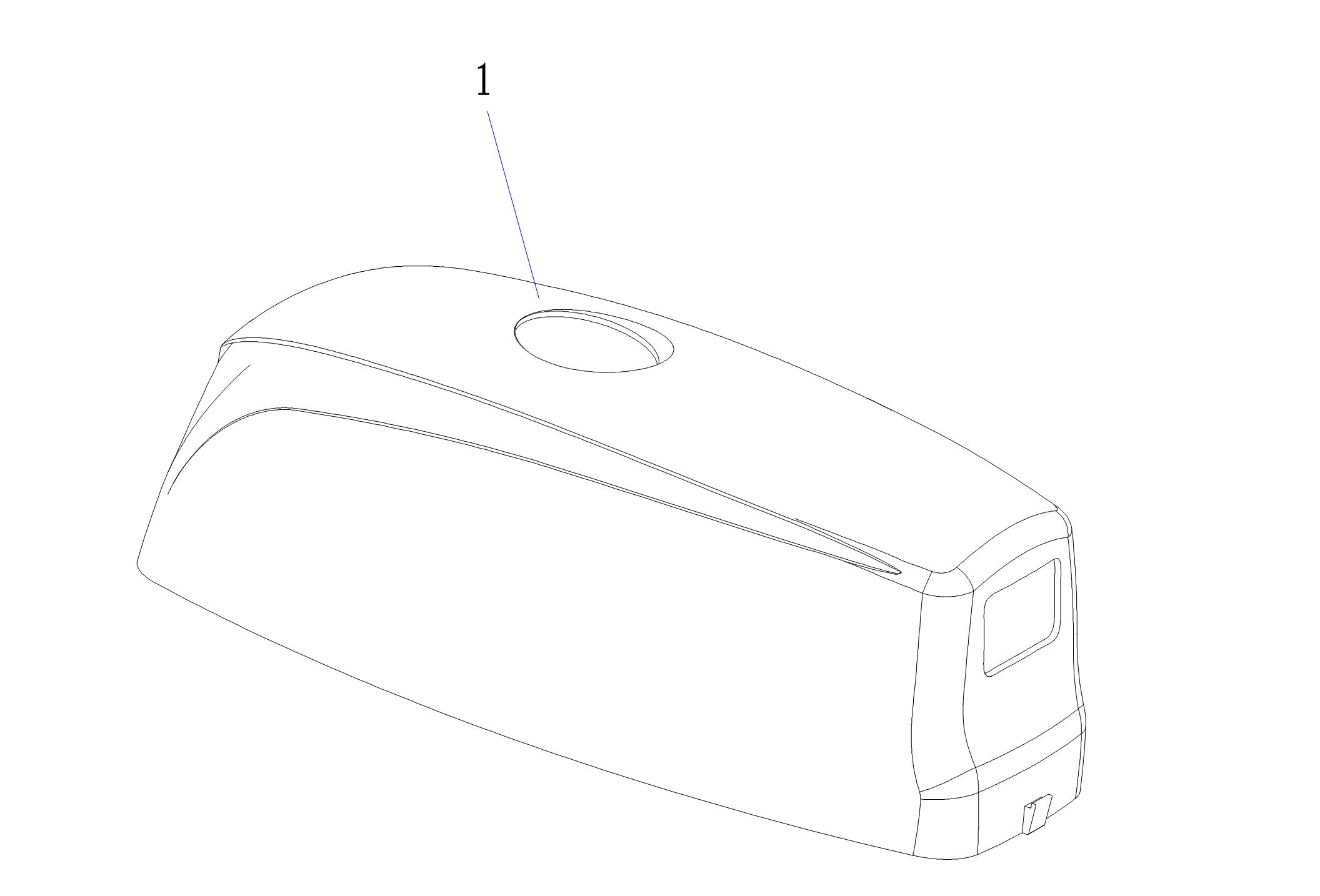

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
13.5F-Ⅱ-07.00.00.00顶罩部件Top Cowling1
启动罩

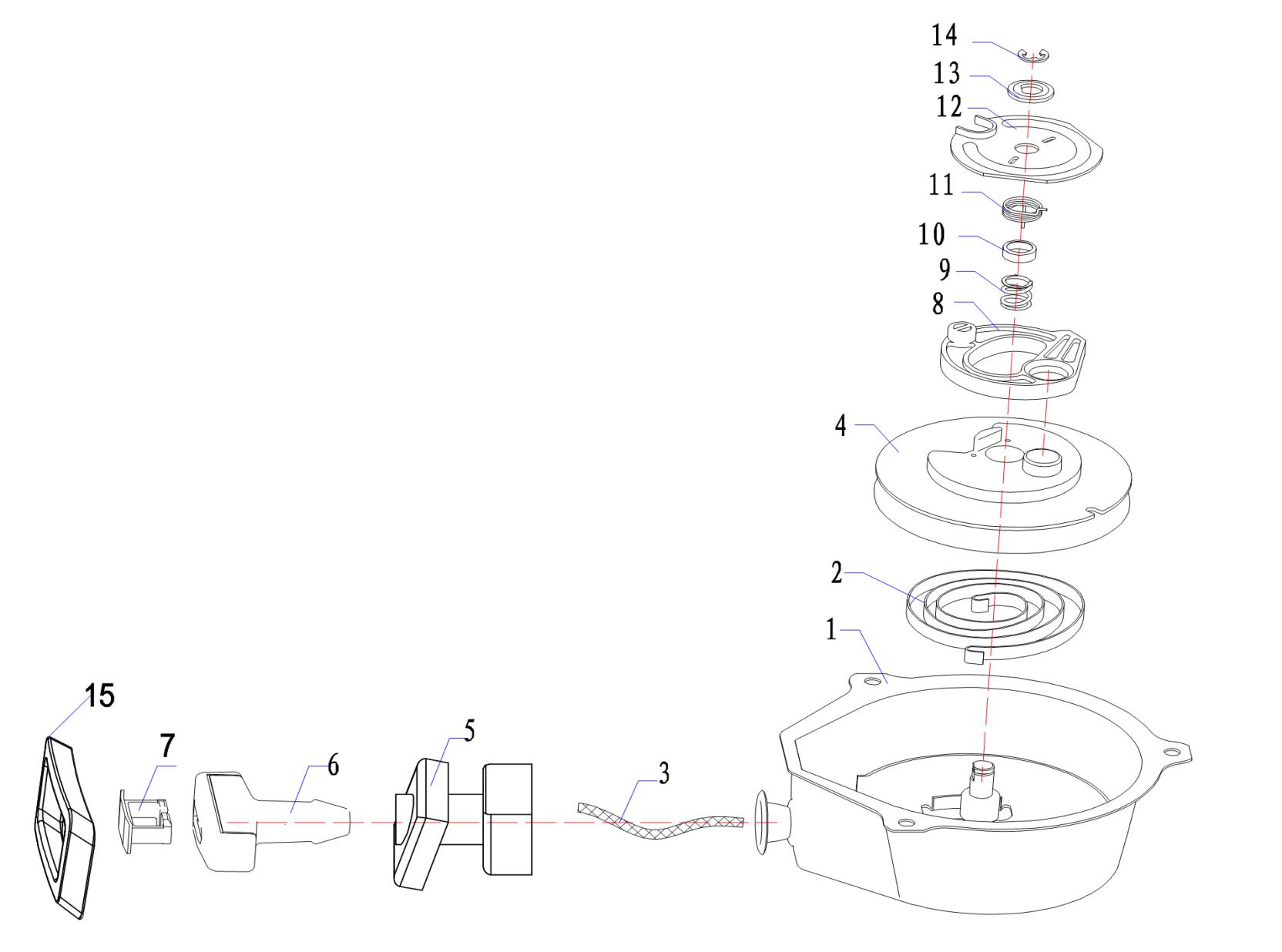

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
13.5F-01.02.01.00启动罩（外壳）Starter cover assy.1312-05001-0
23.5F-01.02.12涡形弹簧Volute spring1307-05004-0
33.5F-01.02.04启动绳 φ3.5*1350mmstart rope1307-05013-0
43.5F-01.02.03启动轮Start wheel1307-05104-0
59.8F-01.01.11.01橡胶托架（短）Rubber support1
615F-01.01.08启动手柄Starter handle1
715F-01.01.10手柄盖Cover,Starter handle1307-05019-0
83.5F-01.02.11启动器Spindle,Start wheel1307-05003-0
93.5F-01.02.10压簧compressed spring1307-05007-0
103.5F-01.02.09扭簧衬圈Bushing,Torsional sprin1307-05021-0
113.5F-01.02.08扭簧Torsional spring1307-05012-0
123.5F-01.02.07压板Press plate1307-05006-0
133.5F-01.02.06垫圈washer1
14GB/T896开口挡圈6Circlip1
153.5-Ⅱ-01.01.07启动橡胶套start rubber sleeve1
None3.5F-01.02.00.00启动罩装配总成Recoil starter assy.16A1-15710-00
动力部分

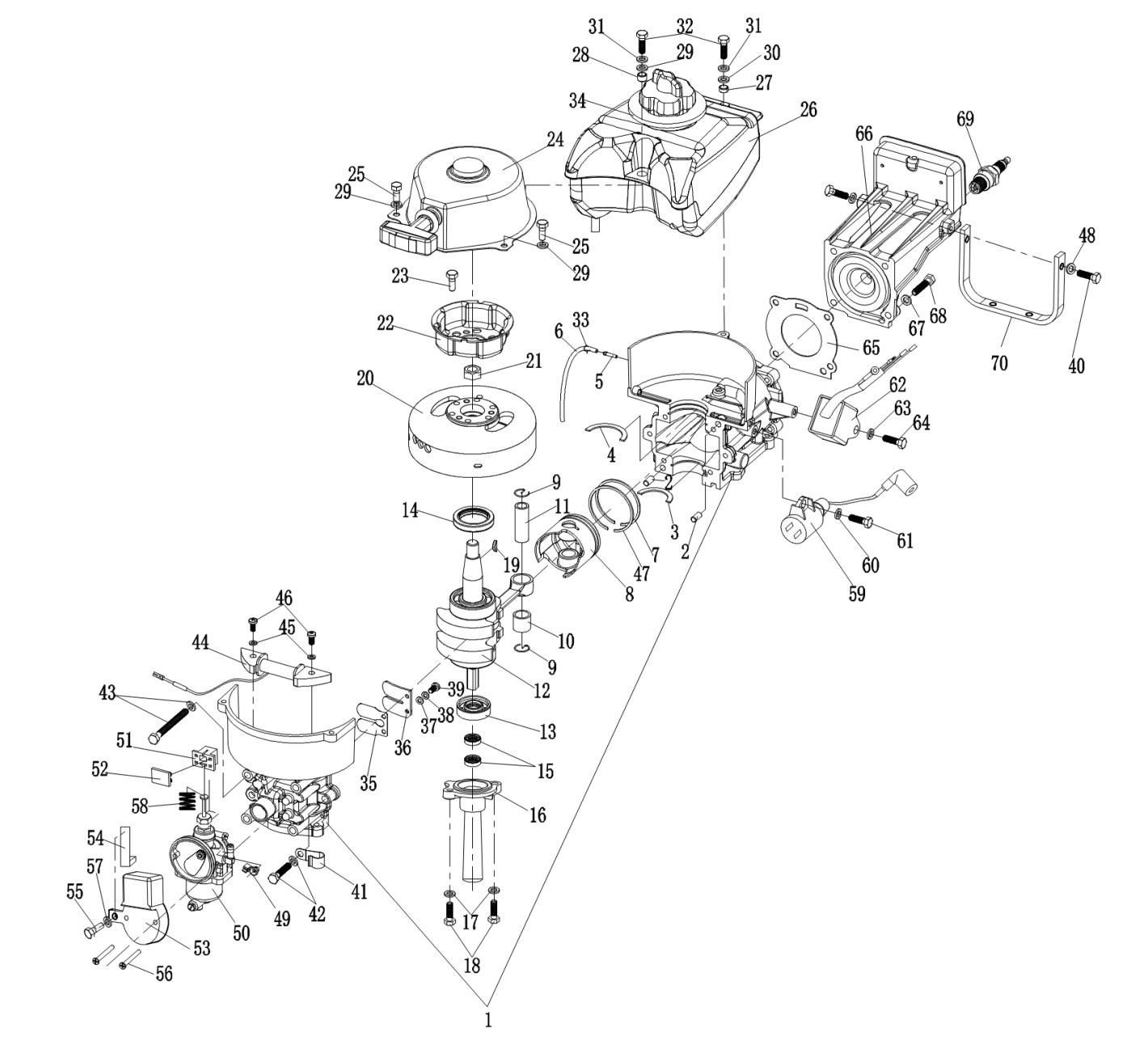

动力部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
13.5F-Ⅲ-01.01.01.01箱体箱盖组件Case and Cover Assy.16F8-W0090-64-1S
215F-01.06.20定位销6*12Locating Pin 2*62
33.5F-Ⅲ-01.01.10U型限位环U shape blocking pin1
43.5F-01.01.09U型限位环U shape blocking pin1
515F-01.06.21气管圆接头BAir Tube fitting B190445-07254
63.5F-01.01.01.04水管(φ3*φ7*150)Water hose(φ3*φ7*150)16F8-11610-00
73.5F-01.01.11.05活塞环第一道1st Piston Ring1
83.5F-01.01.11.01活塞Piston16F8-11631-00-98
93.5F-01.01.11.04活塞销卡簧Circlip (piston pin)293450-11021
103.5F-01.01.11.03滚针轴承Needle bearing193310-210V1
113.5F-01.01.11.02活塞销Piston Pin1646-11633-00
123.5F-Ⅲ-01.01.11.00曲柄连杆组件Crank connecting rod assy16A1-11400-00
133.5F-Ⅲ-01.01.08曲轴下油封Oil seal(Lower crank193306-00409
143.5F-01.01.07曲轴上油封connect)193306-30204
15F2.5-01.01.00.06小油封20*9.8*7connect) Oil Seal(S)20*9.8*7293102-15M32
163.5F-Ⅲ-01.01.18油封壳体Oil Seal Shell1
17GB848平垫6Flat pad 62
18GB5783六角头螺栓M6*18Hex Head Bolt M6*182
193.5F-01.03.01.07半圆键Woodruff key190280-04M06
203.5F-01.03.01.00飞轮总成Flywheel Assy16A1-85550-00
21F4-01.06.37飞轮螺母Flywheel Nut190170-10M33
223.5F-01.02.13起动毂Starter Hub16A1-15723-00-94
23GB5783六角头螺栓M6*12Hex Head Bolt M6*123
243.5F-01.02.00.00启动罩组件Starter cover Assy16A1-15710-00
25GB5783六角头螺栓M6*12Hex Head Bolt M6*122
263.5F-01.07.01.00燃油箱组件Fuel Tank Assy1
273.5F-01.07.04垫管A(短)Pipe Pad(short)1
283.5F-01.07.05垫管B(长)Pipe Pad(long)1
29GB97.1平垫6Flat pad 63
30GB96平垫6Flat Pad 61
31GB93弹垫圈6Spring Washer2
32GB5783六角头螺栓M6*20Hex Bolt M6*202
33管夹φ6.5Pipe Clamp φ71
345F-01.04.12油箱减震圈Fuel Tank Damper Ring1
353.5F-01.01.03进气阀片inlet valve disc1
363.5F-01.01.04进气阀座inlet valve seat1
37GB848平垫4Flat Pad 42
38GB93弹垫圈4Spring washer 42
39GB818十字槽盘头螺钉M4*12Screw M4*122
40GB5783六角头螺栓M6*20Hex Bolt M6*202
41F15-01.03.00.42通气管固定夹BAir tube clamp B1
42GB9074.1（8.8）六角头螺栓和平垫组件M6*30Hex Bolt & flat pad Assy.2
43GB9074.1（8.8）六角头螺栓和平垫组件M6*65Hex Bolt M6*654
443.5F-01.03.05充电线圈Charge Coil16A1-85520-01
45GB93弹垫圈M5Spring Washer M52
46GB818十字槽盘头螺钉M5*20Screw M5*202
473.5F-01.01.11.06活塞环第二道2nd Piston Ring1
48GB848平垫6Flat Pad 62
4915F-01.02.07阻风门连杆接头chock lever joint A11
503.5F-Ⅱ-01.04.07.00化油器总成Carburetor Assy16F8-14301-03
513.5F-Ⅱ-01.04.09.01节气门连接件Throttle Connector1
523.5F-Ⅱ-01.04.09.02节气门连接件扣板Throttle Connector Buckle1
533.5F-Ⅱ-01.04.07.04进气罩Plate Air Intake Hood1
543.5F-Ⅲ-01.04.07.05金属连接件Metal Connector1
55GB5783六角头螺栓M6*10Hex Bolt M6*101
56GB819十字槽沉头螺钉M4*20Screw M4*202
57GB848平垫6Flat Pad 61
583.5F-Ⅱ-01.04.09.03弹簧Spring1
592.5F-01.03.01.00高压包组件Ignition coil16A1-85570-00
60GB97.1平垫6Flat Pad 61
61GB5783六角头螺栓M6*20Hex Bolt M6*201
622.5F-01.03.02.00点火控制器组件CDI16A1-85540-01
63GB97.1平垫6Flat Pad 61
64GB5783(8.8)六角头螺栓M6*16Hex Bolt M6*161
653.5F-01.01.06气缸垫Cylinder Gasket16F8-11181-A1
663.5F-01.01.05气缸盖Cylinder Cover16A1-11111-02-1S
67GB848平垫6Flat Pad 64
68GB5783(A4-80/10.9)六角头螺栓M6*30Hex Bolt M6*304
69BR6HS火花塞Spark Plug194702-00040
703.5F-Ⅱ-02.01.04U型支架U type bracket1
底罩

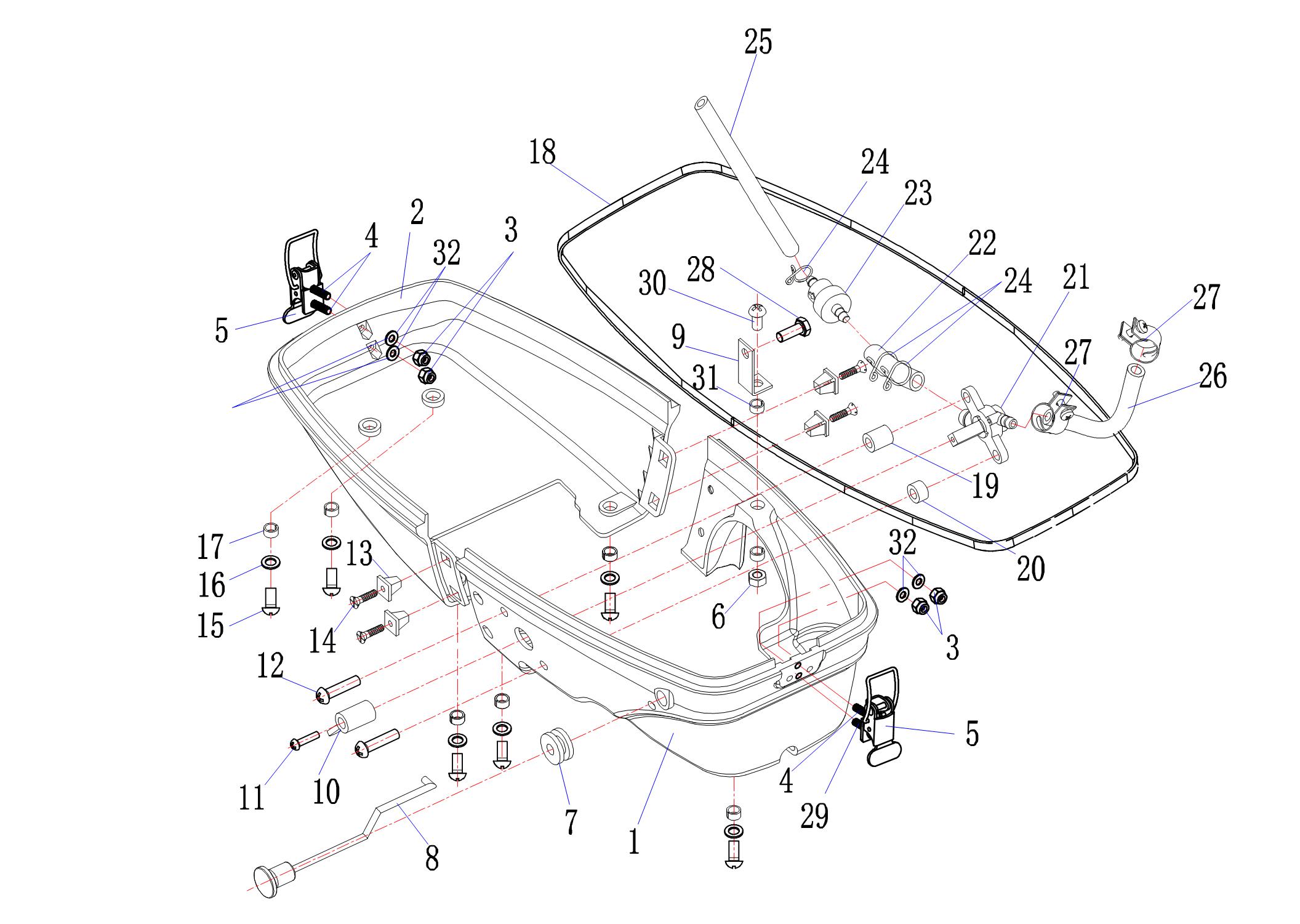

底罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
13.5F-Ⅲ-02.01.01前底罩Bottom Cowling（front）1
23.5F-Ⅲ-02.01.02后底罩bottom Cowling（rear）1
3DIN985六角尼龙锁紧螺母M4Hex Nut M44
4GB818十字槽盘头螺钉M4*16Screw M4*163
5F2.5-02.10.01.00前锁紧钩Front Lock Hook2
6GB6170六角螺母M6Hex Nut M61
79.8F-02.04阻风门拉杆护套Choke rod sheath1
83.5F-Ⅱ-07.07.00阻风门手柄Choke Handle1
93.5F-Ⅲ-02.01.03侧支架side bracket1
10F4-01.07.05.01油开关旋柄Fuel cock knob1
11GB818十字槽盘头螺钉M4*14Screw M4*141
12GB818十字槽盘头螺钉M6*25Screw M6*252
133.5F塑料铆钉(黑色)Plastic Rivets4
14GB846十字槽沉头螺钉ST4.2*16Screw ST4.2*164
15GB818十字槽盘头螺钉M6*16Screw M6*166
16GB97.1平垫6Flat Pad 66
173.5F-Ⅱ-02.01.06开口垫管Open Washer6
182.5F-02.00.00.08密封条Seal Strip2
193.5F-Ⅱ-01.04.03.03垫管（长）Pipe Pad(Long)1
203.5F-Ⅱ-01.04.03.04垫管（短）Pipe Pad(Short)1
21F4-01.07.05.00-Ⅱ油开关组件(带螺纹)Fuel Switch Assy (With1
2240F-01.07.06油管A(5*9*170)S d)1
23F4-01.07.01.05油箱滤网Fuel Filter Assy1
2415F-01.07.04管夹Φ9Pipe Clamp φ 102
25F15-01.04.00.02燃油管 (5*10*150)Fuel Hose (5*10*150)1
263.5F-Ⅱ-01.04.04.01L型放油管L type Fuel Drain Hose1
273.5F-01.04.05.00夹箍组件Clamp Assy2
28GB5783（8.8）六角头螺栓M6*16Hex Head Bolt M6*161
29GB818十字槽盘头螺钉M4*18Screw M4*181
30GB818十字槽盘头螺钉M6*12Screw M6*121
313.5F-Ⅱ-02.01.06开口垫管Open Washer1
32GB97.1平垫4Flat Pad 44
夹紧部分

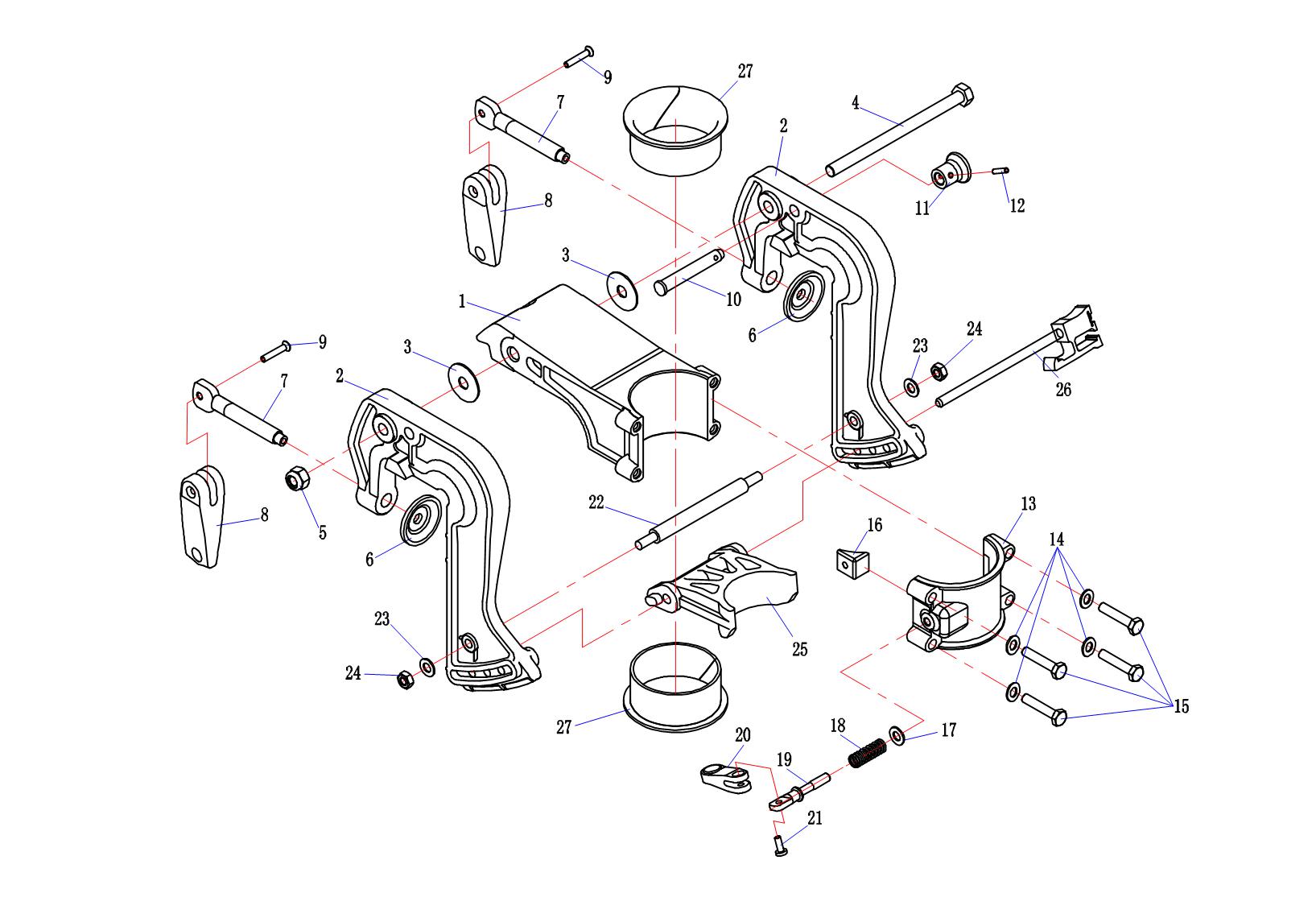

夹紧部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
13.5F-03.03.01旋转托架Swivel bracket16A1-43311-02-4D
23.5F-03.01.01托架Bracket26A1-43112-00-4D
39.8F-03.05.10大平垫Big Flat Pad290202-08022
4GB5783六角头螺栓M8*125Hex Head Bolt M8*1251
5DIN985六角尼龙锁紧螺母M8Hex Nylon locking Nut M81
615F-03.05.02.03夹紧盘Clamp plate2620-43114-00
7F4-03.01.03艉板夹紧螺栓Clamp bolt26E0-43116-01
815F-03.05.02.04夹紧手柄Clamp Handle26E0-43118-01
9GB1015沉头半空心铆钉4*22Rivet2
103.5F-03.02.01.01限位轴Limit Shaft16A1-43191-00
113.5F-03.02.01.02限位轴手柄Limit Shaft Handle16A1-43192-00
12GB879.2弹性圆柱销3*14Elastic cylindrical pin 3*141
133.5F-03.03.02旋转托架盖Swivel bracket Cover16A1-43312-00-4D
14GB97.1平垫6Flat Pad 64
15GB5783六角头螺栓M6*30Hex Head Bolt M6*304
163.5F-03.03.04锁紧压板Locking press plate1646-42528-00
17GB97.1平垫6Flat Pad 61
18F2.5-03.01.00.02压簧Press Spring190501-12272
19F2.5-03.01.00.01锁紧螺杆(带平垫5)Lock Screw(with Flad Pad 5)190122-06004
20F4-03.05.06.01锁紧手柄Locking handle1
21GB875扁平半空心铆钉4*10Rivet 4*101
223.5F-03.05双头螺栓(M6长113)Bolt Stud M6*1131
23GB848平垫6Flat Pad 62
24GB6170六角螺母M6Hex Nut M62
253.5F-03.04托架座Bracket Seat16A1-43351-00
263.5F-03.06.00角度定位件组件Tilt Angle Position Assy16A1-43371-00
273.5F-03.03.05减磨圈Reducing grinding ring2646-42537-01
水上部分

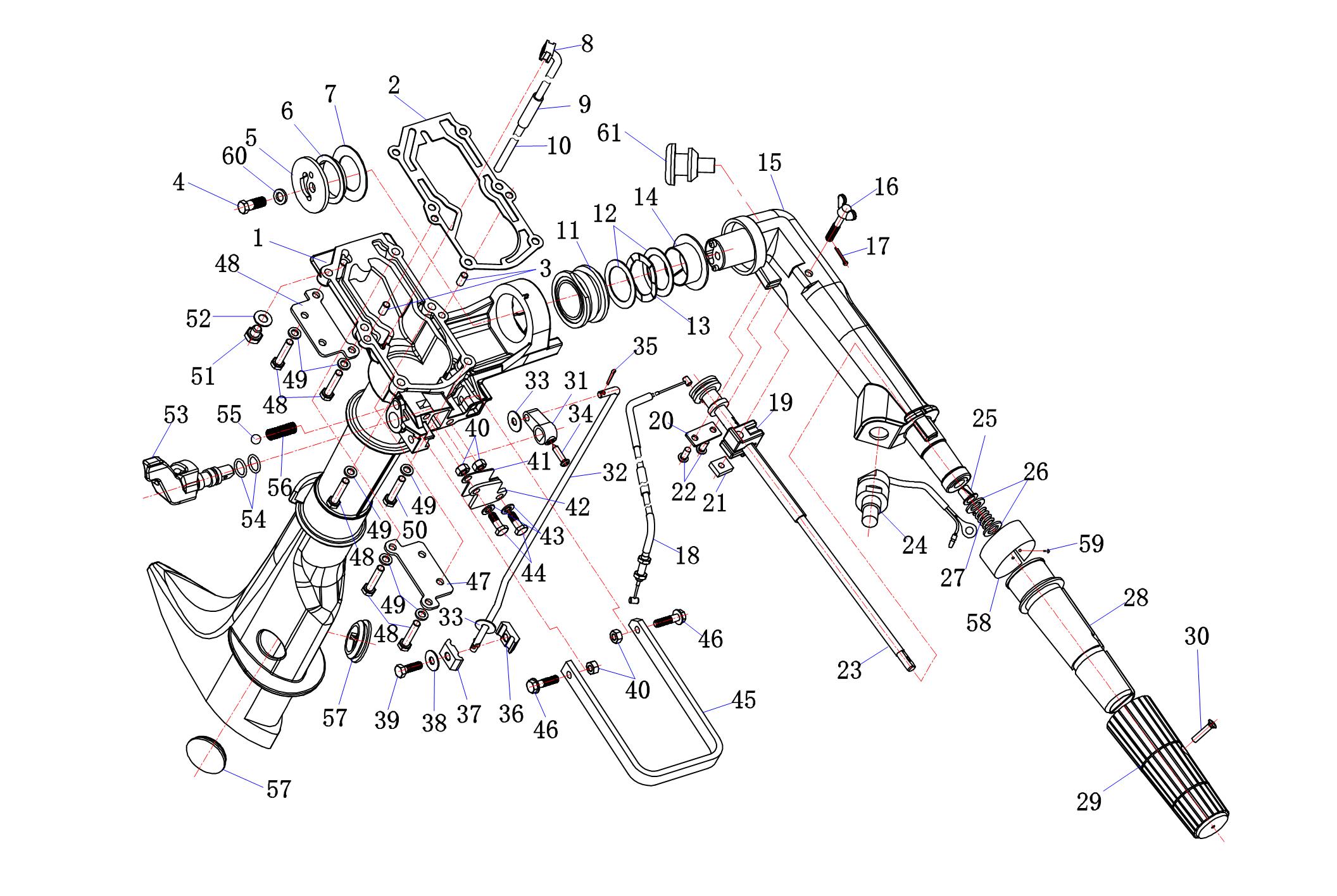

水上部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
13.5F-Ⅲ-05.01水上壳体upper casing1
23.5F-05.04机体密封垫Engine seal gasket1
315F-01.06.20定位销6*12locating pin 6*122
4GB5783六角头螺栓M8*25Hex Head Bolt M8*251
5F4-04.03操舵手柄压板Steering handle plate1
6F4-04.04减磨圈AFriction ring A1
7F4-04.05垫片AGasket A1
83.5F-05.02.02工型橡胶圈I Section Rubber Ring1
93.5F-05.02.03橡胶管(6*10*20)Rubber Hose (6*10*20)1
103.5F-Ⅲ-05.02.00水管(短轴）Water hose(short shaft)1
None3.5F-Ⅲ-05.02.00-L水管(长轴）Water hose(long shaft)1
11F4-04.01.02.00手柄减震环组件Handle damping ring Assy1
12F4-04.07垫片BGasket B2
13F4-04.08波形垫圈Wave Washer1
14F4-04.06减磨圈BFriction ring B1
15F2.5-04.00.00.02操舵手柄Steering Handle1
16F15-04.02.00.08阻力调整旋钮Friction adjusting screw1
17GB91开口销1.6*12Cotter pin 1.6*121
183.5F-Ⅲ-01.04.08.00油门钢索Throttle cable assy.1
1915F-04.07.08锁紧块locking segment1
2015F-04.07.07节气门杆压板Throttle lever plate1
21F2.5-04.00.00.05方型螺母Squar Nut1
22GB818十字槽盘头螺钉M5*12Screw M5*122
2315F-04.07.05节气门杆Throttle Lever1
2415F-04.07.03急停开关总成emergency stop switches assy1
2515F-04.07.12衬套Bushing1
26GB848平垫10Flat Pad 102
2715F-04.07.11弹簧Spring1
2815F-04.07.13手柄Handle1
2915F-04.07.14手柄橡胶套Handle Rubber sleeve1
30GB820十字槽半沉头螺钉M5*25Screw M5*251
313.5F-Ⅲ-05.05.03变档连接块link block,gear shift lever1
323.5F-Ⅲ-05.05.04上变档连杆Upper Gear Shift Lever1
33GB97.1平垫5Flat Pad 52
34GB845十字槽盘头自攻螺钉ST4.2*16Screw ST4.2* 161
35GB91开口销1.6*12Cotter pin 1.6*121
36F2.5-05.00.00.08锁紧块Blocking segment B1
37F2.5-05.00.00.07锁紧块Alocking segment A1
38GB97.1平垫6Flat Pad 61
39GB5783六角头螺栓M6*20Hex Head Bolt M6*201
40GB6170六角螺母M6Hex Nut M64
413.5F-Ⅲ-05.05.06变档手柄板垫Gear Shift Handle Pad1
423.5F-Ⅲ-05.05.05变档手柄连接块盖板Gear Shift Handle Connector c1
43GB848平垫6Flat Pad 62
44GB5783（8.8）六角头螺栓M6*16Hex Head Bolt M6*162
453.5F-Ⅲ-05.06提手Carrying Handle1
46GB5783六角头螺栓M6*25Hex Head Bolt M6*252
473.5F-Ⅱ-02.01.05底座支架Base Bracket2
48GB5783六角头螺栓M6*25Hex Head Bolt M6*255
49GB848平垫6Flat Pad 66
50GB5783六角头螺栓M6*35Hex Head Bolt M6*351
51GB818十字槽盘头螺钉M6*8Screw M6*81
5215F-06.01.04螺塞密封垫Screw Plug Gasket190430-08020-00
533.5F-Ⅲ-05.05.01变档手柄Gear Shift Handle1
543.5F-Ⅲ-05.05.02O型圈(10*2)O ring ( 10*2)1
55F4-05.03钢珠8Steel Ball 81
56F4-05.04压簧Pressure Spring1
57F4-05.01.04水上闷头Plug,upper casing2
58F2.5-04.00.00.04油门标牌Indicator,throttle1
59GB845十字槽盘头自攻螺钉 ST2.2*4.5Screw1
60GB848平垫8Flat Pad 81
6115F-02.09外接水管橡胶闷头External pipe rubber bulkhead1
水下部分

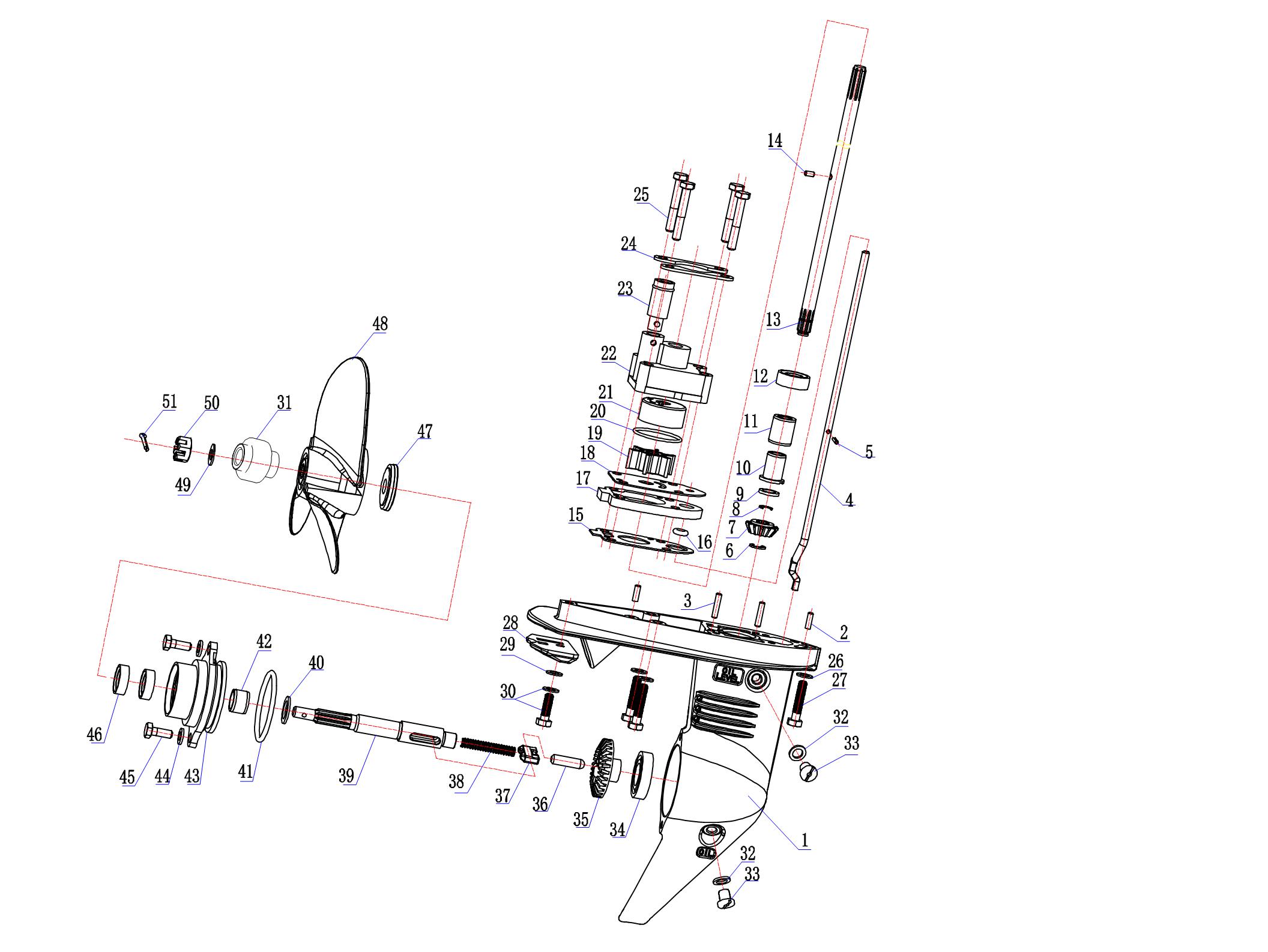

水下部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F2.5-06.00.00.08水下壳体Lower Casing169M-G5311-00-4D
215F-06.03.08定位销4*12(短轴)Cotter Pin 4*12(short shaft)293604-12M07-00
None15F-06.03.08定位销4*12(长轴)Cotter Pin 4*12(long shaft)493604-12M07-00
3F4-06.19水泵座定位销Water Pump Locating Pin293604-18080-00
4F2.5-06.00.00.20-S变档凸轮杆(短轴)Shift cam lever1
NoneF2.5-06.00.00.21-L变档凸轮杆(长轴）Shift cam lever1
5GB879弹性圆柱销2.5*14Elastic cylindrical pin 2 5*141
6GB896开口挡圈6. Circlip 6199001-06600-00
7F2.5-06.00.00.11主动轮Driving wheel1
8F2.5-06.00.00.26弹性挡圈circlip199001-06600-00
9F2.5-06.00.00.10主动轮调整片adjuster,Driving wheel16L5-45533-00-22
10F2.5-06.00.00.24水下壳体上轴套Sleeve(upper),lower casing16L5-45317-09-00
11F2.5-06.00.00.25水下壳体下轴套Sleeve(lower),lower casing16L5-45316-09-00
12F2.5-06.00.00.23油封9.8*24*9Oil Seal 9.8*24*9193103-09M41-00
133.5F-Ⅲ-06.01.12驱动轴(短轴）Drive Shaft(short shaft)169M-G5511-00-00
None3.5F-Ⅲ-06.01.12-L驱动轴(长轴）Drive Shaft(long shaft)1
14F2.5-06.00.00.16叶轮销Impeller pin1
15F2.5-06.00.00.19密封垫Seal Gasket169M-G5315-A0-00
16F2.5-06.00.00.22O型圈（4.8*3.3）O ring（4.8*3.3）193210-05001-00
17F2.5-06.00.00.18水泵座Water Pump Seat169M-G4323-00-00
18F2.5-06.00.00.17水泵垫板（镀）Water Pump Plate169M-G5321-00-94
19F2.5-06.04.00.00水泵叶轮组件Impeller Assy16L5-44352-00-00
20F2.5-06.00.00.15水泵壳体密封圈（33.4*1.Seal ring (water pump shell) （33 4*1 9）193210-33M85-00
21F2.5-06.00.00.14水泵内壳. . Water pump inner shell16L5-44322-00-00
22F2.5-06.00.00.13水泵壳体Water pump shell169M-G4311-00-00
23F4-06.21.04水管下密封圈Water hose seal ring (lower)1
24F2.5-06.00.00.12水泵壳体压板Water pump shell plate2
25GB5783六角头螺栓M6*40Hex Head bolt M6*404
26GB848平垫6Flat pad 63
27GB5783六角头螺栓M6*30(短轴)Hex Head bolt M6*303
NoneGB5782 M6*160(牙长18)六角头螺栓M6*160（长轴）Hex Head bolt M6*1803
None3.5F-Ⅲ-05.00.00.01接长体（长轴专用）connecting block1
28F4-06.02阳极BAnode B168D-G5251-00-00
29GB861.1内齿锁紧垫圈6Inner Gear Lock washer 61
30GB9074.1 (8.8)六角头螺栓和平垫组件M6*Flat pad 61
31F4-06.25.02.00螺旋桨内花键组件Propeller Internal Spine Assy1
3215F-06.01.04螺塞密封垫Seal Gasket290430-08020-00
3315F-06.01.03注油口螺塞Oiling port plug290340-08002-00
34F2.5-06.00.00.07轴承16003Bearing 16003193316-003Y0-00
35F2.5-06.00.00.06正档齿轮Forward gear1
36F2.5-06.03.00.02变档柱塞Shift plunger169M-G5635-00-00
37F2.5-06.03.00.03离合器片Dog clutch16L5-45631-00-00
38F4-06.04.02压缩弹簧Compression spring190501-10064-00
39F2.5-06.03.00.01螺旋桨轴Propeller shaft169M-G5611-00-00
40F2.5-06.00.00.05垫圈gasket190201-13198-00
41F4-06.07.03水下壳体盖O型圈(47.5*3.O ring,lower casing (47 5*3 5)193210-48214-00
42F2.5-06.00.00.03壳体盖轴套. . Lower casing cover axis sleev1
43F2.5-06.00.00.01水下壳体盖Lower casing cover169M-G5361-00-4D
44GB848平垫6Flat pad 62
45GB5783(8.8)六角头螺栓M6*16Hex Head Bolt M6*162
46F4-06.07.02油封（外径22*13*7）Oil Seal 22*13*7293101-13M12-00
47F4-06.24螺旋桨垫块Propeller pad168D-G5987-00-00
48F2.5-06.01.00.01螺旋桨(7-1/4*6)Propeller (7-1/4*6)1
NoneF2.5-06.01.00.00螺旋桨组件(7-1/4*6)Propeller Assy.16L5-45943-00-EL
49GB96平垫8Flat pad 81
50F4-06.26开槽六角螺母M8Slot Hex Nut M81
51GB91开口销2.5*20Cotter Pin 2.5*201
None3.5F-III(S)-06.00.00.0水下装置部件Lower Casing Assy1
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2GB91 2.5*20开口销cotter pin1
3F2.5-06.04.00.00水泵叶轮组件impeller Assy.16L5-44352-00-00
415F-09.01应急启动手柄emergency starting handle1
515F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
615F-01.01.22启动绳φ5*2000mmstarter rope1
73.5F-08.00.00.00工具包toolkit1
8保修保养手册(仅国内客户 用)Warranty and maintenance munal(just for Chinese client)1
