舟一会 ZHOUYIHUI 船外机

海的 40F - 40F HL(S)

共 11 个部位，点击零件编码查看详情，或搜索本页零件。

顶罩

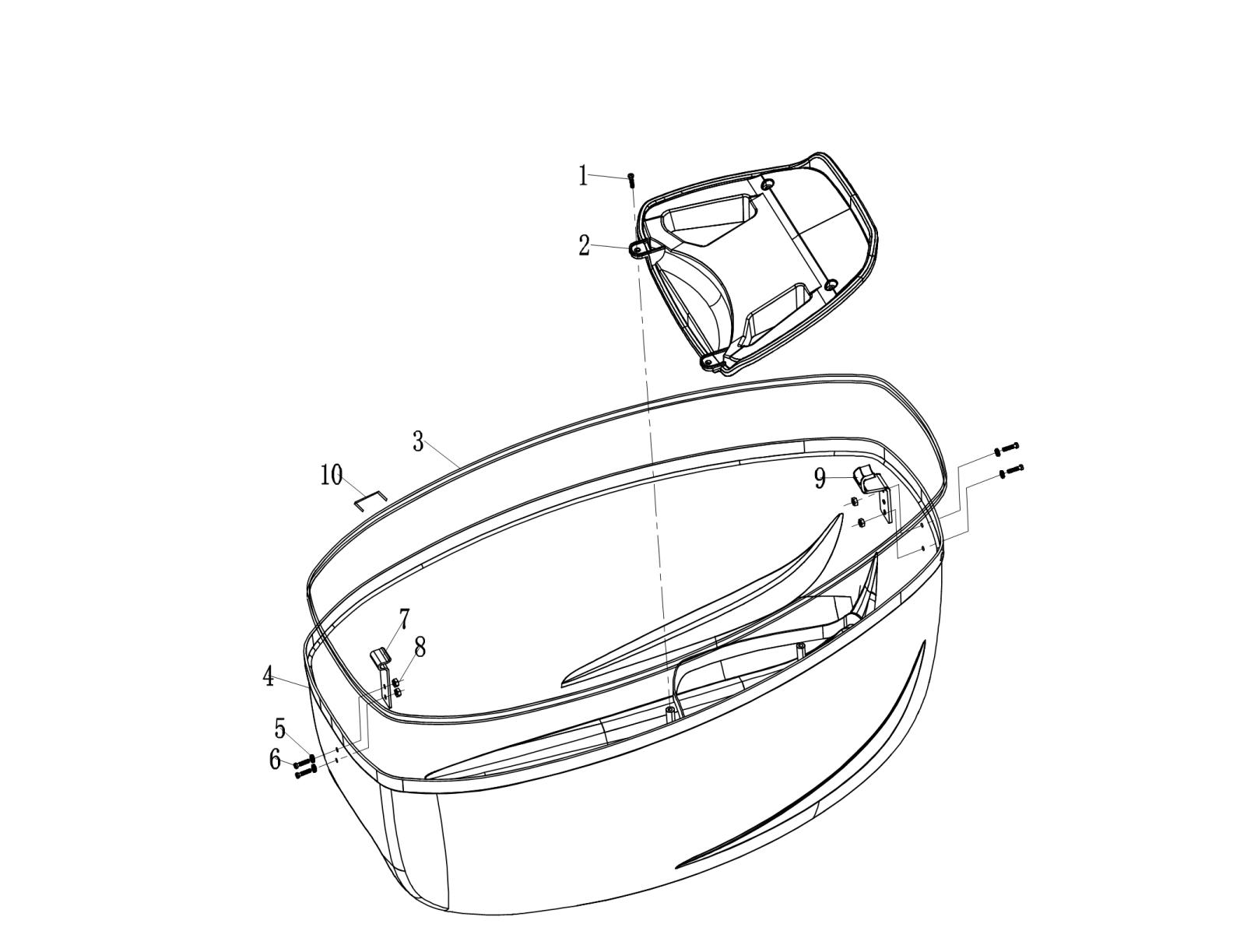

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB845十字槽盘头自攻螺钉ST4.2*13Cross recessed pan head tapping screws4
240F进气口盖Air inlet cover166T-11400-01
340F-07.00.00.02橡胶密封条Rubber sealing strip1
440F顶罩Top cowling166T-11400-01
5GB96平垫4Flat gasket490119-06M65
6GB818十字槽盘头螺钉M4*16Pan head screw with cross recess497802-04006
7F15-07.00.00.06前锁紧钩Lock Hook(front)1
8DIN985六角尼龙锁紧螺母M4Hexagonal nut490185-08045
940F-07.00.00.04后锁紧钩Rear lock hook1
1015F-07.07装帧订Bingding nail10
None40F-07.00.00.00顶罩装配部件Top cowling assy.1
启动罩

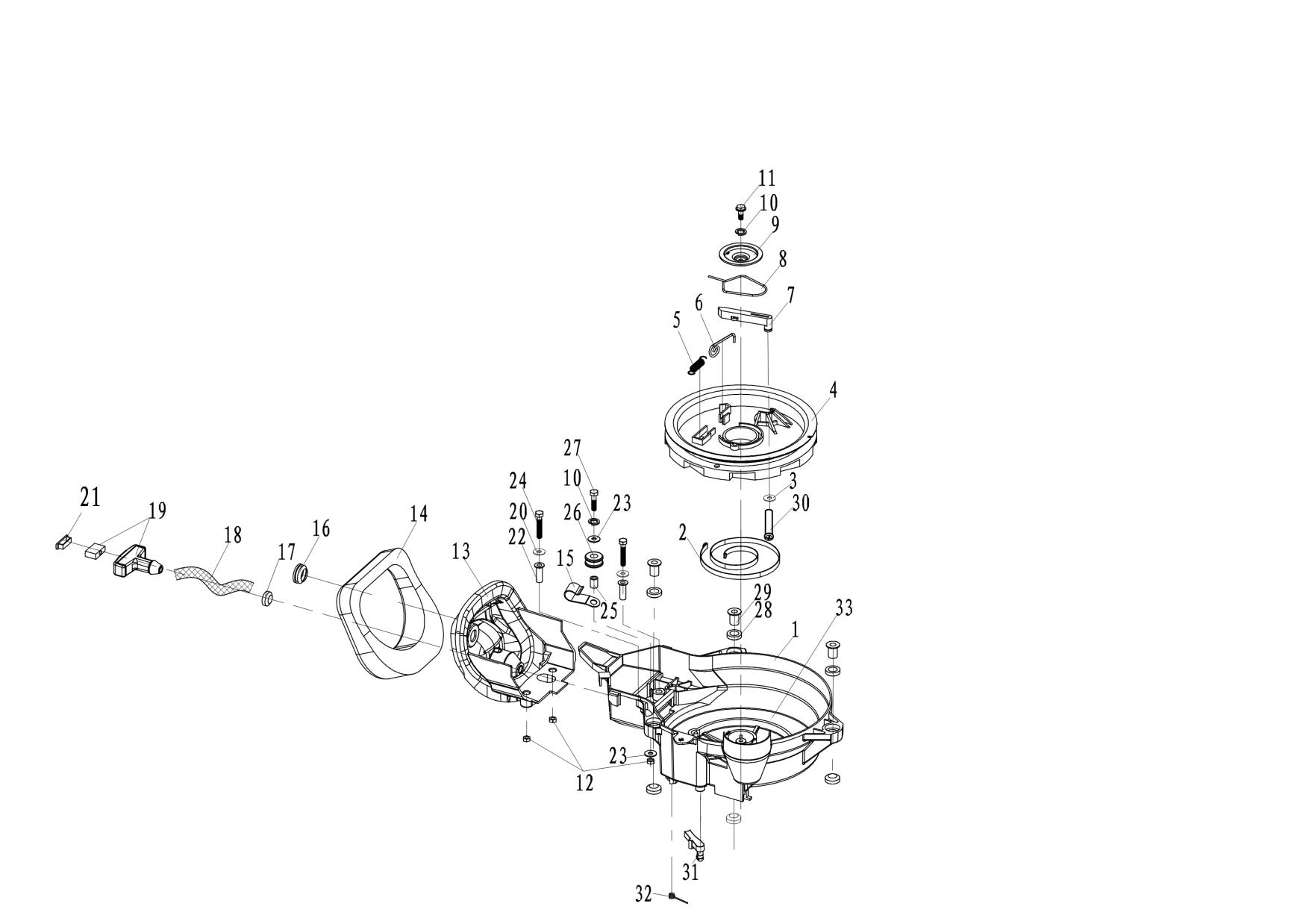

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-01.01.01.01启动罩外壳Casing,Starter cover assy.166T-15711-00
240F-01.01.08涡形弹簧Volute spring16F5-15713-01
340F-01.01.21驱动臂垫片gasket,Drive arm163V-15744-00
440F-01.01.06启动轮Start wheel166T-15714-00
540F-01.01.10回位弹簧Return spring166T-15784-00
640F-01.01.09卡瓣弹簧Spring166T-15767-00
7F25-01.01.00.02驱动臂Drive arm163V-15741-00
840F-01.01.12压板夹簧Clip spring166T-15705-00
940F-01.01.11启动压板Starter plate166T-15716-00
10GB93弹垫M6Washer297902-06125
11GB5783（8.8）六角头螺栓M6*16Bolt197095-06014
12DIN985六角尼龙锁紧螺母M6hexagon nylon lock nut390185-08045
1340F-01.01.02.00启动绳导向器组件Guide comp.,start rope166T-15758-01
1440F-01.01.02.04托架减震套Damper,bracket166T-15762-01
15F15-01.03.00.42通气管固定夹Bfix clip,air breather tube190465-06M86
1640F-01.01.02.03橡胶闷头Rubber plug1
1740F-01.01.19手柄减震圈Shock ring,handle16A0-15789-00
1815F-01.01.22启动绳φ5*2000mmStart rope1
1940F-01.01.18启动手柄Starter handle1338-05019-0
20GB97.1平垫M6Flat gasket292995-06600
2140F-01.01.16手柄盖Starter Handle cover1338-05013-0
2240F-01.01.02.02带肩垫管Shoulder pad tube290387-06M66
23GB96平垫M6Flat gasket290119-06M65
24GB5783六角头螺栓M6*35Hex Head Bolt M6*35297095-06040
2540F-01.01.01.05卷轴垫管bushing16F5-15753-00
2640F-01.01.01.04启动轮卷轴scroll,start wheel165F-15752-00
27GB5783六角头螺栓M6*45Hexagonal bolt M6*45197095-06040
2840F-01.01.14减震圈Damper690385-12M04
2940F-01.01.13带肩垫管Shoulder pad tube390387-08M51
动力部分

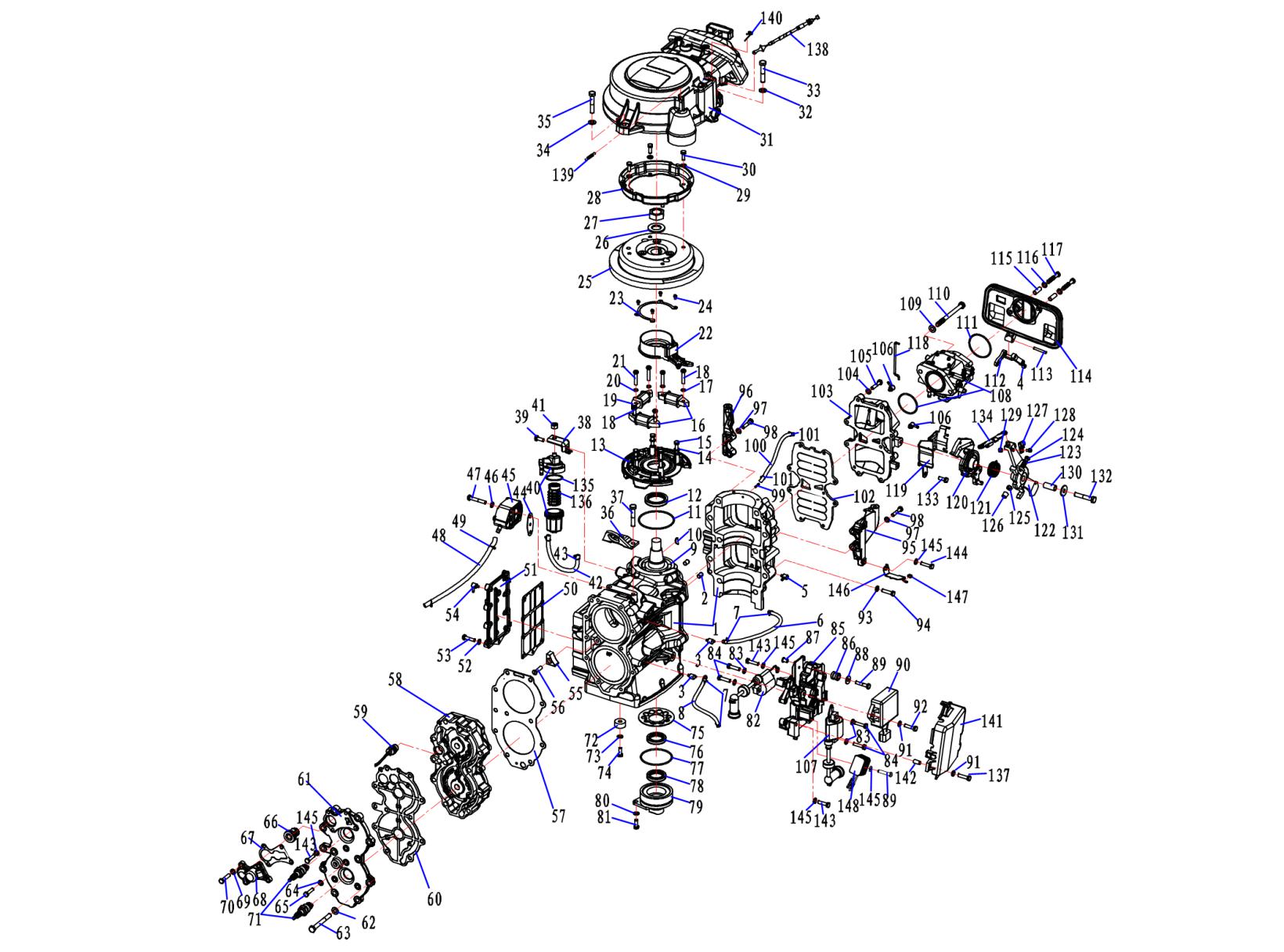

动力部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-01.06.01.01箱体组件（含箱盖）Crankcase comp.(with crankcase cover)166T-15100-02-1S
140F-01.06.03.01箱盖（清洗）1
240F-01.06.00.25定位销8*12Dowel pin293608-12063
340F-01.06.01.03气管圆接头Joint,Breather pipe26E5-13552-01
415F-01.02.07阻风门连杆接头Linkage connector1661-41262-02
515F-01.06.03气管圆接头AJoint,air breather tube16E5-13552-01
640F-01.06.00.04气管（长）(3*7*290)Breather pipe（long）190445-07M08
7管夹φ7Clamp490467-08004
840F-01.06.00.05气管（短）(3*7*215)Breather pipe（short）1
940F曲柄连杆活塞组件Crank connecting rod comp.166T-11400-01
1040F-01.03.03半圆键Woodruff key190280-05015
1140F-01.03.08.02O型密封圈Sealing O-ring193210-75M51
1240F-01.03.08.01油封(35*50*8)Oil seal193102-35008
1340F-01.03.08.00磁电极座总成Magneto seat166T-85561-00
14GB97.1平垫6Flat gasket492995-06600
15GB5783六角头螺栓M6*40Bolt497095-06040
1640F-01.03.04充电线圈Charging coil166T-85520-00
17GB93弹垫M6Washer497902-06125
18GB823十字槽小盘头螺钉M6*25Pan head screw with cross recess497902-06125
1940F-01.03.26照明线圈Lighting coil166T-85533-00
20GB93弹垫M6Washer297902-06125
21GB823十字槽小盘头螺钉M6*30Pan head screw with cross recess297902-06125
2240F-01.03.08.03触发器及安装架组件Pulser bracket166T-85580-00
2340F-01.03.07磁电极压板Magneto plate166T-41611-00
24GB818十字槽盘头螺钉M4*6Pan head screw with cross recess497802-04006
2540F-01.03.01.00飞轮组件Flying wheel166T-85550-00
26GB97.1平垫20Flat gasket190201-21M18
2740F-01.03.02飞轮螺母Flywheel nut190170-20137
2840F-01.01.15启动毂Starter pulley166T-15762-01
29GB97.1平垫6Flat gasket492995-06600
30GB5783六角头螺栓M6*10Bolt497095-06010
3140F-01.01.01.00启动罩组件Recoil starter assy.166T-15710-00
32GB97.1平垫8Flat gasket290385-12M04
33GB5783六角头螺栓M8*35Bolt290119-08M10
34GB97.1平垫8Flat gasket190385-12M04
35GB5783六角头螺栓M8*25Bolt190119-08M51
3640F-01.06.00.01启动罩后支架Bracket(rear),Starter cover assy.1
37GB5783六角头螺栓M8*20Bolt297095-06040
3840F-01.07.07燃油滤清器支架Bracket,fuel filter1648-24566-02
39GB5783六角头螺栓M6*12Bolt197013-06014
4015F-01.07.05.05燃油滤清器(外壳)Fuel filter comp.161N-24560-00
41GB6170六角螺母M8Bolt195380-08600
4240F-01.07.06油管A(5*9*170)Fuel hose A190445-09M08
43管夹φ9Hose clip290467-08004
4440F-01.07.05燃油泵垫片Fuel pump washer1650-24431-A0
4540F-01.07.04.00燃油泵组件(TK)(Y3A-3B)Fuel pump assy.1692-24410-00
46GB97.1平垫6Flat gasket292995-06600
47GB5783六角头螺栓M6*40Bolt297095-06040
4840F-01.07.06油管A(5*9*170)Fuel hose A190445-09086
49管夹φ9Hose clip290467-08004
5040F-01.06.00.10排水盖密封垫seal gasket,exhaust166T-41114-A0
5140F-01.06.00.08排水盖Cover,exhaust166T-41113-00-1S
52GB97.1平垫6Flat gasket990119-06MA3
53GB5783六角头螺栓M6*25Bolt997095-06040
5415F-01.06.10水管圆接头joint,hose1676-11372-00
5540F-01.06.00.20机体阳极Anode1676-11325-00
56GB820十字槽半沉头螺钉M6*25Pan head screw with cross recess190141-06M00
5740F-01.06.00.16气缸垫Cylinder gasket166T-11181-A2
5840F-01.06.00.15气缸盖Cylinder cover166T-11111-01-1S
5940F-01.06.00.17温控传感器组件Temperature sensor comp.1
6040F-01.06.00.19气缸外盖密封垫Gasket,Cylinder outer cover166T-11193-A2
6140F-01.06.00.18气缸外盖Outer cover,Cylinder166T-11191-00-1S
62GB97.1平垫8Flat gasket1190119-08MA5
63GB5782（A4-80)六角头螺栓M8*70Bolt11
64GB97.1平垫6Flat gasket490119-06MA3
65GB5783六角头螺栓M6*25Bolt497095-06040
6615F-01.06.14-节温器(50°)Thermostat 50°16E5-12411-02
6740F-01.06.00.13节温器垫Thermostat Gasket1676-12414-A1
6840F-01.06.00.14节温器盖Thermostat cap1676-12413-00-1S
69GB97.1平垫M6Flat gasket490119-06MA5
70GB5783六角头螺栓M6*35Bolt497095-06040
71BR7HS火花塞Spark plug294702-00272
7240F-01.06.00.11排水阳极Anode,water outlet1676-45251-00
73GB848平垫6Flat gasket192995-06600
74GB5783六角头螺栓M6*20Bolt197095-06020
7540F-01.06.00.26轴承盖板Cap,bearing166T-11565-00
7640F-01.06.00.22油封30*42*6Oil seal293102-30M56
7740F-01.06.00.24油封壳体O型圈O ring,Oil seal casing193210-65M50
7840F-01.06.00.23油封16*30*6Oil seal293101-16001
7940F-01.06.00.21油封壳体Casing,oil seal166T-15396-01-94
80GB97.1平垫6Flat gasket192995-06600
81GB5783六角头螺栓M6*20Bolt197095-06020
8240F-01.03.25高压包(白/黑-旧状态黄线Ignition coil166T-85570-00
83GB97.1平垫6Flat gasket492995-06600
84GB5783六角头螺栓M6*25Bolt497095-06025
8540F-01.03.21控制器支架Bracket166T-8554B-01-94
8640F-01.03.23减震圈Damper36A0-82317-00
8740F-01.03.22带肩垫管Shoulder pad tube390387-06119
88GB96平垫6Flat gasket290119-06M65
89GB5783六角头螺栓M6*30Bolt397095-06040
9040F-01.03.20点火控制器CDI166T-85540-00
91GB97.1平垫6Flat gasket390109-06M81
92GB5783六角头螺栓M6*25Bolt297095-06040
93GB848平垫10Flat gasket1092995-06600
94GB5783六角头螺栓M10*55(A4-80Bolt1097095-06040
9540F-01.06.00.02起动罩左支架Bracket(L),Starter cover assy.166T-15772-00-94
9640F-01.06.00.03起动罩右支架Bracket(R),Starter cover assy.166T-15771-00-94
97GB97.1平垫6Flat gasket492995-06600
98GB5783六角头螺栓M6*30Bolt497095-06040
9915F-01.06.21气管圆接头BJoint,air breather tube1624-14485-00
10040F-01.06.00.07油管(3*7*250)Fuel hose1
101管夹φ7Clamp290467-08004
10240F-01.06.02.00进气阀组件Air intake valve assy166T-13610-00
10340F-01.06.00.12进气歧管Air intake manifold166T-13641-02-1S
104GB97.1平垫6Flat gasket892903-06600
105GB5783六角头螺栓M6*35Bolt897013-06035
10615F-01.06.03气管圆接头AJoint,air breather tube2650-11372-01
10740F-01.03.25高压包(棕/黑-旧状态绿线Ignition coil166T-85570-00
10840F-01.02.02.00化油器组件Carburetor166T-14301-02
109GB97.1平垫8Flat gasket290119-08M03
110GB5783六角头螺栓M8*100Bolt290119-08M03
11140F-01.02.00.01O型圈（进）(53*2.4)O-ring(inlet)193210-54M54
11240F-01.02.00.04阻风门摇臂Rocker arm,chock166T-41252-00
113GB879.2弹性圆柱销4*32Cylindrical pin191690-40032
11440F-01.02.01.00进气消音器组件Air intake silencer166T-14440-00
11540F-01.02.00.02垫管Cushion tube290387-06M80
116GB97.1平垫6Flat gasket292995-06600
117GB818十字槽盘头螺钉M6*40Pan head bolt with cross recess297885-06040
11840F-01.02.00.03阻风门连杆（长）Lever,chock166T-41256-00
11940F-01.04.01油门钢索支架Holder,throttle cable166T-14497-00
12040F-01.04.04滑动座sheave support166T-41638-00
12140F-01.04.05扭簧Torsional spring166T-42167-00
12240F-01.04.06磁电机控制杠杆control linkage,Magneto166T-41631-01
12340F-01.04.07压缩弹簧Compression spring190501-10M84
124GB818十字槽盘头螺钉M6*40Pan head bolt with cross recess197880-06035
125GB6172六角薄螺母M6Hexagonal nut195380-06700
12640F-01.04.08螺纹盖Thread cap1688-44194-00
12740F-01.03.08.07固线卡Wire fixer1
128GB818十字槽盘头螺钉M5*8Pan head screw with cross recess197802-04006
129GB6170六角头螺母M5Cross-recessed nut195380-08600
13040F-01.04.03衬套Bushing190387-08M16
131GB96平垫8Flat gasket190201-08M54
132GB5783六角头螺栓M8*45Bolt197095-08045
133GB5783（8.8）六角头螺栓M6*16Bolt197095-06014
13440F-01.03.08.09连杆Lever166T-41237-00
13515F-01.07.05.06过滤器O型密封圈O ring193210-32738
13615F-01.07.05.04过滤器滤芯filter,fuel filter161n-24563-00
137GB5783六角头螺栓M6*20Bolt197095-06040
13840F-01.01.05制动器钢索组件Brake cable comp.166T-15770-00
139F15-01.07.00.05钢索拉簧Spring166T-15731-00
140F15-01.07.00.03制动器扭簧Torsional spring,brake166T-15734-00
14140F-01.03.05电器盖Electric parts cover166T-81916-01
14240F-01.03.06垫管Cushion tube1
143GB5783六角头螺栓M6*12Bolt397095-06040
144GB5783六角头螺栓M6*16Bolt197095-06040
145GB97.1平垫6Flat gasket592995-06600
14640F-01.03.18支架Holder1
14740F-01.03.08.08开口橡胶圈Rubber ring1
14840FE-01.03.10整流器Rectifier16G1-81970-62
曲轴部分

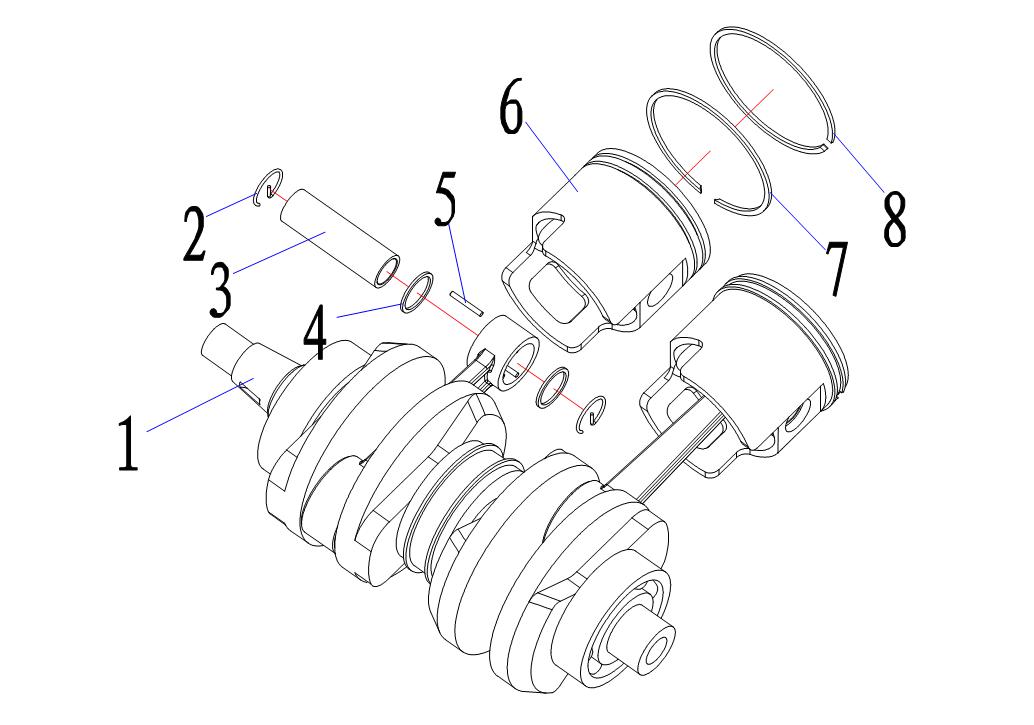

曲轴部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-01.06.05.00曲柄连杆组件Crank connecting rod comp.166T-11400-01
240F-01.06.04.03活塞销卡簧Circlip4663-11634-00
340F-01.06.04.02活塞销Pin,piston26F5-11633-00
440F-01.06.04.05滚针盖板Needle bearing plate490201-20417
540F-01.06.04.04密排滚针Bolt5693603-21111
640F-01.06.04.01活塞Piston266T-11631-01-93
740F-01.06.04.07第二道活塞环the second piston ring266T-11603-00
底座

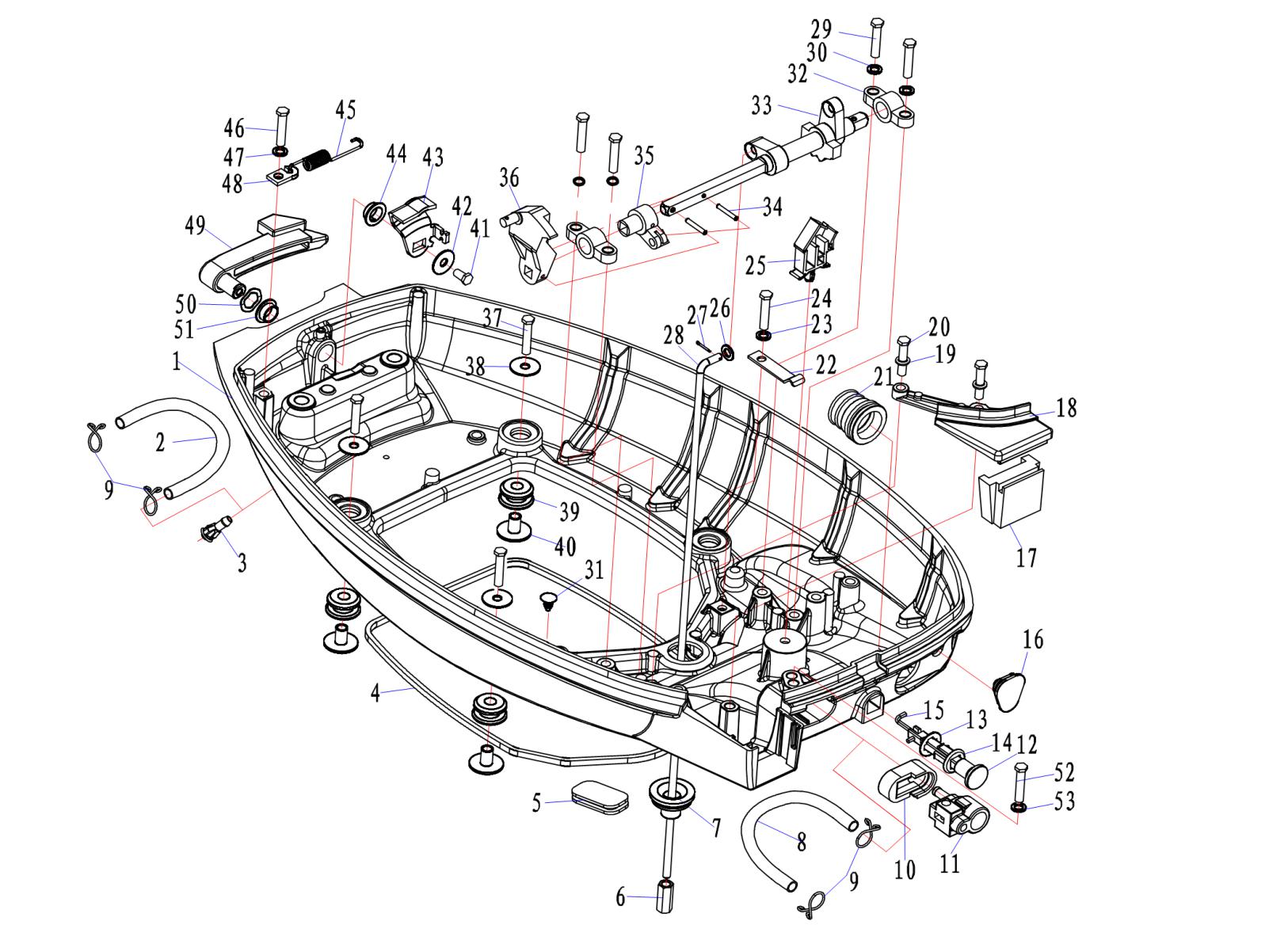

底座 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-02.00.00.01底罩Bottom cowling166T-42710-01-4D
240F-01.06.00.06水管(5*9*375)Hose1
315F-02.11塑料水嘴Water nozzle16E5-44391-00
440F-02.00.00.07橡胶减震圈rubber damper166T-42716-00
5F9.9-02.00.00.15长方形橡胶闷头rubber Plug16H4-42726-00
615F-06.04.05柱状螺母Column nut161N-44146-00
740F-02.00.00.02变档连杆橡胶护套Shift lever rubber sleeve1676-42727-00
840F-01.07.09燃油管B(5*9*550)Fuel hose B190445-09M08
9管夹φ9Hose clip490467-08004
1040F-01.07.10橡胶套Rubber sleeve166T-24329-00
1115F-01.07.01.00燃油管插头组件Fuel hose joint assy.16G1-24304-02
1215F-02.02阻风门拉杆Pull rod,choke16H4-41271-01
1315F-02.04橡胶垫Rubber washer16J8-41274-00
1415F-02.03阻风门拉杆护套Protecting bush,choke1689-41273-00
1540F-01.02.00.05阻风门连杆（短）Pull rod,choke166T-41257-00
16F15-02.00.00.12钢索护套Protecting sleeve,steel cable165W-26326-00
1740F-02.00.00.06方形橡胶闷头Rubber plug166T-42725-00
1840F-02.00.00.05小盖板cover Plate166T-42738-00-5B
19GB97.1平垫6Flat gasket290109-06M81
20GB5783六角头螺栓M6*25Bolt297095-06040
21F15-02.00.00.15手柄连杆橡胶减震圈Rubber shock ring,handle connceting r165W-42726-00
2240F-02.00.00.09变档限位弹簧板Shift limit plate1682-44116-01
23GB97.1平垫6Flat gasket192995-06600
24GB5783六角头螺栓M6*16Bolt197095-06040
2515F-02.06油门钢索固定夹Fixer,Throttle cable190465-25M57
26GB97.1平垫6Flat gasket192995-06600
27GB91开口销1.6*12Cotter pin191490-16012
2840F-02.00.00.10-S上变档杆(S)Shift lever(upper,S)166T-44143-00
None40F-02.00.00.10-L上变档杆(L)Shift lever(upper, L )1
29GB5783六角头螺栓M6*25Bolt497095-06040
30GB97.1平垫6Flat gasket492995-06600
3140F-02.00.00.08螺纹塞Thread plug1
32F15-02.00.00.07托架Bracket26F5-41662-00
3340F-02.01.00.03变档杠杆固定架Shift lever fixer166T-44121-00
34GB879.2弹性圆柱销3*20Cylindrical pin290254-03M05
35F15-02.01.00.01钢索端套Cable end sleeve166M-44122-00
3640F-02.01.00.01变档杆摇臂Shift r lever rocker166T-44125-01
37GB5783六角头螺栓M6*30Bolt490119-06M61
38GB5287平垫6Flat gasket4
3940F-02.00.00.03橡胶减震垫Rubber damper490480-09M21
4040F-02.00.00.04减震垫衬管bushing,damper490387-06035
41GB5783六角头螺栓M6*12Bolt190119-06M73
42GB96.1平垫6Flat gasket1
4340F-02.02.00.05锁紧块Latch segment166T-42816-00
4440F-02.02.00.04垫圈BWasher190386-12M37
4540F-02.02.00.06锁紧块拉簧Tension spring,latch segment190506-16M34
46GB5783六角头螺栓M6*20Bolt190109-06M86
47GB97.1平垫6Flat gasket192995-06600
4840F-02.02.00.07拉簧钩Spring hook166T-43144-00
4940F-02.02.00.00锁紧手柄组件Lock handle comp.166T-42815-01-4D
5040F-02.02.00.02波形垫片Wave washer190206-12052
5140F-02.02.00.03垫圈AWasher190386-12MA2
52GB5783六角头螺栓M6*25Bolt197095-06040
53GB97.1平垫6Flat gasket192995-06600
水上部分

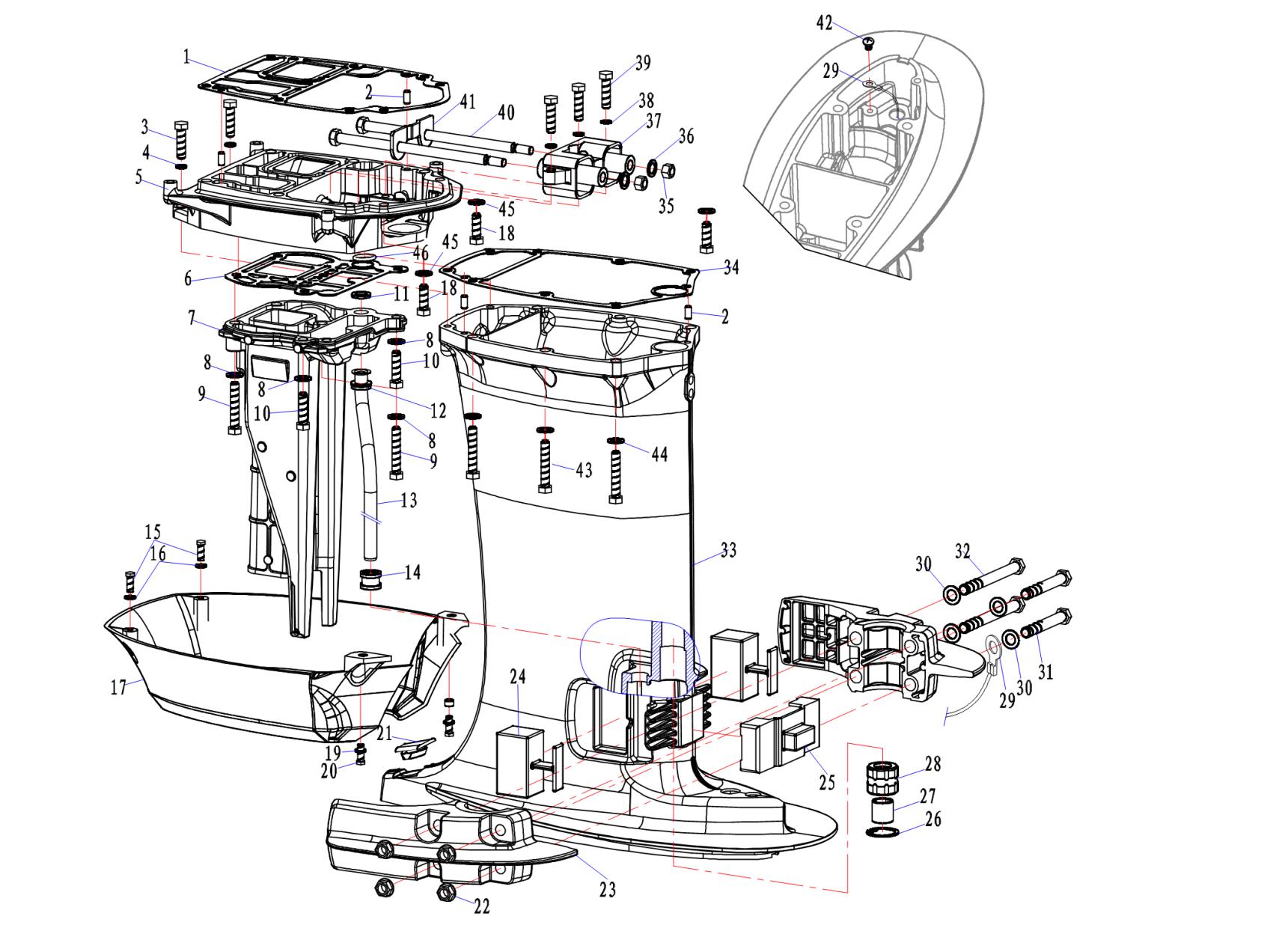

水上部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-05.00.00.10机体座密封垫Gasekt166T-45113-A0
215F-01.06.20定位销6*12Dowel pin493606-12019
3GB5783六角头螺栓M8*30Bolt290119-08M79
4GB93弹垫圈M8Spring washer297902-06125
540F-05.00.00.17机体底座Engine base166T-41137-00-5B
640F-05.00.00.12排气管密封垫Cover gasket,exhaust pipe166T-41133-A0
740F-05.00.00.11排气管Exhaust pipe166T-41131-00-5B
8GB97.1平垫8Flat gasket592995-08600
9GB5783六角头螺栓M8*45Bolt397075-08030
10GB5783六角头螺栓M8*30Bolt297575-08545
1140F-05.00.00.15水管衬圈Bushing ，hose1676--42727-00
1240F-05.00.00.14水管密封圈Seal ring,hose190202-12060
1340F-05.00.00.13-S水管（短轴）Hose (S)166T-44361-00
None40F-05.00.00.13-L水管（长）Hose ( L )1
1440F-05.00.00.16水管下密封圈Seal ring(lower),hose1663-44367-00
15GB5783六角头螺栓M6*16Bolt297095-06016
16GB97.1平垫6Flat gasket292995-06600
1740F-02.00.00.11装饰罩Decoration cover166T-42741-00
18GB5783六角头螺栓M8*30Bolt297095-06040
19GB97.1平垫6Flat gasket292995-06600
20GB5783六角头螺栓M6*16Bolt297095-06040
2140F-05.00.00.02阳极堵塞Plug,Anode163D-45155-00
22GB6177六角头法兰螺母M10Flange bolt490179-10M33
2340F-00.01减震器外壳Damper housing265W-44551-00-4D
2440F-00.02减震块ADamper A265W-44555-10
2540F-02.03减震块BDamper B166T-44575-00
26GB893.1孔用弹性挡圈Φ30Hole collar197075-08030
2740F-05.00.00.05定位套Location bushing166T-44526-00
2840F-05.00.00.06橡胶套Rubber ring1
2940F-03.07.10钢索连接组件cable connector Comp.166T-82127-10
30GB848平垫10Flat gasket490201-10120
31GB5783六角头螺栓M10*70(A4-80)Bolt297075-10070
32GB5783六角头螺栓M10*100(A4-80)Bolt290119-10M04
3340F-05.00.00.01-S水上壳体(短轴）Upper casing(S)166T-45111-00-4D
None40F-05.00.00.01-L水上壳体(长)Upper casing( L )1
3440F-05.00.00.18水上密封垫Seal Gasket,upper casing166T-45114-A0
35DIN985六角尼龙锁紧螺母M8Hexagon Locknut290185-08045
36GB97.1平垫8Flat gasket292995-08200
3740F-05.01.00.00双孔减震器组件Mount Damper(upper) comp.166T-44514-00-4D
38GB93弹垫8Spring washer392995-08100
39GB5783六角头螺栓M8*30Bolt397075-08030
4040F-05.00.00.07六角头长螺栓Bolt290101-08M86
4140F-05.00.00.08双孔减震器压板Dead plate,mount damper(upper)166T-44526-00
42GB818十字槽盘头螺钉M6*8Pan head bolt with cross recess197802-04006
43GB5783六角头螺栓M8*80Bolt697095-06040
44GB97.1平垫8Flat gasket692995-06600
45GB93弹垫8Spring washer297902-06125
46F2.5-01.04.02.04O形圈(13*2.4)O Ring1
托架

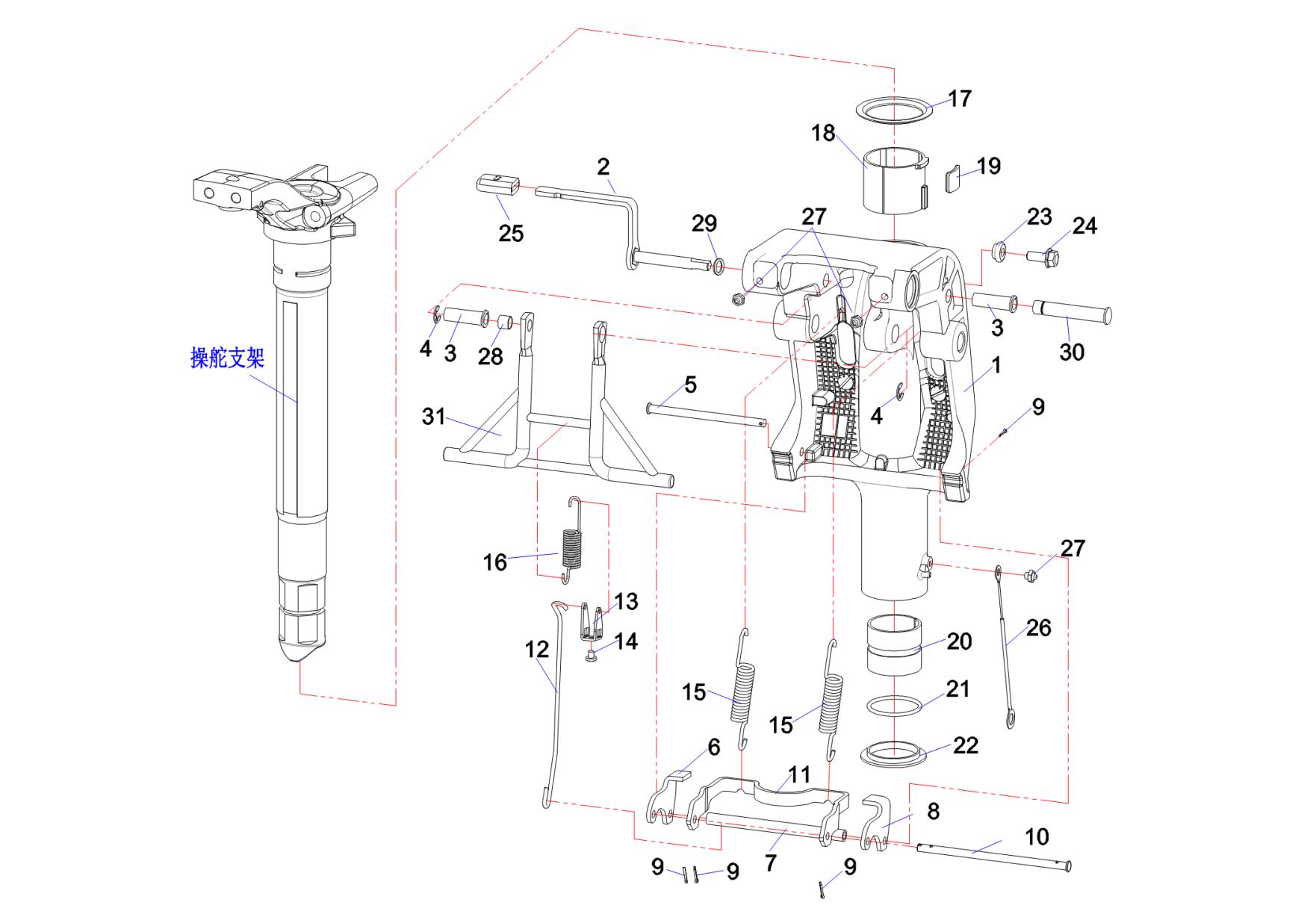

托架 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-03.07.01-S旋转托架(S）Swivel bracket(S)165W-43311-00-4D
None40F-03.07.01-L旋转托架(L)Swivel bracket( L )1
240F-03.07.11.00操纵杠杆组件Lever comp.,Steering165W-43630-11
340F-03.07.11.04销轴套Sleeve,Axis pin290386-10M99
4GB896开口挡圈8Circlip293430-10M00
540F-03.07.11.11支撑架固定轴Fixing axis,support frame190249-07M32
640F-03.07.11.08左外支架Outer bracket(LH)165W-43614-01
740F-03.07.11.12支撑架套管Sleeve,support frame190387-07M29
840F-03.07.11.09右外支架Bracket(RH&Outer)165W-43615-01
9GB91开口销1.6*12Cotter pin491490-20012
1040F-03.07.11.10支撑架销轴Pin roll,support frame190101-08M76
1140F-03.07.11.07内支架Arm,tilt lock165W-43613-00
1240F-03.07.11.06角度定位锁杆angle loction rod165W-43616-00
13F25-03.00.01.04角度定位件Angle fixer166T-43631-11
14GB818十字槽盘头螺钉M5*6Pan head screw with cross recess190157-05014
1540F-03.07.11.13拉簧Sping290506-30M00
16F25-03.00.01.05定位弹簧Position spring190506-20M37
1740F-03.07.03衬圈ring gasket190209-52M00
1840F-03.07.04锁紧圈Lock washer190386-52M02
1940F-03.07.05锁紧圈摩擦片Friction plate,Locking1648-42528-00
2040F-03.07.07下衬套bushing (bottom)190386-44M03
2140F-03.07.08O型橡胶圈(42.6*3.2)Rubber ring193210-43MJ0
2240F-03.07.09下衬圈Lower bushing190386-44M99
2340F-03.07.06锁紧螺栓密封垫Gasket165W-43373-00
24GB9074.1（8.8）六角头螺栓和平垫组件M8*2Flange bolt190105-08M76
2515F-03.09.12.01橡塑套Rubber sleeve1682-43318-01
2640F-03.07.10钢索连接组件Connection assy，Cable166T-82127-00
27JB7940.1直通式压注油杯Oil cup3
28F25-03.00.01.02套圈Sleeve1
29GB848平垫12Flat gasket190386-07MA2
30F25-03.00.01.03定位销轴Dowel pin axis190249-10M31
31F25-03.00.01.06定位支架location bracket166T-43350-02
操舵部分

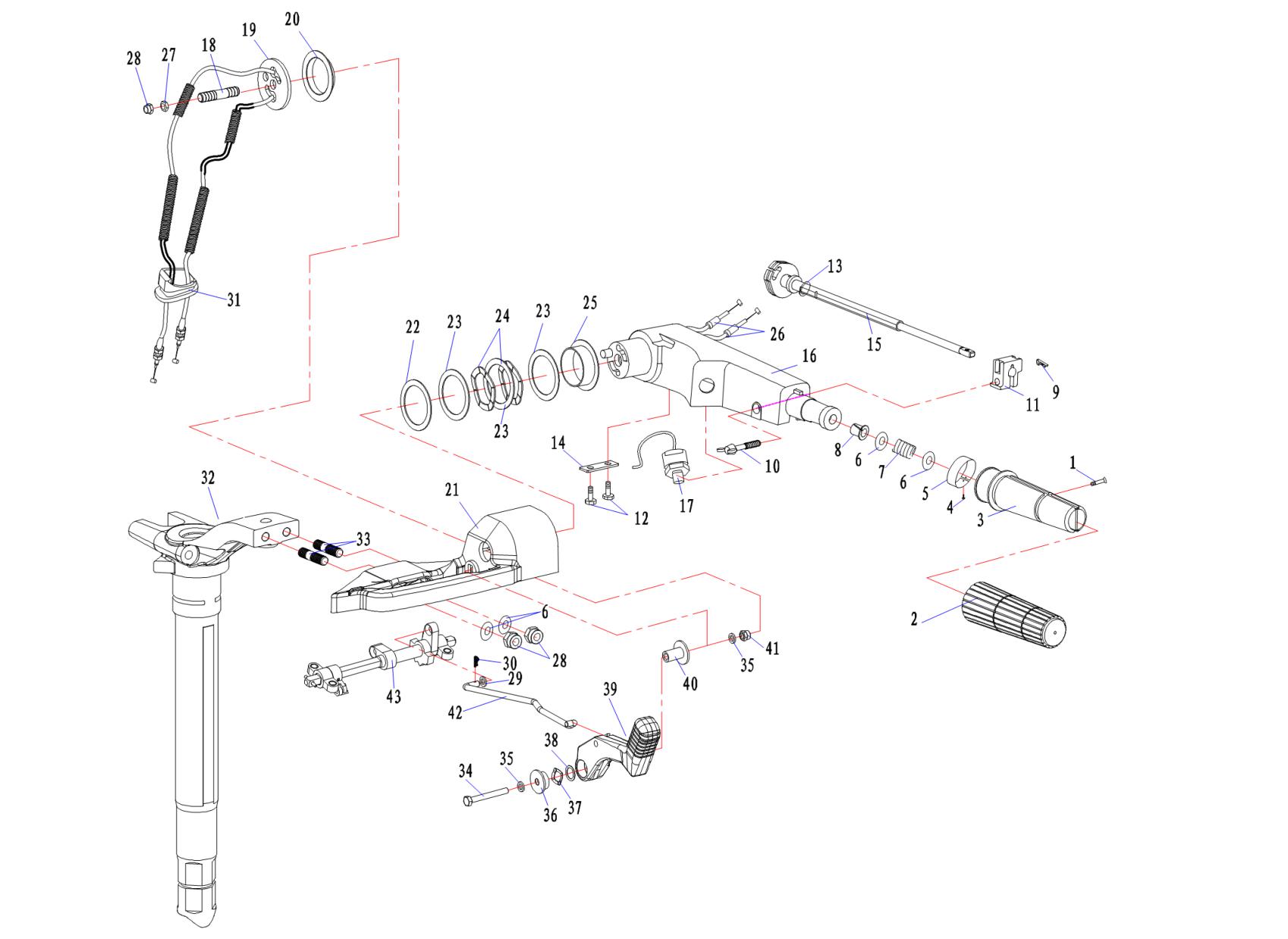

操舵部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB820十字槽半沉头螺钉M5*25Cross recessed countersunk head screw190149-05M13
215F-04.07.14手柄橡胶套Rubber sleeve,Handle16F6-42177-A0
315F-04.07.13手柄Handle1664-42119-00
4GB845十字槽盘头自攻螺钉ST2.2*4.5Screw190269-02M09
5F2.5-04.00.00.04油门标牌Indicator,throttle16G1-42137-10
6GB848平垫10Flat gasket492903-10600
715F-04.07.11弹簧Spring190501-23215
815F-04.07.12衬套Bushing190386-08032
9GB91开口销1.6*12Cotter pin191490-20010
10F15-04.02.00.08阻力调整旋钮Friction adjusting screw165W-42125-00
1115F-04.07.08锁紧块Latch segment16G1-42126-00
12GB9074.1（8.8）六角头螺栓和平垫组件M6*20Bolt assy.2
13GB848平垫12Flat gasket192995-06600
14F15-04.02.00.07节气门杆压板Plate165W-42159-00
15F15-04.02.00.05节气门杆Throttle lever165W-42138-00
16F15-04.02.00.01操舵手柄Steering handle165W-42101-01-4D
1740F-04.01.05急停开关总成Emergency stop switches assy166T-82575-01
18F15-04.02.00.02双头螺柱M10Double-screw bolt1
19F15-04.00.00.02操舵手柄压板Plate165W-42131-01
20F15-04.00.00.04尼龙衬套（短）Nylon sleeve(short)190386-40M99
2140F-04.01.01操舵托架Steering bracket165W-42121-01-4D
22F15-04.00.00.03尼龙垫圈Nylon washers190202-43M57
23F15-04.00.00.07垫圈Gasket390201-43M00
24F15-04.00.00.05波形垫圈Waterform gasket ring290206-43M22
25F15-04.00.00.06尼龙衬套（长）Nylon sleeve(long)190386-440MA0
2640F-04.01.06油门控制钢索Throttle cable266T-26301-00
27GB6170六角螺母M10*1.25Hexagonal nut195380-08600
28DIN985六角尼龙锁紧螺母M10*1.25Hexagonal locknut390185-08045
29GB97.1平垫6Flat gasket192995-06600
3015F-04.08.05卡簧Circlip190468-18008
3140F-04.01.02操舵托架橡胶圈Rubber ring1
3240F-04.01.03-S操舵支架(短轴)Brackt,Steering （S）165W-42511-00-4D
None40F-04.01.03-L操舵支架(长轴)Brackt,Steering （L）1
3340F-04.01.04双头螺柱M10*43Double-screw bolt2
34GB5783六角头螺栓M6*50Bolt197595-06550
35GB848平垫6Flat gasket292995-06600
3640F-04.02.03垫圈Gasket166T-42123-00
3740F-04.02.04波垫Wave washer190206-12052
3840F-04.02.05变档手柄垫圈Washer190201-12M07
3940F-04.02.01变档手柄Shift handle166T-44111-02
4040F-04.02.02带肩垫管Shoulder pad tube190387-06M86
41DIN985六角尼龙锁紧螺母M6Connecting,Top cowling190185-08045
4240F-04.02.06变档手柄连杆Shift link166T-44124-00
4340F-02.01.00.00变档杠杆组件Shift lever166T-44121-00
None40F-04.00.00.00操舵手柄部件（不含操舵托架Tiller Assy. ( Without steering brakcet1
夹紧部分

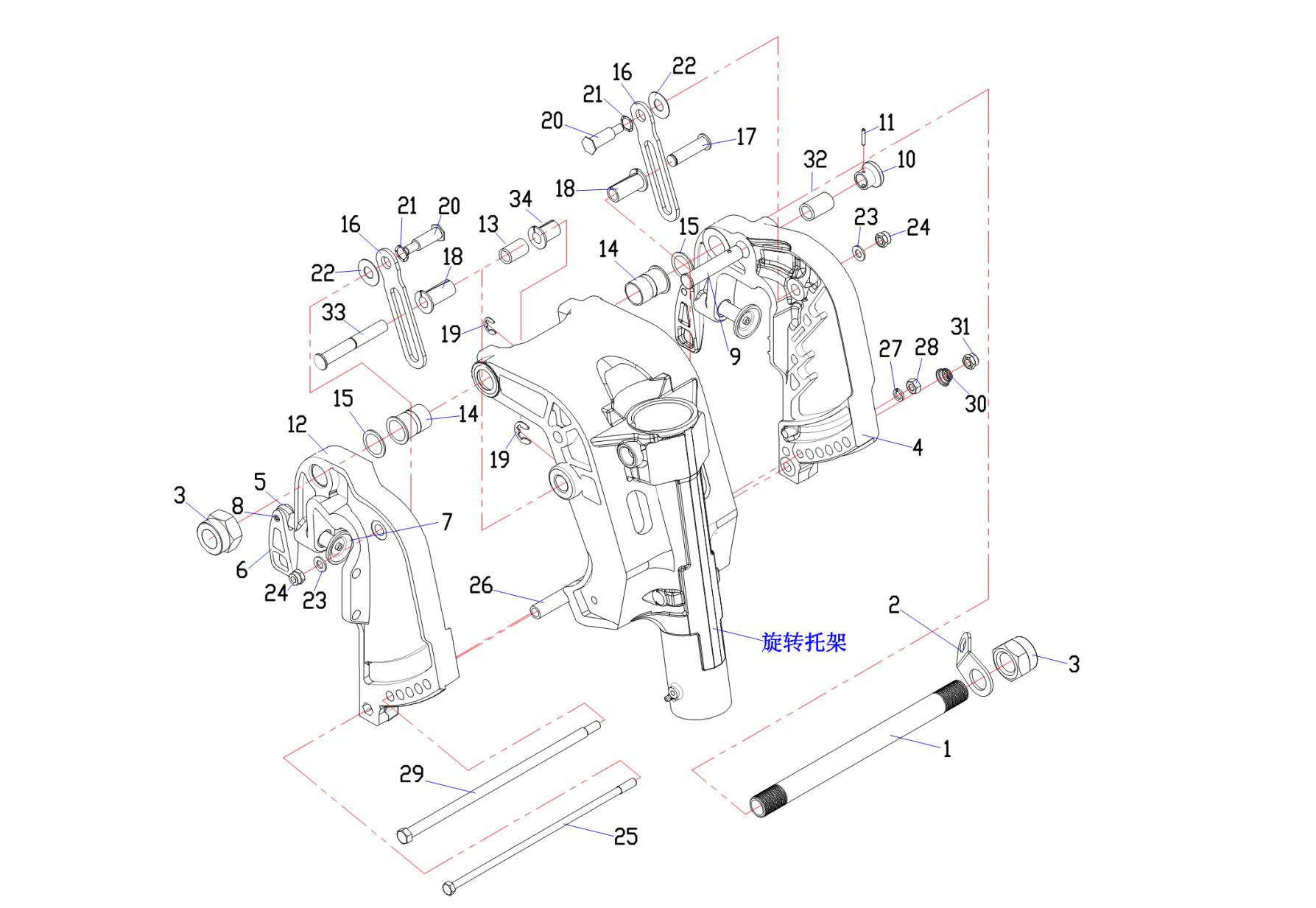

夹紧部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-03.04夹紧托架双头螺栓Bolt163D-43131-01
215F-03.03孔板Orifice plate16J8-43113-01
315F-03.01夹紧托架螺母Clamp nut290185-22043
440F-03.05.01左托架Bracket(LH)166T-43112-01-4D
5F9.9-Ⅱ-艉板夹紧螺栓Clamp Bolt,Transom26E7-43116-00
6F0-03005003.02夹紧手柄intensify handle2663-43118-01-4D
715F-03.05.02.03夹紧盘Clamp plate2648-43114-01
8GB1015沉头半空心铆钉4* 18Rivet290243-04007
940F-03.05.04.01定位轴Position axis165W-43191-00
1040F-03.05.04.02定位轴手柄Position axis handle165W-43192-00
11GB879.2弹性圆柱销3*18Cylindrical pin191690-30018
1240F-03.06.01右托架Bracket(RH)166T-43111-01-4D
13F25-03.00.02.03衬套Bushing190387-12M04
1440F-03.07.02托架阻尼圈Damping ring,bracket290386-22M15
1540F-03.03垫片Gasket290201-22M03
1640F-03.07.12.01制动板brake pad266T-43627-00
1740F-03.07.12.02制动板销pin190249-12M34
1840F-03.07.12.03开口衬套Bushing290386-12M98
19GB896开口挡圈10Split washer2
水下部分

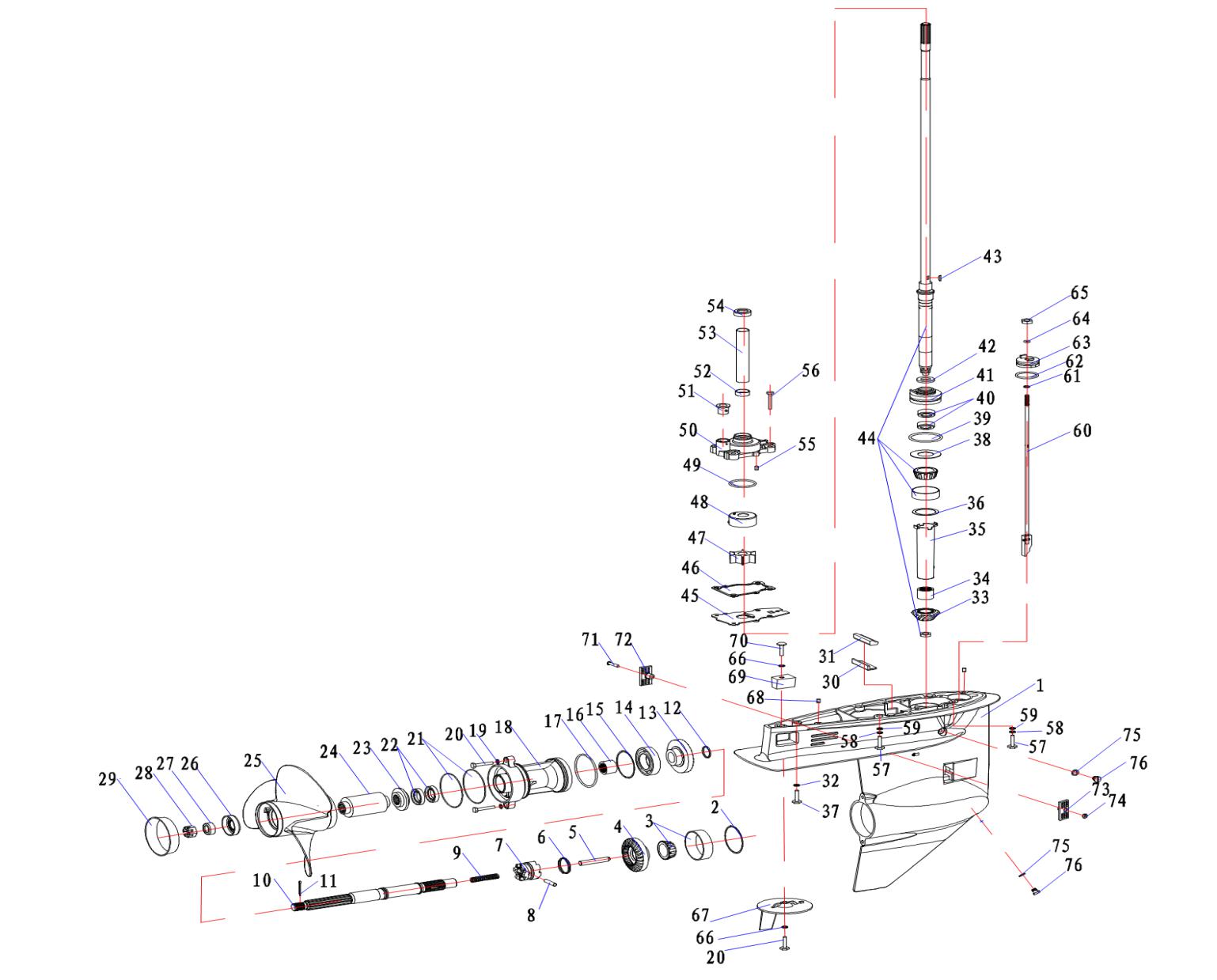

水下部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-06.01.01水下壳体Lower casing166T-45311-01-4D
240F-06.01.05正档齿轮填隙片Shim,forward gear2663-45567-01
340F圆锥滚子轴承322-32Roller Bearings193332-00003
440F-06.01.04正档齿轮Forward gear166T-45560-01
540F-06.05.05变档柱塞(59.8)Shift plunger166T-45635-00
640F-06.05.04簧环Circlip1663-45633-00
740F-06.05.02离合器Dog clutch166T-45631-00
840F-06.05.03离合器销Pin190250-06023
940F-06.05.06压缩弹簧Compression spring190501-15M01
1040F-06.05.01螺旋桨轴Propeller shaft166T-45611-00
11GB91开口销3.2*25Cotter pin191490-16012
1240F-06.05.07垫圈gasket190201-22429
1340F-06.04.02倒档齿轮Reverse gear166T-45571-00
1440F深沟球轴承6007C4deep groove ball bearing193306-001U1
1540F-06.04.03倒挡填隙片Reverse gear shim163D-45577-00
1640F滚针轴承2220Needle bearing193317-22204
1740F-06.04.06壳体盖O型圈（粗）O ring193210-74MG5
1840F-06.04.01水下壳体盖Cap,lower casing163D-45361-02-4D
19GB97.1平垫8Flat gasket290105-08M61
20GB5783六角螺栓M8*25Bolt397095-06040
2140F-06.04.05壳体盖O型圈（细）（74*1.6O ring293210-74MG5
2240F-06.04.04壳体盖油封（22*36*7）Oil seal293101-22M00
2340F-06.02.03螺旋桨垫块propeller Pad1663-45987-02
2440F-06.03.00螺旋桨内花键组件propeller Internal splined169W-45945-00-EL
2540F-06.02.01螺旋桨(11-1/8*13)Propeller1
None40F-06.02.00.00螺旋桨组件(11-1/8*13)Propeller Assy.169W-45945-00-EL
2640F-06.02.04盖板Plate166T-45997-00
2740F-06.02.05压板Press plate190389-22M01
2840F-06.02.07开槽六角螺母Nut190171-16011
2940F-06.02.02喇叭口Propeller mouth191490-30025
3040F-06.01.10密封条压板pressing plate,sealing strip1
3140F-06.01.09密封条sealing strip1
32GB93弹垫M8Spring washer197902-06125
3340F-06.01.12小齿轮pinion gear166T-45551-00
3440F滚针轴承D-1416(NSK)Needle bearing193315-32224
None40F滚针轴承D-1416（国产）Needle bearing193315-32224
3540F-06.01.06尼龙衬圈Nylon bushing16H4-45536-00
3640F-06.01.11.03小齿轮填隙片shim,pignion gear2663-45587-01(10， 20，30，40)
37GB5783六角头螺栓M8*65Bolt197095-06040
3840F-06.07.04大垫圈Large washer190201-27M00
3940F-06.07.03油封壳体O型圈(48*3.1)O ring,Oil seal casing193210-48MG8
4040F-06.04.04壳体盖油封(22*36*7)oil seal293101-22M60
4140F-06.07.01水泵油封壳体Oil casing,water pump163D-44341-00
4240F-06.07.05橡胶衬圈Rubber bushing166T-45344-01
4340F-06.09.02半圆键Woodruff key190280-03M03
4440F-06.01.11.00-S驱动轴总成(短轴)Drive shaft Assy.(S)166T-45501-01
None40F-06.01.11.00-L驱动轴总成(长轴)Drive shaft Assy.( L )1
4540F-06.08.07水泵垫板Plate,water pump166T-44322-00
4640F-06.08.08密封垫gasket163D-44316-00
4740F-06.09.00水泵叶轮组件Impeller assy.16H4-44352-02
4840F-06.08.02水泵内壳Insert, cartridge163D-44322-00
4940F-06.08.03水泵O型圈(59*2.6)O ring,water pump193210-59MG7
5040F-06.08.01水泵壳体Water pump housing comp.166T-44311-00
5140F-06.08.06水管下密封圈Seal ring(lower),hose1
5240F-06.01.15密封圈（小）Sealing ring(S)190480-25M70
5340F-06.01.13-S铜套管(短轴）Copper sleeve(S)166T-44362-10
None40F-06.01.13-L铜套管(长轴）Copper sleeve( L )1
5440F-06.01.14密封圈（大）Sealing ring(L)190480-30M71
5540F-06.08.04水泵壳体定位销4*8stop pin,water pump casing2
56GB5783六角头螺栓M8*30Bolt497095-06040
57GB5783六角头螺栓M10*40Bolt497095-06040
58GB93弹垫10Spring washer497902-06125
59GB848平垫10Flat gasket492995-06600
6040F-06.06.00-S变档凸轮杆组件(短轴）Gear shift cam lever (S)166T-44150-01
None40F-06.06.00-L变档凸轮杆组件(长轴）Gear shift cam lever ( L )1
61GB848平垫6Flat gasket192990-06600
6240F-06.06.05固定板O型圈（大）O ring193210-33MG4
6340F-06.06.04变档凸轮固定板fixing plate，Gearshift cam166T-45321-00
6415F-06.03.03变档杆O型密封圈(5.8*4.3)Shift lever o-ring193210-06ME6
65GB6170六角头螺母M6Hexagonal nut197095-08025
66GB93弹垫8Spring washer292995-08100
6740F-06.01.07航向调整片Trim tab1664-45371-01
6815F-01.06.20定位销6*12Dowel pin293606-12019
6940F-06.01.08水下阳极Anode167C-45251-00
70GB5783六角头螺栓M8*35Bolt197095-08035
71GB820十字槽半沉头螺钉M5*30Cross recessed countersunk hea190141-06M00
7240F-06.01.02进水口盖AWater inlet cover163D-45214-00
7340F-06.01.03进水口盖Bcover,water inlet163D-45215-00
74GB6170六角螺母M5Hexagonal nut195380-08600
7515F-06.01.04螺塞密封垫Seal Gasket290430-08020
7615F-06.01.03注油口螺塞plug,straight screw2688-45341-10
None40F(S)-06.00.00.00水下装置部件Lower casing assy.S166T-45300-02-4D
None40F(L)-06.00.00.00水下装置部件Lower casing assy. L166T-45300-12-4D
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2BR7HS(15F/40F)火花塞(新)sparking plug1
3GB91 3.2*25开口销cotter pin1
440F-06.08.03水泵O型圈(59*2.6)O-ring193210-59MG7
540F-06.09.00水泵叶轮组件impeller Assy.16H4-44352-02
615F-08.00.00燃油箱总成(24L)fuel case Assy.1
715F-09.01应急启动手柄emergency starting handle1
815F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
940F-06.08.02水泵内壳water pump inner shell163D-44322-00
1040F-06.08.07(镀)水泵垫板(电镀)166T-44322-00
1115F-01.01.22启动绳φ5*2000mmstarter rope1
1215F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
1315F-09.00工具包toolkit1
14保修保养手册(仅国内客户用)Warranty and maintenance munal(just for Chinese client)190467-08004
