舟一会 ZHOUYIHUI 船外机

海的 48F - 48F FEL(S)-T

共 10 个部位，点击零件编码查看详情，或搜索本页零件。

顶罩

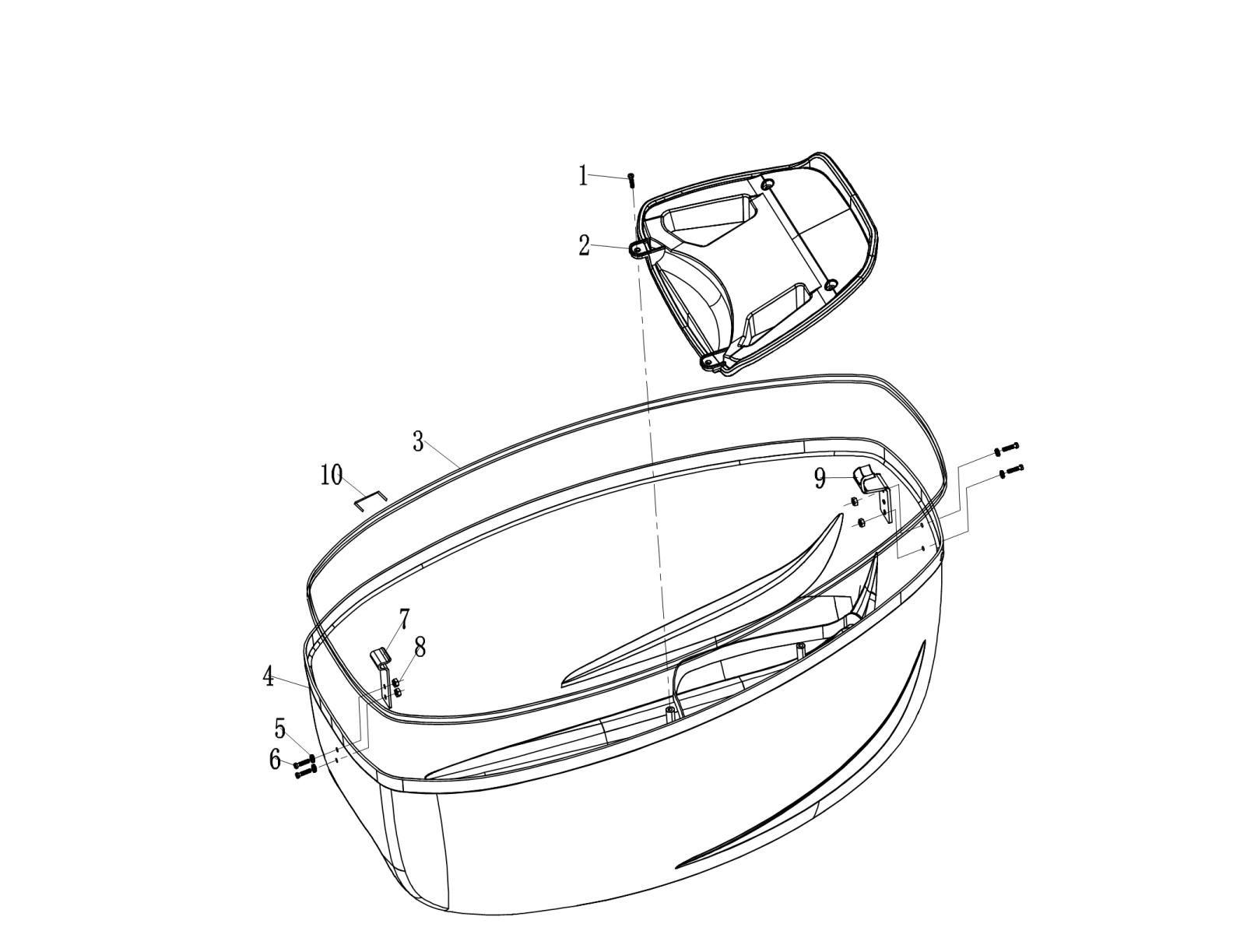

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB845十字槽盘头自攻螺钉ST4.2*13Cross recessed pan head tapping screws4
240F进气口盖Air inlet cover166T-11400-01
340F-07.00.00.02橡胶密封条Rubber sealing strip1
440F顶罩Top cowling166T-11400-01
5GB96平垫4Flat gasket4
6GB818十字槽盘头螺钉M4*16Pan head screw with cross recess497885-06040
7F15-07.00.00.06前锁紧钩Lock Hook(front)1
8DIN985六角尼龙锁紧螺母M4Hexagonal nut4
940F-07.00.00.04后锁紧钩Rear lock hook1
1015F-07.07装帧订Bingding nail10
None40F-07.00.00.00顶罩装配部件Top cowling assy.1
启动罩

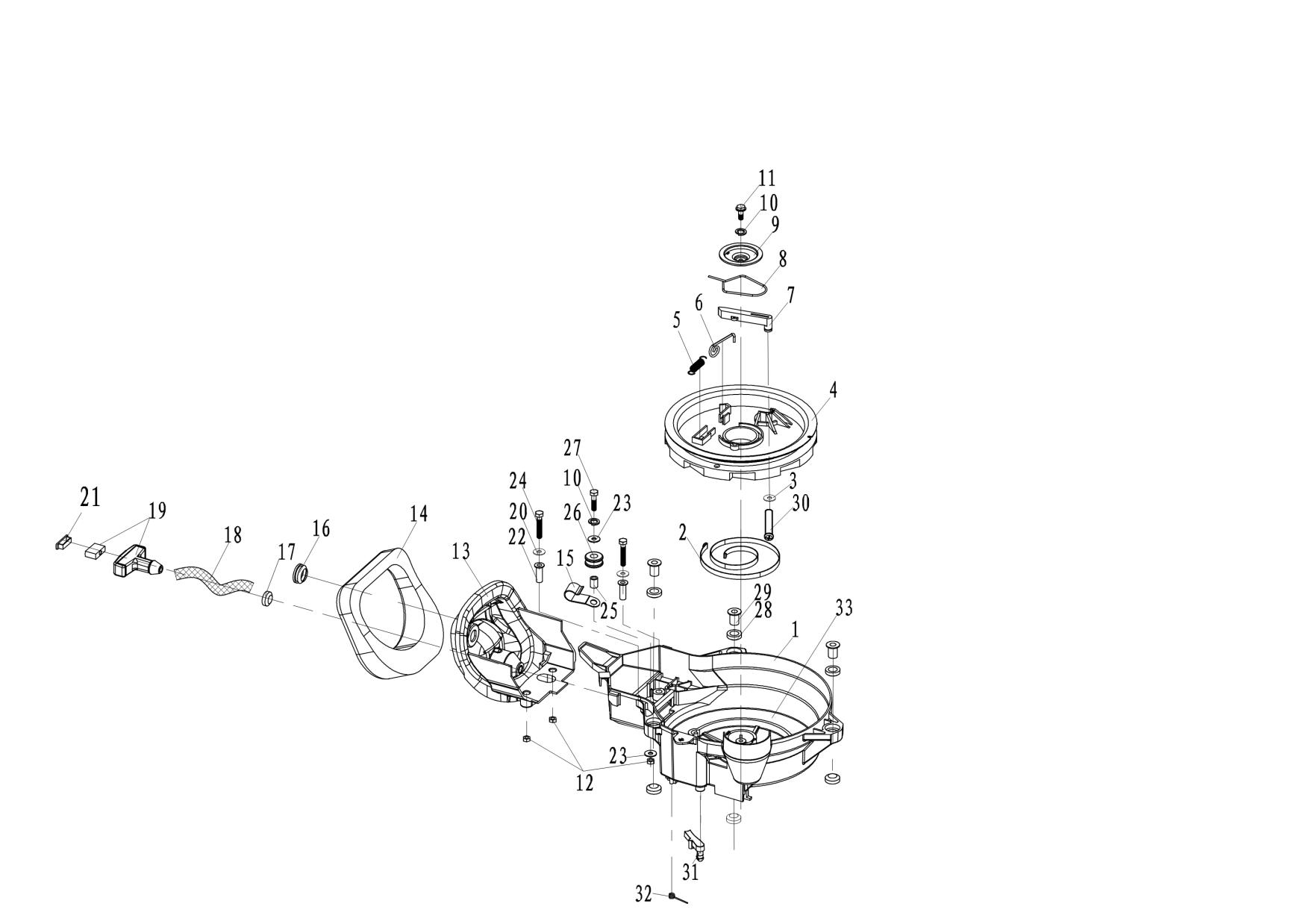

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-01.01.01.01启动罩外壳Casing,Starter cover assy.166T-15711-00
240F-01.01.08涡形弹簧Volute spring16F5-15713-01
340F-01.01.21驱动臂垫片gasket,Drive arm163V-15744-00
440F-01.01.06启动轮Start wheel166T-15714-00
540F-01.01.10回位弹簧Return spring166T-15784-00
640F-01.01.09卡瓣弹簧Spring166T-15767-00
7F25-01.01.00.02驱动臂Drive arm163V-15741-00
840F-01.01.12压板夹簧Clip spring166T-15705-00
940F-01.01.11启动压板Starter plate166T-15716-00
10GB93弹垫M6Washer2
11GB5783（8.8）六角头螺栓M6*16Bolt1
12DIN985六角尼龙锁紧螺母M6hexagon nylon lock nut3
1340F-01.01.02.00启动绳导向器组件Guide comp.,start rope166T-15758-01
1440F-01.01.02.04托架减震套Damper,bracket166T-15762-01
15F15-01.03.00.42通气管固定夹Bfix clip,air breather tube190465-06M86
1640F-01.01.02.03橡胶闷头Rubber plug1
1740F-01.01.19手柄减震圈Shock ring,handle16A0-15789-00
1815F-01.01.22启动绳φ5*2000mmStart rope1
1940F-01.01.18启动手柄Starter handle1338-05019-0
20GB97.1平垫M6Flat gasket290201-21M18
2140F-01.01.16手柄盖Starter Handle cover1338-05013-0
2240F-01.01.02.02带肩垫管Shoulder pad tube290387-06M66
23GB96平垫M6Flat gasket2
24GB5783六角头螺栓M6*35Hex Head Bolt M6*35290119-08M10
2540F-01.01.01.05卷轴垫管bushing16F5-15753-00
2640F-01.01.01.04启动轮卷轴scroll,start wheel165F-15752-00
27GB5783六角头螺栓M6*45Hexagonal bolt M6*45190119-08M10
2840F-01.01.14减震圈Damper690385-12M04
2940F-01.01.13带肩垫管Shoulder pad tube390387-08M51
30GB819十字槽沉头螺钉 *Cross recessed countersunk head screw1
31F15-01.07.00.02M5 14 制动器Brake166T-15794-00
32F15-01.07.00.03制动器扭簧Torsional spring,brake166T-15734-00
3340F-01.01.00.20减磨圈Damping ring1
动力部分

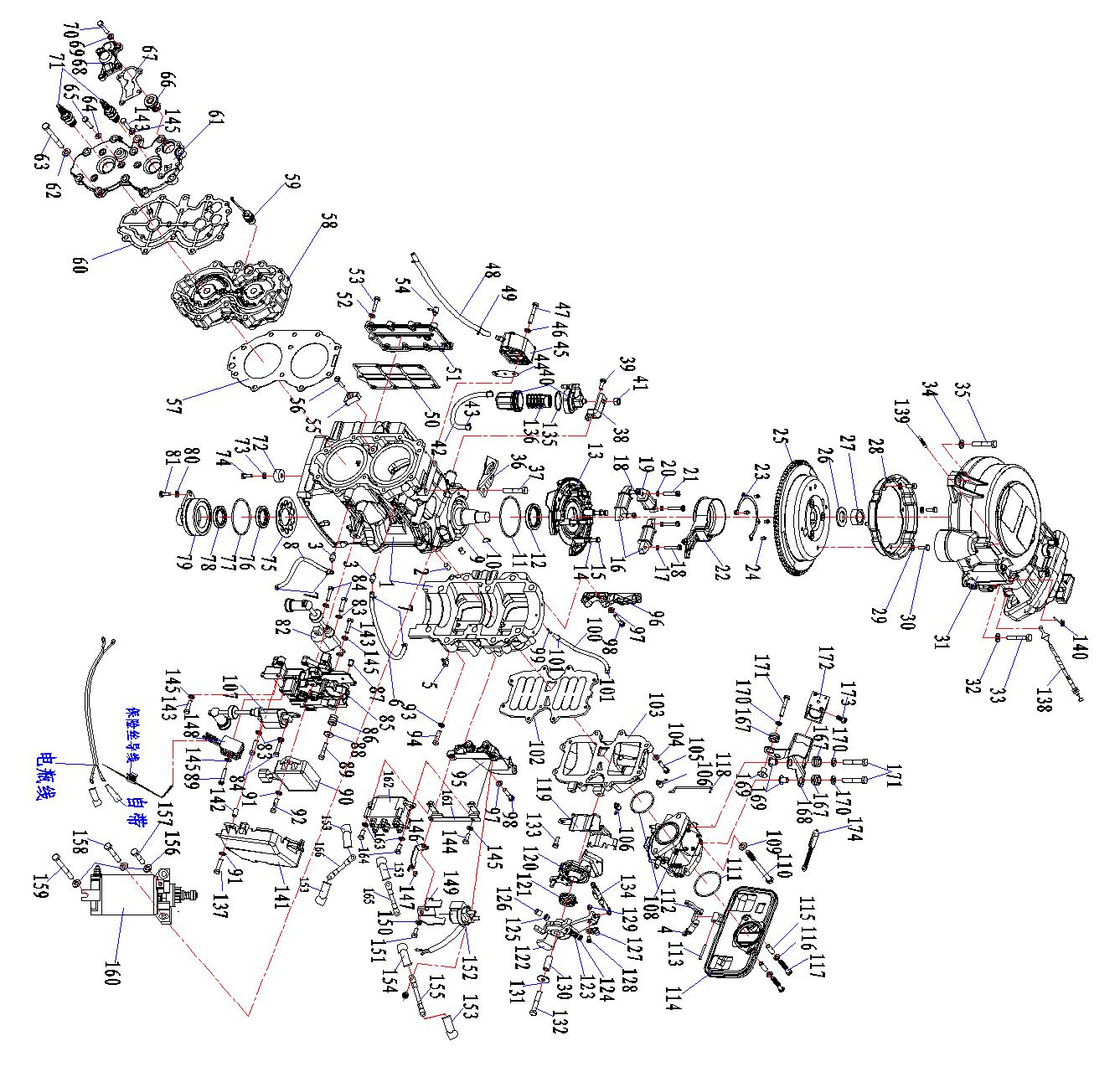

动力部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-01.06.01.01箱体组件（含箱盖）Crankcase comp.(with crankcase cover)166T-15100-02-1S
None40F-01.06.03.01箱盖（清洗）1
240F-01.06.00.25定位销8*12Dowel pin 8*12293608-12063
340F-01.06.01.03气管圆接头Joint,Breather pipe26E5-13552-01
415F-01.02.07阻风门连杆接头choke rod connector1309-03173-0
515F-01.06.03气管圆接头AJoint,air breather tube1650-14485-03
640F-01.06.00.04气管（长）(3*7*290)Breather pipe（long）190445-07M08
715F-01.06.06管夹φ6.5Tube clip4
840F-01.06.00.05气管（短）(3*7*215)Breather pipe（short）1
940F曲柄连杆活塞组件Crank connecting rod & Piston Assy.166T-11400-01
1040F-01.03.03半圆键Woodruff key1
1140F-01.03.08.02O型密封圈Sealing O-ring193210-75M51
1240F-01.03.08.01油封Oil seal193102-35008
1340F-01.03.08.00磁电极座总成Magneto seat166T-85561-00
14GB97.1平垫6Flat gasket490201-21M18
15GB5783六角头螺栓M6*40Hex Head bolt M6*40490119-08M10
1640F-01.03.04充电线圈Charging coil166T-85520-00
17GB93弹垫M6Washer4
18GB823十字槽小盘头螺钉M6*25Pan head screw with cross recess497880-06012
1940F-01.03.26照明线圈Lighting coil166T-85533-00
20GB93弹垫M6Washer2
21GB823十字槽小盘头螺钉M6*30Pan head screw with cross recess297880-06012
2240F-01.03.08.03触发器及安装架组件Pulser bracket166T-85580-00
2340F-01.03.07磁电极压板Magneto plate166T-41611-00
24GB818十字槽盘头螺钉M4*6Cross recessed Pan head screws M4*6497885-06040
2540FE-01.03.01.00飞轮组件fly wheel Assy.1
26GB97.1平垫20Flat gasket190201-21M18
2740F-01.03.02飞轮螺母Flywheel nut190170-20137
2840F-01.01.15制动毂Starter pulley166T-15762-01
29GB97.1平垫6Flat gasket490201-21M18
30GB5783六角头螺栓M6*10Bolt490119-08M10
3140F-01.01.01.00启动罩组件Recoil starter assy.166T-15710-01
32GB97.1平垫8Flat gasket290201-21M18
33GB5783六角头螺栓M8*35Bolt290119-08M10
34GB97.1平垫8Flat gasket190201-21M18
35GB5783六角头螺栓M8*25Hex Head Bolt M8*25190119-08M10
3640F-01.06.00.01启动罩后支架Bracket(rear),Starter cover assy.1
37GB5783六角头螺栓M8*20Bolt290119-08M10
3840F-01.07.07燃油滤清器支架Bracket,fuel filter1648-24566-02
39GB5783六角头螺栓M6*12Bolt190119-08M10
4015F-01.07.05.05燃油滤清器(外壳)Inner cover,exhaust161N-24560-00
41GB6170六角螺母M8Bolt nut1
4240F-01.07.06油管A(5*9*170)Fuel hose A190445-09M08
43管夹φ9Tube Clip2
4440F-01.07.05燃油泵垫片Fuel pump washer1650-24431-A0
4540F-01.07.04.00燃油泵组件(TK)(Y3A-3B)Fuel pump assy.1692-24410-00
46GB97.1平垫6Flat gasket290201-21M18
47GB5783六角头螺栓M6*40Hex Head bolt M6*40290119-08M10
4840F-01.07.06油管A(5*9*170)Fuel hose A190445-09M08
49管夹φ9Tube Clip2
5040F-01.06.00.10排水盖密封垫seal gasket,exhaust166T-41114-A0
5140F-01.06.00.08排水盖Cover,exhaust166T-41113-00-1S
52GB97.1平垫6Flat gasket990201-21M18
53GB5783六角头螺栓M6*25Bolt990119-08M10
5415F-01.06.10水管圆接头water Tube fitting B1
5540F-01.06.00.20机体阳极Anode1676-11325-00
56GB820十字槽半沉头螺钉M6*25Pan head screw with cross recess190141-06M00
5740F-01.06.00.16气缸垫Cylinder gasket166T-11181-A2
5840F-01.06.00.15气缸盖Cylinder cover166T-11111-01-1S
5940F-01.06.00.17温控传感器组件Temperature sensor comp.1
6040F-01.06.00.19气缸外盖密封垫Gasket,Cylinder outer cover166T-11193-A2
6140F-01.06.00.18气缸外盖Outer cover,Cylinder166T-11191-00-1S
62GB97.1平垫8Flat gasket1190201-21M18
63GB5782（A4-80)六角头螺栓M8*70Bolt11
64GB97.1平垫6Flat gasket490201-21M18
65GB5783六角头螺栓M6*25Bolt490119-08M10
6615F-01.06.14-50°节温器(50°)thermostat 50℃1350-01030-1
6740F-01.06.00.13节温器垫Thermostat Gasket1676-12414-A1
6840F-01.06.00.14节温器盖Thermostat cap1676-12413-00-1S
69GB97.1平垫M6Flat gasket490201-21M18
70GB5783六角头螺栓M6*35Hex Head Bolt M6*35490119-08M10
71BR7HS火花塞spark plug2
7240F-01.06.00.11排水阳极Anode,water outlet1676-45251-00
73GB848平垫6Flat gasket1
74GB5783六角头螺栓M6*20Bolt190119-08M10
7540F-01.06.00.26轴承盖板Cap,bearing166T-11565-00
7640F-01.06.00.22油封30*42*6Oil seal293102-30M56
7740F-01.06.00.24油封壳体O型圈O ring,Oil seal casing193210-65M50
7840F-01.06.00.23油封16*30*6Oil seal（16*30*6）2
7940F-01.06.00.21油封壳体Casing,oil seal166T-15396-01-94
80GB97.1平垫6Flat gasket190201-21M18
81GB5783六角头螺栓M6*20Bolt190119-08M10
8240F-01.03.25.02高压包组件2(白/黑）Ignition coil166T-85570-00
83GB97.1平垫6Flat gasket490201-21M18
84GB5783六角头螺栓M6*25Bolt490119-08M10
8540F-01.03.21控制器支架Bracket166T-8554B-01-94
8640F-01.03.23减震圈Damper3
8740F-01.03.22带肩垫管Shoulder pad tube361N-82317-00
88GB96平垫6Flat gasket2
89GB5783六角头螺栓M6*30Bolt390119-08M10
9040F-01.03.20点火控制器CDI166T-85540-00
91GB97.1平垫6Flat gasket390201-21M18
92GB5783六角头螺栓M6*25Bolt290119-08M10
93GB848平垫10Flat Pad 1010
94GB5783六角头螺栓M10*55(A4-80)Bolt1090119-08M10
9540F-01.06.00.02起动罩左支架Bracket(L),Starter cover assy.166T-15772-00-94
9640F-01.06.00.03起动罩右支架Bracket(R),Starter cover assy.166T-15771-00-94
97GB97.1平垫6Flat gasket490201-21M18
98GB5783六角头螺栓M6*30Bolt490119-08M10
9915F-01.06.21气管圆接头BJoint,air breather tube130901-1350
10040F-01.06.00.07油管(3*7*250)Fuel hose1
10115F-01.06.06管夹φ6.5Tube clip2
10240F-01.06.02.00进气阀组件Air intake valve assy166T-13610-00
10340F-01.06.00.12进气歧管Air intake manifold166T-13641-02-1S
104GB97.1平垫6Flat gasket890201-21M18
105GB5783六角头螺栓M6*35Hex Head Bolt M6*35890119-08M10
10615F-01.06.03气管圆接头AJoint,air breather tube2650-14485-03
10740F-01.03.25.01高压包组件（黑/橙)Ignition coil1
10840F-01.02.02.00化油器组件Carburetor166T-14301-02
109GB97.1平垫8Flat gasket290201-21M18
110GB5783六角头螺栓M8*100Bolt290119-08M03
11140F-01.02.00.01O型圈（进）(53*2.4)O-ring(inlet)193210-54M54
11240F-01.02.00.04阻风门摇臂Rocker arm,chock166T-41252-00
113GB879.2弹性圆柱销4*32Cylindrical pin191690-40032
11440F-01.02.01.00进气消音器组件Air intake silencer166T-14440-00
11540F-01.02.00.02垫管Cushion tube290387-06M80
116GB97.1平垫6Flat gasket290201-21M18
117GB818十字槽盘头螺钉M6*40Pan head bolt with cross recess297885-06040
11840F-01.02.00.03阻风门连杆（长）Lever,chock166T-41256-00
11940F-01.04.01油门钢索支架Holder,throttle cable166T-14497-00
12040F-01.04.04滑动座sheave support166T-41638-00
12140F-01.04.05扭簧Torsional spring166T-42167-00
12240F-01.04.06磁电机控制杠杆control linkage,Magneto166T-41631-01
12340F-01.04.07压缩弹簧Compression spring190501-10M84
124GB818十字槽盘头螺钉M6*40Pan head bolt with cross recess197885-06040
125GB6172六角薄螺母M6Hexagon thin nut M61
12640F-01.04.08螺纹盖Thread cap1688-44194-00
12740F-01.03.08.07固线卡Wire fixer1
128GB818十字槽盘头螺钉M5*8Pan head screw with cross recess197885-06040
129GB6170六角头螺母M5Hexagon nut M51
13040F-01.04.03衬套Bushing190387-08M16
131GB96平垫8Flat gasket1
132GB5783六角头螺栓M8*45Bolt197080-08045
133GB5783（8.8）六角头螺栓M6*16Bolt1
13440F-01.03.08.09连杆Lever166T-41237-00
13515F-01.07.05.06过滤器O型密封圈O ring,filter193210-32738
13615F-01.07.05.04过滤器滤芯fuel fliter161N-24563-00
137GB5783六角头螺栓M6*20Bolt190119-08M10
13840F-01.01.05制动器钢索组件Brake cable comp.166T-15770-00
139F15-01.07.00.05钢索拉簧Spring166T-15731-00
140F15-01.07.00.03制动器扭簧Torsional spring,brake166T-15734-00
14140F-01.03.05电器盖Electric parts cover166T-81916-01
14240F-01.03.06垫管Cushion tube1
143GB5783六角头螺栓M6*12Bolt390119-08M10
144GB5783六角头螺栓M6*16Bolt190119-08M10
145GB97.1平垫6Flat gasket590201-21M18
14640F-01.03.18支架Holder1
14740F-01.03.08.08开口橡胶圈Rubber ring1
14840FE-01.03.10整流器Rectifier16G1-81970-62
14940FE-01.03.05继电器支架relay bracket1
150GB/T97平垫M6Flat gasket1
151GB/T5783六角头螺栓M6X12Bolt197095-08014-00
152DQDF15-00.03.00继电器组件relay Assy.1
153DQDF15-00.03.06橡胶护套Brubber sleeve B4
154DQDF15-00.03.03橡胶护套Arubber sleeve A1
155F9.9E-01.06.00.25连接导线connecting wire1
156GB/T97.1平垫8Flat gasket4
157GB/T5783六角头螺栓M8X16Bolt197095-08014-00
158GB/T5783六角头螺栓M8X50Hex Head Bolt M8*50290119-08M13
159GB/T5783六角头螺栓M8X75Hexagonal bolt197095-08014-00
16040FE-01.03.11启动电机electric start motor1
161DQQ-00.00.05.00继电器固定架组件relay fixed bracket Assy.1
16260FET-01.02.15.00起翘电机继电器组件relay Assy,lifted motor1
163GB/T97.1平垫6Flat gasket2
164GB/T5783六角头螺栓M6*12Bolt297095-08014-00
16540FE-01.03.2840F起翘电器正极电源线electric wire，40F Electric Trim positive po1
16640FE-01.03.2940F起翘电器负极电源线electric wire，40F Electric Trim negative p1
16740FE-01.03.07减震圈Damping ring3
16840FE-01.03.09电磁阀支架Solenoid Valve Bracket1
16940FE-01.03.08带肩垫管Cushion Tube390387-06M60
170GB/T96平垫6Flat gasket3
171GB/T5783六角头螺栓M6X25hex bolt M6*25397095-08014-00
17240FE-01.02.00电磁阀组件Solenoid Valve assy.1
173GB/T818十字槽盘头螺钉M5X8Pan head screw with cross recess4
17440FE-00.04.00阀针needle valve1
曲轴部分

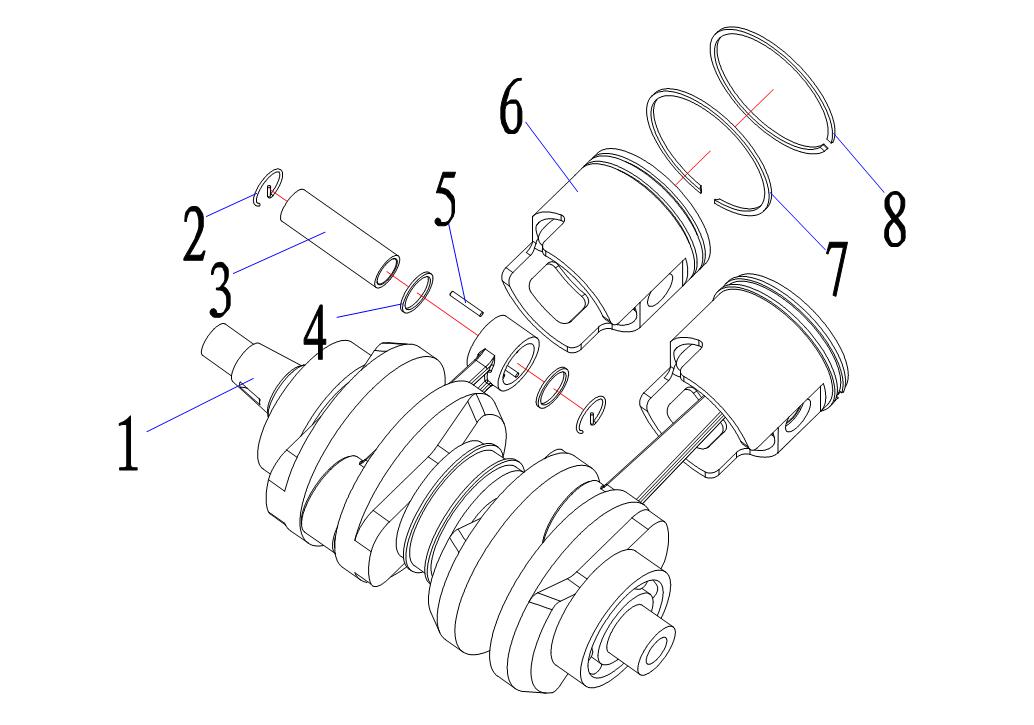

曲轴部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F- 01.06.05.00曲柄连杆组件Crank connecting rod comp.166T-11400-01
240F- 01.06.04.03活塞销卡簧Circlip4663-11634-00
340F- 01.06.04.02活塞销Pin,piston26F5-11633-00
440F- 01.06.04.05滚针盖板Needle bearing plate490201-20417
540F- 01.06.04.04密排滚针Bolt5693603-21111
640F- 01.06.04.01活塞Piston266T-11631-01-93
740F- 01.06.04.07第二道活塞环the second piston ring266T-11603-00
底罩部分

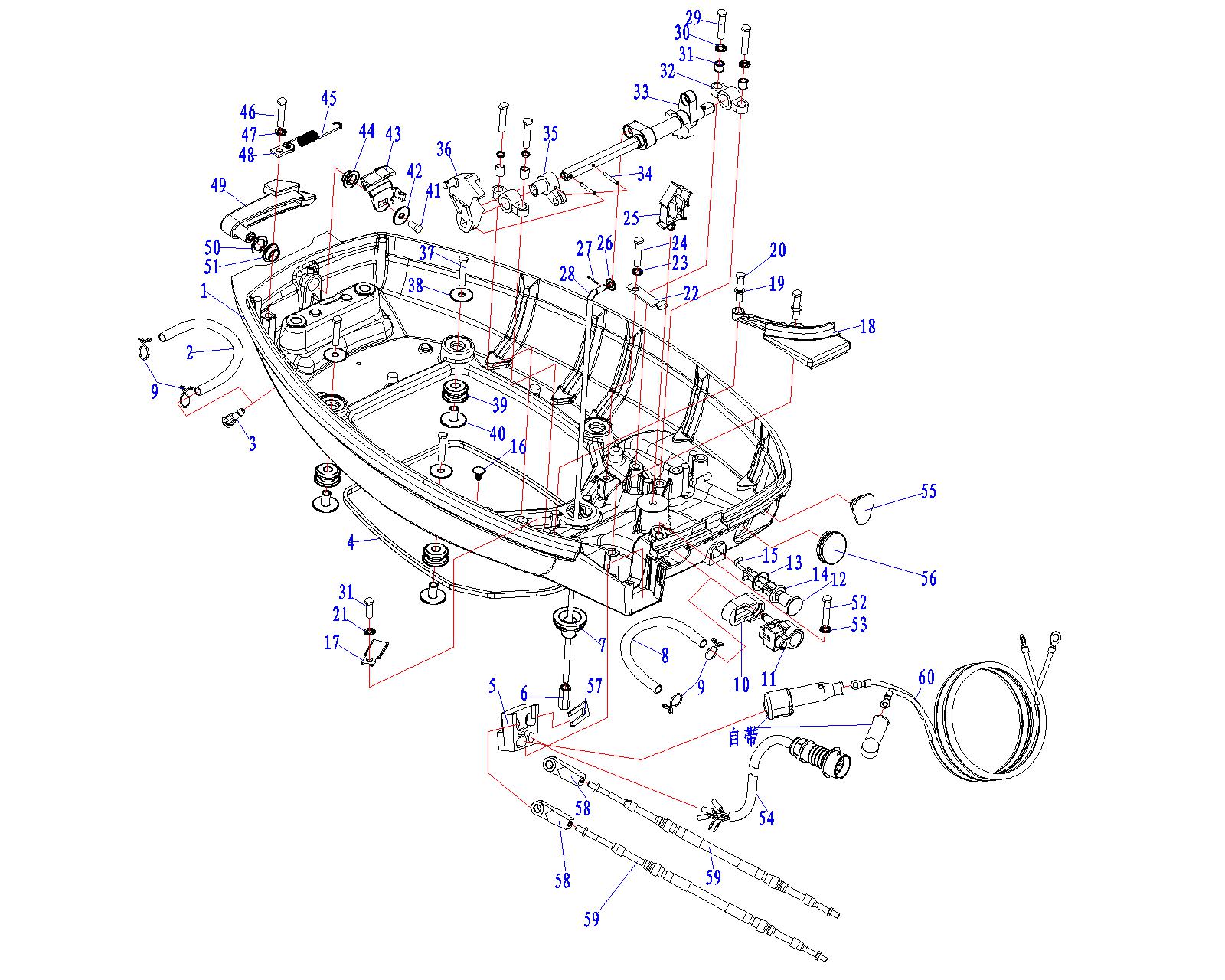

底罩部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-02.00.00.01底罩Bottom cowling166T-42710-01-4D
240F-01.06.00.06水管(5*9*375)Hose1
315F-02.11塑料水嘴Plastic Water nozzle16BL-44391-00
440F-02.00.00.07橡胶减震圈rubber damper166T-42716-00
540FE-02.00.00.06方形橡胶闷头-电rubber plug1
615F-06.04.056柱状螺母Column nut161N-44146-00
740F-02.00.00.02变档连杆橡胶护套Shift lever rubber sleeve1676-42727-00
840F-01.07.09燃油管B(5*9*550)Fuel hose B190445-09M08
9管夹9Tube Clip4
1040F-01.07.10橡胶套Rubber sleeve166T-24329-00
1115F-01.07.01.00燃油管插头组件Fuel hose joint assy1
1215F-02.02阻风门拉杆Pull rod,choke16H4-41271-01
1315F-02.04橡胶垫Rubber washer16J8-41274-00
1415F-02.03阻风门连杆护套Protecting bush,choke1689-41273-00
1540F-01.02.00.05阻风门拉杆（短）Pull rod,choke166T-41257-00
1640F-02.00.00.08螺纹塞Thread plug1
1740FE-02.00.00.01电线压板electric wire plate1
1840F-02.00.00.05小盖板cover Plate166T-42738-00-5B
19GB/T97.1-2002平垫6Flat gasket2
20GB/T5783-2000六角头螺栓M6*25Bolt2
21GB/T97.1-2002平垫6Flat gasket1
2240F-02.00.00.09变档限位弹簧板Shift limit plate1682-44116-01
23GB/T97.1-2002平垫6Flat gasket1
24GB/T5783-2000六角头螺栓M6*16Bolt1
2515F-02.06油门钢索固定夹Fixer,Throttle cable190465-25M57
26GB/T97.1-2002平垫6Flat gasket1
27GB/T91-2000开口销1.6*12Cotter pin 1.6*121
2840F-02.00.00.10-S上变档杆(S)Shift lever(upper,S)166T-44143-00
None40F-02.00.00.10-L上变档杆(L)Shift lever(upper, L )1
29GB/T5783-2000六角头螺栓M6*25Bolt4
30GB/T97.1-2002平垫6Flat gasket4
31GB/T5783-2000六角头螺栓M6*16Bolt1
32F15-02.00.00.07托架Bracket26F5-41662-00
3340F-02.01.00.03变档杠杆固定架Shift lever fixer166T-44121-00
34GB/T879.2-2000弹性圆柱销3*20Cylindrical pin290254-03M05
35F15-02.01.00.01钢索端套Cable end sleeve166M-44122-00
3640F-02.01.00.01变档杆摇臂Shift r lever rocker166T-44125-01
37GB/T5783六角头螺栓M6*30Bolt497095-08014-00
38GB/T5287-2002垫片6(外径φ22)Flat gasket 64
3940F-02.00.00.03橡胶减震垫Rubber damper490480-09M21
4040F-02.00.00.04减震垫衬管bushing,damper490387-06035
41GB/T5783-2000六角头螺栓M6*12Bolt1
42GB/T96.1 、2-2002平垫6Flat gasket1
4340F-02.02.00.05锁紧块Latch segment166T-42816-00
4440F-02.02.00.04垫圈BWasher190386-12M37
4540F-02.02.00.06锁紧块拉簧Tension spring,latch segment190506-16M34
46GB/T5783-2000六角头螺栓M6*20Bolt1
47GB/T97.1-2002平垫6Flat gasket1
4840F-02.02.00.07拉簧钩Spring hook166T-43144-00
4940F-02.02.00.00锁紧手柄组件lock handle assy.1
5040F-02.02.00.02波形垫片Wave washer1
5140F-02.02.00.03垫圈AWasher A1
52GB/T5783-2000六角头螺栓M6*30Bolt1
53GB/T97.1-2002平垫6Flat gasket1
54DQQ-00.00.07.00-S十芯线插头1.2Mten stars plug( 1.2m)1
5540FE-02.00.00.03钢索护套处橡胶闷头rubber plug,cable sleeve1
5640FE-02.00.00.02变档手柄处橡胶闷头rubber plug,shift handle1
57HDYK00.00.23底座钢索限位块Bottom cowling Damper.1
58HDYK00.00.24钢索调节装置ACable adjuster A2
59HDYK00.06.00遥控钢索组件5MRemote Control Cable (5.0m)2
6040FE-01.03.12电瓶线battery cable1
水上部分

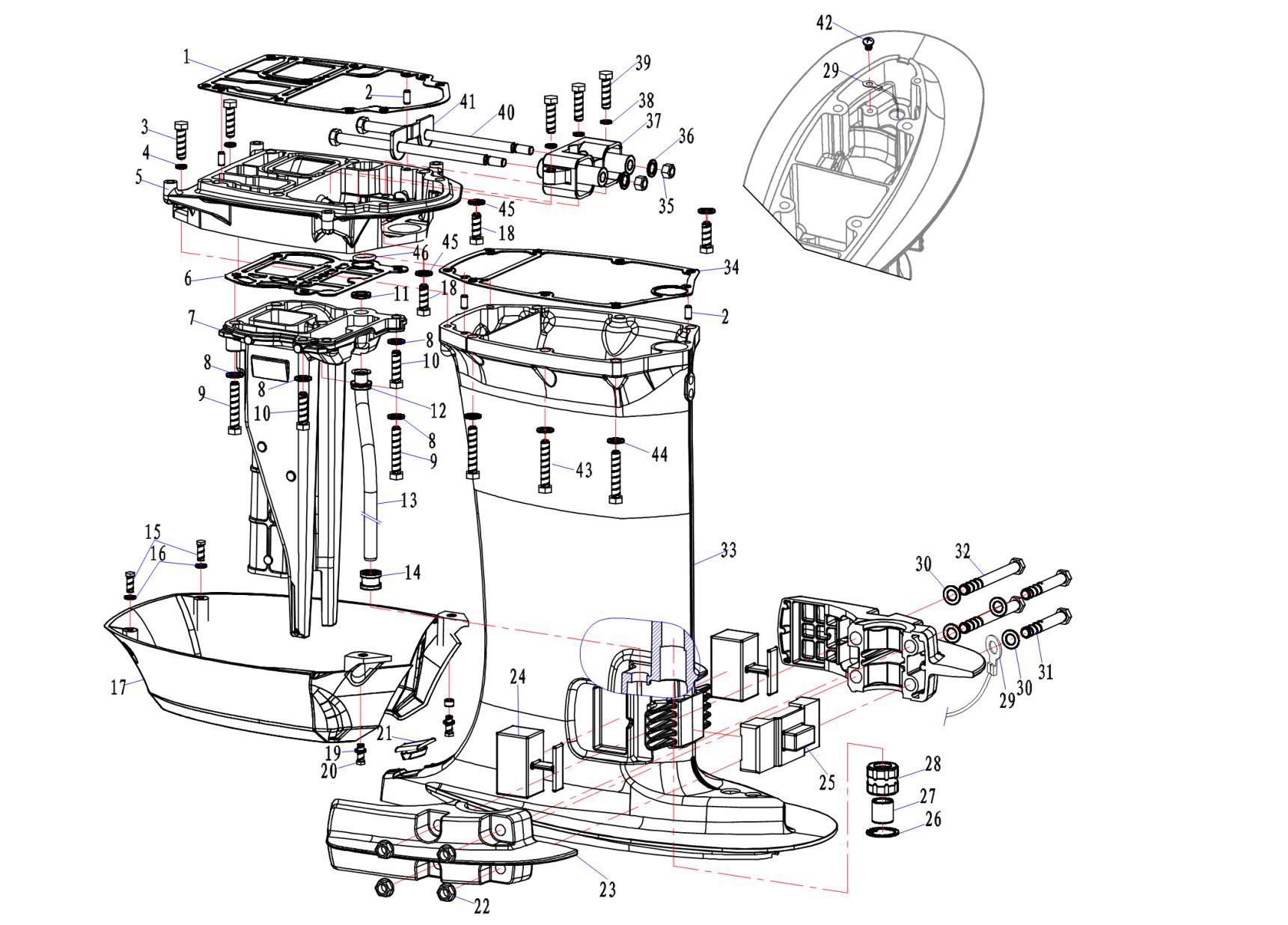

水上部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-05.00.00.10机体座密封垫Gasekt166T-45113-A0
215F-01.06.20定位销6*12Dowel pin4
3GB5783六角头螺栓M8*30Bolt290119-08M10
4GB93弹垫圈M8washer2
540F-05.00.00.17机体底座Engine base166T-41137-00-5B
640F-05.00.00.12排气管密封垫Cover gasket,exhaust pipe166T-41133-A0
740F-05.00.00.11排气管Exhaust pipe166T-41131-00-5B
8GB97.1平垫8Flat gasket590201-21M18
9GB5783六角头螺栓M8*45Bolt397080-08045
10GB5783六角头螺栓M8*30Bolt290119-08M10
1140F-05.00.00.15水管衬圈Bushing ，hose1676--42727-00
1240F-05.00.00.14水管密封圈Seal ring,hose190202-12060
1340F-05.00.00.13-S水管（S）Hose (S)166T-44361-00
None40F-05.00.00.13-L水管（L）Hose ( L )1
1440F-05.00.00.16水管下密封圈Seal ring(lower),hose1663-44367-00
15GB5783六角头螺栓M6*16Bolt290119-08M10
16GB97.1平垫6Flat gasket290201-21M18
1740F-02.00.00.11装饰罩Decoration cover166T-42741-00
18GB5783六角头螺栓M8*30Bolt290119-08M10
19GB97.1平垫6Flat gasket290201-21M18
20GB5783六角头螺栓M6*16Bolt290119-08M10
2140F-05.00.00.02阳极堵塞Plug,Anode163D-45155-00
22GB6177六角头法兰螺母M10Flange bolt490179-10M33
2340F-00.01减震器外壳Damper housing265W-44551-00-4D
2440F-00.02减震块ADamper A265W-44555-10
2540F-02.03减震块BDamper B166T-44575-00
26GB893.1孔用弹性挡圈Φ30Hole collar197075-08030
2740F-05.00.00.05定位套Location bushing166T-44526-00
2840F-05.00.00.06橡胶套Rubber ring1
2940F-03.07.10钢索连接组件Connection assy，Cable166T-82127-00
30GB848平垫10Flat Pad 104
31GB5783六角头螺栓M10*80(A4-80/10.9)Bolt290119-08M10
32GB5783六角头螺栓M10*120(A4-80/10.9Bolt290119-08M10
3340F-05.00.00.01-S水上壳体(短轴）Upper casing(S)166T-45111-00-4D
None40F-05.00.00.01-L水上壳体(长)Upper casing( L )1
3440F-05.00.00.18水上密封垫Seal Gasket,upper casing166T-45114-A0
35DIN985六角尼龙锁紧螺母M8Hexagon nylon lock nut2
36GB97.1平垫8Flat gasket290201-21M18
3740F-05.01.00.00双孔减震器组件Mount Damper(upper) comp.166T-44514-00-4D
38GB93弹垫8washer3
39GB5783六角头螺栓M8*30Bolt390119-08M10
4040F-05.00.00.07六角头长螺栓Bolt290101-08M86
4140F-05.00.00.08双孔减震器压板Dead plate,mount damper(upper166T-44526-00
42GB818十字槽盘头螺钉M6*8Screw M6*8197885-06040
43GB9074.1 M8*80(10.9螺栓和垫圈组合件M8*80Bolt&gasket Assy M8*806
44GB97.1平垫8Flat gasket690201-21M18
45GB93弹垫8washer2
46F2.5-01.04.02.04O形圈(13*2.4)O Ring1
夹紧部分

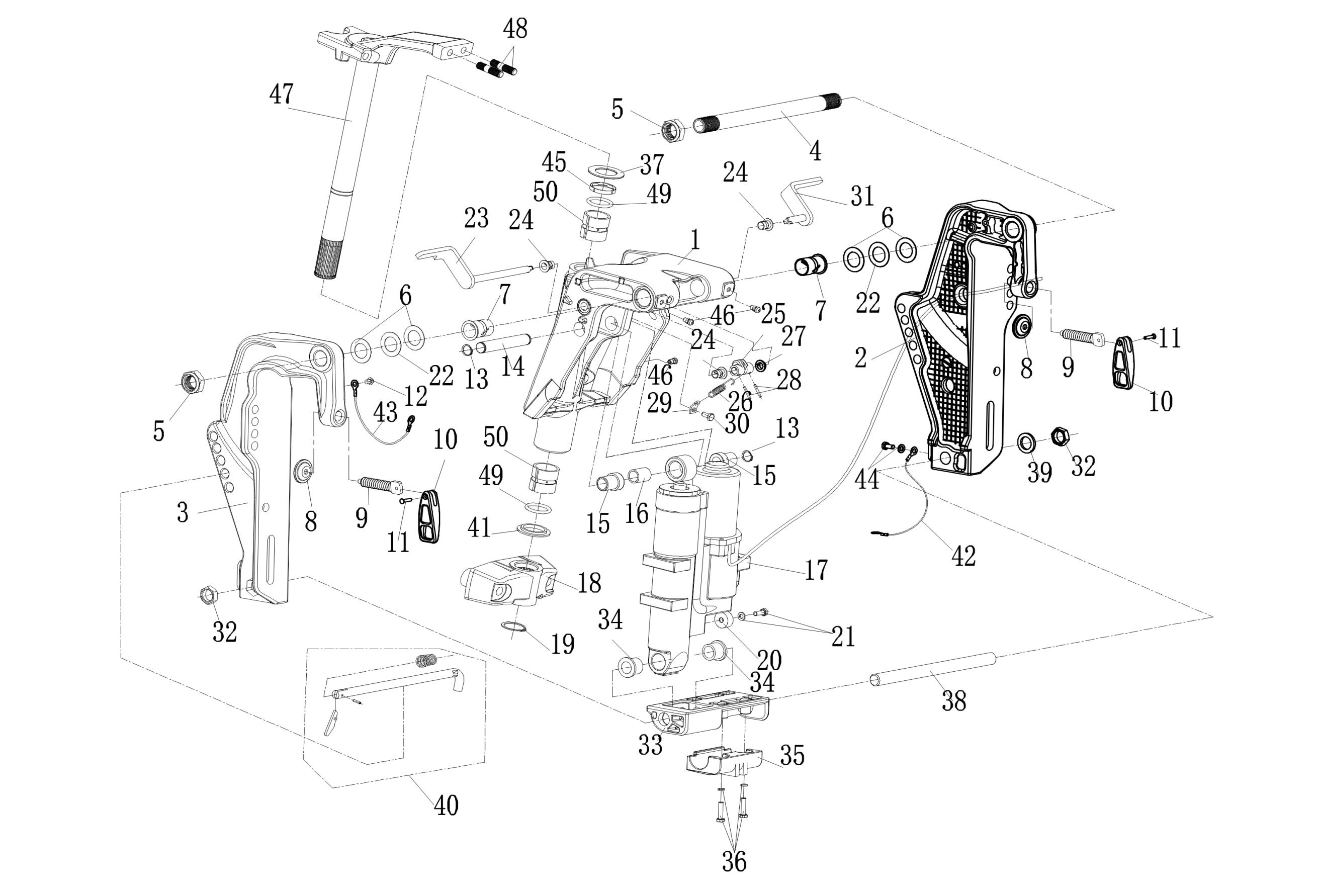

夹紧部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-03.00.00.22旋转托架Swivel bracket1697-43311-03-4D
260F-03.01.01.00左托架组件Bracket(LH)1697-43111-05-4D
360F-03.02.01.00右托架组件Bracket(RH)1697-43112-03-4D
440F-03.04夹紧托架双头螺栓Bolt1346-62191-0
515F-03.01夹紧托架螺母Clamp nut290185-22043
640F-03.03垫片Washer4
740F-03.07.02托架阻尼圈Damping ring,bracket290386-22M15
815F-03.05.02.03夹紧盘Clamp plate2620-43114-00
960F-03.01.01.03艉板夹紧螺栓Transom Clamp Bolt2663-43116-01
1040F-03.05.03.02夹紧手柄intensify handle26E0-43118-01
11GB1015沉头半空心铆钉4*18Bolt2
12GB823十字槽小盘头螺钉M6*8Screw M6*8197880-06012
13GB894.1轴用弹性挡圈A型Φ15Circlip A type Φ15293410-28M06
1460F-03.00.00.16液压起翘支撑轴上Hydralic Trim Suport shaft (up)1
1560F-03.00.00.15液压起翘上衬套Hydralic Trim bushing290386-18M35
1660F-03.00.00.17支撑轴套管Supporting shaft sleeve190386-18M21
1760FET-03.00.08.00电动起翘装置(新)Power Trim Assy.1
1860F-03.00.00.02下减震器连接座Lower damper base16H3-44551-01-4D
19GB894.1轴用弹性挡圈D30Circlip D30193410-28M06
2040F-01.06.00.11排水阳极Anode,water outlet1676-45251-00
21GB9074.1(8.8)螺栓和垫圈组合件M6*1Bolt1
2215F-03.02尼龙垫片Nylon gasket290202-22M54
2360F-03.00.05.00倾斜定位挡杆（左）Tilt positioning lever - Left16H5-43181-03
2460F-03.00.00.20摇臂衬套Arm bush3
2560F-03.00.04.00倾斜定位挡杆摇臂组件Tilt positioning lever arm assy.16G5-43148-00
2660F-03.00.00.19倾斜定位挡杆拉簧Tilt positioning lever spring190506-14M24
2760F-03.00.00.21摇臂开口衬套Arm open bush190386-10025
28GB879弹性圆柱销Φ3*16Elastic cylindrical pin 3*162
2960F-03.00.00.18拉簧钩Hook,spring16G5-43144-00
30GB5783六角头螺栓M6*10Bolt190119-08M10
3160F-03.00.06.00倾斜定位挡杆（右）Tilt positioning lever - Right16H5-43181-03
3260F-03.00.00.09六角螺母M18*1.5Hex Nut M18*1.52
3360F-03.00.00.12托架限位块Bracket blocker163D-43128-01-4D
3460F-03.00.00.14液压起翘下衬套Hydraulic trim Bushing(lower)263D-43112-01-4D
3560F-03.00.00.11阳极Anode163D-45251-00
36GB9074.1(8.8)螺栓和垫圈组合件M6*2Hexagonal bolt & flat gasket assy M6*252
3760F-03.00.00.07上衬套垫圈Upper Bushing Washer190201-30M00
3860F-03.00.00.13液压起翘支撑轴下Hydralic Power Trim Suport shaft (down)190116-18M52
3960F-03.00.00.10平垫Φ19*Φ29.5*3Flat Gasket Φ19*Φ29.5*31
4060F-03.00.02.00角度定位销组件Angle positioning pin assy.1
4160F-03.00.00.03下衬圈Lower Bushing190386-30M60
4260F-03.00.03.00接地线组件Ground Wire assy.1
4360F-03.00.07.00接地导线组件Ground Wire assy.163D-82148-00
44GB9074.1(8.8)螺栓和垫圈组合件M6*1Hexagonal bolt & flat gasket assy M6*101
4560F-03.00.00.06上衬套Upper bushing190386-30M78
46JB7940.1直通式压注油杯M6Oil cup393700-06M03
4760F-03.00.01.00操舵托架组件Steering bracket assy.16H3-42510-03-4D
4840F-04.01.04双头螺柱M10*43Double-screw bolt2
4960F-03.00.00.04O型圈(29*3.8)O ring(29*3.8)293210-29M94
5060F-03.00.00.05开口衬圈Bushing290086-30M77
水下部分

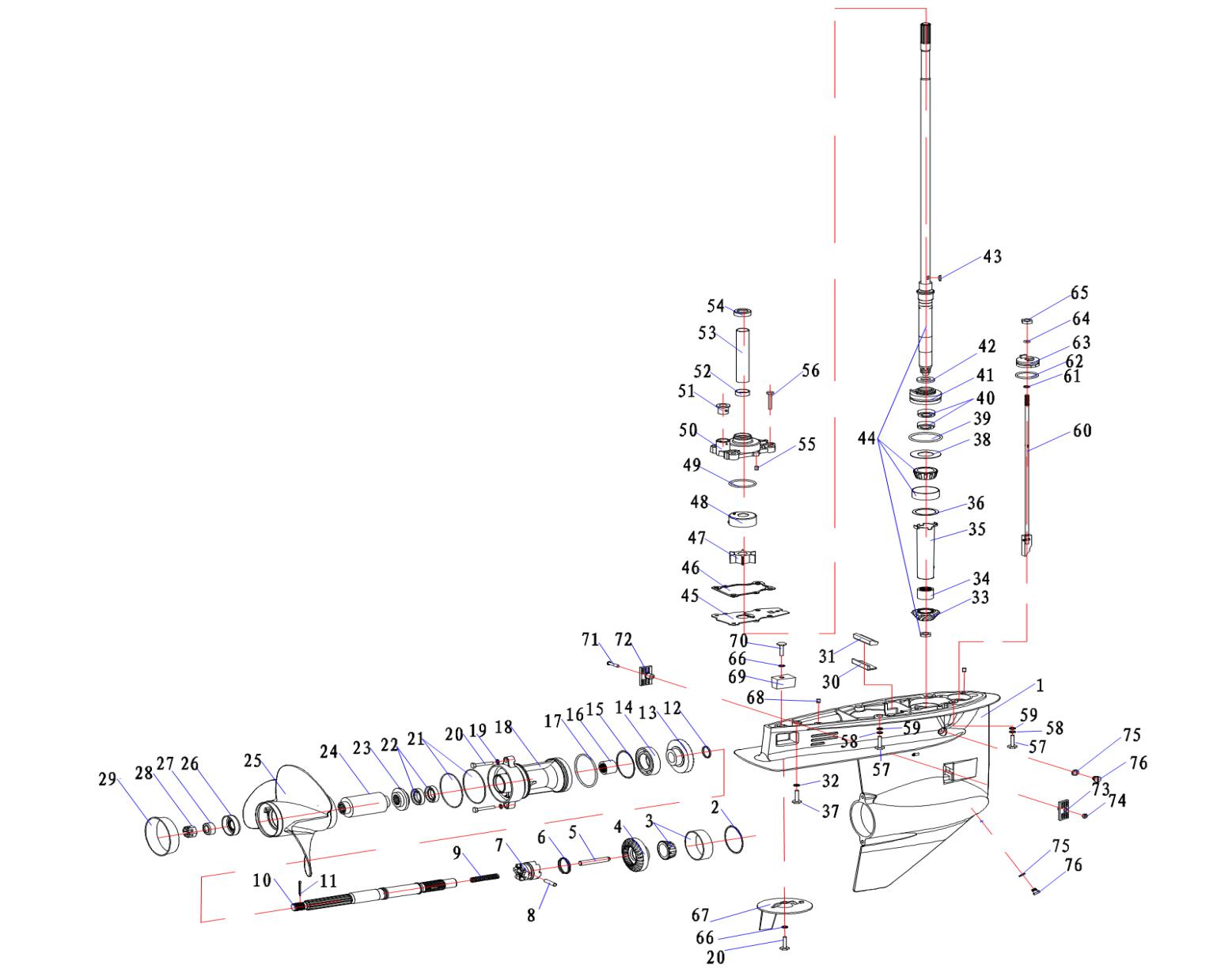

水下部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-06.01.01水下壳体Lower casing166T-45311-01-4D
240F-06.01.05正档齿轮填隙片Shim,forward gear2663-45567-01
340F圆锥滚子轴承322-32Roller Bearings193332-00003
440F-06.01.04正档齿轮Forward gear166T-45560-01
540F-06.05.05变档柱塞(59.8)Shift plunger166T-45635-00
640F-06.05.04簧环Circlip1663-45633-00
740F-06.05.02离合器Dog clutch166T-45631-00
840F-06.05.03离合器销Pin190250-06023
940F-06.05.06压缩弹簧Compression spring190501-15M01
1040F-06.05.01螺旋桨轴Propeller shaft166T-45611-00
11GB91开口销3.2*25Cotter pin1
1240F-06.05.07垫圈gasket190201-22429
1340F-06.04.02倒档齿轮Reverse gear166T-45571-00
1440F深沟球轴承6007C4deep groove ball bearing193306-001U1
1540F-06.04.03倒挡填隙片Reverse gear shim163D-45577-00
1640F滚针轴承2220Needle bearing193317-22204
1740F-06.04.06壳体盖O型圈（粗）O ring193210-74MG5
1840F-06.04.01水下壳体盖Cap,lower casing163D-45361-02-4D
19GB97.1平垫8Flat gasket290201-21M18
20GB5783六角螺栓M8*25Hex Head Bolt M8*25390119-08M10
2140F-06.04.05壳体盖O型圈（细）（74* 1.6O ring293210-74MG5
2240F-06.04.04壳体盖油封（22*36*7）Oil seal(22*36*7)2
2340F-06.02.03螺旋桨垫块propeller Pad1663-45987-02
2440F-06.03.00螺旋桨内花键组件propeller Internal splined169W-45945-00-EL
2540F-06.02.01螺旋桨(11-1/8*13)Propeller1
None40F-06.02.00.00螺旋桨组件(11-1/8*13)Propeller Assy.169W-45945-00-EL
2640F-06.02.04盖板Plate166T-45997-00
2740F-06.02.05压板Press plate190386-22M01
2840F-06.02.07开槽六角螺母Nut190171-16011
2940F-06.02.02喇叭口Propeller mouth191490-30025
3040F-06.01.10密封条压板pressing plate,sealing strip1
3140F-06.01.09密封条sealing strip1
32GB93弹垫M8washer1
3340F-06.01.12小齿轮pinion gear166T-45551-00
3440F滚针轴承(D-1416)NSKNeedle bearing193315-32224
None40F滚针轴承D-1416（国产）Needle bearing193315-32224
3540F-06.01.06尼龙衬圈Nylon bushing16H4-45536-00
3640F-06.01.11.03小齿轮填隙片shim,pignion gear2663-45587-01 (10 ，20，30，
37GB5783六角头螺栓M8*65Bolt190119-08M10
3840F-06.07.04大垫圈Large washer190201-27M00
3940F-06.07.03油封壳体O型圈(48*3.1)O ring,Oil seal casing193210-48MG8
4040F-06.04.04壳体盖油封(22*36*7)Oil seal(22*36*7)2
4140F-06.07.01水泵油封壳体Oil casing,water pump163D-44341-00
4240F-06.07.05橡胶衬圈Rubber bushing166T-45344-01
4340F-06.09.02半圆键Woodruff key190280-03M03
4440F-06.01.11.00-S驱动轴总成(短轴)Drive shaft Assy.(S)166T-45501-01
None40F-06.01.11.00-L驱动轴总成(长轴)Drive shaft Assy.( L )1
4540F-06.08.07水泵垫板Plate,water pump166T-44322-00
4640F-06.08.08密封垫gasket163D-44316-00
4740F-06.09.00水泵叶轮组件Impeller assy.16H4-44352-02
4840F-06.08.02水泵内壳Insert, cartridge163D-44322-00
4940F-06.08.03水泵O型圈(59*2.6)O ring,water pump193210-59MG7
5040F-06.08.01水泵壳体Water pump housing comp.166T-44311-00
5140F-06.08.06水管下密封圈Seal ring(lower),hose1
5240F-06.01.15密封圈（小）Sealing ring(S)190480-25M70
5340F-06.01.13-S铜套管(短轴）Copper sleeve(S)166T-44362-10
None40F-06.01.13-L铜套管(长轴）Copper sleeve( L )1
5440F-06.01.14密封圈（大）Sealing ring(L)190480-30M71
5540F-06.08.04水泵壳体定位销4*8stop pin,water pump casing2
56GB5783六角头螺栓M8*30Bolt490119-08M10
57GB5783六角头螺栓M10*40Bolt490119-08M10
58GB93弹垫10Spring washer4
59GB848平垫10Flat Pad 104
6040F-06.06.00-S变档凸轮杆组件(短轴）Gear shift cam lever (S)166T-44150-01
None40F-06.06.00-L变档凸轮杆组件(长轴）Gear shift cam lever ( L )1
61GB848平垫6Flat gasket1
6240F-06.06.05固定板O型圈（大）O ring193210-33MG4
6340F-06.06.04变档凸轮固定板fixing plate ，Gearshift cam166T-45321-00
6415F-06.03.03变档杆O型密封圈(5.8*4.3)Shift lever o-ring1
65GB6170六角头螺母M6Hexagon nut1
66GB93弹垫8washer2
6740F-06.01.07航向调整片Trim tab1664-45371-01
6815F-01.06.20定位销6*12Dowel pin2
6940F-06.01.08水下阳极Anode167C-45251-00
70GB5783六角头螺栓M8*35Bolt190119-08M10
71GB820十字槽半沉头螺钉M5*30Cross recessed countersunk hea190141-06M00
7240F-06.01.02进水口盖AWater inlet cover163D-45214-00
7340F-06.01.03进水口盖Bcover,water inlet163D-45215-00
74GB6170六角螺母M5Hexagon nut M51
7515F-06.01.04螺塞密封垫Gasket290430-08020
7615F-06.01.03注油口螺塞plug,straight screw290340-08002
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2HDYK00.10.04六角螺栓3/8-24hex bolt1
3HDYK00.10.03操纵杆垫管washer,control Lever1
4HDYK00.10.06平垫M10flat gasket1
5HDYK00.10.05六角薄螺母3/8-24hex bolt,thin1
6HDYK00.10.07尼龙锁紧螺母3/8-24nylon Lock nut1
7BR7HS(15F/40F)火花塞(新)sparking plug1
8GB820 M6*90十字槽半沉头螺钉Pan head bolt with cross recess3
9GB6170 M6六角螺母hex bolt3
10GB96 M10平垫flat gasket8
11GB97.1 M10平垫flat gasket192903-10100
12GB5287 M6平垫flat gasket3
13GB91 3.2*25开口销cotter pin1
14GB6170 M10六角螺母hex nut4
15GB5783 M10*90六角头螺栓hex bolt4
1640F-06.08.03水泵O型圈(59*2.6)O-ring193210-59MG7
1740F-06.09.00水泵叶轮组件impeller Assy.16H4-44352-02
1815F-08.00.00燃油箱总成(24L)fuel case Assy.1
1915F-09.01应急启动手柄emergency starting handle1
20HDYK00.00.24钢索调节装置Asteel cable ajusting device A2
21HDYK00.00.25钢索调节装置Bsteel cable ajusting device B2703-48345-01
22HDYK00.00.32遥控器固定板remote control fixed board1
2315F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
24HDYK00.10.01操纵杆control hook1
2540F-06.08.02水泵内壳water pump inner shell163D-44322-00
2640F-06.08.07(镀)水泵垫板(电镀)water pump base plate166T-44322-00
2715F-01.05.14卡簧（中）circlip(M)1
2815F-04.08.05卡簧（大）circlip(L)190468-18008
2915F-01.01.22启动绳φ5*2000mmstarter rope1
3015F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
3115F-09.00工具包toolkit1
32HDYK00.06.00遥控钢索组件(5M)steel cabe Assy.,remote control2
33HDYK00.00.34.00方向盘组件steering wheel Assy.1
34HDYK00.00.35.00方向座组件direction base Assy.1
35HDYK00.00.35.01(5M方向钢索组件direction wire rope Assy.1
3620A保险丝fuse1
34保修保养手册(仅国内客户用Warranty and maintenance munal(just f1
遥控盒

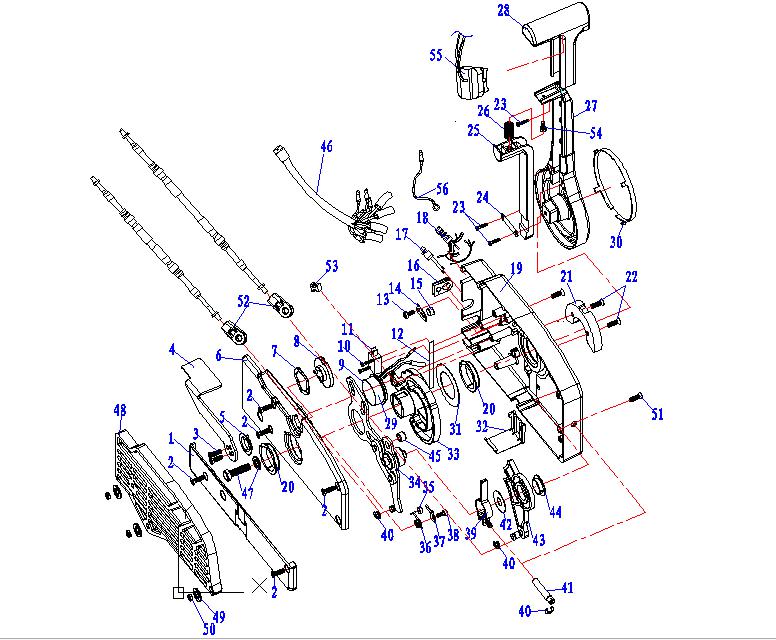

遥控盒 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1HDYK00.00.01小盖板Small plate1703-48213-00
2GB819 M5*16十字槽沉头螺钉Screw M5*165
3GB819 M5*12十字槽沉头螺钉Screw M5*122
4HDYK00.00.02怠速锁紧手柄Idle lock handle1703-48152-00
5HDYK00.00.04减磨圈Antifriction Bushing1703-48243-00
6HDYK00.00.31大盖板Big plate1703-48236-00
7HDYK00.00.03波型垫圈Wave Washer1703-48198-00
8HDYK00.01.00手柄锁紧轮组件Handle Lock wheel Assy1703-48153-00
9HDYK00.02.01蜂鸣器Buzzer assy1703-83383-B0
10GB818 M3*14十字槽盘头螺钉Pan Screw M3*141
11HDYK00.05.00怠速启动开关Idle Start switch1703-82540-00
12HDYK00.00.10弹性钢板Spring steel plate5
13GB818 M4*6十字槽盘头螺钉Pan Screw M4*61
14HDYK00.00.09压板Plate1
15HDYK00.00.11档位限位柱Shift limit pin1
16HDYK00.00.12线束密封圈Wire Harness Seal Ring1703-48284-00
17HDYK00.03.00急停开关总成Engine shut-off switch1688-82575-01
18HDYK00.04.00启动开关总成Start switch Assy1703-82510-12
19HDYK00.00.08遥控盒(外壳)Remote control box1
20HDYK00.00.16档位座减磨圈Gear Shift Seat washer2703-48236-00
21HDYK00.00.20手柄限位器Handle Limit Assy1703-48245-00
22GB818 M5*16十字槽盘头螺钉Screw M5*162
23GB818 M5*16十字槽盘头螺钉Screw M5*163
24HDYK00.09.05锁紧手柄压板handle Lock plate1
25HDYK00.09.04手柄锁紧开关Handle lock switch1703-48223-00
26HDYK00.09.06弹簧Spring1703-48227-00
27HDYK00.09.01手柄座Handle seat1
28HDYK00.09.03手柄Handle1
29HDYK00.02.02峰鸣器护套Handle switch cap1703-82563-02
30HDYK00.09.02手柄座装饰圈Handle seat decoration cir1
31HDYK00.00.15档位座减磨垫Gear Shift Seat washer1
32HDYK00.00.26盒盖连接件Box cover connector1
33HDYK00.00.14档位座Shift seat1
34HDYK00.07.00油门控制装置总成Throttle controler Assy1
35HDYK00.00.06导轮Guide wheel1703-48234-00
36HDYK00.00.07弹簧Spring1703-48244-00
37HDYK00.00.05导轮压板Guide wheel plate1703-48246-00
38GB818 M4*6十字槽盘头螺钉Screw M4*61
39HDYK00.08.01锁紧夹箍Locking Clamp1703-48264-00
40GB896 6开口挡圈(不锈钢/厚度1)Circlip 6193430-06024
41HDYK00.08.02调节螺钉Adjusting screw1703-48265-00
42HDYK00.00.19档位控制器减磨垫Shift control washer1703-48268-00
43HDYK00.00.17档位控制器Shift controler1703-48271-00
44HDYK00.00.13油门控制器减磨片Shift control washer1703-48235-00
45HDYK00.07.10导轮Guide wheel1703-48252-00
46DQQ-00.00.07.00-L十芯插头(5米)Ten-pin plug 5M1
47GB9074.1 M8*30(8.8)六角头螺栓和平垫组件Hex Bolt, Flat Pad M8*30(1
48HDYK00.00.32遥控器固定板Remote control fixation pla1
49GB5287 M6平垫Flat Pad 63
50GB6170 M6六角螺母Hex Nut M63
51GB820 M6*90十字槽半沉头螺钉Screw M6*903
52HDYK00.00.25钢索调节装置BCable adjustor B2703-48345-01
53HDYK00.00.27线索密封座Wire harness sealing Sea1
54GB818 M5*10十字槽盘头螺钉Screw M5*101
55DQQ-00.09.07电起翘遥控盒开关Electric Trim Remote Swit1
55HDYK00.05.01电启动怠速线Electric Start Idle Wire1
