舟一会 ZHOUYIHUI 船外机

海的 60F - 60FFEL

共 14 个部位，点击零件编码查看详情，或搜索本页零件。

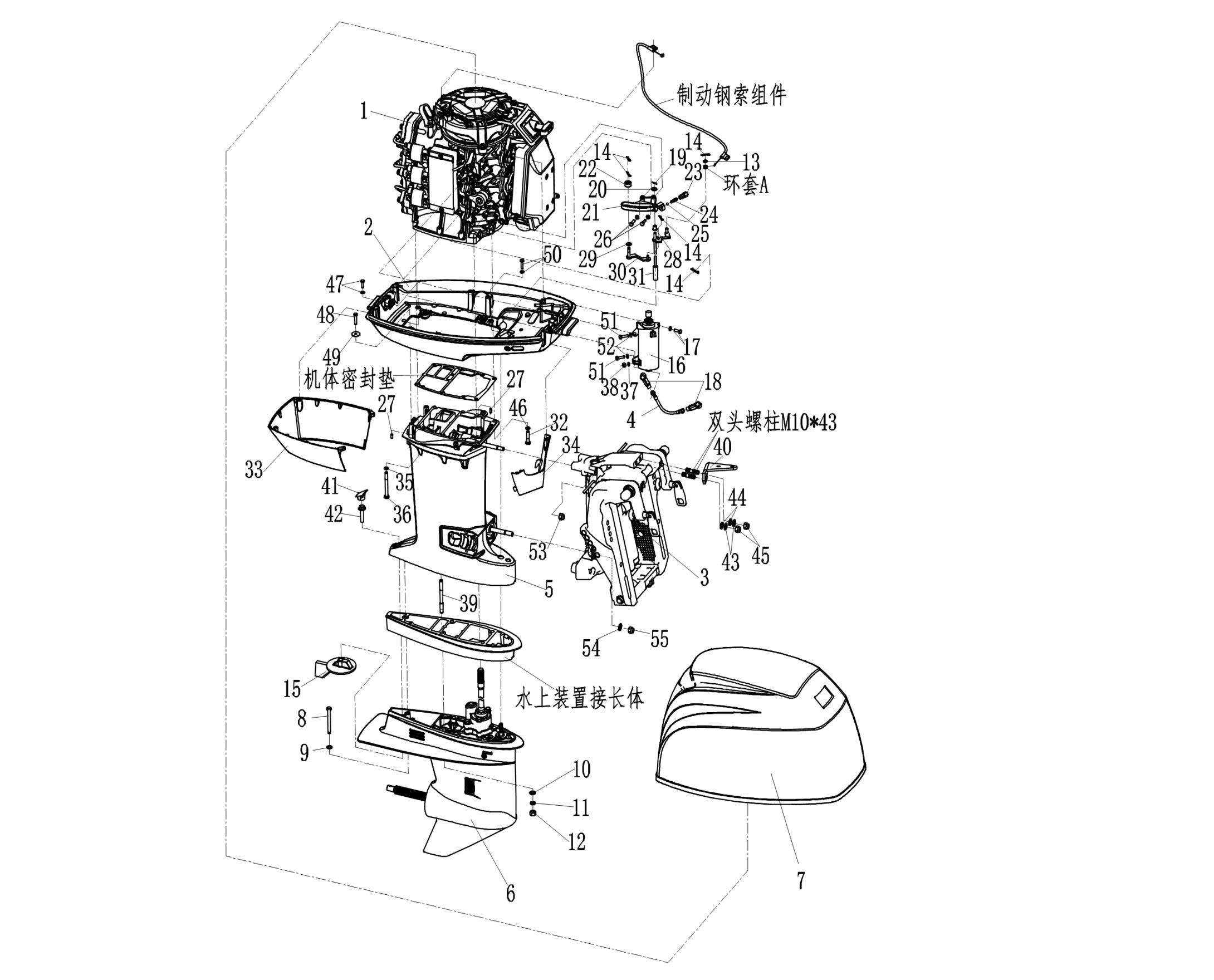

总装分解图
总装分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-01.00.00.00发动机总成Engine Assy.1
260F-02.00.00.00底座系统Lower cowling system1
360F-03.00.00.00夹紧托架系统Clamp Bracket system1
460FE-01.02.00.14导线battery cable1
560F-05.00.00.00水上装置系统Waterborne casing1
660F-06.00.00.00水下驱动系统Lower unit1
760F-07.00.00.00顶罩总成Top Cowling Assambly1
8GB5783六角头螺栓M8*110Bolt M8*110197095-06095
9GB97.1平垫8Flat gasket192903-10100
10GB848平垫10Flat Pad 104
11GB93弹垫10Spring washer4
12GB6170六角螺母M10*1.25Hexagonal nut M10*1.254
13GB97.1平垫6Flat gasket192903-10100
1415F-04.08.05卡簧Circlip590468-18008
1560F-06.00.00.03航向调整片（阳极）Anode1
1660FE-01.02.00.12启动电机electric start motor1
17GB9074.1（8.8）螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket assy M6*251
18DQDF15-00.03.06橡胶护套Brubber sleeve B2
19GB91开口销2*12Cottor pin 2*121
20GB848平垫8Flat Pad 81
2160F-01.06.00.17换档连杆托架Bracket, gear shift1
2260F-01.06.00.15档位滑套Gear sliding sleeve1
2360F-01.06.00.12六角螺栓M12* 1.25HEX NUT M12* 1.251
2460F-01.06.00.13弹簧SPRING1
25GB308钢球1/4Steel ball 1/41
26GB9074.1（8.8）螺栓和垫圈组合件M6*20Flat gasket&Bolt2
2715F-01.06.20定位销6*12Dowel pin2
2860F-01.06.00.18托架衬套Bracket bush1
2960F-01.06.00.16档位滑套垫圈WASHER1
3060F-01.06.02.00换档托架连杆组件Connecting rod,gear shift1
3160F-01.06.03.00换挡连杆组件Gear shift Lever Assy1
32GB5783六角头螺栓M8*35Bolt290119-08M10
3360F-00.00.00.01装饰罩前Decorative cover1
3460F-00.00.00.02装饰罩后Decorative cover1
35GB93弹垫8washer6
36GB5783六角头螺栓M8*85Hex bolt M8*85697095-06095
37GB93弹垫6Washer1
38GB6170六角螺母M6Hexagon nut1
39GB901双头螺柱B级M10*1.25*105Double head bolt B4
4060FE-03.00.00.24操纵钩lever hook1
4160F-00.00.00.03阳极堵塞Anode plug1
42GB5787六角法兰面螺栓M10*1.25*45Hexagon head flange bolts M10*1.25*45 (S12)1
43GB93弹垫10Spring washer2
44GB97.1平垫10Flat gasket292903-10100
45DIN985六角尼龙锁紧螺母M10*1.25hexagonal lock nut M10*1.252
46GB93弹垫8washer2
47GB9074.1（8.8）螺栓和垫圈组合件M6*20Flat gasket&Bolt2
48GB5783六角头螺栓M6*30Bolt497095-06095
4960F-00.00.00.04平垫圈Flat Gasket4
50GB9074.1（8.8）螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket assy M6*252
51GB5783六角头螺栓M8*35Bolt290119-08M10
52GB97.1平垫8Flat gasket292903-10100
53DIN985六角尼龙锁紧螺母M10*1.25hexagonal lock nut M10*1.252
54GB848平垫12Flat gasket 122
55DIN985六角尼龙锁紧螺母M12*1.25Hex nylon locking nut M12* 1.252

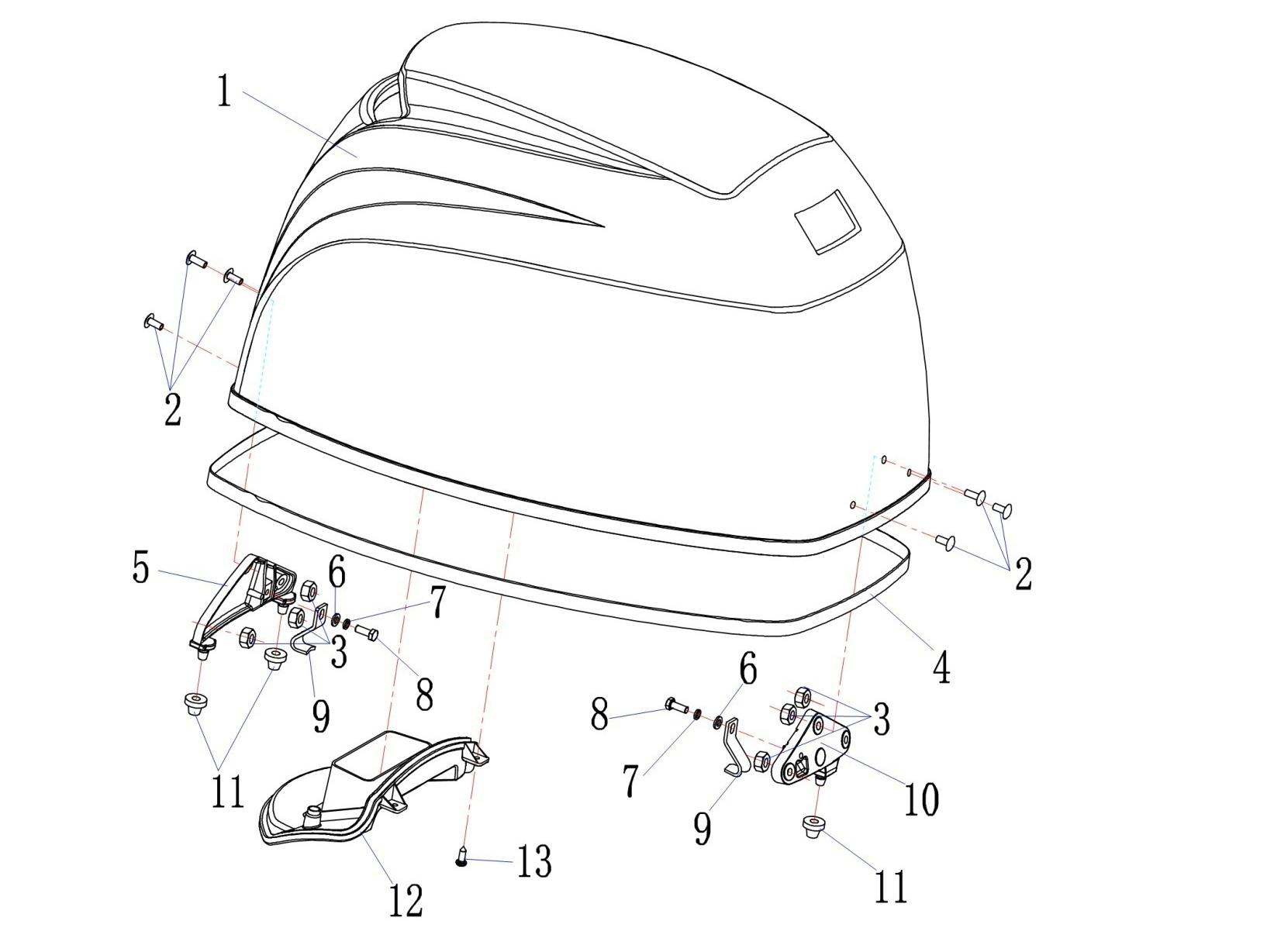

顶罩
顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-07.00.00.07顶罩Top cowling1
2GB818十字槽盘头螺钉M6*20Screw697885-06045
3GB6170六角螺母M6Hexagon nut6
460F-07.00.00.05橡胶密封圈Rubber Seal ring16H3-42615-00
560F-07.00.00.04后锁紧钩固定板Fixing plate190266-06009
6GB97.1平垫6Flat gasket292903-10100
7GB93弹垫6Washer2
8GB5783六角头螺栓M6*16Bolt697095-06095
960F-07.00.00.01锁紧钩Locking hook26H3-42652-00
1060F-07.00.00.03前锁紧钩固定板Front locking hook fixing plate16H3-42647-00-94
1160F-07.00.00.02顶罩减震脚Top cowling shock absorbing foot3663-42662-00
1260F-07.00.00.06进气口盖Air intake cap1
13GB845十字槽盘头自攻螺钉ST4.8*13Screw ST4.8*134

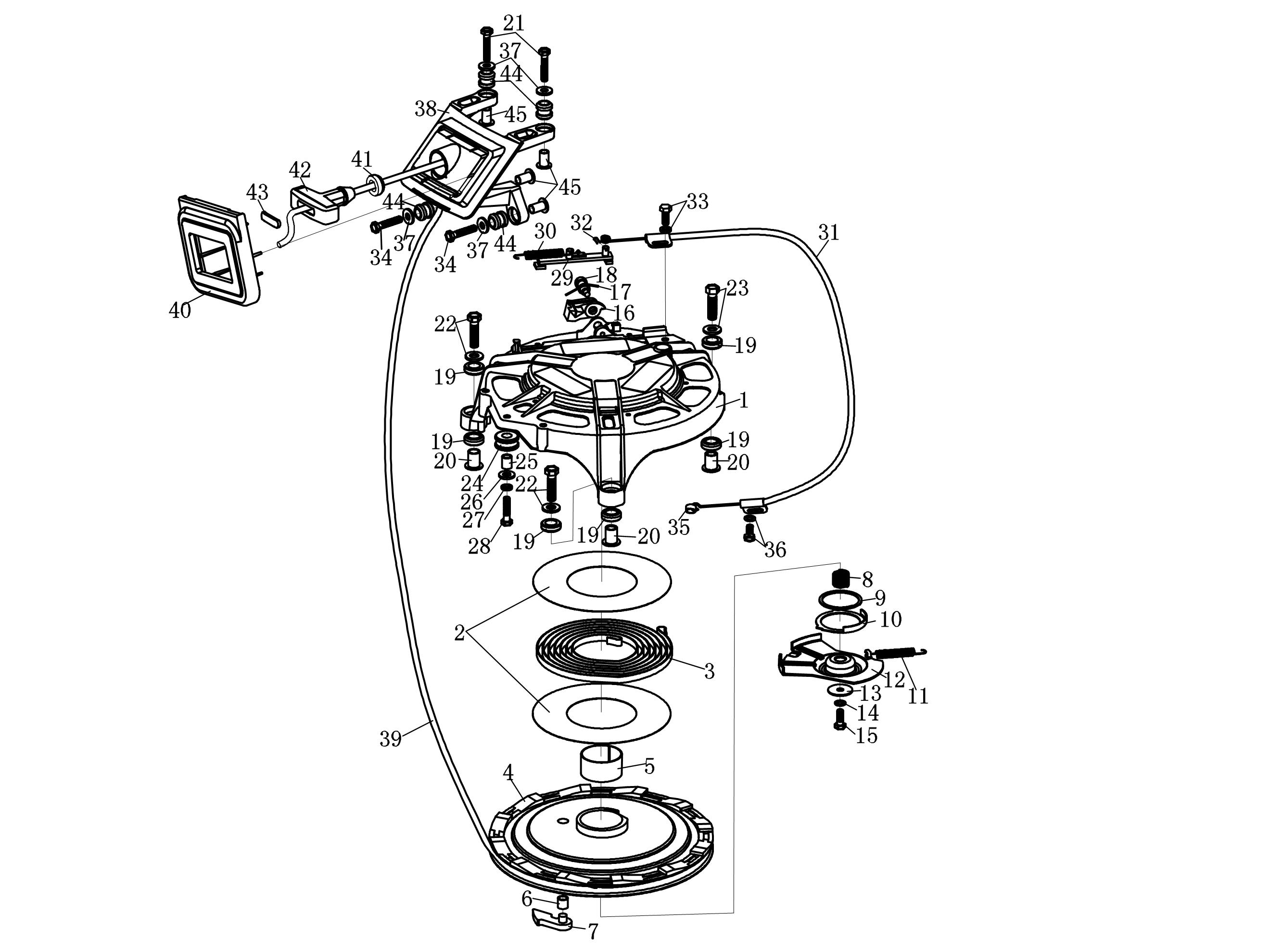

启动罩
启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-01.01.00.17启动罩壳Starter housing1692-15711-00
260F-01.01.00.19减磨片Antifriction disc2663-15739-00
360F-01.01.00.21涡形弹簧Volute Spring1663-15713-00
460F-01.01.00.14启动轮Starter wheel1663-15714-01
560F-01.01.00.20衬套Bushing1663-15754-00
660F-01.01.00.12驱动臂衬套Bush,drive arm1663-15764-00
760F-01.01.01.00驱动臂组件Drive arm Comp1663-15741-02
860F-01.01.00.10弹簧Spring1663-15715-00
960F-01.01.00.18轴用螺旋挡圈(ARSM-39.7Coller ARSM-39.71663-15744-00
1060F-01.01.00.11衬圈挡板gasket plate1663-15726-01
1160F-01.01.00.13压板拉簧pressure plate retracting spring1663-15734-01
1260F-01.01.00.09启动压板Start Plate1663-15716-01
1360F-01.01.00.08铜垫圈Copper washer1663-15719-00
14GB93弹垫6Washer1
15GB5783六角头螺栓M6*16Bolt197095-06095
1660F-01.01.00.06制动器Brake1663-15794-00
1760F-01.01.00.05制动器扭簧torsional spring,brake190508-12015
1860F-01.01.00.04开槽盘头螺钉M5Screw M5190149-05095
1940F-01.01.14减震圈Damper690385-12M04
2060F-01.01.00.03带肩垫管(长)shulder cushion tube(L)390387-08M05
21GB5783六角头螺栓M6*40Hex Head bolt M6*40297095-06095
22GB9074.1(8.8)螺栓和垫圈组合件M8*30Flat gasket&bolts2
23GB9074.1(8.8)螺栓和垫圈组合件M8*25Hexagonal bolt & flat gasket assy M8*251
2440F-01.01.01.04启动绳卷轴scroll,start wheel165F-15752-00
2540F-01.01.01.05卷轴衬套bushing16F5-15753-00
26GB96平垫6Flat gasket1
27GB93弹垫6Washer1
28GB5783六角头螺栓M6*25Bolt197095-06095
2960F-01.01.00.16制动滑块Brake silper1663-15735-01
3060F-01.01.00.01制动拉簧Brake tension spring190506-08M23
3160F-01.01.02.00制动钢索组件Brake Steel cable Assy16K5-15770-01
32GB91开口销 1.6*12Cotter pin 1.6*121
33GB9074.1(8.8)螺栓和垫圈组合件M6*10Hexagonal bolt & flat gasket assy M6*101
34GB5783六角头螺栓M6*25Bolt297095-06095
3560F-01.01.00.24套环AColler A1663-15736-00
36GB9074.1(8.8)螺栓和垫圈组合件M6*10Hexagonal bolt & flat gasket assy M6*101
37GB96平垫6Flat gasket4
3860F-01.01.00.07启动罩托架Braket,starter16K5-15758-01-94
3960F-01.01.00.15启动绳φ6*2500mmStarter Rope φ6*2500mm1
4060F-01.01.00.02橡胶减震垫rubber damper washer16K5-15762-00
4140F-01.01.19手柄减震圈Shock ring,handle16A0-15789-00
4240F-01.01.18启动手柄Starter handle1338-05019-0
4340F-01.01.16手柄盖Starter Handle cover1338-05013-0
4440F-01.03.23减震圈Damper4
4540F-01.03.22带肩垫管Shoulder pad tube461N-82317-00

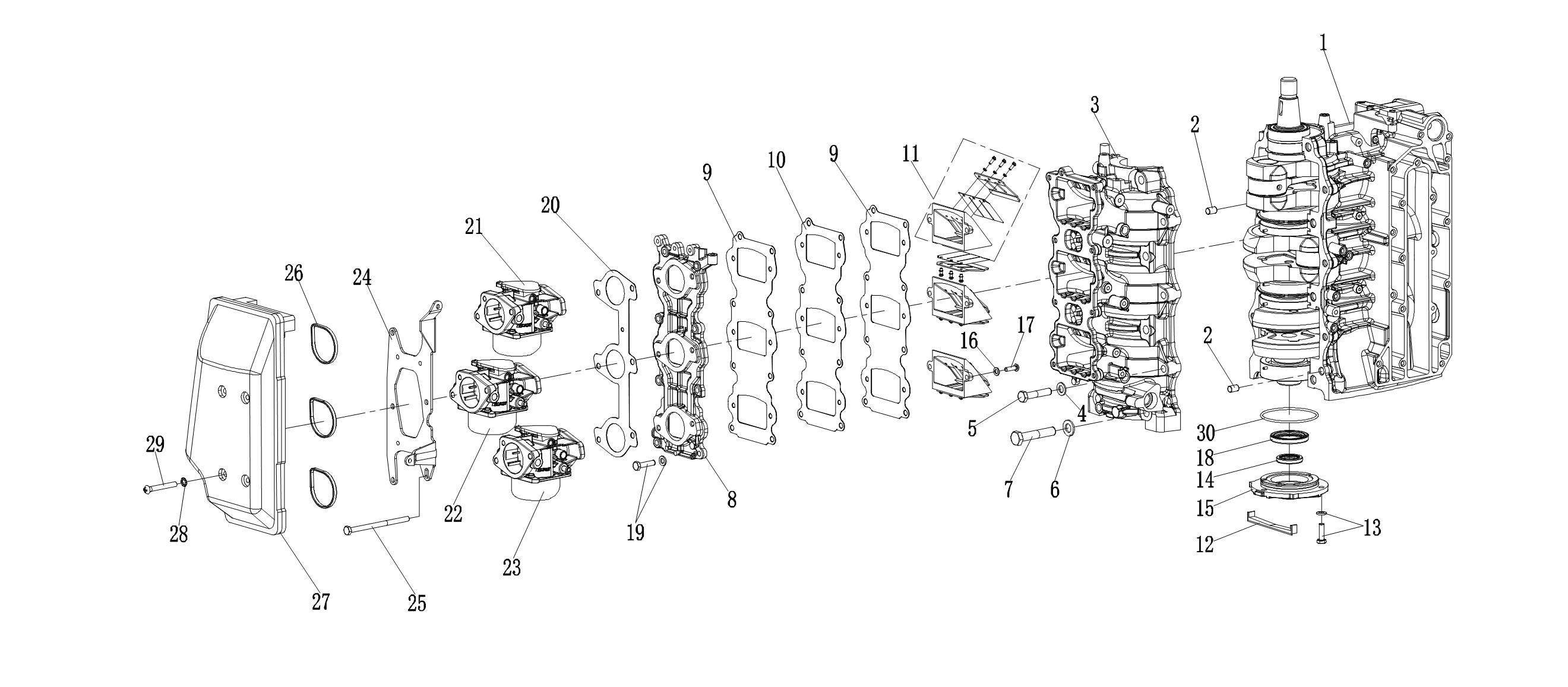

动力部分(1）
动力部分(1） 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-01.04.03.00箱体组件Crank case169D-15100-00-1S
240F-01.06.00.25定位销8*12Dowel pin 8*12293608-12063
360F-01.04.00.29箱盖Case cover193608-12063
4GB97.1平垫8Flat gasket692903-10100
5GB5783(10.9)六角头螺栓M8*40Bolt6
6GB97.1平垫M10Flat gasket892903-10100
7GB5782六角头螺栓M10*1.25*55HEX BOLT M10*1.25*558
860F-01.03.00.08进气歧管Intake manifold16H3-13641-03-94
960F-01.03.00.06进气歧管密封垫Seal gasket,Intake manifold26H3-13622-A1
1060F-01.03.00.07进气歧管密封垫衬板Lining pad,Intake manifold16H3-13624-00-94
1160F-01.03.06.00进气阀组件Inlet valve36H2-13610-00
1260F-01.04.04.05密封条seal strip1
13GB9074.1(8.8)螺栓和垫圈组合件M6*20Flat gasket&Bolt3
1460F-01.04.04.03驱动轴上油封(18*32*7)Oil seal, drave shaft193106-18001
1560F-01.04.04.01油封壳体Shell, oil seal16H3-15359-00-94
16GB97.1平垫5Flat gasket692995-05600
17GB823十字槽小盘头螺钉M5*16Screw M5*16697880-05016
1860F-01.04.04.02曲轴下油封(30*47*7)Oil seal, Crank shaft193102-30009
19GB9074.1(8.8)螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket assy M6*258
2060F-01.03.00.04化油器密封垫seal Gasket, Carburator16H3-14198-A1
2160F-01.03.02.00化油器-1Carburator-116K5-14301-03
2260F-01.03.03.00化油器-2Carburator-216K5-14302-03
2360F-01.03.04.00化油器-3Carburator-316K5-14303-03
2460F-01.03.00.02化油器固定架Braket,Carburator16H3-14413-10
25GB5783六角头螺栓M6*95Hex Bolt M6*95697095-06095
2660F-01.03.00.01进气消音器密封垫Gasket, Silencer36H3-14457-01
2760F-01.03.01.00进气消音器组件Silencer Assy.16H3-14440-02
28GB862.1外齿锁紧垫圈M6Lock washer M6490209-06M05
29GB818十字槽盘头螺钉M6*45Screw M6*45497885-06045
3060F-01.04.04.04油封壳体O型圈(65.9*2.5)O-ring, oil shell193210-65M50

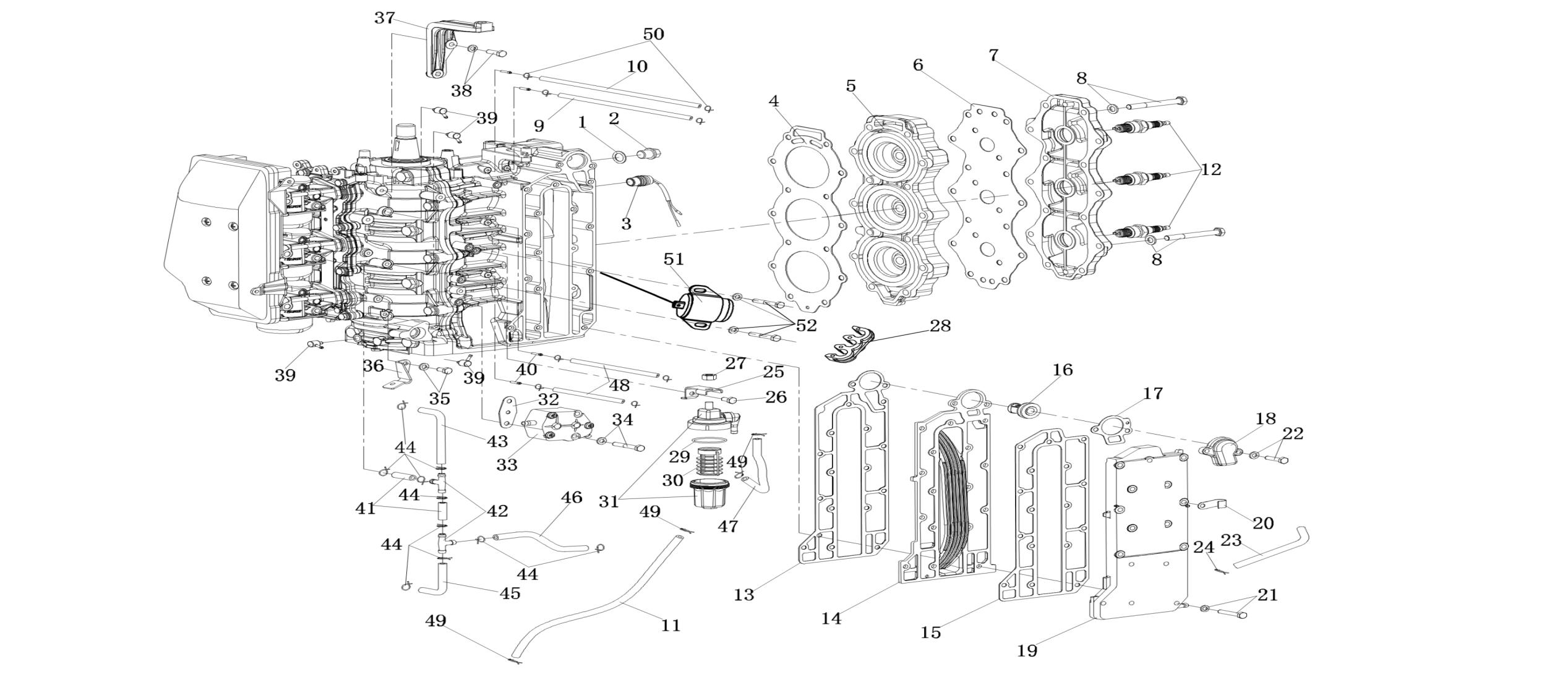

动力部分（2）
动力部分（2） 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.04.00.01垫圈14Washer 14190430-14115
2F15-05.00.00.08放油螺栓M14*12* 1.5Drain bolt M14*12*1.5190340-14M00
360F-01.02.02.00温控传感器组件Temperature Sensor Assy1
460F-01.04.00.04气缸垫Cylinder gasket16H3-11181-A1
560F-01.04.00.03气缸头Cylinder head16H3-11111-01-1S
660F-01.04.00.02气缸盖密封垫Sealing gasket,cylinder cap16H3-11193-A1
760F-01.04.00.01气缸盖Cylinder cap16H3-11191-00-1S
8GB9074.1(10.9)螺栓和垫圈组合件M8*70Bolt&gasket Assy M8*7014
960F-01.04.00.09气管Φ2.5*7*350Air hose Φ3*7*350190445-07M45
1060F-01.04.00.10气管Φ2.5*7*450Air hose Φ3*7*450190445-07M82
1160F-01.03.00.14燃油滤清器进油管5*9*260Oil filter inlet pipe5*9*260169D-24311-00
12BR8HS-10(30F/60F)火花塞(新)Spark plug394702-00160
1360F-01.04.00.16排气内盖密封垫Seal gasket,Exhaust inner cap16H3-41112-A0
1460F-01.04.00.15排气内盖Inner cap,exhaust16H3-41111-01-1S
1560F-01.04.00.14排气侧盖密封垫gasket,Exhaust side cap16H3-41114-A0
1615F-01.06.14-50°节温器(50°)thermostat 50℃1350-01030-1
17F15-01.01.00.11节温器盖垫片Gasket,Thermostat16H3-12414-A1
18F15-01.01.00.12节温器盖Thermostat cap16H3-12413-00-1S
1960F-01.04.00.13排气侧盖Side Cap,exhaust16H3-41113-02-1S
20F15-01.03.00.42通气管固定夹Bfix clip,air breather tube190465-06M86
21GB9074.1 (8.8)螺栓和垫圈组合件M6*35Hexagonal bolt & flat gasket assy M6*16
22GB9074.1 (8.8)螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket assy M6*2
2360F-01.03.00.09L型油管（长）L oil pipe (Long)1
24管夹Φ9Tube Clip1
2515F-01.06.23燃油滤清器支架outer cover,exhaust1682-24566-01
26GB5783六角头螺栓M6*12Bolt197095-06095
27GB6170六角螺母M8Bolt nut1
2860F-01.04.00.11气管管卡Air hose Clamp161A-24560-04
2915F-01.07.05.06过滤器O型圈(33*2)O ring,filter193210-32738
3015F-01.07.05.04过滤器滤芯fuel fliter161N-24563-00
3115F-01.07.05.05燃油滤清器(外壳)Inner cover,exhaust161N-24560-00
3240F-01.07.05燃油泵垫片Fuel pump washer1650-24431-A0
3340F-01.07.04.00燃油泵组件(TK)(Y3A-3B)Fuel pump assy.1692-24410-00
34GB9074.1(8.8)螺栓和垫圈组合件M6*40Bolt2
35GB9074.1(8.8)螺栓和垫圈组合件M6*12Bolt1
3660F-01.01.01.23制动钢索支架Braking cable bracket1
3760F-01.04.00.06启动罩右支架Right Bracket,Starter Cap1
38GB9074.1(8.8)螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket assy M6*2
3915F-01.06.03气管圆接头AJoint,air breather tube4650-14485-03
4015F-01.06.21气管圆接头BJoint,air breather tube430901-1350
4160F-01.03.00.10油管5*9*30Fuil Pipe 5*9*30290445-09220
42F15-05.00.00.17三通T-branch pipe2
4360F-01.04.00.12L型水管（长）L water pipe(long)16H3-24314-00
44管夹Φ9Tube Clip10
452.5F-01.04.00.08L型油管L oil pipe (short)16H3-24313-00
4660F-01.03.00.11油管5*9*125Oil pipe 5*9*125190445-09072
4760F-01.03.00.13燃油泵进油管Fule pump inlet oil pipe169D-24312-00
4860F-01.04.00.08气管Φ2.5*7*185Air hose Φ3*7*185290445-07M02
49管夹Φ9Tube Clip4
50管夹Φ6.5Tube clip8
5160FE-01.02.11.00电磁阀组件Solenoid Valve assy.1
52GB9074.1(8.8)螺栓和垫圈组合件M6*16Bolt2

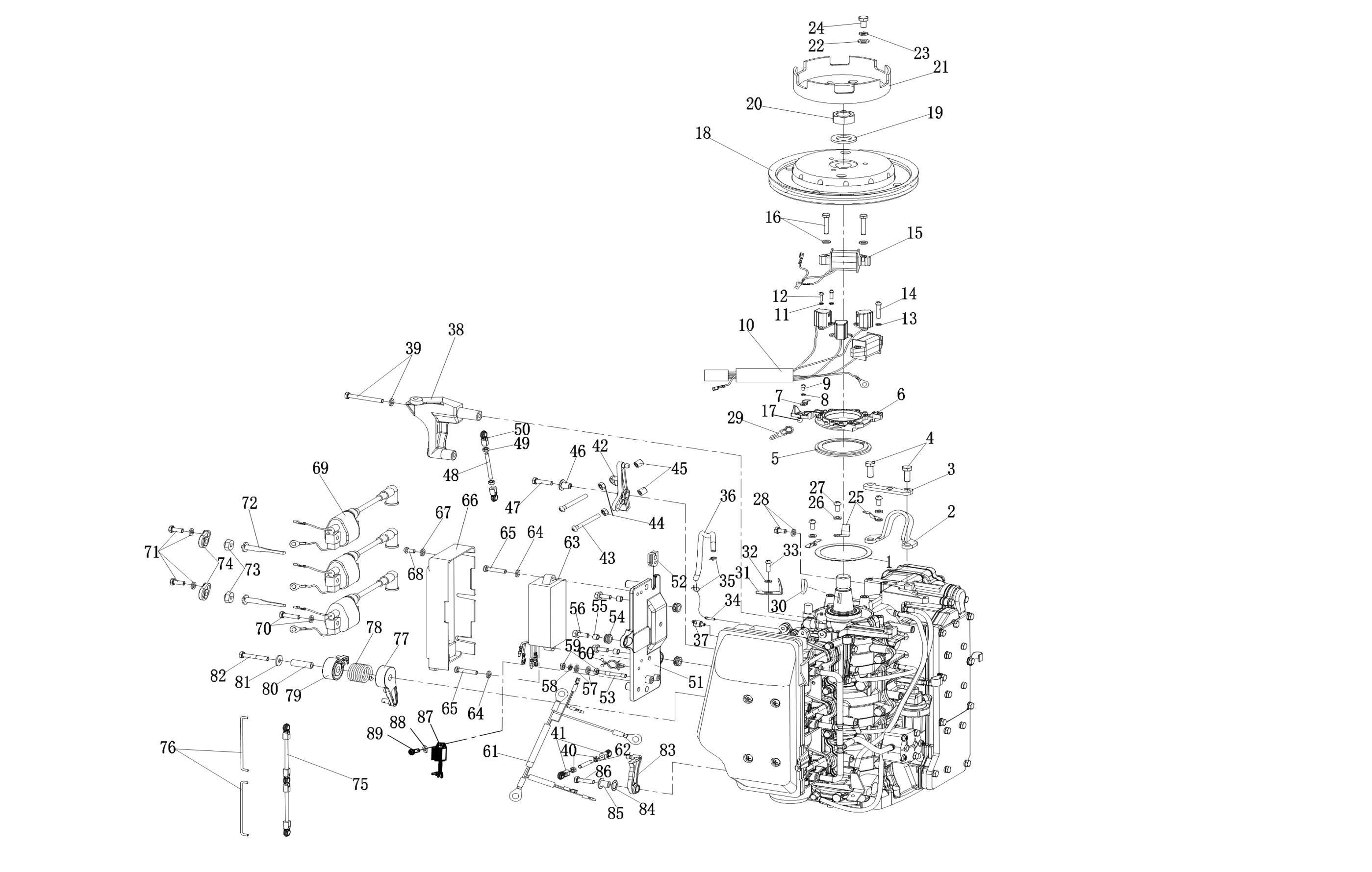

动力部分(3)
动力部分(3) 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-01.02.00.11衬套垫片Bushing Gasket16K5-41618-00
260F-01.04.00.19发动机吊环Hanger ring16K5-11119-01
360F-01.04.00.18启动罩安装块Starter cap Fixing block1
4GB5783六角头螺栓M8*25Hex Head Bolt M8*25297095-06095
560F-01.02.00.10磁电机座衬套Magneto base Bush16H4-41611-00
660F-01.02.09.00磁电机座Magneto Base16H3-85510-A1
760F-01.02.00.09线束压板Wire harness plate1
8GB93弹垫4Washer1
9GB823十字槽小盘头螺钉M4*6Screw M4*6197880-05016
1060F-01.02.10.00触发器及充电线圈组件Trigger & Charging coil assy.1
11GB93弹垫4Washer6
12GB823十字槽小盘头螺钉M4*12Screw M4*12697880-05016
13GB93弹垫M5Spring washer2
14GB823十字槽小盘头螺钉M5*25Screw M5*25297880-05016
1560F-01.02.08.00照明线圈组件Lighting coil Assy16H3-85533-A0
16GB9074.1 (8.8)螺栓和垫圈组合件M6*30Bolt2
1730F-01.02.00.02球头螺栓Ball head bolt1
1860FE-01.02.13.00电启动飞轮electric fly wheel1
19GB97.1平垫20Flat gasket190201-21M18
2040F-01.03.02飞轮螺母M20*1.25Flywheel nut190170-20137
2160F-01.01.00.22启动毂Starting hub16K5-15723-00
22GB97.1平垫8Flat gasket392903-10100
23GB93弹垫8washer3
24GB5783六角头螺栓M8*12Hex head bolt M8*12397013-08012
2560F-01.02.00.08磁电机座压板Magneto Base Plate36H3-41612-00
26GB848平垫6Flat gasket3
27GB823十字槽小盘头螺钉M6*12Cross recessed Pan head screws M6*12397880-05016
28GB9074.1 (8.8)螺栓和垫圈组合件M6*12Bolt1
2960F-01.05.00.02正时连杆接头Timing rod connector16H3-41238-00
3040F-01.03.03半圆键Woodruff key1
3160FE-01.03.00.16TDC指针TDC pointer1
32GB97.1平垫6Flat gasket192903-10100
33GB823十字小盘头螺钉M6*10Bolt197880-05016
3415F-01.06.21气管圆接头BJoint,air breather tube130901-1350
35管夹Φ6.5Tube clip2
3660F-01.04.00.07气管Φ2.5*7*260Air pipe Φ3*7*2601
3715F-01.06.03气管圆接头AJoint,air breather tube1650-14485-03
3860F-01.04.00.05启动罩左支架Left Bracket,Starter Cap16K5-15772-00-94
39GB9074.1(8.8)螺栓和垫圈组合件M6*55Flat gasket&bolts2
40GB6170六角螺母M5Hexagon nut M52
4130F-01.05.00.03正时调整连杆接头Timing adjustment connecting bolt2
4260F-01.05.01.00正时控制器组件Timing controller Assy16H3-41631-00
43GB818十字槽盘头螺钉M6*40Pan head bolt with cross recess297885-06040
44GB6170六角螺母M6Hexagon nut2
4515F-01.04.07螺纹盖screw cap2
4660F-01.05.00.01带肩垫管(短)shoulder Cushion Tube(short)190387-06M60
47GB5783六角头螺栓M6*25Bolt197095-06095
4860F-01.05.02.02连杆Connecting rod1679-41636-00
49GB6170六角螺母M5Hexagon nut M52
5015F-01.03.12连杆接头Linkage connector2
5160F-01.02.00.07电器支架Electrical Bracket16H3-85542-00-94
5230F-01.02.00.09线束固定套Fixing sleeve,speed limit16H3-81922-00
53GB897双头螺柱M6*1*32Stud M6*1*32190116-06M07
54F25-02.00.00.12装饰罩减震垫Damper cushion,Decorative cover390480-13M24
55F25-02.00.00.13装饰罩减震垫管Damper cushion bushing,Decorative cover390387-06M43
56GB5789(10.9)六角法兰面螺栓M6*16Hex Flange Bolt M6*16390105-06M14
57GB97.1平垫6Flat gasket292903-10100
58GB93弹垫6Washer1
59GB6172六角薄螺母M6Hexagon thin nut M62
6060F-01.02.00.05尼龙线卡（中）Nylon Wire clip(middle)190464-12M17
6160F-01.02.06.00接地线组件Ground lead Assy16K5-82531-00
6260F-01.05.03.01连杆Connecting rod1682-41237-50
6360F-01.02.05.00点火控制器组件CDI1
64GB97.1平垫6Flat gasket292903-10100
65GB818十字槽盘头螺钉M6*25Pan head screw with cross recess297885-06045
6660F-01.02.00.02电器盖Electrics cap16H3-81916-00
67GB97.1平垫6Flat gasket292903-10100
68GB818十字槽盘头螺钉M6*12(H型Screw M6*12297885-06045
6960F-01.02.04.00高压包组件Ignition coil assy.36H3-85570-10
70GB9074.1(8.8)螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket assy M6*256
71GB9074.1(8.8)螺栓和垫圈组合件M6*16Bolt2
7260F-01.04.00.17机体阳极Anode2
7330F-01.04.00.17水封water seal26H3-11328-00
7430F-01.04.00.16压紧块Lock pad26H3-11327-00-1S
7560F-01.03.05.00节气门联动杆组件Throttle linkage lever1
7660F-01.03.00.03阻风门联动杆Choke linkage lever2
7760F-01.05.00.03正时控制端轮Timing controller Wheel16H3-41633-00
7860F-01.05.00.04扭簧Torsional spring190508-29M19
7960F-01.05.00.05油门控制端轮Throttle controller Wheel16H3-41632-00
80F9.9-01.01.00.18衬套Bushing190387-06M59
81GB96平垫6Flat gasket1
82GB5783六角头螺栓M6*45Hexagonal bolt M6*45197095-06095
8360F-01.05.00.06油门凸轮Throttle Cam16H3-41213-01
8460F-01.05.00.07波形垫圈Wave Washer190206-10M04
8540FE-01.03.08带肩垫管Cushion Tube190387-06M60
86GB5783六角头螺栓M6*25Bolt197095-06095
8740FE-01.03.10整流器Rectifier16G1-81970-62
88GB97.1平垫5Flat gasket192995-05600
89GB5783六角头螺栓M5*16Bolt197095-05016
曲轴部分

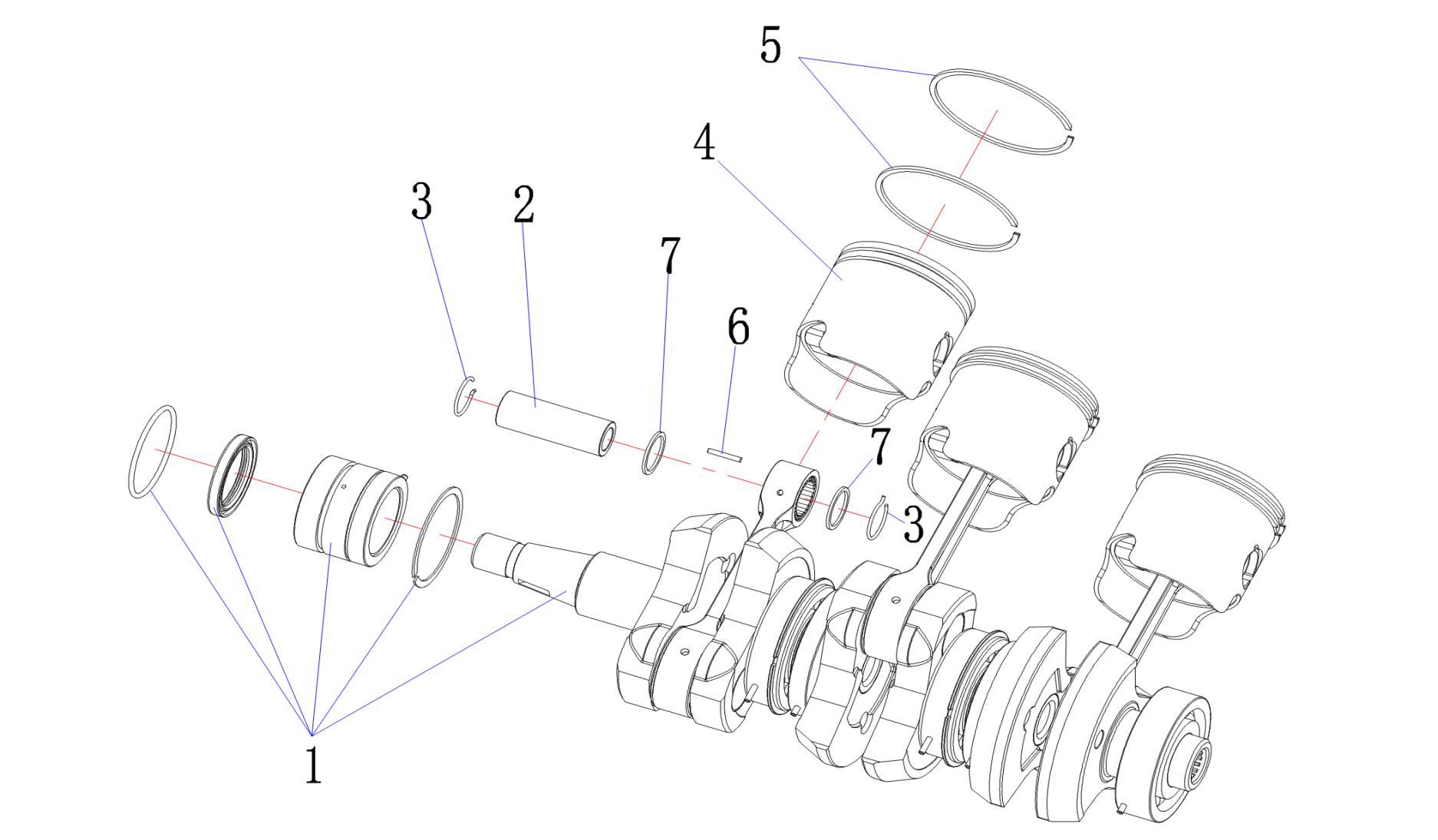

曲轴部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-01.04.01.00曲柄连杆组件Crankshaft Assy16K5-11401-00
260F-01.04.00.30活塞销Piston pin36H3-11633-00
360F-01.04.00.21活塞销卡簧Piston pin Circlip6688-11633-00
460F-01.04.00.24活塞Piston36K5-11631-03-95
530F-01.04.00.27主气环1st ring661N-11603-00
660F-01.04.00.28滚针Rolling needle8493603-18M09
740F-01.06.04.05滚针盖板Needle bearing plate690201-20417
底座

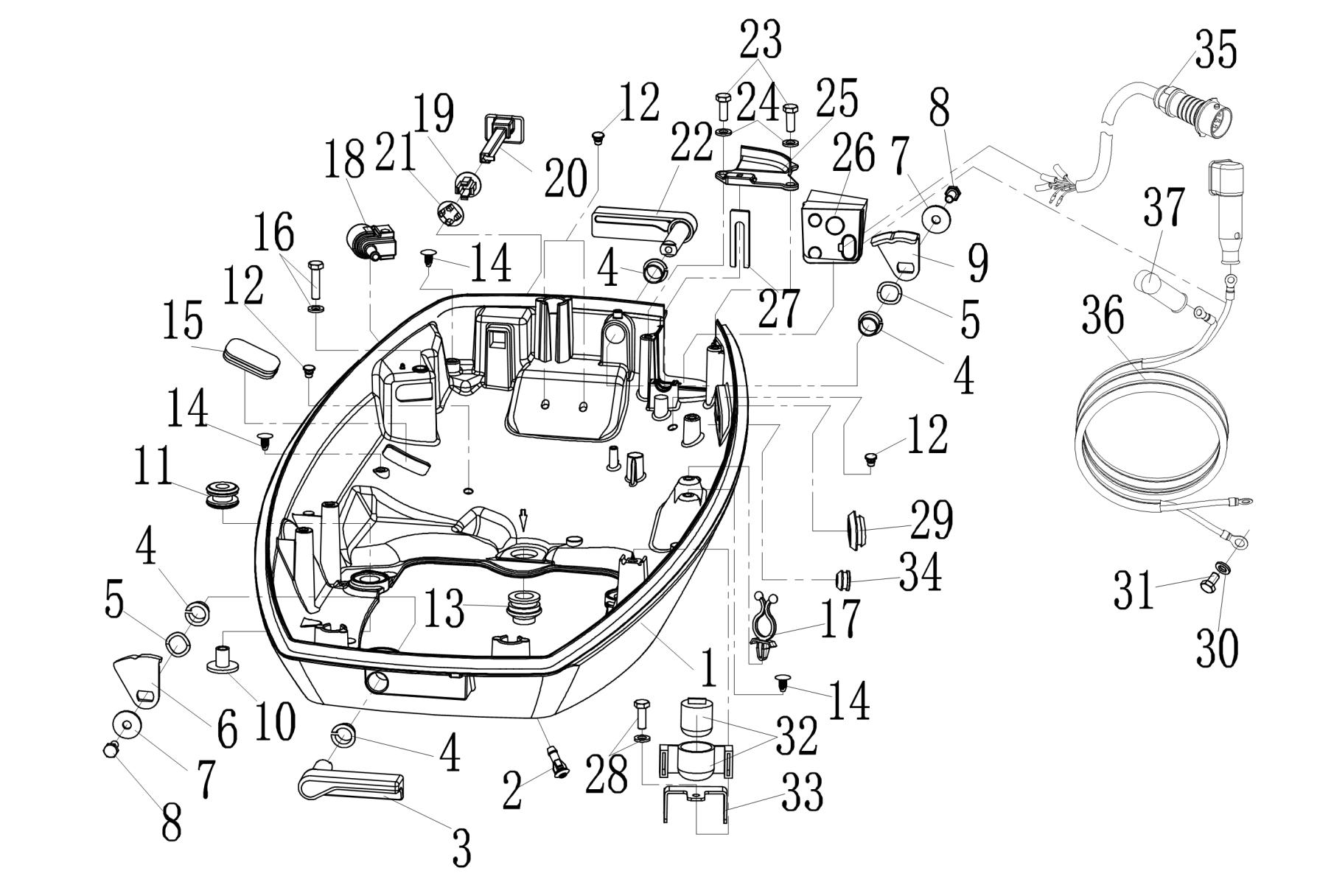

底座 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-02.00.00.12底座Bottom cowling assy.16H3-42711-15-4D
215F-02.11塑料水嘴Plastic Water nozzle16BL-44391-00
360F-02.00.03.00后锁紧手柄组件Rear Lock Handle Assy16H3-42817-01-4D
460F-02.00.00.09开口衬圈Washer490386-13M38
560F-02.00.00.11波垫Wave Washer490206-13M10
660F-02.00.00.14后锁紧钩Rear lock hook16H3-42813-00
7GB5287平垫6Flat gasket 62
8GB5783六角头螺栓M6*12Bolt297095-06095
960F-02.00.00.10前锁紧钩Front lock hook16H3-42818-00
1060F-02.00.00.04带肩垫管（底座）Cushion pipe(Bottom cowling)490386-13M38
1160F-02.00.00.05减震垫（底座）Damper(Bottem Cowling)490480-09M12
1260F-02.00.00.06堵塞（小）Plug(small)4
1360F-02.00.00.03换档轴护套Shaft sleeve16E5-42724-00
1440F-02.00.00.08螺纹塞Thread plug3
15F9.9-02.00.00.15长方形橡胶闷头rubber Plug16H4-42726-00
16GB9074.1(8.8)螺栓和垫圈组合件M6*2Hexagonal bolt & flat gasket assy M6*21
1760F-01.02.00.05尼龙线卡(中)Nylon Wire clip(middle)190464-12M17
1815F-01.07.01.00燃油管插头组件Fuel hose joint assy1
1915F-02.03阻风门拉杆护套Protecting bush,choke1689-41273-00
2060F-02.00.01.00阻风门手柄组件Choke Handle1
2115F-02.04橡胶垫Rubber washer16J8-41274-00
2260F-02.00.02.00前锁紧手柄组件Front lock handle Assy16H3-42815-01-4D
23GB818十字槽盘头螺钉M6*16Pan head bolt with cross recess297880-06016
24GB97.1平垫6Flat gasket292903-10100
2560F-02.00.00.07压板（油门钢索）Plate(Throttle cable)16H3-42738-01-5B
2660FE-02.00.00.14油门钢索固定套fixed sleeve,throttle cable1
27HDYK00.00.23底座钢索限位块Bottom cowling Damper.1
28GB9074.1(8.8)螺栓和垫圈组合件M6*1Bolt1
2960F-02.00.00.01堵塞（左）Plug(left)16H3-42727-00
30GB97.1平垫8Flat gasket192903-10100
31GB5783六角头螺栓M8*12Hex head bolt M8*12197013-08012
32DQDF15-00.03.00继电器组件(电起动)relay Assy.1
3360FE-01.02.12.01继电器支架relay bracket1
3460FE-02.00.00.15橡胶闷头rubber plug1
35DQDF15-00.00.01七芯插头0.8Mseven stars plug0.8M1
3660FE-01.02.00.13电瓶线battery cable1
37DQDF15-00.03.06橡胶护套Brubber sleeve B1
水上部分

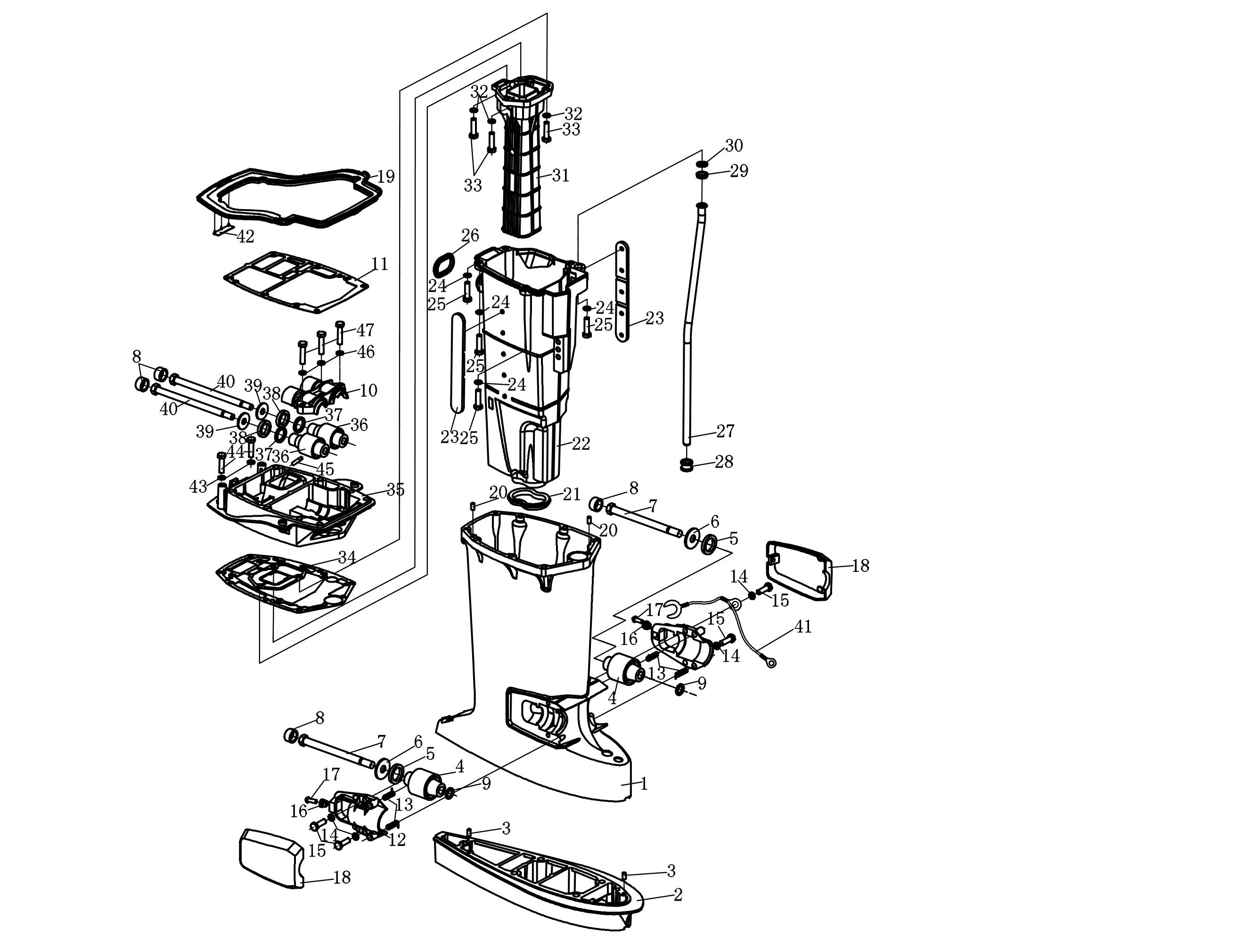

水上部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-05.00.00.15水上装置壳体Upper Casing16H3-45111-01-4D
260F-05.00.00.24水上装置接长体Upper Connector case1696-45211-01-4D
315F-01.06.20定位销6*12Dowel pin2
460F-05.00.03.00下减震器组件Lower Damper Assy2687-44555-00-94
560F-05.00.00.13橡胶垫Φ25Rubber Cushion Φ25290202-25M04
6GB96平垫12Gasket2
760F-05.00.00.14六角头螺栓M12*1.25*153Hex head Bolt M12*1.25*153290109-12M21
860F-05.00.00.07橡胶螺套rubber sleeve4663-44575-00
9GB848平垫12Flat gasket 122
1060F-05.00.00.08上减震器外壳Upper damper shell1688-44511-00-94
1160F-05.00.00.01机体密封垫Body sealing gasket16H3-45113-A0
1260F-05.00.00.11下减震器外壳Lower damper shell26H3-44552-03-94
1360F-05.00.00.12下减震器盖弹簧lower damper cap spring490601-14M08
14GB93弹垫8washer4
15GB5783六角头螺栓M8*25Hex Head Bolt M8*25497095-06095
1660F-05.00.00.10塑料螺母Plastic nut290179-06066
17GB823十字槽小盘头螺钉M5*16Screw M5*16297880-05016
1860F-05.00.00.09下减震器盖Lower damper Cap26H3-44553-01-4D
1960F-05.00.00.02底座减震垫Lower cowling damper16H3-42716-02
2015F-01.06.20定位销6*12Dowel pin2
2160F-05.00.00.18消音器壳体衬圈Silencer shell bush16H3-45123-00
2260F-05.00.00.16消音器壳体Silencer shell16H3-14711-01-5B
2360F-05.00.00.19消音器壳体衬垫Silencer shell cushion26H3-14737-00
24GB93弹垫8washer4
25GB5783六角头螺栓M8*30Bolt497095-06095
2660F-05.00.00.20怠速排气口衬圈Idle exhaust Bush16H3-45127-00
2760F-05.00.00.17水管Water pipe169D-44361-00
2840F-05.00.00.16水管下密封圈Seal ring(lower),hose1663-44367-00
2940F-05.00.00.14水管密封圈Seal ring,hose190202-12060
3040F-05.00.00.15水管衬圈Bushing ，hose1676--42727-00
3160F-05.00.00.25排气管exhaust pipe16H2-41131-00-5B
32GB93弹垫8washer3
33GB5783六角头螺栓M8*30Bolt397095-06095
3460F-05.00.00.21水上装置壳体密封垫Upper shell gasket16H3-45114-A1
3560F-05.00.00.22机体底座Bottom Base16H3-42711-15-4D
3660F-05.00.01.00上减震器组件Upper damper Assy.2688-44514-00-94
3760F-05.00.00.05平垫圈21*28*3Flat gasket 21*28*3290201-20M21
3860F-05.00.00.06橡胶垫Φ21Rubber gasket Φ21290202-20M06
39GB848平垫12Flat gasket 122
4060F-05.00.00.04六角头螺栓M10*1.25*173Hex head bolt M10*1.25*1.73290101-10M49
4160F-05.00.02.00接电导线组件Connecting wire assy1
4260F-05.00.00.03橡胶出水片Rubber exhaust gasket16K5-42717-00
43GB93弹垫8washer2
44GB5783六角头螺栓M8*30Bolt297095-06095
4560F-05.00.00.23水管Water pipe1
46GB5783六角头螺栓M8*35hex bolt M8*35397095-06095
47GB93弹垫8washer3
夹紧部分

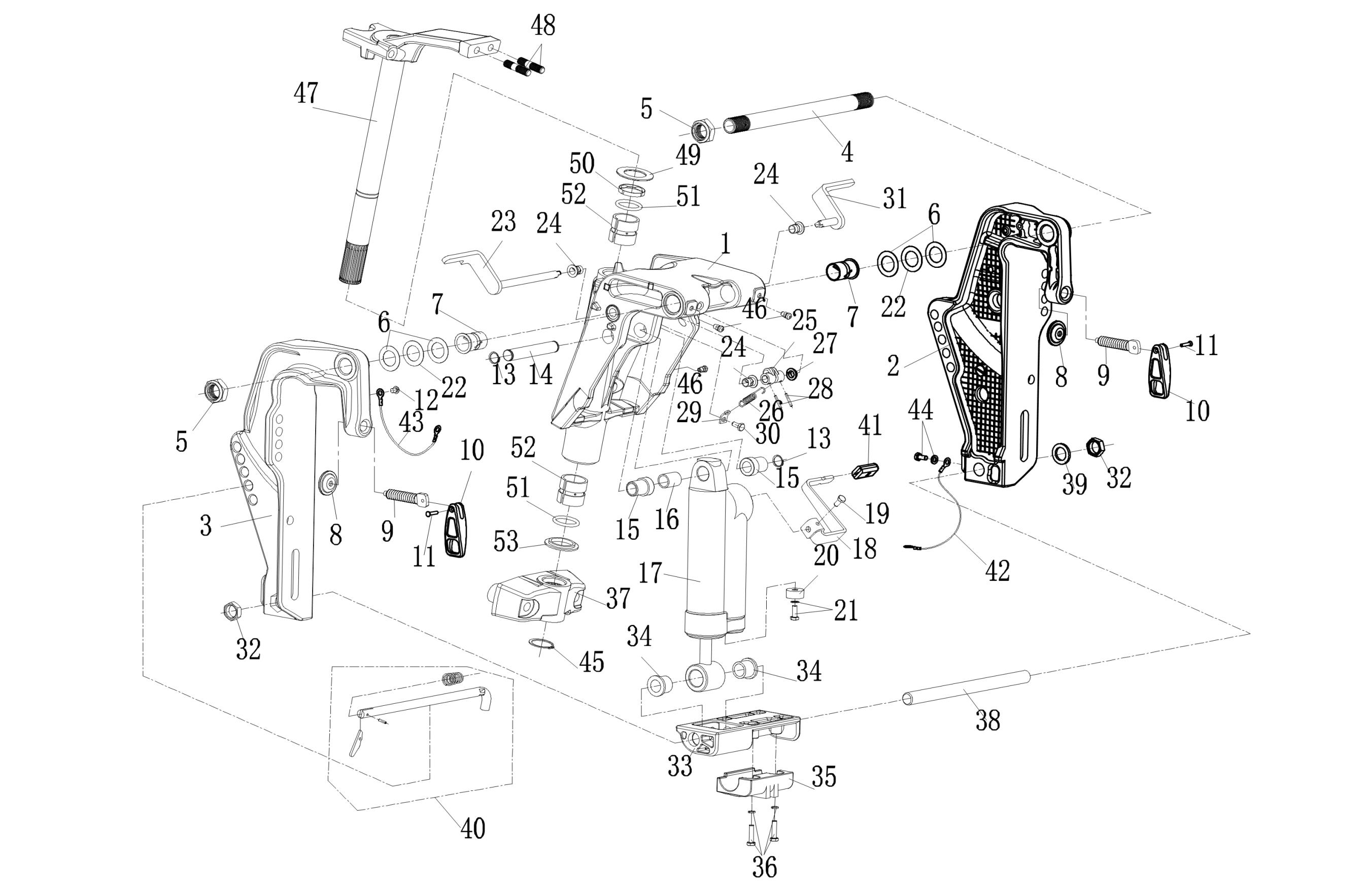

夹紧部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-03.00.00.22旋转托架Swivel bracket1697-43311-03-4D
260F-03.01.01.00左托架组件Bracket(LH)1697-43111-05-4D
360F-03.02.01.00右托架组件Bracket(RH)1697-43112-03-4D
440F-03.04夹紧托架双头螺栓Bolt1346-62191-0
515F-03.01夹紧托架螺母Clamp nut290185-22043
640F-03.03垫片Washer4
740F-03.07.02托架阻尼圈Damping ring,bracket290386-22M15
815F-03.05.02.03夹紧盘Clamp plate2620-43114-00
960F-03.01.01.03艉板夹紧螺栓Transom Clamp Bolt2663-43116-01
1040F-03.05.03.02夹紧手柄intensify handle26E0-43118-01
11GB1015沉头半空心铆钉4* 18Bolt2
12GB823十字槽小盘头螺钉M6*8Screw M6*8197880-06012
13GB894.1轴用弹性挡圈A型Φ15Circlip A type Φ152
1460F-03.00.00.16液压起翘支撑轴上Hydralic Trim Suport shaft (up)1
1560F-03.00.00.15液压起翘上衬套Hydralic Trim bushing290386-18M35
1660F-03.00.00.17支撑轴套管Supporting shaft sleeve190386-18M21
1760F-03.03.00.00手动起翘装置总成Manual Trim Assy169D-43170-10-4D
1860F-03.03.00.01起翘手柄（起翘器自带）Trim Handle(power trim include)169D-43631-00
19GB5783六角头螺栓M6*10Bolt197095-06095
2040F-01.06.00.11排水阳极Anode,water outlet1676-45251-00
21GB9074.1(8.8)螺栓和垫圈组合件M6*16Bolt1
2215F-03.02尼龙垫片Nylon gasket290202-22M54
2360F-03.00.05.00倾斜定位挡杆（左）Tilt positioning lever - Left16H5-43181-03
2460F-03.00.00.20摇臂衬套Arm bush3
2560F-03.00.04.00倾斜定位挡杆摇臂组件Tilt positioning lever arm assy.16G5-43148-00
2660F-03.00.00.19倾斜定位挡杆拉簧Tilt positioning lever spring190506-14M24
2760F-03.00.00.21摇臂开口衬套Arm open bush190386-10025
28GB879弹性圆柱销Φ3*16Elastic cylindrical pin 3*162
2960F-03.00.00.18拉簧钩Hook,spring16G5-43144-00
30GB5783六角头螺栓M6*10Bolt197095-06095
3160F-03.00.06.00倾斜定位挡杆（右）Tilt positioning lever - Right16H5-43181-03
3260F-03.00.00.09六角螺母M18*1.5Hex Nut M18*1.52
3360F-03.00.00.12托架限位块Bracket blocker163D-43128-01-4D
3460F-03.00.00.14液压起翘下衬套Hydraulic trim Bushing(lower)263D-43112-01-4D
3560F-03.00.00.11阳极Anode163D-45251-00
36GB9074.1(8.8)螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket assy M6*252
3760F-03.00.00.02下减震器连接座Lower damper base16H3-44551-01-4D
3860F-03.00.00.13液压起翘支撑轴下Hydralic Power Trim Suport shaft (down)190116-18M52
3960F-03.00.00.10平垫Φ19*Φ29.5*3Flat Gasket Φ19*Φ29.5*31
4060F-03.00.02.00角度定位销组件Angle positioning pin assy.1
4115F-03.09.12.01橡塑套rubber Sleeve1682-43318-01
4260F-03.00.03.00接地线组件Ground Wire assy.1
4360F-03.00.07.00接地导线组件Ground Wire assy.163D-82148-00
44GB9074.1(8.8)螺栓和垫圈组合件M6*10Hexagonal bolt & flat gasket assy M6*101
45GB/T894.1轴用弹性挡圈D30Circlip D30193410-28M06
46JB/T7940.1直通式压注油杯M6Oil cup393700-06M03
4760F-03.00.01.00操舵托架组件Steering bracket assy.16H3-42510-03-4D
4840F-04.01.04双头螺柱M10*43Double-screw bolt2
4960F-03.00.00.07上衬套垫圈Upper Bushing Washer190201-30M00
5060F-03.00.00.06上衬套Upper bushing190386-30M78
5160F-03.00.00.04O型圈(29*3.8)O ring(29*3.8)293210-29M94
5260F-03.00.00.05开口衬圈Bushing290086-30M77
5360F-03.00.00.03下衬圈Lower Bushing190386-30M60
水下部分

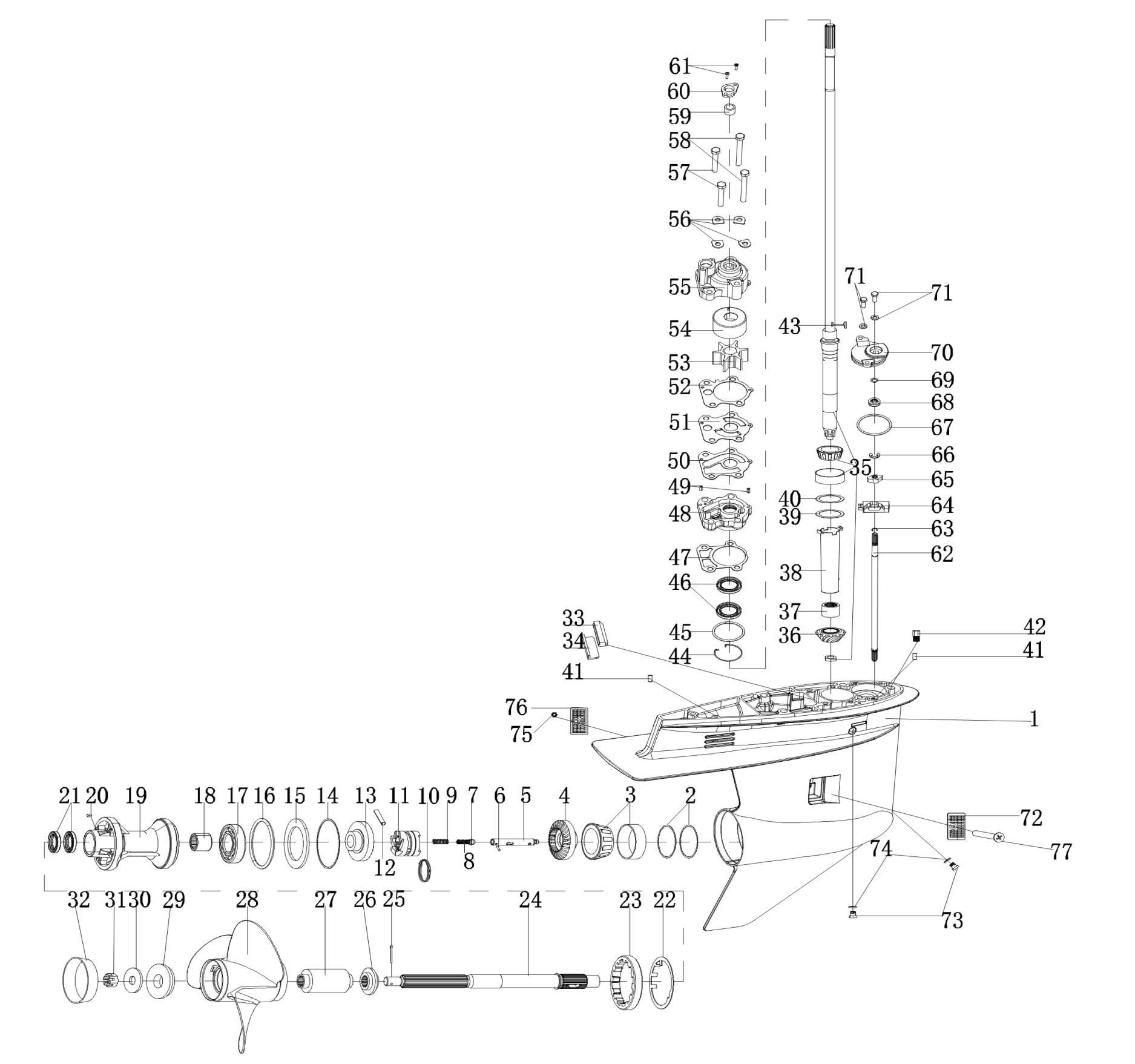

水下部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-06.00.00.46水下壳体Lower Casing16H1-45301-03-4D
260F-06.00.00.43正档齿轮填隙片0.3Forward gear Shim2688-45567-01
360F-06.00.00.42圆锥滚子轴承26822-N/26882R-Bearing 26822-N/26882R-N193332-000W7
460F-06.00.00.41正档齿轮Forward Gear16K5-45560-00
560F-06.00.00.28滑套Slide Bushing16H1-45634-02
660F-06.00.00.30滑轴销Slide pin193603-12M11
760F-06.00.00.27滚珠3/16（碳钢）Steel Ball 3*16 (Carbon steel)293503-16003
860F-06.00.04.00变档柱塞组件Shift plunger assy.16H1-45641-01
960F-06.00.00.29弹簧Spring190501-16M65
1060F-06.00.00.31簧环Circlip1
1160F-06.00.00.33离合器Cluth16H1-45631-01
1260F-06.00.00.32离合器销Cluth Pin190250-07M02
1360F-06.00.03.06倒档齿轮Reverse Gear16H3-45571-00
1460F-06.00.00.24填隙片0.5Shim 0.51688-45577-60
1560F-06.00.03.05止推垫圈Thrust washer1688-45576-00
1660F-06.00.03.03水下壳体盖O型圈(83*5.6)Lower Casing cap O ring(83*5.6)193210-85M97
1760F-06.00.03.04深沟球轴承6207deep groove ball bearing 6207193306-207U0
1860F-06.00.03.02滚针轴承HK2526Needle Bearing HK2526193317-325U0
1960F-06.00.03.07水下壳体盖Lower casing cap1688-45331-00-94
2060F-06.00.00.23平键Flat Key190282-04010
2160F-06.00.02.03油封40*25*6Oil Seal 40*25*6293101-25M03
2260F-06.00.00.22止退垫圈Stop washer1688-45383-02
2360F-06.00.00.21环形螺母Ring nut1688-45384-00
2460F-06.00.00.34螺旋桨轴Propeller shaft16H1-45611-01
25GB91开口销3.2*25Cotter pin1
2660F-06.00.00.49螺旋桨垫块Propeller Pad1688-45987-01
2760F-06.01.01.00螺旋桨内花键组件Propeller Spline Assy1
2860F-06.01.00.01螺旋桨1312*15-KPropeller 1312*15-K16E5-45941-00-EL
None60F螺旋桨组件(13-1/2* 15-K)Propeller Assy.16E5-45947-00
2960F-06.00.00.48螺旋桨垫圈Propeller Washer167F-45997-00
3060F-06.00.00.47六角螺母垫圈Hex Nut Washer190389-25M00
3140F-06.02.07开槽六角螺母Nut190171-16011
3260F-06.01.00.02喇叭口Horn Mouth1
3360F-06.00.00.13密封条Gasket1
3440F-06.01.10密封条压板pressing plate,sealing strip1
3560F-06.00.00.37驱动轴Drive shaft169D-45501-00
3660F-06.00.00.36主动轮Drive Gear16K5-45551-00
3760F-06.00.00.45滚针轴承（BH-1620）NSKNeedle Bearing BH-1620193315-325V1
3860F-06.00.00.44尼龙衬圈Nylon Cushion1688-45536-01
3960F-06.00.00.40驱动轴填隙片0.5Draft shaft Shim 0.51688-45587-20
4060F-06.00.00.39驱动轴填隙片0.1Draft shaft Shim 0.11688-45587-50
4115F-01.06.20定位销6*12Dowel pin2
4260F-06.00.00.20六角螺栓Hex Bolt16J8-45378-00
4360F-06.00.00.08叶轮半圆键Impeller Woodruff key190280-04M04
4460F-06.00.02.04弹性挡圈Spring Washer1
4560F-06.00.02.02油封外壳O型圈(45.6*3.2）Oil Seal shell O ring(45.6*3.2)193210-46044
4660F-06.00.02.03油封40*25*6Oil Seal 40*25*6293101-25M03
4760F-06.00.00.12油封外壳密封垫Oil seal shell gasket1688-44316-A0
4860F-06.00.02.01油封外壳Oil Seal Shell1688-44341-01-94
49F9.9-05.00.00.26定位销4*10Locating Pin 4* 10293604-10M03
5060F-06.00.00.11垫板密封垫Seal gasket plate1688-44324-A0
5160F-06.00.00.10水泵叶轮垫板（镀）Water pump impeller Gasket1688-44323-40
5260F-06.00.00.09水泵外壳密封垫Water pump shell seal gasket1688-44315-A0
5360F-06.00.01.00水泵叶轮组件Water pump impeller assy1688-44352-03
5460F-06.00.00.07水泵内壳（镀）Water pump inner shell169D-44322-00
5560F-06.00.00.06水泵外壳Water pump outer shell1688-44311-01
56GB97.1平垫8Flat gasket492903-10100
57GB5783六角头螺栓M8*50Hex Head Bolt M8*50290119-08M13
58GB5783六角头螺栓M8*70Hex Head Bolt M8*70290119-08M16
5960F-06.00.00.05水管密封圈Water pipe seal ring1663-44366-00
6060F-06.00.00.04水管密封圈压板Water pipe seal ring plate190480-19M06
61GB845十字槽盘头自攻螺钉ST4.2*13Cross recessed pan head tapping screws2
6260F-06.00.00.17下换档连杆Lower Shift connecting rod16H1-44144-00
6360F-06.00.00.18弹性挡圈circlip1
6460F-06.00.00.26变挡凸轮座Shifting cam base16H1-45641-01
6560F-06.00.00.25变挡凸轮Gear shift cam16H1-44151-00
66GB896开口挡圈8Circlip193430-10M00
6760F-06.00.00.16下换档连杆座O型圈（49.5*3）Lower Shift rod O-Ring 49.5*3193210-49046
6860F-06.00.00.15下换档连杆油封Lower Shift rod oil seal193106-09014
6960F-06.00.00.19下换档连杆O型圈(6.5*19)Lower Shift rod O-Ring 6.5*191983210-07003
7060F-06.00.00.14下换档连杆座Shift rod seat1688-45321-00
71GB9074.1(8.8)螺栓和垫圈组合件M6*16Bolt2
7260F-06.00.00.01进水口盖（左）Intake Cover(Left)16H1-45215-00
7315F-06.01.03注油口螺塞plug,straight screw290340-08002
7415F-06.01.04螺塞密封垫Gasket290430-08020
75DIN985六角尼龙锁紧螺母M5Hexagonal nut190185-05002
7660F-06.00.00.02进水口盖（右）Intake Cover(right)16H1-45214-00
77GB819十字槽沉头螺钉M5*45Screw M5*45190185-05002
操纵钩部分

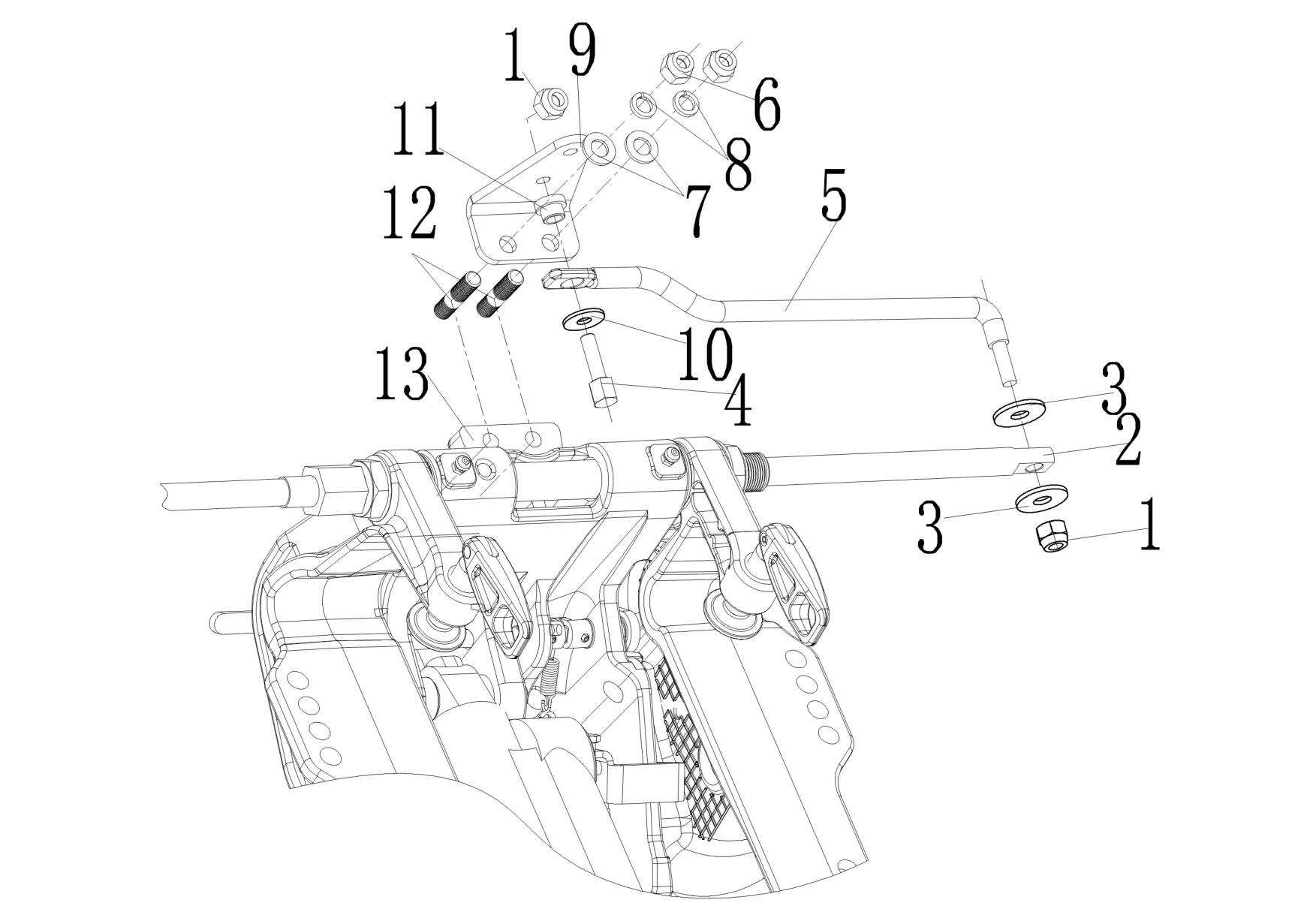

操纵钩部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1HDYK00.10.07尼龙锁紧螺母M3/8-24Nylon lock hex bolt2
2HDYK00.00.35.01方向钢索组件（5米）Steering Cable (5.5m)1
3GB97.1平垫10Flat gasket292903-10100
4HDYK00.10.04六角螺栓3/8-24Hex bolt1
560FE-03.00.00.25操纵杆lever1
6DIN985六角尼龙锁紧螺母M10*1.25hexagonal lock nut M10*1.252
7GB97.1平垫10Flat gasket292903-10100
8GB93弹垫10Spring washer2
960FE-03.00.00.24操纵钩lever hook1
10HDYK00.10.06平垫10flat gasket1
1160FE-03.00.00.26操纵钩垫管bushing,lever hook1
1240F-04.01.04双头螺柱M10*1.25*43Double-screw bolt1
1360F-03.00.00.00夹紧部件Clamp Parts1
遥控盒

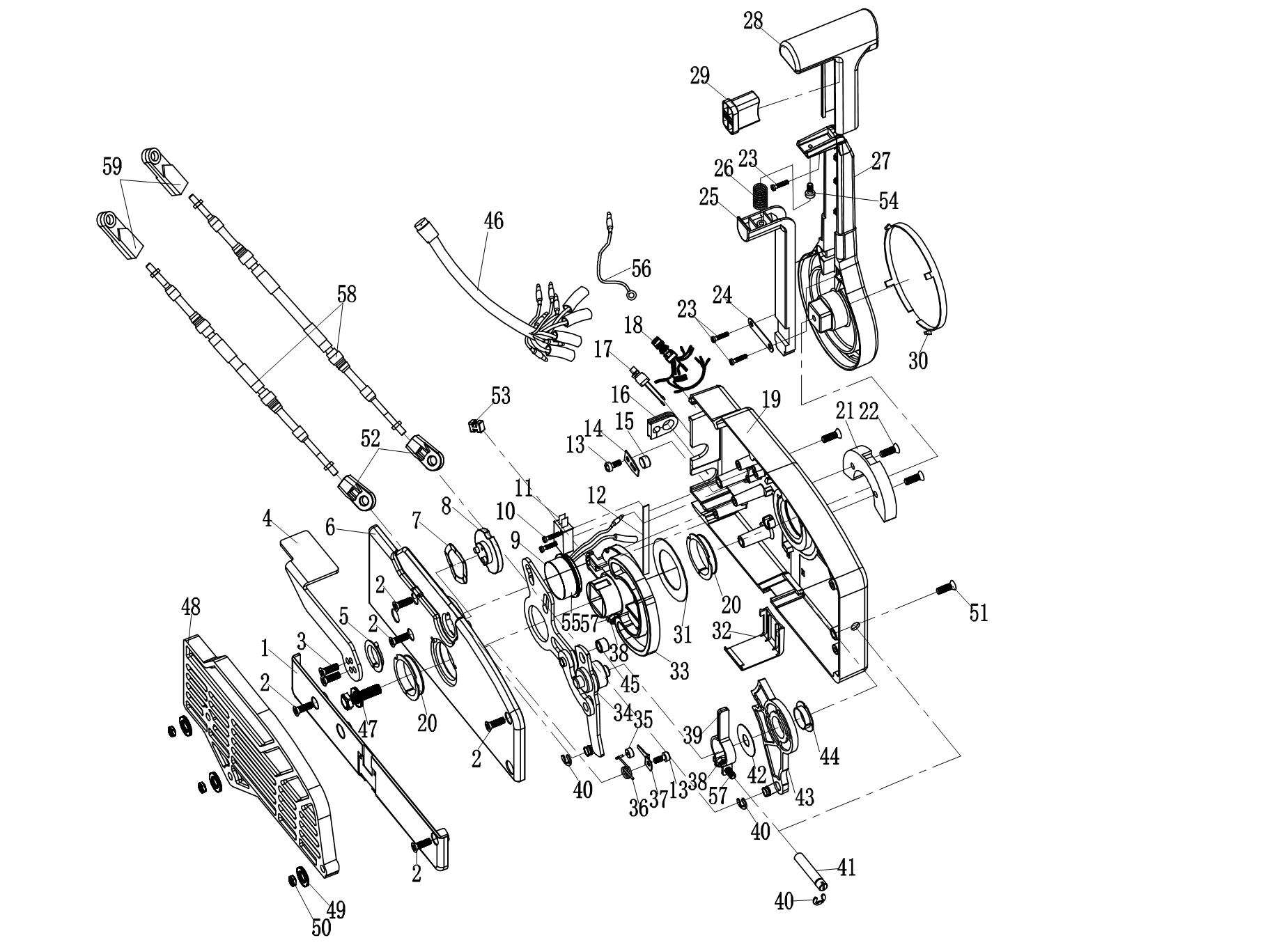

遥控盒 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1HDYK00.00.01小盖板Small plate1
2GB819十字槽沉头螺钉M5*16Bolt5
3GB819十字槽沉头螺纹钉M5*12Screw M5*122
4HDYK00.00.02怠速锁紧手柄Idle lock handle1703-48152-00
5HDYK00.00.04减磨圈Antifriction Bushing1703-48243-00
6HDYK00.00.31大盖板Big plate1703-48236-00
7HDYK00.00.03波型垫圈Wave Washer1703-48198-00
8HDYK00.01.00手柄锁紧轮组件Handle Lock wheel Assy1703-48153-00
9HDYK00.02.01峰鸣器Buzzer assy1703-83383-B0
10GB818十字槽盘头螺钉M3*14Pan Screw M3*14297885-06045
11HDYK00.05.00怠速启动开关Idle Start switch1703-82540-00
12HDYK00.00.10弹性钢板Spring steel plate5
13GB818十字槽盘头螺钉M4*6Cross recessed Pan head screws M4*6297885-06045
14HDYK00.00.09压板Plate1
15HDYK00.00.11档位限位柱Shift limit pin1
16HDYK00.00.12线束密封圈Wire Harness Seal Ring1703-48284-00
17HDYK00.03.00急停开关总成Engine shut-off switch1688-82575-01
18HDYK00.04.00启动开关总成Start switch Assy1703-82510-12
19HDYK00.00.08遥控盒(外壳)Remote control box1
20HDYK00.00.16档位座减磨圈Gear Shift Seat washer2703-48236-00
21HDYK00.00.20手柄限位器Handle Limit Assy1703-48245-00
22GB819十字槽沉头螺钉M5*16Bolt2
23GB819十字槽盘头螺钉M4* 10Pan head bolt with cross recess M4* 103
24HDYK00.09.05锁紧手柄压板handle Lock plate1
25HDYK00.09.04手柄锁紧开关Handle lock switch1703-48223-00
26HDYK00.09.06弹簧Spring1703-48227-00
27HDYK00.09.01手柄座Handle seat1
28HDYK00.09.03手柄Handle1
29HDYK00.09.07手柄开关盖Handle switch cap1
30HDYK00.09.02手柄座装饰圈Handle seat decoration circle1
31HDYK00.00.15档位座减磨垫Gear Shift Seat washer1
32HDYK00.00.26盒盖连接件Box cover connector1
33HDYK00.00.14档位座Shift seat1
3430FEHDYK00.07.0油门控制装置总成Throttle controler Assy1703-48261-01
35HDYK00.00.06导轮Guide wheel1703-48234-00
36HDYK00.00.07弹簧Spring1703-48244-00
37HDYK00.00.05导轮压板Guide wheel plate1703-48246-00
38GB6170六角螺母M5Hexagon nut M52
39HDYK00.08.01锁紧夹箍Locking Clamp1703-48264-00
40GB896开口挡圈6(不锈钢/厚度1)Circlip3
41HDYK00.08.02调节螺钉Adjusting screw1703-48265-00
42HDYK00.00.19档位控制器减磨垫Shift control washer1703-48268-00
43HDYK00.00.17档位控制器Shift controler1703-48271-00
44HDYK00.00.13油门控制器减磨片Shift control washer1703-48235-00
45HDYK00.07.10导轮Guide wheel1703-48252-00
46HDYK00.00.33七芯插头5MSeven-pin plug 5M1688-8258A-20
47GB9074.1(8.8)螺栓和垫圈组合件M8*30Flat gasket&bolts1
48HDYK00.00.32遥控器固定板Remote control fixation plate1
49GB5287平垫6Flat gasket 63
50GB6170六角螺母M6Hexagon nut3
51GB820十字槽半沉头螺钉M6*90Screw M6*903
52HDYK00.00.25钢索调节装置BCable adjustor B2703-48345-01
53HDYK00.00.27线索密封座Wire harness sealing Seat1
54GB818十字槽盘头螺钉M5*10Cross recessed pan head tapping screws(M197885-06045
55HDYK00.02.02蜂鸣器护套Handle switch cap1703-82563-02
56HDYK00.05.01电启动怠速线Electric Start Idle Wire1
57GB5783六角头螺栓M5*25Bolt290119-05M04-00
58HDYK00.06.00遥控钢索组件(5.5M)Remote Control Cable (5.5m)2
59HDYK00.00.24钢索调节装置ACable adjuster A2
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw290340-08002
2GB96 M12平垫flat gasket4
3GB97.1 M6平垫flat gasket1
4GB97.1 M12平垫flat gasket4
5GB91 2*12开口销cotter pin1
6GB91 3.2*25开口销cotter pin1
7GB5783 M12*110六角头螺栓hex bolt4
8GB6170 M12六角螺母hex bolt4
960F-06.00.01.00水泵叶轮组件impeller Assy.1688-44352-03
1015F-08.00.00燃油箱总成(24L)fuel case Assy.1
1115F-09.01应急启动手柄emergency starting handle1
1215F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
1315F-01.01.22启动绳φ5*2000mmstarter rope1
1415F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
1515F-09.00工具包toolkit1
16HDYK00.10.04六角螺栓3/8-24hex bolt1
17HDYK00.10.06平垫M10flat gasket1
18HDYK00.10.07尼龙锁紧螺母3/8-24nylon Lock nut2
1960FE-03.00.00.26操纵钩垫管cushion,control hook1
20GB820 M6*90十字槽半沉头螺钉Pan head bolt with cross recess3
21GB6170 M6六角螺母hex bolt3
22GB97.1 M10平垫flat gasket292903-10100
23GB5287 M6平垫flat gasket3
24HDYK00.00.24钢索调节装置Asteel cable ajusting device A2
25HDYK00.00.25钢索调节装置Bsteel cable ajusting device B2703-48345-01
26HDYK00.00.32遥控器固定板remote control fixed board1
2760FE-03.00.00.25操纵杆control Lever1
28HDYK00.06.00遥控钢索组件(5.5M)steel cabe Assy.,remote control2
29HDYK00.00.34.00方向盘组件steering wheel Assy.1
30HDYK00.00.35.00方向座组件direction base Assy.1
3120A保险丝fuse1
32HDYK00.00.35.01(5.5方向钢索组件direction wire rope Assy.1
33保修保养手册(仅国内客户用)Warranty and maintenance munal(just for Chinese client)1
