舟一会 ZHOUYIHUI 船外机

海的 60F - 60FHL

共 13 个部位，点击零件编码查看详情，或搜索本页零件。

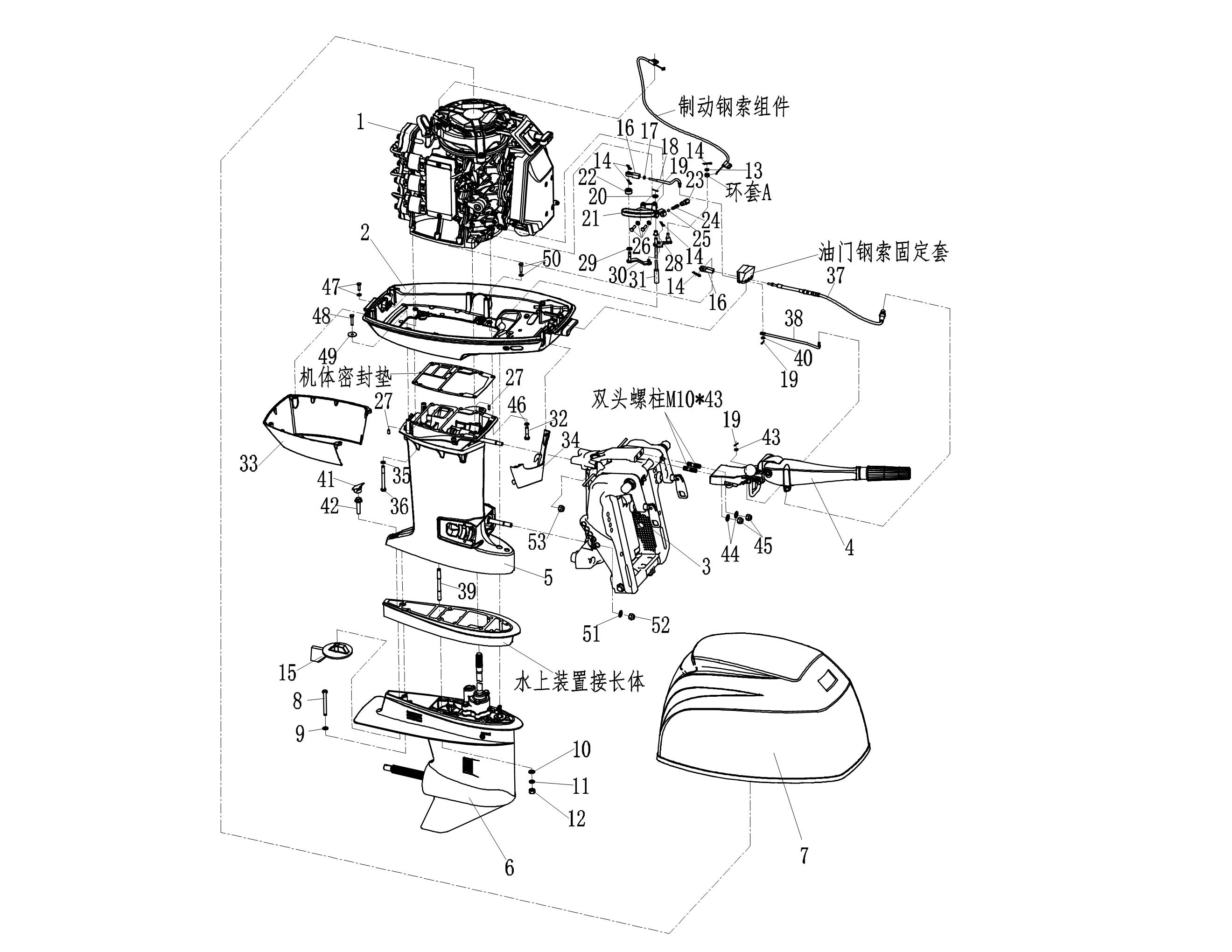

总装分解图
总装分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-01.00.00.00发动机总成Engine Assy.1
260F-02.00.00.00底座系统Lower cowling system1
360F-03.00.00.00夹紧托架系统Clamp Bracket system1
460F-04.00.00.00操舵系统Steering Control system1
560F-05.00.00.00水上装置系统Waterborne casing1
660F-06.00.00.00水下驱动系统Lower unit1
760F-07.00.00.00顶罩总成Top cowling assy.1
8GB5783六角头螺栓M8*110Bolt M8*110197095-06095
9GB97.1平垫8Flat gasket192903-10100
10GB848平垫10Flat Pad 104
11GB93弹垫10Spring washer4
12GB6170六角螺母M10*1.25Hexagonal nut M10*1.254
13GB97.1平垫6Flat gasket192903-10100
1415F-04.08.05卡簧Circlip590468-18008
1560F-06.00.00.03航向调整片（阳极）Anode1
16HDYK00.00.24钢索调节装置ACable adjuster A2
17GB6170六角螺母M5Hexagon nut M51
1860F-01.06.00.03换档连接杆（短）Gear shift(short)1
19GB91开口销2*12Cottor pin 2* 123
20GB848平垫8Flat Pad 81
2160F-01.06.00.17换档连杆托架Bracket, gear shift1
2260F-01.06.00.15档位滑套Gear sliding sleeve1
2360F-01.06.00.12六角螺栓M12* 1.25HEX NUT M12*1.251
2460F-01.06.00.13弹簧SPRING1
25GB308钢球1/4Steel ball 1/41
26GB9074.1(8.8)螺栓和垫圈组合件M6*20Flat gasket&Bolt2
2715F-01.06.20定位销6*12Dowel pin2
2860F-01.06.00.18托架衬套Bracket bush1
2960F-01.06.00.16档位滑套垫圈WASHER1
3060F-01.06.02.00换档托架连杆组件Connecting rod,gear shift1
3160F-01.06.03.00换挡连杆组件Gear shift Lever Assy1
32GB5783六角头螺栓M8*35Bolt290119-08M10
3360F-装饰罩前Decorative cover1
34装饰罩后Decorative cover10F0-0 00 01
35B 00 02弹垫8washer6
36GB5783六角头螺栓M8*85Hex bolt M8*85697095-06095
3760F-油门钢索组件Throttle cable assy.1
38换档连杆（长）Gear shift(long)1F0- 1006000.01
39GB901双头螺柱B级M10*1.25*105Double head bolt B4
40GB848平垫6Flat gasket1
4160F-00.00.00.03阳极堵塞Anode plug1
42GB5787六角法兰面螺栓M10*1.25*45Hexagon head flange bolts M10*1.25*45 (S1
43GB97.1平垫6Flat gasket192903-10100
44GB97.1平垫10Flat gasket292903-10100
45DIN985六角尼龙锁紧螺母M10*1.25hexagonal lock nut M10*1.252
46GB93弹垫8washer2
47GB9074.1(8.8)螺栓和垫圈组合件M6*20Flat gasket&Bolt2
48GB5783六角头螺栓M6*30Bolt497095-06095
4960F-00.00.00.04平垫圈Flat Gasket4
50GB9074.1(8.8)螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket assy M6*252
51GB848平垫12Flat gasket 122
52DIN985六角尼龙锁紧螺母M12*1.25Hex nylon locking nut M12*1.252
53DIN985六角尼龙锁紧螺母M10*1.25hexagonal lock nut M10*1.252

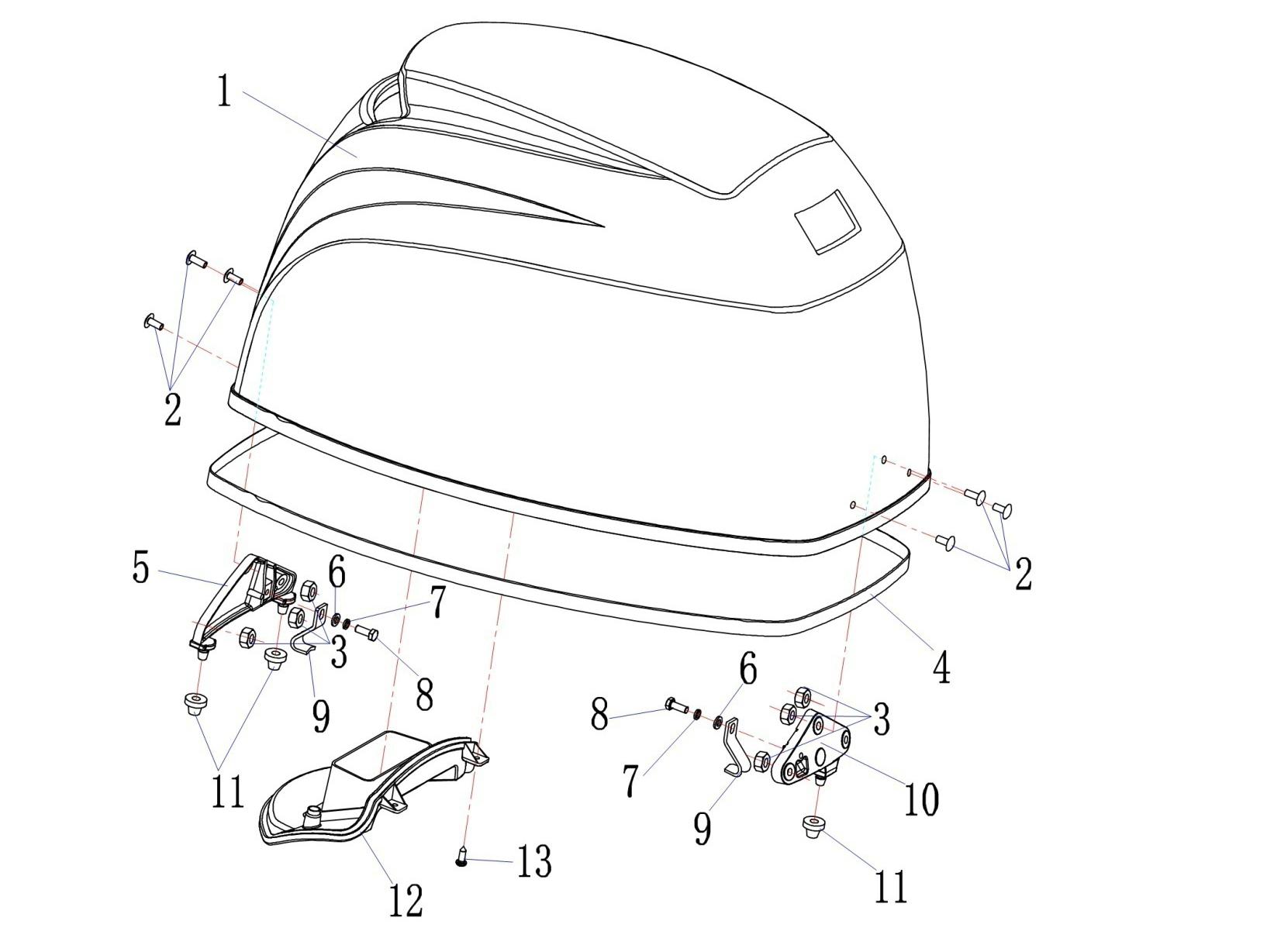

顶罩
顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-07.00.00.07顶罩Top cowling1
2GB818十字槽盘头螺钉M6*20Screw697885-06040
3GB6170六角螺母M6Hexagon nut6
460F-07.00.00.05橡胶密封圈Rubber Seal ring16H3-42615-00
560F-07.00.00.04后锁紧钩固定板Fixing plate190266-06009
6GB97.1平垫6Flat gasket292903-10100
7GB93弹垫6Washer2
8GB5783六角头螺栓M6*16Bolt697095-06095
960F-07.00.00.01锁紧钩Locking hook26H3-42652-00
1060F-07.00.00.03前锁紧钩固定板Front locking hook fixing plate16H3-42647-00-94
1160F-07.00.00.02顶罩减震脚Top cowling shock absorbing foot3663-42662-00
1260F-07.00.00.06进气口盖Air intake cap1
13GB845十字槽盘头自攻螺钉ST4.8*13Screw ST4.8*134
启动罩

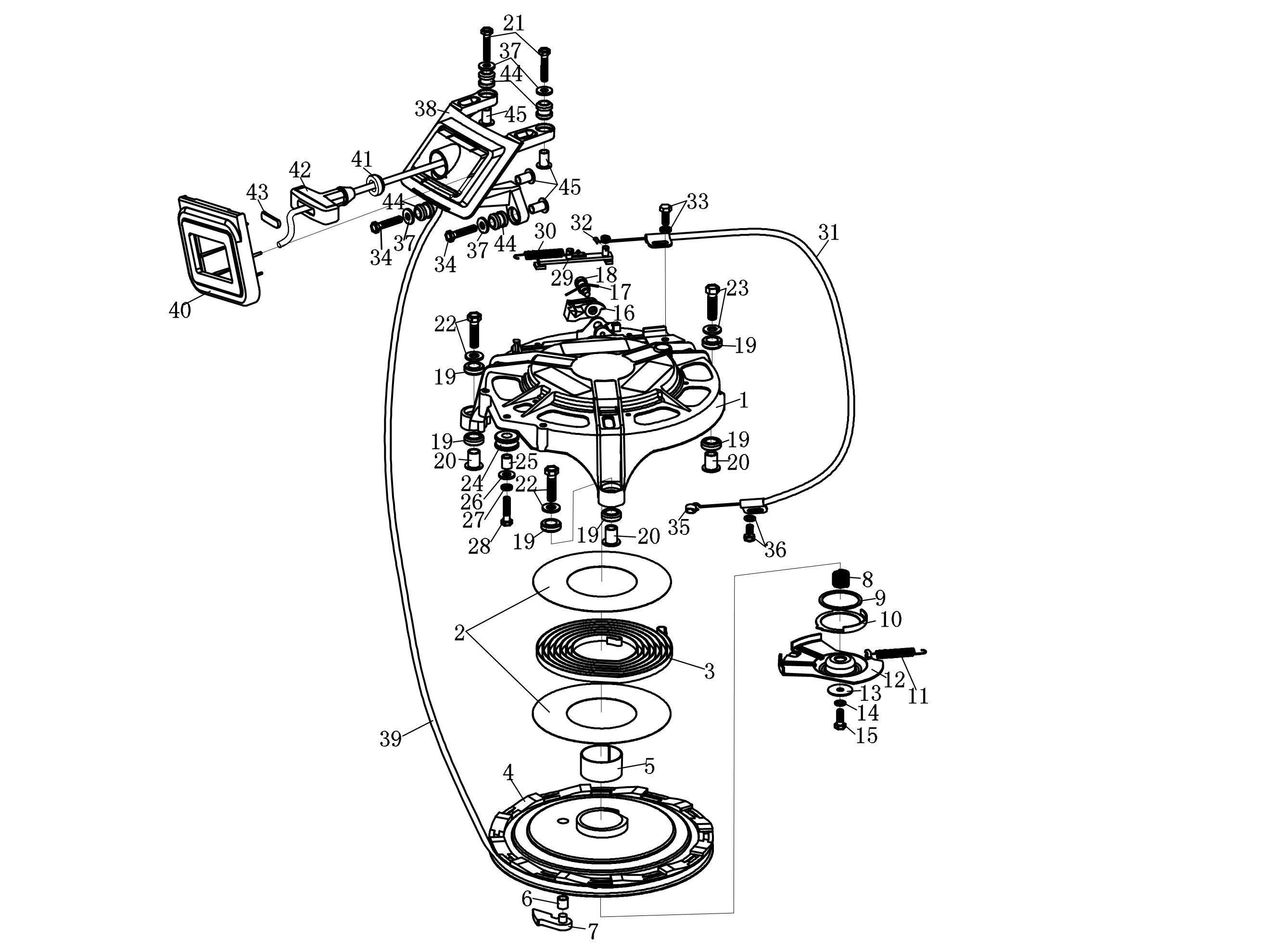

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-01.01.00.17启动罩壳Starter housing1692-15711-00
260F-01.01.00.19减磨片Antifriction disc2663-15739-00
360F-01.01.00.21涡形弹簧Volute Spring1663-15713-00
460F-01.01.00.14启动轮Starter wheel1663-15714-01
560F-01.01.00.20衬套Bushing1663-15754-00
660F-01.01.00.12驱动臂衬套Bush,drive arm1663-15764-00
760F-01.01.01.00驱动臂组件Drive arm Comp1663-15741-02
860F-01.01.00.10弹簧Spring1663-15715-00
960F-01.01.00.18轴用螺旋挡圈(ARSM-39.7Coller ARSM-39.71663-15744-00
1060F-01.01.00.11衬圈挡板gasket plate1663-15726-01
1160F-01.01.00.13压板拉簧pressure plate retracting spring1663-15734-01
1260F-01.01.00.09启动压板Start Plate1663-15716-01
1360F-01.01.00.08铜垫圈Copper washer1663-15719-00
14GB93弹垫6Washer1
15GB5783六角头螺栓M6*16Bolt197095-06095
1660F-01.01.00.06制动器Brake1663-15794-00
1760F-01.01.00.05制动器扭簧torsional spring,brake190508-12015
1860F-01.01.00.04开槽盘头螺钉M5Screw M5190149-05095
1940F-01.01.14减震圈Damper690385-12M04
2060F-01.01.00.03带肩垫管(长)shulder cushion tube(L)390387-08M05
21GB5783六角头螺栓M6*40Hex Head bolt M6*40297095-06095
22GB9074.1(8.8)螺栓和垫圈组合件M8*30Flat gasket&bolts2
23GB9074.1(8.8)螺栓和垫圈组合件M8*25Hexagonal bolt & flat gasket assy M8*251
2440F-01.01.01.04启动绳卷轴scroll,start wheel165F-15752-00
2540F-01.01.01.05卷轴衬套bushing16F5-15753-00
26GB96平垫6Flat gasket1
27GB93弹垫6Washer1
28GB5783六角头螺栓M6*25Bolt197095-06095
2960F-01.01.00.16制动滑块Brake silper1663-15735-01
3060F-01.01.00.01制动拉簧Brake tension spring190506-08M23
3160F-01.01.02.00制动钢索组件Brake Steel cable Assy16K5-15770-01
32GB91开口销 1.6*12Cotter pin 1.6*121
33GB9074.1(8.8)螺栓和垫圈组合件M6*10Hexagonal bolt & flat gasket assy M6*101
34GB5783六角头螺栓M6*25Bolt297095-06095
3560F-01.01.00.24套环AColler A1663-15736-00
36GB9074.1(8.8)螺栓和垫圈组合件M6*10Hexagonal bolt & flat gasket assy M6*101
37GB96平垫6Flat gasket4
3860F-01.01.00.07启动罩托架Braket,starter16K5-15758-01-94
3960F-01.01.00.15启动绳φ6*2500mmStarter Rope φ6*2500mm1
4060F-01.01.00.02橡胶减震垫rubber damper washer16K5-15762-00
4140F-01.01.19手柄减震圈Shock ring,handle16A0-15789-00
4240F-01.01.18启动手柄Starter handle1338-05019-0
4340F-01.01.16手柄盖Starter Handle cover1338-05013-0
4440F-01.03.23减震圈Damper4
4540F-01.03.22带肩垫管Shoulder pad tube461N-82317-00

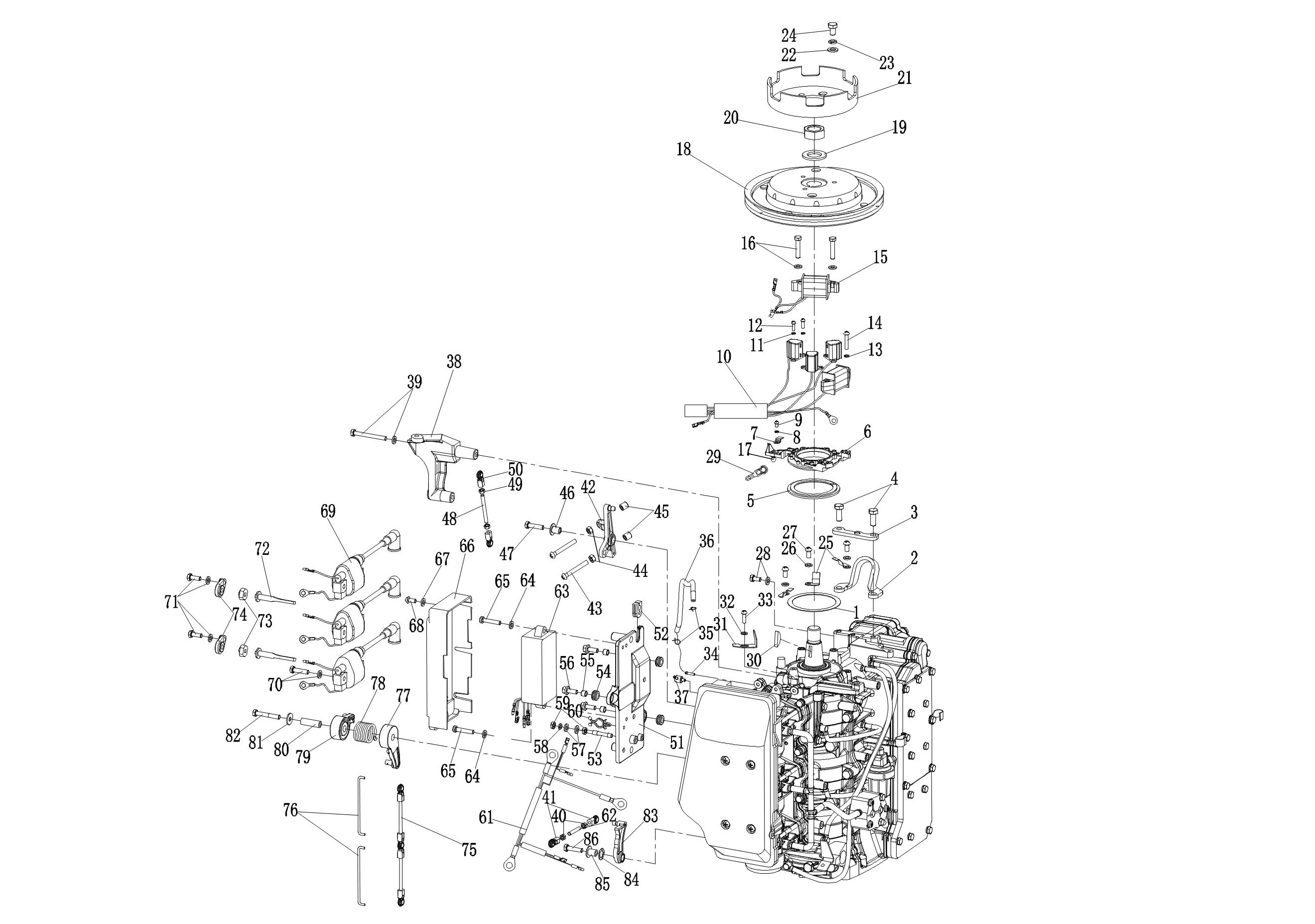

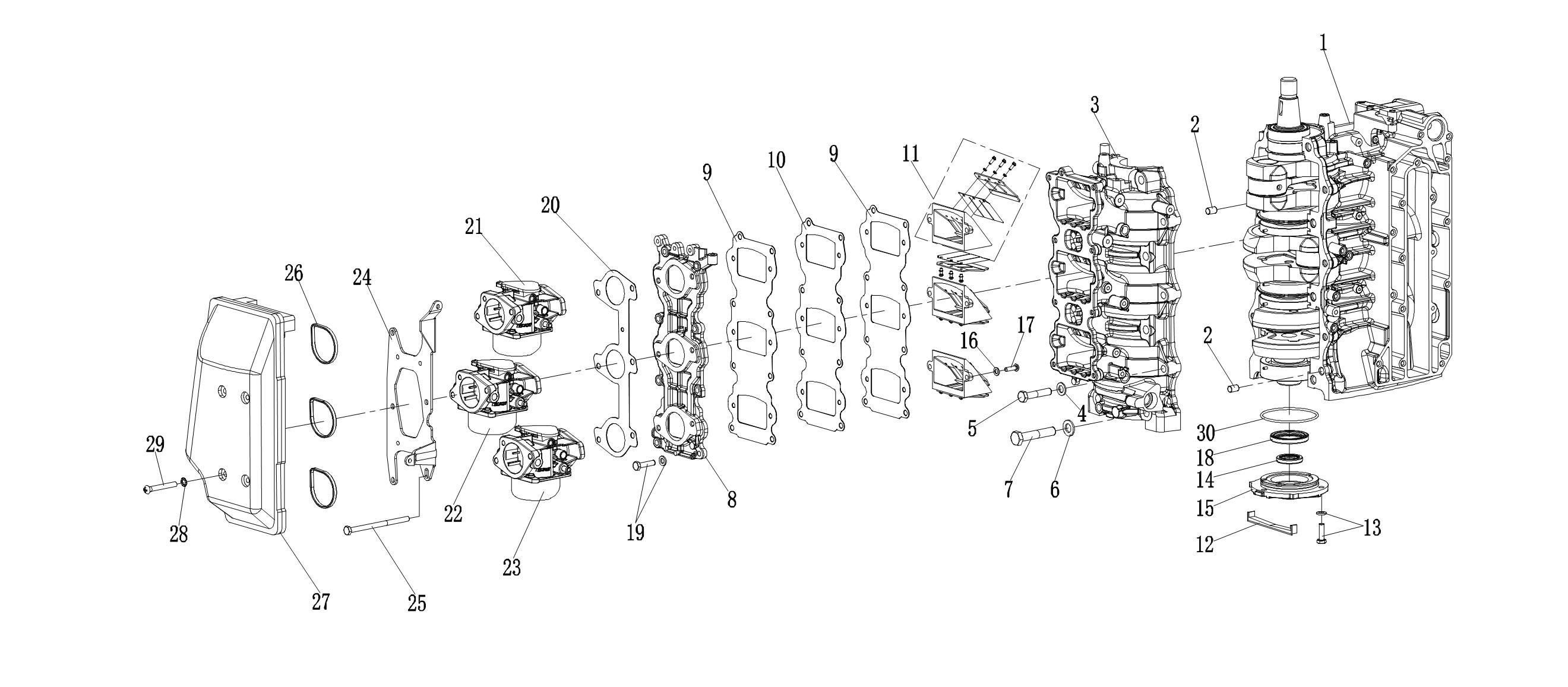

动力部分(1）
动力部分(1） 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-01.04.03.00箱体组件Crank case169D-15100-00-1S
240F-01.06.00.25定位销8*12Dowel pin 8*12293608-12063
360F-01.04.00.29箱盖Case cover193608-12063
4GB97.1平垫8Flat gasket692903-10100
5GB5783(10.9)六角头螺栓M8*40Bolt6
6GB97.1平垫M10Flat gasket892903-10100
7GB5782六角头螺栓M10*1.25*55HEX BOLT M10*1.25*558
860F-01.03.00.08进气歧管Intake manifold16H3-13641-03-94
960F-01.03.00.06进气歧管密封垫Seal gasket,Intake manifold26H3-13622-A1
1060F-01.03.00.07进气歧管密封垫衬板Lining pad,Intake manifold16H3-13624-00-94
1160F-01.03.06.00进气阀组件Inlet valve36H2-13610-00
1260F-01.04.04.05密封条seal strip1
13GB9074.1(8.8)螺栓和垫圈组合件M6*20Flat gasket&Bolt3
1460F-01.04.04.03驱动轴上油封(18*32*7)Oil seal, drave shaft193106-18001
1560F-01.04.04.01油封壳体Shell, oil seal16H3-15359-00-94
16GB97.1平垫5Flat gasket692995-05600
17GB823十字槽小盘头螺钉M5*16Screw M5*16697880-05016
1860F-01.04.04.02曲轴下油封(30*47*7)Oil seal, Crank shaft193102-30009
19GB9074.1(8.8)螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket assy M6*258
2060F-01.03.00.04化油器密封垫seal Gasket, Carburator16H3-14198-A1
2160F-01.03.02.00化油器-1Carburator-116K5-14301-03
2260F-01.03.03.00化油器-2Carburator-216K5-14302-03
2360F-01.03.04.00化油器-3Carburator-316K5-14303-03
2460F-01.03.00.02化油器固定架Braket,Carburator16H3-14413-10
25GB5783六角头螺栓M6*95Hex Bolt M6*95697095-06095

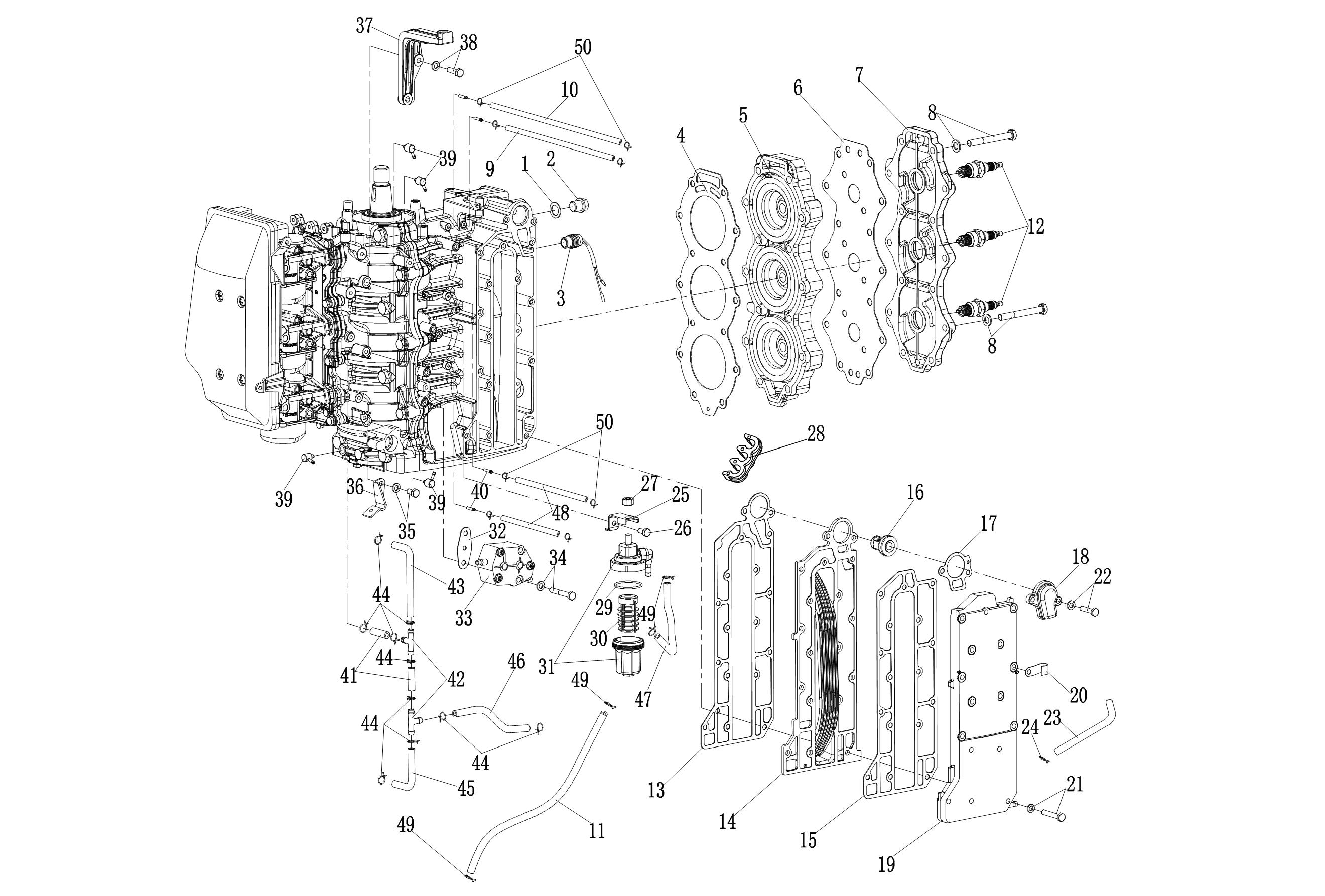

动力部分（2）
动力部分（2） 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.04.00.01垫圈14Washer 141号 90430-14115
2F15-05.00.00.08放油螺栓M14*12* 1.5Drain bolt M14*12* 1.5190340-14M00
360F-01.02.02.00温控传感器组件Temperature Sensor Assy1
460F-01.04.00.04气缸垫Cylinder gasket16H3-11181-A1
560F-01.04.00.03气缸头Cylinder head16H3-11111-01-1S
660F-01.04.00.02气缸盖密封垫Sealing gasket,cylinder cap16H3-11193-A1
760F-01.04.00.01气缸盖Cylinder cap16H3-11191-00-1S
8GB9074.1(10.9)螺栓和垫圈组合件M8*70Bolt&gasket Assy M8*7014
960F-01.04.00.09气管Φ2.5*7*350Air hose Φ3*7*350190445-07M45
1060F-01.04.00.10气管Φ2.5*7*450Air hose Φ3*7*450190445-07M82
1160F-01.03.00.14燃油滤清器进油管Φ5*9*260Oil filter inlet pipe5*9*260169D-24311-00
12BR8HS-10(30F/60F火花塞(新)Spark plug394702-00160
1360F-01.04.00.16排气内盖密封垫Seal gasket,Exhaust inner cap16H3-41112-A0
1460F-01.04.00.15排气内盖Inner cap,exhaust16H3-41111-01-1S
1560F-01.04.00.14排气侧盖密封垫gasket,Exhaust side cap16H3-41114-A0
1615F-01.06.14节温器(50°)thermostat 50℃1350-01030-1
17F15-01.01.00.11节温器盖垫片Gasket,Thermostat16H3-12414-A1
18F15-01.01.00.12节温器盖Thermostat cap16H3-12413-00-1S
1960F-01.04.00.13排气侧盖Side Cap,exhaust16H3-41113-02-1S
20F15-01.03.00.42通气管固定夹Bfix clip,air breather tube190465-06M86
21GB9074.1(8.8)螺栓和垫圈组合件M6*35Hexagonal bolt & flat gasket assy M6*3516
22GB9074.1(8.8)螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket assy M6*252
2360F-01.03.00.09L型油管（长）L oil pipe (Long)1
24管夹Φ9Tube Clip1
2515F-01.06.23燃油滤清器支架outer cover,exhaust1682-24566-01
26GB5783六角头螺栓M6*12Bolt197095-06095
27GB6170六角螺母M8Bolt nut1
2860F-01.04.00.11气管管卡Air hose Clamp161A-24560-04
2915F-01.07.05.06过滤器O型圈(33*2)O ring,filter193210-32738
3015F-01.07.05.04过滤器滤芯fuel fliter161N-24563-00
3115F-01.07.05.05燃油滤清器(外壳)Inner cover,exhaust161N-24560-00
3240F-01.07.05燃油泵垫片Fuel pump washer1650-24431-A0
3340F-01.07.04.00燃油泵组件(TK)(Y3A-3B)Fuel pump assy.1692-24410-00
34GB9074.1(8.8)螺栓和垫圈组合件M6*40Bolt2
35GB9074.1(8.8)螺栓和垫圈组合件M6*12Bolt1
3660F-01.01.01.23制动钢索支架Braking cable bracket1
3760F-01.04.00.06启动罩右支架Right Bracket,Starter Cap1
38GB9074.1(8.8)螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket assy M6*252
3915F-01.06.03气管圆接头AJoint,air breather tube4650-14485-03
4015F-01.06.21气管圆接头BJoint,air breather tube430901-1350
4160F-01.03.00.10油管Φ5*9*30Fuil Pipe 5*9*30290445-09220
42F15-05.00.00.17三通T-branch pipe2
4360F-01.04.00.12L型水管（长）L water pipe(long)16H3-24314-00
44管夹Φ9Tube Clip10
452.5F-01.04.00.08L型油管L oil pipe (short)16H3-24313-00
4660F-01.03.00.11油管5*9*125Oil pipe 5*9*125190445-09072
4760F-01.03.00.13燃油泵进油管Fule pump inlet oil pipe169D-24312-00
4860F-01.04.00.08气管Φ2.5*7*185Air hose Φ3*7*185290445-07M02
49管夹Φ9Tube Clip4
50管夹Φ6.5Tube clip8
动力部分（3）
动力部分（3） 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-01.02.00.11衬套垫片Bushing Gasket16K5-41618-00
260F-01.04.00.19发动机吊环Hanger ring16K5-11119-01
360F-01.04.00.18启动罩安装块Starter cap Fixing block1
4GB5783六角头螺栓M8*25Hex Head Bolt M8*25297095-06095
560F-01.02.00.10磁电机座衬套Magneto base Bush16H4-41611-00
660F-01.02.09.00磁电机座Magneto Base16H3-85510-A1
760F-01.02.00.09线束压板Wire harness plate1
8GB93弹垫M4Washer1
9GB823十字槽小盘头螺钉M4*6Screw M4*6197880-05016
1060F-01.02.10.00触发器及充电线圈组件Trigger & Charging coil assy.1
11GB93弹垫M4Washer6
12GB823十字槽小盘头螺钉M4*1Screw M4* 12697880-05016
13GB93弹垫M5Spring washer2
14GB823十字槽小盘头螺钉M5*2Screw M5*25297880-05016
1560F-01.02.08.00照明线圈组件Lighting coil Assy16H3-85533-A0
16GB9074.1(8.8)螺栓和垫圈组合件M6*3Bolt2
1730F-01.02.00.02球头螺栓Ball head bolt1
1860F-01.02.07.00飞轮组件Flywheel16K5-85550-10
19GB97.1平垫M20Flat gasket190201-21M18
2040F-01.03.02飞轮螺母M20*1.25Flywheel nut190170-20137
2160F-01.01.00.22启动毂Starting hub16K5-15723-00
22GB97.1平垫M8Flat gasket392903-10100
23GB93弹垫M8washer3
24GB5783六角头螺栓M8*12Hex head bolt M8*12397013-08012
2560F-01.02.00.08磁电机座压板Magneto Base Plate36H3-41612-00
26GB848平垫6Flat gasket3
27GB823十字槽小盘头螺钉M6*1Cross recessed Pan head screws M6*1397880-05016
28GB9074.1(8.8)螺栓和垫圈组合件M6*1Bolt1
2960F-01.05.00.02正时连杆接头Timing rod connector16H3-41238-00
3040F-01.03.03半圆键Woodruff key1
3160F-01.03.00.05TDC指针TDC Needle1
32GB97.1平垫6Flat gasket192903-10100
33GB823十字槽小盘头螺钉M6*1Bolt197880-05016
3415F-01.06.21气管圆接头BJoint,air breather tube130901-1350
35管夹Φ6.5Tube clip2
3660F-01.04.00.07气管Φ2.5*7*260Air pipe Φ3*7*2601
3715F-01.06.03气管圆接头AJoint,air breather tube1650-14485-03
3860F-01.04.00.05启动罩左支架Left Bracket,Starter Cap16K5-15772-00-94
39GB9074.1(8.8)螺栓和垫圈组合件M6*5Flat gasket&bolts2
40GB6170六角螺母M5Hexagon nut M52
4130F-01.05.00.03正时调整连杆接头Timing adjustment connecting bolt2
4260F-01.05.01.00正时控制器组件Timing controller Assy16H3-41631-00
43GB818十字槽盘头螺钉M6*40Pan head bolt with cross recess297885-06040
44GB6170六角螺母M6Hexagon nut2
4515F-01.04.07螺纹盖screw cap2
4660F-01.05.00.01带肩垫管(短)shoulder Cushion Tube(short)190387-06M60
47GB5783六角头螺栓M6*25Bolt197095-06095
4860F-01.05.02.02连杆Connecting rod1679-41636-00
49GB6170六角螺母M5Hexagon nut M52
5015F-01.03.12连杆接头Linkage connector2
5160F-01.02.00.07电器支架Electrical Bracket16H3-85542-00-94
5230F-01.02.00.09线束固定套Fixing sleeve,speed limit16H3-81922-00
53GB897双头螺柱M6*1*32Stud M6*1*32190116-06M07
54F25-02.00.00.12装饰罩减震垫Damper cushion,Decorative cover390480-13M24
55F25-02.00.00.13装饰罩减震垫管Damper cushion bushing,Decorative co390387-06M43
56GB5789(10.9)六角法兰面螺栓M6*16Hex Flange Bolt M6*16390105-06M14
57GB97.1平垫6Flat gasket292903-10100
58GB93弹垫M6Washer1
59GB6172六角薄螺母M6Hexagon thin nut M62
6060F-01.02.00.05尼龙线卡（中）Nylon Wire clip(middle)190464-12M17
6160F-01.02.06.00接地线组件Ground lead Assy16K5-82531-00
6260F-01.05.03.01连杆Connecting rod1682-41237-50
6360F-01.02.05.00点火控制器组件CDI1
64GB97.1平垫6Flat gasket292903-10100
65GB818十字槽盘头螺钉M6*25Pan head screw with cross recess297885-06040
6660F-01.02.00.02电器盖Electrics cap16H3-81916-00
67GB97.1平垫6Flat gasket292903-10100
68GB818十字槽盘头螺钉M6*12(Screw M6*12297885-06040
6960F-01.02.04.00高压包组件Ignition coil assy.36H3-85570-10
70GB9074.1(8.8)螺栓和垫圈组合件M6*2Hexagonal bolt & flat gasket assy M6*26
71GB9074.1(8.8)螺栓和垫圈组合件M6*1Bolt2
7260F-01.04.00.17机体阳极Anode2
7330F-01.04.00.17水封water seal26H3-11328-00
7430F-01.04.00.16压紧块Lock pad26H3-11327-00-1S
7560F-01.03.05.00节气门联动杆组件Throttle linkage lever1
7660F-01.03.00.03阻风门联动杆Choke linkage lever2
7760F-01.05.00.03正时控制端轮Timing controller Wheel16H3-41633-00
7860F-01.05.00.04扭簧Torsional spring190508-29M19
7960F-01.05.00.05油门控制端轮Throttle controller Wheel16H3-41632-00
80F9.9-01.01.00.18衬套Bushing190387-06M59
81GB96平垫6Flat gasket1
82GB5783六角头螺栓M6*45Hexagonal bolt M6*45197095-06095
8360F-01.05.00.06油门凸轮Throttle Cam16H3-41213-01
8460F-01.05.00.07波形垫圈Wave Washer190206-10M04
8540FE-01.03.08带肩垫管Cushion Tube190387-06M60
86GB5783六角头螺栓M6*25Bolt197095-06095
曲轴部分

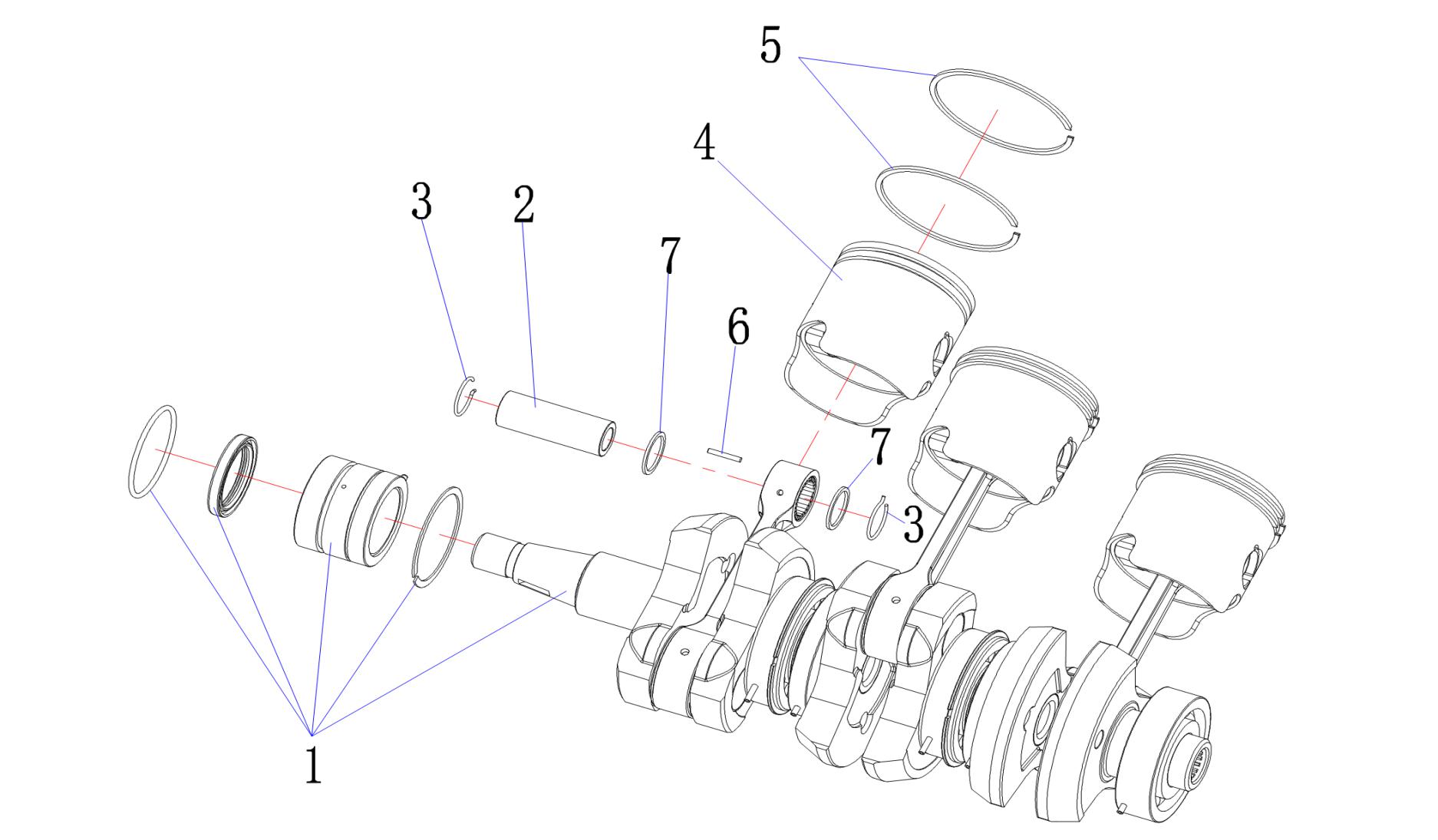

曲轴部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-01.04.01.00曲柄连杆组件Crankshaft Assy16K5-11401-00
260F-01.04.00.30活塞销Piston pin36H3-11633-00
360F-01.04.00.21活塞销卡簧Piston pin Circlip6688-11633-00
460F-01.04.00.24活塞Piston36K5-11631-03-95
530F-01.04.00.27主气环1st ring661N-11603-00
660F-01.04.00.28滚针Rolling needle8493603-18M09
740F-01.06.04.05滚针盖板Needle bearing plate690201-20417
底座

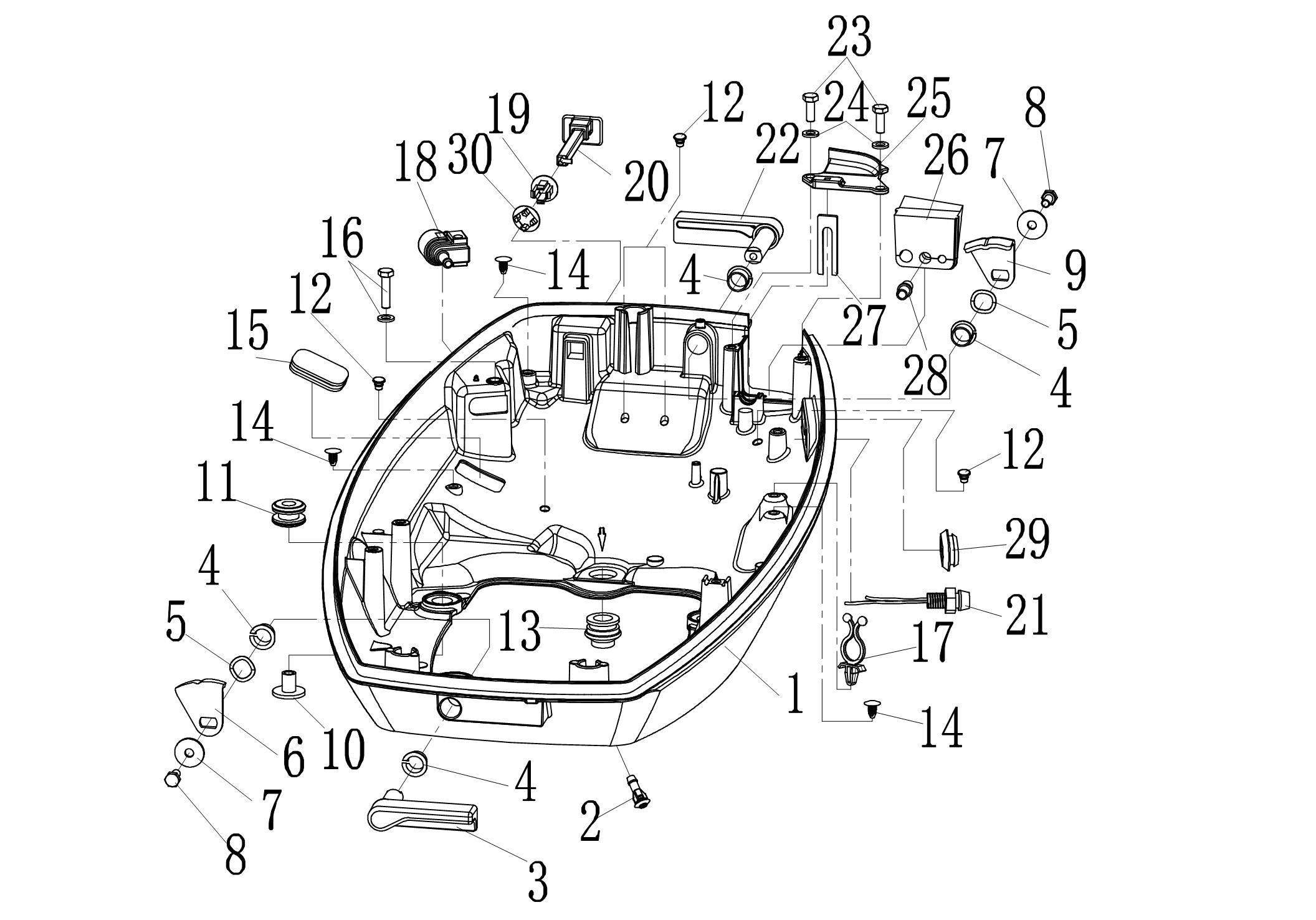

底座 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-02.00.00.12底座Bottom cowling assy.16H3-42711-15-4D
215F-02.11塑料水嘴Plastic Water nozzle16BL-44391-00
360F-02.00.03.00后锁紧手柄组件Rear Lock Handle Assy16H3-42817-01-4D
460F-02.00.00.09开口衬圈Washer490386-13M38
560F-02.00.00.11波垫Wave Washer490206-13M10
660F-02.00.00.14后锁紧钩Rear lock hook16H3-42813-00
7GB5287平垫6Flat gasket 62
8GB5783六角头螺栓M6*12Bolt297095-06095
960F-02.00.00.10前锁紧钩Front lock hook16H3-42818-00
1060F-02.00.00.04带肩垫管（底座）Cushion pipe(Bottom cowling)490386-13M38
1160F-02.00.00.05减震垫（底座）Damper(Bottem Cowling)490480-09M12
1260F-02.00.00.06堵塞（小）Plug(small)4
1360F-02.00.00.03换档轴护套Shaft sleeve16E5-42724-00
1440F-02.00.00.08螺纹塞Thread plug3
15F9.9-02.00.00.15长方形橡胶闷头rubber Plug16H4-42726-00
16GB9074.1(8.8)螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket assy M6*251
1760F-01.02.00.05尼龙线卡(中)Nylon Wire clip(middle)190464-12M17
1815F-01.07.01.00燃油管插头组件Fuel hose joint assy1
1915F-02.03阻风门拉杆护套Protecting bush,choke1689-41273-00
2060F-02.00.01.00阻风门手柄组件Choke Handle1
2160F-01.02.03.00高温报警指示灯组件Alarm lamp assy.1
2260F-02.00.02.00前锁紧手柄组件Front lock handle Assy16H3-42815-01-4D
23GB818十字槽盘头螺钉M6*16Pan head bolt with cross recess297880-06016
24GB97.1平垫6Flat gasket292903-10100
2560F-02.00.00.07压板（油门钢索）Plate(Throttle cable)16H3-42738-01-5B
2660F-02.00.00.08油门钢索固定套throttle cable sleeve,16K5-42725-00
27HDYK00.00.23底座钢索限位块Bottom cowling Damper.1
2860F-01.06.00.02塑料衬套Plastic bushing1
2960F-02.00.00.01堵塞（左）Plug(left)16H3-42727-00
3015F-02.04橡胶垫Rubber washer16J8-41274-00
水上部分

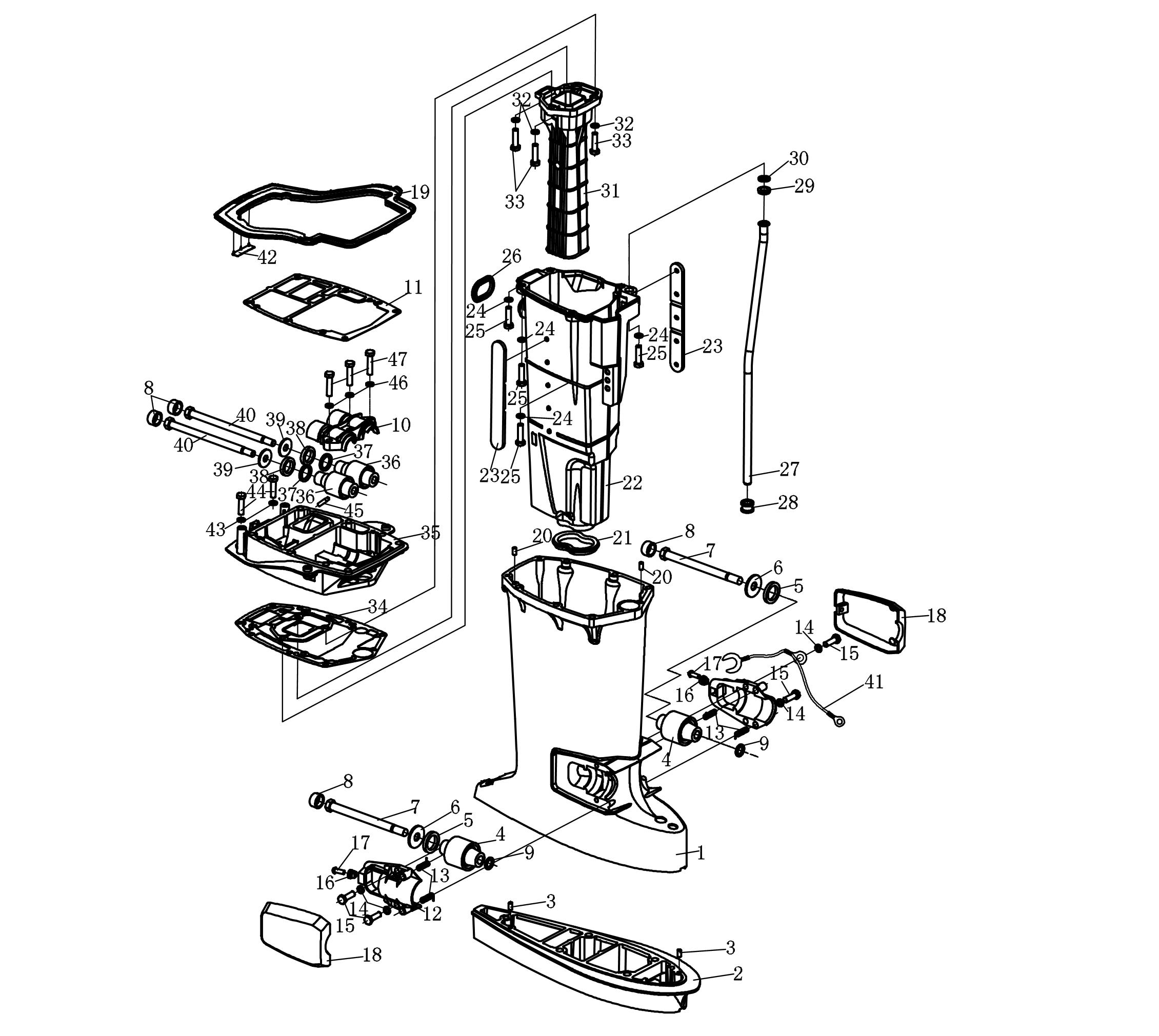

水上部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-05.00.00.15水上装置壳体Upper Casing16H3-45111-01-4D
260F-05.00.00.24水上装置接长体Upper Connector case1696-45211-01-4D
315F-01.06.20定位销6*12Dowel pin2
460F-05.00.03.00下减震器组件Lower Damper Assy2687-44555-00-94
560F-05.00.00.13橡胶垫Φ25Rubber Cushion Φ25290202-25M04
6GB96平垫12Gasket2
760F-05.00.00.14六角头螺栓M12*1.25*153Hex head Bolt M12* 1.25*153290109-12M21
860F-05.00.00.07橡胶螺套rubber sleeve4663-44575-00
9GB848平垫12Flat gasket 122
1060F-05.00.00.08上减震器外壳Upper damper shell1688-44511-00-94
1160F-05.00.00.01机体密封垫Body sealing gasket16H3-45113-A0
1260F-05.00.00.11下减震器外壳Lower damper shell26H3-44552-03-94
1360F-05.00.00.12下减震器盖弹簧lower damper cap spring490601-14M08
14GB93弹垫8washer4
15GB5783六角头螺栓M8*25Hex Head Bolt M8*25497095-06095
1660F-05.00.00.10塑料螺母Plastic nut290179-06066
17GB823十字槽小盘头螺钉M5*16Screw M5*16297880-05016
1860F-05.00.00.09下减震器盖Lower damper Cap26H3-44553-01-4D
1960F-05.00.00.02底座减震垫Lower cowling damper16H3-42716-02
2015F-01.06.20定位销6*12Dowel pin2
2160F-05.00.00.18消音器壳体衬圈Silencer shell bush16H3-45123-00
2260F-05.00.00.16消音器壳体Silencer shell16H3-14711-01-5B
2360F-05.00.00.19消音器壳体衬垫Silencer shell cushion26H3-14737-00
24GB93弹垫8washer4
25GB5783六角头螺栓M8*30Bolt497095-06095
2660F-05.00.00.20怠速排气口衬圈Idle exhaust Bush16H3-45127-00
2760F-05.00.00.17水管Water pipe169D-44361-00
2840F-05.00.00.16水管下密封圈Seal ring(lower),hose1663-44367-00
2940F-05.00.00.14水管密封圈Seal ring,hose190202-12060
3040F-05.00.00.15水管衬圈Bushing ，hose1676--42727-00
3160F-05.00.00.25排气管exhaust pipe16H2-41131-00-5B
32GB93弹垫8washer3
33GB5783六角头螺栓M8*30Bolt397095-06095
3460F-05.00.00.21水上装置壳体密封垫Upper shell gasket16H3-45114-A1
3560F-05.00.00.22机体底座Bottom Base16H3-42711-15-4D
3660F-05.00.01.00上减震器组件Upper damper Assy.2688-44514-00-94
3760F-05.00.00.05平垫圈21*28*3Flat gasket 21*28*3290201-20M21
3860F-05.00.00.06橡胶垫Φ21Rubber gasket Φ21290202-20M06
39GB848平垫12Flat gasket 122
4060F-05.00.00.04六角头螺栓M10*1.25*173Hex head bolt M10*1.25*1.73290101-10M49
4160F-05.00.02.00接电导线组件Connecting wire assy1
4260F-05.00.00.03橡胶出水片Rubber exhaust gasket16K5-42717-00
43GB93弹垫8washer2
44GB5783六角头螺栓M8*30Bolt297095-06095
4560F-05.00.00.23水管Water pipe1
46GB5783(10.9)六角头螺栓M8*35hex bolt M8*353
47GB93弹垫8washer3
夹紧部分

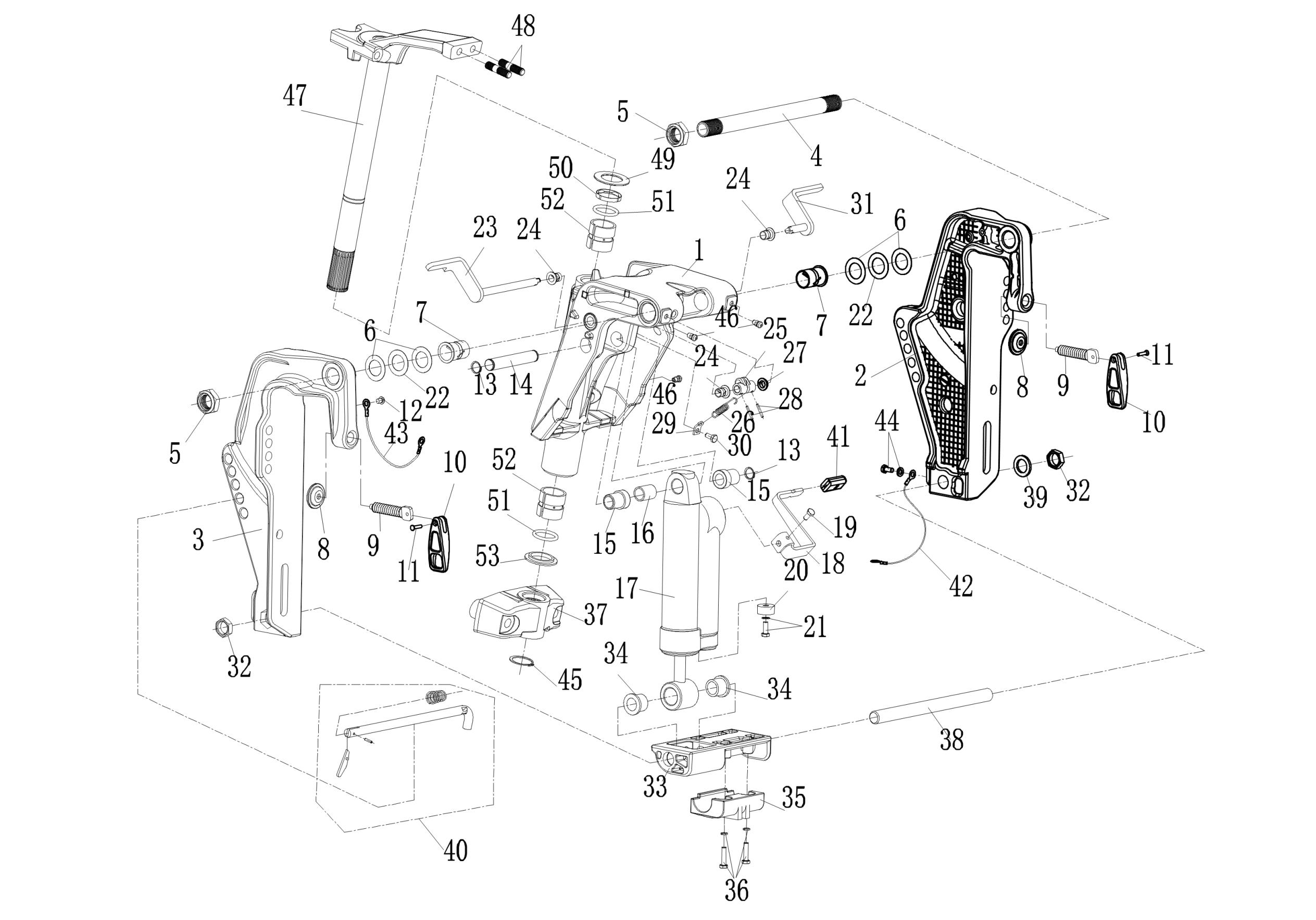

夹紧部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
号 160F-03.00.00.22旋转托架Swivel bracket1697-43311-03-4D
260F-03.01.01.00左托架组件Bracket(LH)1697-43111-05-4D
360F-03.02.01.00右托架组件Bracket(RH)1697-43112-03-4D
440F-03.04夹紧托架双头螺栓Bolt1346-62191-0
515F-03.01夹紧托架螺母Clamp nut290185-22043
640F-03.03垫片Washer4
740F-03.07.02托架阻尼圈Damping ring,bracket290386-22M15
815F-03.05.02.03夹紧盘Clamp plate2620-43114-00
960F-03.01.01.03艉板夹紧螺栓Transom Clamp Bolt2663-43116-01
1040F-03.05.03.02夹紧手柄intensify handle26E0-43118-01
11GB1015沉头半空心铆钉4*18Bolt2
12GB823十字槽小盘头螺钉M6*8Screw M6*8697880-06012
13GB894.1轴用弹性挡圈A型Φ15Circlip A type Φ152
1460F-03.00.00.16液压起翘支撑轴上Hydralic Trim Suport shaft (up)1
1560F-03.00.00.15液压起翘上衬套Hydralic Trim bushing290386-18M35
1660F-03.00.00.17支撑轴套管Supporting shaft sleeve190386-18M21
1760F-03.03.00.00手动起翘装置总成Manual Trim Assy169D-43170-10-4D
1860F-03.03.00.01起翘手柄(自带）Trim Handle(power trim include)169D-43631-00
19GB5783六角头螺栓M6*10Bolt697095-06095
2040F-01.06.00.11排水阳极Anode,water outlet1676-45251-00
21GB9074.1(8.8)螺栓和垫圈组合件M6*1Bolt2
2215F-03.02尼龙垫片Nylon gasket290202-22M54
2360F-03.00.05.00倾斜定位挡杆（左）Tilt positioning lever - Left16H5-43181-03
2460F-03.00.00.20摇臂衬套Arm bush3
2560F-03.00.04.00倾斜定位挡杆摇臂组件Tilt positioning lever arm assy.16G5-43148-00
2660F-03.00.00.19倾斜定位挡杆拉簧Tilt positioning lever spring190506-14M24
2760F-03.00.00.21摇臂开口衬套Arm open bush190386-10025
28GB879弹性圆柱销Φ3*16Elastic cylindrical pin 3*162
2960F-03.00.00.18拉簧钩Hook,spring16G5-43144-00
30GB5783六角头螺栓M6*10Bolt697095-06095
3160F-03.00.06.00倾斜定位挡杆（右）Tilt positioning lever - Right16H5-43181-03
3260F-03.00.00.09六角螺母M18*1.5Hex Nut M18*1.52
3360F-03.00.00.12托架限位块Bracket blocker163D-43128-01-4D
3460F-03.00.00.14液压起翘下衬套Hydraulic trim Bushing(lower)263D-43112-01-4D
3560F-03.00.00.11阳极Anode163D-45251-00
36GB9074.1(8.8)螺栓和垫圈组合件M6*2Hexagonal bolt & flat gasket assy M6*2
3760F-03.00.00.02下减震器连接座Lower damper base16H3-44551-01-4D
3860F-03.00.00.13液压起翘支撑轴下Hydralic Power Trim Suport shaft (dow190116-18M52
3960F-03.00.00.10平垫Φ19*Φ29.5*3Flat Gasket Φ19*Φ29.5*31
4060F-03.00.02.00角度定位销组件Angle positioning pin assy.1
4115F-03.09.12.01橡塑套rubber Sleeve1682-43318-01
4260F-03.00.03.00接地线组件Ground Wire assy.1
4360F-03.00.07.00接地导线组件Ground Wire assy.163D-82148-00
44GB9074.1(8.8)螺栓和垫圈组合件M6*1Hexagonal bolt & flat gasket assy M6*2
45GB/T894.1轴用弹性挡圈D30Circlip D30193410-28M06
46JB/T7940.1直通式压注油杯M6Oil cup393700-06M03
4760F-03.00.01.00操舵托架组件Steering bracket assy.16H3-42510-03-4D
4840F-04.01.04双头螺柱M10*43Double-screw bolt2
4960F-03.00.00.07上衬套垫圈Upper Bushing Washer190201-30M00
5060F-03.00.00.06上衬套Upper bushing190386-30M78
5160F-03.00.00.04O型圈(29*3.8)O ring(29*3.8)293210-29M94
5260F-03.00.00.05开口衬圈Bushing290086-30M77
5360F-03.00.00.03下衬圈Lower Bushing190386-30M60
水下部分

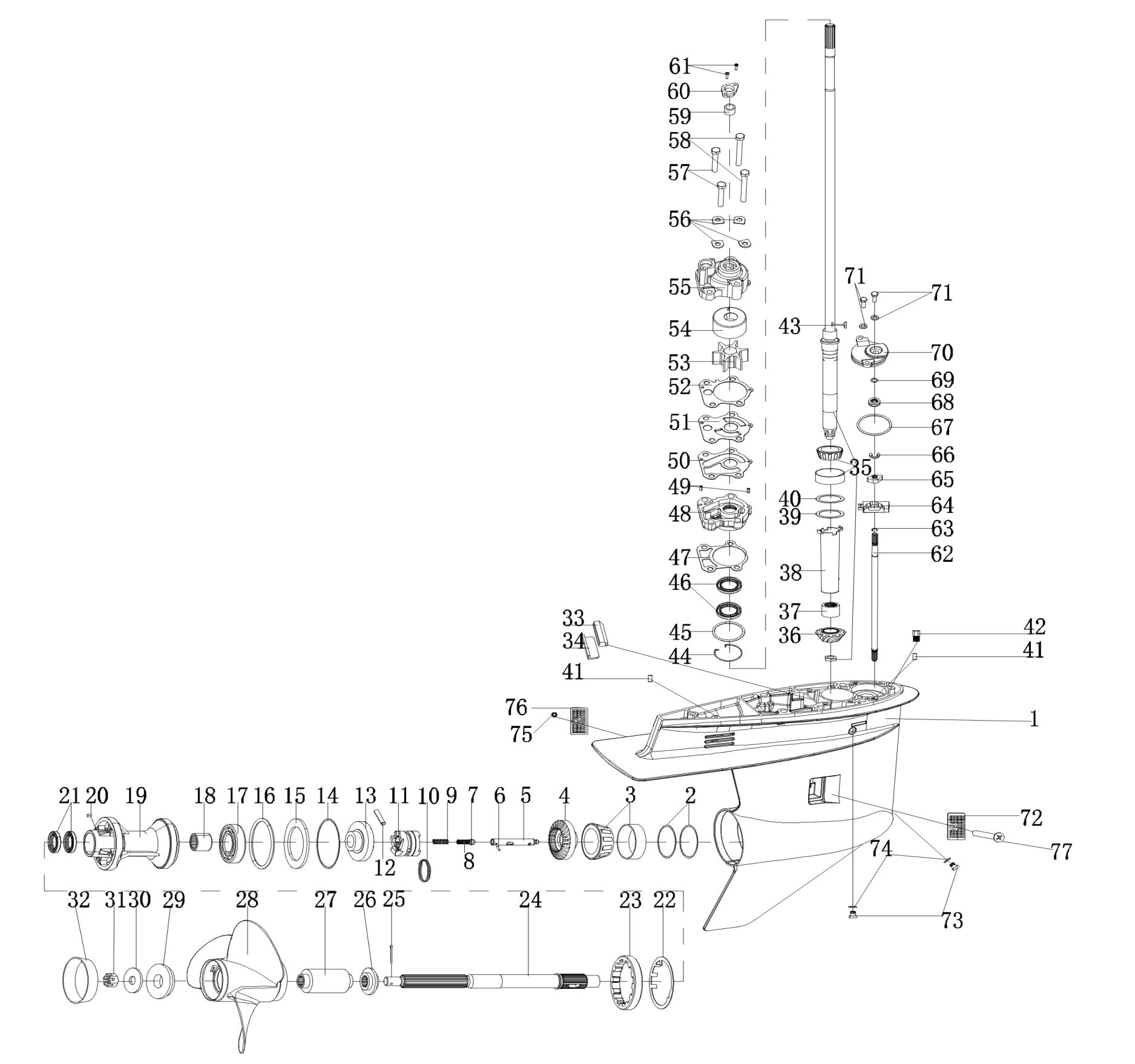

水下部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-06.00.00.46水下壳体Lower Casing16H1-45301-03-4D
260F-06.00.00.43正档齿轮填隙片0.3Forward gear Shim2688-45567-01
360F-06.00.00.42圆锥滚子轴承26822-N/26882R-Bearing 26822-N/26882R-N193332-000W7
460F-06.00.00.41正档齿轮Forward Gear16K5-45560-00
560F-06.00.00.28滑套Slide Bushing16H1-45634-02
660F-06.00.00.30滑轴销Slide pin193603-12M11
760F-06.00.00.27滚珠3/16（碳钢）Steel Ball 3*16 (Carbon steel)293503-16003
860F-06.00.04.00变档柱塞组件Shift plunger assy.16H1-45641-01
960F-06.00.00.29弹簧Spring190501-16M65
1060F-06.00.00.31簧环Circlip1
1160F-06.00.00.33离合器Cluth16H1-45631-01
1260F-06.00.00.32离合器销Cluth Pin190250-07M02
1360F-06.00.03.06倒档齿轮Reverse Gear16H3-45571-00
1460F-06.00.00.24填隙片0.5Shim 0.51688-45577-60
1560F-06.00.03.05止推垫圈Thrust washer1688-45576-00
1660F-06.00.03.03水下壳体盖O型圈(83*5.6)Lower Casing cap O ring(83*5.6)193210-85M97
1760F-06.00.03.04深沟球轴承6207deep groove ball bearing 6207193306-207U0
1860F-06.00.03.02滚针轴承HK2526Needle Bearing HK2526193317-325U0
1960F-06.00.03.07水下壳体盖Lower casing cap1688-45331-00-94
2060F-06.00.00.23平键Flat Key190282-04010
2160F-06.00.02.03油封40*25*6Oil Seal 40*25*6293101-25M03
2260F-06.00.00.22止退垫圈Stop washer1688-45383-02
2360F-06.00.00.21环形螺母Ring nut1688-45384-00
2460F-06.00.00.34螺旋桨轴Propeller shaft16H1-45611-01
25GB91开口销3.2*25Cotter pin1
2660F-06.00.00.49螺旋桨垫块Propeller Pad1688-45987-01
2760F-06.01.01.00螺旋桨内花键组件Propeller Spline Assy1
2860F-06.01.00.01螺旋桨1312*15-KPropeller 1312*15-K1半成品，不支持订购
None60F螺旋桨组件(13-1/2* 15-K)Propeller Assy.16E5-45947-00
2960F-06.00.00.48螺旋桨垫圈Propeller Washer167F-45997-00
3060F-06.00.00.47六角螺母垫圈Hex Nut Washer190389-25M00
3140F-06.02.07开槽六角螺母Nut190171-16011
3260F-06.01.00.02喇叭口Horn Mouth1
3360F-06.00.00.13密封条Gasket1
3440F-06.01.10密封条压板pressing plate,sealing strip1
3560F-06.00.00.37驱动轴Drive shaft169D-45501-00
3660F-06.00.00.36主动轮Drive Gear16K5-45551-00
3760F-06.00.00.45滚针轴承（BH-1620）NSKNeedle Bearing BH-1620193315-325V1
3860F-06.00.00.44尼龙衬圈Nylon Cushion1688-45536-01
3960F-06.00.00.40驱动轴填隙片0.5Draft shaft Shim 0.51688-45587-20
4060F-06.00.00.39驱动轴填隙片0.1Draft shaft Shim 0.11688-45587-50
4115F-01.06.20定位销6*12Dowel pin2
4260F-06.00.00.20六角螺栓Hex Bolt16J8-45378-00
4360F-06.00.00.08叶轮半圆键Impeller Woodruff key190280-04M04
4460F-06.00.02.04弹性挡圈Spring Washer1
4560F-06.00.02.02油封外壳O型圈(45.6*3.2）Oil Seal shell O ring(45.6*3.2)193210-46044
4660F-06.00.02.03油封40*25*6Oil Seal 40*25*6293101-25M03
4760F-06.00.00.12油封外壳密封垫Oil seal shell gasket1688-44316-A0
4860F-06.00.02.01油封外壳Oil Seal Shell1688-44341-01-94
49F9.9-05.00.00.26定位销4*10Locating Pin 4* 10293604-10M03
5060F-06.00.00.11垫板密封垫Seal gasket plate1688-44324-A0
5160F-06.00.00.10水泵叶轮垫板（镀）Water pump impeller Gasket1688-44323-40
5260F-06.00.00.09水泵外壳密封垫Water pump shell seal gasket1688-44315-A0
5360F-06.00.01.00水泵叶轮组件Water pump impeller assy1688-44352-03
5460F-06.00.00.07水泵内壳（镀）Water pump inner shell169D-44322-00
5560F-06.00.00.06水泵外壳Water pump outer shell1688-44311-01
56GB97.1平垫8Flat gasket492903-10100
57GB5783六角头螺栓M8*50Hex Head Bolt M8*50290119-08M13
58GB5783六角头螺栓M8*70Hex Head Bolt M8*70290119-08M16
5960F-06.00.00.05水管密封圈Water pipe seal ring1663-44366-00
6060F-06.00.00.04水管密封圈压板Water pipe seal ring plate190480-19M06
61GB845十字槽盘头自攻螺钉ST4.2*13Cross recessed pan head tapping sc2
6260F-06.00.00.17下换档连杆Lower Shift connecting rod16H1-44144-00
6360F-06.00.00.18弹性挡圈circlip1
6460F-06.00.00.26变挡凸轮座Shifting cam base16H1-45641-01
6560F-06.00.00.25变挡凸轮Gear shift cam16H1-44151-00
66GB896开口挡圈8Circlip193430-10M00
6760F-06.00.00.16下换档连杆座O型圈（49.5*3）Lower Shift rod O-Ring 49.5*3193210-49046
6860F-06.00.00.15下换档连杆油封Lower Shift rod oil seal193106-09014
6960F-06.00.00.19下换档连杆O型圈(6.5*19)Lower Shift rod O-Ring 6.5*191983210-07003
7060F-06.00.00.14下换档连杆座Shift rod seat1688-45321-00
71GB9074.1(8.8)螺栓和垫圈组合件M6*16Bolt2
7260F-06.00.00.01进水口盖（左）Intake Cover(Left)16H1-45215-00
7315F-06.01.03注油口螺塞plug,straight screw290340-08002
7415F-06.01.04螺塞密封垫Gasket290430-08020
75DIN985六角尼龙锁紧螺母M5Hexagonal nut190185-05002
7660F-06.00.00.02进水口盖（右）Intake Cover(right)16H1-45214-00
77GB819十字槽沉头螺钉M5*45Screw M5*45190185-05002
操舵部分

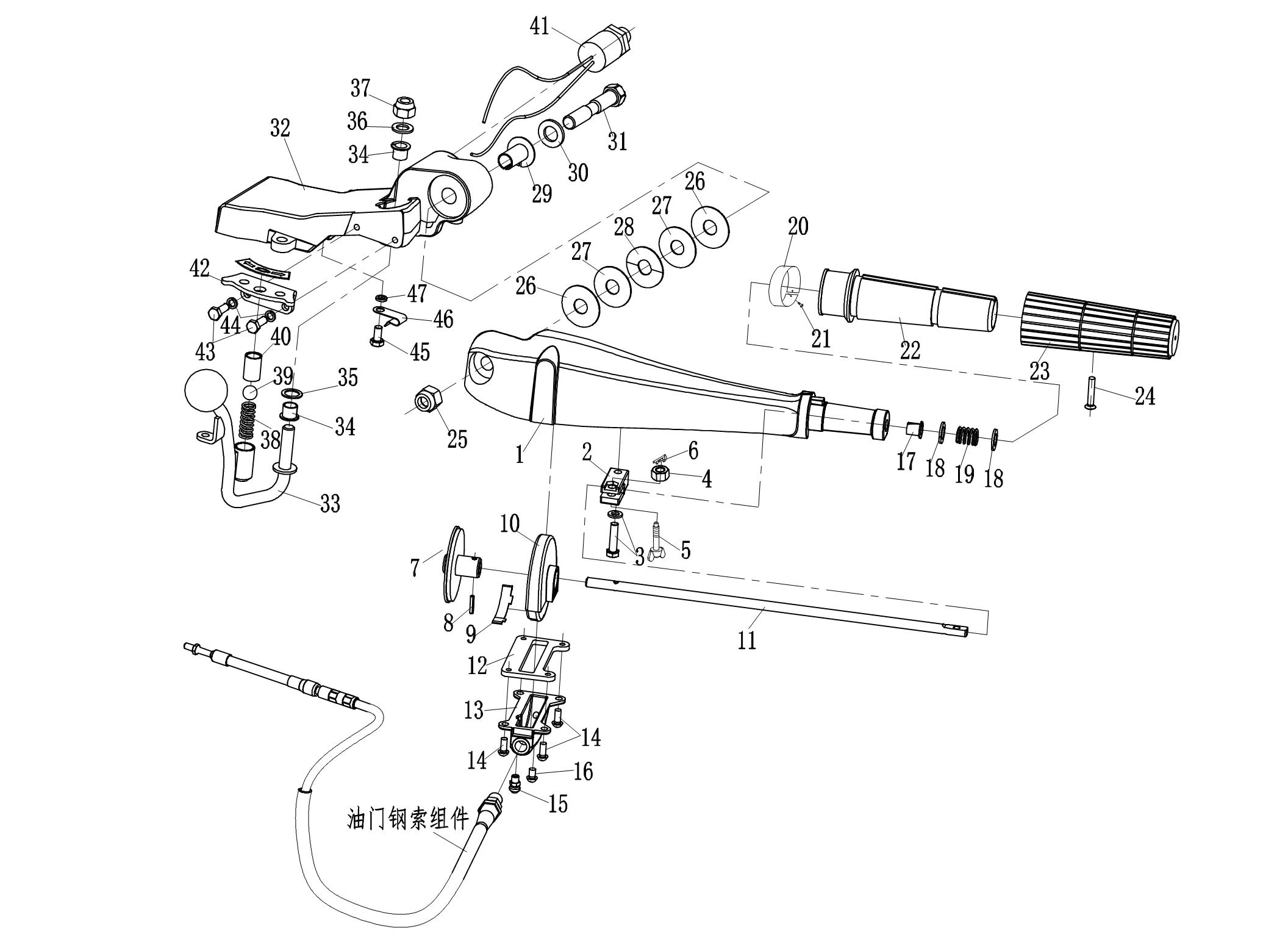

操舵部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-04.00.00.12操舵手柄Steering handle1663-42111-02-4D
260F-04.00.00.11锁紧块Locking block1663-42126-01
3GB9074.1(8.8)螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket assy M6*251
4GB6170六角螺母M6Hexagon nut1
515F-04.07.09阻力调整旋钮Resistance adjustment knob1
6GB91开口销 1.6*12Cotter pin 1.6*121
760F-04.02.01.00节气门杆齿轮组件Throttle rod gear comp.1663-42138-00
8GB879弹性圆柱销Ф3*16Elastic cylindrical pin 3*161
960F-04.00.03.02齿轮箱体金属片gearbox casing Metal sheet1取消
1060F-04.00.03.01齿轮箱体Gearbox Casing1取消
985F-04.00.03.03齿轮箱金属片21
None60F-04.00.03.03齿轮箱金属片11新增
1085F-04.00.03.01齿轮箱体Gearbox Casing1
1160F-04.02.00.01节气门杆Throttle lever1663-42115-00
1260F-04.00.00.10齿轮盖垫Gear cap cushion1663-42133-01
1360F-04.00.00.09油门钢索齿轮盖throttle cable Gear cap1663-42134-03-04
14GB818十字槽盘头螺钉M5*12Screw M5*12497885-06040
15JB/7940.1直通式压注油杯M6Oil cup193700-06M03
16GB818十字盘头螺钉M5*8Pan head screw with cross recess197885-06040
1715F-04.07.12衬套Bushing1
18GB848平垫10Flat Pad 102
1915F-04.07.11弹簧Spring1
20F4-04.11-Ⅱ油门标牌Indicator,throttle1
21GB845十字槽盘头自攻螺钉ST2.Screw1
2215F-04.07.13手柄Handle1
2315F-04.07.14手柄橡胶套Handle Rubber sleeve1
24GB820十字槽半沉头螺钉M5*25Screw M5*251
25DIN985六角尼龙锁紧螺母M12*1.Hex nylon locking nut M12*1.251
2660F-04.00.00.04尼龙垫片Nylon gasket290202-12092
2760F-04.00.00.05金属垫片Metal Gasket290201-12537
2860F-04.00.00.06波形垫圈Wave Gasket190206-12054
2960F-04.00.00.03衬套Bush16K5-44191-00
30GB97.1平垫12Flat gasket 12192903-10100
3160F-04.00.00.02六角头螺栓M12*1.25*70Hex head bolt M12*1.25*701
3260F-04.00.00.07操舵手柄托架Steering handle Bracket1692-42121-02-4D
3360F-01.06.01.00换挡臂组件Shift handle assy.1692-44159-01
3460F-01.06.00.04衬套Bush290386-10009
3560F-01.06.00.05垫圈1* 12.5*17.5Washer 1*12.5*17.51
36GB848平垫10Flat Pad 101
37DIN985六角尼龙锁紧螺母M10*1.hexagonal lock nut M10*1.251
3860F-01.06.00.08弹簧Spring190501-16M17
3960F-01.06.00.06钢球15/32Steel ball 15/32193515-32M01
4060F-01.06.00.07套环BShrink ring B190387-12M30
4160F-01.02.01.00急停开关总成Emergency Switch assy.16K5-82575-03
4260F-01.06.00.10换挡支架Shift bracket1697-44113-00
43GB5783（8.8）六角头螺栓M6*16Bolt2
44GB93弹垫6Washer2
45GB5783六角头螺栓M6*12Bolt197095-06095
46F15-01.03.00.42通气管固定夹Bfix clip,air breather tube190465-06M86
47GB93弹垫6Washer1
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw290340-08002
2GB96 M12平垫flat gasket4
3GB97.1 M6平垫flat gasket1
4GB97.1 M12平垫flat gasket4
5GB91 2*12开口销cotter pin1
6GB91 3.2*25开口销cotter pin1
7GB5783 M12*110六角头螺栓hex bolt4
8GB6170 M12六角螺母hex bolt4
960F-06.00.01.00水泵叶轮组件impeller Assy.1688-44352-03
1015F-08.00.00燃油箱总成(24L)fuel case Assy.1
1115F-09.01应急启动手柄emergency starting handle1
1215F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
1315F-01.01.22启动绳φ5*2000mmstarter rope1
1415F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
1515F-09.00工具包toolkit1
33保修保养手册(仅国内客户用)Warranty and maintenance munal(just for Chinese client)1
