舟一会 ZHOUYIHUI 船外机

海的 6F - 6FHL(S)

共 11 个部位，点击零件编码查看详情，或搜索本页零件。

总装分解图

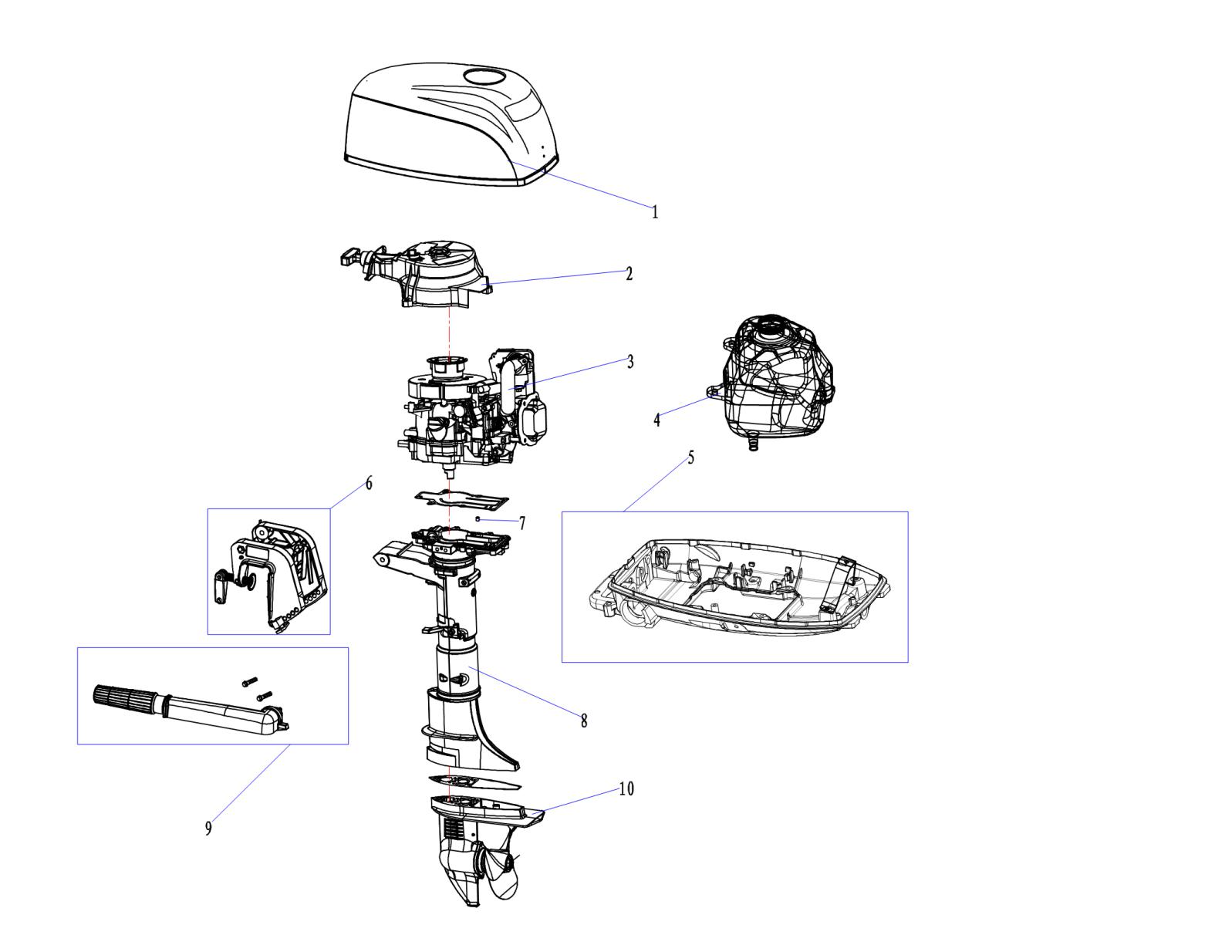

总装分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
15F-07.00.00.00顶罩组件Top cowling assy1
25F-01.01.00.00启动罩组件Starter assy1
35F-01.01.00动力系统Powering system1
45F-01.04.00燃油系统Fuel system1
55F-02.00.00.00底罩部件Bottom cowling assy1
6F4-03.00.00.00夹紧托架部件Bracket assy1
715F-01.06.20定位销6*12Dowel pin 6*122
85F-05.00.00水上部件Upper casing assy1
9F4-04.00.00操舵部件Steering assy1
10F4-06.00.00水下驱动部件Lower casing driving assy1
顶罩

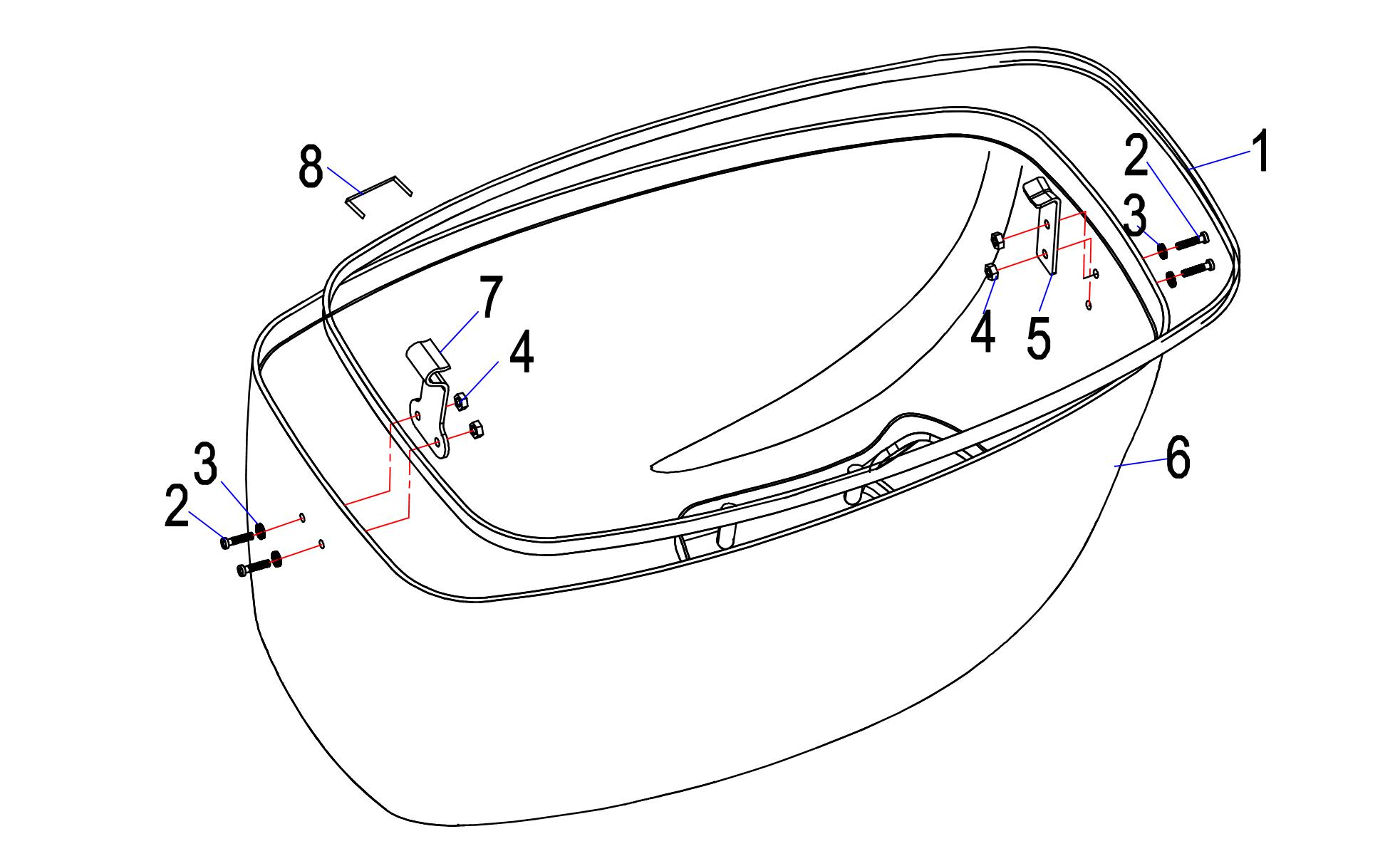

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
19.8F-07.02橡胶密封条Rubber sealing strip1
2GB/T818十字槽盘头螺钉M4*14Pan head screw with cross recess4
3GB/T96平垫4Flat gasket 44
4DIN985六角尼龙锁紧螺母M4Hexgonal nylon nut M44
59.8F-Ⅱ-07.05后锁紧钩Rear lock hook1
69.8F顶罩Top cowling1
79.8F-Ⅱ-07.03前锁紧钩Front lock hook1
8装帧订Bingding nail10
None5F-07.00.00.00顶罩总成Top cowling assy.1
启动罩

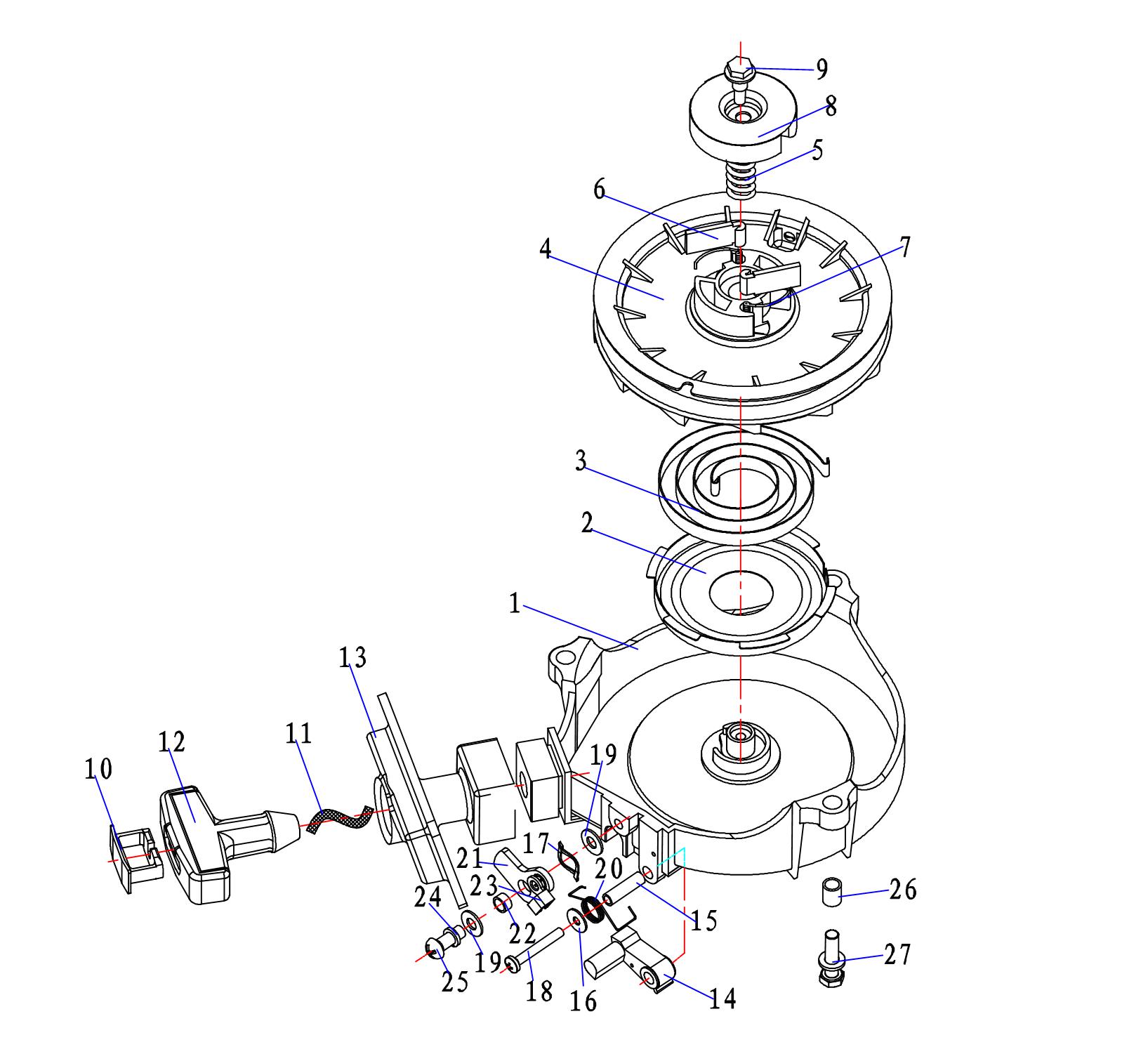

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
15F-01.02.03启动罩statrer cover136905-1051
29.8F-01.01.10涡型弹簧盘Plate,volute spring13B205-0100
39.8F-01.01.09涡型弹簧Volute spring1
49.8F-01.01.07启动轮Start wheel13B205-1040
59.8F-01.01.05压盘弹簧Plate spring136905-0070
69.8F-01.01.04启动拨爪Drive pawl23B205-0030
79.8F-01.01.06拨爪扭簧Drive pawl torsion spring236905-0120
89.8F-01.01.02启动压盘Starter platen13B205-0060
99.8F-01.01.03压盘螺栓Bolt13B205-1380
1015F-01.01.10手柄盖Cover,Starter handle13B205-1310
11F4-01.01.15启动绳 φ3.5*1800mmStart rope φ3.5*1800mm135005-0130
1215F-01.01.08启动手柄Starter handle13B205-0190
139.8F-01.01.11.01-Ⅱ橡胶托架(长)Rubber bracket136905-1160
149.8F-01.01.16制动器Brake133805-2520
159.8F-01.01.17铜衬套Copper bushing1
16GB/T96平垫4Flat gasket1
179.8F-01.01.15波垫Wave gasket1
18GB/T818十字槽盘头螺钉4*30Pan head screw with cross rece1
19GB/T848平垫6Flat gasket 62
205F-01.01.18制动器扭簧Torsional spring,brake133805-2160
219.8F-01.01.12制动器导向块Brake guide133805-2531
229.8F-01.01.14垫管Cushion tube1
239.8F-01.01.13连杆接头Linkage connector134505-2230
24GB/T93弹垫6Washer 61
25GB/T818十字槽盘头螺栓M6*18Pan head bolt with cross reces1
265F-01.02.06启动罩垫管Cushion tube,recoil starter3
27GB9074.1(8.8)六角头螺栓和平垫组件M6*2Hexagonal bolt & flat gasket a3
None5F-01.01.00.00启动罩组件starter cover assy.1

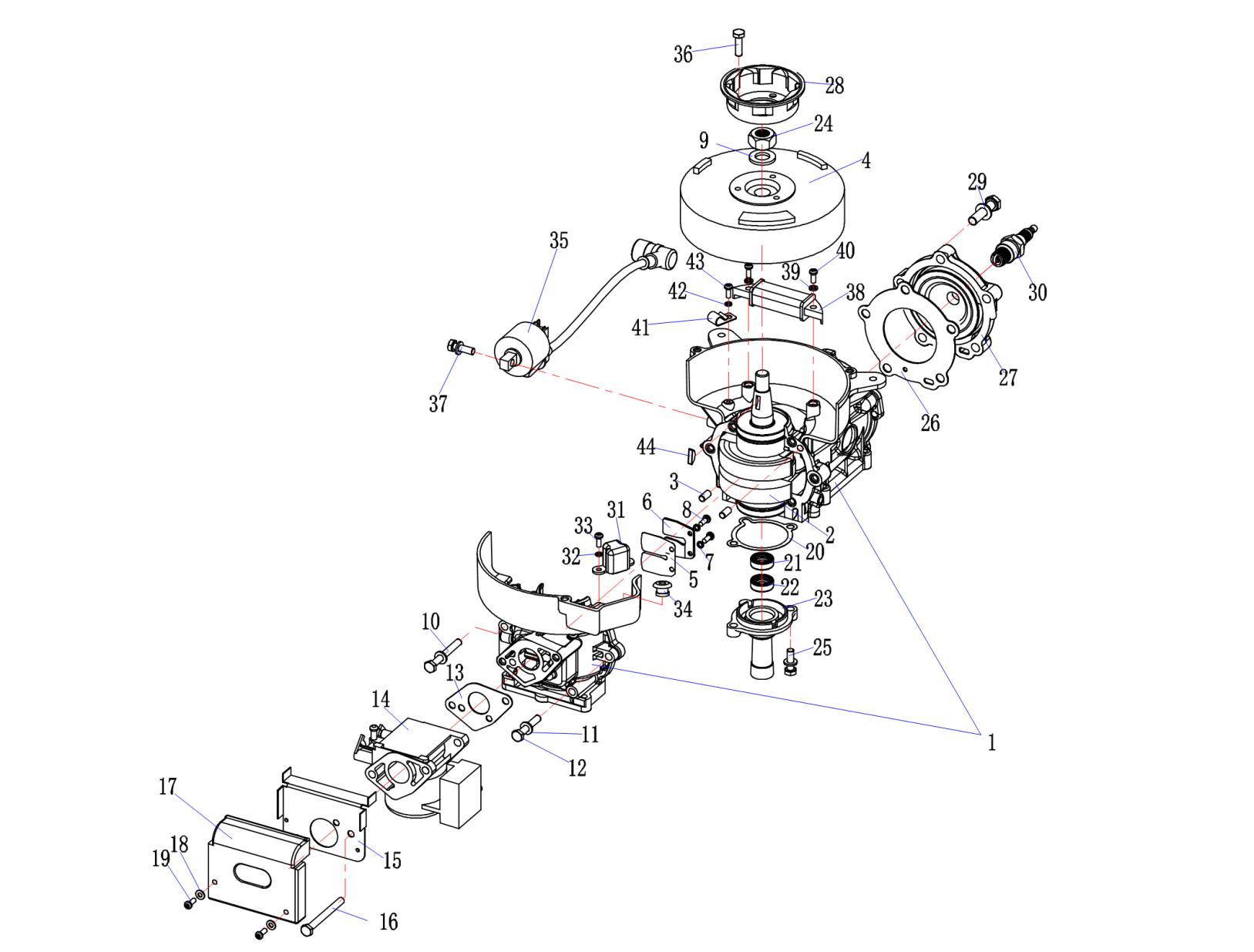

动力部分
动力部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
15F-01.01.03.00曲轴箱组件Crankcase assy1369B01100-2
25F-01.01.02.00曲轴连杆活塞组件Crankshaft connecting rod as136900-0300
315F-01.06.20定位销6*12Dowel pin 6*122
45F-01.03.13飞轮组件Flying wheel assy136906-0010
55F-01.01.04.03阀片Valve136902-1110
65F-01.01.04.02进气阀座Inlet valve base136902-1130
7GB/T93弹垫4Washer 42
8GB/T818十字槽盘头螺钉M4*10Pan head bolt with cross rec2
9GB/T97.1平垫12Flat gasket 121
10GB9074.1(10.9)六角头螺栓和平垫组件M6*55Hexagonal bolt & flat gasket4
11GB97.1平垫6Flat gasket62
12GB5783(10.9)六角头螺栓M6*35Hexagonal bolt & flat gasket2
135F-01.04.07化油器密封垫Carburetor seal gasket136903-2511
145F-01.04.08.00化油器组件Carburetor assy136903-2000
155F-01.04.10空滤器座Air filter base136903-2540
16GB/T5783六角头螺栓M6*85Hexagonal bolt M6*85230962-1151
175F-01.04.09空滤器盖Air filter cap136902-5010
18GB/T97.1平垫4Flat gasket 42
19GB/T818十字槽盘头螺钉M4*18Pan head bolt with cross rec2
205F-01.01.08油封壳体密封垫Gasket,oil seal casing136901-2140
21F4-01.06.15.03双唇口油封B10.8*21*7Oil seal B10.8*21*7136901-2150
22F4-01.06.15.03双唇口油封B10.8*21*7Oil seal B10.8*21*7136901-2150
235F-01.01.07.01油封壳体Oil seal housing136901-2101
24GB6170(10) M12*1.2飞轮螺母（铁铬合金，对边18）Flying wheel nut1
25GB9074.1(8.8)六角头螺栓和平垫组件M6*20Hexagonal bolt & flat gasket2
265F-01.01.06气缸垫Cylinder gasket1369-01005-1
275F-01.01.05气缸头Cylinder head136901-0010
289.8F-01.01.20启动毂Starter pulley13B205-9010
29GB9074.1(10.9)六角头螺栓和平垫组件M8*35Hexagonal bolt & flat gasket5
30BPR7HS火花塞Spark Plug197010-4008
315F-01.03.02触发器组件Impulsor assy136906-0710
32GB/T93弹垫4Spring washer 42
33GB/T818十字槽盘头螺栓M4*12Pan head bolt with cross rec2
345F-01.03.11橡胶衬圈Rubber bushing1
355F-01.03.05高压包Ignition coil136906-0501
36GB/T5783六角头螺栓M6*12Hexagonal bolt M6*12330962-1151
37GB9074.1(8.8)六角头螺栓和平垫组件M6*20Hexagonal bolt & flat gasket2
385F-01.03.03充电线圈组件Charging coil assy136906-0210
39GB/T93弹垫5Spring washer 52
40GB/T823十字槽小盘头螺钉M5*20Pan head bolt with cross rec2
4140F-01.03.08.07固线卡Wire fixer1
42GB/T96平垫4Flat gasket 41
43GB/T818十字槽盘头螺栓M4*8Pan head bolt with cross rec1
449.8F-01.06.27曲轴半圆键Woodruff key,Crankshaft1
曲轴连杆部分

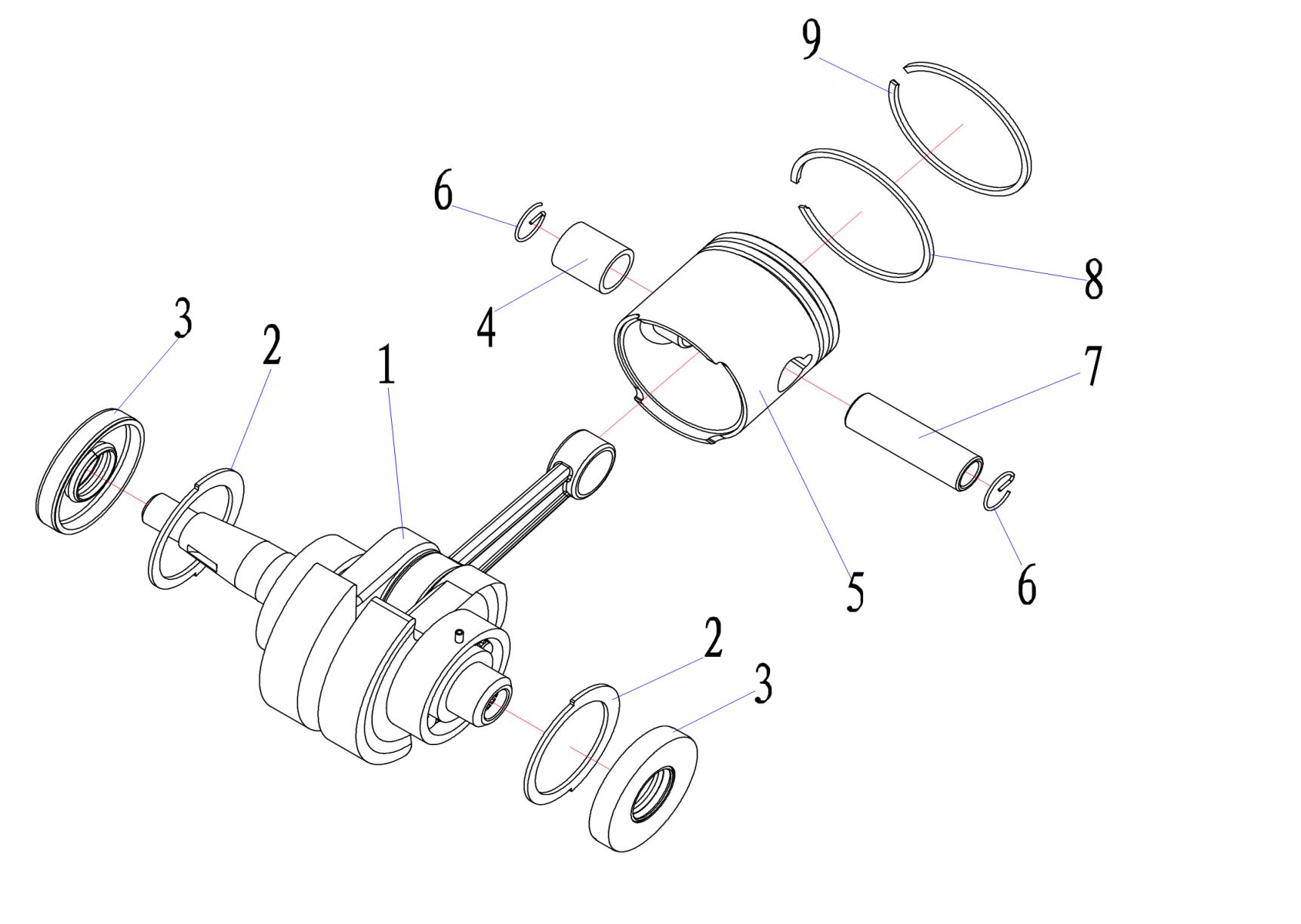

曲轴连杆部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
15F-01.01.11.00曲轴连杆组件Crankshaft assy136900-0300
25F-01.01.10曲轴限位环Stop collar,Crankshaft236900-1150
35F-01.01.11曲轴油封20*47*8Oil seal,Crankshaft 20*47*82D20-D47-8MM
45F-01.01.02.05滚针轴承Needle roller bearing136900-0430
55F-01.01.02.02活塞Piston136900-0040
69.8F-01.06.25活塞销卡簧Piston circlip235000-0240
75F-01.01.02.03活塞销Piston pin136900-0210
85F-01.01.02.07副气环2nd ring135100-0110
95F-01.01.02.06主气环1nd ring135100-0140
底罩部分

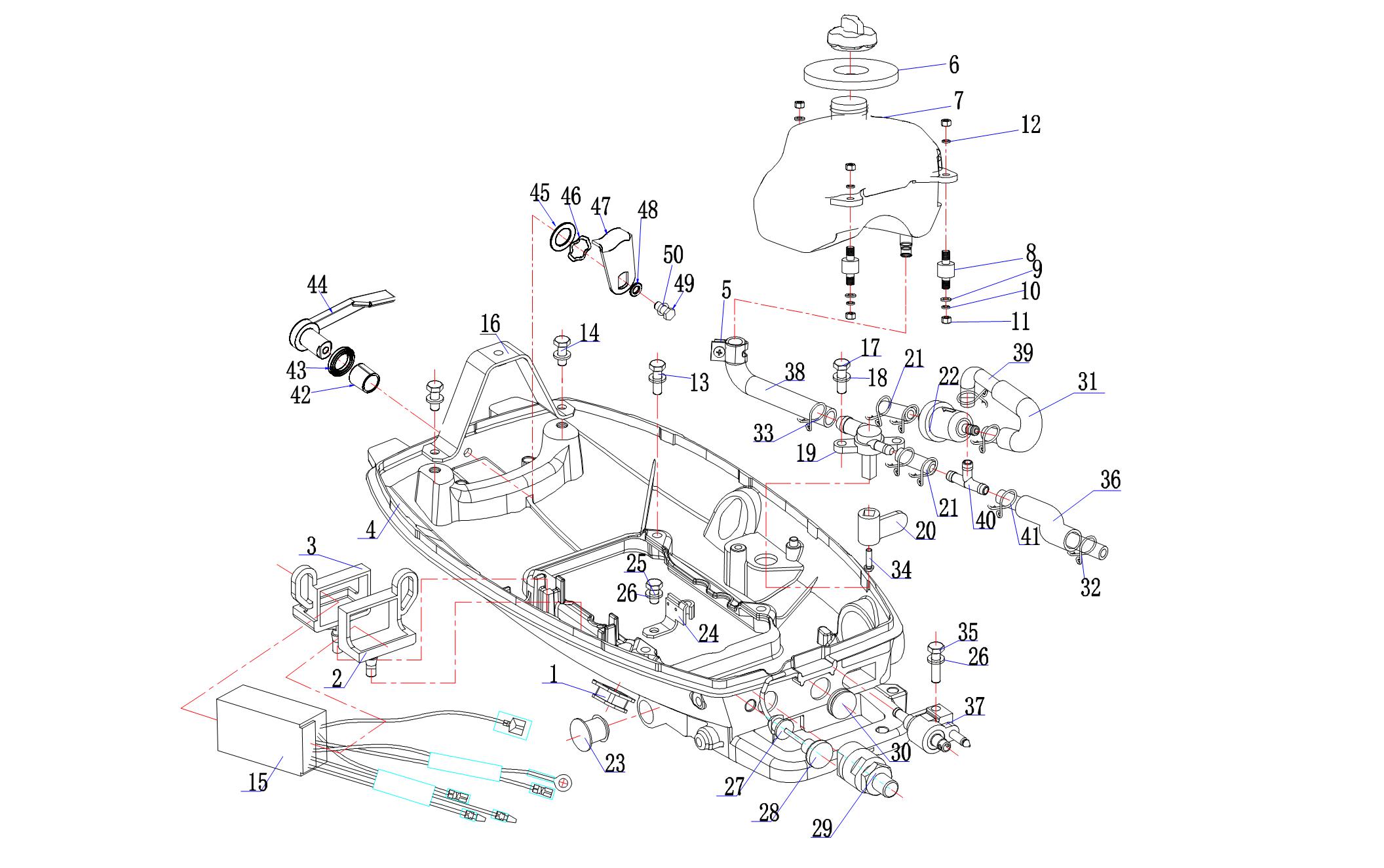

底罩部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
15F-02.07制动器连杆护套Protecting bush,brake linkage136967-1880
25F-01.03.09橡胶固定架（右）Rubber bracket (R)136906-9060
35F-01.03.08橡胶固定架（左）Rubber bracket (L)136906-9060
45F-02.01底座Bottom Base1
53.5F-01.04.05.00夹箍组件Clamping assy1
63.5F-01.04.12油箱减震圈Damper ring,reservoir port136970-0360
75F-01.04.11.00燃油箱组件Fuel tank assy136970-0560
85F-01.04.02油箱减震器组件Fuel tank damper assy336970-0570
9GB97.1平垫6Flat gasket 62
10GB93弹垫6Washer 62
11GB6170六角螺母M6Hexagonal nut M65
12GB5287平垫6Flat gasket 63
13GB9074.1(8.8)六角头螺栓和平垫组件M6*16Hexagonal bolt & flat gasket assy M6*164
14GB9074.1(8.8)六角头螺栓和平垫组件M6*16Hexagonal bolt & flat gasket assy M6*162
155F-01.03.07点火控制器组件CDI assy1
165F-01.04.01油箱支撑架Fuel tank holder1
17GB5783六角头螺栓M6*20Hexagonal bolt & flat gasket assy M6*201
18GB97.1平垫6Flat gasket 61
19F4-01.07.05.00油开关组件Fuel switch assy136970-0110
20F4-01.07.05.01油开关旋钮Fuel switch knob136970-0620
21油管6*10*30Fuel hose 6*10*302
22F9.9-01.04.03.00燃油滤清器组件Fuel filter assy1
235F-02.03堵塞BPlug B136967-1870
245F-02.06.00油门钢索支架Throttle cable holder1
25GB5783六角头螺栓M6*12Hexagonal bolt & flat gasket assy M6*121
26GB97.1平垫6Flat gasket 62
279.8F-02.04阻风门拉杆护套Protecting bush,choke1
285F-02.05.00阻风门手柄Handle,chock1
295F-01.03.12急停开关总成Engine shut-off switch assy136906-8200
305F-02.02堵塞APlug A134567-1170
31波纹管（14*60）Bellows （14*60）1
32F4-01.07.07管夹10Clamp φ 108
33F4-01.07.04管夹14Clamp φ 14136906-0600
34GB/T818十字槽盘头螺钉M4*14Pan head bolt with cross recess M4*141
35GB5783六角头螺栓M6*25Hexagonal bolt & flat gasket assy M6*251
36波纹管（14*80）Bellows （14*80）1
3715F-01.07.01.00燃油管插头组件Fuel hose joint assy1
385F-01.04.04L型油管14L shape fuel hose1
39F6-01.04.00.09手动泵进油管Manual pump fuel hose1
40F15-05.00.00.17三通T-branch pipe1
41油管6*10*115Fuel hose 6*10*1151
429.8F-02.11.03衬套Bushing133867-1470
439.8F-02.11.02橡胶圈Rubber ring136967-1050
449.8F-02.11.01前锁紧手柄Front lock handle1369S67141-1
459.8F-02.11.04垫片Gasket1
469.8F-02.11.05波形垫圈Wave gasket19414-3-1400
479.8F-02.11.06锁紧片Lock plate136967-1420
48GB/T96平垫6Flat gasket 61
49GB5783六角头螺栓M6*12Hexagonal bolt & flat gasket assy M6*121
50GB93弹垫6Washer 61
夹紧装置

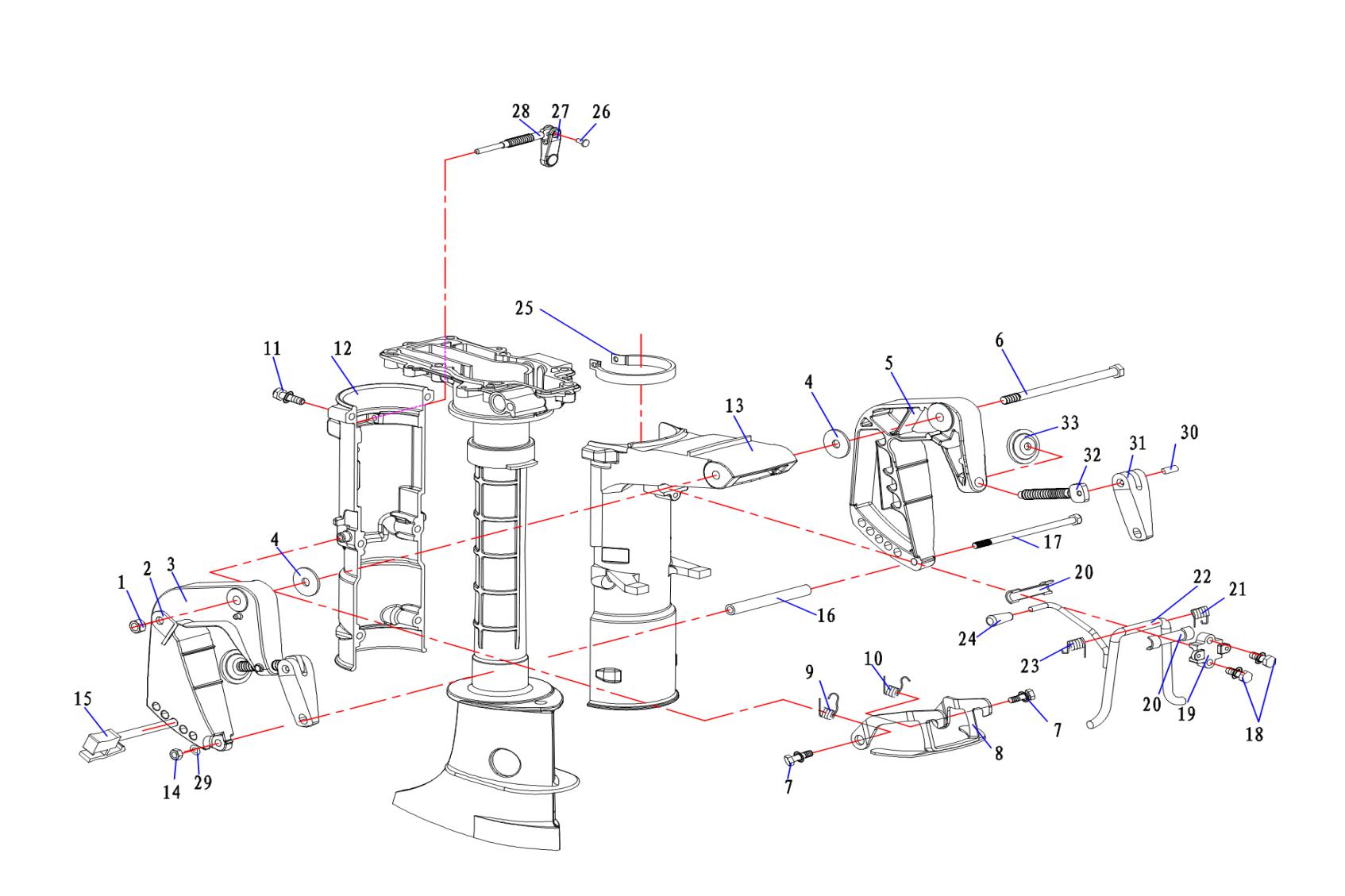

夹紧装置 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1DIN985六角尼龙锁紧螺母M8Hexagonal nylon nut M81
2F4-03.02孔板Orifice plate1
3F4-03.01.01夹紧托架（左）Clamp bracket (left)136962-1130
4F4-03.03尼龙垫片Nylon gasket230762-1160
5F4-03.01.02夹紧托架（右）Clamp bracket (right)136962-1120
6GB/T5783六角头螺栓M8*135Hexagonal bolt M8*135130962-1151
7GB9074.1(8.8)六角头螺栓和平垫组件M6*10Hexagonal bolt & flat gasket assy2
8F4-03.05.08.00起翘锁紧钩组件Tilt lock hook assy136966-3130
9F4-03.05.08.04锁紧钩扭簧BTension spring,locking hook B136966-3390
10F4-03.05.08.03锁紧钩扭簧ATension spring,locking hook(A)136966-3380
11GB9074.1(8.8)六角头螺栓和平垫组件M6*35Hexagonal bolt & flat gasket assy6
12F4-03.05.04旋转托架盖Cap,swivel bracket136962-3921
13F4-03.05.01旋转托架Bracket,swivel1369S62391-2
14GB6170六角螺母M6Hexagonal nut M61
15F4-03.05.07.00角度限位插销Angle adjusting pin135062-1210
16F4-03.04螺栓垫管bolt cushion tube1
17GB/T5783六角头螺栓M6*120Hexagonal bolt M6*120130962-1151
18GB9074.1（8.8）六角头螺栓和平垫组件M6*20Hexagonal bolt & flat gasket assy2
19F4-03.05.03调整支架压板pressure plate,adjusting bracket136962-4390
20F4-03.05.02.05减磨垫Antifriction pad236962-4370
21F4-03.05.02.04扭簧BTorsional spring (B)136962-4340
22F4-03.05.02.01角度调整支架Angle adjusting bracket136962-4310
23F4-03.05.02.03扭簧ATorsional spring (A)136962-4340
24F4-03.05.02.02支架手柄橡胶套Handle rubber sleeve136962-4331
25F4-03.05.05.00锁紧圈组件Lock washer assy1
26GB/T875-86扁平半空心铆钉4*10Thin flat head socket shank rivet1
27F4-03.05.06.01锁紧手柄Lock handle130962-4420
28F4-03.05.06.02锁紧螺杆Lock screw1
29GB/T97.1平垫6Flat gasket1
30GB/T1015沉头半空心铆钉4*22Rivet2
3115F-03.05.02.04夹紧手柄Clamp handle230762-1020
32F4-03.01.03艉板夹紧螺栓Transom clamp bolt236962-1030
3315F-03.05.02.03夹紧盘Clamp plate233262-1010

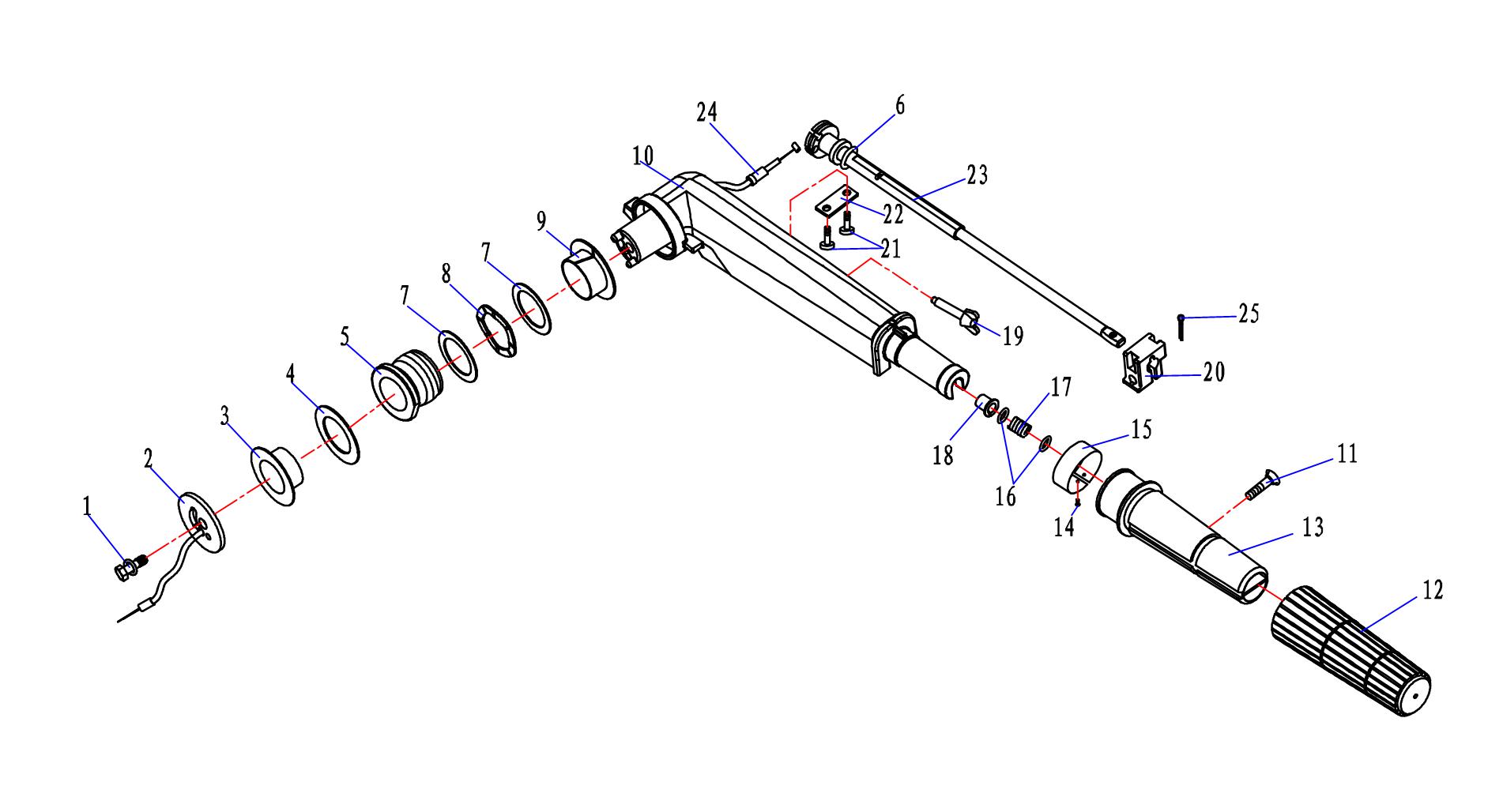

操舵手柄
操舵手柄 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB9074.1(8.8)六角头螺栓和平垫组件M8*25Hexagonal bolt & flat gasket assy M8*251
2F4-04.03操舵手柄压板Steering Plate1
3F4-04.04减磨圈AAntifriction ring A1
4F4-04.05垫片AGasket A1
5F4-04.01.02.00手柄减震环组件Handle shock ring assy1
6GB/T848平垫12Flat gasket 121
7F4-04.07垫片BWasher B2
8F4-04.08波形垫圈Wave gasket1
9F4-04.06减磨圈BAntifriction ring B1
105F-04.01操舵手柄Steering handle1
11GB/T820十字槽半沉头螺钉M5*25Cross recessed countersunk head screw M5*251
1215F-04.07.14手柄橡胶套Rubber sleeve,Handle1
1315F-04.07.13手柄Handle1
14GB/T845十字槽盘头自攻螺钉ST2.2*4.5Cross recessed pan head tapping screws ST2.1
15F4-04.11-Ⅱ油门标牌Indicator,throttle1
16GB/T848平垫10Flat gasket 102
1715F-04.07.11弹簧Spring1
1815F-04.07.12衬套Bushing1
1915F-04.07.09阻力调整旋钮Resistance adjustment knob1
2015F-04.07.08锁紧块Latch segment1
21GB/T818十字槽盘头螺钉M5*12Pan head bolt with cross recess M5*122
2215F-04.07.07节气门杆压板Throttle lever plate1
2315F-04.07.05节气门杆Throttle lever1
245F-04.02油门控制钢索Throttle cable1
25GB/T91开口销1.6*12Cotter pin 1.6*121
None5F-04.00.00操舵手柄部件Tiller Assy.1
水上装置

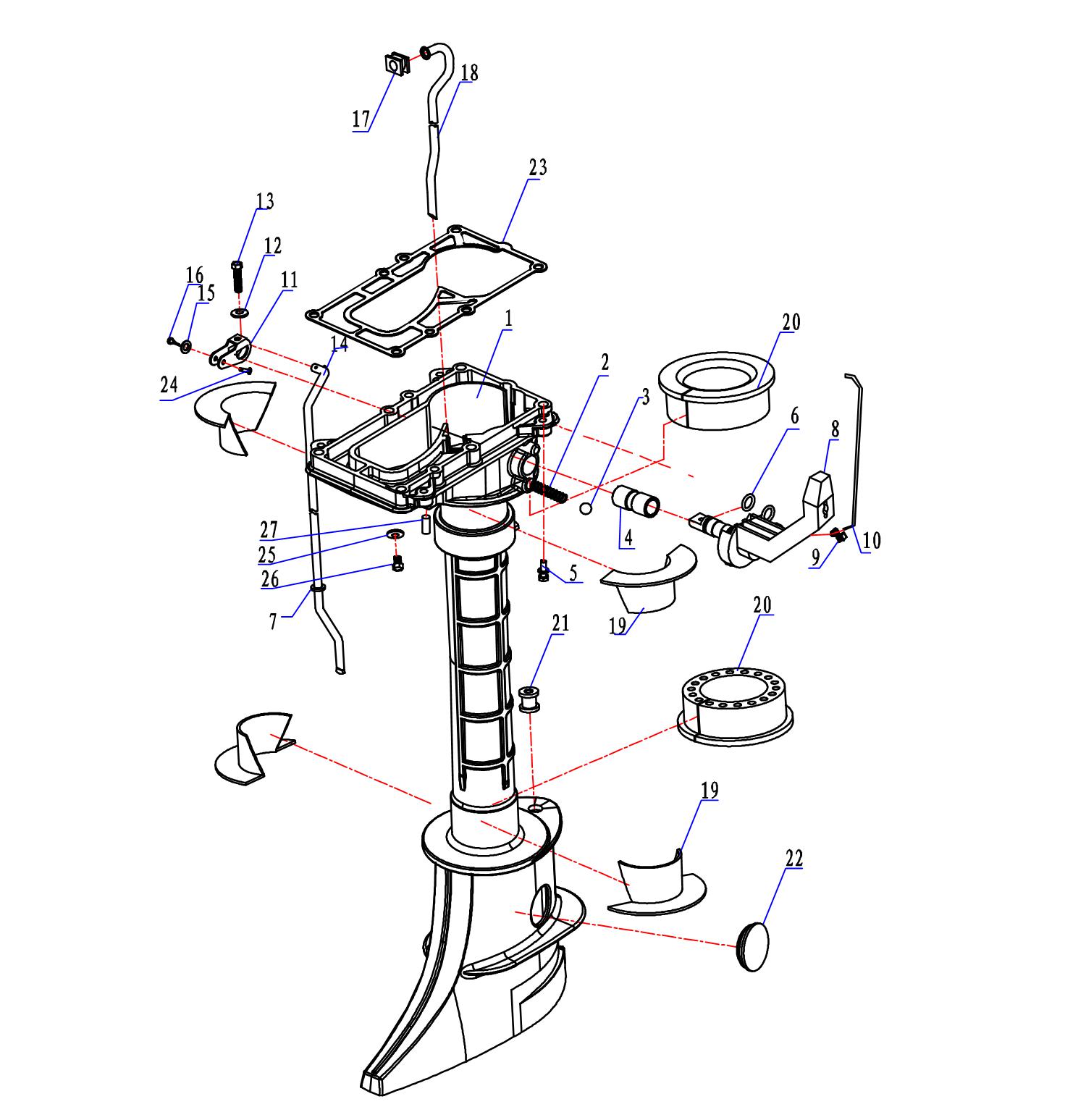

水上装置 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
15F-05.02.01水上装置壳体Upper casing136961-0200
2F4-05.04压簧Compressed spring130166-1120
3F4-05.03钢珠8Steel ball B1
45F-05.02.02档位轴套Shift axis sleeve1
5GB9074.1(8.8)六角头螺栓和平垫组件M6*3Hexagonal bolt & flat gasket assy M66
6F4-05.02.03拨叉O型圈O ring230166-1360
7GB/T97.1平垫6Flat gasket1
85F-05.03.00档位手柄组件Gear shift handle assy136966-1100
99.8F-01.01.13连杆接头Linkage connector134505-2230
105F-05.07制动器连接杆Connecting rod,brake1
115F-05.04变档连杆支架Gear shift bracket136966-2250VER
12GB/T93弹垫4Spring washer1
13GB/T5783六角头螺栓M4*16Hexagonal bolt M4*16130962-1151
145F-05.05变档连杆Gear shift rod136966-2140
15GB/T97.1平垫4Flat gasket 41
16GB/T91开口销1*10Cotter pin 1*101
17F4-05.13水管上密封圈Seal ring (upper),hose1
185F-05.01水管(短）Hose (S)136965-1000
None5F-05.01-L水管（L）Hose (L)1
19F4-05.08减震圈衬套Shock ring bushing4
20F4-05.09减震圈Shock ring2
21F4-05.01.03变档凸轮杆密封圈Sealing ring1
22F4-05.01.04水上闷头Plug,upper casing1
235F-01.01.01机体密封垫Engine gasket136961-0120
245F-05.06变档连杆销Pin,gear shift linkage1
2515F-06.01.04螺塞密封垫Gasket133260-0060
26GB/T5783六角头螺栓M8*10Hexagonal bolt M8*10130962-1151
275F-05.08出水管Water hose(outlet)1
水下装置

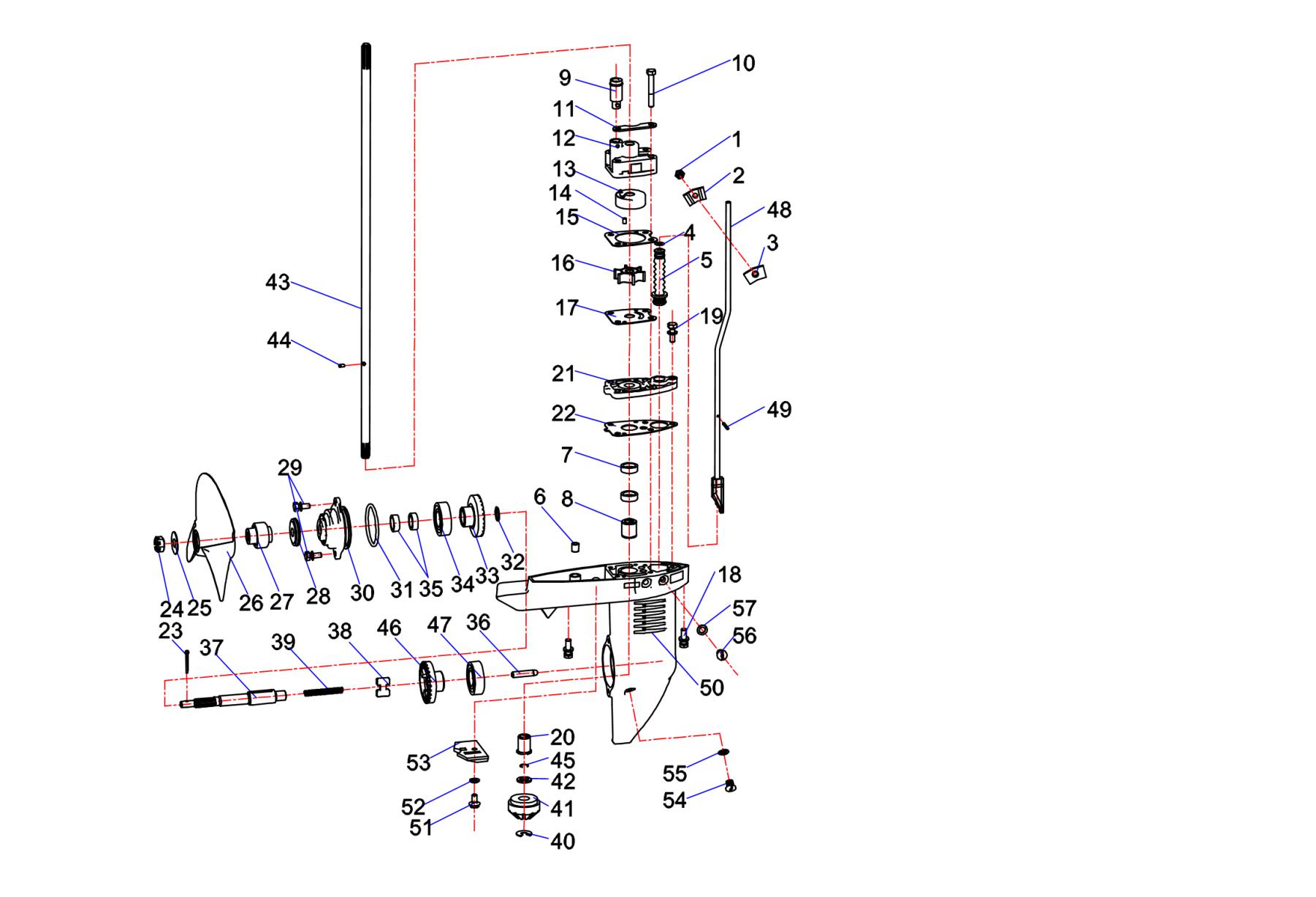

水下装置 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB9074.1(8.8)六角头螺栓和平垫组件M6*20Hexagonal bolt & flat gasket assy M6*1
2F4-06.22变档凸轮锁紧块AShift cam locker B136966-2410
3F4-06.23变档凸轮锁紧块BShift cam locker A136966-2410
4F4-06.16橡胶圈弹簧Spring,rubber ring1
5F4-06.15波形橡胶密封圈Rubber seal strip1
6F4-06.27空心定位销Dowel pin2
7F4-01.06.15.03双唇口油封B10.8*21*7Oil seal B10.8*21*7236960-2230
8F4-06.01.03含油轴承Bearing136960-2110
9F4-06.21.04水管下密封圈Seal ring (lower),hose136965-0140
10GB/T5783六角头螺栓M6*45Hexagonal bolt M6*45430962-1151
11F4-06.20水泵压条Plate,water pump2
12F4-06.21.01水泵壳体Water pump housing136965-0160
13F4-06.21.02水泵内壳Water pump inner housing136965-0110
14F4-06.19水泵座定位销Dowel pin,water pump base2
15F4-06.18水泵密封垫Gasket,water pump136965-0180
16F4-06.21.03.00水泵叶轮组件Impeller assy136965-0210
17F4-06.17水泵垫板Plate,water pump136965-0250
18GB9074.1(8.8)六角头螺栓和平垫组件M6*40（短exagonal bolt & flat gasket assy M6*2
NoneGB/T5783六角头螺栓M6*165(长轴）Bolt M6*165230962-1151
19GB9074.1(8.8)六角头螺栓和平垫组件M6*25Hexagonal bolt & flat gasket assy M6*1
20F4-06.01.04带肩含油轴承Bearing1
21F4-06.14水泵座Water pump base136965-0170
22F4-06.13水泵座密封垫Gasket,water pump base136965-0200
23GB91开口销(2.5*20)Cotter pin (2.5*20)1
24F4-06.26开槽六角螺母Hexagonal nut136964-1210
25GB/T96.1-2000平垫8Flat gasket 81
26F4-06.25.01螺旋桨(7-1/2*7)Propeller (7-1/2*7)136964-5180
NoneF4-06.25.00.00螺旋桨组件(7-1/2*7)Propeller Assy.16E0-45943-01-EL
27F4-06.25.02.00螺旋桨内花键组件Propeller shaft teeth assy1
28F4-06.24螺旋桨垫块Propeller pad136964-2310
29GB9074.1(8.8)六角头螺栓和平垫组件M6*16Hexagonal bolt & flat gasket assy M6*2
30F4-06.07.01水下壳体盖Cap,lower casing136960-1010
31F4-06.07.03水下壳体O型圈O ring,lower casing134565-0150
32F4-06.05垫片Gasket1
33F4-06.06倒档齿轮Reverse gear136964-0300
34F9.9-06.00.00.15轴承6004C2Bearing 6004C2196010-6004
35F4-06.07.02油封22*13*7Oil seal 22*13*7236960-1110
36F4-06.04.04变档柱塞Gear shift plunger136964-2230
37F4-06.04.01螺旋桨轴Propeller shaft136964-2111
38F4-06.04.03离合器片Dog clutch130164-2150
39F4-06.04.02压缩弹簧Compression spring136964-2210
40GB896.6开口挡圈6Circlip 61
41F4-06.08主动轮Driving wheel136964-0200
42F4-06.09主动轮调整片Adjuster,driving wheel136964-0230
435F-06.00.01驱动轴(短轴）Drive shaf (short shaft)136964-3010
None5F-06.00.01（L）驱动轴LDrive shaf (long shaft)1
44F4-06.11.03驱动轴限位销Stop pin,drive shaft1
45F4-06.11.02弹性挡圈（轴用）Circlip1
46F4-06.03正档齿轮Forward gear136964-0100
47F9.9-06.00.00.15轴承6004C2Bearing 6004C2196010-6004
485F-06.01.00变档凸轮组件（S）Shift cam assy. (S)136966-0110， 36966-0120
None5F-06.01.00-II变档凸轮组件（L)Shift cam assy. (L)1
49GB879弹性圆柱销（2.5*20）Pin （2.5*20）1
50F4-06.01.01水下壳体Lower casing136960-0000
51GB9074.1六角头螺栓和平垫组件M6*16Hexagonal bolt M6*121
52GB/T861.1内齿锁紧垫圈6Washer,inner gear1
53F4-06.02阳极BAnode136960-2180
5415F-06.01.03注油口螺塞Plug,straight screw133260-0050
5515F-06.01.04螺塞密封垫Gasket133260-0060
5615F-06.01.03注油口螺塞Plug,straight screw233260-0050
5715F-06.01.04螺塞密封垫Gasket233260-0060
NoneGB/T893.1孔用弹性挡圈(长轴用)circlip1
NoneF4-08.02定位套(长轴用)locating sleeve1
NoneF4-08.03橡胶套(长轴用)rubber sleeve1
NoneF4-08.01接长体(长轴用)connecting block1
None5F(S)-06.00.00.0水下装置部件(S)lower unit(short)1
None5F(L)-06.00.00.0水下装置部件(L)lower unit(long)1
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2GB91 2.5*20开口销cotter pin1
3F4-06.21.03.00水泵叶轮组件impeller Assy.136965-0210
415F-09.01应急启动手柄emergency starting hand1
515F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
615F-01.01.22启动绳φ5*2000mmstarter rope1
715F-09.00工具包toolkit1
8保修保养手册(仅国内 客户用)Warranty and maintenance munal(just for Chinese client)1
