舟一会 ZHOUYIHUI 船外机

海的 85F - 85FE-T

共 10 个部位，点击零件编码查看详情，或搜索本页零件。

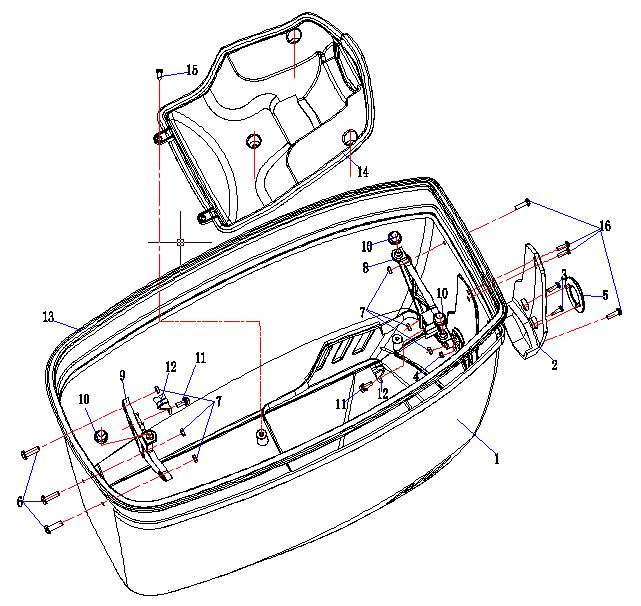

顶罩系统
顶罩系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
185F-07.00.00.01顶罩Top cover1
2F60-07.00.01.09logo安装板Logo installation board1
3GB818 M5*16十字盘头螺钉M5*16Phillip s pan head screw M5*162
4DIN985 M5六角尼龙锁紧螺母Hexagonal nylon lock nut2
5F60-07.00.00.08海的logoSea logo1
6GB818 M6*15十字槽盘头螺钉Cross recessed pan head screws3
7DIN985 M6六角尼龙锁紧螺母Hexagonal nylon lock nut7
885F-07.00.00.04后锁紧钩固定板Rear locking hook fixing plate1
985F-07.00.00.05前锁紧钩固定板Front locking hook fixing plate1
1060F-07.00.00.02顶罩减震脚Top cover shock absorber3
11GB9074.1 M6*16(8.8)螺栓和垫圈组合件Bolt and washer assembly2
1260F-07.00.00.01锁紧钩Locking hook2
1385F-07.00.00.03橡胶条Rubber strip1
1485F-07.00.00.02进气口盖Air inlet cover1
15GBT845-ST4_8X16十字槽盘头自攻螺钉Cross recessed pan head tapping screws5
16GB818 M6*18十字槽盘头螺钉Cross recessed pan head screws4
None装帧订Binding22
总成85F-07.00.00.00顶罩部件Top cover1
None购

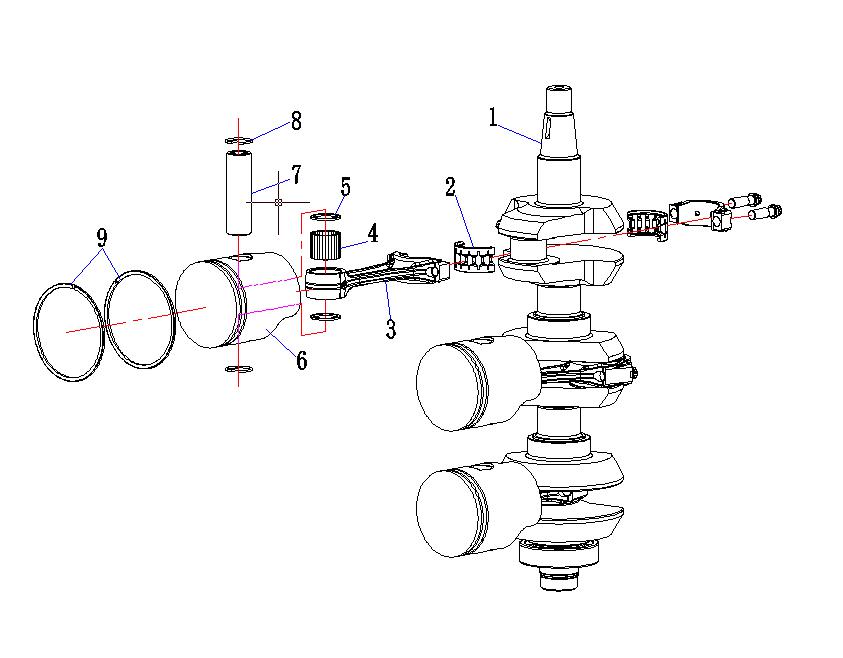

曲轴活塞连杆总成
曲轴活塞连杆总成 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
185F-01.04.01.00曲轴组件（含深沟球轴承及轴用挡 圈）Crankshaft assembly1
285F-01.04.00.30剖分式滚针轴承Split needle roller bearin3
385F-01.04.05.00连杆组件Link assembly3
440F-01.06.04.04密排滚针Closed row needle84
540F-01.06.04.05滚针盖板Needle cover6
685F-01.04.00.27活塞piston3
785F-01.04.00.26活塞销Piston pin3
860F-01.04.00.21活塞销卡簧Piston pin retaining spr6
985F-01.04.00.28活塞环Piston ring6

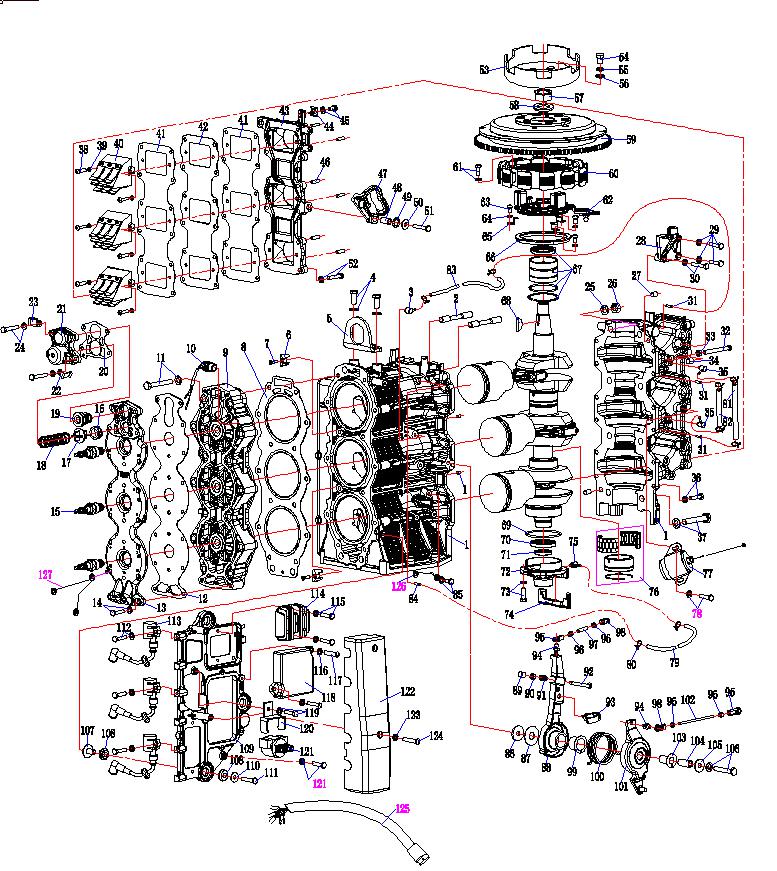

动力系统Ⅰ
动力系统Ⅰ 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
185F-01.04.03.00箱体合件Case fitting1
2GB899 M10*1.25*60双头螺柱Stud2
360F-01.06.00.19气管圆接头Tracheal joint A1
4GB9074.1 M8*20(8.8)螺栓和垫圈组合件(铁铬合金)Bolt and washer assembly (iron chro2
585F-01.04.00.31发动机吊环Engine ring1
685F-01.04.00.17机体阳极Body anode2
7GB819 M4*16十字槽沉头螺钉Cross recessed countersunk head scr2
885F-01.04.00.04汽缸垫Cylinder pad1
985F-01.04.00.03汽缸盖cylinder head1
1060F-01.02.02.00温控传感器组件Temperature control sensor assem1
11GB9074.1M8*60(10.9)螺栓和垫圈组件M8*60Bolt and washer assembly M8*6014
1285F-01.04.00.02汽缸外盖密封垫Cylinder head gasket1
1385F-01.04.00.01汽缸外盖Exhaust cover1
14GB9074.1M6*25(8.8）螺栓和垫圈组件M6*25Bolt and washer assembly M6*2518
15BR8HS-10(30F/60F)火花塞(新)Spark plug (new)3
1685F-01.04.00.18节温器弹簧座密封圈Thermostat spring seat seal1
1785F-01.04.00.19节温器弹簧座Thermostat spring seat1
1885F-01.04.00.20节温器弹簧Thermostat spring1
1915F-01.06.14-50 °节温器(50 °)Thermostat (50 °)1
2085F-01.04.00.21节温器密封垫Thermostat gasket1
2185F-01.04.00.22节温器盖Thermostat cover1
2285F-01.04.00.12高温报警器压板High temperature alarm plate1
23F15-01.03.00.42通气管固定夹BSnorkel fixing clip B1
24GB9074.1 M6*35(8.8)螺栓和垫圈组件M6*35Bolt and washer assembly M6*354
25GB97.1平垫10Flat pad 102
26GB6170 M10*1.25六角螺母Hex nuts2
2740F-01.06.00.25定位销8*12Locating pin 8*122
2885F-01.04.00.06启动罩右支架Starter cover right bracket1
29GB9074.1M6*25(8.8）螺栓和垫圈组件M6*25Bolt and washer assembly M6*252
30GB9074.1 M6*35(8.8)螺栓和垫圈组件M6*35Bolt and washer assembly M6*351
31F60-01.07.03.29油室卸油口Oil chamber discharge port3
32GB818 M6*65十字槽盘头螺钉Cross recessed pan head screws1
33GB6170六角螺母M6Hex nut M61
3415F-01.04.07螺纹盖Screw cap1
3515F-01.06.03气管圆接头ATracheal joint A2
36GB9074.1M6*25(8.8）螺栓和垫圈组件M6*25Bolt and washer assembly M6*2512
37GB/T9074.1M10*1.25*55螺栓和垫圈组合件(铁铬合金)Bolt and washer assembly (iron c6
38GB/T823 M5*16十字小盘头螺钉M5*16Cross small head screw M5*166
39GB93 M5弹垫圈Spring washer6
4085F-01.03.06.00进气阀组件Intake valve assembly3
4185F-01.03.00.08进气歧管密封垫Intake manifold gasket2
4285F-01.03.00.09进气歧管密封垫衬板Intake manifold gasket liner1
4385F-01.03.00.10进气歧管Intake manifold1
4485F-01.03.00.16正时指针Timing pointer1
45GB9074.1 M6*10(8.8)螺栓和垫圈组件M6*10Bolt and washer assembly M6*101
46GB901 M6*30等长双头螺柱10*10*10Stud6
4785F-01.05.03.00滑动座组件Sliding seat assembly1
4885F-01.05.00.12滑动座衬管Sliding seat liner1
4960F-01.05.00.07波形垫圈Wave washer1
50GB96 M6平垫Flat pad1
51GB5783 M6*35六角头螺栓Hex head bolt1
52GB9074.1 M6*30(8.8)螺栓和垫圈组件M6*30Bolt and washer assembly M6*3012
5385F-01.01.00.22启动毂Start hub1
54GB/T5783 M8*12六角头螺栓M8*12Hex head bolt M8*123
55GB/T93 8弹垫8Spring pad 83
56GB/T97.1 8平垫 8Flat pad 83
5740F-01.03.02飞轮螺母M20*1.25Flywheel nut M20*1.251
58GB97.1平垫20Flat pad 201
5985F-01.02.10.00飞轮组件Flywheel assembly1
6085F-01.02.11.00定子组件Stator assembly1
61GB9074.1 M6*30(8.8)螺栓和垫圈组件M6*30Bolt and washer assembly M6*303
6285F-01.02.09.00磁电机座组件Magnetic base assembly1
63GB823十字槽小盘头螺钉M6*12Cross recessed small pan head sc3
64GB848平垫6Flat pad 63
6585F-01.02.00.08磁电机座压板Magnetic motor seat plate3
6685F-01.02.00.20磁电机座衬套Magnetic seat bushing1
6760F-01.04.02.00滚针轴承组件（36NQ5238UNRW11）Needle bearing assembly1
6840F-01.03.03半圆键Semicircle key1
6985F-01.04.00.11油封壳体O型圈（61.5*2.65）Oil seal housing O-ring (61.5*2.1
7060F-01.04.04.02曲轴下油封(30*47*7)Crankshaft lower oil seal (30*471
7185F-01.04.04.02驱动轴上油封(20*32*5)Oil seal on the drive shaft (20*1
7285F-01.04.04.01曲轴下油封壳体Crankshaft lower oil seal housin1
73GB9074.1M6*20(8.8）螺栓和垫圈组件M6*20Bolt and washer assembly M6*203
7485F-01.04.00.29机体密封条Body seal1
7515F-01.06.03气管圆接头ATracheal joint A1
7685F-01.04.02.00剖分式滚针轴承（带外壳）Split needle roller bearings (wi2
7785FE-01.02.11.00电磁阀组件Solenoid valve assembly1
78GB/T818十字槽盘头螺钉M6X15Cross recessed pan head screw M62
7985F-01.04.00.08气管2.5*7*470Trachea 2.5*7*4701
8015F-01.06.06管夹Φ6.5Pipe clamp Φ6.58
8120F-01.06.00.03回油管（2.5*7*185）Oil return pipe (2.5*7*185)1
8285F-01.04.00.07气管2.5*7*105Trachea 2.5*7*1051
8320F-01.06.00.02平衡管（2.5*7*270）Balance tube (2.5*7*270)1
8415F-01.06.21气管圆接头BTracheal round connector B1
85GB/T9074.1 M6*12螺栓和垫圈组合件(铁铬合金)M6*Bolt and washer assembly (iron c1
86GB5287 M8平垫Flat pad1
8785F-01.05.00.08塑料垫片Plastic gasket1
8885F-01.05.00.03正时控制端轮Timing control end wheel1
8915F-01.04.07螺纹盖Screw cap1
90GB6170六角螺母M6Hex nut M61
9185F-01.05.00.10正时螺钉弹簧Timing screw spring1
92GB/T 818 M6*50十字槽盘头螺钉M6*50Cross recessed pan head screw M61
93F4-01.02.06.05圆形尼龙扣Round nylon buckle1
9430F-01.02.00.02球头螺栓Ball stud2
9515F-01.03.12连杆接头Connecting rod joint1
96GB/T6172.1 M5六角薄螺母 M5Hexagonal thin nut M54
9785F-01.05.01.01正时连杆Timing link1
9830F-01.05.00.03正时调整连杆接头Timing adjustment link joint2
9985F-01.05.00.07端轮内衬套End wheel bushing1
10085F-01.05.00.04扭簧Torsion spring1
10185F-01.05.00.05油门控制端轮Throttle control end wheel1
10285F-01.05.02.01油门连杆Throttle connecting rod1
10385F-01.05.00.02端轮外衬套End wheel outer bushing1
10485F-01.05.00.01端轮衬管End wheel liner1
105GB96 M8平垫8Flat pad 81
106GB/T9074.1 M8*45螺栓和垫圈组合件(铁铬合金)Bolt and washer assembly (iron c1
107F9.9-02.00.00.06带肩垫管Shoulder pad1
10885F-01.02.00.05橡胶减震圈Rubber damping ring6
10985F-01.02.00.07电器支架Electrical bracket1
110GB/T96平垫6Flat pad 63
111GB9074.1 M6*30(8.8)螺栓和垫圈组件M6*30Bolt and washer assembly M6*303
112GB9074.1M6*20(8.8）螺栓和垫圈组件M6*20Bolt and washer assembly M6*203
11385F-01.02.04.00高压包组件High voltage package3
11485F-01.02.08.00整流器Rectifier1
115GB9074.1M6*20(8.8）螺栓和垫圈组件M6*20Bolt and washer assembly M6*202
116GB93弹垫6Spring pad 62
117GB/T818十字槽盘头螺钉M6X40Cross recessed pan head screw M62
11885F-01.02.05.00点火控制器组件Ignition controller assembly1
1190104404 GB9074.1 M6*16(8.8) 螺栓和垫圈组合件(铁铬合金) Bolt and washer assembly (iron c1
12085FE-01.02.12.01继电器支架Relay bracket1
121DQDF15-00.03.00继电器组件Relay assembly1
12285F-01.02.00.02电器盖Electrical cover1
123GB/T96平垫6Flat pad 62
124GB823 M6*12十字槽小盘头螺钉Cross recessed small pan head sc1
12585FE-01.02.00.08十芯线束Ten core harness1
12630F-01.02.00.08接地线Ground wire1
127F6-01.03.06.00接地导线组件Ground wire assembly1

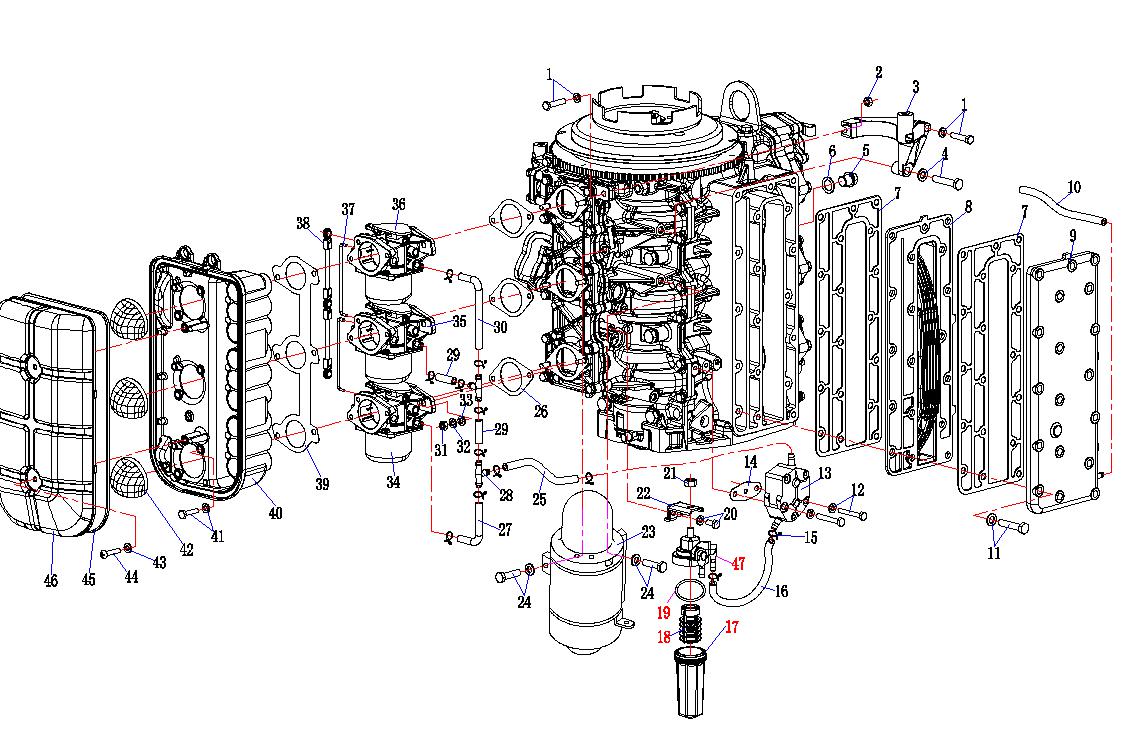

动力系统Ⅱ
动力系统Ⅱ 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB9074.1 M6*30(8.8)螺栓和垫圈组件M6*30Bolt and washer assembly M6*302
2GB6170六角螺母M6Hex nut M61
385F-01.04.00.05启动罩左支架Starter cover left bracket1
4GB9074.1 M8*40(8.8)螺栓和垫圈组件M8*40Bolt and washer assembly M8*401
5F15-05.00.00.08放油螺栓M14*12*1.5Oil drain bolt M14*12*1.51
6F25-01.04.00.01垫圈14Washer 141
785F-01.04.00.14排气盖密封垫Vent cover gasket2
885F-01.04.00.15排气内盖Exhaust inner cover1
985F-01.04.00.13排气外盖Exhaust cover1
10F2.5-05.00.00.09排水管5*9*245Drain pipe 5*9*2451
11GB9074.1 M8*40(8.8)螺栓和垫圈组件M8*40Bolt and washer assembly M8*4018
12GB9074.1 M6*40(8.8)螺栓和垫圈组合件Bolt and washer assembly2
1340F-01.07.04.00燃油泵组件Fuel pump assembly1
1440F-01.07.05燃油泵垫片Fuel pump gasket1
15管夹φ9Pipe clamp φ912
1685F-01.03.00.13油管5*10*190Tubing 5*10*1901
17F60-01.07.01.07燃油滤清器下壳体Fuel filter lower housing1
18F60-01.07.01.08燃油滤清器滤芯Fuel filter element1
1915F-01.07.05.06过滤器O型圈(33*2)Filter O-ring (33*2)1
20GB9074.1 M6*12(8.8)螺栓和垫圈组合件Bolt and washer assembly1
21GB6170六角螺母M8Hex nut M81
2215F-01.06.23燃油滤清器支架Fuel filter bracket1
232031101026 85FE-01.02.01.01 启动电机 Starter motor1
2485F-01.03.00.02进气口后盖Air inlet back cover1
2560F-01.03.00.11油管5*9*125Tubing 5*9*1251
2685F-01.03.00.07化油器密封垫Carburetor gasket3
2785F-01.03.00.12L型油管（短）L-shaped tubing (short)1
28F15-05.00.00.17三通Three links2
2960F-01.03.00.10油管5*9*30Tubing 5*9*302
3085F-01.03.00.11L型水管（长）L-shaped water pipe (long)1
31GB6170 M6六角螺母Hex nuts6
32GB93 M6弹垫圈Spring washer6
33GB/T97.1 6平垫6Flat pad 66
3485F-01.03.04.00化油器组件-3Carburetor assembly-31
3585F-01.03.03.00化油器组件-2Carburetor component-21
3685F-01.03.02.00化油器组件-1Carburetor component-11
3785F-01.03.00.06阻风门联动杆Damper linkage2
3885F-01.03.05.00节气门联动杆组件Throttle linkage rod assembly1
3985F-01.03.00.03进气口盖密封垫Air inlet cover gasket1
4085F-01.03.00.02进气口后盖Air inlet back cover1
41GB9074.1M6*20(8.8）螺栓和垫圈组件M6*20Bolt and washer assembly M6*206
4285F-01.03.00.04进气口防护罩Air inlet guard3
43GB862.1外齿锁紧垫圈M6External tooth lock washer M62
44GB818 M6*15十字槽盘头螺钉Cross recessed pan head screws2
4585F-01.03.00.05进气口盖橡胶圈Air inlet cover rubber ring1
4685F-01.03.00.02进气口后盖Air inlet back cover1
4715F-01.07.05.07燃油滤清器外壳（上）Fuel filter housing (top)1

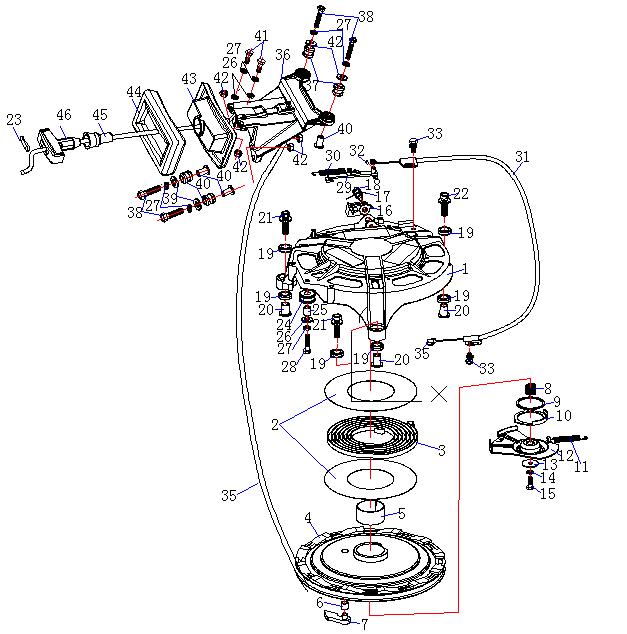

启动罩系统
启动罩系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-01.01.00.17启动罩壳Starter cover1
260F-01.01.00.19减磨片Reduced grinding2
360F-01.01.00.21涡形弹簧Scroll spring1
460F-01.01.00.14启动轮Starting wheel1
560F-01.01.00.20衬套bushing1
660F-01.01.00.12驱动臂衬套Drive arm bushing1
760F-01.01.01.00驱动臂组件Drive arm assembly1
860F-01.01.00.10弹簧spring1
960F-01.01.00.18轴用螺旋挡圈(ARSM-39.7)Shaft retaining ring for shafts (ARSM-1
1060F-01.01.00.11衬圈挡板Lining baffle1
1160F-01.01.00.13压板拉簧Plate tension spring1
1260F-01.01.00.09启动压板Starting platen1
1360F-01.01.00.08铜垫圈Copper washer1
14GB93弹垫6Spring pad 61
15GB5783六角头螺栓M6*16Hex head bolt M6*161
1660F-01.01.00.06制动器Brake1
1760F-01.01.00.05制动器扭簧Brake torsion spring1
1860F-01.01.00.04开槽盘头螺钉M5Slotted pan head screw M51
1940F-01.01.14减震圈Damping ring6
2060F-01.01.00.03带肩垫管(长)Shoulder pad (long)3
21GB/T9074.1 M8*30螺栓和垫圈组合件M8*30Bolt and washer assembly M8*302
22GB/T9074.1 M8*25螺栓和垫圈组合件M8*25Bolt and washer assembly M8*251
2340F-01.01.16手柄盖Handle cover1
2440F-01.01.01.04启动绳卷轴Start rope reel1
2540F-01.01.01.05卷轴衬套Reel bushing1
26GB96平垫6Flat pad 63
27GB93弹垫6Spring pad 67
28GB5783六角头螺栓M6*25Hex head bolt M6*251
2960F-01.01.00.16制动滑块Brake slider1
3060F-01.01.00.01制动拉簧Brake tension spring1
3185F-01.01.00.20制动钢索组件Brake cable assembly1
32GB91开口销1.6*12Cotter pin 1.6*121
33GB9074.1 M6*10(8.8)螺栓和垫圈组合件(铁铬合金)Bolt and washer assembly (iron chrome2
3460F-01.01.00.24套环ALoop A1
3560F-01.01.00.15启动绳φ6*2500mmStarting rope φ6*2500mm1
3685F-01.01.00.07启动罩托架Starter cover bracket1
3740F-01.03.23减震圈Damping ring4
38GB5783六角头螺栓M6*30Hex head bolt M6*304
39GB96平垫6Flat pad 64
4040F-01.03.22带肩垫管Shoulder pad4
41GB5783六角头螺栓M6*20Hex head bolt M6*202
42GB6170六角螺母M6Hex nut M64
4385F-01.01.00.17启动绳托架Start rope bracket1
4485F-01.01.00.15橡胶减震块Rubber damping block1
4540F-01.01.19橡胶减震块Rubber damping block1
4640F-01.01.18手柄减震圈Handle damping ring1
总成85F-01.01.00.00启动罩组件Recoil Starter Assy.1
底罩系统

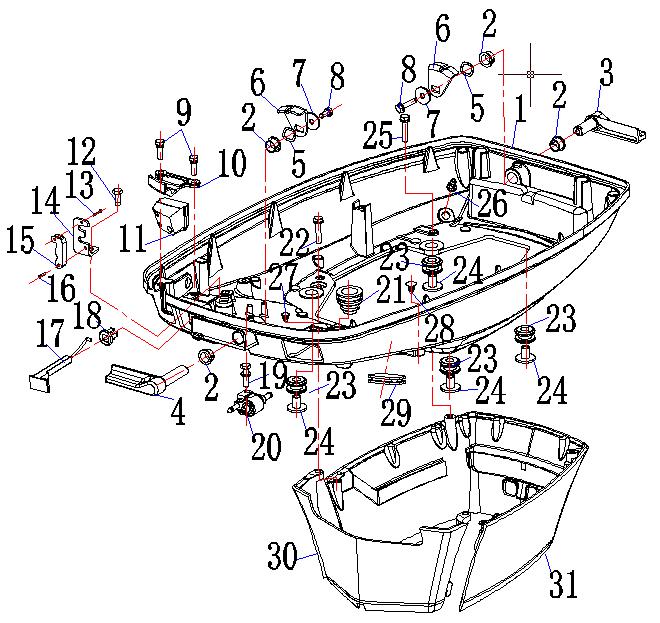

底罩系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
185F-02.00.00.10底座Base1
260F-02.00.00.09开口衬圈Open collar4
385F-02.00.02.00前锁紧手柄组件Front locking handle ass1
485F-02.00.03.00后锁紧手柄组件Rear locking handle as1
585F-02.00.00.08波垫Wave pad2
660F-02.00.00.14锁紧钩（后）Locking hook (back)2
7GB5287平垫6Flat pad 62
8GB5783六角头螺栓M6*12Hex head bolt M6*122
9GB9074.1 M6*16(8.8)螺栓和垫圈组件M6*16Bolt and washer assemb2
1085F-02.00.00.03压板（油门钢索)Pressure plate (thrott1
1185F-02.00.00.04油门钢索固定套Throttle cable fixing1
12GB9074.1 M8*16(8.8)螺栓和垫圈组合件(铁铬合金)Bolt and washer assemb1
1315F-01.05.14卡簧Circlip1
1485F-02.00.01.01>油门钢索固定架>Throttle cable fixing1
1585F-02.00.01.02>油门钢索固定架扣件>Throttle cable fixing1
16GB879 3*12弹性圆柱销Elastic cylindrical pi1
1760F-02.00.01.00阻风门手柄组件Damper handle assembly1
1815F-02.03阻风门拉杆护套Damper pull rod sheath1
1915F-01.07.01.00燃油管插头组件Fuel pipe plug assembl1
20GB9074.1 M6*25(8.8)螺栓和垫圈组合件Bolt and washer assemb1
2185F-02.00.00.09换档轴护套Shift shaft guard1
22GB9074.1 M6*30(8.8)螺栓和垫圈组合件Bolt and washer assemb2
2360F-02.00.00.05减震垫（底座）Damper (base)4
2460F-02.00.00.04带肩垫管（底座）Shoulder pad (base)4
25GB9074.1 M6*20(8.8)螺栓和垫圈组合件Bolt and washer assemb2
2615F-02.11塑料水嘴Plastic faucet1
2760F-02.00.00.06堵塞（小）Blockage (small)1
2840F-02.00.00.08螺纹塞Threaded plug1
29F9.9-02.00.00.15长方形橡胶闷头Rectangular rubber bul1
3085F-00.00.00.02装饰罩后After the cover1
3185F-00.00.00.01装饰罩前Decorative cover1
水下系统

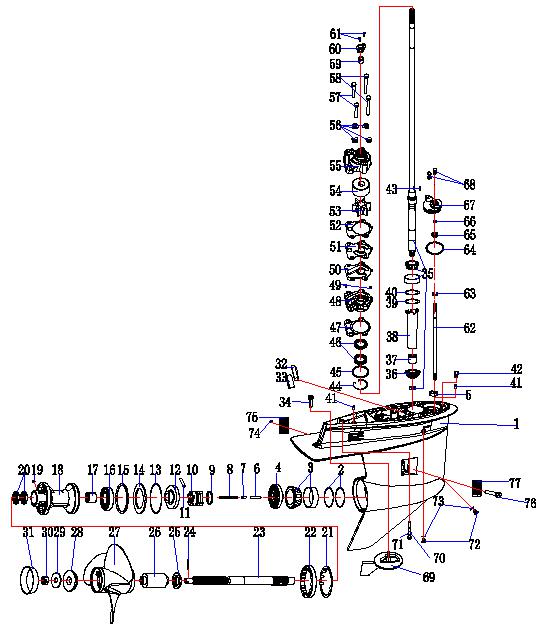

水下系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
185F-06.00.00.20水下壳体Underwater housing1
260F-06.00.00.43正档齿轮填隙片0.3Positive gear shim 0.32
360F-06.00.00.42圆锥滚子轴承26822-N/26882R-NTapered roller bearings 26822-N/26881
485F-06.00.00.19正档齿轮Positive gear1
585F-06.00.00.16变挡凸轮Variable gear cam1
685F-06.00.00.18变档柱塞Shift plunger1
785F-06.00.00.10滑套Sleeve1
885F-06.00.00.12弹簧spring1
960F-06.00.00.31簧环Spring ring1
1085F-06.00.00.11离合器clutch1
1160F-06.00.00.32离合器销Clutch pin1
1285F-06.00.03.09倒档齿轮Reverse gear1
1360F-06.00.00.24填隙片0.5Shims 0.51
1460F-06.00.03.05止推垫圈Thrust washer1
1560F-06.00.03.03水下壳体盖O型圈(83*5.6)Underwater housing cover O-ring (1
1660F-06.00.03.04深沟球轴承6207Deep groove ball bearing 62071
1760F-06.00.03.02滚针轴承HK2526Needle roller bearings HK25261
1860F-06.00.03.07水下壳体盖Underwater housing cover1
1960F-06.00.00.23平键Flat key1
2060F-06.00.02.03油封40*25*6Oil seal 40*25*62
2160F-06.00.00.22止退垫圈Stop washer1
2260F-06.00.00.21环形螺母Ring nut1
2385F-06.00.00.13螺旋桨轴Propeller shaft1
24GB91开口销3.2*25Cotter pin 3.2*251
2560F-06.00.00.49螺旋桨垫块Propeller pad1
2660F-06.01.01.00螺旋桨内花键组件Propeller internal spline assembl1
2760F-06.01.00.01螺旋桨1312*15-KPropeller 1312*15-K1
None60F螺旋桨组件(13-1/2*15-K)Propeller Assy.1
2860F-06.00.00.48螺旋桨垫圈Propeller washer1
2960F-06.00.00.47六角螺母垫圈Hex nut washer1
3040F-06.02.07开槽六角螺母Slotted hex nut1
3160F-06.01.00.02喇叭口Bell mouth1
3260F-06.00.00.13密封条sealing strip1
3340F-06.01.10密封条压板Sealing strip1
34GB/T5787 M10*1.25*45六角法兰面螺栓M10*1.25*45Hexagon flange bolt M10*1.25*451
3585F-06.00.00.14驱动轴Drive shaft1
3685F-06.00.00.15主动轮Driving wheel1
3760F-06.00.00.45滚针轴承NSKNeedle roller bearings NSK1
3860F-06.00.00.44尼龙衬圈Nylon ring1
3960F-06.00.00.40驱动轴填隙片0.5Drive shaft shim 0.51
4060F-06.00.00.39驱动轴填隙片0.1Drive shaft shim 0.11
4115F-01.06.20定位销6*12Locating pin 6*122
4260F-06.00.00.20六角螺栓Hex Bolts1
4360F-06.00.00.08叶轮半圆键Impeller semi-circular key1
4460F-06.00.02.04弹性挡圈Retaining ring1
4560F-06.00.02.02油封外壳O型圈(45.6*3.2）Oil seal housing O-ring (45.6*3.21
4660F-06.00.02.03油封40*25*6Oil seal 40*25*62
4760F-06.00.00.12油封外壳密封垫Oil seal shell gasket1
4860F-06.00.02.01油封外壳Oil seal housing1
49F9.9-05.00.00.26定位销4*10Locating pin 4*102
5060F-06.00.00.11垫板密封垫Pad seal1
5160F-06.00.00.10水泵叶轮垫片（镀）Pump impeller gasket (plated)1
5260F-06.00.00.09水泵外壳密封垫Pump housing gasket1
5360F-06.00.01.00水泵叶轮组件Pump impeller assembly1
5460F-06.00.00.07水泵内壳（镀）Water pump inner casing (plated)1
5560F-06.00.00.06水泵外壳Pump housing1
56GB97.1平垫8Flat pad 84
57GB5783六角头螺栓M8*50Hex head bolt M8*502
58GB5783六角头螺栓M8*70Hex head bolt M8*702
5960F-06.00.00.05水管密封圈Water pipe seal1
6060F-06.00.00.04水管密封圈压板Water pipe seal ring plate1
61GB845十字槽盘头自攻螺钉ST4.2*13Cross recessed pan head tapping s2
6285F-06.00.00.07下换档连杆Lower shift link1
63GB/T896 8开口挡圈8Open retaining ring 81
6460F-06.00.00.16下换档连杆座O型圈（49.5*3）Lower shifting link O-ring (49.5*1
6560F-06.00.00.15下换档连杆油封Lower shift lever oil seal1
6660F-06.00.00.19下换档连杆O型圈(6.5*19)Lower shift link O-ring (6.5*19)1
6760F-06.00.00.14下换档连杆座Lower shifting link1
68GB9074.1 M6*16(8.8)螺栓和垫圈组合件Bolt and washer assembly2
6960F-06.00.00.03航向调整片（阳极）Heading adjustment piece (anode)1
70GB5782 M8*60六角螺栓(A4-80)Hex bolt (A4-80)1
71GB/T93 8弹垫8Spring pad 81
7215F-06.01.03注油口螺塞Filling port screw plug2
7315F-06.01.04螺塞密封垫Screw plug2
74DIN985六角尼龙锁紧螺母M5Hexagonal nylon lock nut M51
7560F-06.00.00.02进水口盖（右）Inlet cover (right)1
76GB819十字槽沉头螺钉M5*45Cross recessed countersunk head s1
7760F-06.00.00.01进水口盖（左）Inlet cover (left)1
None85F-06.00.00.00水下装置部件Lower Casing Assy.1
NoneGB5787六角法兰面半螺纹螺栓M10*40固定壳体4
NoneGB93弹垫8固定壳体1
NoneGB5783 M8*60(9.8)六角头螺栓（1Cr17Ni2达克罗）固定壳体1
None购
None购
水上系统

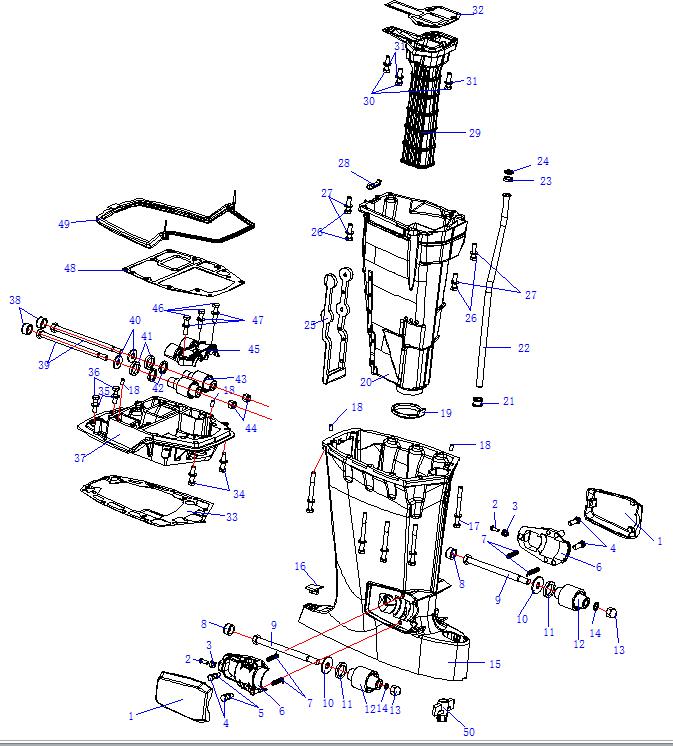

水上系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-05.00.00.09下减震器盖Lower shock absorber cover2
2GB823十字槽小盘头螺钉M5*16Cross recessed small pan head screw2
360F-05.00.00.10塑料螺母Plastic nut2
4GB5783六角头螺栓M8*25Hex head bolt M8*254
5GB93弹垫8Spring pad 84
660F-05.00.00.11下减震器外壳Lower shock absorber housing2
760F-05.00.00.12下减震器盖弹簧Lower shock absorber cover spring4
860F-05.00.00.07橡胶螺套Rubber threaded sleeve2
960F-05.00.00.14六角头螺栓M12*1.25*155Hex head bolt M12*1.25*1552
10GB96平垫12Flat pad 122
1160F-05.00.00.13橡胶垫Φ25Rubber pad Φ252
1260F-05.00.03.00下减震器组件Lower shock absorber assembly2
13DIN985六角尼龙锁紧螺母M12*1.25Hexagonal nylon lock nut M12*1.252
14GB848平垫12Flat pad 122
1585F-05.00.00.01水上装置壳体Water device housing1
1660F-00.00.00.03阳极堵塞Anode blockage1
17GB9074.1 M8*85(10.9)螺栓和垫圈组合件Bolt and washer assembly8
1815F-01.06.20定位销6*12Locating pin 6*124
1985F-05.00.00.08消音器壳体衬圈Muffler housing ring1
2085F-05.00.00.11消音器壳体Silencer housing1
2140F-05.00.00.16水管下密封圈Water pipe seal1
2285F-05.00.00.10水管Water pipe1
2340F-05.00.00.15水管衬圈Water pipe collar1
2440F-05.00.00.14水管密封圈Water pipe seal1
2585F-05.00.00.06消音器壳体减震条Silencer housing shock absorbing str1
26GB5783六角头螺栓M8*30Hex head bolt M8*303
27GB93弹垫8Spring pad 83
2885F-05.00.00.09怠速排气口橡胶条Idle exhaust rubber strip1
2985F-05.00.00.12排气管exhaust pipe1
30GB5783六角头螺栓M8*30Hex head bolt M8*303
31GB93弹垫8Spring pad 83
3285F-05.00.00.13排气管垫片Exhaust pipe gasket1
3385F-05.00.00.07水上装置壳体密封垫Water device housing gasket1
34GB9074.1 M8*35(10.9)螺栓和垫圈组合件(铁铬合金)Bolt and washer assembly (iron chrom2
35GB93弹垫8Spring pad 82
36GB5783六角头螺栓M8*30Hex head bolt M8*302
3785F-05.00.00.14机体底座Body base1
3860F-05.00.00.07橡胶螺套Rubber threaded sleeve2
3960F-05.00.00.04六角头螺栓M10*1.25*173Hex head bolt M10*1.25*1732
40GB848平垫12Flat pad 122
4160F-05.00.00.06橡胶垫Φ21Rubber mat Φ212
4260F-05.00.00.05平垫圈21*28*3Flat washer 21*28*32
4360F-05.00.01.00上减震器组件Upper shock absorber assembly2
44F60-04.00.01.10六角尼龙锁紧螺母Hexagonal nylon lock nut2
4560F-05.00.00.08上减震器外壳Upper shock absorber housing1
46GB5783六角头螺栓M8*25Hex head bolt M8*253
47GB93弹垫8Spring pad 83
4885F-05.00.00.02机体密封垫Body seal1
4985F-05.00.00.15底座减震垫Base cushion1
5085F-06.00.00.01限位衬套Limit bushing1
夹紧部件分解图

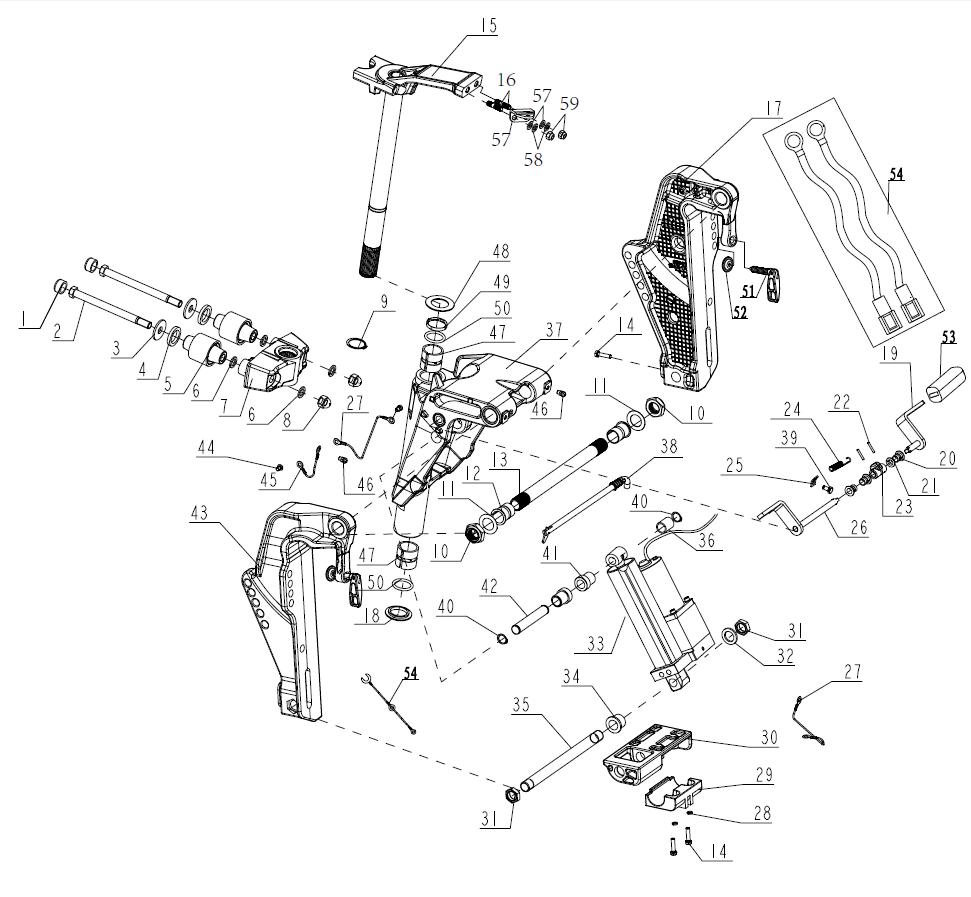

夹紧部件分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-05.00.00.07橡胶螺套Rubber threaded sleeve2
260F-05.00.00.14六角头螺栓M12*1.25*153Hex head bolt M12*1.25*1532
3GB96.M12平垫Flat pad2
460F-05.00.00.13橡胶垫Φ25Rubber pad Φ252
560F-05.00.03.00下减震器组件Lower shock absorber assembly2
6GB848.M12平垫(厚度1.2）Flat pad (thickness 1.2)4
760F-03.00.00.02下减震器连接座Lower shock absorber connector1
8DIN985.M12X1_25六角尼龙锁紧螺母Hexagonal nylon lock nut2
9GB894_1.30轴用弹性挡圈30Shaft circlip 301
1015F-03.01夹紧托架螺母Clamping bracket nut2
1140F-03.03垫片Gasket2
1240F-03.07.02托架阻尼圈Bracket damper2
1340F-03.04夹紧托架双头螺栓Clamping bracket stud1
14GB5783.M6X25六角头螺栓Hex head bolt3
15F60-04.00.01.01操舵托架Steering bracket1
1640F-04.01.04双头螺柱M10*43Stud stud M10*432
1760F-03.02.01.00右托架组件Right bracket assembly1
1860F-03.00.00.03下衬圈Underlay ring1
1960F-03.00.06.00倾斜定位档杆-右Tilting lever - right1
2060F-03.00.00.20摇臂衬套Rocker bushing3
2160F-03.00.00.21摇臂开口衬套Rocker opening bushing1
22GB879.3X20弹性圆柱销Elastic cylindrical pin2
2360F-03.00.04.00倾斜定位挡杆摇臂组件Tilting positioning bar rocker arm1
2460F-03.00.00.19倾斜定位档杆拉簧Tilting position bar tension spring1
2560F-03.00.00.18拉簧钩Pull hook1
2660F-03.00.05.00倾斜定位档杆-左Tilting lever - left1
27F60-03.00.01.02接地线 ⅠGround wire I2
28GB97.1 M6平垫Flat pad2
2960F-03.00.00.11阳极anode1
3060F-03.00.00.12托架限位块Bracket limit block1
3160F-03.00.00.09六角螺母M18*1.5Hex nut M18*1.52
3260F-03.00.00.10平垫19*29.5*3Flat pad 19*29.5*31
3360FET-03.00.08.00电动起翘装置(新)Electric lifting device (new)1
3460F-03.00.00.14液压起翘下衬套Hydraulic lifting lower bushing2
3560F-03.00.00.13液压起翘支撑轴下Hydraulic lifting support under the1
3660F-03.00.00.17支撑轴套管Support shaft sleeve1
37F60-03.00.01.01旋转托架Rotating bracket1
3860F-03.00.02.00角度定位销组件Angle positioning pin assembly1
39GB5783.M6X10六角头螺栓Hex head bolt1
40GB894_1.15轴用弹性挡圈A型15Shaft circlip type A 152
4160F-03.00.00.30起翘衬套Lifting bushing2
4260F-03.00.00.16液压起翘支撑轴上Hydraulic lifting support on the sh1
4360F-03.01.01.00左托架组件Left bracket assembly1
44GB823.M6X8十字槽小盘头螺钉Cross recessed small pan head screw1
45F60-03.00.01.03接地线ⅡGround wire II1
46JB.T7940.1直通式压注油杯M6Straight-through injection oil cup3
4760F-03.00.00.05开口衬圈Open collar2
4860F-03.00.00.07上衬套垫圈Upper bushing washer1
4960F-03.00.00.06Upper bushing1
5060F-03.00.00.04O型圈(29*3.8)O-ring (29*3.8)2
5160F-03.01.01.03艉板夹紧螺栓Rocker clamping bolt2
5215F-03.05.02.03Clamping plate2
5315F-03.09.12.01Rubber sleeve1
5460FET-01.02.00.16电动起翘转接线(两根为一套)Electric lifting adapter cable (two1
5560F-05.00.02.00接电导线组件Electrical wiring assembly1
5660FE-03.00.00.24Hook1
57GB97.1Flat pad 102
58Spring pad 102
59DIN985六角尼龙锁紧螺母M10*1.25Hexagonal nylon lock nut M10*1.252
上变档系统

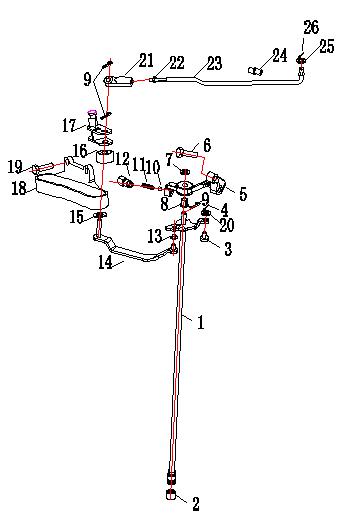

上变档系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
185F-01.06.03.00上变档杆组件Upper shift lever assembly1
285F-01.06.00.11密封圈Seal ring1
385F-01.06.00.10变挡连杆销轴Shift link pin1
4GB/T91 2*12开口销Φ2*12Cotter pin Φ2*121
585F-01.06.00.06变档凸轮座Shift cam seat1
6GB9074.1 M8*30(8.8)螺栓和垫圈组件M8*30Bolt and washer assembly M8*302
7GB96M8平垫Flat pad1
885F-01.06.00.09塑料衬套BPlastic bushing B1
915F-04.08.05卡簧Circlip4
10GB308钢球1/4Steel ball 1/41
1160F-01.06.00.13弹簧spring1
1260F-01.06.00.12六角螺栓M12*1.25Hex bolt M12*1.251
1385F-01.06.00.05塑料衬套APlastic bushing A1
1485F-01.06.02.00变挡杠杆组件Shift lever assembly1
1560F-01.06.00.16档位滑套垫圈Gear sleeve washer1
1660F-01.06.00.18托架衬套Bracket bushing1
1785F-01.06.00.03档位滑套支架Gear sleeve bracket1
1885F-01.06.01.02换档连杆托架Shifting link bracket1
19GB9074.1M6*20(8.8）螺栓和垫圈组件M6*20Bolt and washer assembly M6*202
20GB97.1平垫6Flat pad 61
21HDYK00.00.24钢索调节装置ACable adjusting device A1
22GB6170六角螺母M5Hex nut M51
2385F-01.06.00.16变档连杆Shift link1
2460F-01.06.00.02塑料衬套Plastic bushing1
25开口销2*12Cotter pin 2*121
26GB97.1平垫6Flat pad 61
