舟一会 ZHOUYIHUI 船外机

海的 EF30 - EF30 前置操纵(电启动)

共 17 个部位，点击零件编码查看详情，或搜索本页零件。

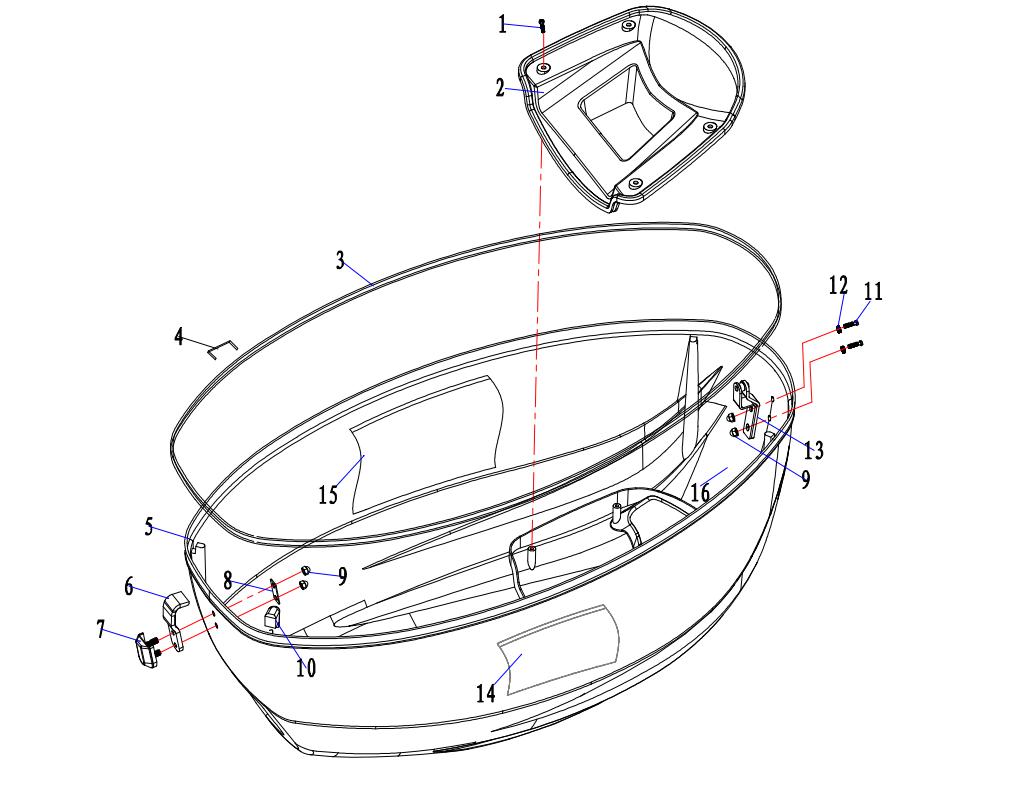

图1 十字槽盘头自攻螺钉ST4.8*19
图1 十字槽盘头自攻螺钉ST4.8*19 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB845 ST4.8*19十字槽盘头自攻螺钉ST4.8*19Cross recessed pan head tapping screws ST4.8 * 194
2F25-07.00.00.01进气口盖Air inlet cover1
3F25-07.00.00.03橡胶密封条Rubber sealing stripe1
415F-07.07装帧订Binding/
5F25-07.00.00.07顶罩Top cover1
6F25-07.00.00.04前锁紧钩Front locking hook1
7F25-07.01.00.00M5*16螺栓组件M5 * 16 bolt assembly1
8F25-07.00.00.05垫板Pad1
9DIN985 M5六角尼龙锁紧螺母Hex nylon lock nut4
10F25-07.00.00.02减震脚Shock absorber foot4
11GB818十字盘头螺钉M5*16Phillip s pan head screw M5 * 162
12GB96平垫5Flat pad 52
13F25-07.02.00.00后锁紧钩组件Rear locking hook assembly1
1440F-07.00.01.03顶罩吸音棉(左)Top cover sound-absorbing cotton (left)1
1540F-07.00.01.04顶罩吸音棉(右)Top cover sound-absorbing cotton (right)1
1640F-07.00.01.02顶罩吸音棉(后)Top cover sound-absorbing cotton (rear)1

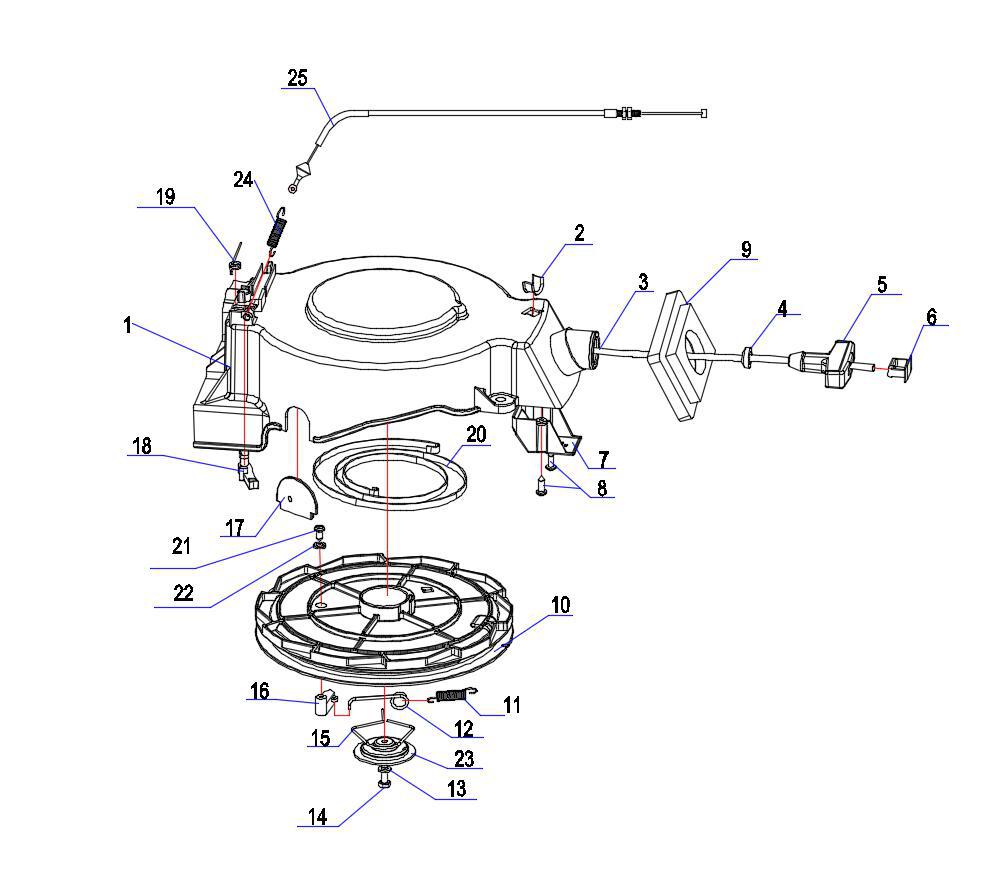

图2 启动罩
图2 启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.01.01.01启动罩Boot hood1
2F9.9-01.07.00.06U型滑套U-shaped sliding sleeve1
3F25-01.01.00.01启动绳 φ6*2200mmStart rope φ6 * 2200mm1
440F-01.01.19手柄减震圈Shock absorber ring1
540F-01.01.18启动手柄Start handle1
640F-01.01.16手柄盖Handle cover1
7F25-01.01.00.04防尘罩Dust cover1
8GB845十字槽盘头自攻螺钉ST4.2*16Cross recessed pan head tapping screws ST4.2 * 162
9F25-01.01.00.07减震垫Cushion1
10F25-01.01.00.03启动轮Start wheel1
1140F-01.01.10回位弹簧Return spring1
1240F-01.01.09卡瓣弹簧Snap spring1
13GB97.1平垫6Flat pad 61
14GB5783(8.8)六角头螺栓M6*16Hexagon head bolt M6 * 161
1540F-01.01.12压板夹簧Pressure plate clamp spring1
16F25-01.01.00.02驱动臂Drive arm1
17F25-01.01.00.06制动钢索固定套Brake cable fixing sleeve1
18F15-01.07.00.02制动器Brake1
19F15-01.07.00.03制动器扭簧Brake torsion spring1
2040F-01.01.08涡型弹簧Scroll spring1
21GB818十字槽盘头螺钉M5*14Cross recessed pan head screws M5 * 141
22GB96平垫5Flat pad 51
2340F-01.01.11启动压板（电镀）Start platen (plating)1
24F15-01.07.00.05钢索拉簧Cable tension spring1
25F25-01.01.00.08制动钢索Brake cable1

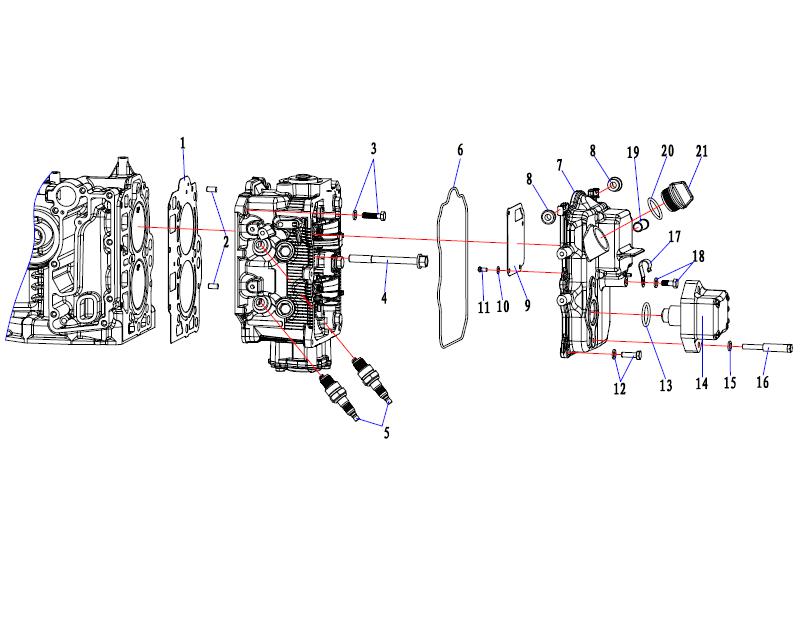

图3 气缸垫组件
图3 气缸垫组件 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.05.02.00气缸垫组件Cylinder gasket assembly1
215F-01.06.20定位销6*12Positioning pin 6 * 122
3GB/T9074.1 M6*25螺栓和垫圈组合件M6*25(10.9)Bolt and washer assembly M6 * 25 (10.9)3
4F25-01.05.00.02气缸头螺栓Cylinder head bolt6
5DPR6EA-9(F15)火花塞(DPR6EA-9)Spark plug (DPR6EA-9)2
6F25-01.05.01.02橡胶密封圈rubber sealed loop1
7F25-01.05.01.01气缸头罩壳Cylinder head cover1
8F15-01.03.00.41减震垫BShock Absorber B2
9F25-01.05.01.03气室盖板Air chamber cover1
10GB/T97.1 4平垫圈4Flat washer 44
11GB/T818 M4*8十字槽盘头螺钉 M4*8Cross recessed pan head screws M4 * 84
12GB/T9074.1 M6*20螺栓和垫圈组合件M6*20(8.8)Bolt and washer assembly M6 * 20 (8.8)5
13F25-01.03.00.12燃油泵O型圈(24.5*3.1)Fuel pump O-ring (24.5 * 3.1)1
14F25-01.03.05.00燃油泵组件(TK)(Y4G-1A)Fuel pump assembly (TK) (Y4G-1A)1
15GB/T97.1 6平垫圈6Flat washer 62
16F25-01.03.00.11燃油泵螺栓Fuel pump bolt2
17F15-01.03.00.42通气管固定夹BSnorkel clamp B1
18GB/T9074.1 M6*12螺栓和垫圈组合件 M6*12(8.8)Bolt and washer assembly M6 * 12 (8.8)1
19F25-01.05.01.04气嘴Gas nozzle1
20F4-01.06.27油标尺O形圈(24*3.5)Oil scale O-ring (24 * 3.5)1
21F15-01.03.00.39加油口螺塞Fuel plug1

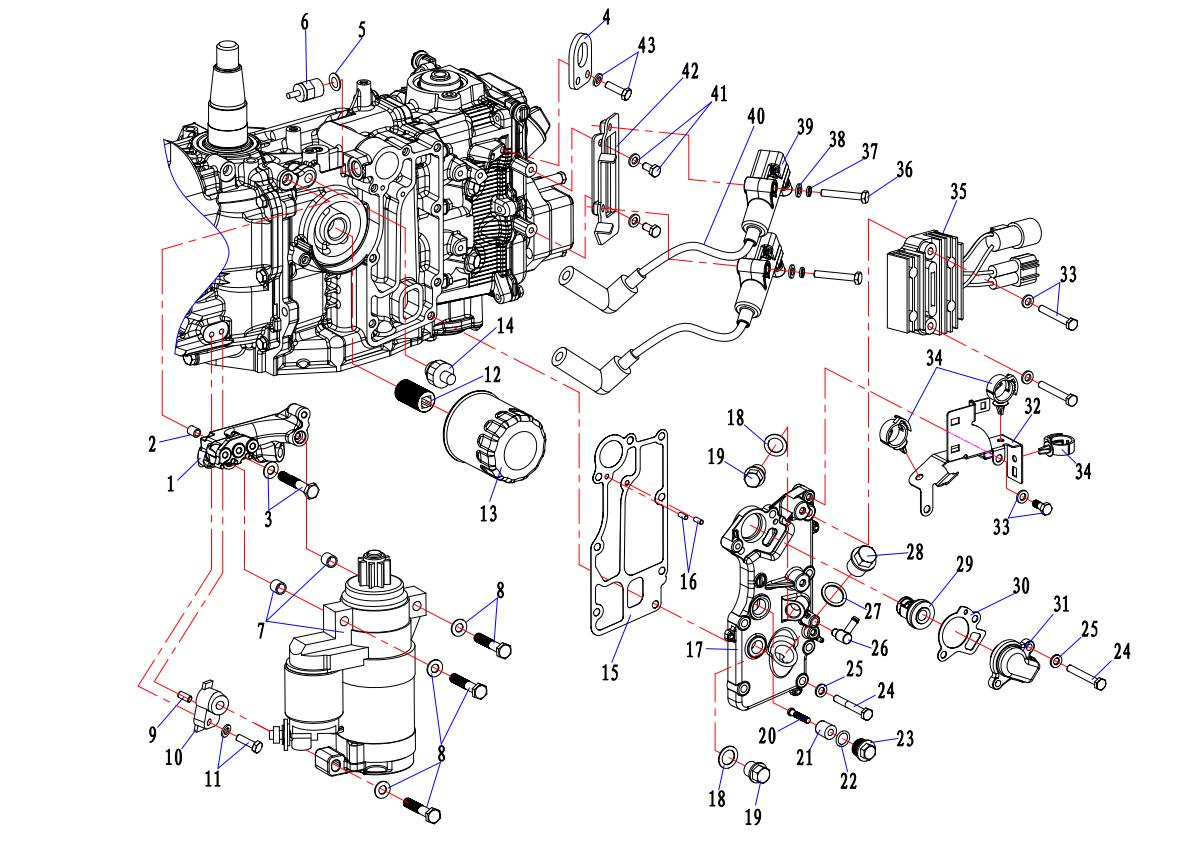

图4 马达支架
图4 马达支架 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.04.00.06马达支架Motor bracket1
2F15-01.01.00.18空心定位销Hollow positioning pin2
3GB/T9074.1 M8*45螺栓和垫圈组合件M8*45(8.8)Bolt and washer assembly M8 * 45 (8.8)2
4F25-01.02.00.04吊环Rings1
5F25-01.04.00.01垫圈14Washer 141
6F25-01.02.12.00温控传感器组件Temperature control sensor assembly1
7F25E-01.02.00.08启动电机Start the motor1
8GB/T9074.1 M8*45螺栓和垫圈组合件 M8*45(8.8)Bolt and washer assembly M8 * 45 (8.8)3
915F-01.06.20定位销6*12Positioning pin 6 * 121
10F25E-01.02.00.09电机下垫块Motor lower block1
11GB/T9074.1 M6*20螺栓和垫圈组合件 M6*20(8.8)Bolt and washer assembly M6 * 20 (8.8)1
12F15-01.05.00.01机油滤清器芯轴Mandrel for oil filter1
13F15-01.05.01.00机油滤清器Oil filter1
14F15-01.01.00.26机油压力报警器Oil pressure alarm1
15F25-01.04.00.05排水侧盖密封垫Drain side cover gasket1
16F9.9-05.00.00.26定位销4*10Positioning pin 4 * 102
17F25-01.04.00.04排水侧盖Drain side cover1
18F25-01.04.00.01垫圈14Washer 142
19F15-05.00.00.08放油螺栓M14*12*1.5Oil drain bolt M14 * 12 * 1.52
20GB/T818 M5*25十字槽盘头螺钉M5*25Cross recessed pan head screws M5 * 251
21F9.9-01.03.00.34阳极AAnode A1
22F9.9-01.03.00.33O型圈O-ring1
23F9.9-01.03.00.35六角法兰面螺栓M16*1.5Hexagon flange bolt M16 * 1.51
24GB/T5783 M6*35六角头螺栓 M6*35(10.9)Hexagon head bolt M6 * 35 (10.9)8
25GB/T97.1 6平垫圈6Flat washer 68
NoneGB9074.1(8.8)六角头螺栓和平垫组件M6*35Hexagon bolt and flat washer assembly M6 * 358
2615F-01.06.10水管圆接头Water pipe round joint1
27F25-01.04.00.03铜垫圈Copper washer1
28F25-01.04.00.02排气螺栓Exhaust bolt1
29F15-01.06.14-60 °节温器60℃Thermostat 60 ℃1
30F15-01.01.00.11节温器垫片Thermostat gasket1
31F25-01.04.00.40节温器盖Thermostat cover1
32F25-01.02.05.01线束固定架Harness fixing frame1
33GB/T99074.1 M6*20螺栓和垫圈组合件 M6*20(8.8)Bolt and washer assembly M6 * 20 (8.8)4
34F25-01.02.05.02圆形尼龙扣（大）Round nylon buckle (large)3
35F25EI-01.02.08.00F25电喷整流调压器组件F25 EFI rectifier voltage regulator assembly1
36GB/T5783 M6*40粗牙全螺纹六角螺栓M6*40Coarse tooth full thread hexagon bolt M6 * 402
37GB/T93 6弹簧垫圈6Spring washer 62
38GB/T97.1 6平垫圈6Flat washer 62
39F25EI-01.02.10.01点火线圈Ignition coils2
40F25EI-01.02.10.02点火线圈高压引线组件Ignition coil high voltage lead assembly2
41GB/T9074.1 M6*20螺栓和垫圈组合件M6*20(8.8)Bolt and washer assembly M6 * 20 (8.8)2
42F25EI-01.02.01.00点火线圈固定架组件Ignition coil fixing frame assembly1
43GB/T9074.1 M6*20螺栓和垫圈组合件M6*20(8.8)Bolt and washer assembly M6 * 20 (8.8)2

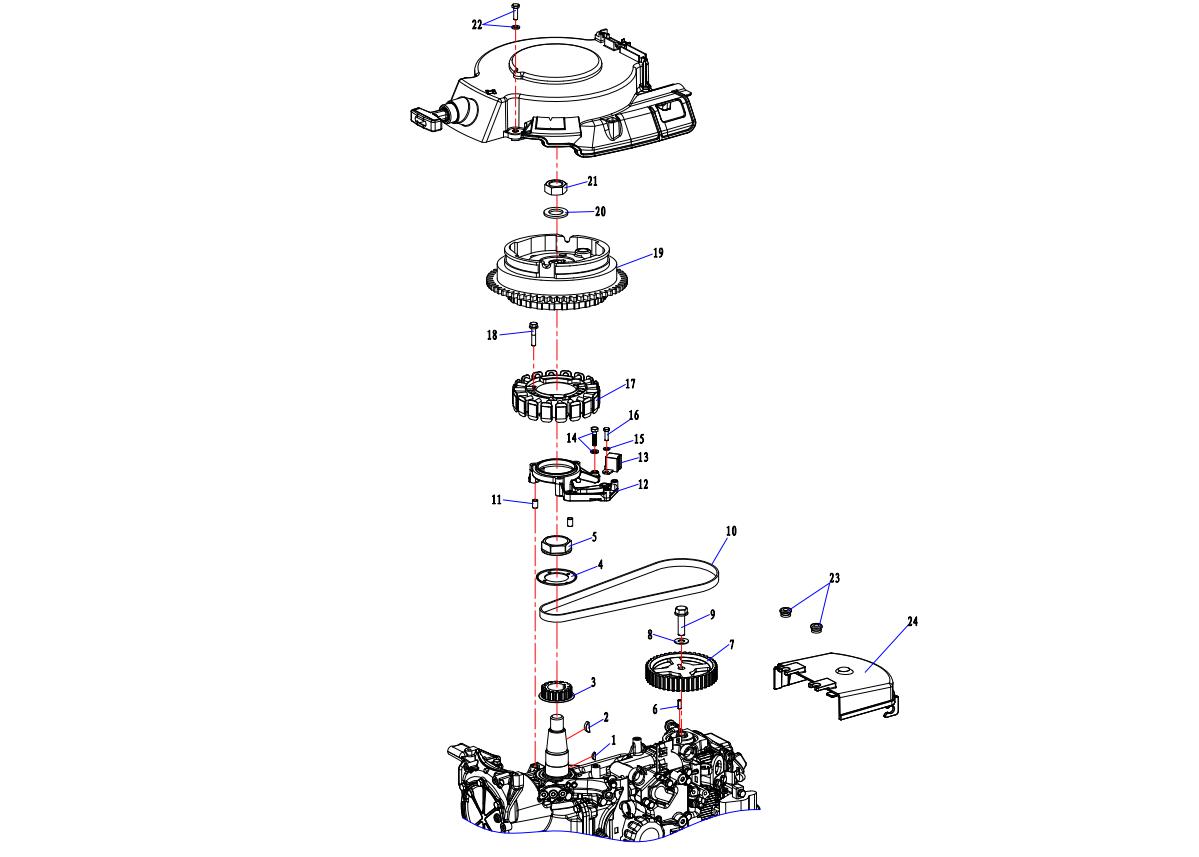

图5 半圆键3*5*13
图5 半圆键3*5*13 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB/T1099 3*5*13半圆键3*5*13Half round key 3 * 5 * 131
240F-01.03.03半圆键Semicircular key1
3F25-01.04.00.14主动带轮Driving pulley1
4F25-01.04.00.13主动带轮挡圈Active belt ring1
5F25-01.04.00.12主动带轮螺母Driving pulley nut1
6F25-01.05.00.16定位销5*17Positioning pin 5 * 171
7F25-01.05.00.01从动带轮Driven pulley1
8GB/T96.1 10大垫圈10Large washer 101
9GB/T5787 M10*1.25*35六角法兰面螺栓(铁铬合 金)M10*1.25*35(8.8)Hexagon flange bolt (iron-chromium alloy) M10 * 1 25 * 35 (8 8)1
10F25-01.04.00.11同步带. . Timing belt1
11F25-01.04.00.08空心定位销8*12Hollow positioning pin 8 * 122
12F25-01.04.00.07定子支架Stator bracket1
13F25EI-01.02.00.02触发器组件Trigger component1
14GB/T9074.1 M6*30螺栓和垫圈组合件M6*30(8.8)Bolt and washer assembly M6 * 30 (8.8)4
15GB/T97.1 5平垫圈5Flat washer 52
16GB/T5783 M5*16六角头螺栓M5*16Hexagon head bolt M5 * 162
17F25EI-01.02.07.00F25电喷定子组件F25 EFI stator assembly1
18GB/T5789 M6*30六角法兰面螺栓(铁铬合金) M6*30(10.9)Hexagon flange bolt (iron-chromium alloy) M6 * 30 (10 9)3
19F25EI-01.02.06.00F25电喷飞轮组件. F25 EFI flywheel assembly1
20GB/T97.1 20平垫圈20Flat washer 201
2140F-01.03.02飞轮螺母(M20*1.25,对边30)Flywheel nut (M20 * 1.25, opposite side 30)1
22GB9074.1 M6*20(8.8)螺栓和垫圈组合件Bolt and washer assembly3
23F15-01.03.00.41减震垫BShock Absorber B2
24F25-01.01.00.09从动带轮罩壳Driven pulley cover1

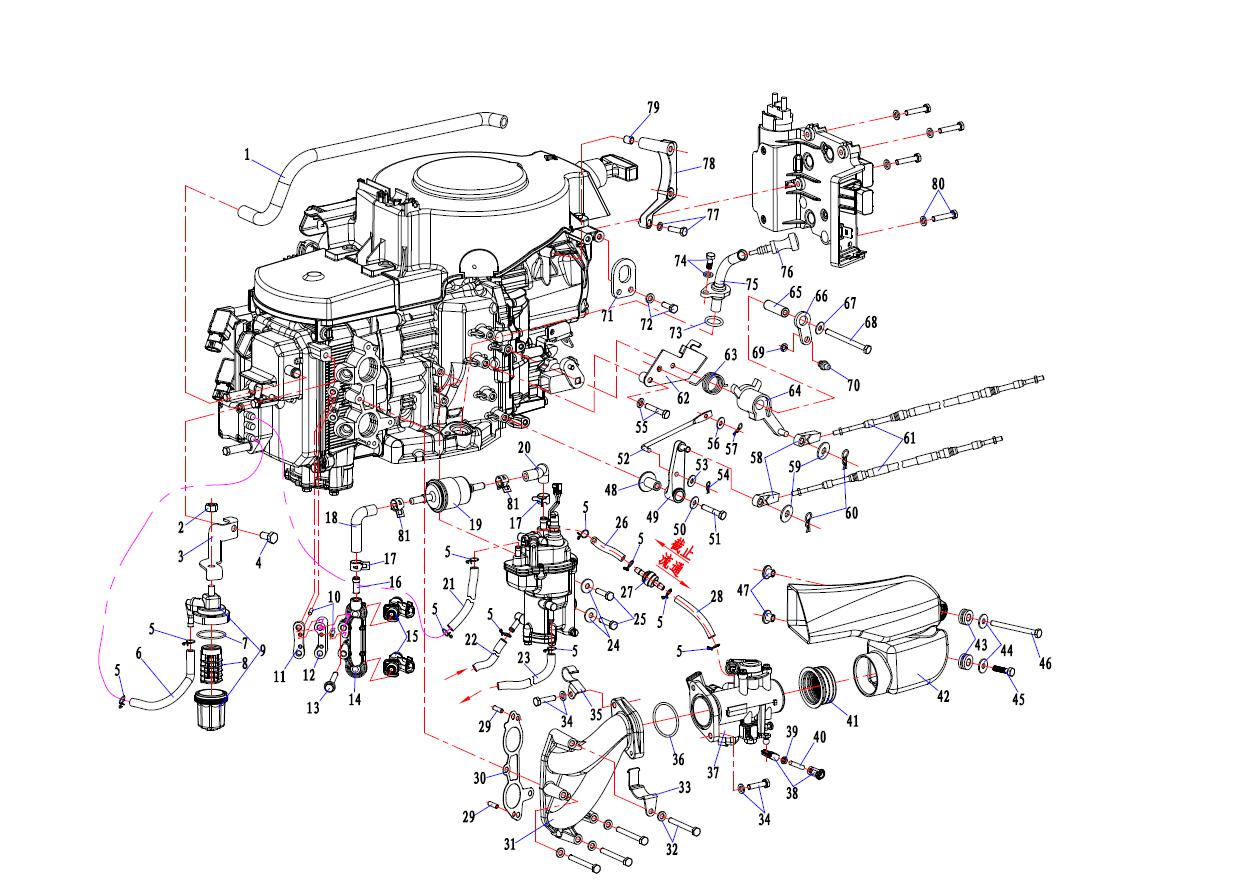

图6 箱体通气管 箱体通气管
图6 箱体通气管 箱体通气管 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25EI-01.03.00.39-EPA箱体通气管Box snorkel1
2GB/T6170 M8六角螺母M8Hex nut M81
3F25EI-01.03.00.35燃油滤清器支架Fuel filter bracket1
4GB/T5783 M8*16六角头螺栓 M8*16Hex head bolt M8 * 161
5管夹φ 10Pipe clamp φ 1010
6F25EI-01.03.00.36滤清器出油管5*10*125(EPA)Filter outlet pipe 5 * 10 * 125 (EPA)1
715F-01.07.05.06过滤器O型圈(33*2)Filter O-ring (33 * 2)1
815F-01.07.05.04过滤器滤芯The filter cartridge1
915F-01.07.05.05燃油滤清器(外壳)Fuel filter (housing)1
10F25EI-01.03.00.01定位销4*16Positioning pin 4 * 164
11F25EI-01.03.00.02喷油器支柱隔热板Injector pillar heat insulation board1
12F25EI-01.03.00.03喷油器支柱Injector pillar1
13GB/T5789 M6*50M6*50(8.8)Hexagon flange bolt (iron-chromium2
14F25EI-01.03.00.04喷油器压帽Injector pressure cap1
15F25EI-01.03.01.00喷油器组件Injector assembly2
16F6-01.05.00.27气管接头Trachea joint2
17F25EI-01.03.00.05日式夹箍Φ12.5Japanese clamp Φ 12.52
18F25EI-01.03.00.06-EPA喷油器进油管Injector inlet pipe1
19F25EI-01.03.02.00终滤器组件Final filter assembly1
20F25EI-01.03.00.08-EPA油室出油管Oil outlet pipe1
21F25EI-01.03.00.34油室进油管5*10*300(EPA)Oil inlet pipe 5 * 10 * 300 (EPA)1
22F25EI-01.03.00.29油室进水管5*9*250Oil inlet pipe 5 * 9 * 2501
23F25EI-01.03.00.30油室出水管5*9*230Oil room outlet pipe 5 * 9 * 2301
24GB/T96.1 6平垫圈6Flat washer 62
25GB/T5783 M6*25六角头螺栓M6*25Hexagon head bolt M6 * 252
26F25EI-01.03.00.32油室通气管(短）5*10*50Oil chamber snorkel (short) 5 * 10 * 501
27F25EI-01.03.00.33气体单向阀Gas check valve1
28F25EI-01.03.00.31油室通气管（长）5*10*70Oil chamber snorkel (long) 5 * 10 * 701
29F9.9-01.03.00.05定位销5*14Positioning pin 5 * 142
30F25-01.03.00.14进气歧管密封垫Intake manifold gasket1
31F25EI-01.03.00.37进气歧管Intake manifold1
32GB/T9074.1 M6*55螺栓和垫圈组合件 M6*55(8.8)Bolt and washer assembly M6 * 55 (8.8)4
33F25EI-01.03.00.07终滤器固定架Final filter holder1
34GB/T9074.1 M6*25螺栓和垫圈组合件 M6*25(8.8)Bolt and washer assembly M6 * 25 (8.8)2
35F25EI-01.03.00.38箱体通气管固定夹Box vent clip1
362.5F-06.00.00.17壳体盖O型圈(40*2.55)O-ring of housing cover (40 * 2.55)1
37F25EI-01.03.07.00节气阀总成Throttle valve assembly1
3830F-01.05.00.03正时调整连杆接头Timing adjustment connecting rod joint2
39GB/T6170 M5粗牙1型六角头螺母M5Coarse teeth type 1 hexagon head nut M51
4030F-01.05.03.01螺杆Screw1
41F25EI-01.03.08.00滤网组件Filter assembly1
42F25EI-01.03.00.40空滤器Air filter1
43F25EI-01.03.00.10油室减震垫Oil chamber cushion2
44GB/T96.1 6大垫圈6Large washer 62
45GB/T5783 M6*25六角头螺栓M6*25Hexagon head bolt M6 * 251
46GB/T5783 M6*70六角头螺栓M6*70Hexagon head bolt M6 * 701
47F25EI-01.03.00.09油室垫管Oil chamber cushion tube2
48F25E-01.04.00.45档位端轮垫管Gear end wheel pad tube1
49F25E-01.04.00.46档位端轮Gear end wheel1
50GB/T96.1 6大垫圈6Large washer 61
51GB/T5783 M6*35六角头螺栓M6*35Hexagon head bolt M6 * 351
52F25E-01.04.00.47档位连杆Gear linkage1
53GB/T96.1 5大垫圈5Large washer 51
5415F-01.05.14卡簧（中）Circlip (middle)1
55GB/T5783 M6*25六角头螺栓M6*25Hexagon head bolt M6 * 251
56GB/T96.1 5大垫圈5Large washer 51
5715F-01.05.14卡簧（中）Circlip (middle)2
58HDYK00.00.24钢索调节装置ASteel cable adjusting device A2
59GB/T96.1 6大垫圈6Large washer 62
6015F-01.05.14卡簧（中）Circlip (middle)2
61HDYK00.06.00遥控钢索组件(3.8M)Remote cable assembly (3.8M)2
62F25E-01.04.00.40油门钢索支架Throttle cable support1
63F25E-01.04.00.43端轮拉簧End wheel tension spring1
64F25E-01.04.00.41油门钢索端轮Throttle cable end wheel1
65F15-01.01.00.21衬套bushing1
66F25EIR-01.04.00.01前操油门连接块Front operating throttle connecting1
67GB/T96.1 6大垫圈6Large washer 61
68GB/T5783 M6*65六角头螺栓 M6*65Hexagon head bolt M6 * 651
69GB/T896 5开口挡圈5Opening ring 51
70F25EI-01.04.00.02油门连接块球头Throttle connecting block ball head1
71F25-01.02.00.04吊环Rings1
72GB/T9074.1 M6*20螺栓和垫圈组合件M6*20(8.8)Bolt and washer assembly M6 * 20 (8.8)2
739.8F-01.05.09橡胶密封圈rubber sealed loop1
74GB/T9074.1 M6*16螺栓和垫圈组合件 M6*16(8.8)Bolt and washer assembly M6 * 16 (8.8)1
75F25-01.06.03.00油标尺座组件Oil scale base assembly1
76F25-01.06.02.00油标尺组件Oil scale assembly1
77GB/T9074.1 M8*20螺栓和垫圈组合件 M8*20(8.8)Bolt and washer assembly M8 * 20 (8.8)1
78F25EI-01.03.00.41空滤器支架Air filter bracket1
79F4-06.27空心定位销Hollow positioning pin1
80GB/T9074.1 M6*30螺栓和垫圈组合件M6*30(8.8)Bolt and washer assembly M6 * 30 (8.8)4
813.5F-01.04.05.00加箍组件Hoop assembly2

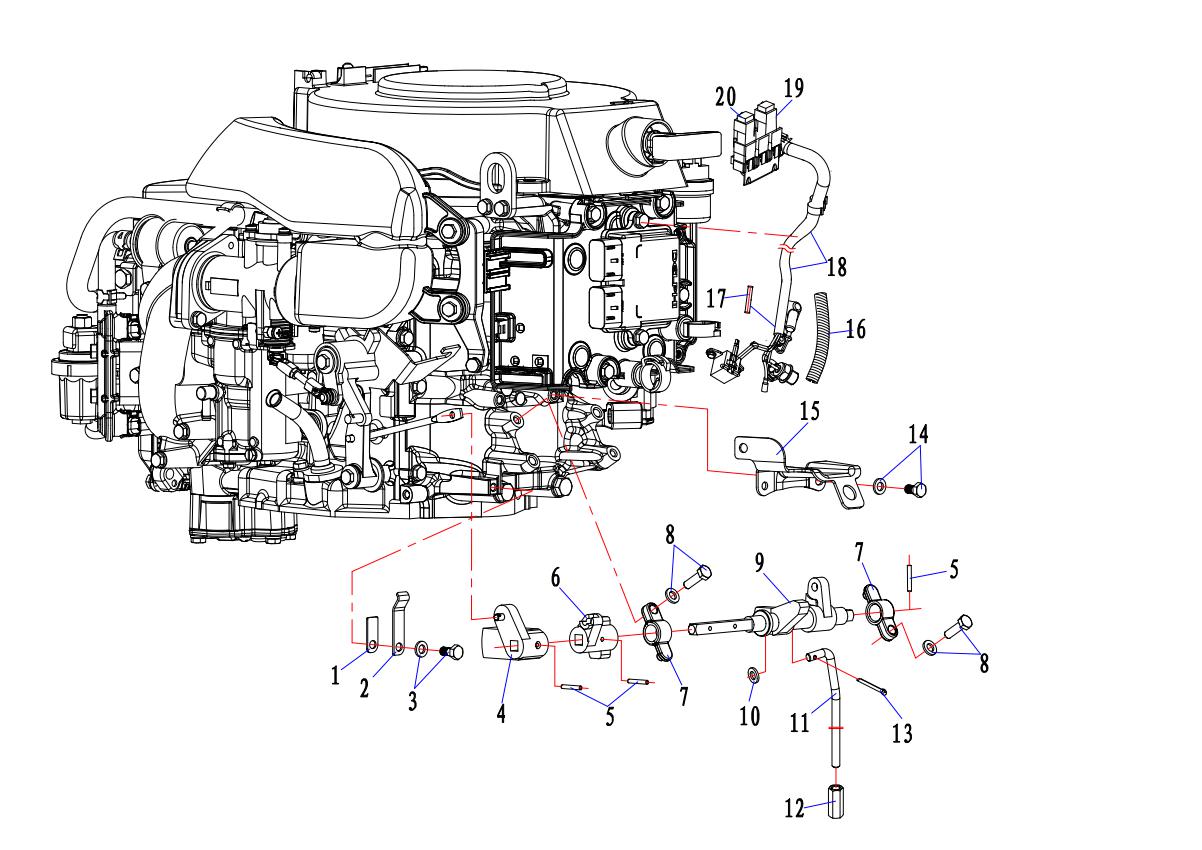

图8 垫板
图8 垫板 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-02.00.00.06垫板Pad1
2F15-02.00.00.05变档限位弹簧板Shift limit spring plate1
3GB/T9074.1 M6*16螺栓和垫圈组合件M6*16(8.Bolt and washer assembly M6 * 16 (8.8)1
4F25-01.04.04.00油门限位块组件Throttle limit block assembly1
5GB/T879.2弹性圆柱销3*20Elastic cylindrical pin 3 * 203
6F25-01.04.04.40变档摇臂Shift rocker1
7F25-01.04.00.20托架bracket1
8GB/T9074.1 M6*20螺栓和垫圈组合件M6*20(8.Bolt and washer assembly M6 * 20 (8.8)2
9F25-01.04.03.00变档杠杆组件Gear shift lever assembly1
10GB/T97.1 6平垫圈6Flat washer 61
11F25-05.00.00.17-L上变档杆(长轴)Upshift lever (long shaft)1
NoneF25-05.00.00.17-S上变档杆(短轴)Upshift lever (short shaft)1
1215F-06.04.05柱状螺母Cylindrical nut1
13GB91 1.6*12开口销Cotter pin1
14GB/T9074.1 M6*20螺栓和垫圈组合件M6*20(8.Bolt and washer assembly M6 * 20 (8.8)2
15F25-01.02.13.00点火器安装架支架组件Ignition bracket assembly1
162.5F-01.04.00.12塑料波纹管ф17*ф21*120Plastic bellows ф 17 * ф21 * 1201
174.0*3.5连线护套Wire sheath1
18F25EI-01.02.05.00F25电喷线束总成F25 EFI wire harness assembly1
19F25EI-01.02.11.00四引脚控制继电器Four-pin control relay1
20F25EI-01.02.12.00五引脚控制继电器Five-pin control relay1
图9 电喷电器支架组件

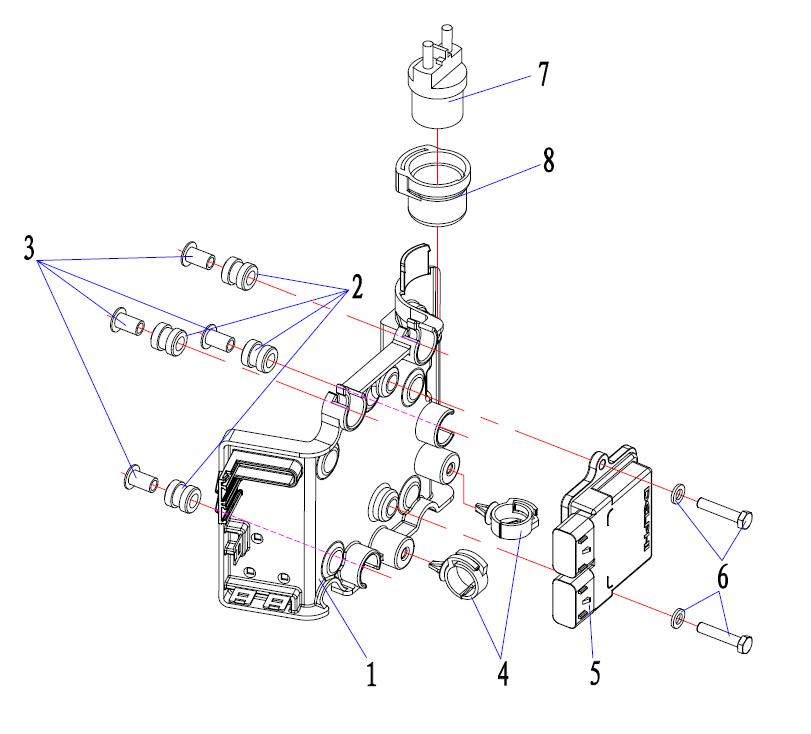

图9 电喷电器支架组件 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25EI-01.02.03.00电喷电器支架组件Bracket assembly for EFI appliances1
240F-01.03.23减震圈Shock absorber ring4
340F-01.03.22带肩垫管Tube with shoulder pad4
4F25-01.02.05.02圆形尼龙扣（大）Round nylon buckle (large)2
5F25EI-01.02.04.00电子控制单元(ECU)Electronic Control Unit (ECU)1
6GB/T9074.1 M6*20螺栓和垫圈组合件M6*20(8.8)Bolt and washer assembly M6 * 20 (8.8)2
7DQDF15-00.03.01继电器Relay1
8F25EI-01.02.02.01继电器护套Relay sheath1
图10 油室本体

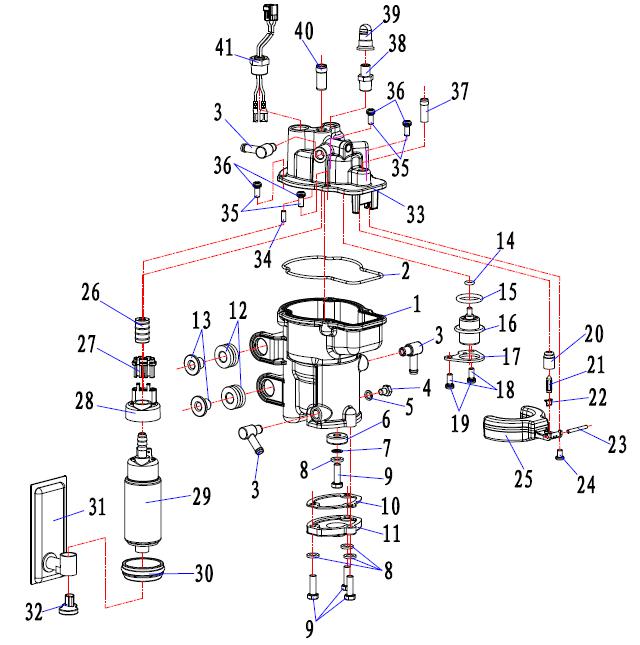

图10 油室本体 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25EI-01.03.00.21油室本体Oil chamber body1
2F25EI-01.03.00.20油室密封圈Oil chamber seal1
315F-01.06.10水管圆接头Water pipe round joint3
4F25EI-01.03.00.24油室放油螺塞Oil drain plug1
5F25EI-01.03.00.25油室放油螺塞密封垫5Oil drain plug seal 51
6F25EI-01.03.00.26油室阳极Oil chamber anode1
7GB/T861.1 5内齿锁紧垫圈 5Internal tooth lock washer 51
8GB/T97.1 5平垫圈5Flat washer54
9GB/T5783 M5*16六角头螺栓M5*16Hexagon head bolt M5 * 164
10F25EI-01.03.00.27油室水腔密封垫Oil chamber water cavity seal1
11F25EI-01.03.00.28油室水腔盖Oil chamber water chamber cover1
12F25EI-01.03.00.10油室减震垫Oil chamber cushion2
13F25EI-01.03.00.09油室垫管Oil chamber cushion tube2
14F25EI-01.03.00.18调压阀O型圈(小)Pressure regulator O-ring (small)1
15F25EI-01.03.00.17调压阀O型圈（大）Pressure regulator O-ring (large)1
16F25EI-01.03.05.00调压阀组件Pressure regulating valve assembly1
17F25EI-01.03.00.16调压阀压板Pressure regulator pressure plate1
18GB/T823 M4*10十字槽小盘头螺钉 M4*10Cross recessed small pan head screws M4 * 102
19GB/T93 4弹簧垫圈4Spring washer42
20F25EI-01.03.00.11Needle seat1
21F25EI-01.03.00.12进油针阀Oil inlet needle valve1
22F25EI-01.03.00.13针阀挂簧Needle valve spring1
23F25EI-01.03.00.15Float shaft1
24GB/T823 M4*6十字槽小盘头螺钉M4*6Cross recessed small pan head screws M4 * 61
25F25EI-01.03.00.141
26F25EI-01.03.00.19泵芯口密封套Pump core seal1
27F25EI-01.03.00.43泵芯接线端子固定扣Pumping terminal fixing buckle1
28F25EI-01.03.00.42泵芯上定位套Positioning sleeve on pump core1
29F25EI-01.03.04.00泵芯组件Pump core assembly1
30F25EI-01.03.00.44泵芯下定位套Positioning sleeve under pump core1
31F25EI-01.03.00.22油泵滤网Oil pump filter1
32F25EI-01.03.00.23泵芯支撑垫Pump core support pad1
33F25EI-01.03.03.00油室盖组件Oil chamber cover assembly1
342.5F-06.00.00.10定位销φ3.5*9Locating pin φ3.5 * 91
35GB/T823 M4*10十字槽小盘头螺钉 M4*10Cross recessed small pan head screws M4 * 104
36GB/T93 4弹簧垫圈4Spring washer44
37F4-01.06.03气管接头Trachea joint1
38F25EI-01.03.06.00排气阀组件Exhaust valve assembly1
39F60-01.07.03.132062701032A1
40F6-01.05.00.27气管接头Trachea joint1
41F25EI-01.02.09.00F25电喷油泵密封连接件组件F25 electric fuel injection pump seal connector1
图11 箱体组件

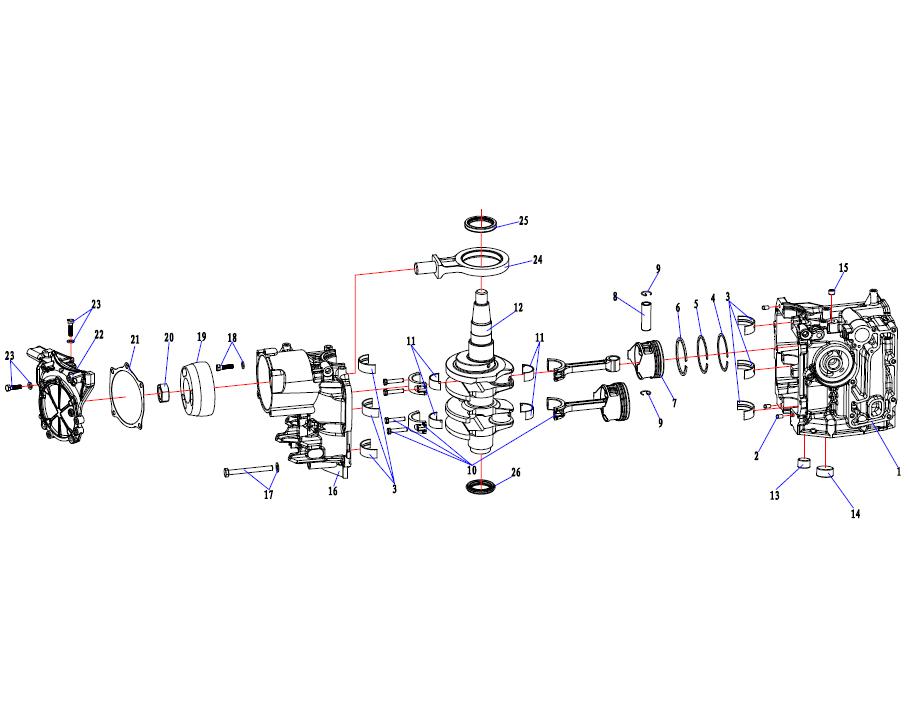

图11 箱体组件 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.04.09.01箱体组件Cabinet components1
215F-01.06.20定位销6*12Positioning pin 6 * 123
3F25-01.04.00.31曲轴瓦Crankshaft W6
4F25-01.04.00.28主气环Main gas ring2
5F25-01.04.00.29副气环Accessory gas ring2
6F25-01.04.08.00组合油环Combination oil ring2
7F25-01.04.00.25活塞piston2
8F25-01.04.00.26活塞销Piston pin2
9F25-01.04.00.27活塞销卡簧Piston p in circlip4
10F25-01.04.07.00连杆组件Connecting rod assembly2
11F25-01.04.00.34连杆轴瓦Connecting rod bearing4
12F25-01.04.00.30曲轴Crankshaft1
13F25-01.04.00.38堵塞1/2Clogged 1/21
14F25-01.04.00.39堵塞3/4Clogged 3/41
15F15-01.01.00.07堵塞1/8Clogged1
16F25-01.04.00.37箱盖Lid1
17GB/T9074.1 M8*80螺栓和垫圈组合件M8*80(10.9)Bolt and washer assembly M8 * 80 (10.9)6
18GB/T9074.1 M6*25螺栓和垫圈组合件M6*25(10.9Bolt and washer assembly M6 * 25 (10.97
19F25-01.04.00.22曲轴平衡活塞Crankshaft balance piston1
2040F-01.03.02飞轮螺母(M20*1.25,对边30)Flywheel nut (M20 * 1.25, opposite side 30)1
21F25-01.04.00.10箱盖盖板密封垫Box cover cover gasket1
22F25-01.04.00.09箱盖盖板Box cover1
23GB/T9074.1 M6*25螺栓和垫圈组合件M6*25(10.9)Bolt and washer assembly M6 * 25 (10.9)6
24F25-01.04.06.00曲轴平衡连杆组件Crankshaft balance connecting rod assembly1
25F25-01.04.00.23曲轴上油封43*55*6Crankshaft oil seal 43 * 55 * 61
26F25-01.04.00.24曲轴下油封35*47*6Crankshaft lower oil seal 35 * 47 * 61
图12 气缸头组件

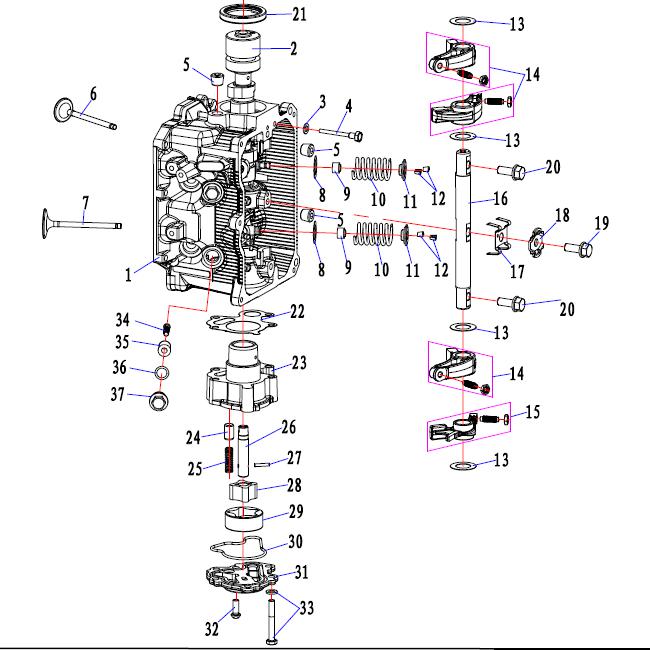

图12 气缸头组件 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25EI-01.05.01.00气缸头组件Cylinder head assembly1
2F25-01.05.05.00凸轮轴组件Camshaft assembly1
3F25-01.05.00.09铜垫片Copper gasket1
4F25-01.05.00.08凸轮轴限位螺栓M6*1.0Camshaft limit bolt M6 * 1.01
5F15-01.01.00.08堵塞1/4Clogged 1/43
6F25-01.05.00.12排气门Exhaust valve2
7F25-01.05.00.11进气门Intake valve2
8F25-01.05.00.15气门弹簧垫圈Valve spring washer4
9F15-01.03.00.15气门油封Valve seal4
10F25-01.05.00.14气门弹簧Valve spring4
11F15-01.03.00.04气门弹簧座圈Valve Spring Seat4
12F15-01.03.00.05气门锁夹Valve lock clip8
13F25-01.05.00.07摇臂垫圈Rocker washer4
14F25-01.05.04.00摇臂组件BRocker arm assembly B3
15F25-01.05.03.00摇臂组件ARocker assembly A1
16F25-01.05.00.06摇臂轴Rocker shaft1
17F25-01.05.00.05摇臂限位簧Rocker limit spring1
18F25-01.05.00.04摇臂轴压板Rocker shaft pressure plate1
19GB/T9074.1 M8*25螺栓和垫圈组合件M8*25(8.8)Bolt and washer assembly M8 * 25 (8.8)1
20GB/T5789 M8*20六角法兰面螺栓(铁铬合金)M8*20(8.8)Hexagon flange bolts (iron-chromium alloy) M8 * 20 (8.8)2
21F25-01.05.00.10凸轮轴上油封50*37*7Camshaft oil seal 50 * 37 * 71
22F25-01.06.00.01机油泵密封垫Oil pump gasket1
23F25-01.06.01.09机油泵体Oil pump body1
24F25-01.06.01.04溢流阀芯Overflow spool1
25F25-01.06.01.03溢流阀压簧Pressure spring of relief valve1
26F25-01.06.01.06转子轴Rotor shaft1
27F25-01.06.01.07滚针Needle roller1
28F25-01.06.01.05内转子Inner rotor1
29F25-01.06.01.08外转子Outer rotor1
30F25-01.06.01.02橡胶密封圈rubber sealed loop1
31F25-01.06.01.01机油泵盖Oil pump cover1
32GB/T823 M6*16十字槽小盘头螺钉M6*16Cross recessed small pan head screws M6 * 162
33GB/T9074.1 M6*45螺栓和垫圈组合件M6*45(8.8)Bolt and washer assembly M6 * 45 (8.8)4
34GB/T818 M5*25十字槽盘头螺钉M5*25Cross recessed pan head screws M5 * 252
35F9.9-01.03.00.34阳极AAnode A2
36F9.9-01.03.00.33O型圈(13*2)O-ring (13 * 2)2
37F9.9-01.03.00.35六角法兰面螺栓Hexagon flange bolts2

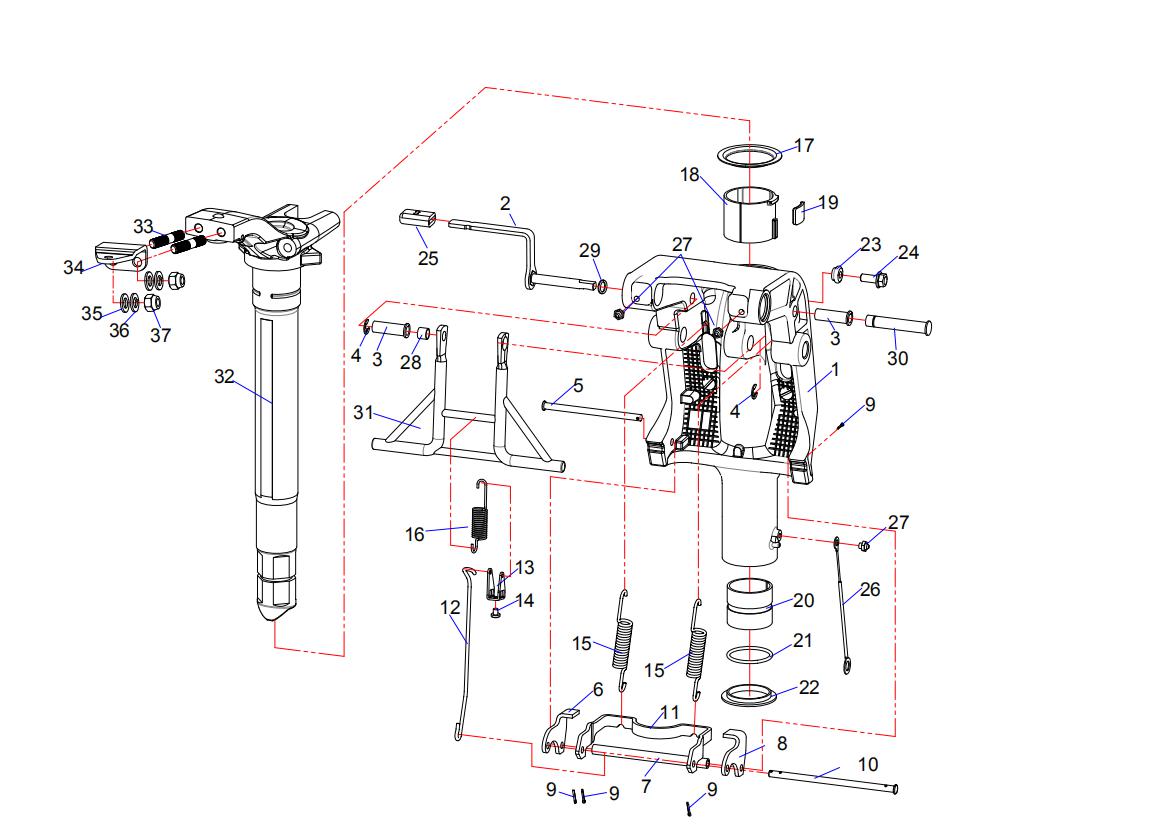

图13 旋转托架(长轴)
图13 旋转托架(长轴) 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-03.07.01-L旋转托架(长轴)Rotating bracket (long axis)1
None40F-03.07.01-S旋转托架(短轴）Rotating bracket (short axis)1
240F-03.07.11.00操纵杠杆组件Lever assembly1
340F-03.07.11.04销轴套Pin sleeve2
4GB896开口挡圈8Open ring82
540F-03.07.11.11支撑架固定轴Support frame fixed shaft1
640F-03.07.11.08左外支架Left outer bracket1
740F-03.07.11.12支撑架套管Support frame casing1
840F-03.07.11.09右外支架Right outer bracket1
9GB91开口销1.6*12Split pin 1.6 * 124
1040F-03.07.11.10支撑架销轴Support pin1
1140F-03.07.11.07内支架Inner bracket1
1240F-03.07.11.06角度定位锁杆Angle positioning lock lever1
13F25-03.00.01.04角度定位件Angle positioning piece1
14GB818十字槽盘头螺钉M5*6Cross recessed pan head screws M5 * 61
1540F-03.07.11.13拉簧Tension spring2
16F25-03.00.01.05定位弹簧Positioning spring1
1740F-03.07.03衬圈1
1840F-03.07.04锁紧圈Locking ring1
1940F-03.07.05锁紧圈摩擦片Locking ring friction plate1
2040F-03.07.07下衬套Lower bushing1
2140F-03.07.08O型橡胶圈(42.6*3.2)O-shaped rubber ring (42.6 * 3.2)1
2240F-03.07.09下衬圈Underlining1
2340F-03.07.06锁紧螺栓密封垫Lock bolt seal1
24GB9074.1（8.8）六角头螺栓和平垫组件M8*20Hexagon head bolt and flat washer assembly M8 * 201
2515F-03.09.12.01橡塑套Rubber sleeve1
2640F-03.07.10钢索连接组件Steel cable connection assembly1
27JB7940.1直通式压注油杯Straight-through pressure filling cup3
28F25-03.00.01.02套圈1
29GB848平垫12Flat pad121
30F25-03.00.01.03定位销轴Positioning pin1
31F25-03.00.01.06定位支架Positioning bracket1
3240F-04.01.03-S操舵支架(短轴)Steering bracket (short shaft)1
None40F-04.01.03-L操舵支架(长轴)Steering bracket (long axis)1
33DIN985 M10*1.25六角尼龙锁紧螺母M10*1.25Hexagonal nylon lock nut M10 * 1.252
3440FE-04.01.09操纵钩Manipulation hook1
35GB97.1平垫10Flat pad102
36GB93弹垫10Spring pad102
37DIN985六角尼龙锁紧螺母M10*1.25Hexagonal nylon lock nut M10 * 1.252
图14 夹紧托架双头螺栓

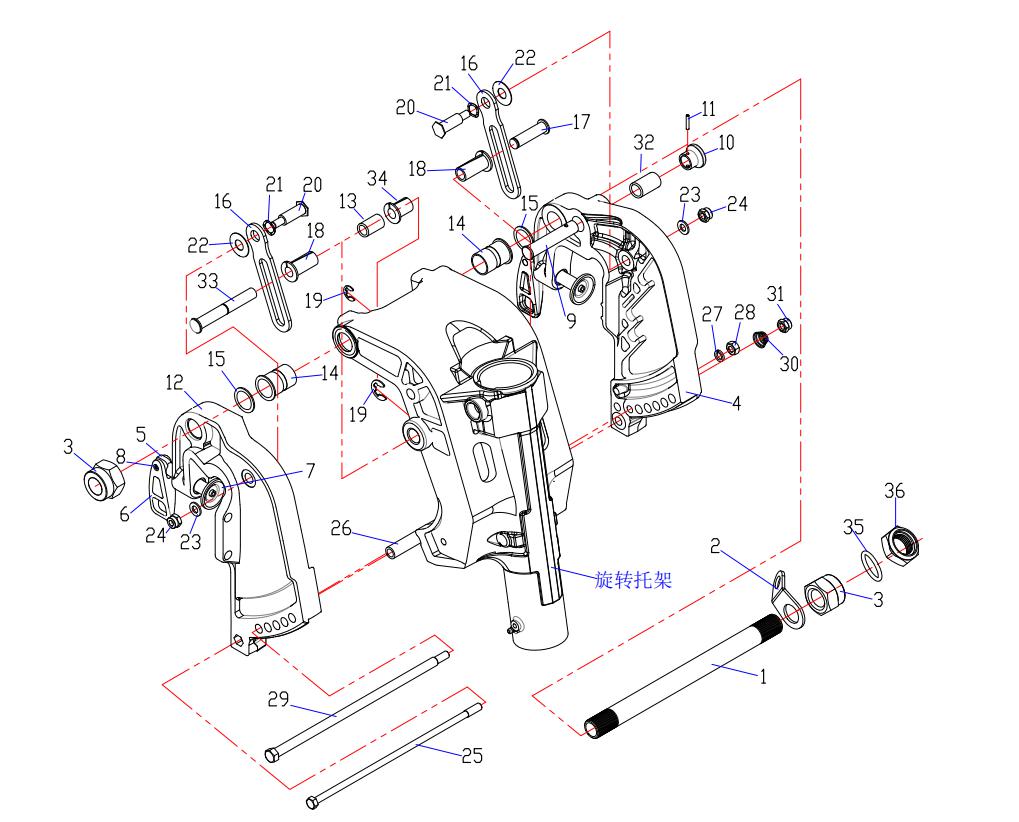

图14 夹紧托架双头螺栓 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-03.04夹紧托架双头螺栓Clamp bracket stud1
215F-03.03孔板Orifice1
315F-03.01夹紧托架螺母Clamp bracket nut2
440F-03.05.01右托架Right bracket1
5F9.9-Ⅱ-03.00.00.02艉板夹紧螺栓Stern plate clamping bolt2
640F-03.05.03.02夹紧手柄Clamping handle2
715F-03.05.02.03夹紧盘Clamping disc2
8GB1015沉头半空心铆钉4*18Countersunk head semi-hollow rivets 4 * 182
940F-03.05.04.01定位轴Positioning axis1
1040F-03.05.04.02定位轴手柄Positioning shaft handle1
11GB879.2弹性圆柱销3*18Elastic cylindrical pin 3 * 181
1240F-03.06.01左托架Left bracket1
13F25-03.00.02.03衬套bushing1
1440F-03.07.02托架阻尼圈Bracket damping ring2
1540F-03.03垫片Gasket2
1640F-03.07.12.01制动板Brake plate2
1740F-03.07.12.02制动板销Brake plate pin1
1840F-03.07.12.03开口衬套Open bush2
19GB896开口挡圈10Opening ring 102
2040F-03.07.12.04制动板固定螺栓Brake plate fixing bolt2
2140F-03.07.12.05波形垫圈Wave washer2
2240F-03.07.12.06塑料垫片Plastic gasket2
23GB97.1平垫8Flat pad 82
24DIN985六角尼龙锁紧螺母M8Hex nylon lock nut M82
2540F-03.08六角螺栓Hex Bolts1
2640F-03.09螺栓套管Bolt bushing1
27GB93弹垫8Spring pad 81
28GB6170六角螺母M8Hex nut M81
2940F-03.10角度限位销轴Angle limit pin1
3040F-03.11塔形弹簧Tower spring1
31DIN985六角尼龙锁紧螺母M8Hex nylon lock nut M81
3240F-03.05.02左托架垫套Left bracket cushion cover1
33F25-03.00.02.01制动板长销Brake plate long pin1
34F25-03.00.02.02开口衬套（短）Open bush (short)1
35HDYK00.00.35.03方向钢索防护套O型圈（16.3*2.3）Directional steel cable protective sleeve O-ring (16.3 * 2.3)2
36HDYK00.00.35.02方向钢索防护套Directional steel cable protective cover2
图15 底座 底座
图15 底座 底座 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-02.00.00.15底座Base1
240F-02.02.00.03垫圈AWasher A1
340F-02.02.00.02波形垫片Wave gasket1
4F25-02.02.00.00锁紧手柄组件Locking handle assembly1
540F-02.02.00.07拉簧钩Spring hook1
6GB/T9074.1 M6*20螺栓和垫圈组合件 M6*20(8.8)Bolt and washer assembly M6 * 20 (8.8)1
740F-02.02.00.06锁紧块拉簧Lock block tension spring1
840F-02.02.00.04垫圈BWasher B1
9F25-02.02.00.04锁紧块Locking block1
10GB/T96 6大垫圈6Large washer 61
11GB/T5783 M6*12六角头螺栓M6*12Hexagon head bolt M6 * 121
12F25-02.00.00.01底座侧堵头Base side plug1
13F25-02.00.00.02侧堵头橡胶垫Side plug rubber pad1
14F25-02.00.00.03侧堵头压板Side plug pressure plate1
15GB/T9074.1 M6*20螺栓和垫圈组合件 M6*20(8.8)Bolt and washer assembly M6 * 20 (8.8)2
16GB/T9074.1 M6*20螺栓和垫圈组合件 M6*20(8.8)Bolt and washer assembly M6 * 20 (8.8)1
17F25-02.00.00.05钢索固定座Steel cable fixing seat1
18F25-02.00.00.06钢索橡胶固定套Steel cable rubber fixing sleeve1
19GB/T9074.1 M6*20螺栓和垫圈组合件 M6*20(8.8)Bolt and washer assembly M6 * 20 (8.8)2
20F25-02.00.00.10支架support1
2140FE-02.00.00.02变档手柄橡胶闷头Shift handle rubber bulkhead1
22GB/T818 M6*10十字槽盘头螺钉M6*10Cross recessed pan head screws M6 * 101
23GB/T97.1 6平垫圈6Flat washer 61
24F25EI-01.02.10.04报警指示灯Alarm indicator1
25F25-02.00.00.16橡胶堵塞Rubber clogging1
26F25E-02.00.00.35底座橡胶堵塞BBase rubber plug B1
27F25-02.01.00.02钢索导向座Cable guide seat1
28F25E-02.00.00.33固定板Fixed plate1
29GB/T9074.1 M6*20螺栓和垫圈组合件 M6*20(8.8)Bolt and washer assembly M6 * 20 (8.8)2
30F25E-02.00.00.32固定板橡胶垫Fixed plate rubber pad1
31GB/T9074.1 M6*20螺栓和垫圈组合件 M6*20(8.8)Bolt and washer assembly M6 * 20 (8.8)2
32F25E-02.00.00.31钢索固定板Steel cable fixing plate1
3315F-01.07.01.00燃油管插头组件Fuel pipe plug assembly1
34F9.9-01.04.00.13燃油管插头垫片Fuel pipe plug gasket1
35管夹φ 10Pipe clamp φ 102
36F25-01.03.00.02燃油滤清器进油管(EPA)Fuel filter inlet pipe (EPA)1
37F25-02.00.00.26水管护套Water pipe sheath1
38DQDF15-00.05.02外接水管盖External water pipe cover1
39DQDF15-00.05.03外接水管插头External water pipe plug1
40DQDF15-00.05.04橡胶垫片Rubber gasket1
41DQDF15-00.05.05外接水管座External water pipe seat1
42F25-02.00.00.11排水嘴(大)Drain nozzle (large)2
4315F-02.11塑料水嘴Plastic spout1
44F25-02.00.00.30底座橡胶密封条Base rubber seal1
45F25-02.00.00.13装饰罩减震垫垫管Shock absorber cushion tube for decorative cover2
46F25-02.00.00.12装饰罩减震垫Shock absorber for decorative cover2
47GB/T5287 6特大垫圈6Extra large washer 64
48GB/T5783 M6*30六角头螺栓 M6*30Hexagon head bolt M6 * 304
49F25-02.00.00.28底座减震垫Base cushion4
50F25-02.00.00.29带肩垫管Tube with shoulder pad4
51GB/T9074.1 M6*20螺栓和垫圈组合件 M6*20(8.8)Bolt and washer assembly M6 * 20 (8.8)1
52F25-02.00.00.04油管压块Tubing block1
53GB/T845 ST5.5*25十字槽盘头自攻螺钉 ST5.5*25Cross recessed pan head tapping screws ST5.5 * 252
54GB/T9074.1 M6*16螺栓和垫圈组合件M6*16(8.8)Bolt and washer assembly M6 * 16 (8.8)2
55GB9074.1 M6*25(8.8)螺栓和垫圈组合件Bolt and washer assembly1
5640F-02.00.00.02变档连杆橡胶护套Shift link rubber jacket1
57F9.9-02.00.00.12排水嘴Spout2
58F25-01.02.00.05指示灯减震垫Indicator cushion1
59F15-05.00.00.17三通Tee2
60F25-02.00.00.21橡胶水管6*10*470Rubber hose 6 * 10 * 4701
61F25-02.00.00.19橡胶水管5*9*355Rubber water pipe 5 * 9 * 3551
62F25-02.00.00.17橡胶水管5*9*150Rubber water pipe 5 * 9 * 1501
63F25-02.00.00.18橡胶水管5*9*45Rubber hose 5 * 9 * 451
64F25EI-01.03.10.10十芯插头（0.8M)Ten-core plug (0.8M)1
65DQDF15-00.03.05长橡胶护套Long rubber jacket1
66DQDF15-00.03.06橡胶护套BRubber sheath B1
67F60-01.09.00.06电喷电源线EFI power cord1
6840F-04.02.05变档手柄垫圈Shift handle washer1
图17 密封垫 密封垫

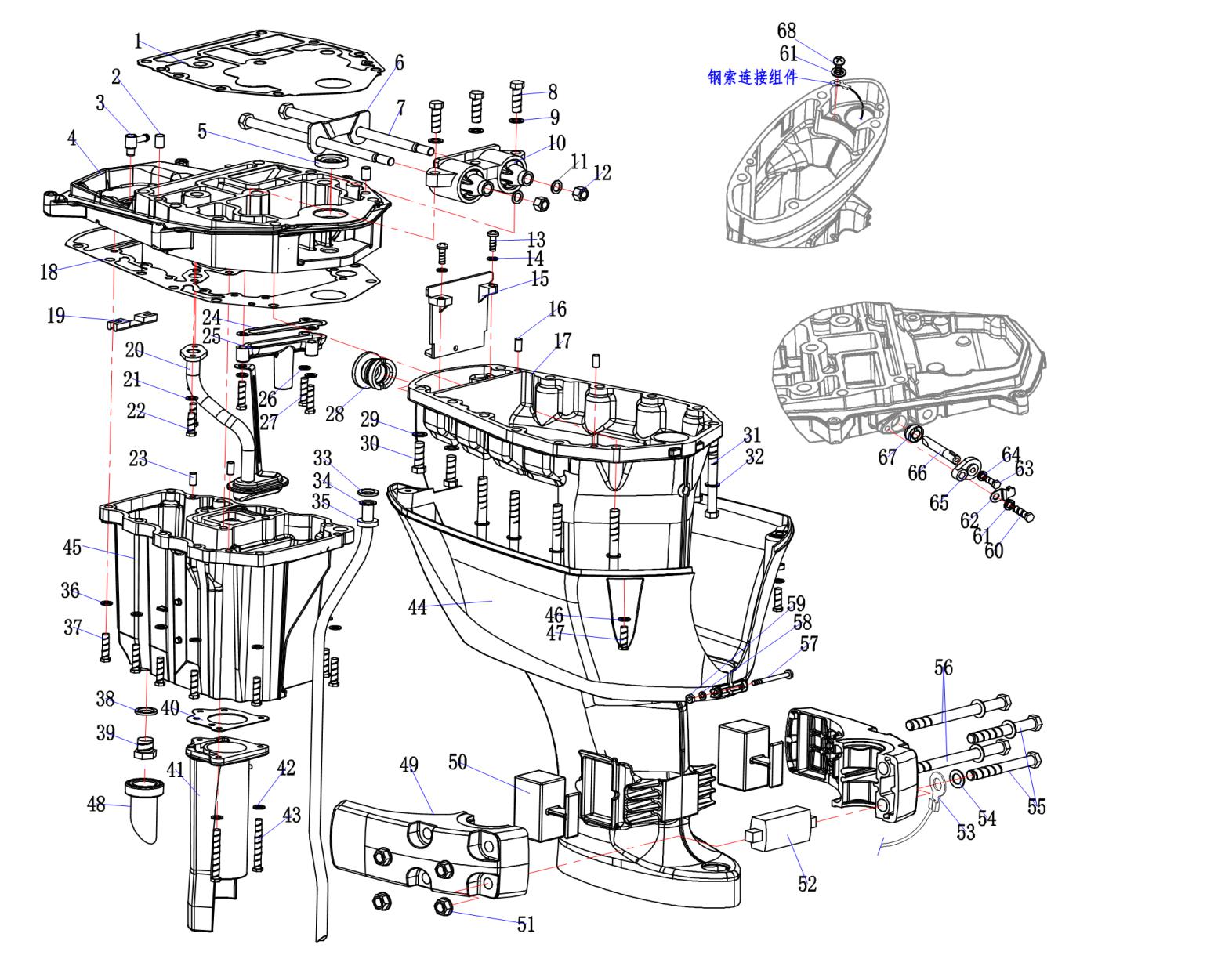

图17 密封垫 密封垫 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-00.00.00.04密封垫Seal1
240F-01.06.00.25定位销8*12Positioning pin 8 * 122
315F-01.06.10水管圆接头Water pipe round joint1
4F25-05.00.00.12机体底座Body base1
540F-01.06.00.23油封(16*30*6)Oil seal (16 * 30 * 6)1
6F25-05.00.00.03双孔减震器支架Double hole shock absorber bracket1
740F-05.00.00.07六角头长螺栓L=184Hexagon head long bolt L = 1842
8GB5783六角头螺栓M8*30Hex head bolt M8 * 303
9GB97.1平垫8Flat pad 83
10F25-05.01.00.00双孔减震器组件Double-hole shock absorber assembly1
11GB97.1平垫8Flat pad 82
12DIN985六角尼龙锁紧螺母M8Hex nylon lock nut M82
13GB818十字槽盘头螺钉M5*16Cross recessed pan head screws M5 * 162
14GB97.1平垫5Flat pad 52
15F25-05.00.00.01怠速排气隔板Idle speed exhaust baffle1
1615F-01.06.20定位销6*12Positioning pin 6 * 122
17F25-05.00.00.02-L水上装置壳体(长轴)Water device housing (long axis)1
NoneF25-05.00.00.02-S水上装置壳体(短轴)Water device housing (short axis)1
18F25-00.00.00.03密封垫Seal1
19F25-05.00.00.15怠速排气橡胶条Idle speed exhaust rubber strip1
20F25-05.02.00.00机油粗滤器组件Oil coarse filter assembly1
21GB97.1平垫6Flat pad 62
22GB5783(8.8)六角头螺栓M6*16Hexagon head bolt M6 * 162
2315F-01.06.20定位销6*12Positioning pin 6 * 122
24F25-05.00.00.11溢流阀座密封垫Relief seat gasket1
25F25-05.00.00.10溢流阀座Overflow seat1
26GB97.1平垫6Flat pad 63
27GB5783六角头螺栓M6*25Hexagon head bolt M6 * 253
28F25-05.00.00.16排气口橡胶护套Exhaust rubber jacket1
29GB97.1平垫8Flat pad 84
30GB5783六角头螺栓M8*30Hex head bolt M8 * 304
31GB5783(A4-80)六角头螺栓M8*80Hexagon head bolt M8 * 808
32GB97.1平垫8Flat pad 88
3340F-05.00.00.15水管衬圈Water pipe liner1
34F25-05.00.00.07-S水管(短轴）Water pipe (short axis)1
NoneF25-05.00.00.07-L水管(长轴）Water pipe (long axis)1
35F25-05.00.00.08水管密封圈Water pipe sealing ring1
36GB97.1平垫6Flat pad 610
37GB5783(A4-80)六角头螺栓M6*25Hexagon head bolt M6 * 2510
38F15-05.00.00.09放油螺栓垫圈Oil drain bolt washer1
39F15-05.00.00.08放油螺栓Oil drain bolt1
40F25-05.00.00.04排气管密封垫Exhaust pipe gasket1
41F25-05.00.00.05排气管exhaust pipe1
42GB97.1平垫6Flat pad 63
43GB5783六角头螺栓M6*50Hexagon head bolt M6 * 503
44F25-00.00.01.00装饰罩组件Decoration cover assembly1
45F25-05.00.00.06油底壳Oil pan1
46GB97.1平垫6Flat pad 62
47GB5783六角头螺栓M6*16Hexagon head bolt M6 * 162
48F25-05.00.00.09放油口橡胶衬圈Oil drain rubber bushing1
49F25-00.00.00.01减震器外壳Shock absorber shell2
5040F-00.02减震块ADamping Block A2
51GB6177六角头法兰螺母M10Hexagon flange nut M104
52F25-00.00.00.02减震块（中）Shock absorber (middle)1
5340F-03.07.10钢索连接组件Steel cable connection assembly1
54GB97.1平垫10Flat pad 104
55GB5783(A4-80)六角头螺栓M10*80Hex head bolt M10 * 802
56GB5783(A4-80)六角头螺栓M10*120Hex head bolt M10 * 1202
57GB818十字槽盘头螺钉M4*45Cross recessed pan head screws M4 * 451
58GB97.1平垫4Flat pad 41
59GB6172六角薄螺母M4Hexagon thin nut M41
60GB5783六角头螺栓M6*20Hexagon head bolt M6 * 201
61GB97.1平垫6Flat pad 62
62F15-01.01.00.06传导片Conductive sheet1
63GB5783六角头螺栓M5*12Hexagon head bolt M5 * 121
64GB97.1平垫5Flat pad 51
65F15-01.01.00.05压紧块Compression block1
66F25-05.00.00.13机体阳极Body anode1
67F15-01.01.00.04水封Water seal1
68GB818十字槽盘头螺钉M6*12Cross recessed pan head screws M6 * 121
图19 水下壳体 水下壳体

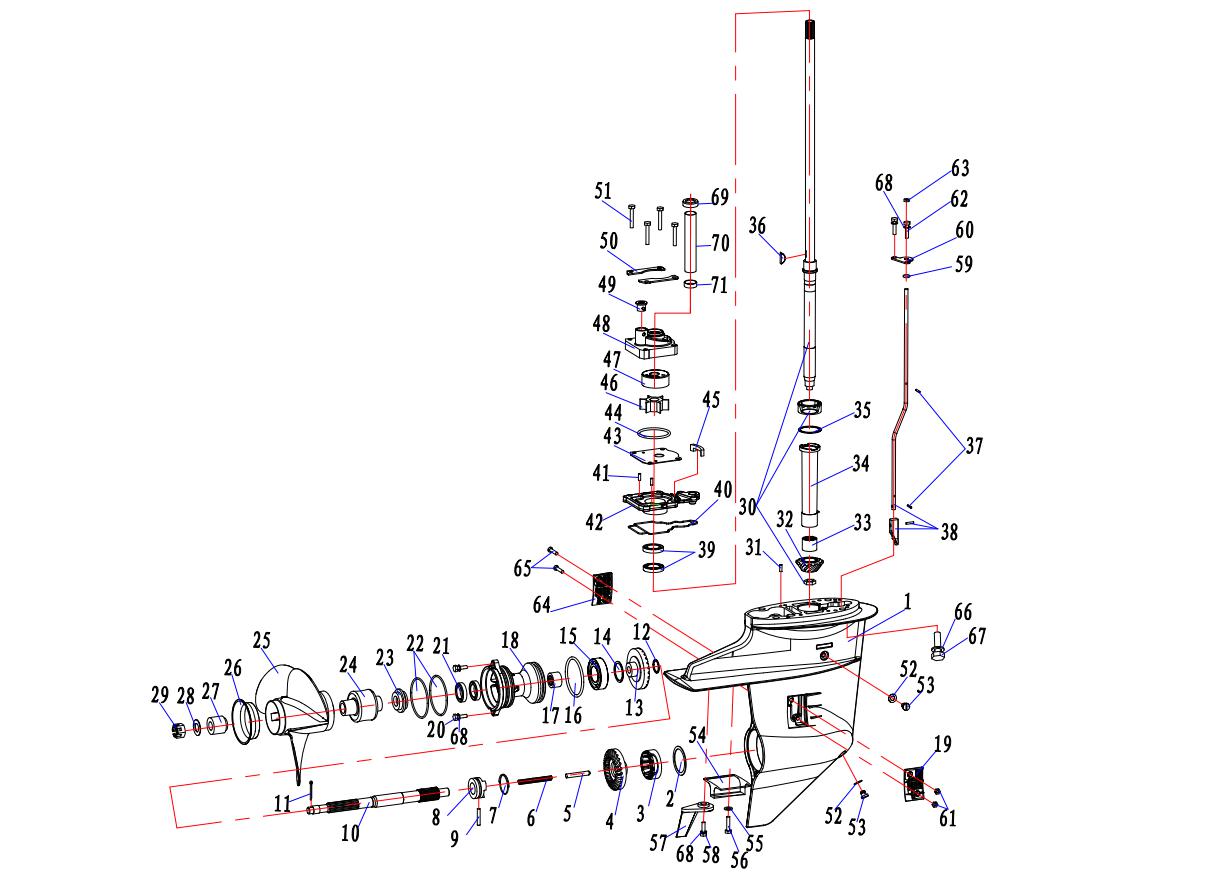

图19 水下壳体 水下壳体 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
130F-06.00.00.27水下壳体Underwater shell1
230F-06.00.00.26填隙片1（正档圆锥）Filler 1 (positive cone)1
315F-06.07圆锥滚子轴承(30205)Tapered roller bearing (30205)1
430F-06.00.00.22正档齿轮Positive gear1
530F-06.00.05.06变档柱塞Shift plunger1
6F9.9-06.00.00.18压缩弹簧compressed spring1
715F-06.10.04簧环Circlip1
830F-06.00.05.02爪形离合器Dog clutch1
915F-06.10.03离合器销Clutch pin1
1030F-06.00.05.01螺旋桨轴Propeller shaft1
11GB91开口销2.5*25Split pin 2.5 * 251
1230F-06.00.00.06垫圈washer1
1330F-06.00.04.06倒档齿轮Reverse gear1
1430F-06.00.04.05填隙片（倒档）Filler (reverse gear)1
1530F-06.00.04.04深沟球轴承(6006C3)Deep groove ball bearings (6006C3)1
1630F-06.00.04.07O型圈（粗） (63.5*4)O-ring (thick) (63.5 * 4)1
1730F-06.00.04.03滚针轴承(HK2016)Needle roller bearings (HK2016)1
1830F-06.00.04.01水下壳体盖Underwater shell cover1
1930F-06.00.00.05进水口盖BWater inlet cover B1
20GB5783六角头螺栓M6*20Hexagon head bolt M6 * 202
2130F-06.00.04.02壳体盖油封（20*34*6.5）Shell cover oil seal (20 * 34 * 6.5)2
2230F-06.00.04.08O型圈（细） (67*2.5)O-ring (thin) (67 * 2.5)2
2330F-06.00.00.03螺旋桨垫块Propeller block1
2430F-06.00.02.00螺旋桨内花键组件Propeller internal spline assembly1
2530F(F25)螺旋桨+喇叭口(9-7/8*11-1/4-F)Propeller + bell mouth (9-7 / 8 * 11-1 / 4-F)1
None30F(F25)螺旋桨组件(9-7/8*11-1/4)Propeller Assy.1
2730F-06.00.00.02螺旋桨内花键垫块Propeller inner spline cushion1
28GB97.1平垫14Flat pad 141
2930F-06.00.00.01开槽六角螺母M14Slotted hexagon nut M141
3030F-06.00.07.00-L驱动轴总成(长轴)Drive shaft assembly (long shaft)1
None30F-06.00.07.00-S驱动轴总成(短轴)Drive shaft assembly (short shaft)1
3115F-06.03.08定位销4*12Positioning pin 4 * 121
3230F-06.00.00.21主动轮(A隆昌)Driving Wheel (A Longchang)1
3330F-06.00.00.28滚针轴承(F2020)NSKNeedle bearing (F2020) NSK1
3430F-06.00.00.29尼龙衬圈Nylon bushing1
3530F-06.00.00.25填隙片（驱动轴）Spacer (drive shaft)1
3640F-06.09.02半圆键Semicircular key1
37GB879弹性圆柱销（2.5*14）Elastic cylindrical pin (2.5 * 14)2
38F25-06.00.01.00-L变档凸轮组件(长轴)Gear shift cam assembly (long shaft)1
NoneF25-06.00.01.01-S变档凸轮杆组件(短轴)Gear shift cam lever assembly (short shaft)1
3940F-06.04.04壳体盖油封(22*36*7)Shell cover oil seal (22 * 36 * 7)2
4030F-06.00.00.19橡胶密封圈rubber sealed loop1
4115F-06.03.08定位销4*12Positioning pin 4 * 124
4230F-06.00.00.20轴承座Bearing seat1
4330F-06.00.00.13水泵垫板Pump pad1
4430F-06.00.00.12水泵外壳O型圈(46*3.3)O-ring of water pump shell (46 * 3.3)1
4530F-06.00.00.16轴承座密封条Bearing seat sealing strip1
4640F-06.09.00水泵叶轮组件Water pump impeller assembly1
4730F-06.00.00.11水泵内壳Water pump inner shell1
4830F-06.00.00.10水泵外壳Water pump housing1
4930F-06.00.00.09水管密封圈Water pipe sealing ring1
5030F-06.00.00.08水泵挡板Pump baffle2
51GB5783六角头螺栓M6*40Hexagon head bolt M6 * 403
5215F-06.01.04螺塞密封垫Plug seal2
5315F-06.01.03注油口螺塞Oil filler plug2
5415F-06.15阳极BAnode B1
55GB861.1内齿锁紧垫圈M6Internal tooth lock washer M61
56GB5783 M6*35(9.8)六角头螺栓（1Cr17Ni2达克罗）Hexagon head bolt (1Cr17Ni2 Dacro)16
5730F-06.00.03.00航向调整片组件Heading adjustment plate assembly1
58GB5783六角头螺栓M6*20Hexagon head bolt M6 * 203
5915F-06.03.03变档杆O形密封圈(5.8*4.3)O-ring of shift lever (5.8 * 4.3)1
6030F-06.00.00.15变档凸轮压板Shift cam pressure plate1
61DIN985六角尼龙锁紧螺母M5Hex nylon lock nut M52
62GB5783六角头螺栓M6*25Hexagon head bolt M6 * 253
63GB6170六角头螺母M6Hexagon nut M61
6430F-06.00.00.04进水口盖AWater inlet cover A1
65GB819十字槽沉头螺钉M5*30Cross recessed countersunk head screws M5 * 3030
66GB848平垫10Flat pad 1012
6730F-00.00.00.01六角法兰面螺栓(M10*35)Hexagon flange bolt (M10 * 35)4
68GB97.1平垫6Flat pad 61
6940F-06.01.14密封圈(大)Sealing ring (large)长轴专用
7030F-06.00.05.07铜套管(仅用于长轴)Copper bushing (only for long shafts)1
7140F-06.01.15密封圈(小)Sealing ring (small)1
图21 小盖板 小盖板

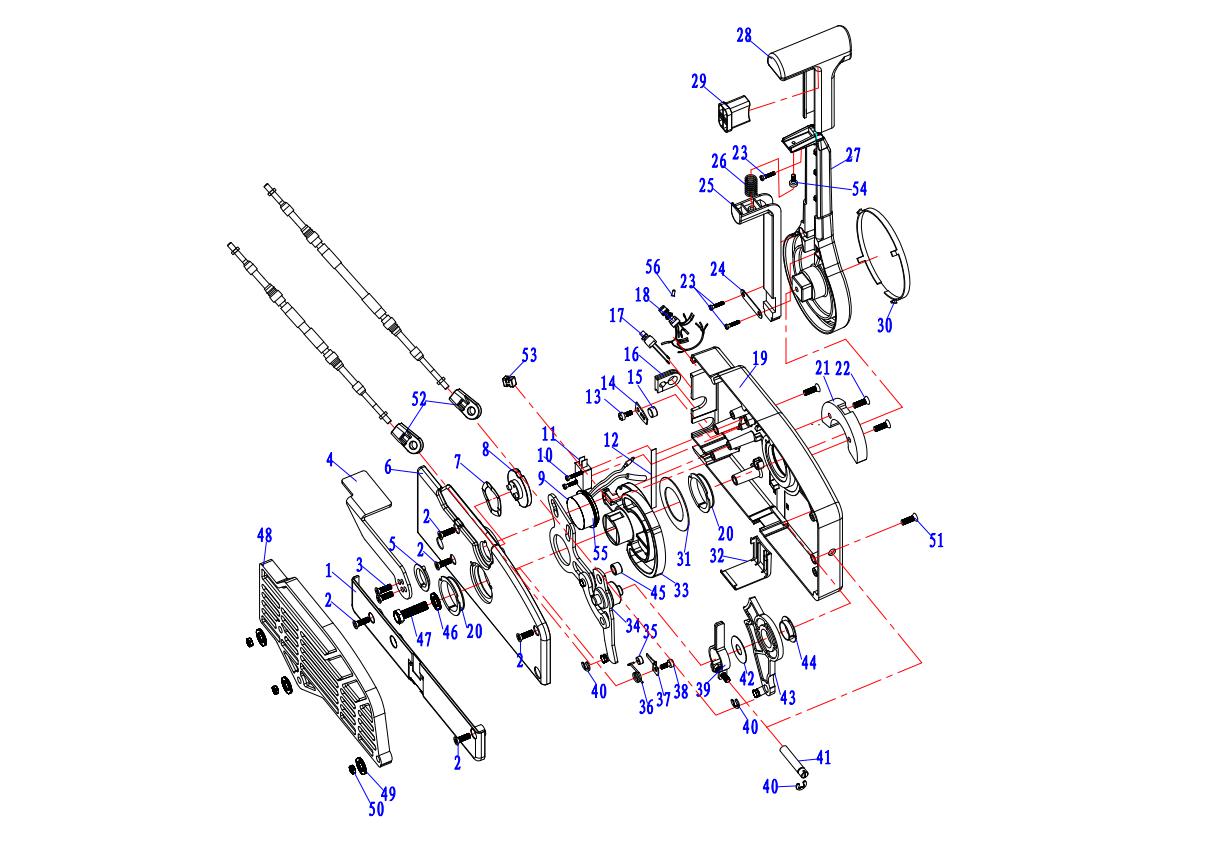

图21 小盖板 小盖板 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1HDYK00.00.01小盖板Small cover1
2GB819 M5*16十字槽沉头螺钉Cross recessed countersunk head screws5
3GB819 M5*12十字槽沉头螺钉Cross recessed countersunk head screws2
4HDYK00.00.02怠速锁紧手柄Idle locking handle1
5HDYK00.00.04减磨圈Antifriction ring1
6HDYK00.00.31大盖板Large cover1
7HDYK00.00.03波型垫圈Wave washer1
8HDYK00.01.00手柄锁紧轮组件Handle locking wheel assembly1
9HDYK00.02.01蜂鸣器buzzer1
10GB818 M3*14十字槽盘头螺钉Cross recessed pan head screws1
11HDYK00.05.00怠速启动开关Idle start switch1
12HDYK00.00.10弹性钢板Elastic steel plate5
13GB818 M4*6十字槽盘头螺钉Cross recessed pan head screws1
14HDYK00.00.09压板Pressure plate1
15HDYK00.00.11档位限位柱Gear limit post1
16HDYK00.00.12线束密封圈Harness sealing ring1
17HDYK00.03.00急停开关总成Emergency stop switch assembly1
18HDYK00.04.00启动开关总成Start switch assembly1
19HDYK00.00.08遥控盒(外壳)Remote control box (housing)1
20HDYK00.00.16档位座减磨圈Gear seat anti-friction ring2
21HDYK00.00.20手柄限位器Handle limiter1
22GB818 M5*16十字槽盘头螺钉Cross recessed pan head screws2
23GB818 M5*16十字槽盘头螺钉Cross recessed pan head screws3
24HDYK00.09.05锁紧手柄压板Locking handle pressure plate1
25HDYK00.09.04手柄锁紧开关Handle lock switch1
26HDYK00.09.06弹簧spring1
27HDYK00.09.01手柄座Handle seat1
28HDYK00.09.03手柄handle1
29HDYK00.09.07手柄开关盖Handle switch cover1
30HDYK00.09.02手柄座装饰圈Handle seat decoration ring1
31HDYK00.00.15档位座减磨垫Gear seat anti-friction pad1
32HDYK00.00.26盒盖连接件Cover connector1
33HDYK00.00.14档位座Gear seat1
34HDYK00.07.00油门控制装置总成Throttle control device assembly1
35HDYK00.00.06导轮Guide wheel1
36HDYK00.00.07弹簧spring1
37HDYK00.00.05导轮压板Guide wheel pressure plate1
38GB818 M4*6十字槽盘头螺钉Cross recessed pan head screws1
39HDYK00.08.01锁紧夹箍Locking clamp1
40GB896 6开口挡圈(不锈钢/厚度1)Opening ring (stainless steel / thickness 1)1
41HDYK00.08.02调节螺钉Adjusting screw1
42HDYK00.00.19档位控制器减磨垫Gear controller anti-friction pad1
43HDYK00.00.17档位控制器Gear controller1
44HDYK00.00.13油门控制器减磨片Throttle controller anti-friction film1
45HDYK00.07.10导轮Guide wheel1
46HDYK00.00.33七星插头5MSeven star plug 5M1
47GB9074.1 M8*30(8.8)六角头螺栓和平垫组件Hex head bolt and flat washer assembly1
48HDYK00.00.32遥控器固定板Remote control fixing plate1
49GB5287 M6平垫Flat pad3
50GB6170 M6六角螺母Hex nuts3
51GB820 M6*90十字槽半沉头螺钉Cross recessed countersunk head screws3
52HDYK00.00.25钢索调节装置BCable adjustment device B2
53HDYK00.00.27线索密封座Lead seal seat1
54GB818 M5*10十字槽盘头螺钉Cross recessed pan head screws1
55HDYK00.02.02峰鸣器护套Peak Sounder Sheath1
55HDYK00.05.01电启动怠速线Electric start idle line1
56F9.9-01.04.00.05连杆帽Connecting rod cap2
