舟一会 ZHOUYIHUI 船外机

海的 EF40 - EF40 前/后置操纵

共 25 个部位，点击零件编码查看详情，或搜索本页零件。

总图

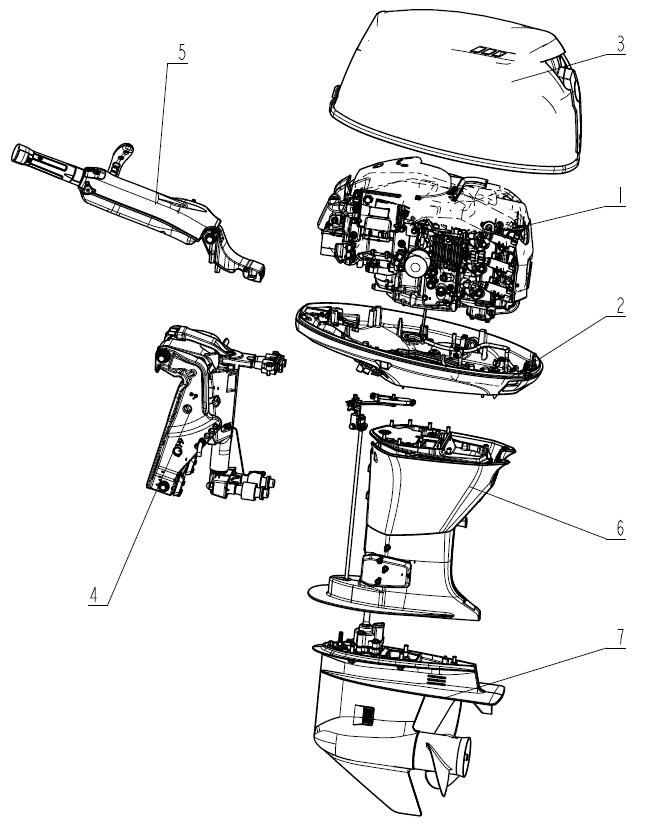

总图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F40-01.00.00.00F40发动机F40 engine1
2F40-02.00.00.00底座总成Base assembly1
3F40-07.00.00.00F40顶罩组件F40 top cover assembly1
4F40-03.00.00.00夹紧装置系统Clamping system1
5F60-04.00.03.00操舵总成Steering assembly1
6F60-05.00.00.00水上装置系统Water system1
7F40-06.00.00.00水下驱动总成Underwater drive assembly1

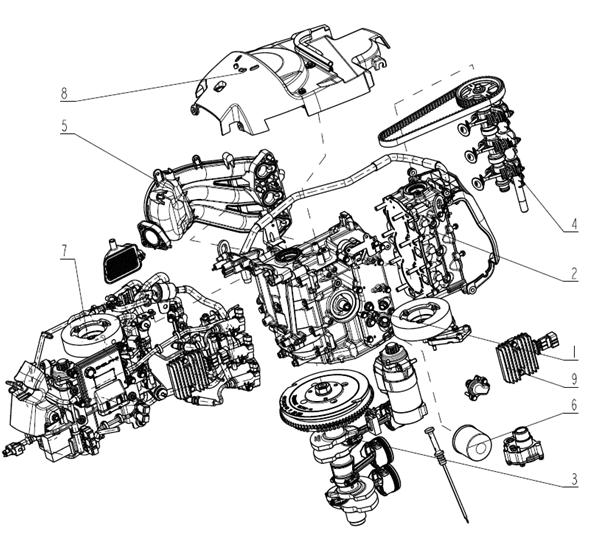

动力
动力 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F40-01.01.00.00箱体系统总成Cabinet system assembly1
2F40-01.02.00.00气缸盖总成Cylinder head assembly1
3F40-01.03.00.00曲柄连杆组件Crank connecting rod assembly1
4F40-01.04.00.00配气机构总成Valve train assembly1
5F40-01.05.00.00进气系统总成Intake system assembly1
6F40-01.06.00.00润滑系统Lubrication system1
7F40-01.07.00.00燃油电控系统Fuel electronic control system1
8F40-01.08.00.00启动罩组件Starter cover assembly1
9F40-01.09.00.00电器系统Electrical system1
曲轴箱体

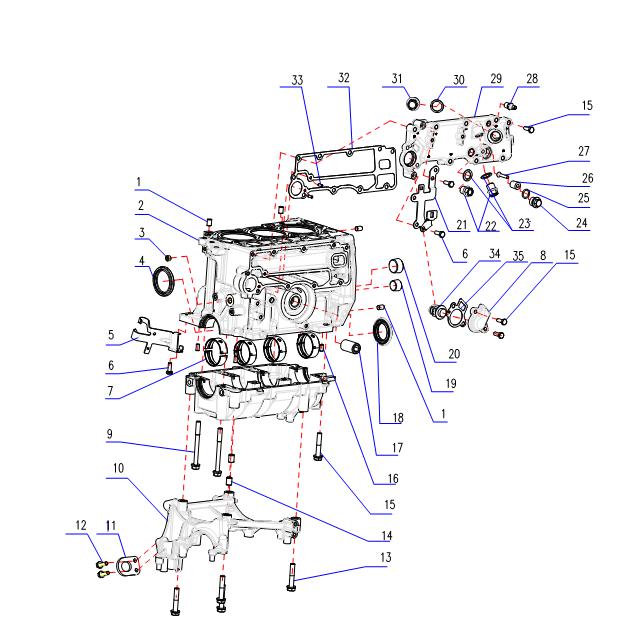

曲轴箱体 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-01.06.00.25定位销8*12Positioning pin 8 * 124
2F40-01.01.01.10箱体合件Cabinet assembly1
3F15-01.01.00.07堵塞1/8Clogged1
4F60-01.01.03.00后油封Rear oil seal1
5F40-01.01.00.05支架1Bracket 11
6GB9074_1.M6X16.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly3
7F60-01.01.00.05主轴瓦（绿色）Main bearing (green)8
NoneF60-01.01.00.05主轴瓦(黑色)Main bearing (black)8
NoneF60-01.01.00.05主轴瓦(红色)Main bearing (red)8
NoneF60-01.01.00.05主轴瓦(黄色)Main bearing (yellow)8
8F15-01.06.14节温器(60 °)Thermostat (60 °)1
9F60-01.01.05.00主轴承盖螺栓组件Main bearing cover bolt assembly8
10F40-01.01.00.03起动电机支架Starting motor bracket1
11F60-01.01.00.17缸体吊耳Cylinder lifting eye1
12GB9074_1.M6X20.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
13GB9074_1.M8X45.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly4
14F60-01.01.00.23定位销套Positioning pin sleeve2
15GB9074_1.M6X35.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly18
1615F-01.06.20定位销6*12Positioning pin 6 * 124
17F15-01.05.00.01机油滤清器芯轴Mandrel for oil filter1
18F60-01.01.02.00前油封Front oil seal1
19F25-01.04.00.38堵塞1/2Clogged 1/21
20F25-01.04.00.39堵塞3/4Clogged 3/41
21F40-01.01.00.06支架2Bracket 21
22F60-01.01.00.13螺栓bolt2
23F25-01.04.00.01垫圈14Washer 142
24F60-01.02.20.01六角法兰面螺堵Hexagon flange plug1
25F60-01.02.20.02O形密封圈O-ring1
26F9.9-01.03.00.34阳极AAnode A1
27GB818 M5X25十字槽盘头螺钉Cross recessed pan head screws1
28F60-01.01.00.08回水管接头Return pipe joint1
29F40-01.01.00.01排气侧盖Exhaust side cover1
30F25-01.04.00.03铜垫圈Copper washer1
31F60-01.01.00.11螺栓bolt1
32F40-01.01.00.02排气侧盖垫片Exhaust side cover gasket1
33F9.9-05.00.00.26定位销4*10Positioning pin 4 * 102
34F60-01.06.01.04节温器盖Thermostat cover1
35F60-01.06.01.04节温器密封垫Thermostat gasket1
气缸盖总成

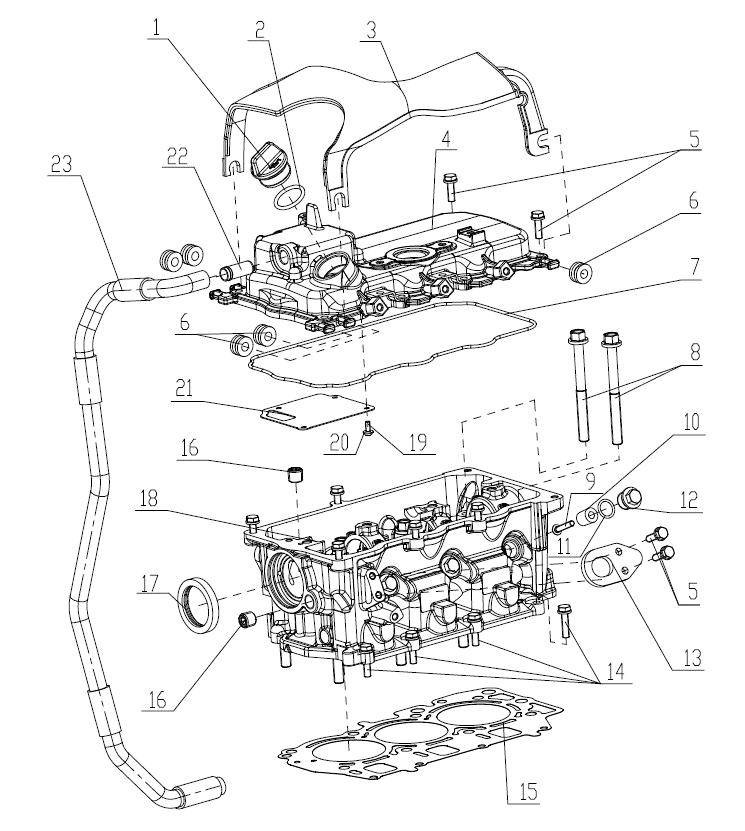

气缸盖总成 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.03.00.39加油口螺塞Fuel plug1
2F60-01.02.30.03O形密封圈O-ring1
3F40-01.02.00.09小罩盖Small cover1
4F40-01.02.30.01气缸盖罩Cylinder head cover1
5GB9074_1.M6X20.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly9
6F60-01.02.00.07减振圈Damping ring5
7F40-01.02.00.06气缸盖罩密封垫Cylinder head cover gasket1
8F60-01.02.00.01缸盖螺栓Cylinder head bolt8
9GB818.M5X25十字槽盘头螺钉Cross recessed pan head screws3
10F9.9-01.03.00.34阳极AAnode A3
11F60-01.02.20.02O形密封圈O-ring3
12F9.9-01.03.00.35六角法兰面螺栓M16*1.5Hexagon flange bolt M16 * 1.53
13F40-01.02.00.05前吊钩Front hook1
14GB9074_1.M6X25.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly4
15F40-01.02.00.04气缸垫Cylinder head gasket1
16F15-01.01.00.08堵塞1/4Clogged 1/44
17F60-01.02.00.02凸轮轴油封Camshaft oil seal1
18F40-01.02.10.00气缸盖组件Cylinder head assembly1
19GB823.M4X10十字槽盘头螺钉Cross recessed pan head screws4
20GB97_1.M4平垫4Flat pad 44
21F40-01.02.30.04盖板Cover1
22F25-01.05.01.04气嘴Gas nozzle1
23F40-01.02.40.01曲轴箱通风管组件EPACrankcase vent pipe assembly EPA1
曲轴

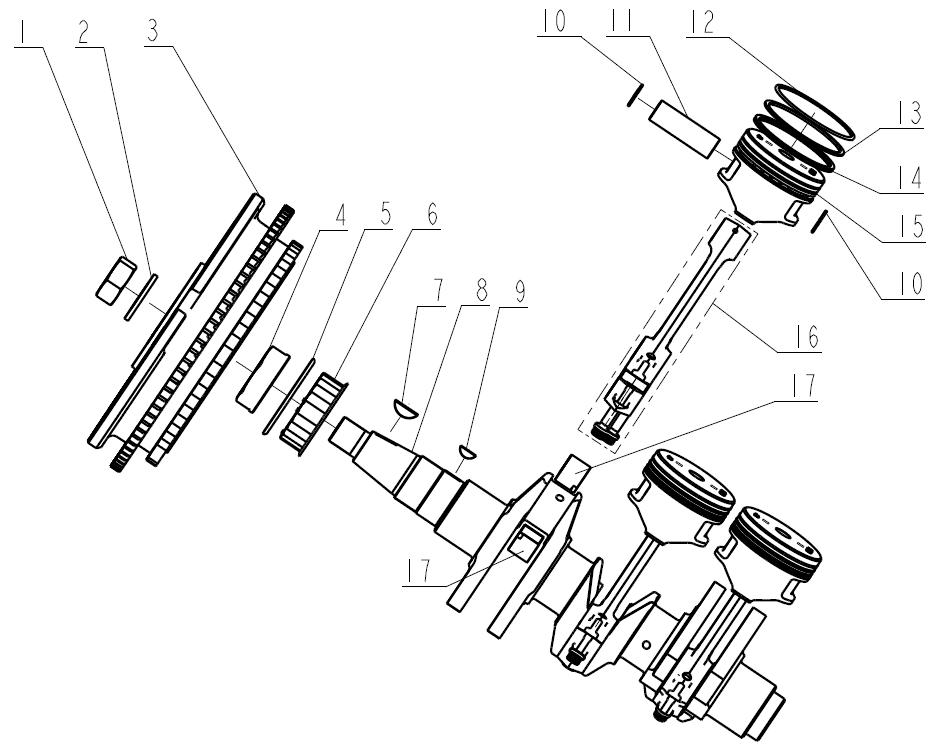

曲轴 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-01.03.02飞轮螺母Flywheel nut1
2GB97_1.M20平垫Flat pad1
3F40-01.09.01.00飞轮flywheel1
4F25-01.04.00.12主动带轮螺母Driving pulley nut1
5F25-01.04.00.13主动带轮挡圈Active belt ring1
6F25-01.04.00.14主动带轮Driving pulley1
740F-01.03.03半圆键Semicircular key1
8F40-01.03.00.01曲轴Crankshaft1
9GB.T1099半圆键3*5*13Half round key 3 * 5 * 131
10F25-01.04.00.27活塞销卡簧Piston p in circlip6
11F25-01.04.00.26活塞销Piston pin3
12F60-01.03.00.09第一道活塞环The first piston ring3
13F60-01.03.00.11第二道活塞环Second piston ring3
14F60-01.03.01.00组合油环Combination oil ring3
15F60-01.03.00.08活塞piston3
16F40-01.03.02.00连杆组件Connecting rod assembly3
17F60-01.03.00.12连杆瓦（绿色）Connecting rod shoe (green)6
NoneF60-01.03.00.12连杆瓦（黑色）Connecting rod shoe (black)6
NoneF60-01.03.00.12连杆瓦（红色）Connecting rod tile (red)6
NoneF60-01.03.00.12连杆瓦（黄色）Connecting rod shoe (yellow)6

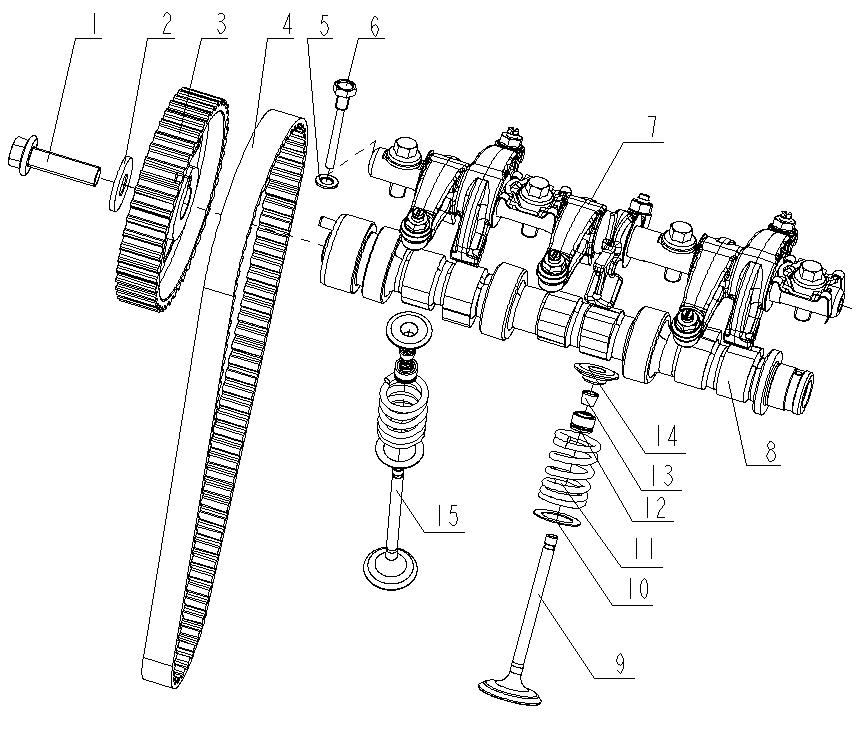

配气机构
配气机构 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB5787 M10*1.25*35(8.8) (S12)六角法兰面螺栓Hexagon flange bolts1
2GB96.M10平垫Flat pad1
3F25-01.05.00.01从动带轮Driven pulley1
4F25-01.04.00.11同步带Timing belt1
5F25-01.05.00.09铜垫片Copper gasket1
6F25-01.05.00.08凸轮轴限位螺栓M6*1.0Camshaft limit bolt M6 * 1.01
7F40-01.04.10.00摇臂总成Rocker arm assembly1
8F40-01.04.01.00凸轮轴组件Camshaft assembly1
9F60-01.04.00.11进气门Intake valve3
10F60-01.04.00.14气门弹簧下座Valve spring lower seat6
11F25-01.05.00.14气门弹簧Valve spring6
12F15-01.03.00.15气门油封Valve seal6
13F60-01.04.00.16气门锁夹Valve lock clip12
14F60-01.04.00.17气门弹簧上座Valve spring upper seat6
15F60-01.04.00.12排气门Exhaust valve3

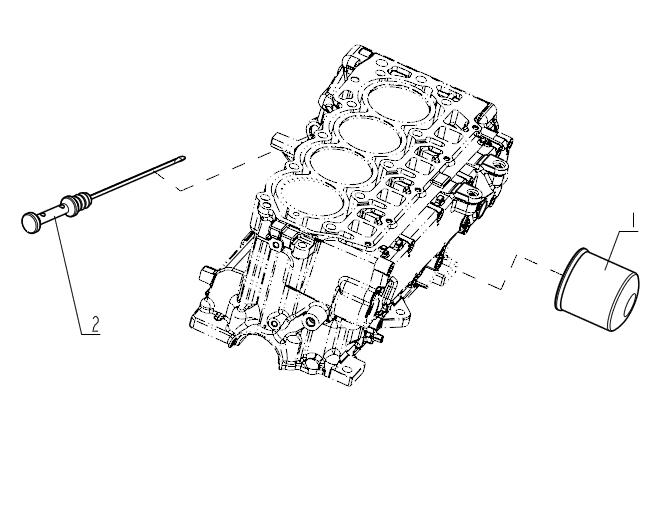

冷却润滑 1
冷却润滑 1 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.05.01.00机油滤清器组件Oil filter assembly1
2F60-01.06.01.01油标尺组件Oil scale assembly1

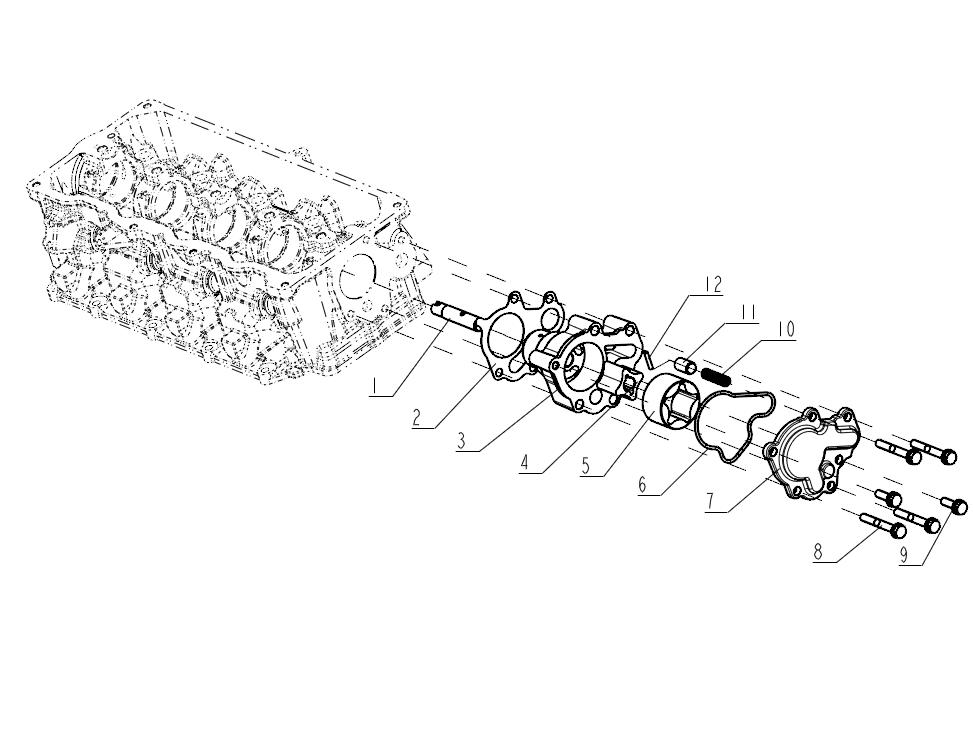

冷却润滑 2
冷却润滑 2 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-01.06.02.06转子轴Rotor shaft1
2F60-01.06.01.02机油泵密封垫Oil pump gasket1
3F60-01.06.02.09机油泵体Oil pump body1
4F60-01.06.02.05内转子Inner rotor1
5F60-01.06.02.08外转子Outer rotor1
6F60-01.06.02.02橡胶密封圈rubber sealed loop1
7F60-01.06.02.01机油泵盖Oil pump cover1
8GB9074_1.M6X45.8_8六角头螺栓和平垫组件Hex head bolt and fl4
9GB9074_1.M6X20.8_8六角头螺栓和平垫组件Hex head bolt and fl2
10F25-01.06.01.03溢流阀压簧Pressure spring of r1
11F25-01.06.01.04溢流阀芯Overflow spool1
12F25-01.06.01.07滚针Needle roller1

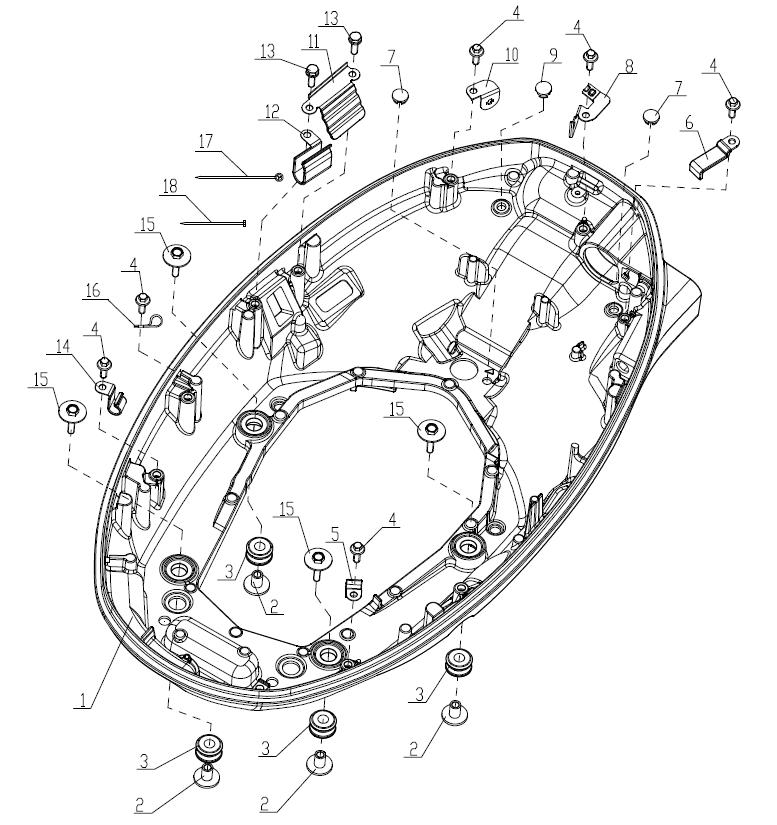

底座 1
底座 1 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-02.00.01.01底座Base1
260F-02.00.00.04带肩垫管(底座)Tube with shoulder pad (base)4
360F-02.00.00.05减震垫(底座)Shock-absorbing pad (base)4
4GB5789.M6X16.10_9六角法兰面螺栓Hexagon flange bolts5
5F60-02.00.01.11水管支架1Water pipe bracket 11
6F60-02.00.01.10线束支架4Harness bracket 41
7F60-02.00.01.19堵塞Clogged2
8F60-02.00.01.12线束支架5Harness bracket 51
9F60-02.00.02.06堵塞1Clog 11
10F60-02.00.01.08卡扣支架1Snap bracket 11
11F60-02.00.01.05线束支架3Harness bracket 31
12F60-02.00.01.03线束支架1Harness bracket 11
13GB9074_1.M6X20.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
14F60-02.00.01.04线束支架2Harness bracket 21
15F60-05.00.03.02六角头螺栓和平垫圈组合件Hex head bolt and flat washer assembly4
16CC-4塑料线夹（黑色）Plastic wire clip (black)1
17F60-01.07.14.03箭头型扎带Arrow Tie6
184*150扎带（黑色）Cable tie (black)8
底座 2

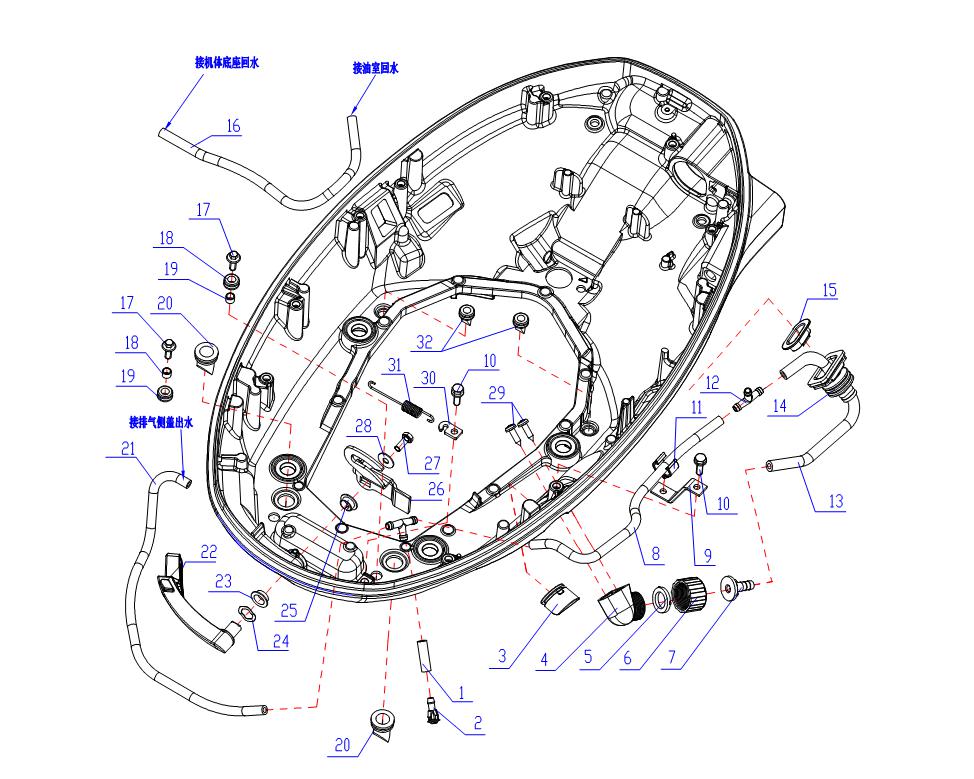

底座 2 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-02.00.02.05水管3(30mm)Water pipe 3 (30mm)1
215F-02.11塑料水嘴Plastic spout1
3F60-02.00.01.26橡胶堵头Rubber plug1
4DQDF15-00.05.05外接水管座External water pipe seat1
5DQDF15-00.05.04橡胶垫片Rubber gasket1
6DQDF15-00.05.02外接水管盖External water pipe cover1
7DQDF15-00.05.03外接水管插头External water pipe plug1
8F60-02.00.02.02水管1Water pipe 11
9F60-02.00.01.15水管支架2Water pipe bracket 21
10GB9074_1.M6X20.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
11F60-02.00.01.16卡扣3Snap 31
12F15-05.00.00.17三通Tee2
13F60-02.00.02.04水管2(228mm)Water pipe 2 (228mm)1
14F60-02.00.01.24水管橡胶护套Water pipe rubber sheath1
15F60-02.00.01.22塑料固定套Plastic fixing sleeve1
16F40-02.00.02.01燃油冷却回水管Fuel cooling water return pipe1
17GB5789.M6X16.10_9六角法兰面螺栓Hexagon flange bolts2
18F60-02.00.01.20橡胶减震垫2Rubber cushion 22
19F60-02.00.01.21减震垫衬套Shock Absorber Liner2
20F60-02.00.01.18减震垫2Shock Absorber 22
21F60-01.01.00.09回水管Return pipe1
22F25-02.02.00.00锁紧手柄组件Locking handle assembly1
2340F-02.02.00.03垫圈AWasher A1
2440F-02.02.00.02波形垫片Wave gasket1
2540F-02.02.00.04垫圈BWasher B1
26F25-02.02.00.04锁紧块Locking block1
27GB5783.M6X16.8_8六角头螺栓Hexagon head bolt1
28GB96 M6平垫6Flat pad 61
29GB845.ST5_5X19十字槽盘头自攻螺钉Cross recessed pan head tapping screws2
3040F-02.02.00.07拉簧钩Spring hook1
3140F-02.02.00.06锁紧块拉簧Lock block tension spring1
32F60-02.00.01.17减震垫1Shock Absorber Pad 12
底座 3

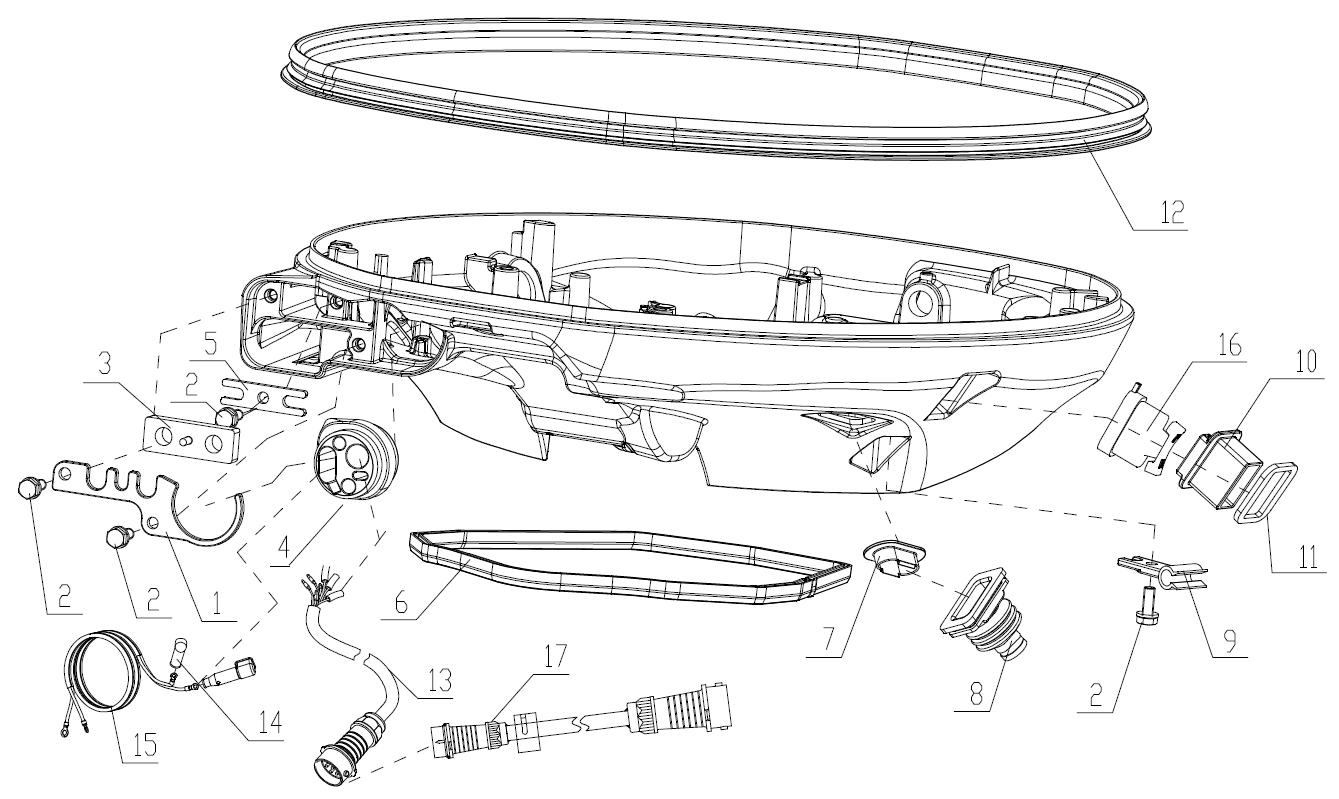

底座 3 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-02.00.01.30固定板Fixed plate1
2GB9074_1.M6X16.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly4
3F60-02.00.01.28拉线固定护套Cable fixing sheath1
4F60-02.00.01.29底座线束堵头Base harness plug1
5F60-02.00.01.27拉线固定板Cable fixing plate1
6F60-02.00.01.02底座橡胶密封条Base rubber seal1
7F60-02.00.01.22塑料固定套Plastic fixing sleeve1
8F60-02.00.01.24水管橡胶护套Water pipe rubber sheath1
9F60-02.00.01.25塑料支架2Plastic bracket 21
10F60-02.00.01.06长方形闷头Oblong head1
11F60-02.00.01.07长方形闷头垫圈Rectangular bulkhead washer1
12F60-02.00.03.01橡胶密封条Rubber sealing stripe1
13F60-01.09.00.07十芯插头线束（短）（0.28M)Ten-core plug harness (short) (0.28M)1
NoneF60-01.09.00.09十芯插头线束（带自锁插件）Ten core plug harness (with self-locking plug-i1
14DQDF15-00.03.03橡胶护套ARubber sheath A1
15F60-01.09.00.13电喷电源线(带自锁插件）EFI power cord (with self-locking plug-in)1
NoneF60-01.09.00.06电喷电源线EFI power cord1
16F60-02.00.03.02起翘开关Warp switch1
17F60-01.09.00.14十芯线转接头（5m延长线）Ten-core cable adapter (5m extension cable)1

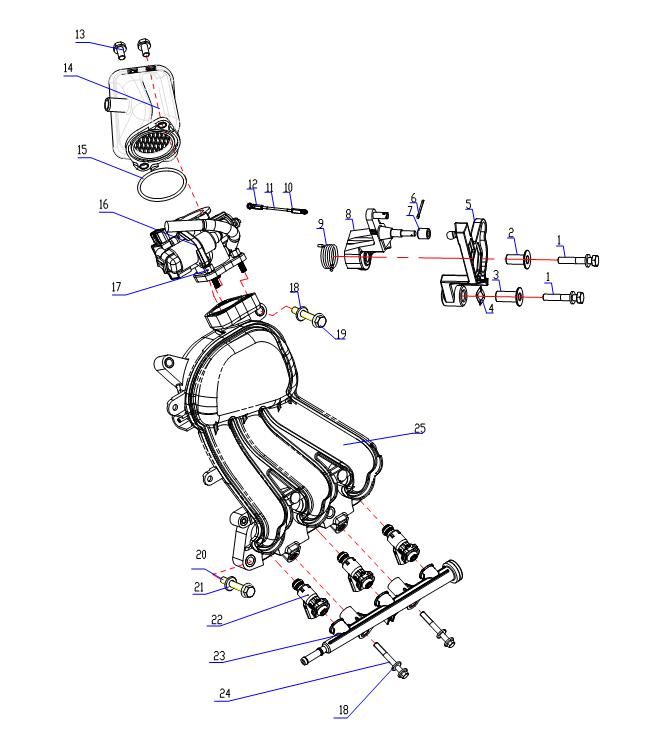

油轨歧管
油轨歧管 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB9074_1.M6X35.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
2F60-01.07.08.09衬套2Bush 21
3F60-01.07.08.08衬套1Bush 11
460F-01.05.00.07波形弹性垫圈Wave elastic washer1
5F60-01.07.08.01节气门摇臂1Throttle rocker arm 11
6GB91 1.6*16开口销Cotter pin1
7F60-01.07.08.07摇臂轴套Rocker sleeve1
8F60-01.07.08.15节气门摇臂2组件Throttle rocker arm 2 components1
9F60-01.07.08.10扭力弹簧Torsion spring1
10GB6172.1 M5六角薄螺母Hexagon thin nut1
11F60-01.07.08.05节气门金属连杆Throttle valve metal connecting rod1
1215F-01.03.12连杆接头Connecting rod connector2
13GB9074.1 M6*12(A2-70)螺栓和垫圈组合件Bolt and washer assembly2
14F40-01.05.02.10空滤器Air filter1
1540F-03.07.08O型橡胶圈(42.6*3.2)O-shaped rubber ring (42.6 * 3.2)1
16F40-01.07.00.01节气门Throttle1
17GB9074.1 M6*18(A2-70)螺栓和垫圈组合件Bolt and washer assembly3
18GB96 M6平垫 6Flat pad 64
19GB5789 M6*35 8.8六角法兰面螺栓Hexagon flange bolts2
20GB5787 M8*40 8.8六角法兰面螺栓Hexagon flange bolts4
21GB96 M8平垫 8Flat pad 84
22F25EI-01.03.01.00喷油器组件Injector assembly3
23F40-01.07.04.00燃油轨Fuel rail1
24GB5789 M6X50 8.8六角法兰面螺栓Hexagon flange bolts2
25F40-01.05.01.00进气歧管Intake manifold1

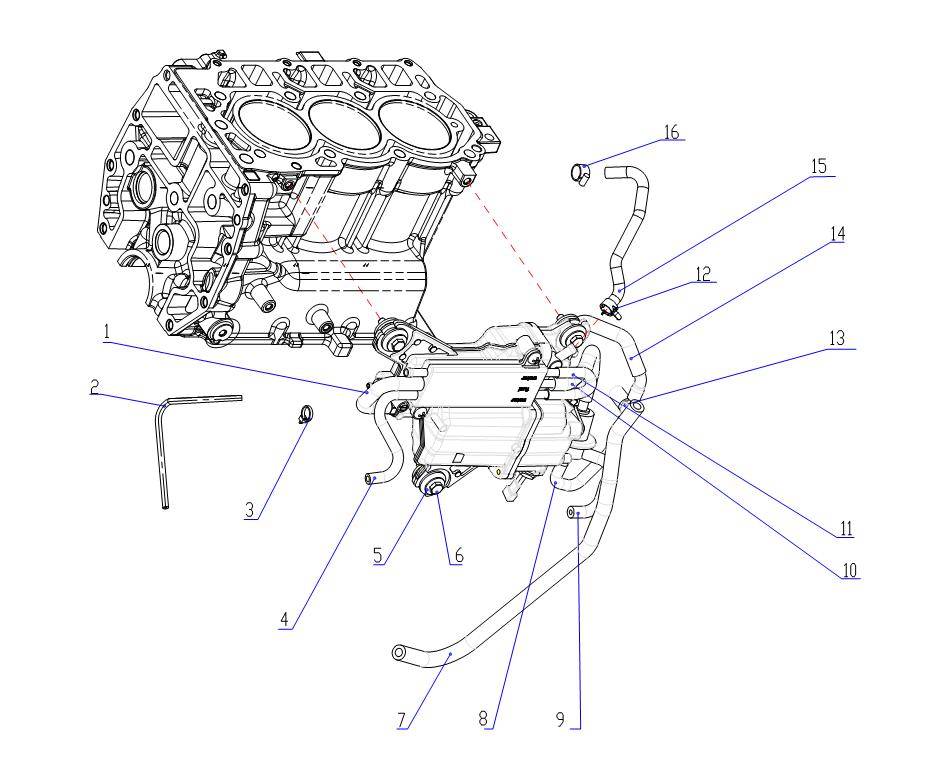

油室缸体
油室缸体 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F40-01.07.09.06-EPA冷凝器连油室胶管（EPA）Condenser with oil chamber hose (EPA)1
2F60-01.07.03.28-EPA放油管（EPA）Drain pipe (EPA)1
34*150扎带（黑色）Cable tie (black)20
4F40-01.07.09.07冷凝器进水管Condenser inlet pipe1
5GB96 M6平垫6Flat pad 63
6GB5787 M6*30六角法兰面螺栓Hexagon flange bolts3
7F40-01.07.09.12碳罐连节气门胶管Carbon canister with throttle hose1
8F40-01.07.09.08-EPA3*7*1153 * 7 * 1151
9F40-01.07.09.13调压阀连歧管胶管Pressure regulator with manifold hose1
10F40-01.07.09.14-EPA调压阀冷凝器胶管Pressure regulator condenser hose1
11F60-01.07.06.06冷凝管水管Condensate water pipe1
12F25EI-01.03.00.05日式夹箍Φ12.5Japanese clamp Φ 12.51
13F60-01.07.00.21三通管Tee1
14F40-01.07.09.09-EPA3*7*1003 * 7 * 1001
15F40-01.07.04.03-EPA燃油轨连油室胶管Fuel rail with oil chamber hose1
16Φ 14.5单耳无极卡箍Single ear step less clamp1

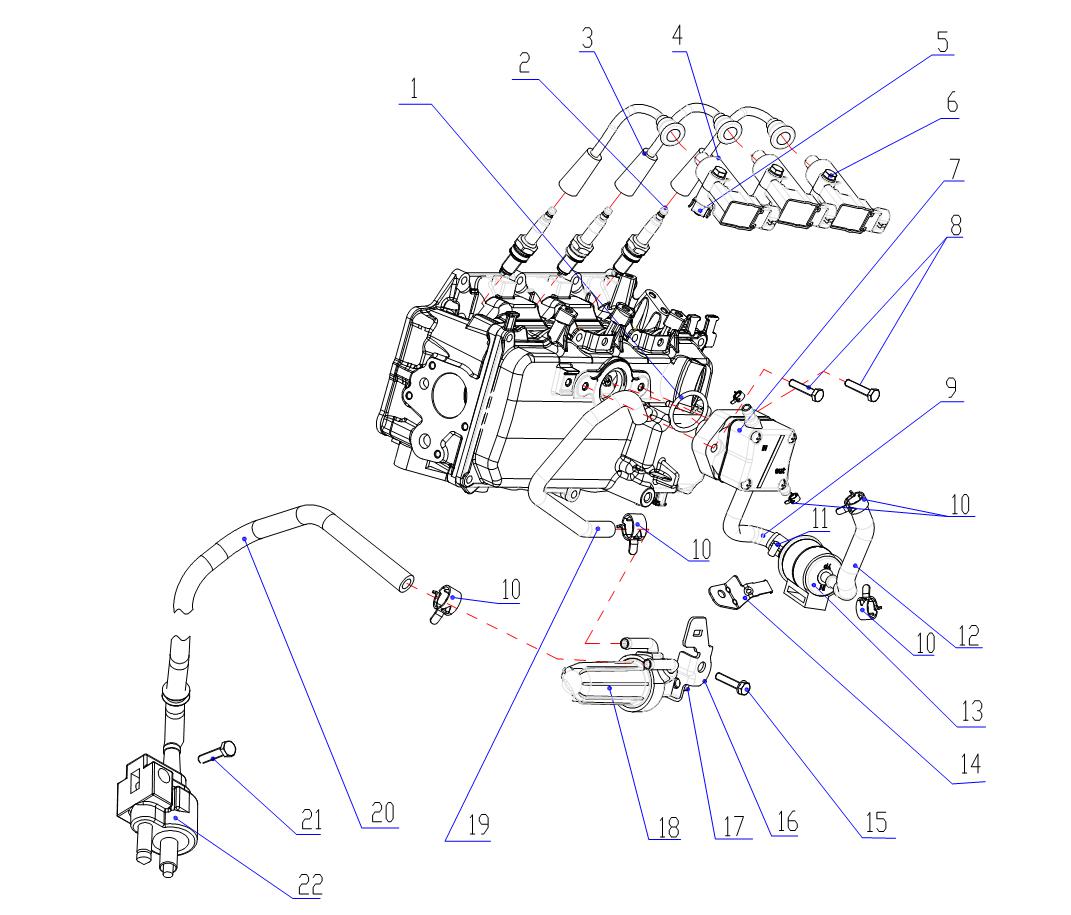

燃油缸体缸盖
燃油缸体缸盖 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-01.07.05.04柱塞泵O形圈Piston pump O-ring1
2DPR6EB-9火花塞Spark plug3
3F40-01.07.14.13高压线High voltage line3
4F25EI-01.02.10.01点火线圈Ignition coils3
5F40-01.07.00.03点火线圈支架Ignition coil bracket3
6GB9074.1 M6*40(8.8)螺栓和垫圈组合件Bolt and washer assembly3
7F60-01.07.00.02燃油泵Fuel pump1
8GB9074.1 M6*25(8.8)螺栓和垫圈组合件Bolt and washer assembly2
9F40-01.07.09.03-EPA柱塞泵连精滤器胶管（EPA）Plunger pump with fine filter hose (EPA)1
10F25EI-01.03.00.05日式夹箍Φ12.5Japanese clamp Φ 12.56
11F40-01.07.09.04-EPA精滤器连油室胶管(EPA)Fine filter with oil chamber hose (EPA)1
12Φ 14.5单耳无级卡箍Single ear step less clamp1
13F25EI-01.03.02.00终滤器组件Final filter assembly1
14F40-01.07.02.03终滤器支架Final filter bracket1
15GB9074_1.M8X20.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly1
16F40-01.07.01.05燃油滤清器支架Fuel filter bracket1
17GB6170.M8六角螺母Hex nuts1
18F60-01.07.01.01燃油滤清器Fuel Filter1
19F40-01.07.09.02-EPA滤清器连柱塞泵胶管(EPA)Filter with plunger pump hose (EPA)1
20F60-01.07.00.35-EPA总燃油进油管进油长管(EPA)Main fuel inlet pipe inlet long pipe (EPA)1
21GB9074.1 M6*20(8.8)六角头螺栓和平垫组件Hex head bolt and flat washer assembly1
2215F-01.07.01.00燃油管插头组件Fuel pipe plug assembly1
启动系统

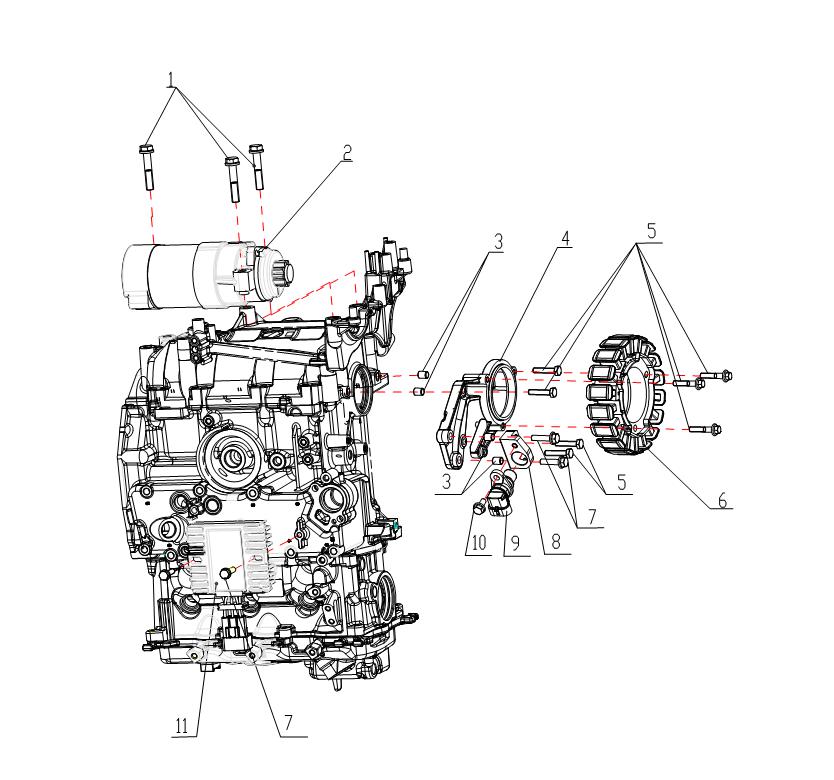

启动系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB9074.1 M8*45(8.8)螺栓和垫圈组合件Bolt and washer assembly3
2F40-01.09.10.01起动电机Starting motor1
3F60-01.09.00.03充电线圈支架定位销套Charging coil bracket positioning pin sleeve4
4F40-01.09.00.02充电线圈支架Charging coil bracket1
5GB9074_1.M6X30.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly7
6F40-01.09.00.04定子线圈Stator coil1
7GB5789 M6*25(10.9)六角法兰面螺栓(铁铬合金)Hexagon flange bolts (iron-chromium alloy)4
8F40-01.02.00.03转速传感器支架Speed sensor bracket1
9F40-01.02.00.02转速传感器Speed sensor1
10GB9074_1.M6X16.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly1
11F60-01.09.00.01调压器Regulator1
电器支架

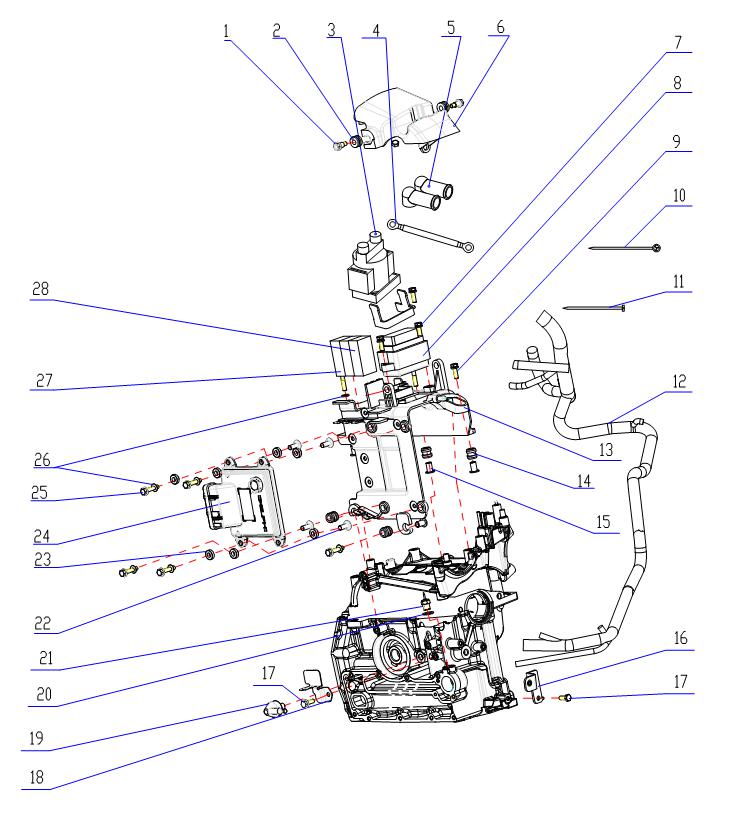

电器支架 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F40-01.07.00.45塑料罩螺栓Plastic cover bolt2
2F60-01.02.00.07减震圈Shock absorber ring3
3DQDF15-00.03.00继电器组件(电起动)（力华）Relay assembly (electric starter) (Lihua)1
440FE-01.03.28起翘继电器正极电源线Lifting relay positive power cord2
5DQDF15-00.03.03橡胶护套ARubber sheath A7
6F40-01.07.00.43继电器塑料罩Relay plastic cover1
7GB9074.1 M6*20(8.8)螺栓和垫圈组合件Bolt and washer assembly2
860FET-01.02.15.00起翘电机继电器组件Lifting motor relay assembly1
9GB9074.1 M6*30(8.8)螺栓和垫圈组合件Bolt and washer assembly6
10F60-01.07.14.03箭头形扎线带Arrow cable tie6
114*150扎带（黑色）Cable tie (black)8
12F40-01.07.00.41总线束布置Bus bundle layout1
NoneF40-01.07.00.46总线束布置（带自锁插件）Bus bundle arrangement (with self-locking plug-in)1
13F40-01.07.07.01总线束底座Bus Bundle Base1
14F40-01.07.03.27减震垫Cushion6
15F60-01.05.02.12衬套bushing6
16F40-01.07.00.05启动罩支架Start cover bracket1
17GB9074.1 M6*16(8.8)螺栓和垫圈组合件Bolt and washer assembly1
18F40-01.07.00.42线束支架Harness bracket1
19F60-01.01.00.26机油压力报警器Oil pressure alarm1
20F25-01.04.00.01垫圈14Washer 141
21F25-01.02.12.00温控传感器Temperature control sensor1
22F60-01.07.00.10ECM金属脚垫ECM metal foot pad4
23F60-01.07.00.09ECM脚垫ECM foot pad8
24F40-01.07.00.08ECMECM1
25GB5789 M6*30 8.8六角法兰面螺栓Hexagon flange bolts4
26GB96 M6平垫6Flat pad 610
27F25EI-01.02.11.00四引脚控制继电器Four-pin control relay2
28F25EI-01.02.12.00五引脚控制继电器Five-pin control relay1
油室

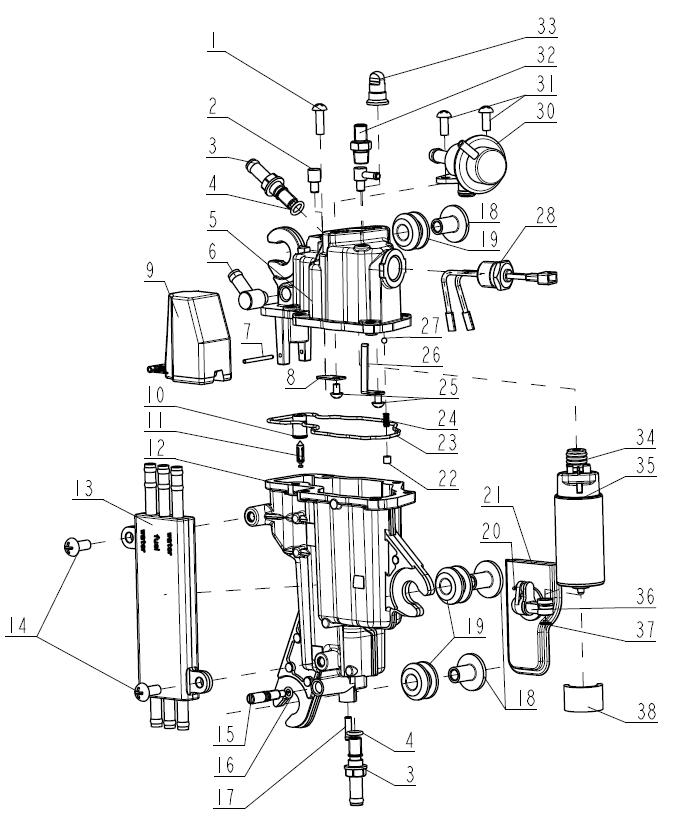

油室 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB818.M5X16十字槽盘头螺钉Cross recessed pan head screws6
2F60-01.07.03.15管接头1Fitting 12
3F60-01.07.03.06管接头3Pipe joint 32
4F60-01.07.03.08管接头3O形圈Pipe coupling 3O ring2
5F40-01.07.03.01上壳体Upper shell1
6F40-01.07.03.06管接头4Fitting 41
7F60-01.07.03.23浮子销Float pin1
8F40-01.07.03.12挡板1Bezel 11
9F40-01.07.03.07浮子组件Float assembly1
10F40-01.07.03.24阀针座Valve seat1
11F60-01.07.03.25阀针Valve needle1
12F40-01.07.03.02下壳体Lower case1
13F60-01.07.06.00冷凝器总成Condenser assembly1
14GB818.M6X15十字槽盘头螺钉Cross recessed pan head screws2
15F60-01.07.03.18放油螺塞Oil drain plug1
16F60-01.07.03.19放油螺塞O形圈Oil drain plug O-ring1
17F60-01.07.03.29油室卸油口Oil chamber discharge port1
18F60-01.07.03.07油室安装垫Oil chamber mounting pad3
19F60-01.07.03.20油室安装垫圈Oil room installation washer3
20GB91 1*12开口销Cotter pin1
21F40-01.07.03.15过滤网Filter1
22F40-01.07.03.18回油口出口Return port outlet1
23F40-01.07.03.11上下壳体密封圈Upper and lower shell seals1
24F40-01.07.03.16回油口弹簧Return port spring1
25GB818 M4*6十字槽盘头螺钉Cross recessed pan head screws2
26F40-01.07.03.13挡板2Bezel 21
27F40-01.07.03.17回油口密封球Oil return port sealing ball1
28F40-01.07.03.21油泵密封连接件Oil pump seal connection1
30F60-01.07.00.19调压阀Pressure regulator1
31GB818 M5*12十字槽盘头螺钉Cross recessed pan head screws2
32F25EI.01.03.06.00排气阀组件Exhaust valve assembly1
33F60-01.07.03.13帽套Cap1
34F40-01.07.03.32腔内燃油泵橡胶套In-cavity fuel pump rubber sleeve1
35F40-01.07.03.03电喷燃油泵EFI fuel pump1
36F40-01.07.03.04过滤网连接塑料Filter connection plastic1
37F60-01.07.03.31腔内燃油泵过滤网卡圈Snap ring of fuel pump filter in cavity1
38F40-01.07.03.27减震垫Cushion1
启动罩

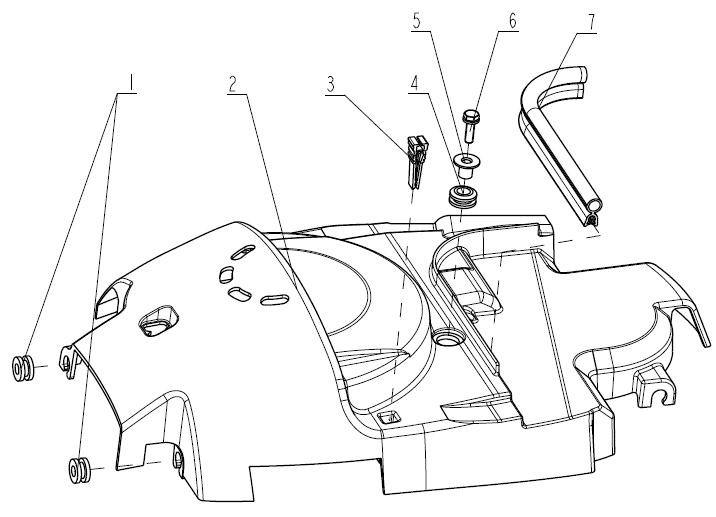

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-01.02.00.07减振圈Damping ring2
2F40-01.08.00.01启动罩Boot hood1
3F40-01.08.00.03塑料夹Plastic clip1
4F60-01.08.10.01减震橡胶垫Shock-absorbing rubber pad1
5F60-01.08.10.02衬套bushing1
6GB9074_1.M6X20.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly1
7F60-01.08.00.02橡胶条Rubber strip1
顶罩

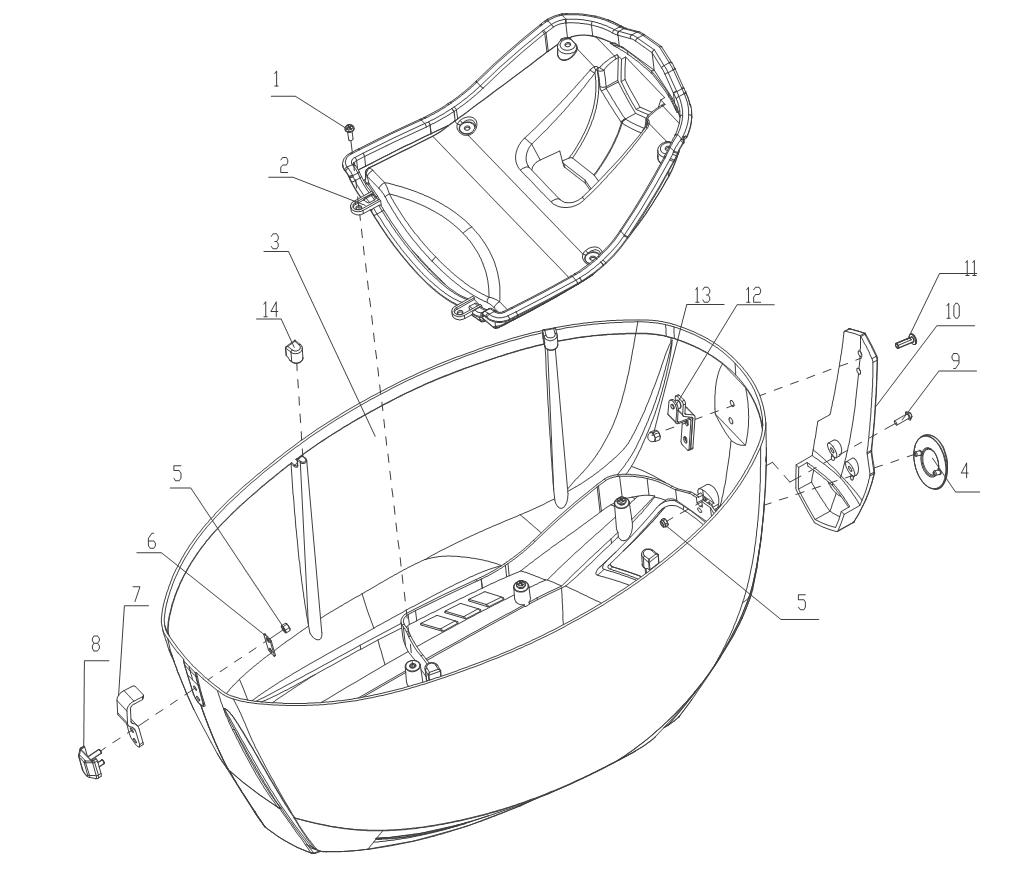

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GBT845.ST4_8X16十字槽盘头自攻螺钉Cross recessed pan head tapping screws6
2F40-07.00.00.02进气口盖组件Air inlet cover assembly1
3F40-07.00.00.01顶罩Top cover1
4F60-07.00.00.05海的logoSea logo1
NoneF60-07.00.00.08空白logoBlank logo1
5DIN985 M5六角尼龙锁紧螺母Hex nylon lock nut4
6F25-07.00.00.05垫板Pad1
7F60-07.01.00.01前锁紧钩Front locking hook1
8F25-07.01.00.00螺栓组件Bolt assembly1
9GB818m5*16十字盘头螺钉M5*16Phillip s pan head screw M5 * 162
10F40-07.00.01.08logo安装板logo mounting plate1
11F60-07.00.00.06盘头螺栓Pan head bolt2
12F25-07.02.00.00后锁紧钩组件Rear locking hook assembly1
13DIN985 M6六角尼龙锁紧螺母Hex nylon lock nut2
14F60-07.00.00.04减震脚Shock absorber foot4
夹紧部分

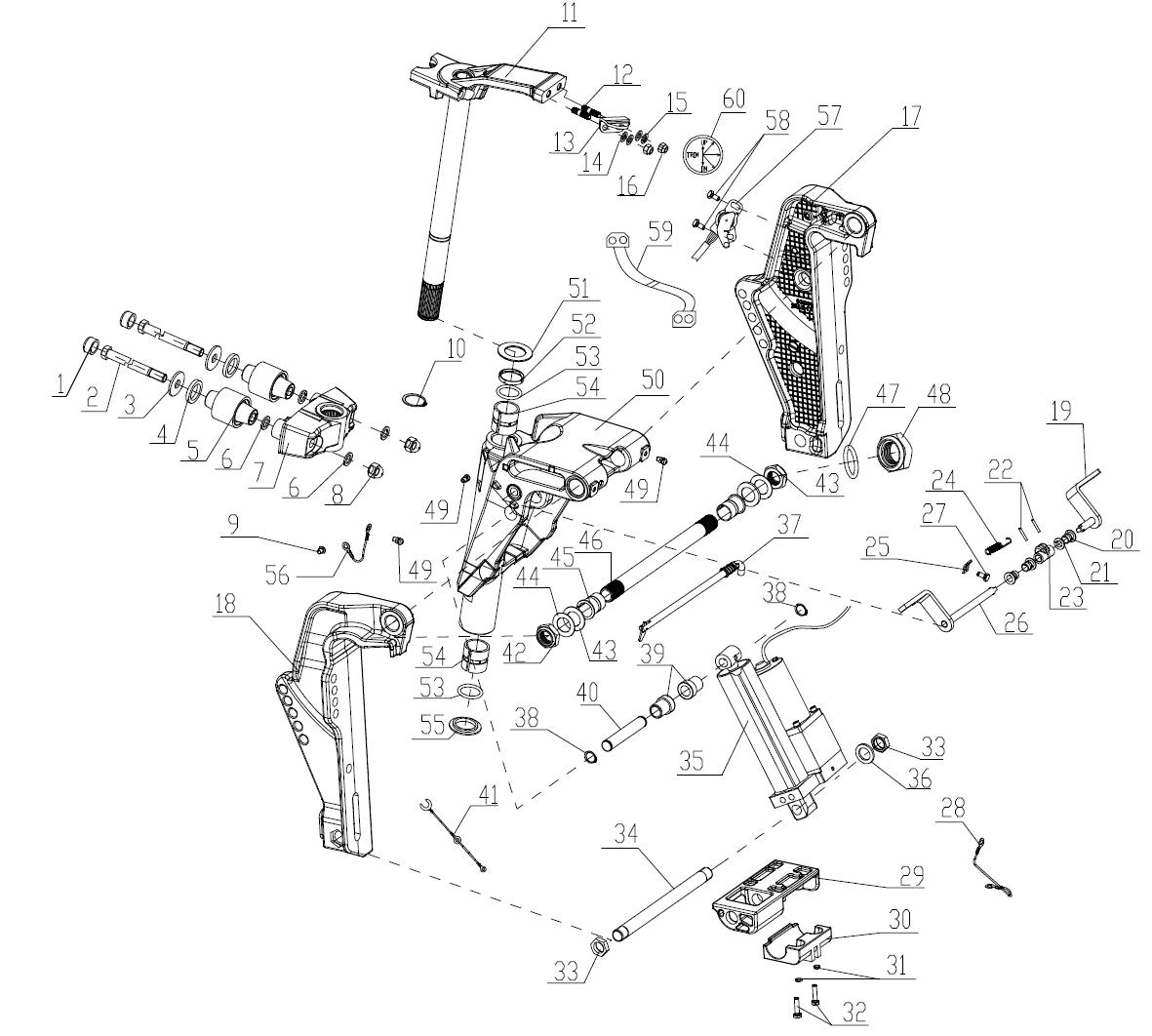

夹紧部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-05.00.00.07橡胶螺套Rubber screw sleeve2
260F-05.00.00.14六角头螺栓M12*1.25*153Hexagon head bolt M12 * 1.25 * 1532
3GB96.M12平垫Flat pad2
460F-05.00.00.13橡胶垫Φ25Rubber pad Φ252
560F-05.00.03.00下减震器组件Lower shock absorber assembly2
6GB848.M12平垫(厚度1.2）Flat pad (thickness 1.2)4
760F-03.00.00.02下减震器连接座Lower shock absorber connector1
8DIN985.M12X1_25六角尼龙锁紧螺母Hex nylon lock nut2
9GB823.M6X8十字槽小盘头螺钉Cross recessed pan head screws1
10GB894_1.30轴用弹性挡圈30Circlip for shaft 301
11F60-04.00.01.01操舵托架Steering bracket1
1240F-04.01.04双头螺柱M10*43Stud M10 * 432
1360FE-03.00.00.24操纵钩Manipulation hook1
14GB97.1平垫10Flat pad 102
15GB93弹垫10Spring pad 102
16DIN985六角尼龙锁紧螺母M10*1.25Hexagonal nylon lock nut M10 * 1.252
后操机型使用F60-04.00.01.10尼龙自锁螺母M10*1.25(S14)Nylon self-locking nut M10 * 1.25 (S14)2
17F60-03.00.01.06右托架Right bracket1
18F60-03.00.01.05左托架Left bracket1
1960F-03.00.06.00倾斜定位档杆-右Tilt positioning lever-right1
2060F-03.00.00.20摇臂衬套Rocker bush3
2160F-03.00.00.21摇臂开口衬套Rocker opening bushing1
22GB879.3X16弹性圆柱销Elastic cylindrical pin2
2360F-03.00.04.00倾斜定位挡杆摇臂组件Rocker arm assembly for tilt positioning1
2460F-03.00.00.19倾斜定位档杆拉簧Tilting positioning lever tension spring1
2560F-03.00.00.18拉簧钩Spring hook1
2660F-03.00.05.00倾斜定位档杆-左Tilt positioning lever-left1
27GB5783.M6X10六角头螺栓Hexagon head bolt1
28F60-03.00.01.02接地线 ⅠGround wire Ⅰ1
2960F-03.00.00.12托架限位块Bracket limit block1
3060F-03.00.00.11阳极anode1
31GB97.1 M6平垫Flat pad2
32GB5783.M6X25六角头螺栓Hexagon head bolt3
3360F-03.00.00.09六角螺母M18*1.5Hex nut M18 * 1.52
3460F-03.00.00.13液压起翘支撑轴下Under hydraulic support shaft1
3560FET-03.00.08.00电动起翘装置Electric lifting device1
3660F-03.00.00.10平垫19*29.5*3Flat pad 19 * 29.5 * 31
3760F-03.00.02.00角度定位销组件Angle positioning pin assembly1
38GB894_1.15轴用弹性挡圈A型15Circlip for shaft A type 152
3960F-03.00.00.30起翘衬套Lifting bush2
4060F-03.00.00.16液压起翘支撑轴上Hydraulic lifting support shaft1
4160F-05.00.02.00接电导线组件Electrical wire assembly1
4215F-03.01夹紧托架螺母Clamp bracket nut2
4315F-03.02尼龙垫圈Nylon washer2
4440F-03.03垫片Gasket2
4540F-03.07.02托架阻尼圈Bracket damping ring2
4640F-03.04夹紧托架双头螺栓Clamp bracket stud1
47HDYK00.00.35.03方向钢索防护套O型圈（16.3*2.3）Directional steel cable protective sleeve O-2
48HDYK00.00.35.02方向钢索防护套Directional steel cable protective cover2
后操机型使用60F-03.00.00.08双头螺柱盖Stud cover2
49JB.T7940.1直通式压注油杯M6Straight-through oil injection cup M63
50F60-03.00.01.01旋转托架Rotating bracket1
5160F-03.00.00.07上衬套垫圈Upper bushing washer1
5260F-03.00.00.06上衬套Upper bushing1
5360F-03.00.00.04O型圈(29*3.8)O-ring (29 * 3.8)2
5460F-03.00.00.05开口衬圈Split ring2
5560F-03.00.00.03下衬圈Underlining1
56F60-03.00.01.03接地线ⅡGround wire Ⅱ1
57F60-03.00.02.00起翘高度传感器Lifting height sensor1
58GB818螺栓M6*14Bolt M6 * 142
59F60-01.09.00.10高度表转接线Altimeter patch cord1
60F60-01.09.00.11起翘高度表Warping altimeter1
水上部分

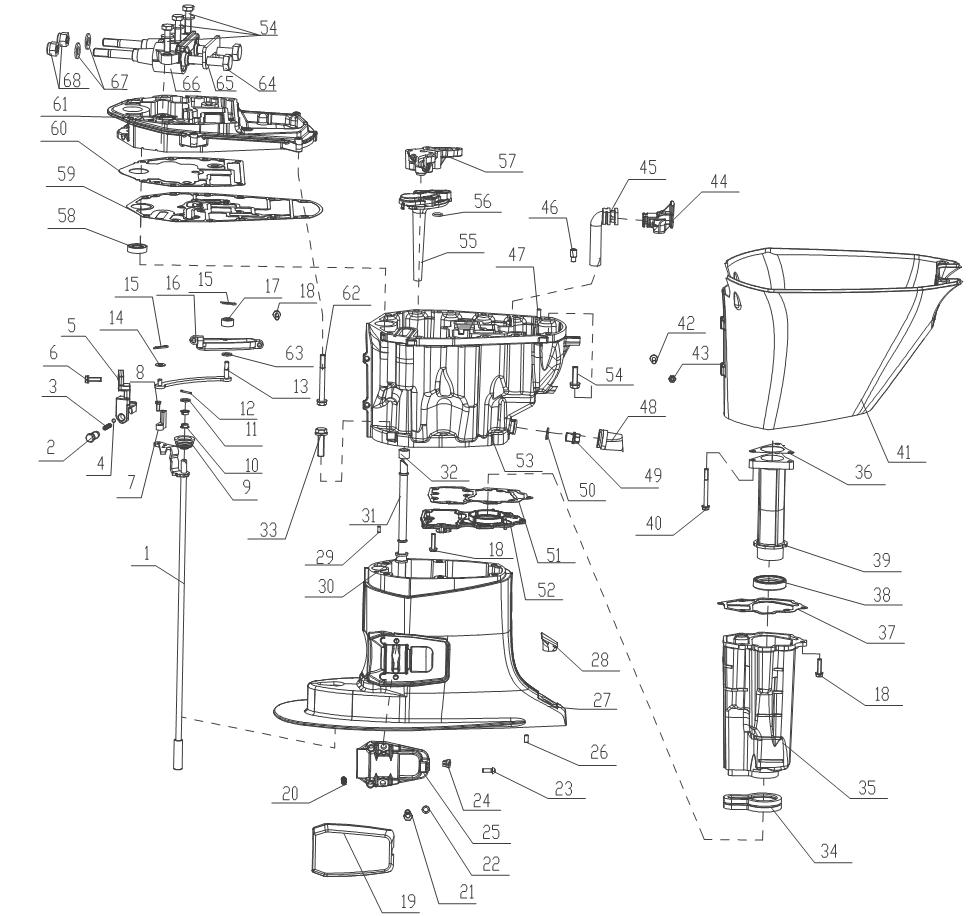

水上部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-04.00.02.02上变档杆组件Upper shift lever assembly1
2F60-04.00.02.06变档机构锁止螺栓Shift mechanism locking bolt1
360F-01.06.00.13压缩弹簧compressed spring1
4F60-04.00.02.15变档凸轮芯杆Shift cam core rod1
5F60-04.00.02.05变档机构支架Gear shift mechanism bracket1
6GB9074_1.M6X20.8_8螺栓和垫圈组合件Bolt and washer assembly3
7F60-04.00.02.12塑料支架1Plastic bracket 11
8GB5783.M5X12六角头螺栓Hexagon head bolt1
9F60-04.00.02.03变档连杆橡胶护套Shift link rubber jacket1
10F60-04.00.02.08衬套bushing2
11F60-04.00.02.14平垫Flat pad1
12GB91.2X16开口销Cotter pin1
13F60-04.00.02.09变档杠杆组合Shift lever combination1
14F60-04.00.02.10平垫Flat pad1
1515F-04.08.05卡簧（大）Circlip (large)2
16F60-04.00.02.11变档槽Gearshift slot1
17F60-04.00.02.13变档块Gearshift1
18GB9074_1.M6X25.8_8螺栓和垫圈组合件Bolt and washer assembly16
1960F-05.00.00.09下减震器盖Lower shock absorber cover2
2060F-05.00.00.12下减震器盖弹簧Lower shock absorber cover spring4
21GB5783.M8X30六角头螺栓Hexagon head bolt4
22GB93.M8弹垫圈Spring washer4
23GB845.ST5_5X16十字槽盘头自攻螺钉Cross recessed pan head tapping screws2
2460F-05.00.00.10塑料螺母Plastic nut2
2560F-05.00.00.11下减震器外壳Lower shock absorber housing2
2615F-01.06.20定位销6*12Positioning pin 6 * 122
27F60-05.00.01.02水上壳体Shell on water1
2860F-00.00.00.03阳极堵塞Anode blockage1
29F9.9.05.00.00.26定位销4*10Positioning pin 4 * 102
3040F-05.00.00.16水管下密封圈Sealing ring under water pipe1
31F40-05.00.03.19上水管Water pipe1
32F60-05.00.03.20上水管密封圈Water pipe sealing ring1
33GB5787.M10X40.8_8.S.13六角法兰面半螺纹螺栓Hexagon flange half-thread bolt6
34F60-05.00.02.06消音器密封垫Silencer gasket1
35F60-05.00.02.04消音器silencer1
36F60-05.00.02.02排气管垫Exhaust pipe pad1
37F60-05.00.02.05消音器垫Silencer pad1
38F60-05.00.02.03排气管密封垫Exhaust pipe gasket1
39F60-05.00.02.01排气管exhaust pipe1
40GB9074_1.M6X65.8_8螺栓和垫圈组合件Bolt and washer assembly3
41F60-05.00.01.01装饰罩Decorative cover1
42GB818.M6X25十字槽盘头螺钉Cross recessed pan head screws2
43GB6170.M6六角螺母Hex nuts2
44F60-05.00.03.18通气连接管2Ventilation connection pipe 21
45F60-05.00.03.17通气连接管1Ventilation connection pipe 11
4615F-01.06.10水管圆接头(排气外盖）Water pipe round joint (exhaust cover)1
4730F.05.02.00.14定位销6*14Positioning pin 6 * 142
48F60-05.00.03.15导流橡胶管Diversion rubber tube1
49F60-05.00.03.16放油螺栓Oil drain bolt1
50F15-05.00.00.09放油螺栓垫圈Oil drain bolt washer1
51F60-05.00.03.06盖板垫片Cover plate gasket1
52F60-05.00.03.07盖板Cover1
53F60-05.00.03.13油底壳Oil pan1
54GB9074_1.M8X30.8_8螺栓和垫圈组合件Bolt and washer assembly7
55F60-05.00.03.08机油过滤器组件Oil filter assembly1
56F60-05.00.03.10机油过滤器组件密封圈Seal ring of oil filter assembly1
57F60-05.00.03.09机油过滤器支架Oil filter bracket1
5860F-01.04.04.03驱动轴上油封(18*32*7)Oil seal on drive shaft (18 * 32 * 7)1
59F60-05.00.03.14油底壳垫片Oil pan gasket1
60F60-05.00.03.05机体底座垫片Body base gasket1
61F60-05.00.03.01机体底座Body base1
62GB9074_1.M8X80.10_9螺栓和垫圈组合件Bolt and washer assembly8
63GB97_1.M8平垫Flat pad1
64F60-04.00.01.04上减震螺栓Upper shock bolt2
65F60-04.00.01.03面板panel1
66F60-04.00.01.02上减震组件Upper damping component1
67GB97_1.M10平垫Flat pad2
68F60-04.00.01.10尼龙自锁螺母M10*1.25(S14)Nylon self-locking nut M10 * 1.25 (S14)2
水下部分

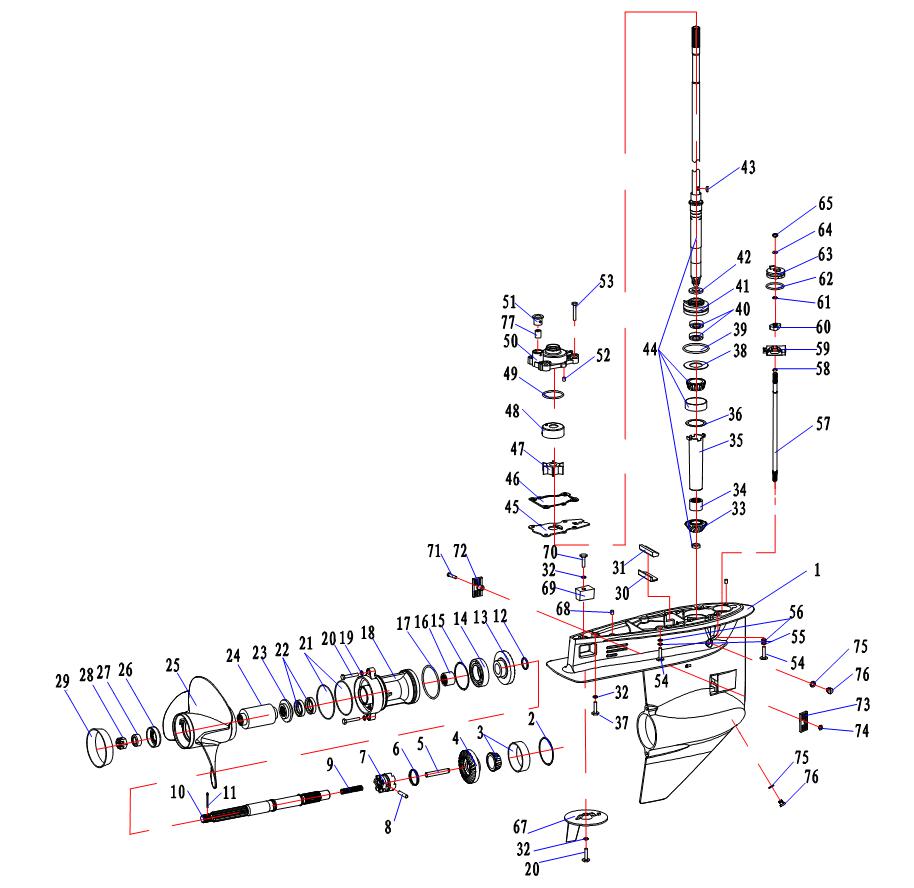

水下部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F40-06.00.00.46水下壳体Underwater shell1
240F-06.01.05正档齿轮填隙片Positive gear gap filler2
340F圆锥滚子轴承322-32Tapered roller bearings 322-321
440F-06.01.04正档齿轮Positive gear1
5F40-06.00.00.28变档柱塞Shift plunger1
640F-06.05.04簧环Circlip1
740F-06.05.02离合器clutch1
840F-06.05.03离合器销Clutch pin1
940F-06.05.06压缩弹簧compressed spring1
10F40-06.00.00.34螺旋桨轴Propeller shaft1
11GB91开口销3.2*25Cotter pin 3.2 * 251
1240F-06.05.07垫圈washer1
1340F-06.04.02倒档齿轮Reverse gear1
1440F深沟球轴承6007C4Deep groove ball bearings 6007C41
1540F-06.04.03倒挡填隙片Reverse shim1
1640F滚针轴承2220Needle bearing 22201
1740F-06.04.06壳体盖O型圈（粗）O-ring (thick)1
1840F-06.04.01水下壳体盖Underwater shell cover1
19GB97.1平垫8Flat pad 82
20GB5783六角螺栓M8*25Hex bolt M8 * 253
2140F-06.04.05壳体盖O型圈（细）（74*1.6）Shell cover O-ring (thin) (74 * 1.6)2
2240F-06.04.04壳体盖油封（22*36*7）Shell cover oil seal (22 * 36 * 7)2
2340F-06.02.03螺旋桨垫块Propeller block1
2440F-06.03.00螺旋桨内花键组件Propeller internal spline assembly1
2540F-06.02.01螺旋桨(11-1/8*13)Propeller (11-1 / 8 * 13)1
None40F-06.02.00.00螺旋桨组件(11-1/8*13)Propeller Assy.1
2640F-06.02.04盖板Cover1
2740F-06.02.05压板Pressure plate1
2840F-06.02.07开槽六角螺母Slotted hexagon nuts1
2940F-06.02.02喇叭口Bell mouth1
3040F-06.01.09密封条sealing strip1
3140F-06.01.10密封条压板Sealing plate1
32GB93弹垫M8Spring pad M83
3340F-06.01.12小齿轮gear1
3440F滚针轴承D-1416Needle bearing D-14161
3540F-06.01.06尼龙衬圈Nylon bushing1
3640F-06.01.11.03小齿轮填隙片Pinion shim2
37GB5783六角头螺栓M8*65Hex head bolt M8 * 651
3840F-06.07.04大垫圈Large washer1
3940F-06.07.03油封壳体O型圈(48*3.1)Oil seal housing O-ring (48 * 3.1)1
4040F-06.04.04壳体盖油封(22*36*7)Shell cover oil seal (22 * 36 * 7)2
4140F-06.07.01水泵油封壳体Water pump oil seal housing1
42F40-06.00.00.02橡胶衬圈Rubber bushing1
4340F-06.09.02半圆键Semicircular key1
44F40-06.00.00.01驱动轴Drive shaft1
45F40-06.00.00.10水泵垫板Pump pad1
46F40-06.08.00.08密封垫Seal1
47F40-06.00.01.00水泵叶轮组件Water pump impeller assembly1
48F40-06.08.00.02水泵内壳Water pump inner shell1
4940F-06.08.03水泵O型圈(59*2.6)Pump O-ring (59 * 2.6)1
50F40-06.00.00.06水泵壳体Water pump housing1
51F40-06.08.00.06水管下密封圈Sealing ring under water pipe1
5240F-06.08.04水泵壳体定位销4*8Water pump housing positioning pin 4 * 82
53GB5783六角头螺栓M8*30Hex head bolt M8 * 304
54GB5787 M10*40（9.8）(S13)六角法兰面半螺纹螺栓Hexagon flange half-thread bolt4
55GB93弹垫10Spring pad 104
56GB848平垫10Flat pad 104
57F40-06.00.00.17下换档连杆Downshift link1
5860F-06.00.00.18弹性挡圈Circlip1
59F40-06.00.00.26变档凸轮座Gear shift cam seat1
6060F-06.00.00.25变档凸轮Shift cam1
61GB896 8开口挡圈8Open ring 81
6240F-06.06.05固定板O型圈（大）Fixed plate O-ring (large)1
63F40-06.00.00.14下换档连杆座Lower shift connecting rod seat1
64GB/T3452.1（F40）变档杆O型密封圈(8.75*2.65)2062606002A1
6560F-06.00.00.19下换档连杆O型圈(6.5*19)Lower shift connecting rod O-ring (6.5 * 19)1
66F40-06.00.00.27橡胶圈rubber band1
6740F-06.01.07航向调整片Heading adjustment film1
6815F-01.06.20定位销6*12Positioning pin 6 * 122
6940F-06.01.08水下阳极Underwater anode1
70GB5783六角头螺栓M8*35Hex head bolt M8 * 351
71GB820十字槽半沉头螺钉M5*30Cross recessed countersunk head screws M5 * 301
7240F-06.01.02进水口盖AWater inlet cover A1
7340F-06.01.03进水口盖BWater inlet cover B1
74GB6170六角螺母M5Hex nut M51
7515F-06.01.04螺塞密封垫Plug seal2
7615F-06.01.03注油口螺塞Oil filler plug2
None前操电起翘
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞Oil filler plug2
2DPR6EB-9(F25)火花塞(新)Spark plug (new)2
3GB96 M12平垫Flat pad4
4GB97.1 M6平垫Flat pad1
5GB97.1 M12平垫Flat pad4
6GB91 2*12开口销Cotter pin1
7GB91 3.2*25开口销Cotter pin1
8M12*1.25*110(9.8)六角头螺栓（螺纹60mm）Hexagon head bolt (thread 60mm)4
960F-06.00.01.00水泵叶轮组件Water pump impeller assembly1
1015F-08.00.00燃油箱总成(24L)Fuel tank assembly (24L)1
1115F-06.01.04螺塞密封垫Plug seal2
12GB6170(10) M12*1.25飞轮螺母（铁铬合金，对边18）Flywheel nut (iron-chromium alloy, opposite side 18)8
1315F-08.01.06.00燃油管单向阀组件Fuel pipe check valve assembly1
14F15-09.00工具包Toolkit1
15保修保养手册(仅国内客户用)manual (only for domestic customers)1
16HDYK00.10.04六角螺栓3/8-24Hex bolt 3 / 8-241
17HDYK00.10.05六角薄螺母3/8-24Hexagon thin nuts 3 / 8-241
18HDYK00.10.07尼龙锁紧螺母3/8-24Nylon lock nut 3 / 8-242
1960FE-03.00.00.26操纵钩垫管Manipulation hook pad tube1
20F25EI-01.02.11.00四引脚控制继电器Four-pin control relay1
21F25EI-01.02.12.00五引脚控制继电器Five-pin control relay1
22GB820 M6*90十字槽半沉头螺钉Cross recessed countersunk headscrews3
23GB6170 M6六角螺母Hex nuts3
24GB97.1 M10平垫Flat pad2
25GB5287 M6平垫Flat pad3
26HDYK00.00.24钢索调节装置ASteel cable adjusting device A2
27HDYK00.00.25钢索调节装置BCable adjustment device B2
28HDYK00.00.32遥控器固定板Remote control fixing plate1
2960FE-03.00.00.25操纵杆Joystick1
30HDYK00.06.00遥控钢索组件(5.5M)Remote cable assembly (5.5M)2
31HA100船用仪表Marine instrument (1
32F60-01.09.00.08仪表转接线（6米）meters)1
337.5A保险丝（电喷用）（褐色）Fuse (for EFI) (brown)1
3410A保险丝（电喷用）（红色）Fuse (for EFI) (red)1
3515A保险丝（电喷用）（蓝色）Fuse (for EFI) (blue)1
3630A保险丝（电喷用）（绿色）Fuse (for EFI) (green)1
37F60-01.07.01.11油水分离器组件Oil-water separator assembly1
38F60-01.09.00.10高度表转接线Altimeter patch cord1
39F60-01.09.00.11起翘高度表Warping altimeter1
40HDYK00.00.00.00（40FFE-T）遥控盒总成Remote control box assembly1
None后操电起翘
REF NOPART CODEDISCRIPTION(CN)DISCRIPTION(EN)QTY
115F-06.01.03注油口螺塞Oil filler plug2
2DPR6EB-9(F25)火花塞(新)Spark plug (new)2
3GB93 M10弹垫圈Spring washer4
4GB96 M12平垫Flat pad4
5GB97.1 M6平垫Flat pad1
6GB97.1 M10平垫Flat pad4
7GB97.1 M12平垫Flat pad4
8GB91 2*12开口销Cotter pin1
9GB91 3.2*25开口销Cotter pin1
10M12*1.25*110(9.8)六角头螺栓（螺纹60mm）Hexagon head bolt (thread 60mm)4
1160F-06.00.01.00水泵叶轮组件Water pump impeller assembly1
1215F-08.00.00燃油箱总成(24L)Fuel tank assembly (24L)1
1315F-06.01.04螺塞密封垫Plug seal2
14GB6170(10) M12*1.25飞轮螺母（铁铬合金，对边18）Flywheel nut (iron-chromium alloy, opposite side 18)8
1515F-08.01.06.00燃油管单向阀组件Fuel pipe check valve assembly1
16F15-09.00工具包Toolkit1
17保修保养手册(仅国内客户用)manual (only for domestic customers)1
18F25EI-01.02.11.00四引脚控制继电器Four-pin control relay1
19F25EI-01.02.12.00五引脚控制继电器Five-pin control relay1
20F60-04.00.01.10尼龙自锁螺母M10*1.25(S14)Nylon self-locking nut M10 * 1.25 (S14)4
217.5A保险丝（电喷用）（褐色）Fuse (for EFI) (brown)1
2210A保险丝（电喷用）（红色）Fuse (for EFI) (red)1
2315A保险丝（电喷用）（蓝色）Fuse (for EFI) (blue)1
2430A保险丝（电喷用）（绿色）Fuse (for EFI) (green)1
25F60-01.07.01.11油水分离器组件Oil-water separator assembly1
26F60-04.00.03.00操舵手柄部件Steering handle parts1
操舵手柄

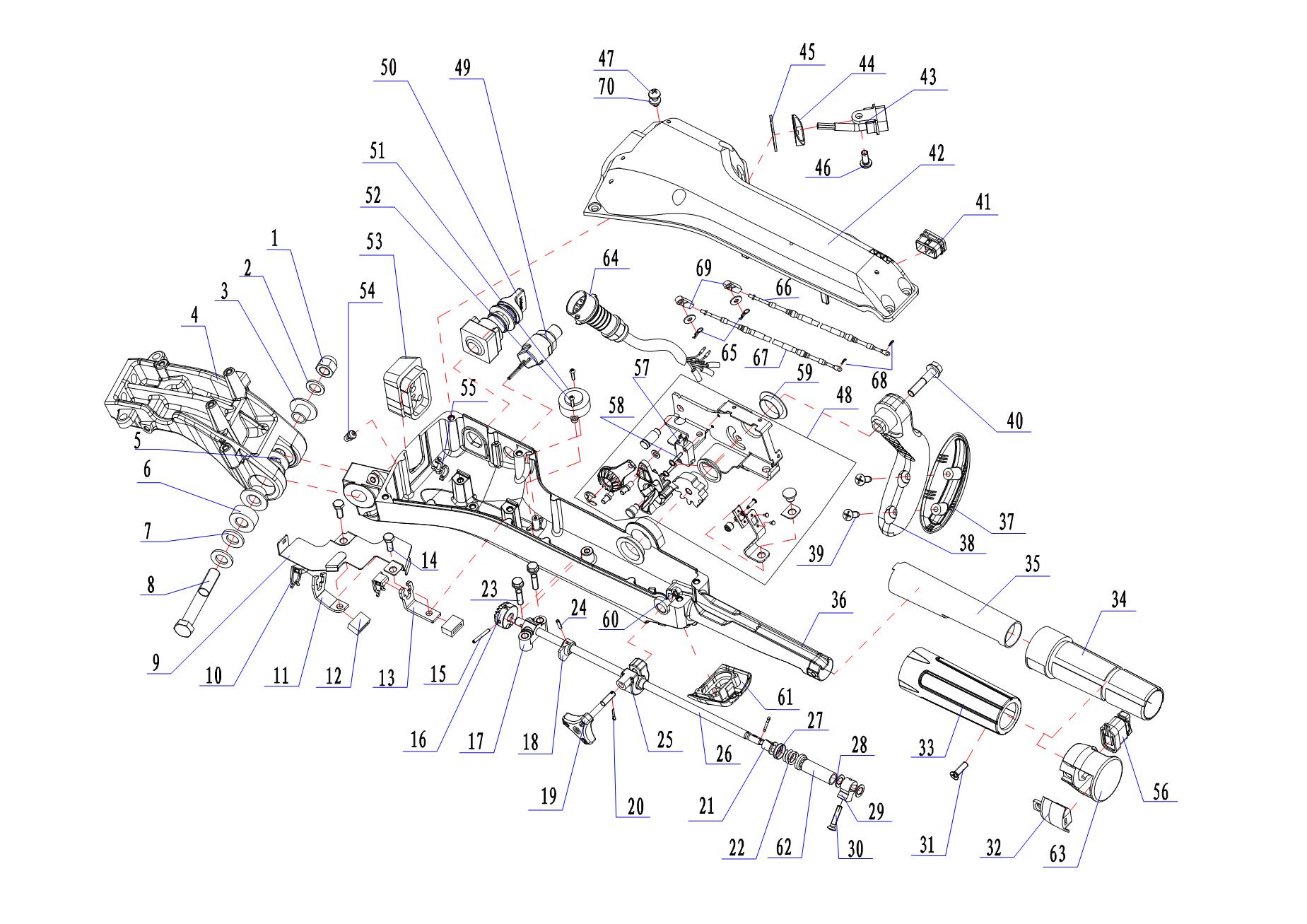

操舵手柄 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1DIN985 M12*1.25六角尼龙锁紧螺母Hex nylon lock nut1
2GB848 M12小垫圈Small washer1
3F60-04.00.03.07塑料衬套Plastic bushing2
4F60-04.00.03.06连接支架Connection bracket1
5F60-04.00.03.10薄垫片Thin gasket2
6F60-04.00.03.08厚垫块Thick pad1
7GB97_1.M12平垫圈Flat Washers2
8GB5785 M12X1.25X80六角头螺栓-细牙Hexagon head bolts-fine teeth1
9F60-04.00.03.13线束盖支架Harness cover bracket1
10F9.9E-02.00.00.02拉线杆塑料卡扣Drawbar plastic buckle2
11F60-04.00.03.16变档拉线杆支架Shift cable support1
12F60-04.00.03.15橡胶套Rubber sleeve2
13F60-04.00.03.14油门拉线杆支架Throttle cable support1
14GB9074_1 M6X16.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
15GB879 3*20弹性圆柱销Elastic cylindrical pin1
16F60-04.00.03.21油门拉线杆主动齿轮Throttle cable driving gear1
17F60-04.00.03.22齿轮限位支架Gear limit bracket1
18F60-04.00.03.23变档限位块Shift limit block1
19F60-04.00.03.26油门拉线杆松紧螺栓Throttle tension rod elastic bolt1
20GB91 2*12开口销Cotter pin2
2115F-04.07.12衬套bushing1
22F60-04.00.03.29弹簧spring1
23GB9074.1 M6*30(8.8)六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
24GB879 3*14弹性圆柱销Elastic cylindrical pin1
25F60-04.00.03.25油门拉线杆松紧块Throttle tension rod elastic block1
26F60-04.00.03.24油门拉线杆Throttle pull rod1
27F60-04.00.03.28弹簧挡圈Spring retaining ring2
28F60-04.00.03.46挡圈Retaining ring2
29F60-04.00.03.30油门转动块Throttle turning block1
30GB820 M5X25十字槽半沉头螺钉Cross recessed countersunk head screws1
31GB819 M6X20十字槽沉头螺钉Cross recessed countersunk head screws1
32F60-04.00.03.78塑料压板Plastic pressure plate1
33F60-04.00.03.33橡胶手柄Rubber handle1
34F60-04.00.03.32把手外衬套Handle outer bushing1
35F60-04.00.03.31把手内衬套Handle bush1
36F60-04.00.03.01操舵手柄Steering handle1
37F60-04.00.03.42换挡手柄塑料盖Shift handle plastic cover1
38F60-04.00.03.41换挡手柄Shift lever1
39GB847-6_3*19十字槽半沉头自攻螺钉F型Cross recessed countersunk head tapping screws type F2
40GB9074_14.M8X40六角头螺栓与平垫组合Combination of hexagon head bolt and flat1
41F60-04.00.03.05塑料罩堵头Plastic cover plug1
42F60-04.00.03.04塑料罩Plastic cover1
43F60-04.00.03.72报警指示灯Alarm indicator1
44F60-04.00.03.52斜减震垫Oblique cushion1
45F60-04.00.03.51减震垫Cushion1
46GB845 ST6.3X16十字槽盘头自攻螺钉F型Cross recessed pan head tapping screws type1
47GB818 M6*16十字槽盘头螺钉Cross recessed pan head screws6
48F60-04.00.03.60换档传动组Shift transmission group1
49HDYK00.03.00急停开关总成Emergency stop switch assembly1
50F60-04.00.03.93启动开关总成Start switch assembly1
51F60-04.00.03.76蜂鸣器buzzer1
52GB818.M3X8十字槽盘头螺钉Cross recessed pan head screws2
53F60-04.00.03.03橡胶块Rubber block1
54JB.T7940.1油杯Oil Cup1
55F60-04.00.03.18拉线杆两口卡扣Two snaps of cable rod1
56DQQ-00.09.07电起跷遥控盒开关Electric rocker remote control box switch1
57F60-04.00.03.59怠速启动开关总成Idle start switch assembly1
58GB9074_1 M3X14十字槽盘头螺钉Cross recessed pan head screws2
59F60-04.00.03.44衬套bushing2
60GB6170.M6六角螺母Hex nuts1
61F60-04.00.03.56转速调节开关外壳Speed adjustment switch housing1
62F60-04.00.03.45轴套Bushing1
63F60-04.00.03.79电起跷遥控盒开关外壳Switch box for remote control box1
64F60-04.00.03.77十芯插座线束（1m）Ten core socket harness (1m)1
6515F-01.03.11卡簧（小）Circlip (small)2
66F60-04.00.03.57油门钢索组件Throttle cable assembly1
67F60-04.00.03.58换挡钢索组件Shift cable assembly1
68GB91 2*12开口销Cotter pin2
69HDYK00.00.24钢索调节装置ASteel cable adjusting device A2
70GB97.1 M6平垫 6Flat pad 66
遥控盒

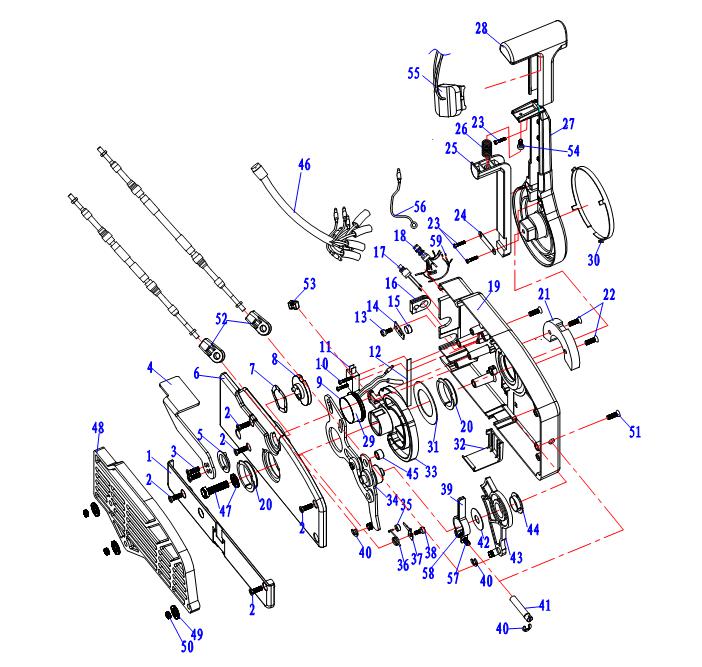

遥控盒 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1HDYK00.00.01小盖板Small cover1
2GB819 M5*16十字槽沉头螺钉Cross recessed countersunk head screws5
3GB819 M5*12十字槽沉头螺钉Cross recessed countersunk head screws2
4HDYK00.00.02怠速锁紧手柄Idle locking handle1
5HDYK00.00.04减磨圈Antifriction ring1
6HDYK00.00.31大盖板Large cover1
7HDYK00.00.03波型垫圈Wave washer1
8HDYK00.01.00手柄锁紧轮组件Handle locking wheel assembly1
9HDYK00.02.01蜂鸣器buzzer1
10GB818 M3*14十字槽盘头螺钉Cross recessed pan head screws1
11HDYK00.05.00怠速启动开关Idle start switch1
12HDYK00.00.10弹性钢板Elastic steel plate5
13GB818 M4*6十字槽盘头螺钉Cross recessed pan head screws1
14HDYK00.00.09压板Pressure plate1
15HDYK00.00.11档位限位柱Gear limit post1
16HDYK00.00.12线束密封圈Harness sealing ring1
17HDYK00.03.00急停开关总成Emergency stop switch assembly1
18HDYK00.04.00启动开关总成Start switch assembly1
19HDYK00.00.08遥控盒(外壳)Remote control box (housing)1
20HDYK00.00.16档位座减磨圈Gear seat anti-friction ring2
21HDYK00.00.20手柄限位器Handle limiter1
22GB818 M5*16十字槽盘头螺钉Cross recessed pan head screws2
23GB818 M4*10十字槽盘头螺钉Cross recessed pan head screws3
24HDYK00.09.05锁紧手柄压板Locking handle pressure plate1
25HDYK00.09.04手柄锁紧开关Handle lock switch1
26HDYK00.09.06弹簧spring1
27HDYK00.09.01手柄座Handle seat1
28HDYK00.09.03手柄handle1
29HDYK00.02.02峰鸣器护套Peak Sounder Sheath1
30HDYK00.09.02手柄座装饰圈Handle seat decoration ring1
31HDYK00.00.15档位座减磨垫Gear seat anti-friction pad1
32HDYK00.00.26盒盖连接件Cover connector1
33HDYK00.00.14档位座Gear seat1
34HDYK00.07.00油门控制装置总成Throttle control device assembly1
35HDYK00.00.06导轮Guide wheel1
36HDYK00.00.07弹簧spring1
37HDYK00.00.05导轮压板Guide wheel pressure plate1
38GB818 M4*6十字槽盘头螺钉Cross recessed pan head screws1
39HDYK00.08.01锁紧夹箍Locking clamp1
40GB896 6开口挡圈(不锈钢/厚度1)Opening ring (stainless steel / thickness 1)1
41HDYK00.08.02调节螺钉Adjusting screw1
42HDYK00.00.19档位控制器减磨垫Gear controller anti-friction pad1
43HDYK00.00.17档位控制器Gear controller1
44HDYK00.00.13油门控制器减磨片Throttle controller anti-friction film1
45HDYK00.07.10导轮Guide wheel1
46DQQ-00.00.07.00-L十芯插座线束（5M）Ten core socket harness (5M)1
47GB9074.1 M8*30(8.8)六角头螺栓和平垫组件Hex head bolt and flat washer assembly1
48HDYK00.00.32遥控器固定板Remote control fixing plate1
49GB5287 M6平垫Flat pad3
50GB6170 M6六角螺母Hex nuts3
51GB820 M6*90十字槽半沉头螺钉Cross recessed countersunk head screws3
52HDYK00.00.25钢索调节装置BCable adjustment device B2
53HDYK00.00.27线索密封座Lead seal seat1
54GB818 M5*10十字槽盘头螺钉Cross recessed pan head screws1
55DQQ-00.09.07电起翘遥控盒开关Electric lifting remote control box switch1
56HDYK00.05.01电启动怠速线Electric start idle line1
57GB5783 M5*25六角头螺栓Hexagon head bolt2
58GB6170 M5六角螺母Hex nuts2
59F9.9-01.04.00.05连杆帽Connecting rod cap2
