舟一会 ZHOUYIHUI 船外机

海的 F15 - F15FEL(S)

共 12 个部位，点击零件编码查看详情，或搜索本页零件。

顶罩

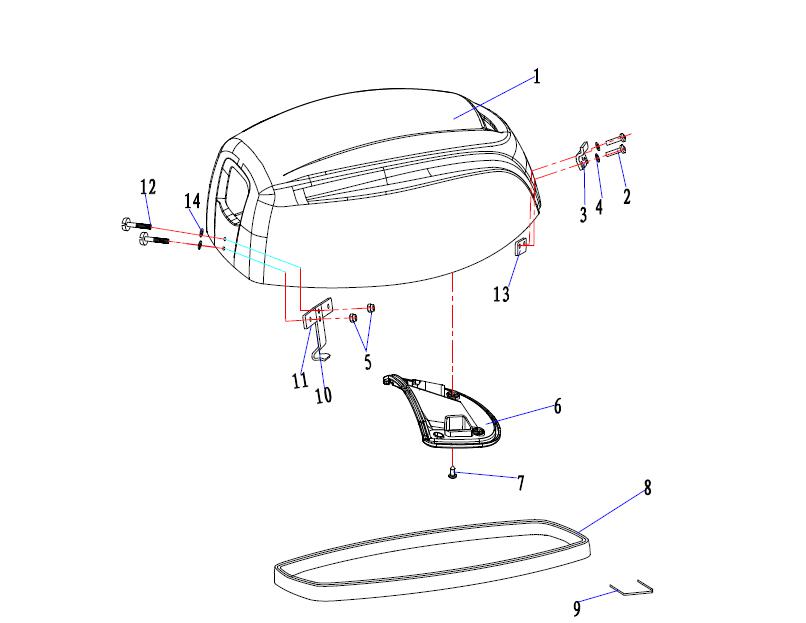

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15顶罩(共展）顶罩(共展）Top cowling1
2GB818十字槽盘头螺钉M4*12Pan head screw with cross recess2
3F6-07.00.00.04顶罩后锁紧钩Rear lock hook1
4GB97.1平垫4Flat gasket2
5DIN985六角尼龙锁紧螺母M4Bolt2
6F15进气口盖Air inlet cap1
7GB845十字槽盘头自攻螺钉ST4.8*13Screw ST4.8*134
8F15-07.00.00.03橡胶密封圈（长1.5M)Rubber seal ring1
915F-07.07圆形装帧钉1.2Bingding nail20
10F15-07.00.00.06前锁紧钩Lock Hook(front)1
11F9.9-07.09前锁紧钩座front lock hook seat1
12GB818十字槽盘头螺钉M4*16Pan head bolt with cross recess2
132.5F-02.00.00.10锁紧钩固定板Plate1
14GB96平垫M4Flat gasket 42
启动罩

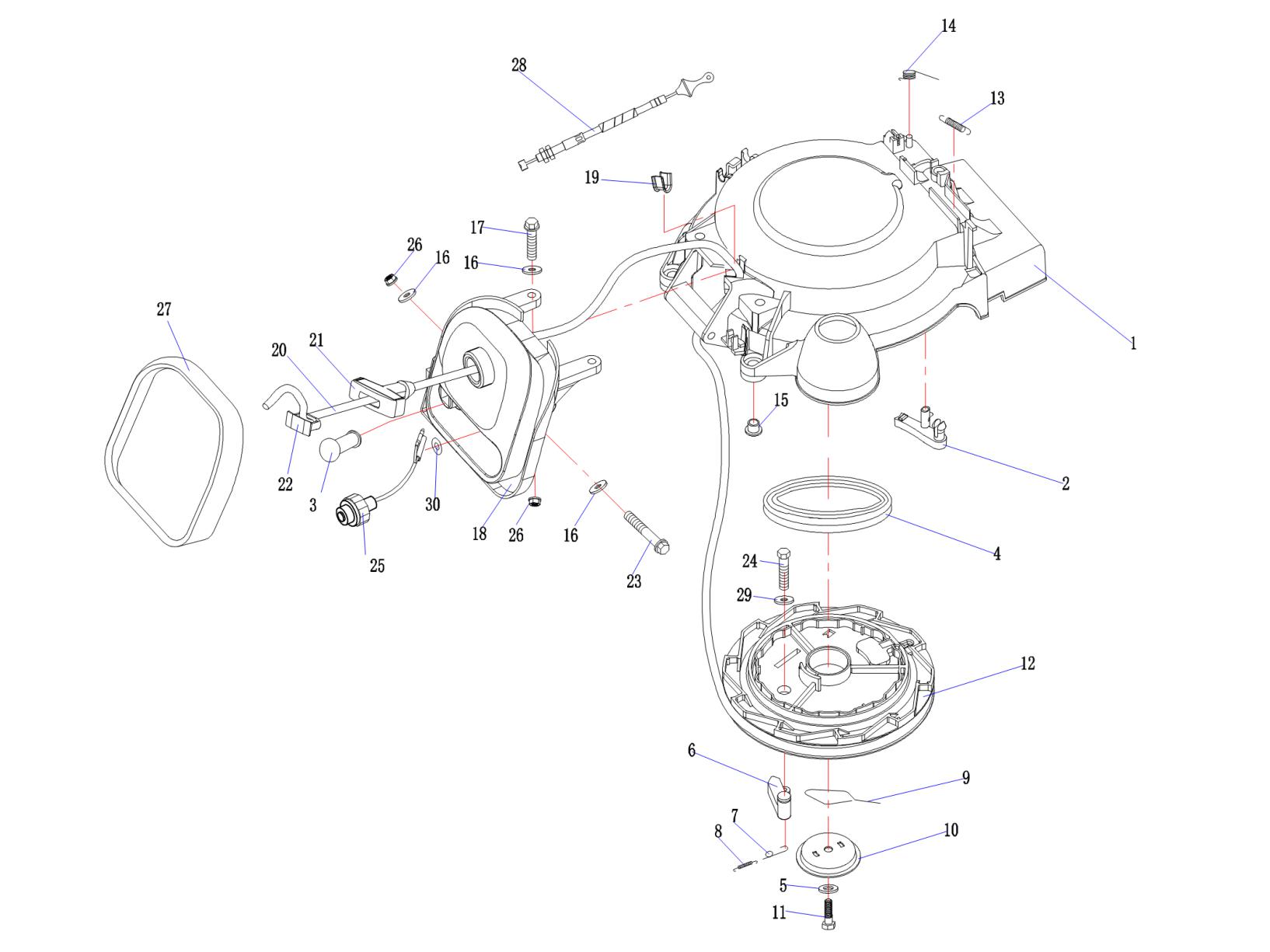

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.07.00.01启动罩外壳Casing,Starter cover assy.1
2F15-01.07.00.02制动器Brake166T-15794-00
3F15-01.07.00.06阻风门堵塞Plug,choke1
415F-01.01.11涡形弹簧Volute spring163V-15713-00
5GB848平垫6Flat gasket1
6F25-01.01.00.02驱动臂Drive arm163V-15741-00
715F-01.01.18驱动臂弹簧Spring,drive arm163V-15767-01
815F-01.01.17回位弹簧Return spring163V-15784-01
915F-01.01.20压板夹簧Clip spring163V-15705-01
1015F-01.01.19启动压板Starter plate163V-15716-00
11GB5783(8.8)六角头螺栓M6*16Bolt1
12F15-01.01.05启动轮Start wheel1
13F15-01.07.00.05钢索拉簧Spring166T-15731-00
14F15-01.07.00.03制动器扭簧Torsional spring,brake166T-15734-00
15F15-01.07.00.08启动罩垫管Cushion tube,recoil starter3
16GB96平垫6Flat gasket4
17GB5783六角头螺栓M6*30Bolt2
18F15-01.07.01.00启动手柄托架组件Brackt comp.,starter handle1
19F9.9-01.07.00.06U型滑套U-type sliding bush1
2015F-01.01.22启动绳5*2000mmStart rope1
2115F-01.01.08启动手柄Starter handle1
2215F-01.01.10手柄盖(启动)Cover,Starter handle1
23GB5783六角头螺栓M6*85Hexagonal bolt M6*851
24GB818十字槽盘头螺钉M5*14Pan head bolt with cross recess1
25F15-01.06.01.00机油报警指示灯组件light,oil alarm168T-85410-00-00
26DIN985六角尼龙锁紧螺母M6hexagon nylon lock nut3
27F15-01.07.00.07托架减震套Damper,bracket1
28F15-01.07.00.04制动钢索Steel cable,brake166M-15770-00-00
29GB96平垫5Flat gasket1
3015F-03.09.13杠杆垫washer1
动力分解图

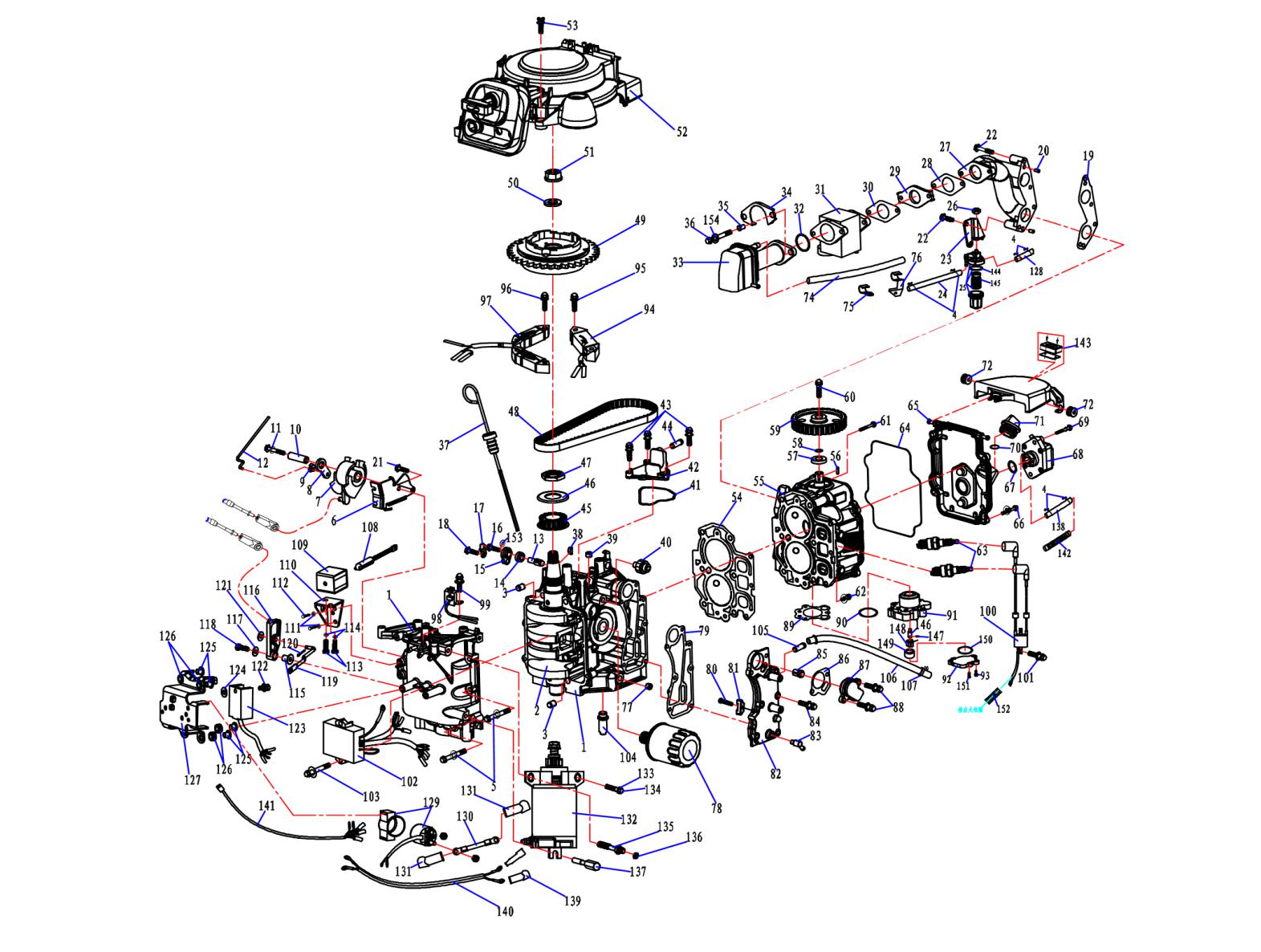

动力分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.01.00.01箱体组件Crankcase comp. (with crankcase cover)166M-15100-02-1S
2F15-01.02.00.00曲柄连杆组件Crank connection road assy.1
3F15-01.01.00.18空心定位销Dowel pin2
4管夹10Clamp6
5GB/T9074.1 M6X35 （10.9螺栓和垫圈组合件M6X35Hexagonal bolt & flat gasket assy M6*356
6F15-01.01.00.20油门钢索端轮支座seat,throttle cable cam165W-14497-01-00
7F15-01.01.00.22油门钢索端轮Pulley165W-41638-00-00
8F15-01.01.00.23油门连接块Connecting block,throttle165W-41283-00-00
915F-01.02.07阻风门连杆接头choke rod connector1309-03173-0
10F15-01.01.00.21衬套Bushing190387-06064-00
11GB/T9074.1 （8.8）螺栓和垫圈组合件M6X55Flat gasket&bolts1
12F15-01.01.00.25油门连杆Throttle lever166M-41211-00-00
13F15-01.01.00.03机体阳极Anode166M-11325-00-00
14F15-01.01.00.04水封Stop collar,drive pully166M-11328-00-00
15F15-01.01.00.05压紧块Pressing strip166M-11327-00-94
16GB5783六角头螺栓M5*12Hexagon headed bolt M5*121
17F15-01.01.00.06传导片Conductive slice166M-12535-00-00
18GB/T9074.1螺栓和垫圈组合件M6X20Flat gasket&Bolt1
19F15-01.03.00.28进气歧管密封垫Air intake manifold gasket166M-13645-00-00
2015F-01.06.20定位销6*12Dowel pin2
21GB9074.1 M6*12(8.8)六角头螺栓M6*12Bolt11
22GB/T9074.1 （8.8）螺栓和垫圈组合件M6X40Bolt4
23F15-01.03.00.31燃油滤清器固定架Holder,fuel filter1
24F15-01.04.00.01燃油管5*10*505Fuel hose190445-10M93-00
2515F-01.07.05.05燃油滤清器（外壳）Inner cover,exhaust161N-24560-00
26GB6170六角螺母M8Bolt nut1
27F15-01.03.00.30进气歧管Air intake manifold1
28F15-01.03.00.32化油器密封垫Carburetor Seal gasket166M-13646-00-00
29F15-01.03.00.33隔热板heatproof Plate166M-14271-00-00
30F15-01.03.00.32化油器密封垫Carburetor Seal gasket166M-13646-00-00
31DQDF15-00.00.03化油器组件Carburetor Assy.166M-14301-12-00
32F15-01.03.04.04O形密封圈(34.3*2)Seal O-ring193210-35M86-00
33F15-01.03.04.00进气消音器组件Air intake silencer Assy.166M-12170-00-00
34F15-01.03.00.34进气消音器夹紧板Clamp plate,Air intake silencer166M-14477-00-00
35F15-01.03.00.43垫管Cushion tube290387-06119-00
36GB5783六角头螺栓M6*100Bolt290119-06M76-00
37F15-Ⅱ-01.03.00油标尺(天然气)oil dip stick comp.166M-15362-00-00
38F15-01.02.00.02飞轮半圆键Woodruff key190280-05013-00
39F15-01.01.00.07堵塞1/8Plug1
40F15-01.01.00.26机油压力报警器Oil pressure alarm162Y-82504-10-00
41F15-01.01.02.03密封条sealing strip166M-11357-00-00
42F15-01.01.02.01呼吸器本体breather1
43GB9074.1螺栓和垫圈组合件M6*20(8.8Flat gasket&Bolt3
44F15-01.01.02.02进油嘴Oil inlet1
45F15-01.02.00.03主动带轮drive pully166M-11536-10-00
46F15-01.02.00.04主动带轮挡圈Stop collar,drive pully166M-11557-00-00
47F15-01.02.00.05六角螺母Nut190170-28M37-00
48F15-01.03.00.25同步带belt166M-46241-00-00
49DQDF15-00.00.04飞轮（电启动）needle valve1
50GB/T 97.1平垫圈 16Flat gasket M16190201-16M44
51F15-01.06.00.06飞轮螺母（法兰面Fly wheel nut1334-00132-0
52F15-01.07.00.00起动罩组件对边 )Recoil Starter assy1
53GB/T9074.1螺栓和垫圈组合件M6X20Flat gasket&Bolt3
54F15-01.03.02.00汽缸垫组件Cylinder gasket comp.166M-11181-10-00
55F15-01.03.00.21气缸头Cylinder head1
56GB/T1099半圆键3*5*13Woodruff keyoil seal190280-03M01-00
57F15-01.03.00.16油封18*35*7-Roil seal193102-18M21-00
58F25-01.04.00.01垫圈 14Washer 14190430-14115
59F15-01.03.00.24从动带轮Driven pulley166M-11537-00-94
60GB/T5789 （10.9）六角法兰面螺栓M6X16Hex Flange Bolt M6*16190105-06M14
61GB5789 (10.9)六角头法兰螺栓M8X75Flat gasket668T-12171-00-00
62GB/T9074.1 （8.8）螺栓和垫圈组合件M6X35Hexagonal bolt & flat gasket assy M6*353
63DPR6EA-9(F15)火花塞Spark plug2NGK-DPR6E-A9-00
64F15-01.03.00.38橡胶密封圈Rubber seal ring166M-11356-00-00
65F15-01.03.00.37汽缸头罩壳Cover,Cylinder head1
66GB/T9074.1 （8.8）螺栓和垫圈组合件M6X20Flat gasket&Bolt4
67F15-01.04.01.10O形密封圈(20.2*2.4)O-ring193210-20M65-00
68F15-01.04.01.00燃油泵组件Fuel pump assy.166M-24410-10-00
69GB/T9074.1 （8.8）螺栓和垫圈组合件M6X20Flat gasket&Bolt2
70F4-01.06.27油标尺O形圈(24*3.5)O ring1
71F15-01.03.00.39加油口螺塞Oil filling plug169M-E5363-00-00
72F15-01.03.00.27减震垫 ADamper2
73F15-01.03.00.26从动带轮罩壳Drive pulley cover166M-46297-00-00
74F15-01.03.00.35通气管Breath hose1
75F15-01.03.00.42通气管固定夹 Bfix clip,air breather tube190465-06M86
76F15-01.03.00.36通气管固定夹 AClip1
77F15-01.01.00.08堵塞1/4Plug1
78F15-01.05.01.00机油滤清器组件Oil filter assembly15GH-13440-00-00
79F15-01.01.00.09排气盖垫片Gasket,exhaust cap166M-41114-01-00
80GB820十字槽半沉头螺钉M4X12Cross recessed countersunk head screw1
81F15-01.01.00.13排气盖阳极Anode16E5-11325-00-00
82F15-01.01.00.10-电排气盖（电启动）Exhaust cover1
8315F-01.06.10水管圆接头water Tube fitting B3
84GB/T9074.1（8.8）螺栓和垫圈组合件M6X30Bolt5
85F15-01.06.14-60 °节温器（60 ° )Thermostat 60 °169M-12411-01-00
86F15-01.01.00.11节温器盖垫片Gasket,Thermostat16H3-12414-A1
87F15-01.01.00.12节温器盖Thermostat cap1
88GB/T9074.1（8.8）螺栓和垫圈组合件M6X30Bolt2
89F15-01.05.00.02机油泵密封垫Oil pump Seal gasket166M-13329-10-00
90F15-01.05.02.04密封环sealing1
91F15-01.05.02.06机油泵泵体Oil pump1
92F15-01.05.02.05机油泵盖Oil pump cap1
93GB/T9074.1（8.8）螺栓和垫圈组合件M6X35Hexagonal bolt & flat gasket assy M6*353
94F15-01.06.03.00充电线圈组件Charging coil assy1
95GB/T9074.1（8.8）螺栓和垫片组合件M6X25Hexagonal bolt & flat gasket assy M6*252
96GB/T9074.1（8.8）螺栓和垫圈组合件M6X35Hexagonal bolt & flat gasket assy M6*354
97F15-01.06.02.00发动机线圈组件engine coil comp.266M-85533-10-00
98F15-01.06.04.00触发线圈组件Trigger coil comp.166M-85520-00-00
99GB/T9074.1（8.8）螺栓和垫圈组合件M6X16Bolt2
100F15-01.06.05.00高压包组件Ignition coil166M-85570-00-00
101GB/T9074.1（8.8）螺栓和垫片组合件M6X20Flat gasket&Bolt2
102F15-01.06.06.00点火线圈组件Ingition coil comp.166M-85540-01-00
103GB/T9074.1（8.8）螺栓和垫片组合件M6X20Flat gasket&Bolt2
104F15-01.01.01.00溢流阀组件Flood valve comp.16G8-11575-00-00
105F15-01.01.02.02进油嘴Oil inlet1
106DQDF15-00.05.01外接水管7*12*880External water pipe7*12*8801
107尼龙扎带4.5X80Nylon ribbon2
108DQDF15-00.02.07阀针组件needle valve assy.1
10940FE-00.02.00电磁阀组件Solenoid Valve assy.1
110DQDF15-00.02.06支架bracket1
111GB/T848平垫6Flat gasket2
112GB/T5783（8.8）六角头螺栓M6X16Bolt2
113GB/T818十字槽盘头螺钉M5X6Pan head screw with cross recess290157-05014
114GB/T93-87弹簧垫圈5Spring washer2
115DQDF15-00.01.02带肩垫管shulder pad tube1
116DQDF15-00.01.01油门限位板throttle limited plate1
117GB/T96-85平垫6Flat gasket2
118GB/T5783六角头螺栓M6X25Bolt1
119DQDF15-00.01.03限位连接杆limited connecting rod1
120GB/T91开口销1.6*12Cotter pin 1.6*121
121GB/T96-85平垫5Flat gasket1
122GB/T9074.1（8.8）螺栓和垫圈组合件M6X12Bolt1
123F15-01.06.07.00整流器组件Rectifier Comp.168T-81960-00-00
124GB/T848平垫6Flat gasket1
125F15-01.07.00.08起动罩垫管Cushion tube,recoil starter4
126F15-01.06.00.02减震垫Damper4
127F15-01.06.00.01整流器支架Bracket,Rectifier1
128F15-01.04.00.02燃油管5*10*150Fuel Hose (5*10*150)1
129DQDF15-00.03.00继电器组件(电起动)relay Assy.1
130DQDF15-00.03.04连接导线connecting wire1
131DQDF15-00.03.03橡胶护套Arubber sleeve A2
132DQDF15-00.04.00启动电机组件electric start motor assy.1
133GB/T848平垫8Flat Pad 81
134GB/T5783六角头螺栓M8*50Hex Head Bolt M8*50190119-08M13
135DQDF15-00.04.02双头螺柱M8*66double head bolt M8*661
136GB6170六角头螺母M8Bolt nut1
137DQDF15-00.04.01长六角头螺栓M8*45Hex bolt(L)M8*451
138F15-01.04.00.03燃油管5*10*380Fuel hose190445-10M19-00
139DQDF15-00.03.03橡胶护套Arubber sleeve A1
140DQDF15-00.00.07电瓶线（长2235）battery cable（2235）1
141DQDF15-00.00.01七芯插头0.8Mseven stars plug0.8M1
142F15-01.04.00.04波纹管ф11*290Bellows1
14360F-01.02.00.13计时器组件timer Comp.16AU-11411-00-00
14415F-01.07.05.06过滤器O型圈(33*2)O ring,filter193210-32738
14515F-01.07.05.04过滤器滤芯fuel fliter161N-24563-00
146F15-01.05.02.01转子轴Rotor spindle1
147GB309 2.5*11.8滚针2.5*11.8Roller needle1
148F15-01.05.02.02内转子Inner rotor1
149F15-01.05.02.03外转子Outer rotor1
150F15-01.05.02.04密封环sealing1
151GB823十字槽小盘头螺钉M6*20Cross recessed Pan head screws M6*202
152F15-01.06.00.08阻燃管ф23*80flame retardent,hose1
153GB848平垫M5flate gasket1
154GB848平垫M6Flat gasket2
曲轴活塞

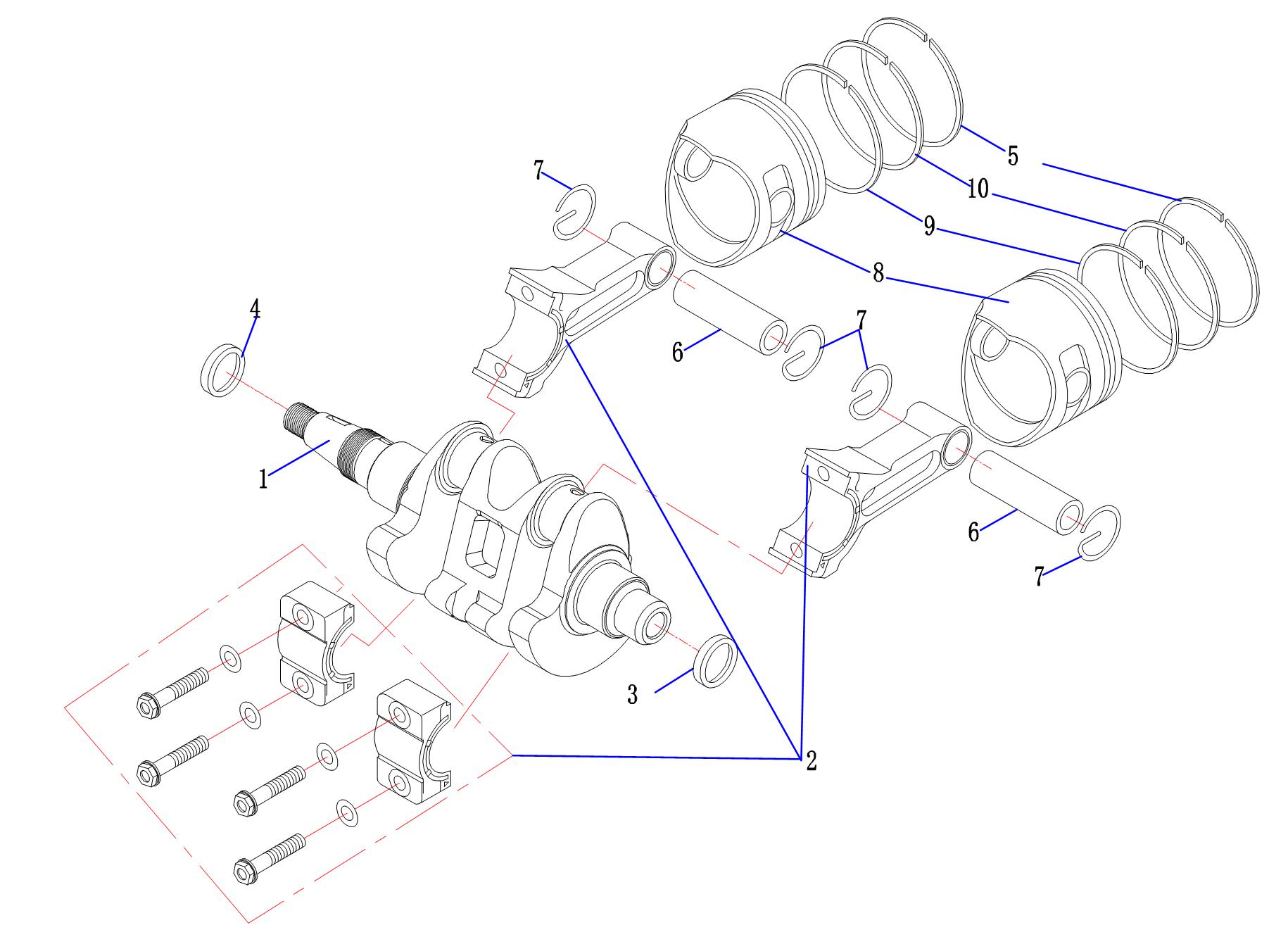

曲轴活塞 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.02.00.01曲轴Crankshaft166M-11411-00-00
2F15-01.02.01.00连杆组件Connecting rod comp.266M-11650-00-00
3F15-01.02.00.07曲轴下油封Oil seal(bottom),crankshaft193102-25M52-00
4F15-01.02.00.06曲轴上油封Oil seal(upper),crankshaft193102-35M51-00
6F15-01.02.02.06活塞销Pin,piston2634-11633-00-00
7F15-01.02.02.02活塞销卡簧Circlip493450-15023-00
8F15-01.02.02.01活塞Piston266M-11631-00-96
5F15-01.02.02.03主气环1st ring266N-11603-00-00
9F15-01.02.02.05油环Oil ring266N-11603-00
10F15-01.02.02.04副气环2nd ring2
配气系统

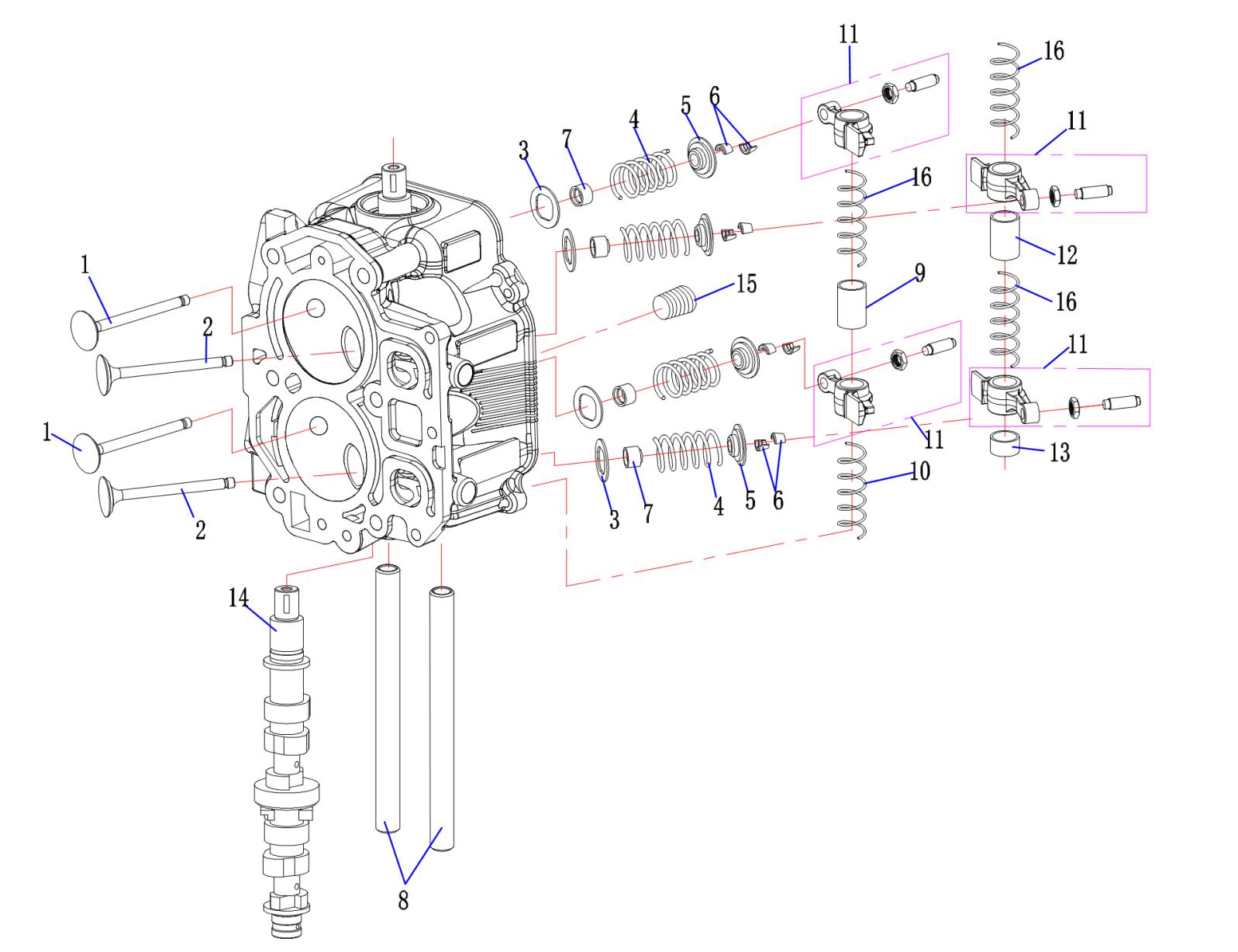

配气系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.03.00.01进气门Intake valve266M-12111-00-00
2F15-01.03.00.02排气门Exhaust valve266M-12121-00-00
3F15-01.03.00.07气门弹簧垫圈Washer,Valve spring466M-12116-00-00
4F15-01.03.00.03气门弹簧Valve spring466M-12113-00-00
5F15-01.03.00.04气门弹簧座圈Washer,Valve spring430X-12117-00-00
6F15-01.03.00.05气门锁夹valve clamp830X-12118-00-00
7F15-01.03.00.15气门油封Valve oil seal451Y-12119-00-00
8F15-01.03.00.06摇臂轴Rocker arm shaft266M-12146-00-00
9F15-01.03.00.10摇臂轴隔套ASleeve,Rocker arm shaft(inlet)190387-13M56-00
10F15-01.03.00.09摇臂轴弹簧ASpring,Rocker arm shaft190501-12M41-00
11F15-01.03.00.14摇臂Rocker arm466M-12151-10-00
12F15-01.03.00.12摇臂轴隔套CSleeve,Rocker arm shaft c(outlet)190387-13002-00
13F15-01.03.00.11摇臂轴隔套BSleeve,Rocker arm shaft B190387-13001-00
14F15-01.03.01.00凸轮轴组件Camshaft comp.166M-12170-00-00
15F15-01.01.00.08堵塞1/4Plug3
16F15-01.03.00.13摇臂轴弹簧BSpring,Rocker arm shaft390501-12M40-00

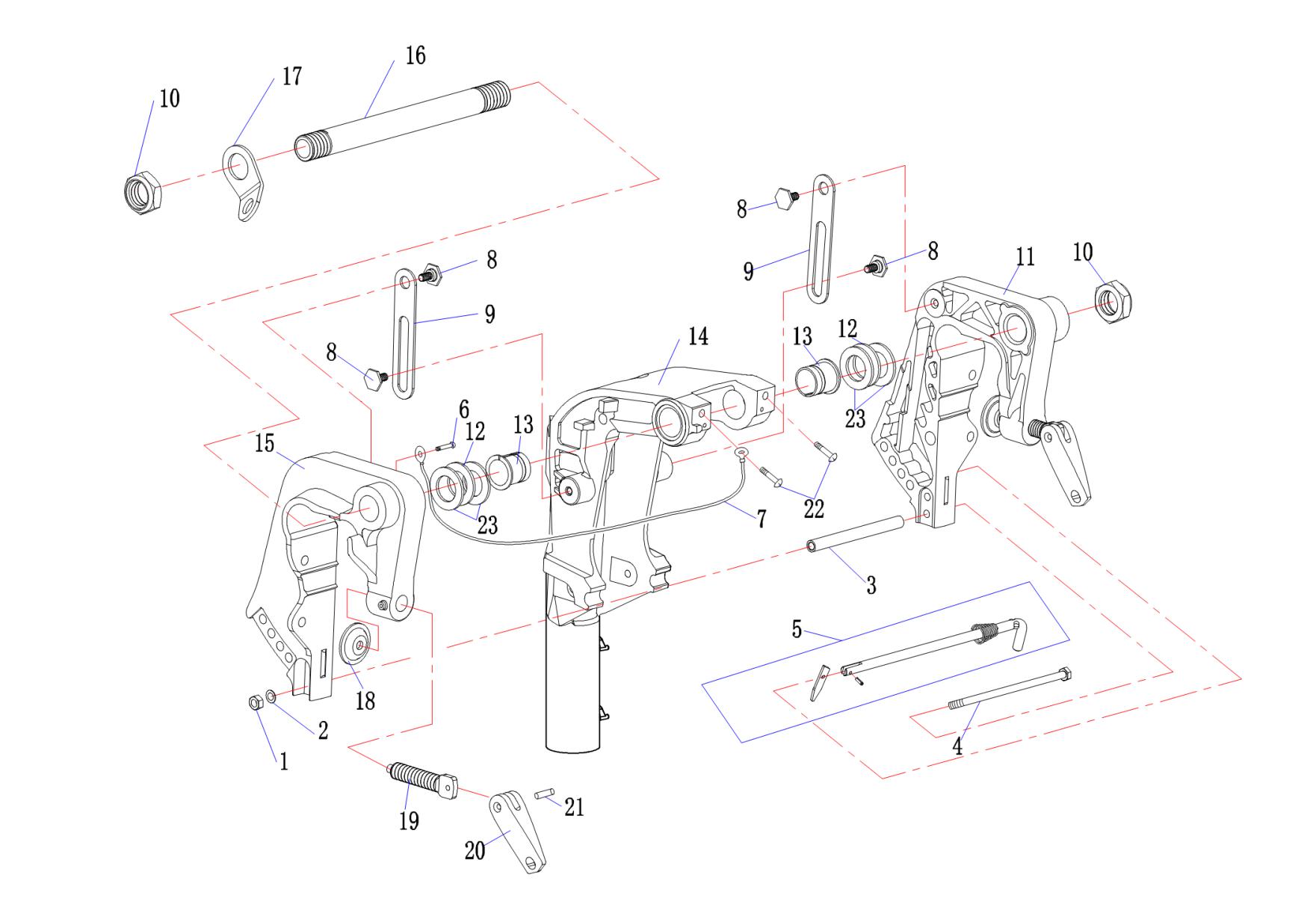

夹紧托架
夹紧托架 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB6170六角头螺母M6Hexagon nut192995-06600-00
2GB848平垫6Flat gasket192995-06600-00
315F-03.11螺栓套管Sleeve190387-06M13-00
4GB5783六角头螺栓M6*145Bolt190101-06M29-00
515F-03.10.00-Ⅱ角度限位插销组件Trim rod Assy.16L2-43160-00-00
6GB818十字槽盘头螺钉M6*8Pan head bolt with cross rece1
715F-03.05.03钢索连接组件Cable Connector Assy.166M-82148-00-00
815F-03.06扁头六角螺栓Bolt4
915F-03.07制动板brake pad263V-43181-00-00
1015F-03.01夹紧托架螺母Clamp nut290185-22043-00
1115F-03.08.01夹紧托架（右）（高压)Bracket(RH)163V-43111-06-4D
1215F-03.02尼龙垫圈Nylon gasket290202-22M54-00
1315F-03.09.02托架阻尼套Damping ring,bracket290386-22M94-00
14F15-03.01.00.01-S旋转托架（短轴）Swivel bracket(S)163V-43311-03-4D
NoneF15-03.01.00.01-L旋转托架（长轴）Swivel bracket(L)166M-43311-10-4D
1515F-03.05.01夹紧托架（左）（高压)Bracket(LH)163V-43112-07-4D
16F15-03.00.00.01夹紧托架双头螺栓Bolt163W-43131-01-00
1715F-03.03孔板Orifice plate166R-43113-00-00
1815F-03.05.02.03夹紧盘Clamp plate2648-43114-01-00
19F9.9-Ⅱ-03.00.00.02艉板夹紧螺栓Clamp Bolt,Transom26E7-43116-00-00
2040F-03.05.03.02夹紧手柄intensify handle26E0-43118-01-00
21GB1015沉头半空心铆钉4*18Rivet290243-04M01-00
22GB818十字盘头螺钉M8*10Pan head bolt with cross rece2
2340F-03.03垫片Gasket4
操舵托架部位

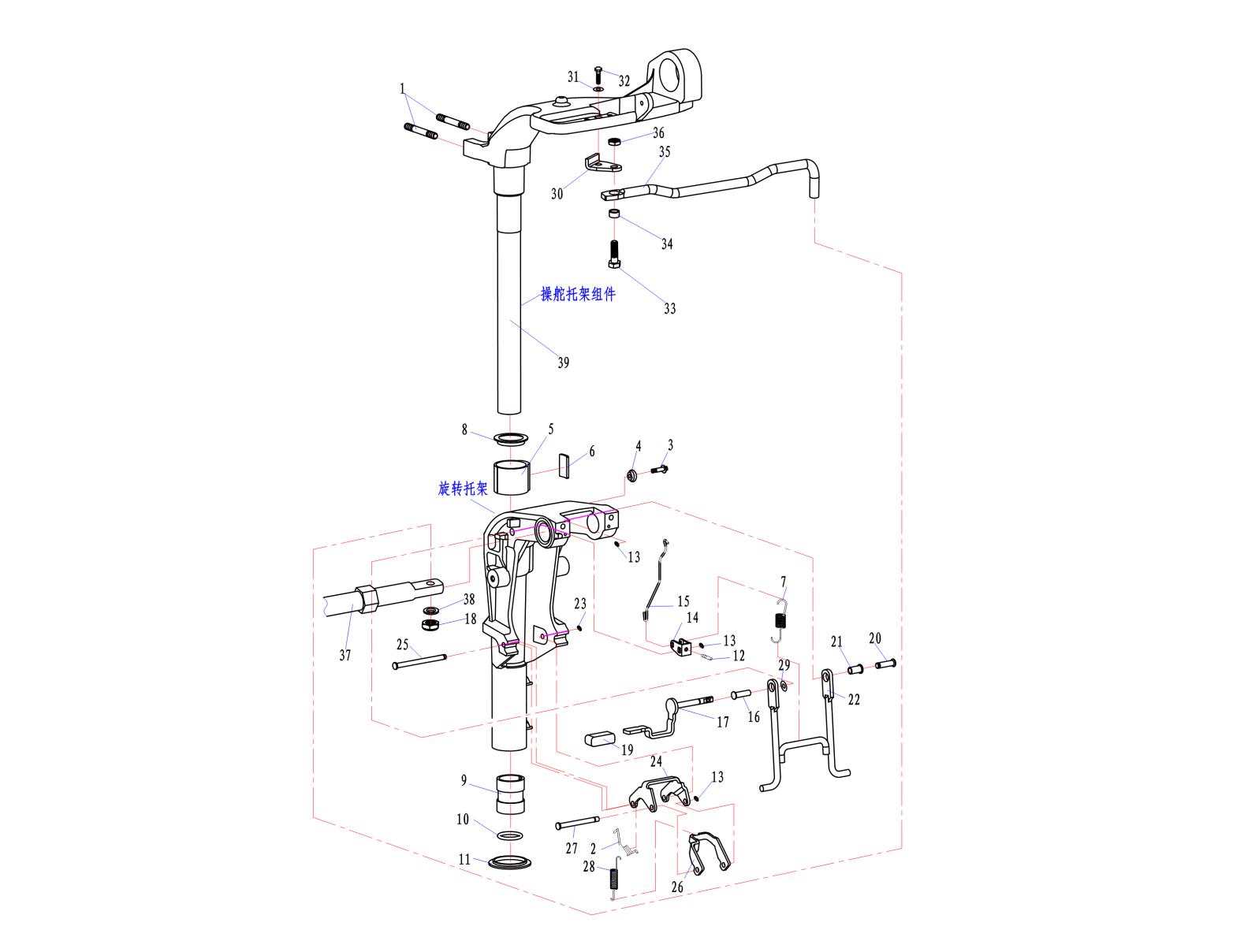

操舵托架部位 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-04.01.03双头螺栓Bolt2
215F-03.09.23弹簧Spring190508-18M41
3GB9074.1六角头螺栓和平垫组件M6*20Flat gasket&Bolt1
415F-03.09.09锁紧螺栓密封圈Gasket1689-43373-01
515F-03.09.03锁紧圈Lock washer165F-42537-00
615F-03.09.04锁紧圈摩擦片Friction plate,Locking163V-42528-00
715F-03.09.24角度支撑架拉簧Spring190507-20M00
815F-03.09.05垫圈ring gasket190209-40008
915F-03.09.06下衬套bushing (bottom)190386-30048
1015F-03.09.07O型密封圈(29*3.8)O ring193210-29M94
1115F-03.09.08下衬圈Lower bushing190386-30M60
12GB818十字槽盘头螺钉M5*6Pan head screw with cross recess190157-05014
13GB896开口挡圈5Circlip2
1415F-03.09.10角度定位件Angle fixer163V-43641-01
1515F-03.09.11角度定位锁杆angle loction rod166R-43617-00
1615F-03.09.14杠杆套Sleeve1
1715F-03.09.12.00操纵杠杆组件Lever comp.,Steering166M-43630-01
18HDYK00.10.07尼龙锁紧螺母3/8-24Nylon lock hex bolt1
1915F-03.09.12.01橡塑套rubber Sleeve1682-43318-01
2015F-03.09.19角度定位锁轴Pin166R-43611-00
2115F-03.09.17支撑架销尼龙套Nylon bush,support frame190386-07M95
2215F-03.09.15角度支撑架Tilt angle fixer166M-43350-01
23GB896开口挡圈4Circlip299080-05600
2415F-03.09.21角度定位锁紧外支架Tilt angle outer bracket166R-43615-00
2515F-03.09.16支撑架销Pin,support frame163V-43659-00
2615F-03.09.20角度定位锁紧内支架Tilt angle inner bracket163V-43614-10
2715F-03.09.22角度定位固定轴Shaft,Tilt Lock166R-43611-00
2815F-03.09.18拉簧pull Sping163V-43656-00
2915F-03.09.13杠杆垫washer1
30HDYK00.10.02操纵钩lever hook1
31GB/T848平垫8Flat Pad 81
32GB/T5783六角头螺栓M8X25Hex Head Bolt M8*251
33HDYK00.10.04六角螺栓3/8-24Hex bolt1
34HDYK00.10.03操纵杆垫管bushing,operating lever1
35HDYK00.10.01操纵杆lever1
36HDYK00.10.05六角薄螺母3/8-24Hex thin bolt1
37HDYK00.00.34.00方向盘组件Steering Wheel1
38HDYK00.10.06平垫10flat gasket1
39F15-04.01.00.00操舵托架组件(短轴）Steering bracket comp.（S）166M-42511-01-4D
NoneF15-04.01.00.00-L操舵托架组件(长轴）Steering bracket comp.（L）1
底罩

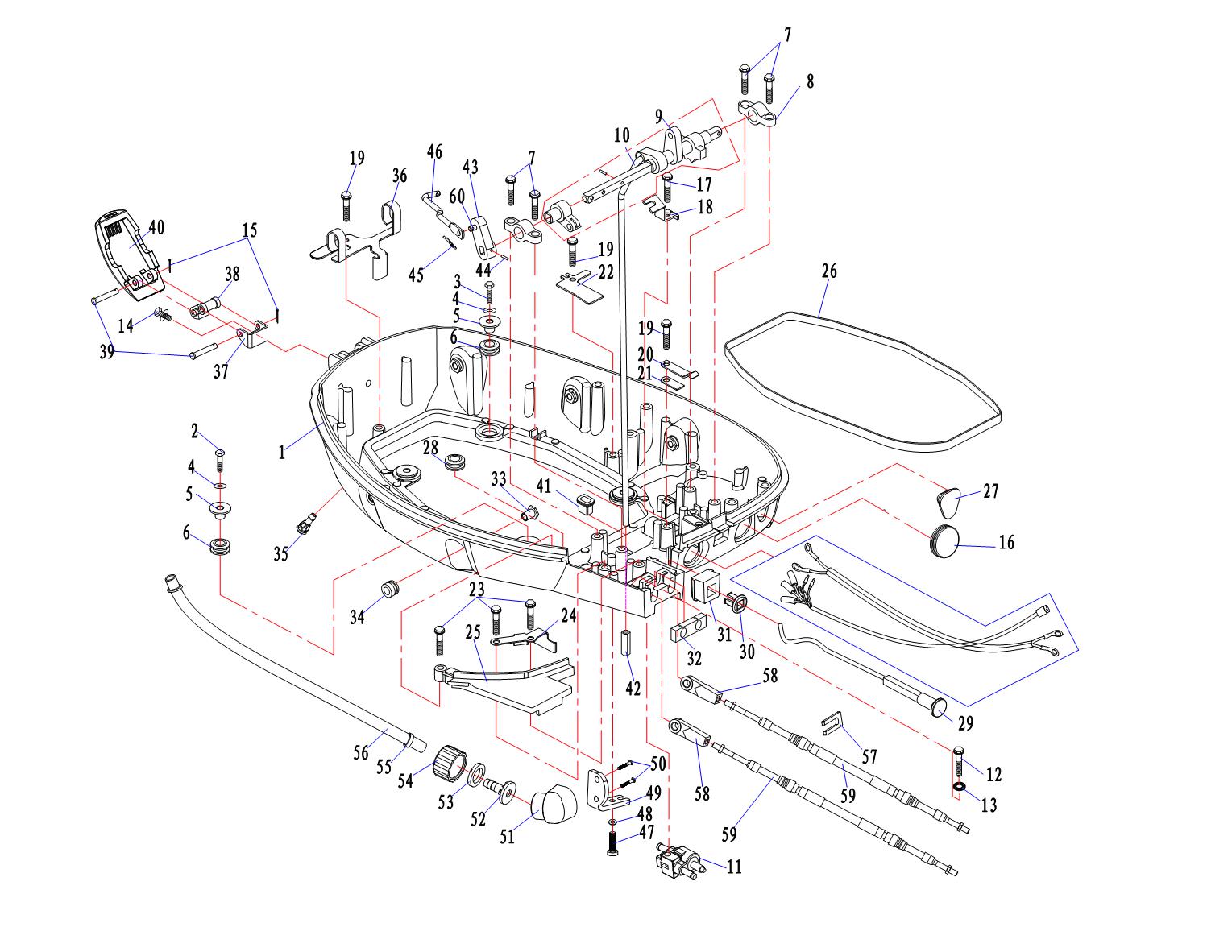

底罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-Ⅱ-02.00.00.01底座（天然气）Botton Base1
2GB5783六角头螺栓M6*35Hex Head Bolt M6*352
3GB5783六角头螺栓M6*25Bolt2
4GB5287平垫6Flat gasket 64
515F-02.08减震垫衬管Washer,damping490480-15M31
615F-02.07底座减震垫Cushion blocking of bottom seat490387-06034
7GB/T5789六角法兰面螺栓M6*25Bolt490109-06M86-00
8F15-02.00.00.07托架Bracket26F5-41662-00
9F15-02.01.00.00变档杠杆组件Shift lever Comp.165W-44121-00-00
10F15-02.00.00.17-S上变档杆（短轴）Shift lever(upper,S)166M-44124-00-00
1115F-01.07.01.00燃油管插头组件Fuel hose joint assy1
12GB/T5783六角头螺栓M6*25Bolt1
13GB848平垫6Flat gasket1
14GB9074.1螺栓和垫圈组合件M6*12Bolt1
15GB/T896 4开口挡圈4Opening ring 42
1640FE-02.00.00.02变档手柄橡胶闷头rubber plug,shift handle1
17GB/T5789六角法兰面螺栓M6*20Bolt190109-06M86-00
18F15-02.00.00.03钢索固定架Cable fixer1
19GB/T5789六角法兰面螺栓M6*16Hex Flange Bolt M6*16390105-06M14
20F15-02.00.00.05变档限位弹簧板shift limit plate165W-44116-00-00
21F15-02.00.00.06垫板plate166R-44114-00-00
22F15-02.00.00.02压板Press plate266M-42743-00-00
23GB/T5789六角法兰面螺栓M6*30Bolt390109-06M86-00
24F15-02.00.00.11阻风门拉杆固定架fixing bracket,choke pull rod1
25F15-02.00.00.10燃油管插头上盖板Top cover,fuel hose joint1
26F15-02.00.00.18橡胶减震条(长835)Rubber damper strip1
2740FE-02.00.00.03钢索护套处橡胶闷头rubber plug,cable sleeve1
28DQDF15-00.05.07外接水管橡胶护套sleeve ,External water pipe1
29DQDF15-00.06.00阻风门拉杆组件chock rod Assy.1
3015F-02.03阻风门拉杆护套Protecting bush,choke1689-41273-00
31F15-02.00.00.16橡胶固定块Rubber block1
32HDYK00.00.22底座钢索固定块steel cable fixed block,lower coeling1
33F15-00.00.00.15装饰板减震器垫圈gasket,bottom damper6
34F15-02.00.00.32装饰板减震器Damper66A0-82317-00-00
3515F-02.11塑料水嘴Plastic Water nozzle16BL-44391-00
36F15-02.00.00.19水管管卡Clip,hose1
37F6-02.03.00.00锁紧手柄支架组件Lock handle bracket Assy.1
38F6-02.00.00.06锁紧手柄连接件lock handle connector1
39F6-02.00.00.05锁紧手柄转轴Lock handle ratation shaft2
40F9.9-02.00.00.17锁紧手柄lock handle1
4115F-02.10变档连杆橡胶护套protecting bush,gear shifting linkage1682-42727-00
4215F-06.04.05柱状螺母Column nut161N-44146-00
43DQDF15-00.00.05变档杠杆塑料套plastic sleeve,shife rod1
44GB/T879.2-2000弹性圆柱销 3*20Cylindrical pin190254-03M05
4515F-01.03.11卡簧（小）Spring191490-16018
46DQDF15-00.01.03限位连接杆limited connecting rod1
47GB/T5783六角头螺栓M6*20Bolt1
48GB/T848平垫6Flat gasket1
49DQDF15-00.05.06外接水管安装架Mounting rack，External water pipe1
50GB/T845十字槽盘头自攻螺钉ST5.5*1Pan head screw ST5.5*192
51DQDF15-00.05.05外接水管座Seat,External water hose1
52DQDF15-00.05.03外接水管插头Plug,External water hose1
53DQDF15-00.05.04橡胶垫片Rubber gasket1
54DQDF15-00.05.02外接水管盖Cap,External water hose1
55尼龙扎带4.5*80Nylon ribbon1
56DQDF15-00.05.01外接水管7*12*880External water pipe7*12*8801
57HDYK00.00.23底座钢索限位块Bottom cowling Damper.1
58HDYK00.00.24钢索调节装置ACable adjuster A2
59HDYK00.06.00遥控钢索组件(3.8M)Remote Control Cable (3.8m)2
60DQDF15-00.00.06嵌件insert1
水上分解图

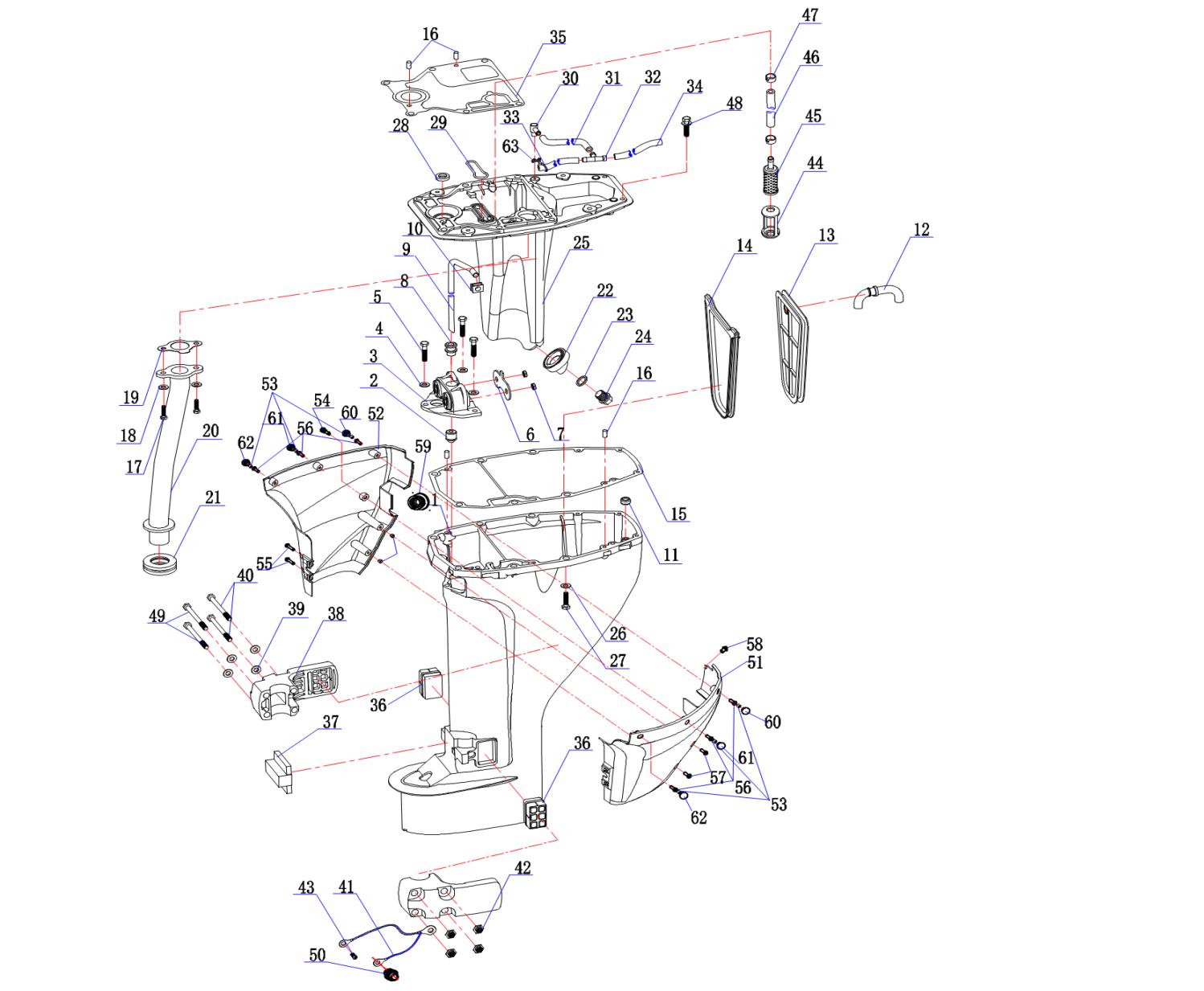

水上分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-05.02.00.01-S水上装置壳体(短轴）Upper casing (S)166M-45111-00-4D
NoneF15-05.02.00.01-L水上装置壳体(长轴）Upper casing (L)1
215F-05.07水管下橡胶圈rubber ring,water hose(dowm)166M-44366-00-00
3F15-05.04.00.00双孔减震器组件damper comp.166M-44514-00-4D
4GB848平垫6Flat gasket392995-06600-00
5GB5783六角头螺栓M6*25Bolt3
6F15-04.00.00.01上减震器压板Pressing plate,Damper166M-44526-00-00
7GB6170六角头螺母M8Hexagon nut2
8F15-05.00.00.19水管上橡胶圈Rubber ring (upper),hose163V-44368-00-00
9F15-05.00.00.13水管(短轴)Hose (S)166M-44361-10-00
NoneF15-05.00.00.13-L水管(长轴)Hose (L)1
1015F-05.06水管工形橡胶圈Rubber ring,water hose163V-44365-10-00
11F15-05.00.00.12密封圈Sealing ring166M-45128-00-00
12F15-05.03.00.02橡胶通气管Rubber breather hose166M-45136-00-00
13F15-05.03.00.01排气隔板Exhaust baffle166M-45115-00-00
14F15-05.03.00.03隔板密封圈Seal ring166M-45126-00-00
15F15-05.00.00.03油底壳下密封垫Seal Gasket(bottom),Oil sump166M-45113-00-00
1615F-01.06.20定位销6*12Dowel pin493606-12019-00
17GBT5783(8.8)六角头螺栓M6*16Bolt290119-06090-00
18GB848平垫6Flat gasket292995-06600-00
19F15-05.00.00.10排气管密封垫Seal gasket,exhaust pipe166M-11355-00-00
20F15-05.01.00.00排气管组件Exhaust pipe comp.16D4-41131-00-94
21F15-05.00.00.11排气管减震圈damper,Exhaust pipe16D4-41138-00-00
22F15-05.00.00.07放油口橡胶衬圈rubber bushing166M-15316-00-00
23F25-01.04.00.01垫圈14gasket190430-14M09-00
24F15-05.00.00.08放油螺栓Oil drain plug190340-14M06-00
25F15-05.00.00.20油底壳Oil sump166M-41137-00-5B
26GB848平垫8Flat gasket692995-08600-00
27GB5783六角头螺栓M8*45Bolt697095-06020-00
2815F-01.06.27油封B13*25*6Oil seal193101-12M63-00
29F15-05.00.00.04橡胶密封条Rubber sealing strip1
3015F-01.06.10水管圆接头joint,hose1676-11372-00-00
31F15-05.00.00.15水管B(5*9*170)Hose1
32F15-05.00.00.17三通T-branch pipe1
33F15-05.00.00.14水管A（5*9*65）Hose1
34F15-05.00.00.16水管C（出水管/定型管）Hose1
35F15-05.00.00.02油底壳上密封垫Gasket(upper),Oil sump166M-11351-10-00
36F15-00.00.00.03减震块BDamper B2682-44555-30-00
37F15-00.00.00.02减震块ADamp er A166M-44557-00-00
38F15-00.00.00.01减震块外壳Damper housing266M-44551-00-4D
39GB848平垫8Flat gasket492995-08600-00
40GB5783六角头螺栓M8*105Bolt2
41F15-05.00.00.18钢索连接件Cable connector166M-82127-00-00
42GB6177六角法兰螺母M8Flange bolt4
43GB818十字槽盘头螺钉M6*12Pan head bolt with cross recess1
44F15-01.05.03.03粗滤油器护套Protect sleeve,filter166M-13417-00-00
45F15-01.05.04.00粗滤油器组件filter comp.166M-13421-00-00
46F15-01.05.03.02吸油软管(7*12*190)hose166M-13416-00-00
47F15-01.05.03.01夹箍Clip266M-24351-00-00
48GB9074.1(8.8)六角头螺栓和平垫组件M6*2Bolt&flat gasket Assy.297095-06020-00
49GB5783六角头螺栓M8*85Bolt2
50JB/7940.1直通式压注油杯M6Oil cup1
51F15-00.00.00.16装饰罩（左）Decoration cover（LH）1
52F15-00.00.00.17装饰罩（右）Decoration cover（RH）1
53F15-00.00.00.21装饰罩堵头嵌件Plug6
5415F-02.11塑料水嘴Water nozzle16BL-44391-00
55GB818十字槽盘头螺钉M6*12Cross recessed pan head tapping scr2
56GB818十字槽盘头螺钉M6*20Cross recessed pan head tapping scr6
57GB818十字槽盘头螺钉M6*30Cross recessed pan head tapping scr2
58GB818十字槽盘头螺钉M8*12Cross recessed pan head tapping scr1
59F15-00.00.00.14怠速孔减震器Damper1
60F15-00.00.00.18堵塞（左）Plug2
61F15-00.00.00.19堵塞（中）Plug2
62F15-00.00.00.20堵塞（右）Plug2
63管夹φ 10Hose clip1
水下分解图

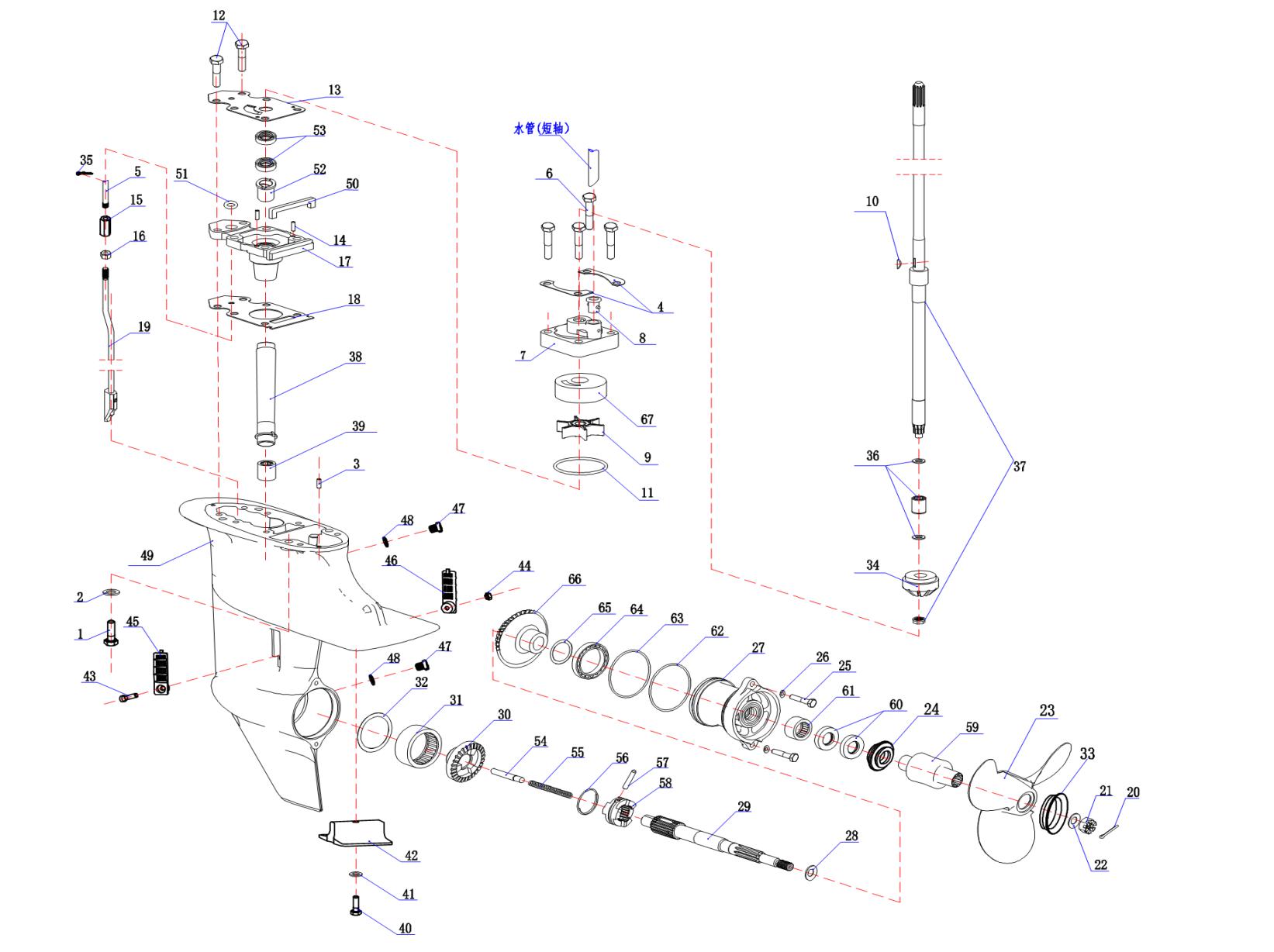

水下分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB5783六角头螺栓M8*30Bolt497075-08030-00
2GB848平垫8Flat gasket492995-08600-00
315F-06.03.08定位销4*12Dowel pin293604-12M07-00
415F-06.02.07水泵固定板Dead plate,water pump263V-44328-00-00
5F15-02.00.00.17-S上变档杆(短轴)Shift lever(upper,S)166M-44124-00-00
6GB5783六角头螺栓M8*45Bolt497080-08045-00
715F-06.02.01水泵壳体Water pump housing comp.163V-44301-00-00
815F-06.02.06水泵水管密封圈Seal Gasket,water hose1647-44366-00-00
915F-06.02.04水泵叶轮Impeller163V-44352-01-00
1015F-06.01.09半圆键Woodruff key1664-44338-00-00
1115F-06.02.02水泵壳体O形圈(45.5*3)O ring,water pump casing193210-44398-00
12GB5783六角头螺栓M8*25Bolt297080-08025-00
1315F-06.03.01轴承座压板（电镀）pressing plate,bearing seat163V-44323-00-00
1415F-06.03.08定位销4*12Dowel pin293604-12M07-00
1515F-06.04.05柱状螺母Column nut190170-06015-00
16GB6170六角螺母M6Hexagonal nut192995-06600-00
1715F-06.03.02轴承座壳体Bearing seat casing163V-45331-00-5B
1815F-06.03.07轴承座密封垫Seal Gasket,bearing seat163V-45315-A0-00
19F15-06.01.00.00-S变档凸轮组件（S）Shift cam assy. (S)163V-44150-00-00
NoneF15-06.01.00.00-L变档凸轮杆组件(L)Shift cam assy. (L)1
20GB91开口销(2.5*20)Cotter pin191490-30020-00
2115F-06.14.06开槽六角螺母Nut190171-10M01-00
22GB96平垫10Flat gasket192903-10600-00
2315F-06.14.01螺旋桨(9-1/4*11)Propeller1
2415F-06.13衬套Bushing16E7-45987-01-00
25GB5783六角头螺栓M6*20Bolt297095-06020-00
26GB848平垫6Flat gasket292995-06600-00
2715F-06.12.06水下壳体盖Cap,lower casing1683-45361-02-4D
2815F-06.11垫圈gasket190201-17682-00
2915F-06.10.01螺旋桨轴Propeller shaft1683-45611-00-00
3015F-06.09正档螺旋锥齿轮spiral bevel,forward gear16E7-45560-01-00
3115F-06.07圆锥滚子轴承30205Roller Bearings193332-00005-00
3215F-06.08正档齿轮填隙片（0.1）Shim2664-45567-01-00
3315F-06.14.02螺旋桨喇叭口Bell1
3415F-06.01.10小齿轮Pinion gear163V-45551-00-00
3515F-04.08.05卡簧circlip1
3615F-06.01.13推力圆柱滚子轴承Roller Bearings193341-41414-00
3715F-06.01.08-S驱动轴（短轴）Drive shaft (S)163V-45510-01-00
None15F-06.01.08-L驱动轴（L）Drive shaft (L)163V-45510-11-00
3815F-06.01.07尼龙衬圈Nylon bushing163V-45536-00-00
3915F-06.01.14滚针轴承F1420（国产）Needle bearing Needle bearing193315-314V8-00
None15F-06.01.14滚针轴承F1420（NSK）193315-314V8-00
40GB5789六角法兰面螺栓M6*30Bolt195895-06030-00
41GB861.1内齿锁紧垫圈M6Washer,inner gear192990-06300-00
4215F-06.15阳极BAnode161N-45251-01-00
43GB820十字槽半沉头螺钉M5*20Cross recessed countersunk head scr190152-05M04-00
44DIN985六角尼龙锁紧螺母M5Connecting,Top cowling190185-05002-00
4515F-06.01.05进水口盖AWater inlet cover163V-45215-00-00
4615F-06.01.06进水口盖Bcover,water inlet16G1-45214-00-00
4715F-06.01.03注油口螺塞plug,straight screw290340-08002-00
4815F-06.01.04螺塞密封垫Seal Gasket290430-08020-00
4915F-06.01.02水下壳体Lower casing166M-45311-01-4D
5015F-06.03.04轴承座密封条Sealing strip,bearing seat163V-45375-00-00
5115F-06.03.03变档杆O形密封圈（5.8*4.3）Shift lever o-ring193210-06ME6-00
5215F-06.03.06带肩筒形轴承Bearing1626-45316-09-00
5315F-06.03.05油封20*30*6Oil seal293101-20001-00
5415F-06.10.06(S)变档柱塞S=43Plunger1650-45635-00-00
5515F-06.10.05压缩弹簧Compression spring190501-14M06-00
5615F-06.10.04簧环Circlip1648-45633-00-00
5715F-06.10.03销Pin190250-05010-00
5815F-06.10.02爪形离合器Dog clutch1682-45631-00-00
5915F-06.14.03螺旋浆内花键Propeller shaft teeth1
6015F-06.12.08油封17*30*6Oil seal293101-17054-00
6115F-06.12.07滚针轴承17BM2312Needle bearing193315-317U2-00
6215F-06.12.04O形圈(56*3.1)O ring193210-57M09-00
6315F-06.12.05O形圈(57.8*2)O ring193210-56M80-00
6415F-06.12.03深沟球轴承6005deep groove ball bearing193306-00501-00
6515F-06.12.02倒档齿轮填隙片shim1626-45577-00-00
6615F-06.12.01倒档螺旋锥齿轮Reverse gear16E7-45571-00-00
6715F-06.02.03水泵内壳Insert, cartridge163V-44322-00-00
NoneF15(S)-06.00.00.00水下装置部件Lower Casing Assy.1
NoneF15(L)-06.00.00.00水下装置部件Lower Casing Assy.1
遥控盒

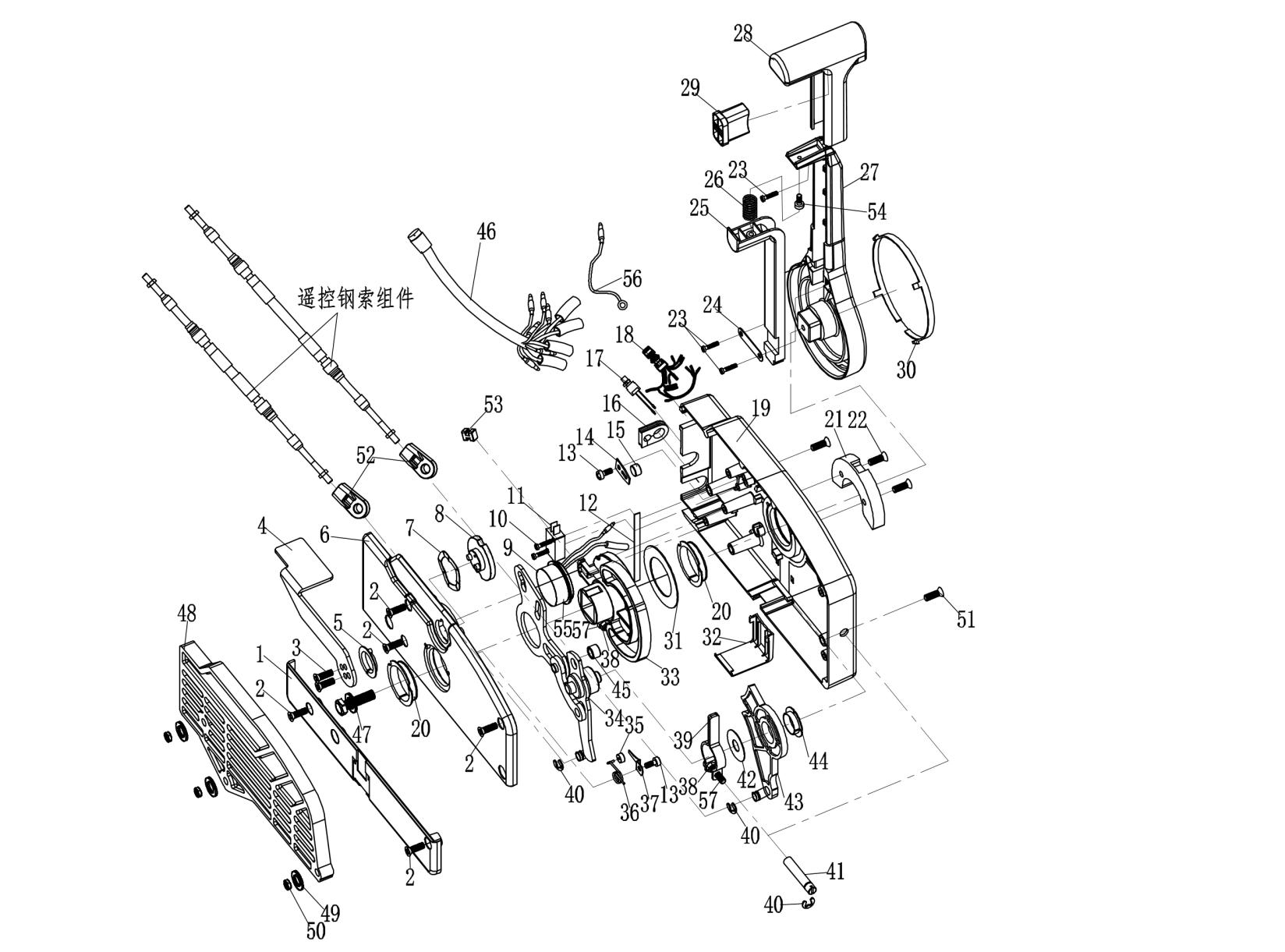

遥控盒 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1HDYK00.00.01Small plate1
2GB819十字槽沉头螺钉M5*16Screw M5*165
3GB819十字槽沉头螺纹钉M5*12Screw M5*122
4HDYK00.00.02怠速锁紧手柄Idle lock handle1703-48152-00
5HDYK00.00.04Antifriction Bushing1703-48243-00
6HDYK00.00.31Big plate1703-48236-00
7HDYK00.00.03波型垫圈Wave Washer1703-48198-00
8HDYK00.01.00手柄锁紧轮组件Handle Lock wheel Assy1703-48153-00
9HDYK00.02.01Buzzer assy1703-83383-B0
10GB818十字槽盘头螺钉M3*14Pan Screw M3*142
11HDYK00.05.00怠速启动开关Idle Start switch1703-82540-00
12HDYK00.00.10弹性钢板Spring steel plate5
13GB818十字槽盘头螺钉M4*6Pan Screw M4*62
14HDYK00.00.09Plate1
15HDYK00.00.11档位限位柱Shift limit pin1
16HDYK00.00.12线束密封圈Wire Harness Seal Ring1703-48284-00
17HDYK00.03.00急停开关总成Engine shut-off switch1688-82575-01
18HDYK00.04.00启动开关总成Start switch Assy1703-82510-12
19HDYK00.00.08遥控盒(外壳)Remote control box1
20HDYK00.00.16档位座减磨圈Gear Shift Seat washer2703-48236-00
21HDYK00.00.20手柄限位器Handle Limit Assy1703-48245-00
22GB819十字槽沉头螺钉M5*16Screw M5*162
23GB819十字槽盘头螺钉M4*10Pan Screw M4*103
24HDYK00.09.05锁紧手柄压板handle Lock plate1
25HDYK00.09.04手柄锁紧开关Handle lock switch1703-48223-00
26HDYK00.09.06Spring1703-48227-00
27HDYK00.09.01Handle seat1
28HDYK00.09.03Handle1
29HDYK00.09.07手柄开关盖Handle switch cap1
30HDYK00.09.02手柄座装饰圈Handle seat decoration circle1
31HDYK00.00.15档位座减磨垫Gear Shift Seat washer1
32HDYK00.00.26盒盖连接件Box cover connector1
33HDYK00.00.14档位座Shift seat1
34HDYK00.07.00油门控制装置总成Throttle controler Assy1
35HDYK00.00.06导轮Guide wheel1703-48234-00
36HDYK00.00.07弹簧Spring1703-48244-00
37HDYK00.00.05导轮压板Guide wheel plate1703-48246-00
38GB6170六角螺母M5Hex nut M52
39HDYK00.08.01锁紧夹箍Locking Clamp1703-48264-00
40GB896开口挡圈6(不锈钢/厚度1)Circlip 6393430-06024
41HDYK00.08.02调节螺钉Adjusting screw1703-48265-00
42HDYK00.00.19档位控制器减磨垫Shift control washer1703-48268-00
43HDYK00.00.17档位控制器Shift controler1703-48271-00
44HDYK00.00.13油门控制器减磨片Shift control washer1703-48235-00
45HDYK00.07.10导轮Guide wheel1703-48252-00
46HDYK00.00.33七芯插头5MSeven-pin plug 5M1688-8258A-20
47GB9074.1(8.8)螺栓和垫圈组合件M8*30Hex Bolt, Flat Pad M8*30(8.8)1
48HDYK00.00.32遥控器固定板Remote control fixation plate1
49GB5287平垫6Flat Pad 63
50GB6170六角螺母M6Hex Nut M63
51GB820十字槽半沉头螺钉M6*90Screw M6*903
52HDYK00.00.25钢索调节装置BCable adjustor B2703-48345-01
53HDYK00.00.27线索密封座Wire harness sealing Seat1
54GB818十字槽盘头螺钉M5*10Screw M5*101
55HDYK00.02.02蜂鸣器护套Buzzer Cover1703-82563-02
56HDYK00.05.01电启动怠速线Electric Start Idle Wire1
57GB5783六角头螺栓M5*25Hex bolt M5*252
Machine Accessories
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2HDYK00.10.04六角螺栓3/8-24hex bolt1
3HDYK00.10.03操纵杆垫管washer,control Lever1
4HDYK00.10.06平垫M10flat gasket1
5HDYK00.10.05六角薄螺母3/8-24hex bolt,thin1
6HDYK00.10.07尼龙锁紧螺母3/8-24nylon Lock nut1
7GB5783 M8*25六角头螺栓hex bolt1
8GB820 M6*90十字槽半沉头螺钉Pan head bolt with cross recess3
9GB6170 M6六角螺母hex bolt3
10GB848 M8平垫flat gasket1
11GB97.1 M10平垫flat gasket192903-10100
12GB5287 M6平垫flat gasket3
13GB91 2.5*20开口销cotter pin1
1415F-06.02.04水泵叶轮water pump impeller163V-44352-01
1515F-09.01应急启动手柄emergency starting handle1
16F15-08.00.00.00燃油箱总成(12L)fuel case Assy.1
17HDYK00.00.24钢索调节装置Asteel cable ajusting device A2
18HDYK00.00.25钢索调节装置Bsteel cable ajusting device B2703-48345-01
19HDYK00.00.32遥控器固定板remote control fixed board1
2015F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
21HDYK00.10.02操纵钩control hook1
22HDYK00.10.01操纵杆control hook1
2315F-01.01.22启动绳 φ5*2000mmstarter rope1
2415F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
25F15-09.00工具包toolkit1
26HDYK00.06.00遥控钢索组件(3.8M)steel Cable Assy.,remote control2
27HDYK00.00.34.00方向盘组件steering wheel Assy.1
28HDYK00.00.35.00方向座组件direction base Assy.1
2920A保险丝fuse1
30HDYK00.00.35.01(3.8M)方向钢索组件direction wire rope Assy.1
