舟一会 ZHOUYIHUI 船外机

海的 F15 - F15HEL(S)

共 12 个部位，点击零件编码查看详情，或搜索本页零件。

顶罩

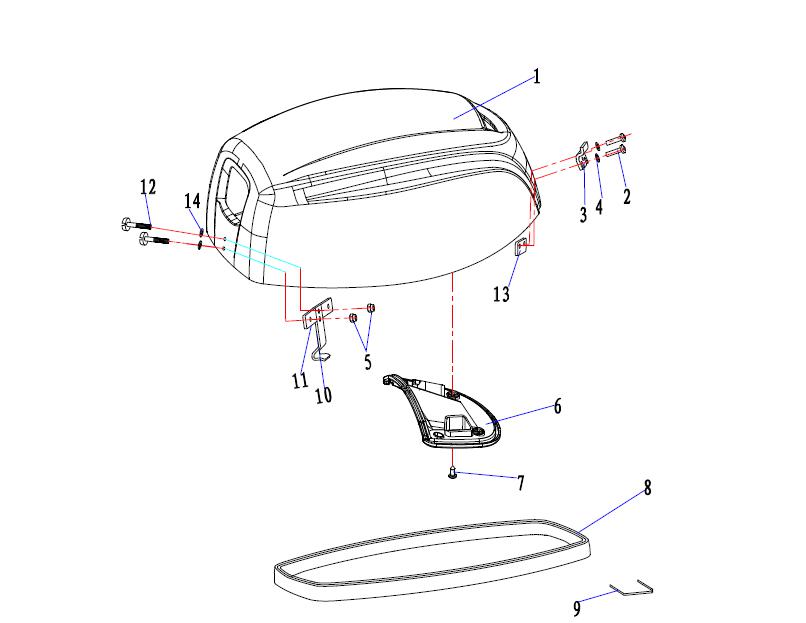

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15顶罩顶罩Top cowling1
2GB818十字槽盘头螺钉M4*12Pan head screw with cross recess290157-05014
3F6-07.00.00.04顶罩后锁紧钩Rear lock hook1
4GB97.1平垫4Flat gasket290201-16M44
5DIN985六角尼龙锁紧螺母M4Bolt290185-05002-00
6F15进气口盖Air inlet cap1
7GB845十字槽盘头自攻螺钉ST4.8*13Screw ST4.8*134
8F15-07.00.00.03橡胶密封圈（长1.5M)Rubber seal ring1
915F-07.07圆形装帧钉1.2Bingding nail20
10F15-07.00.00.06前锁紧钩Lock Hook(front)1
11F9.9-07.09前锁紧钩座front lock hook seat1
12GB818十字槽盘头螺钉M4*16Pan head bolt with cross recess290157-05014
132.5F-02.00.00.10锁紧钩固定板Plate1
14GB96平垫M4Flat gasket 4292903-10600-00
启动罩

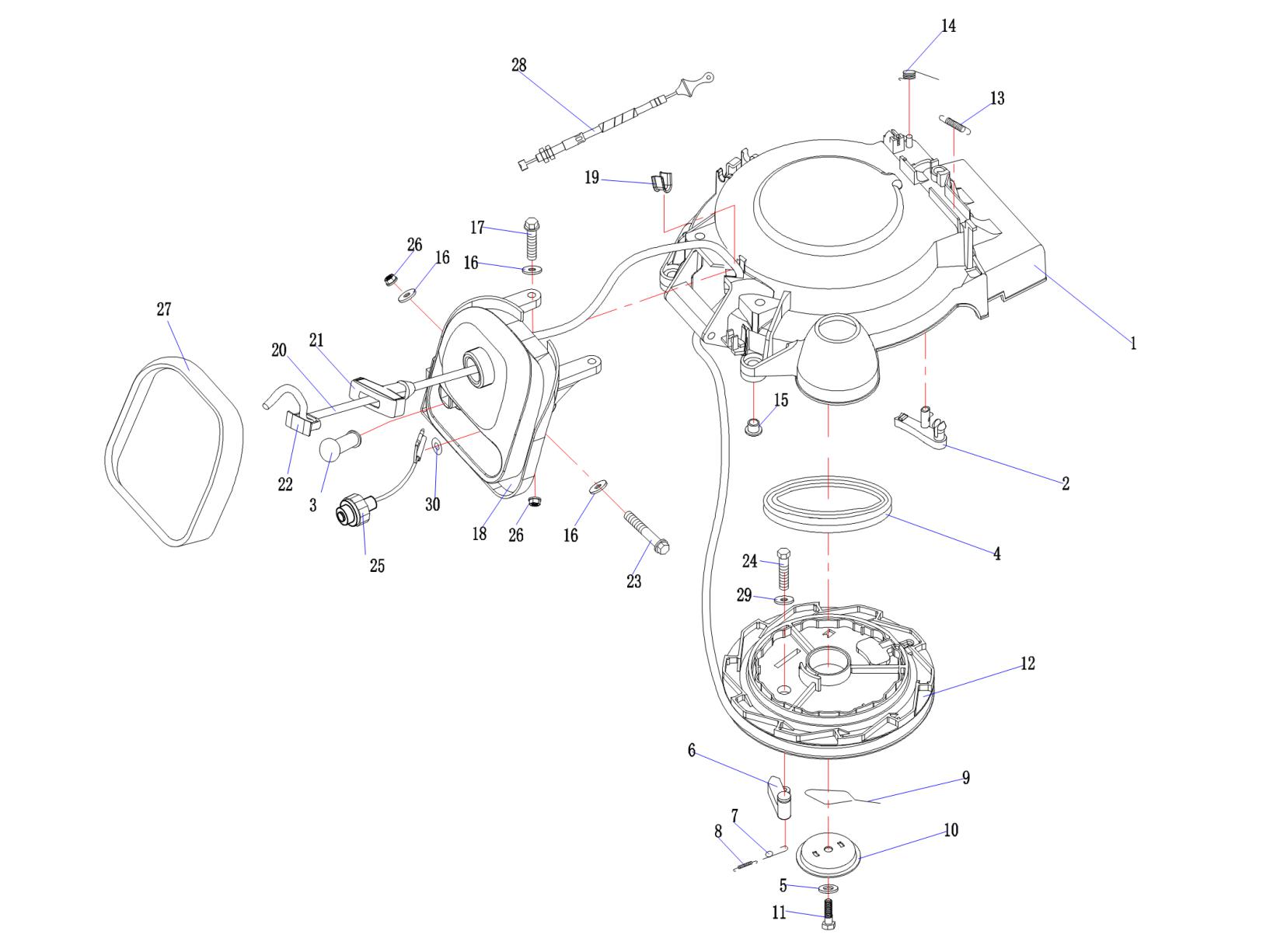

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.07.00.01启动罩外壳Casing,Starter cover assy.1
2F15-01.07.00.02制动器Brake166T-15794-00
3F15-01.07.00.06阻风门堵塞Plug,choke1
415F-01.01.11涡形弹簧Volute spring163V-15713-00
5GB848平垫6Flat gasket192995-08600-00
6F25-01.01.00.02驱动臂Drive arm163V-15741-00
715F-01.01.18驱动臂弹簧Spring,drive arm163V-15767-01
815F-01.01.17回位弹簧Return spring163V-15784-01
915F-01.01.20压板夹簧Clip spring163V-15705-01
1015F-01.01.19启动压板Starter plate163V-15716-00
11GB5783(8.8)六角头螺栓M6*16Bolt1
12F15-01.01.05启动轮Start wheel1
13F15-01.07.00.05钢索拉簧Spring166T-15731-00
14F15-01.07.00.03制动器扭簧Torsional spring,brake166T-15734-00
15F15-01.07.00.08启动罩垫管Cushion tube,recoil starter3
16GB96平垫6Flat gasket492903-10600-00
17GB5783六角头螺栓M6*30Bolt290119-06MA3-00
18F15-01.07.01.00启动手柄托架组件Brackt comp.,starter handle1
19F9.9-01.07.00.06U型滑套U-type sliding bush1
2015F-01.01.22启动绳5*2000mmStart rope1
2115F-01.01.08启动手柄Starter handle1
2215F-01.01.10手柄盖(启动)Cover,Starter handle1
23GB5783六角头螺栓M6*85Hexagonal bolt M6*85190119-06MA3-00
24GB818十字槽盘头螺钉M5*14Pan head bolt with cross recess190157-05014
25F15-01.06.01.00机油报警指示灯组件light,oil alarm168T-85410-00-00
26DIN985六角尼龙锁紧螺母M6hexagon nylon lock nut390185-05002-00
27F15-01.07.00.07托架减震套Damper,bracket1
28F15-01.07.00.04制动钢索Steel cable,brake166M-15770-00-00
29GB96平垫5Flat gasket192903-10600-00
3015F-03.09.13杠杆垫washer1
动力部分

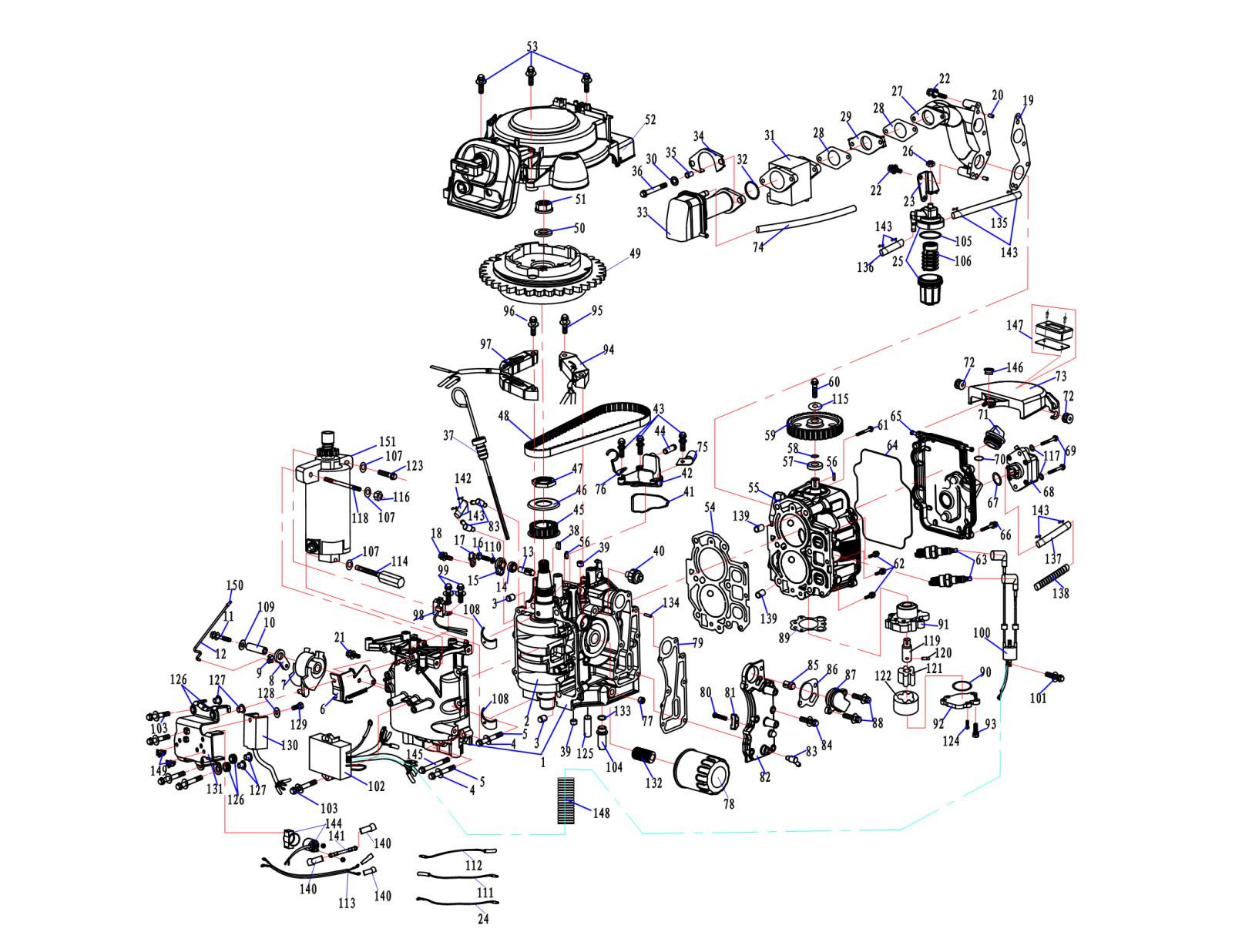

动力部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.01.00.01箱体组件Crankcase comp. (with crankcase166M-15100-02-1S
2F15-01.02.00.00曲柄连杆组件Crank connection road assy.1
3F15-01.01.00.18空心定位销Dowel pin2
4GB848平垫M6Flat gasket692995-08600-00
5GB5783(A4-80)六角头螺栓M6*35Bolt690119-06MA3-00
6F15-01.01.00.20油门钢索端轮支座seat,throttle cable cam165W-14497-01-00
7F15-01.01.00.22油门钢索端轮Pulley165W-41638-00-00
8F15-01.01.00.23油门连接块Connecting block,throttle165W-41283-00-00
915F-01.02.07阻风门连杆接头choke rod connector1309-03173-0
10F15-01.01.00.21衬套Bushing190387-06064-00
11GB9074.1 M6*55(8.8)螺栓和垫圈组合件Flat gasket&bolts1
12F15-01.01.00.25油门连杆Throttle lever166M-41211-00-00
13F15-01.01.00.03机体阳极Anode166M-11325-00-00
14F15-01.01.00.04水封Stop collar,drive pully166M-11328-00-00
15F15-01.01.00.05压紧块Pressing strip166M-11327-00-94
16GB5783 M5*12六角头螺栓M5*12Hexagon headed bolt M5*121
17F15-01.01.00.06传导片Conductive slice166M-12535-00-00
18GB9074.1 M6*20(8.8)螺栓和垫圈组合件Flat gasket&Bolt1
19F15-01.03.00.28进气歧管密封垫Air intake manifold gasket166M-13645-00-00
2015F-01.06.20定位销6*12Dowel pin2
21GB9074.1 M6*12(8.8)螺栓和垫圈组合件Bolt1
22GB9074.1 M6*40(8.8)螺栓和垫圈组合件Bolt4
23F15-01.03.00.31燃油滤清器固定架Holder,fuel filter1
24HDF9.9HE-00.00.13接地线(黑)(利尔)ground lead1
2515F-01.07.05.05燃油滤清器（外壳）Inner cover,exhaust161N-24560-00
26GB6170六角头螺母M8Hexagon nut192995-06600-00
27F15-01.03.00.30进气歧管Air intake manifold166M-13641-10-94
28F15-01.03.00.32化油器密封垫Carburetor Seal gasket266M-13646-00-00
29F15-01.03.00.33隔热板heatproof Plate166M-14271-00-00
30GB848平垫M6Flat gasket292995-08600-00
31DQDF15-00.00.03化油器组件Carburetor Assy.166M-14301-12-00
32F15-01.03.04.04O型密封圈(34.3*2)Seal O-ring193210-35M86-00
33F15-01.03.04.00进气消音器组件Air intake silencer Assy.166M-12170-00-00
34F15-01.03.00.34进气消音器夹紧板Clamp plate,Air intake silencer166M-14477-00-00
35F15-01.03.00.43垫管Cushion tube290387-06119-00
36GB5783 M6*100六角头螺栓M6*100Bolt290119-06M76-00
37F15-Ⅱ-01.03.00油标尺(天然气)oil dip stick comp.166M-15362-00-00
38F15-01.02.00.02飞轮半圆键Woodruff key190280-05013-00
39F15-01.01.00.08堵塞1/4Plug2
40F15-01.01.00.26机油压力报警器Oil pressure alarm162Y-82504-10-00
41F15-01.01.02.03密封条sealing strip166M-11357-00-00
42F15-01.01.02.01呼吸器本体breather166M-11168-00-1S
43GB9074.1 M6*20(8.8)螺栓和垫圈组合件Flat gasket&Bolt3
44F15-01.01.02.02进油嘴Oil inlet1
45F15-01.02.00.03主动带轮drive pully166M-11536-10-00
46F15-01.02.00.04主动带轮挡圈Stop collar,drive pully166M-11557-00-00
47F15-01.02.00.05六角螺母Nut190170-28M37-00
48F15-01.03.00.25同步带belt166M-46241-00-00
49DQDF15-00.00.04飞轮(电起动)needle valve1
50GB97.1平垫M16Flat gasket M16190201-16M44
51F15-01.06.00.06飞轮螺母(对边24)Fly wheel nut1334-00132-0
52F15-01.07.00.00启动罩组件Recoil Starter assy1
53GB5783六角头螺栓M6*20Bolt390119-06MA3-00
54F15-01.03.02.00气缸垫组件Cylinder gasket comp.166M-11181-10-00
55F15-01.03.00.21气缸头Cylinder head166M-11111-01-1S
56GB/T1099半圆键(3*5*13)Woodruff keyoil seal290280-03M01-00
57F15-01.03.00.16油封18*35*7-Roil seal193102-18M21-00
58GB97.1平垫M12Flat gasket 12190201-16M44
59F15-01.03.00.24从动带轮Driven pulley166M-11537-00-94
60GB5789 M6*16(10.9)六角法兰面螺栓M6*16Hex Flange Bolt M6*16190105-06M14
61GB5789 M8*75(10.9) (S1六角法兰面螺栓(铁铬合lat gasket668T-12171-00-00
62GB5783 M6*25(10.9)六角头螺栓M6*25Bolt390119-06MA3-00
63DPR6EA-9(F15)火花塞Spark plug2NGK-DPR6E-A9-00
64F15-01.03.00.38橡胶密封圈Rubber seal ring166M-11356-00-00
65F15-01.03.00.37气缸头罩壳Cover,Cylinder head166M-11191-00-1S
66GB9074.1 M6*20(8.8)螺栓和垫圈组合件Flat gasket&Bolt4
67F15-01.04.01.10O型密封圈(20.2*2.4)O-ring193210-20M65-00
68F15-01.04.01.00燃油泵组件Fuel pump assy.166M-24410-10-00
69GB818M6*30十字槽盘头螺钉M6*30Cross recessed Pan head screwsM 2
70F4-01.06.27油标尺O形圈(24*3.5)O ring1
71F15-01.03.00.39加油口螺塞Oil filling plug169M-E5363-00-00
72F15-01.03.00.27减震垫 ADamper2
73F15-01.03.00.26从动带轮罩壳Drive pulley cover166M-46297-00-00
74F15-01.03.00.35通气管Breath hose1
75F15-01.03.00.42通气管固定夹 Bfix clip,air breather tube190465-06M86
76F15-01.03.00.36通气管固定夹 AClip1
77F15-01.01.00.07堵塞1/8Plug1
78F15-01.05.01.00机油滤清器组件Oil filter assembly15GH-13440-00-00
79F15-01.01.00.09排气盖垫片Gasket,exhaust cap166M-41114-01-00
80GB820 M4*12十字槽半沉头螺钉M4*12Cross recessed countersunk head1
81F15-01.01.00.13排气盖阳极Anode16E5-11325-00-00
82F15-01.01.00.10排气盖(电启动)Exhaust cover1
8315F-01.06.10水管圆接头water Tube fitting B3
84GB9074.1 M6*30(8.8)螺栓和垫圈组合件Bolt5
85F15-01.06.14-60 °节温器(60 °)Thermostat 60 °169M-12411-01-00
86F15-01.01.00.11节温器盖垫片Gasket,Thermostat16H3-12414-A1
87F15-01.01.00.12节温器盖Thermostat cap16H3-12413-00-1S
88GB5783六角头螺栓M6*30Bolt290119-06MA3-00
89F15-01.05.00.02机油泵密封垫Oil pump Seal gasket166M-13329-10-00
90F15-01.05.02.04密封环sealing1
91F15-01.05.02.06机油泵泵体Oil pump166M-13300-10-00
92F15-01.05.02.05机油泵盖Oil pump cap1
93GB5783六角头螺栓M6*35Bolt390119-06MA3-00
94F15-01.06.03.00充电线圈组件Charging coil assy1
95GB5783六角头螺栓M6*25Bolt290119-06MA3-00
96GB5783六角头螺栓M6*35Bolt490119-06MA3-00
97F15-01.06.02.00发动机线圈组件engine coil comp.166M-85533-10-00
98F15-01.06.04.00触发线圈组件Trigger coil comp.166M-85520-00-00
99GB5783(8.8)六角头螺栓M6*16Bolt2
100F15-01.06.05.00高压包组件Ignition coil166M-85570-00-00
101GB9074.1 M6*20(8.8)螺栓和垫圈组合件Flat gasket&Bolt2
102F15-01.06.06.00点火线圈组件Ingition coil comp.166M-85540-01-00
103GB9074.1 M6*20(8.8)螺栓和垫圈组合件Flat gasket&Bolt6
104F15-01.01.01.00溢流阀组件Flood valve comp.16G8-11575-00-00
10515F-01.07.05.06过滤器O型圈(33*2)O ring,filter193210-32738
10615F-01.07.05.04过滤器滤芯fuel fliter161N-24563-00
107GB/T848平垫8Flat Pad 83
108F15-01.01.00.17主轴瓦Main bearing4
109GB96平垫M6Flat gasket192903-10600-00
110GB848平垫M5Flat gasket192995-08600-00
111HDF9.9HE-00.00.12继电器导线relay wire1
112HDF15HE-00.00.02保险丝导线fuse wire1
113DQDF15-00.00.07电瓶线（长2235）battery cable（2235）1
114DQDF15-00.04.01长六角头螺栓M8*45Hex bolt(L)M8*451
115GB96平垫M6Flat gasket192903-10600-00
116GB/T6170六角头螺母M8Bolt nut1
117GB848平垫M6Flat gasket292995-08600-00
118DQDF15-00.04.02双头螺栓M8*66double head bolt M8*661
119F15-01.05.02.01转子轴Rotor spindle1
120GB309 2.5*11.8滚针2.5*11.8Roller needle1
121F15-01.05.02.02内转子Inner rotor1
122F15-01.05.02.03外转子Outer rotor1
123GB5783六角头螺栓M8*50Hex Head Bolt M8*50190119-08M13
124GB823十字槽小盘头螺钉M6*20Cross recessed Pan head screwsM 2
125F15-01.01.02.02进油嘴Oil inlet1
126F15-01.06.00.02减震垫Damper4
127F15-01.07.00.08起动罩垫管Cushion tube,recoil starter4
128GB848平垫M6Flat gasket192995-08600-00
129GB5783六角头螺栓M6*12Bolt190119-06MA3-00
130F15-01.06.07.00整流器组件Rectifier Comp.168T-81960-00-00
131F15-01.06.00.01整流器支架Bracket,Rectifier1
132F15-01.05.00.01机油滤清器芯轴dabber,fuel filter190401-20M00-00
133F15-01.01.00.15o型橡胶圈O-ring193210-12M62-00
13415F-06.03.08定位销4*12Cotter Pin 4*12(short shaft)293604-12M07-00
135F15-01.04.00.01燃油管5*10*505Fuel hose190445-10M93-00
136F15-01.04.00.02燃油管5*10*150Fuel Hose (5*10*150)1
137F15-01.04.00.03燃油管380*10*5Fuel hose190445-10M19-00
138F15-01.04.00.04波纹管280*14（外）Bellows1
139F15-01.01.00.18空心定位销Dowel pin2
140DQDF15-00.03.03橡胶护套Arubber sleeve A3
141DQDF15-00.03.04连接导线connecting wire1
142F15-01.01.00.27气管5*10*70Hose1
143管夹φ 10Clamp8
144DQDF15-00.03.00继电器组件（电启动）relay Assy.1
145GB5789 M8*55(10.9) (S1六角法兰面螺栓M8*55Bolt4
146F15-01.03.00.41减震垫BDamper1
14760F-01.02.00.13计时器组件timer Comp.16AU-11411-00-00
148F15-01.06.00.08阻燃管ф23*80flame retardent,hose1
149F25-01.02.05.02圆形尼龙扣(大)Nylon Button2
150F9.9-01.04.00.05连杆帽linkage cover1
151DQDF15-00.04.00启动电机组件electric start motor assy.1
曲轴活塞

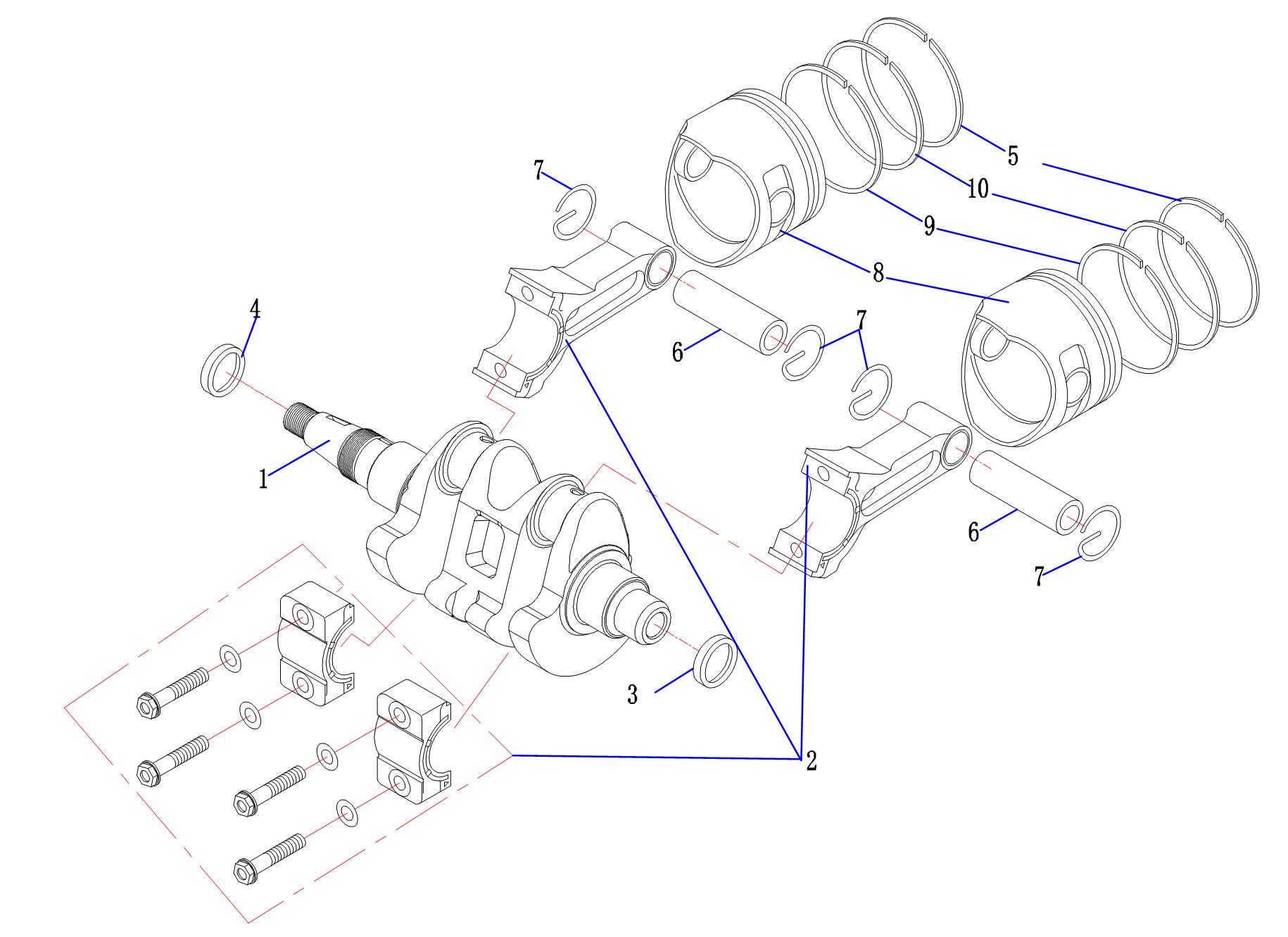

曲轴活塞 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.02.00.01曲轴Crankshaft166M-11411-00-00
2F15-01.02.01.00连杆组件Connecting rod comp.266M-11650-00-00
3F15-01.02.00.07曲轴下油封Oil seal(bottom),crankshaf193102-25M52-00
4F15-01.02.00.06曲轴上油封Oil seal(upper),crankshaft193102-35M51-00
6F15-01.02.02.06活塞销Pin,piston2634-11633-00-00
7F15-01.02.02.02活塞销卡簧Circlip493450-15023-00
8F15-01.02.02.01活塞Piston266M-11631-00-96
5F15-01.02.02.03主气环1st ring266N-11603-00-00
9F15-01.02.02.05油环Oil ring266N-11603-00
10F15-01.02.02.04副气环2nd ring2
配气系统

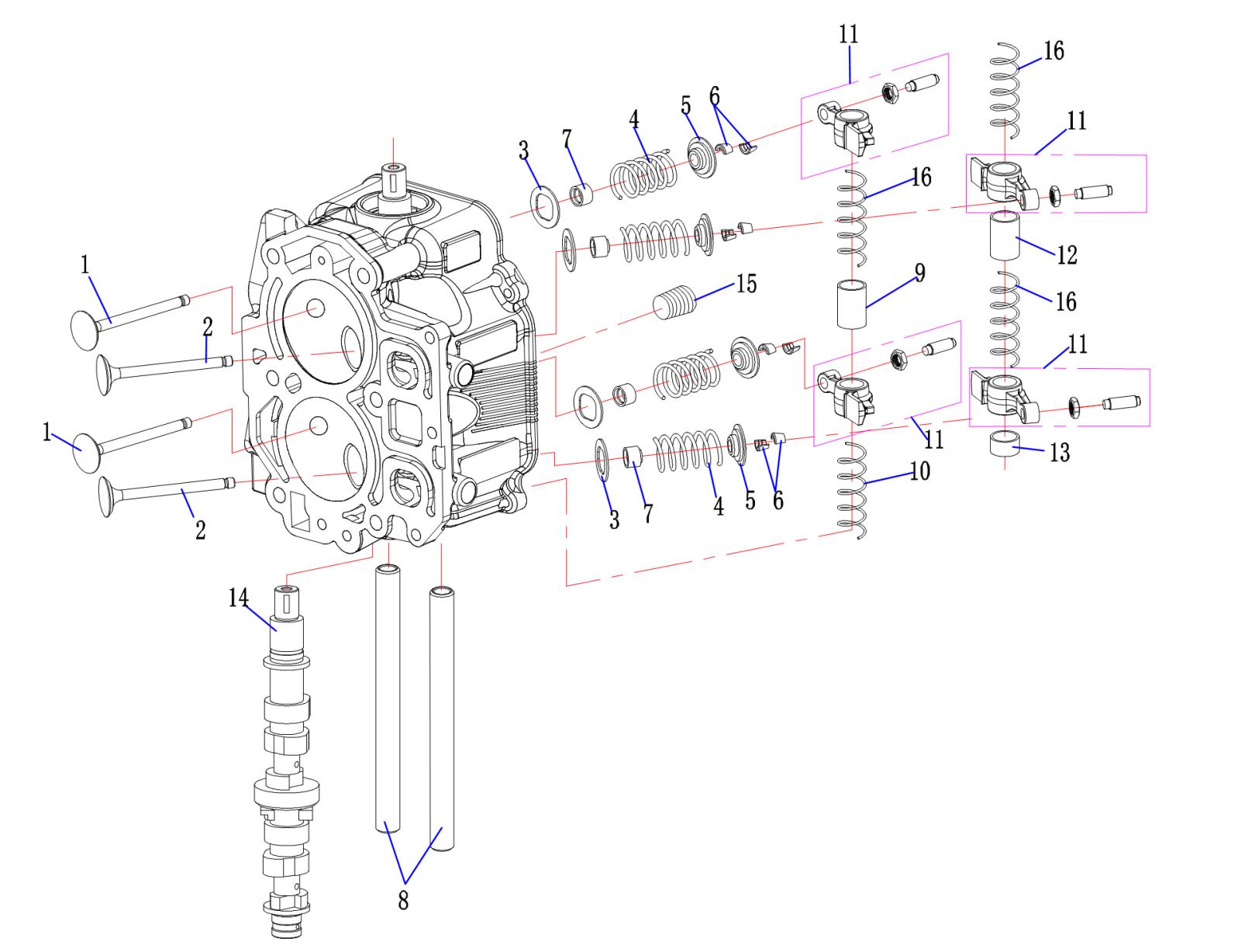

配气系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.03.00.01进气门Intake valve266M-12111-00-00
2F15-01.03.00.02排气门Exhaust valve266M-12121-00-00
3F15-01.03.00.07气门弹簧垫圈Washer,Valve spring466M-12116-00-00
4F15-01.03.00.03气门弹簧Valve spring466M-12113-00-00
5F15-01.03.00.04气门弹簧座圈Washer,Valve spring430X-12117-00-00
6F15-01.03.00.05气门锁夹valve clamp830X-12118-00-00
7F15-01.03.00.15气门油封Valve oil seal451Y-12119-00-00
8F15-01.03.00.06摇臂轴Rocker arm shaft266M-12146-00-00
9F15-01.03.00.10摇臂轴隔套ASleeve,Rocker arm shaft(inlet)190387-13M56-00
10F15-01.03.00.09摇臂轴弹簧ASpring,Rocker arm shaft190501-12M41-00
11F15-01.03.00.14摇臂Rocker arm466M-12151-10-00
12F15-01.03.00.12摇臂轴隔套CSleeve,Rocker arm shaft c(outlet)190387-13002-00
13F15-01.03.00.11摇臂轴隔套BSleeve,Rocker arm shaft B190387-13001-00
14F15-01.03.01.00凸轮轴组件Camshaft comp.166M-12170-00-00
15F15-01.01.00.08堵塞1/4Plug3
16F15-01.03.00.13摇臂轴弹簧BSpring,Rocker arm shaft390501-12M40-00
操舵手柄

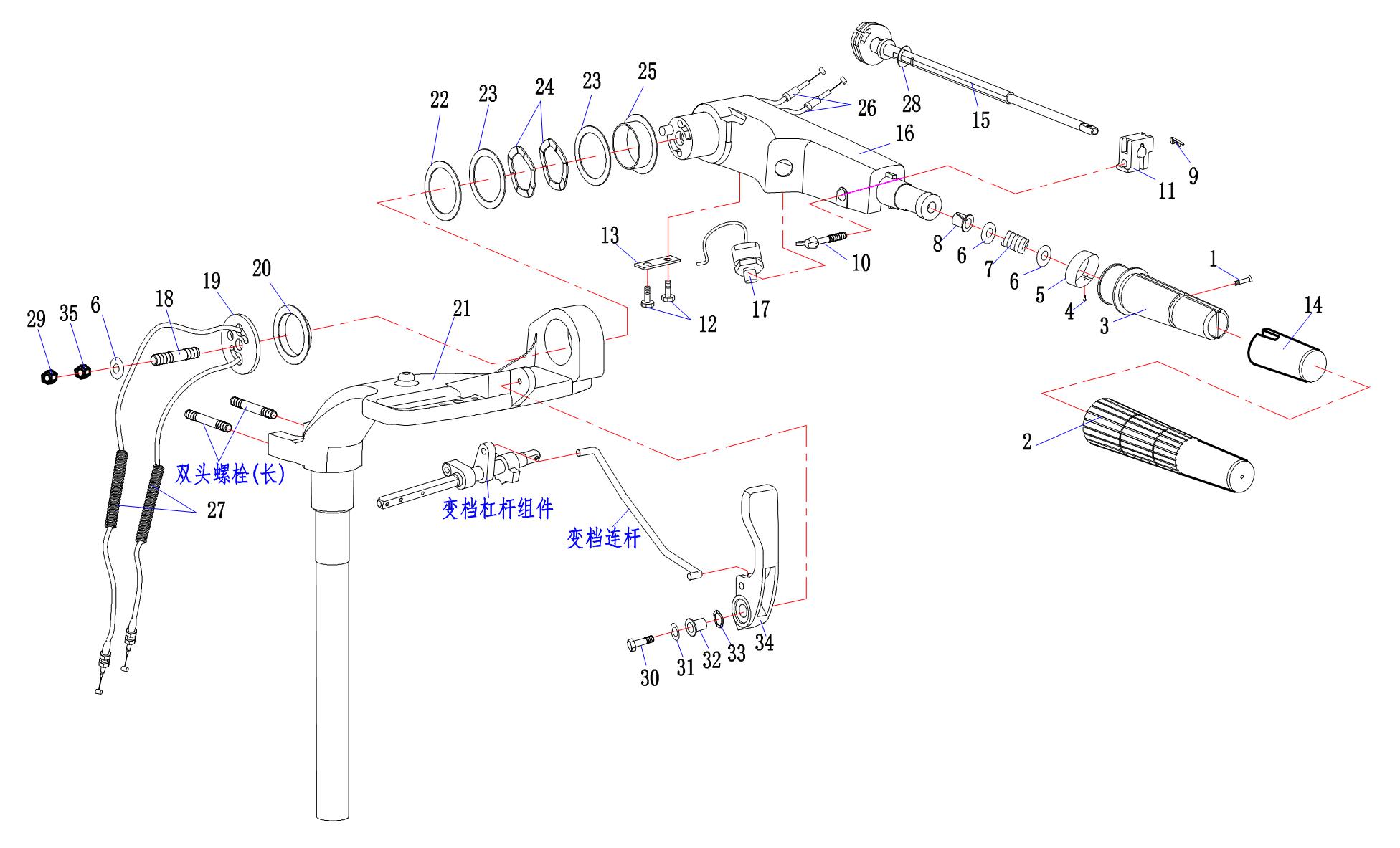

操舵手柄 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB820十字槽半沉头螺钉M5*25Cross recessed countersunk head190152-05M04-00
2F4-04.07.15手柄橡胶套Rubber sleeve,Handle1
315F-04.07.13手柄Handle1
4GB845十字槽盘头自攻螺钉Cross recessed pan head tapping screws1
5F4-04.11-Ⅱ油2门标24牌5Indicator,throttle1
6GB848平垫10Flat gasket192995-08600-00
715F-04.07.11弹簧spring1
815F-04.07.12衬套Bushing1
9GB91开口销1.6*12Cotter pin191490-30020-00
10F15-04.02.00.08阻力调整旋钮Friction adjusting screw1
1115F-04.07.08锁紧块Latch segment1
12GB9074.1六角头螺栓和平垫组件Bolt and flat gasket2
13F15-04.02.00.07节6气20门杆压板Plate165W-42159-00
14F4-04.07.14手柄嵌件insert,handle1
15F15-04.02.00.05节气门杆Throttle lever165W-42138-00
16F15-04.02.00.01操舵手柄Steering handle165W-42101-01-4D
1715F-04.07.03急停开关总成emergency stop switches assy1
18F15-04.02.00.02双头螺栓M10Double-screw bolt1
19F15-04.00.00.02操舵手柄压板Plate165W-42131-01
20F15-04.00.00.04尼龙衬套（短）Nylon sleeve(short)190386-40M99
21F15-04.01.00.00操舵托架组件(短轴）Steering bracket comp.（S）166M-42511-01-4D
NoneF15-04.01.00.00-L操舵托架组件(长轴）Steering bracket comp.（L）1
22F15-04.00.00.03尼龙垫圈Nylon washers190202-43M57
23F15-04.00.00.07垫圈gasket290201-43M00
24F15-04.00.00.05波形垫圈waterform gasket ring290206-43M22
25F15-04.00.00.06尼龙衬套（长）Nylon sleeve(long)190386-440MA0
26F15-04.02.00.04油门控制钢索Throttle cable266M-26311-00-00
27F15-04.00.00.08波纹塑料管Waveform pipe290446-10M87-00
28GB848平垫12Flat gasket192995-08600-00
29DIN985六角尼龙锁紧螺母M10*1.25hexagonal locknut190185-05002-00
30GB5783六角头螺栓M6*35190119-06MA3-00
31GB848平垫6Flat gasket192995-08600-00
3215F-04.08.03带肩垫管Shoulder pad tube1
3315F-04.08.04变档手柄波形垫圈Wave washer1
34F15-02.00.00.34变档手柄Shift handle166M-44111-01-00
35GB6170六角螺母M10*1.25Hexagonal nut192995-06600-00
NoneF15-04.00.00.00操舵手柄部件Tiller Assy.1
夹紧部位

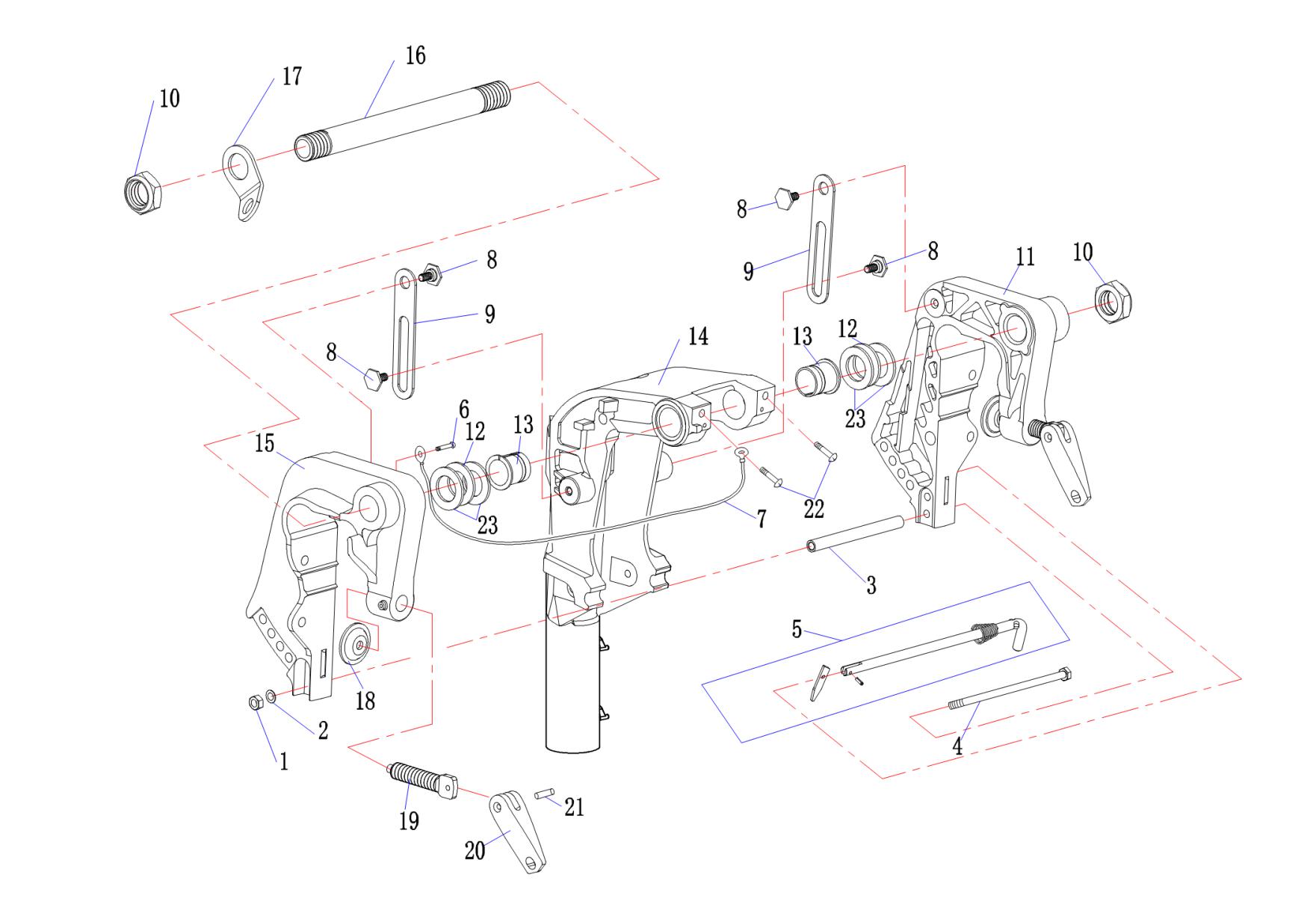

夹紧部位 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB6170六角头螺母M6Hexagon nut192995-06600-00
2GB848平垫6Flat gasket192995-06600-00
315F-03.11螺栓套管Sleeve190387-06M13-00
4GB5783六角头螺栓M6*145Bolt190101-06M29-00
515F-03.10.00-Ⅱ角度限位插销组件Trim rod Assy.16L2-43160-00-00
6GB818十字槽盘头螺钉M6*8Pan head bolt with cross rece190157-05014
715F-03.05.03钢索连接组件Cable Connector Assy.166M-82148-00-00
815F-03.06扁头六角螺栓Bolt4
915F-03.07制动板brake pad263V-43181-00-00
1015F-03.01夹紧托架螺母Clamp nut290185-22043-00
1115F-03.08.01夹紧托架（右）（高压)Bracket(RH)163V-43111-06-4D
1215F-03.02尼龙垫圈Nylon gasket290202-22M54-00
1315F-03.09.02托架阻尼套Damping ring,bracket290386-22M94-00
14F15-03.01.00.01-S旋转托架（短轴）Swivel bracket(S)163V-43311-03-4D
NoneF15-03.01.00.01-L旋转托架（长轴）Swivel bracket(L)166M-43311-10-4D
1515F-03.05.01夹紧托架（左）（高压)Bracket(LH)163V-43112-07-4D
16F15-03.00.00.01夹紧托架双头螺栓Bolt163W-43131-01-00
1715F-03.03孔板Orifice plate166R-43113-00-00
1815F-03.05.02.03夹紧盘Clamp plate2648-43114-01-00
19F9.9-Ⅱ-03.00.00.02艉板夹紧螺栓Clamp Bolt,Transom26E7-43116-00-00
2040F-03.05.03.02夹紧手柄intensify handle26E0-43118-01-00
21GB1015沉头半空心铆钉4*18Rivet290243-04M01-00
22GB818十字盘头螺钉M8*10Pan head bolt with cross rece290157-05014
2340F-03.03垫片Gasket4
旋转托架部位

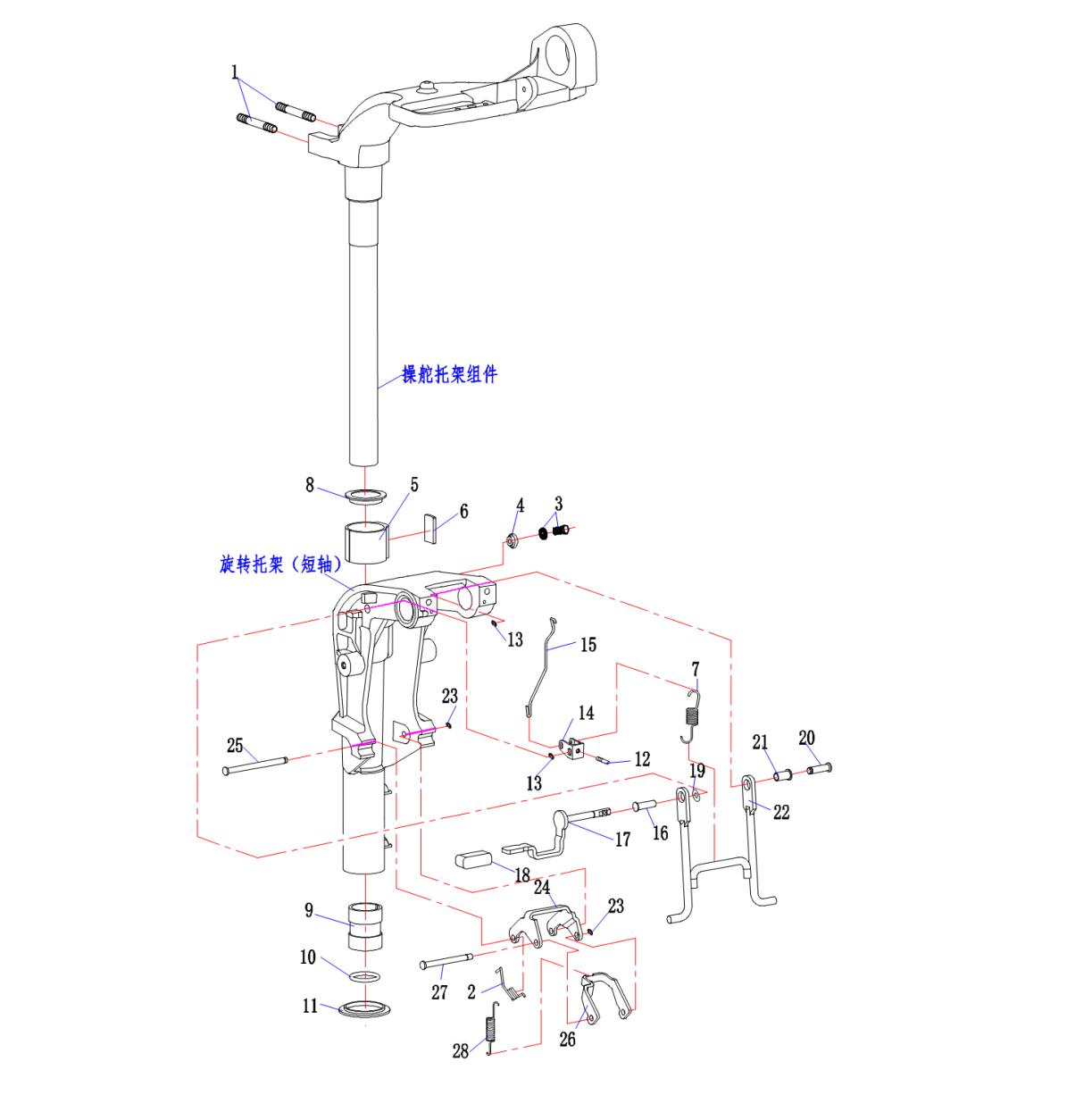

旋转托架部位 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-04.01.03双头螺栓Bolt2
215F-03.09.23弹簧Spring190508-18M41
3GB9074.1六角头螺栓和平垫组件M6*20Flat gasket&Bolt1
415F-03.09.09锁紧螺栓密封圈Gasket1689-43373-01
515F-03.09.03锁紧圈Lock washer165F-42537-00
615F-03.09.04锁紧圈摩擦片Friction plate,Locking163V-42528-00
715F-03.09.24角度支撑架拉簧Spring190507-20M00
815F-03.09.05垫圈ring gasket190209-40008
915F-03.09.06下衬套bushing (bottom)190386-30048
1015F-03.09.07O型密封圈(29*3.8)O ring193210-29M94
1115F-03.09.08下衬圈Lower bushing190386-30M60
12GB818十字槽盘头螺钉M5*6Pan head screw with cross recess190157-05014
13GB896开口挡圈5Circlip299080-05600
1415F-03.09.10角度定位件Angle fixer163V-43641-01
1515F-03.09.11角度定位锁杆angle loction rod166R-43617-00
1615F-03.09.14杠杆套Sleeve1
1715F-03.09.12.00操纵杠杆组件Lever comp.,Steering166M-43630-01
1815F-03.09.12.01橡塑套rubber Sleeve1682-43318-01
1915F-03.09.13杠杆垫washer1
2015F-03.09.19角度定位锁轴Pin166R-43611-00
2115F-03.09.17支撑架销尼龙套Nylon bush,support frame190386-07M95
2215F-03.09.15角度支撑架Tilt angle fixer166M-43350-01
23GB896开口挡圈4Circlip299080-05600
2415F-03.09.21角度定位锁紧外支架Tilt angle outer bracket166R-43615-00
2515F-03.09.16支撑架销Pin,support frame163V-43659-00
2615F-03.09.20角度定位锁紧内支架Tilt angle inner bracket163V-43614-10
2715F-03.09.22角度定位固定轴Shaft,Tilt Lock166R-43611-00
2815F-03.09.18拉簧pull Sping163V-43656-00
底罩

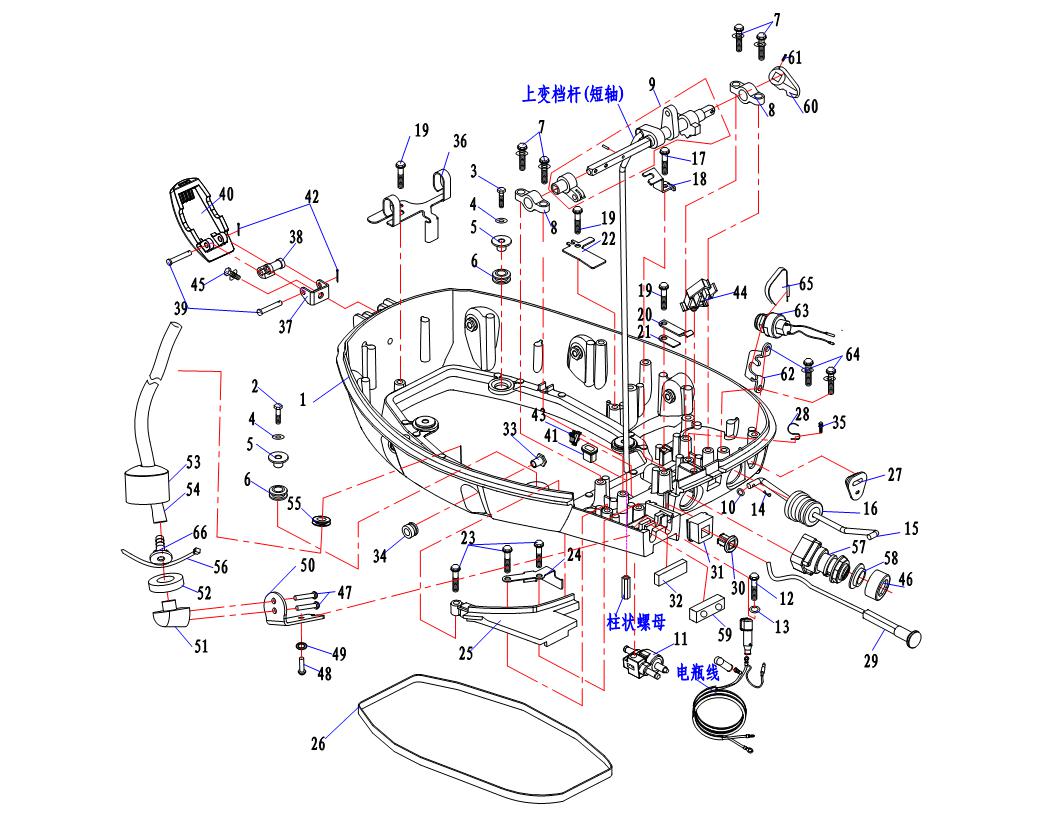

底罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-Ⅱ-02.00.00.01底座(天然气）Botton Base1
2GB/T5783六角头螺栓M6*25Bolt2
3GB/T5783六角头螺栓M6*35Hex Head Bolt M6*352
4GB5287平垫6Flat gasket 64
515F-02.08减震垫衬管Washer,damping490480-15M31
615F-02.07底座减震垫Cushion blocking of bottom seat490387-06034
7GB9074.1螺栓和垫圈组合件M6*25Hexagonal bolt & flat gasket assy M6*252
8F15-02.00.00.07托架Bracket26F5-41662-00
9F15-02.01.00.00变档杠杆组件Shift lever Comp.165W-44121-00-00
10GB848平垫6Flat gasket192995-08600-00
1115F-01.07.01.00燃油管插头组件Fuel hose joint assy1
12GB/T5783六角头螺栓M6*25Bolt2
13GB848平垫6Flat gasket192995-08600-00
1415F-04.08.05卡簧（大）Circlip190468-18008
15F15-02.00.00.14变档连杆Gear shift1
16F15-02.00.00.15手柄连杆橡胶减震圈Rubber shock ring,handle connceting rod165W-42726-00
17GB/T5789六角法兰面螺栓M6*20Bolt190109-06M86-00
18F15-02.00.00.03钢索固定架Cable fixer1
19GB5789六角法兰面螺栓M6*16Hex Flange Bolt M6*16490105-06M14
20F15-02.00.00.05变档限位弹簧板shift limit plate165W-44116-00-00
21F15-02.00.00.06垫板plate166R-44114-00-00
22F15-02.00.00.02压板Press plate266M-42743-00-00
23GB5789六角法兰面螺栓M6*30Bolt490105-06M14
24F15-02.00.00.11阻风门拉杆固定架fixing bracket,choke pull rod1
25F15-02.00.00.10燃油管插头上盖板upper plate,fuel hose plug1
26F15-02.00.00.18橡胶减震条Rubber damper strip1
27F15-02.00.00.12钢索护套Protecting sleeve,steel cable165W-26326-00
28F6-02.00.00.02手动泵支架左Holder, manual pump (L)
29DQDF15-00.06.00阻风门拉杆组件chock rod Assy.1
3015F-02.03阻风门拉杆护套Protecting bush,choke1689-41273-00
31F15-02.00.00.16橡胶固定块Rubber block1
32F15-02.00.00.09橡胶密封块Rubber seal block165W-42727-00-00
33F15-00.00.00.15装饰板减震器垫圈gasket,bottom damper6
34F15-02.00.00.32装饰板减震器Damper66A0-82317-00-00
35GB9074.1 M6*16(8.8)螺栓和垫圈组合件Bolt1
36F15-02.00.00.19水管管卡Clip,hose1
37F6-02.03.00.00锁紧手柄支架组件Lock handle bracket Assy.1
38F6-02.00.00.06锁紧手柄连接件lock handle connector1
39F6-02.00.00.05锁紧手柄转轴Lock handle ratation shaft2
40F9.9-02.00.00.17锁紧手柄lock handle1
4115F-02.10变档连杆橡胶护套protecting bush,gear shifting linkage1682-42727-00
42GB/T896 4开口挡圈4Opening ring 42
43F15-01.06.00.03塑料线卡plastic cable clamp1
4415F-02.06油门钢索固定夹Fixer,Throttle cable190465-25M57
45GB9074.1螺栓和垫圈组合件M6*12Bolt2
4630FE-02.00.00.15电启动开关防护罩protective cover，electric start switch1
47GB/T845十字槽盘头自攻螺钉ST5.5*Pan head screw ST5.5*192
48GB/T5783六角头螺栓M6*20Bolt2
49GB/T848平垫M6Flat gasket1
50DQDF15-00.05.06外接水管安装架Mounting rack，External water pipe1
51DQDF15-00.05.05外接水管座Seat,External water hose1
52DQDF15-00.05.04橡胶垫片Rubber gasket1
53DQDF15-00.05.02外接水管盖Cap,External water hose1
54DQDF15-00.05.01外接水管 φ7xφ12x880External water pipe7*12*8801
55DQDF15-00.05.07外接水管橡胶护套sleeve ,External water pipe1
56尼龙扎带Nylon ribbon
57F9.9HE-00.00.10后启动开关（天然气）start switch（natural gas)1
5830F-02.00.00.14电启动开关防震垫crash pad,electric start switch1
59HDYK00.00.22底座钢索固定块steel cable fixed block,lower coeling1
60F15-Ⅱ-02.01.00.06安全启动凸轮(天然气)safety switch cam（natural gas)1
61GB879 3*20弹性圆柱销Cylindrical pin190254-03M05
62F15E-Ⅱ-02.00.00.33安全启动开关固定座fixed seat,safety start switch1
63F9.9-Ⅱ-01.06.00.17安全启动开关safety start switch1
64GB9074.1 M6*20(8.8)螺栓和垫圈组合件Flat gasket&Bolt1
65F25EB-01.02.00.35安全开关压板plate,safety switches1
66DQDF15-00.05.03外接水管插头Plug,External water hose1
水上分解图

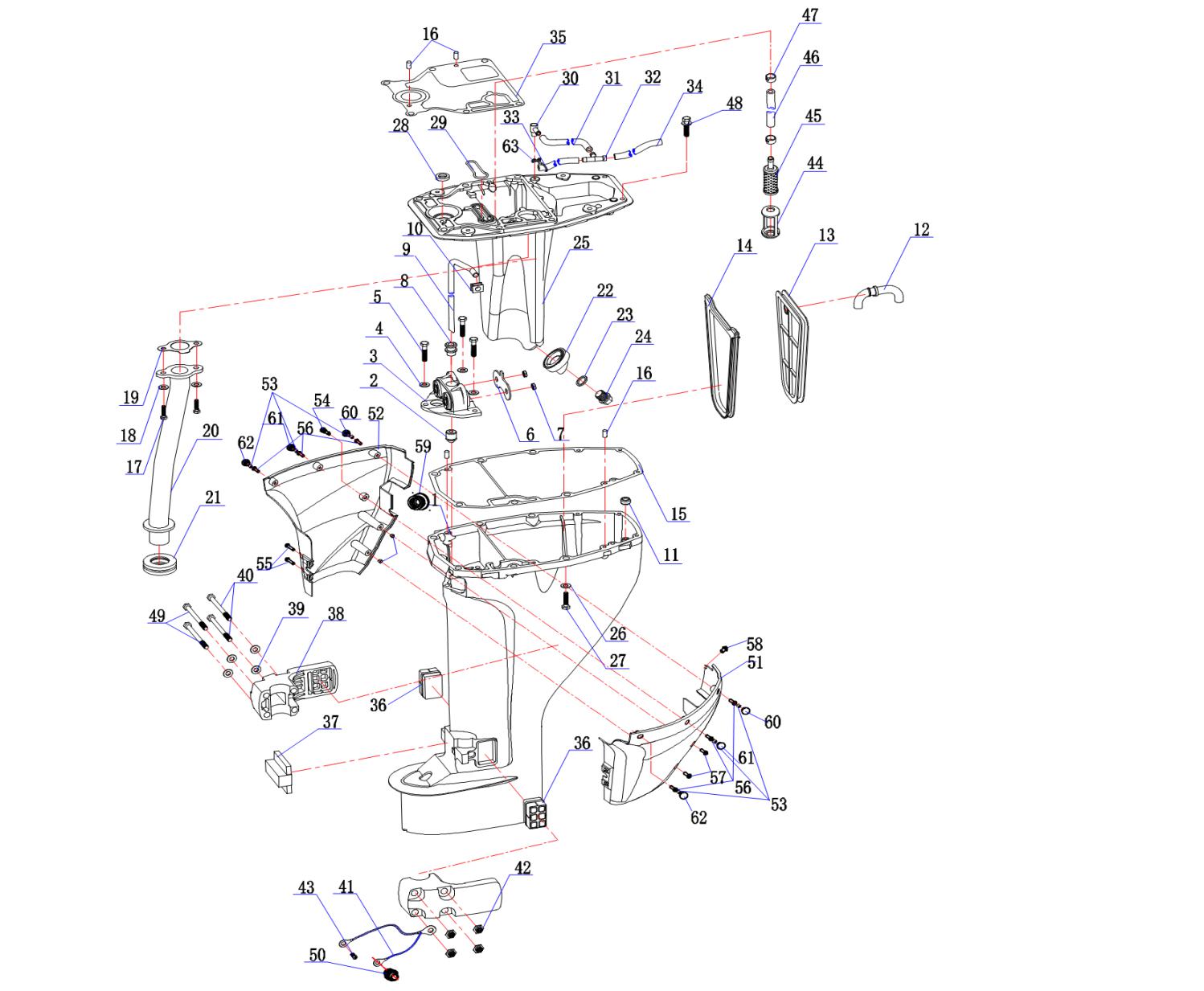

水上分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-05.02.00.01-S水上装置壳体(短轴）Upper casing (S)166M-45111-00-4D
NoneF15-05.02.00.01-L水上装置壳体(长轴）Upper casing (L)1
215F-05.07水管下橡胶圈rubber ring,water hose(dowm)166M-44366-00-00
3F15-05.04.00.00双孔减震器组件damper comp.166M-44514-00-4D
4GB848平垫6Flat gasket392995-06600-00
5GB5783六角头螺栓M6*25Bolt390119-06MA3-00
6F15-04.00.00.01上减震器压板Pressing plate,Damper166M-44526-00-00
7GB6170六角头螺母M8Hexagon nut292995-06600-00
8F15-05.00.00.19水管上橡胶圈Rubber ring (upper),hose163V-44368-00-00
9F15-05.00.00.13水管(短轴)Hose (S)166M-44361-10-00
NoneF15-05.00.00.13-L水管(长轴)Hose (L)1
1015F-05.06水管工形橡胶圈Rubber ring,water hose163V-44365-10-00
11F15-05.00.00.12密封圈Sealing ring166M-45128-00-00
12F15-05.03.00.02橡胶通气管Rubber breather hose166M-45136-00-00
13F15-05.03.00.01排气隔板Exhaust baffle166M-45115-00-00
14F15-05.03.00.03隔板密封圈Seal ring166M-45126-00-00
15F15-05.00.00.03油底壳下密封垫Seal Gasket(bottom),Oil sump166M-45113-00-00
1615F-01.06.20定位销6*12Dowel pin493606-12019-00
17GBT5783(8.8)六角头螺栓M6*16Bolt290119-06090-00
18GB848平垫6Flat gasket292995-06600-00
19F15-05.00.00.10排气管密封垫Seal gasket,exhaust pipe166M-11355-00-00
20F15-05.01.00.00排气管组件Exhaust pipe comp.16D4-41131-00-94
21F15-05.00.00.11排气管减震圈damper,Exhaust pipe16D4-41138-00-00
22F15-05.00.00.07放油口橡胶衬圈rubber bushing166M-15316-00-00
23F25-01.04.00.01垫圈14gasket190430-14M09-00
24F15-05.00.00.08放油螺栓Oil drain plug190340-14M06-00
25F15-05.00.00.20油底壳Oil sump166M-41137-00-5B
26GB848平垫8Flat gasket692995-08600-00
27GB5783六角头螺栓M8*45Bolt697095-06020-00
2815F-01.06.27油封B13*25*6Oil seal193101-12M63-00
29F15-05.00.00.04橡胶密封条Rubber sealing strip1
3015F-01.06.10水管圆接头joint,hose1676-11372-00-00
31F15-05.00.00.15水管B(5*9*170)Hose1
32F15-05.00.00.17三通T-branch pipe1
33F15-05.00.00.14水管A（5*9*65）Hose1
34F15-05.00.00.16水管C（出水管/定型管）Hose1
35F15-05.00.00.02油底壳上密封垫Gasket(upper),Oil sump166M-11351-10-00
36F15-00.00.00.03减震块BDamper B2682-44555-30-00
37F15-00.00.00.02减震块ADamp er A166M-44557-00-00
38F15-00.00.00.01减震块外壳Damper housing266M-44551-00-4D
39GB848平垫8Flat gasket492995-08600-00
40GB5783六角头螺栓M8*105Bolt290119-06MA3-00
41F15-05.00.00.18钢索连接件Cable connector166M-82127-00-00
42GB6177六角法兰螺母M8Flange bolt4
43GB818十字槽盘头螺钉M6*12Pan head bolt with cross recess190157-05014
44F15-01.05.03.03粗滤油器护套Protect sleeve,filter166M-13417-00-00
45F15-01.05.04.00粗滤油器组件filter comp.166M-13421-00-00
46F15-01.05.03.02吸油软管(7*12*190)hose166M-13416-00-00
47F15-01.05.03.01夹箍Clip266M-24351-00-00
48GB9074.1(8.8)六角头螺栓和平垫组件M6*20Bolt&flat gasket Assy.297095-06020-00
49GB5783六角头螺栓M8*85Bolt290119-06MA3-00
50JB/7940.1直通式压注油杯M6Oil cup1
51F15-00.00.00.16装饰罩（左）Decoration cover（LH）1
52F15-00.00.00.17装饰罩（右）Decoration cover（RH）1
53F15-00.00.00.21装饰罩堵头嵌件Plug6
5415F-02.11塑料水嘴Water nozzle1
55GB818十字槽盘头螺钉M6*12Cross recessed pan head tapping screws290157-05014
56GB818十字槽盘头螺钉M6*20Cross recessed pan head tapping screws690157-05014
57GB818十字槽盘头螺钉M6*30Cross recessed pan head tapping screws290157-05014
58GB818十字槽盘头螺钉M8*12Cross recessed pan head tapping screws190157-05014
59F15-00.00.00.14怠速孔减震器Damper1
60F15-00.00.00.18堵塞（左）Plug2
61F15-00.00.00.19堵塞（中）Plug2
62F15-00.00.00.20堵塞（右）Plug2
63管夹φ 10Hose clip1
水下分解图

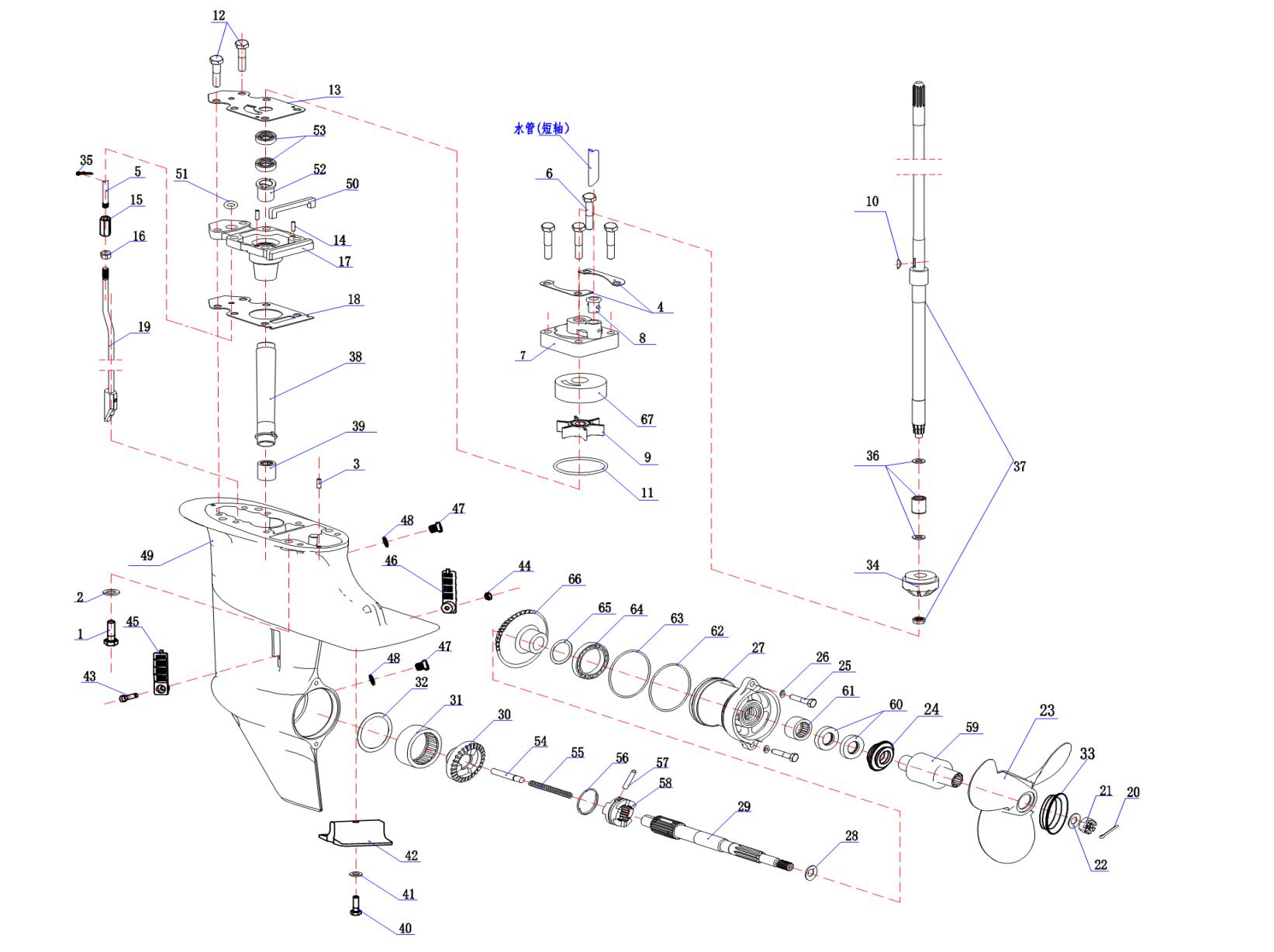

水下分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB5783六角头螺栓M8*30Bolt497075-08030-00
2GB848平垫8Flat gasket492995-08600-00
315F-06.03.08定位销4*12Dowel pin293604-12M07-00
415F-06.02.07水泵固定板Dead plate,water pump263V-44328-00-00
5F15-02.00.00.17-S上变档杆(短轴)Shift lever(upper,S)166M-44124-00-00
6GB5783六角头螺栓M8*45Bolt497080-08045-00
715F-06.02.01水泵壳体Water pump housing comp.163V-44301-00-00
815F-06.02.06水泵水管密封圈Seal Gasket,water hose1647-44366-00-00
915F-06.02.04水泵叶轮Impeller163V-44352-01-00
1015F-06.01.09半圆键Woodruff key1664-44338-00-00
1115F-06.02.02水泵壳体O形圈(45.5*3)O ring,water pump casing193210-44398-00
12GB5783六角头螺栓M8*25Bolt297080-08025-00
1315F-06.03.01轴承座压板（电镀）pressing plate,bearing seat163V-44323-00-00
1415F-06.03.08定位销4*12Dowel pin293604-12M07-00
1515F-06.04.05柱状螺母Column nut190170-06015-00
16GB6170六角螺母M6Hexagonal nut192995-06600-00
1715F-06.03.02轴承座壳体Bearing seat casing163V-45331-00-5B
1815F-06.03.07轴承座密封垫Seal Gasket,bearing seat163V-45315-A0-00
19F15-06.01.00.00-S变档凸轮组件（S）Shift cam assy. (S)163V-44150-00-00
NoneF15-06.01.00.00-L变档凸轮杆组件(L)Shift cam assy. (L)1
20GB91开口销(2.5*20)Cotter pin191490-30020-00
2115F-06.14.06开槽六角螺母Nut190171-10M01-00
22GB96平垫10Flat gasket192903-10600-00
2315F-06.14.01螺旋桨(9-1/4*11)Propeller1
2415F-06.13衬套Bushing16E7-45987-01-00
25GB5783六角头螺栓M6*20Bolt297095-06020-00
26GB848平垫6Flat gasket292995-06600-00
2715F-06.12.06水下壳体盖Cap,lower casing1683-45361-02-4D
2815F-06.11垫圈gasket190201-17682-00
2915F-06.10.01螺旋桨轴Propeller shaft1683-45611-00-00
3015F-06.09正档螺旋锥齿轮spiral bevel,forward gear16E7-45560-01-00
3115F-06.07圆锥滚子轴承30205Roller Bearings193332-00005-00
3215F-06.08正档齿轮填隙片（0.1）Shim2664-45567-01-00
3315F-06.14.02螺旋桨喇叭口Bell1
3415F-06.01.10小齿轮Pinion gear163V-45551-00-00
3515F-04.08.05卡簧circlip190468-18008
3615F-06.01.13推力圆柱滚子轴承Roller Bearings193341-41414-00
3715F-06.01.08-S驱动轴（短轴）Drive shaft (S)163V-45510-01-00
None15F-06.01.08-L驱动轴（L）Drive shaft (L)163V-45510-11-00
3815F-06.01.07尼龙衬圈Nylon bushing163V-45536-00-00
3915F-06.01.14滚针轴承F1420Needle bearing Needle bearing193315-314V8-00
None15F-06.01.14滚针轴承F1420（NSK）193315-314V8-00
40GB5789六角法兰面螺栓M6*30Bolt195895-06030-00
41GB861.1内齿锁紧垫圈M6Washer,inner gear192990-06300-00
4215F-06.15阳极BAnode161N-45251-01-00
43GB820十字槽半沉头螺钉M5*20Cross recessed countersunk head190152-05M04-00
44DIN985六角尼龙锁紧螺母M5Connecting,Top cowling190185-05002-00
4515F-06.01.05进水口盖AWater inlet cover163V-45215-00-00
4615F-06.01.06进水口盖Bcover,water inlet16G1-45214-00-00
4715F-06.01.03注油口螺塞plug,straight screw290340-08002-00
4815F-06.01.04螺塞密封垫Seal Gasket290430-08020-00
4915F-06.01.02水下壳体Lower casing166M-45311-01-4D
5015F-06.03.04轴承座密封条Sealing strip,bearing seat163V-45375-00-00
5115F-06.03.03变档杆O形密封圈（5.8*4.Shift lever o-ring193210-06ME6-00
5215F-06.03.06带肩筒形轴承Bearing1626-45316-09-00
5315F-06.03.05油封20*30*6Oil seal293101-20001-00
5415F-06.10.06(S)变档柱塞S=43Plunger1650-45635-00-00
5515F-06.10.05压缩弹簧Compression spring190501-14M06-00
5615F-06.10.04簧环Circlip1648-45633-00-00
5715F-06.10.03销Pin190250-05010-00
5815F-06.10.02爪形离合器Dog clutch1682-45631-00-00
5915F-06.14.03螺旋浆内花键Propeller shaft teeth1
6015F-06.12.08油封17*30*6Oil seal293101-17054-00
6115F-06.12.07滚针轴承17BM2312Needle bearing193315-317U2-00
6215F-06.12.04O形圈(56*3.1)O ring193210-57M09-00
6315F-06.12.05O形圈(57.8*2)O ring193210-56M80-00
6415F-06.12.03深沟球轴承6005deep groove ball bearing193306-00501-00
6515F-06.12.02倒档齿轮填隙片shim1626-45577-00-00
6615F-06.12.01倒档螺旋锥齿轮Reverse gear16E7-45571-00-00
6715F-06.02.03水泵内壳Insert, cartridge163V-44322-00-00
NoneF15(S)-06.00.00.00水下装置部件Lower Casing Assy.1
NoneF15(L)-06.00.00.00水下装置部件Lower Casing Assy.1
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2GB91 2.5*20开口销cotter pin1
315F-06.02.04水泵叶轮water pump impeller163V-44352-01
415F-09.01应急启动手柄emergency starting handle1
5F15-08.00.00.00燃油箱总成(12L)fuel case Assy.1
615F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
715F-01.01.22启动绳φ5*2000mmstarter rope1
815F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
9F15-09.00工具包toolkit1
