舟一会 ZHOUYIHUI 船外机

海的 F15 - F15HL(S)

共 12 个部位，点击零件编码查看详情，或搜索本页零件。

顶罩

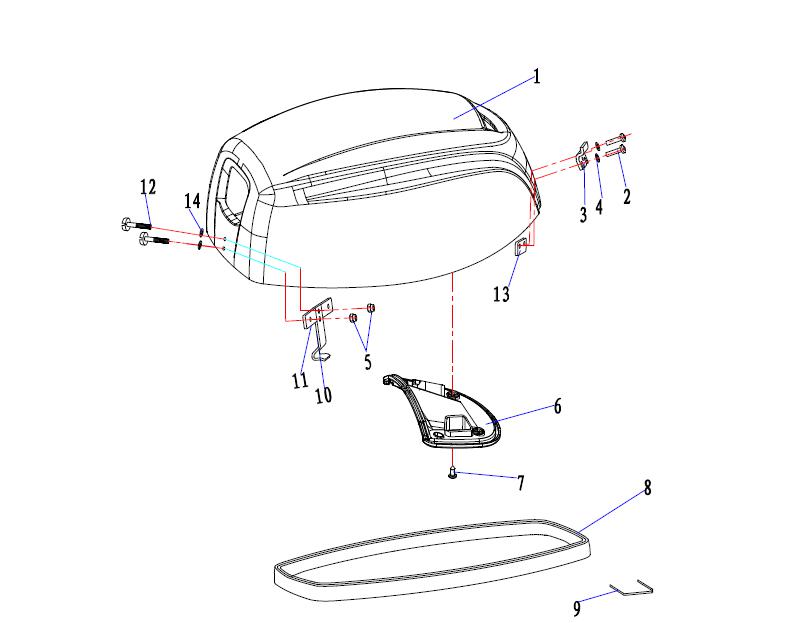

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15顶罩顶罩Top cowling1
2GB818十字槽盘头螺钉M4*12Pan head screw with cross recess297095-06020-00
3F6-07.00.00.04顶罩后锁紧钩Rear lock hook1
4GB97.1平垫4Flat gasket292995-06600-00
5DIN985六角尼龙锁紧螺母M4Bolt292995-06600-00
6F15进气口盖Air inlet cap1
7GB845十字槽盘头自攻螺钉ST4.8*13Screw ST4.8*134
8F15-07.00.00.03橡胶密封圈（长1.5M)Rubber seal ring1
915F-07.07圆形装帧钉1.2Bingding nail20
10F15-07.00.00.06前锁紧钩Lock Hook(front)1
11F9.9-07.09前锁紧钩座front lock hook seat1
12GB818十字槽盘头螺钉M4*16Pan head bolt with cross recess297095-06020-00
132.5F-02.00.00.10锁紧钩固定板Plate1
14GB96平垫M4Flat gasket 4295380-06700-00
启动罩

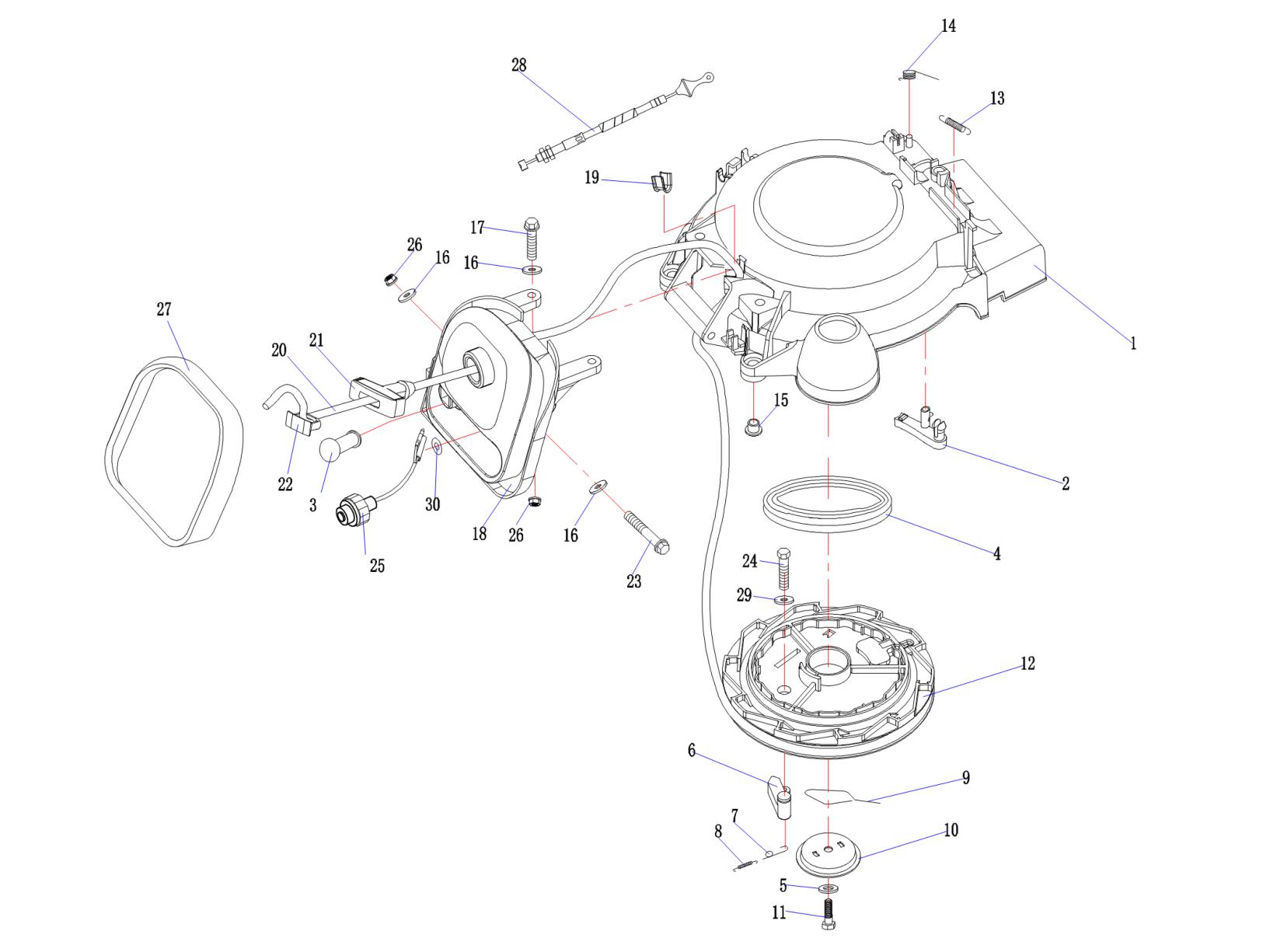

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.07.00.01启动罩外壳Casing,Starter cover assy.1
2F15-01.07.00.02制动器Brake166T-15794-00-00
3F15-01.07.00.06阻风门堵塞Plug,choke1
415F-01.01.11涡形弹簧Volute spring163V-15713-00-00
5GB848平垫6Flat gasket192995-06600-00
6F25-01.01.00.02驱动臂Drive arm1
715F-01.01.18驱动臂弹簧Spring,drive arm163V-15784-01-00
815F-01.01.17回位弹簧Return spring163V-15767-01-00
915F-01.01.20压板夹簧Clip spring163V-15705-01-00
1015F-01.01.19启动压板Starter plate163V-15716-00-00
11GB5783(8.8)六角头螺栓M6*16Bolt1
12F15-01.01.05启动轮Start wheel1
13F15-01.07.00.05钢索拉簧Spring166T-15731-00-00
14F15-01.07.00.03制动器扭簧Torsional spring,brake166T-15734-00-00
15F15-01.07.00.08启动罩垫管Cushion tube,recoil starter3
16GB96平垫6Flat gasket495380-06700-00
17GB5783六角头螺栓M6*30Bolt290119-06M76-00
18F15-01.07.01.00启动手柄托架组件Brackt comp.,starter handle1
19F9.9-01.07.00.0U型滑套U-Sleeve1
2015F-01.01.22启动绳5*2000mmStart rope190890-44373-00
2115F-01.01.08启动手柄Starter handle16G1-15755-00-00
2215F-01.01.10手柄盖(启动)Cover,Starter handle16G1-15779-00-00
23GB5783六角头螺栓M6*85Bolt190119-06M76-00
24GB818十字槽盘头螺钉M5*14Cross recessed countersunk head screw197095-06020-00
25F15-01.06.01.00机油报警指示灯组件Oil pressure alarm1
26DIN985六角尼龙锁紧螺母M6Hexagonal nut392995-06600-00
27F15-01.07.00.07托架减震套Damper,bracket1
28F15-01.07.00.04制动钢索Steel cable,brake166M-15770-00-00
29GB96平垫5Flat gasket195380-06700-00
3015F-03.09.13杠杆垫washer190202-07M60-00
NoneF15-01.07.00.00启动罩（装配总成）Recoil Starter assy1
动力系统

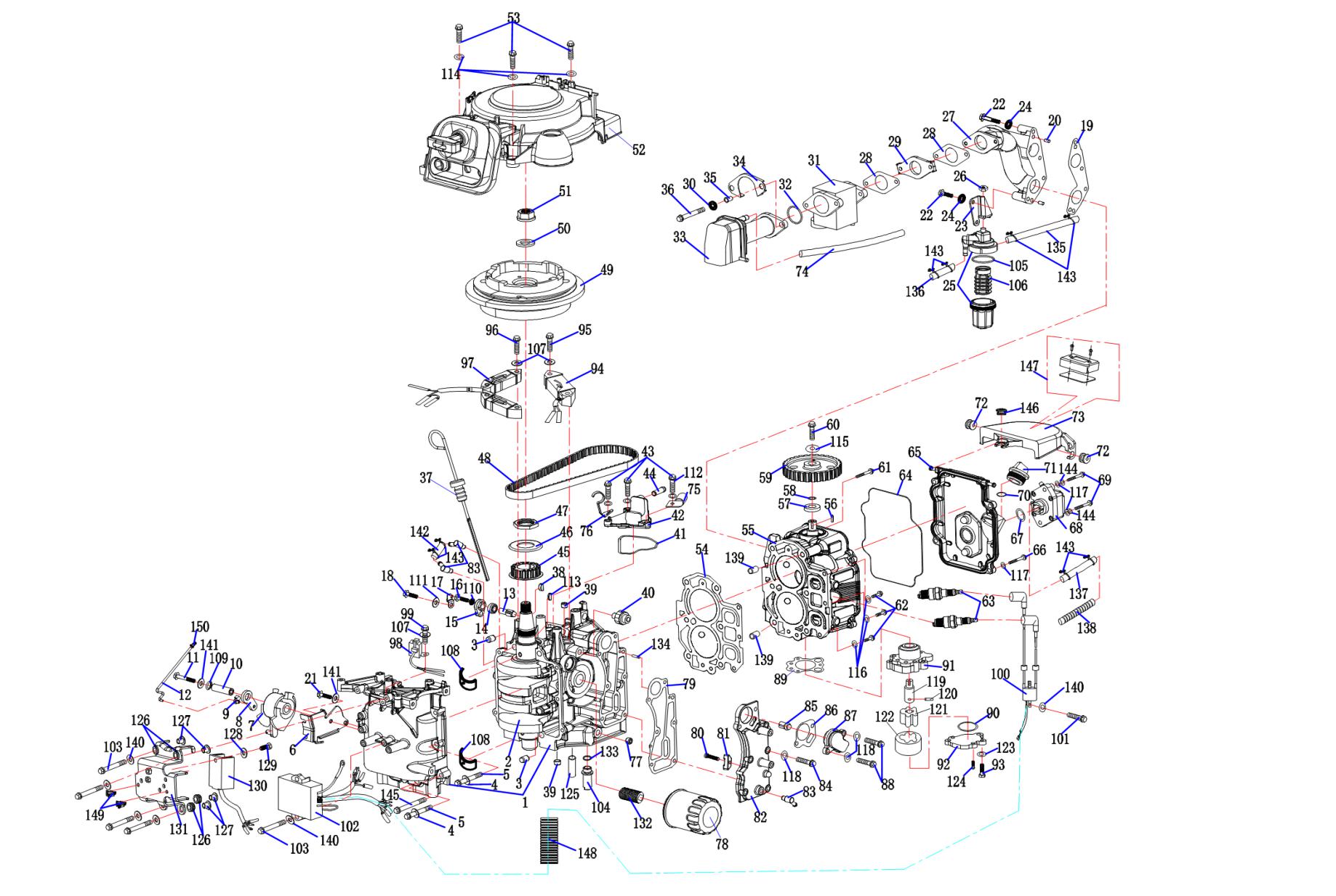

动力系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.01.00.01箱体组件Crankcase comp. (with crankcase cover)166M-15100-02-1S
2F15-01.02.00.00曲柄连杆组件Crank connection road assy.1
3F15-01.01.00.18空心定位销Dowel pin299510-10114-00
4GB848平垫M6Flat gasket692995-06600-00
5GB5783(A4-80)六角头螺栓M6*35Bolt690119-06MA3-00
6F15-01.01.00.20油门钢索端轮支座seat,throttle cable cam165W-14497-01-00
7F15-01.01.00.22油门钢索端轮Pulley165W-41638-00-00
8F15-01.01.00.23油门连接块Connecting block,throttle165W-41283-00-00
915F-01.02.07阻风门连杆接头joint,chock lever1661-41262-02-00
10F15-01.01.00.21衬套Bushing190387-06064-00
11GB5783六角头螺栓M6*55Bolt190119-06M76-00
12F15-01.01.00.25油门连杆Throttle lever166M-41211-00-00
13F15-01.01.00.03机体阳极Anode166M-11325-00-00
14F15-01.01.00.04水封Stop collar,drive pully166M-11328-00-00
15F15-01.01.00.05压紧块Pressing strip166M-11327-00-94
16GB5783六角头螺栓M5*12Bolt190119-06M76-00
17F15-01.01.00.06传导片Conductive slice166M-12535-00-00
18GB5783六角头螺栓M6*20Bolt190119-06M76-00
19F15-01.03.00.28进气歧管密封垫Air intake manifold gasket166M-13645-00-00
2015F-01.06.20定位销6*12Dowel pin293606-12019-00
21GB5783六角头螺栓M6*10Bolt190119-06M76-00
22GB5783六角头螺栓M6*40Bolt490119-06M76-00
23F15-01.03.00.31燃油滤清器固定架Holder,fuel filter1
24GB848平垫M6Flat gasket492995-06600-00
2515F-01.07.05.05燃油滤清器（外壳）cover,Fuel Filter161N-24560-00-00
26GB6170六角头螺母M8Hexagon nut192995-06600-00
27F15-01.03.00.30进气歧管Air intake manifold166M-13641-10-94
28F15-01.03.00.32化油器密封垫Carburetor Seal gasket266M-13646-00-00
29F15-01.03.00.33隔热板heatproof Plate166M-14271-00-00
30GB848平垫M6Flat gasket292995-06600-00
31DQDF15-00.00.03化油器组件Carburetor Assy.166M-14301-12-00
32F15-01.03.04.04O型密封圈(34.3*2)Seal O-ring193210-35M86-00
33F15-01.03.04.00进气消音器组件Air intake silencer Assy.166M-12170-00-00
34F15-01.03.00.34进气消音器夹紧板Clamp plate,Air intake silencer166M-14477-00-00
35F15-01.03.00.43垫管Bushing2
36GB5783六角头螺栓M6*100Bolt290119-06M76-00
37F15-Ⅱ-01.03.00油标尺(天然气)oil dip stick comp.166M-15362-00-00
38F15-01.02.00.02飞轮半圆键Woodruff key190280-05013-00
39F15-01.01.00.08堵塞1/4Plug2
40F15-01.01.00.26机油压力报警器Oil pressure alarm162Y-82504-10-00
41F15-01.01.02.03密封条sealing strip166M-11357-00-00
42F15-01.01.02.01呼吸器本体breather166M-11168-00-1S
43GB5783六角头螺栓M6*20Bolt390119-06M76-00
44F15-01.01.02.02进油嘴Oil inlet16E5-24377-00-00
45F15-01.02.00.03主动带轮drive pully166M-11536-10-00
46F15-01.02.00.04主动带轮挡圈Stop collar,drive pully166M-11557-00-00
47F15-01.02.00.05六角螺母Nut190170-28M37-00
48F15-01.03.00.25同步带belt166M-46241-00-00
49F15-01.06.00.04飞轮体Fly wheel1
50GB97.1平垫M16Flat gasket192995-06600-00
51F15-01.06.00.06飞轮螺母Nut190179-16M05-00
52F15-01.07.00.00启动罩组件Recoil starter(assemble assy.)1
53GB5783六角头螺栓M6*20Bolt390119-06M76-00
54F15-01.03.02.00气缸垫组件Cylinder gasket comp.166M-11181-10-00
55F15-01.03.00.21气缸头Cylinder head166M-11111-01-1S
56GB1099半圆键(3*5*13)Woodruff key192995-06600-00
57F15-01.03.00.16油封18*35*7-ROil seal193102-18M21-00
58GB97.1平垫M12Flat gasket192995-06600-00
59F15-01.03.00.24从动带轮Driven pulley166M-11537-00-94
60GB5789六角法兰面螺栓M6*16Bolt190109-06M86-00
61GB5789(10.9) (S10)六角头法兰螺栓M8*75Bolt690105-08M78-00
62GB5783(A4-80/10.9)六角头螺栓M6*25Bolt390119-06MA3-00
63DPR6EA-9(F15)火花塞Spark plug2NGK-DPR6E-A9-00
64F15-01.03.00.38橡胶密封圈Rubber seal ring166M-11356-00-00
65F15-01.03.00.37气缸头罩壳Cover,Cylinder head166M-11191-00-1S
66GB5783六角头螺栓M6*20Bolt490119-06M76-00
67F15-01.04.01.10O型密封圈(20.2*2.4)Seal O-ring193210-20M65-00
68F15-01.04.01.00燃油泵组件Fuel pump assy.166M-24410-10-00
69GB818十字槽盘头螺钉M6*30Cross recessed countersunk head297095-06020-00
70F4-01.06.27油标尺O形圈(24*3.5)O-ring193210-24M79-00
71F15-01.03.00.39加油口螺塞Oil filling plug16G8-15363-00-00
72F15-01.03.00.27减震垫 ADamper2
73F15-01.03.00.26从动带轮罩壳Drive pulley cover166M-46297-00-00
74F15-01.03.00.35通气管Breath hose1
75F15-01.03.00.42通气管固定夹 Bfix clip,air breather tube1
76F15-01.03.00.36通气管固定夹 AClip1
77F15-01.01.00.07堵塞1/8Plug1
78F15-01.05.01.00机油滤清器组件Oil filter assembly15GH-13440-00-00
79F15-01.01.00.09排气盖垫片Gasket,exhaust cap166M-41114-01-00
80GB820十字槽半沉头螺钉M4*1Cross recessed countersunk head190152-05M04-00
81F15-01.01.00.13排气盖阳极Anode16E5-11325-00-00
82F15-01.01.00.10排气盖Cap,exhaust1
8315F-01.06.10水管圆接头joint,hose3676-11372-00-00
84GB5783六角头螺栓M6*30Bolt590119-06M76-00
85F15-01.06.14-60 °节温器(60 °)Thermostat 50 °166M-12411-01-00
86F15-01.01.00.11节温器盖垫片Gasket,Thermostat cap162Y-12414-00-00
87F15-01.01.00.12节温器盖Thermostat cap16H3-12413-00-1S
88GB5783六角头螺栓M6*30Bolt290119-06M76-00
89F15-01.05.00.02机油泵密封垫Oil pump Seal gasket166M-13329-10-00
90F15-01.05.02.04密封环Sealing ring1
91F15-01.05.02.06机油泵泵体Oil pump166M-13300-10-00
92F15-01.05.02.05机油泵盖Oil pump cap1
93GB5783六角头螺栓M6*35Bolt390119-06MA3-00
94F15-01.06.03.00充电线圈组件Charging coil assy1
95GB5783六角头螺栓M6*25Bolt290119-06M76-00
96GB5783六角头螺栓M6*35Bolt490119-06MA3-00
97F15-01.06.02.00发动机线圈组件engine coil comp.166M-85533-10-00
98F15-01.06.04.00触发线圈组件Trigger coil comp.166M-85520-00-00
99GB5783(8.8)六角头螺栓M6*16Bolt290119-06090-00
100F15-01.06.05.00高压包组件Ignition coil166M-85570-00-00
101GB5783六角头螺栓M6*20Bolt297095-06020-00
102F15-01.06.06.00点火线圈组件Ingition coil comp.166M-85540-01-00
103GB5783六角头螺栓M6*20Bolt697095-06020-00
104F15-01.01.01.00溢流阀组件Flood valve comp.16G8-11575-00-00
10515F-01.07.05.06过滤器O型圈(33*2)O ring，filter193210-32738-00
10615F-01.07.05.04过滤器滤芯filter,fuel filter161N-24563-00-00
107GB848平垫M6Flat gasket866M-11416-00-00
108F15-01.01.00.17主轴瓦Main bearing4
109GB96平垫M6Flat gasket195380-06700-00
110GB848平垫M5Flat gasket192995-06600-00
111GB848平垫M6Flat gasket190387-06M79-00
112GB848平垫M6Flat gasket392995-06600-00
113GB1099半圆键(3*5*13)Woodruff key192995-06600-00
114GB848平垫M6Flat gasket392995-06600-00
115GB96平垫M6Flat gasket192995-06600-00
116GB848平垫M6Flat gasket390387-06M79-00
117GB848平垫M6Flat gasket692995-06600-00
118GB848平垫M6Flat gasket792995-06600-00
119F15-01.05.02.01转子轴Rotor spindle1
120GB309滚针2.5*11.8Neele1
121F15-01.05.02.02内转子Inner rotor1
122F15-01.05.02.03外转子Outer rotor1
123GB848平垫M6Flat gasket392995-06600-00
124GB823十字槽小盘头螺钉M6*2Pan head bolt with cross recess2
125F15-01.01.02.02进油嘴Oil inlet16E5-24377-00-00
126F15-01.06.00.02减震垫Damper4
127F15-01.07.00.08启动罩垫管Cushion tube,recoil starter4
128GB848平垫M6Flat gasket192995-06600-00
129GB5783六角头螺栓M6*12Bolt190119-06M76-00
130F15-01.06.07.00整流器组件Rectifier comp.16G8-81960-A1-00
131F15-01.06.00.01整流器支架Bracket,Rectifier1
132F15-01.05.00.01机油滤清器芯轴dabber,fuel filter190401-20M00-00
133F15-01.01.00.15O型橡胶圈O-rubber ring193210-24M79-00
13415F-06.03.08定位销4*12Dowel pin293604-12M07-00
135F15-01.04.00.01燃油管5*10*505Fuel hose190445-10M93-00
136F15-01.04.00.02燃油管5*10*150Fuel hose190445-10M15-00
137F15-01.04.00.03燃油管5*10*380Fuel hose190445-10M19-00
138F15-01.04.00.04波纹管280*14（外）Bellows1
139F15-01.01.00.18空心定位销Dowel pin299510-10114-00
140GB848平垫M6Flat gasket892995-06600-00
141GB848平垫M6Flat gasket292995-06600-00
142F15-01.01.00.27气管5*10*70Hose1
143管夹φ 10fix clip，hose8
144GB93弹垫圈M6Washer2
145GB5789(10.9) (S10)六角法兰面螺栓M8*55Bolt4
146F15-01.03.00.41减震垫BDamper1
14760F-01.02.00.13计时器组件Timer comp.1
148F15-01.06.00.08阻燃管ф23*80flame retardent,hose1
149F15-01.06.00.03塑料线卡plastic cable clamp2
150F9.9-01.04.00.05连杆帽Cap, Connection rod1
曲轴活塞

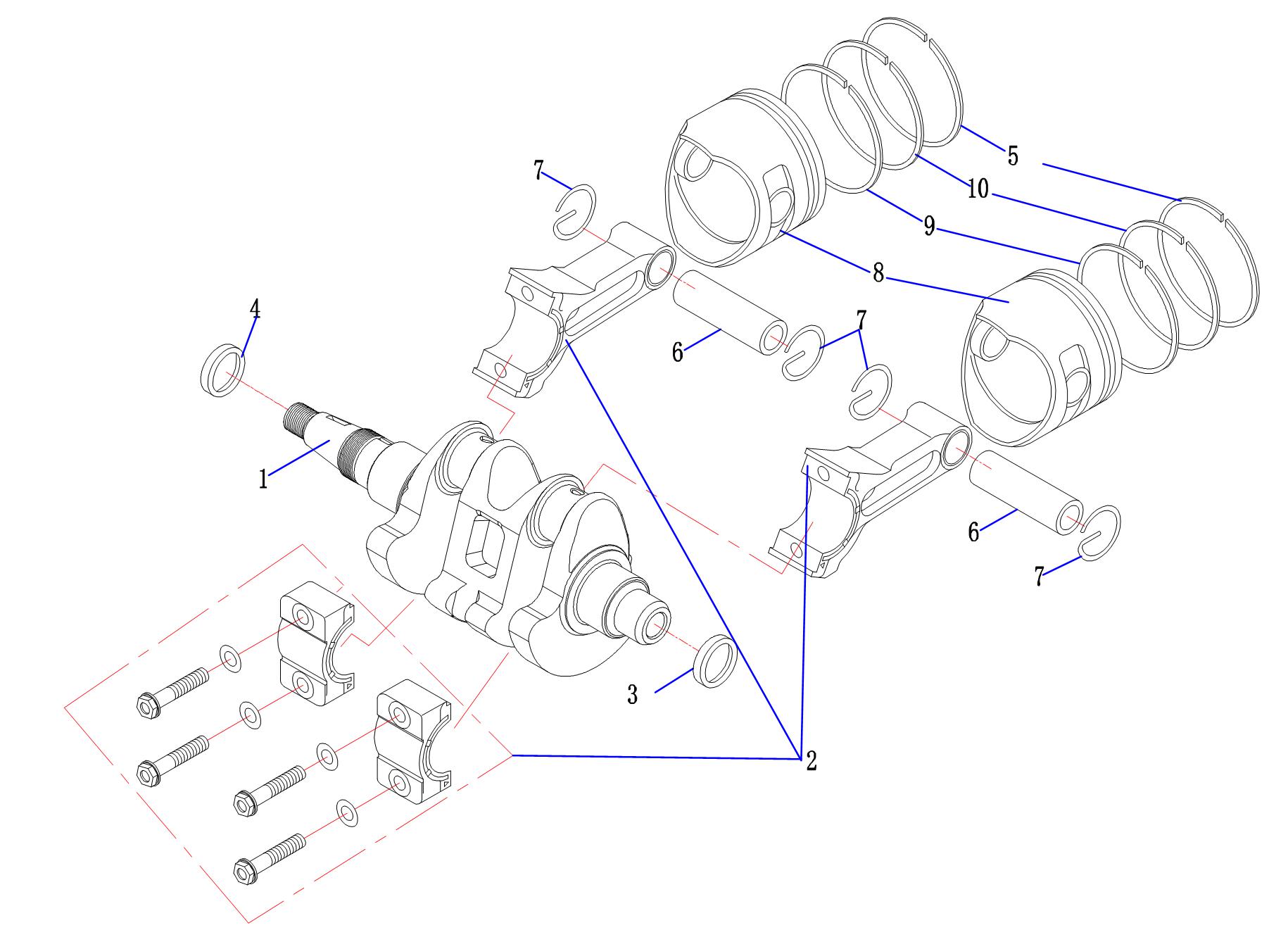

曲轴活塞 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.02.00.01曲轴Crankshaft166M-11411-00-00
2F15-01.02.01.00连杆组件Connecting rod comp.266M-11650-00-00
3F15-01.02.00.07曲轴下油封Oil seal(bottom),crankshaf193102-25M52-00
4F15-01.02.00.06曲轴上油封Oil seal(upper),crankshaft193102-35M51-00
6F15-01.02.02.06活塞销Pin,piston2634-11633-00-00
7F15-01.02.02.02活塞销卡簧Circlip493450-15023-00
8F15-01.02.02.01活塞Piston266M-11631-00-96
5F15-01.02.02.03主气环1st ring266N-11603-00-00
9F15-01.02.02.05油环Oil ring266N-11603-00
10F15-01.02.02.04副气环2nd ring2
配气系统

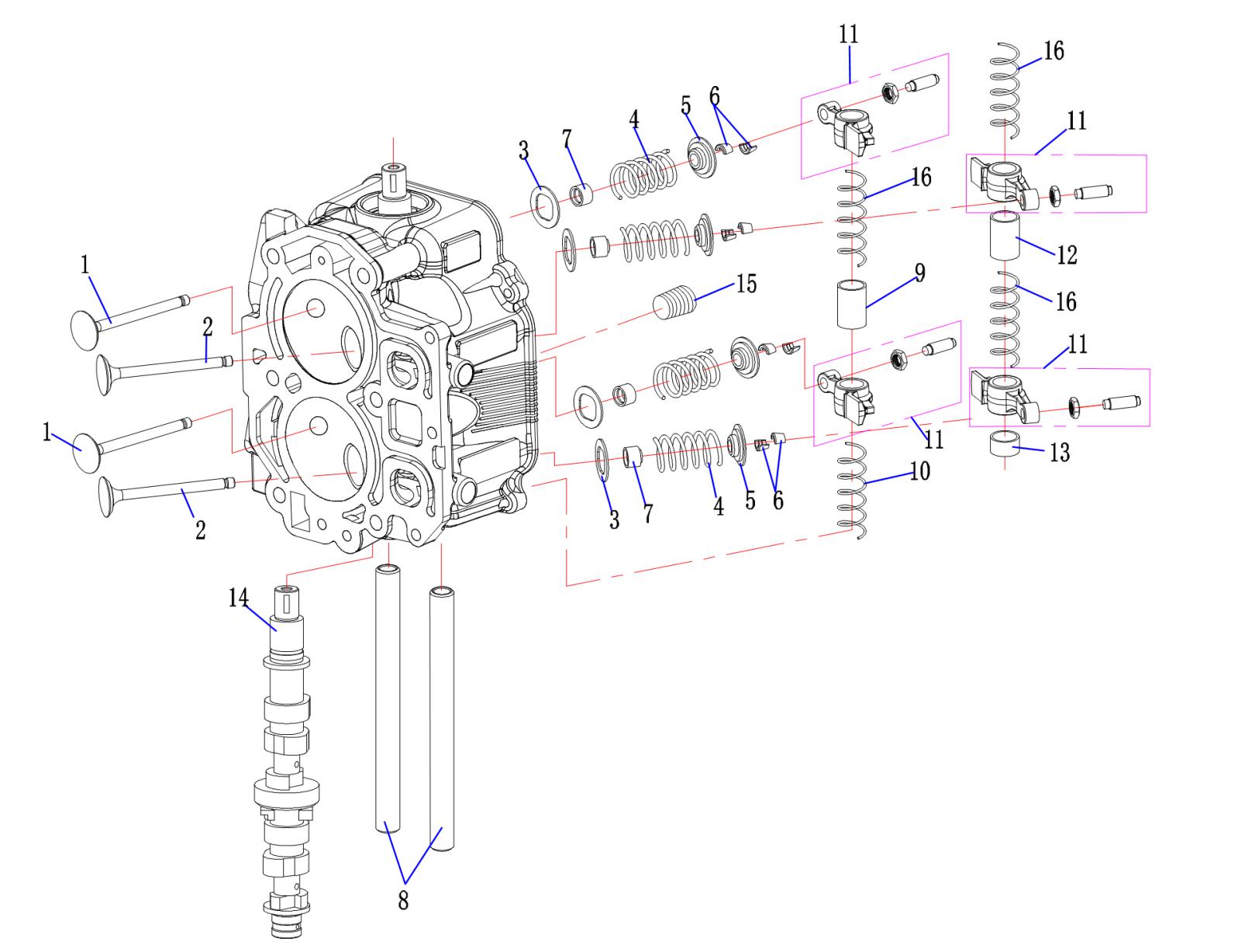

配气系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.03.00.01进气门Intake valve266M-12111-00-00
2F15-01.03.00.02排气门Exhaust valve266M-12121-00-00
3F15-01.03.00.07气门弹簧垫圈Washer,Valve spring466M-12116-00-00
4F15-01.03.00.03气门弹簧Valve spring466M-12113-00-00
5F15-01.03.00.04气门弹簧座圈Washer,Valve spring430X-12117-00-00
6F15-01.03.00.05气门锁夹valve clamp830X-12118-00-00
7F15-01.03.00.15气门油封Valve oil seal451Y-12119-00-00
8F15-01.03.00.06摇臂轴Rocker arm shaft266M-12146-00-00
9F15-01.03.00.10摇臂轴隔套ASleeve,Rocker arm shaft(inlet)190387-13M56-00
10F15-01.03.00.09摇臂轴弹簧ASpring,Rocker arm shaft190501-12M41-00
11F15-01.03.00.14摇臂Rocker arm466M-12151-10-00
12F15-01.03.00.12摇臂轴隔套CSleeve,Rocker arm shaft c(outlet)190387-13002-00
13F15-01.03.00.11摇臂轴隔套BSleeve,Rocker arm shaft B190387-13001-00
14F15-01.03.01.00凸轮轴组件Camshaft comp.166M-12170-00-00
15F15-01.01.00.08堵塞1/4Plug3
16F15-01.03.00.13摇臂轴弹簧BSpring,Rocker arm shaft390501-12M40-00
操舵手柄

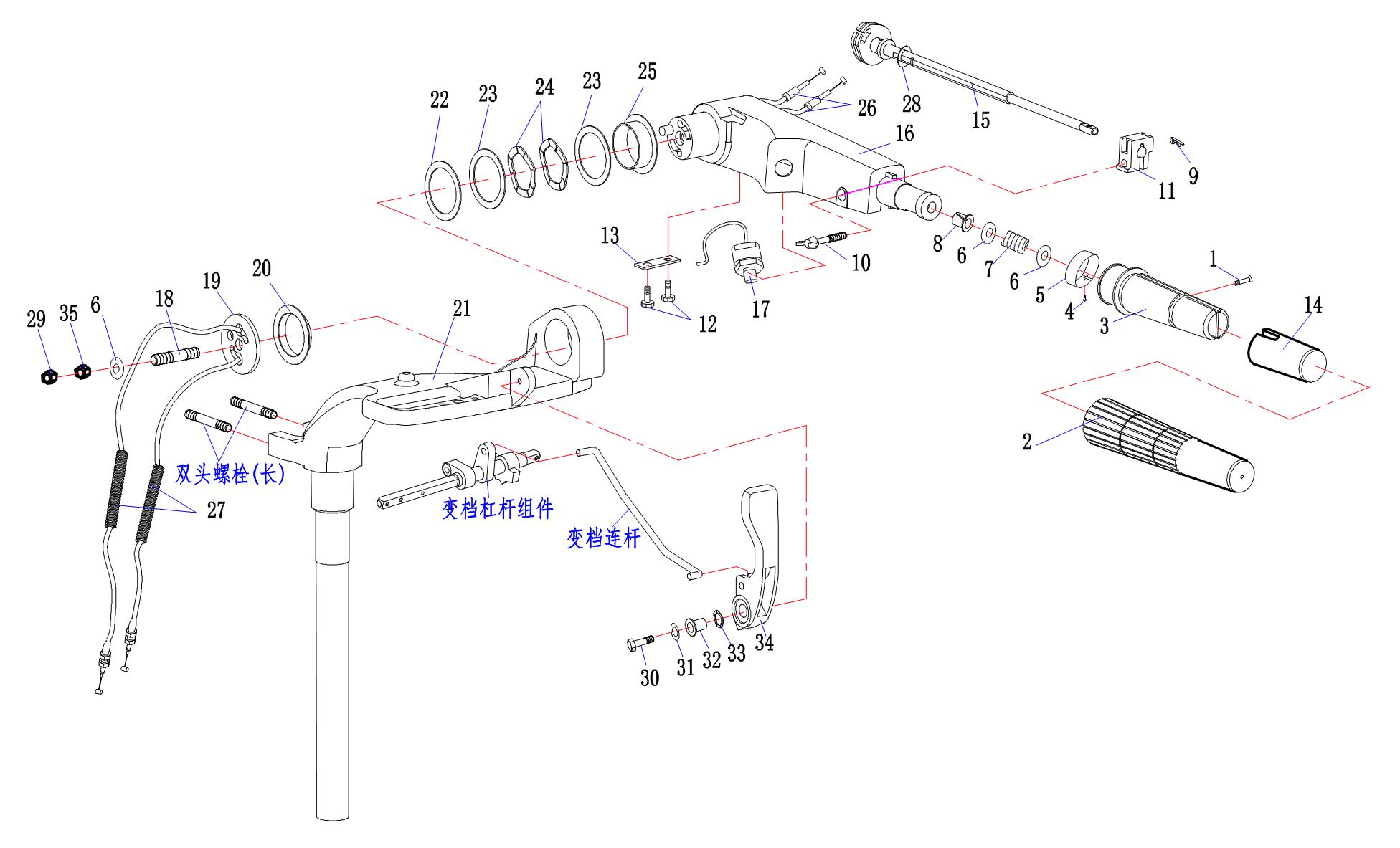

操舵手柄 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB820十字槽半沉头螺钉M5*25Cross recessed countersunk head screw190152-05M04-00
2F4-04.07.15手柄橡胶套Rubber sleeve,Handle1
315F-04.07.13手柄Handle1
4GB845ST2.2*4.5Cross recessed pan head tapping screws1
5F4-04.11-Ⅱ油门标牌Indicator,throttle1
6GB848平垫10Flat gasket192995-06600-00
715F-04.07.11弹簧spring1
815F-04.07.12衬套Bushing1
9GB91开口销1.6*12Cotter pin191490-30020-00
10F15-04.02.00.08阻力调整旋钮Friction adjusting screw1
1115F-04.07.08锁紧块Latch segment1
12GB9074.1M6*20Bolt and flat gasket297095-06020-00
13F15-04.02.00.07节气门杆压板Plate165W-42159-00
14F4-04.07.14手柄嵌件insert,handle1
15F15-04.02.00.05节气门杆Throttle lever165W-42138-00
16F15-04.02.00.01操舵手柄Steering handle1
1715F-04.07.03急停开关总成emergency stop switches assy1
18F15-04.02.00.02双头螺栓M10Double-screw bolt1
19F15-04.00.00.02操舵手柄压板Plate165W-42131-01
20F15-04.00.00.04尼龙衬套（短）Nylon sleeve(short)190386-40M99
21F15-04.01.00.00操舵托架组件(短轴）Steering bracket comp.（S）1
NoneF15-04.01.00.00-L操舵托架组件(长轴）Steering bracket comp.（L）1
22F15-04.00.00.03尼龙垫圈Nylon washers190202-43M57
23F15-04.00.00.07垫圈gasket290201-43M00
24F15-04.00.00.05波形垫圈waterform gasket ring290206-43M22
25F15-04.00.00.06尼龙衬套（长）Nylon sleeve(long)190386-440MA0
26F15-04.02.00.04油门控制钢索Throttle cable2
27F15-04.00.00.08波纹塑料管Waveform pipe2
28GB848平垫12Flat gasket192995-06600-00
29DIN985六角尼龙锁紧螺母M10*1.25hexagonal locknut192995-06600-00
30GB5783六角头螺栓M6*35Bolt190119-06M76-00
31GB848平垫6Flat gasket192995-06600-00
3215F-04.08.03带肩垫管Shoulder pad tube1
3315F-04.08.04变档手柄波形垫圈Wave washer1
34F15-02.00.00.34变档手柄Shift handle1
35GB6170六角螺母M10*1.25Hexagonal nut192995-06600-00
NoneF15-04.00.00.00操舵手柄部件Tiller Assy.1

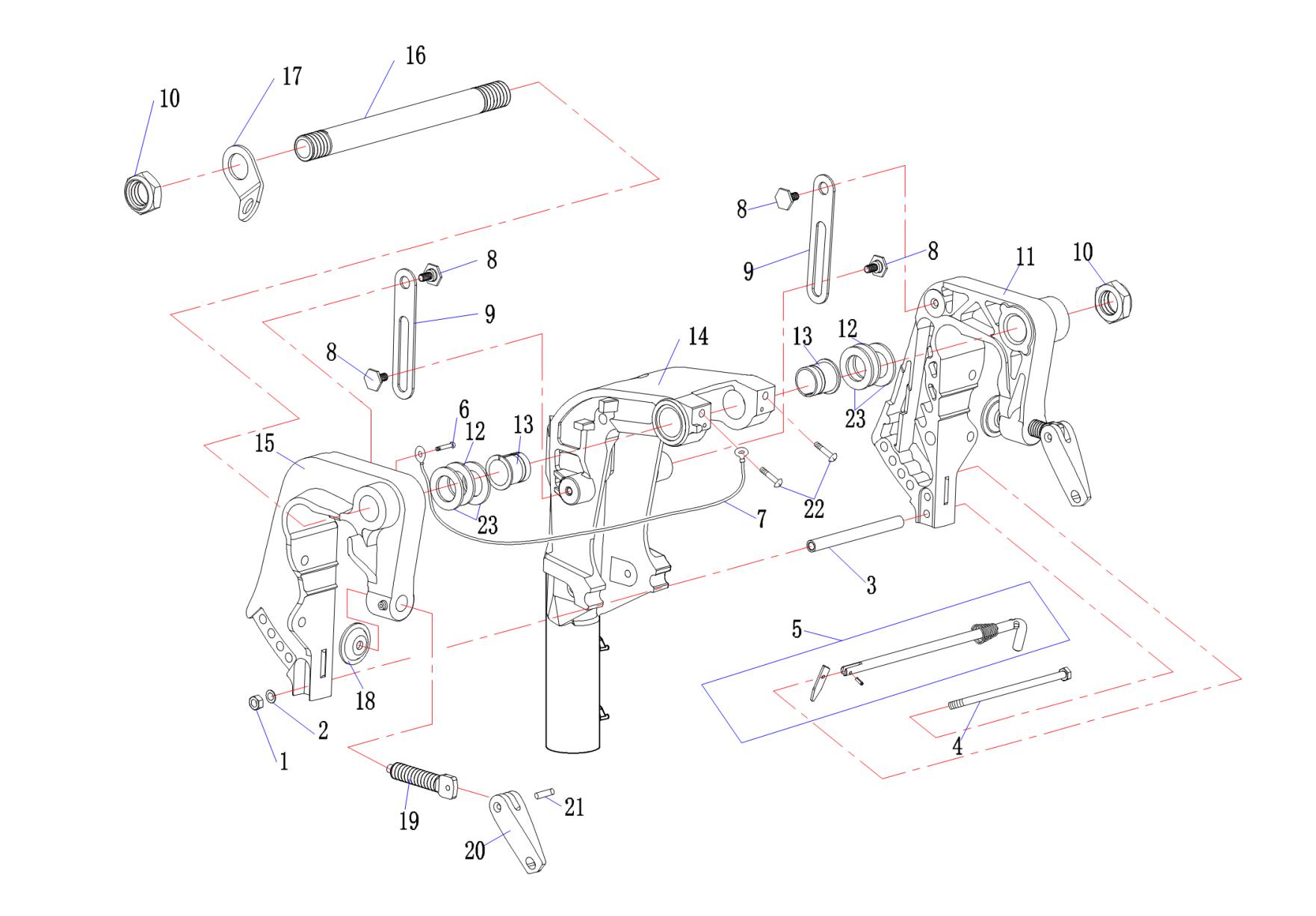

夹紧部分
夹紧部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB6170六角头螺母M6Hexagon nut192995-06600-00
2GB848平垫6Flat gasket192995-06600-00
315F-03.11螺栓套管Sleeve190387-06M13-00
4GB5783六角头螺栓M6*145Bolt290101-06M29-00
515F-03.10.00-Ⅱ角度限位插销组件Trim rod Assy.16L2-43160-00-00
6GB818十字槽盘头螺钉M6*8Pan head bolt with cross rec297095-06020-00
715F-03.05.03钢索连接组件Cable Connector Assy.166M-82148-00-00
815F-03.06扁头六角螺栓Bolt4
915F-03.07制动板brake pad263V-43181-00-00
1015F-03.01夹紧托架螺母Clamp nut290185-22043-00
1115F-03.08.01夹紧托架（右）（高压)Bracket(RH)163V-43111-06-4D
1215F-03.02尼龙垫圈Nylon gasket290202-22M54-00
1315F-03.09.02托架阻尼套Damping ring,bracket290386-22M94-00
14F15-03.01.00.01-S旋转托架（短轴）Swivel bracket(S)163V-43311-03-4D
NoneF15-03.01.00.01-L旋转托架（长轴）Swivel bracket(L)166M-43311-10-4D
1515F-03.05.01夹紧托架（左）（高压)Bracket(LH)163V-43112-07-4D
16F15-03.00.00.01夹紧托架双头螺栓Bolt163W-43131-01-00
1715F-03.03孔板Orifice plate166R-43113-00-00
1815F-03.05.02.03夹紧盘Clamp plate2648-43114-01-00
19F9.9-Ⅱ-03.00.00.02艉板夹紧螺栓Clamp Bolt,Transom26E7-43116-00-00
2040F-03.05.03.02夹紧手柄intensify handle26E0-43118-01-00
21GB1015沉头半空心铆钉4*18Rivet290243-04M01-00
22GB818十字盘头螺钉M8*10Pan head bolt with cross rec297095-06020-00
2340F-03.03垫片Gasket4

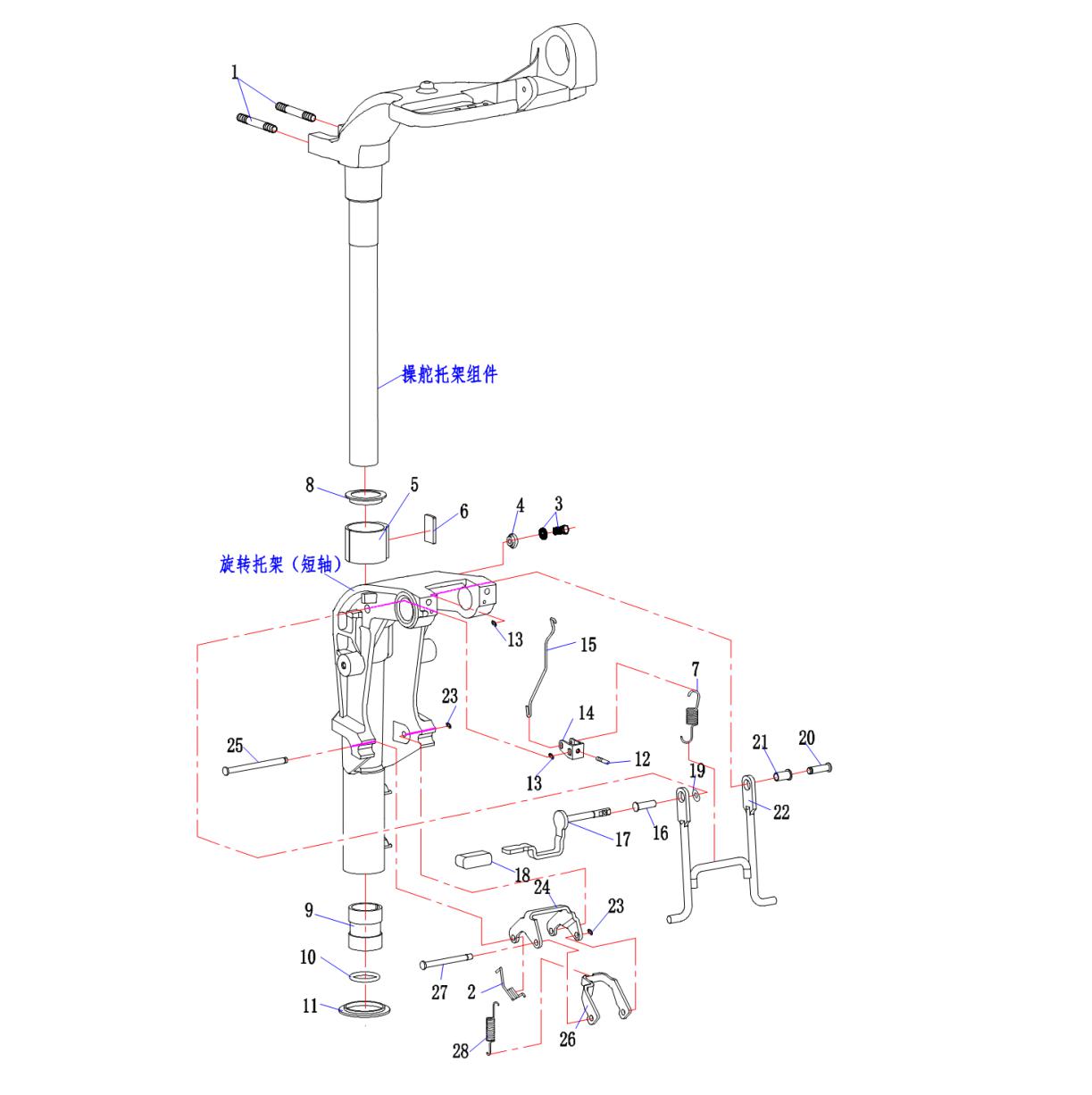

旋转托架
旋转托架 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
115F-04.01.03双头螺栓Bolt2
215F-03.09.23弹簧spring190508-18M41-00
3GB9074.1六角头螺栓和平垫组件M6*2Bolt197095-06020-00
415F-03.09.09锁紧螺栓密封圈Seal Gasket1689-43373-01-00
515F-03.09.03锁紧圈Lock washer165F-42537-00-00
615F-03.09.04锁紧圈摩擦片Friction plate,Locking163V-42528-00-00
715F-03.09.24角度支撑架拉簧Spring190507-20M00-00
815F-03.09.05垫圈gasket1
915F-03.09.06下衬套bushing (bottom)190386-30048-00
1015F-03.09.07O型密封圈(29*3.8)O-Seal ring193210-29M94-00
1115F-03.09.08下衬圈Lower bushing190386-30M60-00
12GB818十字槽盘头螺钉M5*6Pan head screw with cross recess190157-05014-00
13GB896开口挡圈5Circlip299080-05600-00
1415F-03.09.10角度定位件Angle fixer163V-43641-01-00
1515F-03.09.11角度定位锁杆angle loction rod1
1615F-03.09.14杠杆套axis sleeve190387-07M07-00
1715F-03.09.12.00操纵杠杆组件Lever comp.,Steering166M-43630-01-00
1815F-03.09.12.01橡塑套Rubber sleeve1682-43318-01-00
1915F-03.09.13杠杆垫washer190202-07M60-00
2015F-03.09.19角度定位锁轴shaft,Tilt Lock163V-43191-00-00
2115F-03.09.17支撑架销尼龙套Nylon bush,support frame190386-07M95-00
2215F-03.09.15角度支撑架Tilt angle fixer166M-43350-01-00
23GB896开口挡圈4Circlip293430-04M03-00
2415F-03.09.21角度定位锁紧外支架Tilt angle outer bracket166R-43615-00-00
2515F-03.09.16支撑架销Pin,support frame163V-43659-00-00
2615F-03.09.20角度定位锁紧内支架Tilt angle inner bracket163V-43614-10-00
2715F-03.09.22角度定位固定轴shaft,Tilt Lock166R-43611-00-00
2815F-03.09.18拉簧Sping190506-26M38-00

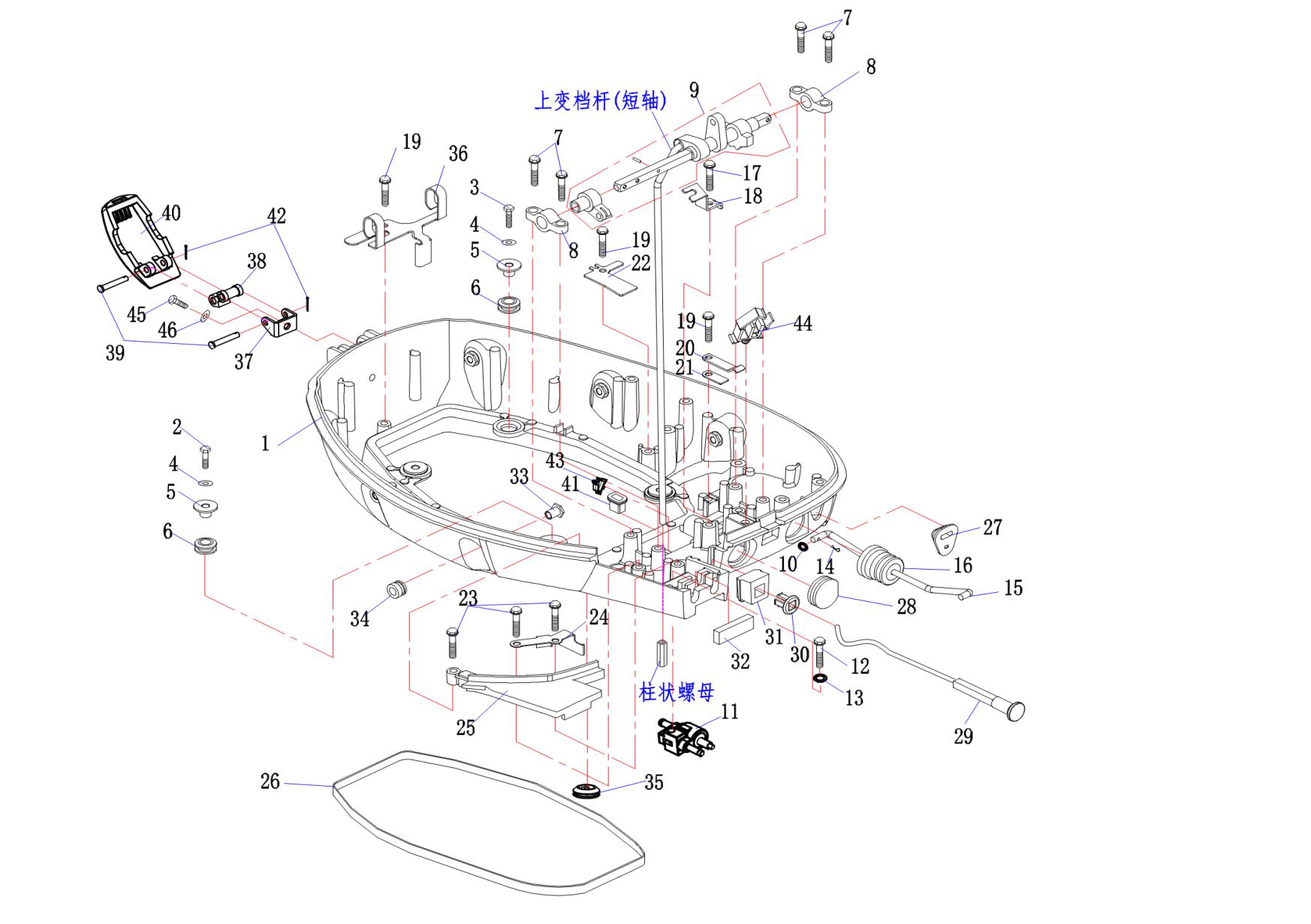

底罩
底罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-Ⅱ-底座(天然气）Botton Base
2GB5783六角头螺栓M6*25Bolt290119-06MA3-00
3GB5783六角头螺栓M6*35Bolt290119-06M76-00
4GB5287平垫6Flat gasket492995-06600-00
515F-02.08减震垫衬管Bushing,damping4
615F-02.07底座减震垫Cushion blocking of bottom seat4
7GB5783六角头螺栓M6*25Bolt290109-06M81-00
8F15-02.00.00.07托架Bracket26F5-41662-00-00
9F15-02.01.00.00变档杠杆组件Shift lever Comp.165W-44121-00-00
10GB848平垫6Flat gasket192995-06600-00
1115F-01.07.01.00燃油管插头组件Fuel hose plug comp.16G1-24304-02-00
12GB5783六角头螺栓M6*25Bolt297095-06020-00
13GB848平垫6Flat gasket192995-06600-00
1415F-04.08.05卡簧circlip1
15F15-02.00.00.14变档连杆Gear shift1
16F15-02.00.00.15手柄连杆橡胶减震圈Rubber shock ring,handle connceting r165W-42726-00-00
17GB5789(10.9)六角法兰面螺栓M6*20Bolt1
18F15-02.00.00.03钢索固定架Cable fixer1
19GB5789六角法兰面螺栓M6*16Flange bolt190109-06M86-00
20F15-02.00.00.05变档限位弹簧板Shift limit plate165W-44116-00-00
21F15-02.00.00.06垫板Plate166R-44114-00-00
22F15-02.00.00.02压板Press plate266M-42743-00-00
23GB5789(10.9)六角法兰面螺栓M6*30Bolt1
24F15-02.00.00.11阻风门拉杆固定架fixing bracket,choke pull rod1
25F15-02.00.00.10燃油管插头上盖板Top cover,fuel hose joint166M-42738-00-4D
26F15-02.00.00.18橡胶减震条Rubber damper strip1
27F15-02.00.00.12钢索护套Protecting sleeve,steel cable166M-26326-00-00
2815F-02.12前操油门橡胶闷头（大Rubber plug1682-42724-00-00
29DQDF15-00.06.00阻风门拉杆组件chock rod Assy.1
3015F-02.03阻风门拉杆护套Protecting bush,choke1
31F15-02.00.00.16橡胶固定块Rubber block1
32F15-02.00.00.09橡胶密封块Rubber seal block165W-42727-00-00
33F15-00.00.00.15装饰板减震器垫圈Gasket,damper6
34F15-02.00.00.32装饰板减震器Damper6
35F4-02.13后罩橡胶闷头Rubber plug1
36F15-02.00.00.19水管管卡Clip,hose1
37F6-02.03.00.00锁紧手柄支架组件bracket comp. Lock handle1
38F6-02.00.00.06锁紧手柄连接件connector,lock handle1
39F6-02.00.00.05锁紧手柄转轴Spindle,lock handle2
40F9.9-02.00.00.17锁紧手柄Lock handle1
4115F-02.10变档连杆橡胶护套rubber protecting bush,gear shifting1
42GB/T896 4开口挡圈4Opening ring 42
43F15-01.06.00.03塑料线卡clip2
4415F-02.06油门钢索固定夹Fixer,Throttle cable190465-25M57-00
45GB5783六角头螺栓M6*12Bolt290119-06M76-00
46GB97.1平垫M6Flat gasket292995-06600-00

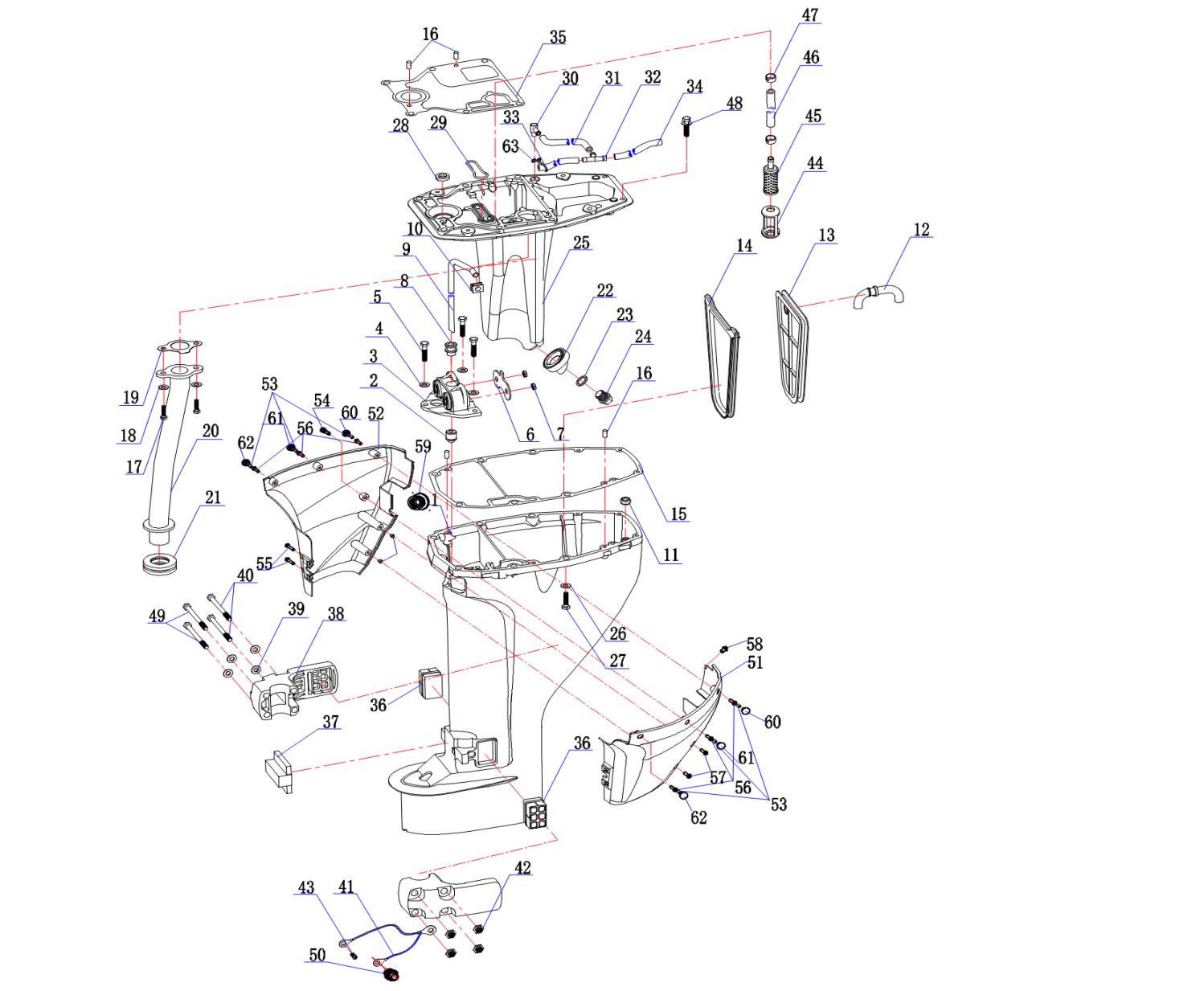

水上分解图
水上分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-05.02.00.01-S水上装置壳体(短轴）Upper casing (S)166M-45111-00-4D
NoneF15-05.02.00.01-L水上装置壳体(长轴）Upper casing (L)1
215F-05.07水管下橡胶圈rubber ring,water hose(dowm)166M-44366-00-00
3F15-05.04.00.00双孔减震器组件damper comp.166M-44514-00-4D
4GB848平垫6Flat gasket392995-06600-00
5GB5783六角头螺栓M6*25Bolt390119-06M76-00
6F15-04.00.00.01上减震器压板Pressing plate,Damper166M-44526-00-00
7GB6170六角头螺母M8Hexagon nut292995-06600-00
8F15-05.00.00.19水管上橡胶圈Rubber ring (upper),hose163V-44368-00-00
9F15-05.00.00.13水管(短轴)Hose (S)166M-44361-10-00
NoneF15-05.00.00.13-水管(长轴)Hose (L)1
1015F-05.06水管工形橡胶圈Rubber ring,water hose163V-44365-10-00
11F15-05.00.00.12密封圈Sealing ring166M-45128-00-00
12F15-05.03.00.02橡胶通气管Rubber breather hose166M-45136-00-00
13F15-05.03.00.01排气隔板Exhaust baffle166M-45115-00-00
14F15-05.03.00.03隔板密封圈Seal ring166M-45126-00-00
15F15-05.00.00.03油底壳下密封垫Seal Gasket(bottom),Oil sump166M-45113-00-00
1615F-01.06.20定位销6*12Dowel pin493606-12019-00
17GBT5783(8.8)六角头螺栓M6*16Bolt290119-06090-00
18GB848平垫6Flat gasket292995-06600-00
19F15-05.00.00.10排气管密封垫Seal gasket,exhaust pipe166M-11355-00-00
20F15-05.01.00.00排气管组件Exhaust pipe comp.16D4-41131-00-94
21F15-05.00.00.11排气管减震圈damper,Exhaust pipe16D4-41138-00-00
22F15-05.00.00.07放油口橡胶衬圈rubber bushing166M-15316-00-00
23F25-01.04.00.01垫圈14gasket190430-14M09-00
24F15-05.00.00.08放油螺栓Oil drain plug190340-14M06-00
25F15-05.00.00.20油底壳Oil sump166M-41137-00-5B
26GB848平垫8Flat gasket692995-08600-00
27GB5783六角头螺栓M8*45Bolt697095-06020-00
2815F-01.06.27油封B13*25*6Oil seal193101-12M63-00
29F15-05.00.00.04橡胶密封条Rubber sealing strip1
3015F-01.06.10水管圆接头joint,hose1676-11372-00-00
31F15-05.00.00.15水管B(5*9*170)Hose1
32F15-05.00.00.17三通T-branch pipe1
33F15-05.00.00.14水管A（5*9*65）Hose1
34F15-05.00.00.16水管C（出水管/定型管）Hose1
35F15-05.00.00.02油底壳上密封垫Gasket(upper),Oil sump166M-11351-10-00
36F15-00.00.00.03减震块BDamper B2682-44555-30-00
37F15-00.00.00.02减震块ADamp er A166M-44557-00-00
38F15-00.00.00.01减震块外壳Damper housing266M-44551-00-4D
39GB848平垫8Flat gasket492995-08600-00
40GB5783六角头螺栓M8*105Bolt290119-06M76-00
41F15-05.00.00.18钢索连接件Cable connector166M-82127-00-00
42GB6177六角法兰螺母M8Flange bolt4
43GB818十字槽盘头螺钉M6*12Pan head bolt with cross recess197095-06020-00
44F15-01.05.03.03粗滤油器护套Protect sleeve,filter166M-13417-00-00
45F15-01.05.04.00粗滤油器组件filter comp.166M-13421-00-00
46F15-01.05.03.02吸油软管(7*12*190)hose166M-13416-00-00
47F15-01.05.03.01夹箍Clip266M-24351-00-00
48GB9074.1(8.8)六角头螺栓和平垫组件M6*Bolt&flat gasket Assy.297095-06020-00
49GB5783六角头螺栓M8*85Bolt290119-06M76-00
50JB/7940.1直通式压注油杯M6Oil cup1
51F15-00.00.00.16装饰罩（左）Decoration cover（LH）1
52F15-00.00.00.17装饰罩（右）Decoration cover（RH）1
53F15-00.00.00.21装饰罩堵头嵌件Plug6
5415F-02.11塑料水嘴Water nozzle1
55GB818十字槽盘头螺钉M6*12Cross recessed pan head tapping297095-06020-00
56GB818十字槽盘头螺钉M6*20Cross recessed pan head tapping697095-06020-00
57GB818十字槽盘头螺钉M6*30Cross recessed pan head tapping297095-06020-00
58GB818十字槽盘头螺钉M8*12Cross recessed pan head tapping197095-06020-00
59F15-00.00.00.14怠速孔减震器Damper1
60F15-00.00.00.18堵塞（左）Plug2
61F15-00.00.00.19堵塞（中）Plug2
62F15-00.00.00.20堵塞（右）Plug2
63管夹φ 10Hose clip1

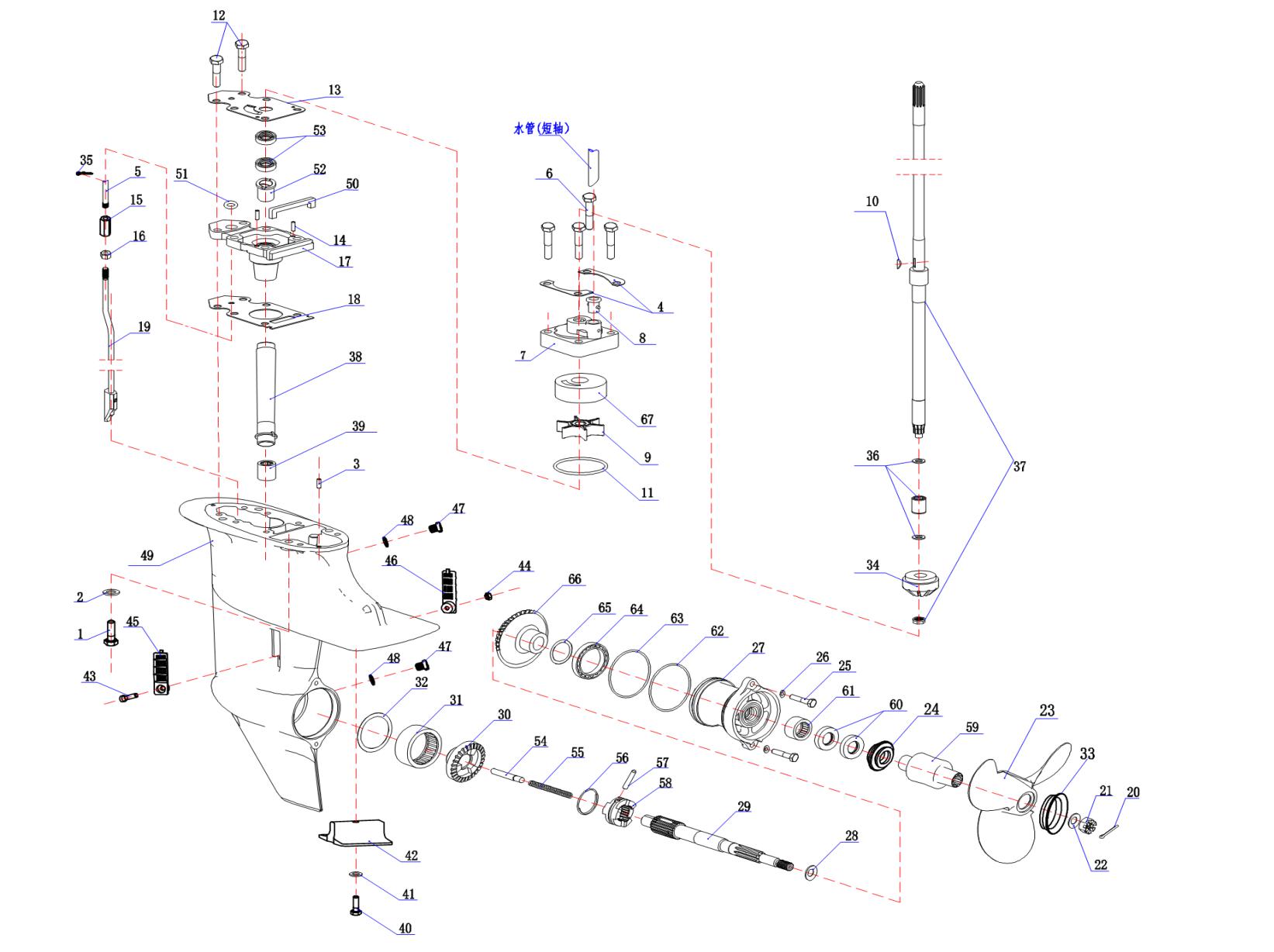

水下分解图
水下分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB5783六角头螺栓M8*30Bolt497075-08030-00
2GB848平垫8Flat gasket492995-08600-00
315F-06.03.08定位销4*12Dowel pin293604-12M07-00
415F-06.02.07水泵固定板Dead plate,water pump263V-44328-00-00
5F15-02.00.00.17-S上变档杆(短轴)Shift lever(upper,S)166M-44124-00-00
6GB5783六角头螺栓M8*45Bolt497080-08045-00
715F-06.02.01水泵壳体Water pump housing comp.163V-44301-00-00
815F-06.02.06水泵水管密封圈Seal Gasket,water hose1647-44366-00-00
915F-06.02.04水泵叶轮Impeller163V-44352-01-00
1015F-06.01.09半圆键Woodruff key1664-44338-00-00
1115F-06.02.02水泵壳体O形圈(45.5*3)O ring,water pump casing193210-44398-00
12GB5783六角头螺栓M8*25Bolt297080-08025-00
1315F-06.03.01轴承座压板（电镀）pressing plate,bearing seat163V-44323-00-00
1415F-06.03.08定位销4*12Dowel pin293604-12M07-00
1515F-06.04.05柱状螺母Column nut190170-06015-00
16GB6170六角螺母M6Hexagonal nut192995-06600-00
1715F-06.03.02轴承座壳体Bearing seat casing163V-45331-00-5B
1815F-06.03.07轴承座密封垫Seal Gasket,bearing seat163V-45315-A0-00
19F15-06.01.00.00-S变档凸轮组件（S）Shift cam assy. (S)163V-44150-00-00
NoneF15-06.01.00.00-L变档凸轮杆组件(L)Shift cam assy. (L)1
20GB91开口销(2.5*20)Cotter pin191490-30020-00
2115F-06.14.06开槽六角螺母Nut190171-10M01-00
22GB96平垫10Flat gasket192903-10600-00
2315F-06.14.01螺旋桨(9-1/4*11)Propeller1
2415F-06.13衬套Bushing16E7-45987-01-00
25GB5783六角头螺栓M6*20Bolt297095-06020-00
26GB848平垫6Flat gasket292995-06600-00
2715F-06.12.06水下壳体盖Cap,lower casing1683-45361-02-4D
2815F-06.11垫圈gasket190201-17682-00
2915F-06.10.01螺旋桨轴Propeller shaft1683-45611-00-00
3015F-06.09正档螺旋锥齿轮spiral bevel,forward gear16E7-45560-01-00
3115F-06.07圆锥滚子轴承30205Roller Bearings193332-00005-00
3215F-06.08正档齿轮填隙片（0.1）Shim2664-45567-01-00
3315F-06.14.02螺旋桨喇叭口Bell1
3415F-06.01.10小齿轮Pinion gear163V-45551-00-00
3515F-04.08.05卡簧circlip1
3615F-06.01.13推力圆柱滚子轴承Roller Bearings193341-41414-00
3715F-06.01.08-S驱动轴（短轴）Drive shaft (S)163V-45510-01-00
None15F-06.01.08-L驱动轴（L）Drive shaft (L)163V-45510-11-00
3815F-06.01.07尼龙衬圈Nylon bushing163V-45536-00-00
3915F-06.01.14滚针轴承F1420Needle bearing Needle bearing193315-314V8-00
None15F-06.01.14滚针轴承F1420（NSK）193315-314V8-00
40GB5789六角法兰面螺栓M6*30Bolt195895-06030-00
41GB861.1内齿锁紧垫圈M6Washer,inner gear192990-06300-00
4215F-06.15阳极BAnode161N-45251-01-00
43GB820十字槽半沉头螺钉M5*20Cross recessed countersunk head screw190152-05M04-00
44DIN985六角尼龙锁紧螺母M5Connecting,Top cowling190185-05002-00
4515F-06.01.05进水口盖AWater inlet cover163V-45215-00-00
4615F-06.01.06进水口盖Bcover,water inlet16G1-45214-00-00
4715F-06.01.03注油口螺塞plug,straight screw290340-08002-00
4815F-06.01.04螺塞密封垫Seal Gasket290430-08020-00
4915F-06.01.02水下壳体Lower casing166M-45311-01-4D
5015F-06.03.04轴承座密封条Sealing strip,bearing seat163V-45375-00-00
5115F-06.03.03变档杆O形密封圈（5.8*4.Shift lever o-ring193210-06ME6-00
5215F-06.03.06带肩筒形轴承Bearing1626-45316-09-00
5315F-06.03.05油封20*30*6Oil seal293101-20001-00
5415F-06.10.06(S)变档柱塞S=43Plunger1650-45635-00-00
5515F-06.10.05压缩弹簧Compression spring190501-14M06-00
5615F-06.10.04簧环Circlip1648-45633-00-00
5715F-06.10.03销Pin190250-05010-00
5815F-06.10.02爪形离合器Dog clutch1682-45631-00-00
5915F-06.14.03螺旋浆内花键Propeller shaft teeth1
6015F-06.12.08油封17*30*6Oil seal293101-17054-00
6115F-06.12.07滚针轴承17BM2312Needle bearing193315-317U2-00
6215F-06.12.04O形圈(56*3.1)O ring193210-57M09-00
6315F-06.12.05O形圈(57.8*2)O ring193210-56M80-00
6415F-06.12.03深沟球轴承6005deep groove ball bearing193306-00501-00
6515F-06.12.02倒档齿轮填隙片shim1626-45577-00-00
6615F-06.12.01倒档螺旋锥齿轮Reverse gear16E7-45571-00-00
6715F-06.02.03水泵内壳Insert, cartridge163V-44322-00-00
F15(S)-06.00.00.00水下装置部件Lower Casing Assy.1
F15(L)-06.00.00.00水下装置部件Lower Casing Assy.1
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2GB91 2.5*20开口销cotter pin1
315F-06.02.04水泵叶轮water pump impeller163V-44352-01
415F-09.01应急启动手柄emergency starting handle1
5F15-08.00.00.00燃油箱总成(12L)fuel case Assy.1
615F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
715F-01.01.22启动绳φ5*2000mmstarter rope190890-44373-00
815F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
9F15-09.00工具包toolkit1
