舟一会 ZHOUYIHUI 船外机

海的 F25 - F25FEL(S)

共 16 个部位，点击零件编码查看详情，或搜索本页零件。

顶罩

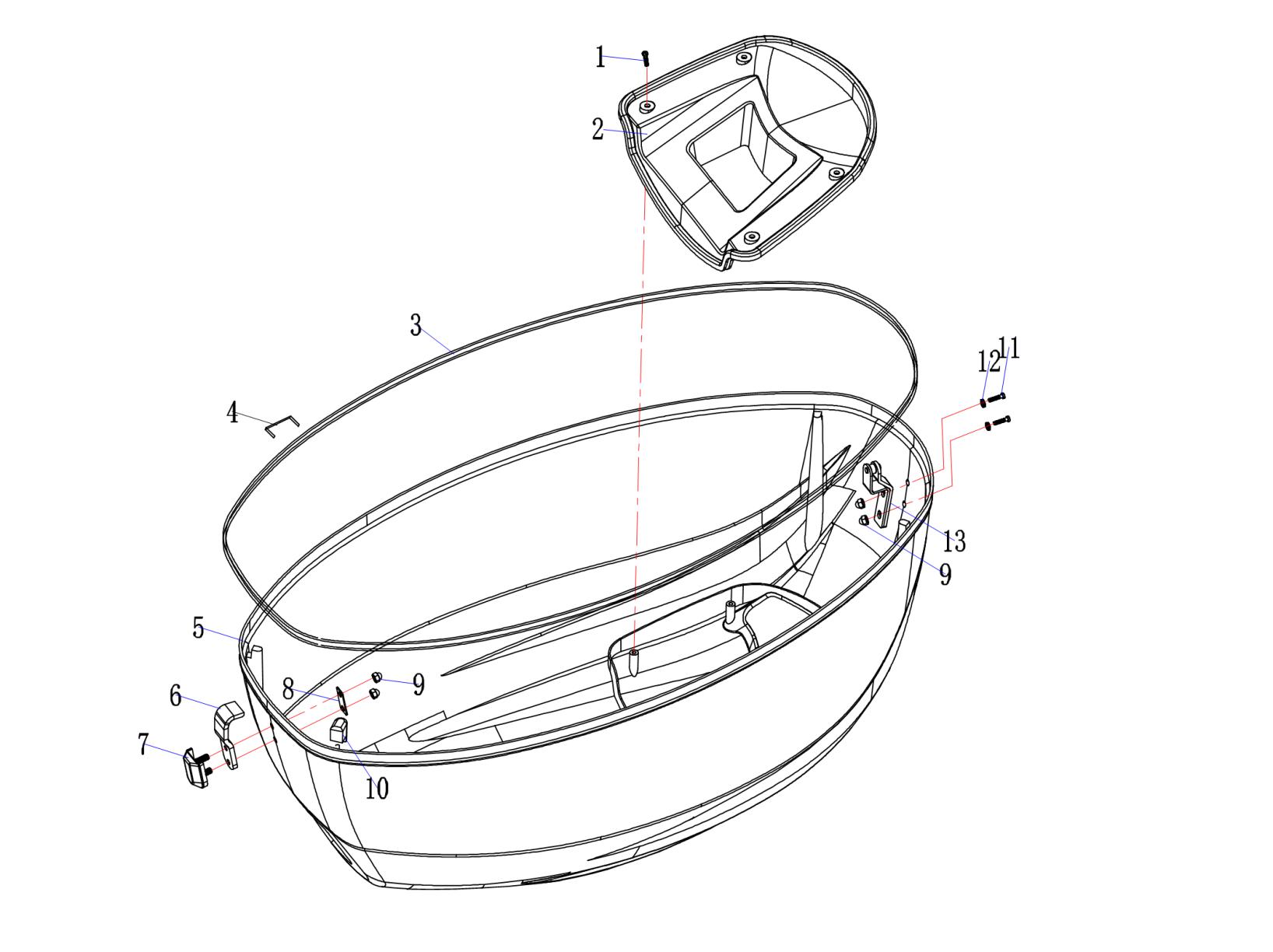

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB845十字槽盘头自攻螺钉ST4.8*19Cross recessed pan head tapping4
2F25-07.00.00.01进气口盖screws Air inlet cap1
3F25-07.00.00.03橡胶密封条Rubber sealing strip1
415F-07.07装帧订Bingding nail10
5F25-07.00.00.07顶罩Top cowling1
6F25-07.00.00.04前锁紧钩Hook(front)1
7F25-07.01.00.00M5*16螺栓组件Bolt comp.1
8F25-07.00.00.05垫板Plate1
9GB923盖形螺母M5Bolt4
10F25-07.00.00.02减震脚Damper4
11GB818十字盘头螺钉M5*16Pan head bolt with cross recess290157-05014
12GB96平垫5Flat gasket2
13F25-07.02.00.00后锁紧钩组件Rear lock hook comp.1
启动罩

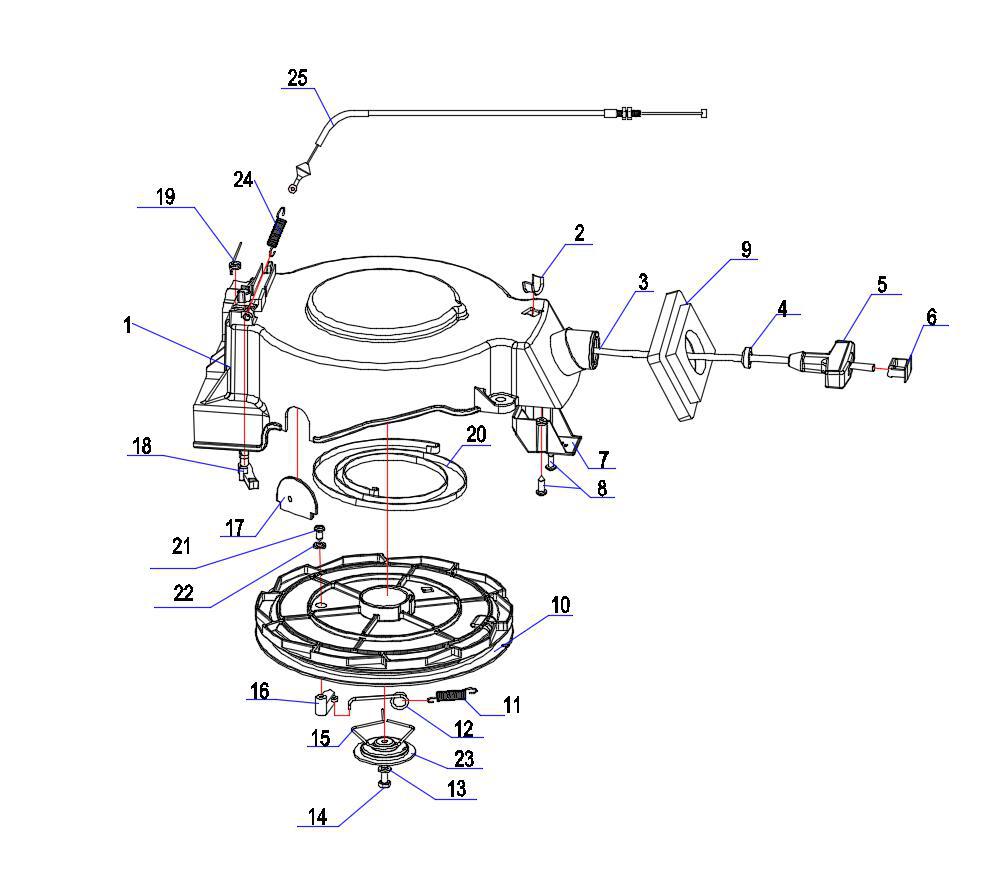

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.01.01.01启动罩Starter cover assy.16BL-15711-00-00
2F9.9-01.07.00.06U型滑套U-type sliding bush1
3F25-01.01.00.01启动绳φ6*2200mmStart rope190790-48194-00
440F-01.01.19手柄减震圈Shock ring,handle16A0-15789-00
540F-01.01.18启动手柄Starter handle1338-05019-0
640F-01.01.16手柄盖Starter Handle cover1338-05013-0
7F25-01.01.00.04防尘罩Dust cover1
8GB845十字槽盘头自攻螺钉ST4.2*16Screw ST4.2* 162
9F25-01.01.00.07减震垫Damper gasket1
10F25-01.01.00.03启动轮Start wheel16BL-15714-00-00
1140F-01.01.10回位弹簧Return spring166T-15784-00
1240F-01.01.09卡瓣弹簧Spring166T-15767-00
13GB97.1平垫6Flat gasket192995-06600-00
14GB5783(8.8)六角头螺栓M6*16Bolt1
1540F-01.01.12压板夹簧Clip spring166T-15705-00
16F25-01.01.00.02驱动臂Drive arm163V-15741-00
17F25-01.01.00.06制动钢索固定套fixing bush,brake cable1
18F15-01.07.00.02制动器Brake166T-15794-00
19F15-01.07.00.03制动器扭簧Torsional spring,brake166T-15734-00
2040F-01.01.08涡型弹簧Volute spring16F5-15713-01
21GB818十字槽盘头螺钉M5*14Pan head bolt with cross recess190157-05014
22GB96平垫5Flat gasket1
2340F-01.01.11启动压板Starter plate166T-15716-00
24F15-01.07.00.05钢索拉簧Spring166T-15731-00
25F25-01.01.00.08制动钢索throttle cable1

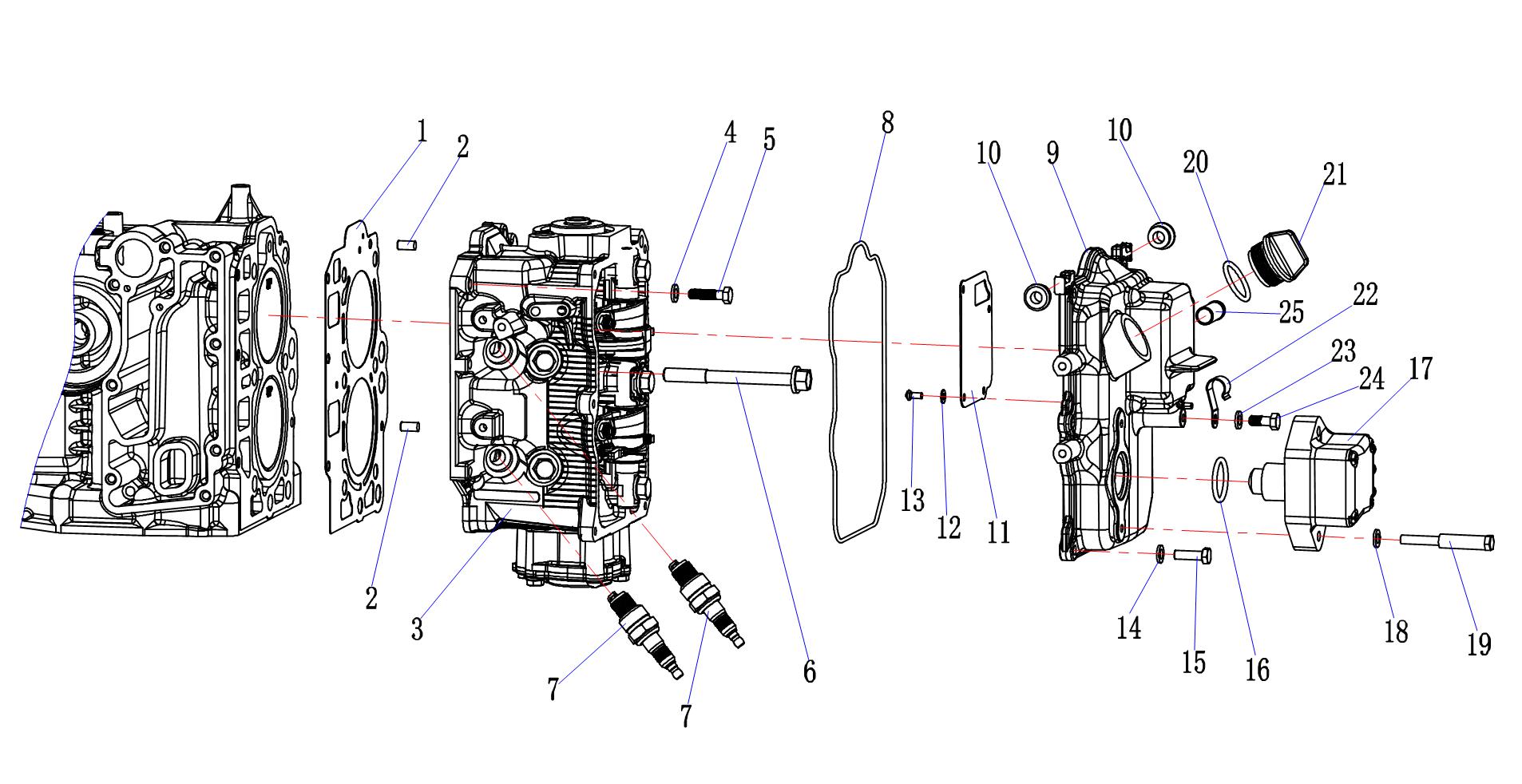

动力分解图（1）
动力分解图（1） 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.05.02.00气缸垫组件Cylinder gasket comp.16BL-11181-00-00
215F-01.06.20定位销6*12Dowel pin293606-12019-00
3F25-01.05.06.00气缸头组件Cylinder head Assy.16BL-11111-00-1S
4GB97.1平垫6Flat gasket392995-06600-00
5GB5783(A4-80/10.9)六角头螺栓M6*25Bolt395023-06025-00
6F25-01.05.00.02气缸头螺栓Bolt,Cylinder head6
7DPR6EB-9(F25)火花塞(新)Spark Plug2DPR-6EB90-00-00
8F25-01.05.01.02橡胶密封圈Rubber seal ring1
9F25-01.05.01.01气缸头罩壳Cover,Cylinder head16BL-11191-00-1S
10F15-01.03.00.41减震垫BDamper2
11F25-01.05.01.03气室盖板Cover plate,Chamber16BG-11168-00-00
12GB97.1平垫4Flat gasket492995-06600-00
13GB818十字槽盘头螺钉M4*Pan head bolt with cross recess490157-05014
14GB97.1平垫6Flat gasket592995-06600-00
15GB5783六角头螺栓M6*20Bolt597095-06020-00
16F25-01.03.00.12燃油泵O型圈O-ring,fuel pump162Y-24415-01-00
17F25-01.03.05.00燃油泵组件(TK)(Y4GFuel pump assy.162Y-24410-04-00
18GB97.1平垫6Flat gasket292995-06600-00
19F25-01.03.00.11燃油泵螺栓Bolt,fuel pump2
20F4-01.06.27油标尺O形圈(24*3.5O ring193210-24M79-00
21F15-01.03.00.39加油口螺塞Oil filling plug16G8-15363-00-00
22F15-01.03.00.42通气管固定夹Bfix clip,air breather tube1
23GB97.1平垫6Flat gasket192995-06600-00
24GB5783六角头螺栓M6*12Bolt197095-06020-00
25F25-01.05.01.04气嘴Gas nipple1
动力分解图(3)

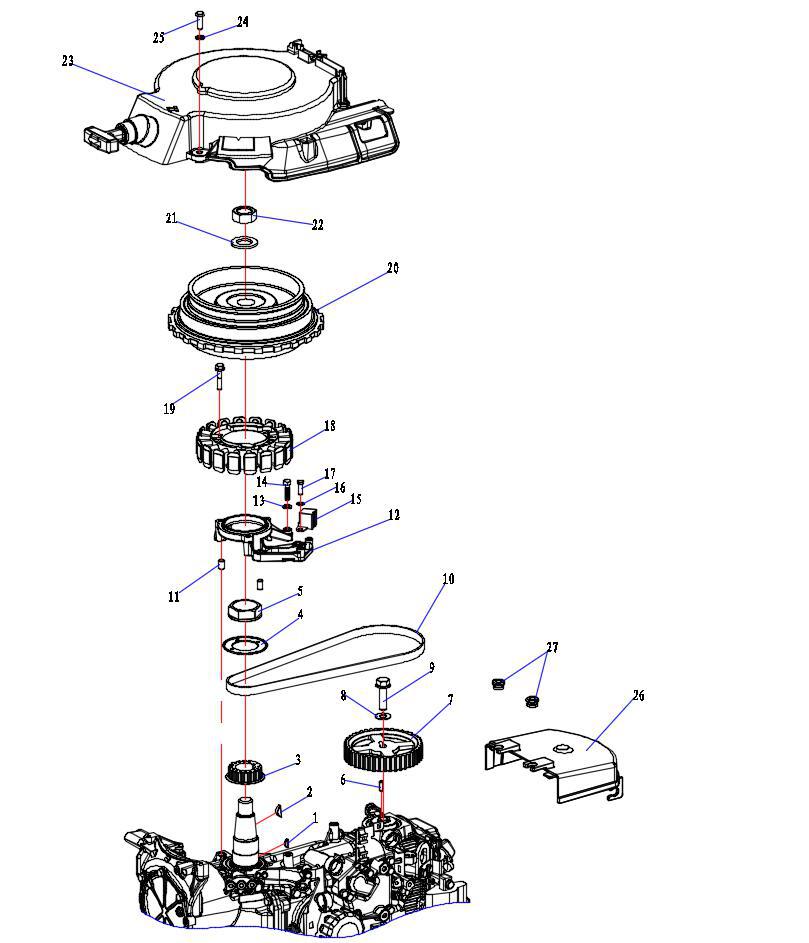

动力分解图(3) 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB1099半圆键3*5*13Woodruff keyoil seal190280-03M01-00
240F-01.03.03半圆键Woodruff key1
3F25-01.04.00.14主动带轮Drive pulley16C5-11536-00-00
4F25-01.04.00.13主动带轮挡圈Stop collar,drive pully162Y-11557-00-00
5F25-01.04.00.12主动带轮螺母nut,drive pully190179-35001-00
6F25-01.05.00.16定位销5*17stop pin1
7F25-01.05.00.01从动带轮Driven pulley16C5-11537-00-00
8GB96平垫10Gasket1
9GB5787六角法兰面螺栓M10*1.25*35Flange bolt195817-10035-00
10F25-01.04.00.11同步带belt16C5-46241-00-00
11F25-01.04.00.08空心定位销8*12Dowel pin2
12F25-01.04.00.07定子支架bracket,stator16BG-85561-00-94
13GB97.1平垫6Flat gasket492995-06600-00
14GB5783(A4-80/10.9)六角头螺栓M6*25Bolt490119-06MA3-00
15F25-01.02.00.02触发器Impulsor s16AH-85580-00-00
16GB97.1平垫M5Flat gasket292995-05600
17GB5783六角头螺栓M5*16Bolt297095-05016
18F25-01.02.02.00定子组件stator comp.16BL-85510-10-00
19GB5789(10.9)六角法兰面螺栓M6*30Bolt3
20F25E-01.02.01.00飞轮组件fly wheel Assy.1
21GB97.1平垫20Flat gasket190201-21M18
2240F-01.03.02飞轮螺母Flywheel nut190170-20137
23F25-01.01.01.00启动罩组件Recoil Starter Assy.1
24GB97.1平垫6Flat gasket392995-06600-00
25GB5783六角头螺栓M6*20Bolt397095-06020-00
26F25-01.01.00.09从动带轮罩壳Drive pulley cover16BL-46297-00-00
27F15-01.03.00.41减震垫BDamper2
动力分解图(2)

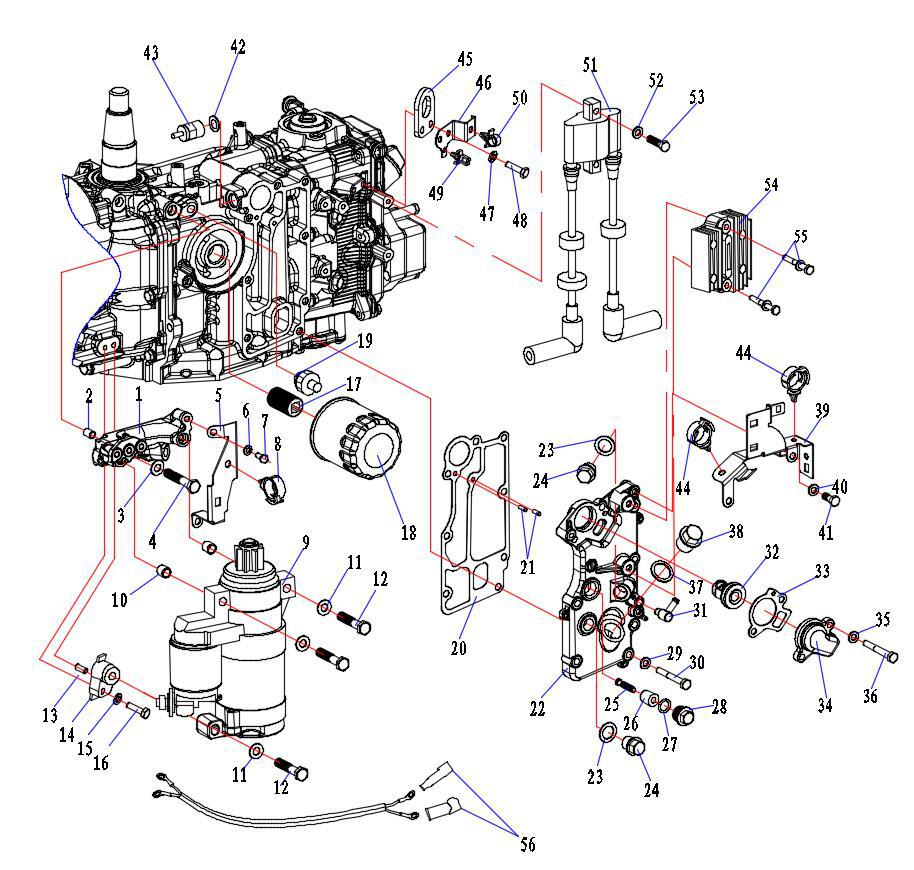

动力分解图(2) 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.04.00.06马达支架bracket,motor1
2F15-01.01.00.18空心定位销Dowel pin2
3GB97.1平垫8Flat gasket292995-06600-00
4GB9074.1(10.9)六角头螺栓和平垫组件M8*45Bolt2
5F25-01.02.06.01线束固定架(一圆孔)Holder,cable1
6GB97.1平垫6Flat gasket292995-06600-00
7GB5783(8.8)六角头螺栓M6*16Bolt2
8F25-01.02.05.02圆形尼龙扣（大）Nylon Button1
9F25E-01.02.00.08启动电机electric start motor1
10F25E-01.02.00.10空心定位销hollow dowel pin1
11GB97.1平垫8Flat gasket392995-06600-00
12GB9074.1(10.9)六角头螺栓和平垫组件M8*45Bolt3
1315F-01.06.20定位销6*12Dowel pin293606-12019-00
14F25E-01.02.00.09电机下垫块electric motor1
15GB97.1平垫6Flat gasket192995-06600-00
16GB5783六角头螺栓M6*20Bolt197095-06020-00
17F15-01.05.00.01机油滤清器芯轴dabber,fuel filter190401-20M00-00
18F15-01.05.01.00机油滤清器Oil filter assembly15GH-13440-00-00
19F15-01.01.00.26机油压力报警器Oil pressure alarm162Y-82504-10-00
20F25-01.04.00.05排水侧盖密封垫Gasket,exhaust side cover16BL-41114-00-00
21F9.9-05.00.00.26定位销4*10Locating Pin 4*10293604-10M03
22F25-01.04.00.04排水侧盖Side cover,exhaust16BL-41113-00-1S
23F25-01.04.00.01垫圈14Washer 14290430-14115
24F15-05.00.00.08放油螺栓Drain bolt M14*12*1.5290340-14M00
25GB818十字槽盘头螺钉M5*25Cross recessed Pan head screws M5*25190157-05014
26F9.9-01.03.00.34阳极AAnode16G8-11325-00-00
27F9.9-01.03.00.33O型圈(13*2)O ring1
28F9.9-01.03.00.35六角法兰面螺栓M16*1.5bolt1
29GB97.1平垫6Flat gasket692995-06600-00
30GB5783(A4-80)六角头螺栓M6*35Bolt690119-06MA3-00
3115F-01.06.10水管圆接头water Tube fitting B10
32F15-01.06.14-60°节温器60℃Thermostat 60°169M-12411-01-00
33F15-01.01.00.11节温器盖垫片Gasket,Thermostat16H3-12414-A1
34F25-01.04.00.40节温器盖Thermostat cap16C5-12413-00-9S
35GB97.1平垫6Flat gasket292995-06600-00
36GB5783(A4-80)六角头螺栓M6*35Bolt290119-06MA3-00
37F25-01.04.00.03铜垫圈Washer1
38F25-01.04.00.02排气螺栓Bolt,exhaust1
39F25-01.02.05.01线束固定架(三圆孔)Holder,cable1
40GB97.1平垫6Flat gasket292995-06600-00
41GB5783(8.8)六角头螺栓M6*16Bolt2
42F25-01.04.00.01垫圈14Washer 14190430-14115
43F25-01.02.12.00温控传感器组件Temperature sensor comp.1
44F25-01.02.05.02圆形尼龙扣（大）Nylon Button3
45F25-01.02.00.04吊环holder1
46F25-01.02.07.03水管固定架Bracket,hose1
47GB97.1平垫6Flat gasket292995-06600-00
48GB5783六角头螺栓M6*20Bolt297095-06020-00
49F25-01.02.07.02线卡Clip,wires1
50F25-01.02.07.01水管固定夹Clip,hose1
51F25-01.02.08.00高压包组件Ignition coil1
52GB97.1平垫6Flat gasket292995-06600-00
53GB5783六角头螺栓M6*25Bolt297095-06020-00
54F25E-01.02.00.11整流器rectifier1
55GB9074.1螺栓和垫圈组合件 M6*16(8.8Bolt2
56F25-01.02.00.01接地线护套ground lead sleeve2
动力分解图(4)

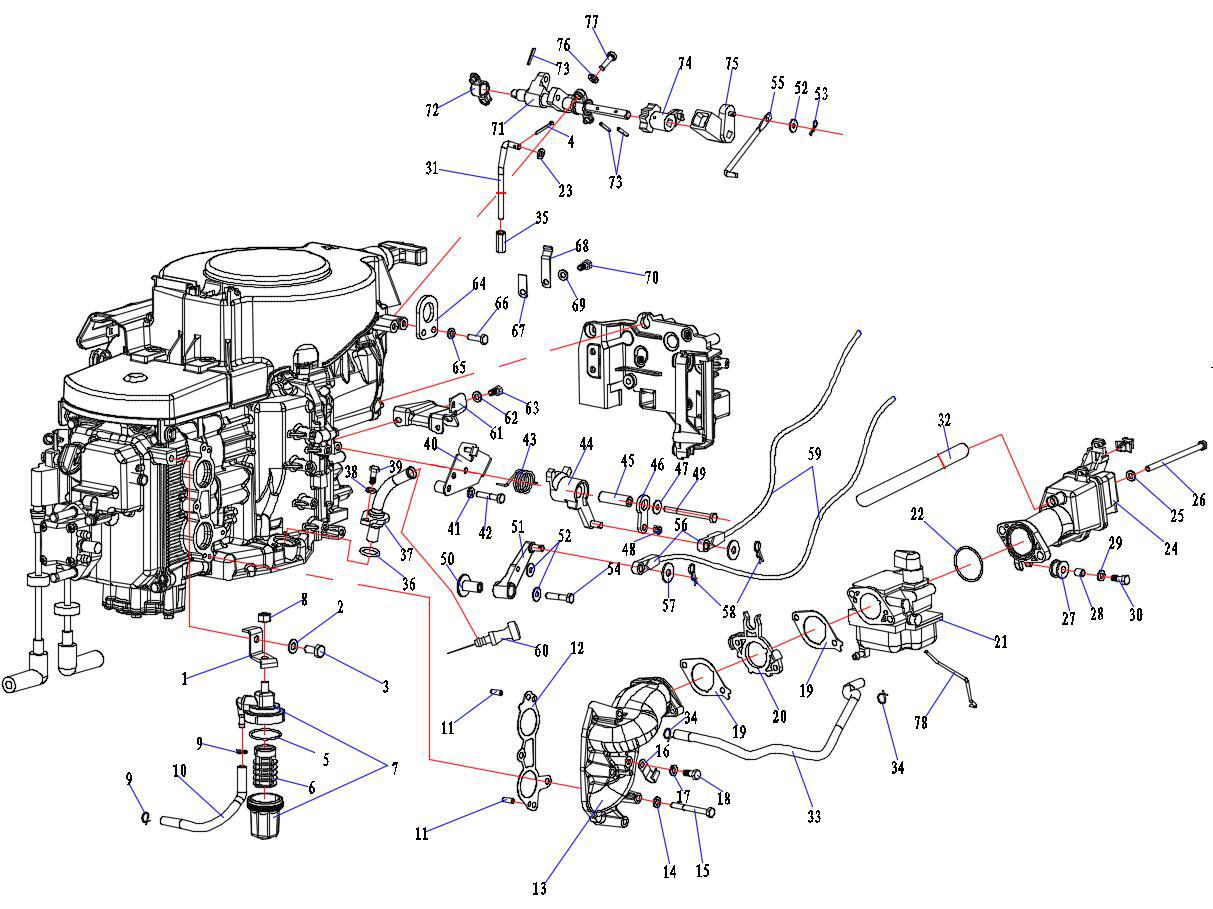

动力分解图(4) 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.03.00.01燃油滤清器支架Bracket,fuel filter1
2GB97.1平垫8Flat gasket192995-06600-00
3GB5783六角头螺栓M8*16Bolt197095-08014-00
4GB91开口销1.6*12Cotter pin 1.6*121
515F-01.07.05.06过滤器O型圈(33*2)O ring,filter193210-32738
615F-01.07.05.04过滤器滤芯fuel fliter161N-24563-00
715F-01.07.05.05过滤器外壳Inner cover,exhaust161N-24560-00
8GB6170六角螺母M8Bolt nut1
9管夹φ10Clamp2
10F25-01.03.02.01燃油滤清器出油管Ф5*10*160Oil outlet hose,fuel filter1
11F9.9-01.03.00.05定位销Ф5*14Dowel pin291690-50014-00
12F25-01.03.00.14进气歧管密封垫Air intake manifold gaske1
13F25-01.03.00.13进气歧管Air intake manifold16BL-13641-00-94
14GB97.1平垫6Flat gasket492995-06600-00
15GB5783六角头螺栓M6*55Hex Head Bolt M6*55497013-06055
16F15-01.03.00.42通气管固定夹Bfix clip,air breather tube190465-06M86
17GB97.1平垫6Flat gasket192995-06600-00
18GB5783(8.8)六角头螺栓M6*16Bolt1
19F25-01.03.00.08化油器密封垫Carburetor Seal gasket2
20F25-01.03.00.09隔热板Heat proof Plate16BL-14271-00-00
21F25-01.03.04.00化油器组件Carburetor Assy.16BL-14301-00-00
22F25-01.03.00.07O型圈(3.8*2)O ring193210-39ME4-00
23GB97.1平垫6Flat gasket192995-06600-00
24F25-01.03.03.00进气消音器组件Air intake silencer16BL-14440-00-00
25GB97.1平垫6Flat gasket292995-06600-00
26GB5783六角头螺栓M6*100Bolt290119-06M76-00
27F25-01.03.00.06进气消音器减震垫Damper,Air intake silenc1
28F25-01.03.00.04进气消音器垫管AAir intake cushion tube1
29GB5287平垫6Flat gasket 61
30GB5783六角头螺栓M6*20Bolt197095-06020-00
31F25-05.00.00.17上变档杆(短轴）Shift lever(upper,S)1
32F25-01.03.00.10通气管Breath hose16BL-15373-00-00
33F25-01.03.01.01燃油泵出油管5*10*365Outlet pipe,fuel pump1
34管夹φ10Clamp2
3515F-06.04.05柱状螺母Column nut161N-44146-00
36GB97.1平垫6Flat gasket192995-06600-00
37F25-01.06.03.00油标尺座组件oil dip stick seat comp.1
38GB97.1平垫6Flat gasket192995-06600-00
39GB5783(8.8)六角头螺栓M6*16Bolt1
40F25E-01.04.00.40油门钢索支架bracket,remote cable1
41GB97.1平垫6Flat gasket192995-06600-00
42GB5783 M6*35六角头螺栓Hex Head Bolt M6*351
43F25E-01.04.00.43端门拉簧tension spring1
44F25E-01.04.00.41油门钢索端轮Throttle cable end wheel1
45F15-01.01.00.21衬套Bushing190387-06064-00
46F15-01.01.00.23油门连接块Connecting block,throttle165W-41283-00-00
47GB96平垫6Flat gasket1
4815F-01.02.07阻风门连杆接头choke rod connector1309-03173-0
49GB5783 M6*65六角头螺栓Bolt1
50F25E-01.04.00.45挡位端轮垫管shift end wheel cushion1
51F25E-01.04.00.46档位端轮shift end wheel1
52GB96平垫M5Flat gasket1
5315F-01.05.14卡簧Spring1
54GB5783六角头螺栓M6*35Hex Head Bolt M6*35197095-06020-00
55F25E-01.04.00.47档位连杆gear shift lever1
56HDYK00.00.24钢索调节装置ACable adjuster A2
57GB96平垫6Flat gasket2
5815F-01.05.14卡簧Spring2
59HDYK00.06.00遥控钢索组件(3.8M)Remote Control Cable (32
60F25-01.06.02.00油标尺组件oil dip stick comp.1
61F25-01.02.13.00点火器安装架支架组件mounting bracket Assy.,i1
62GB97.1平垫6Flat gasket192995-06600-00
63GB5783六角头螺栓M6*20Bolt197095-06020-00
64F25-01.02.00.04吊环holder1
65GB97.1平垫6Flat gasket292995-06600-00
66GB5783六角头螺栓M6*20Bolt297095-06020-00
67F15-02.00.00.06垫板plate166R-44114-00-00
68F15-02.00.00.05变档限位弹簧板shift limit plate165W-44116-00-00
69GB97.1平垫6Flat gasket192995-06600-00
70GB5783(8.8)六角头螺栓M6*16Bolt1
71F25-01.04.03.00变档杠杆组件Gear shift cable comp.,1
72F25-01.04.00.20托架Bracket2
73GB879.2弹性圆柱销3*20Cylindrical pin390254-03M05
74F25-01.04.04.40变档摇臂Gear shift rocker1
75F25-01.04.04.00油门限位块组件limit block,throttle1
76GB97.1平垫6Flat gasket292995-06600-00
77GB5783六角头螺栓M6*20Bolt297095-06020-00
78F25-01.04.00.21油门连杆Throttle lever1

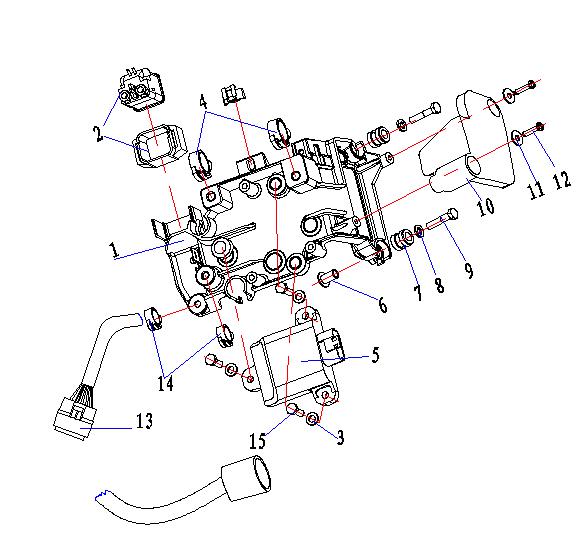

动力分解图(5)
动力分解图(5) 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.02.04.00点火控制器安装架组件mounting bracket comp.(CDI)16BL-81948-00-00
2F25E-01.02.00.12继电器组件(电起动)relay Assy.1
3GB97.1平垫6Flat gasket392995-06600-00
4F25-01.02.05.02圆形尼龙扣(大)Nylon Button2
5F25-01.02.03.00点火控制器组件CDI16BL-85540-00-00
640F-01.03.22带肩垫管Shoulder pad tube461N-82317-00
740F-01.03.23减震圈Damper4
8GB97.1平垫6Flat gasket492995-06600-00
9GB5783六角头螺栓M6*30Bolt497095-06020-00
10F25E-02.00.00.34继电器盖板(电起翘)relay cover plate1
11GB97.1平垫5Flat gasket292995-05600
12GB845十字槽盘头自攻螺钉ST4.8*19Cross recessed pan head tapping screws2
13F25E-01.02.10.00线束组件(电起动)harness(electric stat)1
14F25-01.02.05.02圆形尼龙扣(大)Nylon Button2
15GB5783六角头螺栓M6*20Bolt397095-06020-00

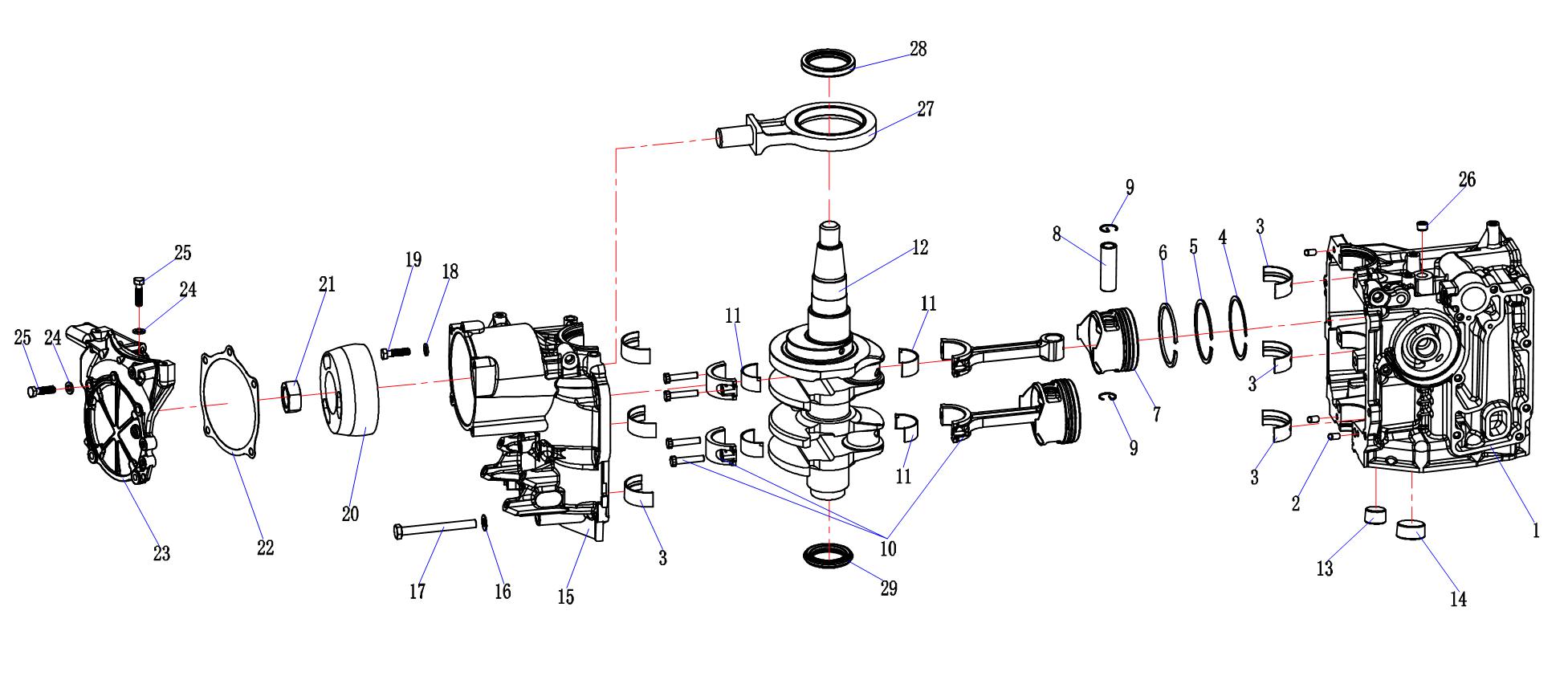

曲轴活塞
曲轴活塞 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.04.09.01文） 箱体组件Crankcase comp.(with crankcase cove16BL-15100-01-00
215F-01.06.20定位销6*12Dowel pin393606-12019-00
3F25-01.04.00.31曲轴瓦(黑色)Crankshaft piece66BG-11416-30-00
4F25-01.04.00.28主气环1nd ring2
5F25-01.04.00.29副气环2nd ring2
6F25-01.04.08.00组合油环组件Oil seal comp.2
7F25-01.04.00.25活塞Piston269W-11631-01-97
8F25-01.04.00.26活塞销Pin,piston262Y-11633-00-00
9F25-01.04.00.27活塞销卡簧Circlip493450-17129-00
10F25-01.04.07.00连杆组件Connecting rod comp.26C5-11650-00-00
11F25-01.04.00.34连杆瓦(黑色)Lever piece46CJ-11656-10-00
12F25-01.04.00.30曲轴Crankshaft16BL-11411-00-00
13F25-01.04.00.38堵塞1/2Plug1
14F25-01.04.00.39堵塞3/4Plug1
15F25-01.04.00.37箱盖crankcase cover1
16GB97.1平垫8Flat gasket692995-06600-00
17GB5783(A4*80)六角头螺栓M8*80Bolt6
18GB97.1平垫6Flat gasket792995-06600-00
19GB5783(A4*80)六角头螺栓M6*25Bolt790119-06MA3-00
20F25-01.04.00.22曲轴平衡活塞Blance piston,Crankshaft16BL-11642-00-00
2140F-01.03.02飞轮螺母Flywheel nut190170-20137
22F25-01.04.00.10箱盖盖板密封垫Gasket16BL-15663-00-00
23F25-01.04.00.09箱盖盖板cover,Crankcase cover16BL-15121-00-1S
24GB97.1平垫6Flat gasket692995-06600-00
25GB5783(A4-80)六角头螺栓M6*25Bolt690119-06MA3-00
26F15-01.01.00.07堵塞1/8Plug1
27F25-01.04.06.01曲轴平衡连杆Blance lever comp.,Crankshaft16BL-11665-00-00
28F25-01.04.00.23曲轴上油封43*55*6Oil seal(upper),crankshaft193102-43M42-00
29F25-01.04.00.24曲轴下油封35*47*6Oil seal(bottom),crankshaft193101-35002-00
配气系统

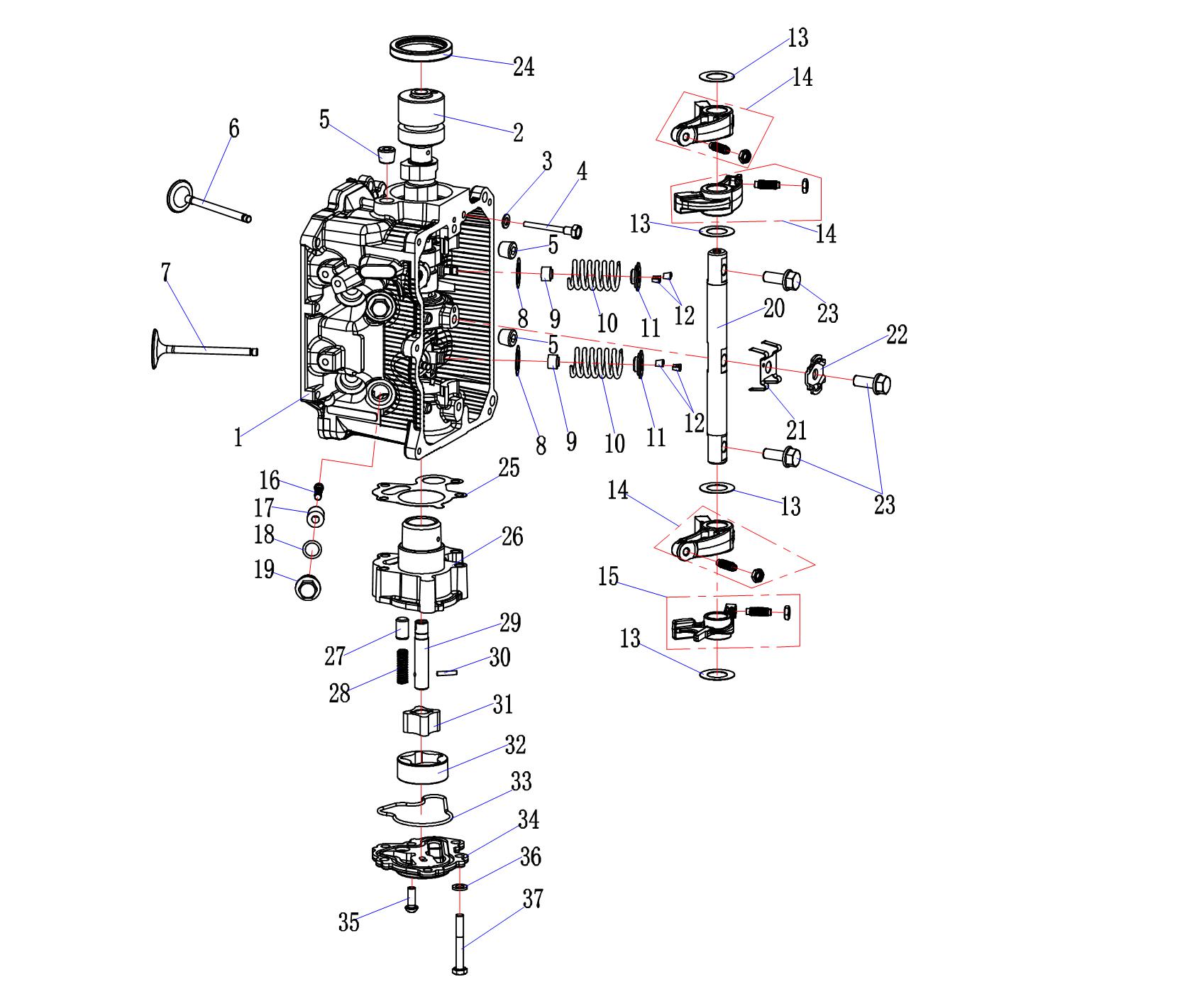

配气系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.05.06.01气缸头Cylinder Head16BL-11111-00-1S
2F25-01.05.05.00凸轮轴组件Camshaft comp.16BL-12171-00-00
3F25-01.05.00.09铜垫片Gasket1
4F25-01.05.00.08凸轮轴限位螺栓M6*1.0Bolt1
5F15-01.01.00.08堵塞1/4Plug3
6F25-01.05.00.12排气门Exhaust valve269W-12111-00-00
7F25-01.05.00.11进气门Intake valve269W-12121-00-00
8F25-01.05.00.15气门弹簧垫圈Washer,Valve spring462Y-12116-00-00
9F15-01.03.00.15气门油封Valve oil seal451Y-12119-00-00
10F25-01.05.00.14气门弹簧Valve spring451Y-12114-00-00
11F15-01.03.00.04气门弹簧座圈Washer,Valve spring430X-12117-00-00
12F15-01.03.00.05气门锁夹valve clamp830X-12118-00-00
13F25-01.05.00.07摇臂垫圈washer,Rocker arm490201-16014-00
14F25-01.05.04.00摇臂组件BRock arm comp. B36C5-12151-00-00
15F25-01.05.03.00摇臂组件ARock arm comp. A162Y-12151-00-00
16GB818十字槽盘头螺钉M5*25Cross recessed Pan head screws M5*25290157-05014
17F9.9-01.03.00.34阳极AAnode26G8-11325-00-00
18F9.9-01.03.00.33O型圈(13*2)O ring2
19F9.9-01.03.00.35六角法兰面螺栓M16*1.5bolt2
20F25-01.05.00.06摇臂轴Rocker arm shaft16BL-12146-00-00
21F25-01.05.00.05摇臂限位簧Stop spring,rocker arm16BL-12233-00-00
22F25-01.05.00.04摇臂轴压板Plate,rocker arm shaft16BL-12231-00-00
23GB5789(10.9)六角法兰面螺栓M8*20Flange bolt3
24F25-01.05.00.10凸轮轴上油封50*37*7Oil seal(upper),Camshaft1
25F25-01.06.00.01机油泵密封垫Oil pump gasket16C5-13329-00-00
26F25-01.06.01.09机油泵体Oil pump housing1
27F25-01.06.01.04溢流阀芯Valve element,flood valve1
28F25-01.06.01.03溢流阀压簧Pressure spring,flood valve1
29F25-01.06.01.06转子轴Rotor spindle1
30F25-01.06.01.07滚针needle1
31F25-01.06.01.05内转子Inner rotor1
32F25-01.06.01.08外转子Outer rotor1
33F25-01.06.01.02橡胶密封圈Rubber seal ring1
34F25-01.06.01.01机油泵盖Oil pump cap1
35GB823十字槽小盘头螺钉M6*16Pan head bolt with cross recess2
36GB97.1平垫6Flat gasket492995-06600-00
37GB5783六角头螺栓M6*45Hexagonal bolt M6*45497095-06020-00
夹紧托架部位(1）

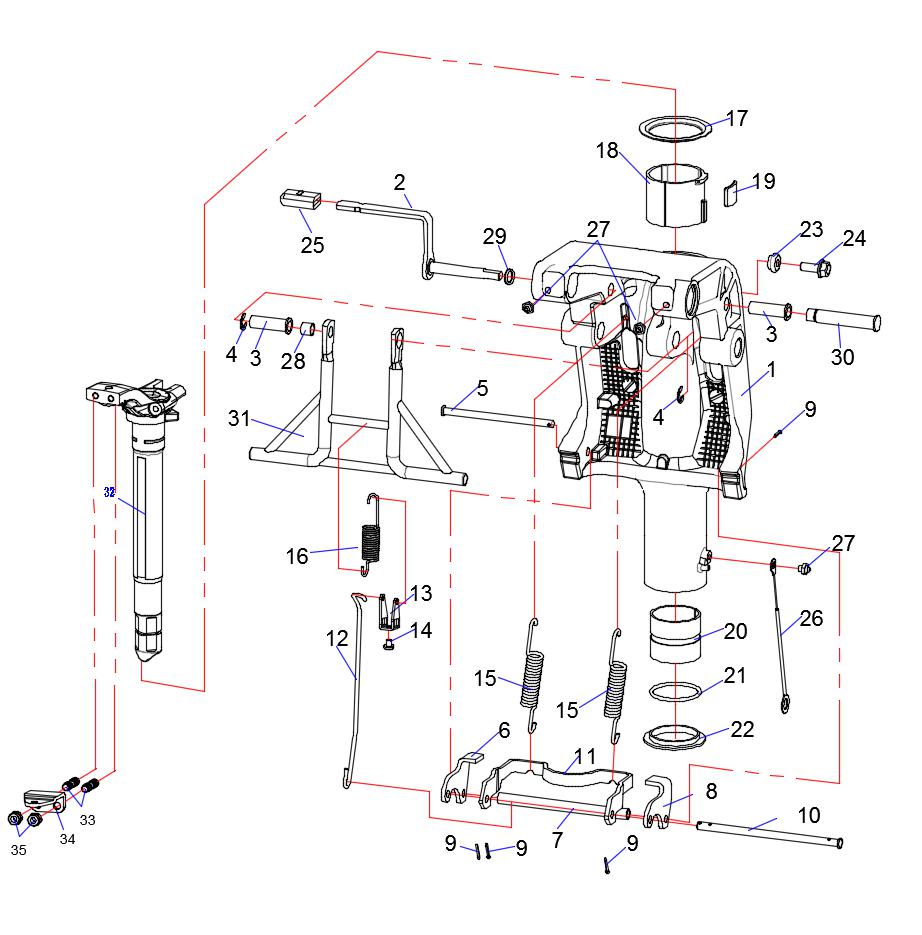

夹紧托架部位(1） 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-03.07.01-S旋转托架(短轴）Swivel bracket(S)165W-43311-00-4D
None40F-03.07.01-L旋转托架(长轴)Swivel bracket( L )1
240F-03.07.11.00操纵杠杆组件Lever comp.,Steering165W-43630-11
340F-03.07.11.04销轴套Sleeve,Axis pin290386-10M99
4GB896开口挡圈8Circlip293430-10M00
540F-03.07.11.11支撑架固定轴Fixing axis,support frame190249-07M32
640F-03.07.11.08左外支架Outer bracket(LH)165W-43614-01
740F-03.07.11.12支撑架套管Sleeve,support frame190387-07M29
840F-03.07.11.09右外支架Bracket(RH&Outer)165W-43615-01
9GB91开口销1.6*12Cotter pin 1.6*124
1040F-03.07.11.10支撑架销轴Pin roll,support frame190101-08M76
1140F-03.07.11.07内支架Arm,tilt lock165W-43613-00
1240F-03.07.11.06角度定位锁杆angle loction rod165W-43616-00
13F25-03.00.01.04角度定位件Angle fixer166T-43631-11
14GB818十字槽盘头螺钉M5*6Pan head screw with cross recess190157-05014
1540F-03.07.11.13拉簧Sping290506-30M00
16F25-03.00.01.05定位弹簧Position spring190506-20M37
1740F-03.07.03衬圈ring gasket190209-52M00
1840F-03.07.04锁紧圈Lock washer190386-52M02
1940F-03.07.05锁紧圈摩擦片Friction plate,Locking1648-42528-00
2040F-03.07.07下衬套bushing (bottom)190386-44M03
2140F-03.07.08O型橡胶圈(42.6*3.2)Rubber ring193210-43MJ0
2240F-03.07.09下衬圈Lower bushing190386-44M99
2340F-03.07.06锁紧螺栓密封垫Gasket165W-43373-00
24GB9074.1（8.8）六角头螺栓和平垫组件M8*20Hexagon headed bolt and flat plate M61
2515F-03.09.12.01橡塑套rubber Sleeve1682-43318-01
2640F-03.07.10钢索连接组件Connection assy，Cable166T-82127-00
27JB7940.1直通式压注油杯Oil cup393700-06M03
28F25-03.00.01.02套圈Sleeve1
29GB848平垫12Flat gasket 121
30F25-03.00.01.03定位销轴Dowel pin axis190249-10M31
31F25-03.00.01.06定位支架location bracket166T-43350-02
3240F-04.01.03-S操舵支架(短轴)Brackt,Steering （S）165W-42511-00-4D
None40F-04.01.04-L操舵支架(L)Brackt,Steering （L）1
3340F-04.01.04双头螺柱M10*43Double-screw bolt1
3440FE-04.01.09操纵钩lever hook1
35DIN985 M10*1.25六角尼龙锁紧螺母hexagonal lock nut M10*1.252
夹紧托架部位(2)

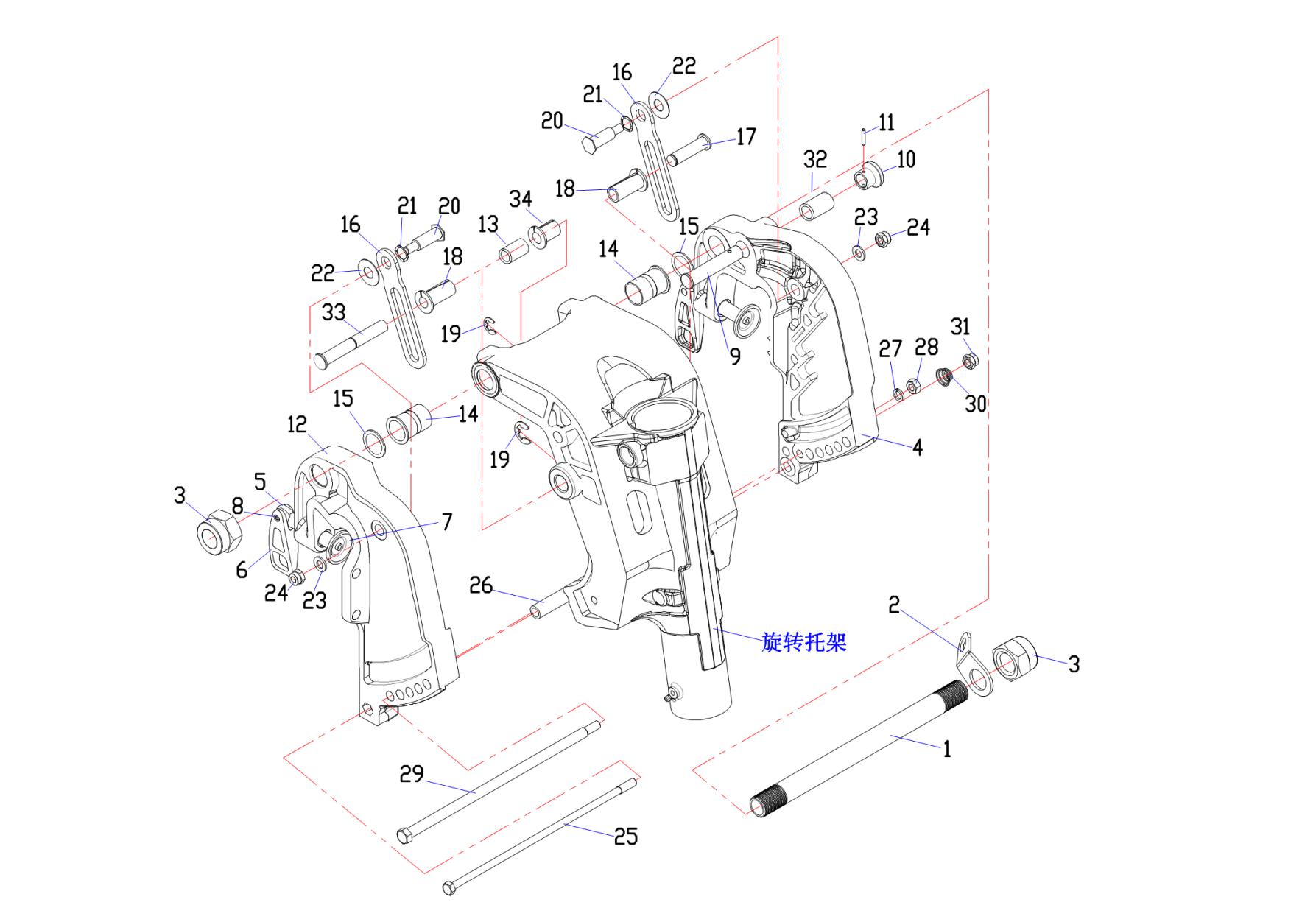

夹紧托架部位(2) 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
号140F-03.04夹紧托架双头螺栓Bolt1346-62191-0
215F-03.03孔板Orifice plate16J8-43113-01
315F-03.01夹紧托架螺母Clamp nut290185-22043
440F-03.05.01左托架Bracket(LH)166T-43112-01-4D
540F-03.05.03.01艉板夹紧螺栓Clamp Bolt,Transom290149-14M12
640F-03.05.03.02夹紧手柄intensify handle26E0-43118-01
715F-03.05.02.03夹紧盘Clamp plate2620-43114-00
8GB1015沉头半空心铆钉4* 18Bolt2
940F-03.05.04.01定位轴Position axis1
1040F-03.05.04.02定位轴手柄Position axis handle1
11GB879.2弹性圆柱销3*18Elastic cylindrical pin 3*101
1240F-03.06.01右托架Bracket(RH)166T-43111-01-4D
13F25-03.00.02.03衬套Bushing190387-12M04
1440F-03.07.02托架阻尼圈Damping ring,bracket290386-22M15
1540F-03.03垫片Washer2
1640F-03.07.12.01制动板brake pad266T-43627-00
1740F-03.07.12.02制动板销pin190249-12M34
1840F-03.07.12.03开口衬套Bushing290386-12M98
19GB896开口挡圈10Circlip293430-10M00
2040F-03.07.12.04制动板固定螺栓Bolt,brake pad290109-08M90
2140F-03.07.12.05波形垫圈waterform gasket ring2
2240F-03.07.12.06塑料垫片Plastic washer290202-12031
23GB97.1平垫8Flat gasket292995-06600-00
24DIN985六角尼龙锁紧螺母M8Hexagon nylon lock nut2
2540F-03.08六角螺栓Bolt190101-08M76
2640F-03.09螺栓套管Sleeve190387-08M29
27GB93弹垫8washer1
28GB6170六角螺母M8Bolt nut1
2940F-03.10角度限位销轴Trim shaft190101-08M28
3040F-03.11塔形弹簧Spring190502-10M06
31DIN985六角尼龙锁紧螺母M8Hexagon nylon lock nut1
3240F-03.05.02左托架垫套Bushing,bracket(LH)1
33F25-03.00.02.01制动板长销pin190249-12M39
34F25-03.00.02.02开口衬套（短）Bushing190386-12MA0
底罩

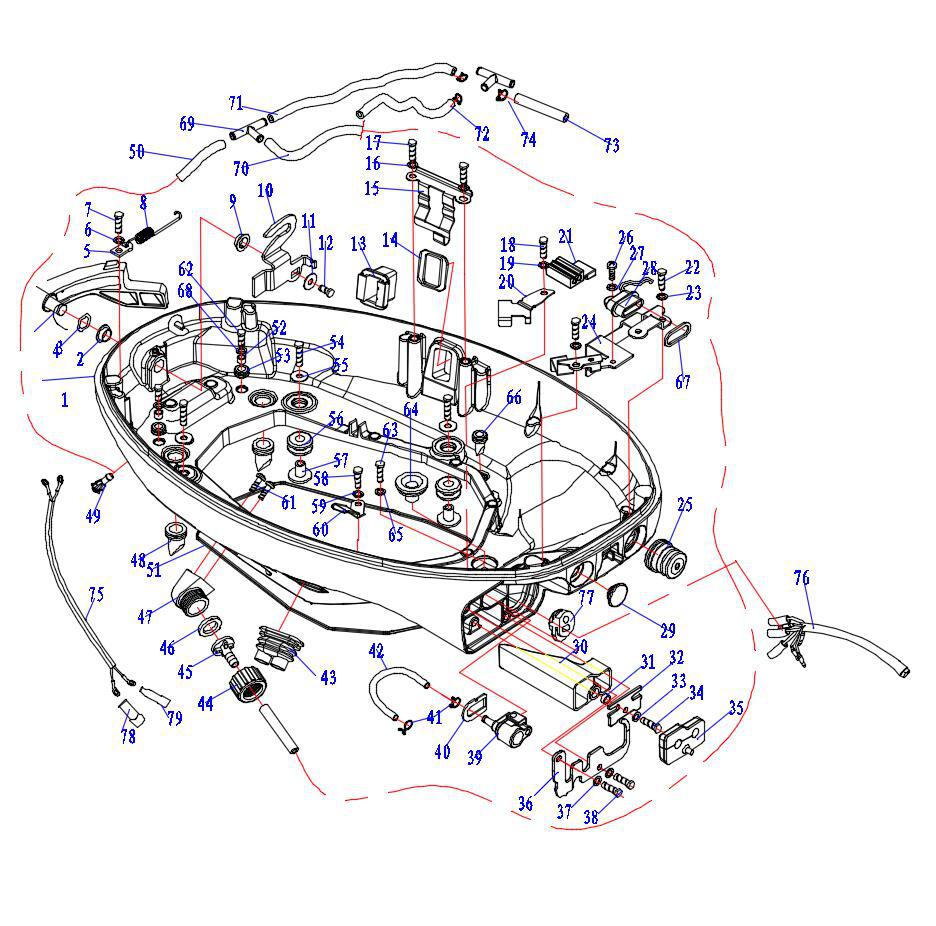

底罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-02.00.00.15底座Bottom Base1
240F-02.02.00.03垫圈AWasher A1
340F-02.02.00.02波形垫片Wave washer1
4F25-02.02.00.00锁紧手柄组件Lock handle comp.1
540F-02.02.00.07拉簧钩Spring hook166T-43144-00
6GB97.1平垫6Flat gasket192995-06600-00
7GB5783六角头螺栓M6*20Bolt197095-06020-00
840F-02.02.00.06锁紧钩拉簧Tension spring,latch segment190506-16M34
940F-02.02.00.04垫圈BWasher190386-12M37
10F25-02.02.00.04锁紧块Latch segment1
11GB96平垫6Flat gasket1
12GB5783六角头螺栓M6*12Bolt197095-06020-00
13F25-02.00.00.01底座侧堵头Base side plug1
14F25-02.00.00.02侧堵头橡胶垫Side plug rubber gasket1
15F25-02.00.00.03侧堵头压板Side plug plate1
16GB97.1平垫6Flat gasket292995-06600-00
17GB5783六角头螺栓M6*20Bolt297095-06020-00
18GB5783六角头螺栓M6*20Bolt197095-06020-00
19GB97.1平垫6Flat gasket192995-06600-00
20F25-02.00.00.05钢索固定座Cable fixed seat1
21F25-02.00.00.06钢索橡胶固定套Rubber fixed sleeve of cable1
22GB5783六角头螺栓M6*20Bolt297095-06020-00
23GB97.1平垫6Flat gasket292995-06600-00
24F25-02.00.00.10支架Holder1
25F15-02.00.00.15手柄连杆橡胶减震圈Rubber shock ring,handle165W-42726-00
26GB818十字槽盘头螺钉M6*10conncet ing rod Bolt190157-05014
27GB97.1平垫6Flat gasket192995-06600-00
28F25-01.02.09.00指示灯组件Indicator light comp.1
29F25-02.00.00.16橡胶堵塞Rubber plug1
30F25-02.01.00.02钢索导向座Wire guide seat1
31F25-02.01.00.01垫管Cushion tube1
32F25E-02.00.00.31钢索固定板cable wire fixed plate1
33GB97.1平垫6Flat gasket192995-06600-00
34GB5783六角头螺栓M6*20Bolt197095-06020-00
35F25E-02.00.00.32固定板橡胶垫rubber gasket,fixed plate2
36F25E-02.00.00.33固定板fixed plate2
37GB97.1平垫6Flat gasket192995-06600-00
38GB5783六角头螺栓M6*20Bolt197095-06020-00
3915F-01.07.01.00燃油管插头组件Fuel hose joint assy1
40F9.9-01.04.00.13燃油管插头垫片fuel hose joint Washer1
41管夹φ10Clamp2
42F25-01.03.00.02燃油滤清器进油管Oil inlet hose,fuel filter1
43F25-02.00.00.26水管护套Sleeve,hose1
44DQDF15-00.05.02外接水管盖Cap,External water hose1
45DQDF15-00.05.03外接水管插头Plug,External water hose1
46DQDF15-00.05.04橡胶垫片Rubber gasket1
47DQDF15-00.05.05外接水管座Seat,External water hose1
48F25-02.00.00.11排水嘴（大）Water nozzle2
4915F-02.11塑料水嘴Plastic Water nozzle16BL-44391-00
50F25-02.00.00.18橡胶水管5*9*45Rubber hose1
51F25-02.00.00.30底座橡胶密封条The base rubber sealing strip1
52F25-02.00.00.13装饰罩减震垫垫管Damper cushion bushing,Decorative290387-06M43
53F25-02.00.00.12装饰罩减震垫cover Damper cushion,Decorative cover290480-13M24
54GB5783六角头螺栓M6*30Bolt497095-06020-00
55GB5287平垫6Flat gasket 64
56GB5783六角头螺栓M6*30Bolt497095-06020-00
57GB5287平垫6Flat gasket 64
58GB5783六角头螺栓M6*20Bolt197095-06020-00
59GB97.1平垫6Flat gasket192995-06600-00
60F25-02.00.00.04油管压块Pressing block,fuel hose1
61GB845十字槽盘头自攻螺钉ST5.5*25Screw2
62GB5783六角头螺栓M6*16Bolt297095-06020-00
63GB5783六角头螺栓M6*25Bolt197095-06020-00
6440F-02.00.00.02变档连杆橡胶护套Shift lever rubber sleeve1676-42727-00
65GB97.1平垫6Flat gasket192995-06600-00
66F9.9-02.00.00.12排水嘴Water nozzle265W-42717-00
67F25-01.02.00.05指示灯减震垫gasket,indicator light1
68GB97.1平垫6Flat gasket292995-06600-00
69F15-05.00.00.17三通T-branch pipe2
70F25-02.00.00.21橡胶水管5*9*470Rubber hose1
71F25-02.00.00.19橡胶水管5*9*355Rubber hose1
72F25-02.00.00.17橡胶水管5*9*305Rubber hose1
73F25-02.00.00.18橡胶水管5*9*45Rubber hose1
74管夹φ9Tube Clip7
75F25E-01.02.11.01电瓶线battery cable1
76HDYK00.00.33七芯插头5MSeven-pin plug 5M1688-8258A-20
77F25E-02.00.00.35底座橡胶堵塞Bruber plugB,lower cowling1
78DQDF15-00.03.03橡胶护套Arubber sleeve A2
79DQDF15-00.03.06橡胶护套Brubber sleeve B1
水上分解图

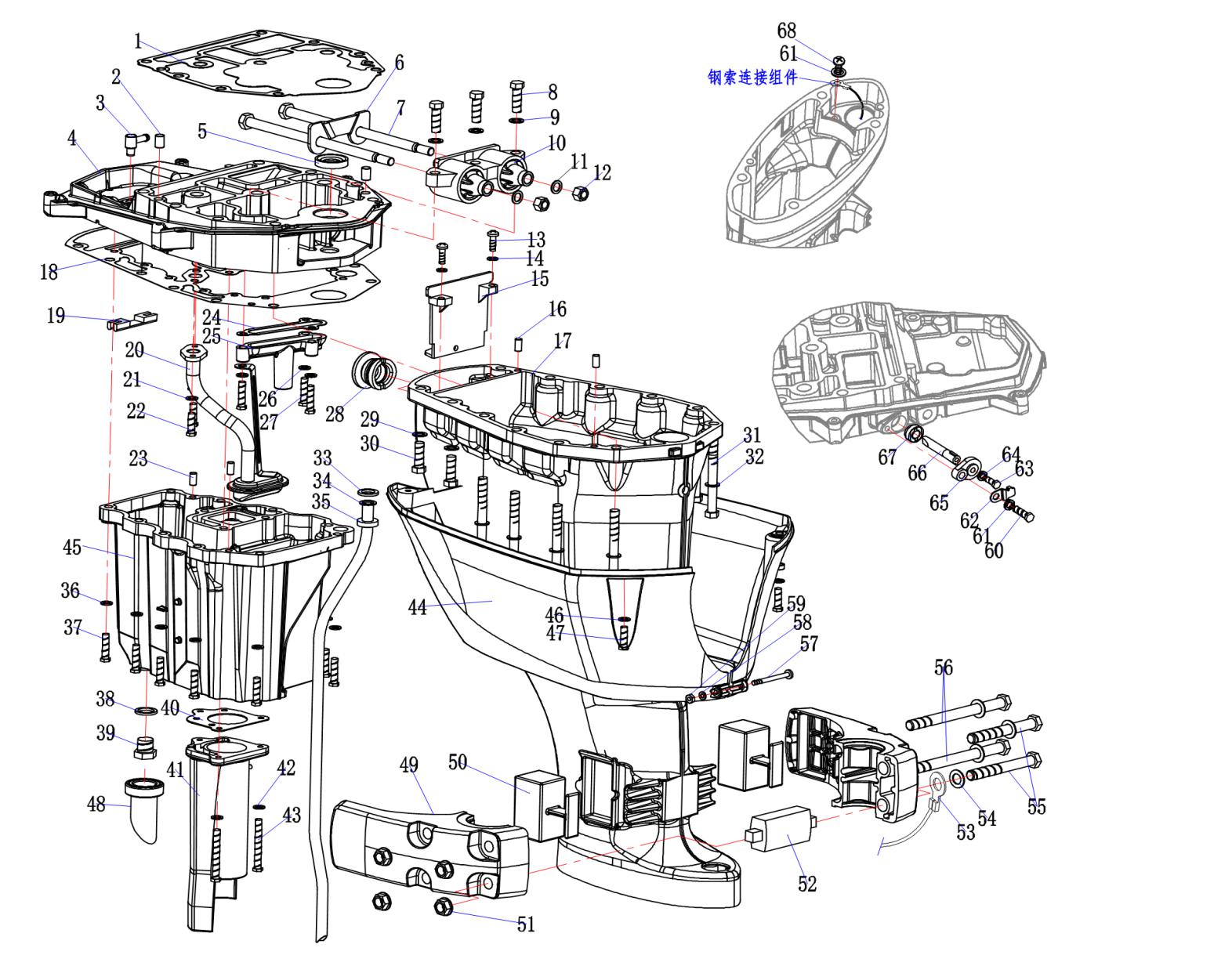

水上分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-00.00.00.04密封垫Seal gasket1
240F-01.06.00.25定位销8*12Dowel pin 8*12293608-12063
315F-01.06.10水管圆接头water Tube fitting B1
4F25-05.00.00.12机体底座Engine base167C-41137-13-CA
540F-01.06.00.23油封(16*30*6)Oil seal（16*30*6）1
6F25-05.00.00.03双孔减震器支架Braket,mount damper(upper)1
740F-05.00.00.07六角头长螺栓L= 184Bolt290101-08M86
8GB5783六角头螺栓M8*30Bolt397095-06020-00
9GB97.1平垫8Flat gasket392995-06600-00
10F25-05.01.00.00双孔减震器组件Mount Damper(upper) comp.1
11GB97.1平垫8Flat gasket292995-06600-00
12DIN985六角尼龙锁紧螺母M8Hexagon nylon lock nut2
13GB818十字槽盘头螺钉M5*16Pan head bolt with cross recess290157-05014
14GB97.1平垫5Flat gasket292995-05600
15F25-05.00.00.01怠速排气隔板Idling exhaust baffle165W-45151-00-00
1615F-01.06.20定位销6*12Dowel pin293606-12019-00
17F25-05.00.00.02-S水上装置壳体(短轴)Upper casing(S)16BP-45111-00-4D
NoneF25-05.00.00.02-L水上装置壳体（长轴)Upper casing(L)1
18F25-00.00.00.03密封垫Seal gasket169W-15312-00-00
19F25-05.00.00.15怠速排气橡胶条Rubber strip,idle exhaust1
20F25-05.02.00.00机油粗滤器组件Oil strainers components1
21GB97.1平垫6Flat gasket292995-06600-00
22GB5783(8.8)六角头螺栓M6*16Bolt2
2315F-01.06.20定位销6*12Dowel pin293606-12019-00
24F25-05.00.00.11溢流阀座密封垫Seal Gasket,flood valve seat162Y-13475-00-00
25F25-05.00.00.10溢流阀座seat,flood valve16BG-11576-00-94
26GB97.1平垫6Flat gasket392995-06600-00
27GB5783六角头螺栓M6*25Bolt397095-06020-00
28F25-05.00.00.16排气口橡胶护套Rubber sheath,exhaust port1
29GB97.1平垫8Flat gasket492995-06600-00
30GB5783六角头螺栓M8*30Bolt497095-06020-00
31GB5783(A4-80)六角头螺栓M8*80Bolt8
32GB97.1平垫8Flat gasket892995-06600-00
3340F-05.00.00.15水管衬圈Bushing ，hose1676--42727-00
34F25-05.00.00.07-S水管(短轴）Hose165W-44361-02-00
NoneF25-05.00.00.07-L水管(长轴）Hose1
35F25-05.00.00.08水管密封圈Seal ring,hose1
36GB97.1平垫6Flat gasket1092995-06600-00
37GB5783(A4-80)六角头螺栓M6*25Bolt1090119-06MA3-00
38F15-05.00.00.09放油螺栓垫圈Washer190430-14M09-00
39F15-05.00.00.08放油螺栓Drain bolt M14*12* 1.5190340-14M00
40F25-05.00.00.04排气管密封垫Seal gasket,exhaust pipe167C-41133-00-00
41F25-05.00.00.05排气管Exhaust pipe168U-41131-00-5B
42GB97.1平垫6Flat gasket392995-06600-00
43GB5783六角头螺栓M6*50Bolt397095-06020-00
44F25-00.00.01.00装饰罩组件Decoration cover1
45F25-05.00.00.06油底壳Oil sump165W-15311-03-5B
46GB97.1平垫6Flat gasket292995-06600-00
47GB5783六角头螺栓M6*16Bolt297095-06020-00
48F25-05.00.00.09放油口橡胶衬圈Washer165W-15316-00-00
49F25-00.00.00.01减震器外壳Damper housing2
5040F-00.02减震块ADamper A265W-44555-10
51GB6177六角头法兰螺母M10Flange bolt490179-10M33
52F25-00.00.00.02减震块（中）Damper (middle)1
5340F-03.07.10钢索连接组件Connection assy，Cable166T-82127-00
54GB97.1平垫10Flat gasket492903-10100
55GB5783(A4-80)六角头螺栓M10*80Bolt2
56GB5783(A4-80)六角头螺栓M10*120Bolt2
57GB818十字槽盘头螺钉M4*45Pan head screw with cross recess190157-05014
58GB97.1平垫4Flat gasket192995-06600-00
59GB6172六角薄螺母M4Nut1
60GB5783六角头螺栓M6*20Bolt197095-06020-00
61GB97.1平垫6Flat gasket292995-06600-00
62F15-01.01.00.06传导片Conductive slice166M-12535-00-00
63GB5783六角头螺栓M5*12Hexagon headed bolt M5*12197095-06020-00
64GB97.1平垫5Flat gasket192995-05600
65F15-01.01.00.05压紧块Bolt166M-11327-00-94
66F25-05.00.00.13机体阳极Anode162Y-11325-00-00
67F15-01.01.00.04水封Stop collar,drive pully166M-11328-00-00
68GB818十字槽盘头螺钉M6*12Screw M6*12190157-05014
水下分解图

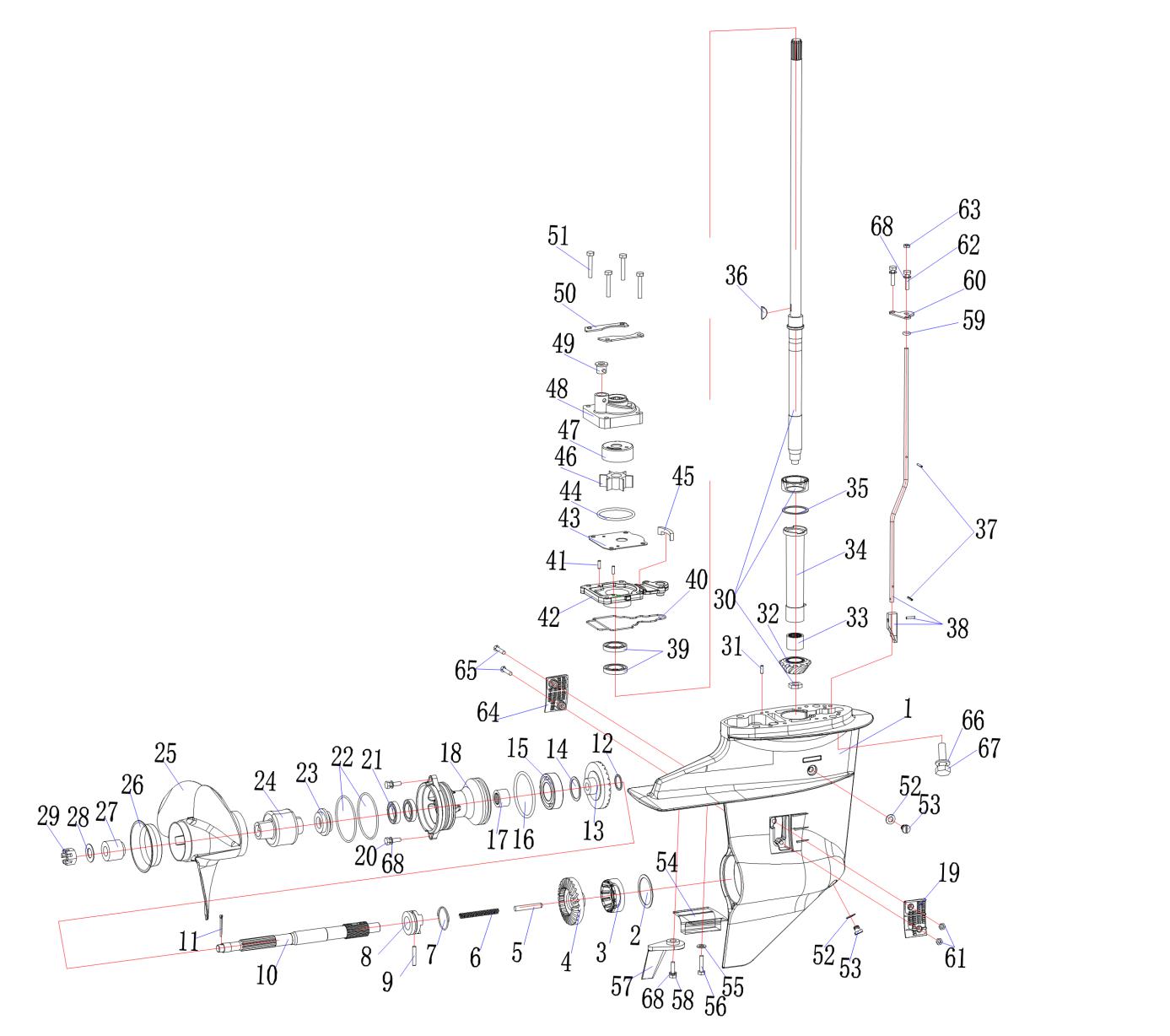

水下分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
130F-06.00.00.27水下壳体Lower casing161N-45311-02-4D
230F-06.00.00.26填隙片1（正档圆锥）Shim,forward gear16L2-45567-00
315F-06.07圆锥滚子轴承(30205)Roller Bearings193332-00005
430F-06.00.00.22正档齿轮Forward gear161N-45560-10
530F-06.00.05.06变档柱塞Gear shift plunger1648-45635-00
630F-06.00.05.05压缩弹簧Compression spring190501-10065
715F-06.10.04簧环Circlip1648-45633-06
830F-06.00.05.02爪形离合器Dog clutch1664-45631-02
915F-06.10.03离合器销Pin190250-05010
1030F-06.00.05.01螺旋桨轴Propeller shaft165W-45611-00
11GB91开口销2.5*25Cotter pin 2.5*251
1230F-06.00.00.06垫圈gasket190201-20417
1330F-06.00.04.06倒档齿轮Reverse gear161N-45571-00
1430F-06.00.04.05填隙片（倒档）shim16L2-45577-00
1530F-06.00.04.04深沟球轴承(6006C3)deep groove ball bearing193306-00612
1630F-06.00.04.07O型圈（粗）(63.5*4)O ring(63.5*4)193210-64ME7
1730F-06.00.04.03滚针轴承(HK2016)Needle bearing(HK2016)193315-22004
1830F-06.00.04.01水下壳体盖Cap,lower casing161N-45361-01-4D
1930F-06.00.00.05进水口盖Bcover,water inlet1
20GB5783六角头螺栓M6*20Bolt297095-06020-00
2130F-06.00.04.02壳体盖油封（20*34*6.5）Oil seal（20*34*6.5）293101-20M07
2230F-06.00.04.08O型圈（细）(67*2.5)O ring(67*2.5)293210-65M50
2330F-06.00.00.03螺旋桨垫块Pad,propeller16L2-45987-01-00
2430F-06.00.02.00螺旋桨内花键组件Propeller shaft teeth assy.1664-45941-01-EL
2530F-06.00.01.01螺旋桨(9-7/8*12-F)Propeller(9-7/8*12-F)1
2630F-06.00.01.02螺旋桨喇叭口(9-7/8*12-F)Propeller horn(9-7/8*12-F)1
2730F-06.00.00.02螺旋桨内花键垫块Pad,Propeller Liner1689-45997-00-00
28GB97.1平垫14Flat gasket 14192995-06600-00
2930F-06.00.00.01开槽六角螺母M14Nut M14190171-14013
3030F-06.00.07.00-S驱动轴总成(短轴)Drive shaf(S)161N-45510-00
None30F-06.00.07.00-L驱动轴总成(长轴)drive shaft assy1
3115F-06.03.08定位销4*12Cotter Pin 4*12(short shaft)193604-12M07-00
3230F-06.00.00.21主动轮Driving wheel161N-45551-00
3330F-06.00.00.28滚针轴承（F2020）Needle bearing193315-220V7-00
3430F-06.00.00.29尼龙衬圈Nylon bushing161N-45536-00
3530F-06.00.00.25填隙片（驱动轴）shim161N-45587-00
3640F-06.09.02半圆键Woodruff key190280-03M03
37GB879弹性圆柱销（2.5*14）Elastic cylindrical pin 2.5*142
38F25-06.00.01.00-S变档凸轮组件(短轴)Gear shift cam lever (S)165W-44150-01-00
NoneF25-06.00.01.01-L变档凸轮组件(长轴)Gear shift cam lever (L)1
3940F-06.04.04壳体盖油封(22*36*7)Oil seal(22*36*7)2
4030F-06.00.00.19橡胶密封圈Rubber seal ring193101-22067
4115F-06.03.08定位销4*12Cotter Pin 4*12(short shaft)293604-12M07-00
4230F-06.00.00.20轴承座Bearing seat161N-45331-00-5B
4330F-06.00.00.13水泵垫板Plate,water pump161N-44323-00
4430F-06.00.00.12水泵外壳O型圈(46*3.3)O-ring,Water pump casing(46*3.3)193210-45161
4530F-06.00.00.16轴承座密封条Sealing strip,bearing seat161N-45127-00
4640F-06.09.00水泵叶轮组件Impeller assy.16H4-44352-02
4730F-06.00.00.11水泵内壳Insert, cartridge169P-44322-00
4830F-06.00.00.10水泵外壳Casing,water pump169P-44311-00
4930F-06.00.00.09水管密封圈hose seal ring1
5030F-06.00.00.08水泵挡板Baffle,water pump2
51GB5783六角头螺栓M6*40Hex Head bolt M6*40497095-06020-00
5215F-06.01.04螺塞密封垫Gasket290430-08020
5315F-06.01.03注油口螺塞plug,straight screw290340-08002
5415F-06.15阳极BAnode161N-45251-01
55GB861.1内齿锁紧垫圈M6Washer,inner gear1
56GB5783六角头螺栓M6*35Hex Head Bolt M6*35197095-06020-00
5730F-06.00.03.00航向调整片组件Heading trim tab assembly161N-45371-00
58GB5783六角头螺栓M6*20Bolt197095-06020-00
5915F-06.03.03变档杆O形密封圈(5.8*4.3)Shift lever o-ring1
6030F-06.00.00.15变档凸轮压板Gearshift cam plate1
61DIN985六角尼龙锁紧螺母M5Hexagonal nut290185-05002
62GB5783六角头螺栓M6*25Bolt297095-06020-00
63GB6170六角头螺母M6Hexagon nut1
6430F-06.00.00.04进水口盖AWater inlet cover A1
65GB819十字槽沉头螺钉M5*30cross recessed countersunk head screw M5*302
66GB848平垫10Flat Pad 104
6730F-00.00.00.01六角法兰面螺栓(M10*35)Bolt(M10*35)4
68GB97.1平垫6Flat gasket592995-06600-00
遥控盒

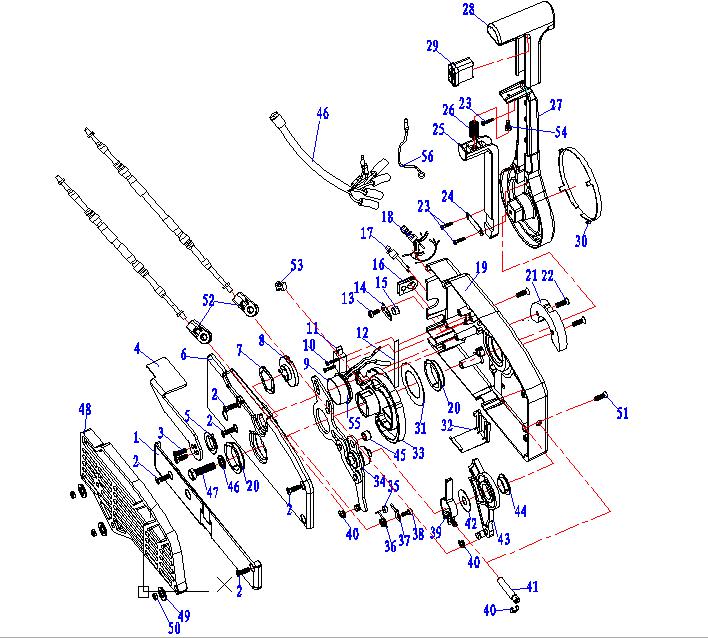

遥控盒 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1HDYK00.00.01小盖板Small plate1703-48213-00
2GB819 M5*16十字槽沉头螺钉Screw M5*165
3GB819 M5*12十字槽沉头螺钉Screw M5*122
4HDYK00.00.02怠速锁紧手柄Idle lock handle1703-48152-00
5HDYK00.00.04减磨圈Antifriction Bushing1703-48243-00
6HDYK00.00.31大盖板Big plate1703-48236-00
7HDYK00.00.03波型垫圈Wave Washer1703-48198-00
8HDYK00.01.00手柄锁紧轮组件Handle Lock wheel Assy1703-48153-00
9HDYK00.02.01蜂鸣器Buzzer assy1703-83383-B0
10GB818 M3*14十字槽盘头螺钉Pan Screw M3*141
11HDYK00.05.00怠速启动开关Idle Start switch1703-82540-00
12HDYK00.00.10弹性钢板Spring steel plate5
13GB818 M4*6十字槽盘头螺钉Pan Screw M4*61
14HDYK00.00.09压板Plate1
15HDYK00.00.11档位限位柱Shift limit pin1
16HDYK00.00.12线束密封圈Wire Harness Seal Ring1703-48284-00
17HDYK00.03.00急停开关总成Engine shut-off switch1688-82575-01
18HDYK00.04.00启动开关总成Start switch Assy1703-82510-12
19HDYK00.00.08遥控盒(外壳)Remote control box1
20HDYK00.00.16档位座减磨圈Gear Shift Seat washer2703-48236-00
21HDYK00.00.20手柄限位器Handle Limit Assy1703-48245-00
22GB818 M5*16十字槽盘头螺钉Screw M5*162
23GB818 M5*16十字槽盘头螺钉Screw M5*163
24HDYK00.09.05锁紧手柄压板handle Lock plate1
25HDYK00.09.04手柄锁紧开关Handle lock switch1703-48223-00
26HDYK00.09.06弹簧Spring1703-48227-00
27HDYK00.09.01手柄座Handle seat1
28HDYK00.09.03手柄Handle1
29HDYK00.09.07手柄开关盖Handle switch cap1
30HDYK00.09.02手柄座装饰圈Handle seat decoration circle1
31HDYK00.00.15档位座减磨垫Gear Shift Seat washer1
32HDYK00.00.26盒盖连接件Box cover connector1
33HDYK00.00.14档位座Shift seat1
34HDYK00.07.00油门控制装置总成Throttle controler Assy1
35HDYK00.00.06导轮Guide wheel1703-48234-00
36HDYK00.00.07弹簧Spring1703-48244-00
37HDYK00.00.05导轮压板Guide wheel plate1703-48246-00
38GB818 M4*6十字槽盘头螺钉Screw M4*61
39HDYK00.08.01锁紧夹箍Locking Clamp1703-48264-00
40GB896 6开口挡圈(不锈钢/厚度1)Circlip 6193430-06024
41HDYK00.08.02调节螺钉Adjusting screw1703-48265-00
42HDYK00.00.19档位控制器减磨垫Shift control washer1703-48268-00
43HDYK00.00.17档位控制器Shift controler1703-48271-00
44HDYK00.00.13油门控制器减磨片Shift control washer1703-48235-00
45HDYK00.07.10导轮Guide wheel1703-48252-00
46HDYK00.00.33七芯插头5MSeven-pin plug 5M1688-8258A-20
47GB9074.1 M8*30(8.8)六角头螺栓和平垫组件Hex Bolt, Flat Pad M8*30(8.8)1
48HDYK00.00.32遥控器固定板Remote control fixation plate1
49GB5287 M6平垫Flat Pad 63
50GB6170 M6六角螺母Hex Nut M63
51GB820 M6*90十字槽半沉头螺钉Screw M6*903
52HDYK00.00.25钢索调节装置BCable adjustor B2703-48345-01
53HDYK00.00.27线索密封座Wire harness sealing Seat1
54GB818 M5*10十字槽盘头螺钉Screw M5*101
55HDYK00.02.02峰鸣器护套Buzzer Cover1703-82563-02
55HDYK00.05.01电启动怠速线Electric Start Idle Wire1
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2HDYK00.10.04六角螺栓3/8-24hex bolt1
3HDYK00.10.03操纵杆垫管washer,control Lever1
4HDYK00.10.06平垫M10flat gasket1
5HDYK00.10.05六角薄螺母3/8-24hex bolt,thin1
6HDYK00.10.07尼龙锁紧螺母3/8-24nylon Lock nut1
7DPR6EB-9(F25)火花塞(新)sparking plug1DPR-6EB90-00-00
8GB820 M6*90十字槽半沉头螺钉Pan head bolt with cross recess3
9GB6170 M6六角螺母hex bolt3
10GB97.1 M10平垫flat gasket192903-10100
11GB5287 M6平垫flat gasket3
12GB91 2.5*25开口销cotter pin1
1340F-06.09.00水泵叶轮组件impeller Assy.16H4-44352-02
1430F-06.00.00.12水泵外壳O型圈(46*3.3)O-ring193210-45161
1515F-08.00.00燃油箱总成(24L)fuel case Assy.1
1615F-09.01应急启动手柄emergency starting handle1
17HDYK00.00.24钢索调节装置Asteel cable ajusting device A2
18HDYK00.00.25钢索调节装置Bsteel cable ajusting device B2703-48345-01
19HDYK00.00.32遥控器固定板remote control fixed board1
2015F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
21HDYK00.10.01操纵杆control hook1
2215F-01.01.22启动绳φ5*2000mmstarter rope1
2315F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
24F15-09.00工具包toolkit1
25HDYK00.06.00遥控钢索组件(3.8M)steel Cable Assy.,remote control2
26HDYK00.00.34.00方向盘组件steering wheel Assy.1
27HDYK00.00.35.00方向座组件direction base Assy.1
2820A保险丝fuse1
29HDYK00.00.35.01(3.方向钢索组件direction wire rope Assy.1
