舟一会 ZHOUYIHUI 船外机

海的 F25 - F25HL(S)

共 15 个部位，点击零件编码查看详情，或搜索本页零件。

顶罩

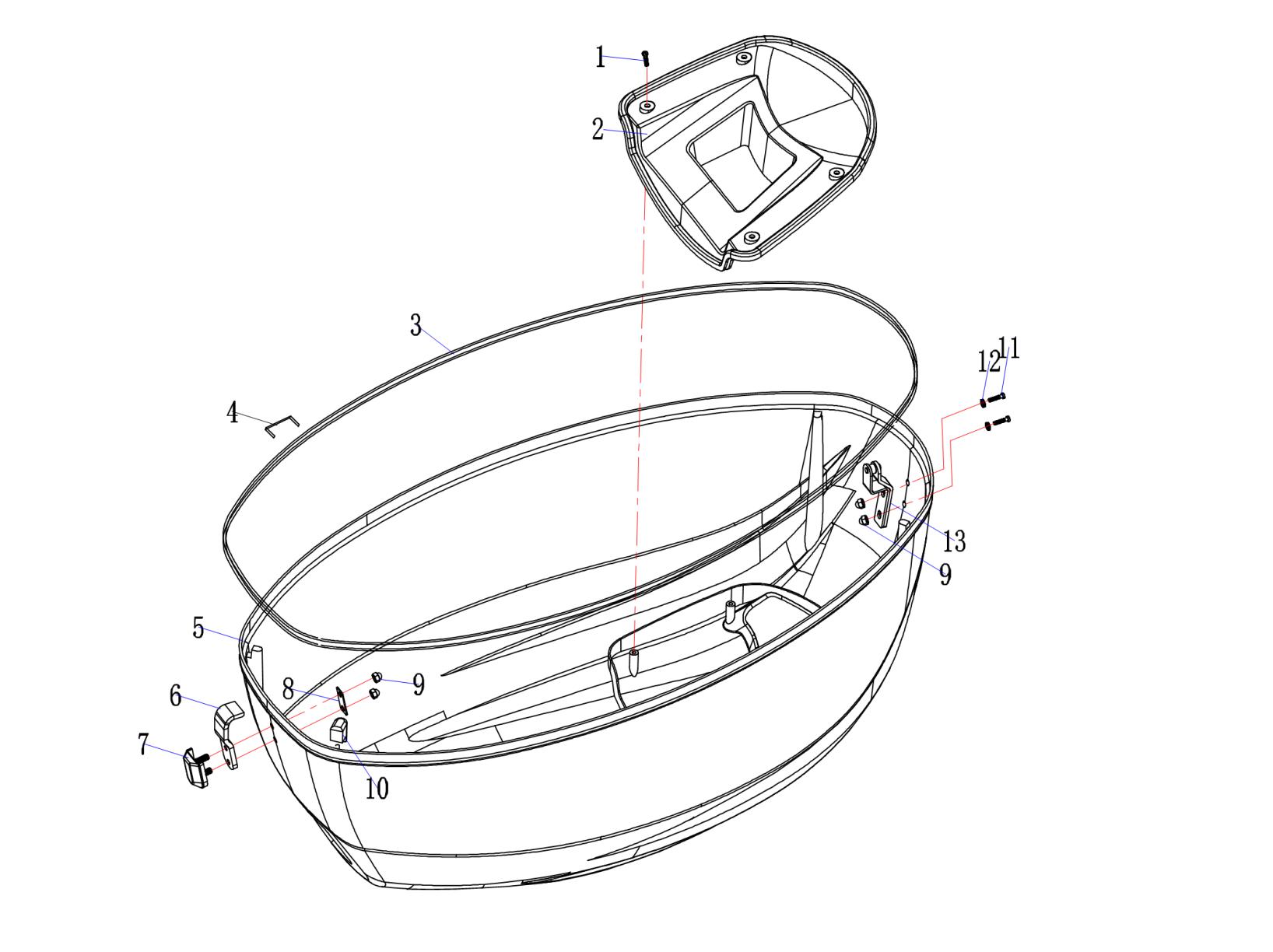

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB845十字槽盘头自攻螺钉ST4.8*19Cross recessed pan head tapping screws4
2F25-07.00.00.01进气口盖Air inlet cap1
3F25-07.00.00.03橡胶密封条Rubber sealing strip1
415F-07.07装帧订Bingding nail10
5F25-07.00.00.07顶罩Top cowling1
6F25-07.00.00.04前锁紧钩Hook(front)1
7F25-07.01.00.00M5*16螺栓组件Bolt comp.1
8F25-07.00.00.05垫板Plate1
9GB923盖形螺母M5Bolt4
10F25-07.00.00.02减震脚Damper4
11GB818十字盘头螺钉M5*16Pan head bolt with cross recess290157-05014-00
12GB96平垫5Flat gasket292995-06600-00
13F25-07.02.00.00后锁紧钩组件Rear lock hook comp.1
NoneF25-07.00.00.00顶罩装配总成Top cowling assy1
启动罩

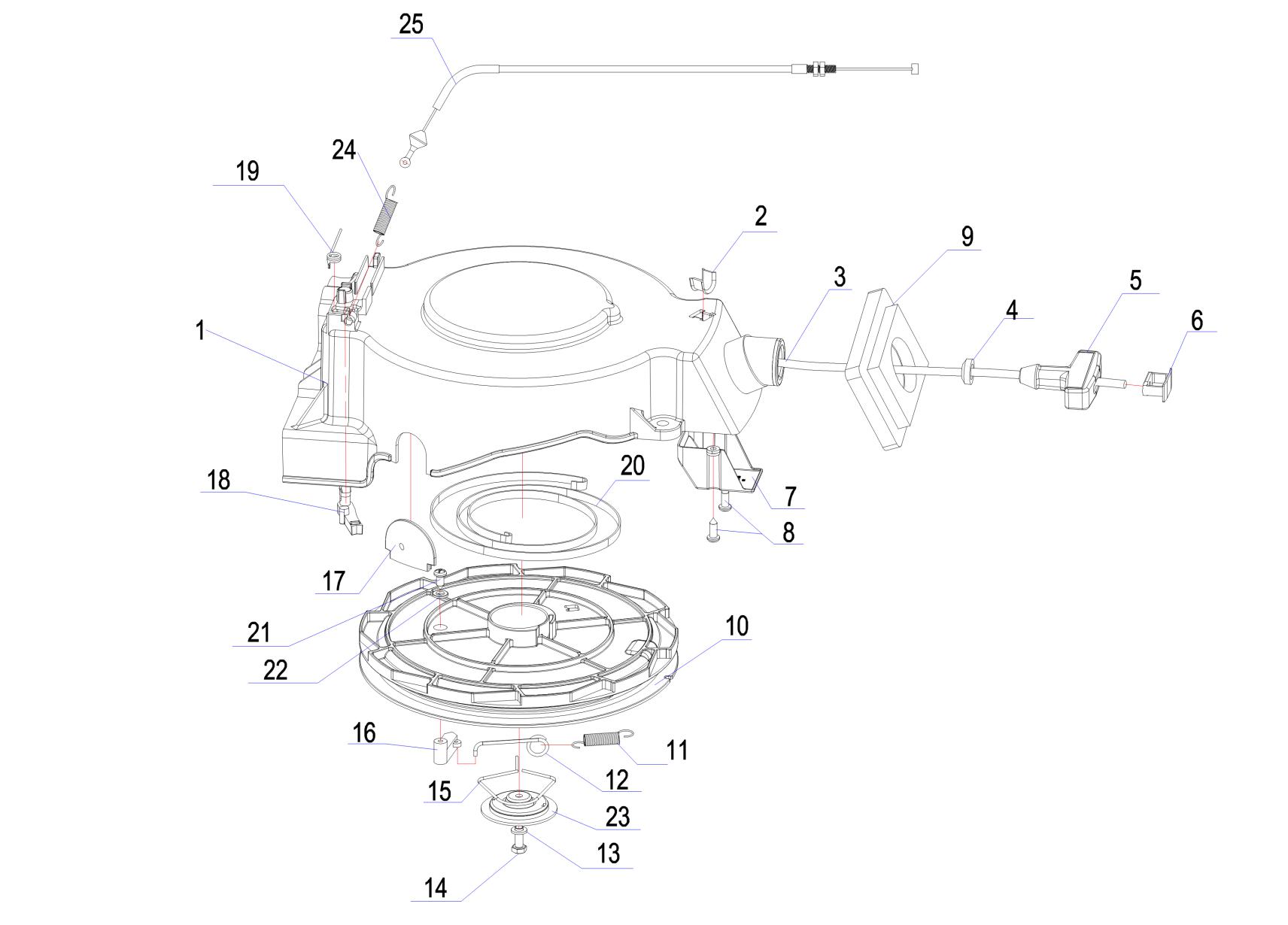

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.01.01.01启动罩Starter cover assy.16BL-15711-00-00
2F9.9-01.07.00.06U型滑套U-Sleeve1
3F25-01.01.00.01启动绳 φ6*2200mmStart rope190790-48194-00
440F-01.01.19手柄减震圈Shock ring,handle16A0-15789-00-00
540F-01.01.18启动手柄Starter handle1689-15755-01-00
640F-01.01.16手柄盖Handle cap16F5-15779-02-00
7F25-01.01.00.04防尘罩Dust cover1
8GB845十字槽盘头自攻螺钉ST4.2*16Cross recessed countersunk head2
9F25-01.01.00.07减震垫Damper gasket1
10F25-01.01.00.03启动轮Start wheel16BL-15714-00-00
1140F-01.01.10回位弹簧Return spring166T-15767-00-00
1240F-01.01.09卡瓣弹簧Spring166T-15784-00-00
13GB97.1平垫6Flat gasket192995-06600-00
14GB5783(8.8)六角头螺栓M6*16Bolt1
1540F-01.01.12压板夹簧Clip spring166T-15705-00-00
16F25-01.01.00.02驱动臂Drive arm16AH-15741-10-00
17F25-01.01.00.06制动钢索固定套fixing bush,brake cable1
18F15-01.07.00.02制动器Brake168T-15794-00-00
19F15-01.07.00.03制动器扭簧Torsional spring,brake166T-15734-00-00
2040F-01.01.08涡型弹簧Volute spring166T-15713-00-00
21GB818十字槽盘头螺钉M5*14Bolt190157-05014-00
22GB96平垫5Flat gasket192995-06600-00
2340F-01.01.11启动压板Starter plate1
24F15-01.07.00.05钢索拉簧spring, throttle1
25F25-01.01.00.08制动钢索throttle cable1
NoneF25-01.01.00.00启动罩组件Recoil Starter Assy.1
动力分解图1

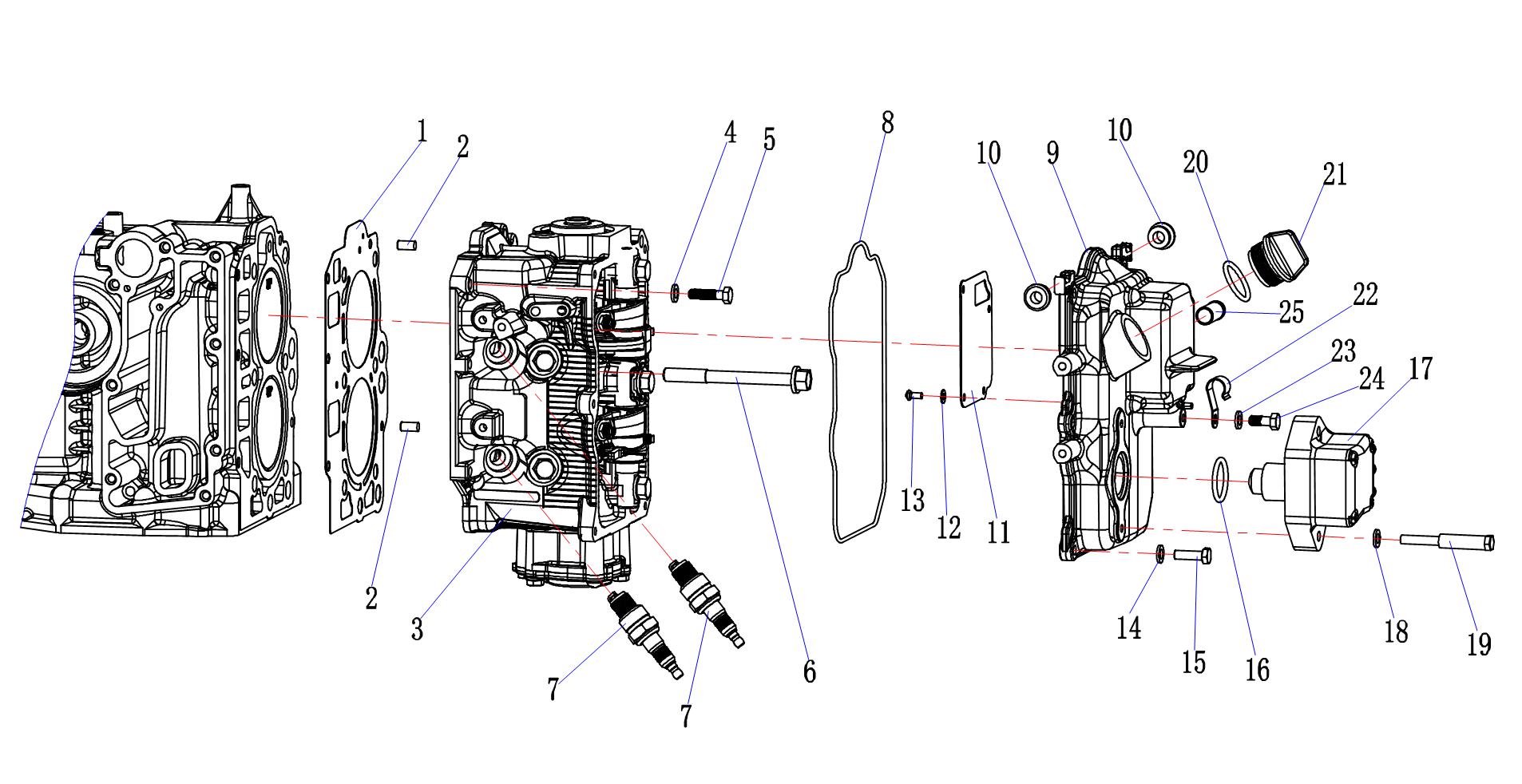

动力分解图1 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.05.02.00气缸垫组件Cylinder gasket comp.16BL-11181-00-00
215F-01.06.20定位销6*12Dowel pin293606-12019-00
3F25-01.05.06.00气缸头组件Cylinder head Assy.16BL-11111-00-1S
4GB97.1平垫6Flat gasket392995-06600-00
5GB5783(A4-80/10.9)六角头螺栓M6*25Bolt395023-06025-00
6F25-01.05.00.02气缸头螺栓Bolt,Cylinder head6
7DPR6EB-9(F25)火花塞(新)Spark Plug2DPR-6EB90-00-00
8F25-01.05.01.02橡胶密封圈Rubber seal ring1
9F25-01.05.01.01气缸头罩壳Cover,Cylinder head16BL-11191-00-1S
10F15-01.03.00.41减震垫BDamper2
11F25-01.05.01.03气室盖板Cover plate,Chamber16BG-11168-00-00
12GB97.1平垫4Flat gasket492995-06600-00
13GB818十字槽盘头螺钉M4*8Pan head bolt with cross rec490157-05014-00
14GB97.1平垫6Flat gasket592995-06600-00
15GB5783六角头螺栓M6*20Bolt597095-06020-00
16F25-01.03.00.12燃油泵O型圈O-ring,fuel pump162Y-24415-01-00
17F25-01.03.05.00燃油泵组件(TK)(Y4G-Fuel pump assy.162Y-24410-04-00
18GB97.1平垫6Flat gasket292995-06600-00
19F25-01.03.00.11燃油泵螺栓Bolt,fuel pump2
20F4-01.06.27油标尺O形圈(24*3.5O ring193210-24M79-00
21F15-01.03.00.39加油口螺塞Oil filling plug16G8-15363-00-00
22F15-01.03.00.42通气管固定夹Bfix clip,air breather tube1
23GB97.1平垫6Flat gasket192995-06600-00
24GB5783六角头螺栓M6*12Bolt197095-06020-00
25F25-01.05.01.04气嘴Gas nipple1

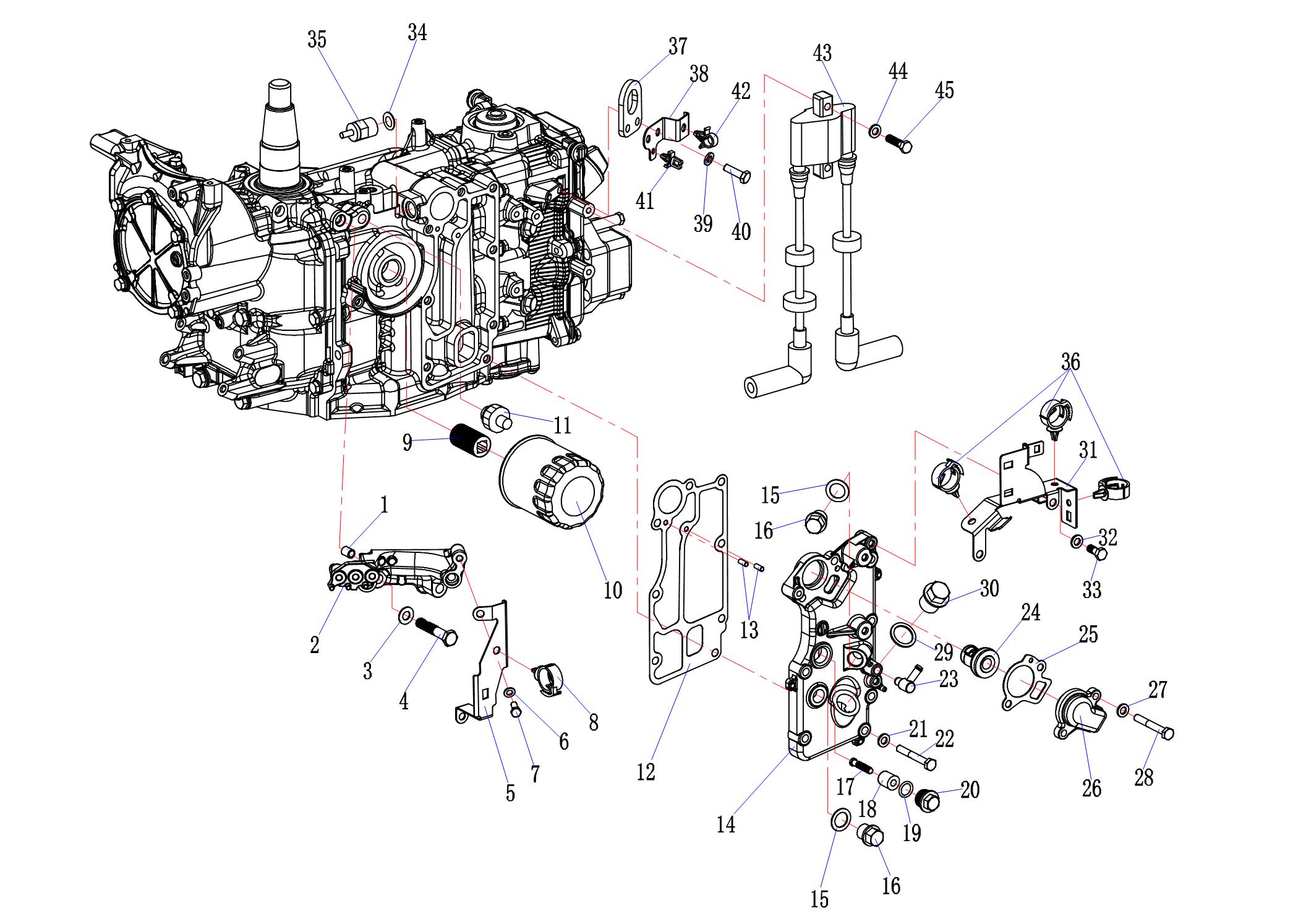

动力分解图2
动力分解图2 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.01.00.18空心定位销Dowel pin2
2F25-01.04.00.06马达支架bracket,motor1
3GB97.1平垫8Flat gasket292995-06600-00
4GB5783(A4-80)六角头螺栓M8*45Bolt2
5F25-01.02.06.01线束固定架(一圆孔)Holder,cable1
6GB97.1平垫6Flat gasket292995-06600-00
7GB5783(8.8)六角头螺栓M6*16Bolt2
8F25-01.02.05.02圆形尼龙扣（大）Nylon Button1
9F15-01.05.00.01机油滤清器芯轴dabber,fuel filter16C5-12858-00-00
10F15-01.05.01.00机油滤清器Oil filter assembly15GH-13440-20-00
11F15-01.01.00.26机油压力报警器Oil pressure alarm1
12F25-01.04.00.05排水侧盖密封垫Gasket,exhaust side cover16BL-41114-00-00
13F9.9-05.00.00.26定位销4*10stop pin2
14F25-01.04.00.04排水侧盖Side cover,exhaust16BL-41113-00-1S
15F25-01.04.00.01垫圈14washer2
16F15-05.00.00.08放油螺栓Oil drain plug290340-14M06-00
17GB818十字槽盘头螺钉M5*25Pan head screw with cross recess190157-05014-00
18F9.9-01.03.00.34阳极AAnode16G8-11325-00-00
19F9.9-01.03.00.33O型圈(13*2)O ring1
20F9.9-01.03.00.35六角法兰面螺栓M16*1.5Flange bolt1
21GB97.1平垫6Flat gasket692995-06600-00
22GB5783(A4-80)六角头螺栓M6*35Bolt6
2315F-01.06.10水管圆接头joint,hose1676-11372-00-00
24F15-01.06.14-60 °节温器60℃Thermostat 60 °16G8-12411-03-00
25F15-01.01.00.11节温器盖垫片Gasket,Thermostat cap1688-12412-00-00
26F25-01.04.00.40节温器盖Thermostat cap16C5-12413-00-9S
27GB97.1平垫6Flat gasket292995-06600-00
28GB5783(A4-80)六角头螺栓M6*35Bolt2
29F25-01.04.00.03铜垫圈Washer1
30F25-01.04.00.02排气螺栓Bolt,exhaust1
31F25-01.02.05.01线束固定架(三圆孔)Holder,cable1
32GB97.1平垫6Flat gasket292995-06600-00
33GB5783(8.8)六角头螺栓M6*16Bolt2
34F25-01.04.00.01垫圈14gasket1
35F25-01.02.12.00温控传感器组件Temperature sensor comp.1
36F25-01.02.05.02圆形尼龙扣（大）Cables ties3
37F25-01.02.00.04吊环holder1
38F25-01.02.07.03水管固定架Bracket,hose1
39GB97.1平垫6Flat gasket292995-06600-00
40GB5783六角头螺栓M6*20Bolt297095-06020-00
41F25-01.02.07.02线卡Clip,wires1
42F25-01.02.07.01水管固定夹Clip,hose1
43F25-01.02.08.00高压包组件Ignition coil1
44GB97.1平垫6Flat gasket292995-06600-00
45GB5783六角头螺栓M6*25Bolt297095-06020-00

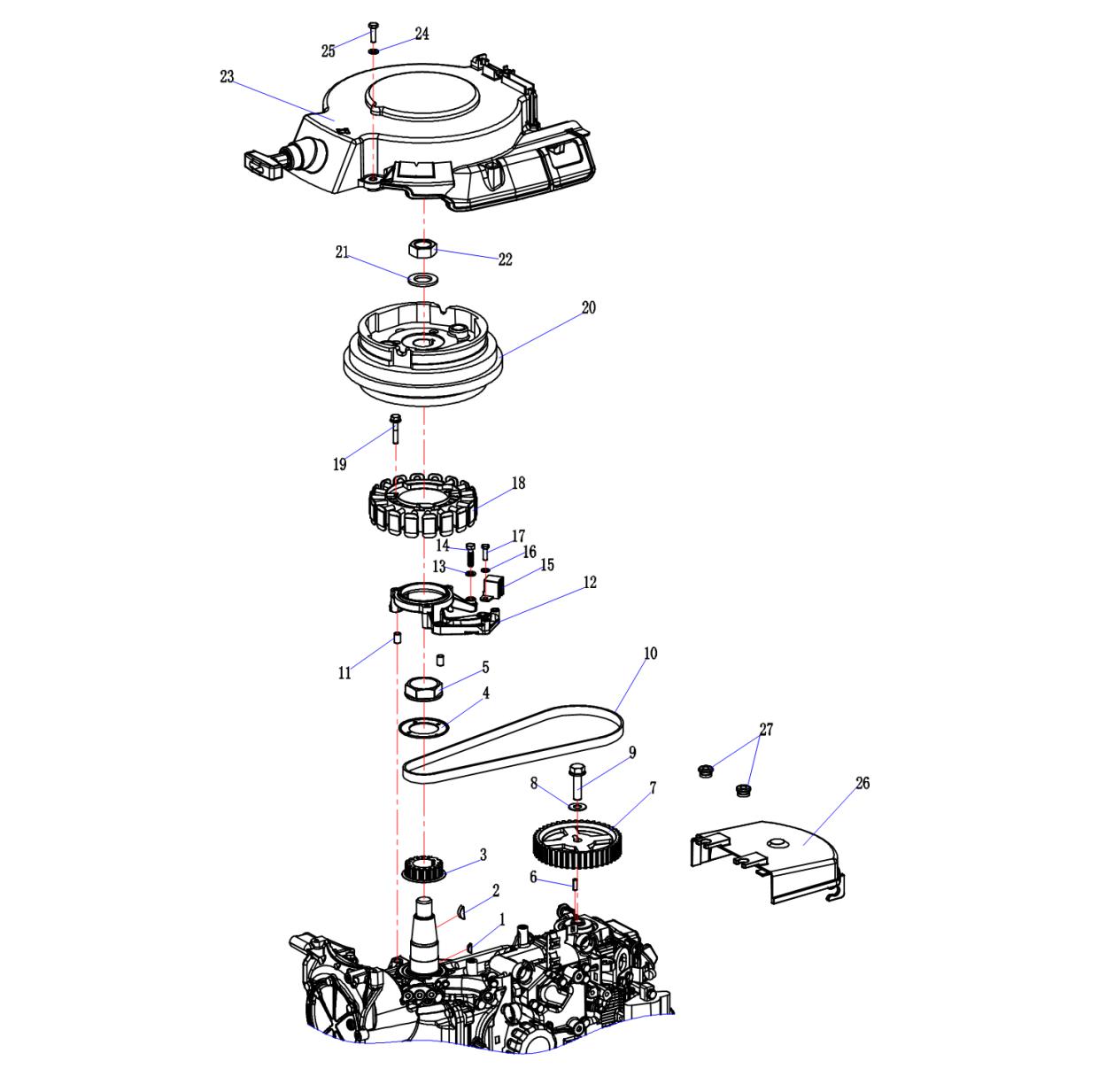

动力分解图3
动力分解图3 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB1099半圆键3*5*13Woodruff key190280-03M01-00
240F-01.03.03半圆键Woodruff key1
3F25-01.04.00.14主动带轮Drive pulley16C5-11536-00-00
4F25-01.04.00.13主动带轮挡圈Stop collar,drive pully162Y-11557-00-00
5F25-01.04.00.12主动带轮螺母nut,drive pully190179-35001-00
6F25-01.05.00.16定位销5*17stop pin1
7F25-01.05.00.01从动带轮Driven pulley16C5-11537-00-00
8GB96平垫10Flat gasket190201-10144-00
9GB5787六角法兰面螺栓M10*1.25*35Flange bolt195817-10035-00
10F25-01.04.00.11同步带belt16C5-46241-00-00
11F25-01.04.00.08空心定位销8*12Dowel pin2
12F25-01.04.00.07定子支架bracket,stator16BG-85561-00-94
13GB97.1平垫6Flat gasket492995-06600-00
14GB5783(A4-80/10.9)六角头螺栓M6*25Bolt495023-06025-00
15F25-01.02.00.02触发器Impulsor s16AH-85580-00-00
16GB97.1平垫M5Flat gasket292995-06600-00
17GB5783六角头螺栓M5*16Bolt297095-06020-00
18F25-01.02.02.00定子组件stator comp.16BL-85510-10-00
19GB5789(10.9)六角法兰面螺栓M6*30Flange bolt3
20F25-01.02.01.00飞轮组件Flying wheel Assy.16BL-85550-10-00
21GB97.1平垫20Flat gasket192995-06600-00
2240F-01.03.02飞轮螺母Flywheel nut190170-20137-00
23F25-01.01.01.00启动罩组件stater cover assy.1
24GB97.1平垫6Flat gasket392995-06600-00
25GB5783六角头螺栓M6*20Bolt397095-06020-00
26F25-01.01.00.09从动带轮罩壳Drive pulley cover16BL-46297-00-00
27F15-01.03.00.41减震垫BDamper2

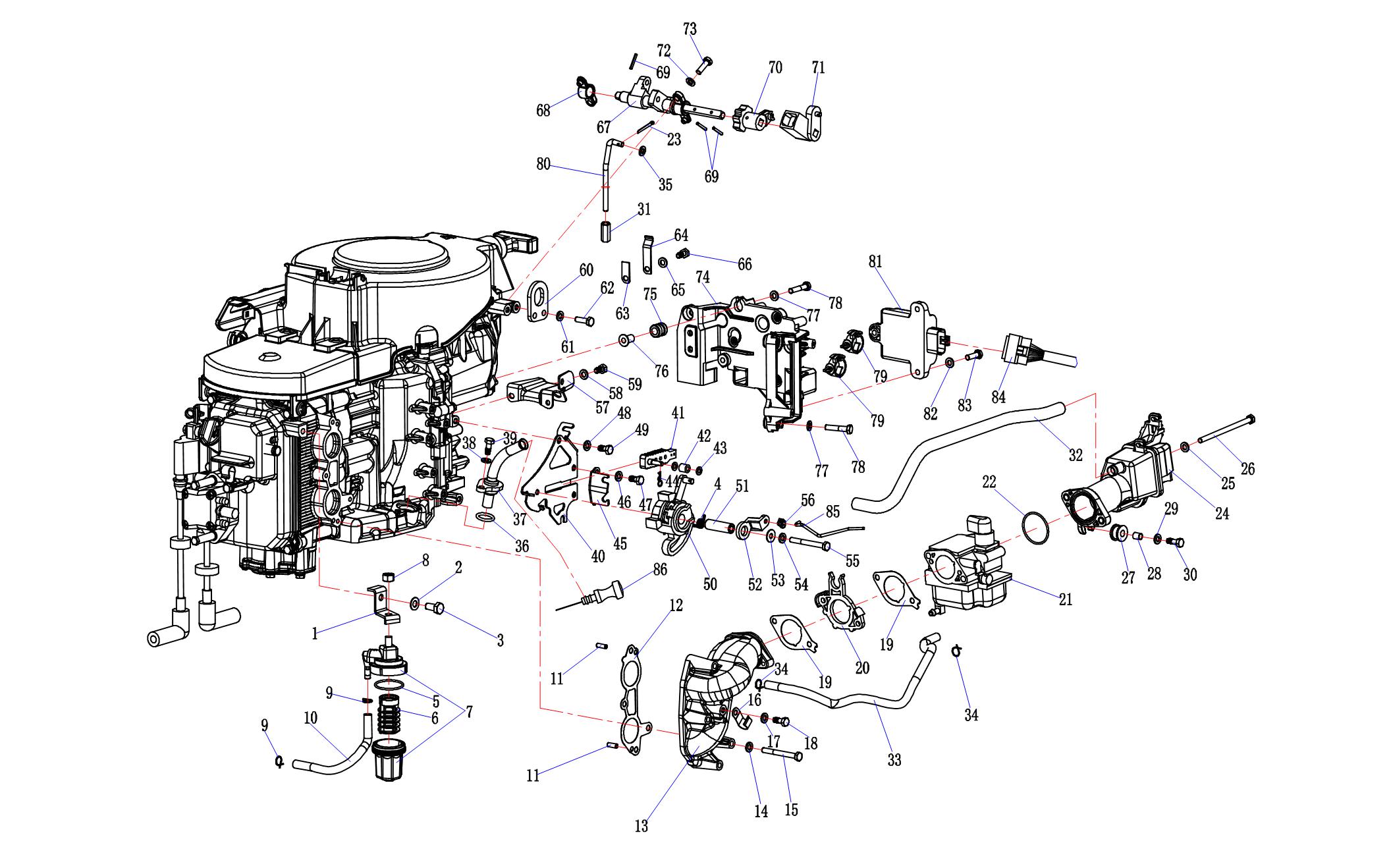

动力分解图4
动力分解图4 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.03.00.01燃油滤清器支架Bracket,fuel filter1
2GB97.1平垫8Flat gasket190201-08M07-00
3GB5783六角头螺栓M8*16Bolt597080-08016-00
4F25-01.04.00.18Torsional spring1
515F-01.07.05.06过滤器O型圈(33*2)O ring1
615F-01.07.05.04过滤器滤芯filter,fuel filter1
715F-01.07.05.05过滤器外壳Fuel filter comp.1
8GB6170六角螺母M8Bolt195380-08600-00
9管夹φ 10Clip
10F25-01.03.02.01燃油滤清器出油管Ф5*1Oil outlet hose,fuel filter1
11F9.9-定位销Ф5*14Dowel pin291690-50014-00
1201 03 00 05 F25-01.03.00.14进气歧管密封垫Air intake manifold gasket
13F25-01.03.00.13进气歧管Air intake manifold16BL-13641-00-94
14GB97.1平垫6Flat gasket192995-06600-00
15GB5783六角头螺栓M6*55hexagon bolt597595-06555-00
16F15-01.03.00.42通气管固定夹Bfix clip,air breather tube1
17GB97.1平垫6Flat gasket192995-06600-00
18GB5783(8.8)六角头螺栓M6*16Bolt1
19F25-01.03.00.08化油器密封垫Carburetor Seal gasket2
20F25-01.03.00.09隔热板Heatproof Plate16BL-14271-00-00
21F25-01.03.04.00化油器组件Carburetor Assy.16BL-14301-00-00
22F25-01.03.00.07O型圈(3.8*2)O ring193210-39ME4-00
2315F-01.05.14Circlip1
24F25-01.03.03.00进气消音器组件Air intake silencer16BL-14440-00-00
25GB97.1平垫6Flat gasket192995-06600-00
26GB5783六角头螺栓M6*100Bolt597095-06020-00
27F25-01.03.00.06进气消音器减震垫Damper,Air intake silencer1
28F25-01.03.00.04进气消音器垫管AAir intake cushion tube1
29GB5287平垫6Flat gasket1
30GB5783六角头螺栓M6*20Bolt597095-06020-00
3115F-06.04.05柱状螺母nut1
32F25-01.03.00.10通气管Breath hose16BL-15373-00-00
33F25-01.03.01.01燃油泵出油管5*10*365Outlet pipe,fuel pump1
34管夹φ 10Clip
35GB97.1平垫6Flat gasket192995-06600-00
36F25-01.06.00.02橡胶O型圈(17.5*3)O ring193210-19MJ3-00
37F25-01.06.03.00油标尺座组件oil dip stick seat comp.1
38GB97.1平垫6Flat gasket192995-06600-00
39GB5783(8.8)六角头螺栓M6*16Bolt1
40F25-01.04.01.00油门钢索端轮支架组件Stay comp.,Throttle wire1
41F25-01.04.02.00油门限位轴组件limit shaft comp.,throttle1
4230F-01.05.00.02Wheel1
43GB97.1平垫5Flat gasket192995-06600-00
4415F-01.03.11Circlip1
45F25-01.04.00.19钢索安装架mounting bracket1
46GB97.1平垫6Flat gasket192995-06600-00
47GB5783(8.8)六角头螺栓M6*16Bolt1
48GB97.1平垫6Flat gasket192995-06600-00
49GB5783(8.8)六角头螺栓M6*16Flat gasket192995-06600-00
50F25-01.04.00.17油门钢索端轮End wheel,Throttle cable1
51F15-01.01.00.21Bushing1
52F25-01.04.00.16油门连接块Connecting block,throttle1
53GB96平垫6Flat gasket292995-06600-00
54GB97.1平垫6Flat gasket192995-06600-00
55GB5783六角头螺栓M6*55hexagon bolt597595-06555-00
5615F-01.02.07阻风门连杆接头joint,chock lever1
57F25-01.02.13.00点火器安装架支架组件mounting bracket Assy.,ignition1
58GB97.1平垫6Flat gasket192995-06600-00
59GB5783六角头螺栓M6*20Bolt597095-06020-00
60F25-01.02.00.04holder1
61GB97.1平垫6Flat gasket192995-06600-00
62GB5783六角头螺栓M6*20Bolt597095-06020-00
63F15-02.00.00.06Plate1
64F15-02.00.00.05变档限位弹簧板Shift limit plate1
65GB97.1平垫6Flat gasket192995-06600-00
66GB5783(8.8)六角头螺栓M6*16Bolt1
67F25-01.04.03.00变档杠杆组件Gear shift cable comp.,1
68F25-01.04.00.20Bracket2
69GB879.2弹性圆柱销3*20Cylindrical pin391690-30018-00
70F25-01.04.04.40变档摇臂Gear shift rocker1
71F25-01.04.04.00油门限位块组件limit block,throttle1
72GB97.1平垫6Flat gasket192995-06600-00
73GB5783六角头螺栓M6*20Bolt597095-06020-00
74F25-01.02.04.00点火控制器安装架组件mounting bracket comp. (CDI)16BL-81948-00-00
7540F-01.03.23减震圈Damper4
7640F-01.03.22带肩垫管Shoulder pad tube4
77GB97.1平垫6Flat gasket192995-06600-00
78GB5783六角头螺栓M6*30(螺纹2Bolt597095-06020-00
79F4-01.02.06.05圆形尼龙扣Nylon button2
80F25-05.00.00.17上变档杆(短轴）Shift lever(upper,S)1
81F25-01.02.03.00点火控制器组件CDI16BL-85540-00-00
82GB97.1平垫6Flat gasket192995-06600-00
83GB5783六角头螺栓M6*20Bolt597095-06020-00
84F25-01.02.10.00线束组件Harness1
85F25-01.04.00.21油门连杆Throttle lever1
86F25-01.06.02.00油标尺组件oil dip stick comp.1
曲轴活塞

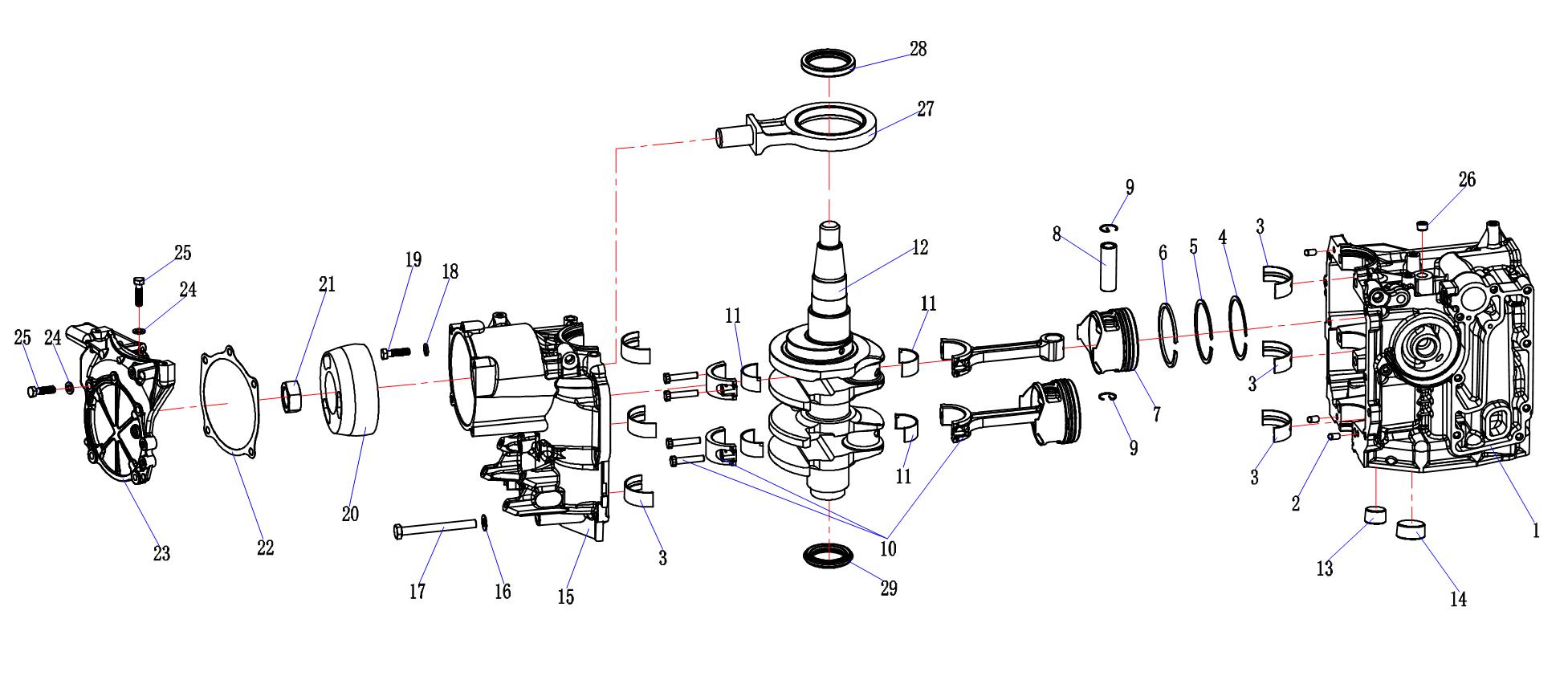

曲轴活塞 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-01.04.09.01箱体组件Crankcase comp. (with crankcase cover)16BL-15100-01-00
215F-01.06.20定位销6*12Dowel pin393606-12019-00
3F25-01.04.00.31曲轴瓦(黑色)Crankshaft piece66BG-11416-30-00
4F25-01.04.00.28主气环1nd ring2
5F25-01.04.00.29副气环2nd ring2
6F25-01.04.08.00组合油环组件Oil seal comp.2
7F25-01.04.00.25活塞Piston269W-11631-01-97
8F25-01.04.00.26活塞销Pin,piston262Y-11633-00-00
9F25-01.04.00.27活塞销卡簧Circlip493450-17129-00
10F25-01.04.07.00连杆组件Connecting rod comp.26C5-11650-00-00
11F25-01.04.00.34连杆瓦(黑色)Lever piece46CJ-11656-10-00
12F25-01.04.00.30曲轴Crankshaft16BL-11411-00-00
13F25-01.04.00.38堵塞1/2Plug1
14F25-01.04.00.39堵塞3/4Plug1
15F25-01.04.00.37箱盖crankcase cover1
16GB97.1平垫8Flat gasket690201-08M07-00
17GB5783(A4*80)六角头螺栓M8*80Bolt6
18GB97.1平垫6Flat gasket792995-06600-00
19GB5783(A4*80)六角头螺栓M6*25Bolt795023-06025-00
20F25-01.04.00.22曲轴平衡活塞Blance piston,Crankshaft16BL-11642-00-00
2140F-01.03.02飞轮螺母Flywheel nut190170-20137-00
22F25-01.04.00.10箱盖盖板密封垫Gasket16BL-15663-00-00
23F25-01.04.00.09箱盖盖板cover,Crankcase cover16BL-15121-00-1S
24GB97.1平垫6Flat gasket692995-06600-00
25GB5783(A4-80)六角头螺栓M6*25Bolt695023-06025-00
26F15-01.01.00.07堵塞1/8Plug1
27F25-01.04.06.01曲轴平衡连杆Blance lever comp.,Crankshaft16BL-11665-00-00
28F25-01.04.00.23曲轴上油封43*55*6Oil seal(upper),crankshaft193102-43M42-00
29F25-01.04.00.24曲轴下油封35*47*6Oil seal(bottom),crankshaft193101-35002-00
气缸头部位
气缸头部位 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号

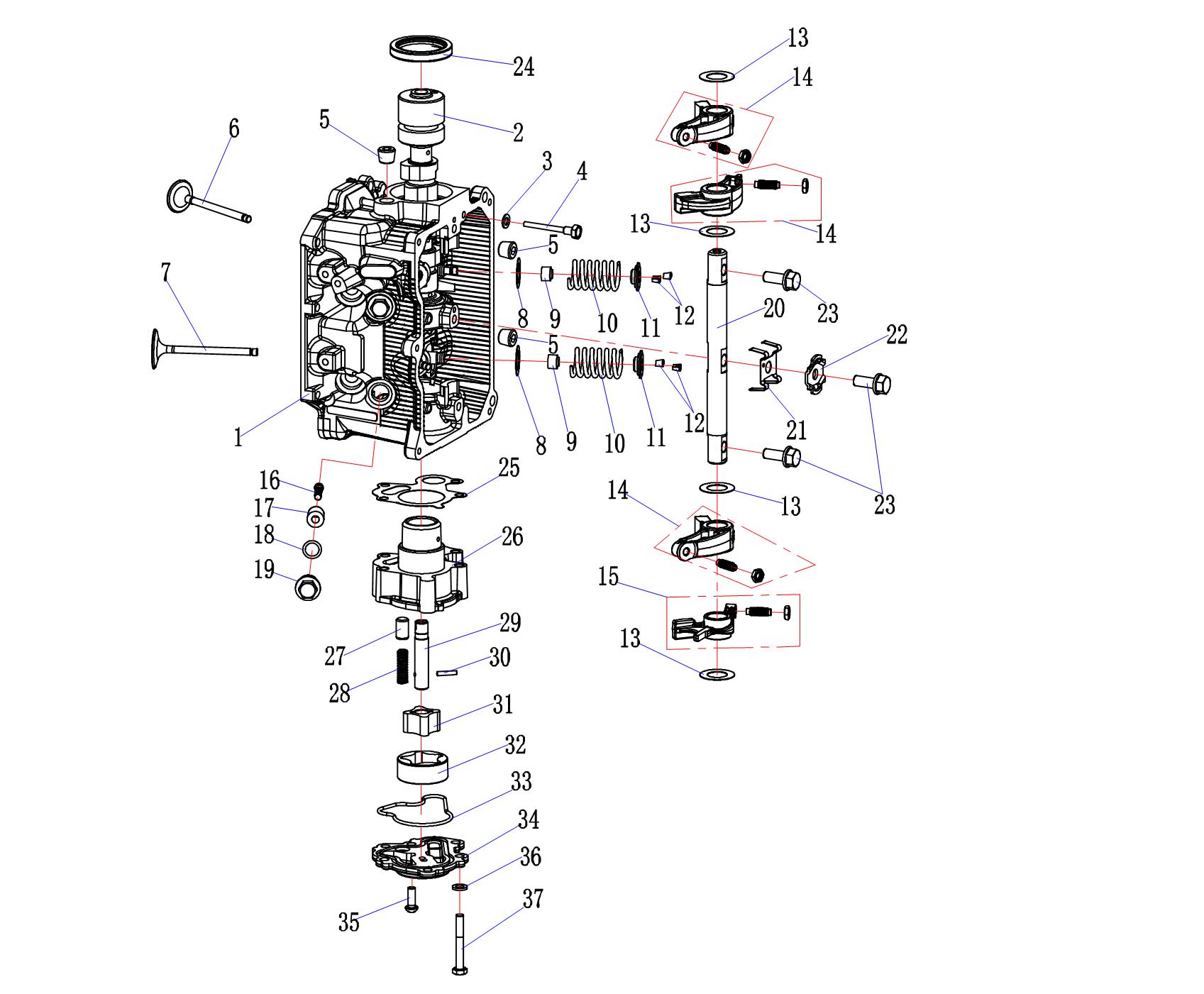

1F25-01.05.06.01气缸头Cylinder head16BL-11111-00-1S
2F25-01.05.05.00凸轮轴组件Oil seal comp.,Camshaft16BL-12171-00-00
3F25-01.05.00.09铜垫片Copper Washer1
4F25-01.05.00.08凸轮轴限位螺栓M6*1.0Bolt1
5F15-01.01.00.08堵塞1/4Plug3
6F25-01.05.00.12排气门Exhaust valve269W-12111-00-00
7F25-01.05.00.11进气门Intake valve269W-12121-00-00
8F25-01.05.00.15气门弹簧垫圈Washer,Valve spring462Y-12116-00-00
9F15-01.03.00.15气门油封Valve oil seal451Y-12119-00-00
10F25-01.05.00.14气门弹簧Valve spring451Y-12114-00-00
11F15-01.03.00.04气门弹簧座圈Washer,Valve spring430X-12117-00-00
12F15-01.03.00.05气门锁夹valve Lock clamp830X-12118-00-00
13F25-01.05.00.07摇臂垫圈washer,Rocker arm490201-16014-00
14F25-01.05.04.00摇臂组件BRock arm comp. B36C5-12151-00-00
15F25-01.05.03.00摇臂组件ARock arm comp. A162Y-12151-00-00
16GB818十字槽盘头螺钉M5*25Bolt290157-05014-00
17F9.9-01.03.00.34阳极AAnode16BL-11325-00-00
18F9.9-01.03.00.33O型圈(13*2)O ring1
19F9.9-01.03.00.35六角法兰面螺栓M16*1.5Flange bolt1
20F25-01.05.00.06摇臂轴Rocker arm shaft16BL-12146-00-00
21F25-01.05.00.05摇臂限位簧Stop spring,rocker arm16BL-12233-00-00
22F25-01.05.00.04摇臂轴压板Plate,rocker arm shaft16BL-12231-00-00
23GB5789(10.9)六角法兰面螺栓M8*20Flange bolt3
24F25-01.05.00.10凸轮轴上油封50*37*7Oil seal(upper),Camshaft1
25F25-01.06.00.01机油泵密封垫Oil pump gasket16C5-13329-00-00
26F25-01.06.01.09机油泵体Oil pump housing1
27F25-01.06.01.04溢流阀芯Valve element,flood valve1
28F25-01.06.01.03溢流阀压簧Pressure spring,flood valve1
29F25-01.06.01.06转子轴Rotor spindle1
30F25-01.06.01.07滚针needle1
31F25-01.06.01.05内转子Inner rotor1
32F25-01.06.01.08外转子Outer rotor1
33F25-01.06.01.02橡胶密封圈Rubber seal ring1
34F25-01.06.01.01机油泵盖Oil pump cap1
35GB823十字槽小盘头螺钉M6*16Pan head bolt with cross recess2
36GB97.1平垫6Flat gasket192995-06600-00
37GB5783六角头螺栓M6*45Bolt597095-06020-00

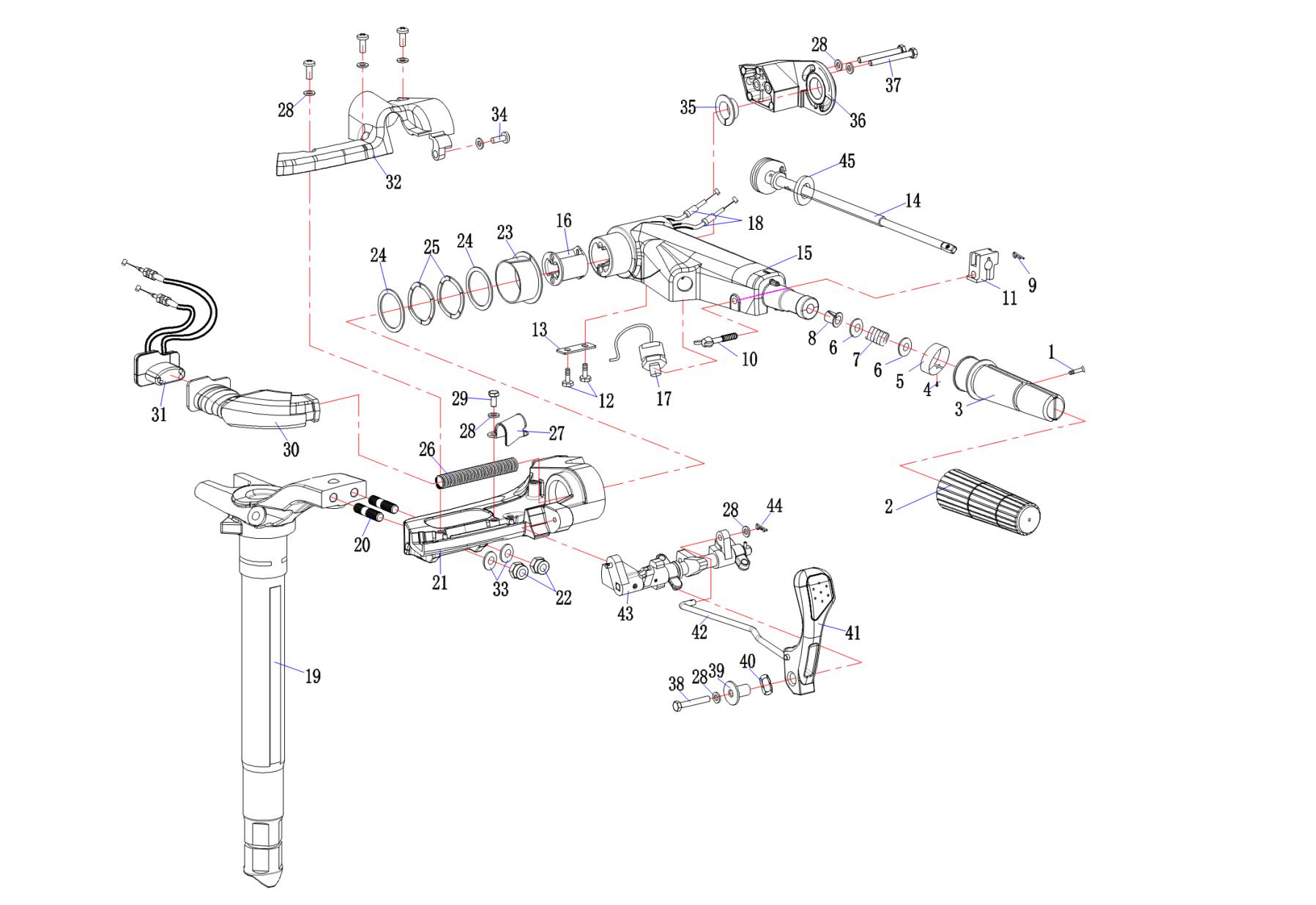

操舵手柄
操舵手柄 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB820十字槽半沉头螺钉M5*25Cross recessed countersunk headscrew190152-05011-00
215F-04.07.14手柄橡胶套Rubber sleeve,Handle167D-42177-00-00
315F-04.07.13手柄Handle166M-42119-01-00
4GB845十字槽盘头自攻螺钉ST2.2*4Screw190269-02M09-00
5F2.5-04.00.00.04油门标牌Indicator,throttle16J0-42137-00-00
6GB848平垫10Flat gasket292995-10600-00
715F-04.07.11弹簧spring190501-23215-00
815F-04.07.12衬套Bushing190386-08004-00
9GB91开口销1.6*12Cotter pin191490-20012-00
10F15-04.02.00.08阻力调整旋钮Friction adjusting screw165W-42125-00-00
1115F-04.07.08锁紧块Latch segment16G1-42126-00-00
12GB9074.1(8.8)六角头螺栓和平垫组件M6*20Bolt290109-06M86-00
13F15-04.02.00.07节气门杆压板Pressed Plate165W-42159-00-00
14F15-04.02.00.05节气门杆Throttle lever165W-42138-00-00
15F25-04.00.06.01操舵手柄Steering handle16AH-42101-01-4D
16F25-04.00.06.02操舵手柄套Steering handle cover16AH-26288-00-00
17F25-04.00.06.04急停开关组件emergency stop switch Assy.16BL-82575-00-00
18F25-04.00.06.03油门控制钢索Throttle cable26BP-26311-00-00
1940F-04.01.03-S操舵支架(短轴)Brackt,Steering （S）165W-42511-01-4D
None40F-04.01.04-L操舵支架(L)Brackt,Steering （L）1
2040F-04.01.04双头螺栓M10*43Double-screw bolt2
21F25-04.00.01.01操舵托架Steering bracket16BL-42121-00-4D
22DIN985六角尼龙锁紧螺母 M10*1.25hexagonal locknut190185-10M13-00
23F25-04.00.05手柄衬套handle bush190386-45001-00
24F25-04.00.03垫圈gasket290201-39008-00
25F25-04.00.04波垫Wave washer290206-39001-00
26F25-04.00.01.03波纹管Waveform pipe16AH-2634E-00-00
27F25-04.00.01.02油门钢索固定套Fixing sleeve,throttle cable1
28GB97.1平垫6Flat gasket992995-06600-00
29GB5783六角头螺栓M6*14Flat gasket197095-06020-00
30F25-04.00.02.03橡胶软管Rubber hose16BL-42131-00-00
31F25-04.00.02.04橡胶接头Rubber joint16BP-26316-00-00
32F25-04.00.02.01托架盖Cover,bracket16BL-42532-00-00
33GB97.1平垫10Flat gasket292995-06600-00
34GB823十字槽小盘头螺钉M6*18Pan head bolt with cross recess4
35F25-04.00.08手柄盖衬套bush,Handle cover190381-20001-00
36F25-04.00.07手柄盖Handle cap16AH-42131-00-4D
37GB5783六角头螺栓M6*55hexagon bolt297595-06555-00
38GB5783六角头螺栓M6*40Bolt190119-06M05-00
3940F-04.02.02带肩垫管Shoulder pad tube190387-06M86-00
40F25-04.00.09.02波垫Wave washer190206-15M18-00
41F25-04.00.09.01变档手柄Gear shift handle16AH-44111-00-00
42F25-04.00.09.03变档连杆Gear shift16BL-44124-00-00
43F25-01.04.03.00变档杠杆组件Gear shift lever assy1
4415F-04.08.05卡簧spring1
45GB848平垫12Flat gasket190386-07MA2-00
NoneF25-04.00.00.00操舵手柄部件（不含操舵托架 tAssy. ( Without steering1
托架部位1

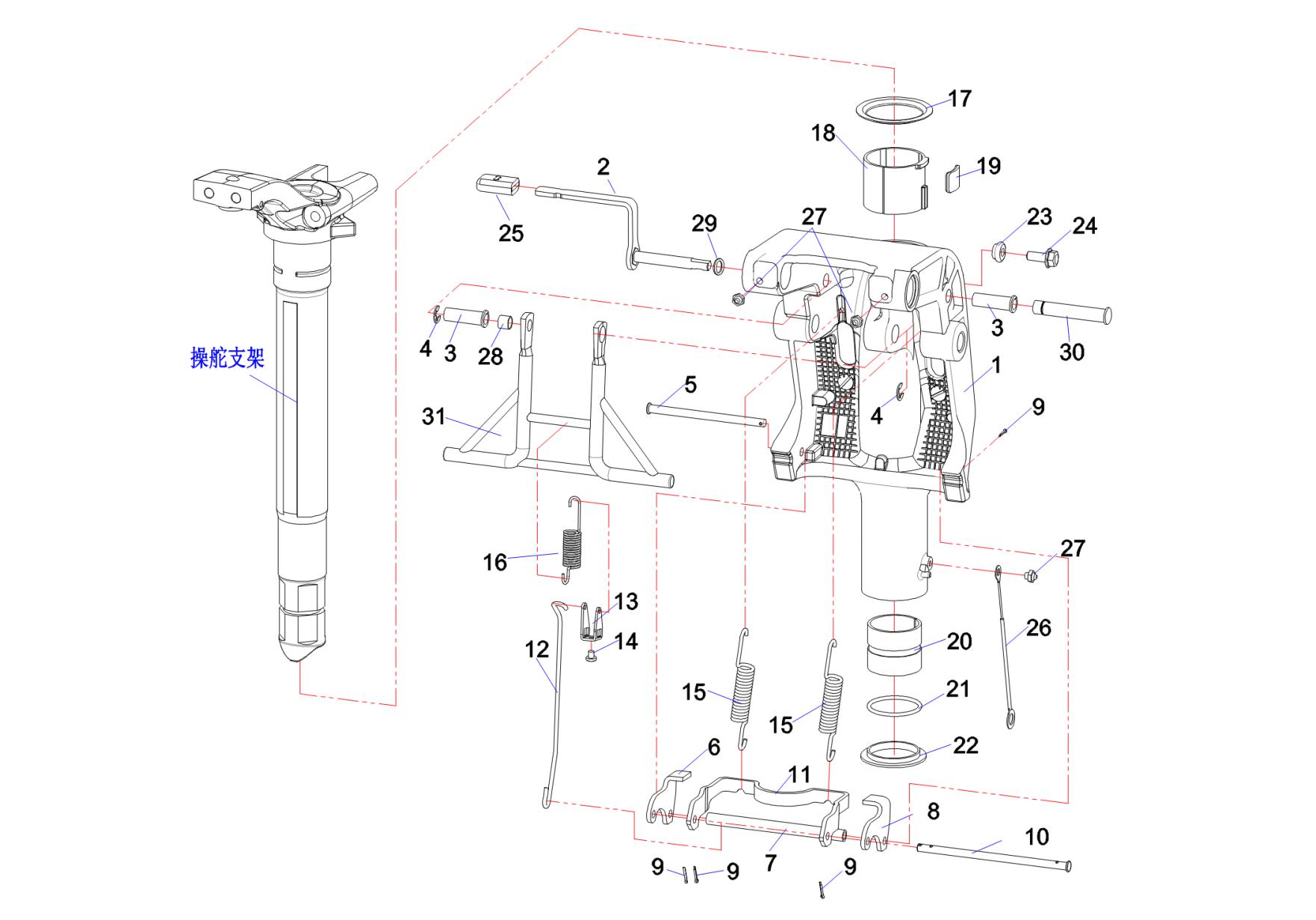

托架部位1 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-03.07.01-S旋转托架(短轴）Swivel bracket(S)165W-43311-00-4D
None40F-03.07.01-L旋转托架(长轴)Swivel bracket(L)1
240F-03.07.11.00操纵杠杆组件Lever comp.,Steering165W-43630-11-00
340F-03.07.11.04销轴套Sleeve,Axis pin290386-10M99-00
4GB896开口挡圈8Circlip299080-08600-00
540F-03.07.11.11支撑架固定轴Fixing axis,support frame190249-07M32-00
640F-03.07.11.08左外支架Outer bracket(LH)165W-43615-01-00
740F-03.07.11.12支撑架套管Sleeve,support frame190387-07M29-00
840F-03.07.11.09右外支架Bracket(RH&Outer)165W-43614-01-00
9GB91开口销1.6*12Cotter pin491490-20012-00
1040F-03.07.11.10支撑架销轴Pin shaft,support frame190249-07M33-00
1140F-03.07.11.07内支架inner bracket165W-43613-00-00
1240F-03.07.11.06角度定位锁杆angle loction rod165W-43616-00-00
13F25-03.00.01.04角度定位件Angle fixer166T-43631-11-00
14GB818十字槽盘头螺钉M5*6Pan head screw with cross recess190157-05014-00
1540F-03.07.11.13拉簧Sping290506-30M00-00
16F25-03.00.01.05定位弹簧Position spring190506-20M37-00
1740F-03.07.03衬圈Bushing190209-52M00-00
1840F-03.07.04锁紧圈Lock washer190386-52M02-00
1940F-03.07.05锁紧圈摩擦片Friction plate,Locking1
2040F-03.07.07下衬套bushing (bottom)190386-44M03-00
2140F-03.07.08O型橡胶圈(42.6*3.2)Rubber ring193210-43MJ0-00
2240F-03.07.09下衬圈bushing (bottom)190386-44M03-00
2340F-03.07.06锁紧螺栓密封垫Gasket1
24GB9074.1（8.8）六角头螺栓和平垫组件M8*20Bolt1
2515F-03.09.12.01橡塑套Rubber sleeve1682-43318-01-00
2640F-03.07.10钢索连接组件Cable connector Assy.1
27JB7940.1直通式压注油杯Oil cup393700-06M03-00
28F25-03.00.01.02套圈bushing190387-07M05-00
29GB848平垫12Flat gasket190386-07MA2-00
30F25-03.00.01.03定位销轴Dowel pin axis190249-10M31-00
31F25-03.00.01.06定位支架location bracket166T-43350-02-00
托架部位2

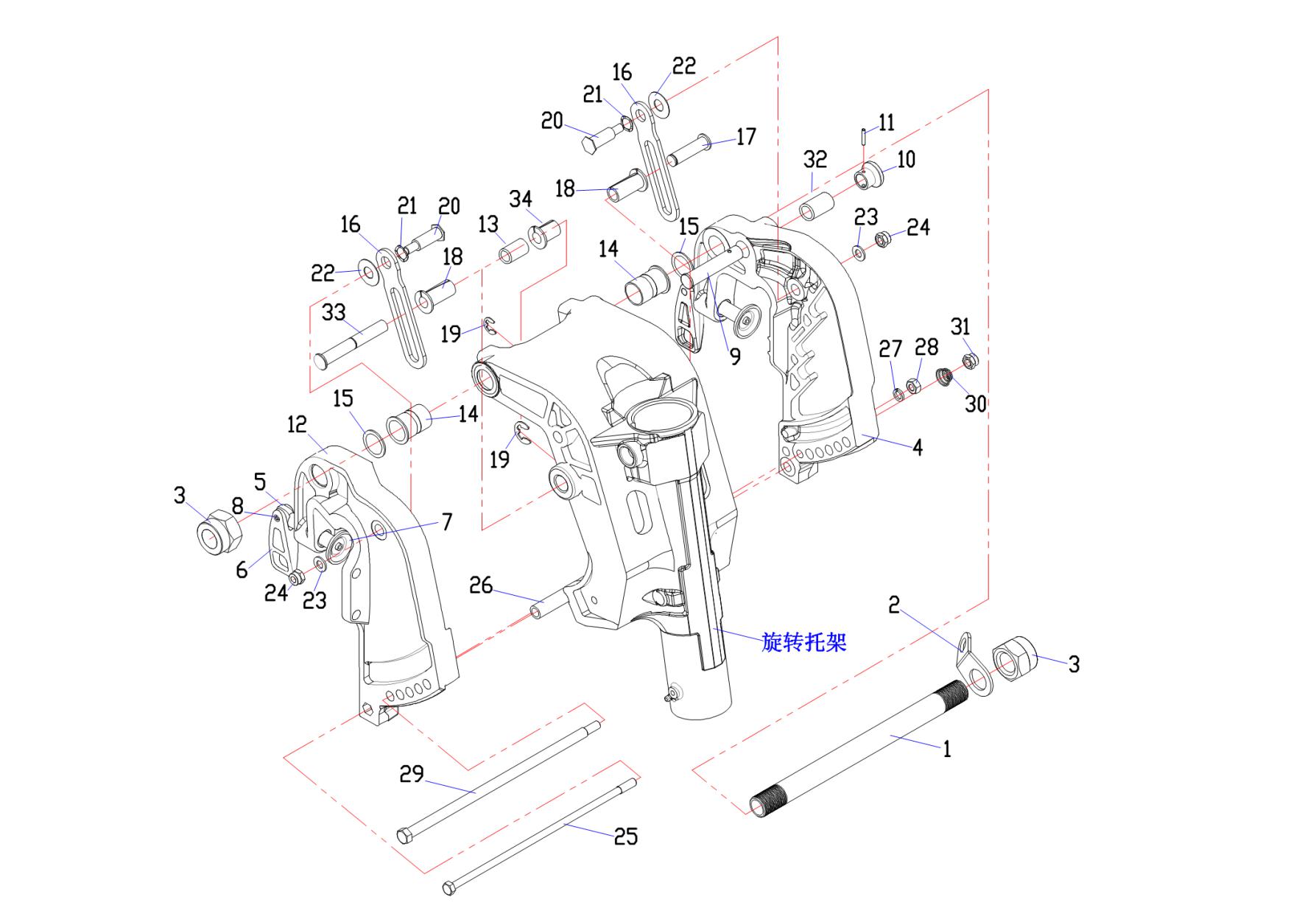

托架部位2 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-03.04夹紧托架双头螺栓Bolt163D-43131-01-00
215F-03.03孔板Orifice plate16J8-43113-01-00
315F-03.01夹紧托架螺母Clamp nut290185-22043-00
440F-03.05.01左托架Bracket(LH)166T-43111-01-4D
540F-03.05.03.01艉板夹紧螺栓Clamp Bolt,Transom290149-14M12-00
640F-03.05.03.02夹紧手柄intensify handle2663-43118-01-4D
715F-03.05.02.03夹紧盘Clamp plate2648-43114-01-00
8GB1015沉头半空心铆钉4*18Rivet290243-04007-00
940F-03.05.04.01定位轴Position axis165W-43191-00-00
1040F-03.05.04.02定位轴手柄Position axis handle1
11GB879.2弹性圆柱销3*18Cylindrical pin191690-30018-00
1240F-03.06.01右托架Bracket(RH)166T-43112-01-4D
13F25-03.00.02.03衬套Bushing190386-12MA0-00
1440F-03.07.02托架阻尼圈Damping ring,bracket290386-22M15-00
1540F-03.03垫片Gasket290201-22M03-00
1640F-03.07.12.01制动板brake pad266T-43627-00-00
1740F-03.07.12.02制动板销pin1
1840F-03.07.12.03开口衬套Bushing290386-12M98-00
19GB896开口挡圈10Split washer299080-10600-00
2040F-03.07.12.04制动板固定螺栓Bolt,brake pad290109-08M90-00
2140F-03.07.12.05波形垫圈waterform gasket ring290206-12M00-00
2240F-03.07.12.06塑料垫片Plastic washer290202-12031-00
23GB97.1平垫8Flat gasket290201-08M07-00
24DIN985六角尼龙锁紧螺母M8Hex Nylon lock nut290185-08057-00
2540F-03.08六角螺栓Bolt190101-08M76-00
2640F-03.09螺栓套管Sleeve190387-08M29-00
27GB93弹垫8Spring washer192990-08100-00
28GB6170六角螺母M8Bolt195380-08600-00
2940F-03.10角度限位销轴Trim shaft1
3040F-03.11塔形弹簧Spring1
31DIN985六角尼龙锁紧螺母M8Nonmetallic six-angled locknut with component embedded190185-08057-00
3240F-03.05.02左托架垫套Bushing,bracket(LH)190386-14MA1-00
33F25-03.00.02.01制动板长销pin190249-12M39-00
34F25-03.00.02.02开口衬套（短）Bushing190387-12M04-00
底罩

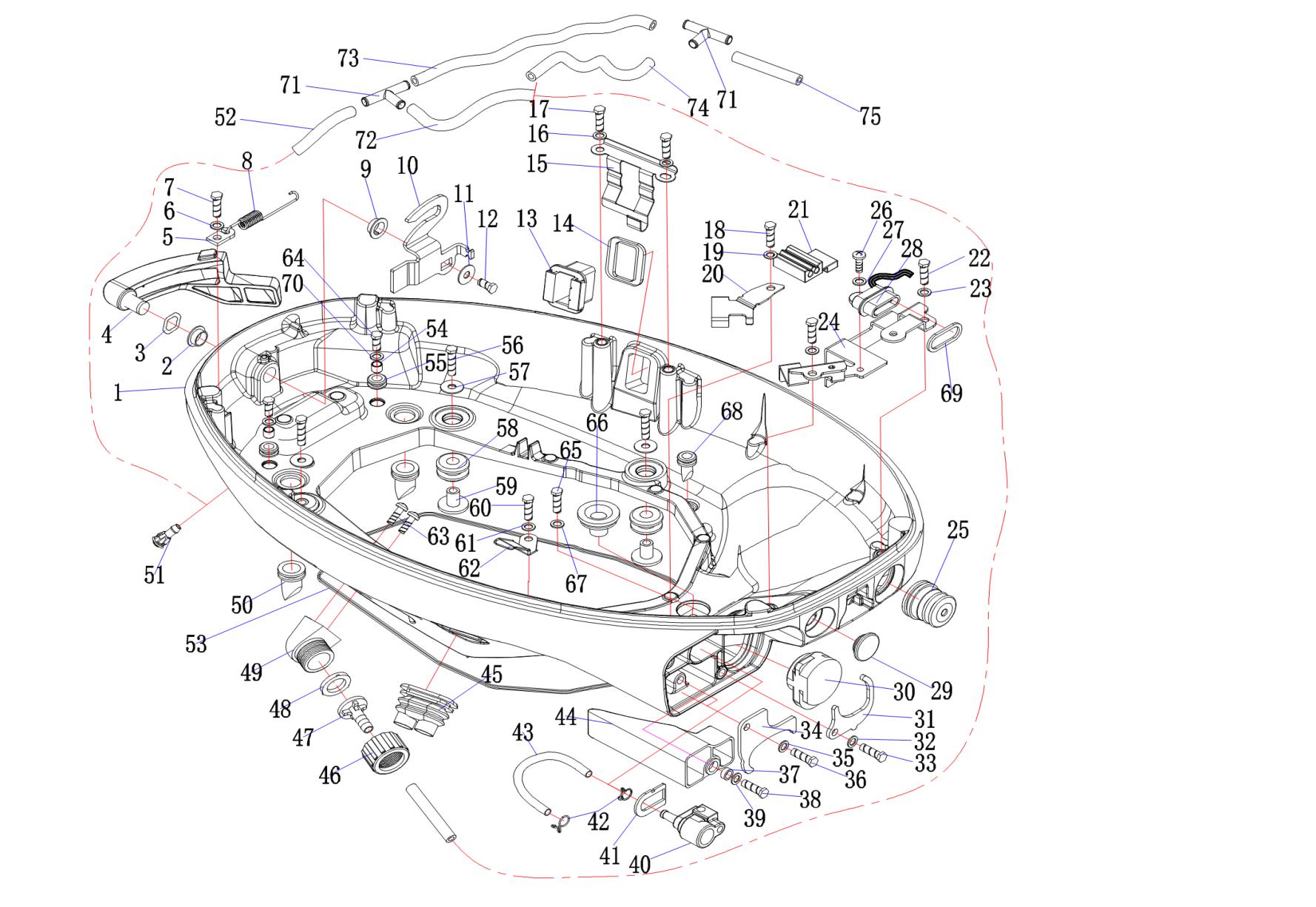

底罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-02.00.00.15底座Bottom Base1
240F-02.02.00.03垫圈AWasher1
340F-02.02.00.02波形垫片Wave washer1
4F25-02.02.00.00锁紧手柄组件Lock handle comp.1
540F-02.02.00.07拉簧钩Spring hook1
6GB97.1平垫6Flat gasket192995-06600-00
7GB5783六角头螺栓M6*20Bolt197095-06020-00
840F-02.02.00.06锁紧钩拉簧Tension spring1
940F-02.02.00.04垫圈BWasher1
10F25-02.02.00.04锁紧块Latch segment1
11GB96平垫6Flat gasket192995-06600-00
12GB5783六角头螺栓M6*12Bolt197095-06020-00
13F25-02.00.00.01底座侧堵头Base side plug1
14F25-02.00.00.02侧堵头橡胶垫Side plug rubber gasket1
15F25-02.00.00.03侧堵头压板Side plug plate1
16GB97.1平垫6Flat gasket292995-06600-00
17GB5783六角头螺栓M6*20Bolt297095-06020-00
18GB5783六角头螺栓M6*20Bolt197095-06020-00
19GB97.1平垫6Flat gasket192995-06600-00
20F25-02.00.00.05钢索固定座Cable fixed seat1
21F25-02.00.00.06钢索橡胶固定套Rubber fixed sleeve of cable1
22GB5783六角头螺栓M6*20Bolt297095-06020-00
23GB97.1平垫6Flat gasket292995-06600-00
24F25-02.00.00.10支架Holder1
25F15-02.00.00.15手柄连杆橡胶减震圈Rubber shock ring,handle connceting rod1
26GB818十字槽盘头螺钉M6*10Pan head bolt with cross recess190157-05014-00
27GB97.1平垫6Flat gasket192995-06600-00
28F25-01.02.09.00指示灯组件Indicator light comp.1
29F25-02.00.00.16橡胶堵塞Rubber plug1
30F25-02.00.00.08橡胶堵塞Rubber plug1
31F25-02.00.00.09橡胶堵塞压板Rubber plug plate1
32GB97.1平垫6Flat gasket192995-06600-00
33GB5783六角头螺栓M6*20Bolt197095-06020-00
34F25-02.00.00.07钢索导向座压板Cable guide plate1
35GB97.1平垫6Flat gasket192995-06600-00
36GB5783六角头螺栓M6*20Bolt197095-06020-00
37F25-02.01.00.01垫管Cushion tube1
38GB5783六角头螺栓M6*20Bolt197095-06020-00
39GB97.1平垫6Flat gasket192995-06600-00
4015F-01.07.01.00燃油管插头组件Fuel hose plug assy.1
41F9.9-01.04.00.13燃油管插头垫片Washer,fuel hose joint1
42管夹φ 10Clamp2
43F25-01.03.00.02燃油滤清器进油管Oil inlet hose,fuel filter1
44F25-02.01.00.02钢索导向座Wire guide seat1
45F25-02.00.00.26水管护套Sleeve,hose1
46DQDF15-00.05.02外接水管盖Cap,External water hose1
47DQDF15-00.05.03外接水管插头Plug,External water hose1
48DQDF15-00.05.04橡胶垫片Rubber gasket1
49DQDF15-00.05.05外接水管座Seat,External water hose1
50F25-02.00.00.11排水嘴（大）Water nozzle2
5115F-02.11塑料水嘴Water nozzle1
52F25-02.00.00.18橡胶水管5*9*45Rubber hose1
53F25-02.00.00.30底座橡胶密封条The base rubber sealing strip1
54F25-02.00.00.13装饰罩减震垫垫管Damper washer,decoration cover2
55F25-02.00.00.12装饰罩减震垫Damper,decoration cover2
56GB5783六角头螺栓M6*30Bolt497095-06020-00
57GB5287平垫6Flat gasket4
58F25-02.00.00.28底座减震垫Cushion blocking of bottom seat4
59F25-02.00.00.29带肩垫管Shoulder pad tube4
60GB5783六角头螺栓M6*20Bolt197095-06020-00
61GB97.1平垫6Flat gasket192995-06600-00
62F25-02.00.00.04油管压块Pressing block,fuel hose1
63GB845十字槽盘头自攻螺钉ST5.5*25Screw2
64GB5783六角头螺栓M6*16Bolt297095-06020-00
65GB5783六角头螺栓M6*25Bolt197095-06020-00
6640F-02.00.00.02变档连杆橡胶护套Shift lever rubber sleeve1
67GB97.1平垫6Flat gasket192995-06600-00
68F9.9-02.00.00.12排水嘴Water nozzle2
69F25-01.02.00.05指示灯减震垫gasket,indicator light1
70GB97.1平垫6Flat gasket292995-06600-00
71F15-05.00.00.17三通T-branch pipe2
72F25-02.00.00.21橡胶水管5*9*470Rubber hose1
73F25-02.00.00.19橡胶水管5*9*355Rubber hose1
74F25-02.00.00.17橡胶水管5*9*305Rubber hose1
75F25-02.00.00.18橡胶水管5*9*45Rubber hose1

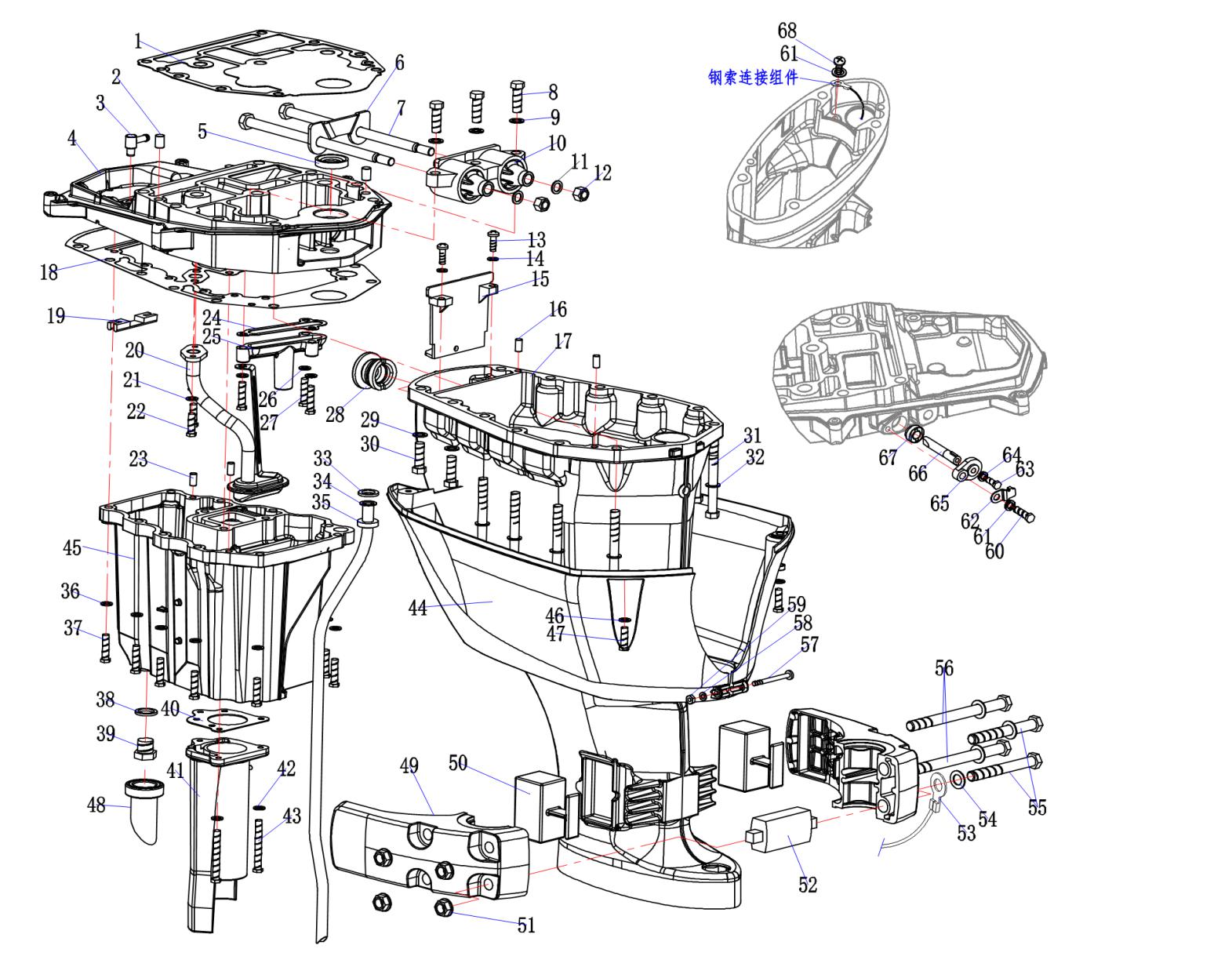

水上分解图
水上分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F25-00.00.00.04密封垫Seal gasket1
240F-01.06.00.25定位销8*12Dowel pin2
315F-01.06.10水管圆接头joint,hose1676-11372-00
4F25-05.00.00.12机体底座Engine base167C-41137-13-CA
540F-01.06.00.23油封(16*30*6)Oil seal1
6F25-05.00.00.03双孔减震器支架Braket,mount damper(upper)1
740F-05.00.00.07六角头长螺栓L=184Bolt2
8GB5783六角头螺栓M8*30Bolt397095-06020-00
9GB97.1平垫8Flat gasket390201-08M07-00
10F25-05.01.00.00双孔减震器组件Mount Damper(upper) comp.1
11GB97.1平垫8Flat gasket290201-08M07-00
12DIN985六角尼龙锁紧螺母M8Nonmetallic six-angled locknut with290185-08057-00
13GB818十字槽盘头螺钉M5*16Pan head bolt with cross recess290157-05014-00
14GB97.1平垫5Flat gasket292995-06600-00
15F25-05.00.00.01怠速排气隔板Idling exhaust baffle165W-45151-00-00
1615F-01.06.20定位销6*12Dowel pin293606-12019-00
17F25-05.00.00.02-S水上装置壳体(短轴)Upper casing (S)16BP-45111-00-4D
NoneF25-05.00.00.02-L水上装置壳体（长轴)Upper casing (L)1
18F25-00.00.00.03密封垫Seal gasket169W-15312-00-00
19F25-05.00.00.15怠速排气橡胶条Rubber strip,idle exhaust1
20F25-05.02.00.00机油粗滤器组件Oil strainers components1
21GB97.1平垫6Flat gasket292995-06600-00
22GB5783(8.8)六角头螺栓M6*16Bolt2
2315F-01.06.20定位销6*12Dowel pin293606-12019-00
24F25-05.00.00.11溢流阀座密封垫Seal Gasket,flood valve seat162Y-13475-00-00
25F25-05.00.00.10溢流阀座seat,flood valve16BG-11576-00-94
26GB97.1平垫6Flat gasket392995-06600-00
27GB5783六角头螺栓M6*25Bolt395023-06025-00
28F25-05.00.00.16排气口橡胶护套Rubber sheath,exhaust port1
29GB97.1平垫8Flat gasket490201-08M07-00
30GB5783六角头螺栓M8*30Bolt497095-06020-00
31GB5783(A4-80)六角头螺栓M8*80Bolt8
32GB97.1平垫8Flat gasket890201-08M07-00
3340F-05.00.00.15水管衬圈Bushing，hose193210-22164-00
34F25-05.00.00.07-S水管(短轴）Hose165W-44361-02-00
NoneF25-05.00.00.07-L水管(长轴）Hose1
35F25-05.00.00.08水管密封圈Seal ring,hose1
36GB97.1平垫6Flat gasket1092995-06600-00
37GB5783(A4-80)六角头螺栓M6*25Bolt1095023-06025-00
38F15-05.00.00.09放油螺栓垫圈Washer190430-14M09-00
39F15-05.00.00.08放油螺栓Oil drain plug190340-14M06-00
40F25-05.00.00.04排气管密封垫Seal gasket,exhaust pipe167C-41133-00-00
41F25-05.00.00.05排气管Exhaust pipe168U-41131-00-5B
42GB97.1平垫6Flat gasket392995-06600-00
43GB5783六角头螺栓M6*50Bolt397095-06020-00
44F25-00.00.01.00装饰罩组件Decoration cover1
45F25-05.00.00.06油底壳Oil sump165W-15311-03-5B
46GB97.1平垫6Flat gasket292995-06600-00
47GB5783六角头螺栓M6*16Bolt297095-06020-00
48F25-05.00.00.09放油口橡胶衬圈Washer165W-15316-00-00
49F25-00.00.00.01减震器外壳Damper housing2
5040F-00.02减震块ADamper A2
51GB6177六角头法兰螺母M10Flange bolt4
52F25-00.00.00.02减震块（中）Damper (middle)1
5340F-03.07.10钢索连接组件Cable1
54GB97.1平垫10Flat gasket492995-06600-00
55GB5783(A4-80)六角头螺栓M10*80Bolt2
56GB5783(A4-80)六角头螺栓M10*120Bolt2
57GB818十字槽盘头螺钉M4*45Pan head screw with cross recess190157-05014-00
58GB97.1平垫4Flat gasket192995-06600-00
59GB6172六角薄螺母M4Nut1
60GB5783六角头螺栓M6*20Bolt197095-06020-00
61GB97.1平垫6Flat gasket292995-06600-00
62F15-01.01.00.06传导片Conductive slice1
63GB5783六角头螺栓M5*12Bolt197095-06020-00
64GB97.1平垫5Flat gasket192995-06600-00
65F15-01.01.00.05压紧块Bolt166M-11327-00-94
66F25-05.00.00.13机体阳极Anode162Y-11325-00-00
67F15-01.01.00.04水封Stop collar,drive pully1
68GB818十字槽盘头螺钉M6*12Pan head bolt with cross recess190157-05014-00

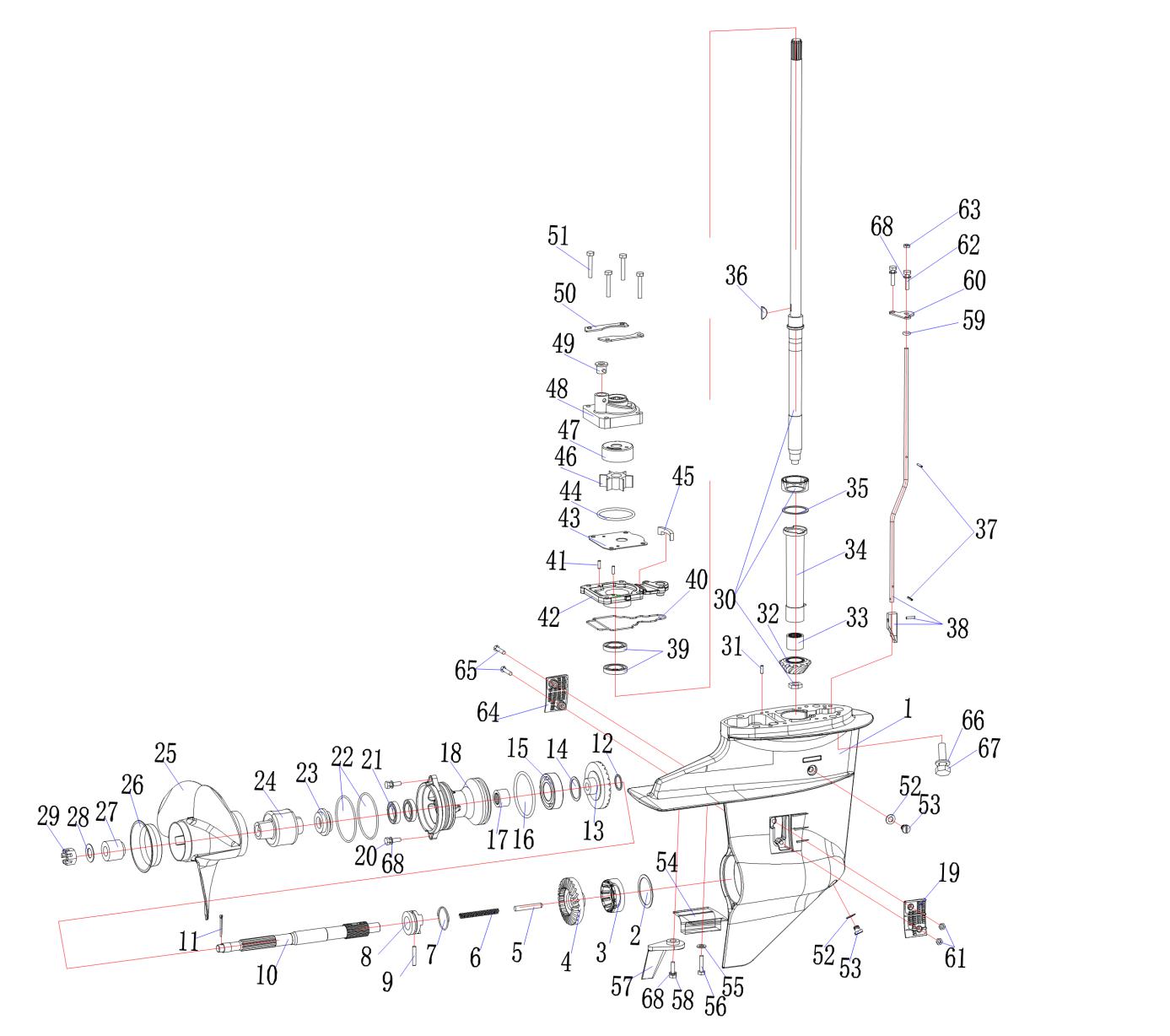

水下分解图
水下分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
130F-06.00.00.27水下壳体Lower casing161N-45311-02-4D
230F-06.00.00.26填隙片1（正档圆锥）Shim,forward gear16L2-45567-00-00
315F-06.07圆锥滚子轴承(30205)Roller Bearings193332-00005-00
430F-06.00.00.22正档齿轮Forward gear161N-45560-10-00
530F-06.00.05.06变档柱塞Gear shift plunger1648-45635-00-00
630F-06.00.05.05压缩弹簧Compression spring190501-10065-00
715F-06.10.04簧环Circlip1648-45633-00-00
830F-06.00.05.02爪形离合器Dog clutch1664-45631-02-00
915F-06.10.03离合器销Clutch pin190250-05010-00
1030F-06.00.05.01螺旋桨轴Propeller shaft165W-45611-00-00
11GB91开口销2.5*25Cotter pin191490-30022-00
1230F-06.00.00.06垫圈gasket1
1330F-06.00.04.06倒档齿轮Reverse gear161N-45571-00-00
1430F-06.00.04.05填隙片（倒档）shim16L2-45577-00-00
1530F-06.00.04.04深沟球轴承(6006C3)deep groove ball bearing193306-00612-00
1630F-06.00.04.07O型圈（粗） (63.5*4)O ring1
1730F-06.00.04.03滚针轴承(HK2016)Needle bearing193315-22004-00
1830F-06.00.04.01水下壳体盖Cap,lower casing161N-45361-01-4D
1930F-06.00.00.05进水口盖Bcover,water inlet16L2-45215-00-00
20GB5783六角头螺栓M6*20Bolt297095-06020-00
2130F-06.00.04.02壳体盖油封（20*34*6.5）Oil seal293101-20M07-00
2230F-06.00.04.08O型圈（细）(67*2.5)O ring2
2330F-06.00.00.03螺旋桨垫块Pad16L2-45987-01-00
2430F-06.00.02.00螺旋桨内花键组件Propeller shaft teeth assy.1
2530F-06.00.01.01螺旋桨(9-7/8*12-F)Propeller1664-45947-01-00
2630F-06.00.01.02螺旋桨喇叭口(9-7/8*12-FPropeller horn1
2730F-06.00.00.02螺旋桨内花键垫块Pad16L2-45987-01-00
28GB97.1平垫14Flat gasket192990-14200-00
2930F-06.00.00.01开槽六角螺母M14Nut190171-14013-00
3030F-06.00.07.00-S驱动轴总成(短轴)drive shaft assy161N-45510-00-00
None30F-06.00.07.00-L驱动轴总成(长轴)drive shaft assy1
3115F-06.03.08定位销4*12Dowel pin193604-10M03-00
3230F-06.00.00.21主动轮Driving wheel161N-45551-00-00
3330F-06.00.00.28滚针轴承（F2020）Needle bearing193315-220V7-00
3430F-06.00.00.29尼龙衬圈Nylon bushing161N-45536-00-00
3530F-06.00.00.25填隙片（驱动轴）shim161N-45587-00-00
3640F-06.09.02半圆键Woodruff key1
37GB879弹性圆柱销（2.5*14）Cylindrical pin2
38F25-06.00.01.01-S变档凸轮组件(短轴)Gear shift cam lever (S)165W-44150-01-00
NoneF25-06.00.01.01-L变档凸轮组件(长轴)Gear shift cam lever (L)1
3940F-06.04.04壳体盖油封(22*36*7)Oil seal261N-45510-10-00
4030F-06.00.00.19橡胶密封圈Rubber seal ring161N-45315-00-00
4115F-06.03.08定位销4*12Dowel pin293604-10M03-00
4230F-06.00.00.20轴承座Bearing seat165W-45331-00-5B
4330F-06.00.00.13水泵垫板Plate,water pump161N-44323-00-00
4430F-06.00.00.12水泵外壳O型圈(46*3.3)O-ring,Water pump casing193210-45161-00
4530F-06.00.00.16轴承座密封条Sealing strip,bearing seat161N-45127-00-00
4640F-06.09.00水泵叶轮组件Impeller assy.16H4-44352-02-00
4730F-06.00.00.11水泵内壳Insert, cartridge161N-44322-01-00
4830F-06.00.00.10水泵外壳Casing,water pump161N-44311-01-00
4930F-06.00.00.09水管密封圈Seal ring,hose16L2-44367-00-00
5030F-06.00.00.08水泵挡板Baffle,water pump2
51GB5783六角头螺栓M6*40Bolt490119-06M05-00
5215F-06.01.04螺塞密封垫Gasket290430-08020
5315F-06.01.03注油口螺塞plug,straight screw2688-45341-10-00
5415F-06.15阳极BAnode161N-45251-01-00
55GB861.1内齿锁紧垫圈M6Washer,inner gear1
56GB5783六角头螺栓M6*35Bolt197095-06020-00
5730F-06.00.03.00航向调整片组件Heading trim tab assembly1
58GB5783六角头螺栓M6*20Bolt192995-06600-00
5915F-06.03.03变档杆O形密封圈(5.8*4.3Shift lever o-ring1
6030F-06.00.00.15变档凸轮压板Gearshift cam p late1
61DIN985六角尼龙锁紧螺母M5Bolt290185-08057-00
62GB5783六角头螺栓M6*25Hexagonal nut295023-06025-00
63GB6170六角头螺母M6Hexagonal nut195380-08600-00
6430F-06.00.00.04进水口盖AWater inlet cover16L2-45214-00-00
65GB819十字槽沉头螺钉M5*30Cross recessed countersunk head2
66GB848平垫10Flat gasket490386-07MA2-00
6730F-00.00.00.01六角法兰面螺栓(M10*35)Bolt4
68GB97.1平垫6Flat gasket592995-06600-00
NoneF25(S)-06.00.00.00水下装配总成（S）Lower unit assy. (S)1
NoneF25(L)-06.00.00.00水下装配总成（L）Lower unit assy. (L)1
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2DPR6EB-9(F25)火花塞(新)sparking plug1DPR-6EB90-00-00
3GB91 2.5*25开口销cotter pin1
440F-06.09.00水泵叶轮组件impeller Assy.16H4-44352-02
515F-08.00.00燃油箱总成(24L)fuel case Assy.1
615F-09.01应急启动手柄emergency starting handle1
715F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
815F-01.01.22启动绳φ5*2000mmstarter rope1
915F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
10F15-09.00工具包toolkit1
