海的 F3.6 - F3.6HL(S)

共 11 个部位，点击零件编码查看详情，或搜索本页零件。

顶罩

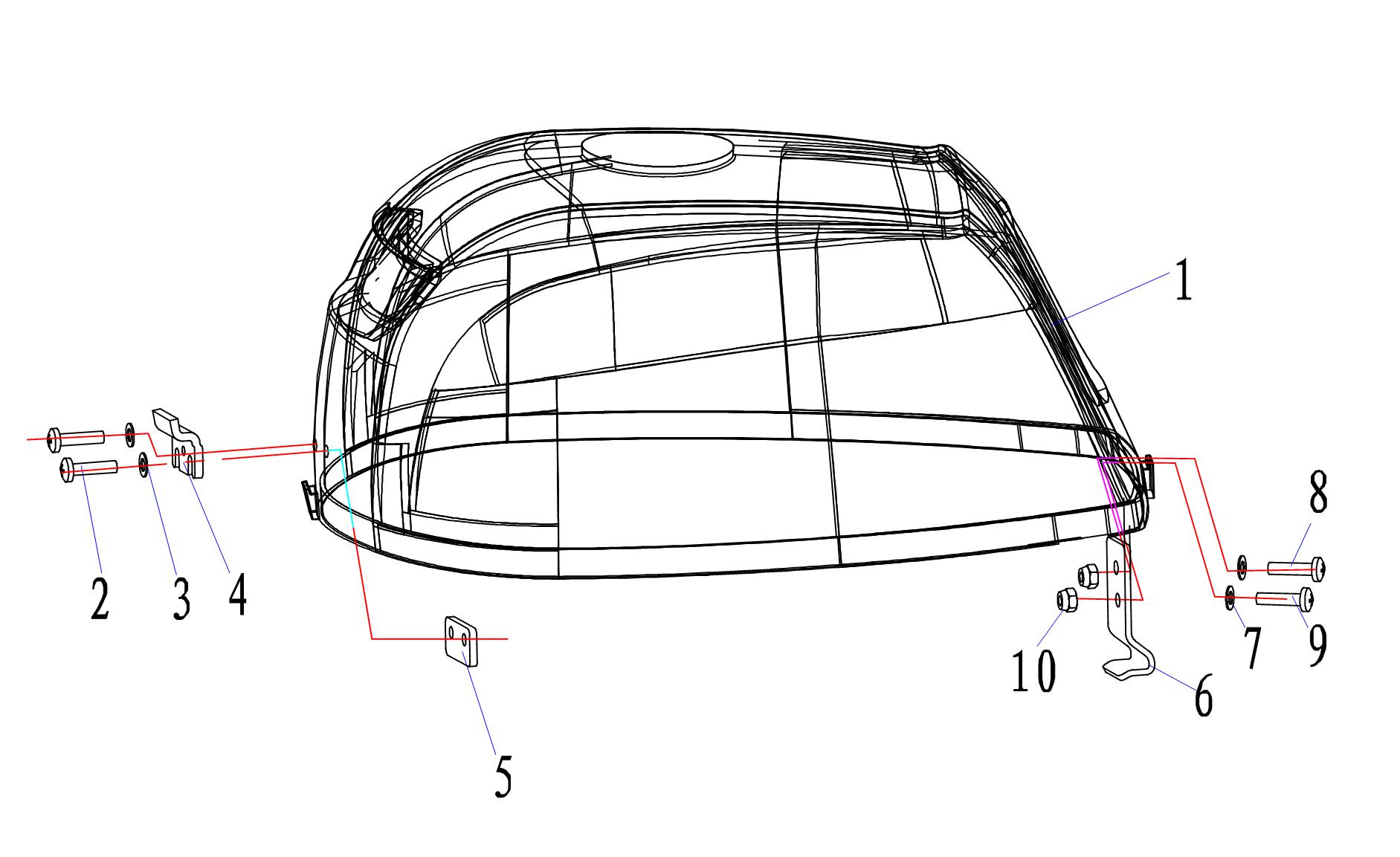

顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F2.5顶罩(共展）Top Cowling1
2GB818十字槽盘头螺钉M4*12Pan head screw with cross recess290159-06M11-00
3GB97.1平垫4Flat gasket294
4F6-07.00.00.04顶罩后锁紧钩Rear lock hook1
52.5F-02.00.00.10锁紧钩固定板Plate1
6F2.5-07.00.00.03前锁紧钩(耳钩)Front lock hook1
7GB96平垫4Flat gasket290201-08M54-00
8GB818十字槽盘头螺钉M4*14Pan head screw with cross recess190159-06M11-00
9GB818十字槽盘头螺钉M4*16Pan head screw with cross recess190159-06M11-00
10DIN985六角尼龙锁紧螺母M4Nut295380-08700-00
NoneF2.5-07.00.00.00顶罩部件Top Cowling assy.1
启动罩

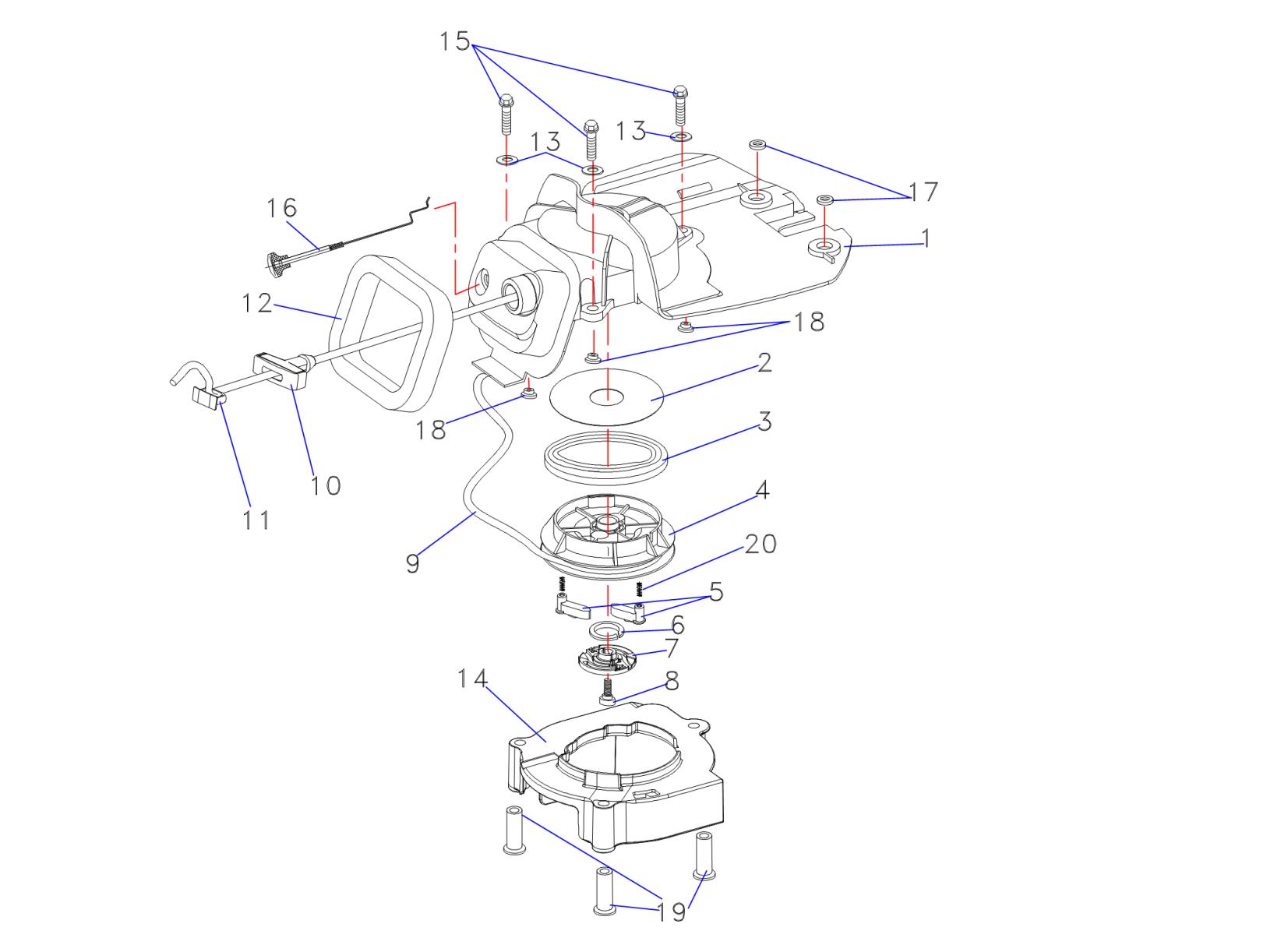

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F2.5-01.06.00.03启动罩外壳Casing,Starter cover assy.1
2F2.5-01.06.00.11减磨片Antifriction gasket169M-15739-00-00
3F4-01.01.08涡形弹簧Volute spring167D-15713-00-00
4F2.5-01.06.00.14启动轮Start wheel169M-15714-00-00
5F2.5-01.06.00.10驱动爪Drive pawl269M-15741-00-00
6F4-01.01.13钢丝挡圈Steel Cable Baffle Ring1
7F2.5-01.06.00.09压盘pressure plate169M-15735-00-00
8F2.5-01.06.00.17压盘螺钉Screw169M-15793-00-00
9F2.5-01.06.00.13启动绳3*1800mmStart rope169M-15751-00-00
1015F-01.01.08启动手柄Starter handle16G1-15755-00-00
1115F-01.01.10手柄盖Cover,Starter handle16G1-15779-00-00
12F2.5-01.06.00.01减震套Damper sleeve169M-15762-00-00
13GB848平垫6Stripe damper35B
14F2.5-01.06.00.15启动罩托架Bracket,Starter cover assy.169M-F4191-00-00
15GB5783六角头螺栓M6*60Bolt300
16F2.5-01.06.01.01阻风门拉手组件Pull rod Assy.,chock169M-F6330-02-00
17F2.5-01.06.00.04垫管ACushing tube A2
18F2.5-01.06.00.05垫管BCushing tube B3
19F2.5-01.06.00.16托架垫管bushing,bracket3
20F4-01.01.10驱动臂弹簧Spring,drive arm2
NoneF2.5-II-01.02.00.00起动罩组件Recoil starter assy169M-15710-00-00
动力部分

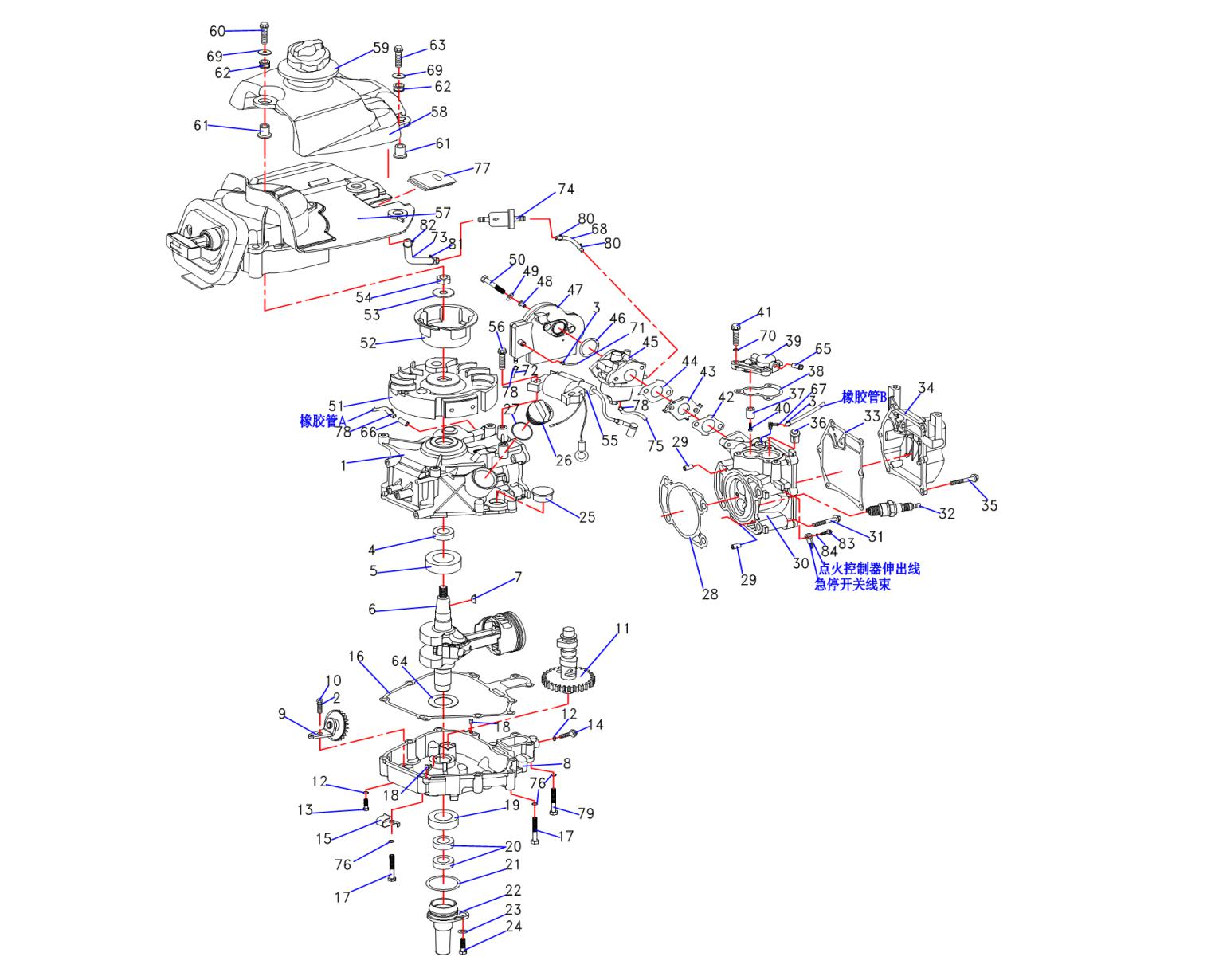

动力部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F2.5-01.01.00.11箱体Crankcase comp.(ex. crankcase cover)169M-E1311-00-
2GB97.1平垫6Flat gasket194
3管夹φ9Clamp2
4F4-01.06.15.02双唇口油封A20*30*7Oil seal193102-20108-00
5F2.5-01.01.00.09轴承 62/22 C3Bearing193306-272Y2-00
6F2.5-01.02.00.00曲轴连杆组件crankshaft lever Assy.1
7F4-01.06.19曲轴半圆键Woodruff key190280-04M06-00
8F2.5-01.01.00.07箱盖Crankcase cover169M-E5111-00-
9F2.5-01.01.02.00甩油齿轮组件Oil gear assy.1M-E3102-00-
10GB5783六角头螺栓M6*12Bolt10
11F2.5-01.03.02.00凸轮轴组件Oil seal comp.,Camshaft169M-12170-01-
12F2.5-01.01.00.04铜垫片Copper gasket20
13F2.5-01.01.00.02放油螺栓M8*20Oil drain plug190105-08M76-00
14GB5783六角头螺栓M8*14Bolt197095-08014-00
15F15-01.03.00.42通气管固定夹 Bfix clip,air breather tube190465-08M99-00
16F2.5-01.01.00.08密封垫Crankcase,seal gasket169M-11351-A0-
17GB5783六角头螺栓M6*45Bolt80
1815F-06.03.08定位销4*12Dowel pin200
19F4-01.06.15.02双唇口油封20*30*7Oil seal193102-20108-00
20F2.5-01.01.00.06小油封20*9.8*7Oil seal293102-09004-00
21F4-01.06.15.04壳体O形密封圈(34.5*2)O-ring1
22F2.5-01.01.00.05油封壳体Casing,oil seal169M-E5396-00-
23GB848平垫8Flat gasket15B
24GB5783六角头螺栓M8*20Bolt100
25F2.5-01.01.01.00机油观察窗组件oil inspection window Assy169M-15361-00-
26F15-01.03.00.39加油口螺塞Oil filling plug1M-E5363-00-
27F4-01.06.27油标尺O形圈(24*3.5)O ring10
28F2.5-01.03.01.00气缸垫组件Cylinder gasket comp.169M-11181-00-
2915F-06.03.08定位销（4*12）Dowel pin20
30F2.5-01.03.00.06气缸头Cylinder head169M-E1111-00-
31GB5789(10.9/S10)六角法兰面螺栓M8*60Flange bolt49 105-08M36-00
32BR6HS火花塞Spark Plug1BR6-HS000-00-00
33F2.5-01.03.00.02气缸盖垫片Cylinder cover gasket169M-11193-A0-
34F2.5-01.03.00.01气缸盖Cylinder cover1M-E1191-00-
35GB5789(10.9)六角法兰面螺栓M6*16Flange bolt694
36F15-01.06. 14-60°节温器(60°)Thermostat 60°169M-12411-01-
37F9.9-01.03.00.34阳极AAnode18- 11325-00-
38F4-01.06.28节温器密封垫seal Gasket1D-E2414-A0-
39F2.5-01.03.00.03节温器盖Thermostat cap1M-E2413-00-
40GB/T818十字槽盘头螺钉M5*25Pan head screw with cross recess19M
41GB5783六角头螺栓M6*20Bolt300
42F2.5-01.04.02.08化油器垫片（出）Caburetor gasket (outlet)169M-E3645-A0-00
43F2.5-01.04.02.09隔热板insulation board169M-E3647-00-00
44F2.5-01.04.02.10化油器垫片（进）Caburetor gasket (in)169M-E3646-A0-00
45F2.5-01.04.02.00化油器组件Carburetor Assy.169M-14301-10-00
46F2.5-01.04.00.01空滤器O型圈(20.2*2.4)O ring193210-20M65-00
47F2.5-01.04.03.00空滤器总成air fiter Assy.169M-14440-01-00
48F2.5-01.04.00.02垫管Cushion tube290387-06076-00
49GB848平垫6Flat gasket25B
50GB5783六角头螺栓M6*75Bolt297595-06575-00
51F2.5-01.05.01.00飞轮组件Flying wheel Assy.169M-85650-00-
52F2.5-01.06.00.18启动毂Starter pulley1M- 15723-00-
53F4-01.06.38飞轮垫片Plane washer10201- 105A2-00
54F4-01.06.37飞轮螺母Flywheel nut190170-10M33-00
55F2.5-01.05.02.00点火器组件CDI (Charging coil, spark plug lead assy.)169M-85640-00-
56GB/T5789(10.9)六角法兰面螺栓M6*25Bolt20
57F2.5-01.06.00.00启动罩组件Starter cover assy.1
58F2.5-01.04.01.02燃油箱Fuel tank169M-F4111-00-
59F4-01.07.01.03油箱减震圈Damper ring,fuel tank1M-24641- 10-00
60GB5783六角头螺栓M6*30Bolt100
61F2.5-01.04.01.05油箱垫管Washer,fuel tank390387-06176-00
62F2.5-01.04.01.04油箱减震垫Damper,fuel tank369M-F4375-00-00
63GB5783六角头螺栓M6*35Bolt200
64F2.5-01.01.00.10曲轴填隙片Crankshaft shim1
65F4-01.06.03气管接头Joint,Breather pipe193700-06M03-00
6615F-01.06.21气管圆接头BJoint,air breather tube1
6715F-01.06.10水管圆接头joint,water hose1
68油管6*10*30oil hose1
69F2.5-01.04.01.01大垫片6*26Washer3
70GB848平垫6Flat gasket35B
71F2.5-01.04.00.04橡胶管BRubber hose1
72F2.5-01.04.00.03橡胶管ARubber hose1
732.5F-01.04.00.13L型油管Fuel line169M-F4311-10-00
74F4-01.07.01.05油箱滤网Fuel filter comp.16L5-24251-00-00
75F2.5-01.04.02.05L型放油管3.5*6.7* 150Fuel line1
NoneF2.5-01.04.02.06L型放油管（端头大小径）1新的
76GB/T848平垫6Flat gasket1092995-06600-00
77F2.5-01.04.02.07油管固定套fixing sleeve,hose1
78管夹φ7Clamp3
79GB5783六角头螺栓M6*40Bolt200
80管夹φ10Clamp2
81管夹φ12Clamp1
82管夹φ14Clamp1
83GB5783六角头螺栓M6*12Bolt100
84GB848平垫6Flat gasket15B
曲轴部分

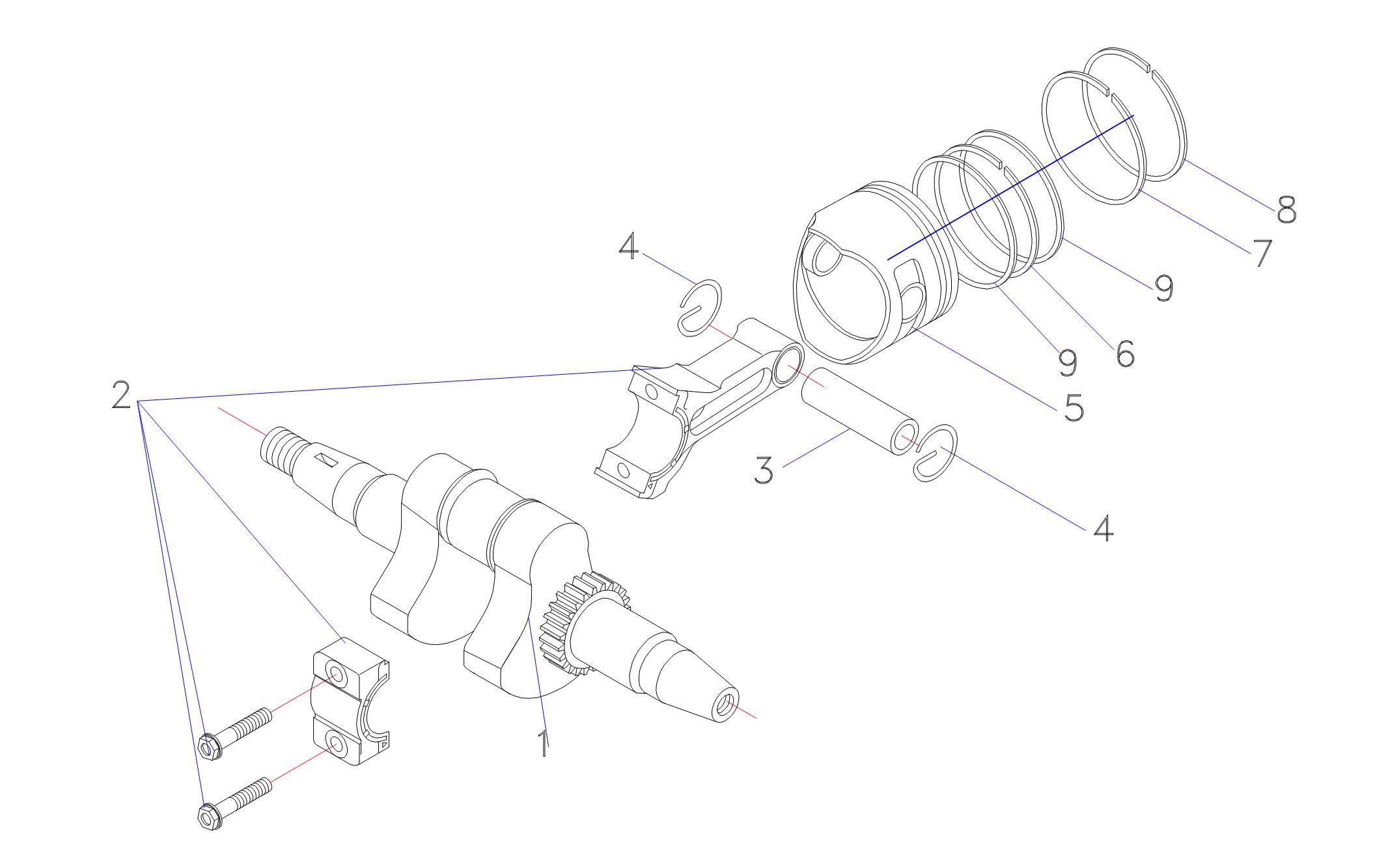

曲轴部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F2.5-01.02.01.00曲轴总成Crankshaft assy.169M-11400-00-00
2F2.5-01.02.02.00连杆总成Connecting rod assy.169M-11650-00-00
3F2.5-01.02.00.02活塞销Pin,piston169M-E1633-00-00
4F2.5-01.02.00.03活塞销卡簧Circlip293450-13130-00
5F2.5-01.02.00.01活塞Piston169M-E1631-01-96
6F2.5-01.02.00.07油环Oil ring169M-E1603-01-00
7F2.5-01.02.00.05副气环2nd ring1
8F2.5-01.02.00.04主气环1st ring1
9F2.5-01.02.00.06钢环Steel ring2
配气机构

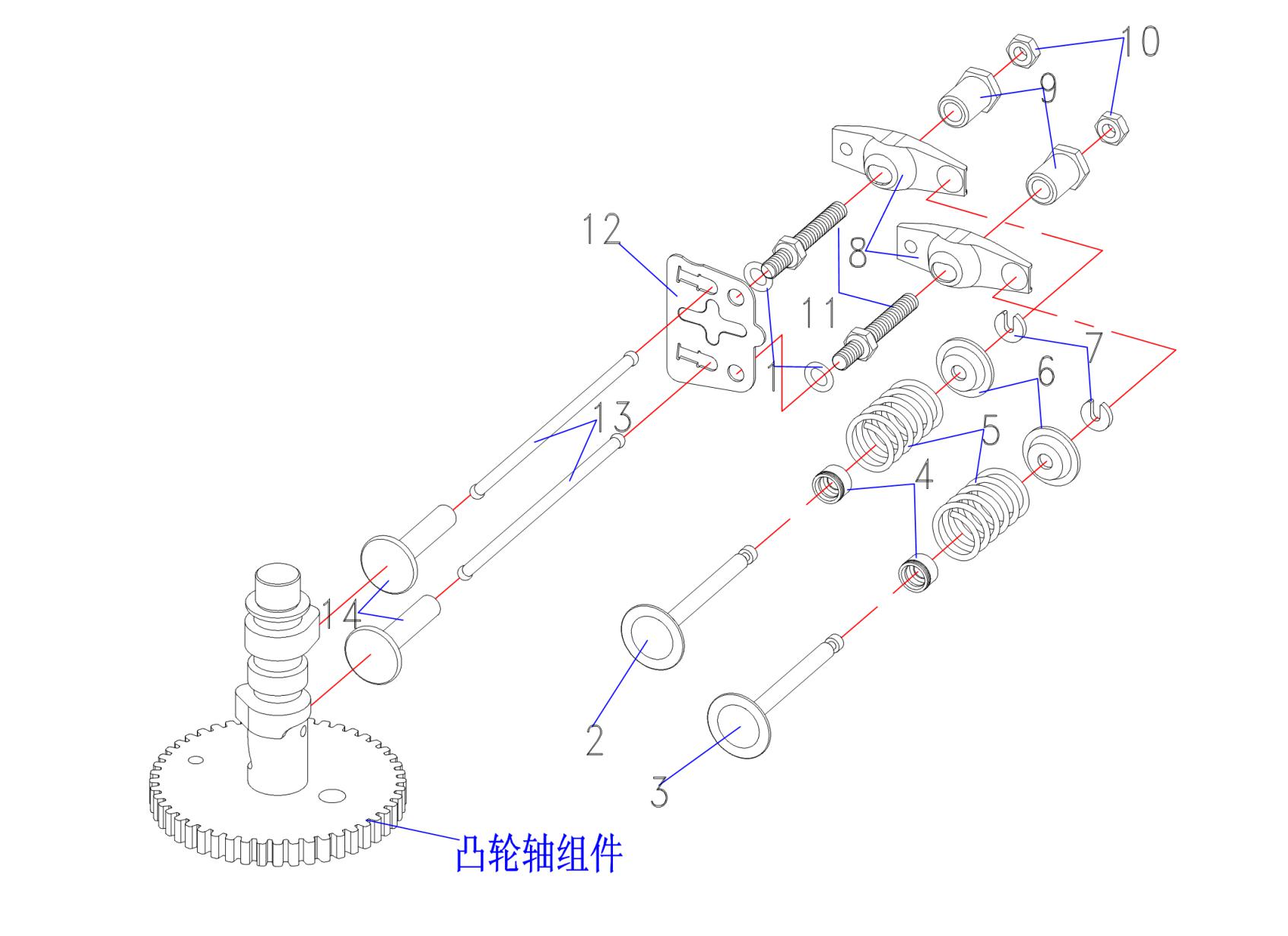

配气机构 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB848平垫6Flat gasket25B
2F4-01.06.33.05进气门Intake valve167D-12111-00-00
3F4-01.06.33.06排气门Exhaust valve167D-12121-00-00
4F4-01.06.33.09气门油封air Valve oil seal251Y-12119-00-00
5F4-01.06.33.07气门弹簧air Valve spring268D-E2113-00-00
6F4-01.06.33.11气门弹簧座air Valve spring base27NJ-12117-00-00
7F4-01.06.33.10气门锁夹valve clamp27NJ-12118-00-00
8F4-01.06.33.14摇臂Rocker arm267D-12151-00-00
9F4-01.06.33.16摇臂球座Rocker arm bolt27FK-12165-00-00
10F4-01.06.33.15六角螺母Bolt27FK-12158-00-00
11F4-01.06.33.13摇臂螺栓Bolt,Rocker arm267D-12157-00-00
12F2.5-01.03.00.05导向板Deflector1
13F2.5-01.03.00.07气门推杆air Valve push rod269M-12154-00-00
14F4-01.06.24气门挺柱air Valve tappet2JA9-12153-00-00

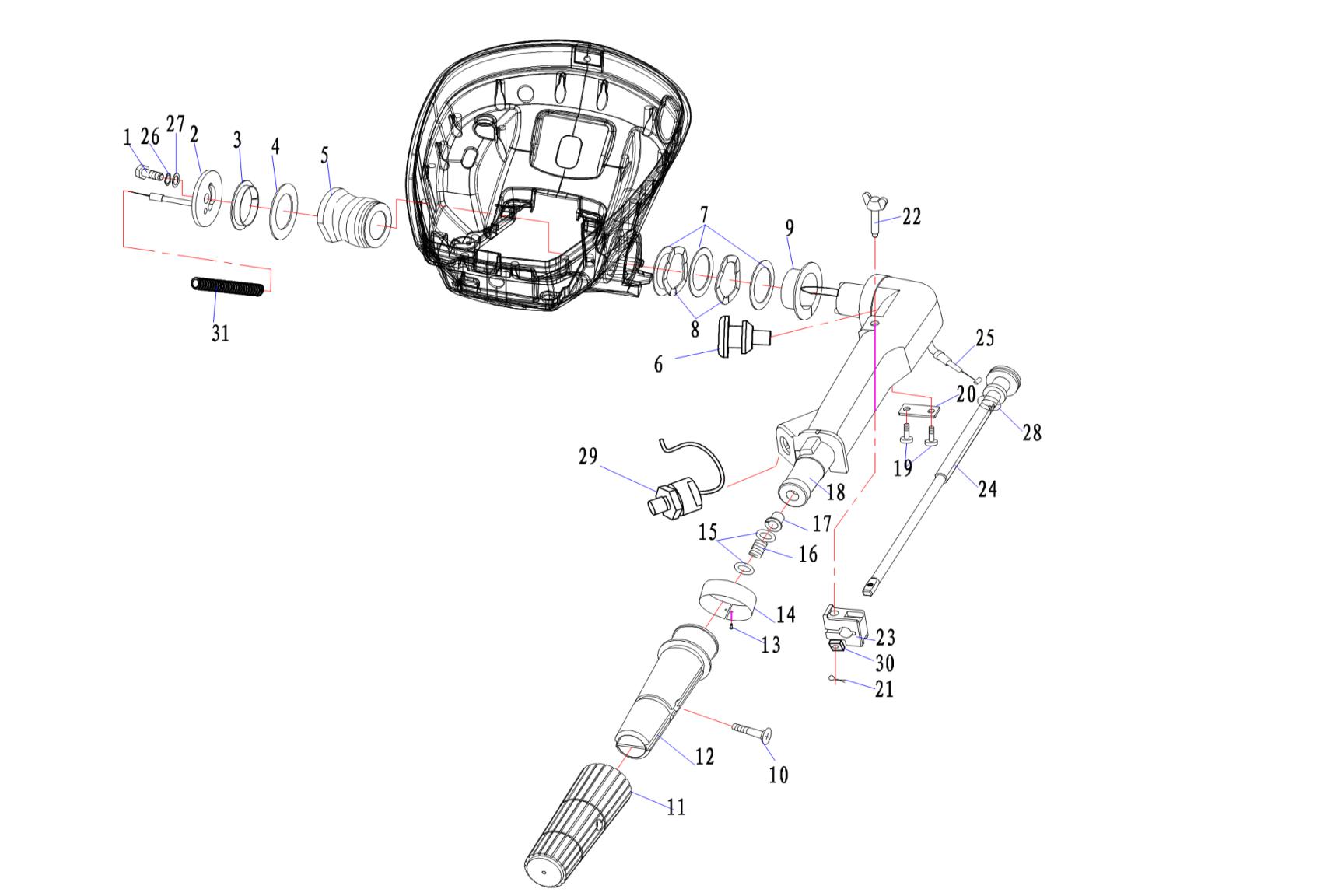

操舵手柄
操舵手柄 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB5783六角头螺栓M8*25Bolt197075-08025-00
2F4-04.03操舵手柄压板press plate,steer handle168D-G2131-01-00
3F4-04.04减磨圈AAntifriction ring A1
4F4-04.05垫片Agasket A168D-G2182-00-00
5F4-04.01.02.00手柄减震环组件Shock ring comp.,handle167D-42129-00-00
615F-02.09外接水管橡胶闷头rubber plug1
7F4-04.07垫片Bgasket B368D-G2181-00-00
8F4-04.08波形垫圈wave plasket269M-G2188-00-00
9F4-04.06减磨圈Bimpair abrasion circle B168D-G2171-00-00
10GB820十字槽半沉头螺钉M5*25Cross recessed countersunk head screw1
1115F-04.07.14手柄橡胶套Rubber sleeve,Handle16N0-G2177-00-00
1215F-04.07.13手柄Handle169M-G2119-10-00
13GB/T845十字盘头自攻螺钉ST2.2*4.5Screw1
14F2.5-04.00.00.04油门标牌Indicator,throttle1
15GB/T848平垫10Flat gasket292995-06600-00
1615F-04.07.11弹簧spring190501-23800-00
1715F-04.07.12衬套Bushing190386-08032-00
18F2.5-04.00.00.02操舵手柄Steering handle169M-G2111-00-4D
19GB/T818十字槽盘头螺钉M5*12Pan head screw with cross recess29M
2015F-04.07.07节气门压板Plate16G1-42138-01-00
21GB/T91开口销1.6*12Cotter pin1
22F15-04.02.00.08阻力调整旋钮Adjustor,friction16G1-42125-01-00
2315F-04.07.08锁紧块Latch segment16N0-G2126-00-00
2415F-04.07.05节气门杆Throttle lever16G1-42138-01-00
25F2.5-04.00.00.03油门控制钢索Throttle cable169M-F6301-10-00
26GB93弹垫8spring gasket1
27GB848平垫8Flat gasket15B
28GB848平垫12Flat gasket15B
2915F-04.07.03急停开关总成emergency stop switches assy165W-82575-01-00
30F2.5-04.00.00.05方型螺母rectangle screw1
31波纹塑料管φ14*140Wave plastic hose1
NoneF2.5-04.00.00.00操舵手柄部件Tiller Assy.1
底座

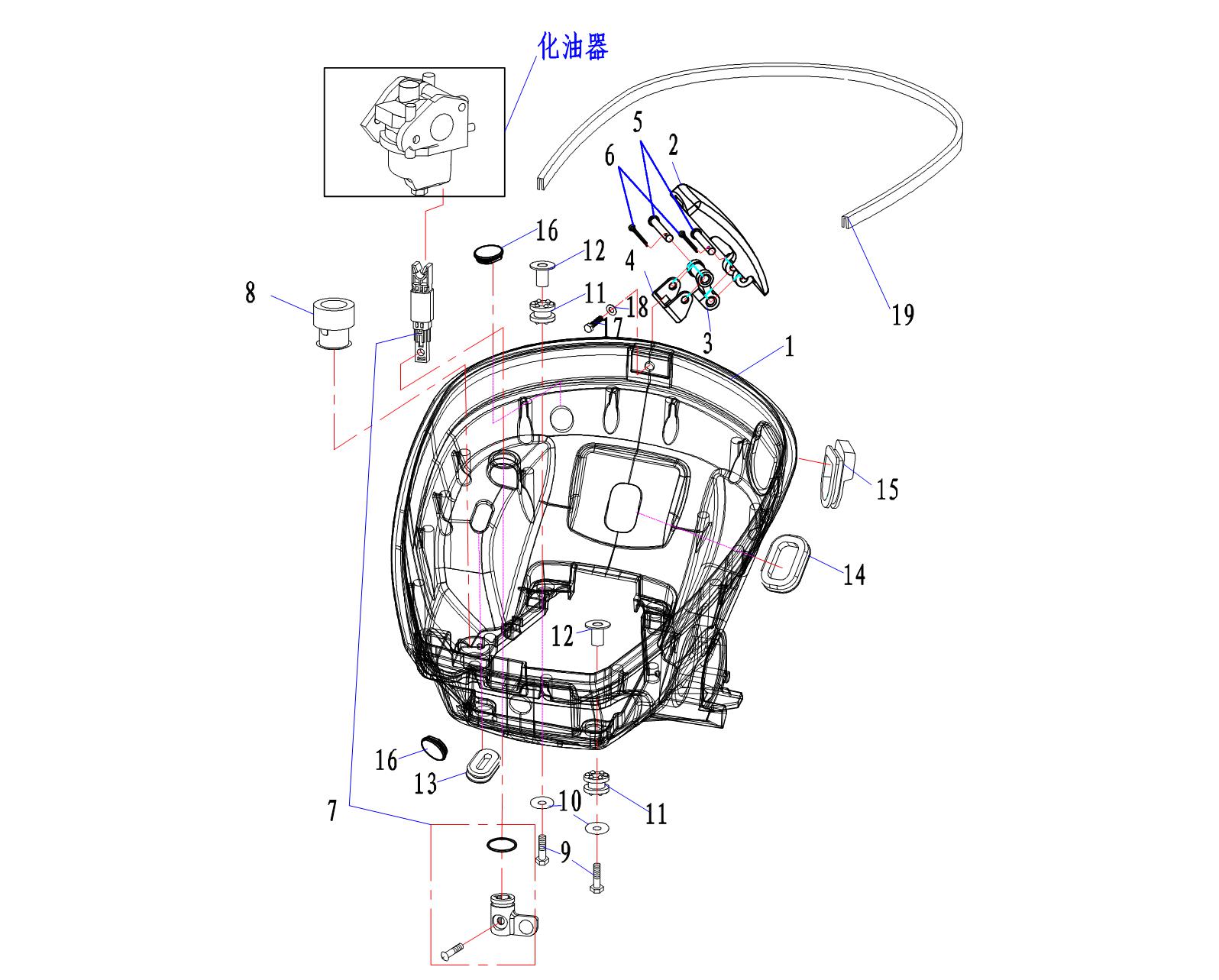

底座 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F2.5-Ⅱ-02.00.00.01底座(压铸件)Bottom1
2F6-02.00.00.07锁紧手柄Lock handle1
3F6-02.00.00.06锁紧手柄连接件lock handle connector1
4F6-02.03.00.00锁紧手柄支架组件Lock handle bracket Assy.1
5F6-02.00.00.05锁紧手柄转轴Lock handle ratat ion shaft2
6GB/T896 4开口挡圈4Cotter pin 1.2* 122
7F2.5-01.04.02.03油开关旋钮组件Fuel cock knob Comp.1
8F2.5-02.00.00.04橡胶衬圈Rubber bushing169M-E5316-00-00
9GB5783 M6*22（A2-7六角头螺栓(SUS30Bolt4
1015F-01.01.25启动罩垫片gasket,start cowling4
11F2.5-02.00.00.08减震垫Damper4
12F2.5-02.00.00.09带肩垫管Shoulder pad tube4
13F2.5-02.00.00.05堵塞（小）Plug (small)1
14F2.5-02.00.00.06堵塞（中）Plug (mid)169M-G2724-00-00
15F2.5-02.00.00.07堵塞（大）Plug（big)169M-G2725-00-00
16F4-01.02.06.06橡胶闷头rubber plug2
17GB5783六角头螺栓M6*12Bolt100
18GB97.1平垫6Flat gasket194
19密封条(970mm)sealing strip1

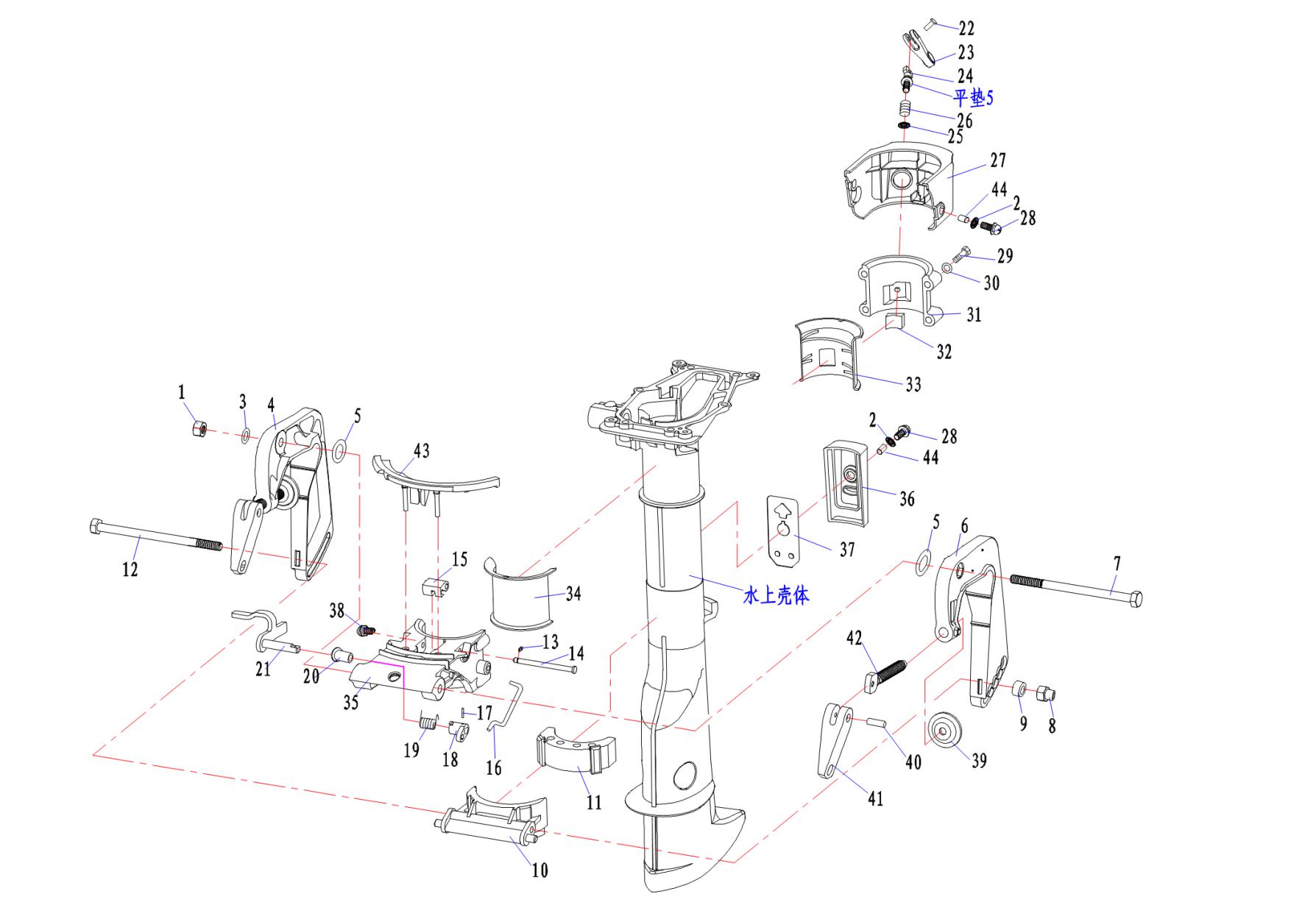

夹紧部分
夹紧部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1DIN985六角尼龙锁紧螺母M8Hex Nylon Locknut M8195380-08700-00
2GB848平垫6Flat gasket35B
3GB848平垫8Flat gasket192990-08200-00
4F2.5-03.00.00.09夹紧托架（左）Clamp bracket(LH)14D
5GB96平垫8Flat gasket290201-08M54-00
6F2.5-03.00.00.17夹紧托架（右）Clamp bracket(RH)14D
7GB5783六角头螺栓M8*135Bolt190101-08M07-00
8DIN985六角尼龙锁紧螺母M6Hex Nylon Locknut M6 thick gasket195780-06300-00
9F2.5-03.00.00.11厚垫片190201-06040-00
10F2.5-03.03.00.03托架座Bracket seat10
11F2.5-03.03.00.01橡胶托架Rubber bracket10
12GB5783六角头螺栓M6*130Bolt195780-06300-00
13GB896开口挡圈4Circlip199001-06600-00
14F2.5-03.00.00.14限位块固定轴Fixing axis,Spacer10
15F2.5-03.00.00.15限位块Spacer10
16F2.5-03.00.00.16限位连接杆Connecting rod,Spacer10
17GB879弹性圆柱销2* 12Cylindrical pin191609-25014-00
18F2.5-03.04.00.04角度定位件Angle fixer10
19F2.5-03.04.00.03扭簧Torsional spring10
2015F-04.07.12衬套Bushing190386-08032-00
21F2.5-03.04.00.00操纵杠杆组件Lever comp.,Steering10
22GB875扁平半空心铆钉4*10Thin flat head socket shank rivet1
23F4-03.05.06.01锁紧手柄Lock handle10
24F2.5-03.01.00.01锁紧螺杆Lock screw10
25GB848平垫6Flat gasket15B
26F2.5-03.01.00.02压簧Compressed spring190501-12803-00
27F2.5-03.00.00.01装饰罩Decoration cover10
28GB818十字槽盘头螺钉M6*16Pan head bolt with cross recess390159-06M11-00
29GB5783六角头螺栓M6*30Bolt400
30GB848平垫6Flat gasket492995-06600-00
31F2.5-03.00.00.05旋转托架盖Cap,swivel bracket14D
32F2.5-03.02.00.00锁紧压板组件Press plate comp.,Locking10
33F2.5-03.00.00.07减磨体BAntifriction B10
34F2.5-03.00.00.06减磨体AAntifriction A10
35F2.5-03.00.00.08旋转托架Swivel bracket14D
36F2.5-03.00.00.03怠速孔罩Idle hole cover10
37F2.5-03.00.00.04橡胶垫片Rubber gasket10
38JB/T7940.1直通式压注油杯M6Oil cup14D
3915F-03.05.02.03夹紧盘Clamp plate2620-43114-00-00
40GB1015沉头半空心铆钉4*22Rivet290243-04M01-00
4115F-03.05.02.04夹紧手柄intensify handle20
42F4-03.01.03艉板夹紧螺栓Clamp bolt26E0-43116-01-00
43F2.5-03.00.00.13橡胶装饰条Rubber decoration strip10
44F4-02.02开口垫管Cushing tube3
水上部分

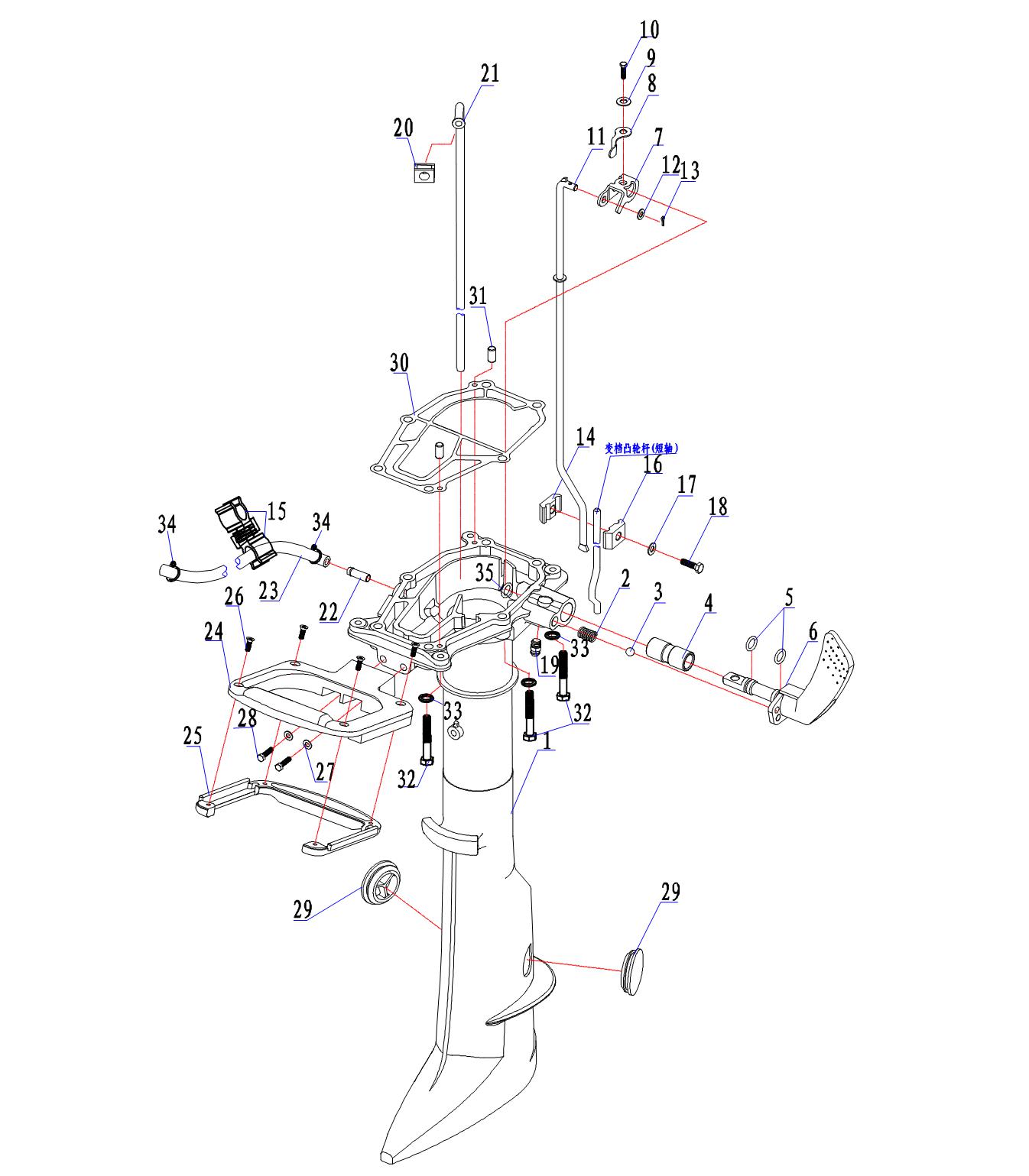

水上部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F2.5-Ⅱ-05.00.00.02水上壳体Upper casing169M-G5111-00-4D
2F4-05.04压簧Compressed spring190501-12802-00
3F4-05.03钢珠8steel ball193505-16024-00
4F4-05.01.02档位轴套Shift axis sleeve168D-G4122-01-00
5F4-05.02.03拨叉O型圈(8.6*2)O ring293210-09350-00
6F2.5-05.02.00.00变档手柄组件Shift handle169M-G4111-00-00
7F2.5-05.00.00.04变档连杆支架Shift lever bracket169M-G4121-00-00
8F2.5-05.00.00.03连杆限位片Spacer169M-44126-00-00
9GB97.1平垫M5Flat gasket192990-05600-00
10GB5783六角头螺栓M5*12Bolt197095-05012-00
11F2.5-05.00.00.05变档连杆Shift lever169M-44143-00-00
12GB97.1平垫M5Flat gasket192995-05600-00
13GB91开口销1.6*12Cotter pin191490-16010-00
14F2.5-05.00.00.08锁紧块BLatch segment16N0-G4145-10-00
15F4-01.07.10.01管夹Aclamp2
16F2.5-05.00.00.07锁紧块ALatch segment16N0-G4146-10-00
17GB97.1平垫M6Flat gasket192995-06600-00
18GB5783六角头螺栓M6*20Bolt197095-06020-00
19GB7940.1直通式压注油杯M6oil cup193700-06M03-00
20F4-05.13水管上密封圈Seal ring(upper),hose168D-G4365-00-00
21F2.5-05.00.00.10水管(短轴）Hose169M-44361-10-00
NoneF2.5-05.00.00.10-L水管(长轴）Hose (L)1
22F4-01.06.03气管接头Joint,Breather pipe193700-06M03-00
23F2.5-05.00.00.09排水管5*9*245Water hose1
24F2.5-05.01.00.01提手座Seat,handle1
25F2.5-05.01.00.02提手盖Protector1
26GB846十字槽沉头螺钉4.2*13Cross recessed countersunk head screw4
27GB848平垫M6Flat gasket292995-06600-00
28GB5783六角头螺栓M6*20Bolt297095-06020-00
29F4-05.01.04水上闷头Plug,upper casing2647-45151-01-00
30F2.5-05.00.00.01机体密封垫Engine gasket169M-45113-A0-00
3115F-06.03.08定位销4*12Dowel pin293604-12M07-00
32GB/T5783六角头螺栓M6*35Bolt690119-06098-00
33GB/T848平垫M6Flat gasket692995-06600-00
34管夹φ9Clamp2
35GB97.1平垫12Flat gasket194
水下部分

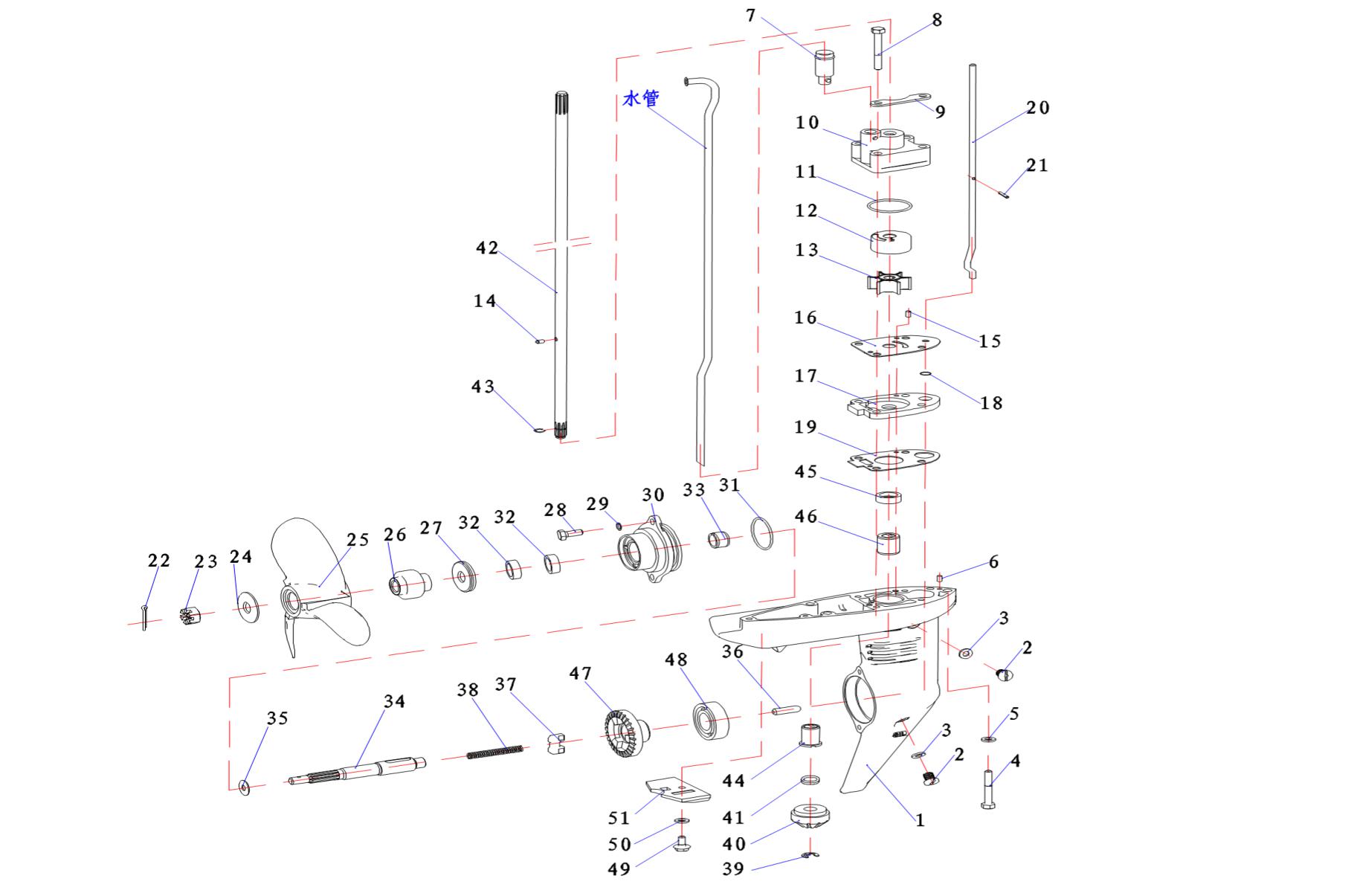

水下部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F2.5-06.00.00.08水下壳体Lower casing169 - 53 -00- 4D
215F-06.01.03注油口螺塞plug,straight screw290340-08002-00
315F-06.01.04螺塞密封垫seal Gasket290430-08020-00
4GB5783六角头螺栓M6*30（短轴）Bolt(S)397095-06030-00
NoneGB5782 M6*160(牙长六角头螺栓M6*160（长轴Bolt(L)3
None3.5F-Ⅲ-05.00.00.01接长体（长轴专用）connecting block1
5GB848平垫M6Flat gasket392995-06600-00
615F-06.03.08定位销4*12 （短轴）Dowel pin293604-12M07-00
None15F-06.03.08定位销4*12 （长轴）Dowel pin400
7F4-06.21.04水管下密封圈Seal ring(lower),hose16E0-44366-00-00
8GB5783六角头螺栓M6*40Bolt497095-06040-00
9F2.5-06.00.00.12水泵壳体压板Dead plate,Water pump housing comp269M-G4328-00-00
10F2.5-06.00.00.13水泵壳体Water pump housing comp.169M-G4311-00-00
11F2.5-06.00.00.15水泵壳体密封圈(33.4*1.9)Sealing ring,Water pump housing comp193210-33M85-00
12F2.5-06.00.00.14水泵内壳Insert, cartridge16L5-44322-00-00
13F2.5-06.04.00.00水泵叶轮组件Impeller assy.16L5-44352-00-00
14F2.5-06.00.00.16叶轮销Impeller pin193604-07M13-00
15F4-06.19水泵座定位销Dowel pin293604-12M07-00
16F2.5-06.00.00.17水泵垫板Plate,water pump169M-G4323-00-00
17F2.5-06.00.00.18水泵座water pump seat169M-G5321-00-94
18F2.5-06.00.00.22O型圈O-ring193 1 -05 01A-00
19F2.5-06.00.00.19密封垫seal gasket169 - 53 5- 0- 00
20F2.5-06.00.00.20-S变档凸轮杆(短轴）Shift lever（S）16L5-44144-00-00
NoneF2.5-06.00.00.21-L变档凸轮杆(长轴）Shift lever(L)1
21GB879弹性圆柱销2.5*14Spring Pin191609-25014-00
22GB91开口销2.5*20pin191490-25030-00
23F4-06.26开槽六角螺母Nut16L5-45616-00-00
24GB96平垫M8Flat gasket190202-08022-00
25F2.5-06.01.00.01螺旋桨propeller16L5-45949-00-00
26F4-06.25.02.00螺旋桨内花键组件Propeller teeth assy.16L5-45949-00
27F4-06.24螺旋桨垫块propeller cushion block1SPACER 1
28GB5783(8.8)六角头螺栓M6*16Bolt297095-06016-00
29GB848平垫M6Flat gasket292 -066 0-00
30F2.5-06.00.00.01水下壳体盖Cap,lower casing169 - 536 -00- 4D
31F4-06.07.03水下壳体盖O型圈O ring,lower casing193210-48214-00
32F4-06.07.02油封(22* 13*7)Oil seal293101-13M12-00
33F2.5-06.00.00.03壳体盖轴套shell cover axis guide1
34F2.5-06.03.00.01螺旋桨轴Propeller shaft169M-G5611-00-00
35F2.5-06.00.00.05垫圈gasket190201-13198-00
36F2.5-06.03.00.02变档柱塞Shift plunger169M-G5635-00-00
37F2.5-06.03.00.03离合器片Dog clutch16L5-45631-00-00
38F4-06.04.02压缩弹簧Compression spring190501-10064-00
39GB896开口挡圈6Circlip199001-06600-00
40F2.5-06.00.00.11主动轮Driving wheel16L5-45551-00-00
41F2.5-06.00.00.10主动轮调整片adjuster,Driving wheel16L5-45533-00-22
42F2.5-06.00.00.09-S驱动轴（短轴）Drive shaft169M-G5511-00-00
NoneF2.5-06.00.00.09-L驱动轴(长轴）Drive shaft1
43F2.5-06.00.00.26弹性挡圈circlip193440-08819-00
44F2.5-06.00.00.24水下壳体上轴套Sleeve(upper),lower casing16L5-45317-09-00
45F2.5-06.00.00.23油封Oil seal193103-09M41-00
46F2.5-06.00.00.25水下壳体下轴套(9.8*24*9)Sleeve(lower),lower casing16L5-45316-09-00
47F2.5-06.00.00.06正档齿轮Forward gear16L5-45560-00-00
48F2.5-06.00.00.07轴承16003Bearing193316-003Y0-00
49GB5783六角头螺栓M6*20Bolt195895-06020-00
50GB861.1内齿锁紧垫圈M6Washer,inner gear192990-06300-00
51F4-06.02阳极BAnode168D-G5251-00-00
NoneF2.5(S)-06.00.00.00水下装置部件Lower Casing Assy.1
NoneF2.5(L)-06.00.00.00水下装置部件Lower Casing Assy.1
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2GB91 2.5*20开口销cotter pin1
3F2.5-06.04.00.00水泵叶轮组件impeller Assy.16L5-44352-00-00
415F-09.01应急启动手柄emergency starting handle1
515F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
615F-01.01.22启动绳φ5*2000mmstarter rope1
7F4-09.00工具包toolkit1
33内Warranty and munal(just for保修保养手册(仅国maintenance Chinese client)1
