舟一会 ZHOUYIHUI 船外机

海的 F6 - F6HL(S)

共 12 个部位，点击零件编码查看详情，或搜索本页零件。

总装分解图

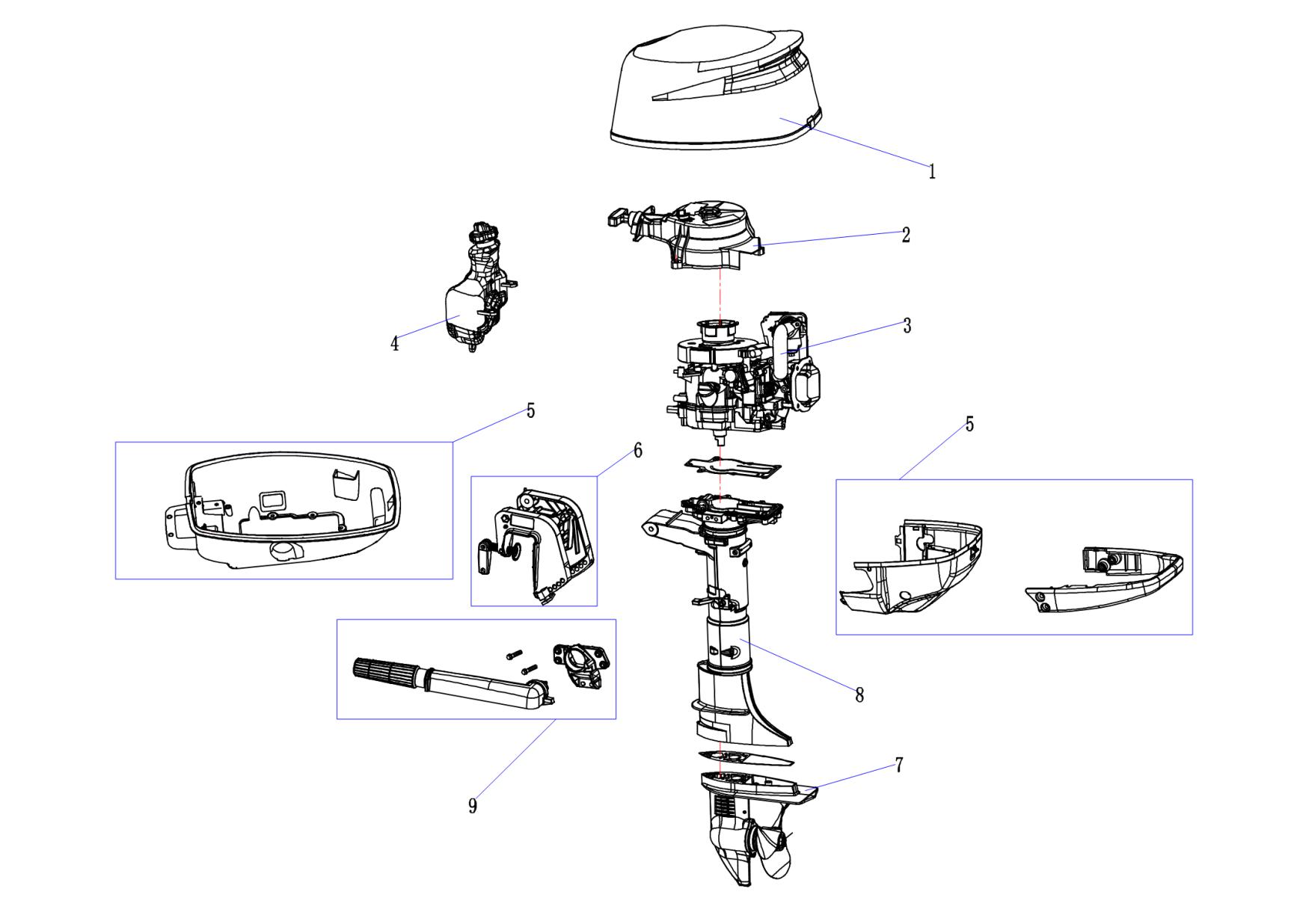

总装分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F4-07.00.00顶罩组件Top cowling assy1
2F4-01.01.00启动罩组件Starter cover assy.1
3F4-01.06.00动力系统Power system1
4F4-01.07.00燃油系统Fuel system1
5F4-02.00.00底罩部件Bottom cowling parts1
6F4-03.00.00夹紧托架部件Clamp Bracket1
7F4-06.00.00水下驱动部件lower driving comp.1
8F4-05.00.00水上部件upper casing comp.1
9F4-04.00.00操舵部件steering comp.1

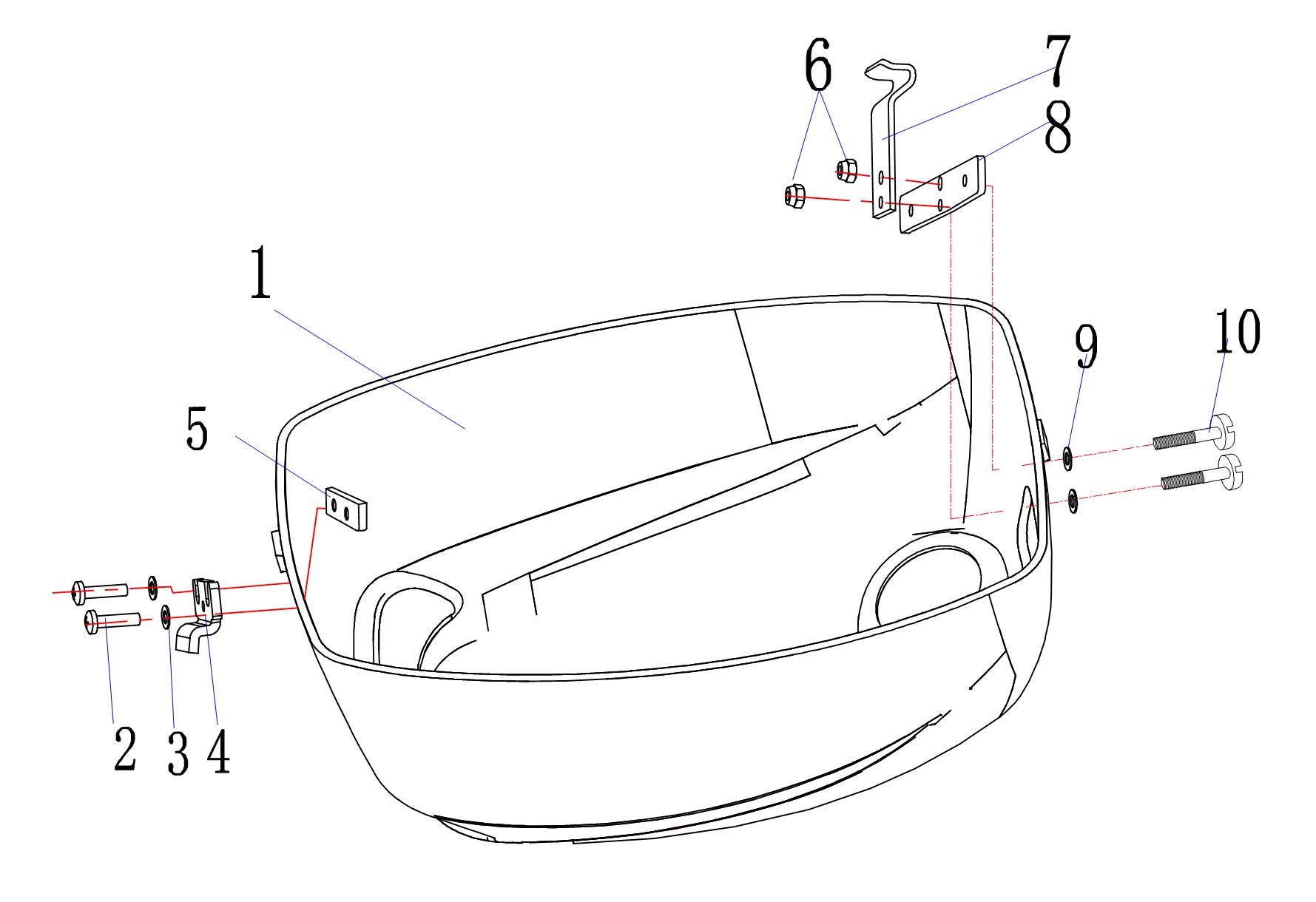

顶罩
顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F4顶罩(共展)Top cowling1
2GB818十字槽盘头螺钉M4*12screw297885-05012-00
3GB97.1平垫4flat gasket2
4F6-07.00.00.04顶罩后锁紧钩rear lock hook1
52.5F-02.00.00.10锁紧钩固定板lock hook plate1
6DIN985六角尼龙锁紧螺母M4Hex Nylon Locknut2
7F15-07.00.00.06前锁紧钩front lock hook1
8F9.9-07.09前锁紧钩座front lock hook seat1
9GB96平垫4flat gasket2
10GB818十字槽盘头螺钉M4*16screw297885-05012-00
NoneF4-07.00.00.00顶罩装配总成Top Cowling Assambly1

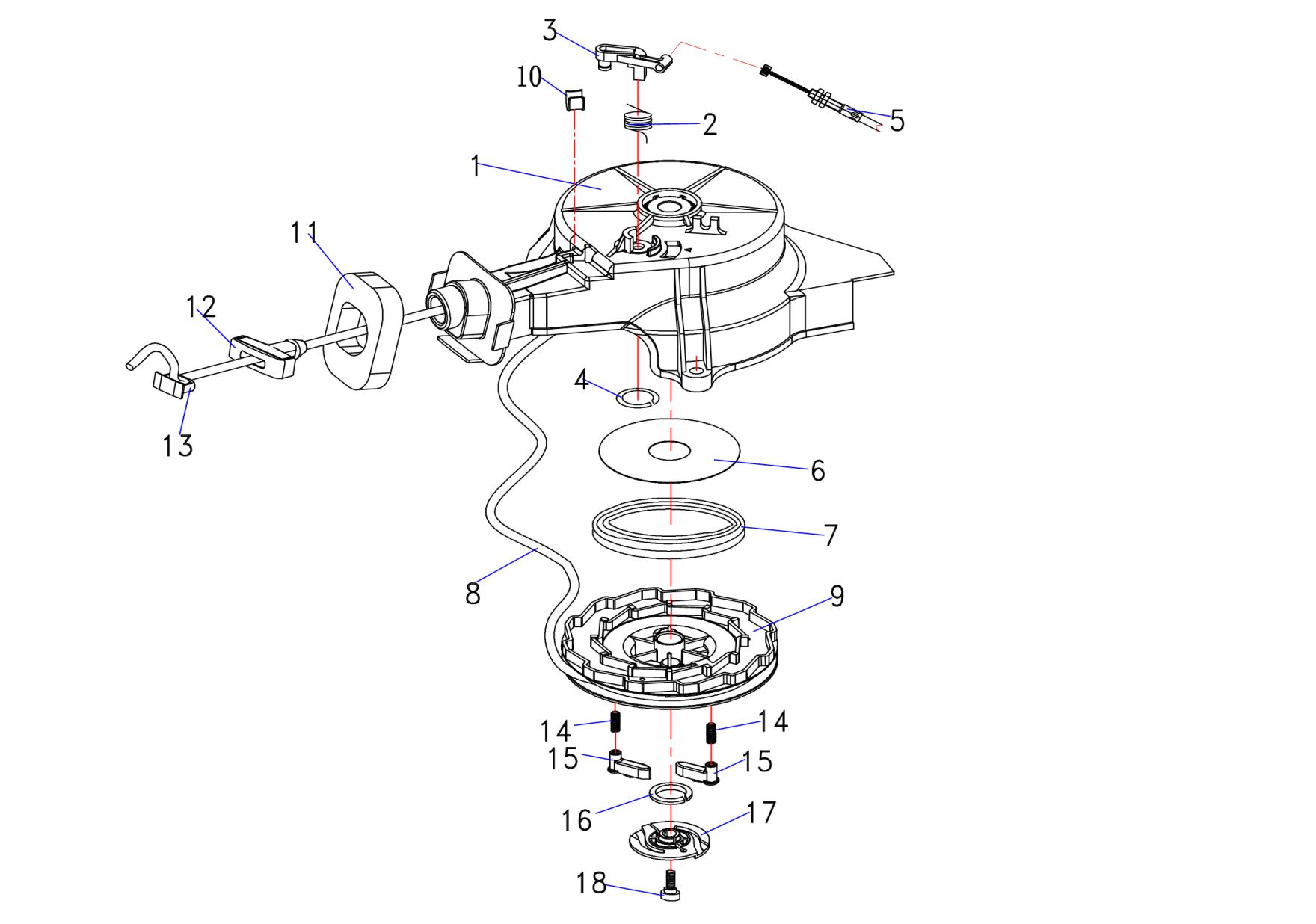

启动罩
启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F4-01.01.01启动罩外壳Casing,Starter cover assy.167D-15711-01-00
2F4-01.01.04制动器扭簧Torsional spring,brake167D-15734-00-00
3F4-01.01.03制动器Brake167D-15794-01-00
4GB896开口挡圈6Circlip199001-06600-00
5F6-02.02.00.00制动钢索组件Brake cable assy.167D-15770-00-00
6F4-01.01.07减磨片Anti-friction167D-15739-00-00
7F4-01.01.08涡形弹簧Volute spring167D-15713-00-00
8F4-01.01.15启动绳φ3.5*1800mmstart rope190890-44372-00
9F4-01.01.09启动轮Start wheel167D-15714-00-00
10F9.9-01.07.00.06U型滑套U-type sliding bush1
11F4-01.01.06减震圈Damper167D-15762-00-00
1215F-01.01.08启动手柄Starter handle16G1-15755-00-00
1315F-01.01.10手柄盖Cover,Starter handle16G1-15779-00-00
14F4-01.01.10驱动臂弹簧Spring,drive arm267D-15767-00-00
15F4-01.01.11驱动臂Drive arm267D-15741-00-00
16F4-01.01.13钢丝挡圈cable circlip167D-15705-00-00
17F4-01.01.12压板press plate167D-15735-00-00
18F4-01.01.14压板螺钉Screw,press plate167D-15793-00-00
NoneF4-01.01.00.00启动罩装配总成Recoil Starter Assy1
动力部分

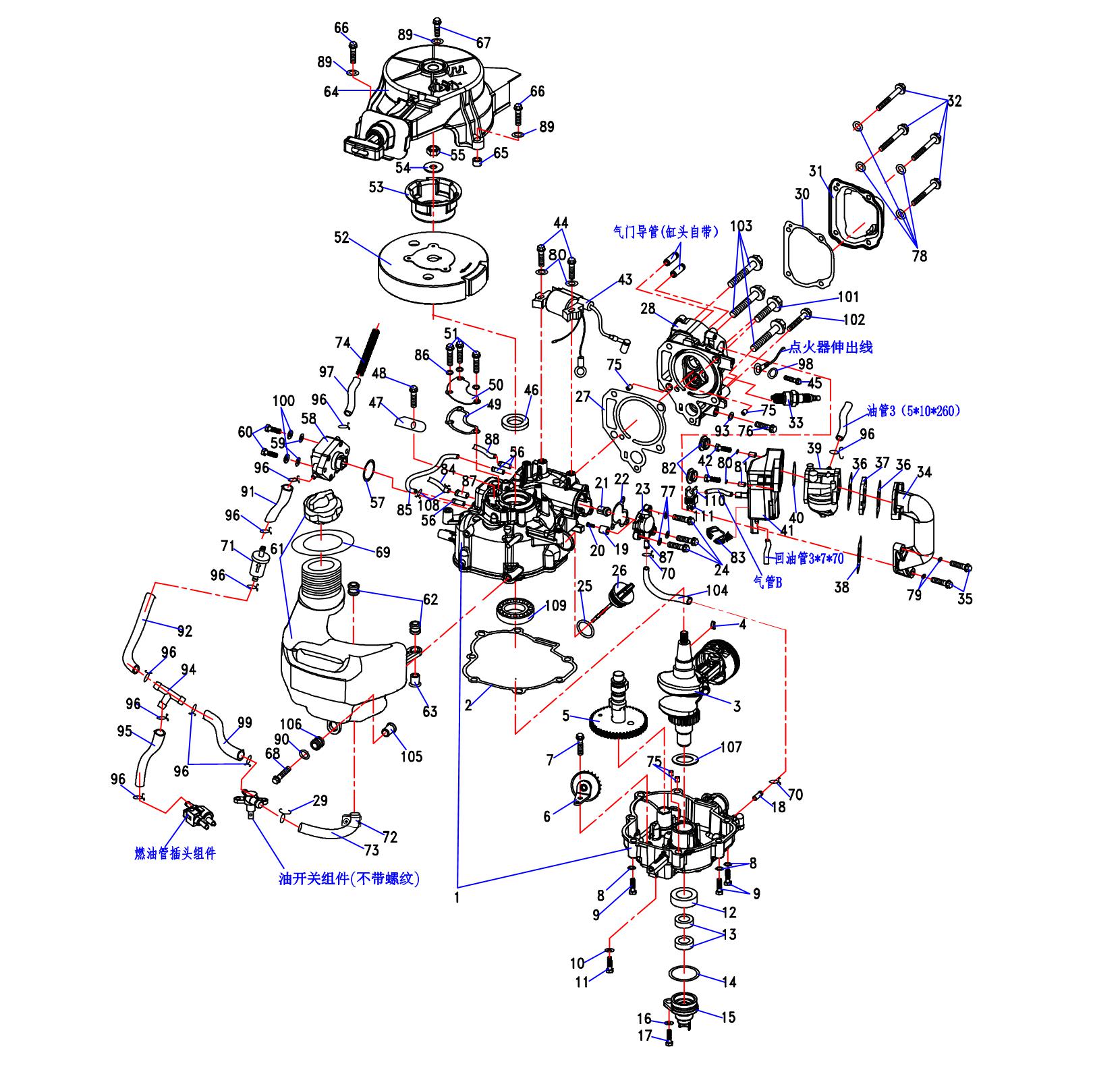

动力部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F4-01.06.01.00曲轴箱体组件Crankcase comp.168D-E1311-02-1S
1F4-01.06.13曲轴箱盖crankcase cover1
2F4-01.06.16箱体密封垫Gasket,crankcase168D-11351-A0-00
3曲柄连杆组件Crankhandle lever Assy.1
4F4-01.06.19曲轴半圆键Woodruff key190280-04M06-00
5F4-01.06.23.00凸轮轴组件Oil seal comp.,Camshaft168D-E2170-00-00
6F4-01.06.14.00甩油齿轮组件Oilgear assy.168D-E3102-00-00
7GB5789六角法兰面螺栓M6*16Bolt195817-06012-00
8GB848平垫8Flat gasket790201-10M02-00
9GB5783六角头螺栓M8*50Bolt797575-08550-00
10F2.5-01.01.00.04铜垫片copper gasket190430-08020-00
11F2.5-01.01.00.02放油螺栓8*20Oil bolt197095-08020-00
12F4-01.06.15.02双唇口油封AOil seal193102-20108-00
13F4-01.06.15.03双唇口油封BOil seal293101-10M14-00
14F4-01.06.15.04壳体O形圈(34.5*2)O ring193210-35537-00
15F4-01.06.15.01油封壳体Casing,oil seal168D-E5396-00-5B
16GB848平垫8Flat gasket190201-10M02-00
17GB5783六角头螺栓M8*20Bolt197095-08020-00
18F4-01.06.03气管接头Joint,Breather pipe1650-24378-00-00
19F9.9-01.03.00.34阳极AAnode16G8-11325-00-00
20GB818十字槽盘头螺钉M5*25Cross recessed countersunk headscrew190149-05M13-00
21F15-01.06.14节温器(60°)Thermostat 60°166M-12411-01-00
22F4-01.06.28节温器密封垫Thermostat seal gasket168D-E2414-A0-00
23F4-01.06.29节温器盖Thermostat cap168D-E2413-00-1S
24GB5783六角头螺栓M6*20Bolt390119-06ME0-00
25F4-01.06.27油标尺O形圈(24*3.5)O-ring193210-24M79-00
26F4-01.06.26油标尺Oil dip-stick168D-E5362-00-00
27F4-01.06.32气缸垫Cylinder gasket167D-11181-A0-00
28F4-01.06.33.01气缸头Cylinder head168D-E1111-10-1S
29管夹φ14hose clip1
30F4-01.06.34缸头罩垫片Gasket168D-E1193-A0-00
31F4-01.06.35缸头罩Cylinder head cover167D-11191-00-00
32GB5783六角头螺栓M6*16Bolt495895-06012-00
33BR6HS(F2.5/F4)火花塞Spark plug1NGK-BR6HS-10- 00
34F4-01.02.02进气歧管Air intake manifold168D-E3641-00-94
35GB5783六角头螺栓M6*25Bolt290105-06M24-00
36F4-01.02.03进气歧管密封垫（进）Air intake manifold gasket(inlet)268D-E3646-A0-00
37F4-01.02.04化油器垫块Carburetor washer block168D-E3647-00-00
38F4-01.02.01进气歧管密封垫（出）Seal Gasket(out),Intake manifold168D-E3645-A0-00
39F4-01.02.05.00化油器组件Carburetor Assy.167D-14301-13-00
40F4-01.02.06.01空滤器O形圈(31*2)O-ring193210-31MJ5-00
41F4-01.02.06.00空滤器组件Air cleaner Assy.168D-E4440-00-00
42GB5783六角头螺栓M6*90Bolt297095-06090-00
43F4-01.03.01.00点火器组件CDI (Charging coil, spark plug lead assy.)1
44GB5783六角头螺栓M6*30Bolt290105-06M24-00
45GB5783六角头螺栓M6*12Bolt195817-06012-00
46F4-01.06.04曲轴油封25*40*5Oil seal,Crankshaft193102-25090-00
47F4-01.06.05阀片Valve gasket168D-E5346-00-00
48GB818十字槽盘头螺钉M4*6Pan head screw with cross recess198503-04006-00
49F4-01.06.06气室垫片Gasket,Chamber168D-E1169-A0-00
50F4-01.06.07气室盖板Cover plate,Chamber1
51GB5783六角头螺栓M6*16Bolt390119-06M80-00
52F4-01.03.03.00飞轮组件Flying wheel Assy.167D-85650-00-00
53F4-01.06.36起动轴套starter shaft sleeve FlyWheel gasket167D-15723-00-00
54F4-01.06.38飞轮垫片190201-105A2-00
55F4-01.06.37飞轮螺母Flywheel nut190170-10M33-00
5615F-01.06.21气管圆接头BJoint,air breather tube36H1-14485-00-00
57F4-01.07.13.11燃油泵O形密封圈O-ring,fuel pump193210-27ME3-00
58F4-01.07.13.00燃油泵组件Fuel pump assy.167D-24410-03-00
59GB97.1平垫6Flat gasket292995-06600-00
60GB5783六角头螺栓M6*30Bolt297075-08025-00
61F4-01.07.01.01油箱Fuel tank168D-F4111-00-00
62F4-01.07.01.04减震垫damper gasket268D-24610-00-00
63F4-01.07.01.02油箱垫管Washer,fuel tank2
64F4-01.01.00.00启动罩组件starter cover Assy.1
65F4-01.01.02启动罩垫管Cushion tube,recoil starter367D-15764-00-00
66GB5783六角头螺栓M6*35Bolt290119-06M80-00
67GB5783六角头螺栓M6*20Bolt197095-06020-00
68GB5783六角头螺栓M6*25Bolt190105-06M24-00
69F4-01.07.01.03油箱减震圈Damper1
70管夹φ9Hose clip2
71F9.9-01.04.03.00燃油滤清器组件Fuel filter Assy.1646-24251-02-00
723.5F-01.04.05.00夹箍组件Clip Assy.1
73F4-01.07.15-Ⅱ油管（共展）Fuel hose1
74F4-01.07.12波纹管ф12* 115wave pipe1
75F4-01.06.12空心定位销Dowel pin490387-06806-00
76GB5783六角头螺栓M8*16Bolt197095-08014-00
77GB848平垫6Flat gasket390201-10M02-00
78GB848平垫6Flat gasket490201-10M02-00
79GB848平垫6Flat gasket290201-10M02-00
80GB848平垫6Flat gasket492995-06600-00
81F4-01.02.06.07垫管Cushion tube2
82F4-01.02.06.06橡胶闷头Rubber plug290480-18M74-00
83F4-01.02.06.05圆型尼龙扣Cables ties1
84F4-01.06.10气管BBreather pipe（B）168D-F4314-00-00
85F4-01.06.09气管ABreather pipe（A）1
86GB848平垫6Flat gasket392995-06600-00
87F4-01.06.03气管接头Joint,Breather pipe2650-24378-00-00
88F4-01.06.08回油管Fuel collection tube190445-07806-00
89GB848平垫6Flat gasket390201-10M02-00
90GB5287平垫6Flat gasket192995-06600-00
91F4-01.07.09油管BFuel hose1
92F6-01.04.00.04油管B(一截为二）Fuel hose1
93F2.5-01.01.00.04铜垫片copper gasket190430-08800-00
94F15-05.00.00.17三通T-branch pipe1
95F6-01.04.00.04油管B(一截为二）Fuel hose1
96管夹φ10Hose clip10
97F4-01.07.16油管3（5*10*260）Fuel hose1
98GB848平垫6Flat gasket192995-06600-00
99油管(5*10*57)Fuel hose1
100GB93弹垫6spring gasket2
101GB5789(10.9)六角法兰面螺栓M8*40Bolt190105-08046-00
102GB5789(10.9)六角法兰面螺栓M6*45Bolt190105-06056-00
103GB5789(10.9)六角法兰面螺栓M8*60Flange bolt390105-08M36-00
104F4-01.06.31节温器水管5*9*185Thermostat hose190445-09807-00
105F15-01.03.00.43垫管Cushion tube190387-06119-00
106F15-02.00.00.32装饰板减震器Damper16A0-82317-00-00
107F4-01.06.22正时齿轮调整垫片adjuster,timing gear190201-266P2-00
108管夹φ7Hose clip2
109F4-01.06.02深沟球轴承6205C3deep groove ball bearing193306-205YD-00
110F4-01.07.10.01管夹AHose clip A1
111F4-01.07.10.02管夹BHose clip B1

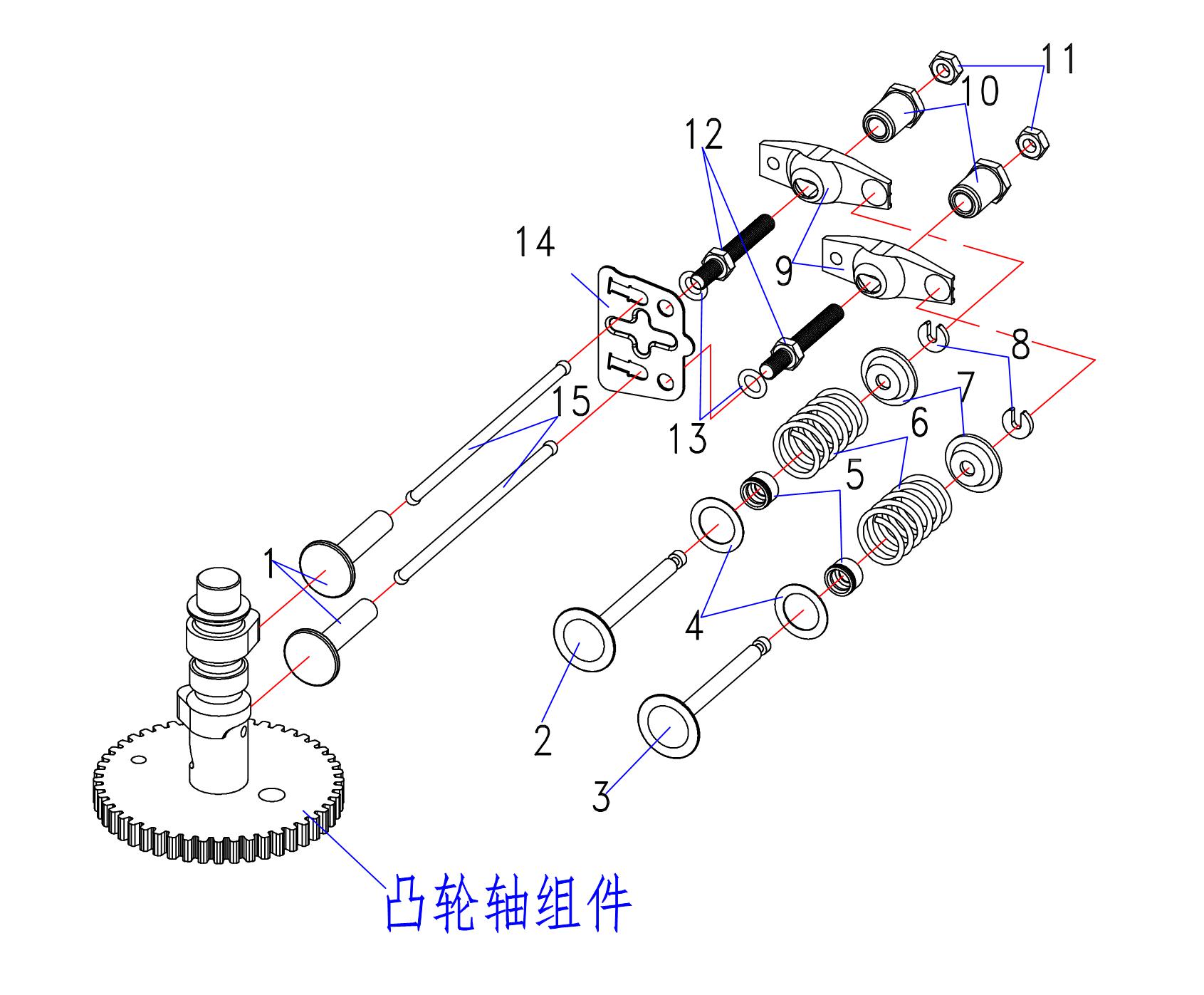

配气系统
配气系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F4-01.06.24气门挺柱Valve tappet2JA9-12153-00-00
2F4-01.06.33.05进气门Intake valve167D-12111-00-00
3F4-01.06.33.06排气门Exhaust valve167D-12121-00-00
4F4-01.06.33.08气门弹簧垫片Spacer,Valve spring268T-12116-00-00
5F4-01.06.33.09气门油封Valve oil seal251Y-12119-00-00
6F4-01.06.33.07气门弹簧Valve spring268D-E2113-00-00
7F4-01.06.33.11气门弹簧座Washer,Valve spring27NJ-12117-00-00
8F4-01.06.33.10气门锁夹valve clamp27NJ-12118-00-00
9F4-01.06.33.14摇臂Rocker arm267D-12151-00-00
10F4-01.06.33.16摇臂球座Rocker arm bolt27FK-12165-00-00
11F4-01.06.33.15六角螺母Bolt27FK-12158-00-00
12F4-01.06.33.13摇臂螺栓Bolt,Rocker arm267D-12157-00-00
13GB848平垫6flat gasket268D-E2155-00-00
14F4-01.06.33.12导向板Deflector167D-12154-00-00
15F4-01.06.25推杆Push rod2

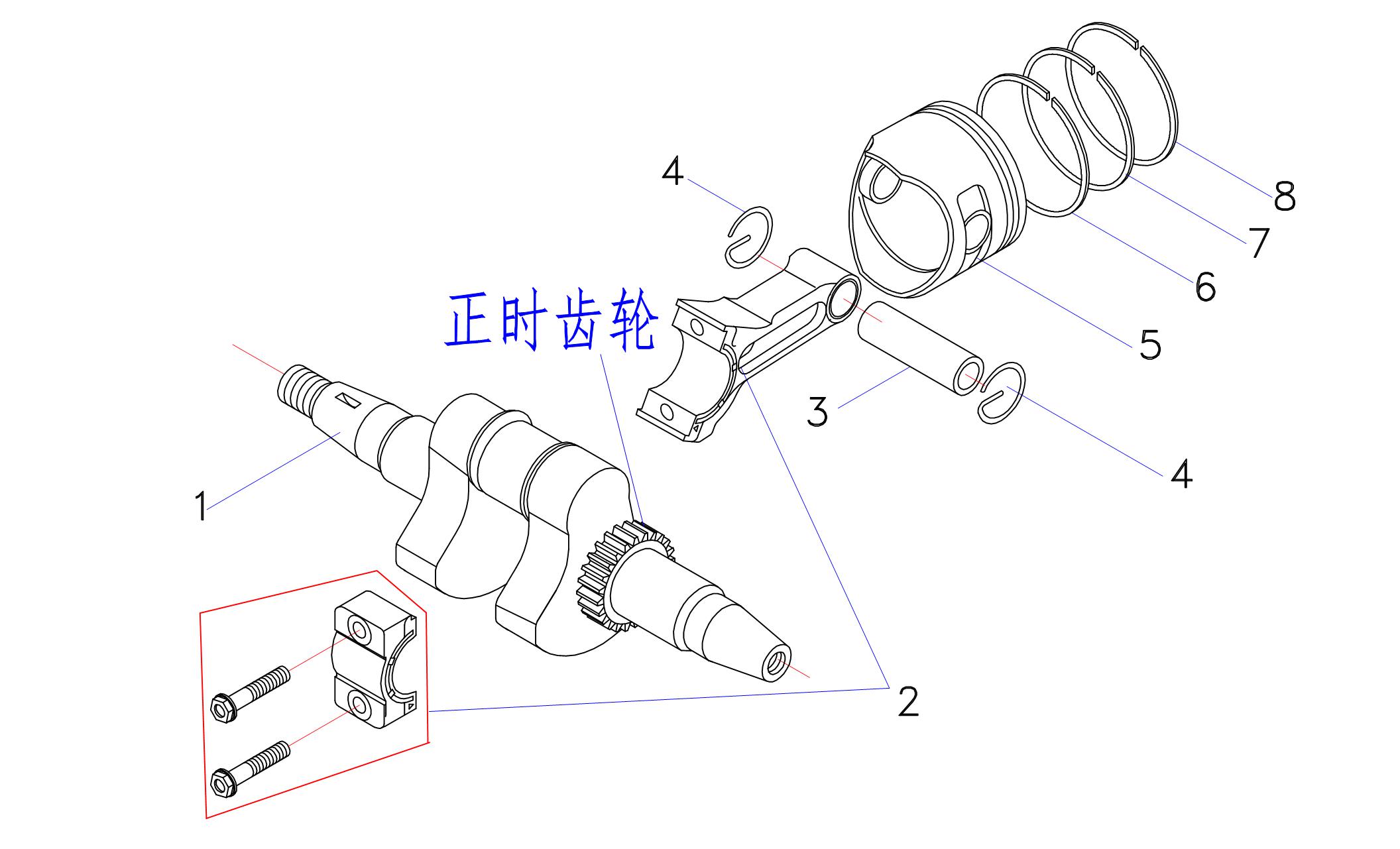

曲轴活塞
曲轴活塞 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F4-01.06.18.00曲轴组件Crankshaft Comp.167D-11400-00-00
2F4-01.06.20.00连杆组件Connecting rod comp.167D-11650-00-00
3F4-01.06.21.02活塞销Pin,piston168D-E1633-00-00
4F4-01.06.21.03活塞销卡簧Circlip293450-14088-00
5F4-01.06.21.01活塞Piston168D-E1631-00-96
6F4-01.06.21.06第三道油环组合3rd ring168D-E1603-00-00
7F4-01.06.21.05第二道收缩环2nd ring1
8F4-01.06.21.04第一道收缩环Top ring1

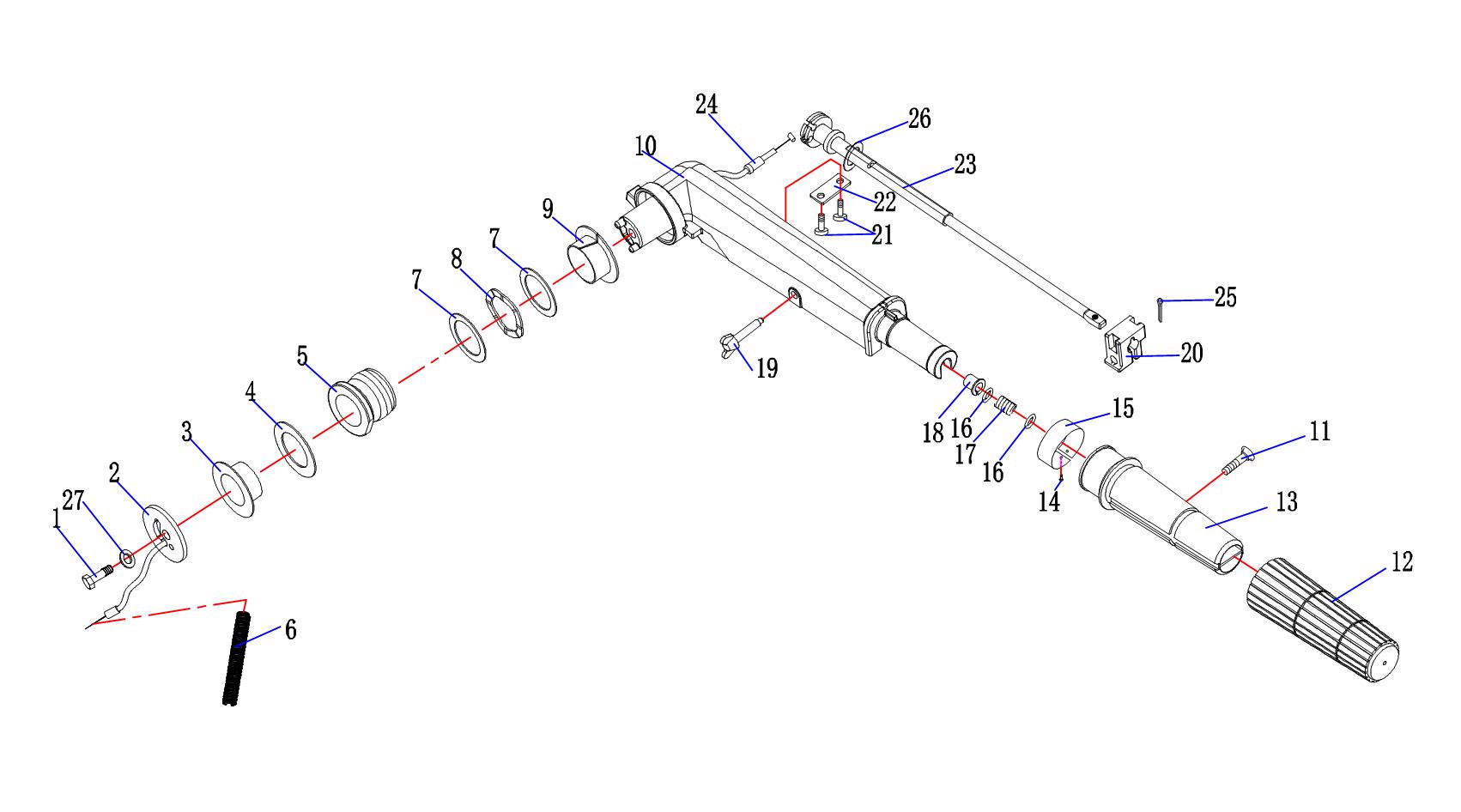

操舵手柄
操舵手柄 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB5783六角头螺栓M8*25Bolt197075-08025-00
2F4-04.03操舵手柄压板pressed Plate,steer handle168D-G2131-01-00
3F4-04.04减磨圈AAntifriction ring A168D-G2172-00-00
4F4-04.05垫片Agasket A168D-G2182-00-00
5F4-04.01.02.00手柄减震环组件Shock ring comp.,handle167D-42129-00-00
6F4-05.15波纹管ф10*155wave pipe1
7F4-04.07垫片BWasher268D-G2181-00-00
8F4-04.08波形垫圈waterform gasket ring169M-G2188-00-00
9F4-04.06减磨圈Bimpair abrasion circle B168D-G2171-00-00
10F4-04.09.01操舵手柄Steering handle168D-G2111-00-4D
11GB820十字槽半沉头螺钉M5*25Cross recessed countersunk head screw190149-05M13-00
1215F-04.07.14手柄橡胶套Rubber sleeve,Handle168D-G2177-10-00
1315F-04.07.13手柄Handle168D-G2119-00-00
14GB845十字槽盘头自攻螺ST2.2*4.Cross recessed pan head tapping screw190269-02M09-00
15F4-04.11-Ⅱ油门标牌Indicator,throttle1
16GB848平垫10Flat gasket290201-10M02-00
1715F-04.07.11弹簧spring190501-23215-00
1815F-04.07.12衬套Bushing190386-08032-00
1915F-04.07.09阻力调整旋钮Adjustor,friction16G1-42125-01-00
2015F-04.07.08锁紧块Latch segment16G1-42126-00-00
21GB818十字槽盘头螺钉M5*12Cross recessed countersunk head screw297885-05012-00
2215F-04.07.07节气门杆压板Pressed Plate.valve168D-G2159-00-00
2315F-04.07.05节气门杆Throttle lever16G1-42138-01-00
24F4-04.10油门钢索组件（共展）Throttle cable168D-F6301-10-00
25GB91开口销1.6*12Cotter pin191490-16010-00
26GB848平垫12Flat gasket190201-10M02-00
27GB848平垫8Flat gasket190201-10M02-00
NoneF4-04.00.00.00操舵手柄部件Tiller Assy.1

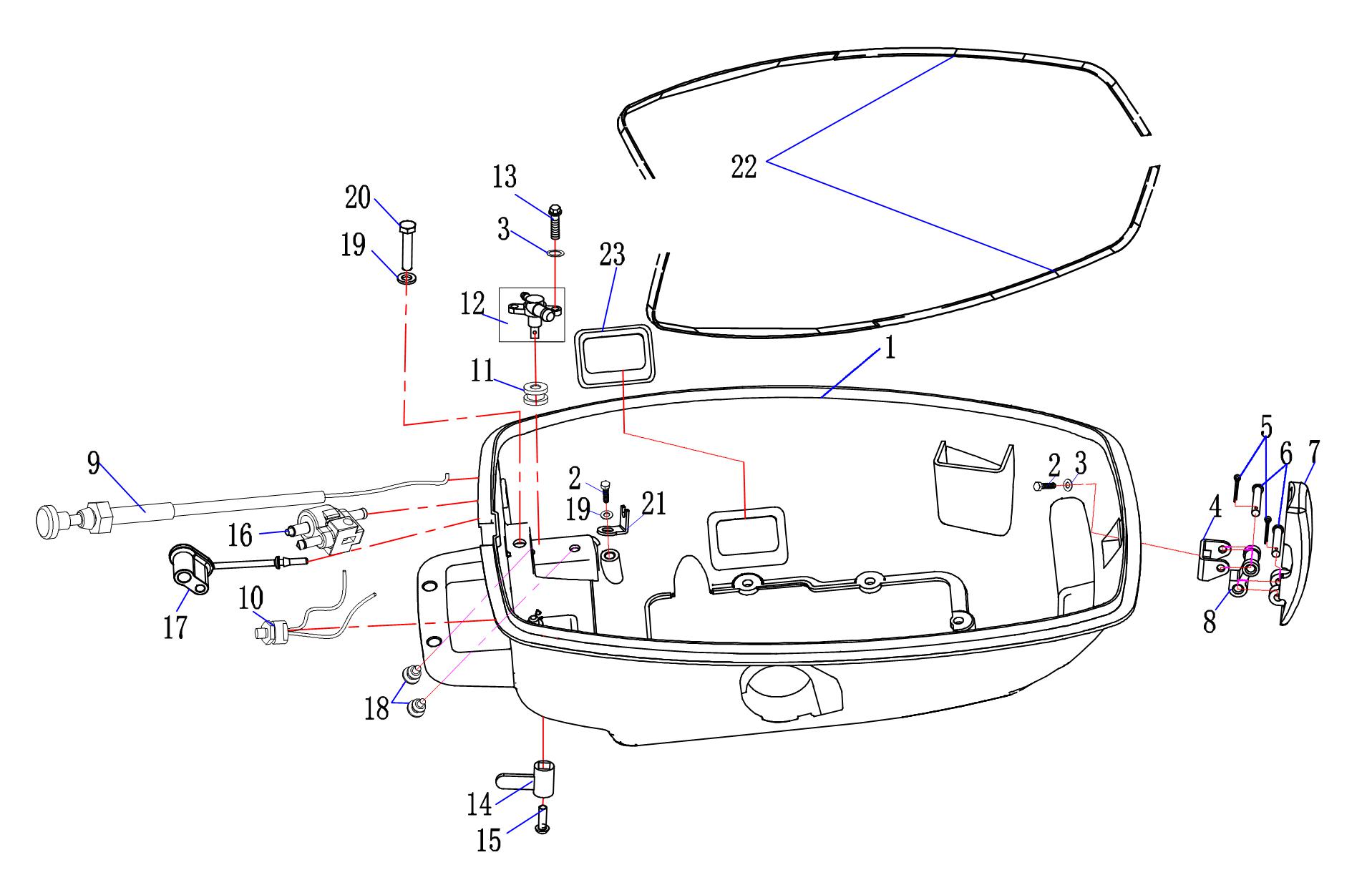

底罩
底罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F4-02.21.01底罩(压铸)(新状态)Bottom cowling1
2GB5783六角头螺栓M6*12Bolt297075-08025-00
3GB97.1平垫6Flat gasket2
4F6-02.03.00.00锁紧手柄支架组件handle bracket1
5GB/T896 4开口挡圈4cotter pin2
6F6-02.00.00.05锁紧手柄转轴handle rotating shaft2
7F6-02.00.00.07锁紧手柄handle1
8F6-02.00.00.06锁紧手柄连接件handle connector1
9F4-02.10-Ⅱ阻风门拉手总成（共展）Pull rod comp.,chock168D-F6330-00-00
1015F-04.07.03急停开关总成emergency stop switches assy167D-82575-00-00
113.5F-07.04减震圈Damper1
12F4-01.07.05.00油开关组件(不带螺纹)Fuel cock comp.167D-24500-00-00
13GB5783 (8.8)六角头螺栓M6*16Bolt1
14F4-01.07.05.01油开关旋柄Fuel cock knob1
15GB818十字槽盘头螺钉M4* 14bolt197885-05012-00
1615F-01.07.01.00燃油管插头组件Fuel hose joint assy.16G1-24304-02-00
17F6-01.04.00.12燃油插头护套Fuel plug cover1
1815F-02.09外接水管橡胶闷头water hose rubber plug2
19GB97.1平垫6Flat gasket2
20GB5783六角头螺栓M6*25bolt197075-08025-00
21F4-01.06.17钢索支架tightwire bracket1
223.5F-Ⅱ-02.01.03密封条(480)sealing strip2
23F4底座橡胶闷头(共展)Rubber plug1

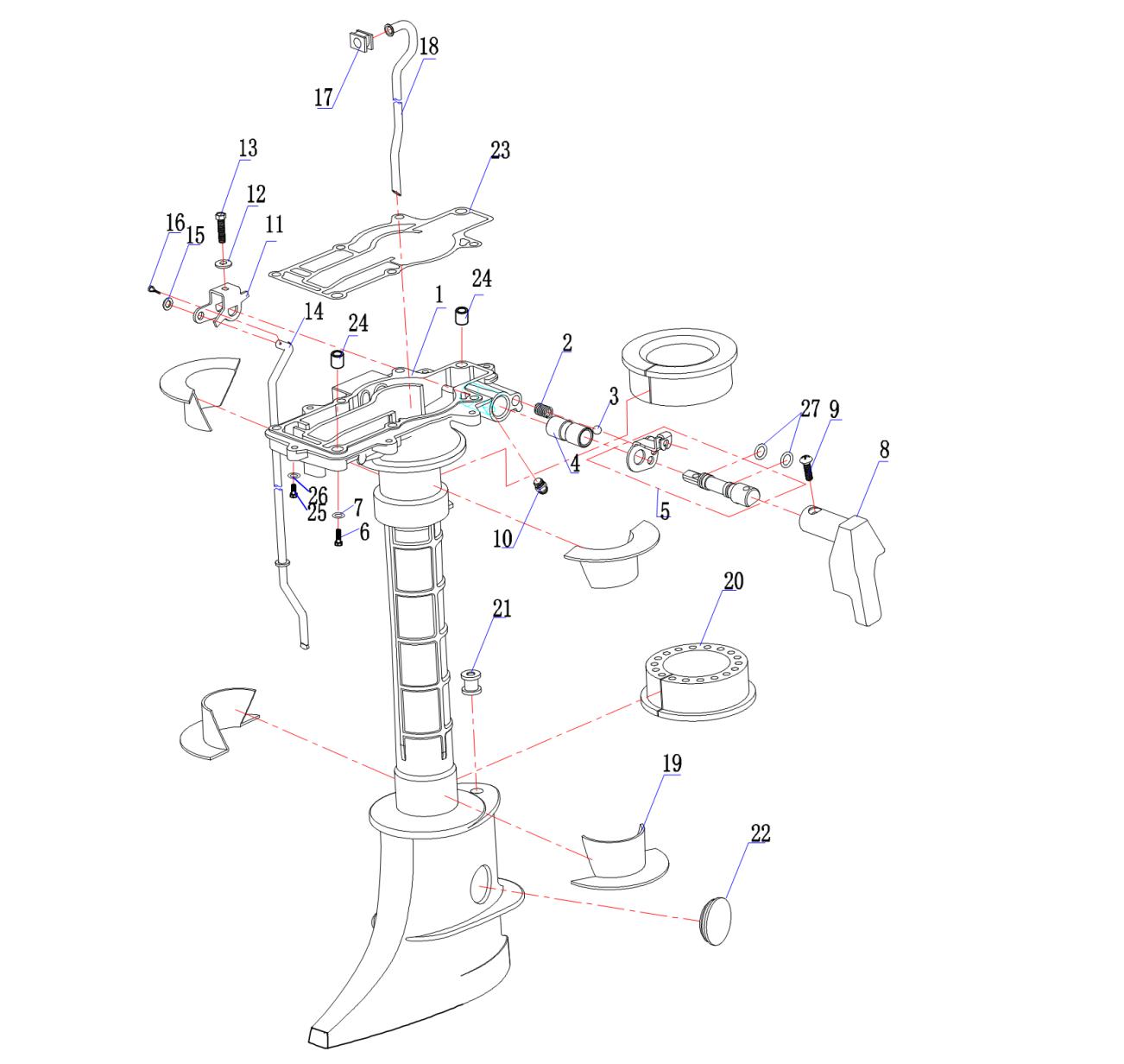

水上分解图
水上分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F4-05.01.01水上装置壳体Upper casing168D-G5111-01-4D
2F4-05.04压簧Compressed spring190501-12802-00
3F4-05.03钢珠steel ball193505-16024-00
4F4-05.01.02档位轴套Shift axis sleeve168D-G4122-01-00
5F4-05.02.00档位拨叉组件Gear shift rod168D-G4119-00-00
6GB5783六角头螺栓M6*35bolt797095-06035-00
7GB848平垫6Flat gasket792995-06600-00
8F4档位手柄(共展）Shift handle1
9GB820十字槽半沉头螺钉M5*20Screw198680-05520-00
10JB7940.1直通式压注油杯M6Oil cup190480-10M13-00
11F4-05.07变档连杆支架Gear shift bracket168D-G4121-00-00
12GB848平垫5Flat gasket192990-05600-00
13GB5783六角头螺栓M5*25Bolt190119-05M04-00
14F4-05.06变档连杆Gear shift lever167D-44143-01-00
15GB848平垫6Flat gasket192990-05600-00
16GB91开口销1.6*12Cotter pin191490-16010-00
17F4-05.13水管上密封圈Seal ring(upper),hose1
18F4-05.12水管(短轴）Hose168D-G4360-00-00
NoneF4-05.12水管(长轴）Hose168D-G4360-00-00
19F4-05.08减震圈衬套Bushing468D-G2549-00-00
20F4-05.09减震圈Damper268D-G2537-00-00
21F4-05.01.03变档凸轮杆密封圈Sealinjg ring193700-06M03-00
22F4-05.01.04水上闷头rubber Plug,upper casing1647-45151-01-00
23F4-06.39密封垫Seal gasket167D-45113-A0-00
24F4-06.27空心定位销Dowel pin290387-06806-00
25GB5783(8.8)六角头螺栓M6*16Bolt6
26GB848平垫6Flat gasket690201-10M02-00
27F4-05.02.03拨叉O形圈(8.6*2)O-ring293210-09350-00

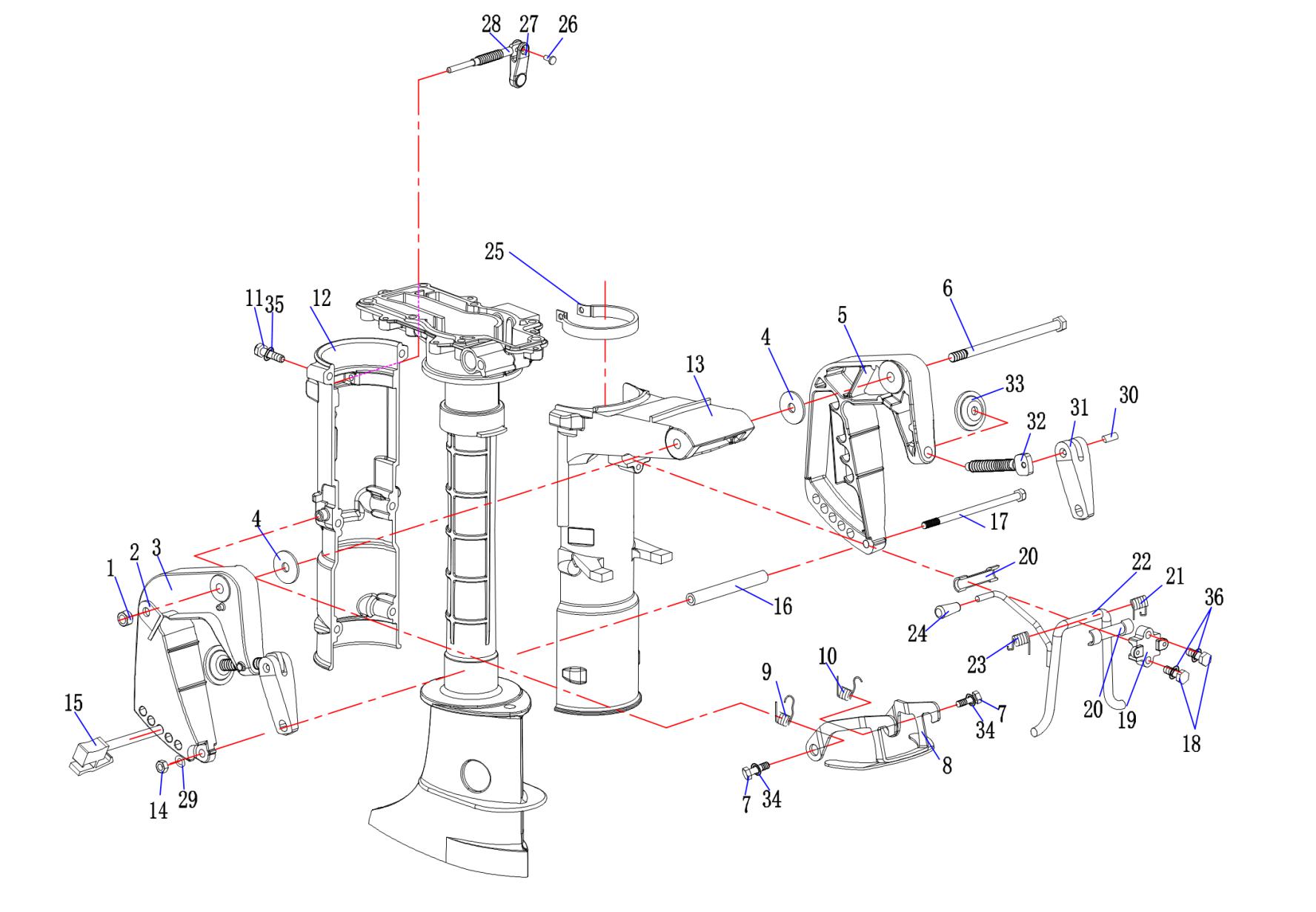

夹紧部位
夹紧部位 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1DIN985六角尼龙锁紧螺母M8190185-08057-00
2F4-03.02孔板Orifice plate168D-G3113-00-00
3F4-03.01.01夹紧托架（左）Clamp bracket(left)16L8-G3112-00-4D
4F4-03.03尼龙垫片Nylon gasket290202-08M58-00
5F4-03.01.02夹紧托架（右）Bracket,Clamp16L8-G3111-01-4D
6GB5783六角头螺栓M8*135Bolt190101-08M07-00
7GB5783六角头螺栓M6*10Bolt295895-06010-00
8F4-03.05.08.00起翘锁紧钩组件Lock Hook Comp.16E0-43614-00-5B
9F4-03.05.08.04锁紧钩扭簧BTension spring,locking hook(B)190508-14M10-00
10F4-03.05.08.03锁紧钩扭簧ATension spring,locking hook(A)190508-14M11-00
11GB5783六角头螺栓M6*35Bolt697095-06035-00
12F4-03.05.04旋转托架盖Cap,swivel bracket168D-G3312-00-4D
13F4-03.05.01旋转托架Bracket,swivel168D-G3311-00-4D
14GB6170六角螺母M6Hexagonal nut1
15F4-03.05.07.00角度限位插销angle stop pin168D-G3160-00-00
16F4-03.04螺栓垫管Cushing tube190387-06M11-00
17GB5783六角头螺栓M6*120Bolt190101-06335-00
18GB5783六角头螺栓M6*20Bolt290119-06ME0-00
19F4-03.05.03调整支架压板Pressed plate,Adjustable bracket16E0-43313-00-4D
20F4-03.05.02.05减磨垫Antifriction pad2620-43189-00-00
21F4-03.05.02.04扭簧BTorsional spring(B)190508-16021-00
22F4-03.05.02.01角度调整支架Adjustable bracket for angle16E0-43181-00-00
23F4-03.05.02.03扭簧ATorsional spring(A)190508-16020-00
24F4-03.05.02.02支架手柄橡胶套Rubber bush,handle holder16E0-43632-00-00
25F4-03.05.05.00锁紧圈组件Lock washer comp.16E0-42528-03-00
26GB875-86扁平半空心铆钉4* 10Rivet190266-04M05-00
27F4-03.05.06.01锁紧手柄Lock handle168D-G2561-01-00
28F4-03.05.06.02锁紧螺杆Lock screw16L5-42529-01-00
29GB97.1平垫6Flat gasket1
30GB1015沉头半空心铆钉4*22Rivet2
3115F-03.05.02.04夹紧手柄intensify handle26L8-G3118-01-00
32F4-03.01.03艉板夹紧螺栓Clamp bolt26E0-43116-01-00
3315F-03.05.02.03夹紧盘Clamp plate2620-43114-00-00
34GB848平垫6Flat gasket292990-06300-00
35GB848平垫6Flat gasket692995-06600-00
36GB97.1平垫6Flat gasket2

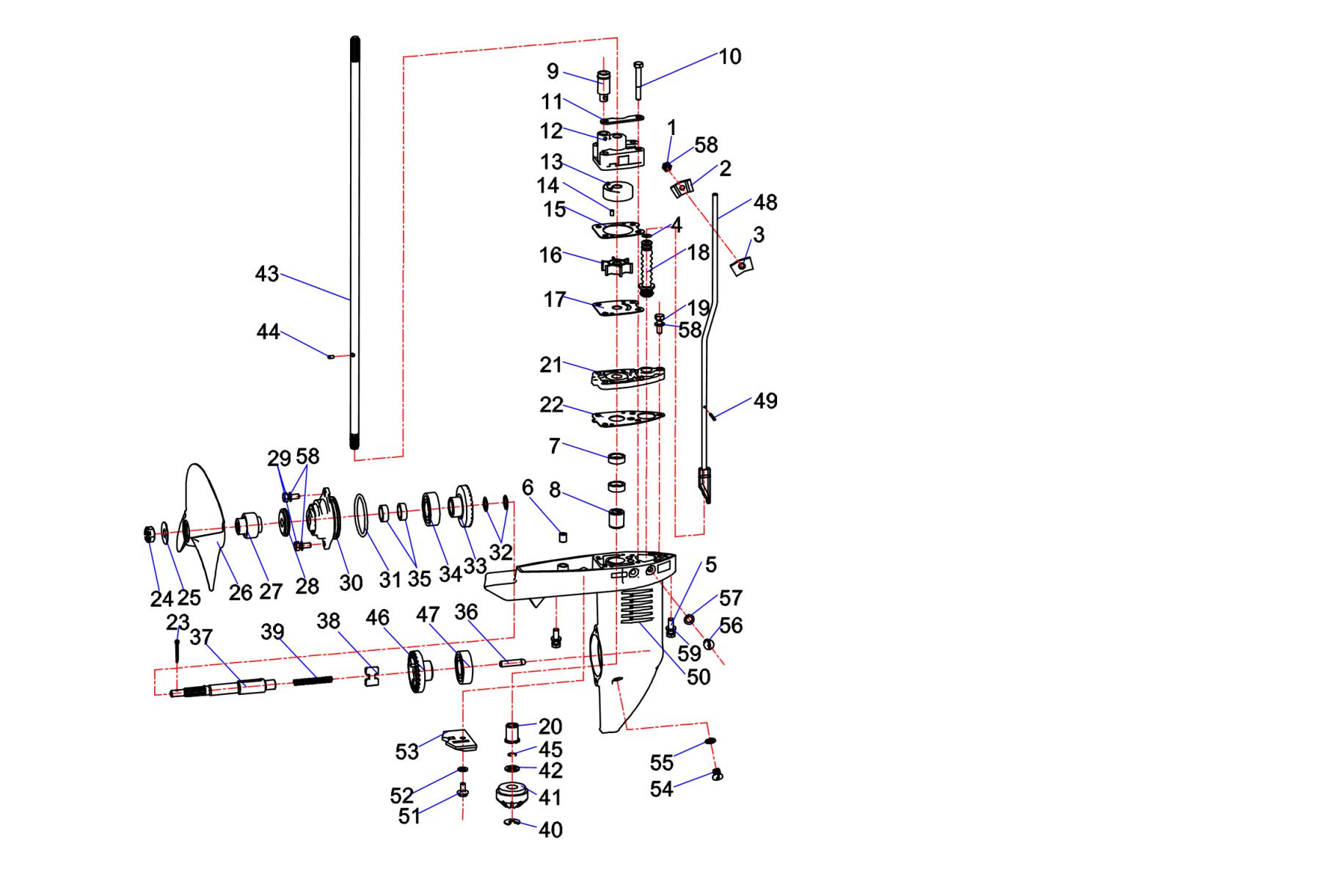

水下分解图
水下分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB5783六角头螺栓M6*20Bolt190119-06ME0-00
2F4-06.22变档凸轮锁紧块AShift cam locker A168D-G4145-00-00
3F4-06.23变档凸轮锁紧块BShift cam locker B168D-G4146-00-00
4F4-06.16橡胶圈弹簧Spring,rubber ring1
5GB5783六角头螺栓M6*40（短轴用）Bolt290119-06M40-00
NoneGB/T5783六角头螺栓M6*165（长轴用Bolt M6*1652
6F4-06.27空心定位销Dowel pin290387-06806-00
7F4-01.06.15.03双唇口油封B10.8*21*7Oil seal293101-10M14-00
8F4-06.01.03含油轴承Oil Bearing16E0-45316-09-00
9F4-06.21.04水管下密封圈Seal ring(lower),hose167D-44366-00-00
10GB/T5783六角头螺栓M6*45Bolt497095-06045-00
11F4-06.20水泵压条Plate,water pump2
12F4-06.21.01水泵壳体Water pump assy.168D-G4311-01-00
13F4-06.21.02水泵内壳Insert, cartridge16E0-44322-02-00
14F4-06.19水泵座定位销Connecting,Top cowling293604-18080-00
15F4-06.18水泵密封垫Gasket,water pump168D-G4315-A0-00
16F4-06.21.03.00水泵叶轮组件Impeller assy.16E0-44352-00-00
17F4-06.17水泵垫板Plate,water pump16E0-44323-00-00
18F4-06.15波形橡胶密封圈Rubber seal strip16L2-44147-00-00
19GB5783六角头螺栓M6*25Bolt190105-06M24-00
20F4-06.01.04带肩含油轴承Oil bearing16E0-45317-09-00
21F4-06.14水泵座base,water pump168D-G5321-00-00
22F4-06.13水泵座密封垫Seal Gasket,water pump seat168D-G5315-A0-00
23GB91开口销(2.5*20)Cotter pin191490-25030-00
24F4-06.26开槽六角螺母Nut1
25GB/T96.1平垫8Flat gasket190201-08M54-00
26F4-06.25.01螺旋桨(7-1/2*7)Propeller16E0-45943-01-EL
NoneF4-06.25.00.00螺旋桨组件(7-1/2*7)Propeller Assy.16E0-45943-01-EL
27F4-06.25.02.00螺旋桨内花键组件Propeller shaft teeth assy.168D-G5987-00-00
28F4-06.24螺旋桨垫块Propeller Pad1
29GB5783(8.8)六角头螺栓M6*16Bolt295895-06016-00
30F4-06.07.01水下壳体盖Cap,lower casing168D-G5361-00-4D
31F4-06.07.03水下壳体O型圈(47.5*3.5)O ring,lower casing193210-48214-00
32F4-06.05垫片Gasket167D-45576-00-00
33F4-06.06倒档齿轮Reverse gear167D-45570-00-00
34F9.9-06.00.00.15轴承6004C2Bearing193306-004YH-00
35F4-06.07.02油封22* 13*7Oil seal293101-13M12-00
36F4-06.04.04变档柱塞Gear shift plunger167D-45635-00-00
37F4-06.04.01螺旋桨轴Propeller shaft168D-G5611-10-00
38F4-06.04.03离合器片Dog clutch167D-45631-01-00
39F4-06.04.02压缩弹簧Compression spring1
40GB896.6开口挡圈6Circlip167D-15744-00-00
41F4-06.08主动轮Driving wheel16E0-45551-00-00
42F4-06.09主动轮调整片adjuster,Driving wheel190201-11M49-00
43F4-06.11.01-S驱动轴(短轴）Drive shaf(S)168D-G5511-10-00
NoneF4-08.04-L驱动轴(长轴）Drive shaf(L)1
44F4-06.11.03驱动轴限位销Stop pin,drive shaft193604-09066-00
45F4-06.11.02弹性挡圈（轴用）Circlip190467-08M01-00
46F4-06.03正档齿轮Forward gear167D-45560-00-00
47F9.9-06.00.00.15轴承6004C2Bearing193306-004YH-00
48F4-06.12.00-S变档凸轮组件(短轴)Gear shift cam lever (S)168D-G4150-10-00
NoneF4-08.06.00-L变档凸轮杆组件(长轴)Gear shift cam lever (L)1
49GB879弹性圆柱销（2.5*20）Pin1
50F4-06.01.01水下壳体Lower casing168D-G5311-00-4D
51GB/T5783六角头螺栓M6*12Bolt192990-06300-00
52GB/T861.1内齿锁紧垫圈6Washer,inner gear1
53F4-06.02阳极BAnode B168D-G5251-00-00
5415F-06.01.03注油口螺塞plug,straight screw190340-08002-00
5515F-06.01.04螺塞密封垫Gasket190430-08800-00
5615F-06.01.03注油口螺塞plug,straight screw290340-08002-00
5715F-06.01.04螺塞密封垫Gasket290430-08800-00
58GB97.1平垫6Flat gasket492990-06300-00
59GB848平垫6Flat gasket290201-10M02-00
NoneGB/T893.1孔用弹性挡圈(长轴用)circlip1
NoneF4-08.02定位套(长轴用)locating sleeve1
NoneF4-08.03橡胶套(长轴用)rubber sleeve1
NoneF4-08.01接长体(长轴用)connecting block1
NoneF4(S)-06.00.00.00水下装配总成（S）Lower Casing Assambly Assy(S)1
NoneF4(L)-06.00.00.00水下装配总成（L）Lower Casing Assambly Assy(L)1
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2GB91 2.5*20开口销cotter pin1
3F4-06.21.03.00水泵叶轮组件impeller Assy.136965-0210
415F-09.01应急启动手柄emergency starting hand1
5F15-08.00.00.00燃油箱总成(12L)fuel case Assy.1
615F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
715F-01.01.22启动绳φ5*2000mmstarter rope1
815F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecte1
9F4-09.00工具包toolkit1
