海的 F60 - F60 前/后置操纵

共 27 个部位，点击零件编码查看详情，或搜索本页零件。

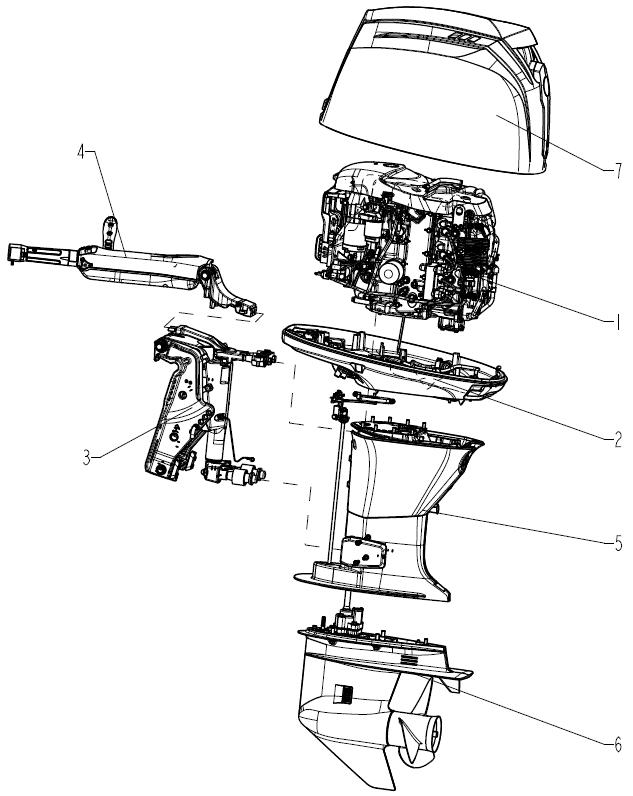

总图
总图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-01-00-00-00发动机总成1
2F60-02-00-00-00底座总成1
3F60-03-00-00-00夹紧装置系统1
4F60-04-00-03-00操舵总成1
5F60-05-00-00-00水上装置系统1
6F60-06-00-00-00水下驱动总成1
7F60-07-00-00-00F60顶罩组件1

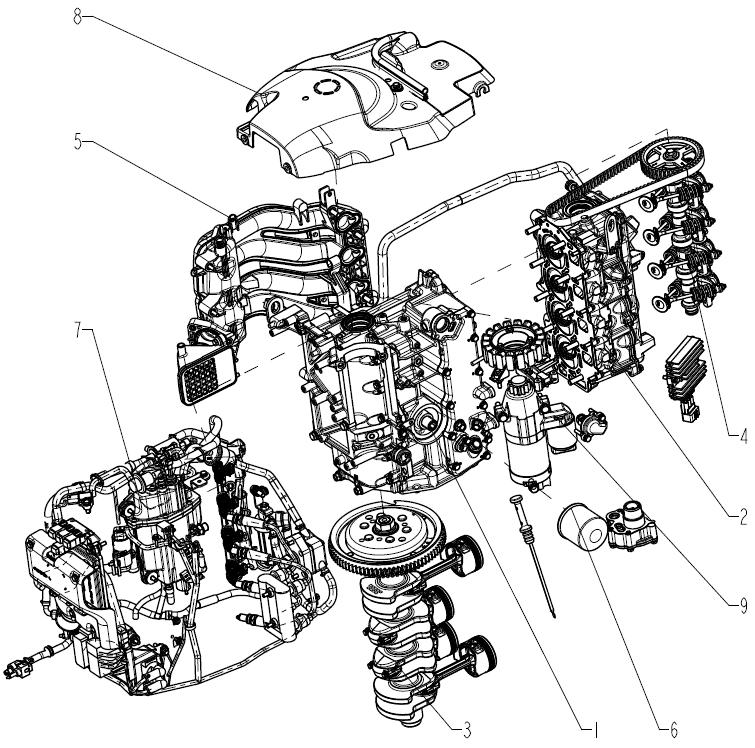

发动机
发动机 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-01.01.00.00箱体系统总成1
2F60-01.02.00.00气缸盖总成1
3F60-01.03.00.00曲柄连杆组件1
4F60-01.04.00.00配气机构总成1
5F60-01.05.00.00进气系统总成1
6F60-01.06.00.00冷却润滑系统1
7F60-01.07.00.00附件燃油电控1
8F60-01.08.00.00启动罩组件1
9F60-01.09.00.00电器系统1

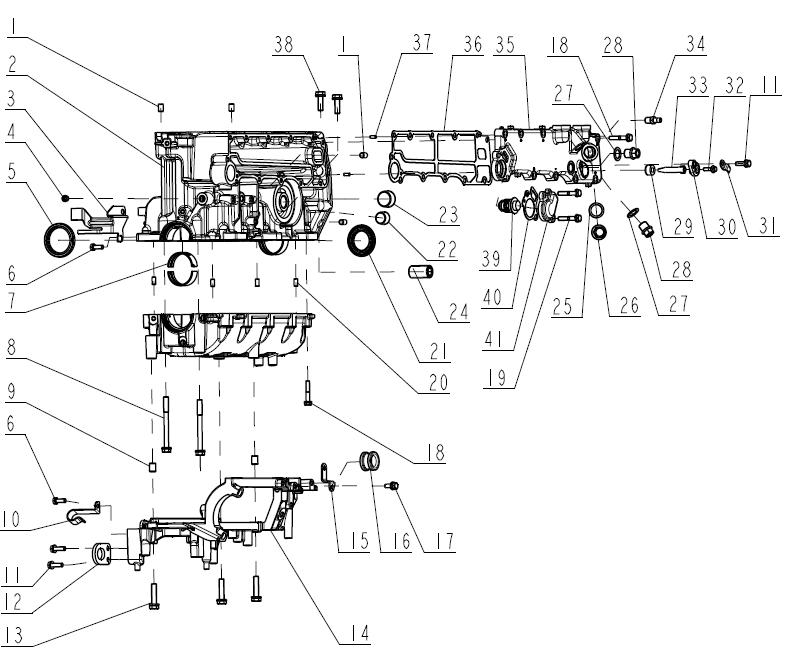

箱体系统
箱体系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-01.06.00.25定位销Positioning pin4
2F60-01.01.01.10箱体合件Cabinet assembly1
3F60-01.01.00.25曲轴箱通风管固定支架2Crankcase ventilation pipe fixing bracket 21
4F15-01.01.00.07堵塞1/8Clogged1
5F60-01.01.02.00前油封Front oil seal1
6GB9074.1 M6*16(8.8)六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
7F60-01.01.00.05主轴瓦(绿色)Main bearing (green)10
NoneF60-01.01.00.05主轴瓦(黑色)Main bearing (black)10
NoneF60-01.01.00.05主轴瓦(红色)Main bearing (red)10
NoneF60-01.01.00.05主轴瓦(黄色)Main bearing (yellow)10
8F60-01.01.05.00主轴承盖螺栓组件Main bearing cover bolt assembly10
9F60-01.01.00.23定位销套Positioning pin sleeve2
10F60-01.01.00.18曲轴箱通风管固定支架1Crankcase ventilation pipe fixing bracket 11
11GB9074.1 M6*20(8.8)六角头螺栓和平垫组件Hex head bolt and flat washer assembly3
12F60-01.01.00.17缸体吊耳Cylinder lifting eye1
13GB9074.1 M8*35(8.8)六角头螺栓和平垫组件Hex head bolt and flat washer assembly3
14F60-01.01.00.16起动电机支架Starting motor bracket1
15F60-01.01.00.19塑料卡扣支架Plastic snap bracket1
16F60-01.01.00.22橡胶护套Rubber sheath1
17GBT9074.17 M6*16六角头螺栓和平垫组件Hex head bolt and flat washer assembly1
18GB9074.1 M6*35(8.8)六角头螺栓和平垫组件Hex head bolt and flat washer assembly20
19GB9074.1 M8*35(8.8)六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
20GBT119.2 D6*12定位销Positioning pin4
21F60-01.01.03.00后油封Rear oil seal1
22F25-01.04.00.38堵塞1/2Clogged 1/21
23F25-01.04.00.39堵塞3/4Clogged 3/41
24F15-01.05.00.01机油滤清器芯轴Mandrel for oil filter1
25F25-01.04.00.03铜垫圈Copper washer1
26F60-01.01.00.11螺栓bolt1
27F25-01.04.00.01垫圈14Washer 142
28F60-01.01.00.13螺栓bolt2
29F60-01.01.00.15橡胶垫Rubber mat1
30F60-01.01.04.02法兰Flange1
31F15-01.01.00.06传导片Conductive sheet1
32GBT16674.1 M5*16六角法兰面螺栓Hexagon flange bolts1
33F60-01.01.04.01阳极anode1
34F60-01.01.00.08回水管接头Return pipe joint1
35F60-01.01.00.06排气侧盖Exhaust side cover1
36F60-01.01.00.07排气侧盖垫片Exhaust side cover gasket1
37GB/T119.2 D4*10定位销Positioning pin2
38GB5789 M8*20(A2-70)六角法兰面螺栓Hexagon flange bolts2
39F15-01.06.14-60 °节温器(60 °)Thermostat (60 °)1
40F60-01.06.01.05节温器盖密封垫Thermostat cover gasket1
41F60-01.06.01.04节温器盖Thermostat cover1

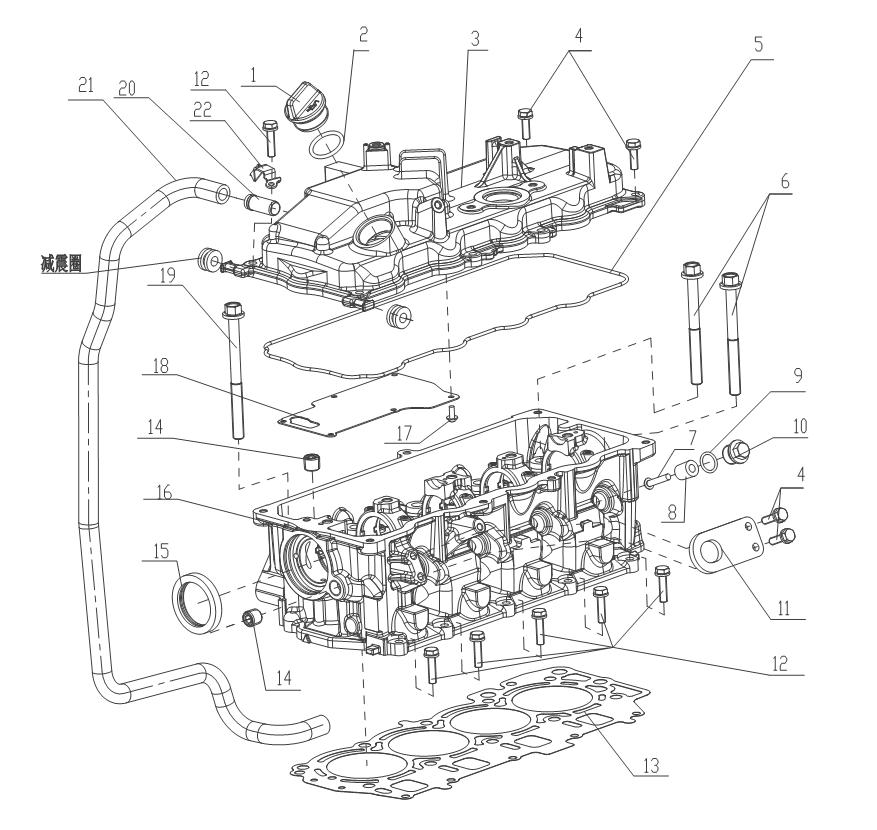

气缸盖
气缸盖 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F15-01.03.00.39加油口螺塞Fuel plug1
2F60-01.02.30.03O形密封圈O-ring1
3F60-01.02.30.01气缸盖罩Cylinder head cover1
4GB9074_1.M6X20.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly8
5F60-01.02.00.06气缸盖罩密封垫Cylinder head cover gasket1
6F60-01.02.00.01缸盖螺栓（总长93mm)Cylinder head bolt (total length 93mm)9
7GB818 M5*25十字槽盘头螺钉Cross recessed pan head screws4
8F9.9-01.03.00.34阳极AAnode A4
9F60-01.02.20.02O形密封圈O-ring4
10F9.9-01.03.00.35六角法兰面螺栓M16*1.5Hexagon flange bolt M16 * 1.54
11F60-01.02.00.05前吊钩Front hook1
12GB9074_1.M6X25.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly6
13F60-01.02.00.04气缸垫Cylinder head gasket1
14F15-01.01.00.08堵塞1/4Clogged 1/45
15F60-01.02.00.02凸轮轴油封Camshaft oil seal1
16F60-01.02.10.00气缸盖组件Cylinder head assembly1
17GB823 M4*10十字槽盘头螺钉Cross recessed pan head screws6
18F60-01.02.30.04盖板Cover1
19F60-01.02.00.01A缸盖螺栓（总长123mm)Cylinder head bolts (total length 123mm)1
20F60-01.02.40.00-EPA曲轴箱通风管组件(EPA）Crankcase vent pipe assembly (EPA)1
21F25-01.05.01.04气嘴Gas nozzle1
22F60-01.07.02.05终滤器支架Final filter bracket1

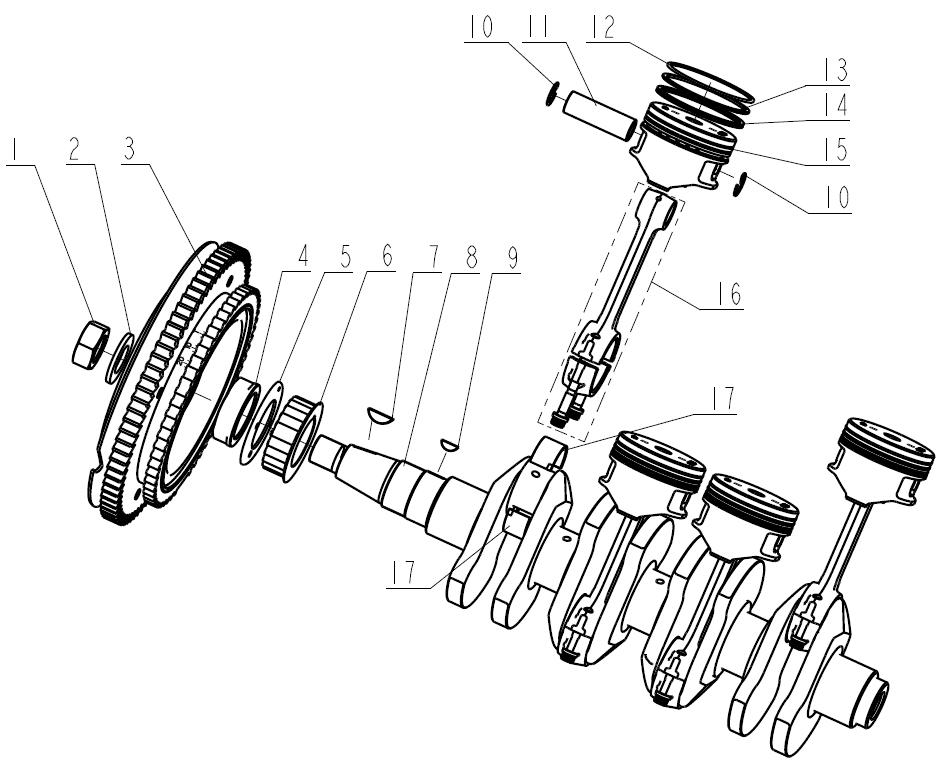

曲轴
曲轴 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
140F-01.03.02飞轮螺母(M20*1.25,对边30)Flywheel nut (M20 * 1.25, opposite side 30)1
2GB97_1.M20平垫Flat pad1
3F60-01.09.01.00飞轮flywheel1
4F25-01.04.00.12主动带轮螺母Driving pulley nut1
5F25-01.04.00.13主动带轮挡圈Active belt ring1
6F25-01.04.00.14主动带轮Driving pulley1
740F-01.03.03半圆键Semicircular key1
8F60-01.03.00.01曲轴Crankshaft1
9GB.T1099半圆键3*5*13Half round key 3 * 5 * 131
10F25-01.04.00.27活塞销卡簧Piston p in circlip8
11F25-01.04.00.26活塞销Piston pin4
12F60-01.03.00.09第一道活塞环The first piston ring4
13F60-01.03.00.11第二道活塞环Second piston ring4
14F60-01.03.01.00组合油环Combination oil ring4
15F60-01.03.00.08活塞piston4
16F60-01.03.02.00连杆组件Connecting rod assembly4
17F60-01.03.00.12连杆瓦（绿色）Connecting rod shoe (green)8
NoneF60-01.03.00.12连杆瓦（黑色）Connecting rod shoe (black)8
NoneF60-01.03.00.12连杆瓦（红色）Connecting rod tile (red)8
NoneF60-01.03.00.12连杆瓦（黄色）Connecting rod shoe (yellow)8
配气机构

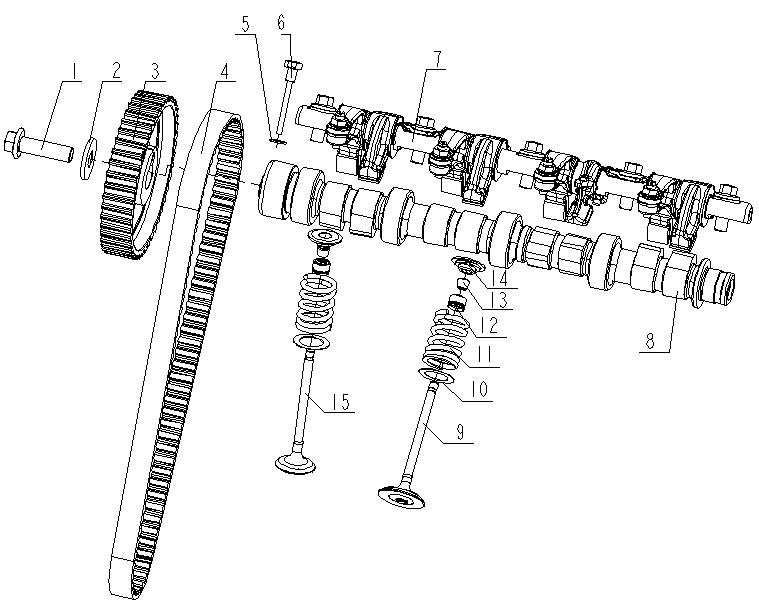

配气机构 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB5787 M10*1.25*35(8.8) (S12)六角法兰面螺栓Hexagon flange bolts1
2GB96.M10平垫Flat pad1
3F25-01.05.00.01从动带轮Driven pulley1
4F25-01.04.00.11同步带Timing belt1
5F25-01.05.00.09铜垫片Copper gasket1
6F25-01.05.00.08凸轮轴限位螺栓M6*1.0Camshaft limit bolt M6 * 1.01
7F60-01.04.10.00摇臂总成Rocker arm assembly1
8F60-01.04.01.00凸轮轴组件Camshaft assembly1
9F60-01.04.00.11进气门Intake valve4
10F60-01.04.00.14气门弹簧下座Valve spring lower seat8
11F25-01.05.00.14气门弹簧Valve spring8
12F15-01.03.00.15气门油封Valve seal8
13F60-01.04.00.16气门锁夹Valve lock clip16
14F60-01.04.00.17气门弹簧上座Valve spring upper seat8
15F60-01.04.00.12排气门Exhaust valve4

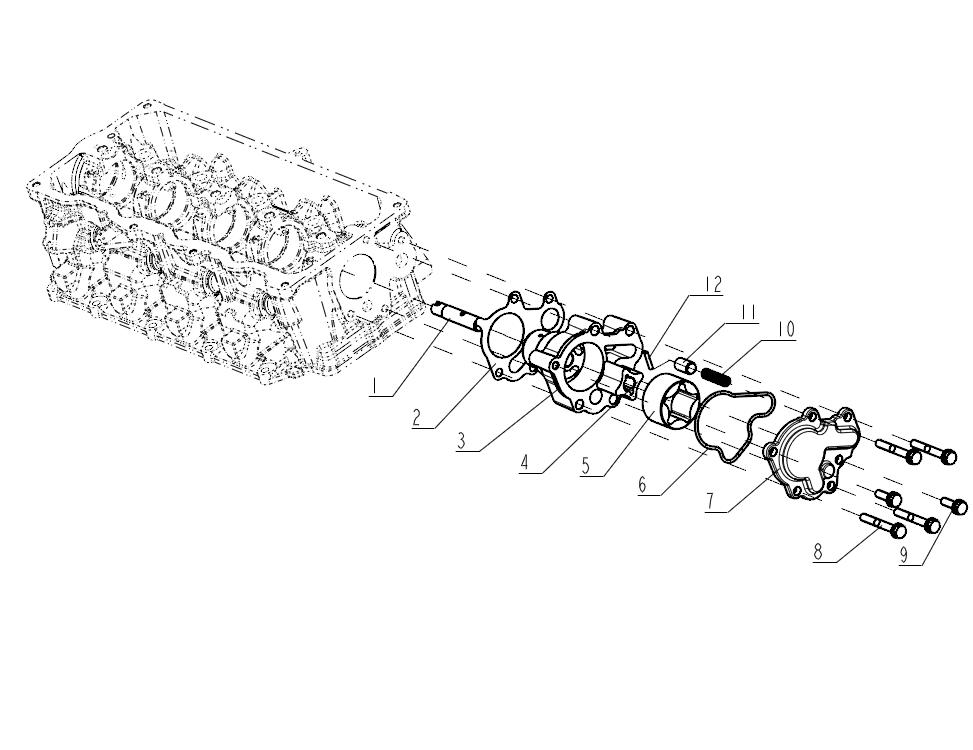

冷却润滑系统 1
冷却润滑系统 1 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-01.06.02.06转子轴Rotor shaft1
2F60-01.06.01.02机油泵密封垫Oil pump gasket1
3F60-01.06.02.09机油泵体Oil pump body1
4F60-01.06.02.05内转子Inner rotor1
5F60-01.06.02.08外转子Outer rotor1
6F60-01.06.02.02橡胶密封圈rubber sealed loop1
7F60-01.06.02.01机油泵盖Oil pump cover1
8GB9074_1.M6X45.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly4
9GB9074_1.M6X20.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
10F25-01.06.01.03溢流阀压簧Pressure spring of relief valve1
11F25-01.06.01.04溢流阀芯Overflow spool1
12F25-01.06.01.07滚针Needle roller1

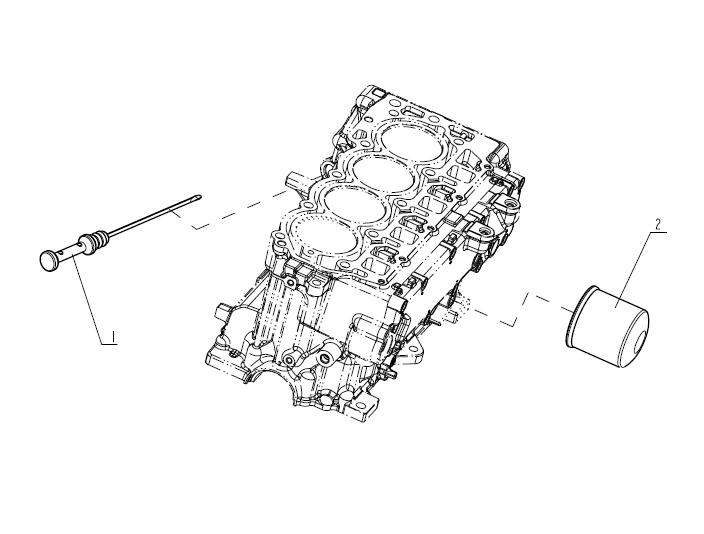

冷却润滑系统 2
冷却润滑系统 2 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-01.06.01.01油标尺组件Oil scale assembly1
2F15-01.05.01.00机油滤清器组件Oil filter assembly1

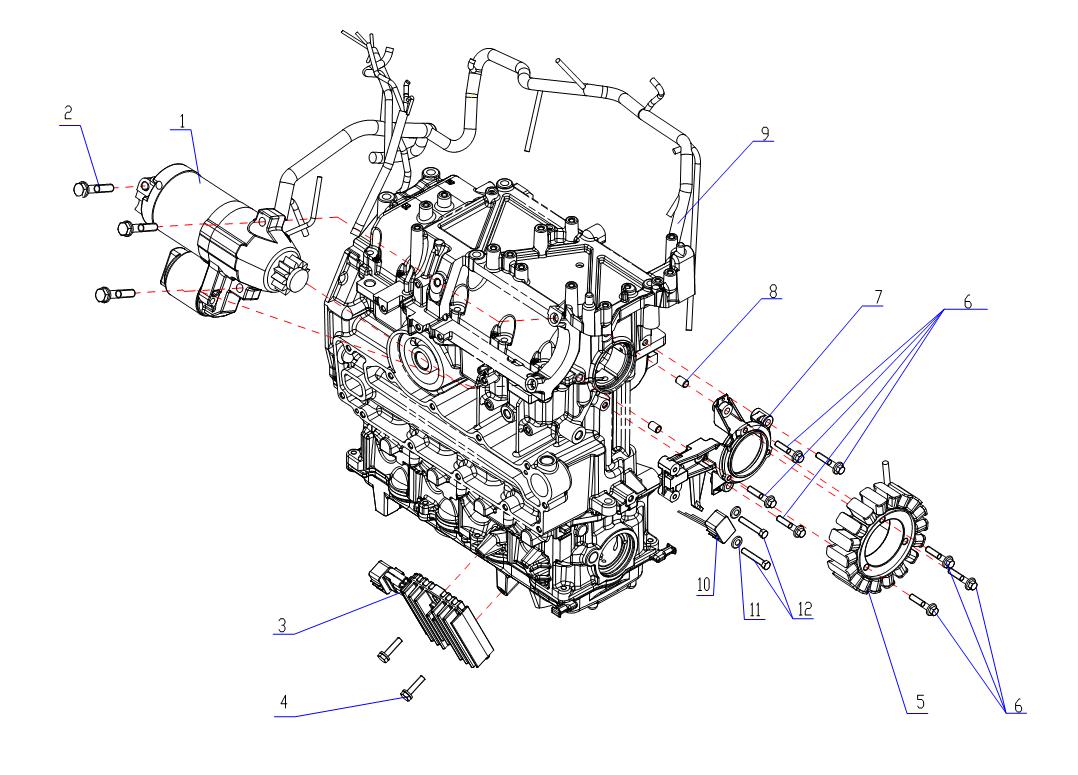

电器系统
电器系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-01.09.00.05起动电机Starting motor1
NoneF60-01.09.00.06起动电机垫片Starting motor shop1
2GB9074_1.M8X45.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly3
3F60-01.09.00.01调压器Regulator1
4GB9074_1.M6X25.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
5F60-01.09.00.04定子线圈Stator coil1
6GB5789.M6X30.8_8六角法兰面螺栓Hexagon flange bolts7
7F60-01.09.00.02充电线圈支架Charging coil bracket1
8F60-01.09.00.03充电线圈支架定位销套Charging coil bracket positioning pin sleeve2
9F60-01.07.14.00总线束（不拆）Bus bundle (not disassembled)1
NoneF60-01.07.14.20总线束（带自锁插件）Bus bundle (with self-locking plug-in)1
10F25-01.02.00.02触发器trigger1
11GB97.1 M5平垫Flat pad2
12GB5783 M5*20六角头螺栓Hexagon head bolt2

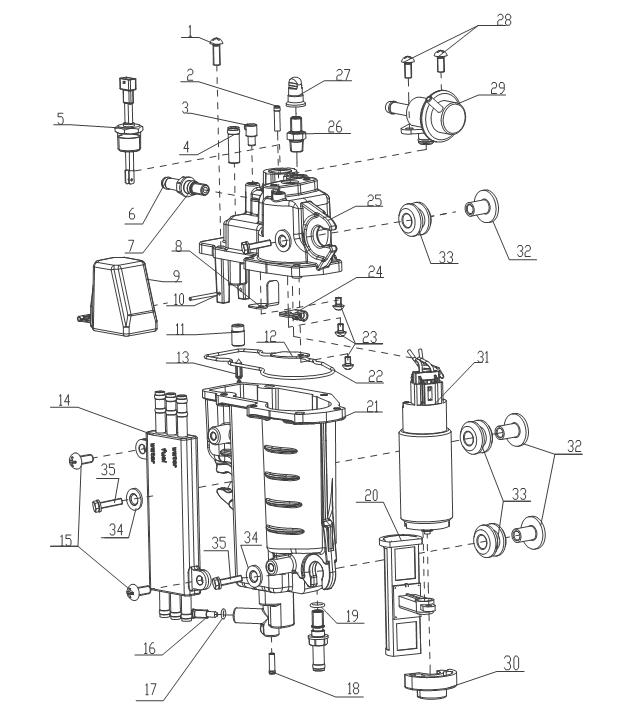

燃油供给系统 1
燃油供给系统 1 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB818 M5X16十字槽盘头螺钉Cross recessed pan head screws6
2F60-01.07.03.16管接头2Pipe connector 21
3F60-01.07.03.15管接头1Fitting 11
4F60-01.07.03.14油室进油口接头Oil inlet connector1
5F60-01.07.03.21油泵密封连接件Oil pump seal connection1
6F60-01.07.03.06管接头3Pipe joint 32
7F60-01.07.03.08管接头3O形圈Pipe coupling 3O ring1
8F60-01.07.03.11挡板2Bezel 21
9F60-01.07.03.05浮子组件Float assembly1
10F60-01.07.03.23浮子销Float pin1
11F60-01.07.03.24阀针座Valve seat1
12F60-01.07.03.10挡板1Bezel 11
13F60-01.07.03.25阀针Valve needle1
14F60-01.07.06.00冷凝器总成Condenser assembly1
15GB818.M6X15十字槽盘头螺钉Cross recessed pan head screws2
16F60-01.07.03.18放油螺塞Oil drain plug1
17F60-01.07.03.19放油螺塞O形圈Oil drain plug O-ring1
18F60-01.07.03.29油室卸油口Oil chamber discharge port1
19F60-01.07.03.09油室接冷凝器接头O形圈O-ring for oil chamber to condenser connector1
20F60-01.07.03.03腔内燃油泵滤网In-cavity fuel pump filter1
21F60-01.07.03.02下壳体Lower case1
22F60-01.07.03.26密封圈Sealing ring1
23GB818.M4X6十字槽盘头螺钉Cross recessed pan head screws3
24F4-11.12.31线卡Line card1
25F60-01.07.03.01上壳体Upper shell1
26F25EI-01.03.06.00排气阀组件Exhaust valve assembly1
27F60-01.07.03.13帽套Cap1
28GB818.M5X12十字槽盘头螺钉Cross recessed pan head screws2
29F60-01.07.00.19调压阀Pressure regulator1
30F60-01.07.03.27减震垫Cushion1
31F60-01.07.03.04腔内燃油泵In-cavity fuel pump1
32F60-01.07.03.07油室安装垫Oil chamber mounting pad3
33F60-01.07.03.20油室安装垫圈Oil room installation washer3
34GB96 M6平垫Flat pad3
35GB5787 M6*30六角法兰面螺栓Hexagon flange bolts3

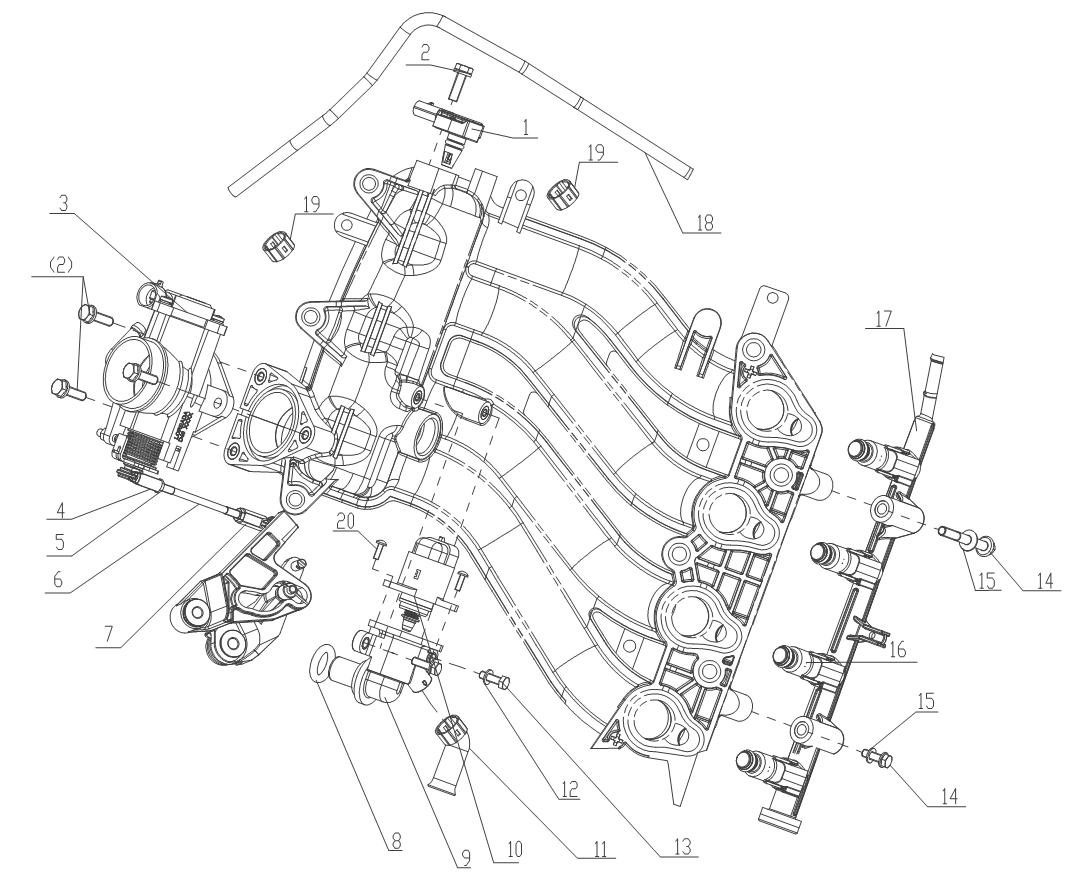

燃油供给系统 2
燃油供给系统 2 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-01.07.00.03进气温度压力传感器Intake air temperature and pressure sensor1
2GB9074_1.M6X20.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly1
3F60-01.07.00.05节气门（口径Φ33）Throttle1
415F-01.03.12连杆接头Connecting rod connector2
5GB6172.1 M5六角薄螺母Hexagon thin nut2
6F60-01.07.08.05节气门金属连杆Throttle valve metal connecting rod1
730F-01.05.00.03正时调整连杆接头Timing adjustment connecting rod joint1
8GB/T3452.1 16*4.5O形圈O-ring1
9F60-01.07.05.02补气阀安装座Gas valve mounting seat1
10F60-01.07.05.03补气阀步进电机Gas valve stepping motor1
11F60-01.07.05.01补气阀圆管Filling valve round tube1
12GB97.1 M5平垫Flat pad2
13GB5783 M5*16 8_8六角头螺栓Hexagon head bolt2
14GB5789.M6X50.8_8六角法兰面螺栓Hexagon flange bolts2
15GB96 M6平垫Flat pad1
16F25EI-01.03.01.00喷油器Fuel injector4
17F60-01.07.04.10燃油轨Fuel rail1
18F60-01.07.00.06-EPA节气门管(EPA)(415mm)Throttle valve (EPA) (415mm)1
19F60-01.07.14.03箭头形扎线带Arrow cable tie2
20GB818 M4*8十字槽盘头螺钉Cross recessed pan head screws2

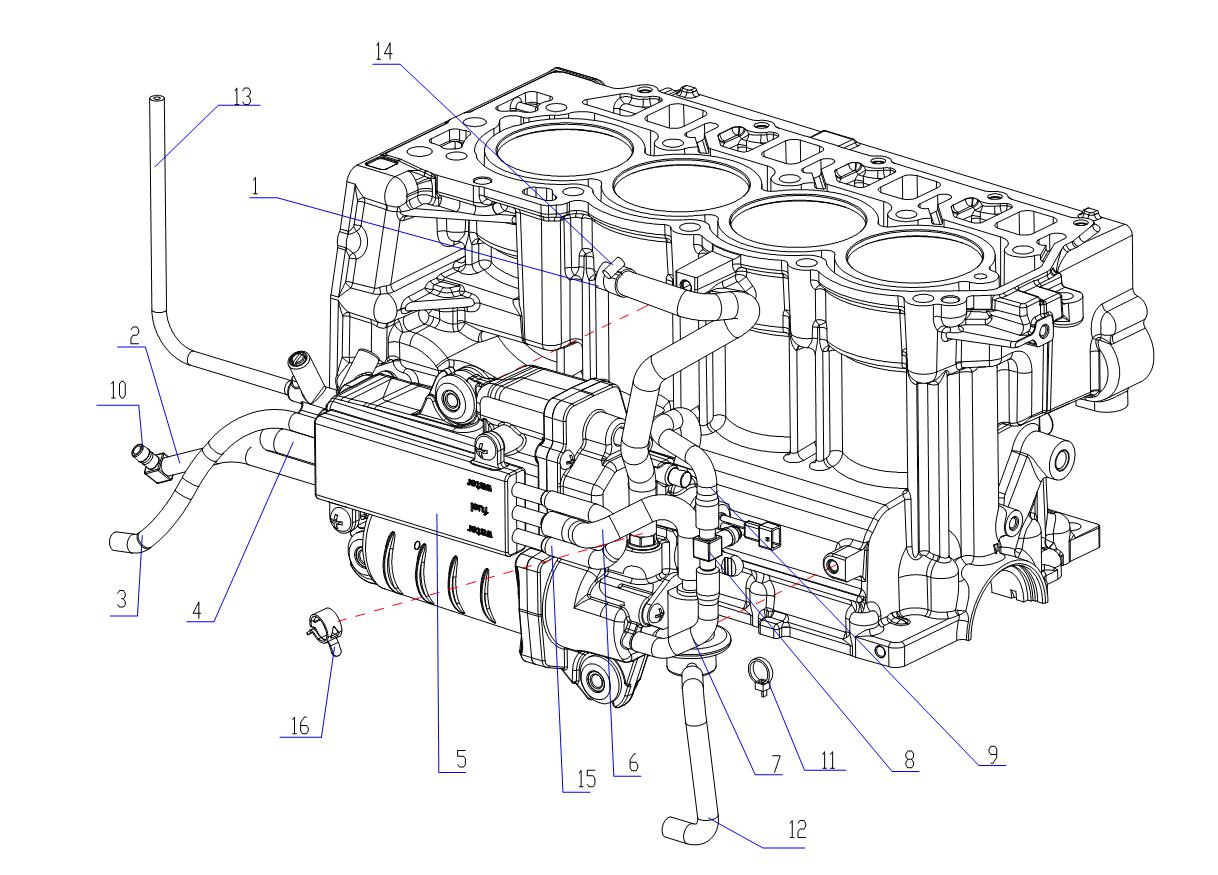

燃油供给系统 3
燃油供给系统 3 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-01.07.04.03-EPA燃油轨连接管（EPA)Fuel rail connection pipe (EPA)1
2F60-01.07.06.07冷凝管进水管Condensate inlet pipe1
3F60-01.07.06.05冷凝管出水管Condensate outlet pipe1
4F60-01.07.06.04-EPA冷凝管出油管(EPA)Condenser pipe outlet pipe (EPA)1
5F60-01.07.06.00冷凝器总成Condenser assembly1
6F60-01.07.00.27-EPA调压阀冷凝管(EPA)Pressure Regulator Condenser (EPA)1
7F60-01.07.00.22-EPA三通管1(EPA)（3*7*80)Tee 1 (EPA) (3 * 7 * 80)1
8F60-01.07.00.21三通管Tee1
9F60-01.07.00.23-EPA三通管2(EPA) (3*7*130)Tee 2 (EPA) (3 * 7 * 130)1
10F60-01.07.00.30直角两通Right angle two way1
114*150扎带（黑色）Cable tie (black)25
12F60-01.07.00.20调压阀歧管连接管Manifold connecting pipe of pressure regulat1
13F60-01.07.03.28-EPA放油管(EPA)(200mm)Oil drain pipe (EPA) (200mm)2
14Φ 14.5单耳无极卡箍Single ear step less clamp1
15F60-01.07.06.06冷凝管水管Condensate water pipe1
15F25EI-01.03.00.05日式夹箍Φ12.5Japanese clamp Φ 12.51

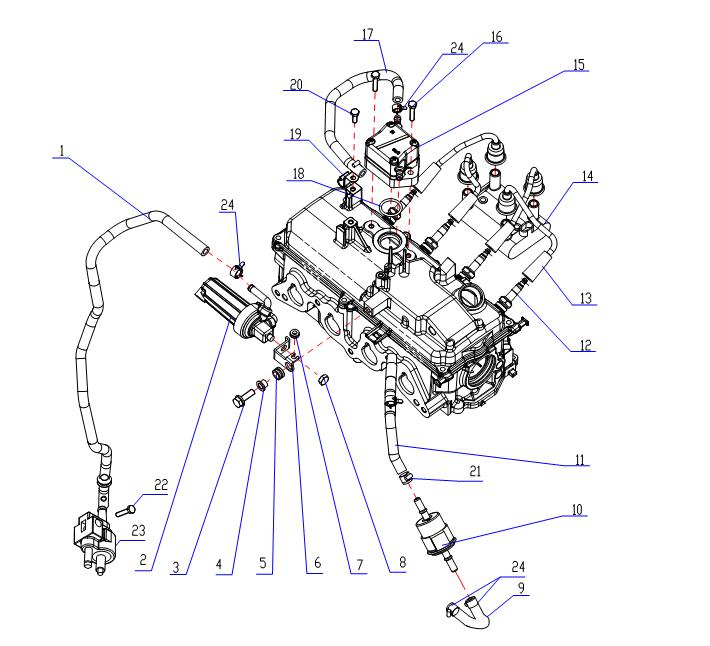

燃油供给系统 4
燃油供给系统 4 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-01.07.00.35-EPA总燃油进油管进油长管(EPA)Main fuel inlet pipe inlet long pipe (EPA)1
2F60-01.07.01.01燃油滤清器Fuel Filter1
3GB9074_1.M8X25.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly1
4F60-01.07.01.06燃油滤清器垫脚Fuel filter feet1
5F60-01.07.01.04燃油滤清器减震垫2Fuel filter cushion 21
6F60-01.07.01.05燃油滤清器支架Fuel filter bracket1
7F60-01.07.01.03燃油过滤器减震垫1Fuel filter cushion 11
8GB6170 M8六角螺母Hex nuts1
9F60-01.07.02.01-EPA油室连柱塞泵管(EPA)Oil chamber with plunger pump tubing (EPA)1
10F25EI-01.03.02.00终滤器组件Final filter assembly1
11F60-01.07.02.04-EPA柱塞泵连油室短管(EPA)Plunger pump with short oil chamber (EPA)1
12DPR6EB.9火花塞Spark plug4
13F60-01.07.14.12高压线组件（包含4根）High-voltage line components (including 4)1
14F60-01.07.00.16点火线圈Ignition coils1
15F60-01.07.00.02燃油泵Fuel pump1
16GB5789 M6*28 8.8六角法兰面螺栓Hexagon flange bolts2
17F60-01.07.01.02-EPA滤清器柱塞泵连接管 （EPA) (295mm)Filter plunger pump connection pipe (EPA) (295mm)1
18F60-01.07.05.04柱塞泵O形圈Piston pump O-ring1
19F60-02.00.01.04线束支架2Harness bracket 21
20GB9074.1 M6*16(8.8)六角头螺栓和平垫组件Hex head bolt and flat washer assembly1
21Φ 14.5单耳无极卡箍Single ear step less clamp1
22GB9074.1 M6 *20 8.8螺栓和垫圈组合件Bolt and washer assembly1
2315F-01.07.01.00燃油管插头组件Fuel pipe plug assembly1
24F25EI-01.03.00.05日式夹箍Φ12.5Japanese clamp Φ 12.56
燃油供给系统 5

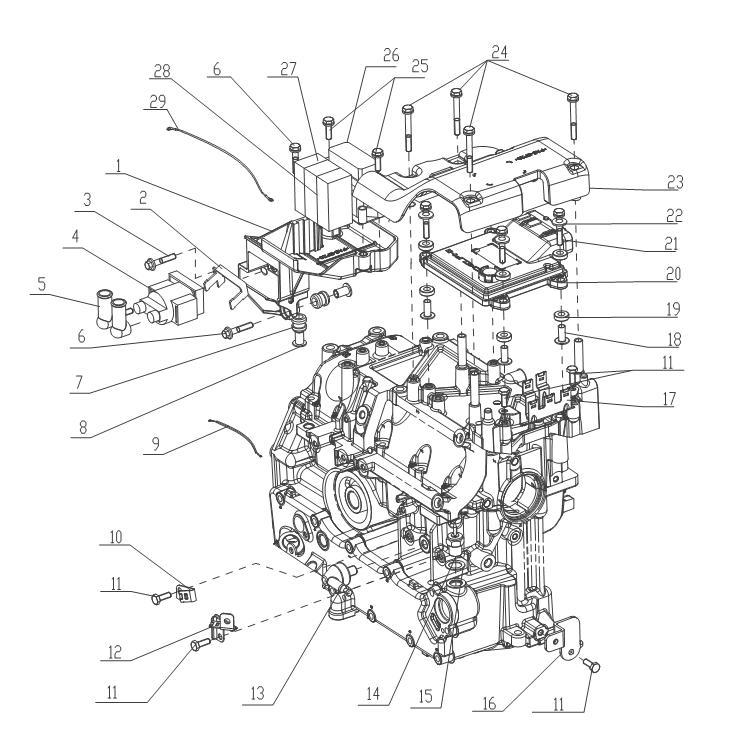

燃油供给系统 5 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-01.07.07.01总线束底座Bus Bundle Base1
2F25E-01.02.00.12继电器支架Relay bracket1
3GB5787 M6*12(8.8)六角法兰面螺栓Hexagon flange bolts1
4F25E-01.02.00.12继电器组件(电起动)（力Relay assembly (electric start) (Lihua1
5DQDF15-00.03.03橡胶护套ARubber sheath A5
6GB5789 M6X30 8.8六角法兰面螺栓Hexagon flange bolts2
7F60-01.05.02.11减震垫Cushion2
8F60-01.05.02.12衬套bushing2
9F9.9E-01.06.00.25连接导线Connecting wire1
10F60-01.07.14.02总线束支架2Bus bundle bracket 21
11GB9074_1.M6X16.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly5
12F60-01.07.14.01总线束支架1Bus bundle bracket 11
13F60-01.01.00.26机油压力报警器Oil pressure alarm1
14F25-01.02.12.00温控传感器组件Temperature control sensor assembly1
15F25-01.04.00.01垫圈14Washer 141
16F60-01.07.00.31起动罩盖固定支架Start cover fixing bracket1
17F60-01.07.00.42保险丝支架Fuse holder1
18F60-01.07.00.10ECM金属脚垫ECM metal foot pad4
19F60-01.07.00.09ECM脚垫ECM foot pad8
20F60-01.07.00.08ECMECM1
21GB5783 M6*35（A2-70）六角头螺栓（SUS304不锈Hexagon flange bolts4
22GB96 M5平垫Flat pad4
23F60-01.07.09.00ECM罩盖组装ECM cover assembly1
24GB9074_1.M6X50.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly4
25GB9074_1.M6X20.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
2660FET-01.02.15.00起翘电机继电器组件Lifting motor relay assembly1
27F25EI-01.02.11.00四引脚控制继电器Four-pin control relay2
28F25EI-01.02.12.00五引脚控制继电器Five-pin control relay1
2940FE-01.03.2840F起翘继电器正极电源线40F Lifting relay positive power cord1
节气门摇臂

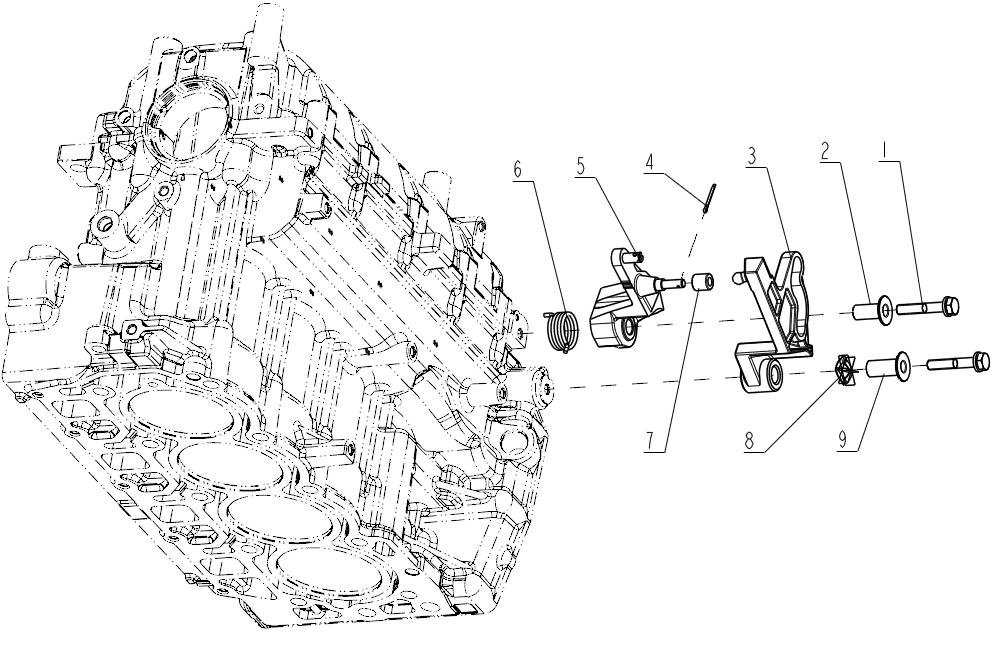

节气门摇臂 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB9074_1.M6X35.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
2F60-01.07.08.09衬套2Bush21
3F60-01.07.08.01节气门摇臂1Throttle rocker arm 11
4GB91 1.6*16开口销Cotter pin1
5F60-01.07.08.15节气门摇臂2组件Throttle rocker arm 2 components1
6F60-01.07.08.10扭力弹簧Torsion spring1
7F60-01.07.08.07摇臂轴套Rocker sleeve1
860F-01.05.00.07波形弹性垫圈Wave elastic washer1
9F60-01.07.08.08衬套1Bush11

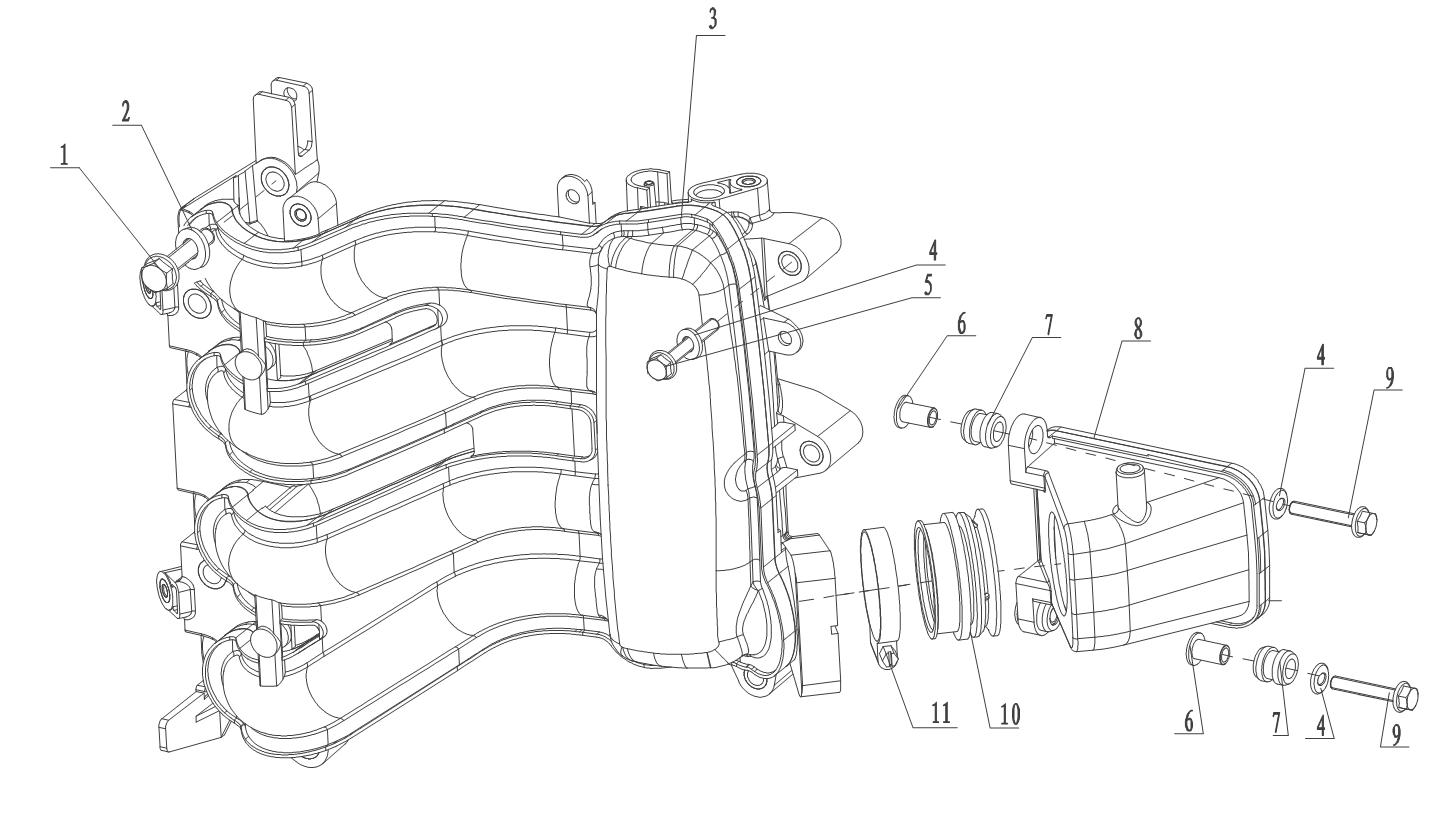

进气系统
进气系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB5789-M8X40六角法兰面螺栓Hexagon flange bolts5
2GB96 M8平垫Flat pad5
3F60.01.05.01.00进气歧管Intake manifold1
4GB96 M6平垫Flat pad5
5GB5787-M6X45.8_8六角法兰面螺栓Hexagon flange bolts3
6F60-01.05.02.12衬套bushing2
7F60-01.05.02.11减震垫Cushion2
8F60-01.05.02.10空滤器Air filter1
9GBT5787-M6X35.8_8六角法兰面螺栓Hexagon flange bolts2
10F60-01.05.02.13橡胶套Rubber sleeve1
11D50QCT620-1999卡箍Clamp1
启动罩

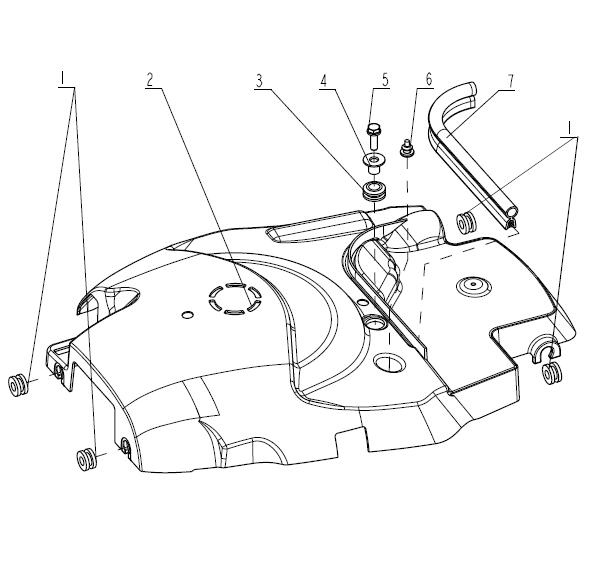

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-01.02.00.07减振圈Damping ring4
2F60-01.08.00.01启动罩Boot hood1
3F60-01.08.10.01减震橡胶垫Shock-absorbing rubber pad1
4F60-01.08.10.02衬套bushing1
5GB9074_1.M6X20.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly1
615F-02.09外接水管橡胶闷头External water pipe rubber bulkhead1
7F60-01.08.00.02橡胶条(226mm)Rubber strip (226mm)1

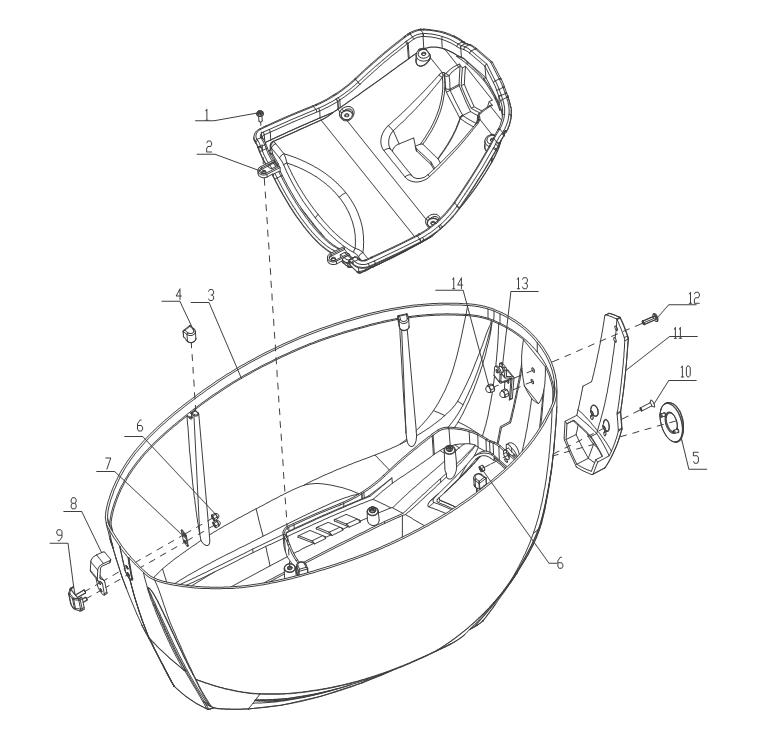

顶罩
顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GBT845-ST4_8X16十字槽盘头自攻螺钉Cross recessed pan head tapping screws6
2F60-07.00.00.02进气口盖组件Air inlet cover assembly1
3F60-07.00.00.01顶罩Top cover1
4F60-07.00.00.04减震脚Shock absorber foot4
5F60-07.00.00.05海的logoSea logo1
NoneF60-07.00.00.08空白logoBlank logo1
6DIN985 M5六角尼龙锁紧螺母Hex nylon lock nut4
7F25-07.00.00.05垫板Pad1
8F25-07.00.00.04前锁紧钩Front locking hook1
9F25-07.01.00.00螺栓组件Bolt assembly1
10GB818m5*16十字盘头螺钉M5*16Phillip s pan head screw M5 * 162
11F60-07.00.01.09logo安装板logo mounting plate1
12F60-07.00.00.06盘头螺栓Pan head bolt1
13F25-07.02.00.00后锁紧钩组件Rear locking hook assembly1
14DIN985 M6六角尼龙锁紧螺母Hex nylon lock nut2

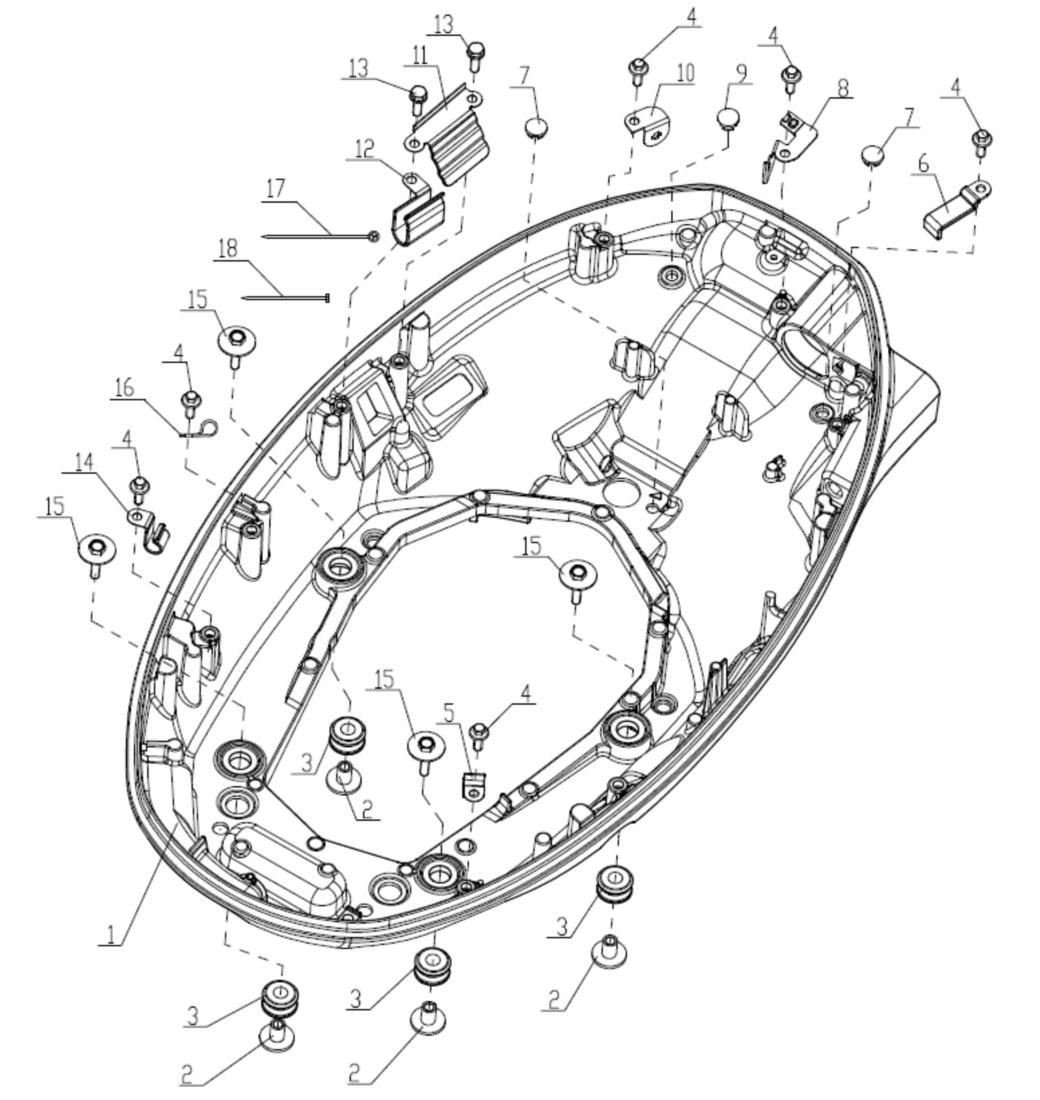

底座 1
底座 1 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-02.00.01.01底座Base1
260F-02.00.00.04带肩垫管(底座)Tube with shoulder pad (base)4
360F-02.00.00.05减震垫(底座)Shock-absorbing pad (base)4
4GB5789.M6X16.10_9六角法兰面螺栓Hexagon flange bolts5
5F60-02.00.01.11水管支架1Water pipe bracket 11
6F60-02.00.01.10线束支架4Harness bracket 41
7F60-02.00.01.19堵塞Clogged2
8F60-02.00.01.12线束支架5Harness bracket 51
9F60-02.00.02.06堵塞1Clog 11
10F60-02.00.01.08卡扣支架1Snap bracket 11
11F60-02.00.01.05线束支架3Harness bracket 31
12F60-02.00.01.03线束支架1Harness bracket 11
13GB9074_1.M6X20.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
14F60-02.00.01.04线束支架2Harness bracket 21
15F60-05.00.03.02六角头螺栓和平垫圈组合件Hex head bolt and flat washer assembly4
16CC-4塑料线夹（黑色）Plastic wire clip (black)1
17F60-01.07.14.03箭头型扎带Arrow Tie6
184*150扎带（黑色）Cable tie (black)8

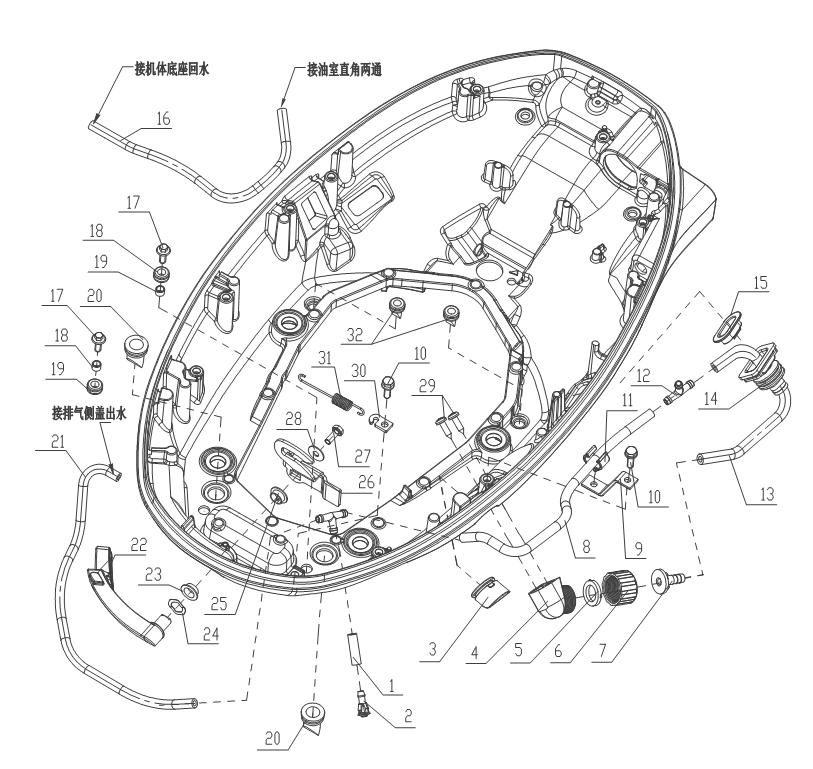

底座 2
底座 2 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-02.00.02.05水管3(30mm)Water pipe 3 (30mm)1
215F-02.11塑料水嘴Plastic spout1
3F60-02.00.01.26橡胶堵头Rubber plug1
4DQDF15-00.05.05外接水管座External water pipe seat1
5DQDF15-00.05.04橡胶垫片Rubber gasket1
6DQDF15-00.05.02外接水管盖External water pipe cover1
7DQDF15-00.05.03外接水管插头External water pipe plug1
8F60-02.00.02.02水管1Water pipe 11
9F60-02.00.01.15水管支架2Water pipe bracket 21
10GB9074_1.M6X20.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
11F60-02.00.01.16卡扣3Snap 31
12F15-05.00.00.17三通Tee2
13F60-02.00.02.04水管2(228mm)Water pipe 2 (228mm)1
14F60-02.00.01.24水管橡胶护套Water pipe rubber sheath1
15F60-02.00.01.22塑料固定套Plastic fixing sleeve1
16F60-02.00.02.01燃油冷却回水管Fuel cooling water return pipe1
17GB5789.M6X16.10_9六角法兰面螺栓Hexagon flange bolts2
18F60-02.00.01.20橡胶减震垫2Rubber cushion 22
19F60-02.00.01.21减震垫衬套Shock Absorber Liner2
20F60-02.00.01.18减震垫2Shock Absorber 22
21F60-01.01.00.09回水管Return pipe1
22F25-02.02.00.00锁紧手柄组件Locking handle assembly1
2340F-02.02.00.03垫圈AWasher A1
2440F-02.02.00.02波形垫片Wave gasket1
2540F-02.02.00.04垫圈BWasher B1
26F25-02.02.00.04锁紧块Locking block1
27GB5783.M6X16.8_8六角头螺栓Hexagon head bolt1
28GB96 M6平垫6Flat pad 61
29GB845.ST5_5X19十字槽盘头自攻螺钉Cross recessed pan head tapping screws2
3040F-02.02.00.07拉簧钩Spring hook1
3140F-02.02.00.06锁紧块拉簧Lock block tension spring1
32F60-02.00.01.17减震垫1Shock Absorber Pad 12

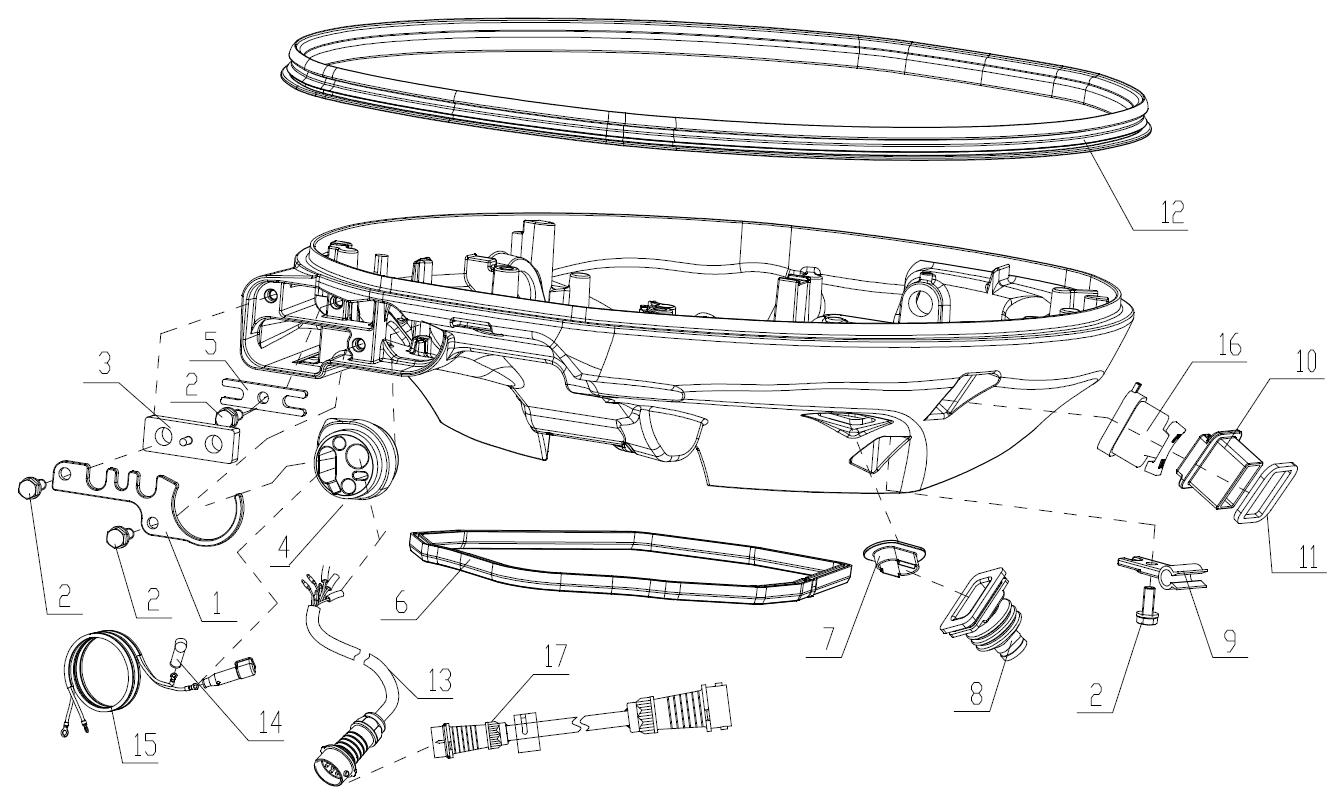

底座 3
底座 3 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-02.00.01.30固定板Fixed plate1
2GB9074_1.M6X16.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly4
3F60-02.00.01.28拉线固定护套Cable fixing sheath1
4F60-02.00.01.29底座线束堵头Base harness plug1
5F60-02.00.01.27拉线固定板Cable fixing plate1
6F60-02.00.01.02底座橡胶密封条Base rubber seal1
7F60-02.00.01.22塑料固定套Plastic fixing sleeve1
8F60-02.00.01.24水管橡胶护套Water pipe rubber sheath1
9F60-02.00.01.25塑料支架2Plastic bracket 21
10F60-02.00.01.06长方形闷头Oblong head1
11F60-02.00.01.07长方形闷头垫圈Rectangular bulkhead washer1
12F60-02.00.03.01橡胶密封条Rubber sealing stripe1
13F60-01.09.00.07十芯插头线束（短）（0.28M)Ten-core plug harness (short) (0.28M)1
NoneF60-01.09.00.09十芯插头线束（带自锁插件）Ten core plug harness (with self-locking plug-in)1
14DQDF15-00.03.03橡胶护套ARubber sheath A1
15F60-01.09.00.13电喷电源线(带自锁插件）EFI power cord (with self-locking plug-in)1
NoneF60-01.09.00.06电喷电源线EFI power cord1
16F60-02.00.03.02起翘开关Warp switch1
17F60-01.09.00.14十芯线转接头（5m延长线）Ten-core cable adapter (5m extension cable)1

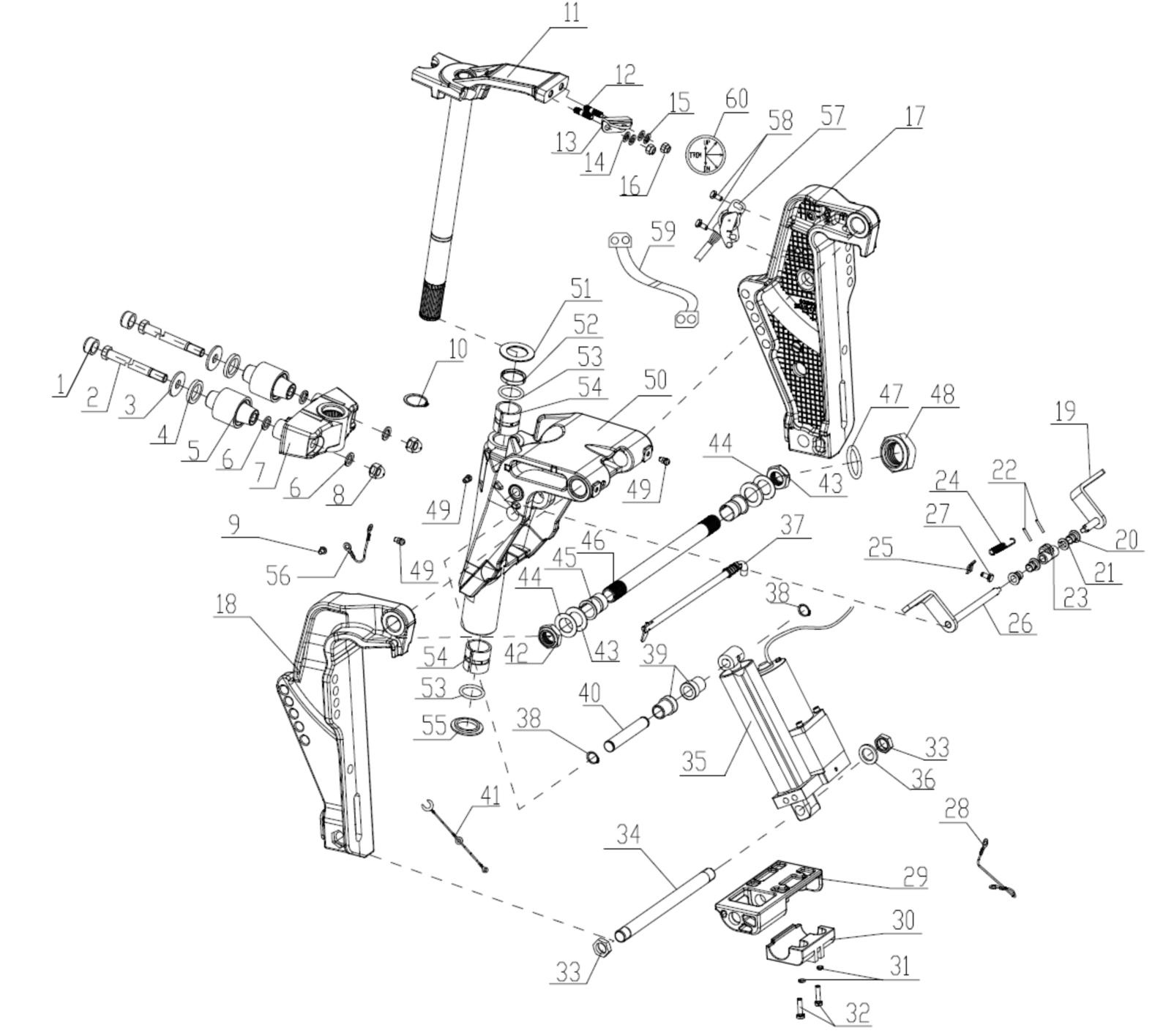

夹紧部分
夹紧部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-05.00.00.07橡胶螺套Rubber screw sleeve2
260F-05.00.00.14六角头螺栓M12*1.25*153Hexagon head bolt M12 * 1.25 * 1532
3GB96.M12平垫Flat pad2
460F-05.00.00.13橡胶垫Φ25Rubber pad Φ252
560F-05.00.03.00下减震器组件Lower shock absorber assembly2
6GB848.M12平垫(厚度1.2）Flat pad (thickness 1.2)4
760F-03.00.00.02下减震器连接座Lower shock absorber connector1
8DIN985.M12X1_25六角尼龙锁紧螺母Hex nylon lock nut2
9GB823.M6X8十字槽小盘头螺钉Cross recessed pan head screws1
10GB894_1.30轴用弹性挡圈30Circlip for shaft 301
11F60-04.00.01.01操舵托架Steering bracket1
1240F-04.01.04双头螺柱M10*43Stud M10 * 432
1360FE-03.00.00.24操纵钩Manipulation hook1
14GB97.1平垫10Flat pad 102
15GB93弹垫10Spring pad 102
16DIN985六角尼龙锁紧螺母M10*1.25Hexagonal nylon lock nut M10 * 1.252
后操机型使用F60-04.00.01.10尼龙自锁螺母M10*1.25(S14)Nylon self-locking nut M10 * 1.25 (S14)2
17F60-03.00.01.06右托架Right bracket1
18F60-03.00.01.05左托架Left bracket1
1960F-03.00.06.00倾斜定位档杆-右Tilt positioning lever-right1
2060F-03.00.00.20摇臂衬套Rocker bush3
2160F-03.00.00.21摇臂开口衬套Rocker opening bushing1
22GB879.3X16弹性圆柱销Elastic cylindrical pin2
2360F-03.00.04.00倾斜定位挡杆摇臂组件Rocker arm assembly for tilt positionin1
2460F-03.00.00.19倾斜定位档杆拉簧Tilting positioning lever tension sprin1
2560F-03.00.00.18拉簧钩Spring hook1
2660F-03.00.05.00倾斜定位档杆-左Tilt positioning lever-left1
27GB5783.M6X10六角头螺栓Hexagon head bolt1
28F60-03.00.01.02接地线 ⅠGround wire Ⅰ1
2960F-03.00.00.12托架限位块Bracket limit block1
3060F-03.00.00.11阳极anode1
31GB97.1 M6平垫Flat pad2
32GB5783.M6X25六角头螺栓Hexagon head bolt3
3360F-03.00.00.09六角螺母M18*1.5Hex nut M18 * 1.52
3460F-03.00.00.13液压起翘支撑轴下Under hydraulic support shaft1
3560FET-03.00.08.00电动起翘装置Electric lifting device1
3660F-03.00.00.10平垫19*29.5*3Flat pad 19 * 29.5 * 31
3760F-03.00.02.00角度定位销组件Angle positioning pin assembly1
38GB894_1.15轴用弹性挡圈A型15Circlip for shaft A type 152
3960F-03.00.00.30起翘衬套Lifting bush2
4060F-03.00.00.16液压起翘支撑轴上Hydraulic lifting support shaft1
4160F-05.00.02.00接电导线组件Electrical wire assembly1
4215F-03.01夹紧托架螺母Clamp bracket nut2
4315F-03.02尼龙垫圈Nylon washer2
4440F-03.03垫片Gasket2
4540F-03.07.02托架阻尼圈Bracket damping ring2
4640F-03.04夹紧托架双头螺栓Clamp bracket stud1
47HDYK00.00.35.03方向钢索防护套O型圈（16.3*2.3Directional steel cable protective slee2
48HDYK00.00.35.02方向钢索防护套Directional steel cable protective cove2
后操机型使用60F-03.00.00.08双头螺柱盖Stud cover2
49JB.T7940.1直通式压注油杯M6Straight-through oil injection cup M63
50F60-03.00.01.01旋转托架Rotating bracket1
5160F-03.00.00.07上衬套垫圈Upper bushing washer1
5260F-03.00.00.06上衬套Upper bushing1
5360F-03.00.00.04O型圈(29*3.8)O-ring (29 * 3.8)2
5460F-03.00.00.05开口衬圈Split ring2
5560F-03.00.00.03下衬圈Underlining1
56F60-03.00.01.03接地线ⅡGround wire Ⅱ1
57F60-03.00.02.00起翘高度传感器Lifting height sensor1
58GB818螺栓M6*14Bolt M6 * 142
59F60-01.09.00.10高度表转接线Altimeter patch cord1
60F60-01.09.00.11起翘高度表Warping altimeter1
水上部分

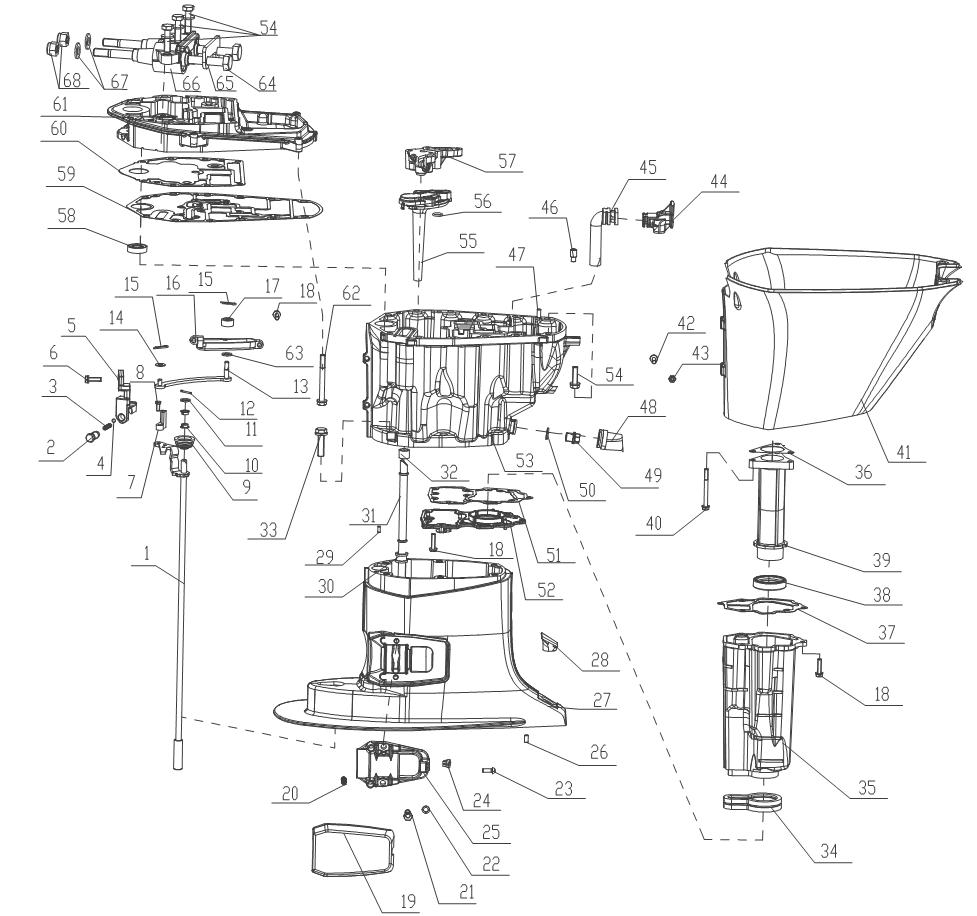

水上部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F60-04.00.02.02上变档杆组件Upper shift lever assembly1
2F60-04.00.02.06变档机构锁止螺栓Shift mechanism locking bolt1
360F-01.06.00.13压缩弹簧compressed spring1
4F60-04.00.02.15变档凸轮芯杆Shift cam core rod1
5F60-04.00.02.05变档机构支架Gear shift mechanism bracket1
6GB9074_1.M6X20.8_8螺栓和垫圈组合件Bolt and washer assembly3
7F60-04.00.02.12塑料支架1Plastic bracket 11
8GB5783.M5X12六角头螺栓Hexagon head bolt1
9F60-04.00.02.03变档连杆橡胶护套Shift link rubber jacket1
10F60-04.00.02.08衬套bushing2
11F60-04.00.02.14平垫Flat pad1
12GB91.2X16开口销Cotter pin1
13F60-04.00.02.09变档杠杆组合Shift lever combination1
14F60-04.00.02.10平垫Flat pad1
1515F-04.08.05卡簧（大）Circlip (large)2
16F60-04.00.02.11变档槽Gearshift slot1
17F60-04.00.02.13变档块Gearshift1
18GB9074_1.M6X25.8_8螺栓和垫圈组合件Bolt and washer assembly16
1960F-05.00.00.09下减震器盖Lower shock absorber cover2
2060F-05.00.00.12下减震器盖弹簧Lower shock absorber cover spring4
21GB5783.M8X30六角头螺栓Hexagon head bolt4
22GB93.M8弹垫圈Spring washer4
23GB845.ST5_5X16十字槽盘头自攻螺钉Cross recessed pan head tapping screws2
2460F-05.00.00.10塑料螺母Plastic nut2
2560F-05.00.00.11下减震器外壳Lower shock absorber housing2
2615F-01.06.20定位销6*12Positioning pin 6 * 122
27F60-05.00.01.02水上壳体Shell on water1
2860F-00.00.00.03阳极堵塞Anode blockage1
29F9.9-05.00.00.26定位销4*10Positioning pin 4 * 102
3040F-05.00.00.16水管下密封圈Sealing ring under water pipe1
31F60-05.00.03.19上水管Water pipe1
32F60-05.00.03.20上水管密封圈Water pipe sealing ring1
33GB5787.M10X40.8_8.S.13六角法兰面半螺纹螺栓Hexagon flange half-thread bolt6
34F60-05.00.02.06消音器密封垫Silencer gasket1
35F60-05.00.02.04消音器silencer1
36F60-05.00.02.02排气管垫Exhaust pipe pad1
37F60-05.00.02.05消音器垫Silencer pad1
38F60-05.00.02.03排气管密封垫Exhaust pipe gasket1
39F60-05.00.02.01排气管exhaust pipe1
40GB9074_1.M6X65.8_8螺栓和垫圈组合件Bolt and washer assembly3
41F60-05.00.01.01装饰罩Decorative cover1
42GB818.M6X25十字槽盘头螺钉Cross recessed pan head screws2
43GB6170.M6六角螺母Hex nuts2
44F60-05.00.03.18通气连接管2Ventilation connection pipe 21
45F60-05.00.03.17通气连接管1Ventilation connection pipe 11
4615F-01.06.10水管圆接头(排气外盖）Water pipe round joint (exhaust cover)1
4730F-05.02.00.14定位销6*14Positioning pin 6 * 142
48F60-05.00.03.15导流橡胶管Diversion rubber tube1
49F60-05.00.03.16放油螺栓Oil drain bolt1
50F15-05.00.00.09放油螺栓垫圈Oil drain bolt washer1
51F60-05.00.03.06盖板垫片Cover plate gasket1
52F60-05.00.03.07盖板Cover1
53F60-05.00.03.13油底壳Oil pan1
54GB9074_1.M8X30.8_8螺栓和垫圈组合件Bolt and washer assembly7
55F60-05.00.03.08机油过滤器组件Oil filter assembly1
56F60-05.00.03.10机油过滤器组件密封圈Seal ring of oil filter assembly1
57F60-05.00.03.09机油过滤器支架Oil filter bracket1
5860F-01.04.04.03驱动轴上油封(18*32*7)Oil seal on drive shaft (18 * 32 * 7)1
59F60-05.00.03.14油底壳垫片Oil pan gasket1
60F60-05.00.03.05机体底座垫片Body base gasket1
61F60-05.00.03.01机体底座Body base1
62GB9074_1.M8X80.10_9螺栓和垫圈组合件Bolt and washer assembly8
63GB97_1.M8平垫Flat pad1
64F60-04.00.01.04上减震螺栓Upper shock bolt2
65F60-04.00.01.03面板panel1
66F60-04.00.01.02上减震组件Upper damping component1
67GB97_1.M10平垫Flat pad2
68F60-04.00.01.10尼龙自锁螺母M10*1.25(S14)Nylon self-locking nut M10 * 1.25 (S14)2
水下部分

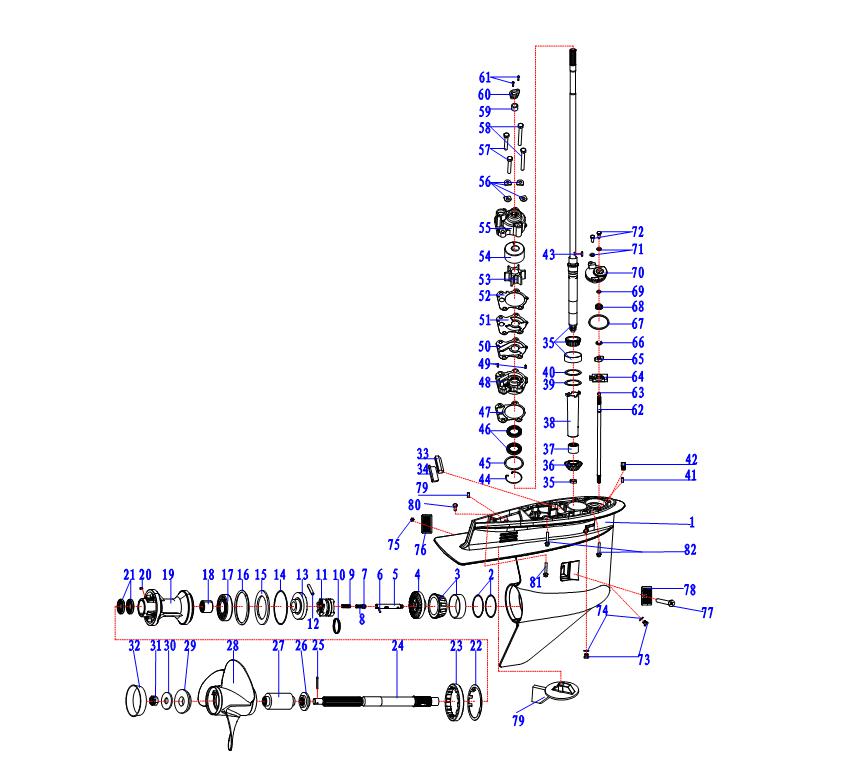

水下部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
160F-06.00.00.46水下壳体Underwater shell1
260F-06.00.00.43正档齿轮填隙片0.3Positive gear gap filler 0.32
360F-06.00.00.42圆锥滚子轴承26822-N/26882R-NTapered roller bearings 26822-N / 26882R-N1
460F-06.00.00.41正档齿轮Positive gear1
560F-06.00.00.28滑套Sliding sleeve1
660F-06.00.00.30滑轴销Sliding pin1
760F-06.00.00.27滚珠3/16（碳钢）Ball 3/16 (carbon steel)2
860F-06.00.04.00换档柱塞组件Shift plunger assembly1
960F-06.00.00.29弹簧spring1
1060F-06.00.00.31簧环Circlip1
1160F-06.00.00.33离合器clutch1
1260F-06.00.00.32离合器销Clutch pin1
1360F-06.00.03.06倒档齿轮Reverse gear1
1460F-06.00.00.24填隙片0.5Gap 0.51
1560F-06.00.03.05止推垫圈Thrust washer1
1660F-06.00.03.03水下壳体盖O型圈(83*5.6)Underwater shell cover O-ring (83 * 5.6)1
1760F-06.00.03.04深沟球轴承6207Deep groove ball bearings 62071
1860F-06.00.03.02滚针轴承HK2526Needle bearing HK25261
1960F-06.00.03.07水下壳体盖Underwater shell cover1
2060F-06.00.00.23平键Flat key1
2160F-06.00.02.03油封40*25*6Oil seal 40 * 25 * 62
2260F-06.00.00.22止退垫圈Non-return washer1
2360F-06.00.00.21环形螺母Ring nut1
2460F-06.00.00.34螺旋桨轴Propeller shaft1
25GB91开口销3.2*25Cotter pin 3.2 * 251
2660F-06.00.00.49螺旋桨垫块Propeller block1
2760F-06.01.01.00螺旋桨内花键组件Propeller internal spline assembly1
2860F-06.01.00.01螺旋桨1312*15-KPropeller 1312 * 15-K1
None螺旋桨组件(13-1/2*15-K)Propeller Assy.1
2960F-06.00.00.48螺旋桨垫圈Propeller washer1
3060F-06.00.00.47六角螺母垫圈Hex nut washer1
3140F-06.02.07开槽六角螺母Slotted hexagon nuts1
3260F-06.01.00.02喇叭口Bell mouth1
3360F-06.00.00.13密封条sealing strip1
3440F-06.01.10密封条压板Sealing plate1
35F60-06.00.00.01驱动轴Drive shaft1
3660F-06.00.00.36主动轮Driving wheel1
3760F-06.00.00.45滚针轴承（BH-1620）NSKNeedle bearing (BH-1620) NSK1
3860F-06.00.00.44尼龙衬圈Nylon bushing1
3960F-06.00.00.40驱动轴填隙片0.5Drive shaft shim 0.51
4060F-06.00.00.39驱动轴填隙片0.1Drive shaft shim 0.11
4115F-01.06.20定位销6*12Positioning pin 6 * 122
4260F-06.00.00.20六角螺栓Hex Bolts1
4360F-06.00.00.08叶轮半圆键Impeller semicircular key1
4460F-06.00.02.04弹性挡圈Circlip1
4560F-06.00.02.02油封外壳O型圈(45.6*3.2）O-ring of oil seal shell (45.6 * 3.2)1
4660F-06.00.02.03油封40*25*6Oil seal 40 * 25 * 62
4760F-06.00.00.12油封外壳密封垫Oil seal shell gasket1
4860F-06.00.02.01油封外壳Oil seal shell1
49F9.9-05.00.00.26定位销4*10Positioning pin 4 * 102
5060F-06.00.00.11垫板密封垫Pad gasket1
5160F-06.00.00.10水泵叶轮垫片（镀）Water pump impeller gasket (plating)1
5260F-06.00.00.09水泵外壳密封垫Water pump casing gasket1
5360F-06.00.01.00水泵叶轮组件Water pump impeller assembly1
5460F-06.00.00.07水泵内壳（镀）Pump inner shell (plating)1
5560F-06.00.00.06水泵外壳Water pump housing1
56GB97.1平垫8Flat pad 82
57GB5783 M8*5（8.8）六角头螺栓M8*50Hexagon head bolt M8 * 502
58GB9074.1 M8*70(A2-70)螺栓和垫圈组合件（SUS304不锈钢）Bolt and washer assembly (SUS304 stainless steel)2
5960F-06.00.00.05水管密封圈Water pipe sealing ring1
6060F-06.00.00.04水管密封圈压板Water pipe sealing ring pressure plate1
61GB845十字槽盘头自攻螺钉ST4.2*13Cross recessed pan head tapping screws ST4.2 * 132
6260F-06.00.00.17下换档连杆Downshift link1
6360F-06.00.00.18弹性挡圈Circlip1
6460F-06.00.00.26变挡凸轮座Shift cam seat1
6560F-06.00.00.25变挡凸轮Shift cam1
66GB896开口挡圈8Open ring 81
6760F-06.00.00.16下换档连杆座O型圈（49.5*3）Lower shift connecting rod seat O-ring (49.5 * 3)1
6860F-06.00.00.15下换档连杆油封Lower shift connecting rod oil seal1
6960F-06.00.00.19下换档连杆O型圈(6.5*19)Lower shift connecting rod O-ring (6.5 * 19)1
7060F-06.00.00.14下换档连杆座Lower shift connecting rod seat1
71GB97.1平垫6Flat pad 62
72GB5783(8.8)六角头螺栓M6*16Hexagon head bolt M6 * 162
7315F-06.01.03注油口螺塞Oil filler plug2
7415F-06.01.04螺塞密封垫Plug seal2
75DIN985六角尼龙锁紧螺母M5Hex nylon lock nut M51
7660F-06.00.00.02进水口盖（右）Water inlet cover (right)1
77GB819十字槽沉头螺钉M5*45Cross recessed countersunk head screws M5 * 451
7860F-06.00.00.01进水口盖（左）Water inlet cover (left)1
7960F-06.00.00.03航向调整片（阳极）Heading adjustment piece (anode)1
80GB5787 M10*1.25*45（10六角法兰面螺栓(铁铬合金)Hexagon flange bolts (iron-chromium alloy)1
81GB9074.1 M8*60(10.9)螺栓和垫圈组合件(铁铬合金)Bolt and washer assembly (iron-chromium alloy)1
8287 M10*1.25*40（8.8） (六角法兰面螺栓（铁铬合金）Hexagon flange bolts (iron-chromium alloy)4
操舵手柄

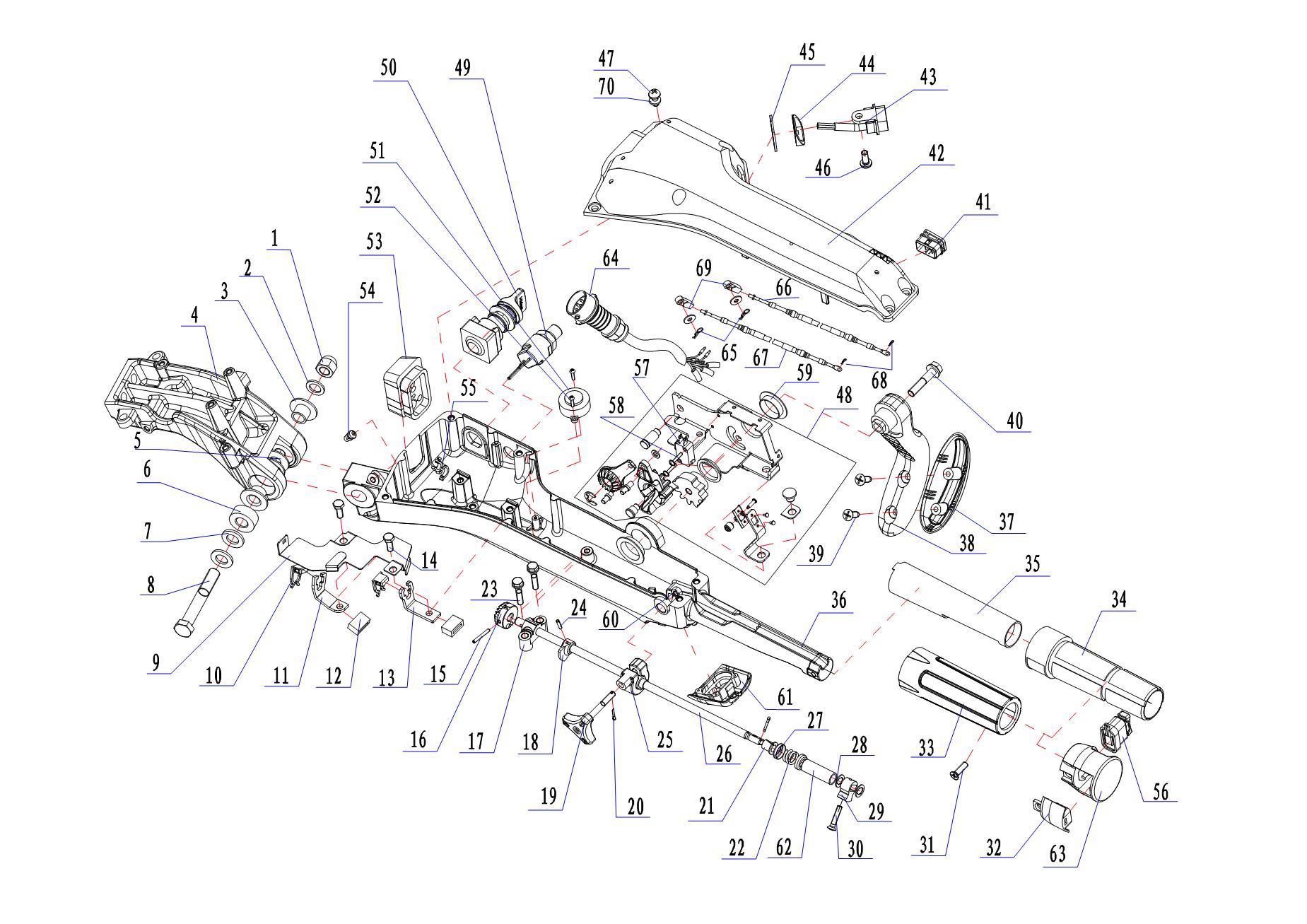

操舵手柄 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1DIN985 M12*1.25六角尼龙锁紧螺母Hex nylon lock nut1
2GB848 M12小垫圈Small washer1
3F60-04.00.03.07塑料衬套Plastic bushing2
4F60-04.00.03.06连接支架Connection bracket1
5F60-04.00.03.10薄垫片Thin gasket2
6F60-04.00.03.08厚垫块Thick pad1
7GB97_1.M12平垫圈Flat Washers2
8GB5785 M12X1.25X80六角头螺栓-细牙Hexagon head bolts-fine teeth1
9F60-04.00.03.13线束盖支架Harness cover bracket1
10F9.9E-02.00.00.02拉线杆塑料卡扣Drawbar plastic buckle2
11F60-04.00.03.16变档拉线杆支架Shift cable support1
12F60-04.00.03.15橡胶套Rubber sleeve2
13F60-04.00.03.14油门拉线杆支架Throttle cable support1
14GB9074_1 M6X16.8_8六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
15GB879 3*20弹性圆柱销Elastic cylindrical pin1
16F60-04.00.03.21油门拉线杆主动齿轮Throttle cable driving gear1
17F60-04.00.03.22齿轮限位支架Gear limit bracket1
18F60-04.00.03.23变档限位块Shift limit block1
19F60-04.00.03.26油门拉线杆松紧螺栓Throttle tension rod elastic bolt1
20GB91 2*12开口销Cotter pin2
2115F-04.07.12衬套bushing1
22F60-04.00.03.29弹簧spring1
23GB9074.1 M6*30(8.8)六角头螺栓和平垫组件Hex head bolt and flat washer assembly2
24GB879 3*14弹性圆柱销Elastic cylindrical pin1
25F60-04.00.03.25油门拉线杆松紧块Throttle tension rod elastic block1
26F60-04.00.03.24油门拉线杆Throttle pull rod1
27F60-04.00.03.28弹簧挡圈Spring retaining ring2
28F60-04.00.03.46挡圈Retaining ring2
29F60-04.00.03.30油门转动块Throttle turning block1
30GB820 M5X25十字槽半沉头螺钉Cross recessed countersunk head screws1
31GB819 M6X20十字槽沉头螺钉Cross recessed countersunk head screws1
32F60-04.00.03.78塑料压板Plastic pressure plate1
33F60-04.00.03.33橡胶手柄Rubber handle1
34F60-04.00.03.32把手外衬套Handle outer bushing1
35F60-04.00.03.31把手内衬套Handle bush1
36F60-04.00.03.01操舵手柄Steering handle1
37F60-04.00.03.42换挡手柄塑料盖Shift handle plastic cover1
38F60-04.00.03.41换挡手柄Shift lever1
39GB847-6_3*19十字槽半沉头自攻螺钉F型Cross recessed countersunk head tapping screws type F2
40GB9074_14.M8X40六角头螺栓与平垫组合Combination of hexagon head bolt and flat washer1
41F60-04.00.03.05塑料罩堵头Plastic cover plug1
42F60-04.00.03.04塑料罩Plastic cover1
43F60-04.00.03.72报警指示灯Alarm indicator1
44F60-04.00.03.52斜减震垫Oblique cushion1
45F60-04.00.03.51减震垫Cushion1
46GB845 ST6.3X16十字槽盘头自攻螺钉F型Cross recessed pan head tapping screws type1
47GB818 M6*16十字槽盘头螺钉Cross recessed pan head screws6
48F60-04.00.03.60换档传动组Shift transmission group1
49HDYK00.03.00急停开关总成Emergency stop switch assembly1
50F60-04.00.03.93启动开关总成Start switch assembly1
51F60-04.00.03.76蜂鸣器buzzer1
52GB818.M3X8十字槽盘头螺钉Cross recessed pan head screws2
53F60-04.00.03.03橡胶块Rubber block1
54JB.T7940.1油杯Oil Cup1
55F60-04.00.03.18拉线杆两口卡扣Two snaps of cable rod1
56DQQ-00.09.07电起跷遥控盒开关Electric rocker remote control box switch1
57F60-04.00.03.59怠速启动开关总成Idle start switch assembly1
58GB9074_1 M3X14十字槽盘头螺钉Cross recessed pan head screws2
59F60-04.00.03.44衬套bushing2
60GB6170.M6六角螺母Hex nuts1
61F60-04.00.03.56转速调节开关外壳Speed adjustment switch housing1
62F60-04.00.03.45轴套Bushing1
63F60-04.00.03.79电起跷遥控盒开关外壳Switch box for remote control box1
64F60-04.00.03.77十芯插座线束（1m）Ten core socket harness (1m)1
6515F-01.03.11卡簧（小）Circlip (small)2
66F60-04.00.03.57油门钢索组件Throttle cable assembly1
67F60-04.00.03.58换挡钢索组件Shift cable assembly1
68GB91 2*12开口销Cotter pin2
69HDYK00.00.24钢索调节装置ASteel cable adjusting device A2
70GB97.1 M6平垫 6Flat pad 66
遥控盒

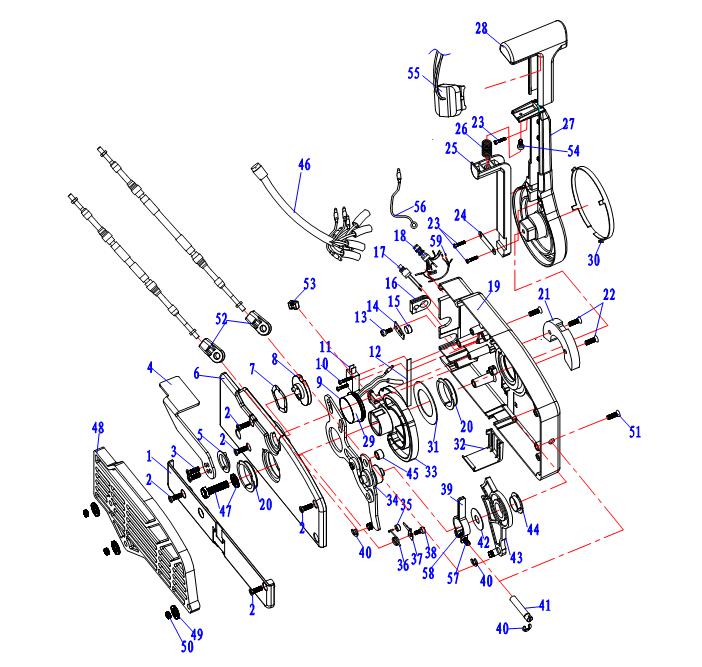

遥控盒 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1HDYK00.00.01小盖板Small cover1
2GB819 M5*16十字槽沉头螺钉Cross recessed countersunk head screws5
3GB819 M5*12十字槽沉头螺钉Cross recessed countersunk head screws2
4HDYK00.00.02怠速锁紧手柄Idle locking handle1
5HDYK00.00.04减磨圈Antifriction ring1
6HDYK00.00.31大盖板Large cover1
7HDYK00.00.03波型垫圈Wave washer1
8HDYK00.01.00手柄锁紧轮组件Handle locking wheel assembly1
9HDYK00.02.01蜂鸣器buzzer1
10GB818 M3*14十字槽盘头螺钉Cross recessed pan head screws1
11HDYK00.05.00怠速启动开关Idle start switch1
12HDYK00.00.10弹性钢板Elastic steel plate5
13GB818 M4*6十字槽盘头螺钉Cross recessed pan head screws1
14HDYK00.00.09压板Pressure plate1
15HDYK00.00.11档位限位柱Gear limit post1
16HDYK00.00.12线束密封圈Harness sealing ring1
17HDYK00.03.00急停开关总成Emergency stop switch assembly1
18HDYK00.04.00启动开关总成Start switch assembly1
19HDYK00.00.08遥控盒(外壳)Remote control box (housing)1
20HDYK00.00.16档位座减磨圈Gear seat anti-friction ring2
21HDYK00.00.20手柄限位器Handle limiter1
22GB818 M5*16十字槽盘头螺钉Cross recessed pan head screws2
23GB818 M4*10十字槽盘头螺钉Cross recessed pan head screws3
24HDYK00.09.05锁紧手柄压板Locking handle pressure plate1
25HDYK00.09.04手柄锁紧开关Handle lock switch1
26HDYK00.09.06弹簧spring1
27HDYK00.09.01手柄座Handle seat1
28HDYK00.09.03手柄handle1
29HDYK00.02.02峰鸣器护套Peak Sounder Sheath1
30HDYK00.09.02手柄座装饰圈Handle seat decoration ring1
31HDYK00.00.15档位座减磨垫Gear seat anti-friction pad1
32HDYK00.00.26盒盖连接件Cover connector1
33HDYK00.00.14档位座Gear seat1
34HDYK00.07.00油门控制装置总成Throttle control device assembly1
35HDYK00.00.06导轮Guide wheel1
36HDYK00.00.07弹簧spring1
37HDYK00.00.05导轮压板Guide wheel pressure plate1
38GB818 M4*6十字槽盘头螺钉Cross recessed pan head screws1
39HDYK00.08.01锁紧夹箍Locking clamp1
40GB896 6开口挡圈(不锈钢/厚度1)Opening ring (stainless steel / thickness 1)1
41HDYK00.08.02调节螺钉Adjusting screw1
42HDYK00.00.19档位控制器减磨垫Gear controller anti-friction pad1
43HDYK00.00.17档位控制器Gear controller1
44HDYK00.00.13油门控制器减磨片Throttle controller anti-friction film1
45HDYK00.07.10导轮Guide wheel1
46DQQ-00.00.07.00-L十芯插座线束（5M）Ten core socket harness (5M)1
47GB9074.1 M8*30(8.8)六角头螺栓和平垫组件Hex head bolt and flat washer assembly1
48HDYK00.00.32遥控器固定板Remote control fixing plate1
49GB5287 M6平垫Flat pad3
50GB6170 M6六角螺母Hex nuts3
51GB820 M6*90十字槽半沉头螺钉Cross recessed countersunk head screws3
52HDYK00.00.25钢索调节装置BCable adjustment device B2
53HDYK00.00.27线索密封座Lead seal seat1
54GB818 M5*10十字槽盘头螺钉Cross recessed pan head screws1
55DQQ-00.09.07电起翘遥控盒开关Electric lifting remote control box switch1
56HDYK00.05.01电启动怠速线Electric start idle line1
57GB5783 M5*25六角头螺栓Hexagon head bolt2
58GB6170 M5六角螺母Hex nuts2
59F9.9-01.04.00.05连杆帽Connecting rod cap2
None前操电起翘
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞Oil filler plug2
2DPR6EB-9(F25)火花塞(新)Spark plug (new)2
3GB96 M12平垫Flat pad4
4GB97.1 M6平垫Flat pad1
5GB97.1 M12平垫Flat pad4
6GB91 2* 12开口销Cotter pin1
7GB91 3.2*25开口销Cotter pin1
8M12* 1.25*110(9.8)六角头螺栓（螺纹60mm）Hexagon head bolt (thread 60mm)4
960F-06.00.01.00水泵叶轮组件Water pump impeller assembly1
1015F-08.00.00燃油箱总成(24L)Fuel tank assembly (24L)1
1115F-06.01.04螺塞密封垫Plug seal2
12GB6170(10) M12*1.25飞轮螺母（铁铬合金，对边18）Flywheel nut (iron-chromium alloy, opposite side 18)8
1315F-08.01.06.00燃油管单向阀组件Fuel pipe check valve assembly1
14F15-09.00工具包Toolkit1
15保修保养手册(仅国内客户用)manual (only for domestic customers)1
16HDYK00.10.04六角螺栓3/8-24Hex bolt 3 / 8-241
17HDYK00.10.05六角薄螺母3/8-24Hexagon thin nuts 3 / 8-241
18HDYK00.10.07尼龙锁紧螺母3/8-24Nylon lock nut 3 / 8-242
1960FE-03.00.00.26操纵钩垫管Manipulation hook pad tube1
20F25EI-01.02.11.00四引脚控制继电器Four-pin control relay1
21F25EI-01.02.12.00五引脚控制继电器Five-pin control relay1
22GB820 M6*90十字槽半沉头螺钉Cross recessed countersunk headscrews3
23GB6170 M6六角螺母Hex nuts3
24GB97.1 M10平垫Flat pad2
25GB5287 M6平垫Flat pad3
26HDYK00.00.24钢索调节装置ASteel cable adjusting device A2
27HDYK00.00.25钢索调节装置BCable adjustment device B2
28HDYK00.00.32遥控器固定板Remote control fixing plate1
2960FE-03.00.00.25操纵杆Joystick1
30HDYK00.06.00遥控钢索组件(5.5M)Remote cable assembly (5.5M)2
31HA100船用仪表Marine instrument (1
32F60-01.09.00.08仪表转接线（6米）meters)1
337.5A保险丝（电喷用）（褐色）Fuse (for EFI) (brown)1
3410A保险丝（电喷用）（红色）Fuse (for EFI) (red)1
3515A保险丝（电喷用）（蓝色）Fuse (for EFI) (blue)1
3630A保险丝（电喷用）（绿色）Fuse (for EFI) (green)1
37F60-01.07.01.11油水分离器组件Oil-water separator assembly1
38F60-01.09.00.10高度表转接线Altimeter patch cord1
39F60-01.09.00.11起翘高度表Warping altimeter1
40HDYK00.00.00.00（40FFE-T）遥控盒总成Remote control box assembly1
None后操电起翘
