舟一会 ZHOUYIHUI 船外机

海的 F8 - F8HL(S)

共 13 个部位，点击零件编码查看详情，或搜索本页零件。

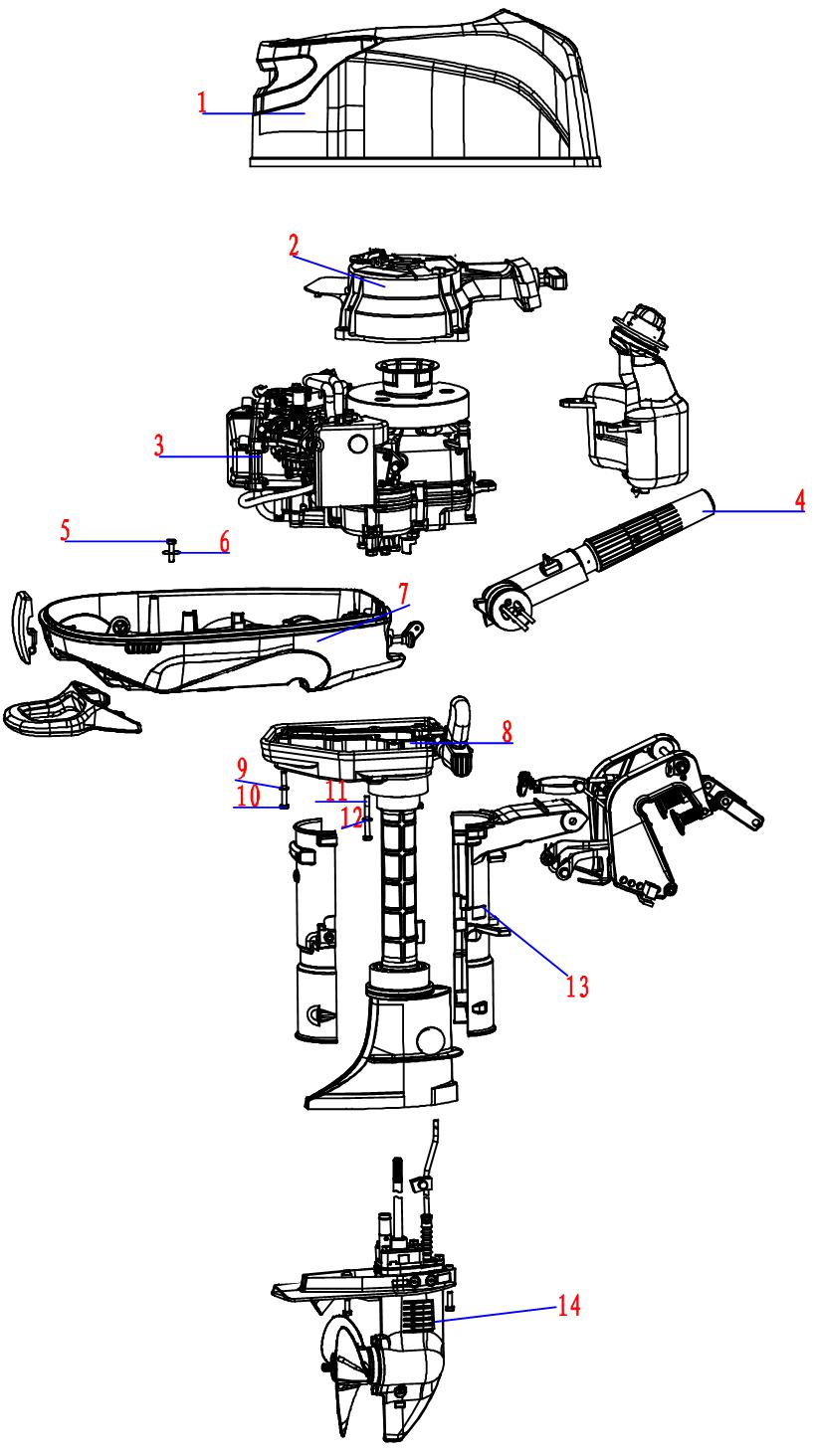

总装分解图
总装分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F6-07.00.00.00顶罩部件Top cowling assy.1
2F6-01.01.00.00启动罩组件Starter cover assy.16BX-15710-00
3F6-01.05.00.00动力系统Power system1
4F6-04.00.00.00操舵组件Tiller assy2
5GB/T5783六角头螺栓M6*35Bolt M6*35490280-04M06-00
6GB/T5287特大平垫6XL Flat gasket 64
7F6-02.00.00.00底座部件Bottom cowling assy1
8F6-05.00.00.00水上部件Upper casing1
9GB/T5782六角头螺栓M6*40Bolt M6*40593102-20108-00
10GB/T97.1平垫6Flat gasket 6590201-12472-00
11GB/T5782六角头螺栓M6*50Bolt M6*50493102-20108-00
12GB/T97.1平垫6Flat gasket 6490201-12472-00
13F4-03.01.00夹紧托架组件Bracket & swivel assy1
14F6-05.00.00.00水下部件Lower casing assy1
顶罩
顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F6-07.00.00.01顶罩Top cowling1
2F6-07.00.01.02进气口盖Air inlet cap1
3GB/T818十字槽盘头螺钉M4*12Pan head bolt M4*122
4GB/T97.1平垫圈4Flat gasket 4290201-12472-00
5F6-07.00.00.04顶罩后锁紧钩Cowling lock,back1
62.5F-02.00.00.10锁紧钩固定板Locking plate1
7GB/T845十字槽盘头自攻螺钉ST4.2*16Pan head bolt ST4.2*165
8DIN985六角尼龙锁紧螺母M4Nylon nut M4390185-08057-00
9F6-07.00.00.05顶罩前锁紧钩Cowling lock,front1
10GB/T96大垫圈4Big gasket 43
11GB/T818十字槽盘头螺钉M4*16Pan head bolt M4*163
12F6-07.00.00.03橡胶密封条rubber Seal strip1
1315F-07.07圆形装帧钉Bingding nail20
NoneF6顶罩部件Top Cowling1

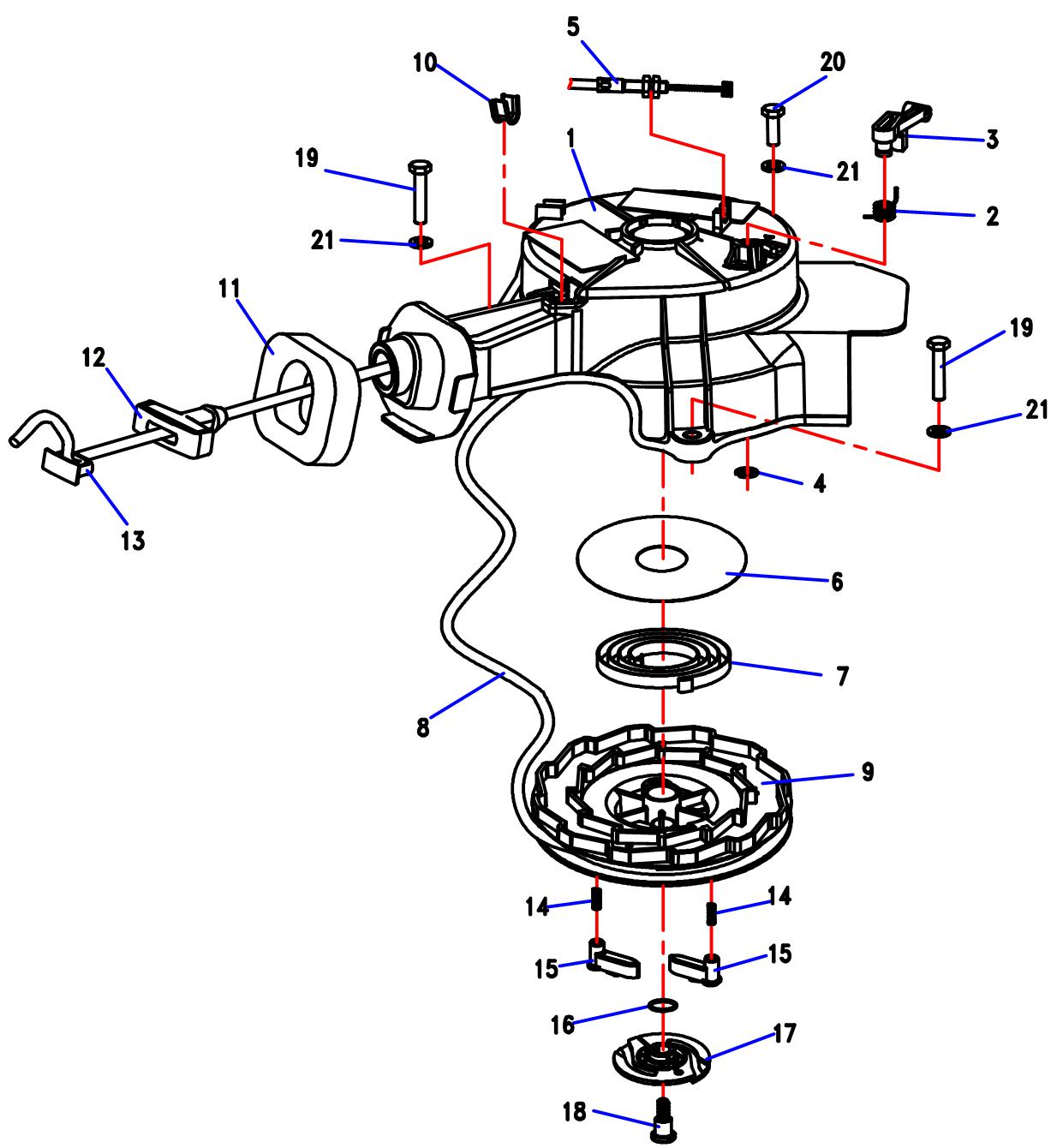

启动罩
启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F6-01.01.01.00起动罩外壳组件Starter cover assy.16BX-15711-00-00
2F4-01.01.04制动器扭簧Brake torsion-spring167D-15734-00-00
3F4-01.01.03制动器Brake167D-15794-01-00
4GB/T896开口挡圈6Circlip199001-06600-00
5F6-02.02.00.00制动钢索组件Braking wire Assy.16BX-E5770-00-00
6F4-01.01.07减磨片Antifriction167D-15739-00-00
7F4-01.01.08涡形弹簧Volute spring167D-15713-00-00
8F4-01.01.15启动绳 1800mmStart rope1
9F4-01.01.09起动轮Start wheel167D-15714-00-00
10F9.9-01.07.00.06U型滑套Sliding sleeve163V-15764-00-00
11F4-01.01.06减震圈Damper16BX-15762-00-00
1215F-01.01.08起动手柄Starter handle16G1-15755-00-00
1315F-01.01.10手柄盖Cover,Starter handle16G1-15779-00-00
14F4-01.01.10驱动臂弹簧Spring,drive arm267D-15767-00-00
15F4-01.01.11驱动臂Drive arm267D-15741-00-00
16F4-01.01.13钢丝挡圈Washer16BX-15705-00-00
17F4-01.01.12起动压板Starter plate167D-15735-00-00
18F4-01.01.14压板螺钉Screw,press plate167D-15793-00-00
19GB/T5783六角头螺栓M6*35Bolt M6*35290280-04M06-00
20GB/T5783六角头螺栓M6*20Bolt M6*20190280-04M06-00
21GB/T97.1平垫圈6Flat gasket390201-12472-00
NoneF6-01.01.00.00启动罩装配总成Recoil Starter Assy16BX-15710-00-00

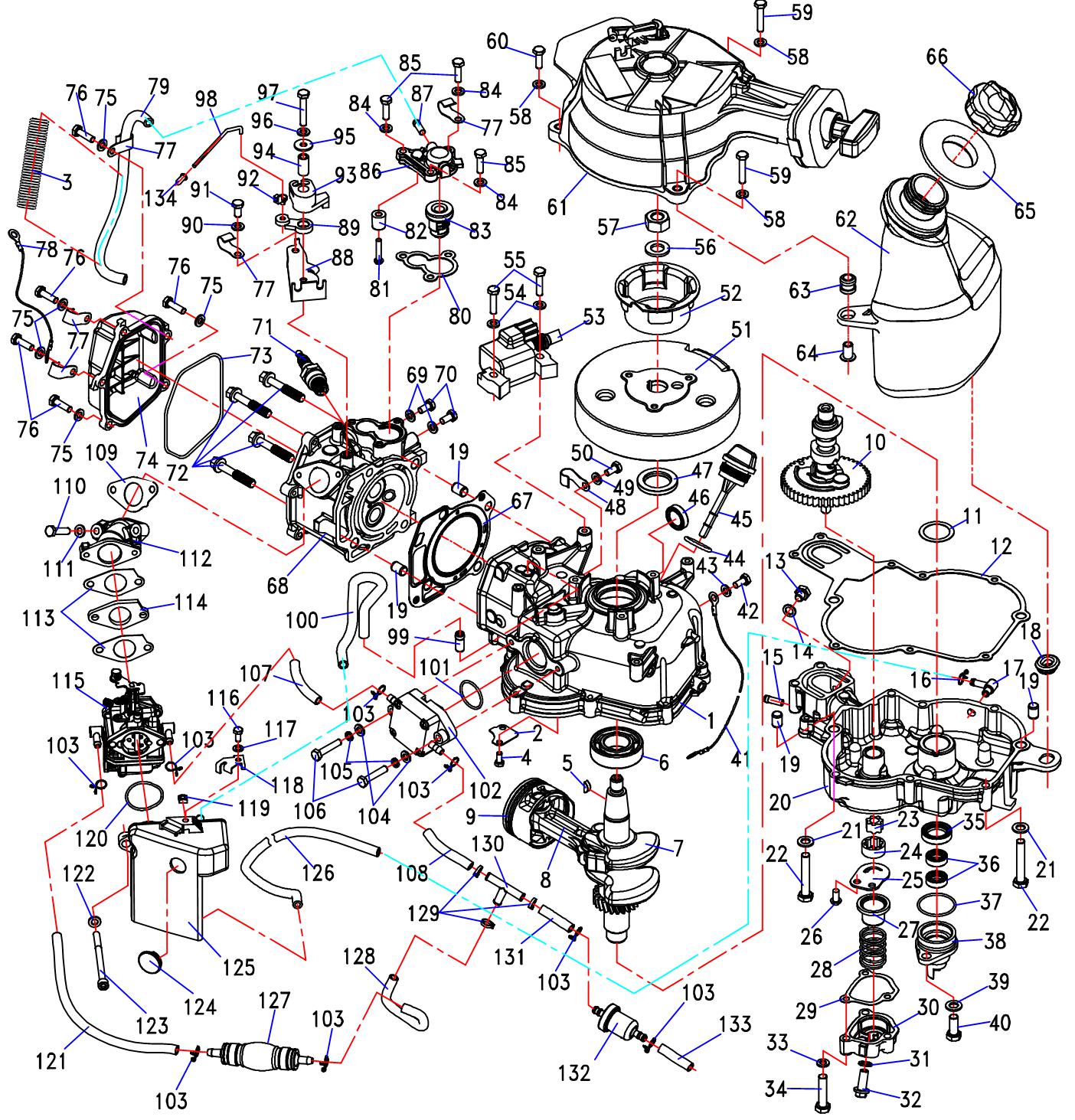

动力系统
动力系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F6-01.05.07.00曲轴箱体组件Crankcase comp. (with crankcase cover16BX-WE090-00-1S
NoneF6-01.05.07.03堵头 ( φ7*8）1
2F6-01.05.00.26挡油板Oil baffle plate1
3波纹管Ф 12*140Sylphon bellows Ф 12*1401676-11372-00
4GB/T5783六角头螺栓M5*10Bolt M5*10290280-04M06-00
5F4-01.06.19曲轴半圆键Woodruff key193306-205B2-00
6F4-01.06.02深沟球轴承6205CC3Ball bearing 6205CC316BX-E1410-00-00
7F6-01.05.03.00曲轴组件Crankshaft comp.16BX-11650-00-00
8F6-01.05.04.00连杆组件Connecting rod comp.1
9F6-01.05.05.00活塞组件piston comp.16BX-E2170-00-00
10F6-01.05.06.00凸轮轴组件Camshaft comp.190201-266P2-00
11F4-01.06.22正时齿轮调整垫Adjuster,timing gear16BX-11351-00-00
12F6-01.05.00.19箱体密封垫Seal Gasket,crankcase1
13GB/T5783六角头螺栓M8*14Bolt M8*14190280-04M06-00
14F2.5-01.01.00.04铜垫片Copper Washer1650-24378-00-00
15F4-01.06.03气管接头Joint,Breather pipe1650-24378-00
16管夹9Hose clip1676-11372-00-00
1715F-01.06.10水管圆接头Joint,hose190480-01559-00
18F6-01.04.00.01油箱减震圈下Damper ring,fuel tank199510-10114-00
19F15-01.01.00.18空心定位销Dowel pin4
20F6-01.05.00.18箱盖Crankcase cover1
21GB/T97.1平垫6Flat gasket 61090201-12472-00
22GB/T5783六角头螺栓M6*50（A4-80）Bolt M6*50（A4-80）1090280-04M06-00
23F6-01.05.00.17内转子Inner rotor1
24F6-01.05.00.16外转子Outer rotor1
25F6-01.05.00.15月牙板Crescent plate198517-06012-00
26GB/T823十字槽小盘头螺钉M6*12Pan head bolt M6*12251Y-13411-00-00
27F6-01.05.01.00机油滤网组件Oil filter comp.190501-18576-00
28F6-01.05.00.14机油泵弹簧Spring,Oil pump16BX-E3475-00-00
29F6-01.05.00.13机油泵密封垫Oil pump seal gasket16BX-E3417-00-1S
30F6-01.05.00.12机油泵壳体Oil pump housing1
31F2.5-01.01.00.04铜垫片Copper Washer1650-24378-00
32F2.5-01.01.00.02放油口螺栓Oil drain plug1
33GB/T97.1平垫6Flat gasket 6390201-12472-00
34GB/T5782六角头螺栓M6*35（螺纹18）Bolt M6*35(thread #18)393102-20108-00
35F4-01.06.15.02双唇口油封A（20*30*7）Oil seal A（20*30*7）193101-10M14-00
36F4-01.06.15.03双唇口油封B（10.8*21*7）Oil seal B（10.8*21*7）293210-35537-00
37F4-01.06.15.04壳体O型密封圈O ring168D-E5396-00-5B
38F4-01.06.15.01油封壳体Casing,oil seal1
39GB/T97.1平垫8Flat gasket 8190201-12472-00
40GB/T5783六角头螺栓M8*20Bolt M8*20190280-04M06-00
41F6-01.03.04.00接电导线组件Wire comp.1
42GB/T5783六角头螺栓M6*12Bolt M6*12190280-04M06-00
43GB/T97.1平垫圈6Flat washer 6190201-12472-00
44F4-01.06.27油标尺O型圈Dipstick O ring193210-24M79-00
45F4-01.06.26油标尺Dipstick168D-E5362-00-00
46F2.5-01.01.01.00机油观察窗组件Oil inspection box Assy.1
47F4-01.06.04曲轴油封25*40*5Oil seal,Crankshaft193102-25090-00
48F15-01.03.00.42通气管固定夹BFix clip,air breather tube1
49GB/T97.1平垫圈6Flat washer 6190201-12472-00
50GB/T5783六角头螺栓M6*12Bolt M6*12190280-04M06-00
51F6-01.03.05.00飞轮组件Flying wheel comp16BX-85550-00-00
52F6-01.05.00.08起动毂Starter pulley16BX-15723-00-00
53F6-01.03.03.00点火器组件CDI comp16BX-85571-00-00
54GB/T97.1平垫圈6Flat washer 6290201-12472-00
55GB/T5783六角头螺栓M6*25Bolt M6*25290280-04M06-00
56GB/T97.1平垫圈12Flat washer 12190201-12472-00
5715F-01.03.19飞轮螺母Flywheel nut190170-12066-00
58GB/T97.1平垫圈6Flat washer 6390201-12472-00
59GB/T5783六角头螺栓M6*35Bolt M6*35290280-04M06-00
60GB/T5783六角头螺栓M6*20Bolt M6*20190280-04M06-00
61F6-01.01.00.00起动罩组件Starter cover assy.16BX-15710-00-00
62F6-01.04.01.01燃油箱Fuel tank1
63F4-01.07.01.04减震垫(油箱)Damper26A0-82317-00-00
64F4-01.07.01.02油箱垫管Washer,fuel tank290387-06119-00
65F6-01.04.00.14油箱口减震圈Damper ring,fuel tank16A0-82317-00-00
66F4-01.07.02.00油箱盖组件Cap,fuel tank comp16BX-24610-10-00
67F6-01.05.09.00气缸垫Cylinder gasket16BX-11181-00-00
68F6-01.05.02.00气缸头组件Cylinder head comp16BX-E1111-00-1S
69GB/T97.1平垫圈6Flat washer 6290201-12472-00
70GB/T5783六角头螺栓M6*12Bolt M6*12290280-04M06-00
71CR6HSB火花塞F6Spark plug1CR6-HSB00-00-00
72GB/T5789六角法兰面螺栓M8*60Flange bolt M8*604
73F6-01.05.00.11气缸头罩壳密封圈Seal ring, Cylinder head cover16BX-11356-00-00
74F6-01.05.00.10气缸头罩壳Cylinder head cover1
75GB/T97.1平垫6Flat washer 6590201-12472-00
76GB/T5783六角头螺栓M6*20Bolt M6*20590280-04M06-00
77F15-01.03.00.42通气管固定夹BFix clip,air breather tube5
78F6-01.03.06.00接地导线组件Earthing conductor comp.1
79F6-01.05.00.09水管Water hose1
80F4-01.06.28节温器密封垫Thermostat gasket168D-E2414-A0-00
81GB/T818十字槽盘头螺钉M5*25Pan head bolt M5*251
82F9.9-01.03.00.34阳极AAnode16G8-11325-00-00
83F15-01.01.00.14节温器（60℃)Thermostat（60℃)166M-12411-01-00
84GB/T97.1平垫6Flat washer 6390201-12472-00
85GB/T5783六角头螺栓M6*20Bolt M6*20390280-04M06-00
86F4-01.06.29节温器盖Thermostat cap168D-E2413-00-1S
87F4-01.06.03气管接头Joint,Breather pipe1650-24378-00-00
88F6-01.05.00.01油门钢索端轮支座Base,throttle cable cam1
89F6-01.05.00.03油门连接块Connecting block,throttle1
90GB/T97.1平垫6Flat washer 6190201-12472-00
91GB/T5783六角头螺栓M6*12Bolt M6*12190280-04M06-00
9215F-01.02.07阻风门连杆接头Joint,chock lever1
93F6-01.05.00.02油门钢索端轮End wheel ,Throttle cable1
94F6-01.05.00.04端轮衬套End wheel bushing1
95GB/T96大垫圈6Flat washer 61
96GB/T97.1平垫6Flat gasket 6190201-12472-00
97GB/T5783六角头螺栓M6*35Bolt M6*35190280-04M06-00
98F6-01.05.00.05油门连杆Throttle lever1
99F6-01.05.00.27气管接头Joint,Breather pipe1
100F6-01.02.00.03强制排气管Exhaust pipe1
101F4-01.07.13.11燃油泵O型密封圈O-ring,fuel pump193210-27ME3-00
102F4-01.07.13.00燃油泵组件Fuel pump assy.16BX-24410-00-00
103管夹9Hose clip 95676-11372-00
104GB/T97.1平垫6Flat gasket 6290201-12472-00
105GB/T93弹簧垫圈6Washer,spring2
106GB/T5783六角头螺栓M6*30Bolt M6*30290280-04M06-00
107F6-01.04.00.07燃油泵出油管Outlet pipe,fuel pump1
108F6-01.04.00.08燃油泵进油管Inlet pipe, fuel pump1
109F6-01.02.00.06进气歧管密封垫（出）Seal Gasket, intake manifold (outlet16BX-E3645-00-00
110GB/T5783六角头螺栓M6*25Bolt M6*25290280-04M06-00
111GB/T97.1平垫圈6Flat washer 6290201-12472-00
112F6-01.02.00.05进气歧管Intake manifold16BX-E3641-10-94
113F6-01.02.00.01进气歧管密封垫（进）Gasket, intake manifold (inlet)26BX-E3646-00-00
114F6-01.02.00.02隔热板Heatproof plate16BX-E3647-00-00
115F6-01.02.02.00化油器组件Carburetor comp16BX-14301-10-00
116GB/T5783六角头螺栓M5*10Bolt M5*10190280-04M06-00
117GB/T97.1平垫5Flat gasket 5190201-12472-00
118F6-02.00.00.01阻风门拉索压板Plate,choker wire1
119GB/T39C级方螺母M5C class square nut M51
120F6-01.02.00.07空气滤清器O型圈O ring,air cleaner193210-320A7-00
121F6-01.04.00.11手动泵出油管Oil outlet hose, manual pump1
122GB/T97.1平垫6Flat gasket 6290201-12472-00
123GB/T70.1内六角圆柱头螺栓M6*85Bolt M6*852
124F4-01.02.06.06橡胶闷头Rubber plug190480-18M74-00
125F6-01.02.01.00空滤器组件Air cleaner comp16BX-14440-00-00
126F6-01.02.00.04回油管Fuel collection tube1
127F6-01.04.02.00手动泵组件Manual pump comp.16BX-24360-10-00
128F6-01.04.00.09手动泵进油管Oil inlet hose,manual pump1
129扎带Ribbon3676-11372-00
130F15-05.00.00.17三通T-branch pipe1688-24378-00-00
131F6-01.04.00.13油管EFuel hose E1
132F9.9-01.03.04.00燃油滤清器组件Fuel filter comp168T-24251-01-00
133F6-01.04.00.06油管DFuel hose D16BX-F4311-00-00
134F9.9-01.04.00.05连杆帽Connecting bar cap1
135管夹9hose clip2676-11372-00

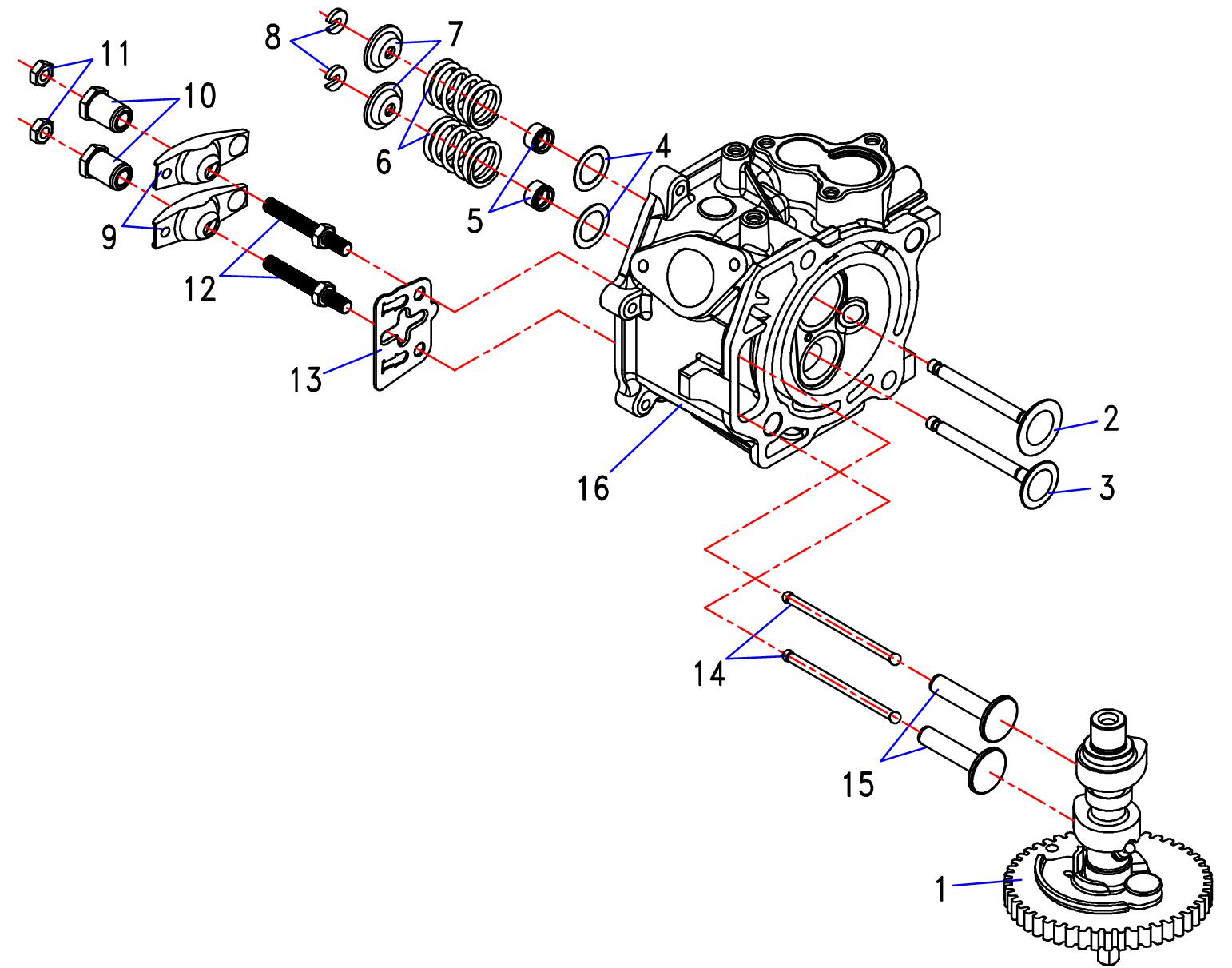

配气系统
配气系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F6-01.05.06.00凸轮轴组件Camshaft comp16BX-E2170-00-00
2F6-01.05.00.22进气门Intake valve16BX-12111-00-00
3F6-01.05.00.06排气门Exhaust valve16AU-12121-00-00
4F4-01.06.33.08气门弹簧垫片Spacer,Valve spring268T-12116-00-00
5F4-01.06.33.09气门油封Oil seal,valve251Y-12119-00-00
6F6-01.05.00.23气门弹簧Spring,valve260R-12113-00-00
7F4-01.06.33.11气门弹簧座Washer,Valve spring27NJ-12117-00-00
8F4-01.06.33.10气门锁夹Valve Lock clamp27NJ-12118-00-00
9F4-01.06.33.14摇臂Rocker arm267D-12151-00-00
10F4-01.06.33.16摇臂球座Rocker arm bolt base27FK-12165-00-00
11F4-01.06.33.15六角螺母Nut27FK-12158-00-00
12F4-01.06.33.13摇臂螺栓Bolt,Rocker arm267D-12157-00-00
13F6-01.05.00.24导向板Deflector16BX-E2155-00-00
14F6-01.05.00.25推杆Push rod26BX-12154-00-00
15F4-01.06.24气门挺柱Valve tappet2JA9-12153-00-00
16F6-01.05.02.00气缸头组件Cylinder head comp16BX-E1111-00-1S

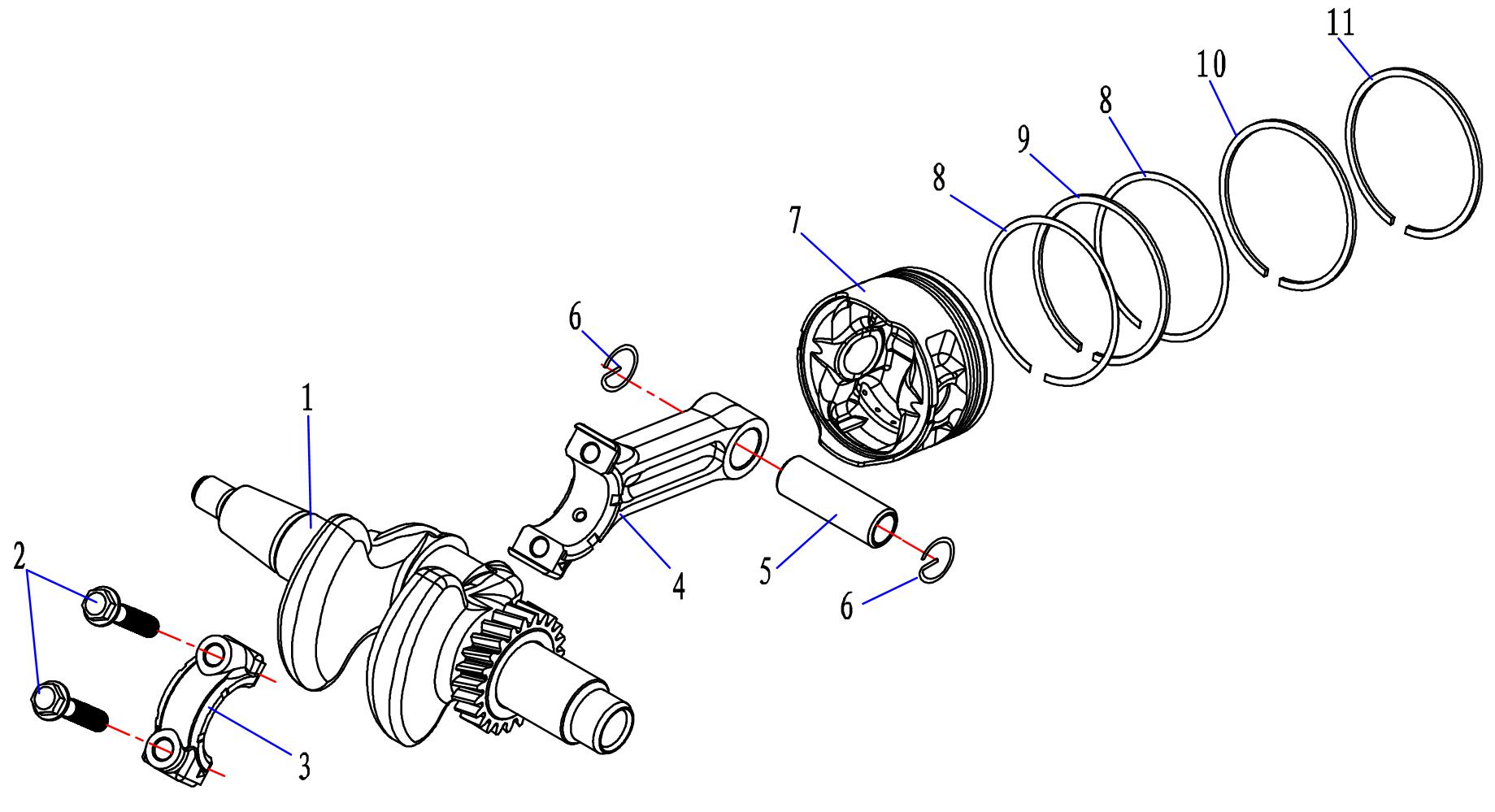

曲轴活塞
曲轴活塞 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F6-01.05.03.00曲轴组件Crankshaft comp16BX-E1410-00-00
2F6-01.05.04.03连杆螺栓Connection rod bolt26BX-11650-00-00
3F6-01.05.04.02连杆盖Connection rod cap16BX-11650-00
4F6-01.05.04.01C连杆Connection rod1
5F6-01.05.05.02活塞销Pin,piston16BX-11633-00-00
6F6-01.05.05.03活塞销卡簧Circlip,piston293450-16068-00
7F6-01.05.05.01活塞Piston16BX-E1636-00-00
8F6-01.05.05.06油环刮片环O ring, piston26BX-E1603-00-00
9F6-01.05.05.07油环簧环Oil ring1
10F6-01.05.05.05副气环2nd ring1
11F6-01.05.05.04主气环Top ring1

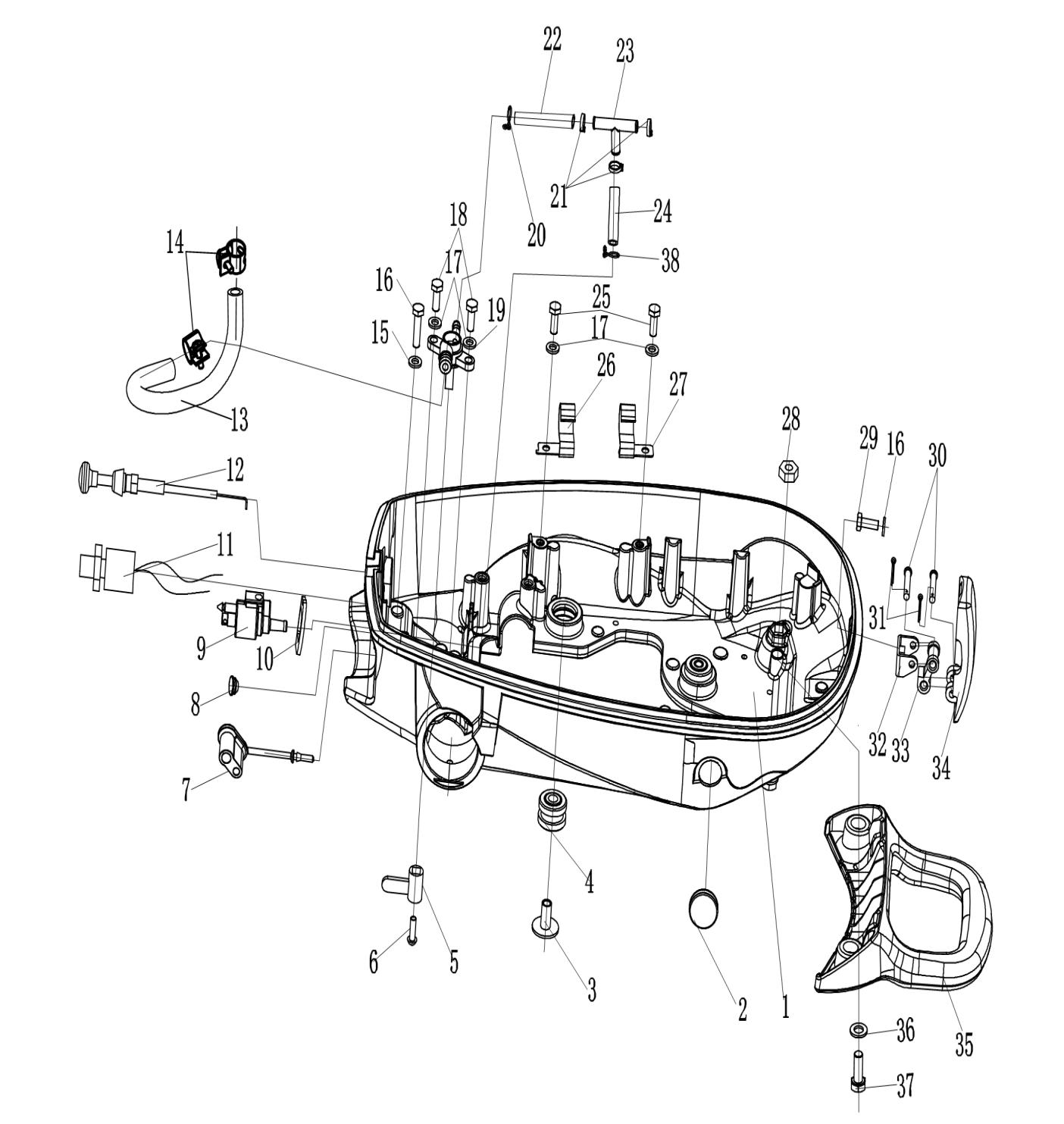

底罩
底罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F6-02.00.00.00底座部件Bottom base comp1
2F4-02.13后罩橡胶闷头Rubber plug190480-22M72-00
3F9.9-02.00.00.06带肩垫管Shoulder pad tube490387-06176-00
4F9.9-02.00.00.05底座减震垫Cushion blocking of bottom seat490480-21M82-00
5F4-01.07.05.01油开关旋柄Fuel cock knob1
6GB/T818十字槽盘头螺钉M4*14Pan head bolt M4*141
7F6-01.04.00.12燃油管插头护套Sleeve,Fuel hose joint1
8F6-02.00.00.09橡胶闷头Rubber plug1
915F-01.07.01.00燃油管插头组件Fuel hose joint assy.16YL-24304-01-00
10F9.9-01.04.00.13燃油管插头垫片Washer,fuel hose joint160R-F4329-00-00
1140F-04.01.05急停开关总成Emergency stop switches assy1
12F6-02.01.00.00阻风门拉手总成Choke handle assy16BX-F6330-01-00
13F6-01.04.00.03燃油管AFuel hose A1
143.5F-01.04.05.00夹箍组件Clamping assy2
15GB/T97.1平垫6Flat gasket 6190201-12472-00
16GB/T5783六角头螺栓M6*25Bolt M6*25190280-04M06-00
17GB/T97.1平垫6Flat gasket 6590201-12472-00
18GB/T5783六角头螺栓M6*14Bolt M6*1426BX-42129-00-00
19F4-01.07.05.00油开关座Fuel cock comp.16BX-24500-00-00
20管夹9Hose clip1676-11372-00
21扎带Ribbon3676-11372-00
22F6-01.04.00.04油管BFuel hose1
23F15-05.00.00.17三通T branches1688-24378-00
24F6-01.04.00.05油管CFuel hose C1
25GB/T5783六角头螺栓M6*14Bolt M6*14290280-04M06-00
26F6-02.00.00.02手动泵支架（左）Holder, manual pump (L)1
27F6-02.00.00.03手动泵支架（右）Holder, manual pump (R)1
28GB/T6170六角螺母M8Nut M81
29GB/T5783六角头螺栓M6*12Bolt M6*12190280-04M06-00
30F6-02.00.00.05锁紧手柄转轴Spindle,lock handle2
31GB/T896 4开口挡圈4Cotter pin 1.2*122
32F6-02.03.00.00锁紧手柄支架组件Bracket comp. lock handle1
33F6-02.00.00.06锁紧手柄连接件Connecting, lock handle1
34F6-02.00.00.07锁紧手柄Lock handle168T-42801-00-00
35F6-02.04.00.00底座提手组件Handle comp. botton base16BX-G2731-00-00
36GB/T97.1平垫8Flat gasket 8190201-12472-00
37GB/T5783六角头螺栓M8*20Bolt M8*20190280-04M06-00
38管夹10Hose clip1676-11372-00
夹紧部位

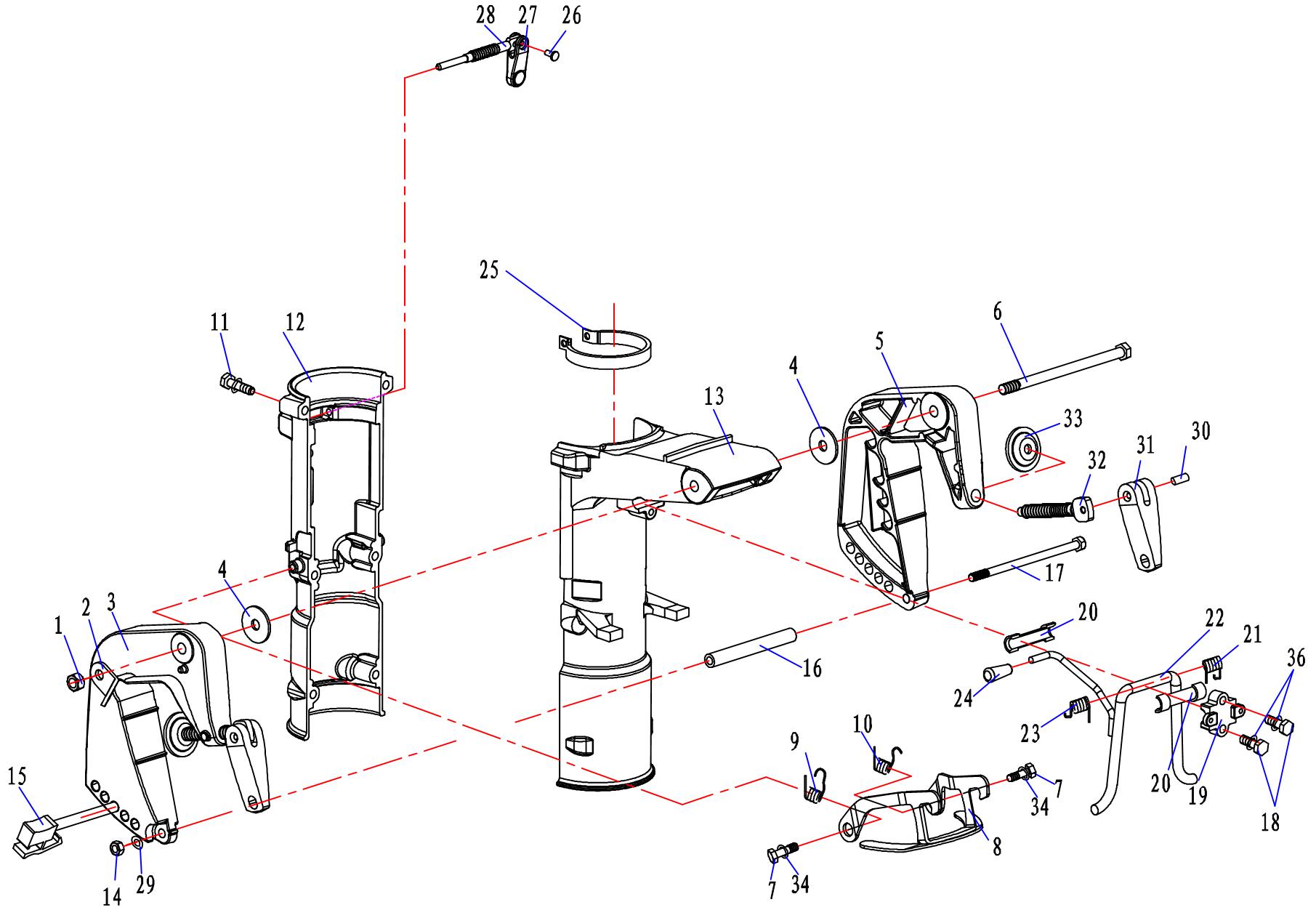

夹紧部位 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1DIN985六角尼龙锁紧螺母M8Nylon lock nut M8190185-08057-00
2F4-03.02孔板Orifice plate168D-G3113-00-00
3F4-03.01.01夹紧托架（左）Bracket,Clam(L)16L8-G3112-00-4D
4F4-03.03尼龙垫片Nylon gasket290202-08M58-00
5F4-03.01.02夹紧托架（右）Bracket,Clam(R)16L8-G3111-01-4D
6GB/T5783六角头螺栓M8*135Bolt M8*135190101-08M07-00
7GB/T5783六角头螺栓M6*10Bolt M6*10290280-04M06-00
8F4-03.05.08.00起翘锁紧钩组件Trim locking hook assy16BX-43614-00-00
9F4-03.05.08.04锁紧钩扭簧BTension spring,locking hook(B)1
10F4-03.05.08.03锁紧钩扭簧ATension spring,locking hook(A)16BX-43188-00-00
11GB/T5783六角头螺栓M6*35Bolt M6*35690280-04M06-00
12F4-03.05.04旋转托架盖Cap,swivel bracket168D-G3312-01-4D
13F4-03.05.01旋转托架Bracket,swivel168D-G3311-01-4D
14GB6170六角螺母M6Nut M61
15F4-03.05.07.00角度限位插销bolt,Tilt Lock168D-G3160-00-00
16F4-03.04螺栓垫管Cushing tube190387-06M11-00
17GB/T5783六角头螺栓M6*120Bolt M6*120190101-06335-00
18GB/T5783六角头螺栓M6*20Bolt M6*20290280-04M06-00
19F4-03.05.03调整支架压板Bracket adjusting plate16E0-43313-00-94
20F4-03.05.02.05减磨垫Antifriction pad2620-43189-00-00
21F4-03.05.02.04扭簧BTorsional spring (B)1
22F4-03.05.02.01角度调整支架Adjustable bracket16BX-43181-00-00
23F4-03.05.02.03扭簧ATorsional spring (A)1
24F4-03.05.02.02支架手柄橡胶套Rubber bush,handle holder1
25F4-03.05.05.00锁紧圈组件Lock washer comp.16E0-42528-03-00
26GB/T875-86扁平半空心铆钉4*10Rivet 4*10190266-04M05-00
27F4-03.05.06.01锁紧手柄Lock handle168D-G2561-01-00
28F4-03.05.06.02锁紧螺杆Lock screw16L5-42529-01-00
29GB/T97.1平垫6Flat gasket 6190201-12472-00
30GB/T1015沉头半空心铆钉4*22Rivet 4*22290243-04M01-00
3115F-03.05.02.04夹紧手柄Intensify handle26L8-G3118-01-00
32F4-03.01.03艉板夹紧螺栓Clamp bolt26E0-43116-01-00
3315F-03.05.02.03夹紧盘Clamp plate2620-43114-00-00
34GB/T848平垫圈6Flat washer 626BX-G4121-00
35GB/T848平垫圈6Flat washer 666BX-G4121-00
36GB/T97.1平垫圈6Flat washer 6290201-12472-00
操舵手柄

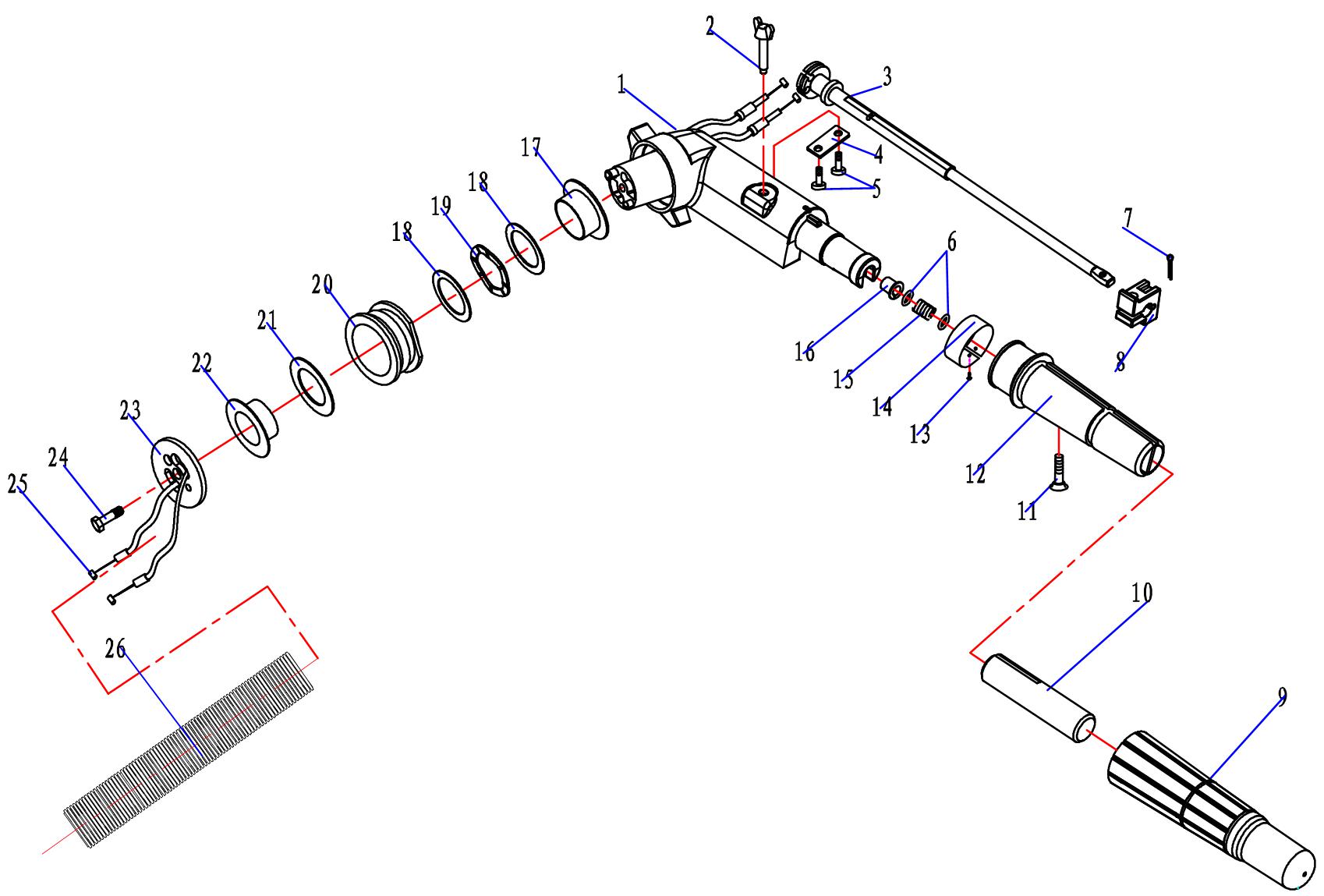

操舵手柄 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F6-04.00.00.07操舵手柄Steering handle1
215F-04.07.09阻力调整旋钮Adjustor,friction16G1-42125-01-00
3F6-04.01.00.00节气门杆Throttle lever16BX-42138-00-00
415F-04.07.07节气门杆压板Plate,throttle lever1
5GB/T818十字槽盘头螺钉M5*12Pan head bolt M5*122
6GB/T848小垫圈10Washer 1026BX-G4121-00
7GB/T91开口销1.6*12Cotter pin 1.6*12191490-16010-00
815F-04.07.08锁紧块Latch segment16G1-42126-00-00
9F4-04.07.15手柄橡胶套Rubber sleeve,Handle1
10F4-04.07.14手柄嵌件Insert,handle2
11GB/T820十字槽半沉头螺钉M5*25Pan head bolt M5*251
1215F-04.07.13手柄Handle1
13GB/T845十字槽盘头自攻螺钉ST2.2*6Pan head bolt ST2.2*61
1415F-04.11-Ⅱ油门标牌Indicator,throttle1
1515F-04.07.11弹簧Spring190501-23215-00
1615F-04.07.12衬套Bushing190386-08032-00
17F6-04.00.00.02减震圈外Outer damper1
18F6-04.00.00.03垫片外Outer washer2
19F6-04.00.00.05波垫Wave washer1
20F6-04.02.00.00手柄减震环组件Shock ring comp,handle16BX-42129-00-00
21F6-04.00.00.04垫片内Inner washer1
22F6-04.00.00.06减震圈内Inner damper1
23F6-04.00.00.01操舵手柄压板Plate16BX-42131-00-00
24GB/T5783六角头螺栓M8*25Bolt M8*25197075-08025-00
25F6-04.00.00.08油门控制钢索Throttle cable26BX-F6301-00-00
26波纹管Ф14* 140Sylphon Ф14*1401676-11372-00
2760F-01.04.00.11气管管卡Pipe clip2
NoneF6操舵手柄部件Tiller Assy.1
水上部分

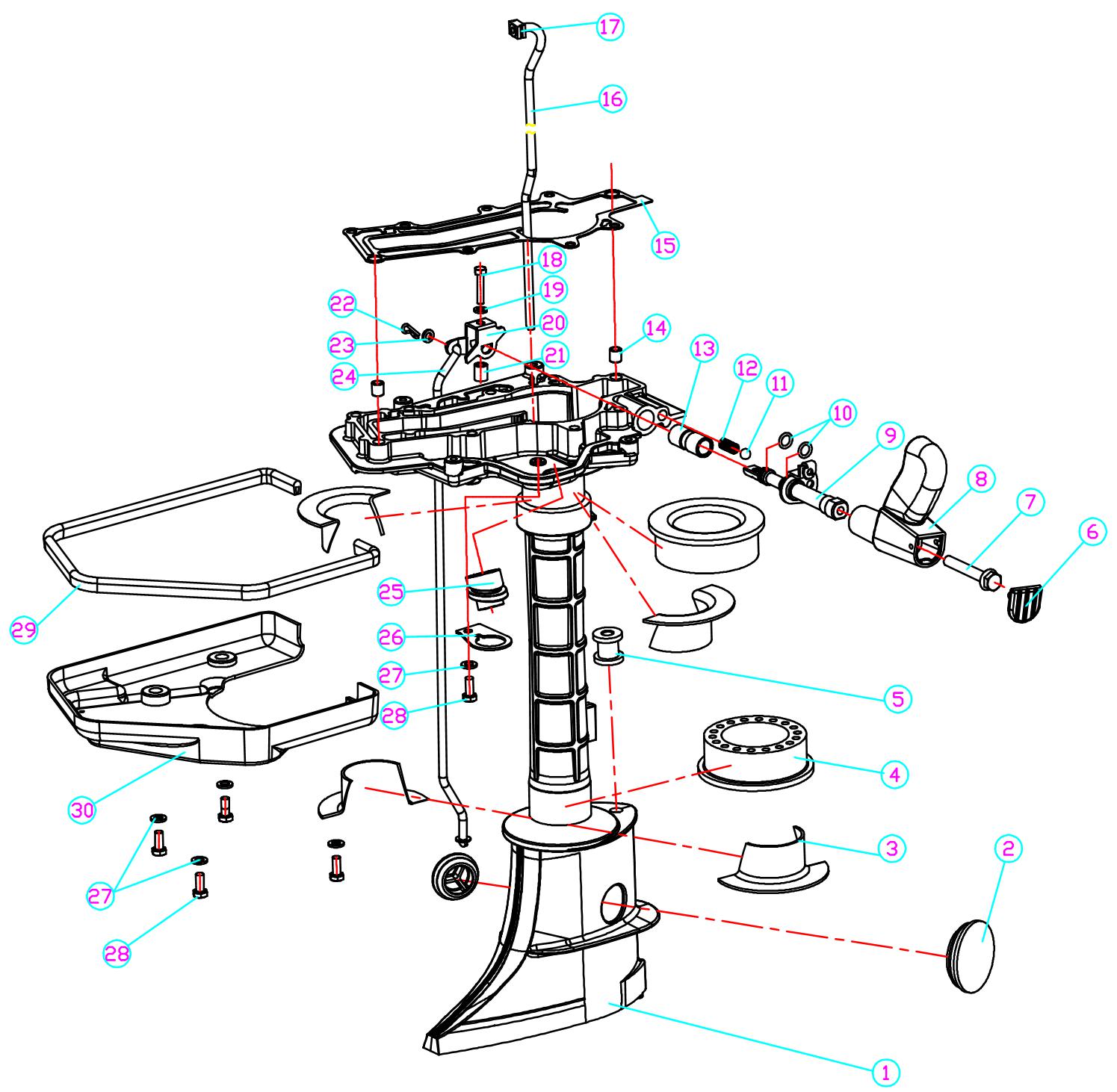

水上部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F6-05.00.00.05水上装置壳体Upper casing16BX-G5111-00-4D
2F4-05.01.04水上闷头rubber Plug,upper casing2647-45151-01-00
3F4-05.08减震圈衬套Bushing4
4F4-05.09减震圈Damper2
5F4-05.01.03变档凸轮杆密封圈Sealing ring,gear cam rod190480-10M13-00
6F6-05.02.00.02变档手柄盖Cap,Gear shift handle1
7GB5789(10.9)六角法兰面螺栓M8*40Flange bolt M8*40190105-08046-00
8F6-05.02.00.00变档手柄Gear shift handle16BX-G4111-00-00
9F6-05.03.00.00档位拨叉组件Gear shifting assy16BX-G4119-00-CA
10F4-05.02.03拨叉O型圈O ring,gear shifting293210-09350-00
11F4-05.03钢珠8Steel ball 8193505-16024-00
12F4-05.04压簧Compress spring190501-12802-00
13F4-05.01.02档位轴套Shift axis sleeve16BX-G4122-00-00
14F4-06.27空心定位销Dowel pin290387-06806-00
15F6-05.00.00.04机体密封垫Engine gasket16BX-45113-00-00
16F4-05.12-S水管（短轴）Hose (short shaft)16BX-G4360-00-00
NoneF4-08.05-L水管（短轴）Hose (short shaft)1
17F4-05.13水管上密封圈Seal ring (upper),hose190119-05M04-00
18GB/T5783六角头螺栓M5*25Bolt M5*25192990-05600-00
19GB/T848平垫5Flate gasket 516BX-G4121-00-00
20F4-05.07变档连杆支架Gear shift bracket190387-06504-00
21F4-05.00.00.06支架衬套Bushing191490-16010-00
22GB/T91-86开口销1.6*12Cotter pin 1.6*12192990-05600-00
23GB/T848平垫6Flat gasket 616BX-44143-00-00
24F4-05.06变档连杆Gear shifting rod1
25F6-05.00.00.03放油口护套Sleeve1
26F6-05.00.00.02放油口护套压板Plate1
27GB/T97.1平垫圈6Flat washer 6590119-05M04-00
28GB/T5783六角头螺栓M6*14Bolt M6*1456BX-42716-00-00
29F6-05.00.00.01装饰罩密封条Sealing strip, decoration cov16BX-G2723-00-00
30F6-05.01.00.00装饰罩组件Decoration cover assy1
水下部分-短轴

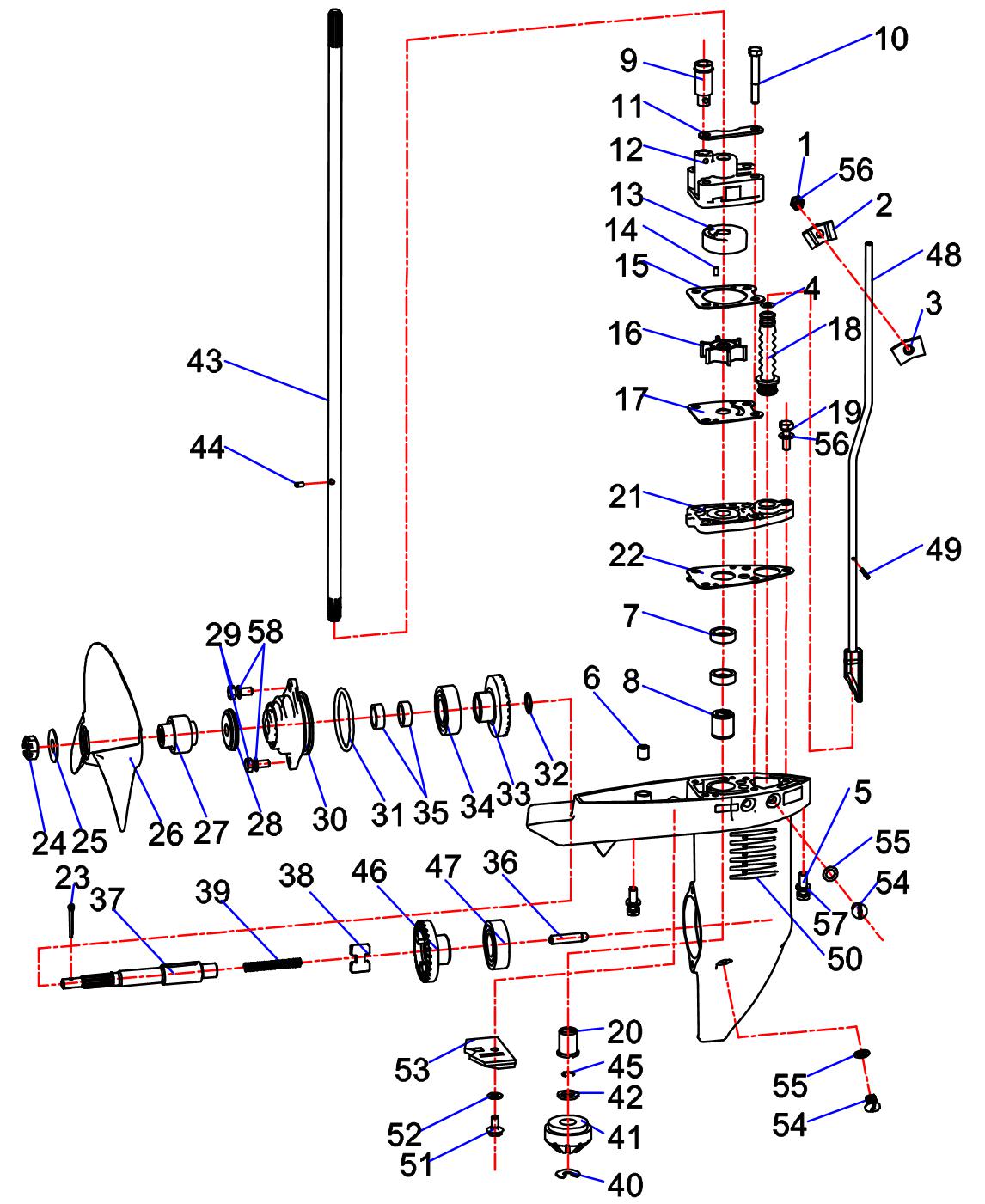

水下部分-短轴 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB/T5783六角头螺栓M6*20Bolt M6*20190280-04M06-00
2F4-06.22变档凸轮锁紧块AShift cam locker B168D-G4145-00-00
3F4-06.23变档凸轮锁紧块BShift cam locker A168D-G4146-00-00
4F4-06.16橡胶圈弹簧Spring,rubber ring1
5GB/T5783六角头螺栓M6*40Bolt M6*40290280-04M06-00
6F4-06.27空心定位销Dowel pin290387-06806-00
7F4-01.06.15.03双唇口油封B10.8*21*7Oil seal B10.8*21*7293102-10004-00
8F4-06.01.03含油轴承Oil Bearing16E0-45316-09-00
9F4-06.21.04水管下密封圈Seal ring (lower),hose167D-44366-00-00
10GB/T5783六角头螺栓M6*45Bolt M6*45490280-04M06-00
11F4-06.20水泵压条Plate,water pump2
12F4-06.21.01水泵壳体Water pump housing assy.16BX-44311-00-00
13F4-06.21.02水泵内壳Water pump inner housing16BX-44322-00-00
14F4-06.19水泵座定位销Pin,water pump base293604-18080-00
15F4-06.18水泵密封垫Gasket,water pump16BX-G4315-01-00
16F4-06.21.03.00水泵叶轮组件Impeller assy.16E0-44352-00-00
17F4-06.17水泵垫板Plate,water pump16BX-44323-00-00
18F4-06.15波形橡胶密封圈Rubber seal ring1
19GB/T5783六角头螺栓M6*25Bolt M6*25190280-04M06-00
20F4-06.01.04带肩含油轴承Oil Bearing16E0-45317-09-00
21F4-06.14水泵座Water pump base168D-G5321-00-00
22F4-06.13水泵座密封垫Seal Gasket,water pump base168D-G5315-A0-00
23GB91开口销(2.5*20)Cotter pin (2.5*20)191490-25030-00
24F4-06.26开槽六角螺母Nut16L5-45616-00-00
25GB/T96.1-2000平垫8Flat gasket190201-08M54-00
26F6-06.00.00.00螺旋桨(7-1/2*8)Propeller(7-1/2*8)16E0-45949-00-EL
NoneF6-06.00.00.00螺旋桨组件(7-1/2*8)Propeller Assy.16E0-45941-01
27F4-06.25.02.00螺旋桨内花键组件Propeller teeth assy1
28F4-06.24螺旋桨垫块Propeller heel168D-G5987-00-00
29GB/T5783六角头螺栓M6*16Bolt M6*16290280-04M06-00
30F4-06.07.01水下壳体盖Cap,lower casing168D-G5361-00-4D
31F4-06.07.03水下壳体O型圈O ring,lower casing193210-48214-00
32F4-06.05垫片Gasket167D-45576-00-00
33F4-06.06倒档齿轮Reverse gear167D-45560-00-00
34F9.9-06.00.00.15轴承6004C2Bearing 6004C2193306-004YH-00
35F4-06.07.02油封22*13*7Oil seal 22*13*7293101-13M12-00
36F4-06.04.04变档柱塞Gear shift plunger167D-45635-00-00
37F4-06.04.01螺旋桨轴Propeller shaft168D-G5611-10-00
38F4-06.04.03离合器片Dog clutch167D-45631-01-00
39F4-06.04.02压缩弹簧Compression spring190501-120A9-00
40GB896.6开口挡圈6Circlip167D-15744-00-00
41F4-06.08主动轮Driving wheel16BX-45551-00-00
42F4-06.09主动轮调整片Adjuster,Driving wheel1
43F4-06.11.01-S驱动轴(短轴）Drive shaft(short shaft)168D-G5511-00-00
44F4-06.11.03驱动轴限位销Drive shaft pin193604-09066-00
45F4-06.11.02弹性挡圈（轴用）circlip190467-08M01-00
46F4-06.03正档齿轮Forward gear167D-45570-00-00
47F9.9-06.00.00.15轴承6004C2Bearing 6004C2193306-004YH-00
48F4-06.12.00-S变档凸轮组件（短轴）Gear shift cam (short shaft)16BX-G4150-00-00
49GB879弹性圆柱销（2.5*20）Flexible cylinder pin (2.5*201
50F4-06.01.01水下壳体Lower casing168D-G5311-00-4D
51GB/T5783六角头螺栓M6*12Bolt M6*12190280-04M06-00
52GB/T861.1内齿锁紧垫圈6Serrated locking washer 61
53F4-06.02阳极BAnode B168D-G5251-00-00
5415F-06.01.03注油口螺塞Plug screw390340-08002-00
5515F-06.01.04螺塞密封垫Plug screw gasket390430-08020-00
56GB/T97.1平垫圈6Flat gasket 6490201-12472-00
57GB/T848平垫圈6Flat gasket 626BX-G4121-00
NoneF6(S)水下装置部件Lower Casing Assy.1
水下部分-长轴

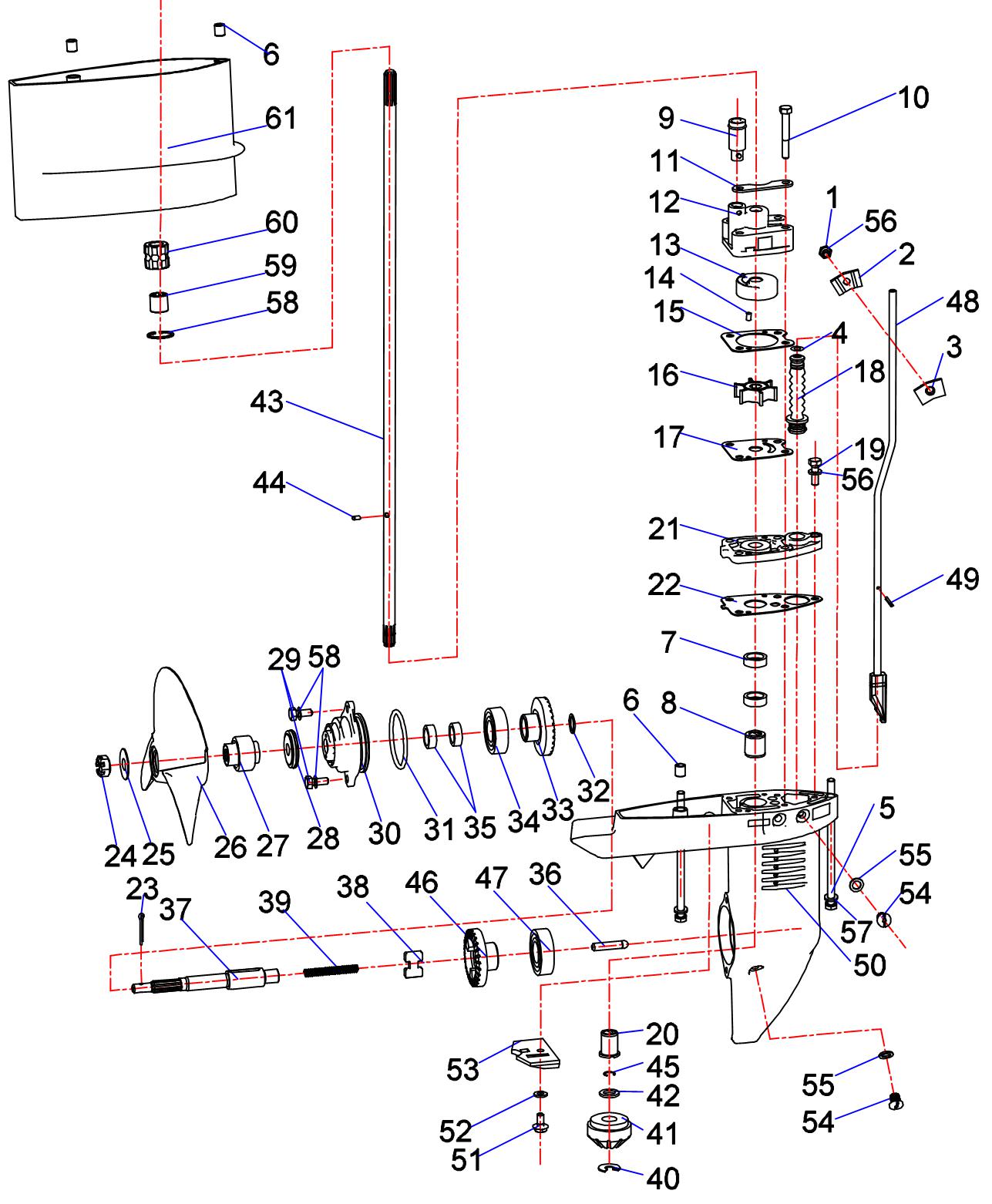

水下部分-长轴 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB/T5783六角头螺栓M6*20Bolt M6*20190280-04M06-00
2F4-06.22变档凸轮锁紧块AShift cam locker B168D-G4145-00-00
3F4-06.23变档凸轮锁紧块BShift cam locker A168D-G4146-00-00
4F4-06.16橡胶圈弹簧Spring,rubber ring1
5GB/T5783六角头螺栓M6*165Bolt M6*165290280-04M06-00
6F4-06.27空心定位销Dowel pin490387-06806-00
7F4-01.06.15.03双唇口油封B10.8*21*7Oil seal B10.8*21*7293102-10004-00
8F4-06.01.03含油轴承Oil Bearing16E0-45316-09-00
9F4-06.21.04水管下密封圈Seal ring(lower),hose167D-44366-00-00
10GB/T5783六角头螺栓M6*45Bolt M6*45490280-04M06-00
11F4-06.20水泵压条Plate,water pump2
12F4-06.21.01水泵壳体Water pump housing assy.16BX-44311-00-00
13F4-06.21.02水泵内壳Water pump inner housing16BX-44322-00-00
14F4-06.19水泵座定位销Dowel Pin,water pump base293604-18080-00
15F4-06.18水泵密封垫Gasket,water pump16BX-G4315-01-00
16F4-06.21.03.00水泵叶轮组件Impeller assy.16E0-44352-00-00
17F4-06.17水泵垫板Plate,water pump16BX-44323-00-00
18F4-06.15波形橡胶密封圈Rubber seal ring1
19GB/T5783六角头螺栓M6*25Bolt M6*25190280-04M06-00
20F4-06.01.04带肩含油轴承Oil Bearing16E0-45317-09-00
21F4-06.14水泵座Water pump base168D-G5321-00-00
22F4-06.13水泵座密封垫Gasket,water pump base168D-G5315-A0-00
23GB91开口销(2.5*20)Cotter pin (2.5*20)191490-25030-00
24F4-06.26开槽六角螺母Nut16L5-45616-00-00
25GB/T96.1-2000平垫8Flat gasket 8190201-08M54-00
26F6-06.00.00.00螺旋桨(7-1/2*8)Propeller(7-1/2*8)16E0-45949-00-EL
NoneF6-06.00.00.00螺旋桨组件(7-1/2*8)Propeller Assy.16E0-45941-01
27F4-06.25.02.00螺旋桨内花键组件Propeller teeth assy1
28F4-06.24螺旋桨垫块Propeller heel168D-G5987-00-00
29GB/T5783六角头螺栓M6*16Bolt M6*16290280-04M06-00
30F4-06.07.01水下壳体盖Cap,lower casing168D-G5361-00-4D
31F4-06.07.03水下壳体O型圈O ring,lower casing193210-48214-00
32F4-06.05垫片Gasket167D-45576-00-00
33F4-06.06倒档齿轮Reverse gear167D-45560-00-00
34F9.9-06.00.00.15轴承6004C2Bearing 6004C2193306-004YH-00
35F4-06.07.02油封22*13*7Oil seal 22*13*7293101-13M12-00
36F4-06.04.04变档柱塞Gear shift plunger167D-45635-00-00
37F4-06.04.01螺旋桨轴Propeller shaft168D-G5611-10-00
38F4-06.04.03离合器片Dog clutch167D-45631-01-00
39F4-06.04.02压缩弹簧Compression spring190501-120A9-00
40GB896.6开口挡圈6Circlip 6167D-15744-00-00
41F4-06.08主动轮Driving wheel16BX-45551-00-00
42F4-06.09主动轮调整片Adjuster,Driving wheel1
43F4-08.04-L驱动轴(长轴）Drive shaft(long shaft)1
44F4-06.11.03驱动轴限位销Drive shaft pin193604-09066-00
45F4-06.11.02弹性挡圈（轴用）Flexible retainer ring (for shaf190467-08M01-00
46F4-06.03正档齿轮Forward gear167D-45570-00-00
47F9.9-06.00.00.15轴承6004C2Bearing 6004C2193306-004YH-00
48F4-08.06.00-L变档凸轮组件（长轴）Gear shift cam (long shaft)16BX-G4150-10-00
49GB879弹性圆柱销（2.5*20）Flexible cylinder pin (2.5*20)1
50F4-06.01.01水下壳体Lower casing168D-G5311-00-4D
51GB/T5783六角头螺栓M6*12Bolt M6*12190280-04M06-00
52GB/T861.1内齿锁紧垫圈6Serrated locking washer 61
53F4-06.02阳极BAnode B168D-G5251-00-00
5415F-06.01.03注油口螺塞Plug screw390340-08002-00
5515F-06.01.04螺塞密封垫Plug screw Seal gasket390430-08020-00
56GB/T97.1平垫圈6Flat gasket 6490201-12472-00
57GB/T848平垫圈6Flat gasket 626BX-G4121-00
58GB/T893.1孔用弹性挡圈Flexible retainer ring1
59F4-08.02定位套Locating bush1
60F4-08.03橡胶套Rubber bush1
61F4-08.01接长体Extension casing1
NoneF6(L)水下装置部件Lower Casing Assy.1
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2GB91 2.5*20开口销cotter pin1
3F4-06.21.03.00水泵叶轮组件impeller Assy.136965-0210
415F-09.01应急启动手柄emergency starting handle1
5F15-08.00.00.00燃油箱总成(12L)fuel case Assy.1
615F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
715F-01.01.22启动绳φ5*2000mmstarter rope1
815F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
9F9.9工具包toolkit1
10F6-09.00.00.02火花塞套筒sleeve ，spark plug1
