舟一会 ZHOUYIHUI 船外机

海的 F9.9 - F9.9HL(S)

共 12 个部位，点击零件编码查看详情，或搜索本页零件。

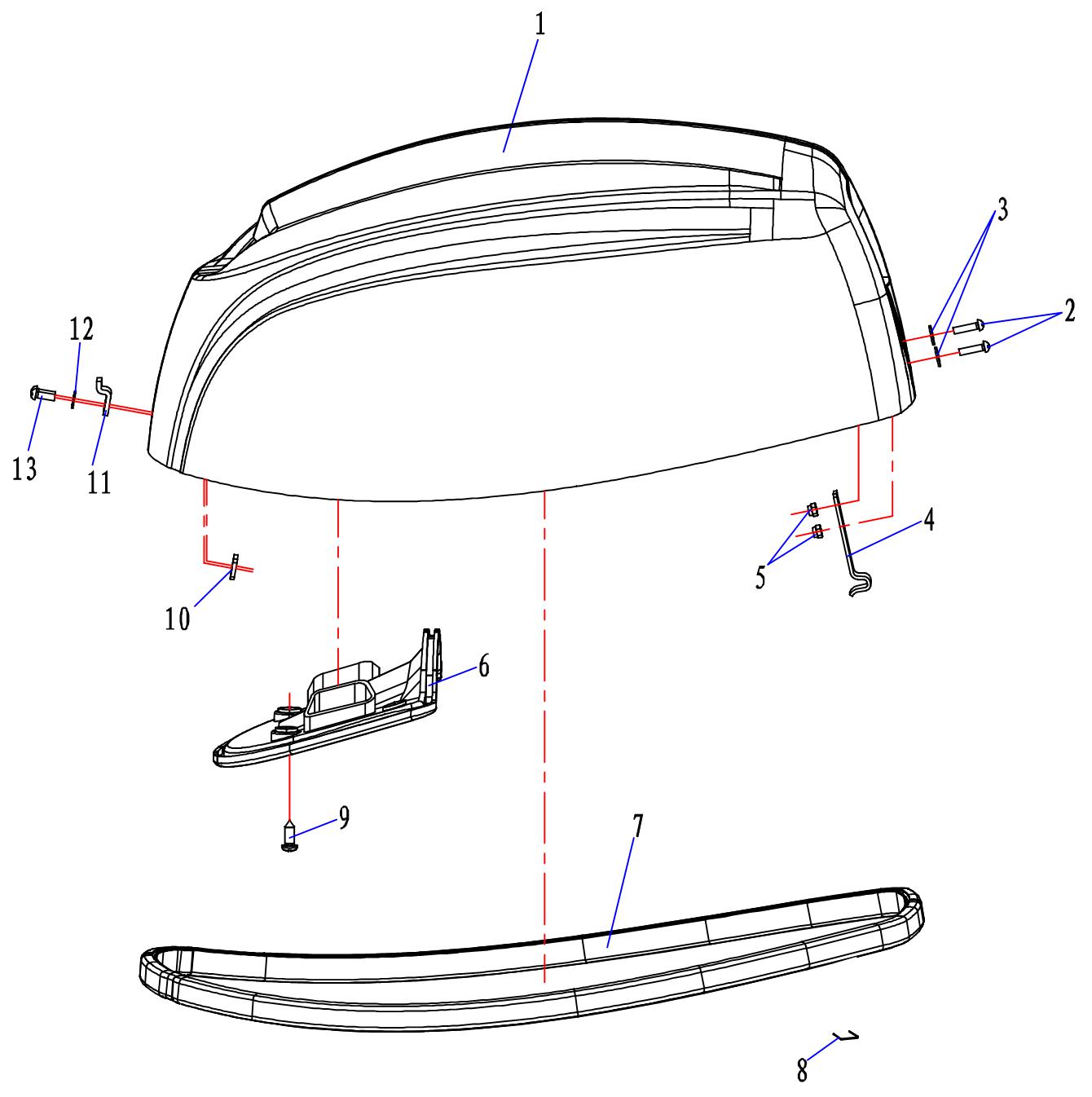

顶罩
顶罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F9.9-07.00.00.01顶罩Top cowling1
2GB/T818十字槽盘头螺钉M4*16Pan head bolt with cross recess2
3GB/T96大垫圈4wahser2
4F15-07.00.00.06前锁紧钩Front lock hook1
5DIN985六角尼龙锁紧螺母M4Hexagonal nut2
6F9.9-07.00.00.02进气口盖air inlet cap1
7F9.9-07.00.00.03橡胶密封圈rubber seal ring1
815F-07.07圆形装帧钉 1.2bingding nail20
9GB/T845十字槽盘头自攻螺钉ST4.8*16Cross recessed pan head tapping screws3
102.5F-02.00.00.10锁紧钩固定板fixer,hook1
11F6-07.00.00.04顶罩后锁紧钩rear lock hook1
12GB/T97.1平垫圈4Flat gasket290201-13201-00
13GB/T818十字槽盘头螺钉M4*12Pan head bolt with cross recess M4*122
NoneF9.9-07.00.00.00顶罩（装配总成）Top Cowling Assy1
启动罩

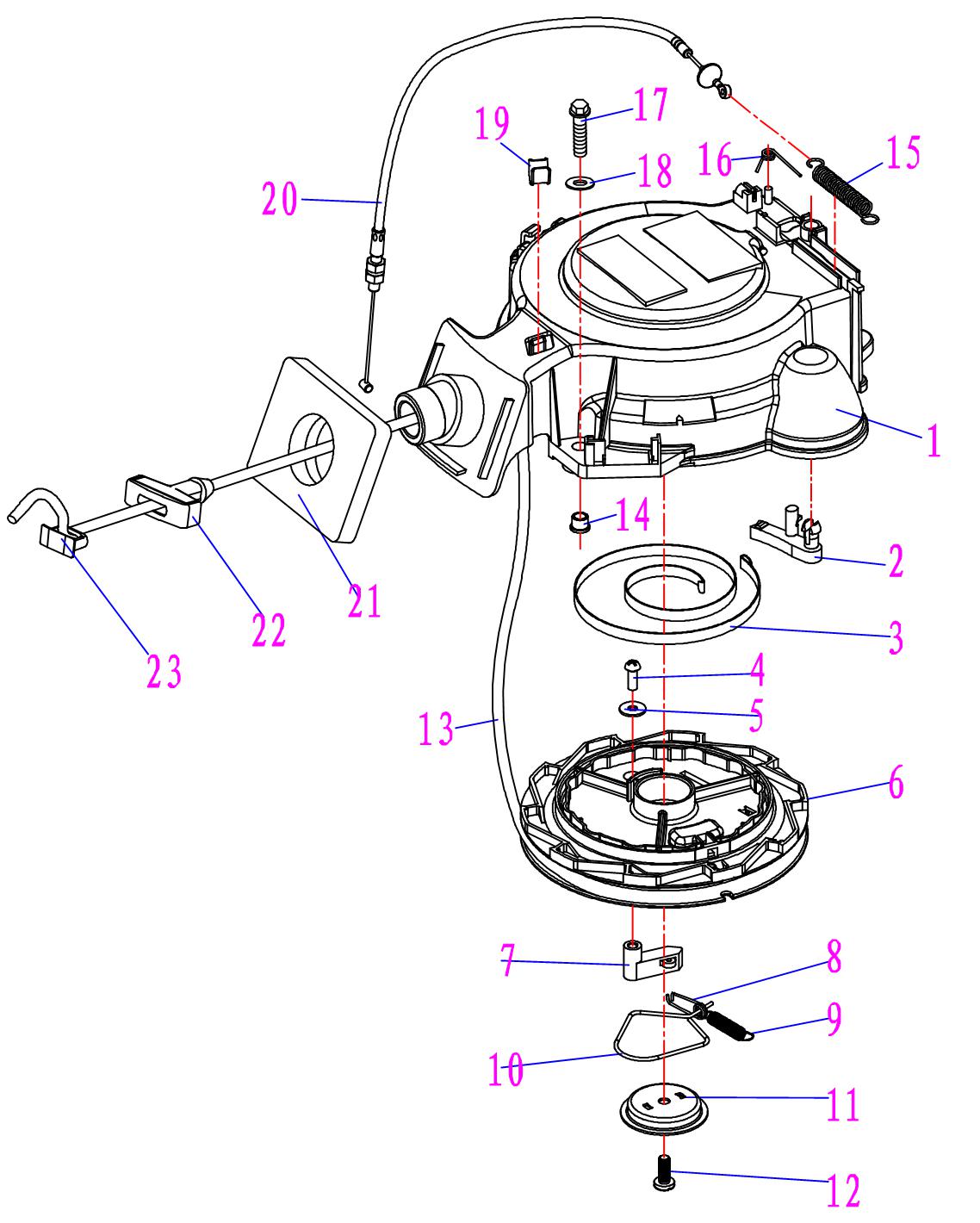

启动罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F9.9-01.07.00.02起动罩外壳Casing,Starter cover assy.168T-15711-03-00
2F15-01.07.00.02制动器Brake168T-15794-00-00
315F-01.01.11涡形弹簧Volute spring163V-15713-00-00
4GB/T818十字槽盘头螺钉M5*14Cross recessed countersunk head screw1
5GB/T96大垫圈5Washer1
615F-01.01.05起动轮starter wheel163V-15714-00-00
7F25-01.01.00.02驱动臂drive arm163V-15741-00-00
815F-01.01.18驱动臂弹簧spring, drive arm168T-15784-00-00
915F-01.01.17回位弹簧return spring163V-15767-01-00
1015F-01.01.20压板夹簧clip spring163V-15705-01-00
1115F-01.01.19起动压板starter plate168T-15716-00-00
12GB/T67开槽盘头螺钉M6*16screw M6*16197095-06025-00
1315F-01.01.22启动绳5MM*2000starter rope1
14F2.5-01.06.00.05垫管Bcushion B3
15F15-01.07.00.05钢索拉簧spring166T-15731-00-00
16F15-01.07.00.03制动器扭簧Torsional spring, brake166T-15734-00-00
17GB/T5783六角头螺栓M6*20screw M6*20397095-06012-00
18GB/T97.1平垫圈6washer390201-13201-00
19F9.9-01.07.00.06U型滑套U cushion1
20F9.9-01.07.00.07制动钢索throttle cable1
21F9.9-01.07.00.03减震套damper cushion168T-15762-00-00
2215F-01.01.08起动手柄starter handle16G1-15755-00-00
2315F-01.01.10手柄盖cover, starter handle16G1-15779-00-00
NoneF9.9-01.07.00.00启动罩（装配总成）Recoil Starter Assy1

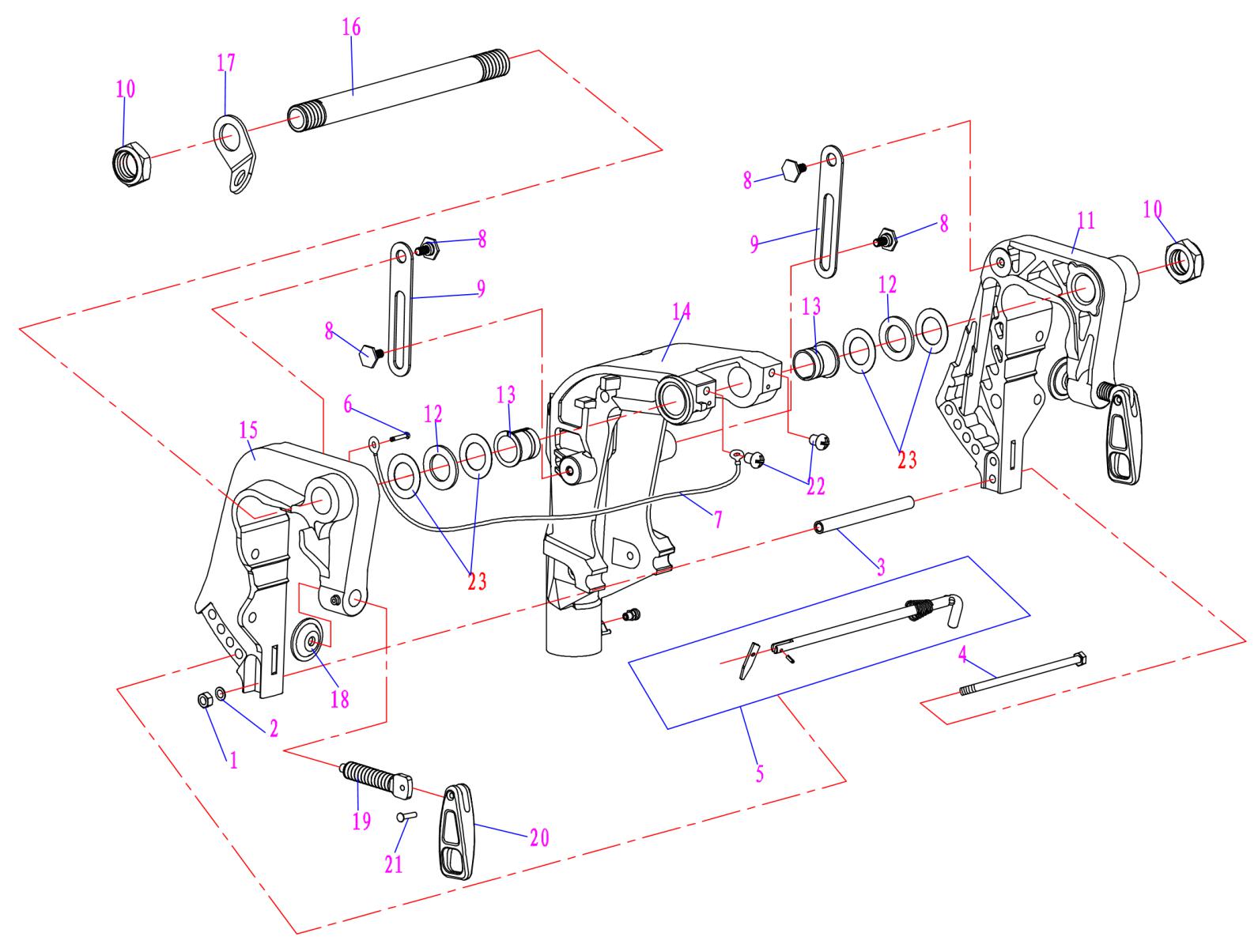

夹紧部位
夹紧部位 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB/T6170六角头螺母M6Hexagonal nut195380-06700-00
2GB/848平垫圈6Flat gasket192995-06600-00
315F-03.11螺栓套管Bushing190387-06M13-00
4GB/T5783六角头螺栓M6*145Bolt197095-06012-00
515F-03.10.00-Ⅱ角度限位插销组件Trim rod1
6GB/T818十字槽盘头螺钉M6*8Pan head bolt with cross recess1
715F-03.05.03钢索连接组件Cable connector Comp.1
815F-03.06扁头六角螺栓Bolt490109-06M84-00
915F-03.07制动板brake pad26AH-43627-00-00
1015F-03.01夹紧托架螺母Clamp nut290185-22043-00
1115F-03.08.01夹紧托架（右）（高压）Bracket(RH)16AH-43111-00-4D
1215F-03.02尼龙垫圈Nylon gasket2
1315F-03.09.02托架阻尼套Damping ring,bracket290386-22MA4-00
14F9.9-03.00.00.01旋转托架Swivel bracket1
1515F-03.05.01夹紧托架（左）（高压）Bracket(LH)16AH-43112-00-4D
16F15-03.00.00.01夹紧托架双头螺栓Bolt163W-43131-01-00
1715F-03.03孔板Orifice plate166R-43113-00-00
1815F-03.05.02.03夹紧盘Clamp plate2648-43114-01-00
19F9.9-03.00.00.03艉板夹紧螺栓Clamp Bolt,Transom26E7-43116-00-00
2040F-03.05.03.02夹紧手柄intensify handle26E0-43118-01-00
21GB/T1015沉头半空心铆钉4*18Rivet290243-04M01-00
22GB/T818十字槽盘头螺钉M8*10Pan head bolt with cross recess2
2340F-03.03垫片washer4

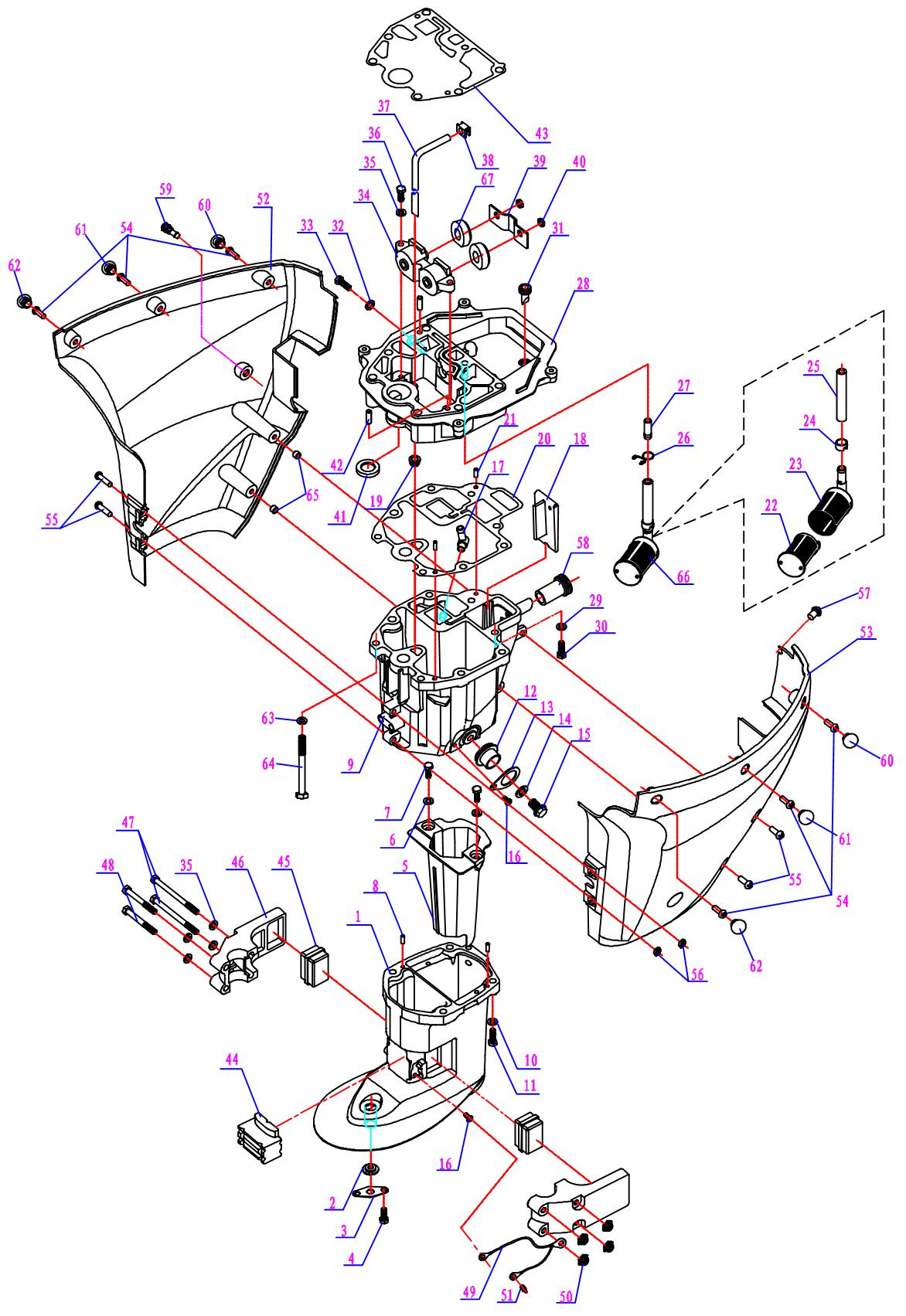

水上分解图
水上分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F9.9-05.00.00.17-S水上装置壳体（短轴）Upper casing (S)16AU-45111-00-4D
NoneF9.9-05.00.00.17-L水上装置壳体（长轴）Upper casing (L)1
2F9.9-05.00.00.19橡胶垫Rubber washer190480-14M54-00
3F9.9-05.00.00.20橡胶垫压板Rubber plate168T-45321-00-00
4GB/T5783六角头螺栓M6*8Bolt197095-06008-00
5F9.9-05.00.00.18排气管Exhaust pipe16AU-14711-00-CA
6GB/T484平垫圈6Flat gasket292995-06600-00
7GB/T5783六角头螺栓M6*14Flat gasket297575-06514-00
815F-06.03.08定位销4*12Dowel pin293604-12M07-00
9F9.9-05.00.00.09油底壳Oil sump168T-15311-01-CA
10GB/T848平垫圈8Flat gasket4
11GB/T5783六角头螺栓M8*35Bolt497575-08535-00
12F9.9-05.00.00.13放油口橡胶衬圈rubber Washer1
13F9.9-05.00.00.14压板Press plate1
14F9.9-05.00.00.16铝垫片Aluminum washer190430-10M11-00
15F9.9-05.00.00.15放油螺栓Oil drain plug190340-10M10-00
16GB/T818十字槽盘头螺钉M5*8Screw2
17F9.9-05.00.00.11水管接头Joint,water hose16H1-11372-00-00
18F9.9-05.00.00.12排气隔板Exhaust baffle168T-45181-00-00
19F9.9-05.00.00.10水管固定圈Fixer,hose190480-10M28-00
20F9.9-05.00.00.07机体底座下垫片Engine base gasket(lower)168T-13475-00-00
2115F-06.03.08定位销4*12Dowel pin293604-12M07-00
22F9.9-01.05.03.02机油杯座Oil cup168T-13421-01-00
23F9.9-01.05.03.03机油杯盖cover, oil cup1
24F15-01.05.03.01夹箍Clip1
25F9.9-01.05.03.01机油管Oil hose1
26管夹12Clamp190467-11M08-00
27F15-01.01.02.02进油嘴Oil inlet1
28F9.9-05.00.00.01机体底座Engine base168T-41137-00-CA
29GB/T848平垫圈8Flat gasket2
30GB/T5783六角头螺栓M8*30Bolt297095-06012-00
31F9.9-02.00.00.12排水嘴Water nozzle165W-42717-00-00
32F2.5-01.01.00.04铜垫片copper gasket190430-08020-00
33GB/T5783六角头螺栓M8*16Bolt197095-08014-00
34F9.9-05.01.00.00双孔减震器组件Mount Damper(upper) comp.168T-44517-00-00
35GB/T848平垫圈6Flat gasket692995-06600-00
36GB/T5783六角头螺栓M6*25Bolt297575-06525-00
37F9.9-05.00.00.08-S水管（短轴）Hose168T-44361-00-00
NoneF9.9-05.00.00.08-L水管（长轴）Hose
3815F-05.06水管工型橡胶圈Rubber ring,water hose163V-44365-10-00
39F9.9-05.00.00.02减震器压板Damper plate168T-44526-00-00
40GB/T6170六角头螺母M8Bolt295380-08600-00
41F9.9-06.01.00.03油封（11.8*22*7）Oil seal,drive shaft193101-11M23-00
42F9.9-05.00.00.05定位销6*19Stop pin293606-19M23-00
43F9.9-05.00.00.06机体底座上垫片Upper engine gasket168T-11351-00-00
44F9.9-00.00.00.02减震块BDamper B16AU-44557-00-00
4515F-00.02减震块ADamp er A2682-44555-30-00
46F9.9-00.00.00.01减震块外壳Damper housing26AU-44551-00-4D
47GB/T5783六角头螺栓M6*85Bolt M6*85297095-06012-00
48GB/T5783六角头螺栓M6*55Bolt M6*55292995-06600-00
49F9.9-05.00.00.21钢索连接件Cable connector197575-08535-00
50GB/T6177.1六角法兰面螺母M6Flange bolt4
51JB/T7940.1直通式压注油杯M6Oil cup1
52F9.9-05.00.00.23装饰罩（右）Decoration cover（RH）1
53F9.9-05.00.00.22装饰罩(左)Decoration cover（LH）1
54GB/T818十字槽盘头螺钉M6*20Pan head screw with cross re6
55GB/T818十字槽盘头螺钉M6*25Pan head screw with cross re4
56GB/T6170六角头螺母M6Hexagonal nut295380-06700-00
57GB/T818十字槽盘头螺钉M8*10Pan head bolt with cross rec1
58F9.9-00.00.00.03怠速孔减震器Damper,Idle exhaust1
5915F-02.11塑料水嘴plastic nope1
60F15-00.00.00.20堵塞（右）plug (right)2
61F15-00.00.00.19堵塞（中）plug (middle)2
62F15-00.00.00.18堵塞（左）plug (left)2
63GB/T848平垫圈8washer6
64GB/T5783六角头螺栓M8*75Hexagonal bolt697095-06012-00
65F9.9-05.00.00.24垫管cushion tube2
66F9.9-01.05.03.00机油滤清器组件oil filter Comp.1
6715F-00.10双孔减震器套（单凸面）sleeve,damper2
水下分解图

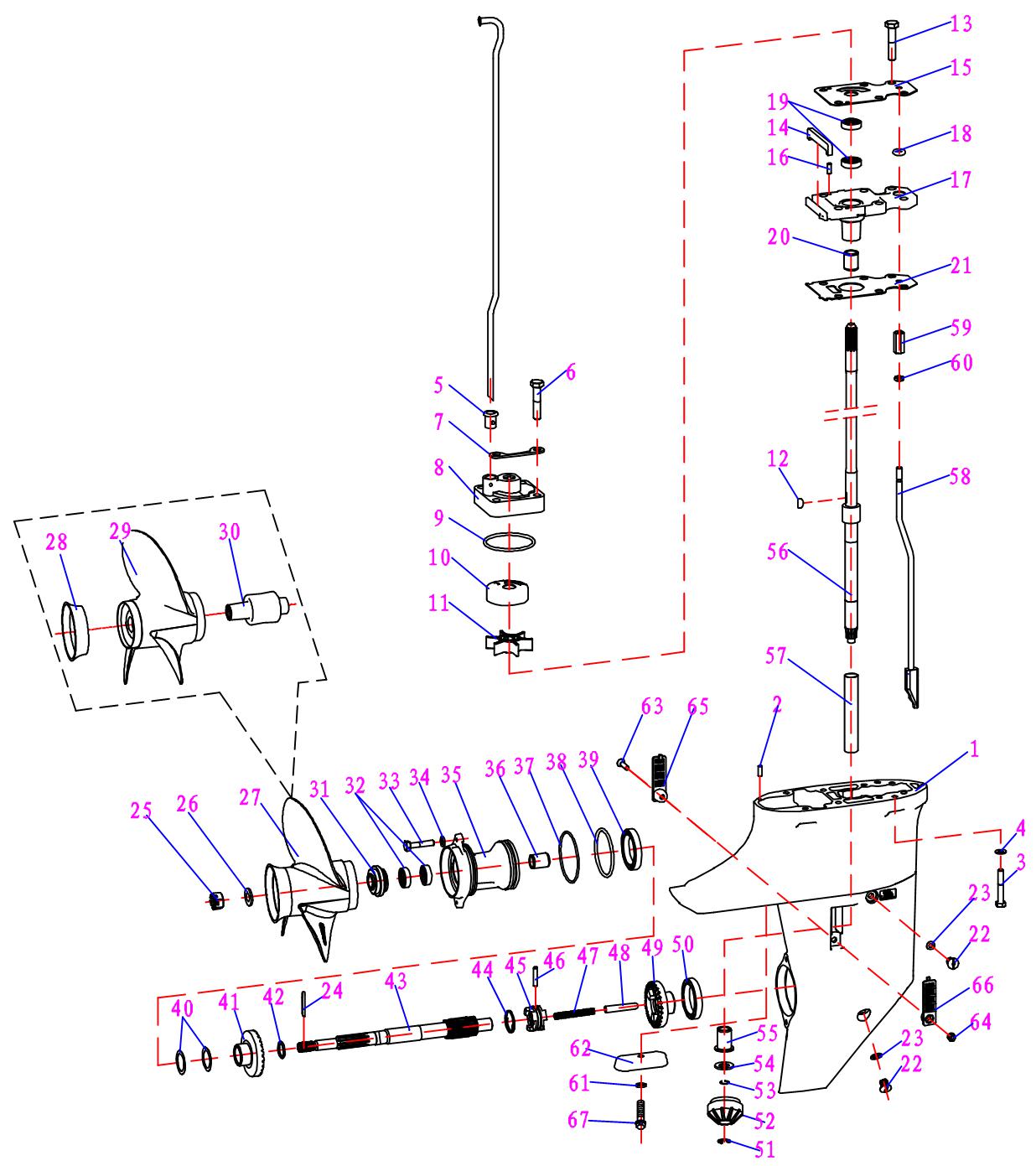

水下分解图 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F9.9-06.00.00.13水下壳体lower case16AU-45311-00-4D
215F-06.03.08定位销4*12dowel pin293604-12M07-00
3GB/T5783六角头螺栓M8*35bolt497575-08535-00
4GB/T848平垫圈8Flat gasket492995-06600-00
515F-06.02.06水泵水管密封圈Seal gasket,water piper168T-44366-00-00
6GB/T5783六角头螺栓M8*45bolt M8*45497095-08045-00
715F-06.02.07水泵固定板fix plate,water pump263V-44328-01-00
815F-06.02.01水泵壳体water pump163V-44301-00-00
915F-06.02.02水泵壳体O形圈O ring,water pump193210-44398-00
1015F-06.02.03水泵内壳inner cover,water pump163V-44322-00-00
11F9.9-06.05.00.00水泵叶轮组件impeller assy168T-44352-00-00
1215F-06.01.09半圆键woodruff key1664-44338-00-00
13GB/T5783六角头螺栓M8*25bolt M8*25297080-08025-00
1415F-06.03.04轴承座密封条sealing strip,bearing seat163V-45375-00-00
15F9.9-06.01.00.01轴承座压板pressing plate,bearing seat168T-44323-00-00
1615F-06.03.08定位销4*12dowel pin293604-12M07-00
17F9.9-06.01.00.05轴承座壳体Bearing seat casing168T-45331-00-CA
1815F-06.03.03变档杆O形密封圈Shift lever o-ring193210-06ME6-00
19F9.9-06.01.00.03油封（11.8*22*7）Oil seal293101-12M70-00
20F9.9-06.01.00.04含油轴承Oil Bearing16G1-45316-09-00
21F9.9-06.01.00.06轴承座密封垫Seal Gasket,bearing seat168T-45315-A0-00
2215F-06.01.03注油口螺塞plug,straight screw290340-08002-00
2315F-06.01.04螺塞密封垫Seal Gasket290430-08143-00
24GB/T91开口销2.5*20cotter pin191490-30020-00
2515F-06.14.06开槽六角螺母Nut190171-10M01-00
26GB/T96大垫圈10gasket190201-10M01-00
27F9.9-06.03.00.00螺旋桨组件Propeller Assy1
28F9.9-06.03.00.02喇叭口propeller mouth1
29F9.9-06.03.00.01螺旋桨propeller1
30F9.9-06.03.00.03螺旋桨内花键propeller shaft teeth1
31F9.9-06.00.00.24衬套bushing16G1-45987-02-00
32F9.9-06.02.00.04油封（15*28*6）oil seal293101-15074-00
33GB/T5783六角头螺栓M6*16bolt297095-06025-00
34GB/T848平垫圈6washer290201-13201-00
35F9.9-06.02.00.07水下壳体盖cap,lower casing16G1-45361-01-4D
36F9.9-06.02.00.03含油轴承Oil Bearing16G1-45362-09-00
37F9.9-06.02.00.06O形圈(大)O ring (big)193210-49046-00
38F9.9-06.02.00.05O形圈（小）O ring (small)193210-53M08-00
39F9.9-06.00.00.15轴承6004C2bearing193306-004U0-00
40F9.9-06.02.00.02倒档齿轮填隙片shim,reverse gear292995-06600-00
41F9.9-06.02.00.01倒档螺旋锥齿轮Gear168T-45571-00-00
42F9.9-06.00.00.23垫圈（外径19.6）washer190201-13201-00
43F9.9-06.00.00.22螺旋桨轴propeller shaft168T-45611-00-00
44F9.9-06.00.00.20簧环circlip1654-45633-00-00
45F9.9-06.00.00.21爪形离合器dog clutch168T-45631-00-00
46F9.9-06.00.00.19销pin16G1-45632-00-00
47F9.9-06.00.00.18压缩弹簧compression spring190501-140A1-00
48F9.9-06.00.00.17变档柱塞gear shif plug16G1-45635-00-00
49F9.9-06.00.00.16正档螺旋锥齿轮forward gear168T-45560-00-00
50F9.9-06.00.00.15轴承6004C2bearing193306-004U0-00
51GB/T896开口挡圈(定制) 7circlip190467-09M05-00
52F9.9-06.00.00.11主动轮driving bearing168T-45551-00-00
53F4-06.11.02弹性挡圈（轴用）Circlip,spring199001-07600-00
54F9.9-06.00.00.10主动轮调整片adjuster,driving bearing16G1-45533-10-00
55F9.9-06.00.00.07含油轴承Bearing16G1-45317-09-00
56F9.9-06.00.00.08-S驱动轴（短轴）Driving Shaft(S)16AU-45511-00-00
NoneF9.9-06.00.00.08-L驱动轴（长轴）Driving Shaft(L)
57F9.9-06.00.00.06尼龙衬圈Nylon Collar190387-14M49-00
58F9.9-06.04.00.00-S变档凸轮组件（短轴）Shift Cam Assy (S)168T-44150-00-00
NoneF9.9-06.04.00.00-L变档凸轮组件（长轴）Shift Cam Assy (L)
5915F-06.04.05柱状螺母Connector, Shift Rod161N-44146-00-00
60GB/T6172六角薄螺母M6Nut195380-06700-00
61GB/T861.1内齿锁紧垫圈6Washer, Internal tooth192990-06300-00
62F9.9-06.00.00.14阳极Anode168T-45251-00-00
63GB/T820十字槽半沉头螺钉M5*20Screw, Countersunk190152-05M03-00
64DIN985六角尼龙锁紧螺母M5Nut, Nylon190185-05002-00
6515F-06.01.05进水口盖ACover, Water inlet A16G1-45214-00-00
6615F-06.01.06进水口盖BCover, Water inlet B16G1-45215-00-00
67GB/T5789六角法兰面螺栓M6*20Bolt190109-06M86-00
NoneF9.9-06.00.00.00-I水下装置部件（S）（装配）lower Unit assembly (S)1
NoneF9.9-06.00.00.00-II水下装置部件（L）（装配）lower Unit assembly (L)1
配气系统

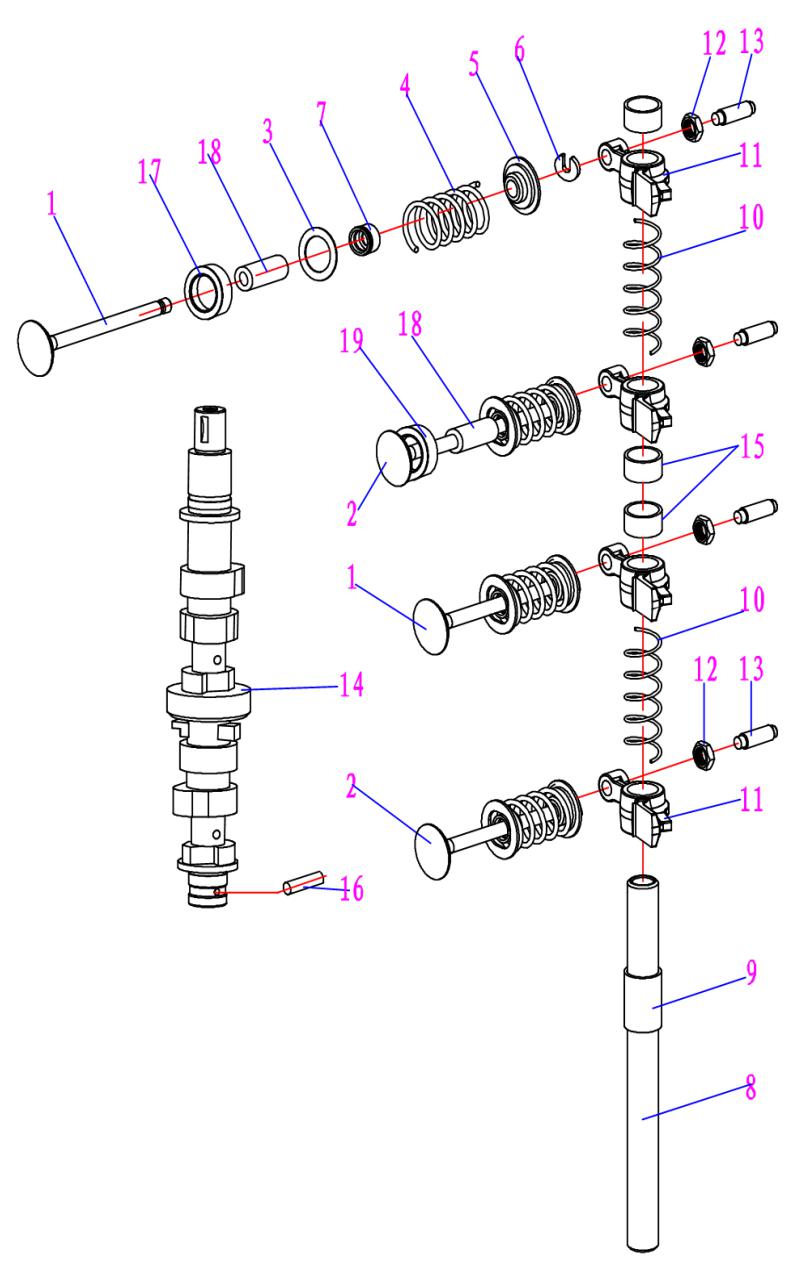

配气系统 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F4-01.06.33.05进气门Intake valve26AU-12111-00-00
2F4-01.06.33.06排气门Exhaust valve26AU-12121-00-00
3F4-01.06.33.08气门弹簧垫片Spacer,Valve spring468T-12116-00-00
4F9.9-01.03.00.20气门弹簧Valve spring460R-12113-00-00
5F4-01.06.33.11气门弹簧座Washer,Valve spring47NJ-12117-00-00
6F4-01.06.33.10气门锁夹valve clamp47NJ-12118-00-00
7F4-01.06.33.09气门油封Valve oil seal451Y-12119-00-00
8F9.9-01.03.00.26摇臂轴Rocker arm shaft168T-12146-00-00
9F15-01.03.00.11摇臂轴隔套BSleeve,Rocker arm shaft B190387-13M56-00
10F15-01.03.00.13摇臂轴弹簧BSpring,Rocker arm shaft290501-12M40-00
11F9.9-01.03.00.27摇臂组件Rock arm comp.468T-12151-00-00
12F9.9-01.03.00.30六角螺母M6*0.5（摇臂自带件）screw M6*0.54
13F9.9-01.03.00.31气门调节螺杆(摇臂自带件)valve adjust screw4
14F9.9-01.03.00.24凸轮轴Camshaft168T-12171-00-00
15F9.9-01.03.00.32摇臂轴隔套BSleeve,Rocker arm shaft B390387-14M03-00
16F9.9-01.03.00.25销轴(凸轮轴自带件)pin shaft1
17F4-01.06.33.02进气门座圈（气缸头组件自带）gasket,inlet volve2
18F4-01.06.33.04气门导管（气缸头组件自带）valve pipe4
19F4-01.06.33.03排气门座圈（气缸头组件自带）gasket,inlet volve2
曲轴活塞

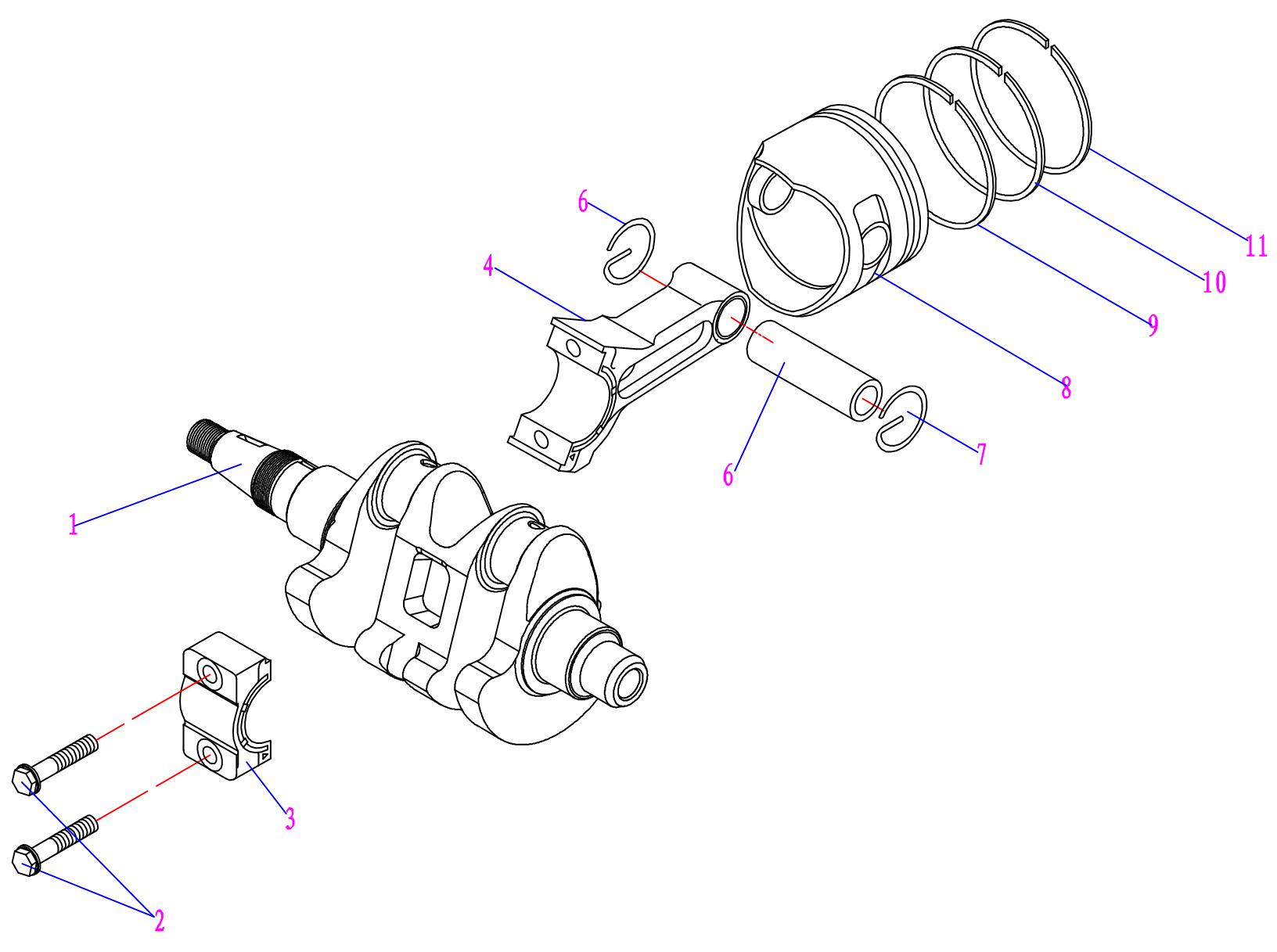

曲轴活塞 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F9.9-01.02.00.01曲轴crankshaft16AU-11411-00-00
2F9.9-01.02.01.03六角法兰面螺栓bolt46AU-11650-00-00
3F9.9-01.02.01.02连杆盖cover, connect rod2
4F9.9-01.02.01.01连杆体connecting rod2
5F9.9-01.02.01.00连杆组件connecting rod assy2
6F9.9-01.02.00.03活塞销pin268T-11633-00-00
7F15-01.02.02.02活塞销卡簧circlip,piston pin493450-15023-00
8F9.9-01.02.00.02活塞piston26AU-11631-00-96
9F9.9-01.02.00.07组合油环oil ring268T-11603-01-00
10F9.9-01.02.00.06副气环2nd ring2
11F9.9-01.02.00.05主气环1st ring268T-11603-01-00
动力部分

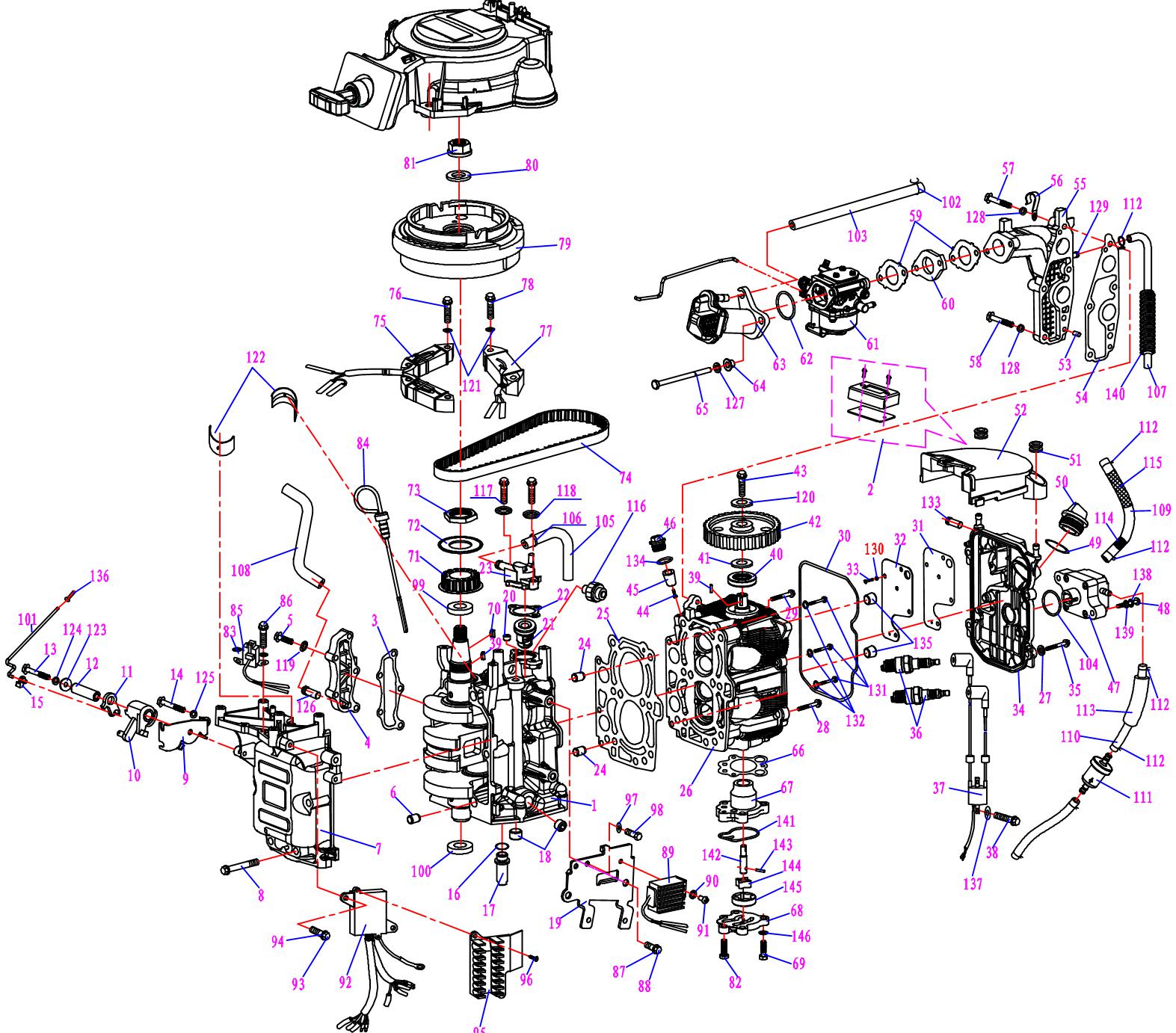

动力部分 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F9.9-01.01.00.08曲轴箱crankcase comp16AU-W009B-00-1S
260F-01.02.00.13计时器组件timer Comp.16AU-11411-00-00
3F9.9-01.01.00.05侧盖密封垫side cover gasket16AU-41113-00-1S
4F9.9-01.01.00.04排水侧盖side cover,exhaust1
5GB/T5783六角头螺栓M6*25bolt397575-06525-00
6F9.9-01.01.00.11定位销dowel pin499510-10114-00
7F9.9-01.01.00.09箱盖crankcase cover1
8GB/T5789六角法兰面螺栓M8*65bolt M8*65190119-06049-00
9F9.9-01.01.00.14油门钢索端轮支座seat,throttle cable cam168T-14497-00-00
10F9.9-01.01.00.15油门钢索端轮End wheel,Throttle cable168T-41638-00-00
11F9.9-01.01.00.16油门连接块connecting block, throttle168T-41283-00-00
12F9.9-01.01.00.18衬套bushing190387-06M59-00
13GB/T5783六角头螺栓M6*45bolt397095-06012-00
14GB/T5783六角头螺栓M6*12Bolt397575-06525-00
1515F-01.02.07阻风门连杆接头joint,chock lever1661-41262-02-00
16F15-01.01.00.15O形橡胶圈O-ring193210-12M62-00
17F15-01.01.01.00溢流阀组件Flood valve comp.16G8-11575-00-00
18F9.9-01.01.00.07堵塞3/8Plug2
19F9.9-01.06.00.08电器支架Electrical appliance bracket1
20F15-01.01.00.07堵塞1/8Plug1
21F15-01.01.00.14节温器60 °Thermostat 60 °1166M-12411-01-00
22F9.9-01.01.00.01密封垫Seal gasket16G8-12414-A0-00
23F9.9-01.01.00.02节温器盖Thermostat cap168T-12413-00-1S
24F15-01.01.00.18定位销dowel pin2
25F9.9-01.03.02.00汽缸垫组件Cylinder gasket comp.168T-11181-00-00
26F9.9-01.03.00.16汽缸头组件Cylinder head comp.16AU-11111-00-1S
27GB/T848平垫圈6Flat gasket468T-12171-00-00
28F9.9-01.03.00.14六角法兰面螺栓M8*60Bolt290105-08M78-00
29F9.9-01.03.00.15六角法兰面螺栓M8*75Bolt490105-08M36-00
30F9.9-01.03.00.11橡胶密封圈Seal Gasket,Air flue cover plate168T-11356-00-00
31F9.9-01.03.00.13气道密封垫Seal plate,Air flue168T-11169-A0-00
32F9.9-01.03.00.12气道盖板Plate,Air flue168T-11168-00-00
33GB/T818十字槽盘头螺钉M4*10Bolt298507-04010-00
34F9.9-01.03.00.10汽缸头罩壳Cover,Cylinder head168T-11191-00-1S
35GB/T5783六角头螺栓M6*20bolt397095-06012-00
36BR6HS火花塞(F2.5/F4)Spark plug94702-00274-00
37F9.9-01.06.00.06高压包Ignition coil1680-85570-02-00
38GB/T5783六角头螺栓M6*16Bolt397095-06025-00
39GB/T1099半圆键3*5*13Woodruff key oil seal290280-03M01-00
40F15-01.03.00.16油封18*35*7oil seal193102-18M21-00
41GB/T95平垫圈12flat gasket190201-13201-00
42F15-01.03.00.24从动带轮Driven pulley166M-11537-00-94
43GB/T5789六角法兰面螺栓M6*16 35Mn2Bolt190105-06M14-00
44GB/T818十字槽盘头螺钉M5*25Screw297575-06525-00
45F9.9-01.03.00.34阳极AAnode16G8-11325-00-00
46F9.9-01.03.00.35六角法兰面螺栓M16*1.5bolt1
47F9.9-01.04.01.00燃油泵总成Fuel pump Assy168T-24410-01-00
48GB/T823十字小槽盘头螺钉M6*30screw2
49F4-01.06.27油标尺O形圈O ring193210-24M79-00
50F15-01.03.00.39加油口螺塞Oil filling plug16G8-15363-00-00
51F9.9-01.03.00.08减震圈Damper290480-10627-00
52F9.9-01.03.00.07从动带轮罩壳Driven pulley cover16AU-46297-00-00
53F9.9-01.03.00.05定位销Dowel pin291690-50014-00
54F9.9-01.03.00.06进气歧管密封垫Air intake manifold Seal gasket168T-13645-00-00
55F9.9-01.03.00.04进气歧管Air intake manifold168T-13641-20-1S
56F15-01.03.00.42通气管固定夹Bfix clip,air breather tube190465-08M99-00
57GB/T5783六角头螺栓M6*35Bolt397575-06525-00
58GB/T5783六角头螺栓M6*25Bolt397095-06012-00
59F9.9-01.04.00.02化油器垫片Carburetor washer268T-13646-A0-00
60F9.9-01.04.00.03隔热板Plate168T-14271-00-00
61F9.9E-01.04.00.01化油器总成Carburetor assembly16AU-14301-41
62F9.9-01.03.00.03O形圈(31.5*2.3)O-ring193210-31MJ5-00
63F9.9-01.03.01.00空滤器组件Air cleaner16AU-14440-00-00
64F9.9-01.03.00.02带肩垫管Cushion tube290387-06M70-00
65GB/T5783六角头螺栓M6*85Bolt397095-06012-00
66F9.9-01.05.01.07机油泵密封垫Gasket(oil pump)168T-13329-00-00
67F9.9-01.05.01.06机油泵泵体Oil pump housing168T-13300-00-00
68F9.9-01.05.01.05机油泵泵盖Oil pump cap1
69GB/T5783六角头螺栓M6*30Bolt397095-06012-00
70F4-01.06.19曲轴半圆键Woodruff key190280-04M06-00
71F9.9-01.02.00.10主动带轮Drive pulley168T-11536-00-00
72F9.9-01.02.00.08主动带轮挡圈Stop collar,drive pully168T-11557-00-00
73F9.9-01.02.00.09主动带轮螺母nut,drive pully190170-24M09-00
74F9.9-01.03.00.09同步带belt168T-46241-00-00
75F9.9-01.06.00.12照明线圈Lighting coil168T-85533-10-00
76GB/T5783六角头螺栓M6*30Bolt397095-06012-00
77F9.9-01.06.00.13充电线圈Charging coil168T-85520-00-00
78GB/T5783六角头螺栓M6*25Bolt397095-06012-00
79F9.9-01.06.00.01飞轮组件Flying wheel1
8015F-01.03.20飞轮平垫Plane Flat gasket190201-12472-00
8115F-01.03.19飞轮螺母Flywheel nut190170-12066-00
82GB/T823十字槽小盘头螺钉M6*18screw2
83GB/T848平垫圈5flat gasket4
84F9.9-01.05.05.00油标尺组件Oil dip stick168T-15362-00-00
85F9.9-01.06.00.10触发器Impulsor168T-85580-01-00
86GB/T5783六角头螺栓M5*10Bolt397095-06012-00
87GB/T848平垫圈8Flat gasket4
88GB/T5783六角头螺栓M8*12Bolt397095-06012-00
89F15-01.06.07.00整流器组件Rectifier Comp.168T-81960-00-00
90GB/T848平垫圈5flat gasket4
91GB/T818十字槽盘头螺钉M5*10Cross recessed countersunk head screw2
92F9.9-01.06.00.03点火控制器CDI168T-85540-00-00
93GB/T5783六角头螺栓M6*20Bolt397095-06020-00
94GB/T848平垫圈6Flat gasket490201-43M00-00
95F9.9-01.06.00.04插线座Patching jack168T-82522-00-00
96GB/T845十字槽盘头自攻螺钉ST4.2*13Cross recessed pan head tapping screws3
97GB/T97.1平垫圈6Flat Gasket290201-13201-00
98GB/T5783六角头螺栓M6*12Flat gasket397095-06012-00
99F9.9-01.01.00.12油封(30*42*7-R)Oil seal193102-30M22-00
100F9.9-01.01.00.13油封(25*37*7-L)Oil seal193101-25M69-00
101F9.9-01.04.00.04化油器连杆Carburetor connecting rod16AU-41211-00-00
102管夹10Clamp
103F9.9-01.03.00.01气管6*10*325Breather pipe168T-12483-00-00
104F15-01.04.01.10O型圈O-ring193210-20M65-00
105F9.9-01.01.00.03水管Hose1
106尼龙扎带2.5*70Nylon ribbon
107F9.9-02.00.00.10水管（定型)Hose1
108F9.9-01.01.00.20水管Hose168T-12482-00-00
109F9.9-01.04.00.07燃油管5*10*290Fuel hose1
110F9.9-01.04.00.10燃油管5*10*172Fuel hose1
111F9.9-01.04.03.00燃油滤清器组件Fuel filter comp.168T-24251-01-00
112管夹10clamp
113F9.9-01.04.00.11橡胶管rubber hose1
114F9.9-01.04.00.08波纹管40mmwave hose1
115F9.9-02.00.00.16波纹管110mmwave hose1
116F9.9-01.06.00.15机油压力报警器oil alarm1
117GB/T5783六角头螺栓M6*20bolt397095-06012-00
118GB/T848平垫圈6Flat gasket4
119GB/T848平垫圈6Flat gasket4
120GB/T5287特大垫圈6big gasket4
121GB/T848平垫圈6Flat gasket4
122F9.9-01.01.00.10主轴瓦Main bearing4
123F9.9-01.01.00.17垫圈Flat gasket1
124GB/T848平垫圈6Flat gasket4
125GB/T848平垫圈6Flat gasket4
126F15-01.01.02.02进油嘴Oil inlet1
127GB/T848平垫圈6Flat gasket4
128GB/T848平垫圈6Flat gasket4
129F4-01.06.03气管接头Joint,Breather pipe1
130GB/T848平垫圈4Flat gasket4
131GB/T5783六角头螺栓M6*70Bolt397095-06012-00
132GB/T848平垫圈6Flat gasket4
133F4-01.06.03气管接头Joint,Breather pipe1
134F9.9-01.03.00.330形圈O ring1
135F15-01.01.00.08堵塞1/4Plug2
136F9.9-01.04.00.05连杆帽Cap,Rod1
137GB/T848平垫圈6Flat gasket4
138GB/T93弹垫圈6washer2
139GB/T97.1平垫圈6Flat gasket290201-13201-00
140F9.9-01.04.00.08波纹塑料管Waveform pipe1
141F15-01.05.02.04密封环sealing1
142F9.9-01.05.01.01转子轴shaft,rotor1
143GB/T309滚针2.5*11.8Roller needle1
144F9.9-01.05.01.02内转子inner rotor1
145F9.9-01.05.01.03外转子outer rotor1
146GB/T848平垫圈6Flat gasket4
底罩

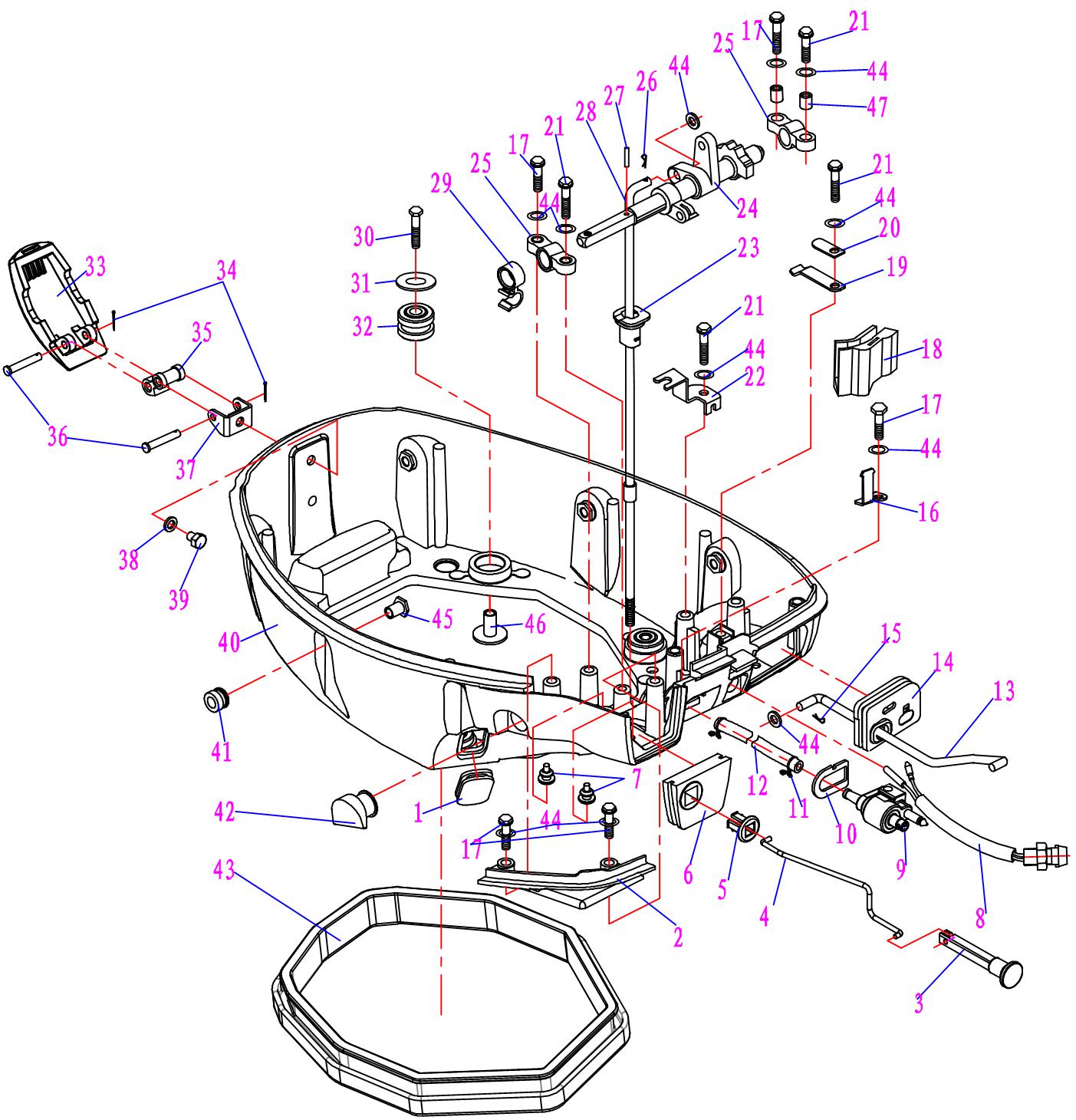

底罩 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F9.9-02.00.00.15长方形橡胶闷头rubber plug1
2F9.9-02.00.00.01阻风门上盖板cover plate, chock1
315F-02.02阻风门拉杆pull rod,choke16H4-41271-02-00
4F9.9-01.04.00.06阻风门连杆pull rod connection, choke1
515F-02.03阻风门拉杆护套protecting bush, choke1689-41273-00-00
6F9.9-02.00.00.02阻风门拉杆座seat,choke168T-42725-00-00
715F-02.09外接水管橡胶闷头rubber plug, water hose2
8F15-01.06.01.00机油报警指示灯组件light,oil alarm168T-85410-00-00
915F-01.07.01.00燃油管插头组件oil plug assy16YL-24304-00-00
10F9.9-01.04.00.13燃油管插头垫片gasket,oil plug1
11管夹10clip2
12F9.9-01.04.00.12燃油管5*10*300oil pipe1
13F9.9-02.00.00.14变档连杆shift lever1
14F9.9-02.00.00.09油门钢索橡胶护套Rubber sleeve,throttle cable168T-42724-20-00
1515F-01.04.14卡簧spring,clip190468-18001-00
16F9.9-01.04.00.15钢索固定块支架cable fixer168T-26393-00-00
17GB/T5783六角头螺栓M6*25bolt597095-06012-00
18F9.9-01.04.00.14钢索固定块cable fixer block168T-26367-00-00
19F15-02.00.00.05变档限位弹簧板shift limit plate165W-44116-00-00
20F15-02.00.00.06垫板plate166R-44114-00-00
21GB/T5783六角头螺栓M6*20bolt490109-06M86-00
22F9.9-02.00.00.03钢索支架cable holder168T-15774-10-00
2315F-02.10变档连杆橡胶护套protecting bush,shift lever1682-42727-00-00
24F9.9-02.01.00.01变档杠杆固定架seat,shift lever fixer168T-44121-02-00
25F9.9-02.01.00.04托架bracket26G1-41662-01-94
2615F-01.05.14卡簧spring,clip190468-18001-00
27GB/T879.2弹性圆柱销3*14pin491690-30014-00
28F9.9-02.00.00.13上变档杆shift lever(upper)168T-44143-00-00
29F9.9-02.01.00.03油管固定架holder,hose190464-10M60-00
30GB/T5783六角头螺栓M6*35bolt497095-06012-00
31GB/T5287平垫圈6flat gasket4
32F9.9-02.00.00.05减震垫damper490480-21M82-00
33F9.9-02.00.00.17锁紧手柄lock handle1
34GB/T896 4开口挡圈4Cotter pin 1.2*122
35F6-02.00.00.06锁紧手柄连接件connecting, lock handle1
36F6-02.00.00.05锁紧手柄转轴rotating shaft,lock handle2
37F6-02.03.00.00锁紧手柄支架组件lock handle bracket Assy.1
38GB/T97.1平垫圈6Flat gasket190201-13201-00
39GB/T5783六角头螺栓M6*12bolt197095-06012-00
40F9.9-02.00.00.04底座bottom base1
41F15-02.00.00.32装饰板减震器damper,bottom4
42F9.9-02.00.00.08前操变档橡胶闷头rubber plug1
43F9.9-02.00.00.11底座密封圈sealing,bottom1
44GB/T848平垫圈6gasket1197575-06525-00
45F15-00.00.00.15装饰板减震器垫圈gasket,bottom damper4
46F9.9-02.00.00.06带肩垫管busher4
47F15-02.00.00.08托架垫管busher,bracket4
旋转部位

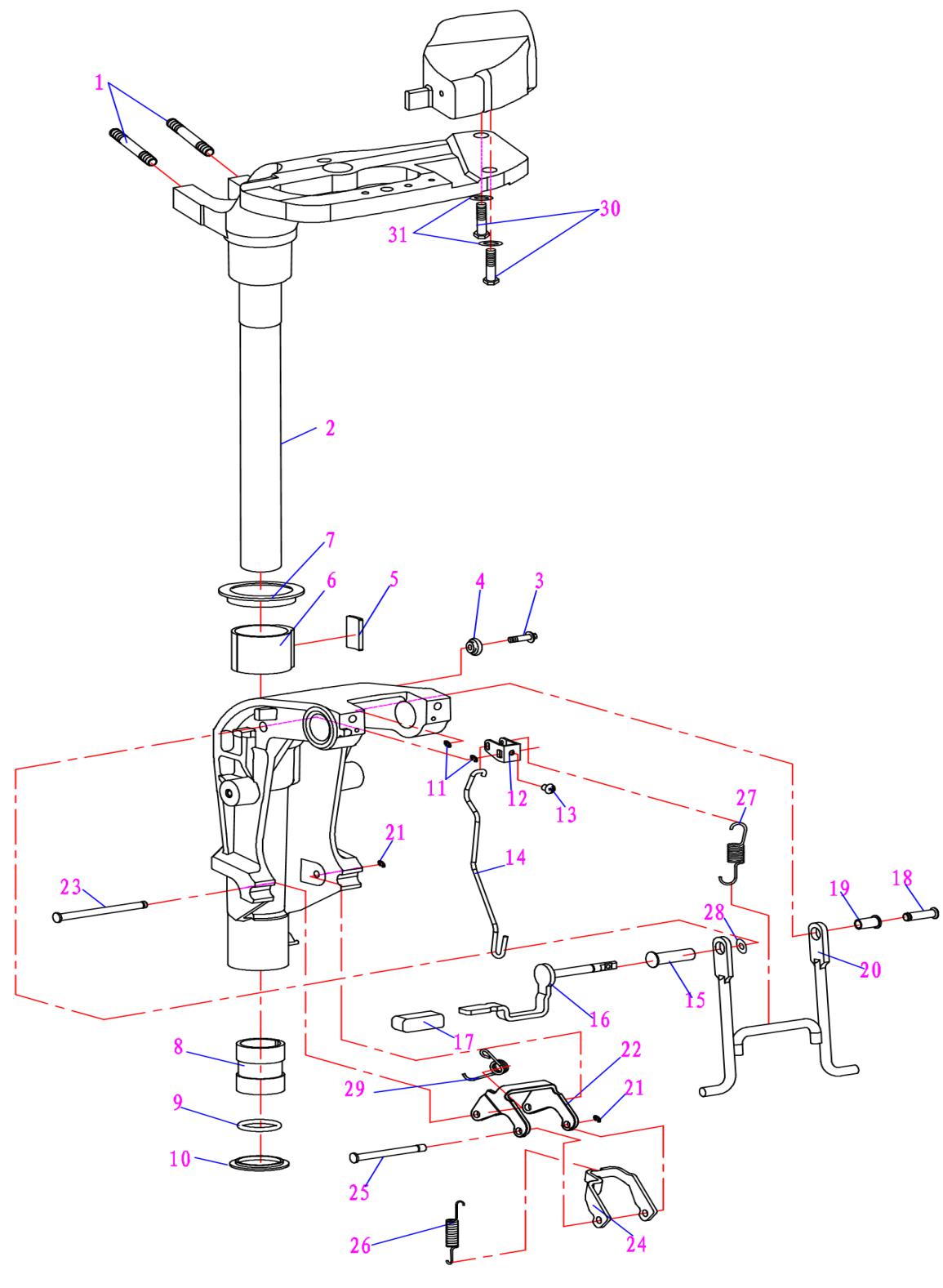

旋转部位 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1F9.9-04.01.00.04双头螺柱M8*65double-screw bolt290116-08M54-00
2F9.9-04.01.00.00操舵托架组件steering bracket1
3GB9074.1六角头螺栓和平垫圈组件M6*20bolt1
415F-03.09.09锁紧螺栓密封圈sealing ring1
515F-03.09.04锁紧圈摩擦片friction plate,locking1
615F-03.09.03锁紧圈locker washer190386-40001-00
715F-03.09.05垫圈gasket190209-40008-00
815F-03.09.06下垫套bushing (bottom)190386-30048-00
915F-03.09.07O形密封圈o-Seal ring193210-29M94-00
1015F-03.09.08下衬圈lower bushing190386-30M60-00
11GB/T896开口挡圈5circlip299080-05600-00
1215F-03.09.10角度定位件angle fixer16AH-43641-00-00
13GB/T818十字槽盘头螺钉M5*6screw1
1415F-03.09.11角度定位锁杆angle loction rod1
1515F-03.09.14杠杆套axis sleeve1
1615F-03.09.12.00操纵杠杆组件Lever comp.,Steering1
1715F-03.09.12.01橡塑套Rubber sleeve1
1815F-03.09.19角度定位锁轴Shaft,Tilt Lock1
1915F-03.09.17支撑架销尼龙套Nylon bush,support frame1
2015F-03.09.15角度支撑架Tilt angle fixer2
21GB/T896开口挡圈4Circlip299080-05600-00
2215F-03.09.21角度定位锁紧外支架Tilt angle outer bracket193430-04M03-00
2315F-03.09.16支撑架销pin16AH-43615-00-00
2415F-03.09.20角度定位锁紧内支架Tilt angle inner bracket1
2515F-03.09.22角度定位锁紧固定轴Pin16AH-43614-00-00
2615F-03.09.18拉簧Sping168T-43611-00-00
2715F-03.09.24角度支撑架拉簧Spring1
2815F-03.09.13杠杆垫gasket1
29F15-03.09.23弹簧spring1
30GB/T5783六角头螺栓M10*35bolt297095-06012-00
31GB/T848平垫圈10gasket2
操舵手柄

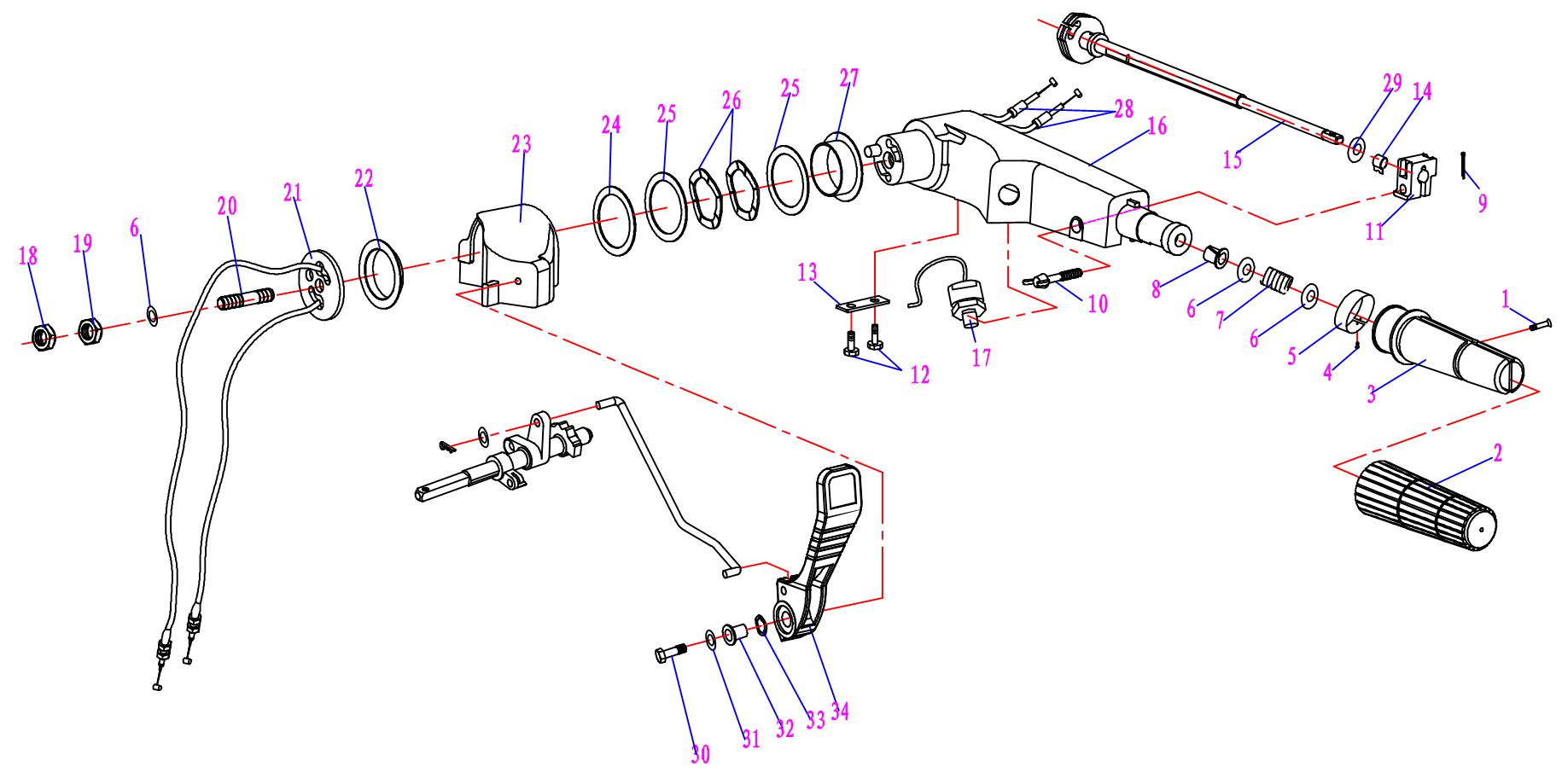

操舵手柄 爆炸图
REF零件编码中文名称英文名称用量YMH对应零件号
1GB/T820十字槽半沉头螺钉M5*25Pan head screw with cross recess1
215F-04.07.14手柄橡胶套Rubber sleeve,Handle167D-42177-00-00
315F-04.07.13手柄Handle167D-42119-01-00
4GB/T845十字槽自攻螺钉ST2.2*4.5Cross recessed pan head tapping scre1
5F4-04.11-Ⅱ油门标牌Indicator,throttle1
6GB/T848平垫圈10Flat gasket3
715F-04.07.11弹簧spring190501-23215-00
815F-04.07.12衬套Bushing190386-08032-00
9GB/T91开口销1.6*12Cotter pin191490-16010-00
10F15-04.02.00.08阻力调整旋钮Friction adjusting screw1
1115F-04.07.08锁紧块Latch segment16G1-42126-00-00
12GB9074.1六角头螺栓和平垫组件M6*20Bolt &flat gasket Assy.2
13F15-04.02.00.07节气门杆压板Plate165W-42159-00-00
14F9.9-04.00.00.02塑料衬套plastic bushing1
1515F-04.07.05节气门杆Throttle lever1
16F15-04.02.00.01操舵手柄Steering handle1
1715F-04.07.03急停开关总成emergency stop switches assy1
18DIN985六角尼龙锁紧螺母M10*1.25nut1
19GB/T6171六角头螺母M10*1.25nut1
20F15-04.02.00.02双头螺柱M10*1.25bolt1
21F15-04.00.00.02操舵手柄压板plate,steering165W-42131-01-00
22F15-04.00.00.04尼龙衬套（短）Nylon sleeve(short)190386-40M99-00
23F9.9-04.01.00.03固定架Mounting bracket1
24F15-04.00.00.03尼龙垫圈Nylon washers190202-43M57-00
25F15-04.00.00.07垫圈gasket290201-43M00-00
26F15-04.00.00.05波形垫圈waterform gasket ring290206-43M22-00
27F15-04.00.00.06尼龙衬套（长）Nylon sleeve(long)166R-42171-00-00
28F9.9-04.00.00.01油门控制钢索Throttle cable268T-26301-11-00
29GB/T848平垫圈12Flat gasket1
30GB/T5783六角头螺栓M6*35bolt197095-06012-00
31GB/T848平垫圈6Flat gasket192995-06600-00
3215F-04.08.03带肩垫管bushing1
3315F-04.08.04变档手柄波形垫圈Wave washer1
34F15-02.00.00.34变档手柄Shift handle1
NoneF9.9-04.00.00.00操舵手柄部件Tiller Assy.1
随机附件
（本块无爆炸图）
REF零件编码中文名称英文名称用量YMH对应零件号
115F-06.01.03注油口螺塞thread plug,straight screw190340-08002
2GB91 2.5*20开口销cotter pin1
3F9.9-06.05.00.00水泵叶轮组件impeller Assy.168T-44352-00-00
415F-09.01应急启动手柄emergency starting handle1
5F15-08.00.00.00燃油箱总成(12L)fuel case Assy.1
615F-06.01.04螺塞密封垫thread plug seal gasket290430-08020
715F-01.01.22启动绳φ5*2000mmstarter rope1
815F-08.01.06.00燃油管单向阀组件Fuel Hose With Connecter1
9F9.9工具包toolkit1
10F9.9套筒sleeve1
