雅马哈 3A - 3AMH

共 10 个部位，点击零件编码查看详情，或搜索本页零件。

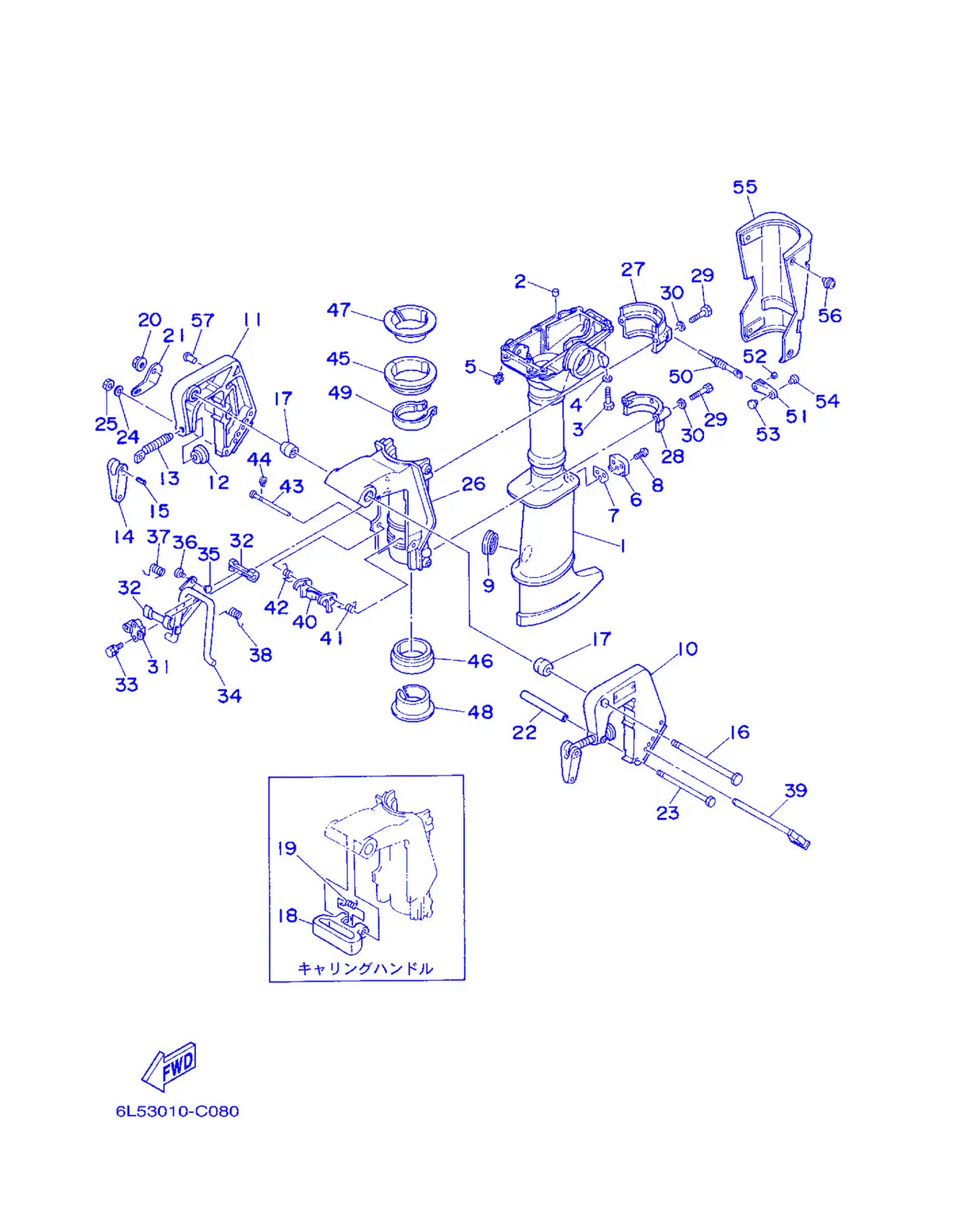

アツパーケーシング & ブラケツト

REF	雅马哈编码	中文名称	英文名称	用量
1	6L5-45111-02-4D	水上装置壳	Casing,Upper	1
2	93604-12M07	定位销	Pin, Dowel	2
3	97095-06030	螺栓	Bolt	6
4	92995-06600	盘形垫	Washer	6
5	93700-06M03	润滑油管嘴	Nipple, Grease	1
6	6L5-45152-00	水上装置壳体盖2	Cover,UpperCasing 2	1
7	6L5-45115-A0	水上装置壳体衬垫	Gasket,UpperCasing	1
8	90149-05M08	螺钉	Screw	1
9	647-45151-01	水上装置壳体盖	Cover,UpperCasing	1
10	6L5-43111-01-4D	夹紧托架	Bracket,Clamp 1	1
11	6L5-43112-00-4D	夹紧托架	Bracket,Clamp 2	1
12	620-43114-00	艉板夹紧衬垫	Pad, Transom Clamp	2
13	6E0-43116-01	艉板夹紧螺钉	Screw, Transom Clamp	2
14	6E0-43118-01	艉板夹紧手柄	Handle, Transom Clamp	2
15	90243-04M01	销	Pin	2
16	90101-08M10	六角螺栓	Bolt, Hexagon	1
17	6G1-43136-00	阻力	Piece, Friction	2
18	6L5-42121-00	托架	Bracket, Carling	1
19	90508-16M30	扭簧	Spring, Torsion	1
20	90185-08057	卡环	Nut, Self-Locking	1
21	6A1-43113-01	夹紧托架面板	Plate,ClampBracket	1
22	90387-06M11	衬套	Color	1
23	90101-06335	卡环	Bolt, Hexagon	1
24	92990-06600	面板垫圈	Washer,Plate	1
25	95380-06600	有槽螺母	Nut, Hexagon	1
26	6L5-43311-01-4D	旋转支架	Bracket, Swivel 1	1
27	6L5-44511-00-4D	上侧减震胶垫盖	Cover, Upper Mount Rubber	1
28	6L5-44553-00-4D	下侧减震胶垫盖	Cover, Lower Mount	1
29	97095-06035	螺栓	Bolt	4
30	92995-06600	盘形垫	Washer	4
31	6E0-43313-00-94	旋转支架	Bracket, Swivel 3	1
32	620-43189-00	衬套	Bushing	2
33	95895-06020	凸缘螺	Bolt, Flange	2
34	6L5-43181-00	顶位销杆	Lever, Tilt Stop	1
35	6L5-44196-00	指示器3	Indicator 3	1
36	6L5-44197-00	指示器4	Indicator 4	1
37	90508-16020	接头	Spring, Torsion	1
38	90508-16021	接头	Spring, Torsion	1
39	6L5-43160-00	角度定位杆组合	TiltRodAssembly	1
40	6L5-43614-00	角度定位锁紧面板	Plate,TiltLock	1
41	90508-08M26	扭簧	Spring, Torsion	1
42	90508-08M27	扭簧	Spring, Torsion	1
43	6L5-43659-00	倒挡锁紧轴	Shaft, Reverse Lock	1
44	99080-05600	卡环	Circlip	1
45	6L5-42537-00	枢轴衬套	Bushing, Pivot Shaft	1
46	6L5-42538-00	枢轴衬套	Bushing, Pivot Shaft	1
47	6L5-42539-00	枢轴衬套	Bushing, Pivot Shaft	1
48	6L5-42549-00	枢轴衬套	Bushing, Pivot Shaft	1
49	6E0-42528-03	阻力板	Plate, Friction	1
50	6L5-42529-01	阻力块螺钉	Screw, Friction Piece	1
51	6L5-42561-00	方向锁紧旋钮	Knob	1
52	90266-04M05	螺丝	Rivet	1
53	6L5-44196-00	指示器3	Indicator 3	1
54	6L5-44197-00	指示器4	Indicator 4	1
55	6L5-43318-11	盖	Cover	1
56	90159-06M10	带垫圈十字槽螺钉	Screw, With Washer	4
57	90269-02M08	螺丝	Rivet	2

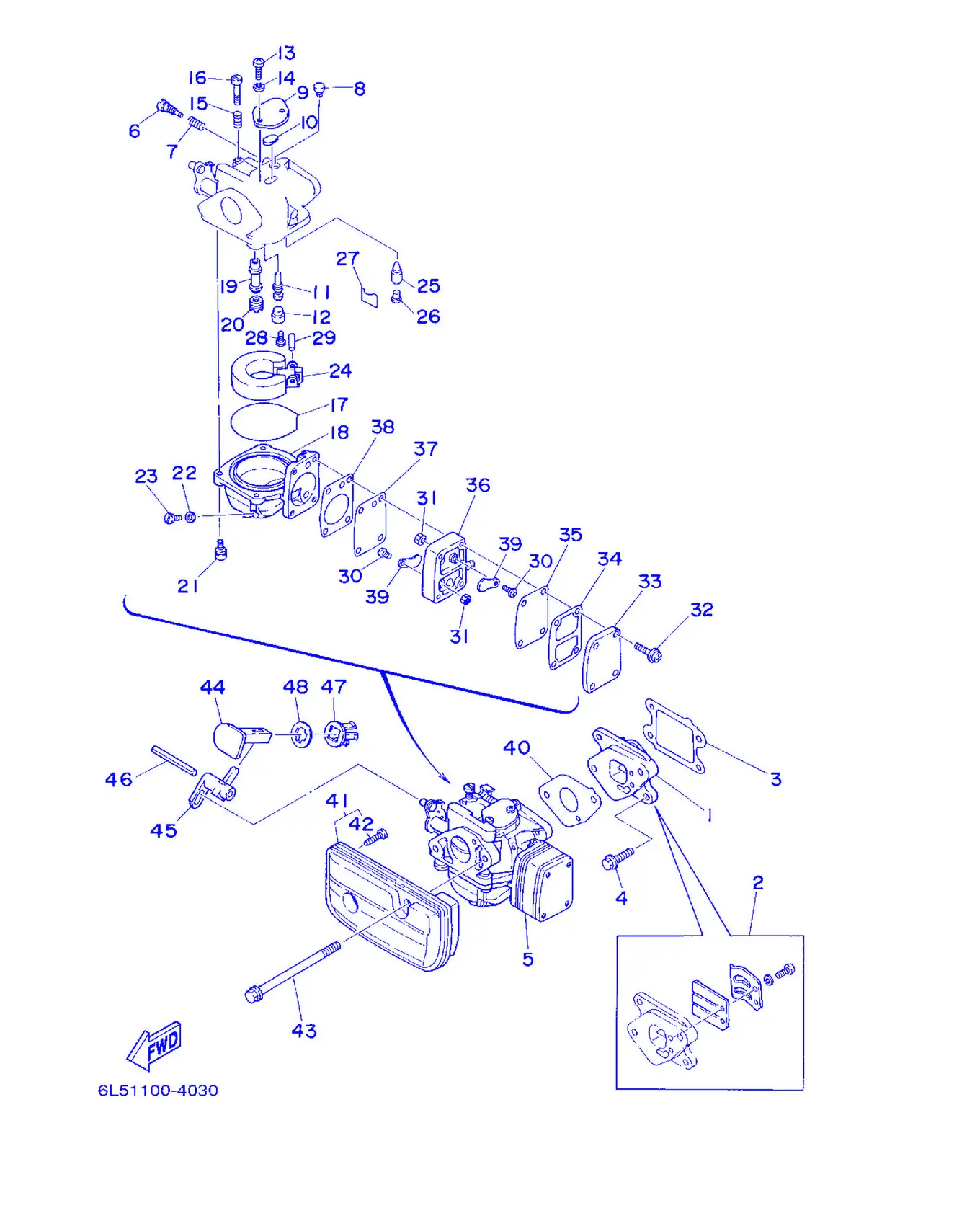

インテーク

REF	雅马哈编码	中文名称	英文名称	用量
1	6L5-13610-02	气门舌簧总成1	Reed ValveAssembly	1
2	6L5-W0004-02	簧片套	LeadSet	1
3	6L5-13621-A2	阀座衬垫	Gasket,ValveSeat	1
4	95895-06016	凸缘螺	Bolt, Flange	2
5	6L5-14301-03	化油器总成1	CarburetorAssembly 1	1
6	679-14923-00	低速螺钉	Screw,Pilot	1
7	679-14555-00	弹簧	Spring	1
8	6G1-14966-00	起动杆	Cap	1
9	6G1-14527-00	面板	Plate	1
10	6G1-14126-00	减震垫片	Gasket	1
11	6L5-14948-03	量孔	Jet (#40)	1
12	676-14966-00	起动杆	Cap	1
13	97880-04010	大柱头螺钉	Screw, Pan Head	2
14	92990-04100	盘形垫	Washer, Spring	2
15	90501-10326	接头	Spring, Compression	1
16	63V-14523-00	止动螺钉	Screw, Stop	1
17	6G1-14984-00	浮子室衬垫	O-ring	1
18	6G1-14980-01	浮子室本	Body, Float Chamber	1
19	6L5-14947-01	针形量孔	Jet,Needle	1
20	676-14943-14	主量孔	Jet,Main (#68)	1
21	97980-04114	带垫圈螺钉	Screw, Washer	4
22	6G1-14398-00	衬垫	Washer	1
23	6G1-14992-00	连杆	Screw, Drain	1
24	6G1-14985-00	浮子	Float	1
25	6G1-14546-00	针阀	Valve, Needle	1
26	676-14186-00	浮子销	Pin, Float	1
27	663-14159-00	钢夹	Clip	1
28	98580-04008	大柱头螺钉	Screw, Pan Head	1
29	688-14548-00	浮子臂销	Pin, Float Arm	1
30	98980-03006	接线螺钉，夹紧螺钉	Screw, Blind	2
31	95380-03600	有槽螺母	Nut	2
32	97980-04125	带垫圈螺钉	Screw, Washer	4
33	6G1-24452-00	盖	Cover	1
34	6G1-24432-00	燃油泵衬垫2	Gasket,FuelPump 2	1
35	6G1-24471-00	隔膜	Diaphragm	1
36	6G1-24412-01	燃油泵本体1	Body 1	1
37	6G1-24411-00	隔板	Diaphragm	1
38	6G1-24431-01	燃油泵衬垫1	Gasket, Fuel Pump 1	1
39	6L5-24421-00	单向阀	Valve, Check	2
40	6L5-14198-A1	衬垫	Gasket	1
41	6L5-14440-00	进气消声器组合	SilencerAssembly,Intake	1
42	97780-40716	十字槽盘头自攻螺钉	Screw, Tapping	2
43	95895-06095	螺栓	Bolt, Flange	2
44	6L5-41271-00	阻风门旋钮	Knob, Choke	1
45	6L5-41252-00	阻风门杆	Lever, Choke 1	1
46	91690-40048	弹簧销	Pin,Spring	1
47	689-41273-00	固定	Grommet	1
48	6J8-41274-00	固定环2	Grommet 2	1

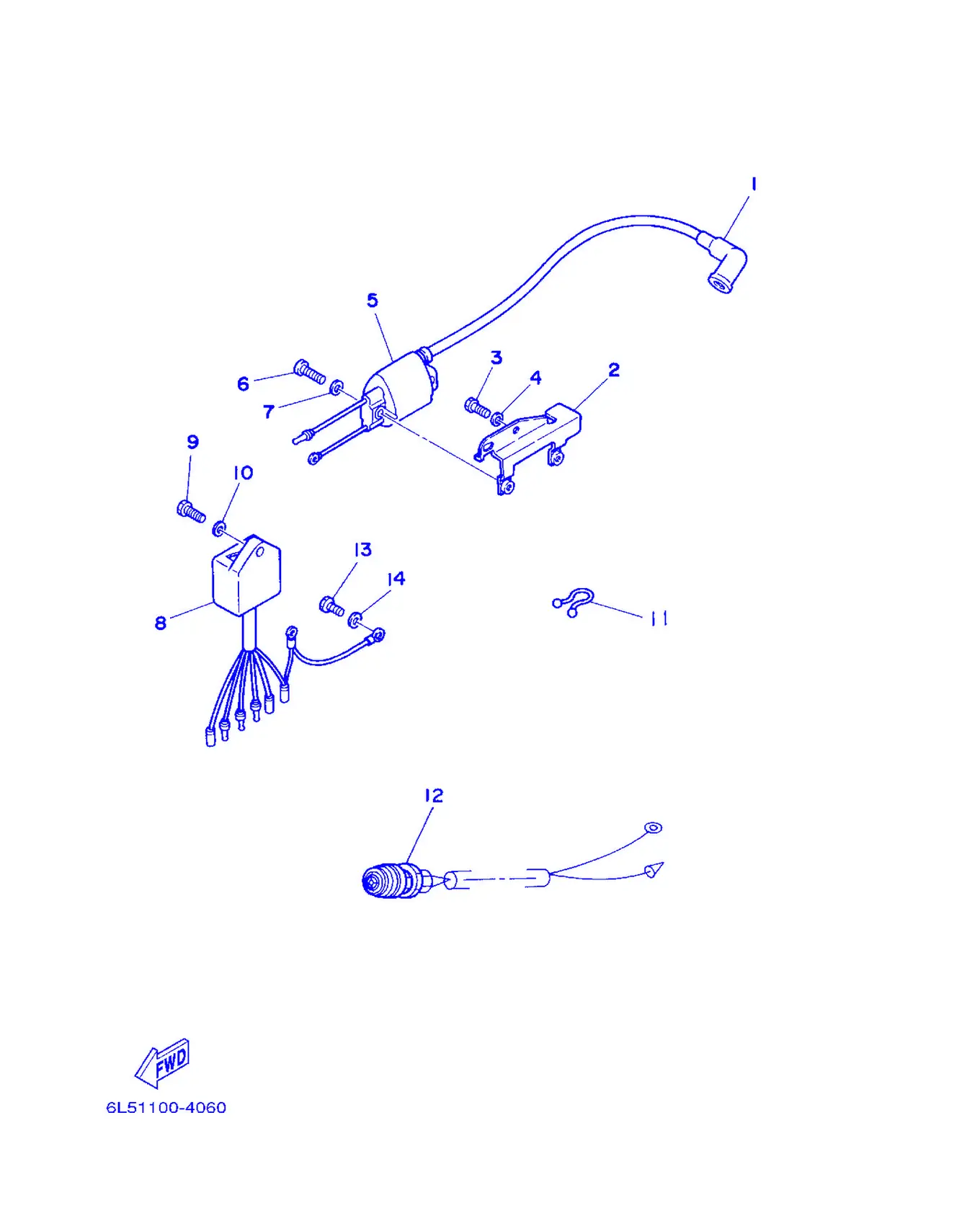

エレクトリカル

REF	雅马哈编码	中文名称	英文名称	用量
1	663-82370-01	塞帽组合	PlugCapAssembly	1
2	6L5-82316-00	点火线圈托架	Bracket, Ignition Coil	1
3	97095-06016	螺栓	Bolt	2
4	92995-06600	盘形垫	Washer	2
5	6L5-85570-M0	点火线圈组合	Ignition Coil Assembly	1
6	97880-06016	大柱头螺钉	Screw, Pan Head	2
7	92990-06600	面板垫圈	Washer,Plate	2
8	6L5-85540-M0	CDI总成	C.D.I. Unit Assembly	1
9	97095-06016	螺栓	Bolt	1
10	92995-06600	盘形垫	Washer	1
11	90465-18147	固定	Clamp	1
12	6L5-82550-00	发动机止动开关组合	Engine Stop Switch Assembly	1
13	97090-06012	螺栓	Bolt	1
14	92990-06600	面板垫圈	Washer,Plate	1

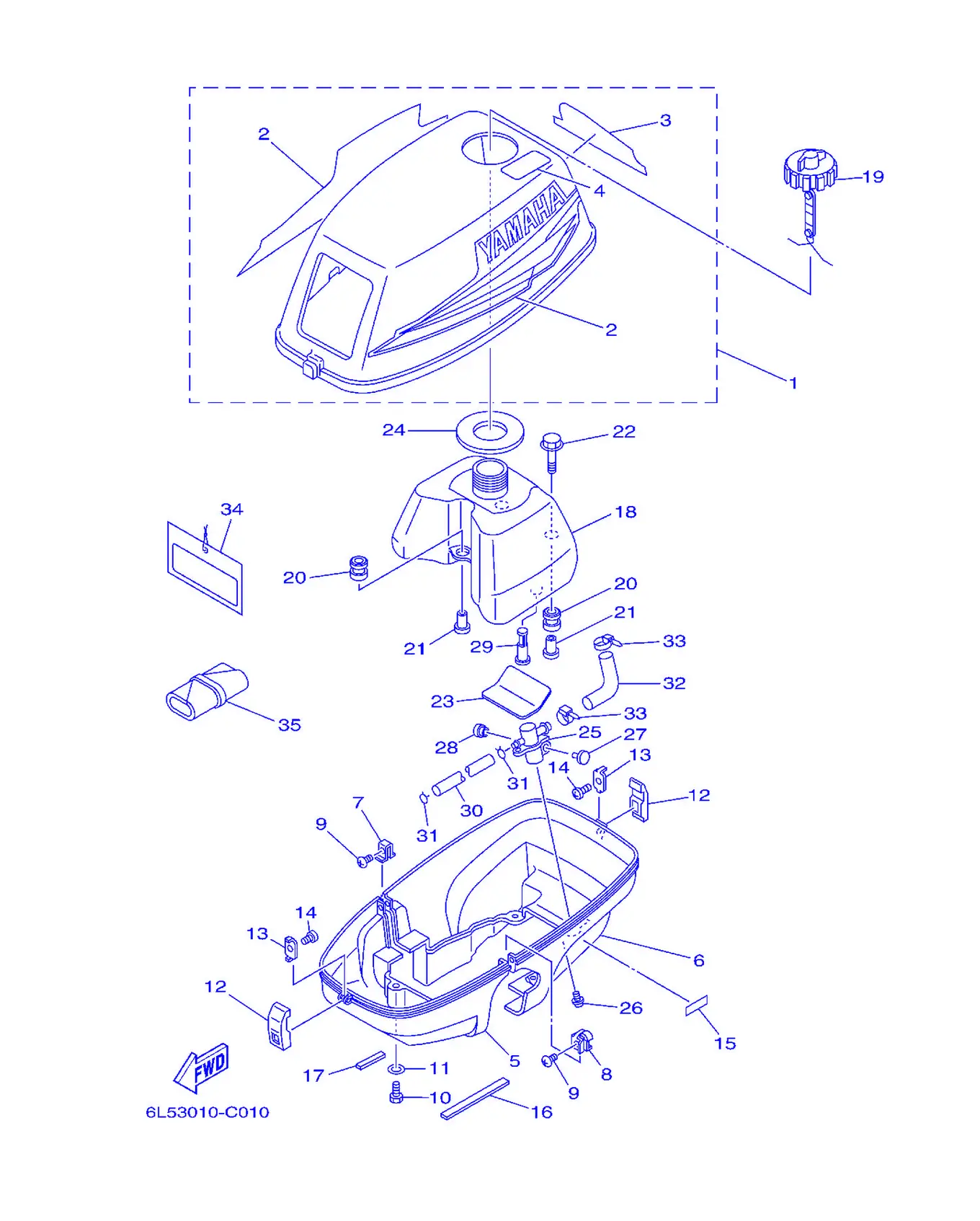

カウリング & フユエル

REF	雅马哈编码	中文名称	英文名称	用量
1	6L5-42610-31-4D	顶罩组合	Top Cowling Assembly	1
2	6L5-W0070-13	图样套	Graphic Set	1
3	6L5-42678-12	后图样	Graphic, Rear	1
4	6Y1-2415A-00	告诫牌	Label, Corrosion	1
5	6L5-42711-11	底罩	Cowling, Bottom	1
6	6L5-42712-12	底罩	Cowling, Bottom	1
7	6L5-42774-00	挡板支承1	Stay, Apron 1	1
8	6L5-42775-00	支承 2	Stay, Apron 2	1
9	97880-05010	大柱头螺钉	Screw, Pan Head	2
10	97095-06016	螺栓	Bolt	4
11	92995-06600	盘形垫	Washer	4
12	6L5-42647-00	夹带支架	Holder, Clamp Band	2
13	6L5-42823-00	止动面板	Plate, Stop	2
14	90167-03M02	自攻螺钉	Screw, Tapping	2
15	6L5-24591-00	燃油旋活栓标牌	Emblem, Fuel Cock	1
16	6L5-42662-00	减震器	Damper	1
17	6L5-42663-00	减震器	Damper	1
18	6L5-24111-02	油箱	Tank,Fuel	1
19	6L5-24610-00	盖组合	CapAssembly	1
20	6A0-82317-00	点火线圈减震器	Damper, Ignition Coil	3
21	624-42542-00	管	Pipe	3
22	90119-06M65	卡环	Bolt, With Washer	2
23	6L5-24141-00	燃油箱保护	Protector, Fuel Tank	1
24	6L5-24641-00	盖衬垫1	Gasket,Cap 1	1
25	6L5-24500-60	燃油开关组合	Fuel Cock Assembly 1	1
26	90159-06M10	带垫圈十字槽螺钉	Screw, With Washer	1
27	6L5-44196-00	指示器3	Indicator 3	1
28	6L5-44197-00	指示器4	Indicator 4	1
29	6L5-24251-00	滤网1	Strainer 1	1
30	6L5-24311-00	油管	Pipe,Fuel 1	1
31	90467-08004	卡环	Clip	2
32	6L5-24312-00	管2	Pipe 2	1
33	90465-13M11	线夹	Clamp	2
34	61H-2819R-01	警告标签	Tag, Warning	1
35	656-W2810-02	工具套	ToolKit	1

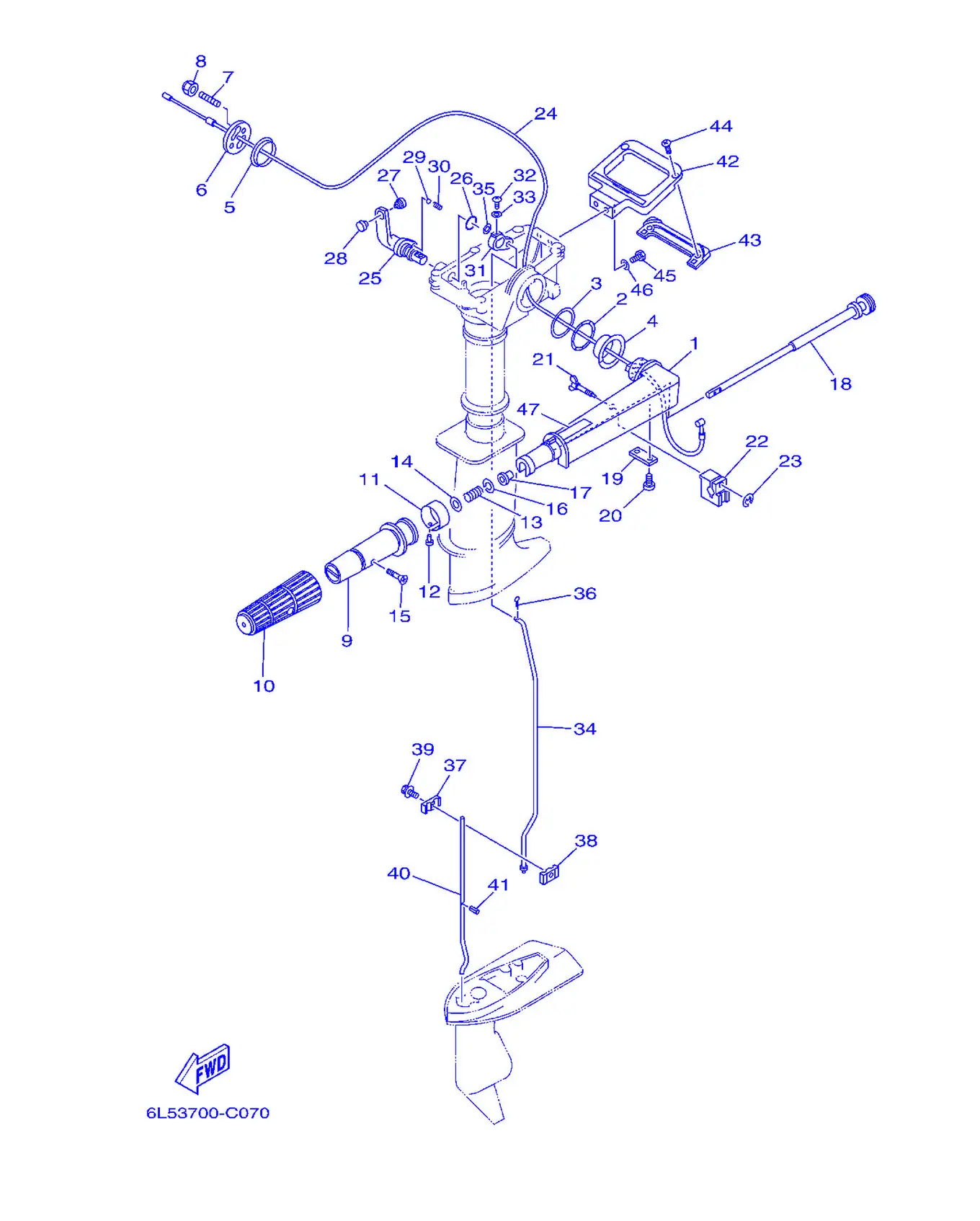

コントロール

REF	雅马哈编码	中文名称	英文名称	用量
1	6G1-42111-12-4D	操舵手柄	Handle,Steering	1
2	90206-36M21	平垫圈	Washer, Wave	1
3	90202-36M55	平垫圈	Washer,Plate	1
4	90386-34M97	衬套	Bushing	1
5	90386-33M96	衬套	Bushing	1
6	6G1-42131-02	方向手把盖	Cover,HandleSteering	1
7	90116-08016	螺栓	Bolt, Stud	1
8	90185-08057	卡环	Nut, Self-Locking	1
9	664-42119-00	方向手把握	Grip,SteeringHandle	1
10	6G1-42177-00	手把橡皮	Rubber,Handle	1
11	6L5-42137-00	油门指示器	Indicator, Throttle	1
12	90269-02M09	螺丝	Rivet	1
13	90501-23215	接头	Spring, Compression	1
14	92903-10600	盘形垫	Washer,Plate	1
15	90149-05M13	螺钉	Screw	1
16	90209-08M17	带垫螺栓	Washer	1
17	90386-08032	衬套	Bushing	1
18	6G1-42138-01	油门杆	Lever,Throttle	1
19	6E0-42159-02	支承	Stay	1
20	97885-05012	大柱头螺钉	Screw, Pan Head	2
21	6L5-42125-00	阻力调整螺	Bolt, Friction Adjust	1
22	6G1-42126-00	方向手把握把摩擦	Friction, Steering Handle	1
23	99080-03600	开口簧	Circlip	1
24	6L5-26301-01	油门钢索组合	ThrottleCableAssembly	1
25	6L5-44111-00	变挡手柄	Handle, Gear Shift	1
26	93210-12327	O型圈	O-ring	1
27	6L5-44196-00	指示器3	Indicator 3	1
28	6L5-44197-00	指示器4	Indicator 4	1
29	93505-16024	滚珠	Ball	1
30	90501-12274	接头	Spring, Compression	1
31	6L5-44121-00	变挡杆杠杆	Lever, Shift Rod	1
32	97780-40520	自攻螺钉	Screw, Tapping	1
33	92990-04600	平垫圈	Washer,Plate	1
34	6L5-44143-00	变挡连杆	Rod, Shift	1
35	92990-05600	盘形垫	Washer,Plate	1
36	91490-16010	开口销	Pin, Cotter	1
37	6E0-44145-00	变挡连杆接头	Connector, Shift Rod	1
38	6E0-44146-00	变挡连杆接头	Connector, Shift Rod	1
39	95895-06020	凸缘螺	Bolt, Flange	1
40	6L5-44144-00	变挡连杆	Rod, Shift	1
40	6L5-44144-10	变挡连杆	Rod, Shift	1
41	91609-25014	弹簧销	Pin,Spring	1
42	6L5-42731-00-4D	承载提	Carrying Handle	1
43	6L5-42735-00	保护	Protector	1
44	90161-04M02	自攻螺钉	Screw, Tapping	2
45	97095-06020	螺栓	Bolt	2
46	92995-06600	盘形垫	Washer	2
47	6A1-2415A-01	告诫牌	Label, Corrosion	1

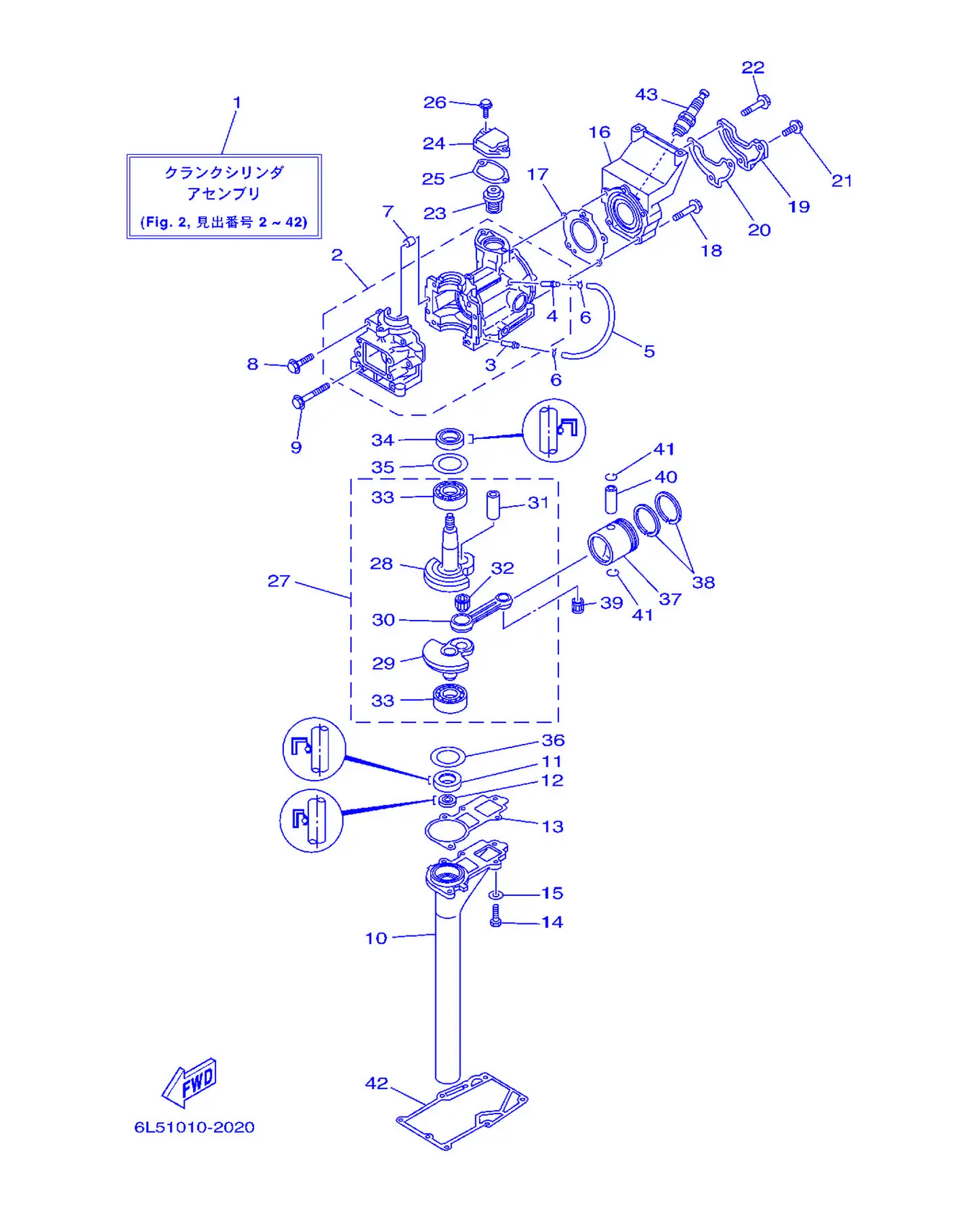

シリンダ & クランクケース

REF	雅马哈编码	中文名称	英文名称	用量
1	6L5-W0090-01-1S	气缸曲柄组合	Crank Cylinder Assembly	1
2	6L5-15100-00-1S	曲轴箱组合	Crankcase Assembly	1
3	624-14485-00	连接管	Pipe,Joint	1
4	6E5-11372-01	软管接头	Nipple, Hose	1
5	90445-07M29	固定	Hose (L135)	1
6	90467-06016	固定	Clip	2
7	93606-12019	定位销	Pin, Dowel	2
8	90105-06M16	螺栓	Bolt, Flange	4
9	90105-06M40	六角法兰面螺栓	Bolt, Flange	2
10	6L5-15396-00-94	油封壳	Housing,OilSeal	1
11	93101-20M29	油封	OilSeal	1
12	93101-09M42	固定	OilSeal	1
13	6L5-15369-A0	油封壳体衬垫	Gasket,OilSealHousing	1
14	97095-06020	螺栓	Bolt	5
15	92995-06600	盘形垫	Washer	5
16	6L5-11111-00-1S	气缸头1	Head, Cylinder 1	1
17	6L5-11181-A2	气缸头垫片1	Gasket, Cylinder Head 1	1
18	90119-06047	带垫圈六角头螺栓	Bolt, With Washer	3
19	6L5-11191-00-1S	气缸盖罩1	Cover, Cylinder Head 1	1
20	6L5-11193-A1	气缸盖罩衬垫1	Gasket, Head Cover 1	1
21	90119-06MA2	卡环	Bolt, With Washer	1
22	90119-06027	带垫螺栓	Bolt, With Washer	2
23	6E5-12411-02	温控器	Thermostat	1
24	6L5-12413-00-1S	温控器盖	Cover,Thermostat	1
25	6L5-12414-A1	盖衬垫	Gasket,Cover	1
26	90119-06MA2	卡环	Bolt, With Washer	2
27	6L5-11400-00	曲轴组合	CrankshaftAssembly	1
28	6L5-11412-00	曲柄1	Crank 1	1
29	6L5-11422-00	曲柄2	Crank 2	1
30	6L5-11651-00	连杆1	Rod, Connecting	1
31	6L5-11681-00	曲柄销1	Pin, Crank 1	1
32	93310-416N7	轴承	Bearing	1
33	93306-204U0	轴承	Bearing	2
34	93102-20M06	油封	OilSeal	1
35	90201-32M00	平垫圈	Washer,Plate	1
36	90201-32M01	平垫圈	Washer,Plate	1
37	6L5-11631-00-96	活塞	Piston (STD)	1
37	6L5-11635-00	活塞	Piston (0.25MM O/S)	1
37	6L5-11636-00	活塞	Piston (0.50MM O/S)	1
38	6L5-11610-00	活塞环套	PistonRingSet (STD)	1
38	6L5-11610-10	活塞环套	Piston Ring Set (0.25MM O/S)	1
38	6L5-11610-20	活塞环套	Piston Ring Set (0.50MM O/S)	1
39	93310-112U0	轴承	Bearing	1
40	6L5-11633-00	活塞销	Pin,Piston	1
41	93450-13022	卡环	Circlip	2
42	6L5-45113-A1	水上装置壳体衬垫	Gasket,UpperCasing	1
43	94703-00273	火花塞	Plug, Spark (NGK B6HS-10)	1

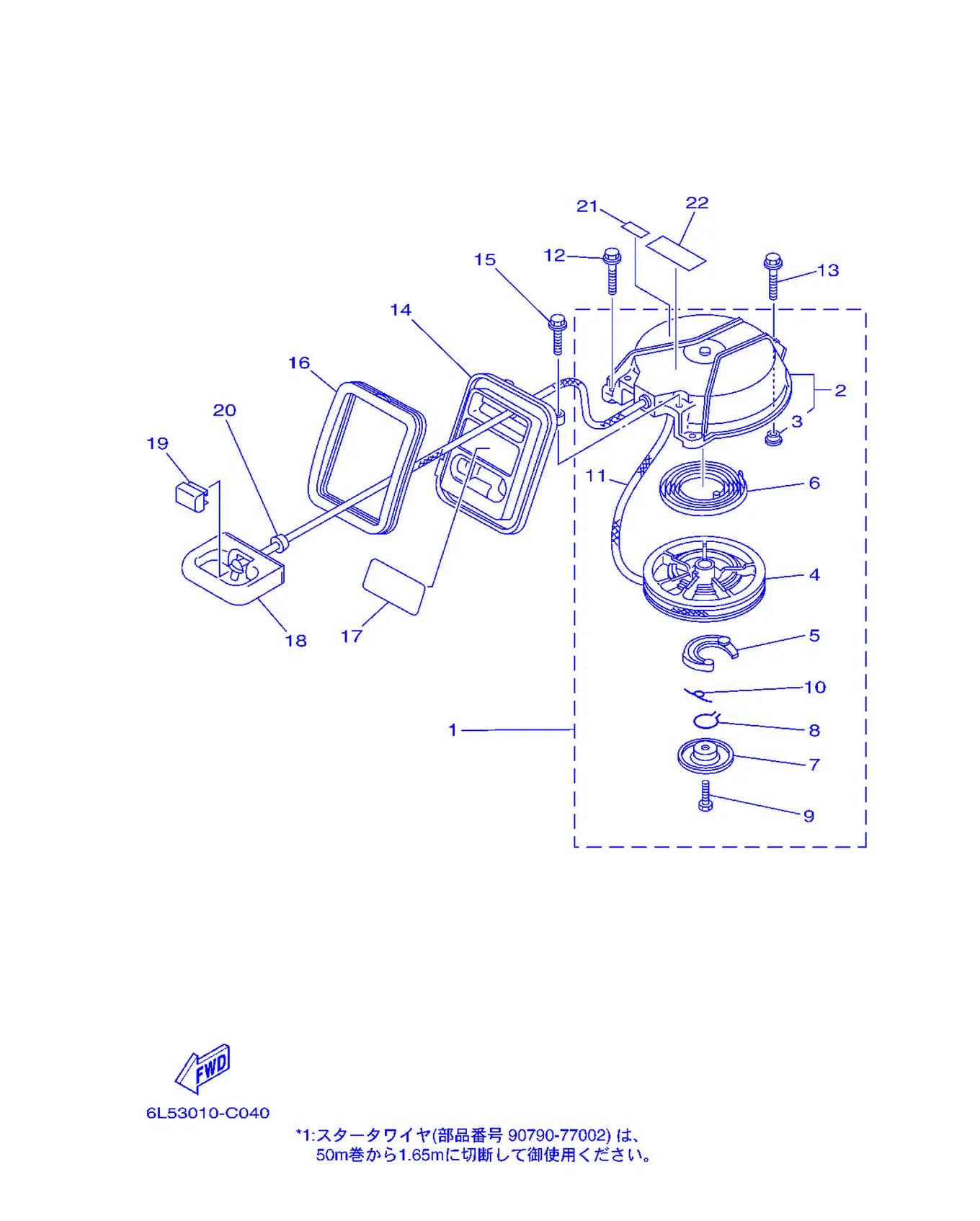

スタータ

REF	雅马哈编码	中文名称	英文名称	用量
1	6L5-15710-00	起动器组合	StarterAssembly	1
2	6L5-15711-00	起动器箱	Case,Starter	1
3	90387-06M70	衬套	Color	1
4	6L5-15714-00	拉索卷	Drum, Sheave	1
5	6L5-15741-00	驱动	Pawl, Drive	1
6	6L5-15713-00	起动器弹簧	Spring,Starter	1
7	6L5-15716-00	驱动板	Plate, Drive	1
8	6A1-15705-00	驱动爪弹簧	Spring, Drive Pole	1
9	97313-06012	螺栓	Bolt	1
10	6A1-15767-00	弹簧	Spring	1
12	95895-06020	凸缘螺	Bolt, Flange	2
13	95895-06035	凸缘螺栓	Bolt, Flange	1
14	6L5-15758-00-98	导向绳索	Guide, Rope	1
15	95895-06016	凸缘螺	Bolt, Flange	2
16	6L5-15761-00	橡皮密封圈1	Seal,Rubber 1	1
17	6L5-42677-10	前图样	Graphic, Front	1
18	6L5-15755-00	起动器手	Handle,Starter	1
19	6L5-15779-00	盖	Cover	1
20	6L5-15789-00	减震器	Damper	1
21	6H8-42791-00	标志，商标1	Mark 1	1
22	6A1-83625-01	商标，标志5	Mark 5	1

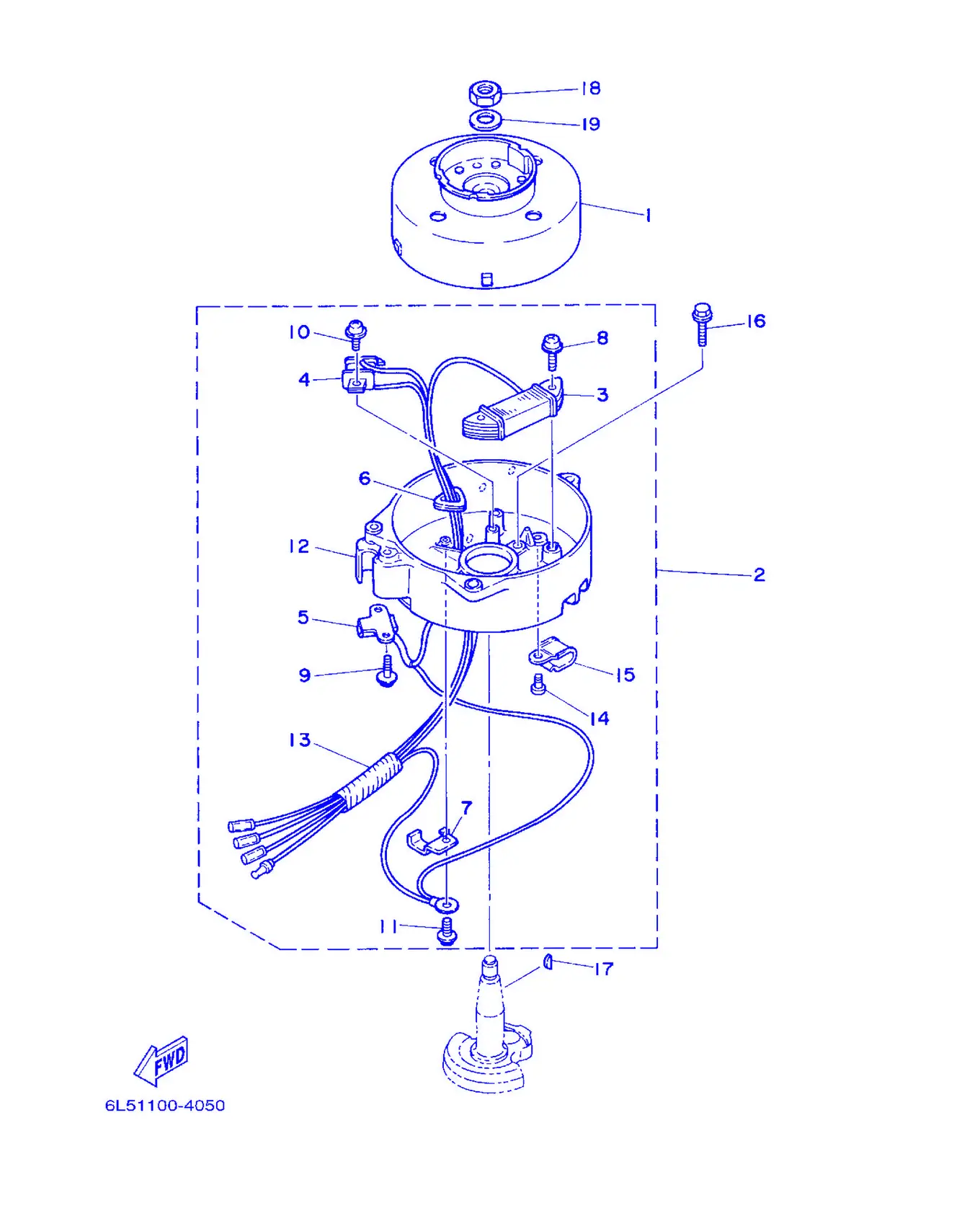

ゼネレータ

REF	雅马哈编码	中文名称	英文名称	用量
1	6L5-85550-M0	转子总成	Rotor Assembly	1
2	6L5-85560-M1	定子总成	BaseAssembly	1
3	6E0-85520-70	充电线	Coil, Charge	1
4	6L5-85595-M0	脉冲线	Coil, Pulser	1
5	6L5-85592-M0	脉冲线圈组合	Pulser Coil Assembly	1
6	6E0-81336-70	固定	Grommet	1
7	6E0-81328-70	夹箍	Clamp	1
8	90159-05038	卡环	Screw, Washer	2
9	90159-05037	卡环	Screw, Washer	2
10	90159-04036	带垫螺栓	Screw, Washer	2
11	90159-04035	卡环	Screw, Washer	1
12	6L5-15771-01-94	支承1	Stay 1	1
13	90446-10M01	固定	Hose (L60)	1
14	97803-05008	螺钉	Screw, Pan Head	1
15	90465-10M34	线夹	Clamp	1
16	95895-06016	凸缘螺	Bolt, Flange	2
17	90280-04M06	半圆键	Key, Woodruff	1
18	90170-10113	螺帽	Nut	1
19	90201-10126	平垫圈	Washer,Plate	1

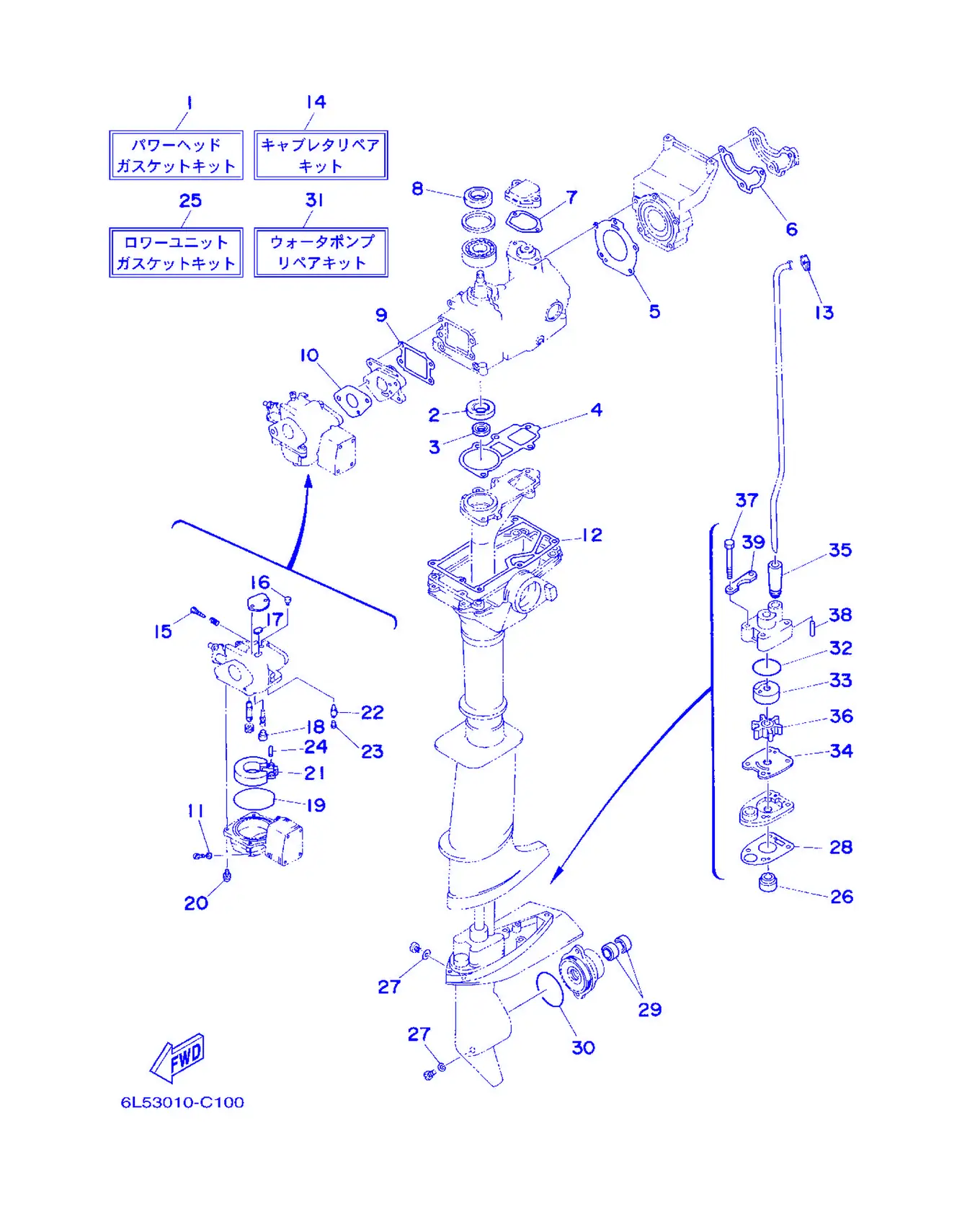

リペアキツト

REF	雅马哈编码	中文名称	英文名称	用量
1	6L5-W0001-A1	衬垫套	Power Head Gasket Kit	1
2	93101-20M29	油封	OilSeal	1
3	93101-09M42	固定	OilSeal	1
4	6L5-15369-A0	油封壳体衬垫	Gasket,OilSealHousing	1
5	6L5-11181-A2	气缸头垫片1	Gasket, Cylinder Head 1	1
6	6L5-11193-A1	气缸盖罩衬垫1	Gasket, Head Cover 1	1
7	6L5-12414-A1	盖衬垫	Gasket,Cover	1
8	93102-20M06	油封	OilSeal	1
9	6L5-13621-A2	阀座衬垫	Gasket,ValveSeat	1
10	6L5-14198-A1	衬垫	Gasket	1
11	6G1-14398-00	衬垫	Washer	1
12	6L5-45113-A1	水上装置壳体衬垫	Gasket,UpperCasing	1
13	646-44365-00	水封减震器	Damper,WaterSeal	1
14	6G1-W0093-00	化油器修理套	CarburetorRepair Kit	1
15	679-14923-00	低速螺钉	Screw,Pilot	1
16	6G1-14966-00	起动杆	Cap	1
17	6G1-14126-00	减震垫片	Gasket	1
18	676-14966-00	起动杆	Cap	1
19	6G1-14984-00	浮子室衬垫	O-ring	1
20	97980-04114	带垫圈螺钉	Screw, Washer	4
21	6G1-14985-00	浮子	Float	1
22	6G1-14546-00	针阀	Valve, Needle	1
23	676-14186-00	浮子销	Pin, Float	1
24	688-14548-00	浮子臂销	Pin, Float Arm	1
25	6L5-W0001-21	衬垫套	LowerUnitGasket Kit	1
26	93103-09M41	油封	OilSeal	1
27	90430-08020	固定	Gasket	2
28	6L5-45315-A0	水下装置壳体密封垫	Packing, Lower Casing	1
29	93101-13M12	油封	OilSeal	2
30	93210-48214	O型圈	O-ring	1
31	6L5-W0078-00	水泵修理套	Water PumpRepair Kit	1
32	93210-33M85	O型圈	O-ring	1
33	6L5-44322-00	芯子	Insert, Cartridge	1
34	6L5-44323-00	外挡板	Outer Plate, Cartridge	1
35	6E0-44366-00	水封减震器	Damper,WaterSeal	1
36	6L5-44352-00	叶轮	Impeller	1
37	97095-06040	螺栓	Bolt	4
38	93604-18080	定位销	Pin, Dowel	2
39	6L5-44328-00	面板	Plate	2

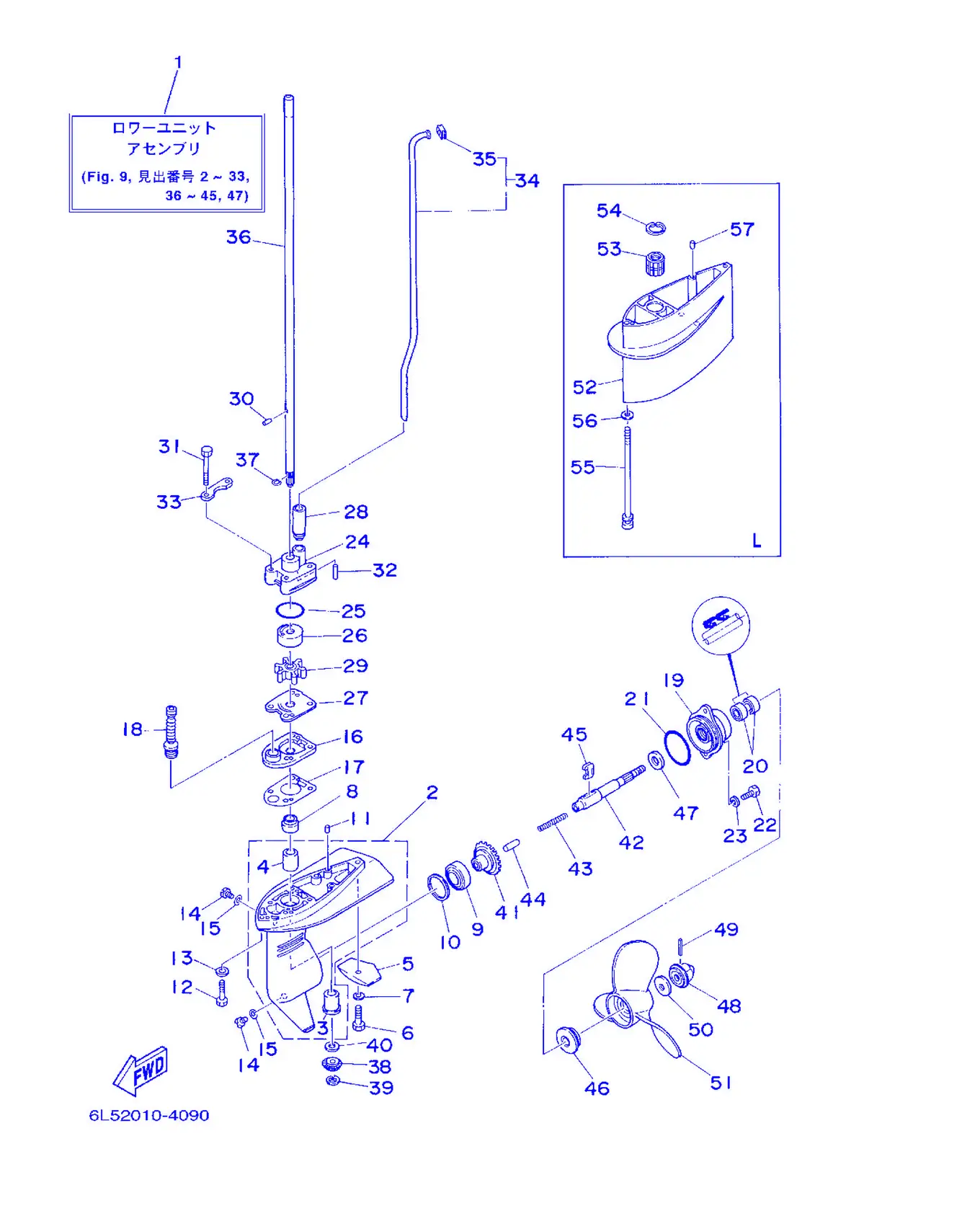

ロワーケーシング & ドライブ

REF	雅马哈编码	中文名称	英文名称	用量
1	6L5-45300-01-4D	水下装置总成	LowerUnitAssembly	1
1	6L5-45300-11-4D	水下装置总成	LowerUnitAssembly	1
2	6L5-45311-00-4D	水下装置壳	Casing,Lower	1
3	6L5-45317-09	驱动轴衬套	Bushing, Drive Shaft	1
4	6L5-45316-09	驱动轴衬套	Bushing, Drive Shaft	1
5	6L5-45251-03	阳极	Anode	1
6	95895-06030	凸缘螺	Bolt, Flange	1
6	90101-06M18	卡环	Bolt, Hexagon	1
7	92990-06300	盘形垫	Washer, Internal Tooth	1
8	93103-09M41	油封	OilSeal	1
9	93316-003U0	轴承	Bearing	1
10	6L5-45567-00	填隙	Shim	1
11	93604-12M07	定位销	Pin, Dowel	2
12	97095-06030	螺栓	Bolt	3
13	92995-06600	盘形垫	Washer	3
14	90340-08002	螺丝	Plug, Straight Screw	2
15	90430-08020	固定	Gasket	2
16	6L5-45321-00-5B	面板	Plate	1
17	6L5-45315-A0	水下装置壳体密封垫	Packing, Lower Casing	1
18	6L2-44147-00	变挡连杆衬套	Boot, Shift Rod	1
19	6L5-45361-00-4D	水下装置壳体盖	Cap,Lower Casing	1
20	93101-13M12	油封	OilSeal	2
21	93210-48214	O型圈	O-ring	1
22	97095-06016	螺栓	Bolt	2
23	92995-06600	盘形垫	Washer	2
24	6L5-44311-00	水泵壳	Housing,Water Pump	1
25	93210-33M85	O型圈	O-ring	1
26	6L5-44322-00	芯子	Insert, Cartridge	1
27	6L5-44323-00	外挡板	Outer Plate, Cartridge	1
28	6E0-44366-00	水封减震器	Damper,WaterSeal	1
29	6L5-44352-00	叶轮	Impeller	1
30	93604-07M13	定位销	Pin, Dowel	1
31	97095-06040	螺栓	Bolt	4
32	93604-18080	定位销	Pin, Dowel	2
33	6L5-44328-00	面板	Plate	2
34	6L5-44360-01	水管组合	Water Tube Assembly	1
34	6L5-44360-11	水管组合	Water Tube Assembly	1
35	646-44365-00	水封减震器	Damper,WaterSeal	1
36	6L5-45511-00	驱动轴	Shaft, Drive	1
36	6L5-45511-10	驱动轴	Shaft, Drive	1
37	90467-07M12	卡环	Clip	1
38	6L5-45551-00	小齿轮	Pinion (13T)	1
39	99001-06600	卡环	Circlip	1
40	6L5-45533-00	填隙	Shim (T:2.0MM)	1
40	6L5-45533-10	填隙	Shim (T:2.1MM)	1
41	6L5-45560-00	齿轮	Gear 1 (27T)	1
42	6L5-45611-00	螺旋浆轴	Shaft,Propeller	1
43	90501-10064	接头	Spring, Compression	1
44	6L5-45635-00	变挡柱	Plunger, Shift	1
45	6L5-45631-00	爪形离合器	Clutch, Dog	1
46	6L5-45987-01	衬套	Spacer	1
47	90201-13198	平垫圈	Washer,Plate	1
48	6L5-45616-00	螺旋浆螺母	Nut,Propeller	1
49	91490-25030	开口销	Pin, Cotter	1
50	90201-08M54	平垫圈	Washer,Plate	1
51	6L5-45943-00-EL	螺旋浆组合	Propeller (3X7-1/4X6-BS)	1
51	6L5-45945-00-EL	螺旋浆组合	Propeller (3X7-1/4X7-1/4-BS)	1
51	6L5-45947-00-EL	螺旋浆组合	Propeller (3X7-1/4X8-1/4-BS)	1
52	6L5-45211-00-4D	延伸部分	Extension	1
53	6L5-45318-00	驱动轴衬套	Bushing,Drive Shaft	1
54	93420-22M03	开口簧环，卡	Circlip	1
55	90101-06M18	卡环	Bolt, Hexagon	3
56	92990-06600	面板垫圈	Washer,Plate	3
57	93604-12M07	定位销	Pin, Dowel	2
