雅马哈 8C - 8CWHL

共 20 个部位，点击零件编码查看详情，或搜索本页零件。

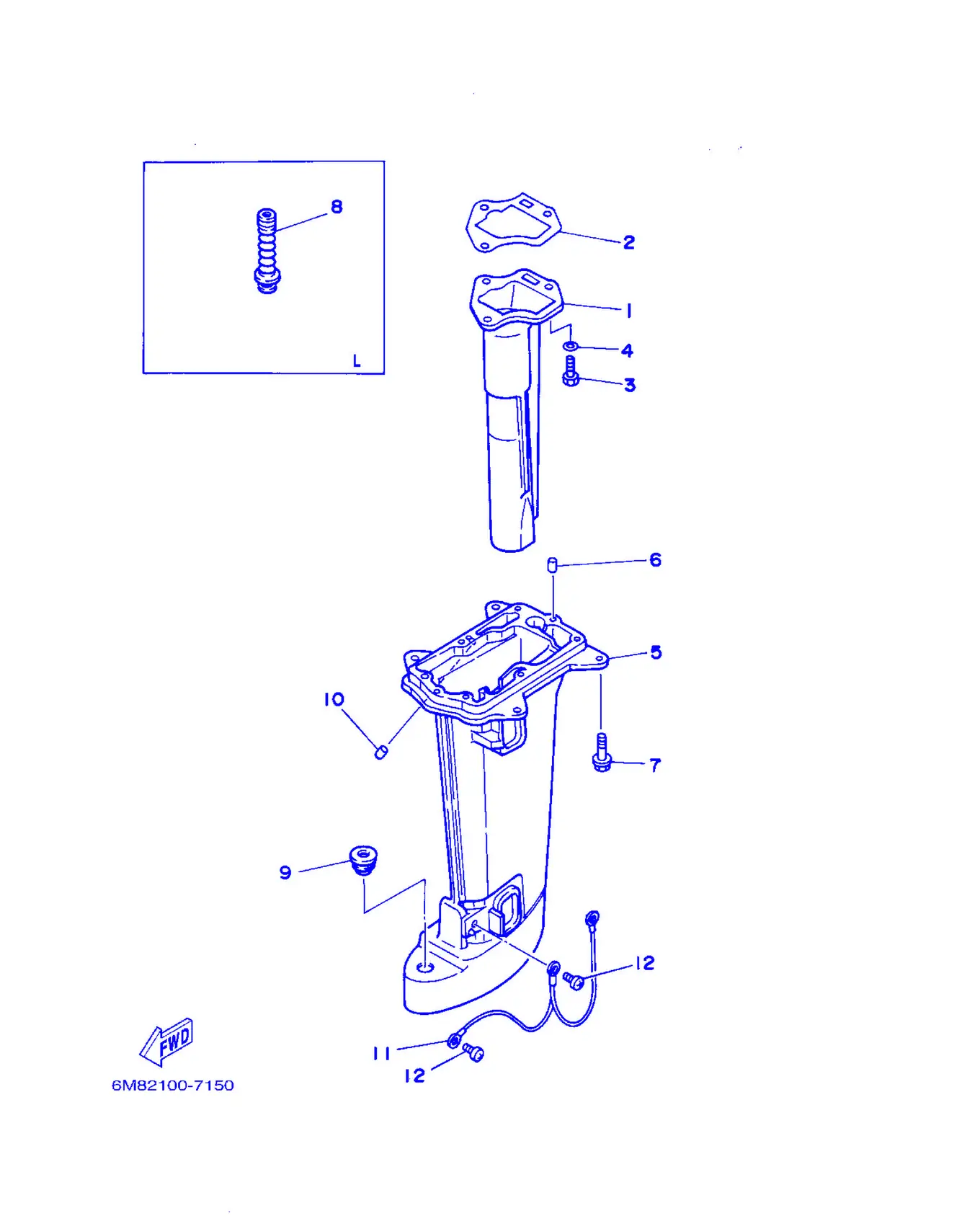

アツパーケーシング

REF	雅马哈编码	中文名称	英文名称	用量
1	6N0-G1131-00-5B	排气岐管1	Manifold,Exhaust 1	1
2	6G1-41133-A0	排气岐管衬垫1	Gasket, Exhaust Manifold	1
3	97095-06020	螺栓	Bolt	3
4	92995-06600	盘形垫	Washer	3
5	6N0-G5111-00-4D	水上装置壳	Casing,Upper	1
5	6N0-G5111-10-4D	水上装置壳	Casing,Upper	1
6	93604-08062	定位销	Pin, Dowel	2
7	95895-06030	凸缘螺	Bolt, Flange	6
8	655-44147-00	变挡连杆衬套	Boot, Shift Rod	1
9	90480-20M29	油封	Grommet	1
10	6G1-45135-00	管	Pipe	1
11	6G1-82149-00	导线3	Wire,Lead 3	1
12	97885-06008	大柱头螺钉	Screw, Pan Head	2

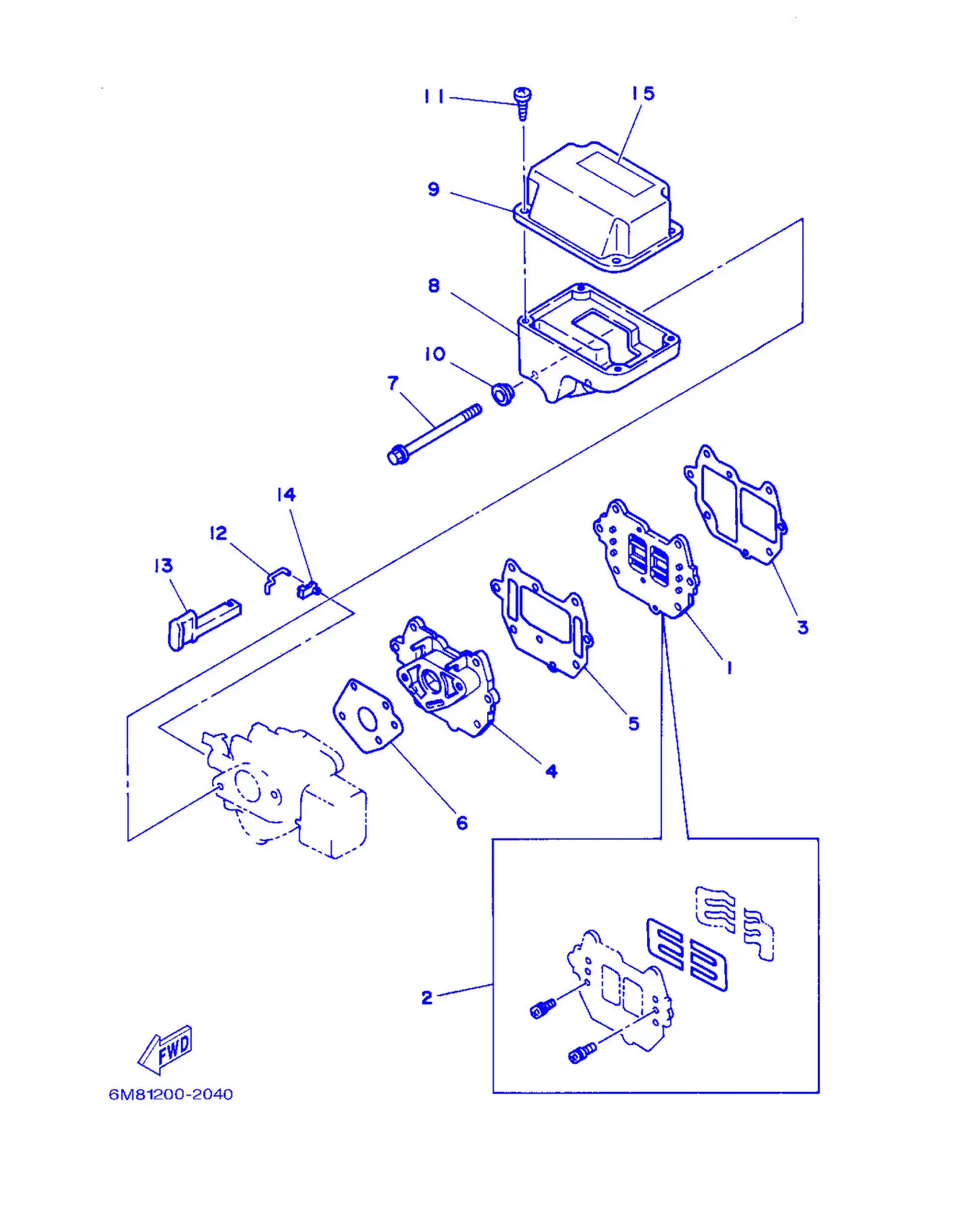

インテーク

REF	雅马哈编码	中文名称	英文名称	用量
1	6G1-13610-01	簧片阀组合	Reed ValveAssembly	1
2	6G1-W0004-00	簧片套	LeadSet	1
3	6G1-13621-A1	阀座衬垫	Gasket,ValveSeat	1
4	6N0-E3641-00-94	岐管1	Manifold 1	1
5	6G1-13645-A1	岐管衬垫1	Gasket,Manifold 1	1
6	6G1-14198-A1	垫片	Gasket	1
7	95895-06085	螺栓	Bolt, Flange	2
8	6M8-E4417-00	盖1	Cover 1	1
9	6M8-E4418-00	盖2	Cover 2	1
10	90387-06M70	衬套	Color	2
11	97780-50514	自攻螺钉	Screw, Tapping	4
12	6G1-41256-00	阻风门杆1	Rod, Choke 1	1
13	6G1-41271-00	阻风门旋钮	Knob, Choke	1
14	661-41262-02	阻风门杠杆接头	Joint, Choke Lever	1
15	60R-H3625-00	商标，标志5	Mark 5	1

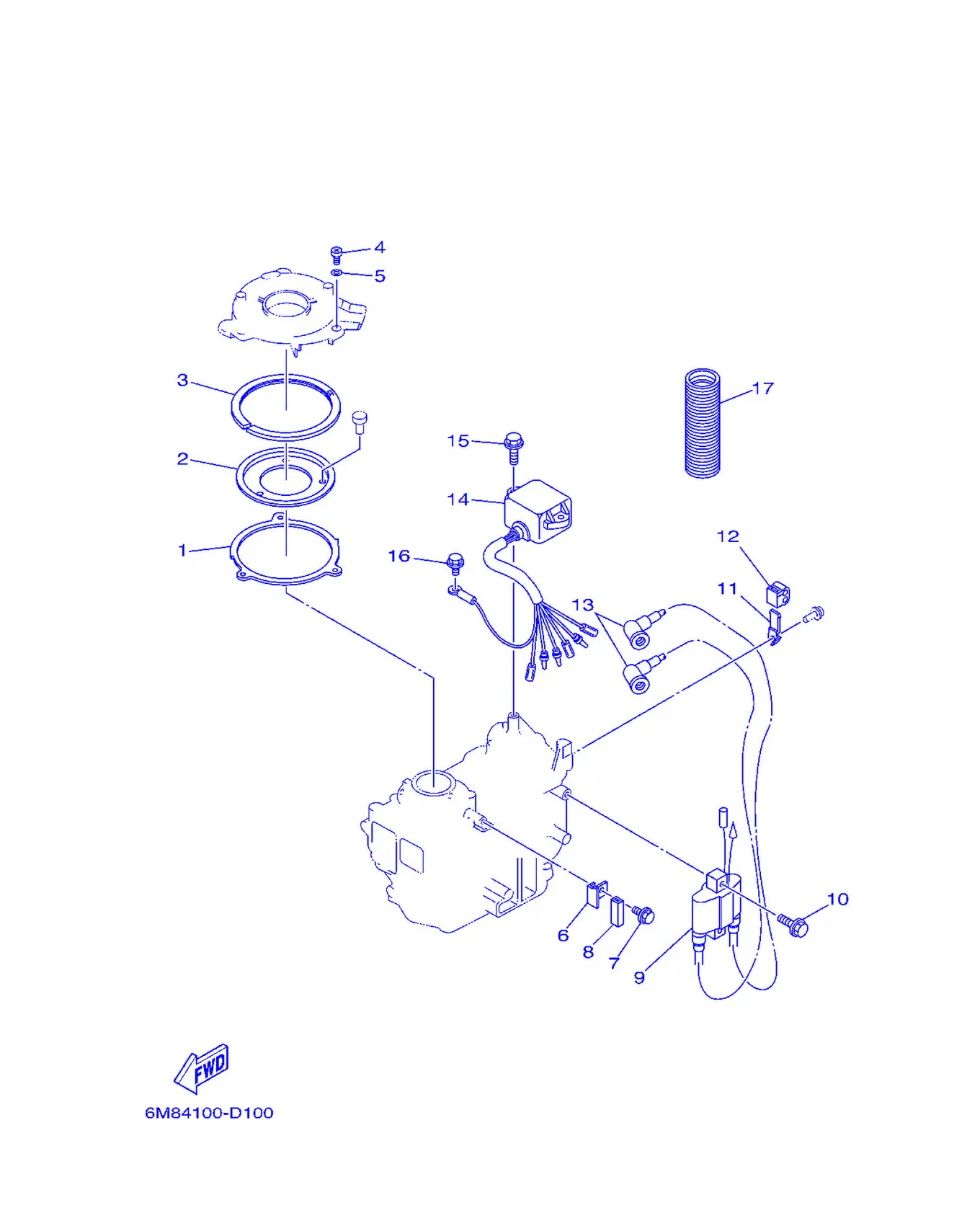

エレクトリカル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6N0-G1611-00	磁电机座挡	Retainer, Magnet Base	1
2	6G1-41612-00	磁电机座挡	Retainer, Magnet Base	1
3	6N0-G1613-00	座摩擦板	Plate, Base Friction	1
4	97885-05010	大柱头螺钉	Screw, Pan Head	3
5	92995-05600	盘形垫	Washer	3
6	6G1-41615-01	磁电机座限位板	Stopper, Magnet Base	1
7	95895-06010	凸缘螺栓	Bolt, Flange	1
8	6G1-44194-00	盖	Cap	1
9	6G1-85570-01	点火线圈组合	Ignition Coil Assembly	1
10	95895-06025	凸缘螺	Bolt, Flange	2
11	6M8-82361-00	线夹	Clamp, Cord	1
12	6M8-82362-00	线夹2	Clamp, Cord 2	1
13	663-82370-01	塞帽组合	PlugCapAssembly	2
14	696-85540-12	电子点火器总成	C.D.I. Unit Assembly	1
15	95895-06020	凸缘螺	Bolt, Flange	2
16	95895-06010	凸缘螺栓	Bolt, Flange	1
17	6G1-83557-00	管	Tube	1

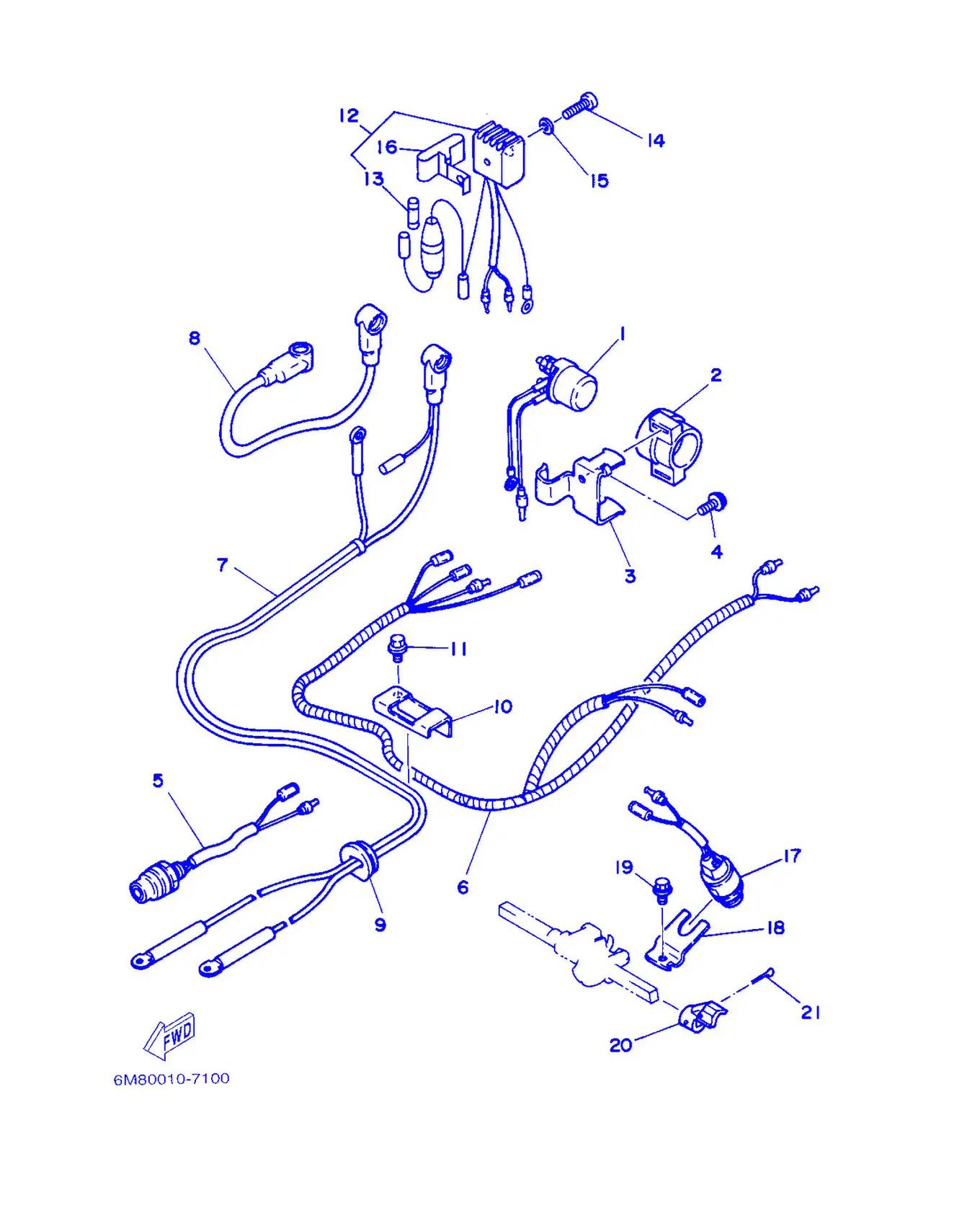

エレクトリカル 2 (WHシヨウ)

REF	雅马哈编码	中文名称	英文名称	用量
1	6G1-81941-10	起动继电器组合	StarterRelayAssembly	1
2	6G1-81952-00	继电器支架	Holder, Relay	1
3	6G1-81945-00	开关装配面板	Plate, Switch Fitting	1
4	95895-06016	凸缘螺	Bolt, Flange	1
5	689-81870-00	起动开关组合	Starting Switch Assembly	1
6	6G1-82590-00	电缆总成	WireHarnessAssembly	1
7	6G1-82105-01	电缆	WireHarness	1
8	6G1-82117-00	导线	Wire,Lead	1
9	682-42724-40	固定	Grommet	1
10	6G1-82362-00	线夹2	Clamp, Cord 2	1
11	95895-06010	凸缘螺栓	Bolt, Flange	1
12	6G1-81970-61	整流器组合	Rectifier Assembly	1
13	6G1-82151-00	保险丝	Fuse	1
14	97880-05025	大柱头螺钉	Screw, Pan Head	1
15	92990-05600	盘形垫	Washer,Plate	1
16	90465-08M19	卡环	Clamp	1
17	6F5-82540-00	空挡开关组合	Neutral Switch Assembly	1
18	6G1-82554-00	空挡开关支承	Stay, Neutral Switch	1
19	95895-06010	凸缘螺栓	Bolt, Flange	1
20	6G1-44125-00	变挡杆杠杆手柄	Lever, Shift Rod	1
21	91490-25020	开口销	Pin, Cotter	1

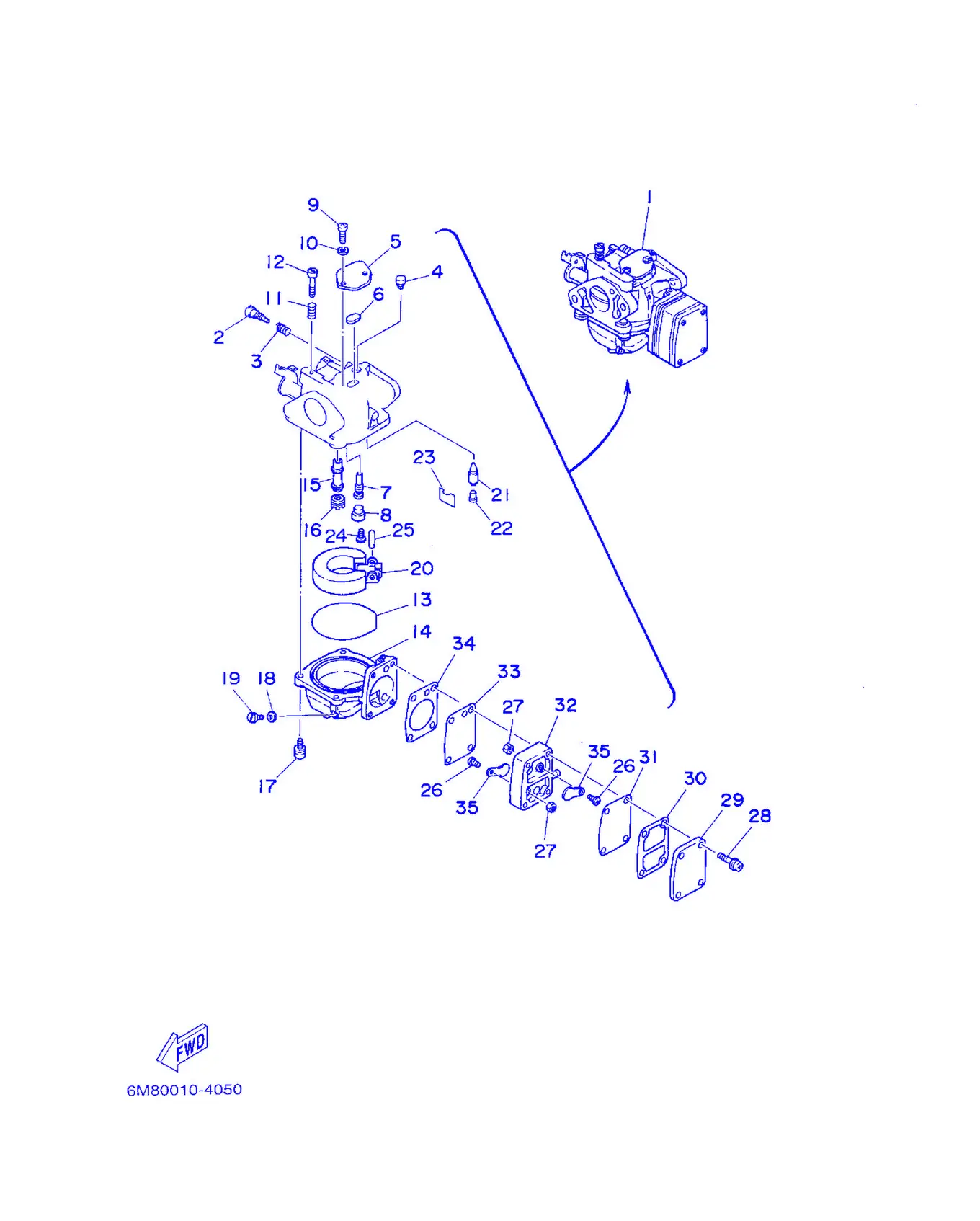

キヤブレタ

REF	雅马哈编码	中文名称	英文名称	用量
1	6G1-14301-01	化油器总成1	CarburetorAssembly 1	1
2	679-14923-00	低速螺钉	Screw,Pilot	1
3	679-14555-00	弹簧	Spring	1
4	6G1-14966-00	起动杆	Cap	1
5	6G1-14527-00	面板	Plate	1
6	6G1-14126-00	减震垫片	Gasket	1
7	6G1-14948-05	量孔	Jet (#45)	1
8	676-14966-00	起动杆	Cap	1
9	97880-04010	大柱头螺钉	Screw, Pan Head	2
10	92990-04100	盘形垫	Washer, Spring	2
11	90501-10326	接头	Spring, Compression	1
12	63V-14523-00	止动螺钉	Screw, Stop	1
13	6G1-14984-00	浮子室衬垫	O-ring	1
14	6G1-14980-01	浮子室本	Body, Float Chamber	1
15	6G1-14947-00	针形量孔	Jet,Needle	1
16	676-14943-26	主量孔	Jet,Main (#98)	1
17	97980-04114	带垫圈螺钉	Screw, Washer	4
18	6G1-14398-00	衬垫	Washer	1
19	6G1-14992-00	连杆	Screw, Drain	1
20	6G1-14985-00	浮子	Float	1
21	6G1-14546-01	针阀	Valve, Needle	1
22	676-14186-00	浮子销	Pin, Float	1
23	663-14159-00	钢夹	Clip	1
24	98580-04008	大柱头螺钉	Screw, Pan Head	1
25	688-14548-00	浮子臂销	Pin, Float Arm	1
26	98980-03006	接线螺钉，夹紧螺钉	Screw, Blind	2
27	95380-03600	有槽螺母	Nut	2
28	97980-04125	带垫圈螺钉	Screw, Washer	4
29	6G1-24452-00	盖	Cover	1
30	6G1-24432-00	燃油泵衬垫2	Gasket,FuelPump 2	1
31	6G1-24471-00	隔膜	Diaphragm	1
32	6G1-24412-01	燃油泵本体1	Body 1	1
33	6G1-24411-00	隔板	Diaphragm	1
34	6G1-24431-01	燃油泵衬垫1	Gasket, Fuel Pump 1	1
35	6G1-24421-00	单向阀	Valve, Check	2

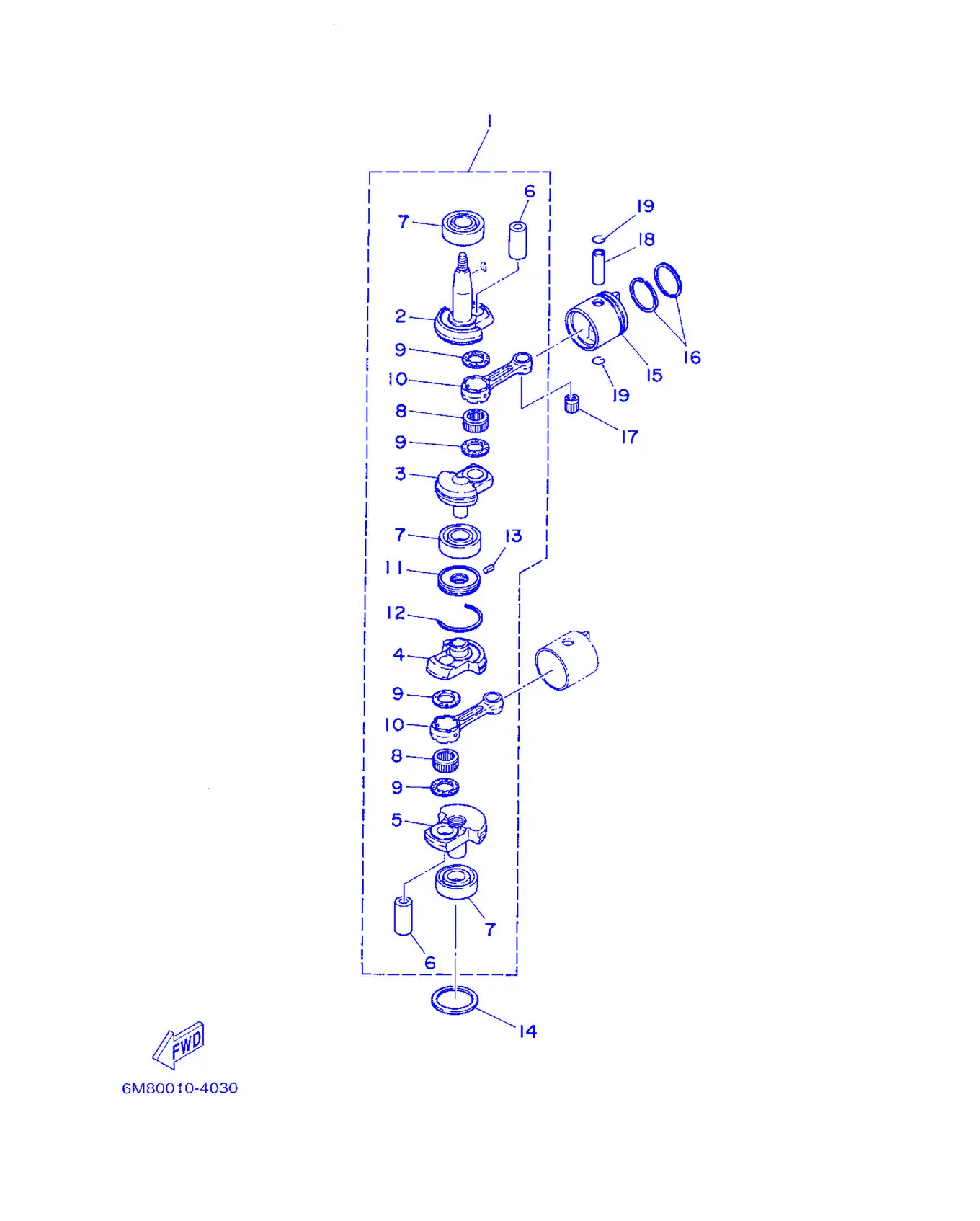

クランクシヤフト & ピストン

REF	雅马哈编码	中文名称	英文名称	用量
1	6N0-E1400-00	曲柄总成	CrankshaftAssembly	1
2	6N0-E1412-00	曲柄1	Crank 1	1
3	6N0-E1422-00	曲柄2	Crank 2	1
4	6N0-E1432-00	曲柄3	Crank 3	1
5	6N0-E1442-00	曲柄4	Crank 4	1
6	6G1-11681-00	曲柄销1	Pin, Crank 1	2
7	93306-204U0	轴承	Bearing	3
8	93310-418V1	轴承	Bearing	2
9	90209-18112	垫圈	Washer	4
10	6N0-E1651-00	连杆	Rod, Connecting	2
11	6N0-E1515-00	曲折环式密封	Seal, Labyrinth 1	1
12	93440-47055	弹性挡圈	Circlip	1
13	91609-20008	弹簧销	Pin, Spring	1
14	90201-41303	平垫圈	Washer,Plate	1
15	6N0-E1631-00-98	活塞	Piston (STD)	2
16	6N0-E1603-00	活塞环套件	PistonRingSet (STD)	2
17	93310-112V0	轴承	Bearing	2
18	6N0-E1633-00	活塞销	Pin,Piston	2
19	93450-13022	卡环	Circlip	4

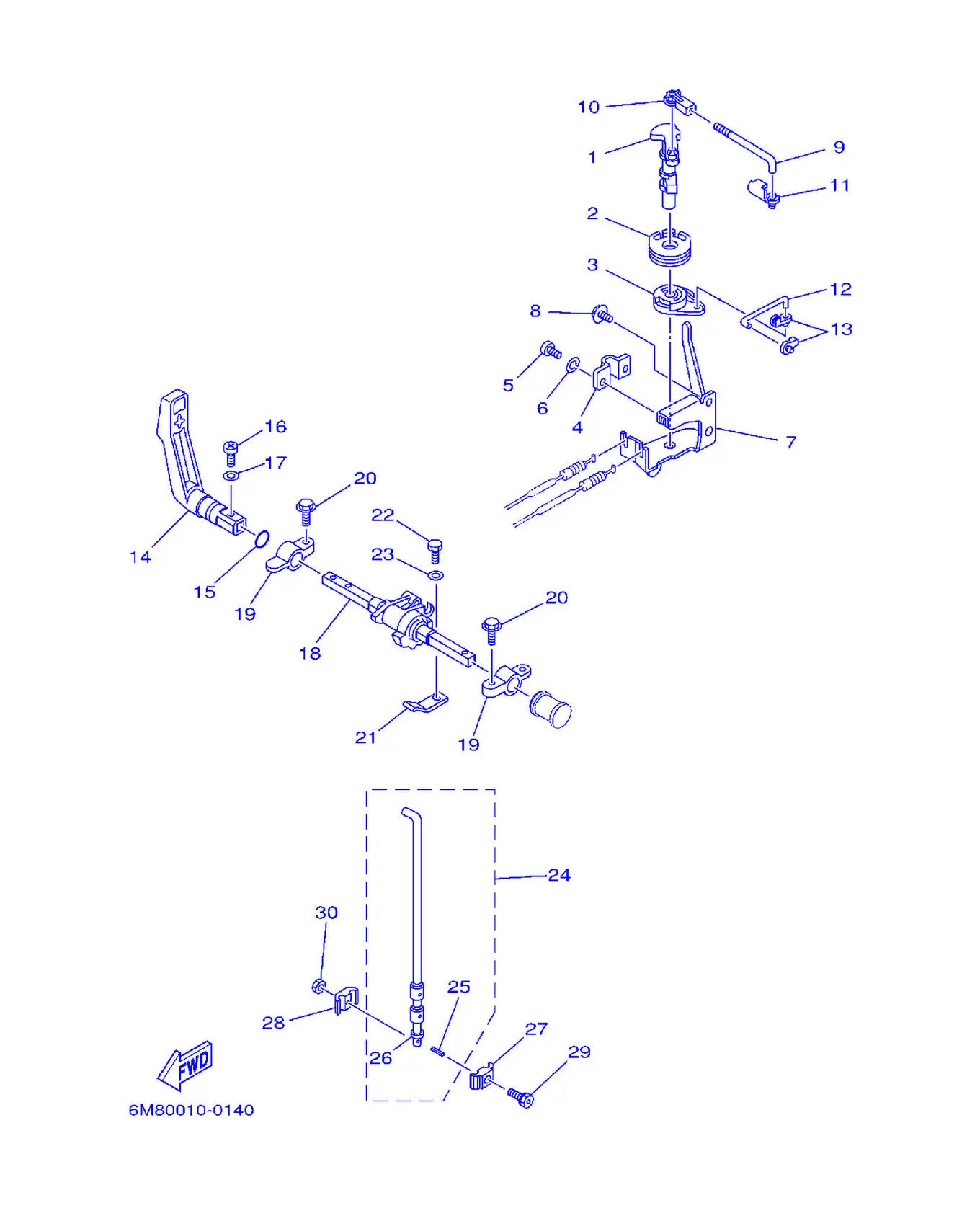

コントロール

REF	雅马哈编码	中文名称	英文名称	用量
1	6G1-41631-00	磁电机控制杠杆	Lever, Magnet Control	1
2	6G1-41638-00	滑	Pulley	1
3	6G1-41283-01	空转油门杠杆	Lever, Free Accelerator	1
4	6G1-41661-00	托架	Bracket	1
5	97880-05010	大柱头螺钉	Screw, Pan Head	2
6	92990-05100	盘形垫	Washer,Spring	2
7	6G1-14497-81	油门钢索支承	Stay, Throttle Wire	1
8	95895-06010	凸缘螺栓	Bolt, Flange	2
9	6G1-41238-00	连杆接头	Joint, Link	1
10	662-41237-01	连杆接头	Joint, Link	1
11	6E9-41237-00	连杆接头	Joint, Link	1
12	6G1-41211-00	加速器连杆	Link, Accelerator	1
13	661-41262-02	阻风门杠杆接头	Joint, Choke Lever	2
14	6N0-G4111-00	变挡手柄	Handle, Gear Shift	1
15	93210-12327	O型圈	O-ring	1
16	97880-05016	大柱头螺钉	Screw, Pan Head	1
17	92990-05600	盘形垫	Washer,Plate	1
18	6G1-44121-02-94	变挡杆杠杆	Lever, Shift Rod	1
19	6G1-41662-01-94	托架	Bracket	2
20	90105-06M14	螺栓	Bolt, Washer Based Head	2
21	6G1-44116-01	弹簧	Spring	1
22	97095-06012	螺栓	Bolt	1
23	92995-06600	盘形垫	Washer	1
24	6N0-G4110-00	换挡杆组件	Shift Rod Assembly	1
25	91690-20010	弹簧销	Pin,Spring	3
26	92990-05600	盘形垫	Washer,Plate	1
27	6N0-G4145-10	变挡连杆接头	Connector, Shift Rod	1
28	6N0-G4146-10	变挡连杆接头	Connector, Shift Rod	1
29	90109-06M17	螺栓	Bolt	1
30	95380-06600	有槽螺母	Nut, Hexagon	1

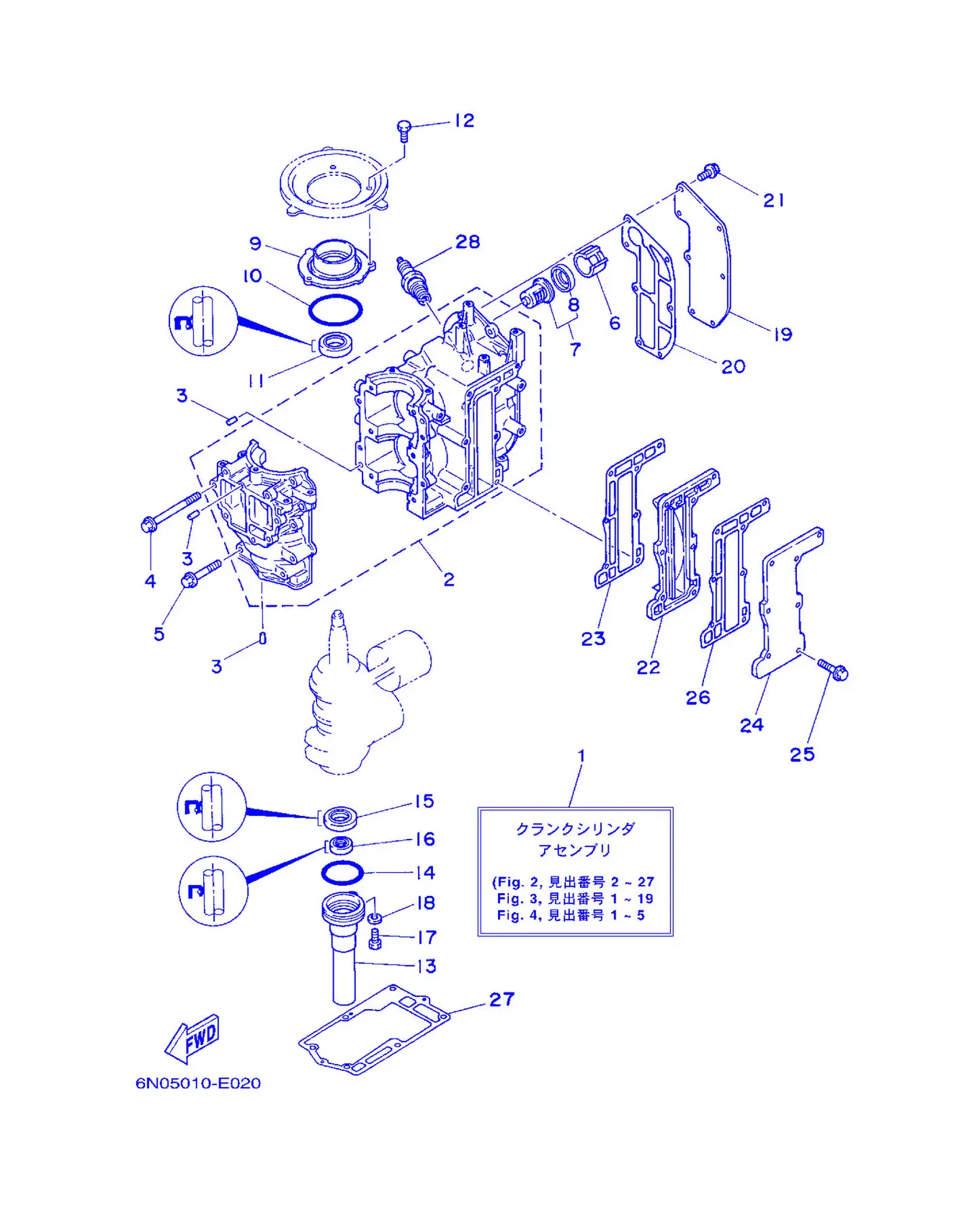

シリンダ & クランクケース

REF	雅马哈编码	中文名称	英文名称	用量
1	6N0-WE090-01-1S	曲轴箱组合	Crank Cylinder Assembly	1
2	6N0-E5100-00-1S	曲轴箱组合	Crankcase Assembly	1
3	93604-08062	定位销	Pin, Dowel	4
4	90105-06M26	衬套	Bolt, Flange	6
5	90105-06M25	卡环	Bolt, Flange	4
6	90387-22M50	衬套	Color	1
7	6E5-12411-02	温控器	Thermostat	1
8	6E5-12412-00	温控器密封	Seal,Thermostat	1
9	6G1-15359-01-94	油封壳	Housing,OilSeal	1
10	93210-54M54	O型圈	O-ring	1
11	93102-20M25	油封	OilSeal	1
12	97013-06016	螺栓	Bolt	3
13	6G1-15396-02-5B	油封壳	Housing,OilSeal	1
14	93210-42159	O型圈	O-ring	1
15	93101-20M34	油封	OilSeal	1
16	93101-12M26	油封	OilSeal	1
17	97095-06016	螺栓	Bolt	1
18	92995-06600	盘形垫	Washer	1
19	6N0-E1191-00-1S	气缸盖罩1	Cover, Cylinder Head 1	1
20	6G1-11193-A1	气缸盖罩衬垫1	Gasket, Head Cover 1	1
21	90105-06039	螺栓	Bolt, Flange	7
22	6N0-G1111-00-1S	排气管内盖	Inner Cover, Exhaust	1
23	6G1-41112-A1	排气管内盖衬垫	Gasket, Exhaust Inner Cover	1
24	6G1-41113-01-1S	排气管外盖	Outer Cover, Exhaust	1
25	90105-06037	螺栓	Bolt, Flange	7
26	6G1-41114-A0	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
27	6G1-45113-A1	水上装置壳体衬垫	Gasket,UpperCasing	1
28	94703-00217	火花塞	Plug, Spark (NGK B7HS-10)	2

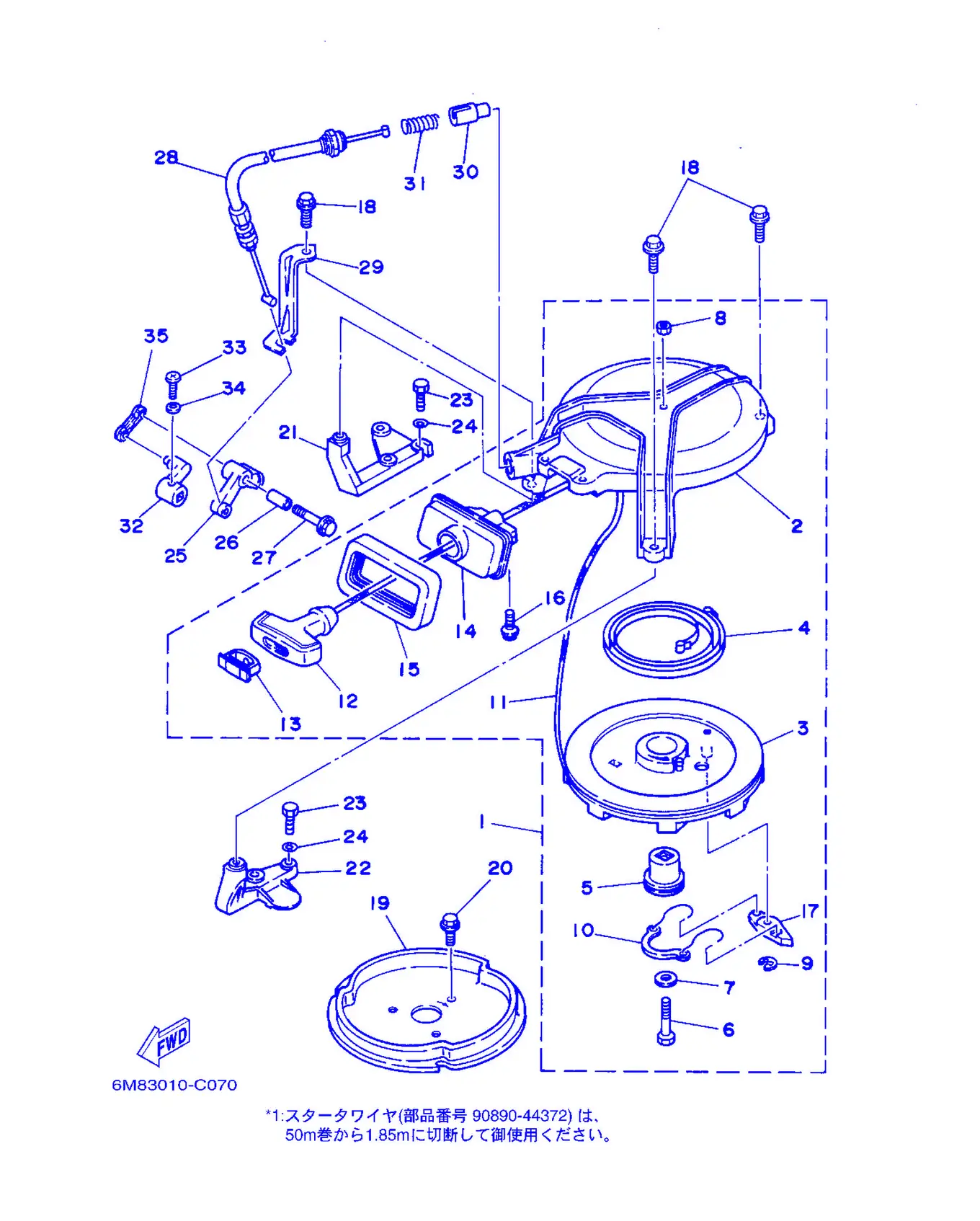

スタータ

REF	雅马哈编码	中文名称	英文名称	用量
1	6M8-E5710-03	起动器组合	StarterAssembly	1
2	6N0-E5711-80-94	起动器箱	Case,Starter	1
3	6M8-E5714-00	拉索卷	Drum, Sheave	1
4	90510-08M03	弹簧	Spring, Spiral	1
5	6G1-15717-00	起动器轴	Shaft,Starter	1
6	97013-06035	螺栓	Bolt	1
7	90201-06M30	带垫面板	Washer,Plate	1
8	95303-06600	有槽螺母	Nut	1
9	93430-06M02	卡环	Circlip	1
10	6G1-15705-00	驱动爪弹簧	Spring, Drive Pole	1
12	6G1-15755-00	起动器手	Handle,Starter	1
13	6G1-15779-00	盖	Cover	1
14	6N0-E5758-00	导向绳索	Guide, Rope	1
15	6G1-15762-00	橡皮密封圈2	Seal, Rubber 2	1
16	95895-06016	凸缘螺	Bolt, Flange	2
17	677-15741-01	驱动爪	Pawl, Drive	1
18	95895-06020	凸缘螺	Bolt, Flange	3
19	6N0-E5723-00-94	起动器滑	Pulley, Starter	1
20	90105-06M29	螺栓	Bolt, Flange	3
21	6N0-E5771-00-94	支承1	Stay 1	1
22	6N0-E5772-00-94	支承2	Stay 2	1
23	97075-06020	螺栓	Bolt	4
24	92995-06600	盘形垫	Washer	4
25	6G1-15746-81	臂	Arm	1
26	6G1-15764-00	安装环1	Color 1	1
27	95895-06025	凸缘螺	Bolt, Flange	1
28	6N0-E5770-80	起动器止动钢索组	Cable Complete, Starter Stop	1
29	6G1-15774-81	支承4	Stay 4	1
30	656-15748-00	起动器止动柱	Plunger, Starter Stop	1
31	90501-10227	压簧	Spring, Compression	1
32	6G1-44125-80	变挡杆杠杆手柄	Lever, Shift Rod	1
33	97880-05016	大柱头螺钉	Screw, Pan Head	1
34	92990-05600	盘形垫	Washer,Plate	1
35	6G1-15747-80	连杆	Link	1

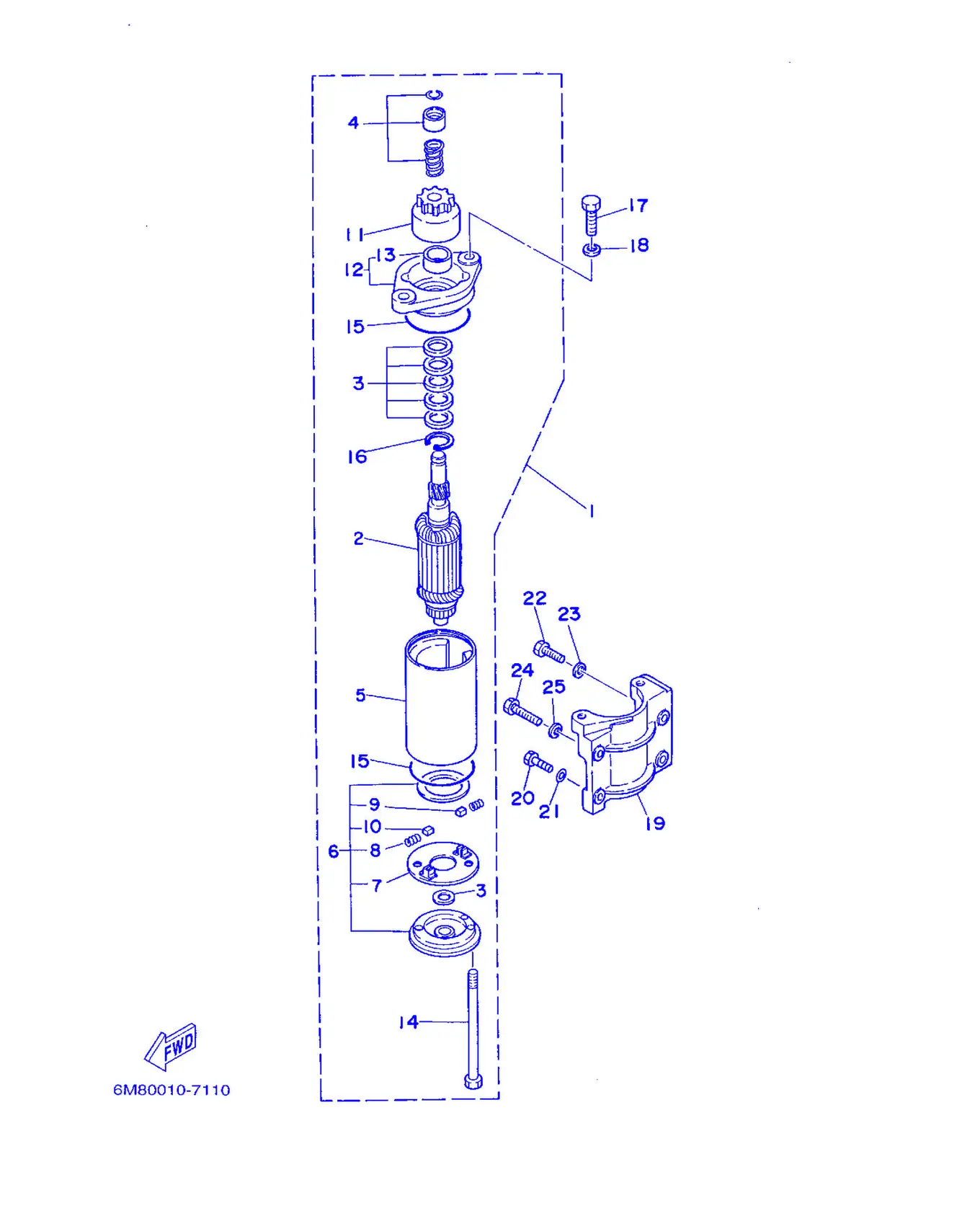

スターテイングモータ (WHシヨウ)

REF	雅马哈编码	中文名称	英文名称	用量
1	6L2-81800-11	起动电动机总成	Starting Motor Assembly	1
2	6L2-81850-11	电枢组合	Armature Assembly	1
3	682-81809-10	垫圈套	Washer Kit	1
4	6L2-81833-10	止动环	Ring, Stop	1
5	682-81810-11	定子组合	Stator Assembly	1
6	6L2-81820-10	后托架组合	Rear Bracket Assembly	1
7	6L2-81840-10	电刷架组合	Brush Holder Assembly	1
8	682-81813-10	电刷弹簧	Spring, Brush	2
9	6L2-81811-10	电刷1	Brush 1	1
10	6L2-81812-10	电刷2	Brush 2	1
11	682-81832-10	越转离合器	Clutch, Overrun	1
12	682-81830-10	前托架组合	FrontBracketAssembly	1
13	682-81831-00	前金属	Metal, Front	1
14	682-81826-10	螺栓	Bolt	2
15	682-81847-10	O型圈	O-ring	2
16	682-81834-10	弹簧座	Ring	1
17	97013-08025	螺栓	Bolt	2
18	92903-08600	有槽螺母	Washer,Plate	2
19	682-81822-43-94	起动电动机托架	Bracket, Starting Motor	1
20	97075-06020	螺栓	Bolt	2
21	92995-06600	盘形垫	Washer	2
22	97075-06025	螺栓	Bolt	1
23	92995-06600	盘形垫	Washer	1
24	97075-06030	螺栓	Bolt	1
25	92995-06600	盘形垫	Washer	1

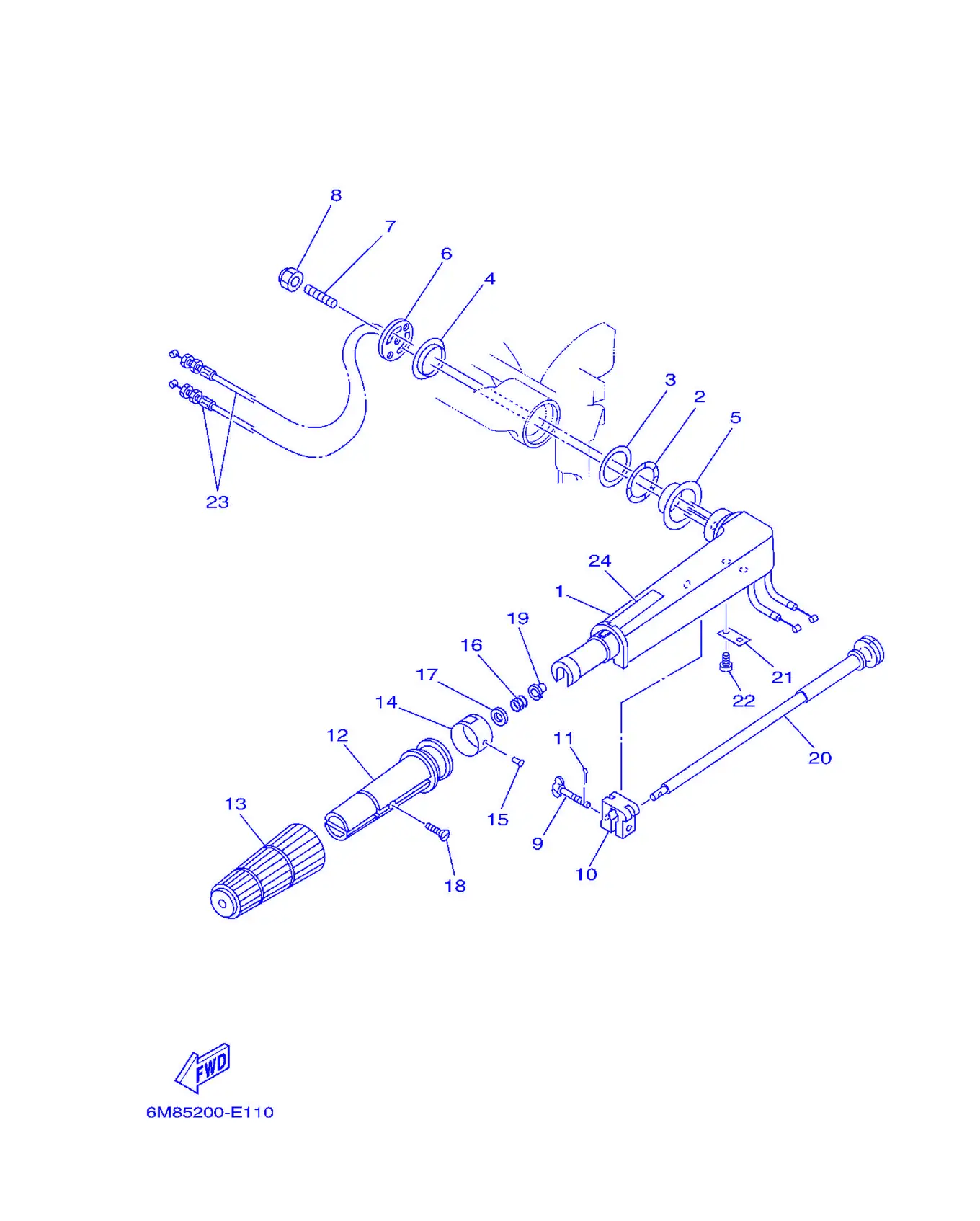

ステアリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6M8-G2111-11-4D	方向手	Handle,Steering	1
2	90206-36M21	平垫圈	Washer, Wave	1
3	90202-36M55	平垫圈	Washer,Plate	1
4	90386-33M96	衬套	Bushing	1
5	90386-34M97	衬套	Bushing	1
6	6G1-42131-02	方向手把盖	Cover,HandleSteering	1
7	90116-08016	螺栓	Bolt, Stud	1
8	90185-08057	卡环	Nut, Self-Locking	1
9	6G1-42125-01	阻力调整螺	Bolt, Friction Adjust	1
10	6G1-42126-00	方向手把握把摩擦	Friction, Steering Handle	1
11	91490-16010	开口销	Pin, Cotter	1
12	6M4-G2119-00	方向手把握	Grip,SteeringHandle	1
13	6N0-G2177-00	手把橡皮	Rubber,Handle	1
14	6N0-G2137-10	油门指示器	Indicator, Throttle	1
15	90269-02M09	螺丝	Rivet	1
16	90501-23215	接头	Spring, Compression	1
17	92903-10600	盘形垫	Washer,Plate	1
18	90149-05M13	螺钉	Screw	1
19	90386-08032	衬套	Bushing	1
20	6G1-42138-01	油门杆	Lever,Throttle	1
21	6E0-42159-02	支承	Stay	1
22	97885-05012	大柱头螺钉	Screw, Pan Head	2
23	6N0-F6301-00	油门钢索组合	ThrottleCableAssembly	2
24	60R-H3627-00	警告标签	Label, Corrosion 7	1

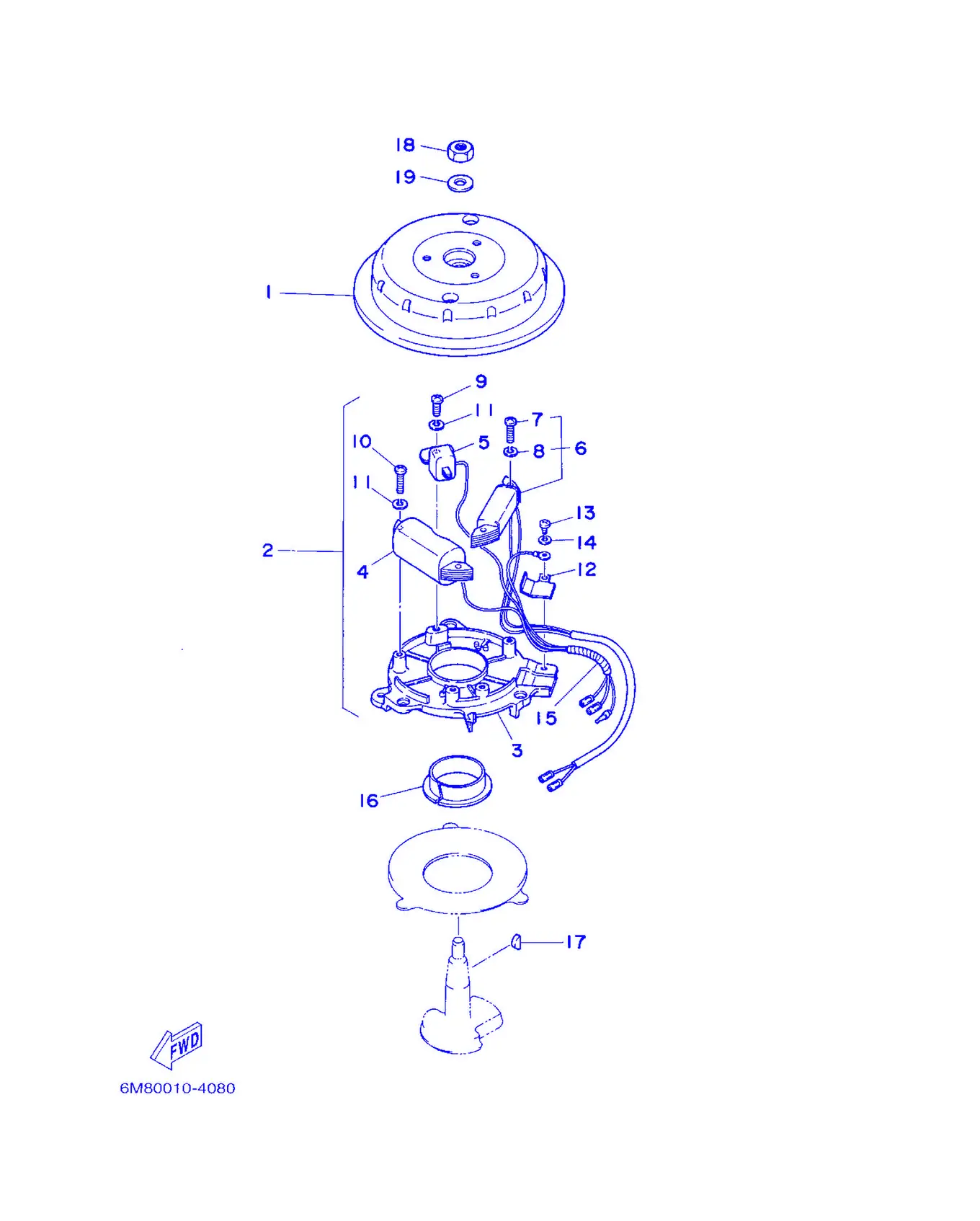

ゼネレータ

REF	雅马哈编码	中文名称	英文名称	用量
1	6G1-85550-71	转子总成	Rotor Assembly	1
1	6G1-85550-A0	转子总成	Rotor Assembly	1
2	6G1-85560-F0	基座组合	BaseAssembly	1
3	6G1-85509-70	磁电机座	Base, Magnet	1
4	6E7-85520-70	充电线	Coil, Charge	1
5	6E7-85580-70	脉冲线	Coil, Pulser	1
6	6E7-81303-A0	照明线圈组合	Lighting Coil Assembly	1
7	97802-05025	大柱头螺钉	Screw, Pan Head	2
8	92902-05100	盘形垫	Washer, Spring	2
9	97802-05016	大柱头螺钉	Screw, Pan Head	1
10	97802-05020	螺栓	Screw, Pan Head	2
11	92902-05100	盘形垫	Washer, Spring	3
12	6G1-85548-70	支架	Holder	1
13	97802-04008	大柱头螺钉	Screw, Pan Head	1
14	92902-04100	盘形垫	Washer, Spring	1
15	6G1-85515-70	导线组合	Lead Wire Assembly	1
16	90386-44M42	衬套	Bushing	1
17	90280-04M06	半圆键	Key, Woodruff	1
18	90170-10113	螺帽	Nut	1
19	90201-10126	平垫圈	Washer,Plate	1

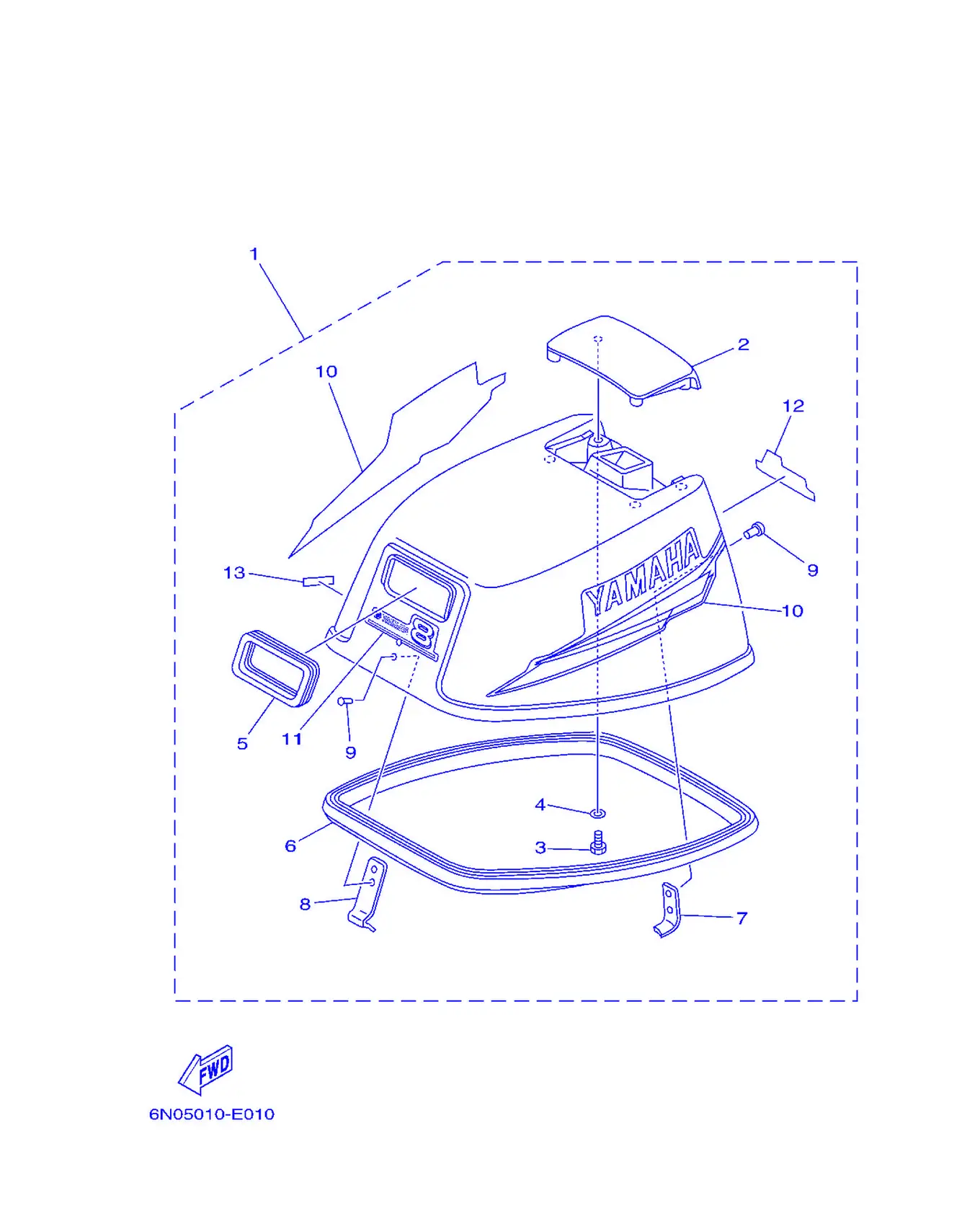

トツプカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6N0-G2610-30-4D	顶罩组合	Top Cowling Assembly	1
2	6N0-G2613-00-4D	空气导管嵌	Molding, Air Duct	1
3	97095-06016	螺栓	Bolt	4
4	92995-06600	盘形垫	Washer	4
5	6G1-15761-00	橡皮密封圈1	Seal, Rubber 1	1
6	6G1-42615-00	密封	Seal	1
7	6G1-42647-00	夹带支架	Holder, Clamp Band	1
8	6N0-G2651-00	钩子	Fook	1
9	90266-04M00	螺丝	Rivet	4
10	6N0-WG070-10	图示套件	Graphic Set	1
11	6N0-G2677-20	前图样	Graphic, Front	1
12	6N0-G2678-11	后图样	Graphic, Rear	1
13	60R-G4191-00	变挡指示器	Indicator, Shift	1

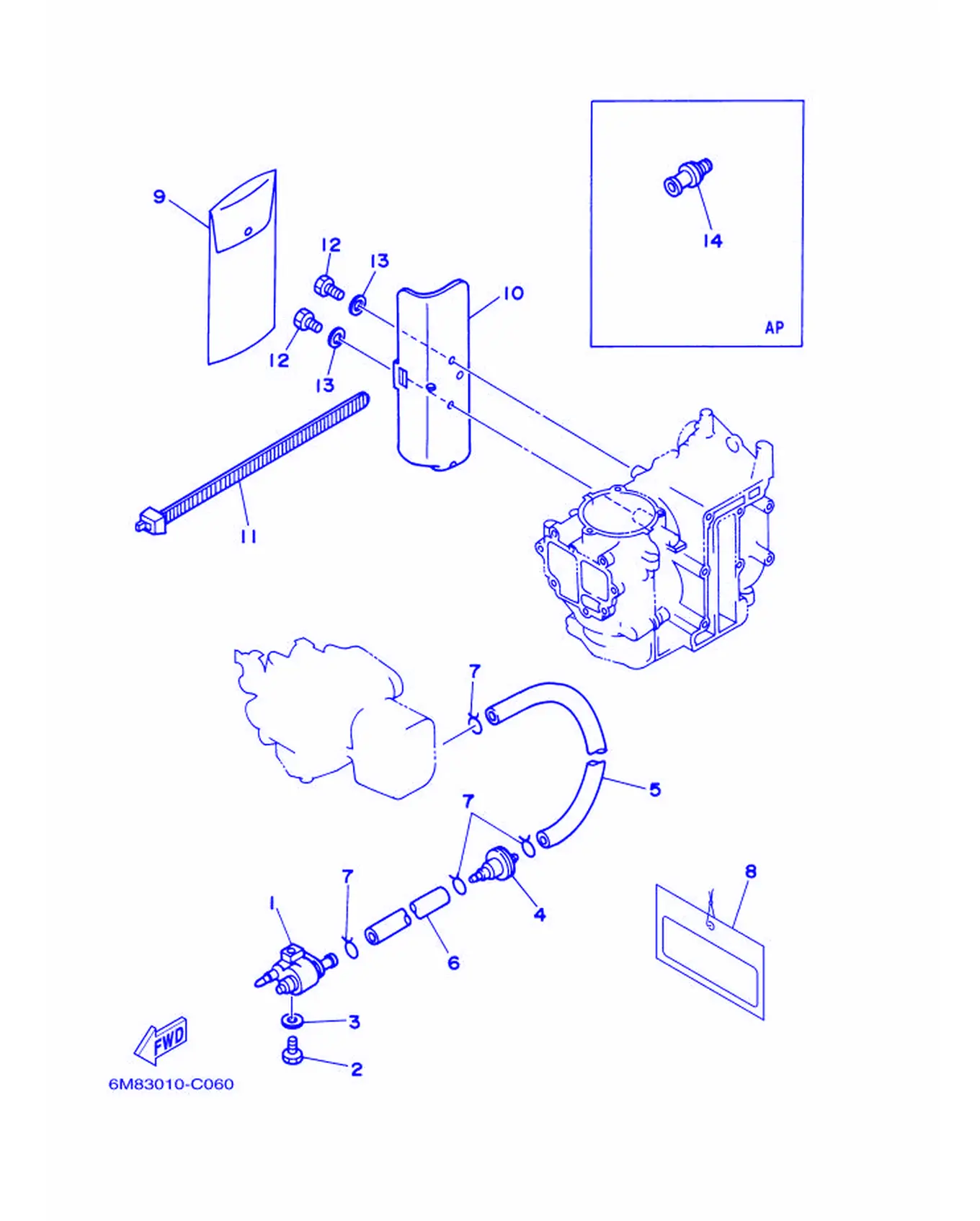

フユエル

REF	雅马哈编码	中文名称	英文名称	用量
1	6G1-24304-02	燃油管接头组件1	Fuel Pipe Joint Complete	1
2	97095-06025	螺栓	Bolt	1
3	92995-06600	盘形垫	Washer	1
4	646-24251-02	滤网1	Strainer 1	1
5	90445-09221	固定	Hose (L205)	1
6	90445-09220	固定	Hose (L30)	1
7	90467-08004	卡环	Clip	4
8	61H-2819R-01	警告标签	Tag, Warning	1
9	6N0-F8100-00	随车工具	ToolKit	1
10	6N0-F8170-00	工具支架	Tool,Holder	1
11	6G1-2811G-00	带	Band	1
12	97095-06012	螺栓	Bolt	2
13	92995-06600	盘形垫	Washer	2
14	6L8-F8193-00	单向放水	Plug, Water Check	1

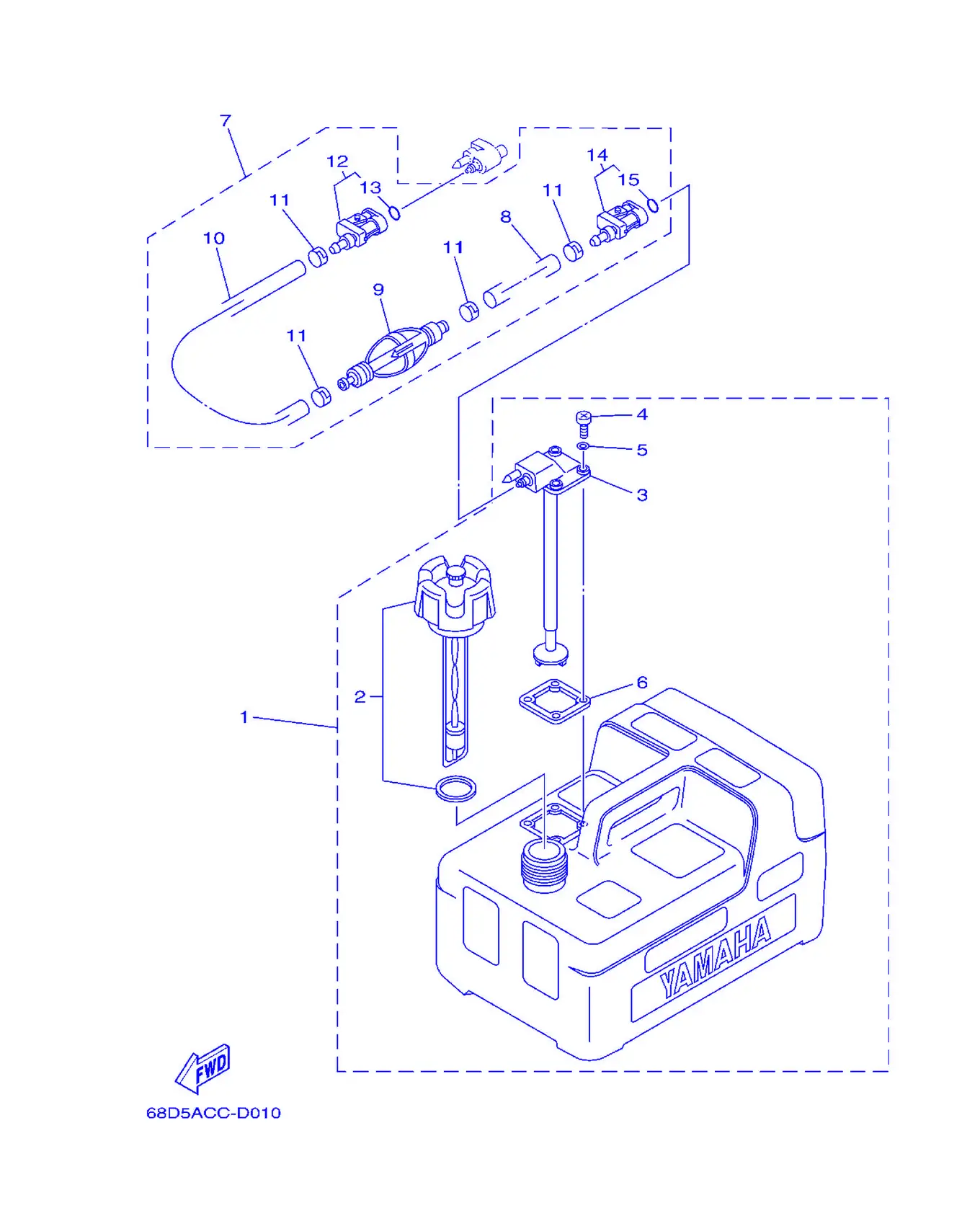

フユエルタンク

REF	雅马哈编码	中文名称	英文名称	用量
1	6YL-W2420-J3	油箱总成	FuelTankAssembly (12L)	1
2	6YL-24610-01	盖组合	Cap Assembly	1
3	6YL-24260-01	油量计组合	Fuel Meter Assembly	1
4	90157-05M16	卡环	Screw, Pan Head	4
5	6YL-24329-00	密封	Seal	4
6	6YL-24268-01	油量计衬垫	Gasket, Fuel Meter	1
7	6Y1-24306-55	燃油管组件1	FuelPipeComplete 1	1
8	90445-11M06	软管	Hose (L:2050MM)	1
9	6Y1-24360-52	起动注油泵组合	Primer Pump Assembly	1
10	90445-11M05	固定	Hose (L:850MM)	1
11	650-24351-51	带1	Band 1	4
12	6G1-24305-05	燃油管接头2(85以下D:11MM)含	Fuel Pipe Joint Complete	1
13	93210-08287	O型圈	O-ring	1
14	6Y1-24305-06	燃油管接头2	Fuel Pipe Joint Complete	1
15	93210-08287	O型圈	O-ring	1

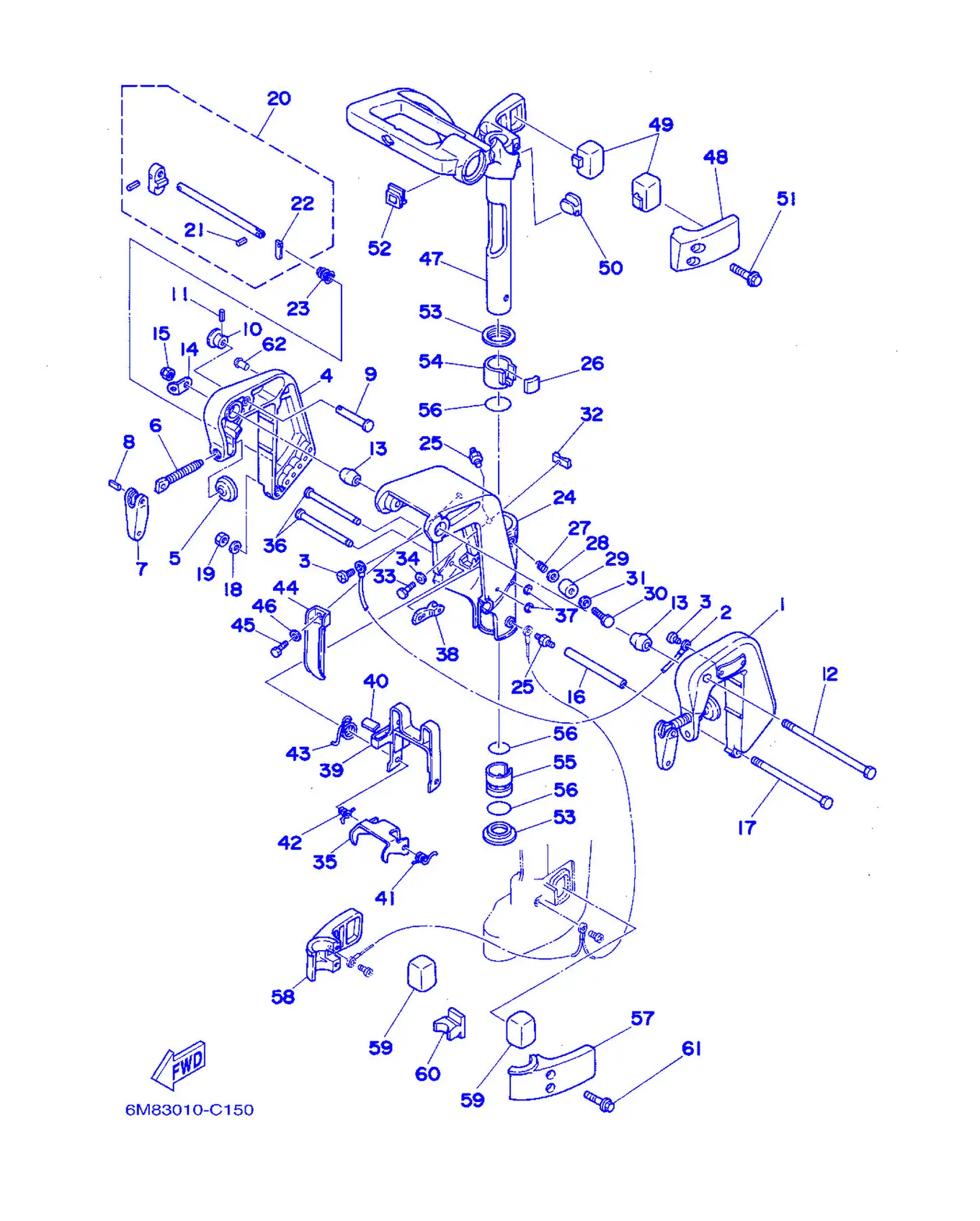

ブラケツト

REF	雅马哈编码	中文名称	英文名称	用量
1	6M8-G3111-02-4D	夹紧托架	Bracket,Clamp 1	1
2	6E5-82148-00	导线4	Wire,Lead 4	1
3	97885-06008	大柱头螺钉	Screw, Pan Head	2
4	6M8-G3112-01-4D	夹紧托架	Bracket,Clamp 2	1
5	620-43114-00	艉板夹紧衬垫	Pad, Transom Clamp	2
6	6N0-G3116-00	艉板夹紧螺钉	Screw, Transom Clamp	2
7	6L8-G3118-01	艉板夹紧手柄	Handle, Transom Clamp	2
8	90243-04M01	销	Pin	2
9	689-43191-00	限位轴	Shaft, Stopper	1
10	689-43192-01	限位旋钮	Knob, Stopper	1
11	91690-30016	弹簧销	Pin,Spring	1
12	90101-08869	螺栓	Bolt, Hexagon	1
13	6G1-43136-00	阻力	Piece, Friction	2
14	6A1-43113-01	夹紧托架面板	Plate,ClampBracket	1
15	90185-08057	卡环	Nut, Self-Locking	1
16	90387-06M13	衬套	Color	1
17	97095-06135	带垫圈螺栓	Bolt	1
18	92990-06600	面板垫圈	Washer,Plate	1
19	95380-06600	有槽螺母	Nut, Hexagon	1
20	6N0-G3160-00	角度定位杆组合	TiltRodAssembly	1
21	91690-30008	弹簧销	Pin,Spring	1
22	6N0-G3165-00	角度定位锁紧面板	Plate, Tilt Lock	1
23	90502-10M06	接头	Spring, Conical	1
24	6N0-G3311-10-4D	旋转支架	Bracket, Swivel 1	1
25	93700-06M03	润滑油管嘴	Nipple, Grease	2
26	6G1-42528-10	阻力板	Plate, Friction	1
27	90501-18M00	接头	Spring, Compression	1
28	92990-08600	盘形垫	Washer,Plate	1
29	6G1-43373-00	减震器密封	Seal,Damper	1
30	97095-08025	螺栓	Bolt	1
31	92995-08600	盘形垫	Washer	1
32	6G1-44532-01	上侧装配限位板	Stopper, Upper Mount	1
33	97095-06010	螺栓	Bolt	1
34	92995-06600	盘形垫	Washer	1
35	6N0-G3614-00	角度定位锁紧面板	Plate,TiltLock	1
36	6G1-43659-00	倒挡锁紧轴	Shaft, Reverse Lock	2
37	99080-05600	卡环	Circlip	2
38	6G1-43615-01	角度定位锁紧面板	Plate,TiltLock	1
39	6G1-43681-00	浅水航行杆	Lever, Shallow Water Drive 1	1
40	6G1-43318-01	盖	Cover	1
41	90508-10M15	固定	Spring, Torsion	1
42	90508-10M16	固定	Spring, Torsion	1
43	90508-14M17	软管	Spring, Torsion	1
44	6N0-G2731-00	承载提	Carrying Handle	1
45	97095-08016	螺栓	Bolt	1
46	92995-08600	盘形垫	Washer	1
47	6M8-G2511-01-4D	方向托架	Bracket,Steering	1
48	6G1-44511-00-4D	上侧减震胶垫盖	Cover, Upper Mount Rubber	1
49	6N0-G4514-00	上侧减震胶垫	Mount Damper, Upper Side	2
50	6G1-44516-00	前上侧减震胶垫	Mount Damper, Upper Front	1
51	95895-06035	凸缘螺栓	Bolt, Flange	2
52	6G1-42551-00	固定	Grommet	1
53	6G1-42535-00	推力垫	Washer, Thrust	2
54	6G1-42537-10	枢轴衬套	Bushing, Pivot Shaft	1
55	6G1-42538-01	枢轴衬套	Bushing, Pivot Shaft	1
56	93210-30M31	O型圈	O-ring	3
57	6N0-G4551-00-4D	下侧减震胶垫壳	Housing, Lower Mount Rubber	1
58	6N0-G4552-00-4D	下侧减震胶垫壳	Housing, Lower Mount Rubber	1
59	6N0-G4555-A0	下侧减震胶垫	Mount Damper, Lower Side	2
60	6N0-G4557-A0	前下侧减震胶垫	Mount Damper, Lower Front	1
61	95895-06035	凸缘螺栓	Bolt, Flange	2
62	90269-02M08	螺丝	Rivet	2

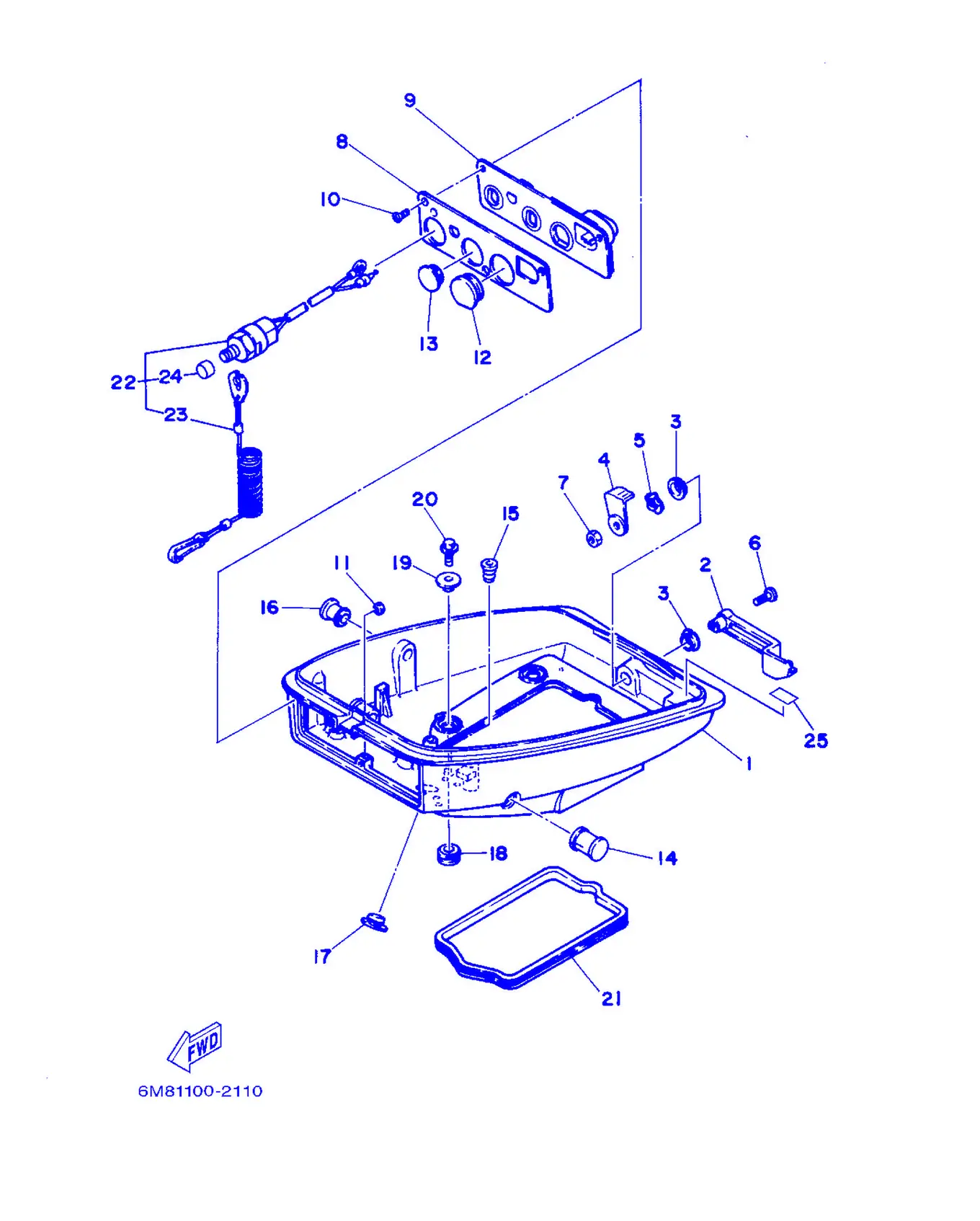

ボトムカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6N0-G2711-00-4D	底罩	Cowling, Bottom	1
2	6N0-G2815-00-4D	夹杆	Lever,Clamp	1
3	90386-12M45	衬套	Bushing	2
4	6E0-42816-00	夹杆	Lever,Clamp	1
5	90206-12052	平垫圈	Washer, Wave	1
6	97885-06030	十字槽盘头螺钉	Screw, Pan Head	1
7	95380-06700	有槽螺母	Nut	1
8	6N0-G2719-00	前下板	Panel, Front Lower	1
9	6N0-G2767-00	托架	Bracket	1
10	90149-05M02	固定	Screw	3
11	95380-05700	有槽螺母	Nut	1
12	6G1-42724-00	固定	Grommet	1
13	6G1-42725-00	固定	Grommet	1
14	6G1-42726-00	固定	Grommet	1
15	6G1-42727-00	固定	Grommet	1
16	6G1-42748-00	固定	Grommet	1
17	6G1-26326-00	固定	Grommet	1
18	90480-15M31	固定	Grommet	4
19	90387-06M52	衬套	Color	4
20	95895-06020	凸缘螺	Bolt, Flange	4
21	6N0-G2716-00	密封橡皮块1	Rubber,Seal 1	1
22	6E9-82575-02	发动机止动开关组合	Engine Stop Switch Assembly	1
23	682-82556-00	止动拉索	Stopper	1
24	689-8257Y-00	盖	Cap	1
25	6E7-42791-00	标志，商标1	Mark 1	1

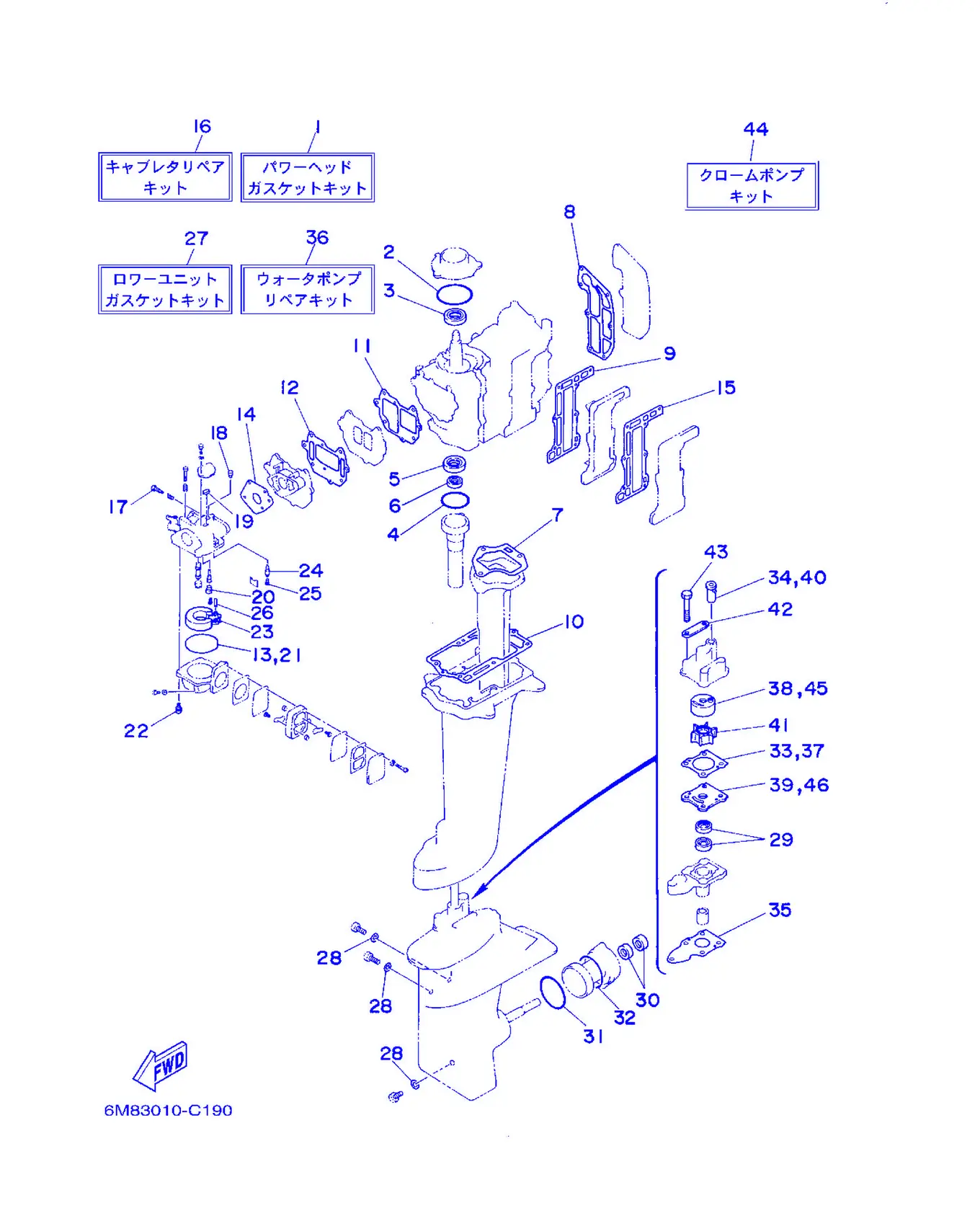

リペアキツト

REF	雅马哈编码	中文名称	英文名称	用量
1	6N0-W0001-A0	衬垫套	Power Head Gasket Kit	1
2	93210-54M54	O型圈	O-ring	1
3	93102-20M25	油封	OilSeal	1
4	93210-42159	O型圈	O-ring	1
5	93101-20M34	油封	OilSeal	1
6	93101-12M26	油封	OilSeal	1
7	6G1-41133-A0	排气岐管衬垫1	Gasket, Exhaust Manifold	1
8	6G1-11193-A1	气缸盖罩衬垫1	Gasket, Head Cover 1	1
9	6G1-41112-A1	排气管内盖衬垫	Gasket, Exhaust Inner Cover	1
10	6G1-45113-A1	水上装置壳体衬垫	Gasket,UpperCasing	1
11	6G1-13621-A1	阀座衬垫	Gasket,ValveSeat	1
12	6G1-13645-A1	岐管衬垫1	Gasket,Manifold 1	1
13	6G1-14984-00	浮子室衬垫	O-ring	1
14	6G1-14198-A1	垫片	Gasket	1
15	6G1-41114-A0	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
16	6N0-W0093-00	化油器修理套	CarburetorRepair Kit	1
17	679-14923-00	低速螺钉	Screw,Pilot	1
18	6G1-14966-00	起动杆	Cap	1
19	6G1-14126-00	减震垫片	Gasket	1
20	676-14966-00	起动杆	Cap	1
21	6G1-14984-00	浮子室衬垫	O-ring	1
22	97980-04114	带垫圈螺钉	Screw, Washer	4
23	6G1-14985-00	浮子	Float	1
24	6G1-14546-01	针阀	Valve, Needle	1
25	676-14186-00	浮子销	Pin, Float	1
26	688-14548-00	浮子臂销	Pin, Float Arm	1
27	6N0-W0001-C0	衬垫套	LowerUnitGasket Kit	1
28	90430-08020	固定	Gasket	3
29	93101-11M23	油封	OilSeal	2
30	93101-15074	油封	OilSeal	2
31	93210-49046	O型圈	O-ring	1
32	93210-53M08	O型圈	O-ring	1
33	6G1-44315-A0	水泵衬垫	Gasket,Water Pump	1
34	647-44366-00	水封减震器	Damper,WaterSeal	1
35	6G1-45315-A0	水下装置壳体密封垫	Packing, Lower Casing	1
36	6N0-W0078-A0	水泵修理套	Water PumpRepair Kit	1
37	6G1-44315-A0	水泵衬垫	Gasket,Water Pump	1
38	6G1-44322-00	芯子	Insert, Cartridge	1
39	6G1-44323-00	外挡板	Outer Plate, Cartridge	1
40	647-44366-00	水封减震器	Damper,WaterSeal	1
41	6G1-44352-00	叶轮	Impeller	1
42	6G1-44328-00	面板	Plate	2
43	97095-06045	螺栓	Bolt	4
44	6N0-W0078-0A	水泵修理套	Chrome Pump Kit	1
45	6G1-44322-40	芯子	Insert, Cartridge	1
46	6G1-44323-40	外挡板	Outer Plate, Cartridge	1

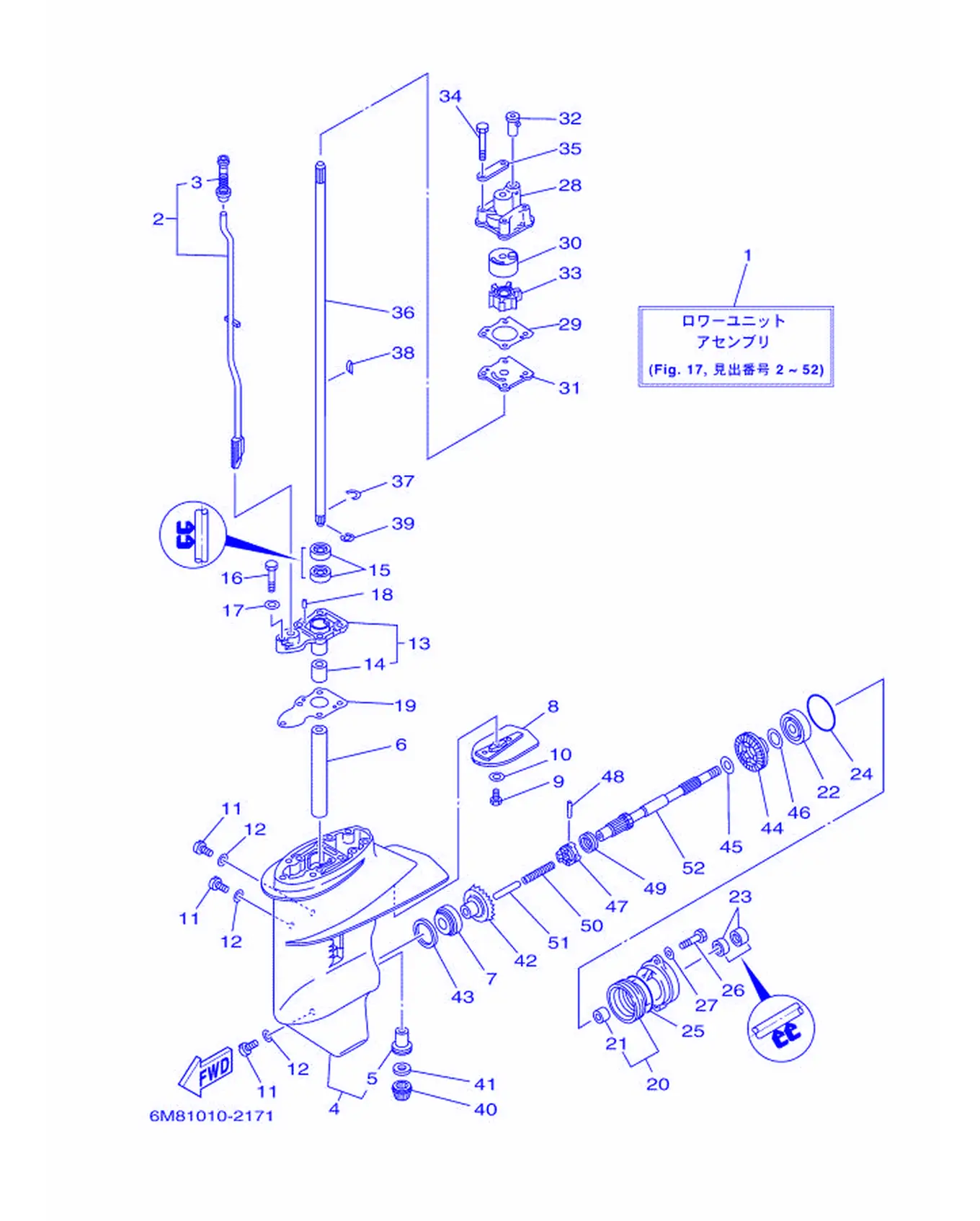

ロワーケーシング & ドライブ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6M8-G5300-00-4D	水下装置总成	LowerUnitAssembly	1
1	6M8-G5300-10-4D	水下装置总成	LowerUnitAssembly	1
2	6N0-G4150-00	变挡凸轮组合	Shift Cam Assembly	1
2	6N0-G4150-10	变挡凸轮组合	Shift Cam Assembly	1
3	6G1-44147-00	变挡连杆衬套	Boot, Shift Rod	1
4	6N0-G5311-00-4D	水下装置壳	Casing,Lower	1
5	6G1-45317-09	驱动轴衬套	Bushing, Drive Shaft	1
6	90387-14M49	衬套	Color	1
7	93332-000U4	轴承	Bearing	1
8	6N0-G5251-00	阳极	Anode	1
9	97095-06016	螺栓	Bolt	1
10	92990-06300	盘形垫	Washer, Internal Tooth	1
11	90340-08002	螺丝	Plug, Straight Screw	3
12	90430-08020	固定	Gasket	3
13	6G1-45331-01-5B	轴承壳	Housing,Bearing	1
14	6G1-45316-09	驱动轴衬套	Bushing, Drive Shaft	1
15	93101-11M23	油封	OilSeal	2
16	97095-06030	螺栓	Bolt	1
17	92995-06600	盘形垫	Washer	1
18	93604-08062	定位销	Pin, Dowel	2
19	6G1-45315-A0	水下装置壳体密封垫	Packing, Lower Casing	1
20	6N0-G5361-00-4D	水下装置壳体盖	Cap,Lower Casing	1
21	6G1-45362-09	衬套	Bushing	1
22	93306-004YH	轴承	Bearing	1
23	93101-15074	油封	OilSeal	2
24	93210-49046	O型圈	O-ring	1
25	93210-53M08	O型圈	O-ring	1
26	97095-06016	螺栓	Bolt	2
27	92995-06600	盘形垫	Washer	2
28	6N0-G4311-00	水泵壳	Housing,Water Pump	1
29	6G1-44315-A0	水泵衬垫	Gasket,Water Pump	1
30	6G1-44322-00	芯子	Insert, Cartridge	1
31	6G1-44323-00	外挡板	Outer Plate, Cartridge	1
32	647-44366-00	水封减震器	Damper,WaterSeal	1
33	6G1-44352-00	叶轮	Impeller	1
34	97095-06045	螺栓	Bolt	4
35	6G1-44328-00	面板	Plate	2
36	6N0-G5511-00	驱动轴	Shaft, Drive	1
36	6N0-G5511-10	驱动轴	Shaft, Drive	1
37	90467-09M05	固定	Clip	1
38	90280-03024	半圆键	Key, Woodruff	1
39	99001-06600	卡环	Circlip	1
40	6N0-G5551-00	小齿轮	Pinion (13T)	1
41	6G1-45533-00	填隙	Shim (T:1.90MM)	1
41	6G1-45533-10	填隙	Shim (T:2.00MM)	1
42	6N0-G5560-00	齿轮	Gear 1 (27T)	1
43	664-45587-01	填隙	Shim (T:0.10MM)	1
43	664-45587-10	填隙	Shim (T:0.12MM)	1
43	664-45587-20	填隙	Shim (T:0.15MM)	1
43	664-45587-30	填隙	Shim (T:0.18MM)	1
43	664-45587-40	填隙	Shim (T:0.30MM)	1
43	664-45587-50	填隙	Shim (T:0.40MM)	1
43	664-45587-60	填隙	Shim (T:0.50MM)	1
44	6N0-G5571-00	齿轮	Gear 2 (27T)	1
45	90201-15M89	平垫圈	Washer,Plate	1
46	647-45567-00	填隙	Shim	1
47	6G1-45631-00	爪形离合器	Clutch, Dog	1
48	6G1-45632-00	十字销	Pin, Cross	1
49	654-45633-00	十字	Ring, Cross Pin	1
50	90501-12M38	销	Spring, Compression	1
51	6G1-45635-00	变挡柱	Plunger, Shift	1
52	6G1-45611-01	螺旋浆轴	Shaft,Propeller	1

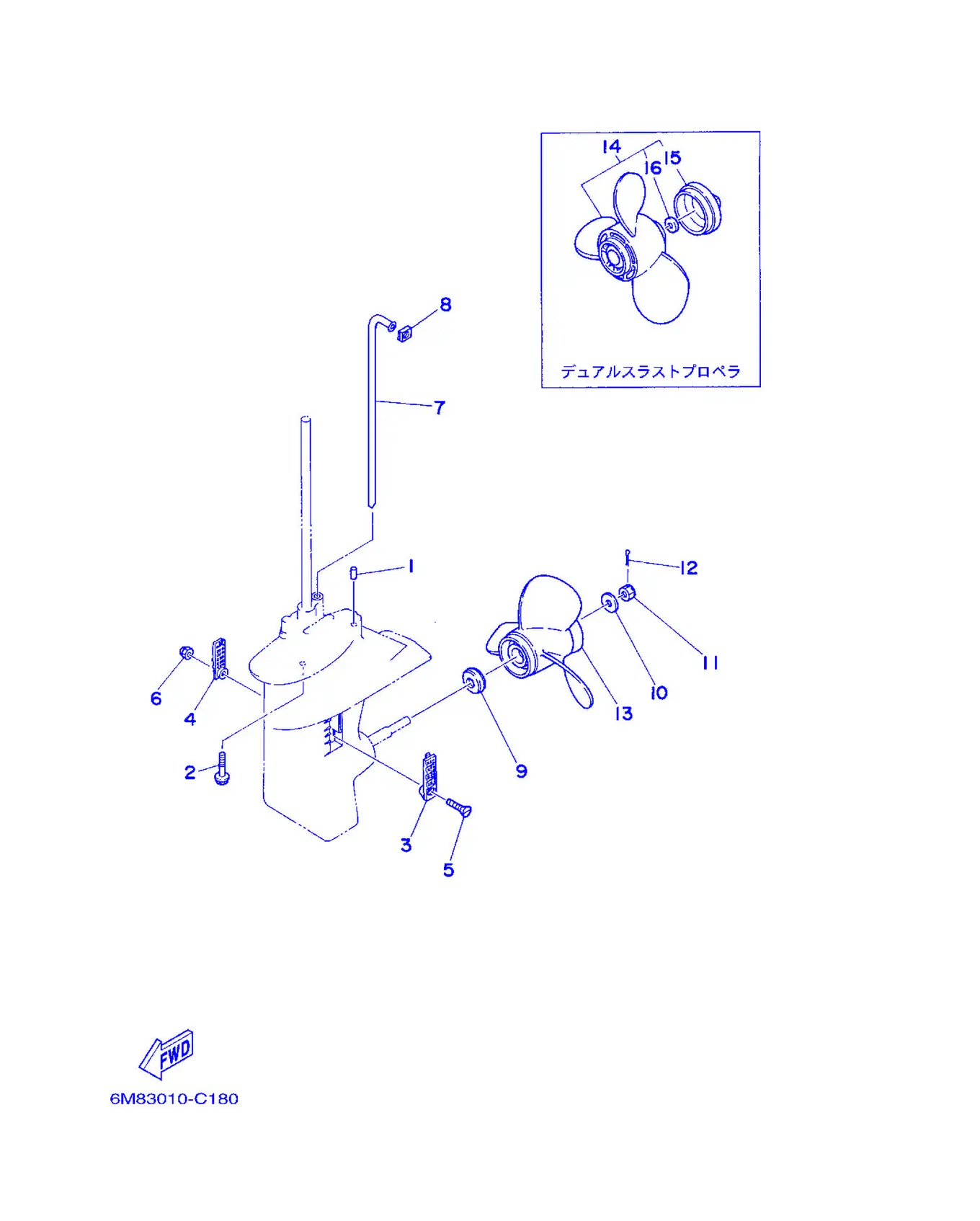

ロワーケーシング & ドライブ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	93604-08062	定位销	Pin, Dowel	2
2	95895-06030	凸缘螺	Bolt, Flange	4
3	6G1-45214-00	进水口盖	Cover, Water Inlet 1	1
4	6G1-45215-00	进水口盖	Cover, Water Inlet	1
5	90152-05M03	卡环	Screw, Countersunk	1
6	90185-05002	螺母	Nut, Self-Locking	1
7	6N0-G4361-00	水管	Tube, Water	1
7	6N0-G4361-10	水管	Tube, Water	1
8	6G1-44365-00	水封减震器	Damper,WaterSeal	1
9	6N0-G5987-00	衬套	Spacer	1
9	6N0-G5987-10	衬套	Spacer	1
10	90201-10M01	平垫圈	Washer,Plate	1
11	90171-10M01	螺帽	Nut, Castle	1
12	91490-30020	开口销	Pin, Cotter	1
13	6G1-45941-00-EL	螺旋浆	Propeller (3X8-1/2X8-1/2-N)	1
14	6G1-W4591-01-EL	螺旋桨	Propeller (3X9X7-N)	1
14	6G1-W4592-00-EL	螺旋桨组合	Propeller (3X9X5-N)	1
15	6G1-45616-01	螺旋浆螺母	Nut, Propeller	1
16	90201-10M02	面板垫圈	Washer,Plate	1
