雅马哈 F15C - F15CEHPL

共 33 个部位，点击零件编码查看详情，或搜索本页零件。

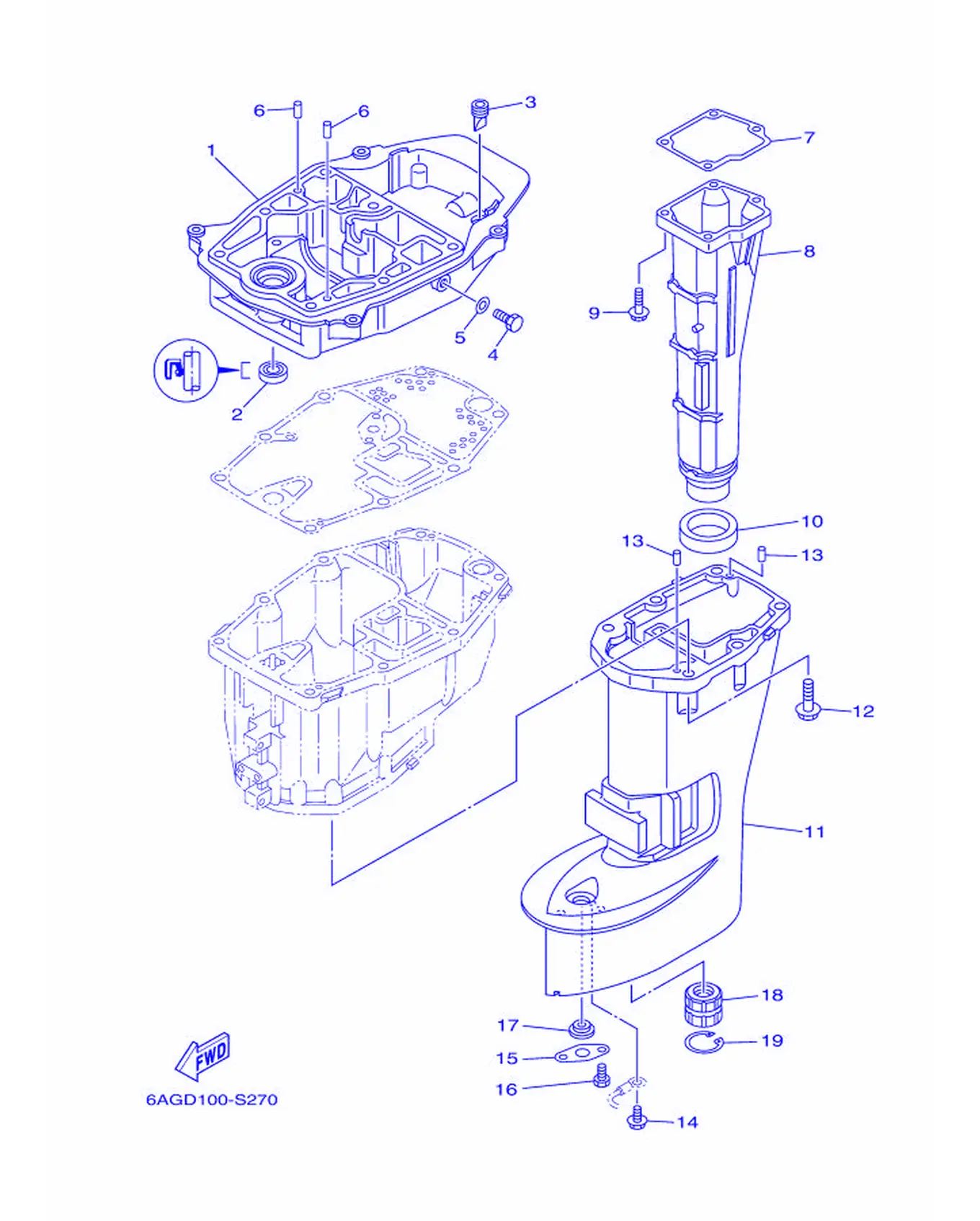

アツパーケーシング

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-41137-00-CA	排气导管	Guide, Exhaust	1
2	93101-12M63	油封	OilSeal	1
3	65W-42717-00	密封橡皮块2	Rubber,Seal 2	1
4	97D95-08014	螺栓	Bolt, Hexagon Deep Recess	1
5	90430-08143	衬垫	Gasket	1
6	93606-19M23	定位销	Pin, Dowel	2
7	6AH-41134-00	排气岐管衬垫	Gasket, Exhaust Manifold 2	1
8	6AH-14711-A0-CA	消声器1	Muffler 1	1
9	97E75-06525	螺栓	Bolt, Hexagon with Washer Deep Recess	4
10	6AH-41138-00	排气管密封圈1	Seal, Exhaust 1	1
11	6AH-45111-10-8D	水上装置壳	Casing, Upper	1
12	97E95-08530	螺栓	Bolt, Hexagon with Washer Deep Recess	6
13	93604-12M07	定位销	Pin, Dowel	2
14	97595-05510	带垫圈螺栓	Bolt, Hexagon Head	1
15	68T-45321-00	面板	Plate	1
16	97D95-06008	连杆螺栓	Bolt, Hexagon Deep Recess	1
17	90480-14M54	固定	Grommet	1
18	682-45318-00	驱动轴衬套	Bushing,Drive Shaft	1
19	93420-30042	卡环	Circlip	1

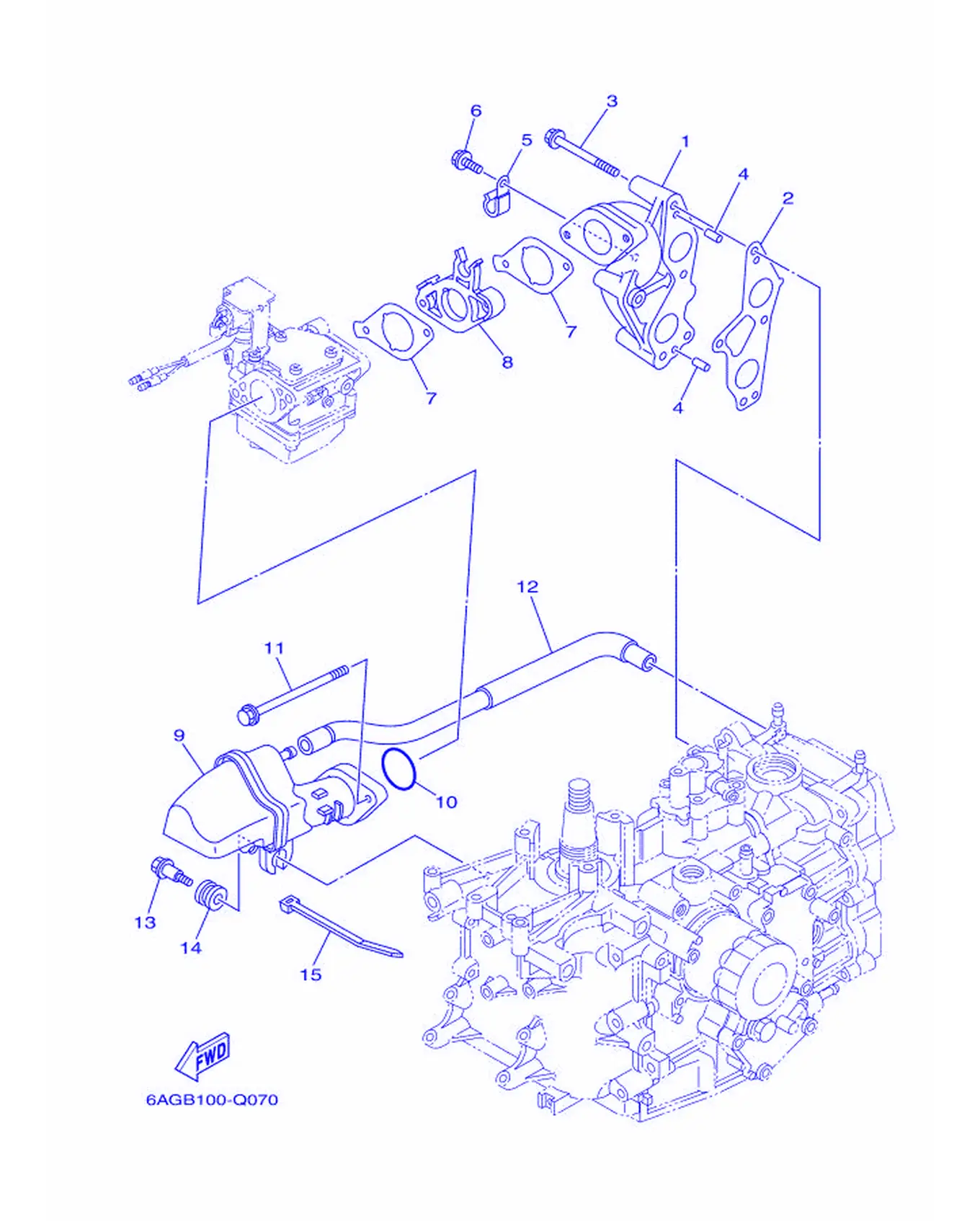

インテ-ク

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-13641-00-94	岐管1	Manifold, Intake 1	1
2	6AH-13645-00	岐管衬垫1	Gasket, Manifold 1	1
3	97E95-06555	螺栓附墊圈	Bolt, Hexagon with Washer Deep Recess	4
4	91690-50014	弹簧销	Pin,Spring	2
5	90465-08M83	固定	Clamp	2
6	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	2
7	6AH-13646-00	岐管衬垫2	Gasket, Manifold 2	2
8	6AH-14271-00	绝缘体，绝缘器	Insulator	1
9	6AH-14440-00	进气消声器组合	Silencer Assembly, Intake	1
10	93210-35M86	O型圈	O-ring	1
11	95D95-06100	凸缘螺栓	Bolt, Flange Deep Recess	2
12	6AH-15373-00	通气管	Pipe, Breather	1
13	90109-06MA1	螺栓	Bolt	1
14	90480-16616	橡胶垫	Grommet	1
15	90465-13M18	固定	Clamp	1

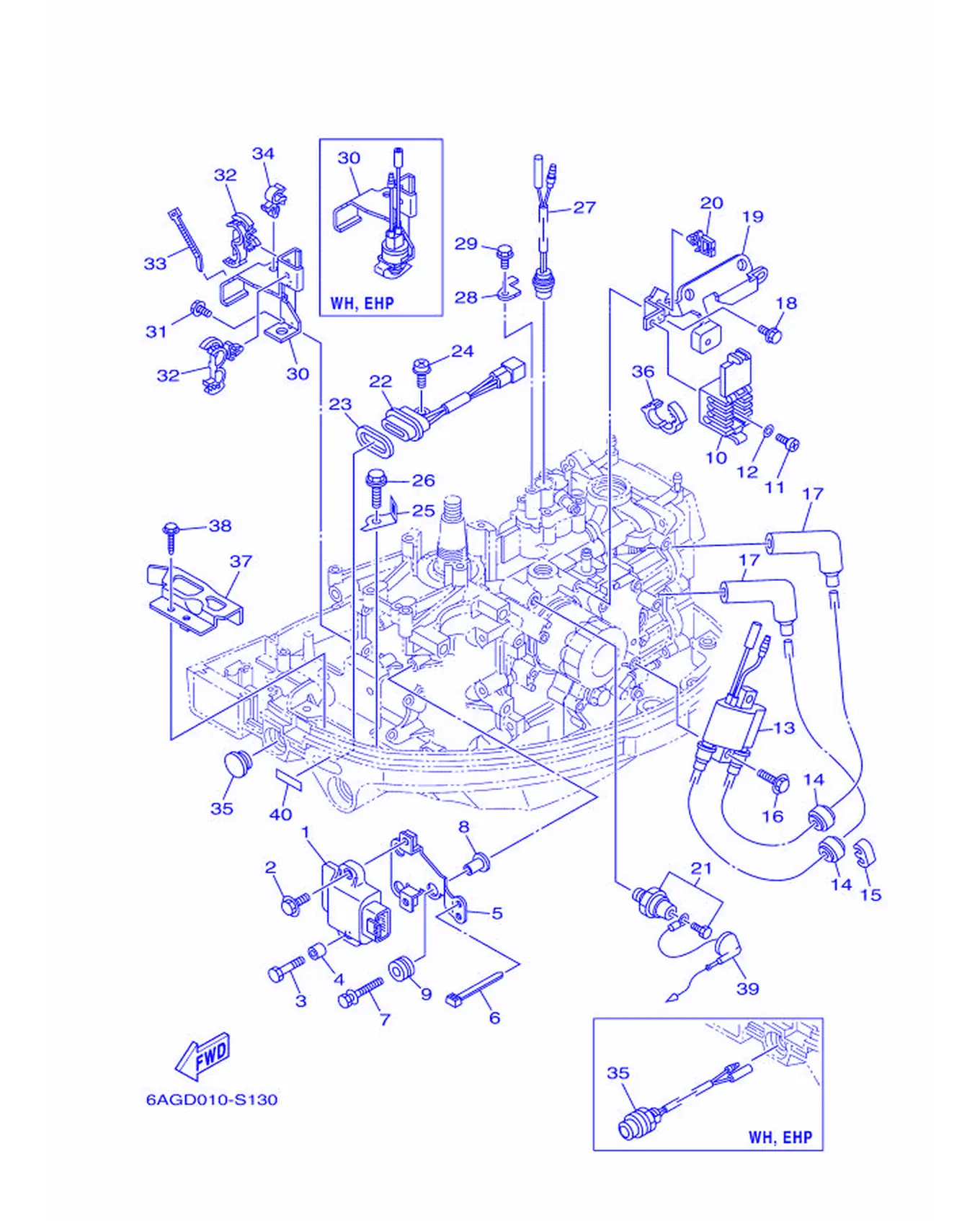

エレクトリカル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-85540-00	电子点火器总成	C.D.I. Unit Assembly	1
2	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	1
3	97D95-06030	螺栓	Bolt, Hexagon Deep Recess	1
4	90387-06M74	衬套	Collar	1
5	6AH-81948-00	托架	Bracket	1
6	90465-13M18	固定	Clamp	1
7	90119-06311	带垫圈六角头螺栓	Bolt, with Washer	3
8	90387-06289	轴套	Color	3
9	90480-10M23	固定	Grommet	3
10	6AH-82522-00	联轴节夹箍	Clamp, Coupler	1
11	97880-06010	大柱头螺钉	Screw, Pan Head	1
12	90201-06M05	平垫圈	Washer,Plate	1
13	6F5-85570-13	点火线圈组合	Ignition Coil Assembly	1
14	90480-25003	橡胶垫	Grommet	2
15	67F-82361-00	线夹	Clamp, Cord	1
16	97E95-06525	螺栓	Bolt, Hexagon with Washer Deep Recess	2
17	6AH-82370-00	火花塞帽总成	Plug Cap Assembly	2
18	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	2
19	6AH-85542-00	托架	Bracket	1
20	90464-07M56	固定	Clamp	2
21	64J-82504-00	油压开关组合	Oil Pressure Switch Assembly	1
22	62Y-84301-10	导向灯总成1	Pilot Light Assembly 1	1
23	6FM-83589-00	衬垫	Gasket	1
24	97985-06212	带垫圈螺钉	Screw, With Washer	1
27	6AH-82560-00	热敏开关总成	Thermo Switch Assembly	1
28	6AH-82588-00	垫片	Plate	1
29	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	1
30	6AH-82540-01	空挡开关组合	Neutral Switch Assembly	1
31	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	2
32	90464-18246	固定	Clamp	2
33	90465-13M18	固定	Clamp	1
34	90464-10M32	固定	Clamp	1
35	68T-81870-00	起动开关组合	Starting Switch Assembly	1
36	90464-16003	六角法兰面螺栓	Clamp	1
37	6AH-82389-00	面板2	Plate 2	1
38	90109-06M86	螺栓	Bolt	1
39	6AH-82553-02	导线延伸部分	Extension, Wire Lead	1
40	67C-85415-00	信号灯标志	Mark	1

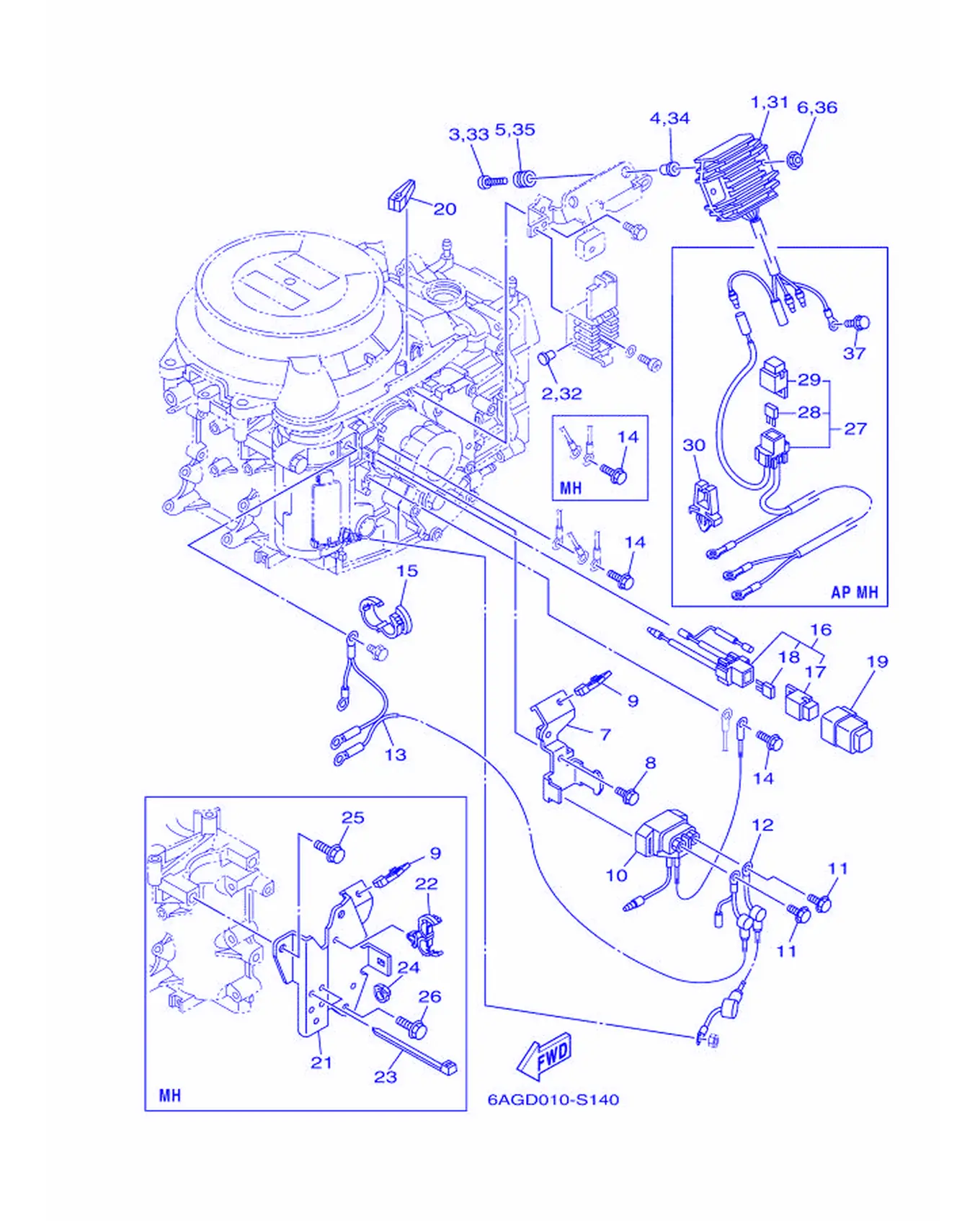

エレクトリカル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-81960-00	整流调节器	Rectifier and Regulator Assembly	1
2	703-82119-01	线套	Cover, Reed Wire	1
3	98980-06030	十字槽盘头螺钉	Screw, Blind	2
4	90387-06M70	衬套	Color	2
5	90480-13M24	固定	Grommet	2
6	95780-06500	带垫螺母	Nut, Flange	2
7	6AH-81945-00	开关装配面板	Switch Fitting Plate	1
8	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	1
9	90464-08004	固定夹	Clamp	1
10	68T-81940-00	起动继电器组合	StarterRelayAssembly	1
11	97E95-06610	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	2
12	6AH-82117-01	导线	Wire, Lead	1
13	6AH-82105-J2	电缆	Battery Cable	1
14	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	2
15	90464-16001	夹子	Clamp	1
16	6AH-82150-00	保险器夹持器总成	Fuse Holder Assembly	1
17	67F-8215B-10	断路器盖	Cap (Yellow)	1
18	67F-82151-00	保险丝	Fuse (20A)	2
19	6AH-82157-00	减震器	Damper	1
20	67F-2812A-00	小夹子	Puller, Fuse	1

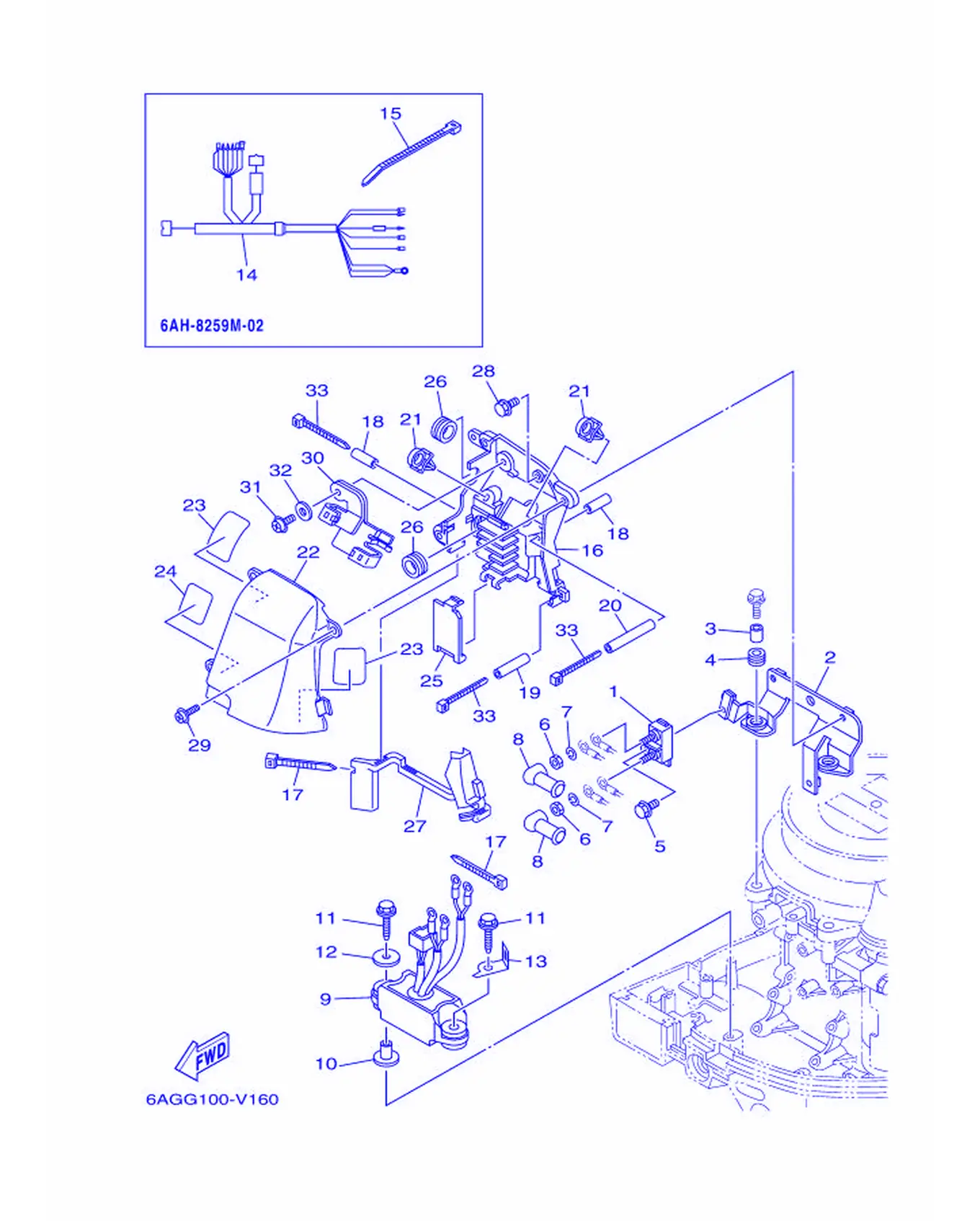

エレクトリカル 4

REF	雅马哈编码	中文名称	英文名称	用量
1	6H5-81925-00	接头	Terminal	1
2	6AH-81929-01	接头托架	Bracket, Terminal	1
3	90387-06182	螺钉	Collar	2
4	6AH-82317-01	点火线圈减震器	Damper, Ignition Coil	2
5	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	1
6	90170-06M30	螺母	Nut	2
7	90204-06M00	弹簧垫圈	Washer,Spring	2
8	6G5-82119-00	导线盖	Cover,LeadWire	2
9	6AH-81950-01	继电器组合	Relay Assembly	1
10	90387-06M03	衬套	Color	2
11	90109-06MA2	螺栓	Bolt	2
12	90201-06416	平垫圈	Washer,Plate	1
13	6AH-82388-00	面板	Plate	1
14	6AH-8259M-02	电线束组合	Wire Harness Assembly 2	1
15	90465-13M18	固定	Clamp	1
16	6AH-8552A-10	壳	Housing	1
17	90465-13M18	固定	Clamp	2
18	90445-07025	固定	Hose	2
19	90445-07026	固定	Hose	1
20	90445-07027	固定	Hose	1
21	90464-12001	线夹	Clamp	2
22	6AH-8552E-10	箱盖，盒盖	Cover, Case	1
23	6AH-42735-11	保护	Protector	2
24	6AH-42735-21	保护	Protector	1
25	6AH-85537-10	盖	Cover	1
26	90480-19368	固定	Grommet	2
27	6AH-85547-11	减震器	Damper	1
28	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	3
29	97985-06214	带垫圈螺丝	Screw, Washer	3
30	6AH-85525-10	盖	Plate	1
31	97985-06214	带垫圈螺丝	Screw, Washer	1
32	90201-06068	平垫圈	Washer,Plate	1
33	90464-76001	固定	Clamp	3

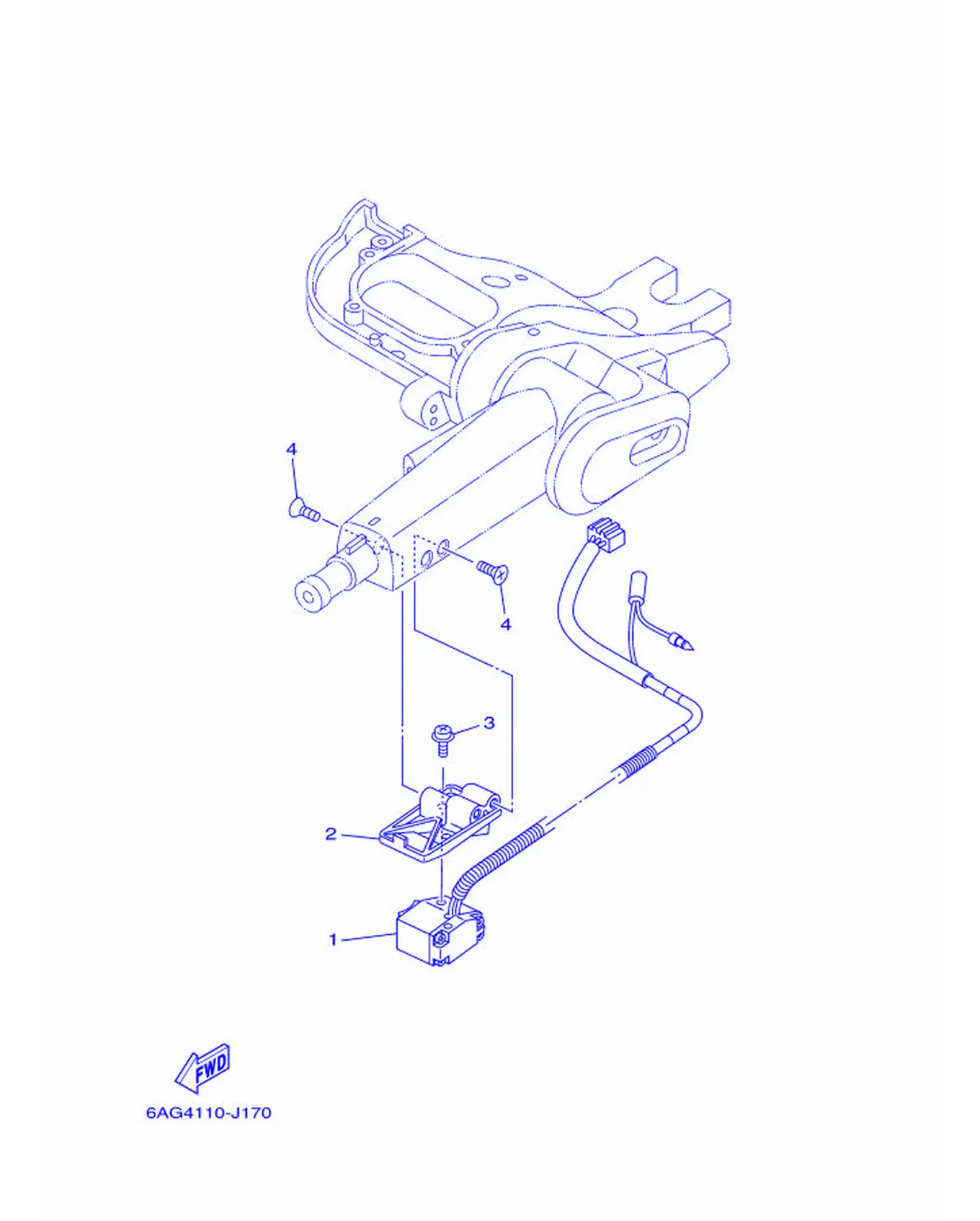

エレクトリカル 5

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-82563-00	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
2	69A-42176-00	支承2	Stay 2	1
3	97985-06220	带垫圈螺钉	Screw, Washer	2
4	90151-06040	螺栓	Screw, Countersunk	3

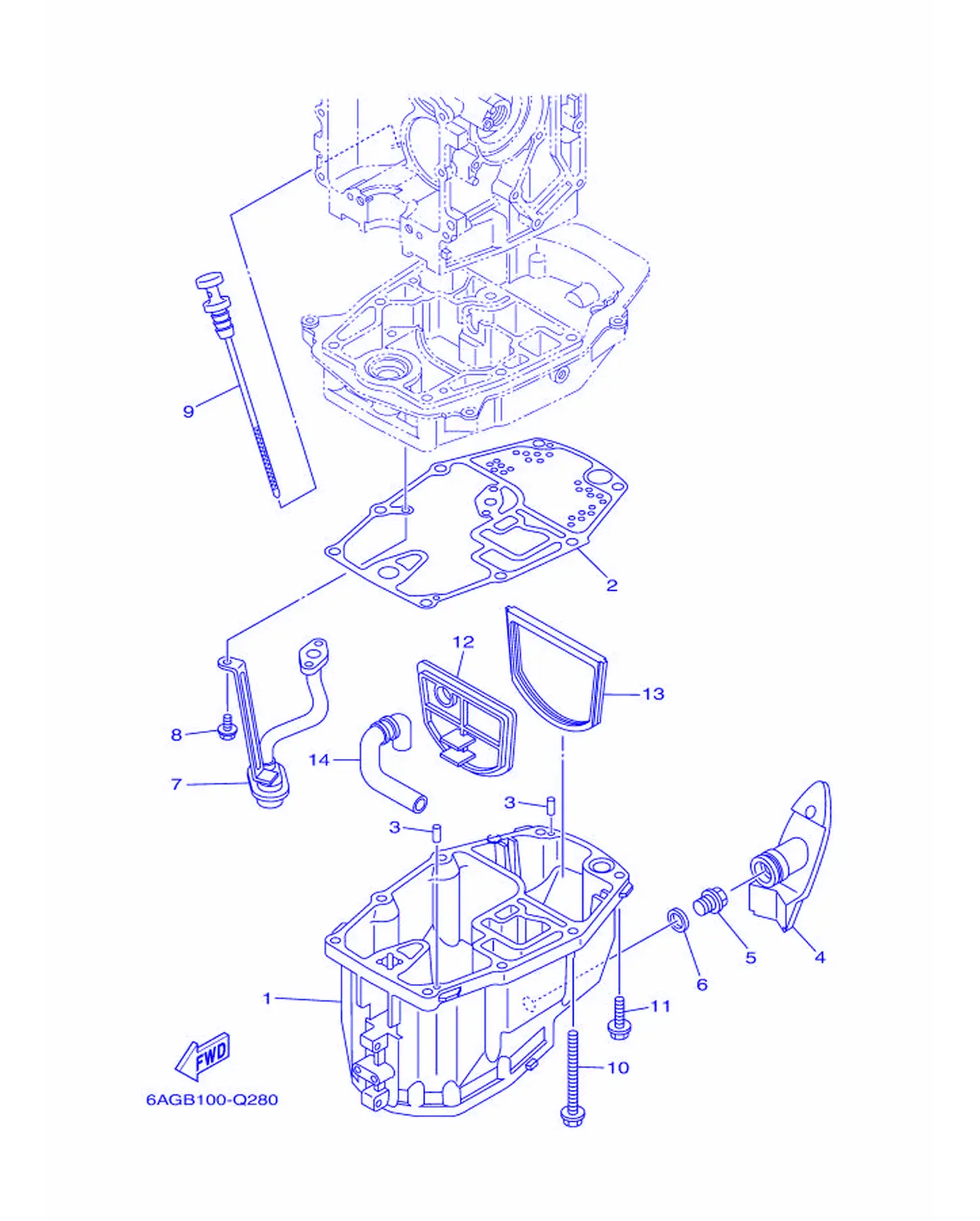

オイルパン

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-15311-00-CA	油槽	Oil Pan	1
2	6AH-15312-11	油槽衬垫	Gasket, Oil Pan	1
3	93604-12M07	定位销	Pin, Dowel	2
4	6AH-15316-00	减震垫1	Damper 1	1
5	90340-14M06	塞	Plug, Straight Screw	1
6	90430-14M09	衬垫	Gasket	1
7	6AH-13411-00	机油过滤网	Strainer, Oil	1
8	97513-06516	带垫圈螺	Bolt, with Washer	3
9	6AH-15362-10	油标塞	Plug, Oil Level	1
10	90119-08103	带垫圈六角头螺栓	Bolt, with Washer	6
11	97E95-08530	螺栓	Bolt, Hexagon with Washer Deep Recess	2
12	6AH-45126-00	减震器密封面板	Seal Damper Plate	1
13	6AH-45115-00	水上装置壳体衬垫	Gasket, Upper Casing	1
14	6AH-45135-00	管	Pipe	1

オイルポンプ

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-12170-01	凸轮轴总成	Camshaft Assembly 1	1
2	6AH-11537-01	从动齿轮	Gear, Driven	1
3	90105-081A7	六角法兰面螺栓	Bolt, Flange	1
4	90201-08784	平垫圈	Washer, Plate	1
5	90201-15423	平垫圈	Washer,Plate	1
6	6AH-11536-00	驱动齿轮	Gear, Drive	1
7	6AH-11557-00	垫圈1	Washer 1	1
8	90170-30003	六角螺母	Nut	1
9	90280-03M01	螺丝	Key, Woodruff	2
10	6AH-46241-00	V型皮带	Belt	1
11	6AH-46297-00	防尘盖	Cover, Dust	1
12	90480-10627	固定	Grommet	3
13	6AH-42617-00	形成减震	Damper, Foam	1
14	90480-06M19	固定	Grommet	1
15	6AH-13300-00	机油泵总成	Oil Pump Assembly	1
16	6AH-13329-11	泵盖垫片	Gasket, Pump Cover	1
17	90105-06035	螺栓	Bolt, Flange	3
18	93102-22010	油封	Oil Seal	1
19	6AH-13437-00	警告标志	Mark, Caution	1
20	6EE-81994-01	警告标签	Label, Safety	1

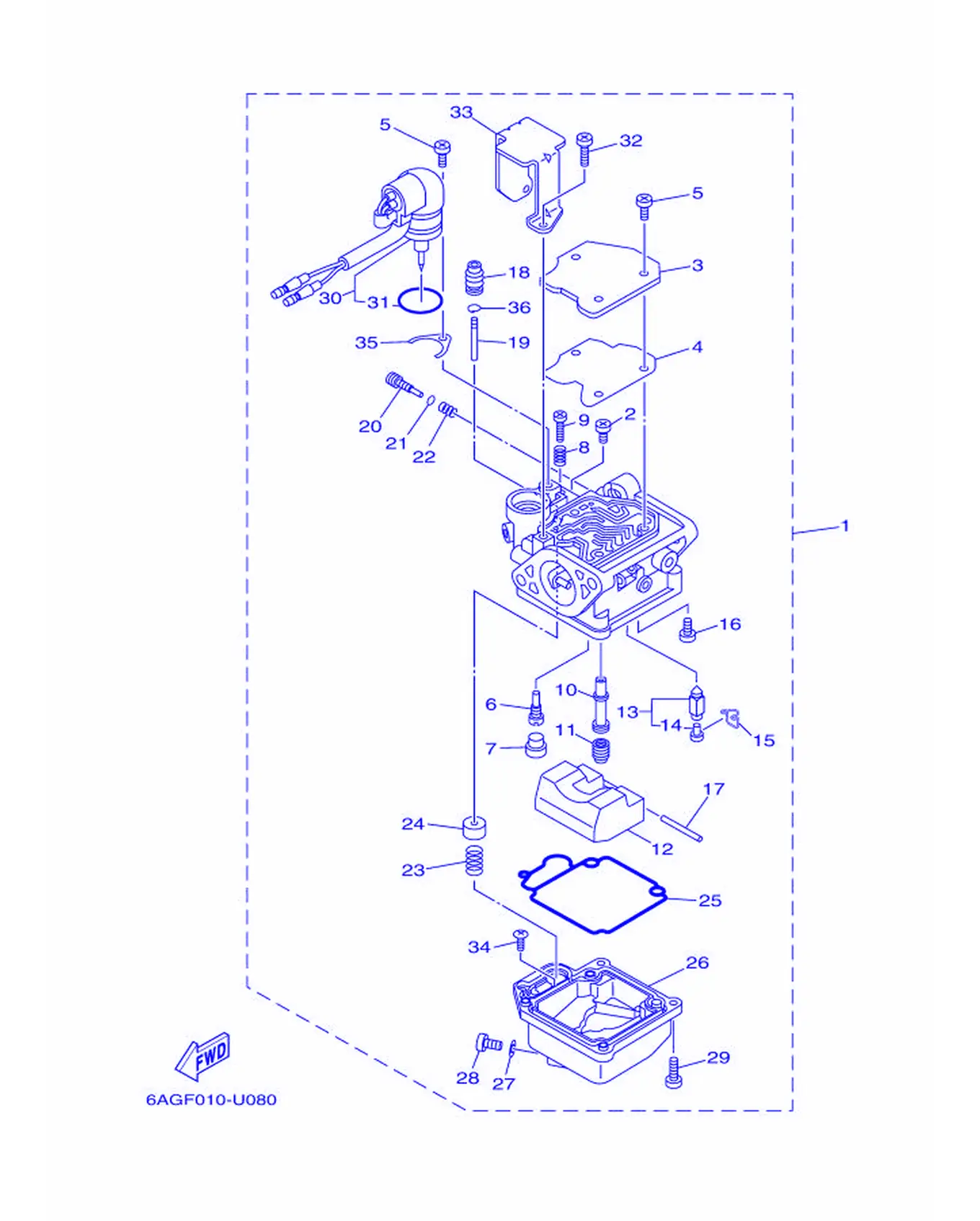

キヤブレタ

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-14301-D7	化油器总成1	Carburetor Assembly 1	1
1	6AG-14301-D7	化油器总成1	Carburetor Assembly 1	1
2	98580-04006	大柱头螺钉	Screw, Pan Head	1
3	65W-14572-00	密封	Plate	1
4	65W-14126-10	衬垫	Gasket	1
5	65L-14565-00	螺钉	Screw	4
6	67G-14948-05	量孔	Jet (#45)	1
6	6AH-14948-02	量孔	Jet (#38)	1
7	679-14966-00	量孔盖	RubberCap	1
8	90501-10326	接头	Spring, Compression	1
9	63V-14523-00	止动螺钉	Screw, Stop	1
10	6AH-14947-00	针形量孔	Jet, Needle	1
10	6AH-14947-10	针形量孔	Jet, Needle	1
11	676-14943-81	主量孔	Jet,Main (#118)	1
11	676-14943-19	主量孔	Jet,Main (#80)	1
12	6AH-14985-00	浮子	Float	1
13	6AH-W1456-10	针阀	Valve, Needle	1
14	676-14186-00	浮子销	Pin, Float	1
15	633-14159-00	钢夹	Clip	1
16	98580-04008	大柱头螺钉	Screw, Pan Head	1
17	6H4-14548-00	浮子臂销	Pin, Float Arm	1
18	65W-14373-02	柱塞罩盖	Cover, Plunger Clip	1
19	6AH-14379-00	起动器连杆	Rod,Starter	1
20	67C-14923-01	低速螺钉	Screw,Pilot	1
21	67F-14398-10	衬垫	O-ring	1
22	67C-14555-00	弹簧	Spring	1
23	6AH-14335-00	柱塞弹簧	Spring, Plunger	1
23	65W-14335-00	柱塞弹簧	Spring, Plunger	1
24	6AH-14371-00	起动柱塞	Plunger, Starter	1
24	6AG-14371-00	起动器柱	Plunger, Starter	1
25	6AH-14384-00	浮子室密封垫片	Gasket, Float Chamber	1
26	6AH-14980-03	浮子室本	Body, Float Chamber	1
27	65W-14398-00	衬垫	Gasket	1
28	65W-14992-09	连杆	Screw, Drain	1
29	97980-04114	带垫圈螺钉	Screw, Washer	4
30	6BL-14380-11	双金属阀	Prime Starter Assembly	1
31	5ML-E4854-00	O型圈	O-ring	1
32	97980-04108	带垫圈螺钉	Screw, With Washer	2
33	6AH-14346-00	面板	Plate	1
34	67C-14567-00	螺钉	Screw	1
35	65W-14346-00	面板	Plate	1
36	65W-1439G-00	卡环 1	Clip 1	1

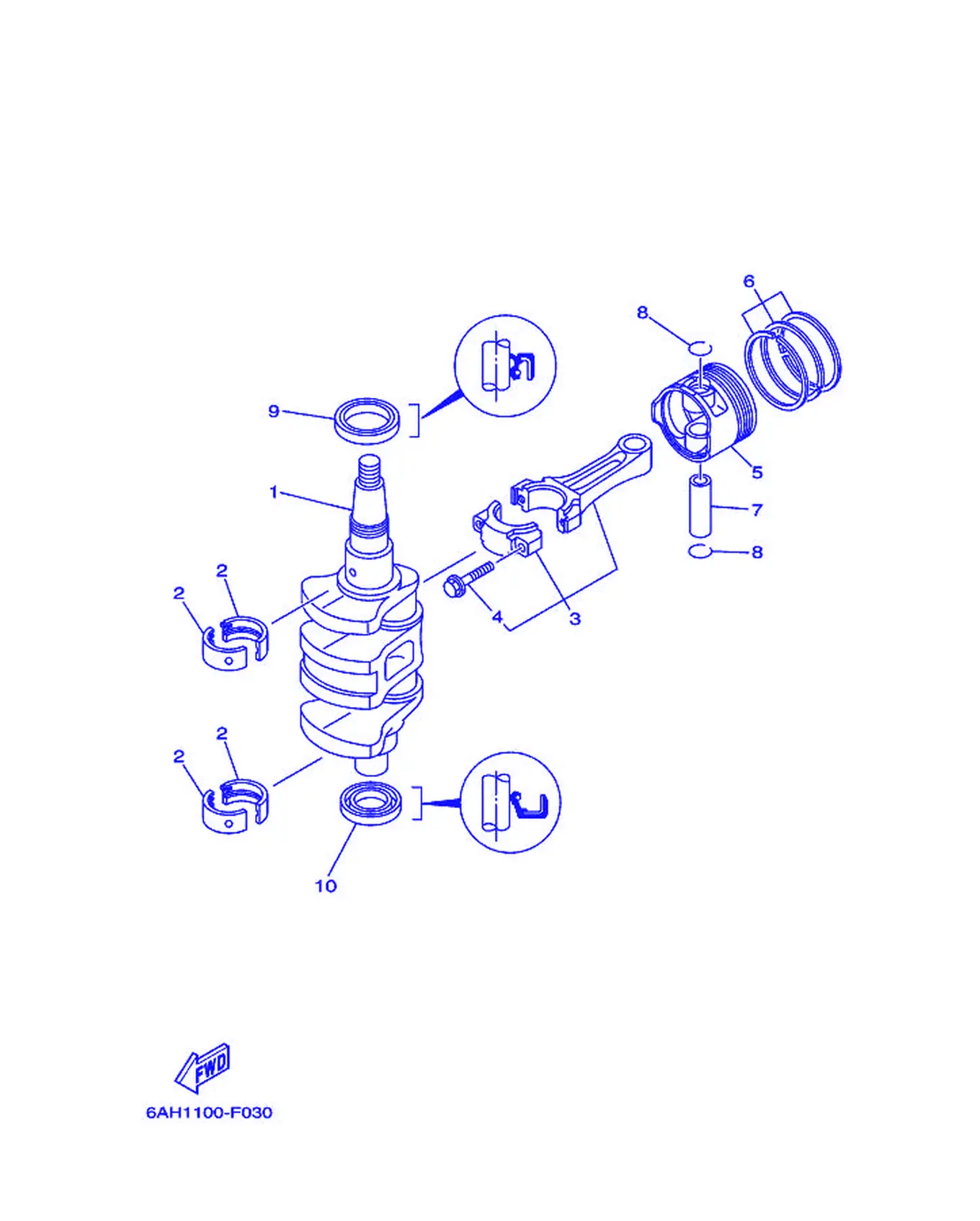

クランクシヤフト & ピストン

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-11411-00	曲轴	Crankshaft	1
2	6AH-11416-00	轴瓦1	Crankshaft Plain Bearing 1	4
2	6AH-11416-10	轴瓦1	Crankshaft Plain Bearing 1	4
2	6AH-11416-20	轴瓦1	Crankshaft Plain Bearing 1	4
3	6AH-11650-10	连杆组合	Connecting Rod Assembly	2
4	6AH-11654-00	连杆螺	Bolt, Connecting Rod	2
5	6AH-11631-00	活塞	Piston (STD)	2
5	6AH-11635-00	活塞	Piston (0.25MM O/S)	2
5	6AH-11636-00	活塞	Piston (0.50MM O/S)	2
6	6AH-11603-00	活塞环套件	Piston Ring Set (STD)	2
6	6AH-11604-00	活塞环套件	Piston Ring Set (0.25MM O/S)	2
6	6AH-11605-00	活塞环套件	Piston Ring Set (0.50MM O/S)	2
7	137-11633-10	活塞销	Pin, Piston	2
8	93450-17129	卡环	Circlip	4
9	93102-37004	油封	Oil Seal	1
10	93102-25014	油封	Oil Seal	1

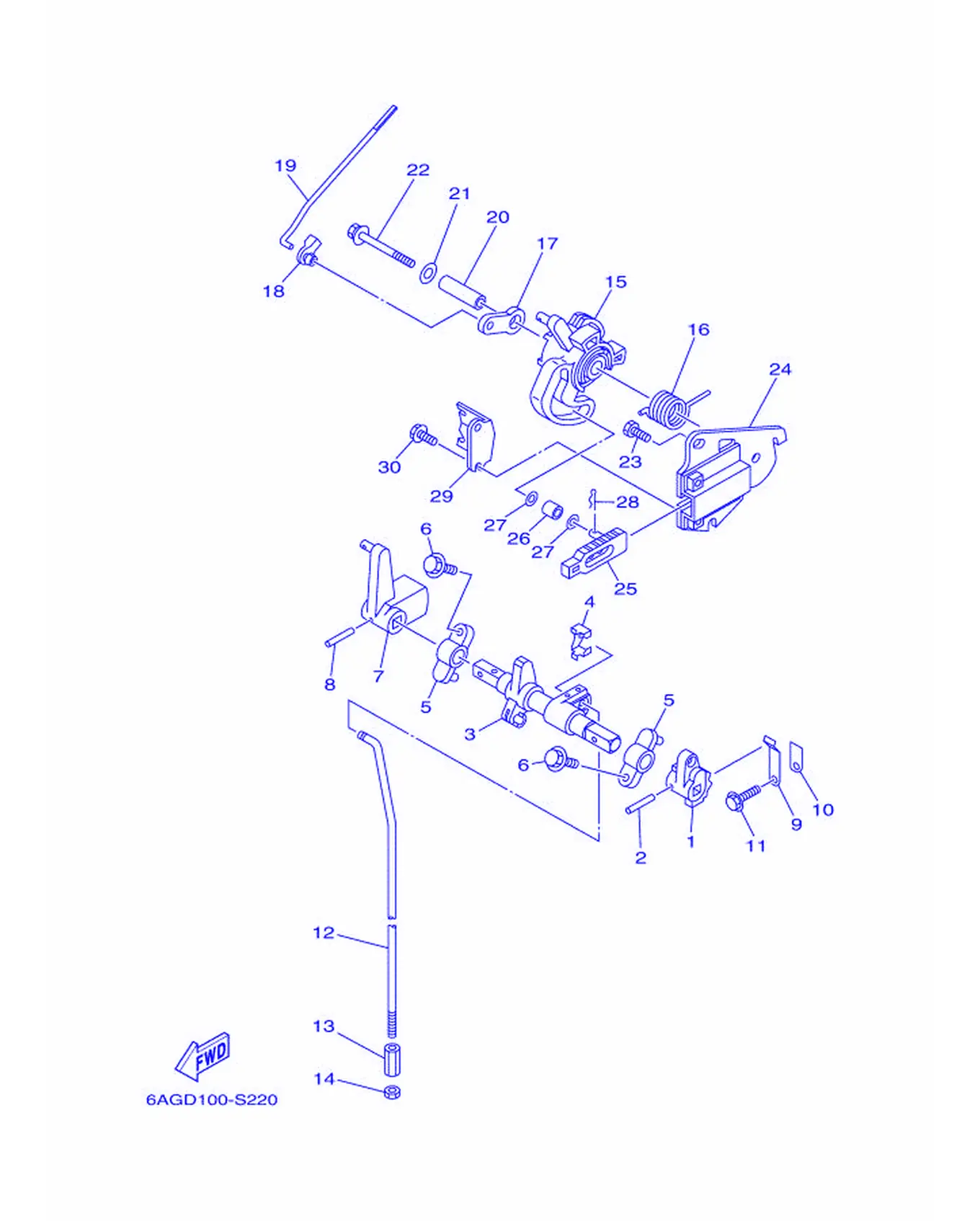

コントロ-ル

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-44123-00	变挡杆杠杆臂	Arm, Shift Rod	1
2	90254-03M05	弹簧销	Pin,Spring	1
3	6AH-44121-01	变挡杆杠杆	Lever, Shift Rod	1
4	6AH-26364-00	钢丝绳接头2	End, Cable 2	1
5	6G1-41662-01-94	托架	Bracket	2
6	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	2
7	6AH-44125-00	变挡杆杠杆手柄	Lever, Shift Rod	1
8	90254-03M05	弹簧销	Pin,Spring	1
9	65W-44116-00	弹簧	Spring	1
10	66R-44114-00	限位板	Stopper	1
11	95D95-06014	螺栓	Bolt, Flange Deep Recess	1
12	6AH-44143-10	变挡连杆	Rod, Shift 1	1
13	90170-06015	螺母	Nut	1
14	95380-06700	有槽螺母	Nut	1
15	6AH-41638-00	滑轮	Pulley	1
16	90508-20M44	扭簧	Spring, Torsion	1
17	65W-41283-00	空转油门杠杆	Lever, Free Accelerator	1
18	6J8-41262-00	阻风门杠杆接头	Joint, Choke Lever	1
19	6AH-41211-00	加速器连杆	Link, Accelerator	1
20	90387-06139	轴套	Collar	1
21	90201-06M31	面板垫圈	Washer,Plate	1
22	97E95-06555	螺栓附墊圈	Bolt, Hexagon with Washer Deep Recess	1
23	97D95-06014	连杆螺栓	Bolt, Hexagon Deep Recess	2
24	6AH-14571-00	油门托架	Bracket, Throttle	1
25	6AH-44167-10	变挡凸轮柱	Shift Cam Plunger	1
26	62Y-42171-00	衬套	Bushing	1
27	90201-05M04	平垫圈	Washer, Plate	2
28	90468-10005	线夹	Clip	1
29	6AH-14497-00	油门钢索支承	Stay, Throttle Wire	1
30	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	2

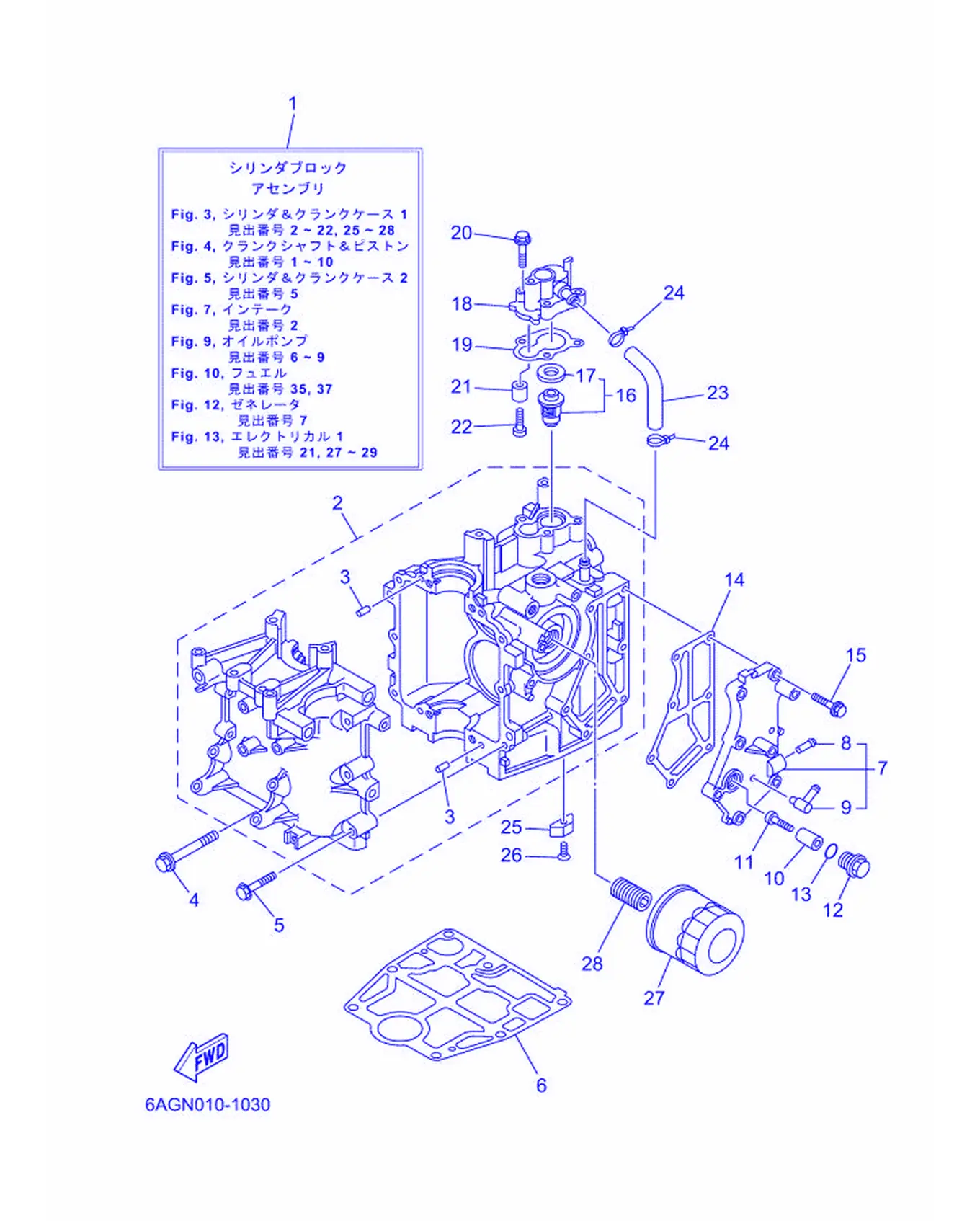

シリンダ & クランクケース 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-W009B-03-1S	气缸曲柄组合	Cylinder Block Assembly	1
2	6AH-15100-01	曲轴箱组合	Crankcase Assembly	1
3	93606-12019	定位销	Pin, Dowel	4
4	90119-08093	带垫圈六角头螺栓	Bolt, with Washer	4
5	97513-06540	带垫圈螺栓	Bolt, with Washer	6
6	6AH-11351-11	气缸垫片1	Gasket, Cylinder	1
7	6AH-41113-01-1S	排气管外盖	Outer Cover, Exhaust	1
8	6E9-24378-00	连接管4	Pipe, Joint 3	1
9	6H1-11372-00	软管接头	Nipple,Hose	1
10	6G8-11325-00	阳极	Anode	1
11	98980-05025	十字槽盘头螺钉	Screw, Bind	1
12	6G8-11197-B0	塞	Blind Plug	1
13	93210-13M63	O型圈	O-ring	1
14	6AH-41114-00	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
15	90119-06MA3	带垫螺栓	Bolt, With Washer	7
16	6AH-12411-00	温控器	Thermostat	1
17	688-12412-00	温控器密封	Seal,Thermostat	1
18	6AH-12413-00-1S	温控器盖	Cover, Thermostat	1
19	6AH-12414-00	盖衬垫	Gasket, Cover	1
20	90119-06MA3	带垫螺栓	Bolt, With Washer	3
21	6G8-11325-00	阳极	Anode	1
22	98980-05025	十字槽盘头螺钉	Screw, Bind	1
23	6AH-12481-00	管1	Pipe 1	1
24	90465-11M10	固定	Clamp	2
25	6E5-11325-00	阳极	Anode	1
26	98780-04016	大柱头螺钉	Screw, Flat Head	1
27	5GH-13440-90	滤油器滤芯组合	Element Assembly, Oil Cleaner	1
28	6C5-12858-A0	管接螺栓2	Bolt, Union	1

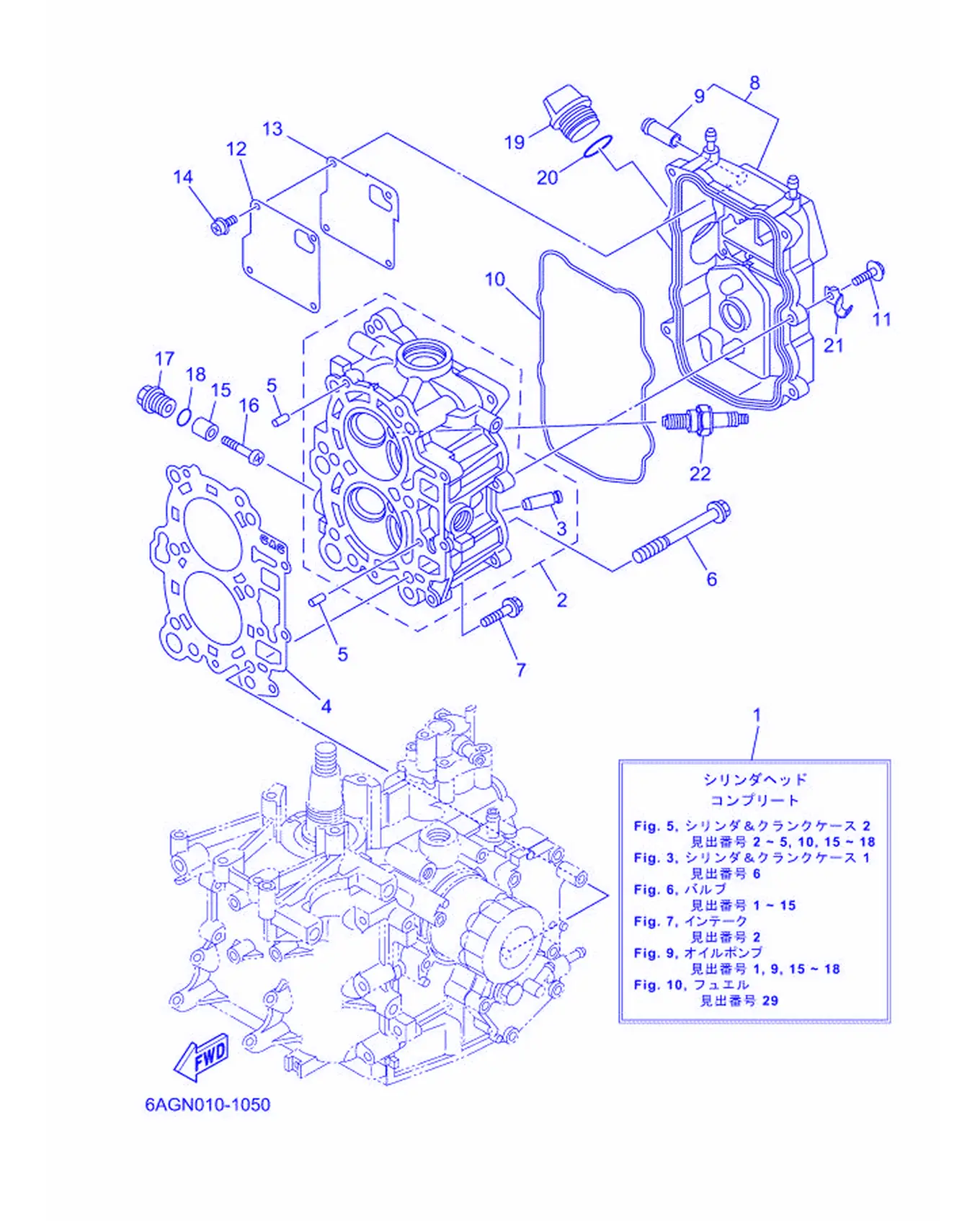

シリンダ & クランクケース 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-W009A-03-1S	气缸头总成	Cylinder Head Complete	1
2	6AH-11111-10-1S	气缸头1	Head, Cylinder 1	1
3	6AH-11133-10	进气门导管	Guide,Valve 1	4
4	6AG-11181-10	气缸头垫片1	Gasket, Cylinder Head 1	1
5	93606-12019	定位销	Pin, Dowel	2
6	90105-09006	六角法兰面螺栓	Bolt, Flange	6
7	90119-06MA3	带垫螺栓	Bolt, With Washer	3
8	6AH-11191-00-1S	气缸盖罩1	Cover, Cylinder Head 1	1
9	6AH-11372-00	软管接头	Nipple, Hose	1
10	6AH-11356-00	气缸密封圈2	Seal, Cylinder 2	1
11	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	5
12	6AH-11168-00	通气管盖	Cover, Breather	1
13	6AH-11169-00	通气管盖衬垫	Gasket, Breather Cover	1
14	97607-04210	带垫圈十字槽盘头螺钉	Screw, Pan Head Washer	4
15	6G8-11325-00	阳极	Anode	2
16	98980-05025	十字槽盘头螺钉	Screw, Bind	2
17	6G8-11197-B0	塞	Blind Plug	2
18	93210-13M63	O型圈	O-ring	2
19	6G8-15363-00	机油塞子	Plug,Oil	1
20	93210-24M79	O型圈	O-ring	1
21	90465-08059	线夹	Clamp	1
22	94709-00418	火花塞	Plug, Spark (NGK DPR6EB-9)	2

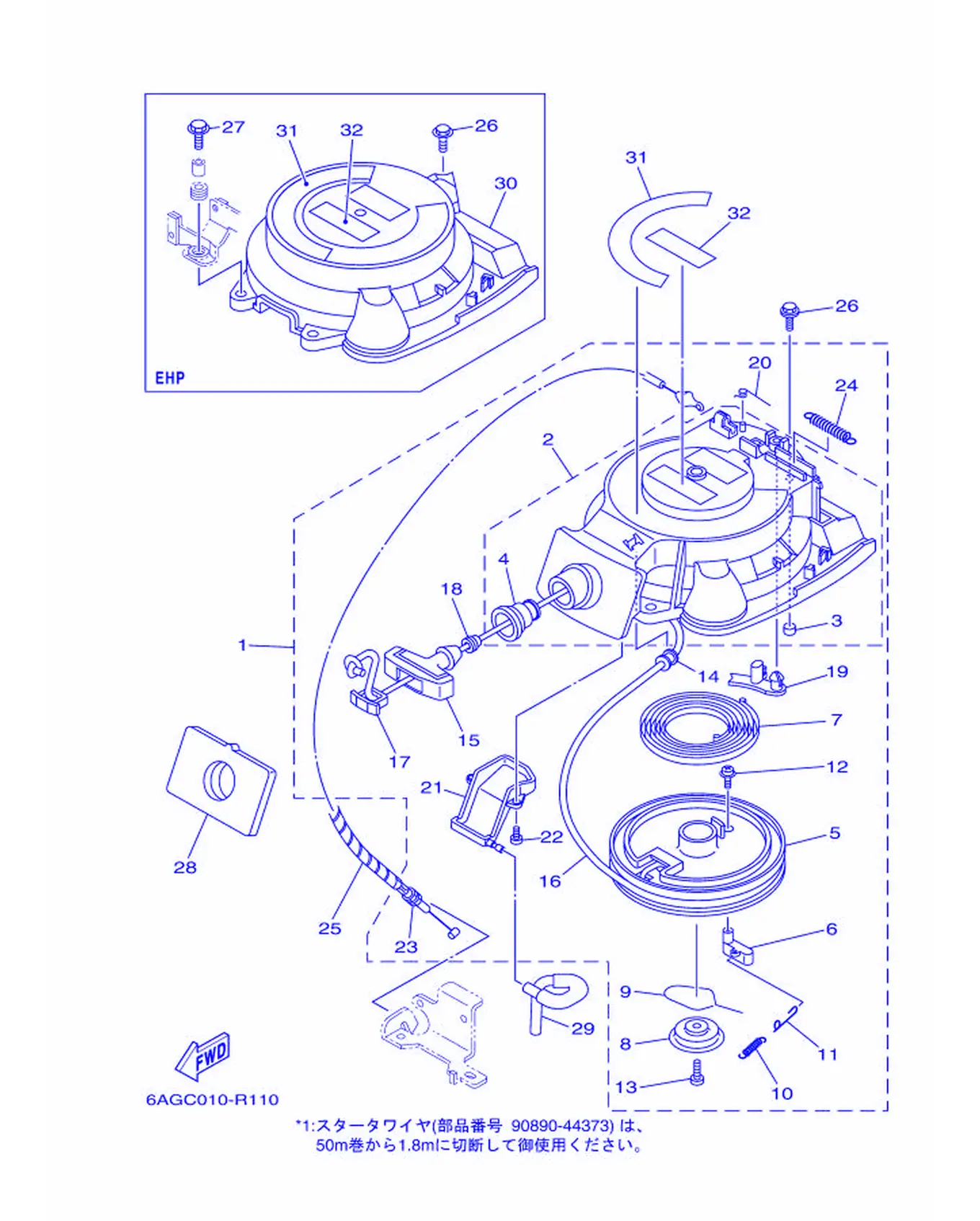

スタ-タ

REF	雅马哈编码	中文名称	英文名称	用量
26	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	1
27	90119-06169	带垫圈六角头螺栓	Bolt, with Washer	2
30	6AH-81337-00	飞轮盖	Cover, Flywheel	1
31	6AH-14427-01	指示牌	Label, Instruction	1
32	6EE-81995-01	警告标签	Label, Warning	1

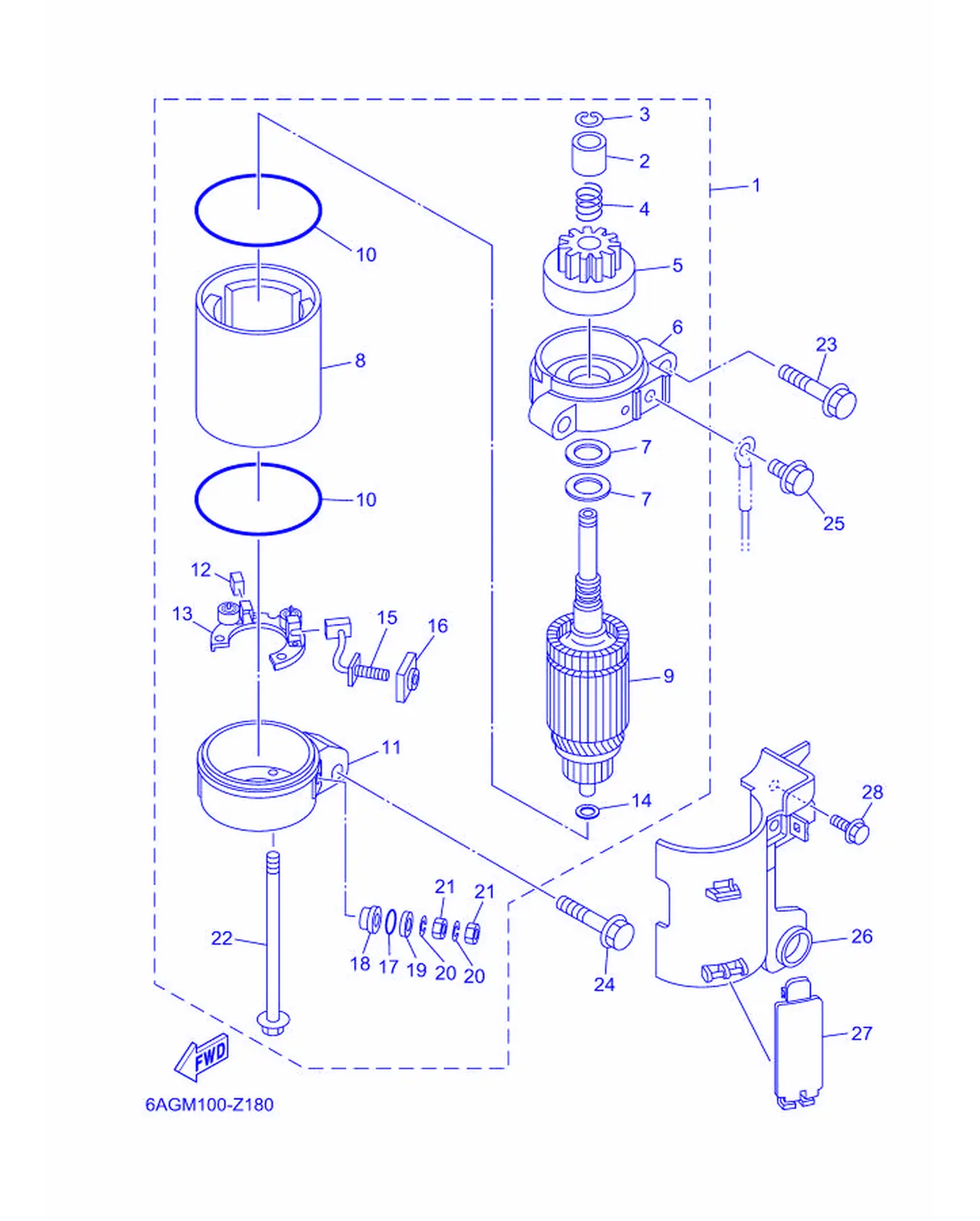

スタ-テイングモ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-81800-10	起动电动机总成	Starting Motor Assembly	1
2	6AH-81859-00	小齿轮限位器	Stopper, Pinion	1
3	689-81884-00	小齿轮限位卡扣	Clip, Pinion Stopper	1
4	689-81858-00	回位弹簧	Spring, Return	1
5	689-81807-20	起动电动机齿轮组合	Gear Assembly, Starting Motor	1
6	6AH-81830-10	前托架组合	FrontBracketAssembly	1
7	689-81835-00	垫圈	Washer	2
8	689-81810-20	定子组合	Starter Assembly	1
9	689-81850-20	电枢组合	ArmatureAssembly	1
10	689-81847-20	O型圈	O-ring	2
11	6AH-81820-10	后托架组合	Rear Bracket Assembly	1
12	689-81812-20	电刷2	Brush 2	1
13	6AH-81840-00	电刷架组合	Brush Holder Assembly	1
14	689-81824-00	垫圈2	Washer 2	1
15	6AH-81811-10	电刷1	Brush 1	1
16	689-8182H-00	端子轴衬2	Bush, Terminal 2	1
17	689-8182L-00	O型圈	O-ring 1	1
18	689-8182G-00	环形齿轮支承	Bush, Terminal	1
19	689-8182E-00	垫	Washer	1
20	689-8182F-00	垫	Washer	2
21	689-8182A-00	螺母	Nut	2
22	689-81826-20	螺	Bolt	2
23	97513-08545	带垫圈螺栓	Bolt, with Washer	2
24	97513-08535	螺栓	Bolt, with Washer	1
25	97E95-08516	螺栓	Bolt, Hexagon with Washer Deep Recess	1
26	6AH-81942-00	护板	Cover	1
27	6AH-82581-00	线夹支承	Stay, Cord Clamp	1
28	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	1

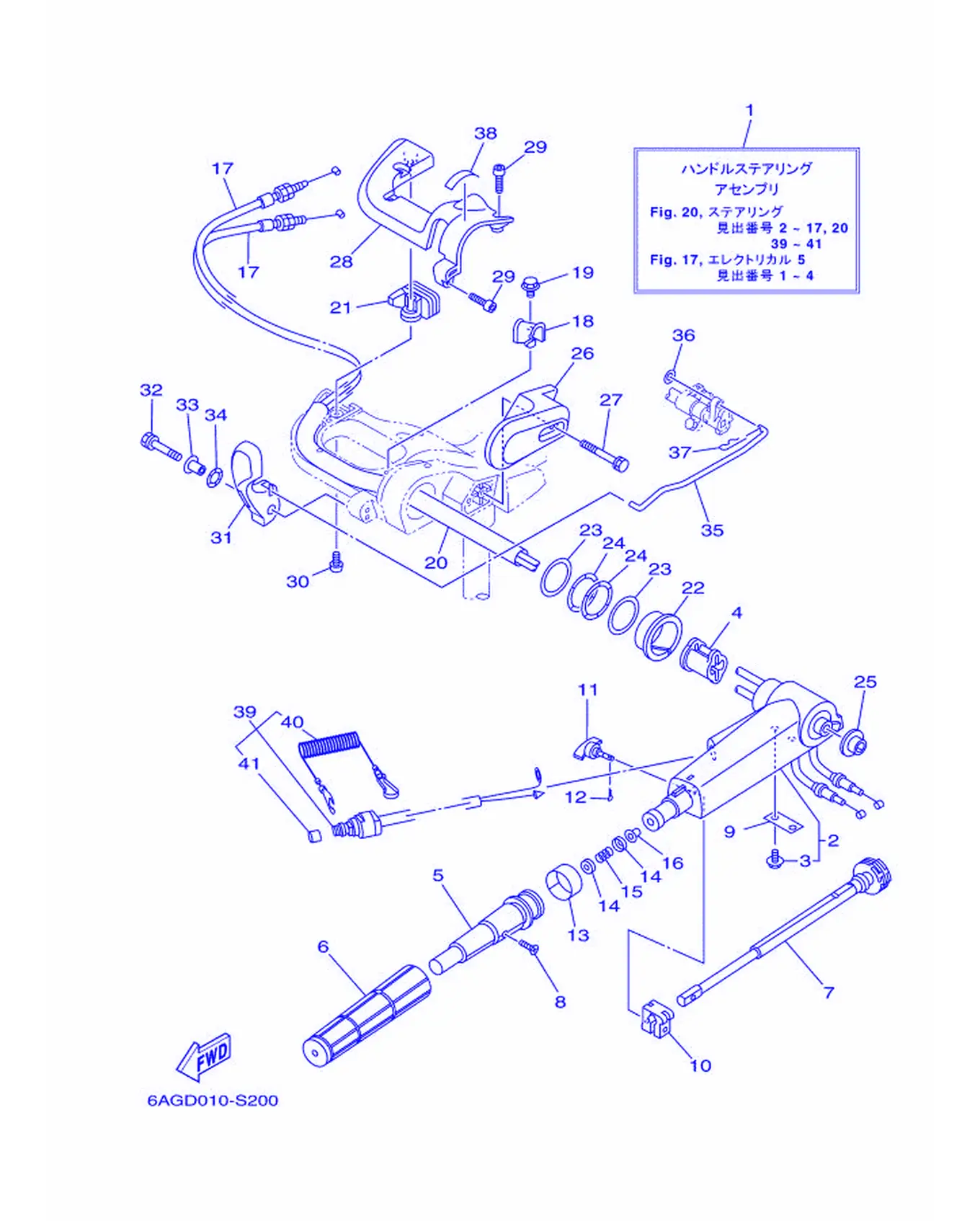

ステアリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-W0084-15-8D	手把方向装置组合	Handle Steering Assembly	1
2	6AH-42101-12-8D	操舵手柄	Handle, Steering	1
3	90109-06M86	螺栓	Bolt	2
4	6AH-26288-01	钢索固定	Grommet, Cable	1
5	66M-42119-01	方向手把握	Grip, Steering Handle	1
6	67D-42177-01	手把橡皮	Rubber, Handle	1
7	65W-42138-00	油门杆	Lever,Throttle	1
8	90152-05011	沉头螺钉	Screw, Countersunk	1
9	65W-42159-00	支承	Stay	1
10	6G1-42126-00	方向手把握把摩擦	Friction, Steering Handle	1
11	65W-42125-00	阻力调整螺	Bolt, Friction Adjust	1
12	91490-16010	开口销	Pin, Cotter	1
13	6J0-42137-10	油门指示器	Indicator, Throttle	1
14	6X4-44188-00	垫圈	Washer	2
15	90501-23215	接头	Spring, Compression	1
16	90386-08004	衬套	Bushing	1
17	6AH-26311-00	气节门拉索1	Cable, Throttle 1	2
18	6AH-44554-00	面板	Plate	1
19	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	1
20	6AH-2634E-00	保护器1	Protector 1	1
21	6AH-42551-01	固定	Grommet	1
22	90386-45001	衬套	Bushing	1
23	90201-39008	平垫圈	Washer, Plate	2
24	90206-39001	波纹垫圈	Washer, Wave	2
25	90381-20001	双金属衬套	Bushing, Solid	1
26	6AH-42131-00-8D	方向手把盖	Cover, Handle Steering	1
27	97E95-06555	螺栓附墊圈	Bolt, Hexagon with Washer Deep Recess	2
28	6AH-42532-A0	盖	Cover	1
29	90111-06072	内六角薄型螺栓	Bolt	4
30	97780-60520	自攻螺钉	Screw, Tapping	1
31	6AH-44111-00	变挡手柄	Handle, Gear Shift	1
32	90119-06M05	带垫螺栓	Bolt, With Washer	1
33	90387-06M86	衬套	Color	1
34	90206-15M18	波形垫圈	Washer, Wave	1
35	6AH-44124-00	变挡杆杠杆连接	Link, Shift Rod	1
36	92990-06200	盘形垫	Washer, Plain	1
37	90468-18008	钢夹	Clip	1
38	6X3-44191-00	变挡指示器	Indicator, Shift	1
39	6AH-82575-00	发动机止动开关组合	Engine Stop Switch Assembly	1
40	682-82556-00	止动拉索	Stopper	1
41	689-8257Y-00	盖	Cap	1

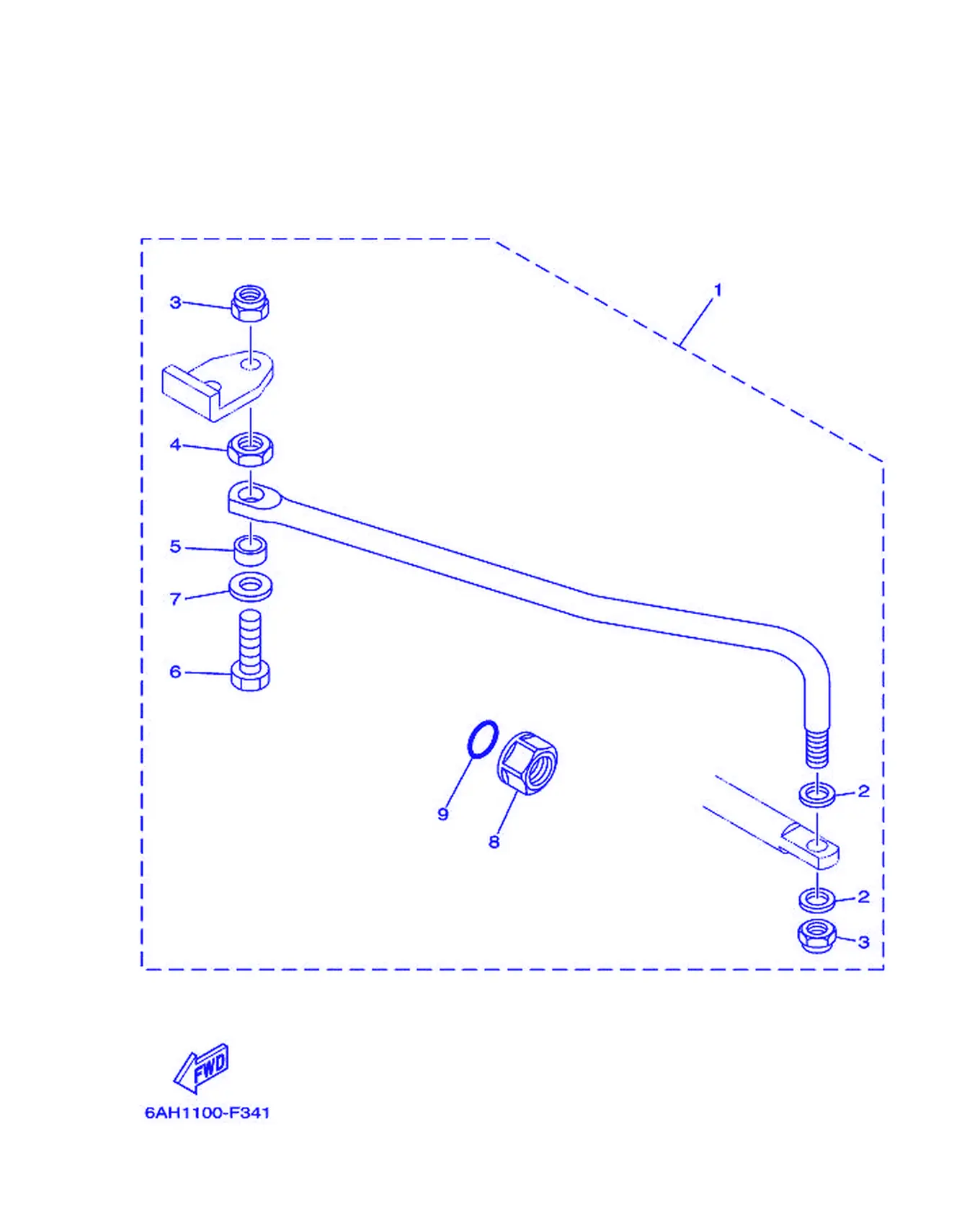

ステアリングガイド

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-61350-00	操舵连接板套	Steering Guide Attachment Kit	1
2	90201-10M20	面板垫圈	Washer,Plate	2
3	90185-09M01	螺帽	Nut, Self-Locking	2
4	90170-09M03	螺帽	Nut	1
5	90387-10M42	衬套	Collar	1
6	6E5-61355-00	螺栓	Bolt	1
7	90201-10081	平垫圈	Washer, Plate	1
8	6E5-43145-01	夹紧托架盖	Cap, Clamp Bracket	1
9	93210-16275	O型圈	O-ring	1

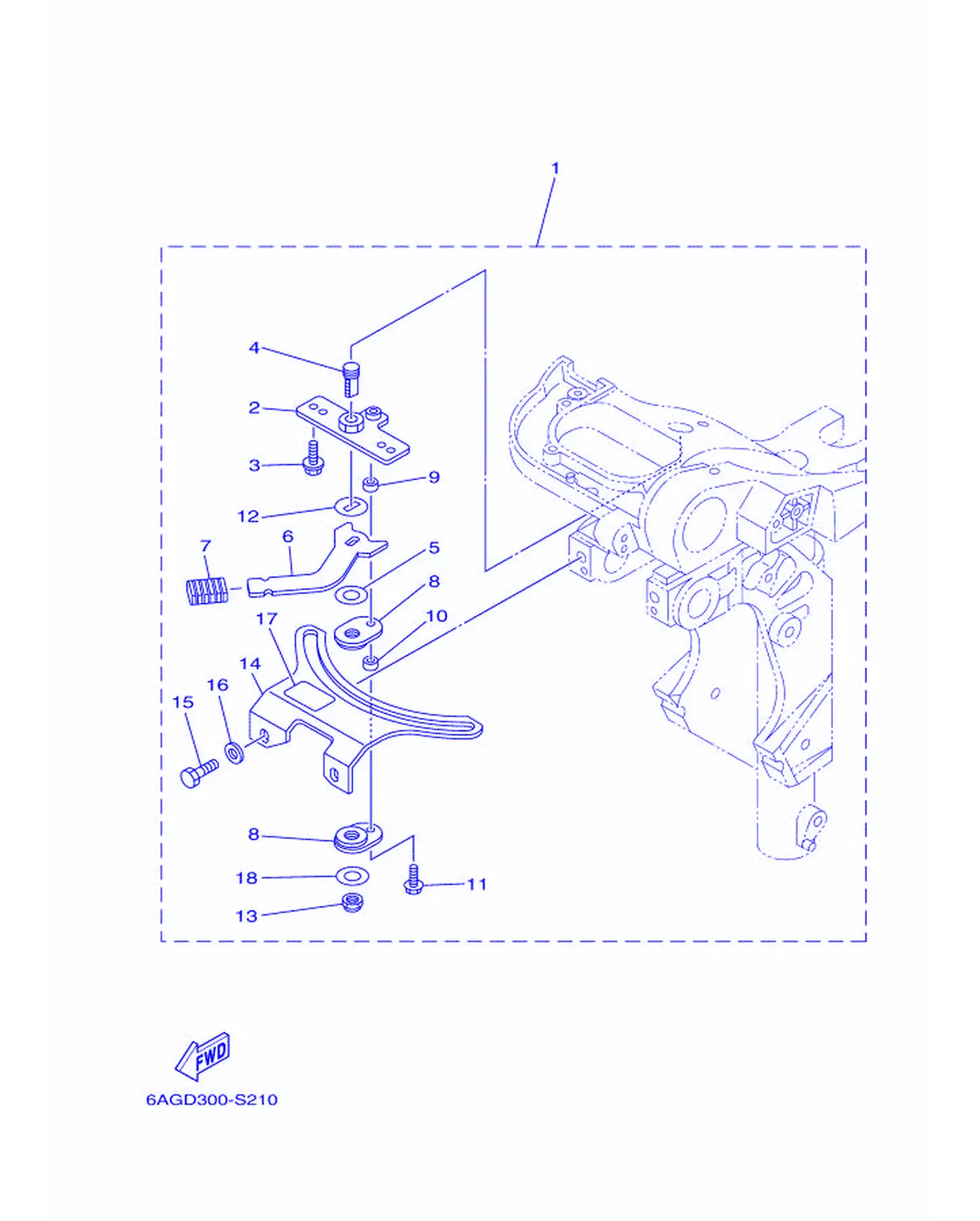

ステアリングフリクシヨン

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-42508-13	方向阻力块组合	Steering Friction Assembly	1
2	68T-42525-01	阻力板	Friction Plate	1
3	90119-05018	带垫圈六角头螺栓	Bolt, with Washer	2
4	67C-42562-A0	操舵锁紧轴	ShaftSteeringLockAssembly	1
5	90202-10M56	平垫圈	Washer, Plate	1
6	68T-42561-00	方向锁紧旋钮	Knob	1
7	689-43633-01	角度定位杆盖	Cover,TiltLever	1
8	65W-42528-00	阻力板	Plate, Friction	2
9	90387-05053	轴套	Collar	1
10	90387-05054	轴套	Collar	1
11	97595-05520	带垫圈螺栓	Bolt, with Washer	1
12	90209-10M26	平垫圈	Washer	1
13	90185-10M14	螺帽	Nut, Self-Locking	1
14	6AH-42527-00	阻力板	Friction Plate	1
15	97D95-08016	螺栓	Bolt, Hexagon Deep Recess	2
16	90201-08065	平垫圈	Washer, Plate	2
18	90201-106M5	平垫圈	Washer, Plate	1

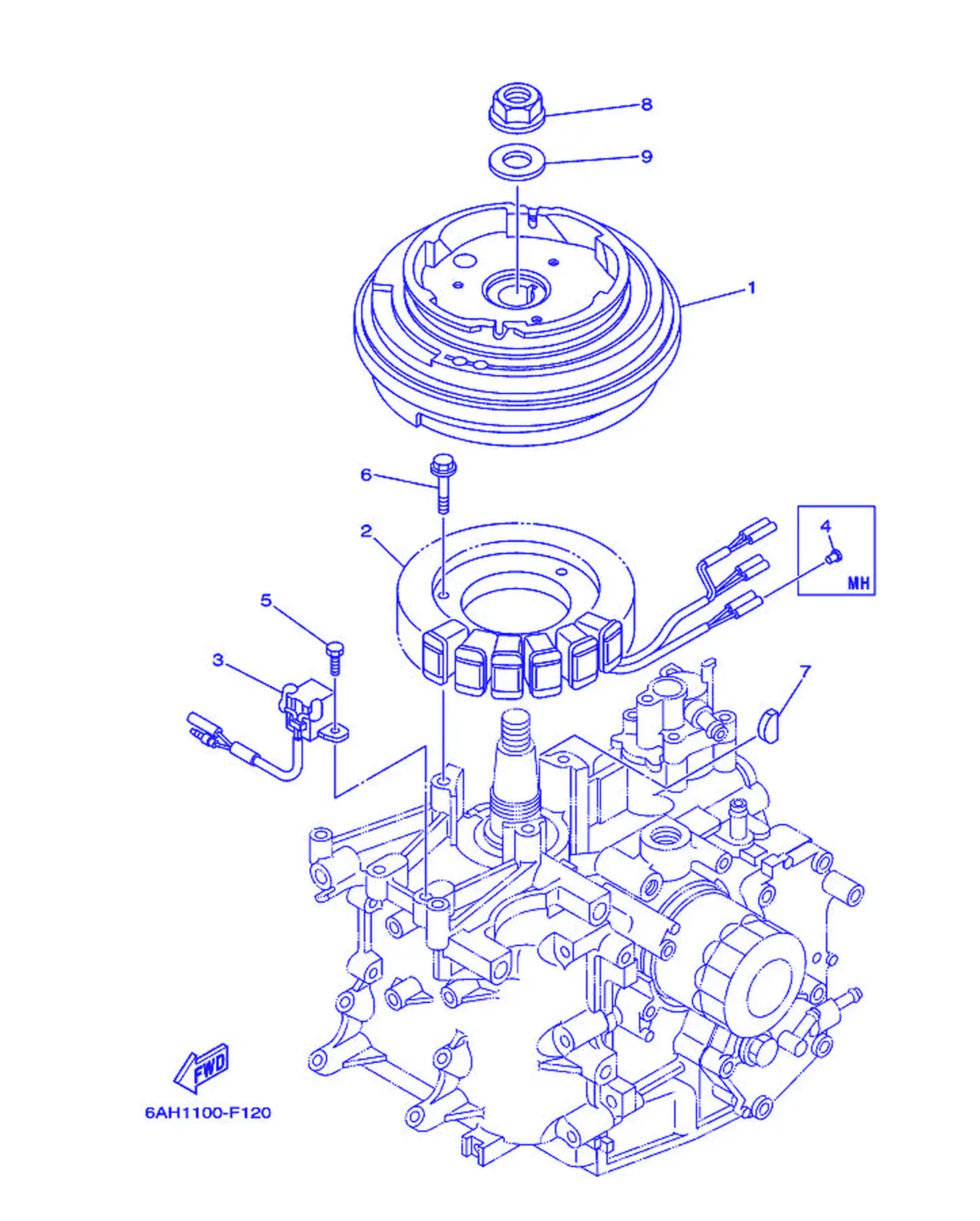

ゼネレ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-85550-10	转子总成	Rotor Assembly	1
2	6AH-85510-00	定子总成	Starter Assembly	1
3	6AH-85580-00	脉冲发生器总成	Coil, Pulser	1
5	97095-05012	螺栓	Bolt	2
6	95D95-06030	螺栓	Bolt, Flange Deep Recess	3
7	90280-05013	螺丝	Key, Woodruff	1
8	90179-16M05	螺母	Nut	1
9	90201-16M44	带垫面板	Washer,Plate	1

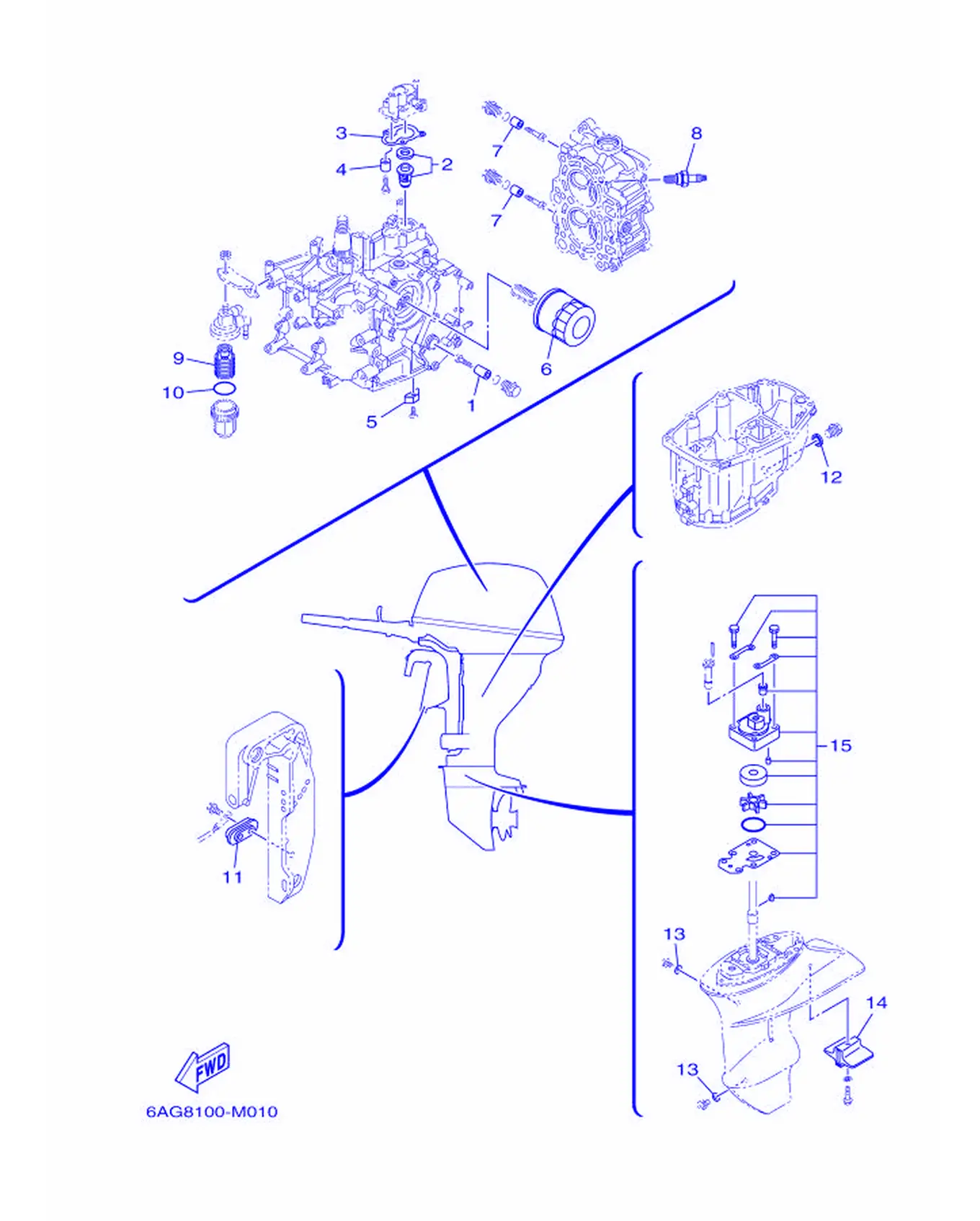

テイキコウカンブヒン

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-11325-00	阳极	Anode	1
2	6AH-12411-00	温控器	Thermostat	1
3	6AH-12414-00	盖衬垫	Gasket, Cover	1
4	6G8-11325-00	阳极	Anode	1
5	6E5-11325-00	阳极	Anode	1
6	5GH-13440-90	滤油器滤芯组合	Element Assembly, Oil Cleaner	1
7	6G8-11325-00	阳极	Anode	2
8	94709-00418	火花塞	Plug, Spark (NGK DPR6EB-9)	2
9	61N-24563-10	过滤器滤芯	Element, Filter	1
10	93210-32738	O型圈	O-ring	1
11	65W-45251-00	阳极	Anode	1
12	90430-14M09	衬垫	Gasket	1
13	90430-08003	垫片	Gasket	2
14	6AH-45251-00	阳极	Anode	1
15	6AH-W0078-02	水泵修理套	Water Pump Repair Kit	1

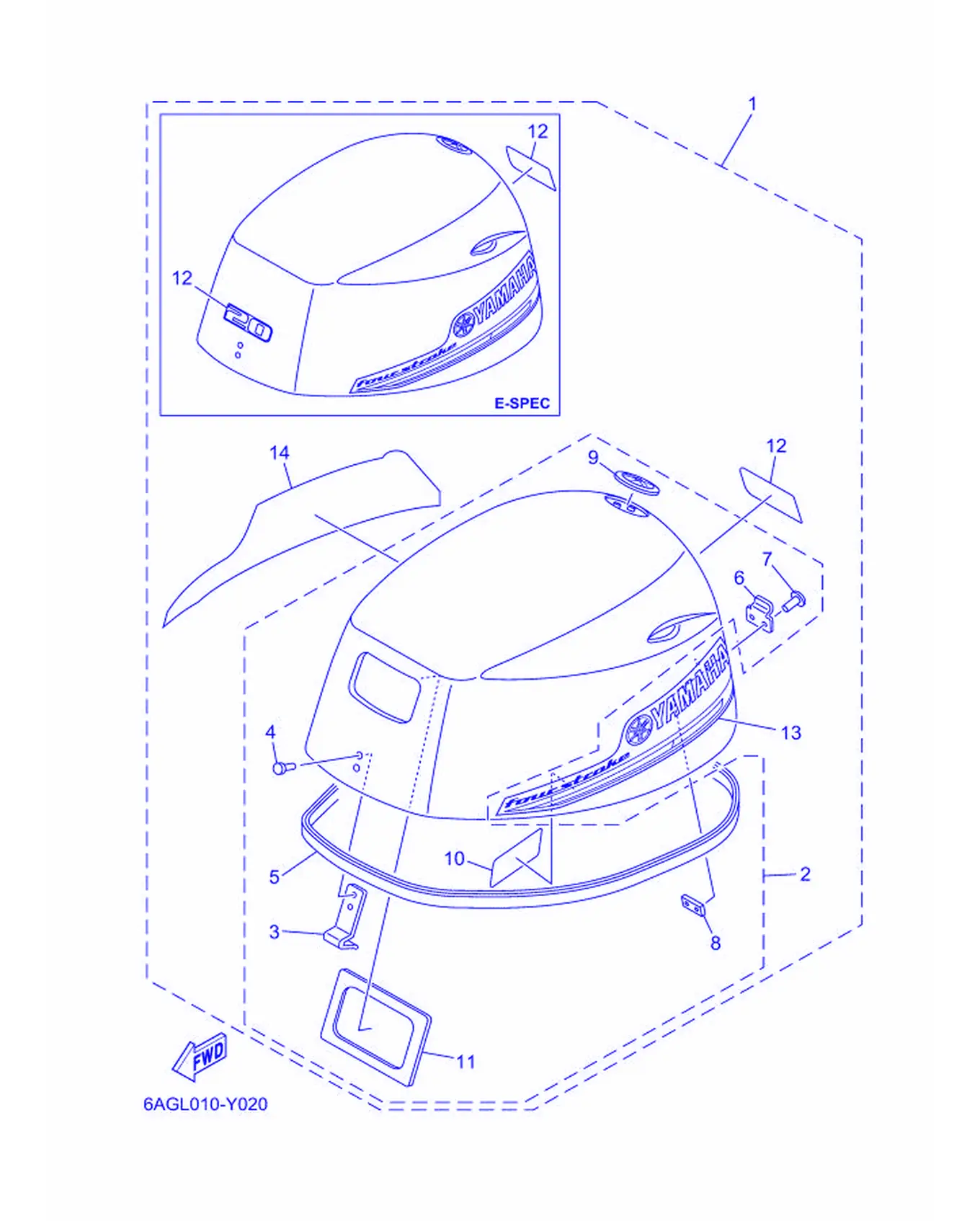

トツプカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-42610-B0	顶罩组合	Top Coupling Assembly	1
1	6AG-42610-90	顶罩组合	Top Coupling Assembly	1
2	6AH-4261A-30	顶罩组合	Top Cowling (Graphic)	1
3	6AH-42651-10	钩	Fook	1
4	90266-04M04	螺丝	Rivet	2
5	6AH-42615-00	密封	Seal	1
6	6FM-42652-00	钩	Fook	1
7	90266-04M01	螺丝	Rivet	2
8	6FM-42647-00	夹带支架	Holder, Clamp Band	1
9	6AH-42697-10	音叉标志	Tuning Fork Mark	1
10	6AH-42735-00	保护	Protector	1
12	6AH-42677-01	前图样	Graphic, Front	2
12	6AG-42677-21	前图样	Graphic, Front	2
13	6AG-42675-01	侧面图样1	Graphic, Side 1	1
14	6AG-42676-01	侧面图样2	Graphic, Side 2	1

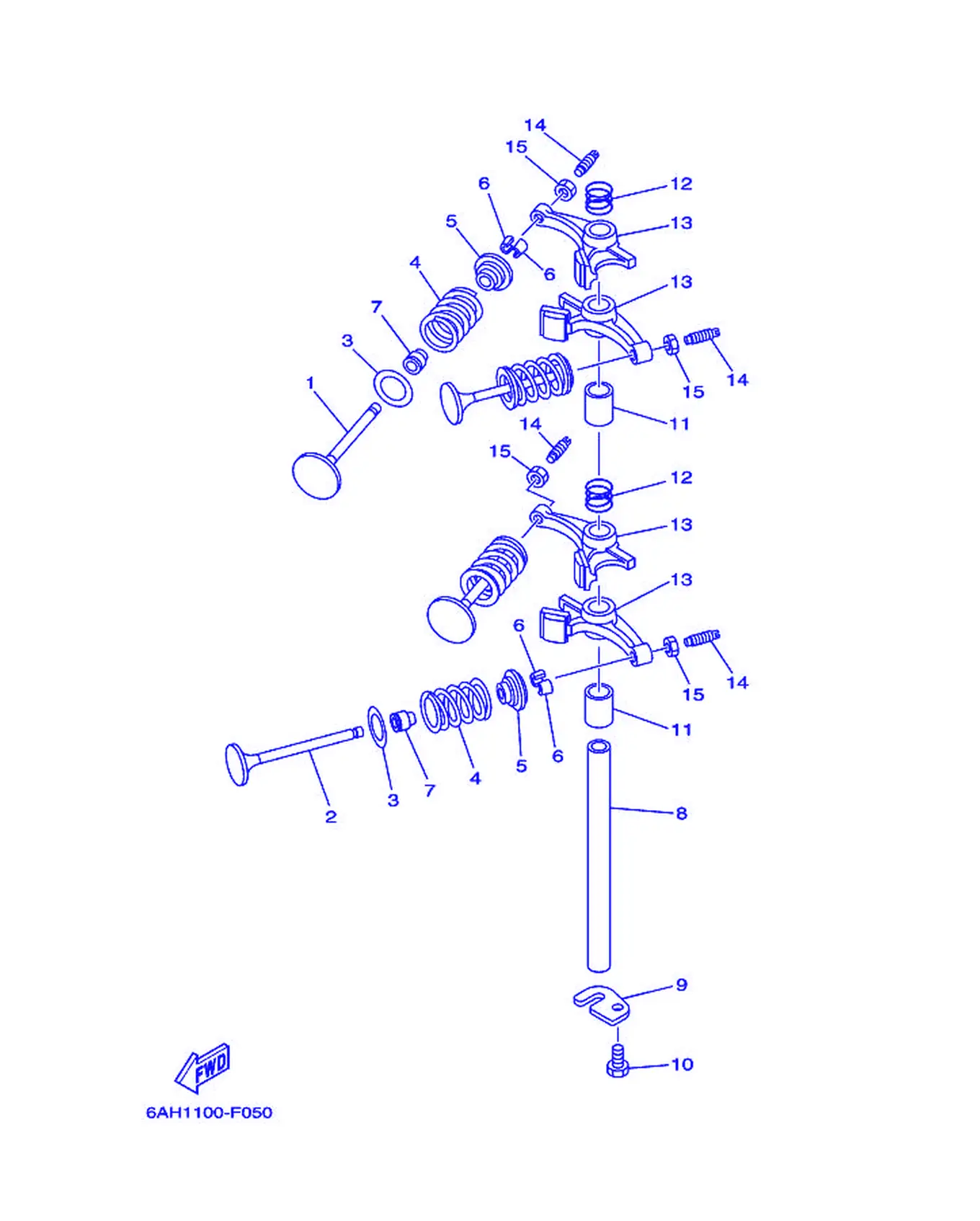

バルブ

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-12111-00	气门1	Valve, Intake	2
2	6AH-12121-10	气门2	Valve, Exhaust	2
3	62Y-12116-00	气门簧座	Seat,ValveSpring	4
4	3YF-12113-00	弹簧1	Spring, Valve Inner	4
5	30X-12117-00	气门弹簧座	Retainer,ValveSpring	4
6	30X-12118-00	气门锁销	Cotter, Valve	8
7	51Y-12119-00	气门杆密封	Seal, Valve Stem	4
8	66M-12146-00	摇臂轴	Shaft, Rocker	1
9	6AH-12279-00	面板	Plate	1
10	97013-06012	螺栓	Bolt	1
11	90387-13006	轴套	Collar	2
12	90501-120A5	压簧	Spring, Compression	2
13	6AH-12151-01	气门摇臂	Arm, Valve Rocker	4
14	64J-12159-00	气门调整螺钉	Screw, Valve Adjusting	4
15	62Y-12158-00	锁紧螺母	Nut,Lock	4

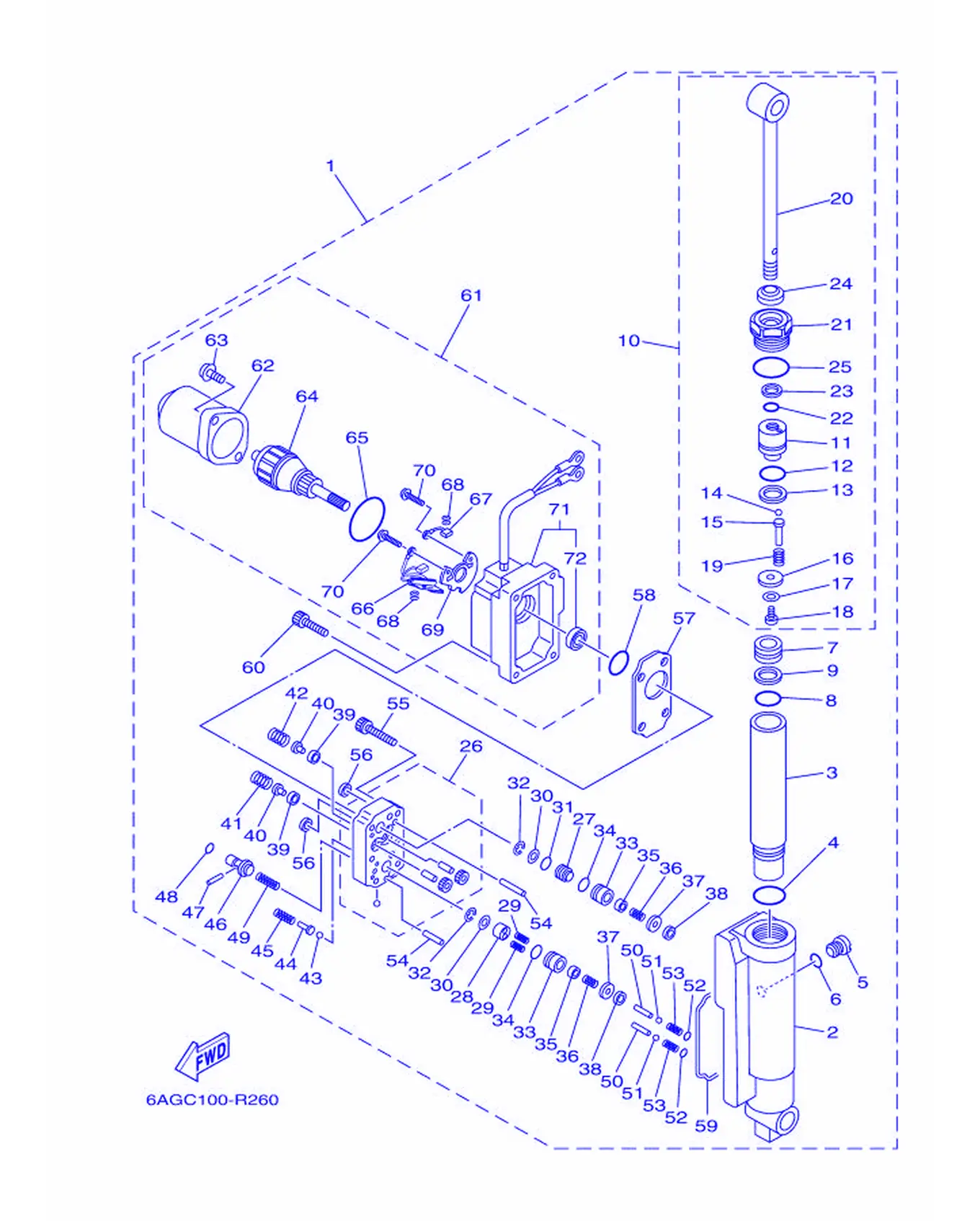

パワーチルトアセンブリ

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-43840-02-8D	电动角度定位装置组合	Power Tilt Assembly	1
2	6AH-4380K-00	角度定位气缸次组合	Cylinder, Tilt Sub-assembly	1
3	6AH-22471-00	减震器气	Cylinder, Shock Absorber	1
4	93210-320A7	O型圈	O-ring	1
5	6H1-4388E-11	锥形螺钉	Plug, Taper Screw	1
6	93210-07003	O型圈	O-ring	1
7	6AH-43814-00	自由活	Piston, Free	1
8	93210-24709	O型圈	O-ring	1
9	6C5-43871-00	密封圈	Ring, Back Up	1
10	6AH-43810-00	活塞分组合	Tilt Piston Sub-Assembly	1
11	6AH-4380D-00	活塞总成	Piston Complete	1
12	93210-24709	O型圈	O-ring	1
13	6C5-43871-00	密封圈	Ring, Back Up	1
14	93501-08001	滚珠	Ball	5
15	6AH-4386A-00	吸收器阀销	Pin, Absorber Valve	5
16	6AH-4385E-00	活塞板	Plate, Piston	1
17	92902-06200	盘形垫	Washer	1
18	6AH-43878-00	座螺	Bolt, Socket	1
19	6AH-43857-00	阀门减震器弹簧	Spring	5
20	6AH-43801-00	杆	Rod	1
21	6AH-43811-00	气缸端部螺钉	Screw, Cylinder End	1
22	6H1-43866-01	O型圈	O-ring	1
23	69A-43871-00	环	Ring, Back Up	1
24	69A-43812-00	防尘密封	Seal, Dust	1
25	62X-43862-00	O型圈	O-ring	1
26	6AH-43830-00	齿轮泵组合	Gear Pump Assembly	1
27	69A-43841-00	滑梭活	Piston, Shuttle	1
28	69A-4384M-00	滑梭活塞2	Piston, Shuttle 2	1
29	62Y-43894-00	滑梭回位弹簧	Spring, Shuttle Return	2
30	69A-4384F-00	主阀门密封	Seal, Main Valve	2
31	6H1-43883-00	O型圈	O-ring	1
32	99002-03600	簧环	Circlip	2
33	69G-4382G-00	波形垫	Valve Seat	2
34	93210-12N52	O型圈	O-ring	2
35	6T4-43808-00	阀座组件1	Seat Valve Complete 1	2
36	69G-43853-00	主阀门弹簧	Spring	2
37	69G-4388F-00	垫片	Spacer	2
38	69J-4381C-00	滤芯 3	Filter 3	2
39	6H1-4384G-11	安全阀密封	Seal, Relief Valve	2
40	6H1-43844-10	阀门支销	Pin, Valve Support	2
41	6F2-43855-00	上减压弹簧	Spring	1
42	6H1-43856-10	下减压弹簧	Spring, Down Relief	1
43	93501-08001	滚珠	Ball	2
44	69A-4386A-00	吸收器阀销	Pin, Absorber Valve	2
45	69A-43824-00	压缩弹簧	Spring, Down Relief 2	2
46	69A-43848-10	手控释放杆	Rod, Manual Release	1
47	93602-15250	定位销	Pin, Dowel	1
48	93210-06001	螺帽	O-ring	1
49	6AH-43854-00	手控释放弹簧	Spring, Manual Release	1
50	69A-4381G-00	销1	Pin 1	2
51	93501-08001	滚珠	Ball	2
52	6H1-43883-00	O型圈	O-ring	2
53	69A-4384H-00	弹簧	Spring	2
54	93606-14081	定位销	Pin, Dowel	2
55	91312-05025	螺栓	Bolt, Hexagon Socket Head	6
56	69J-4381C-00	滤芯 3	Filter 3	2
57	6AH-4381J-00	面板	Plate	1
58	N35-43862-10	O型圈	O-ring	1
59	69A-23129-00	放油螺塞衬垫	Gasket, Drain Plug	1
60	69A-43878-00	座螺	Bolt, Socket	4
61	6AH-43880-00	电动机总成	Motor Assembly	1
62	6AH-43804-00	定子组合	Starter Assembly	1
63	67C-43879-10	带垫螺钉	Screw, Washer	2
64	67C-43805-11	电枢组合	Armature Assembly	1
65	67C-43862-10	O型圈	O-ring	1
66	67C-82181-10	断路器组合	Circuit Breaker Complete	1
67	67C-43892-10	电刷 2	Brush 2	1
68	67C-4386K-10	电刷弹簧	Spring, Brush	2
69	67C-4380F-10	电刷架板	Plate, Brush Holder	1
70	97602-04316	螺丝	Screw, Pan Head Washer	2
71	6AH-43881-01	端部框架	Frame, End	1
72	67C-43882-10	油封	Oil Seal	1

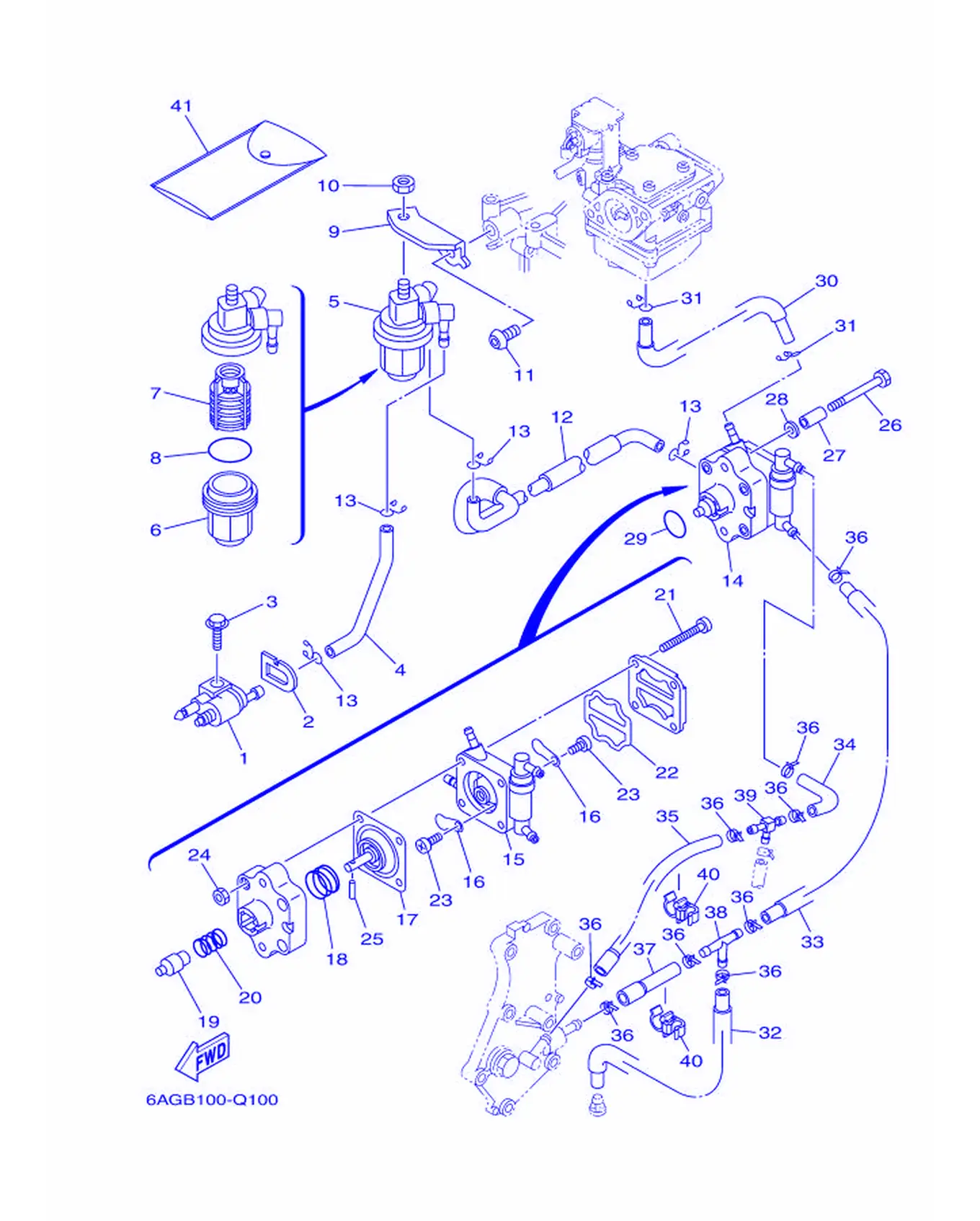

フユエル

REF	雅马哈编码	中文名称	英文名称	用量
1	6G1-24304-11	燃油管接头组件1	Fuel Pipe Joint Complete 1	1
2	61N-24329-01	密封	Seal	1
3	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	1
4	6AH-24311-00	油管	Pipe, Fuel 1	1
5	61N-24560-10	汽油过滤器组合	Filter Assembly	1
6	61N-24521-00	滤杯	Cup, Filter	1
7	61N-24563-10	过滤器滤芯	Element, Filter	1
8	93210-32738	O型圈	O-ring	1
9	6AH-24566-00	过滤器支架	Bracket, Filter	1
10	95380-08600	有槽螺母	Nut	1
11	90111-08055	内六角薄型螺栓	Bolt	1
12	6AH-24312-00	燃油管2	Pipe 2	1
13	90467-09M17	固定	Clip	4
14	6AH-24410-01	燃油泵组合	Fuel Pump Assembly	1
15	6AH-24413-00	燃油泵本体2	Body 2	1
16	6A0-24421-01	单向阀	Valve, Check	2
17	66M-24411-12	隔膜，隔板	Diaphragm	1
18	66M-24423-00	隔膜弹	Spring,Diaphragm	1
19	66M-13131-10	柱	Plunger	1
20	66M-24454-00	弹簧	Spring	1
21	66M-24444-00	螺钉	Screw	4
22	66M-24471-02	隔膜	Diaphragm	1
23	6E7-14325-00	扁头螺钉	Screw, Pan Head	2
24	95380-04600	有槽螺母	Nut	4
25	66M-24374-00	销	Pin	1
26	90101-06032	螺栓	Bolt, Hexagon	2
27	90387-06M17	衬套	Color	2
28	90201-06106	平垫圈	Washer,Plate	2
29	93210-20M65	O型圈	O-ring	1
30	6AH-24313-00	管3	Pipe 3	1
31	90467-09M17	固定	Clip	2
32	6AH-24321-00	管	Pipe 10	1
33	6AH-24322-00	管	Pipe 11	1
34	90445-09026	软管	Hose (L68)	1
35	6AH-24323-00	管	Pipe 12	1
36	90465-11M10	固定	Clamp	9
37	6AH-24324-00	管	Pipe 13	1
38	688-24378-00	连接管4	Pipe,Joint	1
39	6C5-24378-00	连接管4	Pipe,Joint 3	1
40	90464-09018	固定	Clamp	2
41	62Y-28100-01	工具套件	Tool Kit	1

フユエルタンク

REF	雅马哈编码	中文名称	英文名称	用量
1	6YJ-W2420-J3	燃油箱组合	Fuel Tank Assembly (24L)	1
2	6YJ-24610-01	盖组合	Cap Assembly	1
3	6Y1-24260-30	油量计组合	Fuel Meter Assembly	1
4	90157-05M19	螺钉	Screw, Pan Head	4
5	6Y1-24329-00	密封	Seal	4
6	6Y1-24268-01	油量计衬垫	Gasket, Fuel Meter	1
7	6YJ-24167-00	滤	Strainer	1
8	6Y1-24306-56	燃油管组件1	Fuel Pipe Complete 1	1
9	6G1-24305-05	燃油管接头2(85以下D:11MM)含	Fuel Pipe Joint Complete	1
10	93210-08287	O型圈	O-ring	1
11	6Y1-24305-06	燃油管接头2	Fuel Pipe Joint Complete	1
12	93210-08287	O型圈	O-ring	1
13	90445-11M58	油管	Hose (L2050)	1
14	650-24351-51	带1	Band 1	4
15	90445-11M57	软管	Hose (L850)	1
16	6Y1-24360-52	起动注油泵组合	Primer Pump Assembly	1

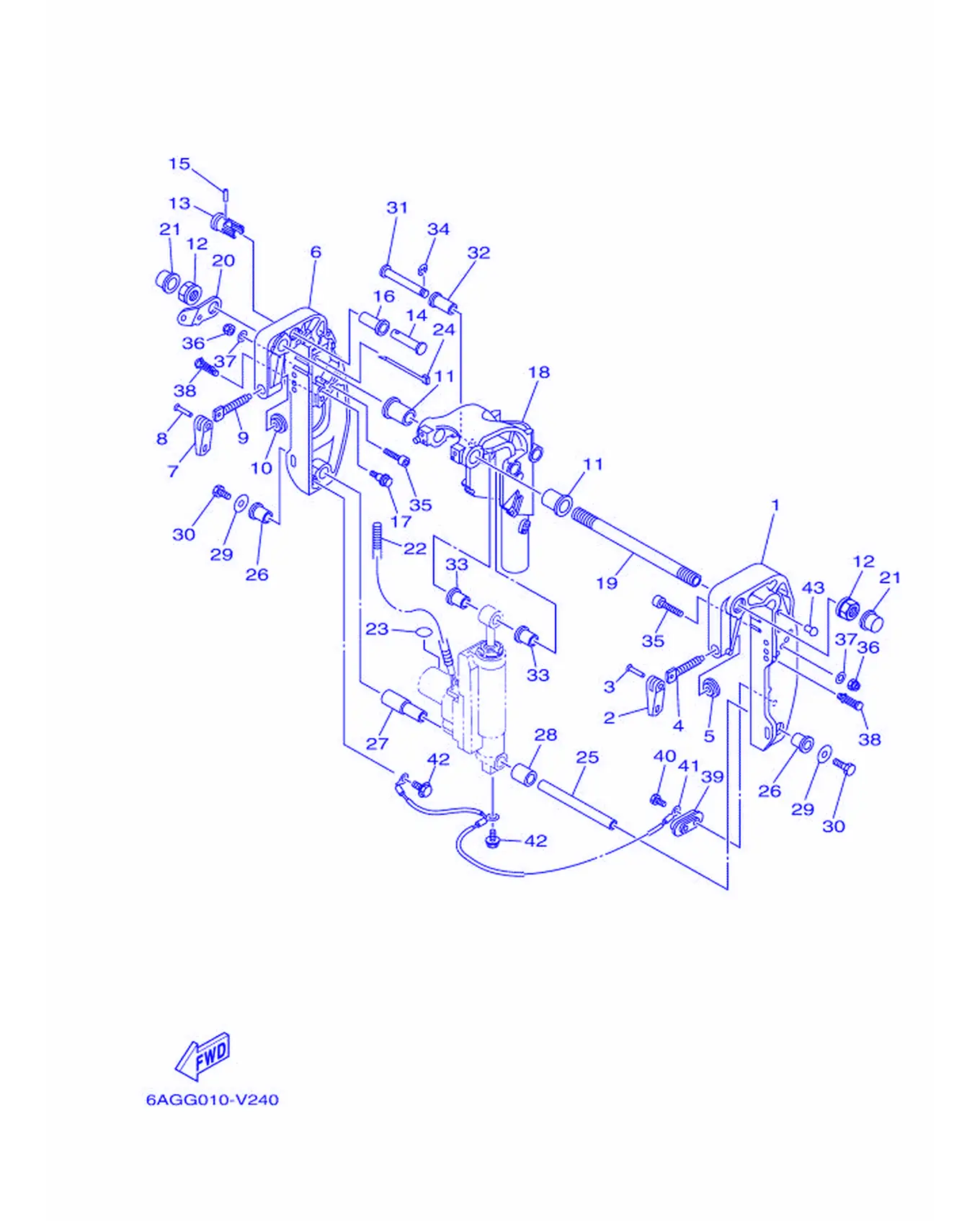

ブラケツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	69A-43111-01-8D	夹紧托架	Bracket, Clamp 1	1
2	6E0-43118-01	艉板夹紧手柄	Handle, Transom Clamp	1
3	90243-04M01	销	Pin	1
4	6E7-43116-00	艉板夹紧螺钉	Screw, Transom Clamp	1
5	648-43114-01	艉板夹紧衬垫	Pad, Transom Clamp	1
6	69A-43112-02-8D	夹紧托架	Bracket, Clamp 2	1
7	6E0-43118-01	艉板夹紧手柄	Handle, Transom Clamp	1
8	90243-04M01	销	Pin	1
9	6E7-43116-00	艉板夹紧螺钉	Screw, Transom Clamp	1
10	648-43114-01	艉板夹紧衬垫	Pad, Transom Clamp	1
11	90386-22MA4	衬套	Bushing	2
12	90185-22043	卡环	Nut, Self-Locking	2
13	6FM-43192-00	限位旋钮	Knob, Stopper	1
14	65W-43191-00	限位轴	Shaft, Stopper	1
15	91690-30018	弹簧销	Pin,Spring	1
16	6FM-43189-00	衬套	Bushing	1
17	90109-06MA1	螺栓	Bolt	1
18	69A-43311-11-8D	旋转支架	Bracket, Swivel 1	1
19	69A-43131-00	夹紧托架螺栓	Bolt,ClampBracket	1
20	69A-43113-00	夹紧托架面板	Plate,ClampBracket	1
21	6G5-43145-01	夹紧托架盖	Cap,ClampBracket	2
22	90446-14MH7	软管 (L560)	Hose (L560)	1
23	69A-43155-00	标志1	Mark 1	1
24	90465-13M97	固定	Clamp	1
25	69G-43818-00	下侧防震销	Pin, Lower Shock Mount	1
26	90386-16MA7	衬套	Bushing	2
27	90386-16MA8	衬套	Bushing	1
28	90387-16M02	衬套	Color	1
29	90201-08M00	垫圈	Washer,Plate	2
30	97080-08016	螺栓	Bolt	2
31	90249-12M36	接头	Pin	1
32	90381-12M10	双金属衬套	Bush, Solid	1
33	90381-12M11	双金属衬套	Bush, Solid	2
34	99080-10600	卡环	Circlip	1
35	90110-08121	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	2
36	90185-08057	卡环	Nut, Self-Locking	2
37	92990-08600	盘形垫	Washer,Plate	2
38	90338-08M19	卡环	Plug	2
39	65W-45251-00	阳极	Anode	1
40	90101-06020	螺栓	Bolt, Hexagon	2
41	63V-82127-00	导线2	Wire,Lead 2	1
42	97E95-06510	螺栓	Bolt, Hexagon with Washer Deep Recess	2
43	90269-02M08	螺丝	Rivet	2

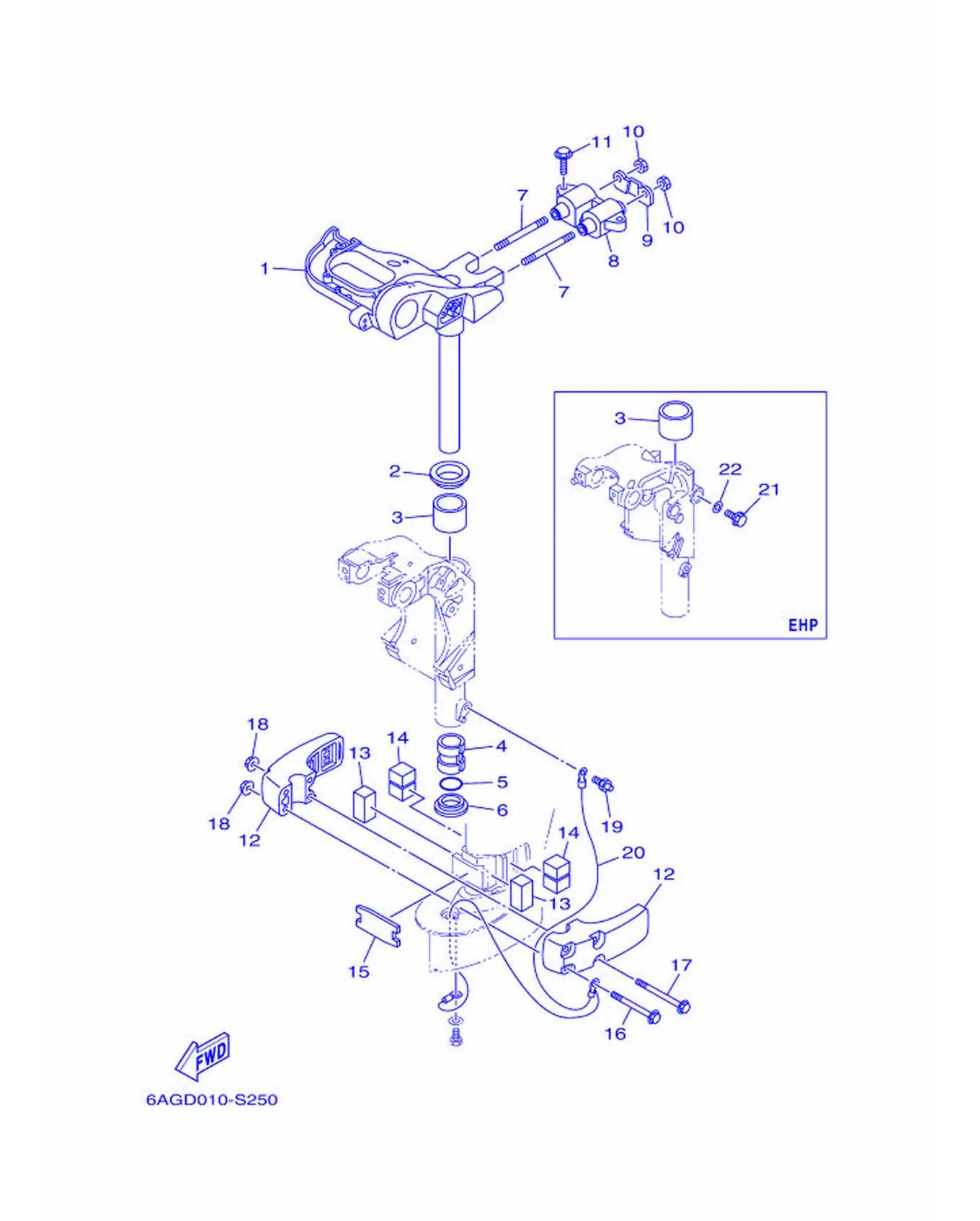

ブラケツト 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-42510-10-8D	方向托架组合	Steering Bracket Assembly	1
2	90209-40008	螺丝	Washer	1
3	90386-40001	衬套	Bushing	1
4	90386-30048	衬套	Bushing	1
5	93210-29M94	O型圈	O-ring	1
6	90386-30M60	衬套	Bushing	1
7	90116-10033	双头螺栓	Bolt, Stud	2
8	6AH-44514-00	上侧减震胶垫	Mount Damper, Upper Side	1
9	6AH-44526-00	面板	Plate	1
10	95380-10600	有槽螺母	Nut	2
11	90119-08094	带垫圈六角头螺栓	Bolt, with Washer	2
12	6AH-44551-A0-8D	下侧减震胶垫壳	Housing, Lower Mount Rubber 1	2
13	6AH-44557-00	前下侧减震胶垫	Mount Damper, Lower Front	2
14	6AH-44555-00	下侧减震胶垫	Mount Damper, Lower Side	2
15	6AH-44574-00	下侧减震胶垫限位板	Stopper, Lower Mount Rubber	1
16	90119-08206	带垫圈六角头螺栓	Bolt, with Washer	2
17	90119-08207	带垫圈六角头螺栓	Bolt, with Washer	2
18	90179-08M34	螺帽	Nut	4
19	93700-06004	翼形螺	Nipple, Grease	1
20	6AH-82127-11	导线2	Wire, Lead 2	1
21	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	1
22	92995-06600	盘形垫	Washer	1

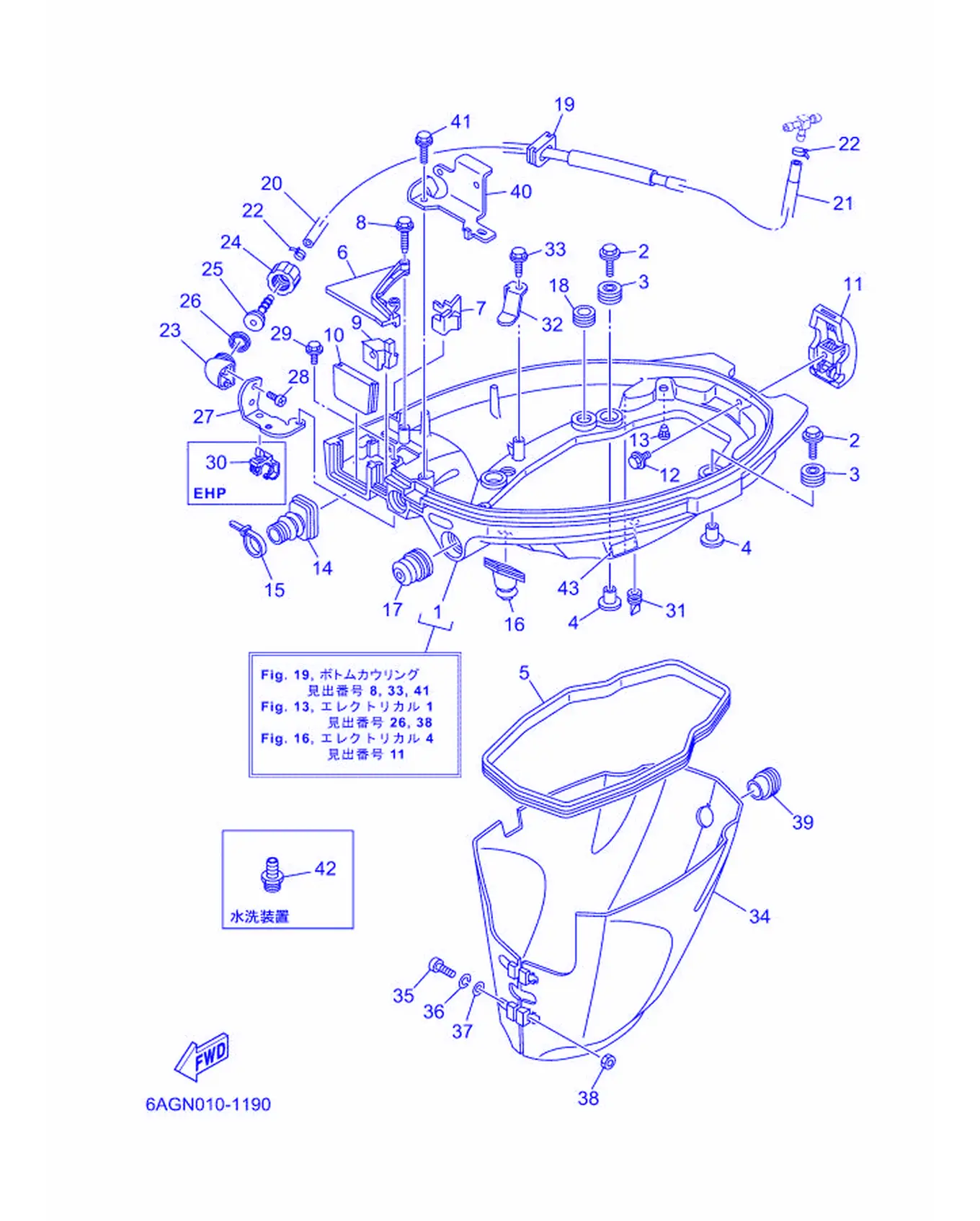

ボトムカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-42710-30-8D	底罩组合	Bottom Cowling Assembly	1
2	90119-06291	带垫圈六角头螺栓	Bolt, with Washer	4
3	90480-21M82	固定	Grommet	4
4	90387-06176	衬套	Color	4
5	6AH-42716-00	密封橡皮块1	Rubber Seal 1	1
6	6AH-42738-00-8D	装配面板	Fitting Plate	1
7	6AH-42718-01	密封橡皮块3	Rubber, Seal 3	1
8	90109-06M82	螺栓	Bolt	2
9	6AH-42725-11	固定	Grommet	1
10	6AH-42724-01	固定	Grommet	1
11	6AH-42801-00	罩箍组	Cowling Clamp Complete	1
12	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1
13	6BL-44391-00	软管管嘴	Nipple,Hose	1
14	6AH-26326-01	固定	Grommet	1
15	90465-11M10	固定	Clamp	1
16	6AH-42727-01	固定	Grommet	1
17	65W-42726-01	固定	Grommet	1
18	90480-16007	橡胶垫	Grommet	1
19	6AH-42726-01	固定	Grommet	1
20	6AH-24314-01	管4	Pipe 4	1
21	90445-15003	软管	Hose (L230)	1
22	90465-11M10	固定	Clamp	2
23	6DR-12572-00	适配器	Adapter	1
24	6R3-12581-10	软管接头1	Joint, Hose 1	1
25	6R3-12582-00	软管接头2	Joint,Hose 2	1
26	6R3-12583-10	软管接头衬垫	Gasket, Hose Joint	1
27	6AH-12535-00	面板	Plate	1
28	90167-06002	卡环	Screw, Tapping	2
29	97E95-06510	螺栓	Bolt, Hexagon with Washer Deep Recess	2
30	90464-12M58	固定	Clamp	1
31	65W-42717-00	密封橡皮块2	Rubber,Seal 2	2
32	6AH-42743-00	托架	Bracket	1
33	90109-06M86	螺栓	Bolt	1
34	6AH-42741-00	挡板	Apron 1	1
35	97885-06030	十字槽盘头螺钉	Screw, Pan Head	2
36	92995-06100	垫圈	Washer,Spring	2
37	92995-06600	盘形垫	Washer	2
38	95380-06600	有槽螺母	Nut, Hexagon	2
39	6AH-42717-01	密封橡皮块2	Rubber, Seal 2	1
42	69J-12584-10	软管接头	Joint, Hose 3	1
43	6EE-42794-01	警告标志	Label, Warning (General)	1

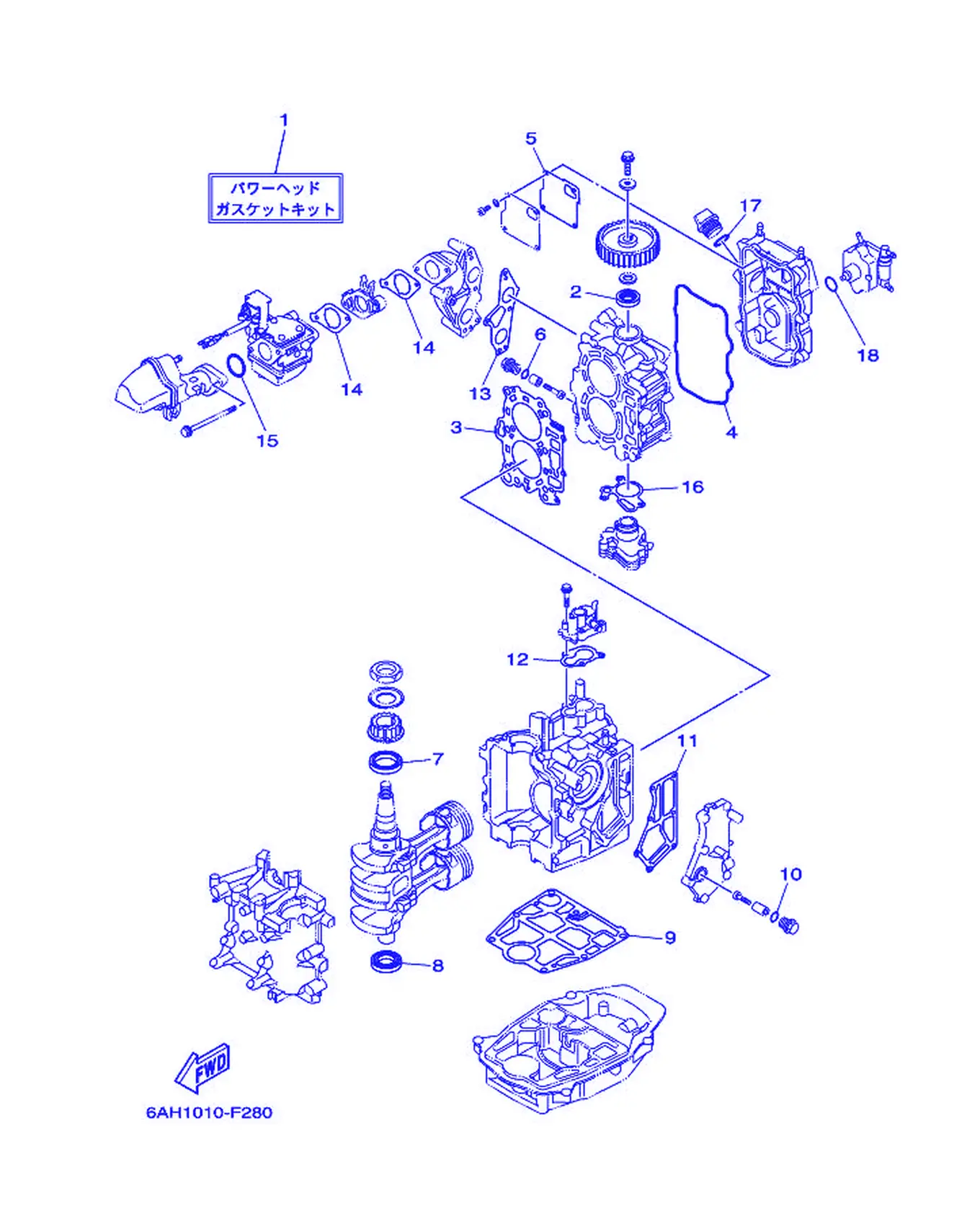

リペアキツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6AG-W0001-01	衬垫套件	Power Head Gasket Kit	1
2	93102-22010	油封	Oil Seal	1
3	6AG-11181-10	气缸头垫片1	Gasket, Cylinder Head 1	1
4	6AH-11356-00	气缸密封圈2	Seal, Cylinder 2	1
5	6AH-11169-00	通气管盖衬垫	Gasket, Breather Cover	1
6	93210-13M63	O型圈	O-ring	2
7	93102-37004	油封	Oil Seal	1
8	93102-25014	油封	Oil Seal	1
9	6AH-11351-11	气缸垫片1	Gasket, Cylinder	1
10	93210-13M63	O型圈	O-ring	1
11	6AH-41114-00	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
12	6AH-12414-00	盖衬垫	Gasket, Cover	1
13	6AH-13645-00	岐管衬垫1	Gasket, Manifold 1	1
14	6AH-13646-00	岐管衬垫2	Gasket, Manifold 2	2
15	93210-35M86	O型圈	O-ring	1
16	6AH-13329-11	泵盖垫片	Gasket, Pump Cover	1
17	93210-24M79	O型圈	O-ring	1
18	93210-20M65	O型圈	O-ring	1

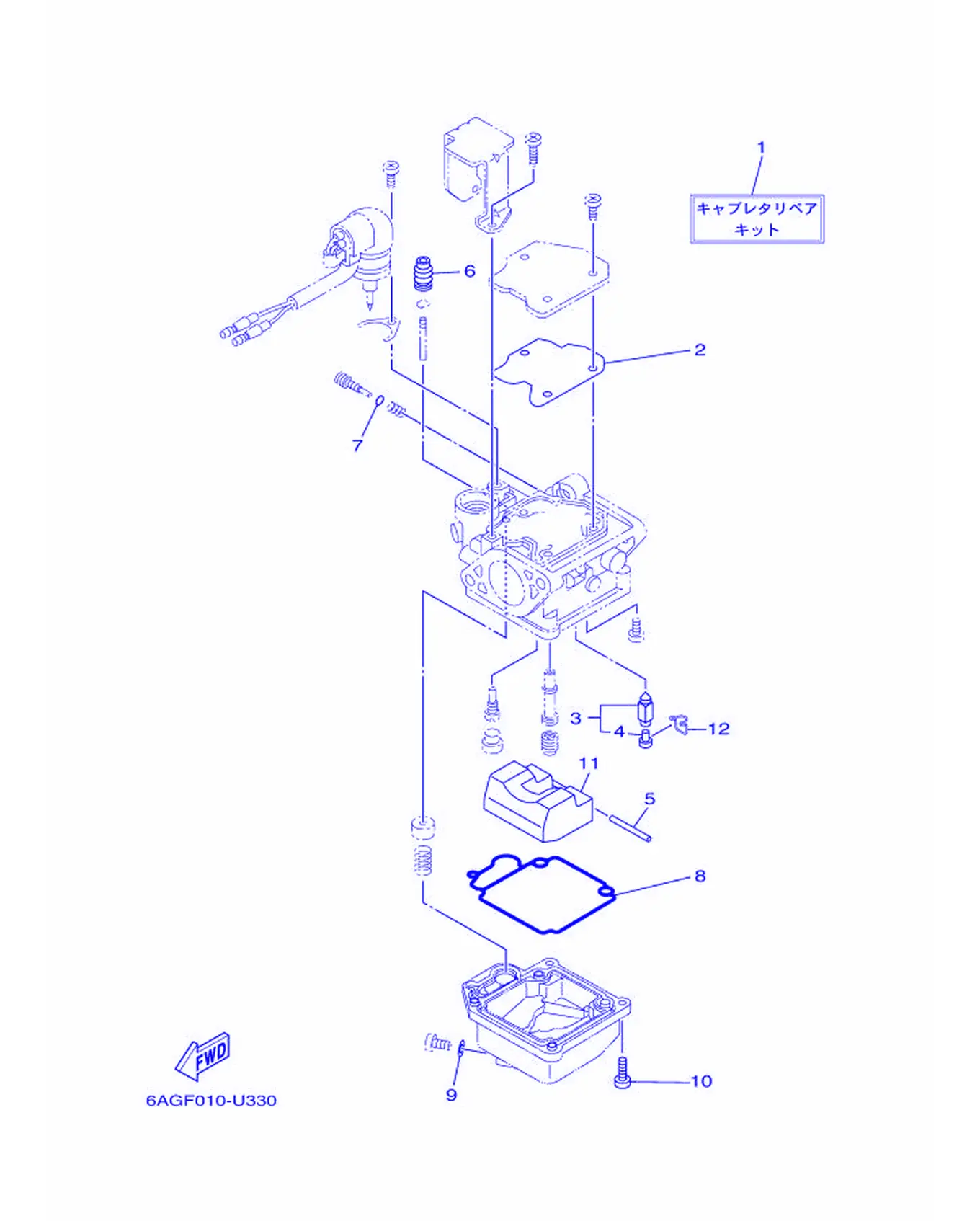

リペアキツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-W0093-02	化油器修理套	Carburetor Repair Kit	1
2	65W-14126-10	衬垫	Gasket	1
3	6AH-W1456-10	针阀	Valve, Needle	1
4	676-14186-00	浮子销	Pin, Float	1
5	6H4-14548-00	浮子臂销	Pin, Float Arm	1
6	65W-14373-02	柱塞罩盖	Cover, Plunger Clip	1
7	67F-14398-10	衬垫	O-ring	1
8	6AH-14384-00	浮子室密封垫片	Gasket, Float Chamber	1
9	65W-14398-00	衬垫	Gasket	1
10	97980-04114	带垫圈螺钉	Screw, Washer	4
11	6AH-14985-00	浮子	Float	1
12	633-14159-00	钢夹	Clip	1

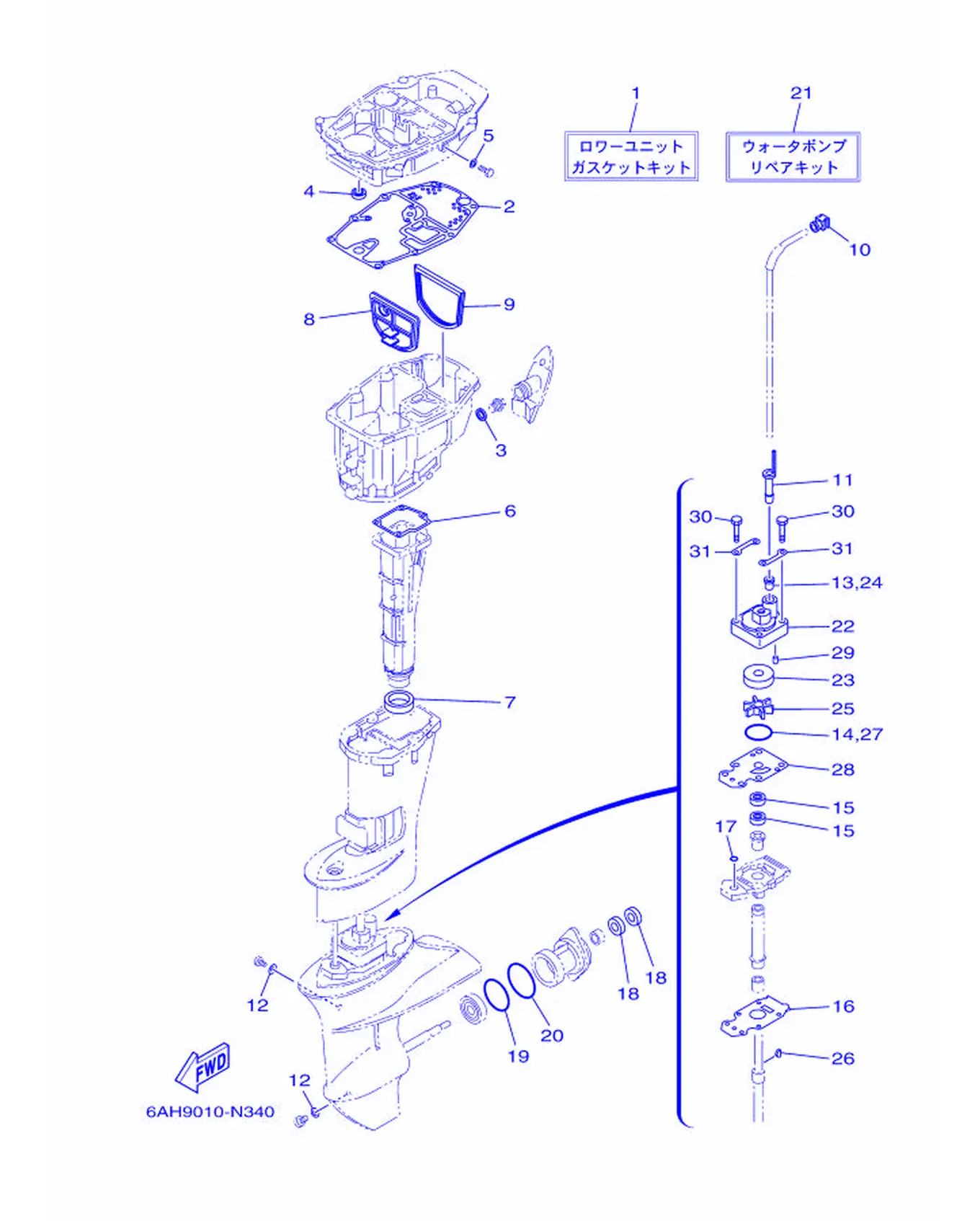

リペアキツト 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-W0001-22	衬垫套件	Lower Unit Gasket Kit	1
2	6AH-15312-11	油槽衬垫	Gasket, Oil Pan	1
3	90430-14M09	衬垫	Gasket	1
4	93101-12M63	油封	OilSeal	1
5	90430-08143	衬垫	Gasket	1
6	6AH-41134-00	排气岐管衬垫	Gasket, Exhaust Manifold 2	1
7	6AH-41138-00	排气管密封圈1	Seal, Exhaust 1	1
8	6AH-45126-00	减震器密封面板	Seal Damper Plate	1
9	6AH-45115-00	水上装置壳体衬垫	Gasket, Upper Casing	1
10	6AH-44365-00	水封减震器	Damper, Water Seal 1	1
11	6AH-44368-00	橡皮水封4	Rubber, Water Seal 4	1
12	90430-08003	垫片	Gasket	2
13	6L2-44367-01	水封减震器	Damper, Water Seal 3	1
14	93210-49046	O型圈	O-ring	1
15	93101-20001	油封	OilSeal	2
16	69G-45315-A0	水下装置壳体密封垫	Packing, Lower Casing	1
17	93210-06ME6	O型圈	O-ring	1
18	93101-17054	油封	OilSeal	2
19	93210-57M09	O型圈	O-ring	1
20	93210-56M80	O型圈	O-ring	1
21	6AH-W0078-02	水泵修理套	Water Pump Repair Kit	1
22	6AH-44311-00	水泵壳	Housing, Water Pump	1
23	63V-44322-00	芯子	Insert, Cartridge	1
24	6L2-44367-01	水封减震器	Damper, Water Seal 3	1
25	63V-44352-01	叶轮	Impeller	1
26	664-44338-00	半圆键	Key, Woodruff	1
27	93210-49046	O型圈	O-ring	1
28	68T-44323-00	外挡板	Outer Plate, Cartridge	1
29	93604-12M07	定位销	Pin, Dowel	2
30	97D95-08045	螺栓	Bolt, Hexagon Deep Recess	4
31	63V-44328-01	面板	Plate	2

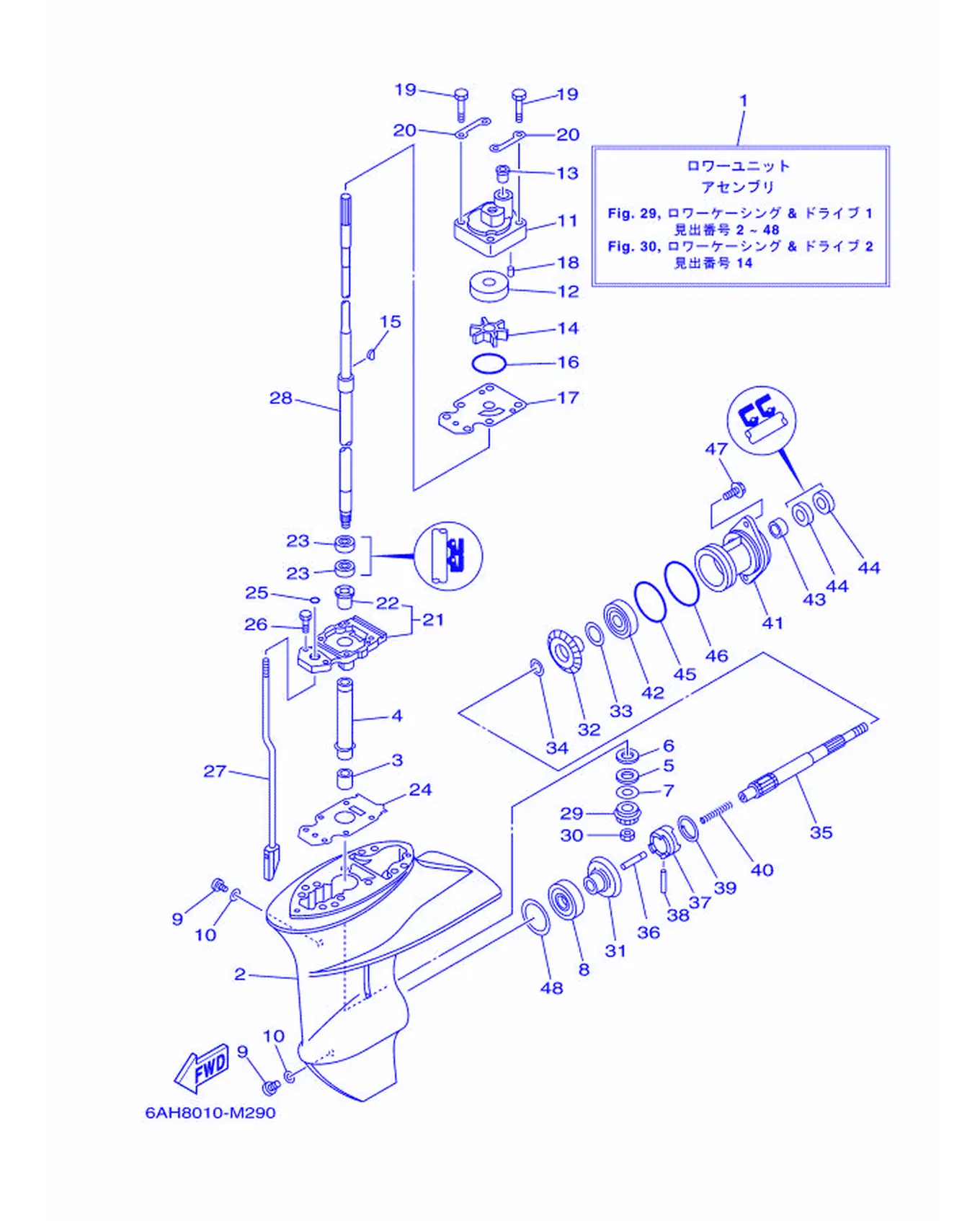

ロワーケーシング & ドライブ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-45300-13-8D	水下装置总成	Lower Unit Assembly	1
2	6AH-45311-00-8D	水下装置壳	Casing, Lower	1
3	93315-314V8	轴承	Bearing	1
4	63V-45536-00	驱动轴套	Sleeve,Drive Shaft	1
5	90209-14011	垫圈	Washer	1
6	90201-15017	平垫圈	Washer, Plate	1
7	6E8-45587-10	填隙	Shim (T:1.13MM)	1
7	6E8-45587-30	填隙	Shim (T:1.20MM)	1
8	93332-00005	轴承	Bearing	1
9	90340-08002	螺丝	Plug, Straight Screw	2
10	90430-08003	垫片	Gasket	2
11	6AH-44311-00	水泵壳	Housing, Water Pump	1
12	63V-44322-00	芯子	Insert, Cartridge	1
13	6L2-44367-01	水封减震器	Damper, Water Seal 3	1
14	63V-44352-01	叶轮	Impeller	1
15	664-44338-00	半圆键	Key, Woodruff	1
16	93210-49046	O型圈	O-ring	1
17	68T-44323-00	外挡板	Outer Plate, Cartridge	1
18	93604-12M07	定位销	Pin, Dowel	2
19	97D95-08045	螺栓	Bolt, Hexagon Deep Recess	4
20	63V-44328-01	面板	Plate	2
21	69G-45331-01-CA	轴承壳	Housing,Bearing	1
22	626-45316-09	驱动轴衬套	Bushing, Drive Shaft	1
23	93101-20001	油封	OilSeal	2
24	69G-45315-A0	水下装置壳体密封垫	Packing, Lower Casing	1
25	93210-06ME6	O型圈	O-ring	1
26	97080-08025	螺栓	Bolt	2
27	6AH-44150-11	变挡凸轮组合	Shift Cam Assembly	1
28	6AH-45510-10	驱动轴组合	Drive Shaft Assembly	1
29	63V-45551-00	小齿轮	Pinion (13T)	1
30	90179-08M06	螺母	Nut	1
31	6E7-45560-01	齿轮	Gear 1 (27T)	1
32	6E7-45571-00	齿轮	Gear	1
33	626-45577-00	填隙	Shim (T:0.10MM)	1
33	626-45577-10	填隙	Shim (T:0.20MM)	1
33	626-45577-20	填隙	Shim (T:0.30MM)	1
33	626-45577-30	填隙	Shim (T:0.40MM)	1
33	626-45577-40	填隙	Shim (T:0.50MM)	1
34	90201-17682	垫圈	Washer,Plate	1
35	683-45611-00	螺旋浆轴	Shaft,Propeller	1
36	650-45635-00	变挡柱	Plunger, Shift	1
37	682-45631-00	爪形离合器	Clutch, Dog	1
38	90250-05010	圆柱销	Pin, Straight	1
39	648-45633-11	固定环	Ring, Cross Pin	1
40	90501-150A0	压簧	Spring, Compression	1
41	683-45361-02-8D	水下装置壳体盖	Cap, Lower Casing	1
42	93306-00501	轴承	Bearing	1
43	93315-317U2	轴承	Bearing	1
44	93101-17054	油封	OilSeal	2
45	93210-57M09	O型圈	O-ring	1
46	93210-56M80	O型圈	O-ring	1
47	90119-06321	带垫圈六角头螺栓	Bolt, with Washer	2
48	664-45567-01	填隙	Shim (T:0.10MM)	1
48	664-45567-10	填隙	Shim (T:0.12MM)	1
48	664-45567-20	填隙	Shim (T:0.15MM)	1
48	664-45567-30	填隙	Shim (T:0.18MM)	1
48	664-45567-40	填隙	Shim (T:0.30MM)	1
48	664-45567-50	填隙	Shim (T:0.40MM)	1
48	664-45567-60	填隙	Shim (T:0.50MM)	1

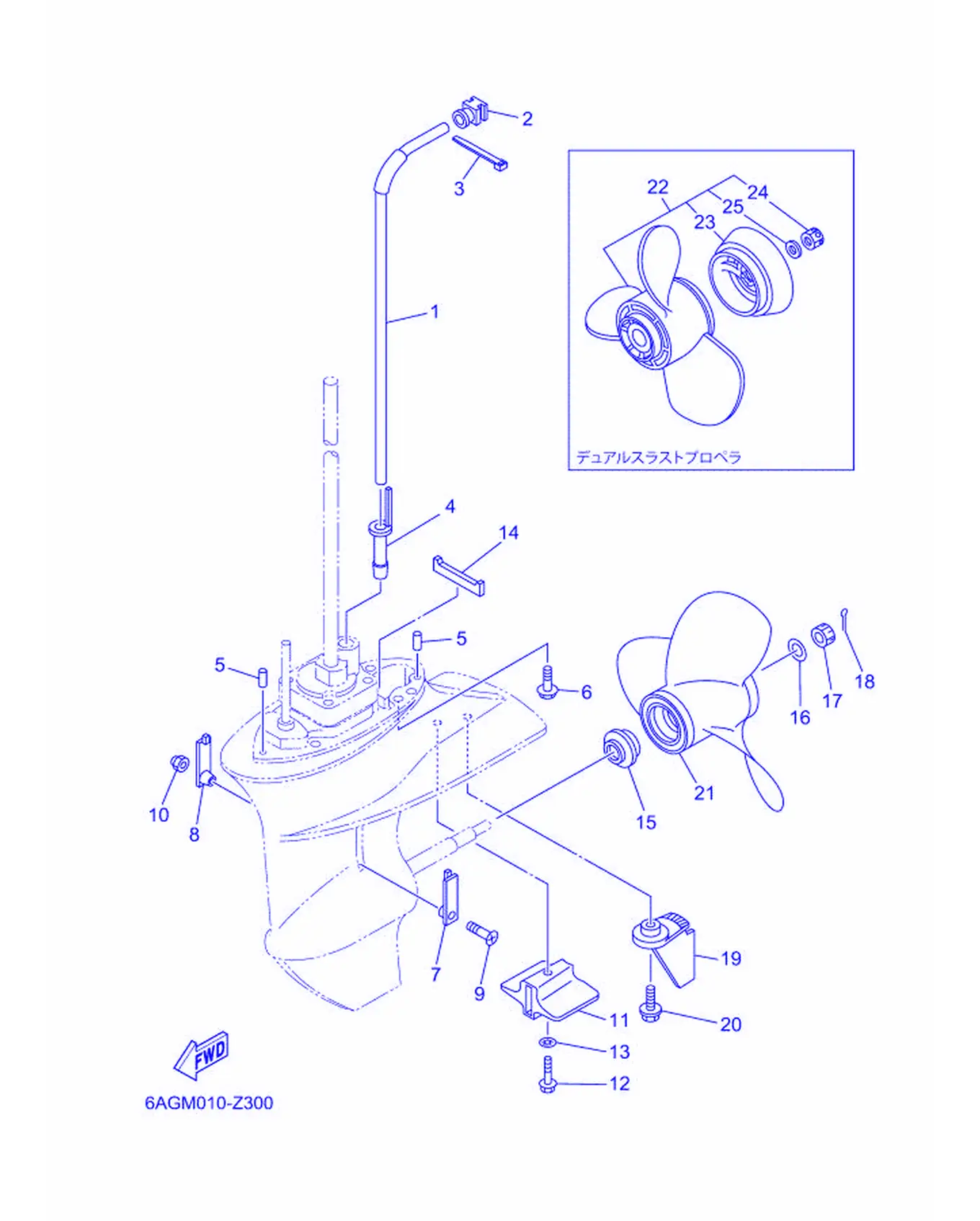

ロワーケーシング & ドライブ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-44361-11	水管	Tube, Water 1	1
2	6AH-44365-01	水封减震器	Damper, Water Seal 1	1
3	90465-11M10	固定	Clamp	1
4	6AH-44368-01	橡皮水封4	Rubber, Water Seal 4	1
5	93604-12M07	定位销	Pin, Dowel	2
6	90119-08205	带垫圈六角头螺栓	Bolt, with Washer	4
7	6G1-45214-00	进水口盖	Cover, Water Inlet 1	1
8	63V-45215-00	进水口盖	Cover, Water Inlet 2	1
9	90152-05011	沉头螺钉	Screw, Countersunk	1
10	90185-05002	螺母	Nut, Self-Locking	1
11	6AH-45251-00	阳极	Anode	1
12	95D95-06035	凸缘螺栓	Bolt, Flange Deep Recess	1
13	92990-06300	盘形垫	Washer, Internal Tooth	1
14	63V-45375-00	密封圈减震	Damper,Seal	1
15	6E7-45987-01	衬套	Spacer	1
16	90201-10M01	平垫圈	Washer,Plate	1
17	90171-10M01	螺帽	Nut, Castle	1
18	91490-30025	开口销	Pin, Cotter	1
19	6AH-45371-A0	航向调整	Tab Trim	1
20	90119-06311	带垫圈六角头螺栓	Bolt, with Washer	1
21	683-45949-00	螺旋浆组合	Propeller (3X9-1/2X6-1/2-J)	1
21	63V-45947-00	螺旋浆组合	Propeller (3X9-1/4X8-J)	1
21	63V-45945-10	螺旋浆组合	Propeller (3X9-1/4X9-J1)	1
21	683-45952-00	螺旋浆组合	Propeller (3X9-1/4X9-3/4-J)	1
21	63V-45952-10	螺旋浆组合	Propeller (3X9-1/4X10-J1)	1
21	683-45943-00	螺旋浆组合	Propeller (3X9-1/4X10-1/2-J)	1
21	63V-45943-10	螺旋浆组合	Propeller (3X9-1/4X11-J1)	1
21	683-45941-00	螺旋浆组合	Propeller (3X9-1/4X12-J)	1
21	63V-45941-10	螺旋桨组合	Propeller (3X9-1/4X12-J1)	1
22	683-W4592-02	螺旋桨组合	Propeller (3X9-3/4X6-1/2-J)	1
23	6E7-45986-00	偏向器	Ring, Deflector	1
24	90171-10M07	螺帽	Nut, Castle	1
25	90201-10M02	面板垫圈	Washer,Plate	1
