雅马哈 F175G - F175GETX

共 42 个部位，点击零件编码查看详情，或搜索本页零件。

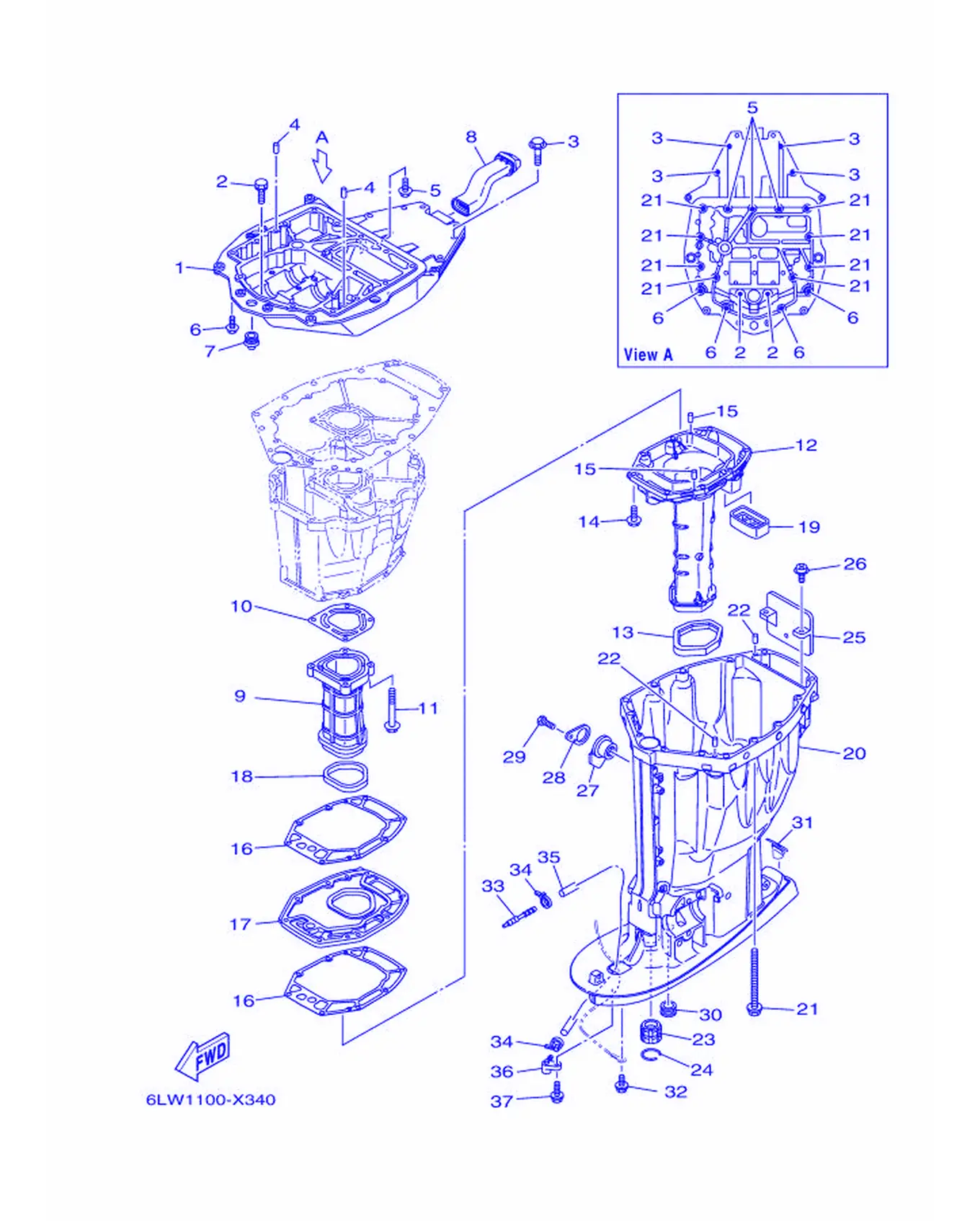

アツパーケーシング

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-41137-07-CA	排气导管	Guide, Exhaust	1
2	90119-08182	带垫圈六角头螺栓	Bolt, with Washer	2
3	97E75-10545	螺栓	Bolt, Hexagon with Washer Deep Recess	4
4	93608-16M16	定位销	Pin, Dowel	2
5	90119-08189	带垫圈六角头螺栓	Bolt, with Washer	3
6	97E75-10535	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	4
7	6E5-42724-01	固定	Grommet	1
8	6LH-42769-00	橡皮密封	Seal, Rubber	1
9	63P-41131-02	排气岐管1	Manifold, Exhaust 1	1
10	63P-41133-A0	排气岐管衬垫1	Gasket, Exhaust Manifold	1
11	97E75-08560	螺栓	Bolt, Hexagon with Washer Deep Recess	4
12	6DA-14711-01	消声器1	Muffler 1	1
12	6DA-14711-11	消声器1	Muffler 1	1
13	69J-45123-00	消音器衬垫	Gasket,Muffler	1
14	97E75-08535	螺栓	Bolt, Hexagon with Washer Deep Recess	8
15	93606-19M23	定位销	Pin, Dowel	2
16	63P-41134-A1	排气岐管衬垫	Gasket, Exhaust Manifold	2
17	63P-45181-02	面板	Plate	1
18	63P-41138-00	排气管密封圈1	Seal, Exhaust 1	1
19	69J-45127-01	密封	Seal	1
20	6LH-45111-00-8D	水上装置壳	Casing, Upper	1
20	6DA-45111-10-8D	水上装置壳	Casing, Upper	1
21	90119-10007	带垫螺栓	Bolt, With Washer	8
22	93608-16M16	定位销	Pin, Dowel	2
23	6E5-45318-00	驱动轴衬套	Bushing,Drive Shaft	1
24	93420-36M01	卡环	Circlip	1
25	69J-14624-01	排气盖	Cover,Exhaust	1
26	97980-06216	带垫圈螺钉	Screw, With Washer	2
27	6BB-15316-01	减震垫1	Damper 1	1
28	6BB-45152-01	水上装置壳体盖2	Cover, Upper Casing 2	1
29	97D95-06012	螺栓	Bolt, Hexagon Deep Recess	1
30	6E5-44366-01	水封减震器	Damper, Water Seal 2	1
31	6DA-45155-01	盖	Cap	1
31	6C5-45155-02	盖	Cap	1
32	95D95-06010	螺栓	Bolt, Flange Deep Recess	1
33	6E5-83558-00	管嘴端部	End, Nipple	1
34	90465-11M10	固定	Clamp	2
35	90445-07044	软管	Hose (L1800)	1
35	90445-07045	软管 (L1680)	Hose (L1680)	1
36	63P-45379-00	软管嘴	Nipple,Hose	1
37	90119-06287	带垫圈六角头螺栓	Bolt, with Washer	1

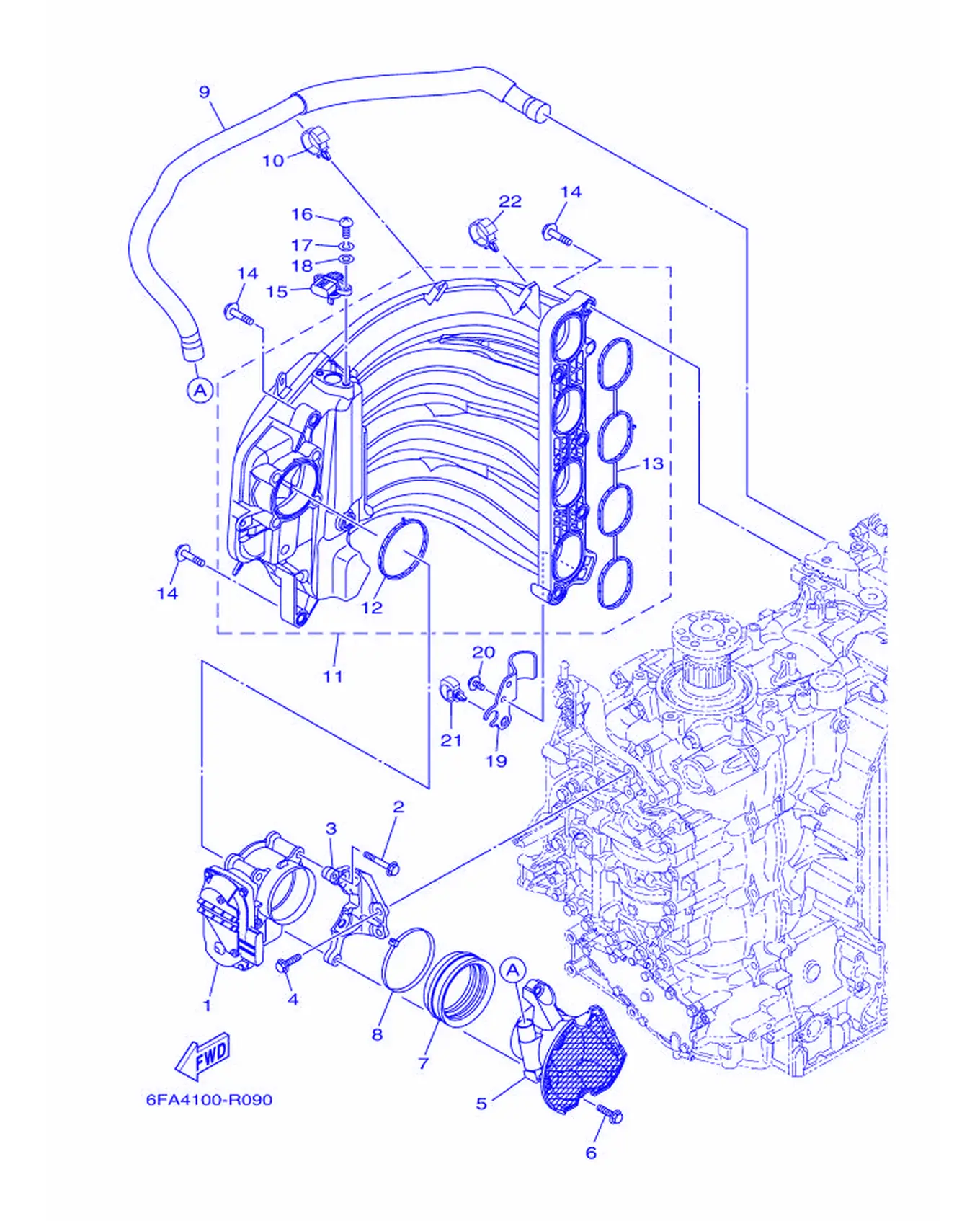

インテーク 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6DA-13751-02	油门本体	Body, Throttle 1	1
2	97E75-08560	螺栓	Bolt, Hexagon with Washer Deep Recess	4
3	6DA-13152-00	支架2	Stay 2	1
4	95D75-06025	螺栓	Bolt, Flange Deep Recess	2
5	6DA-14440-00	进气消声器组合	Silencer Assembly, Intake	1
6	95D75-06025	螺栓	Bolt, Flange Deep Recess	2
7	6P2-1441J-01	消声器管	Pipe, Silencer	1
8	90464-99004	固定夹	Clamp	1
9	6DA-15373-00	通气管	Pipe, Breather	1
10	90464-12183	线夹	Clamp	1
11	6DA-13641-00	岐管1	Manifold, Intake 1	1
12	6DA-13646-00	岐管衬垫2	Gasket, Manifold 2	1
13	6DA-13645-00	岐管衬垫1	Gasket, Manifold 1	1
14	90119-08020	带垫螺栓	Bolt, With Washer	9
15	68F-83688-10	传感器组合	SensorAssembly	1
16	97885-05016	大柱头螺钉	Screw, Pan Head	2
17	92995-05100	盘形垫	Washer	2
18	92995-05600	盘形垫	Washer	2
19	6DA-13881-00	盖	Cover 1	1
20	95D95-06012	螺栓	Bolt, Flange Deep Recess	2
21	90464-20181	固定夹	Clamp	1
22	90464-12183	线夹	Clamp	1

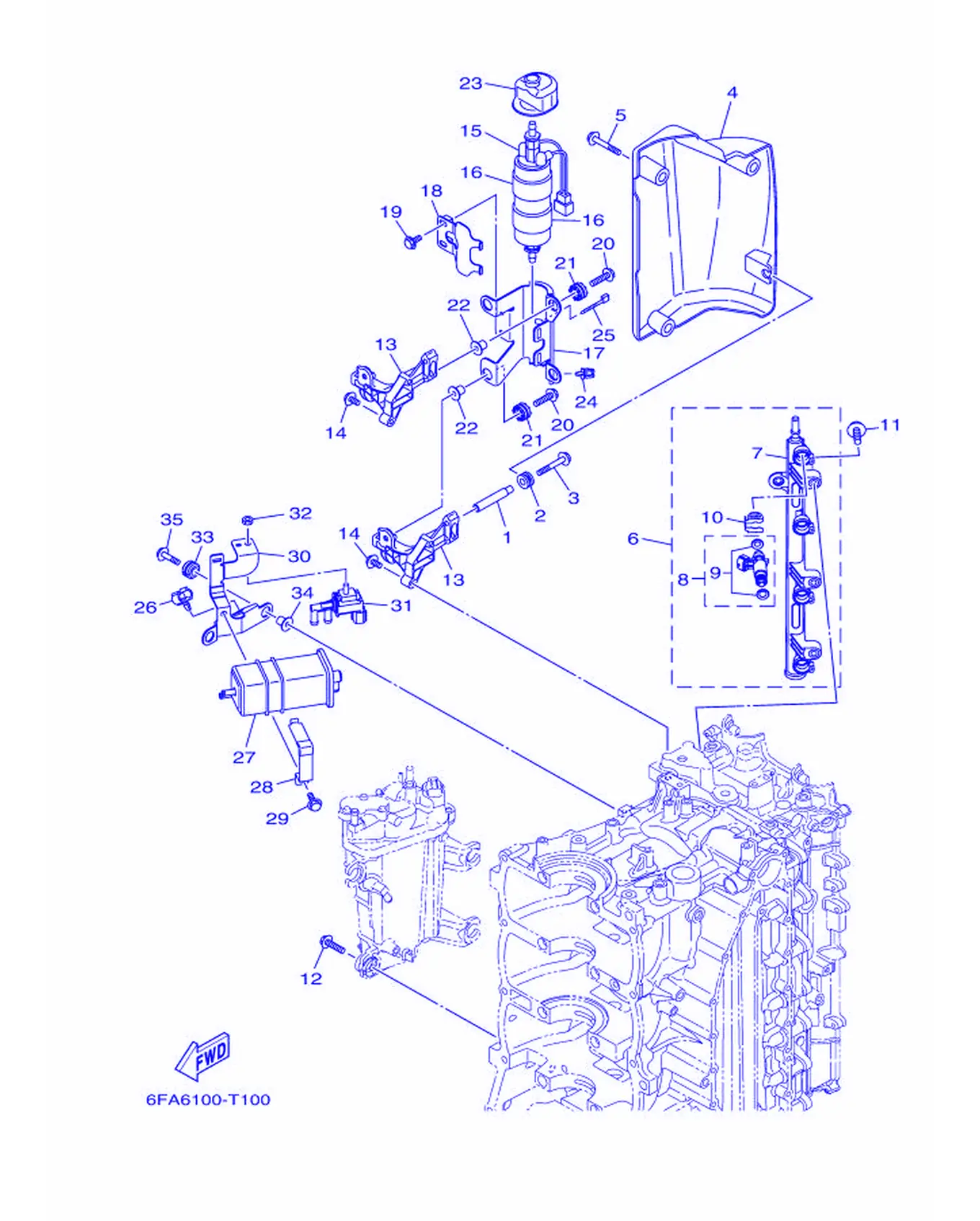

インテーク 2

REF	雅马哈编码	中文名称	英文名称	用量
1	90387-06283	轴套	Collar	1
2	90480-12314	固定	Grommet	1
3	90105-06054	六角法兰面螺栓	Bolt, Flange	1
4	6DA-13564-01	岐管盖	Cover, Manifold	1
5	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	3
6	6DA-13160-02	输送管组合1	Delivery Pipe Assembly 1	1
7	6DA-13161-02	管1	Pipe, Delivery 1	1
8	6DA-13761-01	喷射器	Injector Assembly	4
9	6AW-1410B-00	衬垫套件	Packing Kit	1
10	6AW-13577-10	卡环	Clip	4
11	90105-06M08	螺栓	Bolt, Flange	3
12	90119-06299	带垫圈六角头螺栓	Bolt, with Washer	4
13	6DA-24425-00	燃油泵支承	Bracket, Fuel Pump 1	2
14	90105-06M08	螺栓	Bolt, Flange	4
15	6GR-24410-02	燃油泵组合	Fuel Pump Assembly	1
16	6DA-24492-01	燃油泵衬套	Bush, Fuel Pump	2
17	6DA-24491-00	油泵支承	Bracket, Fuel Pump	1
18	6DA-24426-00	燃油泵支承	Bracket, Fuel Pump 2	1
19	95D95-06012	螺栓	Bolt, Flange Deep Recess	2
20	90119-06309	带垫圈六角头螺栓	Bolt, with Washer	4
21	60V-85516-00	衬套	Spacer	4
22	90387-06289	轴套	Color	4
23	6DA-24462-00	绝缘盖	Cap, Blind	1
24	90464-11121	固定	Clamp	1
25	90465-11M10	固定	Clamp	1
26	90464-09130	线夹	Clamp	1
27	6P2-24170-00	过滤器总成	Canister Assembly	1
28	63P-2419A-01	支架	Holder	1
29	95D95-06016	螺栓	Bolt, Flange Deep Recess	1
30	6DA-2134X-00	金属箱托架	Bracket, Canister	1
31	6C5-86120-00	电磁阀组合	SolenoidValveAssembly	1
32	95380-06600	有槽螺母	Nut, Hexagon	1
33	90480-14031	橡胶垫	Grommet	2
34	90387-06289	轴套	Color	2
35	90119-06309	带垫圈六角头螺栓	Bolt, with Washer	2

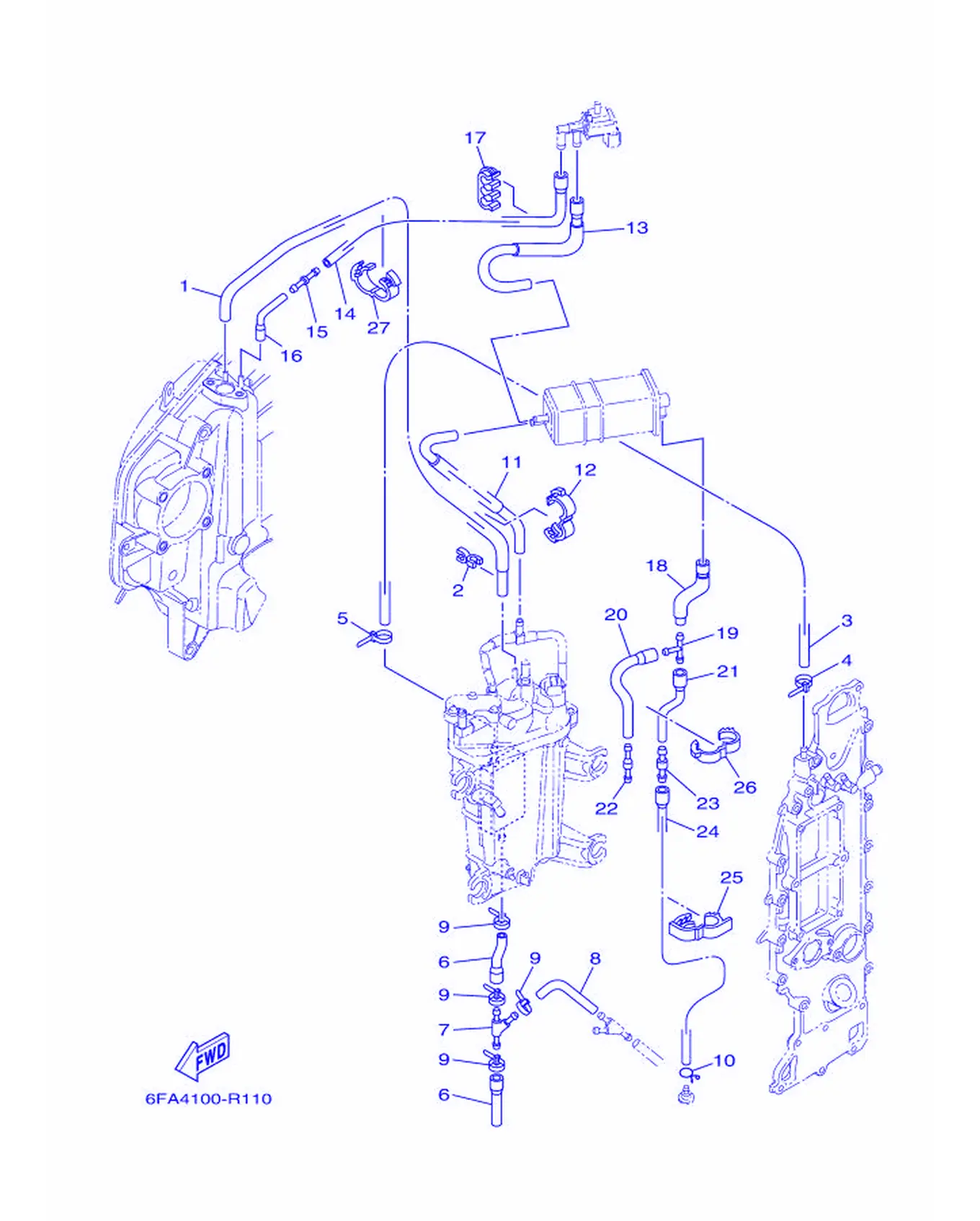

インテーク 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6DA-13532-00	负压传感软管3	Hose, Vacuum Sensing 3	1
2	90464-07M41	固定	Clamp	1
3	90445-09120	软管	Hose (L600)	1
4	90465-11M10	固定	Clamp	1
5	90465-11M10	固定	Clamp	1
6	6DA-12576-00	软管1	Hose 1	2
7	6CE-24377-00	连接管3	Pipe, Joint 2	1
8	90445-10056	软管	Hose (L85)	1
9	90465-11M10	固定	Clamp	4
10	90467-09M09	固定	Clip	1
11	6DA-1475A-00	管1	Pipe 1	1
12	90464-16001	夹子	Clamp	1
13	6DA-1475F-00	管3	Pipe 3	1
14	6DA-2416A-00	软管	Hose	1
15	6CB-14989-00	通气孔	Orifice, Air Vent	1
16	6DA-1475G-00	管4	Pipe 4	1
17	90464-10011	线夹	Clamp	1
18	6DA-13545-00	软管1	Hose 1	1
19	688-24378-00	连接管4	Pipe,Joint	1
20	68V-13546-10	软管2	Hose 2	1
21	6FA-13548-00	软管4	Hose, Air 4	1
22	6E5-21744-00	通气管	Breather	1
23	63D-21744-00	通气管	Breather	1
24	6FA-13547-00	软管3	Hose 3	1
25	90464-18004	固定夹	Clamp	1
26	90464-16001	夹子	Clamp	1
27	90464-16001	夹子	Clamp	1

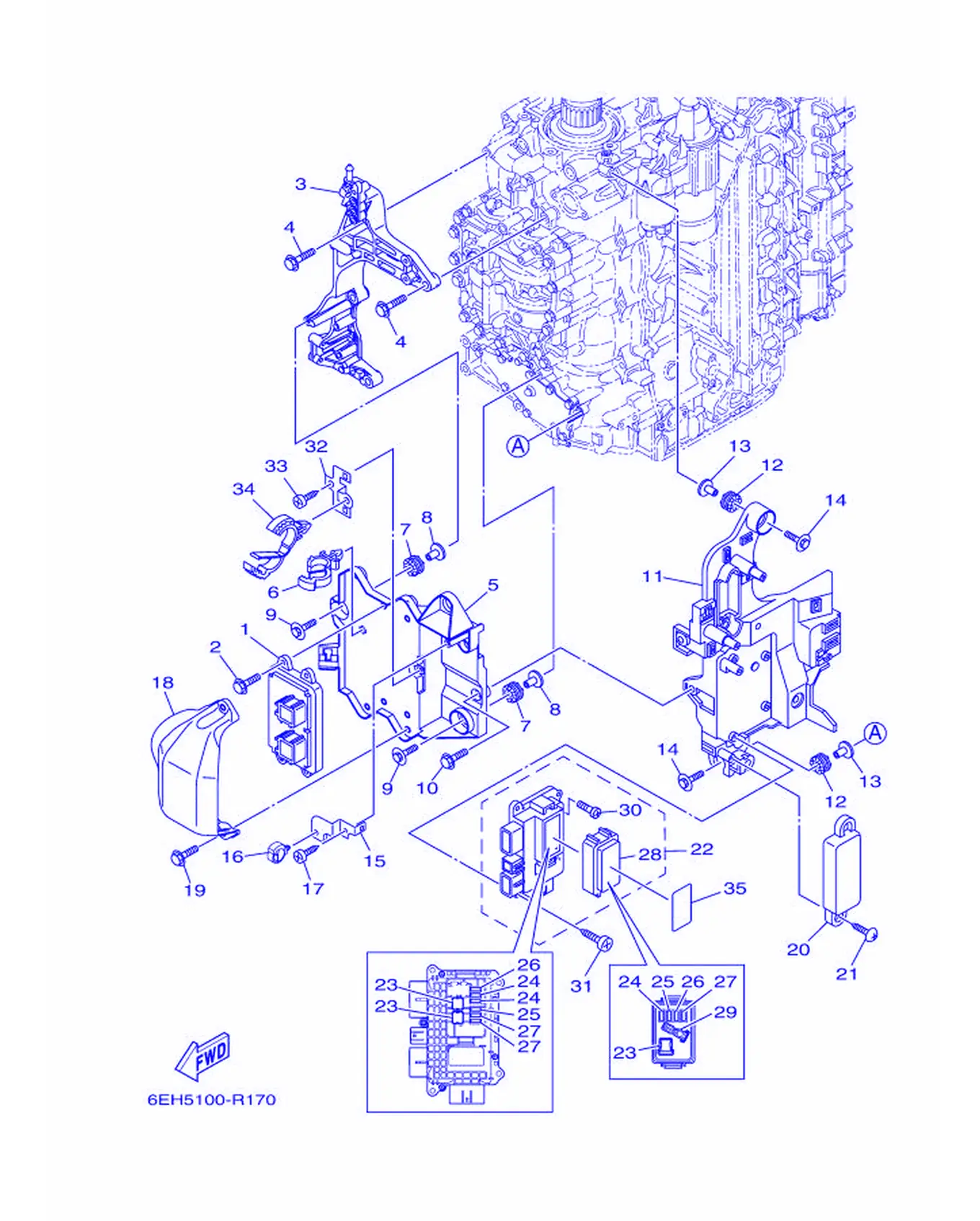

エレクトリカル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6LY-8591A-00	发动机控制单元	Engine Control Unit Assembly	1
2	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	4
3	6DA-85991-01	托架装置	Bracket, Unit	1
4	95D75-08035	连杆螺栓	Bolt, Flange Deep Recess	4
5	6DA-81948-01	托架	Bracket	1
6	90464-12183	线夹	Clamp	1
7	68F-85516-01	衬套	Spacer	3
8	90387-06176	衬套	Color	3
9	90119-06328	带垫圈六角头螺栓	Bolt, with Washer	3
10	95D95-06016	螺栓	Bolt, Flange Deep Recess	2
11	6DA-81952-10	继电器支架	Holder, Relay	1
12	68F-85516-01	衬套	Spacer	3
13	90387-06176	衬套	Color	3
14	90119-06328	带垫圈六角头螺栓	Bolt, with Washer	3
15	6DA-85548-10	支架	Holder	1
16	90464-20181	固定夹	Clamp	1
17	97780-60620	自攻螺钉	Screw, Tapping	1
18	6DA-81639-01	电枢装配面板	Cover	1
19	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	2
20	6DA-8252U-01	套	Cover	1
21	90169-05M00	卡环	Screw, Truss Head Tapping	2
22	6DA-82170-12	保险丝盒组合	Fuse Box Assembly	1
23	6CB-82151-41	保险	Fuse (60A)	3
24	6CB-82151-00	保险丝	Fuse (10A)	3
25	6CB-82151-10	保险	Fuse (15A)	2
26	6CB-82151-20	保险丝	Fuse (20A)	2
27	6CB-82151-30	保险丝	Fuse (30A)	3
28	6CB-85544-10	盖	Cover	1
29	6CB-2812A-00	保险丝拆卸器	Puller, Fuse	1
30	6P2-82113-00	螺钉	Screw (M3)	5
31	97780-50620	自攻螺钉	Screw, Tapping	4
32	6DA-8257V-00	连接器面板	Connector Plate	1
33	97780-60620	自攻螺钉	Screw, Tapping	1
34	90464-32002	线夹	Clamp	1
35	6LW-81919-00	调压器图样	Graphic, Regulator	1

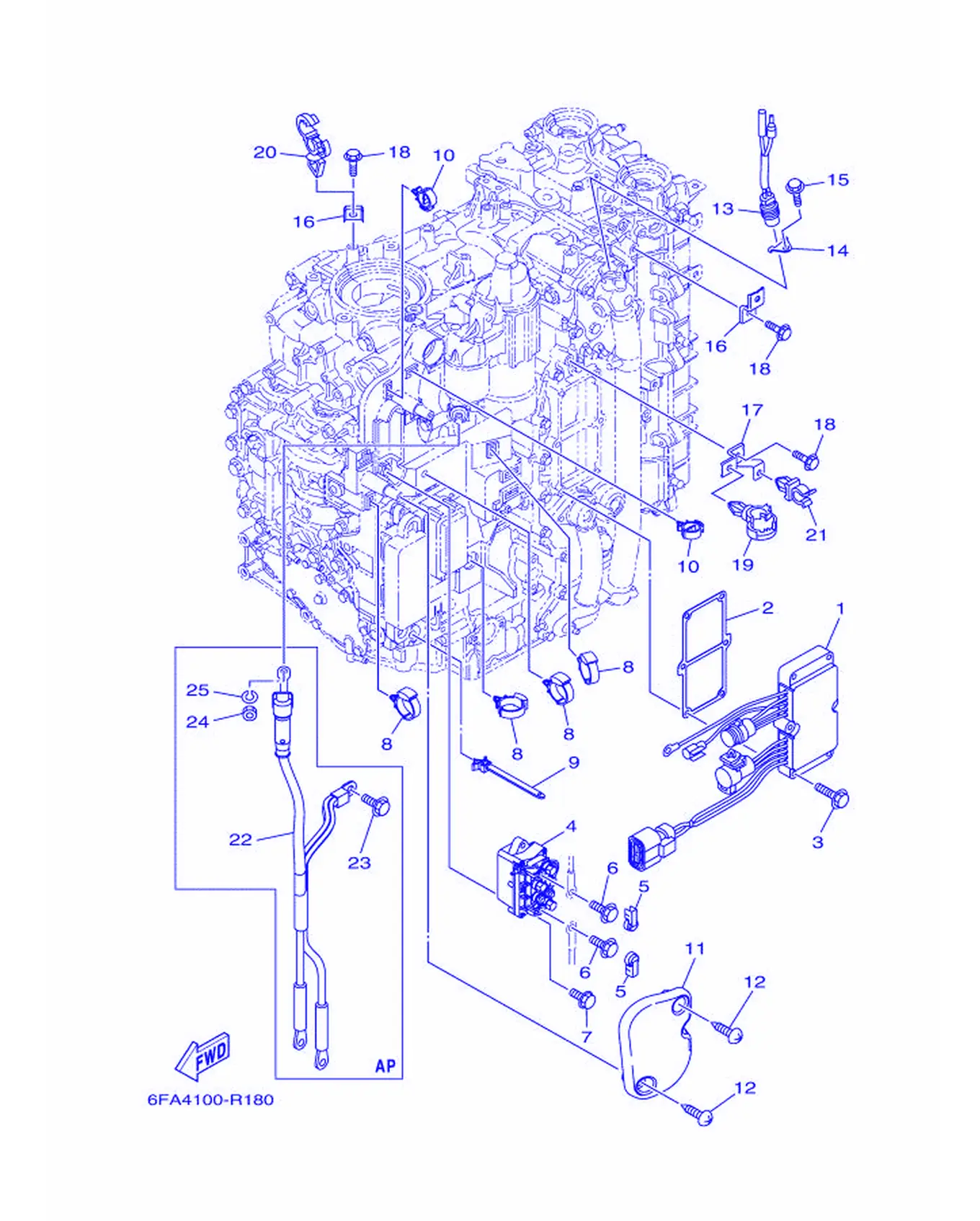

エレクトリカル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6DA-81960-10	整流调节器	Rectifier and Regulator Assembly	1
2	6DA-81975-01	整流器安装板	Rectifier Fitting Plate	1
3	97E95-06535	螺栓	Bolt, Hexagon with Washer Deep Recess	6
4	63P-W8195-00	继电器组合	Relay Assembly	1
5	6P2-8183X-00	电极盖	Cap, Terminal	2
6	97E95-06610	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	2
7	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	2
8	90464-12183	线夹	Clamp	4
9	90464-12089	衬套	Clamp	1
10	90464-18246	固定	Clamp	2
11	6DA-81942-01	护板	Cover	1
12	90169-05M00	卡环	Screw, Truss Head Tapping	2
13	6P2-82560-01	温控开关组合	Thermo Switch Assembly	1
14	6E9-82588-00	面板	Plate	1
15	95D95-06012	螺栓	Bolt, Flange Deep Recess	1
16	6DA-82388-00	面板	Plate	2
17	6DA-82389-00	面板2	Plate 2	1
18	95D95-06016	螺栓	Bolt, Flange Deep Recess	3
19	90464-20181	固定夹	Clamp	1
20	90464-13249	线夹	Clamp	1
21	90464-09008	线夹	Clamp	1
22	6DA-82105-J2	电缆	Battery Cable	1
23	95D95-08016	连杆螺栓	Bolt, Flange Deep Recess	1
24	95333-08600	有槽螺母	Nut	1
25	92903-08100	盘形垫	Washer,Spring	1

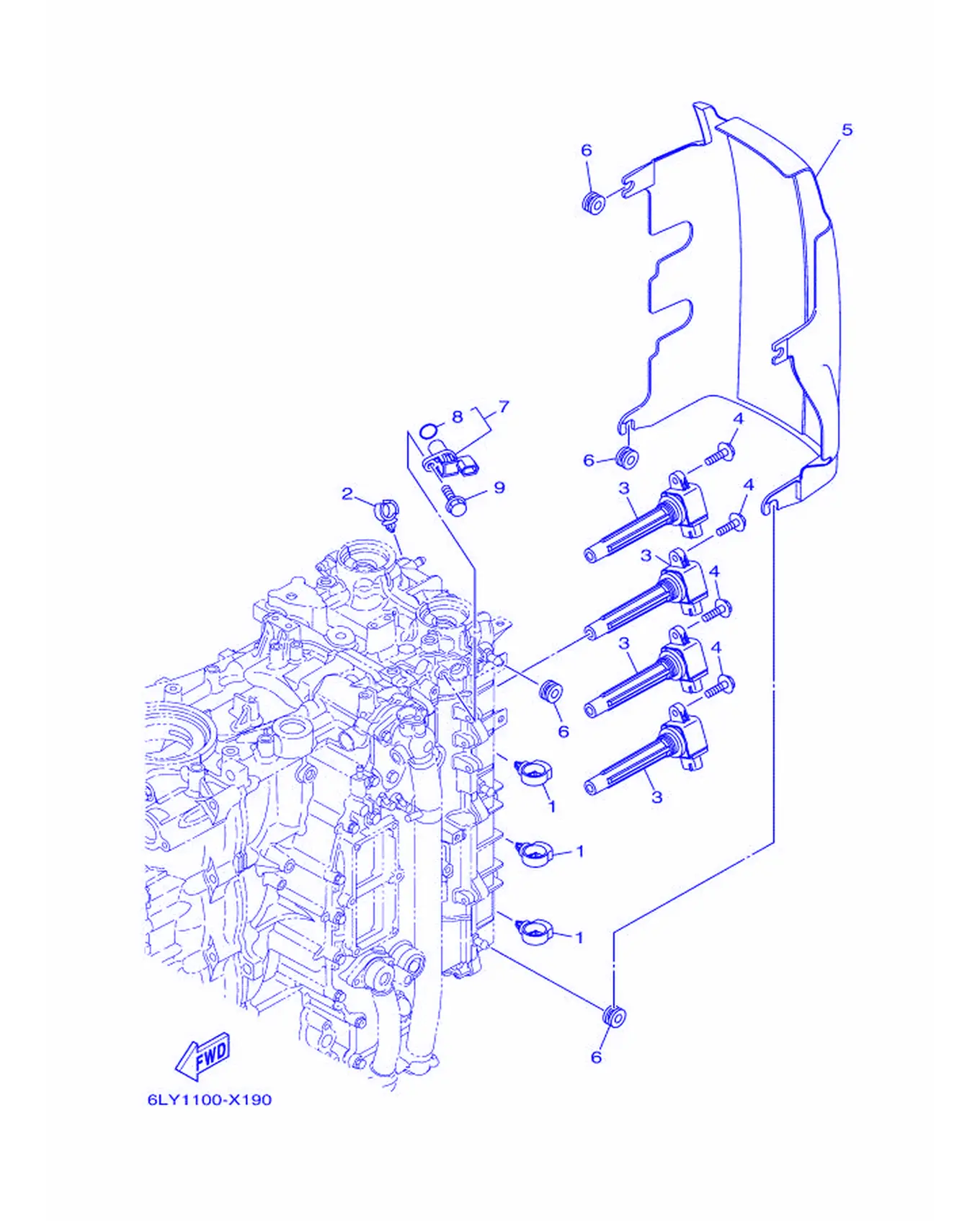

エレクトリカル 3

REF	雅马哈编码	中文名称	英文名称	用量
1	90464-20181	固定夹	Clamp	3
2	90464-13249	线夹	Clamp	1
3	6CB-82310-02	点火线圈总成	Ignition Coil Assembly	4
4	95D95-06025	连杆螺栓	Bolt, Flange Deep Recess	4
5	6DA-82314-01	点火线圈盖	Cover, Ignition Coil	1
6	90480-12314	固定	Grommet	4
7	6P2-85896-00	曲柄位置传感	Sensor, Cam Position	1
8	6P2-85075-00	O型圈	O-ring	1
9	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	1

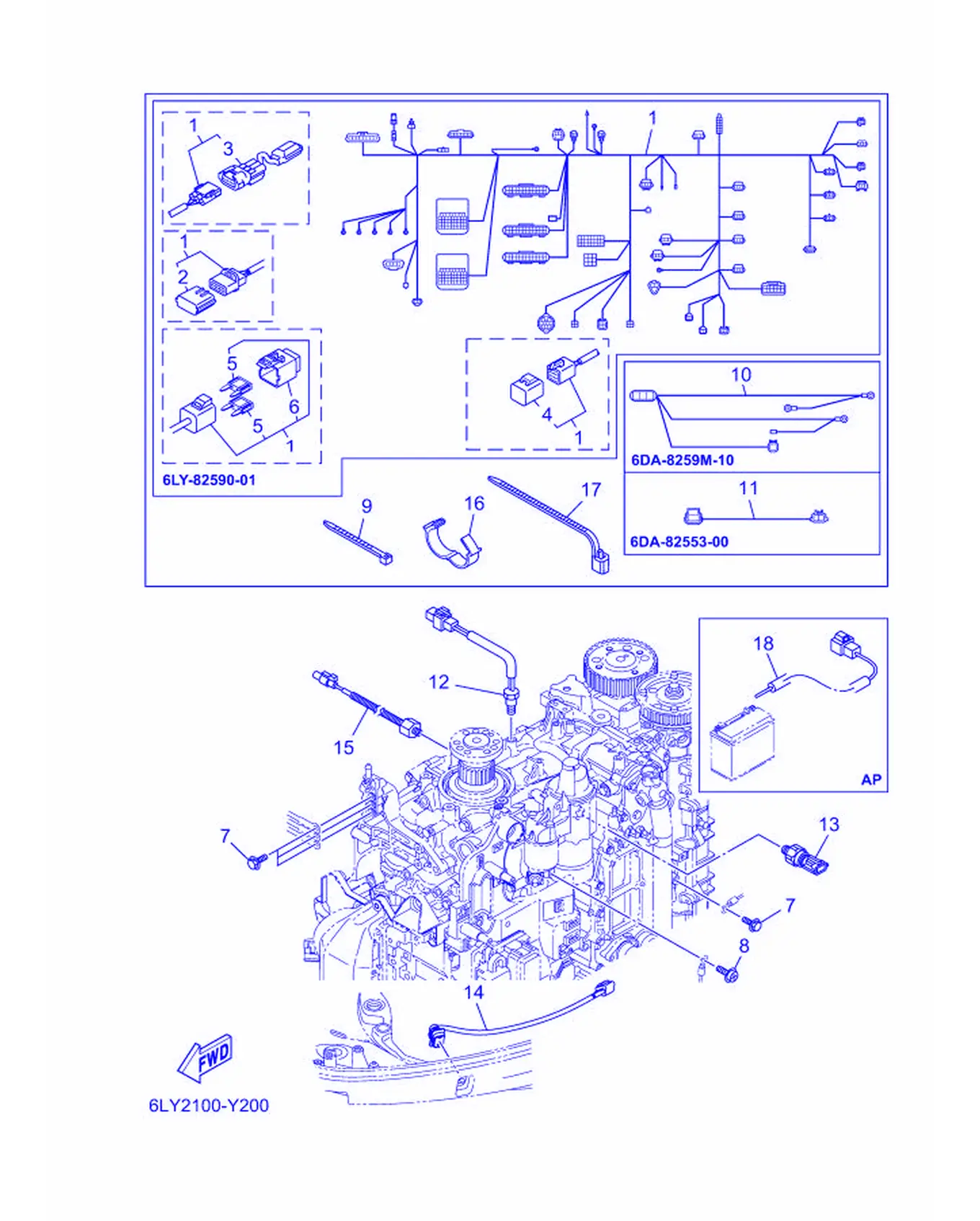

エレクトリカル 4

REF	雅马哈编码	中文名称	英文名称	用量
1	6LY-82590-01	电缆总成	Wire Harness Assembly	1
2	6AW-82582-00	电线束盖	Cap 1	2
3	6FM-81980-01	二极管总成	Diode Assembly	1
4	6Y8-82582-11	电线束盖	Cap 1 (4 Pin)	1
5	67F-82151-20	保险丝	Fuse (5A)	2
6	69J-8215B-00	断路器盖	Cap (Brown)	1
7	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	4
8	97985-04308	带垫螺钉	Screw, Washer	1
9	90465-11M59	固定	Clamp	1
10	6DA-8259M-10	电线束组合2	Wire Harness Assembly 2	1
11	6DA-82553-00	导线延伸部分	Extension, Wire Lead	1
12	6CB-85790-00	温控传感件组合	Thermo Sensor Assembly	1
13	6AW-83651-01	油压传感	Sender, Oil Pressure	1
14	6FM-82563-01	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
15	6CJ-85780-02	发爆传感	Sensor, Knock	1
16	90464-26001	线夹	Clamp	4
17	90464-15195	固定	Clamp	2
18	69J-81949-03	导线	Wire, Lead (Isolator, 3.8M)	1

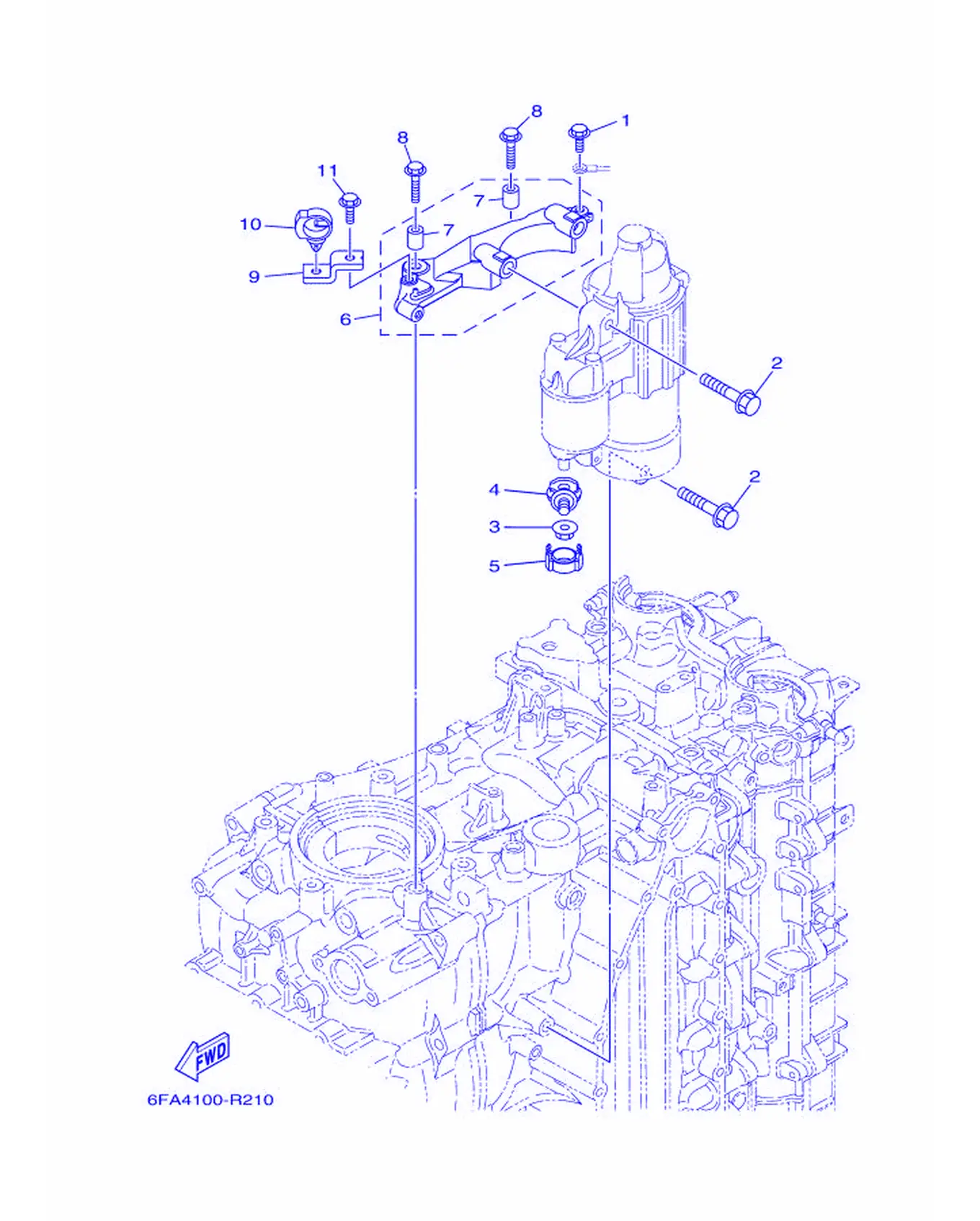

エレクトリカル 5

REF	雅马哈编码	中文名称	英文名称	用量
1	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	1
2	97513-08545	带垫圈螺栓	Bolt, with Washer	3
3	90179-08003	螺母	Nut	1
4	60V-81925-00	接头	Terminal	1
5	68F-82582-00	电线束盖	Cover,WireHarness	1
6	6DA-81822-00	起动电动机托架	Bracket, Starting Motor	1
7	99590-10114	定位销	Pin, Dowel	2
8	90105-08M87	螺母	Bolt, Flange	2
9	6DA-82388-00	面板	Plate	1
10	90464-20181	固定夹	Clamp	1
11	95D95-06016	螺栓	Bolt, Flange Deep Recess	1

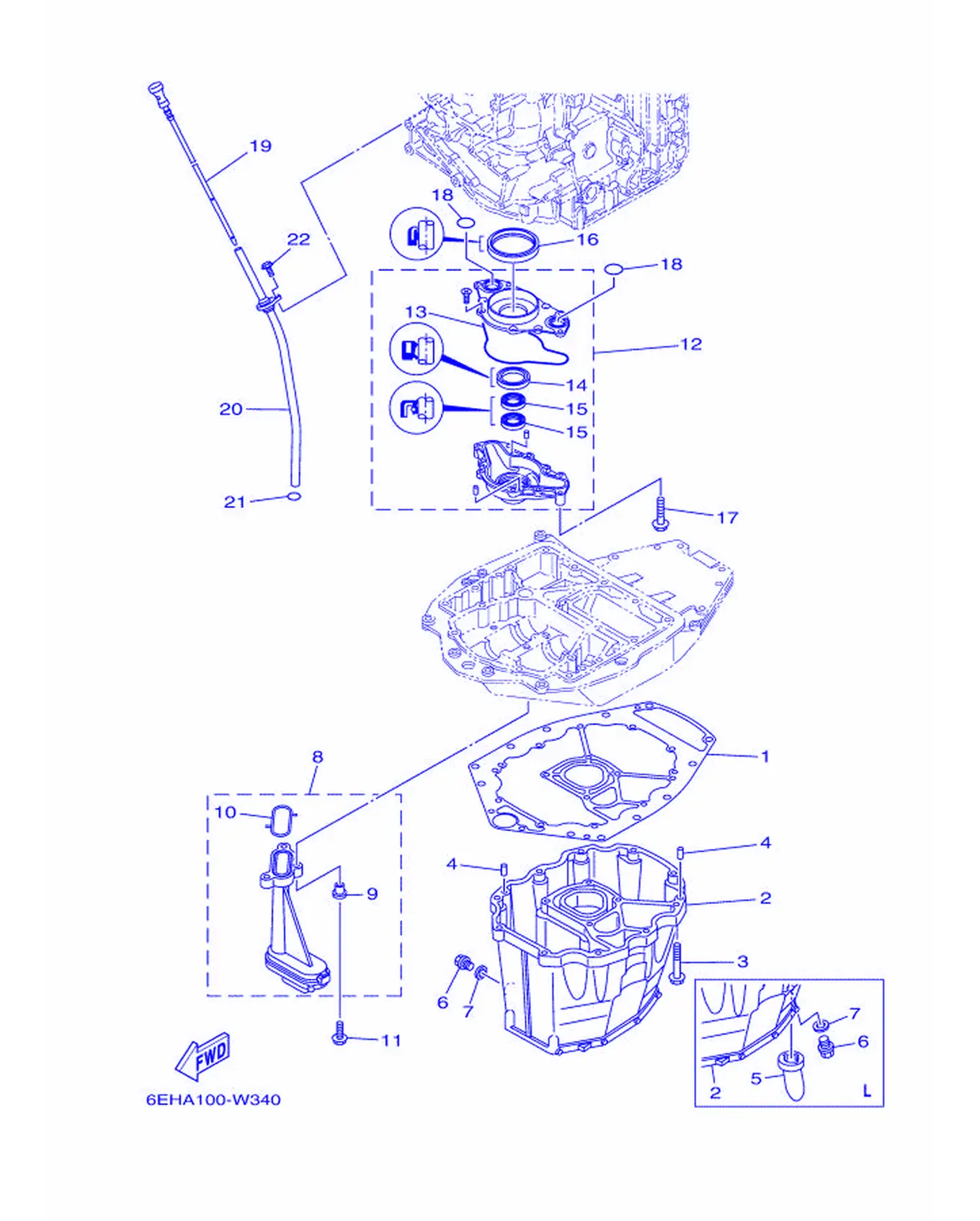

オイルパン

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-15312-02	油槽衬垫	Gasket, Oil Pan	1
2	6DA-15311-02-CA	油槽	Oil Pan	1
2	63P-15311-04-CA	油槽	Oil Pan	1
3	97E75-08535	螺栓	Bolt, Hexagon with Washer Deep Recess	10
4	93608-16M16	定位销	Pin, Dowel	2
5	63P-15316-01	减震垫1	Damper 1	1
6	90340-14M06	塞	Plug, Straight Screw	1
7	90430-14M09	衬垫	Gasket	1
8	63P-13411-00	机油滤芯	Strainer,Oil	1
9	90387-06263	轴套	Color	3
10	63P-13415-00	机油滤网密封	Seal, Oil Strainer	1
11	95812-06025	螺栓	Bolt, Flange	3
12	6DA-13300-00	机油泵总成	Oil Pump Assembly	1
13	6DA-13329-00	泵盖垫片	Gasket, Pump Cover	1
14	6AW-13119-00	润滑密封	Oil Seal	1
15	69J-13631-00	橡皮密封	Oil Seal	2
16	6CB-11355-00	气缸密封圈1	Seal, Cylinder 1	1
17	97E75-06540	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	4
18	93210-25552	O型圈	O-ring	2
19	6DA-15362-00	油标塞	Plug, Oil Level	1
20	6DA-15377-00	导管	Guide, Inlet	1
21	93210-19MJ3	O型圈	O-ring	1
22	95D95-06016	螺栓	Bolt, Flange Deep Recess	1

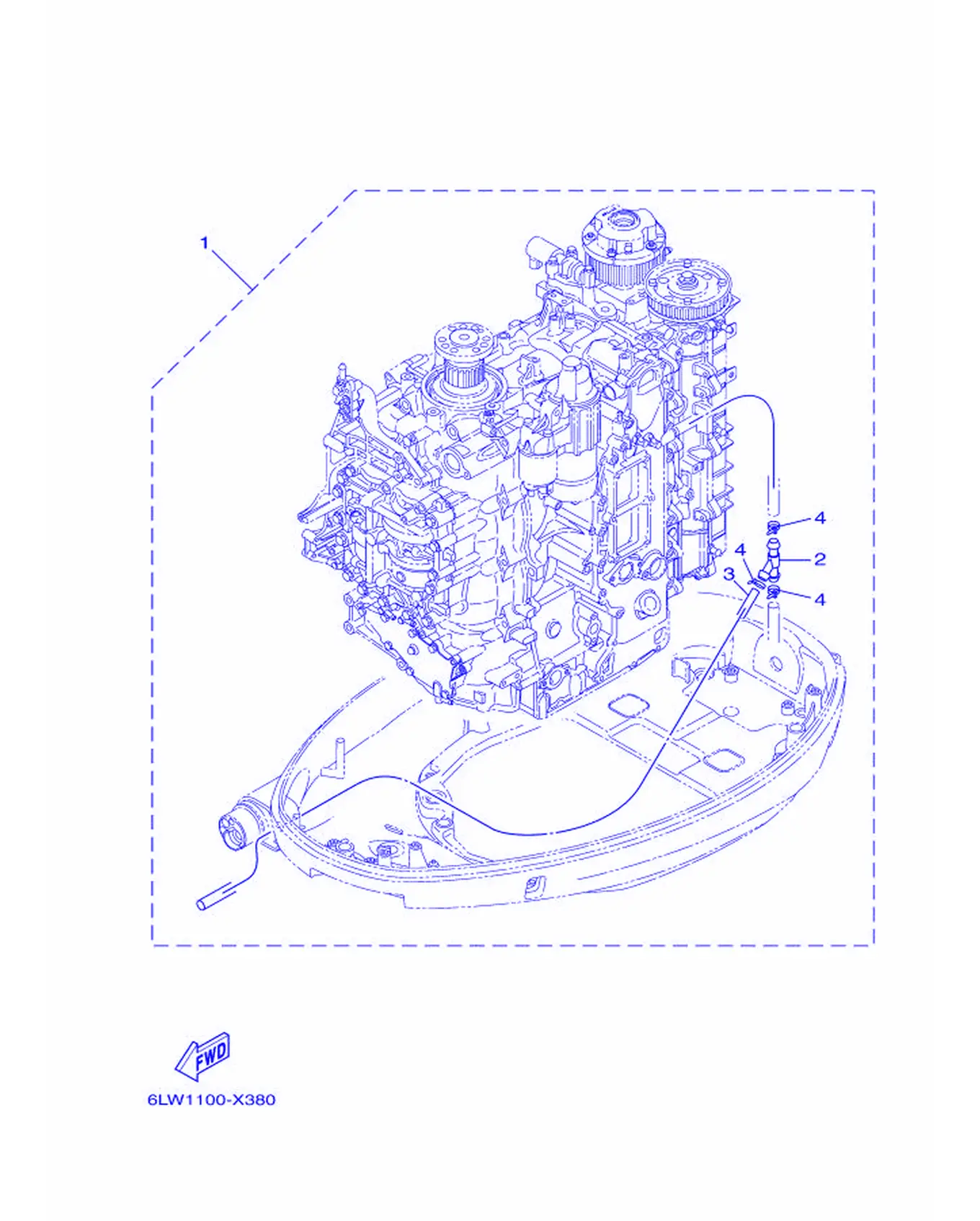

オプシヨナルパ-ツ

REF	雅马哈编码	中文名称	英文名称	用量
2	6DA-13758-00	接合管	Pipe, Joint	1
3	6DA-14987-00	管	Hose	1
4	90465-11M10	固定	Clamp	3

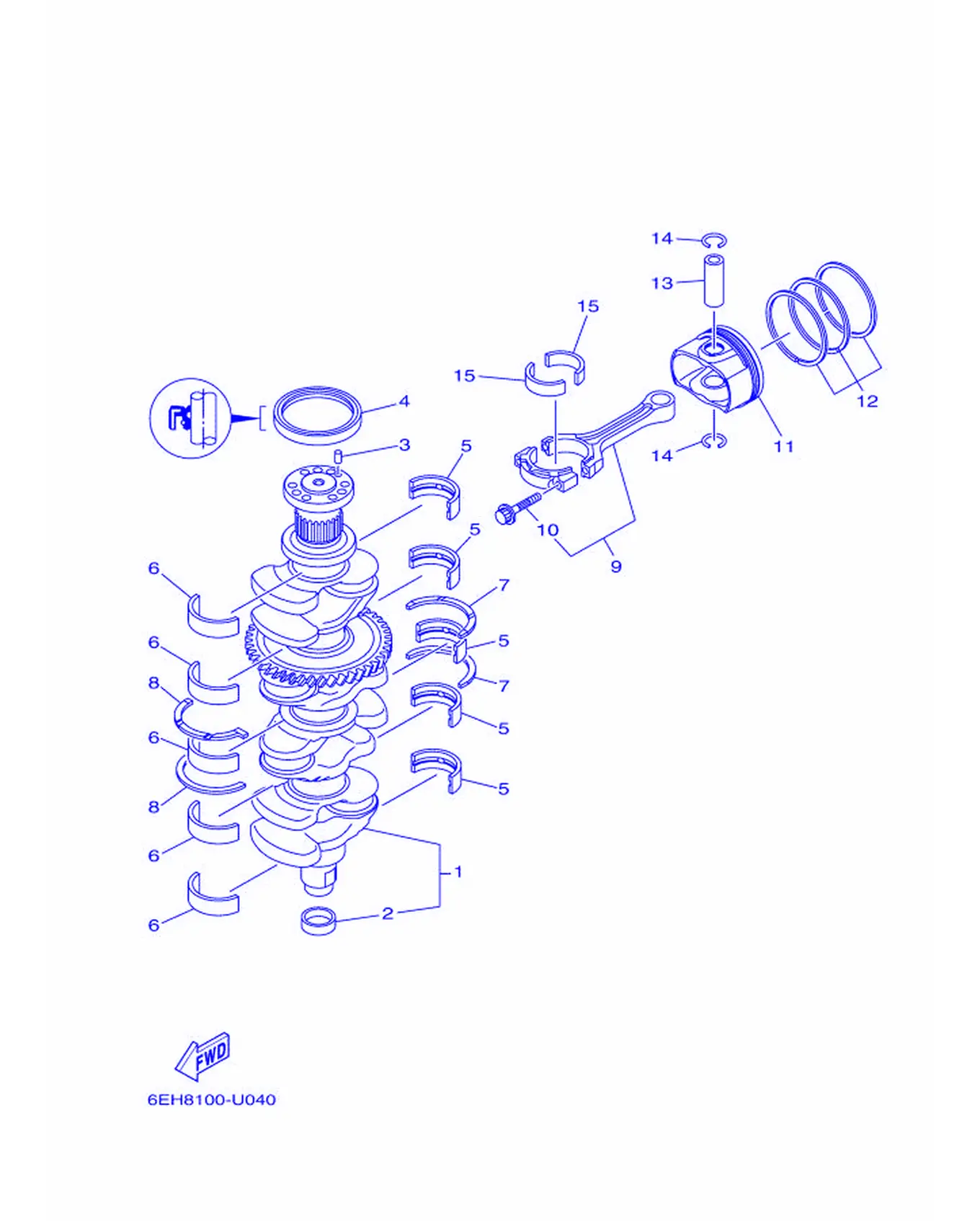

クランクシヤフト & ピストン

REF	雅马哈编码	中文名称	英文名称	用量
1	6DA-11410-00	曲轴	Crankshaft	1
2	6CB-11478-00	衬套	Collar	1
3	93606-12019	定位销	Pin, Dowel	1
4	93102-85008	油封	Oil Seal	1
5	6DA-11416-00	轴瓦1	Crankshaft Plain Bearing 1	5
5	6DA-11416-10	轴瓦1	Crankshaft Plain Bearing 1	5
5	6DA-11416-20	轴瓦1	Crankshaft Plain Bearing 1	5
6	6DA-11417-00	轴瓦2	Crankshaft Plain Bearing 2	5
6	6DA-11417-10	轴瓦	Crankshaft Plain Bearing 2	5
6	6DA-11417-20	轴瓦2	Crankshaft Plain Bearing 2	5
7	6DA-11426-00	轴瓦1	Bearing, Thrust 1	2
8	6DA-11427-00	轴瓦2	Bearing, Thrust 2	2
9	6CB-W1165-10	连杆平面支承套件	Connecting Rod Assembly	4
10	63P-11654-10	连杆螺栓	Bolt, Connecting Rod	2
11	6DA-11631-21-94	活塞	Piston (STD)	4
12	6CB-11603-00	活塞环套件	Piston Ring Set (STD)	4
13	6CB-11633-00	活塞销	Pin, Piston	4
14	K0F-A3233-00	环	Ring, Hole Snap	8
15	6JD-11656-00	轴瓦	Connecting Rod Plain Bearing	8
15	6JD-11656-10	轴瓦	Connecting Rod Plain Bearing	8
15	6JD-11656-20	轴瓦	Connecting Rod Plain Bearing	8

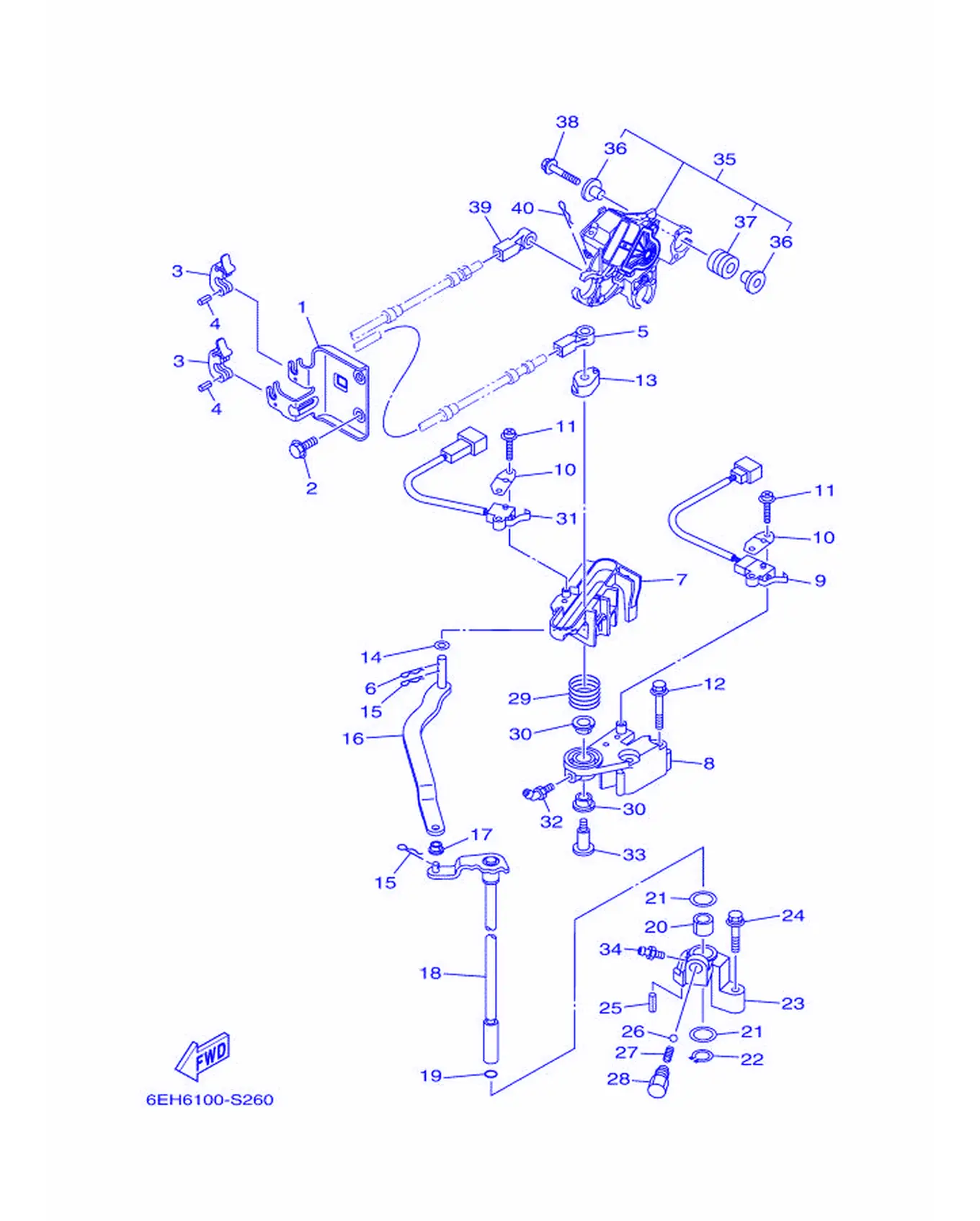

コントロ-ル

REF	雅马哈编码	中文名称	英文名称	用量
1	6DA-48531-00	遥控装置托架1	Bracket, Remote Control 1	1
2	95D95-08020	螺栓	Bolt, Flange Deep Recess	2
3	6E5-48538-00	钢索夹1	Clamp, Cable 1	2
4	91690-30010	弹簧销	Pin,Spring	2
5	6E5-48344-00	遥控钢索端部	Cable End, Remote Control	1
6	90468-18008	钢夹	Clip	1
7	6DA-44176-00	托架	Bracket	1
8	63P-44117-01	托架	Bracket	1
9	69J-8259F-00	开关组合	SwitchAssembly	1
10	61A-82588-01	面板	Plate	2
11	97985-04116	带垫圈螺钉	Screw, With Washer	4
12	97E95-06550	螺栓	Bolt, Hexagon with Washer Deep Recess	2
13	63P-44122-00	变挡杆杠杆衬套	Bushing, Shift Rod Lever	1
14	90202-08M20	平垫圈	Washer,Plate	1
15	90468-18008	钢夹	Clip	2
16	6DA-44121-00	变挡杆杠杆	Lever, Shift Rod	1
17	90386-06M12	衬套	Bushing	1
18	6DA-44120-02	变挡手柄组合	Handle Gear Shift Assembly	1
18	6DA-44120-12	变挡手柄组合	Handle Gear Shift Assembly	1
19	93210-09165	O型圈	O-ring	1
20	90386-16M66	衬套	Bushing	1
21	90202-16061	平垫圈	Washer,Plate	2
22	93410-16006	开口簧环，卡	Circlip	1
23	63P-44118-00	托架	Bracket	1
24	97E75-06535	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	1
25	91690-30010	弹簧销	Pin,Spring	1
26	93501-04M02	滚珠	Ball	1
27	90501-12082	压簧	Spring, Compression	1
28	648-42715-00	衬套	Bushing	1
29	90508-20M31	接头	Spring, Torsion	1
30	90386-12069	衬套	Bushing	2
31	60V-8259F-01	开关组合	Switch Assembly	1
32	93700-06M01	润滑油管嘴	Nipple, Grease	1
33	90109-08019	卡环	Bolt	1
34	93700-06M03	润滑油管嘴	Nipple, Grease	1
35	6DA-8A410-02	传感器组合	Sensor Unit	1
36	69J-13716-00	轴套	Color	6
37	6CB-13593-00	隔板	Damper	3
38	90119-06297	带垫圈六角头螺栓	Bolt, with Washer	3
39	6E5-48344-00	遥控钢索端部	Cable End, Remote Control	1
40	90468-18008	钢夹	Clip	1

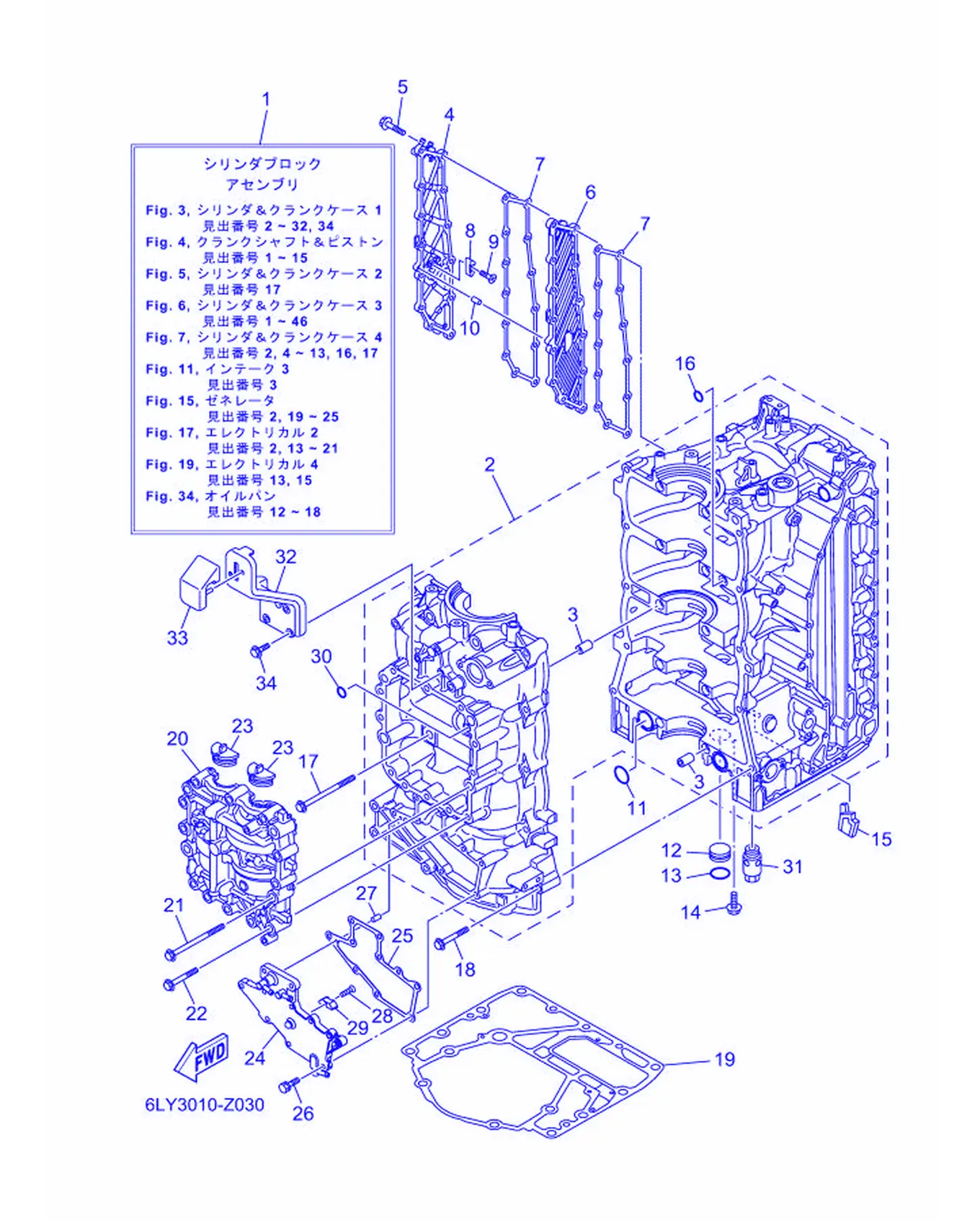

シリンダ & クランクケース 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6DA-W009B-16-9S	主气缸套件	Cylinder Block Assembly	1
2	6DA-15109-01-9S	曲轴箱组合	Crankcase Assembly	1
3	91814-18002	销	Pin, Dowel	10
4	6DA-15414-00-9S	空气净化器盖	Cover 1	1
5	90105-06028	六角法兰面螺栓	Bolt, Flange	13
6	6DA-15423-00-9S	化油器盖2	Cover 2	1
7	6DA-15353-01	放油塞衬垫	Gasket, Drain	2
8	6E5-11325-00	阳极	Anode	1
9	98780-04016	大柱头螺钉	Screw, Flat Head	1
10	91690-40010	弹簧销	Pin,Spring	1
11	93210-25552	O型圈	O-ring	2
12	90338-25004	插销	Plug	1
13	93210-25647	O型圈	O-ring	1
14	90119-06276	带垫圈六角头螺栓	Bolt, with Washer	1
15	6DA-14664-01	断水	Grommet, Water Jacket	1
16	93210-12648	O型圈	O-ring	1
17	90105-10406	六角法兰面螺栓	Bolt, Flange	10
18	90119-08M66	带垫螺栓	Bolt, With Washer	10
19	63P-11351-04	气缸垫片1	Gasket, Cylinder	1
20	6DA-11500-01	平衡轴总成	Balancer Assembly	1
21	90105-10406	六角法兰面螺栓	Bolt, Flange	4
22	90105-08175	六角法兰面螺栓	Bolt, Flange	12
23	63P-11512-00	曲柄盖密封	Seal, Crank Cover	2
24	6DA-15411-00-9S	曲轴箱盖1	Cover, Crankcase 1	1
25	6DA-15451-01	曲轴箱盖垫片1	Gasket, Crankcase Cover	1
26	90119-06MA3	带垫螺栓	Bolt, With Washer	10
27	91690-40010	弹簧销	Pin,Spring	1
28	98780-04016	大柱头螺钉	Screw, Flat Head	1
29	6E5-11325-00	阳极	Anode	1
30	93210-08001	O型圈	O-ring	1
31	63P-13490-00	安全阀组合	Relief Valve Assembly	1
32	6DA-42744-00	支承	Stay	1
33	6DA-42662-01	减震器	Damper	1
34	90105-06039	螺栓	Bolt, Flange	3

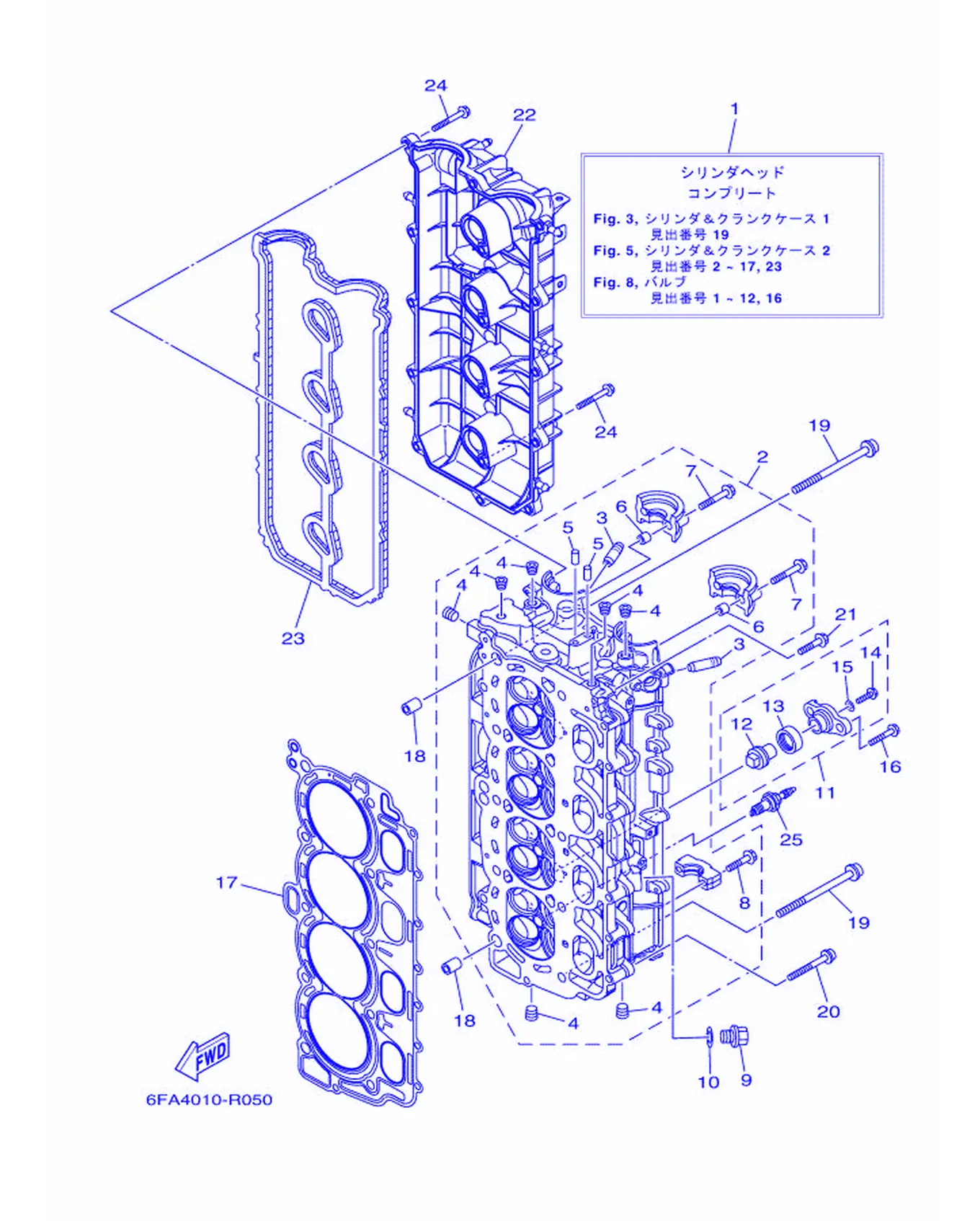

シリンダ & クランクケース 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6FA-W009A-05-9S	气缸头总成	Cylinder Head Complete	1
2	6FA-11110-02-9S	气缸头总成	Cylinder Head Assembly	1
3	6DA-11133-10	进气门导管	Guide,Valve 1	16
4	90344-51019	衬套	Plug, Taper Screw	7
5	93606-12019	定位销	Pin, Dowel	2
6	91809-08006	定位销	Sleeve Guide Dowel	4
7	90119-07001	带垫圈螺栓	Bolt, with Washer	4
8	90119-07234	带垫螺栓	Bolt, with Washer	16
9	90340-14M06	塞	Plug, Straight Screw	1
10	90430-14115	垫片	Gasket	1
11	6ML-11301-00	锌块垫组合	Anode Cover Assembly	2
12	6ML-11325-00	阳极	Anode	1
13	67F-11328-01	阳极固定	Grommet	1
14	90105-06M07	螺栓	Bolt, Flange	1
15	90430-06M03	平垫圈	Gasket	1
16	95D95-08025	连杆螺栓	Bolt, Flange Deep Recess	4
17	6DA-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
18	90387-11005	轴套	Collar	2
19	90149-11001	螺钉	Screw	10
20	90105-08175	六角法兰面螺栓	Bolt, Flange	8
21	90105-06151	六角法兰面螺栓	Bolt, Flange	1
22	6DA-11191-00	气缸盖罩1	Cover, Cylinder Head 1	1
23	6DA-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
24	95D95-06030	螺栓	Bolt, Flange Deep Recess	16
25	94709-00400	火花塞	Plug, Spark (NGK LFR6A-11)	4

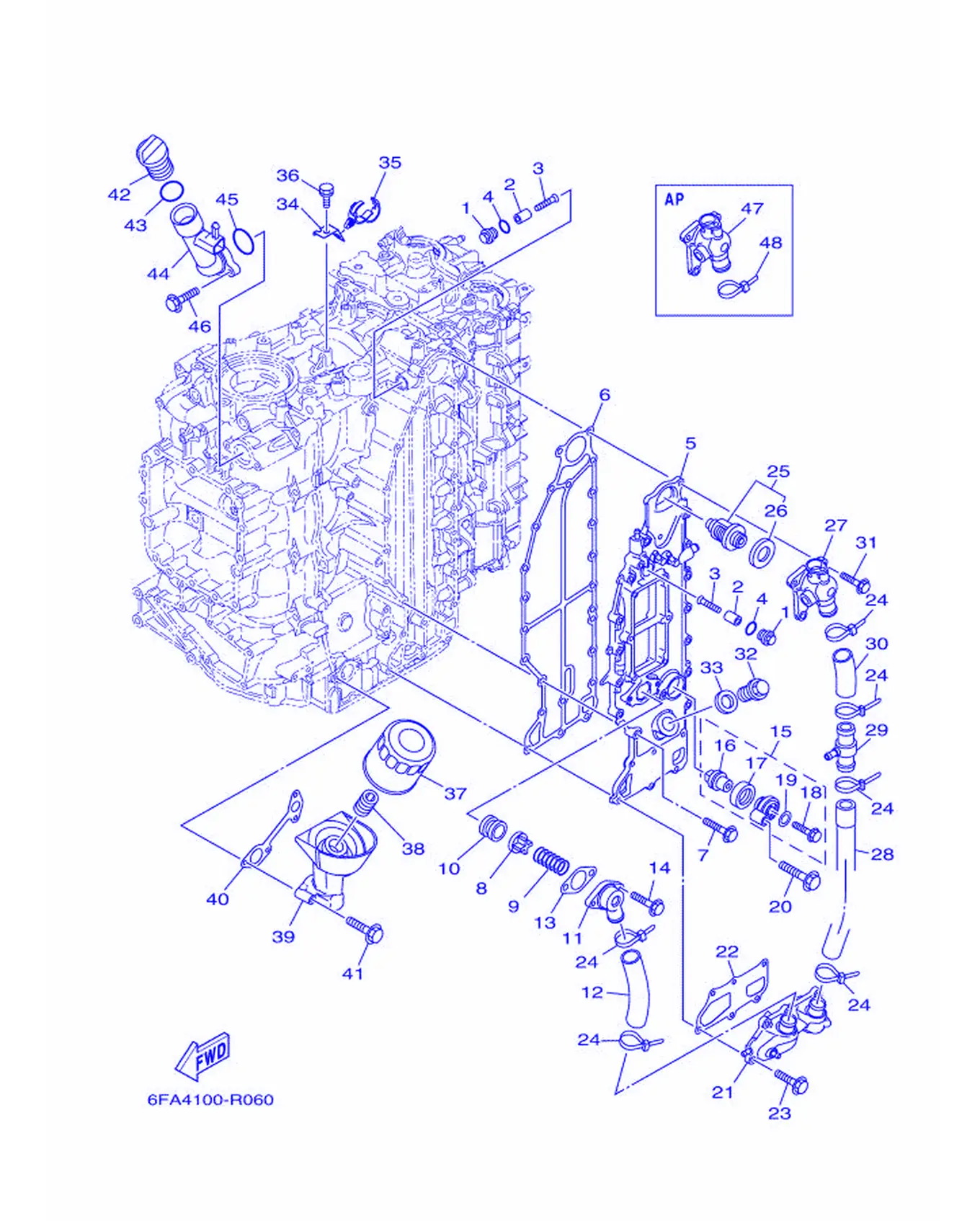

シリンダ & クランクケース 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-11197-B0	塞	Blind Plug	2
2	68T-11325-00	阳极	Anode	2
3	90151-05M05	卡环	Screw, Countersunk	2
4	93210-13M63	O型圈	O-ring	2
5	6DA-41113-00-9S	排气管外盖	Outer Cover, Exhaust	1
6	6DA-41114-01	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
7	90105-06028	六角法兰面螺栓	Bolt, Flange	14
8	60H-12416-00	压力控制阀	Valve, Pressure Control	1
9	90501-16M11	接头	Spring, Compression	1
10	90480-20M05	固定	Grommet	1
11	6G5-11372-00	软管接头	Cover, Bypass 2	1
12	6DA-1243A-00	软管1	Hose 1	1
13	60V-11382-A0	衬垫2	Gasket 2	1
14	90119-06MA3	带垫螺栓	Bolt, With Washer	2
15	69J-11301-02	锌块垫组合	Anode Cover Assembly	1
16	6ML-11325-00	阳极	Anode	1
17	67F-11328-01	阳极固定	Grommet	1
18	90105-06M07	螺栓	Bolt, Flange	1
19	90430-06M03	平垫圈	Gasket	1
20	97E75-08540	螺栓	Bolt, Hexagon with Washer Deep Recess	1
21	6DA-12527-00-9S	冷却水旁通阀盖1	Cover, Water Bypass	1
22	6DA-11381-01	衬垫1	Gasket 1	1
23	90105-06028	六角法兰面螺栓	Bolt, Flange	6
24	90465-11M59	固定	Clamp	6
25	6DA-12411-01	温控器	Thermostat	1
26	6AW-12412-00	温控器密封	Seal, Thermostat	1
27	6DA-12413-B0-9S	温控器盖	Cover, Thermostat	1
28	6DA-1243E-00	软管2	Hose 2	1
29	6CE-24378-00	连接管4	Pipe, Joint 3	1
30	6DA-1244H-00	软管5	Hose 5	1
31	90105-06028	六角法兰面螺栓	Bolt, Flange	3
32	90340-18M09	衬套	Plug, Straight Screw	1
33	90201-186F1	平垫圈	Washer,Plate	1
34	6DA-12491-00	线夹1	Clamp 1	1
35	90464-20181	固定夹	Clamp	1
36	90119-06078	带垫圈六角头螺栓	Bolt, with Washer	1
37	69J-13440-05	机油进滤器总成	Element Assembly, Oil Cleaner	1
38	6S5-12858-00	管接螺栓2	Bolt, Union	1
39	6DA-13446-01	连接器	Connector	1
40	6DA-13475-00	衬垫	Gasket	1
41	90105-06151	六角法兰面螺栓	Bolt, Flange	4
42	6G8-15363-00	机油塞子	Plug,Oil	1
43	93210-24M79	O型圈	O-ring	1
44	6DA-15319-00	接头	Joint	1
45	93210-357A3	O型圈	O-ring	1
46	90105-06037	螺栓	Bolt, Flange	2
47	6DA-1241B-B0-9S	COVER,	Cover, Thermostat 2	1
48	90465-11M59	固定	Clamp	1

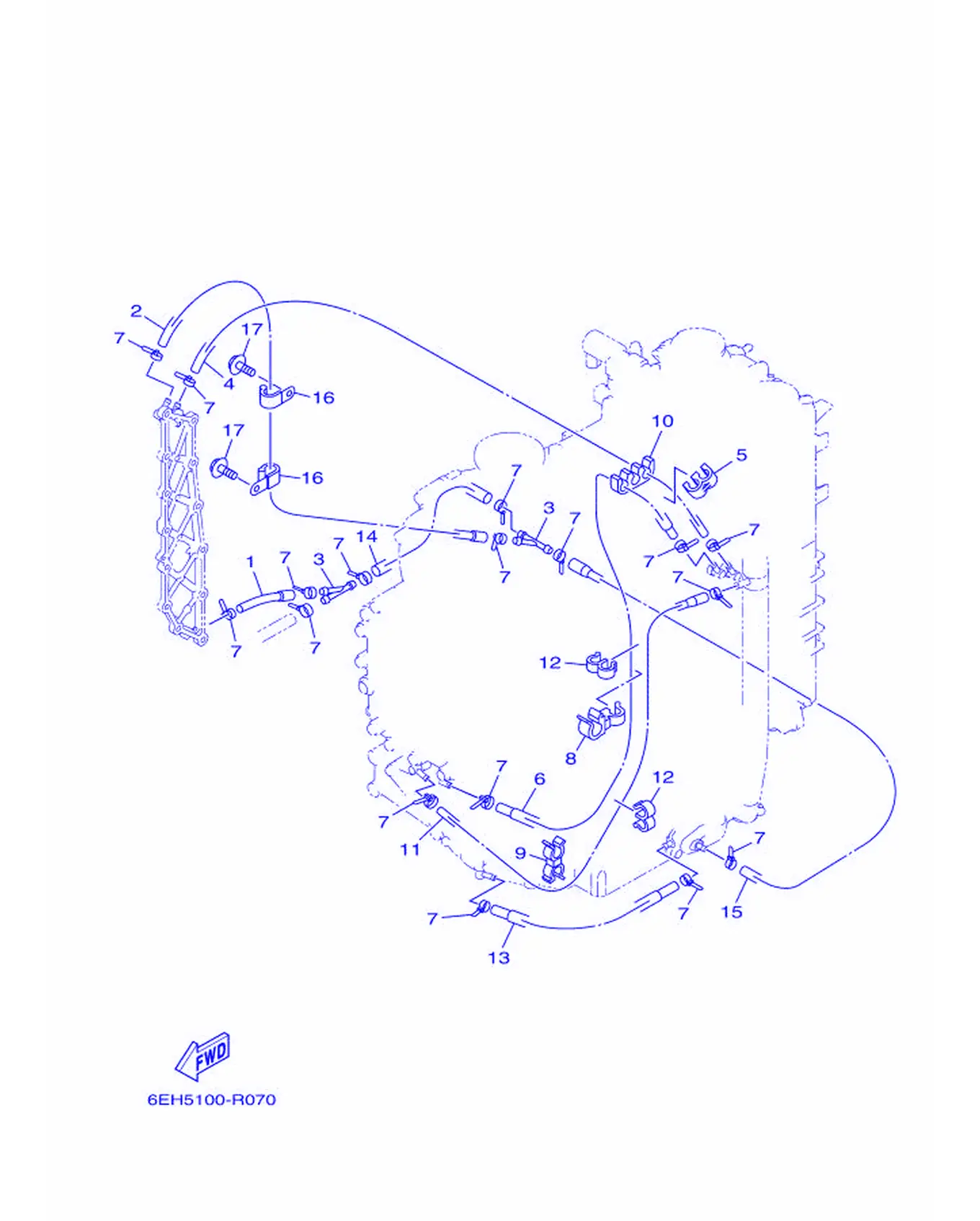

シリンダ & クランクケース 4

REF	雅马哈编码	中文名称	英文名称	用量
1	6DA-12576-00	软管1	Hose 1	1
2	6DA-12589-00	软管6	Hose 6	1
3	6CE-24377-00	连接管3	Pipe, Joint 2	2
4	90445-09008	软管	Hose (L470)	1
5	90464-09M21	固定夹	Clamp	1
6	6DA-12578-00	软管3	Hose 3	1
7	90465-11M10	固定	Clamp	17
8	90464-12010	固定夹	Clamp	1
9	90464-09142	线夹	Clamp	1
10	90464-09020	线夹	Clamp	1
11	6DA-12579-00	软管4	Hose 4	1
12	90464-09M31	固定	Clamp	2
13	6DA-12552-00	软管8	Hose 8	1
14	90445-10057	软管	Hose (L170)	1
15	6DA-12589-00	软管6	Hose 6	1
16	90465-08M83	固定	Clamp	2
17	95D95-06012	螺栓	Bolt, Flange Deep Recess	2

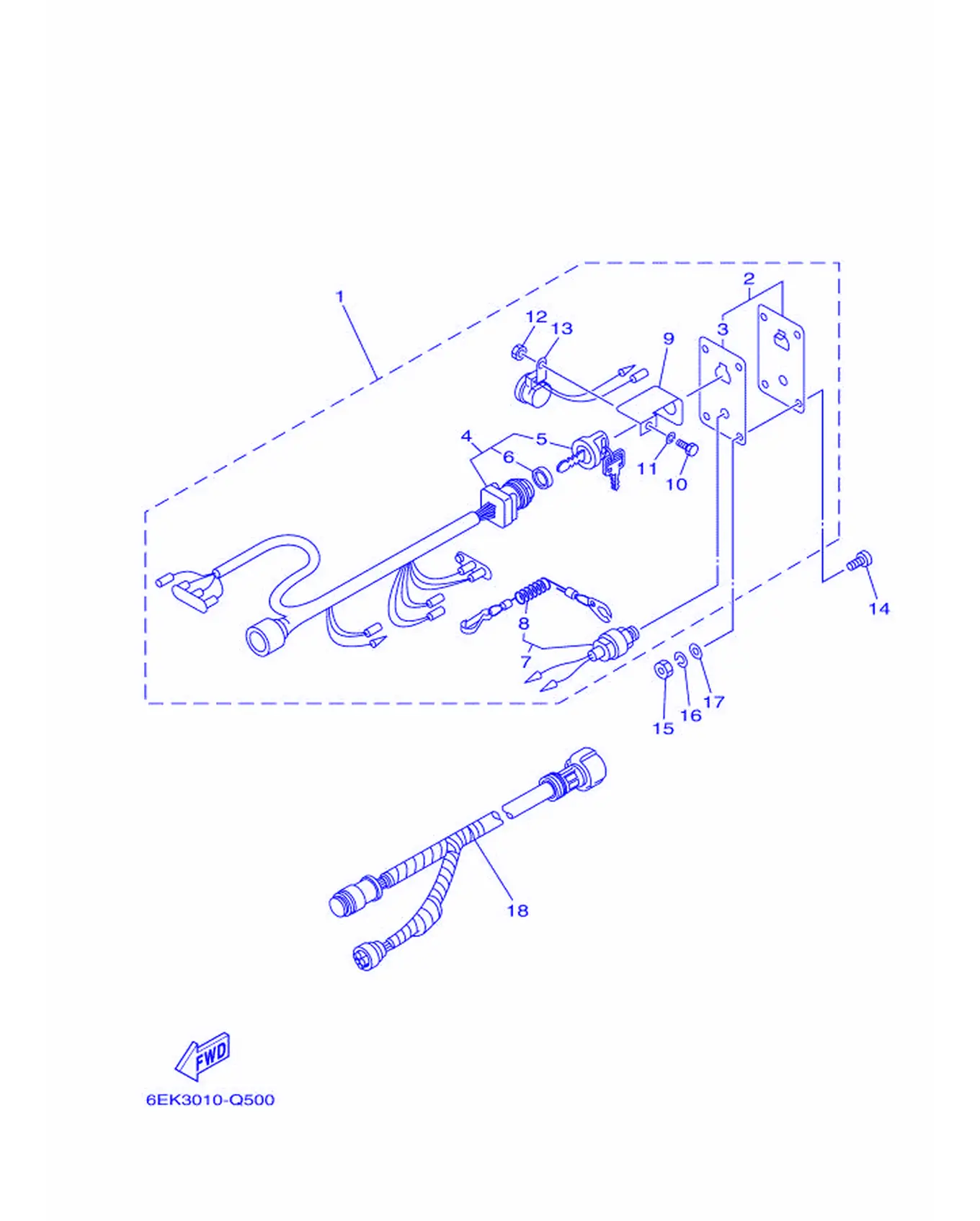

スイツチ & パネル

REF	雅马哈编码	中文名称	英文名称	用量
1	6R5-82570-0A	开关仪表板组合	Panel Switch Assembly	1
2	704-82571-02	开关仪表板	Panel, Switch	1
3	6R5-82588-01	面板	Plate	1
4	6R5-82510-04	主开关总成	Main Switch Assembly	1
5	676-82577-01	键盖	Cap, Key	1
6	703-82532-00	盖	Cap	1
7	688-82575-02	发动机止动开关组合	Engine Stop Switch Assembly	1
8	682-82556-00	止动拉索	Stopper	1
9	64D-82581-00	线夹支承	Stay, Cord Clamp	1
10	97303-05012	螺栓	Bolt	1
11	92903-05100	盘形垫	Washer,Spring	1
12	95303-05700	有槽螺母	Nut	1
13	6R5-83383-00	蜂鸣器	Buzzer	1
14	90149-05M05	螺钉	Screw	4
15	95303-05600	有槽螺母	Nut	4
16	92903-05100	盘形垫	Washer,Spring	4
17	92903-05600	盘形垫	Washer,Plate	4
18	688-8258A-70	电线束延伸部分	Extension, Wire Harness	1

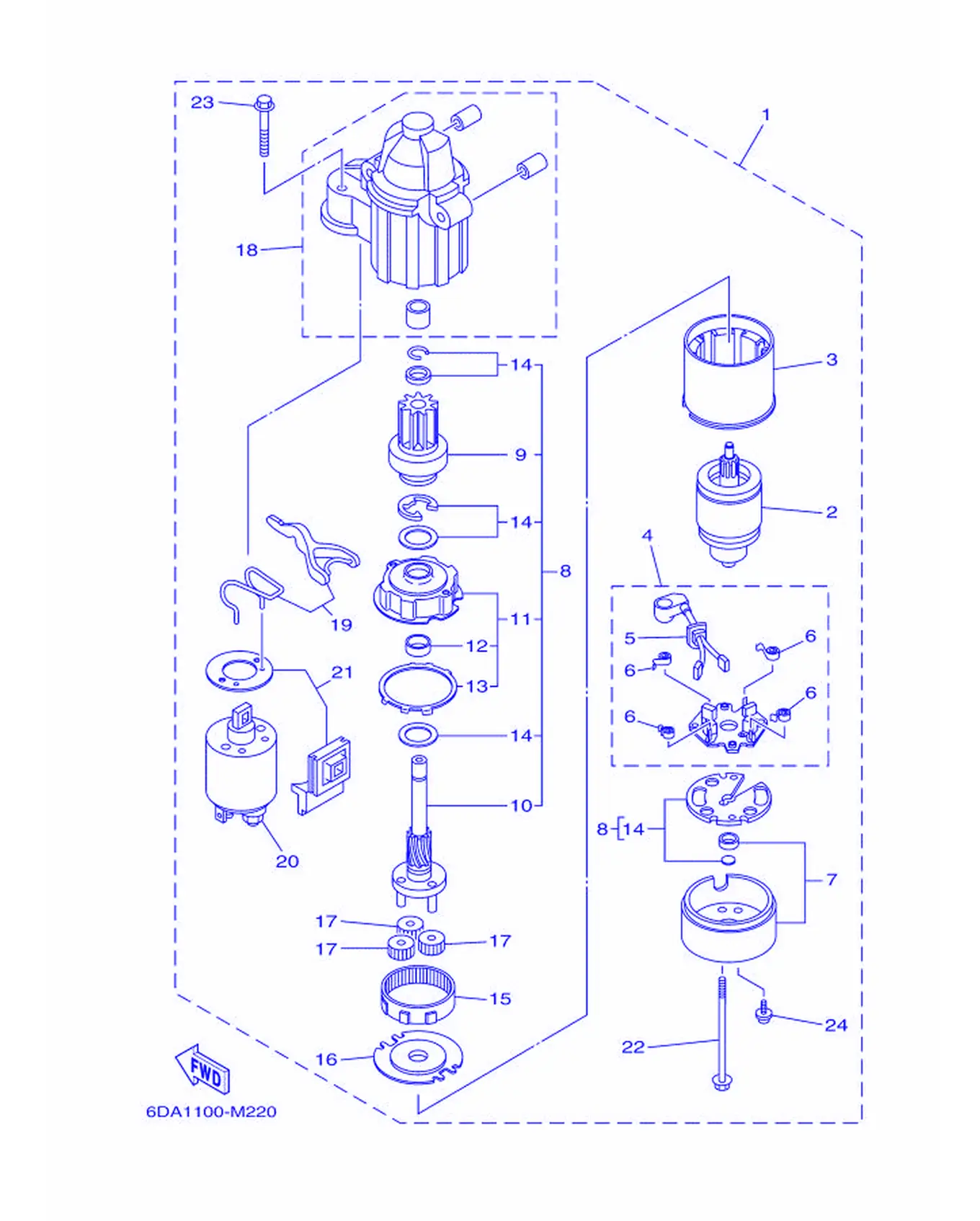

スタ-テイングモ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6CB-81800-02	起动电动机总成	Starting Motor Assembly	1
2	67F-81850-00	电枢组合	Armature Assembly	1
3	67F-81810-00	定子组合	Stator Assembly	1
4	69J-81840-11	电刷架组合	Brush Holder Assembly	1
5	69J-81801-11	碳刷组件	Brush Set	1
6	67F-81813-00	电刷弹簧	Spring, Brush	4
7	6CB-81820-00	后托架组合	Rear Bracket Assembly	1
8	6CB-81807-00	起动电动机齿轮组合	Gear Assembly, Starting Motor	1
9	6CB-81832-00	越转离合器	Clutch, Overrun	1
10	6CB-81836-00	杠杆弹簧	Shaft, Pinion	1
11	67F-81821-00	开关盖	Bracket, Center 1	1
12	67F-81841-00	环形齿轮支承	Bearing	1
13	67F-8183R-00	环形齿轮支承	Gasket	1
14	6CB-81809-00	垫圈套	Washer Kit	1
15	67F-81891-00	环形齿轮	Gear, Ring	1
16	67F-81830-00	前托架组合	Bracket, Center 2	1
17	60V-8183T-00	环形齿轮支承	Gear, Idler	3
18	6CB-81842-00	盖	Cover	1
19	6C5-81839-00	杠杆组合	LeverAssembly	1
20	6C5-81941-01	起动继电器组合	StarterRelayAssembly	1
21	6C5-81869-00	防尘盖	Cover, Dust	1
22	6CB-81826-00	螺栓	Bolt	2
23	69J-81828-00	螺栓2	Bolt 2	2
24	67F-81846-00	螺钉	Screw	2

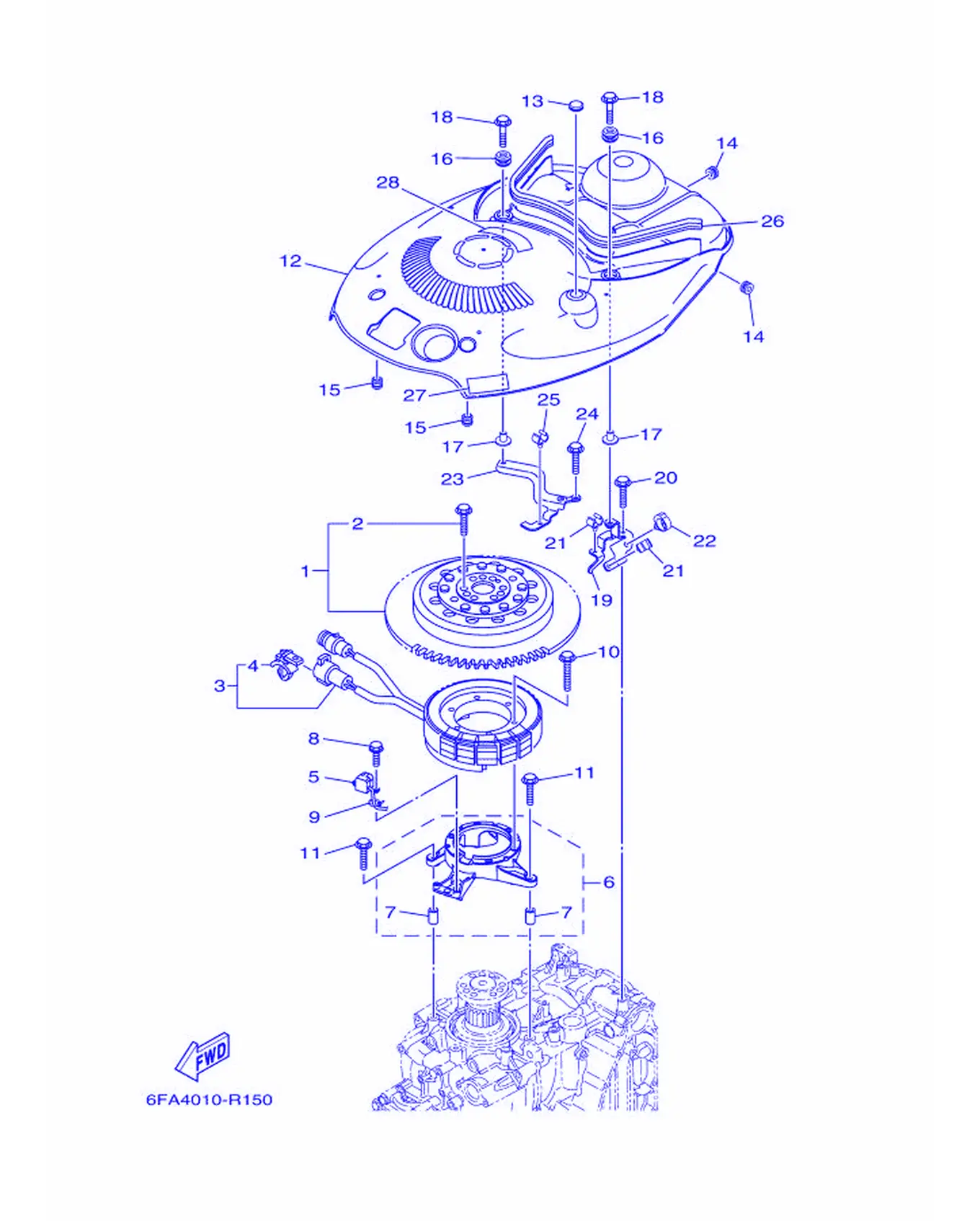

ゼネレ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6DA-W8145-00	带螺栓转子	Rotor Assembly (with Bolt)	1
2	6EK-W9010-00	螺栓套件	BoltSet	1
3	6DA-81410-00	定子总成	Starter Assembly	1
4	90464-12002	固定	Clamp	1
5	6CB-85580-01	脉冲发生器总成	Coil, Pulser	1
6	6DA-85561-00	磁体底座	Base, Magnet	1
7	99530-08012	螺栓	Pin, Dowel	2
8	97595-05520	带垫圈螺栓	Bolt, with Washer	2
9	90465-13M97	固定	Clamp	1
10	95022-06035	螺栓	Bolt, Flange	6
11	95D95-06030	螺栓	Bolt, Flange Deep Recess	4
12	6DA-81337-01	飞轮盖	Cover, Flywheel	1
13	90480-16025	橡胶垫	Grommet	1
14	90480-12314	固定	Grommet	2
15	6A0-82317-01	点火线圈减震器	Damper, Ignition Coil	2
16	6BG-42748-01	固定	Grommet	2
17	90387-06M69	六角螺栓	Color	2
18	90119-06291	带垫圈六角头螺栓	Bolt, with Washer	2
19	6DA-8132G-01	面板	Plate	1
20	95D95-06016	螺栓	Bolt, Flange Deep Recess	1
21	90464-09130	线夹	Clamp	2
22	90464-20181	固定夹	Clamp	1
23	6DA-82398-01	托架	Plate 3	1
24	95D95-06016	螺栓	Bolt, Flange Deep Recess	2
25	90464-09130	线夹	Clamp	1
26	6DA-42617-00	形成减震	Damper, Foam	1
27	63P-13437-02	警告标签	Mark, Corrosion	1
28	6EE-81994-01	警告标签	Label, Safety	1

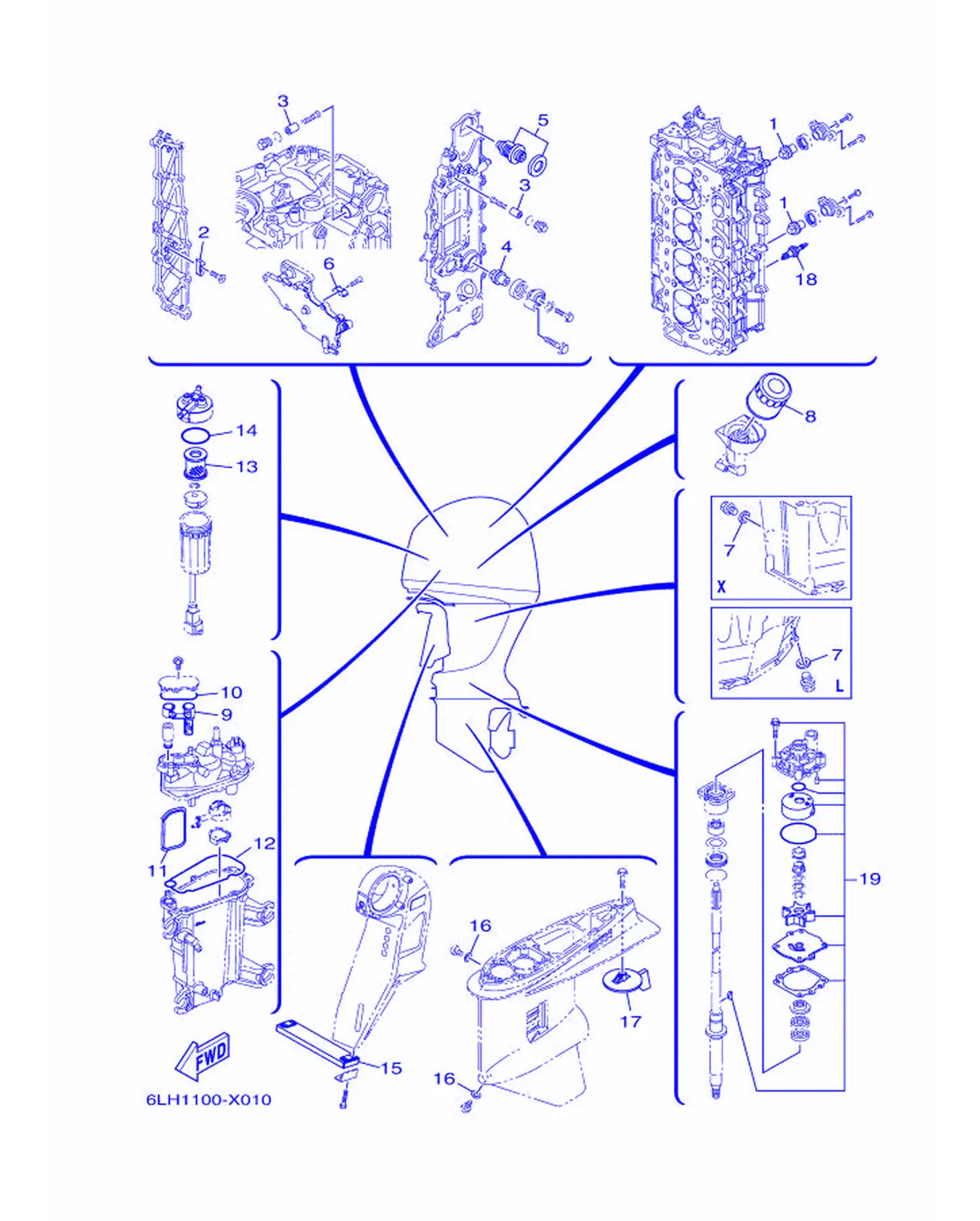

テイキコウカンブヒン

REF	雅马哈编码	中文名称	英文名称	用量
1	6ML-11325-00	阳极	Anode	2
2	6E5-11325-00	阳极	Anode	1
3	68T-11325-00	阳极	Anode	2
4	6ML-11325-00	阳极	Anode	1
5	6DA-12411-01	温控器	Thermostat	1
6	6E5-11325-00	阳极	Anode	1
7	90430-14M09	衬垫	Gasket	1
8	69J-13440-05	机油进滤器总成	Element Assembly, Oil Cleaner	1
9	6CB-24501-01	燃油过滤器	Filter, Fuel	1
10	6CB-13016-00	O型圈	O-ring	1
11	6LH-13915-00	过滤器	Filter	1
12	6CB-14984-00	浮子室衬垫	Gasket,FloatChamber	1
13	6P3-24563-02	过滤器滤芯	Element, Filter	1
14	6P3-24564-00	衬垫	Gasket	1
15	6AW-45251-00	阳极	Anode	1
16	90430-08003	垫片	Gasket	2
17	6J9-45371-01	航向调整	Tab Trim	1
18	94709-00400	火花塞	Plug, Spark (NGK LFR6A-11)	4
19	61A-W0078-A4	水泵修理套	Water Pump Repair Kit	1

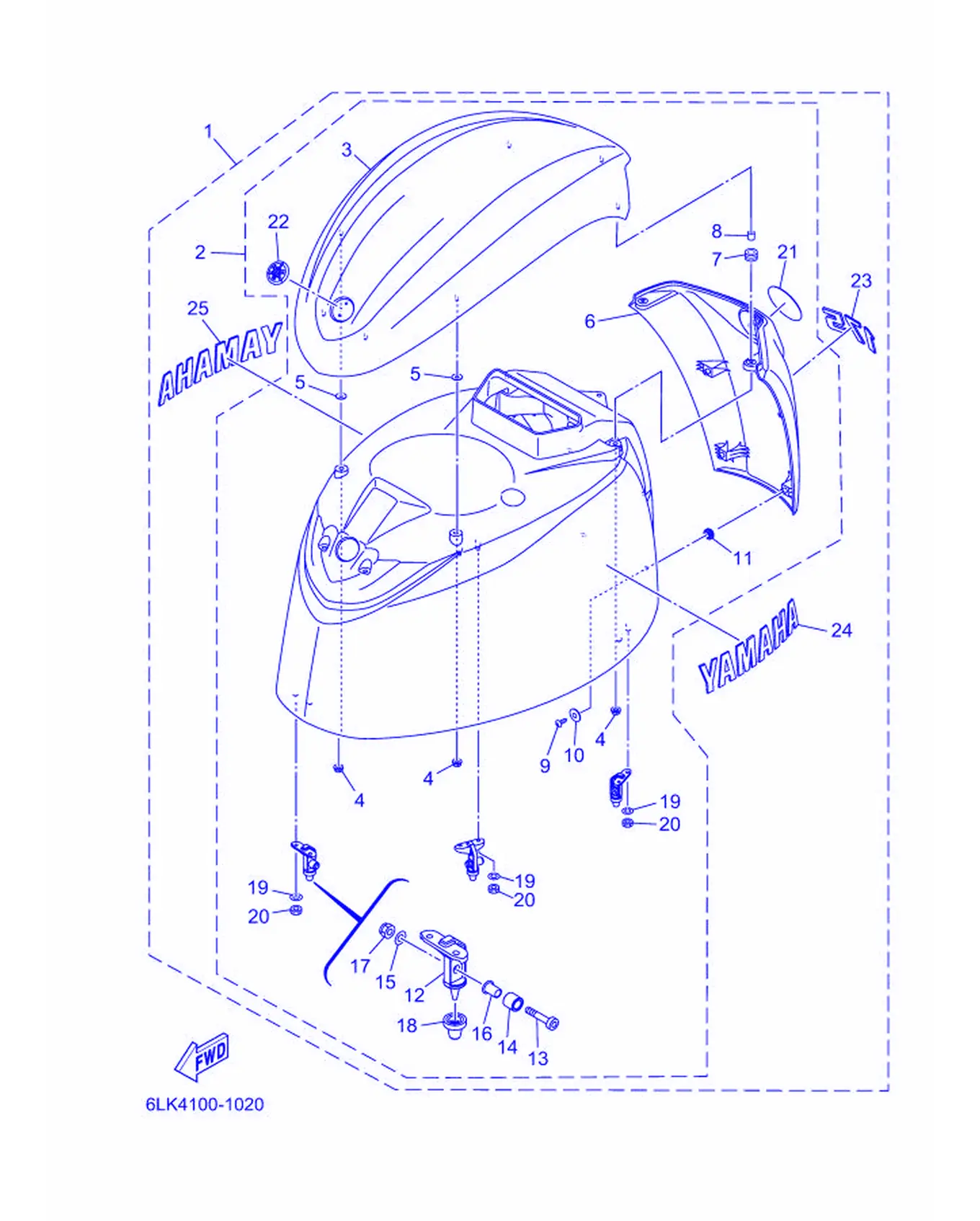

トツプカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6LK-42610-01-8D	顶罩组合	Top Coupling Assembly	1
2	6LH-4261A-02-8D	顶罩组合	Top Cowling (Graphic)	1
3	6LH-42613-00-8D	空气导管嵌	Molding, Air Duct	1
4	90179-06M28	螺帽	Nut	7
5	6CB-42545-00	平垫	Washer, Plain	4
6	6LH-42625-00-8D	后板	Panel Rear	1
7	90480-13004	固定	Grommet	2
8	90387-07054	轴套	Collar	2
9	97780-50016	自攻螺钉	Screw, Tapping	4
10	90201-053R1	平垫圈	Washer, Plate	4
11	90480-16009	橡胶垫	Grommet	4
12	6CB-42647-B0	夹带支架	Holder, Clamp Band	3
13	90111-08078	内六角薄型螺栓	Bolt	3
14	90387-10094	轴套	Collar	3
15	92990-08600	盘形垫	Washer,Plate	3
16	90387-08M45	衬套	Color	3
17	95780-08300	带垫螺母	Nut, Flange	3
18	6AW-42663-01	减震器	Damper 2	3
19	92990-06100	盘形垫	Washer,Spring	6
20	95380-06600	有槽螺母	Nut, Hexagon	6
21	6LH-42697-00	音叉标志	Tuning Fork Mark	1
22	6AH-42697-10	音叉标志	Tuning Fork Mark	1
23	6LK-42678-00	后图样	Graphic, Rear	1
24	6LH-2153A-00	雅马哈标志	Emblem, Yamaha	1
25	6LH-2153B-00	雅马哈标志	Emblem, Yamaha	1

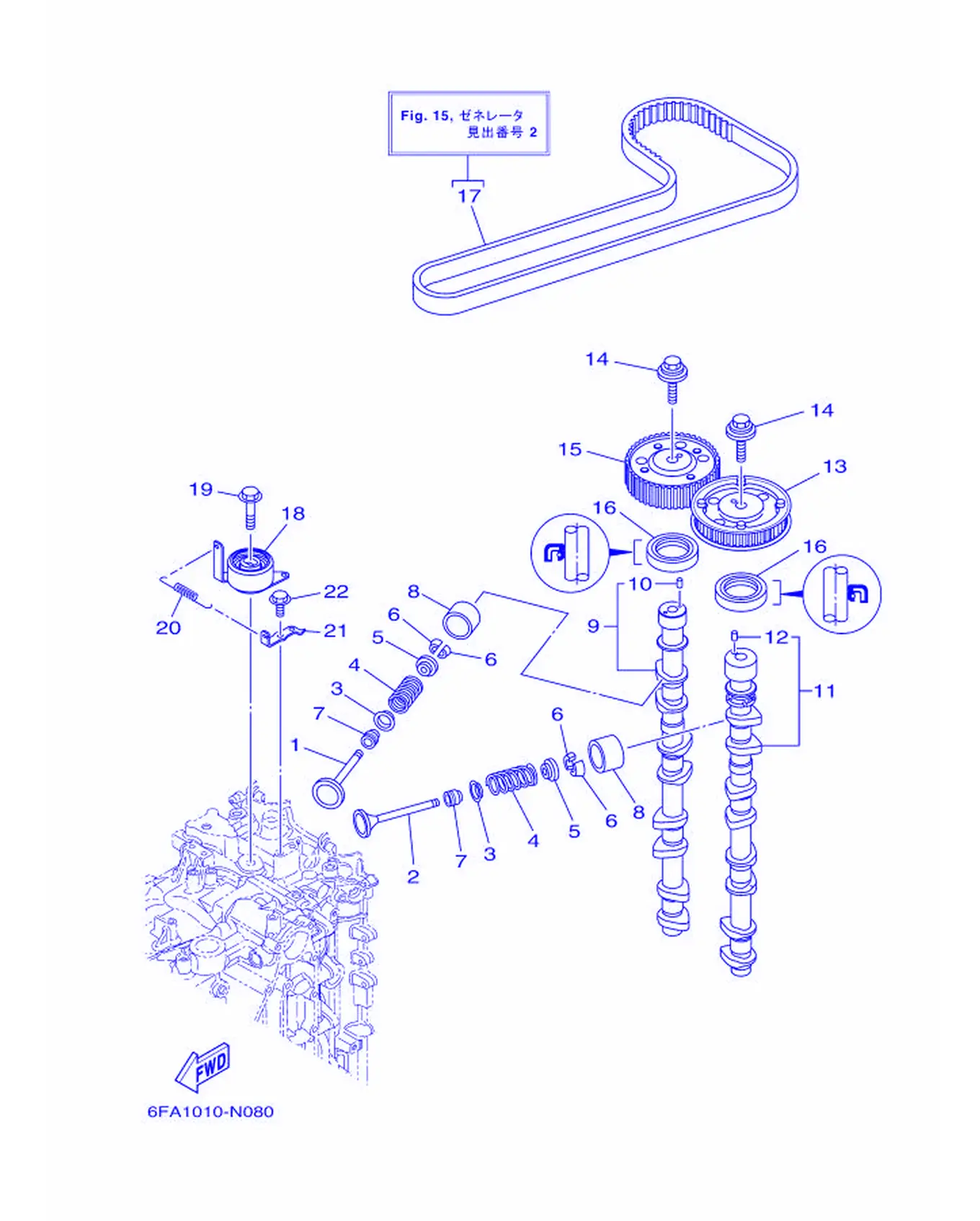

バルブ

REF	雅马哈编码	中文名称	英文名称	用量
1	6CB-12111-00	气门1	Valve, Intake	8
2	6DA-12121-00	气门2	Valve, Exhaust	8
3	K0F-A3743-00	气门弹簧座	Seat, ValveSpring	16
4	6CB-12113-00	弹簧1	Spring, Valve Inner	16
5	K0F-A3741-00	气门弹簧挡圈	Retainer, ValveSpring	16
6	K0F-A3742-00	阀门弹簧固定锁	Lock, ValveSpringRetainer	32
7	51Y-12119-00	气门杆密封	Seal, Valve Stem	16
8	K0F-A3751-00	阀门挺杆	Lifter, Valve (3.000)	16
8	K0F-A3751-10	阀门挺杆	Lifter, Valve (3.025)	16
8	K0F-A3751-20	阀门挺杆	Lifter, Valve (3.050)	16
8	K0F-A3751-30	阀门挺杆	Lifter, Valve (3.075)	16
8	K0F-A3751-40	阀门挺杆	Lifter, Valve (3.100)	16
8	K0F-A3751-50	阀门挺杆	Lifter, Valve (3.122)	16
8	K0F-A3751-60	阀门挺杆	Lifter, Valve (3.142)	16
8	K0F-A3751-70	阀门挺杆	Lifter, Valve (3.162)	16
9	6FA-12171-01	凸轮轴1	Camshaft 1	1
10	93605-10108	定位销	Pin, Dowel	1
11	6DA-12181-02	凸轮轴2	Camshaft 2	1
12	93605-10108	定位销	Pin, Dowel	1
13	6FA-115A0-00	从动齿轮组合	Driven Gear Assembly	1
14	90119-10050	带垫圈六角头螺栓	Bolt, With Washer	2
15	6FA-11567-00	从动齿轮2	Gear, Driven 2	1
16	93102-38008	油封	OilSeal	2
17	6DA-W4624-00	皮带	Belt (Rotor Bolt Included)	1
18	6DA-11590-00	张紧轮组合	Tensioner Assembly	1
19	90119-10M07	螺栓	Bolt, With Washer	1
20	90506-18025	拉簧	Spring, Tension	1
21	6DA-11595-00	面板	Valve Plate	1
22	97E75-06516	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	1

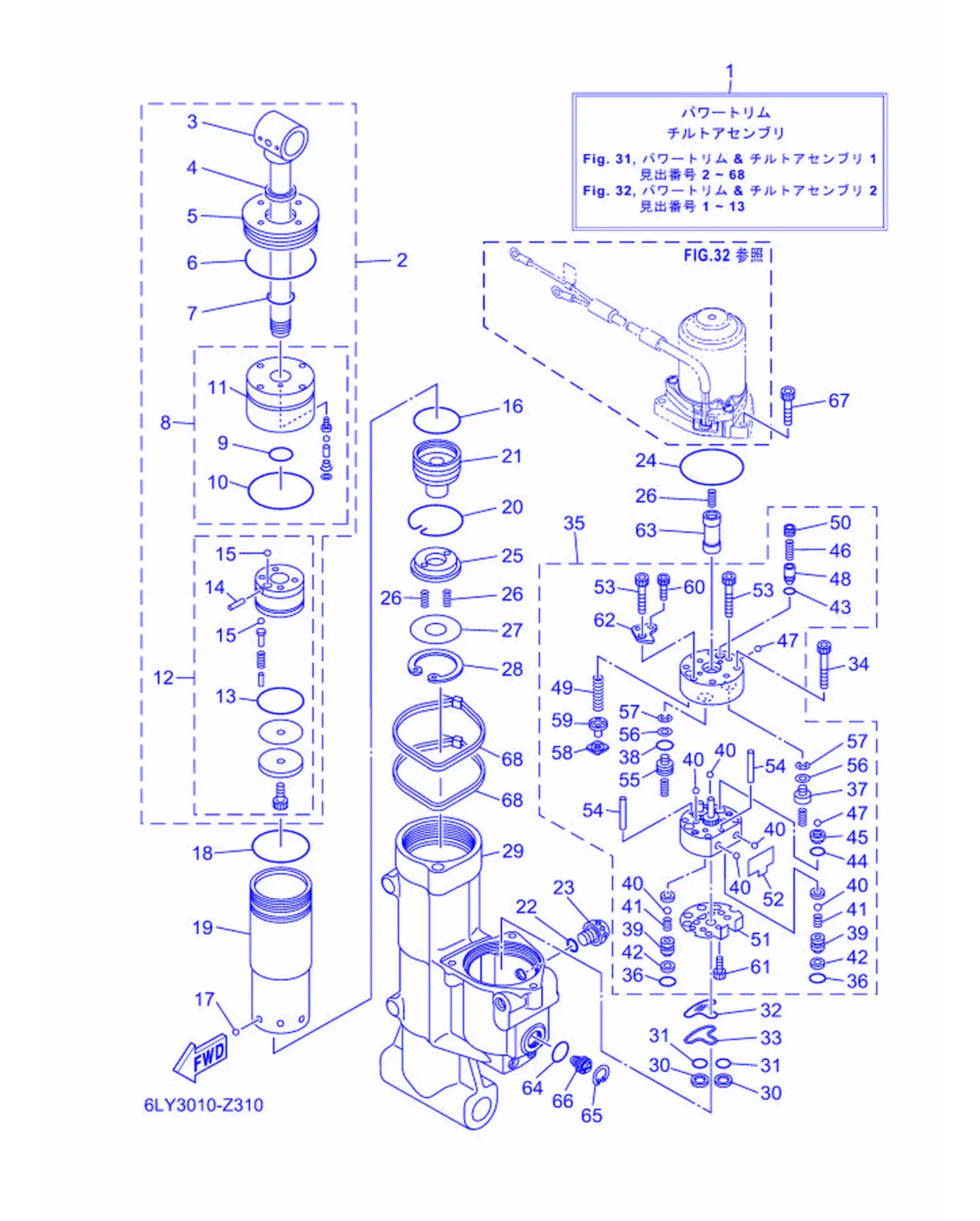

パワートリム & チルトアセンブリ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6LH-43800-02	电动倾斜调整装置组合	Power Trim & Tilt Assembly	1
2	6LH-43810-00	活塞分组合	Tilt Piston Sub-Assembly	1
3	6LH-43801-00	杆	Rod	1
4	93106-19001	油封	Oil Seal	1
5	6LH-43821-00	纵倾角调整气缸端部螺钉	Screw, Trim Cylinder End	1
6	6EK-43861-00	O型圈	O-ring	1
7	63P-43863-10	O型圈	O-ring	1
8	6LH-4380R-00	端部缸体组件	Cylinder End Sub-assembly	1
9	63P-43863-10	O型圈	O-ring	1
10	67F-43865-00	O型圈	O-ring	1
11	6LH-43811-00	气缸端部螺钉	Screw, Cylinder End	1
12	6LH-4380P-00	活塞分组合	Piston Sub Assembly	1
13	6H1-43862-00	O型圈	O-ring	1
14	91609-16010	螺旋销	Pin, Spring	1
15	93505-32038	滚珠	Ball	5
16	6H1-43862-00	O型圈	O-ring	1
17	93503-16003	滚珠	Ball	6
18	7BB-G3861-00	O型圈	O-ring	1
19	6LH-22471-00	减震器气	Cylinder, Shock Absorber	1
20	6EK-43875-00	开口	Ring, Snap	1
21	6EK-4381B-00	自由活塞组件	Free Piston Sub Assembly	1
22	6CJ-43861-10	O型圈	O-ring	1
23	6CJ-43829-20	储油箱盖	Reserve Plug	1
24	93210-68N50	O型圈	O-ring	1
25	6EK-43899-00	面板限位板	Plate Stopper	1
26	62X-4384H-00	弹簧	Spring	3
27	6EK-22434-00	阀门面板1	Valve Plate 1	1
28	99009-47500	卡环	Circlip	1
29	6LH-4380K-02	角度定位气缸次组合	Cylinder, Tilt Sub-assembly	1
30	6C6-43817-00	过滤器2	Filter 2	2
31	69J-4389J-00	O型圈	O-ring	2
32	6C5-43816-00	过滤器1	Filter 1	1
33	6C5-4380G-00	面板	Plate	1
34	91318-05045	内六角圆柱头螺栓	Bolt	4
35	6EK-43830-00	齿轮泵组合	Gear Pump Assembly	1
36	69J-4389J-00	O型圈	O-ring	2
37	6D8-4384M-00	穿梭活塞2	Piston, Shuttle 2	1
38	6H1-43883-00	O型圈	O-ring	1
39	6EK-4382E-00	联接器2	Adapter 2	2
40	93505-32038	滚珠	Ball	6
41	6C6-43853-00	主阀门弹簧	Spring	2
42	6C6-4387G-00	垫圈	Washer	2
43	93210-04N51	O型圈	O-ring	1
44	93210-064A5	O型圈	O-ring	1
45	6D8-43851-00	安全阀座	Seat, Relief Valve	1
46	6C5-43855-10	上减压弹簧	Spring	1
47	93501-08001	滚珠	Ball	2
48	6D8-43844-00	阀门支销	Pin, Valve Support	1
49	6EK-43856-00	下减压弹簧	Spring, Down Relief	1
50	6D8-43843-00	阀门锁紧螺钉	Screw, Valve Lock	1
51	6C5-43895-00	安全阀座	Seat, Relief Valve	1
52	6C5-43854-00	手控释放弹簧	Spring, Manual Release	1
53	91318-05030	内六角圆柱头螺栓	Bolt	2
54	93604-26256	定位销	Pin, Dowel	2
55	6D8-43841-00	活塞	Piston, Shuttle	1
56	69A-4384F-00	主阀门密封	Seal, Main Valve	2
57	99002-03600	簧环	Circlip	2
58	6H1-4384G-11	安全阀密封	Seal, Relief Valve	1
59	6H1-43844-10	阀门支销	Pin, Valve Support	1
60	91318-03025	内六角圆柱头螺栓	Bolt	2
61	91318-03005	内六角圆柱头螺栓	Bolt	1
62	6D8-4382L-00	安全阀盖	Cap Relief Valve	1
63	6EK-43831-00	轴连接器	Connector, Shaft	1
64	93210-12327	O型圈	O-ring	1
65	61A-43876-00	开口	Ring, Snap	1
66	6GR-43845-00	手控释放螺钉	Screw, Manual Release	1
67	91380-06025	螺栓	Bolt	3
68	90464-99004	固定夹	Clamp	2

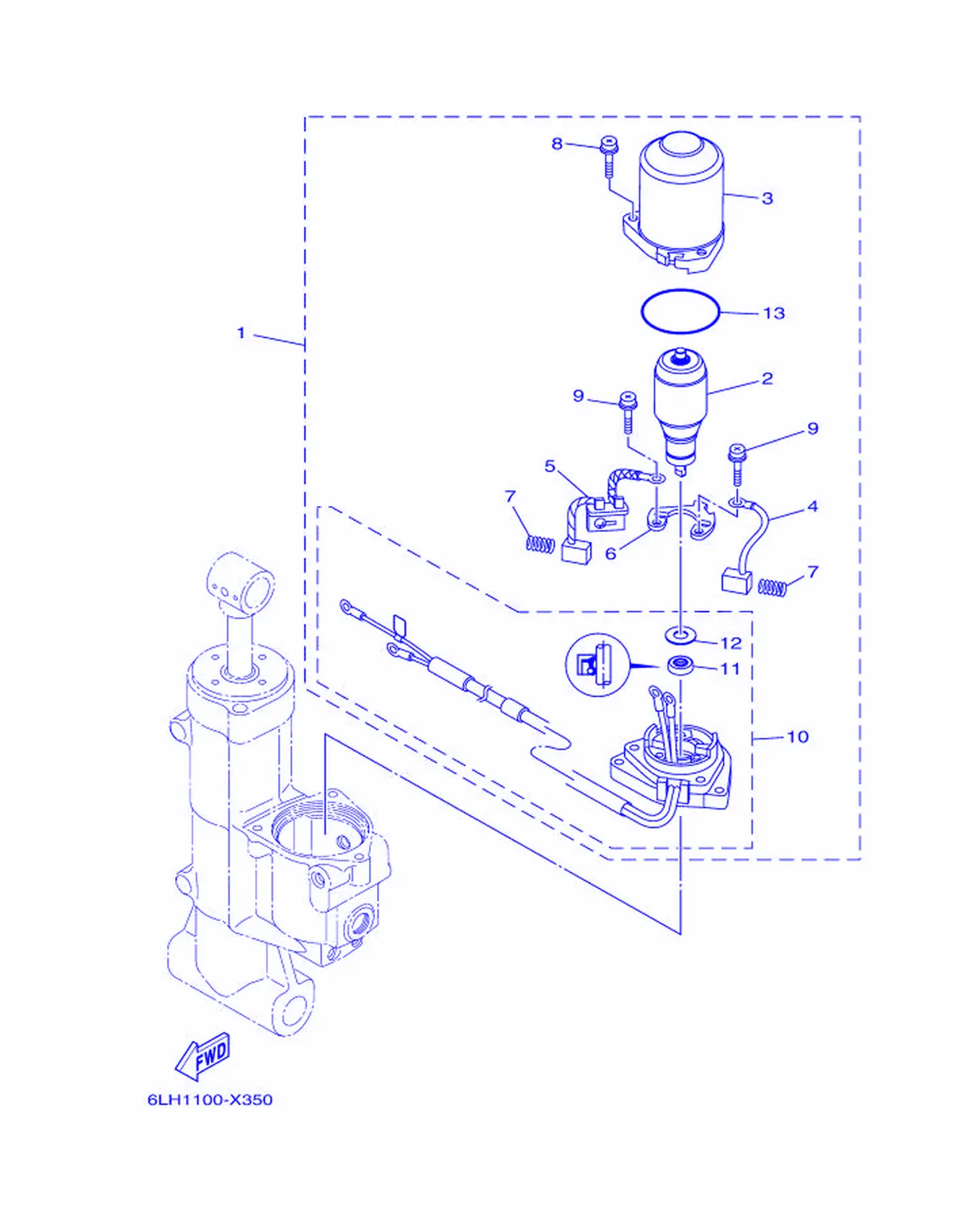

パワートリム & チルトアセンブリ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6LH-43880-01	电动机总成	Motor Assembly	1
2	6LH-43805-10	电枢组合	Armature Assembly	1
3	6EK-43804-20	定子组合	Starter Assembly	1
4	6EK-43892-10	电刷	Brush 2	1
5	63P-82181-20	断路器组	Circuit Breaker Complete	1
6	6EK-4380F-00	支架	Plate, Brush Holder	1
7	62X-4386K-00	电刷弹簧	Spring, Brush	2
8	63P-43879-10	带垫螺钉	Screw, Washer	3
9	97602-04316	螺丝	Screw, Pan Head Washer	2
10	6LH-43881-01	端部框架	Frame, End	1
11	6LH-43882-10	油封	Oil Seal	1
12	90201-12069	六角螺栓	Washer, Plate	1
13	93210-55001	O型圈	O-ring	1

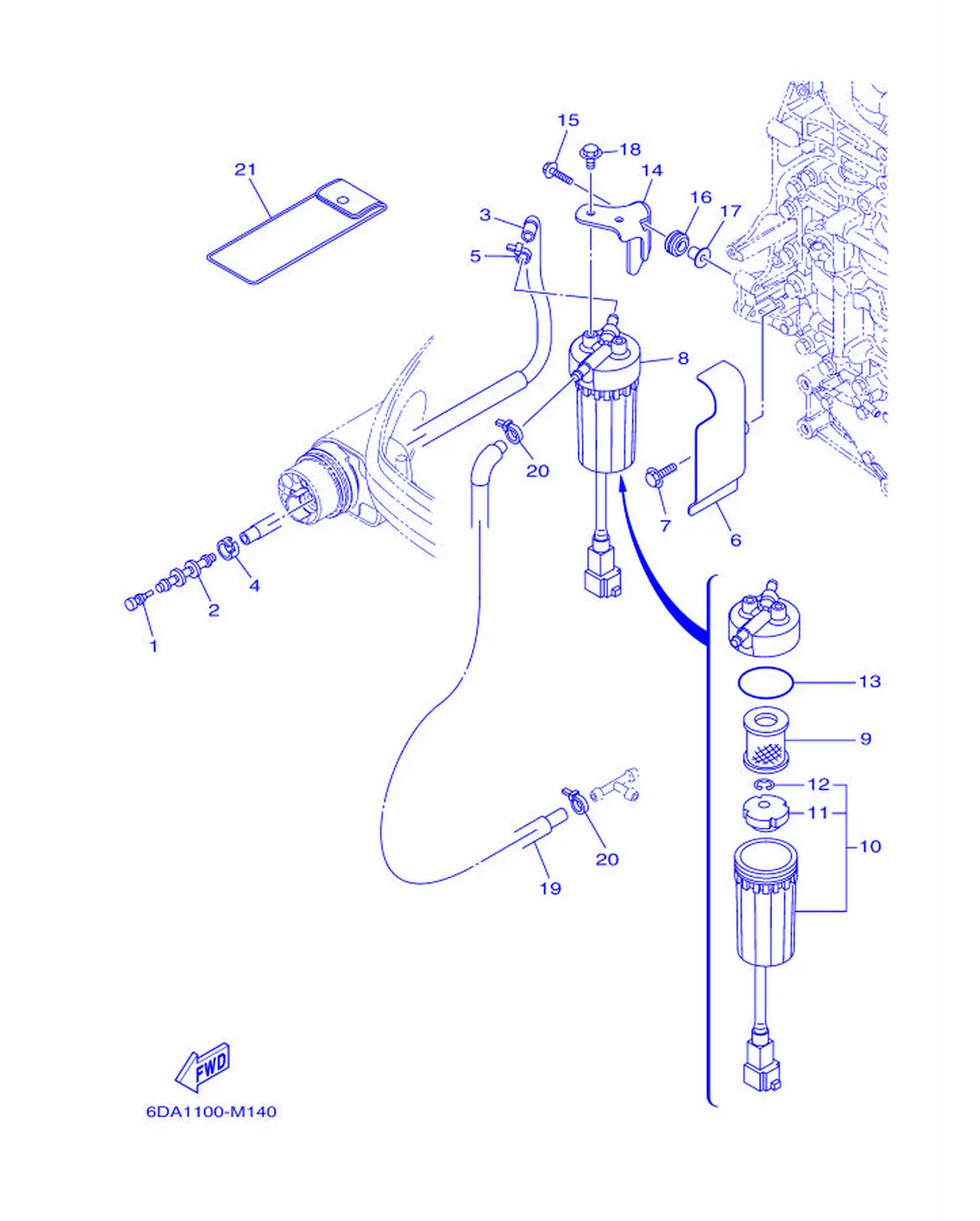

フユエル

REF	雅马哈编码	中文名称	英文名称	用量
1	689-85547-01	减震器	Damper	1
2	6AW-24377-01	连接管3	Pipe, Joint 2	1
3	6DA-24314-10	管4	Pipe 4	1
4	6E5-24351-51	带1	Band 1	1
5	90465-11M10	固定	Clamp	1
6	6DA-24596-01	盖	Cover	1
7	95D95-06025	连杆螺栓	Bolt, Flange Deep Recess	2
8	6P3-24560-04	过滤器总成	Filter Assembly	1
9	6P3-24563-02	过滤器滤芯	Element, Filter	1
10	6P3-24562-03	过滤器滤杯	Cup, Filter	1
11	6P3-24469-00	水位浮标	Float, Water Level	1
12	6P3-24519-00	钢夹	Clip	1
13	6P3-24564-00	衬垫	Gasket	1
14	6DA-24566-00	过滤器支架	Bracket, Filter	1
15	90119-06309	带垫圈六角头螺栓	Bolt, with Washer	2
16	90480-15013	橡胶垫	Grommet	2
17	90387-06289	轴套	Color	2
18	95D95-06012	螺栓	Bolt, Flange Deep Recess	2
19	6DA-24313-10	管3	Pipe 3	1
20	90465-11M10	固定	Clamp	2
21	69J-28100-03	随车工具	Tool Kit	1

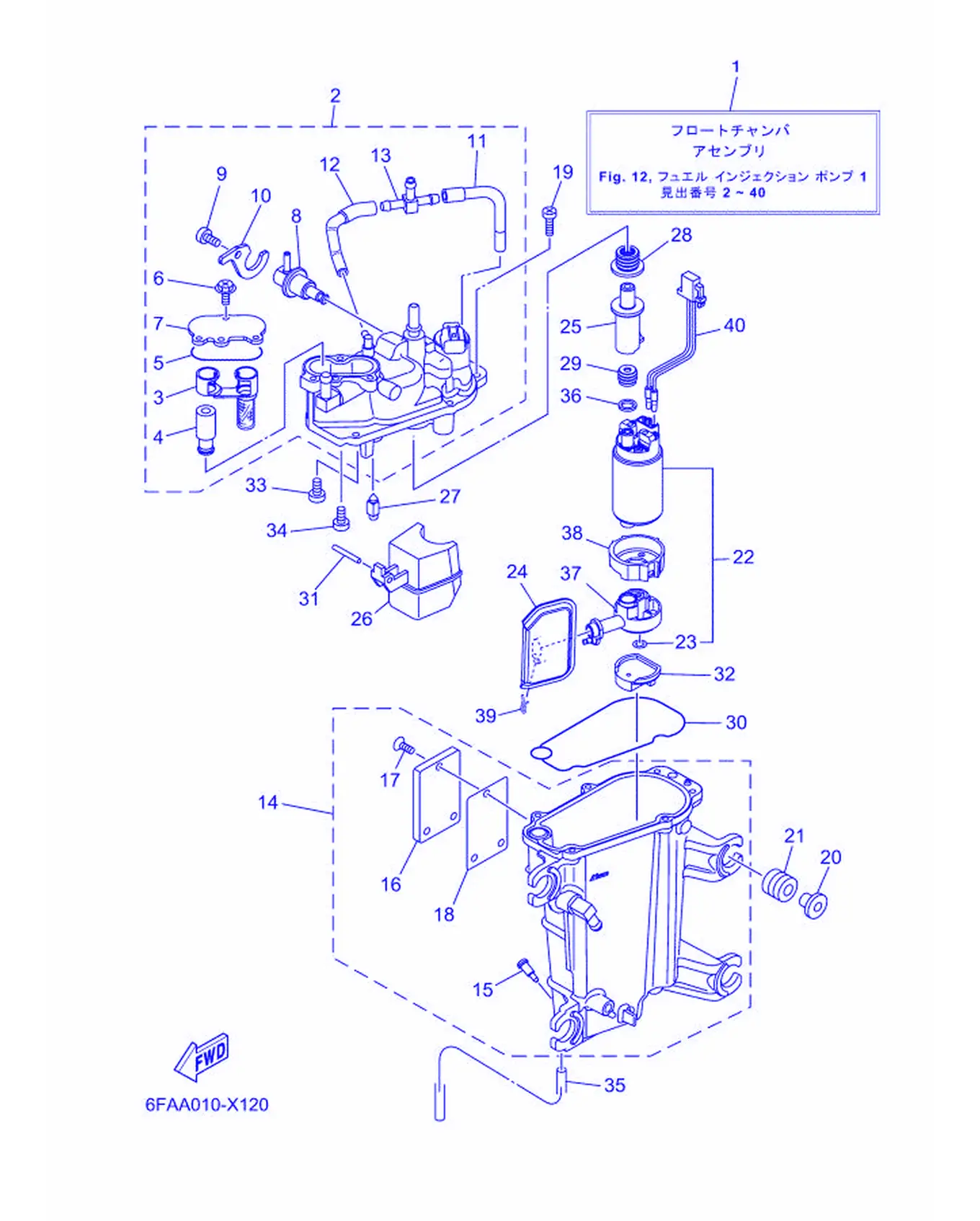

フユエルインジエクシヨンポン

REF	雅马哈编码	中文名称	英文名称	用量
1	6LH-14180-00	浮子室组合	Float Chamber Assembly	1
2	6DA-14182-00	浮子室盖	Cover, Float Chamber	1
3	6CB-24501-01	燃油过滤器	Filter, Fuel	1
4	6CB-24460-00	放油阀组合，安全阀组合	Relief Valve Assembly	1
5	6CB-13016-00	O型圈	O-ring	1
6	6CB-14216-00	螺钉	Screw	3
7	6CB-24217-00	盖	Cover	1
8	6CB-13906-01	调压器	Regulator, Pressure	1
9	6CB-14564-00	螺钉	Screw	1
10	6DA-14146-00	面板	Plate	1
11	6DA-13892-00	管	Hose, Air 2	1
12	6DA-13893-00	管	Hose, Air 3	1
13	69J-24379-00	连接管4	Pipe,Joint 4	1
14	6LH-14181-00	浮子室本体1	Body, Float Chamber 1	1
15	6P2-14191-00	放油旋	Drain Plug	1
16	6EK-24452-00	盖	Cover	1
17	6K8-14591-10	螺钉	Screw	3
18	6CB-24482-00	衬垫1	Gasket 1	1
19	63P-14567-00	螺钉	Screw	6
20	63P-13716-00	轴套	Collar	4
21	6CB-13593-00	隔板	Damper	4
22	6LH-W1390-00	燃油泵衬套	Fuel Pump Kit	1
23	6C5-14127-10	钢夹	Clip	1
24	6LH-13915-00	过滤器	Filter	1
25	6LH-13132-00	接头	Joint	1
26	6CB-14985-00	浮子	Float	1
27	6CB-14546-00	针阀	Valve,Needle	1
28	6LH-1447B-00	衬套	Bushing 1	1
29	6LH-13781-00	泵减震器	Damper, Pump	1
30	6CB-14984-00	浮子室衬垫	Gasket,FloatChamber	1
31	6P2-14386-00	浮子销	Pin,Float	1
32	6LH-13784-00	泵盖	Cover, Pump	1
33	4SV-24453-00	螺钉	Screw	1
34	98507-04008	大柱头螺钉	Screw, Pan Head	1
35	6P2-14149-00	管	Pipe	1
36	6LH-13716-00	安装	Collar	1
37	6LH-13938-00	进气管	Pipe	1
38	6LH-24492-00	燃油泵衬套	Bush, Fuel Pump	1
39	6FM-14137-00	卡环	Clip	1
40	6LH-87226-00	电线束组合	Wire Harness Assembly	1

フユエルタンク

REF	雅马哈编码	中文名称	英文名称	用量
1	6YJ-W2420-J3	燃油箱组合	Fuel Tank Assembly (24L)	1
2	6YJ-24610-01	盖组合	Cap Assembly	1
3	6Y1-24260-30	油量计组合	Fuel Meter Assembly	1
4	90157-05M19	螺钉	Screw, Pan Head	4
5	6Y1-24329-00	密封	Seal	4
6	6Y1-24268-01	油量计衬垫	Gasket, Fuel Meter	1
7	6YJ-24167-00	滤	Strainer	1
8	6Y2-24306-57	燃油管组件1	Fuel Pipe Complete 1	1
9	6E5-24305-06	油管接头2	Fuel Pipe Joint Complete	1
10	93210-08287	O型圈	O-ring	1
11	6Y2-24305-06	燃油管接头组件2(85以上油箱侧D:13M	Fuel Pipe Joint Complete	1
12	93210-08287	O型圈	O-ring	1
13	90445-13M25	软管	Hose (L2050)	1
14	6E5-24351-51	带1	Band 1	4
15	90445-13M24	软管	Hose (L850)	1
16	6Y2-24360-60	起动注油泵组合	Primer Pump Assembly	1

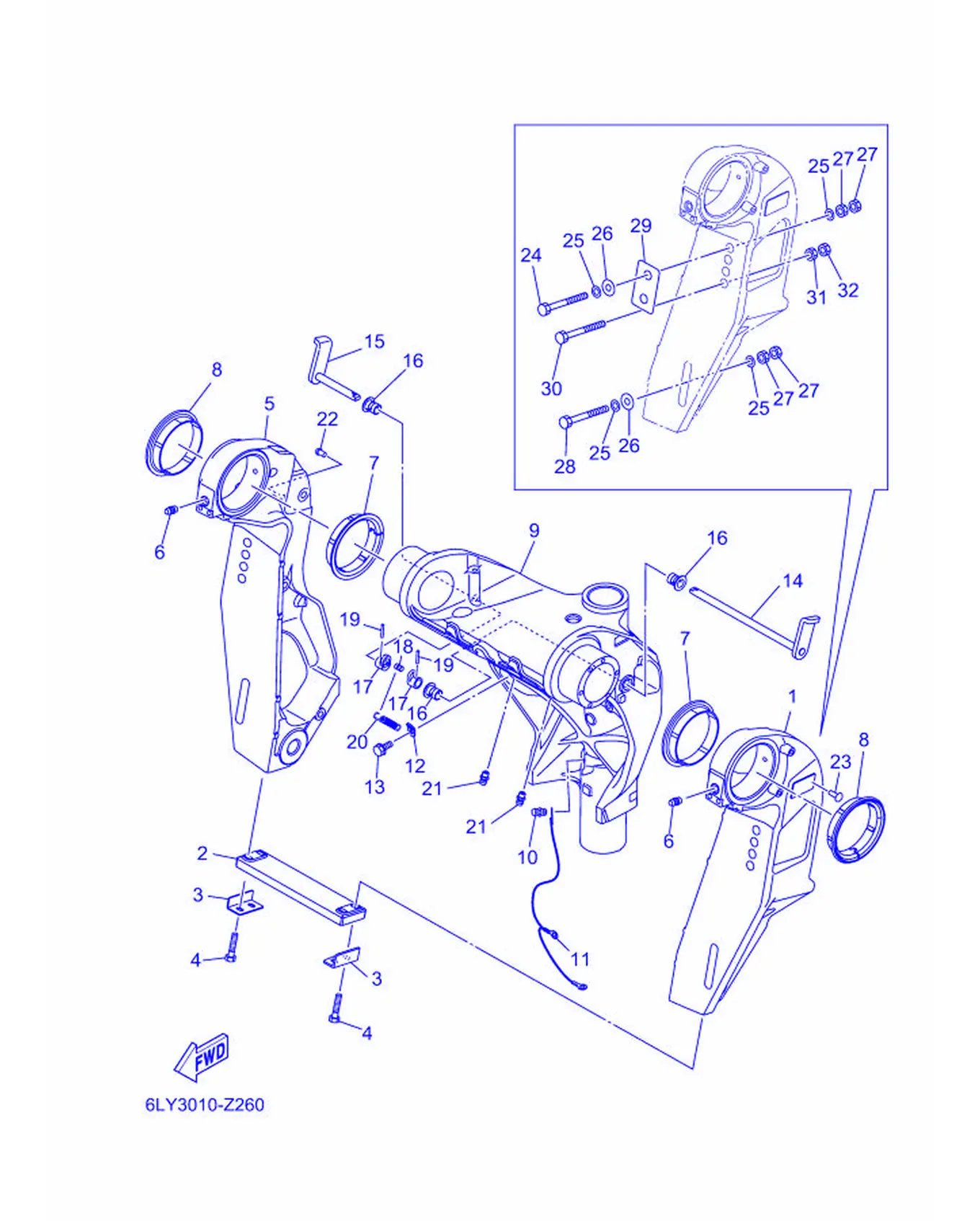

ブラケツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6LH-43111-00-8D	夹紧托架	Bracket, Clamp 1	1
2	6AW-45251-00	阳极	Anode	1
3	6G5-44526-00	面板	Plate	2
4	97E95-06530	螺栓	Bolt, Hexagon with Washer Deep Recess	4
5	6LH-43112-00-8D	夹紧托架	Bracket, Clamp 2	1
6	93700-06002	油脂嘴	Nipple, Grease	2
7	6LH-43333-00	衬套	Bushing, Swivel Bracket	2
8	6LH-43333-10	衬套	Bushing, Swivel Bracket	2
9	6LH-43311-10-8D	旋转支架	Bracket, Swivel 1	1
9	6LH-43311-00-8D	旋转支架	Bracket, Swivel 1	1
10	93700-06002	油脂嘴	Nipple, Grease	1
11	6DA-82149-00	导线3	Wire, Lead 3	1
11	66K-82149-00	导线3	Wire,Lead 3	1
12	6G5-43144-00	弹簧	Hook,Spring	1
13	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1
14	6LH-43181-00	顶位销杆	Lever, Tilt Stop 1	1
15	6LH-43185-00	顶位销杆	Lever, Tilt Stop 2	1
16	90386-10M16	衬套	Bushing	3
17	6G5-43148-00	间隔轴	Collar, Distance	2
18	90249-06M19	螺丝	Pin	1
19	91690-30020	弹簧销	Pin,Spring	2
20	90506-16010	拉簧	Spring, Tension	1
21	93700-06002	油脂嘴	Nipple, Grease	2
22	90269-02M08	螺丝	Rivet	2
23	90269-02M08	螺丝	Rivet	2
24	90101-12069	六角螺栓	Bolt, Hexagon (210MM)	4
25	90201-13M01	面板垫圈	Washer,Plate	12
26	90201-12426	平垫圈	Washer,Plate	4
27	95380-12600	有槽螺母	Nut	12
28	90101-12065	螺栓	Bolt (L:130MM)	2
29	6G5-43119-00	艉板	Plate, Transom	2
30	90101-12078	六角螺栓	Bolt (L:220MM)	2
31	95380-12700	盘形垫	Nut	2
32	90170-12M28	螺栓	Nut	2

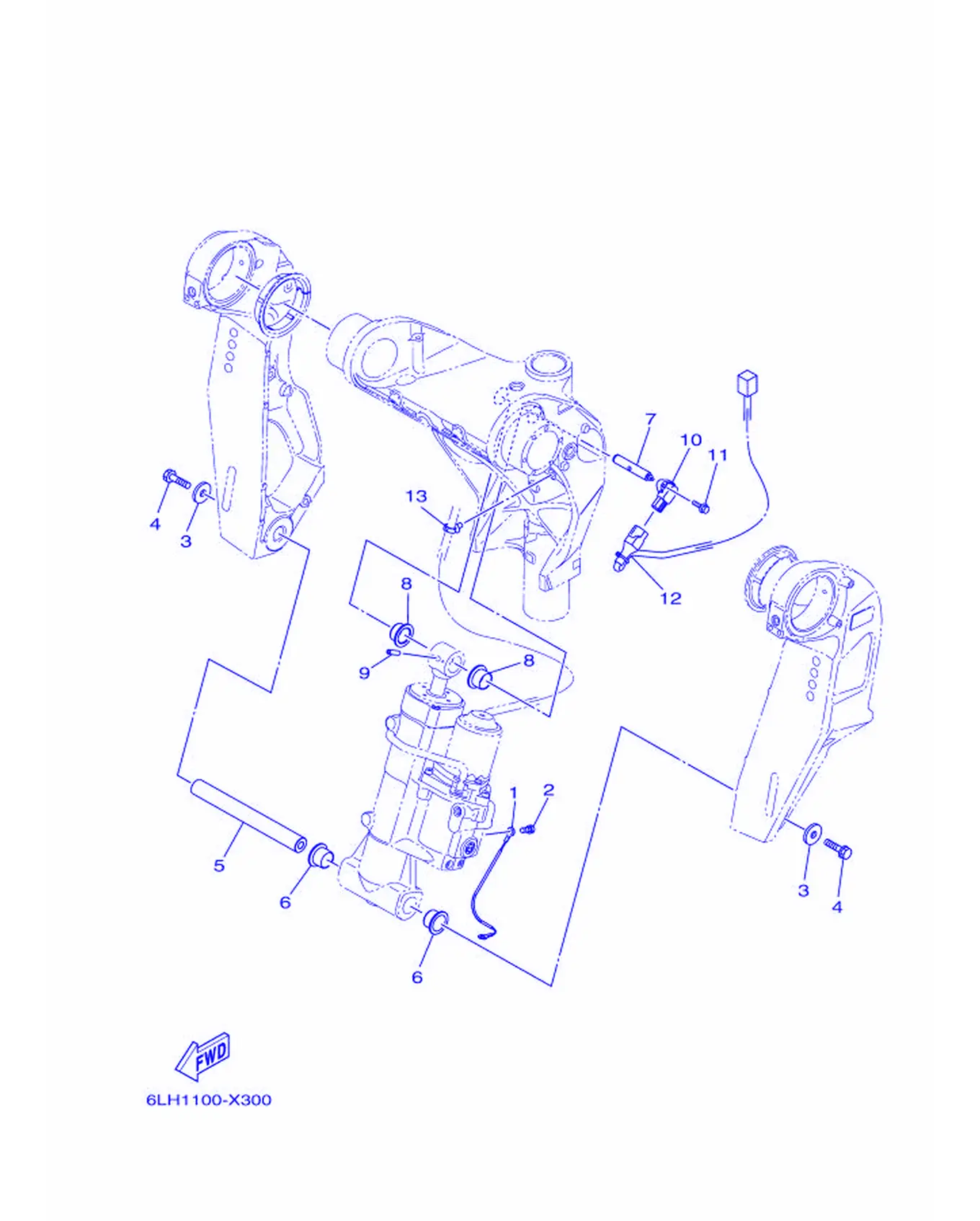

ブラケツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6T4-82117-00	导线	Wire, Lead	1
2	95D95-06010	螺栓	Bolt, Flange Deep Recess	1
3	90201-10060	平垫圈	Washer,Plate	2
4	90119-10054	带垫圈六角头螺栓	Bolt, with Washer	2
5	6BC-43818-00	下侧防震销	Pin, Lower Shock Mount	1
6	90386-22M98	衬套	Bushing	2
7	6LH-43126-00	上侧防震销	Pin, Upper Shock Mount	1
8	90386-22M98	衬套	Bushing	2
9	91690-60022	夹紧盖	Pin, Spring	1
10	6GR-85887-00	传感器	Sensor, Angle	1
11	97595-05516	带垫圈螺	Bolt, with Washer	2
12	6LH-82553-00	导线延伸部分	Extension, Wire Lead	1
13	90464-31002	线夹	Clamp	1

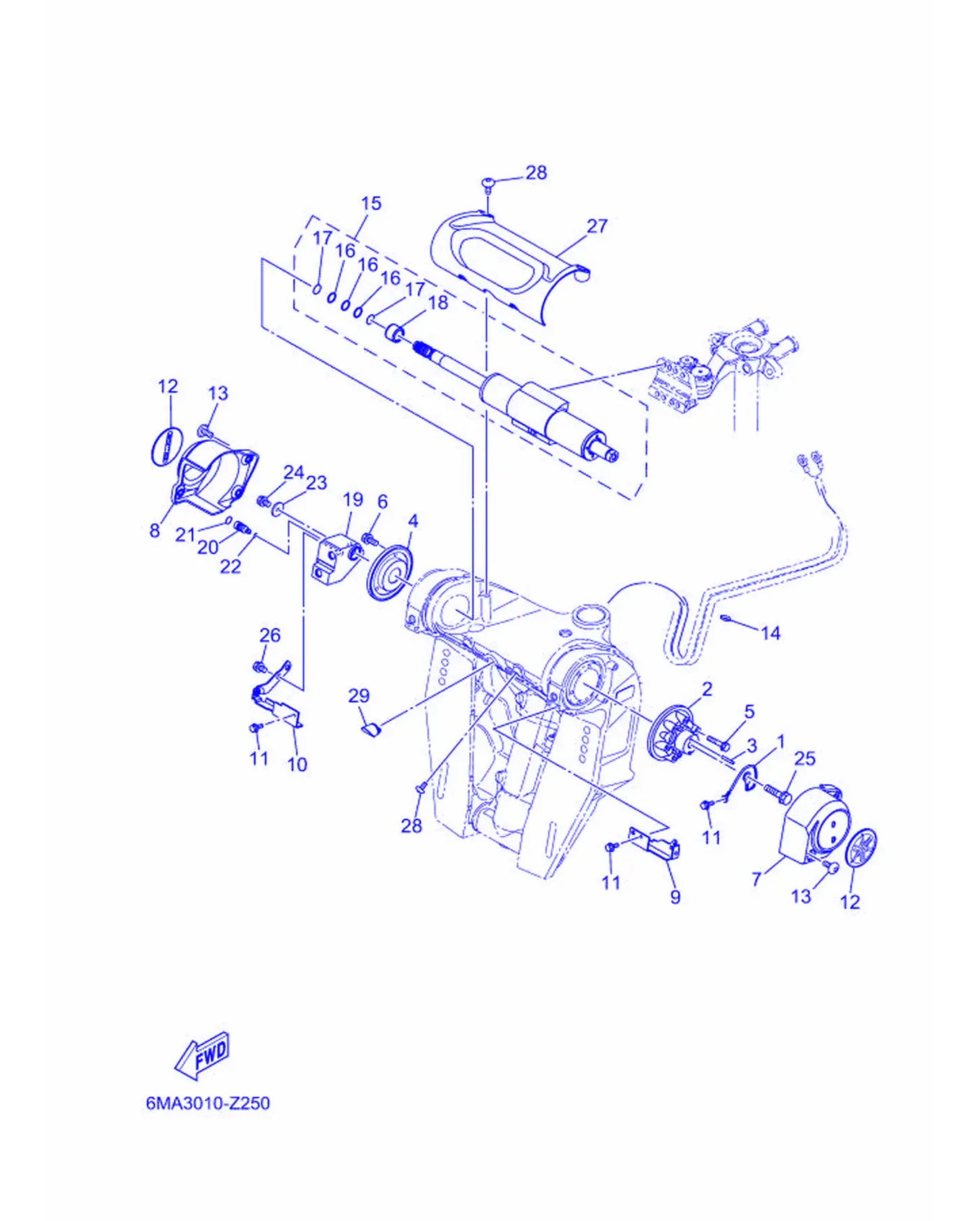

ブラケツト 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6LH-82147-00	导线4	Wire, Lead 5	1
2	6LH-43341-00	盖	Cover, Swivel Side 1	1
3	91690-40025	弹簧销	Pin, Spring	1
4	6LH-43342-00	盖	Cover, Swivel Side 2	1
5	90119-06323	带垫圈六角头螺栓	Bolt, with Washer	6
6	97E75-06520	螺栓附墊圈	Bolt, Hexagon with Washer Deep Recess	3
7	6LP-43381-00-8D	盖	Cover 2	1
8	6LP-43382-00-8D	盖	Cover 3	1
9	6LP-44526-00	面板	Plate	1
10	6LP-44536-00	面板	Plate 2	1
11	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	3
12	6DA-42697-00	音叉标志	Tuning Fork Mark	2
13	90111-06144	内六角薄型螺栓	Bolt	6
14	90465-11M10	固定	Clamp	1
15	6LP-61501-00	动力方向气缸组合	Steering Cylinder Assembly	1
16	93210-15414	空气净化器盖	O-ring	3
17	6LH-2312B-00	支承	Ring, Back Up	2
18	6LH-22253-00	间隔轴	Collar, Distance	1
19	6LP-22954-00	联接器	Adapter	1
20	6LH-22447-00	阀针	Needle, Valve	1
21	93210-10107	O型圈	O-ring	1
22	93210-03494	O型圈	O-ring	1
23	6LH-43627-00	限位板	Stopper	1
24	97D95-06008	连杆螺栓	Bolt, Hexagon Deep Recess	1
25	90119-10058	带垫圈六角头螺栓	Bolt, with Washer	1
26	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	2
27	6LH-43318-00-8D	盖	Cover	1
28	90111-06144	内六角薄型螺栓	Bolt	4
29	6LH-43885-00	固定	Grommet	1

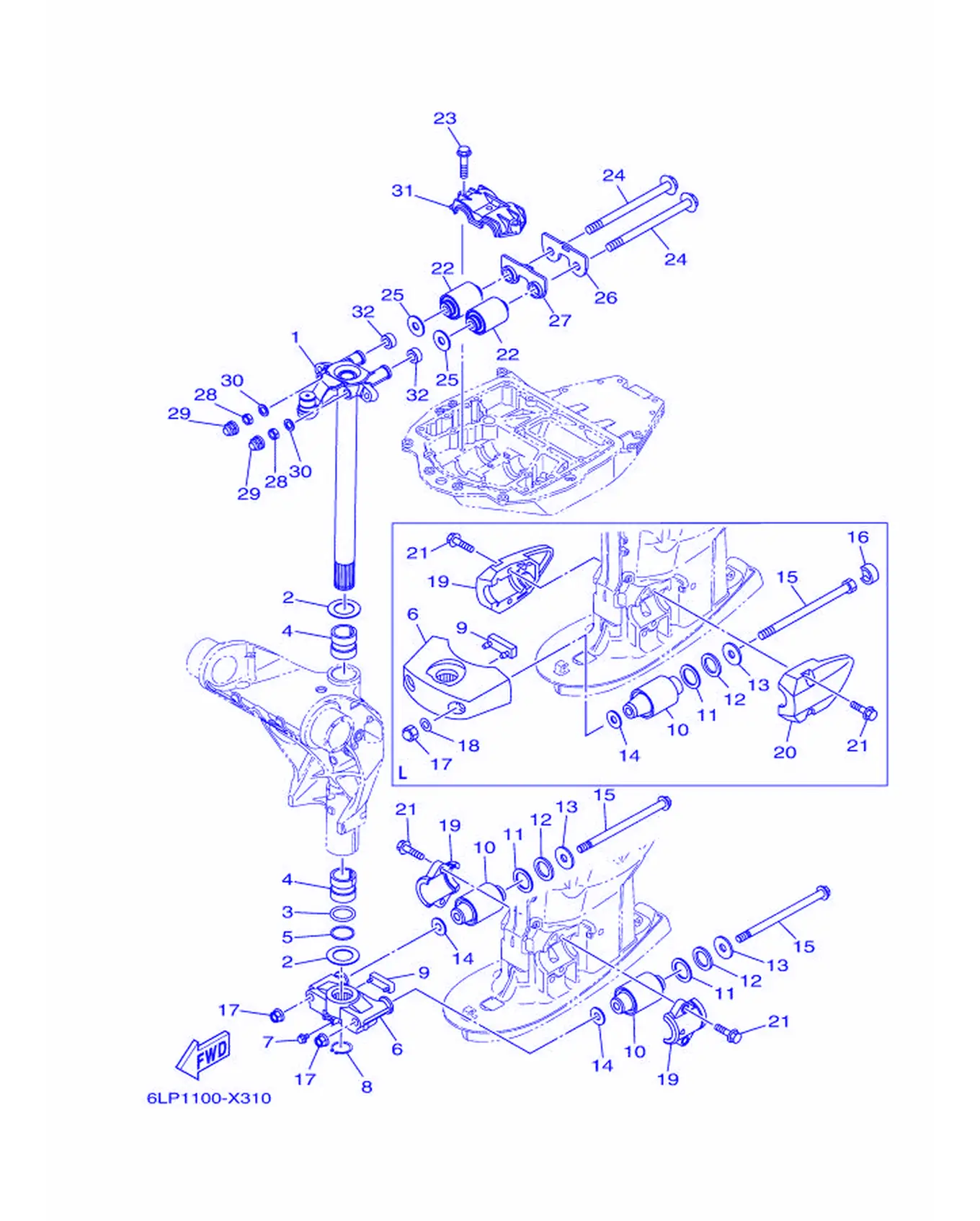

ブラケツト 4

REF	雅马哈编码	中文名称	英文名称	用量
1	6LP-42510-10-8D	方向托架组合	Steering Bracket Assembly	1
1	6LP-42510-00-8D	方向托架组合	Steering Bracket Assembly	1
2	90201-38M60	平垫圈	Washer,Plate	2
3	93210-37MH7	O型圈	O-ring	1
4	90386-38M32	衬套	Bushing	2
5	90202-40M47	垫圈	Washer,Plate	1
6	6DA-44551-00-CA	下侧减震胶垫壳	Housing, Lower Mount Rubber 1	1
6	68V-44551-00-8D	下侧减震胶垫壳	Housing, Lower Mount Rubber 1	1
7	95D95-06010	螺栓	Bolt, Flange Deep Recess	1
8	93410-36102	弹性挡圈	Circlip	1
9	6DA-44575-00	下侧减震胶垫	Damper, Lower Mount Rubber	1
9	61A-44575-01	下侧减震胶垫	Damper, Lower Mount Rubber	1
10	63P-44555-00	下侧减震胶垫	Mount Damper, Lower Side	2
10	60V-44555-00	下侧减震胶垫	Mount Damper, Lower Side	2
11	90201-35008	面板垫圈	Washer,Plate	2
12	90202-32M19	面板垫圈	Washer,Plate	2
13	90201-16M55	面板垫圈	Washer,Plate	2
14	90201-15M58	面板垫圈	Washer,Plate	2
15	90105-14012	六角法兰面螺栓	Bolt, Flange	2
15	90101-14005	六角螺栓	Bolt, Hexagon	2
16	69J-44533-00	上侧减震胶垫	Damper, Upper Mount Rubber	2
17	95604-14200	法兰面锁紧螺母	Nut, Self-Locking	2
17	90176-14002	盖形螺母	Nut, Cap	2
18	92995-14600	盘形垫	Washer	2
19	6DA-44552-00-CA	下侧减震胶垫壳	Housing, Lower Mount Rubber 2	2
19	63P-44553-00-8D	下侧减震胶垫盖	Cover, Lower Mount	1
20	63P-44556-00-8D	前下侧减震胶垫盖 2	Cover, Lower Mount 2	1
21	90119-10058	带垫圈六角头螺栓	Bolt, with Washer	4
22	6DA-44514-00	上侧减震胶垫	Mount Damper, Upper Side	2
23	90119-10024	带垫圈螺栓	Bolt, With Washer	3
24	90105-14012	六角法兰面螺栓	Bolt, Flange	2
25	90201-16M01	平垫圈	Washer,Plate	2
26	6DA-44526-00	面板	Plate	1
27	6DA-44532-00	上侧装配限位板	Stopper, Upper Mount	1
28	90185-14M00	螺帽	Nut, Self-Locking	2
29	6DA-44194-00	盖	Cap	2
30	92995-14600	盘形垫	Washer	2
31	63P-44511-00	上侧减震胶垫盖	Cover, Upper Mount Rubber	1
32	90387-14004	衬套	Color	2

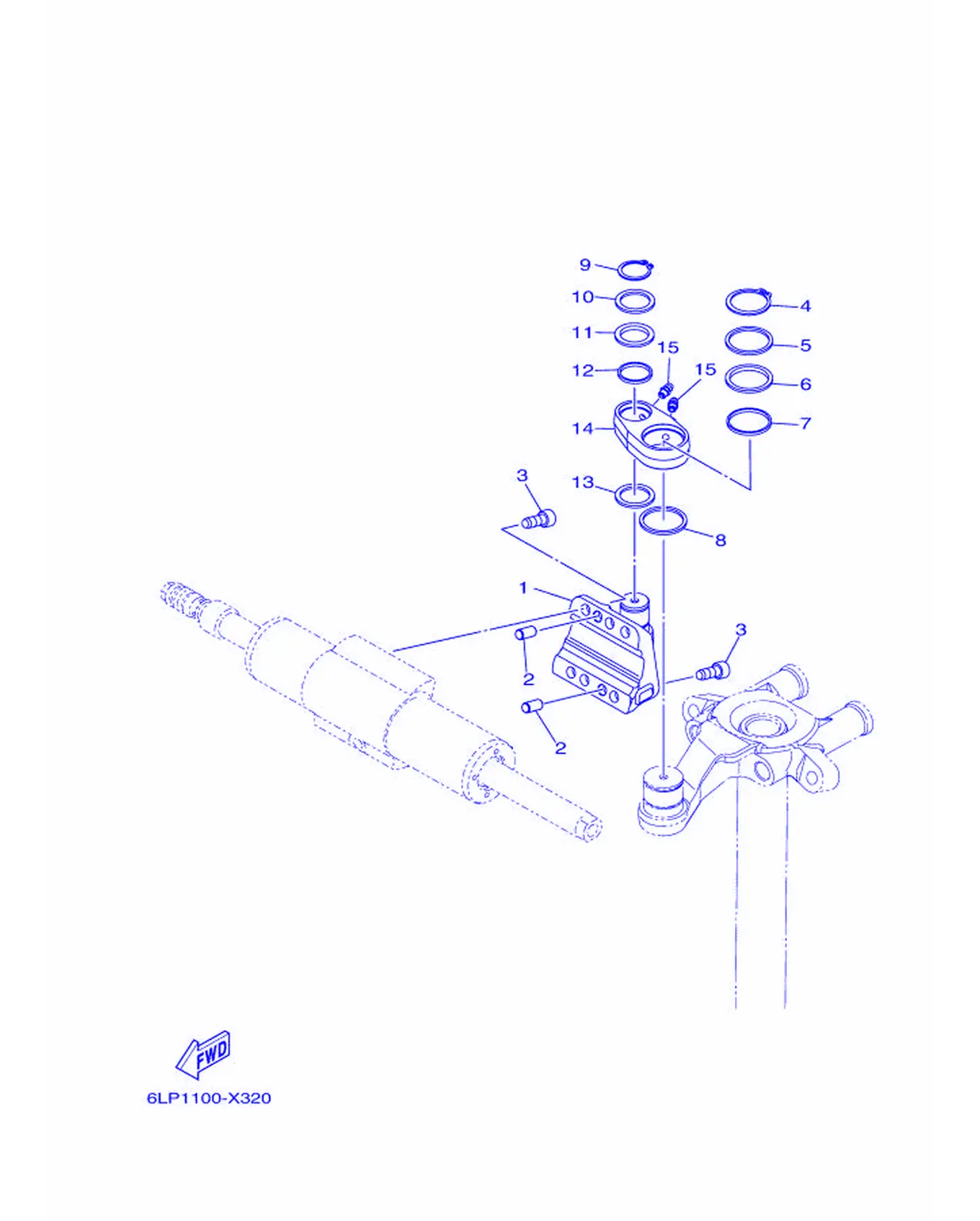

ブラケツト 5

REF	雅马哈编码	中文名称	英文名称	用量
1	6LP-43676-00-8D	钩	Fook	1
2	93608-16M16	定位销	Pin, Dowel	2
3	90110-08133	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	6
4	93410-30101	弹性挡圈	Circlip	1
5	90201-31008	平垫圈	Washer, Plate	1
6	90387-30015	轴套	Collar	1
7	93210-29282	O型圈	O-ring	1
8	90202-31001	平垫圈	Washer, Plate	1
9	93410-22M11	卡环	Circlip	1
10	90201-23018	平垫圈	Washer, Plate	1
11	90387-22040	轴套	Collar	1
12	93210-22298	O型圈	O-ring	1
13	90202-23001	平垫圈	Washer, Plate	1
14	6LP-48133-00	面板	Link Plate	1
15	93700-06002	油脂嘴	Nipple, Grease	2

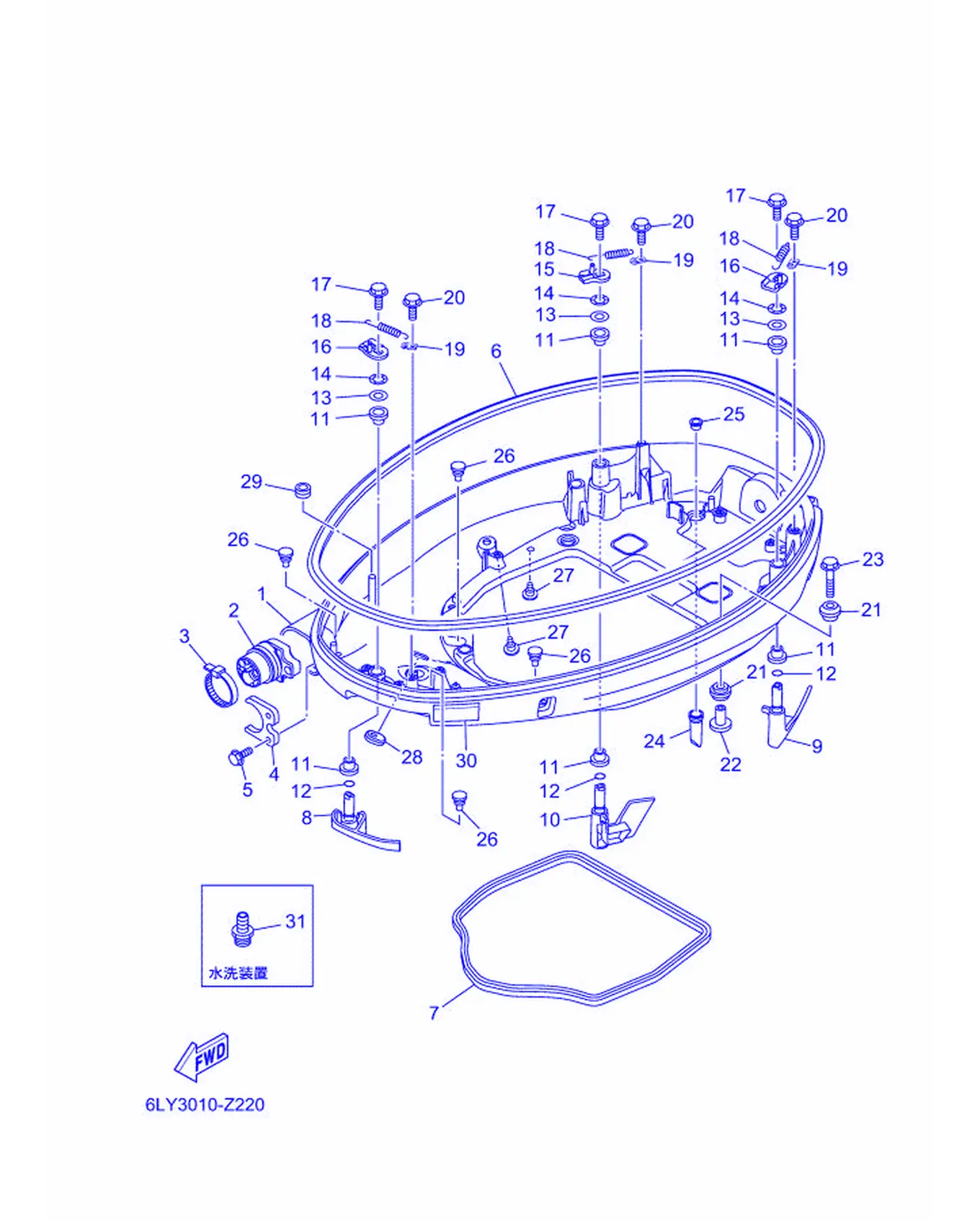

ボトムカウリング 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6LH-42710-00-8D	底罩组合	Bottom Cowling Assembly	1
2	6DA-42725-03	固定	Grommet	1
3	90465-13M30	固定	Clamp	1
4	6CB-42761-00	限位板	Stopper	1
5	95D95-06014	螺栓	Bolt, Flange Deep Recess	2
6	6LH-42615-00	密封	Seal	1
7	63P-42716-01	密封橡皮块1	Rubber Seal 1	1
8	6LH-42815-00-8D	夹杆	Lever, Clamp 1	1
9	6LH-42816-00-8D	夹杆	Lever, Clamp 2	1
10	6LH-42817-00-8D	夹杆	Lever, Clamp 3	1
11	90386-15M73	衬套	Bushing	6
12	93210-13M63	O型圈	O-ring	3
13	90201-156J2	面板垫圈	Washer, Plate	3
14	90206-15M18	波形垫圈	Washer, Wave	3
15	6CB-42818-00	夹杆	Lever, Clamp 4	1
16	6CB-42819-00	夹杆	Lever, Clamp 5	2
17	95D95-08012	螺栓	Bolt, Flange Deep Recess	3
18	90506-22001	拉簧	Spring, Tension	3
19	66T-43144-00	弹簧	Hook,Spring	3
20	95D95-06012	螺栓	Bolt, Flange Deep Recess	3
21	90480-22M81	固定	Grommet	8
22	90387-08M37	衬套	Color	4
23	90119-08187	带垫圈六角头螺栓	Bolt, with Washer	4
24	6DA-42717-01	密封橡皮块2	Rubber, Seal 2	4
25	6DA-42384-00	帽密封	Seal, Cap	4
26	6H4-42748-01	固定	Grommet	4
27	6P2-44391-00	软管管嘴	Nipple,Hose	2
28	6KA-42727-00	固定	Grommet	1
29	90480-13163	固定	Grommet	1
30	6EE-42794-01	警告标志	Label, Warning (General)	1
31	69J-12584-10	软管接头	Joint, Hose 3	1

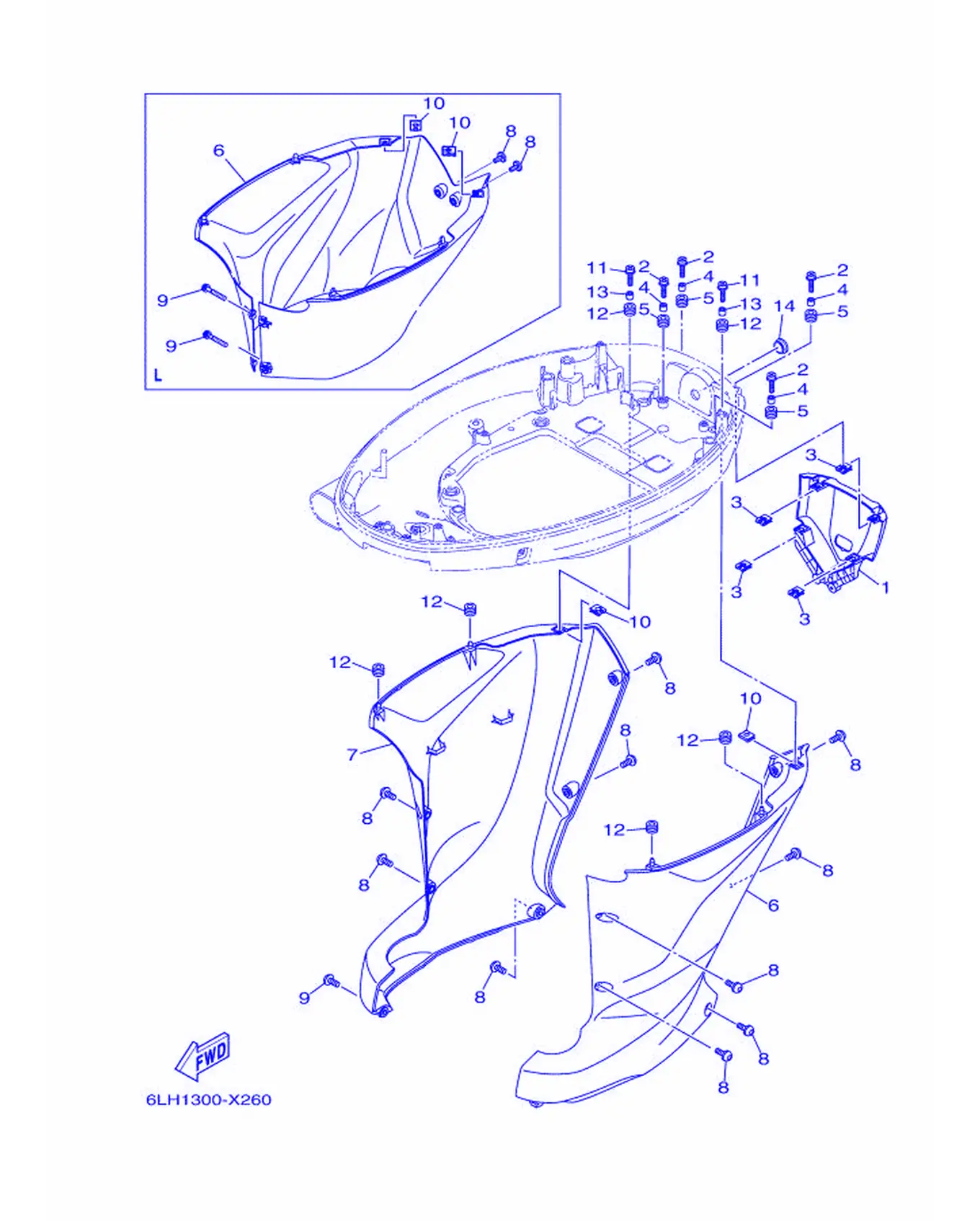

ボトムカウリング 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6LH-42723-00-8D	底盖	Cover, Bottom	1
2	90159-06053	带垫圈十字槽螺钉	Screw, Washer	4
3	90183-061A8	弹性螺母	Nut, Spring	4
4	90387-06M43	衬套	Color	4
5	90480-13M24	固定	Grommet	4
6	6LH-42740-00-8D	挡板	Apron Complete 1	1
6	6LH-42740-10-8D	挡板	Apron Complete 1	1
7	6LH-42770-00-8D	挡板	Apron Complete 2	1
8	90111-06144	内六角薄型螺栓	Bolt	10
8	90111-06144	内六角薄型螺栓	Bolt	2
9	90111-06142	内六角薄型螺栓	Bolt	1
9	90159-06M28	带垫螺钉	Screw, With Washer	2
10	90183-061A8	弹性螺母	Nut, Spring	2
11	90159-06053	带垫圈十字槽螺钉	Screw, Washer	2
12	90480-13M24	固定	Grommet	6
13	90387-06M43	衬套	Color	2
14	676-42726-00	固定	Grommet	1

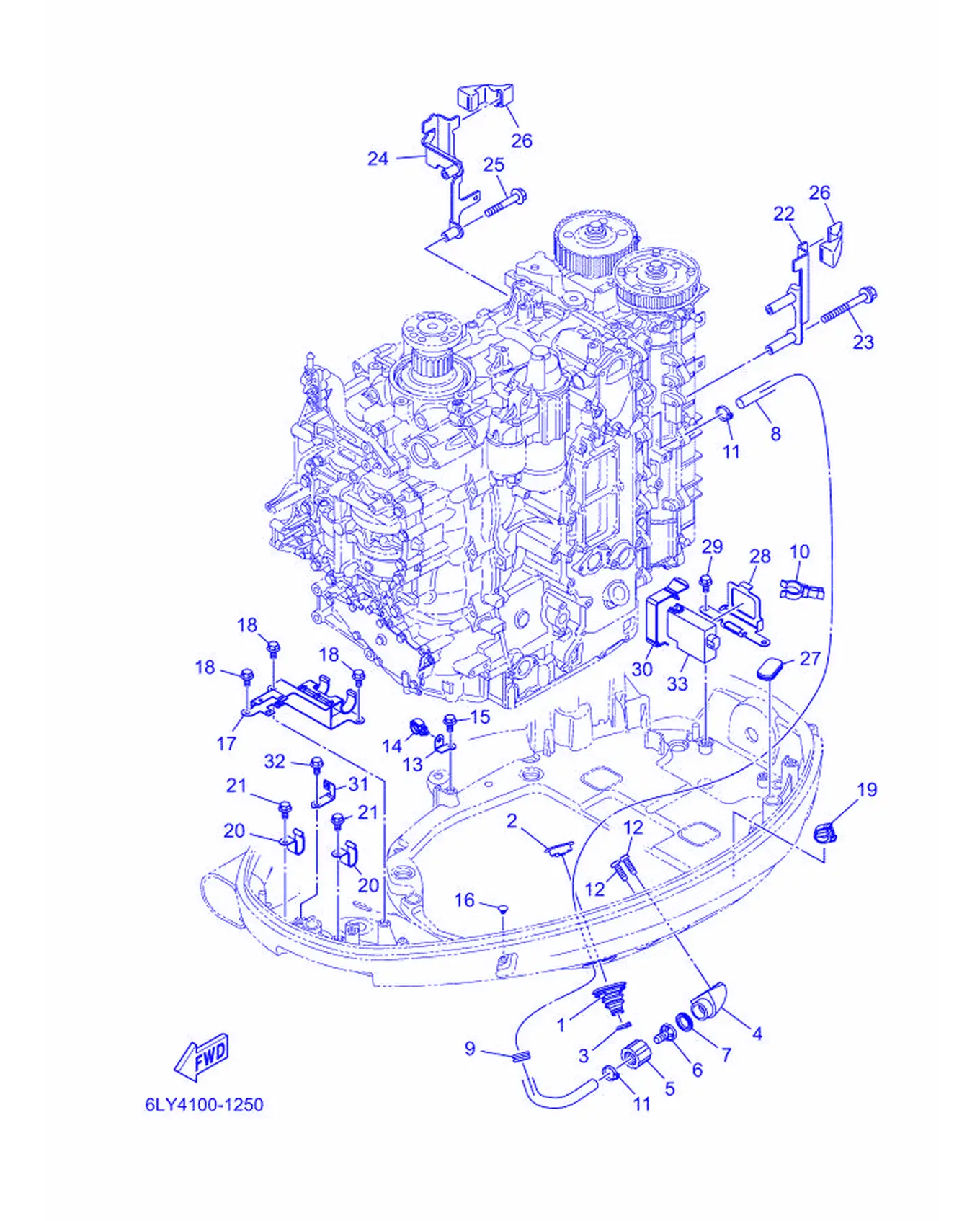

ボトムカウリング 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6BG-42724-01	固定	Grommet	1
2	6BG-42384-00	密封	Seal, Cap	1
3	90465-11M10	固定	Clamp	1
4	6AW-12572-00	联接器	Adapter	1
5	6R3-12581-10	软管接头1	Joint, Hose 1	1
6	6AW-12582-00	软管接头2	Joint, Hose 2	1
7	6R3-12583-10	软管接头衬垫	Gasket, Hose Joint	1
8	6LH-42541-00	减震器	Pipe 1	1
9	90480-19031	橡胶垫	Grommet	1
10	90464-21256	固定	Clamp	1
11	90465-11M10	固定	Clamp	2
12	97780-60520	自攻螺钉	Screw, Tapping	2
13	6BG-42743-00	托架	Bracket	1
14	90464-13249	线夹	Clamp	1
15	95D95-06012	螺栓	Bolt, Flange Deep Recess	1
16	90269-07003	磁片	Rivet	1
17	6LW-8366G-00	托架 3	Bracket 3	1
18	95D95-06012	螺栓	Bolt, Flange Deep Recess	3
19	90464-18004	固定夹	Clamp	1
20	90462-12013	线夹	Clamp	2
21	95D95-06012	螺栓	Bolt, Flange Deep Recess	2
22	6DA-11998-00	托架1	Bracket 1	1
23	95D95-06065	螺栓	Bolt, Flange Deep Recess	2
24	6DA-11999-00	托架2	Bracket 2	1
25	95D95-06040	连杆螺栓	Bolt, Flange Deep Recess	2
26	6CB-42662-02	减震器	Damper	2
27	6H4-42726-01	固定	Grommet	1
28	6LW-42766-00	托架 2	Bracket 2	1
29	95D95-06012	螺栓	Bolt, Flange Deep Recess	2
30	6GR-82131-01	蓄电池箍带	Band, Battery	1
31	63P-8366P-01	托架4	Bracket 4	1
32	95D95-06012	螺栓	Bolt, Flange Deep Recess	1
33	6LW-85335-00	接头	Adapter, Interface	1

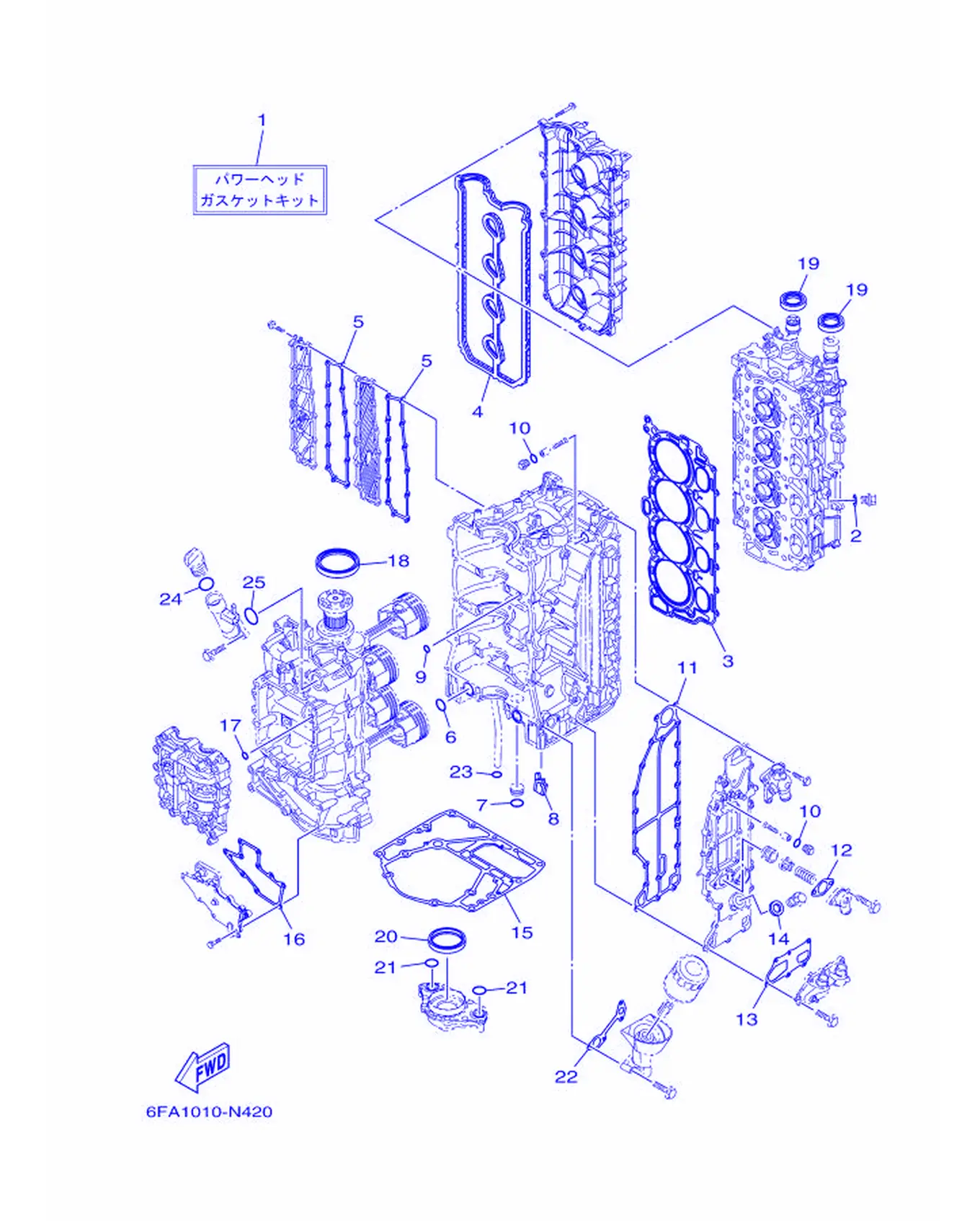

リペアキツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6FA-W0001-02	衬垫套	Power Head Gasket Kit	1
2	90430-14115	垫片	Gasket	1
3	6DA-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
4	6DA-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
5	6DA-15353-01	放油塞衬垫	Gasket, Drain	2
6	93210-25552	O型圈	O-ring	2
7	93210-25647	O型圈	O-ring	1
8	6DA-14664-01	断水	Grommet, Water Jacket	1
9	93210-12648	O型圈	O-ring	1
10	93210-13M63	O型圈	O-ring	2
11	6DA-41114-01	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
12	60V-11382-A0	衬垫2	Gasket 2	1
13	6DA-11381-01	衬垫1	Gasket 1	1
14	90201-186F1	平垫圈	Washer,Plate	1
15	63P-11351-04	气缸垫片1	Gasket, Cylinder	1
16	6DA-15451-01	曲轴箱盖垫片1	Gasket, Crankcase Cover	1
17	93210-08001	O型圈	O-ring	1
18	93102-85008	油封	Oil Seal	1
19	93102-38008	油封	OilSeal	2
20	6CB-11355-00	气缸密封圈1	Seal, Cylinder 1	1
21	93210-25552	O型圈	O-ring	2
22	6DA-13475-00	衬垫	Gasket	1
23	93210-19MJ3	O型圈	O-ring	1
24	93210-24M79	O型圈	O-ring	1
25	93210-357A3	O型圈	O-ring	1

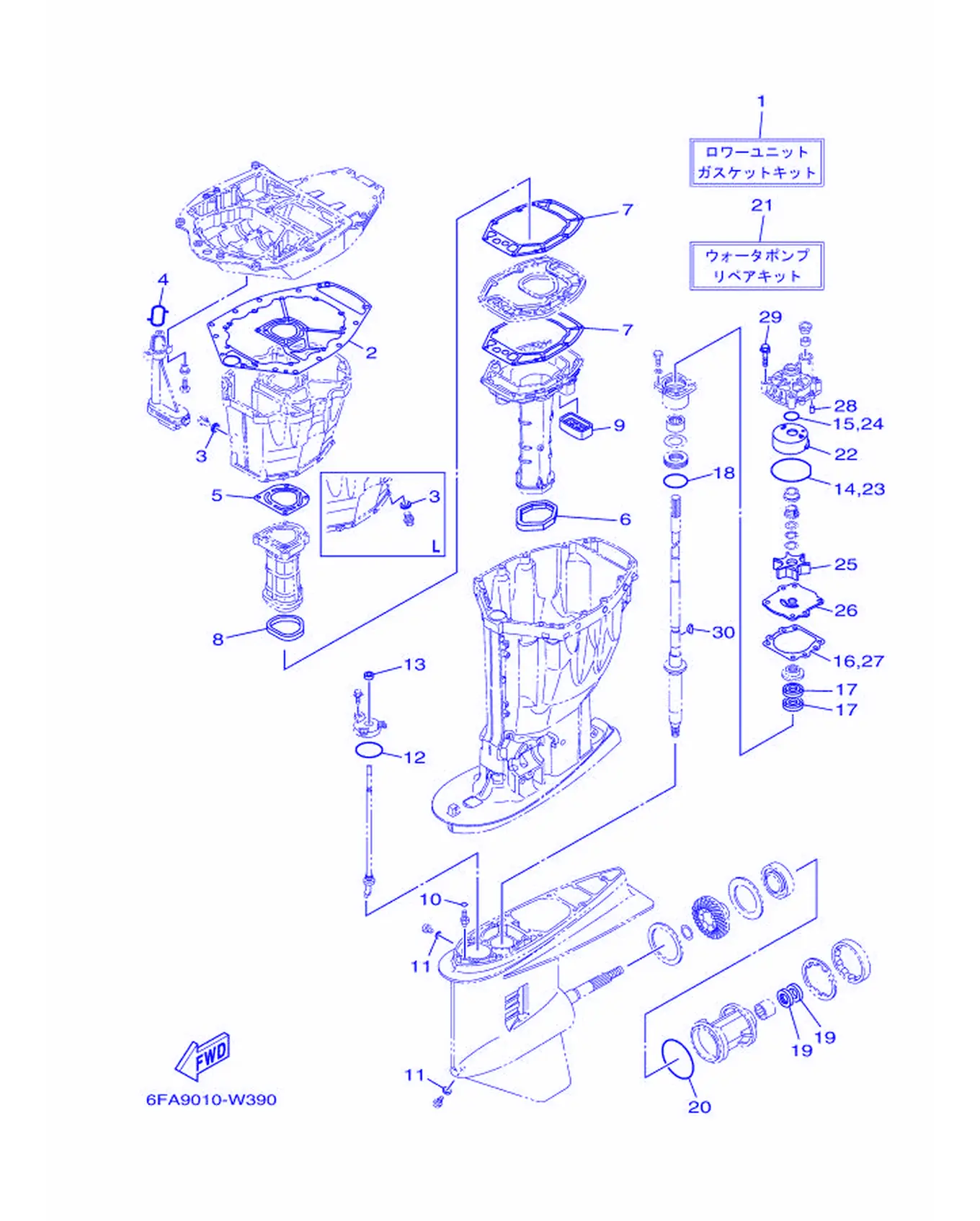

リペアキツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	63P-W0001-22	衬垫套	Lower Unit Gasket Kit	1
2	63P-15312-02	油槽衬垫	Gasket, Oil Pan	1
3	90430-14M09	衬垫	Gasket	1
4	63P-13415-00	机油滤网密封	Seal, Oil Strainer	1
5	63P-41133-A0	排气岐管衬垫1	Gasket, Exhaust Manifold	1
6	69J-45123-00	消音器衬垫	Gasket,Muffler	1
7	63P-41134-A1	排气岐管衬垫	Gasket, Exhaust Manifold	2
8	63P-41138-00	排气管密封圈1	Seal, Exhaust 1	1
9	69J-45127-01	密封	Seal	1
10	93210-07003	O型圈	O-ring	2
11	90430-08003	垫片	Gasket	2
12	93210-58144	O型圈	O-ring	1
13	93106-09014	油封	OilSeal	1
14	93210-86M38	O型圈	O-ring	1
15	93210-37160	O型圈	O-ring	1
16	6E5-44315-A0	水泵衬垫	Gasket,Water Pump	1
17	93101-28M16	油封	OilSeal	2
18	93210-55M14	O型圈	O-ring	1
19	93101-30M17	油封	OilSeal	2
20	93210-97M55	O型圈	O-ring	1
21	61A-W0078-A4	水泵修理套	Water Pump Repair Kit	1
22	61A-44322-02	芯子	Insert, Cartridge	1
23	93210-86M38	O型圈	O-ring	1
24	93210-37160	O型圈	O-ring	1
25	6E5-44352-01	叶轮	Impeller	1
26	6G5-44323-01	外挡板	Outer Plate, Cartridge	1
27	6E5-44315-A0	水泵衬垫	Gasket,Water Pump	1
28	93606-12019	定位销	Pin, Dowel	2
29	90119-08191	带垫圈六角头螺栓	Bolt, with Washer	4
30	90280-04M05	半圆键	Key, Woodruff	1

リモ-トコントロ-ルアセンブリ

REF	雅马哈编码	中文名称	英文名称	用量
1	704-48205-R2	遥控装置组合	Remote Control Assembly (R/H)	1
2	704-48129-11	螺钉3	Screw 3	3
3	EL8-48251-00	凸轮面板	Plate,Cam	1
4	704-48265-00	摩擦轴	Shaft, Friction	1
5	701-48246-00	衬套	Spacer	1
6	93430-06024	卡环	Circlip	4
7	EL8-48259-00	开口簧环，卡	Circlip 1	1
8	704-48262-00	油门轴	Shaft,Throttle	1
9	704-48264-00	带阻力油	Throttle, Friction	1
10	704-82540-40	空挡开关组合	Neutral Switch Assembly	1
11	704-48119-50	盖	Cover	1
12	EL8-48281-00	螺钉	Screw	1
13	704-48215-61	图样	Graphic	1
14	704-48281-00	螺钉	Screw	1
15	97890-05025	大柱头螺钉	Screw, Pan Head	2
16	704-48261-00	油门臂	Arm,Throttle	1
17	EL8-48191-00	垫圈1	Washer 1	1
18	704-48283-00	螺钉	Screw	4
19	97380-06018	螺栓	Bolt	3
20	703-48345-01	遥控钢索端部2	Cable End, Remote Control	2
21	704-48287-00	垫	Washer	4
22	95380-05600	螺母	Nut	4
23	704-48271-00	变挡臂	Arm, Shift	1
24	EL8-48127-00	螺钉1	Screw 1	10
25	703-48358-01	钢索固定装置	Anchor, Cable	1
26	704-48231-00	齿轮壳	Housing, Cap	1
27	EL8-48241-00	驱动臂	Arm, Drive	1
28	EL8-48254-00	油门调整限位板	Stopper, Throttle	1
29	92780-06020	平头螺钉	Screw, Flat Head	2
30	98780-05018	平头螺钉	Screw, Flat Head	4
31	EL8-48244-00	发动机空转弹簧	Spring, Free Axel	1
32	EL8-48245-00	锁紧面板	Plate, Lock	1
33	704-48222-10	控制杠杆握柄	Grip,ControlLever	1
34	704-82594-00	夹箍	Clamp	1
35	704-82563-60	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
36	704-48229-30	控制杠杆握柄	Grip,ControlLever	1
37	92990-05300	盘形垫	Washer, Internal Tooth	3
38	95380-06600	有槽螺母	Nut, Hexagon	2
39	701-48248-00	发动机空转卷轴	Roller, Free Accelerator	1
40	704-48238-00	延迟簧	Spring, Detent	5
41	704-48232-P1	齿	Gear	1
42	EL8-48164-00	销2	Pin 2	1
43	704-48221-R0	控制杠杆	Lever, Control	1
44	704-48242-10	驱动轴	Shaft, Drive	1
45	704-48225-R0	盖	Cover	1
46	704-48192-00	垫圈2	Washer 2	1
47	97890-06018	大柱头螺钉	Screw, Pan Head	2
48	92990-06300	盘形垫	Washer, Internal Tooth	2
49	704-48224-R0	控制杠杆盖	Cover,ControlLever	1
50	EL8-48279-00	卡环 2	Circlip 2	1
51	704-48234-00	衬套1	Bushing 1	1
52	704-48219-R0	导线盖	Cover,Lead	1
53	704-48144-10	限位板面板2	Plate, Stopper 2	2
54	704-48176-01	固定	Grommet	1
55	704-48192-P0	垫圈2	Washer 2	1
56	704-48233-00	齿轮2	Gear 2	1
57	704-48235-00	衬套	Bushing	1
58	704-48153-00	发动机空转轴	Shaft, Free Axel	1
59	704-48166-00	塞	Plug	1
60	704-48284-P0	固定	Grommet	1
61	704-48178-10	轴面板	Plate, Shift	1
62	704-48167-20	塞	Plug	1
63	97890-05016	大柱头螺钉	Screw, Pan Head	3

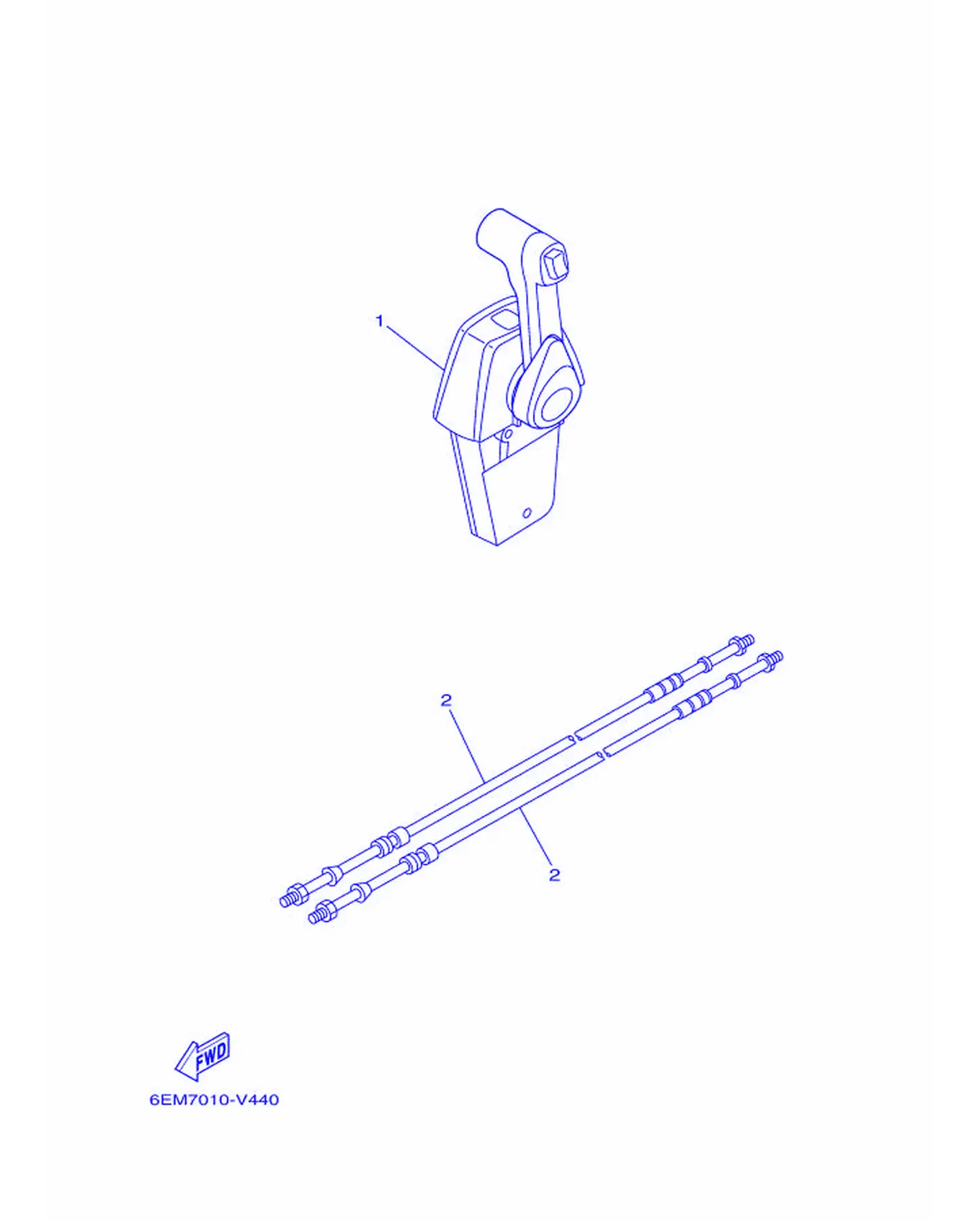

リモートコントロールボツクス

REF	雅马哈编码	中文名称	英文名称	用量
1	704-48205-R2	遥控装置组合	Remote Control Assembly (R/H)	1
2	701-48320-50	遥控钢索 (4.56m)	Cable, Remote Control	2
2	701-48320-60	遥控钢索 (4.88m)	Cable, Remote Control	2
2	701-48320-80	遥控钢索 (5.18m)	Cable, Remote Control	2
2	701-48350-00	遥控钢索 (6.40m)	Cable, Remote Control	2
2	701-48350-20	遥控钢索 (7.01m)	Cable, Remote Control	2

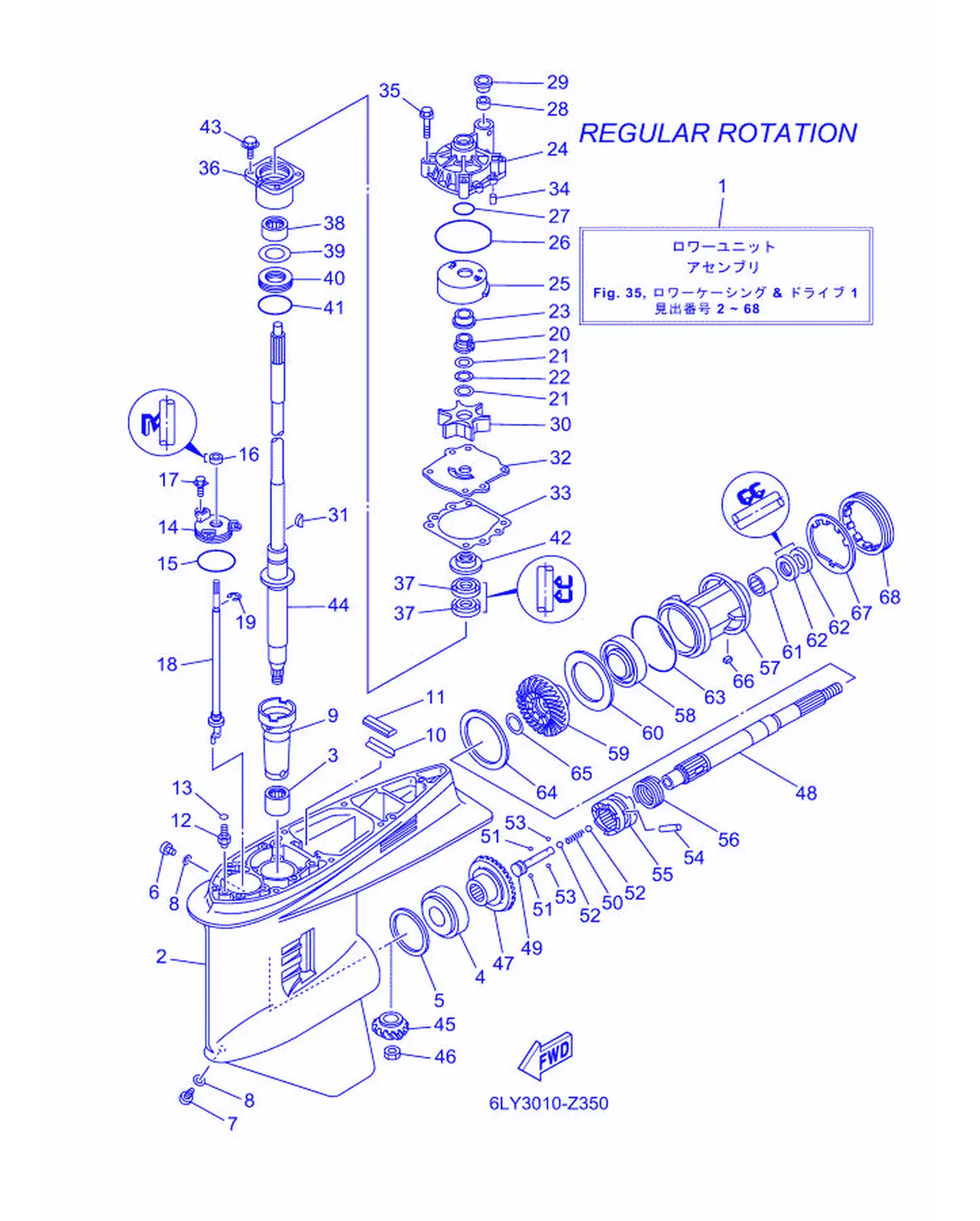

ロワーケーシング & ドライブ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6DA-45300-14-8D	水下装置总成	Lower Unit Assembly	1
1	6DA-45300-03-8D	水下装置总成	Lower Unit Assembly	1
2	6J9-45301-07-8D	水下装置壳	Casing,Lower	1
3	93311-928U5	轴承	Bearing	1
4	93332-000V3	轴承	Bearing	1
5	6G5-45567-01	填隙	Shim (T:0.10MM)	1
5	6G5-45567-10	填隙	Shim (T:0.12MM)	1
5	6G5-45567-20	填隙片	Shim (T:0.15MM)	1
5	6G5-45567-30	填隙	Shim (T:0.18MM)	1
5	6G5-45567-40	填隙	Shim (T:0.30MM)	1
5	6G5-45567-50	填隙	Shim (T:0.40MM)	1
5	6G5-45567-60	填隙	Shim (T:0.50MM)	1
6	90340-08002	螺丝	Plug, Straight Screw	1
7	688-45341-10	放油塞	Plug, Drain	1
8	90430-08003	垫片	Gasket	2
9	6G5-45536-01	驱动轴套	Sleeve,Drive Shaft	1
10	663-45376-00	密封圈减震块导承	Guide,SealDamper	1
11	688-45375-00	密封圈减震	Damper,Seal	1
12	63P-45378-00	软管嘴	Nipple,Hose	1
13	93210-07003	O型圈	O-ring	1
14	6E5-45321-00	面板	Plate	1
15	93210-58144	O型圈	O-ring	1
16	93106-09014	油封	OilSeal	1
17	90119-06286	带垫圈六角头螺栓	Bolt, with Washer	3
18	63P-44150-01	变挡凸轮组合	Shift Cam Assembly	1
19	99001-08600	卡环	Circlip	1
20	61A-45538-00	衬套1	Spacer 1	1
21	90201-22M01	平垫圈	Washer,Plate	2
22	90206-22M19	波形垫圈	Washer, Wave	1
23	61A-45527-00	驱动轴安装	Color,Drive Shaft	1
24	61A-44311-01	水泵壳	Housing,Water Pump	1
25	61A-44322-02	芯子	Insert, Cartridge	1
26	93210-86M38	O型圈	O-ring	1
27	93210-37160	O型圈	O-ring	1
28	6E5-44365-01	水封减震器	Damper, Water Seal 1	1
29	6E5-44312-00	水泵壳体盖	Cover,Water PumpHousing	1
30	6E5-44352-01	叶轮	Impeller	1
31	90280-04M05	半圆键	Key, Woodruff	1
32	6G5-44323-01	外挡板	Outer Plate, Cartridge	1
33	6E5-44315-A0	水泵衬垫	Gasket,Water Pump	1
34	93606-12019	定位销	Pin, Dowel	2
35	90119-08191	带垫圈六角头螺栓	Bolt, with Washer	4
36	6E5-45331-00-9S	轴承壳	Housing,Bearing	1
37	93101-28M16	油封	OilSeal	2
38	93317-330U2	轴承	Bearing	1
39	6E5-45587-01	填隙	Shim (T:0.10MM)	1
39	6E5-45587-10	填隙	Shim (T:0.12MM)	1
39	6E5-45587-20	填隙	Shim (T:0.15MM)	1
39	6E5-45587-30	填隙	Shim (T:0.18MM)	1
39	6E5-45587-40	填隙	Shim (T:0.30MM)	1
39	6E5-45587-50	填隙	Shim (T:0.40MM)	1
39	6E5-45587-60	填隙	Shim (T:0.50MM)	1
40	93341-930V2	轴承	Bearing	1
41	93210-55M14	O型圈	O-ring	1
42	6E5-45344-00	油封盖	Cover,OilSeal	1
43	97E95-08525	螺栓	Bolt, Hexagon with Washer Deep Recess	4
44	6DA-45501-10	驱动轴组件	Drive Shaft Complete	1
44	63P-45501-01	驱动轴组	Drive ShaftComplete	1
45	6DA-45551-00	小齿轮	Pinion (14T)	1
46	90170-16M01	螺帽	Nut	1
47	6DA-45560-00	齿轮	Gear 1 (26T)	1
48	6J9-45611-01	螺旋浆轴	Shaft,Propeller	1
49	6E5-45634-02	变挡滑	Slide, Shift	1
50	90501-16M37	压簧	Spring, Compression	1
51	93507-32009	滚珠	Ball	2
52	93511-32017	滚珠	Ball	2
53	93503-16003	滚珠	Ball	2
54	90250-08M07	圆柱销	Pin, Straight	1
55	6DA-45631-01	爪形离合器	Clutch, Dog	1
56	6E5-45633-01	固定环	Ring, Cross Pin	1
57	6J9-45332-00-CA	轴承壳	Housing,Bearing	1
58	93306-209U0	轴承	Bearing	1
59	6DA-45571-00	齿轮	Gear 2 (26T)	1
60	6G5-45576-10	推力垫	Washer, Thrust	1
61	93315-43061	滚针轴承	Bearing	1
62	93101-30M17	油封	OilSeal	2
63	93210-97M55	O型圈	O-ring	1
64	6G5-45577-02	填隙	Shim (T:0.10MM)	1
64	6G5-45577-10	填隙	Shim (T:0.12MM)	1
64	6G5-45577-20	填隙	Shim (T:0.15MM)	1
64	6G5-45577-30	填隙	Shim (T:0.18MM)	1
64	6G5-45577-40	填隙	Shim (T:0.30MM)	1
64	6G5-45577-50	填隙	Shim (T:0.40MM)	1
64	6G5-45577-60	填隙	Shim (T:0.50MM)	1
65	90201-30M92	平垫圈	Washer,Plate	1
66	90282-04M00	直键	Key, Straight	1
67	6G5-45383-01	爪形垫	Washer, Claw	1
68	6G5-45384-02	螺母	Nut	1

ロワーケーシング & ドライブ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6DA-44361-00	水管	Tube, Water 1	1
1	6DA-44361-10	水管	Tube, Water 1	1
2	90445-23002	软管	Hose (L59)	1
3	6E5-44365-01	水封减震器	Damper, Water Seal 1	1
4	90202-16061	平垫圈	Washer,Plate	1
5	93608-16M16	定位销	Pin, Dowel	2
6	97E95-10645	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	6
7	90119-10072	带垫圈六角头螺栓	Bolt, with Washer	1
8	6J9-45214-00	进水口盖	Cover, Water Inlet	1
9	6J9-45215-00	进水口盖	Cover, Water Inlet	1
10	90152-05M08	沉头螺钉	Screw, Countersunk	1
11	90185-05002	螺母	Nut, Self-Locking	1
12	6J9-45371-01	航向调整	Tab Trim	1
13	90105-10M00	螺栓	Bolt, Flange	1
14	6E5-45987-01	衬套	Spacer	1
15	688-45997-01	衬套	Spacer	1
16	92990-18200	盘形垫	Washer	1
17	90171-18M04	螺母	Nut, Castle	1
18	91490-40030	开口销	Pin, Cotter	1
19	6G5-45941-00	螺旋浆组合	Propeller (3X15-1/4X15-M)	1
19	6G5-45952-00	螺旋浆组合	Propeller (3X14-5/8X16-M)	1
19	6G5-45947-01	螺旋浆组合	Propeller (3X14-1/2X17-M)	1
19	6G5-45945-01	螺旋浆	Propeller (3X14X19-M)	1
19	6G5-45943-01	螺旋浆组合	Propeller (3X13-3/4X21-M)	1
19	6G5-45949-00	螺旋浆组合	Propeller (3X13-1/2X23-M)	1
19	6G5-45978-03	螺旋浆组合	Propeller (3X13-3/4X17-M2)	1
19	6G5-45974-03	螺旋浆组合	Propeller (3X13-3/4X19-M2)	1
19	6G5-45972-02	螺旋浆组合	Propeller (3X13-3/4X21-M)	1
19	6G5-45976-01	螺旋浆组合	Propeller (3X13-3/8X23-M)	1
19	6G5-45930-00	螺旋浆组合	Propeller (3X13-3/8X25-M)	1
20	68F-45932-20	螺旋浆组合	Propeller (3X14-1/2X13-M)	1
20	68F-45930-20	螺旋浆组合	Propeller (3X14-1/2X14-M)	1
20	68F-45970-20	螺旋浆组合14 1/2X15R	Propeller (3X14-1/2X15-M)	1
20	68F-45972-20	螺旋浆组合14 1/4X17R	Propeller (3X14-1/4X17-M)	1
20	68F-45978-20	螺旋浆组合14 1/4X18R	Propeller (3X14-1/4X18-M)	1
20	68F-45974-20	螺旋浆组合13 3/4X19R	Propeller (3X13-3/4X19-M)	1
20	68F-45976-20	螺旋浆组合13 3/4X21R	Propeller (3X13-3/4X21-M)	1
20	60H-45970-00	螺旋浆组合	Propeller (3X14-1/4X14-M)	1
20	60H-45972-00	螺旋浆组合	Propeller (3X14-1/4X16-M)	1
20	60H-45974-00	螺旋浆组合	Propeller (3X14-1/4X18-M)	1
20	60H-45976-00	螺旋浆组合	Propeller (3X14-1/4X20-M)	1
20	60H-45978-00	螺旋浆组合	Propeller (3X14-1/4X22-M)	1
20	6CE-45934-20	螺旋桨	Propeller (3X15-1/4X18-T)	1
20	6CE-45970-20	螺旋浆组合	Propeller (3X15-1/4X19-T)	1
20	6CE-45932-20	螺旋浆组合	Propeller (3X15X20-T)	1
21	6CE-45C81-10	螺旋桨减震胶1	Damper Rubber, Propeller 1	1
22	6CE-45B70-20	螺旋桨	Propeller (4X15X21-T)	1
22	6CE-45B72-20	螺旋桨	Propeller (4X15X22-T)	1
22	6CE-45B74-20	螺旋桨	Propeller (4X15X23-T)	1
23	6CE-45C81-10	螺旋桨减震胶1	Damper Rubber, Propeller 1	1
