雅马哈 F20G - F20GWHPL

共 37 个部位，点击零件编码查看详情，或搜索本页零件。

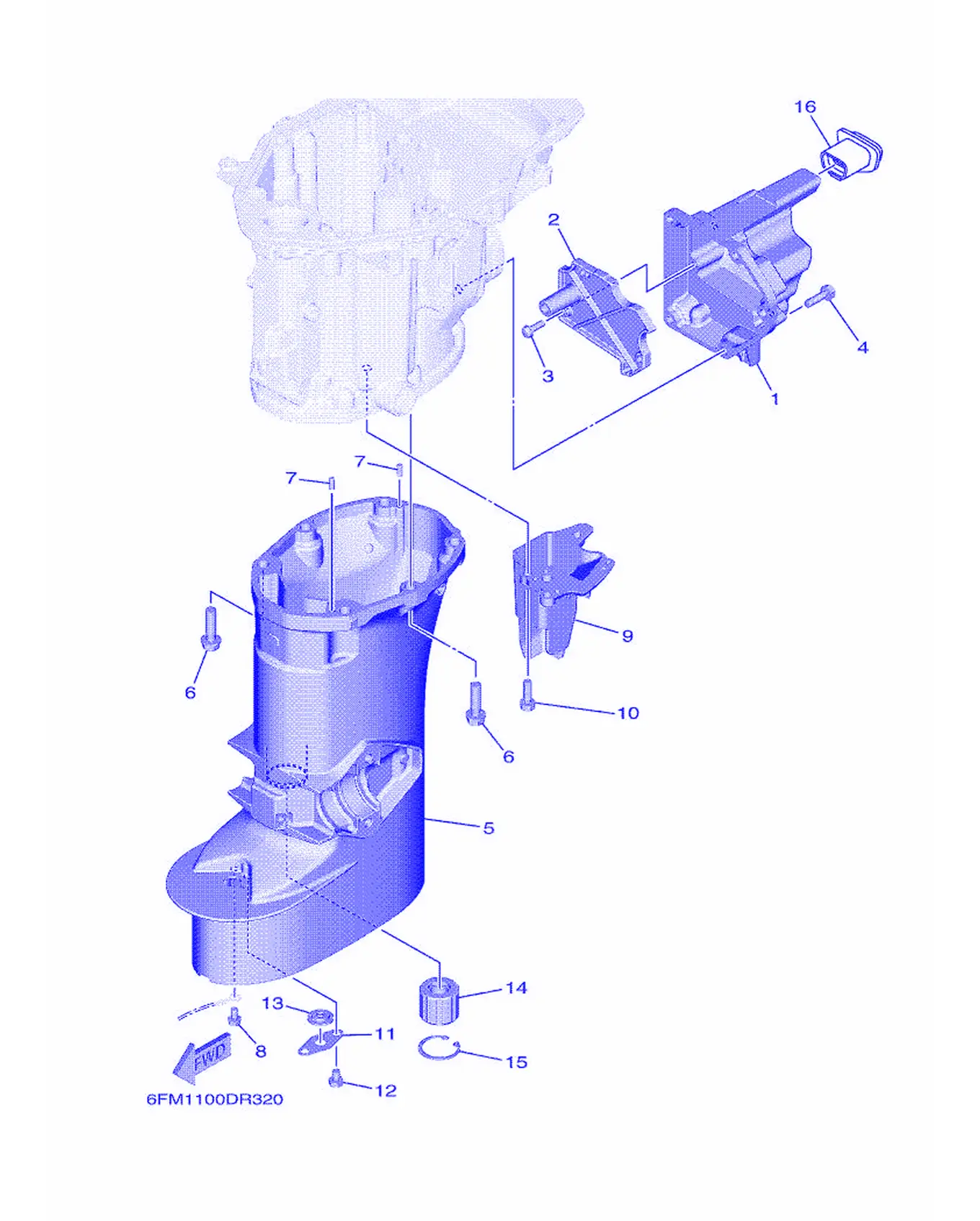

アツパーケーシング

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-14731-00-CA	腔体1	Chamber 1	1
2	6FM-45126-00	减震器密封面板	Seal Damper Plate	1
3	97980-05216	带垫圈螺丝	Screw, With Washer	3
4	90105-06M07	螺栓	Bolt, Flange	5
5	6FM-45111-10-8D	水上装置壳	Casing, Upper	1
6	97E95-08530	螺栓	Bolt, Hexagon with Washer Deep Recess	6
7	93604-10M03	定位销	Pin, Dowel	2
8	97595-05510	带垫圈螺栓	Bolt, Hexagon Head	1
9	6FM-14711-00-CA	消声器1	Muffler 1	1
10	90105-06M07	螺栓	Bolt, Flange	3
11	68T-45321-00	面板	Plate	1
12	97D95-06008	连杆螺栓	Bolt, Hexagon Deep Recess	1
13	90480-14M54	固定	Grommet	1
14	6L2-45318-00	驱动轴衬套	Bushing,Drive Shaft	1
15	93420-30042	卡环	Circlip	1
16	6FM-42769-01	橡皮密封	Seal, Rubber	1

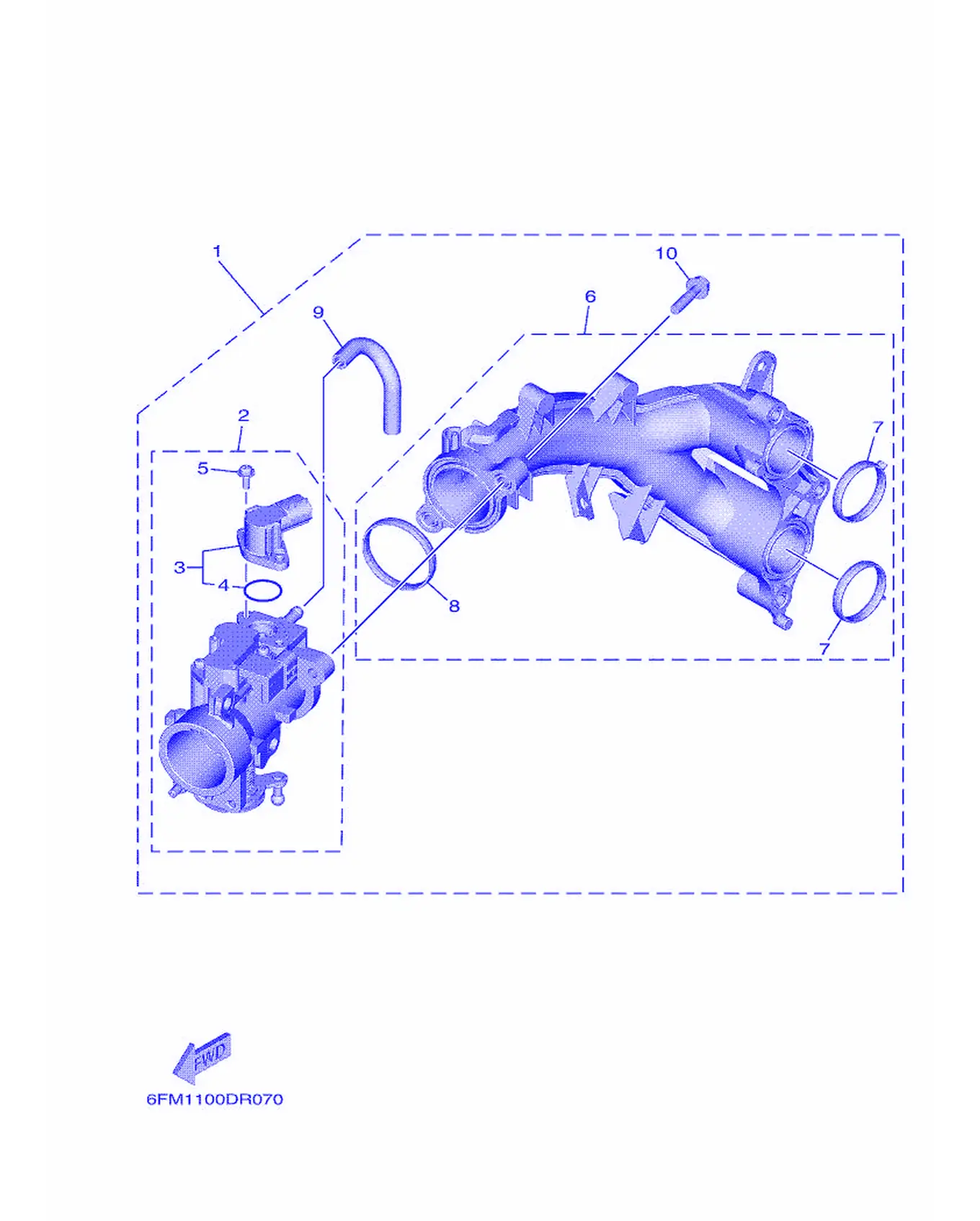

インテーク 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-14200-02	进气装置总成	Intake Assembly	1
2	6FM-13750-02	节流阀体总成	Throttle Body Assembly	1
3	6FM-1410H-01	电磁阀组合	Solenoid Valve	1
4	1ST-1416A-00	O型圈	O-ring	1
5	68V-14216-00	螺钉	Screw	2
6	6FM-13641-00	岐管1	Manifold, Intake 1	1
7	6FM-13645-00	岐管衬垫1	Gasket, Manifold 1	2
8	6FM-13646-00	岐管衬垫2	Gasket, Manifold 2	1
9	6FM-13543-00	空气软管	Hose, Air	1
10	6P2-14446-00	螺栓	Bolt	2

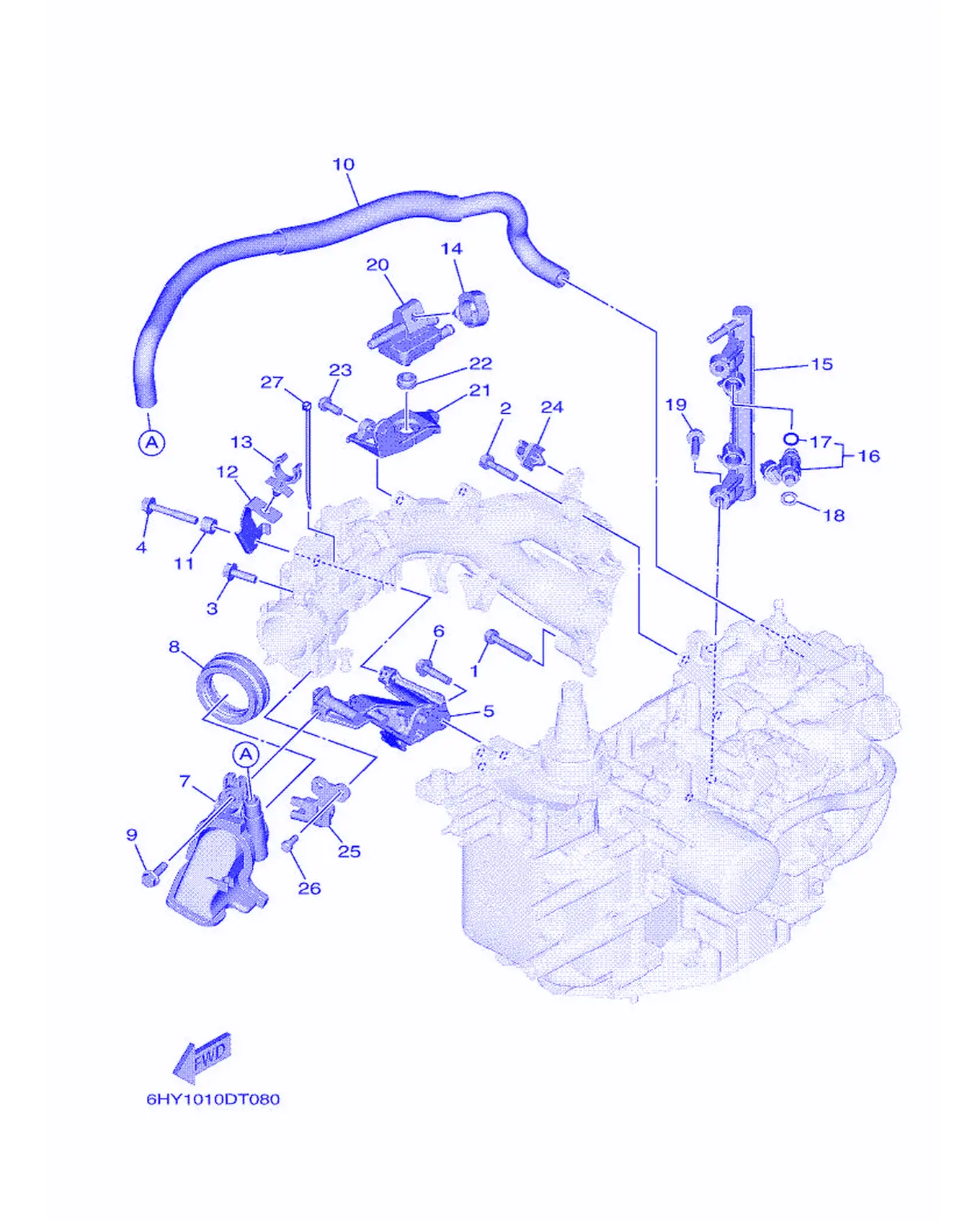

インテーク 2

REF	雅马哈编码	中文名称	英文名称	用量
1	90119-06MA6	带垫螺栓	Bolt, With Washer	1
2	90119-06MA4	带垫螺栓	Bolt, With Washer	2
3	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	2
4	95D95-06040	连杆螺栓	Bolt, Flange Deep Recess	1
5	6FM-13152-01	支架2	Stay 2	1
6	95D95-06025	连杆螺栓	Bolt, Flange Deep Recess	3
7	6FM-14440-10	进气消声器组合	Silencer Assembly, Intake	1
8	6FM-1441J-00	消声器管	Pipe, Silencer	1
9	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	1
10	6FM-15373-00	通气管	Pipe, Breather	1
11	90387-06318	轴套	Collar	1
12	6FM-13782-00	支承	Stay	1
13	90464-16240	线夹	Clamp	1
14	90464-20181	固定夹	Clamp	1
15	6FM-13161-01	管1	Pipe, Delivery 1	1
16	6FM-13761-10	喷射器	Injector Assembly	2
17	68V-1416A-00	O型圈	O-ring	1
18	6FM-13766-00	喷射器橡皮	Rubber, Injector	2
19	95D95-06025	连杆螺栓	Bolt, Flange Deep Recess	2
20	6FM-2417F-00	分离器	Separator	1
21	6FM-2419F-00	金属箱托架	Bracket, Canister	1
22	90480-13M24	固定	Grommet	1
23	97980-06216	带垫圈螺钉	Screw, With Washer	2
24	90464-07259	夹	Clamp	1
25	6FM-14497-00	油门钢索支承	Stay, Throttle Wire	1
26	91380-05012	螺栓	Bolt	2
27	90465-11M59	固定	Clamp	1

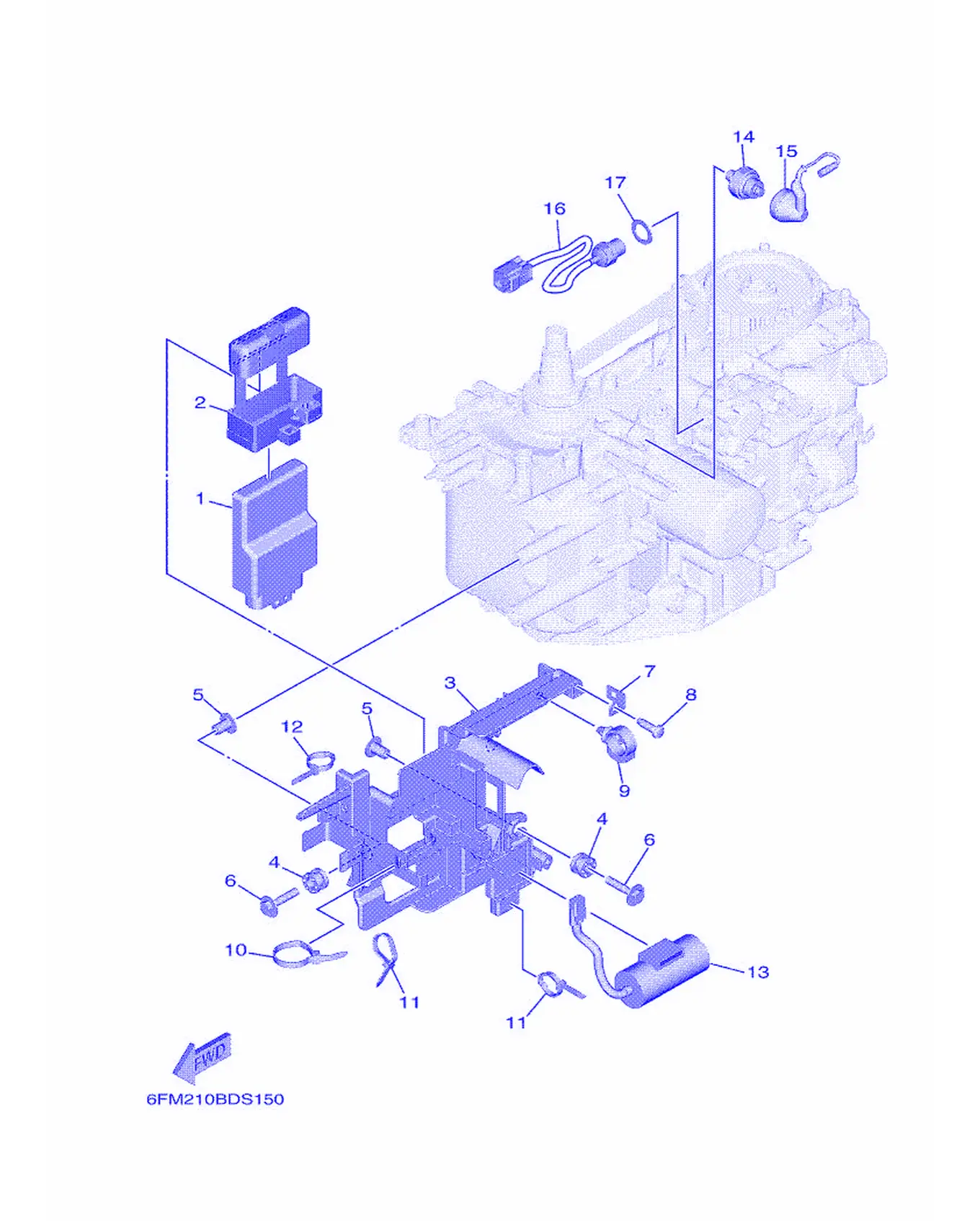

エレクトリカル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6HY-8591A-20	发动机控制单元	Engine Control Unit Assembly	1
2	6FM-85546-00	带	Band	1
3	6FM-81948-00	托架	Bracket	1
4	64J-85516-01	衬套	Spacer	3
5	69M-42758-01	轴套	Color	3
6	90119-06293	带垫圈六角头螺栓	Bolt, with Washer	3
7	68V-85548-01	支架	Holder	1
8	97780-60620	自攻螺钉	Screw, Tapping	1
9	90464-20181	固定夹	Clamp	1
10	90465-13M18	固定	Clamp	1
11	90465-13M11	线夹	Clamp	2
12	90465-13M97	固定	Clamp	1
13	6FM-81965-00	电容器	Condenser	1
14	64J-82504-00	油压开关组合	Oil Pressure Switch Assembly	1
15	68V-81315-01	导线组合	Lead Wire Assembly	1
16	6CJ-85790-00	温控传感件组合	Thermo Sensor Assembly	1
17	90430-14115	垫片	Gasket	1

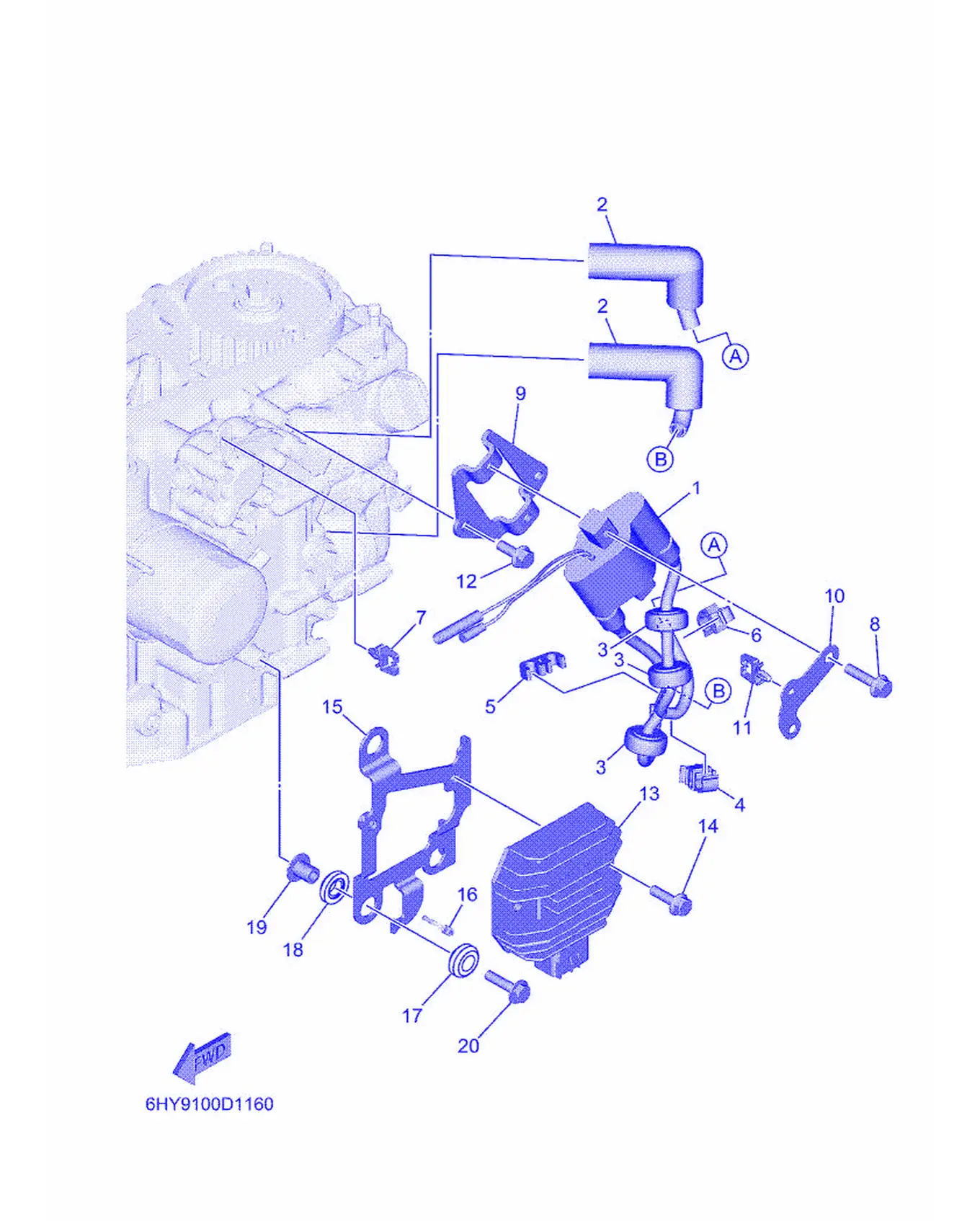

エレクトリカル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6F5-85570-13	点火线圈组合	Ignition Coil Assembly	1
2	6AH-82370-00	火花塞帽总成	Plug Cap Assembly	2
3	90480-25003	橡胶垫	Grommet	3
4	90464-07017	软管	Clamp	1
5	67F-82361-00	线夹	Clamp, Cord	1
6	90464-09018	固定	Clamp	1
7	90464-11121	固定	Clamp	1
8	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	2
9	6FM-82316-00	点火线圈托架	Bracket, Ignition Coil	1
10	6FM-81539-00	线圈面板	Coil Plate	1
11	90464-11121	固定	Clamp	1
12	95D95-06016	螺栓	Bolt, Flange Deep Recess	2
13	6FM-81960-10	整流调节器	Rectifier and Regulator Assembly	1
14	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	2
15	6FM-8711E-00	整流器支架	Stay, Rectifier	1
16	90465-11M10	固定	Clamp	1
17	6FM-82535-01	固定	Grommet	3
18	6FM-82545-01	固定	Grommet	3
19	90387-06289	轴套	Color	3
20	90119-06311	带垫圈六角头螺栓	Bolt, with Washer	3

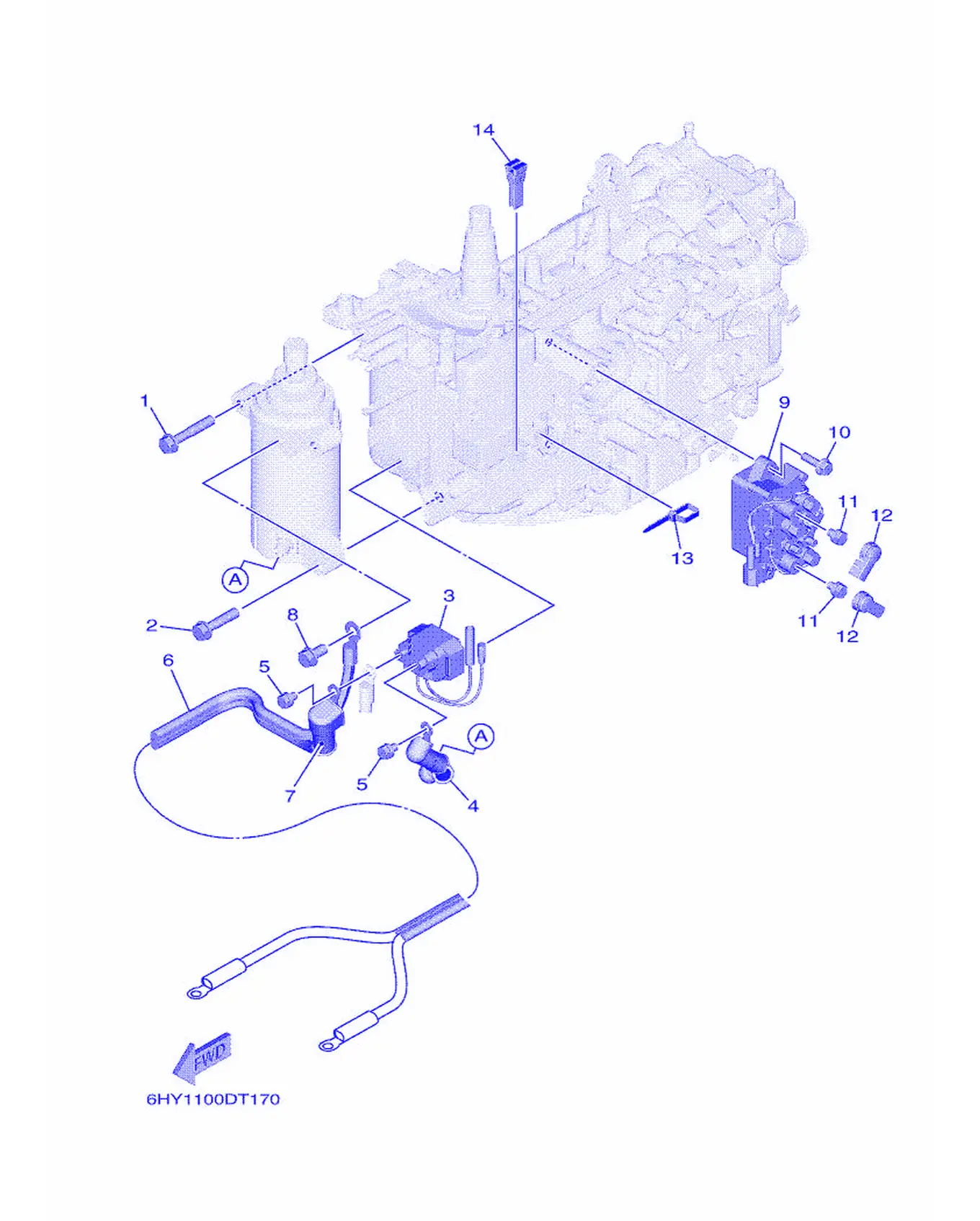

エレクトリカル 3

REF	雅马哈编码	中文名称	英文名称	用量
1	97513-08545	带垫圈螺栓	Bolt, with Washer	2
2	97513-08535	螺栓	Bolt, with Washer	1
3	6FM-81940-00	起动继电器总成	Starter Relay Assembly	1
4	6AH-82117-01	导线	Wire, Lead	1
5	97E95-06610	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	2
6	6FM-82105-J1	电缆	Battery Cable (L: 2.0M)	1
7	6P2-82119-00	导线盖	Cover, Reed Wire	1
8	97E95-08516	螺栓	Bolt, Hexagon with Washer Deep Recess	1
9	63P-W8195-00	继电器组合	Relay Assembly	1
10	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	2
11	97E95-06610	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	2
12	6P2-8183X-00	电极盖	Cap, Terminal	2
13	90465-13M11	线夹	Clamp	1
14	67F-2812A-00	小夹子	Puller, Fuse	1

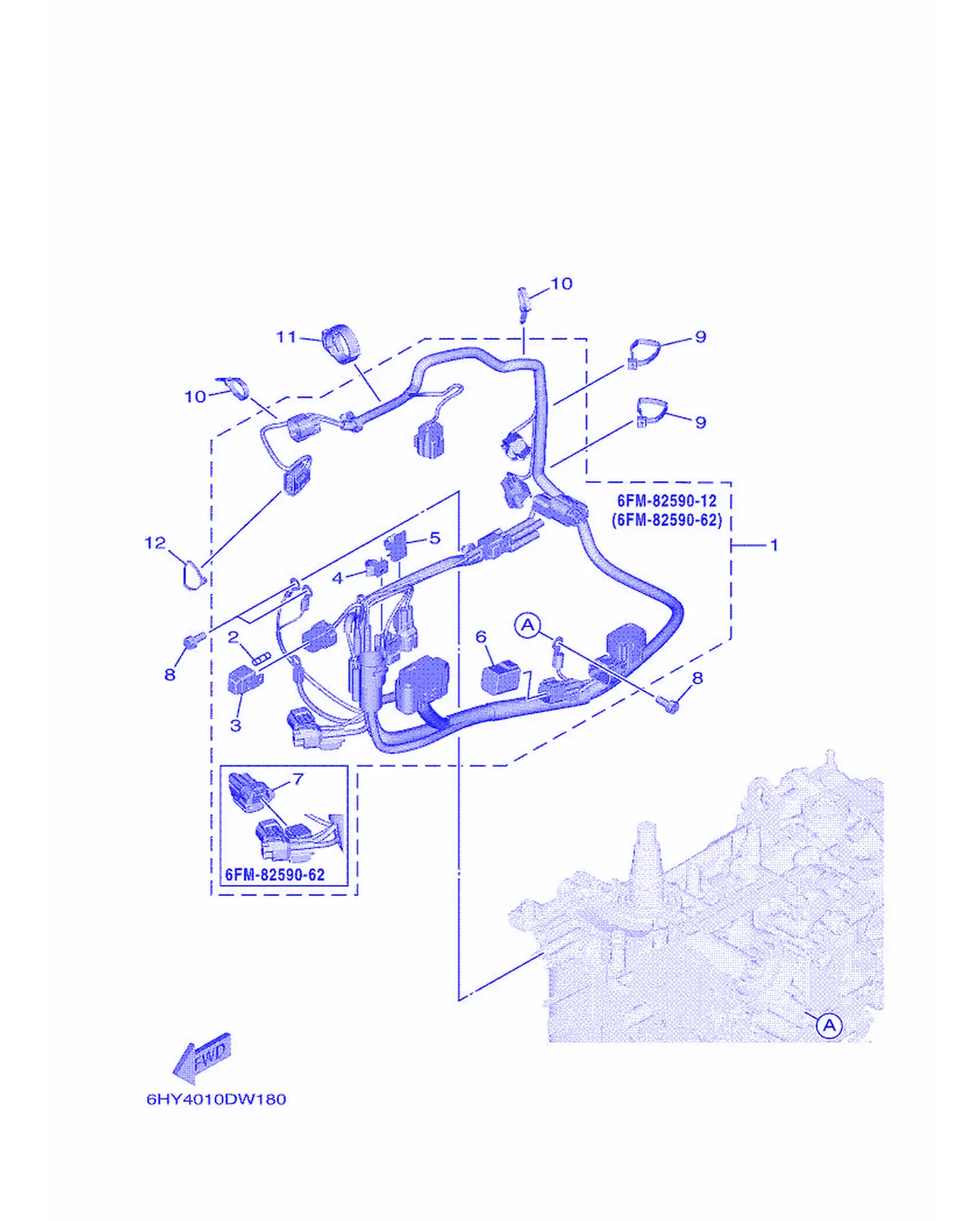

エレクトリカル 4

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-82590-62	电缆总成	Wire Harness Assembly	1
2	67F-82151-00	保险丝	Fuse (20A)	2
3	67F-8215B-10	断路器盖	Cap (Yellow)	1
4	90464-09M47	固定	Clamp	1
5	90464-12002	固定	Clamp	1
6	6Y8-82582-11	电线束盖	Cap 1 (4 Pin)	1
7	6FM-81980-01	二极管总成	Diode Assembly	1
8	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	3
9	90465-11M52	固定	Clamp	2
10	90465-13M11	线夹	Clamp	2
11	90464-28003	固定	Clamp	1
12	90465-11M59	固定	Clamp	1

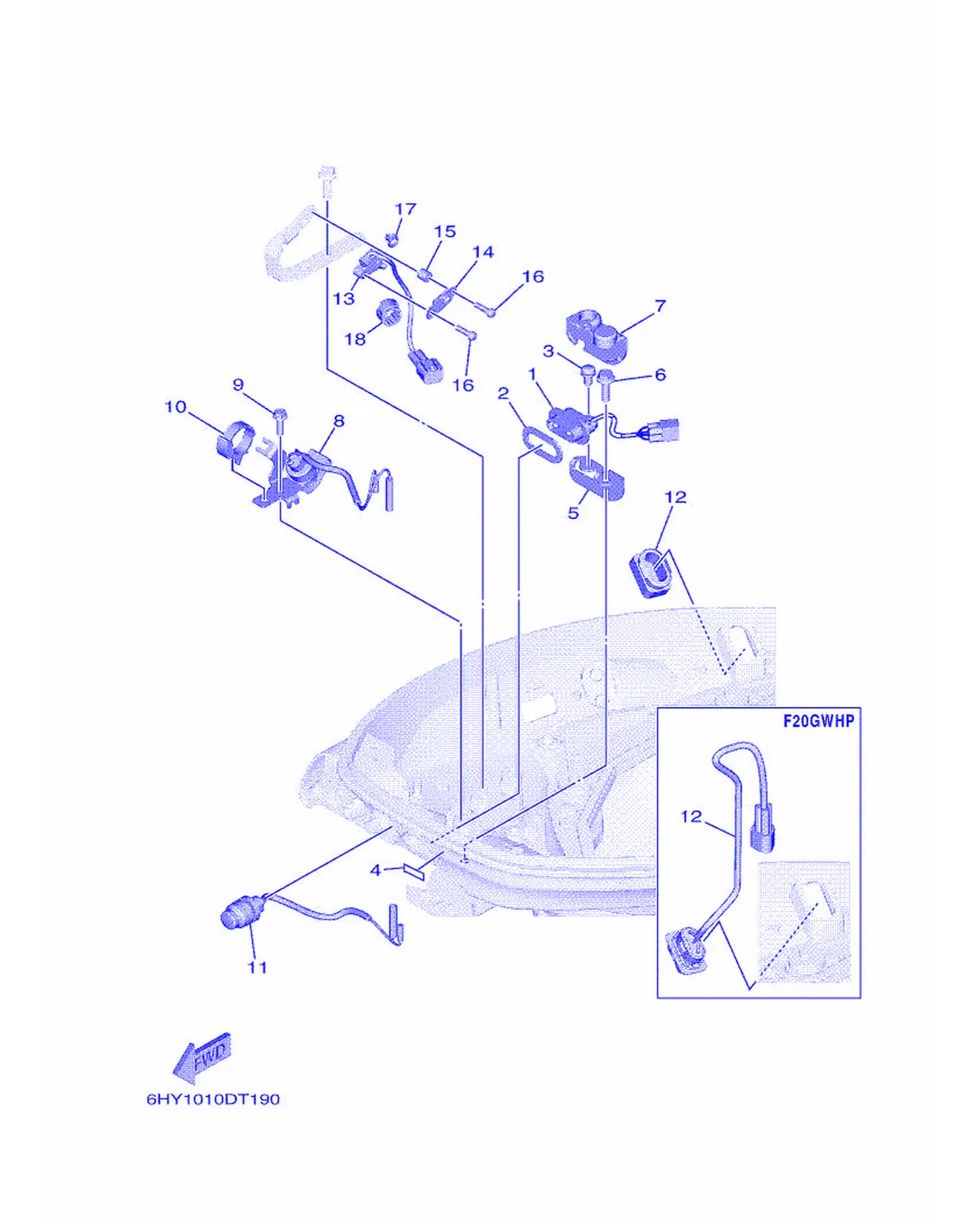

エレクトリカル 5

REF	雅马哈编码	中文名称	英文名称	用量
1	62Y-84301-10	导向灯总成1	Pilot Light Assembly 1	1
2	6FM-83589-00	衬垫	Gasket	1
3	97985-06212	带垫圈螺钉	Screw, With Washer	1
4	67C-85415-00	信号灯标志	Mark	1
5	6FM-82388-00	面板	Plate	1
6	90109-06M86	螺栓	Bolt	1
7	6FM-82355-01	固定	Grommet	1
8	6FM-82540-00	空挡开关组合	Neutral Switch Assembly	1
9	90109-06M86	螺栓	Bolt	1
10	90464-12183	线夹	Clamp	1
11	65W-81870-00	起动开关组合	Starting Switch Assembly	1
12	6FM-82563-01	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
13	60V-8259F-01	开关组合	Switch Assembly	1
14	6FM-82588-00	面板	Plate	1
15	90387-04001	衬套	Color	1
16	97985-04116	带垫圈螺钉	Screw, With Washer	2
17	90465-11M10	固定	Clamp	1
18	90464-13227	线夹	Clamp	1

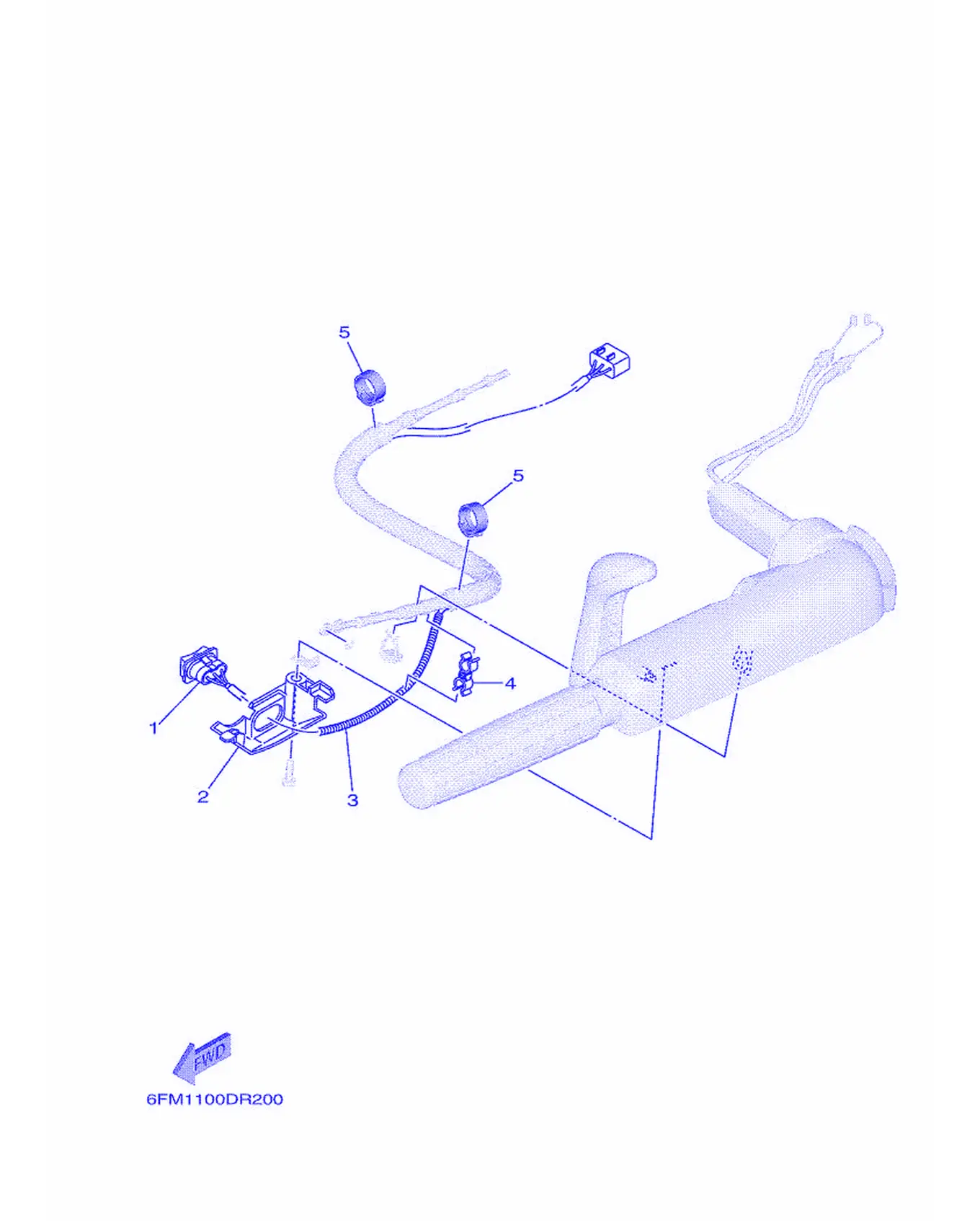

エレクトリカル 6

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-81860-01	开关组合	Switch Assembly	1
2	6FM-42176-00	支承2	Stay 2	1
3	90446-10M82	固定	Hose	1
4	90464-10M59	固定	Clamp	1
5	90464-16001	夹子	Clamp	2

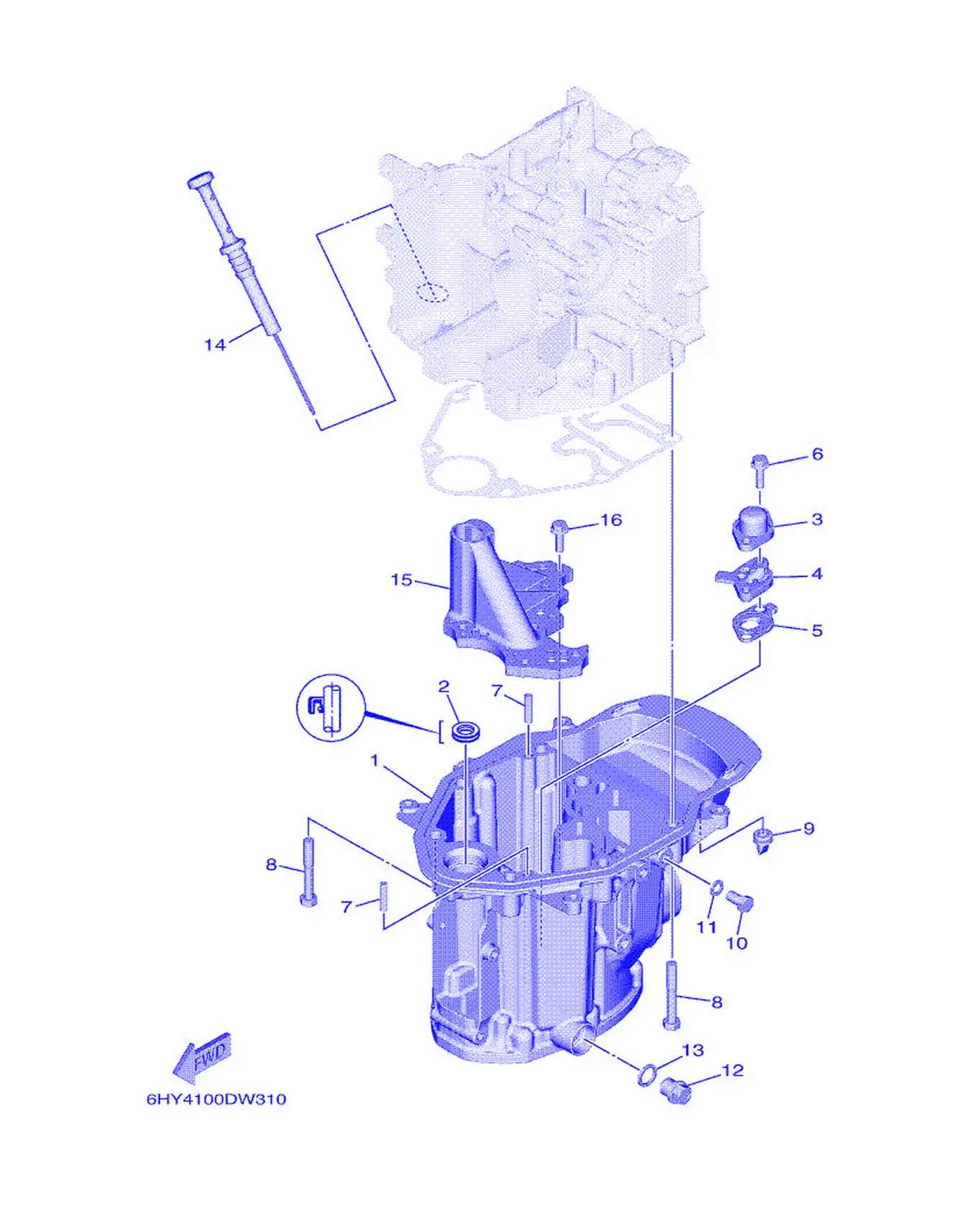

オイルパン

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-15311-01-CA	油槽	Oil Pan	1
2	93101-13001	衬套	Oil Seal	1
3	6FM-13411-00	机油过滤网	Strainer, Oil	1
4	6FM-13421-00	滤网2	Strainer 2	1
5	6FM-13415-00	机油滤网密封	Seal, Oil Strainer	1
6	95822-06025	螺栓	Bolt, Flange	2
7	93606-25M00	定位销	Pin, Dowel	2
8	97E75-08555	螺栓	Bolt, Hexagon with Washer Deep Recess	6
9	65W-42717-00	密封橡皮块2	Rubber,Seal 2	1
10	97D95-08014	螺栓	Bolt, Hexagon Deep Recess	1
11	90430-08143	衬垫	Gasket	1
12	90340-14M06	塞	Plug, Straight Screw	1
13	90430-14M09	衬垫	Gasket	1
14	6FM-15362-00	油标塞	Plug, Oil Level	1
15	6FM-13317-10	隔板	Baffle Plate	1
16	95817-06025	螺栓	Bolt, Flange	3

オイルポンプ

REF	雅马哈编码	中文名称	英文名称	用量
1	6HY-12170-01	凸轮轴组合1	Camshaft Assembly 1	1
2	6AH-11537-01	从动齿轮	Gear, Driven	1
3	90105-081A7	六角法兰面螺栓	Bolt, Flange	1
4	90201-08784	平垫圈	Washer, Plate	1
5	90282-05012	螺栓	Key, Straight	1
6	6AH-11536-00	驱动齿轮	Gear, Drive	1
7	6AH-11557-00	垫圈1	Washer 1	1
8	90170-30009	线夹	Nut	1
9	90280-03M01	螺丝	Key, Woodruff	1
10	6FM-46241-00	V型皮带	Belt	1
11	6FM-46297-01	防尘盖	Cover, Dust	1
12	90480-10627	固定	Grommet	2
13	6FM-42617-00	形成减震	Damper, Foam	1
14	6FM-81639-01	电枢装配面板	Cover	1
15	6AH-13300-00	机油泵总成	Oil Pump Assembly	1
16	6AH-13329-11	泵盖垫片	Gasket, Pump Cover	1
17	90105-06035	螺栓	Bolt, Flange	3
18	93102-22010	油封	Oil Seal	1
19	6FM-13437-01	警告标签	Mark, Caution	1

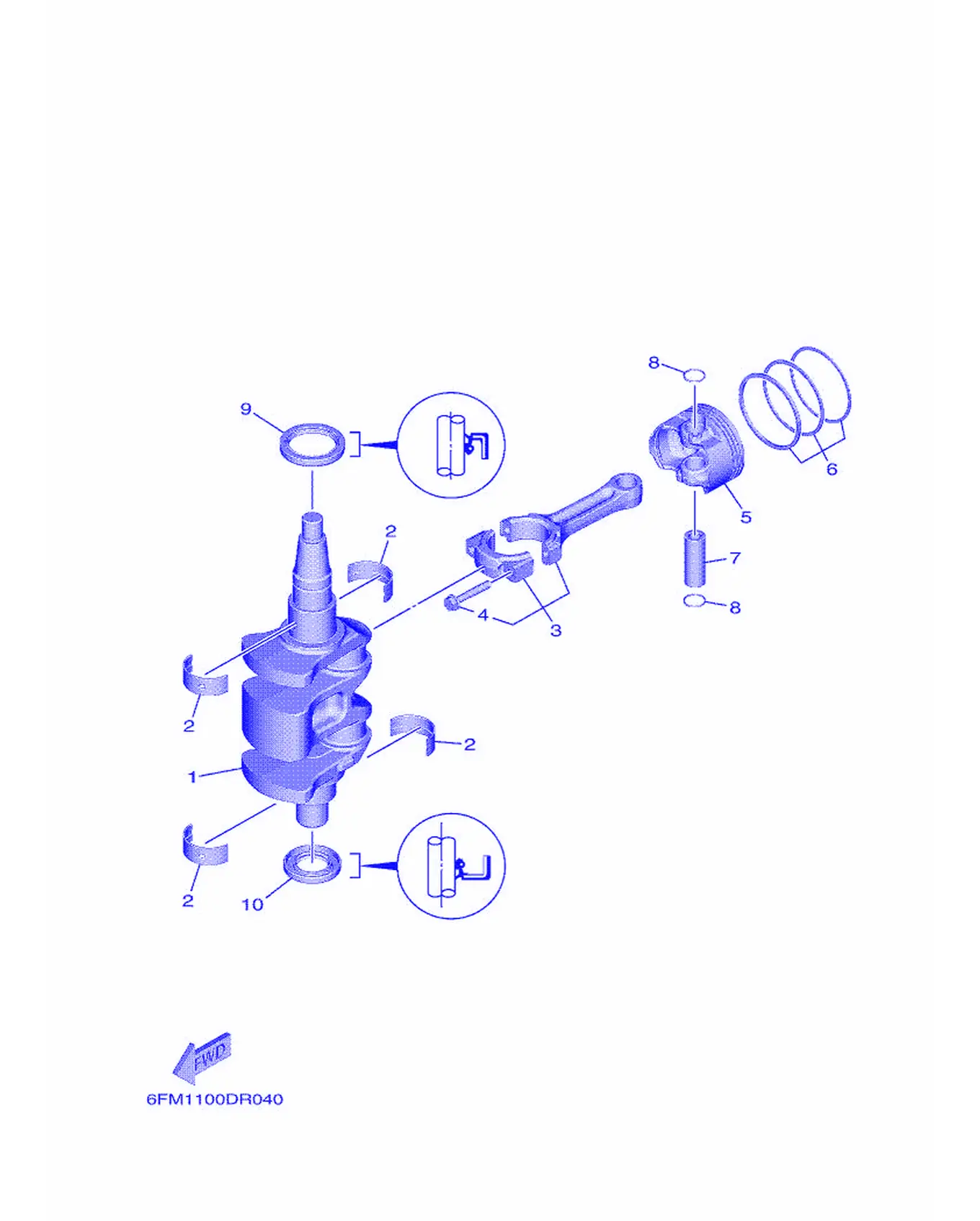

クランクシヤフト & ピストン

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-11411-00	曲轴	Crankshaft	1
2	6AH-11416-00	轴瓦1	Crankshaft Plain Bearing 1	4
2	6AH-11416-10	轴瓦1	Crankshaft Plain Bearing 1	4
2	6AH-11416-20	轴瓦1	Crankshaft Plain Bearing 1	4
3	6FM-11650-01	连杆组合	Connecting Rod Assembly	2
4	6AH-11654-00	连杆螺	Bolt, Connecting Rod	2
5	6FM-11631-00	活塞	Piston (STD)	2
5	6FM-11635-00	活塞	Piston (0.25MM O/S)	2
5	6FM-11636-00	活塞	Piston (0.50MM O/S)	2
6	67C-11603-01	活塞环套件	Piston Ring Set (STD)	2
6	67C-11604-01	活塞环套件	Piston Ring Set (0.25MM O/S)	2
6	67C-11605-01	活塞环套件	Piston Ring Set (0.50MM O/S)	2
7	6FM-11633-00	活塞销	Pin, Piston	2
8	93450-17129	卡环	Circlip	4
9	93102-37004	油封	Oil Seal	1
10	93102-25014	油封	Oil Seal	1

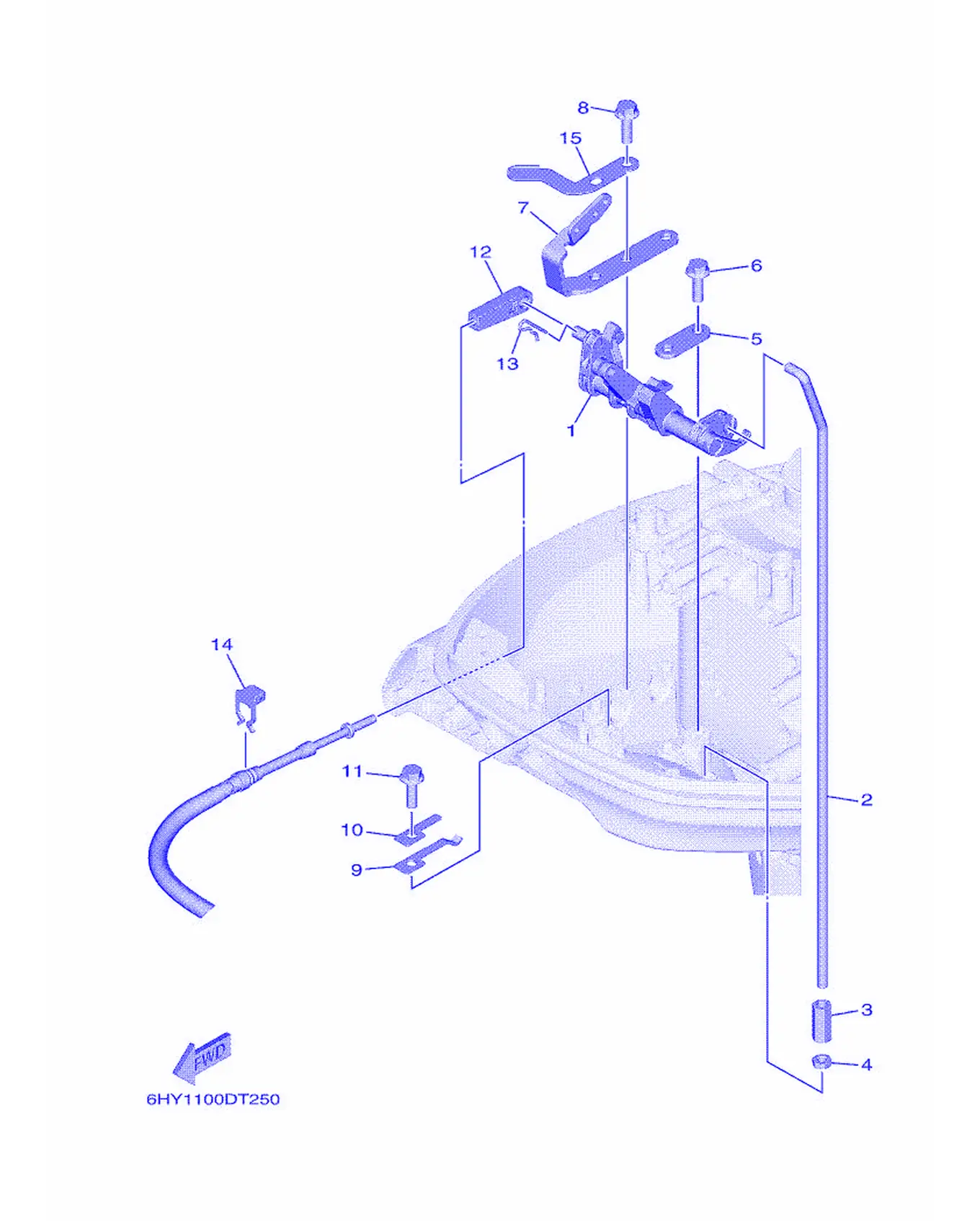

コントロ-ル

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-44121-00	变挡杆杠杆	Lever, Shift Rod	1
2	6FM-44143-10	变挡连杆	Rod, Shift 1	1
3	90170-06015	螺母	Nut	1
4	95380-06700	有槽螺母	Nut	1
5	6FM-41661-00	托架	Bracket 1	1
6	90109-06M86	螺栓	Bolt	1
7	6FM-41662-00	托架	Bracket 2	1
8	90109-06M86	螺栓	Bolt	1
9	66R-44116-00	弹簧	Spring	1
10	66R-44118-00	托架	Bracket	1
11	90109-06M86	螺栓	Bolt	1
12	6FM-48344-00	变档控制杆手柄	Cable End, Remote Control	1
13	90468-18008	钢夹	Clip	1
14	63D-48538-00	钢索夹1	Clamp,Cable 1	1
15	6FM-82398-00	托架	Plate 3	1

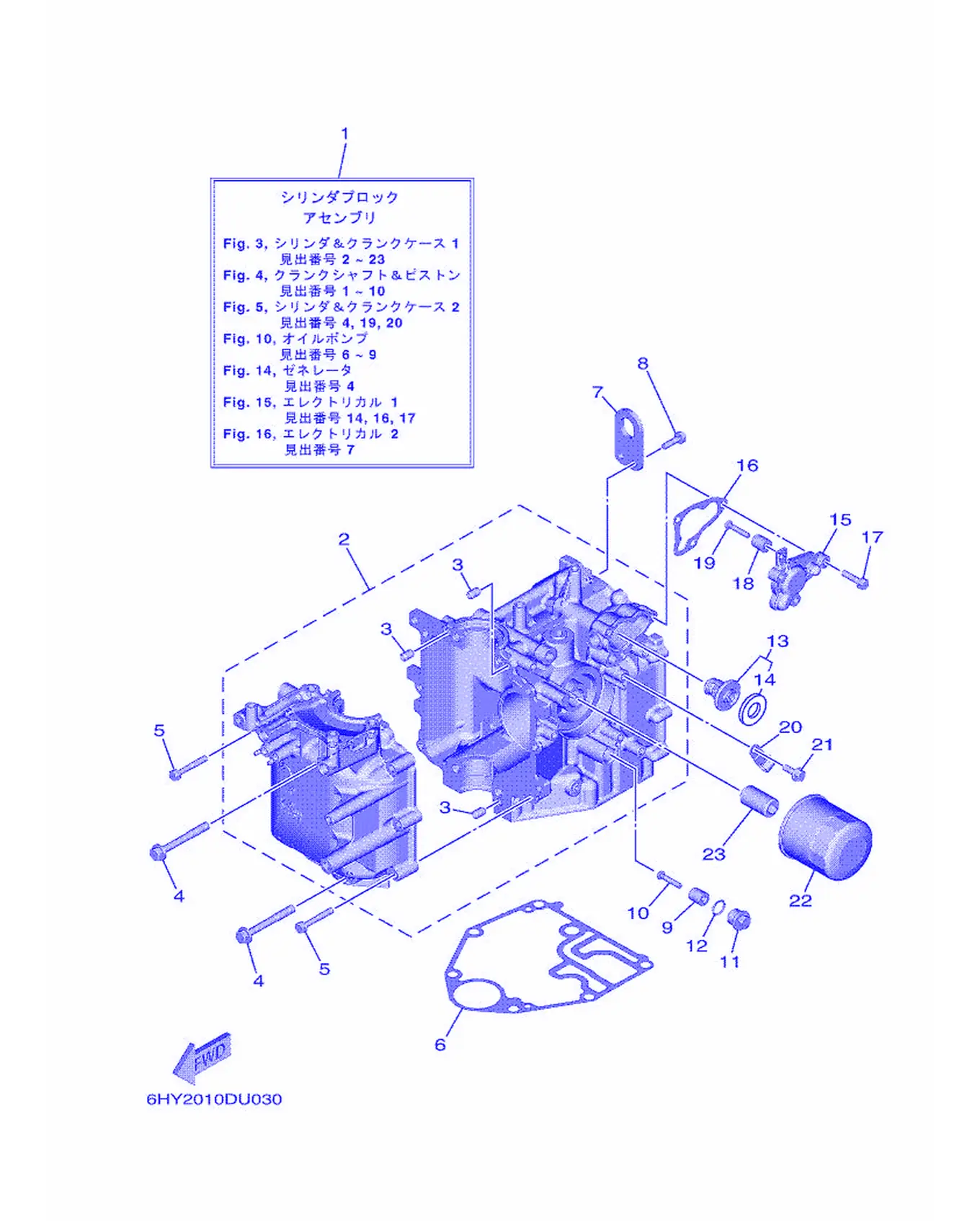

シリンダ & クランクケース 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-W009B-02-1S	主气缸套件	Cylinder Block Assembly	1
2	6FM-15100-01	曲轴箱组合	Crankcase Assembly	1
3	99530-08012	螺栓	Pin, Dowel	3
4	90119-08093	带垫圈六角头螺栓	Bolt, with Washer	4
5	97513-06540	带垫圈螺栓	Bolt, with Washer	6
6	6FM-11351-01	气缸衬垫	Gasket, Cylinder	1
7	6FM-11119-00	发动机悬挂架	Hanger, Engine	1
8	90105-06M07	螺栓	Bolt, Flange	2
9	6G8-11325-00	阳极	Anode	1
10	98980-05025	十字槽盘头螺钉	Screw, Bind	1
11	6G8-11197-B0	塞	Blind Plug	1
12	93210-13M63	O型圈	O-ring	1
13	6FM-12411-00	温控器	Thermostat	1
14	6FM-12412-00	温控器密封	Seal, Thermostat	1
15	6FM-12413-00-1S	温控器盖	Cover, Thermostat	1
16	6FM-12414-00	盖衬垫	Gasket, Cover	1
17	90119-06MA3	带垫螺栓	Bolt, With Washer	3
18	6G8-11325-00	阳极	Anode	1
19	98980-05025	十字槽盘头螺钉	Screw, Bind	1
20	90465-08M83	固定	Clamp	1
21	95D95-06016	螺栓	Bolt, Flange Deep Recess	1
22	5GH-13440-90	滤油器滤芯组合	Element Assembly, Oil Cleaner	1
23	6C5-12858-A0	管接螺栓2	Bolt, Union	1

シリンダ & クランクケース 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6HY-W009A-11-1S	气缸头总成	Cylinder Head Complete	1
2	6FM-11111-10-1S	气缸头1	Head, Cylinder 1	1
3	6AH-11133-10	进气门导管	Guide,Valve 1	4
4	6FM-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
5	99530-08012	螺栓	Pin, Dowel	2
6	90105-09010	固定	Bolt, Flange	6
7	90119-06MA3	带垫螺栓	Bolt, With Washer	3
8	6FM-11191-00	气缸盖罩1	Cover, Cylinder Head 1	1
9	6FM-11356-00	气缸密封圈2	Seal, Cylinder 2	1
10	90105-06M07	螺栓	Bolt, Flange	5
11	6FM-11168-00	通气管盖	Cover, Breather	1
12	97607-04210	带垫圈十字槽盘头螺钉	Screw, Pan Head Washer	5
13	6G8-11325-00	阳极	Anode	2
14	98980-05025	十字槽盘头螺钉	Screw, Bind	2
15	6G8-11197-B0	塞	Blind Plug	2
16	93210-13M63	O型圈	O-ring	2
17	90465-08059	线夹	Clamp	1
18	6HY-15407-00	滤芯1	Element 1	1
19	6G8-15363-00	机油塞子	Plug,Oil	1
20	93210-24M79	O型圈	O-ring	1
21	6FM-2475H-00	支承1	Bracket, Seat Lever 1	1
22	90465-13M18	固定	Clamp	1
23	94709-00418	火花塞	Plug, Spark (NGK DPR6EB-9)	2

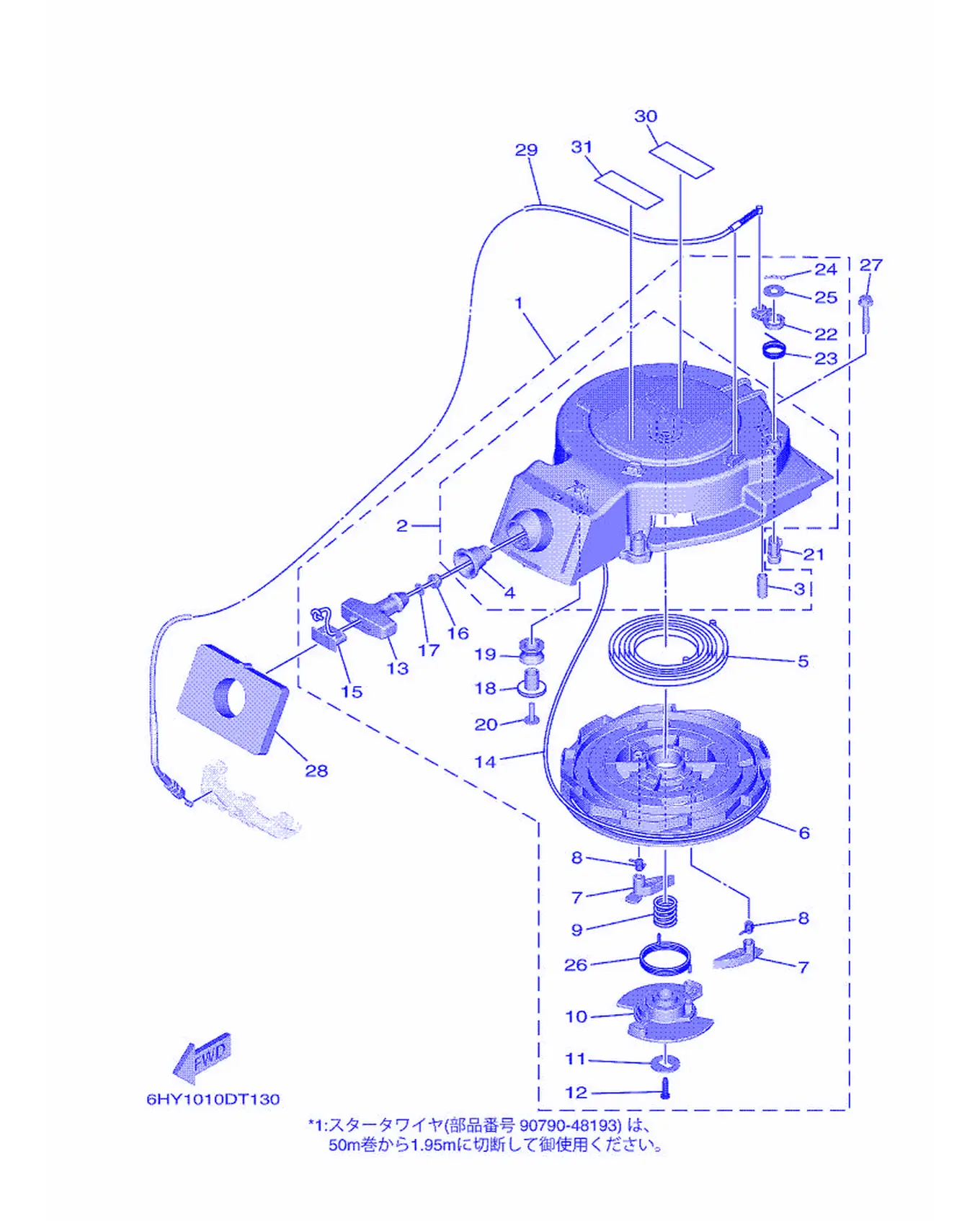

スタ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-15710-06	起动器组合	Starter Assembly	1
2	6FM-15711-10	起动器箱	Case,Starter	1
3	6FM-15764-10	安装环1	Collar 1	3
4	68T-15795-00	钢夹	Guide, Rope	1
5	6FM-15713-00	起动器弹簧	Spring,Starter	1
6	6FM-15714-01	拉索卷	Drum, Sheave	1
7	6FM-15741-01	驱动	Pawl, Drive	2
8	6FM-15734-01	回位弹簧	Spring, Return	2
9	6FM-15705-01	驱动爪弹簧	Spring, Drive Pole	1
10	6FM-15735-01	凸轮导向装置	Guide,Cam	1
11	6FM-15726-00	平垫	Washer, Flat	1
12	6FM-15793-01	螺钉	Screw	1
13	6G1-15755-00	起动器手	Handle,Starter	1
15	6G1-15779-00	盖	Cover	1
16	6A0-15789-01	减震器	Damper	1
17	6FM-15721-01	填隙	Shim	1
18	6FM-15753-00	衬套	Bushing	1
19	6FM-15752-00	拉索卷轴	Roller, Wire	1
20	6FM-15768-00	螺栓	Bolt	1
21	63V-15794-00	限位板	Stopper	1
22	6FM-15748-00	起动器止动柱	Plunger, Starter Stop	1
23	63V-15734-00	回位弹簧	Spring, Return	1
24	6FM-15799-01	钢夹	Clip	1
25	63V-15726-00	平垫	Washer, Flat	1
26	6FM-15767-00	弹簧	Spring	1
27	90105-06035	螺栓	Bolt, Flange	3
28	6FM-15762-00	橡皮密封圈2	Seal, Rubber 2	1
29	6FM-15770-08	起动器止动钢索组	Cable Complete, Starter Stop	1
30	6EE-81995-01	警告标签	Label, Warning	1
31	6EE-81994-01	警告标签	Label, Safety	1

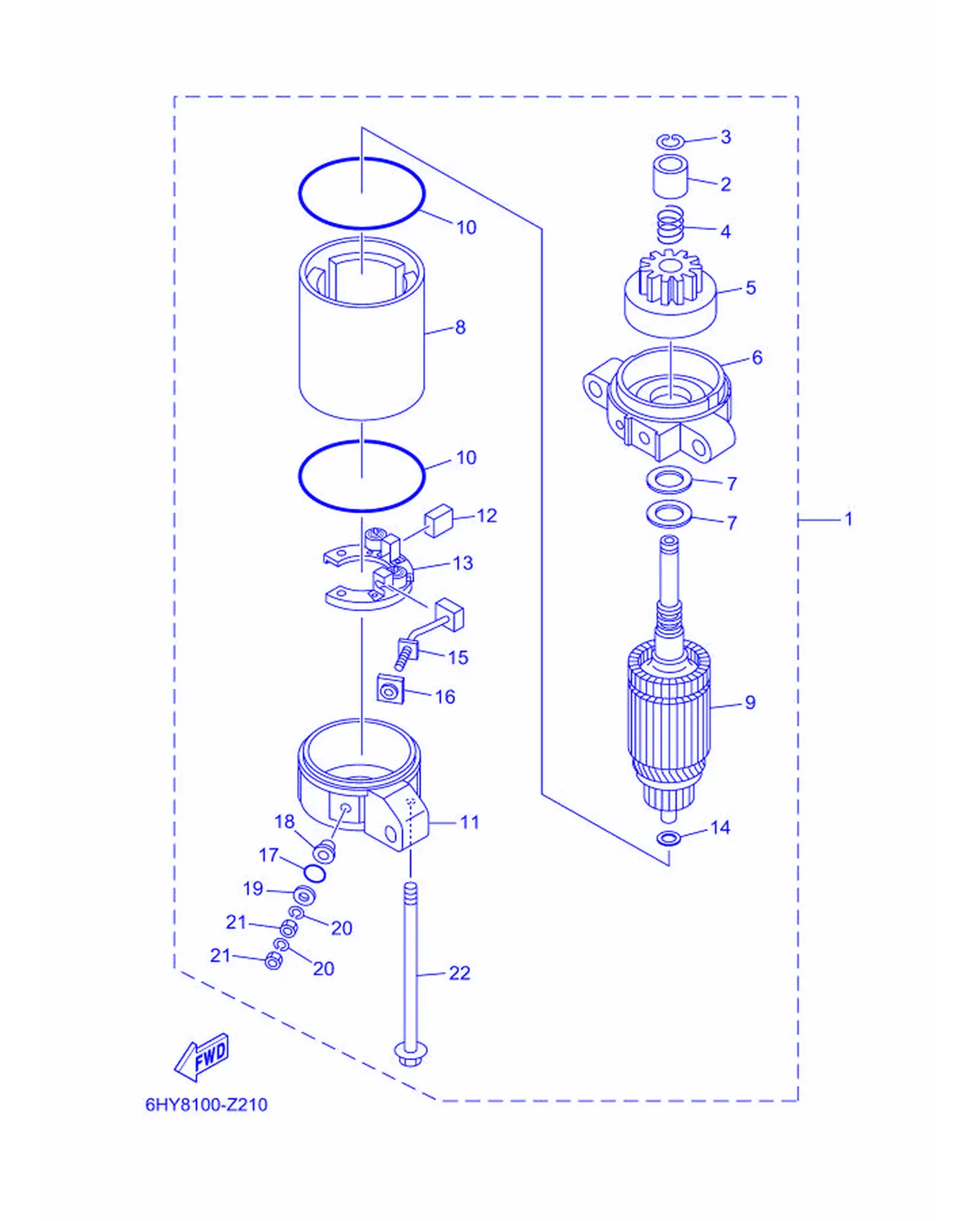

スタ-テイングモ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6AH-81800-10	起动电动机总成	Starting Motor Assembly	1
2	6AH-81859-00	小齿轮限位器	Stopper, Pinion	1
3	689-81884-00	小齿轮限位卡扣	Clip, Pinion Stopper	1
4	689-81858-00	回位弹簧	Spring, Return	1
5	689-81807-20	起动电动机齿轮组合	Gear Assembly, Starting Motor	1
6	6AH-81830-10	前托架组合	FrontBracketAssembly	1
7	689-81835-00	垫圈	Washer	2
8	689-81810-20	定子组合	Starter Assembly	1
9	689-81850-20	电枢组合	ArmatureAssembly	1
10	689-81847-20	O型圈	O-ring	2
11	6AH-81820-10	后托架组合	Rear Bracket Assembly	1
12	689-81812-20	电刷2	Brush 2	1
13	6AH-81840-00	电刷架组合	Brush Holder Assembly	1
14	689-81824-00	垫圈2	Washer 2	1
15	6AH-81811-10	电刷1	Brush 1	1
16	689-8182H-00	端子轴衬2	Bush, Terminal 2	1
17	689-8182L-00	O型圈	O-ring 1	1
18	689-8182G-00	环形齿轮支承	Bush, Terminal	1
19	689-8182E-00	垫	Washer	1
20	689-8182F-00	垫	Washer	2
21	689-8182A-00	螺母	Nut	2
22	689-81826-20	螺	Bolt	2

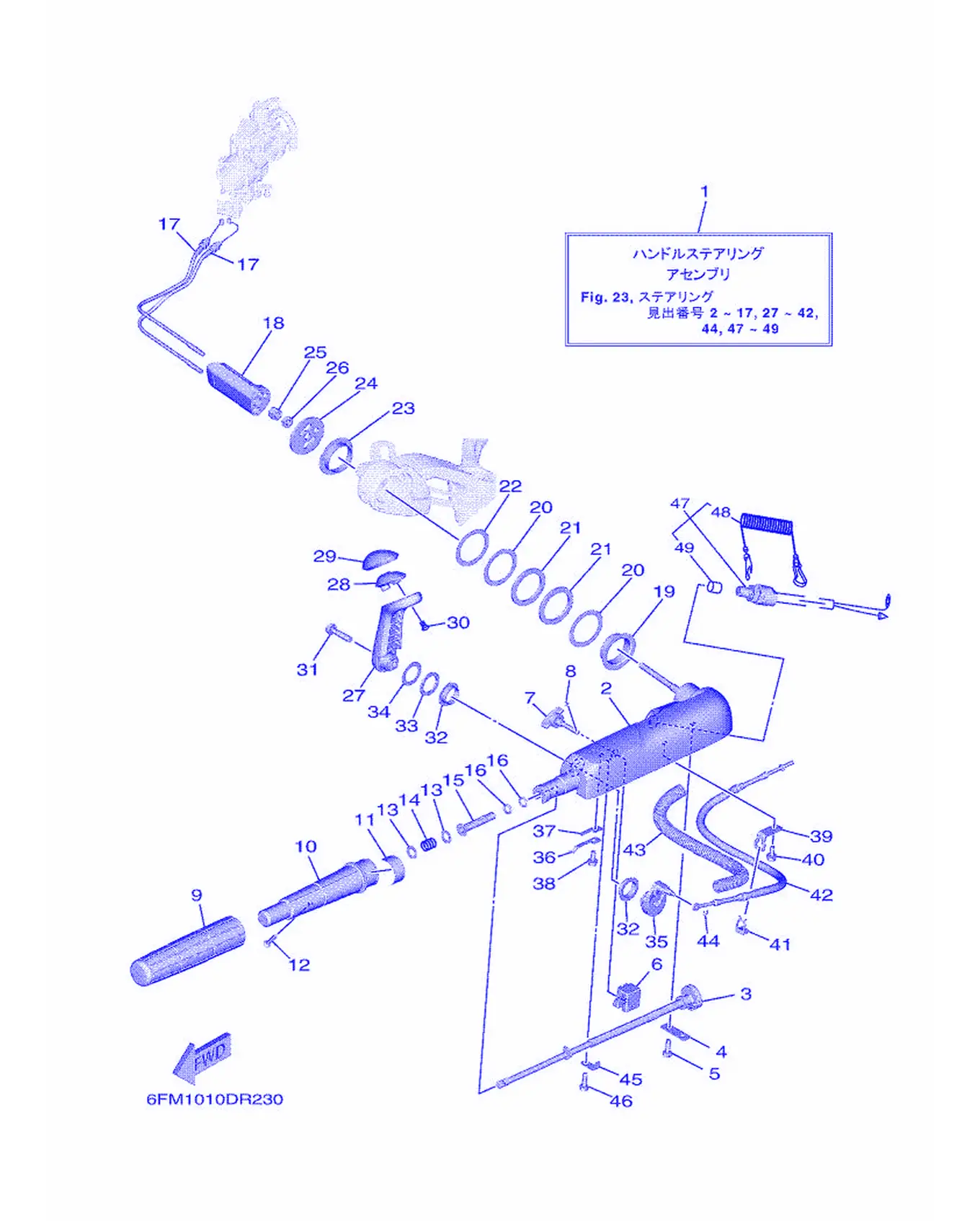

ステアリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-W0084-03-8D	手把方向装置组合	Handle Steering Assembly	1
2	6FM-42111-00-8D	方向手	Handle, Steering	1
3	6DR-42138-01	油门杆	Lever, Throttle	1
4	65W-42159-00	支承	Stay	1
5	90105-06M07	螺栓	Bolt, Flange	1
6	6DR-42126-00	方向手把握把摩擦块	Friction, Steering Handle Grip	1
7	65W-42125-00	阻力调整螺	Bolt, Friction Adjust	1
8	91490-16010	开口销	Pin, Cotter	1
9	67D-42177-01	手把橡皮	Rubber, Handle	1
10	67D-42119-01	方向手把握	Grip,SteeringHandle	1
11	6FM-42137-00	油门指示器	Indicator, Throttle	1
12	90152-05011	沉头螺钉	Screw, Countersunk	1
13	90201-10M02	面板垫圈	Washer,Plate	2
14	90501-23215	接头	Spring, Compression	1
15	6FM-42171-00	衬套	Bushing	1
16	93210-10010	十字槽螺钉	O-ring	2
17	6FM-26301-00	油门钢索组合	Throttle Cable Assembly	2
18	6FM-26316-01	气节门保护罩	Boot, Throttle Cable	1
19	66R-42171-00	衬套	Bushing	1
20	90201-43M00	平垫圈	Washer,Plate	2
21	90206-43M22	平垫圈	Washer, Wave	2
22	90202-43M57	平垫圈	Washer,Plate	1
23	90386-40M99	衬套	Bushing	1
24	65W-42131-01	方向手把盖	Cover,HandleSteering	1
25	95780-10300	螺母	Nut, Flange	1
26	95380-10700	螺母	Nut	1
27	6DR-44111-00-8D	变挡手柄	Handle, Gear Shift	1
28	6DR-44173-00	变挡控制杆	Lever, Shift Control	1
29	6DR-42129-01	橡皮衬套	Bushing, Rubber	1
30	97780-60920	自攻螺钉	Screw, Tapping	2
31	97E95-08535	螺栓	Bolt, Hexagon with Washer Deep Recess	1
32	90386-26MA3	衬套	Bushing	2
33	90206-26M25	波纹垫圈	Washer, Wave	1
34	90202-26M59	平垫圈	Washer,Plate	1
35	6DR-44113-A0	手柄凸轮面板	Cam Plate, Handle	1
36	6DR-44116-00	弹簧	Spring	1
37	66R-44118-00	托架	Bracket	1
38	95D95-06014	螺栓	Bolt, Flange Deep Recess	1
39	66R-48538-00	钢索夹1	Clamp,Cable 1	1
40	95D95-06014	螺栓	Bolt, Flange Deep Recess	1
41	63D-48538-00	钢索夹1	Clamp,Cable 1	1
42	6DR-48321-00	钢索	Cable	1
43	90446-20MF5	软管	Hose (L320)	1
44	99080-04600	有槽螺母	Circlip	1
45	6DR-44114-00	限位板	Stopper	1
46	91380-06025	螺栓	Bolt	1
47	6FM-82575-00	发动机止动开关组合	Engine Stop Switch Assembly	1
48	682-82556-00	止动拉索	Stopper	1
49	689-8257Y-00	盖	Cap	1

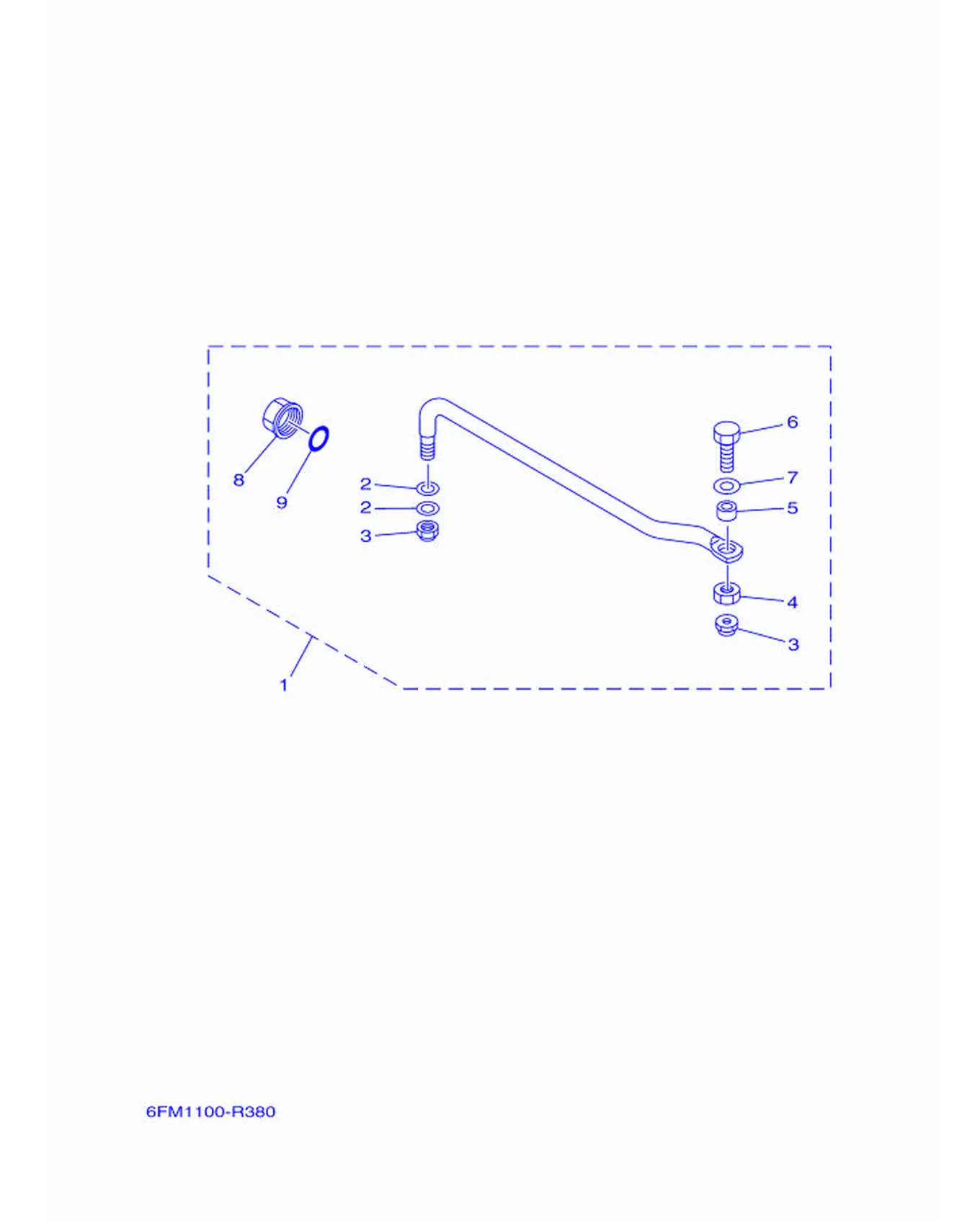

ステアリングガイド

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-61350-00	操舵连接板套	Steering Guide Attachment Kit	1
2	90201-10M20	面板垫圈	Washer,Plate	2
3	90185-09M01	螺帽	Nut, Self-Locking	2
4	90170-09M03	螺帽	Nut	1
5	90387-10M42	衬套	Collar	1
6	90101-09M01	卡环	Bolt	1
7	90201-10081	平垫圈	Washer, Plate	1
8	6E5-43145-01	夹紧托架盖	Cap, Clamp Bracket	1
9	93210-16275	O型圈	O-ring	1

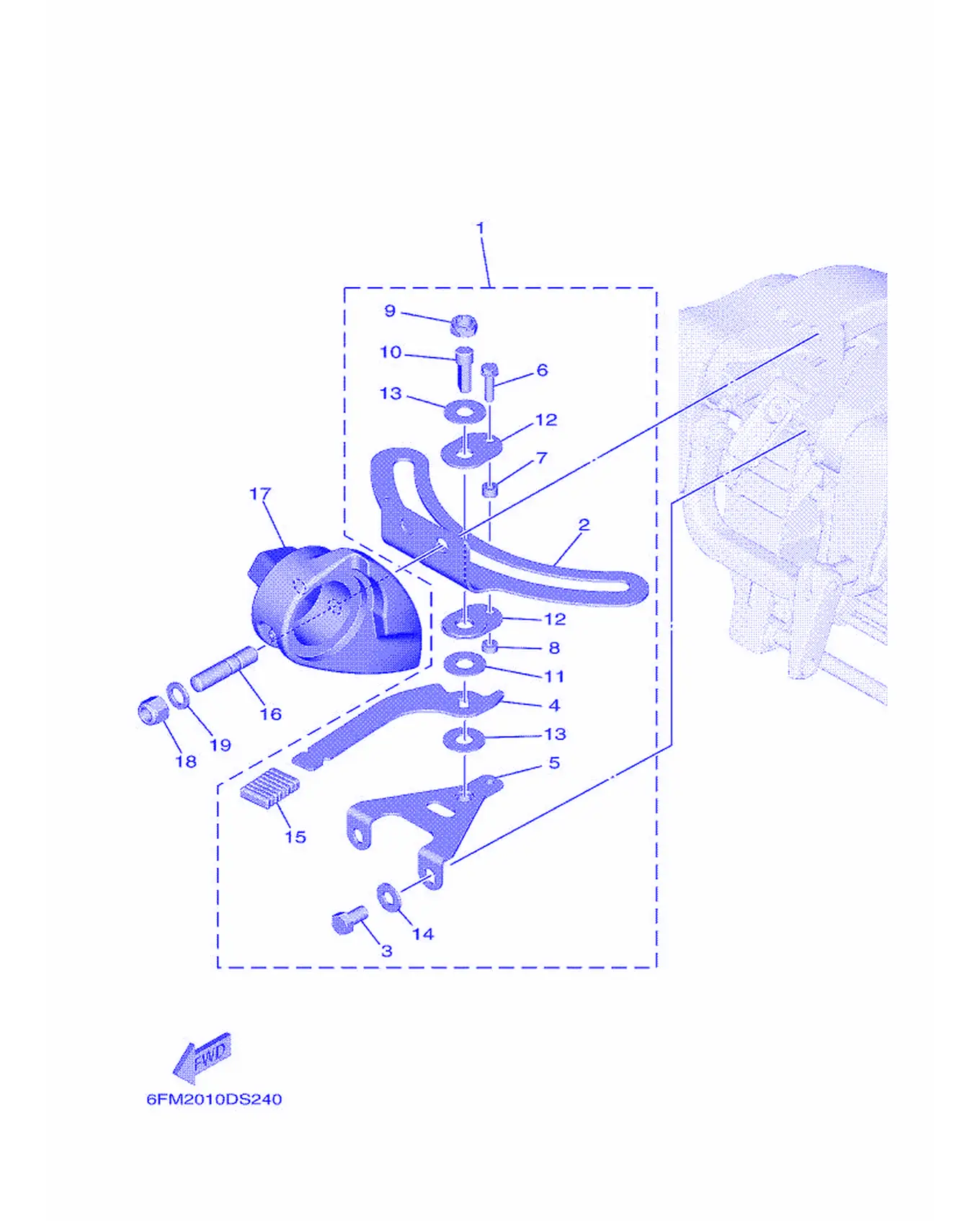

ステアリングフリクシヨン

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-42508-02	方向阻力块组合	Steering Friction Assembly	1
2	6FM-42527-00	阻力板	Friction Plate	1
3	97D95-08014	螺栓	Bolt, Hexagon Deep Recess	2
4	6FM-42561-00	方向锁紧旋钮	Knob	1
5	6FM-42525-00	阻力板	Friction Plate	1
6	97595-05520	带垫圈螺栓	Bolt, with Washer	1
7	90387-05054	轴套	Collar	1
8	90387-05053	轴套	Collar	1
9	90185-10M14	螺帽	Nut, Self-Locking	1
10	67C-42562-A0	操舵锁紧轴	ShaftSteeringLockAssembly	1
11	90202-10M56	平垫圈	Washer, Plate	1
12	65W-42528-00	阻力板	Plate, Friction	2
13	90201-106M5	平垫圈	Washer, Plate	2
14	92995-08200	盘形垫	Washer	2
15	689-43633-01	角度定位杆盖	Cover,TiltLever	1
16	90116-10064	带垫圈六角头螺栓	Bolt, Stud	2
17	6FM-42121-01-8D	托架	Bracket, Carling	1
18	90185-10027	锁紧螺母	Nut, Self-Locking	2
19	90201-10049	面板垫圈	Washer, Plate	2

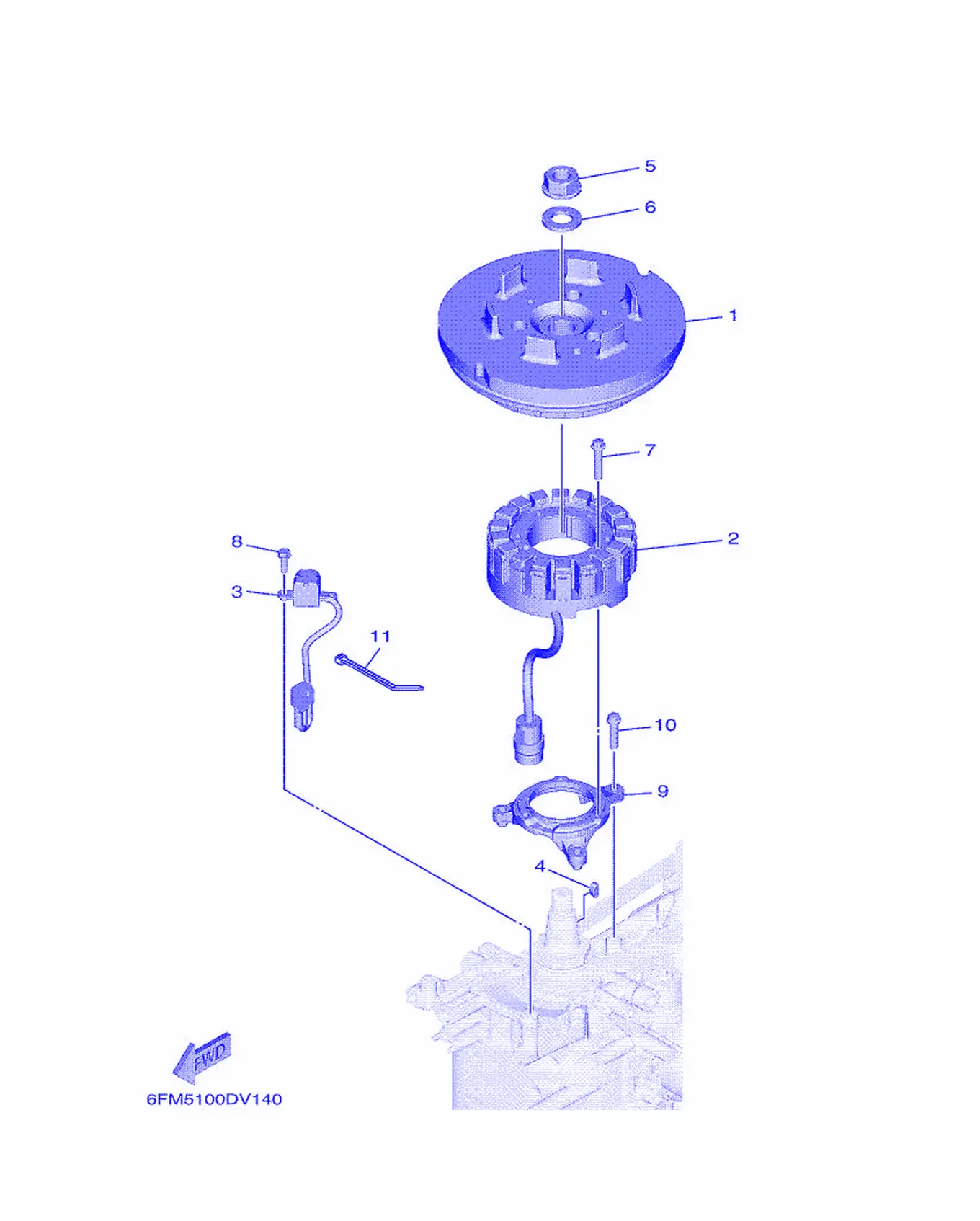

ゼネレ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-81450-12	转子总成	Rotor Assembly	1
2	6FM-81410-01	定子总成	Starter Assembly	1
3	6CB-85580-01	脉冲发生器总成	Coil, Pulser	1
4	90280-05013	螺丝	Key, Woodruff	1
5	90179-16M05	螺母	Nut	1
6	90201-16M44	带垫面板	Washer,Plate	1
7	95023-06030	凸缘螺	Bolt, Flange	3
8	97595-05516	带垫圈螺	Bolt, with Washer	2
9	6FM-85561-01	磁体底座	Base, Magnet	1
10	95023-06025	凸缘螺	Bolt, Flange	3
11	90465-11M59	固定	Clamp	1

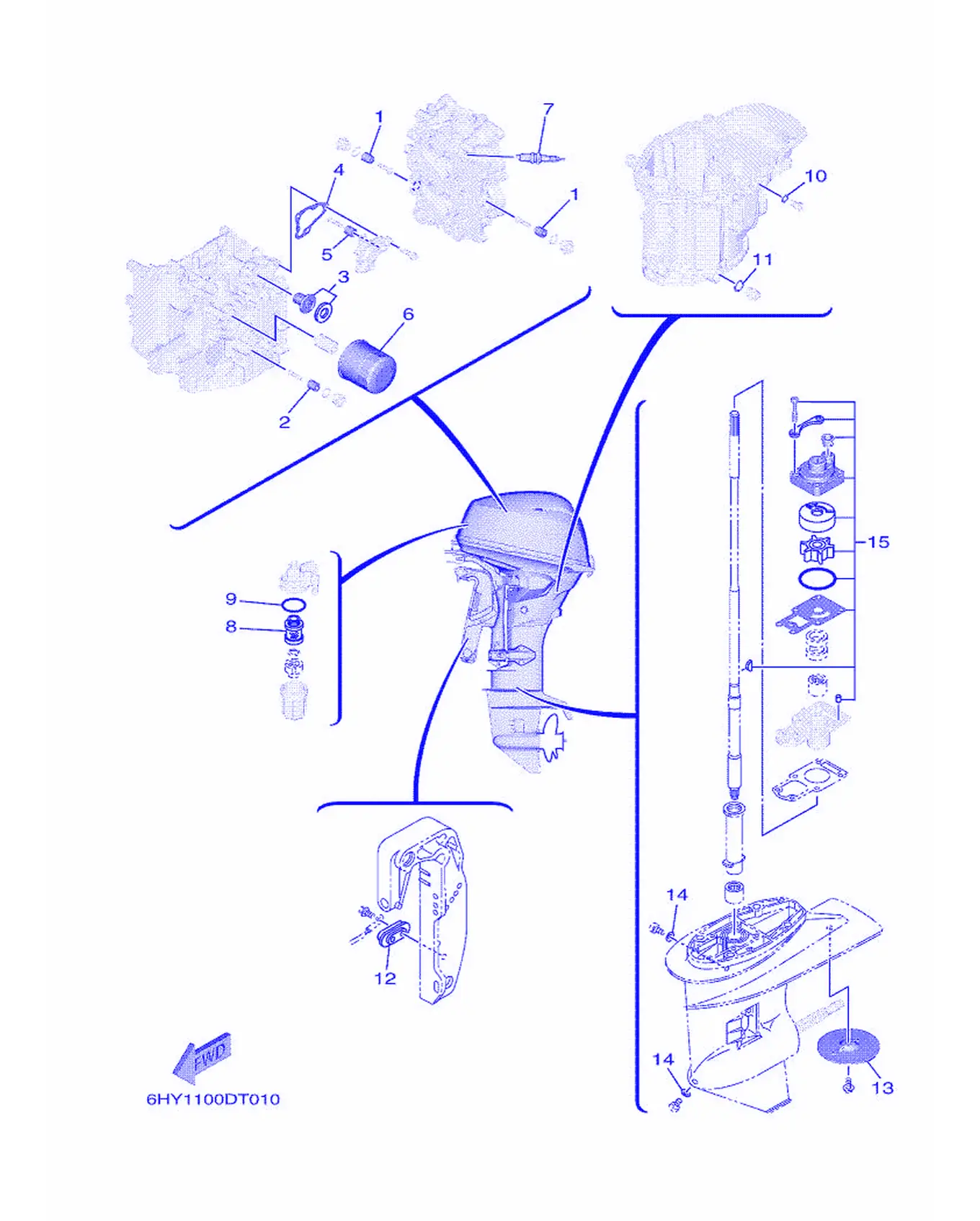

テイキコウカンブヒン

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-11325-00	阳极	Anode	2
2	6G8-11325-00	阳极	Anode	1
3	6FM-12411-00	温控器	Thermostat	1
4	6FM-12414-00	盖衬垫	Gasket, Cover	1
5	6G8-11325-00	阳极	Anode	1
6	5GH-13440-90	滤油器滤芯组合	Element Assembly, Oil Cleaner	1
7	94709-00418	火花塞	Plug, Spark (NGK DPR6EB-9)	2
8	6D8-24563-00	过滤器滤芯(07 F115A)68V-	Element, Filter	1
9	6D8-24564-00	衬垫	Gasket	1
10	90430-08143	衬垫	Gasket	1
11	90430-14M09	衬垫	Gasket	1
12	65W-45251-00	阳极	Anode	1
13	664-45371-01	航向调整	Tab Trim	1
14	90430-08003	垫片	Gasket	2
15	6FM-W0078-02	水泵修理套	Water Pump Repair Kit	1

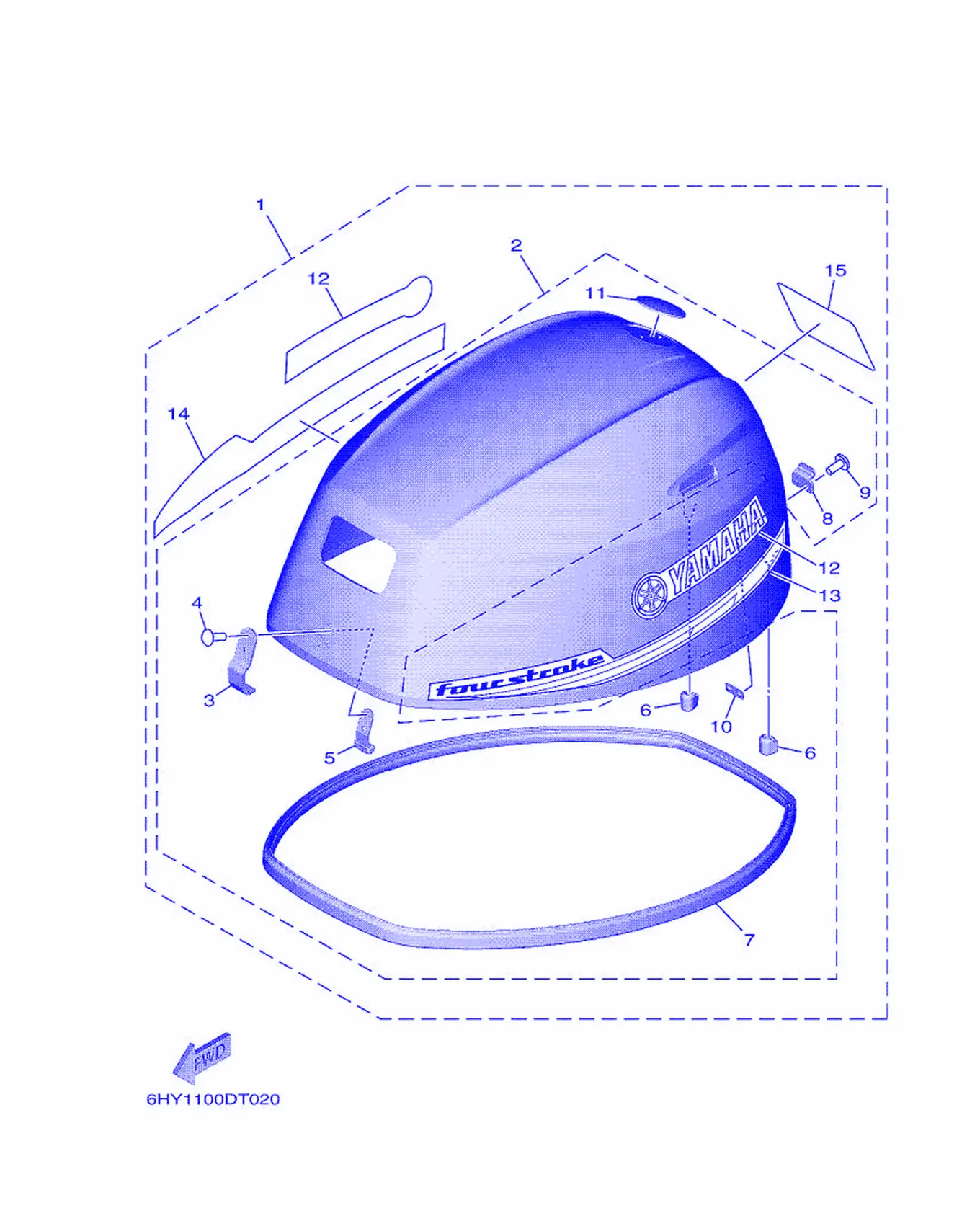

トツプカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6HY-42610-02	顶罩组合	Top Coupling Assembly	1
2	6FM-4261A-02	顶罩组合	Top Cowling (Graphic)	1
3	6FM-42651-00	钩	Fook	1
4	90266-04M01	螺丝	Rivet	2
5	6FM-42649-00	夹带支架	Holder, Clamp Band	1
6	6BG-42662-01	减震器	Damper	2
7	6FM-42615-00	密封	Seal	1
8	6FM-42652-00	钩	Fook	1
9	90266-04M01	螺丝	Rivet	2
10	6FM-42647-00	夹带支架	Holder, Clamp Band	1
11	6AH-42697-10	音叉标志	Tuning Fork Mark	1
12	6FM-42681-01	罩标志	Mark, Coupling	2
13	6FM-42675-01	侧面图样1	Graphic, Side 1	1
14	6FM-42676-01	侧面图样2	Graphic, Side 2	1
15	6DN-42677-11	前图样	Graphic, Front	1

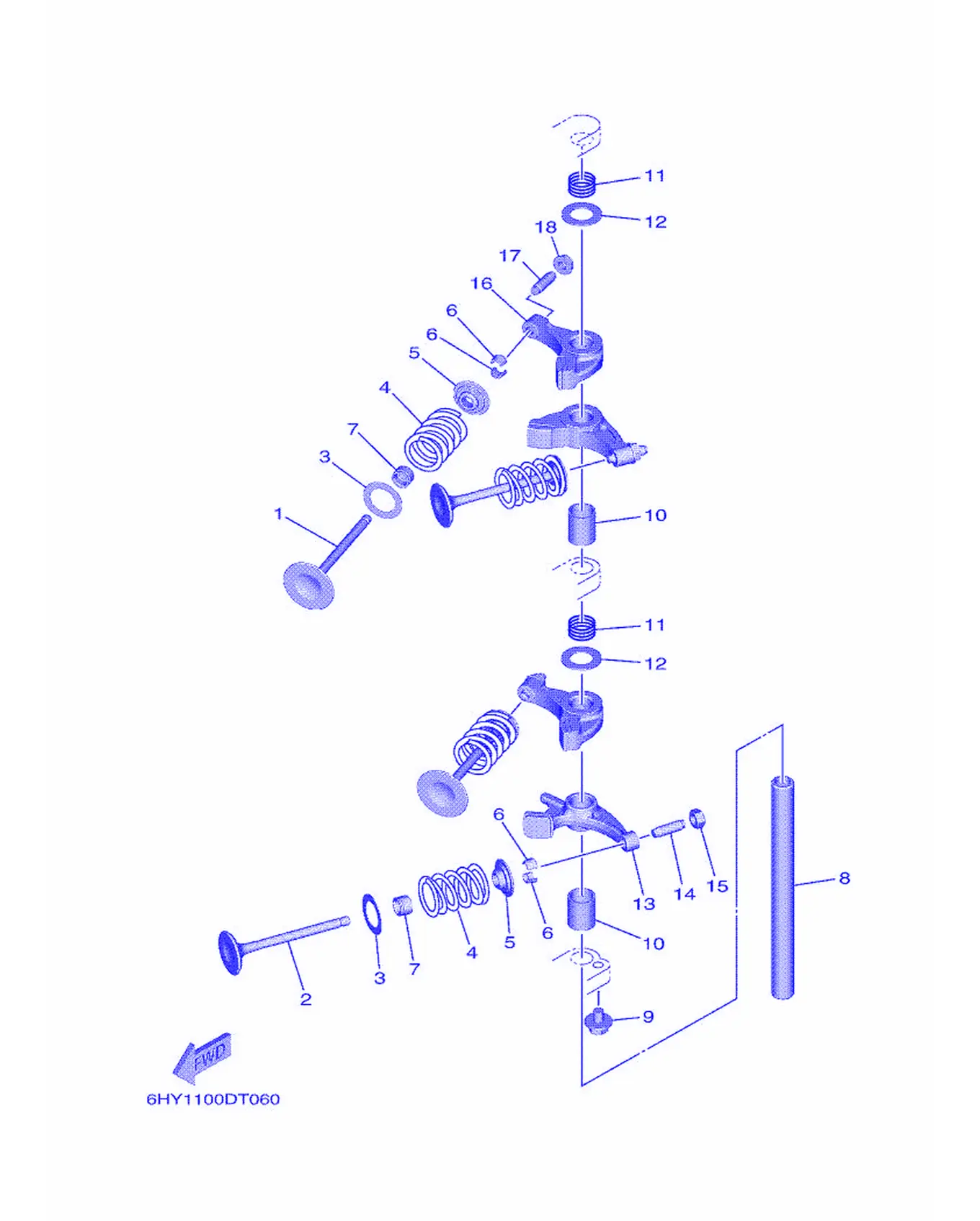

バルブ

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-12111-00	气门1	Valve, Intake	2
2	6FM-12121-00	气门2	Valve, Exhaust	2
3	62Y-12116-00	气门簧座	Seat,ValveSpring	4
4	3YF-12113-00	弹簧1	Spring, Valve Inner	4
5	30X-12117-00	气门弹簧座	Retainer,ValveSpring	4
6	30X-12118-00	气门锁销	Cotter, Valve	8
7	51Y-12119-00	气门杆密封	Seal, Valve Stem	4
8	66M-12146-00	摇臂轴	Shaft, Rocker	1
9	90119-06054	六角螺栓	Bolt, with Washer	1
10	90387-13006	轴套	Collar	2
11	90501-120A5	压簧	Spring, Compression	2
12	90201-131M4	平垫圈	Washer, Plate	2
13	6AH-12151-01	气门摇臂	Arm, Valve Rocker	1
14	64J-12159-00	气门调整螺钉	Screw, Valve Adjusting	1
15	62Y-12158-00	锁紧螺母	Nut,Lock	1
16	6FM-12151-00	气门摇臂	Arm, Valve Rocker	3
17	6C5-12159-00	气门调整螺钉	Screw, Valve Adjusting	3
18	6C5-12158-00	锁紧螺母	Nut,Lock	3

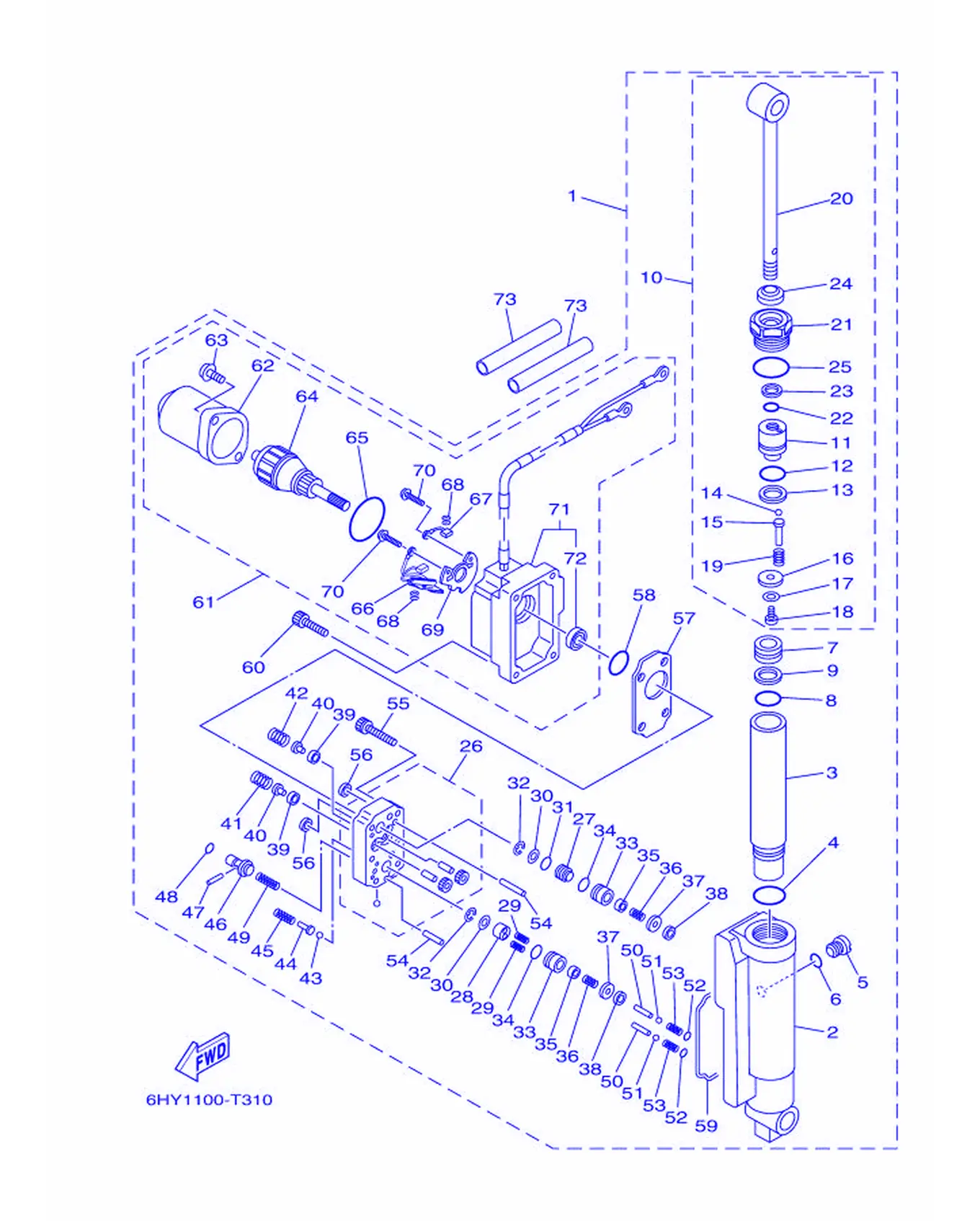

パワートリム & チルトアセンブリ

REF	雅马哈编码	中文名称	英文名称	用量
1	6HY-43840-00-8D	电动角度定位装置组合	Power Tilt Assembly	1
2	6HY-4380K-00	角度定位气缸次组合	Cylinder, Tilt Sub-assembly	1
3	6AH-22471-00	减震器气	Cylinder, Shock Absorber	1
4	93210-320A7	O型圈	O-ring	1
5	6H1-4388E-11	锥形螺钉	Plug, Taper Screw	1
6	93210-07003	O型圈	O-ring	1
7	6AH-43814-00	自由活	Piston, Free	1
8	93210-24709	O型圈	O-ring	1
9	6C5-43871-00	密封圈	Ring, Back Up	1
10	6AH-43810-00	活塞分组合	Tilt Piston Sub-Assembly	1
11	6AH-4380D-00	活塞总成	Piston Complete	1
12	93210-24709	O型圈	O-ring	1
13	6C5-43871-00	密封圈	Ring, Back Up	1
14	93501-08001	滚珠	Ball	5
15	6AH-4386A-00	吸收器阀销	Pin, Absorber Valve	5
16	6AH-4385E-00	活塞板	Plate, Piston	1
17	92902-06200	盘形垫	Washer	1
18	6AH-43878-00	座螺	Bolt, Socket	1
19	6AH-43857-00	阀门减震器弹簧	Spring	5
20	6AH-43801-00	杆	Rod	1
21	6AH-43811-00	气缸端部螺钉	Screw, Cylinder End	1
22	6H1-43866-01	O型圈	O-ring	1
23	69A-43871-00	环	Ring, Back Up	1
24	69A-43812-00	防尘密封	Seal, Dust	1
25	62X-43862-00	O型圈	O-ring	1
26	6AH-43830-00	齿轮泵组合	Gear Pump Assembly	1
27	69A-43841-00	滑梭活	Piston, Shuttle	1
28	69A-4384M-00	滑梭活塞2	Piston, Shuttle 2	1
29	62Y-43894-00	滑梭回位弹簧	Spring, Shuttle Return	2
30	69A-4384F-00	主阀门密封	Seal, Main Valve	2
31	6H1-43883-00	O型圈	O-ring	1
32	99002-03600	簧环	Circlip	2
33	69G-4382G-00	波形垫	Valve Seat	2
34	93210-12N52	O型圈	O-ring	2
35	6T4-43808-00	阀座组件1	Seat Valve Complete 1	2
36	69G-43853-00	主阀门弹簧	Spring	2
37	69G-4388F-00	垫片	Spacer	2
38	69J-4381C-00	滤芯 3	Filter 3	2
39	6H1-4384G-11	安全阀密封	Seal, Relief Valve	2
40	6H1-43844-10	阀门支销	Pin, Valve Support	2
41	6F2-43855-00	上减压弹簧	Spring	1
42	6H1-43856-10	下减压弹簧	Spring, Down Relief	1
43	93501-08001	滚珠	Ball	2
44	69A-4386A-00	吸收器阀销	Pin, Absorber Valve	2
45	69A-43824-00	压缩弹簧	Spring, Down Relief 2	2
46	69A-43848-10	手控释放杆	Rod, Manual Release	1
47	93602-15250	定位销	Pin, Dowel	1
48	93210-06001	螺帽	O-ring	1
49	6AH-43854-00	手控释放弹簧	Spring, Manual Release	1
50	69A-4381G-00	销1	Pin 1	2
51	93501-08001	滚珠	Ball	2
52	6H1-43883-00	O型圈	O-ring	2
53	69A-4384H-00	弹簧	Spring	2
54	93606-14081	定位销	Pin, Dowel	2
55	91312-05025	螺栓	Bolt, Hexagon Socket Head	6
56	69J-4381C-00	滤芯 3	Filter 3	2
57	6AH-4381J-00	面板	Plate	1
58	N35-43862-10	O型圈	O-ring	1
59	69A-23129-00	放油螺塞衬垫	Gasket, Drain Plug	1
60	69A-43878-00	座螺	Bolt, Socket	4
61	6HY-43880-00	电动机总成	Motor Assembly	1
62	6AH-43804-00	定子组合	Starter Assembly	1
63	67C-43879-10	带垫螺钉	Screw, Washer	2
64	67C-43805-11	电枢组合	Armature Assembly	1
65	67C-43862-10	O型圈	O-ring	1
66	67C-82181-10	断路器组合	Circuit Breaker Complete	1
67	67C-43892-10	电刷 2	Brush 2	1
68	67C-4386K-10	电刷弹簧	Spring, Brush	2
69	67C-4380F-10	电刷架板	Plate, Brush Holder	1
70	97602-04316	螺丝	Screw, Pan Head Washer	2
71	6HY-43881-01	端部框架	Frame, End	1
72	67C-43882-10	油封	Oil Seal	1
73	90446-15003	软管	Hose (L100)	2

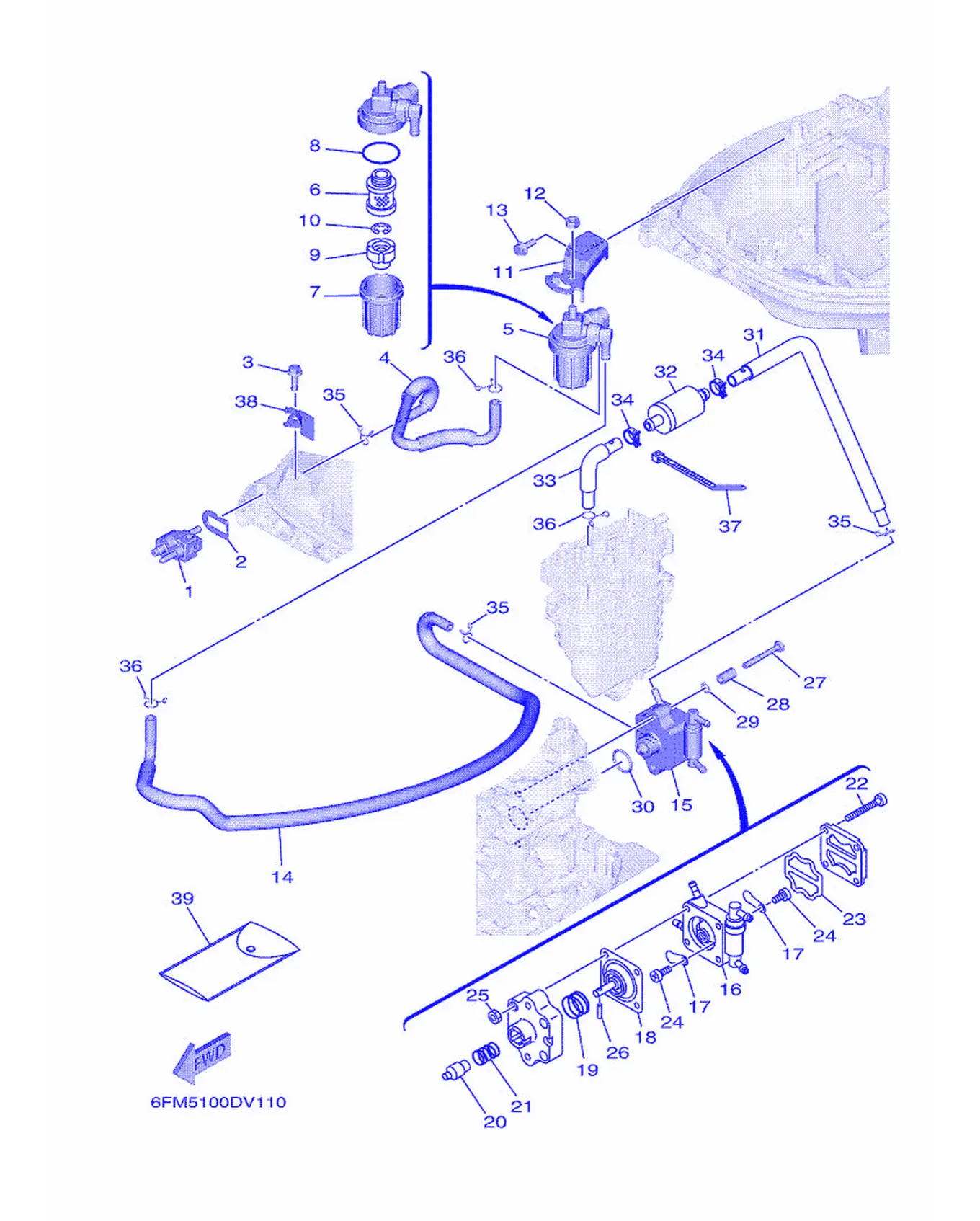

フユエル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6G1-24304-11	燃油管接头组件1	Fuel Pipe Joint Complete 1	1
2	61N-24329-01	密封	Seal	1
3	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	1
4	6FM-24311-10	油管	Pipe, Fuel 1	1
5	6FM-24560-00	过滤器总成	Filter Assembly	1
6	6D8-24563-00	过滤器滤芯(07 F115A)68V-	Element, Filter	1
7	6FM-24521-00	滤杯	Cup, Filter	1
8	6D8-24564-00	衬垫	Gasket	1
9	6D8-24469-00	水位浮标	Float, Water Level	1
10	6D8-24519-00	钢夹	Clip	1
11	6FM-24566-00	过滤器托架	Bracket, Filter	1
12	95380-08600	有槽螺母	Nut	1
13	95D75-06016	螺栓	Bolt, Flange Deep Recess	1
14	6FM-24312-10	管2	Pipe 2	1
15	6AH-24410-71	燃油泵组合	Fuel Pump Assembly	1
16	6AH-24413-70	燃油泵本体2	Body 2	1
17	6A0-24421-01	单向阀	Valve, Check	2
18	66M-24411-12	隔膜，隔板	Diaphragm	1
19	66M-24423-00	隔膜弹	Spring,Diaphragm	1
20	66M-13131-10	柱	Plunger	1
21	66M-24454-00	弹簧	Spring	1
22	66M-24444-00	螺钉	Screw	4
23	66M-24471-02	隔膜	Diaphragm	1
24	6E7-14325-00	扁头螺钉	Screw, Pan Head	2
25	95380-04600	有槽螺母	Nut	4
26	66M-24374-00	销	Pin	1
27	90101-06032	螺栓	Bolt, Hexagon	2
28	90387-06320	自锁螺母	Collar	2
29	90201-06016	螺栓	Washer, Plate	2
30	93210-20M65	O型圈	O-ring	1
31	6FM-24313-30	管3	Pipe 3	1
32	6C5-24251-01	滤网1	Strainer 1	1
33	6FM-24315-10	管5	Pipe 5	1
34	90467-120A7	卡环	Clip	2
35	90467-09M17	固定	Clip	3
36	90467-10M04	带垫螺栓	Clip	3
37	90465-13M18	固定	Clamp	1
38	6FM-24396-00	带2	Plate	1
39	62Y-28100-01	工具套件	Tool Kit	1

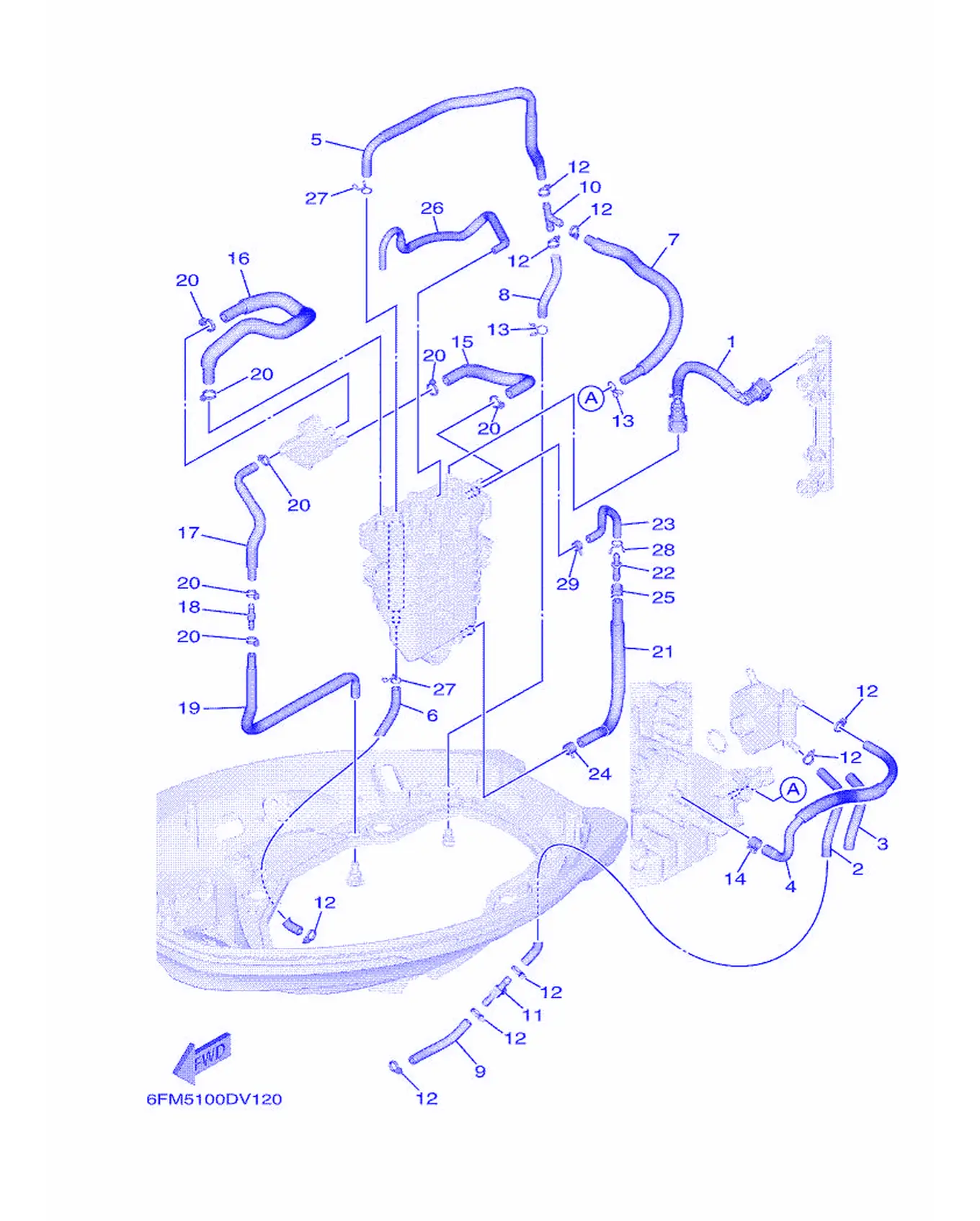

フユエル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-24310-01	燃油管组合	Fuel Pipe Assembly	1
2	90445-09091	软管	Hose (L135)	1
3	6FM-12498-00	保护	Protector	1
4	6FM-12482-01	管2	Pipe 2	1
5	6FM-12483-00	管3	Pipe 3	1
6	6FM-12484-00	管4	Pipe 4	1
7	6FM-12485-01	管5	Pipe 5	1
8	90445-09063	软管	Hose	1
9	90445-09012	固定	Hose (L70)	1
10	688-24378-00	连接管4	Pipe,Joint	1
11	6C5-24378-00	连接管4	Pipe,Joint 3	1
12	90465-11M10	固定	Clamp	9
13	90467-08M10	固定	Clip	2
14	90467-110A1	卡环	Clip	1
15	6FM-1475A-00	管1	Pipe 1	1
16	6FM-1475E-01	管2	Pipe 2	1
17	6FM-1475F-00	管3	Pipe 3	1
18	6E5-21744-00	通气管	Breather	1
19	6FM-1475G-00	管4	Pipe 4	1
20	90465-11M10	固定	Clamp	7
21	6FM-1243K-00	排水管	Pipe, Drain	1
22	6FM-14191-00	放油旋	Drain Plug	1
23	6FM-1443G-00	排水管2	Pipe Drain 2	1
24	90467-110A1	卡环	Clip	1
25	90467-090A4	钢夹	Clip	1
26	6FM-13542-00	负压传感软管1	Hose, Vacuum Sensing 1	1
27	90467-08M10	固定	Clip	2
28	90467-08M10	固定	Clip	1
29	90467-08092	卡箍	Clip	1

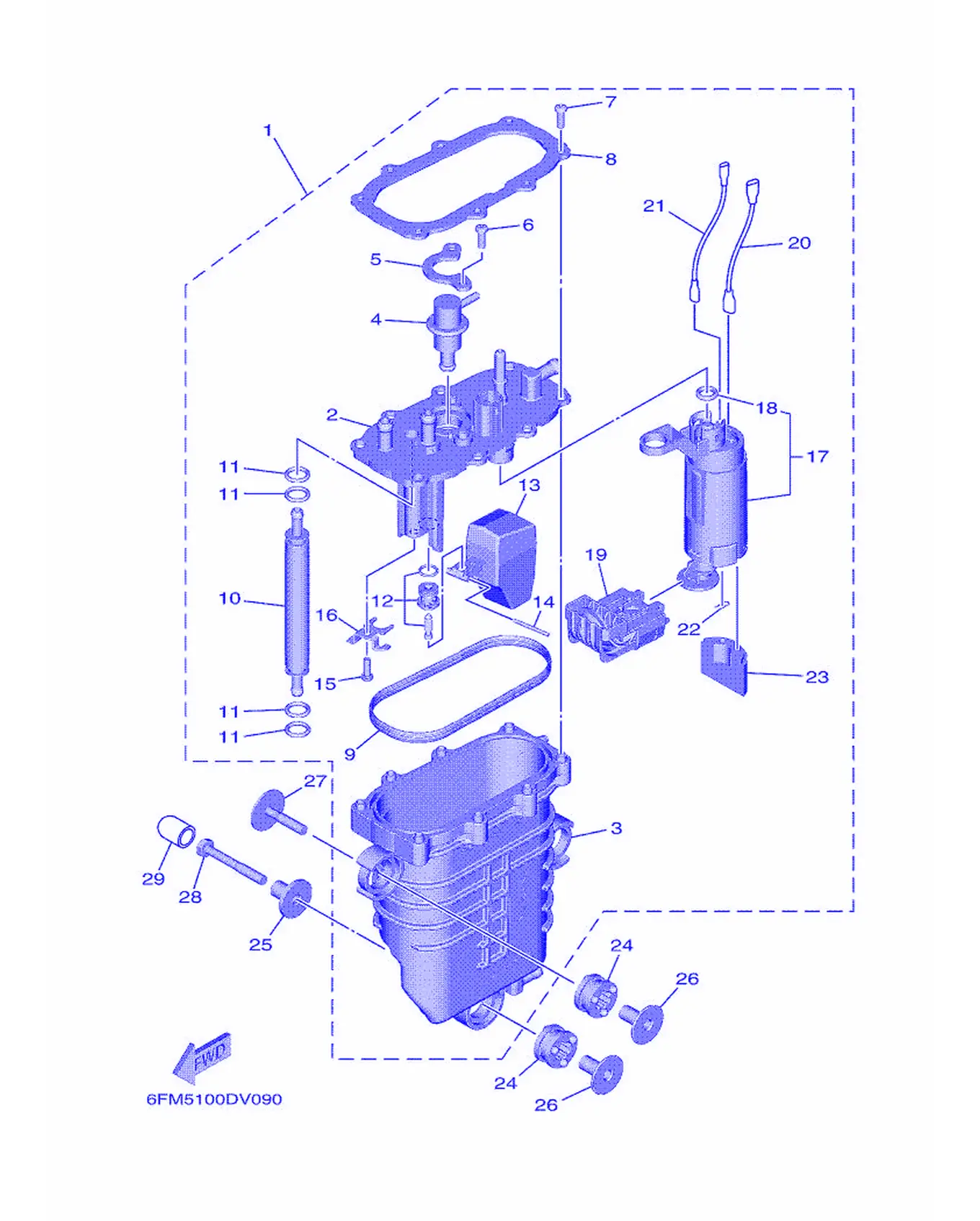

フユエルインジエクシヨンポンプ

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-14180-02	浮子室组合	Float Chamber Assembly	1
2	6FM-14182-00	浮子室盖	Cover, Float Chamber	1
3	6FM-14181-01	浮子室本体1	Body, Float Chamber 1	1
4	6FM-13906-00	调压器	Regulator, Pressure	1
5	6FM-14146-00	面板	Plate	1
6	6FM-14565-00	螺钉	Screw	2
7	6FM-14567-00	螺钉	Screw	8
8	6FM-14243-00	面板	Plate	1
9	6FM-14984-00	浮子室衬垫	Gasket, Float Chamber	1
10	6FM-21841-00	冷却器	Cooler	1
11	6FM-14562-00	O型圈	O-ring	4
12	6FM-14546-00	针阀	Valve, Needle	1
13	68V-14985-00	浮子	Float	1
14	6FM-14386-00	浮子销	Pin, Float	1
15	6FM-14565-00	螺钉	Screw	1
16	6FM-14674-00	导向装置1	Valve,Plate	1
17	6FM-13910-00	燃油泵总成	Fuel Pump Assembly	1
18	6FM-14561-00	O型圈	O-ring	1
19	6FM-13915-00	过滤器	Filter	1
20	6FM-1469M-00	电线1	Wire 1	1
21	6FM-1469N-00	电线2	Wire 2	1
22	6FM-14137-00	卡环	Clip	1
23	6FM-13781-00	泵减震器	Damper, Pump	1
24	6FM-13593-00	减震器	Damper	3
25	90387-06M69	六角螺栓	Color	1
26	90387-06176	衬套	Color	3
27	90119-06291	带垫圈六角头螺栓	Bolt, with Washer	2
28	90101-06032	螺栓	Bolt, Hexagon	1
29	67F-13448-00	盖	Cap	1

フユエルタンク

REF	雅马哈编码	中文名称	英文名称	用量
1	6YJ-W2420-J3	燃油箱组合	Fuel Tank Assembly (24L)	1
2	6YJ-24610-01	盖组合	Cap Assembly	1
3	6Y1-24260-30	油量计组合	Fuel Meter Assembly	1
4	90157-05M19	螺钉	Screw, Pan Head	4
5	6Y1-24329-00	密封	Seal	4
6	6Y1-24268-01	油量计衬垫	Gasket, Fuel Meter	1
7	6YJ-24167-00	滤	Strainer	1
8	6Y1-24306-56	燃油管组件1	Fuel Pipe Complete 1	1
9	6G1-24305-05	燃油管接头2(85以下D:11MM)含	Fuel Pipe Joint Complete	1
10	93210-08287	O型圈	O-ring	1
11	6Y1-24305-06	燃油管接头2	Fuel Pipe Joint Complete	1
12	93210-08287	O型圈	O-ring	1
13	90445-11M58	油管	Hose (L2050)	1
14	650-24351-51	带1	Band 1	4
15	90445-11M57	软管	Hose (L850)	1
16	6Y1-24360-52	起动注油泵组合	Primer Pump Assembly	1

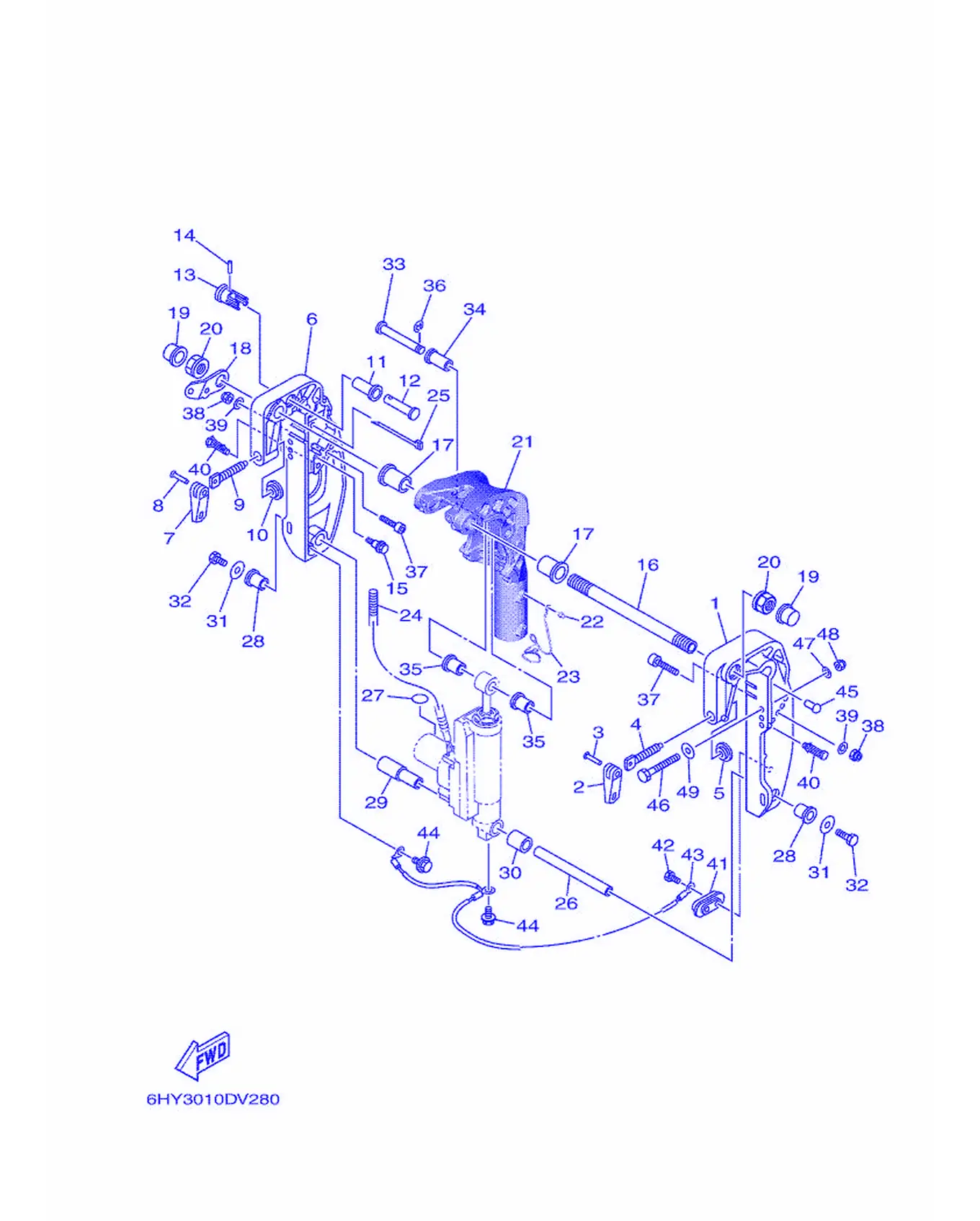

ブラケツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	69A-43111-01-8D	夹紧托架	Bracket, Clamp 1	1
2	6E0-43118-01	艉板夹紧手柄	Handle, Transom Clamp	1
3	90243-04M01	销	Pin	1
4	6E7-43116-00	艉板夹紧螺钉	Screw, Transom Clamp	1
5	648-43114-01	艉板夹紧衬垫	Pad, Transom Clamp	1
6	69A-43112-02-8D	夹紧托架	Bracket, Clamp 2	1
7	6E0-43118-01	艉板夹紧手柄	Handle, Transom Clamp	1
8	90243-04M01	销	Pin	1
9	6E7-43116-00	艉板夹紧螺钉	Screw, Transom Clamp	1
10	648-43114-01	艉板夹紧衬垫	Pad, Transom Clamp	1
11	6FM-43189-00	衬套	Bushing	1
12	65W-43191-00	限位轴	Shaft, Stopper	1
13	6FM-43192-00	限位旋钮	Knob, Stopper	1
14	91690-30018	弹簧销	Pin,Spring	1
15	90109-06MA1	螺栓	Bolt	1
16	69A-43131-00	夹紧托架螺栓	Bolt,ClampBracket	1
17	90386-22MA4	衬套	Bushing	2
18	69A-43113-00	夹紧托架面板	Plate,ClampBracket	1
19	6G5-43145-01	夹紧托架盖	Cap,ClampBracket	2
20	90185-22043	卡环	Nut, Self-Locking	2
21	6HY-43311-10-8D	旋转支架	Bracket, Swivel 1	1
22	93700-06004	翼形螺	Nipple, Grease	1
23	6FM-82127-00	导线2	Wire, Lead 2	1
24	90446-14MH7	软管 (L560)	Hose (L560)	1
25	90465-13M97	固定	Clamp	1
26	69G-43818-00	下侧防震销	Pin, Lower Shock Mount	1
27	69A-43155-00	标志1	Mark 1	1
28	90386-16MA7	衬套	Bushing	2
29	90386-16MA8	衬套	Bushing	1
30	90387-16M02	衬套	Color	1
31	90201-08M00	垫圈	Washer,Plate	2
32	97080-08016	螺栓	Bolt	2
33	90249-12M36	接头	Pin	1
34	90381-12M10	双金属衬套	Bush, Solid	1
35	90381-12M11	双金属衬套	Bush, Solid	2
36	99080-10600	卡环	Circlip	1
37	90110-08121	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	2
38	90185-08057	卡环	Nut, Self-Locking	2
39	92990-08600	盘形垫	Washer,Plate	2
40	90338-08M19	卡环	Plug	2
41	65W-45251-00	阳极	Anode	1
42	90101-06020	螺栓	Bolt, Hexagon	2
43	63V-82127-00	导线2	Wire,Lead 2	1
44	97E95-06510	螺栓	Bolt, Hexagon with Washer Deep Recess	2
45	90269-02M08	螺丝	Rivet	2
46	90101-08M88	螺栓	Bolt, Hexagon	4
47	92990-08600	盘形垫	Washer,Plate	4
48	90185-08057	卡环	Nut, Self-Locking	4
49	90201-08MA4	面板垫圈	Washer,Plate	4

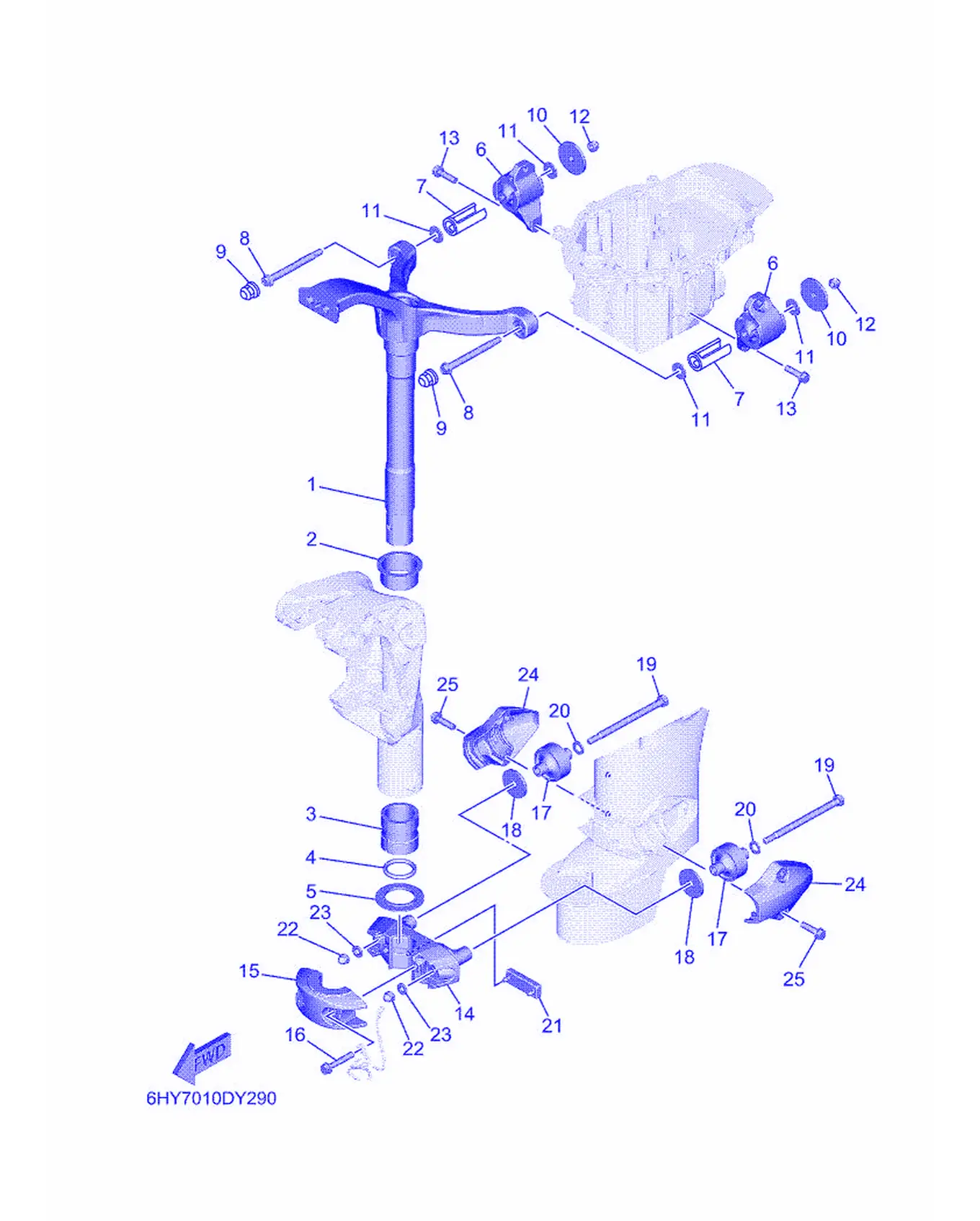

ブラケツト 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-42511-10-8D	方向托架	Bracket, Steering	1
2	90381-45001	平垫圈	Bushing, Solid	1
3	90386-38M32	衬套	Bushing	1
4	93210-37MH7	O型圈	O-ring	1
5	90386-38002	衬套	Bushing	1
6	6FM-44514-10-CA	上侧减震胶垫	Mount Damper, Upper Side	2
7	6FM-44532-00	上侧装配限位板	Stopper, Upper Mount	2
8	90109-08241	螺栓	Bolt	2
9	66T-44194-10	盖	Cap	2
10	90201-08120	平垫圈	Washer, Plate	2
11	90201-09014	油封	Washer, Plate	4
12	95380-08800	六角螺母	Nut, Crown	2
13	97E95-08530	螺栓	Bolt, Hexagon with Washer Deep Recess	4
14	6FM-44551-00-8D	下侧减震胶垫壳	Housing, Lower Mount Rubber 1	1
15	6FM-44552-00-8D	下侧减震胶垫壳	Housing, Lower Mount Rubber 2	1
16	97E95-08545	螺栓	Bolt, Hexagon with Washer Deep Recess	2
17	6FM-44555-11	下侧减震胶垫	Mount Damper, Lower Side	2
18	90201-10077	平垫圈	Washer, Plate	2
19	90101-08M02	螺栓	Bolt, Hexagon	2
20	92995-10600	盘形垫	Washer	2
21	6E5-44575-01	下侧减震胶垫	Damper, Lower Mount Rubber	1
22	95380-08800	六角螺母	Nut, Crown	2
23	90201-08M08	平垫圈	Washer,Plate	2
24	6FM-44553-00-8D	下侧减震胶垫盖	Cover, Lower Mount	2
25	97E95-08530	螺栓	Bolt, Hexagon with Washer Deep Recess	4

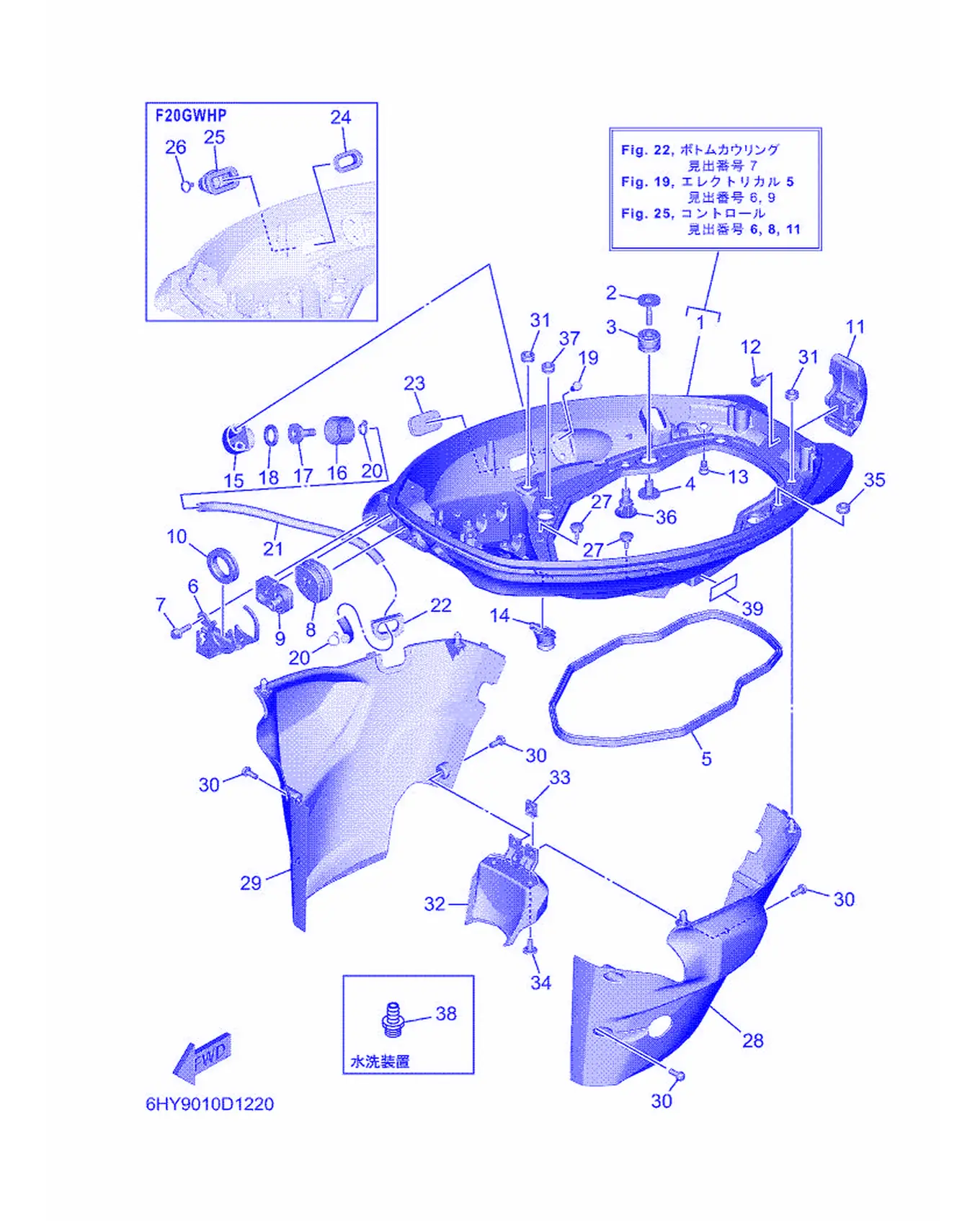

ボトムカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-42710-00-8D	底罩组合	Bottom Cowling Assembly	1
2	90119-06291	带垫圈六角头螺栓	Bolt, with Washer	4
3	90480-21M82	固定	Grommet	4
4	90387-06176	衬套	Color	4
5	6FM-42716-00	密封橡皮块1	Rubber Seal 1	1
6	6FM-42761-00	限位板	Stopper	1
7	90109-06316	螺栓	Bolt	2
8	6FM-42724-01	固定	Grommet	1
9	6FM-42725-01	固定	Grommet	1
10	6FM-42726-11	固定	Grommet	1
11	6FM-42801-00	罩箍组	Cowling Clamp Complete	1
12	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1
13	6BL-44391-00	软管管嘴	Nipple,Hose	1
14	6AH-42727-01	固定	Grommet	1
15	6DR-12572-00	适配器	Adapter	1
16	6R3-12581-10	软管接头1	Joint, Hose 1	1
17	6R3-12582-00	软管接头2	Joint,Hose 2	1
18	6R3-12583-10	软管接头衬垫	Gasket, Hose Joint	1
19	97780-60520	自攻螺钉	Screw, Tapping	2
20	90465-11M10	固定	Clamp	2
21	90445-11182	软管	Hose (L300)	1
22	6AH-42726-01	固定	Grommet	1
24	6BG-42384-00	密封	Seal, Cap	1
25	6BG-42724-01	固定	Grommet	1
26	90465-11M10	固定	Clamp	1
27	6H4-42748-01	固定	Grommet	2
28	6FM-42741-00	挡板	Apron 1	1
29	6FM-42771-00	挡板	Apron 2	1
30	90159-06062	六角螺栓	Screw, Washer	6
31	90480-13M24	固定	Grommet	4
32	6FM-42735-00	保护	Protector	1
33	90183-061A8	弹性螺母	Nut, Spring	2
34	90111-06144	内六角薄型螺栓	Bolt	2
35	90480-13M24	固定	Grommet	1
36	6P2-44391-00	软管管嘴	Nipple,Hose	1
37	90480-13M24	固定	Grommet	1
38	69J-12584-10	软管接头	Joint, Hose 3	1
39	6EE-42794-01	警告标志	Label, Warning (General)	1

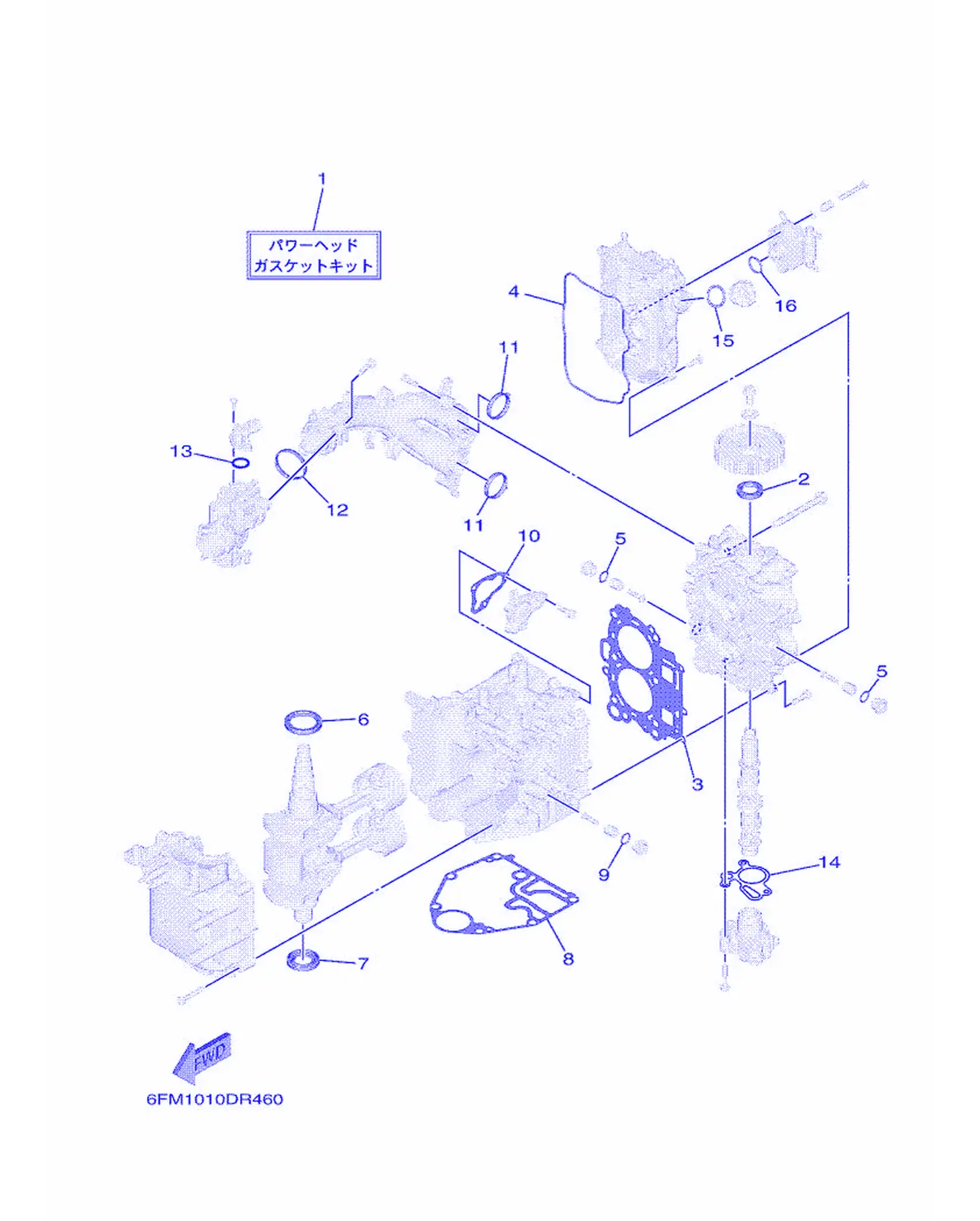

リペアキツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-W0001-01	衬垫套	Power Head Gasket Kit	1
2	93102-22010	油封	Oil Seal	1
3	6FM-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
4	6FM-11356-00	气缸密封圈2	Seal, Cylinder 2	1
5	93210-13M63	O型圈	O-ring	2
6	93102-37004	油封	Oil Seal	1
7	93102-25014	油封	Oil Seal	1
8	6FM-11351-01	气缸衬垫	Gasket, Cylinder	1
9	93210-13M63	O型圈	O-ring	1
10	6FM-12414-00	盖衬垫	Gasket, Cover	1
11	6FM-13645-00	岐管衬垫1	Gasket, Manifold 1	2
12	6FM-13646-00	岐管衬垫2	Gasket, Manifold 2	1
13	1ST-1416A-00	O型圈	O-ring	1
14	6AH-13329-11	泵盖垫片	Gasket, Pump Cover	1
15	93210-24M79	O型圈	O-ring	1
16	93210-20M65	O型圈	O-ring	1

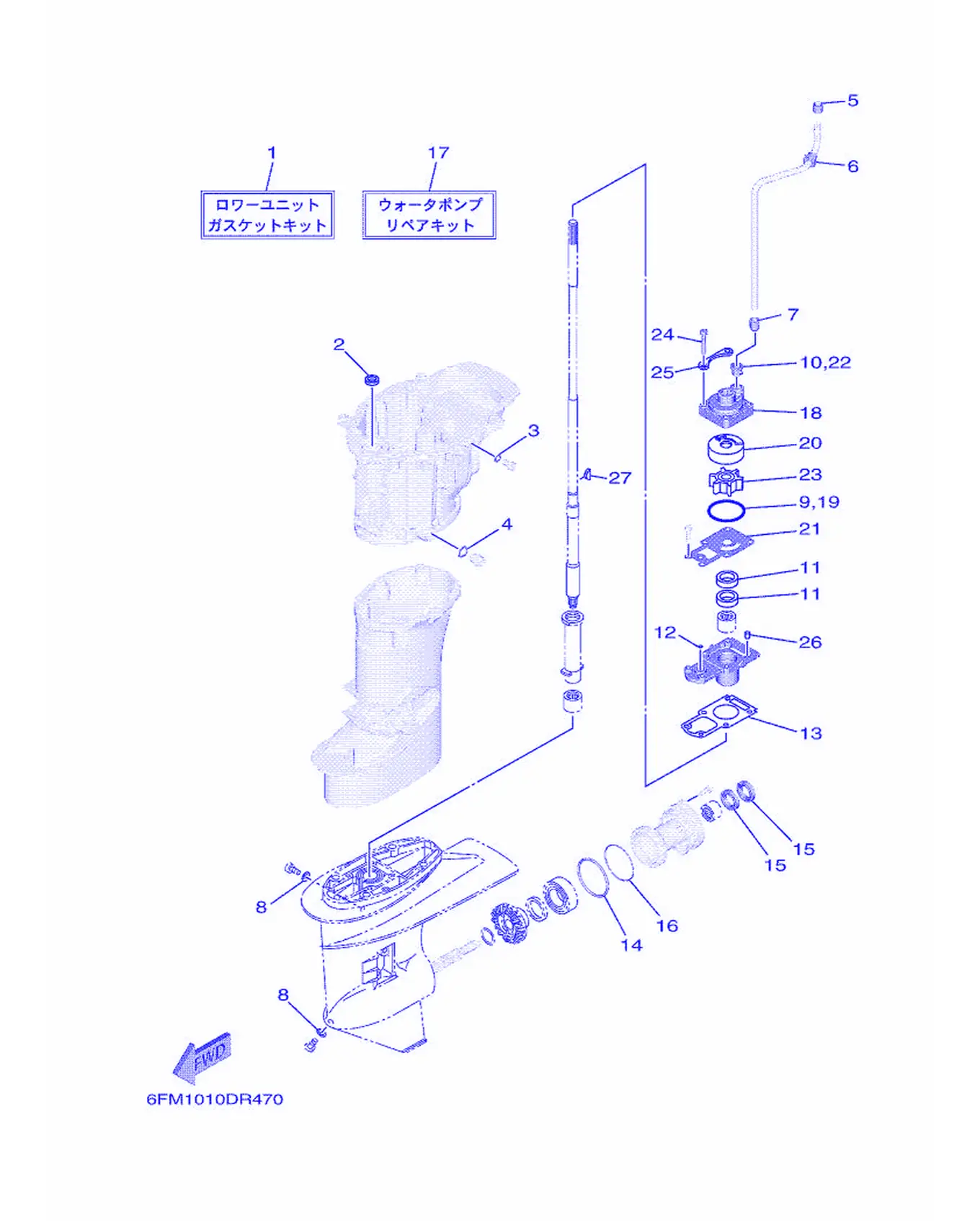

リペアキツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-W0001-21	衬垫套	Lower Unit Gasket Kit	1
2	93101-13001	衬套	Oil Seal	1
3	90430-08143	衬垫	Gasket	1
4	90430-14M09	衬垫	Gasket	1
5	682-44365-01	水封减震器	Damper, Water Seal 1	1
6	6AH-44365-01	水封减震器	Damper, Water Seal 1	1
7	6L2-44368-01	橡皮水封4	Rubber, Water Seal 4	1
8	90430-08003	垫片	Gasket	2
9	93210-45161	O型圈	O-ring	1
10	6L2-44367-11	水封减震器	Damper, Water Seal 3	1
11	93101-20048	油封	OilSeal	2
12	93210-06ME6	O型圈	O-ring	1
13	6L2-45315-A0	水下装置壳体密封垫	Packing, Lower Casing	1
14	93210-60MA3	O型圈	O-ring	1
15	93101-20M07	油封	OilSeal	2
16	93210-60M99	O型圈	O-ring	1
17	6FM-W0078-02	水泵修理套	Water Pump Repair Kit	1
18	6L2-44311-01	水泵壳	Housing, Water Pump	1
19	93210-45161	O型圈	O-ring	1
20	6L2-44322-00	芯子	Insert, Cartridge	1
21	6FM-44323-01	外挡板	Outlet Plate, Cartridge	1
22	6L2-44367-11	水封减震器	Damper, Water Seal 3	1
23	6L2-44352-00	叶轮	Impeller	1
24	97E95-06540	螺栓	Bolt, Hexagon with Washer Deep Recess	4
25	6L2-44328-00	面板	Plate	2
26	93604-12M07	定位销	Pin, Dowel	2
27	90280-03024	半圆键	Key, Woodruff	1

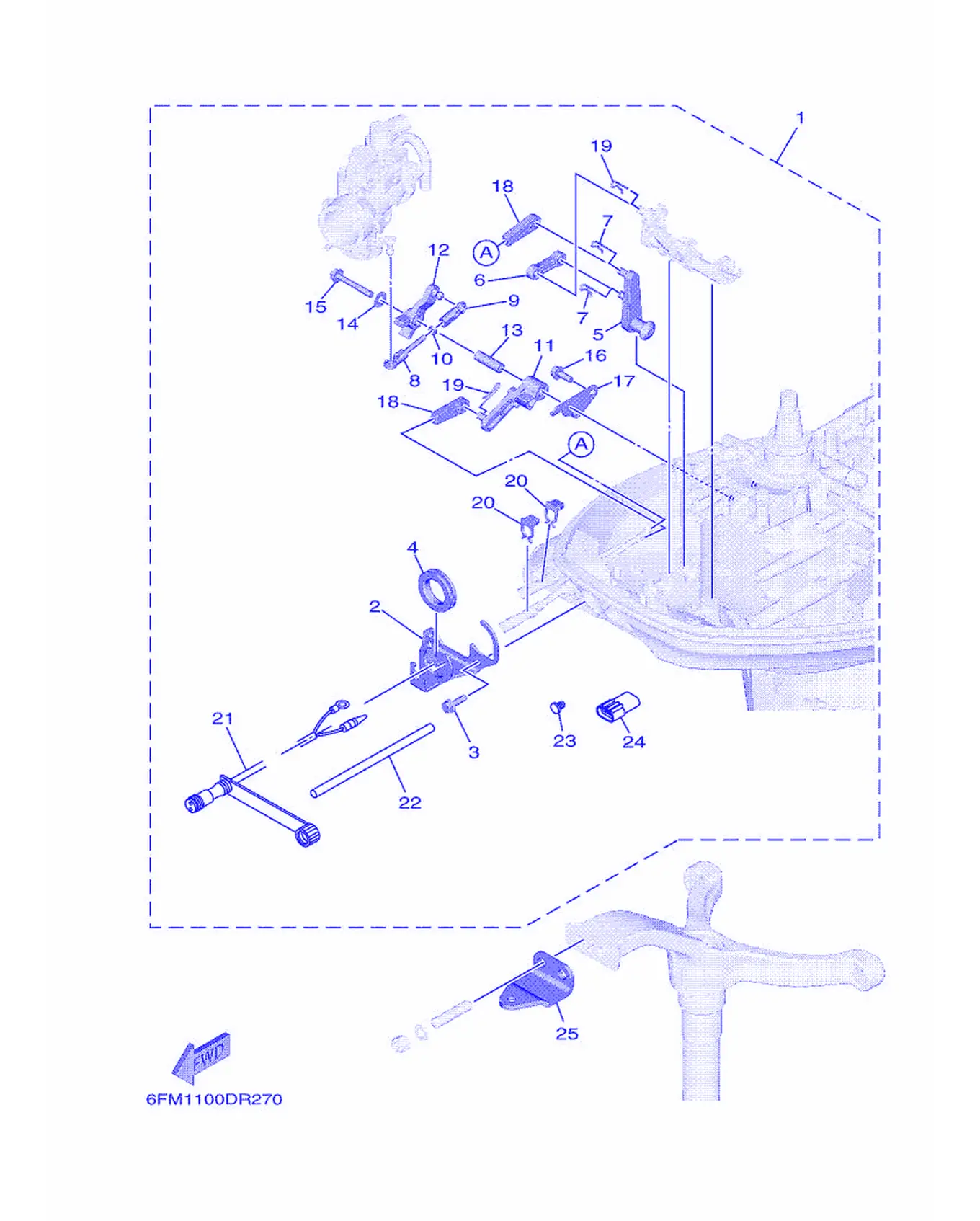

リモコンアタツチメント

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-48501-02	遥控附件组合	Remote Control Attachment Assembly	1
2	6FM-42761-10	限位板	Stopper	1
3	90109-06316	螺栓	Bolt	2
4	6FM-42726-11	固定	Grommet	1
5	6FM-44125-00	变挡杆杠杆手柄	Lever, Shift Rod	1
6	6FM-44192-00	指示器4	Link, Shift Rod	1
7	90468-18008	钢夹	Clip	2
8	682-41237-50	连杆接头	Joint, Link	1
9	6H4-41237-00	连杆接头	Joint, Link	1
10	95380-05700	有槽螺母	Nut	1
11	6FM-42157-00	衬套	Lever, Throttle	1
12	6FM-41283-00	空转油门杠杆	Lever, Free Accelerator	1
13	90387-06M59	衬套	Color	1
14	90201-06M62	平垫圈	Washer,Plate	1
15	95D95-06045	螺栓	Bolt, Flange Deep Recess	1
16	95D95-06016	螺栓	Bolt, Flange Deep Recess	1
17	6FM-14571-00	油门托架	Bracket, Throttle	1
18	6FM-48344-00	变档控制杆手柄	Cable End, Remote Control	2
19	90468-18008	钢夹	Clip	2
20	63D-48538-00	钢索夹1	Clamp,Cable 1	2
21	6D5-84340-01	插座缆索组合1	Socket Code Assembly 1	1
22	90446-09M42	固定	Hose (L160)	1
23	703-82119-01	线套	Cover, Reed Wire	1
24	6FM-82582-00	电线束盖	Cap 1 (3Pin)	1
25	65W-48511-01	操舵转向钩	Fook, Steering	1

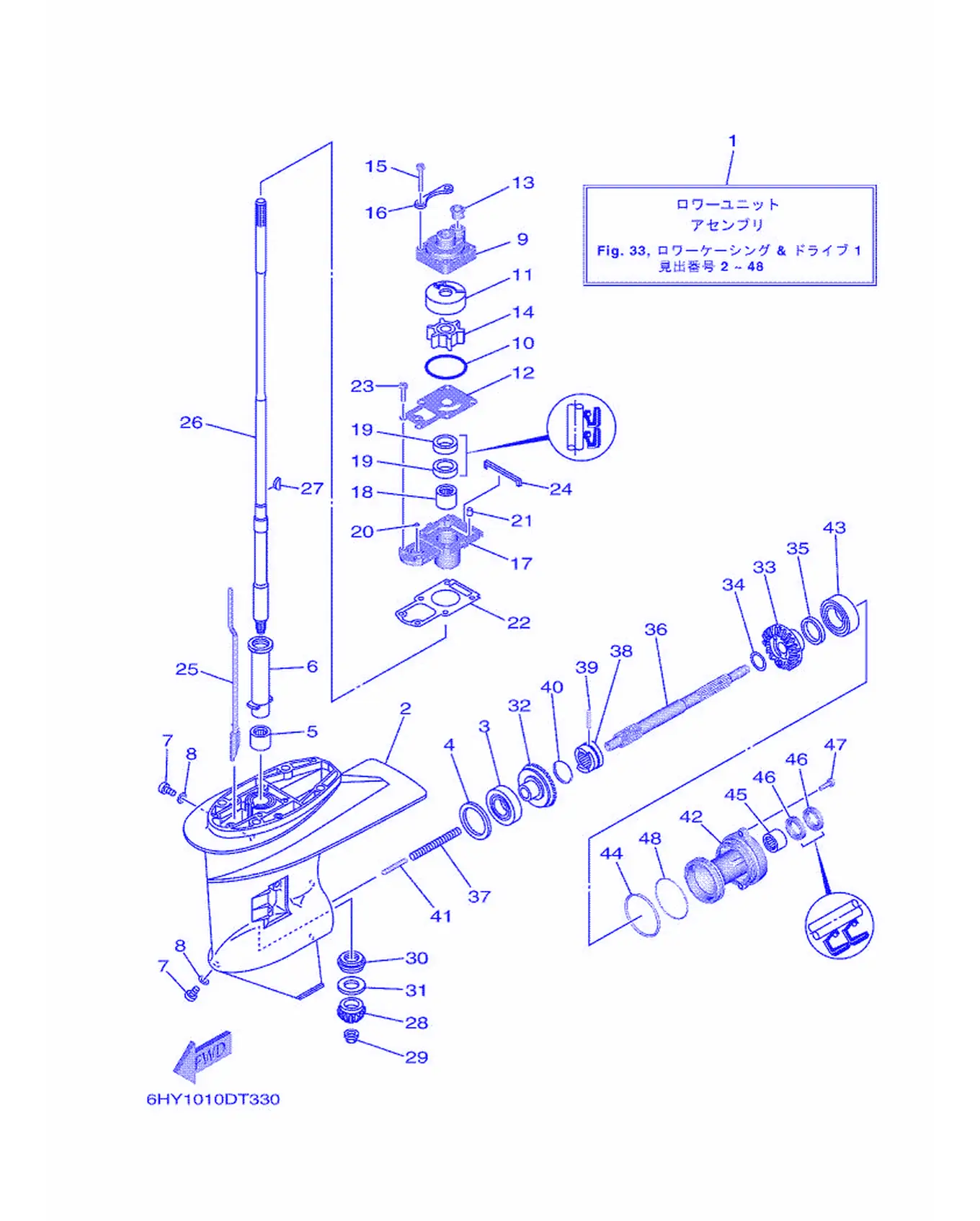

ロワーケーシング & ドライブ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-45300-13-8D	水下装置总成	Lower Unit Assembly	1
2	6L2-45311-02-8D	水下装置壳	Casing, Lower	1
3	93332-00005	轴承	Bearing	1
4	6L2-45567-00	填隙	Shim(T:1.0MM)	1
4	6L2-45567-10	填隙	Shim(T:1.1MM)	1
4	6L2-45567-20	填隙	Shim(T:1.2MM)	1
4	6L2-45567-30	填隙	Shim (T:1.3MM)	1
4	6L2-45567-40	填隙	Shim (T:1.4MM)	1
5	93315-220V9	轴承	Bearing	1
6	6L2-45536-00	驱动轴套	Sleeve,Drive Shaft	1
7	90340-08002	螺丝	Plug, Straight Screw	2
8	90430-08003	垫片	Gasket	2
9	6L2-44311-01	水泵壳	Housing, Water Pump	1
10	93210-45161	O型圈	O-ring	1
11	6L2-44322-00	芯子	Insert, Cartridge	1
12	6FM-44323-01	外挡板	Outlet Plate, Cartridge	1
13	6L2-44367-11	水封减震器	Damper, Water Seal 3	1
14	6L2-44352-00	叶轮	Impeller	1
15	97E95-06540	螺栓	Bolt, Hexagon with Washer Deep Recess	4
16	6L2-44328-00	面板	Plate	2
17	6FM-45331-00-CA	轴承壳	Housing, Bearing	1
18	93315-22004	轴承	Bearing	1
19	93101-20048	油封	OilSeal	2
20	93210-06ME6	O型圈	O-ring	1
21	93604-12M07	定位销	Pin, Dowel	2
22	6L2-45315-A0	水下装置壳体密封垫	Packing, Lower Casing	1
23	97080-06020	螺栓	Bolt	2
24	6L2-45375-00	密封圈减震	Damper,Seal	1
25	6FM-44150-11	变挡凸轮组合	Shift Cam Assembly	1
26	6FM-45510-10	驱动轴组合	Drive Shaft Assembly	1
27	90280-03024	半圆键	Key, Woodruff	1
28	6L2-45551-01	小齿轮	Pinion	1
29	90179-10M14	螺帽	Nut	1
30	93341-320U0	轴承	Bearing, Thrust	1
31	6L2-45587-00	填隙	Shim (T:1.5MM)	1
31	6L2-45587-10	填隙	Shim (T:1.6MM)	1
32	6FM-45560-00	齿轮	Gear 1 (27T)	1
33	6FM-45571-00	齿轮	Gear 2 (27T)	1
34	90201-20417	平垫圈	Washer,Plate	1
35	6L2-45577-00	填隙	Shim(T:1.0MM)	1
35	6L2-45577-10	填隙	Shim(T:1.1MM)	1
35	6L2-45577-20	填隙	Shim(T:1.2MM)	1
35	6L2-45577-30	填隙	Shim (T:1.3MM)	1
36	65W-45611-00	螺旋浆轴30H'	Shaft,Propeller	1
37	90501-10065	弹簧	Spring, Compression	1
38	6FM-45631-00	爪形离合器	Clutch, Dog	1
39	90250-05010	圆柱销	Pin, Straight	1
40	648-45633-11	固定环	Ring, Cross Pin	1
41	648-45635-00	变挡柱	Plunger, Shift	1
42	6L2-45361-03-8D	水下装置壳体盖	Cap, Lower Casing	1
43	93306-00612	轴承	Bearing	1
44	93210-60MA3	O型圈	O-ring	1
45	93315-22004	轴承	Bearing	1
46	93101-20M07	油封	OilSeal	2
47	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	2
48	93210-60M99	O型圈	O-ring	1

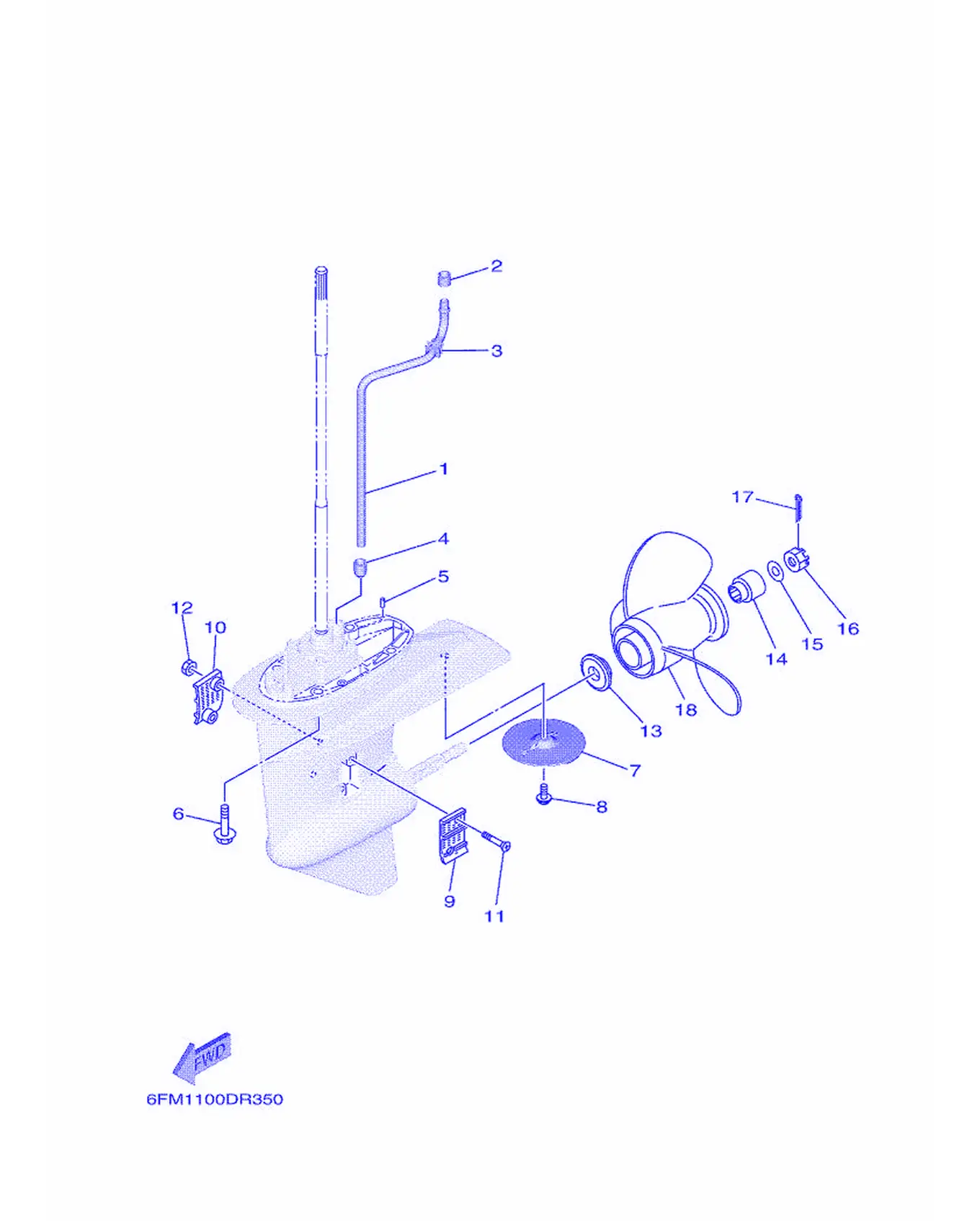

ロワーケーシング & ドライブ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6FM-44361-10	水管	Tube, Water 1	1
2	682-44365-01	水封减震器	Damper, Water Seal 1	1
3	6AH-44365-01	水封减震器	Damper, Water Seal 1	1
4	6L2-44368-01	橡皮水封4	Rubber, Water Seal 4	1
5	93604-12M07	定位销	Pin, Dowel	2
6	97E95-10535	带垫圈螺栓	Bolt, Hexagon with Washer Deep Recess	4
7	664-45371-01	航向调整	Tab Trim	1
8	90105-08M02	螺栓	Bolt, Washer Based Head	1
9	6L2-45214-00	进水口盖	Cover, Water Inlet	1
10	6L2-45215-00	进水口盖	Cover, Water Inlet	1
11	90151-05M05	卡环	Screw, Countersunk	2
12	90185-05002	螺母	Nut, Self-Locking	2
13	6L2-45987-01	衬套	Spacer	1
14	689-45997-00	衬套	Spacer	1
15	92990-14200	平垫圈	Washer, Plain	1
16	90171-14013	螺母	Nut, Castle	1
17	91490-30025	开口销	Pin, Cotter	1
18	664-45943-01	螺旋浆组合	Propeller (3X9-7/8X8-F)	1
18	664-45941-01	螺旋浆组合	Propeller (3X9-7/8X9-F)	1
18	62C-45941-00	螺旋浆组合	Propeller (3X9-7/8X10-F)	1
18	664-45945-00	螺旋浆	Propeller (3X9-7/8X10-1/2-F)	1
18	664-45947-01	螺旋浆	Propeller (3X9-7/8X11-1/4-F)	1
18	664-45954-01	螺旋浆组合	Propeller (3X9-7/8X12-F)	1
18	664-45972-00	螺旋浆组合	Propeller (3X9-1/8X12-F)	1
18	664-45949-02	螺旋浆组合	Propeller (3X9-7/8X13-F)	1
18	664-45970-00	螺旋浆组合	Propeller (3X9-1/8X13-F)	1
18	664-45952-00	螺旋浆组合	Propeller (3X9-7/8X14-F)	1
