雅马哈 F25D - F25DWHX

共 34 个部位，点击零件编码查看详情，或搜索本页零件。

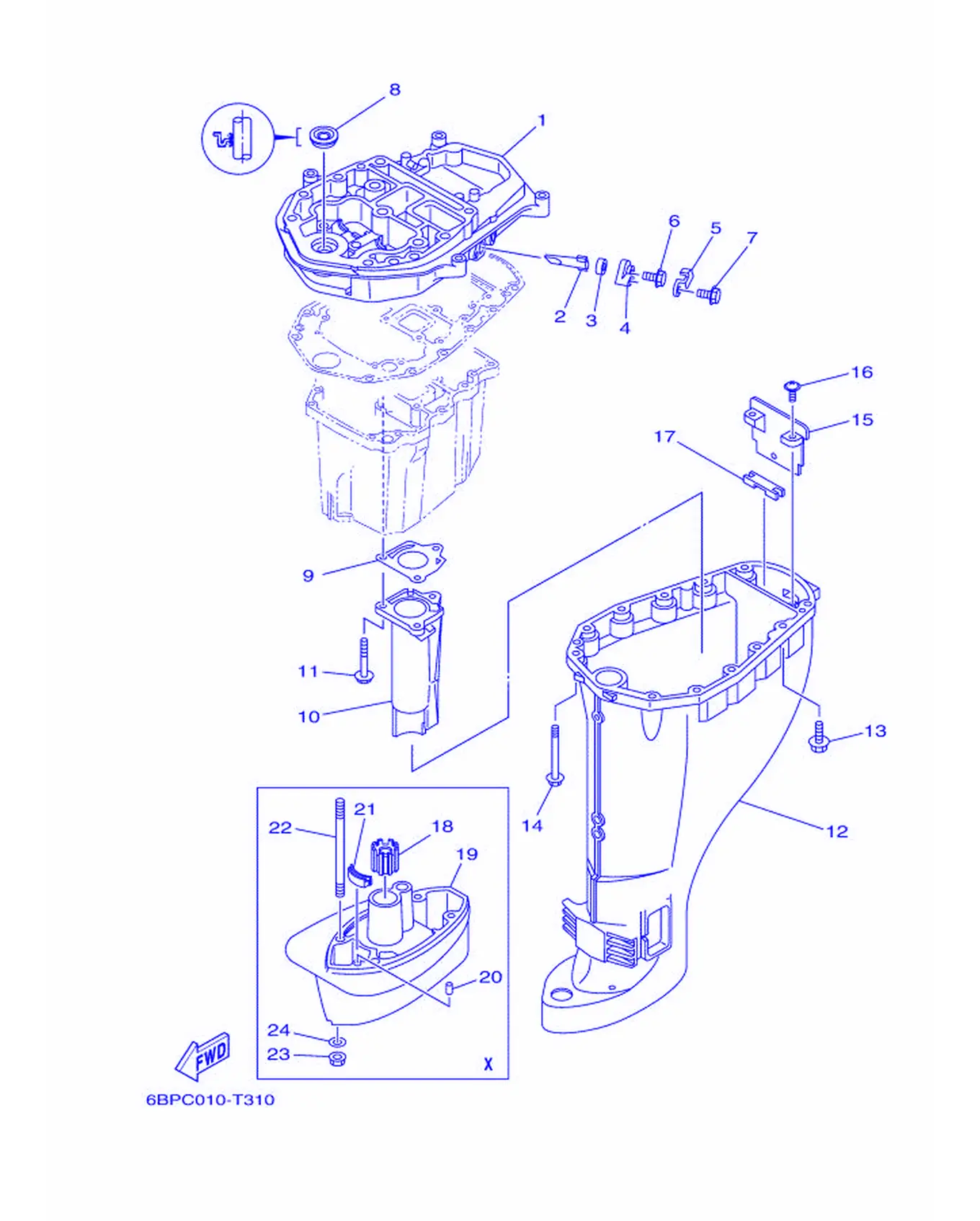

アツパーケーシング

REF	雅马哈编码	中文名称	英文名称	用量
1	67C-41137-20-CA	排气导管	Guide, Exhaust	1
2	62Y-11325-00	阳极	Anode	1
3	66M-11328-01	阳极固定	Grommet	1
4	66M-11327-00-94	阳极盖	Cover, Anode	1
5	66M-12535-00	面板	Plate	1
6	97595-05512	带垫圈螺	Bolt, With Washer	1
7	97513-06520	带垫圈螺	Bolt, With Washer	1
8	93103-16011	油封	Oil Seal	1
9	67C-41133-00	排气岐管衬垫1	Gasket, Exhaust Manifold	1
10	68U-41131-00-CA	排气岐管1	Manifold, Exhaust 1	1
11	97E75-06550	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	3
12	6D5-45111-10-8D	水上装置壳	Casing, Upper	1
13	97E75-08530	螺栓	Bolt, Hexagon with Washer Deep Recess	4
14	90119-08202	带垫圈六角头螺栓	Bolt, with Washer	8
15	65W-45151-00	水上装置壳体盖	Cover,UpperCasing	1
16	97980-05216	带垫圈螺丝	Screw, With Washer	2
17	65W-45128-00	密封圈2	Seal 2	1
18	689-45318-00	驱动轴衬套	Bushing,Drive Shaft	1
19	61N-45211-31-8D	延伸部分	Extension	1
20	93606-11M24	定位销	Pin, Dowel	2
21	61N-45375-01	密封圈减震	Damper, Seal	1
22	90116-10M33	螺母	Bolt, Stud	4
23	90179-10M03	螺母	Nut	4
24	92995-10600	盘形垫	Washer	4

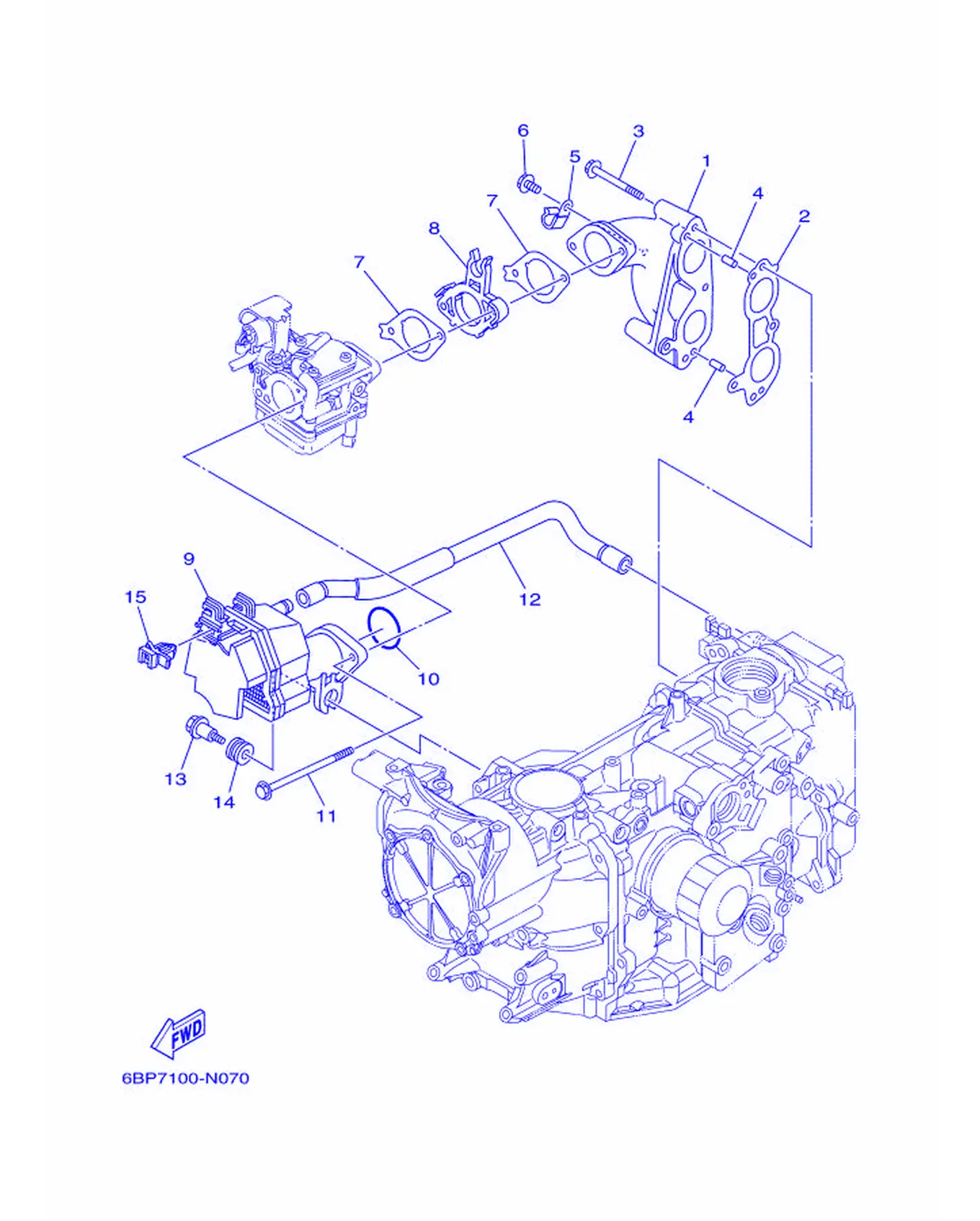

インテ-ク

REF	雅马哈编码	中文名称	英文名称	用量
1	6BL-13641-00-94	岐管1	Manifold, Intake 1	1
2	6BL-13645-00	岐管衬垫1	Gasket, Manifold 1	1
3	97E95-06555	螺栓附墊圈	Bolt, Hexagon with Washer Deep Recess	4
4	91690-50014	弹簧销	Pin,Spring	2
5	90465-08M83	固定	Clamp	1
6	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1
7	6BL-13646-00	岐管衬垫2	Gasket, Manifold 2	2
8	6BL-14271-00	绝缘体，绝缘器	Insulator	1
9	6BL-14440-00	进气消声器组合	Silencer Assembly, Intake	1
10	93210-39ME4	O型圈	O-ring	1
11	95D95-06100	凸缘螺栓	Bolt, Flange Deep Recess	2
12	6BL-15373-00	通气管	Pipe, Breather	1
13	90109-06MA1	螺栓	Bolt	1
14	90480-16616	橡胶垫	Grommet	1
15	90464-09M47	固定	Clamp	1

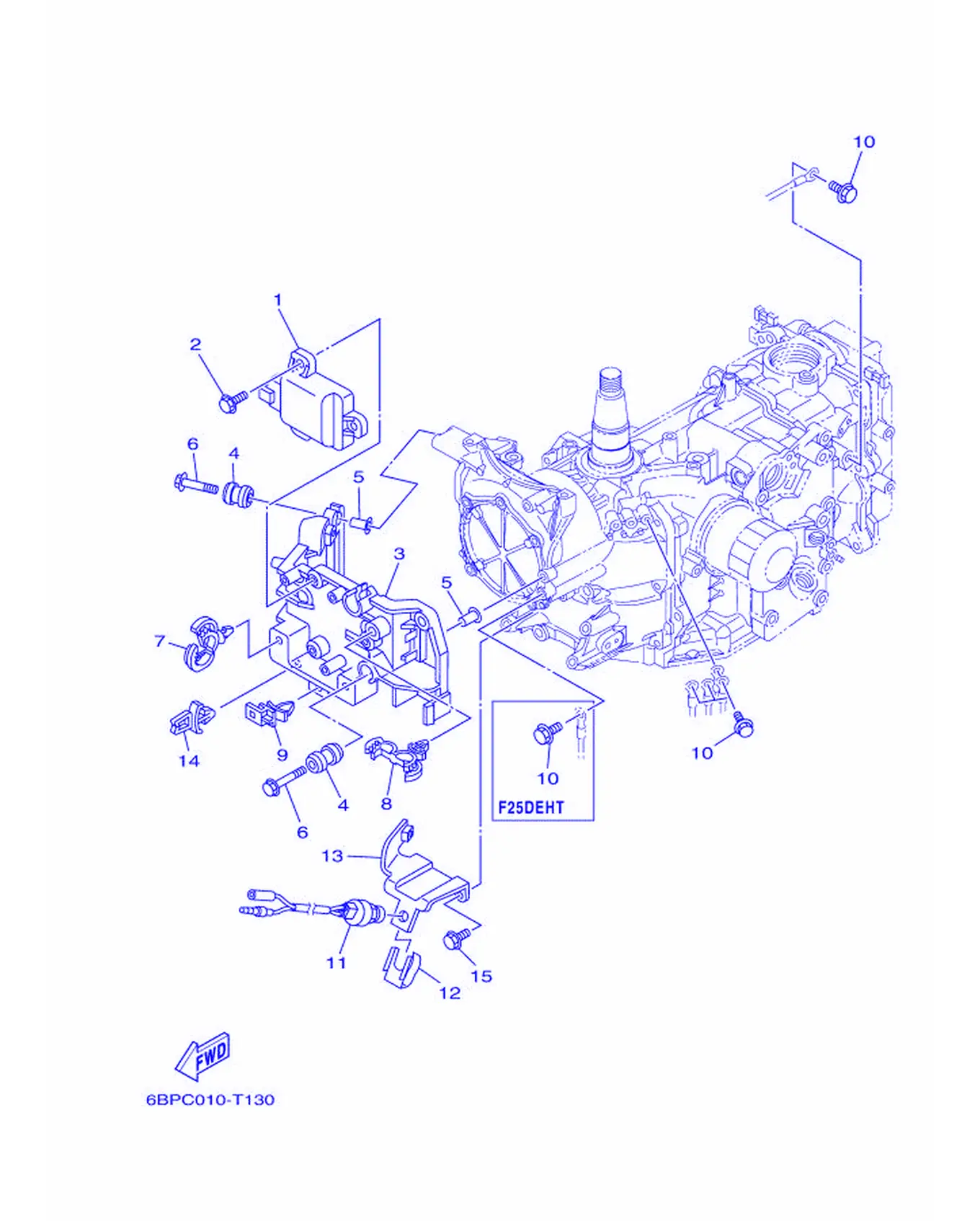

エレクトリカル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6BL-85540-00	电子点火器总成	C.D.I. Unit Assembly	1
2	97E75-06520	螺栓附墊圈	Bolt, Hexagon with Washer Deep Recess	3
3	6BL-81948-01	托架	Bracket	1
4	6A0-82317-01	点火线圈减震器	Damper, Ignition Coil	4
5	90387-06119	环	Color	4
6	95D95-06030	螺栓	Bolt, Flange Deep Recess	4
7	90464-20181	固定夹	Clamp	2
8	90464-18246	固定	Clamp	2
9	90464-12002	固定	Clamp	1
10	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	4
11	6H3-82540-01	空挡开关总成	Neutral Switch Assembly	1
12	6BL-82555-00	主开关减震器	Damper, Main Switch 1	1
13	6BL-82554-00	空挡开关支承	Stay, Neutral Switch	1
14	90464-06001	固定	Clamp	1
15	95D95-06014	螺栓	Bolt, Flange Deep Recess	2

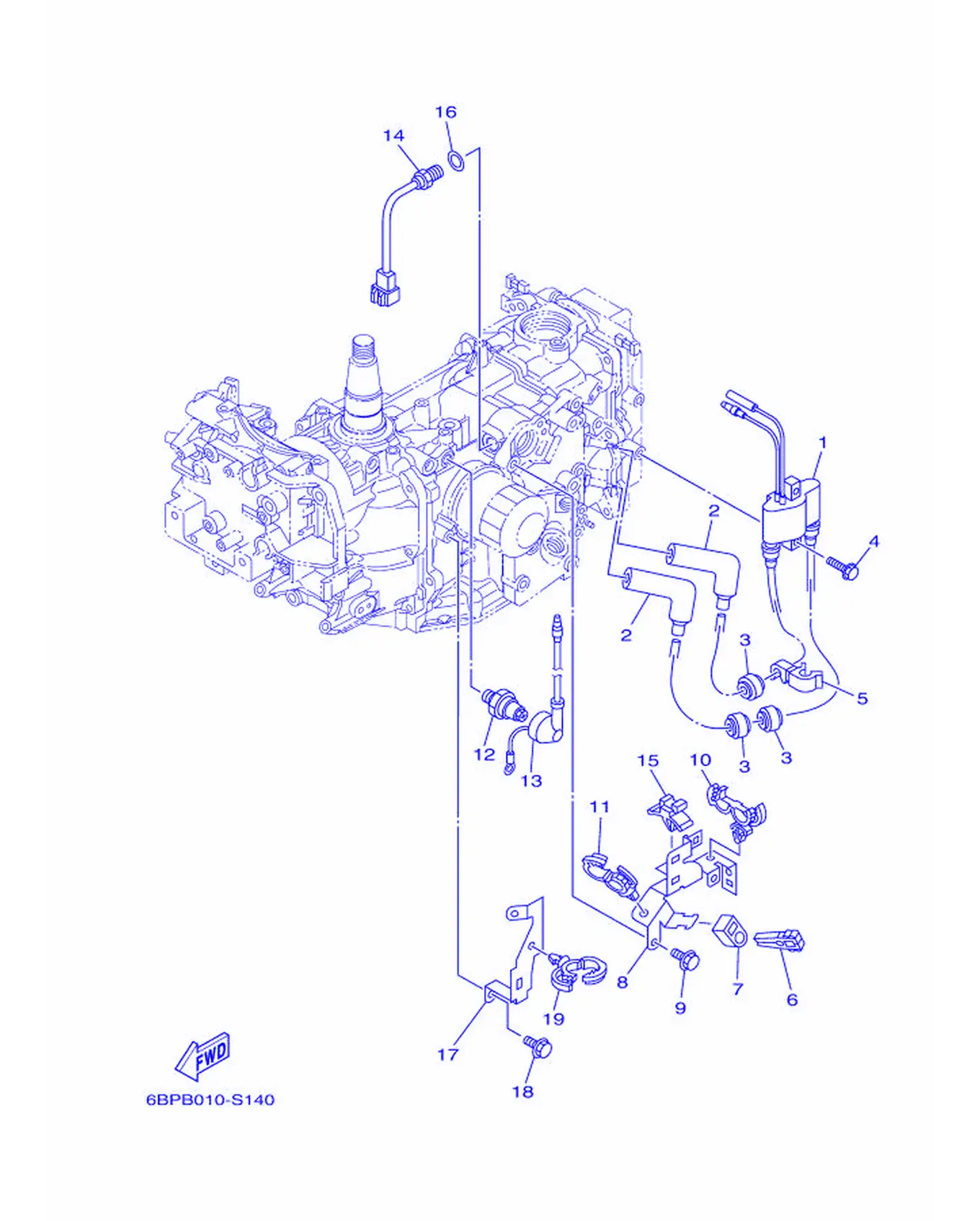

エレクトリカル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6F5-85570-13	点火线圈组合	Ignition Coil Assembly	1
2	6AH-82370-00	火花塞帽总成	Plug Cap Assembly	2
3	90480-25003	橡胶垫	Grommet	3
4	97E95-06525	螺栓	Bolt, Hexagon with Washer Deep Recess	2
5	90464-09018	固定	Clamp	1
6	67F-2812A-00	小夹子	Puller, Fuse	1
7	67C-82155-00	箍带	Band	1
8	6BL-8339X-00	转换装置组合	Clamp, Cord	1
9	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	2
10	90464-18246	固定	Clamp	1
11	90464-20181	固定夹	Clamp	1
12	64J-82504-00	油压开关组合	Oil Pressure Switch Assembly	1
13	68V-81315-01	导线组合	Lead Wire Assembly	1
14	6CJ-85790-00	温控传感件组合	Thermo Sensor Assembly	1
15	90464-09M47	固定	Clamp	1
16	90430-14115	垫片	Gasket	1
17	6BL-82389-00	面板2	Plate 2	1
18	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	2
19	90464-20181	固定夹	Clamp	1

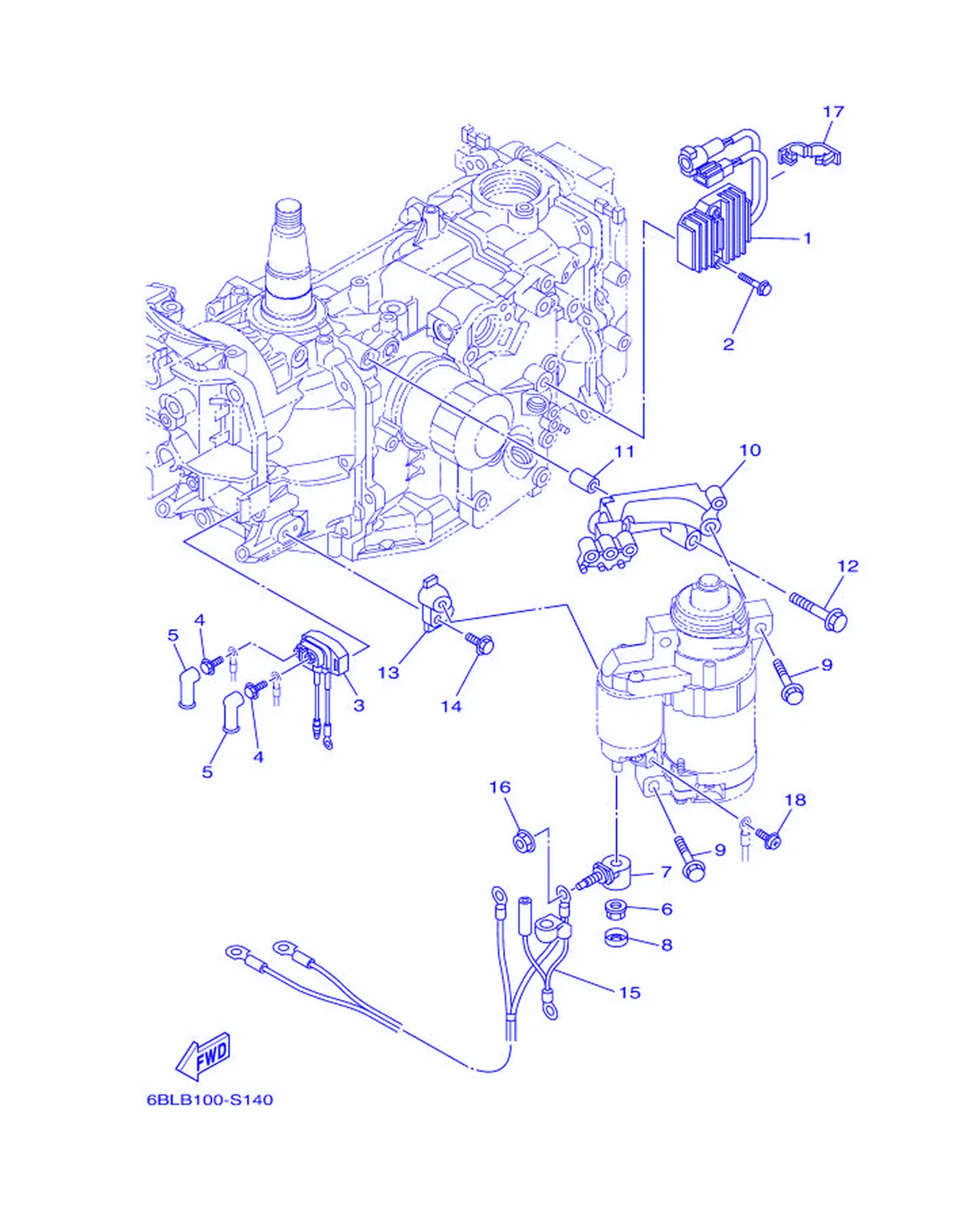

エレクトリカル 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6BL-81960-00	整流调节器	Rectifier and Regulator Assembly	1
2	97E95-06540	螺栓	Bolt, Hexagon with Washer Deep Recess	2
3	68T-81940-00	起动继电器组合	StarterRelayAssembly	1
4	97E95-06610	连杆螺栓	Bolt, Hexagon with Washer Deep Recess	2
5	6G5-82119-10	导线盖	Cover,LeadWire	2
6	6BL-8182A-00	螺母	Nut	1
7	6BL-81925-00	接头	Terminal	1
8	6BL-8183X-00	电极盖	Cap, Terminal	1
9	97513-08545	带垫圈螺栓	Bolt, with Washer	3
10	6BL-81822-00	起动电动机托架	Bracket, Starting Motor	1
11	99530-10114	定位销	Pin, Dowel	2
12	97513-08545	带垫圈螺栓	Bolt, with Washer	2
13	6BL-81823-00	起动电动机支承	Stay, Starting Motor	1
14	97E75-06520	螺栓附墊圈	Bolt, Hexagon with Washer Deep Recess	1
15	6BL-82105-J2	电缆	Battery Cable	1
16	90179-08003	螺母	Nut	1
17	90464-18004	固定夹	Clamp	1
18	90159-05M12	带垫螺栓	Screw, With Washer	1

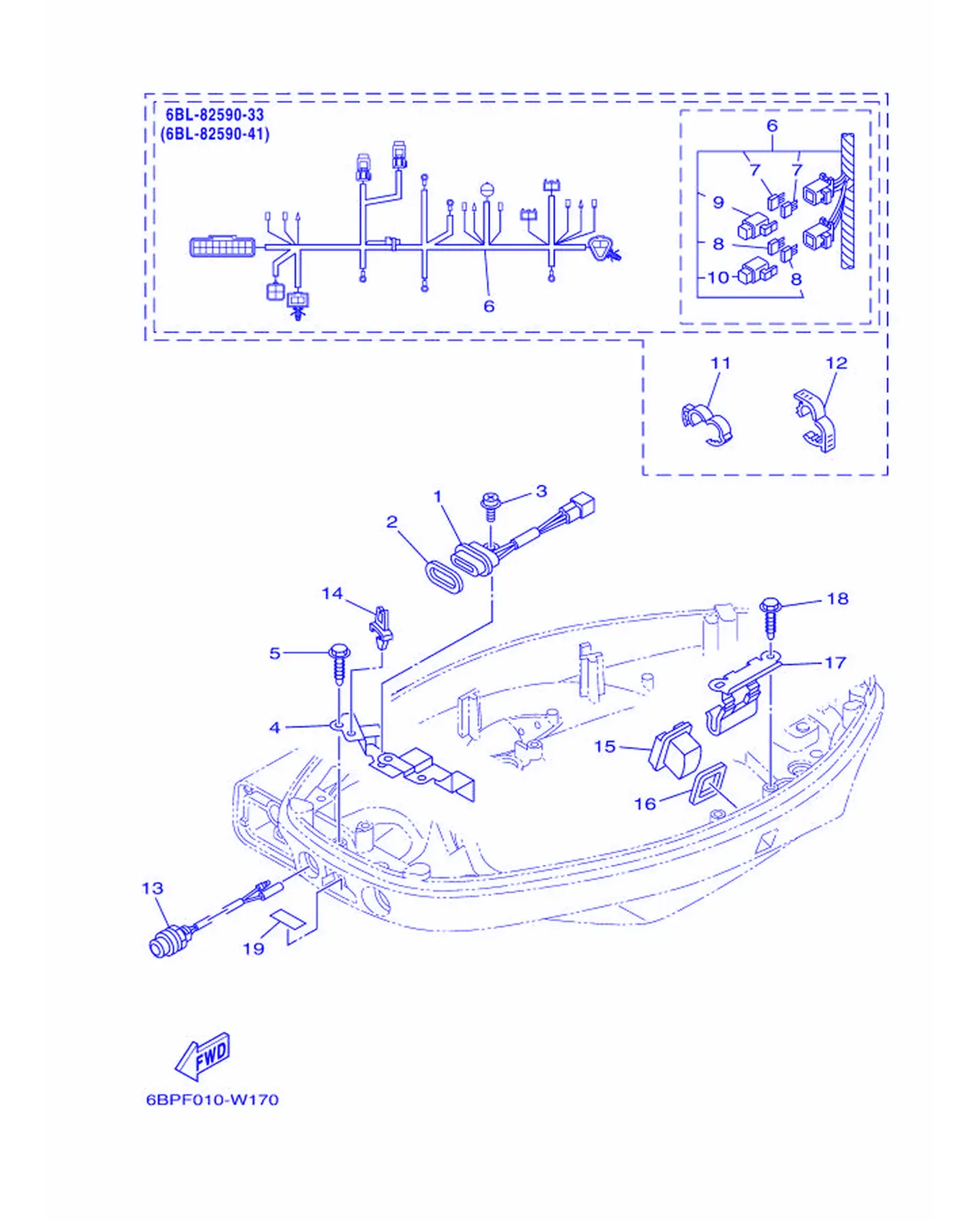

エレクトリカル 5

REF	雅马哈编码	中文名称	英文名称	用量
1	62Y-84301-00	导向灯组合1	Pilot Light Assembly 1	1
2	6FM-83589-00	衬垫	Gasket	1
3	97985-06212	带垫圈螺钉	Screw, With Washer	1
4	6BL-82388-00	面板	Plate	1
5	90109-06M86	螺栓	Bolt	2
6	6BL-82590-41	电缆总成	Wire Harness Assembly	1
7	67F-82151-00	保险丝	Fuse (20A)	2
8	67F-82151-10	保险丝	Fuse (30A)	2
9	67F-8215B-10	断路器盖	Cap (Yellow)	1
10	67F-8215B-20	断路器盖	Cap (Green)	1
11	90464-18004	固定夹	Clamp	1
12	90464-18004	固定夹	Clamp	1
13	65W-81870-00	起动开关组合	Starting Switch Assembly	1
14	90464-06001	固定	Clamp	1
15	69J-42723-01	底盖	Cover, Bottom	1
16	69J-82587-01	衬垫	Gasket	1
17	63P-83614-01	托架	Bracket	1
18	90109-06M86	螺栓	Bolt	2
19	67C-85415-00	信号灯标志	Mark	1

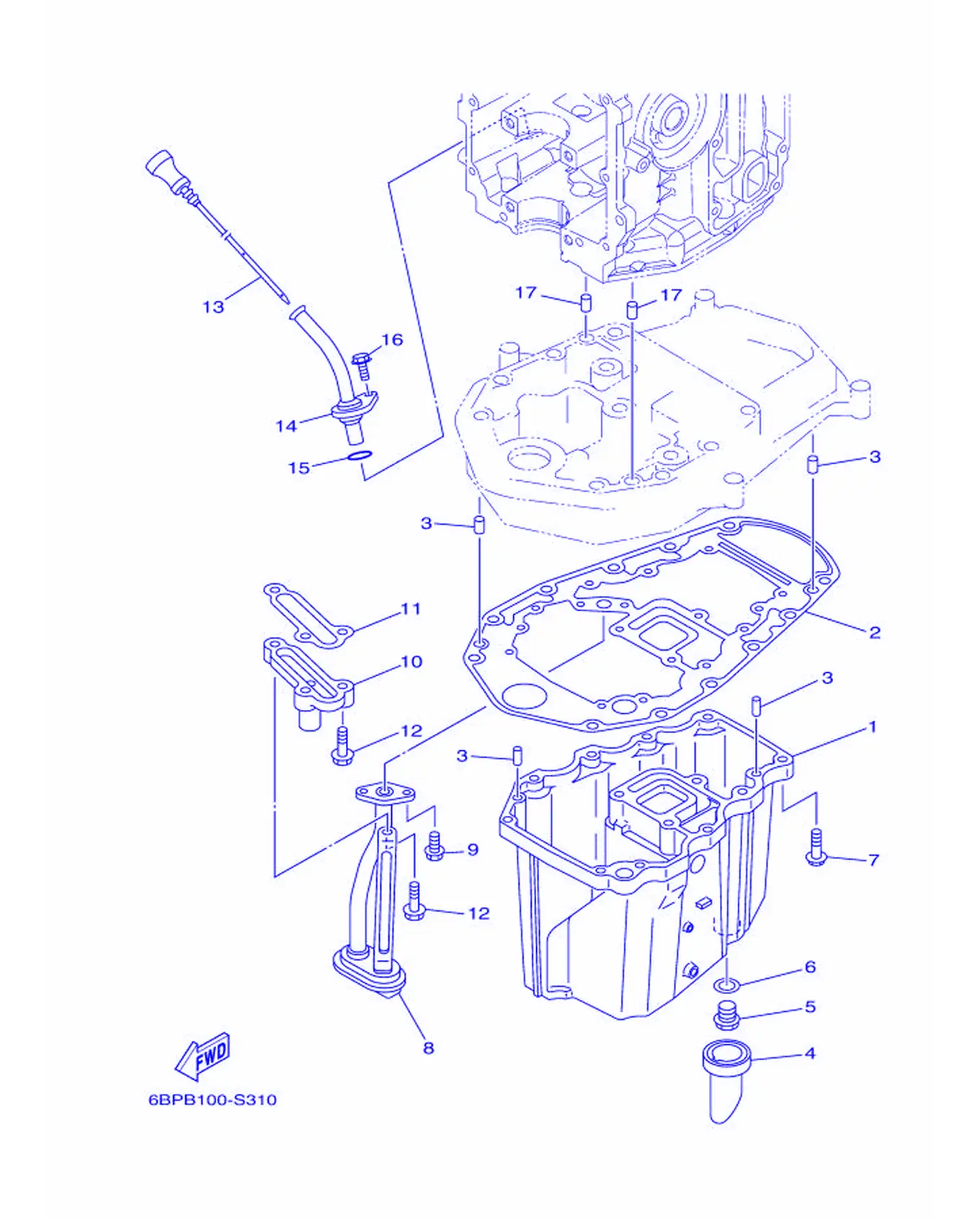

オイルパン

REF	雅马哈编码	中文名称	英文名称	用量
1	65W-15311-03-CA	油槽	Oil Pan	1
2	69W-15312-01	油槽衬垫	Gasket, Oil Pan	1
3	93606-12019	定位销	Pin, Dowel	4
4	65W-15316-01	发动机架减震器1	Damper 1	1
5	90340-14M06	塞	Plug, Straight Screw	1
6	90430-14M09	衬垫	Gasket	1
7	97E75-06525	螺栓	Bolt, Hexagon with Washer Deep Recess	10
8	65W-13411-00	机油滤	Strainer,Oil	1
9	97513-06516	带垫圈螺	Bolt, with Washer	2
10	6BG-11576-00-94	安全阀主	Body, Relief	1
11	62Y-13475-00	衬垫	Gasket	1
12	97513-06525	带垫圈螺	Bolt, with Washer	3
13	6BL-15362-00	油标塞	Plug, Oil Level	1
14	6BL-15377-00	导管	Guide, Inlet	1
15	93210-19MJ3	O型圈	O-ring	1
16	95D95-06016	螺栓	Bolt, Flange Deep Recess	1
17	93608-12M05	定位销	Pin, Dowel	2

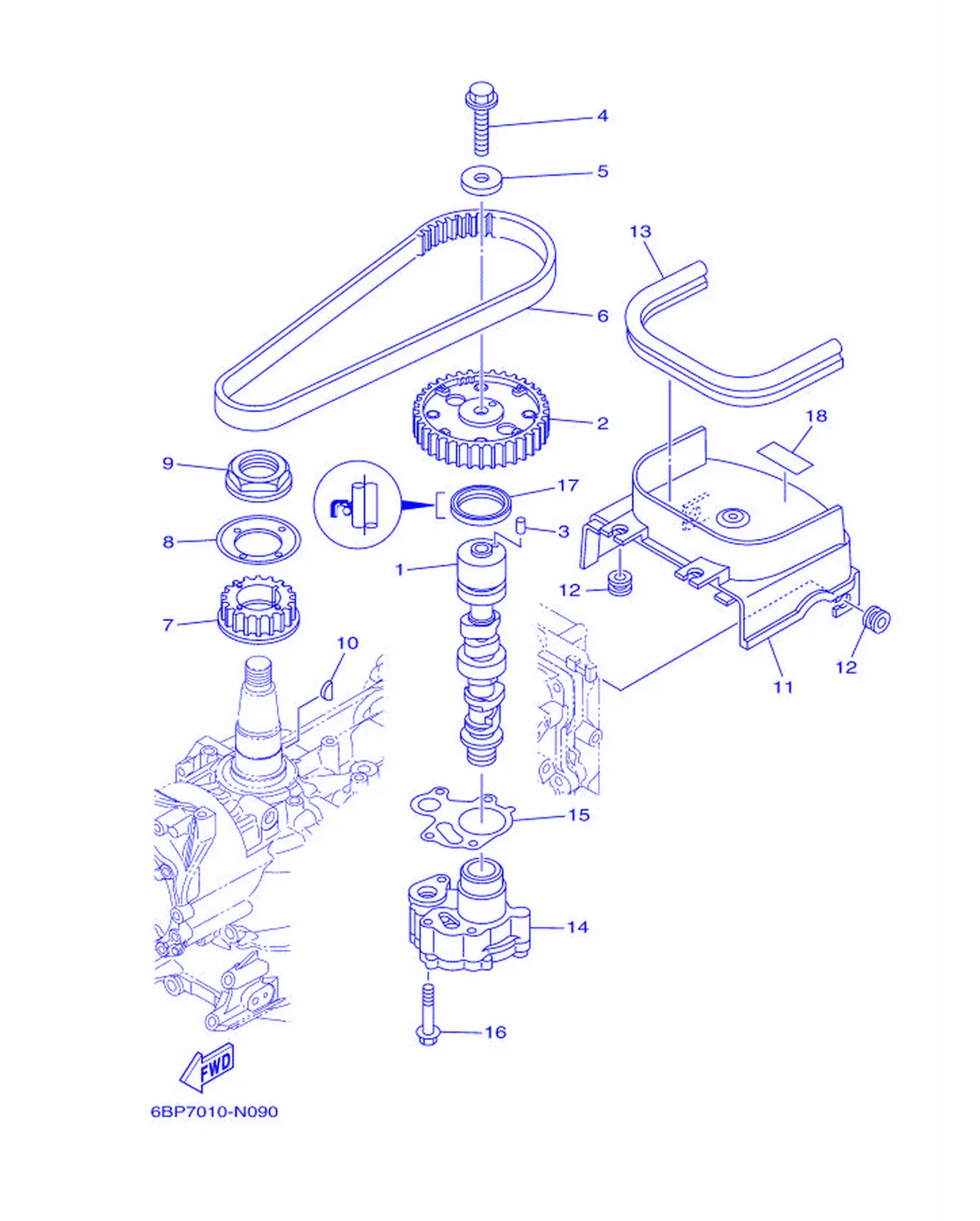

オイルポンプ

REF	雅马哈编码	中文名称	英文名称	用量
1	6BL-12170-00	凸轮轴组合1	Camshaft Assembly 1	1
2	6C5-11537-10	从动齿轮	Gear, Driven	1
3	93605-17002	定位销	Pin, Dowel	1
4	95817-10035	螺栓	Bolt, Flange	1
5	90201-10144	固定	Washer,Plate	1
6	6C5-46241-00	V型皮带	Belt	1
7	6C5-11536-00	主动齿轮	Gear, Drive	1
8	62Y-11557-00	垫圈1	Washer 1	1
9	90179-35001	螺母	Nut	1
10	90280-03017	半圆键	Key, Withdraw	1
11	6BL-46297-00	防尘盖	Cover, Dust	1
12	90480-12314	固定	Grommet	4
13	6BL-42617-00	形成减震	Damper, Foam	1
14	6BL-13300-00	机油泵总成	Oil Pump Assembly	1
15	6C5-13329-00	泵盖衬垫	Gasket,PumpCover	1
16	90119-06025	带垫螺栓	Bolt, With Washer	4
17	93102-37M40	油封	OilSeal	1
18	6BP-13437-01	警告标签	Mark, Caution	1

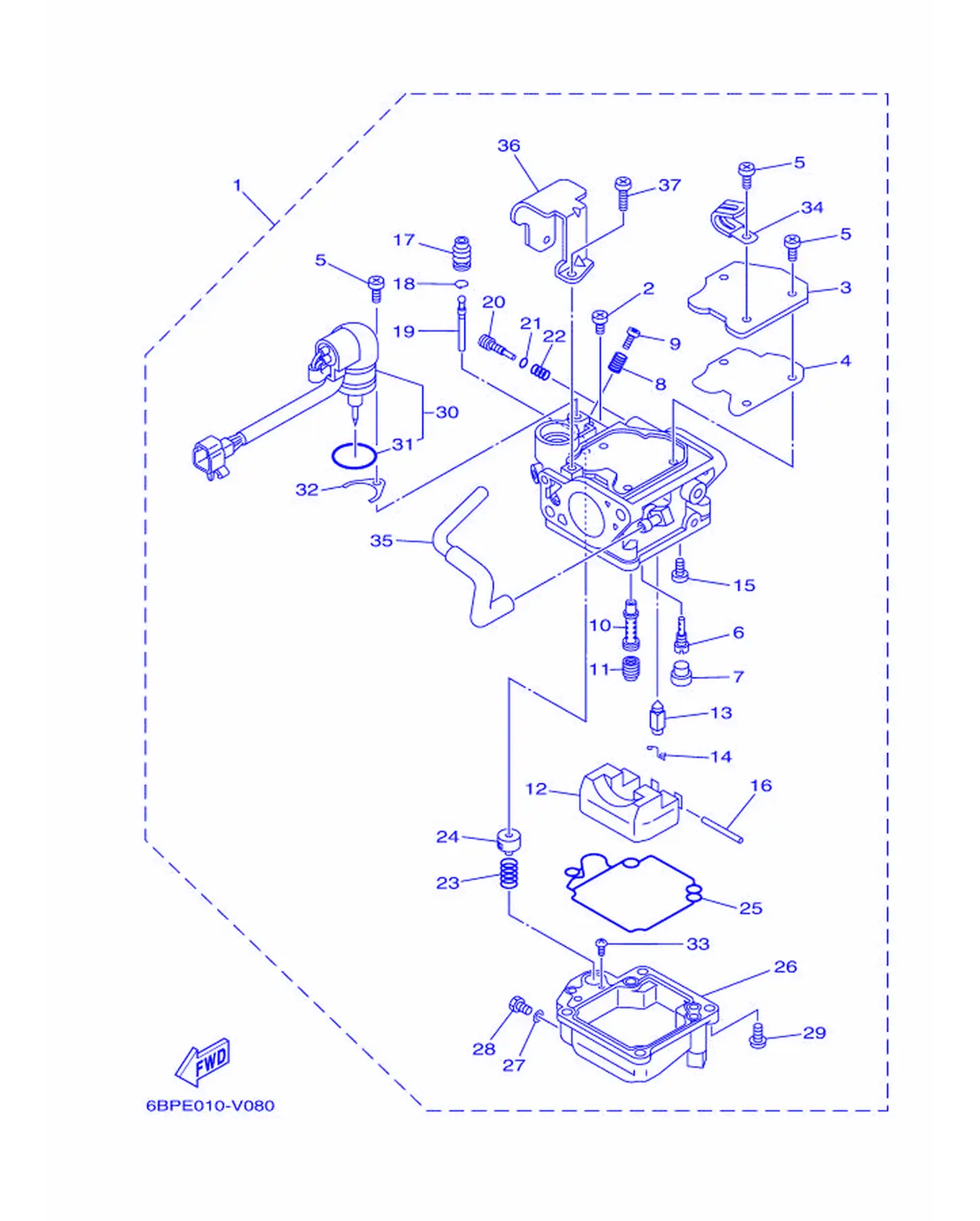

キヤブレタ

REF	雅马哈编码	中文名称	英文名称	用量
1	6BL-14301-23	化油器总成1	Carburetor Assembly 1	1
2	98580-04006	大柱头螺钉	Screw, Pan Head	1
3	65W-14572-00	密封	Plate	1
4	65W-14126-10	衬垫	Gasket	1
5	65L-14565-00	螺钉	Screw	4
6	67G-14948-05	量孔	Jet (#45)	1
7	679-14966-00	量孔盖	RubberCap	1
8	90501-10326	接头	Spring, Compression	1
9	63V-14523-00	止动螺钉	Screw, Stop	1
10	65W-14947-90	针形量孔	Jet, Needle	1
11	6G1-14943-79	主量孔	Jet,Main (#108)	1
12	63V-14985-00	浮子	Float	1
13	6AH-14546-00	阀门	Valve, Needle	1
14	633-14159-00	钢夹	Clip	1
15	98580-04008	大柱头螺钉	Screw, Pan Head	1
16	6H4-14548-00	浮子臂销	Pin, Float Arm	1
17	65W-14373-02	柱塞罩盖	Cover, Plunger Clip	1
18	65W-1439G-00	卡环 1	Clip 1	1
19	65W-14379-00	起动器连杆	Rod,Starter	1
20	6AH-14923-01	低速螺钉	Screw,Pilot	1
21	67F-14398-10	衬垫	O-ring	1
22	67C-14555-00	弹簧	Spring	1
23	65W-14335-00	柱塞弹簧	Spring, Plunger	1
24	65W-14371-00	起动器柱	Plunger, Starter	1
25	65W-14384-00	浮子室衬垫	Gasket, Float Chamber	1
26	65W-14980-22	浮子室本	Body, Float Chamber	1
27	65W-14398-00	衬垫	Gasket	1
28	65W-14992-00	连杆	Screw, Drain	1
29	97980-04114	带垫圈螺钉	Screw, Washer	4
30	6BL-14380-00	双金属阀	Prime Starter Assembly	1
31	5ML-E4854-00	O型圈	O-ring	1
32	65W-14346-00	面板	Plate	1
33	67C-14567-00	螺钉	Screw	1
34	67F-14255-01	面板	Plate	1
35	65W-14807-00	箱盖	Hose Complete	1
36	6BL-14346-00	面板	Plate	1
37	97980-04108	带垫圈螺钉	Screw, With Washer	2

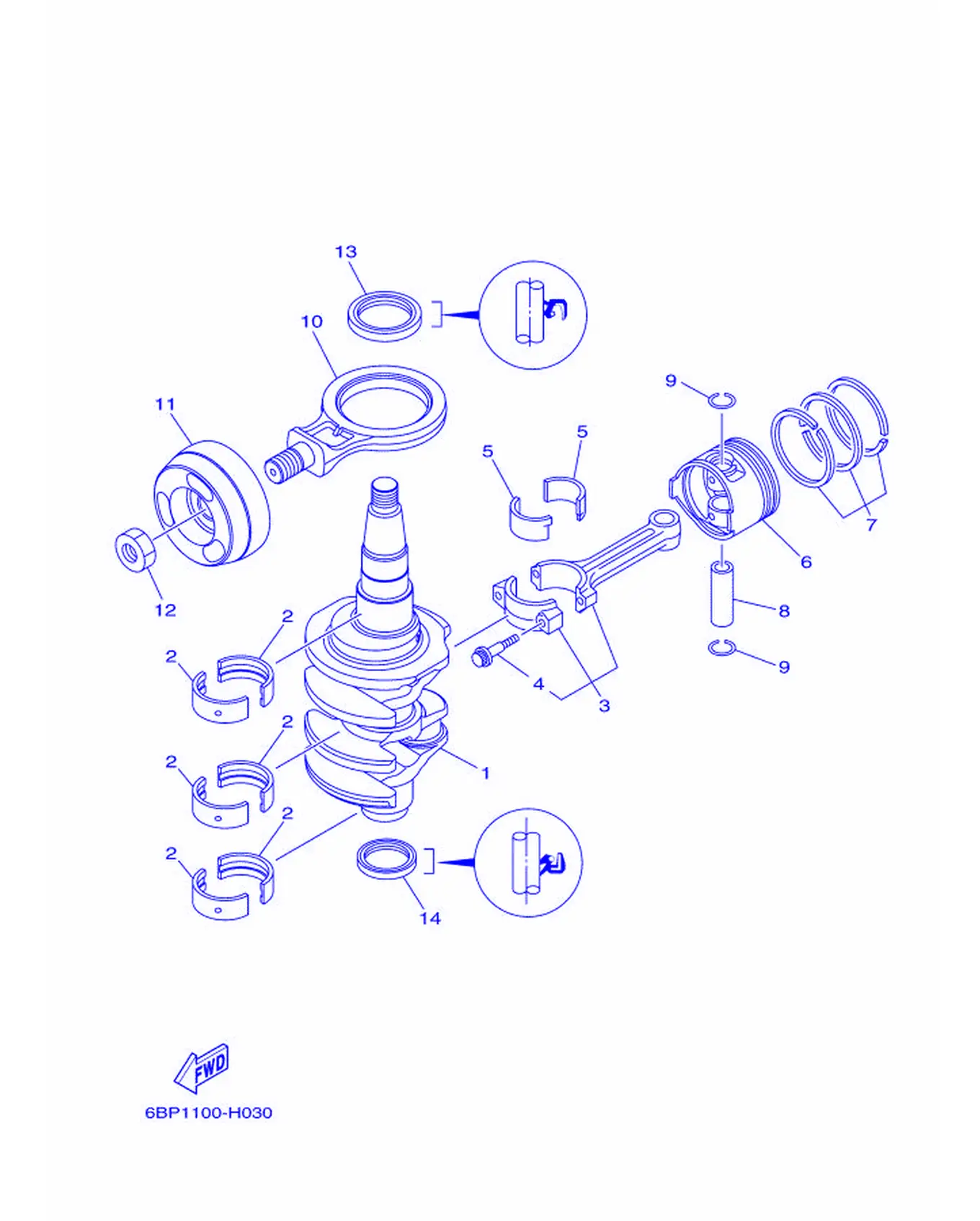

クランクシヤフト & ピストン

REF	雅马哈编码	中文名称	英文名称	用量
1	6BL-11411-00	曲轴	Crankshaft	1
2	6BG-11416-10	轴瓦1红色	Plain Bearing, Crankshaft	6
2	6BG-11416-20	轴瓦1粉红	Plain Bearing, Crankshaft	6
2	6BG-11416-30	轴瓦1绿色	Plain Bearing, Crankshaft	6
3	6C5-11650-10	连杆组合	Connecting Rod Assembly	2
4	6C5-11654-00	连杆螺栓	Bolt, Connecting Rod	2
5	6CJ-11656-20	轴瓦	Plain Bearing, Connecting Rod	4
5	6CJ-11656-30	轴瓦	Plain Bearing, Connecting Rod	4
5	6CJ-11656-10	轴瓦	Plain Bearing, Connecting Rod	4
6	69W-11631-01-97	活塞	Piston (STD)	2
6	69W-11635-01	活塞	Piston (0.25MM O/S)	2
6	69W-11636-01	活塞	Piston (0.50MM O/S)	2
7	67C-11603-01	活塞环套件	Piston Ring Set (STD)	2
7	67C-11604-01	活塞环套件	Piston Ring Set (0.25MM O/S)	2
7	67C-11605-01	活塞环套件	Piston Ring Set (0.50MM O/S)	2
8	62Y-11633-00	活塞销	Pin,Piston	2
9	93450-17129	卡环	Circlip	4
10	6BL-11665-00	连杆组合3	Connecting Rod Assembly 3	1
11	6BL-11642-00	活塞2	Piston 2 (STD)	1
12	90170-20137	螺母	Nut	1
13	93102-43M42	油封	OilSeal	1
14	93101-35002	油封	OilSeal	1

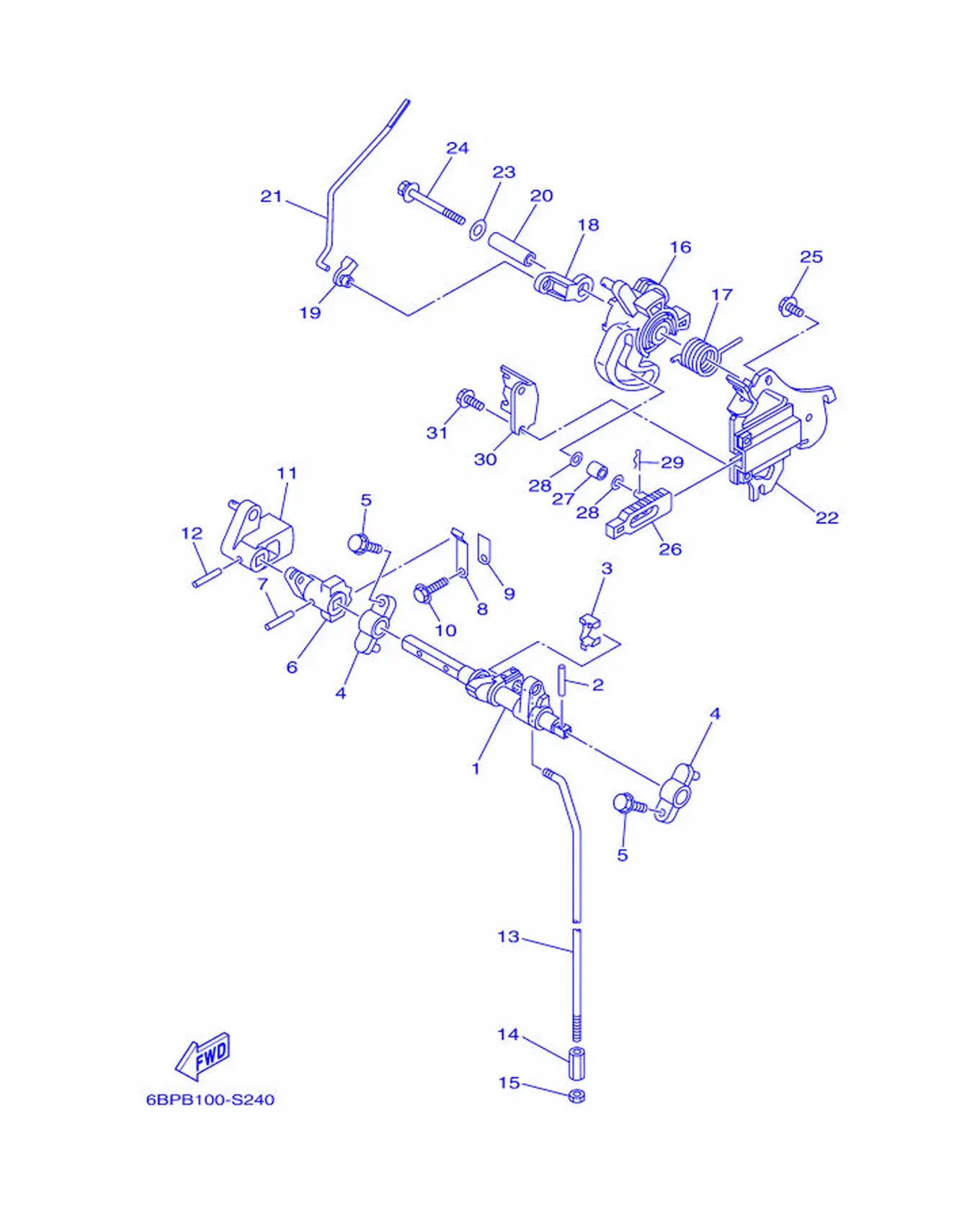

コントロ-ル

REF	雅马哈编码	中文名称	英文名称	用量
1	6BL-44121-01	变挡杆杠杆	Lever, Shift Rod	1
2	90254-03M05	弹簧销	Pin,Spring	1
3	6AH-26364-00	钢丝绳接头2	End, Cable 2	1
4	6G1-41662-01-94	托架	Bracket	2
5	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	2
6	6BL-44173-00	变挡控制杆	Lever, Shift Control	1
7	90254-03M05	弹簧销	Pin,Spring	1
8	65W-44116-00	弹簧	Spring	1
9	66R-44114-00	限位板	Stopper	1
10	95D95-06014	螺栓	Bolt, Flange Deep Recess	1
11	6BL-44142-00	密封	Joint	1
12	90254-03M05	弹簧销	Pin,Spring	1
13	6BP-44143-10	变挡连杆	Rod, Shift 1	1
14	90170-06015	螺母	Nut	1
15	95380-06700	有槽螺母	Nut	1
16	6AH-41638-00	滑轮	Pulley	1
17	90508-20M44	扭簧	Spring, Torsion	1
18	6BL-41283-00	空转油门杠杆	Lever, Free Accelerator	1
19	6J8-41262-00	阻风门杠杆接头	Joint, Choke Lever	1
20	90387-06139	轴套	Collar	1
21	6BP-41211-00	加速器连杆	Link, Accelerator	1
22	6BL-14571-00	油门托架	Bracket, Throttle	1
23	90201-06M31	面板垫圈	Washer,Plate	1
24	97E95-06555	螺栓附墊圈	Bolt, Hexagon with Washer Deep Recess	1
25	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	2
26	6AH-44167-10	变挡凸轮柱	Shift Cam Plunger	1
27	62Y-42171-00	衬套	Bushing	1
28	90201-05M04	平垫圈	Washer, Plate	2
29	90468-10005	线夹	Clip	1
30	6AH-14497-00	油门钢索支承	Stay, Throttle Wire	1
31	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	2

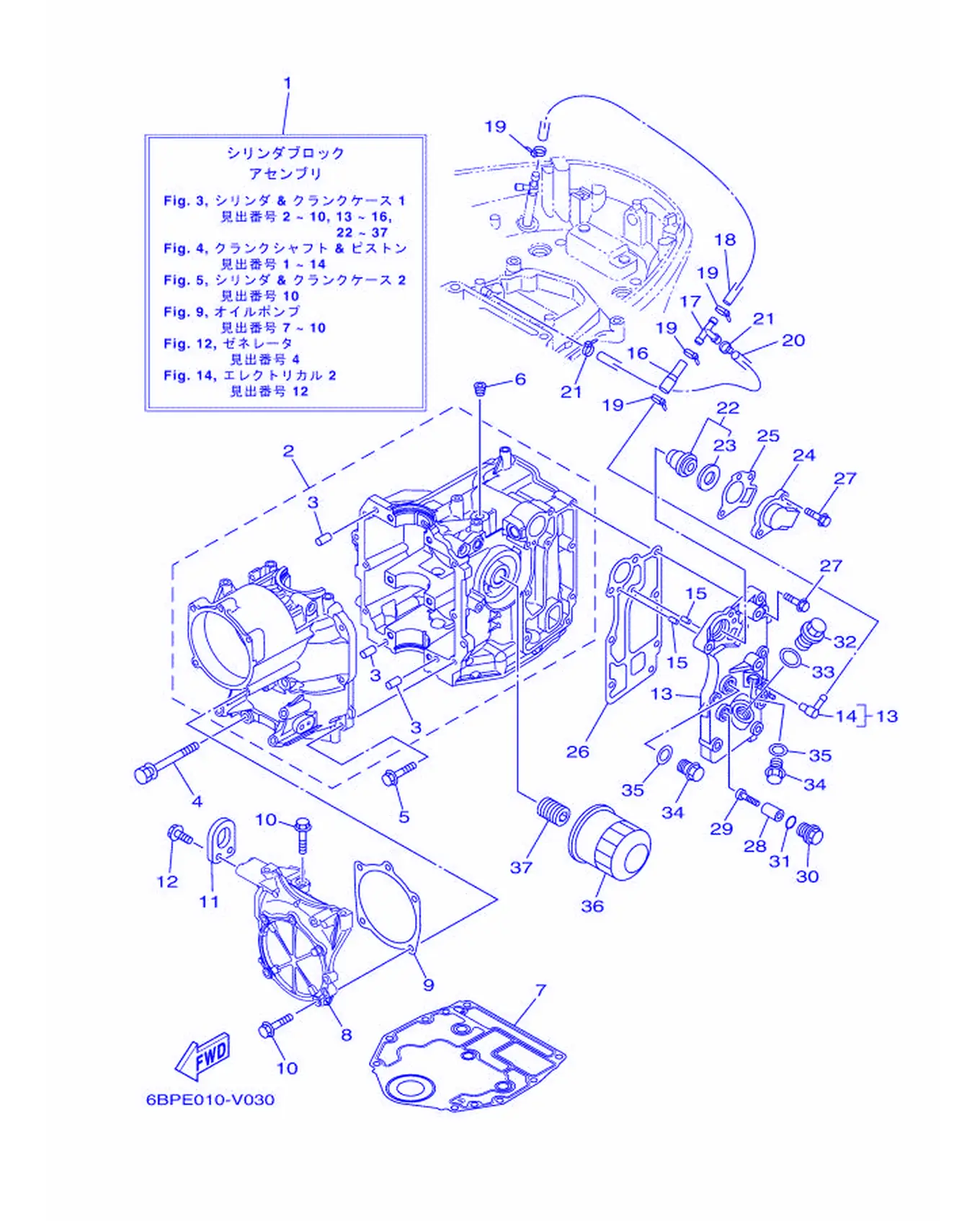

シリンダ & クランクケース 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6BL-W009B-03-1S	主气缸套件	Cylinder Block Assembly	1
2	6BL-15100-02	曲轴箱组合	Crankcase Assembly	1
3	93606-12019	定位销	Pin, Dowel	3
4	90119-08M01	带垫螺栓	Bolt, With Washer	6
5	97513-06525	带垫圈螺	Bolt, with Washer	7
6	90344-51003	衬套	Plug, Taper Screw	1
7	6BG-11351-01	气缸垫片1	Gasket, Cylinder	1
8	6BL-15121-00-1S	曲轴箱2	Crankcase 2	1
9	6BL-15663-00	密封	Seal	1
10	97513-06525	带垫圈螺	Bolt, with Washer	6
11	62Y-11119-00	发动机悬挂架	Hanger, Engine	1
12	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	2
13	6BL-41113-01-1S	排气管外盖	Outer Cover, Exhaust	1
14	6H1-11372-00	软管接头	Nipple,Hose	1
15	93604-10M03	定位销	Pin, Dowel	2
16	6BP-12481-00	管1	Pipe 1	1
17	688-24378-00	连接管4	Pipe,Joint	1
18	90445-09251	软管	Hose (L350)	1
19	90465-11M10	固定	Clamp	4
20	90445-09104	软管	Hose (L300)	1
21	90465-11M10	固定	Clamp	2
22	6G8-12411-03	温控器	Thermostat	1
23	688-12412-00	温控器密封	Seal,Thermostat	1
24	6BG-12413-00-1S	温控器盖	Cover, Thermostat	1
25	62Y-12414-00	盖衬垫	Gasket,Cover	1
26	6BL-41114-00	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
27	90119-06MA5	带垫螺栓	Bolt, With Washer	8
28	6G8-11325-00	阳极	Anode	1
29	98980-05025	十字槽盘头螺钉	Screw, Bind	1
30	6G8-11197-A0	绝缘插头	Blind Plug	1
31	93210-13M63	O型圈	O-ring	1
32	90340-18M09	衬套	Plug, Straight Screw	1
33	90201-186F1	平垫圈	Washer,Plate	1
34	90340-14M06	塞	Plug, Straight Screw	2
35	90430-14115	垫片	Gasket	2
36	5GH-13440-80	滤油器滤芯组合	Element Assembly, Oil Cleaner	1
37	6C5-12858-A0	管接螺栓2	Bolt, Union	1

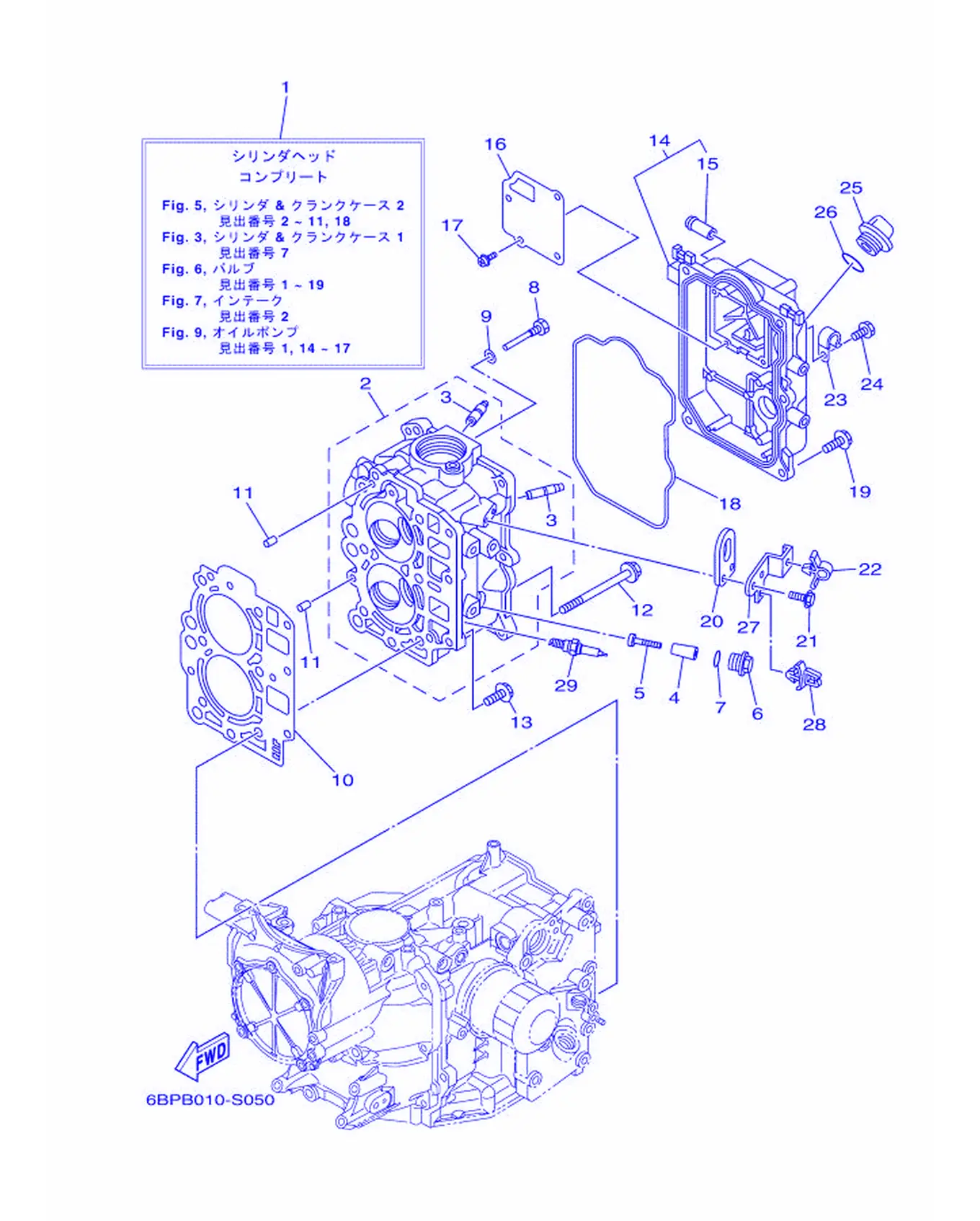

シリンダ & クランクケース 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6BL-W009A-11-1S	气缸头总成	Cylinder Head Complete	1
2	6BL-11111-10-1S	气缸头1	Head, Cylinder 1	1
3	62Y-11133-31	进气门导管	Guide,Valve 1	4
4	6BL-11325-00	阳极	Anode	2
5	98980-05035	大柱头螺钉	Screw, Blind	2
6	6G8-11197-A0	绝缘插头	Blind Plug	2
7	93210-13M63	O型圈	O-ring	2
8	90109-06M65	螺栓	Bolt	1
9	90430-06014	螺栓	Gasket	1
10	6BL-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
11	93606-12019	定位销	Pin, Dowel	2
12	90105-09009	六角法兰面螺栓	Bolt, Flange	6
13	90119-06MA3	带垫螺栓	Bolt, With Washer	3
14	6BL-11191-00-1S	气缸盖罩1	Cover, Cylinder Head 1	1
15	62Y-14485-00	连接管	Pipe, Joint	1
16	6BG-11168-00	通气管盖	Cover, Breather	1
17	97607-04210	带垫圈十字槽盘头螺钉	Screw, Pan Head Washer	4
18	6BL-11356-00	气缸密封圈2	Seal, Cylinder 2	1
19	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	5
20	62Y-11119-00	发动机悬挂架	Hanger, Engine	1
21	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	2
22	90464-09023	线夹	Clamp	1
23	90465-08M83	固定	Clamp	1
24	97E95-06512	螺栓	Bolt, Hexagon with Washer Deep Recess	1
25	6G8-15363-00	机油塞子	Plug,Oil	1
26	93210-24M79	O型圈	O-ring	1
27	6BL-82398-00	托架	Plate 3	1
28	90464-06001	固定	Clamp	1
29	94709-00418	火花塞	Plug, Spark (NGK DPR6EB-9)	2

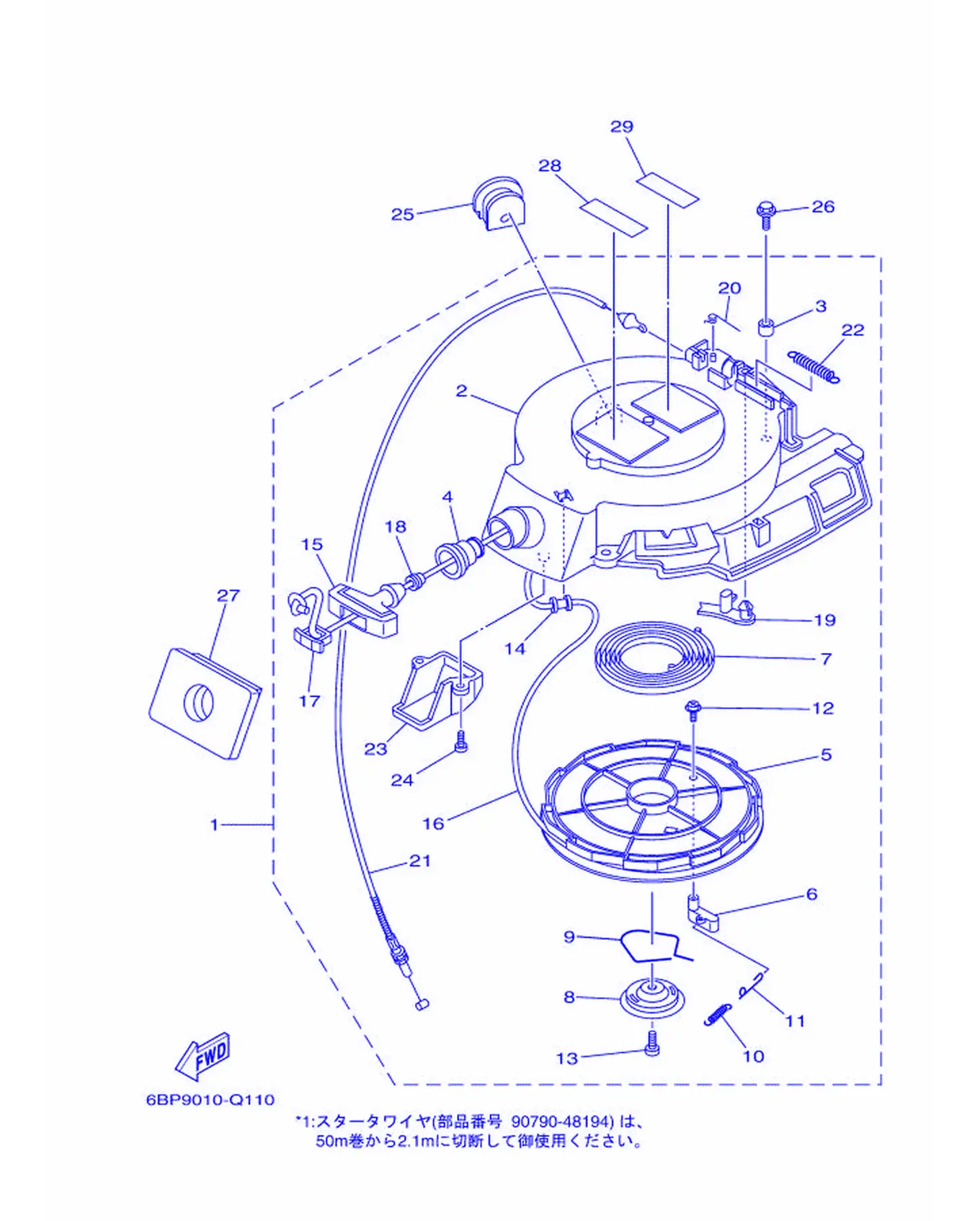

スタ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6BL-15710-02	起动器组合	Starter Assembly	1
2	6BL-15711-01	起动器箱	Case,Starter	1
3	6AH-15764-00	安装环1	Collar 1	3
4	6AH-15795-00	导绳	Guide, Rope	1
5	6BL-15714-00	拉索卷	Drum, Sheave	1
6	6AH-15741-10	驱动爪	Pawl, Drive	1
7	66T-15713-00	起动器弹簧	Spring,Starter	1
8	66T-15716-00	驱动板	Plate, Drive	1
9	66T-15705-00	驱动爪弹簧	Spring, Drive Pole	1
10	66T-15767-00	弹簧	Spring	1
11	66T-15784-00	回位弹簧	Spring, Return	1
12	6BL-15793-00	螺钉	Screw	1
13	68T-15793-00	螺钉	Screw	1
14	6BL-15764-00	安装环1	Collar 1	1
15	689-15755-02	起动器手柄	Handle, Starter	1
17	6F5-15779-02	盖	Cover	1
18	6A0-15789-01	减震器	Damper	1
19	68T-15794-00	限位板	Stopper	1
20	66T-15734-00	回位弹簧	Spring, Return	1
21	6BL-15770-00	起动器止动钢索组	Cable Complete, Starter Stop	1
22	66T-15731-00	弹簧挡	Spring, Return	1
23	6BL-15782-00	拉索卷轮盖	Cover, Sheave	1
24	6AH-15793-00	螺钉	Screw	2
25	6BL-15357-01	固定	Grommet	1
26	95D75-06020	凸缘螺栓	Bolt, Flange Deep Recess	3
27	6BL-15762-01	橡皮密封圈2	Seal, Rubber 2	1
28	6EE-81994-00	警告标签	Label, Safety	1
29	6EE-81995-00	警告标签	Label, Warning	1

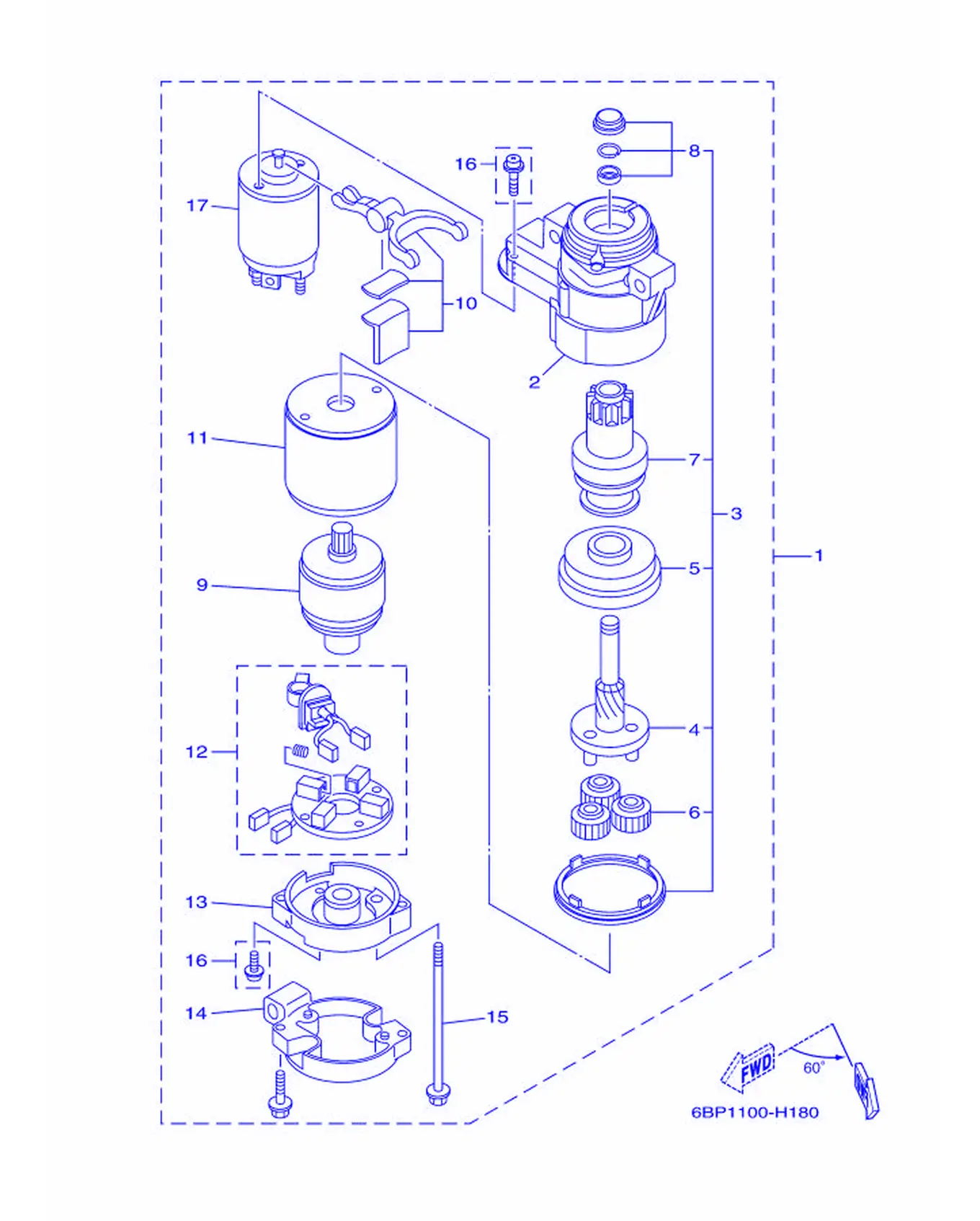

スタ-テイングモ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6BG-81800-00	起动电动机总成	Starting Motor Assembly	1
2	6BG-81830-00	前托架组合	FrontBracketAssembly	1
3	6BG-81807-00	起动电动机齿轮组合	Gear Assembly, Starting Motor	1
4	6BG-81836-00	杠杆弹簧	Spring, Lever	1
5	6BG-81891-00	环形齿轮	Gear, Ring	1
6	6AW-8183T-00	惰轮	Gear, Idler	3
7	6BG-81832-00	越转离合器	Clutch, Overrun	1
8	6BG-81857-00	挡圈	Pinion Stopper Set	1
9	6BG-81850-00	电枢组合	ArmatureAssembly	1
10	6BG-81839-00	杠杆组合	LeverAssembly	1
11	6BG-81810-00	定子组合	Starter Assembly	1
12	6BG-81840-00	电刷架组合	Brush Holder Assembly	1
13	6BG-81820-00	后托架组合	Rear Bracket Assembly	1
14	6BG-8182J-00	托架	Bracket Complete, Rear	1
15	6BG-81826-00	螺栓	Bolt	2
16	6BG-81846-00	螺钉1	ScrewSet	1
17	6BG-81941-00	起动继电器组合	StarterRelayAssembly	1

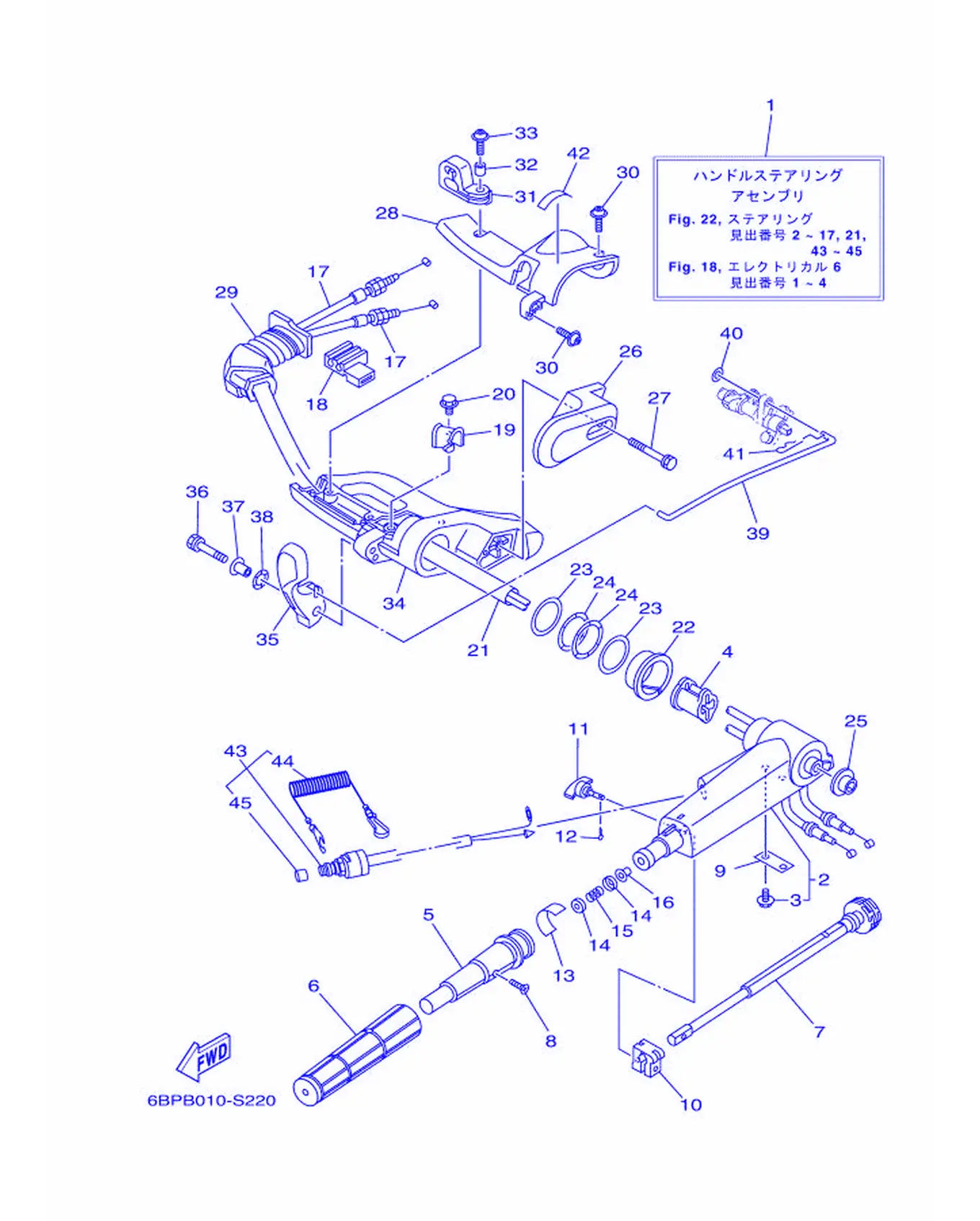

ステアリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6BP-W0084-02-8D	手把方向装置组合	Handle Steering Assembly	1
2	6AH-42101-02-8D	操舵手柄	Handle, Steering	1
3	90109-06M86	螺栓	Bolt	2
4	6AH-26288-01	钢索固定	Grommet, Cable	1
5	66M-42119-01	方向手把握	Grip, Steering Handle	1
6	67D-42177-01	手把橡皮	Rubber, Handle	1
7	65W-42138-00	油门杆	Lever,Throttle	1
8	90152-05011	沉头螺钉	Screw, Countersunk	1
9	65W-42159-00	支承	Stay	1
10	6G1-42126-00	方向手把握把摩擦	Friction, Steering Handle	1
11	65W-42125-00	阻力调整螺	Bolt, Friction Adjust	1
12	91490-16010	开口销	Pin, Cotter	1
13	6J0-42137-10	油门指示器	Indicator, Throttle	1
14	6X4-44188-00	垫圈	Washer	2
15	90501-23215	接头	Spring, Compression	1
16	90386-08004	衬套	Bushing	1
17	6BP-26311-00	油门钢索1	Cable, Throttle 1	2
18	6BP-26316-01	气节门保护罩	Boot, Throttle Cable	1
19	6AH-44554-00	面板	Plate	1
20	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	1
21	6AH-2634E-00	保护器1	Protector 1	1
22	90386-45001	衬套	Bushing	1
23	90201-39008	平垫圈	Washer, Plate	2
24	90206-39001	波纹垫圈	Washer, Wave	2
25	90381-20001	双金属衬套	Bushing, Solid	1
26	6AH-42131-00-8D	方向手把盖	Cover, Handle Steering	1
27	97E95-06555	螺栓附墊圈	Bolt, Hexagon with Washer Deep Recess	2
28	6BL-42532-00	盖	Cover	1
29	6BL-42131-01	方向手把盖	Cover, Handle Steering	1
30	90111-06072	内六角薄型螺栓	Bolt	3
31	6BL-82594-01	夹箍	Clamp	1
32	90387-06M53	衬套	Color	1
33	90111-06133	螺栓	Bolt	1
34	6BL-42121-00-8D	托架	Bracket, Carling	1
35	6AH-44111-00	变挡手柄	Handle, Gear Shift	1
36	90119-06M05	带垫螺栓	Bolt, With Washer	1
37	90387-06M86	衬套	Color	1
38	90206-15M18	波形垫圈	Washer, Wave	1
39	6BL-44124-00	变挡杆杠杆连接	Link, Shift Rod	1
40	92990-06200	盘形垫	Washer, Plain	1
41	90468-18008	钢夹	Clip	1
42	6G8-44191-00	变挡指示器	Indicator, Shift	1
43	6BL-82575-00	发动机止动开关组合	Engine Stop Switch Assembly	1
44	682-82556-00	止动拉索	Stopper	1
45	689-8257Y-00	盖	Cap	1

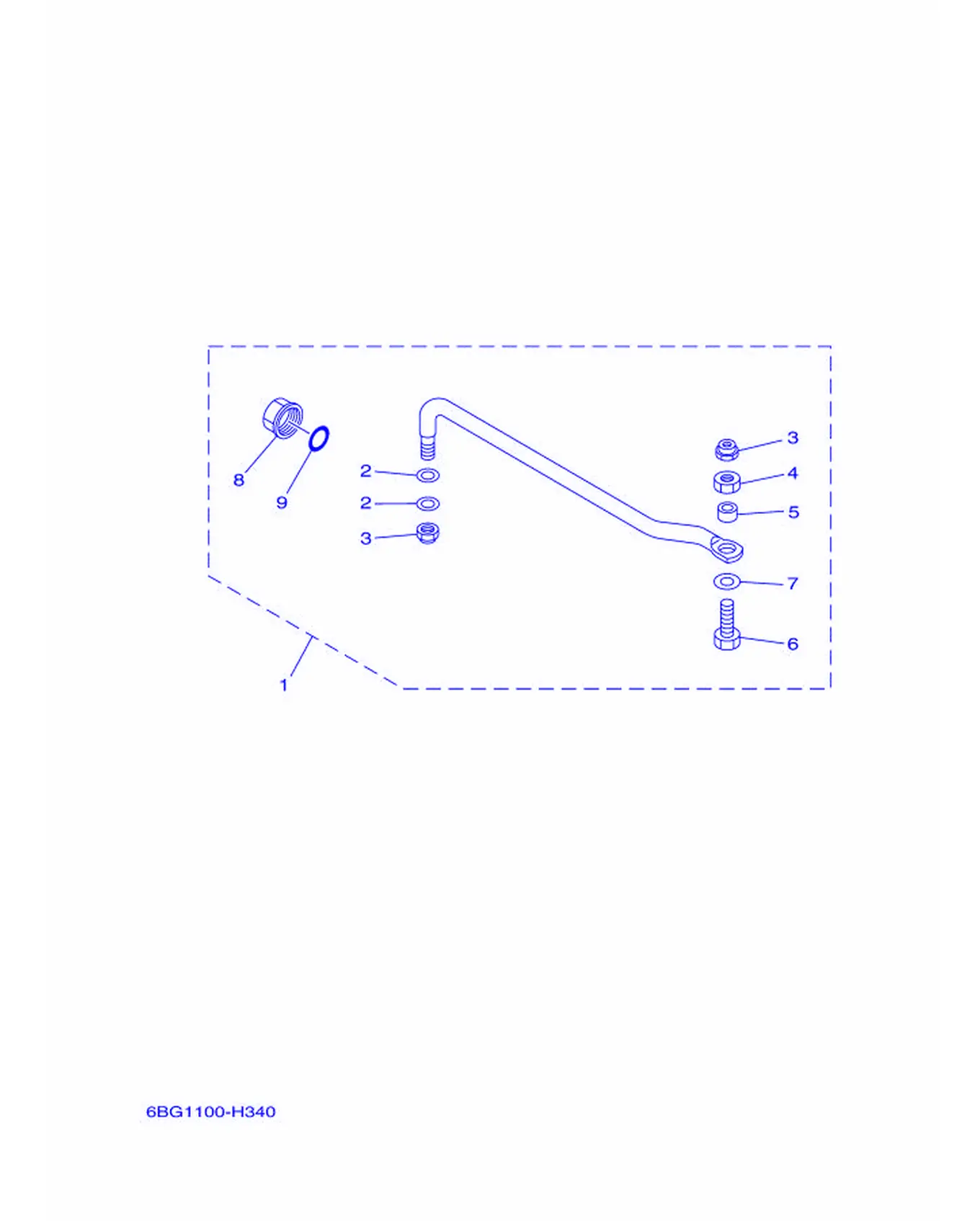

ステアリングガイド

REF	雅马哈编码	中文名称	英文名称	用量
1	6BG-61350-00	操舵连接板套	Steering Guide Attachment Kit	1
2	90201-10M20	面板垫圈	Washer,Plate	2
3	90185-09M01	螺帽	Nut, Self-Locking	2
4	90170-09M03	螺帽	Nut	1
5	90387-10M42	衬套	Collar	1
6	90101-09M01	卡环	Bolt	1
7	90201-10081	平垫圈	Washer, Plate	1
8	6E5-43145-01	夹紧托架盖	Cap, Clamp Bracket	1
9	93210-16275	O型圈	O-ring	1

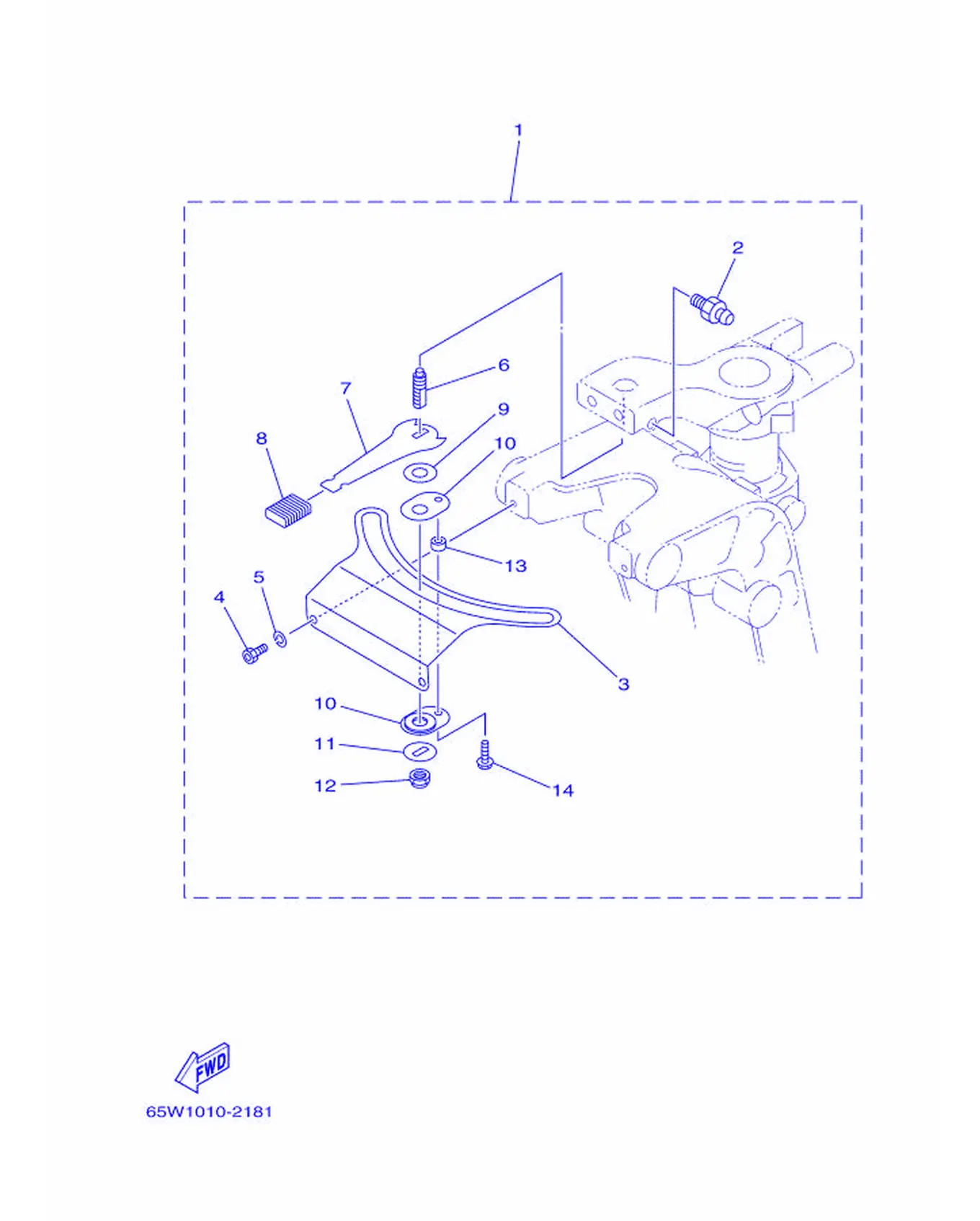

ステアリングフリクシヨン

REF	雅马哈编码	中文名称	英文名称	用量
1	65W-42508-02	方向阻力块组合	Steering Friction Assembly	1
2	93700-06004	翼形螺	Nipple, Grease	1
3	65W-42527-00	阻力板	Plate, Friction	1
4	90109-06M88	卡环	Bolt	2
5	92990-06100	盘形垫	Washer,Spring	2
6	65W-42562-00	操舵锁紧轴	Shaft Steering Lock Assembly	1
7	65W-42561-00	方向锁紧旋钮	Knob	1
8	689-43633-01	角度定位杆盖	Cover,TiltLever	1
9	90202-10M56	平垫圈	Washer, Plate	1
10	65W-42528-00	阻力板	Plate, Friction	2
11	90209-10M26	平垫圈	Washer	1
12	90185-10M14	螺帽	Nut, Self-Locking	1
13	90387-05054	轴套	Collar	1
14	90109-05M89	卡环	Bolt	1

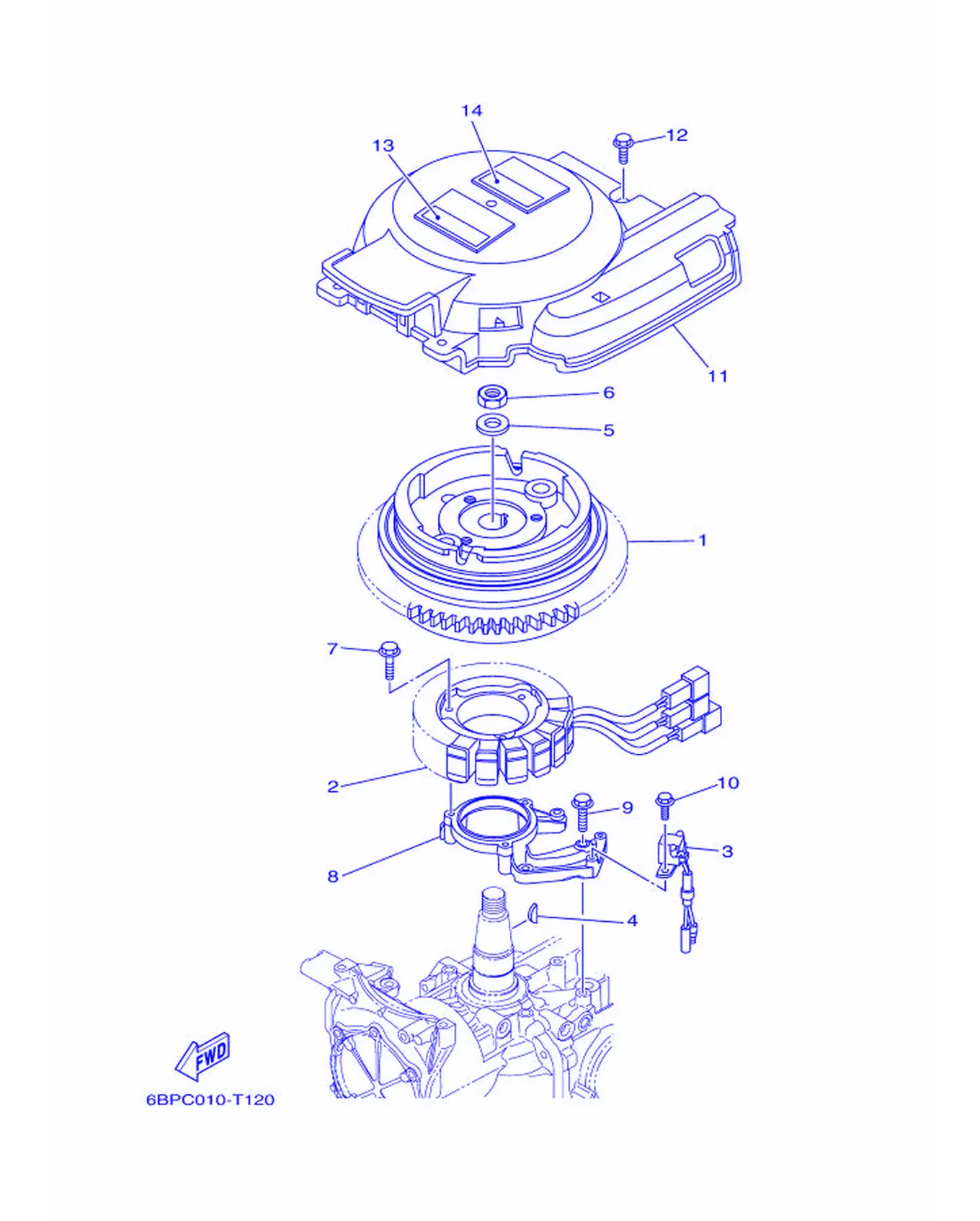

ゼネレ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6BL-85550-00	转子组合	Rotor Assembly	1
2	6BL-85510-00	定子组合	Starter Assembly	1
3	6AH-85580-00	脉冲发生器总成	Coil, Pulser	1
4	6H4-11545-00	半圆键	Key, Woodruff	1
5	90201-21M18	平垫圈	Washer,Plate	1
6	90170-20137	螺母	Nut	1
7	95023-06030	凸缘螺	Bolt, Flange	3
8	6BG-85561-00	磁体底座	Base, Magnet	1
9	95023-06025	凸缘螺	Bolt, Flange	4
10	97595-05516	带垫圈螺	Bolt, with Washer	2

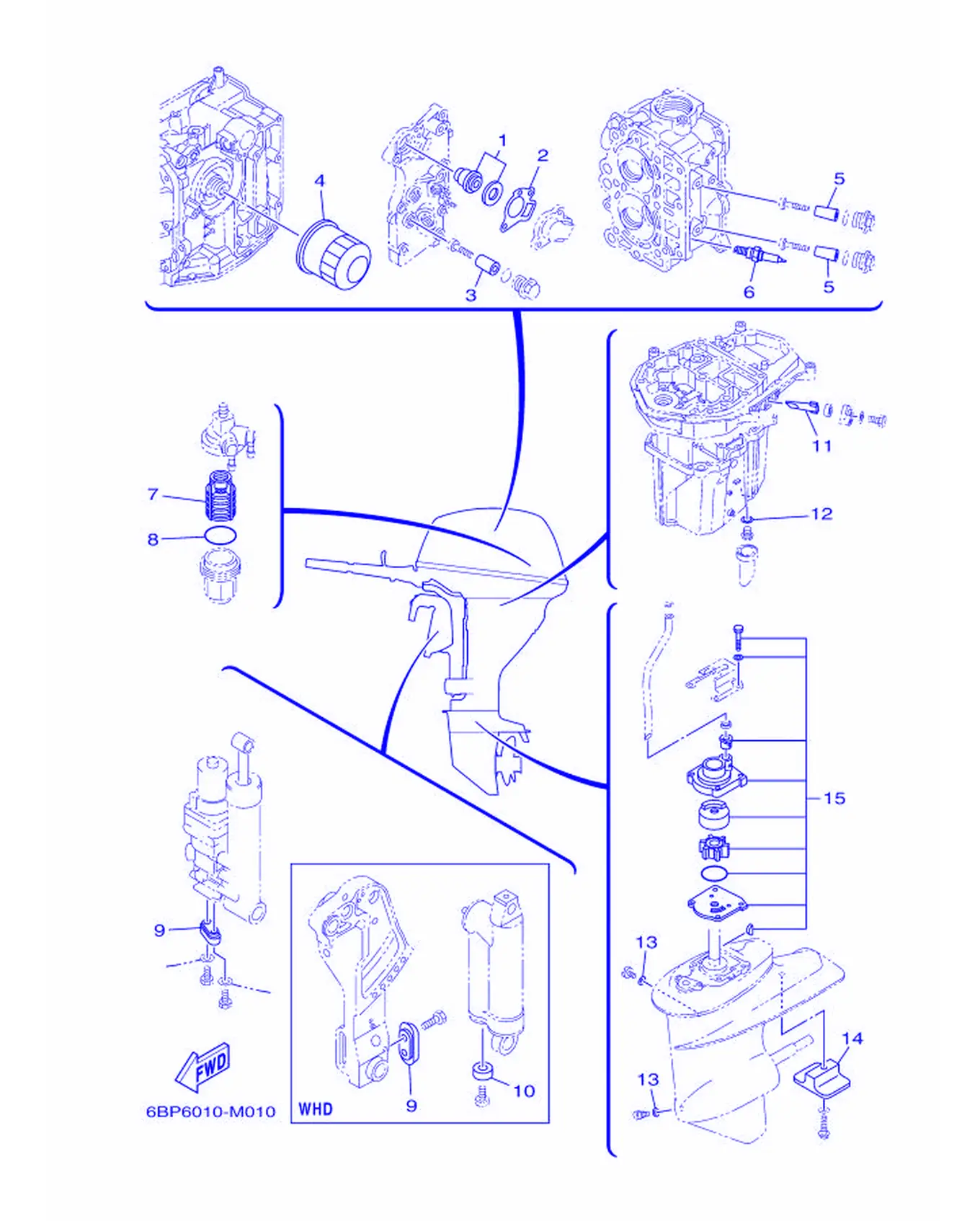

テイキコウカンブヒン

REF	雅马哈编码	中文名称	英文名称	用量
1	6G8-12411-03	温控器	Thermostat	1
2	62Y-12414-00	盖衬垫	Gasket,Cover	1
3	6G8-11325-00	阳极	Anode	1
4	5GH-13440-80	滤油器滤芯组合	Element Assembly, Oil Cleaner	1
5	6BL-11325-00	阳极	Anode	2
6	94709-00418	火花塞	Plug, Spark (NGK DPR6EB-9)	2
7	61N-24563-10	过滤器滤芯	Element, Filter	1
8	93210-32738	O型圈	O-ring	1
11	62Y-11325-00	阳极	Anode	1
12	90430-14M09	衬垫	Gasket	1
13	90430-08003	垫片	Gasket	2
14	61N-45251-01	阳极	Anode	1
15	61N-W0078-14	水泵修理套	Water Pump Repair Kit	1

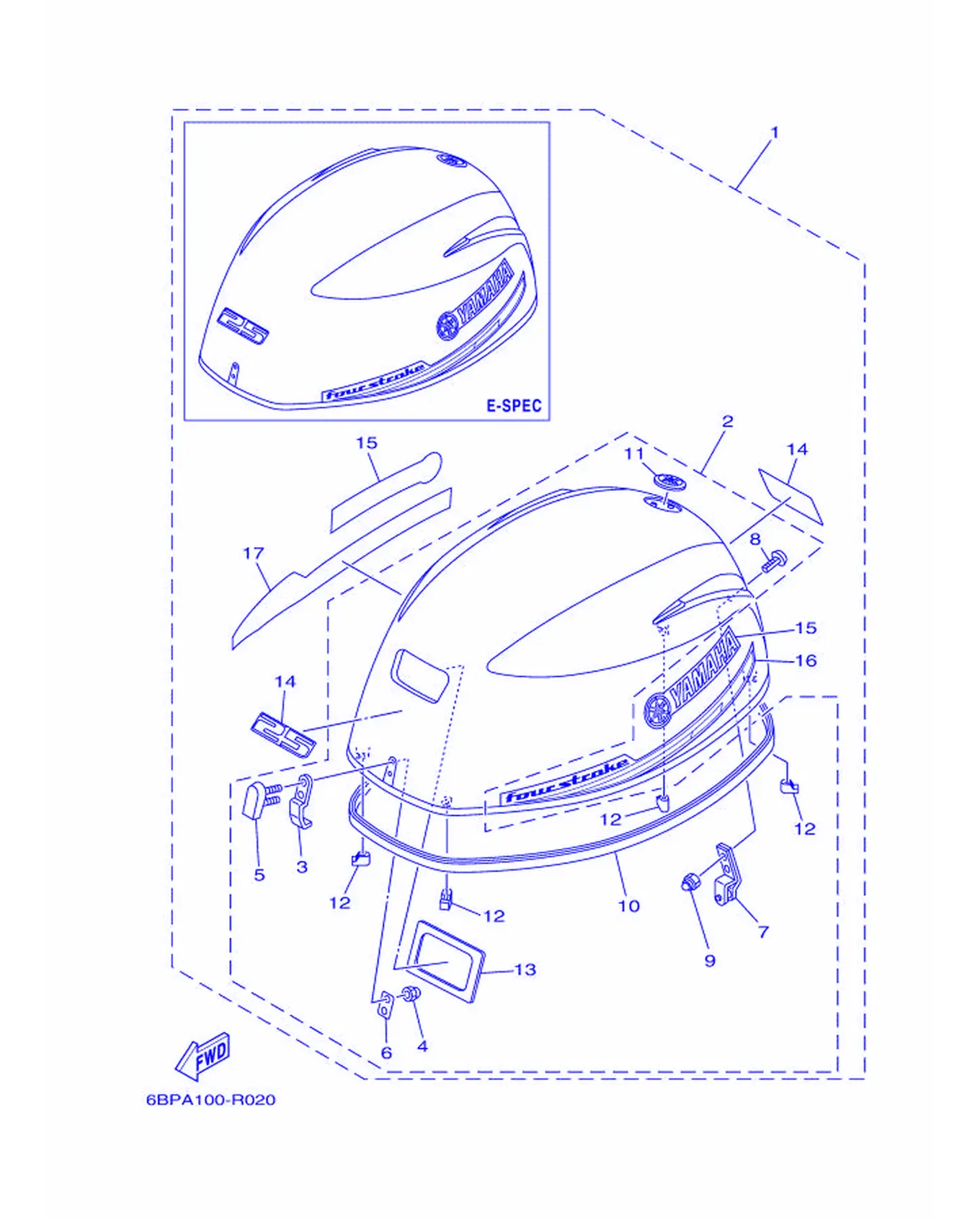

トツプカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6BP-42610-44	顶罩组合	Top Coupling Assembly	1
2	6BL-4261A-03	顶罩组合	Top Cowling (Graphic)	1
3	6BL-42651-00	钩	Fook	1
4	95380-05800	六角螺母	Nut	2
5	6BG-42851-00	夹紧盖	Cover, Clamp	1
6	6BG-42649-00	夹带支架	Holder, Clamp Band	1
7	6BL-42652-00	钩	Fook	1
8	90109-06047	螺栓	Bolt	2
9	90185-06M05	螺帽	Nut, Self-Locking	2
10	6CJ-42615-00	密封	Seal	1
11	6AH-42697-10	音叉标志	Tuning Fork Mark	1
12	6BG-42662-01	减震器	Damper	4
13	6BL-42656-00	橡胶垫	Protector, Rubber Seal	1
14	6BP-42677-11	前图样	Graphic, Front	2
15	6BP-42681-01	罩标志	Mark, Coupling	2
16	6FM-42675-01	侧面图样1	Graphic, Side 1	1
17	6FM-42676-01	侧面图样2	Graphic, Side 2	1

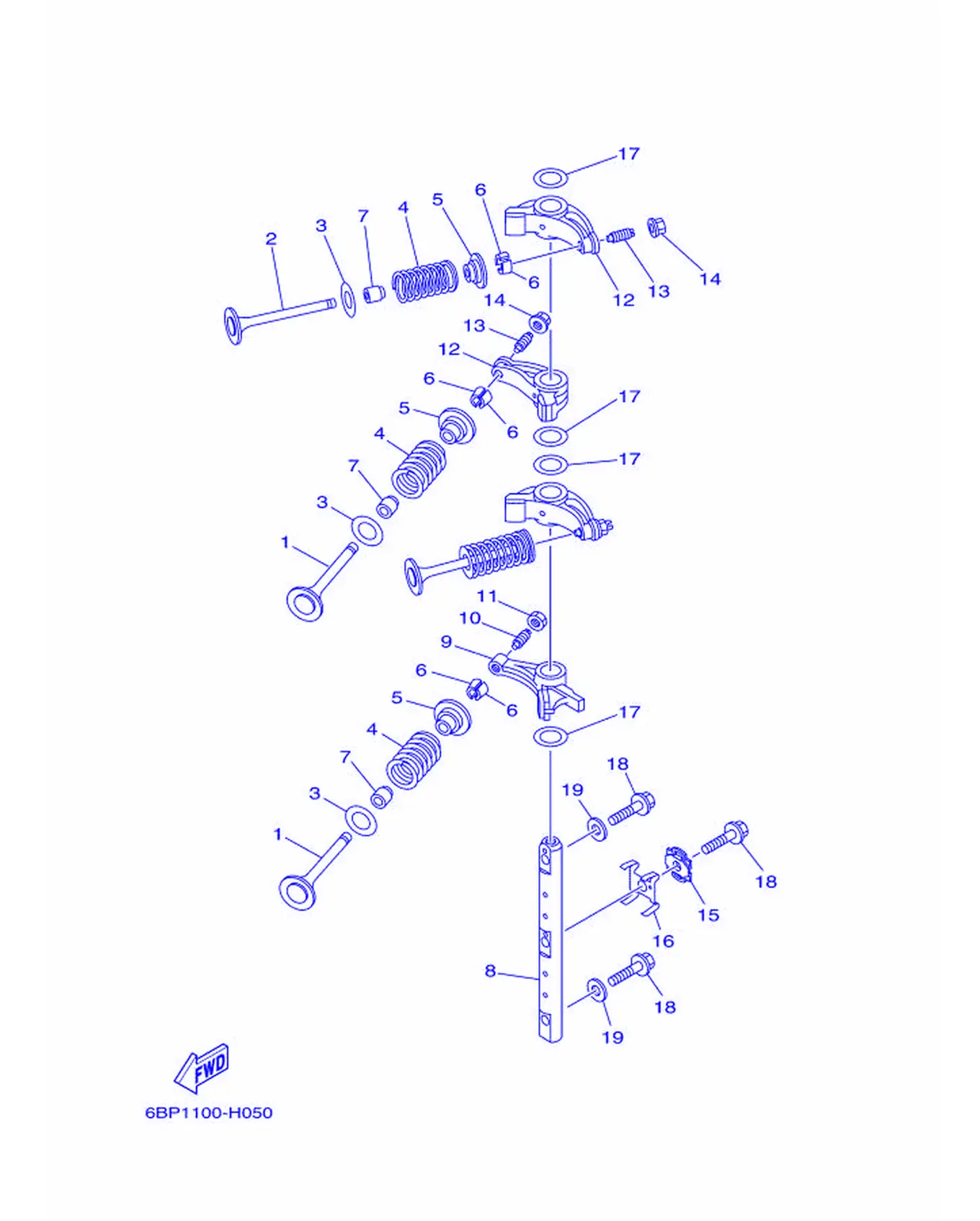

バルブ

REF	雅马哈编码	中文名称	英文名称	用量
1	69W-12111-00	进气门	Valve,Intake	2
2	69W-12121-10	气门2	Valve, Exhaust	2
3	62Y-12116-00	气门簧座	Seat,ValveSpring	4
4	51Y-12114-00	气门外弹簧	Spring, Valve Outer	4
5	30X-12117-00	气门弹簧座	Retainer,ValveSpring	4
6	30X-12118-00	气门锁销	Cotter, Valve	8
7	51Y-12119-00	气门杆密封	Seal, Valve Stem	4
8	6BL-12146-00	摇臂轴	Shaft, Rocker	1
9	62Y-12151-00	气门摇臂	Arm, Valve Rocker	1
10	64J-12159-00	气门调整螺钉	Screw, Valve Adjusting	1
11	62Y-12158-00	锁紧螺母	Nut,Lock	1
12	6C5-12151-00	气门摇臂	Arm, Valve Rocker	3
13	6C5-12159-00	气门调整螺钉	Screw, Valve Adjusting	3
14	6C5-12158-00	锁紧螺母	Nut,Lock	3
15	6BL-12231-00	导向限位板1	Guide, Stopper 1	1
16	6BL-12233-00	导向限位板面板1	Guide Stopper Plate 1	1
17	90201-16014	面板垫圈	Washer,Plate	4
18	90105-08060	螺栓	Bolt, Flange	3
19	92990-08200	垫圈	Washer, Plain	2

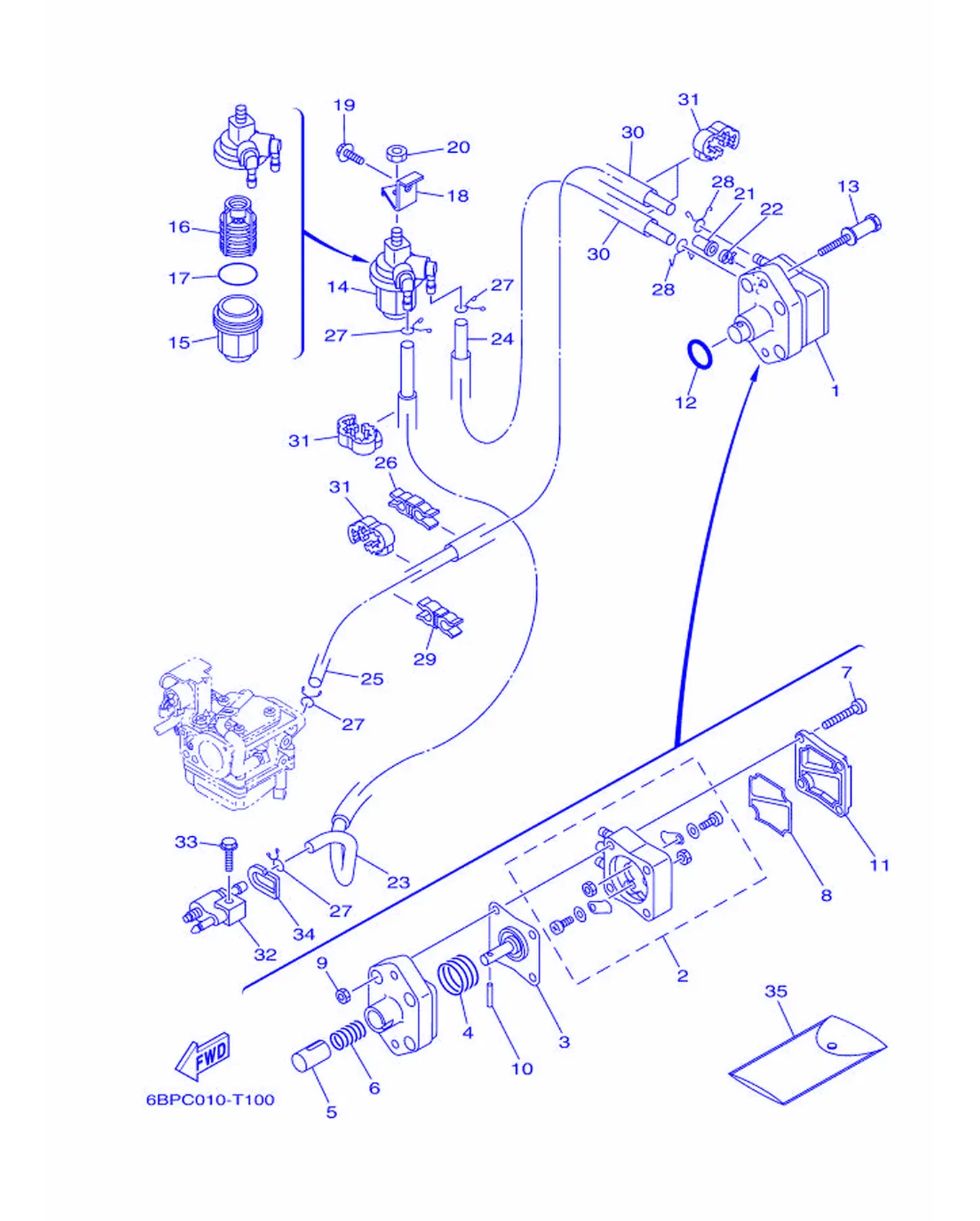

フユエル

REF	雅马哈编码	中文名称	英文名称	用量
1	62Y-24410-05	燃油泵组合	Fuel Pump Assembly	1
2	62Y-24415-01	燃油泵本体4	Body 4	1
3	62Y-24411-03	隔膜，隔板	Diaphragm	1
4	62Y-24423-00	隔膜弹	Spring,Diaphragm	1
5	62Y-13131-00	活塞	Plunger	1
6	62Y-24454-00	弹簧	Spring	1
7	62Y-24444-01	螺钉	Screw	4
8	6C5-24471-01	隔膜	Diaphragm	1
9	95380-05600	螺母	Nut	4
10	62Y-24374-01	销	Pin	1
11	6C5-24414-00	燃油泵本体3	Body 3	1
12	93210-24M79	O型圈	O-ring	1
13	90109-06266	带垫圈六角头螺栓	Bolt	2
14	61N-24560-10	汽油过滤器组合	Filter Assembly	1
15	61N-24521-00	滤杯	Cup, Filter	1
16	61N-24563-10	过滤器滤芯	Element, Filter	1
17	93210-32738	O型圈	O-ring	1
18	6D5-24566-00	过滤器托架	Bracket, Filter	1
19	95D95-08016	连杆螺栓	Bolt, Flange Deep Recess	1
20	95380-08600	有槽螺母	Nut	1
21	6BL-24481-00	塞	Plug	1
22	90465-11M10	固定	Clamp	1
23	6BL-24311-00	油管	Pipe, Fuel 1	1
24	90445-10M20	固定	Hose (L150)	1
25	90445-10MG7	软管	Hose (L350)	1
26	90464-10M59	固定	Clamp	1
27	90467-09M17	固定	Clip	4
28	90467-10M04	带垫螺栓	Clip	2
29	90464-11009	线夹	Clamp	1
30	90446-15003	软管	Hose (L100)	2
31	90464-13227	线夹	Clamp	4
32	6G1-24304-10	燃油管接头组件1	Fuel Pipe Joint Complete 1	1
33	97E95-06525	螺栓	Bolt, Hexagon with Washer Deep Recess	1
34	61N-24329-01	密封	Seal	1
35	62Y-28100-01	工具套件	Tool Kit	1

フユエルタンク

REF	雅马哈编码	中文名称	英文名称	用量
1	6YJ-W2420-J3	燃油箱组合	Fuel Tank Assembly (24L)	1
2	6YJ-24610-01	盖组合	Cap Assembly	1
3	6Y1-24260-30	油量计组合	Fuel Meter Assembly	1
4	90157-05M19	螺钉	Screw, Pan Head	4
5	6Y1-24329-00	密封	Seal	4
6	6Y1-24268-01	油量计衬垫	Gasket, Fuel Meter	1
7	6YJ-24167-00	滤	Strainer	1
8	6Y1-24306-55	燃油管组件1	FuelPipeComplete 1	1
9	6G1-24305-05	燃油管接头2(85以下D:11MM)含	Fuel Pipe Joint Complete	1
10	93210-08287	O型圈	O-ring	1
11	6Y1-24305-06	燃油管接头2	Fuel Pipe Joint Complete	1
12	93210-08287	O型圈	O-ring	1
13	90445-11M06	软管	Hose (L:2050MM)	1
14	650-24351-51	带1	Band 1	4
15	90445-11M05	固定	Hose (L:850MM)	1
16	6Y1-24360-52	起动注油泵组合	Primer Pump Assembly	1

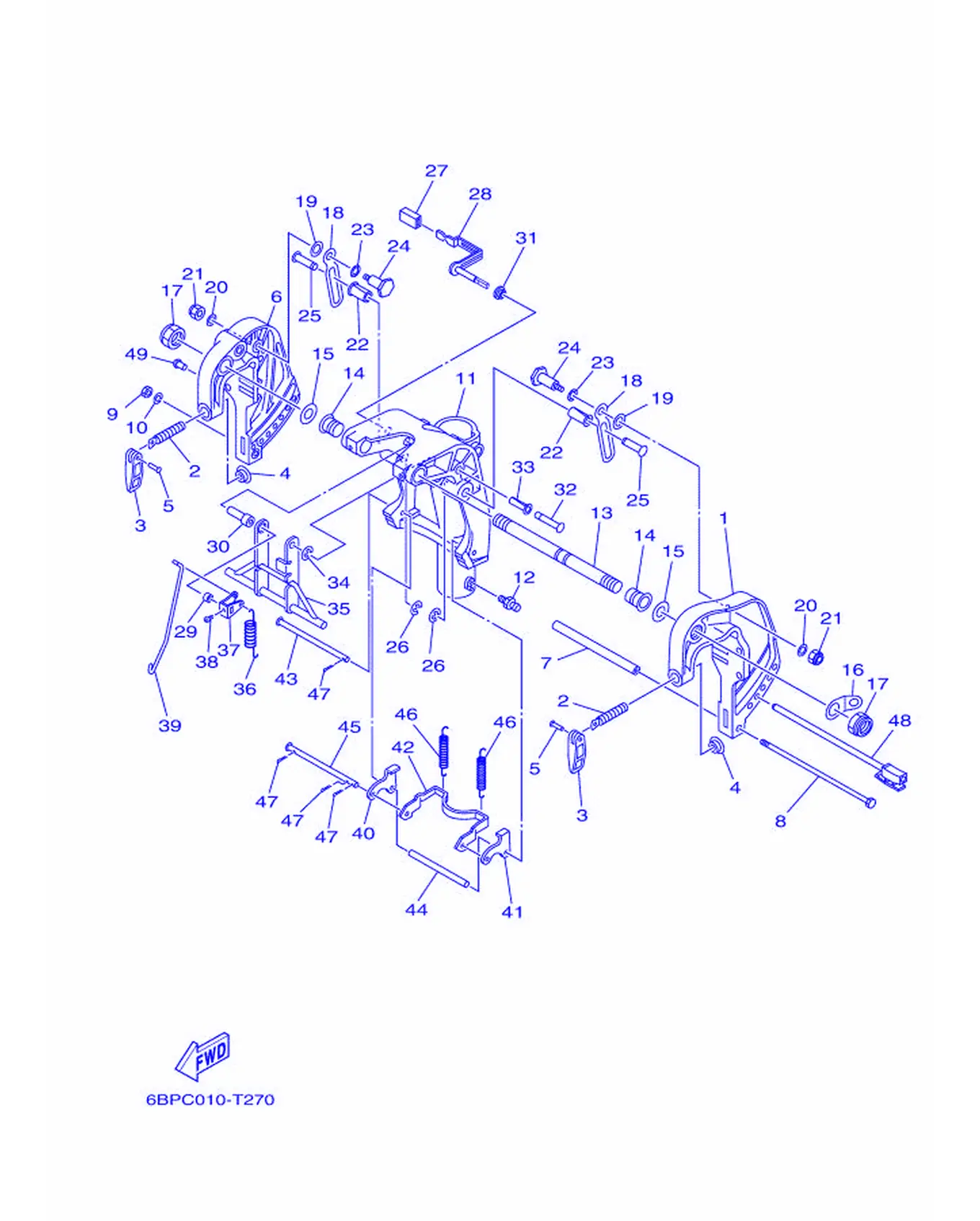

ブラケツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	66T-43111-01-8D	夹紧托架	Bracket, Clamp 1	1
2	90149-14M12	螺钉	Screw	2
3	663-43118-01-8D	艉板夹紧手柄	Handle, Transom Clamp	2
4	648-43114-01	艉板夹紧衬垫	Pad, Transom Clamp	2
5	90243-04007	固定销	Pin	2
6	66T-43112-01-8D	夹紧托架	Bracket, Clamp 2	1
7	90387-10108	轴套	Collar	1
8	90101-08M76	卡环	Bolt, Hexagon	1
9	95380-08600	有槽螺母	Nut	1
10	92990-08100	盘形垫	Washer,Spring	1
11	65W-43311-11-8D	旋转支架	Bracket, Swivel 1	1
12	93700-06M03	润滑油管嘴	Nipple, Grease	1
13	63D-43131-01	夹紧托架螺	Bolt,ClampBracket	1
14	90386-22M15	衬套	Bushing	2
15	90201-22M03	平垫圈	Washer,Plate	2
16	6J8-43113-01	夹紧托架面板	Plate,ClampBracket	1
17	90185-22043	卡环	Nut, Self-Locking	2
18	66T-43627-00	限位板	Stopper	2
19	90202-12031	平垫圈	Washer,Plate	2
20	90201-08M07	平垫圈	Washer,Plate	2
21	90185-08057	卡环	Nut, Self-Locking	2
22	90386-12M98	衬套	Bushing	2
23	90206-12M00	波形垫圈	Washer, Wave	2
24	90109-08M90	卡环	Bolt	2
25	90249-12M34	螺丝	Pin	2
26	99080-10600	卡环	Circlip	2
27	682-43318-01	盖	Cover	1
28	65W-43630-11	角度定位杆组合	TiltLeverAssembly	1
29	90387-07048	轴套	Collar	1
30	90387-07049	轴套	Collar	1
31	90386-07MA2	衬套	Bushing	1
32	90249-10M31	螺丝	Pin	1
33	90386-10M99	衬套	Bushing	1
34	99080-08600	卡环	Circlip	1
35	66T-43350-11	接收器组合	Recess Assembly	1
36	90506-20M37	接头	Spring, Tension	1
37	66T-43631-11	角度定位杆	Lever,Tilt	1
38	90157-05014	卡环	Screw, Pan Head	1
39	65W-43616-00	角度定位锁紧杆	Rod,TiltLock	1
40	65W-43614-01	角度定位锁紧面板	Plate,TiltLock	1
41	65W-43615-01	角度定位锁紧面板	Plate,TiltLock	1
42	65W-43613-00	角度定位锁紧臂	Arm,TiltLock	1
43	90249-07M32	螺丝	Pin	1
44	90387-07M29	衬套	Color	1
45	90249-07M33	螺丝	Pin	1
46	90506-30M00	接头	Spring, Tension	2
47	91490-20012	开口销	Pin, Cotter	4
48	65W-43160-00	角度定位杆组合	TiltRodAssembly	1
49	90269-02M08	螺丝	Rivet	2

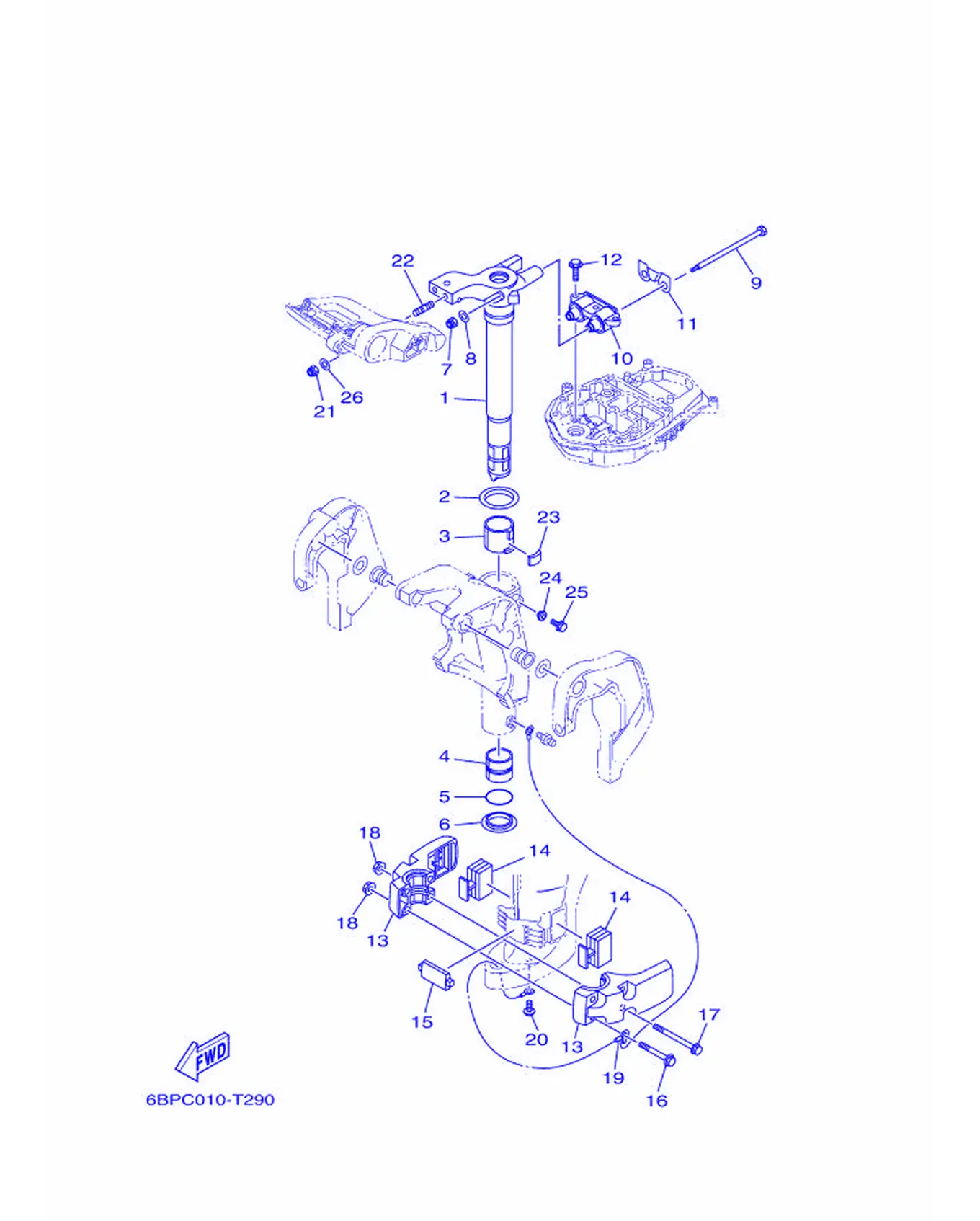

ブラケツト 4

REF	雅马哈编码	中文名称	英文名称	用量
1	65W-42511-11-8D	方向托架	Bracket, Steering	1
2	90209-52M00	垫圈	Washer	1
3	90386-52M02	衬套	Bushing	1
4	90386-44M03	衬套	Bushing	1
5	93210-43MJ0	O型圈	O-ring	1
6	90386-44M99	衬套	Bushing	1
7	90185-08018	锁紧螺母	Nut, Self-Locking	2
8	92995-08200	盘形垫	Washer	2
9	90101-08M86	螺栓	Bolt, Hexagon	2
10	67C-44514-20	上侧减震胶垫	Mount Damper, Upper Side	1
11	66T-44526-30	面板	Plate	1
12	97E75-08530	螺栓	Bolt, Hexagon with Washer Deep Recess	3
13	65W-44551-11-8D	下侧减震胶垫壳	Housing, Lower Mount Rubber 1	2
14	65W-44555-00	下侧减震胶垫	Mount Damper, Lower Side	2
15	65W-44575-01	下侧减震胶垫	Damper, Lower Mount Rubber	1
16	97E75-10580	内六角圆柱头螺钉	Bolt, Hexagon with Washer Deep Recess	2
17	90119-10074	带垫圈六角头螺栓	Bolt, with Washer	2
18	90179-10M33	螺帽	Nut	4
19	65W-82127-10	导线2	Wire,Lead 2	1
20	97885-06008	大柱头螺钉	Screw, Pan Head	1
21	90185-10027	锁紧螺母	Nut, Self-Locking	2
22	90116-10064	带垫圈六角头螺栓	Bolt, Stud	2
23	648-42528-01	阻力板	Friction Plate	1
24	65W-43373-01	减震器密封	Seal, Damper	1
25	90105-08M76	六角螺栓	Bolt, Flange	1
26	92995-10600	盘形垫	Washer	2

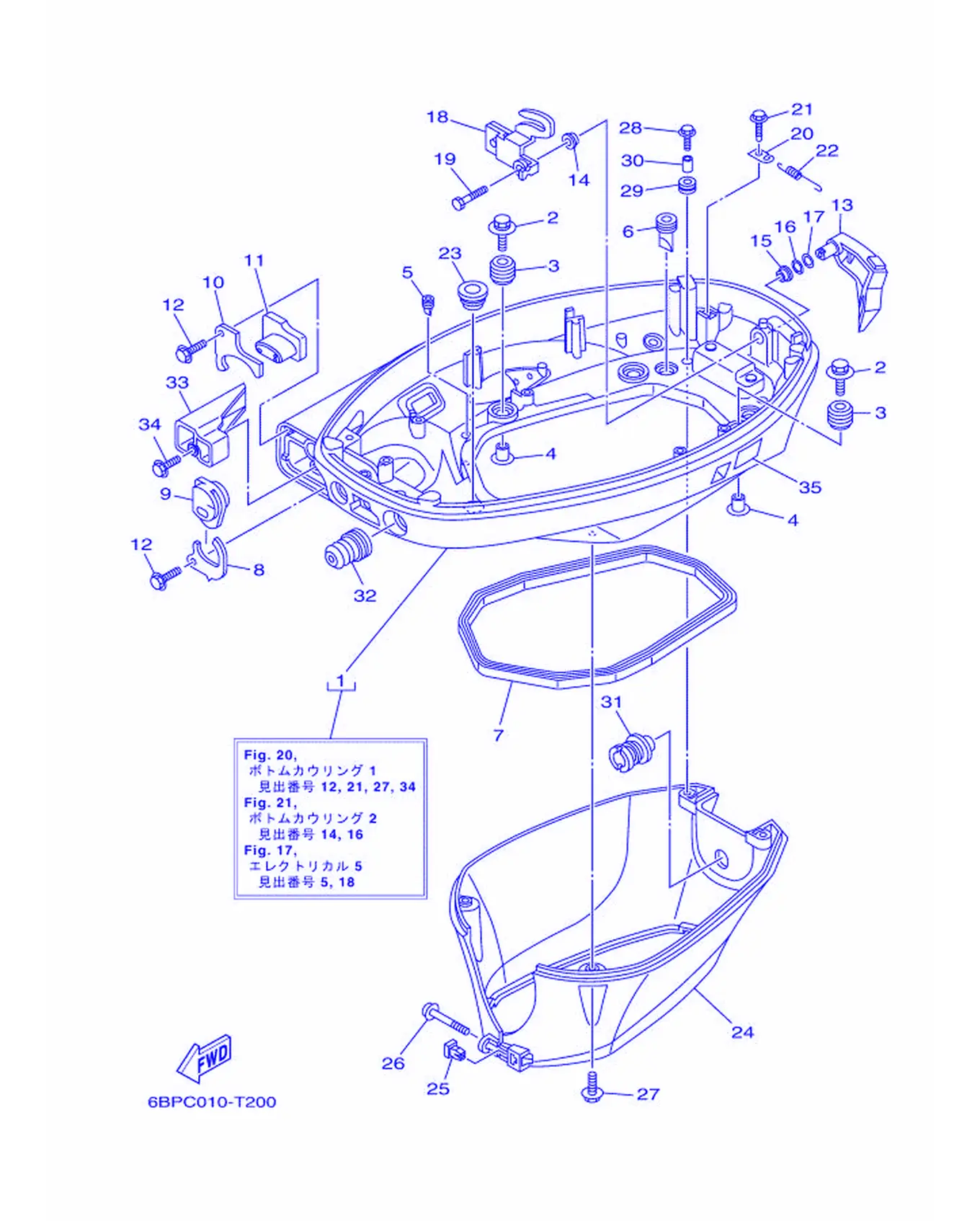

ボトムカウリング 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6BP-42710-00-8D	底罩组合	Bottom Cowling Assembly	1
2	90119-06291	带垫圈六角头螺栓	Bolt, with Washer	4
3	6BG-42748-01	固定	Grommet	4
4	90387-06M69	六角螺栓	Color	4
5	65W-42717-00	密封橡皮块2	Rubber,Seal 2	2
6	61A-42717-00	密封橡皮块2	Rubber,Seal 2	2
7	62Y-42716-01	密封橡皮块1	Rubber Seal 1	1
8	6BL-42761-10	限位板	Stopper	1
9	6BL-42725-21	固定	Grommet	1
10	6BL-42762-10	限位板	Stopper	1
11	6BL-42727-11	固定	Grommet	1
12	90109-06M86	螺栓	Bolt	2
13	6BL-42815-00-8D	夹杆	Lever, Clamp 1	1
14	90386-12M37	衬套	Bushing	1
15	90386-12MA2	衬套	Bushing	1
16	90206-12052	平垫圈	Washer, Wave	1
17	90201-12M07	平垫圈	Washer,Plate	1
18	6BG-42816-00	夹杆	Lever, Clamp 2	1
19	97D95-06012	螺栓	Bolt, Hexagon Deep Recess	1
20	66T-43144-00	弹簧	Hook,Spring	1
21	90109-06M86	螺栓	Bolt	1
22	90506-18023	拉簧	Spring, Tension	1
23	68U-42727-01	固定	Grommet	1
24	6BP-42741-00	挡板	Apron	1
25	60V-42756-00	夹箍支承	Stay, Clamp	1
26	97980-04245	缸盖总成	Screw, Washer	1
27	90109-06M86	螺栓	Bolt	2
28	97E95-06514	螺栓	Bolt, Hexagon with Washer Deep Recess	2
29	90480-13M24	固定	Grommet	2
30	90387-06M43	衬套	Color	2
31	6BP-42769-01	橡皮密封	Seal, Rubber	1
32	65W-42726-01	固定	Grommet	1
33	6BL-42735-00	保护	Protector	1
34	90109-06M86	螺栓	Bolt	1
35	6EE-42794-00	警告标志	Label, Warning (General)	1

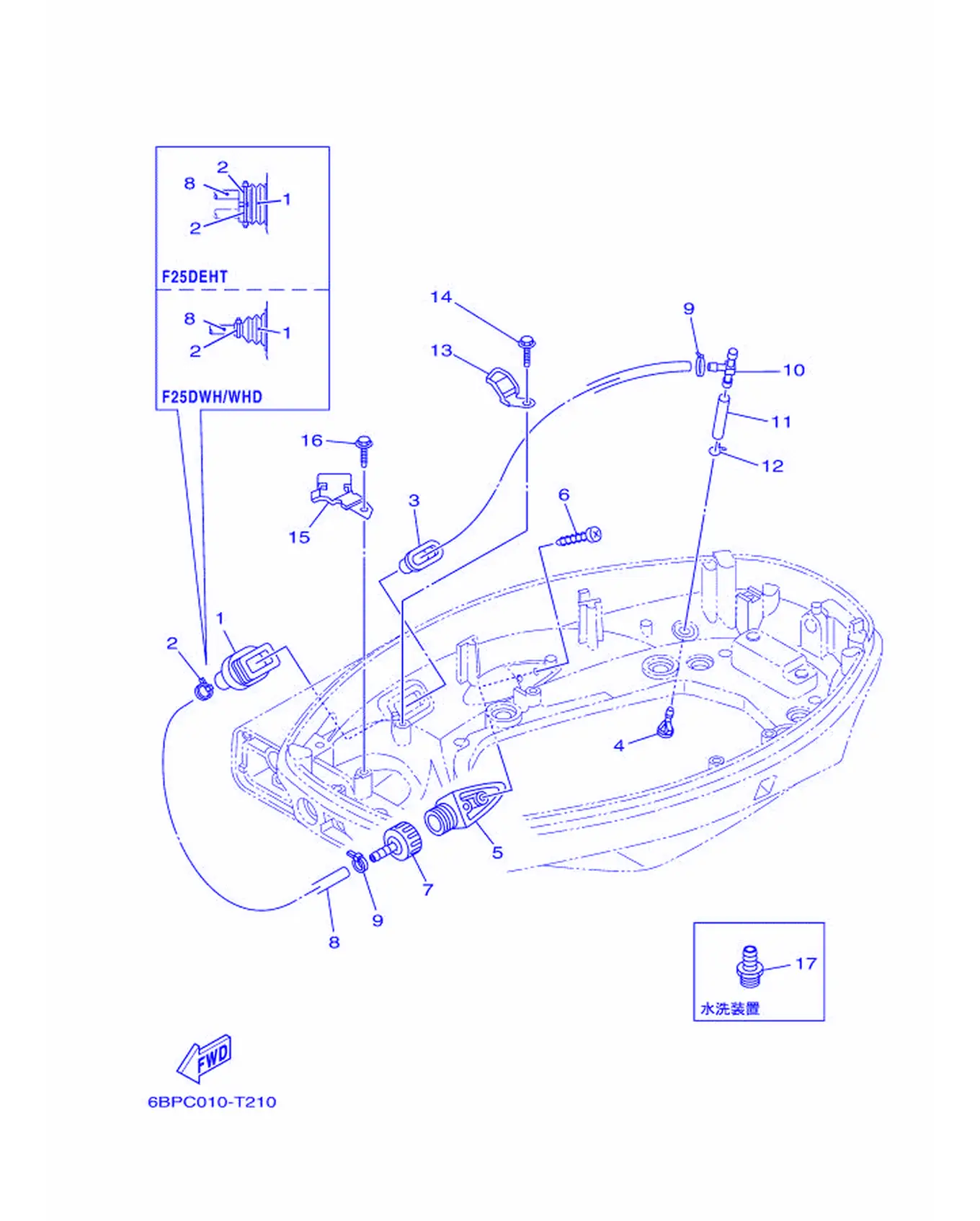

ボトムカウリング 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6BG-42724-01	固定	Grommet	1
2	90465-11M10	固定	Clamp	1
3	6BG-42384-00	密封	Seal, Cap	1
4	6BL-44391-00	软管管嘴	Nipple,Hose	1
5	6AW-12572-00	联接器	Adapter	1
6	97780-60520	自攻螺钉	Screw, Tapping	2
7	6R3-12580-00	软管接头5	JointAssembly	1
8	90445-11153	固定	Hose (L460)	1
9	90465-11M10	固定	Clamp	2
10	6C5-24378-00	连接管4	Pipe,Joint 3	1
11	90445-09057	固定	Hose	1
12	90467-08M18	固定	Clip	1
13	6BL-24396-00	带2	Plate	1
14	90109-06M86	螺栓	Bolt	1
15	6BL-24364-00	支承	Stay	1
16	90109-06M86	螺栓	Bolt	1
17	69J-12584-00	软管接头	Joint,Hose 3	1

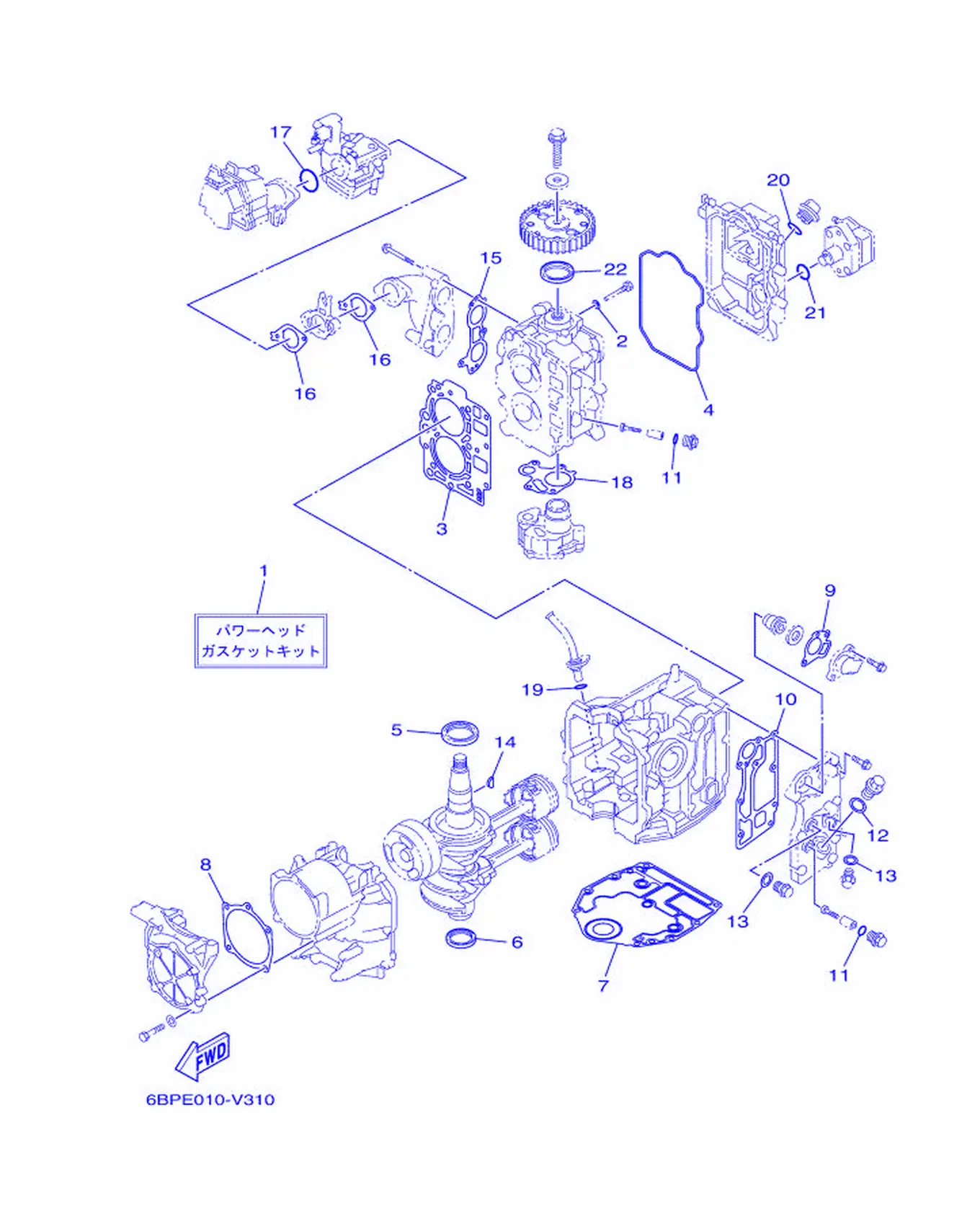

リペアキツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6BL-W0001-02	衬垫套	Power Head Gasket Kit	1
2	90430-06014	螺栓	Gasket	1
3	6BL-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
4	6BL-11356-00	气缸密封圈2	Seal, Cylinder 2	1
5	93102-43M42	油封	OilSeal	1
6	93101-35002	油封	OilSeal	1
7	6BG-11351-01	气缸垫片1	Gasket, Cylinder	1
8	6BL-15663-00	密封	Seal	1
9	62Y-12414-00	盖衬垫	Gasket,Cover	1
10	6BL-41114-00	排气管外盖衬垫	Gasket, Exhaust Outer Cover	1
11	93210-13M63	O型圈	O-ring	3
12	90201-186F1	平垫圈	Washer,Plate	1
13	90430-14115	垫片	Gasket	2
14	90280-03017	半圆键	Key, Withdraw	1
15	6BL-13645-00	岐管衬垫1	Gasket, Manifold 1	1
16	6BL-13646-00	岐管衬垫2	Gasket, Manifold 2	2
17	93210-39ME4	O型圈	O-ring	1
18	6C5-13329-00	泵盖衬垫	Gasket,PumpCover	1
19	93210-19MJ3	O型圈	O-ring	1
20	93210-24M79	O型圈	O-ring	1
21	93210-24M79	O型圈	O-ring	1
22	93102-37M40	油封	OilSeal	1

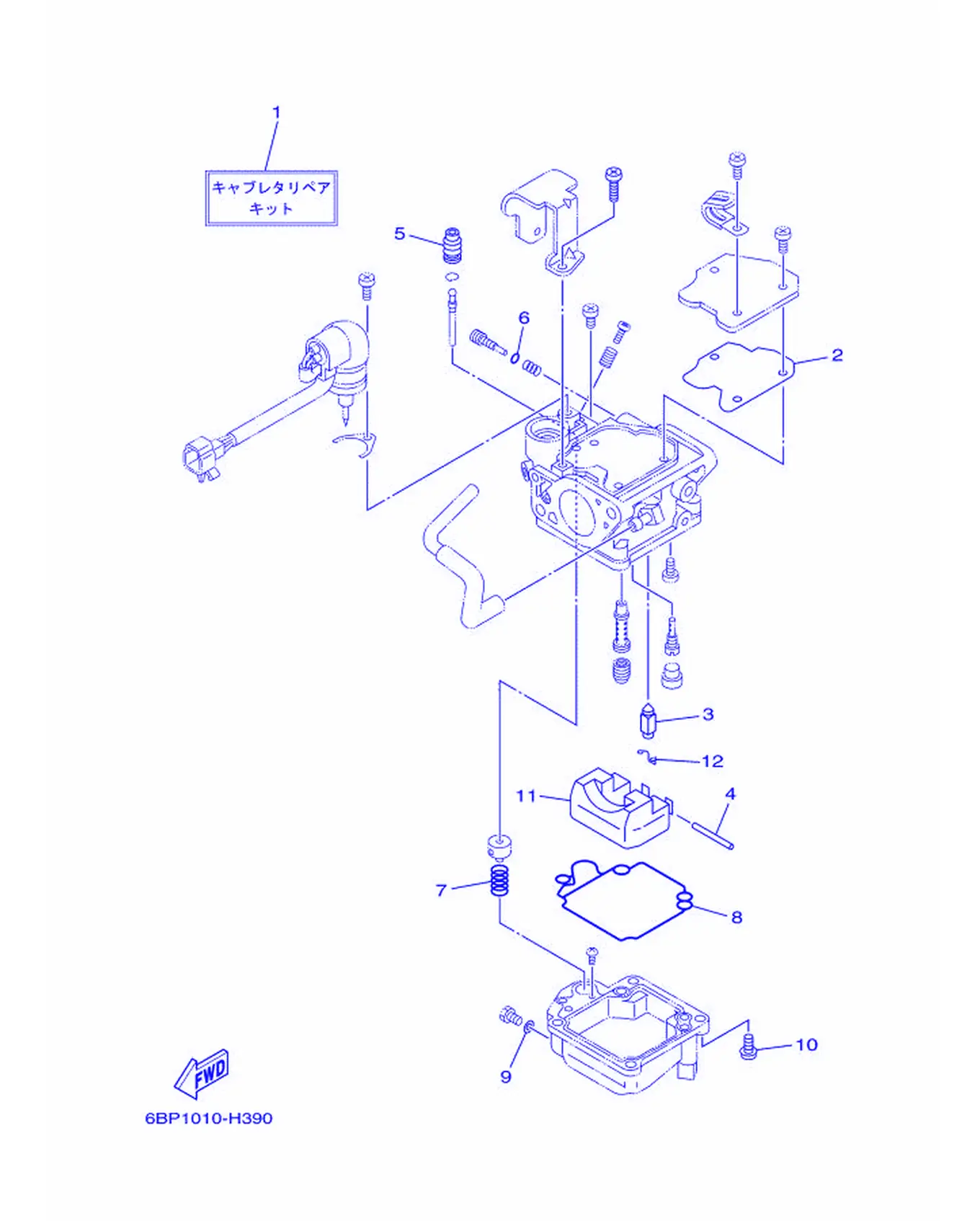

リペアキツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6BL-W0093-00	化油器修理套	Carburetor Repair Kit	1
2	65W-14126-10	衬垫	Gasket	1
3	6AH-14546-00	阀门	Valve, Needle	1
4	6H4-14548-00	浮子臂销	Pin, Float Arm	1
5	65W-14373-02	柱塞罩盖	Cover, Plunger Clip	1
6	67C-14397-00	O型圈	O-ring	1
7	65W-14335-00	柱塞弹簧	Spring, Plunger	1
8	65W-14384-00	浮子室衬垫	Gasket, Float Chamber	1
9	65W-14398-00	衬垫	Gasket	1
10	97980-04114	带垫圈螺钉	Screw, Washer	4
11	63V-14985-00	浮子	Float	1
12	633-14159-00	钢夹	Clip	1

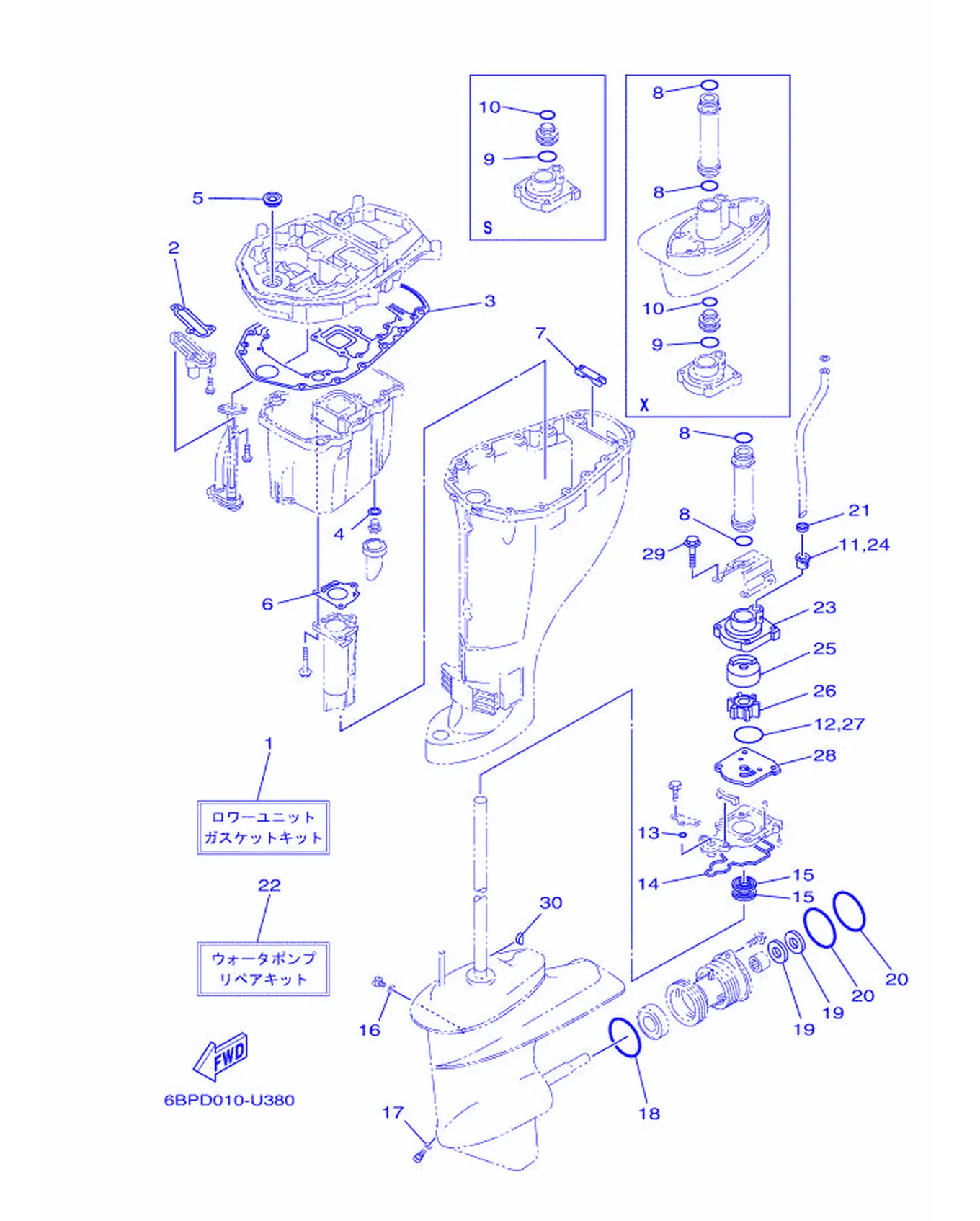

リペアキツト 3

REF	雅马哈编码	中文名称	英文名称	用量
1	65W-W0001-25	衬垫套	Lower Unit Gasket Kit	1
2	62Y-13475-00	衬垫	Gasket	1
3	69W-15312-01	油槽衬垫	Gasket, Oil Pan	1
4	90430-14M09	衬垫	Gasket	1
5	93103-16011	油封	Oil Seal	1
6	67C-41133-00	排气岐管衬垫1	Gasket, Exhaust Manifold	1
7	65W-45128-00	密封圈2	Seal 2	1
8	93210-26130	O型圈	O-ring	2
9	93210-26130	O型圈	O-ring	1
10	93210-22164	O型圈	O-ring	1
11	6L2-44367-01	水封减震器	Damper, Water Seal 3	1
12	93210-45161	O型圈	O-ring	1
13	93210-06ME6	O型圈	O-ring	1
14	61N-45315-00	水下装置壳体密封垫	Packing, Lower Casing	1
15	93101-22067	油封	OilSeal	2
16	90430-08003	垫片	Gasket	1
17	90430-08003	垫片	Gasket	1
18	93210-64ME7	O型圈	O-ring	1
19	93101-20M07	油封	OilSeal	2
20	93210-65M50	O型圈	O-ring	2
21	90430-10002	固定	Gasket	1
22	61N-W0078-14	水泵修理套	Water Pump Repair Kit	1
23	61N-44311-01	水泵壳	Housing,Water Pump	1
24	6L2-44367-01	水封减震器	Damper, Water Seal 3	1
25	61N-44322-01	芯子	Insert, Cartridge	1
26	6H4-44352-02	叶轮	Impeller	1
27	93210-45161	O型圈	O-ring	1
28	61N-44323-00	外挡板	Outer Plate, Cartridge	1
29	97E95-06540	螺栓	Bolt, Hexagon with Washer Deep Recess	4
30	90280-03024	半圆键	Key, Woodruff	1

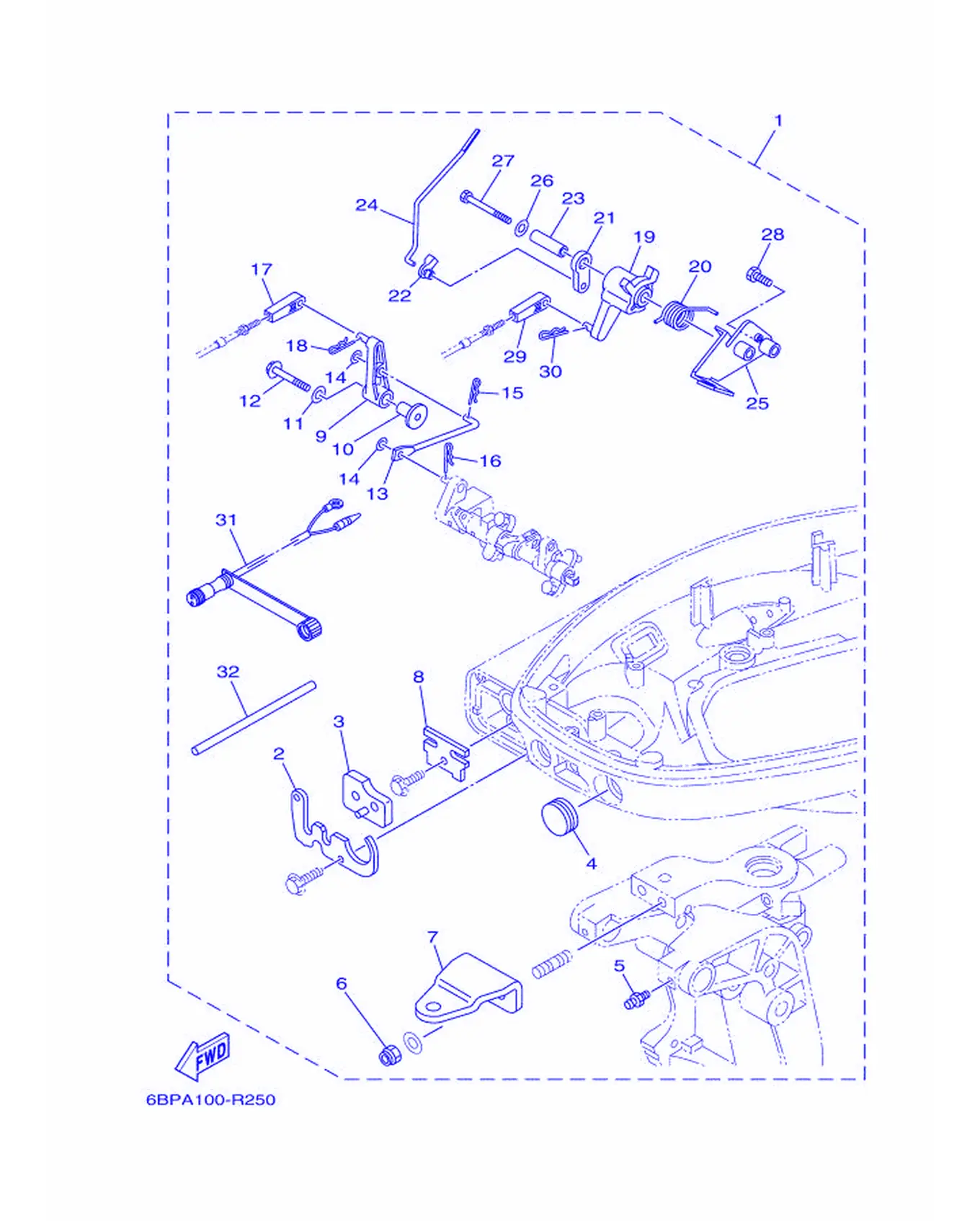

リモコンアタツチメント

REF	雅马哈编码	中文名称	英文名称	用量
1	6BL-48501-02	遥控附件组合	Remote Control Attachment Assembly	1
2	6BL-42761-00	限位板	Stopper	1
3	6BL-42727-01	固定	Grommet	1
4	65W-42726-11	固定	Grommet	1
5	93700-06M03	润滑油管嘴	Nipple, Grease	2
6	90185-10027	锁紧螺母	Nut, Self-Locking	2
7	65W-48511-01	操舵转向钩	Fook, Steering	1
8	6BL-48538-00	钢索夹1	Clamp, Cable 1	1
9	6BL-44125-00	变挡杆杠杆手柄	Lever, Shift Rod	1
10	90387-06M86	衬套	Color	1
11	90201-06M31	面板垫圈	Washer,Plate	1
12	97E95-06535	螺栓	Bolt, Hexagon with Washer Deep Recess	1
13	6BL-44192-00	指示器4	Link, Shift Rod	1
14	90201-05M06	平垫圈	Washer,Plate	2
15	90468-10005	线夹	Clip	1
16	90468-18001	固定	Clip	1
17	6FM-48344-00	变档控制杆手柄	Cable End, Remote Control	1
18	90468-18008	钢夹	Clip	1
19	6BL-41638-00	滑	Pulley	1
20	90508-20040	接头	Spring, Torsion	1
21	65W-41283-00	空转油门杠杆	Lever, Free Accelerator	1
22	6J8-41262-00	阻风门杠杆接头	Joint, Choke Lever	1
23	90387-06139	轴套	Collar	1
24	6BL-41211-00	加速器连杆	Link, Accelerator	1
25	6BL-14571-10	油门托架	Bracket, Throttle	1
26	90201-06M31	面板垫圈	Washer,Plate	1
27	97D95-06065	螺栓	Bolt, Hexagon Deep Recess	1
28	97D95-06025	螺栓	Bolt, Hexagon Deep Recess	1
29	6FM-48344-00	变档控制杆手柄	Cable End, Remote Control	1
30	90468-18008	钢夹	Clip	1
31	6D5-84340-01	插座缆索组合1	Socket Code Assembly 1	1
32	90446-09M42	固定	Hose (L160)	2

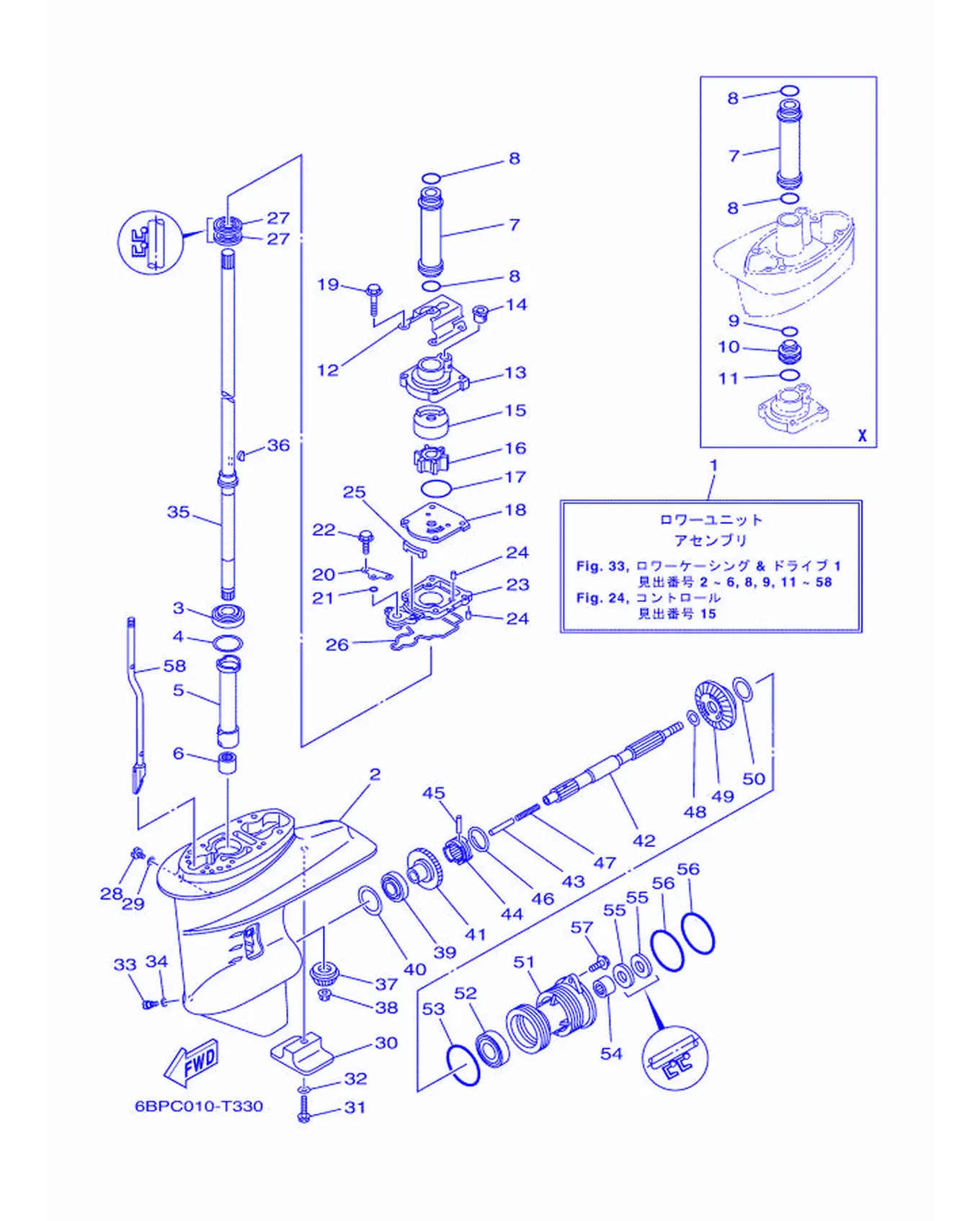

ロワーケーシング & ドライブ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	65W-45300-34-8D	水下装置总成	Lower Unit Assembly	1
2	61N-45311-02-8D	水下装置壳	Casing, Lower	1
3	93332-000W5	轴承	Bearing	1
4	61N-45587-00	填隙	Shim(T:0.7MM)	1
4	61N-45587-10	填隙	Shim(T:1.0MM)	1
4	61N-45587-20	填隙	Shim(T:1.1MM)	1
4	61N-45587-30	填隙	Shim(T:1.2MM)	1
4	61N-45587-40	填隙	Shim (T:1.3MM)	1
4	61N-45587-50	填隙	Shim (T:1.4MM)	1
4	61N-45587-60	填隙	Shim (T:1.5MM)	1
4	61N-45587-70	填隙	Shim (T:1.6MM)	1
5	61N-45536-00	驱动轴套	Sleeve,Drive Shaft	1
6	93315-220V7	轴承	Bearing	1
7	61N-44362-10	水管	Tube, Water	1
8	93210-26130	O型圈	O-ring	2
9	93210-22164	O型圈	O-ring	1
10	61N-44362-00	水管	Tube, Water	1
11	93210-26130	O型圈	O-ring	1
13	61N-44311-01	水泵壳	Housing,Water Pump	1
14	6L2-44367-01	水封减震器	Damper, Water Seal 3	1
15	61N-44322-01	芯子	Insert, Cartridge	1
16	6H4-44352-02	叶轮	Impeller	1
17	93210-45161	O型圈	O-ring	1
18	61N-44323-00	外挡板	Outer Plate, Cartridge	1
19	97E95-06540	螺栓	Bolt, Hexagon with Washer Deep Recess	4
20	65W-44176-00	托架	Bracket	1
21	93210-06ME6	O型圈	O-ring	1
22	97E95-06525	螺栓	Bolt, Hexagon with Washer Deep Recess	2
23	65W-45331-00-CA	轴承壳	Housing, Bearing	1
24	93604-10M03	定位销	Pin, Dowel	3
25	61N-45127-01	密封	Seal	1
26	61N-45315-00	水下装置壳体密封垫	Packing, Lower Casing	1
27	93101-22067	油封	OilSeal	2
28	90340-08002	螺丝	Plug, Straight Screw	1
29	90430-08003	垫片	Gasket	1
30	61N-45251-01	阳极	Anode	1
31	95D95-06035	凸缘螺栓	Bolt, Flange Deep Recess	1
32	92990-06300	盘形垫	Washer, Internal Tooth	1
33	688-45341-10	放油塞	Plug, Drain	1
34	90430-08003	垫片	Gasket	1
35	61N-45510-30	驱动轴组合	Drive ShaftAssembly	1
36	90280-03024	半圆键	Key, Woodruff	1
37	61N-45551-00	小齿轮	Pinion (13T)	1
38	90179-10M14	螺帽	Nut	1
39	93332-00005	轴承	Bearing	1
40	6L2-45567-00	填隙	Shim(T:1.0MM)	1
40	6L2-45567-10	填隙	Shim(T:1.1MM)	1
40	6L2-45567-20	填隙	Shim(T:1.2MM)	1
40	6L2-45567-30	填隙	Shim (T:1.3MM)	1
40	6L2-45567-40	填隙	Shim (T:1.4MM)	1
41	61N-45560-10	齿轮	Gear 1 (27T)	1
42	65W-45611-00	螺旋浆轴30H'	Shaft,Propeller	1
43	648-45635-00	变挡柱	Plunger, Shift	1
44	6FM-45631-00	爪形离合器	Clutch, Dog	1
45	90250-05010	圆柱销	Pin, Straight	1
46	648-45633-11	固定环	Ring, Cross Pin	1
47	90501-10065	弹簧	Spring, Compression	1
48	90201-20417	平垫圈	Washer,Plate	1
49	61N-45571-00	齿轮	Gear 2 (27T)	1
50	6L2-45577-00	填隙	Shim(T:1.0MM)	1
51	61N-45361-01-8D	水下装置壳体盖	Cap, Lower Casing	1
52	93306-00612	轴承	Bearing	1
53	93210-64ME7	O型圈	O-ring	1
54	93315-22004	轴承	Bearing	1
55	93101-20M07	油封	OilSeal	2
56	93210-65M50	O型圈	O-ring	2
57	97E75-06520	螺栓附墊圈	Bolt, Hexagon with Washer Deep Recess	2
58	65W-44150-31	变挡凸轮组合	Shift Cam Assembly	1

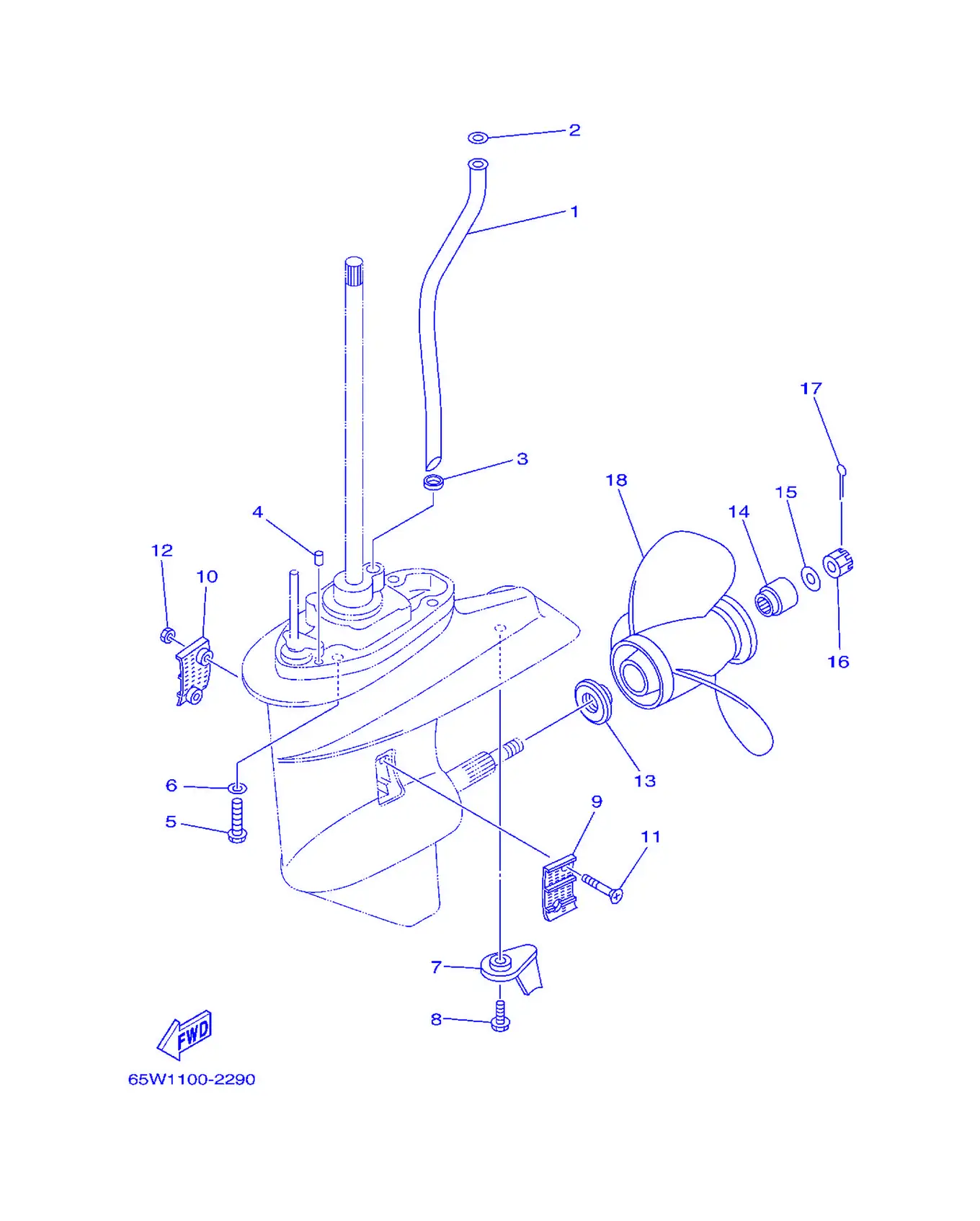

ロワーケーシング & ドライブ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	65W-44361-32	水管	Tube, Water	1
2	90202-12060	平垫圈	Washer,Plate	1
3	90430-10002	固定	Gasket	1
4	93606-11M24	定位销	Pin, Dowel	2
7	61N-45371-00	航向调整	Tab Trim	1
8	90119-06M48	带垫螺栓	Bolt, With Washer	1
9	6L2-45214-00	进水口盖	Cover, Water Inlet	1
10	6L2-45215-00	进水口盖	Cover, Water Inlet	1
11	90151-05M05	卡环	Screw, Countersunk	2
12	90185-05002	螺母	Nut, Self-Locking	2
13	6L2-45987-01	衬套	Spacer	1
14	689-45997-00	衬套	Spacer	1
15	92990-14200	平垫圈	Washer, Plain	1
16	90171-14013	螺母	Nut, Castle	1
17	91490-30025	开口销	Pin, Cotter	1
18	664-45943-01	螺旋浆组合	Propeller (3X9-7/8X8-F)	1
18	664-45941-01	螺旋浆组合	Propeller (3X9-7/8X9-F)	1
18	664-45945-00	螺旋浆	Propeller (3X9-7/8X10-1/2-F)	1
18	664-45947-01	螺旋浆	Propeller (3X9-7/8X11-1/4-F)	1
18	664-45954-01	螺旋浆组合	Propeller (3X9-7/8X12-F)	1
18	664-45972-00	螺旋浆组合	Propeller (3X9-1/8X12-F)	1
18	664-45949-02	螺旋浆组合	Propeller (3X9-7/8X13-F)	1
18	664-45970-00	螺旋浆组合	Propeller (3X9-1/8X13-F)	1
18	664-45952-00	螺旋浆组合	Propeller (3X9-7/8X14-F)	1
