雅马哈 FL450A - FL450AVT2U

共 68 个部位，点击零件编码查看详情，或搜索本页零件。

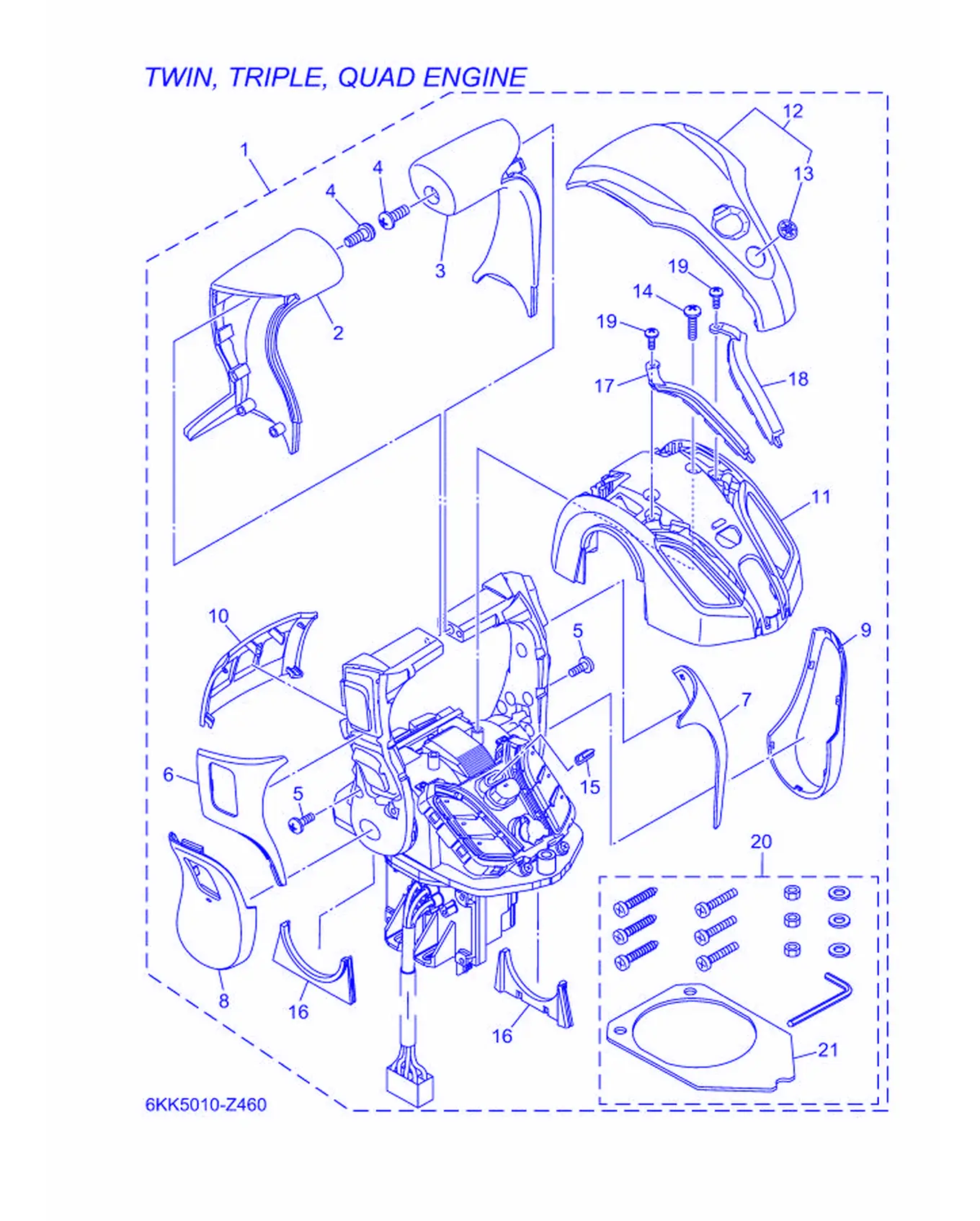

DEC 2 (シングルイガイ)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X9-48A02-12	遥控盒组件3	Remote Control Box Assembly 3	1
2	6X9-4822B-10	控制杠杆握柄	Grip, Lever Multi	1
3	6X9-48222-10	控制杠杆握柄	Grip,ControlLever	1
4	6X9-48127-10	螺钉1	Screw 1	2
5	6X9-44189-20	螺钉	Screw	4
6	6X9-48224-00	控制杠杆盖	Cover,ControlLever	1
7	6X9-48224-10	控制杠杆盖	Cover,ControlLever	1
8	6X9-48225-00	盖	Cover	1
9	6X9-48225-10	盖	Cover	1
10	6X9-48119-10	盖	Cover	1
11	6X9-43679-10	限位板	Cover	1
12	6X9-48400-10	盖罩	Cover Assembly	1
13	6X9-42697-00	音叉标志	Tuning Fork Mark	1
14	6X9-44189-00	螺钉	Screw	2
15	6X9-83532-00	导向灯镜面，指示灯镜面	Lens, Pilot	1
16	6X9-48219-00	导线盖	Cover,Lead	2
17	6X9-84411-00	照灯透镜	Lens, Illuminate 1	1
18	6X9-84412-00	照灯透镜	Lens, Illuminate 2	1
19	6X9-44189-10	螺钉	Screw	2
20	6X9-48901-10	维修垫片	Parts Set 1	1
21	6X9-48176-10	固定	Grommet	1

DEC 4 (ツイン_メインステーシヨン)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X9-48A02-12	遥控盒组件3	Remote Control Box Assembly 3	1
2	6X9-82580-71	电缆组件2	Wire Harness Assembly 2	1
3	6Y8-85371-01	电阻组	End of Line Resistor	1
4	6X6-85590-53	控制器组合	Control Unit Assembly	2
5	6X9-4821A-10	壳体	Housing 2	1
6	6X9-48171-00	螺栓	Bolt	4
7	6Y8-85371-01	电阻组	End of Line Resistor	1
8	6X9-48128-00	螺钉2	Screw 2	8
9	90157-06M13	卡环	Screw, Pan Head	8
10	95780-06300	带垫螺母	Nut, Flange	8
11	90201-065F1	平垫圈	Washer, Plate	8

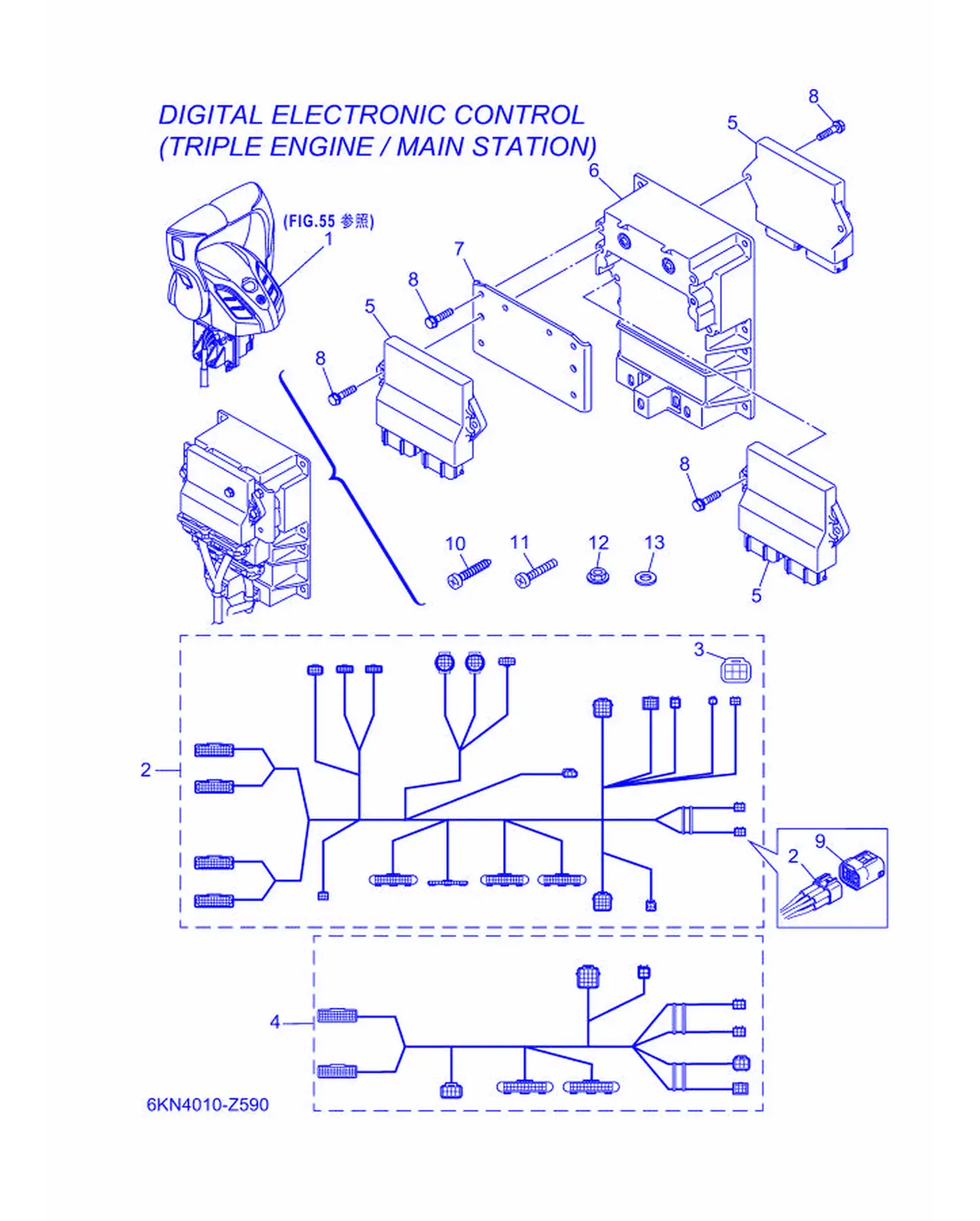

DEC 5 (トリプル_メインステーシヨン)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X9-48A02-12	遥控盒组件3	Remote Control Box Assembly 3	1
2	6X9-82580-71	电缆组件2	Wire Harness Assembly 2	1
3	6Y8-85371-01	电阻组	End of Line Resistor	1
4	6X9-82580-81	电缆组件2	Wire Harness Assembly 2	1
5	6X6-85590-53	控制器组合	Control Unit Assembly	3
6	6X9-4821A-10	壳体	Housing 2	1
7	6X9-4821B-00	壳体	Housing 3	1
8	6X9-48171-00	螺栓	Bolt	8
9	6Y8-85371-01	电阻组	End of Line Resistor	1
10	6X9-48128-00	螺钉2	Screw 2	8
11	90157-06M13	卡环	Screw, Pan Head	8
12	95780-06300	带垫螺母	Nut, Flange	8
13	90201-065F1	平垫圈	Washer, Plate	8

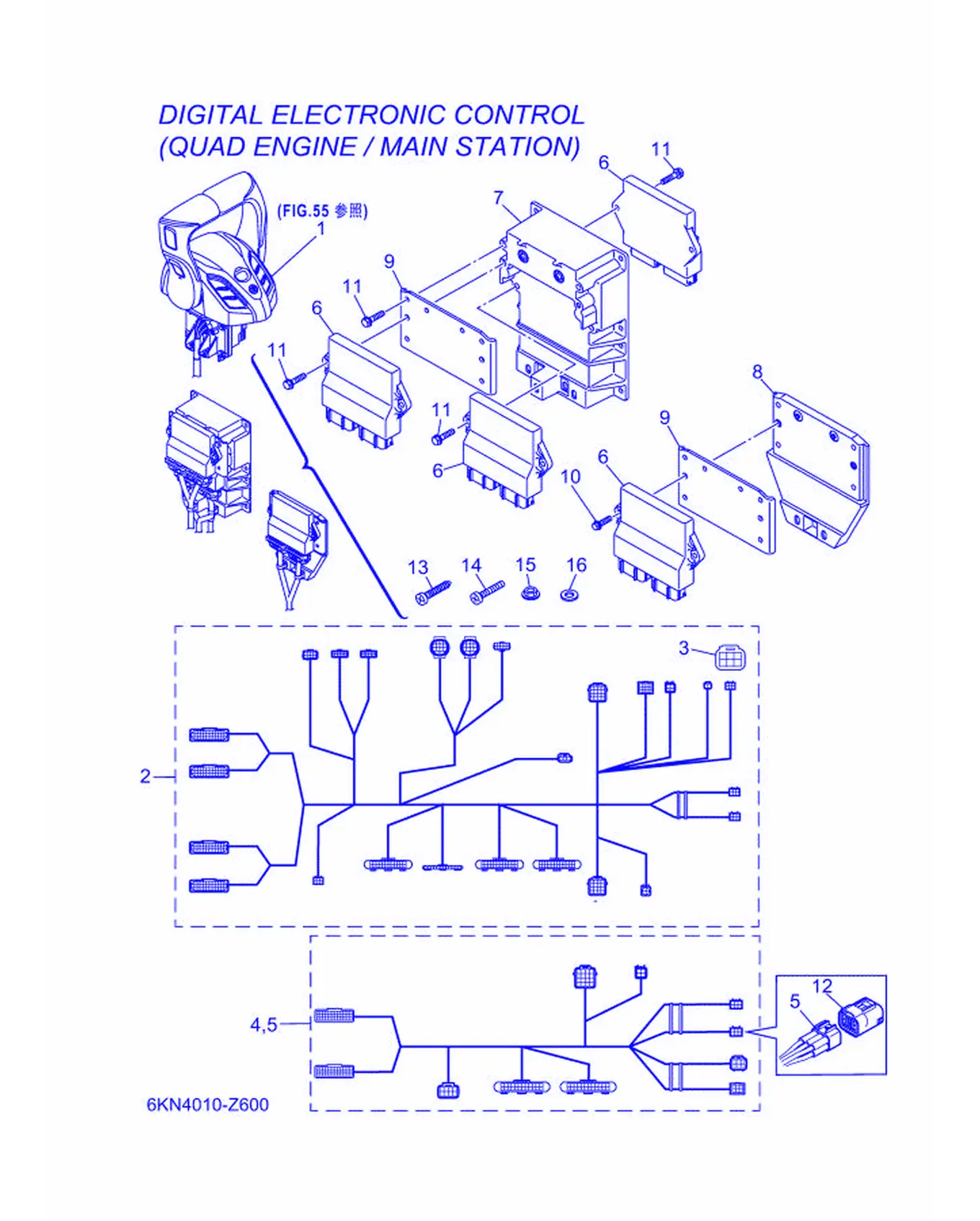

DEC 6 (クワツド_メインステーシヨン)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X9-48A02-12	遥控盒组件3	Remote Control Box Assembly 3	1
2	6X9-82580-71	电缆组件2	Wire Harness Assembly 2	1
3	6Y8-85371-01	电阻组	End of Line Resistor	1
4	6X9-82580-81	电缆组件2	Wire Harness Assembly 2	1
5	6X9-82580-91	电缆组件2	Wire Harness Assembly 2	1
6	6X6-85590-53	控制器组合	Control Unit Assembly	4
7	6X9-4821A-10	壳体	Housing 2	1
8	6X9-48211-10	壳体1	Housing 1	1
9	6X9-4821B-00	壳体	Housing 3	2
10	90105-06106	六角法兰面螺栓	Bolt, Flange	2
11	6X9-48171-00	螺栓	Bolt	8
12	6Y8-85371-01	电阻组	End of Line Resistor	1
13	6X9-48128-00	螺钉2	Screw 2	13
14	90157-06M13	卡环	Screw, Pan Head	13
15	95780-06300	带垫螺母	Nut, Flange	13
16	90201-065F1	平垫圈	Washer, Plate	13

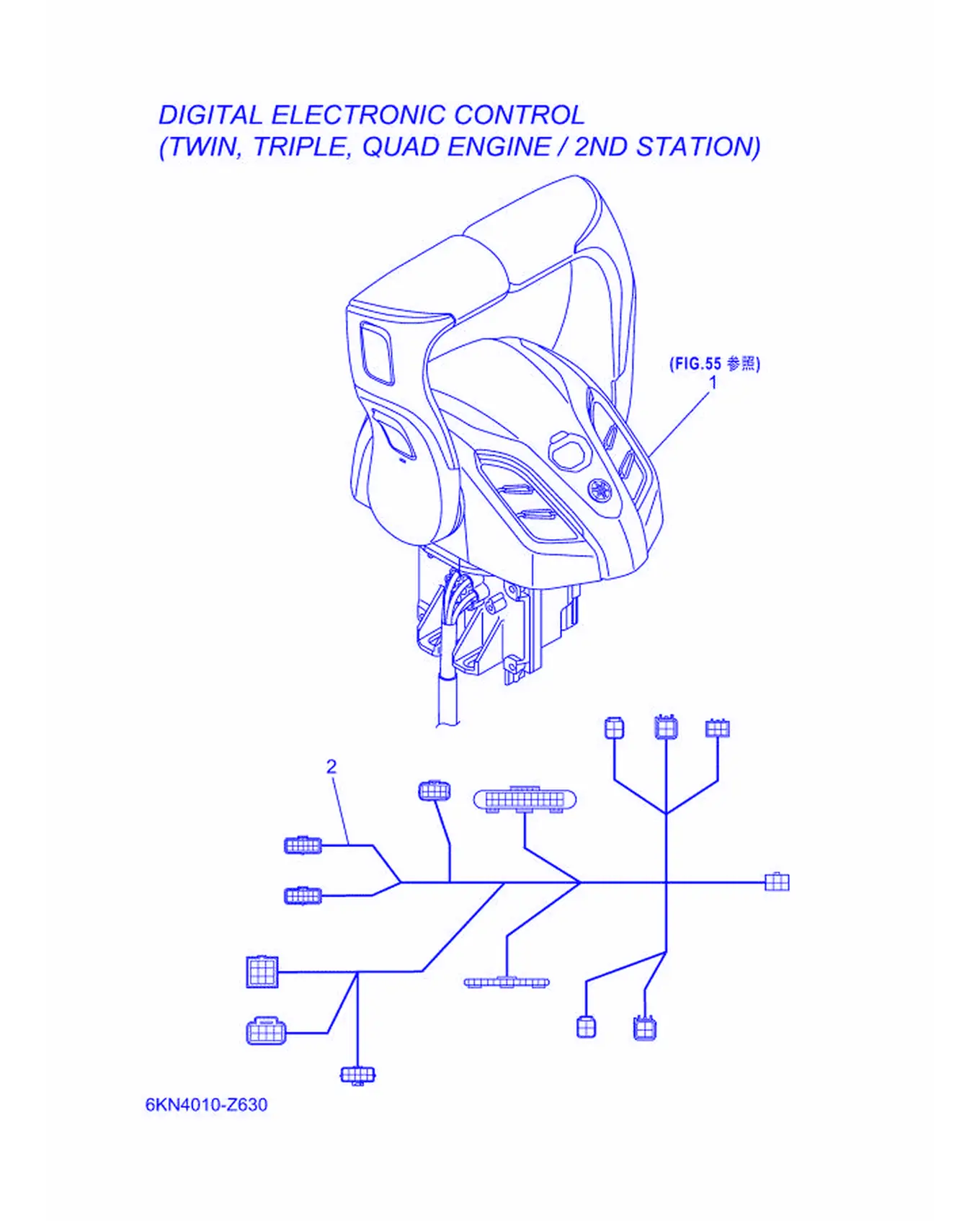

DEC 8 (シングルイガイ_サブステーシヨン)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X9-48A02-12	遥控盒组件3	Remote Control Box Assembly 3	1
2	6X9-82580-K1	电缆组件2	Wire Harness Assembly 2	1

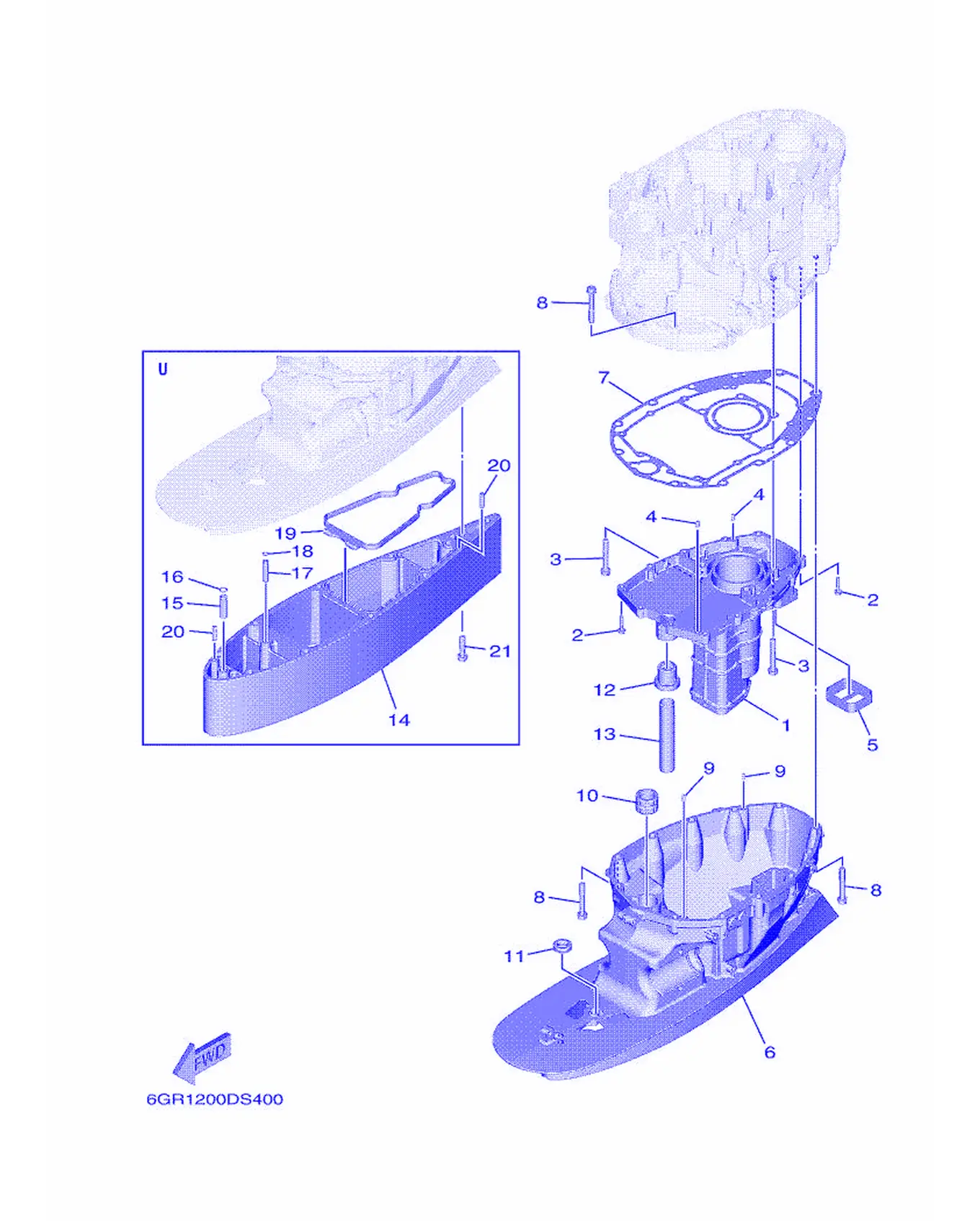

アツパケ-シング 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-14711-01	消声器1	Muffler 1	1
2	95D95-06030	螺栓	Bolt, Flange Deep Recess	12
3	97E75-10570	螺栓	Bolt, Hexagon with Washer Deep Recess	4
4	93606-12019	定位销	Pin, Dowel	2
5	6GR-45127-00	密封	Seal	1
6	6GR-45111-00-CE	水上装置壳	Casing, Upper	1
7	6GR-45113-00	水上装置壳体衬垫	Gasket, Upper Casing	1
8	97E75-10570	螺栓	Bolt, Hexagon with Washer Deep Recess	12
9	93606-12019	定位销	Pin, Dowel	2
10	6GR-45318-00	驱动轴衬套	Bushing, Drive Shaft	1
11	6GR-44521-00	密封	Seal	1
12	6GR-44367-01	水封减震器	Damper, Water Seal 3	1
13	90440-27005	管	Pipe	1
13	90440-27006	管	Pipe	1
14	6GR-45211-00-CE	延伸部分	Extension	1
15	6GR-45398-00	软管接头	Nipple, 1	1
16	93210-10010	十字槽螺钉	O-ring	1
17	6GR-45399-00	软管接头	Nipple, 2	1
18	93210-07100	O型圈	O-ring	1
19	6GR-45375-01	密封圈减震	Damper, Seal	1
20	99480-08030	平行销	Pin	2
21	90119-10024	带垫圈螺栓	Bolt, With Washer	1

アツパケーシング 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-41137-00	排气导管	Guide, Exhaust	1
2	90340-32011	螺塞	Plug, Straight Screw	2
3	93210-32172	O型圈	O-ring	2
4	93102-26004	油封	Oil Seal	1
5	6GR-41297-00	垫圈1	Washer, 1	1
6	97D95-06012	螺栓	Bolt, Hexagon Deep Recess	1
7	6AW-42724-01	固定	Grommet	1
8	6H1-42726-22	固定	Grommet	2
9	6BG-42384-00	密封	Seal, Cap	2
10	90465-11M10	固定	Clamp	4
11	6GR-42724-01	固定	Grommet	1
12	6GR-42384-00	密封圈组合	Seal, Cap	1
13	90465-11M59	固定	Clamp	1
14	6DA-42717-01	密封橡皮块2	Rubber, Seal 2	4
15	6DA-42384-00	帽密封	Seal, Cap	4
16	6GR-44391-00	软管管嘴	Nipple, Hose	1
17	60V-42747-10	垫	Pad	1
18	95D95-06016	螺栓	Bolt, Flange Deep Recess	1
19	6GR-12584-00	软管接头	Joint, Hose 3	2
20	6GR-44366-01	水封减震器	Damper, Water Seal 2	2
21	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	2
22	97E75-10570	螺栓	Bolt, Hexagon with Washer Deep Recess	6
23	90119-10040	带垫圈六角头螺栓	Bolt, with Washer	4
24	90119-10075	带垫圈六角头螺栓	Bolt, with Washer	4
25	93608-16M16	定位销	Pin, Dowel	2
26	6GR-14753-00	排气消声器	Silencer, Exhaust	1
27	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	2
28	6GR-45135-00	管	Pipe	1
29	90450-35003	软管夹箍总成	Hose Clamp Assembly	2
30	6GR-42716-00	密封橡皮块1	Rubber Seal 1	1
31	6GR-82398-00	托架	Plate 3	1
32	95D95-06012	螺栓	Bolt, Flange Deep Recess	2
33	90464-19M45	固定夹	Clamp	1
34	90464-12015	扭簧	Clamp	1

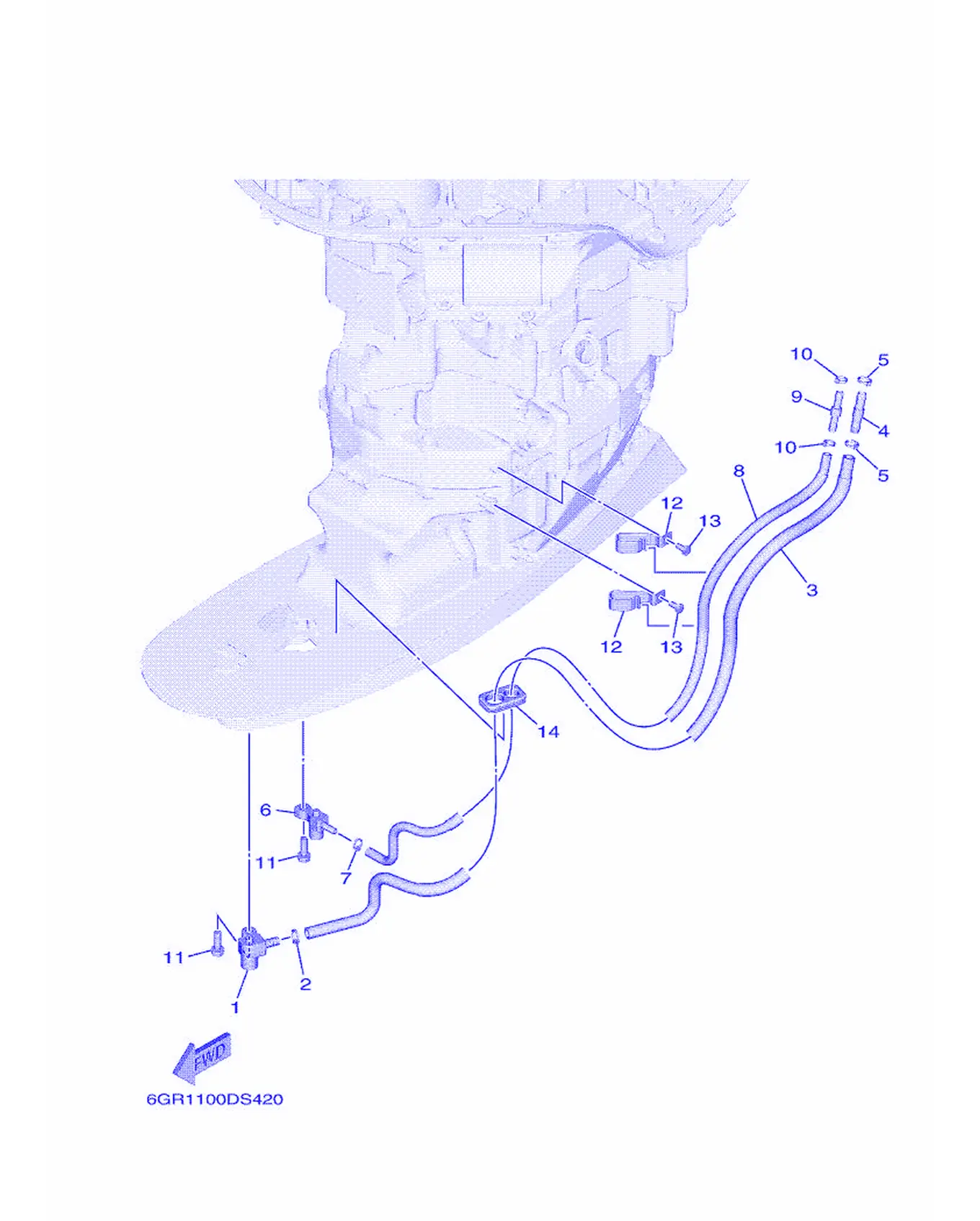

アツパケーシング 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-45368-00	软管接头2	Joint, Hose 1	1
2	90465-11M10	固定	Clamp	1
3	6GR-4383K-00	机油软管1	Hose, Oil 1	1
4	6AW-42785-00	管	Pipe	1
5	90465-11M10	固定	Clamp	2
6	6GR-45369-00	软管接头3	Joint, Hose 2	1
7	90465-11M10	固定	Clamp	1
8	6GR-2318F-00	通气软管	Hose, Air	1
9	6E5-24379-00	连接管4	Pipe,Joint 4	1
10	90465-11M10	固定	Clamp	2
11	97E95-08525	螺栓	Bolt, Hexagon with Washer Deep Recess	2
12	6GR-12491-00	线夹1	Clamp 1	2
13	97D95-06012	螺栓	Bolt, Hexagon Deep Recess	2
14	6GR-45159-01	减震器	Seal Rubber	1

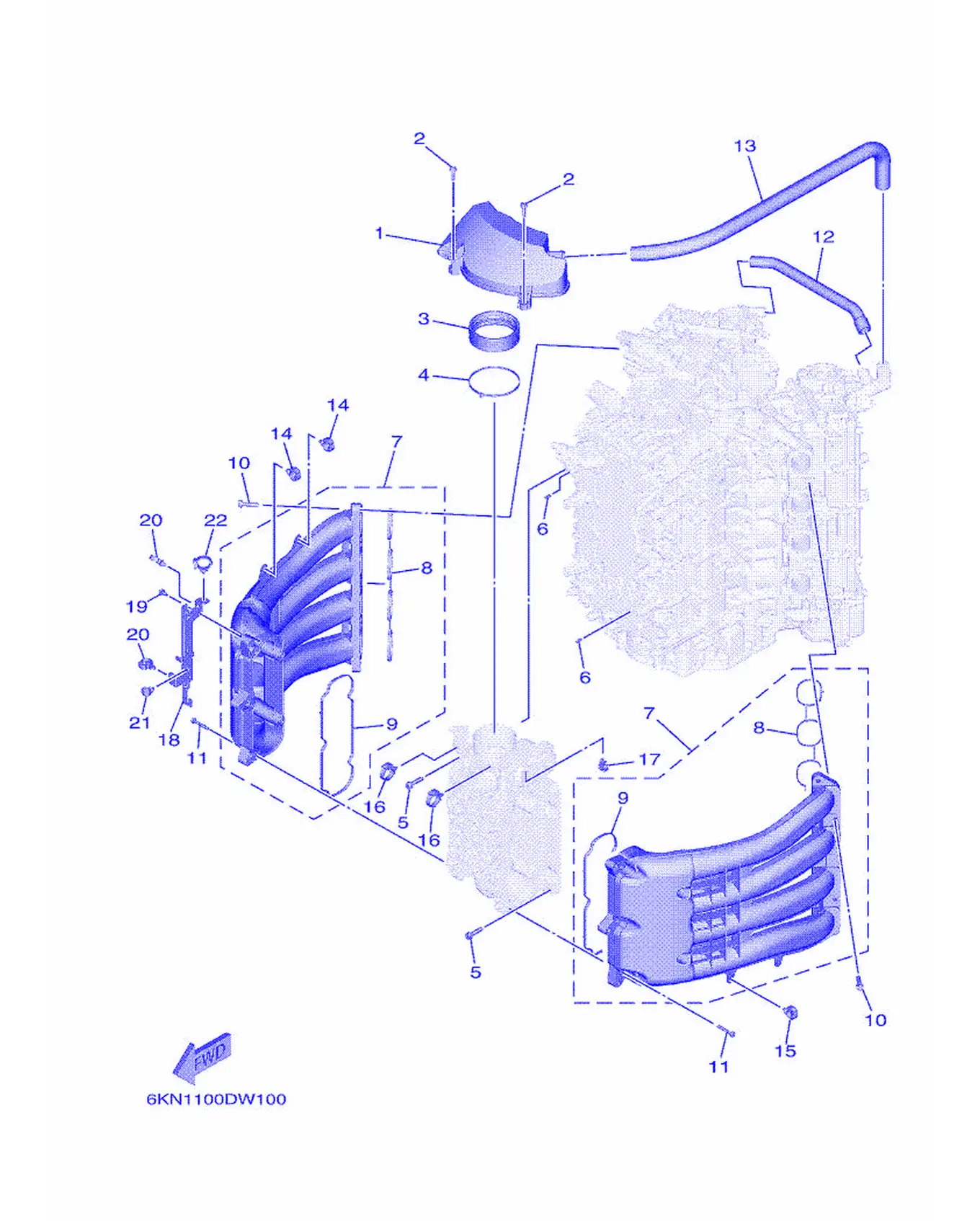

インテ-ク

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-14440-00	进气消声器组合	Silencer Assembly, Intake	1
2	95D95-06025	连杆螺栓	Bolt, Flange Deep Recess	2
3	6AW-1441J-01	消声器管	Pipe, Silencer	1
4	90464-99004	固定夹	Clamp	1
5	90119-08022	带垫螺栓	Bolt, With Washer	6
6	91690-50014	弹簧销	Pin,Spring	2
7	6GR-13641-00	岐管1	Manifold, Intake 1	2
8	6GR-13645-00	岐管衬垫1	Gasket, Manifold 1	1
9	6GR-13646-00	岐管衬垫2	Gasket, Manifold 2	1
10	90119-08022	带垫螺栓	Bolt, With Washer	10
11	90119-06MA6	带垫螺栓	Bolt, With Washer	10
12	6GR-1531A-00	通气软管1	Hose, Breather 1	1
13	6KN-1531A-10	通气软管1	Hose, Breather 1	1
14	90464-20181	固定夹	Clamp	2
15	90464-20181	固定夹	Clamp	1
16	90464-12183	线夹	Clamp	2
17	90464-13249	线夹	Clamp	1
18	6KN-8257G-00	线夹	Clamp, Cord	1
19	95D95-06012	螺栓	Bolt, Flange Deep Recess	2
20	90464-20181	固定夹	Clamp	2
21	90464-13249	线夹	Clamp	1
22	90464-12183	线夹	Clamp	1

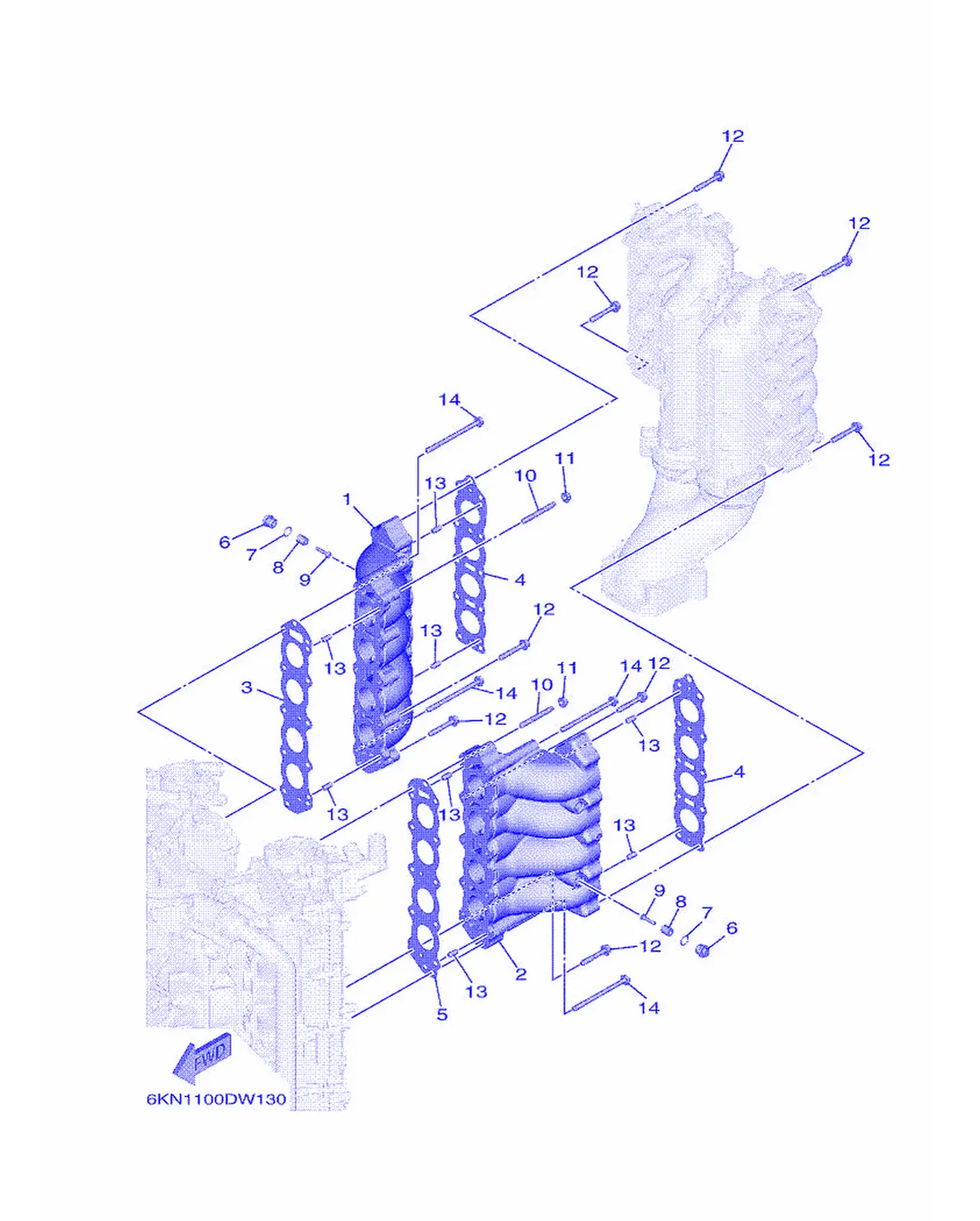

エキゾースト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-14615-00-9S	排气管接头1	Joint, Exhaust 1	1
2	6KN-14625-00-9S	排气管接头2	Joint, Exhaust 2	1
3	6KN-14613-00	排气管垫片1	Gasket, Exhaust Pipe	1
4	6KN-14623-00	排气管衬垫	Gasket, Exhaust Pipe	2
5	6KN-14643-00	衬垫3	Gasket 3	1
6	6G8-11197-B0	塞	Blind Plug	4
7	93210-13M63	O型圈	O-ring	4
8	6G8-11325-00	阳极	Anode	4
9	98980-05025	十字槽盘头螺钉	Screw, Bind	4
10	90116-08037	双头螺栓	Bolt, Stud	4
11	90179-08M34	螺帽	Nut	4
12	90105-08175	六角法兰面螺栓	Bolt, Flange	22
13	93608-16M16	定位销	Pin, Dowel	8
14	90105-08279	六角法兰面螺栓	Bolt, Flange	10

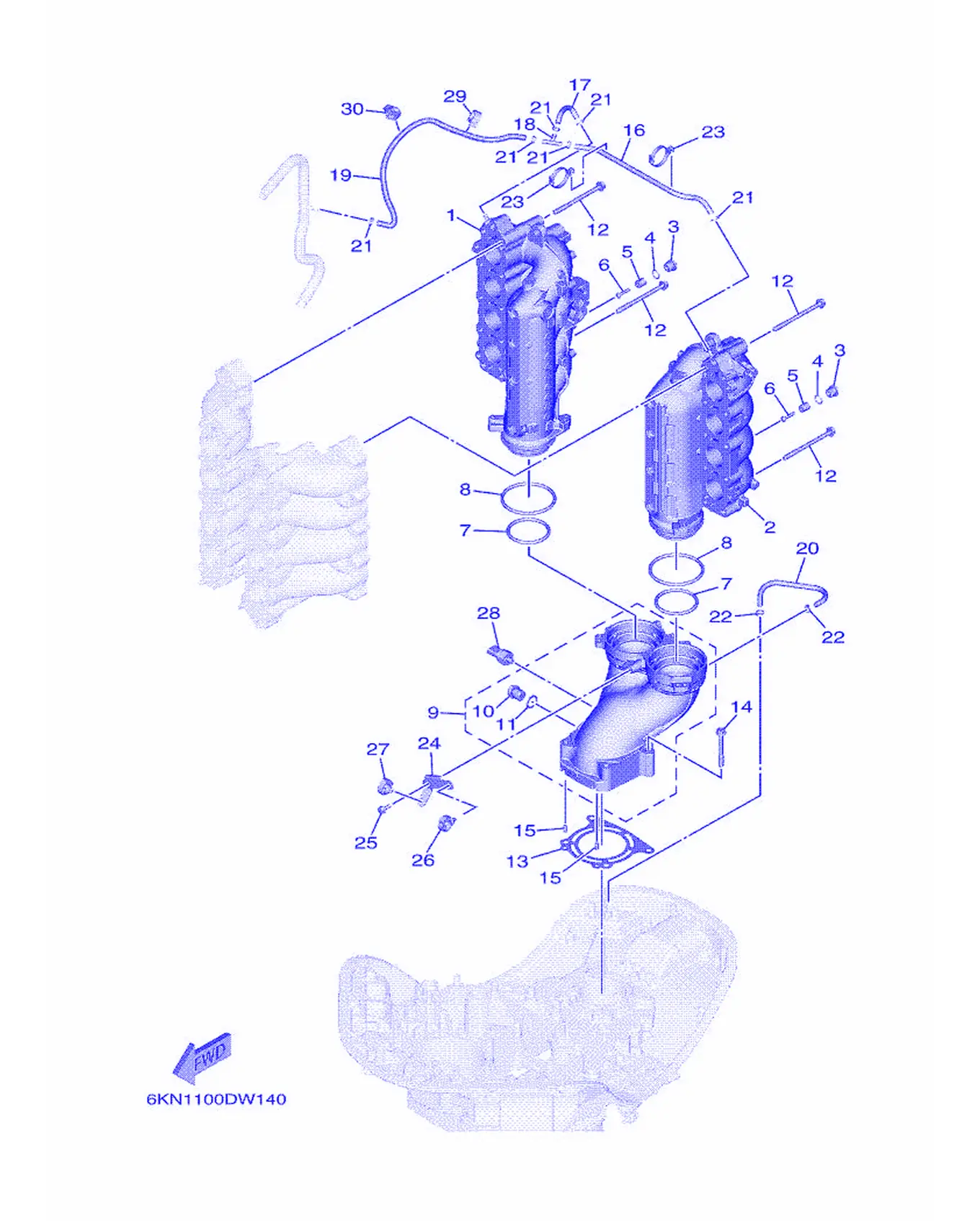

エキゾースト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-14635-10-9S	排气管接头3	Joint, Exhaust 3	1
2	6KN-14645-10-9S	排气管接头4	Joint, Exhaust 4	1
3	6G8-11197-B0	塞	Blind Plug	2
4	93210-13M63	O型圈	O-ring	2
5	6G8-11325-00	阳极	Anode	2
6	98980-05025	十字槽盘头螺钉	Screw, Bind	2
7	93210-65001	O型圈	O-ring	2
8	93210-85003	O型圈	O-ring	2
9	6KN-14656-00-9S	排气管接头5	Joint, Exhaust 5	1
10	90340-18M09	衬套	Plug, Straight Screw	1
11	90201-186F1	平垫圈	Washer,Plate	1
12	90105-08277	六角法兰面螺栓	Bolt, Flange	10
13	6GR-41134-00	排气岐管衬垫	Gasket, Exhaust Manifold	1
14	90105-08220	六角法兰面螺栓	Bolt, Flange	4
15	93606-12019	定位销	Pin, Dowel	2
16	90445-09104	软管	Hose (L300)	1
17	90445-09063	软管	Hose	1
18	688-24378-00	连接管4	Pipe,Joint	1
19	6KN-12481-00	管1	Pipe 1	1
20	90445-09095	固定	Hose	1
21	90465-11M10	固定	Clamp	6
22	90465-11M10	固定	Clamp	2
23	90464-09028	线夹	Clamp	2
24	6KN-82588-00	垫片	Plate	1
25	95D95-06016	螺栓	Bolt, Flange Deep Recess	1
26	90464-20181	固定夹	Clamp	1
27	90464-20181	固定夹	Clamp	1
28	6GR-8366B-00	水压传感	Sensor, Water Pressure	1
29	90464-18004	固定夹	Clamp	1
30	90464-18004	固定夹	Clamp	1

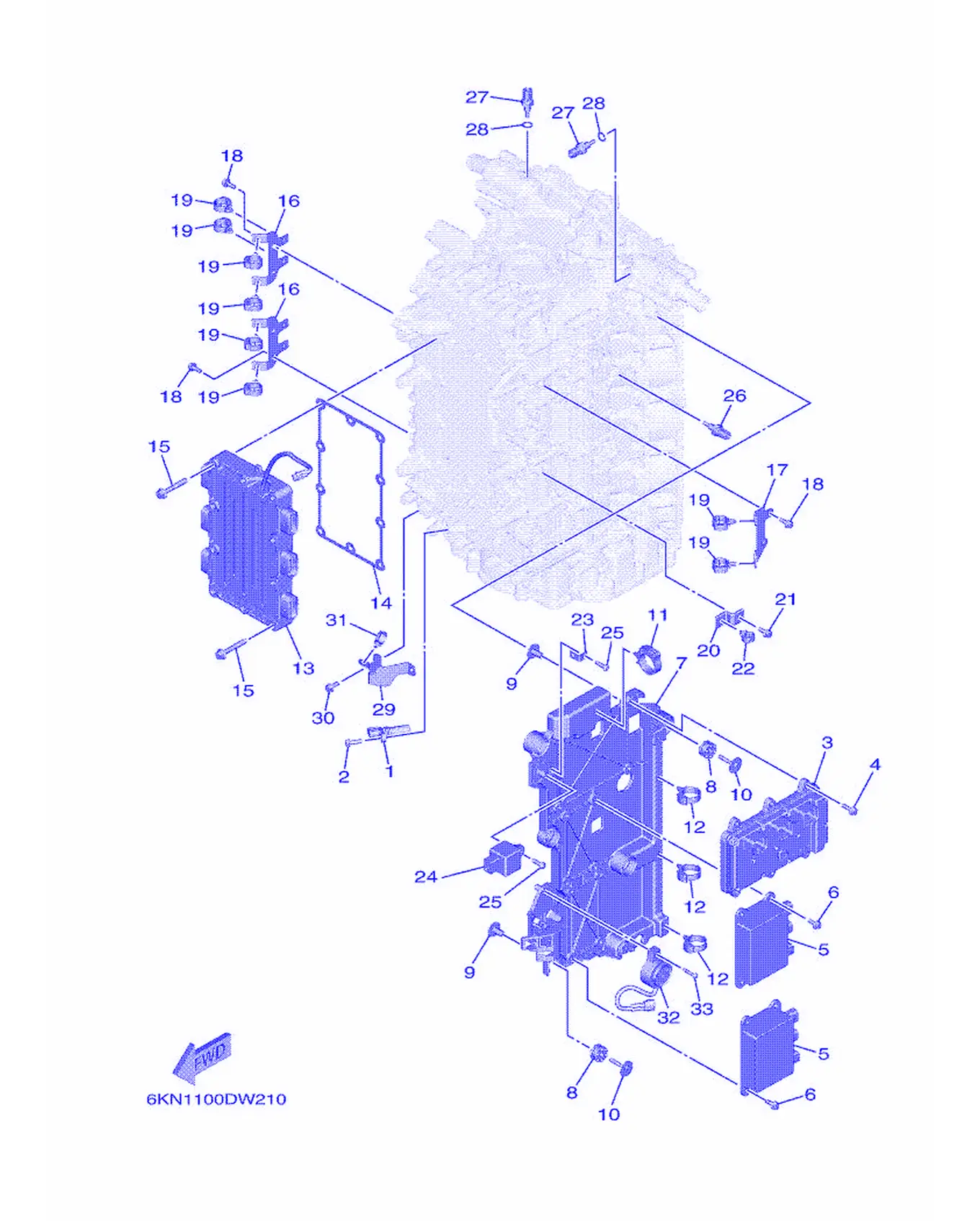

エレクトリカル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-85895-00	曲柄位置传感	Crank Position Sensor	1
2	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	1
3	6KN-8591A-00	发动机控制单元	Engine Control Unit Assembly	1
4	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	4
5	6GR-8591B-00	喷射器组合	Driver, Injector Assembly	2
6	95D95-06016	螺栓	Bolt, Flange Deep Recess	8
7	6GR-81948-02	托架	Bracket	1
8	60V-85564-00	固定	Grommet	6
9	90387-06176	衬套	Color	6
10	90119-06328	带垫圈六角头螺栓	Bolt, with Washer	6
11	90464-32002	线夹	Clamp	1
12	90464-12183	线夹	Clamp	3
13	6GR-81960-11	整流调节器	Rectifier and Regulator Assembly	1
14	6GR-81975-00	整流器安装板	Rectifier Fitting Plate	1
15	90105-08175	六角法兰面螺栓	Bolt, Flange	10
16	6GR-8132G-00	面板	Plate	2
17	6GR-818D2-00	托架	Plate, 2	1
18	95D95-06016	螺栓	Bolt, Flange Deep Recess	6
19	90464-20181	固定夹	Clamp	8
20	6DA-82388-00	面板	Plate	1
21	95D95-06016	螺栓	Bolt, Flange Deep Recess	1
22	90464-13249	线夹	Clamp	1
23	68V-85548-01	支架	Holder	1
24	68V-81950-00	继电器组合	RelayAssembly	1
25	97780-60620	自攻螺钉	Screw, Tapping	2
26	4P9-83591-00	温控器组	Thermo Unit	1
27	6GR-85790-00	温控传感件组合	Thermo Sensor Assembly	2
28	90430-10004	十字槽螺钉	Gasket	2
29	6GR-83614-00	托架	Bracket	1
30	95D95-06016	螺栓	Bolt, Flange Deep Recess	2
31	90464-13249	线夹	Clamp	1
32	6KA-83383-01	蜂鸣器	Buzzer	1
33	97780-50625	自攻螺钉	Screw, Tapping	1

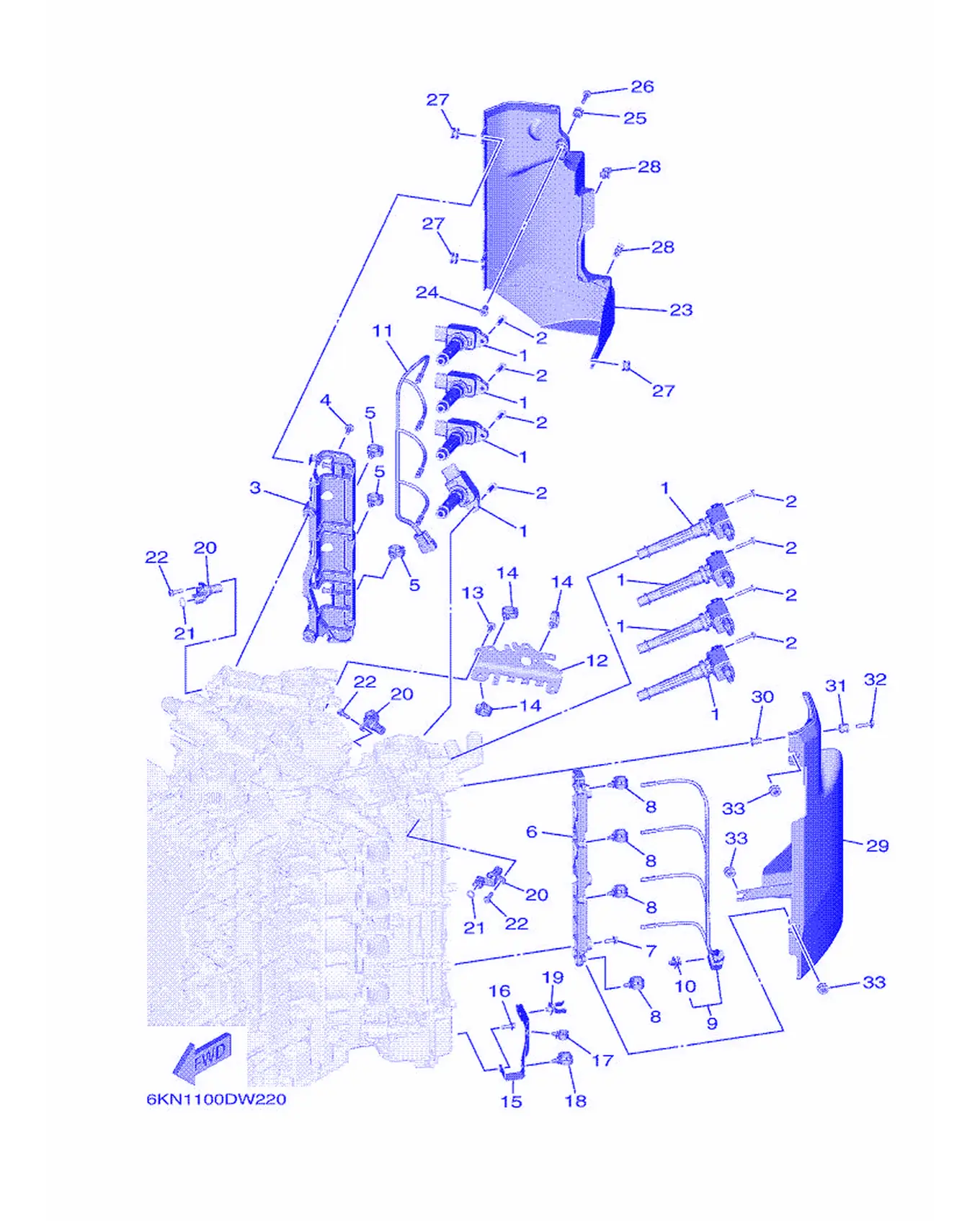

エレクトリカル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-82310-03	点火线圈总成	Ignition Coil Assembly	8
2	90105-06028	六角法兰面螺栓	Bolt, Flange	8
3	6GR-8272F-01	导承，导杆1	Guide Plate 1	1
4	95D95-06016	螺栓	Bolt, Flange Deep Recess	5
5	90464-20181	固定夹	Clamp	3
6	6GR-8272G-01	导承，导杆2	Guide Plate 2	1
7	95D95-06016	螺栓	Bolt, Flange Deep Recess	3
8	90464-20181	固定夹	Clamp	4
9	6GR-82386-00	延伸部分	Extension, Wire Harness	1
10	90464-09M47	固定	Clamp	1
11	6GR-82386-10	延伸部分	Extension, Wire Harness	1
12	6GR-82388-01	面板	Plate	1
13	95D95-06016	螺栓	Bolt, Flange Deep Recess	2
14	90464-20181	固定夹	Clamp	3
15	6GR-82389-00	面板2	Plate 2	1
16	95D95-06016	螺栓	Bolt, Flange Deep Recess	3
17	90464-13249	线夹	Clamp	1
18	90464-20181	固定夹	Clamp	1
19	90464-12015	扭簧	Clamp	1
20	6GR-85896-00	传感器	Sensor, Cam Position	3
21	93210-11001	O型圈	O-ring	2
22	97E95-06520	螺栓	Bolt, Hexagon with Washer Deep Recess	3
23	6GR-11186-01	气缸头侧盖1	Cover, Cylinder Head Side 2	1
24	90387-06119	环	Color	1
25	6A0-82317-01	点火线圈减震器	Damper, Ignition Coil	1
26	95D95-06025	连杆螺栓	Bolt, Flange Deep Recess	1
27	90480-12314	固定	Grommet	3
28	90464-09129	线夹	Clamp	2
29	6GR-11187-01	气缸头侧盖2	Cover, Cylinder Head Side 3	1
30	90387-06119	环	Color	1
31	6A0-82317-01	点火线圈减震器	Damper, Ignition Coil	1
32	95D95-06025	连杆螺栓	Bolt, Flange Deep Recess	1
33	90480-12314	固定	Grommet	3

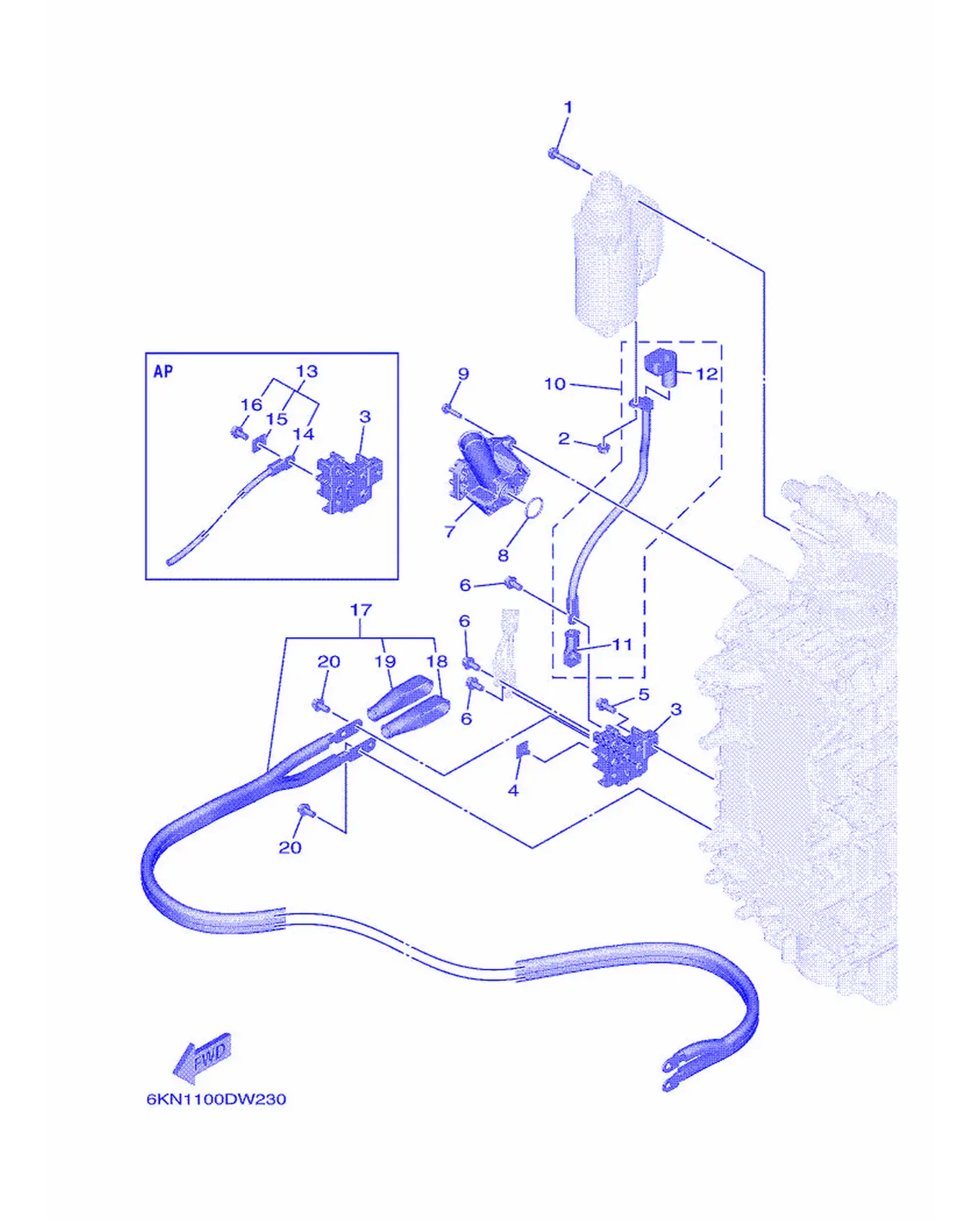

エレクトリカル 3

REF	雅马哈编码	中文名称	英文名称	用量
1	97513-08545	带垫圈螺栓	Bolt, with Washer	3
2	90179-08003	螺母	Nut	1
3	6GR-81925-00	接头	Terminal	1
4	6GR-81916-00	接头盖	Cover, Terminal	1
5	95D95-08020	螺栓	Bolt, Flange Deep Recess	2
6	95D95-08016	连杆螺栓	Bolt, Flange Deep Recess	3
7	6GR-81929-00-9S	接头托架	Bracket, Terminal	1
8	93210-27370	O型圈	O-ring	1
9	95D95-06025	连杆螺栓	Bolt, Flange Deep Recess	3
10	6GR-82117-01	导线	Wire, Lead	1
11	6GR-82119-10	线套	Cover, Reed Wire	1
12	6AW-82119-11	线套	Cover, Reed Wire	1
13	6GR-762W0-01	线束维修套件	Wire Harness Kit	1
14	6GR-81949-01	导线	Wire, Lead (Isolator, 3.8M)	1
15	6P2-81923-00	垫圈	Washer	1
16	95D95-08016	连杆螺栓	Bolt, Flange Deep Recess	1
17	6GR-82105-J2	电缆	Wire Harness	1
18	6AW-82119-00	线套	Cover, Lead Wire	1
19	6AW-82119-20	线套	Cover, Lead Wire	1
20	95D95-08016	连杆螺栓	Bolt, Flange Deep Recess	3

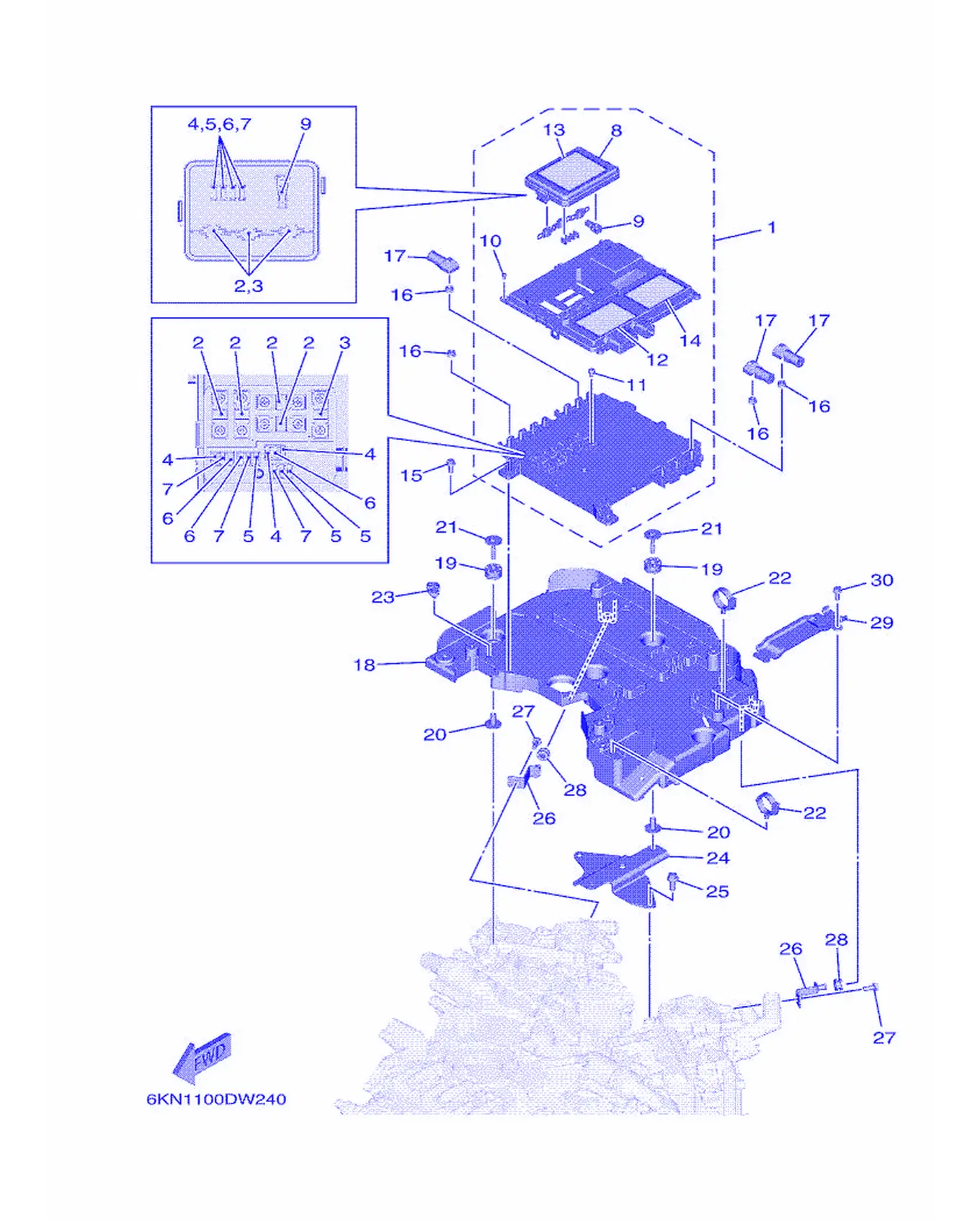

エレクトリカル 4

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-W85AA-02	电源管理器	Electric Power Management Unit	1
2	6GR-82151-10	保险	Fuse (70A)	6
3	6GR-82151-00	保险	Fuse (100A)	2
4	6CB-82151-00	保险丝	Fuse (10A)	4
5	6CB-82151-10	保险	Fuse (15A)	4
6	6CB-82151-20	保险丝	Fuse (20A)	4
7	6CB-82151-30	保险丝	Fuse (30A)	4
8	6GR-85544-00	箱盖	Case	1
9	6CB-2812A-00	保险丝拆卸器	Puller, Fuse	1
10	6P2-82113-00	螺钉	Screw (M3)	7
11	68F-82846-00	限位板组合	Screw, Pan Head (M5)	10
12	6GR-81919-01	调压器图样	Graphic, Regulator	1
13	6GR-81919-11	调压器图样	Graphic, Regulator	1
14	6GR-81919-20	后图样	Graphic, Regulator	1
15	95D95-06016	螺栓	Bolt, Flange Deep Recess	4
16	95780-06500	带垫螺母	Nut, Flange	10
17	6GR-82119-00	线套	Cover, Reed Wire	3
18	6GR-82589-00	电线束保护装	Wire Harness Protector	1
19	68F-85516-01	衬套	Spacer	4
20	90387-06176	衬套	Color	4
21	90119-06328	带垫圈六角头螺栓	Bolt, with Washer	4
22	90464-30001	固定	Clamp	2
23	90464-13249	线夹	Clamp	1
24	6KN-82171-00	保险丝盒支承	Stay, Fuse Box	1
25	95D95-08020	螺栓	Bolt, Flange Deep Recess	2
26	6GR-8272U-00	导承，导杆3	Joint Plate	2
27	95D95-06016	螺栓	Bolt, Flange Deep Recess	2
28	90480-12314	固定	Grommet	2
29	6GR-85525-00	盖	Cover	1
30	95D95-06016	螺栓	Bolt, Flange Deep Recess	1

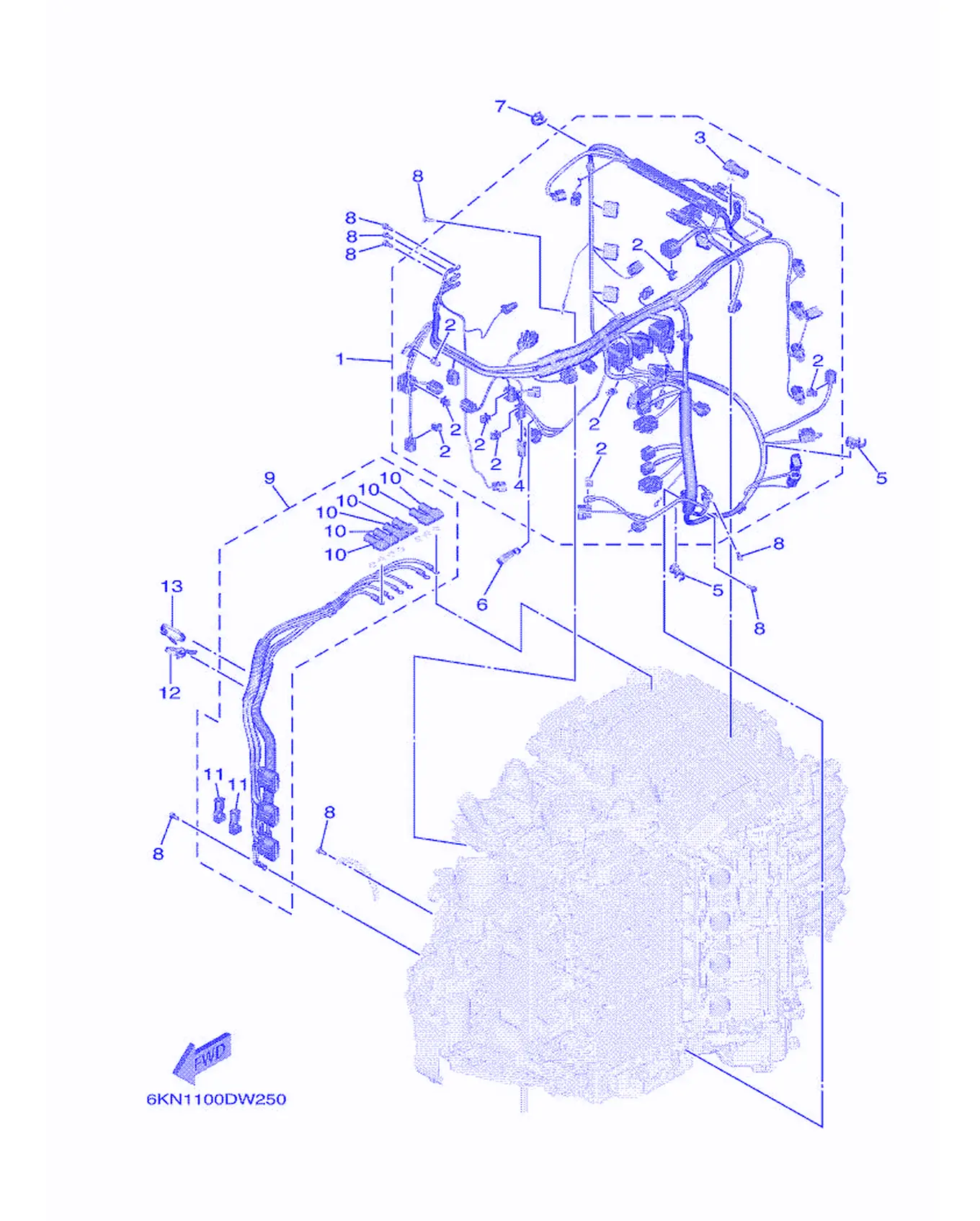

エレクトリカル 5

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-82590-02	电缆总成	Wire Harness Assembly	1
2	90464-09M47	固定	Clamp	9
3	6GR-82119-00	线套	Cover, Reed Wire	1
4	68V-82582-10	电线束盖	Cap 1 (2P)	1
5	90464-12012	线夹	Clamp	2
6	90465-13M24	固定	Clamp	1
7	90464-18004	固定夹	Clamp	1
8	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	8
9	6GR-8259M-00	电缆总成	Wire Harness Assembly 2	1
10	6GR-82119-00	线套	Cover, Reed Wire	6
11	6GR-82119-10	线套	Cover, Reed Wire	2
12	90464-44002	线夹	Clamp	1
13	90464-15195	固定	Clamp	1

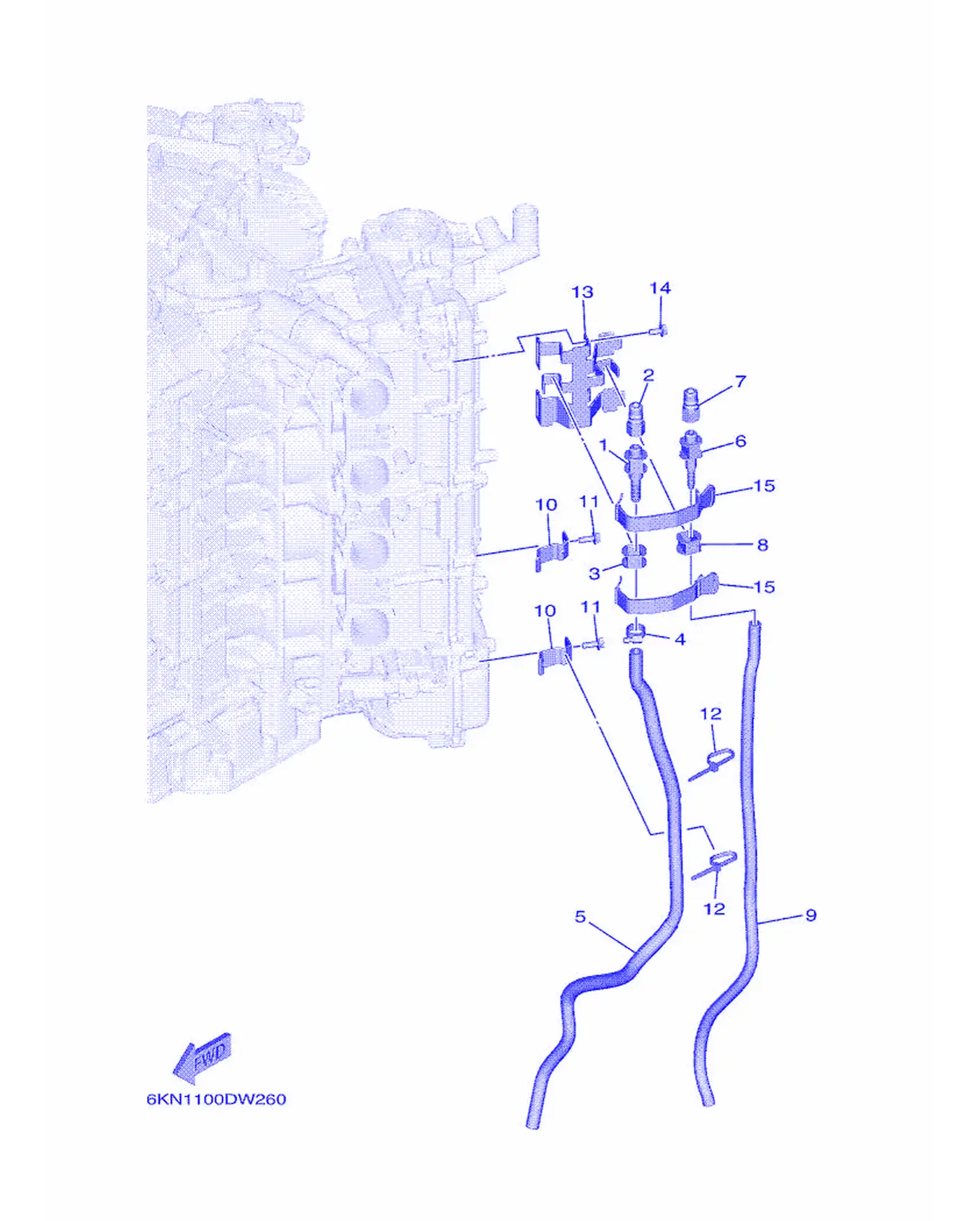

エレクトリカル 6

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-45394-01	软管 1	Hose, Fitting 1	1
2	6GR-45393-00	联轴节夹箍	Coupler	1
3	6GR-81662-00	连接器盖	Cover, Connector	1
4	90450-14M05	固定	Hose Clamp Assembly	1
5	6GR-4383E-01	机油软管2	Hose, Oil 2	1
6	6GR-45395-00	装配软管	Hose, Fitting 2	1
7	6GR-45393-00	联轴节夹箍	Coupler	1
8	6GR-82599-00	连接套	Cover, Connector	1
9	6GR-2318K-00	通气软管2	Hose Air 2	1
10	6GR-81443-00	导线夹1	Clamp, Lead 1	2
11	95D95-06016	螺栓	Bolt, Flange Deep Recess	2
12	90465-13M97	固定	Clamp	2
13	6GR-81845-00	面板	Plate	1
14	95D95-06012	螺栓	Bolt, Flange Deep Recess	2
15	6GR-82131-01	蓄电池箍带	Band, Battery	2

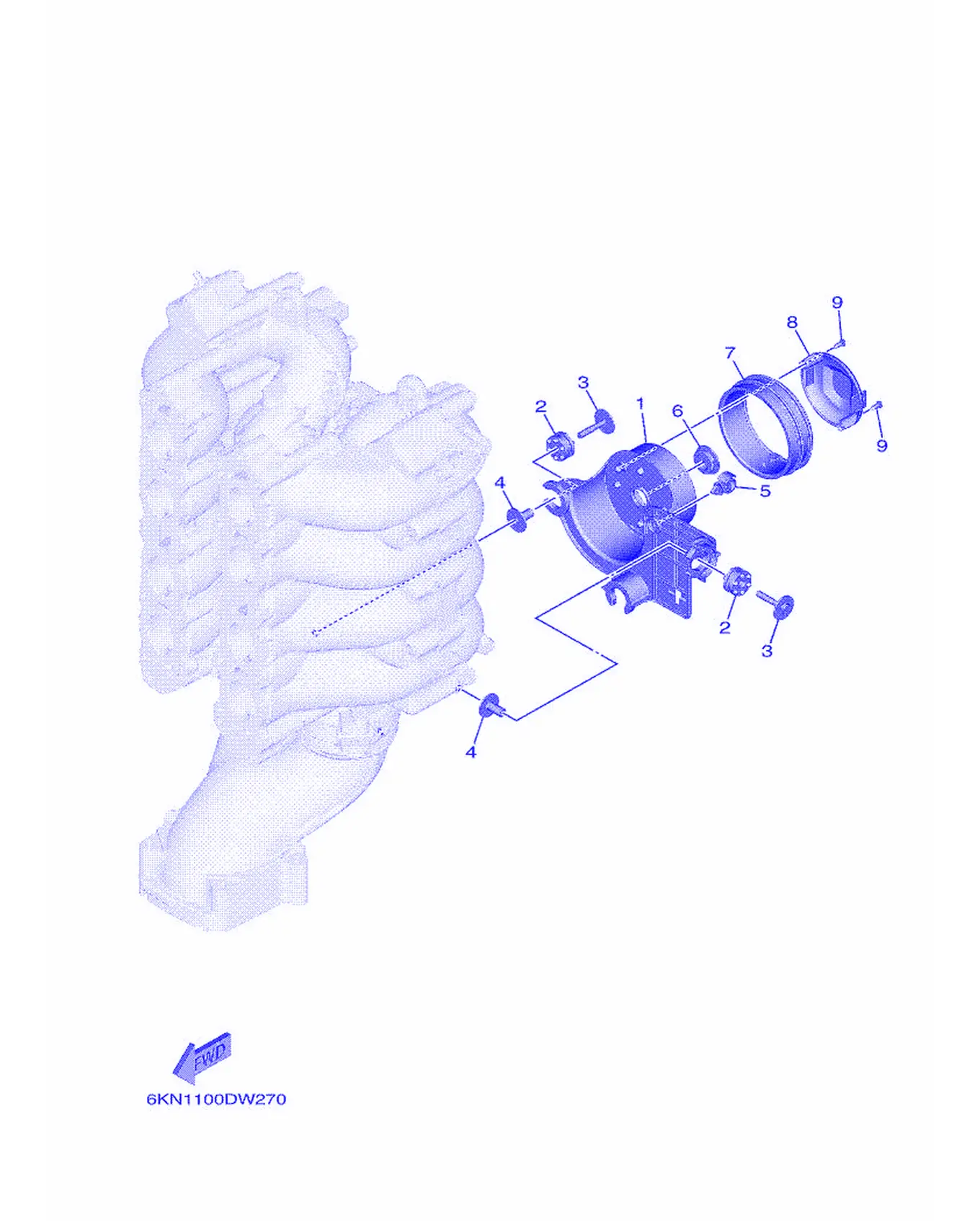

エレクトリカル 7

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-85112-00	反射镜托架1	Bracket, Reflector 1	1
2	68F-85516-01	衬套	Spacer	3
3	90119-06328	带垫圈六角头螺栓	Bolt, with Washer	3
4	90387-06176	衬套	Color	3
5	90464-13249	线夹	Clamp	1
6	676-42726-00	固定	Grommet	1
7	6KN-41273-00	固定	Grommet	1
8	6KN-42532-00	盖	Cover	1
9	97780-40112	自攻螺钉	Screw, Tapping	2

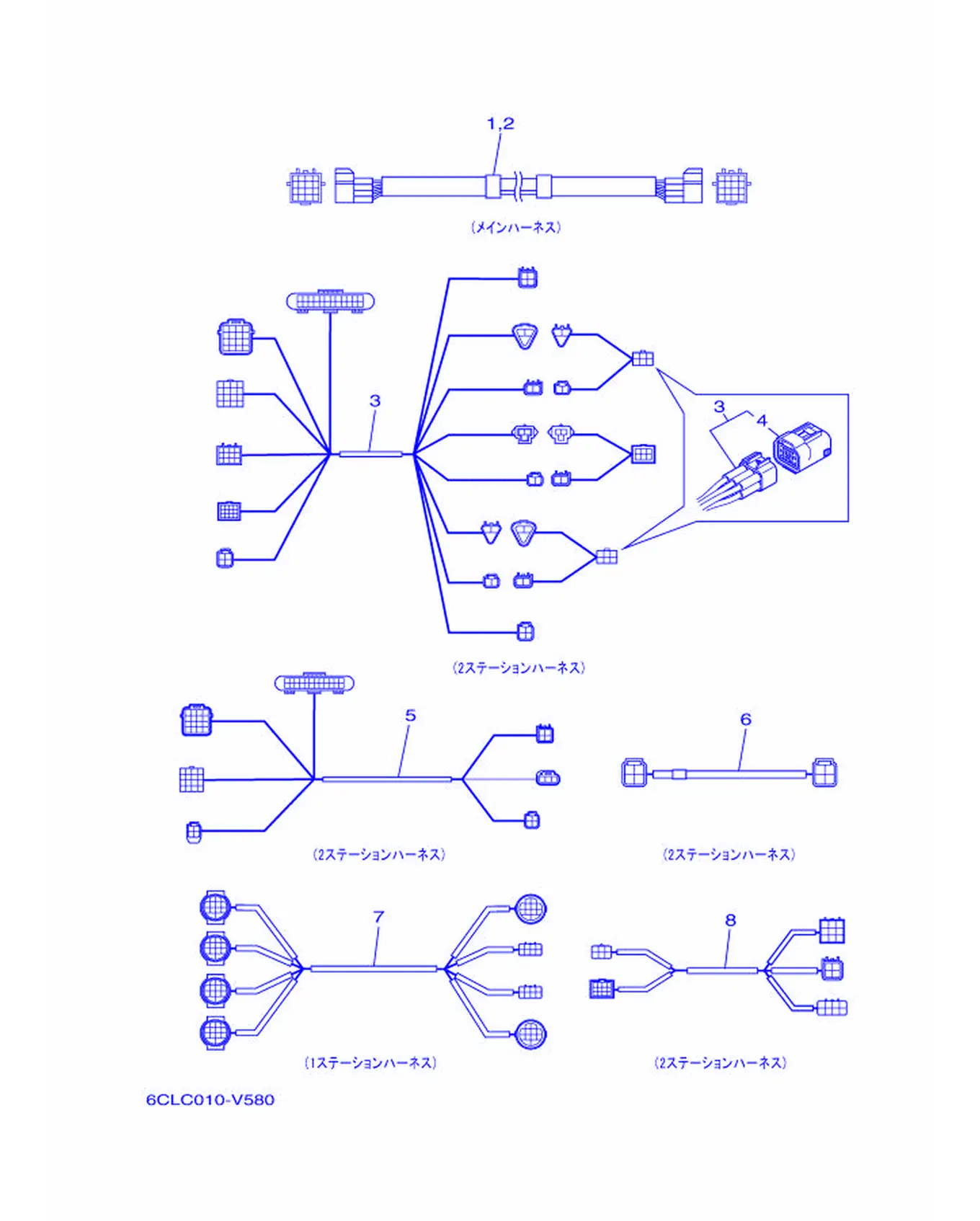

エレクトリカルワイヤハーネス

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-8258A-01	电线束延伸部分	Extension, Wire Harness (6.1M)	2
1	6X6-8258A-01	电线束延伸部分	Extension, Wire Harness (6.1M)	3
1	6X6-8258A-01	电线束延伸部分	Extension, Wire Harness (6.1M)	4
1	6X6-8258A-11	电线束延伸部分	Extension, Wire Harness (7M)	2
1	6X6-8258A-11	电线束延伸部分	Extension, Wire Harness (7M)	3
1	6X6-8258A-11	电线束延伸部分	Extension, Wire Harness (7M)	4
1	6X6-8258A-21	电线束延伸部分	Extension, Wire Harness (8M)	2
1	6X6-8258A-21	电线束延伸部分	Extension, Wire Harness (8M)	3
1	6X6-8258A-21	电线束延伸部分	Extension, Wire Harness (8M)	4
1	6X6-8258A-31	电线束延伸部分	Extension, Wire Harness (10M)	2
1	6X6-8258A-31	电线束延伸部分	Extension, Wire Harness (10M)	3
1	6X6-8258A-31	电线束延伸部分	Extension, Wire Harness (10M)	4
1	6X6-8258A-41	电线束延伸部分	Extension, Wire Harness (12M)	2
1	6X6-8258A-41	电线束延伸部分	Extension, Wire Harness (12M)	3
1	6X6-8258A-41	电线束延伸部分	Extension, Wire Harness (12M)	4
2	6X6-8258A-51	电线束延伸部分	Extension, Wire Harness (3.7M)	2
2	6X6-8258A-51	电线束延伸部分	Extension, Wire Harness (3.7M)	3
2	6X6-8258A-51	电线束延伸部分	Extension, Wire Harness (3.7M)	4
2	6X6-8258A-61	电线束延伸部分	Extension, Wire Harness (5.2M)	2
2	6X6-8258A-61	电线束延伸部分	Extension, Wire Harness (5.2M)	3
2	6X6-8258A-61	电线束延伸部分	Extension, Wire Harness (5.2M)	4
2	6X6-8258A-71	电线束延伸部分	Extension, Wire Harness (15M)	2
2	6X6-8258A-71	电线束延伸部分	Extension, Wire Harness (15M)	3
2	6X6-8258A-71	电线束延伸部分	Extension, Wire Harness (15M)	4
2	6X6-8258A-81	电线束延伸部分	Extension, Wire Harness (24M)	2
2	6X6-8258A-81	电线束延伸部分	Extension, Wire Harness (24M)	3
2	6X6-8258A-81	电线束延伸部分	Extension, Wire Harness (24M)	4
3	6X9-8258A-01	电线束延伸部分	2ND Station Harness (P) 5M-16FT	2
3	6X9-8258A-01	电线束延伸部分	2ND Station Harness (P) 5M-16FT	3
3	6X9-8258A-01	电线束延伸部分	2ND Station Harness (P) 5M-16FT	4
4	6Y8-85371-01	电阻组	End of Line Resistor	2
5	6X9-8258A-31	电线束延伸部分	2ND Station Harness (S) 5M-16FT	2
5	6X9-8258A-31	电线束延伸部分	2ND Station Harness (S) 5M-16FT	3
5	6X9-8258A-31	电线束延伸部分	2ND Station Harness (S) 5M-16FT	4
5	6X9-8258A-41	电线束延伸部分	2ND Station Harness (S) 8M-26FT	2
5	6X9-8258A-41	电线束延伸部分	2ND Station Harness (S) 8M-26FT	3
5	6X9-8258A-41	电线束延伸部分	2ND Station Harness (S) 8M-26FT	4
5	6X9-8258A-51	电线束延伸部分	2ND Station Harness (S) 12M-38FT	2
5	6X9-8258A-51	电线束延伸部分	2ND Station Harness (S) 12M-38FT	3
6	6X9-8258A-60	电线束延伸部分	2ND Station Harness (C) 5M-16FT	1
6	6X9-8258A-60	电线束延伸部分	2ND Station Harness (C) 5M-16FT	2
6	6X9-8258A-70	电线束延伸部分	2ND Station Harness (C) 8M-26FT	1
6	6X9-8258A-70	电线束延伸部分	2ND Station Harness (C) 8M-26FT	2
6	6X9-8258A-80	电线束延伸部分	2ND Station Harness (C) 12M-38FT	1
6	6X9-8258A-80	电线束延伸部分	2ND Station Harness (C) 12M-38FT	2
7	6X9-83553-60	导线	Conversion Harness	1
8	6X9-83553-40	导线	Conversion Harness	1

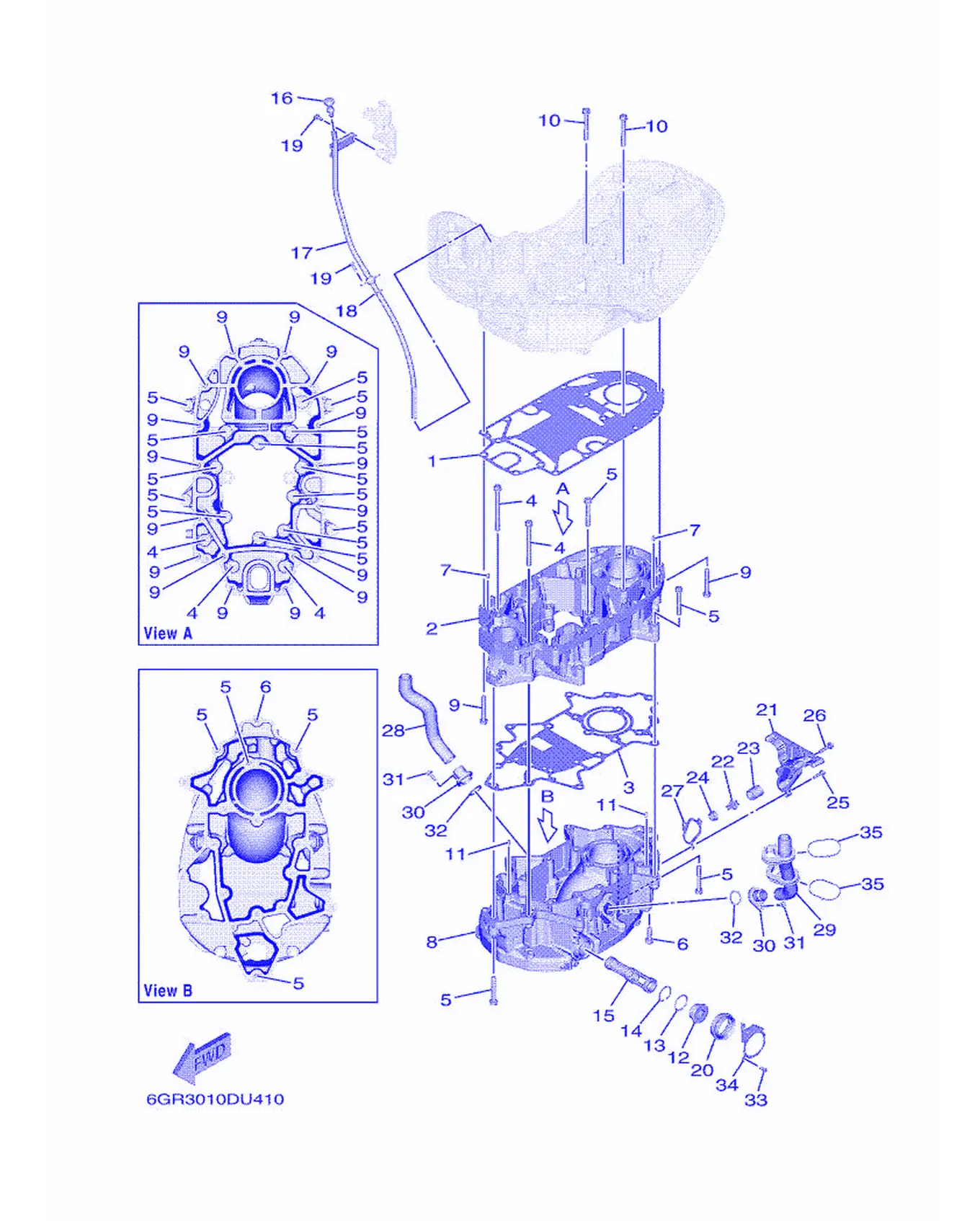

オイルパン

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-15312-01	油槽衬垫	Gasket, Oil Pan	1
2	6GR-1531B-01	油槽	Oil Pan 2	1
3	6GR-1531C-01	油盘垫片	Gasket, Oil Pan 2	1
4	90119-10074	带垫圈六角头螺栓	Bolt, with Washer	3
5	97E75-10570	螺栓	Bolt, Hexagon with Washer Deep Recess	18
6	90119-10040	带垫圈六角头螺栓	Bolt, with Washer	1
7	93606-12019	定位销	Pin, Dowel	2
8	6GR-15311-01	油槽	Oil Pan	1
9	97E75-10570	螺栓	Bolt, Hexagon with Washer Deep Recess	16
10	97E75-10580	内六角圆柱头螺钉	Bolt, Hexagon with Washer Deep Recess	4
11	93606-12019	定位销	Pin, Dowel	2
12	6GR-15351-00	放油	Drain Plug	1
13	93210-34633	O型圈	O-ring	1
14	93420-36M01	卡环	Circlip	1
15	6GR-13411-00	机油过滤网	Strainer, Oil	1
16	6GR-15362-00	油标塞	Plug, Oil Level	1
17	6GR-15377-00	导管	Guide, Inlet	1
18	93210-19MJ3	O型圈	O-ring	1
19	95D95-06016	螺栓	Bolt, Flange Deep Recess	3
20	6GR-15316-01	减震垫1	Damper 1	1
21	6GR-1246A-00	盖1	Cover 1	1
22	6G5-12416-00	压力控制阀	Valve, Pressure Control	1
23	90501-200A2	压簧	Spring, Compression	1
24	90480-20M05	固定	Grommet	1
25	95D95-06025	连杆螺栓	Bolt, Flange Deep Recess	1
26	95D95-06040	连杆螺栓	Bolt, Flange Deep Recess	2
27	6EK-12435-A0	衬垫	Gasket	1
28	6GR-1243F-00	软管3	Hose, 3	1
29	6GR-1257A-01	软管组合1	Hose Assembly 1	1
30	6GR-12581-00	软管接头1	Joint, Hose 1	2
31	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	2
32	6GR-44366-01	水封减震器	Damper, Water Seal 2	2
33	97D95-06012	螺栓	Bolt, Hexagon Deep Recess	1
34	6GR-45152-00	水上装置壳体盖2	Cover, Upper Casing 2	1
35	90464-66001	O型圈	Clamp	2

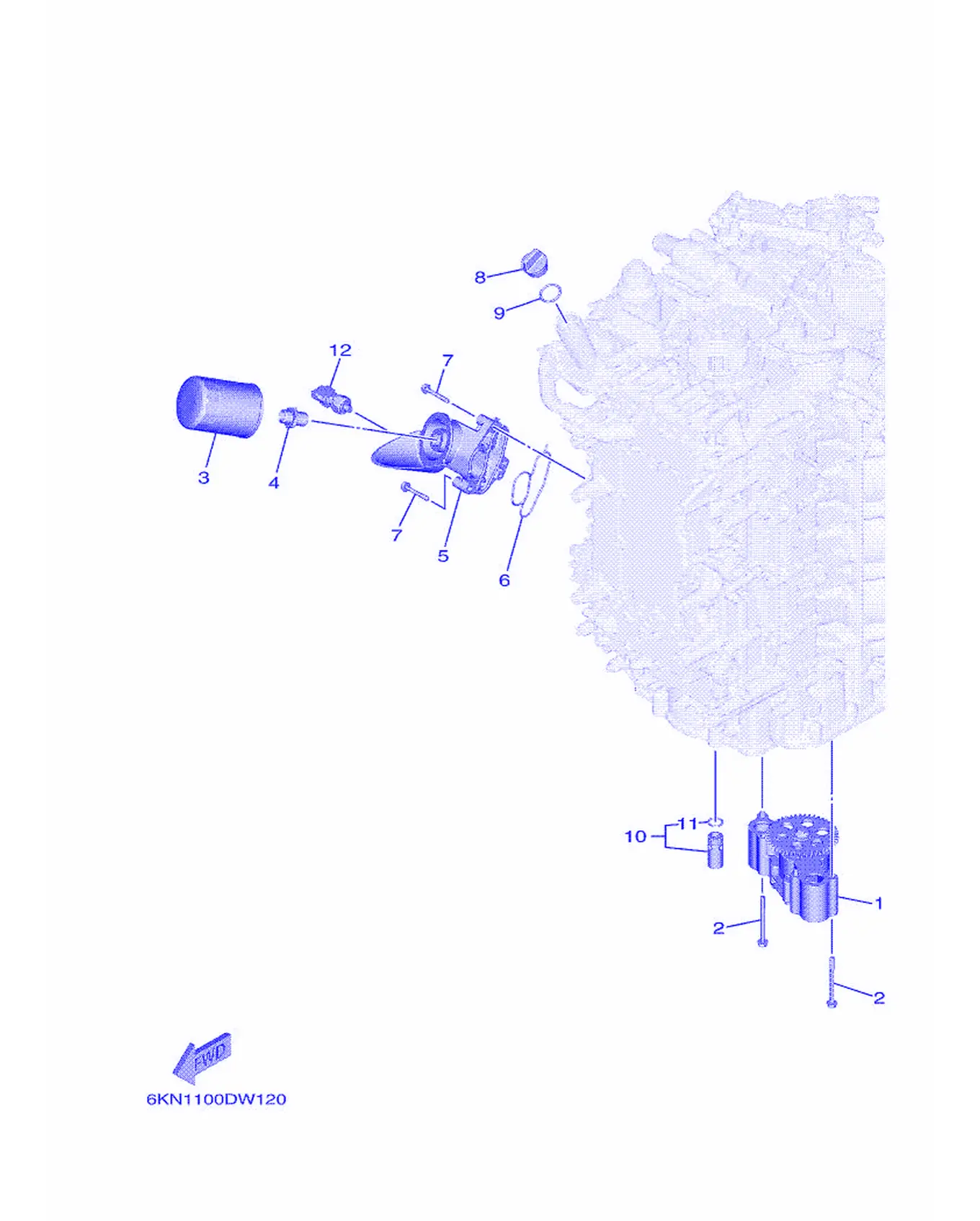

オイルポンプ

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-13300-01	机油泵总成	Oil Pump Assembly	1
2	95817-06075	六角法兰面螺栓	Bolt, Flange	4
3	N26-13440-04	机油进滤器总成	Element Assembly, Oil Cleaner	1
4	90401-19001	螺栓	Bolt, Union	1
5	6GR-13446-00	连接器	Connector	1
6	6GR-13477-00	衬垫	Gasket	1
7	90105-06151	六角法兰面螺栓	Bolt, Flange	3
8	6G8-15363-00	机油塞子	Plug,Oil	1
9	93210-24M79	O型圈	O-ring	1
10	6GR-13490-00	安全阀组合	Relief Valve Assembly	1
11	6GR-13473-00	O型圈	O-ring	1
12	6AW-83651-01	油压传感	Sender, Oil Pressure	1

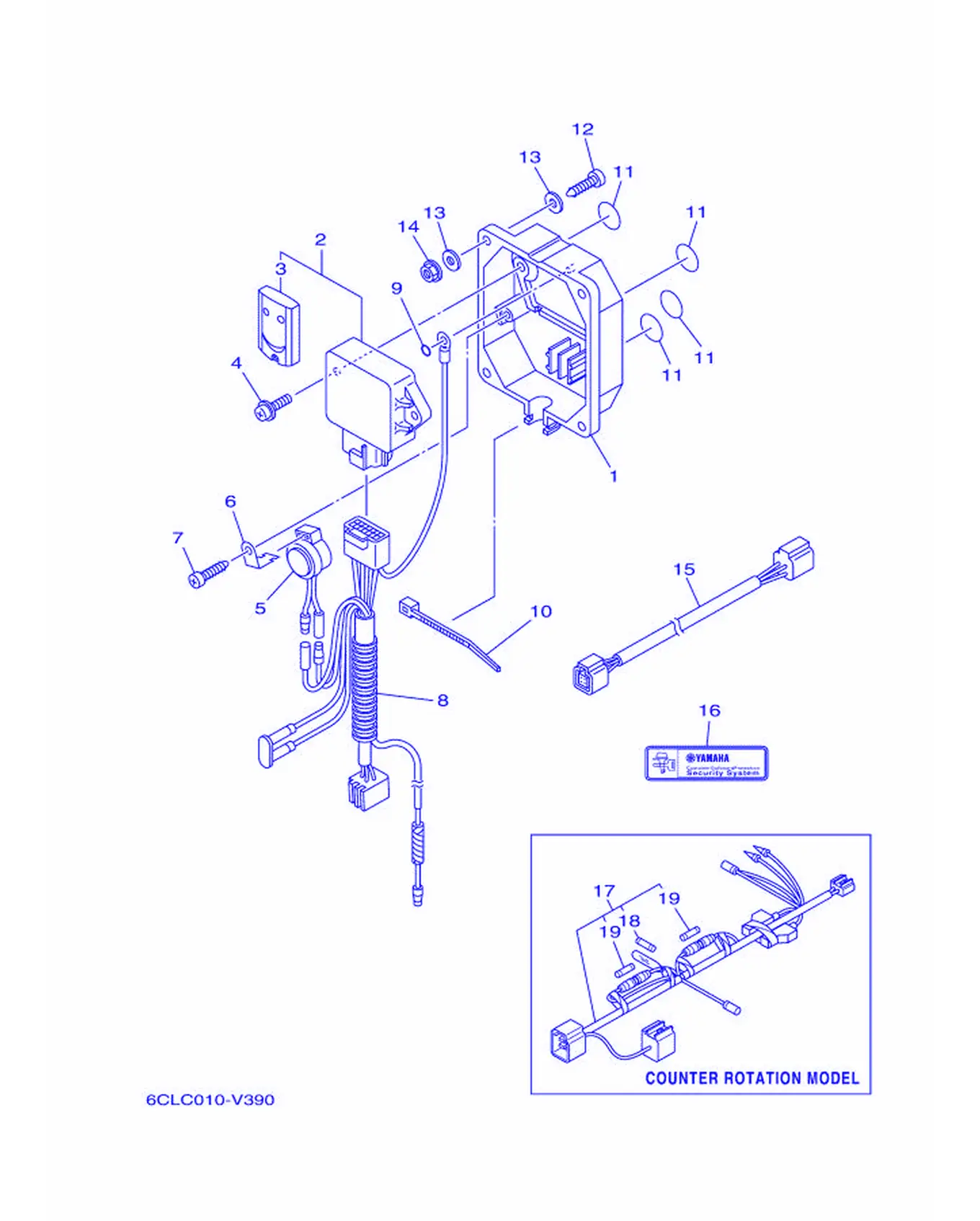

オプシヨナルパ-ツ 1

REF	雅马哈编码	中文名称	英文名称	用量
17	6Y8-81315-04	导线组合	Lead Wire Assembly	1
18	6TA-82151-01	保险	Fuse (5A)	1
19	6Y8-82151-00	保险	Fuse (5A)	2

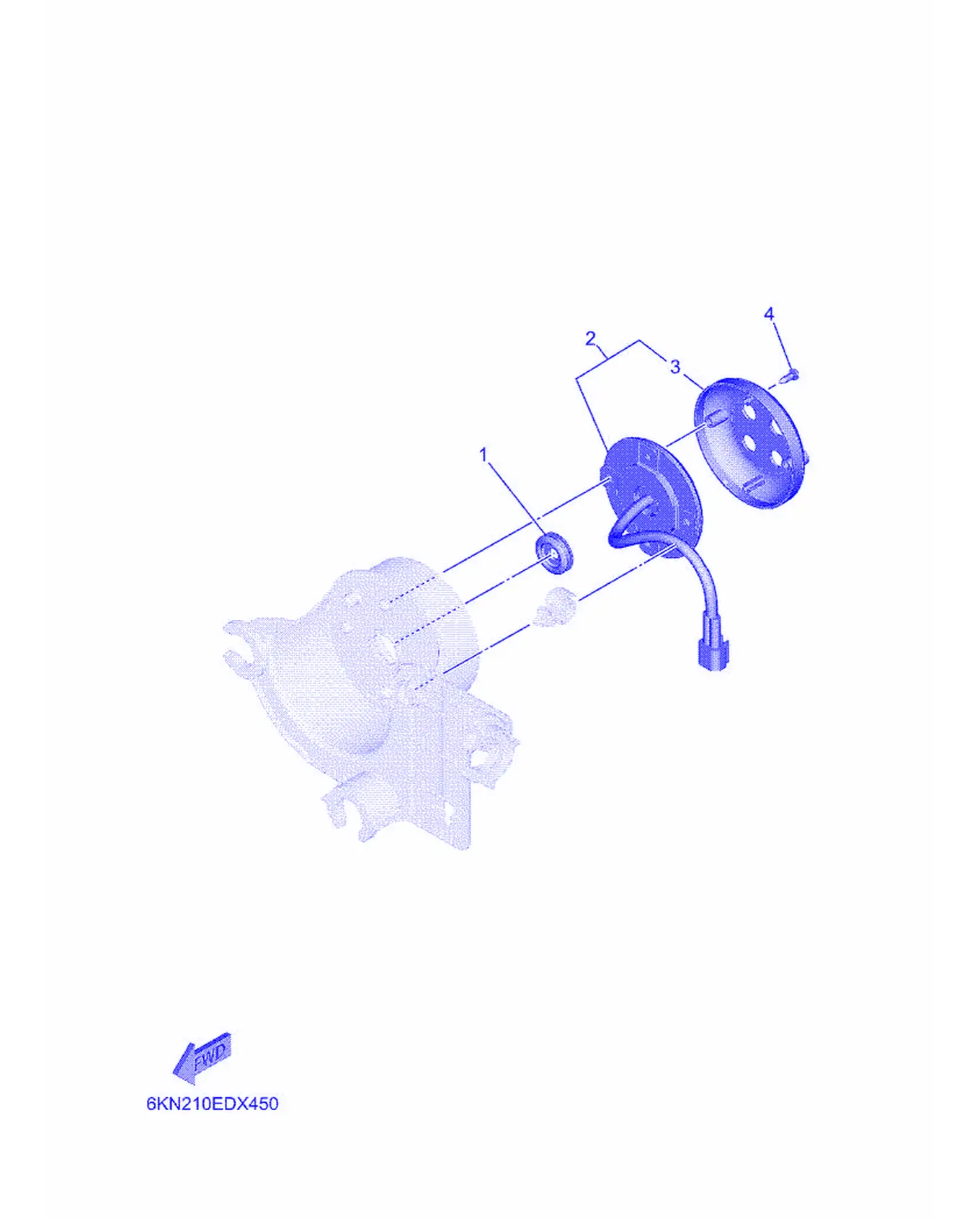

オプシヨナルパ-ツ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	90480-20006	橡胶垫	Grommet	1
2	6KA-6810C-00	LED 灯	LED Light Assembly	1
3	6KA-84516-10	尾灯罩	Cover, Tail Light	1
4	97780-40125	十字槽盘头自攻螺钉	Screw, Tapping	2

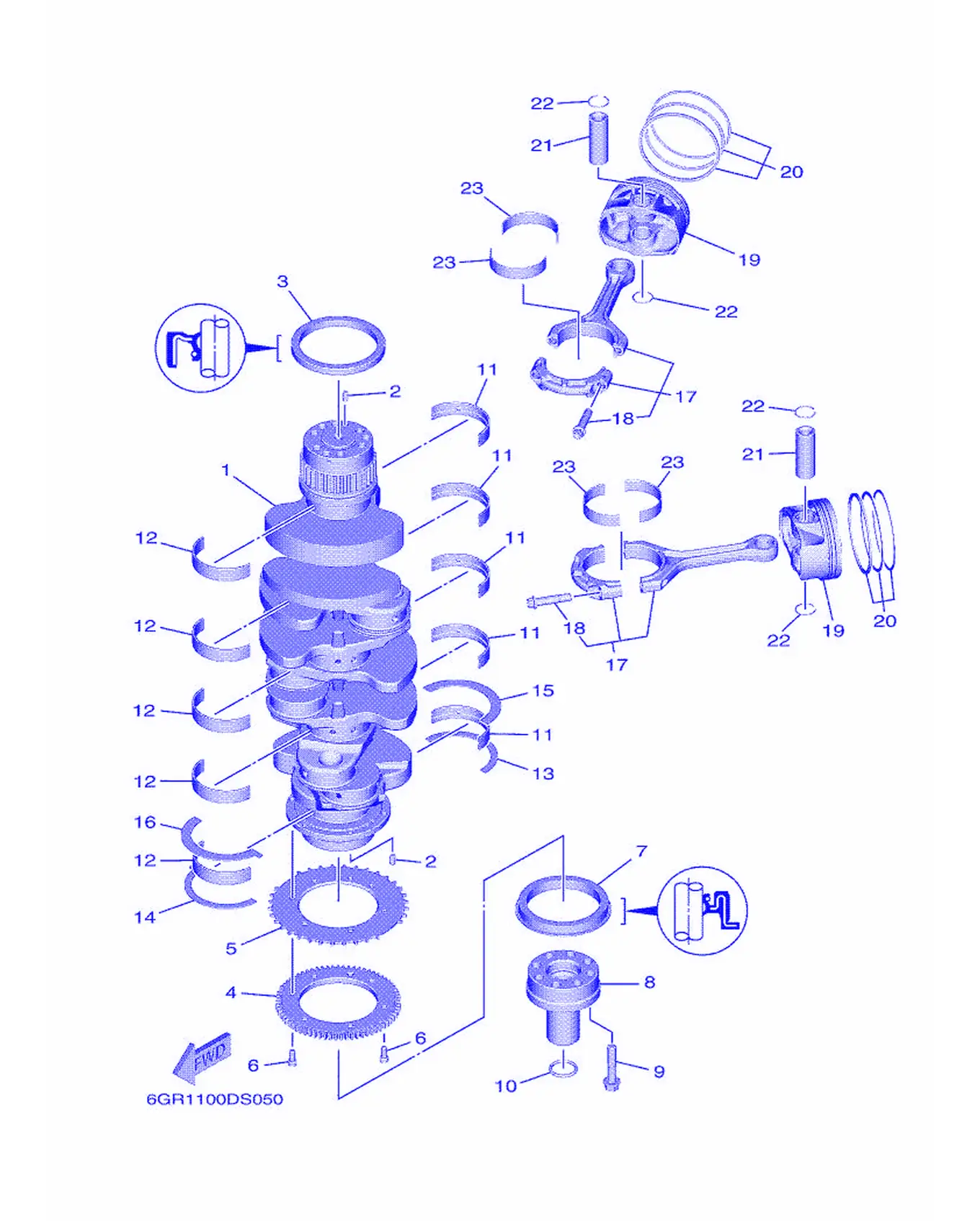

クランクシヤフト & ピストン

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-11411-01	曲轴	Crankshaft	1
2	93606-12019	定位销	Pin, Dowel	2
3	93102-90004	油封	Oil Seal	1
4	6GR-13188-00	主动齿	Gear, Drive	1
5	6GR-81673-00	转子	Rotor	1
6	91317-06014	螺栓	Bolt, Hexagon Socket Head	6
7	93102-85010	油封	Oil Seal	1
8	6GR-12199-00	螺栓	Flange	1
9	90105-10446	六角法兰面螺栓	Bolt, Flange	8
10	93210-260A5	O型圈	O-ring	1
11	6GR-11416-00	轴瓦1	Crankshaft Plain Bearing 1	5
11	6GR-11416-10	轴瓦1	Crankshaft Plain Bearing 1	5
11	6GR-11416-20	轴瓦1	Crankshaft Plain Bearing 1	5
11	6GR-11416-30	轴瓦1	Crankshaft Plain Bearing 1	5
12	6GR-11417-00	轴瓦2	Crankshaft Plain Bearing 2	5
13	6CB-11426-03	轴瓦1	Bearing, Thrust 1	1
14	6CB-11427-03	轴瓦2	Bearing, Thrust 2	1
15	6GR-11426-00	轴瓦1	Bearing, Thrust 1	1
16	6GR-11427-00	轴瓦2	Bearing, Thrust 2	1
17	6GR-W1165-10	连杆平面支承套	Connecting Rod Assembly	8
18	63P-11654-10	连杆螺栓	Bolt, Connecting Rod	2
19	6KN-11631-00	活塞	Piston (STD)	8
20	6GR-11603-00	活塞环套件	Piston Ring Set (STD)	8
21	6GR-11633-00	活塞销	Pin, Piston	8
22	6GR-11634-00	活塞销挡圈	Clip, Piston Pin	16
23	6GR-11656-00	轴瓦	Connecting Rod Plain Bearing	16
23	6GR-11656-10	轴瓦	Connecting Rod Plain Bearing	16

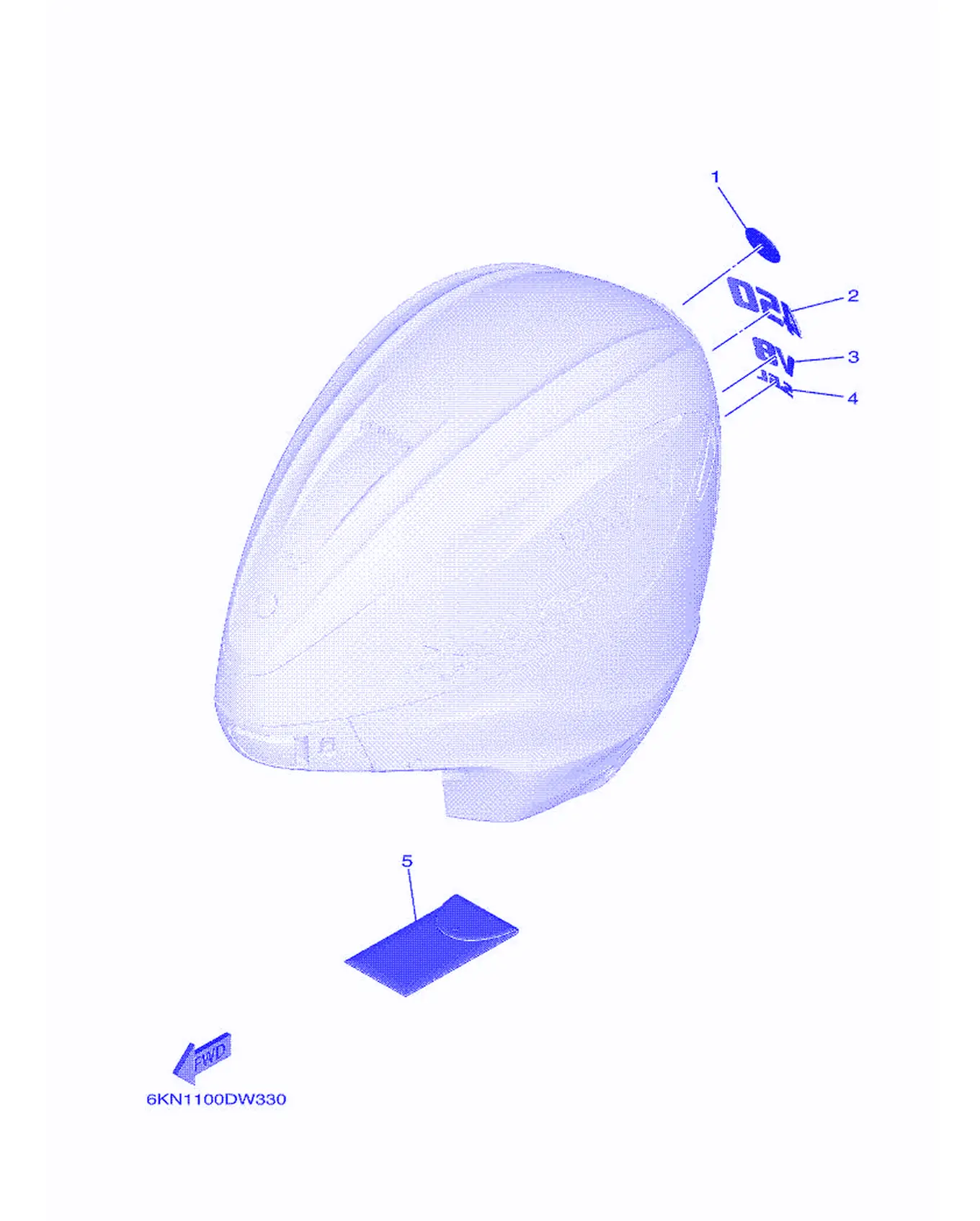

グラフイツク & ツール

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-42697-00	音叉标志	Tuning Fork Mark	1
2	6KN-4267A-00	后图样 2	Graphic, Rear 2	1
3	6GR-42678-00	后图样	Graphic, Rear	1
4	6GR-42682-00	罩标志	Mark, Coupling	1
5	6GR-28100-01	随车工具	Tool Kit	1

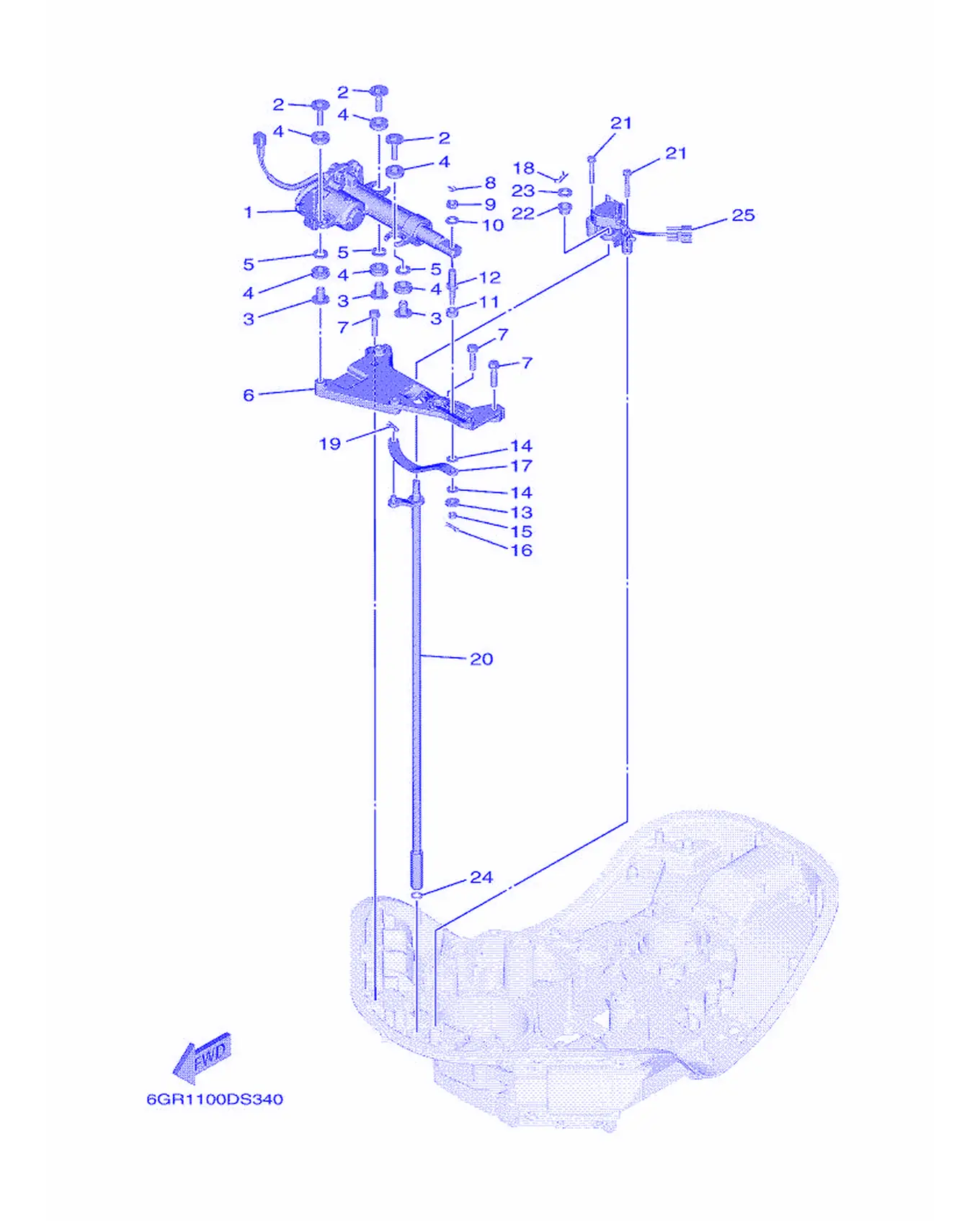

コントロ-ル

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-4820A-01	控制单元	Actuator Unit	1
2	90119-08175	带垫圈六角头螺栓	Bolt, with Washer	3
3	90387-08104	轴套	Collar	3
4	6CE-85564-00	固定	Grommet	6
5	90201-12064	平垫圈	Washer, Plate	3
6	6GR-44117-00	托架	Bracket	1
7	97E75-08535	螺栓	Bolt, Hexagon with Washer Deep Recess	3
8	91490-20015	开口销	Pin, Cotter	1
9	95380-10700	螺母	Nut	1
10	90201-10048	平垫圈	Washer, Plate	1
11	6CE-44122-00	变挡杆杠杆衬套	Bushing, Shift Rod Lever	1
12	6GR-42195-00	连接销1	Pin, Joint 1	1
13	90201-06068	平垫圈	Washer,Plate	1
14	90202-08M41	平垫圈	Washer, Plate	2
15	90185-06M07	螺帽	Nut, Self-Locking	1
16	90468-18008	钢夹	Clip	1
17	6GR-44121-00	变挡杆杠杆	Lever, Shift Rod	1
18	90468-180A0	卡环	Clip	1
19	90468-18008	钢夹	Clip	1
20	6GR-44120-01	变挡手柄组合	Handle Gear Shift Assembly	1
21	97E95-06540	螺栓	Bolt, Hexagon with Washer Deep Recess	2
22	90386-12M61	衬套	Bushing	1
23	90201-10081	平垫圈	Washer, Plate	1
24	93210-11073	O型圈	O-ring	1
25	6GR-68303-00	传感器	Sensor Assembly	1

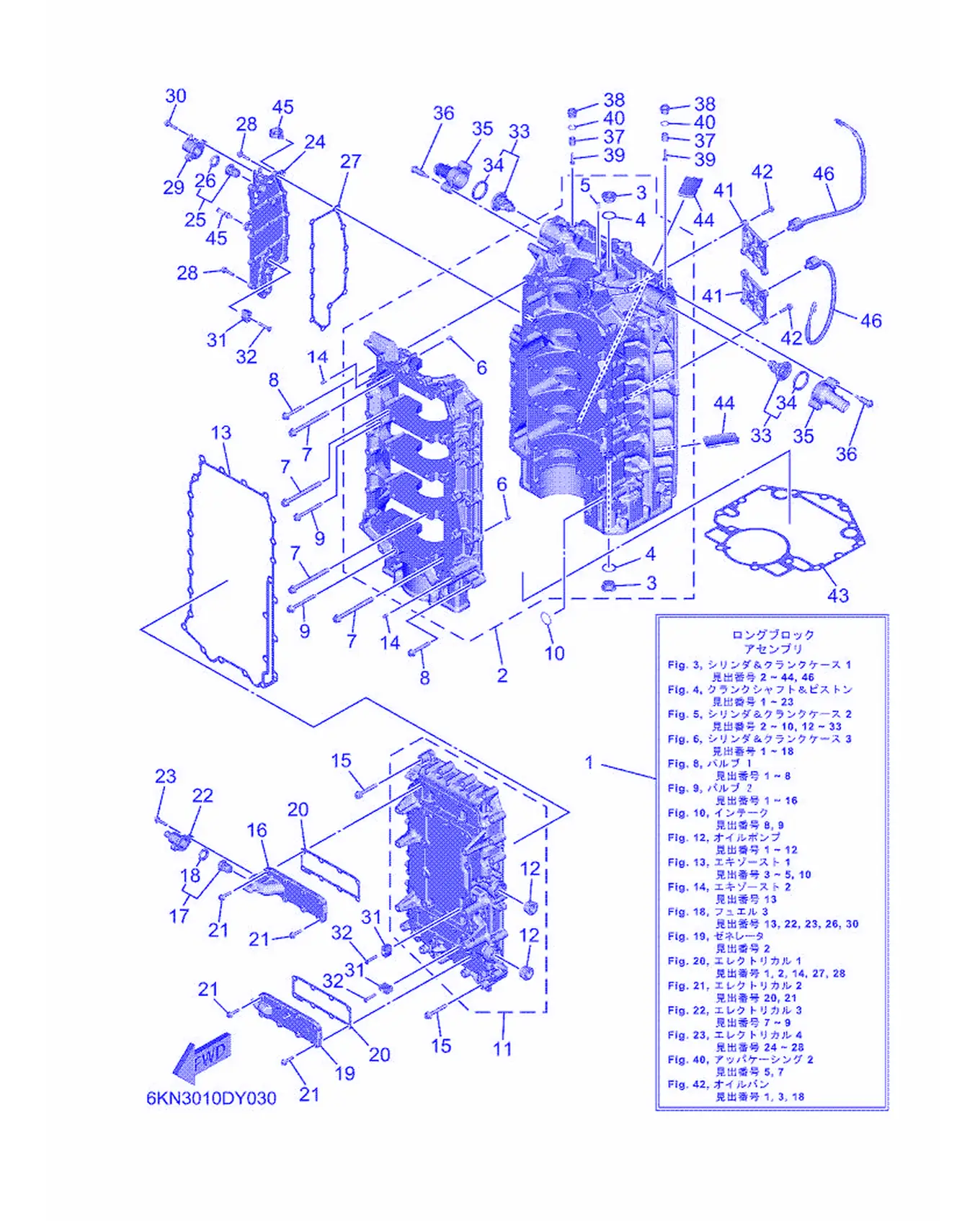

シリンダ & クランクケース 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-11000-00	发动机副总成	Long Block Assembly	1
2	6KN-15109-00-9S	曲轴箱组合	Crankcase Assembly	1
3	90340-24001	螺塞	Plug, Straight Screw	2
4	90430-24239	衬垫	Gasket	2
5	93606-12019	定位销	Pin, Dowel	1
6	93606-12019	定位销	Pin, Dowel	10
7	6P2-15187-00	螺栓	Bolt	20
8	90105-08175	六角法兰面螺栓	Bolt, Flange	10
9	90105-08220	六角法兰面螺栓	Bolt, Flange	6
10	93210-26658	O型圈	O-ring	1
11	6KN-15411-01-9S	曲轴箱盖1	Cover, Crankcase 1	1
12	90340-27001	螺塞	Plug, Straight Screw	2
13	6GR-15451-01	曲轴箱盖垫片1	Gasket, Crankcase Cover	1
14	93606-12019	定位销	Pin, Dowel	2
15	90105-08175	六角法兰面螺栓	Bolt, Flange	26
16	6GR-15414-01-9S	空气净化器盖	Cover 1	1
17	6H3-12411-20	温控器	Thermostat	1
18	6H3-12412-10	温控器密封	Seal, Thermostat	1
19	6GR-15423-00-9S	化油器盖2	Cover 2	1
20	6GR-1131B-00	衬垫	Gasket, Cover	2
21	90105-06037	螺栓	Bolt, Flange	16
22	6KN-12417-00-9S	温控器壳	Housing, Thermostat	1
23	90105-06037	螺栓	Bolt, Flange	2
24	6GR-15413-01-9S	化油器盖	Cover	1
25	66M-12411-01	温控器	Thermostat	1
26	688-12412-00	温控器密封	Seal,Thermostat	1
27	6GR-15353-00	放油塞衬垫	Gasket, Drain	1
28	90105-06037	螺栓	Bolt, Flange	12
29	6GR-1241B-00-9S	温控器盖	Cover, Thermostat 2	1
30	90105-06037	螺栓	Bolt, Flange	2
31	6AW-1132P-00	阳极 5	Anode 5	3
32	90151-06069	梅花槽沉头螺钉	Screw, Countersunk	3
33	6GR-12411-00	温控器	Thermostat	2
34	6GR-12412-00	温控器密封	Seal, Thermostat	1
35	6GR-12413-00	温控器盖	Cover, Thermostat	2
36	90109-06286	螺栓	Bolt	4
37	6G8-11325-00	阳极	Anode	2
38	6G8-11197-B0	塞	Blind Plug	2
39	98980-05025	十字槽盘头螺钉	Screw, Bind	2
40	93210-13M63	O型圈	O-ring	2
41	6GR-1135A-00	托架	Bracket	2
42	90105-06037	螺栓	Bolt, Flange	8
43	6GR-11351-01	气缸垫片1	Gasket, Cylinder	1
44	6GR-14664-01	断水	Grommet, Water Jacket	2
45	90464-20181	固定夹	Clamp	2
46	6CJ-85780-02	发爆传感	Sensor, Knock	2

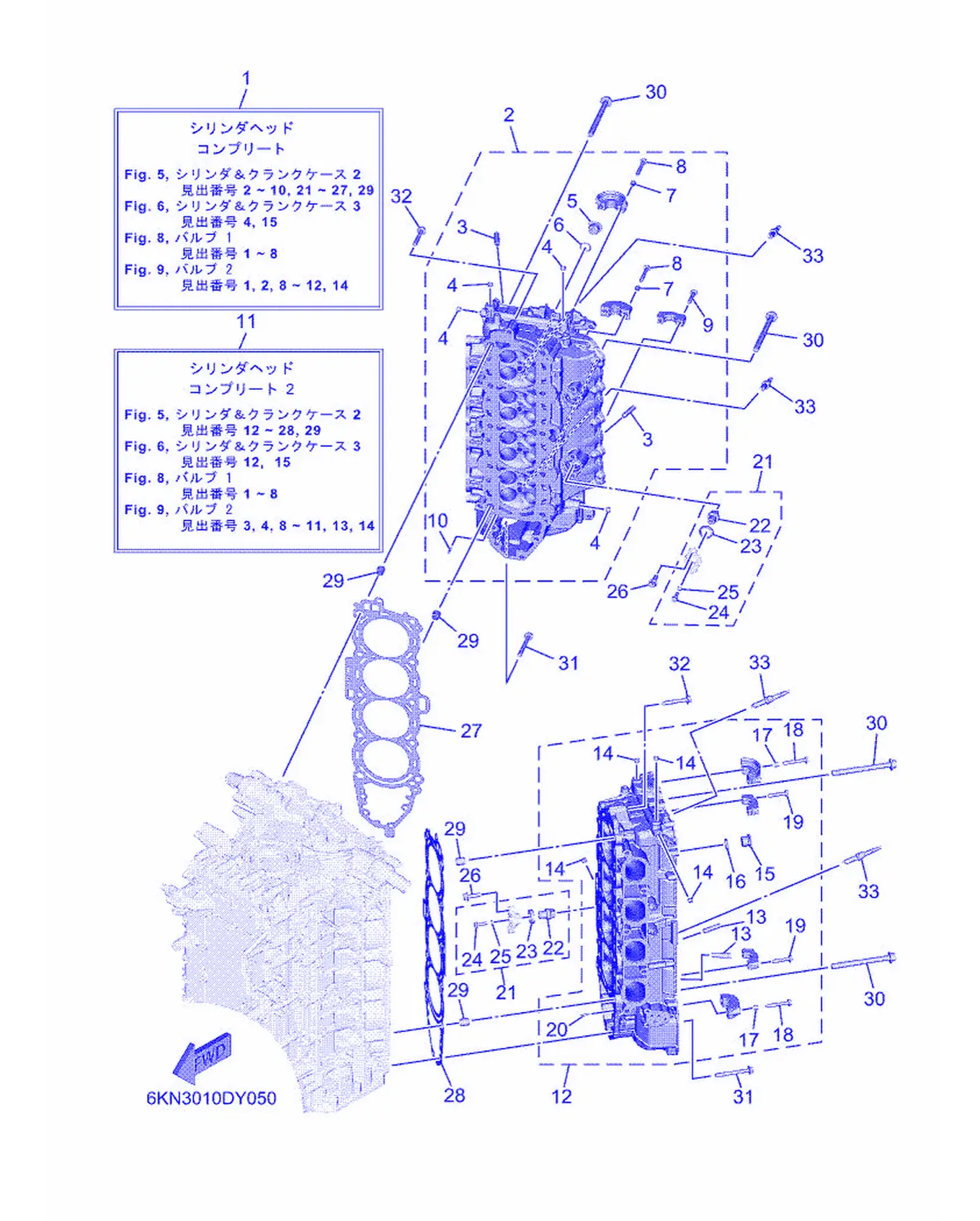

シリンダ & クランクケース 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-W009A-01-9S	气缸头总成	Cylinder Head Complete	1
2	6KN-11110-00	气缸头总成	Cylinder Head Assembly	1
3	6DA-11133-10	进气门导管	Guide,Valve 1	16
4	90344-51019	衬套	Plug, Taper Screw	4
5	90340-97002	螺塞	Plug, Straight Screw	3
6	93210-18322	O型圈	O-ring	3
7	91809-08006	定位销	Sleeve Guide Dowel	4
8	90119-07235	带垫螺栓	Bolt, Washer Cam Caps	4
9	90119-07234	带垫螺栓	Bolt, with Washer	18
10	91690-40018	弹簧销	Pin,Spring	1
11	6KN-W009C-01-9S	气缸头总成	Cylinder Head Complete 2	1
12	6KN-11120-00	气缸盖组合2	Cylinder Head Assembly 2	1
13	6DA-11133-10	进气门导管	Guide,Valve 1	16
14	90344-51019	衬套	Plug, Taper Screw	4
15	90340-97002	螺塞	Plug, Straight Screw	3
16	93210-18322	O型圈	O-ring	3
17	91809-08006	定位销	Sleeve Guide Dowel	4
18	90119-07235	带垫螺栓	Bolt, Washer Cam Caps	4
19	90119-07234	带垫螺栓	Bolt, with Washer	18
20	91690-40018	弹簧销	Pin,Spring	1
21	6ML-11301-00	锌块垫组合	Anode Cover Assembly	4
22	6ML-11325-00	阳极	Anode	1
23	67F-11328-01	阳极固定	Grommet	1
24	90105-06M07	螺栓	Bolt, Flange	1
25	90430-06M03	平垫圈	Gasket	1
26	95D95-08025	连杆螺栓	Bolt, Flange Deep Recess	8
27	6KN-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
28	6KN-11182-00	气缸盖衬垫2	Gasket, Cylinder Head 2	1
29	90387-11005	轴套	Collar	4
30	90149-11001	螺钉	Screw	20
31	90105-08220	六角法兰面螺栓	Bolt, Flange	8
32	90105-08175	六角法兰面螺栓	Bolt, Flange	2
33	94709-00447	火花塞	Spark Plug (NGK ILMAR7H9)	8

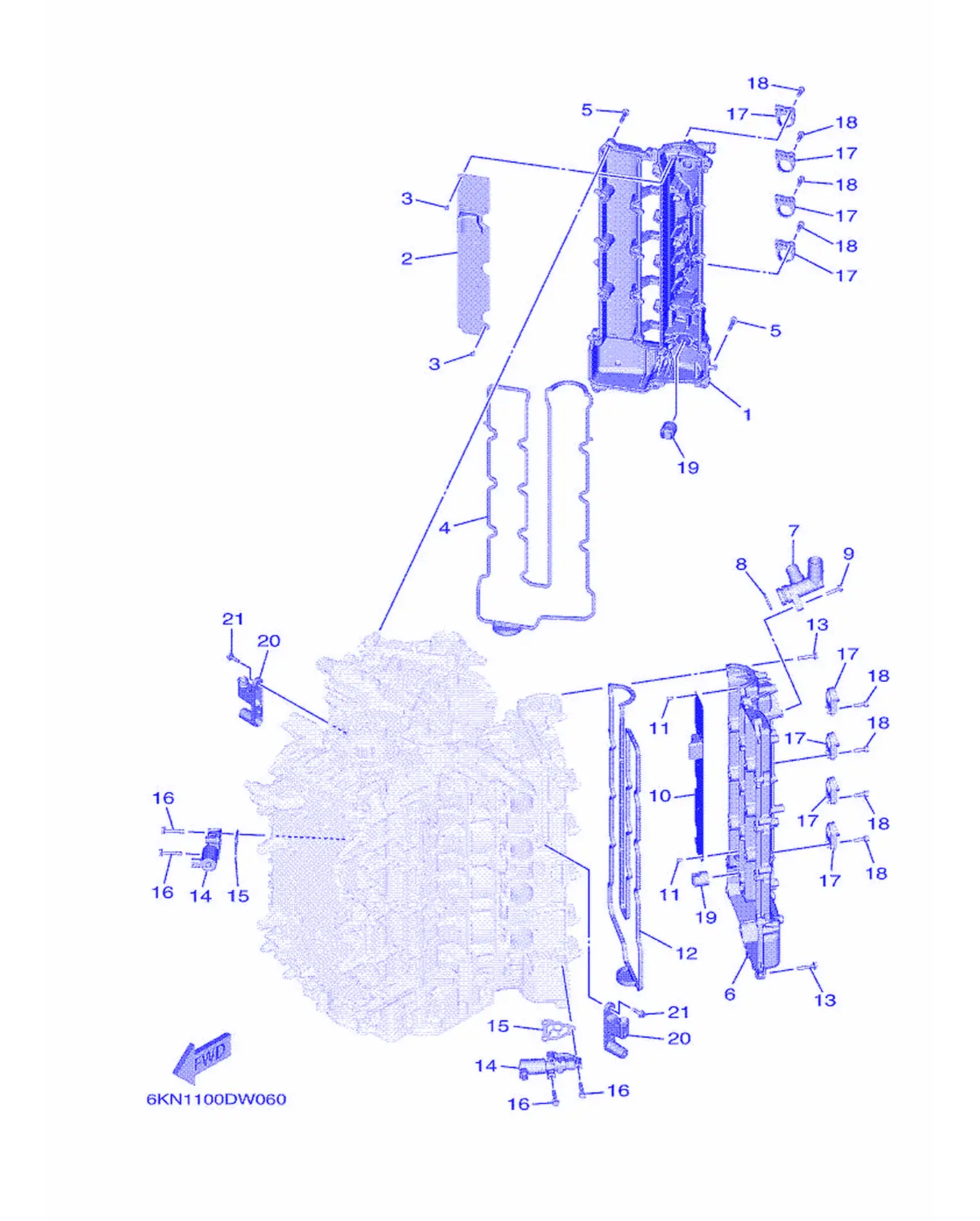

シリンダ & クランクケース 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-11191-00-9S	气缸盖罩1	Cover, Cylinder Head 1	1
2	6GR-11135-00	通气管面板3	Breather Plate 3	1
3	97607-04208	螺钉	Screw, Pan Head Washer	8
4	6GR-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
5	95D95-06030	螺栓	Bolt, Flange Deep Recess	22
6	6GR-11192-00-9S	气缸盖罩2	Cover, Cylinder Head 2	1
7	6GR-11372-00	软管接头	Nipple, Hose	1
8	93210-28646	O型圈	O-ring	1
9	95D95-06025	连杆螺栓	Bolt, Flange Deep Recess	1
10	6GR-11136-00	通气管面板4	Breather Plate 4	1
11	97607-04208	螺钉	Screw, Pan Head Washer	8
12	6GR-11194-00	气缸盖罩衬垫2	Gasket, Head Cover 2	1
13	95D95-06030	螺栓	Bolt, Flange Deep Recess	22
14	6GR-86120-00	电磁阀组合	Solenoid Valve Assembly	2
15	6CB-1242F-00	滤清器衬垫	Gasket Filter	2
16	90105-06035	螺栓	Bolt, Flange	6
17	6GR-82316-00	点火线圈托架	Bracket, Ignition Coil	8
18	90110-06038	六角头插座螺栓	Bolt, Hexagon Socket Head	16
19	6GR-11927-00	起落器	Lifter	2
20	6GR-42743-00	托架	Bracket	2
21	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	4

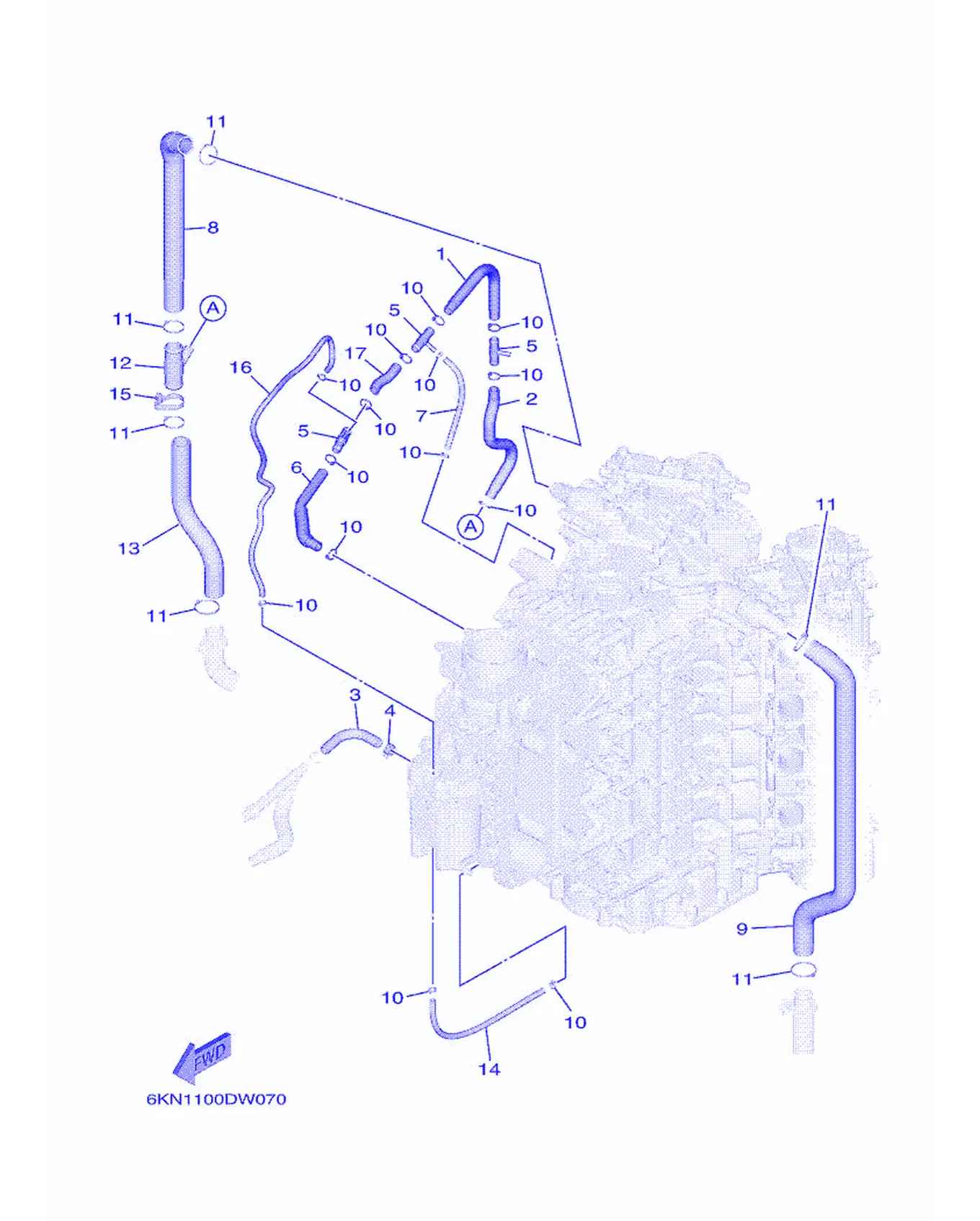

シリンダ & クランクケース 4

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-12576-00	软管1	Hose 1	1
2	6KN-12579-00	软管4	Hose 4	1
3	6GR-42541-00	减震器	Pipe 1	1
4	90467-150A5	卡环	Clip	1
5	6GR-24376-00	连接管1	Pipe, Joint 1	3
6	6KN-12551-00	软管7	Hose 7	1
7	90445-09M00	固定	Hose (L180)	1
8	6GR-1243A-00	软管1	Hose 1	1
9	6GR-1243E-00	软管2	Hose 2	1
10	90465-11M10	固定	Clamp	14
11	90465-11M59	固定	Clamp	6
12	6GR-12594-00	软管接头4	Joint, Hose 4	1
13	6GR-1244H-00	软管5	Hose 5	1
14	90445-09304	软管	Hose (L310)	1
15	90465-13M24	固定	Clamp	1
16	6KN-12588-00	软管5	Hose 5	1
17	6KN-12589-00	软管6	Hose 6	1

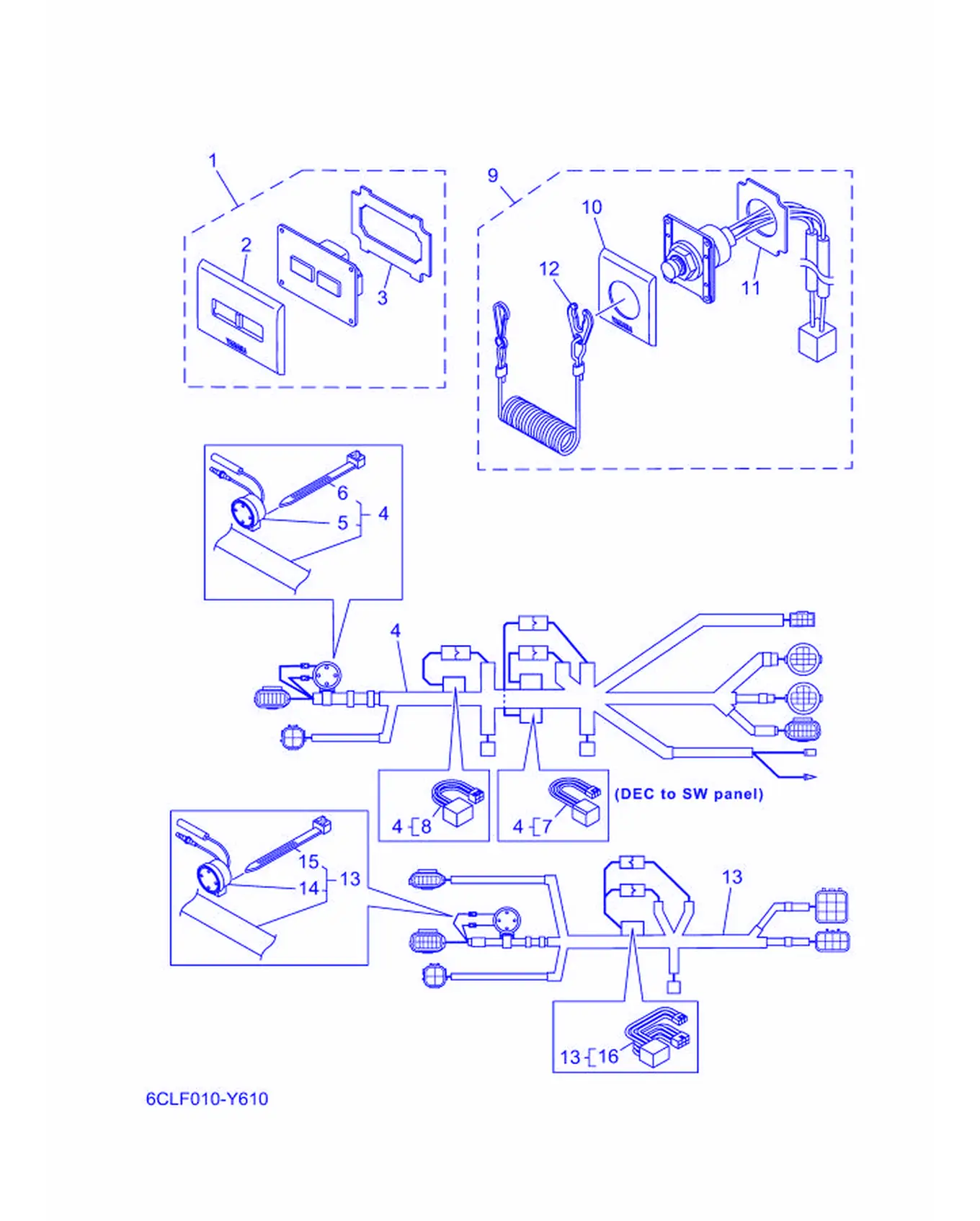

スイツチ & パネル 11 (EKS, ツイン)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X9-82570-32	开关仪表板组合	Panel Switch Assembly	1
2	6X9-82571-31	开关仪表板	Panel, Switch	1
3	6X9-22480-30	密封圈组合	SealAssembly	1
4	6X9-82716-50	拉线开关	Cord Switch	1
5	703-83383-11	蜂鸣器	Buzzer	1
6	90465-13M39	固定环	Clamp	1
7	6X9-81950-00	继电器总成	Relay Assembly	2
8	6X6-81980-00	二极管总成	Diode Assembly	1
9	6X9-82570-81	开关仪表板组合	Panel Switch Assembly	1
10	6X9-82571-71	开关仪表板	Panel, Switch	1
11	6X9-22480-70	密封圈组合	SealAssembly	1
12	682-82556-00	止动拉索	Stopper	1
13	6X9-82716-71	拉线开关	EKS Harness	1
14	703-83383-11	蜂鸣器	Buzzer	1
15	90465-13M39	固定环	Clamp	1
16	6X6-81980-10	二极管总成	Diode Assembly	1

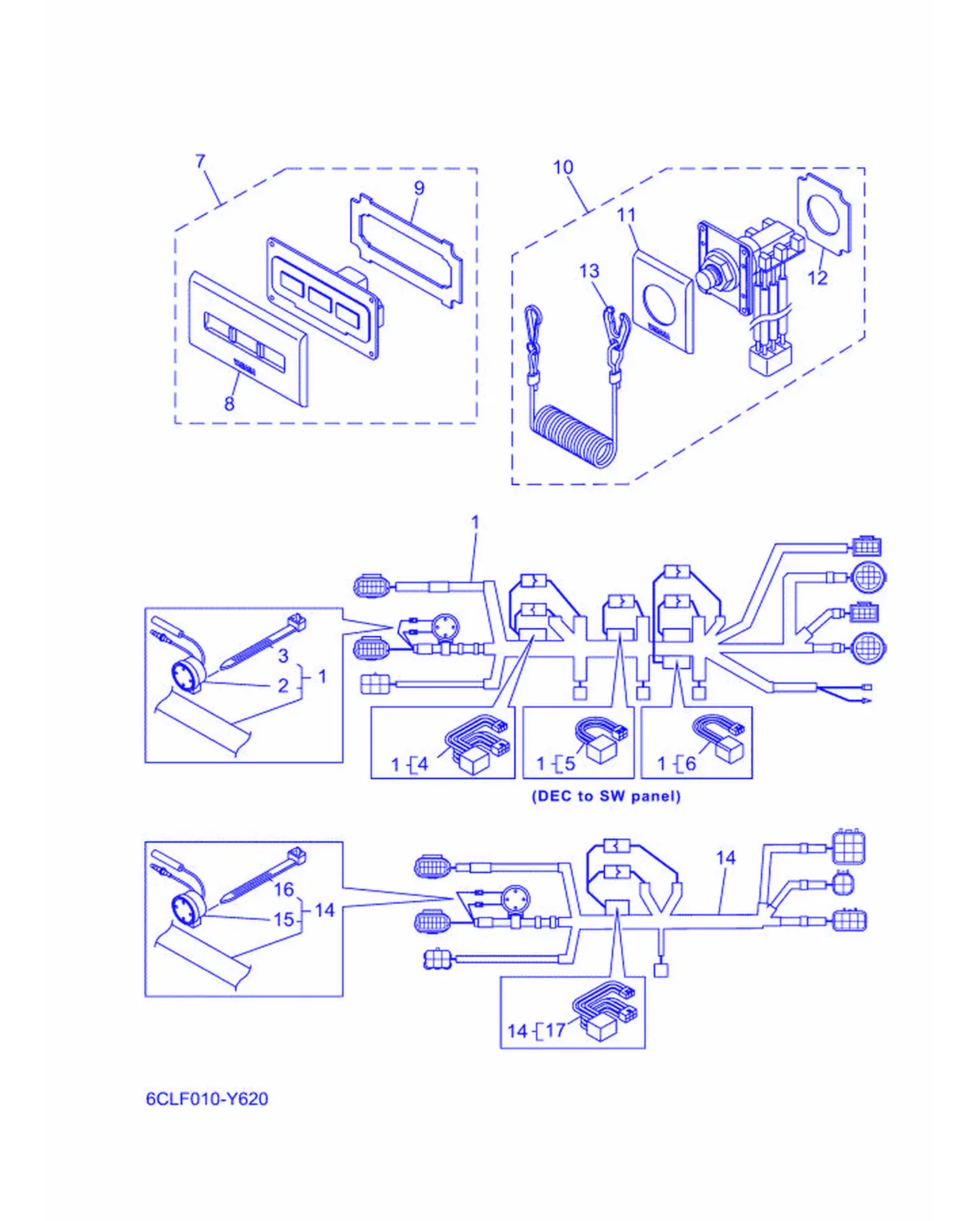

スイツチ & パネル 12 (EKS, トリプル)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X9-82716-41	拉线开关	EKS Harness	1
2	703-83383-11	蜂鸣器	Buzzer	1
3	90465-13M39	固定环	Clamp	1
4	6X6-81980-10	二极管总成	Diode Assembly	1
5	6X6-81980-00	二极管总成	Diode Assembly	1
6	6X9-81950-00	继电器总成	Relay Assembly	2
7	6X9-82570-42	开关仪表板组合	Panel Switch Assembly	1
8	6X9-82571-41	开关仪表板	Panel, Switch	1
9	6X9-22480-40	密封圈组合	SealAssembly	1
10	6X9-82570-C1	开关仪表板组合	Panel Switch Assembly	1
11	6X9-82571-71	开关仪表板	Panel, Switch	1
12	6X9-22480-70	密封圈组合	SealAssembly	1
13	682-82556-00	止动拉索	Stopper	1
14	6X9-82716-80	拉线开关	EKS Harness	1
15	703-83383-11	蜂鸣器	Buzzer	1
16	90465-13M39	固定环	Clamp	1
17	6X6-81980-10	二极管总成	Diode Assembly	1

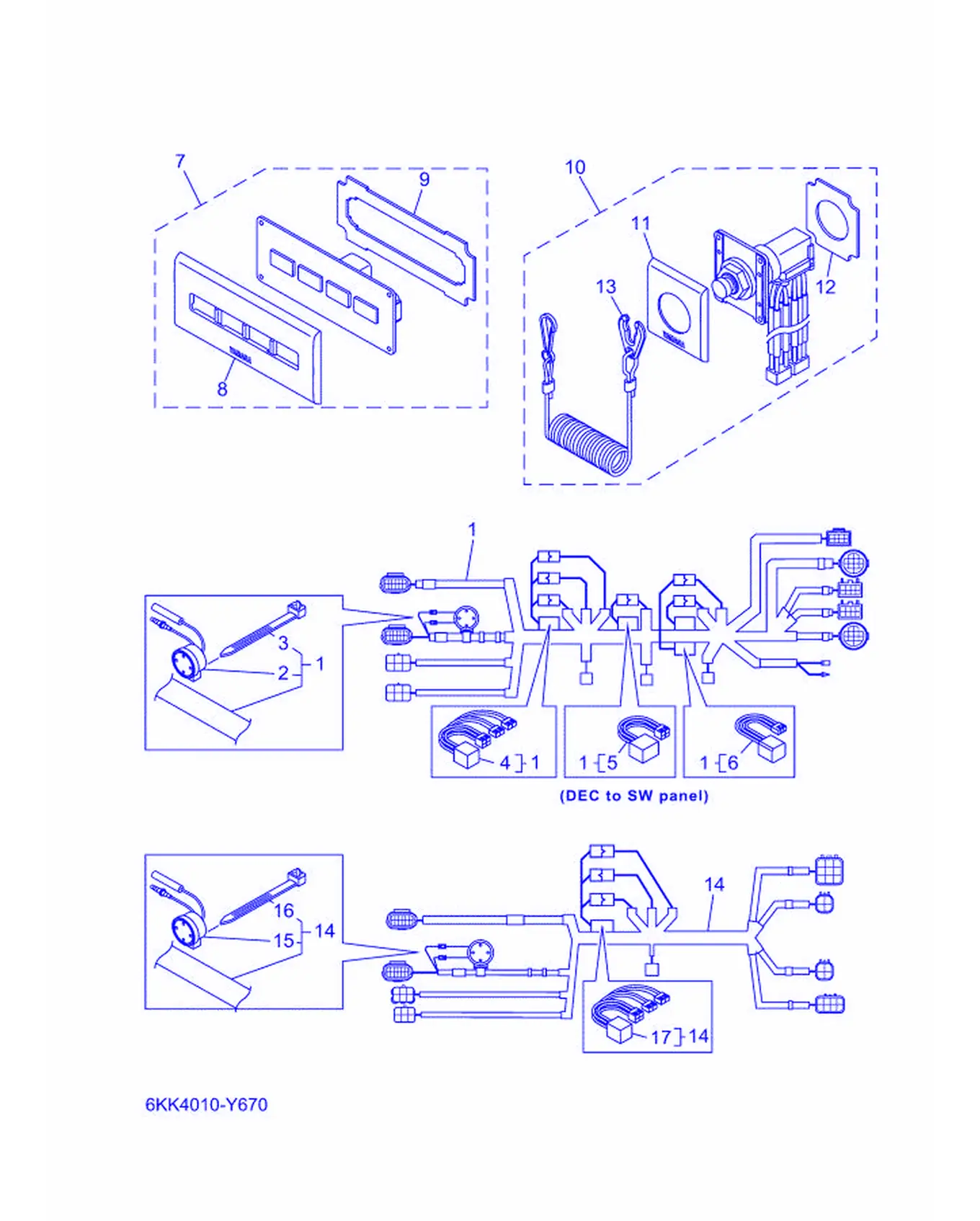

スイツチ & パネル 13 (EKS, クワツド)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X9-82716-91	拉线开关	EKS Harness	1
2	703-83383-11	蜂鸣器	Buzzer	1
3	90465-13M39	固定环	Clamp	1
4	6X6-81980-40	二极管总成	Diode Assembly	1
5	6X6-81980-00	二极管总成	Diode Assembly	1
6	6X9-81950-00	继电器总成	Relay Assembly	2
7	6X9-82570-52	开关仪表板组合	Panel Switch Assembly	1
8	6X9-82571-51	开关仪表板	Panel, Switch	1
9	6X9-22480-50	密封圈组合	SealAssembly	1
10	6X9-82570-D1	开关仪表板组合	Panel Switch Assembly	1
11	6X9-82571-71	开关仪表板	Panel, Switch	1
12	6X9-22480-70	密封圈组合	SealAssembly	1
13	682-82556-00	止动拉索	Stopper	1
14	6X9-82716-A0	拉线开关	EKS Harness	1
15	703-83383-11	蜂鸣器	Buzzer	1
16	90465-13M39	固定环	Clamp	1
17	6X6-81980-40	二极管总成	Diode Assembly	1

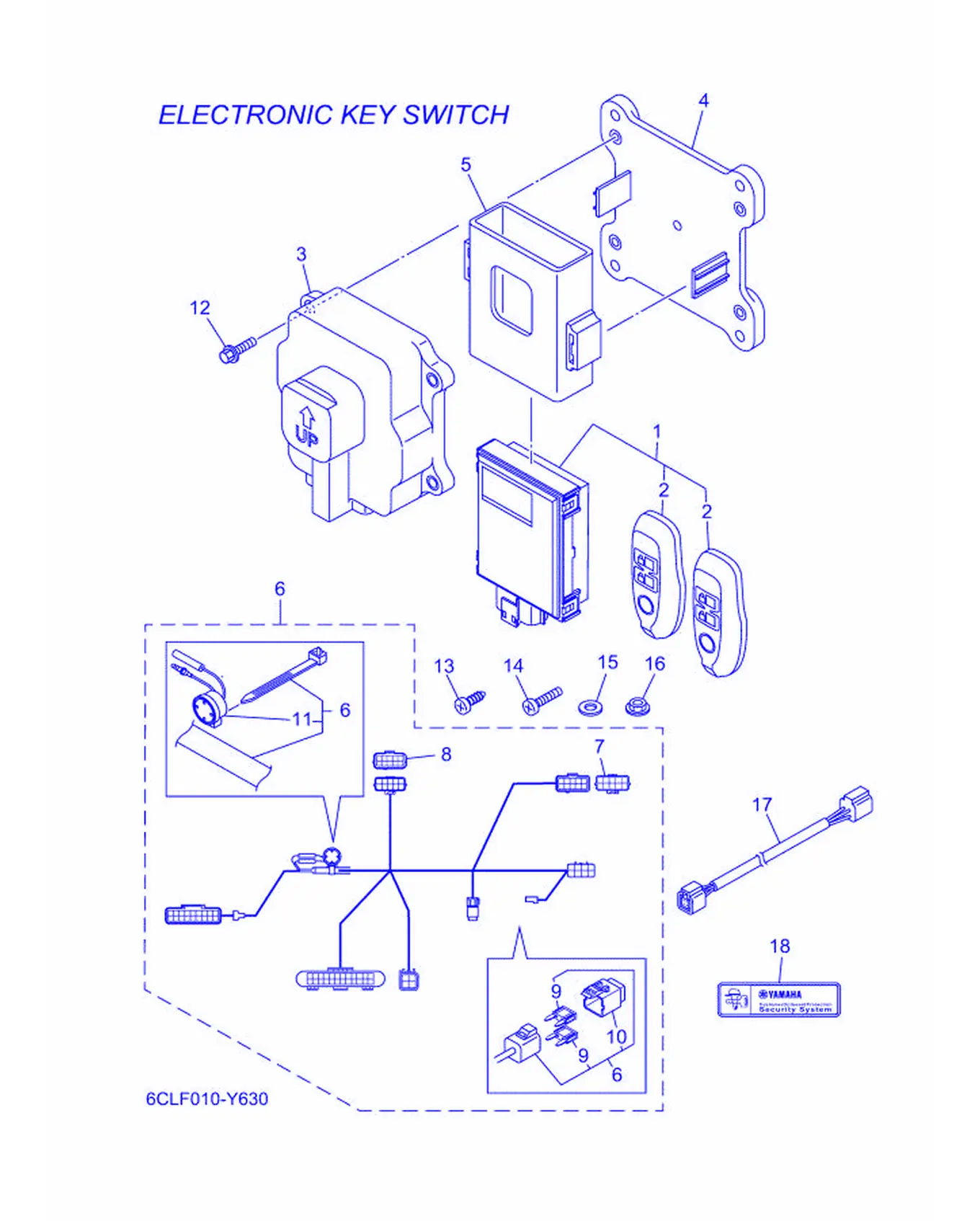

スイツチ & パネル 14 (EKS,KEY_REC)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X9-86260-04	远程控制组合	Remote Control Unit Assembly	1
1	6X9-86260-15	远程控制组合	Remote Control Unit Assembly	1
2	6X9-86261-02	传感器组件	Transmitter Complete	2
2	6X9-86261-13	传感器组件	Transmitter Complete	2
3	6X9-86267-00	容器 1	Case Complete 1	1
4	6X9-81948-00	托架	Bracket	1
5	6X9-85546-01	箍带	Band	1
6	6X9-82509-01	副导线	Wire, Sub Lead	1
7	6X9-82585-00	盖 2	Cap 2	1
8	6X9-82585-10	盖 2	Cap 2	1
9	5JJ-82151-90	保险丝	Fuse (5A-BL)	2
10	69J-8215B-00	断路器盖	Cap (Brown)	1
11	703-83383-11	蜂鸣器	Buzzer	1
12	95880-06016	螺栓	Bolt, Flange	4
13	90167-06M00	六角头盘头自攻螺钉	Screw, Tapping	4
14	97880-06035	大柱头螺钉	Screw, Pan Head	4
15	90201-06M30	带垫面板	Washer,Plate	8
16	95780-06300	带垫螺母	Nut, Flange	4
17	6Y8-82521-11	导线	Pigtail Bus Wire (2FT)	1
18	6Y8-48277-00	标签 1	Sticker 1	1

スイツチ & パネル 3 (ツイン)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-82570-41	开关仪表板组合	Panel Switch Assembly	1
2	6X6-82571-10	开关仪表板	Panel, Switch	1
3	6X6-82510-11	主开关总成	Main Switch Assembly	1
4	703-82532-00	盖	Cap	1
5	6X6-82575-10	发动机止动开关组合	Engine Stop Switch Assembly	1
6	682-82556-00	止动拉索	Stopper	1
7	703-83383-A0	蜂鸣器	Buzzer	1
8	6X6-81980-00	二极管总成	Diode Assembly	1
9	6X6-82570-60	开关仪表板组合	Panel Switch Assembly	1
10	6X6-82571-20	开关仪表板	Panel, Switch	1
11	6X6-83720-00	发光二极管组合	LED Assembly	1
12	6X6-8259E-20	开关总成	Switch Assembly	2
13	6X6-82716-00	拉线开关	Cord Switch	1

スイツチ & パネル 4 (ツイン)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-82570-E0	开关仪表板组合	Panel Switch Assembly	1
2	6X6-82571-20	开关仪表板	Panel, Switch	1
3	6X6-83720-00	发光二极管组合	LED Assembly	1
4	6X6-8259E-20	开关总成	Switch Assembly	2
5	703-83383-A0	蜂鸣器	Buzzer	1
6	6X6-82716-40	拉线开关	Cord Switch	1
7	6X6-81980-00	二极管总成	Diode Assembly	1

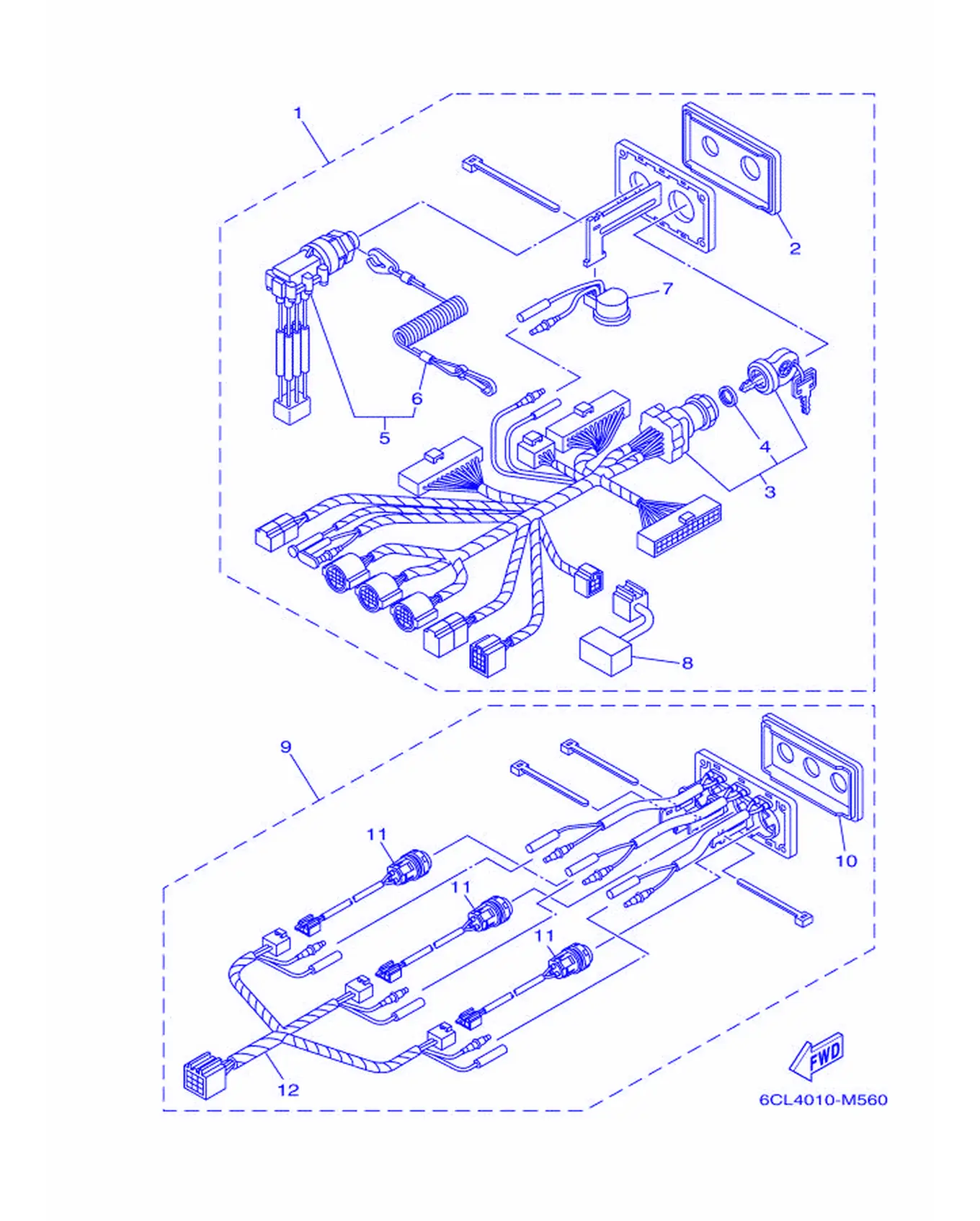

スイツチ & パネル 5 (トリプル)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-82570-51	开关仪表板组合	Panel Switch Assembly	1
2	6X6-82571-10	开关仪表板	Panel, Switch	1
3	6X6-82510-21	主开关总成	Main Switch Assembly	1
4	703-82532-00	盖	Cap	1
5	6X6-82575-10	发动机止动开关组合	Engine Stop Switch Assembly	1
6	682-82556-00	止动拉索	Stopper	1
7	703-83383-A0	蜂鸣器	Buzzer	1
8	6X6-81980-00	二极管总成	Diode Assembly	1
9	6X6-82570-70	开关仪表板组合	Panel Switch Assembly	1
10	6X6-82571-30	开关仪表板	Panel, Switch	1
11	6X6-8259E-20	开关总成	Switch Assembly	3
12	6X6-82716-10	拉线开关	Cord Switch	1

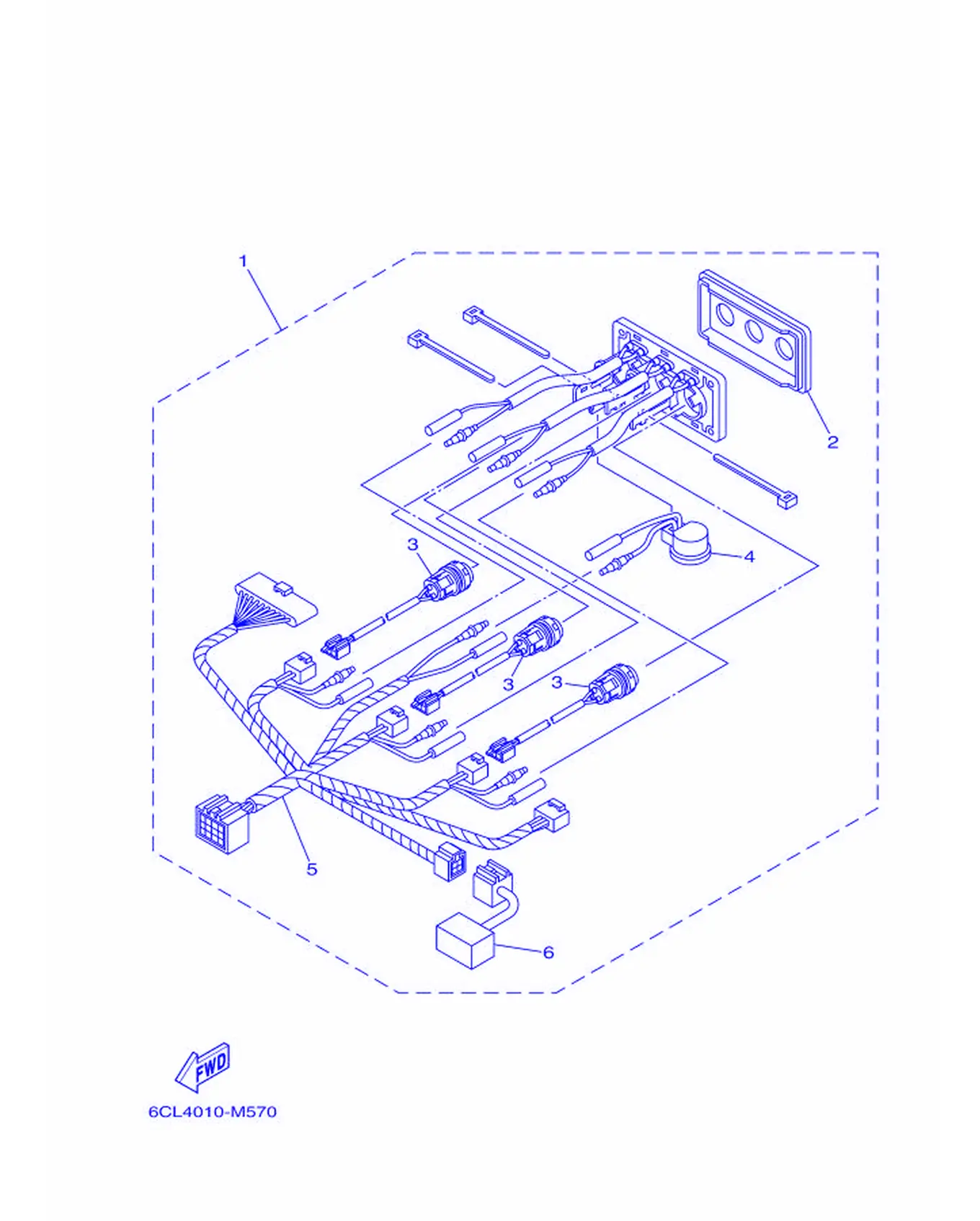

スイツチ & パネル 6 (トリプル)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-82570-F0	开关仪表板组合	Panel Switch Assembly	1
2	6X6-82571-30	开关仪表板	Panel, Switch	1
3	6X6-8259E-20	开关总成	Switch Assembly	3
4	703-83383-A0	蜂鸣器	Buzzer	1
5	6X6-82716-50	拉线开关	Cord Switch	1
6	6X6-81980-00	二极管总成	Diode Assembly	1

スイツチ & パネル 7 (デユアルステーシヨン)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-82570-90	开关仪表板组合	Panel Switch Assembly	1
2	6X6-82571-50	开关仪表板	Panel, Switch	1
3	682-82556-00	止动拉索	Stopper	1
4	6X6-82570-B0	开关仪表板组合	Panel Switch Assembly	2
5	6X6-82571-70	开关仪表板	Panel, Switch	1
6	6X6-81980-10	二极管总成	Diode Assembly	1

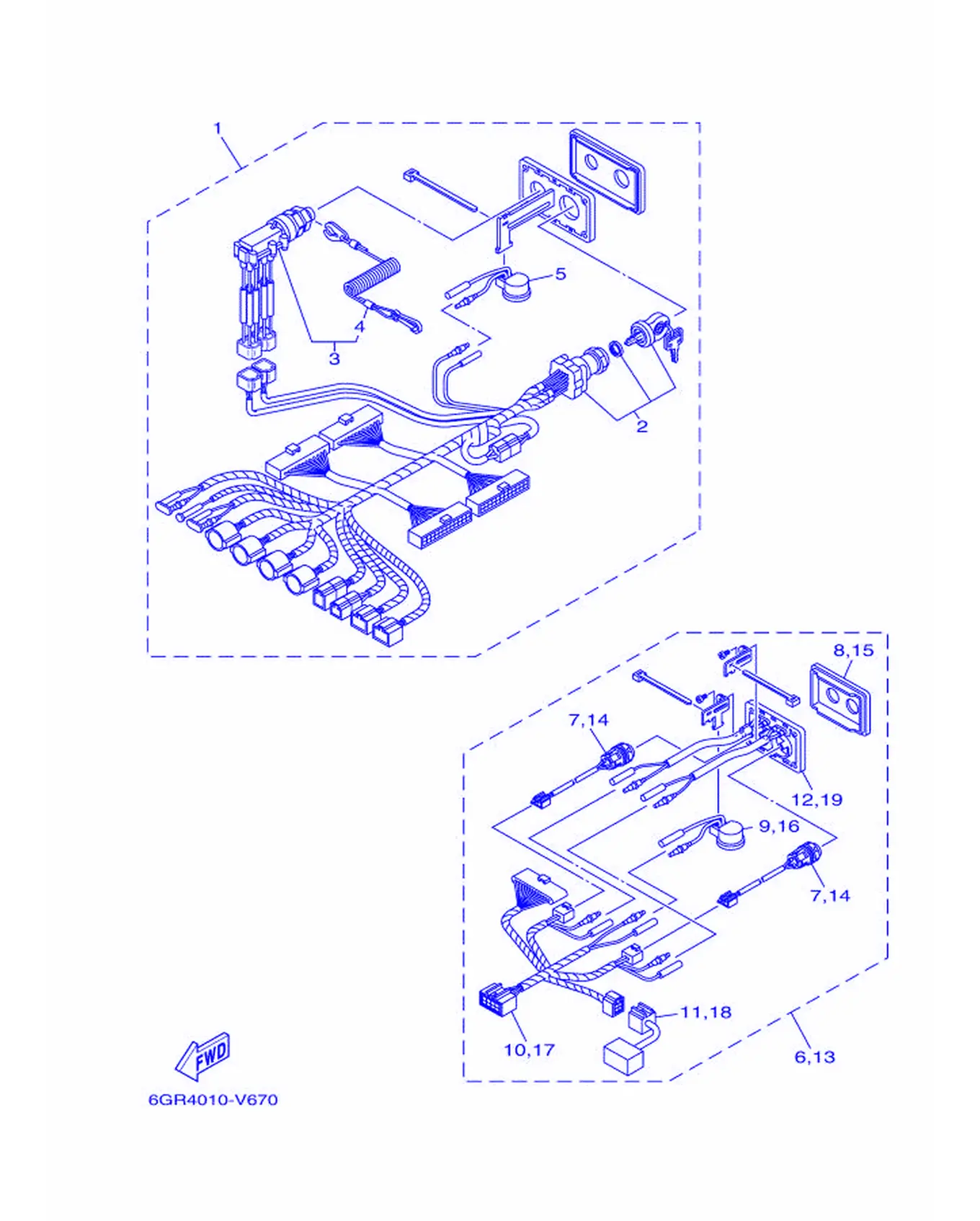

スイツチ & パネル 8 (クワツド)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-82570-G1	开关仪表板组合	Panel Switch Assembly	1
2	6X6-82510-41	主开关总成	Main Switch Assembly	1
3	6ES-82575-10	发动机止动开关组合	Engine Stop Switch Assembly	1
4	682-82556-00	止动拉索	Stopper	1
5	703-83383-A0	蜂鸣器	Buzzer	1
6	6X6-82570-J0	开关仪表板组合	Panel Switch Assembly (PORT-P/CP)	1
7	6X6-8259E-20	开关总成	Switch Assembly	2
8	6X6-82571-80	开关仪表板	Panel, Switch	1
9	703-83383-A0	蜂鸣器	Buzzer	1
10	6X6-82716-40	拉线开关	Cord Switch	1
11	6X6-81980-00	二极管总成	Diode Assembly	1
12	6X6-83720-00	发光二极管组合	LED Assembly	1
13	6X6-82570-K0	开关仪表板组合	Panel Switch Assembly (STBD-CS/S)	1
14	6X6-8259E-20	开关总成	Switch Assembly	2
15	6X6-82571-90	开关仪表板	Panel, Switch	1
16	703-83383-A0	蜂鸣器	Buzzer	1
17	6X6-82716-40	拉线开关	Cord Switch	1
18	6X6-81980-00	二极管总成	Diode Assembly	1
19	6X6-83720-00	发光二极管组合	LED Assembly	1

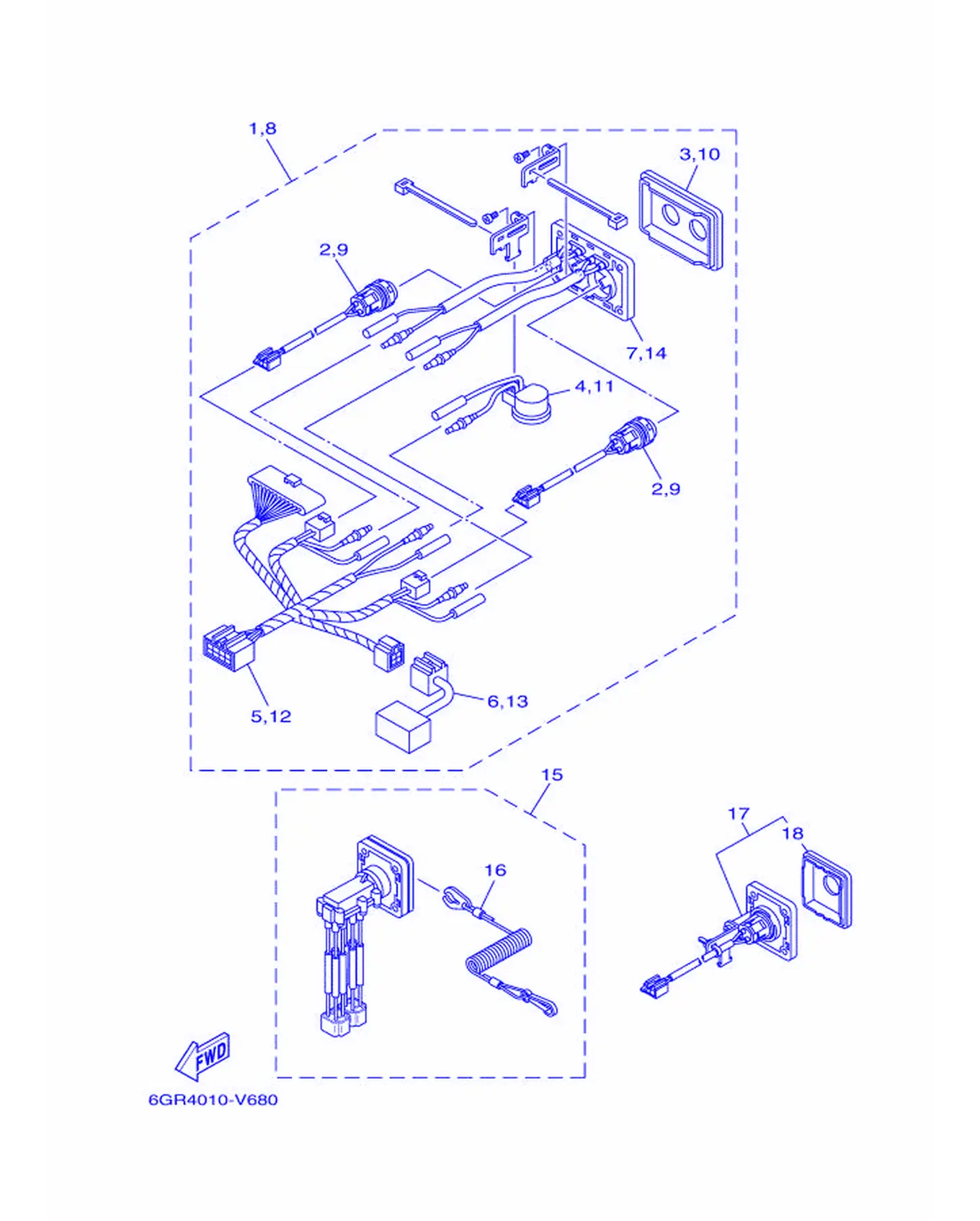

スイツチ & パネル 9 (クワツド)

REF	雅马哈编码	中文名称	英文名称	用量
1	6X6-82570-J0	开关仪表板组合	Panel Switch Assembly (PORT-P/CP)	1
2	6X6-8259E-20	开关总成	Switch Assembly	2
3	6X6-82571-80	开关仪表板	Panel, Switch	1
4	703-83383-A0	蜂鸣器	Buzzer	1
5	6X6-82716-40	拉线开关	Cord Switch	1
6	6X6-81980-00	二极管总成	Diode Assembly	1
7	6X6-83720-00	发光二极管组合	LED Assembly	1
8	6X6-82570-K0	开关仪表板组合	Panel Switch Assembly (STBD-CS/S)	1
9	6X6-8259E-20	开关总成	Switch Assembly	2
10	6X6-82571-90	开关仪表板	Panel, Switch	1
11	703-83383-A0	蜂鸣器	Buzzer	1
12	6X6-82716-40	拉线开关	Cord Switch	1
13	6X6-81980-00	二极管总成	Diode Assembly	1
14	6X6-83720-00	发光二极管组合	LED Assembly	1
15	6ES-82570-00	开关仪表板组合	Engine Stop Switch Assembly (Quartz)	1
16	682-82556-00	止动拉索	Stopper	1
17	6X6-82570-L0	开关仪表板组合	Panel Switch Assembly	1
18	6X6-82571-70	开关仪表板	Panel, Switch	1

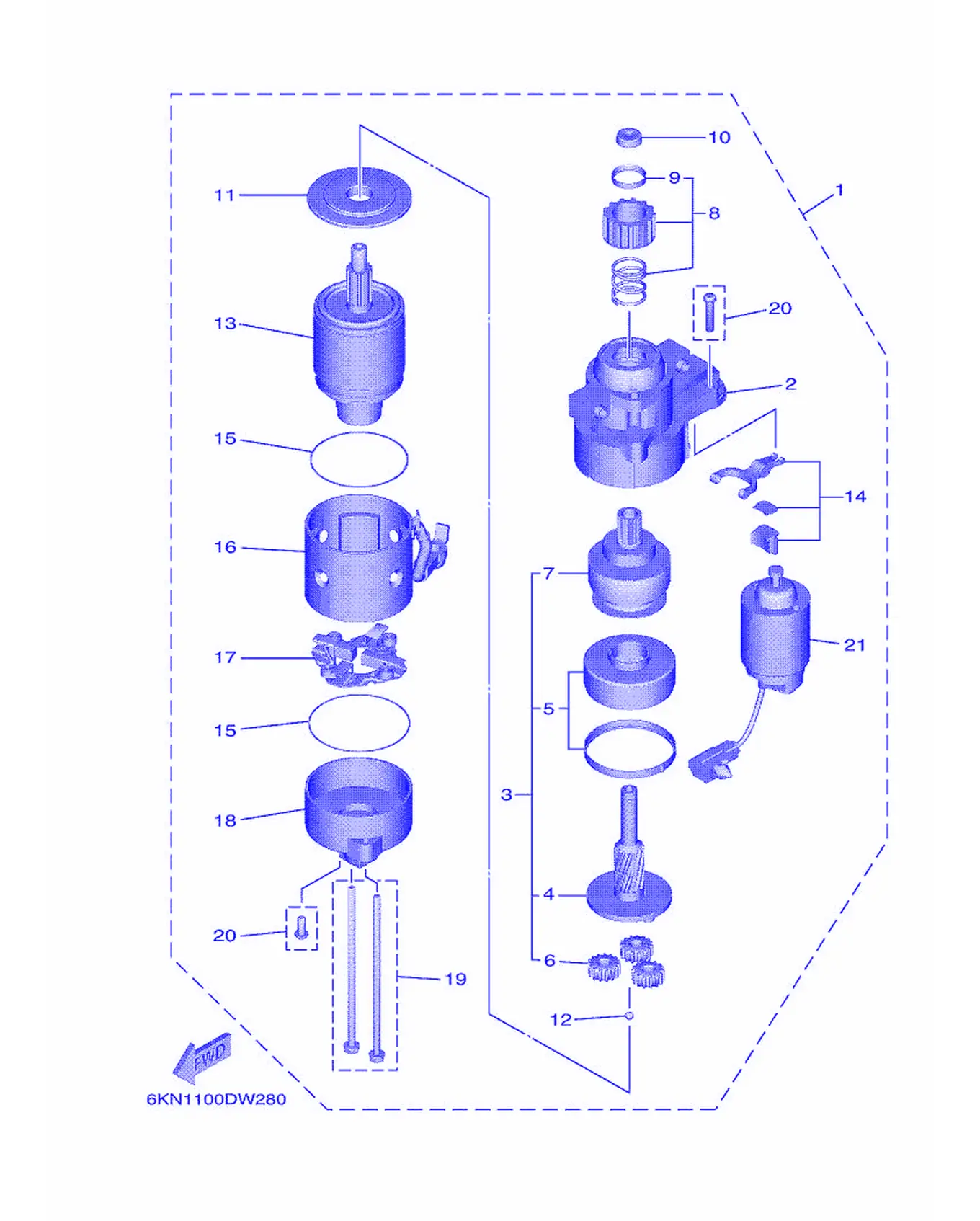

スタ-テイングモ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6AW-81800-02	起动电动机总成	Starting Motor Assembly	1
2	6AW-81830-00	前托架组合	FrontBracketAssembly	1
3	6AW-81807-02	起动电动机齿轮组合	Gear Assembly, Starting Motor	1
4	6AW-81836-00	杠杆弹簧	Spring, Lever	1
5	6AW-81891-01	环形齿轮	Gear, Ring	1
6	6AW-8183T-00	惰轮	Gear, Idler	3
7	6AW-81832-01	越转离合器	Clutch, Overrun	1
8	6AW-81808-00	小齿轮总成	Pinion Assembly	1
9	6AW-81857-00	挡圈	Retainer	1
10	6AW-81862-00	盖	Cap	1
11	6AW-8183R-01	衬垫	Plate	1
12	6AW-81854-00	钢珠	Ball, Steel	1
13	6AW-81850-00	电枢组合	Armature Assembly	1
14	6AW-81839-00	杠杆组合	LeverAssembly	1
15	6AW-81842-00	盖	Packing	2
16	6AW-81810-01	定子组合	Starter Assembly	1
17	6AW-81840-00	电刷架组合	Brush Holder Assembly	1
18	6AW-81820-00	后托架组合	Rear Bracket Assembly	1
19	6AW-81826-00	螺栓	Bolt	1
20	6AW-81846-00	螺钉1	Screw	1
21	6AW-81941-00	起动继电器组合	Starter Relay Assembly	1

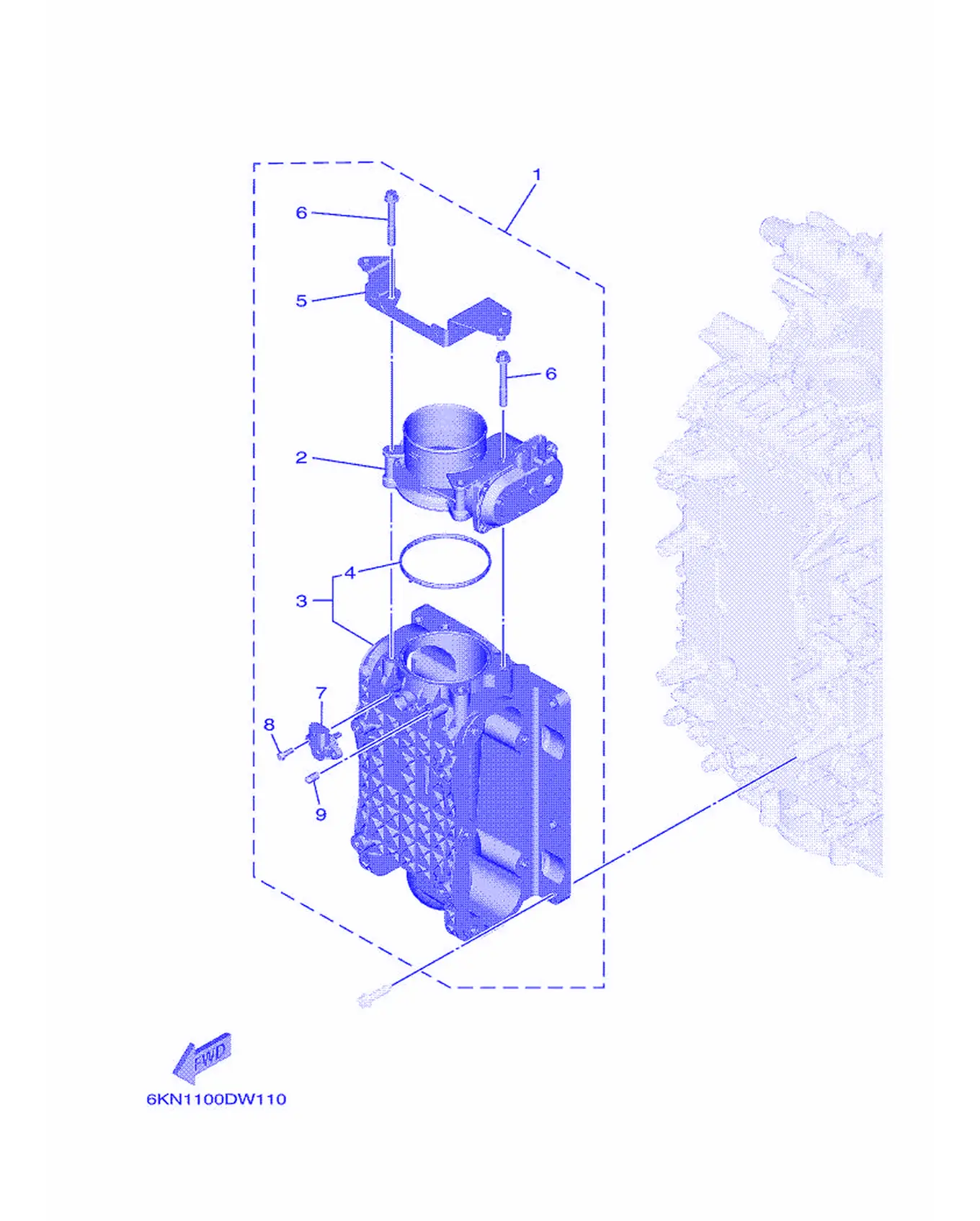

スロツトルボデーアセンブリ

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-13750-01	节流阀体总成	Throttle Body Assembly	1
2	6GR-13751-01	油门本体	Body, Throttle 1	1
3	6GR-13711-00	混合主体	Mixing Body	1
4	6GR-13556-00	垫片	Gasket, Manifold	1
5	6KN-13898-00	保持架	Holder	1
6	90105-08M36	六角螺栓	Bolt, Flange	4
7	68F-83688-10	传感器组合	SensorAssembly	1
8	68V-81147-00	螺钉3	Screw 3	2
9	63P-13643-00	岐管盖	Cover,Manifold	1

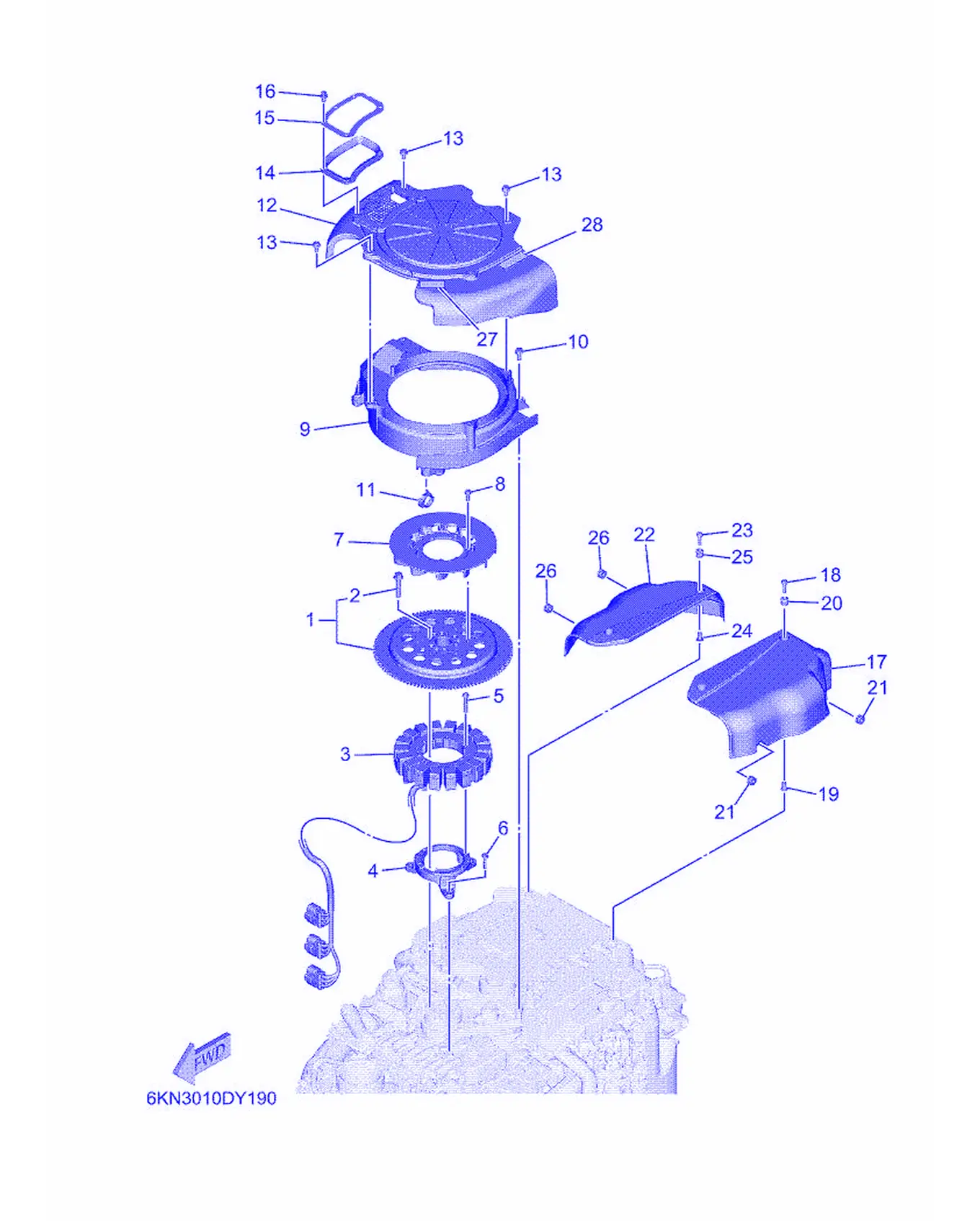

ゼネレ-タ

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-W8145-00	带螺栓转子	Rotor Assembly (with Bolt)	1
2	6EK-W9010-00	螺栓套件	BoltSet	1
3	6GR-81410-00	定子总成	Starter Assembly	1
4	6GR-85561-01	磁体底座	Base, Magnet	1
5	95022-06035	螺栓	Bolt, Flange	6
6	95D95-06030	螺栓	Bolt, Flange Deep Recess	3
7	6GR-85586-01	风扇	Fan	1
8	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	4
9	6GR-12651-00	缸体导气罩1	Air Shroud, Cylinder 1	1
10	95D95-06016	螺栓	Bolt, Flange Deep Recess	3
11	90464-12183	线夹	Clamp	1
12	6GR-12653-01	缸体导气罩3	Air Shroud, Cylinder 3	1
13	95D95-06012	螺栓	Bolt, Flange Deep Recess	5
14	6GR-12659-00	罩减震垫2	Damper, Air Shroud 2	1
15	6KN-12535-00	面板	Plate	1
16	90269-05005	面板	Rivet	5
17	6GR-81942-01	护板	Cover	1
18	95D95-06025	连杆螺栓	Bolt, Flange Deep Recess	2
19	90387-06119	环	Color	2
20	6A0-82317-01	点火线圈减震器	Damper, Ignition Coil	2
21	90480-12314	固定	Grommet	2
22	6GR-81639-01	电枢装配面板	Cover	1
23	95D95-06025	连杆螺栓	Bolt, Flange Deep Recess	2
24	90387-06119	环	Color	2
25	6A0-82317-01	点火线圈减震器	Damper, Ignition Coil	2
26	90480-12314	固定	Grommet	2
27	6GR-13437-01	罩标志	Mark, Caution	1
28	6EE-81994-01	警告标签	Label, Safety	1

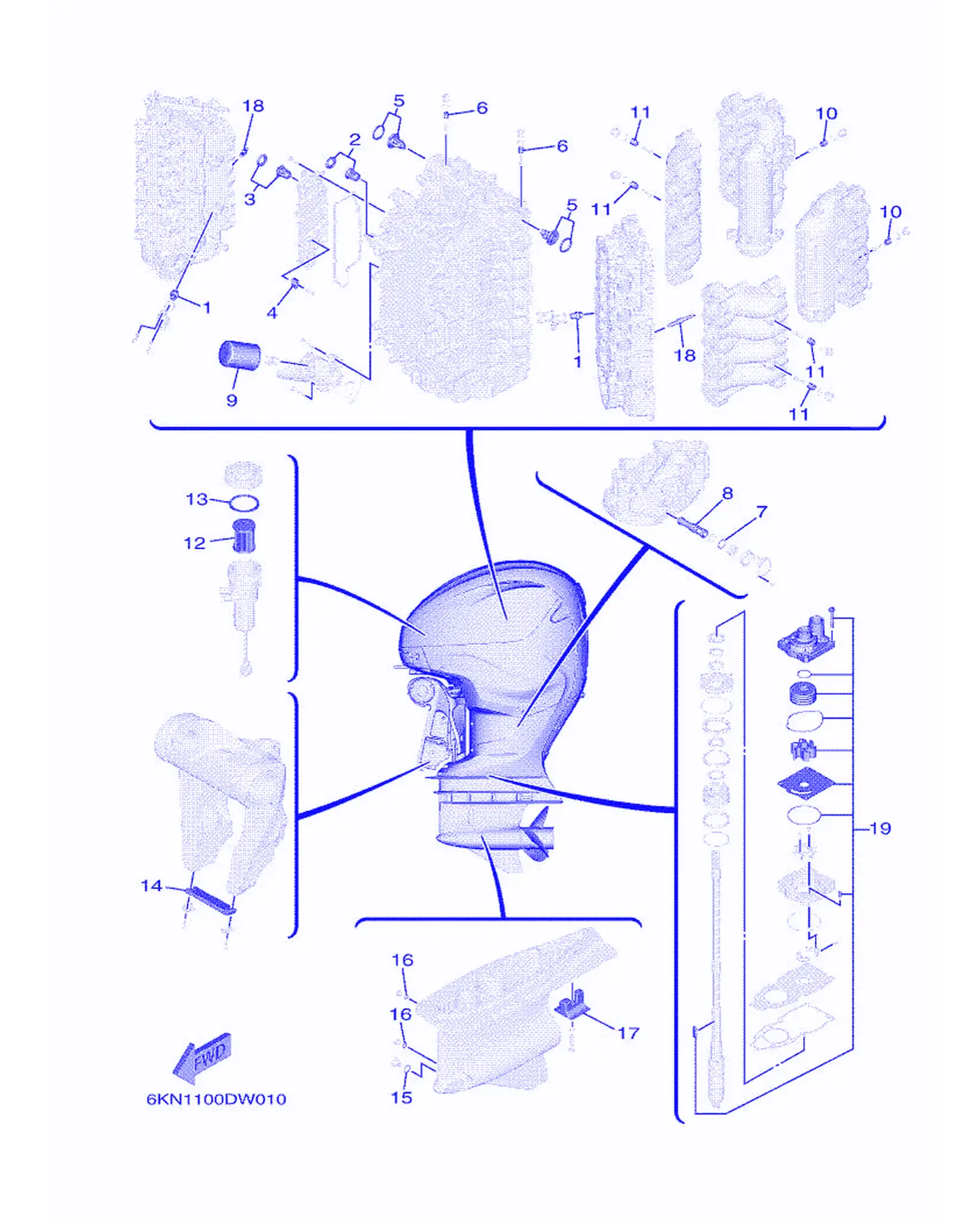

テイキコウカンブヒン

REF	雅马哈编码	中文名称	英文名称	用量
1	6ML-11325-00	阳极	Anode	4
2	6H3-12411-20	温控器	Thermostat	1
3	66M-12411-01	温控器	Thermostat	1
4	6AW-1132P-00	阳极 5	Anode 5	3
5	6GR-12411-00	温控器	Thermostat	2
6	6G8-11325-00	阳极	Anode	2
7	93210-34633	O型圈	O-ring	1
8	6GR-13411-00	机油过滤网	Strainer, Oil	1
9	N26-13440-04	机油进滤器总成	Element Assembly, Oil Cleaner	1
10	6G8-11325-00	阳极	Anode	2
11	6G8-11325-00	阳极	Anode	4
12	6P3-24563-02	过滤器滤芯	Element, Filter	1
13	6P3-24564-00	衬垫	Gasket	1
14	6AW-45251-00	阳极	Anode	1
15	93210-19123	O型圈	O-ring	1
16	93210-09165	O型圈	O-ring	2
17	6AW-45373-00	阳极	Anode	1
18	94709-00447	火花塞	Spark Plug (NGK ILMAR7H9)	8
19	6GR-W0078-01	水泵修理套	Water Pump Repair Kit	1

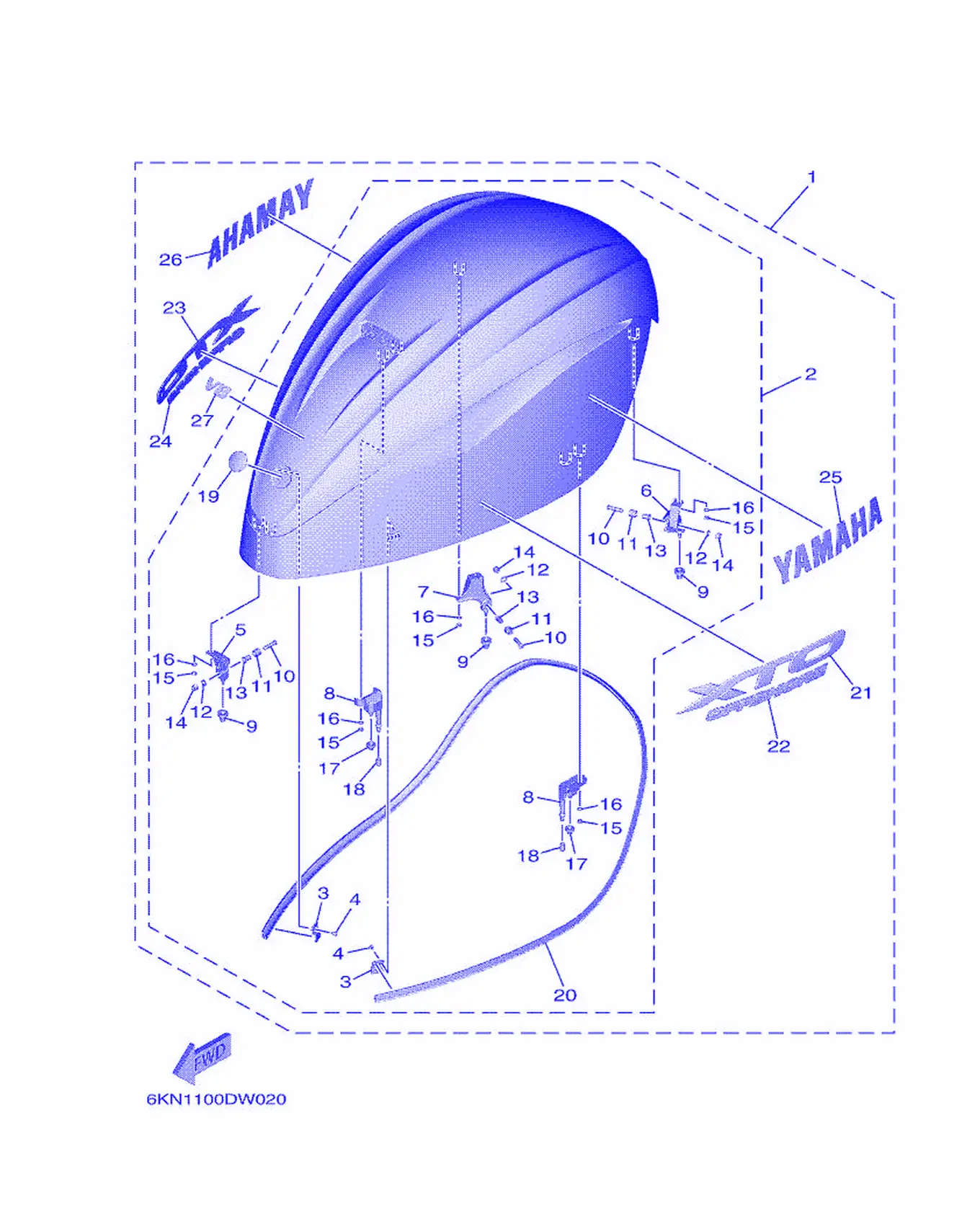

トツプカウリング

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-42610-00-CE	顶罩组合	Top Coupling Assembly	1
2	6KN-4261A-01-CE	顶罩组合	Top Cowling (Graphic)	1
3	6GR-42477-00	锁紧板	Plate, Lock	2
4	97985-05210	带垫圈螺丝	Screw, With Washer	4
5	6GR-42647-00	夹带支架	Holder, Clamp Band	1
6	6GR-42648-00	夹带支架	Holder, Clamp Band	1
7	6GR-42649-00	夹带支架	Holder, Clamp Band	1
8	6GR-42643-00	夹板	Plate, Clamp	2
9	6AW-42663-01	减震器	Damper 2	3
10	90111-08078	内六角薄型螺栓	Bolt	3
11	90387-10094	轴套	Collar	3
12	92990-08600	盘形垫	Washer,Plate	3
13	90387-08M45	衬套	Color	3
14	95780-08300	带垫螺母	Nut, Flange	3
15	95380-06600	有槽螺母	Nut, Hexagon	10
16	92990-06100	盘形垫	Washer,Spring	10
17	663-42662-01	减震器	Damper	2
18	67F-13448-00	盖	Cap	2
19	6LB-42697-00	音叉标记	Tuning Fork Mark	1
20	6KN-42629-00	密封	Seal	1
21	6KN-42675-00	侧面图样1	Graphic, Side 1	1
22	6KN-53184-00	贴花 1	Graphic, 1	1
23	6KN-42676-00	侧面图样2	Graphic, Side 2	1
24	6KN-53185-00	贴花 2	Graphic, 2	1
25	6KN-2153A-00	雅马哈标志	Emblem, Yamaha	1
26	6KN-2153B-00	雅马哈标志	Emblem, Yamaha	1
27	6GR-42677-00	前图样	Graphic, Front	1

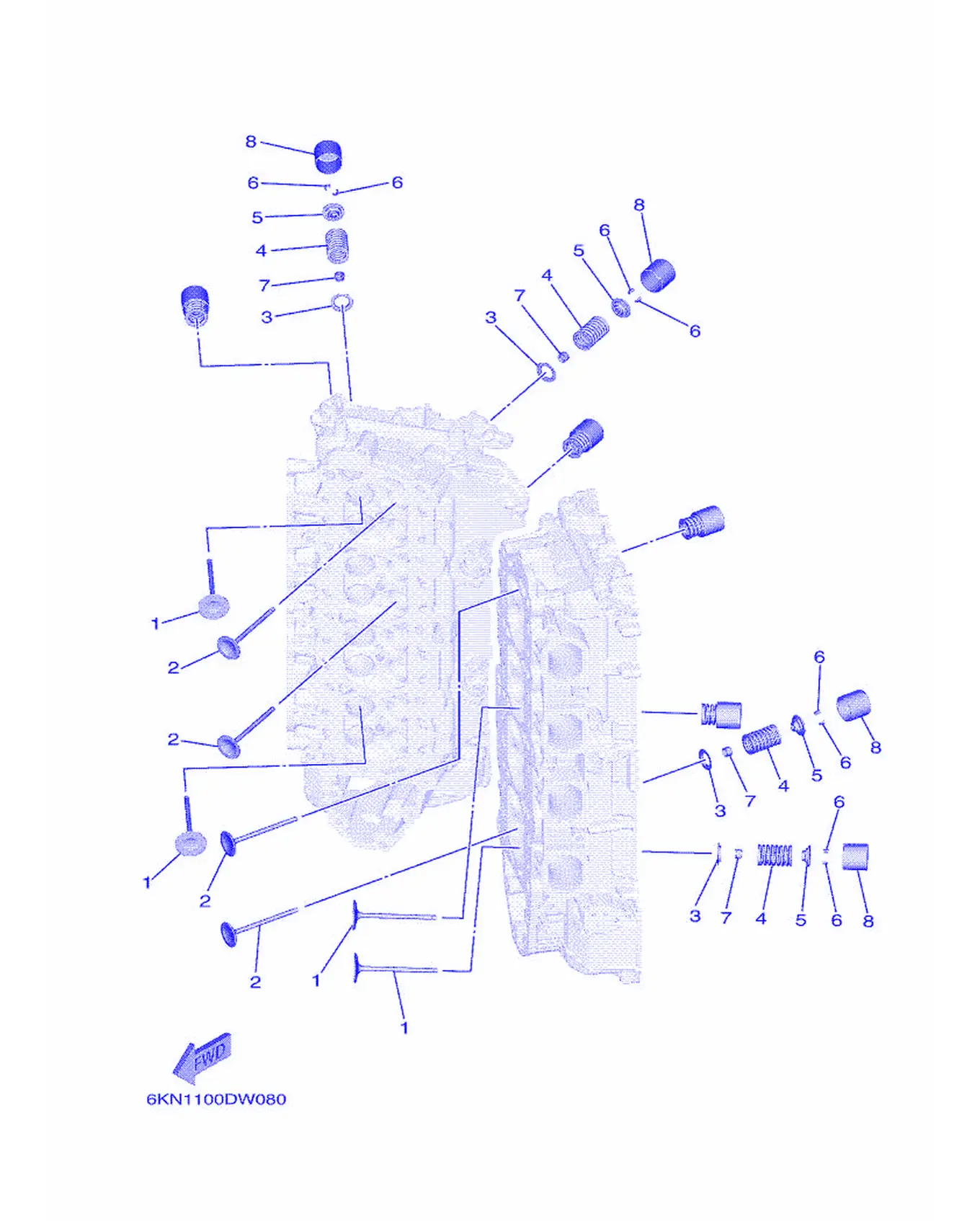

バルブ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-12111-00	气门1	Valve, Intake	16
2	6KN-12121-00	气门2	Valve, Exhaust	16
3	K0F-A3743-00	气门弹簧座	Seat, ValveSpring	32
4	6CB-12113-00	弹簧1	Spring, Valve Inner	32
5	K0F-A3741-00	气门弹簧挡圈	Retainer, ValveSpring	32
6	K0F-A3742-00	阀门弹簧固定锁	Lock, ValveSpringRetainer	64
7	51Y-12119-00	气门杆密封	Seal, Valve Stem	32
8	6GR-12153-00	气门挺杆	Lifter, Valve (3.000)	32
8	6GR-12153-10	气门挺杆	Lifter, Valve (3.025)	32
8	6GR-12153-20	气门挺杆	Lifter, Valve (3.050)	32
8	6GR-12153-30	气门挺杆	Lifter, Valve (3.075)	32
8	6GR-12153-40	气门挺杆	Lifter, Valve (3.100)	32
8	6GR-12153-50	气门挺杆	Lifter, Valve (3.120)	32
8	6GR-12153-60	气门挺杆	Lifter, Valve (3.140)	32
8	6GR-12153-70	气门挺杆	Lifter, Valve (3.160)	32

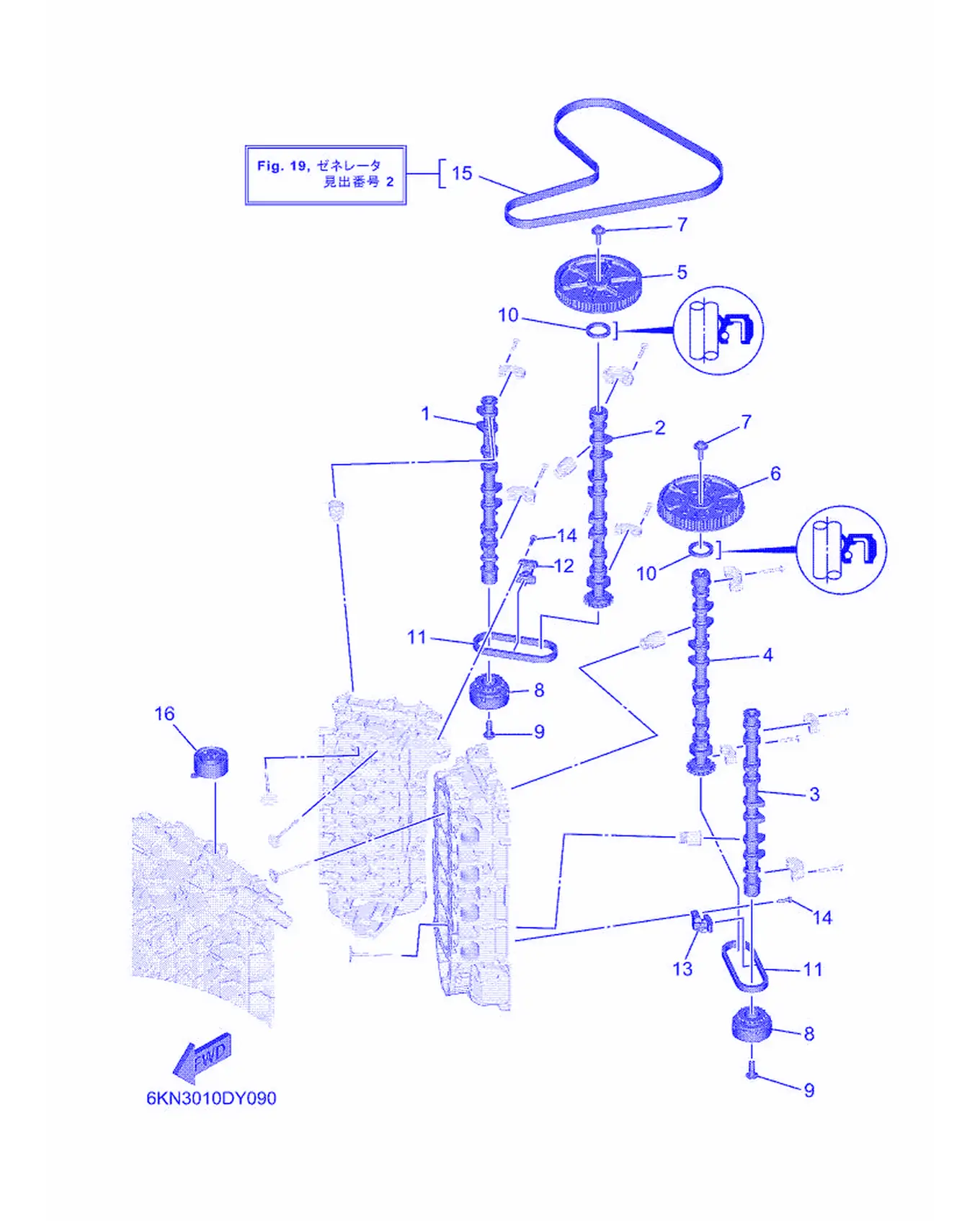

バルブ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-12171-00	凸轮轴1	Camshaft 1	1
2	6KN-12181-00	凸轮轴2	Camshaft 2	1
3	6KN-12172-00	凸轮轴	Camshaft 3	1
4	6KN-12182-00	凸轮轴	Camshaft 4	1
5	6GR-115A0-00	从动齿轮组合	Driven Gear Assembly	1
6	6GR-11567-00	主动齿	Gear, Driven 2	1
7	90119-10050	带垫圈六角头螺栓	Bolt, With Washer	2
8	6GR-12645-00	滑轮组合	Pulley Assembly 1	2
9	90401-12002	螺栓	Bolt, Union	2
10	93102-38008	油封	OilSeal	2
11	94581-99044	链	Chain	2
12	6GR-12210-00	链条张紧器组合	Tensioner Assembly, Cam Chain	1
13	6GR-12230-00	链条张紧器组合	Tensioner Assembly, Cam Chain 2	1
14	90105-06037	螺栓	Bolt, Flange	4
15	6GR-W4624-00	皮带	Belt (Rotor Bolt Included)	1
16	6P2-11590-05	张紧轮组合	Tensioner Assembly	1

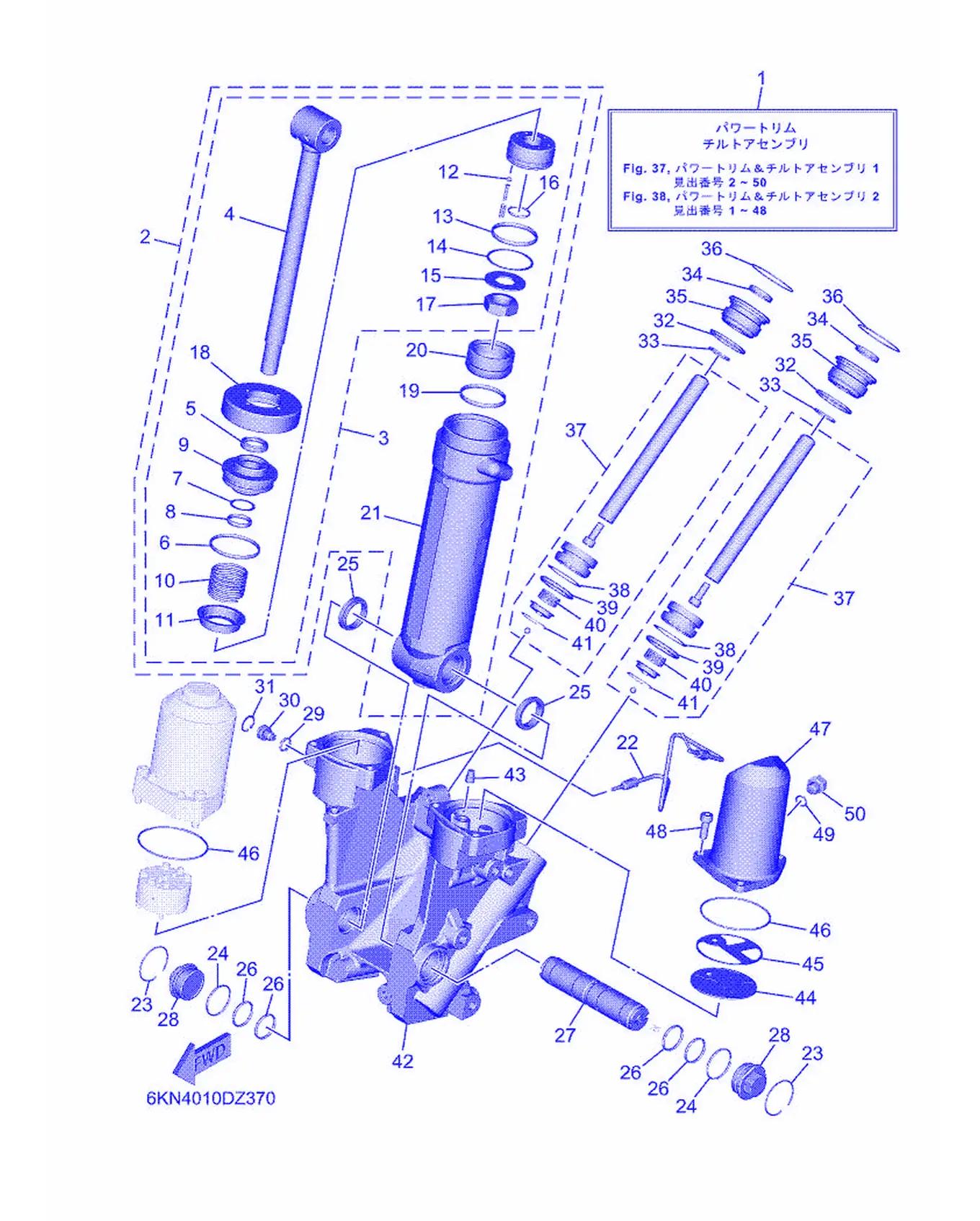

パワートリム & チルトアセンブリ 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-43800-01	电动倾斜调整装置组合	Power Trim & Tilt Assembly	1
2	6GR-43840-00	电动角度定位装置组合	Power Tilt Assembly	1
3	6GR-43810-00	活塞分组合	Tilt Piston Sub-Assembly	1
4	6GR-43801-00	杆	Rod	1
5	6GR-43812-00	防尘密封	Seal, Dust	1
6	93210-49046	O型圈	O-ring	1
7	6GR-43872-00	支承	Ring, Back Up	1
8	6GR-43863-00	O型圈	O-ring	1
9	6GR-43811-00	气缸端部螺钉	Screw, Cylinder End	1
10	69J-4384H-00	弹簧	Spring	1
11	6GR-4382E-00	联接器2	Adapter 2	1
12	93505-32038	滚珠	Ball	4
13	93210-44006	O型圈	O-ring	1
14	6GR-43871-00	环	Ring, Back Up	1
15	90201-18029	平垫圈	Washer, Plate	1
16	93210-18397	O型圈	O-ring	1
17	6GR-43654-00	螺母	Nut 1	1
18	6GR-43827-00	定位	RingSet	1
19	93210-44006	O型圈	O-ring	1
20	6GR-43814-00	自由活	Piston, Free	1
21	6GR-4380K-00	气缸头总成	Cylinder, Tilt Sub-assembly	1
22	6GR-43835-00	管	Pipe	1
23	93450-42110	弹性挡圈	Circlip	2
24	6GR-43862-00	O型圈	O-ring	2
25	6GR-4388F-00	衬套	Spacer	2
26	6GR-43861-00	O型圈	O-ring	4
27	6GR-43818-00	下侧防震销	Pin, Lower Shock Mount	1
28	6GR-22472-01	箱盖	Cap, Case	2
29	93210-12327	O型圈	O-ring	1
30	6GR-43845-00	手控释放螺钉	Screw, Manual Release	1
31	61A-43876-01	开口环	Ring, Snap	1
32	61A-43861-00	O型圈	O-ring	2
33	93210-23587	O型圈	O-ring	2
34	6KN-43812-00	防尘密封	Seal, Dust	2
35	6KN-43821-00	纵倾角调整气缸端部螺钉	Screw, Trim Cylinder End	2
36	6KN-25415-00	开口簧环，卡	Circlip	2
37	6KN-43820-00	活塞分组合	Trim Piston Sub-Assembly	2
38	61A-43874-00	支承	Ring, Back Up	1
39	61A-43864-00	O型圈	O-ring	1
40	61A-4384H-10	弹簧	Spring	1
41	61A-43875-10	开口	Ring, Snap	1
42	6KN-4380L-01	倾斜调整装置壳体	Housing, Trim & Tilt Sub-Assembly	1
43	6GR-4388H-00	塞	Plug	1
44	69J-43817-00	过滤器2	Filter 2	1
45	69J-4388F-00	垫片	Spacer	1
46	93210-66001	O型圈	O-ring	2
47	6KN-43828-00	储油箱	Body, Reservoir	1
48	69J-43888-00	座螺	Bolt, Socket	3
49	93210-09165	O型圈	O-ring	1
50	6EK-43829-00	储油箱	Reserve Plug	1

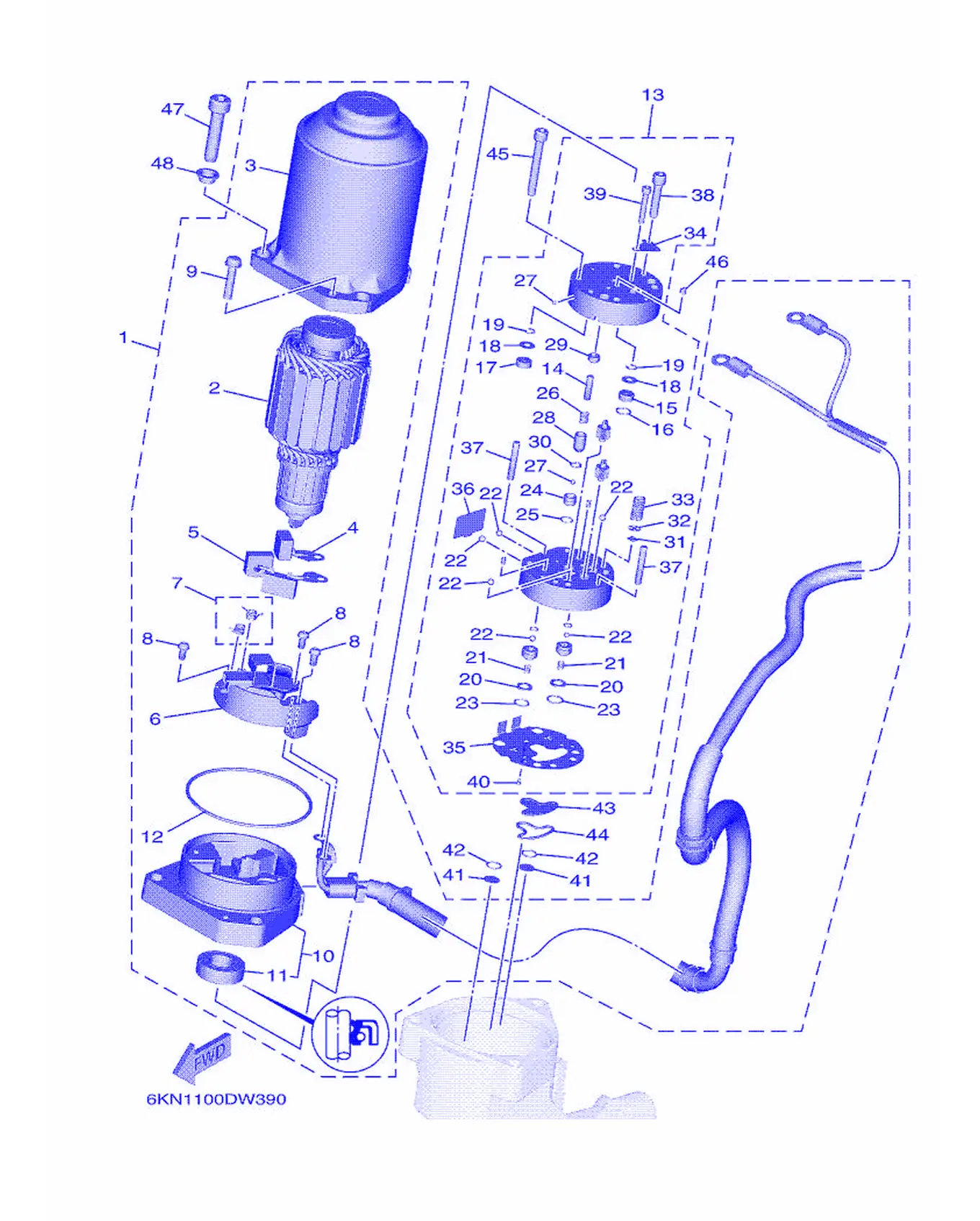

パワートリム & チルトアセンブリ 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-43880-00	电动机总成	Motor Assembly	1
2	6GR-43805-00	电枢组合	Armature Assembly	1
3	6GR-43804-00	定子组合	Starter Assembly	1
4	6GR-43892-00	电刷	Brush 2	1
5	6GR-82181-00	断路器组合	Circuit Breaker Complete	1
6	6GR-4380F-00	支架	Plate, Brush Holder	1
7	6GR-4386K-00	电刷弹簧	Spring, Brush	1
8	97602-04310	带垫圈平面螺钉	Screw, Pan Head Washer	4
9	67C-43879-10	带垫螺钉	Screw, Washer	2
10	6KN-43881-00	端部框架	Frame, End	1
11	6GR-43882-01	油封	Oil Seal	1
12	6GR-43864-01	O型圈	O-ring	1
13	6GR-43830-00	齿轮泵组合	Gear Pump Assembly	1
14	93603-08072	定位销	Pin, Dowel	1
15	6CJ-43841-00	滑梭活塞	Piston, Shuttle	1
16	6H1-43883-00	O型圈	O-ring	1
17	6CJ-4384M-00	穿梭活塞2	Piston, Shuttle 2	1
18	69A-4384F-00	主阀门密封	Seal, Main Valve	2
19	99002-03600	簧环	Circlip	2
20	6C6-4387G-00	垫圈	Washer	2
21	6C6-43853-00	主阀门弹簧	Spring	2
22	93505-32038	滚珠	Ball	6
23	69J-4389J-00	O型圈	O-ring	2
24	6GR-43851-00	安全阀座	Seat, Relief Valve	1
25	93210-064A5	O型圈	O-ring	1
26	6C5-43855-10	上减压弹簧	Spring	1
27	93501-08001	滚珠	Ball	2
28	6D8-43844-00	阀门支销	Pin, Valve Support	1
29	6D8-43843-00	阀门锁紧螺钉	Screw, Valve Lock	1
30	93210-04N51	O型圈	O-ring	1
31	6H1-4384G-11	安全阀密封	Seal, Relief Valve	1
32	6H1-43844-10	阀门支销	Pin, Valve Support	1
33	6GR-43856-00	下减压弹簧	Spring, Down Relief	1
34	6D8-4382L-00	安全阀盖	Cap Relief Valve	1
35	6GR-43895-00	安全阀座	Seat, Relief Valve	1
36	6C5-43854-00	手控释放弹簧	Spring, Manual Release	1
37	93604-26256	定位销	Pin, Dowel	2
38	91318-05030	内六角圆柱头螺栓	Bolt	2
39	91318-03025	内六角圆柱头螺栓	Bolt	2
40	91318-03005	内六角圆柱头螺栓	Bolt	1
41	6C6-43817-00	过滤器2	Filter 2	2
42	69J-4389J-00	O型圈	O-ring	2
43	6C5-43816-00	过滤器1	Filter 1	1
44	6C5-4380G-00	面板	Plate	1
45	91318-05045	内六角圆柱头螺栓	Bolt	4
46	69J-43831-00	轴连接器	Connector,Shaft	1
47	90110-08M05	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	3
48	6GR-23113-00	轴套	Collar	3

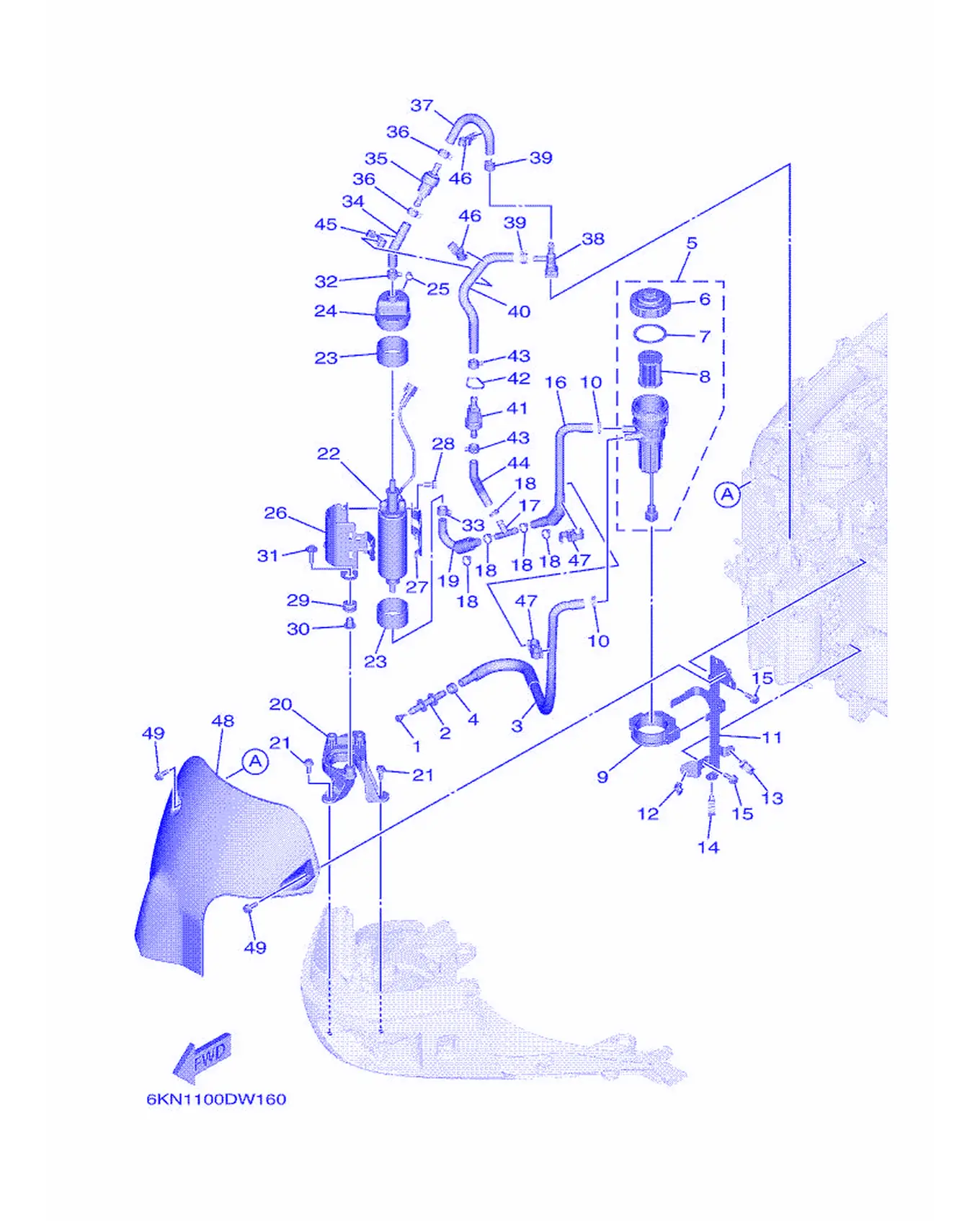

フユエル 1

REF	雅马哈编码	中文名称	英文名称	用量
1	689-85547-01	减震器	Damper	1
2	6AW-24377-01	连接管3	Pipe, Joint 2	1
3	6GR-24311-10	油管	Pipe, Fuel 1	1
4	6E5-24351-51	带1	Band 1	1
5	6GR-24560-02	过滤器总成	Filter Assembly	1
6	6GR-24561-00	滤	Body, Filter	1
7	6P3-24564-00	衬垫	Gasket	1
8	6P3-24563-02	过滤器滤芯	Element, Filter	1
9	6GR-24568-01	过滤器夹箍	Band, Filter	1
10	90465-11M10	固定	Clamp	2
11	6GR-24566-00	过滤器支架	Bracket, Filter	1
12	90464-11121	固定	Clamp	1
13	90464-13249	线夹	Clamp	1
14	90464-18246	固定	Clamp	1
15	95D95-06016	螺栓	Bolt, Flange Deep Recess	2
16	6GR-24312-10	燃油管2	Pipe 2	1
17	6E5-24378-00	连接管4	Pipe,Joint 4	1
18	90465-11M10	固定	Clamp	5
19	6GR-24321-01	管	Pipe 10	1
20	6GR-24425-00	托架	Bracket, Fuel Pump 1	1
21	95D95-06016	螺栓	Bolt, Flange Deep Recess	3
22	6GR-24410-02	燃油泵组合	Fuel Pump Assembly	1
23	6DA-24492-01	燃油泵衬套	Bush, Fuel Pump	2
24	6GR-24462-01	绝缘盖	Cap, Blind	1
25	90465-11M10	固定	Clamp	1
26	6GR-24491-00	油泵支承	Bracket, Fuel Pump	1
27	6GR-24426-00	托架	Bracket, Fuel Pump 2	1
28	95D95-06012	螺栓	Bolt, Flange Deep Recess	2
29	90480-10M23	固定	Grommet	3
30	90387-06289	轴套	Color	3
31	90119-06309	带垫圈六角头螺栓	Bolt, with Washer	3
32	90467-140A9	卡环	Clip	1
33	90467-141A2	卡环	Clip	1
34	6GR-24322-00	管	Pipe 11	1
35	6R5-24408-10	供油系统组合	Fuel Feed Assembly	1
36	90467-140A9	卡环	Clip	2
37	6GR-24323-00	管	Pipe 12	1
38	6P2-24300-01	燃油管接头组件	Fuel Pipe Joint	1
39	90467-120A7	卡环	Clip	2
40	6GR-24324-00	管	Pipe 13	1
41	6GR-24460-20	放油阀组合，安全阀组合	Relief Valve Assembly	1
42	90465-13M60	固定	Clamp	1
43	90467-140A9	卡环	Clip	2
44	6GR-24325-01	管	Pipe 14	1
45	90464-12009	塞	Clamp	1
46	90464-12010	固定夹	Clamp	2
47	90464-12009	塞	Clamp	2
48	6GR-24596-01	盖	Cover	1
49	95D95-06016	螺栓	Bolt, Flange Deep Recess	3

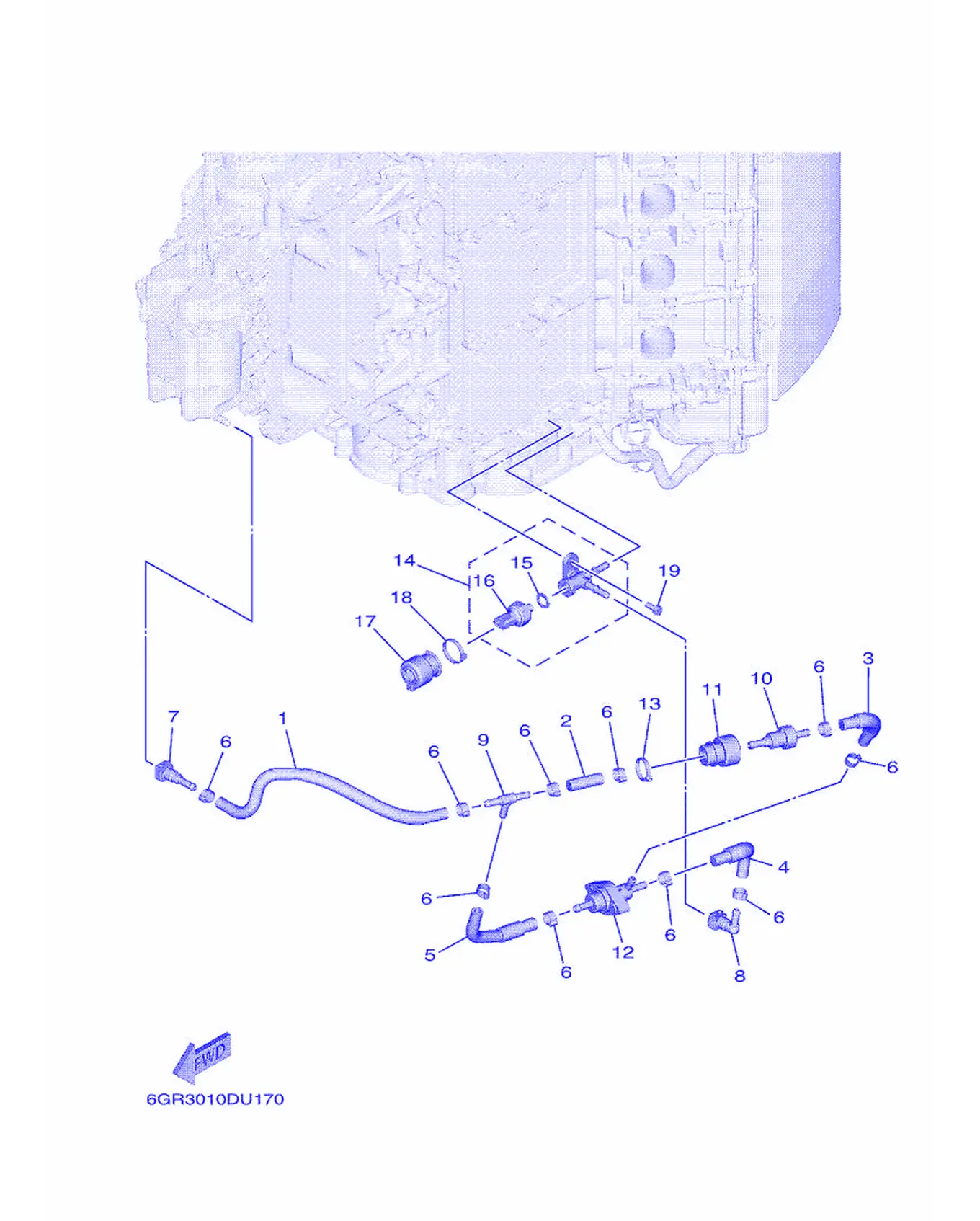

フユエル 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-24313-00	管3	Pipe 3	1
2	6GR-24314-00	管4	Pipe 4	1
3	6GR-24315-00	管5	Pipe 5	1
4	6GR-24316-00	管6	Pipe 6	1
5	6GR-24317-10	管7	Pipe 7	1
6	90467-141A1	卡环	Clip	10
7	6AW-24300-11	燃油管接头组件	Fuel Pipe Joint	1
8	6AW-24300-01	燃油管接头组件2	Fuel Pipe Joint	1
9	6CB-24461-00	连接管	Pipe, Joint	1
10	6GR-24408-01	供油系统组合	Fuel Feed Assembly	1
11	6GR-24217-00	盖	Cover	1
12	6GR-24460-01	放油阀组合，安全阀组合	Relief Valve Assembly	1
13	90465-13M97	固定	Clamp	1
14	6GR-8A411-00	传感器	Sensor Unit 1	1
15	6GR-825A8-00	密封	Seal, Sensor	1
16	6GR-82421-00	传感器	Sensor, Fuel Pressure	1
17	6GR-2464E-01	盖	Cover, Cap	1
18	90465-13M97	固定	Clamp	1
19	97E95-06516	螺栓	Bolt, Hexagon with Washer Deep Recess	1

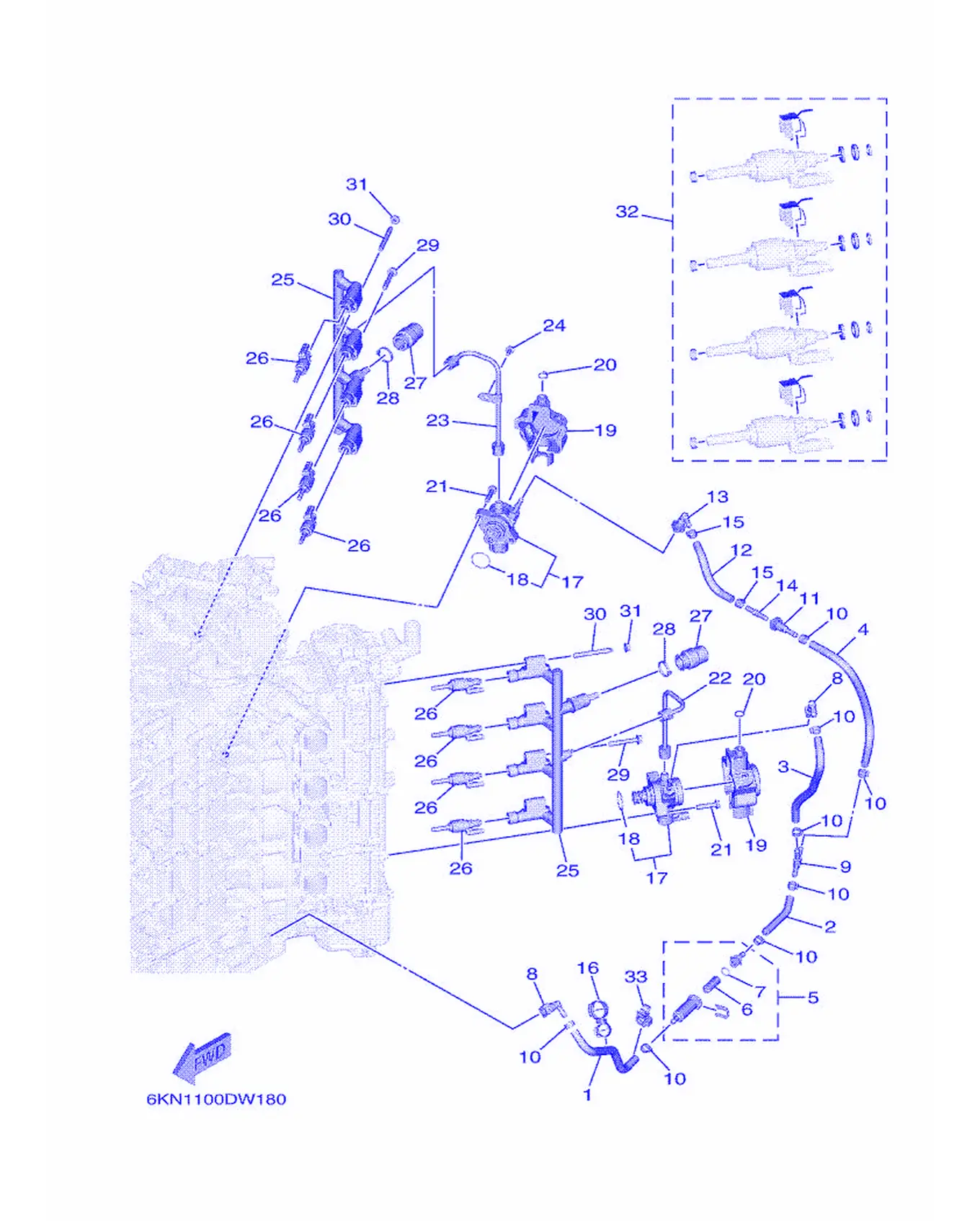

フユエル 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-243A1-00	管	Pipe 15	1
2	6GR-243A2-00	管	Pipe 16	1
3	6GR-243A3-00	管	Pipe 17	1
4	6KN-243A1-00	连接管	Pipe 15	1
5	6GR-24251-00	滤网1	Strainer 1	1
6	6GR-24501-00	燃油过滤器	Filter, Fuel	1
7	6GR-13016-00	O型圈	O-ring	1
8	6AW-24300-01	燃油管接头组件2	Fuel Pipe Joint	2
9	6CB-24461-00	连接管	Pipe, Joint	1
10	90467-141A1	卡环	Clip	8
11	6AW-24300-11	燃油管接头组件	Fuel Pipe Joint	1
12	6KN-243A2-00	连接管	Pipe 16	1
13	6AW-24300-01	燃油管接头组件2	Fuel Pipe Joint	1
14	6KN-24461-00	连接管	Pipe, Joint	1
15	90467-141A1	卡环	Clip	2
16	90464-29223	线夹	Clamp	1
17	6GR-13910-00	燃油泵总成	Fuel Pump Assembly	2
18	6GR-12439-00	O型圈	O-ring	1
19	6GR-24595-01	电线束保护装	Protector	2
20	90465-11M10	固定	Clamp	2
21	97E95-08535	螺栓	Bolt, Hexagon with Washer Deep Recess	4
22	6GR-14295-00	燃油管	Pipe, Fuel	1
23	6GR-14296-00	燃油管2	Pipe, Fuel 2	1
24	95D95-06014	螺栓	Bolt, Flange Deep Recess	1
25	6GR-13160-09	输送管组合1	Delivery Pipe Assembly 1	2
26	6GR-13761-00	喷射器	Injector Assembly	8
27	6GR-24599-01	盖	Cap	2
28	90465-13M97	固定	Clamp	2
29	90105-08175	六角法兰面螺栓	Bolt, Flange	4
30	90116-08037	双头螺栓	Bolt, Stud	4
31	90179-08M34	螺帽	Nut	4
32	6GR-W0005-00	O型环套	O-ring Set	2
33	90464-16015	线夹	Clamp	1

フユエルタンク

REF	雅马哈编码	中文名称	英文名称	用量
1	6YJ-W2420-J3	燃油箱组合	Fuel Tank Assembly (24L)	1
2	6YJ-24610-01	盖组合	Cap Assembly	1
3	6Y1-24260-30	油量计组合	Fuel Meter Assembly	1
4	90157-05M19	螺钉	Screw, Pan Head	4
5	6Y1-24329-00	密封	Seal	4
6	6Y1-24268-01	油量计衬垫	Gasket, Fuel Meter	1
7	6YJ-24167-00	滤	Strainer	1
8	6Y2-24306-57	燃油管组件1	Fuel Pipe Complete 1	1
9	6E5-24305-06	油管接头2	Fuel Pipe Joint Complete	1
10	93210-08287	O型圈	O-ring	1
11	6Y2-24305-06	燃油管接头组件2(85以上油箱侧D:13M	Fuel Pipe Joint Complete	1
12	93210-08287	O型圈	O-ring	1
13	90445-13M25	软管	Hose (L2050)	1
14	6E5-24351-51	带1	Band 1	4
15	90445-13M24	软管	Hose (L850)	1
16	6Y2-24360-60	起动注油泵组合	Primer Pump Assembly	1

ブラケツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-4311A-00-CE	托架	Bracket, Clamp 1, with Nipple	1
2	6AW-45251-00	阳极	Anode	1
3	6G5-44526-00	面板	Plate	2
4	97E95-06530	螺栓	Bolt, Hexagon with Washer Deep Recess	4
5	6GR-4311B-00-CE	托架	Bracket, Clamp 2, with Nipple	1
6	91380-10020	六角螺栓	Bolt	4
7	6GR-4381E-00	托架	Bracket 1	1
8	6GR-4381F-00	托架	Bracket 2	1
9	6GR-82147-00	导线4	Wire, Lead 5	1
10	97E95-06510	螺栓	Bolt, Hexagon with Washer Deep Recess	2
11	61A-42717-00	密封橡皮块2	Rubber,Seal 2	1
12	6GR-43333-00	衬套	Bushing, Swivel Bracket	4
13	90119-10064	带垫圈六角头螺栓	Bolt, with Washer	2
14	90119-10040	带垫圈六角头螺栓	Bolt, with Washer	6
15	6GR-43311-02-CE	旋转支架	Bracket, Swivel 1	1
16	93700-06002	油脂嘴	Nipple, Grease	3
17	6GR-43144-00	弹簧	Fook, Spring	1
18	95D95-06012	螺栓	Bolt, Flange Deep Recess	1
19	6GR-43181-00	顶位销杆	Lever, Tilt Stop 1	1
20	6GR-43185-00	顶位销杆	Lever, Tilt Stop 2	1
21	90386-10M16	衬套	Bushing	3
22	6G5-43148-00	间隔轴	Collar, Distance	2
23	90249-06M19	螺丝	Pin	1
24	90506-16010	拉簧	Spring, Tension	1
25	91690-30020	弹簧销	Pin,Spring	2
26	91690-60022	夹紧盖	Pin, Spring	1
27	90386-20002	衬套	Bushing	2
28	6GR-43376-01	推力接收器螺	Bolt, Thrust Recess	2
29	95780-10300	螺母	Nut, Flange	2
30	90269-02M08	螺丝	Rivet	2
31	90101-12073	六角螺栓	Bolt, Hexagon (180MM)	6
31	90101-12072	六角螺栓	Bolt, Hexagon (110MM)	2
31	90101-12067	六角螺栓	Bolt, Hexagon (150MM)	2
31	90101-12068	六角螺栓	Bolt, Hexagon (170MM)	2
31	90101-12073	六角螺栓	Bolt, Hexagon (180MM)	2
31	90101-12074	六角螺栓	Bolt, Hexagon (200MM)	2
31	90101-12069	六角螺栓	Bolt, Hexagon (210MM)	2
31	90101-12070	六角螺栓	Bolt, Hexagon (230MM)	2
32	90201-12060	平垫圈	Washer, Plate	12
33	90201-12426	平垫圈	Washer,Plate	2
34	90201-13M19	平垫圈	Washer,Plate	4
35	95380-12600	有槽螺母	Nut	12

ブラケツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-43341-00	盖	Cover, Swivel Side 1	1
2	6GR-43342-00	盖	Cover, Swivel Side 2	1
3	90119-08176	带垫圈六角头螺栓	Bolt, with Washer	8
4	6GR-W436G-00-CE	侧盖总成	SBW Side Cover Assembly	2
5	6DA-42697-00	音叉标志	Tuning Fork Mark	1
6	90111-06144	内六角薄型螺栓	Bolt	6
7	6GR-43318-00-CE	盖	Cover	1
8	90111-06144	内六角薄型螺栓	Bolt	4
9	6GR-24864-00	管	Tube	1
10	6KN-24864-00	管	Tube	1
11	90465-11M10	固定	Clamp	2
12	90462-10033	线夹	Clamp	2
13	95D95-06012	螺栓	Bolt, Flange Deep Recess	2
14	6GR-85887-00	传感器	Sensor, Angle	1
15	93210-17MF9	O型圈	O-ring	1
16	97595-05516	带垫圈螺	Bolt, with Washer	2
17	6GR-82553-00	导线延伸部分	Extension, Wire Lead	1
18	90464-36005	固定	Clamp	3
19	90464-55002	线夹	Clamp	1
20	6GR-4381J-00	面板	Plate	1
21	90111-06144	内六角薄型螺栓	Bolt	1
22	6GR-4382A-00	联接器1	Adapter 1	1
23	90149-05044	螺钉	Screw	2
24	6GR-43126-00	上侧防震销	Pin, Upper Shock Mount	1
25	93210-06ME6	O型圈	O-ring	1
26	6GR-42401-23	动力方向气缸组合	Power Steering Cylinder Assembly	1
27	6GR-44331-00	六角螺栓	Bolt, 1	1
28	6GR-44332-00	六角螺栓	Bolt, 2	1
29	97580-08535	带垫圈六角头螺栓	Bolt, with Washer	4
30	6GR-42134-00	油门杆盖	Cover	1
31	91380-04010	六角螺栓	Bolt	4
32	6GR-438A0-02	方向托架组合	Steering, Wire Harness Assembly	1
33	6GR-48538-00	钢索夹1	Clamp, Cable 1	1
34	97D95-06018	六角螺栓	Bolt, Hexagon Deep Recess	2
35	6GR-47716-00	盖	Cover	1
36	90110-06191	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	2
37	6GR-43121-00	电线束保护装	Protector	1
38	6GR-47445-00	保护	Protector	1
39	95D95-06012	螺栓	Bolt, Flange Deep Recess	2
40	90464-12183	线夹	Clamp	2
41	6GR-48539-00	钢索夹2	Clamp, Cable 2	1
42	95D95-06012	螺栓	Bolt, Flange Deep Recess	1
43	90179-14009	螺母	Nut	1
44	6GR-43378-10	垫圈	Washer	1
45	91490-20025	拉簧	Pin, Cotter	1

ブラケツト 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-42510-01-8D	方向托架组合	Steering Bracket Assembly	1
2	90201-51014	平垫圈	Washer, Plate	2
3	93210-49003	O型圈	O-ring	1
4	90386-49001	衬套	Bushing	2
5	90202-51001	平垫圈	Washer, Plate	1
6	6GR-44551-00-CA	下侧减震胶垫壳	Housing, Lower Mount Rubber 1	1
7	93410-46099	弹性挡圈	Circlip	1
8	6GR-44575-01	下侧减震胶垫	Damper, Lower Mount Rubber	1
9	6AW-44555-00	下侧减震胶垫	Mount Damper, Lower Side	2
10	90202-32M19	面板垫圈	Washer,Plate	2
11	90201-16M55	面板垫圈	Washer,Plate	2
12	90201-15M58	面板垫圈	Washer,Plate	2
13	6GR-82149-00	导线3	Wire, Lead 3	1
14	90105-14012	六角法兰面螺栓	Bolt, Flange	2
15	95380-14800	有槽螺母	Nut	2
16	92995-14600	盘形垫	Washer	2
17	6AW-44552-00-CA	下侧减震胶垫壳	Housing, Lower Mount Rubber 2	2
18	90119-10024	带垫圈螺栓	Bolt, With Washer	4
19	6GR-44514-00	上侧减震胶垫	Mount Damper, Upper Side	1
20	6GR-44515-00	上侧减震胶垫	Mount Rubber, Upper Side	1
21	90105-16004	六角法兰面螺栓	Bolt, Flange	2
22	6GR-44194-01	盖	Cap	2
23	90201-18030	平垫圈	Washer, Plate	2
24	6GR-44533-00	上侧减震胶垫	Damper, Upper Mount Rubber	2
25	6GR-44511-00-CA	上侧减震胶垫盖	Cover, Upper Mount Rubber	2
26	90119-10058	带垫圈六角头螺栓	Bolt, with Washer	12
27	6T4-82117-00	导线	Wire, Lead	1
28	97E95-06510	螺栓	Bolt, Hexagon with Washer Deep Recess	2

ヘルムユニツト

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-615A0-00	舵机总成	Helm Unit Assembly	1
2	6GR-6154A-00	活塞分组合	Tilt Helm Unit	1

ベーパーセパレータ

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-24220-13	燃油泵组合	Fuel Tank Complete, 2	1
2	6GR-24223-00	盖	Cover, Fuel Tank Assembly	1
3	6GR-24224-01	箱盖	Case, Fuel Tank Assembly	1
4	6GR-24218-00	衬垫	Gasket	1
5	6GR-13781-00	泵减震器	Damper, Pump	2
6	6GR-2441R-00	托架	Baffle Plate 1	1
7	6GR-244A1-00	箱盖	Case, Pump 1	1
8	6GR-13938-00	进气管	Pipe	2
9	6GR-13593-00	减震器	Damper	2
10	6GR-24196-00	放油	Drain Plug	1
11	6GR-2419A-00	支架	Holder	1
12	6GR-24430-00	燃油泵组合	Fuel Pump Assembly	1
13	6GR-21841-00	冷却器	Cooler	1
14	6FM-14562-00	O型圈	O-ring	4
15	6CB-13593-00	隔板	Damper	4
16	6GR-13716-00	轴套	Collar	4
17	6GR-14197-00	管	Pipe	1
18	68V-13577-01	卡环	Clip	2
19	6GR-14567-00	螺钉	Screw	8
20	6GR-24420-10	燃油泵组合	Fuel Pump Assembly	1
21	6AW-24300-11	燃油管接头组件	Fuel Pipe Joint	1
22	6GR-24113-00	连杆面板	Plate, Connecting	1
23	6GR-2415H-11	警告标志	Label, Warning	1
24	90119-06299	带垫圈六角头螺栓	Bolt, with Washer	4

ボトムカウリング 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-42711-00-CE	底罩	Cowling, Bottom 1	1
2	90480-22M81	固定	Grommet	4
3	90387-08M37	衬套	Color	2
4	90119-08187	带垫圈六角头螺栓	Bolt, with Washer	2
5	6GR-42725-02	固定	Grommet	1
6	6GR-42761-00	限位板	Stopper	1
7	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	2
8	6KN-42717-00	密封橡皮块2	Rubber, Seal 2	1
9	6KN-42726-00	固定	Grommet	1
10	6KN-42617-00	形成减震	Damper, Foam	1
11	6KN-42718-00	密封橡皮块3	Rubber, Seal 3	1
12	6KN-42727-00	固定	Grommet	1
13	6KN-42617-00	形成减震	Damper, Foam	1
14	6H4-42748-01	固定	Grommet	3
15	6KN-11313-00	塞	Blind Plug	1
16	6R3-12581-10	软管接头1	Joint, Hose 1	1
17	6KN-12582-00	软管接头2	Joint, Hose 2	1
18	6R3-12583-10	软管接头衬垫	Gasket, Hose Joint	1
19	6KN-12577-00	软管2	Hose 2	1
20	6KN-12578-00	软管3	Hose 3	1
21	6KN-82535-00	固定	Grommet	1
22	6KN-26393-01	夹持器	Holder	1
23	6GR-24378-10	连接管4	Pipe, Joint 3	1
24	90445-16025	软管	Hose (L290)	1
25	90480-20M05	固定	Grommet	1
26	6GR-83558-00	管嘴端部	End, Nipple	1
27	6GR-24452-00	盖	Cover	1
28	90467-160A7	卡环	Clip	4
29	90467-150A5	卡环	Clip	1
30	6GR-44554-00	面板	Plate	1
31	90111-06144	内六角薄型螺栓	Bolt	1
32	69J-12584-10	软管接头	Joint, Hose 3	1
33	6GR-42753-00	紧固	Fastener	1
34	90464-99006	线夹	Clamp	1
35	6GR-82563-00	电动倾斜调整开关组合	Trim & Tilt Switch Assembly	1
36	90460-15227	软管线夹	Clamp, Hose	1
37	6EE-42794-01	警告标志	Label, Warning (General)	1

ボトムカウリング 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-42712-00-CE	底罩	Cowling, Bottom 2	1
2	6GR-42744-00	支承	Stay	1
3	95D95-06012	螺栓	Bolt, Flange Deep Recess	2
4	6GR-42622-01	减震器	Side, Mold Coupling 1	1
5	6KN-42713-00-CE	底罩	Cowling, Bottom 3	1
6	6GR-42744-00	支承	Stay	1
7	95D95-06012	螺栓	Bolt, Flange Deep Recess	2
8	6GR-42623-01	侧面罩嵌条2	Side, Mold Coupling 2	1
9	90167-05017	六角头盘头自攻螺钉	Screw, Tapping	4
10	6GR-42615-00	密封	Seal	1
11	6KN-42769-00	橡皮密封	Seal, Rubber	1
12	6KN-44522-00	密封	Seal	1
13	90480-16015	橡胶垫	Grommet	14
14	6GR-42758-00	轴套	Collar	12
15	90111-06175	内六角薄型螺栓	Bolt	12
16	90111-06176	内六角薄型螺栓	Bolt	2
17	90480-13034	橡胶垫	Grommet	4
18	69J-42774-10	挡板支承1	Stay, Apron 1	2
19	6GR-42768-01	减震	Damper	2
20	6KN-42625-00-CE	后板	Panel Rear	1
21	6GR-42748-01	固定	Grommet	1
22	90480-16015	橡胶垫	Grommet	4
23	6GR-42758-00	轴套	Collar	4
24	90111-06175	内六角薄型螺栓	Bolt	4
25	90338-07012	塞	Plug	2

ボトムカウリング 3

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-42815-00-CE	夹杆	Lever, Clamp 1	1
2	6GR-42816-01-CE	夹杆	Lever, Clamp 2	1
3	6GR-42817-01-CE	夹杆	Lever, Clamp 3	1
4	6GR-42828-00	夹箍面板	Clamp Plate	2
5	6GR-42829-00	夹箍面板	Clamp Plate 2	1
6	95D95-06012	螺栓	Bolt, Flange Deep Recess	6
7	6GR-42835-00	夹紧盖	Pin, Set 1	3
8	90240-05002	附孔销	Pin, Clevis	3
9	68T-42835-00	夹紧盖	Pin, Set 1	3
10	6GR-42833-00	爪形垫	Washer, Plain	3
11	90386-15M73	衬套	Bushing	6
12	90206-15M18	波形垫圈	Washer, Wave	3
13	90201-156J2	面板垫圈	Washer, Plate	3
14	6GR-42818-00	夹杆	Lever, Clamp 4	1
15	6GR-42819-00	夹杆	Lever, Clamp 5	2
16	95D95-08012	螺栓	Bolt, Flange Deep Recess	3

ボトムカウリング 4

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-42740-00-CE	挡板	Apron Complete 1	1
2	90480-14M17	橡胶垫	Grommet	3
3	6GR-42774-00-CA	挡板支承1	Stay, Apron 1	1
4	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	2
5	6GR-42770-00-CE	挡板	Apron Complete 2	1
6	90480-14M17	橡胶垫	Grommet	3
7	6GR-42775-00-CA	挡板支承2	Stay, Apron 2	1
8	95D95-06020	连杆螺栓	Bolt, Flange Deep Recess	2
9	69J-42774-10	挡板支承1	Stay, Apron 1	6
10	90111-06144	内六角薄型螺栓	Bolt	15
11	90111-06142	内六角薄型螺栓	Bolt	1
12	90173-06001	螺帽	Nut, Square	2
13	6GR-45141-00-CE	水上装置壳体盖	Cover, Upper Casing	1
14	90480-14M17	橡胶垫	Grommet	2
15	90111-06144	内六角薄型螺栓	Bolt	4
16	90111-06142	内六角薄型螺栓	Bolt	2

リペアキツト 1

REF	雅马哈编码	中文名称	英文名称	用量
1	6KN-W0001-01	衬垫套	Power Head Gasket Kit	1
2	6KN-11181-00	气缸头垫片1	Gasket, Cylinder Head 1	1
3	6KN-11182-00	气缸盖衬垫2	Gasket, Cylinder Head 2	1
4	6GR-11193-00	气缸盖罩衬垫1	Gasket, Head Cover 1	1
5	93210-28646	O型圈	O-ring	1
6	6GR-11194-00	气缸盖罩衬垫2	Gasket, Head Cover 2	1
7	6CB-1242F-00	滤清器衬垫	Gasket Filter	2
8	93210-26658	O型圈	O-ring	1
9	6GR-15451-01	曲轴箱盖垫片1	Gasket, Crankcase Cover	1
10	6GR-1131B-00	衬垫	Gasket, Cover	2
11	6GR-15353-00	放油塞衬垫	Gasket, Drain	1
12	93210-13M63	O型圈	O-ring	2
13	6GR-11351-01	气缸垫片1	Gasket, Cylinder	1
14	6GR-14664-01	断水	Grommet, Water Jacket	2
15	93102-90004	油封	Oil Seal	1
16	93102-85010	油封	Oil Seal	1
17	93102-38008	油封	OilSeal	2
18	6GR-13645-00	岐管衬垫1	Gasket, Manifold 1	2
19	6GR-13646-00	岐管衬垫2	Gasket, Manifold 2	2
20	6GR-13477-00	衬垫	Gasket	1
21	93210-24M79	O型圈	O-ring	1

リペアキツト 2

REF	雅马哈编码	中文名称	英文名称	用量
1	6GR-W0001-23	衬垫套	Lower Unit Gasket Kit	1
2	6GR-15312-01	油槽衬垫	Gasket, Oil Pan	1
3	6GR-1531C-01	油盘垫片	Gasket, Oil Pan 2	1
4	93210-34633	O型圈	O-ring	1
5	93210-19MJ3	O型圈	O-ring	1
6	6GR-42716-00	密封橡皮块1	Rubber Seal 1	1
7	93102-26004	油封	Oil Seal	1
8	6GR-44366-01	水封减震器	Damper, Water Seal 2	2
9	6GR-45127-00	密封	Seal	1
10	6EK-12435-A0	衬垫	Gasket	1
11	6GR-45113-00	水上装置壳体衬垫	Gasket, Upper Casing	1
12	6GR-44521-00	密封	Seal	1
13	6GR-44367-01	水封减震器	Damper, Water Seal 3	1
14	6GR-44366-01	水封减震器	Damper, Water Seal 2	2
15	93210-10010	十字槽螺钉	O-ring	1
16	93210-19123	O型圈	O-ring	1
17	93210-09165	O型圈	O-ring	2
18	93210-07100	O型圈	O-ring	1
19	93210-64488	O型圈	O-ring	1
20	93210-97690	O型圈	O-ring	2
21	93211-08001	O型圈	O-ring	1
22	93210-37160	O型圈	O-ring	1
23	6GR-44365-01	水封减震器	Damper, Water Seal 1	1
24	6GR-44315-00	水泵衬垫	Gasket, Water Pump	1
25	93210-89535	O型圈	O-ring	1
26	93211-26001	O型圈	O-ring	1
27	93106-14001	油封	Oil Seal	1
28	93109-26001	油封	Oil Seal	1
29	93101-30037	油封	Oil Seal	2
30	93101-37001	油封	Oil Seal	2
31	6GR-W0078-01	水泵修理套	Water Pump Repair Kit	1
32	93210-97690	O型圈	O-ring	1
33	6GR-44323-00	外挡板	Outlet Plate, Cartridge	1
34	6GR-44322-00	芯子	Insert, Cartridge	1
35	93211-08001	O型圈	O-ring	1
36	93210-37160	O型圈	O-ring	1
37	6GR-44352-00	叶轮	Impeller	1
38	6AW-44336-00	键	Key	1
39	93606-12019	定位销	Pin, Dowel	2
40	90119-08196	带垫圈六角头螺栓	Bolt, with Washer	4

ロワーケーシング & ドライブ 4

REF	雅马哈编码	中文名称	英文名称	用量
1	6GS-45300-16-8D	水下装置总成	Lower Unit Assembly	1
1	6GS-45300-06-CE	水下装置总成	Lower Unit Assembly	1
1	6GS-45300-16-CE	水下装置总成	Lower Unit Assembly	1
2	6GR-45311-02-CE	水下装置壳	Casing, Lower	1
3	6GR-45308-00	气门1	Valve Assembly 1	1
4	93210-10010	十字槽螺钉	O-ring	1
5	6GR-43873-00	支承	Ring, Back Up	2
6	99480-08030	平行销	Pin	2
7	6GR-45376-00	密封圈减震块导承	Guide, Seal Damper	1
8	6GR-45375-01	密封圈减震	Damper, Seal	1
9	6GR-45321-00	面板	Plate	1
10	6GR-45309-00	气门0	Valve Assembly 2	1
11	93210-07100	O型圈	O-ring	1
12	93210-64488	O型圈	O-ring	1
13	93106-14001	油封	Oil Seal	1
14	97E95-08535	螺栓	Bolt, Hexagon with Washer Deep Recess	6
15	6GS-44150-01	变挡凸轮组合	Shift Cam Assembly	1
15	6GS-44150-11	变挡凸轮组合	Shift Cam Assembly	1
16	99002-12600	盘形垫	Circlip	1
17	6GR-44341-00	水泵壳	Housing, Water Pump	1
18	6GR-12451-00	水泵叶	Impeller, Water Pump	1
19	97095-05010	螺栓	Bolt	2
20	91380-05016	六角螺栓	Bolt	2
21	6GR-44381-00	衬套	Spacer 1	1
22	6GR-44382-00	衬套	Spacer 2	1
23	93210-97690	O型圈	O-ring	2
24	6GR-44323-00	外挡板	Outlet Plate, Cartridge	1
25	6GR-44311-00	水泵壳	Housing, Water Pump	1
26	93109-26001	油封	Oil Seal	1
27	6GR-44312-00	水泵壳体盖	Cover, Water Pump Housing	1
28	6GR-44322-00	芯子	Insert, Cartridge	1
29	93211-08001	O型圈	O-ring	1
30	93210-37160	O型圈	O-ring	1
31	6GR-44365-01	水封减震器	Damper, Water Seal 1	1
32	6GR-44379-00	排气软管	Guide, Water Tube	1
33	6GR-44352-00	叶轮	Impeller	1
34	6AW-44336-00	键	Key	1
35	6GR-44328-00	面板	Plate	1
36	6GR-44315-00	水泵衬垫	Gasket, Water Pump	1
37	93606-12019	定位销	Pin, Dowel	2
38	93608-12M05	定位销	Pin, Dowel	2
39	90119-08196	带垫圈六角头螺栓	Bolt, with Washer	4
40	6GR-45344-00	油封盖	Cover, Oil Seal	1
41	6GR-45335-00	油封壳	Housing, Oil Seal	1
42	93210-89535	O型圈	O-ring	1
43	93101-30037	油封	Oil Seal	2
44	97E95-08520	螺栓	Bolt, Hexagon with Washer Deep Recess	2
45	688-45567-01	填隙	Shim (T:0.10MM)	1
45	688-45567-10	填隙	Shim (T:0.12MM)	1
45	688-45567-20	填隙	Shim (T:0.15MM)	1
45	688-45567-30	填隙	Shim (T:0.18MM)	1
45	688-45567-40	填隙	Shim (T:0.30MM)	1
45	688-45567-50	填隙	Shim (T:0.40MM)	1
45	688-45567-60	填隙	Shim (T:0.50MM)	1
46	93399-99967	轴承	Bearing	1
47	90214-35M07	垫圈	Washer, Claw	1
48	90170-35M34	螺母	Nut	1
49	6GR-45501-00	驱动轴组	Drive Shaft Complete	1
49	6GR-45501-10	驱动轴组	Drive Shaft Complete	1
50	6GR-45539-00	衬套2	Spacer 2	2
51	6GR-45244-00	螺母	Nut	1

ロワーケーシング & ドライブ 5

REF	雅马哈编码	中文名称	英文名称	用量
1	93311-944A0	轴承	Bearing	1
2	93311-675A1	轴承	Bearing	1
3	93450-92171	弹性挡圈	Circlip	1
4	93340-69012	轴承	Bearing	1
5	6GR-45567-00	填隙	Shim (T:2.00MM)	1
5	6GR-45567-10	填隙	Shim (T:2.03MM)	1
5	6GR-45567-20	填隙	Shim (T:2.06MM)	1
5	6GR-45567-30	填隙	Shim (T:2.09MM)	1
5	6GR-45567-40	填隙	Shim (T:2.12MM)	1
5	6GR-45567-50	填隙	Shim (T:2.15MM)	1
5	6GR-45567-60	填隙	Shim (T:2.18MM)	1
5	6GR-45567-70	填隙	Shim (T:2.21MM)	1
6	6GR-45824-00	联接器	Adapter	1
7	93606-16117	定位销	Pin, Dowel	1
8	6GR-45551-00	小齿轮	Pinion (14T)	1
9	90170-18009	六角螺母	Nut	1
10	6GS-45561-00	齿轮1	Gear 1 (25T)	1
11	93390-00033	轴承	Bearing	1
12	99009-62500	卡环	Circlip	1
13	90201-253K0	板垫圈 (T=1.0)	Washer, Plate (T=1.0)	1
14	93440-25020	弹性挡圈	Circlip	1
15	6GS-45611-01	螺旋浆轴	Shaft, Propeller	1
16	6GR-45634-00	变挡滑	Slide, Shift	1
17	6GR-45632-00	十字销	Pin, Cross	1
18	6GR-45631-00	爪形离合器	Clutch, Dog	1
19	6GR-45633-00	十字	Ring, Cross Pin	1
20	6H1-45668-00	自由轴	Shaft, Free	1
21	61A-45635-00	变挡柱	Plunger, Shift	2
22	90201-02M00	平垫圈	Washer,Plate	1
23	90183-02M03	螺帽	Nut,Spring	2
24	90501-10M77	压簧	Spring, Compression	1
25	93501-04011	滚珠	Ball	2
26	6GS-45571-00	齿轮	Gear 2 (25T)	1
27	93332-000B2	轴承	Bearing	1
28	6GR-45576-00	推力垫	Washer, Thrust 2	1
29	6GR-45577-00	填隙	Shim (T:0.10MM)	1
29	6GR-45577-10	填隙	Shim (T:0.12MM)	1
29	6GR-45577-20	填隙	Shim (T:0.15MM)	1
29	6GR-45577-30	填隙	Shim (T:0.18MM)	1
29	6GR-45577-40	填隙	Shim (T:0.30MM)	1
29	6GR-45577-50	填隙	Shim (T:0.40MM)	1
29	6GR-45577-60	填隙	Shim (T:0.50MM)	1
30	93341-440U5	轴承	Bearing	1
31	6K1-45578-01	填隙	Shim (T:0.10MM)	1
31	6K1-45578-10	填隙	Shim (T:0.12MM)	1
32	99009-55500	卡环	Circlip	1
33	6GS-45332-00	轴承壳	Housing, Bearing	1
34	93211-26001	O型圈	O-ring	1
35	93311-737A2	轴承	Bearing	1
36	93101-37001	油封	Oil Seal	2
37	90282-05008	平键	Key, Straight	1
38	6GR-45383-00	爪形垫	Washer, Claw	1
39	6GR-45384-00	螺母	Nut	1

ロワーケーシング & ドライブ 6

REF	雅马哈编码	中文名称	英文名称	用量
1	90119-10024	带垫圈螺栓	Bolt, With Washer	9
1	90116-10067	双头螺栓	Bolt, Stud	8
2	92995-10600	盘形垫	Washer	8
3	95380-10600	有槽螺母	Nut	8
4	90119-10009	带垫圈六角头螺栓	Bolt, with Washer	1
5	90110-10053	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	1
5	90110-10054	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	1
6	90340-08003	螺塞	Plug, Straight Screw	2
7	6GR-45341-00	放油	Drain Plug	1
8	93210-19123	O型圈	O-ring	1
9	93210-09165	O型圈	O-ring	2
10	6GR-45214-01	进水口盖	Cover, Water Inlet 1	1
11	90185-06M07	螺帽	Nut, Self-Locking	1
12	6GR-45215-01	进水口盖	Cover, Water Inlet 2	1
13	90110-06425	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	1
14	6KN-45224-00	进水口盖3	Cover, Water Inlet 3	1
15	90185-06M07	螺帽	Nut, Self-Locking	1
16	6KN-45225-00	进水口盖4	Cover, Water Inlet 4	1
17	90110-06425	内六角圆柱头螺钉	Bolt, Hexagon Socket Head	1
18	6AW-45373-00	阳极	Anode	1
19	92990-10300	平垫圈	Washer	1
20	90105-10257	六角法兰面螺栓	Bolt, Flange	1
21	6GR-45987-00	衬套	Spacer 1	1
22	6GR-45997-00	衬套	Spacer 2	1
23	90201-19M01	面板垫圈	Washer, Plate	1
24	90171-18M04	螺母	Nut, Castle	1
25	91490-40030	开口销	Pin, Cotter	1
26	6GS-45970-20	螺旋浆组合SS 3X17-1/8 X15 -YL	Propeller (3X17-1/8X15-YL2)	1
26	6GS-45D70-20	螺旋浆组合	Propeller (3X16-7/8X16-YL2)	1
26	6KP-45938-00	螺旋桨3X15-1/2 X16-T	Propeller (3X16-7/8X16-YL)	1
27	6GR-45C81-10	减震垫2	Damper Rubber, Propeller 1	1
