共 18 个部位，点击零件编码查看详情，或搜索本页零件。
.webp)

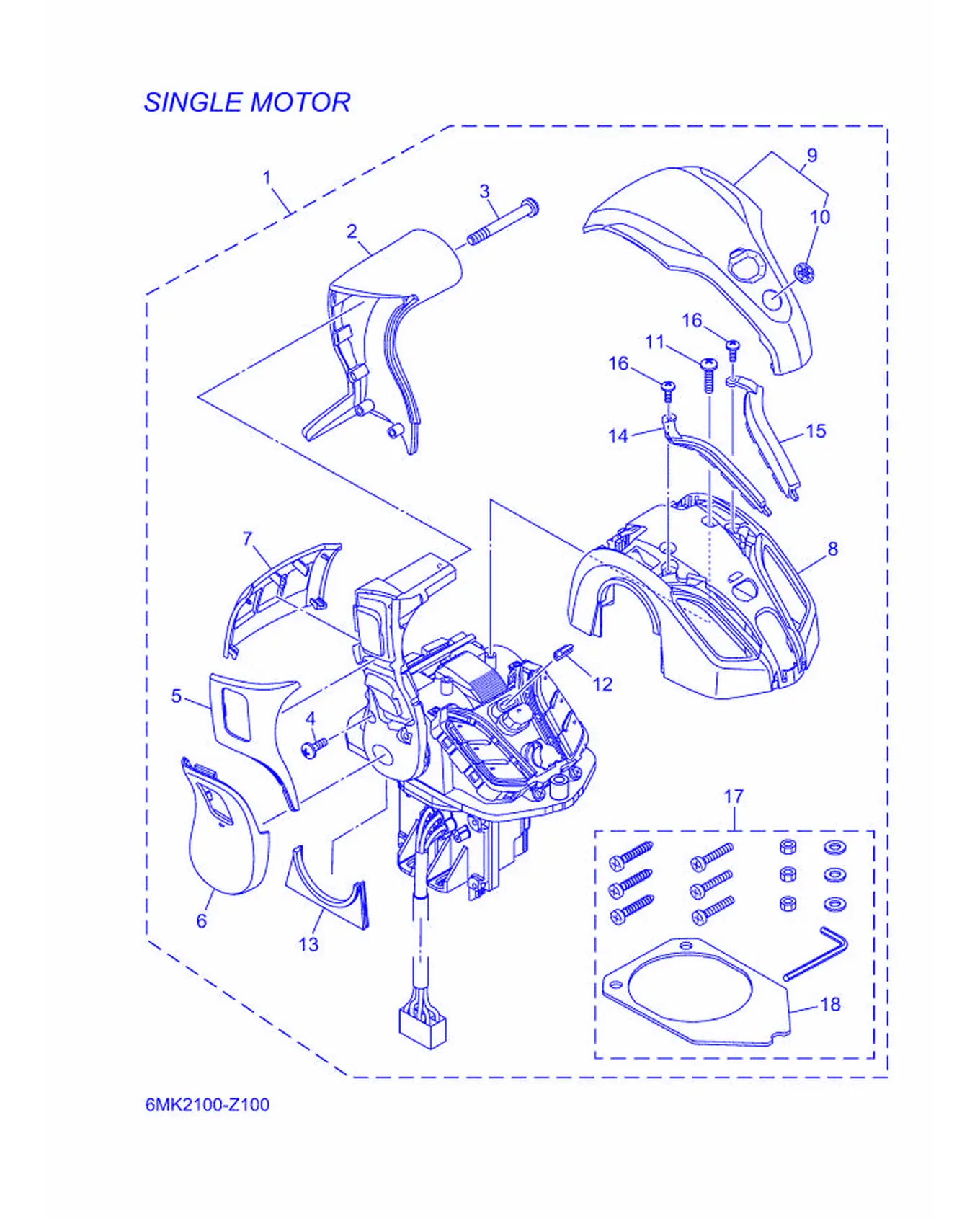

| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6X9-48A01-11 | 遥控盒组件2 | Remote Control Box Assembly 2 | 1 |
| 2 | 6X9-4822A-10 | 控制杠杆握柄 | Grip, Lever Single | 1 |
| 3 | 6X9-48127-20 | 螺钉1 | Screw 1 | 1 |
| 4 | 6X9-44189-20 | 螺钉 | Screw | 2 |
| 5 | 6X9-48224-00 | 控制杠杆盖 | Cover,ControlLever | 1 |
| 6 | 6X9-48225-00 | 盖 | Cover | 1 |
| 7 | 6X9-4811C-10 | 盖罩 | Cover, Single | 1 |
| 8 | 6X9-43679-00 | 限位板 | Cover | 1 |
| 9 | 6X9-48400-10 | 盖罩 | Cover Assembly | 1 |
| 10 | 6X9-42697-00 | 音叉标志 | Tuning Fork Mark | 1 |
| 11 | 6X9-44189-00 | 螺钉 | Screw | 2 |
| 12 | 6X9-83532-00 | 导向灯镜面，指示灯镜面 | Lens, Pilot | 1 |
| 13 | 6X9-48219-00 | 导线盖 | Cover,Lead | 1 |
| 14 | 6X9-84411-00 | 照灯透镜 | Lens, Illuminate 1 | 1 |
| 15 | 6X9-84412-00 | 照灯透镜 | Lens, Illuminate 2 | 1 |
| 16 | 6X9-44189-10 | 螺钉 | Screw | 2 |
| 17 | 6X9-48901-10 | 维修垫片 | Parts Set 1 | 1 |
| 18 | 6X9-48176-10 | 固定 | Grommet | 1 |
.webp)

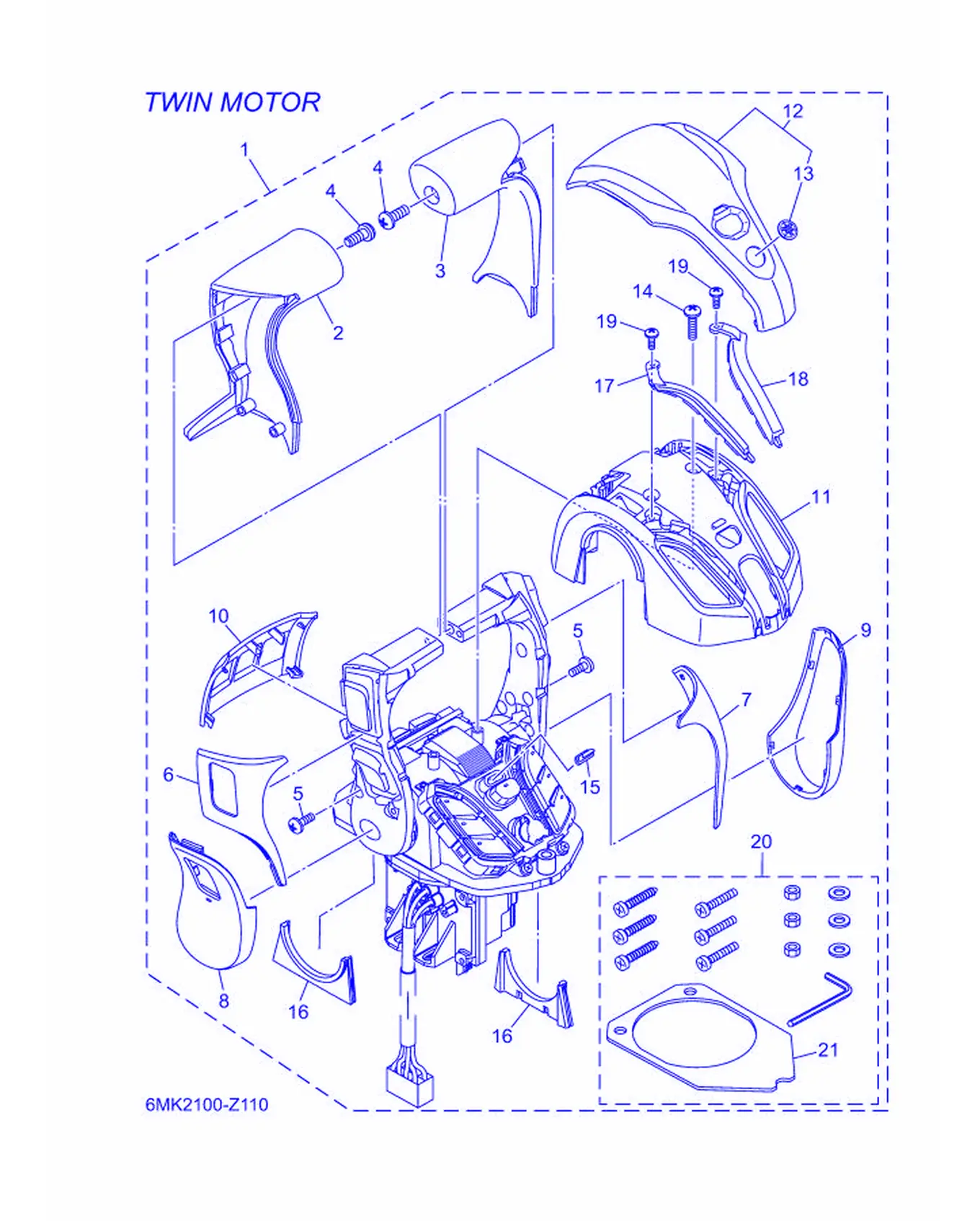

| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6X9-48A02-11 | 遥控盒组件3 | Remote Control Box Assembly 3 | 1 |
| 2 | 6X9-4822B-10 | 控制杠杆握柄 | Grip, Lever Multi | 1 |
| 3 | 6X9-48222-10 | 控制杠杆握柄 | Grip,ControlLever | 1 |
| 4 | 6X9-48127-10 | 螺钉1 | Screw 1 | 2 |
| 5 | 6X9-44189-20 | 螺钉 | Screw | 4 |
| 6 | 6X9-48224-00 | 控制杠杆盖 | Cover,ControlLever | 1 |
| 7 | 6X9-48224-10 | 控制杠杆盖 | Cover,ControlLever | 1 |
| 8 | 6X9-48225-00 | 盖 | Cover | 1 |
| 9 | 6X9-48225-10 | 盖 | Cover | 1 |
| 10 | 6X9-48119-10 | 盖 | Cover | 1 |
| 11 | 6X9-43679-10 | 限位板 | Cover | 1 |
| 12 | 6X9-48400-10 | 盖罩 | Cover Assembly | 1 |
| 13 | 6X9-42697-00 | 音叉标志 | Tuning Fork Mark | 1 |
| 14 | 6X9-44189-00 | 螺钉 | Screw | 2 |
| 15 | 6X9-83532-00 | 导向灯镜面，指示灯镜面 | Lens, Pilot | 1 |
| 16 | 6X9-48219-00 | 导线盖 | Cover,Lead | 2 |
| 17 | 6X9-84411-00 | 照灯透镜 | Lens, Illuminate 1 | 1 |
| 18 | 6X9-84412-00 | 照灯透镜 | Lens, Illuminate 2 | 1 |
| 19 | 6X9-44189-10 | 螺钉 | Screw | 2 |
| 20 | 6X9-48901-10 | 维修垫片 | Parts Set 1 | 1 |
| 21 | 6X9-48176-10 | 固定 | Grommet | 1 |
.webp)

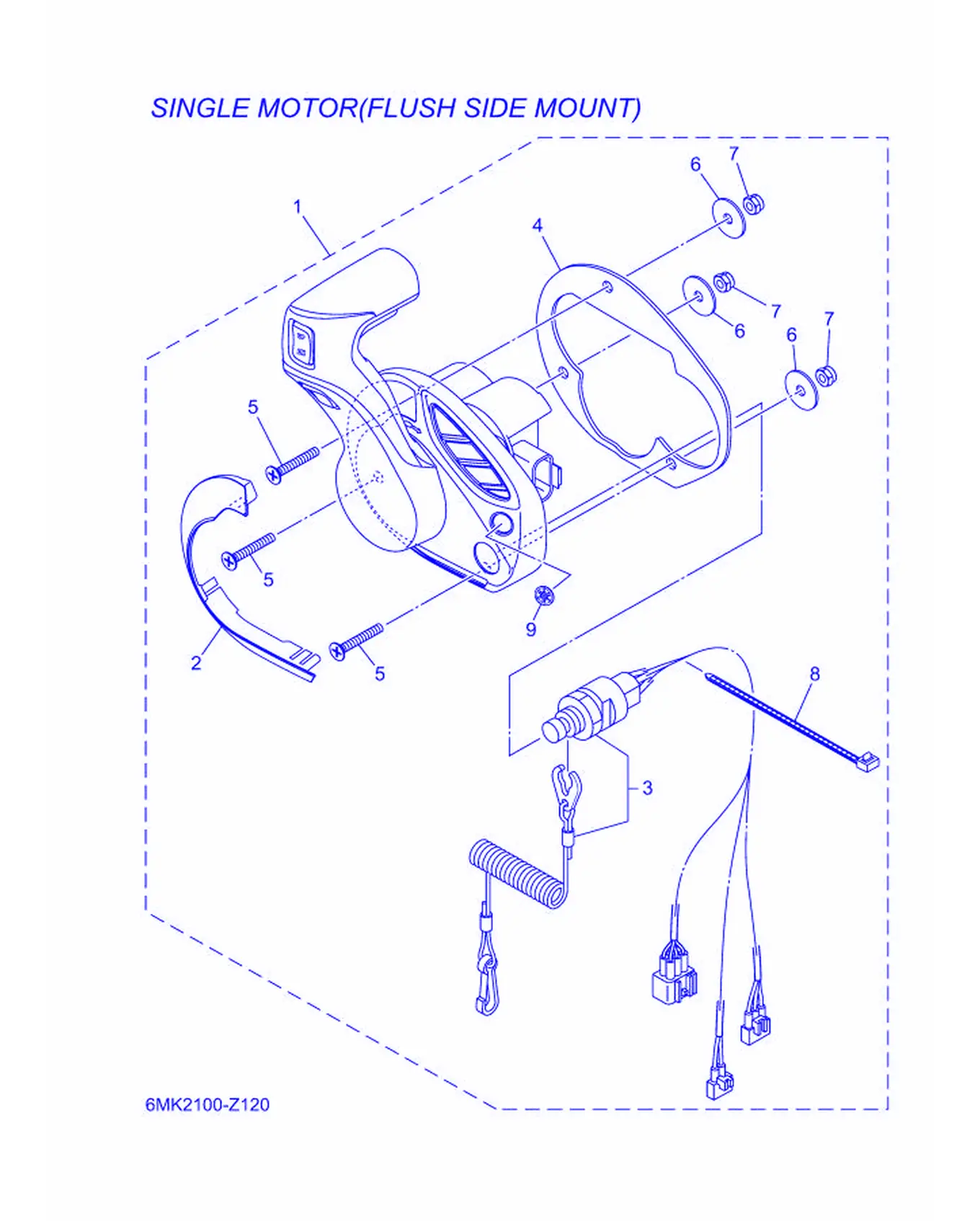

| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6X9-48A00-02 | 遥控盒组件1 | Remote Control Box Assembly 1 | 1 |
| 2 | 6X9-48166-00 | 塞 | Plug | 1 |
| 3 | 6X7-82575-01 | 发动机止动开关组合 | Engine Stop Switch Assembly | 1 |
| 4 | 6X9-4823B-00 | 密封垫 | Packing 2 | 1 |
| 5 | 98780-06035 | 十字槽沉头螺钉 | Screw, Flat Head | 3 |
| 5 | 97780-06230 | 十字槽盘头自攻螺钉 | Screw, Tapping | 3 |
| 6 | 701-48287-00 | 垫圈 | Washer | 3 |
| 7 | 6X0-48156-00 | 螺母1 | Nut 1 | 3 |
| 8 | 6X9-42821-00 | 夹紧盖 | Band, Clamp | 1 |
| 9 | 6X9-42697-00 | 音叉标志 | Tuning Fork Mark | 1 |
.webp)

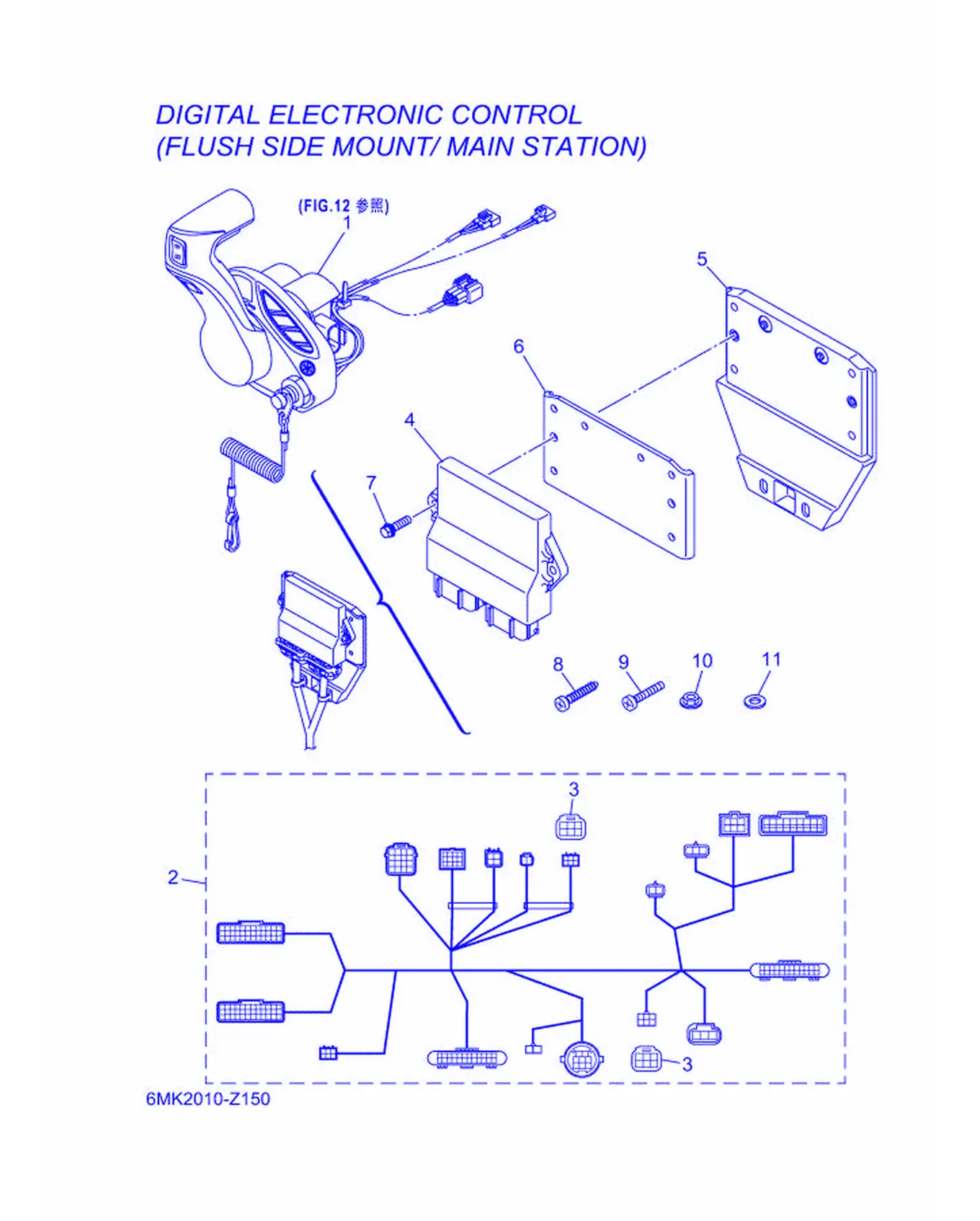

| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6X9-48A01-11 | 遥控盒组件2 | Remote Control Box Assembly 2 | 1 |
| 2 | 6X9-82580-61 | 电缆组件2 | Wire Harness Assembly 2 | 1 |
| 3 | 6Y8-85371-01 | 电阻组 | End of Line Resistor | 2 |
| 4 | 6X6-85590-B0 | 控制器组合 | Control Unit Assembly | 1 |
| 5 | 6X9-48211-10 | 壳体1 | Housing 1 | 1 |
| 6 | 6X9-4821B-00 | 壳体 | Housing 3 | 1 |
| 7 | 90105-06106 | 六角法兰面螺栓 | Bolt, Flange | 2 |
| 8 | 6X9-48128-00 | 螺钉2 | Screw 2 | 5 |
| 9 | 90157-06M13 | 卡环 | Screw, Pan Head | 5 |
| 10 | 95780-06300 | 带垫螺母 | Nut, Flange | 5 |
| 11 | 90201-065F1 | 平垫圈 | Washer, Plate | 5 |
.webp)
| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6X9-48A02-11 | 遥控盒组件3 | Remote Control Box Assembly 3 | 1 |
| 2 | 6X9-82580-71 | 电缆组件2 | Wire Harness Assembly 2 | 1 |
| 3 | 6Y8-85371-01 | 电阻组 | End of Line Resistor | 1 |
| 4 | 6X6-85590-B0 | 控制器组合 | Control Unit Assembly | 2 |
| 5 | 6X9-4821A-10 | 壳体 | Housing 2 | 1 |
| 6 | 6X9-48171-00 | 螺栓 | Bolt | 4 |
| 7 | 6Y8-85371-01 | 电阻组 | End of Line Resistor | 1 |
| 8 | 6X9-48128-00 | 螺钉2 | Screw 2 | 8 |
| 9 | 90157-06M13 | 卡环 | Screw, Pan Head | 8 |
| 10 | 95780-06300 | 带垫螺母 | Nut, Flange | 8 |
| 11 | 90201-065F1 | 平垫圈 | Washer, Plate | 8 |
.webp)

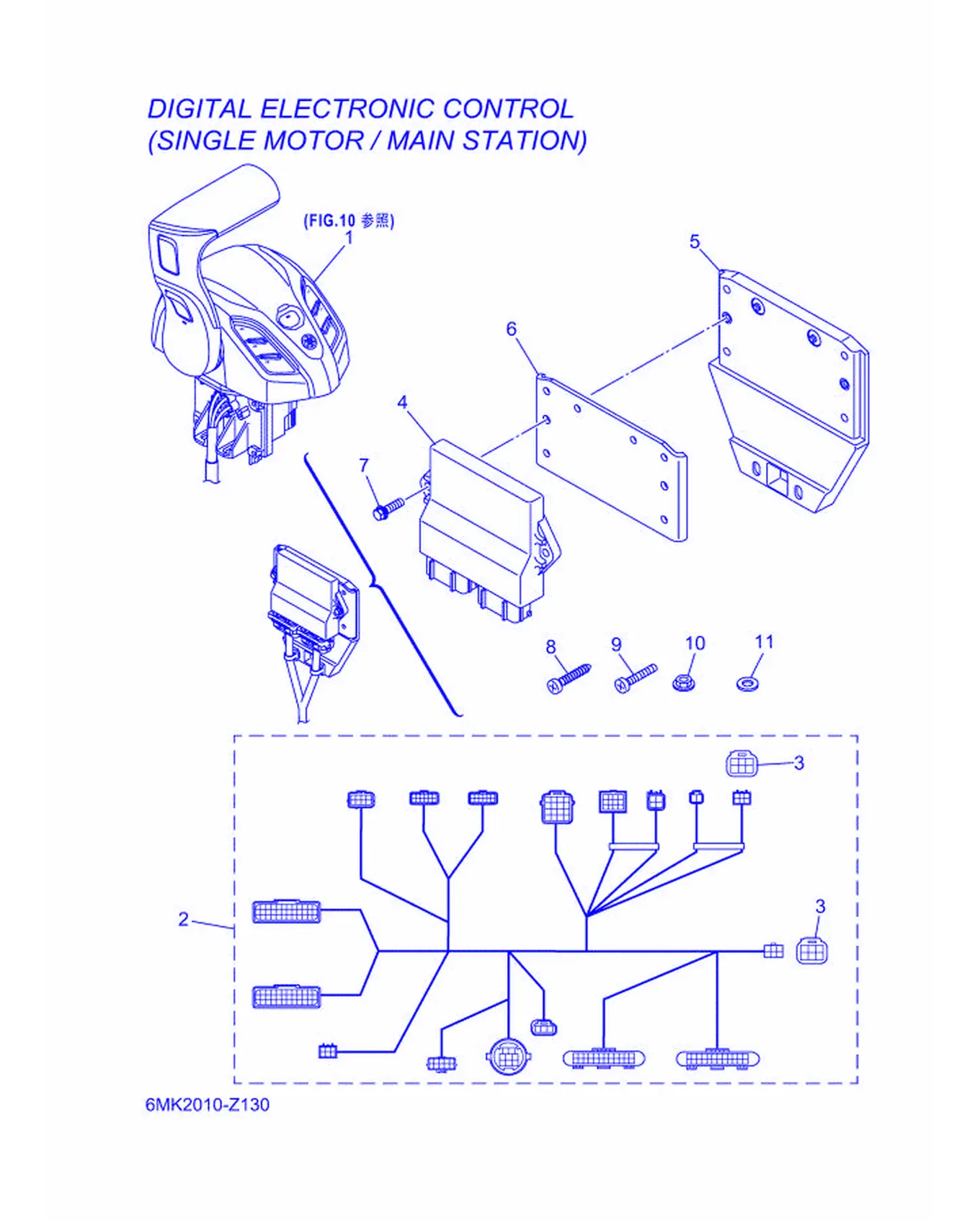

| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6X9-48A00-02 | 遥控盒组件1 | Remote Control Box Assembly 1 | 1 |
| 2 | 6X9-82580-H1 | 电缆组件2 | Wire Harness Assembly 2 | 1 |
| 3 | 6Y8-85371-01 | 电阻组 | End of Line Resistor | 2 |
| 4 | 6X6-85590-B0 | 控制器组合 | Control Unit Assembly | 1 |
| 5 | 6X9-48211-10 | 壳体1 | Housing 1 | 1 |
| 6 | 6X9-4821B-00 | 壳体 | Housing 3 | 1 |
| 7 | 90105-06106 | 六角法兰面螺栓 | Bolt, Flange | 2 |
| 8 | 6X9-48128-00 | 螺钉2 | Screw 2 | 5 |
| 9 | 90157-06M13 | 卡环 | Screw, Pan Head | 5 |
| 10 | 95780-06300 | 带垫螺母 | Nut, Flange | 5 |
| 11 | 90201-065F1 | 平垫圈 | Washer, Plate | 5 |

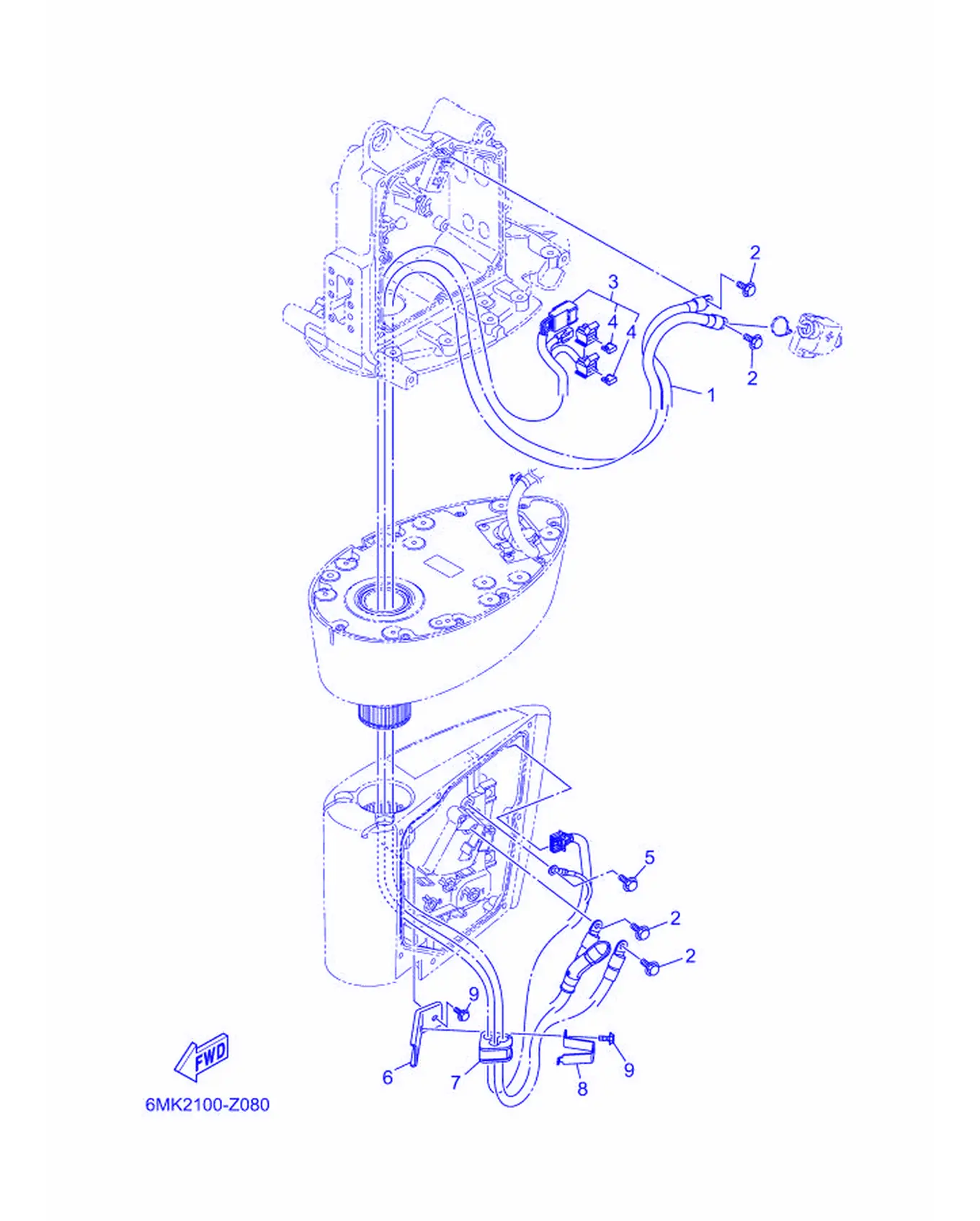

| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6MK-82211-00 | 高压引线1 | Wire, High Voltage Lead 1 | 1 |
| 2 | 95D95-06016 | 螺栓 | Bolt, Flange Deep Recess | 2 |
| 3 | 97E95-06610 | 连杆螺栓 | Bolt, Hexagon with Washer Deep Recess | 2 |
| 4 | 6AW-W8195-10 | 继电器组合 | Relay Assembly | 1 |
| 5 | 6P2-8183X-00 | 电极盖 | Cap, Terminal | 2 |
| 6 | 95D95-06025 | 连杆螺栓 | Bolt, Flange Deep Recess | 2 |
| 7 | 6BG-81925-00 | 接头 | Terminal | 1 |
| 8 | 95D95-06016 | 螺栓 | Bolt, Flange Deep Recess | 1 |
| 9 | 6MK-82389-00 | 面板2 | Plate 2 | 1 |
| 10 | 95D95-06016 | 螺栓 | Bolt, Flange Deep Recess | 1 |
| 11 | 6MK-82119-00 | 导线盖 | Cover, Reed Wire | 1 |
| 12 | 6MK-82398-00 | 托架 | Plate 3 | 1 |
| 13 | 95D95-06016 | 螺栓 | Bolt, Flange Deep Recess | 2 |
| 14 | 6MK-81336-00 | 固定 | Grommet | 1 |
| 15 | 6MK-67727-00 | 夹紧板1 | Clamp Plate 1 | 1 |
| 16 | 95D95-06016 | 螺栓 | Bolt, Flange Deep Recess | 1 |
| 17 | 6MK-81916-00 | 接头盖 | Cover, Terminal | 1 |
| 18 | 6MK-81921-00 | 接头衬垫 | Gasket, Terminal | 1 |
| 19 | 95D95-06020 | 连杆螺栓 | Bolt, Flange Deep Recess | 8 |

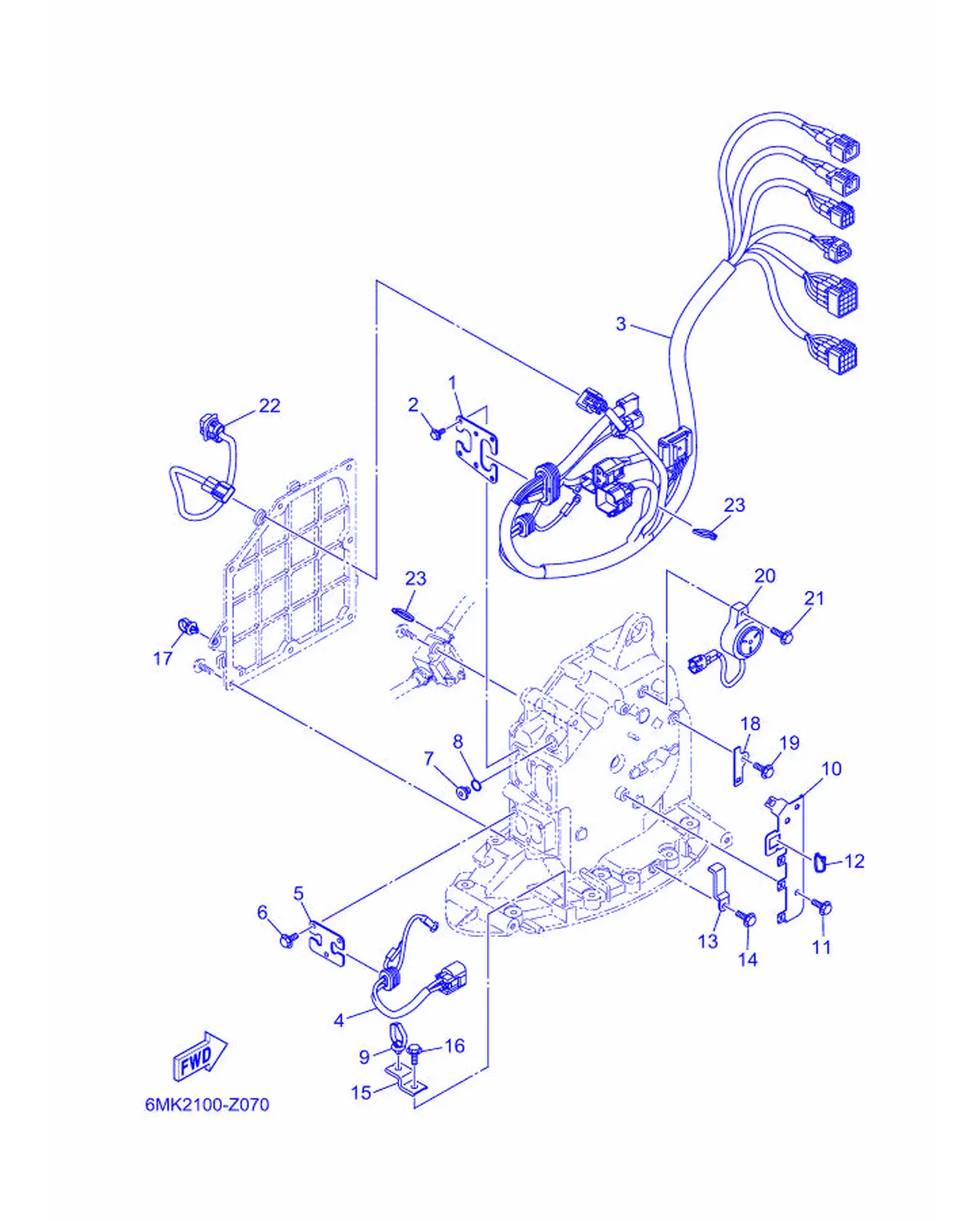

| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6MK-82388-10 | 面板 | Plate | 1 |
| 2 | 97595-05512 | 带垫圈螺 | Bolt, With Washer | 6 |
| 3 | 6MK-82590-10 | 电缆总成 | Wire Harness Assembly | 1 |
| 4 | 6MK-82553-00 | 导线延伸部分 | Extension, Wire Lead | 1 |
| 5 | 6MK-82388-00 | 面板 | Plate | 1 |
| 6 | 97595-05512 | 带垫圈螺 | Bolt, With Washer | 3 |
| 7 | 90340-08003 | 螺塞 | Plug, Straight Screw | 1 |
| 8 | 93210-09165 | O型圈 | O-ring | 1 |
| 9 | 90464-36007 | 固定 | Clamp | 1 |
| 10 | 6MK-68368-00 | 箍夹 | Clamp | 1 |
| 11 | 95D95-06016 | 螺栓 | Bolt, Flange Deep Recess | 2 |
| 12 | 90465-11M59 | 固定 | Clamp | 1 |
| 13 | 90462-20005 | 线夹 | Clamp | 1 |
| 14 | 95D95-06016 | 螺栓 | Bolt, Flange Deep Recess | 1 |
| 15 | 6DA-82388-00 | 面板 | Plate | 1 |
| 16 | 95D95-06016 | 螺栓 | Bolt, Flange Deep Recess | 1 |
| 17 | 90464-36007 | 固定 | Clamp | 1 |
| 18 | 6MK-67879-00 | 支承 | Stay | 1 |
| 19 | 95D95-06016 | 螺栓 | Bolt, Flange Deep Recess | 1 |
| 20 | 6KA-83383-01 | 蜂鸣器 | Buzzer | 1 |
| 21 | 90119-05M04 | 带垫圈六角头螺栓 | Bolt, With Washer | 1 |
| 22 | 6GR-82563-00 | 电动倾斜调整开关组合 | Trim & Tilt Switch Assembly | 1 |
| 23 | 90465-11M59 | 固定 | Clamp | 2 |
| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6MK-82211-10 | 高压引线1 | Wire, High Voltage Lead 1 | 1 |
| 2 | 95D95-06016 | 螺栓 | Bolt, Flange Deep Recess | 4 |
| 3 | 6MK-8259M-00 | 线束总成 | Wire Harness Assembly 2 | 1 |
| 4 | 6CB-82151-00 | 保险丝 | Fuse (10A) | 2 |
| 5 | 95D95-06016 | 螺栓 | Bolt, Flange Deep Recess | 1 |
| 6 | 6MK-82588-00 | 面板 | Plate | 1 |
| 7 | 6MK-81336-00 | 固定 | Grommet | 1 |
| 8 | 6MK-67727-00 | 夹紧板1 | Clamp Plate 1 | 1 |
| 9 | 95D95-06012 | 螺栓 | Bolt, Flange Deep Recess | 2 |

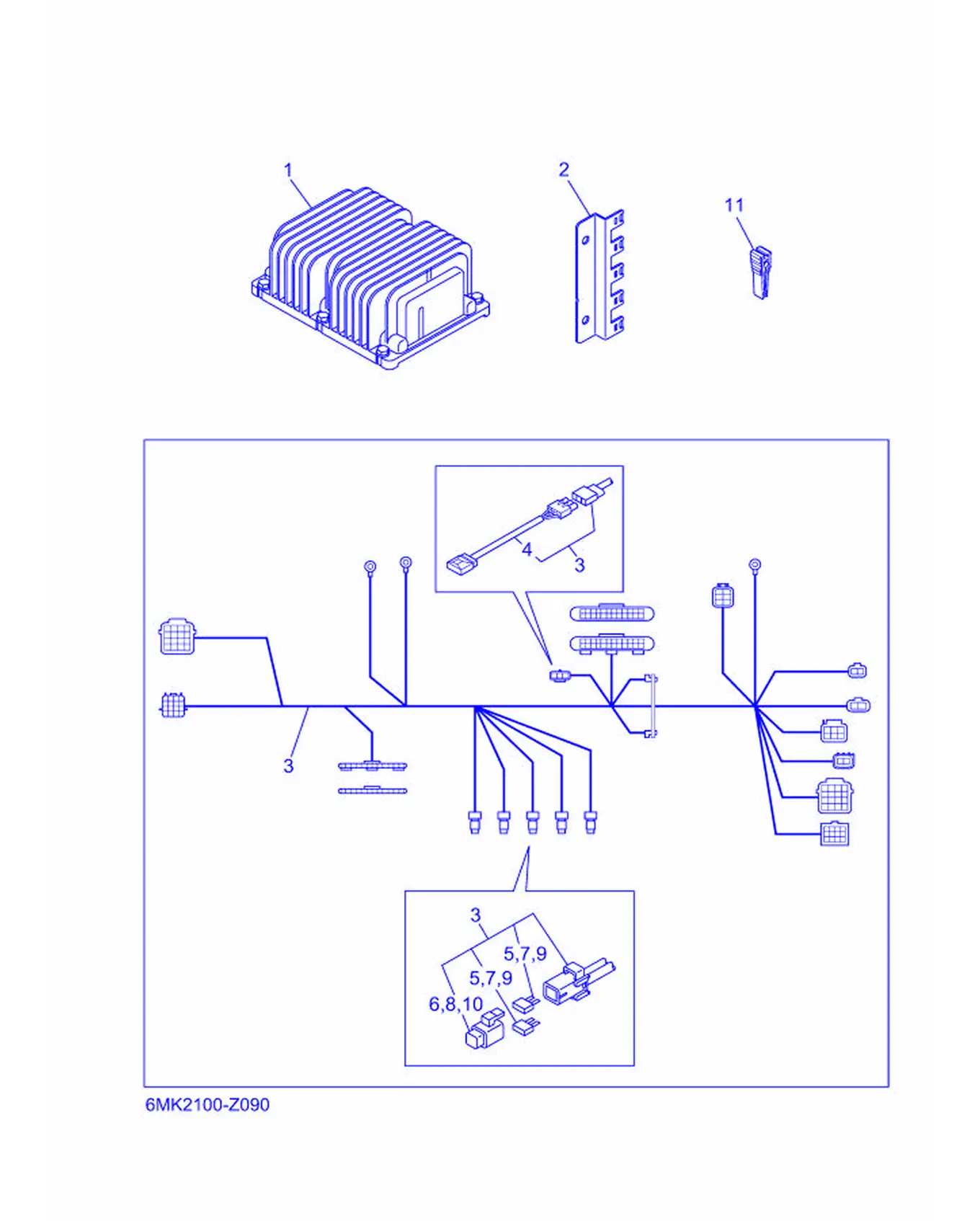

| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6MK-86600-10 | DC-DC转换器组件 | DC-DC Converter Assembly | 1 |
| 2 | 6MK-8350E-00 | 隔板支架 | Bracket | 1 |
| 3 | 6MK-82590-00 | 电缆总成 | Wire Harness Assembly | 1 |
| 4 | 6CE-81980-01 | 二极管总成 | Diode Assembly | 1 |
| 5 | 67F-82151-10 | 保险丝 | Fuse (30A) | 6 |
| 6 | 67F-8215B-20 | 断路器盖 | Cap (Green) | 3 |
| 7 | 67F-82151-50 | 保险丝 | Fuse (15A) | 2 |
| 8 | 67F-8215B-00 | 断路器盖 | Cap (Black) | 1 |
| 9 | 67F-82151-20 | 保险丝 | Fuse (5A) | 2 |
| 10 | 69J-8215B-00 | 断路器盖 | Cap (Brown) | 1 |
| 11 | 67F-2812A-00 | 小夹子 | Puller, Fuse | 1 |

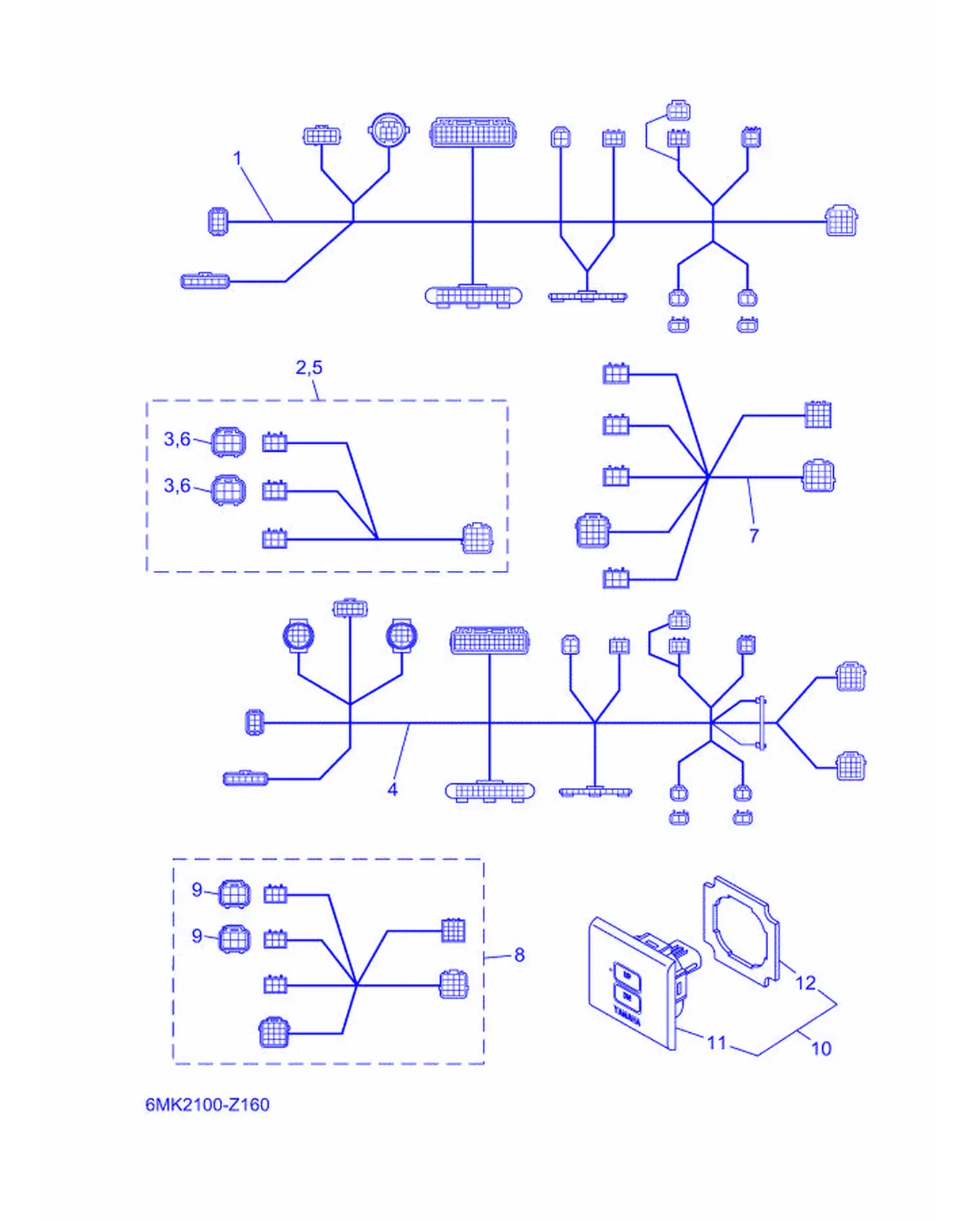

| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6MK-82580-00 | 电缆组件2 | Wire Harness Assembly 2 | 1 |
| 2 | 6MK-8259N-00 | 倾斜限动电 | Wire Harness Assembly 3 | 1 |
| 3 | 6Y8-85371-01 | 电阻组 | End of Line Resistor | 2 |
| 4 | 6MK-82580-10 | 电缆组件2 | Wire Harness Assembly 2 | 1 |
| 5 | 6MK-8259N-00 | 倾斜限动电 | Wire Harness Assembly 3 | 2 |
| 6 | 6Y8-85371-01 | 电阻组 | End of Line Resistor | 2 |
| 7 | 6MK-8259N-40 | 倾斜限动电 | Wire Harness Assembly 3 | 1 |
| 8 | 6MK-8259N-30 | 倾斜限动电 | Wire Harness Assembly 3 | 1 |
| 9 | 6Y8-85371-01 | 电阻组 | End of Line Resistor | 2 |
| 10 | 6MK-82570-00 | 开关仪表板组合 | Panel Switch Assembly | 1 |
| 11 | 6X9-82571-01 | 开关仪表板 | Panel, Switch | 1 |
| 12 | 6X9-22480-00 | 密封圈组合 | SealAssembly | 1 |

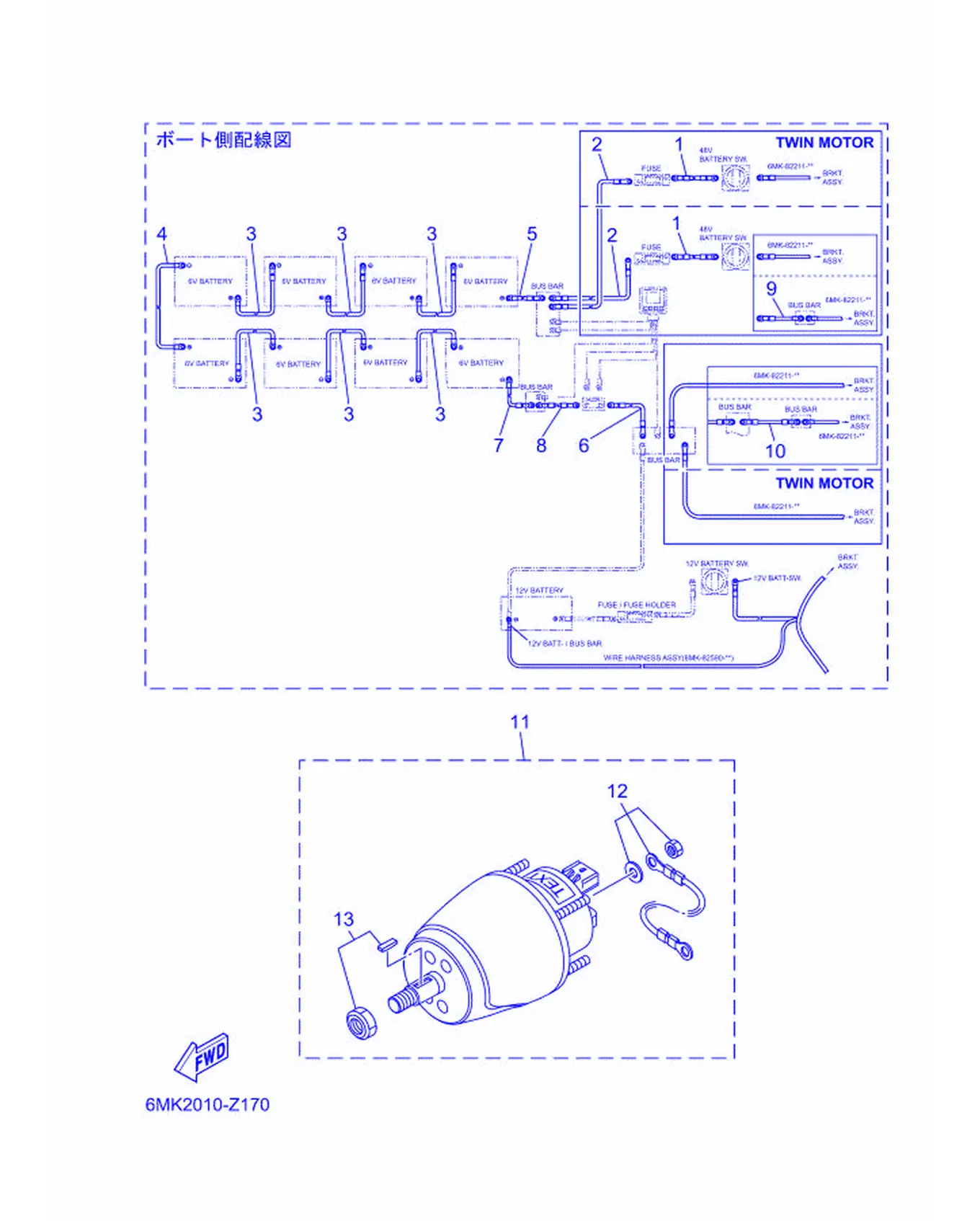

| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6MK-82223-00 | 高压正极引线2 | Wire, High Voltage Plus Lead 2 | 1 |
| 1 | 6MK-82223-00 | 高压正极引线2 | Wire, High Voltage Plus Lead 2 | 2 |
| 2 | 6MK-82223-10 | 高压正极引线2 | Wire, High Voltage Plus Lead 2 | 1 |
| 2 | 6MK-82223-10 | 高压正极引线2 | Wire, High Voltage Plus Lead 2 | 2 |
| 3 | 6MK-82212-30 | 高压引线2 | Wire, High Voltage Lead 2 | 6 |
| 3 | 6MK-82212-00 | 高压引线2 | Wire, High Voltage Lead 2 | 6 |
| 4 | 6MK-82212-40 | 高压引线2 | Wire, High Voltage Lead 2 | 1 |
| 4 | 6MK-82212-10 | 高压引线2 | Wire, High Voltage Lead 2 | 1 |
| 5 | 6MK-82223-50 | 高压正极引线2 | Wire, High Voltage Plus Lead 2 | 1 |
| 5 | 6MK-82223-30 | 高压正极引线2 | Wire, High Voltage Plus Lead 2 | 1 |
| 6 | 6MK-82224-00 | 高压负极引线2 | Wire, High Voltage Minus Lead 2 | 1 |
| 6 | 6MK-82224-30 | 高压负极引线2 | Wire, High Voltage Minus Lead 2 | 1 |
| 7 | 6MK-82224-10 | 高压负极引线2 | Wire, High Voltage Minus Lead 2 | 1 |
| 7 | 6MK-82224-50 | 高压负极引线2 | Wire, High Voltage Minus Lead 2 | 1 |
| 8 | 6MK-82224-G0 | 高压负极引线2 | Wire, High Voltage Minus Lead 2 | 1 |
| 9 | 6MK-82223-20 | 高压正极引线2 | Wire, High Voltage Plus Lead 2 | 1 |
| 9 | 6MK-82223-60 | 高压正极引线2 | Wire, High Voltage Plus Lead 2 | 1 |
| 9 | 6MK-82223-70 | 高压正极引线2 | Wire, High Voltage Plus Lead 2 | 1 |
| 10 | 6MK-82224-20 | 高压负极引线2 | Wire, High Voltage Minus Lead 2 | 1 |
| 10 | 6MK-82224-60 | 高压负极引线2 | Wire, High Voltage Minus Lead 2 | 1 |
| 10 | 6MK-82224-70 | 高压负极引线2 | Wire, High Voltage Minus Lead 2 | 1 |
| 11 | 6JM-615A0-10 | 舵机总成 | Helm Assembly | 1 |
| 12 | 6X9-42409-00 | 维修套件8 | Repair Kit 8 | 1 |
| 13 | 6X9-4240A-00 | 维修套件9 | Repair Kit 9 | 1 |

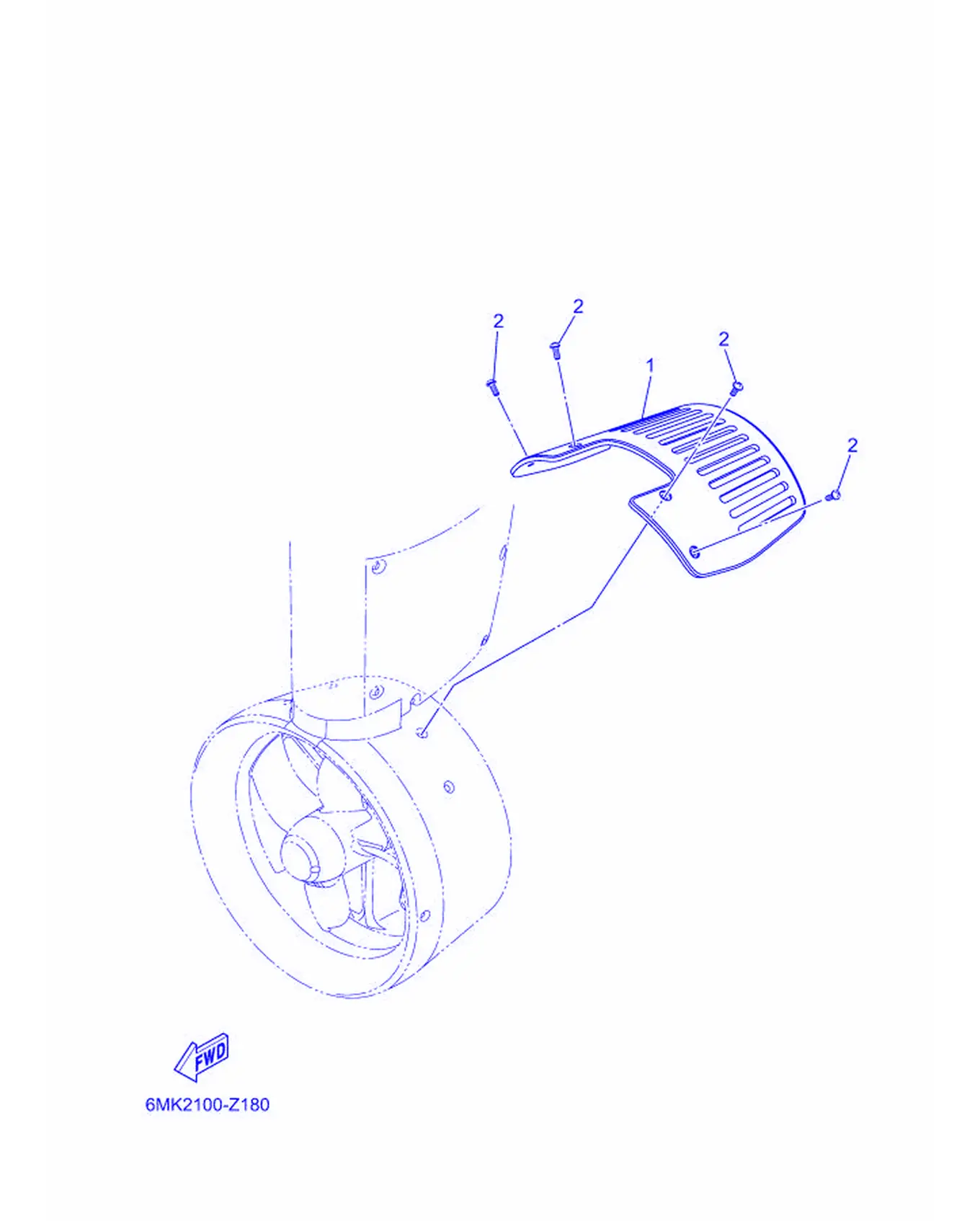

| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6MK-44554-00-P0 | 面板 | Plate | 1 |
| 2 | 90159-06M03 | 带垫螺栓 | Screw, With Washer | 4 |

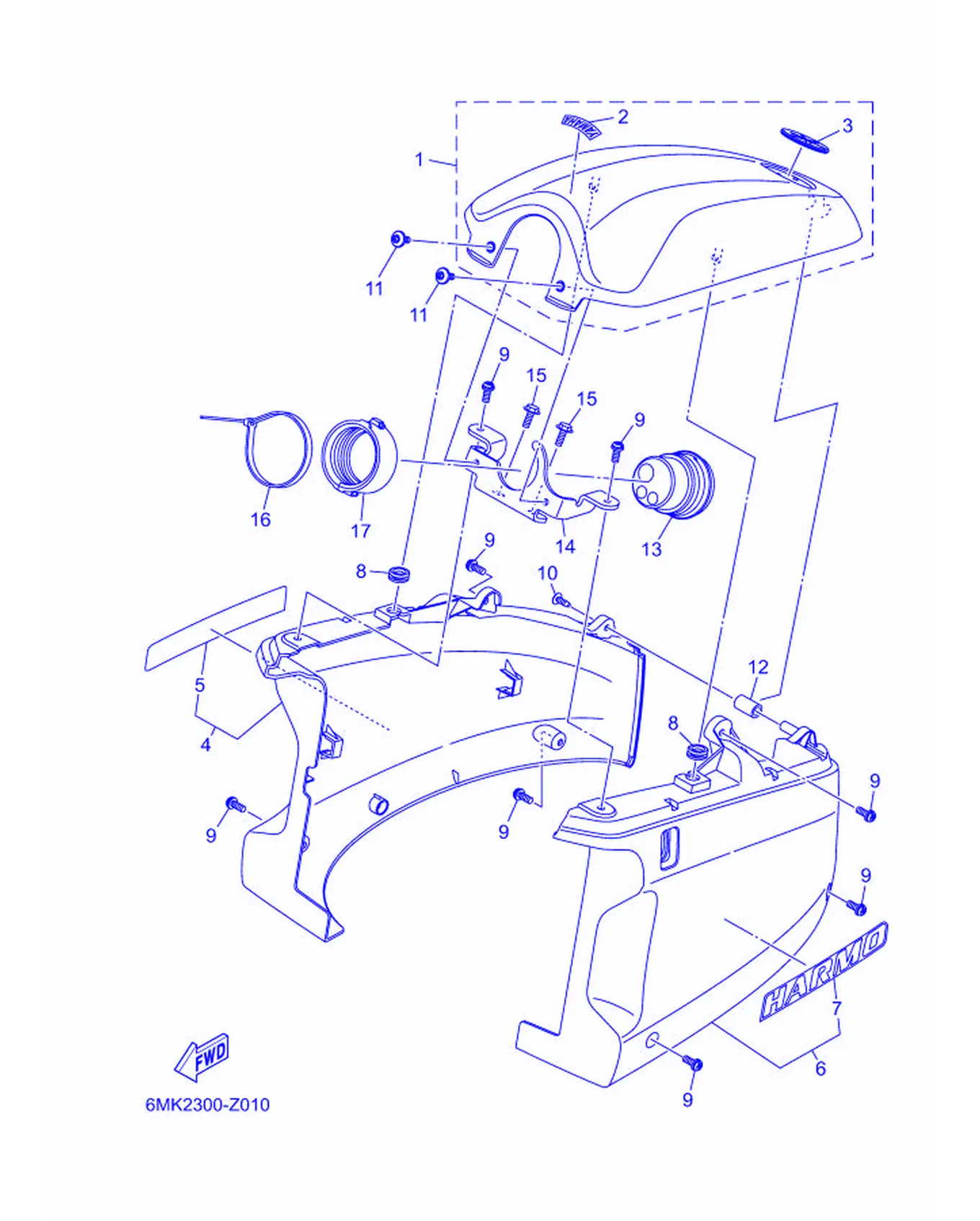

| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6MK-Y427V-00-P0 | 挡板盖总成 | Apron Cover Complete Assembly | 1 |
| 2 | 6MK-42677-00 | 前图样 | Graphic, Front | 1 |
| 3 | 6LB-42697-00 | 音叉标记 | Tuning Fork Mark | 1 |
| 4 | 6MK-Y427E-00-P0 | 挡板1组件 | Apron 1 Assembly | 1 |
| 5 | 6MK-42675-00 | 侧面图样1 | Graphic, Side 1 | 1 |
| 6 | 6MK-Y427H-00-P0 | 挡板2组件 | Apron 2 Assembly | 1 |
| 7 | 6MK-42675-00 | 侧面图样1 | Graphic, Side 1 | 1 |
| 8 | 90480-14M17 | 橡胶垫 | Grommet | 2 |
| 9 | 90159-06062 | 六角螺栓 | Screw, Washer | 8 |
| 10 | 97780-50016 | 自攻螺钉 | Screw, Tapping | 1 |
| 11 | 90111-06144 | 内六角薄型螺栓 | Bolt | 2 |
| 12 | 6MK-42768-00 | 减震 | Damper | 1 |
| 13 | 6MK-42725-00 | 固定 | Grommet | 1 |
| 14 | 6MK-42761-00 | 限位板 | Stopper | 1 |
| 15 | 95D95-06016 | 螺栓 | Bolt, Flange Deep Recess | 2 |
| 16 | 90464-20258 | 固定环 | Clamp | 1 |
| 17 | 68F-42753-00 | 紧固 | Fastener | 1 |
| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6MK-W1269-00-P0 | 导管组件 | Duct Assembly | 1 |
| 2 | 93210-69MG6 | O型圈 | O-ring | 1 |
| 3 | 90111-06115 | 内六角薄型螺栓 | Bolt | 4 |
| 4 | 65W-45251-00 | 阳极 | Anode | 1 |
| 5 | 90101-06020 | 螺栓 | Bolt, Hexagon | 2 |
| 6 | 6MK-8259L-00 | 线束总成 | Wire Harness Assembly 1 | 1 |
| 7 | 6MK-81364-00 | 固定环 | Grommet | 1 |
| 8 | 6MK-12691-00-P0 | 导管1 | Duct 1 | 1 |
| 9 | 90110-06038 | 六角头插座螺栓 | Bolt, Hexagon Socket Head | 1 |

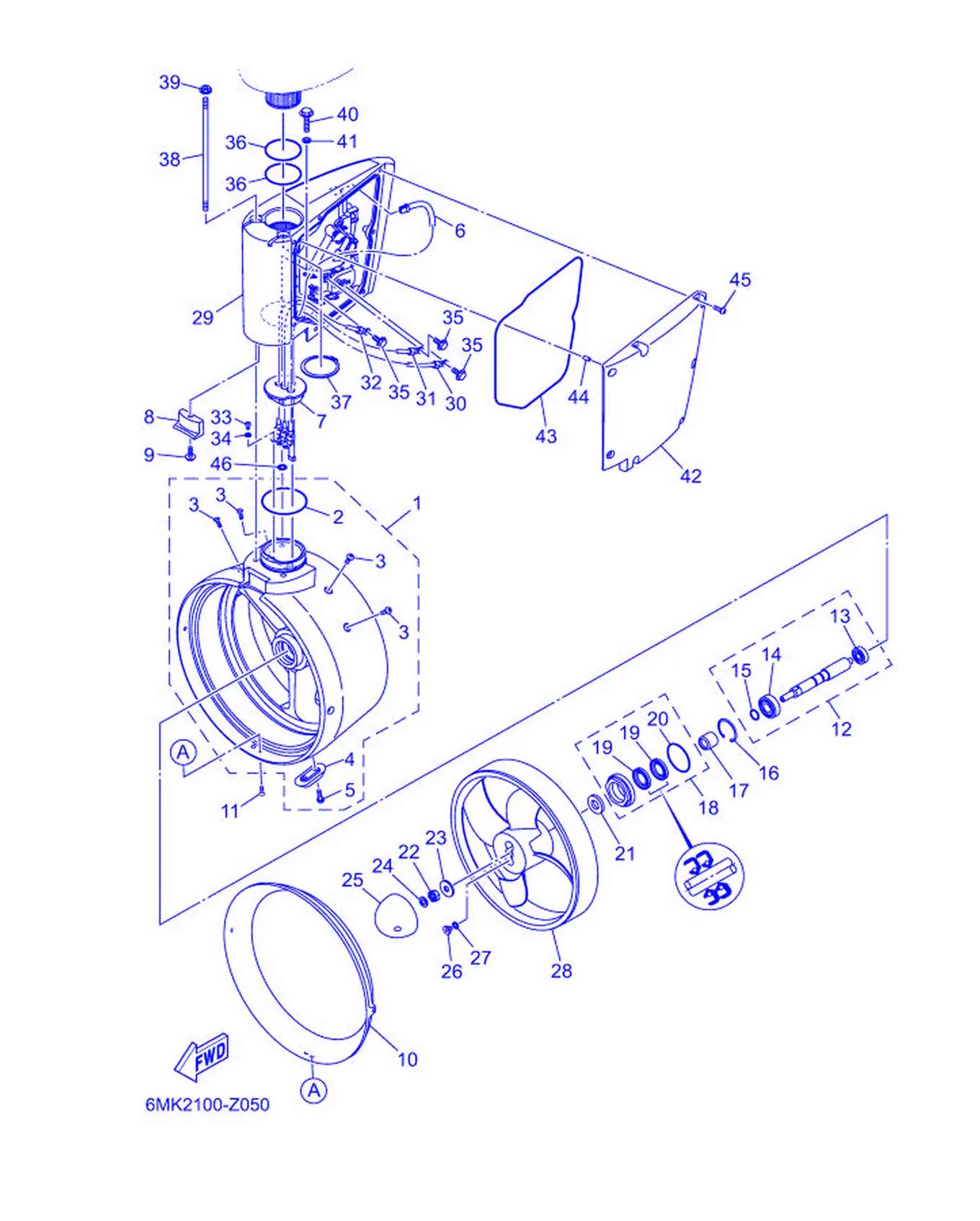

| 10 | 6MK-12692-00-P0 | 导管2 | Duct, 2 | 1 |
| 11 | 90152-05015 | 螺丝 | Screw, Countersunk | 3 |
| 12 | 6MK-Y456A-00 | 螺旋桨轴组件 | Propeller Shaft Assembly | 1 |
| 13 | 93306-20004 | 轴承 | Bearing | 1 |
| 14 | 93306-20301 | 轴承 | Bearing | 1 |
| 15 | 93210-14167 | O型圈 | O-ring | 1 |
| 16 | 93420-40094 | 卡环 | Circlip | 1 |
| 17 | 6JM-45651-00 | 螺旋桨轴套环 | Collar, Propeller Shaft | 1 |
| 18 | 6MK-Y456B-00 | 盖组合 | Cap Assembly | 1 |
| 19 | 93101-25M28 | 油封 | OilSeal | 2 |
| 20 | 93210-49046 | O型圈 | O-ring | 1 |
| 21 | 90201-17M00 | 平垫圈 | Washer,Plate | 1 |
| 22 | 90171-10M01 | 螺帽 | Nut, Castle | 1 |
| 23 | 90201-10085 | 平垫圈 | Washer, Plate | 1 |
| 24 | 92995-10600 | 盘形垫 | Washer | 1 |
| 25 | 6MK-45985-00-P0 | 螺旋浆盖 | Cap, Propeller | 1 |
| 26 | 90340-08003 | 螺塞 | Plug, Straight Screw | 2 |
| 27 | 90430-08003 | 垫片 | Gasket | 2 |
| 28 | 6MK-44390-00-P0 | 叶轮总成 | Impeller Complete | 1 |
| 29 | 6MK-W4771-00-P0 | 壳体组件 | Housing Assembly | 1 |
| 30 | 6MK-82213-00 | 高压引线3 | Wire, High Voltage Lead 3 | 1 |
| 31 | 6MK-82213-10 | 高压引线3 | Wire, High Voltage Lead 3 | 1 |
| 32 | 6MK-82213-20 | 高压引线3 | Wire, High Voltage Lead 3 | 1 |
| 33 | 91380-05010 | 大柱头螺钉 | Bolt | 3 |
| 34 | 92990-05600 | 盘形垫 | Washer,Plate | 3 |
| 35 | 95D95-06016 | 螺栓 | Bolt, Flange Deep Recess | 3 |
| 36 | 93210-55M14 | O型圈 | O-ring | 2 |
| 37 | 93410-60100 | 卡环 | Circlip | 1 |
| 38 | 90116-08092 | 卡箍 | Bolt, Stud | 2 |
| 39 | 90179-08M34 | 螺帽 | Nut | 2 |
| 40 | 95D75-08035 | 连杆螺栓 | Bolt, Flange Deep Recess | 1 |
| 41 | 90210-08017 | 螺栓 | Washer, Seal | 1 |
| 42 | 6MK-47721-00-P0 | 壳体盖 | Cover, Housing | 1 |
| 43 | 6MK-42414-00 | O型圈 | O-ring | 1 |
| 44 | 93606-12019 | 定位销 | Pin, Dowel | 1 |
| 45 | 90111-06203 | 螺栓 | Bolt | 7 |
| 46 | 92990-08400 | 盘形垫 | Washer | 1 |

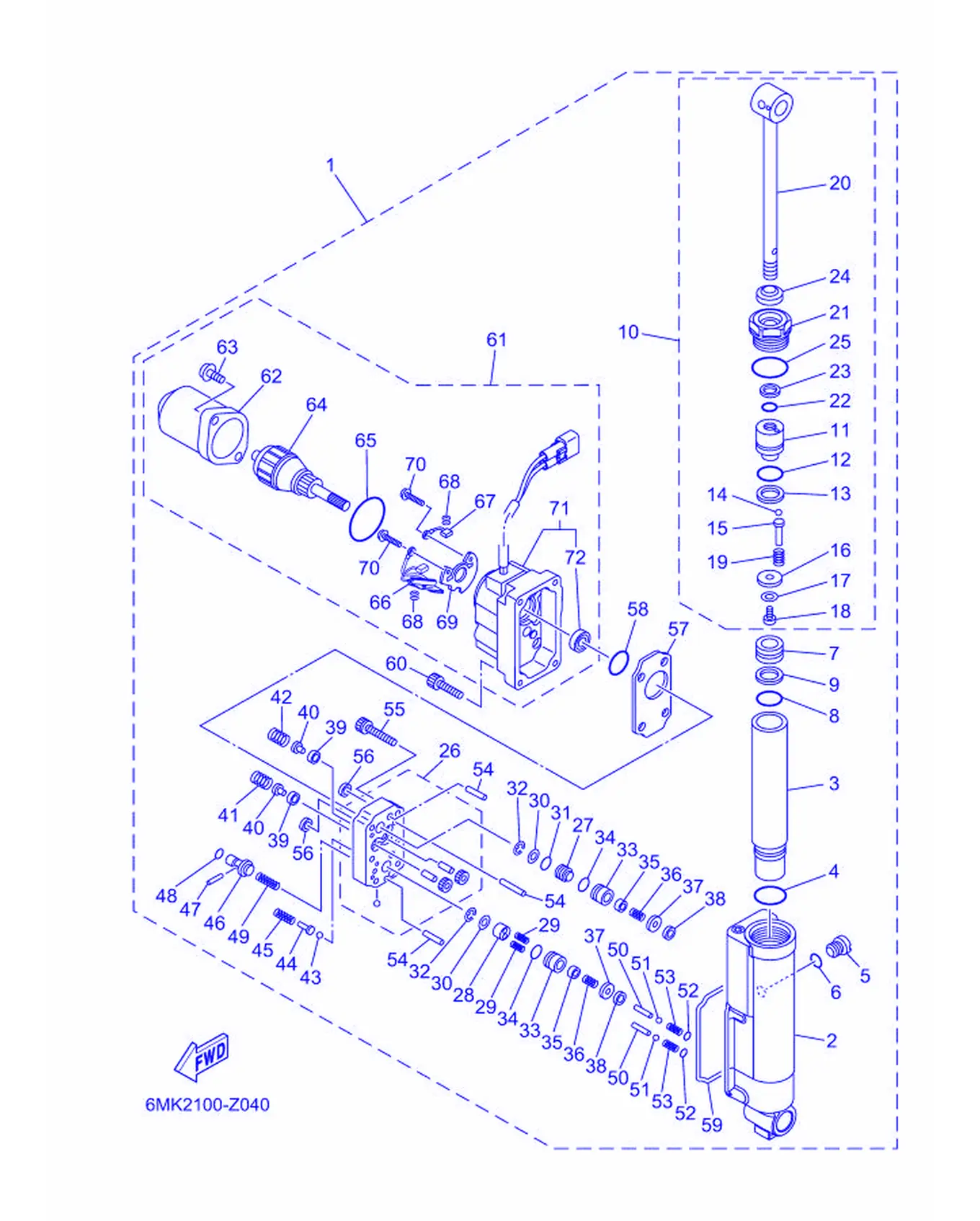

| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6MK-43840-00-8D | 电动角度定位装置组合 | Power Tilt Assembly | 1 |
| 2 | 6MK-4380K-00 | 角度定位气缸次组合 | Cylinder, Tilt Sub-assembly | 1 |
| 3 | 6AH-22471-00 | 减震器气 | Cylinder, Shock Absorber | 1 |
| 4 | 93210-320A7 | O型圈 | O-ring | 1 |
| 5 | 6H1-4388E-11 | 锥形螺钉 | Plug, Taper Screw | 1 |
| 6 | 93210-07003 | O型圈 | O-ring | 1 |
| 7 | 6AH-43814-00 | 自由活 | Piston, Free | 1 |
| 8 | 93210-24709 | O型圈 | O-ring | 1 |
| 9 | 6C5-43871-00 | 密封圈 | Ring, Back Up | 1 |
| 10 | 6MK-43810-00 | 活塞分组合 | Tilt Piston Sub-Assembly | 1 |
| 11 | 6AH-4380D-00 | 活塞总成 | Piston Complete | 1 |
| 12 | 93210-24709 | O型圈 | O-ring | 1 |
| 13 | 6C5-43871-00 | 密封圈 | Ring, Back Up | 1 |
| 14 | 93501-08001 | 滚珠 | Ball | 5 |
| 15 | 6AH-4386A-00 | 吸收器阀销 | Pin, Absorber Valve | 5 |
| 16 | 6AH-4385E-00 | 活塞板 | Plate, Piston | 1 |
| 17 | 92902-06200 | 盘形垫 | Washer | 1 |
| 18 | 6AH-43878-00 | 座螺 | Bolt, Socket | 1 |
| 19 | 6AH-43857-00 | 阀门减震器弹簧 | Spring | 5 |
| 20 | 6MK-43801-00 | 杆 | Rod | 1 |
| 21 | 6AH-43811-00 | 气缸端部螺钉 | Screw, Cylinder End | 1 |
| 22 | 6H1-43866-01 | O型圈 | O-ring | 1 |
| 23 | 69A-43871-00 | 环 | Ring, Back Up | 1 |
| 24 | 69A-43812-00 | 防尘密封 | Seal, Dust | 1 |
| 25 | 62X-43862-00 | O型圈 | O-ring | 1 |
| 26 | 6AH-43830-00 | 齿轮泵组合 | Gear Pump Assembly | 1 |
| 27 | 69A-43841-00 | 滑梭活 | Piston, Shuttle | 1 |
| 28 | 69A-4384M-00 | 滑梭活塞2 | Piston, Shuttle 2 | 1 |
| 29 | 62Y-43894-00 | 滑梭回位弹簧 | Spring, Shuttle Return | 2 |
| 30 | 69A-4384F-00 | 主阀门密封 | Seal, Main Valve | 2 |
| 31 | 6H1-43883-00 | O型圈 | O-ring | 1 |
| 32 | 99002-03600 | 簧环 | Circlip | 2 |
| 33 | 69G-4382G-00 | 波形垫 | Valve Seat | 2 |
| 34 | 93210-12N52 | O型圈 | O-ring | 2 |
| 35 | 6T4-43808-00 | 阀座组件1 | Seat Valve Complete 1 | 2 |
| 36 | 69G-43853-00 | 主阀门弹簧 | Spring | 2 |
| 37 | 69G-4388F-00 | 垫片 | Spacer | 2 |
| 38 | 69J-4381C-00 | 滤芯 3 | Filter 3 | 2 |
| 39 | 6H1-4384G-11 | 安全阀密封 | Seal, Relief Valve | 2 |
| 40 | 6H1-43844-10 | 阀门支销 | Pin, Valve Support | 2 |
| 41 | 6F2-43855-00 | 上减压弹簧 | Spring | 1 |
| 42 | 6H1-43856-10 | 下减压弹簧 | Spring, Down Relief | 1 |
| 43 | 93501-08001 | 滚珠 | Ball | 2 |
| 44 | 69A-4386A-00 | 吸收器阀销 | Pin, Absorber Valve | 2 |
| 45 | 69A-43824-00 | 压缩弹簧 | Spring, Down Relief 2 | 2 |
| 46 | 69A-43848-10 | 手控释放杆 | Rod, Manual Release | 1 |
| 47 | 93602-15250 | 定位销 | Pin, Dowel | 1 |
| 48 | 93210-06001 | 螺帽 | O-ring | 1 |
| 49 | 6AH-43854-00 | 手控释放弹簧 | Spring, Manual Release | 1 |
| 50 | 69A-4381G-00 | 销1 | Pin 1 | 2 |
| 51 | 93501-08001 | 滚珠 | Ball | 2 |
| 52 | 6H1-43883-00 | O型圈 | O-ring | 2 |
| 53 | 69A-4384H-00 | 弹簧 | Spring | 2 |
| 54 | 93606-14081 | 定位销 | Pin, Dowel | 2 |
| 55 | 91312-05025 | 螺栓 | Bolt, Hexagon Socket Head | 6 |
| 56 | 69J-4381C-00 | 滤芯 3 | Filter 3 | 2 |
| 57 | 6AH-4381J-00 | 面板 | Plate | 1 |
| 58 | N35-43862-10 | O型圈 | O-ring | 1 |
| 59 | 69A-23129-00 | 放油螺塞衬垫 | Gasket, Drain Plug | 1 |
| 60 | 69A-43878-00 | 座螺 | Bolt, Socket | 4 |
| 61 | 6MK-43880-00 | 电动机总成 | Motor Assembly | 1 |
| 62 | 6AH-43804-00 | 定子组合 | Starter Assembly | 1 |
| 63 | 67C-43879-10 | 带垫螺钉 | Screw, Washer | 2 |
| 64 | 67C-43805-11 | 电枢组合 | Armature Assembly | 1 |
| 65 | 67C-43862-10 | O型圈 | O-ring | 1 |
| 66 | 67C-82181-10 | 断路器组合 | Circuit Breaker Complete | 1 |
| 67 | 67C-43892-10 | 电刷 2 | Brush 2 | 1 |
| 68 | 67C-4386K-10 | 电刷弹簧 | Spring, Brush | 2 |
| 69 | 67C-4380F-10 | 电刷架板 | Plate, Brush Holder | 1 |
| 70 | 97602-04316 | 螺丝 | Screw, Pan Head Washer | 2 |
| 71 | 6MK-43881-01 | 端部框架 | Frame, End | 1 |
| 72 | 67C-43882-10 | 油封 | Oil Seal | 1 |

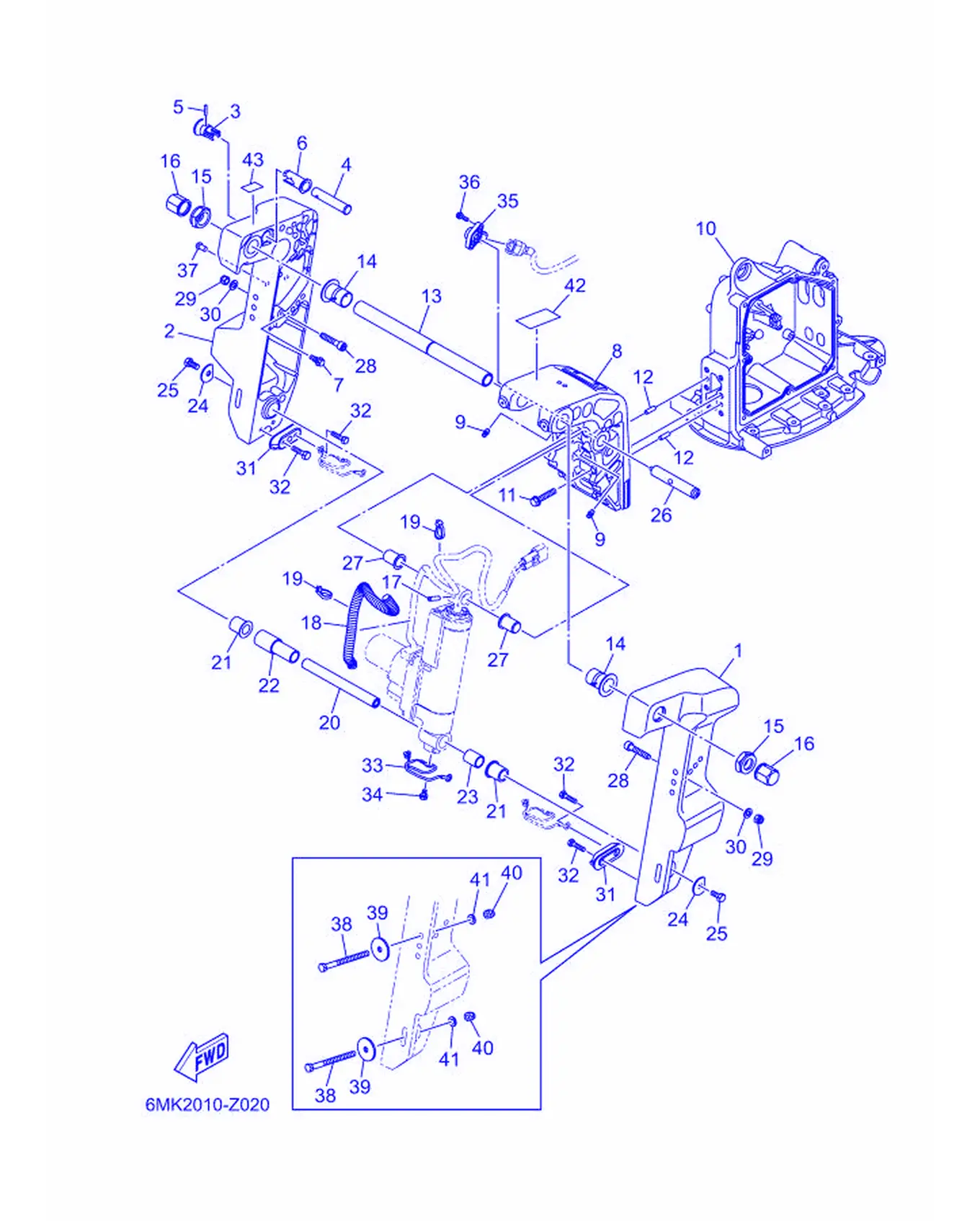

| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6MK-43111-00-P0 | 夹紧托架 | Bracket, Clamp 1 | 1 |
| 2 | 6MK-43112-00-P0 | 夹紧托架 | Bracket, Clamp 2 | 1 |
| 3 | 6FM-43192-00 | 限位旋钮 | Knob, Stopper | 1 |
| 4 | 6MK-43191-00 | 限位轴 | Shaft, Stopper | 1 |
| 5 | 91690-30018 | 弹簧销 | Pin,Spring | 1 |
| 6 | 6FM-43189-00 | 衬套 | Bushing | 1 |
| 7 | 90109-06MA1 | 螺栓 | Bolt | 1 |
| 8 | 6MK-43311-00-P0 | 旋转支架 | Bracket, Swivel 1 | 1 |
| 9 | 93700-06002 | 油脂嘴 | Nipple, Grease | 2 |
| 10 | 6MK-43312-00 | 旋转支架 | Bracket, Swivel 2 | 1 |
| 11 | 90119-08176 | 带垫圈六角头螺栓 | Bolt, with Washer | 6 |
| 12 | 93606-19M23 | 定位销 | Pin, Dowel | 2 |
| 13 | 6MK-43131-00 | 夹紧托架螺 | Bolt, Clamp Bracket | 1 |
| 14 | 90386-22MA4 | 衬套 | Bushing | 2 |
| 15 | 90185-22M11 | 自锁螺母 | Nut, Self-Locking | 2 |
| 16 | 6G5-43145-01 | 夹紧托架盖 | Cap,ClampBracket | 2 |
| 17 | 91690-60022 | 夹紧盖 | Pin, Spring | 1 |
| 18 | 90447-10011 | 带垫圈六角头螺栓 | Tube | 1 |
| 19 | 90464-35132 | 固定 | Clamp | 2 |
| 20 | 6MK-43818-00 | 下侧防震销 | Pin, Lower Shock Mount | 1 |
| 21 | 90386-16MA7 | 衬套 | Bushing | 2 |
| 22 | 90386-16003 | 六角法兰面螺栓 | Bushing | 1 |
| 23 | 90387-16003 | 衬套 | Color | 1 |
| 24 | 90209-08014 | 螺栓 | Washer | 2 |
| 25 | 97080-08016 | 螺栓 | Bolt | 2 |
| 26 | 6MK-43126-00 | 上侧防震销 | Pin, Upper Shock Mount | 1 |
| 27 | 90387-16037 | 轴套 | Collar | 2 |
| 28 | 90110-08121 | 内六角圆柱头螺钉 | Bolt, Hexagon Socket Head | 2 |
| 29 | 95380-08600 | 有槽螺母 | Nut | 2 |
| 30 | 92990-08600 | 盘形垫 | Washer,Plate | 2 |
| 31 | 65W-45251-00 | 阳极 | Anode | 2 |
| 32 | 90101-06020 | 螺栓 | Bolt, Hexagon | 4 |
| 33 | 63V-82127-00 | 导线2 | Wire,Lead 2 | 1 |
| 34 | 97E95-06510 | 螺栓 | Bolt, Hexagon with Washer Deep Recess | 1 |
| 35 | 6GR-85887-00 | 传感器 | Sensor, Angle | 1 |
| 36 | 97595-05516 | 带垫圈螺 | Bolt, with Washer | 2 |
| 37 | 90269-02M08 | 螺丝 | Rivet | 2 |
| 38 | 90101-08M88 | 螺栓 | Bolt, Hexagon | 4 |
| 39 | 90201-08MA4 | 面板垫圈 | Washer,Plate | 4 |
| 40 | 90185-08057 | 卡环 | Nut, Self-Locking | 4 |
| 41 | 92990-08600 | 盘形垫 | Washer,Plate | 4 |
| 42 | 6MK-42794-01 | 警告标签 | Label, Warning (General) | 1 |
| 43 | 6AH-81996-01 | 标志 | Mark | 1 |
| REF | 雅马哈编码 | 中文名称 | 英文名称 | 用量 |
|---|---|---|---|---|
| 1 | 6MK-238B0-00-P0 | 动力转向执行器组件 | Power Steering Actuator Assembly | 1 |
| 2 | 93210-63006 | O型圈 | O-ring | 1 |
| 3 | 95D95-06030 | 螺栓 | Bolt, Flange Deep Recess | 12 |
| 4 | 93606-19M23 | 定位销 | Pin, Dowel | 2 |
